Hunter Fan TX37 Remote control for ceiling fan User Manual
Hunter Fan Company Remote control for ceiling fan
User Manual
www.HunterFan.com 1.888.830.1326
Model #99112
Universal Ceiling Fan
Remote Control

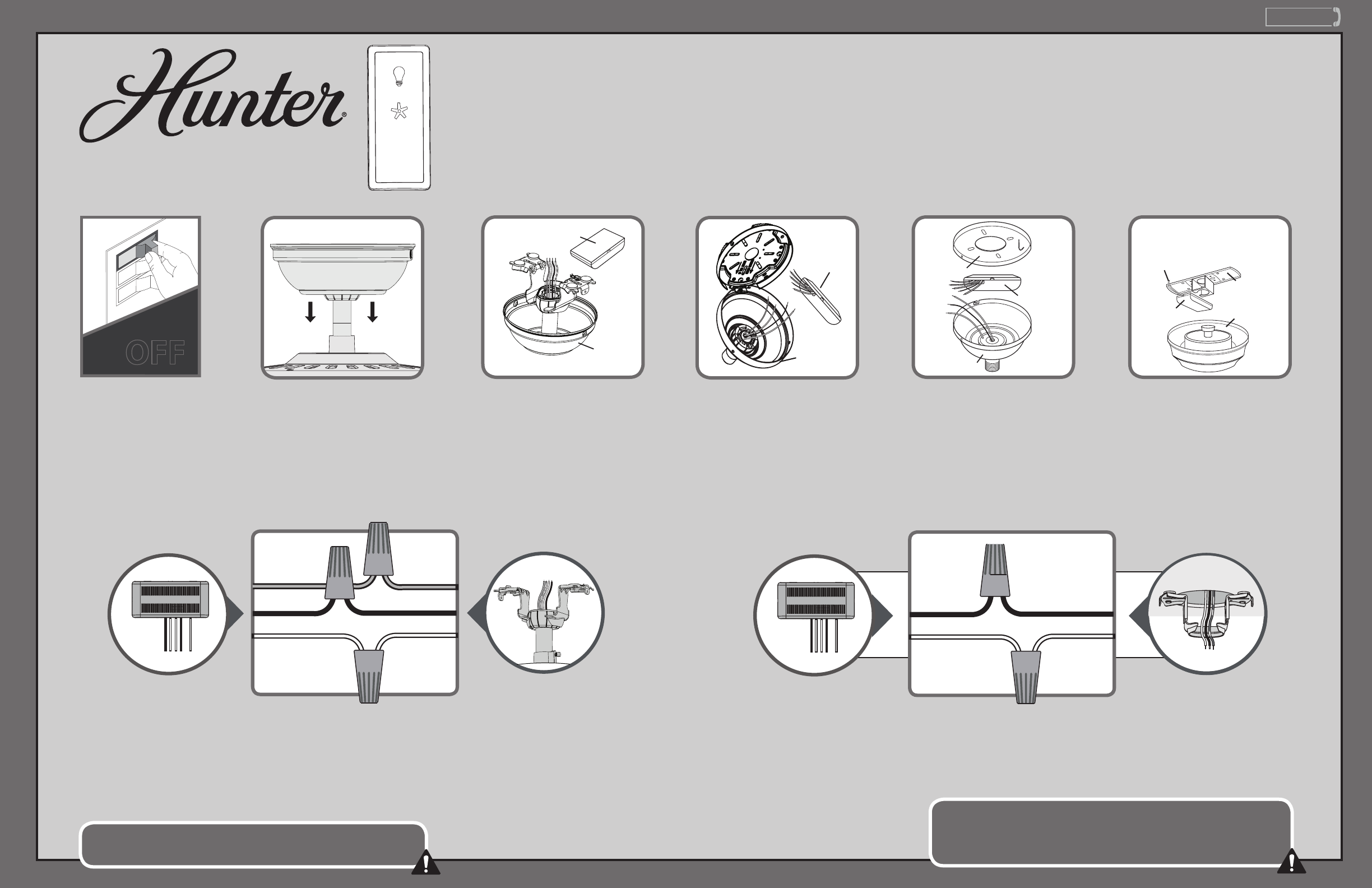

Installation
Wiring
OR OR OR
Remove the canopy. If uncertain
how to remove it, reference the fan’s
owner’s manual. With wiring exposed,
it may be helpful to note existing wire
connections or take a digital photo for
reference. Remove the wire connectors
that connect the wires from the outlet
box to the fan, leaving the grounding
wires connected.
CONNECT WIRES FROM RECEIVER TO FAN -Using the blue wire connectors connect the white wire from the receiver
(marked “common out”) to the white wire from fan. Connect the black wire from the receiver (marked “fan out”) to the
black wire from the fan. Connect the blue wire from the receiver (marked ”light out”) to the blue wire (or possibly black
with white stripe) from the fan.
If you’re uncertain about wire colors or connections, please contact a qualied electrician.
CONNECT WIRES FROM RECEIVER TO WIRES FROM OUTLET BOX - Using an orange wire connector connect the black wire
(ungrounded) from the ceiling to the black wire from the receiver (marked “live in”). Connect the white wire (grounded) from the
ceiling to the white wire from the receiver (marked “neutral in”).
AFTER ALL WIRES ARE CONNECTED and secured with wire connectors, re-install the canopy.
Before installing the
Universal Remote Control,
use the pull chains to turn
the light ON. Be sure power is
OFF before proceeding with
installation.
Choose the hanging system that most closely resembles the one used by your fan and install the receiver and wire as directed.
Note: Some fans may have considerable excess lead wire. For easier canopy installation, cut the excess wire, leaving a minimum of 8” remaining. Re-strip the fan lead wires 1/2”. Place remaining excess
wire into the ceiling electrical box. The bracket and fan must remain properly grounded.
You may have installation issues if the fan is installed on an angled ceiling.
Ceiling
Plate
Receive
r
Canopy
Receiver
Canopy
Ceiling
Bracket
Receiver Fan Body
Cable Tie
For low prole fans, the receiver should
be secured to the hanger bracket with
a cable tie.
Receiver
Canopy
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
To avoid possible electrical shock, before installing or servicing your fan, disconnect the
power by turning off the circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off position, securely fasten a
prominent warning device, such as a tag, to the service panel.
F
R
O
M
R
E
C
E
I
V
E
R
F
R
O
M
C
E
I
L
I
N
G
black (ungrounded)
white (grounded) white (neutral in)
black (live in)
F
R
O
M
R
E
C
E
I
V
E
R
white
black
blue
white (common out)
black (fan out)
blue (light out)
F
R
O
M
F
A
N
M0034-01 • 11/12/12 • © Hunter Fan Company
OFF
Turn Power
www.HunterFan.com 1.888.830.1326
TroubleshootingSafe-Exit
If you have problems installing or operating your fan, do not return this
product to the dealer. Call our Consumer Affairs Hotline.
888-830-1326
Monday through Friday
8 am to 4:30 pm Central
This device complies with RSS-210 of Industry Canada. Operation is
subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
1. This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
2. This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures: Reorient or relocate the receiving antenna, Increase the
separation between the equipment and receiver, Connect the equipment
into an outlet on a circuit different from that to which the receiver is
connected. Consult the dealer or an experienced radio/TV technician for
help. Note: Any changes or modications to the transmitter or receiver
not expressly approved by Hunter Fan Company may void one’s authority
to operate this remote control.
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
Fan will not start
• Make sure the power is on at the
circuit breaker and the wall switch.
• Make sure the battery is working.
• Make sure that the transmitter
and receiver are paired.
• Check wire connections inside of
the canopy.
Transmitter only works when
held at close range
• Change battery.
Lights do not dim
• Check to see if a CFL bulb is
installed. The control has a feature
that automatically detects CFL
bulbs and turns off dimming if a
CFL bulb is installed.
Remote control of fan is erratic
• Make sure battery is installed
correctly.
• Install a fresh battery.
Pairing
Within 3 minutes of restoring power to
the fan, press both the Fan button and
the Light button for at least 4 seconds.
The remote is now paired to the fan’s
receiver. If using the transmitter with
multiple fans, repeat this process for
each fan.
Note: The remote must be paired
before the fan will operate.
Light
Fan
The Light button turns the lights on
and off. The Fan button turns the fan
on and off.
Fan
Light
Operations Maintenance
Installing or changing the battery -
To access the battery compartment
remove the small Phillips head screw
that secures the battery door to the
transmitter assembly. Replace with a
CR2032 battery when necessary. The
battery should be installed with the
positive (+) side up.
Phillips
Head
Screw
Battery
Door
• Press the fan power button for
at least three seconds to initiate
the Safe-Exit Mode.
• The lights will ash for visual
conrmation.
• The lights will stay on 50%
brightness for 15 seconds and
then begin to dim. After a total
of 30 seconds, the lights will be
completely off.
Note: For CFL lighting, the lights
will stay on 100% brightness
for 30 seconds. After a total of
30 seconds, the lights will be
completely off.
The Safe-Exit Program gives
you about thirty seconds of
light when you turn the lights
off to exit the room before the
lights go out. To use Safe-Exit:
M0034-01 • 11/12/12 • © Hunter Fan Company
