Users Manual
Ch TEMP
Form No. 44009-01 Rev 05/09/2007
Your Model 43665 thermostat can read the
temperatures from up to three weather-
resistant sensors at a distance of up to 75
feet*. It will control the temperature from as
many as two indoor sensors, with a third be-
ing a sensor only - perfect for outdoor use.
If you use multiple sensors, you might want
to number them. Simply use a marker to
write a number on the back of each sensor.
Additional sensors can be purchased sepa-
rately from your HVAC contractor, or you
can contact us at
www.climatetechnologyproducts.com.
You can mount the Remote Sensors on a
wall or other vertical surfaces, or you can set
the Remote Sensors on tables or other hori-
zontal surfaces.
Consult the Thermostat Instruction Manual,
page 13, Option 8 for instructions in setting
the thermostat to accommodate the remote
sensors.
* Distance my vary based on building construc-
tion or other interferring frequencies.
Model 43758
Remote Sensor
Owners Manual
NOTE
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment o and on, the user is encour-
aged to try to correct the interference by one
or more of the following measures:
• Increase the separation between the equip-
ment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/
TV technician for help.

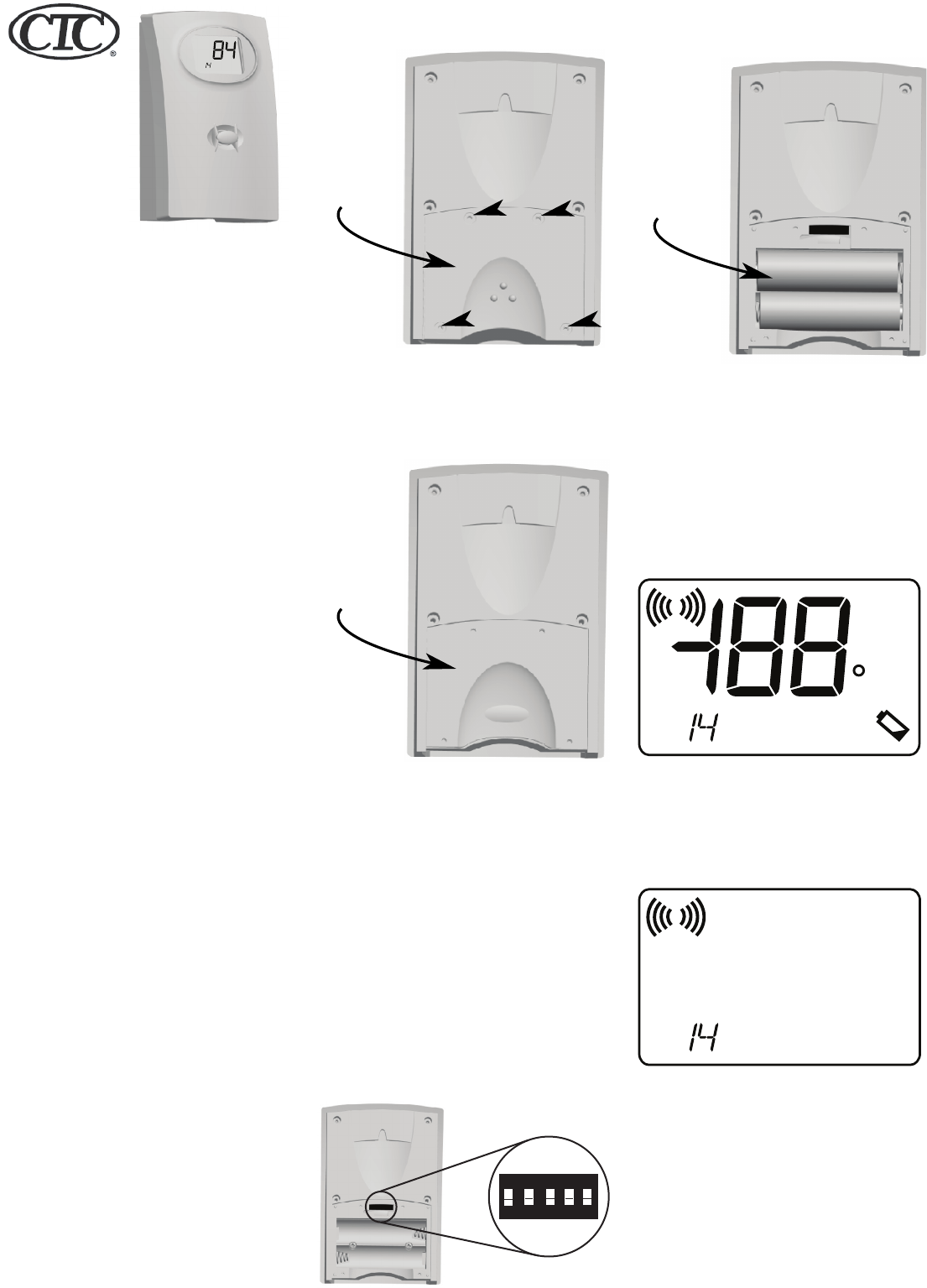

1. Remove the four screws on the back of
the Remote Sensor. See Figure 1. The Outer
Cover will drop off.
Figure 1
2. Remove the Battery Compartment Cover,
which is underneath the Outer Cover. See
Figure 2.
Outer Cover
4. Install two fresh AA alkaline batteries into
the Battery Compartment, being careful to
observe the battery polarities. See Figure 4.
Figure 2
Battery
Compart-
ment Cover
Battery
Compart-
ment
(Batteries
installed)
Figure 3
3. Use the tip of a paper clip to set the FIRST
FOUR Remote Sensor DIP Switches to any
configuration you desire. NOTE: Each sensor
you use must have a different setting. See
Figure 3.
To set the remote sensor to display the tem-
perature in Fahrenheit, place the FIFTH DIP
switch in the UP position.
To set the remote sensor to display the
temperature in Celsius, place the FIFTH DIP
switch in the DOWN position.
Figure 4
OPERATION
Initial Start-Up
1. When the batteries are installed, the LCD
Display will show the first initializing screen
for approx. 2 seconds. See Figure 5.
Ch RHTEMP
C
%
2. The LCD Display will then show the sec-
ond initializing screen for approx. 10 sec-
onds. See Figure 6.
Ch
Figure 5
Figure 6
ON DIP
12 3 45
Climate Technology Corp.
2500 FRISCO AVENUE
MEMPHIS, TN 38114
© 2007 Hunter Fan Company
Form No. 44009-01 Rev 05/09/2007
5) Place the Battery Compartment Cover
over the Battery Compartment.
6) For Wall Mounting

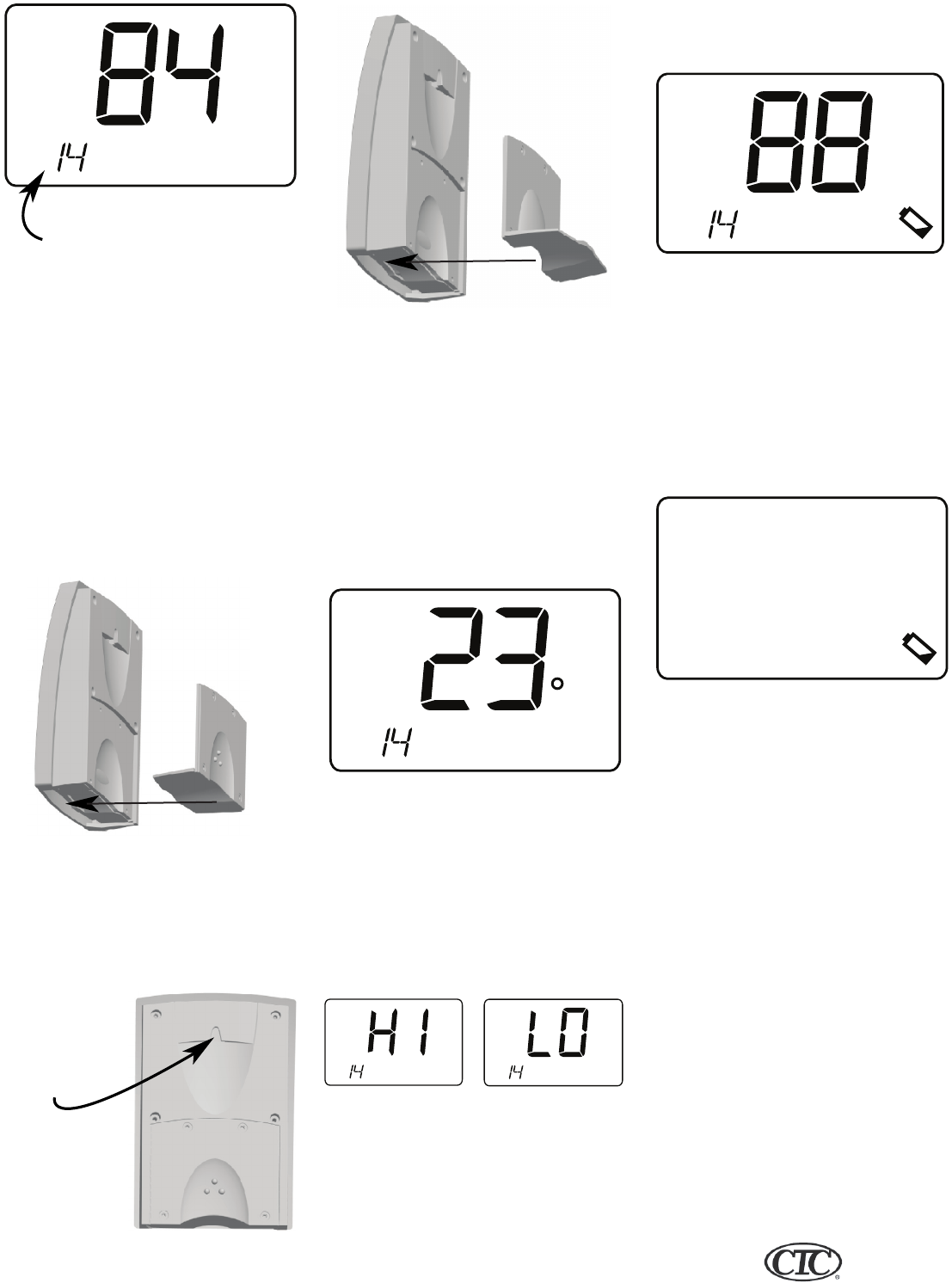

a. Replace the Outer Cover as
shown in Figure 8. Use the four screws to
secure the Outer Cover.
b. Use the provided screw to
mount the Remote Sensor on a wall or other
vertical surface. The back of the Remote
Sensor has a Wall-Mount Indent from which
it will hang from the provided screw. See
Figure 9
Figure 8
Wall-Mount
Indent
Figure 9
6) To Set the Remote Sensor on a Table
a. Replace the Outer Cover as
shown in Figure 10. Use the four screws to
secure the Outer Cover.
b. Rest the Remote sensor on the
horizontal surface of your choice.
Figure 10
Indications
Ch TEMP
Ch TEMP
Normal Temperature Indication
If your Remote Sensor is set to show the
temperature in Celsius, the display will show
the ºC indication next to the temperature.
See Figure 11.
Ch TEMP
C
Figure 11
Temperature Measurement Range
Your Remote Sensor will show temperatures
from -40ºF to 122ºF (-40ºC to 50ºC). If the
temperature is greater than 122ºF (50ºC),
the LCD will show “HI”. See Figure 12A. If the
temperature is lower than -40ºF (-40ºC), the
LCD will show “LO”. See Figure 12B.
Figure 12A
Figure 13
Figure 12B
Low Battery Indication
When your Remote Sensor’s battery is run-
ning low, the LCD will show the flashing Low
Battery Indication to remind you to install
two fresh AA Alkaline batteries at your eali-
est convenience. See Figure 13. At this point
your Remote Sensor will continue to func-
tion normally.
Ch TEMP
Depleted Battery Indication
If your Remote Sensor’s battery is depleted
to the point that the LCD is showing only
the flashing Low Battery Indication, as in
Figure 14, your Remote Sensor has ceased
functioning and will continue in this condi-
tion until two fresh AA Alkaline batteries are
installed. Without further attention, the LCD
will eventually go blank.
Your Remote Sensor will return to normal
operation when fresh batteries are installed.
Figure 14
Troubleshooting
Problem: LCD is Blank.
Solution: Make certain your Remote Sensor’s
batteries are 1) installed correctly, with po-
larities correctly positioned, and 2) fresh.
Problem: Thermostat is not showing the
same temperature as the Remote Sensor.
Solution: Make certain you have the correct
Remote Sensor selected at your thermostat
(if you are using more than one Remote Sen-
sor).
4. The Remote Sensor Screen will display
the ambient temperature and, in the bot-
tom-left corner, a channel number between
0 and 15. See Figure 7. This will be the chan-
nel to which you will set the thermostat to
read the Remote Sensor. See the Thermo-
stat Instruction Manual, page 14, Option 8.
Ch TEMP
3. The LCD Display will then show the nor-
mal operating screen. See Figure 7. NOTE: It
may take up to 30 seconds for the thermo-
stat to "pick-up" the sensor.
Figure 7
Channel
If you require further assitance, call Climate
Technology Corp. Technical Assistance at
1-800-676-7861 from 7am to 7pm Central
Time Monday thru Friday and 8am to 5pm
on Saturday.
