HSK043HD

OWNER’S MANUAL

& WARRANTY INFORMATION

750 WATT

POWER INVERTER

NEW

SOFT START

TECHNOLOGY

THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING

SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS

PRODUCT. BEFORE USE, READ AND UNDERSTAND ALL CAUTIONS,

WARNINGS, INSTRUCTIONS AND PRODUCT LABELS, PLUS YOUR

VEHICLE’S BATTERY MANUFACTURER GUIDELINES. FAILURE TO DO SO

COULD RESULT IN INJURY AND/OR PROPERTY DAMAGE.

4140 SW 28TH WAY, FT. LAUDERDALE, FL 33312

TEL 954-584-4446 • FAX 954-584-5556

IMPORTANT SAFETY INSTRUCTIONS

To ensure reliable service, your power inverter must be installed and used

properly. Please read the installation and operating instructions thoroughly

prior to installation and use. Pay particular attention to the WARNING and

CAUTION statements in this manual. The CAUTION statements advise

against certain conditions and practices that may result in damage to your

inverter. The WARNING statements identify conditions or practices that

may result in personal injury.

Read All Instructions Before Using This Power Inverter!

WARNINGS:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, EXPLOSION OR INJURY:

• Do not connect to AC distribution wiring

•Remove appliance plug from outlet strip or turn off inverter before

working on the appliance. Multiple outlet power strips with switches and

circuit breakers only interrupt power to the "hot" receptacle terminals. The

"neutral" terminals remain powered with respect to the "ground"

terminals

•Do not make any electrical connections or disconnections in areas

designated as IGNITION PROTECTED. This includes DC cigarette lighter

type plug connections, and ring terminal connections

•This is not a toy - keep away from children

CAUTIONS:

•Do not use with positive ground electrical systems (the majority

of modern automobiles, RVs, trucks and boats are negative ground).

Reverse polarity connection will result in a blown fuse, may cause

permanent damage to the inverter and will void warranty

•This inverter will not operate high wattage appliances or equipment that

produce heat, such as hair dryers, microwave ovens and toasters

•Grounding the Neutral will cause the inverter to shut down. Do not operate

this inverter if it is wet. Do not install in engine compartment -

install in a well ventilated area

•This inverter is not tested for use with medical devices

IMPORTANT CABLE INFORMATION

Substantial power loss and reduced battery operating time results from

inverters installed with cables that are not able to supply full power. Symptoms of

low battery power can result from cables that are either excessively long or an

insufficient gauge. Marine installations are also subjected to vibration and stresses

that exceed those of other mobile installations. Therefore, the installer/operator

should be especially aware of the requirements to maintain secure, tight, water-

resistant electrical connections and to provide for strain relief for DC cables and

appliance wiring. Cable insulation must be the appropriate type for the

environment.

CONTENTS

1. INTRODUCTION ..........................................................4

2. CONTROLS, INDICATORS AND CONNECTORS ..................4,5

3. HOW YOUR INVERTER WORKS..............................................5

3.1 Principal of Operation ......................................................5

3.2 The Power Inverter Output Waveform ....................................6

4. INSTALLATION..............................................................6

4.1 Power Source Requirements ..............................................6

4.2 Connection to Power Source............................................7,8

4.3 Connection to Load ........................................................8,9

4.4 Placement of Inverter ........................................................9

5. OPERATING TIPS ........................................................10

5.1 Rated Versus Actual Current Draw of Equipment................10

5.2 Battery Operating Time....................................................10

6. PROTECTIVE FEATURES OF INVERTER ........................11

7. COMMON PROBLEMS ..............................................12

8. TROUBLESHOOTING ............................................12,13

9. FUSE REPLACEMENT ..................................................13

10. SPECIFICATIONS ......................................................14

11. GOLD SEAL WARRANTY ................................14,15,16

1. INTRODUCTION

Your new Husky POWER INVERTER is one in a series of the most

advanced DC to AC inverters available. With proper care and appropriate

usage, it will give you years of dependable service in your car, truck, RV

or boat.

The POWER INVERTER supplies 750 watts of continuous power, with a

1500 watt peak, in the form of two household-type outlets that are ready

to deliver 110 volt AC power whenever and wherever you need it! The

heavy-duty inverter has enough power to run most household or electronic

appliances. It also comes equipped with battery clips to handle higher

amperage/load applications, such as power tools, stereo amplifiers,

vacuums, etc. Added safety features include automatic shutdown and a low

battery alarm to prevent damage to your battery.

This Power Inverter is configured with the latest Soft Start Technology (SST).

Before introduction of Soft-Start, high start-ups currents from large

inductive loads could shut down the inverter. Soft Start improves inverter

operation. Three major features incorporated in SST include: first, gradual

voltage ramp-up during inverter start-ups. This eliminates failed cold starts

under load. Second, output that momentarily dips in voltage and quickly

recovers to allow large motorized loads to start. This eliminates almost all

shutdowns from momentary overloads. Last, the inverter automatically

restarts when an overload that causes inverter shutdown is removed.

Previously, manual reset was required.

This power inverter also incorporates a new cooling technology that

directly benefits our customers. The new design more efficiently cools the

power transistors, and combined with Soft Start, dramatically increases

reliability and the life of the product.

Given proper care and appropriate use, your inverter is covered by a

2-year initial warranty. You may extend the warranty an additional two full

years by paying a small fee. See the Warranty Information at the end of

this manual.

2. CONTROLS, INDICATORS AND CONNECTORS

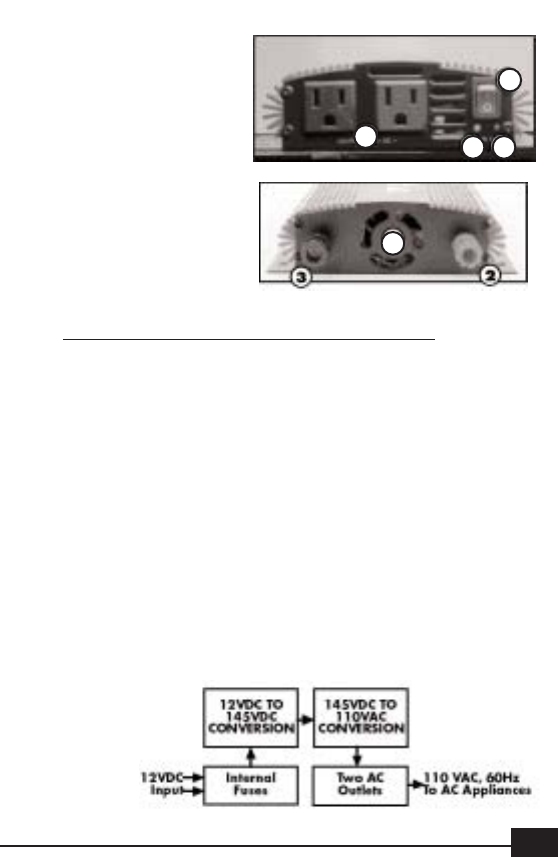

Figure 1 details the front panel of the inverter. The front panel provides two

LED indicators. A green LED shows proper operation when lit. The red LED

shows inverter shutdown from overload, over voltage or over temperature.

Power is supplied through two grounded standard North American outlets.

Outlets accommodate either two or three pin AC plugs. An On/Off Switch

turns the inverter circuitry On and Off. The switch is used to force a reset

of inverter circuits if it is switched Off, then On.

FIGURE 1

FIGURE 2

3. HOW YOUR HUSKY INVERTER WORKS

The inverter converts low voltage DC (direct current) from a battery or other

power source to standard 110 volt AC (alternating current) household power.

3.1 PRINCIPLE OF OPERATION

The inverter converts power in two stages. The first stage is a DC-to-DC

conversion process that raises the low voltage DC at the inverter input to

145 volts DC. The second stage is the actual inverter stage that converts the

high voltage DC into 110 volts, 60 Hz AC.

The DC-to-DC converter stage uses modern high frequency power

conversion techniques that have replaced the bulky transformers found in

less technologically-advanced models. The inverter stage uses advanced

power MOSFET transistors in a full bridge configuration. This ensures

excellent overload capability and the ability to operate reactive loads like

lamp ballasts and small induction motors.

FIGURE 3

Principle of Operation

1. HIGH SPEED COOLING FAN

2. (+) DC POWER CONNECTIONS

3. (–) DC POWER CONNECTIONS

1. RED SHUT DOWN LED

2. GREEN OPERATING

LED

3. 2 (110) RECEPTACLES

4. ON/OFF SWITCH

3.2 THE POWER INVERTER OUTPUT WAVEFORM

The AC output waveform of the POWER INVERTER is known as “modified

sine wave”. It is a waveform that has characteristics similar to the sine wave

shape of utility power. This type of waveform is suitable for most AC loads,

including linear and switching power supplies used in electronic

equipment, transformers, and motors.

The modified sine wave produced by the POWER INVERTER has an RMS

(root mean square) voltage of 110 volts, which is the same as standard

household power. Most AC voltmeters (both digital and analog) are

sensitive to the average value of the waveform rather than the RMS value.

They are calibrated for RMS voltage under the assumption that the

waveform measured will be a pure sine wave. These meters will not read

the RMS voltage of a modified sine wave correctly. They will read about 20

to 30 volts low when measuring the output of the inverter. For accurate

measurement of the output voltage of this unit, use a true RMS reading

voltmeter such as a Fluke 87, Fluke 8060A, Fluke 77/99 series, Beckman

4410, or Triplett 4200.

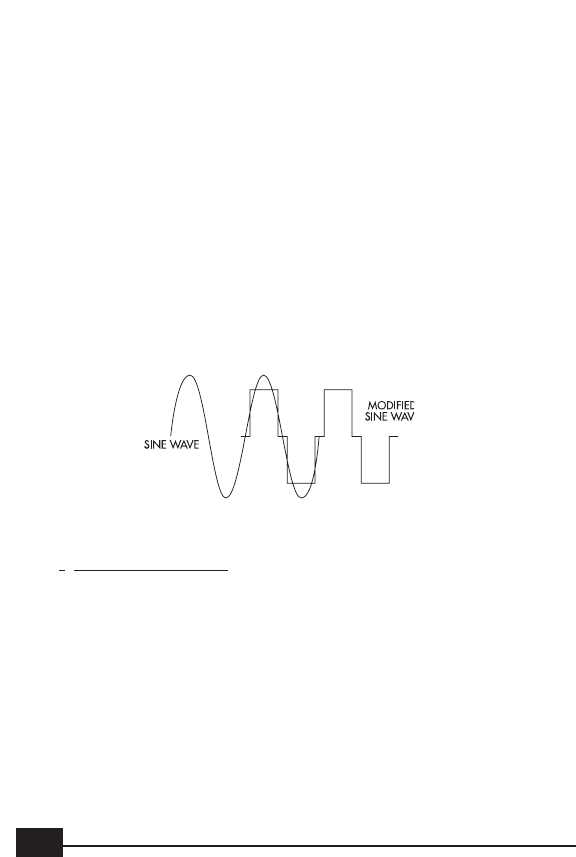

FIGURE 4

Modified Sine Wave and Sine Wave Comparison

4. INSTALLATION

4.1 POWER SOURCE REQUIREMENTS

The power source must provide between 11 and 14.5 volts DC and must

be able to supply the necessary current to operate the load. The power

source may be a battery or a well-regulated DC power supply. To obtain a

rough estimate of the current (in amperes) the power source must deliver,

simply divide the power consumption of the load (in watts AC) by 10.

Example: If a load is rated at 750 watts AC, the power source must be able

to deliver: 750 divided by 10 = 75 amperes

110/120V AC

110/120V A

CAUTION: The POWER INVERTER must be connected only to batteries

with a nominal output voltage of 12 volts. The unit will not operate

from a 6 volt battery and will sustain permanent damage if connected

to a 24 volt battery.

4.2 CONNECTION TO POWER SOURCE

The POWER INVERTER comes equipped with battery clip cables for

connection to the power source.

CAUTION: Do not use with positive ground electrical systems (the

majority of modern automobiles, RVs, and trucks are negative ground).

To operate at full 750 watts output, either use the battery clip cable

(supplied) or directly wire to the power source with user supplied wire and

fuse. Use wire #8AWG for lengths of four feet or less and #6 AWG for

lengths to 10 feet.

CAUTION: Reverse polarity connection will result in a blown fuse and

may cause permanent damage to the inverter.

Connecting to a Power Source Using Provided Cables:

Use the provided cables to connect the POWER INVERTER directly to the

12 volt power source using the following guidelines:

1. Check to be sure the POWER INVERTER power switch is turned off and

that no flammable fumes are present.

2. Connect the black cable to the black post marked “(-)” on the back of

the inverter. Connect the battery clip to the negative terminal of the battery.

3. Connect the red cable to the red post marked “(+)” on the back of the

inverter. Connect the battery clip to the positive terminal of the battery.

4. Check to be sure that all connections between battery clips and

terminals are secure.

Direct Hardwiring to Power Source:

Use #8 AWG wire if the inverter to power source connection is 4 feet or

less. For longer cable lengths use #6 AWG wire. In either case, protect the

positive (+) wire from shorts by installing a 150 to 200 Amp fuse or circuit

breaker close to the DC power source (battery) terminal.

1. Check to be sure the inverter’s power switch is turned off and that no

flammable fumes are present.

2. Identify the positive (+) and negative (-) DC power source (battery)

terminals.

3. Install a fuse holder or breaker close to the positive (+) terminal of the

DC source (battery).

4. Connect a length of wire on one side of the fuse holder or circuit

breaker. Connect the other end of the wire to the Positive (+) terminal

of the inverter.

5. Connect a length of wire between the inverter’s negative (-) terminal

and the DC power source negative (-) terminal.

6. Connect a short length of wire to the other terminal of the fuse holder

or circuit breaker. Mark it “POSITIVE” or “+”.

7. Connect the free end of the fuse or breaker wire to the positive

terminal of the DC power source (battery).

Insert a 150 to 200 Amp fuse in the fuse holder.

9. Test the inverter by turning it on and plugging in a 100 watt lamp or

equipment.

10. If the inverter is not properly operating, then refer to the trouble-

shooting sections of this manual.

CAUTION: Loose connectors may cause overheated wires and melted

insulation. Check to make sure you have not reversed the polarity.

Damage due to reversed polarity is not covered by our warranty.

4.3 CONNECTION TO LOAD

The POWER INVERTER is equipped with dual standard North American

AC power receptacles. Plug the cord from the equipment you wish to

operate into the AC receptacle(s). The green LED indicator lights to indicate

that the inverter is functioning. Make sure the combined load requirement

of your equipment does not exceed 750 watts.

The POWER INVERTER is engineered to be connected directly to standard

electrical and electronic equipment in the manner described above. Do not

connect the Power Inverter to household or RV AC distribution wiring. Do

not connect the Power Inverter to any AC load circuit in which the neutral

conductor is connected to ground (earth) or to the negative of the DC

(battery) source.

WARNING: Do not connect to AC distribution wiring!

CAUTION: RECHARGEABLE APPLIANCES

Certain rechargeable devices are designed to be recharged only by

plugging them directly into an AC receptacle. These devices may

damage the inverter. Do not use the inverter to recharge items that

can be plugged directly into an AC receptacle.

This problem does not occur with the majority of battery-operated

equipment. Most of these devices use a separate charger or transformer

that is plugged into an AC receptacle. The POWER INVERTER is easily

capable of running most chargers and transformers.

4.4 PLACEMENT OF THE INVERTER

For best operating results, the inverter should be placed on a flat and/or

solid surface. A power cord measuring 3 feet (1.0 meter) has been

provided for easy positioning of the inverter. The inverter should only be

used in locations that meet the following criteria:

DRY - Do not allow water and/or other liquids to come into contact with

the POWER INVERTER.

COOL - Ambient air temperature should be between 30° F (-1° C) non-

condensing, and 105° F (40° C). Do not place the inverter on or near a

heating vent or any piece of equipment which is generating heat above

room temperature. Keep the inverter away from direct sunlight, if at all

possible.

VENTILATED - Keep the area surrounding the inverter clear to ensure free

air circulation around the unit. Do not place items on or over the inverter

during operation. A fan is helpful if the inverter is operating at maximum

power outputs for extended periods of time. The unit will shut down if the

internal temperature exceeds 90° C. The unit will restart after it cools.

SAFE - Do not use the inverter near flammable materials

or in any locations that may accumulate flammable fumes

or gases.

5. OPERATING TIPS

5.1 RATED VERSUS ACTUAL CURRENT DRAW OF EQUIPMENT

Most electrical tools, appliances and audio/video equipment have labels

that indicate the power consumption in amps or watts. Be sure that the

power consumption of the item you wish to operate is rated at 750 watts

or less (If the power consumption is rated in amps AC, simply multiply by

the AC volts (110) to determine the wattage). The inverter has overload

protection, so it is safe to try to operate equipment rated at 750 watts or

less. The inverter will shut down if it is overloaded. The overload must be

removed before the inverter will restart. Resistive loads are the easiest for

the POWER INVERTER to run. However, larger resistive loads, such as

electric stoves or heaters, usually require more wattage than the POWER

INVERTER can deliver on a continuous basis. Inductive loads, such as TV’s

and stereos, require more current to operate than do resistive loads of the

same wattage rating. Induction motors, as well as some televisions, may

require 2 to 6 times their wattage rating to start up. The most demanding

in this category are those that start under load, such as compressors and

pumps. Testing is the only definitive way to determine whether a specific

load can be started and how long it can run. The unit will simply shut down

if it is overloaded. To restart the unit after a shutdown due to overloading,

remove the overload.

CAUTION: This inverter will not operate high wattage appliances or

equipment that produce heat, such as hair dryers, microwave

ovens, and toasters.

5.2 BATTERY OPERATING TIME

With a typical vehicle battery, a minimum operating time of 2 to 3 hours

can be expected. In most instances, 5 to 10 hours of operating time is

achievable. However, Husky recommends that the operator start the vehicle

every 2 to 3 hours to recharge the battery system. This will guard against

any unexpected shut-down of the equipment and will ensure that there is

always sufficient battery capacity to start the vehicle’s engine. The inverter

will sound it’s alarm when DC voltage drops to 10.6V.

The inverter may be used whether or not the vehicle’s engine is running.

However, the inverter may not operate while the engine is starting since the

battery voltage can drop substantially during cranking. The inverter draws

less than 0.3 ampere from the battery when it is not supplying power to a

load. In most instances, the inverter can be left connected to the battery

when not in use since it draws so little current. However, if the vehicle is to

remain unused for several days, disconnect the inverter from the battery.

6. PROTECTIVE FEATURES OF THE INVERTER

Your POWER INVERTER monitors the following potentially hazardous

conditions:

Low Battery Voltage - This condition is not harmful to the inverter but could

damage the power source. An audible alarm will sound when input

voltage drops to 10.6. The POWER INVERTER automatically shuts down

when input voltage drops to 10.0 volts. When the condition is corrected,

the unit may be restarted.

Over Voltage Protection - The POWER INVERTER will automatically shut

down when the input voltage exceeds 15 volts DC.

Short Circuit Protection - Reverse polarity or a short circuit condition will

usually result in an external or internal fuse being blown.

Overload Protection - The inverter will automatically shut down when the

continuous draw exceeds 750 watts. When the overload is removed the

inverter will self-start.

Over Temperature Protection - When the temperature sensor inside the

POWER INVERTER reaches 150 degrees F, the unit will automatically shut

down. Allow the unit to cool for at least 15 minutes before restarting after

a heat-related shutdown. Unplug unit while cooling.

Low Battery Alarm - An alarm will sound when the voltage from the battery

drops to 10.6 volts. This is an indication that the battery needs to be

recharged. The user should stop operation of the electronic device at this

time, since the inverter will shut down automatically shortly thereafter, when

the battery voltage drops to 10 volts. Start your engine to recharge the

battery.

If the low voltage alarm sounds when the battery is fully charged, follow

the steps for solving lack of output power in the Troubleshooting Guide. The

alarm will sound when the inverter is overloaded, in thermal shutdown, or

if there is an excessive voltage drop between the battery and inverter.

NOTE: It is normal for the alarm to sound while the unit is being connected

to, or disconnected from, the power source. This is not indicative

of a problem.

7. COMMON PROBLEMS

“Buzzing” sound in audio systems:

Some inexpensive stereo systems and “boom boxes” emit a buzzing sound

from their speakers when operated from the POWER INVERTER. This

occurs because the power supply in the electronic device does not

adequately filter the modified sine wave produced by the inverter. The only

solution to this problem is to use a higher quality sound system that

incorporates a higher quality power amplified supply.

Television Interference:

The Husky POWER INVERTER is shielded to minimize interference with TV

signals. However, in some instances, some interference may still be visible,

particularly with weak TV signals. Try the following corrective measures:

• Position the inverter as far as possible from the television, the antenna

and the antenna cables. Use an extension cable, if necessary

• Adjust the orientation of the inverter, the antenna cables and the TV

power cord to minimize interference

• Make sure that the antenna feeding the television provides an adequate

(“snow free”) signal and that high quality, shielded antenna cable is used

8. TROUBLESHOOTING GUIDE:

TABLE 1 - INVERTER POWER SWITCH TURNED ON

TROUBLE/ INDICATION POSSIBLE CAUSE SUGGESTED REMEDY

No AC output – DC input below 10 Volts Recharge or replace

red LED lit battery

No AC output – Excessive appliance Reduce load-wait for

red LED lit load-thermal shutdown inverter to cool. Turn Off,

then turn On

No AC output Inverter cold Disconnect load from

inverter. Operate inverter

without load for a few minutes.

Reconnect load.

No AC output – Inverter input fuse open Check fuse and wiring.

Green LED not lit Repair and replace fuse.

TROUBLE/ INDICATION POSSIBLE CAUSE SUGGESTED REMEDY

Low battery alarm Bad connection or wiring Tighten all DC

sounds continuously connections

Low battery Low battery voltage Recharge battery.

alarm sounds Remove load from

inverter while recharging

battery

Motorized power tool Excessive start-up load If appliance does not start,

won’t start then appliance is drawing

excessive wattage and will

not work with inverter

Motorized power tool Purely inductive load Make the load not purely

does not operate at inductive. Operate an

correct speed incandescent lamp at

same time as motor

Television/Radio Snow in picture, buzz Keep inverter and

interference in speaker antenna distant from

each other. Use shielded

antenna cable. Connect

antenna to amplifier

9. FUSE REPLACEMENT

If external fuses blow, (or breakers trip), then there is a short or overload

in the DC wiring. Find and fix the problem before replacing the fuses

(or resetting the breaker). After fuse replacement, reconnect the inverter.

This power inverter is equipped with multiple internal fuses. Normally,

these fuses will not blow unless there is a serious problem inside the unit.

Internal fuses are replaceable, however, only electronically knowledgeable

people should attempt fuse replacement. If the unit is damaged during fuse

replacement, the warranty may be voided. Husky recommends contacting

Technical Support for guidance. Based on experience, it is best to return

the unit to Husky for repair. Husky Technical Support can be reached

by calling 954-584-4446, extension 19.

10. SPECIFICATIONS

Output Connection ............Dual North American Standard Receptacles

Output Voltage........................................Approx 110 VAC RMS 60 Hz

Output Current ....................................................................6.8 Amps

Output Waveform ................................................Modified Sine Wave

Input Voltage Range ................................................10.5 to 14.7 VDC

Low Voltage Alarm ..............................................................10.5 VDC

Low Voltage Shutdown..........................................................10.0 VDC

Input Fuses ..............................................................................Internal

Input Cables ............................................................Battery Clip Cable

Additional Protection ..............................Overload, Overvolt, Overtemp

Weight ........................................................................3 lbs (1.35 kg)

Length ....................................................................10.7 in. (27.2 cm)

Width ..................................................................6.25 in. (15.9 cm)

Height ....................................................................1.75 in. (4.5 cm)

11. WARRANTY

HUSKY 2 YEAR LIMITED WARRANTY PROGRAM

The Home Depot warrants this Husky Power Product to the original user to

be free from defects in material and workmanship for a period of two years

from the date of purchase. If you believe that this unit is defective during its

original two-year warranty period, return the unit, with proper proof of

purchase to The Home Depot store or send the product to Husky Power

Products at the address below.

This Husky Power Products is warranted, to the original purchaser only, to

be free of defects in materials and workmanship for two years from the

date of purchase without additional charge. This warranty may be

extended to four years from date of purchase by paying an Extended

Warranty fee (see below). The warranty does not extend to subsequent

purchasers or users. Husky Power Products will not be responsible for any

amount of damage in excess of the retail purchase price of the product

under any circumstances. Incidental and consequential damages are

specifically excluded from coverage under this warranty.

This product is not intended for commercial or rental application, only a 90

day warranty will apply in this instance. This warranty does not apply to

accessories or damage to units from misuse or incorrect installation.

Misuse includes wiring or connecting to improper polarity power sources.

RETURN/REPAIR POLICY: If you believe that the product is defective during

the it’s two year Limited Warranty period, return the unit, with proof of

purchase to the Home Depot Store. Defective products, may also be

returned postage prepaid to Husky Power Products. Any defective product,

other than accessories, that is returned to Husky Power Products within 30

days of the date of purchase will be replaced free of charge. If such a

product is returned more than 30 days but less than two years from the

purchase date, Husky Power Products will repair the unit or, at its option,

replace it free of charge.

If the unit is repaired, new or reconditioned replacement parts may be

used, at Husky Power Products’ option. A unit may be replaced with a new

or reconditioned unit of the same or comparable design. The repaired or

replaced unit will then be warranted under the terms of the remainder of

the warranty period.

The customer is responsible for the shipping charges on all returned items.

During the warranty period, Husky Power Products will be responsible for

the return shipping charges.

LIMITATIONS: This warranty does not cover accessories, bulbs, fuses and

batteries, defects resulting from normal wear and tear (including chips,

scratches, abrasions, discoloration or fading due to usage or exposure to

sunlight), accidents, damage during shipping to our service facility,

alterations, unauthorized use or repair, neglect, misuse, abuse, failure to

follow instructions for care and maintenance, fire, flood, and Acts of God.

If your problem is not covered by this warranty, call Husky Power Products

Technical Support Department at toll-free 866-584-5504 for general

repair information and charges if applicable.

STATE LAW RIGHTS: This warranty gives you specific legal rights. Some

states do not allow limitations on how long an implied warranty lasts or the

exclusion or limitation of incidental or consequential damages, so the

exclusions or limitations stated herein may not apply. This warranty gives

the purchaser specific legal rights; other rights, which vary from state to

state, may apply.

TO REQUEST WARRANTY SERVICE FOR THIS PRODUCT: Contact Husky

Power Products Technical Support by telephone, fax or mail. We suggest

that you keep the original packaging in case you need to ship the unit.

When returning a product, include your name, address, phone number,

dated sales receipt (or copy), and a description of the reason for return and

product serial number. After replacing the unit, we will return it to you

within four weeks.

FT. LAUDERDALE, FL 33312 MADE IN CHINA

WARRANTY ACTIVATION: Please complete Warranty Activation Card

and mail to Husky Power Products. All products must be registered

within (30) days of purchase. To activate this warranty, mail completed

registration form to:

ATTN.: CUSTOMER SERVICE / HUSKY POWER PRODUCTS

4140 SW 28th Way, Ft. Lauderdale, FL 33312 • TOLL-FREE 866-584-5504

WARRANTY IS NON-TRANSFERABLE AND NON-REFUNDABLE.

THE HOME DEPOT, USA, INC.

Husky HSK043HD Manual.q User Manual To The Fc55dcb9 02ed 42cd 8886 F36322af4075

Navigation menu

Versions of this User Manual:

Views

Navigation
