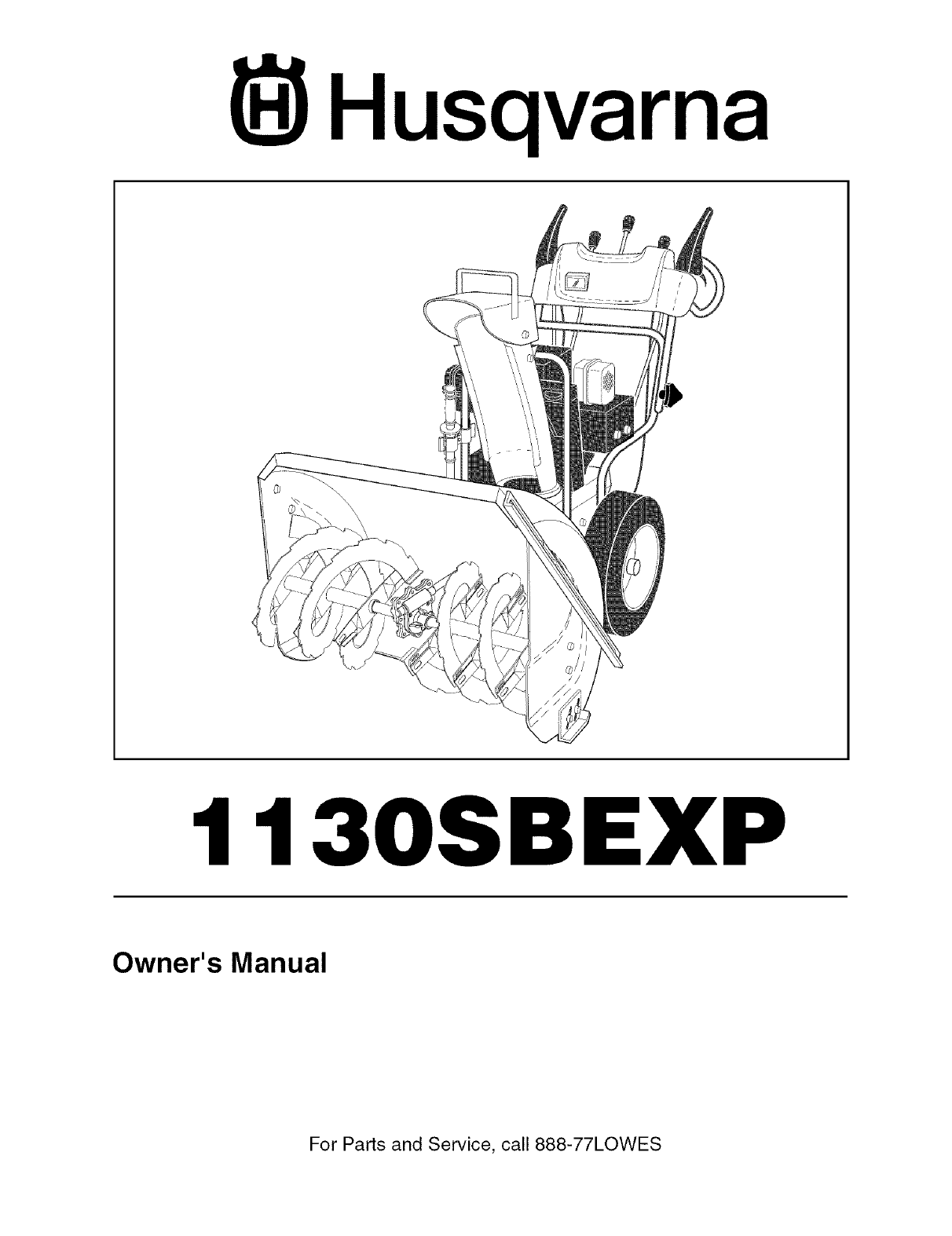

Husqvarna

1130SBEXP

Owner's Manual

For Parts and Service, call 888-77LOWES

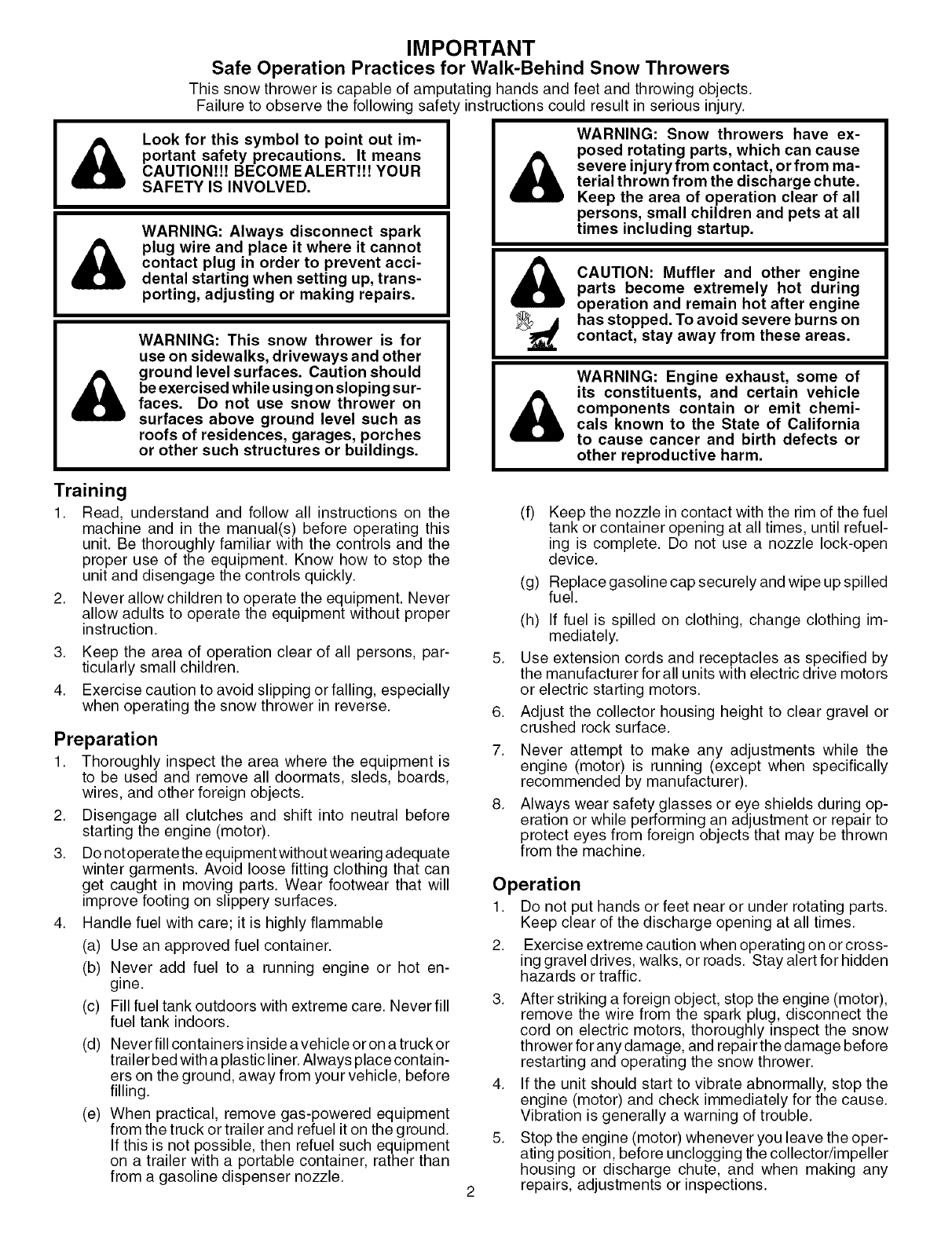

IMPORTANT

Safe Operation Practices for Walk-Behind Snow Throwers

This snow thrower is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury.

Look for this symbol to point out im-

portant safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

WARNING: Always disconnect spark

plug wire and place it where it cannot

contact plug in order to prevent acci-

dental starting when setting up, trans-

porting, adjusting or making repairs.

WARNING: This snow thrower is for

use on sidewalks, driveways and other

ground level surfaces. Caution should

be exercised while using on sloping sur-

faces. Do not use snow thrower on

surfaces above ground level such as

roofs of residences, garages, porches

or other such structures or buildings.

WARNING: Snow throwers have ex-

posed rotating parts, which can cause

severe injury from contact, or from ma-

terial thrown from the discharge chute.

Keep the area of operation clear of all

persons, small children and pets at all

times including startup.

CAUTION: Muffler and other engine

parts become extremely hot during

operation and remain hot after engine

has stopped. To avoid severe burns on

contact, stay away from these areas.

WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemi-

cals known to the State of California

to cause cancer and birth defects or

other reproductive harm.

Training

1. Read, understand and follow all instructions on the

machine and in the manual(s) before operating this

unit. Be thoroughly familiar with the controls and the

proper use of the equipment. Know how to stop the

unit and disengage the controls quickly.

2. Never allow children to operate the equipment. Never

allow adults to operate the equipment without proper

instruction.

3. Keep the area of operation clear of all persons, par-

ticularly small children.

4. Exercise caution to avoid slipping or falling, especially

when operating the snow thrower in reverse.

Preparation

1. Thoroughly inspect the area where the equipment is

to be used and remove all doormats, sleds, boards,

wires, and other foreign objects.

2. Disengage all clutches and shift into neutral before

starting the engine (motor).

3. Do notoperatethe equipment without wearing adequate

winter garments. Avoid loose fitting clothing that can

get caught in moving parts. Wear footwear that will

improve footing on slippery surfaces.

4. Handle fuel with care; it is highly flammable

(a) Use an approved fuel container.

(b) Never add fuel to a running engine or hot en-

gine.

fuel tank indoors.

(d) Never fill containers inside a vehicle or on a truck or

trailer bed with a plastic liner. Always place contain-

ers on the ground, away from your vehicle, before

filling.

(e) When practical, remove gas-powered equipment

from the truck or trailer and refuel it on the ground.

If this is not possible, then refuel such equipment

on a trailer with a portable container, rather than

from a gasoline dispenser nozzle.

(f) Keep the nozzle in contact with the rim of the fuel

tank or container opening at all times, until refuel-

ing is complete. Do not use a nozzle lock-open

device.

(g) Replace gasoline cap securely and wipe up spilled

fuel.

(h) If fuel is spilled on clothing, change clothing im-

mediately.

Use extension cords and receptacles as specified by

the manufacturer for all units with electric drive motors

or electric starting motors.

Adjust the collector housing height to clear gravel or

crushed rock surface.

Never attempt to make any adjustments while the

engine (motor) is running (except when specifically

recommended by manufacturer).

Always wear safety glasses or eye shields during op-

eration or while performing an adjustment or repair to

protect eyes from foreign objects that may be thrown

from the machine.

Operation

1. Do not put hands or feet near or under rotating parts.

Keep clear of the discharge opening at all times.

2. Exercise extreme caution when operating on or cross-

ing gravel drives, walks, or roads. Stay alert for hidden

hazards or traffic.

3. After striking a foreign object, stop the engine (motor),

remove the wire from the spark plug, disconnect the

cord on electric motors, thoroughly inspect the snow

thrower for any damage, and repair the damage before

restarting and operating the snow thrower.

4. If the unit should start to vibrate abnormally, stop the

engine (motor) and check immediately for the cause.

Vibration is generally a warning of trouble.

5. Stop the engine (motor) whenever you leave the oper-

ating position, before unclogging the collector/impeller

housing or discharge chute, and when making any

repairs, adjustments or inspections.

6. Whencleaning,repairingorinspectingthesnowthrower,

stoptheengineandmakecertainthecollector/impeller

andall movingpartshavestopped.Disconnectthe

sparkplugwireandkeepthewireawayfromtheplug

topreventsomeonefromaccidentallystartingtheen-

gine.

7. Donotruntheengineindoors,exceptwhenstarting

theengineandfortransportingthesnowthrowerinor

outof thebuilding.Opentheoutsidedoors;exhaust

fumesaredangerous.

8. Exerciseextremecautionwhenoperatingonslopes.

9. Neveroperatethesnowthrowerwithoutproperguards,

andothersafetyprotectivedevicesinplaceandwork-

ing.

10.Neverdirectthedischargetowardpeopleor areas

wherepropertydamagecanoccur. Keepchildren

andothersaway.

11.Donotoverloadthemachinecapacitybyattempting

toclearsnowat toofasta rate.

12.Neveroperatethemachineat hightransportspeeds

onslipperysurfaces.Lookbehindandusecarewhen

operatinginreverse.

13.Disengagepowertothecollector/impellerwhensnow

throweristransportedornotinuse.

14.Useonlyattachmentsandaccessoriesapprovedby

themanufacturerofthesnowthrower(suchaswheel

weights,counterweights,orcabs).

15.Neveroperatethesnowthrowerwithoutgoodvisibility

orlight.Alwaysbesureofyourfooting,andkeepafirm

holdonthehandles.Walk;neverrun.

16.Nevertouchahotengineormuffler.

Clearing a Clogged Discharge Chute

Hand contact with the rotating impeller inside the discharge

chute is the most common cause of injury associated with

snow throwers. Never use your hand to clean out the dis-

charge chute. To clear the chute:

1. SHUT THE ENGINE OFF!

2. Wait 10 seconds to be sure the impeller blades have

stopped rotating.

3. Always use a clean-out tool, not your hands.

Maintenance and Storage

1. Check shear bolts and other bolts at frequent intervals

for proper tightness to be sure the equipment is in safe

working condition.

2. Never store the machine with fuel in the fuel tank

inside a building where ignition sources are present

such as hot water heaters, space heaters, or clothes

dryers. Allow the engine to cool before storing in any

enclosure.

3. Always refer to operator's manual for important details

if the snow thrower is to be stored for an extended

period.

4. Maintain or replace safety and instruction labels, as

necessary.

5. Run the machine a few minutes after throwing snow

to prevent freeze-up of the collector/impeller.

CONGRATULATIONS on your purchase of a new snow

thrower. Ithas been designed, engineered and manufactured

to give best possible dependability and performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest authorized service

center. We have competent, well-trained technicians and

the proper tools to service or repair this unit.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your snow thrower

properly. Always observe the "SAFETY RULES".

SERIAL NUMBER:

DATE OF PURCHASE:

THE MODELANDSERIAL NUMBERSWlLLBE FOUND

ON ADECALATTACHED TO THE REAR OFTHE SNOW

THROWER HOUSING.

YOU SHOULD RECORD BOTH SERIAL NUMBERAND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

PRODUCT SPECIFICATIONS

Gasoline Capacity 4.0 Quarts

and Type: Unleaded Regular only

Oil Type SAE 30 (above 40°F)

(API SG-SL): SAE 5W-30 or 10W-30 (0° to +40°F

SAE OW-30 (below O°F)

Oil Capacity: 26 Ounces

Spark Plug: Champion RN4C (Gap: .030")

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for

and using your snow thrower.

• Follow the instructions under"Maintenance" and "Stor-

age" sections of this owner's manual.

TABLE OF CONTENTS

SAFETY RULES ........................................................ 2-3

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ................................ 3

WARRANTY ................................................................ 32

ASSEMBLY /PRE-OPERATION ............................... 5-7

OPERATION ............................................................ 8-14

MAINTENANCE ..................................................... 14-15

MAINTENANCE SCHEDULE ..................................... 14

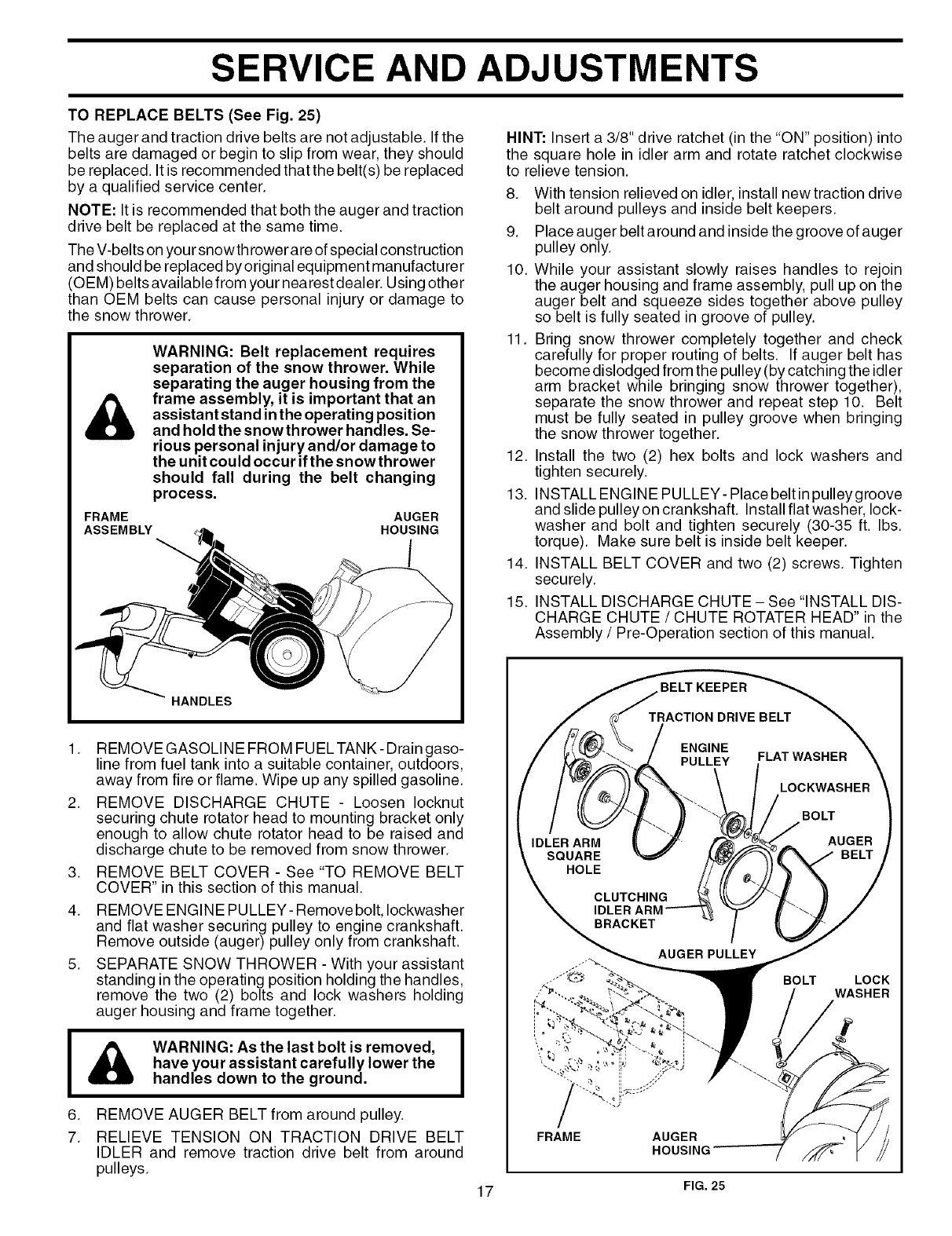

SERVICE AND ADJUSTMENTS ........................... 16-18

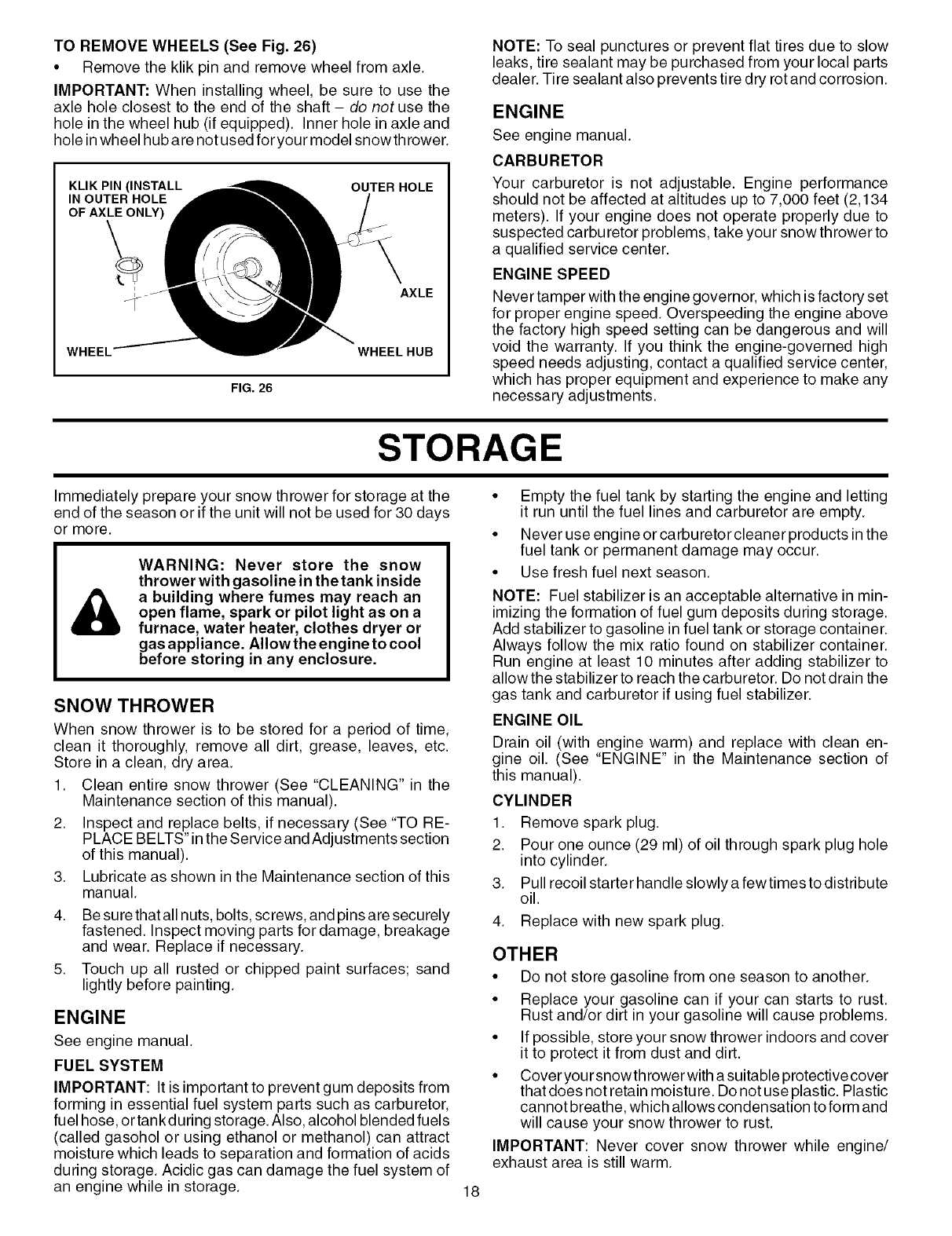

STORAGE ................................................................... 18

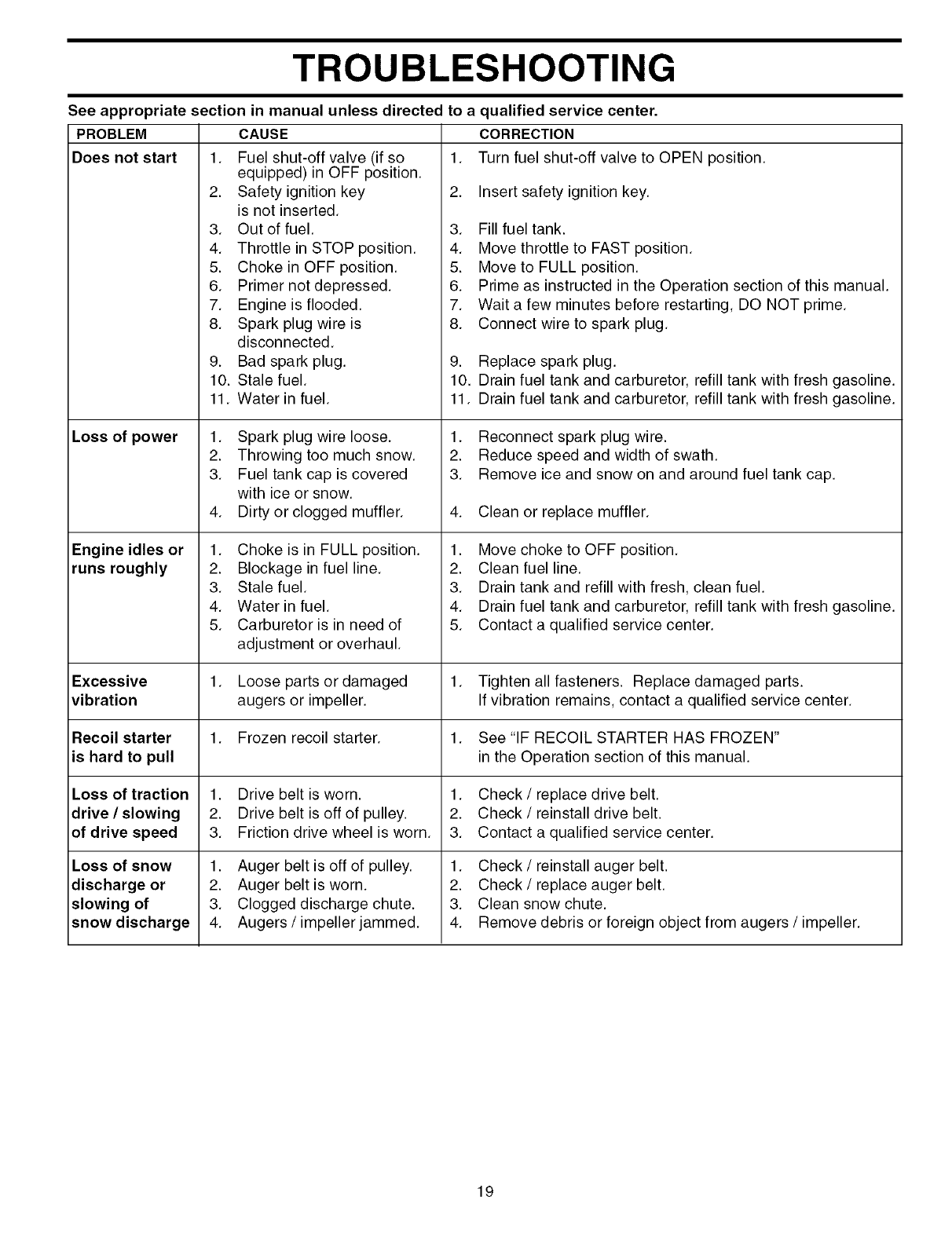

TROUBLESHOOTING ................................................ 19

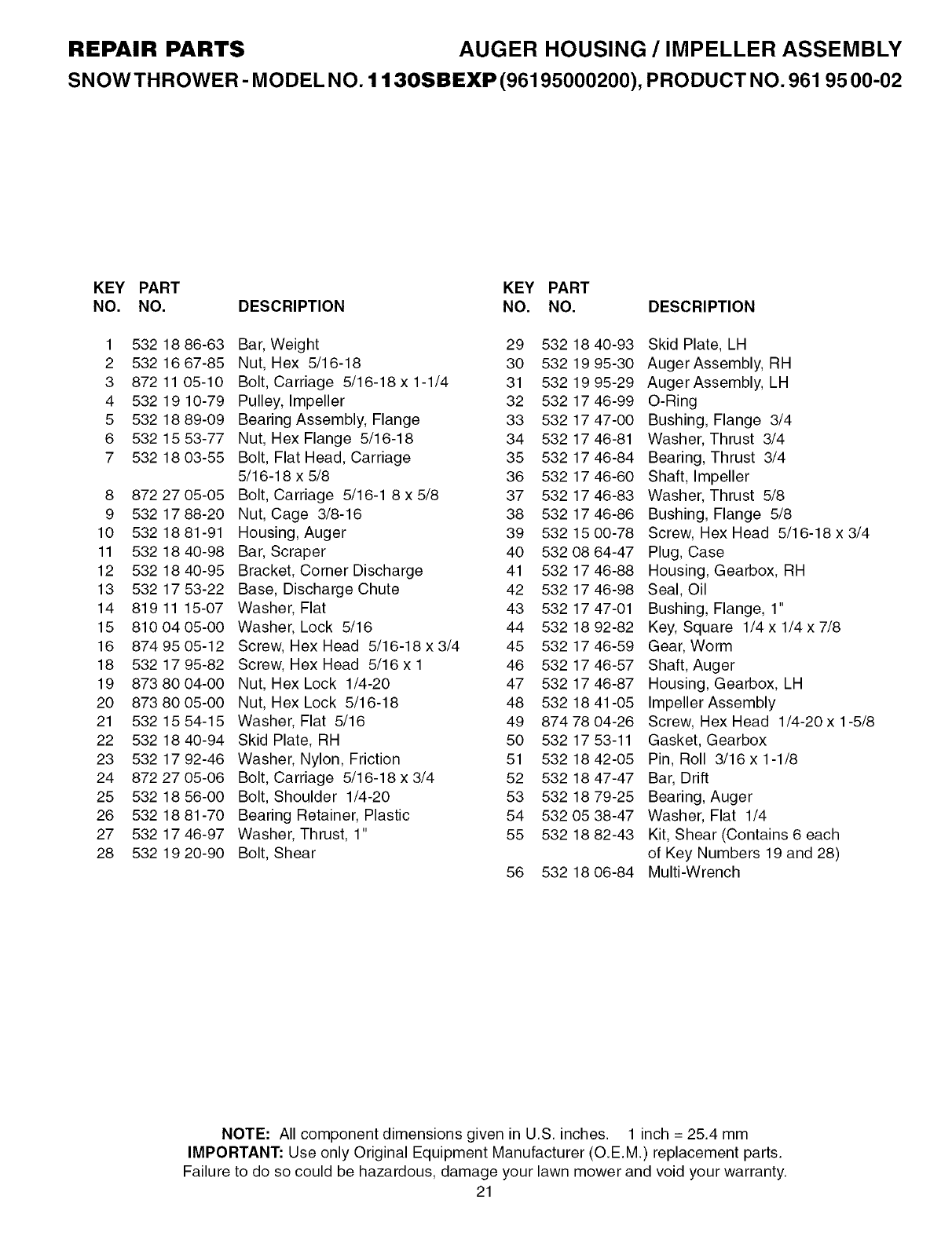

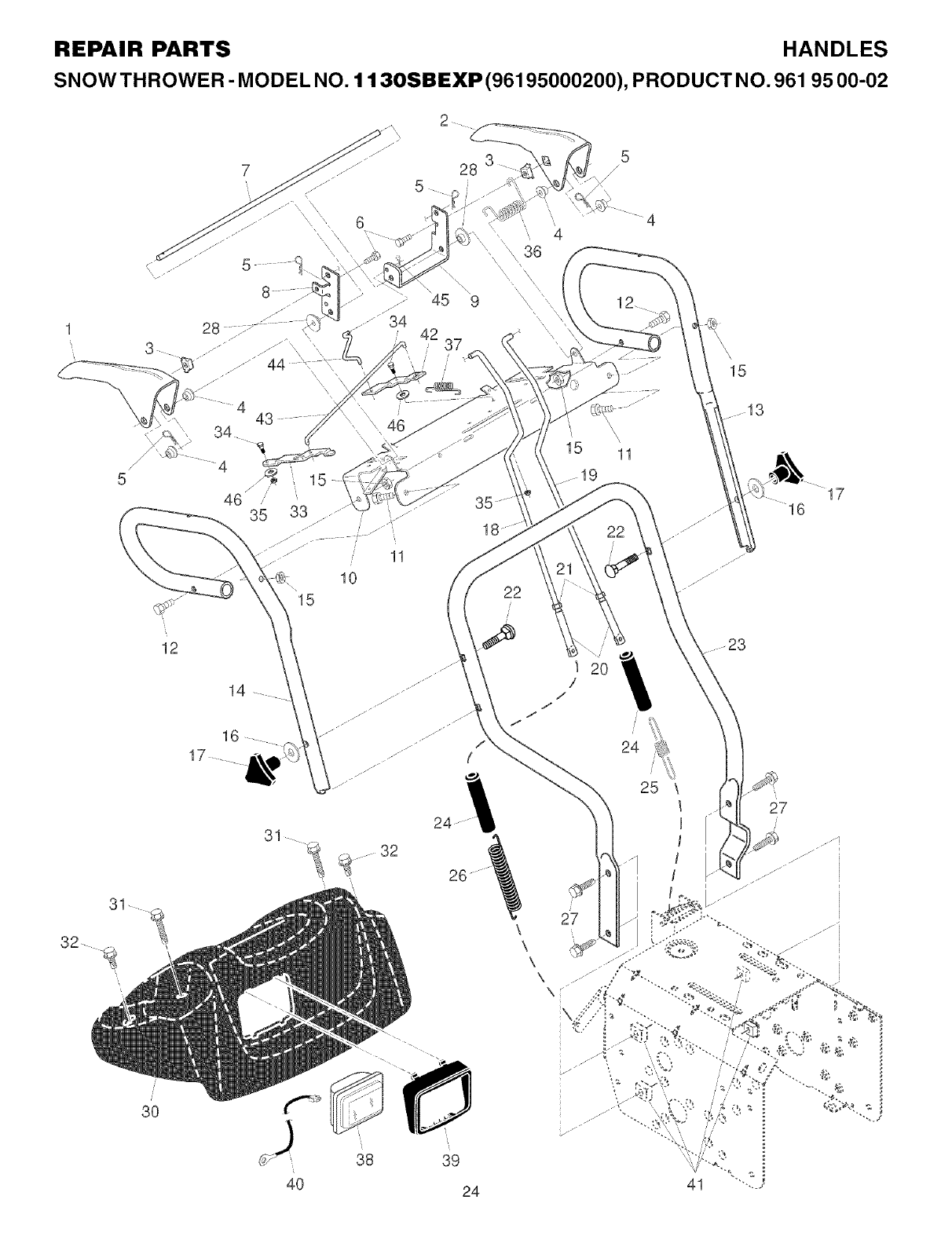

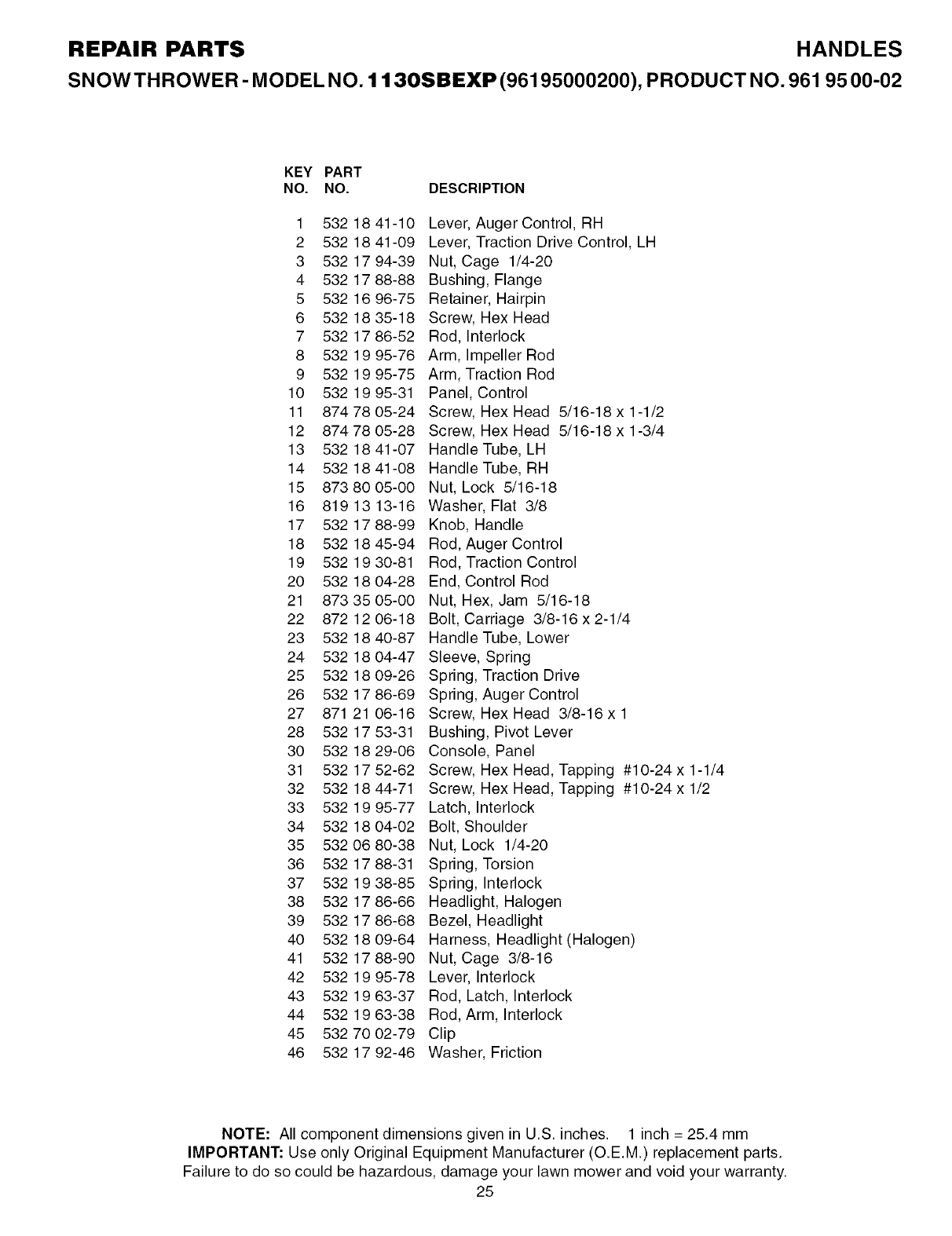

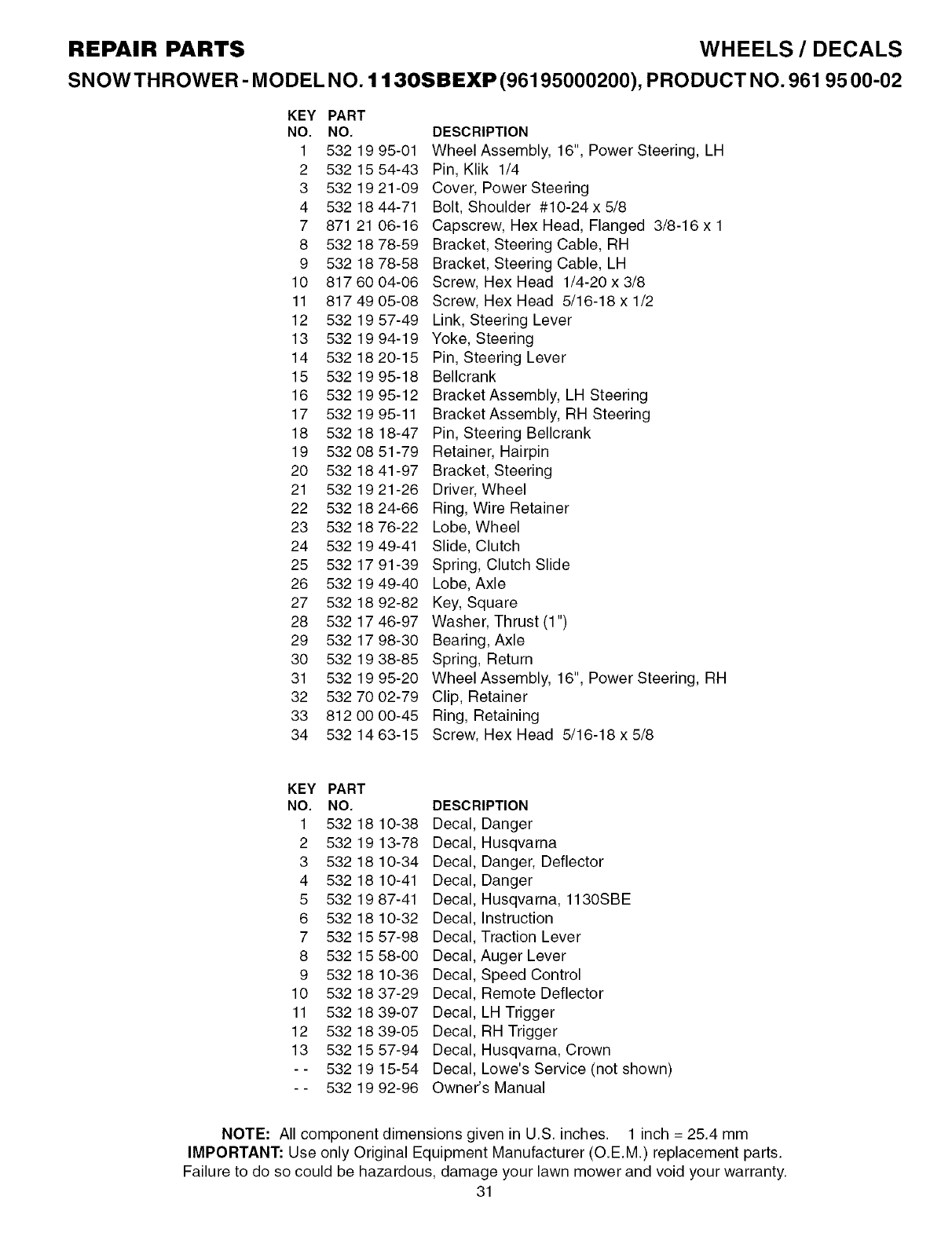

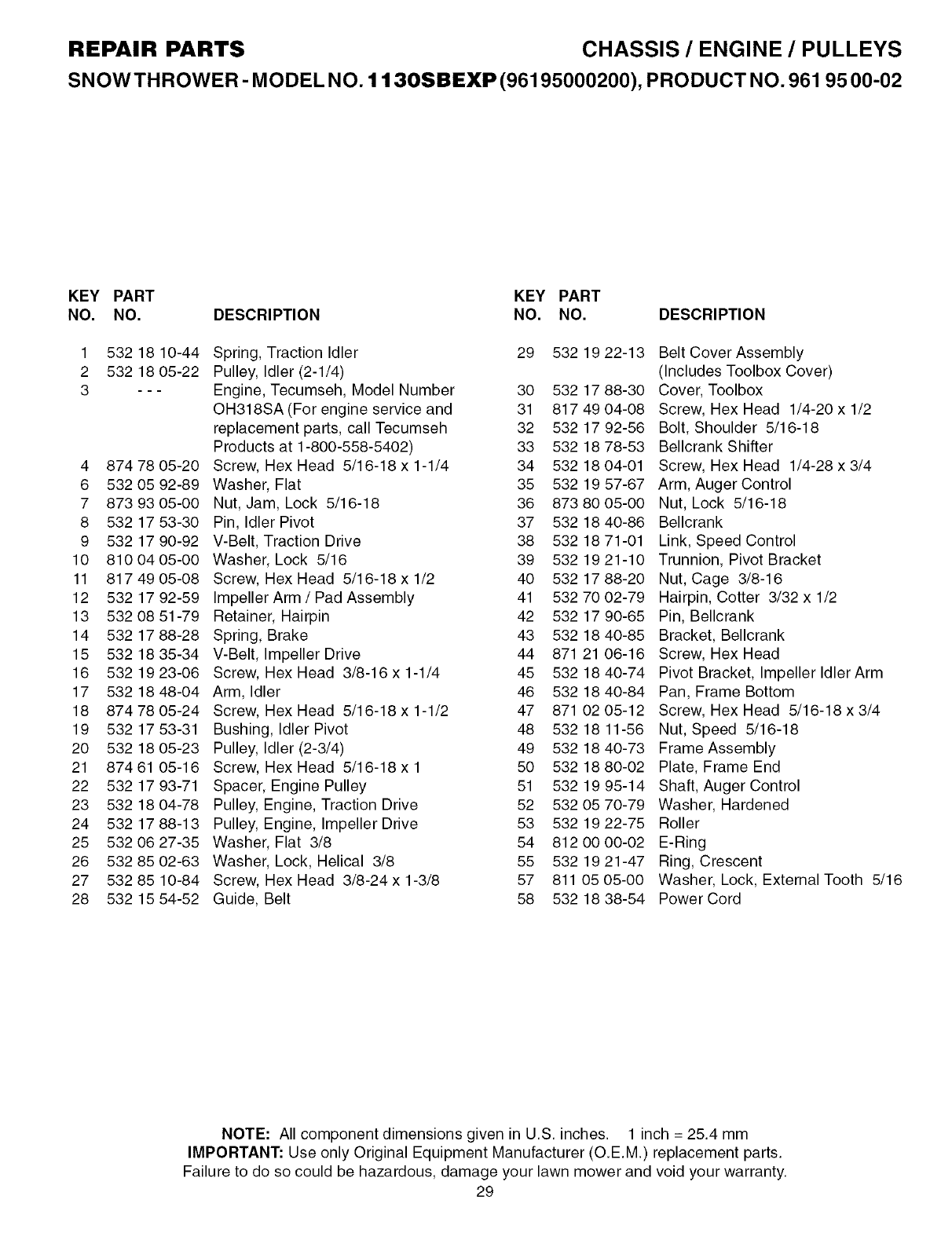

REPAIR PARTS ..................................................... 20-31

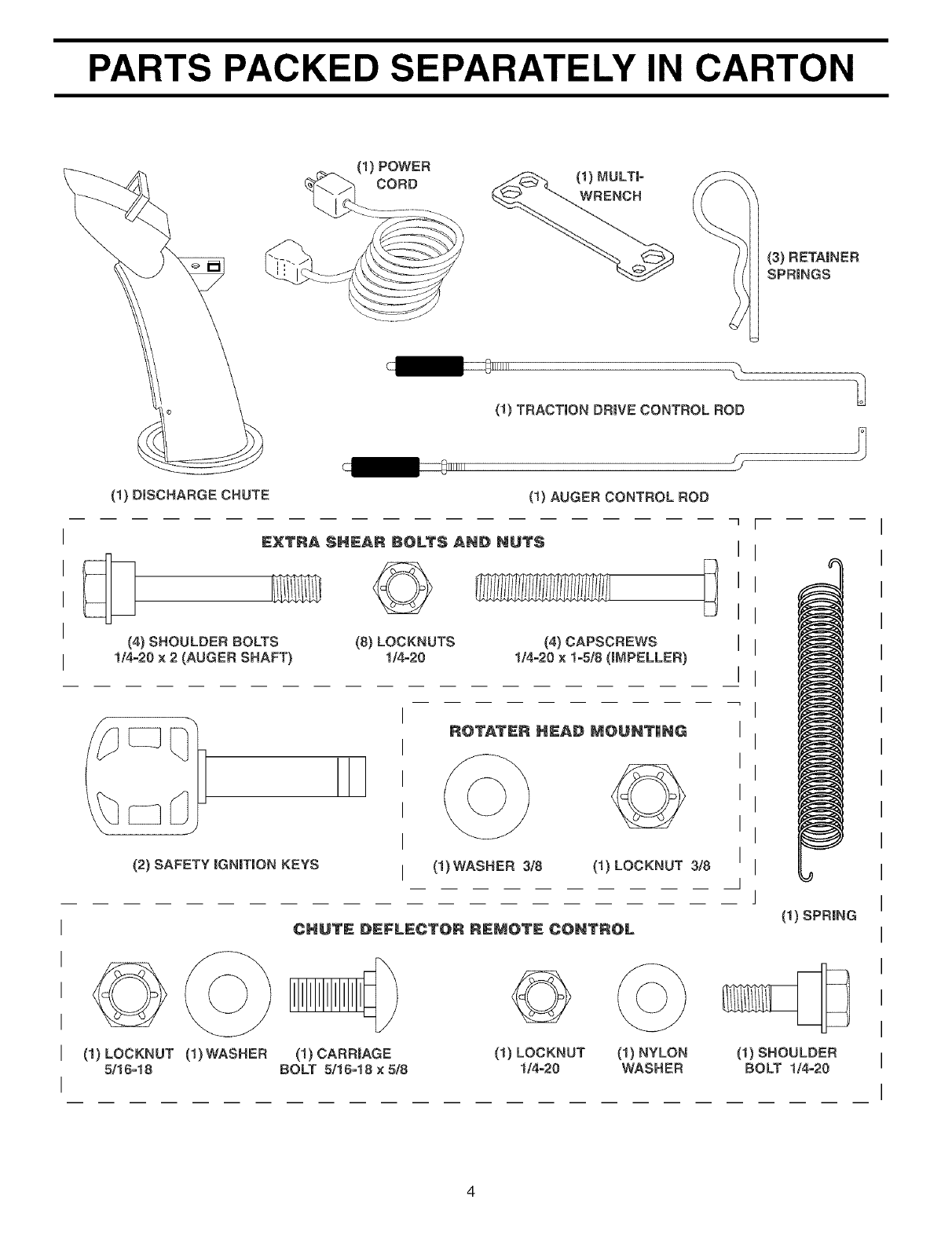

PARTS PACKED SEPARATELY IN CARTON

(1) POWER

CORD

(1) TRACTION DRIVE CONTROL ROD

(1) DISCHARGE CHUTE

(3) RETAINER

SPRINGS

(2) SAFETY IGNITmON KEYS (1} WASHER 3/8

(1) LOCKNUT (1}WASHER

5/16o18

CHUTE DEFLECTOR REMOTE CONTROL

(1) CARRIAGE

BOLT 5/16-18 x 5/8

(I) LOCKNUT

t 14o20 (1) NYLON

WASHER

(1) SPRING

(1) SHOULDER

BOLT I/4o20

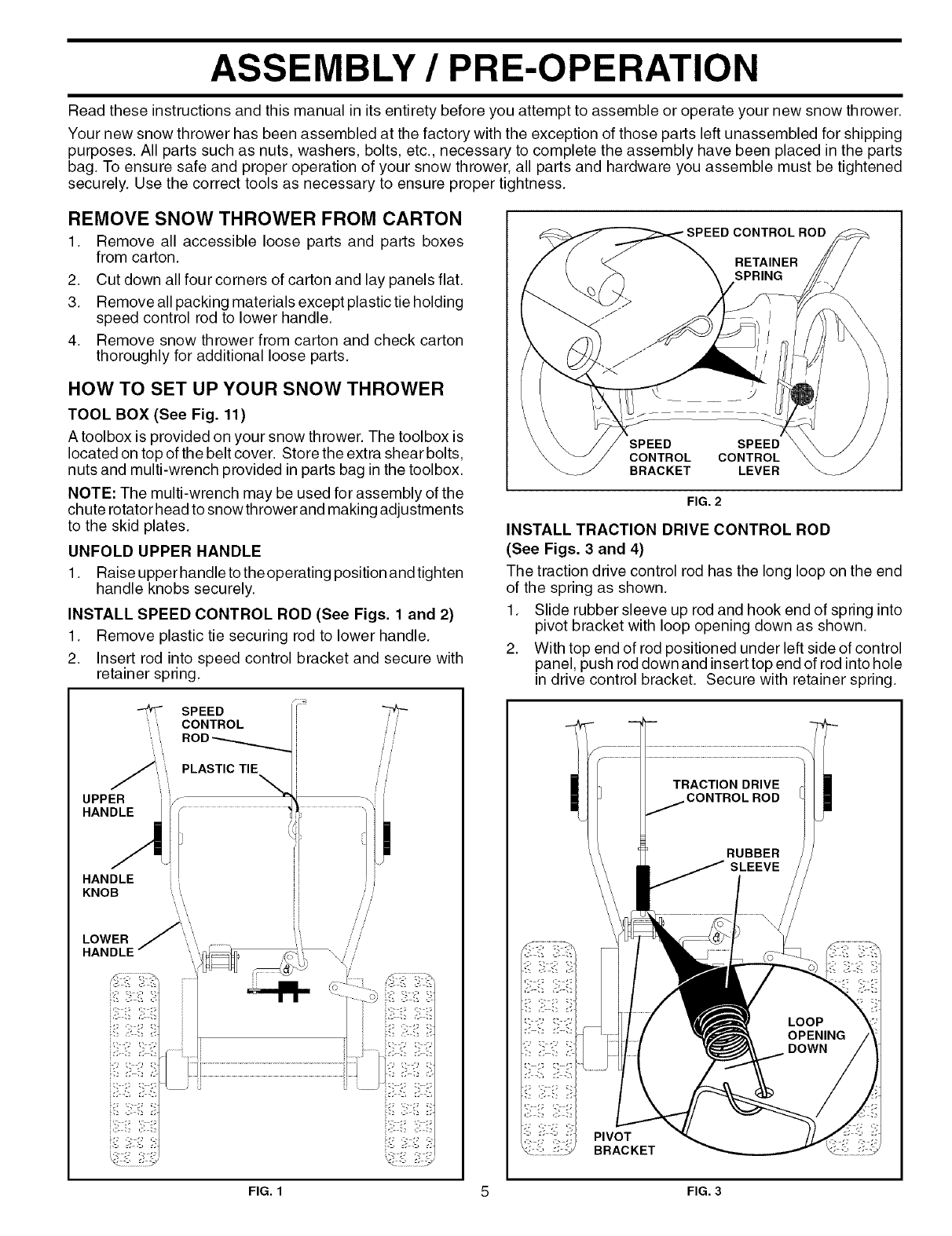

ASSEMBLY /PRE-OPERATION

Read these instructions and this manual in its entirety before you attempt to assemble or operate your new snow thrower.

Your new snow thrower has been assembled at the factory with the exception of those parts left unassembled for shipping

purposes. All )arts such as nuts, washers, bolts, etc., necessary to complete the assembly have been placed in the parts

bag. To ensure safe and proper operation of your snow thrower, all parts and hardware you assemble must be tightened

securely. Use the correct tools as necessary to ensure proper tightness.

REMOVE SNOW THROWER FROM CARTON

1. Remove all accessible loose parts and parts boxes

from carton.

2. Cut down all four corners of carton and lay panels flat.

3. Remove all packing materials except plastic tie holding

speed control rod to lower handle.

4. Remove snow thrower from carton and check carton

thoroughly for additional loose parts.

HOW TO SET UP YOUR SNOW THROWER

TOOL BOX (See Fig. 11)

A toolbox is provided on your snow thrower. The toolbox is

located on top of the belt cover. Store the extra shear bolts,

nuts and multi-wrench provided in parts bag in the toolbox.

NOTE: The multi-wrench may be used for assembly of the

chute rotator head to snow thrower and making adjustments

to the skid plates.

UNFOLD UPPER HANDLE

1. Raise upper handle to the operating position and tighten

handle knobs securely.

INSTALL SPEED CONTROL ROD (See Figs. 1and 2)

1. Remove plastic tie securing rod to lower handle.

2. Insert rod into speed control bracket and secure with

retainer spring.

UPPER

HANDLE

SPEED

CONTROL

PLASTIC TIE\

F:;j

HANDLE

KNOB , ",,

LOWER , _ j ,

HANDLE '/'

SPEED SPEED

CONTROL CONTROL

BRACKET LEVER

FIG. 2

INSTALL TRACTION DRIVE CONTROL ROD

(See Figs. 3 and 4)

The traction drive control rod has the long loop on the end

of the spring as shown.

1. Slide rubber sleeve up rod and hook end of spring into

pivot bracket with loop opening down as shown.

2. With top end of rod positioned under left side of control

panel, push rod down and insert top end of rod into hole

in drive control bracket. Secure with retainer spring.

PIVOT

BRACKET

FIG. 1 5 FIG. 3

ASSEMBLY /PRE-OPERATION

TRACTION DRIVE RETAINER

CONTROL LEVER SPRING

CONTROL

BRACKET

AUGER AUGER

CONTROL CONTROL

ROD RETAINER LEVER

SPRING

FIG. 4 FIG. 6

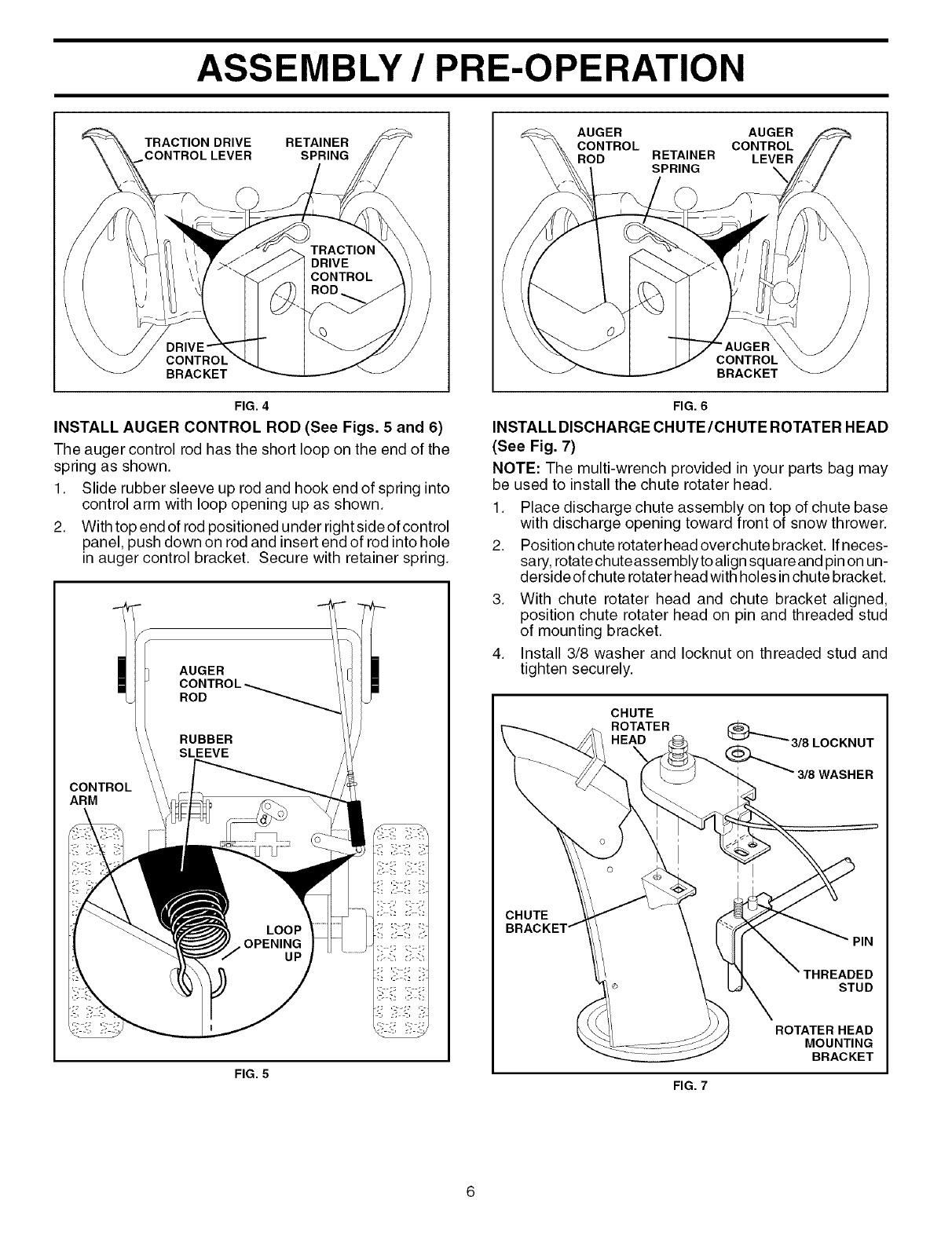

INSTALL AUGER CONTROL ROD (See Figs. 5 and 6)

The auger control rod has the short loop on the end of the

spring as shown.

1. Slide rubber sleeve up rod and hook end of spring into

control arm with loop opening up as shown.

2. With top end of rod positioned under right side ofcontrol

panel, push down on rod and insert end of rod into hole

in auger control bracket. Secure with retainer spring.

FIG. 5

CONTROL

ARM

CONTROL

BRACKET

INSTALL DISCHARGE CHUTE/CHUTE ROTATER HEAD

(See Fig. 7)

NOTE: The multi-wrench provided in your parts bag may

be used to install the chute rotater head.

1. Place discharge chute assembly on top of chute base

with discharge opening toward front of snow thrower.

2. Position chute rotater head overchute bracket. Ifneces-

sary, rotate chuteassemblyto align square and pin on un-

derside of chute rotater head with holes in chute bracket.

3. With chute rotater head and chute bracket aligned,

position chute rotater head on pin and threaded stud

of mounting bracket.

4. Install 3/8 washer and Iocknut on threaded stud and

tighten securely.

CHUTE

ROTATER

HEAD 3/8LOCKNUT

318 WASHER

CHUTE

THREADED

STUD

ROTATER HEAD

MOUNTING

BRACKET

FIG. 7

ASSEMBLY /PRE-OPERATION

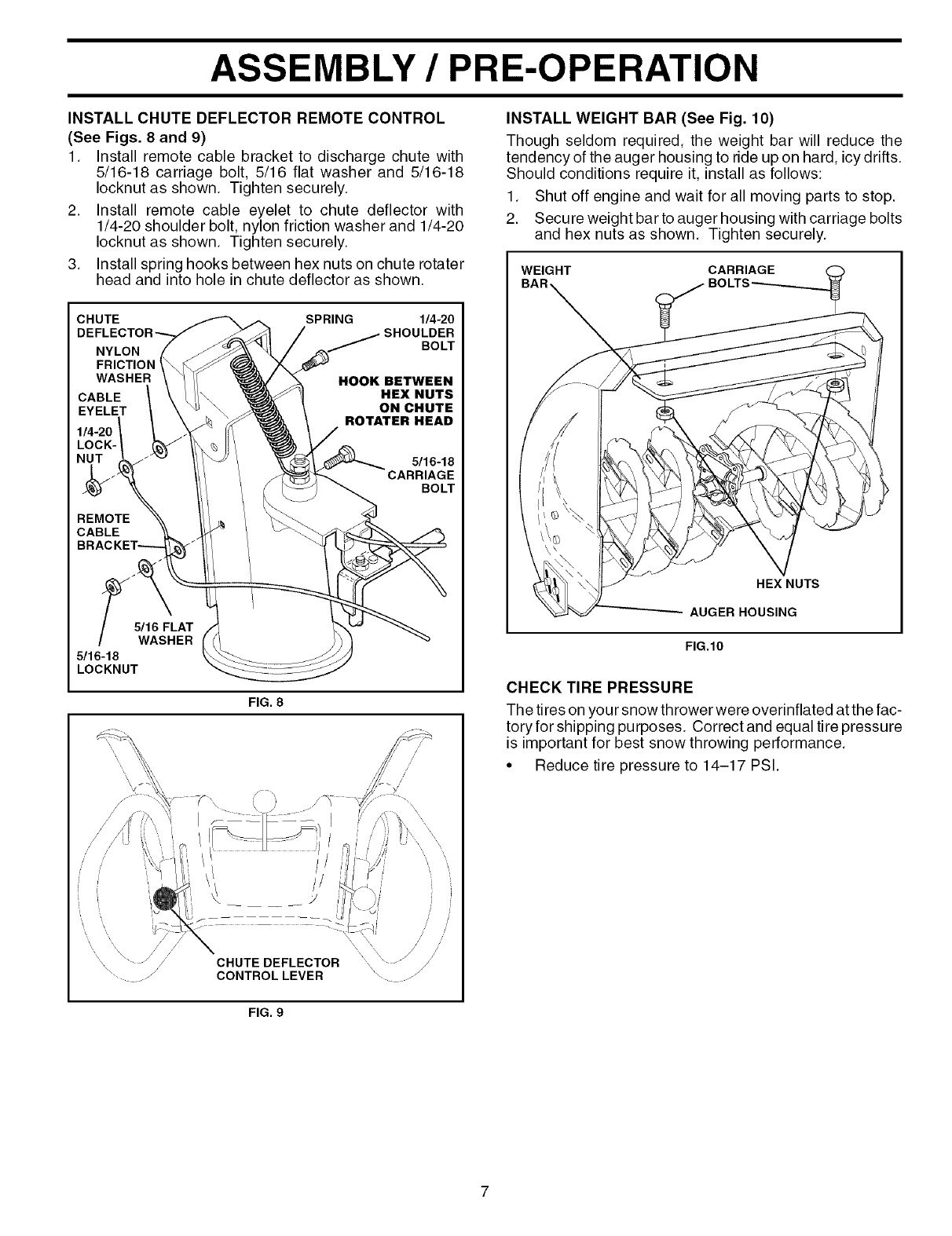

INSTALL CHUTE DEFLECTOR REMOTE CONTROL

(See Figs. 8 and 9)

1. Install remote cable bracket to discharge chute with

5/16-18 carriage bolt, 5/16 flat washer and 5/16-18

Iocknut as shown. Tighten securely.

2. Install remote cable eyelet to chute deflector with

1/4-20 shoulder bolt, nylon friction washer and 1/4-20

Iocknut as shown. Tighten securely.

3. Install spring hooks between hex nuts on chute rotater

head and into hole in chute deflector as shown.

CHUTE SPRING 1/4-20

SHOULDER

NYLON BOLT

FRICTION

WASHER HOOK BETWEEN

CABLE HEX NUTS

EYELET ON CHUTE

ROTATER HEAD

REMOTE

CABLE

5/16 -18

CARRIAGE

BOLT

_16 FLAT

WASHER

_16-18

LOCKNUT

FIG. 8

////

CHUTE DEFLECTOR \

CONTROL LEVER

L i

FIG. 9

INSTALL WEIGHT BAR (See Fig. 10)

Though seldom required, the weight bar will reduce the

tendency of the auger housing to ride up on hard, icy drifts.

Should conditions require it, install as follows:

1. Shut off engine and wait for all moving parts to stop.

2. Secure weight bar to auger housing with carriage bolts

and hex nuts as shown. Tighten securely.

WEIGHT CARRIAGE

HEX NUTS

AUGER HOUSING

FIG.10

CHECK TIRE PRESSURE

The tires on your snow thrower were overinflated at the fac-

tory for shipping purposes. Correct and equal tire pressure

is important for best snow throwing performance.

•Reduce tire pressure to 14-17 PSI.

OPERATION

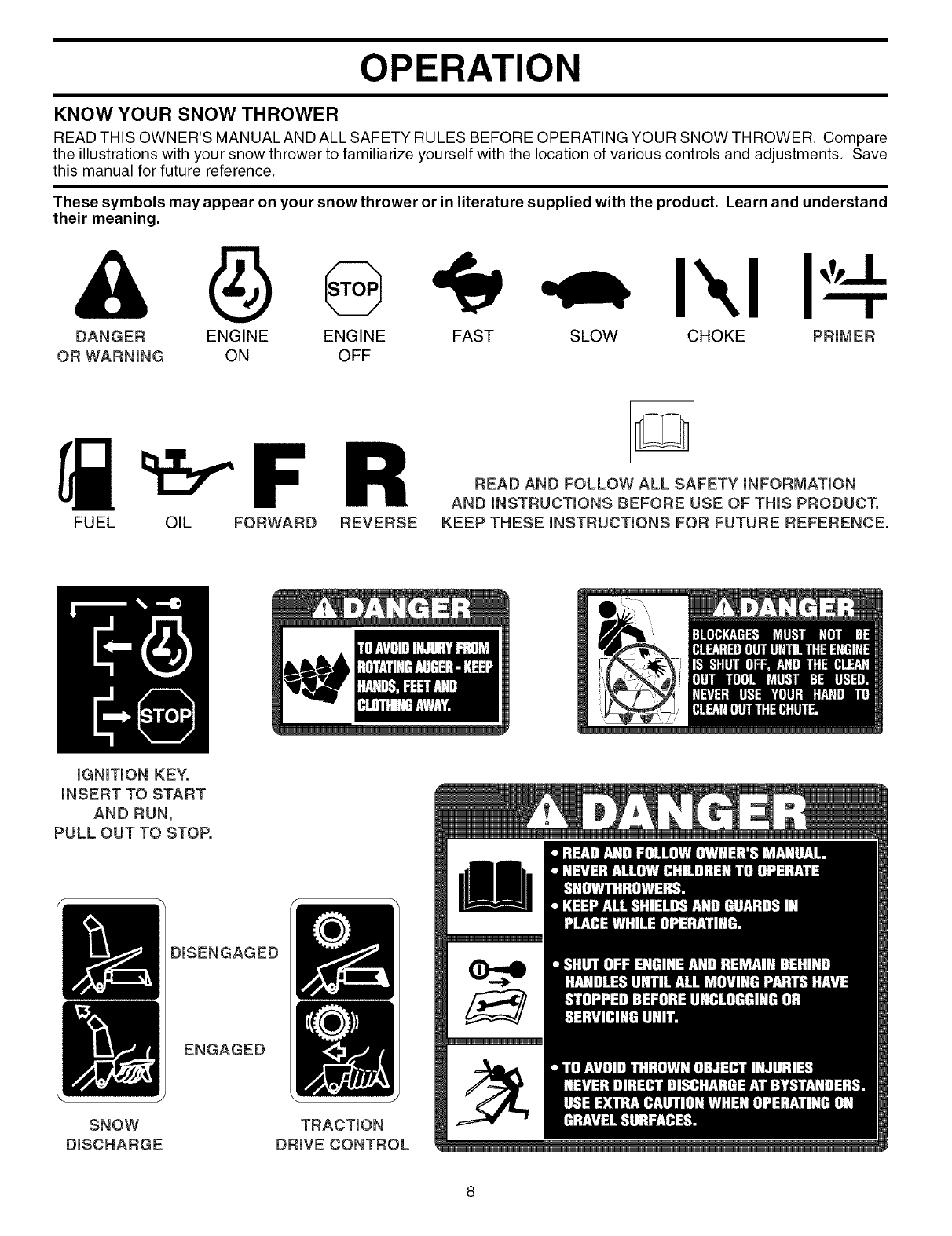

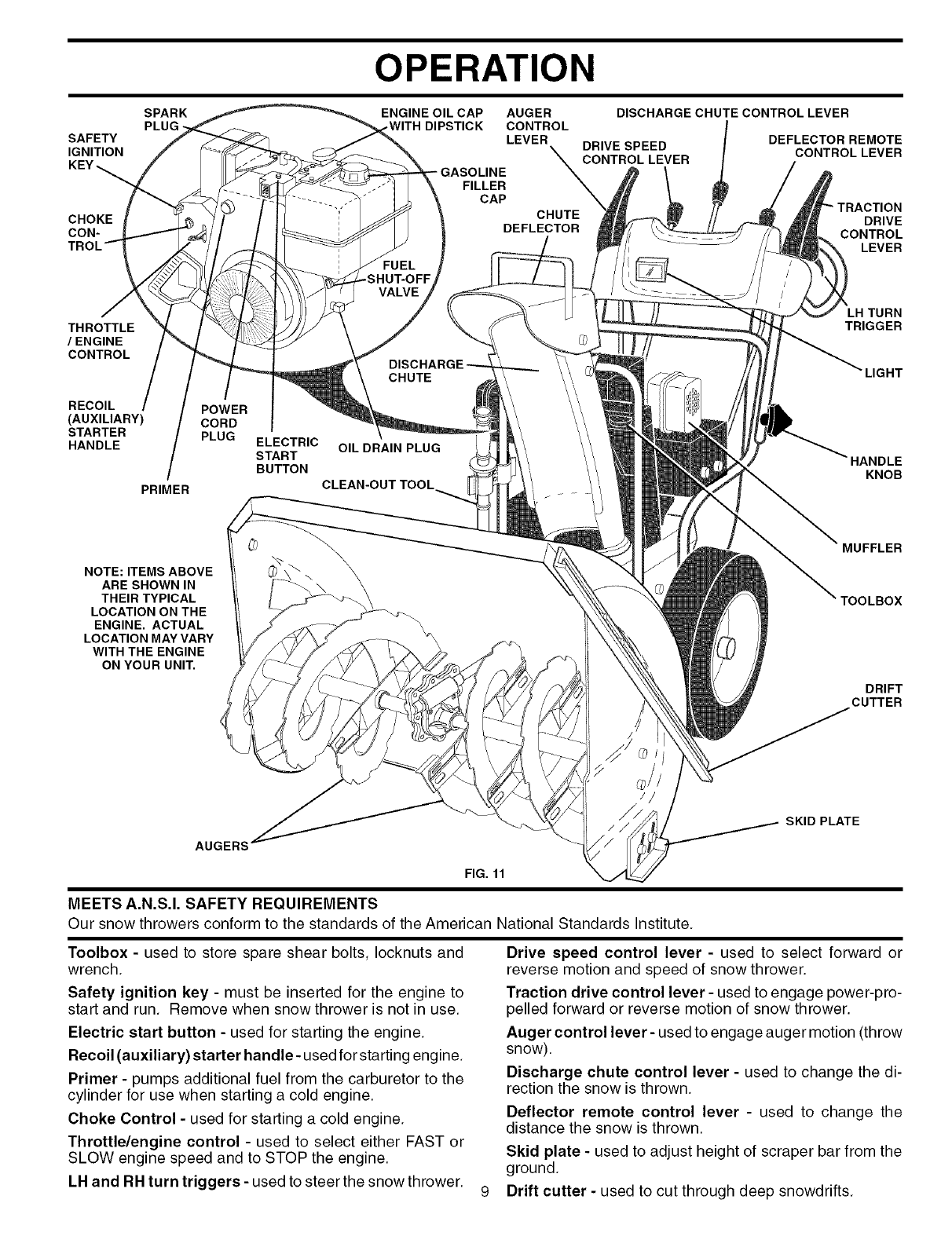

KNOW YOUR SNOW THROWER

READ THIS OWNER'S MANUALAND ALL SAFETY RULES BEFORE OPERATING YOUR SNOW THROWER. Compare

the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments. Save

this manual for future reference.

These symbols may appear on your snow thrower or in literature supplied with the product. Learn and understand

their meaning.

ENGINE

OFF

I',,I

DANGER ENGINE FAST SLOW CHOKE PRIMER

OR WARNING ON

FUEL OIL FORWARD REVERSE

READ AND FOLLOW ALL SAFETY iNFORMATiON

AND iNSTRUCTiONS BEFORE USE OF THiS PRODUCT.

KEEP THESE iNSTRUCTiONS FOR FUTURE REFERENCE.

IGNITION KEY.

INSERT TO START

AND RUN,

PULL OUT TO STOP.

DISENGAGED

ENGAGED

SNOW

DISCHARGE

\--/

TRACTION

DRIVECONTROL

OPERATION

SPARK ENGINE OIL CAP AUGER

.WITH DIPSTICK CONTROL

LEVER

SAFETY

IGNITION

DISCHARGE CHUTE CONTROLLEVER

DEFLECTOR REMOTE

CONTROL LEVER

CHOKE

CON-

FILLER

CAP

CHUTE

DEFLECTOR

TRACTION

DRIVE

CONTROL

LEVER

FUEL

THROTTLE

/ENGINE

CONTROL

VALVE

CHUTE

LH TURN

TRIGGER

LIGHT

RECOIL

(AUXILIARY)

STARTER

HANDLE

POWER

CORD

PLUG

PRIMER

NOTE: ITEMS ABOVE

ARE SHOWN IN

THEIR TYPICAL

LOCATION ON THE

ENGINE. ACTUAL

LOCATION MAY VARY

WITH THE ENGINE

ON YOUR UNIT.

AUGERS

ELECTRIC OIL DRAIN PLUG

START

BUTTON

CLEAN-OUTTOOL

SKID PLATE

HANDLE

KNOB

MUFFLER

TOOLBOX

DRIFT

CUTTER

FIG. 11

MEETS A.N.S.I. SAFETY REQUIREMENTS

Our snow throwers conform to the standards of the American National Standards Institute.

Toolbox -used to store spare shear bolts, Iocknuts and

wrench.

Safety ignition key - must be inserted for the engine to

start and run. Remove when snow thrower is not in use.

Electric start button - used for starting the engine.

Recoil (auxiliary) starter handle- used for starting engine.

Primer - pumps additional fuel from the carburetor to the

cylinder for use when starting a cold engine.

Choke Control - used for starting a cold engine.

Throttle/engine control - used to select either FAST or

SLOW engine speed and to STOP the engine.

LH and RH turn triggers- used to steer the snow thrower.

Drive speed control lever - used to select forward or

reverse motion and speed of snow thrower.

Traction drive control lever - used to engage power-pro-

pelled forward or reverse motion of snow thrower.

Auger control lever- used to engage auger motion (throw

snow).

Discharge chute control lever - used to change the di-

rection the snow is thrown.

Deflector remote control lever -used to change the

distance the snow is thrown.

Skid plate - used to adjust height of scraper bar from the

ground.

Drift cutter - used to cut through deep snowdrifts.

OPERATION

The operation of any snow thrower can result

in foreign objects thrown into the eyes, which

can result in severe eye damage. Always wear

safety glasses or eye shields while operating

your snow thrower or performing any adjust-

ments or repairs. We recommend standard safety glasses

or a wide vision safety mask worn over spectacles.

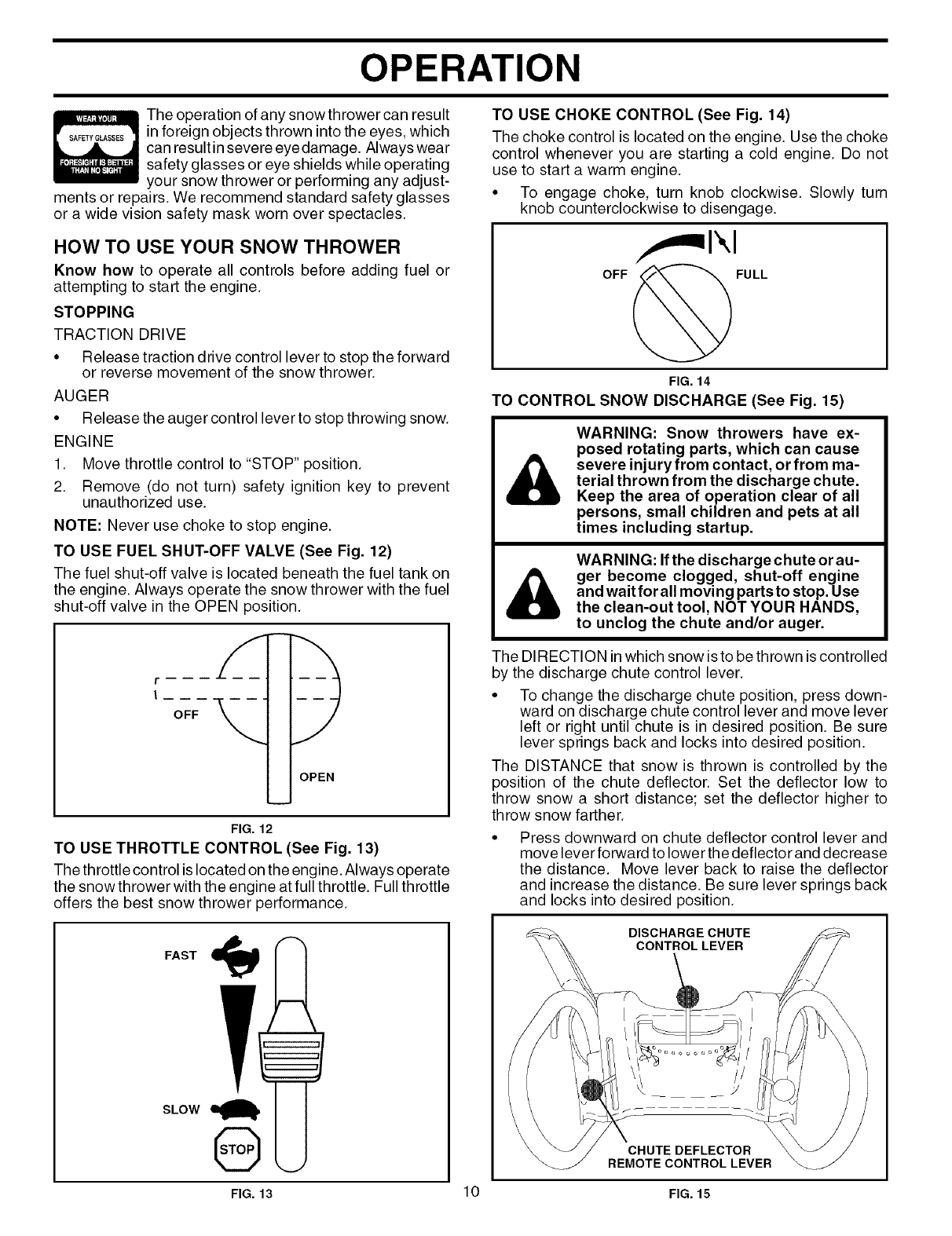

HOW TO USE YOUR SNOW THROWER

Know how to operate all controls before adding fuel or

attempting to start the engine.

STOPPING

TRACTION DRIVE

•Release traction drive control lever to stop the forward

or reverse movement of the snow thrower.

AUGER

• Release the auger control lever to stop throwing snow.

ENGINE

1. Move throttle control to "STOP" position.

2. Remove (do not turn) safety ignition key to prevent

unauthorized use.

NOTE: Never use choke to stop engine.

TO USE FUEL SHUT-OFF VALVE (See Fig. 12)

The fuel shut-off valve is located beneath the fuel tank on

the engine. Always operate the snow thrower with the fuel

shut-off valve in the OPEN position.

TO USE CHOKE CONTROL (See Fig. 14)

The choke control is located on the engine. Use the choke

control whenever you are starting a cold engine. Do not

use to start a warm engine.

• To engage choke, turn knob clockwise. Slowly turn

knob counterclockwise to disengage.

OFF _ FULL

FIG. 14

TO CONTROL SNOW DISCHARGE (See Fig. 15)

&WARNING: Snow throwers have ex-

posed rotating parts, which can cause

severe injury from contact, or from ma-

terial thrown from the discharge chute.

Keep the area of operation clear of all

persons, small children and pets at all

times including startup.

&WARNING: If the discharge chute or au-

ger become clogged, shut-off engine

and wait for all moving partsto stop. Use

the clean-out tool, NOT YOUR HANDS,

to unclog the chute and/or auger.

OPEN

FIG. 12

TO USE THROTTLE CONTROL (See Fig. 13)

The throttle control is located on the engine. Always operate

the snow thrower with the engine at full throttle. Full throttle

offers the best snow thrower performance.

FAST

SLOW @

The DIRECTION in which snow is to be thrown is controlled

by the discharge chute control lever.

• To change the discharge chute position, press down-

ward on discharge chute control lever and move lever

left or right until chute is in desired position. Be sure

lever springs back and locks into desired position.

The DISTANCE that snow is thrown is controlled by the

position of the chute deflector. Set the deflector low to

throw snow a short distance; set the deflector higher to

throw snow farther.

Press downward on chute deflector control lever and

move lever forward to lower the deflector and decrease

the distance. Move lever back to raise the deflector

and increase the distance. Be sure lever springs back

and locks into desired position.

DISCHARGE CHUTE

CONTROL LEVER

CHUTE DEFLECTOR

REMOTE CONTROL LEVER

FIG. 13 10 FIG. 15

OPERATION

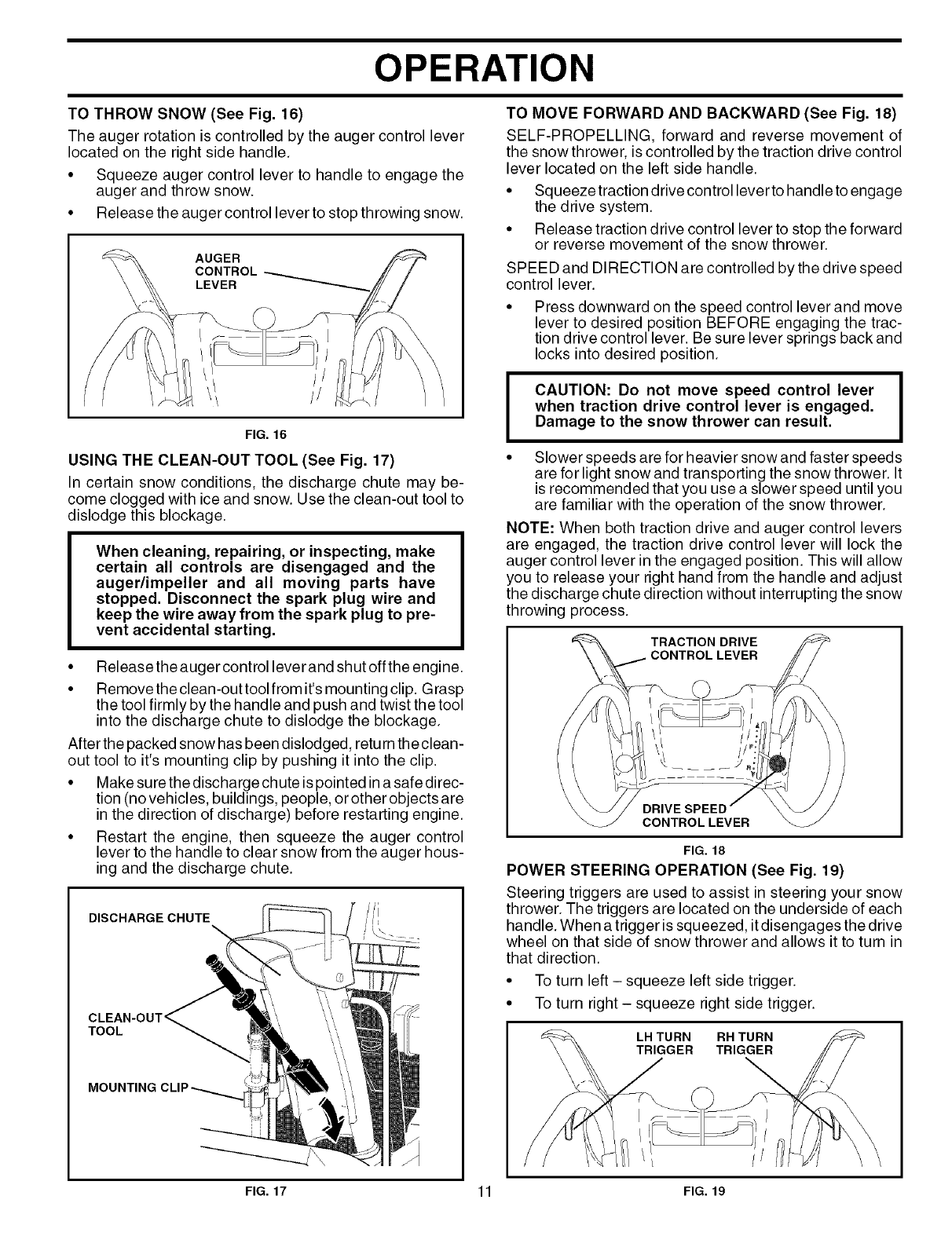

TO THROW SNOW (See Fig. 16)

The auger rotation is controlled by the auger control lever

located on the right side handle.

• Squeeze auger control lever to handle to engage the

auger and throw snow.

• Release the auger control lever to stop throwing snow.

FIG. 16

USING THE CLEAN-OUT TOOL (See Fig. 17)

In certain snow conditions, the discharge chute may be-

come clogged with ice and snow. Use the clean-out tool to

dislodge this blockage.

When cleaning, repairing, or inspecting, make

certain all controls are disengaged and the

auger/impeller and all moving parts have

stopped. Disconnect the spark plug wire and

keep the wire away from the spark plug to pre-

vent accidental starting.

• Release the auger control leverand shut offthe engine.

• Remove the clean-out tool from it's mounting clip. Grasp

the tool firmly by the handle and push and twist the tool

into the discharge chute to dislodge the blockage.

After the packed snow has been dislodged, return theclean-

out tool to it's mounting clip by pushing it into the clip.

• Make sure the discharge chute is pointed ina safe direc-

tion (no vehicles, buildings, people, or other objects are

in the direction of discharge) before restarting engine.

• Restart the engine, then squeeze the auger control

lever to the handle to clear snow from the auger hous-

ing and the discharge chute.

DISCHARGECHUTE

TOOL

MOUNTING

TO MOVE FORWARD AND BACKWARD (See Fig. 18)

SELF-PROPELLING, forward and reverse movement of

the snow thrower, is controlled by the traction drive control

lever located on the left side handle.

• Squeeze traction drive control lever to handle to engage

the drive system.

• Release traction drive control lever to stop the forward

or reverse movement of the snow thrower.

SPEED and DIRECTION are controlled by the drive speed

control lever.

Press downward on the speed control lever and move

lever to desired position BEFORE engaging the trac-

tion drive control lever. Be sure lever springs back and

locks into desired position.

I CAUTION: Do not move speed control lever I

when traction drive control lever is engaged. I

Damage to the snow thrower can result.

• Slower speeds are for heavier snow and faster speeds

are for light snow and transporting the snow thrower. It

is recommended that you use a slower speed until you

are familiar with the operation of the snow thrower.

NOTE: When both traction drive and auger control levers

are engaged, the traction drive control lever will lock the

auger control lever in the engaged position. This will allow

you to release your right hand from the handle and adjust

the discharge chute direction without interrupting the snow

throwing process.

TRACTION DRIVE

LEVER

DRIVE

CONTROL LEVER

FIG. 18

POWER STEERING OPERATION (See Fig. 19)

Steering triggers are used to assist in steering your snow

thrower. The triggers are located on the underside of each

handle. When a trigger is squeezed, it disengages the drive

wheel on that side of snow thrower and allows it to turn in

that direction.

• To turn left - squeeze left side trigger.

• To turn right - squeeze right side trigger.

TURN

FIG. 17 11 FIG. 19

OPERATION

TO ADJUST SKID PLATES (See Fig. 20)

NOTE: The wrench provided in your parts bag may be used

to adjust the skid plates.

Skid plates are located on each side of the auger housing

and adjust the clearance between the scraper bar and the

ground surface. Adjust skid plates evenly to proper height

for current surface conditions. For removal of snow in

normal conditions, such as a paved driveway or sidewalk,

place skid plates in the highest position (lowest scraper

clearance) to give a 1/8" clearance between the scraper

bar and the ground. Use a middle position if the surface

to be cleared is uneven.

NOTE: It is not recommended to operate the snow thrower

over gravel or rocky surfaces. Objects such as gravel, rocks

or other debris, can easily be picked up and thrown by the

impeller, which can cause serious personal injury, property

damage or damage to the snow thrower.

•If snow thrower must be operated over gravel surface,

use extra caution and be sure skid plates are adjusted

to lowest (highest scraper clearance) position.

1. Shut off engine and wait for all moving parts to stop.

2. Adjust skid plates by loosening the rear 1/2" hex nut

only, then moving skid plateto desired position. Be sure

both plates are adjusted evenly. Tighten securely.

HIGH

(LOW GROUND

CLEARANCE)

i HOUSING

///_i _-" ,," iSKID PLATE

.... _====____ 1/2" HEX NUT

LOW POSITION (HIGH GROUND CLEARANCE)

FIG. 20

SCRAPER BAR

The scraper bar is not adjustable, but is reversible. After

considerable use it may become worn. When it has worn

almost to the edge of the housing, it can be reversed,

providing additional service before requiring replacement.

Replace a damaged or worn scraper bar.

TO USE DRIFT CUTTERS (See Fig. 21)

Use the drift cutters to cut through deep snowdrifts that are

higher than the front of the snow thrower.

• Loosen upper adjustment nut enough to allow drift

cutter to be raised to highest position and tighten nut

securely. Repeat for opposite side of snow thrower.

AUGER

HOUSING

POSITION\__//i/////p//771///2f.//_ "

A. DRIFT

CUTTER

ADJUST-

MENT NUT

• When not using drift cutters, loosen adjustment nut,

lower to storage position and tighten nut securely.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 22)

The engine on your snow thrower has been shipped, from

the factory, already filled with oil.

1. Check engine oil with snow thrower on level ground.

2. Remove oil fill cap/dipstick and wipe clean, reinsert

the dipstick and screw tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULL" mark on dipstick is reached. Do not overfill.

• To change engine oil, see"TO CHANGE ENGINE OIL"

in the Maintenance section of this manual.

ADD GASOLINE (See Fig. 22)

• Fill fuel tank to bottom of tank filler neck. Do not over-

fill. Use fresh, clean, regular unleaded gasoline with

a minimum of 87 octane. Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

WARNING: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

CAUTION: Alcohol blended fuels (called gas-

ohol or using ethanol or methanol) can attract

moisture which leads to separation and for-

mation of acids during storage. Acidic gas can

damage the fuel system of an engine while in

storage. To avoid engine problems, the fuel

system should be emptied before storage of

30 days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel next

season. See Storage Instructions for additional

information. Never use engine or carburetor

cleaner products in the fuel tank or permanent

damage may occur.

CHOKE CONTROL THROTTLE PRIMER ENGINE OIL

FILL CAP /

DIPSTICK

SAFETY

IGNITION

KEY

FILLER CAP

,FUEL SHUT-

OFF VALVE

RECOIL BUTTON

STARTER

HANDLE CORD PLUG

NOTE: ALL ITEMS ARE SHOWN IN THEIR TYPICAL LOCATION.

ACTUAL LOCATION MAY VARY WITH ENGINE ON YOUR UNIT.

FIG. 21 12 FIG. 22

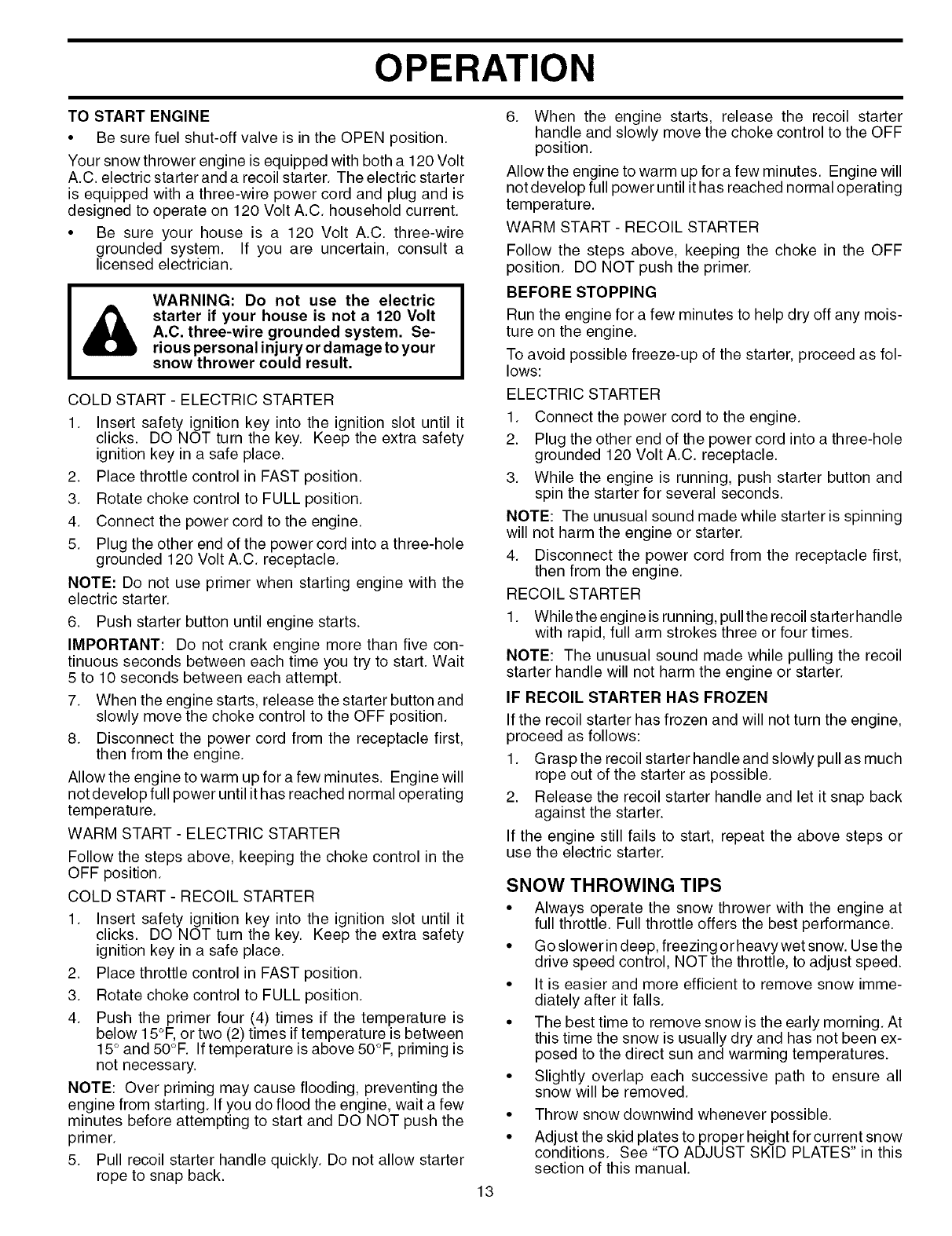

OPERATION

TO START ENGINE

• Be sure fuel shut-off valve is in the OPEN position.

Your snow thrower engine is equipped with both a 120 Volt

A.C. electric starter and a recoil starter. The electric starter

is equipped with a three-wire power cord and plug and is

designed to operate on 120 Volt A.C. household current.

• Be sure your house is a 120 Volt A.C. three-wire

grounded system. If you are uncertain, consult a

licensed electrician.

WARNING: Do not use the electric

starter if your house is not a 120 Volt

A.C. three-wire grounded system. Se-

rious personal injuryor damage to your

snow thrower could result.

COLD START - ELECTRIC STARTER

1. Insert safety ignition key into the ignition slot until it

clicks. DO NOT turn the key. Keep the extra safety

ignition key in a safe place.

2. Place throttle control in FAST position.

3. Rotate choke control to FULL position.

4. Connect the power cord to the engine.

5. Plug the other end of the power cord into a three-hole

grounded 120 Volt A.C. receptacle.

NOTE: Do not use primer when starting engine with the

electric starter.

6. Push starter button until engine starts.

IMPORTANT: Do not crank engine more than five con-

tinuous seconds between each time you try to start. Wait

5 to 10 seconds between each attempt.

7. When the engine starts, release the starter button and

slowly move the choke control to the OFF position.

8. Disconnect the power cord from the receptacle first,

then from the engine.

Allow the engine to warm up for a few minutes. Engine will

not develop full power until it has reached normal operating

temperature.

WARM START - ELECTRIC STARTER

Follow the steps above, keeping the choke control in the

OFF position.

COLD START - RECOIL STARTER

1. Insert safety ignition key into the ignition slot until it

clicks. DO NOT turn the key. Keep the extra safety

ignition key in a safe place.

2. Place throttle control in FAST position.

3. Rotate choke control to FULL position.

4. Push the primer four (4) times if the temperature is

below 15°F, or two (2) times if temperature is between

15° and 50°F. If temperature is above 50°F, priming is

not necessary.

NOTE: Over priming may cause flooding, preventing the

engine from starting. If you do flood the engine, wait a few

minutes before attempting to start and DO NOT push the

primer.

5. Pull recoil starter handle quickly. Do not allow starter

rope to snap back.

6. When the engine starts, release the recoil starter

handle and slowly move the choke control to the OFF

position.

Allow the engine to warm up for a few minutes. Engine will

not develop full power until it has reached normal operating

temperature.

WARM START - RECOIL STARTER

Follow the steps above, keeping the choke in the OFF

position. DO NOT push the primer.

BEFORE STOPPING

Run the engine for a few minutes to help dry off any mois-

ture on the engine.

To avoid possible freeze-up of the starter, proceed as fol-

lows:

ELECTRIC STARTER

1. Connect the power cord to the engine.

2. Plug the other end of the power cord into a three-hole

grounded 120 Volt A.C. receptacle.

3. While the engine is running, push starter button and

spin the starter for several seconds.

NOTE: The unusual sound made while starter is spinning

will not harm the engine or starter.

4. Disconnect the power cord from the receptacle first,

then from the engine.

RECOIL STARTER

1. While the engine is running, pullthe recoil starter handle

with rapid, full arm strokes three or four times.

NOTE: The unusual sound made while pulling the recoil

starter handle will not harm the engine or starter.

IF RECOIL STARTER HAS FROZEN

If the recoil starter has frozen and will not turn the engine,

proceed as follows:

1. Grasp the recoil starter handle and slowly pull as much

rope out of the starter as possible.

2. Release the recoil starter handle and let it snap back

against the starter.

If the engine still fails to start, repeat the above steps or

use the electric starter.

SNOW THROWING TIPS

• Always operate the snow thrower with the engine at

full throttle. Full throttle offers the best performance.

• Go slowerin deep, freezing or heavywet snow. Use the

drive speed control, NOT the throttle, to adjust speed.

• It is easier and more efficient to remove snow imme-

diately after it falls.

• The best time to remove snow is the early morning. At

this time the snow is usually dry and has not been ex-

posed to the direct sun and warming temperatures.

• Slightly overlap each successive path to ensure all

snow will be removed.

• Throw snow downwind whenever possible.

• Adjust the skid plates to proper height for current snow

conditions. See "TO ADJUST SKID PLATES" in this

section of this manual.

• Forextremelyheavysnow,reducethewidthof snow

removalby overlappingpreviouspathand moving

slowly.

• Keepenginecleanandclearofsnowduringuse.This

willhelpairflowandextendenginelife.

• Aftersnow-throwingiscompleted,allowenginetorunfor

afewminutesto meltsnowandiceofftheengine.

• Cleantheentiresnowthrowerthoroughlyaftereach

useandwipedrysoit isreadyfornextuse.

WARNING: Do not operate snow

thrower if weather conditions impair vis-

ibility. Throwing snow during a heavy,

windy snowstorm can blind you and be

hazardous to the safe operation of the

snow thrower.

MAINTENANCE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check for Loose Fasteners

R Clean /inspect Snow Thrower

WCheck /Replace V-Belts

RE Lubrication Chart

Check Engine Oil Level

N Change Engine Oil

Inspect Muffler

N Check /Replace Spark Plug

EEmpty Fuel Tank

GENERAL RECOMMENDATIONS

The warranty on this snow thrower does not cover items that

have been subjected to operator abuse or negligence. To

receive full value from the warranty, operator must maintain

snow thrower as instructed in this manual. Some adjust-

ments will need to be made periodically to properly maintain

your snow thrower.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

• Once a year, you should replace the spark plug and

check belts for wear. A new spark plug will help your

engine run better and last longer.

• Follow the maintenance schedule in this manual.

NOTE: Use only Original Equipment Manufacturer (OEM)

parts to service this unit. Failure to do so can cause the unit

to malfunction and pose a risk of injury to the operator.

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

3. Check controls to be surethey are functioning properly.

LUBRICATION CHART

(_ SAE 30 Motor Oil

See "ENGINE" in

Maintenance section

dP Pivot points

@ Engine oil

LUBRICATION

Keep your snow thrower well lubricated

(See "LUBRICATION CHART"). 14

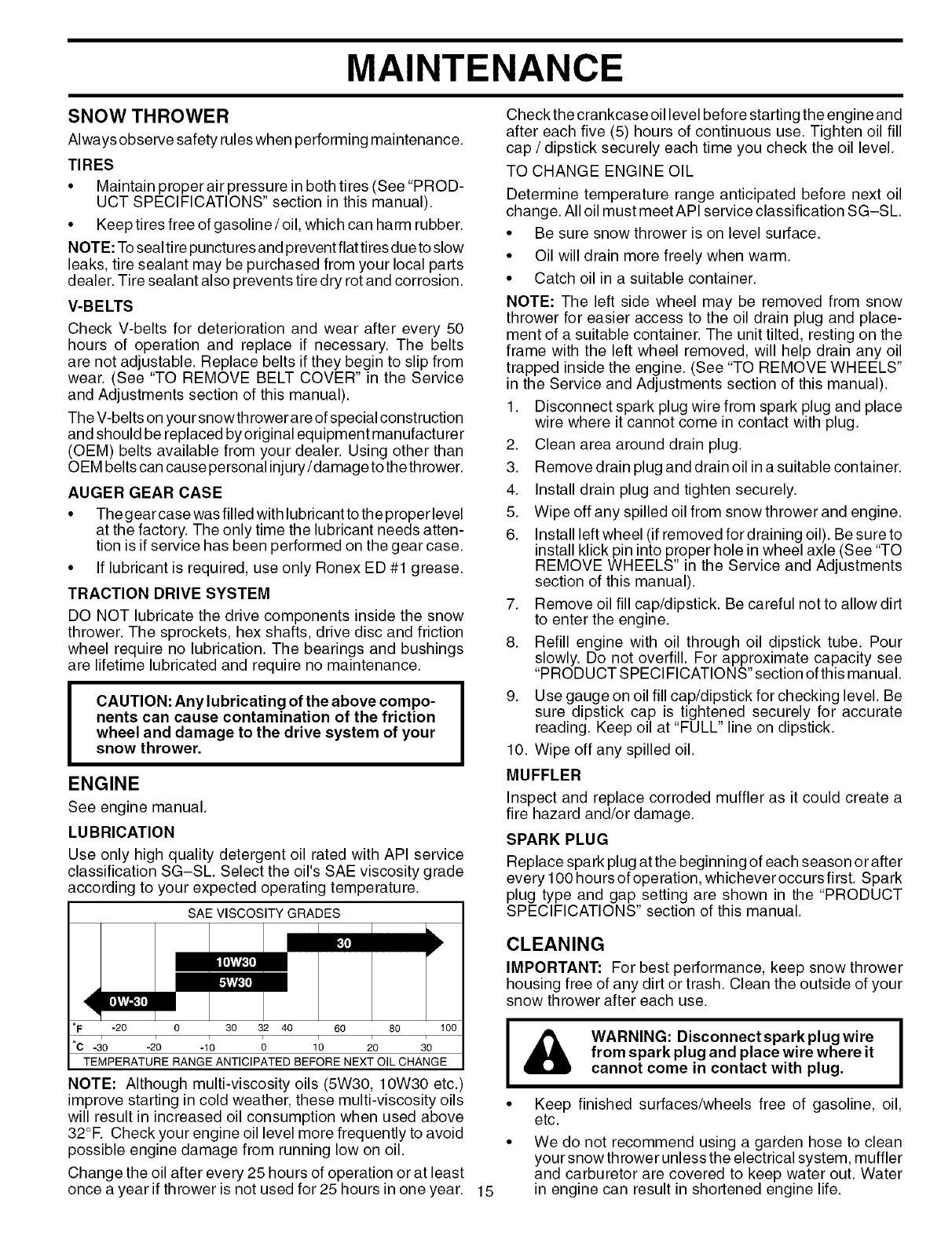

MAINTENANCE

SNOW THROWER

Always observe safety rules when performing maintenance.

TIRES

• Maintain proper air pressure in both tires (See "PROD-

UCT SPECIFICATIONS" section in this manual).

• Keep tires free of gasoline /oil, which can harm rubber.

NOTE: To sealtire punctures and prevent flat tires dueto slow

leaks, tire sealant may be purchased from your local parts

dealer. Tire sealant also prevents tire dry rot and corrosion.

V-BELTS

Check V-belts for deterioration and wear after every 50

hours of operation and replace if necessary. The belts

are not adjustable. Replace belts if they begin to slip from

wear. (See "TO REMOVE BELT COVER" in the Service

and Adjustments section of this manual).

The V-belts on you rsnowth rower are of special construction

and should be replaced by original equipment manufacturer

(OEM) belts available from your dealer. Using other than

OEM belts can cause personal injury/damageto thethrower.

AUGER GEAR CASE

• The gear case was filled with lubricant to the proper level

at the factory. The only time the lubricant needs atten-

tion is if service has been performed on the gear case.

• If lubricant is required, use only Ronex ED #1 grease.

TRACTION DRIVE SYSTEM

DO NOT lubricate the drive components inside the snow

thrower. The sprockets, hex shafts, drive disc and friction

wheel require no lubrication. The bearings and bushings

are lifetime lubricated and require no maintenance.

CAUTION: Any lubricating of the above compo-

nents can cause contamination of the friction

wheel and damage to the drive system of your

snow thrower.

ENGINE

See engine manual.

LU BRICATION

Use only high quality detergent oil rated with API service

classification SG-SL. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

i[,'I_I,]

°F -20 0 30 32 40 60 80 100

°C -10 -2; "t; ; 1; 20 10

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°R Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least

once a year if thrower is not used for 25 hours in one year. 15

Check the crankcase oil level before starting the engine and

after each five (5) hours of continuous use. Tighten oil fill

cap /dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL

Determine temperature range anticipated before next oil

change. All oil must meet API service classification SG-SL.

• Be sure snow thrower is on level surface.

•Oil will drain more freely when warm.

•Catch oil in a suitable container.

NOTE: The left side wheel may be removed from snow

thrower for easier access to the oil drain plug and place-

ment of a suitable container. The unit tilted, resting on the

frame with the left wheel removed, will help drain any oil

trapped inside the engine. (See "TO REMOVE WHEELS"

in the Service and Adjustments section of this manual).

1. Disconnect spark plug wire from spark plug and place

wire where it cannot come in contact with plug.

2. Clean area around drain plug.

3. Remove drain plug and drain oil in a suitable container.

4. Install drain plug and tighten securely.

5. Wipe off any spilled oil from snow thrower and engine.

6. Install left wheel (if removed for draining oil). Be sure to

install klick pin into proper hole in wheel axle (See "TO

REMOVE WHEELS" in the Service and Adjustments

section of this manual).

7. Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine.

8. Refill engine with oil through oil dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATION S" section of this manual.

9. Use gauge on oil fill cap/dipstick for checking level. Be

sure dipstick cap is tightened securely for accurate

reading. Keep oil at "FULL" line on dipstick.

10. Wipe off any spilled oil.

MUFFLER

Inspect and replace corroded muffler as it could create a

fire hazard and/or damage.

SPARK PLUG

Replace spark plug at the beginning of each season or after

every 100 hours of operation, whichever occurs first. Spark

plug type and gap setting are shown in the "PRODUCT

SPECIFICATIONS" section of this manual.

CLEANING

IMPORTANT: For best performance, keep snow thrower

housing free of any dirt or trash. Clean the outside of your

snow thrower after each use.

I& WARNING: Disconnectsparkplugwire I

from spark plug and place wire where it

cannot come in contact with plug.

• Keep finished surfaces/wheels free of gasoline, oil,

etc.

We do not recommend using a garden hose to clean

your snow thrower unless the electrical system, muffler

and carburetor are covered to keep water out. Water

in engine can result in shortened engine life.

SERVICE AND ADJUSTMENTS

WARNING: To avoid serious injury,

before performing any service or ad-

justments:

1. Be sure throttle is in STOP position.

2. Remove safety ignition key.

3. Make sure the augers and all moving

parts have completely stopped.

4. Disconnect spark plug wire from

spark plug and place wire where it

cannot come in contact with plug.

SNOW THROWER

TO ADJUST SNOW THROWER HEIGHT

See "TO ADJUST SKID PLATES" and "SCRAPER BAR"

in the Operation section of this manual.

CHUTE DEFLECTOR

The chute deflector, attached to the top of the discharge

chute, is provided to direct discharging snow away from

the operator. If the deflector becomes damaged, it should

be replaced.

I&WARNING: To avoid serious injury, I

never operate your snow thrower with

the deflector removed or damaged.

• To change direction and/ordistance snowis discharged,

see "TO CONTROL SNOW DISCHARGE" in the Op-

eration section of this manual.

SHEAR BOLTS (See Fig. 23)

AUGER SHEAR BOLTS

Both right and left-hand augers are secured to the auger

shaft with a shoulder/shear bolt and hex nut. Should a for-

eign object or ice become lodged in the augers, the shear

bolts are designed to break, preventing damage to any

other components. If one or both augers do not turn when

auger control lever is engaged, check to see if one or both

of the bolts have sheared. To replace the shear bolts:

1. Disengage all controls and move throttle control to

STOP position. Wait for all moving parts to stop.

2. Disconnect spark plug wire from spark plug and place

wire where it cannot come in contact with plug.

3. Align hole in auger hub with hole in auger shaft and

install a new 1/4-20 x 2" shoulder/shear bolt. Install

1/4-20 lock nut and tighten securely.

I AUTION: Do not substitute. Use only original I

equipment shear bolts as supplied with your I

snow thrower.

4. Connect spark plug wire to spark plug.

IMPELLER SHEAR BOLTS

The impeller is secured to the impeller shaft with two (2)

capscrew/shear bolts and hex nuts. Should a foreign object

or ice become lodged in the impeller, the capscrews are

designed to break, preventing damage to any other com-

ponents. If impeller does not turn when auger control lever

is engaged, check to see if the capscrews have sheared.

To replace the capscrew/shear bolts:

Disengage all controls and move throttle control to

STOP position. Wait for all moving parts to stop.

Disconnect spark plug wire from spark plug and place

wire where it cannot come in contact with plug.

Align holes in impeller hub with holes in impeller shaft

and install two (2) new 1/4-20 x 1-5/8" capscrew/shear

bolts. Install 1/4-20 Iocknuts and tighten securely.

CAUTION: Do not substitute. Use only original [

equipment capscrew/shear bolts as supplied I

with your snow thrower.

Connect spark plug wire to spark plug.

1/4-20 _1/4-20 x 1-5/8 1/4-20 x 2

LOCKNUT //7_ _CAPSCREW /SHOULDER /

\ Id// SHEAR BOLT SHEAR BOLT

1 -

LOCKNUT,--4 _ AUGER HUB AUGER SHAFT

FIG. 23

TO REMOVE BELT COVER (See Fig. 24)

1. Remove the two (2) screws securing belt cover to

frame.

2. Remove belt cover.

• Replace belt cover by installing cover and screws and

tighten securely.

16 FIG. 24

SERVICE AND ADJUSTMENTS

TO REPLACE BELTS (See Fig. 25)

The auger and traction drive belts are not adjustable. If the

belts are damaged or begin to slip from wear, they should

be replaced. It is recommended that the belt(s) be replaced

by a qualified service center.

NOTE: It is recommended that both the auger and traction

drive belt be replaced at the same time.

The V-belts on your snowth rower are of special construction

and should be replaced by original equipment manufacturer

(OEM) belts available from your nearest dealer. Using other

than OEM belts can cause personal injury or damage to

the snow thrower.

WARNING: Belt replacement requires

separation of the snow thrower. While

separating the auger housing from the

frame assembly, it is important that an

assistant stand inthe operating position

and hold the snowthrower handles. Se-

rious personal injury and/or damage to

the unit could occur if the snow thrower

should fall during the belt changing

process.

FRAME AUGER

ASSEMBLY HOUSING

HINT: Insert a 3/8" drive ratchet (in the "ON" position) into

the square hole in idler arm and rotate ratchet clockwise

to relieve tension.

8. With tension relieved on idler, install new traction drive

belt around pulleys and inside belt keepers.

9. Place auger belt around and inside the groove of auger

pulley only.

10. While your assistant slowly raises handles to rejoin

the auger housing and frame assembly, pull up on the

auger belt and squeeze sides together above pulley

so belt is fully seated in groove of pulley.

11. Bring snow thrower completely together and check

carefully for proper routing of belts. If auger belt has

become dislodged from the pulley (by catching the idler

arm bracket while bringing snow thrower together),

separate the snow thrower and repeat step 10. Belt

must be fully seated in pulley groove when bringing

the snow thrower together.

12. Install the two (2) hex bolts and lock washers and

tighten securely.

13. INSTALL ENGINE PULLEY- Place belt inpulley groove

and slide pulley on crankshaft. Install flat washer, lock-

washer and bolt and tighten securely (30-35 ft. Ibs.

torque). Make sure belt is inside belt keeper.

14. INSTALL BELT COVER and two (2) screws. Tighten

securely.

15. INSTALL DISCHARGE CHUTE - See "INSTALL DIS-

CHARGE CHUTE /CHUTE ROTATER HEAD" in the

Assembly /Pre-Operation section of this manual.

1. REMOVE GASOLINE FROM FUEL TANK- Drain gaso-

line from fuel tank into a suitable container, outdoors,

away from fire or flame. Wipe up any spilled gasoline.

2. REMOVE DISCHARGE CHUTE - Loosen Iocknut

securing chute rotator head to mounting bracket only

enough to allow chute rotator head to be raised and

discharge chute to be removed from snow thrower.

3. REMOVE BELT COVER - See "TO REMOVE BELT

COVER" in this section of this manual.

4. REMOVE ENGINE PULLEY- Remove bolt, Iockwasher

and flat washer securing pulley to engine crankshaft.

Remove outside (auger) pulley only from crankshaft.

5. SEPARATE SNOW THROWER - With your assistant

standing in the operating position holding the handles,

remove the two (2) bolts and lock washers holding

auger housing and frame together.

I & WARNING: Asthelast bolt is removed, I

have your assistant carefully lower the

handles down to the ground.

REMOVE AUGER BELT from around pulley.

RELIEVE TENSION ON TRACTION DRIVE BELT

IDLER and remove traction drive belt from around

pulleys.

HOLE

FRAME AUGER

HOUSING

LOCK

WASHER

17 FIG. 25

TO REMOVE WHEELS (See Fig. 26)

• Remove the klik pin and remove wheel from axle.

IMPORTANT: When installing wheel, be sure to use the

axle hole closest to the end of the shaft - do not use the

hole in the wheel hub (if equipped). Inner hole in axle and

hole in wheel hub are not used for your model snowth rower.

KLIK PIN (INSTALL

IN OUTER HOLE

OF AXLE ONLY)

OUTER HOLE

iAXLE

WHEEL WHEEL HUB

NOTE: To seal punctures or prevent flat tires due to slow

leaks, tire sealant may be purchased from your local parts

dealer. Tire sealant also prevents tire dry rot and corrosion.

ENGINE

See engine manual.

CARBURETOR

Your carburetor is not adjustable. Engine performance

should not be affected at altitudes up to 7,000 feet (2,134

meters). If your engine does not operate properly due to

suspected carburetor problems, take your snow thrower to

a qualified service center.

ENGINE SPEED

FIG. 26

STORAGE

Never tamper with the engine governor, which is factory set

for proper engine speed. Overspeeding the engine above

the factory high speed setting can be dangerous and will

void the warranty. If you think the engine-governed high

speed needs adjusting, contact a qualified service center,

which has proper equipment and experience to make any

necessary adjustments.

Immediately prepare your snow thrower for storage at the

end of the season or if the unit will not be used for 30 days

or more.

&WARNING: Never store the snow

thrower with gasoline in the tank inside

a building where fumes may reach an

open flame, spark or pilot light as on a

furnace, water heater, clothes dryer or

gas appliance. AIIowtheenginetocool

before storing in any enclosure.

SNOW THROWER

When snow thrower is to be stored for a period of time,

clean it thoroughly, remove all dirt, grease, leaves, etc.

Store in a clean, dry area.

1. Clean entire snow thrower (See "CLEANING" in the

Maintenance section of this manual).

2. Inspect and replace belts, if necessary (See "TO RE-

PLACE BELTS" in the Service and Adjustments section

of this manual).

Lubricate as shown in the Maintenance section of this

manual.

Be sure that all nuts, bolts, screws, and pins are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

ENGINE

See engine manual.

FUEL SYSTEM

IMPORTANT: It is important to prevent gum deposits from

forming in essential fuel system parts such as carburetor,

fuel hose, or tank during storage. Also, alcohol blended fuels

(called gasohol or using ethanol or methanol) can attract

moisture which leads to separation and formation of acids

during storage. Acidic gas can damage the fuel system of

an engine while in storage.

• Empty the fuel tank by starting the engine and letting

it run until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in min-

imizing the formation of fuel gum deposits during storage.

Add stabilizer to gasoline in fuel tank or storage container.

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to

allow the stabilizer to reach the carburetor. Do not drain the

gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean en-

gine oil. (See "ENGINE" in the Maintenance section of

this manual).

CYLINDER

1. Remove spark plug.

2. Pour one ounce (29 ml) of oil through spark plug hole

into cylinder.

3. Pull recoil starter handle slowly a fewtimes to distribute

oil.

4. Replace with new spark plug.

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your snow thrower indoors and cover

it to protect it from dust and dirt.

• Cover your snowthrower with a suitable protective cover

that does not retain moistu re. Do not use plastic. Plastic

cannot breathe, which allows condensation to form and

will cause your snow thrower to rust.

IMPORTANT: Never cover snow thrower while engine/

exhaust area is still warm.

TROUBLESHOOTING

See appropriate section in manual unless directed to a qualified service center.

PROBLEM CORRECTION

Does not start 1. 1. Turn fuel shut-off valve to OPEN position.

Loss of power

Engine idles or

runs roughly

Excessive

vibration

Recoil starter

is hard to pull

Loss of traction

drive /slowing

of drive speed

Loss of snow

discharge or

slowing of

snow discharge

CAUSE

Fuel shut-off valve (if so

equipped) in OFF position.

Safety ignition key

is not inserted.

3. Out of fuel.

4. Throttle in STOP position.

5. Choke in OFF position.

6. Primer not depressed.

7. Engine is flooded.

8. Spark plug wire is

disconnected.

9. Bad spark plug.

10. Stale fuel.

11. Water in fuel.

1. Spark plug wire loose.

2. Throwing too much snow.

3. Fuel tank cap is covered

with ice or snow.

4. Dirty or clogged muffler.

1. Choke is in FULL position.

2. Blockage in fuel line.

3. Stale fuel.

4. Water in fuel.

5. Carburetor is in need of

adjustment or overhaul.

Loose parts or damaged

augers or impeller.

1. Frozen recoil starter.

1. Drive belt is worn.

2. Drive belt is off of pulley.

3. Friction drive wheel is worn.

1. Auger belt is off of pulley.

2. Auger belt is worn.

3. Clogged discharge chute.

4. Augers/impeller jammed.

2. Insert safety ignition key.

3. Fill fuel tank.

4. Move throttle to FAST position.

5. Move to FULL position.

6. Prime as instructed in the Operation section of this manual.

7. Wait a few minutes before restarting, DO NOT prime.

8. Connect wire to spark plug.

9. Replace spark plug.

10. Drain fuel tank and carburetor, refill tank with fresh gasoline.

11. Drain fuel tank and carburetor, refill tank with fresh gasoline.

1. Reconnect spark plug wire.

2. Reduce speed and width of swath.

3. Remove ice and snow on and around fuel tank cap.

4. Clean or replace muffler.

1. Move choke to OFF position.

2. Clean fuel line.

3. Drain tank and refill with fresh, clean fuel.

4. Drain fuel tank and carburetor, refill tank with fresh gasoline.

5. Contact a qualified service center.

Tighten all fasteners. Replace damaged parts.

If vibration remains, contact a qualified service center.

See "IF RECOIL STARTER HAS FROZEN"

in the Operation section of this manual.

1. Check /replace drive belt.

2. Check /reinstall drive belt.

3. Contact a qualified service center.

1. Check /reinstall auger belt.

2. Check /replace auger belt.

3. Clean snow chute.

4. Remove debris or foreign object from augers /impeller.

REPAIR PARTS AUGER HOUSING /IMPELLER ASSEMBLY

SNOW THROWER - MODEL NO. 113OSBEXP (96195000200), PRODUCT NO. 961 95 00-02

413_

39\

3234

5O 43

44 27 z_

45 1-2

24 25

53 19

30 1

24 20

REPAIR PARTS AUGER HOUSING /IMPELLER ASSEMBLY

SNOWTHROWER - MODEL NO. 113OSBEXP (96195000200), PRODUCT NO. 961 95 00-02

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 532 18 86-63 Bar, Weight 29 532 18 40-93 Skid Plate, LH

2 532 16 67-85 Nut, Hex 5/16-18 30 532 19 95-30 Auger Assembly, RH

3 872 11 05-10 Bolt, Carriage 5/16-18 x 1-1/4 31 532 19 95-29 Auger Assembly, LH

4 532 19 10-79 Pulley, Impeller 32 532 17 46-99 O-Ring

5 532 18 89-09 Bearing Assembly, Flange 33 532 17 47-00 Bushing, Flange 3/4

6 532 15 53-77 Nut, Hex Flange 5/16-18 34 532 17 46-81 Washer, Thrust 3/4

7 532 18 03-55 Bolt, Flat Head, Carriage 35 532 17 46-84 Bearing, Thrust 3/4

5/16-18 x 5/8 36 532 17 46-60 Shaft, Impeller

8 872 27 05-05 Bolt, Carriage 5/16-1 8 x 5/8 37 532 17 46-83 Washer, Thrust 5/8

9 532 17 88-20 Nut, Cage 3/8-16 38 532 17 46-86 Bushing, Flange 5/8

10 5321881-91 Housing, Auger 39 5321500-78 Screw, HexHead 5/16-18x3/4

11 532 18 40-98 Bar, Scraper 40 532 08 64-47 Plug, Case

12 532 18 40-95 Bracket, Corner Discharge 41 532 17 46-88 Housing, Gearbox, RH

13 532 17 53-22 Base, Discharge Chute 42 532 17 46-98 Seal, Oil

14 819 11 15-07 Washer, Flat 43 532 17 47-01 Bushing, Flange, 1"

15 8100405-00 Washer, Lock 5/16 44 532 18 92-82 Key, Square 1/4x 1/4x7/8

16 8749505-12 Screw, HexHead 5/16-18x3/4 45 5321746-59 Gear, Worm

18 5321795-82 Screw, HexHead 5/16xl 46 5321746-57 Shaft, Auger

19 873 80 04-00 Nut, Hex Lock 1/4-20 47 532 17 46-87 Housing, Gearbox, LH

20 873 80 05-00 Nut, Hex Lock 5/16-18 48 532 18 41-05 Impeller Assembly

21 5321554-15 Washer, Flat 5/16 49 8747804-26 Screw, HexHead 1/4-20xl-5/8

22 532 18 40-94 Skid Plate, RH 50 532 17 53-11 Gasket, Gearbox

23 532 17 92-46 Washer, Nylon, Friction 51 532 18 42-05 Pin, Roll 3/16 x 1-1/8

24 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4 52 532 18 47-47 Bar, Drift

25 532 18 56-00 Bolt, Shoulder 1/4-20 53 532 18 79-25 Bearing, Auger

26 532 18 81-70 Bearing Retainer, Plastic 54 532 05 38-47 Washer, Flat 1/4

27 532 17 46-97 Washer, Thrust, 1" 55 532 18 82-43 Kit, Shear (Contains 6 each

28 532 19 20-90 Bolt, Shear of Key Numbers 19 and 28)

56 532 18 06-84 Multi-Wrench

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

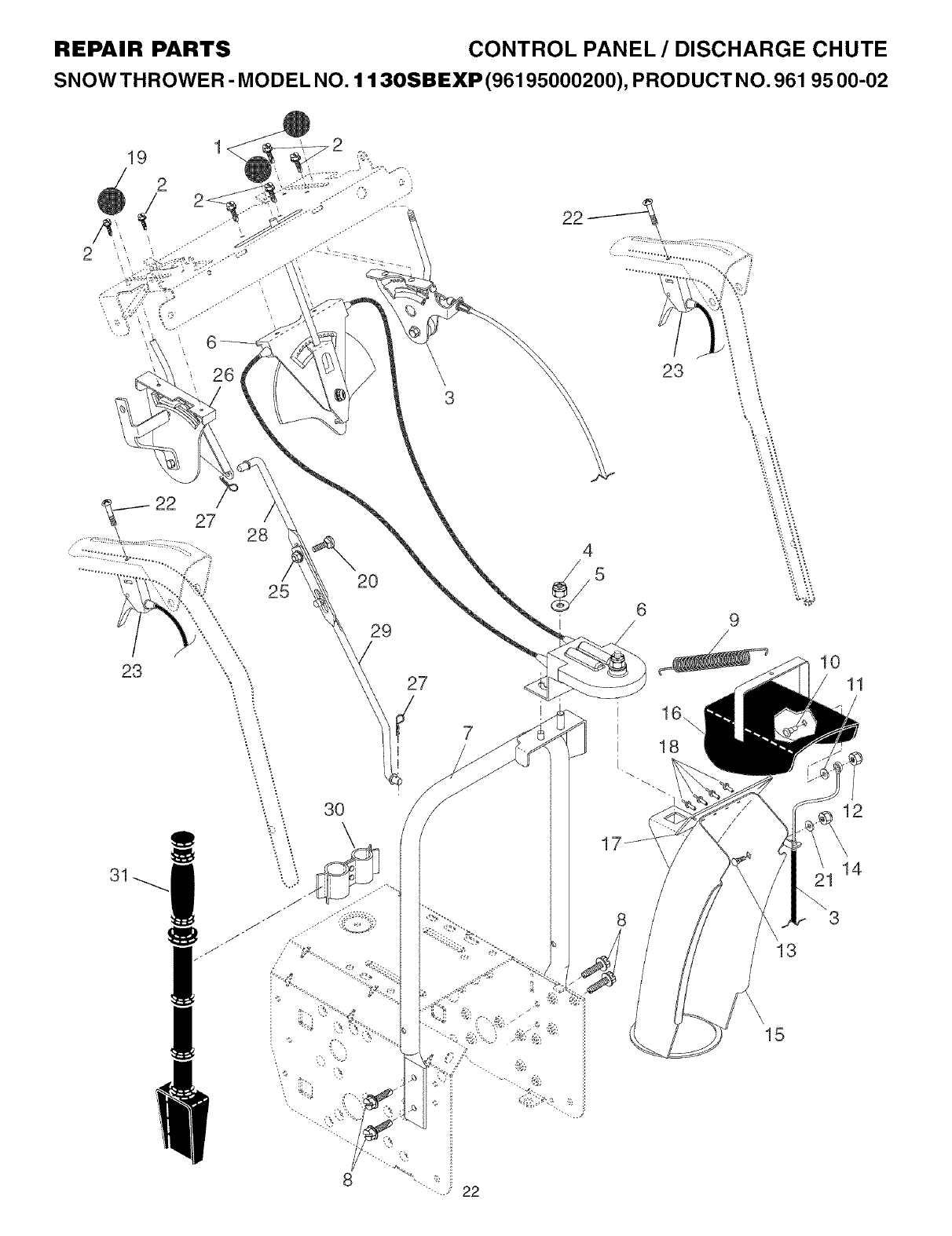

REPAIR PARTS CONTROL PANEL /DISCHARGE CHUTE

SNOW THROWER- MODEL NO. 1 13OSBEXP (96195000200), PRODUCT NO. 961 95 00-02

\26 23

:._,\'.,

1 "\

6 9

16\

!, \\

822

REPAIR PARTS CONTROL PANEL /DISCHARGE CHUTE

SNOWTHROWER - MODEL NO. 113OSBEXP (96195000200), PRODUCT NO. 961 95 00-02

KEY PART

NO. NO. DESCRIPTION

1 532 18 33-34

2 817 50 10-10

3 532 17 86-74

4 873 80 06-00

5 819 13 13-16

6 532 17 86-59

7 532 18 40-89

8 532 15 00-78

9 532 18 45-05

10 532 17 98-29

11 532 17 92-46

12 873 80 04-00

13 872 25 05-05

14 873 80 05-00

15 532 18 41-12

16 532 18 41-13

17 5321791-45

18 532 12 84-15

19 532 18 33-33

20 872 27 05-06

21 532 15 54-15

22 874 04 10-24

23 532 19 24-49

25 532 15 53-77

26 532 19 88-75

27 532 16 96-75

28 532 18 04-45

29 532 18 77-16

30 532 19 27-10

31 532 19 21-99

Knob, Lever

Screw #10-24 x 5/8

Control Assembly, Deflector

Nut, Lock 3/8-16

Washer, Flat 3/8

Control Assembly, Chute Rotater

Support, Pivot

Screw, Hex Head 5/16-18 x 3/4

Spring, Deflector

Bolt, Shoulder

Washer, Friction, Nylon

Nut, Lock 1/4-20

Bolt, Carriage 5/16-18

Nut, Lock 5/16-18

Chute Assembly

Deflector Assembly

Seal, Deflector

Rivet, Blind

Knob, Speed Control Lever

Bolt, Carriage 5/16-18 x 3/4

Washer, Flat 5/16

Screw #10-24 x 1-1/2

Control Assembly, Power Steering

Nut, Lock 5/16-18

Lever Assembly, Speed Control

Retainer, Hairpin

Rod, Upper, Speed Control

Rod, Lower, Speed Control

Clamp, Clean-Out Tool

Tool, Clean-Out

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

REPAIR PARTS HANDLES

SNOW THROWER - MODEL NO. 113OSBEXP (96195000200), PRODUCT NO. 961 95 00-02

28 3

L X

)..... \

15 22

,. ,_ 38 39

40 24

15 11

REPAIR PARTS HANDLES

SNOWTHROWER - MODEL NO. 113OSBEXP (96195000200), PRODUCT NO. 961 95 00-02

KEY PART

NO. NO. DESCRIPTION

1 532 18 41-10

2 5321841-09

3 532 17 94-39

4 532 17 88-88

5 532 16 96-75

6 532 18 35-18

7 532 17 86-52

8 532 19 95-76

9 532 19 95-75

10 532 19 95-31

11 874 78 05-24

12 874 78 05-28

13 5321841-07

14 5321841-08

15 873 80 05-00

16 819 13 13-16

17 532 17 88-99

18 532 18 45-94

19 532 19 30-81

20 532 18 04-28

21 873 35 05-00

22 872 12 06-18

23 532 18 40-87

24 532 18 04-47

25 532 18 09-26

26 532 17 86-69

27 871 21 06-16

28 532 17 53-31

30 532 18 29-06

31 532 17 52-62

32 532 18 44-71

33 532 19 95-77

34 532 18 04-02

35 532 06 80-38

36 532 17 88-31

37 532 19 38-85

38 532 17 86-66

39 532 17 86-68

40 532 18 09-64

41 532 17 88-90

42 532 19 95-78

43 532 19 63-37

44 532 19 63-38

45 532 70 02-79

46 532 17 92-46

Lever, Auger Control, RH

Lever, Traction Drive Control, LH

Nut, Cage 1/4-20

Bushing, Flange

Retainer, Hairpin

Screw, Hex Head

Rod, Interlock

Arm, Impeller Rod

Arm, Traction Rod

Panel, Control

Screw, Hex Head 5/16-18 x 1-1/2

Screw, Hex Head 5/16-18 x 1-3/4

Handle Tube, LH

Handle Tube, RH

Nut, Lock 5/16-18

Washer, Flat 3/8

Knob, Handle

Rod, Auger Control

Rod, Traction Control

End, Control Rod

Nut, Hex, Jam 5/16-18

Bolt, Carriage 3/8-16 x 2-1/4

Handle Tube, Lower

Sleeve, Spring

Spring, Traction Drive

Spring, Auger Control

Screw, Hex Head 3/8-16 x 1

Bushing, Pivot Lever

Console, Panel

Screw, Hex Head, Tapping #10-24 x 1-1/4

Screw, Hex Head, Tapping #10-24 x 1/2

Latch, Interlock

Bolt, Shoulder

Nut, Lock 1/4-20

Spring, Torsion

Spring, Interlock

Headlight, Halogen

Bezel, Headlight

Harness, Headlight (Halogen)

Nut, Cage 3/8-16

Lever, Interlock

Rod, Latch, Interlock

Rod, Arm, Interlock

Clip

Washer, Friction

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

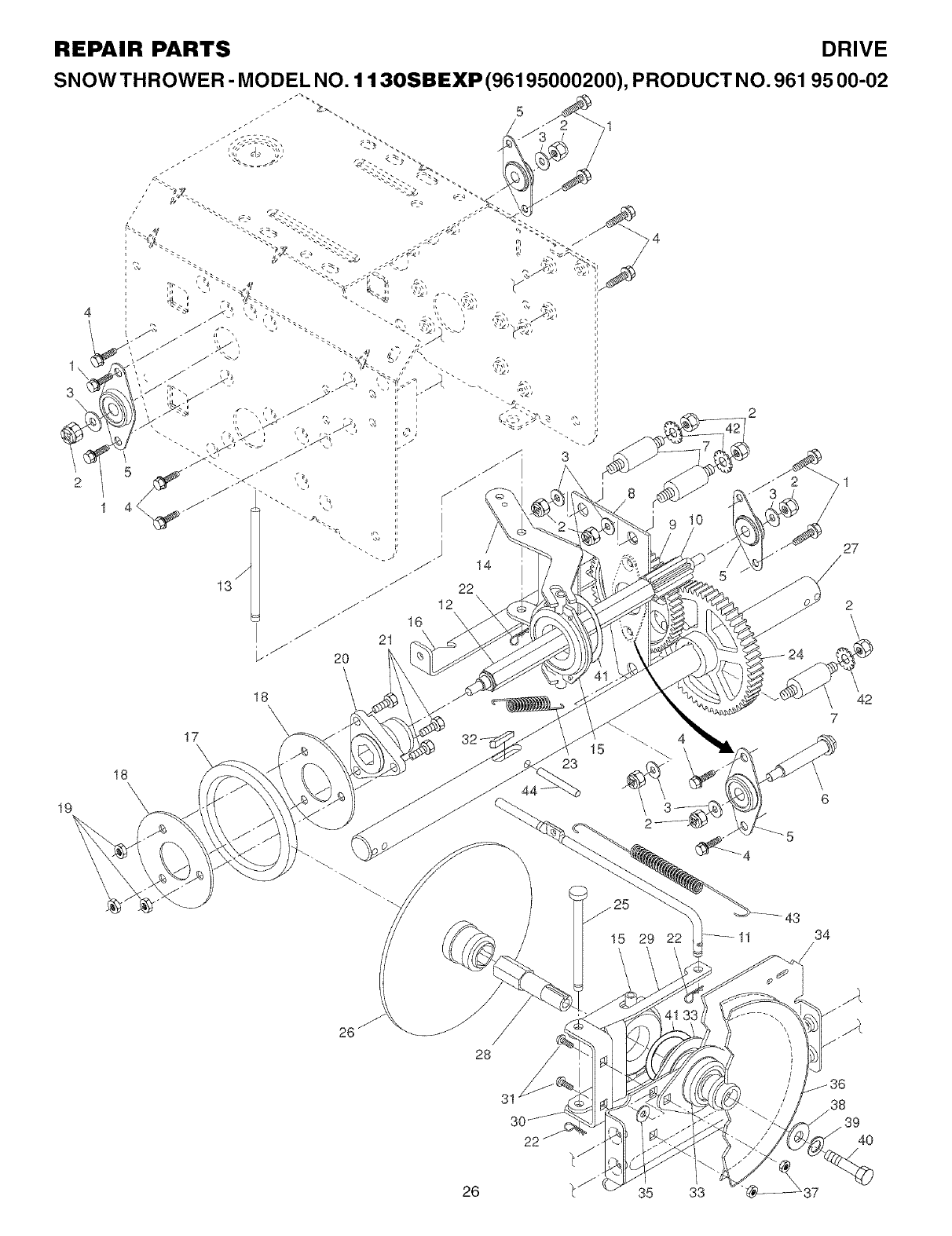

REPAIR PARTS DRIVE

SNOW THROWER - MODEL NO. 1 130SBEXP (96195000200), PRODUCT NO. 961 95 00-02

12 \

11 34

26 /

22 4O

26 35 33

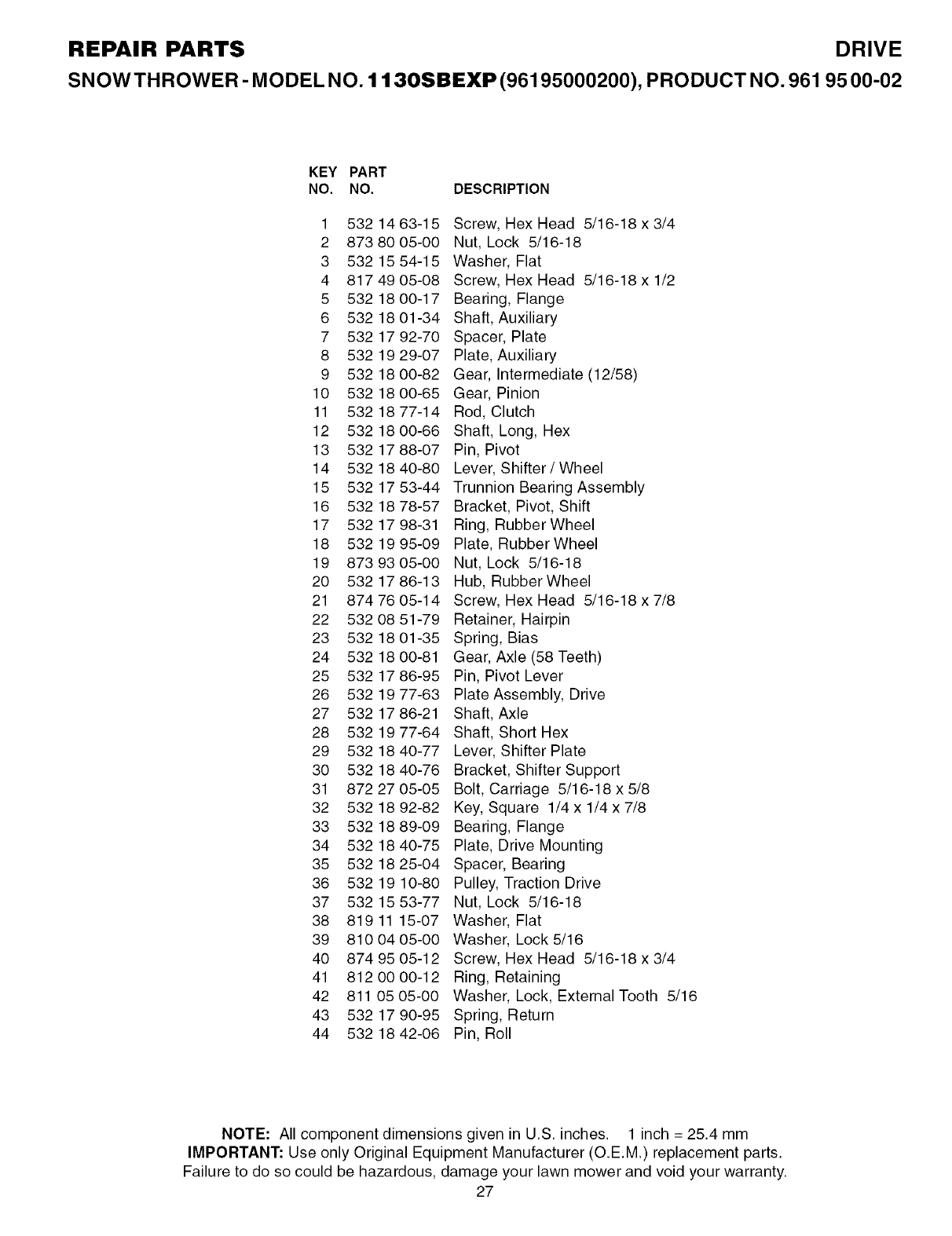

REPAIR PARTS DRIVE

SNOWTHROWER - MODEL NO. 113OSBEXP (96195000200), PRODUCT NO. 961 95 00-02

KEY PART

NO. NO. DESCRIPTION

1 5321463-15

2 873 80 05-00

3 5321554-15

4 817 49 05-08

5 5321800-17

6 532 18 01-34

7 532 17 92-70

8 532 19 29-07

9 532 18 00-82

10 532 18 00-65

11 5321877-14

12 532 18 00-66

13 532 17 88-07

14 532 18 40-80

15 532 17 53-44

16 532 18 78-57

17 532 17 98-31

18 532 19 95-09

19 873 93 05-00

20 532 17 86-13

21 874 76 05-14

22 532 08 51-79

23 532 18 01-35

24 532 18 00-81

25 532 17 86-95

26 532 19 77-63

27 532 17 86-21

28 532 19 77-64

29 532 18 40-77

30 532 18 40-76

31 872 27 05-05

32 532 18 92-82

33 532 18 89-09

34 532 18 40-75

35 532 18 25-04

36 532 19 10-80

37 532 15 53-77

38 819 11 15-07

39 810 04 05-00

40 874 95 05-12

41 812 O0 00-12

42 811 05 05-00

43 532 17 90-95

44 532 18 42-06

Screw, Hex Head 5/16-18 x 3/4

Nut, Lock 5/16-18

Washer, Flat

Screw, Hex Head 5/16-18 x 1/2

Bearing, Flange

Shaft, Auxiliary

Spacer, Plate

Plate, Auxiliary

Gear, Intermediate (12/58)

Gear, Pinion

Rod, Clutch

Shaft, Long, Hex

Pin, Pivot

Lever, Shifter /Wheel

Trunnion Bearing Assembly

Bracket, Pivot, Shift

Ring, Rubber Wheel

Plate, Rubber Wheel

Nut, Lock 5/16-18

Hub, Rubber Wheel

Screw, Hex Head 5/16-18 x 7/8

Retainer, Hairpin

Spring, Bias

Gear, Axle (58 Teeth)

Pin, Pivot Lever

Plate Assembly, Drive

Shaft, Axle

Shaft, Short Hex

Lever, Shifter Plate

Bracket, Shifter Support

Bolt, Carriage 5/16-18 x 5/8

Key, Square 1/4 x 1/4 x 7/8

Bearing, Flange

Plate, Drive Mounting

Spacer, Bearing

Pulley, Traction Drive

Nut, Lock 5/16-18

Washer, Flat

Washer, Lock 5/16

Screw, Hex Head 5/16-18 x 3/4

Ring, Retaining

Washer, Lock, External Tooth 5/16

Spring, Return

Pin, Roll

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

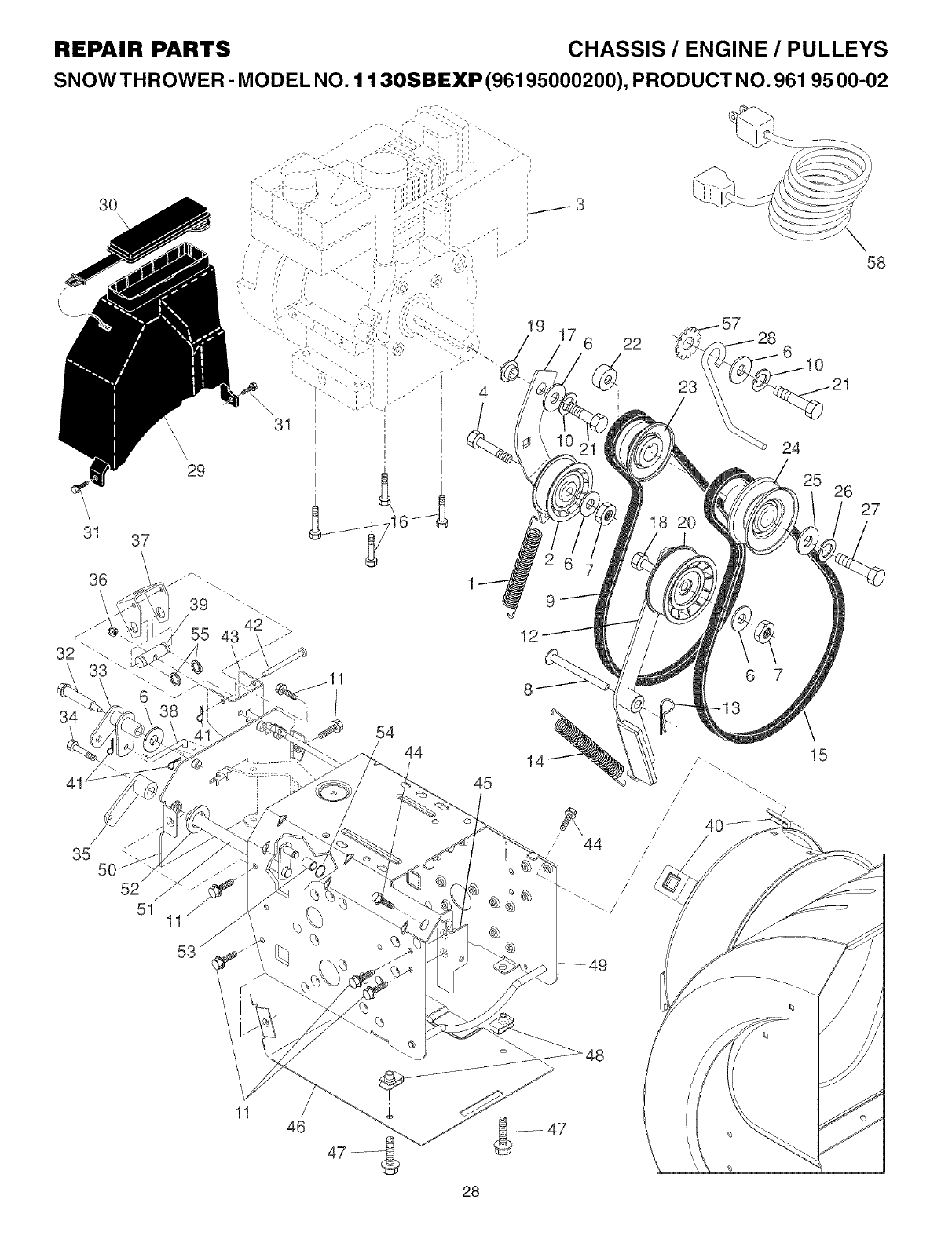

REPAIR PARTS CHASSIS /ENGINE /PULLEYS

SNOW THROWER - MODEL NO. 1 130SBEXlP (96195000200), PRODUCT NO. 961 95 00-02

3O j3

55 43

6 22

REPAIR PARTS CHASSIS /ENGINE /PULLEYS

SNOWTHROWER - MODEL NO. 1 13OSBEXP (96195000200), PRODUCT NO. 961 95 00-02

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 5321810-44

2 532 18 05-22

3 - - -

4 874 78 05-20

6 532 05 92-89

7 873 93 05-00

8 532 17 53-30

9 532 17 90-92

10 8100405-00

11 817 49 05-08

12 532 17 92-59

13 532 08 51-79

14 532 17 88-28

15 532 18 35-34

16 532 19 23-06

17 532 18 48-04

18 874 78 05-24

19 532 17 53-31

20 532 18 05-23

21 874 61 05-16

22 532 17 93-71

23 532 18 04-78

24 532 17 88-13

25 532 06 27-35

26 532 85 02-63

27 532 85 10-84

28 532 15 54-52

Spring, Traction Idler 29 532 19 22-13

Pulley, Idler (2-1/4)

Engine, Tecumseh, Model Number 30 532 17 88-30

OH318SA (For engine service and 31 817 49 04-08

replacement parts, call Tecumseh 32 532 17 92-56

Products at 1-800-558-5402) 33 532 18 78-53

Screw, Hex Head 5/16-18 x 1-1/4 34 532 18 04-01

Washer, Flat 35 532 19 57-67

Nut, Jam, Lock 5/16-18 36 873 80 05-00

Pin, Idler Pivot 37 532 18 40-86

V-Belt, Traction Drive 38 532 18 71-01

Washer, Lock 5/16 39 532 19 21-10

Screw, Hex Head 5/16-18 x 1/2 40 532 17 88-20

Impeller Arm /Pad Assembly 41 532 70 02-79

Retainer, Hairpin 42 532 17 90-65

Spring, Brake 43 532 18 40-85

V-Belt, Impeller Drive 44 871 21 06-16

Screw, Hex Head 3/8-16 x 1-1/4 45 532 18 40-74

Arm, Idler 46 532 18 40-84

Screw, Hex Head 5/16-18 x 1-1/2 47 871 02 05-12

Bushing, Idler Pivot 48 532 18 11-56

Pulley, Idler (2-3/4) 49 532 18 40-73

Screw, Hex Head 5/16-18 x 1 50 532 18 80-02

Spacer, Engine Pulley 51 532 19 95-14

Pulley, Engine, Traction Drive 52 532 05 70-79

Pulley, Engine, Impeller Drive 53 532 19 22-75

Washer, Flat 3/8 54 812 O0 00-02

Washer, Lock, Helical 3/8 55 532 19 21-47

Screw, Hex Head 3/8-24 x 1-3/8 57 811 05 05-00

Guide, Belt 58 532 18 38-54

Belt Cover Assembly

(Includes Toolbox Cover)

Cover, Toolbox

Screw, Hex Head 1/4-20 x 1/2

Bolt, Shoulder 5/16-18

Bellcrank Shifter

Screw, Hex Head 1/4-28 x 3/4

Arm, Auger Control

Nut, Lock 5/16-18

Bellcrank

Link, Speed Control

Trunnion, Pivot Bracket

Nut, Cage 3/8-16

Hairpin, Cotter 3/32 x 1/2

Pin, Bellcrank

Bracket, Bellcrank

Screw, Hex Head

Pivot Bracket, Impeller Idler Arm

Pan, Frame Bottom

Screw, Hex Head 5/16-18 x 3/4

Nut, Speed 5/16-18

Frame Assembly

Plate, Frame End

Shaft, Auger Control

Washer, Hardened

Roller

E-Ring

Ring, Crescent

Washer, Lock, External Tooth 5/16

Power Cord

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

REPAIR PARTS WHEELS /DECALS

SNOW THROWER - MODEL NO. 1 130SBEXlP (96195000200), PRODUCT NO. 961 95 00-02

9 4

10 18 3O

, 21

19 32 13

1 13 2

}

5 11 /

1 13 _ 3 30

REPAIR PARTS WHEELS /DECALS

SNOWTHROWER - MODEL NO. 113OSBEXP (96195000200), PRODUCT NO. 961 95 00-02

KEY PART

NO. NO.

1 532 19 95-01

2 532 15 54-43

3 5321921-09

4 532 18 44-71

7 871 21 06-16

8 532 18 78-59

9 532 18 78-58

10 817 60 04-06

11 817 49 05-08

12 532 19 57-49

13 532 19 94-19

14 532 18 20-15

15 532 19 95-18

16 532 19 95-12

17 532 19 95-11

18 5321818-47

19 532 08 51-79

20 532 18 41-97

21 532 19 21-26

22 532 18 24-66

23 532 18 76-22

24 532 19 49-41

25 532 17 91-39

26 532 19 49-40

27 532 18 92-82

28 532 1746-97

29 532 17 98-30

30 532 19 38-85

31 532 19 95-20

32 532 70 02-79

33 812 00 00-45

34 532 1463-15

DESCRIPTION

Wheel Assembly, 16", Power Steering, LH

Pin, Klik 1/4

Cover, Power Steering

Bolt, Shoulder #10-24 x 5/8

Capscrew, Hex Head, Flanged 3/8-16 x 1

Bracket, Steering Cable, RH

Bracket, Steering Cable, LH

Screw, Hex Head 1/4-20 x 3/8

Screw, Hex Head 5/16-18 x 1/2

Link, Steering Lever

Yoke, Steering

Pin, Steering Lever

Bellcrank

Bracket Assembly, LH Steering

Bracket Assembly, RH Steering

Pin, Steering Bellcrank

Retainer, Hairpin

Bracket, Steering

Driver, Wheel

Ring, Wire Retainer

Lobe, Wheel

Slide, Clutch

Spring, Clutch Slide

Lobe, Axle

Key, Square

Washer, Thrust (1")

Bearing, Axle

Spring, Return

Wheel Assembly, 16", Power Steering, RH

Clip, Retainer

Ring, Retaining

Screw, Hex Head 5/16-18 x 5/8

KEY PART

NO. NO.

1 5321810-38

2 5321913-78

3 5321810-34

4 5321810-41

5 532 19 87-41

6 5321810-32

7 532 15 57-98

8 532 15 58-00

9 5321810-36

10 532 18 37-29

11 532 18 39-07

12 532 18 39-05

13 532 15 57-94

-- 5321915-54

-- 532 19 92-96

DESCRIPTION

Decal, Danger

Decal, Husqvarna

Decal, Danger, Deflector

Decal, Danger

Decal, Husqvarna, 1130SBE

Decal, Instruction

Decal, Traction Lever

Decal, Auger Lever

Decal, Speed Control

Decal, Remote Deflector

Decal, LH Trigger

Decal, RH Trigger

Decal, Husqvarna, Crown

Decal, Lowe's Service (not shown)

Owner's Manual

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

o'1

IX3

.--L

"-4

i,o

"-4

o'1

133

.-<

Husqvarna

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company ("Husqvarna") warrants Husqvarna product to the original pur-

chaser to be free from defects in material and workmanship from the date of purchase for the "Warranty

Period" of the product as set forth below:

_ite;time,Warranty: Alt tiller tines against breakage, trimmer shafts, ignition coils and modules on hand

eta proauct.

3 Year Warranty: Spindles (on Zero Turn Riders and Commercial Walk-Behinds)

2Year COMMERCIAL-Warranty: Husqvarna Commercial Turf Equipment--zero turn riders, wide area

walks, and ground engaging commercial equipment.

2Year NON-COMMERCIAL Warranty: Automatic Mower, Riding tawn mowers, yard and garden tractors,

walk behind mowers, tillers, chain saws, trimmers, brushcutters, clearing saws, snow btowers, handheld

blowers, backpack blowers, hedge trimmers, electrical products and power-assist coflection systems for

noncommercial nonprofessional noninstitutionai or nonincome producing use, except as herein stated.

Emission control system components necessary to comply with CARB-TIER-N and EPA regulations,

except for those components which are part of engine systems manufactured by third party engine manu-

facturers for which the purchaser has received a separate warranty with product information supptied at

time of purchase.

1Year Warranty: Power cutters, stump grinder, pole pruners and pote saws for non-commercial non-pro-

fessional non-institutional or non-income producing use. All trimmers, brushcutters, clearing saws, hover-

ing trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection

systems used for commercial institutional professional or income producing purposes or use.

Batteries have a one-year prorated limited warranty with t00% replacement during the first 6 months.

90 Day Warranty: Automatic Mower, Chain saws, power cutters, stump grinders, pole saws, poie prun-

ers, snow throwers, model series 580 & 600 walk-behind mowers and commercial turf equipment or any

Husqvarna product used for commercial institutional professional or income producinq purposes or use

except as otherwise provided herein.

Husqvarna Safety Apparel carries a 90-day warranty from the date of the customer's original purchase

for defects in material and workmanship. Normal wear, tear or abuse is not covered under warranty. Prod-

uct must be returned to Charlotte with a warranty claim form. All care and maintenance instructions must

be fotlowed as stated by the manufacturer on the care label The fit of the protective apparel/boot is not

covered under warranty.

30 Day Warranty: Replacement parts, accessories including bars and chains, toots and display items.

SECTION 2: HUSQVARNA'S OBLIGATIONS UNDER THE WARRANTY

Husqvarna wilt repair or replace defective components without charge for parts or Iabor if a component

faiIs because of a defect in material or workmanship during the warranty period.

SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY

The following items are not covered by this warranty:

(1)Normal customer maintenance items which become worn through normal regular use, including, but

not limited to, betts, blades, blade adapters, bulbs, fiIters, guide bars, lubbcants, rewind springs, saw

chain, spark ptugs, starter ropes and tines;

(2)Natural discoloration of material due to ultraviolet tight;

(3)Engine and drive systems not manufactured by Husqvarna; these items are covered by the respective

manufacturer's warranty as provided in writing with the product information supplied at the time of pur-

chase; atl claims must be sent to the appropriate manufacturer;

(4)Lawn and garden attachments are covered by a third party which gives a warranty, ail claims for war-

ranty should be sent to the manufacturer; and

(5)Emission Control System components necessary to comply with CARB-TERd! and EPA regulations

which are manufactured by third party engine manufacturer.

WARRANTY STATEMENT

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shail be inapplicable to defects resulting from the following:

(1)Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust,

corrosion, or any adverse reaction due to incorrect storage or use habits;

(2)Failure to operate or maintain the unit in accordance with the Owner's/Operator's manual or instruc-

tion sheet furnished by Husqvarna;

(3)Alterations or modifications that change the intended use of the product or affects the product's per-

formance, operation, safety, or durability, or causes the product to fail to comply with any applicable

taws; or:

(4)Additional damage to parts or components due to continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY iS THE EXCLUSIVE REMEDY OF

THE PURCHASER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES FOR BREACH OF ANY EXPRESS OR iMPLIED WARRANTY ON THESE PRODUCTS EXCEPT

TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY iMPLIED WARRANTY OF MERCHANTABIL-

ITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO

THE WARRANTY PERIOD AS DEFINED iN THE LIMITED WARRANTY STATEMENT. HUSQVARNA RE-

SERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NOTICE,

AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PRODUCTS.

Some states do not atlow the exclusion of incidental or consequential damages, or limitations on how long

an implied warranty tasts, so the above limitations or exclusions may not apply to you. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written

inthe maintenance section of the Owner's/Operator's manual Should an operational problem or failure occur,

the product should not be used, but delivered as is to an authorized Husqvarna dealer for evaluation. Proof

of purchase, as explained in section 6, rests soiety with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION

It is the Owner's and Dealer's responsibility to make certain that the Warranty Registration Card is properly

fiIled out and mailed to Husqvarna Forest & Garden Company. This card shoutd be mailed within ten (10) days

from the date of purchase in order to confirm the warranty and to facilitate post-sate service.

Proof of purchase must be presented to the authorized Husqvarna dealer in order to obtain warranty ser-

vice. This proof must include date purchased, modet number, serial number, and complete name and address

of the selling deater.

To obtain the benefit of this warranty, the product believed to be defective must be delivered to an au-

thorized Husqvarna dealer in a timely manner, no later than thirty (30) days from date of the operational

problem or failure. The product must be delivered at the owner's expense. Pick-up and detivery charges are

not covered by this warranty. An authorized Husqvarna dealer can be normatIy located through the "Yellow

Pages" of the local telephone directory or by catIing 1-800-HUSKY62 for a deater in your area.

HUSQVARNA

7349 Statesville Road

Charlotte, NC 28269 53t 83 81-23 2002

Husqvarna 1130SBEXP User Manual SNOWTHROWER Manuals And Guides L0530584

HUSQVARNA Snowthrower, Gas Manual L0530584 HUSQVARNA Snowthrower, Gas Owner's Manual, HUSQVARNA Snowthrower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
