Husqvarna

YTH2448

Owner's Manual

For Parts and Service, call 1-800-77LOWES

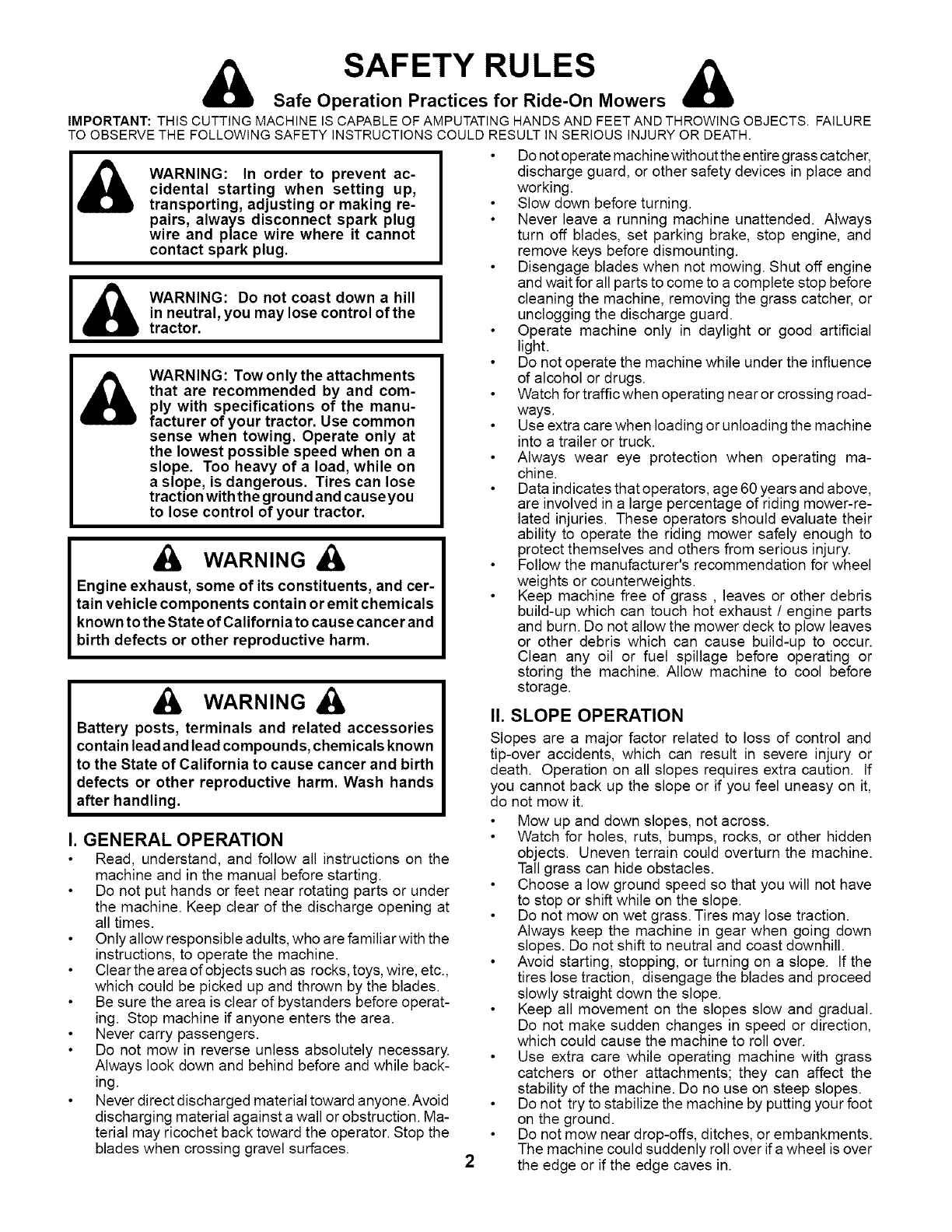

SAFETY RULES &

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEETANDTHROWING OBJECTS. FAILURE

TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

Do not operate machine without the entire grass catcher,

WARNING: In order to prevent ac-

cidental starting when setting up,

transporting, adjusting or making re-

pairs, always disconnect spark plug

wire and place wire where it cannot

contact spark plug.

I i_1) WARNING: Do not coast down a hill I

in neutral, you may lose control of the I

tractor.

&WARNING: Tow only the attachments

that are recommended by and com-

ply with specifications of the manu-

facturer of your tractor. Use common

sense when towing. Operate only at

the lowest possible speed when on a

slope. Too heavy of a load, while on

a slope, is dangerous. Tires can lose

traction with the ground and causeyou

to lose control of your tractor.

WARNING

Engine exhaust, some of its constituents, and cer-

tain vehicle components contain or emit chemicals

known to the State of California to cause cancer and

birth defects or other reproductive harm.

WARNING

Battery posts, terminals and related accessories

contain lead and lead compounds, chemicals known

to the State of California to cause cancer and birth

defects or other reproductive harm. Wash hands

after handling.

I. GENERAL OPERATION

Read, understand, and follow all instructions on the

machine and in the manual before starting.

Do not put hands or feet near rotating parts or under

the machine. Keep clear of the discharge opening at

all times.

Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blades.

Be sure the area is clear of bystanders before operat-

ing. Stop machine if anyone enters the area.

Never carry passengers.

Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while back-

ing.

Never direct discharged material toward anyone. Avoid

discharging material against a wall or obstruction. Ma-

terial may ricochet back toward the operator. Stop the

blades when crossing gravel surfaces. 2

discharge guard, or other safety devices in place and

working.

Slow down before turning.

Never leave a running machine unattended. Always

turn off blades, set parking brake, stop engine, and

remove keys before dismounting.

Disengage blades when not mowing. Shut off engine

and wait for all parts to come to a complete stop before

cleaning the machine, removing the grass catcher, or

unclogging the discharge guard.

Operate machine only in daylight or good artificial

light.

Do not operate the machine while under the influence

of alcohol or drugs.

Watch for traffic when operating near or crossing road-

ways.

Use extra care when loading or unloading the machine

into a trailer or truck.

Always wear eye protection when operating ma-

chine.

Data indicates that operators, age 60 years and above,

are involved in a large percentage of riding mower-re-

lated injuries. These operators should evaluate their

ability to operate the riding mower safely enough to

protect themselves and others from serious injury.

Follow the manufacturer's recommendation for wheel

weights or counterweights.

Keep machine free of grass, leaves or other debris

build-up which can touch hot exhaust /engine parts

and burn. Do not allow the mower deck to plow leaves

or other debris which can cause build-up to occur.

Clean any oil or fuel spillage before operating or

storing the machine. Allow machine to cool before

storage.

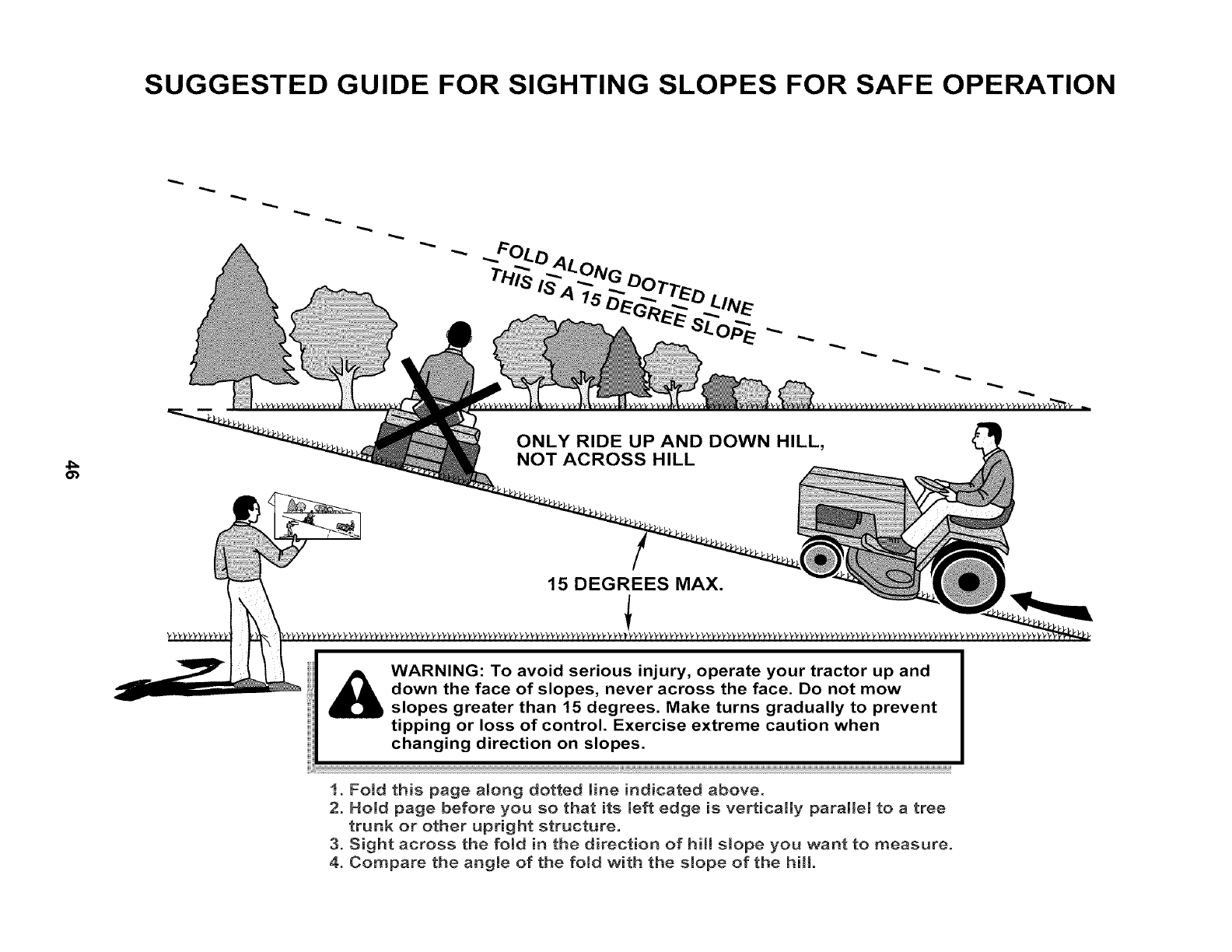

II. SLOPE OPERATION

Slopes are a major factor related to loss of control and

tip-over accidents, which can result in severe injury or

death. Operation on all slopes requires extra caution. If

you cannot back up the slope or if you feel uneasy on it,

do not mow it.

Mow up and down slopes, not across.

Watch for holes, ruts, bumps, rocks, or other hidden

objects. Uneven terrain could overturn the machine.

Tall grass can hide obstacles.

Choose a low ground speed so that you will not have

to stop or shift while on the slope.

Do not mow on wet grass. Tires may lose traction.

Always keep the machine in gear when going down

slopes. Do not shift to neutral and coast downhill.

Avoid starting, stopping, or turning on a slope. If the

tires lose traction, disengage the blades and proceed

slowly straight down the slope.

Keep all movement on the slopes slow and gradual.

Do not make sudden changes in speed or direction,

which could cause the machine to roll over.

Use extra care while operating machine with grass

catchers or other attachments; they can affect the

stability of the machine. Do no use on steep slopes.

Do not try to stabilize the machine by putting your foot

on the ground.

Do not mow near drop-offs, ditches, or embankments.

The machine could suddenly roll over ifa wheel is over

the edge or if the edge caves in.

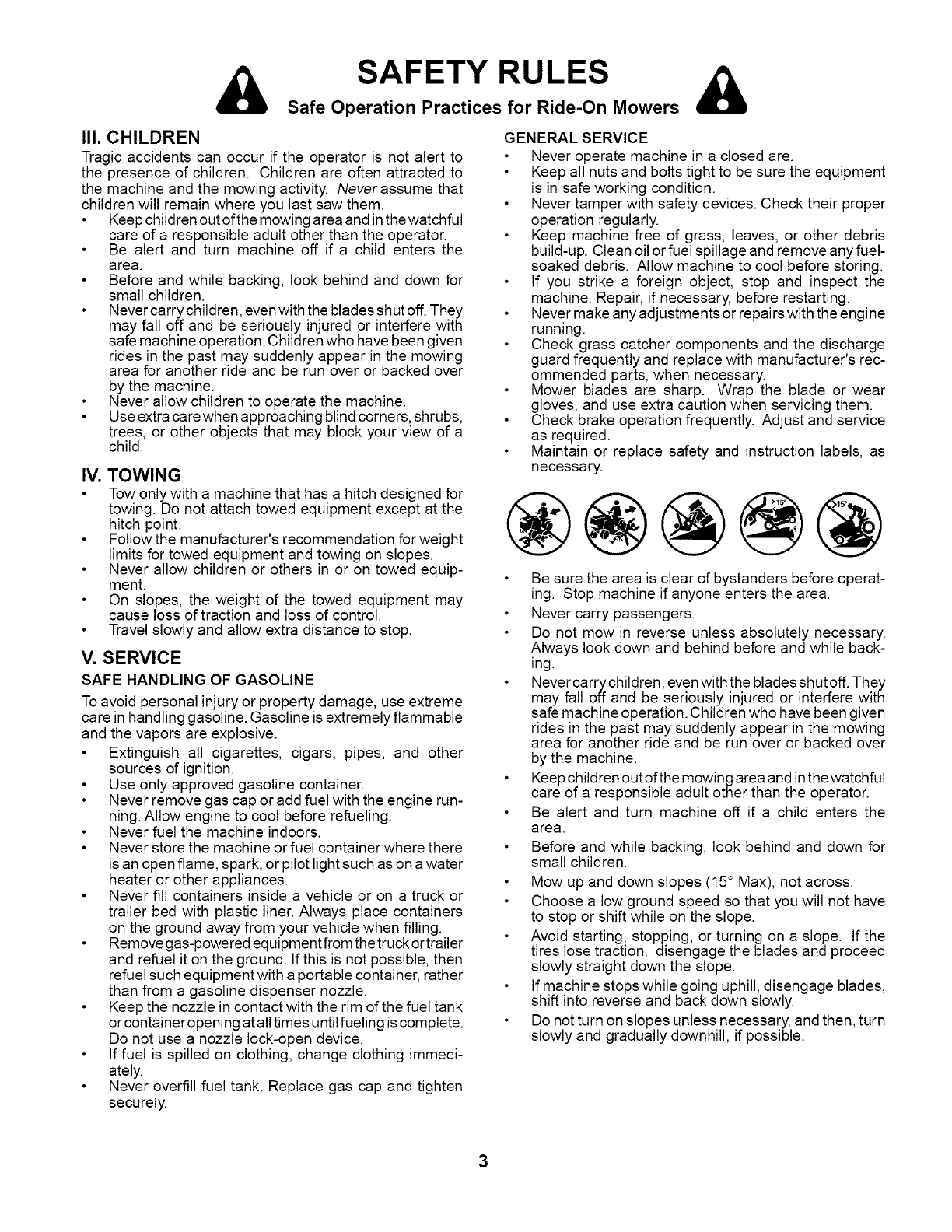

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

II1. CHILDREN

Tragic accidents can occur if the operator is not alert to

the presence of children. Children are often attracted to

the machine and the mowing activity. Never assume that

children will remain where you last saw them.

Keep child ren out of the mowing area and inthe watchful

care of a responsible adult other than the operator.

Be alert and turn machine off if achild enters the

area.

Before and while backing, look behind and down for

small children.

Never carry children, even with the blades shut off. They

may fall off and be seriously injured or interfere with

safe machine operation. Children who have been given

rides in the past may suddenly appear in the mowing

area for another ride and be run over or backed over

by the machine.

Never allow children to operate the machine.

Use extra care when approaching blind corners, shrubs,

trees, or other objects that may block your view of a

child.

IV. TOWING

Tow only with a machine that has a hitch designed for

towing. Do not attach towed equipment except at the

hitch point.

Follow the manufacturer's recommendation for weight

limits for towed equipment and towing on slopes.

Never allow children or others in or on towed equip-

ment.

On slopes, the weight of the towed equipment may

cause loss of traction and loss of control.

Travel slowly and allow extra distance to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property damage, use extreme

care in handling gasoline. Gasoline is extremely flammable

and the vapors are explosive.

Extinguish all cigarettes, cigars, pipes, and other

sources of ignition.

Use only approved gasoline container.

Never remove gas cap or add fuel with the engine run-

ning. Allow engine to cool before refueling.

Never fuel the machine indoors.

Never store the machine or fuel container where there

is an open flame, spark, or pilot light such as on a water

heater or other appliances.

Never fill containers inside a vehicle or on a truck or

trailer bed with plastic liner. Always place containers

on the ground away from your vehicle when filling.

Remove gas-powered equipmentfrom the truck ortrailer

and refuel it on the ground. If this is not possible, then

refuel such equipment with a portable container, rather

than from a gasoline dispenser nozzle.

Keep the nozzle in contact with the rim of the fuel tank

or container opening at alltimes until fueling is complete.

Do not use a nozzle lock-open device.

If fuel is spilled on clothing, change clothing immedi-

ately.

Never overfill fuel tank. Replace gas cap and tighten

securely.

GENERAL SERVICE

Never operate machine in a closed are.

Keep all nuts and bolts tight to be sure the equipment

is in safe working condition.

Never tamper with safety devices. Check their proper

operation regularly.

Keep machine free of grass, leaves, or other debris

build-up. Clean oil or fuel spillage and remove any fuel-

soaked debris. Allow machine to cool before storing.

If you strike a foreign object, stop and inspect the

machine. Repair, if necessary, before restarting.

Never make any adjustments or repairs with the engine

running.

Check grass catcher components and the discharge

guard frequently and replace with manufacturer's rec-

ommended parts, when necessary.

Mower blades are sharp. Wrap the blade or wear

gloves, and use extra caution when servicing them.

Check brake operation frequently. Adjust and service

as required.

Maintain or replace safety and instruction labels, as

necessary.

®@@@@

Be sure the area is clear of bystanders before operat-

ing. Stop machine if anyone enters the area.

Never carry passengers.

Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while back-

ing.

Never carry children, even with the blades shut off. They

may fall off and be seriously injured or interfere with

safe machine operation. Children who have been given

rides in the past may suddenly appear in the mowing

area for another ride and be run over or backed over

by the machine.

Keep child ren out of the mowing area and inthe watchful

care of a responsible adult other than the operator.

Be alert and turn machine off if a child enters the

area.

Before and while backing, look behind and down for

small children.

Mow up and down slopes (15° Max), not across.

Choose a low ground speed so that you will not have

to stop or shift while on the slope.

Avoid starting, stopping, or turning on a slope. If the

tires lose traction, disengage the blades and proceed

slowly straight down the slope.

If machine stops while going uphill, disengage blades,

shift into reverse and back down slowly.

Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline Capacity 4 Gallons

and type: Unleaded Regular

Oil Type (API-SG-SL): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.75 Pints

Spark Plug: Champion QC12YC

(Gap: .040")

Ground Speed (MPH): Forward: 0 - 5.5

Reverse: 0 - 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 16 AMPS @ 3600 RPM

Battery: AMP/HR: 35

MIN. CCA: 280

Case Size: U1R

Blade Bolt Torque: 45-55FT. LBS.

CONGRATULATIONS on your purchase of a new tractor.

Ithas been designed, engineered and manufactured to give

you the best possible dependability and performance.

Should you experience any problem you cannot easily rem-

edy, please contact your nearest authorized servicecenter/

department We have competent, well-trained technicians

and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

Read and observe the safety rules.

Follow a regular schedule in maintaining, caring for

and using your tractor.

Follow the instructions under "Maintenance" and "Stor-

age" sections of this owner's manual.

WARNING: This tractor is equipped with an internal com-

bustion engine and should not be used on or near any

unimproved forest-covered, brush-covered orgrass-covered

land unless the engine's exhaust system is equipped with

a spark arrester meeting applicable local or state laws (if

any). If a spark arrester is used, it should be maintained

in effective working order by the operator.

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code).

Other states may have similar laws. Federal laws apply on

federal lands.

A spark arrester for the muffler is available through your

nearest authorized service center/department (See REPAIR

PARTS section of this manual).

TABLE OF CONTENTS

SAFETY RULES ......................................................... 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ................................. 4

ASSEMBLY ................................................................. 6-9

OPERATION ........................................................... 10-15

MAINTENANCE SCHEDULE ...................................... 16

MAINTENANCE ..................................................... 16-19

SERVICE AND ADJUSTMENTS ............................ 20-25

STORAGE .................................................................... 26

TROUBLESHOOTING ............................................ 27-28

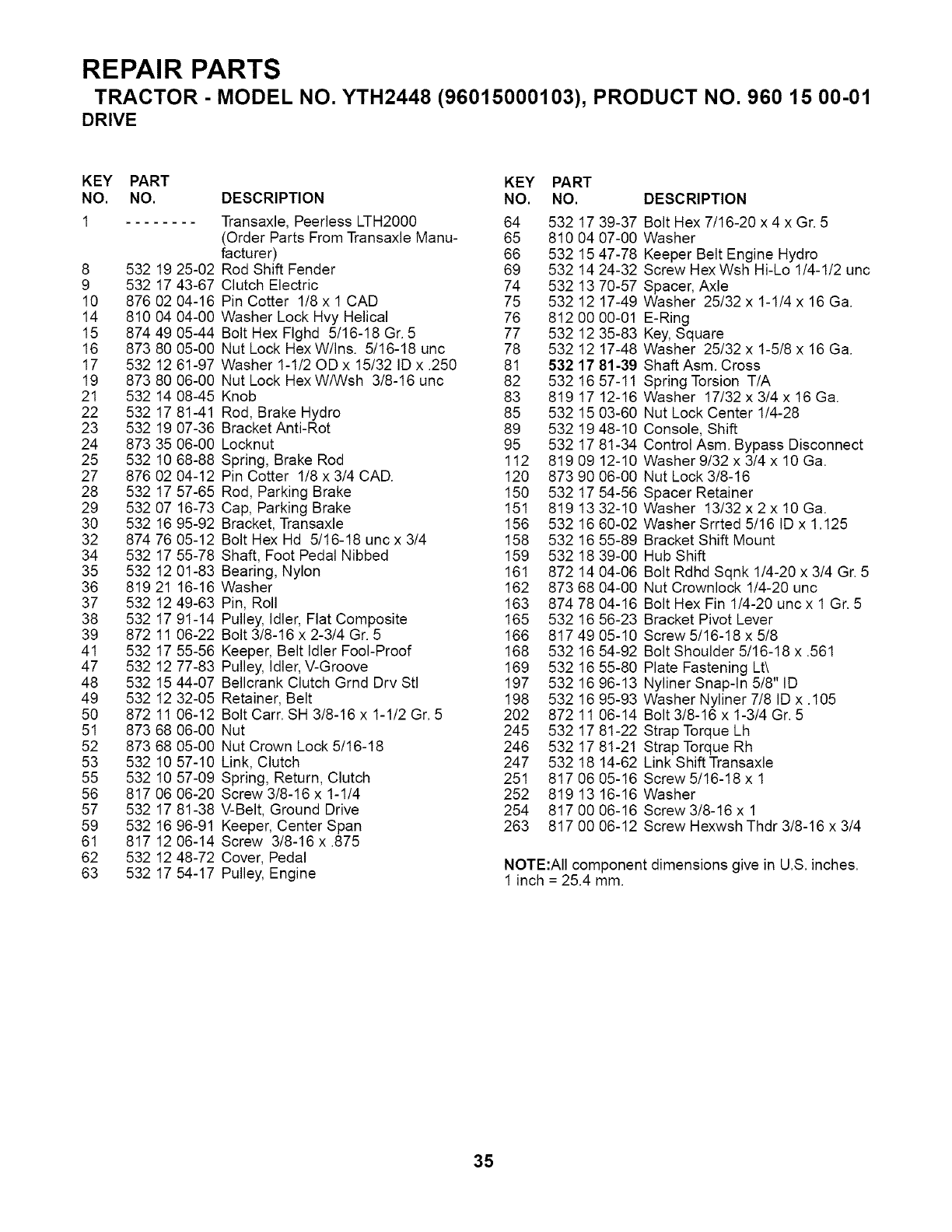

REPAIR PARTS - TRACTOR ................................. 30-45

UNASSEMBLED PARTS

Steering Wheel Mower

_ teering

Wheel

Adapter

Steering

Wheel Insert

(2)Flanged

Pins j,

(1)Front Plate

Assembly

(2) Retainer Springs (5) Retainer Springs

o (4) Adjusting Bars

Gauge Wheels

(4) Locknuts 3/8-16

4) etainer Springs

(double loop)

(4) Shoulder Bolt's_

(4) Wheels

(4) Washers

3/8 x 3/4 x 14 Ga.

(4) Clevis Pins

(2) Locknuts

5/16 x 18

Nose Roller

(2) Hex Bolts

5/16x18x1

I I

Nose Roller

Retainer Spring

Nose

Roller

Brackets

Seat

(1) Washer 17/32 x 1-3/16 x 12 Gauge

_ (1) Knob

Keys Slope Sheet

(2) Keys

(1) Oil Drain Tube

For Future Use

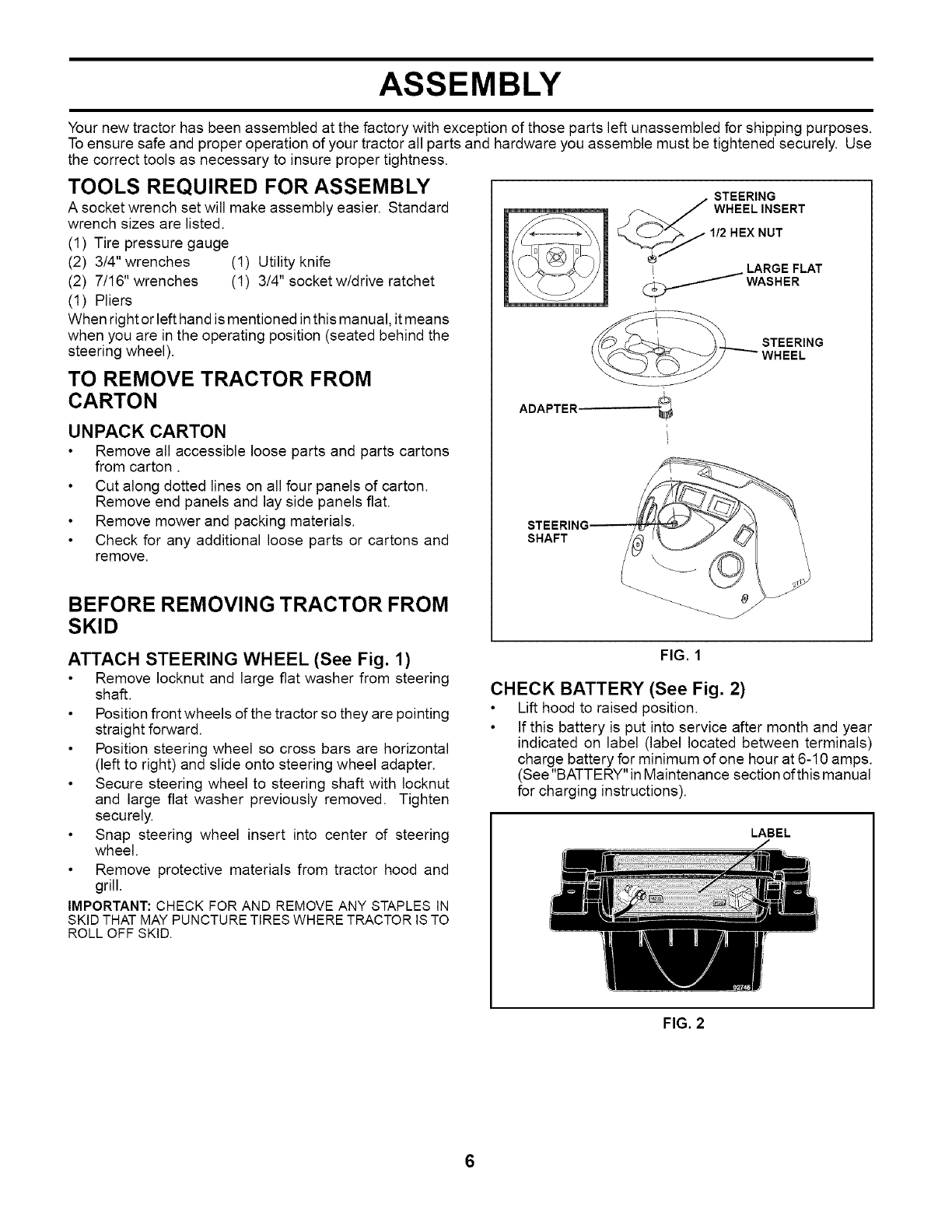

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

(1) Tire pressure gauge

(2) 3/4" wrenches (1) Utility knife

(2) 7/16" wrenches (1) 3/4" socket w/drive ratchet

(1) Pliers

When right or left hand is mentioned in this manual, it means

when you are in the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

Remove all accessible loose parts and parts cartons

from carton.

Cut along dotted lines on all four panels of carton.

Remove end panels and lay side panels flat.

Remove mower and packing materials.

Check for any additional loose parts or cartons and

remove.

BEFORE REMOVING TRACTOR FROM

SKID

ATTACH STEERING WHEEL (See Fig. 1)

Remove Iocknut and large flat washer from steering

shaft.

Position front wheels of the tractor so they are pointing

straight forward.

Position steering wheel so cross bars are horizontal

(left to right) and slide onto steering wheel adapter.

Secure steering wheel to steering shaft with Iocknut

and large flat washer previously removed. Tighten

securely.

Snap steering wheel insert into center of steering

wheel.

Remove protective materials from tractor hood and

grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES IN

SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR IS TO

ROLL OFF SKID.

ADAPTER

_STEERING

WHEEL INSERT

I/2 HEX NUT

/LARGE FLAT

_WASHER

WHEEL

SHAFT

FIG. 1

CHECK BATTERY (See Fig. 2)

Lift hood to raised position.

If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amps.

(See "BATTERY" inMaintenance section of this manual

for charging instructions).

LABEL

FIG. 2

ASSEMBLY

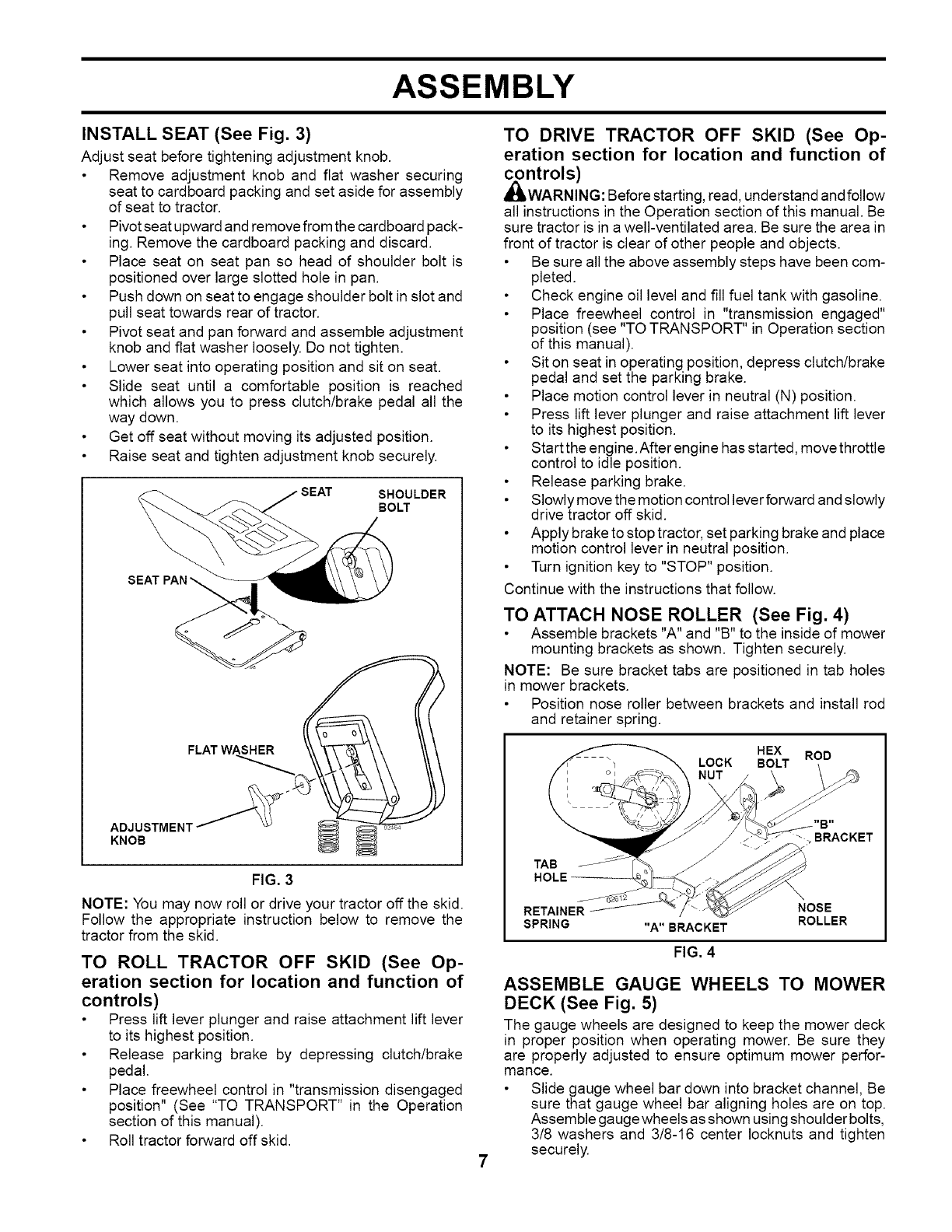

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

Remove adjustment knob and flat washer securing

seat to cardboard packing and set aside for assembly

of seat to tractor.

Pivot seat upward and remove from the cardboard pack-

ing. Remove the cardboard packing and discard.

Place seat on seat pan so head of shoulder bolt is

positioned over large slotted hole in pan.

Push down on seat to engage shoulder bolt in slot and

pull seat towards rear of tractor.

Pivot seat and pan forward and assemble adjustment

knob and flat washer loosely. Do not tighten.

Lower seat into operating position and sit on seat.

Slide seat until a comfortable position is reached

which allows you to press clutch/brake pedal all the

way down.

Get off seat without moving its adjusted position.

Raise seat and tighten adjustment knob securely.

SEAT SHOULDER

BOLT

SEAT PAN

FLAT WASHER

ADJUSTMEN3

KNOB

FIG. 3

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the

tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Op-

eration section for location and function of

controls)

Press lift lever plunger and raise attachment lift lever

to its highest position.

Release parking brake by depressing clutch/brake

pedal.

Place freewheel control in "transmission disengaged

position" (See "TO TRANSPORT" in the Operation

section of this manual).

Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See Op-

eration section for location and function of

controls)

_LWARNING: Before starting, read, understand and follow

all instructions in the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be sure the area in

front of tractor is clear of other people and objects.

Be sure all the above assembly steps have been com-

pleted.

Check engine oil level and fill fuel tank with gasoline.

Place freewheel control in "transmission engaged"

position (see "TO TRANSPORT" in Operation section

of this manual).

Sit on seat in operating position, depress clutch/brake

pedal and set the parking brake.

Place motion control lever in neutral (N) position.

Press lift lever plunger and raise attachment lift lever

to its highest position.

Start the engine. After engine has started, move throttle

control to idle position.

Release parking brake.

Slowly move the motion control lever forward and slowly

drive tractor off skid.

Apply brake to stop tractor, set parking brake and place

motion control lever in neutral position.

Turn ignition key to "STOP" position.

Continue with the instructions that follow.

TO ATTACH NOSE ROLLER (See Fig. 4)

Assemble brackets "A" and "B" to the inside of mower

mounting brackets as shown. Tighten securely.

NOTE: Be sure bracket tabs are positioned in tab holes

in mower brackets.

Position nose roller between brackets and install rod

and retainer spring.

HEX ROD

LOCK BOLT

BRACKET

TAB

HOLE

RETAINER NOSE

ROLLER

SPRING "A" BRACKET

FIG. 4

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 5)

The gauge wheels are designed to keep the mower deck

in proper position when operating mower. Be sure they

are properly adjusted to ensure optimum mower perfor-

mance.

Slide gauge wheel bar down into bracket channel, Be

sure that gauge wheel bar aligning holes are on top.

Assemble gauge wheels as shown using shoulder bolts,

3/8 washers and 3/8-16 center Iocknuts and tighten

securely.

ASSEMBLY

For ease of mower to tractor assembly, raise gauge

wheels to highest position and retain with clevis pins

and spring retainers.

Adjust gauge wheels before operating mower. See "TO

ADJUST GAUGE WHEELS" in the Operation section

of this manual.

RETAINER SPRING

ADJUSTING

SHOULDER BAR

BOLT

GAUGE

WHEEL

3/8 WASHER

3/8-16 CENTER

LOCKNUT

FIG. 5

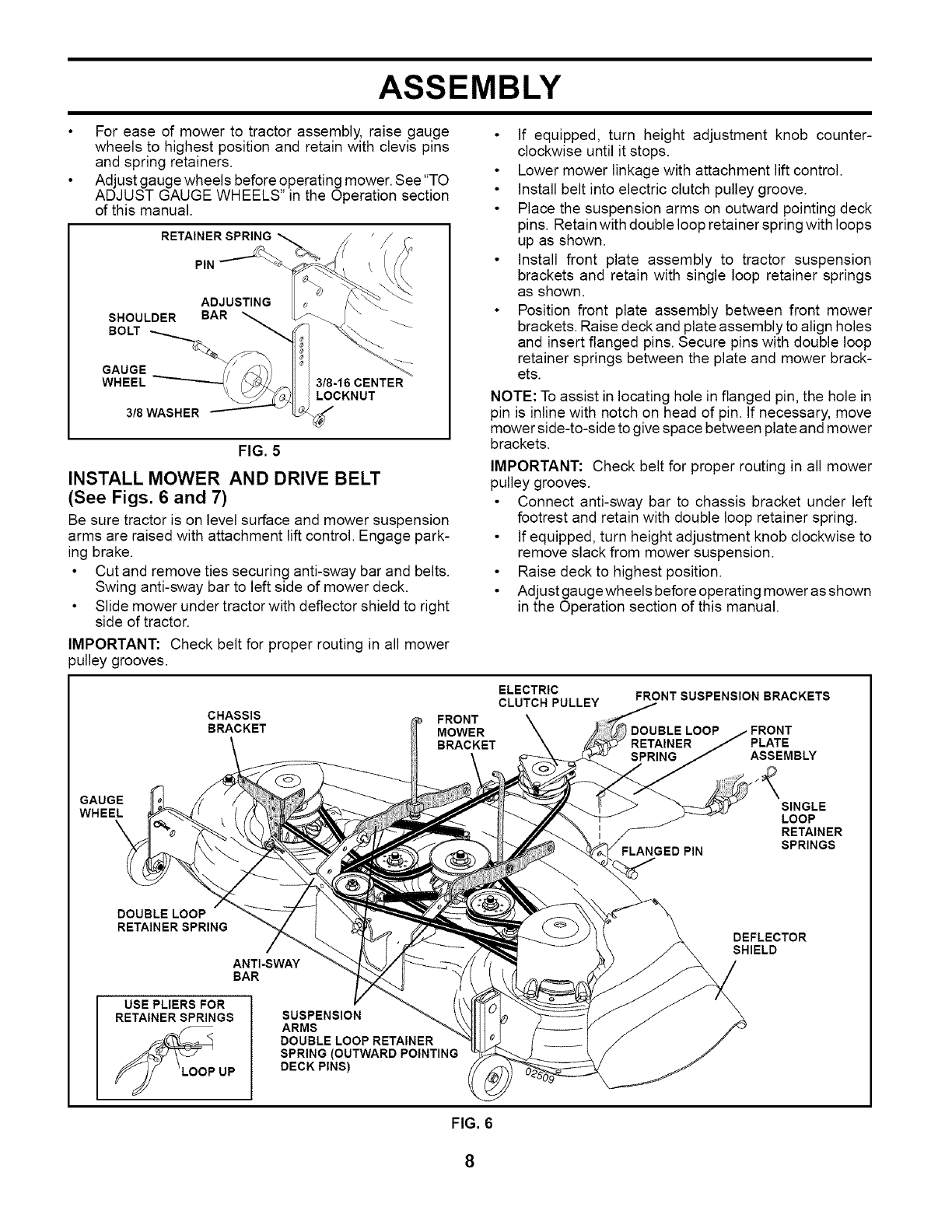

INSTALL MOWER AND DRIVE BELT

(See Figs. 6 and 7)

Be sure tractor is on level surface and mower suspension

arms are raised with attachment lift control. Engage park-

ing brake.

Cut and remove ties securing anti-sway bar and belts.

Swing anti-sway bar to left side of mower deck.

Slide mower under tractor with deflector shield to right

side of tractor.

IMPORTANT: Check belt for proper routing in all mower

pulley grooves.

If equipped, turn height adjustment knob counter-

clockwise until it stops.

Lower mower linkage with attachment lift control.

Install belt into electric clutch pulley groove.

Place the suspension arms on outward pointing deck

pins. Retain with double loop retainer spring with loops

up as shown.

Install front plate assembly to tractor suspension

brackets and retain with single loop retainer springs

as shown.

Position front plate assembly between front mower

brackets. Raise deck and plate assembly to align holes

and insert flanged pins. Secure pins with double loop

retainer springs between the plate and mower brack-

ets.

NOTE: To assist in locating hole in flanged pin, the hole in

pin is inline with notch on head of pin. If necessary, move

mower side-to-side to give space between plate and mower

brackets.

IMPORTANT: Check belt for proper routing in all mower

pulley grooves.

Connect anti-sway bar to chassis bracket under left

footrest and retain with double loop retainer spring.

If equipped, turn height adjustment knob clockwise to

remove slack from mower suspension.

Raise deck to highest position.

Adjust gauge wheels before operating mower as shown

in the Operation section of this manual.

CHASSIS

BRACKET

ELECTRIC FRONT SUSPENSION BRACKETS

CLUTCH PULLEY

FRONT

MOWER

BRACKET PLATE

ASSEMBLY

GAUGE

WHEEL

\SINGLE

LOOP

RETAINER

SPRINGS

DOUBLE LOOP

RETAINER SPRING

ANTI-SWAY

BAR

USE PLIERS FOR

RETAINER SPRINGS

LOOP UP

SUSPENSION

ARMS

DOUBLE LOOP RETAINER

SPRING (OUTWARD POINTING

DECK PINS)

DEFLECTOR

SHIELD

FIG. 6

ASSEMBLY

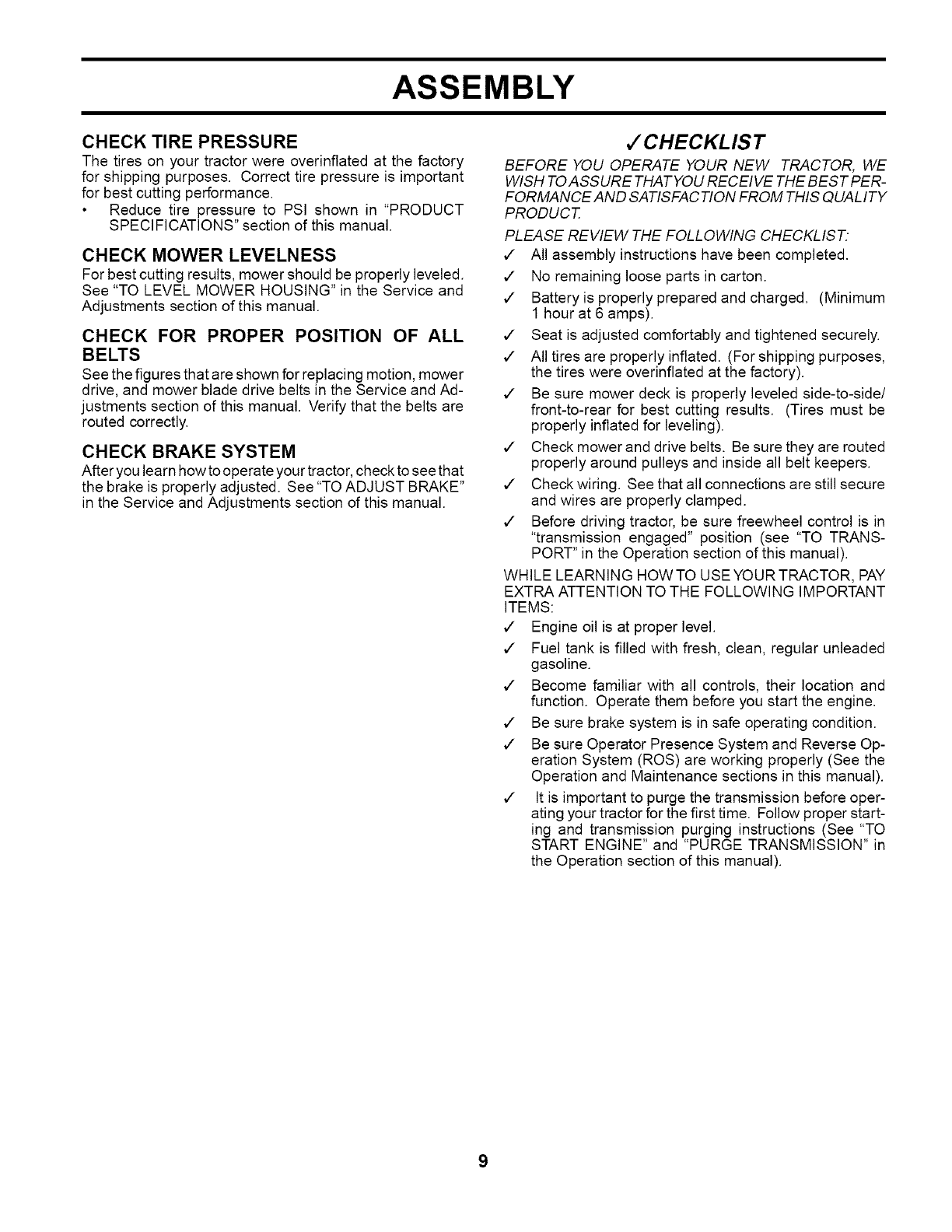

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory

for shipping purposes. Correct tire pressure is important

for best cutting performance.

Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" section of this manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should be properly leveled.

See "TO LEVEL MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion, mower

drive, and mower blade drive belts in the Service and Ad-

justments section of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that

the brake is properly adjusted. See "TO ADJUST BRAKE"

in the Service and Adjustments section of this manual.

,/'CHECKLIST

BEFORE YOU OPERATE YOUR NEW TRACTOR, WE

WISH TOASSURE THATYOU RECEIVE THE BEST PER-

FORMANCE AND SATISFACTION FROM THIS QUALITY

PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST.

,/ All assembly instructions have been completed.

,/ No remaining loose parts in carton.

,/ Battery is properly prepared and charged. (Minimum

1 hour at 6 amps).

,/ Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

,/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring. See that all connections are still secure

and wires are properly clamped.

,/ Before driving tractor, be sure freewheel control is in

"transmission engaged" position (see "TO TRANS-

PORT" in the Operation section of this manual).

WHILE LEARNING HOWTO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level.

,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

,/ Become familiar with all controls, their location and

function. Operate them before you start the engine.

,/ Be sure brake system is in safe operating condition.

,/ Be sure Operator Presence System and Reverse Op-

eration System (ROS) are working properly (See the

Operation and Maintenance sections in this manual).

,/ It is important to purge the transmission before oper-

ating your tractor for the first time. Follow proper start-

ing and transmission purging instructions (See "TO

START ENGINE" and "PURGE TRANSMISSION" in

the Operation section of this manual).

OPERATION

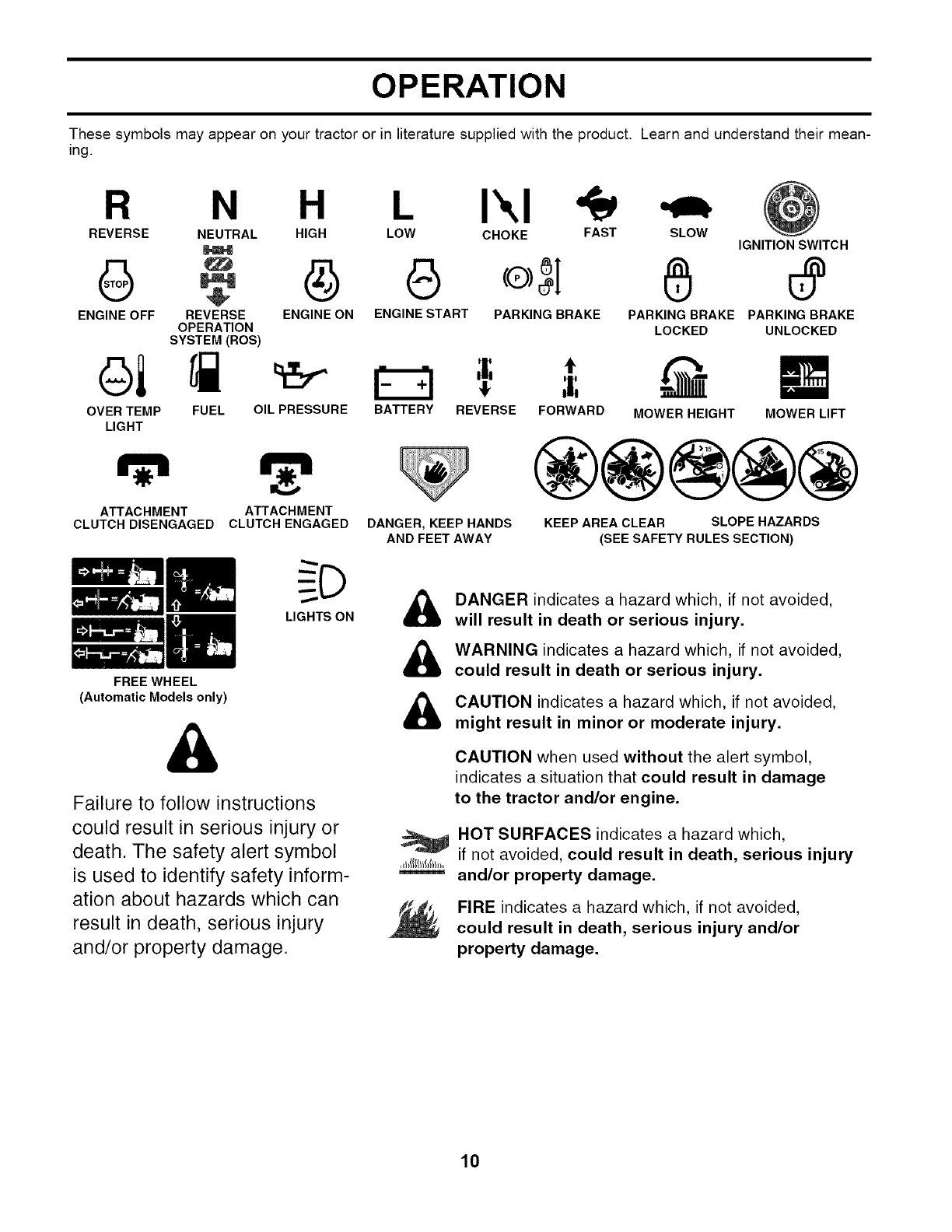

These symbols may appear on your tractor or in literature supplied with the product, Learn and understand their mean-

ing.

RLI\l

LOW CHOKE FAST

REVERSE NEUTRAL HIGH SLOW

IGNITION SWITCH

0 45 o, I 6

ENGINE OFF REVERSE ENGINE Off ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

OPERATION LOCKED UNLOCKED

SYSTEM(ROS)

BATTERY REVERSE FORWARD MOWER HEIGHTFUEL OIL PRESSURE MOWER LIFT

OVER TEMP

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH DISENGAGED CLUTCH ENGAGED

LIGHTS ON

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

,_l_IttlllIJ(ll,,

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

OPERATION

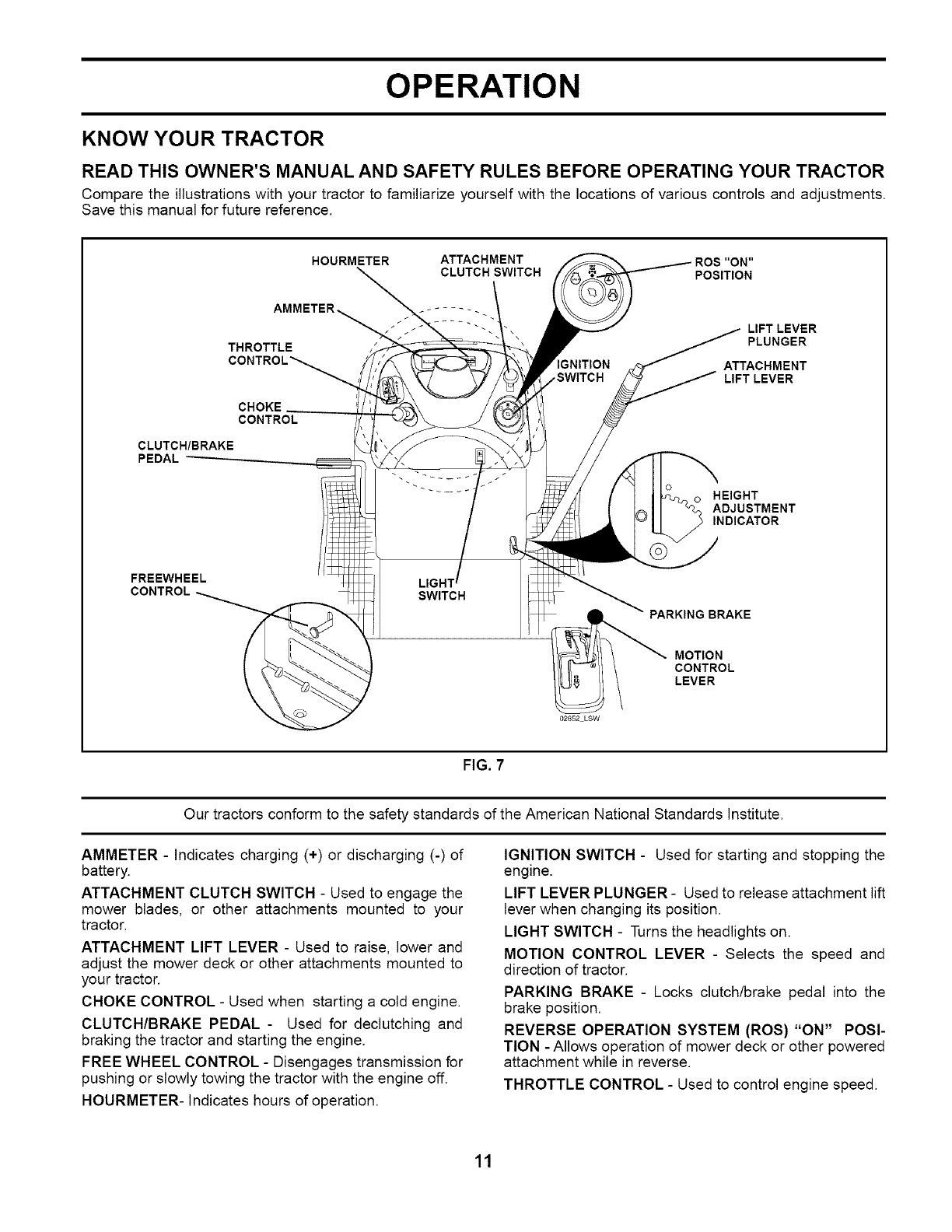

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments,

Save this manual for future reference.

HOURMETER ATTACHMENT "ON"

CLUTCH SWITCH POSITION

AMMETER_

THROTTLE

CONTROL_

CHOKE

CONTROL

CLUTCH/BRAKE

PEDAL

LIFT LEVER

PLUNGER

ATTACHMENT

LIFT LEVER

oHEIGHT

ADJUSTMENT

INDICATOR

FREEWHEEL

CONTROL LIGHT /

SWITCH

PARKING BRAKE

MOTION

CONTROL

LEVER

FIG. 7

Our tractors conform to the safety standards of the American National Standards Institute.

AMMETER - Indicates charging (+) or discharging (-) of

battery.

ATTACHMENT CLUTCH SWITCH - Used to engage the

mower blades, or other attachments mounted to your

tractor.

ATTACHMENT LIFT LEVER - Used to raise, lower and

adjust the mower deck or other attachments mounted to

your tractor.

CHOKE CONTROL - Used when starting a cold engine.

CLUTCH/BRAKE PEDAL - Used for declutching and

braking the tractor and starting the engine.

FREE WHEEL CONTROL - Disengages transmission for

pushing or slowly towing the tractor with the engine off.

HOURMETER- Indicates hours of operation.

IGNITION SWITCH - Used for starting and stopping the

engine.

LIFT LEVER PLUNGER - Used to release attachment lift

lever when changing its position.

LIGHT SWITCH - Turns the headlights on.

MOTION CONTROL LEVER - Selects the speed and

direction of tractor.

PARKING BRAKE - Locks clutch/brake pedal into the

brake position.

REVERSE OPERATION SYSTEM (ROS) "ON" POSI-

TION - Allows operation of mower deck or other powered

attachment while in reverse.

THROTTLE CONTROL - Used to control engine speed.

OPERATION

Ior standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 8)

Your tractor is equipped with an operator presence sens-

ing switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

Depress clutch/brake pedal into full "BRAKE" position

and hold.

Place parking brake lever in "ENGAGED" position and

release pressure from clutch/brake pedal. Pedal should

remain in "BRAKE" position. Make sure parking brake

will hold tractor secure.

The operation of any tractor can result in foreign objects thrown into the eyes, which can result I

in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or I

performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility, al-

ways stop engine when stopping tractor on grass areas.

PUSH IN TO ATTACHMENT

THROTTLE "DISENGAGE" SWITCH

PULL OUT TO

'ENGAGE"

"BRAKE"

POSITION

PARKING

BRAKE

"DISENGAGED" "ENGAGED"

POSITION POSITION

CONTROL

LEVER

CLUTCH/BRAKE

PEDAL "DRIVE"

POSITION

FIG. 8

STOPPING (See Fig. 8)

MOWER BLADES -

To stop mower blades, move attachment clutch switch

to "DISENGAGED" position.

GROUND DRIVE -

To stop ground drive, depress clutch/brake pedal into

full "BRAKE" position..

Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES NOT

RETURN TO NEUTRAL (N) POSITION WHEN THE CLUTCH/

BRAKE PEDAL IS DEPRESSED.

ENGINE -

Move throttle control between half and full speed (fast)

position.

NOTE: Failure to move throttle control between half and

full speed (fast) position, before stopping may cause engine

to "backfire".

Turn ignition key to "STOP" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY

POSITION OTHER THAN "STOP" WILL CAUSE THE BATTERY

TO BE DISCHARGED, (DEAD).

CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 8)

Always operate engine at full throttle.

Operating engine at less than full throttle reduces the

battery charging rate.

Full throttle offers the best bagging and mower perfor-

mance.

TO USE CHOKE CONTROL (See Fig. 8)

Use choke control whenever you are starting a cold engine.

Do not use to start a warm engine.

To engage choke control, pull knob out. Slowly push

knob in to disengage.

TO MOVE FORWARD AND BACKWARD

(See Fig. 8)

The direction and speed of movement is controlled by the

motion control lever.

Start tractor with motion control lever in neutral (N)

position.

Release parking brake.

Slowly move motion control lever to desired position.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 8)

The position of the attachment lift lever determines the

cutting height.

Grasp lift lever.

Press plunger with thumb and move lever to desired

position.

The cutting height range is approximately 1-1/2 to 4".

The heights are measured from the ground to the blade tip

with the engine not running. These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

The average lawn should be cut to approximately 2-t/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

For best cutting performance, grass over 6 inches

in height should be mowed twice. Make the first cut

relatively high; the second to desired height.

TO ADJUST GAUGE WHEELS (See Fig. 9)

Gauge wheels are properly adjusted when they are slightly

off the ground when mower is at the desired cutting height

in operating position. Gauge wheels then keep the deck

in proper position to help prevent scalping in most terrain

12 conditions.

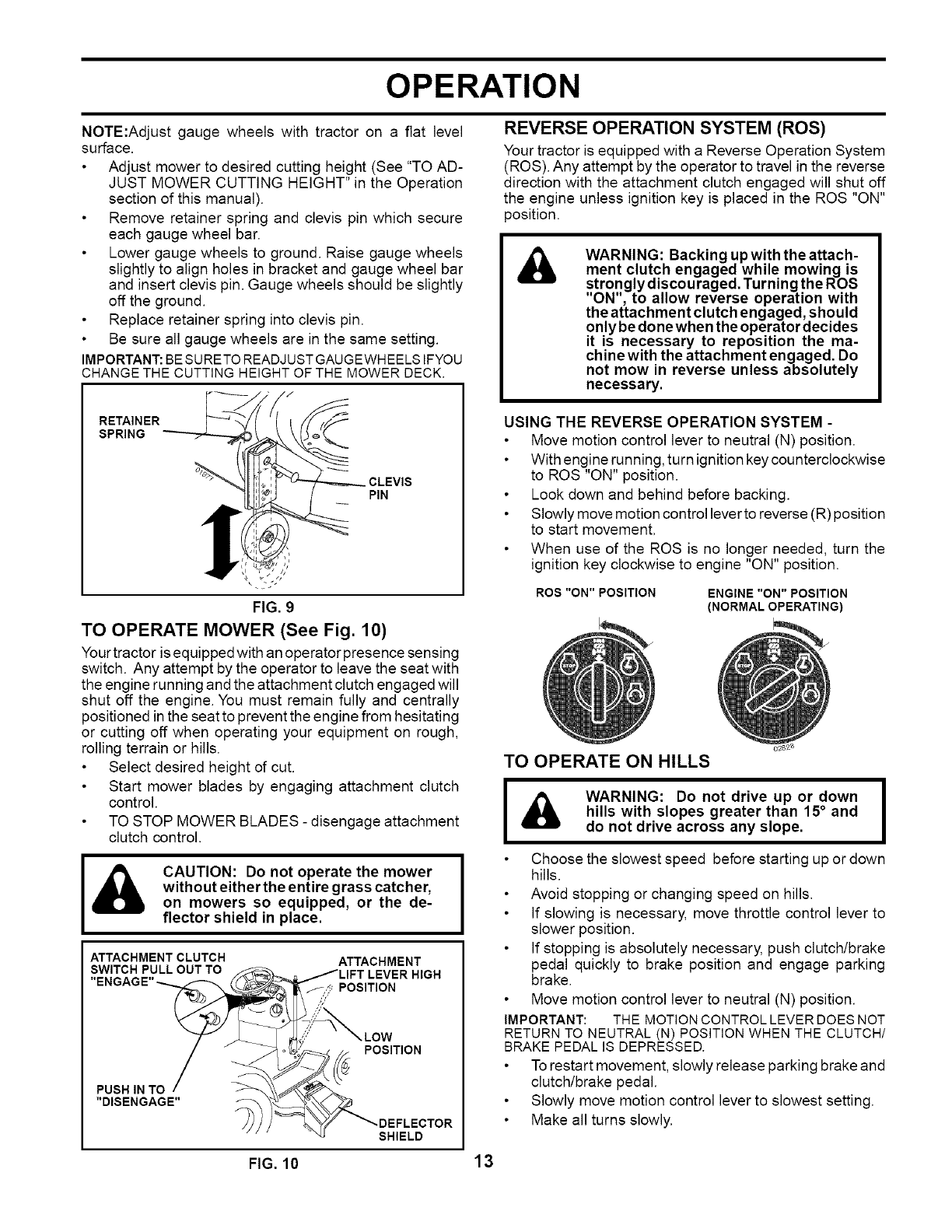

OPERATION

NOTE:Adjust gauge wheels with tractor on a flat level

surface.

Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT" in the Operation

section of this manual).

Remove retainer spring and clevis pin which secure

each gauge wheel bar.

Lower gauge wheels to ground. Raise gauge wheels

slightly to align holes in bracket and gauge wheel bar

and insert clevis pin. Gauge wheels should be slightly

off the ground.

Replace retainer spring into clevis pin.

Be sure all gauge wheels are in the same setting.

IMPORTANT:BESURETOREADJUSTGAUGEWHEELSIFYOU

CHANGETHE CUTTINGHEIGHTOF THE MOWERDECK.

RETAINER

SPRING

CLEVIS

FIG. 9

TO OPERATE MOWER (See Fig. 10)

Yourtractor is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine. You must remain fully and centrally

positioned in the seat to prevent the engine from hesitating

or cutting off when operating your equipment on rough,

rolling terrain or hills.

Select desired height of cut.

Start mower blades by engaging attachment clutch

control.

TO STOP MOWER BLADES - disengage attachment

clutch control.

CAUTION: Do not operatethe mower

without either the entire grass catcher,

on mowers so equipped, or the de-

flector shield in place,

ATTACHMENT CLUTCH

SWITCH PULL OUT TO ATTACHMENT

POSITION

PUSH IN TO

"DISENGAGE"

POSITION

SHIELD

REVERSE OPERATION SYSTEM (ROS)

Your tractor is equipped with a Reverse Operation System

(ROS). Any attempt by the operator to travel in the reverse

direction with the attachment clutch engaged will shut off

the engine unless ignition key is placed in the ROS "ON"

position.

WARNING: Backing up with the attach-

ment clutch engaged while mowing is

stronglydiscouraged. Turning the ROS

"ON", to allow reverse operation with

the attachment clutch engaged, should

only be done when the operator decides

it is necessary to reposition the ma-

chine with the attachment engaged. Do

not mow in reverse unless absolutely

necessary.

USING THE REVERSE OPERATION SYSTEM -

Move motion control lever to neutral (N) position.

With engine running, turn ignition key counterclockwise

to ROS "ON" position.

Look down and behind before backing.

Slowly move motion control lever to reverse (R) position

to start movement.

When use of the ROS is no longer needed, turn the

ignition key clockwise to engine "ON" position.

ROS "ON" POSITION

TO OPERATE ON HILLS

ENGINE "ON" POSITION

(NORMAL OPERATING)

I&WARNING: Do not drive up or down I

hills with slopes greater than 15° and

do not drive across any slope,

Choose the slowest speed before starting up or down

hills.

Avoid stopping or changing speed on hills.

If slowing is necessary, move throttle control lever to

slower position.

If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTIONCONTROLLEVERDOES NOT

RETURNTO NEUTRAL (N) POSITIONWHEN THE CLUTCH/

BRAKE PEDAL IS DEPRESSED.

To restart movement, slowly release parking brake and

clutch/brake pedal.

Slowly move motion control lever to slowest setting.

Make all turns slowly.

FIG. 10 13

OPERATION

TO TRANSPORT (See Figs. 7 and 11)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in freewheeling

position. Free wheel control is located at the rear drawbar

of tractor.

Raise attachment liftto highest position with attachment

lift control.

Pull freewheel control out and down into the slot and

release so it is held in the disengaged position.

Do not push or tow tractor at more than two (2)

MPH.

To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting

your tractor on atruck or atrailer, be sure hood is closed

and secured to tractor. Use an appropriate means of tying

hood to tractor (rope, cord, etc.).

FIG. 11

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recommended by and

com ply with specifications of the manufacturer of your trac-

tor. Use common sense when towing. Too heavy of a load,

while on a slope, is dangerous. Tires can lose traction with

the ground and cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil.

Check engine oil with tractor on level ground.

Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULL:' mark on dipstick is reached. Do not overfill.

For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Maintenance section of this manual).

To change engine oil, see the Maintenance section in

this manual.

ADD GASOLINE

Fill fuel tank to bottom of filler neck. Do not overfill.

Use fresh, clean, regular unleaded gasoline with a

minimum of 87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits and reduce

valve life). Do not mix oil with gasoline. Purchase fuel

in quantities that can be used within 30 days to assure

fuel freshness.

I_ AUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can at-

tract moisture which leads to separation and

formation of acids during storage. Acidic gas

can damage the fuel system of an engine while

in storage. To avoid engine problems, the fuel

system should be emptied before storage of

30 days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel next

season. See Storage Instructions for additional

information. Never use engine or carburetor

cleaner products in the fuel tank or permanent

damage may occur.

TO START ENGINE (See Fig. 8)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.

Besure freewheel control is inthe transmission engaged

position.

Sit on seat in operating position, depress clutch/brake

pedal and set parking brake.

Place motion control lever in neutral (N) position.

Move attachment clutch to "DISENGAGED" position.

Move throttle control to fast position

Pull choke control out for a cold engine start attempt.

For a warm engine start attempt the choke control may

not be needed.

NOTE: Before starting, read the warm and cold starting

procedures below.

Insert key into ignition and turn key clockwise to

"START" position and release key as soon as engine

starts. Do not run starter continuously for more than

fifteen seconds per minute. If the engine does not start

after several attempts, push choke control in, wait a

few minutes and try again. If engine still does not start,

pull the choke control out and retry.

WARM WEATHER STARTING (50° F and above)

When engine starts, slowly push choke control in until

the engine begins to run smoothly. If the engine starts

to run roughly, pull the choke control out slightly for a

few seconds and then continue to push the control in

slowly.

OPERATION

The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow it to warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50° F and below)

When engine starts, slowly push choke control in until

the engine begins to run smoothly. Continue to push

the choke control in small steps allowing the engine to

accept small changes in speed and load, until the choke

control is fully in. If the engine starts to run roughly, pull

the choke control out slightly for a few seconds and

then continue to push the control in slowly. This may

require anengine warm-up period from several seconds

to several minutes, depending on the temperature.

AUTOMATIC TRANSMISSION WARM UP

• Before driving the unit incold weather, the transmission

should be warmed up as follows:

Be sure the tractor is on level ground.

Place the motion control lever in neutral.

Release the parking brake and let the clutch/

brake slowly return to operating position.

Allow one minute for transmission to warm up. This

can be done during the engine warm up period.

The attachments can be used during the engine warm-

up period after the transmission has been warmed

up and may require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual.

PURGE TRANSMISSION

To ensure proper operation and performance, it is recom-

mended that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air inside the transmission which may have de-

veloped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT SHOULD

BE PURGEDAFTER REINSTALLATIONBEFOREOPERATING

THE TRACTOR.

Place tractor safely in an area that is flat for approxi-

mately 80 feet in front of the tractor and set the parking

brake.

Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to slow position. With

motion control lever in neutral (N) position, slowly dis-

engage clutch/brake pedal.

Slowly move motion control lever to full forward position

and hold for five (5) seconds, or approximately 40 feet.

Slowly move lever to full reverse position and hold for

five (5) seconds, or approximately 20 feet. After the

tractor moves approximately 20 feet in reverse return

the motion control lever to the neutral (N) position.

Your transmission is now purged and now ready for normal

operation.

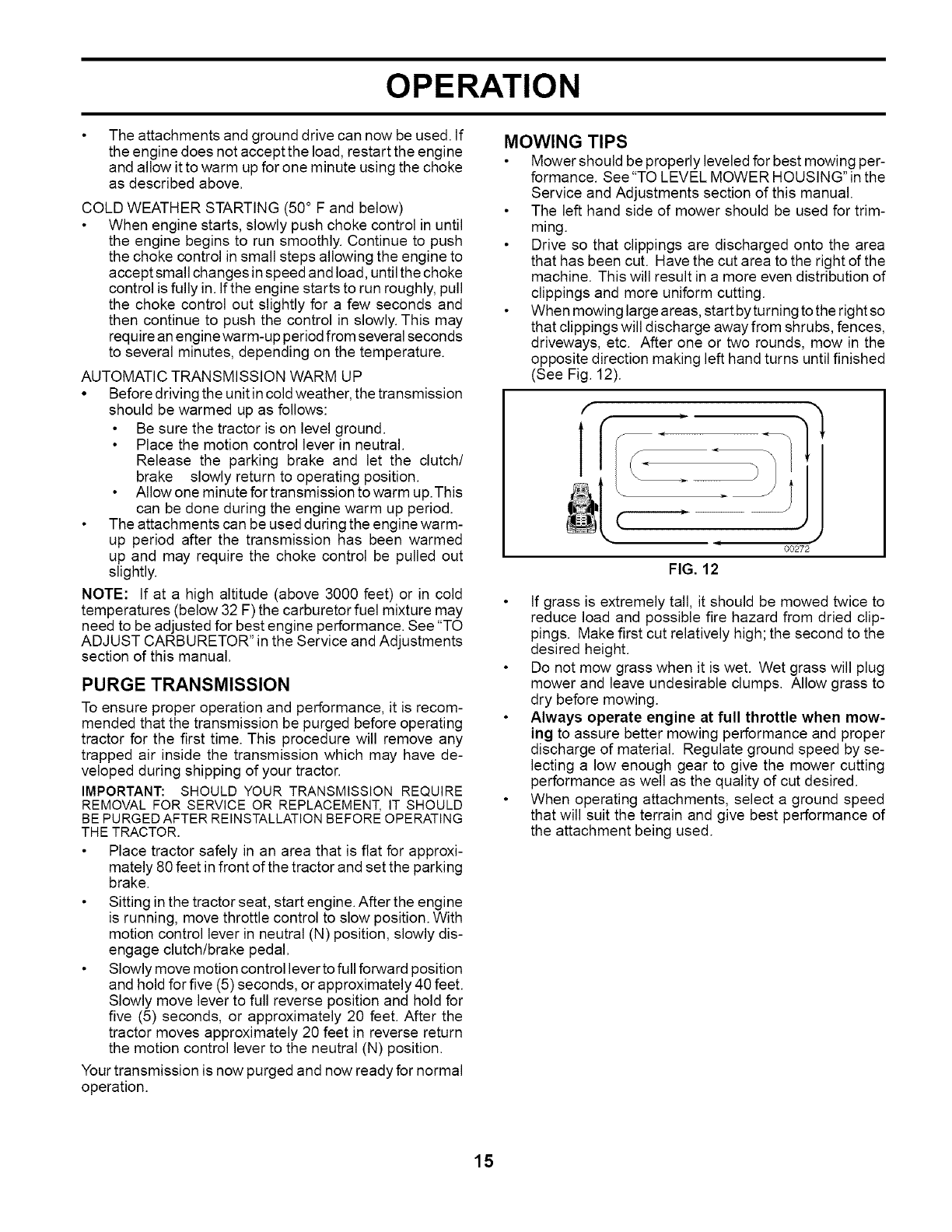

MOWING TIPS

Mower should be properly leveled for best mowing per-

formance. See "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual.

The left hand side of mower should be used for trim-

ming.

Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

machine. This will result in a more even distribution of

clippings and more uniform cutting.

When mowing large areas, start by turning to the right so

that clippings will discharge away from shrubs, fences,

driveways, etc. After one or two rounds, mow in the

opposite direction making left hand turns until finished

(See Fig. 12).

r---- )

00272

FIG. 12

If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. Allow grass to

dry before mowing.

Always operate engine at full throttle when mow-

ing to assure better mowing performance and proper

discharge of material. Regulate ground speed by se-

lecting a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used.

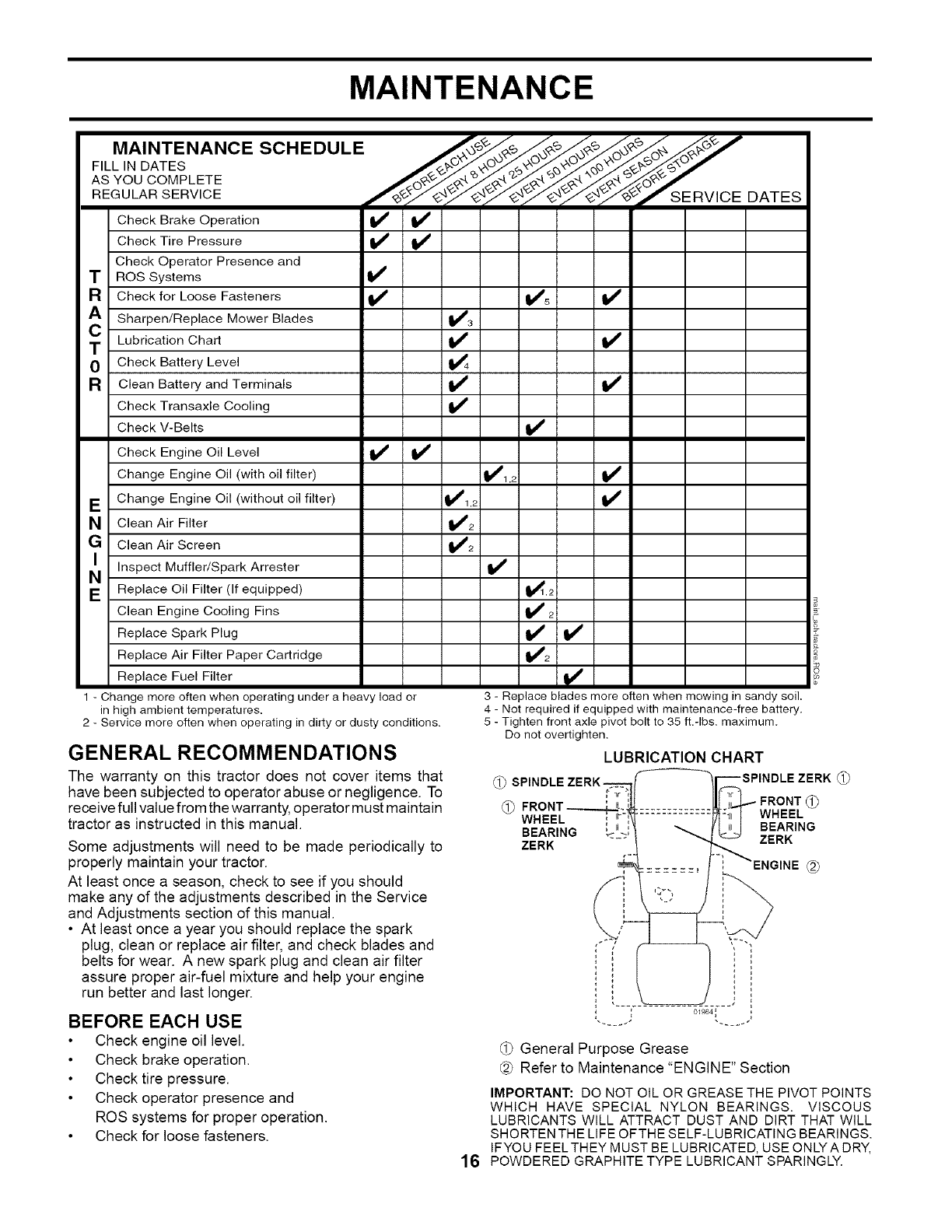

MAINTENANCE

scH ou. "

F"'' O TES

REGULAR SERVICE VICE DATES

Check Brake Operation _ _4,

Check Tire Pressure

Check Operator Presence and

TROS Systems I_

RCheck for Loose Fasteners if 1_5 If

ASharpen/Replace Mower Blades 1_3

C Lubrication Chart _ if

0 Check Battery Level

RClean Battery and Terminals I_

Check Transaxle Cooling If

Check V-Belts if

Check Engine Oil Level I_ I_

Change Engine Oil (with oil filter) t_1,2

EChange Engine Oil (without oil filter) _1_1, 2

N Clean Air Filter 1_2

G Clean Air Screen 1_2

NI Inspect Muffler/Spark Arrester

E Replace Oil Filter (If equipped) 1_1.2

Clean Engine Cooling Fins I1_ 2

Replace Spark Plug I_ I_

Replace Air Filter Paper Cartridge _2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that

have been subjected to operator abuse or negligence. To

receive full value from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

At least once a season, check to see if you should

make any of the adjustments described in the Service

and Adjustments section of this manual.

• At least once a year you should replace the spark

plug, clean or replace air filter, and check blades and

belts for wear. A new spark plug and clean air filter

assure proper air-fuel mixture and help your engine

run better and last longer.

BEFORE EACH USE

Check engine oil level.

Check brake operation.

Check tire pressure.

Check operator presence and

ROS systems for proper operation.

Check for loose fasteners.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

LUBRICATION CHART

(_ SPINDLE ZERK_

_} FRONT --.-_!. '

WHEEL ._=l___

BEARING <-:.,

ZERK

--SPINDLEZERK(_)

_RONT _

WHEEL

BEARING

ZERK

"_'_ENGINE @

(_ General Purpose Grease

@ Refer to Maintenance "ENGINE" Section

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS

LUBRICANTS WILL ATTRACT DUST AND DIRT THAT WILL

SHORTEN THE LIFE OFTHE SELF-LUBRICATING BEARINGS.

IFYOU FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY,

16 POWDERED GRAPHITE TYPE LUBRICANT SPARINGLY.

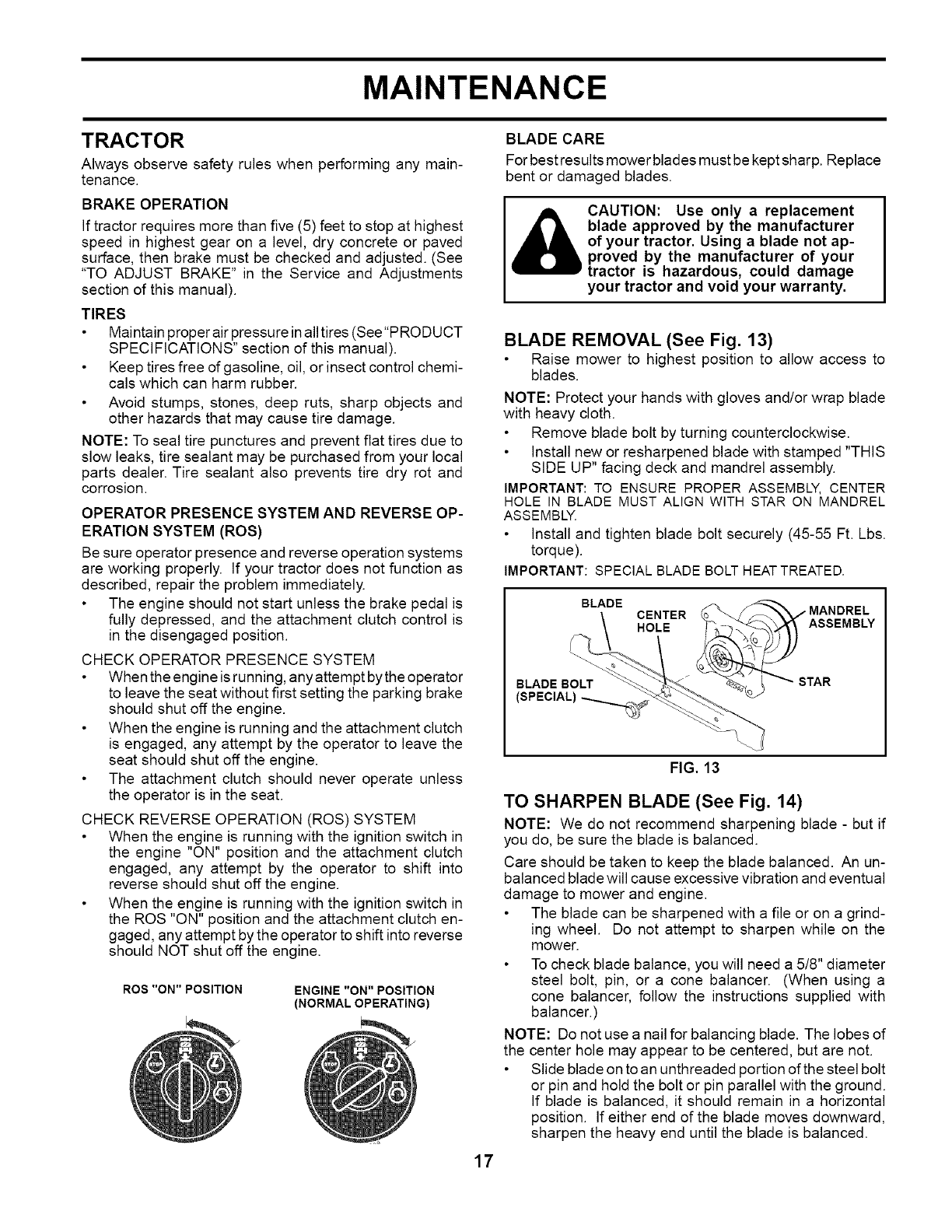

MAINTENANCE

TRACTOR

Always observe safety rules when performing any main-

tenance.

BRAKE OPERATION

If tractor requires more than five (5) feet to stop at highest

speed in highest gear on a level, dry concrete or paved

surface, then brake must be checked and adjusted. (See

"TO ADJUST BRAKE" in the Service and Adjustments

section of this manual).

TIRES

Maintain proper air pressure inall tires (See"P RODUCT

SPECIFICATIONS" section of this manual).

Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

OPERATOR PRESENCE SYSTEM AND REVERSE OP-

ERATION SYSTEM (ROS)

Be sure operator presence and reverse operation systems

are working properly. If your tractor does not function as

described, repair the problem immediately.

The engine should not start unless the brake pedal is

fully depressed, and the attachment clutch control is

in the disengaged position.

CHECK OPERATOR PRESENCE SYSTEM

When the engine is running, any attempt by the operator

to leave the seat without first setting the parking brake

should shut off the engine.

When the engine is running and the attachment clutch

is engaged, any attempt by the operator to leave the

seat should shut off the engine.

The attachment clutch should never operate unless

the operator is in the seat.

CHECK REVERSE OPERATION (ROS) SYSTEM

When the engine is running with the ignition switch in

the engine "ON" position and the attachment clutch

engaged, any attempt by the operator to shift into

reverse should shut off the engine.

When the engine is running with the ignition switch in

the ROS "ON" position and the attachment clutch en-

gaged, any attempt by the operator to shift into reverse

should NOT shut off the engine.

ROS "ON" POSITION ENGINE "ON" POSITION

(NORMAL OPERATING)

BLADE CARE

For best results mower blades must be kept sharp. Replace

bent or damaged blades.

CAUTION: Use only a replacement

blade approved by the manufacturer

of your tractor. Using a blade not ap-

proved by the manufacturer of your

tractor is hazardous, could damage

your tractor and void your warranty.

BLADE REMOVAL (See Fig. 13)

Raise mower to highest position to allow access to

blades.

NOTE: Protect your hands with gloves and/or wrap blade

with heavy cloth.

Remove blade bolt by turning counterclockwise.

Install new or resharpened blade with stamped "THIS

SIDE UP" facing deck and mandrel assembly.

IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER

HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL

ASSEMBLY.

Install and tighten blade bolt securely (45-55 Ft. Lbs.

torque).

IMPORTANT: SPECIAL BLADE BOLT HEATTREATED.

BLADE CENTER

HOLE ASSEMBLY

BLADE BOLT

(SPECIAL) _

FIG. 13

TO SHARPEN BLADE (See Fig. 14)

NOTE: We do not recommend sharpening blade - but if

you do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An un-

balanced blade will cause excessive vibration and eventual

damage to mower and engine.

The blade can be sharpened with a file or on a grind-

ing wheel. Do not attempt to sharpen while on the

mower.

To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a

cone balancer, follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

Slide blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in ahorizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

MAINTENANCE

CENTER

5/8" BOLT OR PIN BLADE

FIG. 14

BATTERY

Yourtractor has a battery charging system which is sufficient

for normal use. However, periodic charging of the battery

with an automotive charger will extend its life.

Keep battery and terminals clean.

Keep battery bolts tight.

Keep small vent holes open.

Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is

maintenance free. Do not attempt to open or remove caps

or covers. Adding or checking level of electrolyte is not

necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

Remove terminal guard.

Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

Rinse the battery with plain water and dry.

Clean terminals and battery cable ends with wire brush

until bright.

Coat terminals with grease or petroleum jelly.

Reinstall battery (See "REPLACING BATTERY" in

the SERVICE AND ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours

of operation and replace if necessary. The belts are not

adjustable. Replace belts if they begin to slip from wear.

TRANSAXLE COOLING

The transmission fan and cooling fins should be kept clean

to assure proper cooling.

Do not attempt to clean fan or transmission while engine

is running or while the transmission is hot. To prevent pos-

sible damage to seals, do not use high pressure water or

steam to clean transaxle.

Inspect cooling fan to be sure fan blades are intact and

clean.

Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean cool-

ing fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nance is not required for the life of the transaxle. Should

the transaxle ever leak or require servicing, contact your

nearest authorized service center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SG-SL. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

F -20 0 30 32 40 60 80 100

c-_0 -2; -1; ;;0 _0 10 4;

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

oilviscchar t 1

FIG. 15

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°E Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after every 50 hours of operation or at least

once a year if the tractor is not used for 50 hours in one

year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

cap/dipstick securely each time you check the oil level.

MAINTENANCE

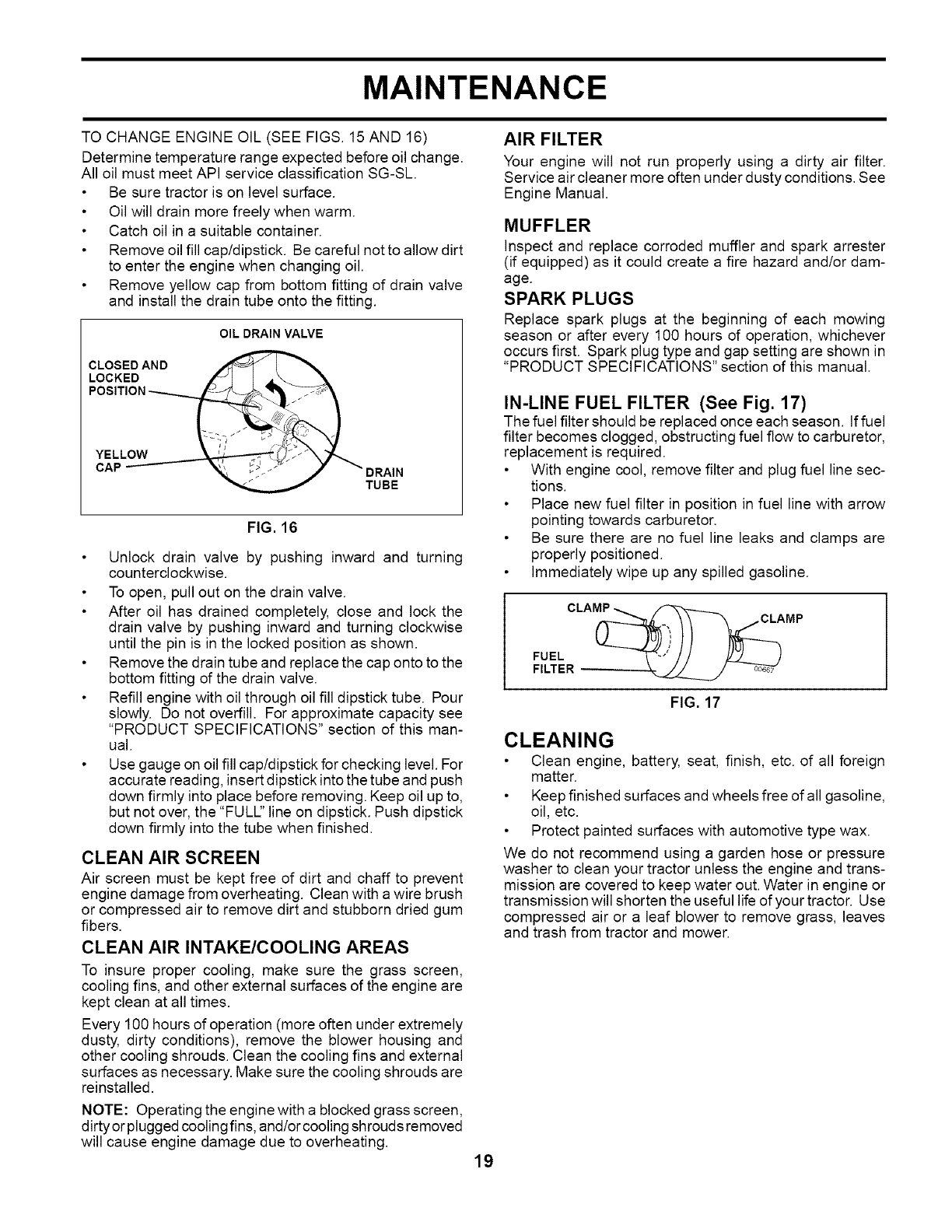

TO CHANGE ENGINE OIL (SEE FIGS. 15 AND 16)

Determine temperature range expected before oil change.

All oil must meet API service classification SG-SL.

Be sure tractor is on level surface.

Oil will drain more freely when warm.

Catch oil in a suitable container.

Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

Remove yellow cap from bottom fitting of drain valve

and install the drain tube onto the fitting.

OIL DRAIN VALVE

DRAIN

TUBE

FIG. 16

Unlock drain valve by pushing inward and turning

counterclockwise.

To open, pull out on the drain valve.

After oil has drained completely, close and lock the

drain valve by pushing inward and turning clockwise

until the pin is in the locked position as shown.

Remove the drain tube and replace the cap onto to the

bottom fitting of the drain valve.

Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section of this man-

ual.

Use gauge on oil fill cap/dipstick for checking level. For

accurate reading, insert dipstick into the tube and push

down firmly into place before removing. Keep oil up to,

but not over, the "FULL" line on dipstick. Push dipstick

down firmly into the tube when finished.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the grass screen,

cooling fins, and other external surfaces of the engine are

kept clean at all times.

Every 100 hours of operation (more often under extremely

dusty, dirty conditions), remove the blower housing and

other cooling shrouds. Clean the cooling fins and external

surfaces as necessary. Make sure the cooling shrouds are

reinstalled.

NOTE: Operating the engine with a blocked grass screen,

dirty orplugged cooling fins, and/or cooling shrouds removed

will cause engine damage due to overheating.

AIR FILTER

Your engine will not run properly using a dirty air filter.

Service air cleaner more often under dusty conditions. See

Engine Manual.

MUFFLER

Inspect and replace corroded muffler and spark arrester

(if equipped) as it could create a fire hazard and/or dam-

age.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" section of this manual.

IN-LINE FUEL FILTER (See Fig. 17)

The fuel filter should be replaced once each season. Iffuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

With engine cool, remove filter and plug fuel line sec-

tions.

Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

Be sure there are no fuel line leaks and clamps are

properly positioned.

Immediately wipe up any spilled gasoline.

CLAMP .__

FUEL _ \'" //_)

FILTER _

FIG. 17

CLEANING

Clean engine, battery, seat, finish, etc. of all foreign

matter.

Keep finished surfaces and wheels free of all gasoline,

oil, etc.

Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose or pressure

washer to clean your tractor unless the engine and trans-

mission are covered to keep water out. Water in engine or

transmission will shorten the useful life of your tractor. Use

compressed air or a leaf blower to remove grass, leaves

and trash from tractor and mower.

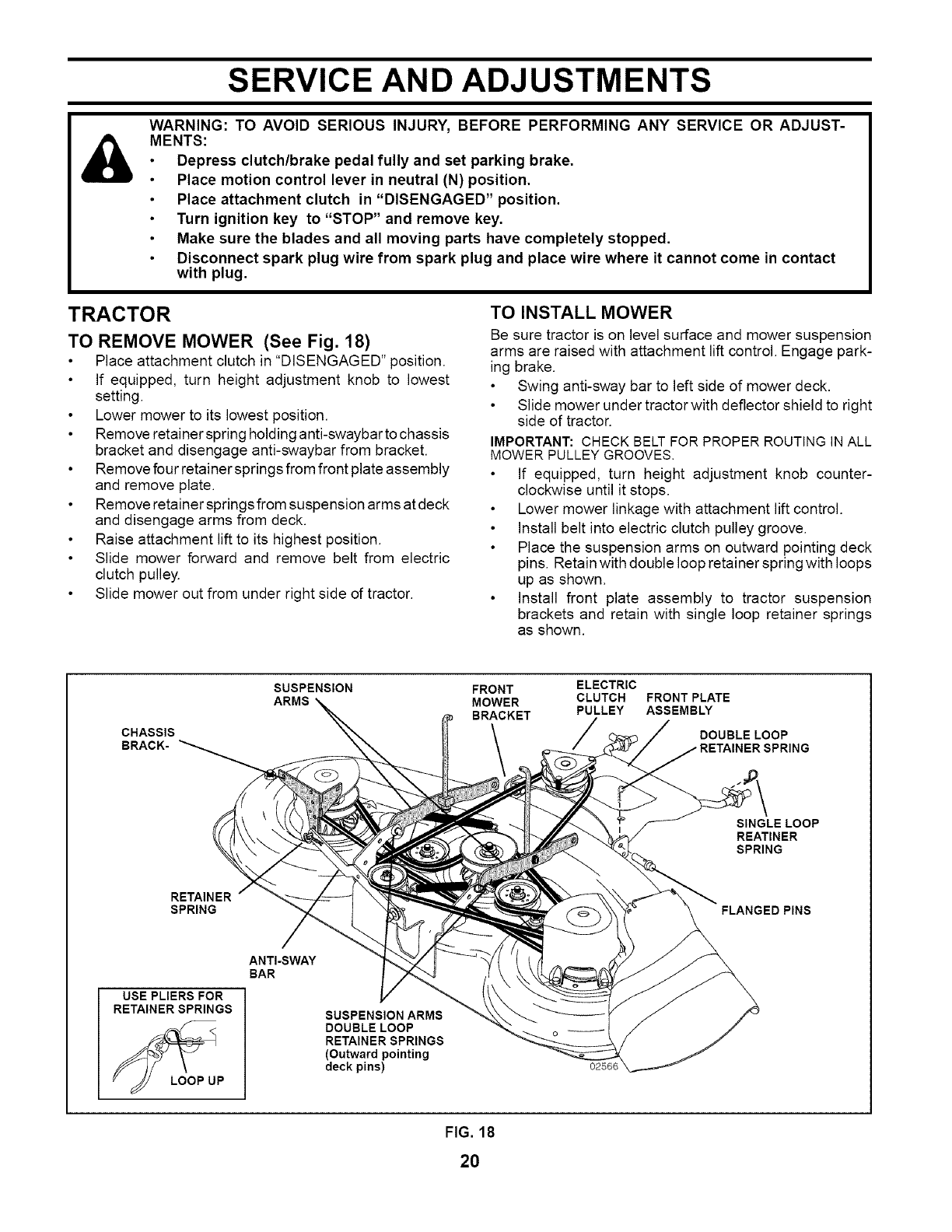

SERVICE AND ADJUSTMENTS

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUST-

MENTS:

Depress clutch/brake pedal fully and set parking brake.

Place motion control lever in neutral (N) position.

Place attachment clutch in "DISENGAGED" position.

Turn ignition key to "STOP" and remove key.

Make sure the blades and all moving parts have completely stopped.

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

TRACTOR

TO REMOVE MOWER (See Fig. 18)

Place attachment clutch in "DISENGAGED" position.

If equipped, turn height adjustment knob to lowest

setting.

Lower mower to its lowest position.

Remove retainer spring holding anti-swaybar to chassis

bracket and disengage anti-swaybar from bracket.

Remove four retainer springs from front plate assembly

and remove plate.

Remove retainer springs from suspension arms at deck

and disengage arms from deck.

Raise attachment lift to its highest position.

Slide mower forward and remove belt from electric

clutch pulley.

Slide mower out from under right side of tractor.

TO INSTALL MOWER

Be sure tractor is on level surface and mower suspension

arms are raised with attachment lift control. Engage park-

ing brake.

Swing anti-sway bar to left side of mower deck.

Slide mower under tractor with deflector shield to right

side of tractor.

IMPORTANT: CHECK BELTFOR PROPER ROUTINGIN ALL

MOWER PULLEYGROOVES.

If equipped, turn height adjustment knob counter-

clockwise until it stops.

Lower mower linkage with attachment lift control.

Install belt into electric clutch pulley groove.

Place the suspension arms on outward pointing deck

pins. Retain with double loop retainer spring with loops

up as shown.

Install front plate assembly to tractor suspension

brackets and retain with single loop retainer springs

as shown.

CHASSIS

BRACK-

SUSPENSION

ARMS FRONT ELECTRIC

MOWER CLUTCH FRONT PLATE

BRACKET PULLEY ASSEMBLY

DOUBLELOOP

SINGLE LOOP

REATINER

SPRING

RETAINER

SPRING FLANGED PINS

USE PLIERS FOR

RETAINER SPRINGS

LOOPUP

ANTI-SWAY

BAR

SUSPENSION ARMS

DOUBLE LOOP

RETAINER SPRINGS

(Outward pointing

deck pins)

FIG. 18

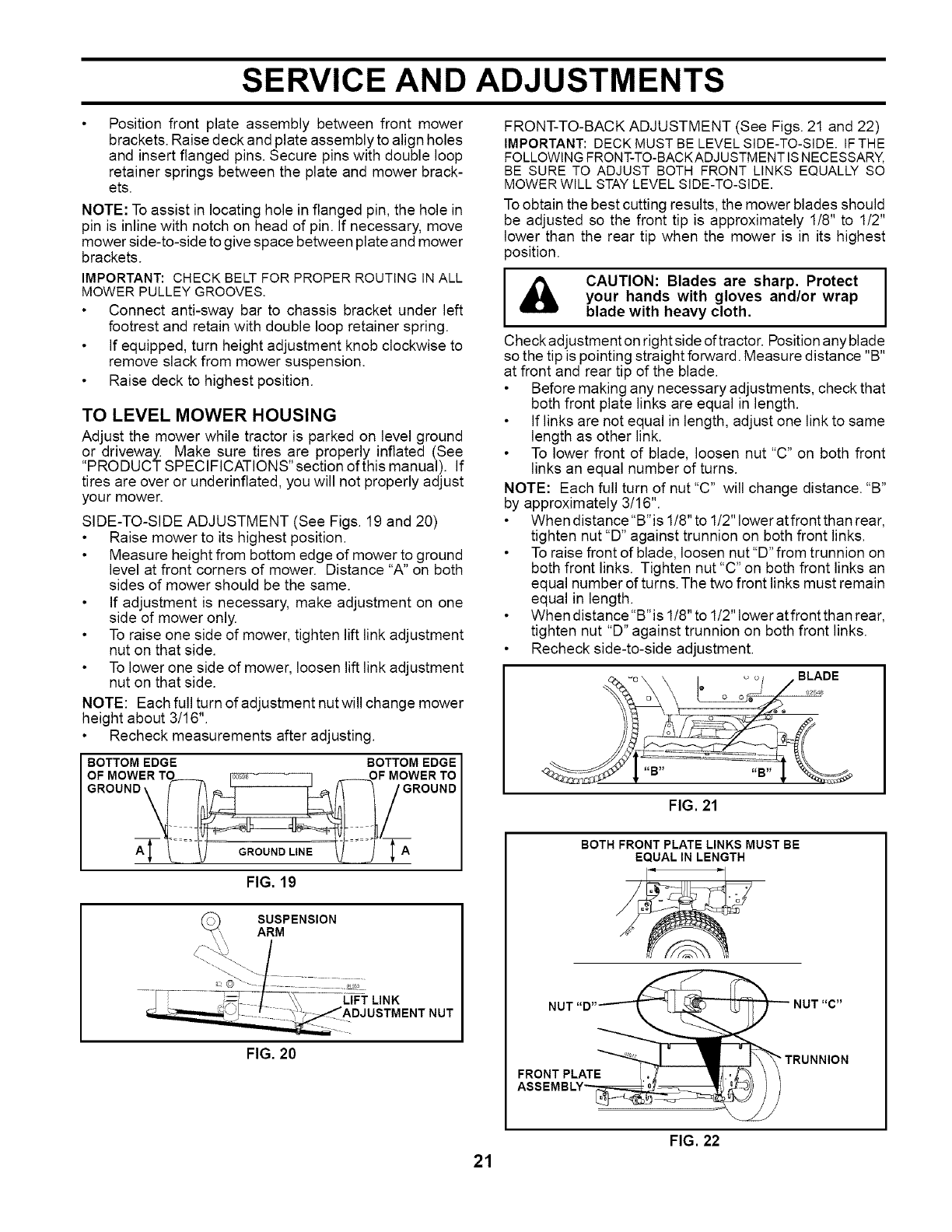

SERVICE AND ADJUSTMENTS

Position front plate assembly between front mower

brackets. Raise deck and plate assembly to align holes

and insert flanged pins. Secure pins with double loop

retainer springs between the plate and mower brack-

ets.

NOTE: To assist in locating hole in flanged pin, the hole in

pin is inline with notch on head of pin. If necessary, move

mower side-to-side to give space between plate and mower

brackets.

IMPORTANT: CHECK BELT FOR PROPER ROUTING IN ALL

MOWER PULLEY GROOVES.

Connect anti-sway bar to chassis bracket under left

footrest and retain with double loop retainer spring.

If equipped, turn height adjustment knob clockwise to

remove slack from mower suspension.

Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground

or driveway. Make sure tires are properly inflated (See

"PRODUCT SPECIFICATIONS'section of this manual). If

tires are over or underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 19 and 20)

Raise mower to its highest position.

Measure height from bottom edge of mower to ground

level at front corners of mower. Distance "A" on both

sides of mower should be the same.

If adjustment is necessary, make adjustment on one

side of mower only.

To raise one side of mower, tighten lift link adjustment

nut on that side.

To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Each full turn of adjustment nut will change mower

height about 3/16".

Recheck measurements after adjusting.

BOTTOM EDGE BOTTOM EDGE

FIG. 19

@\ SUSPENSION

ARM

\ \

-r ........ ..........,: TLNK

_ ii_ _ADJUSTMENT NUT

FIG. 20

FRONT-TO-BACK ADJUSTMENT (See Figs. 2t and 22)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF THE

FOLLOWING FRONT-TO-BACKADJUSTMENT ISNECESSARY,

BE SURE TO ADJUST BOTH FRONT LINKS EQUALLY SO

MOWER WILL STAY LEVEL SIDE-TO-SIDE.

To obtain the best cutting results, the mower blades should

be adjusted so the front tip is approximately 1/8" to t/2"

lower than the rear tip when the mower is in its highest

3osition.

CAUTION: Blades are sharp. Protect I

your hands with gloves and/or wrap I

blade with heavy cloth.

Check adjustment on right side of tractor. Position any blade

so the tip is pointing straight forward. Measure distance "B"

at front and rear tip of the blade.

Before making any necessary adjustments, check that

both front plate links are equal in length.

If links are not equal in length, adjust one link to same

length as other link.

To lower front of blade, loosen nut "C" on both front

links an equal number of turns.

NOTE: Each full turn of nut "C" will change distance. "B"

by approximately 3/16".

When distance "B"is 1/8" to 1/2" lower at front than rear,

tighten nut "D" against trunnion on both front links.

To raise front of blade, loosen nut "D" from trunnion on

both front links. Tighten nut "C" on both front links an

equal number of turns. The two front links must remain

equal in length.

When distance "B"is 1/8" to 1/2" lower at front than rear,

tighten nut "D" against trunnion on both front links.

Recheck side-to-side adjustment.

FIG. 21

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

NUT "D"-'_

FRONT PLATE'_,,

ASSEMBLY_

NUT "C"

_TRUNNION

FIG. 22

SERVICE AND ADJUSTMENTS

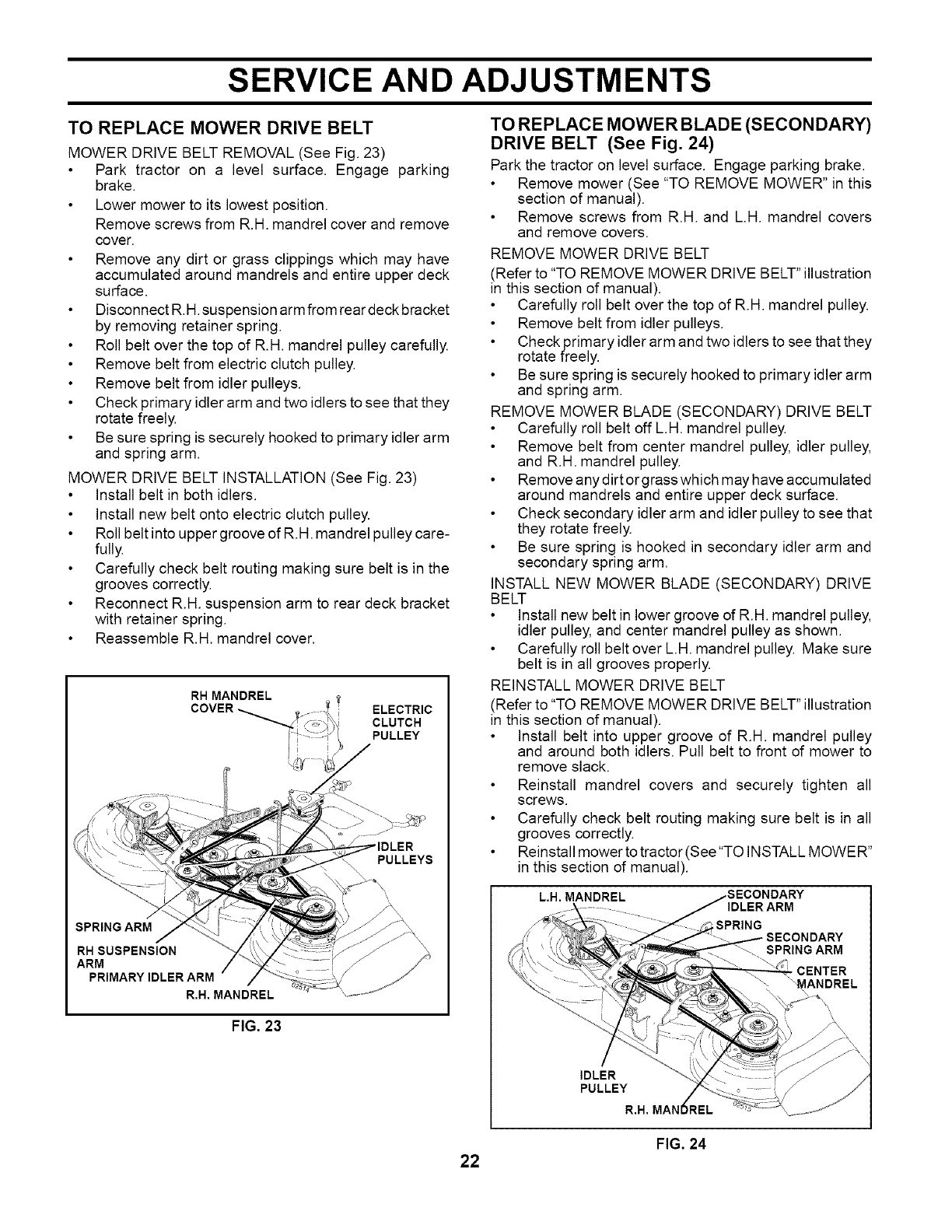

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL (See Fig. 23)

Park tractor on a level surface. Engage parking

brake.

Lower mower to its lowest position.

Remove screws from RH. mandrel cover and remove

cover.

Remove any dirt or grass clippings which may have

accumulated around mandrels and entire upper deck

surface.

Disconnect R.H.suspension arm from rear deck bracket

by removing retainer spring.

Roll belt over the top of R.H. mandrel pulley carefully.

Remove belt from electric clutch pulley.

Remove belt from idler pulleys.

Check primary idler arm and two idlers to see that they

rotate freely.

Be sure spring is securely hooked to primary idler arm

and spring arm.

MOWER DRIVE BELT INSTALLATION (See Fig. 23)

Install belt in both idlers.

Install new belt onto electric clutch pulley.

Roll belt into upper groove of R.H. mandrel pulley care-

fully.

Carefully check belt routing making sure belt is in the

grooves correctly.

Reconnect RH. suspension arm to rear deck bracket

with retainer spring.

Reassemble RH. mandrel cover.

PULLEYS

SPRING ARM

RH SUSPENSION

ARM

PRIMARYIDLERARM

R.H, MANDREL

FIG. 23

TO REPLACE MOWER BLADE (SECONDARY)

DRIVE BELT (See Fig. 24)

Park the tractor on level surface. Engage parking brake.

Remove mower (See "TO REMOVE MOWER" in this

section of manual).

Remove screws from RH. and LH. mandrel covers

and remove covers.

REMOVE MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE BELT" illustration

in this section of manual).

Carefully roll belt over the top of R.H. mandrel pulley.

Remove belt from idler pulleys.

Check primary idler arm and two idlers to see that they

rotate freely.

Be sure spring is securely hooked to primary idler arm

and spring arm.

REMOVE MOWER BLADE (SECONDARY) DRIVE BELT

Carefully roll belt off L.H. mandrel pulley.

Remove belt from center mandrel pulley, idler pulley,

and R.H. mandrel pulley.

Remove any dirt or grass which may have accumulated

around mandrels and entire upper deck surface.

Check secondary idler arm and idler pulley to see that

they rotate freely.

Be sure spring is hooked in secondary idler arm and

secondary spring arm.

INSTALL NEW MOWER BLADE (SECONDARY) DRIVE

BELT

Install new belt in lower groove of R.H. mandrel pulley,

idler pulley, and center mandrel pulley as shown.

Carefully roll belt over L.H. mandrel pulley. Make sure

belt is in all grooves properly.

REINSTALL MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE BELT" illustration

in this section of manual).

Install belt into upper groove of R.H. mandrel pulley

and around both idlers. Pull belt to front of mower to

remove slack.

Reinstall mandrel covers and securely tighten all

screws.

Carefully check belt routing making sure belt is in all

grooves correctly.

Reinstall mower to tractor (See "TO INSTALL MOWER"

in this section of manual).

L.H. MANDREL

IDLER

PULLEY

R.H,

FIG. 24

SERVICE AND ADJUSTMENTS

TO CHECK AND ADJUST BRAKE

(See Fig. 25)

Your tractor is equipped with an adjustable brake system

which is mounted on the right side of the transaxle.

If tractor requires more than five (5) feet to stop at highest

speed in highest gear on a level, dry concrete or paved

surface, then brake must be checked and adjusted.

TO CHECK BRAKE

Park tractor on a level, dry concrete or paved surface,

depress clutch/brake pedal all the way down and en-

gage parking brake.

Disengage transmission by placing freewheel control

in "transmission disengaged" position. Pull freewheel

control out and into the slot and release so it is held in

the disengaged position.

The rear wheels must lock and skid when you try to manually

push the tractor forward. Ifthe rear wheels rotate, the brake

needs to be adjusted or the pads need to be replaced.

TO ADJUST BRAKE

Depress clutch/brake pedal all the way down and en-

gage parking brake.

Measure distance between brake operating arm and

nut "A" on brake rod.

If distance is other than 1-9/16", loosen jam nut and

turn nut "A" until distance becomes 1-9/16". Retighten

jam nut against nut "A".

Engage transmission by placing freewheel control in

"transmission engaged" position.

Road test tractor for proper stopping distance as stated

above. Readjust if necessary. If stopping distance is

still greater than five (5) feet in highest gear, further

maintenance is necessary. Replace brake pads or

contact a qualified service center.

NUT

TO REPLACE MOTION DRIVE BELT

(See Fig. 26)

Park the tractor on level surface. Engage parking brake.

For assistance, there is a belt installation guide decal on

bottom side of left footrest.

BELT REMOVAL -

Remove mower (See "TO REMOVE MOWER" in this

section of manual).

NOTE: Observe entire motion drive belt and position of all

belt guides and keepers.

Remove belt from stationary idler and clutching idler.

Remove belt downward from around engine pulley.

Pull belt slack toward rear of tractor. Carefully remove

belt upwards from transmission input pulley.

Remove belt from center span keeper and pull belt

away from tractor.

BELT INSTALLATION -

Carefully work new belt down onto the input pulley.

Slide belt into the center span keeper.

Pull belt toward front of tractor and roll around the top

groove of engine pulley.

Install belt through stationary idler and clutching

idler.

Make sure belt is in all pulley grooves and inside all

belt guides and keepers.

Install mower (See "TO INSTALL MOWER" in this sec-

tion of manual).

ENGINE_

PULLEY

CLUTCHING ----..

IDLER

STATIONARY

IDLER

TRANSMISSION

INPUT PULLEY KEEPER

FIG. 26

FIG. 25

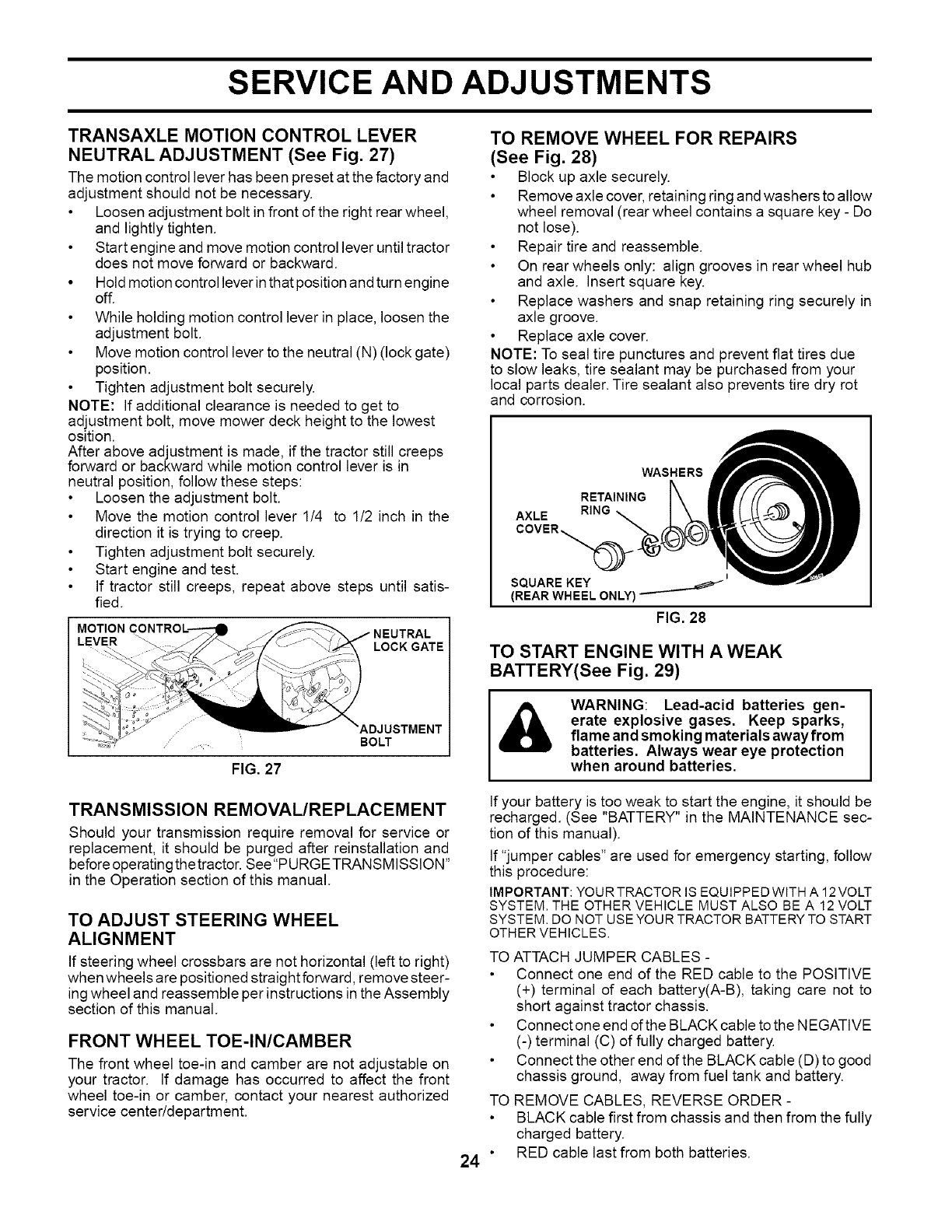

SERVICE AND ADJUSTMENTS

TRANSAXLE MOTION CONTROL LEVER

NEUTRAL ADJUSTMENT (See Fig. 27)

The motion control lever has been preset at the factory and

adjustment should not be necessary.

Loosen adjustment bolt in front of the right rear wheel,

and lightly tighten.

Start engine and move motion control lever until tractor

does not move forward or backward.

• Hold motion control lever inthat position and turn engine

off.

While holding motion control lever in place, loosen the

adjustment bolt.

Move motion control lever to the neutral (N) (lock gate)

position.

Tighten adjustment bolt securely.

NOTE: If additional clearance is needed to get to

adjustment bolt, move mower deck height to the lowest

osition.

After above adjustment is made, if the tractor still creeps

forward or backward while motion control lever is in

neutral position, follow these steps:

Loosen the adjustment bolt.

Move the motion control lever 1/4 to 1/2 inch in the

direction it is trying to creep.

Tighten adjustment bolt securely.

Start engine and test.

If tractor still creeps, repeat above steps until satis-

fied.

MOTION NEUTRAL

LOCKGATE

FIG. 27

ADJUSTMENT

BOLT

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or

replacement, it should be purged after reinstallation and

before operating the tractor. See"PURGETRANSMISSION"

in the Operation section of this manual.

TO ADJUST STEERING WHEEL

ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

whenwheelsare positioned straightforward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service center/department.

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 28)

Block up axle securely.

Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

Repair tire and reassemble.

On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

Replace washers and snap retaining ring securely in

axle groove.

Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due

to slow leaks, tire sealant may be purchased from your

local parts dealer. Tire sealant also prevents tire dry rot

and corrosion.

WASHERS

RETAINING

AXLE RING

COVER,,_.

SQUARE KEY _ i

(REAR WHEEL ONLY) "''"-

FIG. 28

TO START ENGINE WITH AWEAK

BATTERY(See Fig. 29)

&WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. (See "BATTERY" in the MAINTENANCE sec-

tion of this manual).

If "jumper cables" are used for emergency starting, follow

this procedure:

IMPORTANT:YOURTRACTORISEQUIPPEDWITHA 12VOLT

SYSTEM.THE OTHER VEHICLE MUST ALSO BE A 12VOLT

SYSTEM.DO NOTUSEYOURTRACTORBATTERYTO START

OTHERVEHICLES.

TO ATTACH JUMPER CABLES -

Connect one end of the RED cable to the POSITIVE

(+) terminal of each battery(A-B), taking care not to

short against tractor chassis.

Connect one end of the BLACK cable to the NEGATIVE

(-) terminal (C) of fully charged battery.

Connect the other end of the BLACK cable (D) to good

chassis ground, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

BLACK cable first from chassis and then from the fully

charged battery.

RED cable last from both batteries.

SERVICE AND ADJUSTMENTS

Dr7

02614

WEAK OR DEAD FULLY CHARGED

BATTERY BATTERY

FIG. 29

REPLACING BATTERY (See Fig. 30)

WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals

at the same time. Before connect-

ing battery, remove metal bracelets,

wristwatch bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acci-

dental grounding.

Lift hood to raised position.

Disconnect BLACK battery cable first then RED battery

cable and carefully remove battery from tractor.

Install new battery with terminals in same position as

old battery.

First connect RED battery cable to positive (+) terminal

with hex bolt and keps nut as shown. Tighten securely.

Slide terminal cover over terminal.

Connect BLACK grounding cable to negative (-) ter-

minal with remaining hex bolt and keps nut. Tighten

securely.

NEGATIVE POSITIVE

(BLACK) (RED)

CABLE CABLE

FIG. 30

TO REPLACE HEADLIGHT BULB

Raise hood.

Pull bulb holder out of the hole in the backside of the

grill.

Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

Close hood. 25

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

Check wiring. See electrical wiring diagram in the

Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 31)

Raise hood.

Unsnap headlight wire connector.

Stand in front of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

To replace, reverse above procedures.

HOOD

HEADLIGHT

WIRE

CONNECTOR

FIG. 31

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

The throttle control has been preset at the factory and

adjustment should not be necessary. If adjustment is nec-

essary, see engine manual.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the factory and ad-

justment should not be necessary. If adjustment is neces-

sary, see engne manual.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not

operate properly due to suspected carburetor problems,

take your tractor to an authorized service center for repair

and/or adjustment.

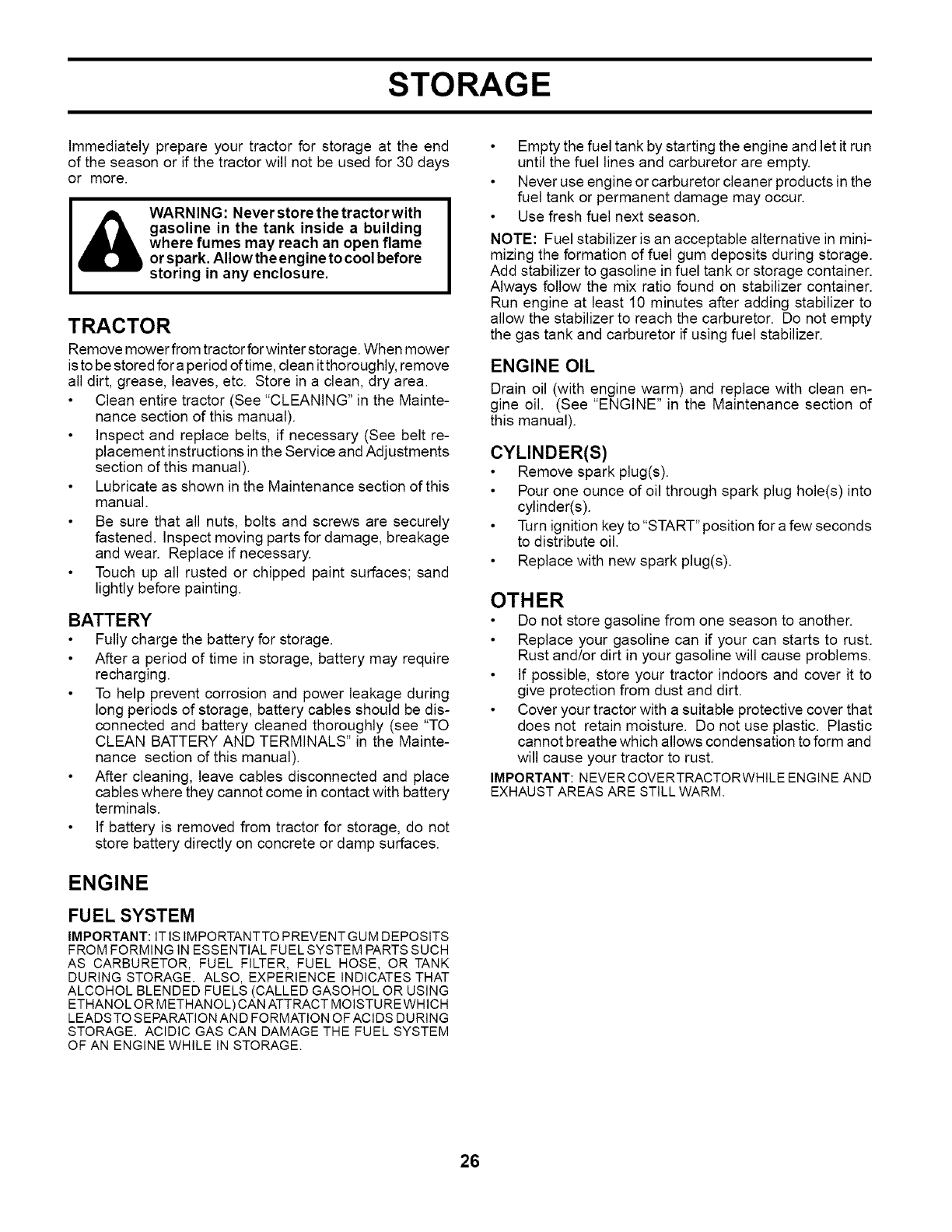

STORAGE

Immediately prepare your tractor for storage at the end

of the season or if the tractor will not be used for 30 days

or more.

WARNING: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

orspark. Allow theenginetocool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter storage. When mower

isto be stored for a period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a clean, dry area.

Clean entire tractor (See "CLEANING" in the Mainte-

nance section of this manual).

Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

Lubricate as shown in the Maintenance section of this

manual.

Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

Fully charge the battery for storage.

After a period of time in storage, battery may require

recharging.

To help prevent corrosion and power leakage during

long periods of storage, battery cables should be dis-

connected and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Mainte-

nance section of this manual).

After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANTTO PREVENT GUM DEPOSITS

FROM FORMING IN ESSENTIAL FUEL SYSTEM PARTS SUCH

AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK

DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT

ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT MOISTURE WHICH

LEADSTO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM

OF AN ENGINE WHILE IN STORAGE.

Empty the fuel tank by starting the engine and let it run

until the fuel lines and carburetor are empty.

Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in mini-

mizing the formation of fuel gum deposits during storage.

Add stabilizer to gasoline in fuel tank or storage container.

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to

allow the stabilizer to reach the carburetor. Do not empty

the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean en-

gine oil. (See "ENGINE" in the Maintenance section of

this manual).

CYLINDER(S)

Remove spark plug(s).

Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

Turn ignition key to "START" position for a few seconds

to distribute oil.

Replace with new spark plug(s).

OTHER

Do not store gasoline from one season to another.

Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

If possible, store your tractor indoors and cover it to

give protection from dust and dirt.

Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVERCOVERTRACTORWHILE ENGINE AND

EXHAUST AREAS ARE STILL WARM.

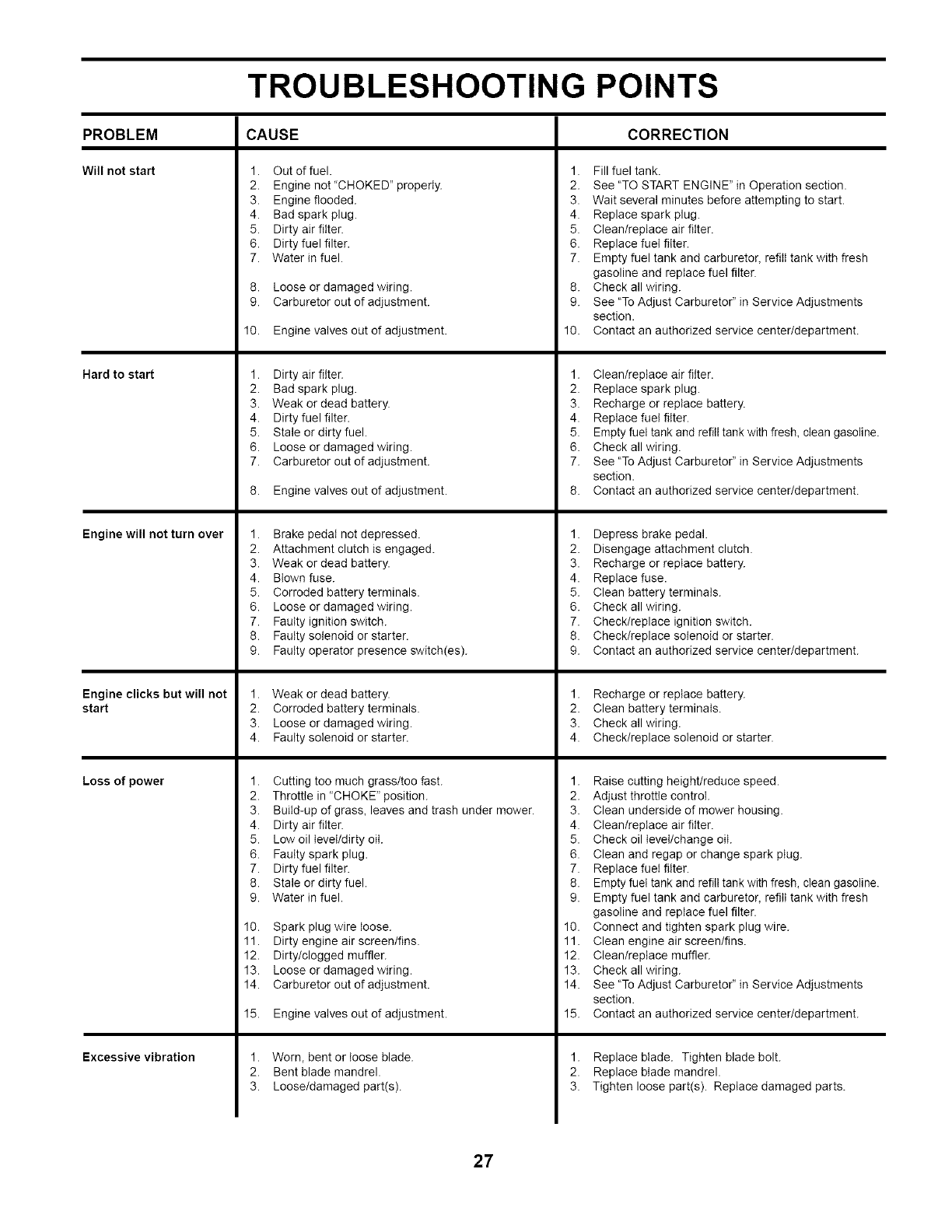

TROUBLESHOOTING POINTS

PROBLEM

Will not start

Hard to start

Engine will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration

CAUSE

1. Out of fuel.

2. Engine not "CHOKED" properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too fast.

2. Throttle in "CHOKE" position.

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE" in Operation section.

3. Wait several minutes before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuet filter.

7. Empty fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor" in Service Adjustments

section.

10. Contact an authorized service center/department.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in Service Adjustments

section.

8. Contact an authorized service center/department.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or starter.

9. Contact an authorized service center/department.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or starter.

1. Raise cutting height/reduce speed.

2. Adjust throttle control.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

Build-up of grass, leaves and trash under mower.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

3. Clean underside of mower housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank with fresh, clean gasoline.

9. Empty fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Connect and tighten spark plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. Carburetor out of adjustment.

15. Engine valves out of adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

14. See "To Adjust Carburetor" in Service Adjustments

section.

15. Contact an authorized service center/department.

1. Replace blade. Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s). Replace damaged parts.

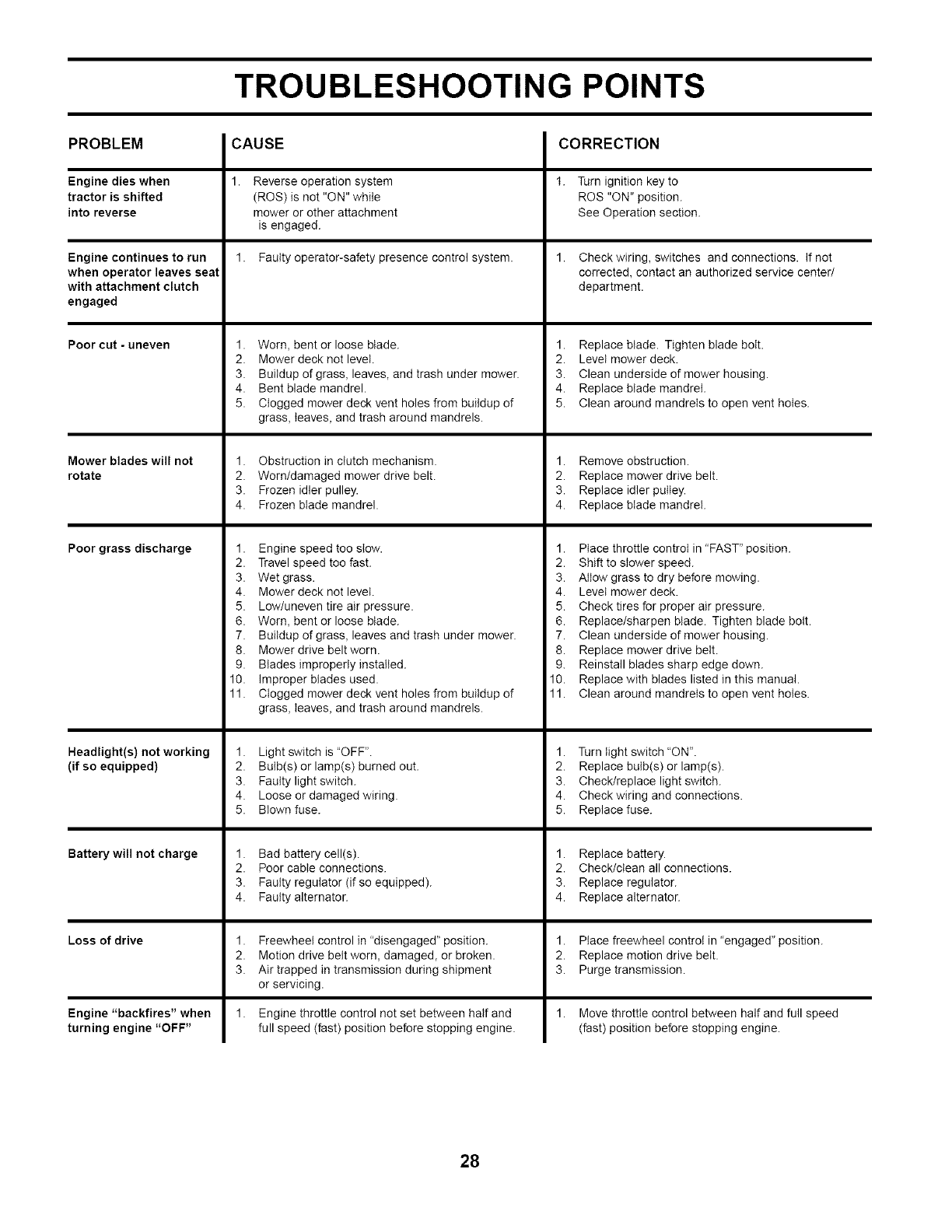

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Engine dies when 1. Reverse operation system 1. Turn ignition key to

tractor is shifted (ROS) is not "ON" while ROS "ON" position.

into reverse mower or other attachment See Operation section.

is engaged.

Engine continues to run 1. Faulty operator-safety presence control system. 1. Check wiring, switches and connections. If not

when operator leaves seat corrected, contact an authorized service center/

with attachment clutch department.

engaged

Poor cut - uneven

Mower blades will not

rotate

Poor grass discharge

Headlight(s) not working

(if so equipped)

Battery will not charge

Loss of drive

Engine "backfires" when

turning engine "OFF"

1. Worn, bent or loose btade.

2. Mower deck not levet.

3. Buitdup of grass, leaves, and trash under mower.

4. Bent blade mandrel.

5. Ctogged mower deck vent holes from buitdup of

grass, leaves, and trash around mandrels.

1. Obstruction in dutch mechanism.

2. Worn/damaged mower drive belt.

1. Replace btade. Tighten blade bolt.

2. Levet mower deck.

3. Clean underside of mower housing.

4. Replace btade mandret.

5. Clean around mandrets to open vent hotes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too stow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in "FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before mowing.

4. Level mower deck.

5. Check tires for proper air pressure.

6. Replace/sharpen blade. Tighten blade bolt.

7. Buildup of grass, leaves and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Light switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator (if so equipped).

4. Faulty alternator.

1. Freewheel control in "disengaged" position.

2. Motion drive belt worn, damaged, or broken.

3. Air trapped in transmission during shipment

or servicing.

Engine throttle control not set between half and

full speed (fast) position before stopping engine.

7. Clean underside of mower housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge down.

10. Replace with blades listed in this manual.

11. Clean around mandrels to open vent holes.

1. Turn light switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in "engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

1. Move throttle control between half and full speed

(fast) position before stopping engine.

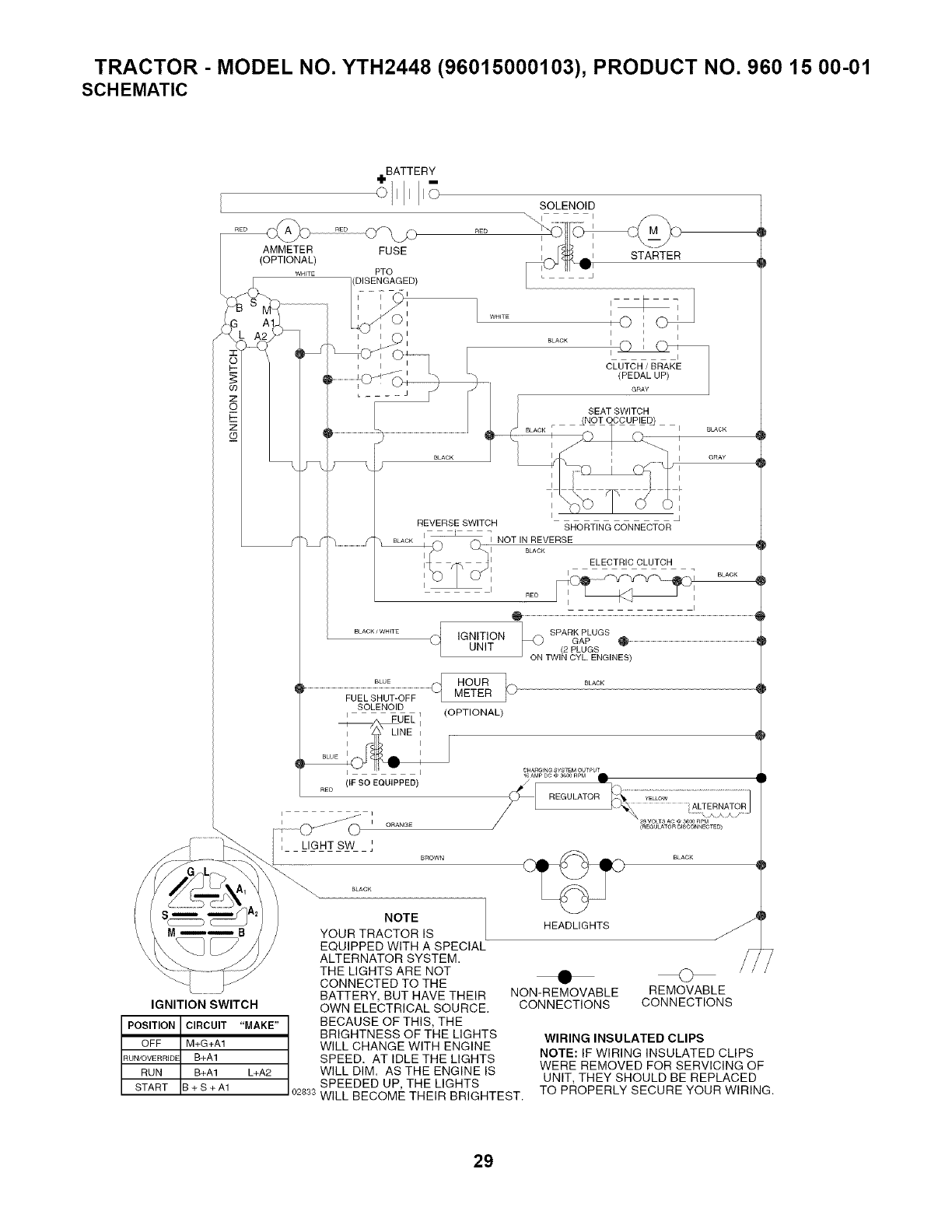

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

SCHEMATIC

BATTERY

SOLENOID

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1

RUN/OVERRIDE B+A1

RUN B+A1 L+A2

START B + S + A1

IGNITION

UNIT

SPARK PLUGS

_) GAP O ...........................................................................................................................................

.... (2 PLUGS

ON TWIN CYL. ENGINES)

HOUR _) BLACKMETER

SOLENOID

I FUEL i (OPTIONAL)

I LINE I

BLUE I I

CHA_GINGSYSTEMOUTPUT

I_AMP PC @3_00 RPM _

..O (IF SO EQUIPPED)J ' /2L REGULATOR:'[ILX .............._E_ow ........................................................_TE"RN/_A_xT_' l

/2evolts Ac _ 3_o0RPM

/(REGULATORD_SCONNECTED)

LIGHT SW

02833

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

HEADLIGHTS

• O

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

WILL BECOME THEIR BRIGHTEST.

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS

WERE REMOVED FOR SERVICING OF

UNIT, THEY SHOULD BE REPLACED

TO PROPERLY SECURE YOUR WIRING.

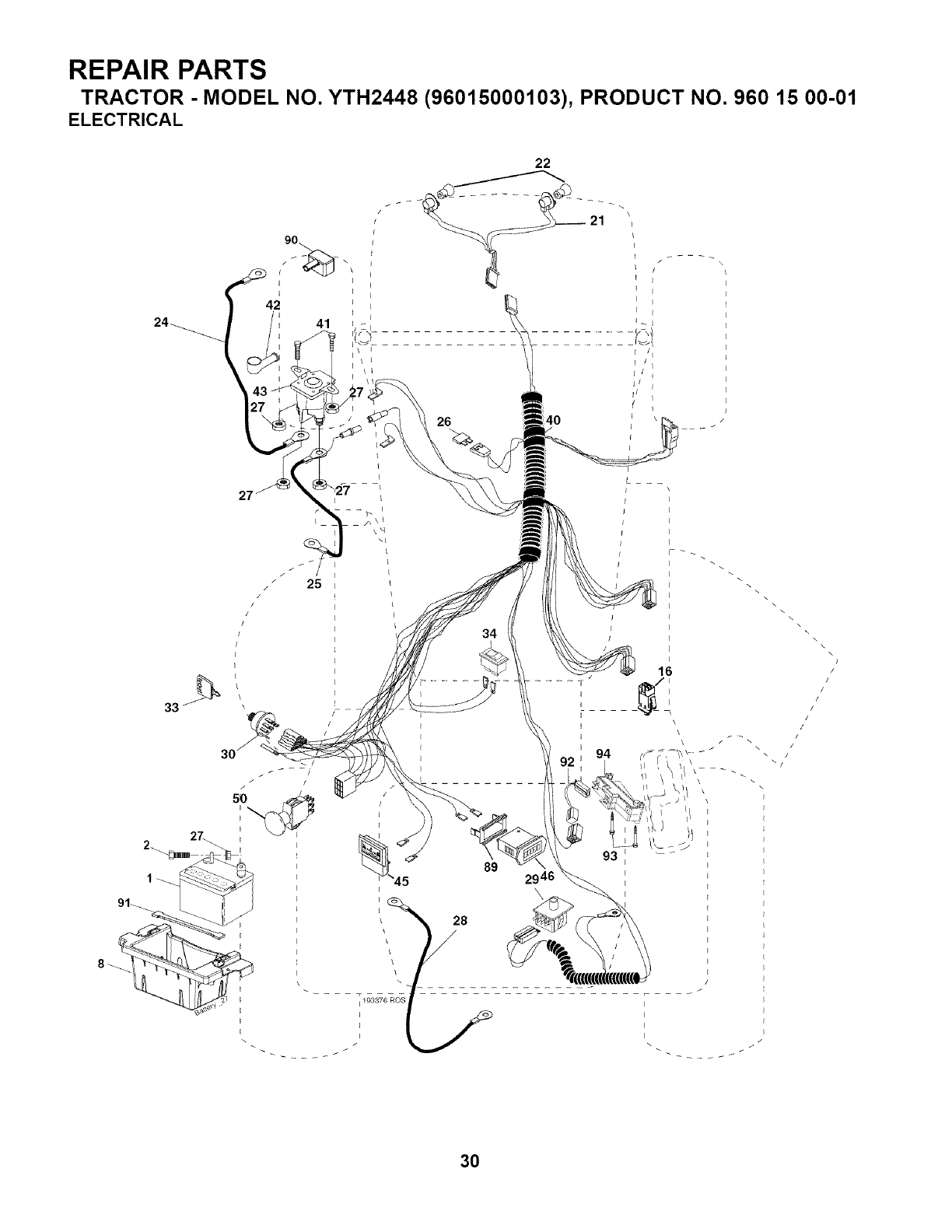

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

ELECTRICAL

I I

42 I

'89

I /

[

2946

16 /

\//

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 14 49-27

2 874 76 04-12

8 532 18 64-91

16 532 17 6t-38

2t 532 18 37-59

22 532 O041-52

24 532 12 47-80

25 532 14 61-48

26 532 17 51-58

27 873 51 04-00

28 532 14 54-91

29 532 19 27-49

30 532 19 33-50

33 532 14 04-0t

34 532 11 07-12

40 532 19 33-76

41 817 72 04-08

42 532 13 15-63

43 532 17 88-6t

45 532 12 28-22

46 532 16 96-35

50 532 19 61-12

89 532 16 96-39

90 532 18 04-49

9t 532 19 02-70

92 532 19 34-65

93 532 19 25-40

94 532 19 18-54

Battery

Bolt Hex Hd 1/4-20 unc x 3/4

Box Battery

Switch Interlock Push-In

Harness Asm Light W/4152j

Bulb Light #1156

Cable Battery 6 Ga. 11" red

Cable Battery 6 Ga. 22" red w/16 wire

Fuse 20 AMP

Nut Keps Hex 1/4-20 unc

Cable Ground black

Switch Seat DP w/ROS

Switch Ign

Key Ign Molded Generic

Switch Light/Reset

Harness Ign.

Bolt 1/4-20 x 1/2

Cover Terminal Red

Solenoid

Ammeter

Hourmeter Snap-In

Switch PTO

Bracket Snap-In Hourmeter

Cover Terminal

Strap Battery

Harness Pigtail Revers Switch

Screw Plastic 10-14 x 2.0

Module Reverse ROS

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

CHASSIS AND ENCLOSURES

259

/258

217

278

159

214

11_

2O8

158

209

3_ 38_4

208

chassis elite husqy 4

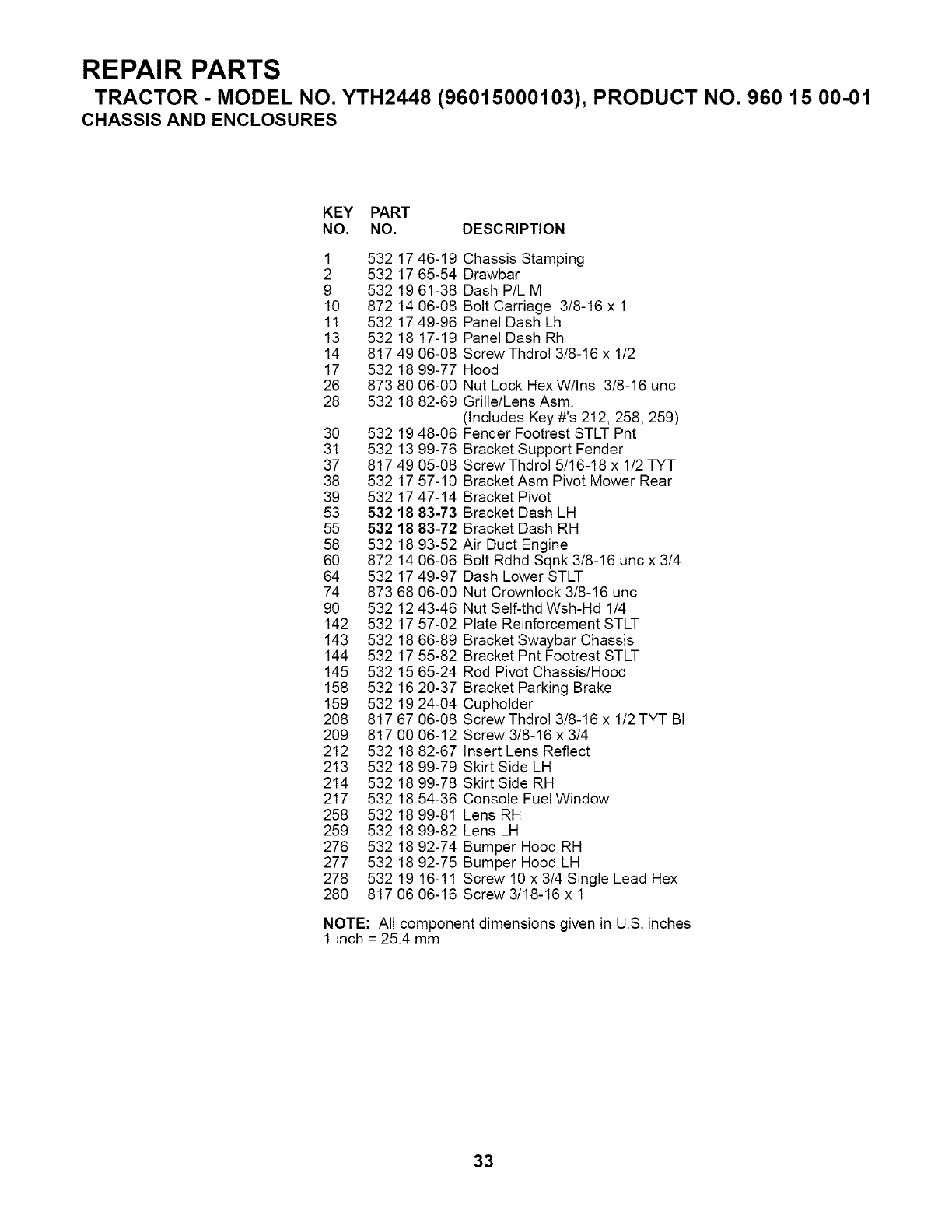

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 532 1746-19

2 532 17 65-54

9 532 19 61-38

10 872 14 06-08

11 532 17 49-96

13 532 18 17-19

14 817 49 06-08

17 532 18 99-77

26 873 80 06-00

28 532 18 82-69

30 532 19 48-06

31 532 13 99-76

37 817 49 05-08

38 532 17 57-10

39 532 17 47-t4

53 532 18 83-73

55 532 18 83-72

58 532 18 93-52

60 872 14 06-06

64 532 17 49-97

74 873 68 06-00

90 532 12 43-46

142 532 17 57-02

143 532 18 66-89

144 532 17 55-82

145 532 15 65-24

158 532 16 20-37

159 532 19 24-04

208 817 67 06-08

209 817 0006-12

212 532 18 82-67

213 532 18 99-79

214 532 18 99-78

217 532 18 54-36

258 532 18 99-81

259 532 18 99-82

276 532 18 92-74

277 532 18 92-75

278 532 19 16-tl

280 817 06 06-16

Chassis Stamping

Drawbar

Dash P/L M

Bolt Carriage 3/8-16 x 1

Panel Dash Lh

Panel Dash Rh

Screw Thdrol 3/8-16 x 1/2

Hood

Nut Lock Hex W/Ins 3/8-16 unc

Grille/Lens Asm.

(Includes Key #'s 212,258,259)

Fender Footrest STLT Pnt

Bracket Support Fender

Screw Thd rol 5/16-18 x 1/2 TYT

Bracket Asm Pivot Mower Rear

Bracket Pivot

Bracket Dash LH

Bracket Dash RH

Air Duct Engine

Bolt Rdhd Sqnk 3/8-16 unc x 3/4

Dash Lower STLT

Nut Crownlock 3/8-t6 unc

Nut Self-thd Wsh-Hd 1/4

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Rod Pivot Chassis/Hood

Bracket Parking Brake

Cupholder

Screw Thdrol 3/8-t6 x 1/2 TYT BI

Screw 3/8-16 x 3/4

Insert Lens Reflect

Skirt Side LH

Skirt Side RH

Console Fuel Window

Lens RH

Lens LH

Bumper Hood RH

Bumper Hood LH

Screw 10 x 3/4 Single Lead Hex

Screw 3/18-16 x 1

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR . MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

DRIVE

37 36 35

15 J78

252 i

24 55

74 75

d_ive-hydro.stlt 71

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

DRIVE

KEY PART

NO. NO.

8 532 19 25-02

9 532 17 43-67

10 876 02 04-16

14 8t0 04 04-00

15 874 49 05-44

16 873 80 05-00

17 532 12 61-97

19 873 80 06-00

21 532 14 08-45

22 532 17 8t-41

23 532 19 07-36

24 873 35 06-00

25 532 10 68-88

27 876 02 04-t2

28 532 17 57-65

29 532 07 16-73

30 532 16 95-92

32 874 76 05-12

34 532 17 55-78

35 532 12 01-83

36 819 21 16-16

37 532 12 49-63

38 532 17 91-14

39 872 11 06-22

41 532 17 55-56

47 532 12 77-83

48 532 15 44-07

49 532 12 32-05

50 872 11 06-t2

51 873 68 06-00

52 873 68 05-00

53 532 10 57-t0

55 532 10 57-09

56 817 06 06-20

57 532 17 81-38

59 532 16 96-91

61 817 12 06-14

62 532 12 48-72

63 532 17 54-17

DESCRIPTION KEY PART

NO. NO.

Transaxle, Peerless LTH2000 64 532 17

(Order Parts From Transaxle Manu- 65 810 04

facturer) 66 532 15

Rod Shift Fender 69 532 14

Clutch Electric 74 532 13

Pin Cotter 1/8 x 1 CAD 75 532 12

Washer Lock Hvy Helical 76 812 00

Bolt Hex Flghd 5/16-18 Gr. 5 77 532 12

Nut Lock Hex W/Ins. 5/16-18 unc 78 532 12

Washer 1-1/20D x 15/32 ID x .250 81 532 17

Nut Lock Hex W/Wsh 3/8-16 unc 82 532 16

Knob 83 819 17

Rod, Brake Hydro 85 532 15

Bracket Anti-Rot 89 532 19

Locknut 95 532 17

Spring, Brake Rod 112 8t9 09

Pin Cotter 1/8 x 3/4 CAD. 120 873 90

Rod, Parking Brake 150 532 17

Cap, Parking Brake 151 819 13

Bracket, Transaxle 156 532 16

Bolt Hex Hd 5/16-18 uncx 3/4 158 532 16

Shaft, Foot Pedal Nibbed 159 532 18

Bearing, Nylon 161 872 14

Washer 162 873 68

Pin, Roll 163 874 78

Pulley, Idler, Flat Composite 165 532 16

Bolt 3/8-t6 x 2-3/4 Gr. 5 166 817 49

Keeper, Belt Idler Fool-Proof 168 532 16

Pulley, Idler, V-Groove 169 532 16

Bellcrank Clutch Grnd Drv Stl 197 532 16

Retainer, Belt 198 532 16

Bolt Carr. SH 3/8-16 x 1-1/2 Gr. 5 202 872 11

Nut 245 532 17

Nut Crown Lock 5/16-18 246 532 17

Link, Clutch 247 532 18

Spring, Return, Clutch 251 817 06

Screw 3/8-16 x 1-1/4 252 819 13

V-Belt, Ground Drive 254 817 00

Keeper, Center Span 263 817 00

Screw 3/8-16 x .875

Cover, Pedal

Pulley, Engine

DESCRIPTION

39-37 Bolt Hex 7/16-20 x 4 x Gr. 5

07-00 Washer

47-78 Keeper Belt Engine Hydro

24-32 Screw Hex Wsh Hi-Lo 1/4-1/2 unc

70-57 Spacer, Axle

17-49 Washer 25/32 x 1-1/4 x 16 Ga.

00-01 E-Ring

35-83 Key, Square

17-48 Washer 25/32 x 1-5/8 x 16 Ga.

81-39 Shaft Asm. Cross

57-11 Spring Torsion T/A

12-16 Washer 17/32 x 3/4 x 16 Ga.

03-60 Nut Lock Center 1/4-28

48-10 Console, Shift

81-34 Control Asm. Bypass Disconnect

12-t0 Washer 9/32 x 3/4 x 10 Ga.

06-00 Nut Lock 3/8-16

54-56 Spacer Retainer

32-10 Washer 13/32 x 2 x t0 Ga.

60-02 Washer Srrted 5/16 ID x 1.125

55-89 Bracket Shift Mount

39-00 Hub Shift

04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

04-00 Nut Crownlock 1/4-20 unc

04-16 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5

56-23 Bracket Pivot Lever

05-10 Screw 5/16-18 x 5/8

54-92 Bolt Shoulder 5/16-18 x .561

55-80 Plate Fastening Lt\

96-13 Nyliner Snap-In 5/8" ID

95-93 Washer Nyliner 7/8 ID x .105

06-14 Bolt 3/8-16 x 1-3/4 Gr. 5

81-22 Strap Torque Lh

81-21 Strap Torque Rh

14-62 Link Shift Transaxle

05-t6 Screw 5/16-18 x 1

16-16 Washer

06-16 Screw 3/8-16 x 1

06-12 Screw Hexwsh Thdr 3/8-16 x 3/4

NOTE:All component dimensions give in U.S. inches.

1 inch = 25.4 mm.

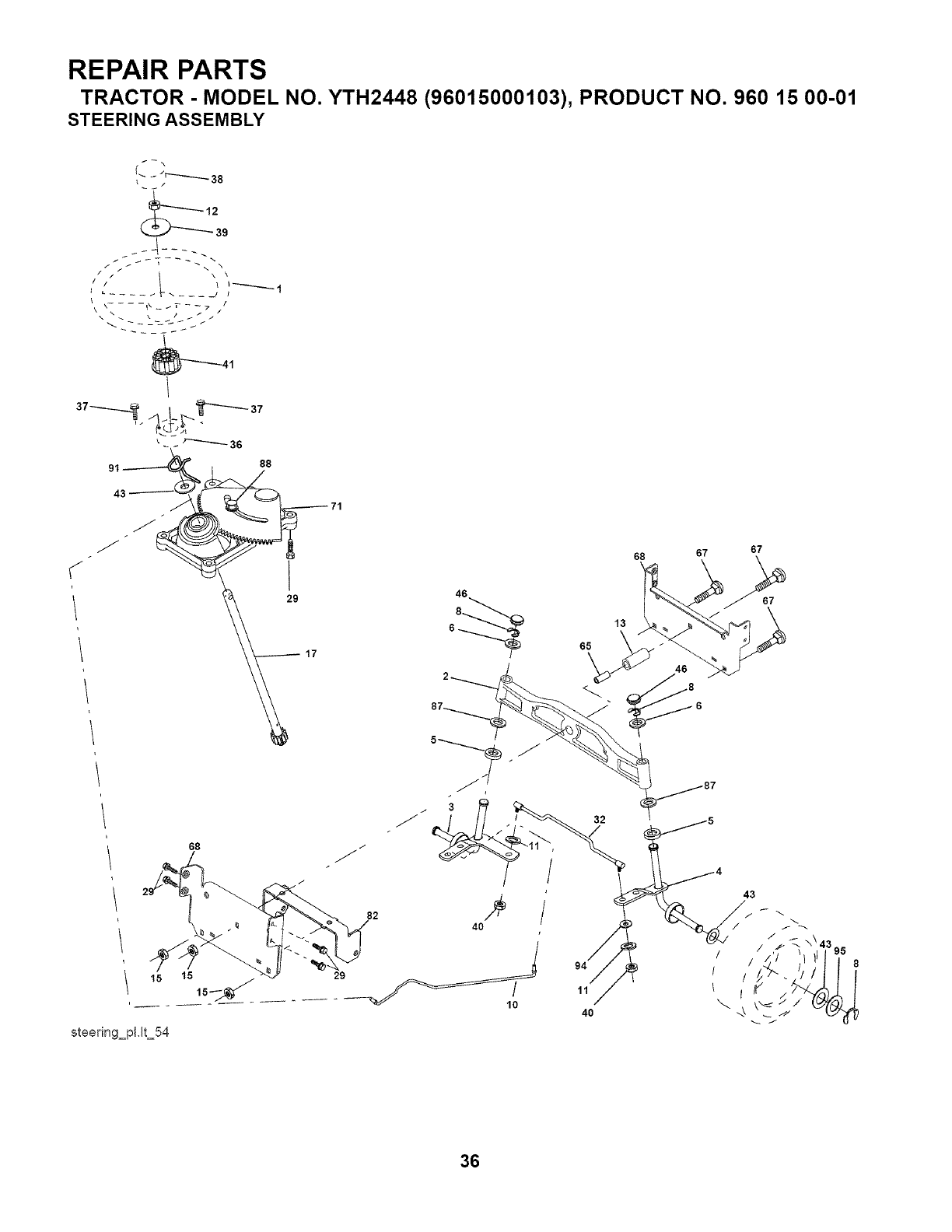

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

STEERING ASSEMBLY

6 13

65 \

steefing=pl.lt=54

68 67 67

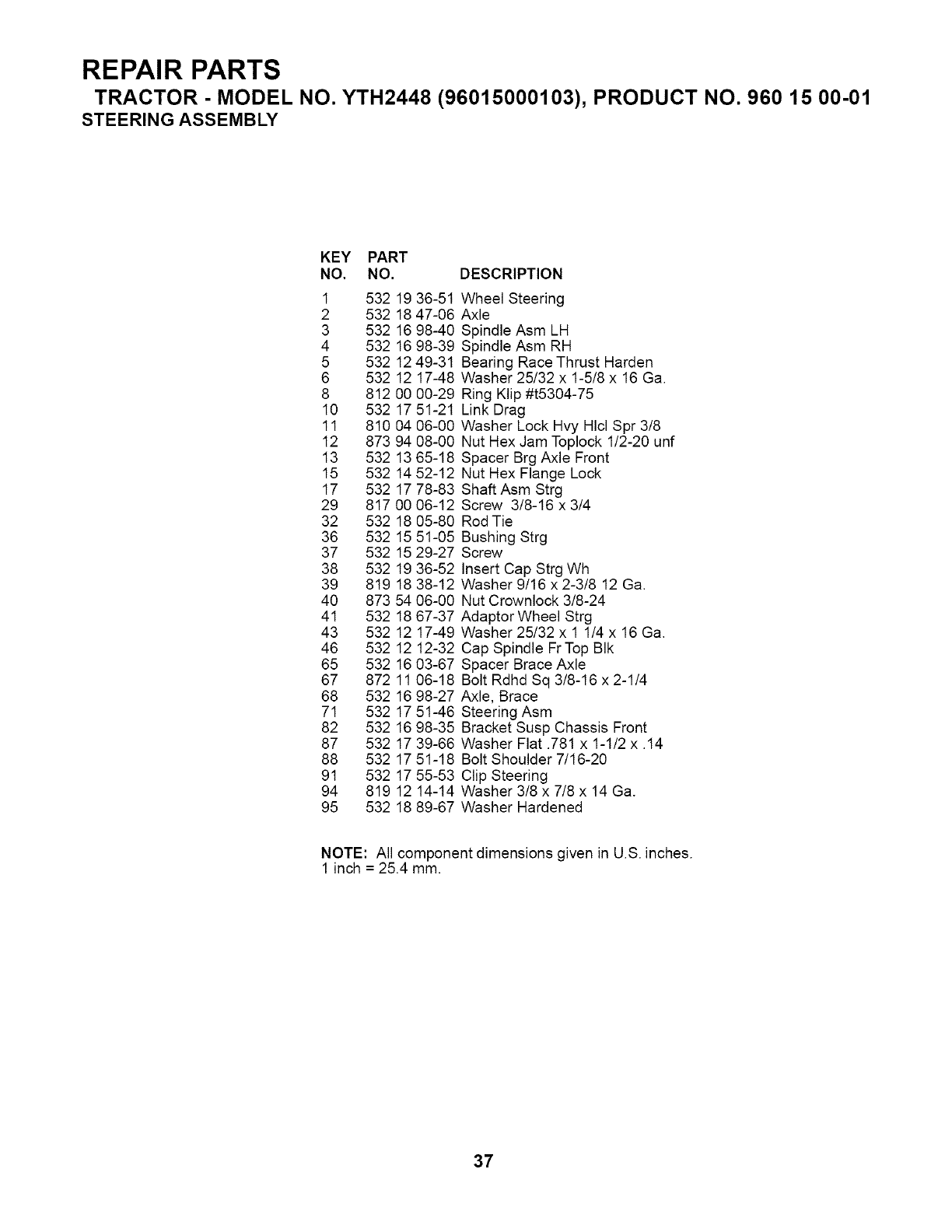

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

STEERING ASSEMBLY

KEY PART

NO. NO.

1 532 19 36-51

2 532 18 47-06

3 532 16 98-40

4 532 16 98-39

5 532 12 49-31

6 532 12 t7-48

8 812 00 00-29

10 532 17 5t-21

11 810 04 06-00

12 873 94 08-00

13 532 13 65-18

15 532 14 52-12

17 532 17 78-83

29 817 00 06-12

32 532 18 05-80

36 532 15 51-05

37 532 15 29-27

38 532 t9 36-52

39 819 18 38-12

40 873 54 06-00

41 532 18 67-37

43 532 12 17-49

46 532 12 12-32

65 532 16 03-67

67 872 11 06-18

68 532 16 98-27

71 532 17 51-46

82 532 16 98-35

87 532 17 39-66

88 532 17 51-18

91 532 17 55-53

94 819 12 14-14

95 532 18 89-67

DESCRIPTION

Wheel Steering

Axle

Spindle Asm LH

Spindle Asm RH

Bearing Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring Klip #t5304-75

Link Drag

Washer Lock Hvy Hlcl Spr 3/8

Nut Hex Jam Toplock 1/2-20 unf

Spacer Brg Axle Front

Nut Hex Flange Lock

Shaft Asm Strg

Screw 3/8-16 x 3/4

Rod Tie

Bushing Strg

Screw

Insert Cap Strg Wh

Washer 9/16 x 2-3/8 12 Ga.

Nut Crownlock 3/8-24

Adaptor Wheel Strg

Washer 25/32 x 1 1/4 x 16 Ga.

Cap Spindle Fr Top BIk

Spacer Brace Axle

Bolt Rdhd Sq 3/8-16 x 2-1/4

Axle, Brace

Steering Asm

Bracket Susp Chassis Front

Washer Flat .781 x 1-1/2 x .14

Bolt Shoulder 7/16-20

Clip Steering

Washer 3/8 x 7/8 x 14 Ga.

Washer Hardened

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

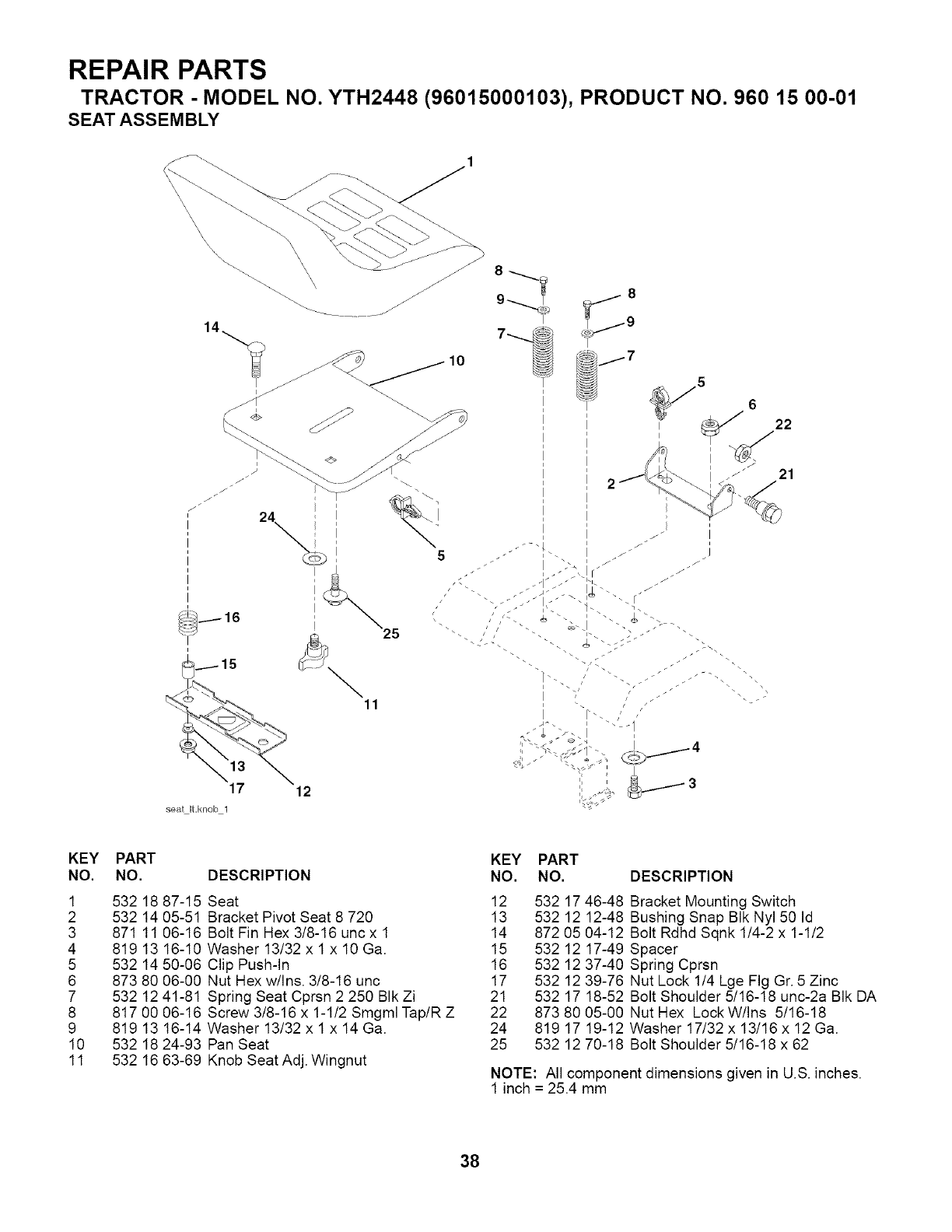

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

SEAT ASSEMBLY

\\\\

KEY

NO.

PART

NO.

532 18 87-15

532 14 05-5t

871 11 06-16

819 13 16-10

532 14 50-06

873 80 06-00

532 12 41-8t

817 00 06-16

819 13 16-14

532 18 24-93

532 16 63-69

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Seat 12 532 17

Bracket Pivot Seat 8 720 13 532 12

Bolt Fin Hex 3/8-16 unc x 1 14 872 05

Washer 13/32 x 1 x 10 Ga. 15 532 12

Clip Push-In 16 532 12

Nut Hex w/Ins. 3/8-16 unc 17 532 12

Spring Seat Cprsn 2 250 BIk Zi 21 532 17

Screw 3/8-16 x 1-1/2 Smgml TapiR Z 22 873 80

Washer 13/32 x 1 x 14 Ga. 24 819 17

Pan Seat 25 532 12

Knob Seat Adj. Wingnut

46-48 Bracket Mounting Switch

12-48 Bushing Snap BIk Nyl 50 Id

04-12 Bolt Rdhd Sqnk 1/4-2 x 1-1/2

17-49 Spacer

37-40 Spring Cprsn

39-76 Nut Lock 1/4 Lge Fig Gr. 5 Zinc

18-52 Bolt Shoulder 5/16-18 unc-2a BIk DA

05-00 Nut Hex LockW/Ins 5/16-18

19-12 Washer 17/32 x 13/16 x 12 Ga.

70-18 Bolt Shoulder 5/16-18 x 62

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

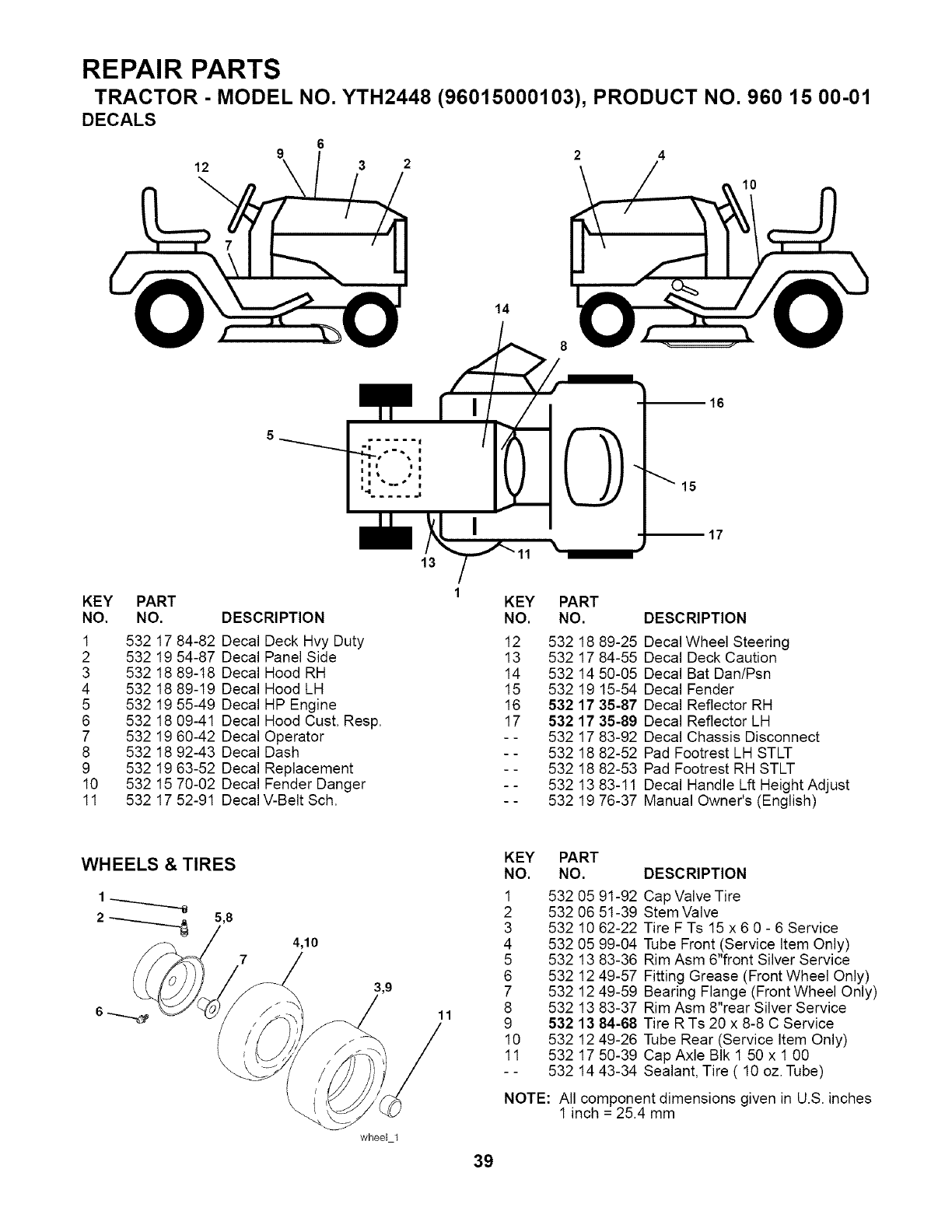

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

DECALS

KEY PART

NO. NO. DESCRIPTION

1 532 17 84-82 Decal Deck Hvy Duty

2 532 19 54-87 Decal Panel Side

3 532 18 89-18 Decal Hood RH

4 532 18 89-19 Decal Hood LH

5 532 19 55-49 Decal HP Engine

6 532 18 09-41 Decal Hood Cust. Resp.

7 532 19 60-42 Decal Operator

8 532 18 92-43 Decal Dash

9 532 19 63-52 Decal Replacement

10 532 15 70-02 Decal Fender Danger

11 532 17 52-91 Decal V-Belt Sch.

KEY PART

NO. NO.

12 532 18 89-25

13 532 17 84-55

14 532 14 50-05

15 532 19 15-54

16 532 17 35-87

17 532 17 35-89

- - 532 17 83-92

- - 532 18 82-52

- - 532 18 82-53

- - 532 13 83-11

- - 532 19 76-37

DESCRIPTION

Decal Wheel Steering

Decal Deck Caution

Decal Bat Dan/Psn

Decal Fender

Decal Reflector RH

Decal Reflector LH

Decal Chassis Disconnect

Pad Footrest LH STLT

Pad Footrest RH STLT

Decal Handle Lft Height Adjust

Manual Owner's (English)

WHEELS & TIRES

5,8

4,10

\\\

3,9

whee_ 1

KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92

2 532 06 5t-39

3 532 10 62-22

4 532 05 99-04

5 532 13 83-36

6 532 12 49-57

7 532 12 49-59

8 532 13 83-37

9532 13 84-68

10 532 12 49-26

11 532 17 50-39

- - 532 14 43-34

Cap Valve Tire

Stem Valve

Tire F Ts 15 x 6 0 - 6 Service

Tube Front (Service Item Only)

Rim Asm 6"front Silver Service

Fitting Grease (Front Wheel Only)

Bearing Flange (Front Wheel Only)

Rim Asm 8"rear Silver Service

Tire R Ts 20 x 8-8 C Service

Tube Rear (Service Item Only)

Cap Axle BIk 1 50 x 1 00

Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

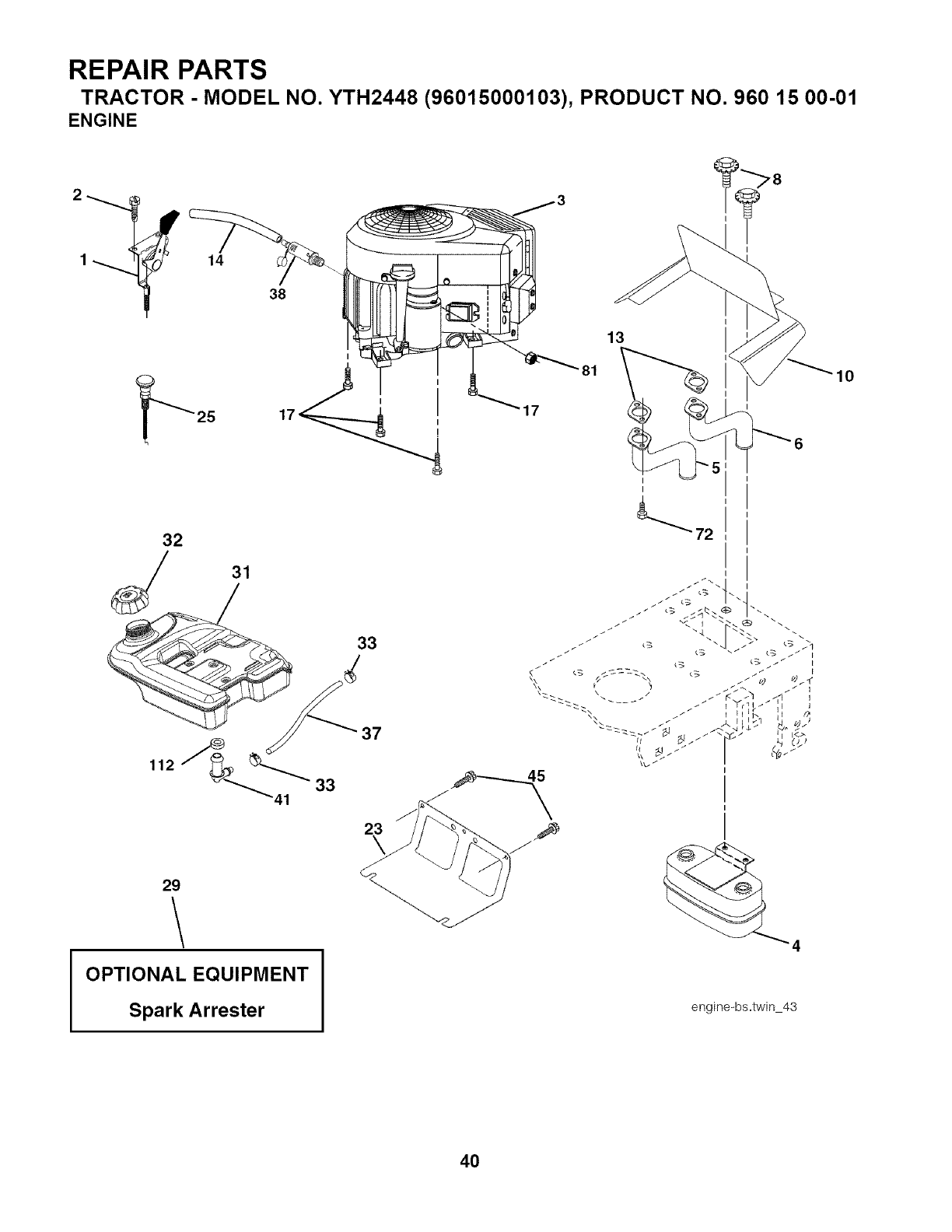

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

ENGINE

OPTIONAL EQUIPMENT

Spark Arrester

81 _1o

engine-bs.twin 43

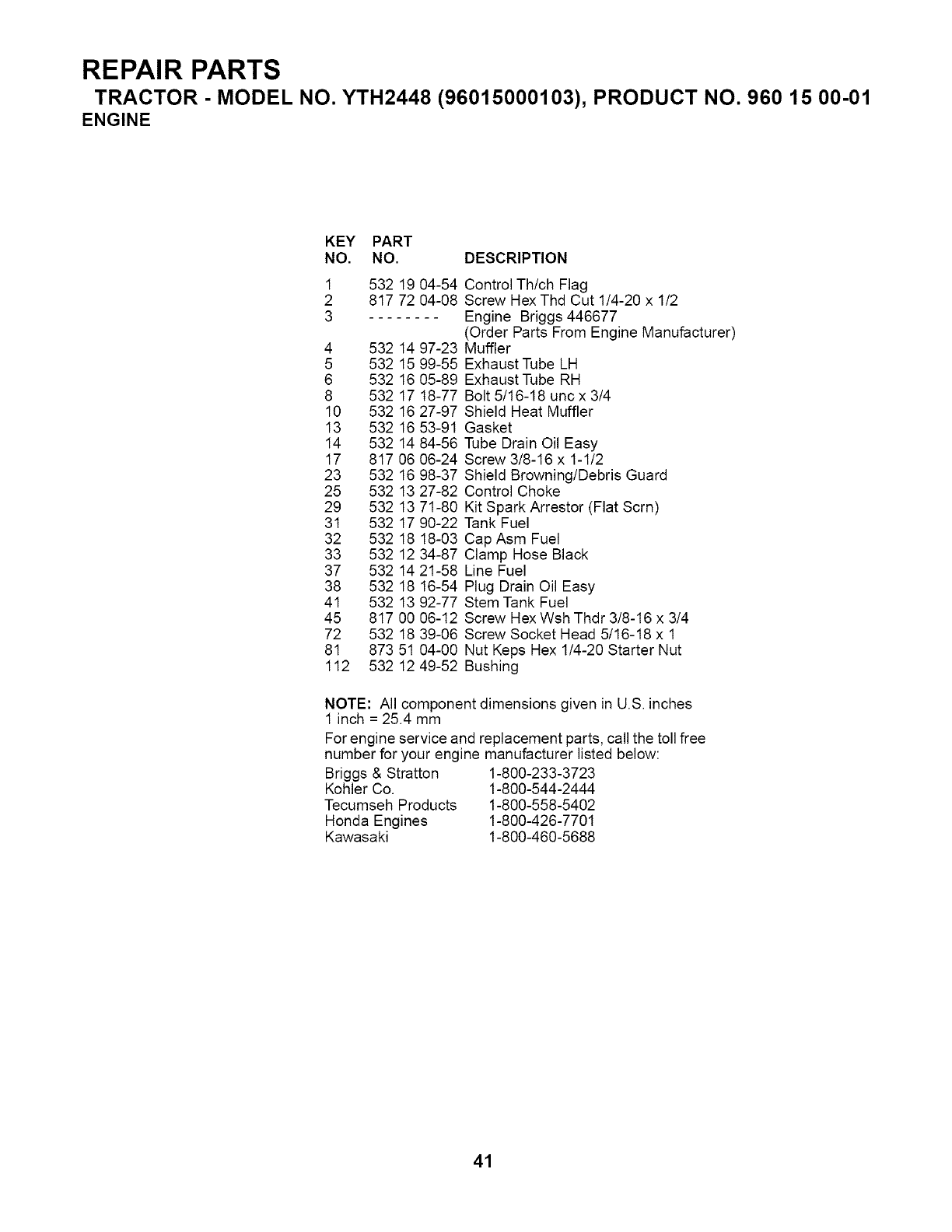

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

ENGINE

KEY PART

NO. NO. DESCRIPTION

532 19 04-54

817 72 04-08

4 532 14 97-23

5 532 15 99-55

6 532 16 05-89

8 532 17 t8-77

10 532 16 27-97

13 532 16 53-91

14 532 14 84-56

17 817 06 06-24

23 532 16 98-37

25 532 13 27-82

29 532 13 71-80

31 532 17 90-22

32 532 18 18-03

33 532 12 34-87

37 532 14 21-58

38 532 18 16-54

41 532 13 92-77

45 817 O006-12

72 532 18 39-06

81 873 51 04-00

112 532 12 49-52

Control Th/ch Flag

Screw Hex Thd Cut 1/4-20 x 1/2

Engine Briggs 446677

(Order Parts From Engine Manufacturer)

Muffler

Exhaust Tube LH

Exhaust Tube RH

Bolt 5/16-18 unc x 3/4

Shield Heat Muffler

Gasket

Tube Drain Oil Easy

Screw 3/8-16 x 1-1/2

Shield Browning/Debris Guard

Control Choke

Kit Spark Arrestor (Flat Scrn)

Tank Fuel

Cap Asm Fuel

Clamp Hose Black

Line Fuel

Plug Drain Oil Easy

Stem Tank Fuel

Screw Hex Wsh Thdr 3/8-t6 x 3/4

Screw Socket Head 5/16-18 x 1

Nut Keps Hex 1/4-20 Starter Nut

Bushing

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

For engine service and replacement parts, call the toll free

number for your engine manufacturer listed below:

Briggs & Stratton 1-800-233-3723

Kohler Co. 1-800-544-2444

Tecumseh Products 1-800-558-5402

Honda Engines 1-800-426-7701

Kawasaki 1-800-460-5688

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

MOWER LIFT

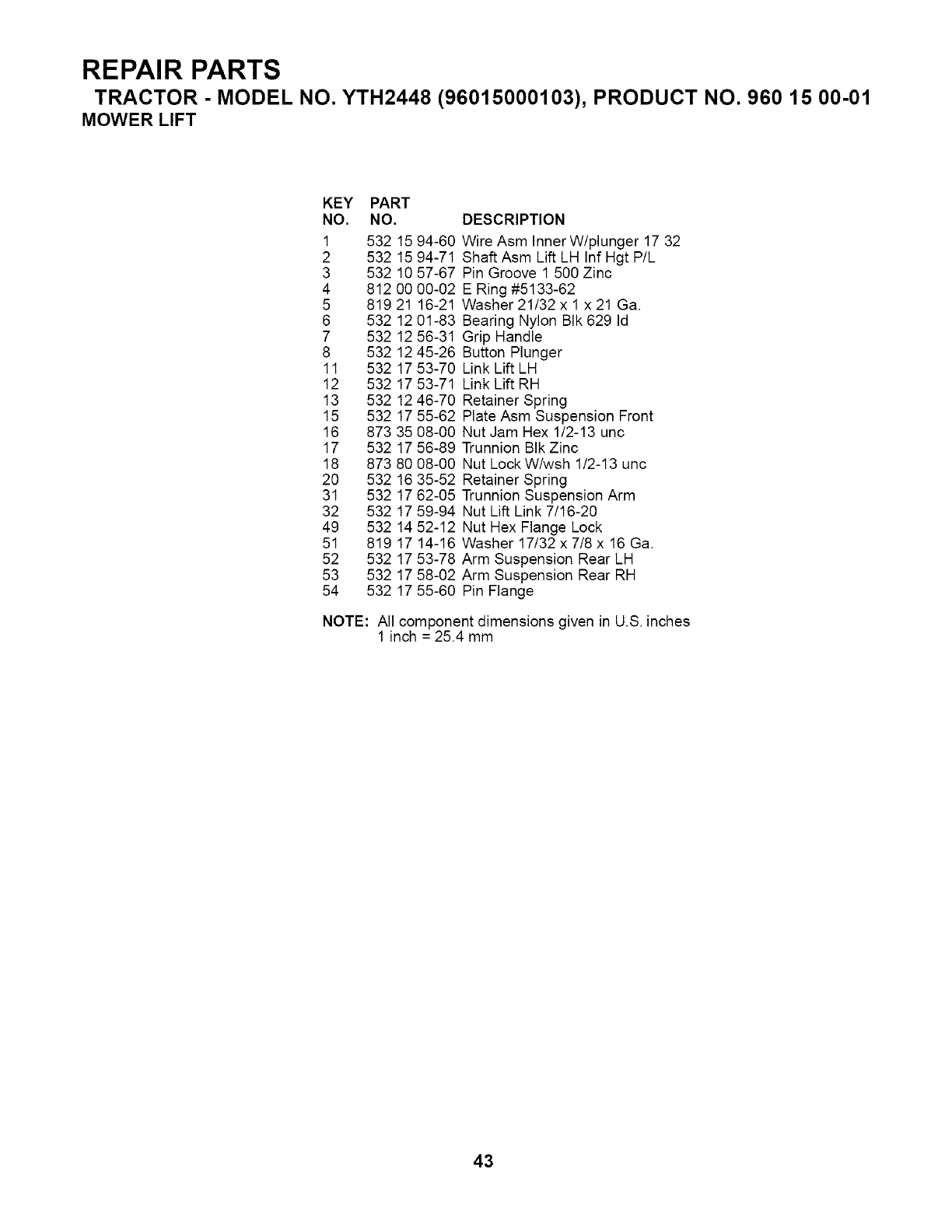

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

MOWER LIFT

KEY PART

NO. NO.

1 532 15 94-60

2 532 15 94-71

3 532 10 57-67

4 812 00 00-02

5 819 2t 16-21

6 532 12 01-83

7 532 12 56-3t

8 532 12 45-26

11 532 1753-70

12 532 17 53-71

13 532 12 46-70

15 532 17 55-62

16 873 35 08-00

17 532 17 56-89

18 873 80 08-00

20 532 16 35-52

3t 532 17 62-05

32 532 17 59-94

49 532 t4 52-12

51 819 17 14-16

52 532 17 53-78

53 532 17 58-02

54 532 17 55-60

DESCRIPTION

Wire Asm Inner W/plunger 17 32

Shaft Asm Lift LH Inf Hgt P/L

Pin Groove 1 500 Zinc

E Ring #5133-62

Washer 21/32 x 1 x 21 Ga.

Bearing Nylon BIk 629 Id

Grip Handle

Button Plunger

Link Lift LH

Link Lift RH

Retainer Spring

Plate Asm Suspension Front

Nut Jam Hex 1/2-13 unc

Trunnion BIk Zinc

Nut Lock W/wsh 1/2-13 unc

Retainer Spring

Trunnion Suspension Arm

Nut Lift Link 7/16-20

Nut Hex Flange Lock

Washer t7/32 x 7/8 x 16 Ga.

Arm Suspension Rear LH

Arm Suspension Rear RH

Pin Flange

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

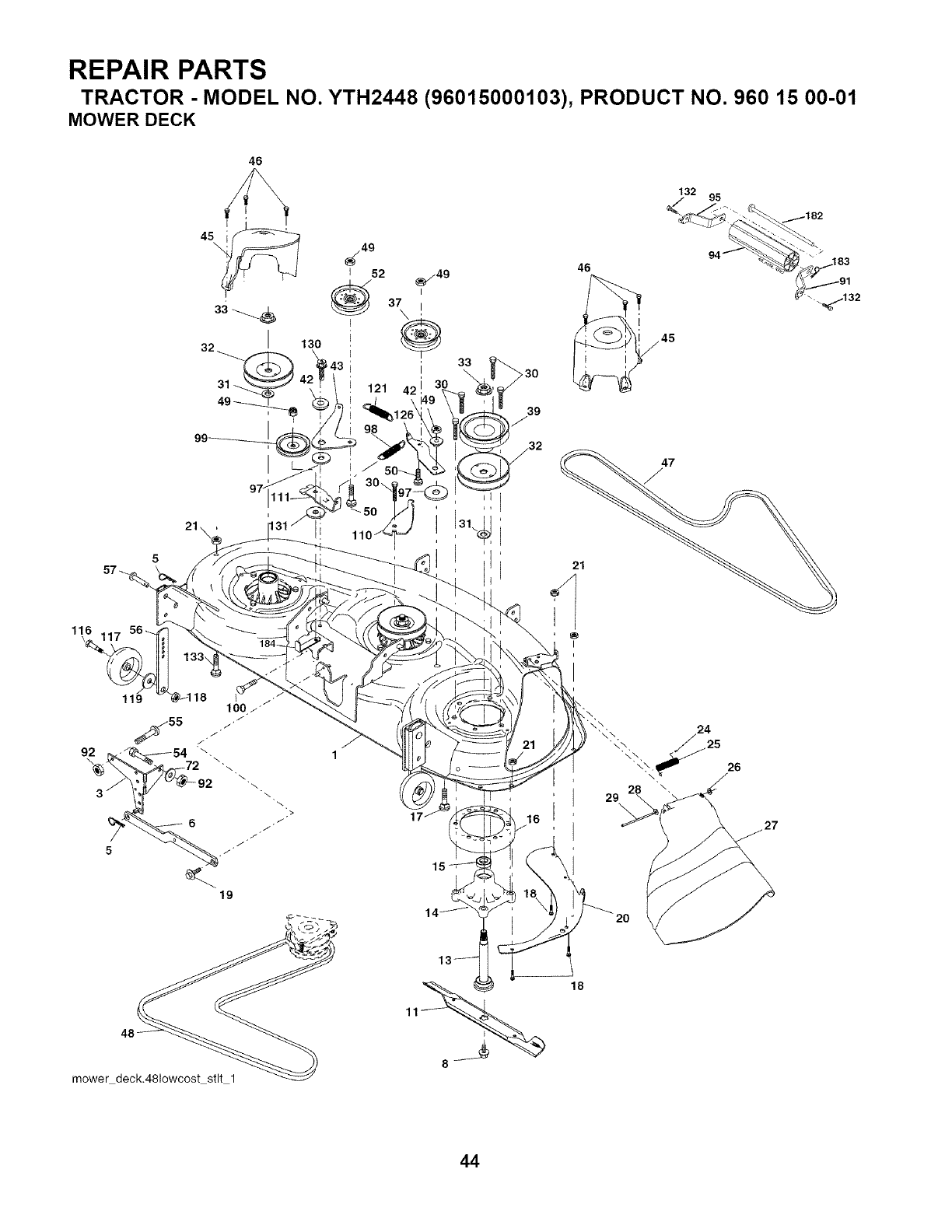

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

MOWER DECK

57_

29\

mower deck.481owcost stlt 1

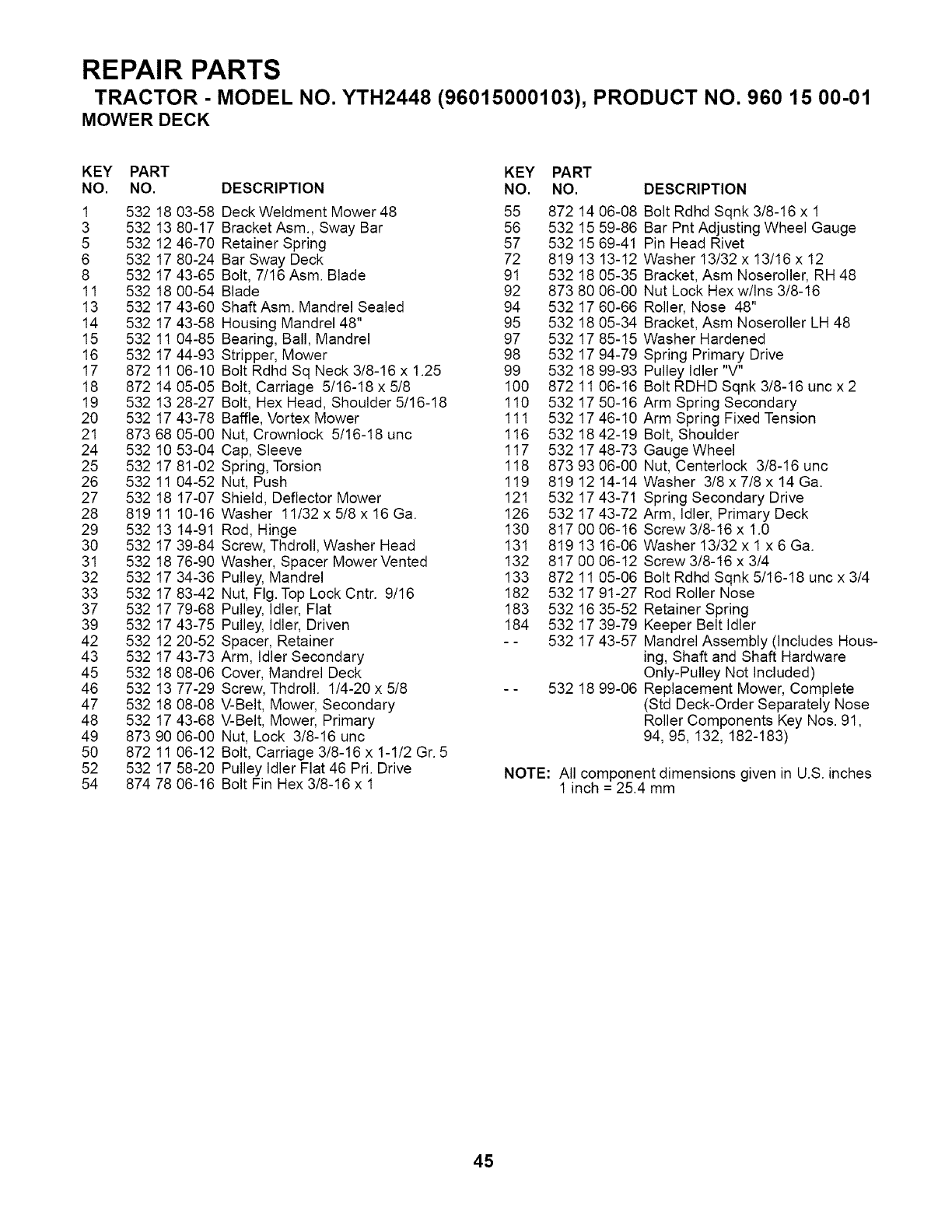

REPAIR PARTS

TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01

MOWER DECK

KEY PART

NO. NO.

1 532 18 03-58

3 532 13 80-t7

5 532 12 46-70

6 532 17 80-24

8 532 17 43-65

11 532 18 00-54

13 532 17 43-60

14 532 17 43-58

15 532 11 04-85

16 532 17 44-93

17 872 11 06-10

18 872 14 05-05

19 532 13 28-27

20 532 17 43-78

21 873 68 05-00

24 532 10 53-04

25 532 17 8t-02

26 532 11 04-52

27 532 18 17-07

28 819 11 10-16

29 532 13 14-91

30 532 17 39-84

3t 532 18 76-90

32 532 17 34-36

33 532 17 83-42

37 532 17 79-68

39 532 17 43-75

42 532 12 20-52

43 532 17 43-73

45 532 18 08-06

46 532 13 77-29

47 532 18 08-08

48 532 17 43-68

49 873 90 06-00

50 872 11 06-12

52 532 17 58-20

54 874 78 06-16

DESCRIPTION KEY PART

NO. NO.

Deck Weldment Mower 48 55 872 14

Bracket Asm., Sway Bar 56 532 15

Retainer Spring 57 532 15

Bar Sway Deck 72 819 13

Bolt, 7/16 Asm. Blade 91 532 18

Blade 92 873 80

Shaft Asm. Mandrel Sealed 94 532 17

Housing Mandrel 48" 95 532 18

Bearing, Ball, Mandrel 97 532 17

Stripper, Mower 98 532 17

Bolt Rdhd Sq Neck 3/8-16 x 1.25 99 532 18

Bolt, Carriage 5/16-18 x 5/8 100 872 11

Bolt, Hex Head, Shoulder 5/16-18 110 532 17

Baffle, Vortex Mower 11t 532 17

Nut, Crownlock 5/16-18 unc 116 532 18

Cap, Sleeve 117 532 17

Spring, Torsion 118 873 93

Nut, Push 119 819 12

Shield, Deflector Mower 12t 532 17

Washer 11/32x5/8x16Ga. 126 53217

Rod, Hinge 130 817 00

Screw, Thdroll, Washer Head 131 819 13

Washer, Spacer Mower Vented 132 817 00

Pulley, Mandrel 133 872 11

Nut, FIg. Top Lock Cntr. 9/16 182 532 17

Pulley, Idler, Flat 183 532 16

Pulley, Idler, Driven 184 532 17

Spacer, Retainer -- 532 17

Arm, Idler Secondary

Cover, Mandrel Deck

Screw, Thdroll. 1/4-20 x 5/8 - - 532 18

V-Belt, Mower, Secondary

V-Belt, Mower, Primary

Nut, Lock 3/8-16 unc

Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5

Pulley Idler Flat 46 Pri. Drive

Bolt Fin Hex 3/8-16 x 1

DESCRIPTION

06-08 Bolt Rdhd Sqnk 3/8-t6 x 1

59-86 Bar Pnt Adjusting Wheel Gauge

69-4t Pin Head Rivet

13-12 Washer 13/32 x 13/16 x 12

05-35 Bracket, Asm Noseroller, RH 48

06-00 Nut Lock Hex w/Ins 3/8-16

60-66 Roller, Nose 48"

05-34 Bracket, Asm Noseroller LH 48

85-15 Washer Hardened

94-79 Spring Primary Drive

99-93 Pulley Idler "V"

06-16 Bolt RDHD Sqnk 3/8-t6 unc x 2

50-16 Arm Spring Secondary

46-10 Arm Spring Fixed Tension

42-19 Bolt, Shoulder

48-73 Gauge Wheel

06-00 Nut, Centerlock 3/8-16 unc

14-14 Washer 3/8 x 7/8 x 14 Ga.

43-71 Spring Secondary Drive

43-72 Arm, Idler, Primary Deck

06-t6 Screw 3/8-16 x 1.0

16-06 Washer 13/32 x 1 x 6 Ga.

06-12 Screw 3/8-16 x 3/4

05-06 Bolt Rdhd Sqnk 5/16-18 unc x 3/4

91-27 Rod Roller Nose

35-52 Retainer Spring

39-79 Keeper Belt Idler

43-57 Mandrel Assembly (Includes Hous-

ing, Shaft and Shaft Hardware

Only-Pulley Not Included)

99-06 Replacement Mower, Complete

(Std Deck-Order Separately Nose

Roller Components Key Nos. 91,

94, 95, 132, 182-183)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

,,..,.,..

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

4_ WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its [eft edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hilt.

,,,,I

Husqvarna

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company ("Husqvarna") warrants Husqvarna product to the original purchaser

to be free from defects in material and workmanship from the date of purchase for the "VVarranty Period" of the

)roduct as set forth below:

.ife_irqe Warranty: All tiller tines against breakage, trimmer shafts, ignition coils and modules on hand held

)roouol.

3 Year Warranty: Spindles (on Zero Turn Riders and Commercial Walk-Behinds)

2Year COMMERCIAL-Warranty: Husqvarna Commercial Turf Equipment--zero turn riders, wide area walks,

and ground engaging commercial equipment.

2 Year NON-COMMERCIAL Warranty: Automatic Mower, Riding lawn mowers, yard and garden tractors, walk

behind mowers, tillers, chain saws, trimmers, brushcutters, clearing saws, snow blowers, handheld btowers,

backpack blowers, hedge trimmers, electrical products and power-assist collection systems for noncom-

merciat, nonprofessional noninstitutionai or nonincome producinq use, except as herein stated.

Emission control system components necessary to comply with CARB-TtER-tl and EPA regulations, except

for those components which are part of engine systems manufactured by third party engine manufacturers for

which the purchaser has received a separate warranty with product information supplied at time of purchase.

1 Year Warranty: Power cutters, stump grinder, pole pruners and pole saws for non-commercial nondaro-

fessionat non-institutional or nomincome producinq use. All trimmers, brushcutters, clearing saws, hovering

trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection systems

used for commercial, institutional, orofessionat or income oroducing ourooses or use,

Batteries have a one-year prorated limited warranty with t00% replacement during the first 6 months

90 Day Warranty: Automatic Mower, Chain saws, power cutters, stump grinders, pole saws, pole pruners,

snow throwers, model series 580 & 600 walk-behind mowers and commercial turf equipment or any Husqvama

)roduct used for commercial, institutional, professional, or income producing purposes or use except as oth-

erwise provided herein.

Husqvarna Safety Apparel carries a 90-day warranty from the date of the customer's original purchase for

defects in material and workmanship. Normal wear, tear or abuse is not covered under warranty. Product must

be returned to Charlotte with a warranty claim form. All care and maintenance instructions must be followed

as stated by the manufacturer on the care tabet. The fit of the protective apparel/boot is not covered under

warranty.

30 Day Warranty: Replacement parts, accessories including bars and chains, tools and display items

SECTION 2: HUSQVARNA'S OBLIGATIONS UNDER THE WARRANTY

Husqvarna will repair or replace defective components without charge for parts or labor if a component fails

because of a defect in material or workmanship during the warranty period,

SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY

The following items are not covered by this warranty:

(1)Normal customer maintenance items which become worn through normal regular use, including, but

not limited to, belts, blades, blade adapters, bulbs, filters, guide bars, lubricants, rewind springs, saw

chain, spark plugs, starter ropes and tines;

(2)Natural discoloration of material due to ultraviolet light;

(3)Engine and drive systems not manufactured by Husqvama; these items are covered by the respective

manufacturer's warranty as provided in writing with the product information supplied at the time of pur-

chase; all claims must be sent to the appropriate manufacturer;

(4)Lawn and garden attachments are covered by a third party which gives a warranty, all claims for war-

rarity should be sent to the manufacturer; and

(5)Emission Control System components necessary to comply with CARB-TIER-II and EPA regulations

which are manufactured by third party engine manufacturer

WARRANTY STATEMENT

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting from the following:

(1)Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust,

corrosion, or any adverse reaction due to incorrect storage or use habits;

(2)Failure to operate or maintain the unit in accordance with the Owner's/Operator's manual or instruc-

tion sheet furnished by Husqvarna;

(3)Alterations or modifications that change the intended use of the product or affects the product's per*

formance, operation, safety, or durability, or causes the product to fail to comply with any applicable

laws; or:

(4)Additional damage to parts or components due to continued use occurring after any of the above,

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE PURCHASER HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS EXCEPT

TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABIL-

ITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO

THE WARRANTY PERIOD AS DEFINED tN THE LIMITED WARRANTY STATEMENE HUSQVARNA RE-

SERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NOTICE,

AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PROD-

UCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long

an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written

in the maintenance section of the Owner_s/OperatoCs manua_ Should an operational problem or failure occur,

the product should not be used, but delivered as is to an authorized Husqvama dealer for evaluation Proof

of purchase, as explained in section 6, rests soleiy with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION

tt is the Owner's and Dealer's responsibility to make certain that the Warranty Registration Card is properly

filled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10) days

from the date of purchase in order to confirm the warranty and to facilitate post-sate service.

Proof of purchase must be presented to the authorized Husqvama dealer in order to obtain warranty ser-

vice. This proof must include date purchased, model number, serial number, and complete name and address

of the selling dealer

To obtain the benefit of this warranty, the product beiieved to be defective must be delivered to an au-

thorized Husqvarna dealer in a timely manner, no later than thirty (30) days from date of the operational

problem or failure. The product must be delivered at the owner's expense. Pick-up and delivery charges are

not covered by this warranty. An authorized Husqvarna dealer can be normally tocated through the "Yeilow

Pages" of the local telephone directory or by calling 1-800_HUSKY62 for a dealer in your area,

HUSQVARNA

7349 Statesville Road

Charlotte, NC 28269 53I 83 81-23 2002

5321976-37 Rev. 2 03.12.05 RD/TR usqvarna Printed in U.S.A.

Husqvarna 279080 User Manual TRACTOR Manuals And Guides L0505111

HUSQVARNA Lawn, Tractor Manual L0505111 HUSQVARNA Lawn, Tractor Owner's Manual, HUSQVARNA Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
