WARNING
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive
WARNING
Before using our products, please read this manual
carefully to understand the proper use of your unit.
APPLICABLE SERIAL NUMBERS: 80100101 and up
Operator’s manual
130BT
150BT/BF
170BT/BF
180BT/BF English
115 09 83-95
130BT&180BT_US-65.fm Page 1 Friday, December 7, 2007 1:05 PM
![](asset-2.png)
English
2
YOUR WARRANTY RIGHTS
AND OBLIGATIONS
The EPA (The US Environmental Protection Agency),
CARB (California Air Resources Board), Environment
Canada and Husqvarna Forest & Garden are pleased to
explain the emissions control system warranty on your
2007 and later small nonroad engine. In U.S. and
Canada, new small nonroad engines must be designed,
built and equipped to meet the federal stringent anti-
smog standards. Husqvarna Forest & Garden must
warrant the emission control system on your small
nonroad engine for the period of time listed below
provided there has been no abuse, neglect or improper
maintenance of your unit. Your emission control system
includes Parts such as the carburetor, fuel tank and the
ignition system. Where a warrantable condition exists,
Husqvarna Forest & Garden will repair your small
nonroad engine at no cost to you. Expenses covered
under warranty include diagnosis, parts and labor.
MANUFACTURER’S WAR-
RANTY COVERAGE
The 2007 and later small nonroad engines are
warranted for two years. If any emission related part on
you engine (as listed above) is defective, the part will be
repaired or replaced by Husqvarna Forest & Garden.
OWNER’S WARRANTY
RESPONSIBILITIES
As the small nonroad engine owner, you are responsible
for the performance of the required maintenance listed in
your Operator’s Manual. Husqvarna Forest & Garden
recommends that you retain all receipts covering
maintenance on your small nonroad engine, but
Husqvarna Forest & Garden cannot deny warranty
solely for the lack of receipts or for your failure to ensure
the performance of all scheduled maintenance. As the
small nonroad engine owner, you should, however, be
aware that Husqvarna Forest & Garden may deny you
warranty coverage if your small nonroad engine or a part
of it has failed due to abuse, neglect, improper
maintenance, unapproved modifications or the use of
parts not made or approved by the original equipment
manufacturer. You are responsible for presenting your
small nonroad engine to a Husqvarna Forest & Garden
authorized servicing dealer as soon as a problem exists.
The warranty repairs should be completed in a
reasonable amount of time, not to exceed 30 days. If you
have any questions regarding your warranty rights and
responsibilities, you should contact your nearest
authorized servicing dealer or call Husqvarna Forest &
Garden at 1-800-487-5963.
WARRANTY COMMENCE-
MENT DATE
The warranty period begins on the date small nonroad
engine is delivered.
LENGTH OF COVERAGE
Husqvarna Forest & Garden warrants to the initial owner
and each subsequent purchaser that the engine is free
from defects in materials and workmanship which cause
the failure of a warranted part for a period of two years.
WHAT IS COVERED
REPAIR OR REPLACEMENT OF PARTS Repair or
replacement of any warranted part will be performed at
no charge to the owner at an approved Husqvarna
Forest & Garden servicing dealer. If you have any
questions regarding your warranty rights and
responsibilities, you should contact your nearest
authorized servicing dealer or call Husqvarna Forest &
Garden at 1-800-487-5963.
WARRANTY PERIOD Any warranted part which is not
scheduled for replacement as required maintenance, or
which is scheduled only for regular inspection to the
effect of “repair or replace as necessary” shall be
warranted for 2 years. Any warranted part which is
scheduled for replacement as required maintenance
shall be warranted for the period of time up to the first
scheduled replacement point for that part.
DIAGNOSIS The owner shall not be charged for
diagnostic labor which leads to the determination that a
warranted part is defective, if the diagnostic work is
performed at an approved Husqvarna Forest & Garden
servicing dealer.
CONSEQUENTIAL DAMAGES Husqvarna Forest &
Garden may be liable for damages to other engine
components caused by the failure of a warranted part
still under warranty.
WHAT IS NOT COVERED
All failures caused by abuse, neglect or improper
maintenance are not covered.
ADD -ON OR MODIFIED PARTS
The use of add-on or modified parts can be grounds for
disallowing a warranty claim. Husqvarna Forest &
Garden is not liable to cover failures of warranted parts
caused by the use of add-on or modified parts.
HOW TO FILE A CLAIM
If you have any questions regarding your warranty rights
and responsibilities, you should contact your nearest
authorized servicing dealer or call Husqvarna Forest &
Garden at 1-800-487-5963.
WHERE TO GET WARRANTY
SERVICE
Warranty services or repairs shall be provided at all
Husqvarna Forest & Garden authorized servicing
dealers.
MAINTENANCE, REPLACE-
MENT AND REPAIR OF EMIS-
SION-RELATED PARTS
Any Husqvarna Forest & Garden approved replacement
part used in the performance of any warranty maintenance
or repairs on emission-related parts, will be provided
without charge to the owner if the part is under warranty.
EMISSION CONTROL WAR-
RANTY PARTS LIST
1 Carburetor and internal parts
2 Intake pipe, airfilter holder and carburetor bolts.
3 Airfilter and fuelfilter covered up to maintenance
schedule.
4 Ignition System
1Spark Plug, covered up to maintenance schedule
2Ignition Module
5 Fuel tank with cap and pipe
MAINTENANCE STATEMENT
The owner is responsible for the performance of all
required maintenance, as defined in the operator’s
manual.
FEDERAL EMISSION CONTROL WARRANTY STATEMENT
130BT&180BT_US-65.fm Page 2 Friday, December 7, 2007 1:05 PM
![](asset-3.png)
English
3
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SAFETY FIRST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Notes on types of warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warning labels on the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Symbols on the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
WORKING CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
WORKING CIRCUMSTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AVOID NOISE PROBLEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
WORKING PLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
FUEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
BEFORE STARTING THE ENGINE. . . . . . . . . . . . . . . . . . . . . . . . 7
USING THE PRODUCT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TRANSPORTATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
What is what?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
SWIVEL JOINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
THROTTLE LEVER [130BT/150BT/170BT/180BT] . . . . . . . . . . . 14
THROTTLE CABLE [130BT/150BT/170BT/180BT] . . . . . . . . . . . 14
RIGHT HANDLE [150BF/170BF/180BF] . . . . . . . . . . . . . . . . . . . 14
HANDLEBAR [OPTION] [130BT/150BT/170BT/180BT] . . . . . . . 14
BLOWER TUBES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
HARNESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
WAIST BELT [150BT/BF] [170BT/BF] [180BT/BF]. . . . . . . . . . . . 15
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
FUEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
HOW TO MIX FUEL . . . . . . . . . . . . . . . . . . . . . . 16
FUELING THE UNIT. . . . . . . . . . . . . . . . . . . . . . 16
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
CONTROL ARM [150BF/170BF/180BF] . . . . . . 17
STARTING ENGINE . . . . . . . . . . . . . . . . . . . . . . 17
ADJUSTING IDLE SPEED . . . . . . . . . . . . . . . . . 18
STOPPING ENGINE . . . . . . . . . . . . . . . . . . . . . 18
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
AIR CLEANER . . . . . . . . . . . . . . . . . . . . . . . . . . 19
FUEL FILTER . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
SPARK PLUG . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
MUFFLER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
SPARK ARRESTER . . . . . . . . . . . . . . . . . . . . . . 20
AIR INLET NET . . . . . . . . . . . . . . . . . . . . . . . . . 21
IGNITION COIL AIR GAP INSPECTION . . . . . . 21
SHOLDER STRAP . . . . . . . . . . . . . . . . . . . . . . . 21
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Contents
130BT&180BT_US-65.fm Page 3 Friday, December 7, 2007 1:05 PM
![](asset-4.png)
English
4
SAFETY FIRST
Instructions contained in warnings within this manual
and warning seals marked with a symbol on the
blower concern critical points which must be taken into
consideration to prevent possible serious bodily injury,
and for this reason you are requested to read all such
instructions carefully and follow them without fail.
Notes on types of warnings
WARNING
Instructions labeled as shown above, concern
critical steps or procedures which must be fol-
lowed in order to prevent accidents which could
lead to serious bodily injury or death.This mark is
used to indicate instructions which must be fol-
lowed without exception.
IMPORTANT
Instructions labeled as shown above concern
steps or procedures which, if not followed
correctly, could lead to mechanical failure,
breakdown, or damage.
NOTE
Used to label supplementary instructions
designed to provide hints or directions useful in
the use of the product.
Symbols
WARNING! The machine can
be a dangerous tool if used
incorrectly or carelessly, which
can cause serious or fatal injury
to the operator or others.
Please read the operator’s manual
carefully and make sure you
understand the instructions before
using the machine.
Always wear:
• Hearing protection
• Approved eye protection
Always wear protective gloves.
Wear study, non-slip boots
The blower can forcibly throw objects
that can bounce back. This can result
in serious eye injuries if the
recommended safety equipment is
not used.
The blower operator must
make sure that no
bystanders or animals come
nearer than 50 feet (15
meters). Whenever several
operators are working in the same work area, they
should maintain a safe distance of at least 50 feet (15
meters) from one another.
A breathing mask should be used
when there is a risk of dust.
Keep all parts of your body away
from hot surfaces.
Other symbols/decals on the machine refer to
special certification requirements for certain
markets.
IMPORTANT
If the warning label peels off or becomes soiled
and impossible to read, you should contact the
dealer from which you purchased the product to
order new labels and affix them in the required
location(s).
Warning labels on the machine
Safety
130BT&180BT_US-65.fm Page 4 Friday, December 7, 2007 1:05 PM
![](asset-5.png)
English
5
For safe operation and maintenance, symbols are carved in relief on the machine. Using to these indications, please be
careful not to make a mistake.
(a) The port to refuel the "MIX GASOLINE"
Position: FUEL TANK CAP
(b) The direction to close the choke
Position: INTAKE CUP
(c) The direction to open the choke
Position: INTAKE CUP
(d) The direction to stop the engine
Position: THROTTLE LEVER [130 BT/150 BT/170
BT only]
(e) The emission information label
∗1 : THE ACTUAL MANUFACTURING MONTH WILL
BE PRINTED.
∗2 : THE INITIAL NUMBER WILL BE CHANGED
EVERY YEAR OF MANUFACTURING.
This engine label certifies that the product is certified in
accordance with American exhaust emissions
requirements EPA Ph II and CARB Tier III. The
Emissions Compliance Period referred to on the
emissions Compliance label indicates the number of
operating hours for which the engine has been shown to
meet Federal and California emission requirements.
Category C = 50 hours, B = 125 hours, and A = 300
hours.
For customer assistance call: 704-921-7000 or contact
us at our website: www.husqvarna.com
IMPORTANT
Check the emission information label on your
product.
In the case of <FOR EPA ONLY>, the product is
unsupported to use in California.
WARNING
1. Read this Blower Operator Manual carefully.
Be sure you understand how to operate this
unit properly before you use it. Failure to do so
could result in serious injury.
2. Be sure to keep this manual
handy so that you may refer to
it later whenever any questions
arise. Also note that you are
requested to contact the dealer
from whom you purchased the
product for assistance the
event that you have any questions which
cannot be answered herein.
3. Always be sure to include this manual when
selling, lending, or otherwise transferring the
ownership of this product.
4. Do not lend or rent your machine without the
owner's manul.
5. Be sure that anyone using your unit understands
the information contained in this manual.
6. Never let a child use the machine.
7.
Long-term exposure to noise can result in
permanent hearing impairment. So always
use approved hearing protection.
8.
Under no circumstances may the design of
the machine be modified without the
permission of the manufacturer. Always use
genuine accessories. Non-authorized
modifications and/or accessories can result
in serious personal injury or the death of the
operator or others.
9.
A blower is a dangerous tool if used
carelessly or incorrectly and can cause
serious, even fatal injuries. It is extremely
important that you read and understand the
contents of this Operator’s manual.
10.
Husqvarna AB has a policy of continuous
product development and therefore reserves
the right to modify the design and appearance
of products without prior notice.
11.
The machine is only designed for blowing
lawns, pathways, asphalt roads and the like.
(d)(a) (b) (c)
A
BC
A
BC
<FOR EPA ONLY> <FOR EPA & CARB>
A : Model B :
ENGINE
FAMILY C :
ENGINE
DISPLACEMENT
130BT
7KZXS.0294BK
∗
2
29cc
150BT/BF
7KZXS.0505BP
∗
2
50cc
170BT/BF
7KZXS.0655BE
∗
2
65cc
180BT/BF
8KZXS.0725PQ
∗
2
72cc
Safety Precautions
Symbols on the machine
130BT&180BT_US-65.fm Page 5 Friday, December 7, 2007 1:05 PM
![](asset-6.png)
English
6
WORKING CONDITIONS
1. Refrain from operating the blower if you are tired, ill,
or upset, or if you are under the influence of alcohol,
drugs or medication
2. To reduce the risk of hearing loss associated with
sound levels, hearing protection is required.
3. To reduce the risk of injury
associated with thrown objects,
always wear eye protection and
foot protection. Approved
protective goggles must comply
with standard ANSI Z87.1 in the
USA or EN 166 in EU countries.
4. To reduce the risk of injury
associated with the inhalation of
dust, use a face filter mask in dusty
conditions.
5. Wear rubber-soled shoes or shoes
with some other form of anti-slip
protection to help protect you
against falling.
6. To reduce the risk of injury
associated with objects being
drawn into rotating parts, do not
wear loose clothing, scarves, neck
chains, hair longer than shoulder
length, or other loose material.
7. Prolonged use of a blower, exposing the operator to
vibrations and cold, may produce whitefinger
disease (Raynaud’s phenomenon), the symptoms of
which include tingling and burning sensations
followed by loss of color and numbness in the
fingers. All factors which contribute to whitefinger
disease are not known, but cold weather, smoking
diseases or physical conditions as well as long
periods of exposure to vibration are mentioned as
factors. In order to reduce the risk of whitefinger
disease, the following precautions are strongly
recommended
a) Keep your body warm. Never use the blower
during rain.
b) Wear thick anti-vibration
gloves.
c) Take more than 5 minutes of
break in a warm place fre-
quently.
d) Maintain a firm grip at all
times, but do not squeeze the
handles with constant, exces-
sive pressure.
e) If you feel discomfort, redness and swelling of
your fingers or any other part of your body, see
a doctor before it gets worse.
8. The ignition system of your unit produces an
electromagnetic field of a very low intensity. This field
may interfere with some pacemakers. To reduce the
risk of serious or fatal injury, people with pacemaker
should consult their physician and the pacemaker
manufacturer before operating this tool.
WORKING CIRCUMSTANCE
1. To reduce the risk of injury
associated with exhaust fume
inhalation, do not operate in
unventilated area. The exhaust
gases contain harmful carbon
monoxide.
2. Avoid using the blower where
stable footing and balance are
not assured.
3. Never operate the machine in high wind, bad
weather, potentially explosive atmosphere, when
visibility is poor or in very high or low temperatures.
(Our recommended use environment is below 40
degrees C (104 degrees F).)
AVOID NOISE PROBLEM
NOTE
Check and follow the local regulations as to
sound levels and hours of operations for blower.
1. Operate power equipment only at reasonable hours,
not early in the morning or late at night when people
might be disturbed. Comply with times listed in local
ordinances.
2. To reduce sound levels, limit the number of pieces of
equipment used at any one time.
3. Operate power blowers at the lowest possible
throttle speed to do the job.
4. Check your equipment before operation, especially
the muffler, air intakes and air filters.
WORKING PLAN
• To reduce the risk of health damages, avoid
excessive use and take sufficient time to rest .
FUEL
WARNING
To reduce the risk of fire and burn injury:
a) Handle fuel with care. It is highly
flammable.
b) Do not smoke while handing fuel.
c) Do not refuel a hot engine.
d) Do not refuel a running engine.
e) Avoid spilling fuel or oil. Always
wipe unit dry before using.
f ) Move at least 10 ft. (3 meters)
away from the fueling point before starting the
engine.
g) Always store gasoline in a container approved for
flammable liquids.
h) Make sure the unit is properly assembled and in
good operating condition.
i ) Do not use the blower near a fire,
as aiming the blower in the
direction of a flame may cause
flammable substances to ignite.
Safety Precautions
130BT&180BT_US-65.fm Page 6 Friday, December 7, 2007 1:05 PM
![](asset-7.png)
English
7
BEFORE STARTING THE
ENGINE
• Each time before starting the engine, inspect the
entire unit to see if every part is in good order and is
securely tightened in place. If any damage is found
in the fuel line, the exhaust line, or the ignition wiring,
do not use the blower until it has been repaired.
IMPORTANT
Before starting operation, always make sure to
check if any obstacles are left inside the volute
case and net. The obstacles may cause serious
injury or damage to fan and volute case.
WARNING
Check to see if the shock-absorbers <A> have
become cracked or otherwise damaged. Note that
failing to replace these rubber and spring mounts
when they have become cracked or damaged may
cause the engine to come loose from its frame during
use, thus resulting in possible serious bodily injury.
If cracked, be sure to replace without delay.
WARNING
To reduce the risk of injury associated with contact-
ing rotating parts, stop the engine before installing
or removing attachments. Never take off the Guard
Net <B>.
Always disconnect the spark plug before performing
maintenance or accessing movable parts.
USING THE PRODUCT
WARNING
While using the product, if abnormal noise or
vibration occurs, stop the engine immediately and
contact the nearest Husqvarna servicing dealer
for assistance. Checking the fan is very important.
If the rotating fan should break up, it will lead to
serious accidents.
1. Check the work area that the blower will be used in
and remove or cover all valuables that may be
damaged by the air blast or thrown debris.
2. To reduce the risk of injury associated with thrown
objects.
a) Watch out for children, pets, open windows or
freshly washed cars, and blow debris safely
away.
b) Use the full blower tube extension so the air
stream can work close to the ground.
c) Do not allow bystanders in work area.
d) Do not point the
blower tube in
the direction of
people or pets.
e) Always check to
be sure that no
debris has been blown onto someone else’s
property.
f) Pay attention to the direction of the wind, do not
work against the wind.
3. To minimize blowing time.
a) Use rakes and brooms to loosen debris before
blowing.
b) In dusty conditions, slightly dampen surfaces or
use a mister attachment when water is available.
c) Conserve water by using power blowers instead
of hoses for many lawn and garden applications,
including areas such as gutters, screens, patios,
grills, porches and gardens.
4. The blower must not be used
while on a ladder or scaffolding.
5. Never put the machine down with
the engine running unless you
have it in clear sight.
6. Never touch the spark plug or plug
cord while the engine is in
operation. Doing so may result in
being subjected to an electrical
shock.
7. Never touch the muffler, spark
plug, or other metallic parts of the
engine, or area around the engine
cover while the engine is in
operation or immediately after
shutting down the engine. These
metallic parts reach high
temperatures during operation
and doing so could result in
serious burns.
WARNING
The temperature of the machine
may increase after stopping the
engine. Especially never forget to
cool down the engine before refu-
eling the machine.
8. If the engine catches fire or in any other emergency
situation that requires you to free yourself from the
machine, open the buckle in the waist belt and drop
the machine backward.
9. After using blowers and other equipment, CLEAN
UP! Dispose of debris in trash receptacles.
[150BT/BF] [170BT/BF]
[180BT/BF]
[130BT]
<A>
<A>
<B>
<A>
<A>
<B>
[130BT] [150BT/BF] [170BT/BF]
[180BT/BF]
Safety Precautions
130BT&180BT_US-65.fm 7 ページ 2008年3月21日 金曜日 午後1時6分
![](asset-8.png)
English
8
MAINTENANCE
1. In order to maintain your product in proper working
order, perform the maintenance and checking
operations described in the manual at regular
intervals.
2. Always be sure to turn off the engine and disconnect
the spark plug before performing any maintenance
or checking procedures.
WARNING
The metallic parts, engine cover, and area around
the engine reach high temperatures immediately
after stopping the engine.
3. Examine the blower at intervals for loose fasteners
and rusted or damaged parts. Use special care
around the fuel line, the muffler, and the ignition
wiring.
4. All engine service except for those described in this
manual should be performed by competent service
personnel. Improper service to the blower fan and
muffler could cause a hazardous failure.
5. When replacing the any other part or any lubricant,
always be sure to use only Husqvarna products or
products which have been certified by Husqvarna for
use with the Husqvarna product.
6. In the event that any part must be replaced or any
maintenance or repair work not described in this
manual must be performed, please contact the
nearest Husqvarna servicing dealer for assistance.
7. Do not use any accessory or attachment other than
those bearing the Husqvarna mark and
recommended for the unit.
8. Under no circumstances should you ever take apart
the product or alter it in any way. Doing so might
result in the product becoming damaged during
operation or the product becoming unable to operate
properly.
TRANSPORTATION
• Drain the fuel from the fuel tank before transporting
or storing the blower.
• Secure the blower so that it does nor receive
damage from shock doing transportation.
• Do not apply strong forces to the blower, such as
throwing it or dropping it. Doing so in validates the
warranty.
STORAGE
• When storing the blower, choose a space indoors,
dry, cool and dark, well-ventilated, free from dust
and out of reach of children.
Safety Precautions
130BT&180BT_US-65.fm Page 8 Friday, December 7, 2007 1:05 PM
![](asset-9.png)
English
9
1. Frame
2. Harness
3. Spark Plug Cap
4. Throttle Lever
5. Guard Net
6. Choke Lever
7. Air Cleaner
8. Volute Case, Cover
9. “CAUTION” Label
10. Elbow
11. Fuel Tank
12. Recoil Starter
13. Stop Switch with Throttle Position Setting
14. Engine Cover
15. Handle Bar (Option)
16. Fan
17. Shock Absorber (Spring)
18. Shock Absorber (Rubber)
19. Band (Stopper)
20. Flexible Hose
21. Pipes
22. Pad
23. Flat Nozzle (Option)
24. “EMISSION” Label
DISPOSAL
When disposing your machine, fuel or oil for the machine, be sure to allow your local regulations.
Frame: PE (Polyethylene)
Harness: Chemical fiber
Throttle lever: Metal, Plastic
Volute case, Volute cover, Engine cover: PA66GF (Glass-reinforced nylon), Brass
Pad: Chemical fiber
Flexible hose: EVA (Ethylene vinyl acetate)
Pipes: PP (Polypropylene), PE (Polyethylene)
Fan: PA66GF (Glass-reinforced nylon)
Element: Urethane
* The insert nut of volute case, and fan can be taken off.
<130BT>
15
14
2
8
10
1
3
6
7
24
12
11
4
13
20 21
5
16
18 17
19
9
22
23
What is what?
130BT&180BT_US-65.fm Page 9 Friday, December 7, 2007 1:05 PM
![](asset-a.png)
English
10
1. Frame
2. Harness
3. Spark Plug Cap
4. Throttle Lever
5. Net
6. Choke Lever
7. Air Cleaner
8. Volute Case, Cover
9. “CAUTION” Label
10. Elbow
11. Fuel Tank
12. Recoil Starter
13. Stop Switch with Throttle Position Setting
14. Engine Cover
15. Handle Bar (Option) (150BT only)
16. Fan
17. Shock Absorber (Rubber)
18. Flexible Hose
19. Pipes
20. Pad
21. Flat Nozzle (Option)
22. “EMISSION” Label
23. Stop Switch (behind)
DISPOSAL
When disposing your machine, fuel or oil for the machine, be sure to allow your local regulations.
Frame: PE (Polyethylene)
Harness: Chemical fiber
Throttle lever: Metal, Plastic
Volute case, Volute cover, Engine cover: PA66GF (Glass-reinforced nylon), Brass
Pad: Chemical fiber
Flexible hose: EVA (Ethylene vinyl acetate)
Pipes: PP (Polypropylene), PE (Polyethylene)
Fan: PA66GF (Glass-reinforced nylon)
Element: Urethane
* The insert nut of volute case, and fan can be taken off.
9
20
21
23
4
14
2
8
10
1
3
6
7
12
11
4
13
18
19
17
15
16
5
22
<150BT/BF>
<150BT>
<150BF>
What is what?
130BT&180BT_US-65.fm Page 10 Friday, December 7, 2007 1:05 PM
![](asset-b.png)
English
11
1. Frame
2. Harness
3. Spark Plug Cap
4. Throttle Lever
5. Stop Switch (behind)
6. Net
7. Choke Lever
8. Air Cleaner
9. Volute Case, Cover
10. “CAUTION” Label
11. Elbow
12. Fuel Tank
13. Recoil Starter
14. Stop Switch with Throttle Position Setting
15. Engine Cover
16. Handle Bar (Option) (170 BT only)
17. Fan
18. Shock Absorber (Rubber)
19. Flexible Hose
20. Pipes
21. Pad
22. Flat Nozzle (Option)
23. “EMISSION” Label
DISPOSAL
When disposing your machine, fuel or oil for the machine, be sure to allow your local regulations.
Frame: PE (Polyethylene)
Harness: Chemical fiber
Throttle lever: Metal, Plastic
Volute case, Volute cover, Engine cover: PA66GF (Glass-reinforced nylon), Brass
Pad: Chemical fiber
Flexible hose: EVA (Ethylene vinyl acetate)
Pipes: PP (Polypropylene)
Fan: PA66GF (Glass-reinforced nylon)
Element: Paper, Urethane
* The insert nut of volute case, volute cover and fan can be taken off.
8
3
9
12
16
12
6
7
13
15
11 14 4
54
17
10
18
18
19 20
21
22
23
<170BT>
<170BF>
<170BT/BF>
What is what?
130BT&180BT_US-65.fm Page 11 Friday, December 7, 2007 1:05 PM
![](asset-c.png)
English
12
1. Frame
2. Harness
3. Spark Plug Cap
4. Throttle Lever
5. Stop Switch (behind)
6. Net
7. Choke Lever
8. Air Cleaner
9. Volute Case, Cover
10. “CAUTION” Label
11. Elbow
12. Fuel Tank
13. Recoil Starter
14. Stop Switch with Throttle Position Setting
15. Engine Cover
16. Handle Bar (Option) (180 BT only)
17. Fan
18. Shock Absorber (Rubber)
19. Flexible Hose
20. Pipes
21. Pad
22. Flat Nozzle (Option)
23. “EMISSION” Label
DISPOSAL
When disposing your machine, fuel or oil for the machine, be sure to allow your local regulations.
Frame: ABS
Harness: Chemical fiber
Throttle lever: Metal, Plastic
Volute case, Volute cover, Engine cover: PA66GF (Glass-reinforced nylon), Brass
Pad: Chemical fiber
Flexible hose: EVA (Ethylene vinyl acetate)
Pipes: EVA (Ethylene vinyl acetate)
Fan: PA66GF (Glass-reinforced nylon)
Element: Paper, Urethane
* The insert nut of volute case, volute cover and fan can be taken off.
16
15
1
2
10
6
7
13
12
4
14
11
18
9
3
8
22
21
17
20
19
<180BT>
<180BF>
<180BT/BF>
What is what?
130BT&180BT_US-65.fm Page 12 Friday, December 7, 2007 1:05 PM
![](asset-d.png)
English
13
• The data shown above are those in the case of one straight pipe.
• Specifications are subject to change without notice.
MODEL 130BT 150BT 150BF 170BT 170BF 180BT 180BF
Dimensions (L x W x H)
mm (in)
295x387x432
(11.6x15.2x17) 351x446x479
(13.8x17.6x18) 351x487x479
(13.8x19.2x18) 365x464x485
(14x18x19) 365x496x485
(14x20x19) 410x509x497
(16.1x20x19.6) 410x550x497
(16.1x21.7x19.6)
Dry Weight kg (lbs)
(including pipe)
6.75 (14.9) 10.2 (22.5) 10.4 (22.9) 12 (26.5) 12.2 (26.9) 13.2 (29.1) 13.4 (29.5)
Dry Weight kg (lbs)
(without accessories)
6.1 (13.4) 9.5 (20.9) 11.2 (24.7) 12.4 (27.3)
Fuel Tank Capacity liter
(fl. oz)
0.9 (30.4) 1.25 (42.3) 1.75 (60.0) 2.13 (72.0)
Engine Type
Air cooled 2-cycle gasoline engine
Piston Displacement
cu. cm (cu. in)
29.5 (1.8) 50.2 (3.1) 64.9 (4.0) 71.9 (4.4)
Air Filter
Single
stage filter Single stage filter
(half wet) 2-stage fresh flow filter system
Carburetor (Dia-
phragm) valve type
Rotary
Ignition System
CDI Digital Ignition
Spark Plug
NGK CMR7H
Muffler
Spark arrester equipped
Idle speed rpm
3000 2200 2000
Operating Engine
Speed rpm
3000 to
6700 2200 to 6100 2000 to 6900 2000 to 6700
Fuel Consumption
liter/h (fl. oz/h)
0.58 (19.6) 1.04 (35.2) 1.6 (54.1) 1.85 (62.6)
Average Air Volume (w/std
Pipe) cu. m/min (cf/m)
10.2 (360) 14 (494) 16 (565) 19.4 (685)
Average Air Volume (@
housing) cu. m/min (cf/m)
12.2 (431) 19.6 (692) 21.0 (742) 25.9 (915)
Air velocity m/sec (mph)
(Maximum)
65 (145) 80 (180) 88 (198) 90 (201)
Noise Level (50 Feet ANSI
B175.2-2000) dB(A)
69 71 76 77
Sound power level
EC directive 2000/14/
EC, measured dB (A)
102 104 110 109
Sound power level
EC directive 2000/14/
EC, guaranteed dB (A)
102 104 110
Noise pressure level at
the operator’s ear (LpAeq)
prEN15503 (ISO7917) dB (A)
90 94 95 (ISO7917)
100
Vibration level at idle,
right handle
prEN15503 (ISO7916) m/s
2
1.9
2.9
2.3 0.8
(ISO7916)
1.4
(ISO7916)
2.2 2.6
Vibration level at max,
speed, right handle
prEN15503 (ISO7916) m/s
2
2.6
2.1
2.5 3.9
(ISO7916)
4.3
(ISO7916)
3.5 4.5
Technical data
130BT&180BT_US-65.fm 13 ページ 2008年3月21日 金曜日 午後1時6分
![](asset-e.png)
English
14
SWIVEL JOINT
1. Connect the blower and swivel joint with flexible hose. Clamp both
ends of the flexible hose securely with the hardware supplied with the
unit.
NOTE
A light lubricant may be used to ease assembly of flexible hose to
blower elbow.
THROTTLE LEVER [130BT/150BT/170BT/180BT]
1. Set up the throttle holder to the swivel and tighten the screw on the
holder.
When setting up the holder, please make sure to match the holder to the
convex on the swivel joint as shown in F2.
2. Adjust the position and angle to achieve a comfortable working
position, and tighten the throttle lever.
(1) Cable
(2) Hose
THROTTLE CABLE [130BT/150BT/170BT/180BT]
[130BT]
• Fasten the throttle cable at central position of the hose by the band
attached to the throttle cable.
First, wrap the hose with the band fixed to the throttle cable from the
lower side.
Then, pass the band through a hole of the band as shown in figure.
Please note that there is a possibility of damaging the hose if the
band is fastened too tightly.
[150BT] [170BT] [180BT]
• Use the clamp to fasten the colgate tube containing the throttle cable
and the power cable to the hose.
(1) Clamp
RIGHT HANDLE [150BF/170BF/180BF]
• Insert the handle holder to the swivel and tighten the screw on the
holder.
When setting up the holder, please make sure to match the holder to the
convex on the swivel joint as shown in F5.
HANDLEBAR [OPTION] [130BT/150BT/170BT/
180BT]
1. Insert the holder, then assemble the handlebar (OPTION) and tighten it
securely.
F1
(1)
(2)
F2
F3
[130BT]
(1)
F4
[150BT] [170BT] [180BT]
F5
F6
Assembly
130BT&180BT_US-65.fm Page 14 Friday, December 7, 2007 1:05 PM
![](asset-f.png)
English
15
BLOWER TUBES
1. Align the protrusion and the groove provided on the tube ends and
twist the tube until the connection is locked.
NOTE
A light lubricant may be used to ease assembly of blower tube.
NOTE
If longer tube is required, the second straight pipe can be
connected with the first one.
If higher air speed is required, the round blow pipe can be replaced
by the flat nozzle with the second straight pipe.
(1) Flat nozzle (option)
HARNESS
NOTE
The harness must always be worn when working with the
machine. Failure to do so means you will be unable to maneuver
safely and this can result in injury to yourself or others.
A correctly adjusted harness and machine significantly facilitates the work.
Adjust the harness to give the best working position.
Tighten the side straps so that the pressure is evenly distributed across the
shoulders.
WAIST BELT [150BT/BF] [170BT/BF] [180BT/BF]
• The waist belt is attached to the rings on the left and right sides of the
frame.
NOTE
130BT has no waist belt.
Place the waist belt around your waist and not too far down on the
stomach. Tighten the waist belt strap so that you feel the weight of the
blower resting on your hip.
• Be sure to always tighten the buckle in front of your body.
WARNING
• If you are not using a waist belt, be sure to remove it from the
unit and store it.
• There is a risk that the belt will be caught, toppling the unit.
• There is a danger that the belt will be sucked into the fan.
F7
F8 (1)
F9
F10
F11
F12
F13
Assembly
130BT&180BT_US-65.fm 15 ページ 2008年3月21日 金曜日 午後1時6分
![](asset-10.png)
English
16
FUEL
WARNING
• Gasoline is very flammable.
Avoid smoking or bringing
any flame or sparks near
fuel. Make sure to stop the
engine and allow it cool
before refueling the unit.
Select outdoor bare ground
for fueling and move at least
10ft (3m) away from the fuel-
ing point before starting the
engine.
• The engines are lubricated
by oil specially formulated
for air-cooled 2-cycle
gasoline engine use. If
Husqvarna oil is not
available, use an anti-
oxidant added quality oil
expressly labeled for air-
cooled 2-cycle engine use.
(JASO FC GRADE OIL or ISO
EGC GRADE)
• Do not use BIA or TCW (2-
stroke water-cooling type)
mixed oil.
RECOMMENDED MIXING RATIO
GASOLINE 50:OIL 1
• Exhaust emission are
controlled by the
fundamental engine
parameters and components (i.e., carburation,
ignition timing and port timing) without addition
of any major hardware or the introduction of an
inert material during combustion.
• These engines are certified to operate on
unleaded gasoline.
• Make sure to use gasoline with a minimum
octane number of 89 RON (USA/Canada: 87AL)
• If you use a gasoline of a lower octane value
than specified, there is a danger that the engine
temperature may rise and an engine problem
such as piston seizing may consequently
occur.
• Unleaded gasoline is recommended to reduce
the contamination of the air for the sake of your
health and the environment.
• Poor quality gasolines or oils may damage
sealing rings, fuel lines or fuel tank of the
engine.
HOW TO MIX FUEL
IMPORTANT
Pay attention to agitation.
1. Measure out the quantities of gasoline and oil to be
mixed.
2. Put some of the gasoline into a clean, approved fuel
container.
3. Pour in all of the oil and agitate well.
4. Pour in the rest of gasoline and agitate again for at
least one minute. As some oils may be difficult to
agitate depending on oil ingredients, sufficient
agitation is necessary for the engine to last long.
Note that, if the agitation is insufficient, there is an
increased danger of early piston seizing due to an
abnormally lean mixture.
5. Indicate the contents on outside of container for easy
identification to avoid mixing with raw gasoline or
other containers.
FUELING THE UNIT
1. Untwist and remove the fuel cap.
2. Put fuel into the fuel tank to 80% of the full capacity.
3. Fasten the fuel cap securely and wipe up any fuel
spillage around the unit.
WARNING
1. Select bare ground for fueling.
2. Move at least 10 feet (3 meters) away from the
fueling point before starting the engine.
3. Stop the engine and let it cool for a few
minutes before refueling the unit. At that time,
be sure to sufficiently agitate the mixed
gasoline in the container.
4. Do not smoke or place hot objects near fuel.
FOR YOUR ENGINE LIFE, AVOID;
1. FUEL WITH NO OIL (RAW GASOLINE) - It will
cause severe damage to the internal engine parts
very quickly.
2. GASOHOL - It can cause deterioration of rubber
and/or plastic parts and disruption of engine
lubrication.
3. OIL FOR 4-CYCLE ENGINE USE - It can cause
spark plug fouling, exhaust port blocking, or piston
ring sticking.
4. Mixed fuels which have been left unused for a period
of one month or more may clog the carburetor and
result in the engine failing to operate properly.
5. When storing the product for a long period of time,
clean the fuel tank after rendering it empty. Next,
activate the engine and empty the carburetor of the
composite fuel.
6. When scrapping the used mixed oil container, scrap
it only at an authorized repository site.
NOTE
For details of quality assurance, read the
description in the Warranty section carefully.
Moreover, normal wear and change in product
with no functional influence are not covered by
the warranty. Also, note that if the usage in the
instruction manual is not observed for the mixed
gasoline, etc. as described herein, it may not be
covered by the warranty.
Fuel
130BT&180BT_US-65.fm Page 16 Friday, December 7, 2007 1:05 PM
![](asset-11.png)
English
17
CONTROL ARM [150BF/170BF/180BF]
• Hold the upper end of the control arm in hand and, while pulling it
away from the unit, rotate arm forward (counter-clockwise in the
direction of the arrow) until it clicks. (The first position)
And if you want, you can rotate arm further until it clicks. (The second
position)
Choose the arm position according to your working condition.
• To fold the arm, reverse the order.
(1)First position
(2)Second position
STARTING ENGINE
IMPORTANT
• Avoid operating the blower with the flexible tube and swivel
joint disconnected. That will reduce the cooling air and the
engine could be damaged by overheating.

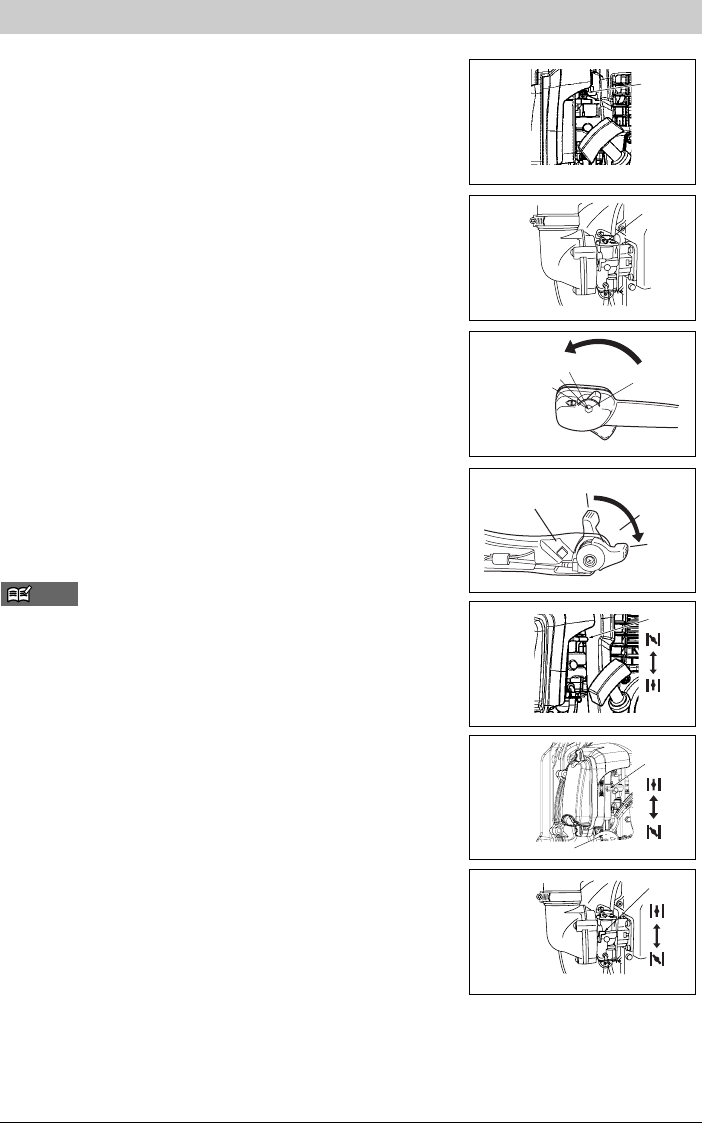

1. Push the primer bulb until fuel flows out in the clear tube.
2. When the engine is cool, close the choke.
(1)Choke Lever
(2)Primer Bulb
(3)OPEN
(4)CLOSE
3. Set the throttle lever position.
[130BT] [150BT/BF] [170BT/BF] [180BT/BF]
Idling About 1/3 Open
(1)Full Throttle
(2)About 1/3 Open
(3)Idling
(4)STOP [130BT/150BT/170BT/180BT] as shown in F19
(5)Stop Switch [150BF/170BF/180BF] as shown in F20
4. To start, hold the top of the blower firmly with your left hand. Pull the starter
knob slowly until you feel it engage and then give it a vigorous strong pull.
IMPORTANT
• Never twist the starter cord around your hand.
• Avoid pulling the starter rope out to its full extent and allowing
the starter rope to snap back. This will prevent premature
damage to the starter.
• Do not let a person stand near the blower or the exhaust port.
5. Once the engine is running, gradually open the choke if it was set
closed, and let the engine run at idle speed for a minute to warm it up.
NOTE
When the engine fails to start after several attempts due to
overchoking, open the choke and repeat pulling the rope.
WARNING
Air comes out as soon as the engine is started, even at idle speed.
F14
[150BF] [170BF] [180BF]
(1)
(2)
F15
[150BF] [170BF] [180BF]
(1)
(2)
(3)
(4)
F16
(1)
(2)
(3)
(4)
F18
[130BT]
[170BT/BF] [180BT/BF]
F17 (1)
(2)
(4)
(3)
[150BT/BF]
(1)
(2)
(3)
(4)
F19
[130BT/150BT/170BT/180BT]
(1)
(2)
(3)
(5)
[150BF] [170BF] [180BF]
F21
F20
Operation
130BT&180BT_US-65.fm Page 17 Friday, December 7, 2007 1:05 PM
![](asset-12.png)
English
18
ADJUSTING IDLE SPEED
[130BT]
• The idling speed is set for 3000 rpm at the factory. If it is necessary
to adjust the idle speed, use the adjustment screw on the top side of
carburetor.
(1)Idling Adjustment Screw
[150BT/BF] [170BT/BF] [180BT/BF]
• The idling speed is set for 2200 rpm [150BT/BF] or 2000 rpm
[170BT/BF] [180BT/BF] at the factory. If it is necessary to adjust the
idle speed, use the adjustment screw on the top side of the
carburetor.
(1)Idling Adjustment Screw
STOPPING ENGINE
[130BT/150BT/170BT/180BT]
• Move the throttle lever to the STOP position.
(4)Stop
[150BF/170BF/180BF]
• Move the throttle lever to the idling position and press the stop switch
(red button). The machine has the mechanism that once the stop
button is pushed the plug won't give off sparks until the engine stops.
(3)Idling
(5)Stop Switch
NOTE
If the engine does not stop when setting the ignition switch to the
stop position, close the choke lever and stop the engine.
In this case, please repair the machine at your nearest servicing
dealer.
(1)Choke Lever
(2)OPEN
(3)CLOSE
(1)
F22
[130BT] [150BT/BF]
(1)
F23
[170BT/BF] [180BT/BF]
(1)
(2)
(3)
(4)
F24
[130BT/150BT/170BT/180BT]
(1)
(2)
(4)
(3)
(1)
(2)
(3)
(5)
F25
[150BF/170BF/180BF]
F27
(1)
(2)
(3)
F26
[130BT]
[150BT/BF]
(1)
(2)
(3)
F28
[170BT/BF] [180BT/BF]
Operation
130BT&180BT_US-65.fm Page 18 Friday, December 7, 2007 1:05 PM
![](asset-13.png)
English
19
Maintenance, replacement, or repair of the emission control device and systems may be performed by any non-road
engine repair establishment or individual.
WARNING
Make sure that the engine has stopped and is cool before performing
any service to the blower. Contact with rotating blower fan or hot
muffler may result in a personal injury.
AIR CLEANER
• Check the air cleaner before use.
A clogged air filter may increase fuel consumption while cutting down the
engine power.
• Never operate the blower without an air filter or with a deformed or broken
filter element because unfiltered dusty air will quickly ruin the engine.
[170BT/BF] [180BT/BF]
• Never clean the paper filter by tapping on it. Doing so may break the element,
causing dust to get sucked into the blower and damaging the engine.
CLEANING AIR FILTER:
[130BT] (F29)
1. Unscrew the knob and remove the air cleaner cover.
(1) Knob (2) Element
(3) Screen
2. Wash the filter element in fresh, non flammable cleaning solution (ex. warm
soapy water) and then dry.
(Clean the air filter once in a week.)
3. Reinstall the filter. Never forget to attach the screen. If the screen is not
attached, the cleaner will not seal properly and the dusts come into the
cylinder.
4. Hook the slots of cover (4) on the tabs of body (5) and screw the knob.
[150BT/BF] (F30)
1. Unscrew the 2 knobs and remove the air cleaner cover.
(1) Knob (2) Element
(3) Screen (4) Packing
2. Wash the filter element with neutral detergent and warm water and then dry
completely.
(Clean the air filter once in the week.)
3. Moisten the filter element with a small amount of 2 cycle oil.
NOTE
• Do not apply 4 cycle motor oil as they may damage element.
• Do not use mixture gasoline. This type of gasoline does not contain
much of oil, so that the element becomes dry after a few hours.
• Soak the filter element into a 2 cycle motor oil.
Squeeze the element to remove excess oil so that it weighs 2 to 3 times
heavier than it was dried.
4. Reinstall the element into the packing,set the packing into the air cleaner body.
Never forget to attach the screen properly. If the screen is not attached, the
cleaner will not seal properly and the dusts come into the cylinder.
5. Reinstall the air cleaner cover and screw the 2 knobs.
System/Compornent Procedure Daily or
Before use Every 25
hours after Every 50
hours after Every 100
hours after
Air
Filter Prefilter Inspect/Clean 9
Paper Filter (170 only)
Inspect/Replace 9
Fuel Leaks Inspect/Replace 9
Fuel Filter Inspect/Replace 99
Fuel Line Inspect/Clean 9
Spark Plug Inspect/Clean 9
Muffler Inspect/Clean 9
Bolts on muffler Tighten 9
Entire unit Inspect/Replace 9
Muffler Spark Arrester Inspect/Clean 9
Cooling System Inspect/Clean 9
Screws/Nuts/Bolts Tighten 9
Cylinder Exhaust Port Inspect/Clean 9
(3)
(4)
(2)
(1)
(3)
(5)(4)
(1) (2)
F29
[130BT]
F30
[150BT/BF]
Maintenance
130BT&180BT_US-65.fm Page 19 Friday, December 7, 2007 1:05 PM
![](asset-14.png)

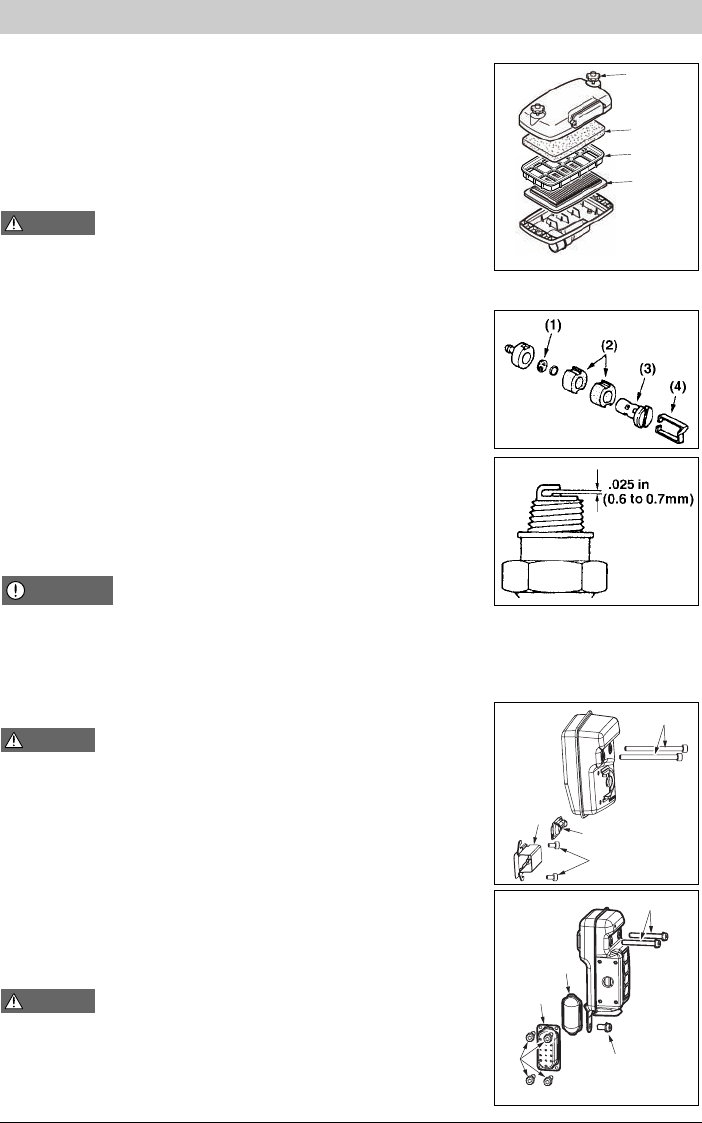

English
20
[170BT/BF] [180BT/BF] (F31)
1. Unscrew 2 knob bolts and remove the air cleaner cover. Then remove the
prefilter mounted inside the air cleaner cover.
(1) Knob Bolt (2) Prefilter
(3) Inner Case [180BT/BF] (4) Paper Filter
2. Wash the prefilter in fresh, non flammable cleaning solution (ex. warm soapy
water) and then dry.
(Clean the air filter once in a week.)
3. Exchange the paper filter element with new one in case it has been
contaminated.
WARNING
• This prefilter is dry type.
• Never wash the prefilter in an oily cleaning solution.
• Never include oil in the wash.
• Do not clean the paper filter by tapping on it.
FUEL FILTER
• A clogged fuel filter may cause poor acceleration of the engine. Check
periodically to see if the filter is clogged with dirt. The filter can be taken out
of the fueling port using a small wire hook. Disconnect the filter assembly
from the fuel pipe and unhook the retainer to disassemble it. Clean the
components with gasoline.
(1) Screen (2) Element (x 2)
(3) Holder (4) Retainer
SPARK PLUG
• The spark plug may gather carbon deposits on its firing end with reasonable
use. Remove and inspect the spark plug every 25 hours and clean the
electrodes as necessary with a wire brush. The spark gap should be
adjusted to .025 in (0.6 to 0.7mm).
• Plug manufacturers recommend replacing the plug twice a year to avoid
unexpected plug failure in a job.
REPLACEMENT PLUG IS A NGK CMR7H.
IMPORTANT
• Note that using any spark plugs other than those designated may
result in the engine failing to operate properly or in the engine becom-
ing overheated and damaged.
• To install the spark plug, first turn the plug with your hands until it is
tight, then tighten it a quarter turn more with a socket wrench.
MUFFLER
WARNING
• Periodically inspect the muffler for loose fasteners, damage or corro-
sion. If any sign of exhaust leakage is found, do not use the blower and
have it repaired immediately.
1. Remove the muffler, insert a screwdriver into the vent, and wipe away any
carbon buildup. Wipe away any carbon buildup on the muffler exhaust vent
and cylinder exhaust port at the same time.
2. Tighten all screws, bolts, and fittings.
SPARK ARRESTER
• The muffler is equipped with a spark arrester to prevent red hot carbon from
flying out of the exhaust outlet. Periodically inspect and clean as necessary
with a wire brush.
(1) Bolt (2) Bolt
(3) Spark Arrester (4) Diffuser
WARNING
• Before starting operation, always make sure to check if the muffler is
properly held by the bolts (2).
Fastening Torque: [130BT]
[150BT/BF] [170BT/BF] [180BT/BF]
7 to 11 N·m 8 to 12 N·m
• Also make sure that the spark arrester and the diffuser are properly
attached with the bolts (1). (Fastening Torque : 2 to 3 N·m)
(1)
(2)
(3)
(4)
F31
[170BT/BF] [180BT/BF]
(180BT/BF
ONLY)
F32
F33
(2)
(1) (2)
(4)
(3)
(2)
(4)
(3)
(1)
F35
F34
[150BT/BF] [170BT/BF] [180BT/BF]
[130BT]
Maintenance
130BT&180BT_US-65.fm Page 20 Friday, December 7, 2007 1:05 PM
![](asset-15.png)
English
21
AIR INLET NET
IMPORTANT
• Blown air is taken in from the air inlet net. If the air flow drops during
operation, stop the engine and inspect the air inlet net for blockage by
obstacles.
• Note that failure to remove any such obstacles may result in the engine
becoming overheated and damaged.
(1)Net
WARNING
Never use the blower without the net on the blower. Before each use,
check that the net is attached in place and is free from any damage.
IGNITION COIL AIR GAP INSPECTION
• If the gap is not accurate or when installing the coil or rotor, adjust the air
gap between the ignition coil and the iron core of the rotor.
Air Gap: [130BT] [150BT/BF] [170BT/BF] [180BT/BF]
0.35 mm (0.30 to 0.40 mm) 0.40 mm (0.35 to 0.45 mm)
0.014 in (0.012 to 0.016 in) 0.016 in (0.014 to 0.017 in)
(1) Rotor
(2) Ignition coil
SHOLDER STRAP
• If the shoulder strap is damaged it may break during use, thus causing the
product to fall and resulting in personal injury. Follow the instructions below
to replace the shoulder strap with new one.
• Take off the clip from the strap.
• Pass the end of the strap through the hanger.
• Return the clip to the strap.
IMPORTANT
Make sure that the thick round bar of the clip is in the strap.
If it is attached in the wrong way, it leads to serious personal injury.
BEFORE STORING THE BLOWER:
1. Drain the fuel tank and push the primer bulb until it becomes empty of fuel.
2. Remove the spark plug and drop a spoonful of 2-cycle oil into the cylider. Crank the engine several time and install
the spark plug.
3. Store unit in a dry, cool and dark, well-ventilated, dust-free place, out of the reach of children.
Storage
(1)
(1)
F37
F36
[130BT]
[150BT/BF] [170BT/BF] [180BT/BF]
(2)
(1)
F39
[150BT/BF] [170BT/BF] [180BT/BF]
F38
[130BT]
F40
Maintenance
130BT&180BT_US-65.fm Page 21 Friday, December 7, 2007 1:05 PM
![](asset-16.png)
22
130BT&180BT_US-65.fm Page 22 Friday, December 7, 2007 1:05 PM
