Operator's

Manual

Operator's Manual

Ride Mower

96043004500

03002

2

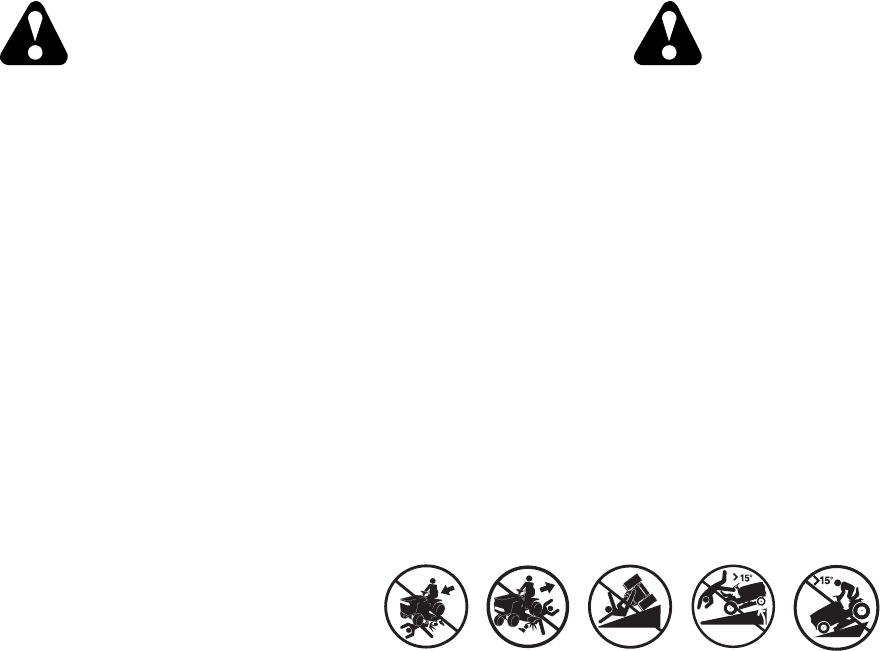

I. GENERAL OPERATION

• Read, understand, and follow all instructions on the

machine and in the manual before starting.

• Do not put hands or feet near rotating parts or under

the machine. Keep clear of the discharge opening at

all times.

• Only allow responsible adults, who are familiar with

the in structions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blades.

• Be sure the area is clear of bystanders before operat-

ing. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while back-

ing.

• Never direct discharged material toward anyone. Avoid

discharging material against a wall or obstruction.

Material may ricochet back toward the operator. Stop

the blades when crossing gravel surfaces.

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE

TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

WARNING: In order to prevent ac-

cidental starting when setting up,

transporting, ad justing or making re-

pairs, al ways dis connect spark plug

wire and place wire where it can not

contact spark plug.

WARNING: Do not coast down a hill

in neutral, you may lose control of the

tractor.

WARNING: Tow only the attachments

that are rec ommended by and com-

ply with spec ifications of the man u-

facturer of your tractor. Use common

sense when towing. Operate only at

the low est possible speed when on a

slope. Too heavy of a load, while on

a slope, is dan gerous. Tires can lose

traction with the ground and cause you

to lose control of your tractor.

WARNING

Engine exhaust, some of its con stituents, and cer-

tain vehicle com ponents contain or emit chem icals

known to the State of Cal ifornia to cause can cer and

birth de fects or oth er re productive harm.

WARNING

Battery posts, terminals and related ac cessories

contain lead and lead compounds, chem icals known

to the State of Cal ifornia to cause can cer and birth

defects or oth er re productive harm. Wash hands

after handling.

• Do not operate machine without the entire grass catcher,

discharge guard, or other safety devices in place and

working.

• Slow down before turning.

• Never leave a running machine unattended. Always

turn off blades, set parking brake, stop engine, and

remove keys before dismounting.

• Disengage blades when not mowing. Shut off engine

and wait for all parts to come to a complete stop before

cleaning the machine, removing the grass catcher, or

unclogging the discharge guard.

• Operate machine only in daylight or good artificial

light.

• Do not operate the machine while under the influence

of alcohol or drugs.

• Watch for traffic when operating near or crossing

roadways.

• Use extra care when loading or unloading the machine

into a trailer or truck.

• Always wear eye protection when operating ma-

chine.

• Data indicates that operators, age 60 years and above,

are involved in a large percentage of riding mower-re-

lated injuries. These operators should evaluate their

ability to operate the riding mower safely enough to

protect them selves and others from serious injury.

• Follow the manufacturer's recommendation for wheel

weights or counterweights.

• Keep machine free of grass , leaves or other debris

build-up which can touch hot exhaust / engine parts

and burn. Do not allow the mower deck to plow leaves

or other debris which can cause build-up to occur.

Clean any oil or fuel spillage before operating or

storing the machine. Allow machine to cool before

storage.

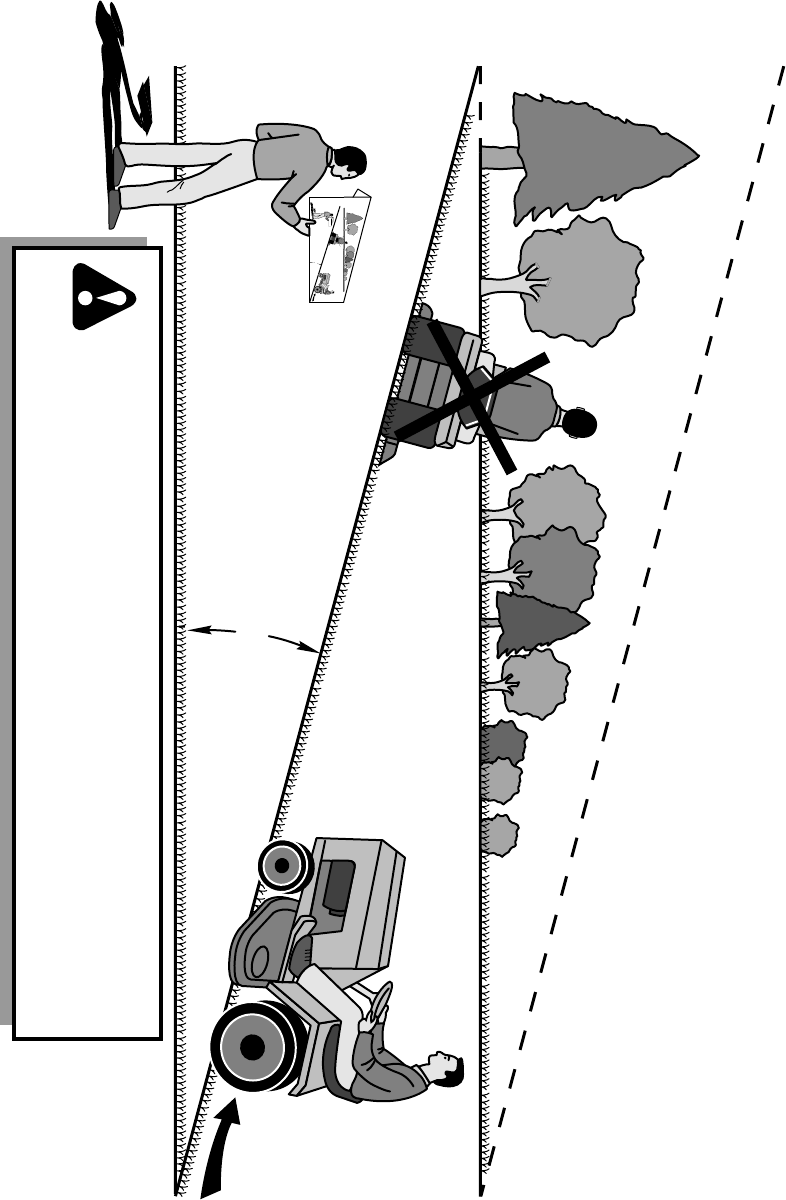

II. SLOPE OPERATION

Slopes are a major factor related to loss of control and

tip-over accidents, which can result in severe injury or

death. Operation on all slopes requires extra caution. If

you cannot back up the slope or if you feel uneasy on it,

do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or other hidden

objects. Uneven terrain could overturn the machine.

Tall grass can hide obstacles.

• Choose a low ground speed so that you will not have

to stop or shift while on the slope.

• Do not mow on wet grass. Tires may lose traction.

Always keep the machine in gear when going down

slopes. Do not shift to neutral and coast downhill.

• Avoid starting, stopping, or turning on a slope. If the

tires lose traction, disengage the blades and proceed

slowly straight down the slope.

• Keep all movement on the slopes slow and gradual.

Do not make sudden changes in speed or direction,

which could cause the machine to roll over.

• Use extra care while operating machine with grass

catchers or other at tachments; they can affect the

stability of the machine. Do no use on steep slopes.

• Do not try to stabilize the machine by putting your foot

on the ground.

• Do not mow near drop-offs, ditches, or embankments.

The machine could suddenly roll over if a wheel is over

the edge or if the edge caves in.

3

• Be sure the area is clear of bystanders before operat-

ing. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while back-

ing.

• Never carry children, even with the blades shut off. They

may fall off and be seriously injured or interfere with

safe machine operation. Children who have been given

rides in the past may suddenly appear in the mowing

area for another ride and be run over or backed over

by the machine.

• Keep children out of the mowing area and in the watchful

care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the

area.

• Before and while backing, look behind and down for

small children.

• Mow up and down slopes (15° Max), not across.

• Choose a low ground speed so that you will not have

to stop or shift while on the slope.

• Avoid starting, stopping, or turning on a slope. If the

tires lose traction, disengage the blades and proceed

slowly straight down the slope.

• If machine stops while going uphill, disengage blades,

shift into reverse and back down slowly.

• Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, if possible.

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

III. CHILDREN

Tragic accidents can occur if the operator is not alert to

the presence of children. Children are often attracted to

the ma chine and the mowing activity. Never assume that

children will remain where you last saw them.

• Keep children out of the mowing area and in the watchful

care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the

area.

• Before and while backing, look behind and down for

small children.

• Never carry children, even with the blades shut off. They

may fall off and be seriously injured or interfere with

safe machine operation. Children who have been given

rides in the past may suddenly appear in the mowing

area for another ride and be run over or backed over

by the machine.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may block your view of a

child.

IV. TOWING

• Tow only with a machine that has a hitch designed for

towing. Do not attach towed equipment except at the

hitch point.

• Follow the manufacturer's recommendation for weight

limits for towed equipment and towing on slopes.

• Never allow children or others in or on towed equip-

ment.

• On slopes, the weight of the towed equipment may

cause loss of traction and loss of control.

• Travel slowly and allow extra distance to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property damage, use extreme

care in handling gasoline. Gasoline is extremely flammable

and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes, and other

sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel container where there

is an open flame, spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle or on a truck or

trailer bed with plastic liner. Always place containers

on the ground away from your vehicle when filling.

• Remove gas-powered equipment from the truck or

trailer and refuel it on the ground. If this is not possible,

then refuel such equipment with a portable container,

rather than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim of the fuel tank or

container opening at all times until fueling is complete.

Do not use a nozzle lock-open device.

• If fuel is spilled on clothing, change clothing immedi-

ately.

• Never overfill fuel tank. Replace gas cap and tighten

securely.

GENERAL SERVICE

• Never operate machine in a closed area.

• Keep all nuts and bolts tight to be sure the equipment

is in safe working condition.

• Never tamper with safety devices. Check their proper

operation regularly.

• Keep machine free of grass, leaves, or other debris

build-up. Clean oil or fuel spillage and remove any

fuel-soaked debris. Allow machine to cool before

storing.

• If you strike a foreign object, stop and inspect the

machine. Repair, if necessary, before restarting.

• Never make any adjustments or repairs with the engine

running.

• Check grass catcher components and the discharge

guard frequently and replace with manufacturer's rec-

ommended parts, when necessary.

• Mower blades are sharp. Wrap the blade or wear

gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service

as required.

• Maintain or replace safety and instruction labels, as

necessary.

4

SAFETY RULES .........................................................2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ................................. 4

ASSEMBLY .................................................................5-6

OPERATION .............................................................7-13

MAINTENANCE SCHEDULE ...................................... 14

MAINTENANCE ..................................................... 14-17

SERVICE AND AD JUSTMENTS ............................18-23

STORAGE .................................................................... 24

TROUBLESHOOTING ............................................ 25-26

REPAIR PARTS ......................................................27-40

TABLE OF CONTENTS

PRODUCT SPECIFICATIONS

Gasoline Capacity 4.0 Gallons

and type: Unleaded Regular

Oil Type (API-SG-SL): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

Oil Capacity: w/Filter: 56 oz

w/o Filter: 48 oz

Spark Plug: Champion RC14YC

(Gap: .030")

Ground Speed (MPH): Forward: 0 – 5.5

Reverse: 0 – 2.4

Charging System: 16 AMPS @ 3600 RPM

Battery: AMP/HR: 28

MIN. CCA: 230

Case Size: U1R

Blade Bolt Torque: 45-55 FT. LBS.

CONGRATULATIONS on your purchase of a new tractor.

It has been designed, engineered and manu factured to give

you the best possible dependability and performance.

Should you experience any problem you cannot easily rem-

edy, please contact your nearest authorized servicecenter/

department We have competent, well-trained tech nicians

and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor prop erly.

Always observe the “SAFETY RULES”.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for

and using your tractor.

• Follow the instructions under “Maintenance” and “Stor-

age” sec tions of this own er’s manual.

WARNING: This tractor is equipped with an internal com-

bustion engine and should not be used on or near any un-

improved forest-covered, brush-covered or grass-cov ered

land unless the en gine’s exhaust system is equipped with

a spark arrester meeting ap plicable local or state laws (if

any). If a spark arrester is used, it should be maintained

in effective working order by the operator.

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code).

Other states may have similar laws. Federal laws apply

on federal lands.

A spark arrester for the muffler is available through your

nearest authorized service center/department.

5

UNASSEMBLED PARTS

(2) Keys

Slope Sheet

Key

(1) Oil Drain Tube

ASSEMBLY

When right or left hand is mentioned in this man ual, it means when you are in the operating po sition (seated be hind the

steering wheel).

Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes.

FIG. 1

ADJUST SEAT (See Fig. 2)

• Sit in seat.

• Lift up adjustment lever (A) and slide seat until a com-

fortable position is reached which allows you to press

clutch/brake pedal all the way down.

• Release lever to lock seat in position.

FIG. 2

A

NOTE: You may now roll or drive your tractor off the skid.

Follow the ap propriate instruction on the next page to

remove the tractor from the skid.

WARNING: Before start ing, read, un derstand and fol low

all in structions in the Op eration section of this man ual. Be

sure tractor is in a well-ventilated area. Be sure the area in

front of tractor is clear of other peo ple and objects.

UNPACK CARTON

• Remove all accessible loose parts and parts cartons

from carton.

• Cut along dashed lines on all four panels of carton.

Remove end panels and lay side panels flat.

• Check for any additional loose parts or cartons and

remove.

TO REMOVE TRACTOR FROM CAR TON

CHECK BATTERY (See Fig. 1)

1. Lift hood to raised position.

NOTE: If this battery is put into service after month and

year indicated on label (L) (label is located between

terminals) charge battery for minimum of one hour at

6-10 amps. (See "BATTERY" in Maintenance section

of this manual for charging instructions).

L

02931

6

ASSEMBLY

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory

for shipping purposes. Correct tire pressure is important

for best cutting performance.

• Reduce tire pressure to PSI shown on tires.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be prop-

erly leveled. See “TO LEVEL MOWER HOUSING” in the

Service and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that

the brake is operating properly. See “TO CHECK BRAKE”

in the Service and Adjustments section of this manual.

✓CHECKLIST

BEFORE YOU OPERATE YOUR NEW TRAC TOR, WE

WISH TO ASSURE THAT YOU RECEIVE THE BEST PER-

FORMANCE AND SATISFACTION FROM THIS QUALITY

PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

✓ All assembly instructions have been com pleted.

✓ No remaining loose parts in carton.

✓ Battery is properly prepared and charged.

✓ Seat is adjusted comfortably and tightened securely.

✓ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

✓ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

✓ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

✓ Check wiring. See that all connections are still secure

and wires are properly clamped.

✓ Before driving tractor, be sure free wheel control is in

“transmission engaged” position (see “TO TRANS-

PORT” in the Operation section of this man ual).

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

✓ Engine oil is at proper level.

✓ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

✓ Become familiar with all controls, their location and

function. Operate them before you start the engine.

✓ Be sure brake system is in safe operating condition.

✓ Be sure Operator Presence System and Reverse Op-

eration System (ROS) are working properly (See the

Operation and Maintenance sections in this manual).

✓ It is important to purge the transmission before op-

erating your tractor for the first time. Follow proper

starting and transmission purging instructions (See

“TO START EN GINE” and “PURGE TRANSMISSION”

in the Op eration section of this manual).

TO ROLL TRACTOR OFF SKID (See Op-

eration section for location and function of

controls)

• Raise attachment lift lever to its highest po sition.

• Release parking brake by de pressing brake ped al.

• Place freewheel control in dis engaged po sition to dis-

engage trans mission (See “TO TRANS PORT” in the

Operation section of this manual).

• Roll tractor forward off skid.

TO DRIVE TRAC TOR OFF SKID (See Op-

eration section for location and function of

controls)

• Be sure all the above assembly steps have been com-

pleted.

• Check engine oil level and fill fuel tank with gasoline.

• Place freewheel control in "trans mission engaged"

position (see "TO TRANSPORT" in Operation section

of this manual).

• Sit on seat in operating position, depress brake pedal

and set the parking brake.

• Raise attachment lift lever to its highest position.

• Remove key from bag and start the engine (see "TO

START" in the Operation section of this manual). After

engine has started, move throttle control to idle (slow)

position.

• Release parking brake.

• Slowly depress forward drive pedal and drive tractor

off skid.

• Apply brake to stop tractor and set park ing brake.

• Turn ignition key to "STOP" position.

Continue with the in structions that follow.

7

OPERATION

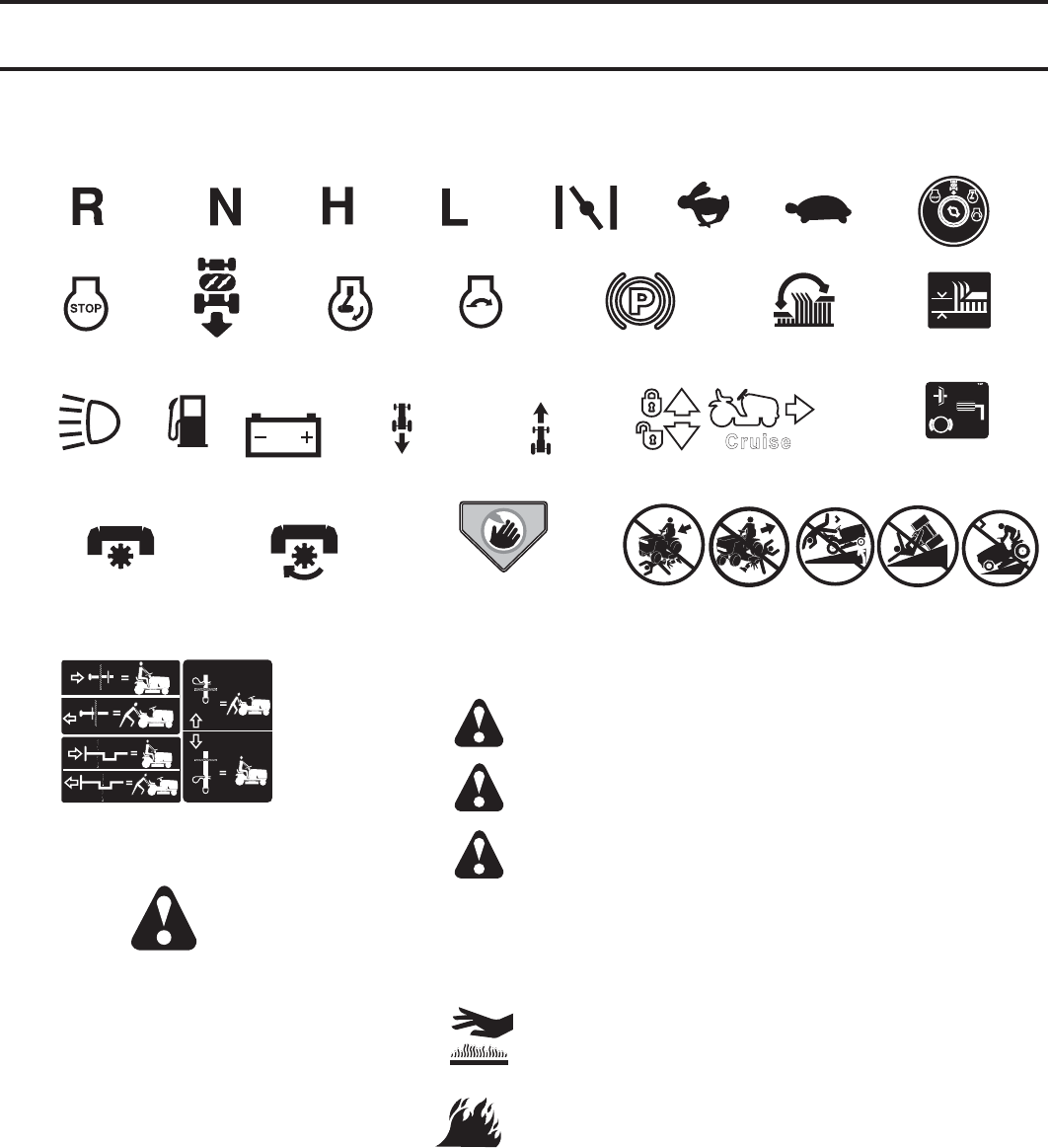

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

DANGER, KEEP HANDS

AND FEET AWAY

FREE WHEEL

(Automatic Models only)

KEEP AREA CLEAR SLOPE HAZARDS

15

15

(SEE SAFETY RULES SECTION)

BATTERY REVERSE FORWARD

FAST SLOW

ENGINE ON

ENGINE OFF

FUEL

CHOKE

MOWER HEIGHT

REVERSE NEUTRAL HIGH LOW

ATTACHMENT

CLUTCH ENGAGED

PARKING BRAKE

IGNITION SWITCH

ATTACHMENT

CLUTCH DISENGAGED

ENGINE START MOWER LIFT

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

REVERSE

OPERATION

SYSTEM (ROS)

LIGHTS ON CLUTCH/BRAKE

PEDAL

CRUISE CONTROL

8

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad justments.

Save this manual for future reference.

Our tractors conform to the applicable safety standards of the American National Standards Institute.

FIG. 3

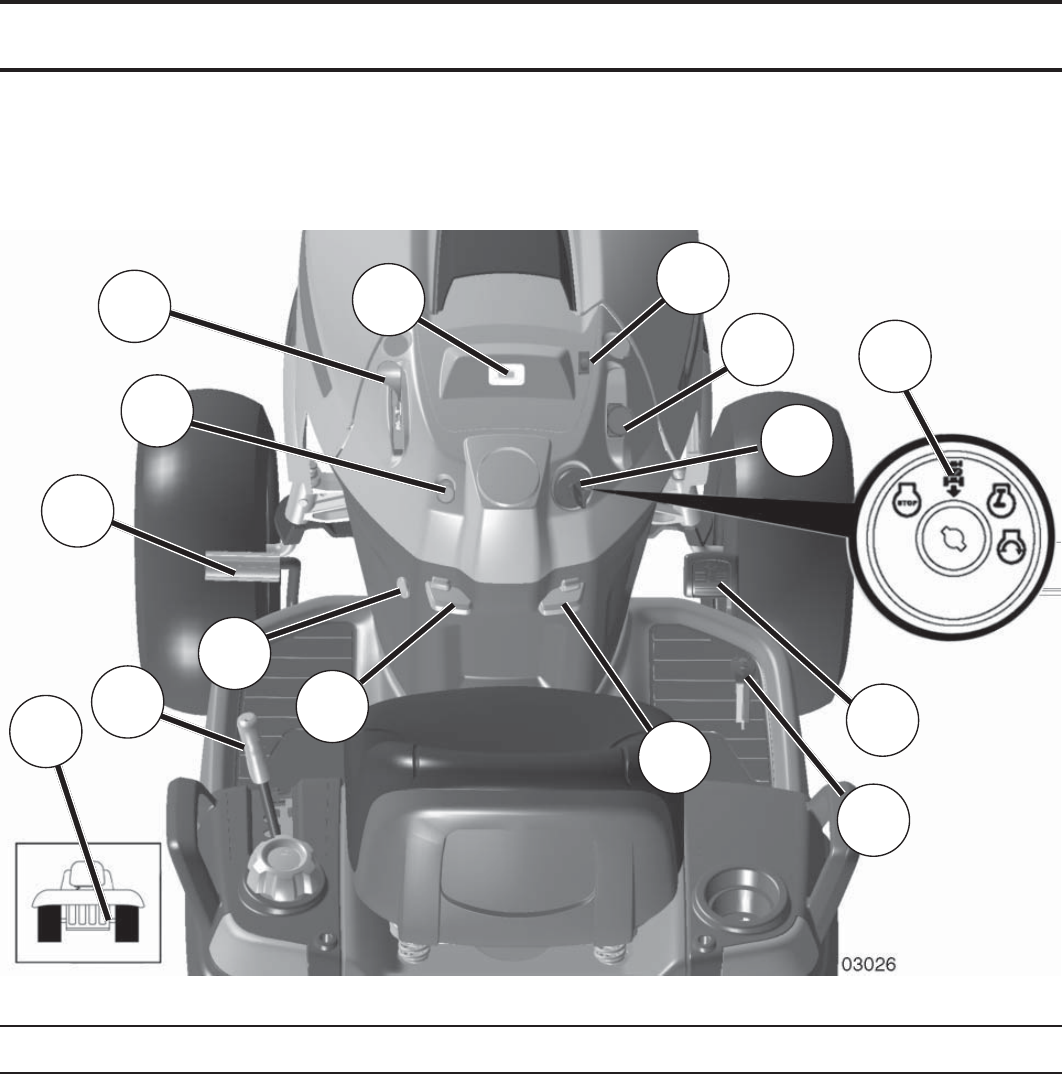

(A) ATTACHMENT LIFT LEVER - Used to raise and lower

the mower or other attachments mounted to your trac tor.

(B) BRAKE PEDAL - Used for brak ing the tractor and

starting the engine.

(C) PARKING BRAKE - Locks clutch/brake pedal into the

brake position.

(D) THROTTLE/CHOKE CONTROL - Used for starting

and controlling engine speed.

(E) ATTACHMENT CLUTCH SWITCH - Used to engage

the mow er blades, or other at tachments mounted to your

tractor.

(F) IGNITION SWITCH - Used for starting and stopping

the engine.

(G) REVERSE OPERATION SYSTEM (ROS) "ON"

POSITION - Allows operation of mower or other powered

attachment while in reverse.

(H) LIGHT SWITCH - Turns the headlights on and off.

(J) CRUISE CONTROL LEVER - Used to set forward

movement of tractor at desired speed without holding the

forward drive pedal.

(K) FORWARD DRIVE PEDAL - Used for forward

movement of tractor.

(L) REVERSE DRIVE PEDAL - Used for reverse

movement of tractor.

(M) FREEWHEEL CONTROL - Disengages transmission

for pushing or slowly tow ing the trac tor with the engine off.

(N)CHOKE CONTROL - Used when starting a cold engine.

(P) SERVICE REMINDER / HOUR METER - Indicates

when service is required for the engine and mower.

(Q) 12-VOLT POWER PORT - Used for 12 volt accessories.

A

D

N

P

K

L

J

M

EG

H

C

F

Q

B

9

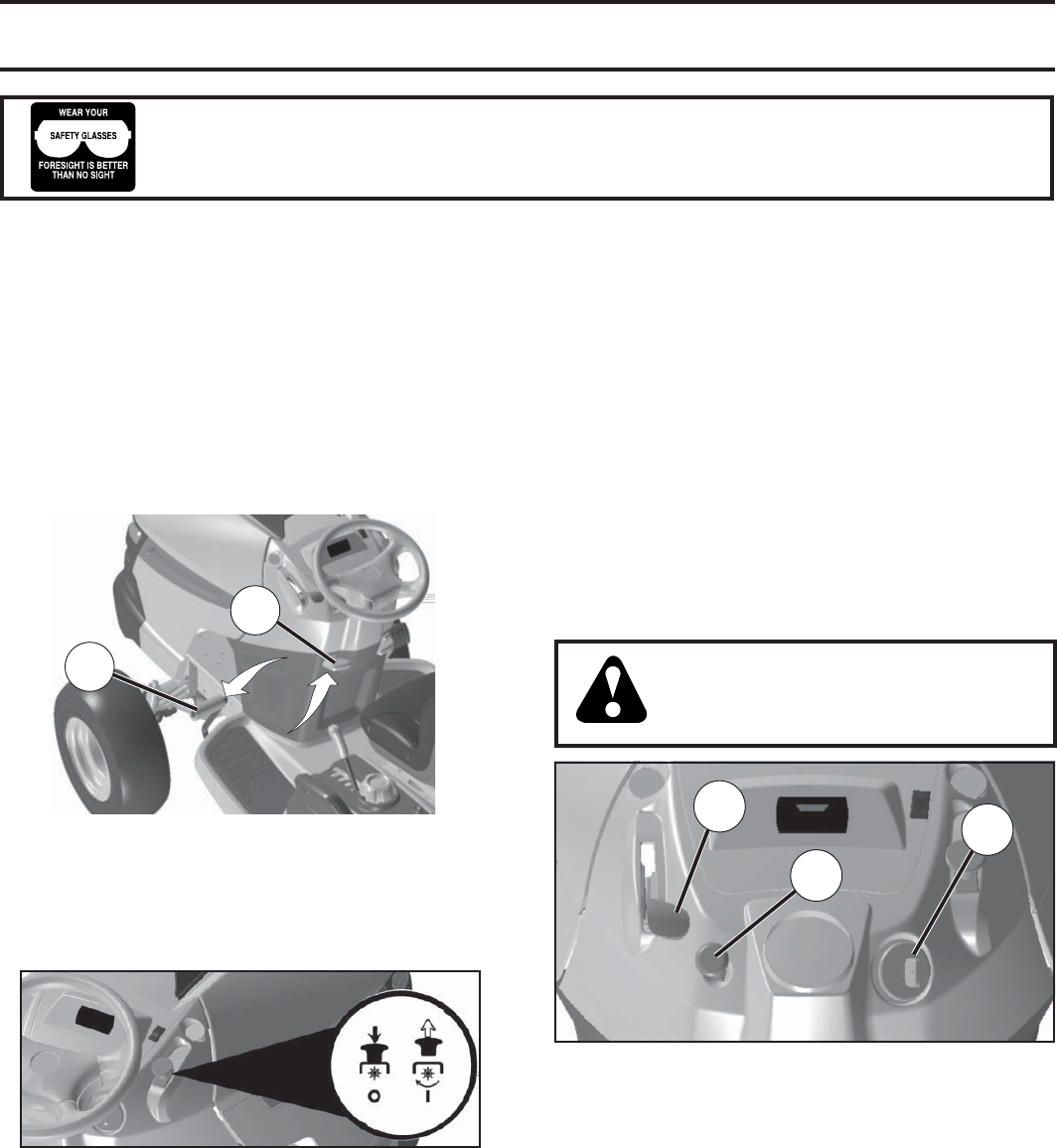

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes, which can result

in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor

or per forming any ad justments or repairs. We rec ommend standard safety glasses or a wide

vision safety mask worn over spectacles.

TO USE THROTTLE CONTROL (D) (See Fig. 6)

Always operate engine at full speed (fast).

• Operating engine at less than full speed (fast) reduces

engines operating efficiency.

• Full speed (fast) of fers the best bagging and mower

performance.

HOW TO USE YOUR TRAC TOR

TO SET PARKING BRAKE (See Fig. 4)

Your tractor is equipped with an operator presence sens-

ing switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

• Depress brake pedal (B) all the way down and hold.

• Pull parking brake lever (C) up and hold, re lease pres-

sure from brake pedal (B), then release parking brake

lever. Pedal should re main in brake position. Make

sure parking brake will hold tractor secure.

STOPPING (See Fig. 5)

MOWER BLADES -

• To stop mower blades,move attachment clutch lever

to “DIS ENGAGED” po sition.

FIG. 4

FIG. 6

CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator's position; to empty

grass catcher, etc.

GROUND DRIVE -

• To stop ground drive, depress brake pedal into full

“BRAKE” position.

IMPORTANT: FORWARD AND REVERSE DRIVE PEDALS

RETURN TO NEUTRAL POSITION WHEN NOT DEPRESSED.

• Turn ignition key to “STOP” position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY

POSITION OTHER THAN "STOP" WILL CAUSE THE BATTERY

TO BE DIS CHARGED, (DEAD).

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot en gine exhaust gases may

cause “browning” of grass. To eliminate this possibility, al-

ways stop engine when stopping tractor on grass areas.

FIG. 5

ENGINE -

• Move throttle control between half and full speed (fast)

position.

NOTE: Failure to move throttle control between half and

full speed (fast) position, before stop ping may cause engine

to “backfire”.

TO USE CHOKE CONTROL (N) (See Fig. 6)

Use choke control whenever you are starting a cold engine.

Do not use to start a warm engine.

• To engage choke control (N), pull knob out. Slowly

push knob in to disengage.

F

D

N

B

C

10

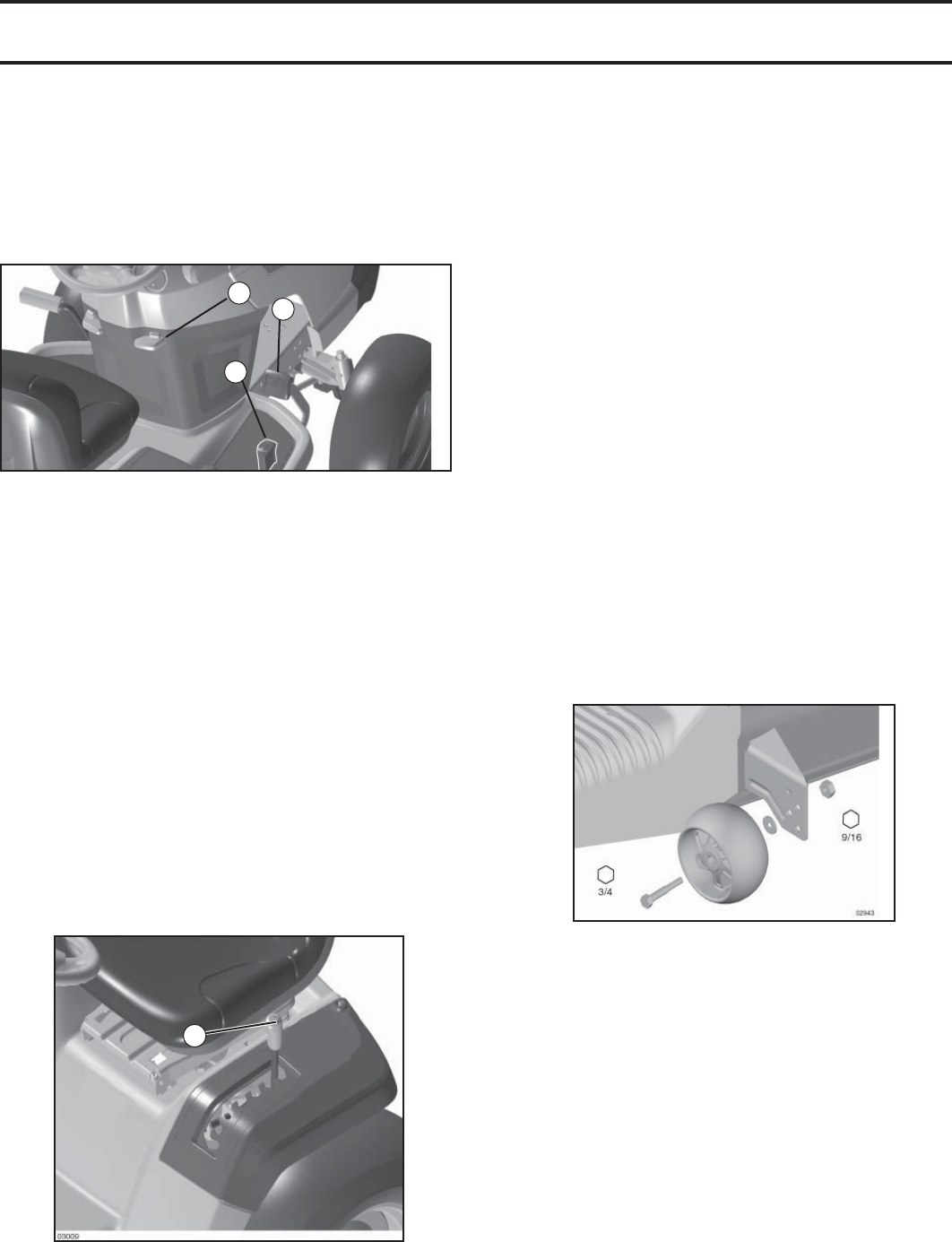

OPERATION

TO ADJUST MOWER CUT TING HEIGHT

(See Fig. 8)

The po sition of the at tachment lift le ver (A) de termines the

cutting height.

TO MOVE FORWARD AND BACKWARD

(See Fig. 7)

The direction and speed of movement is controlled by the

forward and reverse drive pedals.

• Start tractor and release parking brake.

• Slowly depress forward (K) or reverse (L) drive pedal to

begin movement. Ground speed increases the further

down the pedal is depressed.

FIG. 8

FIG.9

TO ADJUST GAUGE WHEELS (See Fig. 9)

Gauge wheels are prop erly ad justed when they are slight ly

off the ground when mower is at the desired cutting height

in operating position. Gauge wheels then keep the deck

in proper position to help prevent scalping in most terrain

conditions.

NOTE: Adjust gauge wheels with tractor on a flat level

surface.

• Adjust mower to desired cutting height (See “TO AD-

JUST MOWER CUT TING HEIGHT” in this sec tion of

manual).

• With mower in desired height of cut po sition, gauge

wheels should be assembled so they are slightly off

the ground. In stall gauge wheel in ap propriate hole.

Tighten se curely.

• Repeat for all, installing gauge wheel in same adjust-

ment hole.

FIG. 7

JK

L

TO USE CRUISE CONTROL (J) (See Fig. 7)

The cruise control feature can be used for forward travel

only.

SYSTEM CHARACTERISTICS

The cruise control should only be used while mowing or

transporting on relatively smooth, straight surfaces. Other

conditions such as trimming at slow speeds may cause the

cruise control to dis engage. Do not use the cruise control

on slopes, rough terrian or while trimmimg or turning.

• With forward drive pedal depressed to desired speed,

pull cruise control lever (J) up and hold while lifting

your foot off the pedal, then release the lever.

To disengage the cruise control, depress the brake pedal

or tap on forward drive pedal.

• Put attachment lift lever in desired cutting height slot.

The cutting height range is ap proximately 1" to 4". The

heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches

in height should be mowed twice. Make the first cut

relatively high; the second to de sired height.

A

11

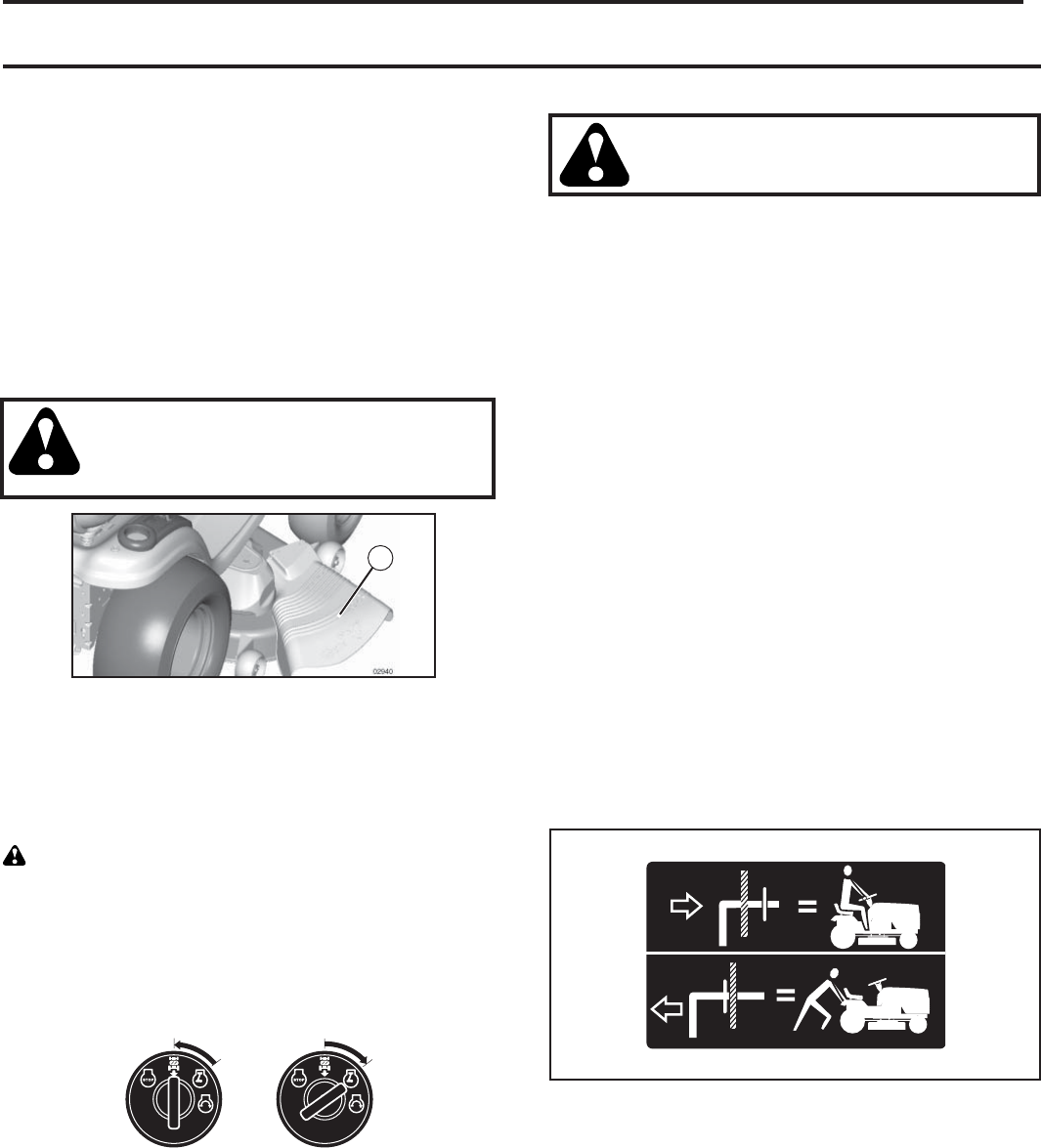

TO OPERATE MOWER (See Fig. 10)

Your tractor is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine. You must remain fully and centrally

positioned in the seat to prevent the engine from hesitat-

ing or cutting off when operating your equipment on rough,

rolling terrain or hills.

1. Select desired height of cut with attachment lift lever.

2. Start mower blades by engaging at tachment clutch

control.

TO STOP MOWER BLADES -

disengage at tachment clutch con trol.

CAUTION: Do not operate the mower

without either the en tire grass catcher,

on mowers so equipped, or the deflec-

tor shield (S) in place.

S

FIG. 10

OPERATION

FIG. 11

TO TRANSPORT (See Figs. 3 and 11)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in free wheeling

position. Free wheel control is located at the rear drawbar

of tractor.

• Raise attachment lift to highest position with at tachment

lift control.

• Pull freewheel control out and down into the slot and

release so it is held in the disengaged position.

• Do not push or tow tractor at more than two (2)

MPH.

• To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed

and secured to tractor. Use an appropriate means of tying

hood to tractor (rope, cord, etc.).

Transmission Engaged

Transmission Disengaged

REVERSE OPERATION SYSTEM (ROS)

Your tractor is equipped with a Reverse Operation System

(ROS). Any attempt by the operator to travel in the reverse

direction with the attachment clutch engaged will shut off the

engine unless ignition key is placed in the ROS "ON" position.

WARNING: Backing up with the attachment clutch en-

gaged while mowing is strongly discouraged. Turning the

ROS "ON", to allow reverse operation with the attachment

clutch engaged, should only be done when the operator

decides it is necessary to reposition the machine with the

attachment engaged. Do not mow in reverse unless

absolutely necessary.

ROS "ON" POSITION ENGINE "ON" POSITION

(NORMAL OPERATING)

0

2

8

2

8

TO OPERATE ON HILLS

CAUTION: Do not drive up or down

hills with slopes greater than 15° and

do not drive across any slope.

• Choose the slowest speed before starting up or down

hills.

• Avoid stopping or changing speed on hills.

• If stopping is absolutely necessary, push brake pedal

quickly to brake position and engage parking brake.

• To restart movement, slowly release parking brake

and brake pedal.

• Slowly depress appropriate drive pedal to slowest

setting.

• Make all turns slowly.

USING THE REVERSE OPERATION SYSTEM -

Only use if you are certain no children or other bystanders

will enter the mowing area.

• Depress brake pedal all the way down.

• With engine running, turn ignition key counterclockwise

to ROS "ON" position.

• Look down and behind before and while backing.

• Slowly depress reverse drive pedal to start movement.

• When use of the ROS is no longer needed, turn the

ignition key clockwise to engine "ON" position.

12

CAUTION: Alcohol blended fuels (called gasohol

or using ethanol or methanol) can attract moisture

which leads to sep aration and for mation of acids

during storage. Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before

storage of 30 days or longer. Drain the gas tank,

start the engine and let it run until the fuel lines and

carburetor are empty. Use fresh fuel next season.

See Storage In structions for additional information.

Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

OPERATION

TO START ENGINE (See Fig. 3)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.

• Be sure freewheel control is in the transmission en gaged

position.

• Sit on seat in operating position, depress brake pedal

and set parking brake.

• Move attachment clutch to “DISENGAGED” position.

• Move throttle control to choke position.

NOTE: Before starting, read the warm and cold starting

procedures below.

• Insert key into ignition and turn key clockwise to “START”

position and release key as soon as engine starts.

Do not run starter continuously for more than fifteen

seconds per minute. If the engine does not start after

several attempts, move throttle control to fast position,

wait a few minutes and try again. If engine still does

not start, move the throttle control back to the choke

position and retry.

WARM WEATHER STARTING (50° F and above)

• When engine starts, move the throttle control to the

fast position.

• The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow it to warm up for one minute using the choke

as described above.

COLD WEATHER STARTING ( 50° F and below)

• When engine starts, allow engine to run with the

throttle control in the choke position until the engine

runs roughly, then move throttle control to fast posi-

tion. This may require an engine warm-up period from

several seconds to several minutes, depending on the

temperature.

AUTOMATIC TRANSMISSION WARM UP

•Before driving the unit in cold weather, the trans mission

should be warmed up as follows:

• Be sure the tractor is on level ground.

• Release the parking brake and let the brake slowly

return to operating position.

• Allow one minute for transmission to warm up. This

can be done during the engine warm up period.

• The attachments can also be used during the engine warm-

up period after the transmission has been warmed up.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See “TO

ADJUST CARBURETOR” in the Service and Adjustments

section of this manual.

TOWING CARTS AND OTHER AT TACH MENTS

Tow only the attachments that are recommended by and

comply with specifications of the manufacturer of your trac-

tor. Use common sense when towing. Too heavy of a load,

while on a slope, is dangerous. Tires can lose traction with

the ground and cause you to lose control of your tractor.

SERVICE REMINDER/HOUR METER

Service reminder shows the total number of hours the engine

has run and flashes to indicate that the engine or mower

needs servicing. When service is required, the service

reminder will flash for two hours. To service engine and

mower, see the Maintenance section of this manual.

NOTE: Service reminder runs when the ignition key is in

any position but "STOP". For accurate reading, be sure

key remains in the "STOP" position when engine is not

running.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do not overfill. Use

fresh, clean, regular un leaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will increase carbon

and lead oxide deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in quan tities that can

be used within 30 days to assure fuel freshness.

CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

START ING.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the

factory, already filled with sum mer weight oil.

• Check engine oil with tractor on level ground.

• Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

“FULL” mark on dipstick is reached. Do not overfill.

• For cold weather operation you should change oil for

easier starting (See “OIL VISCOSITY CHART” in the

Maintenance sec tion of this manual).

• To change engine oil, see the Maintenance section in

this manual.

13

FIG. 12

MOWING TIPS

• Mower should be properly leveled for best mowing

performance. See “TO LEVEL MOWER HOUSING” in

the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim-

ming.

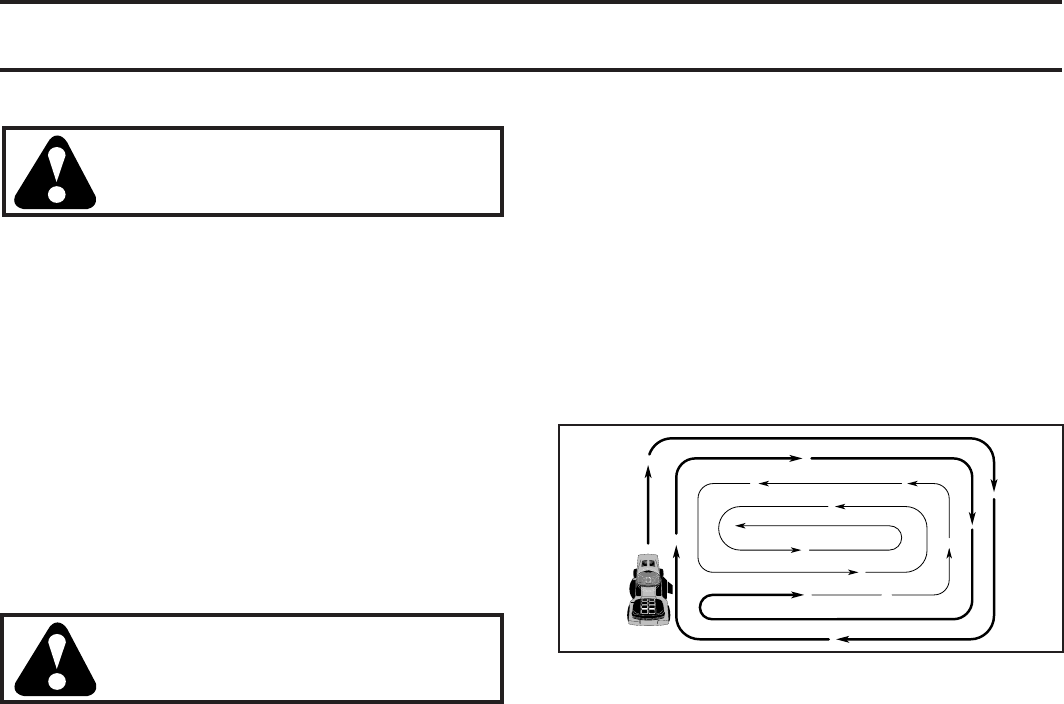

• Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

machine. This will result in a more even dis tribution of

clippings and more uniform cutting.

• When mowing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, driveways, etc. After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig. 12).

• If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

• Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. Allow grass to

dry before mowing.

•Always operate engine at full throttle when mow-

ing to assure better mowing performance and proper

discharge of material. Regulate ground speed by

selecting a low enough gear to give the mower cut ting

performance as well as the quality of cut desired.

• When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the at tachment being used.

OPERATION

PURGE TRANSMISSION

CAUTION: Never engage or disengage

freewheel lever while the engine is

running.

To ensure proper operation and performance, it is rec om-

mended that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air inside the transmission which may have de-

veloped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION

REQUIRE REMOVAL FOR SERVICE OR REPLACEMENT,

IT SHOULD BE PURGED AFTER REINSTALLATION

BEFORE OPERATING THE TRACTOR.

• Place tractor safely on a level surface - that is clear

and open - with engine off and parking brake set.

• Disengage transmission by placing freewheel control

in freewheeling position (See “TO TRANSPORT” in

this section of manual).

• Sitting in the tractor seat, start engine. After the en-

gine is running, move throttle control to slow position.

Disengage parking brake

CAUTION: At any time there may be

movement of the drive wheels.

• Depress forward drive pedal to full forward position,

hold for five (5) seconds and release pedal. Depress

reverse drive pedal to full reverse position, hold for five

(5) seconds and release pedal. Repeat this procedure

three (3) times.

• Shut- off engine and set parking brake.

• Engage transmission by placing freewheel control in

engaged position (See “TO TRANSPORT” in this sec-

tion of manual).

• Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to half (1/2) speed.

Disengage parking brake.

• Drive tractor forward for approximately five feet then

backwards for five feet. Repeat this driving procedure

three times.

Your transmission is now purged and now ready for normal

operation.

14

MAINTENANCE

T

R

A

C

T

0

R

Inspect Muffler/Spark Arrester

Clean Air Filter

Change Engine Oil (with oil filter)

Replace Air Filter Paper Cartridge

Replace Spark Plug

Check Engine Oil Level

Clean Engine Cooling Fins

Clean Air Screen

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

E

N

G

I

N

E

Replace Oil Filter (If equipped)

Replace Fuel Filter

3

2

2

2

2

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

1,

1,2

2

4

Change Engine Oil (without oil filter)

1,2

maint_sch-tractore.ROS.e

BEFORE

EACH

USE

EVERY

8

HOURS

EVERY

25

HOURS

EVERY

50

HOURS

EVERY

100

HOURS

EVERY

SEASON

BEFORE

STORAGE

Lubrication Chart

Check Brake Operation

Check Battery Level

Check Tire Pressure

Clean Battery and Terminals

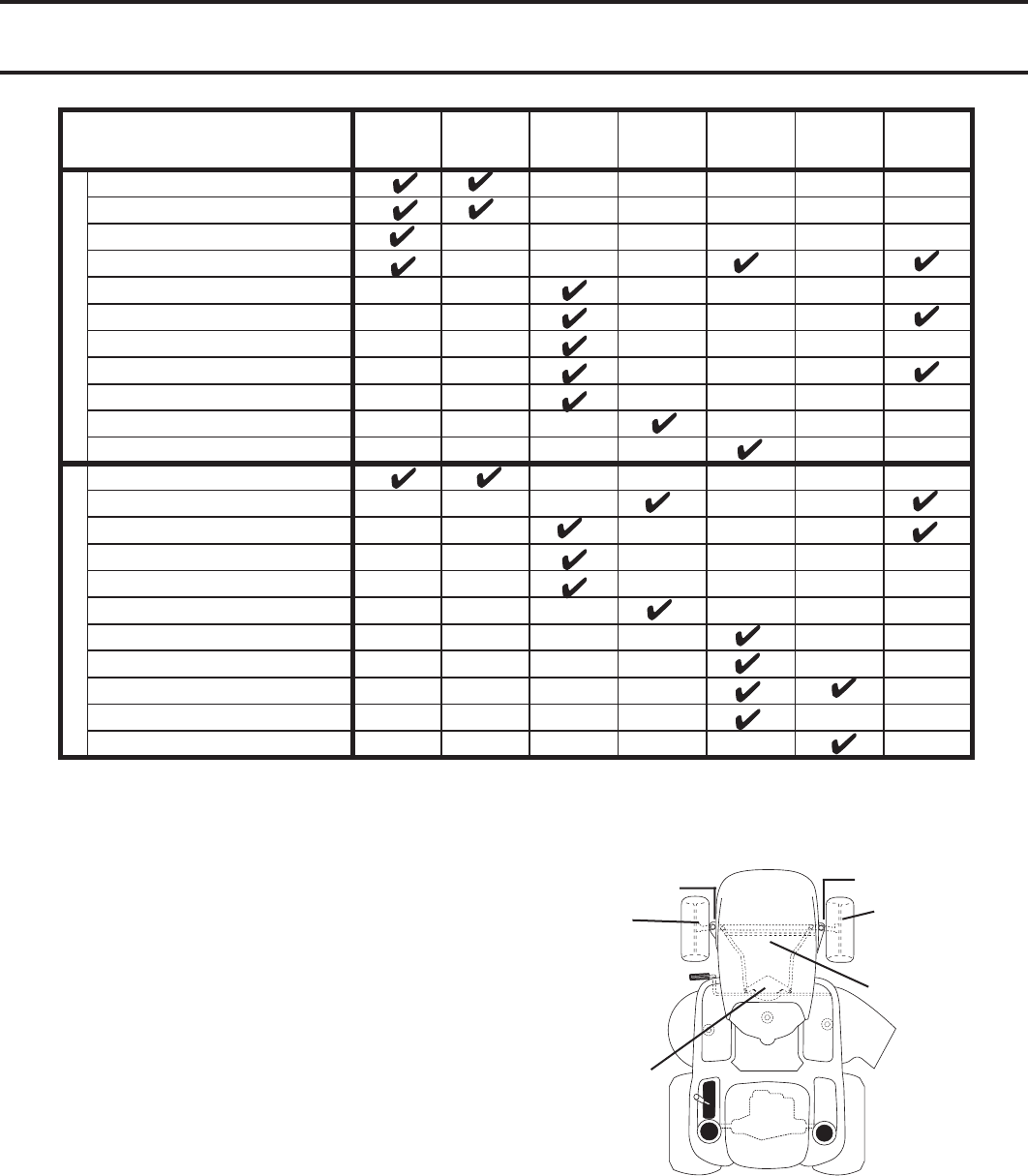

MAINTENANCE

SCHEDULE

Check for Loose Fasteners

Check/Replace Mower Blades

Check Operator Presence & ROS Systems

Check Transaxle Cooling

Check V-Belts

Check Mower Levelness

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, operator must main tain tractor

as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

At least once a season, check to see if you should make

any of the adjustments described in the Service and

Adjustments section of this manual.

• At least once a year you should replace the spark

plug, clean or replace air filter, and check blades and

belts for wear. A new spark plug and clean air filter

assure proper air-fuel mixture and help your engine

run better and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and

ROS systems for proper operation.

• Check for loose fasteners.

02956

LUBRICATION CHART

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS

LU BRICANTS WILL ATTRACT DUST AND DIRT THAT WILL

SHORTEN THE LIFE OF THE SELF-LU BRICAT ING BEARINGS.

IF YOU FEEL THEY MUST BE LU BRICAT ED, USE ONLY A DRY,

POWDERED GRAPHITE TYPE LU BRICANT SPARINGLY.

➀ General Purpose Grease

➁ Refer to Maintenance “ENGINE” Section

➀ SPINDLE ZERK

➀ FRONT

WHEEL

BEARING

ZERK

➁ ENGINE

➀ SPINDLE ZERK

➀ FRONT

WHEEL

BEARING

ZERK

➀ STEERING

SECTOR GEAR

TEETH

15

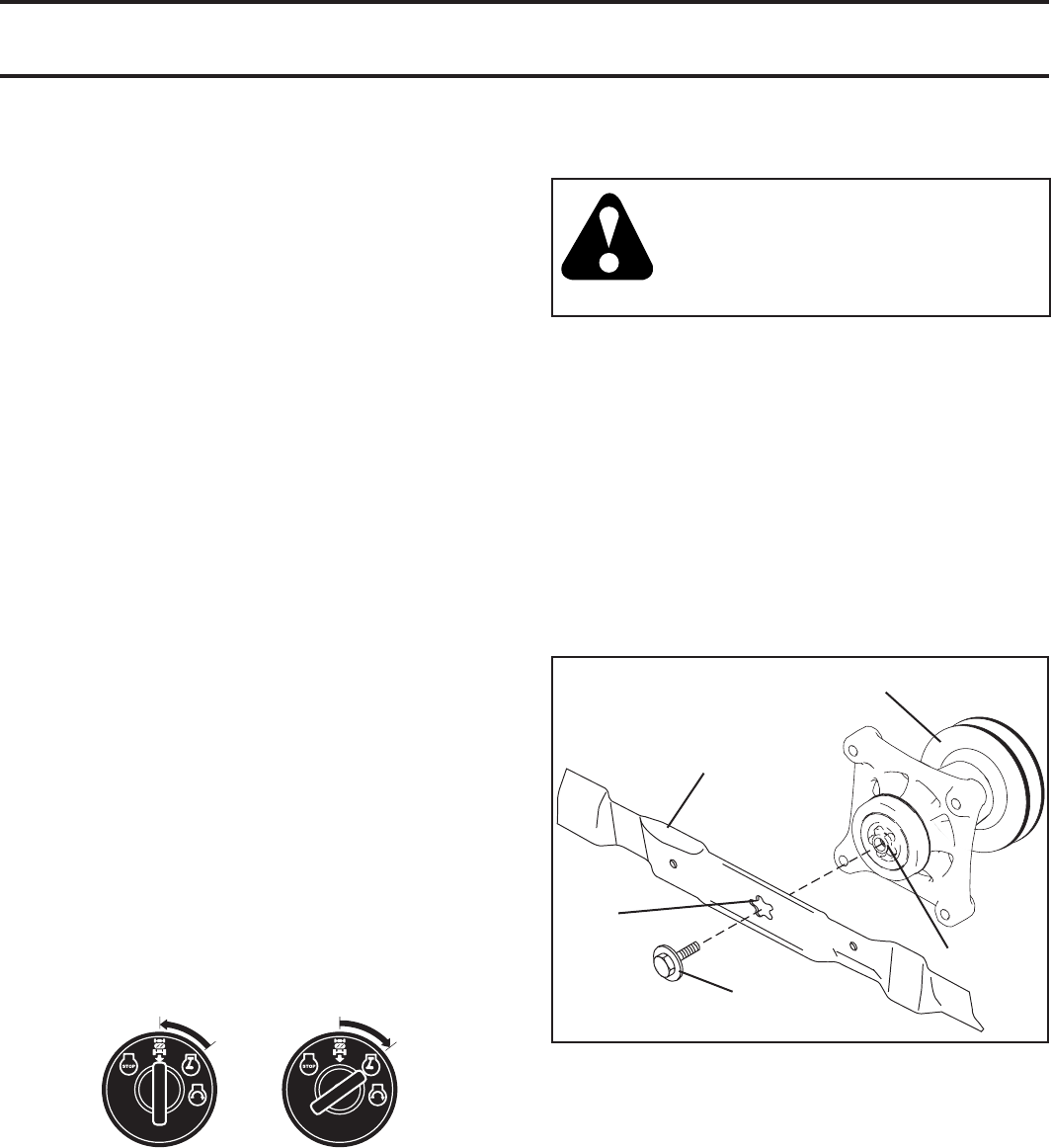

MAINTENANCE

FIG. 13

TRACTOR

Always observe safety rules when per forming any main-

tenance.

BRAKE OPERATION

If tractor requires more than five (5) feet to stop at highest

speed in high est gear on a level, dry concrete or paved

surface, then brake must be serviced. (See “TO CHECK

BRAKE” in the Ser vice and Ad justments section of this

manual).

TIRES

• Maintain proper air pressure in all tires (See PSI on

tires).

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and pre vent flat tires due

to slow leaks, tire sealant may be purchased from your

local parts dealer. Tire sealant also pre vents tire dry rot

and corrosion.

OPERATOR PRESENCE SYS TEM AND REVERSE OP-

ERATION SYSTEM (ROS)

Be sure operator presence and reverse operation sys tems

are work ing properly. If your tractor does not function as

described, repair the problem immediately.

• The engine should not start unless the brake pedal is

fully de pressed, and the attachment clutch con trol is

in the dis engaged position.

CHECK OPERATOR PRESENCE SYSTEM

• When the engine is running, any attempt by the op erator

to leave the seat without first setting the parking brake

should shut off the engine.

• When the engine is running and the at tachment clutch

is engaged, any attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never operate unless

the operator is in the seat.

CHECK REVERSE OPERATION (ROS) SYSTEM

• When the engine is running with the ignition switch in

the engine "ON" position and the at tachment clutch

engaged, any attempt by the operator to shift into

reverse should shut off the engine.

• When the engine is running with the ignition switch in

the ROS "ON" position and the at tachment clutch en-

gaged, any attempt by the operator to shift into reverse

should NOT shut off the engine.

BLADE CARE

For best results mower blades must be sharp. Re place

worn, bent or damaged blades.

0

2

8

2

8

ROS "ON" Position Engine "ON" Position

(Normal Operating)

BLADE REMOVAL (See Fig. 13)

• Raise mower to highest position to allow access to

blades.

NOTE: Protect your hands with gloves and/or wrap blade

with heavy cloth.

• Remove blade bolt by turning coun terclockwise.

• Install new blade with stamped "GRASS SIDE" facing

the ground.

IMPORTANT: To ensure proper as sembly, center hole in

blade must align with star on mandrel assembly.

• Install and tighten blade bolt securely (45-55 Ft. Lbs.

torque).

IMPORTANT: Special blade bolt is heat treated.

CAUTION: Use only a replacement

blade approved by the manufacturer of

your tractor. Using a blade not approved

by the manufacturer of your tractor is

hazardous, could damage your tractor

and void your warranty.

MANDREL

ASSEMBLY

BLADE

BLADE BOLT

(SPECIAL)

CENTER

HOLE

STAR

16

MAINTENANCE

V-BELTS

Check V-belts for deterioration and wear after 100 hours

of operation and replace if necessary. The belts are not

adjustable. Re place belts if they begin to slip from wear.

TRANSAXLE COOLING

The transmission fan and cooling fins should be kept clean

to assure proper cooling.

Do not attempt to clean fan or transmission while engine

is running or while the transmission is hot. To prevent pos-

sible damage to seals, do not use high pressure water or

steam to clean transaxle.

• Inspect cooling fan to be sure fan blades are intact and

clean.

• Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean

cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid main te-

nance is not required for the life of the transaxle. Should

the transaxle ever leak or require servicing, contact your

nearest au thorized ser vice center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SG-SL. Select the oil’s SAE viscosity grade

according to your expected operating temperature.

BATTERY

Your tractor has a battery charging system which is suf ficient

for normal use. However, periodic charging of the battery

with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is

maintenance free. Do not attempt to open or remove caps

or covers. Adding or checking level of electrolyte is not

necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to “leak” power.

• Remove terminal guard.

• Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See “REPLACING BATTERY" in

the SERVICE AND ADJUSTMENTS section of this

manual).

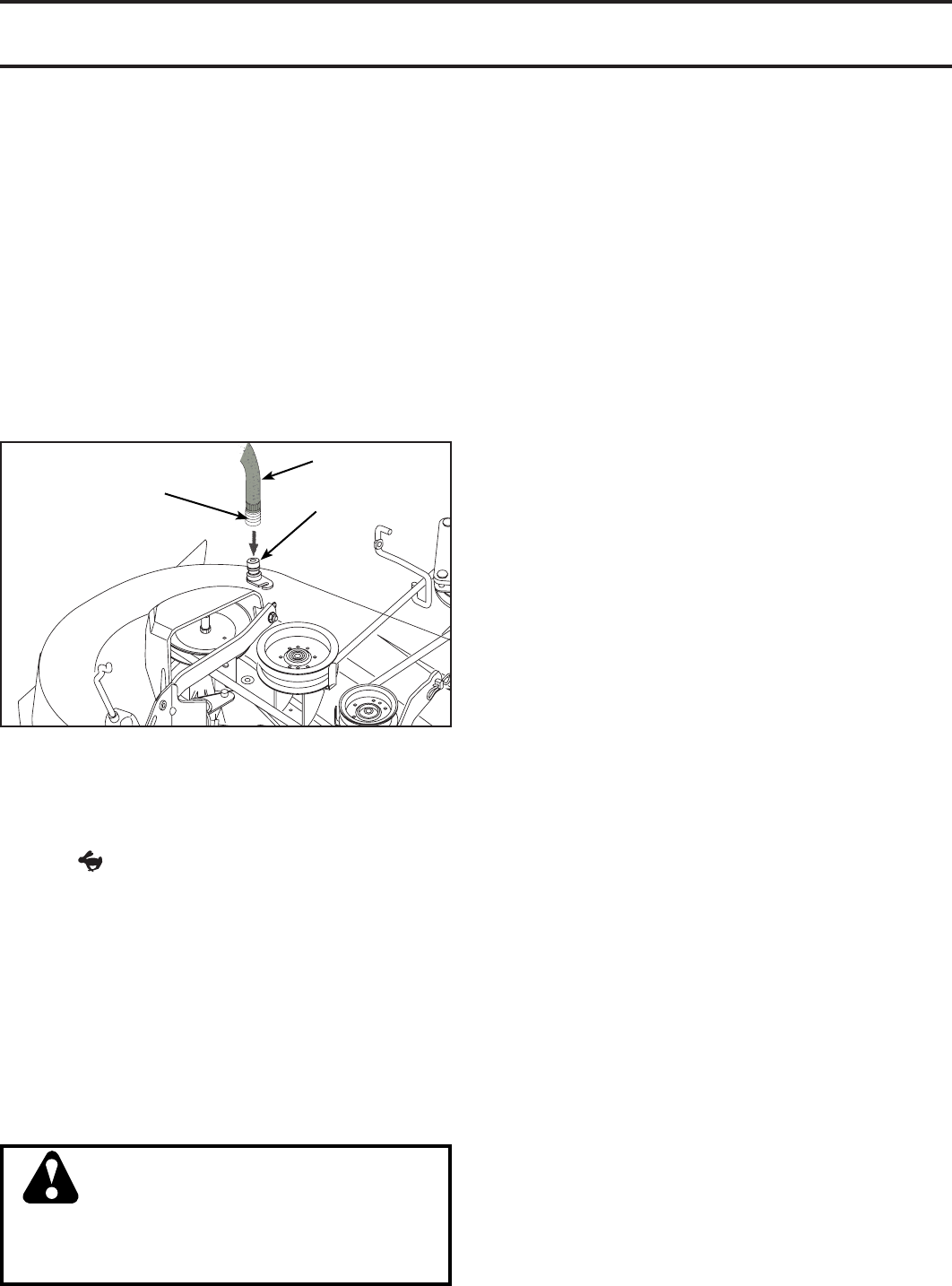

DECK WASHOUT PORT (See Fig. 14)

Your tractor’s deck is equipped with a washout port on

its surface as part of its deck wash system. It should be

utilized after each use.

1. Drive the tractor to a level, clear spot on your lawn, near

enough to a water spigot for your garden hose to reach.

IMPORTANT: Make certain the tractor’s discharge chute is

directed AWAY from your house, garage, parked cars, etc.

Remove bagger chute or mulch cover if attached.

2. Make sure the PTO (Blade Engage) is not engaged,

set the parking brake, and stop the engine.

3. Thread the nozzle adapter (packaged with your tractor’s

Operator’s Manual) onto the end of your garden hose.

4. Pull back the lock collar of the nozzle adapter and push

the adapter onto the deck washout port at the left end

of the mower deck. Release the lock collar to lock the

adapter on the nozzle.

Washout Port

Nozzle Adapter

Hose

IMPORTANT: Tug hose ensuring connection is secure.

5. Turn the water on.

6. While sitting in the operator’s position on the tractor,

re-start the engine and place the throttle lever in the

Fast " " position.

IMPORTANT: Recheck the area making certain the area

is clear.

7. Move the tractor’s PTO (Blade Engage) to the ON

position. Remain in the operator’s position with the

cutting deck engaged until the deck is cleaned.

8. Move the tractor’s PTO (Blade Engage) to the OFF

position. Turn the ignition key to the STOP position to

turn the tractor’s engine off. Turn the water off.

9. Pull back the lock collar of the nozzle adapter to dis-

connect the adapter from the nozzle washout port.

10. Move the tractor to a dry area, preferably a concrete or

paved area. Engage the mower deck PTO to remove ex-

cess water and to help dry before putting the tractor away.

WARNING: A broken or missing washout

fitting could expose you or others to

thrown objects from contact with the blade.

•Replace broken or missing washout fitting

immediately, prior to using mower again.

•Plug any holes in mower with bolts and

locknuts.

Fig. 14

17

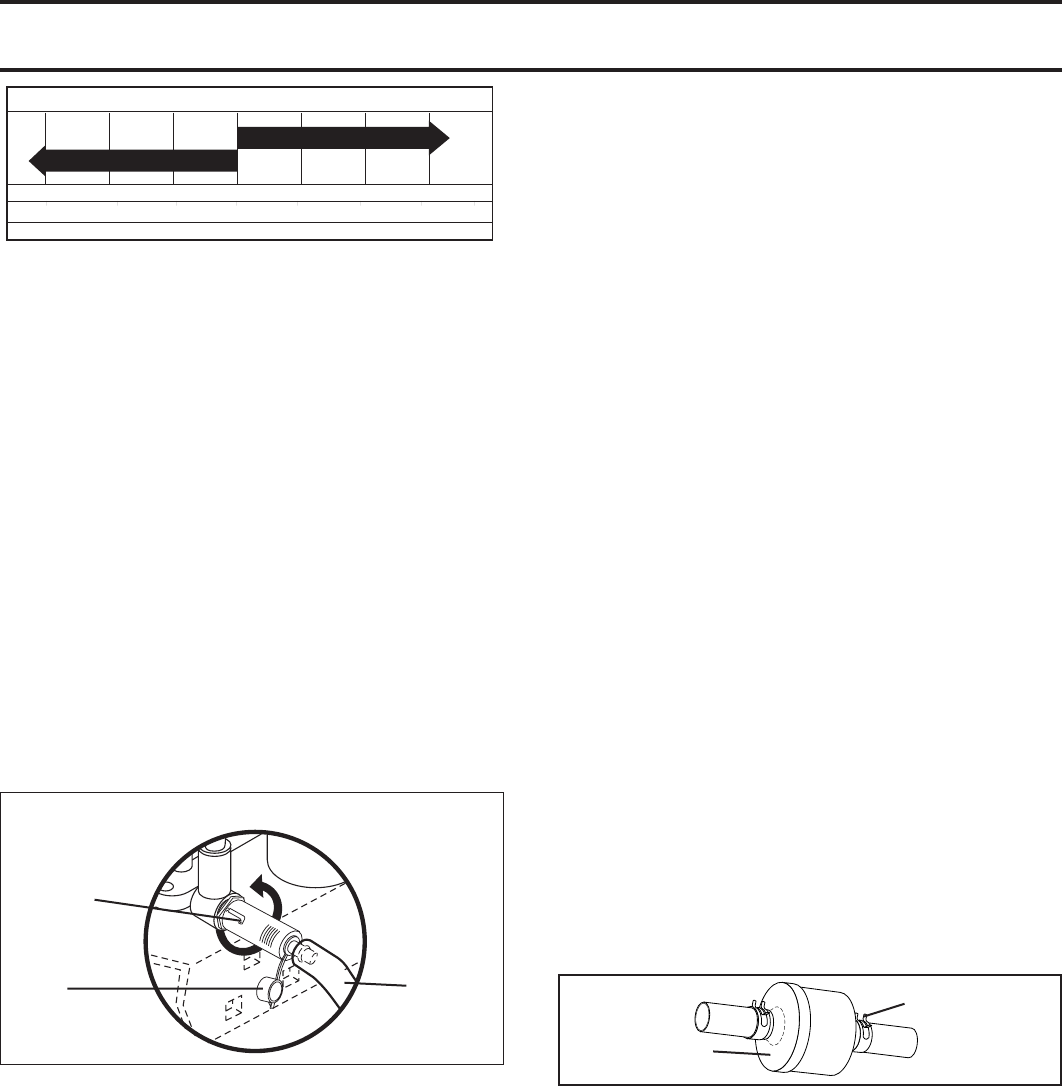

TO CHANGE ENGINE OIL (See Fig. 15)

Determine temperature range expected before oil change.

All oil must meet API service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

• Remove yellow cap from end of drain valve and install

the drain tube onto the fitting.

02463

CLOSED AND

LOCKED

POSITION

YELLOW

CAP

DRAIN

TUBE

OIL DRAIN VALVE

FIG. 15

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, they will result in increased

oil consumption when used above 32°F. Check your engine

oil level more frequently to avoid possible engine damage

from running low on oil.

Change the oil after every 50 hours of operation or at least

once a year if the tractor is not used for 50 hours in one

year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

cap/dipstick securely each time you check the oil level.

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

SAE VISCOSITY GRADES

-20 0 30 40 80 100

-30 -20 0 20 30 40

F

C

32

-10 10

60

5W-30

SAE 30

• Unlock drain valve by pushing inward and turning

counterclockwise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and lock the

drain valve by pushing inward and turning clockwise

until the pin is in the locked position as shown.

• Remove the drain tube and replace the cap onto to the

bottom fitting of the drain valve.

• Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

“PRODUCT SPECIFICATIONS” section of this man ual.

• Use gauge on oil fill cap/dipstick for checking level.

Be sure dipstick cap is tightened securely for accurate

reading. Keep oil at “FULL” line on dipstick. Tighten

cap onto the tube securely when finished.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent

engine dam age from overheating. Clean with a wire brush

or compressed air to re move dirt and stubborn dried gum

fibers.

AIR FILTER

Your engine will not run properly using a dirty air filter.

Service air cleaner more often under dusty conditions.

See Engine Manual.

ENGINE OIL FILTER

Replace the engine oil filter every season or every other

oil change if the tractor is used more than 100 hours in

one year.

MAINTENANCE

MUFFLER

Inspect and replace corroded muffler and spark arrester

(if equipped) as it could create a fire hazard and/or dam-

age.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

“PRODUCT SPECIFICATIONS” section of this manual.

CLAMP

FUEL FILTER

FIG. 16

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign

matter.

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose or pressure

washer to clean your tractor unless the engine and trans-

mission are covered to keep water out. Water in engine or

transmission will shorten the useful life of your tractor. Use

compressed air or a leaf blower to remove grass, leaves

and trash from tractor and mower.

IN-LINE FUEL FILTER (See Fig. 16)

The fuel filter should be replaced once each season. If fuel

filter becomes clogged, ob structing fuel flow to car buretor,

replacement is re quired.

• With engine cool, remove filter and plug fuel line sec-

tions.

• Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are

properly positioned.

• Immediately wipe up any spilled gasoline.

18

E

F

M

K

G

B

G

A

QR

PC

D

L

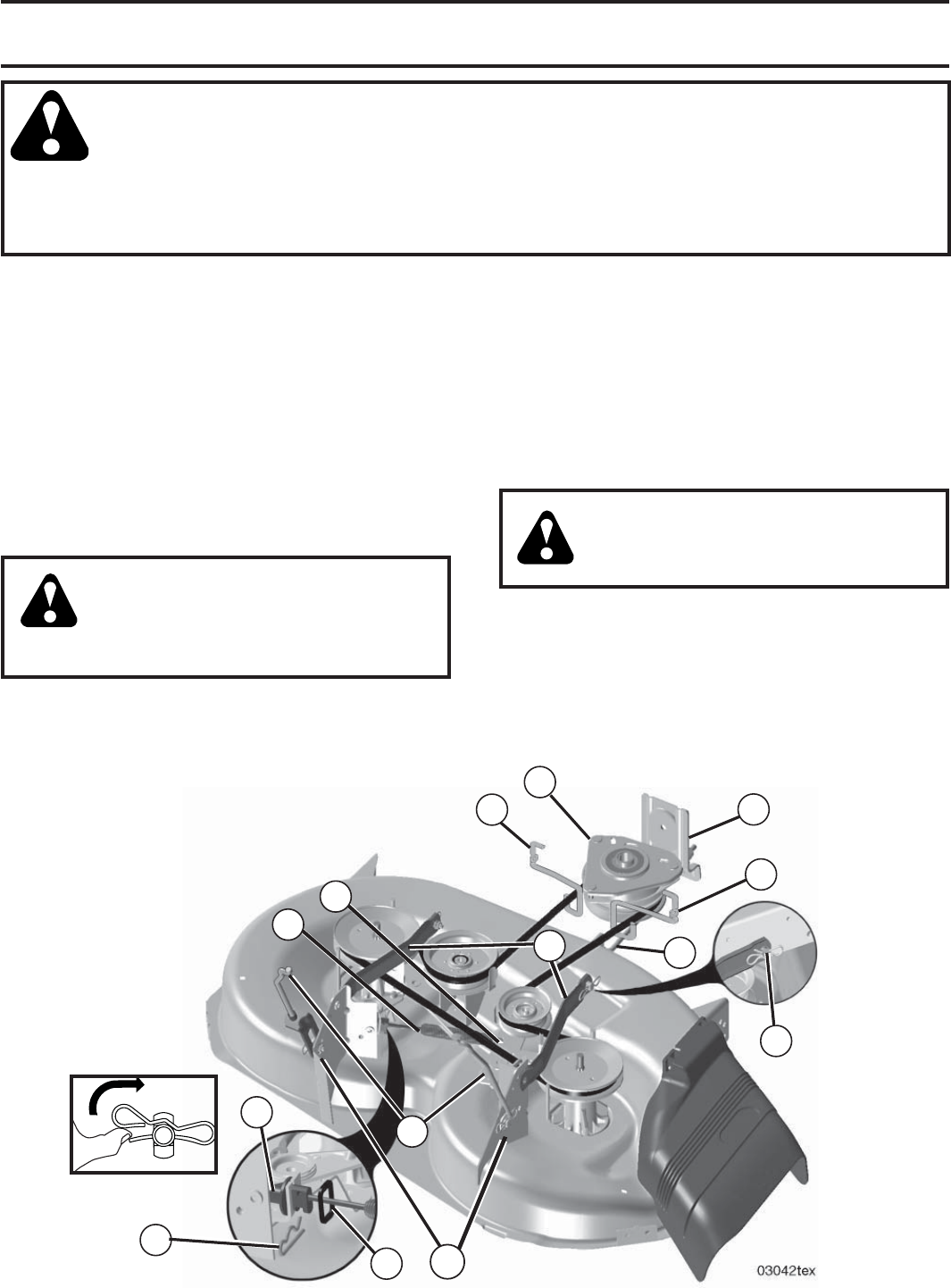

SERVICE AND ADJUSTMENTS

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST -

MENTS:

• Depress brake pedal fully and set parking brake.

• Place attachment clutch in “DISENGAGED” position.

• Turn ignition key to “STOP” and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

TO REMOVE MOWER (See Fig. 17)

• Place attachment clutch in “DIS ENGAGED” position.

• Lower attachment lift lever to its lowest position.

• Roll belt off engine pulley (M) and belt keepers (G).

• Remove retainer spring (K), slide col lar (L) off and push

housing guide (P) out of brack et.

• Remove clutch cable spring (Q) from idler arm (R).

• Disconnect front link (E) from mower - remove retainer

spring and washer.

• Go to either side of mower and disconnect mower

suspension arm (A) from chassis pin (B) and rear lift

link (C) from rear mower bracket (D) - remove retainer

springs and washers.

CAUTION: AFTER REAR LIFT LINKS

ARE DISCONNECTED, THE ATTACH-

MENT LIFT LEVER WILL BE SPRING

LOADED. HAVE A TIGHT GRIP ON LIFT

LEVER WHEN CHANGING POSITION

OF THE LEVER.

• Slide mower out from under right side of tractor.

FIG. 17

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER IS TO BE MOUNTED ON THE TRAC TOR,

REMOVE THE FRONT LINK (E) AND REAR LIFT LIKS

(C) FROM TRACTOR AND HOOK THE CLUTCH SPRING

(Q) INTO THE CABLE GUIDE ON FRONT EDGE OF

LOWER DASH.

TO INSTALL MOWER (See Fig. 17–21)

Be sure tractor is on level surface and engage park ing

brake.

• Lower attachment lift lever to it's lowest position.

CAUTION: LIFT LEVER IS SPRING

LOADED. HAVE A TIGHT GRIP ON

LIFT LEVER, LOWER IT SLOWLY AND

ENGAGE IN LOWEST POSITION.

NOTE: Be sure mower side suspension arms (A) are point-

ing forward before sliding mower under tractor.

• Slide mower under tractor until it is centered under

tractor.

• ATTACH MOWER SIDE SUSPENSION ARMS (A) TO

CHASSIS - Position hole in arm over pin (B) on outside

of tractor chassis and secure with retainer spring.

• Repeat on opposite side of tractor.

19

E

F

M

K

G

B

G

A

QR

PC

D

L

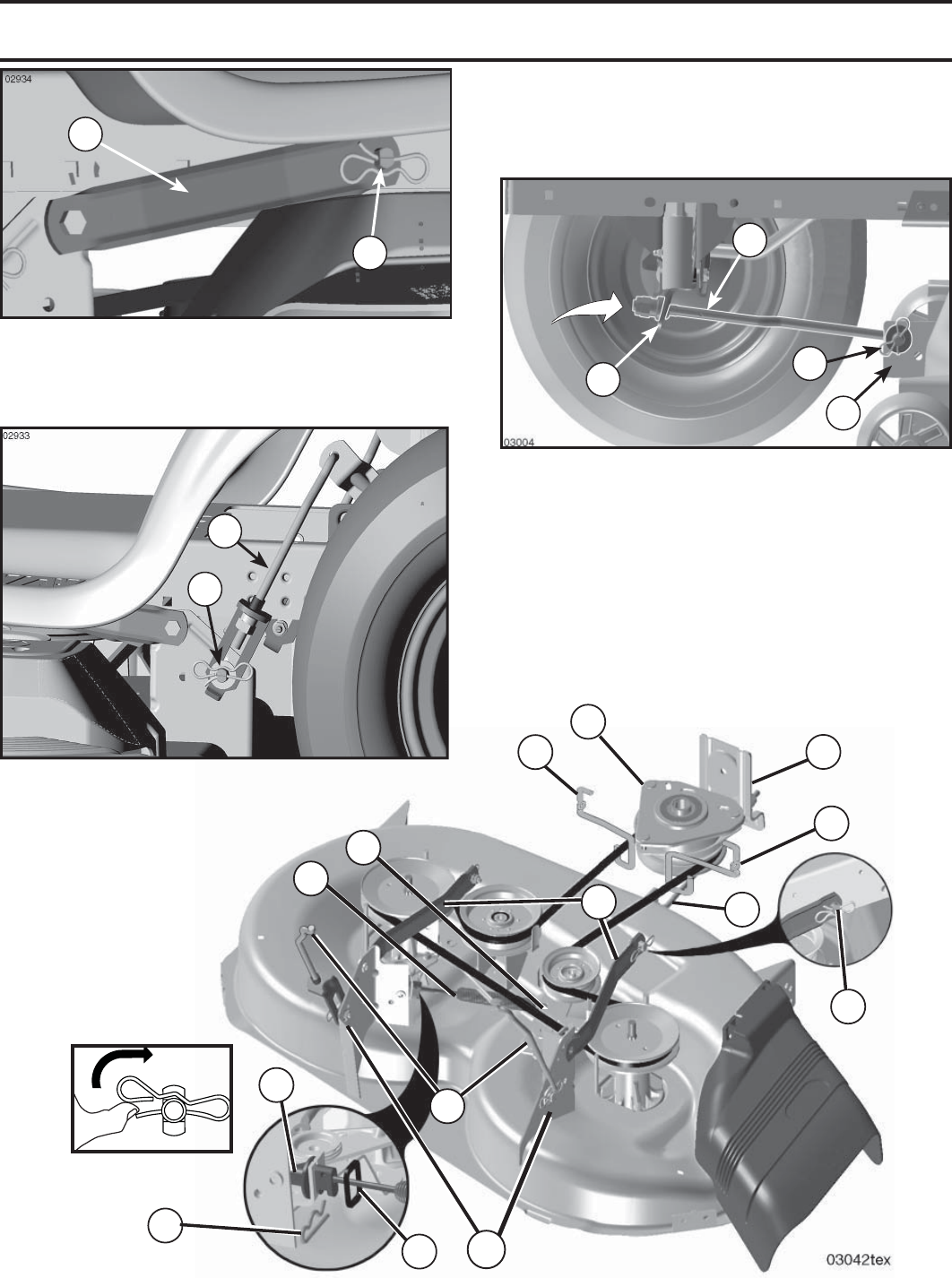

SERVICE AND ADJUSTMENTS

• ATTACH REAR LIFT LINKS (C) - Lift rear corner of

mower and position slot in link assembly over pin (D)

on rear mower bracket and secure with washer and

retainer spring.

• Install belt on engine pulley (M), in belt keepers (G).

IMPORTANT: CHECK BELT FOR PROPER ROUTING

IN ALL MOWER PULLEY GROOVES.

• Raise attachment lift lever to highest position.

• If necessary, adjust gauge wheels before op erating

mower as shown in the Operation section of this

manual.

E

F

H

J

A

B

• ATTACH FRONT LINK (E) - Work from left side of trac-

tor. Insert rod end of link assembly through front hole

in tractor front suspension bracket (F).

• Insert end of link (E) into hole in front mower bracket

and secure with washer and retainer spring (J).

FIG. 18

FIG. 19

FIG. 20

C

D

FIG. 21

20

SERVICE AND ADJUSTMENTS

• If adjustment is necessary, see step in Visual Adjust-

ment instructions above.

• Recheck measurements, adjust if necessary until both

sides are equal.

FRONT-TO-BACK ADJUSTMENT (See Figs. 24 and 25)

IMPORTANT: Deck must be level side-to-side.

To obtain the best cutting re sults, the mower blades should

be adjusted so the front tip is 1/8" to 1/2" lower than the

rear tip when the mower is in its highest position.

CAUTION: Blades are sharp. Protect your

hands with gloves and/or wrap blade with

heavy cloth.

• Raise mower to highest position.

• Position any blade so the tip is pointing straight forward.

Measure distance (B) to the ground at front and rear tip

of the blade.

• If front tip of blade is not 1/8" to 1/2" lower than the rear

tip, go to the front of tractor.

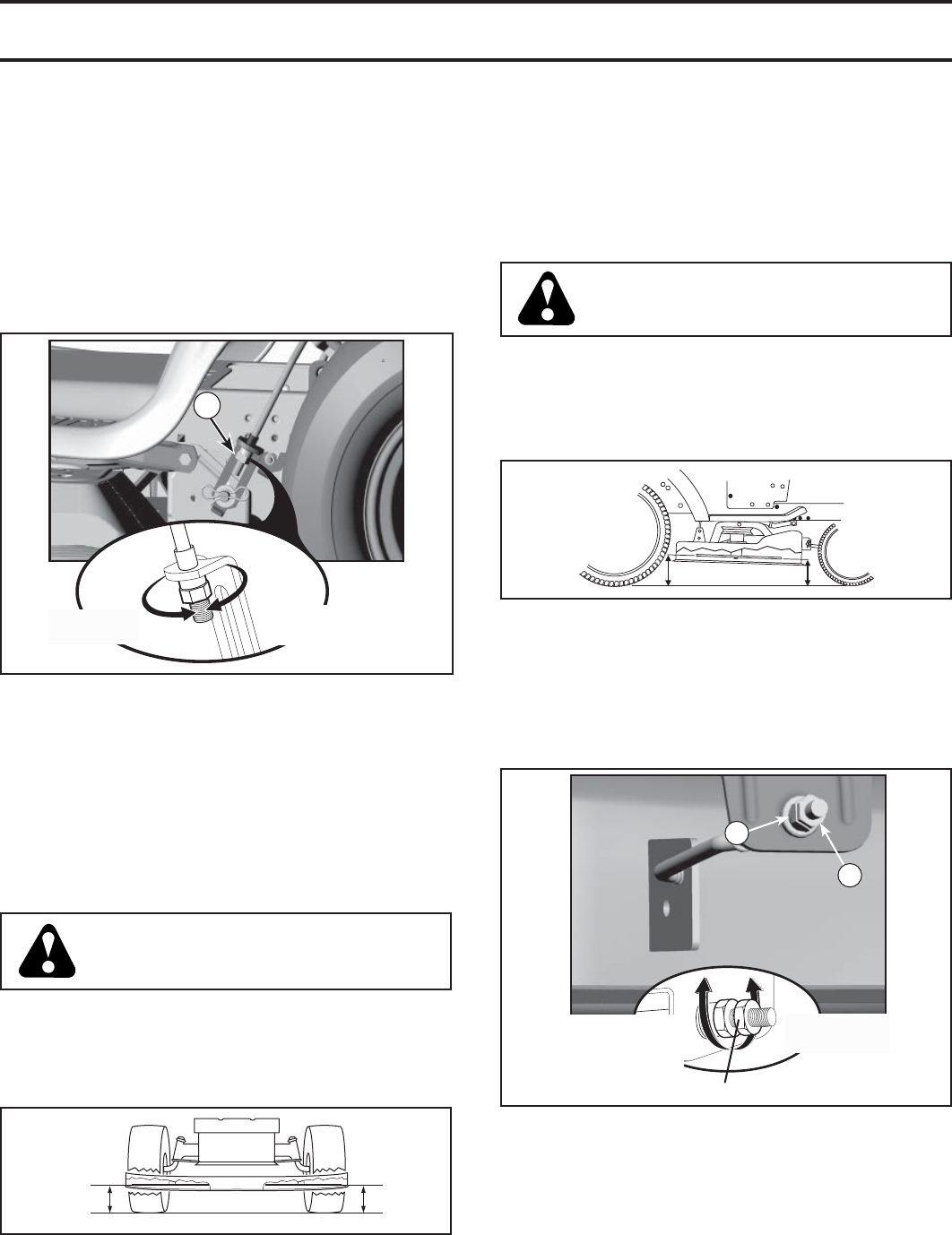

TO LEVEL MOWER

Make sure tires are properly inflated to the PSI shown on

tires. If tires are over or under inflated, it may affect the

appearance of your lawn and lead you to think the mower

is not adjusted properly.

VISUAL SIDE-TO-SIDE ADJUSTMENT (See Fig. 22)

• With all tires properly inflated and if your lawn appears

unevenly cut, determine which side of mower is cutting

lower.

• With a 3/4" or adjustable wrench, turn lift link adjust-

ment nut (A) to the left to lower LH side of mower, or,

to the right to raise LH side of mower.

NOTE: Each full turn of adjustment nut will change mower

height about 3/16".

• Test your adjustment by mowing some uncut grass

and visually checking the appearance. Readjust, if

necessary, until you are satisfied with the results.

PRECISION SIDE-TO-SIDE ADJUSTMENT

(See Fig. 23)

• With all tires properly inflated, park tractor on level

ground or driveway.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap

blade with heavy cloth.

• Raise mower to its highest position.

• At both sides of mower, position blade at side and

measure the distance (A) from bottom edge of blade

to the ground. The distance should be the same on

both sides.

NOTE: Each full turn of the adjustment nut will change

mower height about 1/8".

• Recheck measurements, adjust if necessary until front

tip of blade is 1/8" to 1/2" lower than the rear tip.

• Hold adjustment nut in position with wrench and tighten

jam nut securely against adjustment nut.

02966

A

A

FIG. 23

02548

BB

FIG. 24

• With an 11/16" or adjustable wrench, loosen jam nut A

several turns to clear adjustment nut B.

• With a 3/4" or adjustable wrench, turn front link adjust-

ment nut (B) clockwise (ltighten) to raise the front of

mower, or, counterclockwise (loosen) to lower the front

mower.

FIG. 25

B

02950

A

Tighten adjust nut

B to raise mower

Loosen adjust

nut B to lower

mower

Loosen jam nut A first

FIG. 22

0

2

9

4

8

A

Turn nut left

to lower mower

Turn nut right

to raise mower

21

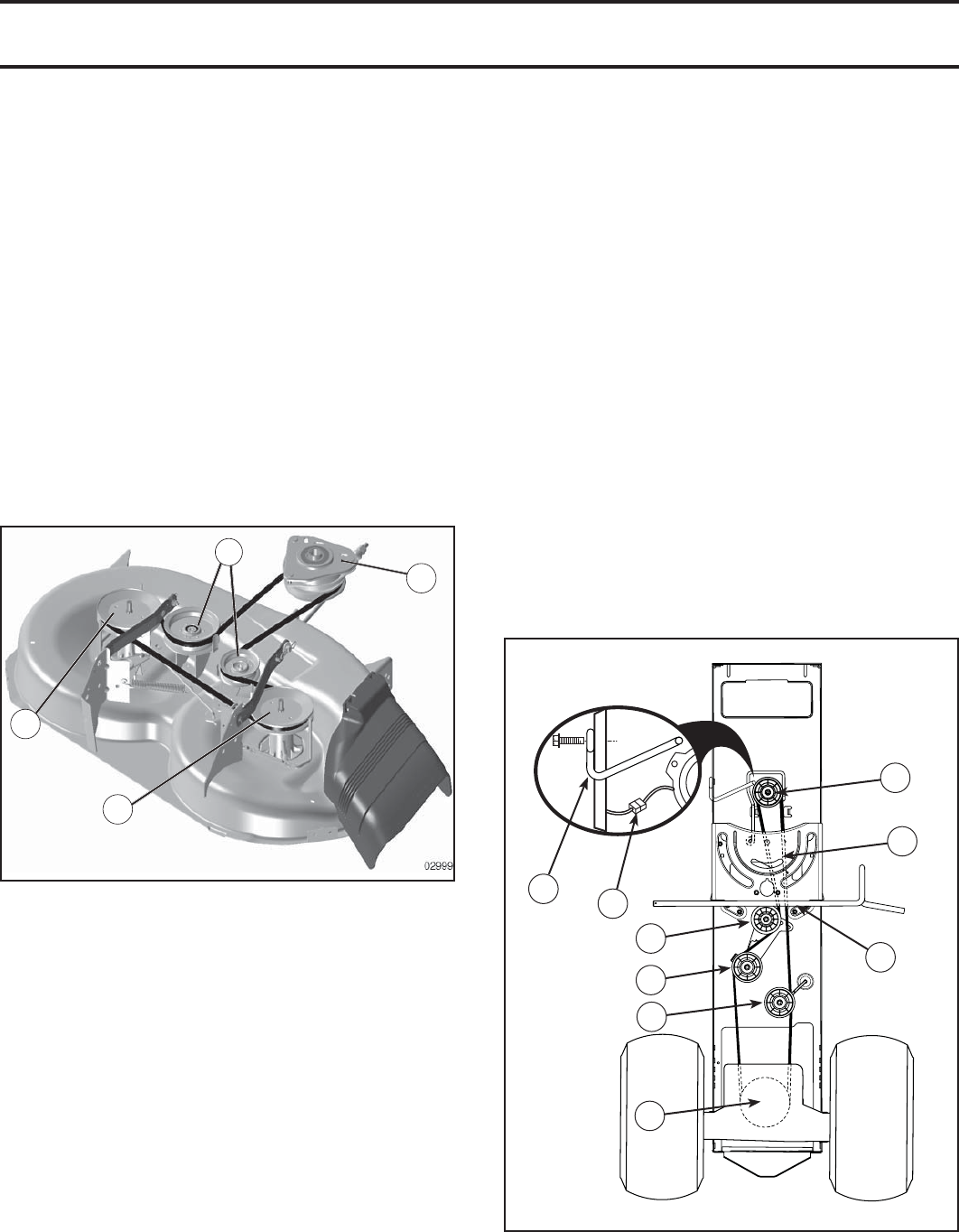

SERVICE AND ADJUSTMENTS

TO REPLACE MOTION DRIVE BELT

(See Fig. 27)

Park the tractor on level surface. En gage parking brake.

For as sistance, there is a belt installation guide decal on

bottom side of left footrest.

BELT REMOVAL -

• Remove mower (See “TO RE MOVE MOWER” in this

section of manual).

NOTE: Observe entire motion drive belt and position of all

belt guides and keepers.

• Disconnect clutch wire harness (A).

• Remove anti-rotation link (B) on right side of tractor.

• Remove belt from stationary idler (C) and clutching

idler (D).

• Remove belt from centerspan idler (E).

TO REPLACE MOWER DRIVE BELT

(See Fig. 26)

MOWER DRIVE BELT REMOVAL

• Park tractor on a level surface. En gage parking

brake.

• Lower attachment lift lever to its lowest position.

• Remove any dirt or grass clippings which may have

accumulated around mandrels and entire upper deck

surface.

• Remove belt from electric clutch pulley (M), both man-

drel pulleys (R) and all idler pulleys (S).

MOWER DRIVE BELT INSTALLATION

• Install belt around all mandrel pulleys (R) and around

idler pulleys (S) as shown.

• Install belt onto electric clutch pulley (M).

IMPORTANT: Check belt for proper routing in all mower

pulley grooves.

• Raise attachment lift lever to highest position.

FIG. 26

• Pull belt slack toward rear of trac tor. Carefully remove

belt up wards from trans mission input pulley and over

cooling fan blades (F).

• Remove belt downward from engine pulley and around

electric clutch (G).

• Slide belt toward rear of tractor, off the steering plate

(H) and remove from tractor.

BELT INSTALLATION -

• Install new belt from tractor rear to front, over the steer-

ing plate (H) and above clutch brake pedal shaft (J).

• Pull belt toward front of tractor and roll belt around

electric clutch and onto engine pulley (G).

• Pull belt toward rear of tractor. Carefully work belt down

around transmission cooling fan and onto the input

pulley (F). Be sure belt is inside the belt keeper.

• Install belt on centerspan idler (E).

• Install belt through stationary idler (C) and clutch ing

idler (D).

• Reinstall anti-rotation link (B) on right side of tractor.

Tighten securely.

• Reconnect clutch harness (A).

• Make sure belt is in all pulley grooves and in side all

belt guides and keep ers.

• Install mower (See “TO IN STALL MOWER” in this

section of manual).

electric

02953

A

B

C

D

E

F

G

H

J

FIG. 27

S

M

R

R

22

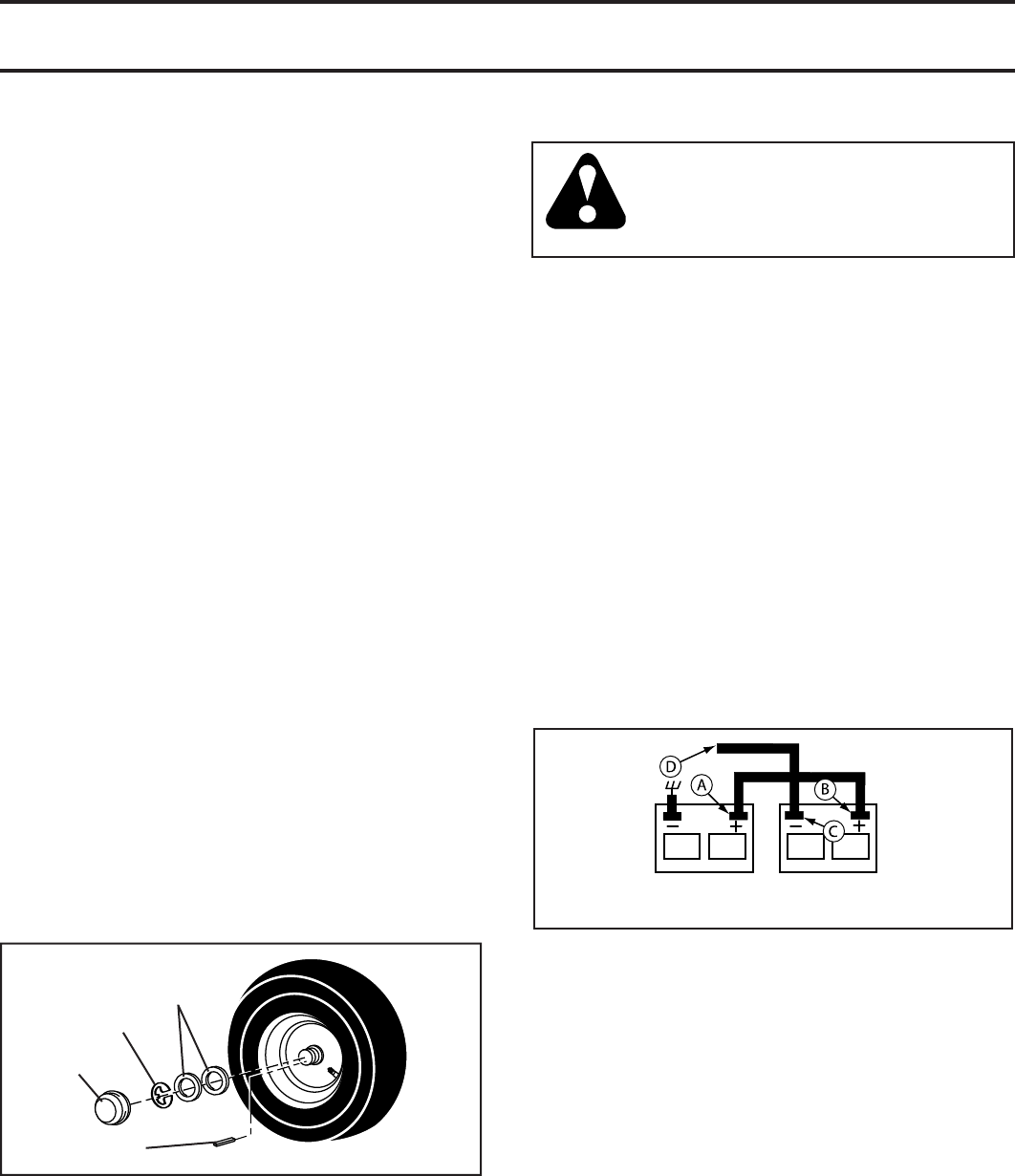

SERVICE AND ADJUSTMENTS

FIG. 28

RETAIN ING

RING

WASH ERS

SQUARE KEY (REAR

WHEEL ONLY)

AXLE COVER

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 29)

WARNING: Lead-acid batteries gen-

erate ex plosive gases. Keep sparks,

flame and smoking ma terials away from

batteries. Always wear eye pro tection

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. (See "BATTERY" in the MAINTENANCE sec-

tion of this man ual).

If “jumper ca bles” are used for emer gency starting, follow

this pro cedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12

VOLT SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO

START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect one end of the RED cable to the POSITIVE

(+) terminal of each battery(A-B), taking care not to

short against tractor chassis.

• Connect one end of the BLACK ca ble to the NEGA TIVE

(-) terminal (C) of fully charged battery.

• Connect the other end of the BLACK cable (D) to good

chassis ground, away from fuel tank and bat tery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery.

• RED cable last from both batteries.

WEAK OR DEAD

BATTERY FULLY CHARGED

BATTERY

• Replace washers and snap retaining ring securely in

axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due

to slow leaks, tire sealant may be purchased from your

local parts dealer. Tire sealant also prevents tire dry rot

and corrosion.

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 28)

• Block up axle securely.

• Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

FRONT WHEEL TOE-IN/CAM BER

Your new tractor front wheel toe-in and camber is set at the

factory and is normal. The front wheel toe-in and camber

are not adjustable. If damage has occurred to affect the

factory set front wheel toe-in or camber, contact a qualified

service center.

TO CHECK BRAKE

If tractor requires more than five (5) feet to stop at highest

speed in high est gear on a level, dry concrete or paved

surface, then brake must be serviced.

You may also check brake by:

• Park tractor on a level, dry concrete or paved surface,

depress brake pedal all the way down and engage

parking brake.

• Disengage transmission by placing freewheel control

in “transmission disengaged” position. Pull freewheel

control out and into the slot and release so it is held in

the disengaged position.

The rear wheels must lock and skid when you try to manu-

ally push the tractor forward. If the rear wheels rotate,

then the brake needs to be serviced. Contact a qualified

service center.

FIG. 29

23

SERVICE AND ADJUSTMENTS

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the

grill.

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 31)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedure.

ENGINE

TO AD JUST THROTTLE CON TROL CABLE

The throttle control has been preset at the factory and

adjustment should not be necessary. If adjustment is nec-

essary, see engine manual.

TO AD JUST CHOKE CON TROL

The choke control has been preset at the factory and ad-

justment should not be necessary. If adjustment is neces-

sary, see engne manual.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not

operate properly due to suspected carburetor problems,

take your tractor to an authorized service center for repair

and/or adjustment.

02778

HEADLIGHT

WIRE

CONNECTOR

HOOD

FIG. 31

FIG. 30

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the

Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

REPLACING BATTERY (See Fig. 30)

02954

POSITIVE

(RED)

CABLE

NEGATIVE

(BLACK)

CABLE

A

B

C

WARNING: Do not short battery ter minals

by allowing a wrench or any other object

to contact both terminals at the same time.

Before connecting battery, remove metal

bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected first to prevent spark-

ing from ac cidental grounding.

1. Lift hood to raised position.

2. Disconnect BLACK battery cable (A) then RED battery

cable and carefully remove battery from tractor.

3. Install new battery with terminals in same position as

old battery.

4. First connect RED battery cable (B) to positive (+) battery

terminal with hex bolt and keps nut as shown. Tighten

securely. Slide terminal cover (C) over terminal.

5. Connect BLACK grounding cable to negative (-) bat tery

terminal with re maining hex bolt and keps nut. Tight en

securely

6. Close hood.

24

STORAGE

Immediately prepare your tractor for storage at the end

of the season or if the tractor will not be used for 30 days

or more.

WARNING: Never store the trac tor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any en closure.

TRACTOR

Remove mower from tractor for winter storage. When

mower is to be stored for a period of time, clean it thor-

oughly, remove all dirt, grease, leaves, etc. Store in a

clean, dry area.

• Clean entire tractor (See “CLEANING” in the Mainte-

nance section of this manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

• Lubricate as shown in the Maintenance sec tion of this

manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require

recharging.

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be dis-

connected and battery cleaned thoroughly (see “TO

CLEAN BATTERY AND TERMINALS” in the Mainte-

nance section of this manual).

• After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

• If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS

FROM FORMING IN ES SENTIAL FUEL SYSTEM PARTS SUCH

AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK

DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT

ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT MOIS TURE WHICH

LEADS TO SEPARATION AND FOR MA TION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM

OF AN ENGINE WHILE IN STORAGE.

• Empty the fuel tank by starting the engine and let it run

until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in mini-

mizing the formation of fuel gum deposits during stor age.

Add stabilizer to gasoline in fuel tank or storage container.

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to

allow the stabilizer to reach the carburetor. Do not empty

the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See “ENGINE” in the Maintenance section of this

manual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

• Turn ignition key to “START” position for a few seconds

to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to

give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE EN GINE

AND EXHAUST AREAS ARE STILL WARM.

25

TROUBLESHOOTING POINTS

Will not start 1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section.

3. Engine flooded. 3. Wait several minutes before attempting to start.

4. Bad spark plug. 4. Replace spark plug.

5. Weak or dead battery. 5. Recharge or replace battery.

6. Dirty air filter. 6. Clean/replace air filter.

7. Dirty fuel filter. 7. Replace fuel filter.

8. Water in fuel. 8. Empty fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

9. Loose or damaged wiring. 9. Check all wiring.

10. Carburetor out of adjustment. 10. See “To Adjust Carburetor” in Service Adjustments

section.

11. Engine valves out of adjustment. 11. Contact an authorized service center/department.

Hard to start 1. Dirty air filter. 1. Clean/replace air filter.

2. Bad spark plug. 2. Replace spark plug.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Dirty fuel filter. 4. Replace fuel filter.

5. Stale or dirty fuel. 5.

Empty fuel tank and refill tank with fresh, clean gasoline.

6. Loose or damaged wiring. 6. Check all wiring.

7. Carburetor out of adjustment. 7. See “To Adjust Carburetor” in Service Adjustments

section.

8. Engine valves out of adjustment. 8. Contact an authorized service center/department.

Engine will not turn over 1. Brake pedal not depressed. 1. Depress brake pedal.

2. Attachment clutch is engaged. 2. Disengage attachment clutch.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Blown fuse. 4. Replace fuse.

5. Corroded battery terminals. 5. Clean battery terminals.

6. Loose or damaged wiring. 6. Check all wiring.

7. Faulty ignition switch. 7. Check/replace ignition switch.

8. Faulty solenoid or starter. 8. Check/replace solenoid or starter.

9. Faulty operator presence switch(es). 9. Contact an authorized service center/department.

Engine clicks but will not 1. Weak or dead battery. 1. Recharge or replace battery.

start 2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or starter.

Loss of power 1. Cutting too much grass/too fast. 1. Raise cutting height/reduce speed.

2. Throttle in “CHOKE” position. 2. Adjust throttle control.

3. Build-up of grass, leaves and trash under mower. 3. Clean underside of mower housing.

4. Dirty air filter. 4. Clean/replace air filter.

5. Low oil level/dirty oil. 5. Check oil level/change oil.

6. Faulty spark plug. 6. Clean and regap or change spark plug.

7. Dirty fuel filter. 7. Replace fuel filter.

8. Stale or dirty fuel. 8.

Empty fuel tank and refill tank with fresh, clean gasoline.

9. Water in fuel. 9. Empty fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Spark plug wire loose. 10. Connect and tighten spark plug wire.

11. Dirty engine air screen/fins. 11. Clean engine air screen/fins.

12. Dirty/clogged muffler. 12. Clean/replace muffler.

13. Loose or damaged wiring. 13. Check all wiring.

14. Carburetor out of adjustment. 14. See “To Adjust Carburetor” in Service Adjustments

section.

15. Engine valves out of adjustment. 15. Contact an authorized service center/department.

Excessive vibration 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Bent blade mandrel. 2. Replace blade mandrel.

3. Loose/damaged part(s). 3. Tighten loose part(s). Replace damaged parts.

PROBLEM CAUSE CORRECTION

26

TROUBLESHOOTING POINTS

Engine dies when 1. Reverse operation system 1. Turn ignition key to

tractor is shifted (ROS) is not "ON" while ROS "ON" position.

into reverse mower or other attachment See Operation section.

is engaged.

Engine continues to run 1. Faulty operator-safety presence control system. 1. Check wiring, switches and connections. If not

when operator leaves seat corrected, contact an authorized service center/

with attachment clutch department.

engaged

Poor cut - uneven 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Mower deck not level. 2. Level mower deck.

3. Buildup of grass, leaves, and trash under mower. 3. Clean underside of mower housing.

4. Bent blade mandrel. 4. Replace blade mandrel.

5. Clogged mower deck vent holes from buildup of 5. Clean around mandrels to open vent holes.

grass, leaves, and trash around mandrels.

Mower blades will not 1. Obstruction in clutch mechanism. 1. Remove obstruction.

rotate 2. Worn/damaged mower drive belt. 2. Replace mower drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass discharge 1. Engine speed too slow. 1. Place throttle control in “FAST” position.

2. Travel speed too fast. 2. Shift to slower speed.

3. Wet grass. 3. Allow grass to dry before mowing.

4. Mower deck not level. 4. Level mower deck.

5. Low/uneven tire air pressure. 5. Check tires for proper air pressure.

6. Worn, bent or loose blade. 6. Replace blade. Tighten blade bolt.

7. Buildup of grass, leaves and trash under mower. 7. Clean underside of mower housing.

8. Mower drive belt worn. 8. Replace mower drive belt.

9. Blades improperly installed. 9. Reinstall blades sharp edge down.

10. Improper blades used. 10. Replace with blades listed in this manual.

11. Clogged mower deck vent holes from buildup of 11. Clean around mandrels to open vent holes.

grass, leaves, and trash around mandrels.

Headlight(s) not working 1. Light switch is “OFF”. 1. Turn light switch “ON”.

(if so equipped) 2. Bulb(s) or lamp(s) burned out. 2. Replace bulb(s) or lamp(s).

3. Faulty light switch. 3. Check/replace light switch.

4. Loose or damaged wiring. 4. Check wiring and connections.

5. Blown fuse. 5. Replace fuse.

Battery will not charge 1. Bad battery cell(s). 1. Replace battery.

2. Poor cable connections. 2. Check/clean all connections.

3. Faulty regulator (if so equipped). 3. Replace regulator.

4. Faulty alternator. 4. Replace alternator.

Loss of drive 1. Freewheel control in “disengaged” position. 1. Place freewheel control in “engaged” position.

2. Motion drive belt worn, damaged, or broken. 2. Replace motion drive belt.

3. Air trapped in transmission during shipment 3. Purge transmission.

or servicing.

Engine “backfires” when 1. Engine throttle control not set between half and 1. Move throttle control between half and full speed

turning engine “OFF” full speed (fast) position before stopping engine. (fast) position before stopping engine.

PROBLEM CAUSE CORRECTION

27

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

SCHEMATIC

NOTES

M

FUSE

STARTER

SOLENOID

BATTERY

ELECTRIC CLUTCH

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

REGULATOR

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

STATOR

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF EQUIPPED)

JUNCTION

CONNECTOR

PTO SWITCH

(DISENGAGED)

SM

B

GL

2

3

1

6

A2

A1

M

6

3

52

41

6

5

4

3

2

1

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

9-15 AMP DC @ 3600 RPM

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH13

IGNITION SWITCH

CIRCUITPOSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

POWER OUTLET

(OPTIONAL)

12V

A

AMMETER

(OPTIONAL)

BLACK

BLACK /WHITE

ORANGE

RED

BROWN

BLUE

BLUE

BLACK

BLACK

BLACKBLACK

BLACK

BLACK

BLACK

BLACK

BLACK

BLACK

BLACK

RED

RED

RED

WHITE

WHITE

WHITE

GRAY

GRAY

BLACK

BLACK

B

A

G

H

D

FC

E

PTO SWITCH

B

A

H

D

C

E

BLUE BLACK

85 86

30 87

87A

87

87A 8586

30

RELAY

BLUE

BLUE BLACK

BLACK

28

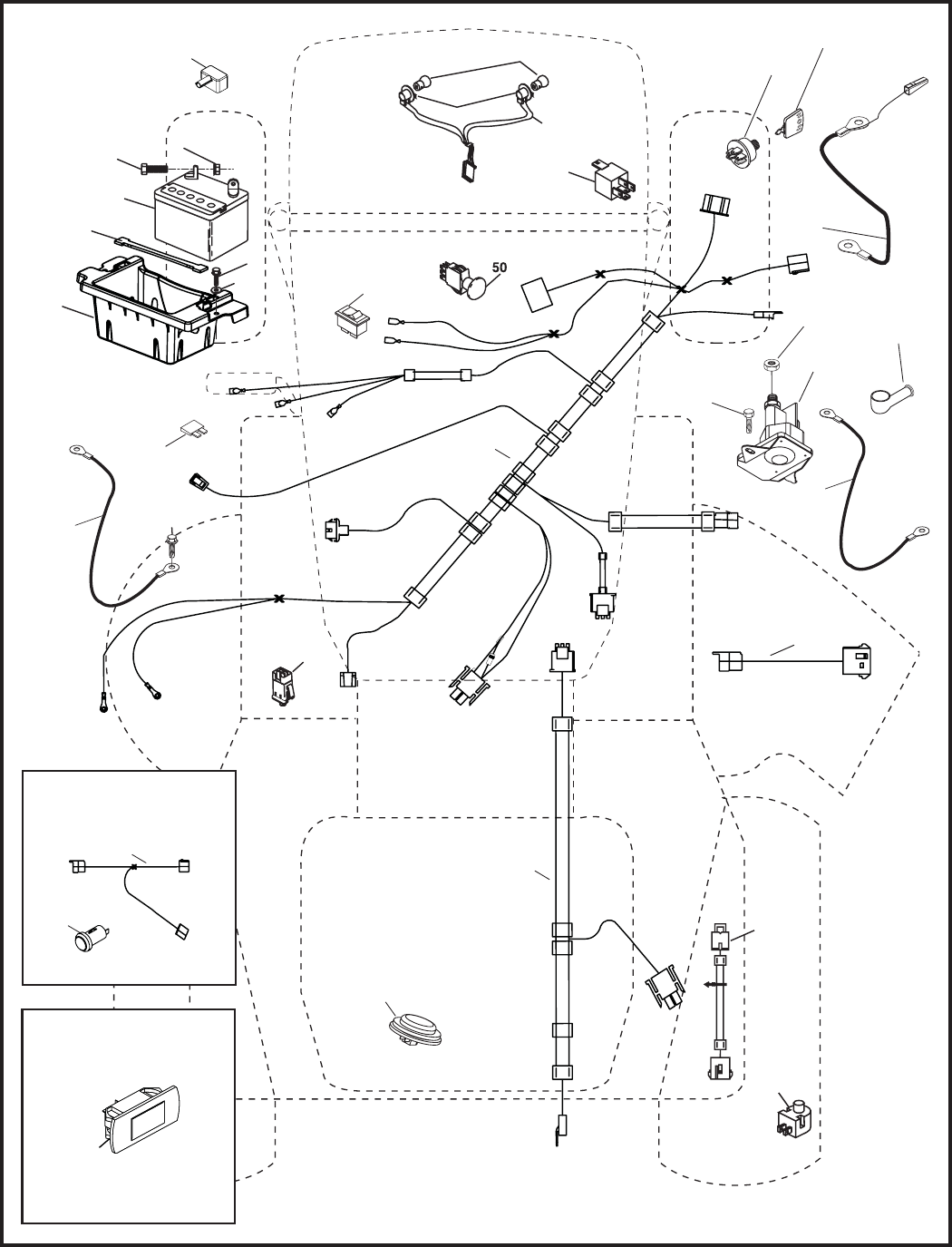

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

ELECTRICAL

8

1

99

100

91

227

90

28

55

26

43

41

24

27

25

30

33

22

79 21

101

40

71

34

With Service Minder Option

4646

With 12V Outlet Option

59

103

16

42

T20S

102

29

81

105

29

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 18 64-91 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 18 37-59 Harness Socket Light w/4152J

22 532 00 41-52 Bulb Light

24 532 40 02-53 Cable Battery 8"

25 532 41 28-95 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 14 54-91 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign

33 532 41 19-35 Key\Chain

34 532 11 07-12 Switch Light/Reset

40 532 40 96-14 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover, Terminal

43 532 19 25-07 Solenoid

46 532 40 17-63 Gauge Service Reminder Hrmtr

50 532 17 46-51 Switch PTO

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT

59 532 40 03-03 Outlet 12-Volt

71 532 19 42-76 Harness Ign.

79 532 17 52-42 Socket Asm Bulb Twistlock

81 532 40 96-15 Relay Harness Sealed

90 532 40 07-24 Cover Terminal

91 532 19 02-70 Strap Battery Mount

99 817 67 04-12 Screw 1/4-20 x 3/4

100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.

101 532 19 83-17 Harness Pigtail

102 532 40 44-54 Harness Pigtail

103 532 40 79-62 Harness 12-Volt Pigtail

105 532 40 75-68 Switch Reverse TT Pedal Control

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

30

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

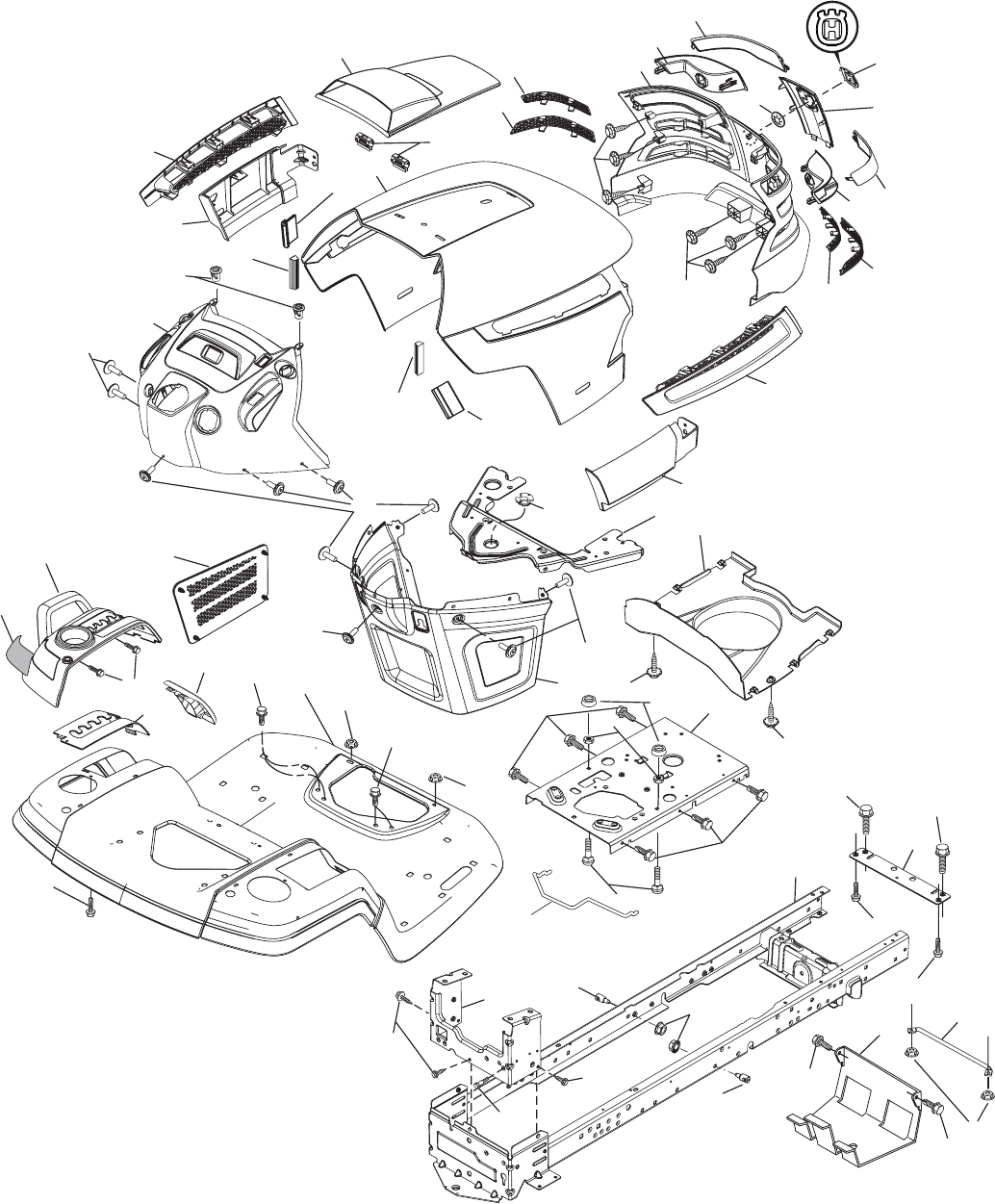

CHASSIS

182

68

68

176

176

176

175

178

183

236

150

34

130

130

177

52

189

189

152 217

235

161

162

196

221

14

214

130

130

202

203

204

210

208

18

15

25

298 296

299

207

211

209

212

5

176

205

206

234

234

68

68

213

213

218

chassis-tex_TEX GT HUSQ_17

137

137

165

228

228

194

180

58

189

189

230

37 194

194

36

36

162

181

199

31

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

CHASSIS

KEY PART

NO. NO. DESCRIPTION

5 532 40 87-01 Dash

14 532 41 10-46 Hood

15 532 19 89-07 Lens LH

18 532 40 86-07 Grille/Lens Asm.

25 532 19 89-06 Lens RH

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 40 18-25 Fender

52 873 68 05-00 Nut Lock 5/16-18

58 532 41 22-83 Drawbar Lower

68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2

130 532 41 63-58 Screw 10 x .750 BOS Thread

137 532 40 75-90 Bumper Dash

150 532 19 85-12 Air Duct

152 532 19 95-35 Shield Browning

159 817 00 06-12 Screw 3/8-16 x 3/4

161 532 40 18-26 Console Fuel Window

162 543 14 24-32 Screw Hex WSH HI-LO 1/4 x 1/2 unc

165 532 19 68-26 Support Tank Rear

175 532 19 63-04 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-27 Bushing Steering

178 532 19 97-82 Cargo Net Asm.

180 532 41 50-64 Chassis

181 532 40 30-25 Bushing Mtg. Fender Crgo

182 532 40 68-59 Dash Lower

183 874 78 05-20 Bolt Fin Hex 5/16-18 unc x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

196 432 41 77-78 Console Asm. Deck Lift NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

199 532 19 82-59 Plate Deck Lift

202 532 40 30-48 Vent Side Hood RH

203 532 40 30-76 Vent Side Hood LH

204 532 41 66-13 Vent Top Hood

205 532 40 17-09 Skirt Hood Side RH

206 532 40 17-11 Skirt Hood Side LH

207 532 19 71-98 Bezel RH

208 532 19 71-99 Bezel LH

209 532 19 91-30 Insert Hex Top RH

210 532 19 91-31 Insert Hex Top LH

211 532 19 91-32 Insert Hex Bottom RH

212 532 19 91-33 Insert Hex Bottom LH

213 874 76 05-12 Bolt 5/16-18 x 3/4

214 532 19 91-45 Clip Retainer Tinner

217 532 40 91-67 Rod Pivot

218 532 19 63-95 X-Piece Hood Stop

221 532 19 89-09 Reflector LH

228 532 19 51-61 Stud Fastner

230 532 17 01-65 Bolt Shoulder 5/16-18

234 532 40 47-42 Bumper Hood

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 unc

296 532 40 86-06 Trim, Husq.

298 532 11 04-52 Nut, Push

299 532 40 50-12 Logo

32

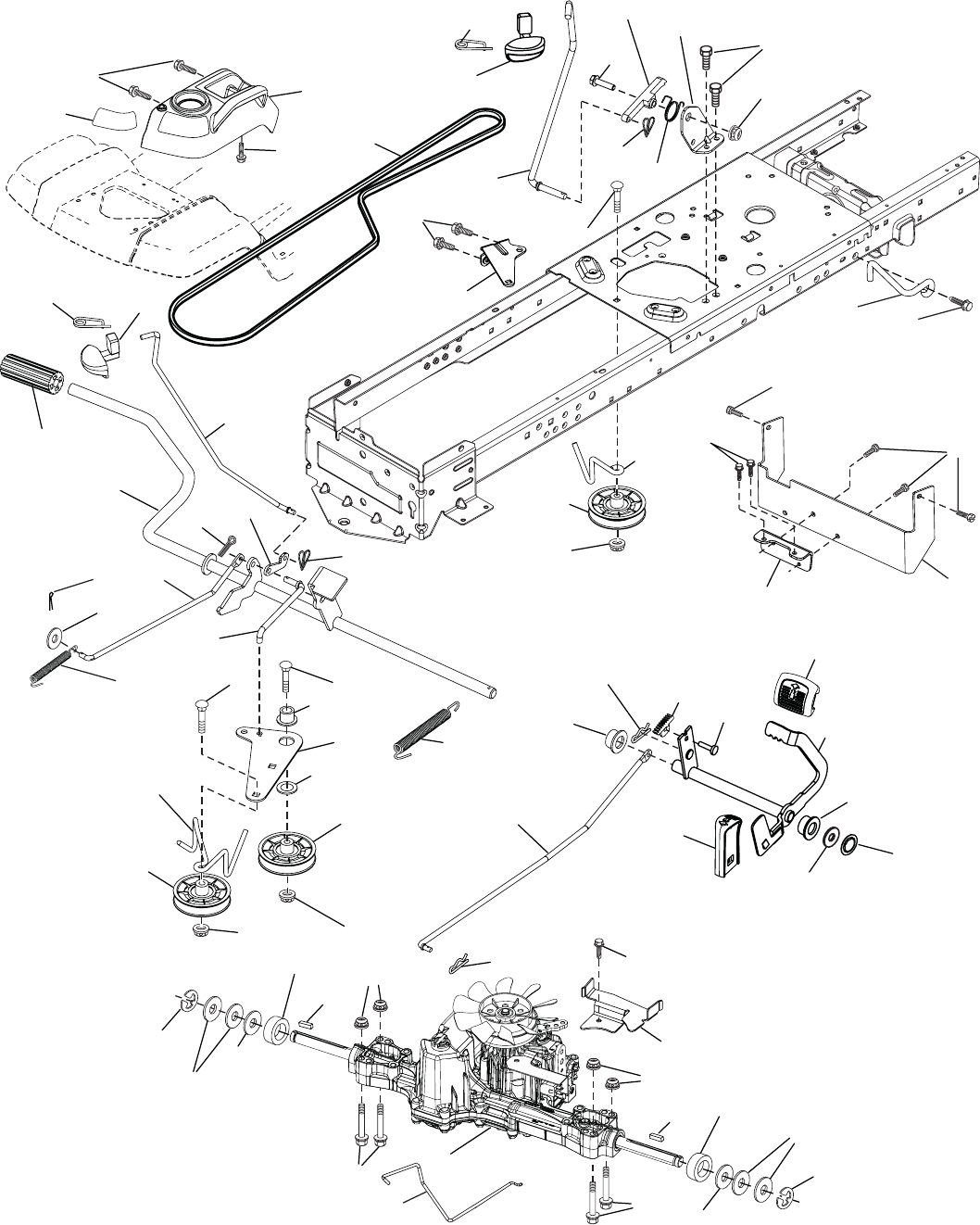

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

DRIVE

52

51

170

216

143 171

225

125

drive-tex_K46_pedal_13

56

70

74

220

74

213

221

160

206

26

207

209

92 125

116

64

188

161

35

184

167

160

42

159

221

186

189

49

187

50

51

52

51

190

185

163

153

208

210

214

125

215

153

211

166

211

222

80

125

125

226

125

29

159

15

17

197 196

2

2

73

73 33

205

1

116

33

230

230

183

183

205

116

99

33

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

DRIVE

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532 41 72-13 Transaxle, TUFFTORQ K46 LD

(Internal parts not available)

2 532 12 35-83 Key

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring, Brake

26 532 19 96-79 Spring Return Cruise

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 532 19 95-91 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove 910" Offset

56 532 13 09-69 V-Belt, Drive

64 532 19 78-65 Shaft Asm. Pedal Brake Control

70 532 40 05-30 Console Asm.

73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5

74 532 14 24-32 Screw Hex WSH Hi-Lo 1/4 x 1/2 unc

80 532 41 21-70 Bracket Strap Torque

92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25

99 532 41 57-42 Rod Spring Bypass

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw 5/16-18 x 1/2

153 532 12 47-88 Retainer Spring

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 75-09 Spring, Return, Clutch

163 532 40 10-34 Rod Pedal Control

166 532 19 72-90 Nut Push

167 532 40 52-57 Latch Brake Parking

170 532 19 43-22 Keeper Belt Centerspan

171 872 11 06-16 Bolt RDHD SQNK 3/8-16 unc x 2

183 532 13 70-57 Spacer Split

184 532 40 31-18 Handle Parking Brake

185 872 11 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

196 817 00 06-16 Screw 3/8-16 x 1

197 532 19 58-04 Bracket Clutch Anti-Rotation

205 532 12 17-48 Washer

206 532 19 78-67 Bracket Mount Latch Cruise

207 532 19 78-68 Latch Control Cruise

208 532 19 78-69 Gear Sector Control Cruise

209 532 19 95-92 Rod Control Cruise

210 532 19 78-60 Rocker Asm. Pedal Control

211 532 12 01-83 Bearing Nylon

213 532 40 31-19 Knob Control Cruise

214 532 41 68-63 Pedal Forward

215 532 40 17-23 Pedal Reverse

216 532 19 61-31 Bracket Pulley Idler

220 532 19 89-08 Reflector RH

221 532 40 31-87 Retainer Spring Clip Handle

222 879 21 20-10 Washer 21/32 x 1-1/4 x 10 Ga.

225 532 40 33-19 Keeper Belt Trans.

226 532 40 15-64 Bracket Mount Torque

230 532 18 89-67 Washer Hardened

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

34

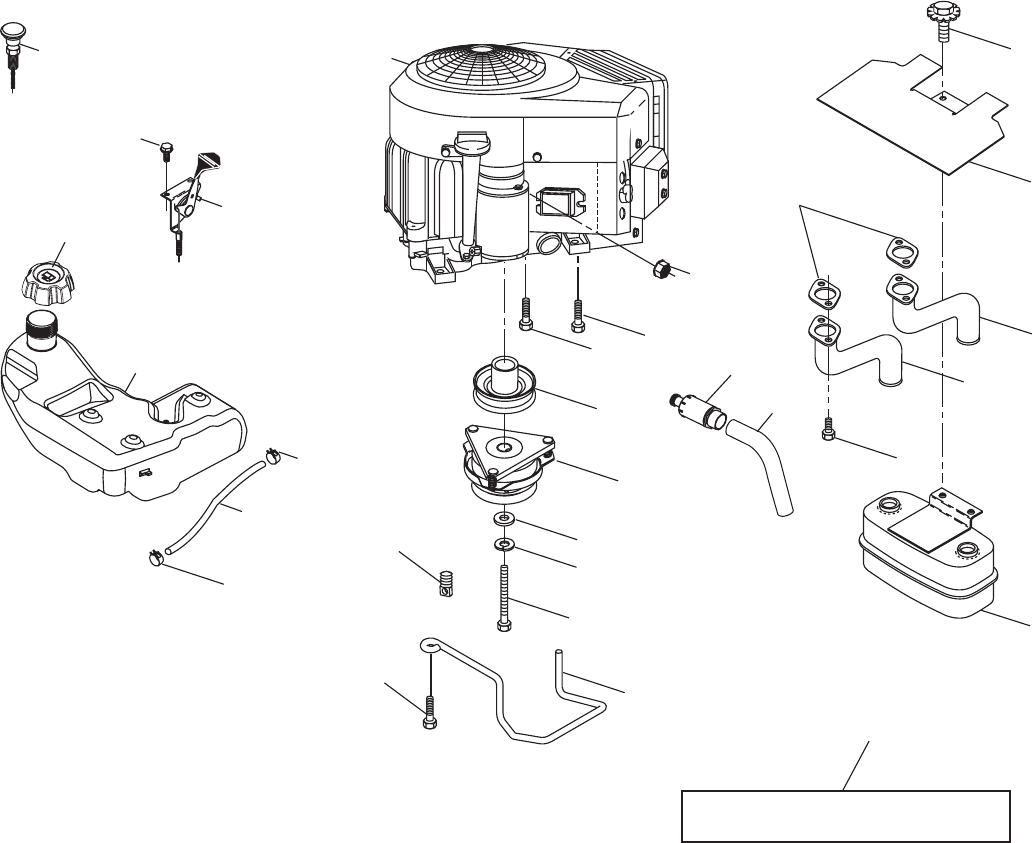

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

ENGINE

1

84

12

11

41

42

85

29

SPARK ARRESTER KIT

84

45

18

15

37

28

37

22

21

20 62

71

70

79

69

87

2

engine-tex_11-vgt

81

82

9

90

31

35

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

ENGINE

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 - - - - - - Engine B&S Model No. 386777

2 532 14 97-23 Muffler

9 532 19 43-20 Keeper Belt Engine

11 532 40 00-08 Clutch Ogura

12 532 40 50-97 Pulley Engine

15 532 19 34-99 Tank Fuel

18 532 19 42-67 Cap Asm

20 532 17 83-85 Control Throttle

21 532 41 63-58 Screw #10 x 0.750 BOS Thread

22 532 19 15-96 Control Choke

28 532 40 11-35 Fuel Line

29 532 13 71-80 Spark Arrester Kit

31 532 14 50-06 Clip Push-In Hinged

37 532 12 34-87 Clamp Hose

41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250

42 810 04 07-00 Washer Lock 7/16

45 873 51 04-00 Nut Keps Hex 1/4-20 unc

62 532 14 66-29 Shield Heat Muffler

69 532 19 24-42 Gasket

70 532 19 15-58 Exhaust Tube LH

71 532 19 15-49 Exhaust Tube RH

79 532 19 24-43 Screw

81 532 14 84-56 Tube Drain Oil Easy

82 532 18 16-54 Plug Drain Oil

84 817 06 06-20 Screw 3/8-16 x 1-1/4

85 532 17 39-37 Bolt 7/16-20 x 4

87 532 17 18-77 Bolt 5/16-18 x 3/4

90 817 00 06-16 Screw 3/8-16 x 1

Engine Power Rating Information

The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engi-

neers) code J11940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and

corrected in accordance with SAE J1995 (Revision 2002-5). Actual gross engine power will be lower and is affected by,

among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of prod-

ucts on which engines are placed and the variety of environmental issues applicable to operating the equipment, the gas

engine will not develop the rated gross power when used in a given piece of power equipment (actual “on-site” or net

horsepower). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust,

charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humid-

ity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may sub-

stitute an engine of higher rated power for this Series engine.

36

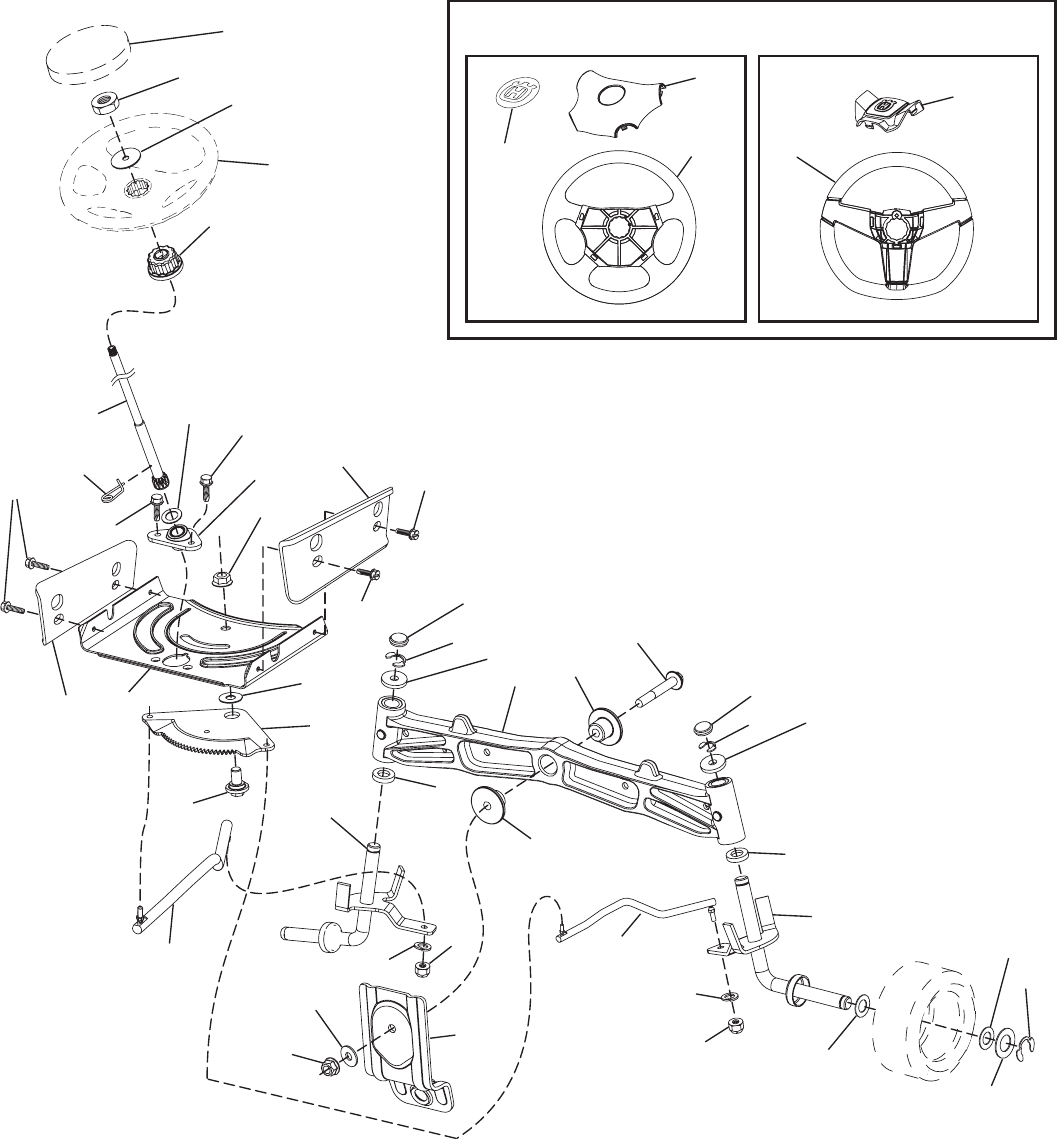

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

STEERING ASSEMBLY

61

steering-tex_special_9_r1

21

11

26

79

26

HUSQ SR

PREM 2

*

35

19

60

59

58

57

63

57

63

63

5

62

15

14

13

13

53

8

70

68

69

16

28

28

13

22

64

4

15

14

6

9

87

9

87

67

67

66

6

2

*

45

51

*

37

KEY PART

NO. NO. DESCRIPTION

1 532 41 64-80 Wheel, Steering

2 532 18 47-06 Axle Asm., Front

4 532 40 30-87 Spindle Asm., LH

5 532 40 30-88 Spindle Asm., RH

6 532 12 49-31 Bearing, Race Thrust Harden

7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

8 812 00 00-29 Ring, Clip #T5304-75

9 532 12 12-32 Cap, Spindle

13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8

15 873 54 06-00 Nut, Crown Lock 3/8-24 unf

16 532 40 82-19 Shaft Steering

19 532 19 47-29 Plate Steering

21 532 18 67-37 Adapter, Wheel Steering

22 532 19 48-45 Bushing, Strg. Blk

26 532 41 59-87 Insert, Wheel Steering

28 817 00 06-12 Screw 3/8-16 x 3/4

35 532 19 47-32 Gear, Sector Plate

45 819 18 38-12 Washer 9/16 ID x 2-3/8 OD 12 Ga.

51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf

53 532 18 89-67 Washer Hardened .793 x 1.637 x .060

57 532 40 74-65 Bracket Upstop

58 532 19 47-47 Bolt Shoulder Sector Pivot CFM

59 532 19 47-48 Washer Thrust Sector Steering

60 873 97 10-00 Nut Flange Lock 5/8-11

61 532 19 47-40 Draglink, LH

62 532 19 47-41 Draglink, RH

63 817 00 05-12 Screw 5/16-18 x 3/4

64 532 19 98-49 Retainer Clip Spring Steering

66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr

67 532 19 47-37 Bushing PM Front Axle

68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5

69 532 19 91-62 Washer 1.5 x .505 x .118

70 532 19 61-97 Bracket Deck Susp. Front

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

STEERING ASSEMBLY

38

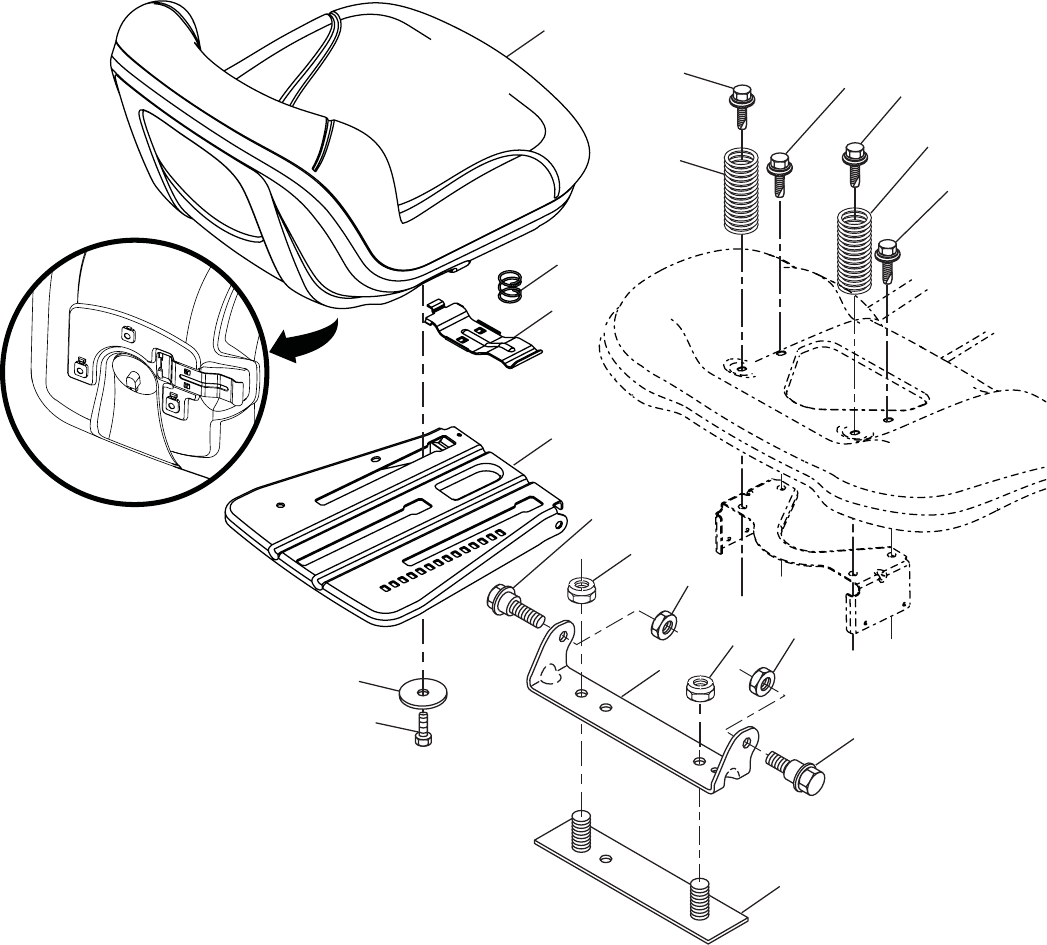

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

SEAT ASSEMBLY

1 532 40 66-21 Seat

2 532 18 01-66 Bracket Pivot Fender

3 532 14 06-75 Strap, Asm Fender

6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc

7 532 12 41-81 Spring, Seat Cprsn

8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems

10 532 19 69-77 Pan, Seat

21 532 17 18-52 Bolt, Shoulder 5/16-18

37 873 80 05-00 Nut, Lock 5/16-18 unc

40 532 19 76-61 Handle Slide Seat

41 532 19 82-00 Spring Latch Seat

43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4

44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

2

6

1

40

10

37

37

21

21

3

41

7

8

7

8

seat-tex_6.5SL_3

44

43

8

8

6

39

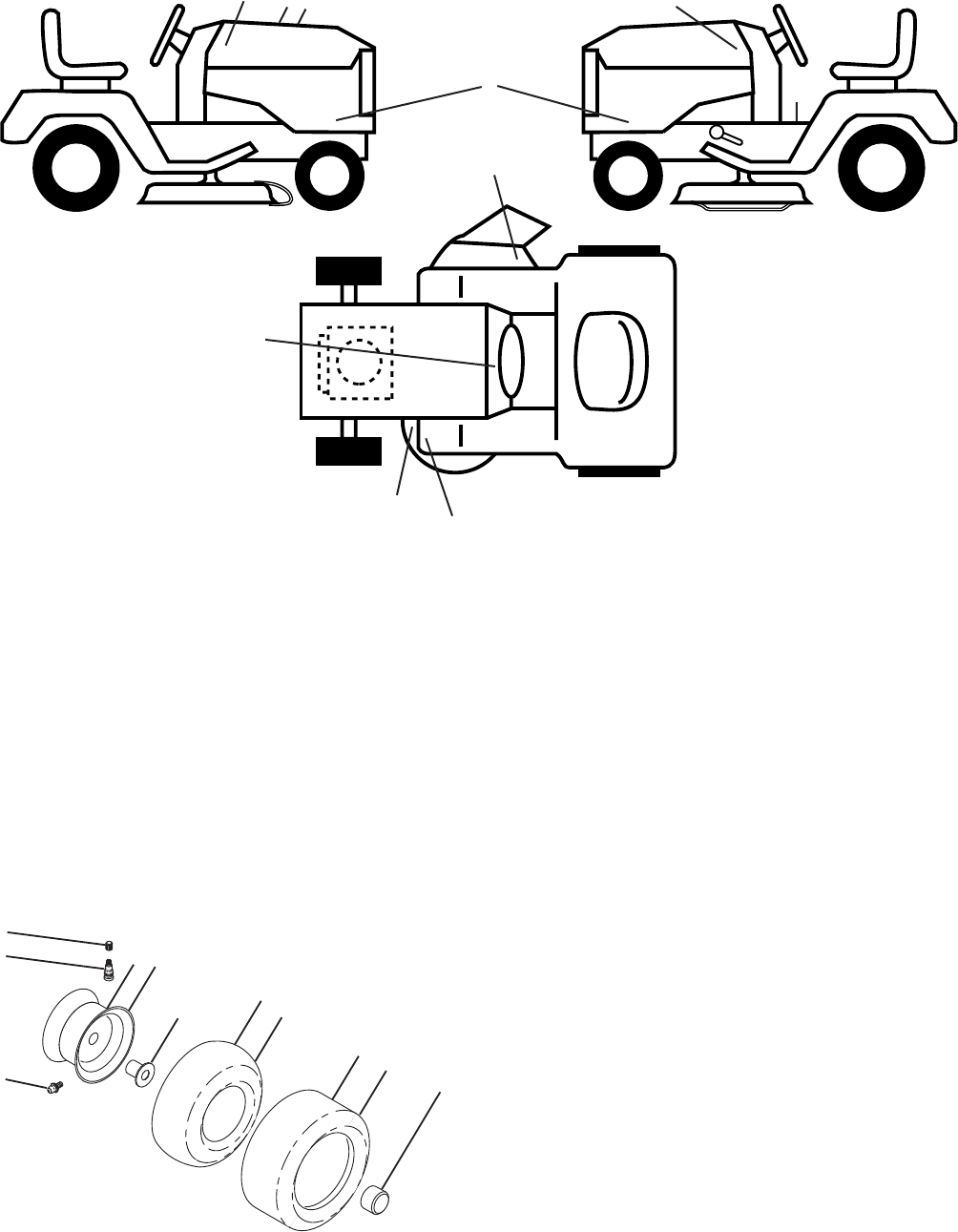

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

DECALS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

6

2

1

3

11

410

59

8

7

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 13 83-36 Rim Front Service

4 532 05 99-04 Tube Front (Service Item Only)

5 532 10 62-22 Tire Front 15 x 6.0-6 Service

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 Bearing Flange (Front Wheel Only)

8 532 17 50-39 Cap Axle Blk 1 50 x 1 00

9 532 10 62-22 Tire R T 20 x 10-8 Service

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 13 83-37 Rim Asm 8" Rear Service

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 41 16-58 Decal, Operators

2 532 41 57-80 Decal, Hood

3 532 41 82-14 Decal, Emblem Panel SD

4 532 41 86-00 Decal, Pedal

5 532 18 09-41 Decal, Customer Respons.

6 532 41 82-71 Decal, Replacement

8 532 17 05-63 Decal , Mower Warn Keep Hand Away

9 532 14 50-05 Decal, Battery Dnge/Poi

12 532 16 03-96 Decal, Mower V-Belt Schematic

- - 532 41 82-77 Decal, Deck Air Induct

- - 532 16 69-60 Decal, Bypass

- - 532 40 17-71 Pad, Footrest, LH

- - 532 40 37-73 Pad, Footrest, RH

- - 532 41 86-14 Manual, Owner's (English)

- - 532 41 86-15 Manual, Owner's (French)

12

256

3

2

1

8

9

4

40

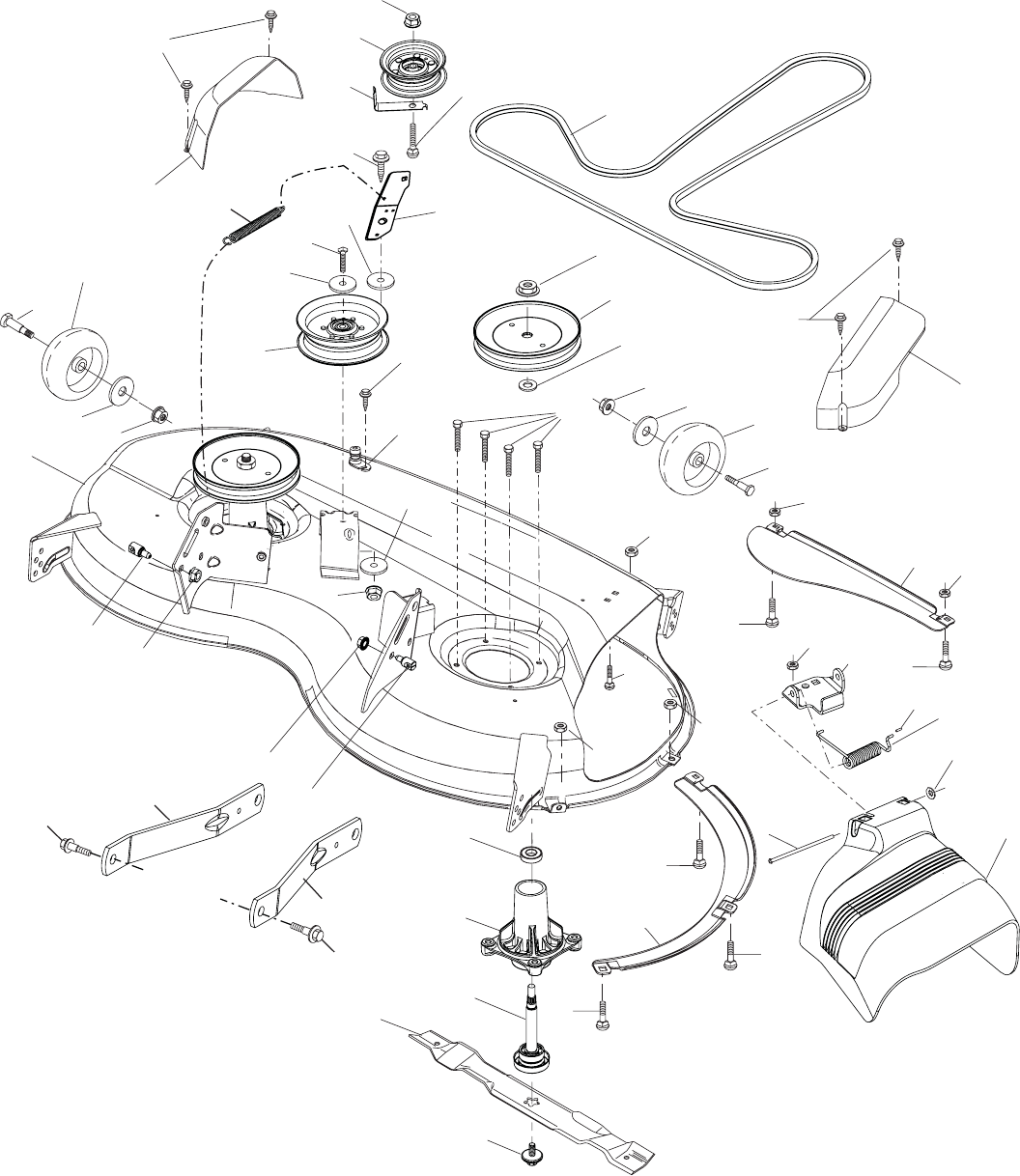

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

MOWER DECK

55

30

32

31

33

56

34

57

59

62

197

188

1

69

69

69

199

40

3

46

145

46_tex_lt_pred_15

15

14

13

11

8

21

25

26

27

198

29

21

21

23

24

36

40

2

19

19

6

6

117

116

40

119

117

119

116

40

68

46

189

189

188

21

21

69

69

69

21

242

241

200

147

41

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

MOWER DECK

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 532 41 86-03 Mower Housing

2 532 40 55-06 Cover Mandrel RH

3 532 40 55-07 Cover Mandrel LH

6 532 19 51-86 Arm Suspension

8 532 19 30-03 Bolt/Washer Asm 7/16-20 unf

11 532 40 53-80 Blade Mower Hi Lift

13 532 19 28-72 Shaft Assembly, Mandrel

14 532 18 72-81 Housing, Mandrel

15 532 11 04-85 Bearing, Ball, Mandrel

19 532 19 65-39 Bolt, Shoulder

21 873 68 05-00 Nut

23 532 19 25-57 Bracket, Deflector

24 532 10 53-04 Cap, Sleeve

25 532 19 70-26 Spring, Torsion, Deflector

26 532 11 04-52 Nut, Push

27 532 40 53-57 Shield, Deflector

29 532 13 14-91 Rod, Hinge

30 532 17 39-84 Screw Thdrol Rolling Wsh Hd

31 532 18 76-90 Washer, Spacer

32 532 19 74-73 Pulley, Mandrel

33 532 40 02-34 Nut, Toplock, Flanged

34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5

36 532 19 73-79 Pulley, Idler, Flat

40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc

46 532 13 77-29 Screw

55 532 19 72-49 Arm, Idler

56 532 19 90-92 Spacer, Retainer

57 817 00 06-16 Screw Hexwsh Thd 3/8-16 x 1

59 532 14 10-43 Guard, Tuv Idler (94)

62 874 52 06-36 Bolt 3/8-16 unc x 2-1/4 Gr. 5

68 532 40 51-43 V-Belt

69 872 14 05-05 Bolt

116 532 19 34-06 Bolt, Shoulder

117 532 17 48-73 Wheel, Gauge

119 819 13 20-12 Washer 13/32 x 1-1/2 x 11 Ga.

145 532 19 31-97 Pulley Idler

147 532 19 72-51 Spring Return

188 532 19 51-61 Stud Fastener

189 873 90 05-00 Nut Lock Hex Flange

197 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.

198 532 40 31-49 Baffle Center Front

199 532 40 31-50 Baffle Front RH

200 819 41 35-24 Washer 13/32 x 2 x 10 Ga.

241 532 15 29-27 Screw

242 532 41 55-98 Washout Port

- - 532 19 28-70 Mandrel Assembly (Includes

housing, shaft assembly, and

bearing only - pulley/nut/washer

and blade bolt/washers not

included)

- - 532 41 82-26 Replacement Mower, Complete

42

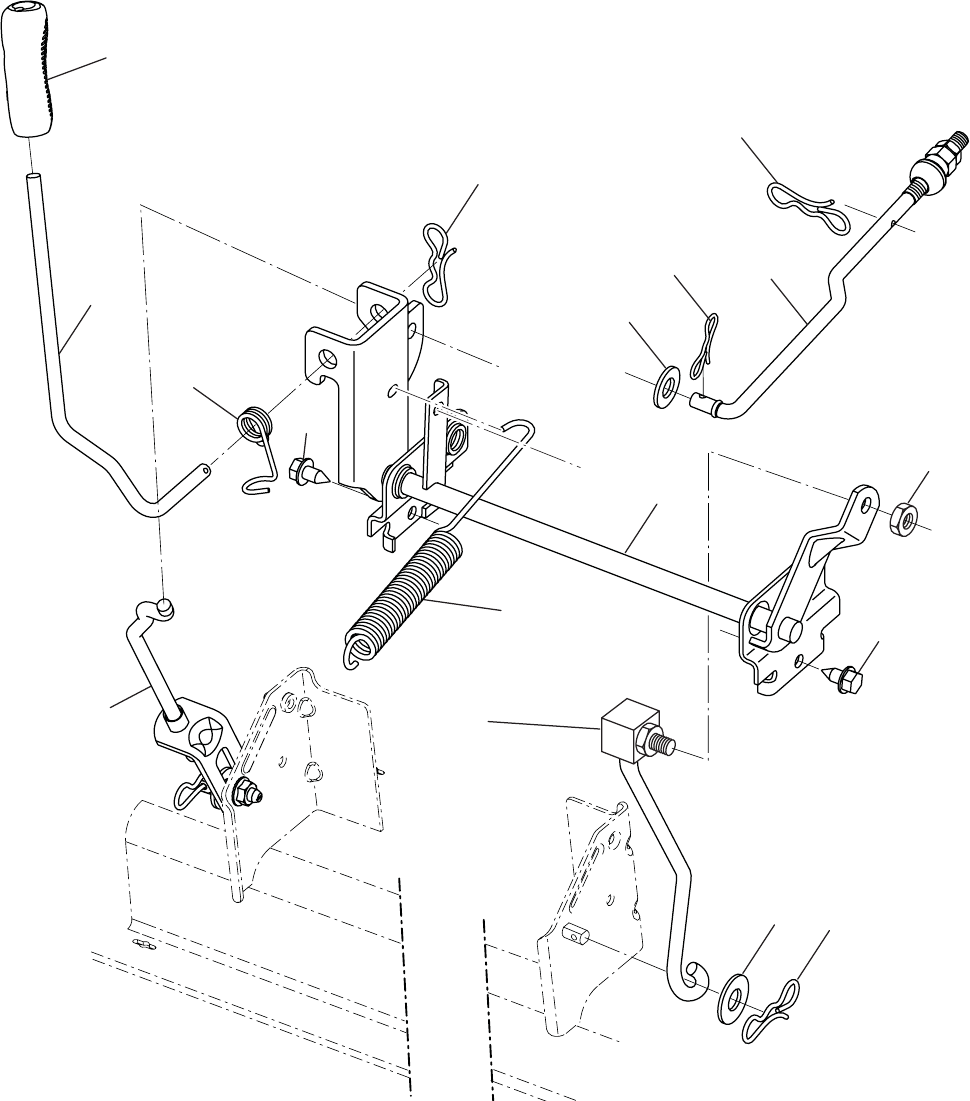

TRACTOR - - MODEL NUMBER 2346XLS (96043004500), PRODUCT NO. 960 43 00-45

MOWER LIFT

7

3

87

10

88

2

89

90

87

98

97

97

lift-tex_7

91 91

89 87

100

2 532 19 52-23 Shaft Asm., Lift

3 532 19 52-30 Lever Asm., Lift RH

7 532 41 15-55 Grip, Lever

10 532 19 63-14 Spring Torsion

87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock

88 532 41 07-10 Spring Lift Assist

89 819 19 19-12 Washer Clear Zinc

90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

91 532 19 51-81 Link Lift Susp Mower Rear

97 817 00 06-12 Screw 3/8-16 x 3/4

98 532 19 52-70 Link Lift Susp. Front Mower

100 873 93 06-00 Nut Center Lock 3/8-16 unc

KEY PART

NO. NO. DESCRIPTION

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company (“Husqvarna”) warrants Husqvarna product to the original purchaser to be free from

defects in material and workmanship from the date of purchase for the “Warranty Period” of the product as set forth below:

Lifetime Warranty (Parts and Labor): All tiller tines and trimmer shafts against breakage. Proof of purchase required.

Lifetime Warranty (“PARTS ONLY” after initial warranty expiration): Ignition coils and modules on handheld product.

Proof of purchase required.

WARRANTY SCHEDULE FOR TURF CARE Equipment - Zero Turn Riders

(New warranty applies to units sold after August 1, 2005. Also applies to units factory-equipped with R.O.P.S.

EZ Zero Turn Riders: 3 year consumer warranty or 600 hours of use (when used solely at the owner’s residence.)

EZ Zero Turn Riders: 1 year commercial warranty or 600 hours of use.

iZ, LZ & BZ Zero Turn Riders:

5 year consumer warranty or 1,500 hours of use (when used solely at the owner’s residence.)

iZ, LZ & BZ Zero Turn Riders: 5 year commercial warranty or 1,500 hours of use.

3 Year or 1,500 Hour Commercial Use Warranty: spindles on zero turn riders, hydraulic pumps and wheel motors.

Warranty Schedule for Turf Care Walk Behind Units - W, WG & WH Zero Turn Riders - 3 year consumer and commercial

warranty. New warranty applies to units sold after August 1, 2005. Also applies to units factory-equipped with R.O.P.S.

2 Year COMMERCIAL and CONSUMER Warranty: all Husqvarna ground-engaging commercial equipment.

WARRANTY SCHEDULE FOR CONSUMER TURF CARE EQUIPMENT:

2 Year Consumer Warranty: Automatic mower, all Residential Zero Turn Riders, all lawn, yard and garden tractors, all

noncommercial walk behind mowers, tillers, chain saws, trimmers, brushcutters, clearing saws, snow blowers, handheld

blowers, backpack blowers, hedge trimmers, electrical products and power-assist collection systems for noncommercial,

nonprofessional, noninstitutional or nonincome producing use, except as herein stated. All consumer product use must have

been limited to the owner’s residence.

WARRANTY SCHEDULE FOR CONSUMER FOREST & GARDEN EQUIPMENT:

2 Year Consumer Warranty: all consumer chain saws, trimmers, brushcutters, clearing saws, handheld blowers, backpack

blowers, hedge trimmers, and electrical products for noncommercial, nonprofessional, noninstitutional or nonincome

producing use, except as herein stated. All consumer product use must have been limited to the owner’s residence.

2 Year or 2,000 Hour Powertrain & 1 Year or 1,000 Hour Body Warranty: Husqvarna Utility Vehicles.

1 Year Warranty: Power cutters, stump grinder, pole pruners and pole saws for non-commercial, non-professional,

noninstitutional, non-municipality or non-income producing use. All 300 series trimmers, brushcutters, clearing saws,

hovering trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection systems for

commercial, institutional, professional or income producing purposes or use.

1 Year Conditional Component Warranty: Chain saw crankshafts for commercial/professional use (parts and labor).Saw

must be operated with Husqvarna XP 2 cycle oil.

90 Day Commercial Warranty:

Automatic mower, chain saws, 100 series trimmers, power cutters, stump grinders, pole

saws, pole pruners, snow throwers, model series 580 & 600 walk-behind mowers, or any Husqvarna product used for

commercial, institutional, professional, municipality or income producing purposes or use except as otherwise provided herein.

Batteries: 1 year prorated limited warranty with 100% replacement during the first 6 months.

Rental Warranty: 90 days on all applicable professional equipment reference warranty time period charts

located in the back of the Retailer Warranty Policy & Procedure Manual.

Husqvarna Safety Apparel carries a 90-day warranty from the date of the customer’s original purchase for defects in

material and workmanship. Normal wear, tear or abuse is not covered under warranty. Product must be returned to Charlotte

with a warranty claim form. All care and maintenance instructions must be followed as stated by the manufacturer on the

care label. The fit of the protective apparel/boot is not covered under warranty.

30 Day Warranty: Replacement parts, accessories including bars and chains, tools and display items. Emission control

system components necessary to comply with CARB-TIER II and EPA regulations, except for those components which are

part of engine systems manufactured by third part engine manufacturers for which the purchaser has received a separate

warranty with product at time of purchase.

SECTION 2: HUSQVARNA’S OBLIGATIONS UNDER THE WARRANTY

Husqvarna will repair or replace defective components without charge for parts or labor if a component fails because of a

defect in material or workmanship during the warranty period.

SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY

The following items are not covered by this warranty:

(1) Normal customer maintenance items which become worn through normal regular use, including, but not limited to, belts,

blades, blade adapters, bulbs, clutches, clutch drums, filters, guide bars, lubricants, rewind springs, saw chain, spark plugs,

starter ropes and tines;

(2) Natural discoloration of material due to ultraviolet light;

(3) Engine and drive systems not manufactured by Husqvarna; these items are covered by the respective manufacturer’s

warranty as provided in writing with the product information supplied at the time of purchase; all claims must be sent to the

appropriate manufacturer;

(4) Lawn and garden attachments are covered by a third party which gives a warranty, all claims for warranty should be sent

to the manufacturer,

(5) Commercial or consumer mowing decks with sand abrasion damage.

(6) Emission Control System components necessary to comply with CARB-TIER II and EPA regulations which are

manufactured by third party engine manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting from the following:

(1) Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust, corrosion, or any

adverse reaction due to incorrect storage or use habits;

(2) Failure to operate or maintain the unit in accordance with the Owner’s/Operator’s manual or instruction sheet furnished

by Husqvarna;

(3) Alterations or modifications that change the intended use of the product or affects the product’s performance, operation,

safety, or durability, or causes the product to fail to comply with any applicable laws; or:

(4) Additional damage to parts or components due to continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE

PURCHASER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR

BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS EXCEPT TO THE EXTENT

PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO THE WARRANTY PERIOD AS

DEFINED IN THE LIMITED WARRANTY STATEMENT. HUSQVARNA RESERVES THE RIGHT TO CHANGE OR

IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NOTICE, AND DOES NOT ASSUME OBLIGATION TO UPDATE

PREVIOUSLY MANUFACTURED PRODUCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long an implied

warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and

you may also have other rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written in the

maintenance section of the Owner’s/Operator’s manual. Should an operational problem or failure occur, the product should

not be used, but delivered as is to an authorized Husqvarna retailer for evaluation. Proof of purchase, as explained in

section 6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION

It is the Owner’s and Retailer’s responsibility to make certain that the Warranty Registration Card is properly filled out and

mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10) days from the date of purchase

in order to confirm the warranty and to facilitate post-sale service.

Proof of purchase must be presented to the authorized Husqvarna retailer in order to obtain warranty service. This proof

must include date purchased, model number, serial number, and complete name and address of the selling retailer.

To obtain the benefit of this warranty, the product believed to be defective must be delivered to an authorized Husqvarna

retailer in a timely manner, no later than thirty (30) days from date of the operational problem or failure. The product must be

delivered at the owner’s expense. Downtime, pick-up and delivery charges are not covered by this warranty. An authorized

Husqvarna retailer can be normally located through the “Yellow Pages” of the local telephone directory or by calling 1-800-

HUSKY62 for a retailer in your area.

HUSQVARNA

7349 Statesville Road

Charlotte, NC 28269

WARRANTY STATEMENT

43

15 DEGREES MAX.

FOLD ALONG DOTTED LINE

THIS IS A 15 DEGREE SLOPE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

532 41 86-14 12.03.07 SBW Printed in the U.S.A.
