326RJ
X-SERIES
Operator’s manual
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.
![](asset-2.png)
2 –
English
KEY TO SYMBOLS

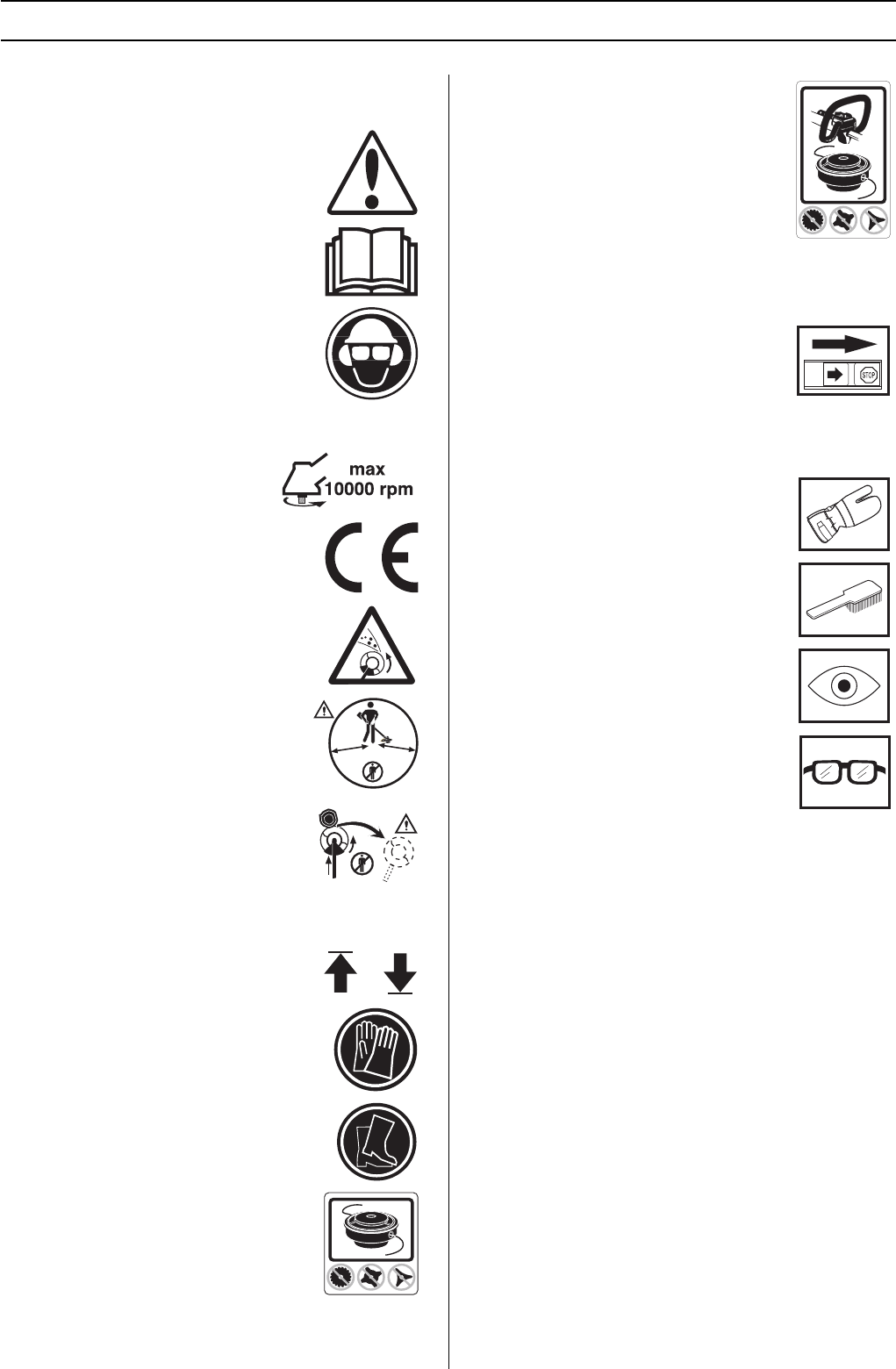

Symbols
WARNING! Clearing saws, brushcutters and
trimmers can be dangerous! Careless or
incorrect use can result in serious or fatal
injury to the operator or others.
Please read the operator’s manual carefully
and make sure you understand the
instructions before using the machine.
Always wear:
• A protective helmet where there is a risk
of falling objects
• Hearing protection
• Approved eye protection
Max. speed of output shaft, rpm
This product is in accordance with
applicable CE directives.
Watch out for thrown objects and ricochets.
The operator of the machine must ensure,
while working, that no persons or animals
come closer than 15 metres.
Machines fitted with saw blades or grass
blades can be thrown violently to the side
when the blade comes into contact with a
fixed object. The blade is capable of
amputating an arm or leg. Always keep
people and animals at least 15 metres from
the machine.
Arrows which show limits for handle
positioning.
Always wear approved protective gloves.
Wear sturdy, non-slip boots.
Only use non-metallic, flexible cutting
attachments, i.e. trimmer heads with trimmer
cord.
Only intended for trimmer heads.
Other symbols/decals on the machine
refer to special certification requirements for certain
markets.
The engine is switched off by moving the
stop switch to the stop position. CAUTION!
The stop switch automatically returns to the
start position. In order to prevent
unintentional starting, the spark plug cap
must be removed from the spark plug when assembling,
checking and/or performing maintenance.
Always wear approved protective gloves.
Regular cleaning is required.
Visual check.
Approved eye protection must always be
used.
50FT
15 m
50FT
15 m
![](asset-3.png)
English
– 3
CONTENTS
Contents Note the following before starting:
Husqvarna AB has a policy of continuous product
development and therefore reserves the right to modify the
design and appearance of products without prior notice.
Long-term exposure to noise can result in permanent hearing
impairment. So always use approved hearing protection.
Maintenance, replacement, or repair of the emission control
devices and system may be performed by any nonroad
engine repair establishment or individual.
This engine label certifies that the product is certified in
accordance with American exhaust emissions requirements
EPA Ph II and CARB Tier II. The Emissions Compliance
Period referred to on th emissions Compliance label indicates
th number of operating hours for which the engine has been
shown to meet Federal and California emisson requirements.
Category C = 50 hours, B = 125 hours, and A = 300 hours.
For customer assistance call: 704-921-7000 or contact us at
our website: www.husqvarna.com
KEY TO SYMBOLS
Symbols ....................................................................... 2
CONTENTS
Contents ...................................................................... 3
Note the following before starting: ................................ 3
INTRODUCTION
Dear customer! ............................................................ 4
WHAT IS WHAT?
What is what on the trimmer? ...................................... 5
GENERAL SAFETY PRECAUTIONS
Important ...................................................................... 6
Personal protective equipment ..................................... 6
Machine
′
s safety equipment ........................................ 6
Cutting equipment ........................................................ 9
ASSEMBLY
Fitting the J-handle ..................................................... 11
Fitting blades and trimmer heads ................................. 11
Fitting a trimmer guard and Superauto II 1" trimmer
head ............................................................................. 11
Fitting the blade guard/combination guard, grass blade
and grass cutter ........................................................... 12
Fitting other guards and cutting attachments ............... 12
FUEL HANDLING
Fuel safety ................................................................... 13
Fuel .............................................................................. 13
Fueling ......................................................................... 14
STARTING AND STOPPING
Check before starting ................................................... 15
Starting and stopping ................................................... 15
WORKING TECHNIQUES
General working instructions ....................................... 17
MAINTENANCE
Carburetor .................................................................... 20
Muffler .......................................................................... 21
Cooling system ............................................................ 22
Spark plug .................................................................... 22
Air filter ......................................................................... 22
Bevel gear .................................................................... 23
Maintenance schedule ................................................. 24
TECHNICAL DATA
Technical data .............................................................. 25
FEDERAL EMISSION CONTROL WARRANTY
STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS ..... 26
!
WARNING! Under no circumstances may the
design of the machine be modified without
the permission of the manufacturer. Always
use genuine accessories. Non-authorized
modifications and/or accessories can result
in serious personal injury or the death of the
operator or others.
Your warranty may not cover damage or
liability caused by the use of non-authorized
accessories or replacement parts.
!
WARNING! A clearing saw, brushcutter or
trimmer can be dangerous if used
incorrectly or carelessly, and can cause
serious or fatal injury to the operator or
others. It is extremely important that you
read and understand the contents of this
operator’s manual.
![](asset-4.png)
4 –
English
INTRODUCTION
Dear customer!
Congratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the
Swedish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production of muskets. The
location was logical, since water power was harnessed from the Huskvarna River to create the water-powered plant. During over
300 years of continuous operation, the Husqvarna factory has produced a lot of different products, from wood stoves to modern
kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor driven lawn mowers appeared, followed
by chain saws in 1959, and it is within this area Husqvarna is working today.
Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest priority.
We develop, manufacture and market high quality motor driven products for forestry and gardening as well as for building and
construction industry.
Your purchase gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who
sells your machine is not one of our authorized dealers, ask for the address of your nearest servicing dealer.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this operator
′
s
manual as a valuable document. By following its
′
content (using, service, maintenance etc) the life span and the second-hand value
of the machine can be extended. If you ever lend or sell this machine, make sure that the borrower or buyer gets the operator
′
s
manual, so they will also know how to properly maintain and use it.
Thank you for using a Husqvarna product.
Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.
For customer assistance call: 704-921-7000 or contact us at our website: www.husqvarna.com
![](asset-5.png)
English
– 5
WHAT IS WHAT?

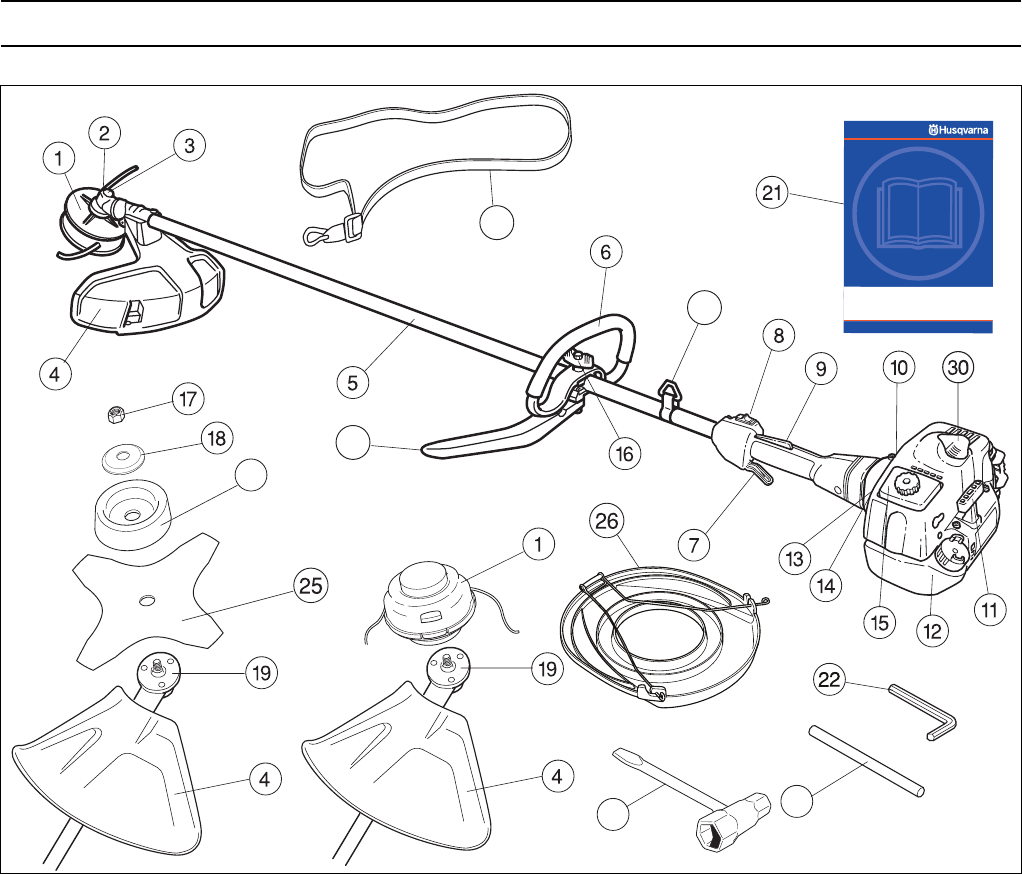

What is what on the trimmer?
28
29
27
23
20
24
1 Trimmer head
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Loop handle
7 Throttle control
8 Stop switch
9 Throttle lock
10 Cylinder cover
11 Starter handle
12 Fuel tank
13 Choke control
14 Air purge
15 Air filter cover
16 Handle adjustment
17 Locking nut
18 Support flange
19 Drive disc
20 Socket spanner
21 Operator’s manual
22 Allen key
23 Locking pin
24 Support cup
25 Blade
26 Transport guard
27 J-handle
28 Support eyes for harness
29 Harness
30 Spark plug cap and spark plug
![](asset-6.png)
6 –
English
GENERAL SAFETY PRECAUTIONS
Important

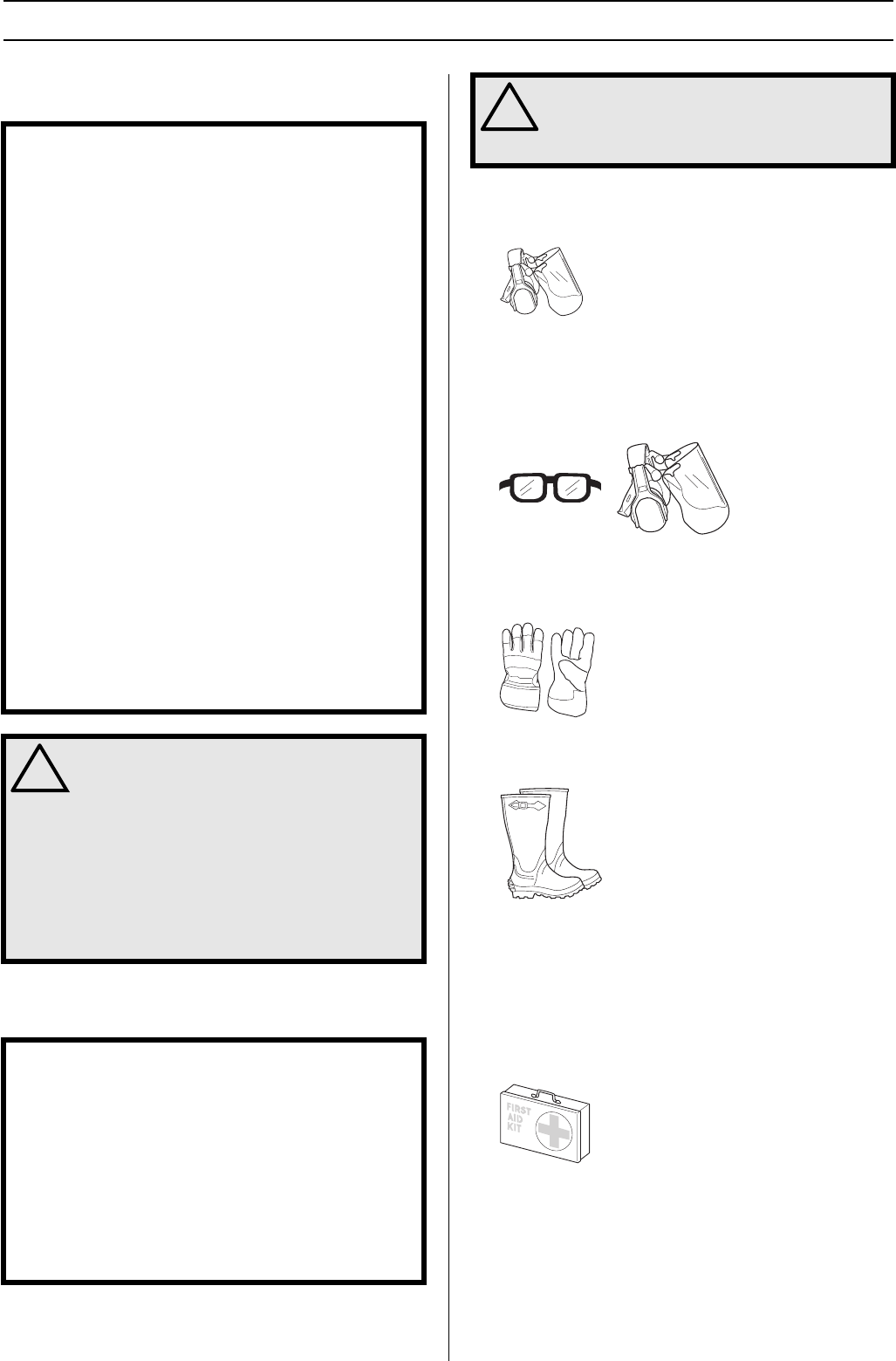

Personal protective equipment
HEARING PROTECTION
Wear hearing protection that provides adequate noise
reduction.
EYE PROTECTION
Always wear approved eye protection. If you use a visor then
you must also wear approved protective goggles. Approved
protective goggles must comply with standard ANSI Z87.1 in
the USA or EN 166 in EU countries.
GLOVES
Gloves should be worn when necessary, e.g., when fitting
cutting attachments.
BOOTS
Wear sturdy, non-slip boots.
CLOTHING
Wear clothes made of a strong fabric and avoid loose clothing
that can catch on twigs and branches. Always wear heavy,
long pants. Do not wear jewellery, shorts sandals or go
barefoot. Secure hair so it is above shoulder level.
FIRST AID KIT
Always have a first aid kit nearby.
Machine
′′′′
s safety equipment
This section describes the machine
′
s safety equipment, its
purpose, and how checks and maintenance should be carried
out to ensure that it operates correctly. See the ”What is
what?” section to locate where this equipment is positioned
on your machine.
IMPORTANT!
The machine is only designed for trimming grass, grass
clearing and/or forestry clearing.
The only accessories you can operate with this engine unit
are the cutting attachments we recommend in the chapter
on Technical data.
Never use the machine if you are tired, if you have drunk
alcohol, or if you are taking medication that could affect your
vision, your judgement or your co-ordination.
Wear personal protective equipment. See instructions
under the heading Personal protective equipment.
Never use a machine that has been modified in any way
from its original specification.
Never use a machine that is faulty. Carry out the checks,
maintenance and service instructions described in this
manual. Some maintenance and service measures must be
carried out by trained and qualified specialists. See
instructions under the heading Maintenance.
All covers and guards must be fitted before starting. Make
sure the spark plug cap and HT lead are not damaged.
Otherwise you could get an electric shock.
The machine operator must ensure that no people or
animals come closer than 15 metres while working. When
several operators are working in the same area the safety
distance should be at least twice the tree height and no less
than 15 metres.
!
WARNING! Never allow children to use or be
in the vicinity of the machine. As the
machine is equipped with a spring-loaded
stop switch and can be started by low speed
and force on the starter handle, even small
children under some circumstances can
produce the force necessary to start the
machine. This can mean a risk of serious
personal injury. Therefore remove the spark
plug cap when the machine is not under
close supervision.
IMPORTANT!
A clearing saw, brushcutter or trimmer can be dangerous if
used incorrectly or carelessly, and can cause serious or
fatal injury to the operator or others. It is extremely
important that you read and understand the contents of this
operator’s manual.
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen. Ask
your dealer for help in choosing the right equipment.
!
WARNING! Listen out for warning signals or
shouts when you are wearing hearing
protection. Always remove your hearing
protection as soon as the engine stops.
![](asset-7.png)
English
– 7
GENERAL SAFETY PRECAUTIONS
The life span of the machine can be reduced and the risk of
accidents can increase if machine maintenance is not carried
out correctly and if service and/or repairs are not carried out
professionally. If you need further information please contact
your nearest servicing dealer.

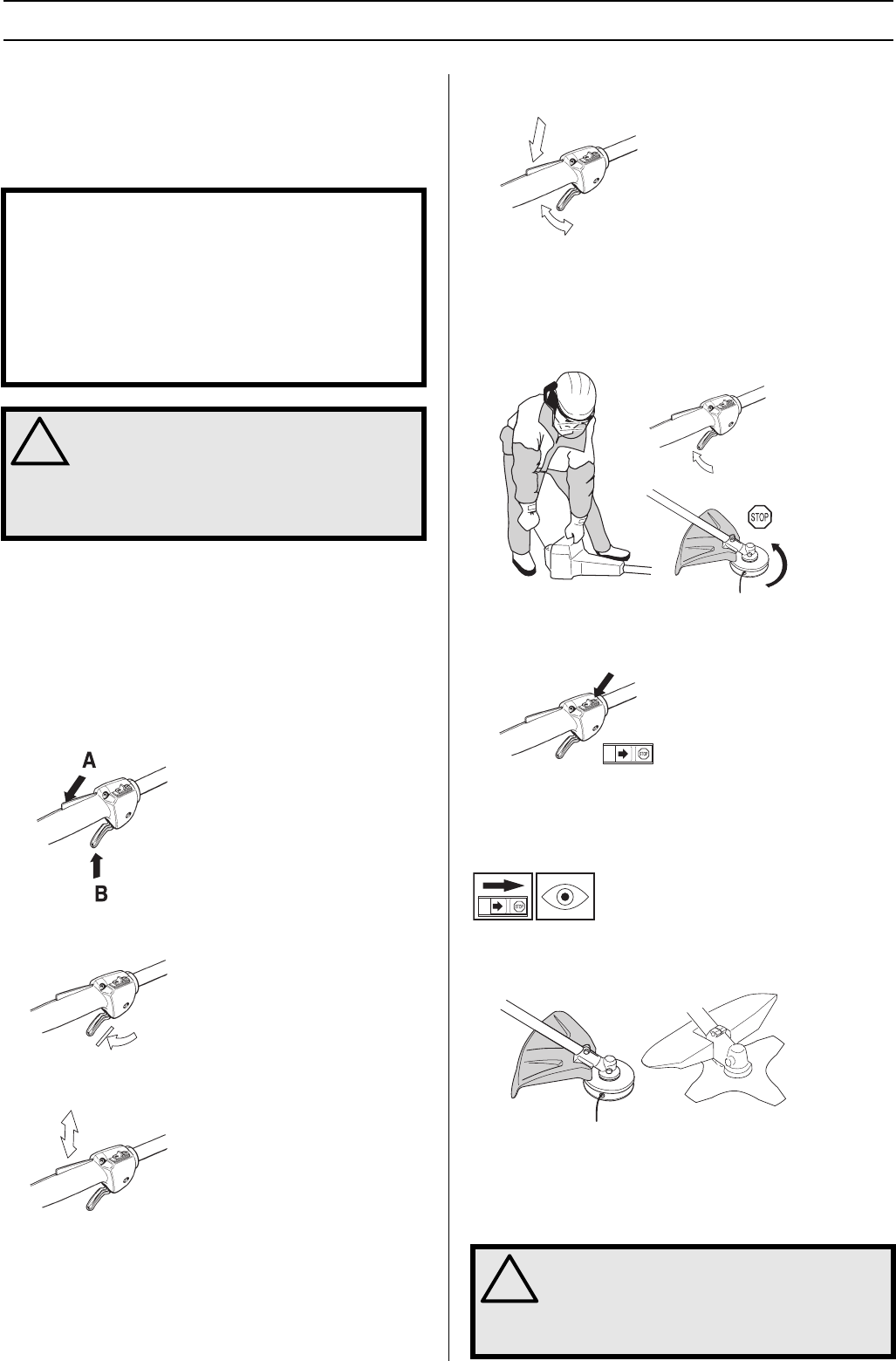

Throttle lock
The throttle lock is designed to prevent accidental operation
of the throttle control. When you press the lock (A) (i.e. when
you grasp the handle) it releases the throttle control (B).
When you release the handle the throttle control and the
throttle lock both move back to their original positions. This
movement is controlled by two independent return springs.
This arrangement means that the throttle control is
automatically locked at the idle setting.
Make sure the throttle control is locked at the idle setting
when the throttle lock is released.
Press the throttle lock and make sure it returns to its original
position when you release it.
Check that the throttle control and throttle lock move freely
and that the return springs work properly.
See instructions under the heading Start. Start the machine
and apply full throttle. Release the throttle and check that the
cutting attachment stops and remains at a standstill. If the
cutting attachment rotates with the throttle in the idle position
then the carburettor idle setting must be checked. See
instructions under the heading Maintenance.
Stop switch
Use the stop switch to switch off the engine.
Start the engine and make sure the engine stops when you
move the stop switch to the stop setting.
Cutting attachment guard
This guard is intended to prevent loose objects from being
thrown towards the operator. The guard also protects the
operator from accidental contact with the cutting attachment.
Check that the guard is undamaged and not cracked. Replace
the guard if it has been exposed to impact or is cracked.
Always use the recommended guard for the cutting
attachment you are using. See chapter on Technical data.
IMPORTANT!
All servicing and repair work on the machine requires
special training. This is especially true of the machine
′
s
safety equipment. If your machine fails any of the checks
described below you must contact your service agent.
When you buy any of our products we guarantee the
availability of professional repairs and service. If the retailer
who sells your machine is not a servicing dealer, ask him for
the address of your nearest service agent.
!
WARNING! Never use a machine with faulty
safety equipment. The machine’s safety
equipment must be checked and maintained
as described in this section. If your machine
fails any of these checks contact your
service agent to get it repaired.
!
WARNING! Never use a cutting attachment
without an approved guard. See the chapter
on Technical data. If an incorrect or faulty
guard is fitted this can cause serious
personal injury.
![](asset-8.png)
8 –
English
GENERAL SAFETY PRECAUTIONS

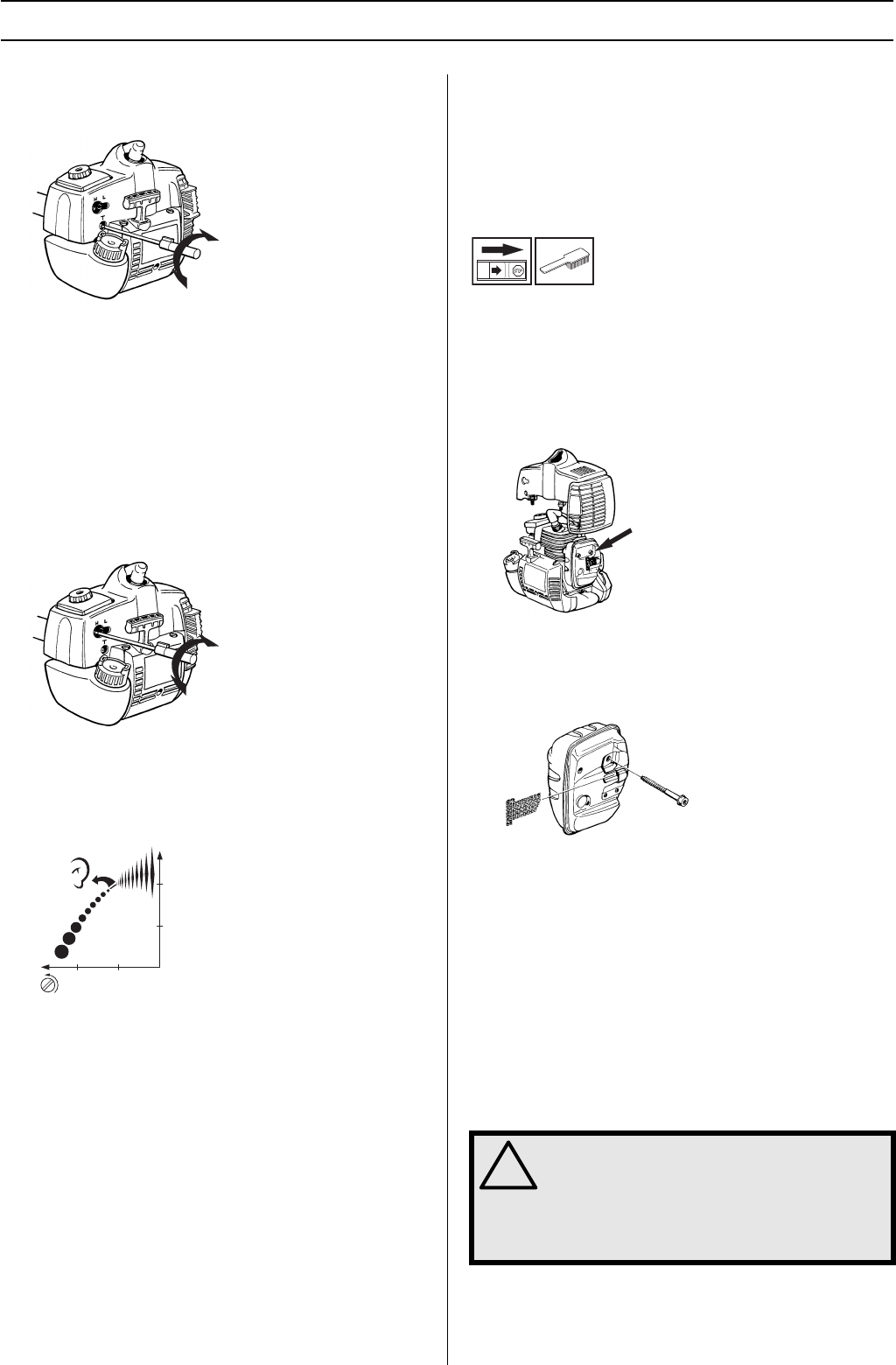

Vibration damping system
Your machine is equipped with a vibration damping system
that is designed to reduce vibration and make operation
easier.
Use of incorrectly wound cord or an incorrect cutting
attachment increases the level of vibration. See instructions
under the heading Cutting equipment.
The machine
′
s vibration damping system reduces the transfer
of vibration between the engine unit/cutting equipment and
the machine
′
s handle unit.
Regularly check the vibration damping units for cracks or
deformation.
Check that the vibration damping element is undamaged and
securely attached.

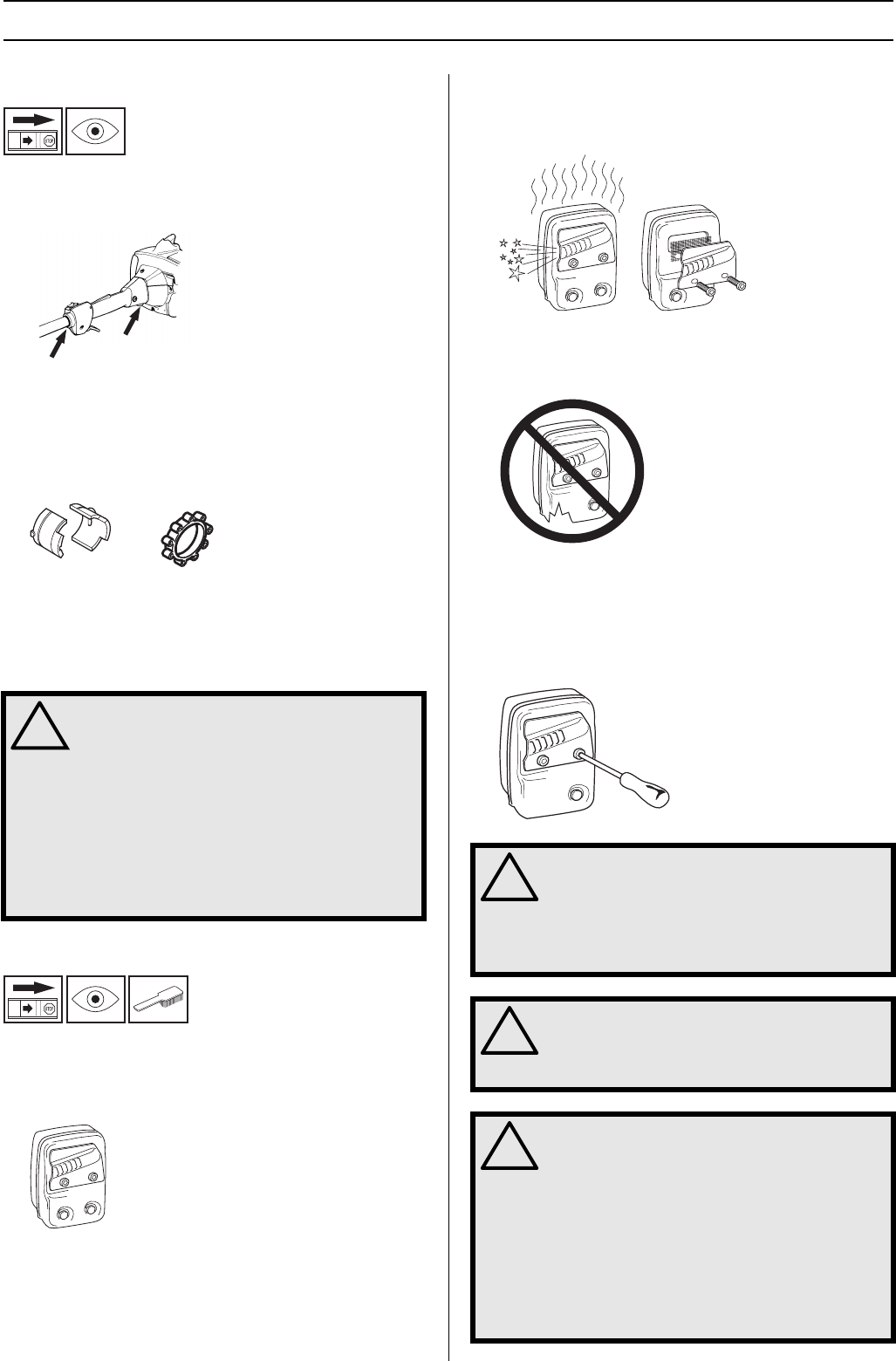

Muffler
The muffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user.
A muffler fitted with a catalytic converter is also designed to
reduce harmful exhaust gases.
In countries that have a warm and dry climate there is a
significant risk of fire. We therefore fit certain mufflers with a
spark arrestor mesh. Check whether the muffler on your
machine is fitted with this kind of mesh.
For mufflers it is very important that you follow the instructions
on checking, maintaining and servicing your machine.
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to the
machine.
If the muffler on your machine is fitted with a spark arrestor
mesh this must be cleaned regularly. A blocked mesh will
cause the engine to overheat and may lead to serious
damage.
!
WARNING! Overexposure to vibration can
lead to circulatory damage or nerve damage
in people who have impaired circulation.
Contact your doctor if you experience
symptoms of overexposure to vibration.
Such symptoms include numbness, loss of
feeling, tingling, pricking, pain, loss of
strength, changes in skin colour or
condition. These symptoms normally appear
in the fingers, hands or wrists. The risk
increases at low temperatures.
!
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
remain so for some time after stopping. This
also applies at idle speed. Contact can result
in burns to the skin. Remember the risk of
fire!
!
WARNING! The inside of the muffler contain
chemicals that may be carcinogenic. Avoid
contact with these elements in the event of a
damaged muffler.
!
WARNING! Bear in mind that:
Engine exhaust fumes contain carbon
monoxide, which can cause carbon
monoxide poisoning. For this reason you
should not start or run the machine indoors,
or anywhere that is poorly ventilated.
The exhaust fumes from the engine are hot
and may contain sparks which can start a
fire. Never start the machine indoors or near
combustible material!
![](asset-9.png)
English
– 9
GENERAL SAFETY PRECAUTIONS

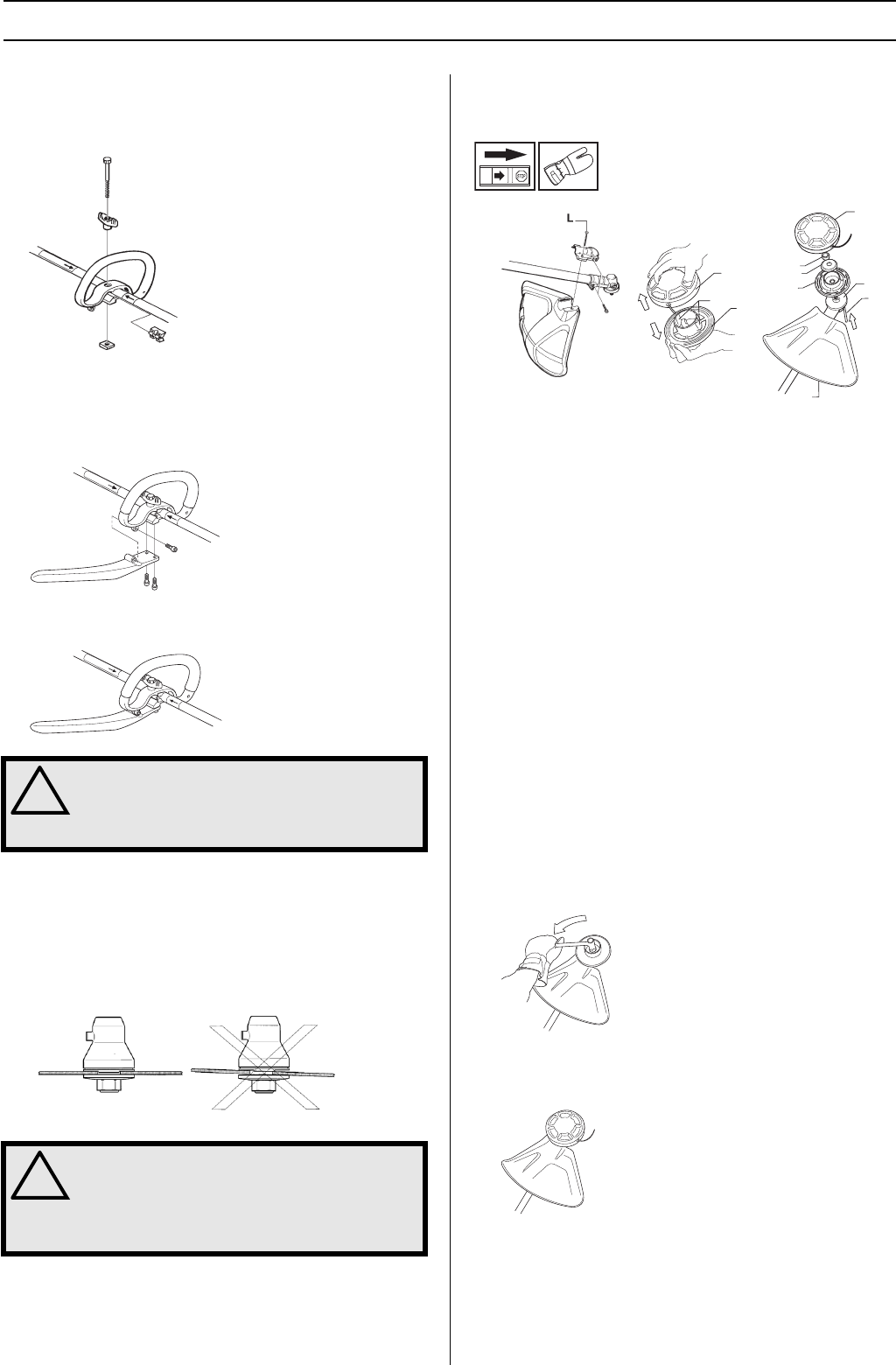

Locking nut
A locking nut is used to secure some types of cutting
attachment.
When fitting, tighten the nut in the opposite direction to the
direction of rotation of the cutting attachment. To remove it,
undo the nut in the same direction as the cutting attachment
rotates. (CAUTION! The nut has a left-hand thread.)
When loosening and tightening the saw blade nut, there is a
risk of injury from the teeth of the saw blade. You should
therefore always ensure that your hand is shielded by the
blade guard when doing this. Always use a socket spanner
with a shaft that is long enough to allow this. The arrow in the
diagram shows the area where you should operate the socket
spanner when loosening or tightening the nut.
The nylon lining inside the locking nut must not be so worn
that you can turn it by hand. The lining should offer a
resistance of at least 1.5 Nm. The nut should be replaced
after it has been put on approx. 10 times.
Cutting equipment
This section describes how to choose and maintain your
cutting equipment in order to:
• Reduce the risk of blade thrust.
• Obtain maximum cutting performance.
• Extend the life of cutting equipment.
Cutting equipment
Grass blades and grass cutters are intended for cutting
coarse grass.
A trimmer head is intended for trimming grass.
General rules
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.
Keep the teeth of the blade correctly sharpened! Follow our
instructions and use the recommended file gauge. An
incorrectly sharpened or damaged blade increases the risk of
accidents.
Check the cutting attachment for damage or cracks. A
damaged cutting attachment should always be replaced.
IMPORTANT!
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.
Refer to the instructions for the cutting attachment to check
the correct way to load the cord and the correct cord
diameter.
Keep the teeth of the blade correctly sharpened! Follow our
recommendations. Also refer to the instructions on the
blade packaging.
!
WARNING! Always stop the engine before
doing any work on the cutting attachment.
This continues to rotate even after the
throttle has been released. Ensure that the
cutting attachment has stopped completely
and disconnect the HT lead from the spark
plug before you start to work on it.
!
WARNING! Using an incorrect cutting
attachment or an incorrectly sharpened
blade increases the risk of kickback.
![](asset-a.png)
10 –
English
GENERAL SAFETY PRECAUTIONS

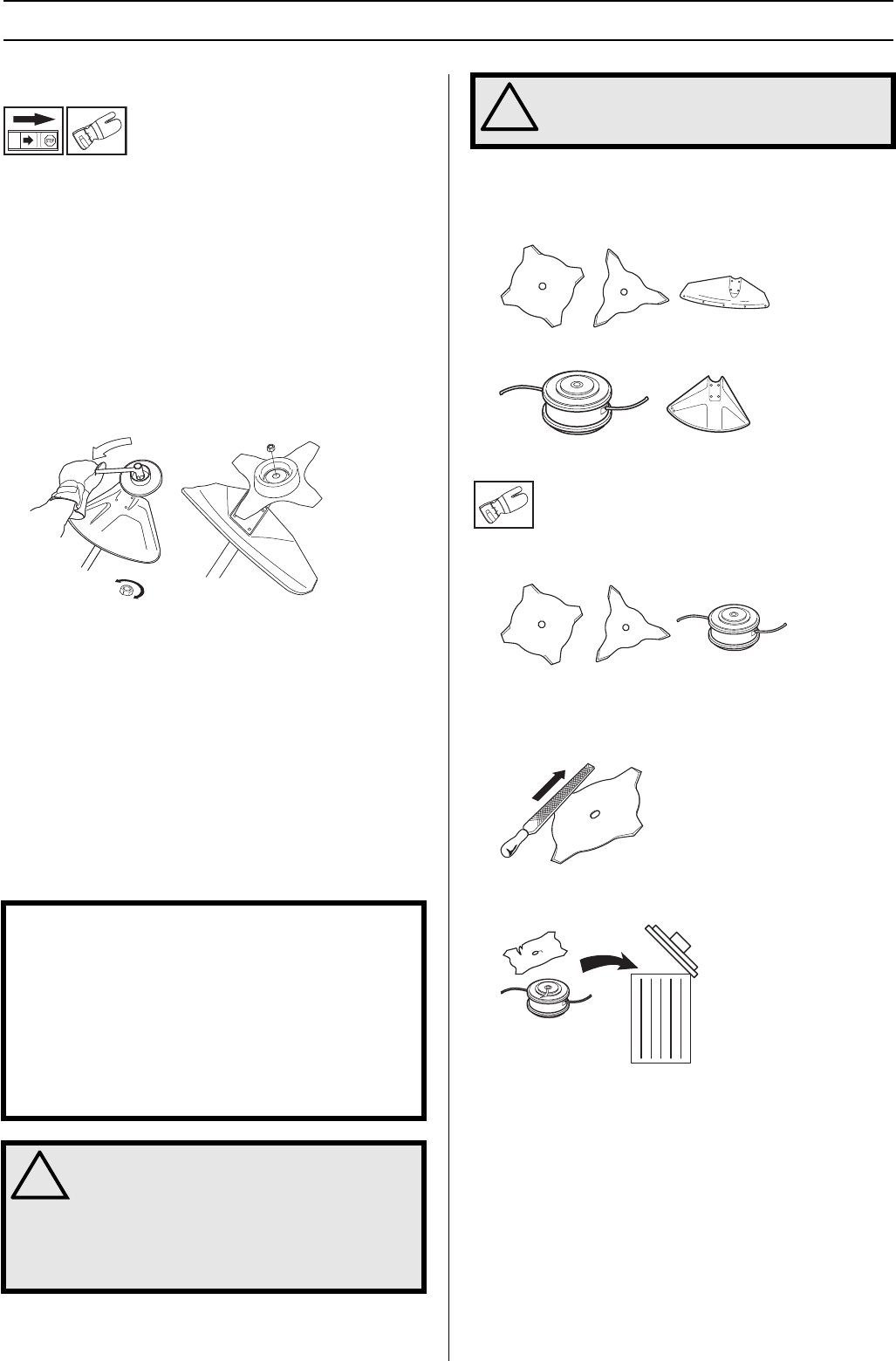

Sharpening grass cutters and grass
blades
• See the cutting attachment packaging for correct
sharpening instructions. Sharpen blades and cutters
using a single-cut flat file.
• Sharpen all edges equally to maintain the balance of the
blade.
Trimmer head
• Only use the recommended trimmer heads and trimmer
cords. These have been tested by the manufacturer to suit
a particular engine size. This is especially important when
a fully automatic trimmer head is used. Only use the
recommended cutting attachment. See the chapter on
Technical data.
• Smaller machines generally require small trimmer heads
and vice versa. This is because when clearing using a
cord the engine must throw out the cord radially from the
trimmer head and overcome the resistance of the grass
being cleared.
• The length of the cord is also important. A longer cord
requires greater engine power than a shorter cord of the
same diameter.
• Make sure that the cutter on the trimmer guard is intact.
This is used to cut the cord to the correct length.
• To increase the life of the cord it can be soaked in water
for a couple of days. This will make the line tougher so that
it lasts longer.
!
WARNING! Always discard a blade that is
bent, twisted, cracked, broken or damaged
in any other way. Never attempt to straighten
a twisted blade so that it can be reused. Only
use original blades of the specified type.
IMPORTANT!
Always ensure the trimmer cord is wound tightly and evenly
around the drum, otherwise the machine will generate
harmful vibration.
![](asset-b.png)
English
– 11
ASSEMBLY
Fitting the J-handle
• Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
• Slide the spacer into the slot in the loop handle.
• Fit the nut, knob and screw. Do not overtighten.
• Attach the J-handle to the loop handle using the three
screws, as shown.
• Now adjust the trimmer to give a comfortable working
position. Tighten the bolt/knob.
Fitting blades and trimmer heads
When fitting the cutting attachment it is extremely important
that the raised section on the drive disc/support flange
engages correctly in the centre hole of the cutting attachment.
If the cutting attachment is fitted incorrectly it can result in
serious and/or fatal personal injury.
Fitting a trimmer guard and
Superauto II 1" trimmer head
• Fit the correct trimmer guard (A) for use with the trimmer
head. Hook the guard onto the fitting on the shaft and
secure it with the bolt (L).
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
•To fit the trimmer head, first separate the two halves (see
diagram). Proceed as follows:
• Insert a finger into the centre hole of the cover (I) while
grasping the cover with your other fingers. Using the index
finger and thumb of your other hand, release the two
catches (J) that engage in the cut-outs in the bottom half
(K). Pull apart the trimmer head, grasping the cover firmly.
• Place the cover (I) and the support flange (F) on the
output shaft.
• Fit the nut (G). The nut must be tightened to a torque of
35-50 Nm (3.5-5 kpm). Use the socket spanner in the tool
kit. Hold the shaft of the spanner as close to the blade
guard as possible. To tighten the nut, turn the spanner in
the opposite direction to the direction of rotation (Caution!
left-hand thread).
• Fit the bottom half of the trimmer head (K) to the cover (I)
by pressing them together, with the cut-outs on the bottom
half aligned with the catches on the cover.
• To dismantle, follow the instructions in the reverse order.
!
WARNING! Only grass blades/grass cutters
or trimmer heads/plastic blades may be used
when the J-handle is fitted. Saw blades must
never be used with the J-handle.
!
WARNING! Never use a cutting attachment
without an approved guard. See the chapter
on Technical data. If an incorrect or faulty
guard is fitted this can cause serious
personal injury.
G
F
I
A
B
C
K
JI
K
![](asset-c.png)
12 –
English
ASSEMBLY
Fitting the blade guard/combination
guard, grass blade and grass cutter
• Hook the blade guard/combination guard (A) onto the
fitting on the shaft and secure with the bolt.
CAUTION!
Use the recommended blade guard. See the Technical
data section.
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Place the blade (D), support cup (E) and support flange
(F) on the output shaft.
• Fit the nut (G). The nut must be tightened to a torque of
35-50 Nm (3.5-5 kpm). Use the socket spanner in the tool
kit. Hold the shaft of the spanner as close to the blade
guard as possible. To tighten the nut, turn the spanner in
the opposite direction to the direction of rotation (Caution!
left-hand thread).
Fitting other guards and cutting
attachments
• Fit the correct trimmer guard (A) for use with the trimmer
head. Hook the trimmer guard/combination guard onto
the fitting on the shaft and secure with the bolt (L).
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
• To dismantle, follow the instructions in the reverse order.
G
F
D
B
C
A
E
H
H
![](asset-d.png)
English
– 13

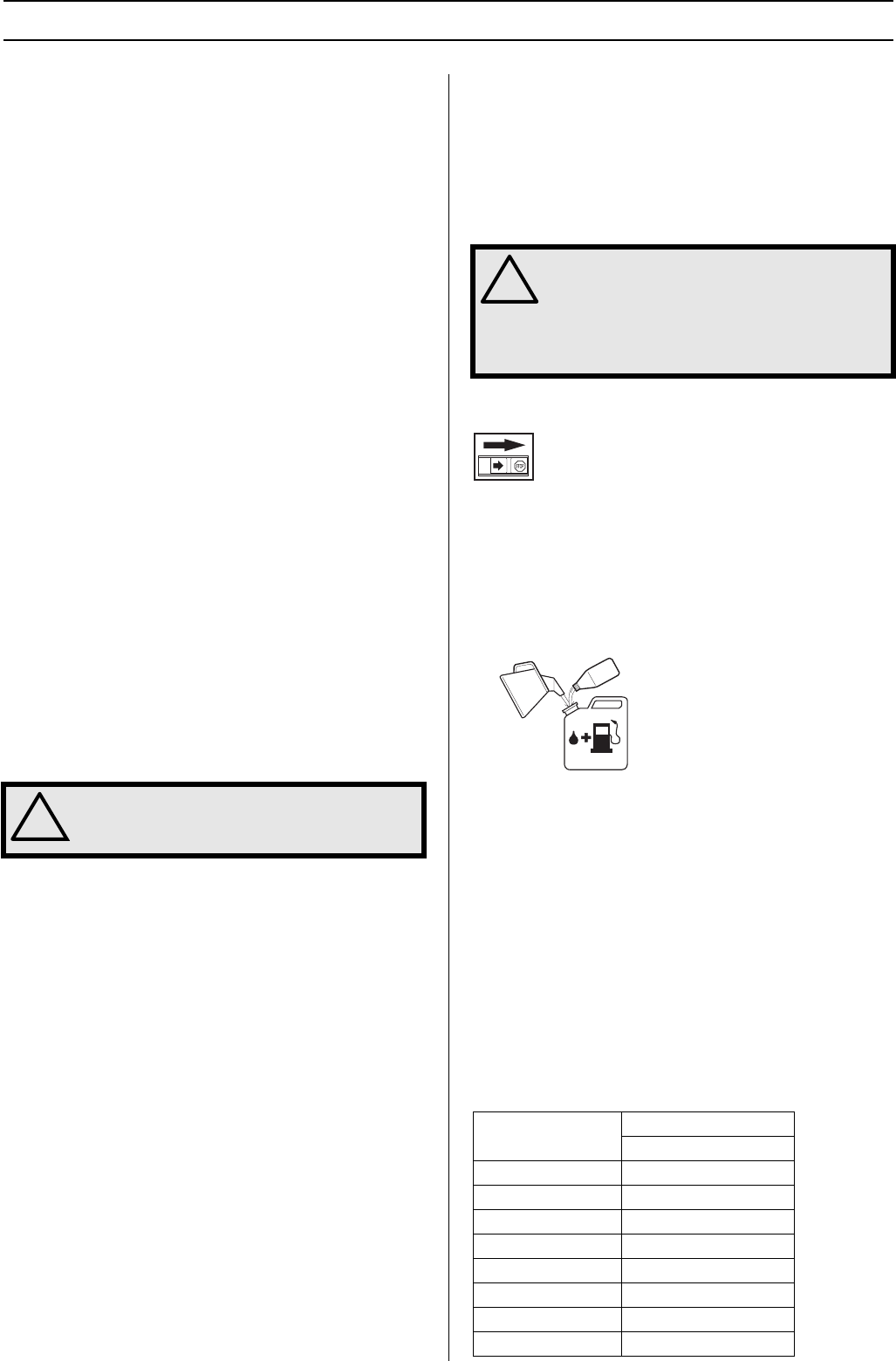

FUEL HANDLING
Fuel safety
Never start the machine:
1 If you have spilt fuel on it. Wipe off the spillage and allow
remaining fuel to evaporate.
2 If you have spilt fuel on yourself or your clothes, change
your clothes. Wash any part of your body that has come in
contact with fuel. Use soap and water.
3 If the machine is leaking fuel. Check regularly for leaks
from the fuel cap and fuel lines.
Transport and storage
• Store and transport the machine and fuel so that there is
no risk of any leakage or fumes coming into contact with
sparks or naked flames, for example, from electrical
machinery, electric motors, electrical relays/switches or
boilers.
• When storing and transporting fuel always use approved
containers intended for this purpose.
• When storing the machine for long periods the fuel tank
must be emptied. Contact your local gas station to find out
where to dispose of excess fuel.
• Ensure the machine is cleaned and that a complete
service is carried out before long-term storage.
• The transport guard must always be fitted to the cutting
attachment when the machine is being transported or in
storage.
• In order to prevent unintentional starting of the engine, the
spark plug cap must always be removed during long-term
storage, if the machine is not under close supervision and
when performing all service measures.
Fuel
CAUTION! The machine is equipped with a two-stroke engine
and must always been run using a mixture of gasoline and
two-stroke engine oil. It is important to accurately measure
the amount of oil to be mixed to ensure that the correct
mixture is obtained. When mixing small amounts of fuel, even
small inaccuracies can drastically affect the ratio of the
mixture.
Gasoline
CAUTION! Always use high grade unleaded oil mixed
gasoline (minimum 87 RON). If your machine is equipped with
a catalytic converter (see chapter on Technical data) always
use a good quality unleaded petrol/oil mixture. Leaded petrol
will destroy the catalytic converter and it will no longer serve
its purpose.
Use low-emission gasoline, also known as alkylate gasoline,
if it is available.
This engine is certified to operate on unleaded gasoline.
• The lowest octane recommended is 87. If you run the
engine on a lower octane than 87 it can result in knocking.
This gives rise to a high engine temperature, which can
result in serious engine damage.
• When working at continuous high revs a higher octane
rating is recommended.
Two-stroke oil
• For best results and performance use HUSQVARNA two-
stroke oil, which is specially formulated for our two-stroke
engines. Mixture 1:50 (2%).
• Never use two-stroke oil intended for water-cooled
outboard engines, sometimes referred to as outboard oil.
• Never use oil intended for four-stroke engines.
!
WARNING! Take care when handling fuel.
Bear in mind the risk of fire, explosion and
inhaling fumes.
!
WARNING! Fuel and fuel fumes are highly
inflammable and can cause serious injury
when inhaled or allowed to come in contact
with the skin. For this reason observe
caution when handling fuel and make sure
there is adequate ventilation.
Gasoline, litre Two-stroke oil, litre
2% (1:50)
5 0,10
10 0,43/0,20
15 0,30
20 0,40
US gallon US fl. oz.
1 2 1/2
2 1/2 6 1/2
5 12 7/8
![](asset-e.png)
14 – English

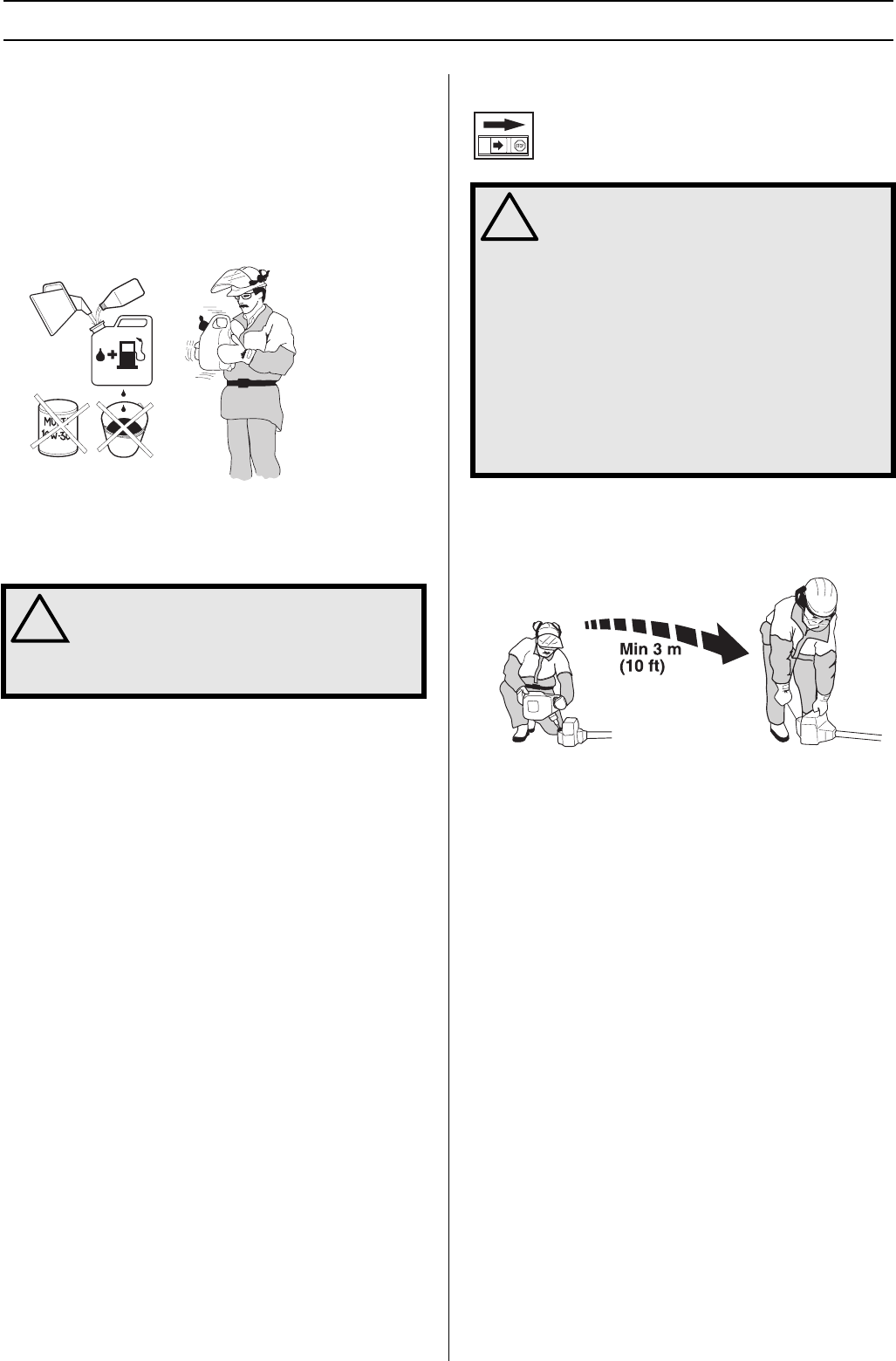

FUEL HANDLING
Mixing
• Always mix the gasoline and oil in a clean container
intended for fuel.
• Always start by filling half the amount of the gasoline to be
used. Then add the entire amount of oil. Mix (shake) the
fuel mixture. Add the remaining amount of gasoline.
• Mix (shake) the fuel mixture thoroughly before filling the
machine’s fuel tank.
• Do not mix more than one month’s supply of fuel at a time.
• If the machine is not used for some time the fuel tank
should be emptied and cleaned.
Fueling
• Clean the area around the fuel cap. Contamination in the
tank can cause operating problems.
• Ensure that the fuel is well mixed by shaking the container
before filling the tank.
!
WARNING! The catalytic converter muffler
gets very hot during and after use. This also
applies during idling. Be aware of the fire
hazard, especially when working near
flammable substances and/or vapours.
!
WARNING! Taking the following precautions,
will lessen the risk of fire:
Do not smoke or place hot objects near fuel.
Always shut off the engine before refuelling.
Always stop the engine and let it cool for a
few minutes before refuelling.
When refuelling, open the fuel cap slowly so
that any excess pressure is released gently.
Tighten the fuel cap carefully after refuelling.
Always move the machine away from the
refuelling area before starting.
![](asset-f.png)
English – 15

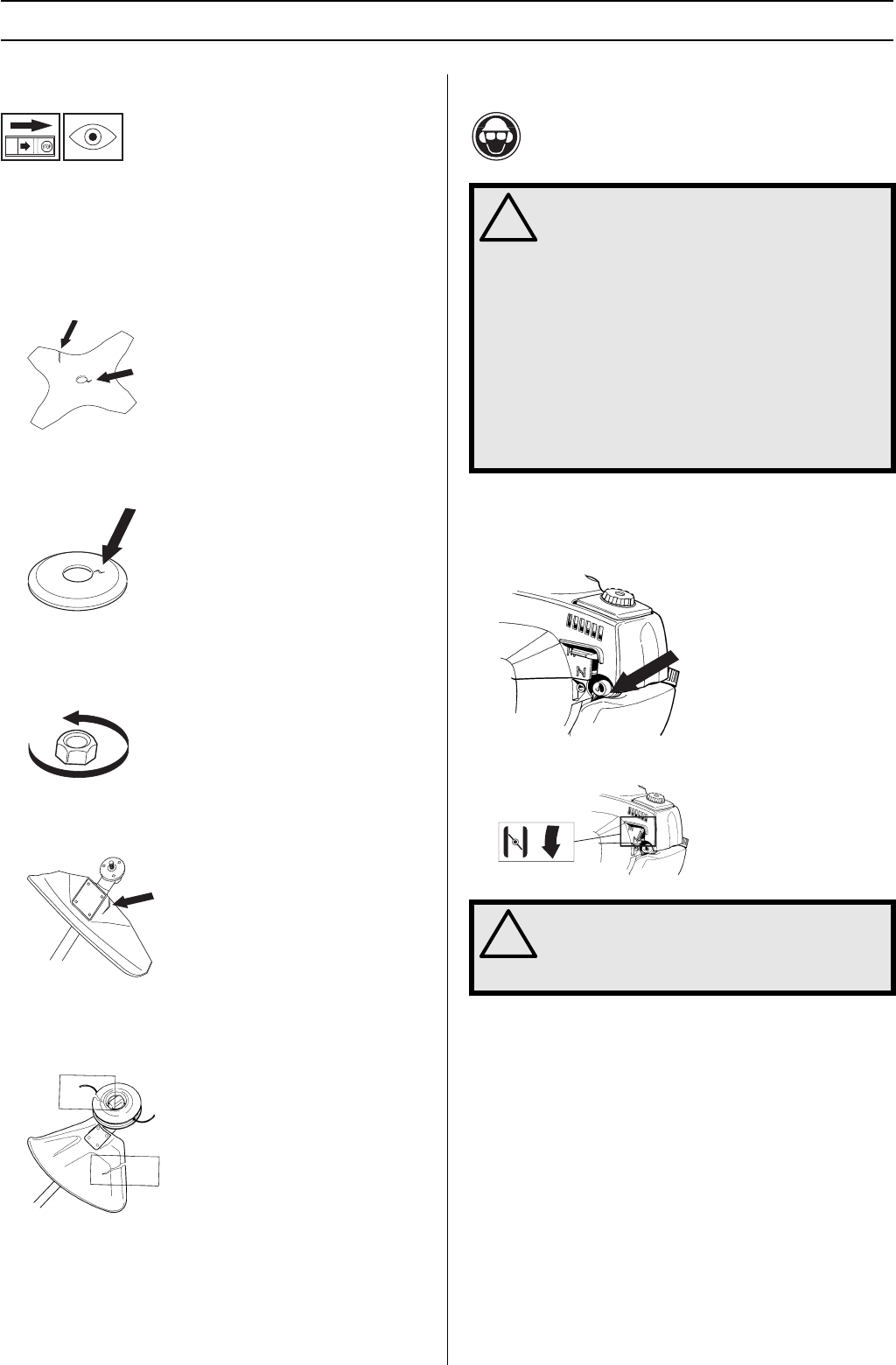

STARTING AND STOPPING
Check before starting
For safety reasons follow these recommendations!
• Check the blade to ensure that no cracks have formed at
the bottom of the teeth or by the centre hole. The most
common reason why cracks are formed is that sharp
corners have been formed at the bottom of the teeth while
sharpening or that the blade has been used with dull
teeth. Discard a blade if cracks are found.
• Check that the support flange is not cracked due to fatigue
or due to being tightened too much. Discard the support
flange if it is cracked.
• Ensure the locking nut has not lost its captive force. The
nut lock should have a locking force of at least 1.5 Nm.
The tightening torque of the locking nut should be 35-50
Nm.
• Check that the blade guard is not damaged or cracked.
Replace the blade guard if it is exposed to impact or is
cracked.
• Check that the trimmer head and trimmer guard are not
damaged or cracked. Replace the trimmer head or
trimmer guard if they have been exposed to impact or are
cracked.
• Never use the machine without a guard nor with a
defective guard.
Starting and stopping
Starting
Primer bulb: Press the primer bulb repeatedly until fuel
begins to fill the bulb. The bulb need not be completely filled.
Choke: Set the choke control in the choke position.
Hold the body of the machine on the ground using your left
hand (CAUTION! Not with your foot!). Grip the starter handle,
slowly pull out the cord with your right hand until you feel
some resistance (the starter pawls grip), now quickly and
powerfully pull the cord. Never wrap the starter cord around
your hand
!
WARNING! The complete clutch cover and
shaft must be fitted before the machine is
started, otherwise the clutch can come loose
and cause personal injury.

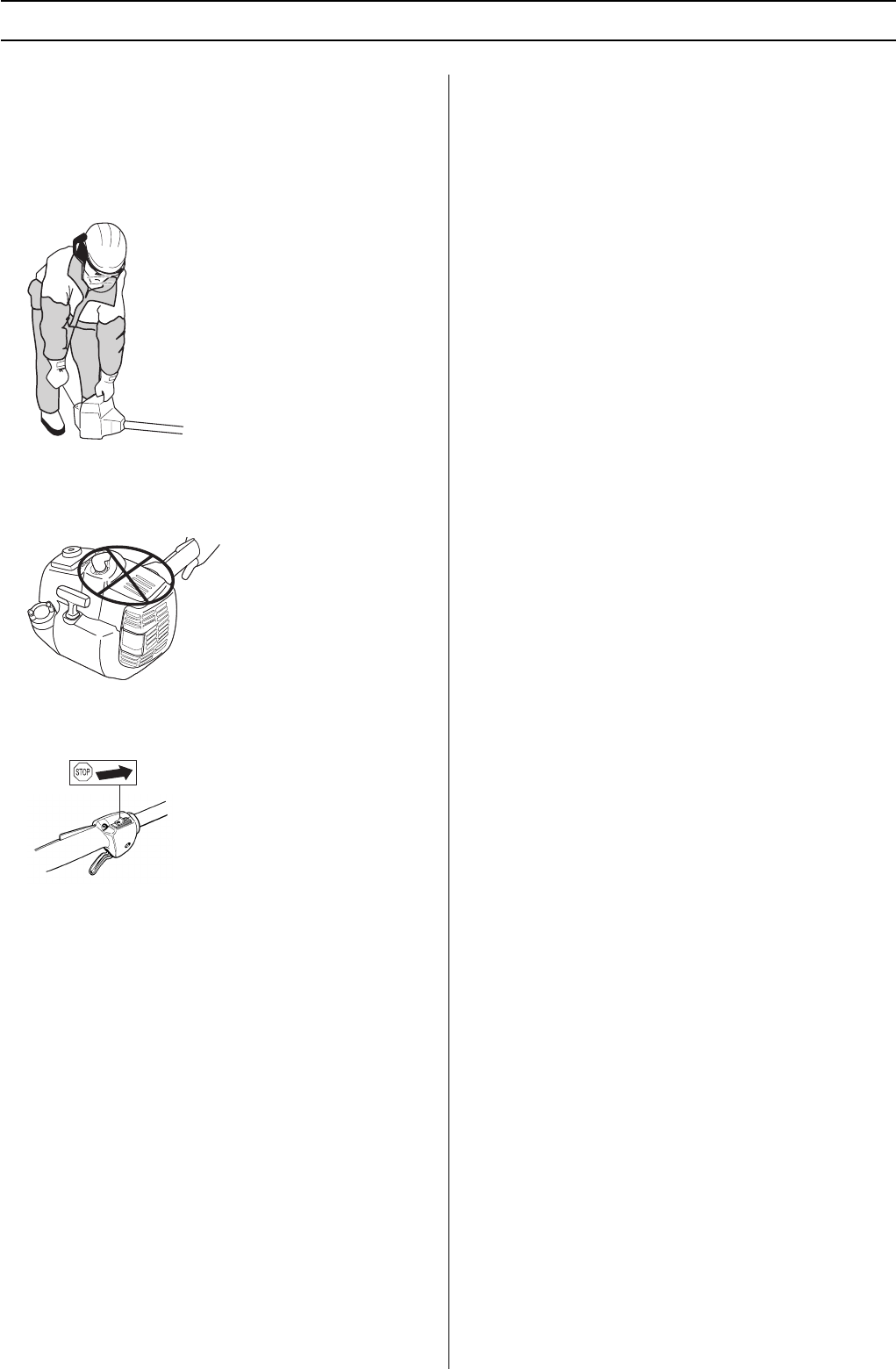

Always move the machine away from the
refuelling area before starting. Place the
machine on a flat surface. Ensure the cutting
attachment cannot come into contact with
any object.
Make sure no unauthorised persons are in
the working area, otherwise there is a risk of
serious personal injury. The safety distance
is 15 metres.
!
WARNING! When the engine is started with
the choke in either the choke or start throttle
positions the cutting attachment will start to
rotate immediately.
![](asset-10.png)
16 – English
STARTING AND STOPPING
Repeat pulling the cord until the engine starts. When the
engine starts. return choke control to run position and apply
full throttle; the throttle will automatically disengage from the
start setting.
CAUTION! Do not pull the starter cord all the way out and do
not let go of the starter handle when the cord is fully extended.
This can damage the machine.
CAUTION! Do not put any part of your body in marked area.
Contact can result in burns to the skin, or electrical shock if
the spark plug cap has been damaged. Always use gloves.
Do not use a machine with damaged spark plug cap.
Stopping
Stop the engine by switching off the ignition.
CAUTION! The stop switch automatically returns to the start
position. In order to prevent unintentional starting, the spark
plug cap must be removed from the spark plug when
assembling, checking and/or performing maintenance.
![](asset-11.png)
English – 17

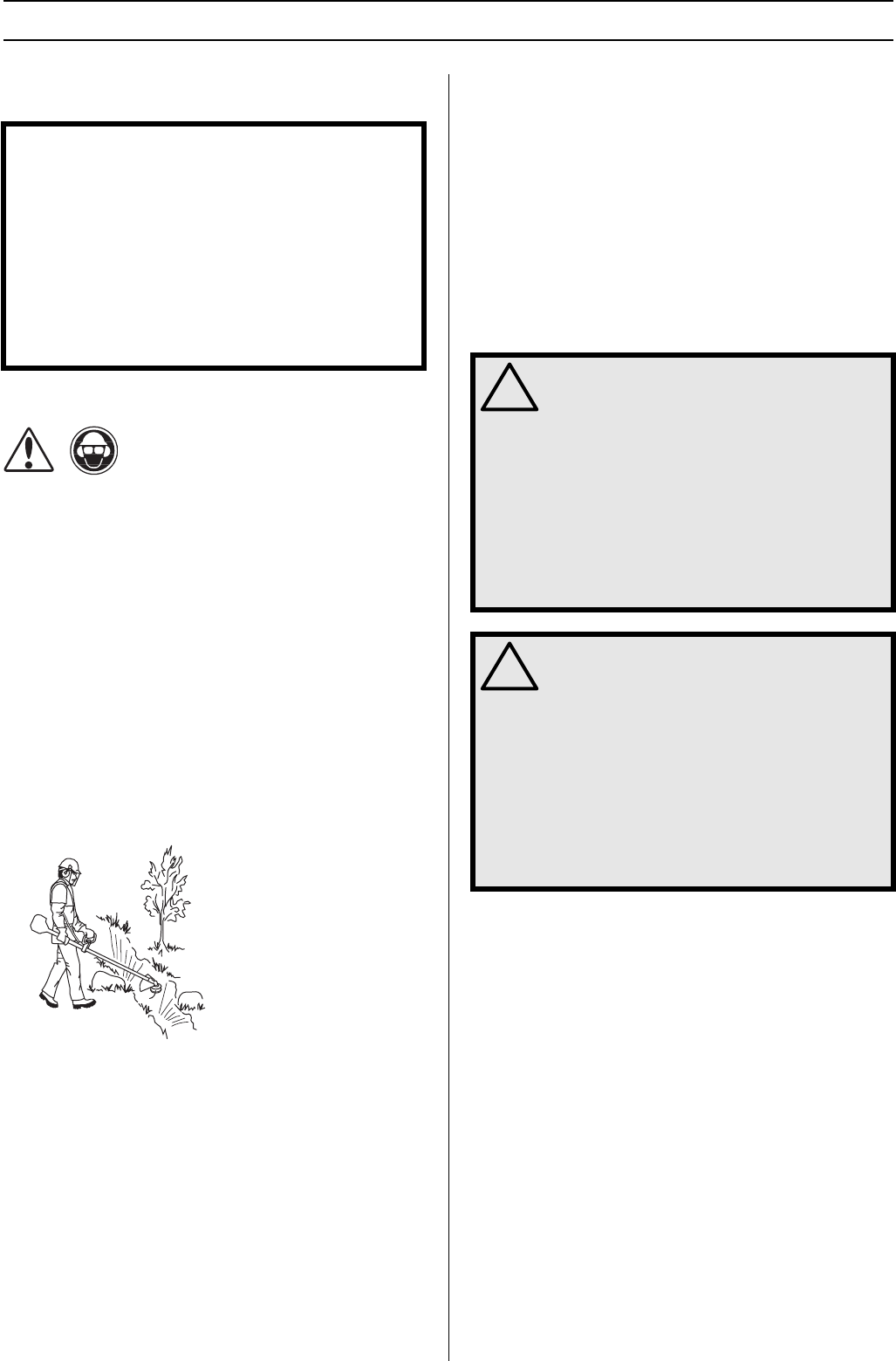

WORKING TECHNIQUES
General working instructions
Basic safety rules
1 Look around you:
• To ensure that people, animals or other things cannot
affect your control of the machine.
• To ensure that people, animals, etc., do not come into
contact with the cutting attachment or loose objects that
are thrown out by the cutting attachment.
• CAUTION! Do not use the machine unless you are able to
call for help in the event of an accident.
2 Do not use the machine in bad weather, such as dense
fog, heavy rain, strong wind, intense cold, etc. Working in
bad weather is tiring and often brings added risks, such as
icy ground, unpredictable felling direction, etc.
3 Make sure you can move and stand safely. Check the area
around you for possible obstacles (roots, rocks, branches,
ditches, etc.) in case you have to move suddenly. Take
great care when working on sloping ground.
4 Switch off the engine before moving to another area. Fit
the transport guard before carrying or transporting the
equipment any distance.
5 Never put the machine down with the engine running
unless you have it in clear sight.
The ABC of clearing
• Always use the correct equipment.
• Make sure the equipment is well adjusted.
• Follow the safety precautions.
• Organise your work carefully.
• Always use full throttle when starting to cut with the blade.
• Always use sharp blades.
• Avoid stones.
• Control the felling direction (take advantage of the wind).
IMPORTANT!
This section describes the basic safety precautions for
working with clearing saws and trimmers.
If you encounter a situation where you are uncertain how to
proceed you should ask an expert. Contact your dealer or
your service workshop.
Avoid all usage which you consider to be beyond your
capability.
You must understand the difference between forestry
clearing, grass clearing and grass trimming before use.
!
WARNING! Neither the operator of the
machine nor anyone else may attempt to
remove the cut material while the engine is
running or the cutting equipment is rotating,
as this can result in serious injury.
Stop the engine and cutting equipment
before you remove material that has wound
around the blade shaft as otherwise there is
a risk of injury. The bevel gear can get hot
during use and may remain so for a while
afterwards. You could get burnt if you touch
it.
!
WARNING! Watch out for thrown objects.
Always wear approved eye protection. Never
lean over the cutting attachment guard.
Stones, rubbish, etc. can be thrown up into
the eyes causing blindness or serious injury.
Keep unauthorised persons at a distance.
Children, animals, onlookers and helpers
should be kept outside the safety zone of 15
m. Stop the machine immediately if anyone
approaches. Never swing the machine
around without first checking behind you to
make sure no-one is within the safety zone.
![](asset-12.png)
18 – English
WORKING TECHNIQUES

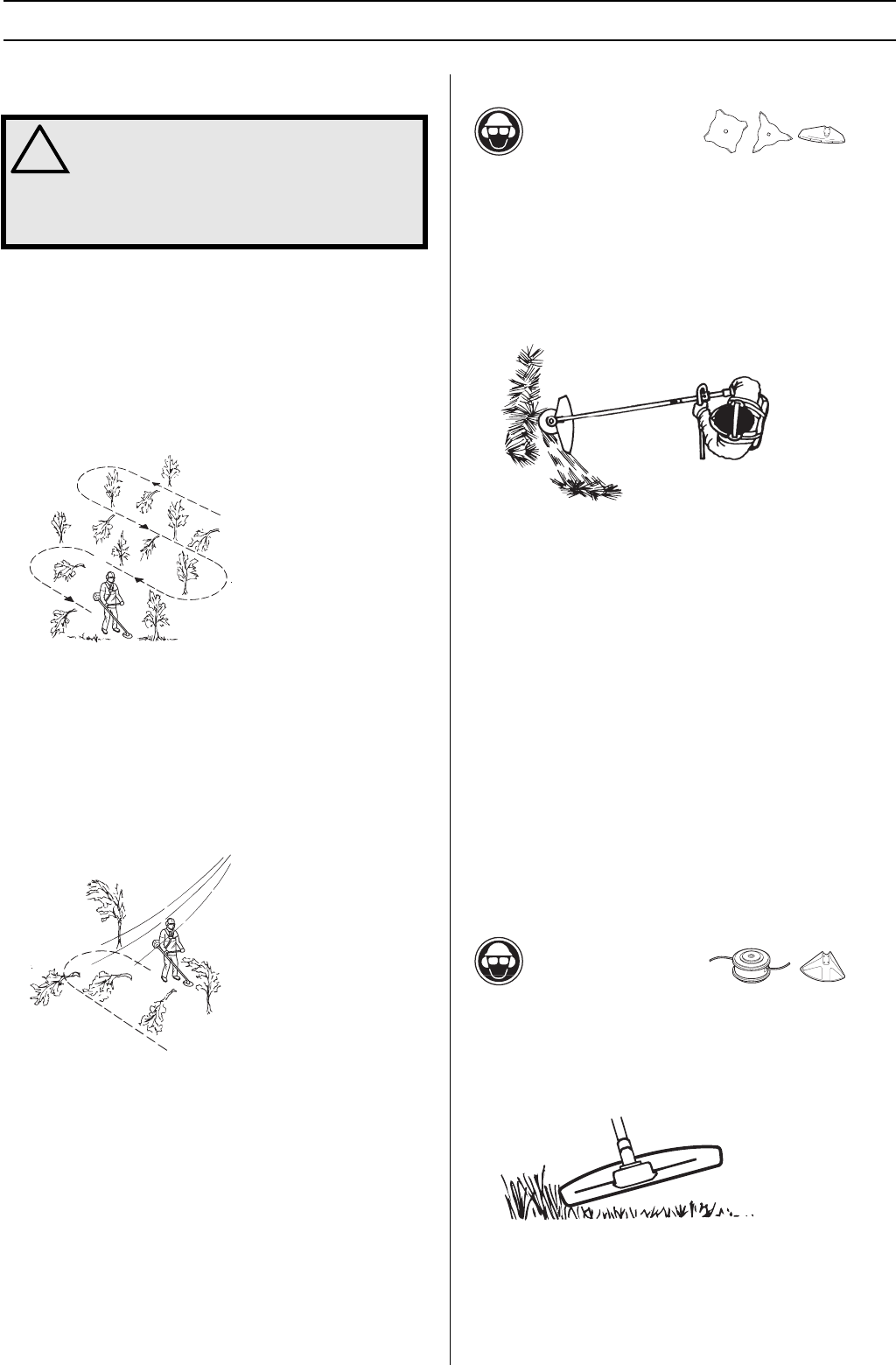

Working methods
• Before you start clearing, check the clearing area, the
type of terrain, the slope of the ground, whether there are
stones, hollows etc.
• Start at whichever end of the area is easiest, and clear an
open space from which to work.
• Work systematically to and fro across the area, clearing a
width of around 4-5 m on each pass. This exploits the full
reach of the machine in both directions and gives the
operator a convenient and varied working area to work in.
• Clear a strip around 75 m long. Move your fuel can as
work progresses.
• On sloping ground you should work along the slope. It is
much easier to work along a slope than it is to work up and
down it.
• You should plan the strip so that you avoid going over
ditches or other obstacles on the ground. You should also
orient the strip to take advantage of wind conditions, so
that cleared stems fall in the cleared area of the stand.
Grass clearing using a grass blade
• Grass blades and grass cutters must not be used on
woody stems.
• A grass blade is used for all types of tall or coarse grass.
• The grass is cut down with a sideways, swinging
movement, where the movement from right-to-left is the
clearing stroke and the movement from left-to-right is the
return stroke. Let the left-hand side of the blade (between
8 and 12 o’clock) do the cutting.
• If the blade is angled to the left when clearing grass, the
grass will collect in a line, which makes it easier to collect,
e.g. by raking.
• Try to work rhythmically. Stand firmly with your feet apart.
Move forward after the return stroke and stand firmly
again.
• Let the support cup rest lightly against the ground. It is
used to protect the blade from hitting the ground.
• Reduce the risk of material wrapping around the blade by
following these instructions:
1 Always work at full throttle.
2 Avoid the previously cut material during the return
stroke.
• Stop the engine, unclip the harness and place the
machine on the ground before you start to collect the cut
material.
Grass trimming with a trimmer head
Trimming
• Hold the trimmer head just above the ground at an angle.
It is the end of the cord that does the work. Let the cord
work at its own pace. Never press the cord into the area
to be cut.
• The cord can easily remove grass and weeds up against
walls, fences, trees and borders, however it can also
damage sensitive bark on trees and bushes, and damage
fence posts.
• Reduce the risk of damaging plants by shortening the
cord to 10-12 cm and reducing the engine speed.
!
WARNING! Avoid cutting with the area of the
blade between the 12 o’clock and 3 o’clock
positions. Because of the speed of rotation
of the blade kickback can occur if you
attempt to cut thick stems with this area of
the blade.
![](asset-13.png)
English – 19
WORKING TECHNIQUES
Clearing
• The clearing technique removes all unwanted vegetation.
Keep the trimmer head just above the ground and tilt it. Let
the end of the cord strike the ground around trees, posts,
statues and the like. CAUTION! This technique increases
the wear on the cord.
• The cord wears quicker and must be fed forward more
often when working against stones, brick, concrete, metal
fences, etc., than when coming into contact with trees and
wooden fences.
• When trimming and clearing you should use less than full
throttle so that the cord lasts longer and to reduce the
wear on the trimmer head.
Cutting
• The trimmer is ideal for cutting grass that is difficult to
reach using a normal lawn mower. Keep the cord parallel
to the ground when cutting. Avoid pressing the trimmer
head against the ground as this can ruin the lawn and
damage the tool.
• Do not allow the trimmer head to constantly come into
contact with the ground during normal cutting. Constant
contact of this type can cause damage and wear to the
trimmer head.
Sweeping
• The fan effect of the rotating cord can be used for quick
and easy clearing up. Hold the cord parallel to and above
the area to be swept and move the tool to and fro.
• When cutting and sweeping you should use full throttle to
obtain the best results.
![](asset-14.png)
20 – English
MAINTENANCE
Carburetor
Your Husqvarna product has been designed and
manufactured to specifications that reduce harmful
emissions. After the engine has used 8-10 tanks of fuel the
engine will be run-in. To ensure that it continues to run at peak
performance and to minimise harmful exhaust emissions
after the running-in period, ask your dealer/service workshop
(who will have a rev counter at their disposal) to adjust your
carburettor.
Function
• The carburetor governs the engine’s speed via the throttle
control. Air and fuel are mixed in the carburetor. The air/
fuel mixture is adjustable. Correct adjustment is essential
to get the best performance from the machine.
• The setting of the carburetor means that the engine is
adapted to local conditions, for example, the climate,
altitude, fuel and the type of 2-stroke oil.

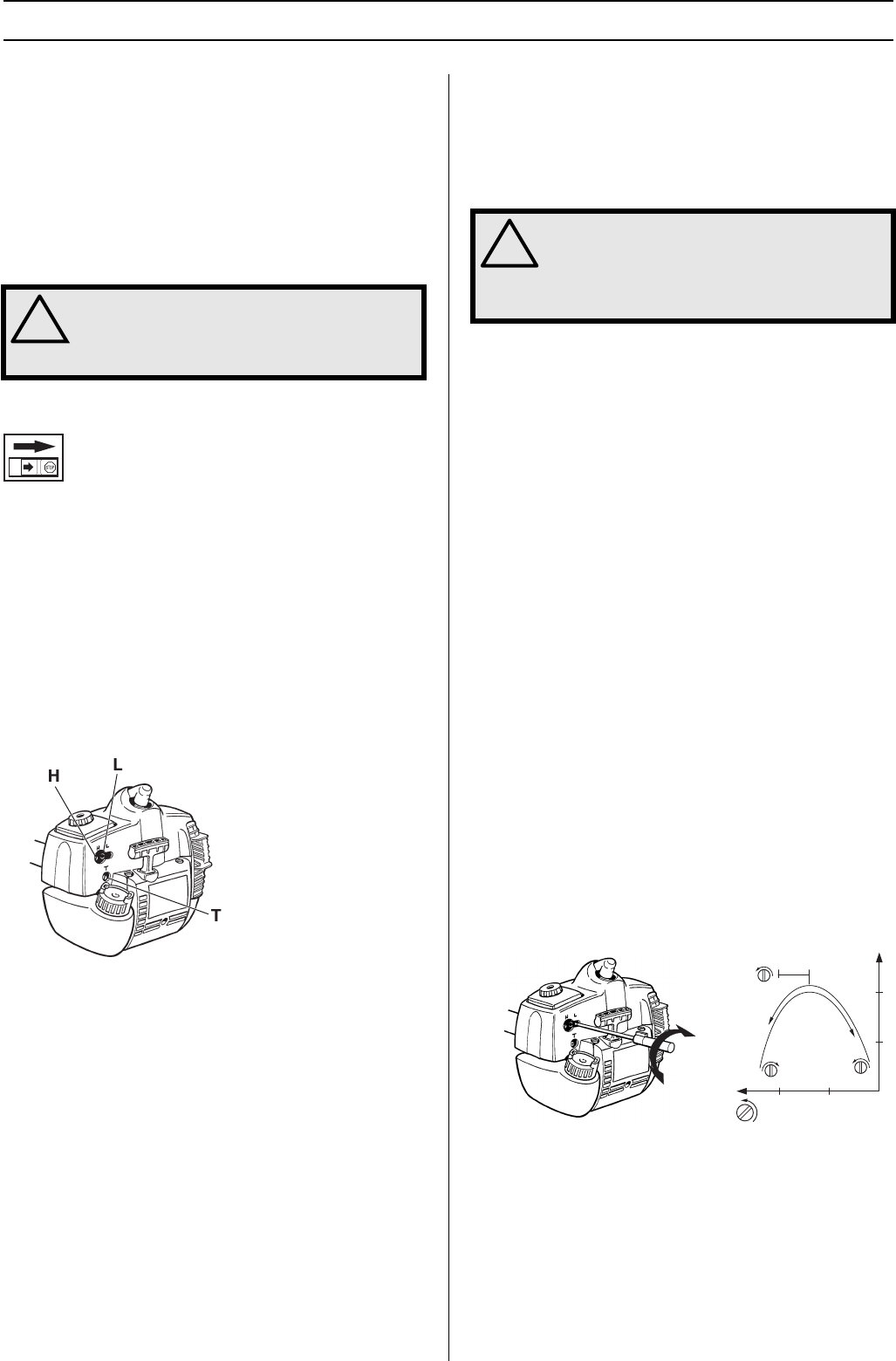

• The carburetor has three adjustment controls:
L = Low speed jet
H = High speed jet
T = Idle adjustment screw
• The L and H-jets are used to adjust the supply of fuel to
match the rate that air is admitted, which is controlled with
the throttle. If they are screwed clockwise the air/fuel ratio
becomes leaner (less fuel) and if they are turned anti-
clockwise the ratio becomes richer (more fuel). A lean
mixture gives a higher engine speed and a rich mixture
gives a lower engine speed.
• The T-screw regulates the throttle setting at idle speed. If
the T-screw is turned clockwise this gives a higher idle
speed; turning it anti-clockwise gives a lower idle speed.
Basic setting
• The basic carburetor settings are adjusted during testing
at the factory. The basic setting is richer than the optimal
setting and should be maintained for the first few hours the
machine is in use. The carburettor should then be finely
adjusted. Fine adjustment should be carried out by a
skilled technician.
CAUTION! If the cutting attachment rotates when the engine
is idling the idle adjustment screw T should be turned anti-
clockwise until the cutting attachment stops.
Rec. idle speed 2700 rpm
Recommended max. speed: See the Technical data section.
Fine adjustment
• When the machine has been ”run-in” the carburetor
should be finely adjusted. The fine adjustment should
be carried out by a qualified person. First adjust the L-
jet, then the idling screw T and then the H-jet.
Conditions
• Before any adjustments are made, make sure that the air
filter is clean and the air filter cover is fitted. If you adjust
the carburettor when the air filter is dirty it will result in a
leaner mixture when the filter is finally cleaned. This can
lead to serious engine damage.
• Carefully turn both jets, L and H, so that they are midway
between fully screwed in and fully screwed out.
• Do not attempt to adjust the L and H jets beyond either
stop as this could cause damage.
• Now start the machine according to the starting
instructions and let it warm up for 10 minutes.
CAUTION! If the cutting attachment rotates when the engine
is idling the idle adjustment screw T should be turned anti-
clockwise until the cutting attachment stops.
Low speed jet L
Try to find the highest idling speed, turning the low speed
needle L clockwise respectively counter-clockwise. When the
highest speed has been found, turn the low speed needle L 1/
4 turn counter-clockwise.
CAUTION! If the cutting attachment rotates when the engine
is idling the idle adjustment screw T should be turned anti-
clockwise until the cutting attachment stops.
Fine adjustment of the idle speed T
Adjust the idle speed using the idle adjustment screw T, if it is
necessary to readjust. First turn the idle adjustment screw T
clockwise until the cutting attachment starts to rotate. Then
turn the screw anticlockwise until the cutting attachment
stops. The idle speed is correctly adjusted when the engine
!
WARNING! The complete clutch cover and
shaft must be fitted before the machine is
started, otherwise the clutch can come loose
and cause personal injury.
!
WARNING! If the idle speed cannot be
adjusted so that the cutting attachment
stops, contact your dealer/service
workshop. Do not use the machine until it
has been correctly adjusted or repaired.
L
+ 1/4
![](asset-15.png)
English – 21
MAINTENANCE
will run smoothly in every position. The idle speed should also
be well below the speed at which the cutting attachment starts
to rotate.
IMPORTANT! If the idle speed cannot be adjusted so that the
cutting attachment stops, contact your dealer/service
workshop. Do not use the machine until it has been correctly
adjusted or repaired.
High speed jet H
The high speed jet H affects the engine power, speed,
temperature and fuel consumption. If the high speed jet H is
set too lean (screwed in too far) the engine speed will be too
high and cause engine damage. Do not let the engine run at
full speed for more than 10 seconds.
Apply full throttle and turn the high speed jet H very slowly
clockwise until the engine slows down. Then turn the high
speed jet H very slowly anticlockwise until the engine starts to
run unevenly. Now turn the high speed jet H slowly clockwise
a little way until the engine runs smoothly.
Note that the engine should not be under load when you
adjust the high speed jet H. You should therefore remove the
cutting attachment, nut, support flange and drive disc before
adjusting the high speed jet H.
The high speed jet H is adjusted correctly when the machine
burbles a little. If the machine races then the setting is too
lean. If the engine produces a lot of smoke and burbles a lot
then the setting is too rich.
CAUTION! For optimum adjustment of the carburettor,
contact a qualified dealer/service workshop that has a
revolution counter at their disposal.
Correctly adjusted carburetor
When the carburetor is correctly adjusted the machine will
accelerate without hesitation and burble a little at maximum
speed. It is also important that the cutting attachment does
not rotate at idle. If the low speed jet L is set too lean it may
cause starting difficulties and poor acceleration.
If the high speed jet H is set too lean it will result in less power,
less performance, poor acceleration and/or damage to the
engine.
If both the L and H jets are set too rich it will results in
acceleration problems or too low a working speed.
Muffler
CAUTION! Some mufflers are fitted with a catalytic
converter. See chapter on Technical data to see whether your
machine is fitted with a catalytic converter.
The muffler is designed to reduce the noise level and to direct
the exhaust gases away from the operator. The exhaust
gases are hot and can contain sparks, which may cause fire
if directed against dry and combustible material.
Some mufflers are equipped with a special spark arrestor
mesh. If your machine has this type of muffler, you should
clean the mesh at least once a week. This is best done with a
wire brush.
On mufflers without a catalytic converter the mesh should be
cleaned weekly, or replaced if necessary. On mufflers fitted
with a catalytic converter the mesh should be checked, and if
necessary cleaned, monthly. If the mesh is damaged it
should be replaced.
If the mesh is frequently blocked, this can be a sign that the
performance of the catalytic converter is impaired. Contact
your dealer to inspect the muffler. A blocked mesh will cause
the machine to overheat and result in damage to the cylinder
and piston. See also instructions under the heading
Maintenance.
CAUTION! Never use a machine with a defective muffler.
H
!
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
remain so for some time after stopping. This
also applies at idle speed. Contact can result
in burns to the skin. Remember the risk of
fire!
![](asset-16.png)
22 – English
MAINTENANCE

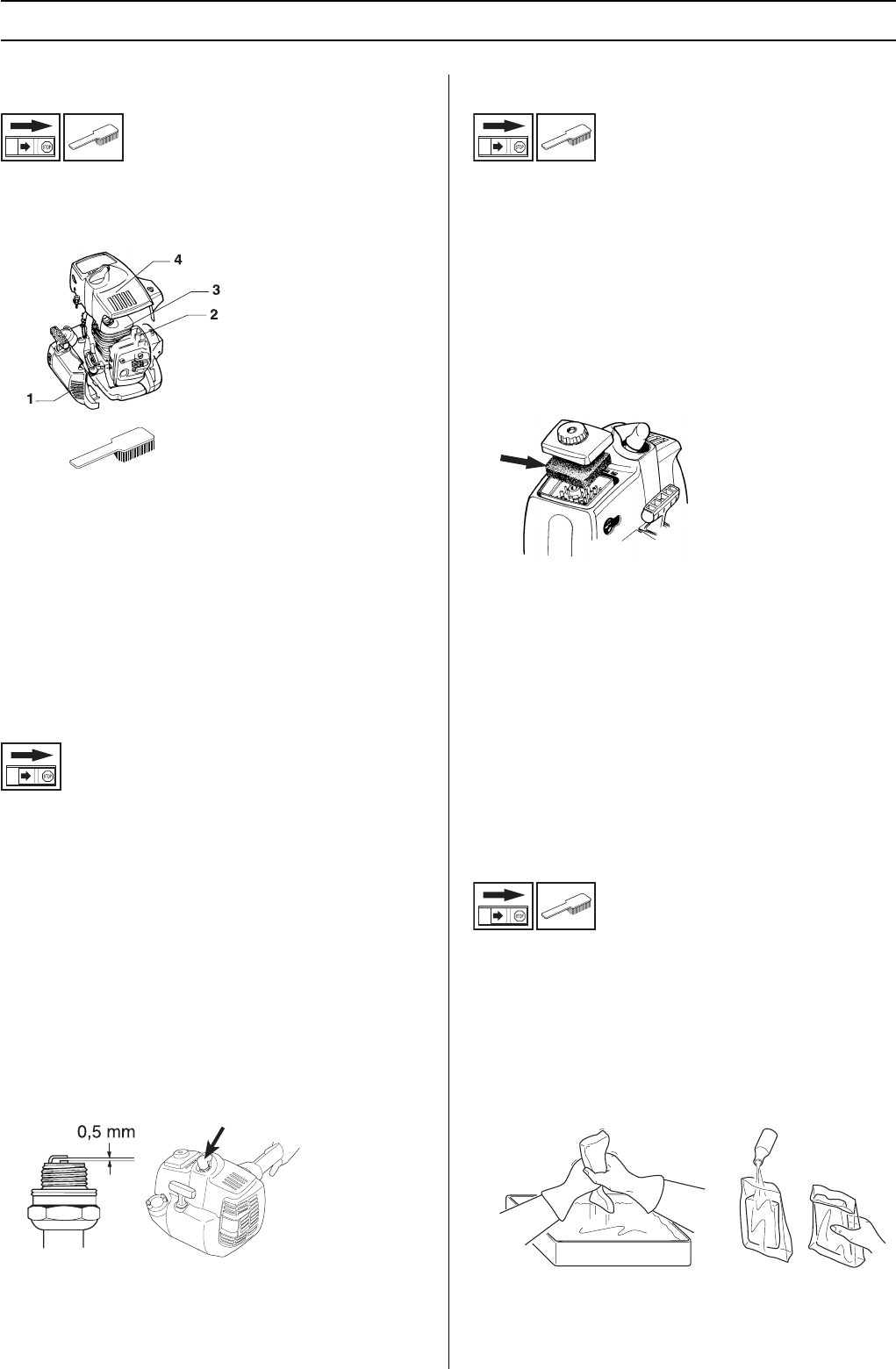

Cooling system
To keep the working temperature as low as possible the
machine is equipped with a cooling system.
The cooling system consists of:
1 Air intake on the starter.
2 Fins on the flywheel.
3 Cooling fins on the cylinder.
4 Cylinder cover (directs cold air over the cylinder).
Clean the cooling system with a brush once a week, more
often in demanding conditions. A dirty or blocked cooling
system results in the machine overheating which causes
damage to the piston and cylinder.
Spark plug
The spark plug condition is influenced by:
• Incorrect carburetor adjustment.
• An incorrect fuel mixture (too much or incorrect type of
oil).
• A dirty air filter.
These factors cause deposits on the spark plug electrodes,
which may result in operating problems and starting
difficulties.
If the machine is low on power, difficult to start or runs poorly
at idle speed: always check the spark plug first before taking
any further action. If the spark plug is dirty, clean it and check
that the electrode gap is 0.5 mm (0,020"). The spark plug
should be replaced after about a month in operation or earlier
if necessary.
CAUTION! Always use the recommended spark plug type!
Use of the wrong spark plug can damage the piston/cylinder.
Air filter
The air filter must be regularly cleaned to remove dust and dirt
in order to avoid:
• Carburettor malfunctions
• Starting problems
• Loss of engine power
• Unnecessary wear to engine parts
• Excessive fuel consumption.
Clean the filter every 25 hours, or more regularly if conditions
are exceptionally dusty.
Cleaning the air filter
Remove the air filter cover and take out the filter. Wash it
clean in warm, soapy water. Ensure that the filter is dry before
refitting it.
An air filter that has been in use for a long time cannot be
cleaned completely. The filter must therefore be replaced with
a new one at regular intervals. A damaged air filter must
always be replaced.
If the machine is used in dusty conditions the air filter should
be soaked in oil. See instructions under the heading Oiling the
air filter.
Oiling the air filter
Always use HUSQVARNA filter oil, art. no. 531 00 92-48. The
filter oil contains a solvent to make it spread evenly through
the filter. You should therefore avoid skin contact.
Put the filter in a plastic bag and pour the filter oil over it.
Knead the plastic bag to distribute the oil. Squeeze the
excess oil out of the filter inside the plastic bag and pour off
the excess before fitting the filter to the machine. Never use
common engine oil. This would drain through the filter quite
quickly and collect in the bottom.
![](asset-17.png)
English – 23
MAINTENANCE

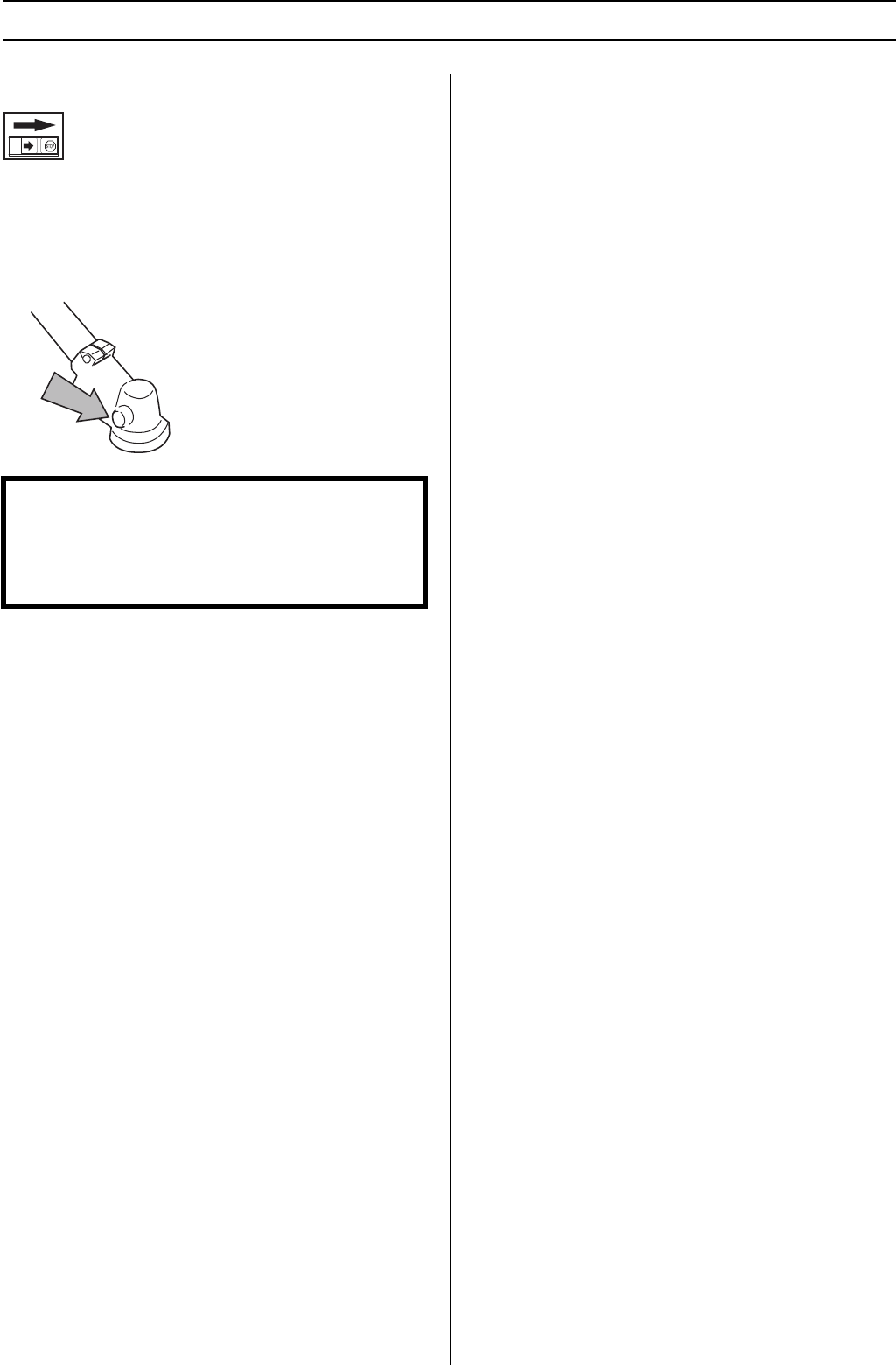

Bevel gear
The bevel gear is filled with the right quantity of grease at the
factory. However, before using the machine you should check
that the bevel gear is filled three-quarters full with grease. Use
HUSQVARNA special grease.
The grease in the bevel gear does not normally need to be
changed except if repairs are carried out.
CAUTION! Use only HUSQVARNA replacement parts. Use
of other brands of replacement parts can cause damage to
your unit or injury to the operator or others. Your warranty
does not cover damage or liability caused by the use of
accessories and/or attachments not specifically
recommended by HUSQVARNA.
![](asset-18.png)
24 – English
MAINTENANCE
Maintenance schedule
The following is a list of the maintenance that must be performed on the machine. Most of the items are described in the
Maintenance section.
The user must only carry out the maintenance and service work described in this manual. More extensive work must be carried
out by an authorised service workshop.
Maintenance Daily
maintenance
Weekly
maintenance
Monthly
maintenance
Clean the outside of the machine. X
Make sure the throttle trigger lock and the throttle function correctly from a
safety point of view. X
Check that the stop switch works correctly. X
Check that the cutting attachment does not rotate at idle. X
Clean the air filter. Replace if necessary. X
Check that the guard is undamaged and not cracked. Replace the guard if
it has been exposed to impact or is cracked. X
Check that the trimmer head is undamaged and not cracked. Replace the
trimmer head if necessary. X
Check that the locking nut of the cutting equipment is tighten correctly. X
Check that nuts and screws are tight. X
Check that there are no fuel leaks from the engine, tank or fuel lines. X
Check the starter and starter cord. X
Check that the vibration damping elements are not damaged. X
Clean the outside of the spark plug. Remove it and check the electrode
gap. Adjust the gap to 0.5 mm (.20”), or replace the spark plug. Check that
the spark plug is fitted with a suppressor.
X
Clean the machines cooling system. X
Clean or replace the spark arrestor mesh on the muffler (only applies to
mufflers without a catalytic converter). X
Clean the outside of the carburettor and the space around it. X
Check that the bevel gear is filled three-quarters full with lubricant. Fill if
necessary using special grease. X
Check the fuel filter from contamination and the fuel hose from cracks or
other defects. Replace if necessary. X
Check all cables and connections. X
Check the clutch, clutch springs and the clutch drum for wear. Replace if
necessary by an autorized service workshop. X
Replace the spark plug. Check that the spark plug is fitted with a
suppressor. X
Check and clean the spark arrestor mesh on the muffler (only applies to
mufflers fitted with a catalytic converter). X
Check and if necessary, clean the exhaust port of cylinder from carbon
deposits. X
![](asset-19.png)
English – 25
TECHNICAL DATA
Technical data
NOTE! Noise pressure at the user’s ear and vibration on the handles are measured with all the machine’s approved cutting
equipment fitted. The table indicates the highest and lowest values.
Note 1: Equivalent noise pressure level is calculated as the time-weighted energy total for noise pressure levels under various
working conditions with the following time distribution: 1/2 idle and 1/2 max. speed.
Engine
Cylinder displacement, cu.in/cm31,50/24,5
Cylinder bore, inch/mm 1,34/34,0
Stroke, inch/mm 1,06/27
Idle speed, rpm 2700
Recommended max. fast idle speed, rpm 11000-11700
Speed of output shaft, rpm 8014
Max. engine output, acc. to ISO 8893 0,9/8400
Catalytic converter muffler Ye s
Speed-regulated ignition system Ye s
Ignition system
Manufacturer/type of ignition system WalbroMB/SEM AM49
Spark plug Champion RCJ 6Y
Electrode gap, inch/mm 0,02/0,5
Fuel and lubrication system
Manufacturer/type of carburetor Zama C1Q
Fuel tank capacity, US pint/litre 1,06/0,5
Weight
Weight without fuel, cutting attachment and guard, Lbs/kg 9,9/4,5
Sound levels
(see note 1)
Equivalent sound pressure level at the user′s ear,
measured according to ANSI B175.3-1997, dB(A), min/
max:
92/98
Vibration levels
Vibration levels at handles, measured according to ANSI
B175.3-1997, m/s2
At idle, left/right handles, min.: 1,7/1,5
At idle, left/right handles, max.: 3,9/3,7
At max. speed, left/right handles, min.:
At max. speed, left/right handles, max.: 7,2/9,8
Approved accessories Type Cutting attachment guard, Art. no.
Arbor shaft thread M10
Plastic blades Tricut Ø 300 mm 503 93 42-02
Grass blade/grass cutter Grass 255-4 1" (Ø 255 4-teeth) 503 93 42-02
Grass 255-8 1" (Ø 250 8-teeth) 503 93 42-02
Trimmer head Trimmy H II 1" 503 97 71-01 / 503 93 42-02
Trimmy Fix 503 97 71-01 / 503 93 42-02
Trimmy Hit 1" 503 97 71-01 / 503 93 42-02
Trimmy Hit Pro 503 97 71-01 / 503 93 42-02
Superauto II 1" 503 97 71-01 / 503 93 42-02
S35 503 97 71-01 / 503 93 42-02
T35 503 97 71-01 / 503 93 42-02
![](asset-1a.png)
26 – English
FEDERAL EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND
OBLIGATIONS
The EPA (The US Environmental Protection Agency), CARB
(California Air Resources Board) and Husqvarna Forest &
Garden are pleased to explain the emissions control system
warranty on your 2001 and later small nonroad engine. In U.S.
and Canada, new small nonroad engines must be designed,
built and equipped to meet the federal stringent anti-smog
standards. Husqvarna Forest & Garden must warrant the
emission control system on your small nonroad engine for the
period of time listed below provided there has been no abuse,
neglect or improper maintenance of your unit. Your emission
control system includes Parts such as the carburetor and the
ignition system. Where a warrantable condition exists,
Husqvarna Forest & Garden will repair your small nonroad
engine at no cost to you. Expenses covered under warranty
include diagnosis, parts and labor.
MANUFACTURER′′′′S WARRANTY
COVERAGE
The 2001 and later small nonroad engines are warranted for
two years. If any emission related part on you engine (as
listed above) is defective, the part will be repaired or replaced
by Husqvarna Forest & Garden.
OWNER′′′′S WARRANTY RESPONSIBILITIES
As the small nonroad engine owner, you are responsible for
the performance of the required maintenance listed in your
Operator′s Manual. Husqvarna Forest & Garden
recommends that you retain all receipts covering
maintenance on your small nonroad engine, but Husqvarna
Forest & Garden cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance of all
scheduled maintenance. As the small nonroad engine owner,
you should, however, be aware that Husqvarna Forest &
Garden may deny you warranty coverage if your small
nonroad engine or a part of it has failed due to abuse, neglect,
improper maintenance, unapproved modifications or the use
of parts not made or approved by the original equipment
manufacturer. You are responsible for presenting your small
nonroad engine to a Husqvarna Forest & Garden authorized
servicing dealer as soon as a problem exists. The warranty
repairs should be completed in a reasonable amount of time,
not to exceed 30 days. If you have any questions regarding
your warranty rights and responsibilities, you should contact
your nearest authorized servicing dealer or call Husqvarna
Forest & Garden at 1-800-487-5963.
WARRANTY COMMENCEMENT DATE
The warranty period begins on the date small nonroad engine
is delivered.
LENGTH OF COVERAGE
Husqvarna Forest & Garden warrants to the initial owner and
each subsequent purchaser that the engine is free from
defects in materials and workmanship which cause the failure
of a warranted part for a period of two years.
WHAT IS COVERED
REPAIR OR REPLACEMENT OF PARTS Repair or
replacement of any warranted part will be performed at no
charge to the owner at an approved Husqvarna Forest &
Garden servicing dealer. If you have any questions regarding
your warranty rights and responsibilities, you should contact
your nearest authorized servicing dealer or call Husqvarna
Forest & Garden at 1-800-487-5963.
WARRANTY PERIOD Any warranted part which is not
scheduled for replacement as required maintenance, or
which is scheduled only for regular inspection to the effect of
“repair or replace as necessary” shall be warranted for 2
years. Any warranted part which is scheduled for replacement
as required maintenance shall be warranted for the period of
time up to the first scheduled replacement point for that part.
DIAGNOSIS The owner shall not be charged for diagnostic
labor which leads to the determination that a warranted part
is defective, if the diagnostic work is performed at an
approved Husqvarna Forest & Garden servicing dealer.
CONSEQUENTIAL DAMAGES Husqvarna Forest & Garden
may be liable for damages to other engine components
caused by the failure of a warranted part still under warranty.
WHAT IS NOT COVERED
All failures caused by abuse, neglect or improper
maintenance are not covered.
ADD -ON OR MODIFIED PARTS
The use of add-on or modified parts can be grounds for
disallowing a warranty claim. Husqvarna Forest & Garden is
not liable to cover failures of warranted parts caused by the
use of add-on or modified parts.
HOW TO FILE A CLAIM
If you have any questions regarding your warranty rights and
responsibilities, you should contact your nearest authorized
servicing dealer or call Husqvarna Forest & Garden at 1-800-
487-5963.
WHERE TO GET WARRANTY SERVICE
Warranty services or repairs shall be provided at all
Husqvarna Forest & Garden authorized servicing dealers.
MAINTENANCE, REPLACEMENT AND
REPAIR OF EMISSION-RELATED PARTS
Any Husqvarna Forest & Garden approved replacement part
used in the performance of any warranty maintenance or
repairs on emission-related parts, will be provided without
charge to the owner if the part is under warranty.
EMISSION CONTROL WARRANTY PARTS
LIST
1 Carburetor and internal parts
2 Intake pipe, airfilter holder and carburetor bolts.
3 Airfilter and fuelfilter covered up to maintenance schedule.
4 Ignition System
1 Spark Plug, covered up to maintenance schedule
2 Ignition Module
5 Muffler with catalytic converter
MAINTENANCE STATEMENT
The owner is responsible for the performance of all required
maintenance, as defined in the operator’s manual.
![](asset-1b.png)
1
Super Auto II
Super Auto II 1
2
345
678
910
4,0 m
13'
2,4 mm
.095"
~2,0 m
6,5'
6"
6"
"
15 cm
15 cm
![](asset-1c.png)
![](asset-1d.png)
1
Trimmy H II
2
34
567
89
7,5 m
25'
2,0-2,4 mm
.080-.095"
1
2
15 cm
6"
~ 3,7 m
12'
15 cm
6"
![](asset-1e.png)
1
Trimmy Hit
23
4
56
789
10 11
“Click”
“Click”
7,0 m
23'
"
12 cm
5"
~ 3,5 m
11'
15 cm
6"
"
2,0-2,4 mm
.080-.095
~ 15 cm
6
![](asset-1f.png)
1
Trimmy Hit Pro
2
56
789
10 12
“Click”
3
4
7,5 m
25'
2,0-2,4 mm
.080-.095"
15 cm
6"
~ 3,7 m
12'
1.)
2.)
11
15 cm
6"
15 cm
6"
![](asset-20.png)

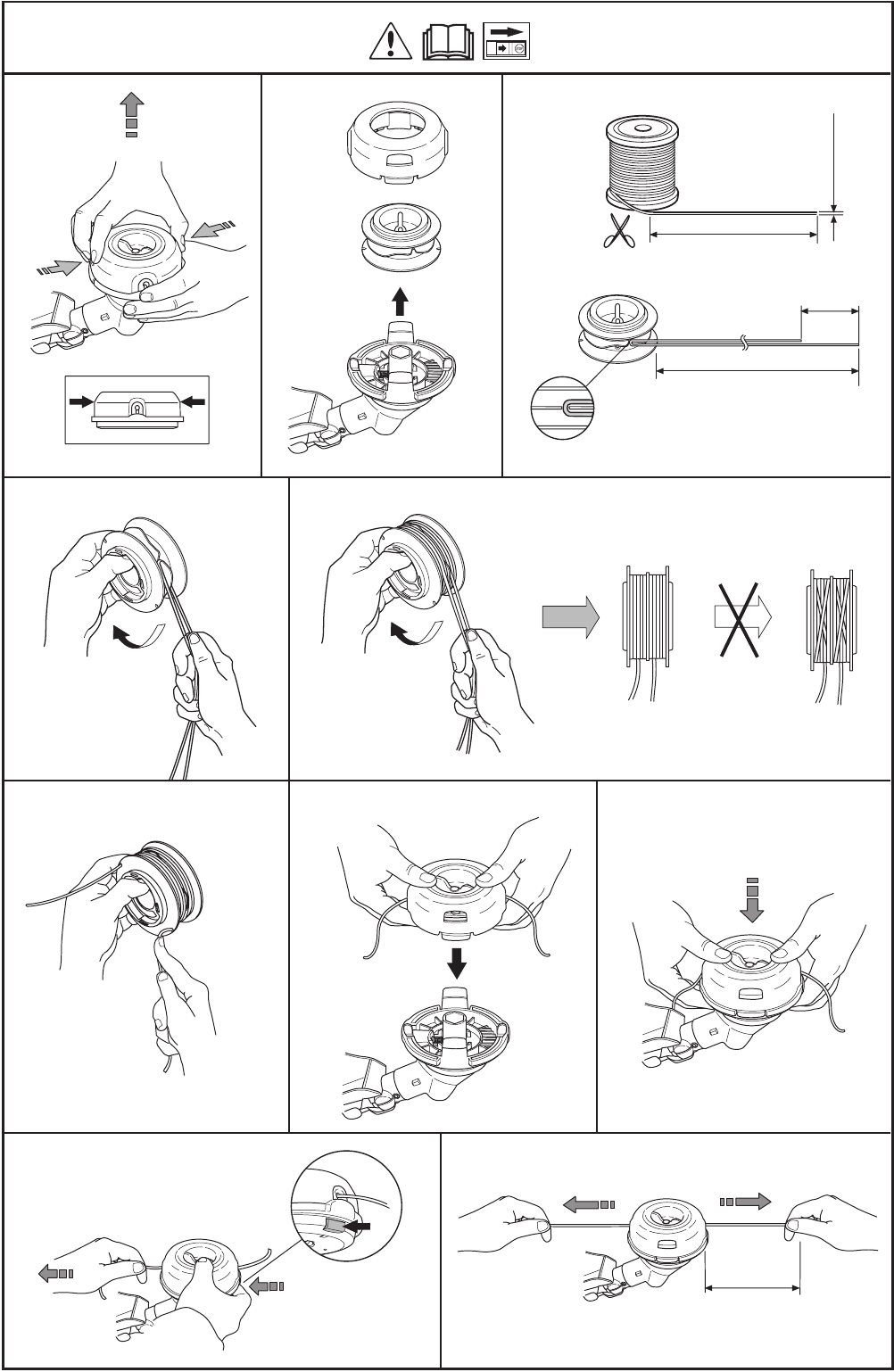

"Clic"
123
5
67
10 11
8,5 m
28'
4
8
4,2 m
14'
2,4-2,7 mm
.095-.106"
10 cm
4"
6"
15 cm
S35
![](asset-21.png)

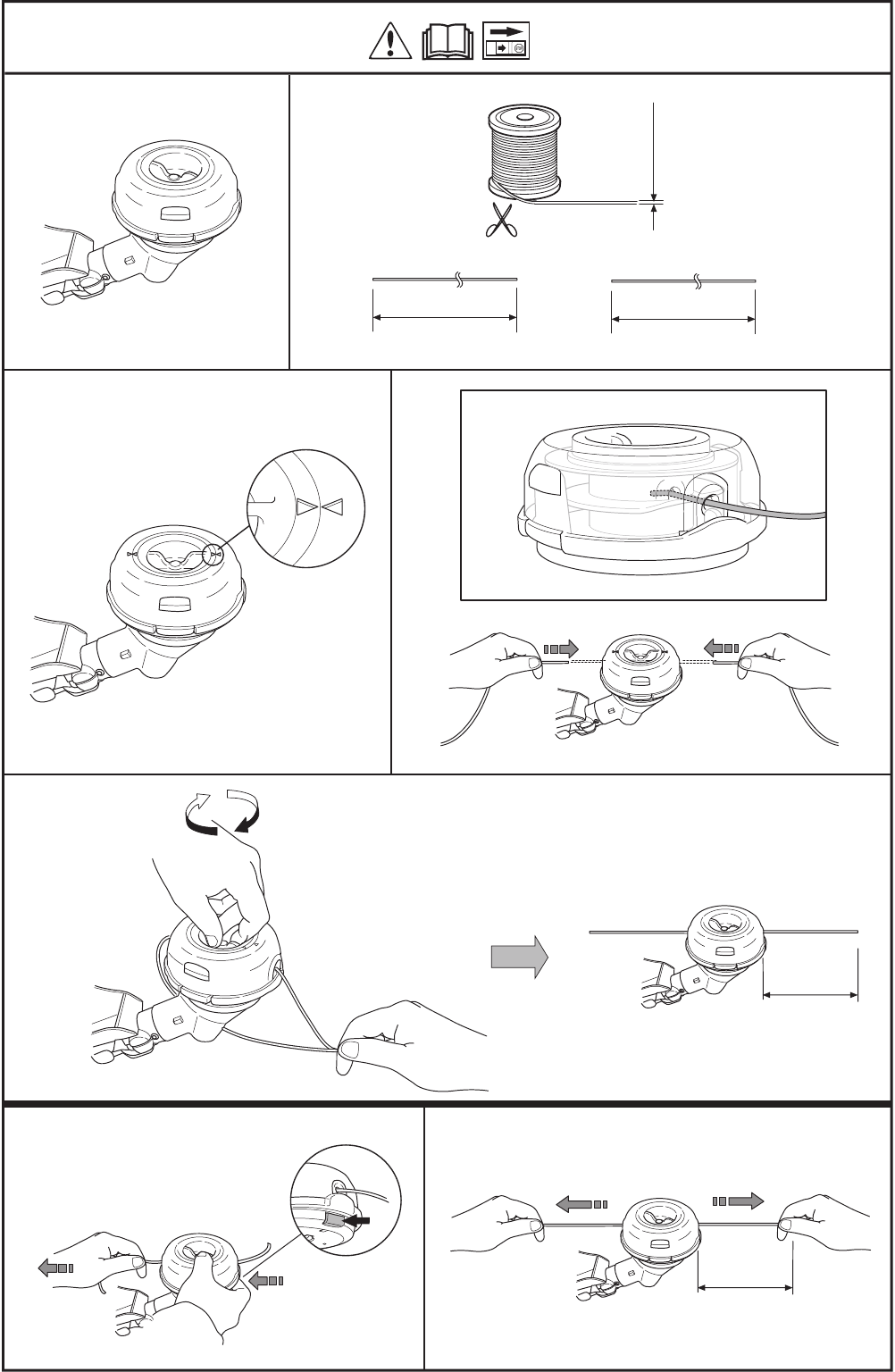

12
4
3
2,4-2,7 mm
.095-.106"
4,25 m
14'
4,25 m
14'
B
6"
15 cm
A
6"
15 cm
S35
5
![](asset-22.png)
´®z+HA3¶5o¨
´®z+HA3¶5o¨

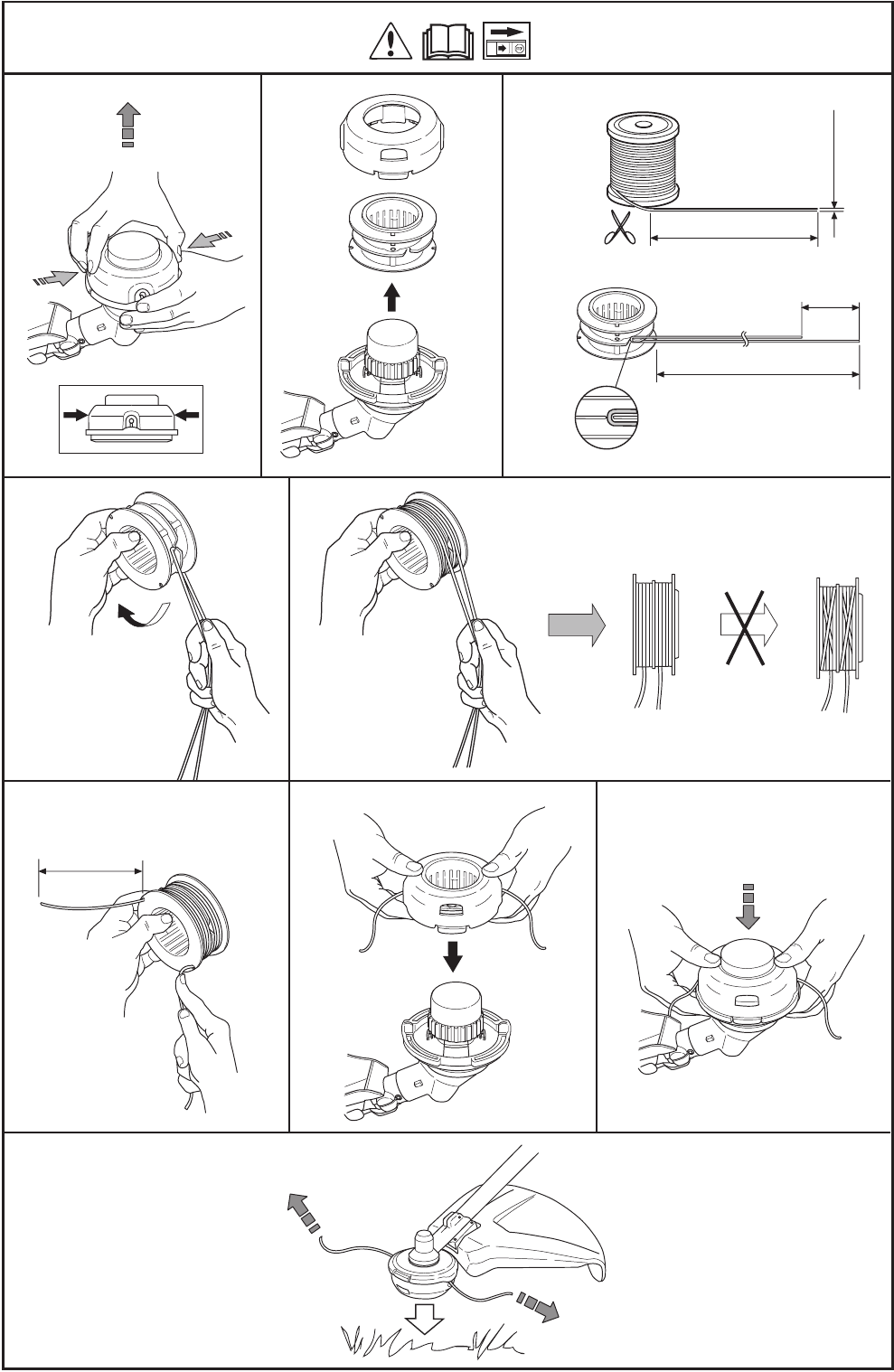

T35
"Clic"
123
5
67
9
8,5 m
28'
4
8
4,3 m
14'
2,4-2,7 mm
.095-.106"
10 cm
4"
6"
15 cm
´®z+HA3¶5o¨
2005-07-11
´®z+HA3¶5o¨
1140331-95
