Husqvarna 327Ldx Users Manual OM, 327 LD X Series, EPA, 2008 09

327LDX to the manual 80ed0a8e-4d52-46a5-b8c0-c3a32da05640

2015-01-24

: Husqvarna Husqvarna-327Ldx-Users-Manual-316751 husqvarna-327ldx-users-manual-316751 husqvarna pdf

Open the PDF directly: View PDF PDF.
Page Count: 36

EE
EEnn
nngg
ggll
llii
iiss
sshh
hh
327LD
X-series
Oper
ator’s manual (EPA)
Please r
ead the operator’s manual carefully and make sure you understand the instructions
before using the machine.
KEY
T
O SYMBOLS
2
–
English

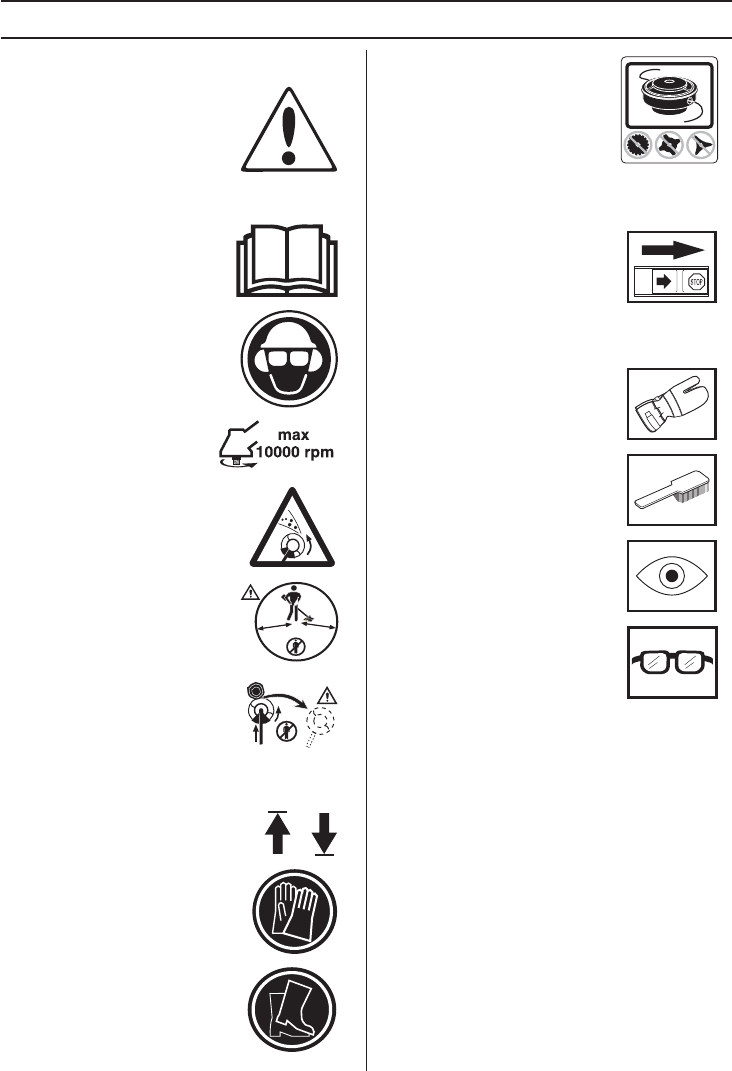

Symbols
W
ARNING! Clearing saws,
brushcutters and trimmers can be
dangerous! Careless or incorrect
use can result in serious or fatal
injury to the operator or others. It is
extremely important that you read
and understand the contents of the
operator’s manual.
Please read the operator’s manual
carefully and make sure you
understand the instructions before
using the machine.
Always wear:
• A protective helmet where there
is a risk of falling objects
• Approved hearing protection
• Approved eye protection
Max. speed of output shaft, rpm
Watch out for thrown objects and
ricochets.
The operator of the machine must
ensure, while working, that no
persons or animals come closer
than 15 metres.
Machines fitted with saw blades or
grass blades can be thrown violently
to the side when the blade comes
into contact with a fixed object. This is
called blade thrust. The blade is
capable of amputating an arm or leg.
Always keep people and animals at least 15 metres from
the machine.
Arrows which show limits for handle
positioning.
Always wear approved protective
gloves.
Wear sturdy, non-slip boots.
Only use non-metallic, flexible
cutting attachments, i.e. trimmer
heads with trimmer cord.
Other symbols/decals on the mac
hine refer to special
certification requirements for certain markets.
The engine is s
witched off by moving
the stop switch to the stop position.
CAUTION! The stop switch
automatically returns to the start
position. In order to prevent
unintentional starting, the spark plug
cap must be removed from the spark plug when
assembling, checking and/or performing maintenance.
Always wear approved protective
gloves.
Regular cleaning is required.
Visual check.
Approved eye protection must always
be used.
50FT
15 m
50FT
15 m
CONTENTS
English
–
3
Contents
Note the f
ollowing before
starting:
Please read the oper
ator’s manual carefully.
Maintenance, replacement, or repair of the emission
control devices and system may be performed by any
nonroad engine repair establishment or individual.

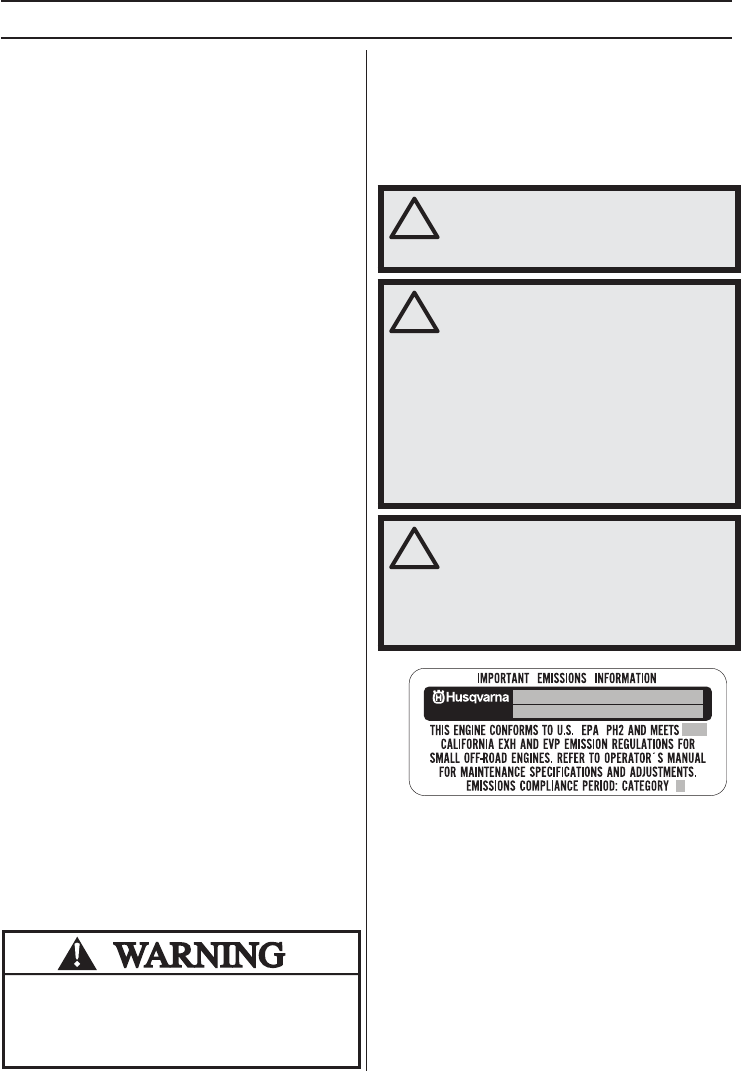

This engine label certifies that the product is certified in
accordance with American exhaust emissions
requirements EPA Ph II and Californian exhaust and
evaporative emissions requirements CARB Tier III. The
Emissions Compliance Period referred to on the
emissions compliance label indicates the number of
operating hours for which the engine has shown to meet
Federal and Californian emission requirements. Category
C = 50 hours, B = 125 hours, and A = 300 hours.
KEY
TO SYMBOLS
Symbols
................................................................ 2
CONTENTS
Contents
............................................................... 3
Note the following before starting: ........................ 3
INTR
ODUCTION
Dear customer!
..................................................... 4
WHA
T IS WHAT?
What is what?
....................................................... 5
GENERAL SAFETY PRECA
UTIONS
Impor
tant .............................................................. 6
Personal protective equipment ............................. 6
Machine
′
s safety equipment ................................. 7
Cutting equipment ................................................ 9
ASSEMBL
Y

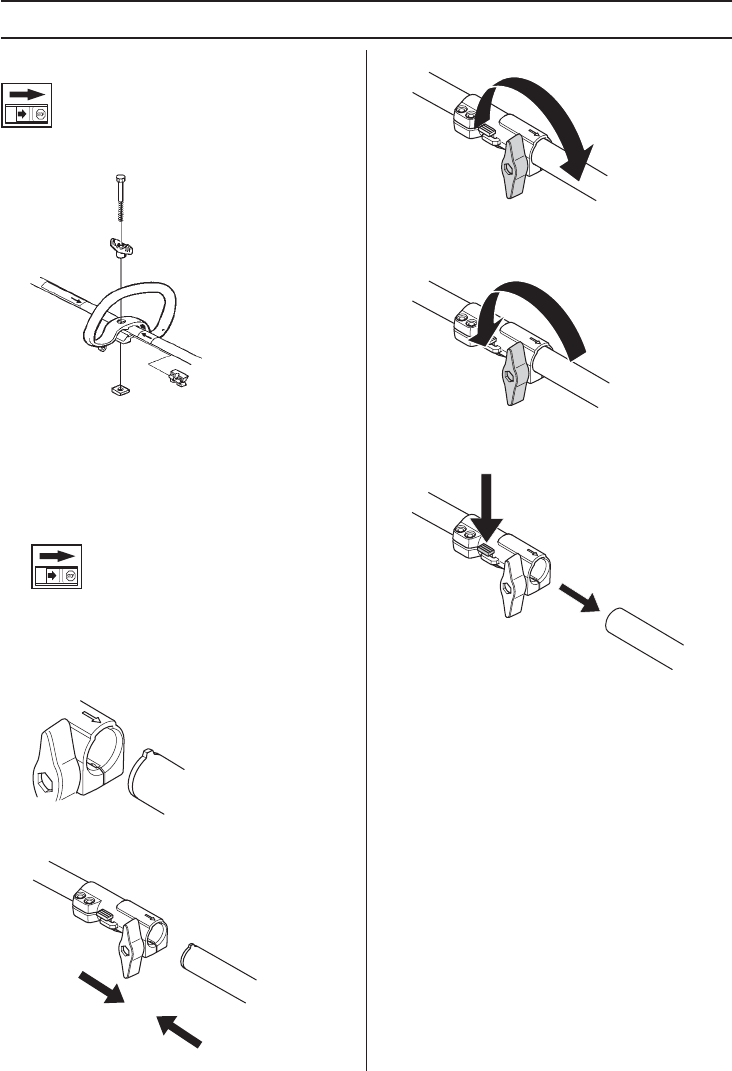

Fitting the loop handle
.......................................... 10
Assembling and dismantling the two-piece shaft . 10

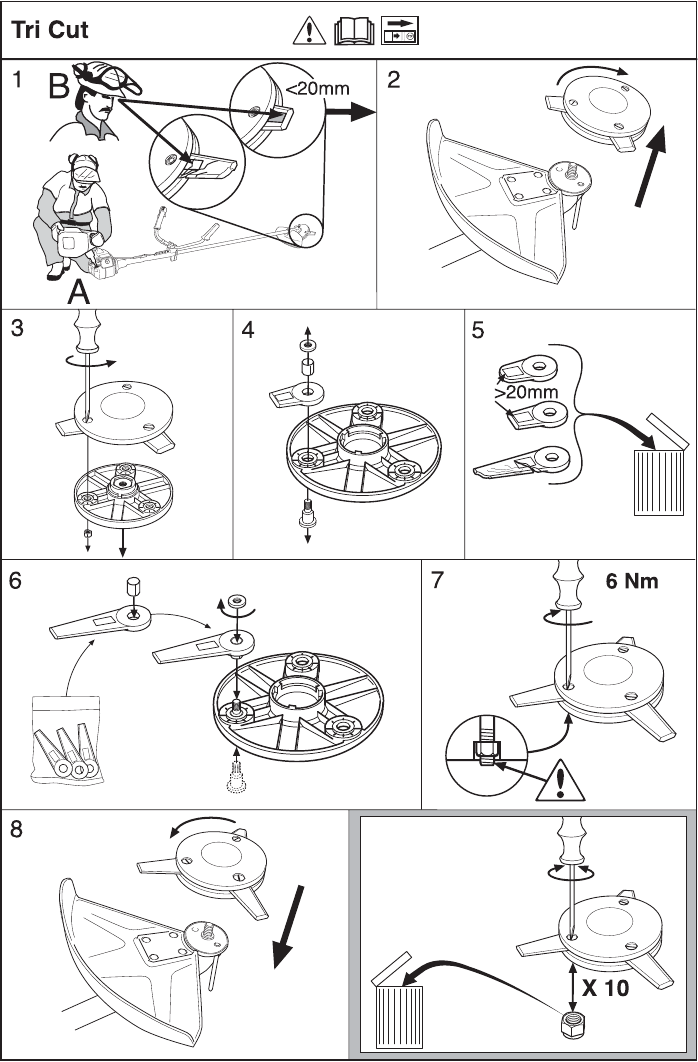

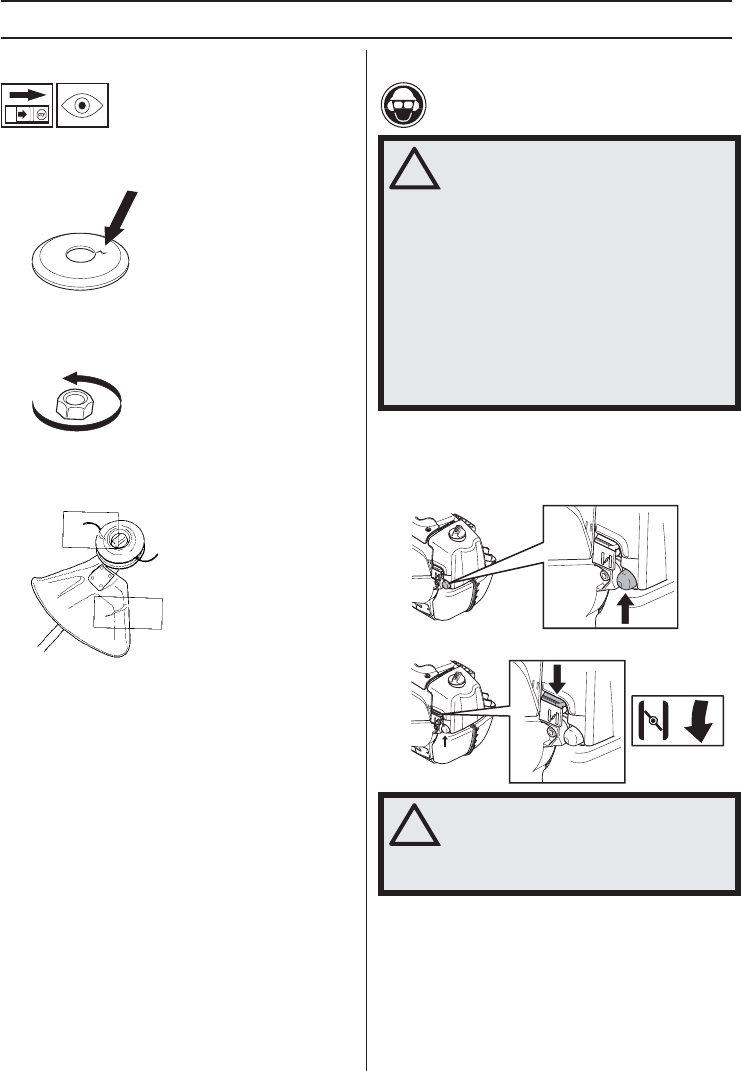

Assembling the cutting equipment ....................... 11

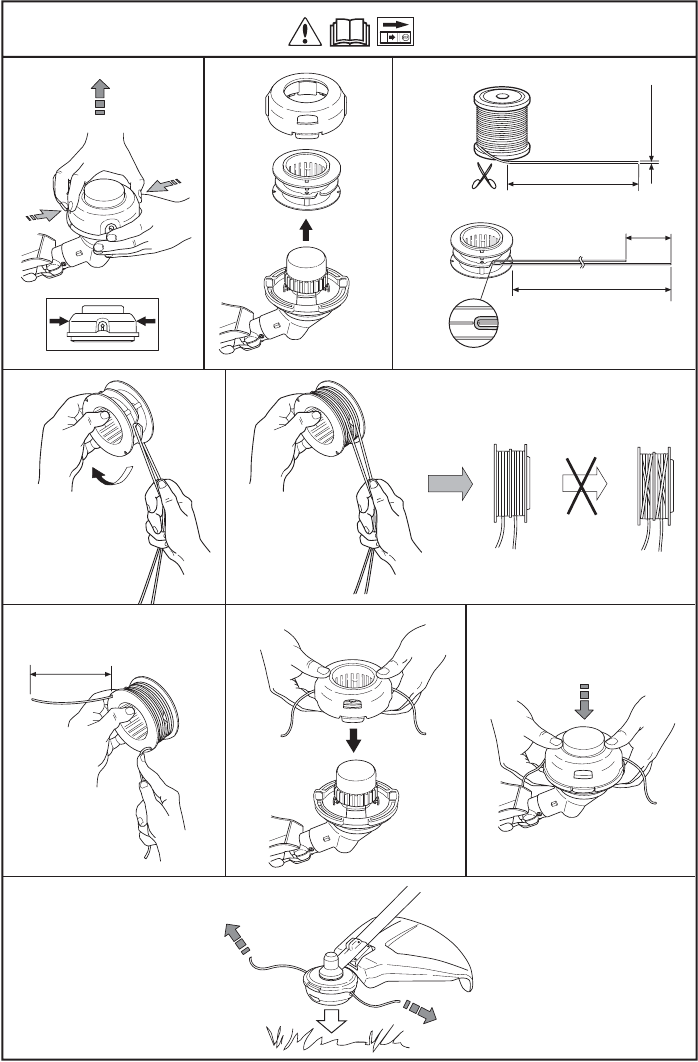

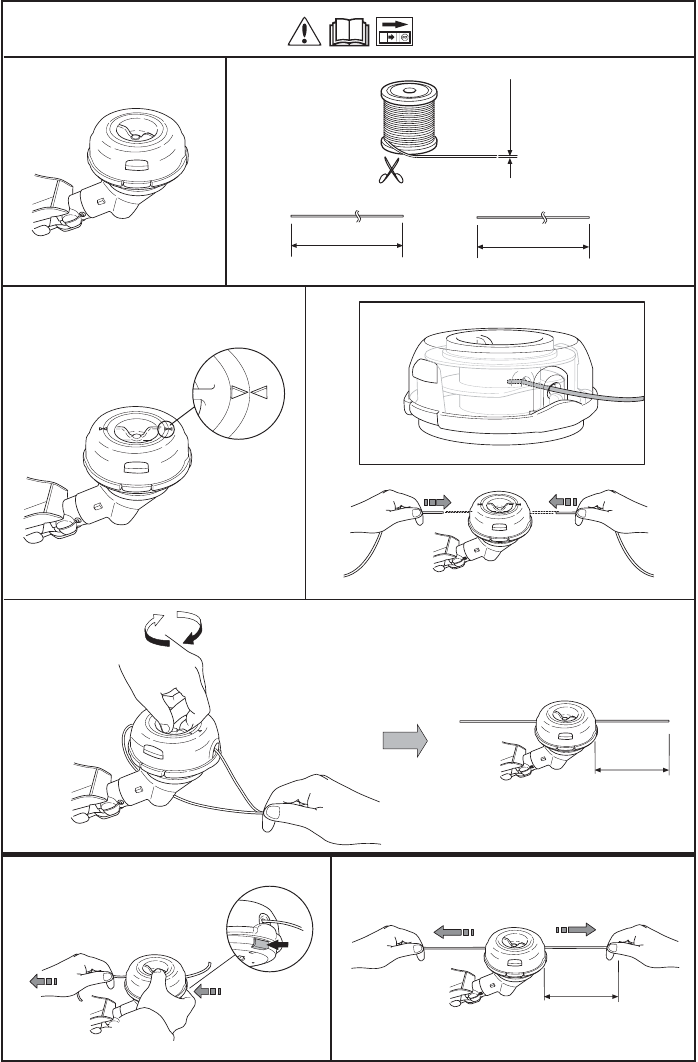

Fitting the trimmer guard and trimmer head ......... 11

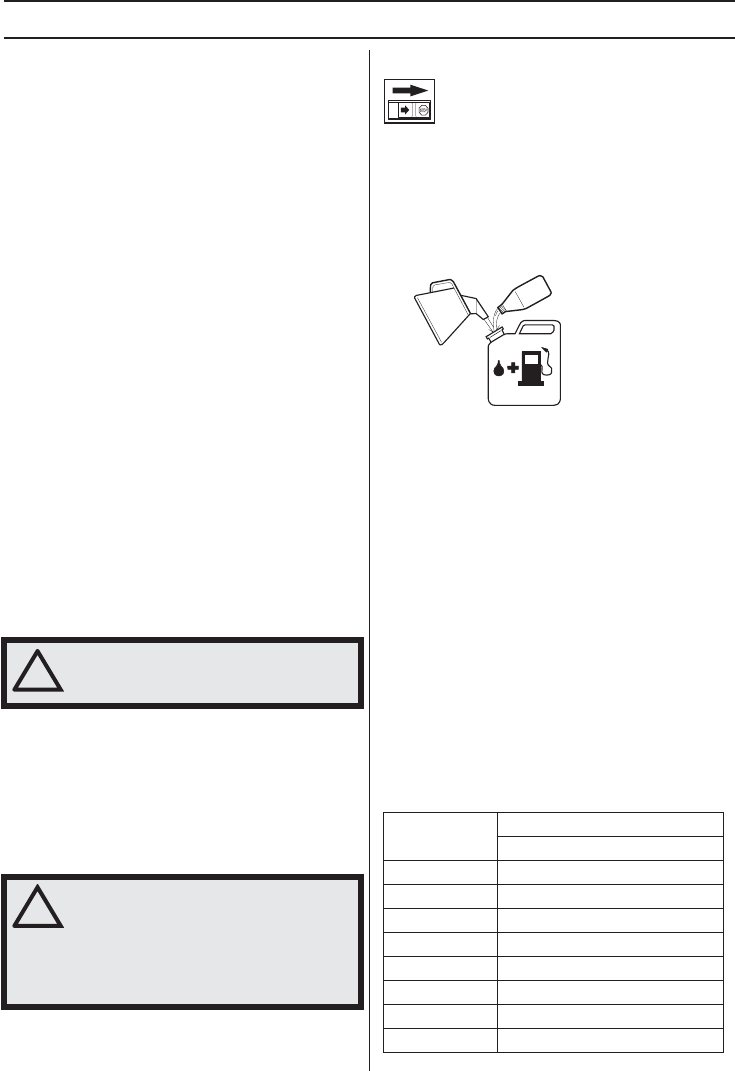

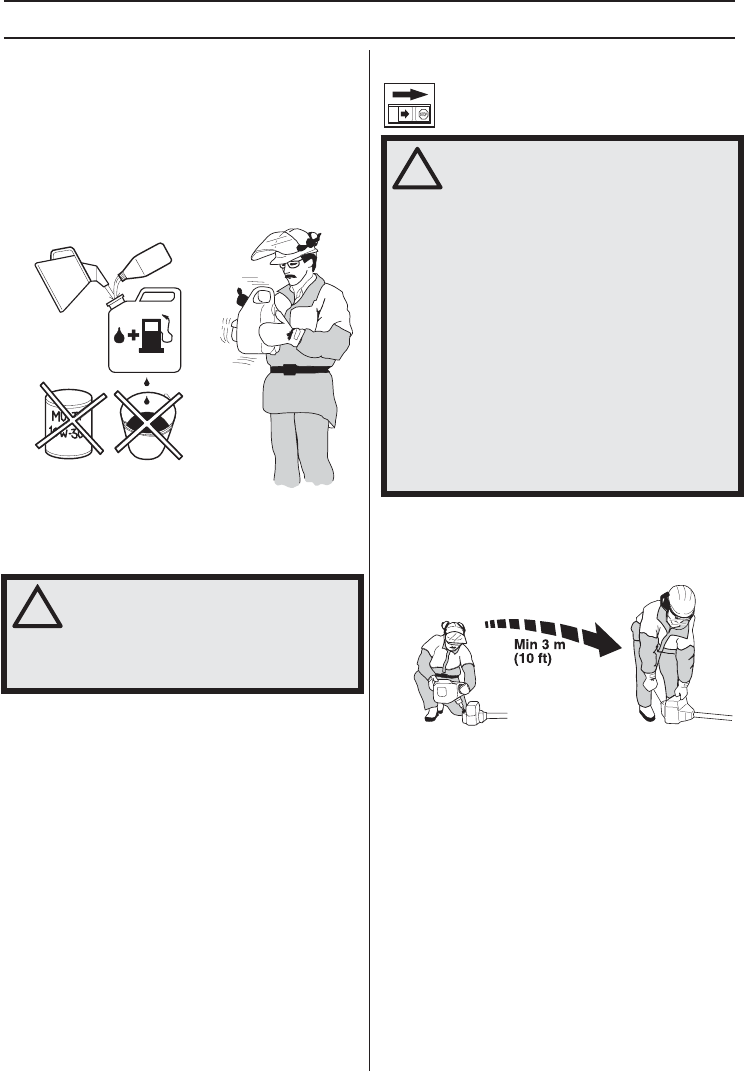

FUEL HANDLING
Fuel saf
ety ............................................................ 12
Fuel ...................................................................... 12
Fueling .................................................................. 13
ST
ARTING AND STOPPING
Chec
k before starting ........................................... 14
Starting and stopping ........................................... 14
W
ORKING TECHNIQUES

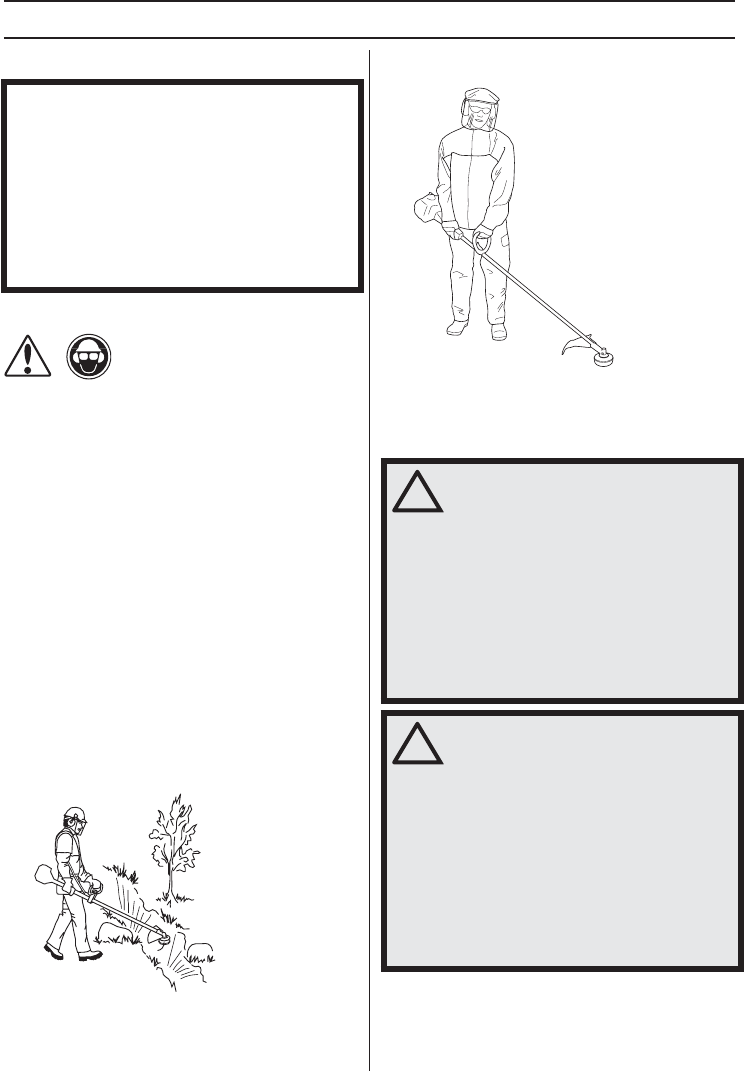

Gener
al working instructions ................................ 16
MAINTENANCE

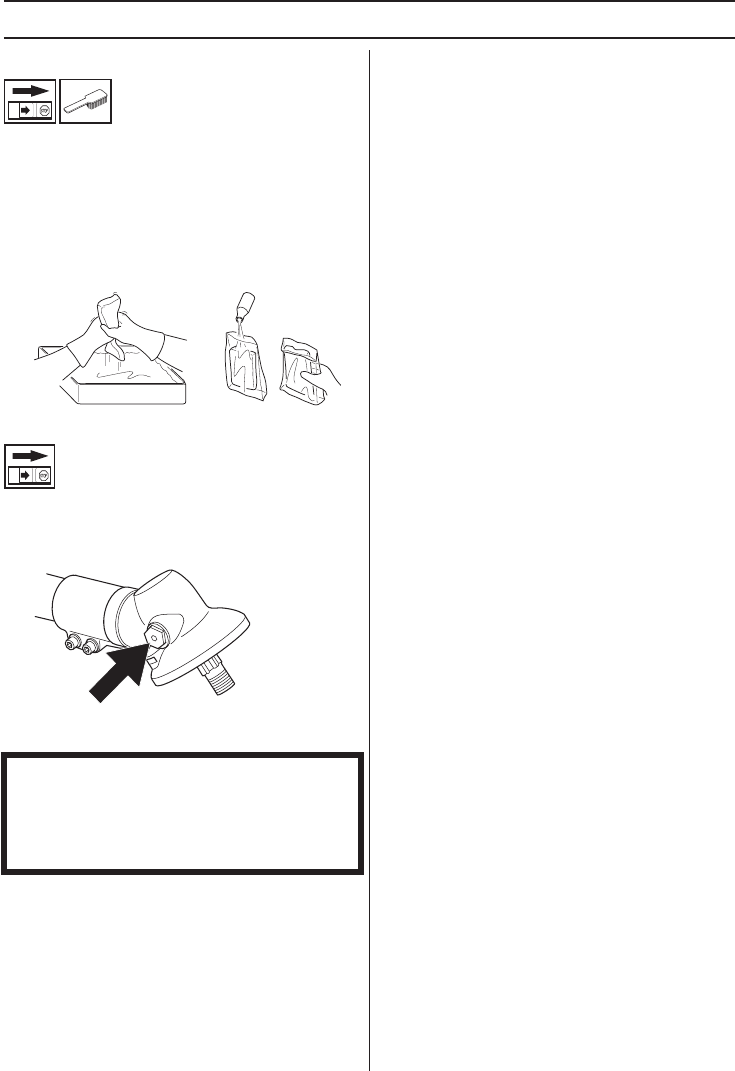

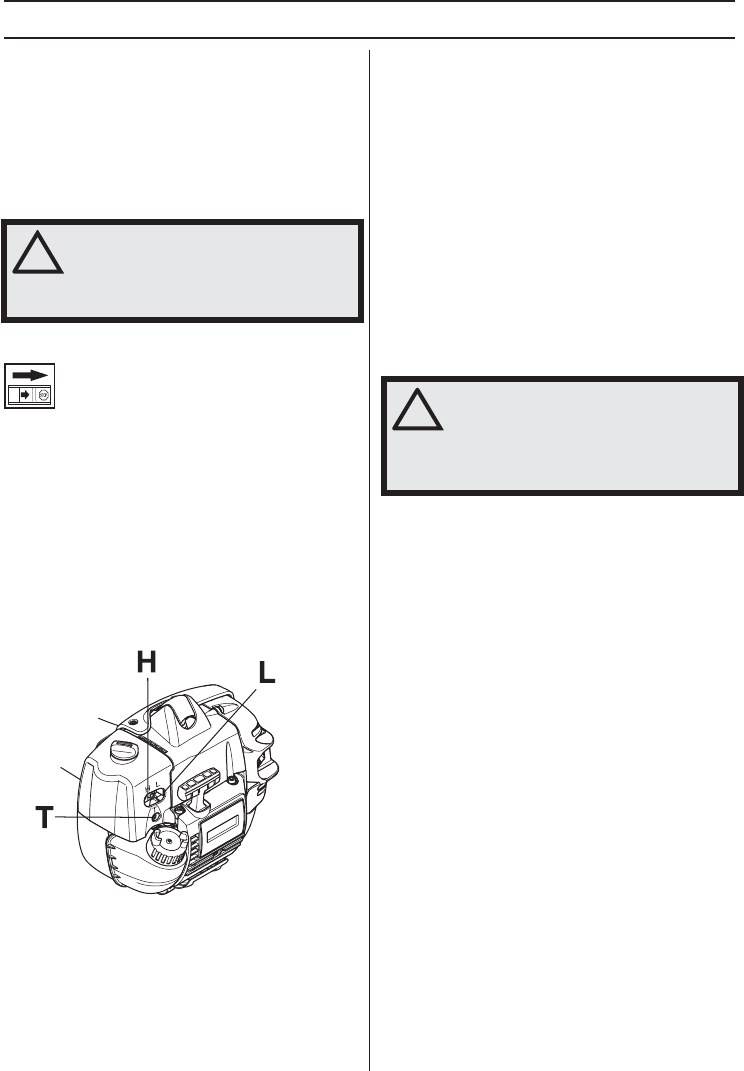

Carb
uretor ............................................................ 18
Muffler .................................................................. 20
Cooling system ..................................................... 20
Spark plug ............................................................ 21
Two-piece shaft ................................................... 21
Air filter ................................................................. 21
Maintenance schedule ......................................... 23
TECHNICAL D
ATA
T
echnical data ...................................................... 24
FEDERAL AND CALIFORNIA EMISSIONS
CONTROL WARRANTY STATEMENT
Y
OUR WARRANTY RIGHTS AND OBLIGATIONS 26
!
W
ARNING! Long-term exposure to noise
can result in permanent hearing
impairment. So always use approved
hearing protection.
!
W
ARNING! Under no circumstances may
the design of the machine be modified
without the permission of the
manufacturer. Always use genuine
accessories. Non-authorized
modifications and/or accessories can
result in serious personal injury or the
death of the operator or others.
Your warranty may not cover damage or
liability caused by the use of non-
authorized accessories or replacement
parts.
!
W
ARNING! A clearing saw, brushcutter
or trimmer can be dangerous if used
incorrectly or carelessly, and can cause
serious or fatal injury to the operator or
others. It is extremely important that you
read and understand the contents of this
operator’s manual.
The engine exhaust from this product
contains chemical known to the State
of California to cause cancer, birth
defects or other reproductive harm.
4
–
English
INTR
ODUCTION
Dear customer!
Cong
ratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689,
when the Swedish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production
of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-
powered plant. During over 300 years of continuous operation, the Husqvarna factory has produced a lot of different
products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first
motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working
today.
Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our
highest priority. We develop, manufacture and market high quality motor driven products for forestry and gardening as
well as for building and construction industry.
Your purchase gives you access to professional help with repairs and service whenever this may be necessary. If the
retailer who sells your machine is not one of our authorized dealers, ask for the address of your nearest servicing dealer.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this
operator
′
s manual as a valuable document. By following its
′
content (using, service, maintenance etc) the life span and
the second-hand value of the machine can be extended. If you ever lend or sell this machine, make sure that the
borrower or buyer gets the operator
′
s manual, so they will also know how to properly maintain and use it.
Thank you for using a Husqvarna product.
Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.
For customer assistance, contact us at our website: www.usa.husqvarna.com
English
–
5
WHA
T IS
WHA
T?

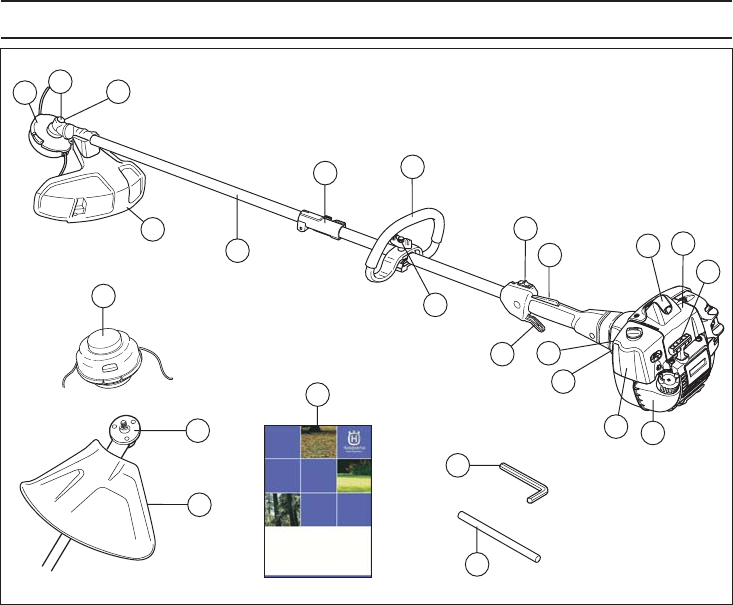

What is what?
132
4
20
4
21
19
9
8
12
13
14
15
16
17
18
22
1
5
67
10 11
1
Trimmer head
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Shaft coupling
7 Loop handle
8 Throttle control
9 Stop switch
10 Throttle lockout
11 Spark plug cap and spark plug
12 Cylinder cover
13 Starter handle
14 Fuel tank
15 Air filter cover
16 Air purge
17 Choke control
18 Handle adjustment
19 Drive disc
20 Operator’s manual
21 Allen key
22 Locking pin
GENERAL SAFETY PRECA
UTIONS
6
–
English

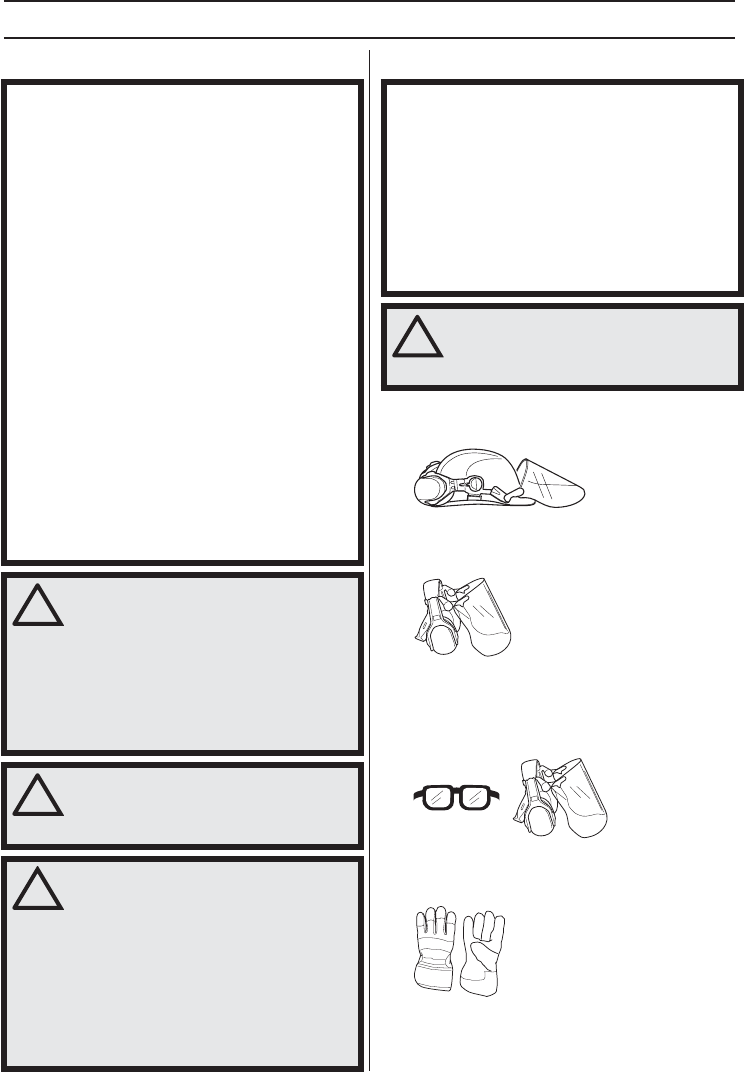

Impor
tant Personal protective equipment

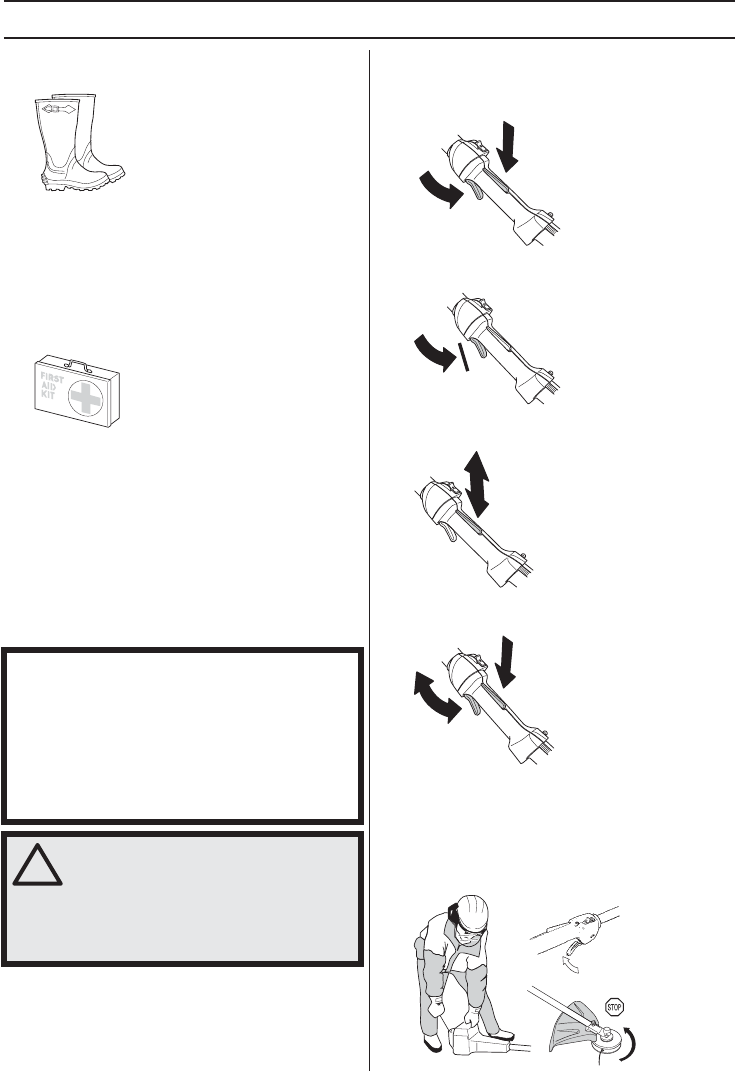

HELMET
A protectiv
e helmet where there is a risk of falling objects
HEARING PROTECTION
Wear hearing protection that provides adequate noise
reduction.
EYE PROTECTION
Always wear approved eye protection. If you use a visor
then you must also wear approved protective goggles.
Approved protective goggles must comply with standard
ANSI Z87.1 in the USA or EN 166 in EU countries.
GLOVES
Gloves should be worn when necessary, e.g., when fitting
cutting attachments.
IMPORTANT!
The machine is only designed for trimming grass.
The only accessories you can operate with this engine
unit are the cutting attachments we recommend in the
chapter on Technical data.
Never use the machine if you are tired, if you have drunk
alcohol, or if you are taking medication that could affect
your vision, your judgement or your co-ordination.
Wear personal protective equipment. See instructions
under the heading Personal protective equipment.
Never use a machine that has been modified in any way
from its original specification.

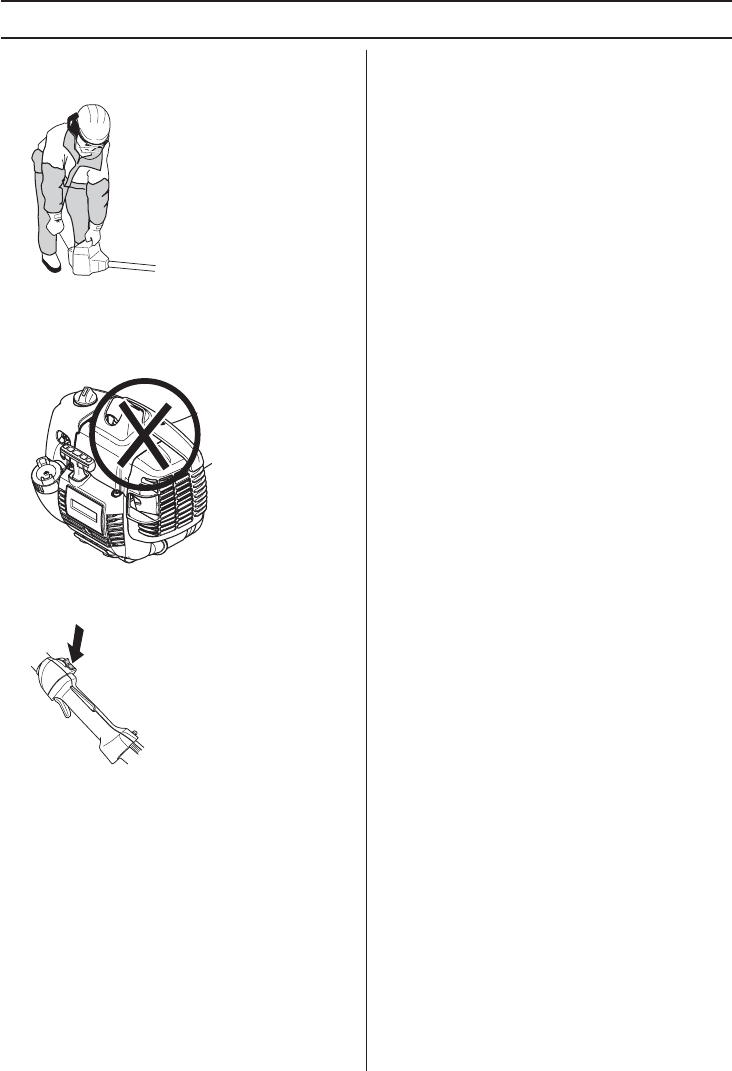

Never use a machine that is faulty. Carry out the checks,
maintenance and service instructions described in this
manual. Some maintenance and service measures
must be carried out by trained and qualified specialists.
See instructions under the heading Maintenance.
All covers, guards and handles must be fitted before
starting. Ensure that the spark plug cap and ignition
lead are undamaged to avoid the risk of electric shock.
The machine operator must ensure that no people or
animals come closer than 15 metres while working.
When several operators are working in the same area
the safety distance should be at least twice the tree
height and no less than 15 metres.
!
W
ARNING! The ignition system of this
machine produces an electromagnetic
field during operation. This field may
under some circumstances interfere with
pacemakers. To reduce the risk of
serious or fatal injury, we recommend
persons with pacemakers to consult
their physician and the pacemaker
manufacturer before operating this
machine.
!
W
ARNING! Running an engine in a
confined or badly ventilated area can
result in death due to asphyxiation or
carbon monoxide poisoning.
!
W
ARNING! Never allow children to use or
be in the vicinity of the machine. As the
machine is equipped with a spring-
loaded stop switch and can be started by
low speed and force on the starter
handle, even small children under some
circumstances can produce the force
necessary to start the machine. This can
mean a risk of serious personal injury.
Therefore remove the spark plug cap
when the machine is not under close
supervision.
IMPOR
TANT!
A clearing saw, brushcutter or trimmer can be
dangerous if used incorrectly or carelessly, and can
cause serious or fatal injury to the operator or others. It
is extremely important that you read and understand the
contents of this operator’s manual.
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen.
Ask your dealer for help in choosing the right equipment.
!
W
ARNING! Listen out for warning signals
or shouts when you are wearing hearing
protection. Always remove your hearing
protection as soon as the engine stops.
GENERAL SAFETY PRECA
UTIONS
English
–
7
BOO
TS
Wear sturdy, non-slip boots.
CLOTHING
Wear clothes made of a strong fabric and avoid loose
clothing that can catch on twigs and branches. Always
wear heavy, long pants. Do not wear jewellery, shorts
sandals or go barefoot. Secure hair so it is above shoulder
level.
FIRST AID KIT
Always have a first aid kit nearby.
Mac
hine
′
s safety equipment
This section descr
ibes the machine
′
s safety equipment,
its purpose, and how checks and maintenance should be
carried out to ensure that it operates correctly. See the
”What is what?” section to locate where this equipment is
positioned on your machine.
The life span of the machine can be reduced and the risk
of accidents can increase if machine maintenance is not
carried out correctly and if service and/or repairs are not
carried out professionally. If you need further information
please contact your nearest servicing dealer.
Thr
ottle lockout
The throttle loc
kout is designed to prevent accidental
operation of the throttle control. When you press the lock
(A) (i.e. when you grasp the handle) it releases the throttle
control (B). When you release the handle the throttle
control and the throttle lockout both move back to their
original positions. This movement is controlled by two
independent return springs. This arrangement means that
the throttle control is automatically locked at the idle
setting.
Make sure the throttle control is locked at the idle setting
when the throttle lockout is released.
Press the throttle lockout and make sure it returns to its
original position when you release it.
Check that the throttle control and throttle lockout move
freely and that the return springs work properly.
See instructions under the heading Start. Start the
machine and apply full throttle. Release the throttle and
check that the cutting attachment stops and remains at a
standstill. If the cutting attachment rotates with the throttle
in the idle position then the carburettor idle setting must
be checked. See instructions under the heading
Maintenance.
IMPORTANT!
All servicing and repair work on the machine requires
special training. This is especially true of the machine
′
s
safety equipment. If your machine fails any of the
checks described below you must contact your service
agent. When you buy any of our products we guarantee
the availability of professional repairs and service. If the
retailer who sells your machine is not a servicing dealer,
ask him for the address of your nearest service agent.
!
W
ARNING! Never use a machine with
faulty safety equipment. The machine’s
safety equipment must be checked and
maintained as described in this section.
If your machine fails any of these checks
contact your service agent to get it
repaired.
A
B
GENERAL SAFETY PRECA
UTIONS
8
–
English

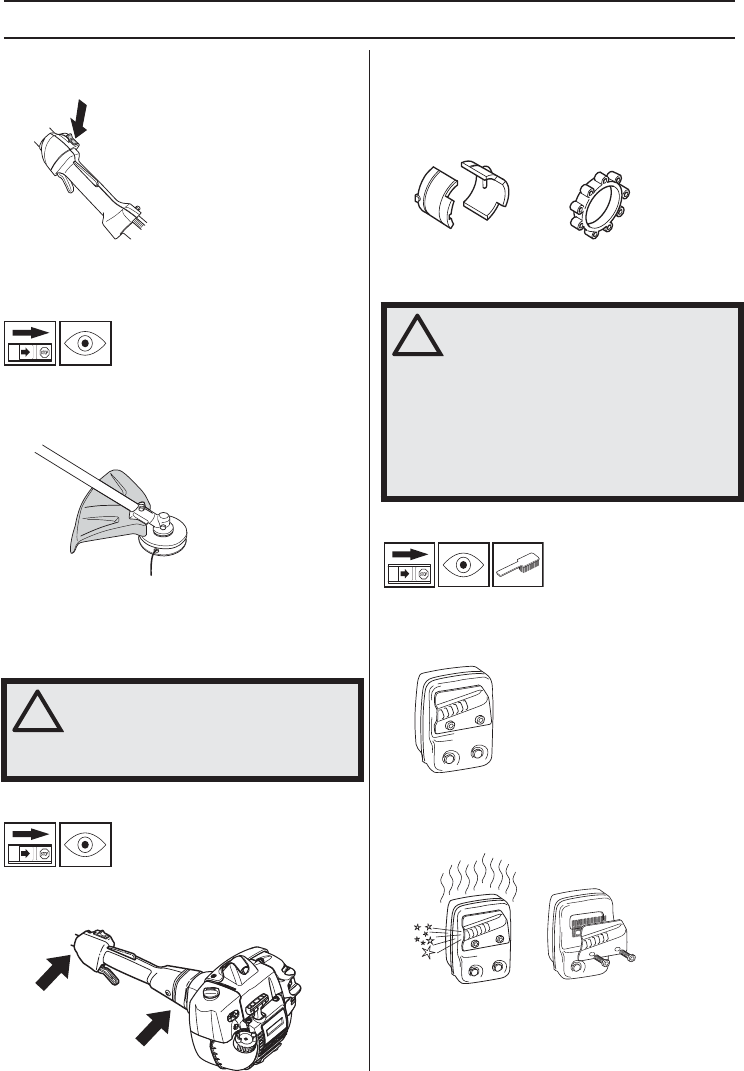

Stop s
witch
Use the stop s
witch to switch off the engine.
Start the engine and make sure the engine stops when
you move the stop switch to the stop setting.
Cutting attac
hment guard
This guard is intended to pre
vent loose objects from being
thrown towards the operator. The guard also protects the
operator from accidental contact with the cutting
attachment.
Check that the guard is undamaged and not cracked.
Replace the guard if it has been exposed to impact or is
cracked.
Always use the recommended guard for the cutting
attachment you are using. See chapter on Technical data.
Vibration damping system
Y
our machine is equipped with a vibration damping
system that is designed to reduce vibration and make
operation easier.
Use of incorrectly wound cord or an incorrect cutting
attachment increases the level of vibration. See
instructions under the heading Cutting equipment.
The machine
′
s vibration damping system reduces the
transfer of vibration between the engine unit/cutting
equipment and the machine
′
s handle unit.
Regularly check the vibration damping units for cracks or
deformation. Check that the vibration damping element is
undamaged and securely attached.
Muffler
The muffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user. A muffler
fitted with a catalytic converter is also designed to reduce
harmful exhaust gases.
In countries that have a warm and dry climate there is a
significant risk of fire. We therefore fit certain mufflers with
a spark arrestor screen. Check whether the muffler on
your machine is fitted with this kind of screen.
For mufflers it is very important that you follow the
instructions on checking, maintaining and servicing your
machine.
!
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
!
WARNING! Overexposure to vibration
can lead to circulatory damage or nerve
damage in people who have impaired
circulation. Contact your doctor if you
experience symptoms of overexposure
to vibration. These symptoms include
numbness, loss of feeling, tingling,
pricking, pain, loss of strength, changes
in skin colour or condition. These
symptoms normally appear in the
fingers, hands or wrists.
GENERAL SAFETY PRECAUTIONS
English – 9

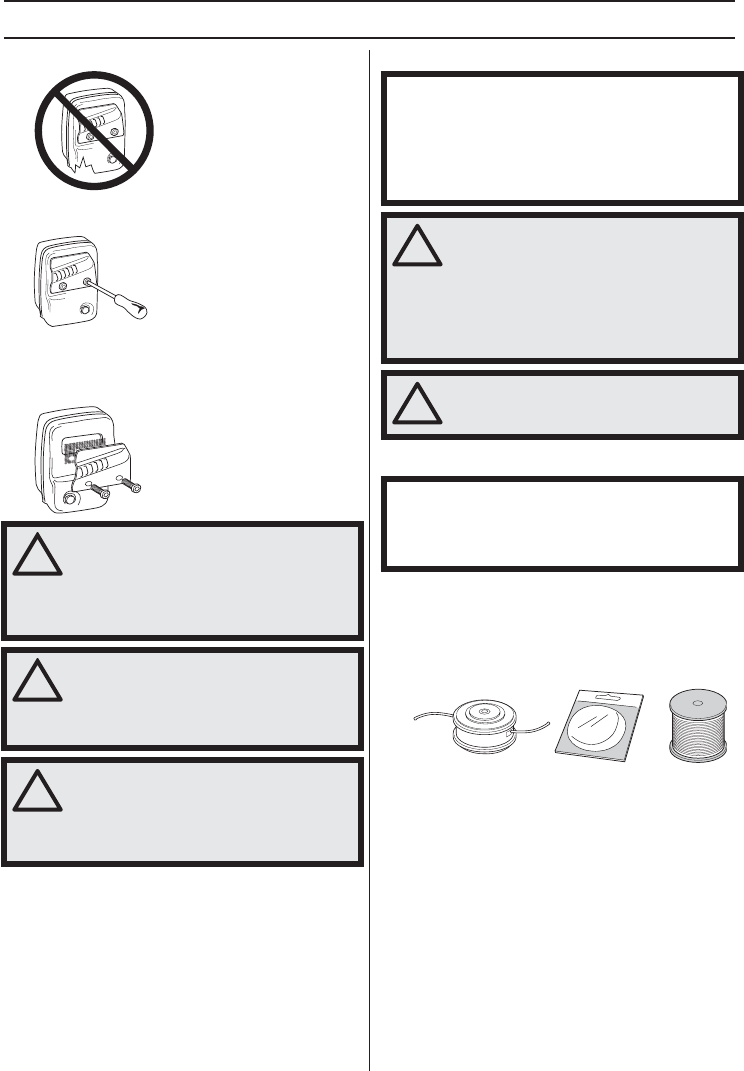

Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to
the machine.
If the muffler on your machine is fitted with a spark
arrestor screen this must be cleaned regularly. A blocked
screen will cause the engine to overheat and may lead to
serious damage.
Cutting equipment
This section describes how to choose and maintain your
cutting equipment in order to:
• Reduce the risk of blade thrust.
• Obtain maximum cutting performance.
• Extend the life of cutting equipment.
Trimmer head
• Only use the recommended trimmer heads and
trimmer cords. These have been tested by the
manufacturer to suit a particular engine size. This is
especially important when a fully automatic trimmer
head is used. Only use the recommended cutting
attachment. See the chapter on Technical data.
• Smaller machines generally require small trimmer
heads and vice versa. This is because when clearing
using a cord the engine must throw out the cord
radially from the trimmer head and overcome the
resistance of the grass being cleared.
• The length of the cord is also important. A longer cord
requires greater engine power than a shorter cord of
the same diameter.
• Make sure that the cutter on the trimmer guard is
intact. This is used to cut the cord to the correct length.
• To increase the life of the cord it can be soaked in
water for a couple of days. This will make the line
tougher so that it lasts longer.
!
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
remain so for some time after stopping.
This also applies at idle speed. Contact
can result in burns to the skin.
Remember the risk of fire!
!
WARNING! The inside of the muffler
contain chemicals that may be
carcinogenic. Avoid contact with these
elements in the event of a damaged
muffler.
!
WARNING! Bear in mind that:
The exhaust fumes from the engine are
hot and may contain sparks which can
start a fire. Never start the machine
indoors or near combustible material!
IMPORTANT!
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.

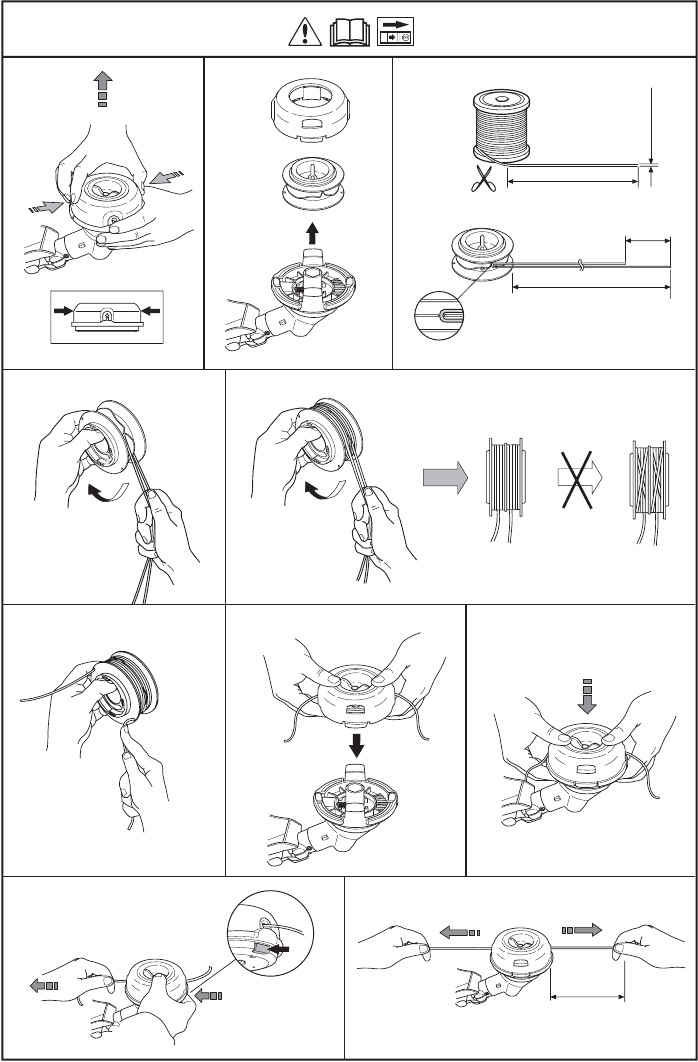

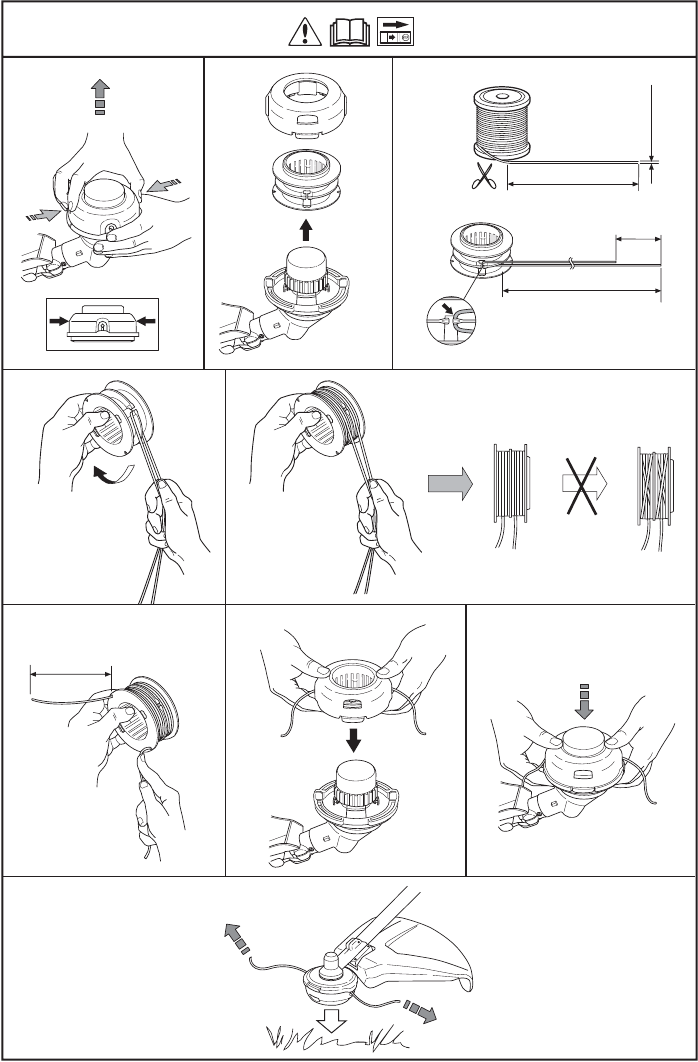

Refer to the instructions for the cutting attachment to
check the correct way to load the cord and the correct
cord diameter.
!
WARNING! Always stop the engine
before doing any work on the cutting
attachment. This continues to rotate even
after the throttle has been released.
Ensure that the cutting attachment has
stopped completely and disconnect the
HT lead from the spark plug before you
start to work on it.
!
WARNING! A faulty cutting attachment
may increase the risk of accidents.
IMPORTANT!
Always ensure the trimmer cord is wound tightly and
evenly around the drum, otherwise the machine will
generate harmful vibration.
ASSEMBLY
10 – English
Fitting the loop handle
•Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
• Slide the spacer into the slot in the loop handle. Fit the
nut, knob and screw. Do not overtighten.
• Now adjust the trimmer to give a comfortable working
position. Tighten the bolt/knob.
Assembling and dismantling the
two-piece shaft
Assembly:
• Loosen the coupling by turning the knob.
• Align the tab of the attachment (A) with the arrow on
the coupling (B).
• Push the attachment into the coupling until the
attachment snaps into place.
• Before using the unit, tighten the knob securely.
Dismantling:
• Loosen the coupling by turning the knob (at least 3
times).
• Push and hold the button (C). While securely holding
the engine end, pull the attachment straight out of the
coupling.
A
B
C
ASSEMBLY
English – 11
Assembling the cutting
equipment

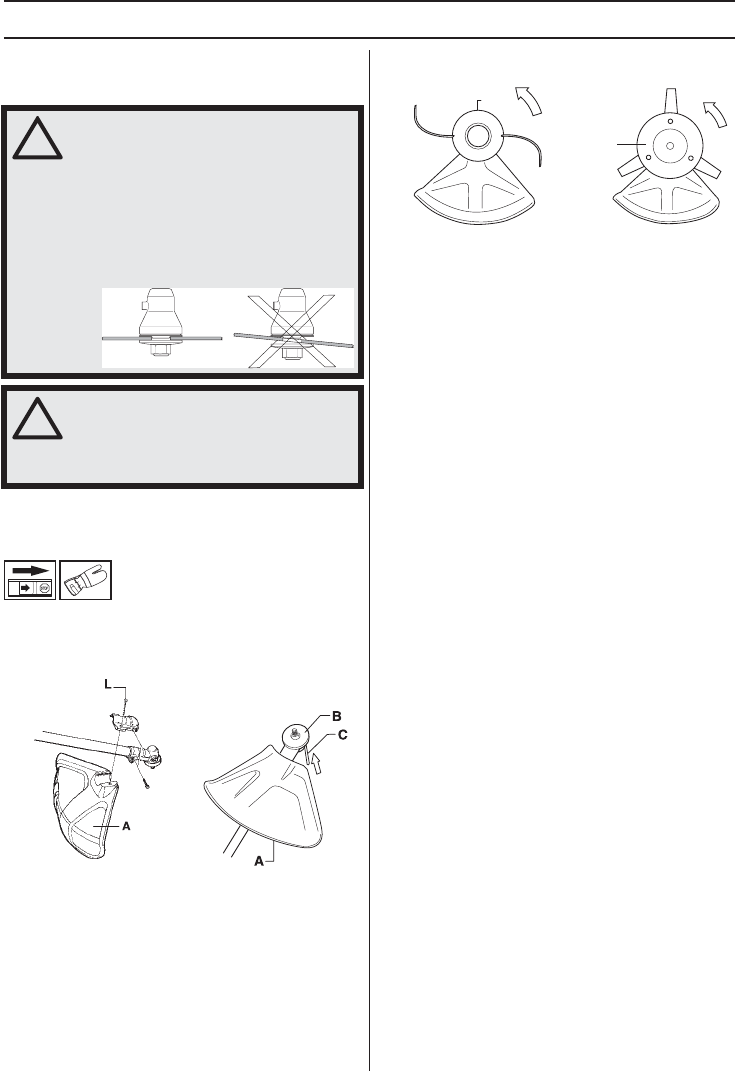

Fitting the trimmer guard and
trimmer head
• Fit the correct trimmer guard (A) for use with the
trimmer head. Hook the trimmer guard/combination
guard onto the fitting on the shaft and secure with the
bolt (L).
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
• To dismantle, follow the instructions in the reverse
order.
!
WARNING!
When fitting the cutting attachment it is
extremely important that the raised
section on the drive disc/support flange
engages correctly in the centre hole of
the cutting attachment. If the cutting
attachment is fitted incorrectly it can
result in serious and/or fatal personal
injury.
!
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
H
H
FUEL HANDLING
12 – English
Fuel safety
Never start the machine:
1 If you have spilled fuel on it. Wipe off the spillage and
allow remaining fuel to evaporate.
2 If you have spilled fuel on yourself or your clothes,
change your clothes. Wash any part of your body that
has come in contact with fuel. Use soap and water.
3 If the machine is leaking fuel. Check regularly for
leaks from the fuel cap and fuel lines.
Transport and storage
•Store and transport the machine and fuel so that there
is no risk of any leakage or fumes coming into contact
with sparks or naked flames, for example, from
electrical machinery, electric motors, electrical relays/
switches or boilers.
• When storing and transporting fuel always use
approved containers intended for this purpose.
• When storing the machine for long periods the fuel
tank must be emptied. Contact your local gas station
to find out where to dispose of excess fuel.
• Ensure the machine is cleaned and that a complete
service is carried out before long-term storage.
• The transport guard must always be fitted to the
cutting attachment when the machine is being
transported or in storage.
• In order to prevent unintentional starting of the engine,
the spark plug cap must always be removed during
long-term storage, if the machine is not under close
supervision and when performing all service
measures.
Fuel
CAUTION! The machine is equipped with a two-stroke
engine and must always been run using a mixture of
gasoline and two-stroke engine oil. It is important to
accurately measure the amount of oil to be mixed to
ensure that the correct mixture is obtained. When mixing
small amounts of fuel, even small inaccuracies can
drastically affect the ratio of the mixture.
Gasoline
CAUTION! Always use a quality gasoline/oil mixture with
an octane rating of at least 87 octane ((RON+MON)/2). If
your machine is equipped with a catalytic converter (see
chapter on Technical data) always use a good quality
unleaded gasoline/oil mixture. Leaded gasoline will
destroy the catalytic converter.
Use low-emission gasoline, also known as alkylate
gasoline, if it is available.
This engine is certified to operate on unleaded
gasoline.
• The lowest recommended octane grade is 87
((RON+MON)/2). If you run the engine on a lower
octane grade than 87 so-called knocking can occur.
This gives rise to a high engine temperature and
increased bearing load, which can result in serious
engine damage.
• When working at continuous high revs a higher octane
rating is recommended.
Two-stroke oil
• For best results and performance use HUSQVARNA
two-stroke engine oil, which is specially formulated for
our air-cooled two stroke-engines.
• Never use two-stroke oil intended for water-cooled
engines, sometimes referred to as outboard oil (rated
TCW).
• Never use oil intended for four-stroke engines.
• Mixing ratio
1:50 (2%) with HUSQVARNA two-stroke oil.
!
WARNING! Take care when handling fuel.
Bear in mind the risk of fire, explosion
and inhaling fumes.
!
WARNING! Fuel and fuel fumes are
highly inflammable and can cause
serious injury when inhaled or allowed to
come in contact with the skin. For this
reason observe caution when handling
fuel and make sure there is adequate
ventilation.
Gasoline, litre Two-stroke oil, litre
2% (1:50)
5 0,10
10 0,20
15 0,30
20 0,40
US gallon US fl. oz.
1 2 1/2
2 1/2 6 1/2
5 12 7/8
FUEL HANDLING
English – 13
Mixing
• Always mix the gasoline and oil in a clean container
intended for fuel.
• Always start by filling half the amount of the gasoline
to be used. Then add the entire amount of oil. Mix
(shake) the fuel mixture. Add the remaining amount of
gasoline.
• Mix (shake) the fuel mixture thoroughly before filling
the machine’s fuel tank.
• Do not mix more than one month’s supply of fuel at a
time.
• If the machine is not used for some time the fuel tank
should be emptied and cleaned.
Fueling
•Clean the area around the fuel cap. Contamination in
the tank can cause operating problems.
• Ensure that the fuel is well mixed by shaking the
container before filling the tank.
!
WARNING! The catalytic converter
muffler gets very hot during and after
use. This also applies during idling. Be
aware of the fire hazard, especially when
working near flammable substances and/
or vapours.
!
WARNING! Taking the following
precautions, will lessen the risk of fire:
Do not smoke or place hot objects near
fuel.
Always shut off the engine before
refuelling.
Always stop the engine and let it cool for
a few minutes before refuelling.
When refuelling, open the fuel cap slowly
so that any excess pressure is released
gently.
Tighten the fuel cap carefully after
refuelling.
Always move the machine away from the
refuelling area before starting.
STARTING AND STOPPING
14 – English
Check before starting
• Check that the support flange is not cracked due to
fatigue or due to being tightened too much. Discard
the support flange if it is cracked.
• Ensure the locking nut has not lost its captive force.
The nut lock should have a locking force of at least 1.5
Nm. The tightening torque of the locking nut should be
35-50 Nm.
• Check that the trimmer head and trimmer guard are
not damaged or cracked. Replace the trimmer head or
trimmer guard if they have been exposed to impact or
are cracked.
• Never use the machine without a guard nor with a
defective guard.
• All covers must be correctly fitted and undamaged
before you start the machine.
Starting and stopping
Starting
Primer bulb: Press the air purge repeatedly until fuel
begins to fill the bulb. The bulb need not be completely
filled.
Choke: Set the choke control in the choke position.
Hold the body of the machine on the ground using your
left hand (CAUTION! Not with your foot!). Grip the starter
handle, slowly pull out the cord with your right hand until
you feel some resistance (the starter pawls grip), now
quickly and powerfully pull the cord. Never wrap the
starter cord around your hand
Repeat pulling the cord until the engine starts. When the
engine starts. return choke control to run position and
apply full throttle; the throttle will automatically disengage
from the start setting.
!
WARNING! The complete clutch cover
and shaft must be fitted before the
machine is started, otherwise the clutch
can come loose and cause personal
injury.
Always move the machine away from the
refuelling area before starting. Place the
machine on a flat surface. Ensure the
cutting attachment cannot come into
contact with any object.
Make sure no unauthorised persons are
in the working area, otherwise there is a
risk of serious personal injury. The safety
distance is 15 metres.
!
WARNING! When the engine is started
with the choke in either the choke or
start throttle positions the cutting
attachment will start to rotate
immediately.
STARTING AND STOPPING
English – 15
CAUTION! Do not pull the starter cord all the way out and
do not let go of the starter handle when the cord is fully
extended. This can damage the machine.
CAUTION!
Do not put any part of your body in marked area. Contact
can result in burns to the skin, or electrical shock if the
spark plug cap has been damaged. Always use gloves.
Do not use a machine with damaged spark plug cap.
Stopping
Stop the engine by switching off the ignition.
CAUTION! The stop switch automatically returns to the
start position. In order to prevent unintentional starting,
the spark plug cap must be removed from the spark plug
when assembling, checking and/or performing
maintenance.
WORKING TECHNIQUES
16 – English
General working instructions
Basic safety rules
1 Look around you:
• To ensure that people, animals or other things cannot
affect your control of the machine.
• To ensure that people, animals, etc., do not come into
contact with the cutting attachment or loose objects
that are thrown out by the cutting attachment.
• CAUTION! Do not use the machine unless you are
able to call for help in the event of an accident.
2 Inspect the working area. Remove all loose objects,
such as stones, broken glass, nails, steel wire, string,
etc. that could be thrown out or become wrapped
around the cutting attachment.
3 Do not use the machine in bad weather, such as
dense fog, heavy rain, strong wind, intense cold, etc.
Working in bad weather is tiring and often brings
added risks, such as icy ground, unpredictable felling
direction, etc.
4 Make sure you can move and stand safely. Check the
area around you for possible obstacles (roots, rocks,
branches, ditches, etc.) in case you have to move
suddenly. Take great care when working on sloping
ground.
5 Keep a good balance and a firm foothold.
6 Always hold the machine with both hands. Hold the
machine on the right side of your body.
7 Keep the cutting attachment below waist level.
8 The engine must be switched off before moving.
9 Never put the machine down with the engine running
unless you have it in clear sight.
IMPORTANT!
This section takes up the basic safety precautions for
working with a trimmer.
If you encounter a situation where you are uncertain
how to proceed you should ask an expert. Contact your
dealer or your service workshop.
Avoid all usage which you consider to be beyond your
capability.
You must understand the difference between forestry
clearing, grass clearing and grass trimming before use.
!
WARNING! Neither the operator of the
machine nor anyone else may attempt to
remove the cut material while the engine
is running or the cutting equipment is
rotating, as this can result in serious
injury.
Stop the engine and cutting equipment
before you remove material that has
wound around the blade shaft as
otherwise there is a risk of injury. The
bevel gear can get hot during use and
may remain so for a while afterwards. You
could get burnt if you touch it.
!
WARNING! Watch out for thrown objects.
Always wear approved eye protection.
Never lean over the cutting attachment
guard. Stones, rubbish, etc. can be
thrown up into the eyes causing
blindness or serious injury.
Keep unauthorised persons at a
distance. Children, animals, onlookers
and helpers should be kept outside the
safety zone of 15 m. Stop the machine
immediately if anyone approaches. Never
swing the machine around without first
checking behind you to make sure no-
one is within the safety zone.
WORKING TECHNIQUES
English – 17
Basic working techniques
Always slow the engine to idle speed after each working
operation. Long periods at full throttle without any load on
the engine can lead to serious engine damage.

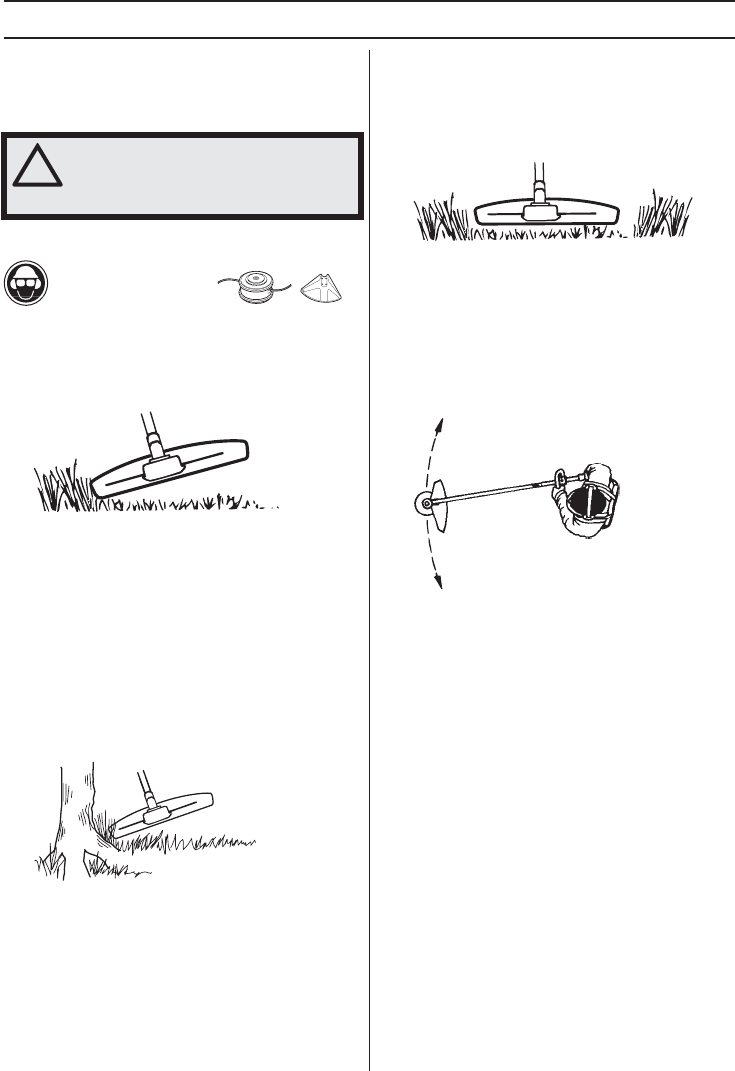

Grass trimming with a trimmer head
Trimming
• Hold the trimmer head just above the ground at an
angle. It is the end of the cord that does the work. Let
the cord work at its own pace. Never press the cord
into the area to be cut.
• The cord can easily remove grass and weeds up
against walls, fences, trees and borders, however it
can also damage sensitive bark on trees and bushes,
and damage fence posts.
• Reduce the risk of damaging plants by shortening the
cord to 10-12 cm and reducing the engine speed.
Clearing
• The clearing technique removes all unwanted
vegetation. Keep the trimmer head just above the
ground and tilt it. Let the end of the cord strike the
ground around trees, posts, statues and the like.
CAUTION! This technique increases the wear on the
cord.
• The cord wears quicker and must be fed forward more
often when working against stones, brick, concrete,
metal fences, etc., than when coming into contact with
trees and wooden fences.
• When trimming and clearing you should use less than
full throttle so that the cord lasts longer and to reduce
the wear on the trimmer head.
Cutting
•The trimmer is ideal for cutting grass that is difficult to
reach using a normal lawn mower. Keep the cord
parallel to the ground when cutting. Avoid pressing the
trimmer head against the ground as this can ruin the
lawn and damage the tool.
• Do not allow the trimmer head to constantly come into
contact with the ground during normal cutting.
Constant contact of this type can cause damage and
wear to the trimmer head.
Sweeping
• The fan effect of the rotating cord can be used for
quick and easy clearing up. Hold the cord parallel to
and above the area to be swept and move the tool to
and fro.
• When cutting and sweeping you should use full
throttle to obtain the best results.
!
WARNING! Sometimes branches or
grass get caught between the guard and
cutting attachment. Always stop the
engine before cleaning.
MAINTENANCE
18 – English
Carburetor
Your Husqvarna product has been designed and
manufactured to specifications that reduce harmful
emissions. After the engine has used 8-10 tanks of fuel
the engine will be run-in. To ensure that it continues to run
at peak performance and to minimise harmful exhaust
emissions after the running-in period, ask your dealer/
service workshop (who will have a rev counter at their
disposal) to adjust your carburettor.
Function
• The carburetor governs the engine’s speed via the
throttle control. Air and fuel are mixed in the
carburetor. The air/fuel mixture is adjustable. Correct
adjustment is essential to get the best performance
from the machine.
• The setting of the carburetor means that the engine is
adapted to local conditions, for example, the climate,
altitude, fuel and the type of 2-stroke oil.
• The carburetor has three adjustment controls:
L = Low speed jet
H = High speed jet
T = Idle adjustment screw
• The L and H-jets are used to adjust the supply of fuel
to match the rate that air is admitted, which is
controlled with the throttle. If they are screwed
clockwise the air/fuel ratio becomes leaner (less fuel)
and if they are turned anti-clockwise the ratio
becomes richer (more fuel). A lean mixture gives a
higher engine speed and a rich mixture gives a lower
engine speed.
• The T-screw regulates the throttle setting at idle
speed. If the T-screw is turned clockwise this gives a
higher idle speed; turning it anti-clockwise gives a
lower idle speed.
Basic setting
• The basic carburetor settings are adjusted during
testing at the factory. The basic setting is richer than
the optimal setting and should be maintained for the
first few hours the machine is in use. The carburettor
should then be finely adjusted. Fine adjustment
should be carried out by a skilled technician.
CAUTION! If the cutting attachment rotates when the
engine is idling the idle adjustment screw T should be
turned anti-clockwise until the cutting attachment stops.
Rec. idle speed: 2700 rpm
Recommended max. speed: See the Technical data
section.
Fine adjustment
• When the machine has been ”run-in” the carburetor
should be finely adjusted. The fine adjustment
should be carried out by a qualified person. First
adjust the L-jet, then the idling screw T and then the
H-jet.
Conditions
•Before any adjustments are made, make sure that the
air filter is clean and the air filter cover is fitted. If you
adjust the carburettor when the air filter is dirty it will
result in a leaner mixture when the filter is finally
cleaned. This can lead to serious engine damage.
• Carefully turn both jets, L and H, so that they are
midway between fully screwed in and fully screwed
out.
• Do not attempt to adjust the L and H jets beyond either
stop as this could cause damage.
• Now start the machine according to the starting
instructions and let it warm up for 10 minutes.
CAUTION! If the cutting attachment rotates when the
engine is idling the idle adjustment screw T should be
turned anti-clockwise until the cutting attachment stops.
!
WARNING! The complete clutch cover
and shaft must be fitted before the
machine is started, otherwise the clutch
can come loose and cause personal
injury.
!
WARNING! If the idle speed cannot be
adjusted so that the cutting attachment
stops, contact your dealer/service
workshop. Do not use the machine until
it has been correctly adjusted or
repaired.
MAINTENANCE
English – 19

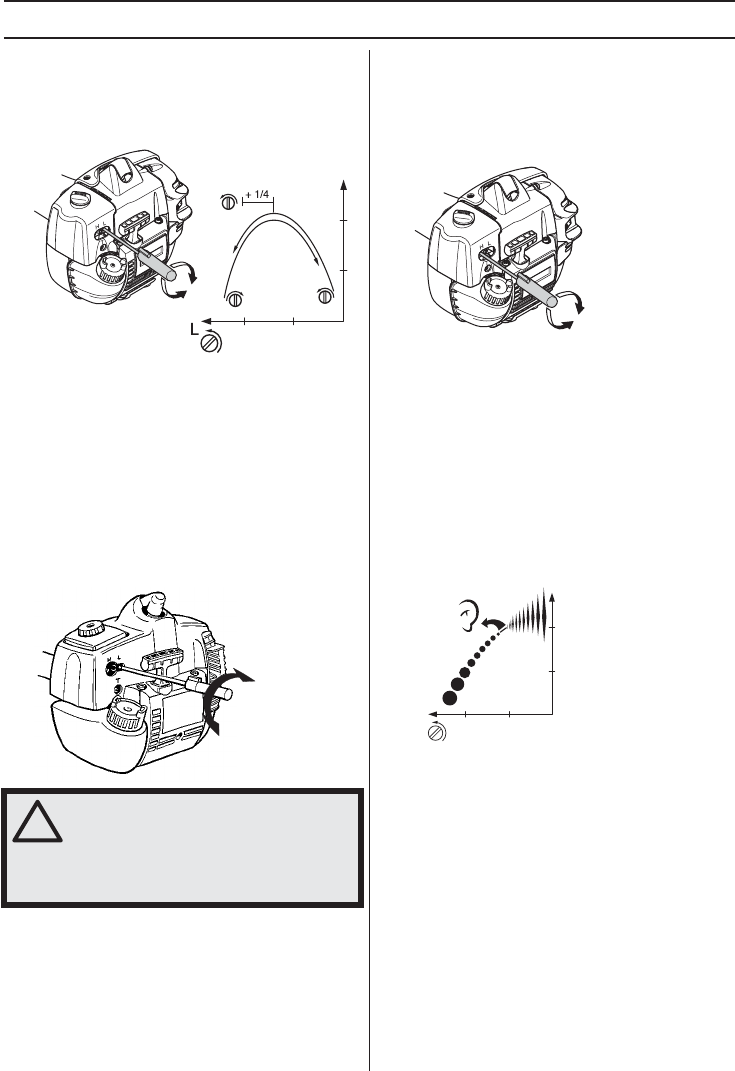

Low speed jet L
Try to find the highest idling speed, turning the low speed
needle L clockwise respectively counter-clockwise. When
the highest speed has been found, turn the low speed
needle L 1/4 turn counter-clockwise.
CAUTION! If the cutting attachment rotates when the
engine is idling the idle adjustment screw T should be
turned anti-clockwise until the cutting attachment stops.
Fine adjustment of the idle speed T
Adjust the idle speed using the idle adjustment screw T, if
it is necessary to readjust. First turn the idle adjustment
screw T clockwise until the cutting attachment starts to
rotate. Then turn the screw anticlockwise until the cutting
attachment stops. The idle speed is correctly adjusted
when the engine will run smoothly in every position. The
idle speed should also be well below the speed at which
the cutting attachment starts to rotate.
High speed jet H
The high speed jet H affects the engine power, speed,
temperature and fuel consumption. If the high speed jet H
is set too lean (screwed in too far) the engine speed will
be too high and cause engine damage. Do not let the
engine run at full speed for more than 10 seconds.
Apply full throttle and turn the high speed jet H very slowly
clockwise until the engine slows down. Then turn the high
speed jet H very slowly anticlockwise until the engine
starts to run unevenly. Now turn the high speed jet H
slowly clockwise a little way until the engine runs
smoothly.
Note that the engine should not be under load when you
adjust the high speed jet H. You should therefore remove
the cutting attachment, nut, support flange and drive disc
before adjusting the high speed jet H.
The high speed jet H is adjusted correctly when the
machine burbles a little. If the machine races then the
setting is too lean. If the engine produces a lot of smoke
and burbles a lot then the setting is too rich.
CAUTION! For optimum adjustment of the carburettor,
contact a qualified dealer/service workshop that has a
revolution counter at their disposal.
Correctly adjusted carburetor
When the carburetor is correctly adjusted the machine will
accelerate without hesitation and burble a little at
maximum speed. It is also important that the cutting
attachment does not rotate at idle. If the low speed jet L is
set too lean it may cause starting difficulties and poor
acceleration.
If the high speed jet H is set too lean it will result in less
power, less performance, poor acceleration and/or
damage to the engine.
If both the L and H jets are set too rich it will results in
acceleration problems or too low a working speed.
!
WARNING! If the idle speed cannot be
adjusted so that the cutting attachment
stops, contact your dealer/service
workshop. Do not use the machine until
it has been correctly adjusted or
repaired.
H
MAINTENANCE
20 – English

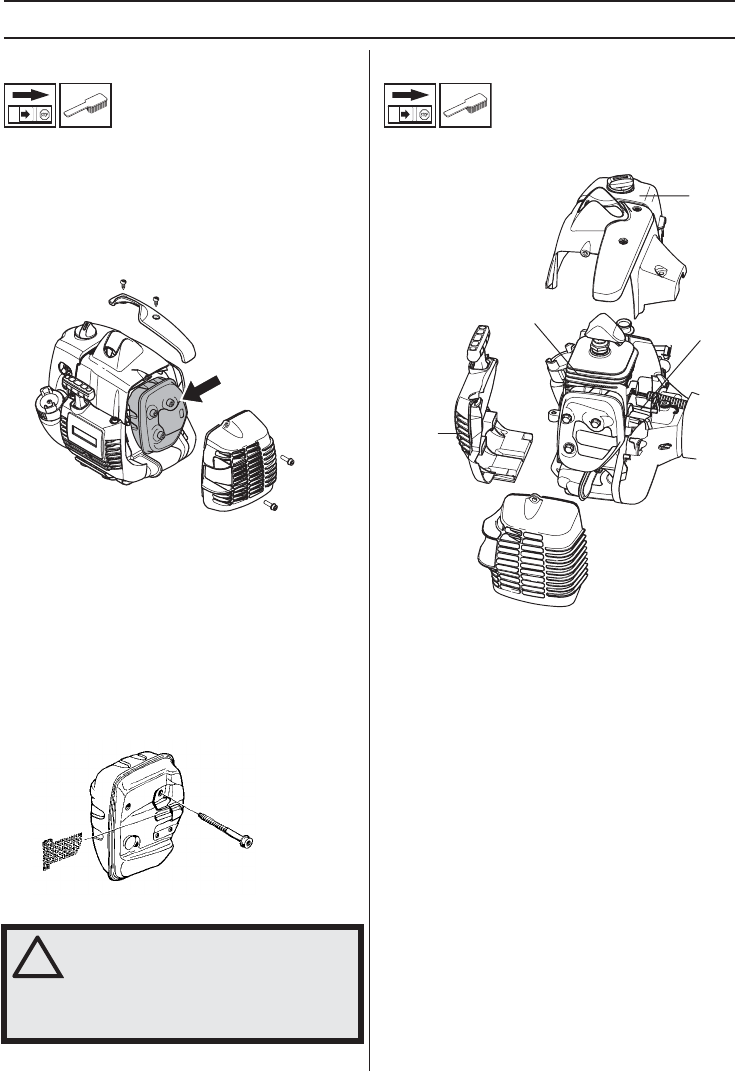

Muffler
CAUTION! Some mufflers are fitted with a catalytic
converter. See chapter on Technical data to see whether
your machine is fitted with a catalytic converter.
The muffler is designed to reduce the noise level and to
direct the exhaust gases away from the operator. The
exhaust gases are hot and can contain sparks, which may
cause fire if directed against dry and combustible
material.
Some mufflers are equipped with a special spark arrestor
screen. If your machine has this type of muffler, you
should clean the screen at least once a week. This is best
done with a wire brush. On mufflers without a catalytic
converter the screen should be cleaned weekly, or
replaced if necessary. On mufflers fitted with a catalytic
converter the screen should be checked, and if necessary
cleaned, monthly. If the screen is damaged it should be
replaced. If the screen is frequently blocked, this can be
a sign that the performance of the catalytic converter is
impaired. Contact your dealer to inspect the muffler. A
blocked screen will cause the machine to overheat and
result in damage to the cylinder and piston.
CAUTION! Never use a machine with a defective muffler.
Cooling system
To keep the working temperature as low as possible the
machine is equipped with a cooling system.
The cooling system consists of:
1 Air intake on the starter.
2 Fins on the flywheel.
3 Cooling fins on the cylinder.
4 Cylinder cover (directs cold air over the cylinder).
Clean the cooling system with a brush once a week, more
often in demanding conditions. A dirty or blocked cooling
system results in the machine overheating which causes
damage to the piston and cylinder.
!
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
remain so for some time after stopping.
This also applies at idle speed. Contact
can result in burns to the skin.
Remember the risk of fire!
1
2
3
4
MAINTENANCE
English – 21

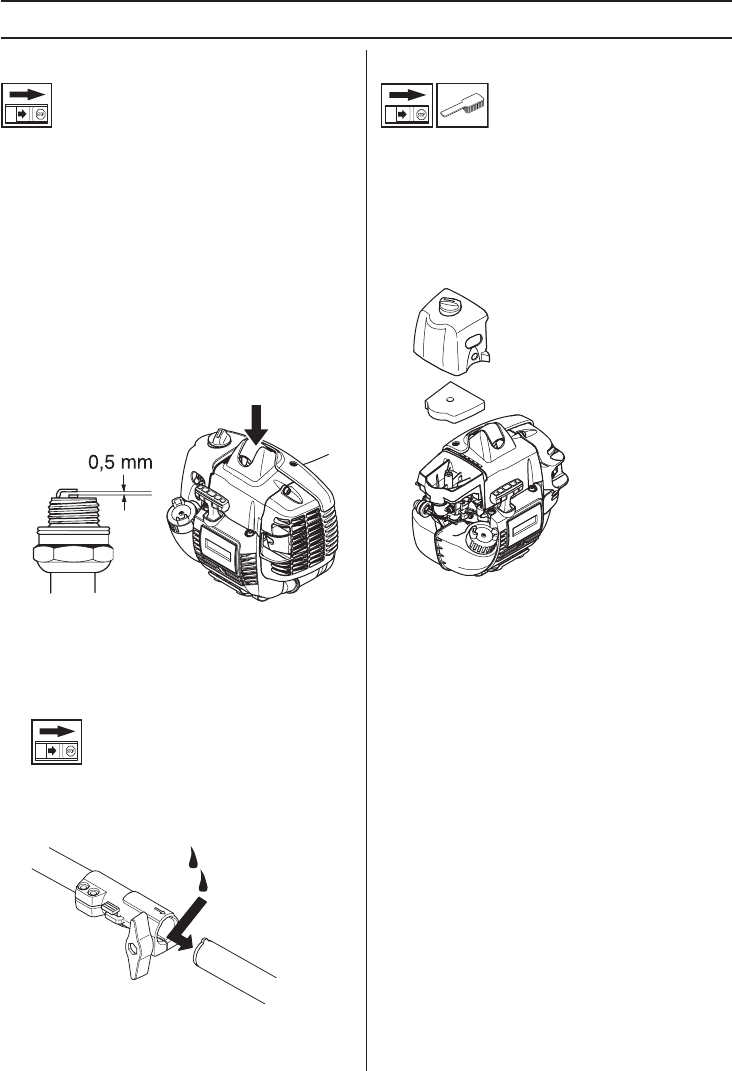

Spark plug
The spark plug condition is influenced by:
• Incorrect carburetor adjustment.
• An incorrect fuel mixture (too much or incorrect type
of oil).
• A dirty air filter.
These factors cause deposits on the spark plug
electrodes, which may result in operating problems and
starting difficulties.
If the machine is low on power, difficult to start or runs
poorly at idle speed: always check the spark plug first
before taking any further action. If the spark plug is dirty,
clean it and check that the electrode gap is 0.020 inch (0.5
mm). The spark plug should be replaced after about a
month in operation or earlier if necessary.
CAUTION! Always use the recommended spark plug
type! Use of the wrong spark plug can damage the piston/
cylinder. Check that the spark plug is fitted with a
suppressor.
Two-piece shaft
The drive shaft end in the lower shaft should be lubricated
with grease every 30 hours. There is a risk that the drive
shaft ends (splined coupling) on models with two-piece
shafts will seize if they are not lubricated regularly.
Air filter
The air filter must be regularly cleaned to remove dust
and dirt in order to avoid:
• Carburettor malfunctions
• Starting problems
• Loss of engine power
• Unnecessary wear to engine parts
• Excessive fuel consumption.
Clean the filter every 25 hours, or more regularly if
conditions are exceptionally dusty.
Cleaning the air filter
Remove the air filter cover and take out the filter. Wash it
clean in warm, soapy water. Ensure that the filter is dry
before refitting it.
An air filter that has been in use for a long time cannot be
cleaned completely. The filter must therefore be replaced
with a new one at regular intervals. A damaged air filter
must always be replaced.
If the machine is used in dusty conditions the air filter
should be soaked in oil. See instructions under the
heading Oiling the air filter.
MAINTENANCE
22 – English
Oiling the air filter
Always use HUSQVARNA filter oil, art. no. 531 00 92-48.
The filter oil contains a solvent to make it spread evenly
through the filter. You should therefore avoid skin contact.
Put the filter in a plastic bag and pour the filter oil over it.
Knead the plastic bag to distribute the oil. Squeeze the
excess oil out of the filter inside the plastic bag and pour
off the excess before fitting the filter to the machine. Never
use common engine oil. This would drain through the filter
quite quickly and collect in the bottom.
Bevel gear
The bevel gear is filled with the right quantity of grease at
the factory. However, before using the machine you
should check that the bevel gear is filled three-quarters
full with grease. Use HUSQVARNA special grease.
The grease in the bevel gear does not normally need to
be changed except if repairs are carried out.
CAUTION! Use only HUSQVARNA replacement parts.
Use of other brands of replacement parts can cause
damage to your unit or injury to the operator or others.
Your warranty does not cover damage or liability caused
by the use of accessories and/or attachments not
specifically recommended by HUSQVARNA.
English – 23
MAINTENANCE
Maintenance schedule
The following is a list of the maintenance that must be performed on the machine. Most of the items are described in the
Maintenance section.
Maintenance Daily
maintenance
Weekly
maintenance
Monthly
maintenance
Clean the outside of the machine. X
Make sure the throttle trigger lock and the throttle function
correctly from a safety point of view. X
Check that the stop switch works correctly. X
Check that the cutting attachment does not rotate at idle. X
Clean the air filter. Replace if necessary. X
Check that the guard is undamaged and not cracked. Replace
the guard if it has been exposed to impact or is cracked. X
Check that the trimmer head is undamaged and not cracked.
Replace the trimmer head if necessary. X
Check that nuts and screws are tight. X
Check that there are no fuel leaks from the engine, tank or fuel
lines. X
Check the starter and starter cord. X
Check that the vibration damping elements are not damaged. X
Clean the outside of the spark plug. Remove it and check the
electrode gap. Adjust the gap to 0.5 mm (.20”), or replace the
spark plug. Check that the spark plug is fitted with a suppressor.
X
Clean the machine’s cooling system. X
Clean or replace the spark arrestor screen on the muffler (only
applies to mufflers without a catalytic converter). X
Clean the outside of the carburettor and the space around it. X
Check that the bevel gear is filled three-quarters full with
lubricant. Fill if necessary using special grease. X
Check the fuel filter from contamination and the fuel hose from
cracks or other defects. Replace if necessary. X
Check all cables and connections. X
Check the clutch, clutch springs and the clutch drum for wear.
Replace if necessary by an autorized service workshop. X
Replace the spark plug. Check that the spark plug is fitted with a
suppressor. X
Check and clean the spark arrestor screen on the muffler (only
applies to mufflers fitted with a catalytic converter). X
24 – English
TECHNICAL DATA
Technical data
Note 1: Equivalent noise pressure level is calculated as the time-weighted energy total for noise pressure levels under
various working conditions with the following time distribution: 1/2 idle and 1/2 max. speed.
NOTE! Noise pressure at the user’s ear and vibration on the handles are measured with all the machine’s approved
cutting equipment fitted. The table indicates the highest and lowest values.
327LDx
Engine
Cylinder displacement, cu.in/cm31,50/24,5
Cylinder bore, inch/mm 1,34/34
Stroke, inch/mm 1,06/27
Idle speed, rpm 2700
Recommended max. fast idle speed, rpm 11000-11700
Speed of output shaft, rpm 9300
Max. engine output, acc. to ISO 8893, kW/ rpm 0,9/8400
Catalytic converter muffler Ye s
Speed-regulated ignition system Ye s
Ignition system
Manufacturer/type of ignition system Walbro MB
Spark plug Champion RCJ 6Y
Electrode gap, inch/mm 0,02/0,5
Fuel and lubrication system
Manufacturer/type of carburetor Zama C1Q
Fuel tank capacity, US pint/litre 1,06/0,5
Weight
Weight without fuel, cutting attachment and guard, Lbs/kg 11,2/5,1
Sound levels
(see note 1)
Equivalent sound pressure level at the user′s ear, measured
according to ANSI B175.3-1997, dB(A), min/max: 94/97
Vibration levels
Vibration levels at handles, measured according to
ANSI B175.3-1997, m/s2
At idle, left/right handles, min.: 1,6/1,2
At idle, left/right handles, max.: 2,2/1,5
At max. speed, left/right handles, min.: 3,1/4,1
At max. speed, left/right handles, max.: 4,1/5,8
English – 25
TECHNICAL DATA
The accessories are recommended for use in combination with the specified power heads and have been evaluated to
applicable ISO- and EN safety requirement standards by the Swedish Machinery Testing Institute.
The accessories have been developed mainly for the Husqvarna 125LD trimmer, but can also be used in combination
with the specified power heads and have been evaluated to applicable ISO- and EN safety requirement standards by the
Swedish Machinery Testing Institute.
The accessories used in combination with the specified power heads have been evaluated to ANSI B175.3-2003 Grass
Trimmers and Brushcutters - Safety Requirements. These combinations have been evaluated by Underwriters
Laboratories Inc. (UL) and are consequently UL listed.
Powerhead model Accessories Art No.
327LDx
Hedge trimmer attachment with shaft HA 110 537 19 66-01
Hedge trimmer attachment with shaft HA 850 537 19 66-02
Clean sweep attachment with shaft SR600 537 19 67-01
Edger attachment with shaft 537 19 69-01
Saw attachment with shaft PA 1100 537 18 33-17
Cultivator attachment with shaft CA 150 537 42 54-01
Powerhead model Accessories Art No.
327LDx
Cultivator attachment CAC 952 71 19-07
Edger attachment EAC 952 71 19-08
Pole saw attachment PAC 952 71 19-10
Blower attachment BAC 952 71 19-11
Hedge trimmer attachment HAC 952 71 19-21
Powerhead model Accessories Type Cutting attachment guard,
Art. no.
327LDx
Arbor shaft thread M10
Plastic blades Tricut Ø 300 mm 503 93 42-02
Trimmer head
T25 503 93 42-02 / 503 97 71-01
S35 503 93 42-02 / 503 97 71-01
T35 503 93 42-02 / 503 97 71-01
FEDERAL AND CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT
26 – English
YOUR WARRANTY RIGHTS AND
OBLIGATIONS
The EPA (U.S. Environmental Protection Agency), CARB
(California Air Resources Board), Environment Canada
and Husqvarna Forest & Garden are pleased to explain
the emissions control system’s warranty on your 2007 and
later small off-road engine. In U.S. and Canada, new
equipment that use small off-road engines must be
designed, built, and equipped to meet the applicable
Federal or Californian stringent anti-smog standards.
Husqvarna Forest & Garden must warrant the emissions
control system on your small off-road engine for the
period listed below provided there has been no abuse,
neglect or improper maintenance of your equipment. Your
emissions control system may include parts such as the
carburetor, ignition system, catalytic converter, fuel tank,
filters and other associated components. Also, included
may be hoses, belts, connectors, sensors, and other
emission-related assemblies. Where a warrantable
condition exists, Husqvarna Forest & Garden will repair
your small off-road engine at no cost to you including
diagnosis, parts and labor.
MANUFACTURER′S WARRANTY
COVERAGE
The emissions control system is warranted for two years.
If any emissions-related part on your equipment is
defective, the part will be repaired or replaced by
Husqvarna Forest & Garden.
OWNER′S WARRANTY
RESPONSIBILITIES
• As the small off-road engine owner, you are
responsible for performance of the required
maintenance listed in your operator’s manual.
Husqvarna Forest & Garden recommends that you
retain all receipts covering maintenance on your small
off-road engine, but Husqvarna Forest & Garden
cannot deny warranty solely for the lack of receipts or
your failure to ensure the performance of all
scheduled maintenance.
• As the small off-road engine owner, you should
however be aware that Husqvarna Forest & Garden
may deny you warranty coverage if your small off-road
engine or a part has failed due to abuse, neglect, or
improper maintenance or unapproved modifications.
• You are responsible for presenting your small off-road
engine to a Husqvarna Forest & Garden distribution
center or service center as soon as the problem
exists. The warranty repairs should be completed in a
reasonable amount of time, not to exceed 30 days. If
you have any questions regarding your warranty
coverage, you should contact Husqvarna Forest &
Garden at 1-800-487-5963.
WARRANTY COMMENCEMENT DATE
The warranty period begins on the date the engine or
equipment is delivered to an ultimate purchaser.
LENGTH OF COVERAGE
Husqvarna Forest & Garden warrants to the ultimate
purchaser and each subsequent owner that the engine or
equipment is designed, built, and equipped so as to
conform with all applicable regulations adopted by EPA
and CARB, and is free from defects in materials and
workmanship that causes the failure of a warranted part
for a period of two years.
WHAT IS COVERED
REPAIR OR REPLACEMENT OF PARTS Repair or
replacement of any warranted part under the warranty
must be performed at no charge to the owner at a
warranty station. Warranty services or repairs will be
provided at all Husqvarna Forest & Garden distribution
centers that are franchised to service the subject engines.
Throughout the emissions warranty period of two years,
Husqvarna Forest & Garden must maintain a supply of
warranted parts sufficient to meet the expected demand
for such parts.
WARRANTY PERIOD Any warranted part that is
scheduled for replacement as required in the
maintenance schedule, is warranted for the period of time
prior to the first scheduled replacement point for that part.
If the part fails prior to the first scheduled replacement,
the part will be repaired or replaced by Husqvarna Forest
& Garden at no cost. Any such part repaired or replaced
under warranty is warranted for the remainder of the
period prior to the first scheduled replacement point for
the part. Any warranted part that is not scheduled for
replacement as required in the maintenance schedule, is
warranted for two years. If any such part fails during the
period of warranty coverage, it will be repaired and
replaced by Husqvarna Forest & Garden at no cost. Any
such part repaired or replaced under the warranty is
warranted for the remaining warranty period. Any
warranted part that is scheduled only for regular
inspection in the maintenance schedule will be warranted
for a period of two years. A statement in such written
instructions to the effect of ”repair or replace as
necessary” will not reduce the period of warranty
coverage. Any such part repaired or replaced under
warranty will be warranted for the remaining warranty
period.
DIAGNOSIS The owner must not be charged for
diagnostic labor that leads to the determination that a
warranted part is in fact defective, provided that such
diagnostic work is performed at a warranty station.
CONSEQUENTIAL DAMAGES Husqvarna Forest &
Garden is liable for damages to other engine components
proximately caused by a failure under warranty of any
warranted part.
FEDERAL AND CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT
English – 27
EMISSION WARRANTY PARTS LIST
1 Carburetor and internal parts
2 Intake pipe, airfilter holder and carburetor bolts.
3 Airfilter and fuelfilter covered up to maintenance
schedule.
4 Spark Plug, covered up to maintenance schedule
5 Ignition Module
6 Muffler with catalytic converter
7 Fuel tank
WHAT IS NOT COVERED
All failures caused by abuse, neglect or improper
maintenance are not covered.
ADD -ON OR MODIFIED PARTS
Add-on or modified parts that are not exempted by CARB
or EPA may not be used. The use of any non-exempted
add-on or modified parts will be grounds for disallowing a
warranty claim. Husqvarna Forest & Garden will not be
liable to warrant failures of warranted parts caused by the
use of a non-exempted add-on or modified part.
HOW TO FILE A CLAIM
If you have any questions regarding your warranty rights
and responsibilities, you should contact your nearest
authorized servicing dealer or call Husqvarna Forest &
Garden at 1-800-487-5963.
WHERE TO GET WARRANTY SERVICE
Warranty services or repairs are provided through all
Husqvarna Forest & Garden authorized servicing dealers.
MAINTENANCE, REPLACEMENT AND
REPAIR OF EMISSION-RELATED PARTS
Any replacement part may be used in the performance of
any warranty maintenance or repairs and must be
provided without charge to the owner. Such use will not
reduce the warranty obligations of the manufacturer.
MAINTENANCE STATEMENT
The owner is responsible for the performance of all
required maintenance, as defined in the operator’s
manual.
"Clic"
123
5
67
10 11
8,5 m
28'
4
8
4,2 m
14'
2,4-2,7 mm
.095-.106"
10 cm
4"
6"
15 cm
S35
12
4
3
2,4-2,7 mm
.095-.106"
4,25 m
14'
4,25 m
14'
B
6"
15 cm
A
6"
15 cm
S35
5
T35, T35x
"Clic"
123
5
67
9
8,5 m
28'
4
8
4,3 m
14'
2,4-2,7 mm
.095-.106"
10 cm
4"
6"
15 cm
"Clic"
123
5
67
9
6,0 m
18'
4
8
3,05 m
9'
2,0-2,4 mm
.079-.095"
10 cm
4"
6"
15 cm
T25
1151209-95
´®z+S4•¶57¨
´®z+S4•¶57¨ 2009-09-18

Navigation menu
