650RTT

Owner's Manual

2

• Keep children and pets away.

• Do not overload the machine capacity by attempting

to till too deep at too fast a rate.

• Never operate the machine at high speeds on slippery

surfaces. Look behind and use care when backing.

• Never allow bystanders near the unit.

• Use only attachments and accessories approved by

the manufacturer of the tiller.

• Never operate the tiller without good visibility or light.

• Be careful when tilling in hard ground. The tines may

catch in the ground and propel the tiller forward. If this

occurs, let go of the handlebars and do not restrain the

machine.

MAINTENANCE AND STORAGE

• Keep machine, attachments, and accessories in safe

work ing condition.

• Check shear pins, engine mounting bolts, and other

bolts at frequent intervals for proper tightness to be

sure the equip ment is in safe working condition.

• Never store the machine with fuel in the fuel tank inside

a building where ignition sources are present, such

as hot water and space heaters, clothes dryers, and

the like. Allow the engine to cool before storing in any

enclosure.

• Always refer to the operator’s guide instructions for

im por tant details if the tiller is to be stored for an ex-

tended period.

- IMPORTANT -

CAUTIONS, IMPORTANTS, AND NOTES ARE A MEANS OF

ATTRACTING ATTENTION TO IMPORTANT OR CRIT I CAL

IN FOR MA TION IN THIS MANUAL.

IMPORTANT: USED TO ALERT YOU THAT THERE IS A

POS SI BIL I TY OF DAM AG ING THIS EQUIP MENT.

NOTE: Gives essential information that will aid you to bet-

ter understand, incorporate, or execute a particular set of

instructions.

Look for this symbol to point out im-

por tant safety precautions. It means

CAUTION!!! BE COME ALERT!!! YOUR

SAFE TY IS INVOLVED.

CAUTION: Always disconnect spark

plug wire and place wire where it can-

not contact spark plug in order to pre-

vent ac ci den tal starting when setting

up, trans port ing, adjusting or making

re pairs.

SAFETY RULES

Safe Operation Practices for Walk-Behind Powered Ro ta ry Tillers

TRAINING

• Read the Owner’s Manual care ful ly. Be thor ough ly

fa mil iar with the controls and the proper use of the

equip ment. Know how to stop the unit and disengage

the controls quickly.

• Never allow children to operate the equipment. Never

allow adults to op er ate the equipment without proper

instruction.

• Keep the area of operation clear of all persons, par-

tic u lar ly small children, and pets.

PREPARATION

• Thoroughly inspect the area where the equipment is

to be used and remove all foreign objects.

• Disengage all clutches and shift into neutral before

starting the engine (mo tor).

• Do not operate the equipment with out wearing ad e -

quate outer gar ments. Wear footwear that will im prove

footing on slippery surfaces.

• Handle fuel with care; it is highly ﬂ ammable.

• Use an approved fuel container.

• Never add fuel to a running engine or hot engine.

• Fill fuel tank outdoors with extreme care. Never ﬁ ll fuel

tank indoors.

• Replace gasoline cap securely and clean up spilled

fuel before restarting.

• Use extension cords and receptacles as speciﬁ ed by

the manufacturer for all units with electric drive motors

or electric starting motors.

• Never attempt to make any adjustments while the

engine (motor) is running (except where speciﬁ cally

rec om mend ed by manufacturer).

OPERATION

• Do not put hands or feet near or under rotating parts.

• Exercise extreme caution when op er at ing on or cross-

ing gravel drives, walks, or roads. Stay alert for hidden

hazards or trafﬁ c. Do not carry pas sen gers.

• After striking a foreign object, stop the engine (motor),

remove the wire from the spark plug, thoroughly in spect

the tiller for any damage, and repair the damage before

restarting and op er at ing the tiller.

• Exercise caution to avoid slipping or falling.

• If the unit should start to vibrate ab nor mal ly, stop the

engine (motor) and check immediately for the cause.

Vi bra tion is generally a warning of trouble.

• Stop the engine (motor) when leaving the operating

position.

• Take all possible precautions when leav ing the ma chine

unattended. Disengage the tines, shift into neutral, and

stop the engine.

• Before cleaning, repairing, or inspecting, shut off the

engine and make certain all moving parts have stopped.

Disconnect the spark plug wire, and keep the wire away

from the plug to prevent accidental starting. Disconnect

the cord on electric motors.

• Do not run the engine indoors; exhaust fumes are

dangerous.

• Never operate the tiller without proper guards, plates,

or other safety protective devices in place.

WARNING

The engine exhaust from this product con-

tains chem i cals known to the State of Cal i -

for nia to cause cancer, birth defects, or other

reproductive harm.

3

CONGRATULATIONS on your purchase of a new tiller. It

has been designed, en gi neered and manu fac tured to give

you the best pos sible de penda bil ity and per form ance.

Should you experience any prob lems you can not easily

remedy, please contact your nearest authorized service

center. We have com pe tent, well-trained tech ni cians and

the proper tools to service or repair this unit.

Please read and retain this manual. The in struc tions will

enable you to assemble and main tain your tiller prop erly.

Always observe the “SAFETY RULES”.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for

and using your tiller.

• Follow instructions under “Maintenance” and “Stor age”

sections of this Owner’s Manual.

IMPORTANT: THIS UNIT IS EQUIPPED WITH AN INTERNAL

COMBUSTION ENGINE AND SHOULD NOT BE USED ON

OR NEAR ANY UNIMPROVED FOREST-COVERED, BRUSH-

COVERED OR GRASS COVERED LAND UNLESS THE

ENGINE'S EXHAUST SYSTEM IS EQUIPPED WITH A SPARK

ARRESTER MEETING APPLICABLE LOCAL LAWS (IF ANY).

IF A SPARK ARRESTER IS USED, IT SHOULD BE MAINTAINED

IN EFFECTIVE WORK ING ORDER BY THE OPERATOR.

IN THE STATE OF CALIFORNIA, A SPARK ARRESTER IS

REQUIRED BY LAW (SECTION 4442 OF THE CALIFORNIA

PUBLIC RESOURCES CODE). OTHER STATES MAY HAVE

SIMILAR LAWS. FEDERAL LAWS APPLY ON FEDERAL LANDS.

SEE YOUR AUTHORIZED SERVICE CENTER/DEPARTMENT

FOR SPARK ARRESTER.

MAINTENANCE ...................................................11-13

SERVICE & ADJUSTMENTS ...............................14-17

STORAGE ..................................................................18

TROUBLESHOOTING ...............................................19

REPAIR PARTS-TILLER.......................................20-26

TABLE OF CONTENTS

SAFETY RULES ..........................................................2

CUSTOMER RESPONSIBILITIES...............................3

PRODUCT SPECIFICATIONS .....................................3

ASSEMBLY ...............................................................4-6

OPERATION ...........................................................7-10

MAINTENANCE SCHEDULE ....................................11

Gasoline Capacity: 3 Quarts

Unleaded Reg u lar

OIL (API-SF/SJ): SAE 30 (Above 40°F)

(Capacity 20 oz./0.6L) SAE 5W-30/10W30

(Below 40°F)

Spark Plug: Champion

(Gap: .030"/0.76mm) RC12YC

PRODUCT SPECIFICATIONS

4

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

(1) Utility knife

(1) Tire pressure gauge

(1) Pair of pliers

(1) 9/16" wrench

OPERATOR’S POSITION (See Fig. 1)

When right or left hand is mentioned in this manual, it

means when you are in the operating position (standing

behind tiller handles).

Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to insure proper tightness.

FRONT

OPERATOR’S

POSITION

LEFT RIGHT

FIG. 1

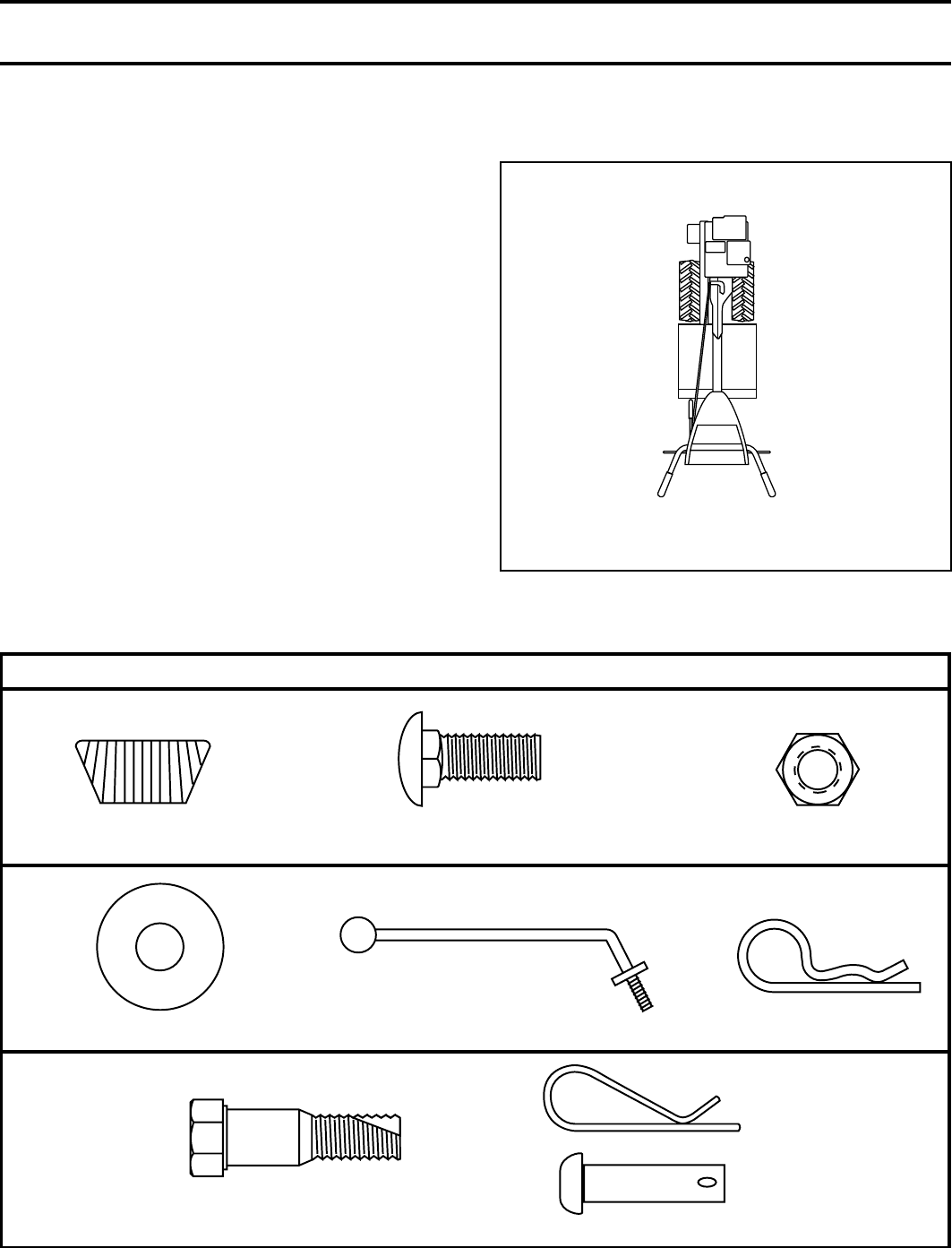

(1) Hairpin Clip

(1) Carriage Bolt

3/8-16 UNC x 1 Grade 5 (1) Center Locknut

3/8-16 UNC

(1) Handle Lock Lever

(1) Flat Washer 13/32 x 1 x 11 Gauge

CONTENTS OF HARDWARE PACK

(2) Handle Locks

(1) Pivot Bolt

3/8-16 UNC Grade 5 Extra Shear Pins & Clips

ASSEMBLY

5

carton_3

handles_10

ASSEMBLY

• Grasp handle assembly. Hold in “up” position. Be sure

handle lock remains in gearcase notch. Slide handle

assembly into position.

HANDLE ASSEMBLY

"UP" POSITION

FIG. 4

UNPACKING CARTON (See Fig. 2)

CAUTION: Be careful of exposed

sta ples when handling or disposing

of cartoning material.

IMPORTANT: WHEN UN PACK ING AND AS SEM BLING TILLER,

BE CAREFUL NOT TO STRETCH OR KINK CABLES.

• While holding handle assembly, cut cable ties se cur ing

handle assembly to top frame and depth stake. Let

handle assembly rest on tiller.

• Remove top frame of carton.

• Slowly ease handle assembly up and place on top of

carton.

• Cut down right hand front and right hand rear cor ners

of carton, lay side carton wall down.

• Remove packing material from handle assembly.

FIG. 2

SHIFT ROD

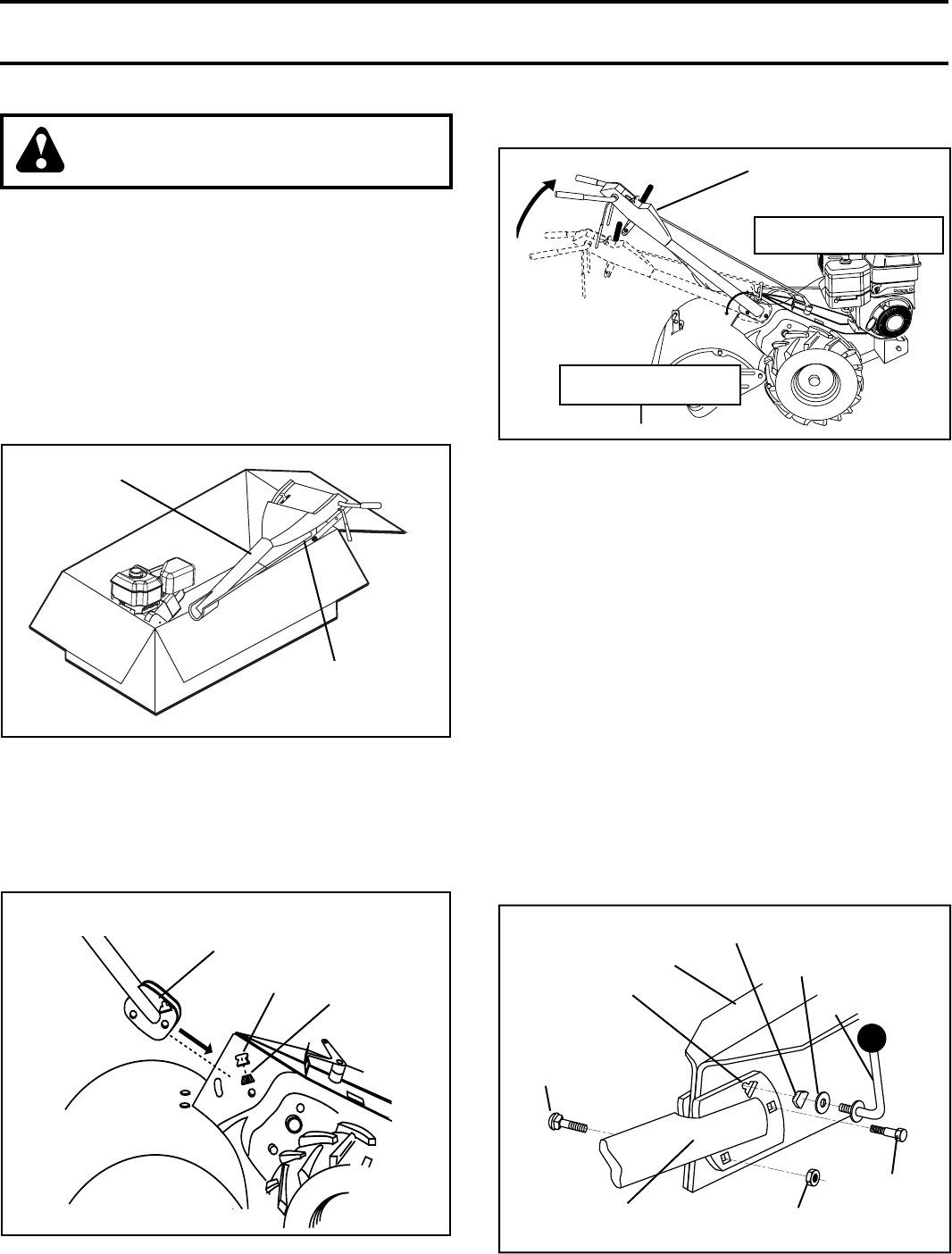

INSTALL HANDLE (See Figs. 3, 4, and 5)

• Insert one handle lock (with teeth facing outward) in

gearcase notch. (Apply grease on smooth side of

handle lock to aid in keeping lock in place until handle

assembly is lowered into position.)

HANDLE

AS SEM BLY

FIG. 3

HANDLE ASSEMBLY

GEARCASE

NOTCH

HANDLE

LOCK

VIEWED FROM R.H. SIDE OF TILLER

LOOSEN HANDLE

LOCK LEVER TO MOVE

TIGHTEN HANDLE LOCK

LEVER TO HOLD

handles_34

CARRIAGE

BOLT

SLOT

GEARCASE

HANDLE

LOCK

FLAT

WASHER

HANDLE LOCK

LEVER

PIVOT BOLT

LOCKNUT

HANDLE

BASE

FIG. 5

• Rotate handle assembly down. Insert rear carriage bolt

ﬁ rst, with bolt head on L.H. side of tiller and loosely

assemble locknut (See Fig. 5).

• Insert pivot bolt in front part of plate and tighten.

• Cut down remaining corners of carton and lay panels

ﬂ at.

• Lower the handle assembly. Tighten nut on carriage

bolt so handle moves with some resistance. This will

allow for easier adjustment.

• Place ﬂ at washer on threaded end of handle lock le-

ver.

• Insert handle lock lever through handle base and

gearcase. Screw in handle lock lever just enough to

hold lever in place.

• Insert second handle lock (with teeth in ward) in the

slot of the handle base (just inside of washer).

• With handle assembly in lowest position, securely

tight en handle lock lever by rotating clockwise. Leav-

ing handle assembly in lowest position will make it

easier to remove tiller from carton.

6

ASSEMBLY

SHIFT

ROD

HAIRPIN

CLIP

SHIFT

LEVER

INDICATOR

REMOVE TILLER FROM CRATE

• Make sure shift lever indicator is in “N” position (See

Fig. 7)

• Tilt tiller forward by lifting handle. Separate cardboard

cover from leveling shield.

• Rotate tiller handle to the right and pull tiller out of

carton.

CONNECT SHIFT ROD (See Fig. 7)

• Insert end of shift rod into hole of shift lever indicator.

• Insert hairpin clip through hole of shift rod to secure.

FIG. 7

FIG. 6

END OF CLUTCH

CABLE

CONTROL

BAR

CONTROL BAR

BRACKET

CONTROL BAR

BRACKET

CLUTCH

CABLE

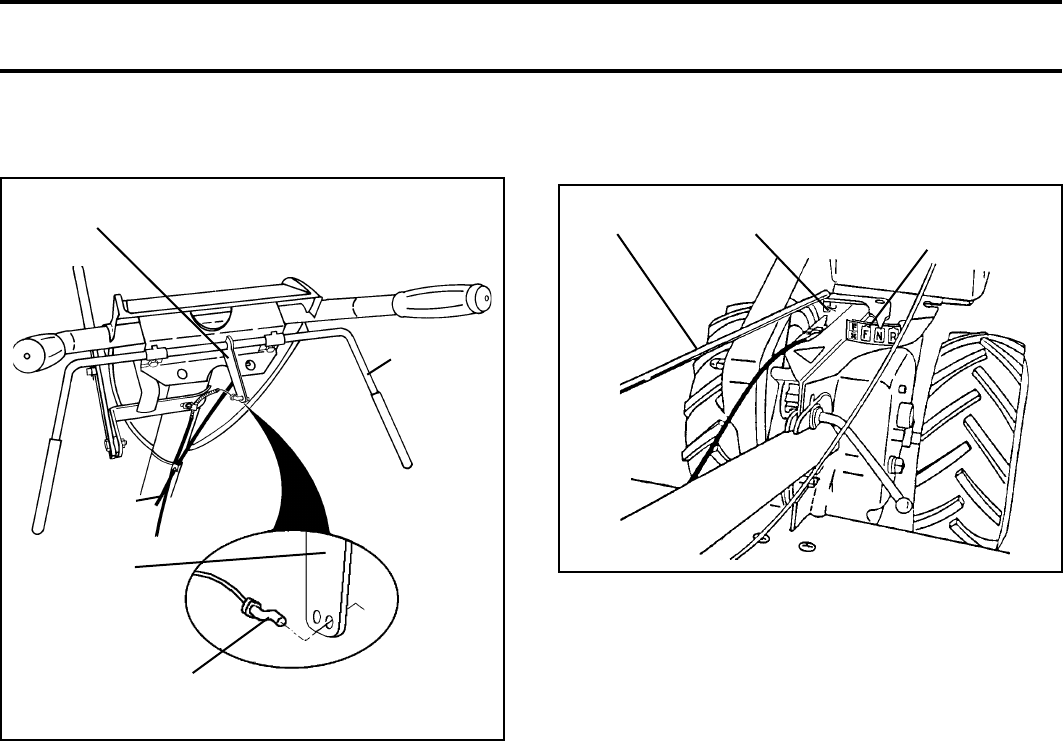

ATTACH CLUTCH CABLE (See Fig. 6)

• Hook end of clutch cable through hole in control bar

bracket.

CHECK TIRE PRESSURE

The tires on your unit were overinﬂ ated at the factory for

shipping purposes. Correct and equal tire pressure is

important for best tilling performance.

• Reduce tire pressure to 20 PSI (1.4 kg/cm2).

HANDLE HEIGHT

• Handle height may be adjusted to better suit operator.

(See “TO ADJUST HANDLE HEIGHT” in the Service

and Adjustments section of this manual).

7

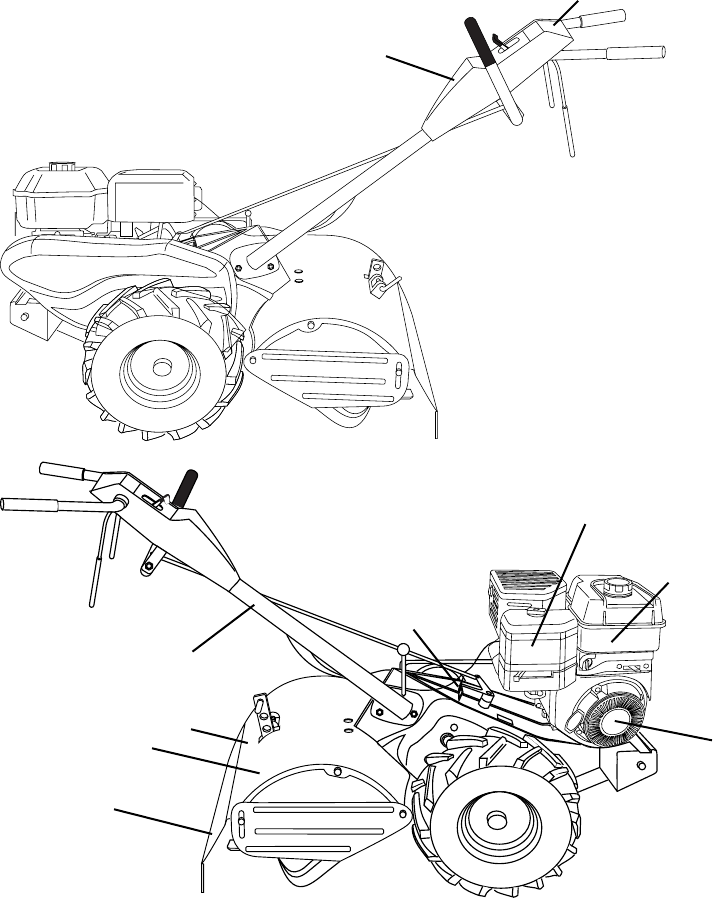

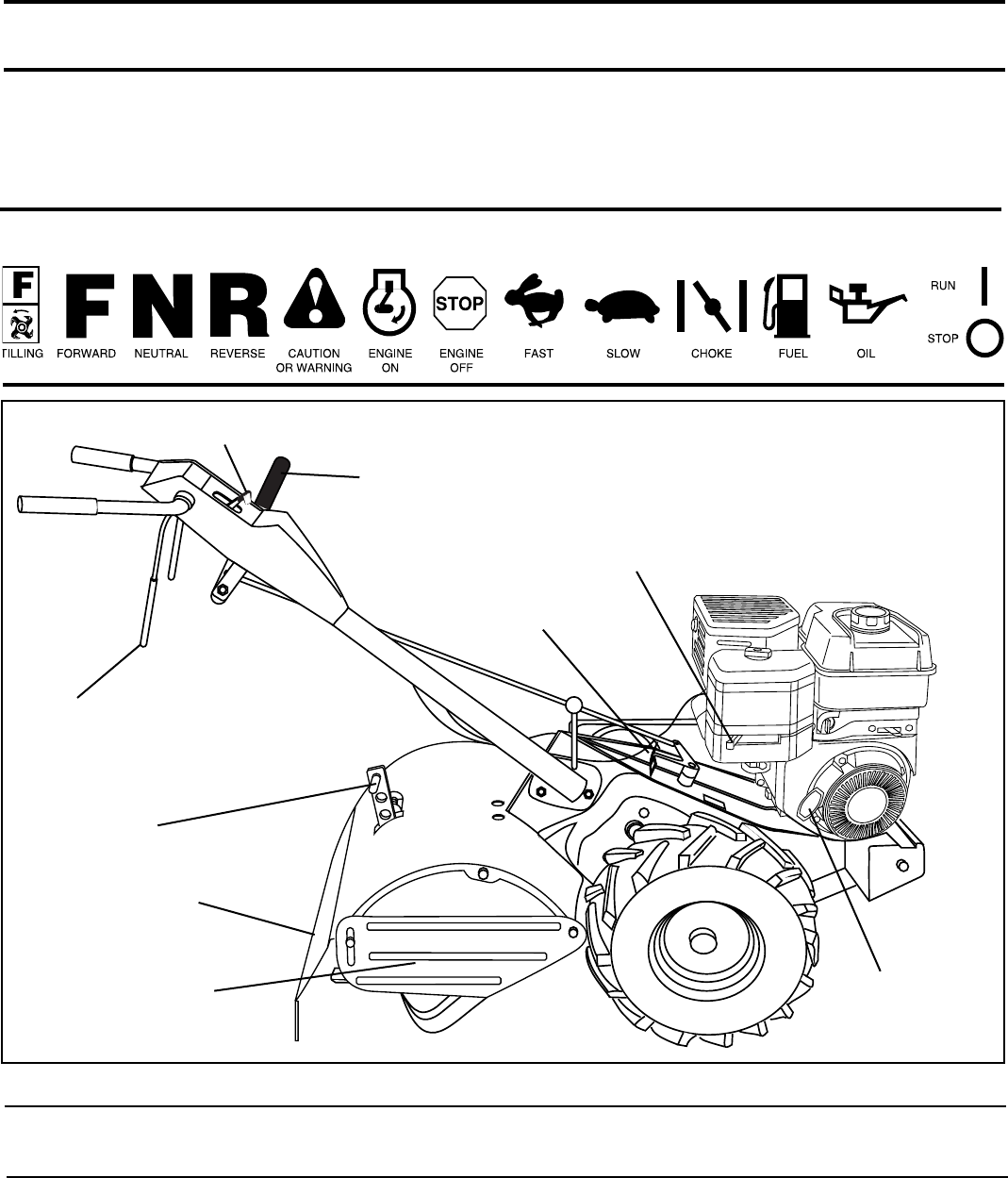

KNOW YOUR TILLER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.

Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save

this manual for future reference.

These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their

meaning.

DRIVE

CONTROL

BAR

DEPTH STAKE

SHIFT LEVER

LEVELING

SHIELD

RECOIL

STARTER

HANDLE

SHIFT LEVER IN DI CA TOR

THROTTLE

CONTROL

OUTER SIDE

SHIELD

FIG. 8

MEETS ANSI SAFETY REQUIREMENTS

Our tillers conform to the safety standards of the American National Standards Institute.

CHOKE CONTROL - Used when starting a cold engine.

DEPTH STAKE - Controls depth at which tiller will dig.

DRIVE CONTROL BAR - Used to engage tines.

LEVELING SHIELD - Levels tilled soil.

OUTER SIDE SHIELD - Adjustable to protect small plants

from being buried.

RECOIL STARTER HANDLE - Used to start the engine.

SHIFT LEVER - Used to shift transmission gears.

SHIFT LEVER INDICATOR - Shows which gear the trans-

mis sion is in.

THROTTLE CONTROL - Controls engine speed.

CHOKE CONTROL

OPERATION

8

TURNING

• Release the drive control bar.

• Move throttle control to “SLOW” position.

• Place shift lever indicator in “F” (forward) position. Tines

will not turn.

• Lift handle to raise tines out of ground.

• Swing the handle in the opposite direction you wish

to turn, being careful to keep feet and legs away from

tines.

OPERATION

00155

HOW TO USE YOUR TILLER

Know how to operate all controls before adding fuel and

oil or attempting to start engine.

STOPPING (See Fig. 9)

TINES AND DRIVE

• Release drive control bar to stop movement.

• Move shift lever to “N” (neutral) position.

ENGINE

• Move throttle control to “STOP” position.

• Never use choke to stop engine.

TINE OPERATION - WITH WHEEL DRIVE

• Always release drive control bar before moving shift

lever into another position.

• Tine movement is achieved by moving shift lever to

( ) till position and engaging drive control bar.

FORWARD - WHEELS ONLY/TINES

STOPPED

• Release drive control bar and move shift lever in di ca tor

to “F” (forward) position. Engage drive control bar and

tiller will move forward.

REVERSE - WHEELS ONLY/TINES STOPPED

• DO NOT STAND DIRECTLY BEHIND TILLER.

• Release the drive control bar.

• Move throttle control to “SLOW” position.

• Move shift lever indicator to “R” (reverse) position.

• Hold drive control bar against the handle to start tiller

movement.

HARD TO SHIFT GEARS

• Brieﬂ y engage drive control bar and release or rock tiller

forward and backward until are able to shift gears.

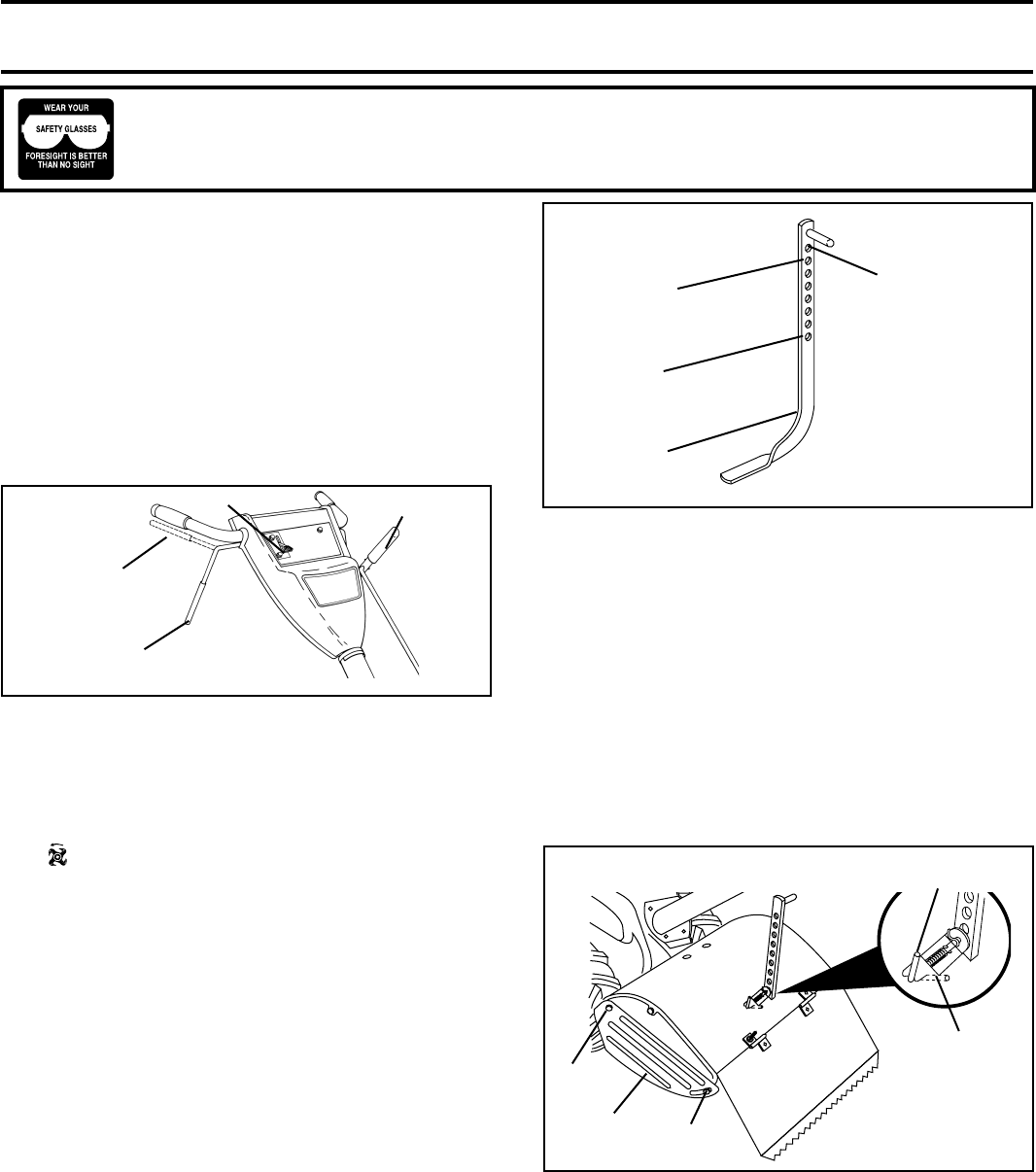

DEPTH STAKE (See Fig. 10)

The depth stake can be raised or lowered to allow you more

versatile tilling and cul ti vat ing, or to more easily transport

your tiller.

FIG. 9

depth_stake_2

TILLING (See Fig. 11)

• Release depth stake pin. Pull the depth stake up for

increased tilling depth. Place depth stake pin in hole

of depth stake to lock in position.

• Place shift lever indicator in tilling position.

• Hold the drive control bar against the handle to start

tilling movement. Tines and wheels will both turn.

• Move throttle control to “FAST” position for deep tilling.

To cultivate, throttle control can be set at any desired

speed, depending on how fast or slow you wish to

cultivate.

IMPORTANT: ALWAYS RELEASE DRIVE CONTROL

BAR BEFORE MOVING SHIFT LEVER INTO ANOTHER

POSITION.

TRANSPORT

POSITION

DEEPEST

TILLING

DEPTH

STAKE

SHALLOWEST

TILLING

(CULTIVATING)

FIG. 10

The operation of any tiller can result in foreign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields before starting

your tiller and while tilling. We recommend a wide vision safety mask for over spectacles

or standard safety glasses.

DRIVE CONTROL BAR

“ENGAGED” PO SI TION

SHIFT LEVER

THROT TLE CONTROL

DRIVE CONTROL BAR

“DISENGAGED” PO SI TION

depth_stake_1

NUT

“B”

NUT

“A”

OUTER

SIDE SHIELD

DEPTH STAKE PIN

“RELEASED” POSITION

“LOCKED”

POSITION

FIG. 11

9

OPERATION

engine_art_4

OIL

LEVEL

OIL DRAIN

PLUG

OIL

FILLER

PLUG

FIG. 12

BEFORE STARTING ENGINE

IMPORTANT: BE VERY CAREFUL NOT TO ALLOW DIRT

TO ENTER THE ENGINE WHEN CHECKING OR ADDING

OIL OR FUEL. USE CLEAN OIL AND FUEL AND STORE IN

AP PROVED, CLEAN, COVERED CONTAINERS. USE CLEAN

FILL FUNNELS.

CHECK ENGINE OIL LEVEL (See Fig.12)

• The engine in your unit has been shipped, from the

factory, already ﬁ lled with SAE 30 summer weight oil.

• With engine level, clean area around oil ﬁ ller plug and

remove plug.

• Engine oil should be to point of overﬂ owing when engine

is level. For ap proxi mate capacity see “PROD UCT

SPEC I FI CA TIONS” on page 3 of this manual. All oil

must meet A.P.I. Service Classiﬁ cation SF-SJ.

• For cold weather operation you should change oil for

easier starting (See oil viscosity chart in the Mainte-

nance sec tion of this manual).

• To change engine oil, see the Maintenance section in

this manual.

TO START ENGINE (See Fig. 13)

CAUTION: Keep drive control bar in

“DISENGAGED” position when start-

ing en gine.

When starting engine for the ﬁ rst time or if engine has run

out of fuel, it will take extra pulls of the recoil starter to

move fuel from the tank to the engine.

• Make sure spark plug wire is prop er ly connected.

• Move shift lever indicator to “N” (neutral) position.

• Place throttle control in “FAST” position.

ADD GASOLINE

• Fill fuel tank to bottom of ﬁ ller neck. Do not overﬁ ll.

Use fresh, clean, regular un lead ed gasoline with a

minimum of 87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits and reduce

valve life). Do not mix oil with gasoline. Purchase fuel

in quan ti ties that can be used within 30 days to assure

fuel freshness.

CAUTION: Fill to within 1/2 inch of top

of fuel tank to prevent spills and to allow

for fuel expansion. If gasoline is ac-

ci den tal ly spilled, move machine away

from area of spill. Avoid creating any

source of ignition until gasoline vapors

have disappeared.

Wipe off any spilled oil or fuel. Do not

store, spill or use gasoline near an

open ﬂ ame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GAS O LINE TO HELP INSURE GOOD COLD WEATHER

START ING.

CAUTION: Alcohol blended fuels (called

gas o hol or using ethanol or methanol) can at-

tract moisture which leads to sep a ra tion and

for ma tion of acids during storage. Acidic gas

can damage the fuel system of an engine while

in storage. To avoid engine problems, the fuel

system should be emptied before stor age of

30 days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel next

sea son. See Storage In struc tions for additional

information. Never use engine or carburetor

cleaner products in the fuel tank or permanent

damage may occur.

• When you have completed your turn-around, release

the drive control bar and lower handle. Place shift

lever in till position and move throttle control to de sired

speed. To begin tilling, hold drive control bar against

the handle.

OUTER SIDE SHIELDS (See Fig. 11)

The back edges of the outer side shields are slotted so

that the shields can be raised for deep tilling and low ered

for shal low tilling to protect small plants from being buried.

Loosen nut “A” in slot and nut “B”. Move shield to desired

position (both sides). Retighten nuts.

TO TRANSPORT

CAUTION: Before lifting or trans port ing,

allow tiller engine and mufﬂ er to cool.

Disconnect spark plug wire. Drain

gasoline from fuel tank.

AROUND THE YARD

• Release the depth stake pin. Move the depth stake

down to the top hole for transporting the tiller. Place

depth stake pin in hole of depth stake to lock in posi-

tion. This prevents tines from scufﬁ ng the ground.

• Place shift lever indicator in “F” (forward) position for

transporting.

• Hold the drive control bar against the handle to start

tiller movement. Tines will not turn.

• Move throttle control to desired speed.

AROUND TOWN

• Disconnect spark plug wire.

• Drain fuel tank.

• Transport in upright position to prevent oil leakage.

10

RUN

CHOKE

OPERATION

• Soil conditions are important for proper tilling. Tines will

not readily penetrate dry, hard soil which may con trib ute

to excessive bounce and difﬁ cult handling of your tiller.

Hard soil should be mois tened before tilling; however,

extremely wet soil will “ball-up” or clump during tilling.

Wait until the soil is less wet in order to achieve the

best results. When tilling in the fall, re move vines and

long grass to prevent them from wrapping around the

tine shaft and slowing your tilling operation.

• Do not lean on handle. This takes weight off the wheels

and reduces traction. To get through a really tough

section of sod or hard ground, apply upward pressure

on handle or lower the depth stake.

321

5

4

67

FIG. 14

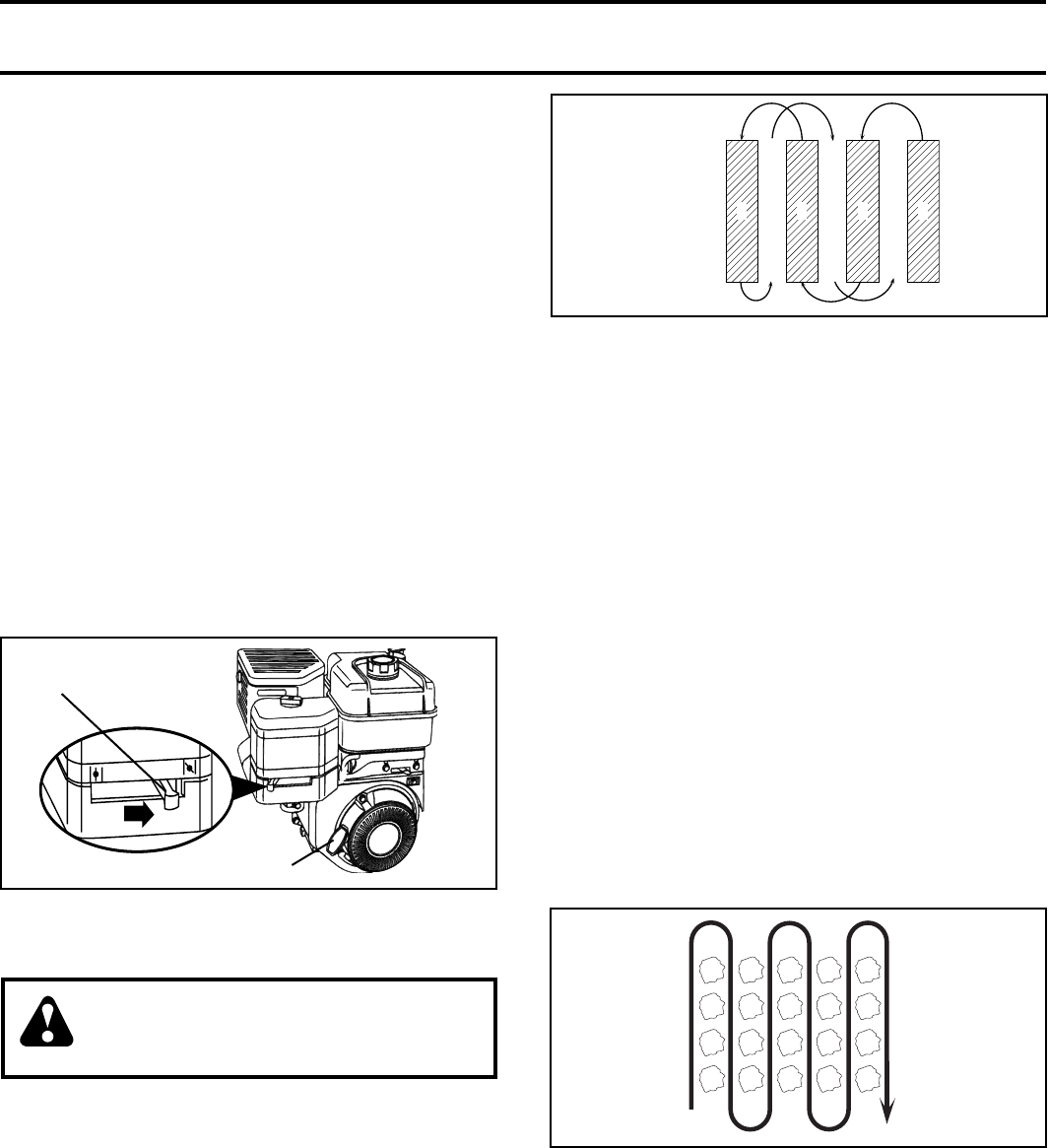

CULTIVATING

Cultivating is destroying the weeds between rows to pre-

vent them from robbing nourishment and moisture from the

plants. At the same time, breaking up the upper layer of

soil crust will help retain moisture in the soil. Best digging

depth is 1" to 3" (2.5-7.5 cm). Lower the outer side shields

to protect small plants from being buried.

• Cultivate up and down the rows at a speed which will

allow tines to uproot weeds and leave the ground in

rough condition, promoting no further growth of weeds

and grass (See Fig. 15).

FIG. 15

TILLING HINTS

CAUTION: Until you are accustomed to

handling your tiller, start actual ﬁ eld use

with throttle in slow position (mid-way

between “FAST” and “IDLE”).

• Tilling is digging into, turning over, and breaking up

packed soil before planting. Loose, unpacked soil helps

root growth. Best tilling depth is 4" to 6" (10-15 cm).

A tiller will also clear the soil of unwanted vege ta tion.

The de com po si tion of this vegetable mat ter enriches

the soil. Depending on the climate (rain fall and wind),

it may be advisable to till the soil at the end of the

growing season to further condition the soil.

• You will ﬁ nd tilling much easier if you leave a row un-

tilled between passes. Then go back between tilled

rows. (See Fig. 14) There are two reasons for doing

this. First, wide turns are much easier to negotiate than

about-faces. Sec ond, the tiller won’t be pulling itself,

and you, toward the row next to it.

FIG. 13

TINE SHEAR PINS

The tine assemblies on your tiller are secured to the tine

shaft with shear pins (See “TINE REPLACEMENT” in the

Service and Ad just ments section of this manual).

If the tiller is unusually overloaded or jammed, the shear

pins are designed to break before internal damage occurs

to the trans mis sion.

• If shear pin(s) break, replace only with those shown in

the Repair Parts section of this manual.

CHOKE CONTROL

RECOIL STARTER HANDLE

• Turn fuel shut-off valve 1/4 turn to open position.

• Move choke control to choke position.

• Grasp recoil starter handle with one hand and grasp

tiller handle with other hand. Pull rope out slowly until

engine reaches start of com pres sion cycle (rope will

pull slightly harder at this point).

• Pull recoil starter handle quickly. Do not let starter

handle snap back against starter.

• If engine ﬁ res but does not start, move choke control

to half choke position. Pull recoil starter handle until

engine starts.

• When engine starts, slowly move choke control to

"RUN" position as engine warms up.

NOTE: A warm engine requires less choking to start.

• Move throttle control to desired running position.

• Allow engine to warm up for a few minutes before

engaging tines.

NOTE: If at a high altitude (3000 feet) or in cold tem per a tures

(below 32°F), the carburetor fuel mixture may need to be

adjusted for best engine performance. See "TO AD JUST

CARBURETOR" in the Service and Adjustments section

of this manual.

NOTE: If engine does not start, see troubleshooting

points.

11

MAINTENANCE

GENERAL RECOMMENDATIONS

The warranty on this tiller does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, the operator must main tain tiller

as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tiller.

All adjustments in the Service and Adjustments section

of this manual should be checked at least once each

season.

• Once a year you should replace the spark plug, clean

or replace air ﬁ lter, and check tines and belts for wear.

A new spark plug and clean air ﬁ lter assure proper

air-fuel mixture and help your engine run better and

last longer.

BEFORE EACH USE

• Check engine oil level.

• Check tine operation.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See “LUBRICATION CHART”).

c SAE 30 OR 10W-30 MOTOR OIL

d REFER TO MAINTENANCE “EN GINE” SECTION

eEP #1 GREASE

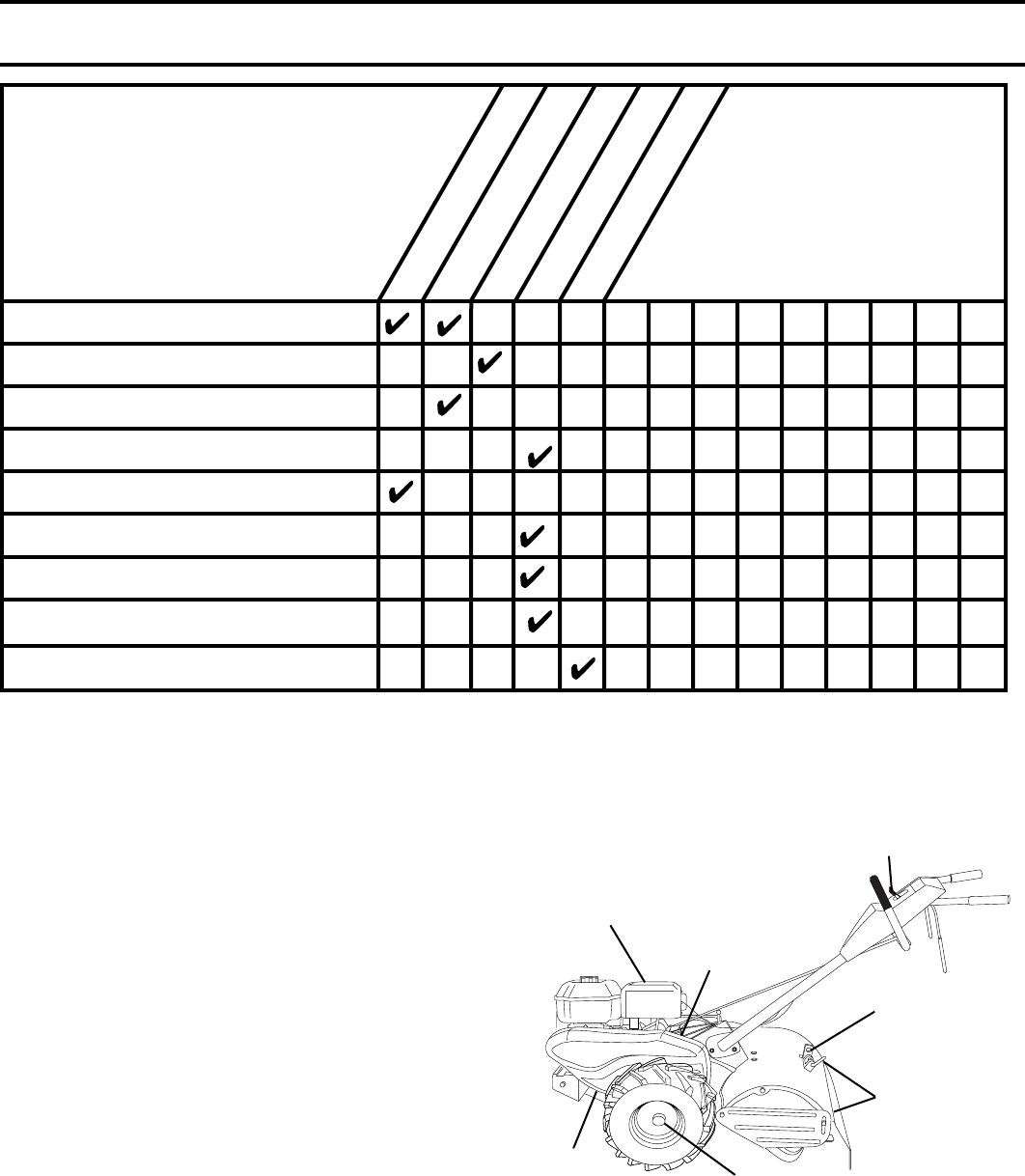

LUBRICATION CHART

c WHEEL

HUB

d ENGINE

c THROT TLE

CONTROL

c IDLER

BRACKET

c LEVELING

SHIELD

HINGES

c DEPTH

STAKE PIN

e RH GEAR CASE

GREASE FITTIG

MAINTENANCE

SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check Engine Oil Level

Change Engine Oil

Oil Pivot Points

Inspect Air Screen

Inspect Spark Arrester / Muffler

Clean or Replace Air Cleaner Cartridge

Clean Engine Cylinder Fins

Replace Spark Plug

BEFORE EACH USE

EVERY 25 HOURS

EVERY 5 HOURS

EVERY 50 HOURS

SERVICE DATES

1,2

2

1 - Change more often when operating under a heavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

EVERY SEASON

RH Gear Case Grease Fitting (1oz.)

12

MAINTENANCE

OIL FILLER

PLUG

OIL LEVEL

OIL

DRAIN

PLUG

FIG. 16

Disconnect spark plug wire before performing any maintenance (except car bu re tor adjustment) to

prevent accidental start ing of engine.

Prevent ﬁ res! Keep the engine free of grass, leaves, spilled oil, or fuel. Re move fuel from tank

before tipping unit for maintenance. Clean mufﬂ er area of all grass, dirt, and debris.

Do not touch hot mufﬂ er or cylinder ﬁ ns as contact may cause burns.

FIG. 17

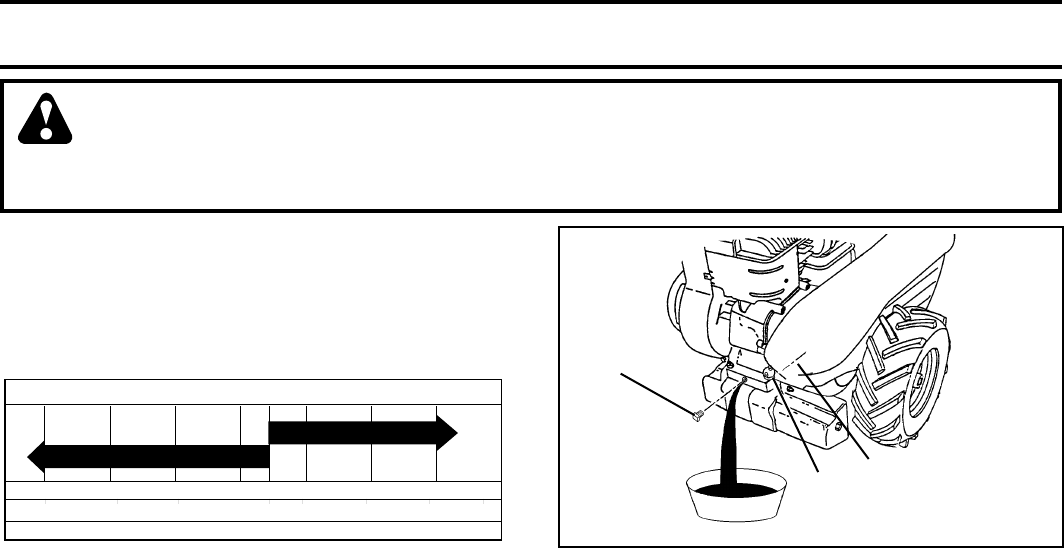

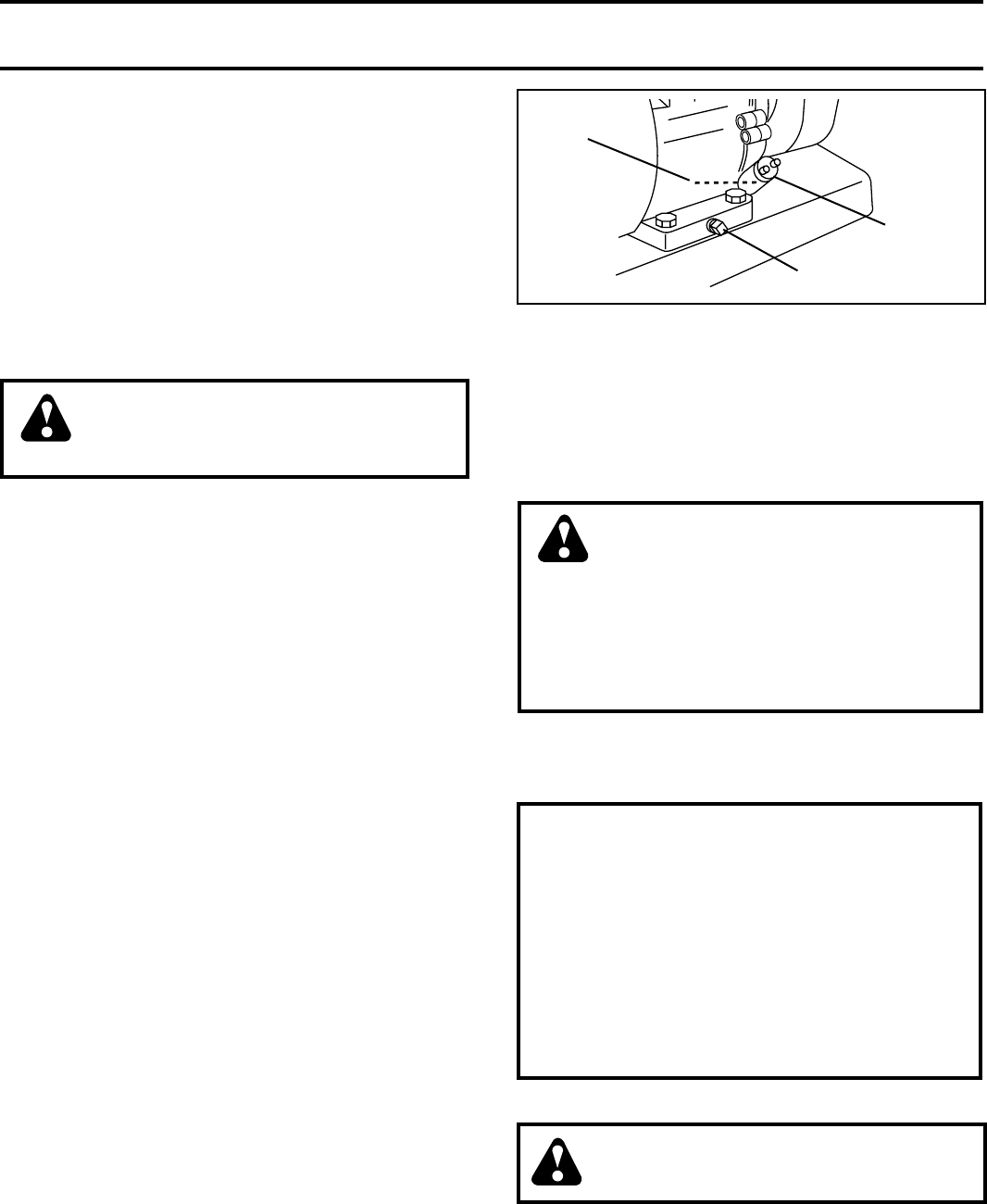

TO CHANGE ENGINE OIL (See Figs. 16 and 17)

Determine temperature range expected before oil change.

All oil must meet API service classiﬁ cation SF-SJ.

• Be sure tiller is on level surface.

• Oil will drain more freely when warm.

• Use a funnel to prevent oil spill on tiller, and catch oil

in a suitable con tain er.

• Remove drain plug. For easier removal of plug use

7/16 12 Pt. socket with extension.)

• Tip tiller forward to drain oil.

• After oil has drained completely, replace oil drain plug

and tighten securely.

• Remove oil ﬁ ller plug. Be careful not to allow dirt to

enter the engine.

• Reﬁ ll engine with oil. See “CHECK ENGINE OIL LEVEL”

in the Operation section of this manual.

ENGINE

LUBRICATION

Use only high quality detergent oil rated with API service

classiﬁ cation SF-SJ. Select the oil’s SAE vis cos i ty grade

according to your expected temperature.

NOTE: Although multi-viscosity oils (5W-30, 10W-30, etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

40°F (4°C). Check your engine oil level more frequently to

avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at

least once a year if the tiller is not used for 25 hours in

one year.

Check the crankcase oil level before starting the engine

and after each ﬁ ve (5) hours of continuous use. Add SAE

30 motor oil or equivalent. Tighten oil ﬁ ller plug securely

each time you check the oil level.

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

SAE VISCOSITY GRADES

-20 0 30 40 80 100

-30 -20 4 20 30 40

F

C-10 10

60

10W-30 / 5W-30

SAE 30

oil_visc_chart5_e(drt)

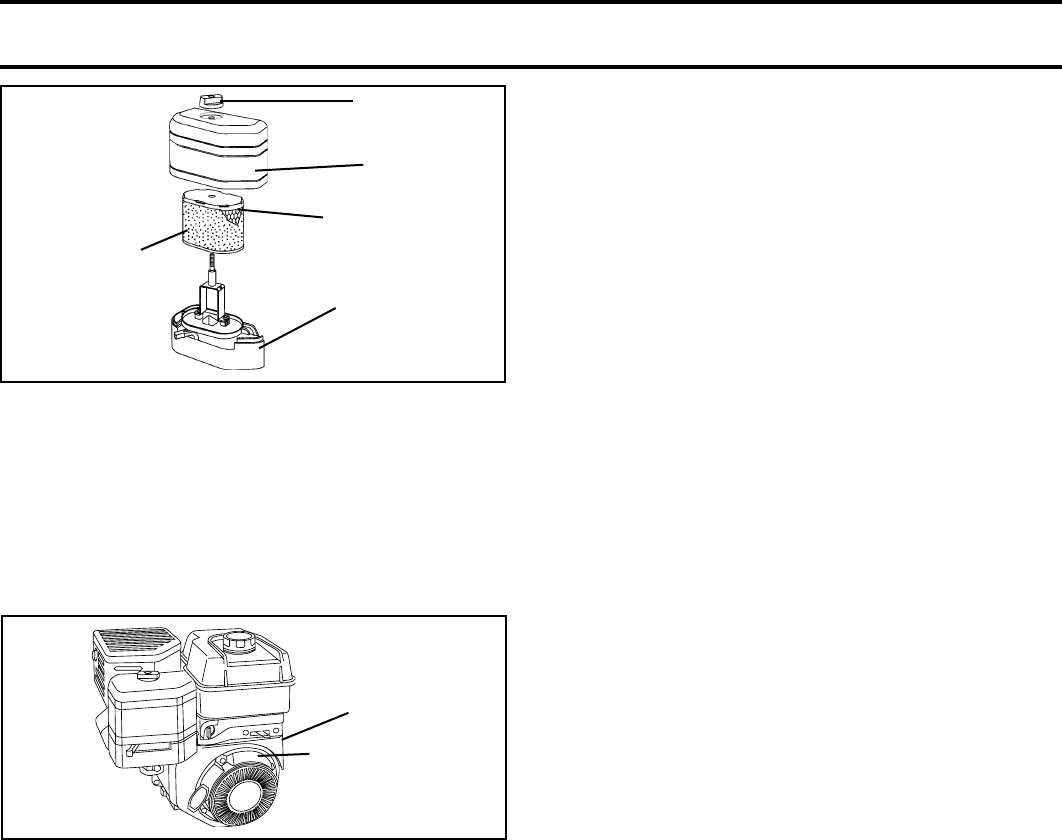

AIR FILTER (See Fig. 18)

Your engine will not run properly using a dirty air ﬁ lter. Clean

the foam pre-cleaner after every 25 hours of op er a tion or

every season. Service paper cartridge every 100 hours of

operation or every season, which ev er occurs ﬁ rst.

Service air cleaner more often under dusty conditions.

• Remove cover screw and cover.

TO SERVICE PRE-CLEANER

• Remove foam pre-cleaner from air cleaner cover.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

• If very dirty or damaged, replace pre-cleaner.

• Reinstall pre-cleaner into air cleaner cover.

• Reinstall cover and secure screw.

TO SERVICE CARTRIDGE

• Carefully remove cartridge to prevent debris from

en ter ing carburetor. Clean base carefully to pre vent

debris from entering carburetor.

• Clean cartridge by tap ping gen tly on ﬂ at surface. If

very dirty or damaged, replace cartridge.

• Re in stall cartridge, cover with pre-cleaner and se cure

with screw.

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS KER O SENE,

ARE NOT TO BE USED TO CLEAN THE CAR TRIDGE. THEY

MAY CAUSE DETERIORATION OF THE CARTRIDGE. DO NOT

OIL CARTRIDGE. DO NOT USE PRESSURIZED AIR TO CLEAN

OR DRY CARTRIDGE.

13

FIG. 18

COVER

KNOB

BASE

FOAM

PRECLEANER

COVER

AIR CLEANER

CARTRIDGE

COOLING SYSTEM (See Fig. 19)

Your engine is air cooled. For proper engine performance

and long life keep your engine clean.

• Clean air screen frequently using a stiff-bristled

brush.

• Keep cylinder ﬁ ns, levers, and linkage free of dirt and

chaff.

MAINTENANCE

engine_art_

61

FIG. 19

AIR SCREEN

BLOW ER

HOUS ING

MUFFLER

Do not operate tiller without mufﬂ er. Do not tamper with

exhaust system. Damaged mufﬂ ers or spark arresters could

create a ﬁ re hazard. Inspect pe ri odi cally and re place if

nec es sary. If your engine is equipped with a spark arrester

screen assembly, re move every 50 hours for cleaning and

inspection. Re place if dam aged.

SPARK PLUG

Replace spark plugs at the beginning of each tilling sea-

son or after every 50 hours of use, whichever comes ﬁ rst.

Spark plug type and gap setting is shown in “PRODUCT

SPEC I FI CA TIONS” on page 3 of this manual.

TRANSMISSION

Once a season, lubricate the right hand side gear case

grease ﬁ tting with 1 oz. of EP #1 Grease.

CLEANING

Do not clean your tiller when the engine and transmission

are hot. We do not rec om mend using pressurized water

(gar den hose, etc.) to clean your unit un less the gasket

area around the trans mis sion and the engine muf ﬂ er, air

ﬁ l ter and car bu re tor are cov ered to keep wa ter out. Wa ter

in en gine will short en the useful life of your tiller.

• Clean engine, wheels, ﬁ nish, etc. of all foreign mat-

ter.

• Keep ﬁ nished surfaces and wheels free of all gas o line,

oil, etc.

• Protect painted surfaces with au to mo tive type wax.

14

SERVICE AND ADJUSTMENTS

CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come

into contact with plug.

TILLER

TO ADJUST HANDLE HEIGHT (See Fig. 20)

Select handle height best suited for your tilling conditions.

Handle height will be different when tiller digs into soil.

• First loosen handle lock lever.

• Handle can be positioned at different settings between

“HIGH” and “LOW” positions.

• Retighten handle lock lever securely after adjusting.

FIG. 20

HANDLE

(LOW POSITION)

TIRE CARE

CAUTION: When mounting tires, un-

less beads are seated, over in ﬂ a tion can

cause an explosion.

• Maintain 20 PSI (1.4 kg/cm2) of tire pressure. If tire

pres sures are not equal, tiller will pull to one side.

• Keep tires free of gasoline or oil which can damage

rubber.

TO REMOVE WHEEL (See Fig. 21)

• Place blocks under trans mis sion to keep tiller from

tipping.

• Remove outer side shield by removing nuts “A” and

“B”.

• Remove inner side shield by removing nuts “C” and

“D”.

• Remove hairpin clip and clevis pin from wheel.

• Remove wheel and tire.

• Repair tire and reassemble.

tire_4

CLEVIS

IN NER SIDE

SHIELD

OUTER SIDE

SHIELD

NUT

“D”

HAIR PIN

CLIP

NUT “C”

NUT “A”

NUT “B”

FIG. 21

HANDLE LOCK

LEVER

HANDLE

(HIGH POSITION)

FIG. 22

SCREW

AND

WASHER

HEX NUT

AND

WASHER

(LOCATED

BEHIND

TIRE)

BELT GUARD SCREW

AND WASHER

HAIRPIN CLIP AND

CLEVIS PIN

TO REMOVE BELT GUARD (See Fig. 22)

NOTE: For ease of removal, remove hairpin clip and

clevis pin from left wheel. Pull wheel out from tiller about

1 inch.

• Remove two (2) screws from side of belt guard.

• Remove hex nut and washer from bottom of belt guard

(located behind wheel).

• Pull belt guard out and away from unit.

• Replace belt guard by reversing above procedure.

15

SERVICE AND ADJUSTMENTS

CABLE CLIP

SCREW

DRIVE

CONTROL

CABLE

EXTENSION

SPRING

ENGINE

PULLEY

IDLER

PULLEY TRANS MIS SION PULLEY

LESS

TEN SION

5/8" MORE

TEN SION

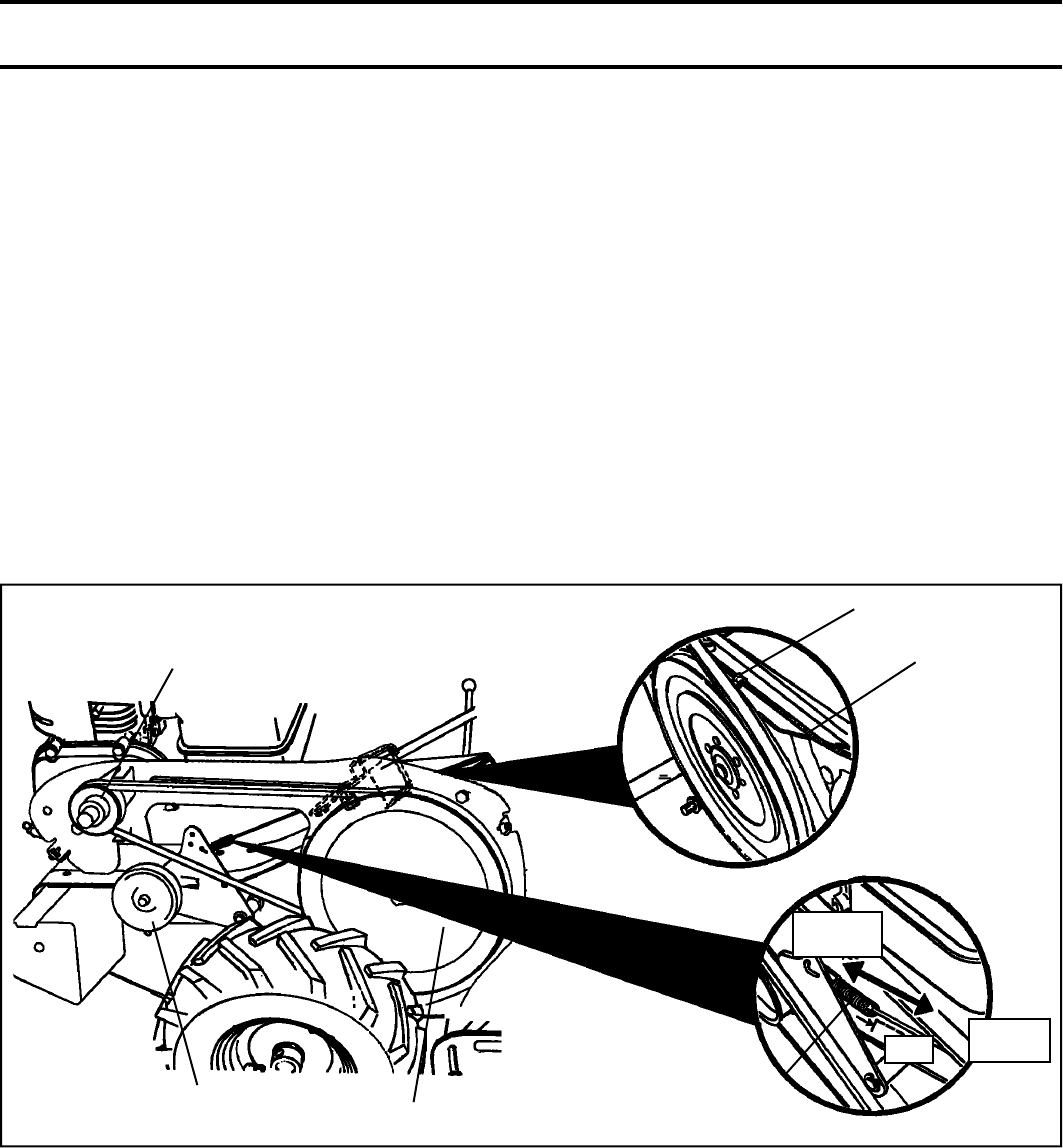

TO REPLACE GROUND DRIVE BELT

(See Fig. 23)

• Remove belt guard (See “TO REMOVE BELT GUARD”

in this section of this manual).

• Remove old belt by slipping off engine pulley ﬁ rst then

remove from transmission pulley.

• Place new belt in groove of transmission pulley and

into engine pulley. BELT MUST BE IN GROOVE ON

TOP OF IDLER PULLEY. NOTE POSITION OF BELT

TO GUIDES.

• Check belt adjustment as described below.

• Replace belt guard.

• Reposition wheel and replace clevis pin and hairpin

clip.

FIG. 23

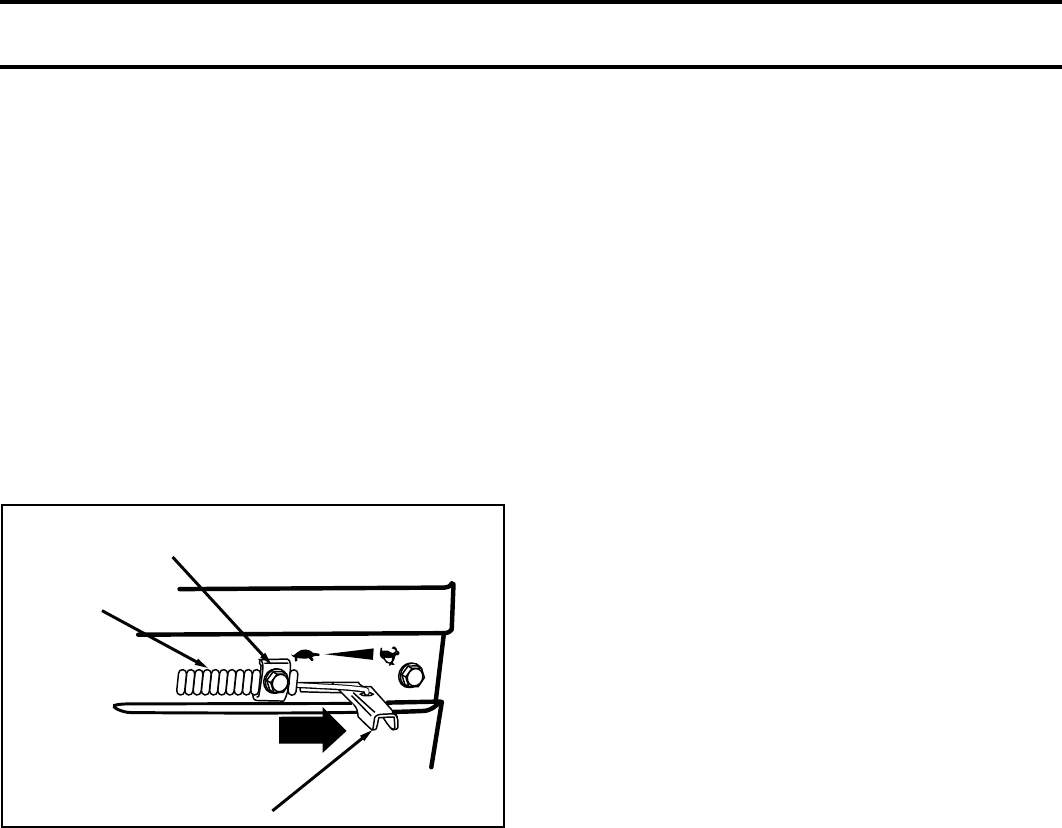

GROUND DRIVE BELT ADJUSTMENT

(See Fig. 23)

For proper belt tension, the extension spring should

have about 5/8 inch stretch when drive control bar is in

“EN GAGED” position. This tension can be attained as

follows:

• Loosen cable clip screw securing the drive control

cable.

• Slide cable forward for less tension and rearward for

more tension until about 5/8 inch stretch is obtained

while the drive control bar is engaged.

• Tighten cable clip screw securely.

16

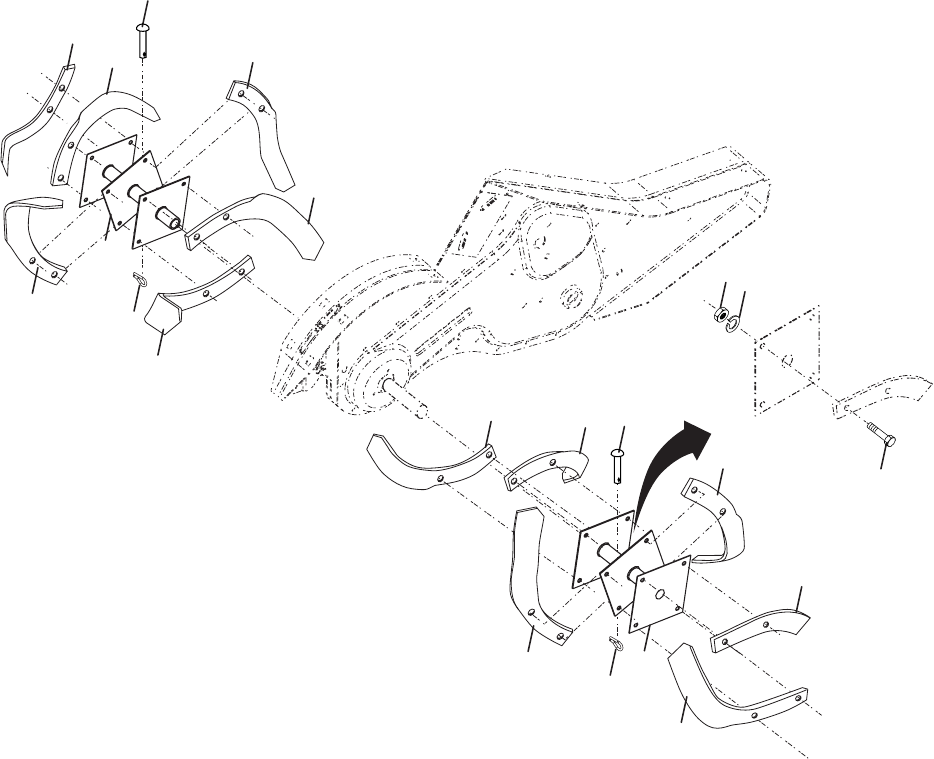

tine_13

tine_3

SERVICE AND ADJUSTMENTS

FIG. 26

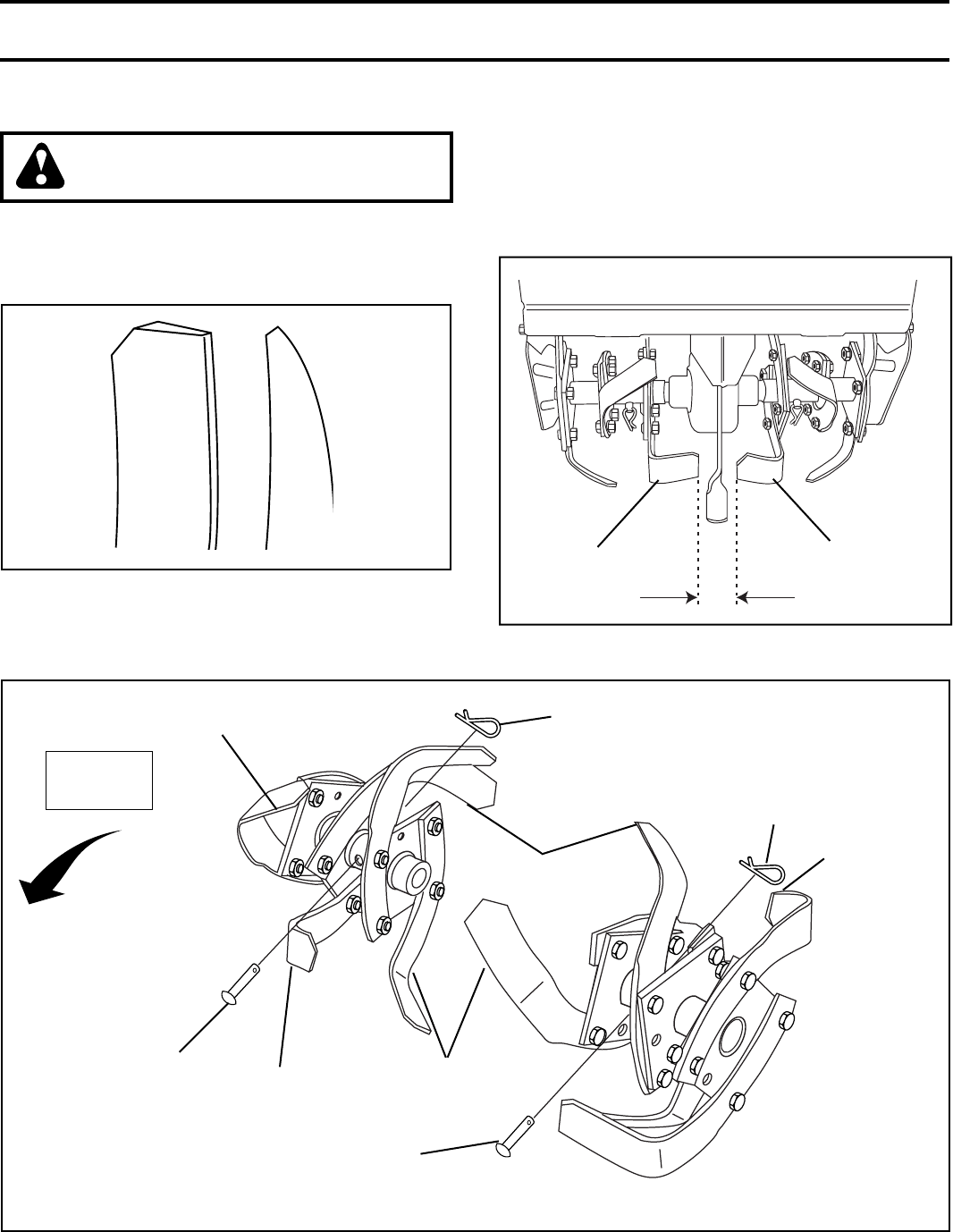

TINE REPLACEMENT

(See Figs. 24, 25, and 26)

CAUTION: Tines are sharp. Wear

gloves or other protection when han-

dling tines.

A badly worn tine causes your tiller to work harder and dig

more shallow. Most important, worn tines cannot chop and

shred organic matter as effectively nor bury it as deeply as

good tines. A tine this worn needs to be replaced.

FIG. 25

• To maintain the superb tilling performance of this

ma chine the tines should be checked for sharpness,

wear, and bending, particularly the tines which are

next to the transmission. If the gap between the tines

ex ceeds 3-1/2 inches (9 cm), they should be replaced

or straight ened as necessary.

• New tines should be assembled as shown in Fig.

26. Sharp ened tine edges will rotate rearward from

above.

TINE TINE

3-1/2" MAX (9 CM)

SHARP EDGE

HAIRPIN CLIP

SHARP

EDGES

COUNTER

TINE

ROTATION

02050

SHARP EDGES SHARP EDGE

SHEAR PIN

HAIRPIN CLIP

FIG. 24

NEW TINE WORN TINE

SHARP

EDGE

17

SERVICE AND ADJUSTMENTS

FIG. 27

engine_art_78

THROTTLE CONTROL

CLAMP SCREW

CASING

AND WIRE

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 27)

The throttle control has been preset at the factory and

ad just ment should not be necessary. If adjustment is

necessary, proceed as follows:

• With engine not running, move remote throttle control

lever to “FAST” position.

• If throttle lever on engine touches high speed stop, no

further adjustment is necessary. If throttle lever does

not touch high speed stop, continue with adjustment

procedure.

• Loosen cable clamp screw.

• Move throttle lever up until it touches high speed stop,

and hold in this position.

• Tighten cable clamp screw securely.

TO AD JUST CARBURETOR

The carburetor has been preset at the factory and ad just ment

should not be necessary. However, engine per for mance

can be affected by dif fer enc es in fuel, tem per a ture, al ti tude

or load. If the carburetor does need ad just ment, contact

your nearest authorized service center/de part ment

IMPORTANT: NEVER TAMPER WITH THE ENGINE GOVERNOR,

WHICH IS FACTORY SET FOR PROPER ENGINE SPEED.

OVER SPEED ING THE ENGINE ABOVE THE FACTORY HIGH

SPEED SETTING CAN BE DANGEROUS. IF YOU THINK THE

ENGINE-GOVERNED HIGH SPEED NEEDS ADJUSTING,

CONTACT YOUR NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS THE PROPER EQUIP MENT AND

EXPERIENCE TO MAKE ANY NEC ES SARY ADJUSTMENTS.

18

Immediately prepare your tiller for storage at the end of the

season or if the unit will not be used for 30 days or more.

WARNING: Never store the tiller with

gasoline in the tank inside a build ing

where fumes may reach an open ﬂ ame

or spark. Allow the engine to cool before

storing in any en clo sure.

TILLER

• Clean entire tiller (See “CLEANING” in the Maintenance

section of this manual).

• Inspect and replace belts, if necessary (See belt re-

place ment instructions in the Service and Ad just ments

section of this manual).

• Lubricate as shown in the Maintenance section of this

manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, break age

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS

FROM FORMING IN ES SEN TIAL FUEL SYS TEM PARTS SUCH

AS THE CAR BU RE TOR, FUEL FILTER, FUEL HOSE, OR TANK

DURING STOR AGE. ALSO, EXPERIENCE INDICATES THAT

AL CO HOL BLENDED FUELS (CALLED GASOHOL OR USING

ETHA NOL OR METHA NOL) CAN ATTRACT MOIS TURE WHICH

LEADS TO SEPA RA TION AND FORMATION OF ACIDS DUR ING

STOR AGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM

OF AN ENGINE WHILE IN STOR AGE.

• Empty the fuel tank by starting the engine and let it run

until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in the

fuel tank or permanent.

• Use fresh fuel next season.

NOTE: Fuel stablizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during

storage. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stablizer

container. Run engine at least 10 minutes after adding

stablizer to allow the stabilizer to reach the carburetor.

Do not empty the gas tank and carburetor if using fuel

stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean oil. (See

“ENGINE” in the Maintenance section of this man ual).

CYLINDER(S)

• Remove spark plug.

• Pour 1 ounce (29 ml) of oil through spark plug hole into

cylinder.

• Pull starter handle slowly several times to distribute

oil.

• Replace with new spark plug.

OTHER

• Do not store gasoline from one season to an-

other.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your unit indoors and cover it to give

protection from dust and dirt.

• Cover your unit with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your unit to rust.

IMPORTANT: NEVER COVER TILLER WHILE EN GINE AND

EX HAUST AREAS ARE STILL WARM.

STORAGE

19

Will not start 1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section.

3. Engine ﬂ ooded. 3. Wait several minutes before attempting to start.

4. Dirty air cleaner. 4. Clean or replace air cleaner cartridge.

5. Water in fuel. 5. Empty fuel tank and carburetor, and reﬁ ll tank with fresh,

clean gasoline.

6. Clogged fuel tank. 6. Remove fuel tank and clean.

7. Loose spark plug wire. 7. Make sure spark plug wire is seated properly on plug.

8. Bad spark plug or improper gap. 8. Replace spark plug or adjust gap.

9. Carburetor out of adjustment. 9. Make necessary adjustments.

10. Oil soaked air ﬁ lter. 10. Replace air ﬁ lter.

Hard to start 1. Throttle control not set properly. 1. Place throttle control in “FAST” position.

2. Dirty air cleaner. 2. Clean or replace air cleaner cartridge.

3. Bad spark plug or improper gap. 3. Replace spark plug or adjust gap.

4. Stale or dirty fuel. 4. Empty fuel tank and reﬁ ll tank with fresh, clean gasoline.

5. Loose spark plug wire. 5. Make sure spark plug wire is seated properly on plug.

6. Carburetor out of adjustment. 6. Make necessary adjustments.

Loss of power 1. Engine is overloaded. 1. Set depth stake for shallower tilling.

2. Dirty air cleaner. 2. Clean or replace air cleaner cartridge.

3. Low oil level/dirty oil. 3. Check oil level/change oil.

4. Faulty spark plug. 4. Clean and regap or change spark plug.

5. Oil in fuel. 5. Empty and clean fuel tank and reﬁ ll tank, and clean

car bu re tor.

6. Stale or dirty fuel. 6. Empty fuel tank and reﬁ ll tank with fresh, clean gasoline.

7. Water in fuel. 7. Empty fuel tank and carburetor, and reﬁ ll tank with fresh,

clean gasoline.

8. Clogged fuel tank. 8. Remove fuel tank and clean.

9. Spark plug wire loose. 9. Connect and tighten spark plug wire.

10. Dirty engine air screen. 10. Clean engine air screen.

11. Dirty/clogged mufﬂ er. 11. Clean/replace mufﬂ er.

12. Carburetor out of adjustment. 12. Make necessary adjustments.

13. Poor compression. 13. Contact an authorized service center/department.

Engine overheats 1. Low oil level/dirty oil. 1. Check oil level/change oil.

2. Dirty engine air screen. 2. Clean engine air screen.

3. Dirty engine. 3. Clean cylinder ﬁ ns, air screen, and mufﬂ er area.

4. Partially plugged mufﬂ er. 4. Remove and clean mufﬂ er.

5. Improper carburetor adjustment. 5. Adjust carburetor to richer position.

Excessive bounce/ 1. Ground too dry and hard. 1. Moisten ground or wait for more favorable soil

difﬁ cult handling conditions.

Soil balls up or clumps 1. Ground too wet. 1. Wait for more favorable soil conditions.

Engine runs but tiller 1. Drive control bar is not engaged. 1. Engage drive control.

won’t move 2. V-belt not correctly adjusted. 2. Inspect/adjust V-belt.

3. V-belt is off pulley(s). 3. Inspect V-belt.

Engine runs but labors 1. Tilling too deep. 1. Set depth stake for shallower tilling.

when tilling 2. Throttle control not properly adjusted. 2. Check throttle control setting.

3. Carburetor out of adjustment. 3. Make necessary adjustments.

Tines will not rotate 1. Shear pin(s) broken. 1. Replace shear pin(s).

PROBLEM CAUSE CORRECTION

TROUBLESHOOTING POINTS

20

REPAIR PARTS

TILLER - - MODEL NUMBER 650RTT (650BRTTA), PRODUCT NUMBER 954 32 93-25

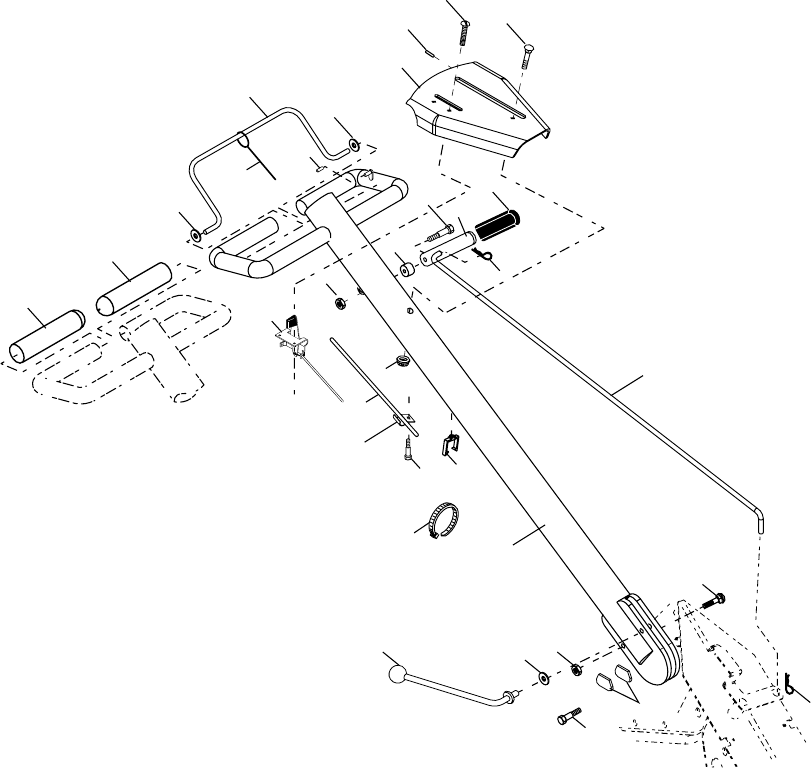

HANDLE ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

17 532 10 92-29 Lock, Handle

18 873 68 06-00 Nut, Crownlock 3/8-16 unc

19 819 13 16-11 Washer 13/32 x 1 x 11 Ga.

20 532 10 92-28 Lever, Lock, Handle

21 532 19 03-72 Handle

22 532 16 51-97 Clip Cable

23 532 08 67-77 Screw, Hex Washer Hd. Slotted

#10-24 x 1/2

24 532 00 94-84 Clip

25 873 97 05-00 Nut Lock Hex Flange

26 532 11 06-75 Cable, Clutch

27 873 97 04-00 Nut Hex Flange 1/4-20 unc

30 532 00 71-92 Tie Cable

31 532 15 06-96 Bolt, Pivot

KEY PART

NO. NO. DESCRIPTION

1 532 18 06-34 Control, Throttle

2 532 14 14-06 Grip, Handle

3 532 11 06-73 Grommet Handle

4 532 12 72-54 Bar Assembly, Control

5 532 00 67-12 Cap Vinyl

6 532 19 04-52 Panel, Control

7 532 11 06-41 Bushing Split

8 817 72 04-08 Screw 1/4-20 x 1/2

9 872 01 05-20 Bolt 5/16-18 x 2.50

10 532 11 06-46 Grip, Handle

11 532 12 47-88 Clip, Hairpin

12 532 08 13-28 Bolt, Shoulder

13 532 18 74-97 Handle, Shift

14 532 10 93-13 Grommet, Rubber

15 532 11 07-02 Rod, Shift

16 872 11 06-08 Bolt, Carriage 3/8-16 x 1 Gr. 5 NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

8

9

7

6

3

4

26

5

3

1

27

25

26

24

23 22

15

11

10

12

14

13

21

19

31

17

16

11

18

20

2

handle_assy_3a

30

21

KEY PART

NO. NO. DESCRIPTION

1 873 51 05-00 Nut, Keps 5/16-18

2 810 04 06-00 Washer, Lock 3/8

3 873 22 06-00 Nut, Hex 3/8-16

4 532 17 01-27 Shield, Inner Belt Guard RT

5 532 16 43-29 Pin Spirol Flared

6 532 11 01-11 Lever, Shift

7 872 11 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5

8 532 00 87-00 Plate, Shift Indicator

9 532 08 67-77 Screw, Hex, Washer Head, Slotted

#10-24 x 1/2

10 532 00 94-84 Clip

11 810 04 04-00 Washer, Lock 1/4

12 873 22 04-00 Nut, Hex 1/4-20

13 823 23 05-06 Screw, Set, Hex 5/16-18 x 3/8

14 532 11 06-52 Spacer, Split 0.327 x 0.42 x 2.09

15 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.

16 532 14 51-02 Sheave, Transmission

19 812 00 00-28 Retainer, Ring

21 532 15 61-17 Spacer, Split

22 874 77 05-08 Bolt, Fin Hex 5/16-24 unf x 1/2

23 532 00 50-15 Tire

532 12 43-66 Rim

532 12 47-18 Tire Valve

REPAIR PARTS

TILLER - - MODEL NUMBER 650RTT (650BRTTA), PRODUCT NUMBER 954 32 93-25

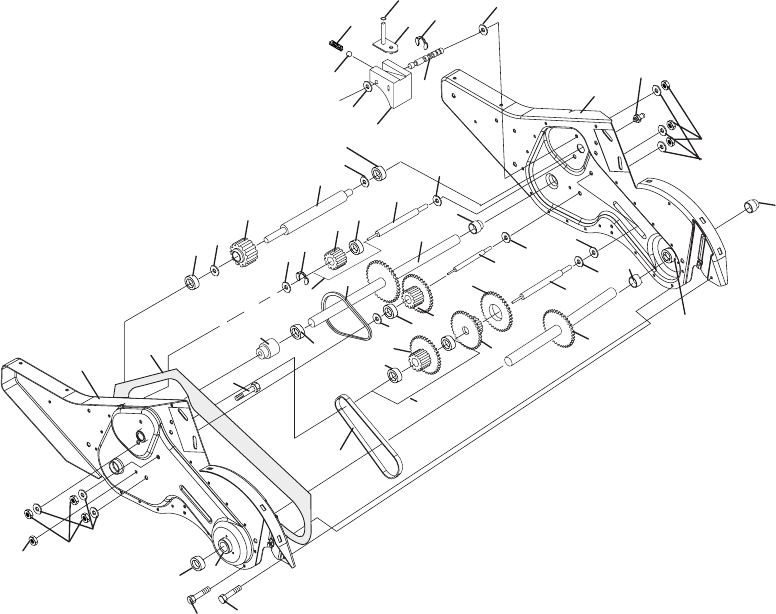

MAINFRAME, LEFT SIDE

KEY PART

NO. NO. DESCRIPTION

24 532 12 68-75 Rivet, Drilled

25 532 12 47-88 Clip, Hairpin

26 532 19 04-53 Guard, Belt

27 532 13 28-01 Belt, V

28 532 10 46-79 Pulley, Idler

29 812 00 00-32 Ring, Klip

30 532 15 92-29 Bracket, Idler

31 532 10 23-84 Bolt, Hex 5/16-16 x 12

32 532 10 21-41 Shaft, Idler Arm

33 874 76 06-16 Bolt, Hex 3/8-16 x 1

34 532 10 23-83 Counterweight, L. H.

35 874 76 05-24 Bolt, Hex 5/16-18 x 1-1/2

36 532 10 23-31 Bracket, Reinforcement, L. H.

37 532 13 08-12 Sheave, Engine

38 874 76 05-44 Bolt, Fin Hex 5/16-18 unc x 2-3/4

39 532 14 00-62 Cap, Plunger Blk

40 532 17 04-88 Screw Hex Wsh Slt #10-24 x 1/2

44 873 80 05-00 Nut Lock Hex w/Ins 5/16-18 unc PL

65 873 97 05-00 Nut Lock Hex Flange

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

1

32

65

35 34 31

30

28 3

40 26 15

44

40

27

19

16

38

4

21

14

32

33

36

13

37

39

6

5

8

11

12

7

9

10

29

22

mainframe_left_17

24

23

25

22

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS

TILLER - - MODEL NUMBER 650RTT (650BRTTA), PRODUCT NUMBER 954 32 93-25

MAINFRAME, RIGHT SIDE

2 873 97 05-00 Locknut, Hex, Flange 5/16-18

5 532 10 23-32 Bracket, Reinforcement

7 532 10 21-73 Counter Weight, R.H.

8 810 04 06-00 Washer, Lock 3/8

9 873 22 06-00 Nut, Hex 3/8-16

10 874 76 05-24 Bolt, Hex 5/16-18 x 1-1/2

11 532 12 47-88 Clip, Hairpin

12 532 12 68-75 Rivet, Drilled

13 532 00 50-15 Tire

532 12 43-66 Rim

532 12 47-18 Tire Valve

15 - - - - - - - - Engine, Briggs & Stratton

Model No. 120302 (Order parts

from Engine Manufacturer)

5

10

7

8

9

11

12

13

15

2

10

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

For engine service and replacement parts, call the toll free

number for your engine manufacturer listed below:

Briggs & Stratton 1-800-233-3723

Tecumseh Products 1-800-558-5402

Honda Engines 1-800-426-7701

23

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

1 532 18 85-54 Transmission Assembly (In cludes

Key Nos. 2-53)

2 532 18 84-82 Gearcase, L.H. w/Bearing (In cludes

Key No. 4)

3 532 16 19-63 Gasket, Gearcase

4 532 00 50-20 Bearing, Needle

5 532 00 13-70 Washer, Thrust 5/8 x 1.10 x 1/32

6 532 13 73-35 Pinion, Input

7 532 14 51-01 Shaft, In put

8 532 12 47-92 Bearing, Needle

9 532 15 44-67 Washer, Seal

10 532 12 46-97 Ball, Steel

11 532 10 03-71 Spring, Shift, Fork

12 532 10 61-60 O-Ring

13 532 14 21-45 Arm, Shift

14 532 00 83-53 Fork, Shift

15 812 00 00-39 Ring, Klip

16 532 15 44-66 Shaft, Shift

18 532 00 43-58 Washer

19 812 00 00-40 Ring, Klip

20 532 10 21-14 Gear, As sem bly, Reverse Idler (In-

cludes Key Nos. 21 and 22)

21 532 10 21-15 Gear, Re verse Idler

22 532 00 68-03 Bearing, Needle

23 532 10 21-11 Shaft, Re verse Idler

24 810 04 07-00 Washer, Lock 7/16

25 873 61 07-00 Nut, Hex 7/16-20

27 532 14 30-09 Bearing, Shaft, Ground Drive L.H.

28 532 10 63-90 Spacer 0.765 x 1.125 x 1.23

REPAIR PARTS

TILLER - - MODEL NUMBER 650RTT (650BRTTA), PRODUCT NUMBER 954 32 93-25

TRANSMISSION

KEY PART

NO. NO. DESCRIPTION

29 532 10 21-34 Chain #35-50 Pitch

30 532 15 07-37 Ground Shaft Assembly

31 532 14 30-08 Bearing, Shaft, Ground Drive R.H.

32 532 10 63-88 Spacer 0.70 x 1.00 x 1.150

33 532 10 21-21 Sprocket and Gear Assembly

34 532 10 21-12 Shaft, Re duc tion (2nd)

35 532 10 21-01 Screw, Whiz, Lock 5/16-18 x 3-1/2

36 532 15 43-55 Sprocket Assembly w/Bearing (In-

cludes Key Nos. 37 and 38)

37 532 12 47-91 Bearing, Needle

38 532 15 43-56 Sprocket, Tine

39 532 10 53-45 Gear, Clus ter, Red 1st & 2nd

40 532 10 53-46 Gear, Re verse

41 532 00 83-58 Shaft, Re duc tion (1st)

42 532 00 42-20 Washer, Thrust

43 532 10 61-46 Spacer 1.01 x 1.75 x 0.760

44 532 15 52-36 Seal Asm, Oil

48 532 18 84-85 Gearcase, R.H. w/Bearing (In cludes

Key No. 8)

49 532 13 26-88 Shaft, Tine

50 532 10 61-47 Chain, Roller #50-50 Pitch

51 817 72 04-08 Screw 1/4-20 x 1/2

52 873 22 05-00 Nut, Hex 5/16-18

53 532 16 51-40 Kit, Bearing

58 532 17 95-20 Bolt Shoulder 1/4-20 unc x .875

60 532 18 32-26 Fitting Grease

- - 532 00 60-66 Grease, Plastilube #1

12

13 15

16

14

9

8

518

23

22

21

19

18

3

2

31

7

6

5

4

11

10

29

30

28

18 32 33

34

18

48

60

24

44

18

42 43

41

49

40

39

37

38

37

50

36

20

25

27

35

25 24

44

51 58

53

52

53

transmission_19.5b

24

19 532 10 27--01Grip

20 873 22 06-00 Nut, Hex 3/8-16

21 532 10 21-56 Stake, Depth

22 874 93 06-32 Bolt, Hex 3/8-16 x 2

23 532 00 44-40 Hinge

24 872 14 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5

25 532 12 47-17 Cap, Vinyl

26 532 10 92-27 Pad, Idler

27 532 12 50-16 Shield, Leveling

28 532 12 05-88 Pin, Hinge

29 532 14 22-93 Shield, Side

32 873 22 04-00 Nut Fin Hex 1/4-20 unc

33 810 04 04-00 Washer Lock Hvy Helical 1/4

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 873 90 05-00 Nut, Lock Hex Flange 5/16-18

2 532 16 29-52 Shield, Side, Outer L. H.

3 532 00 83-93 Pin, Stake, Depth

4 812 00 00-35 Ring, Klip

5 532 18 08-47 Bolt, Rdhd Sqnk 5/16-18 x 3/4

6 532 00 83-94 Spring

7 532 00 83-92 Bracket, Latch

8 532 10 92-30 Spring, Depth Stake

9 532 14 22-92 Shield, Tine

10 872 14 05-08 Bolt, Carriage 5/16-18 unc x 1

11 873 22 05-00 Nut, Hex 5/16-18

12 810 04 05-00 Washer, Lock 5/16

13 872 11 05-10 Bolt, Carriage 5/16-18 x 1-1/4

14 532 12 43-11 Bracket, Shield Tine

15 532 16 29-53 Shield, Side, Outer R.H.

16 873 90 04-00 Nut, Hex Flange 1/4-20 unc

18 872 04 04-10 Bolt, Carriage 1/4-20 x 1-1/4 Gr.

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

TILLER - - MODEL NUMBER 650RTT (650BRTTA), PRODUCT NUMBER 954 32 93-25

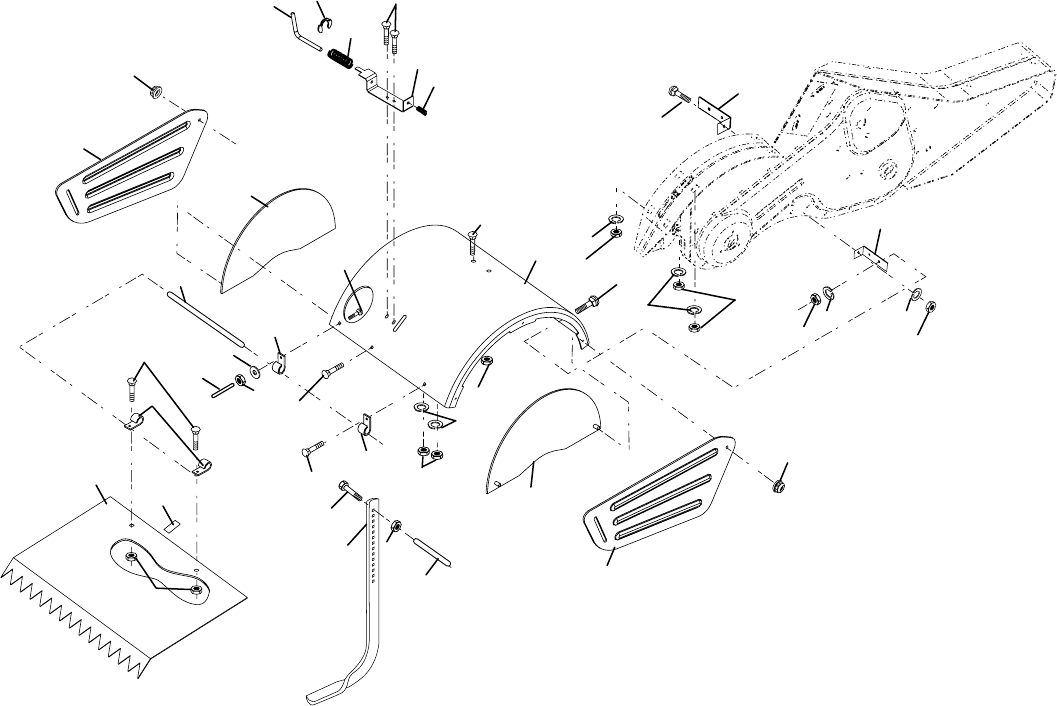

TINE SHIELD

2

29

15

1

11

12

13

14

24

23

26

27 11

12

16

11 12

25

33

32

16

34

7

8

9

5

23

28

24

18

6

5

12

11

10

tine_shield_13_in

22

21 20

19

1

25

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 532 00 44-59 Tine, Outer, L.H.

2 532 13 26-73 Clevis Pin

3 532 00 65-54 Tine, Inner, L.H.

4 532 12 46-60 Retainer, Spring Zinc

5 532 13 27-27 Assembly, Hub and Plate, L.H.

6 873 61 06-00 Nut, Hex 3/8-24

7 810 04 06-00 Washer, Lock 3/8

8 874 61 06-16 Bolt, Hex 3/8-24 x 1

9 532 00 44-60 Tine, Outer, R.H.

10 532 13 27-28 Assembly, Hub and Plate, R.H.

11 532 00 65-55 Tine, Inner, R.H.

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

TILLER - - MODEL NUMBER 650RTT (650BRTTA), PRODUCT NUMBER 954 32 93-25

TINE ASSEMBLY

2

11

10

9

4

5

67

3

1

2

1

9

8

tine_ipb_1

26

2 532 18 92-34 Decal, CNTRL PNL

3 532 13 72-82 Decal, Control Tine

4 532 18 92-33 Decal, Tine Shield

5 532 11 06-14 Decal, Hand Placement

6 532 10 21-80 Decal, Shift Indicator

7 532 16 23-84 Decal, Warning

8 532 17 10-79 Decal, Engine B&S 6.5 HP

9 532 12 00-76 Decal, Warning, Rotating Tines

10 532 16 68-70 Decal, Engine Intek REF

11 532 17 10-78 Decal, Rewind Intek #274350

- - 532 18 89-00 Manual, Owner’s (English)

KEY PART

NO. NO. DESCRIPTION

3

2

6

9

REPAIR PARTS

TILLER - - MODEL NUMBER 650RTT (650BRTTA), PRODUCT NUMBER 954 32 93-25

DECALS

5

7

8

10

11

4

27

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company (“Husqvarna”) warrants Husqvarna product to the original pur-

chaser to be free from defects in material and workmanship from the date of purchase for the “Warranty

Period” of the product as set forth below:

Lifetime Warranty: All tiller tines against breakage, trimmer shafts, ignition coils and modules on hand

held prod uct.

3 Year Warranty: Spindles (on Zero Turn Riders and Commercial Walk-Behinds)

2 Year COMMERCIAL-Warranty: Husqvarna Commercial Turf Equipment—zero turn riders, wide area

walks, and ground engaging commercial equipment.

2 Year NON-COMMERCIAL Warranty: Automatic Mower, Riding lawn mowers, yard and garden tractors,

walk behind mowers, tillers, chain saws, trimmers, brushcutters, clearing saws, snow blowers, handheld

blowers, backpack blowers, hedge trimmers, electrical products and power-assist collection systems for

non com mer cial, nonprofessional, noninstitutional or nonincome producing use, except as herein stated.

Emission control system components necessary to comply with CARB-TIER-II and EPA regulations,

except for those components which are part of engine systems manufactured by third party engine manu-

facturers for which the purchaser has received a separate warranty with product information supplied at

time of purchase.

1 Year Warranty: Power cutters, stump grinder, pole pruners and pole saws for non-commercial, non-pro-

fessional, non-institutional or non-income producing use. All trimmers, brushcutters, clearing saws, hover-

ing trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection

systems used for commercial, institutional, professional or income producing purposes or use.

Batteries have a one-year prorated limited warranty with 100% replacement during the ﬁ rst 6 months.

90 Day Warranty: Automatic Mower, Chain saws, power cutters, stump grinders, pole saws, pole prun-

ers, snow throwers, model series 580 & 600 walk-behind mowers and commercial turf equipment or any

Husqvarna product used for commercial, institutional, professional, or income producing purposes or use

except as otherwise provided herein.

Husqvarna Safety Apparel carries a 90-day warranty from the date of the customer’s original purchase

for defects in material and workmanship. Normal wear, tear or abuse is not covered under warranty. Prod-

uct must be returned to Charlotte with a warranty claim form. All care and maintenance instructions must

be followed as stated by the manufacturer on the care label. The ﬁ t of the protective apparel/boot is not

covered under warranty.

30 Day Warranty: Replacement parts, accessories including bars and chains, tools and display items.

SECTION 2: HUSQVARNA’S OBLIGATIONS UNDER THE WARRANTY

Husqvarna will repair or replace defective components without charge for parts or labor if a component

fails because of a defect in material or workmanship during the warranty period.

SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY

The following items are not covered by this warranty:

(1)Normal customer maintenance items which become worn through normal regular use, including,

but not limited to, belts, blades, blade adapters, bulbs, ﬁ lters, guide bars, lubricants, rewind springs,

saw chain, spark plugs, starter ropes and tines;

(2)Natural discoloration of material due to ultraviolet light;

(3)Engine and drive systems not manufactured by Husqvarna; these items are covered by the respec

tive manufacturer’s warranty as provided in writing with the product information supplied at the time

of purchase; all claims must be sent to the appropriate manufacturer;

(4)Lawn and garden attachments are covered by a third party which gives a warranty, all claims for

warranty should be sent to the manufacturer; and

(5)Emission Control System components necessary to comply with CARB-TIER-II and EPA regula

tions which are manufactured by third party engine manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting from the following:

(1)Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust,

corrosion, or any adverse reaction due to incorrect storage or use habits;

(2)Failure to operate or maintain the unit in accordance with the Owner’s/Operator’s manual or instruc-

tion sheet furnished by Husqvarna;

(3)Alterations or modiﬁ cations that change the intended use of the product or affects the product’s per-

formance, operation, safety, or durability, or causes the product to fail to comply with any applicable

laws; or:

(4)Additional damage to parts or components due to continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE PUR CHAS ER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS EXCEPT

TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABIL-

ITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO

THE WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRANTY STATEMENT. HUSQVARNA RE-

SERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NO TICE,

AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PROD-

UCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long

an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives

you speciﬁ c legal rights, and you may also have other rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written

in the maintenance section of the Owner’s/Operator’s manual. Should an operational problem or failure occur,

the product should not be used, but delivered as is to an authorized Husqvarna dealer for evaluation. Proof

of purchase, as explained in section 6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION

It is the Owner’s and Dealer’s responsibility to make certain that the Warranty Registration Card is properly

ﬁ lled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10) days

from the date of purchase in order to conﬁ rm the warranty and to facilitate post-sale service.

Proof of purchase must be presented to the authorized Husqvarna dealer in order to obtain warranty ser-

vice. This proof must include date purchased, model number, serial number, and complete name and address

of the selling dealer.

To obtain the beneﬁ t of this warranty, the product believed to be defective must be delivered to an au-

thorized Husqvarna dealer in a timely manner, no later than thirty (30) days from date of the operational

problem or failure. The product must be delivered at the owner’s expense. Pick-up and delivery charges are

not covered by this warranty. An authorized Husqvarna dealer can be normally located through the “Yellow

Pages” of the local telephone directory or by calling 1-800-HUSKY62 for a dealer in your area.

HUSQVARNA

7349 Statesville Road

Charlotte, NC 28269

531 83 81-23 2002

WARRANTY STATEMENT

532 18 89-00 Rev. 1 12.05.03 TR/rad Printed in U.S.A.

Husqvarna 650Rtt Users Manual OM, 650 RTT (650 BRTT A), 954329325, 2003 12, Tiller

650rtt 8ee20c6e-e7d7-4ea6-a098-1ac1a44cddc2 Husqvarna Tiller 650RTT User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
