431621 01.05.10 BY Printed in U.S.A.

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR

®

(1-888-784-6427)

Au Canada pour service en français:

1-800-LE-FOYER

MC

(1-800-533-6937)

www.sears.ca

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

Your Home

For repair – in your home –ofall major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME®Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Get it fixed, at your home or ours!

© Sears Brands, LLC

® Registered Trademark / TM Trademark / SM Service Mark of Sears Brands, LLC

® Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears Brands, LLC

MC Marque de commerce / MD Marque déposée de Sears Brands, LLC

Model No.

917.384510

Product No.

6021P

CAUTION:

Read and follow all

Safety Rules and In struc tions

before operating this equipment

Owner’s Manual

ROTARY LAWN MOWER

149cc Kohler Engine

21" Multi-Cut

Husqvarna, Charlotte, NC 28269 U.S.A.

Visit our website: www.husqvarna.com

2

Warranty...................................................4

Safe ty Rules ..........................................2-3

Prod uct Spec i fi ca tions..............................5

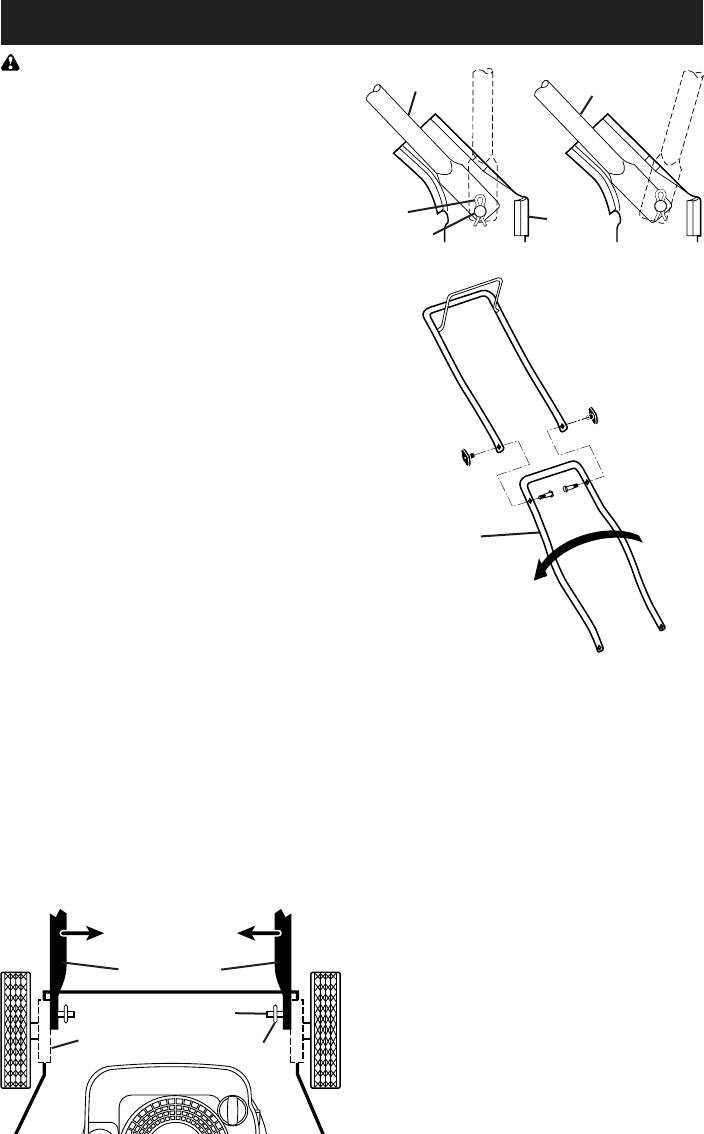

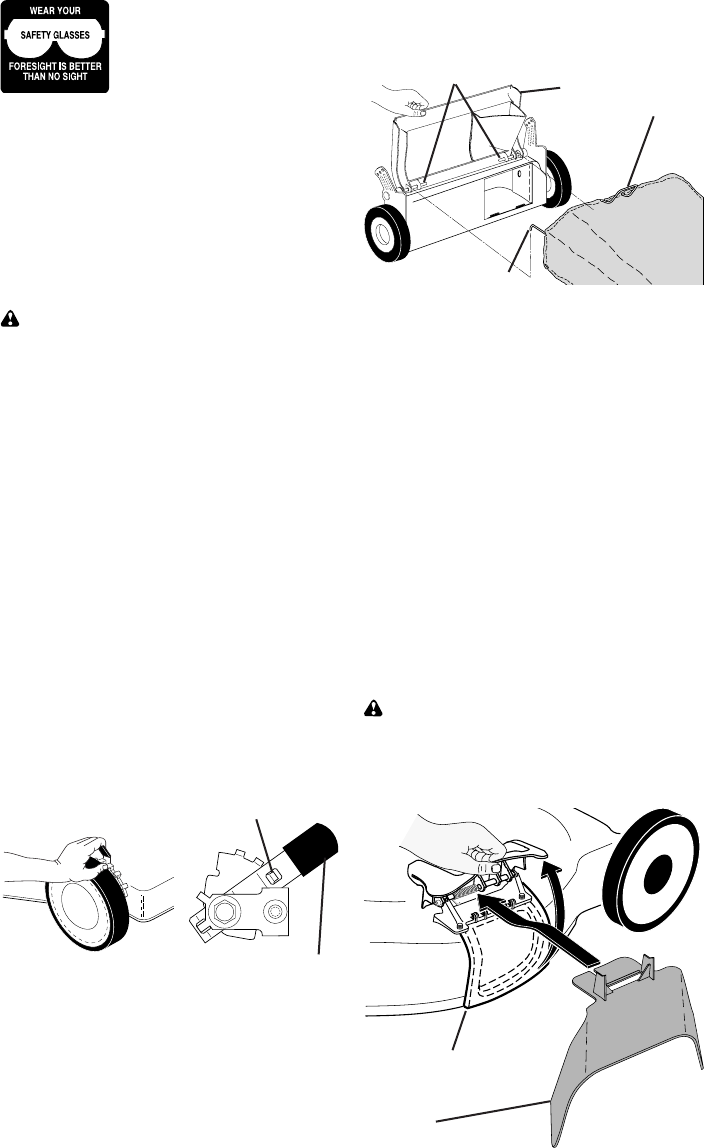

Assembly / Pre-Operation ........................6

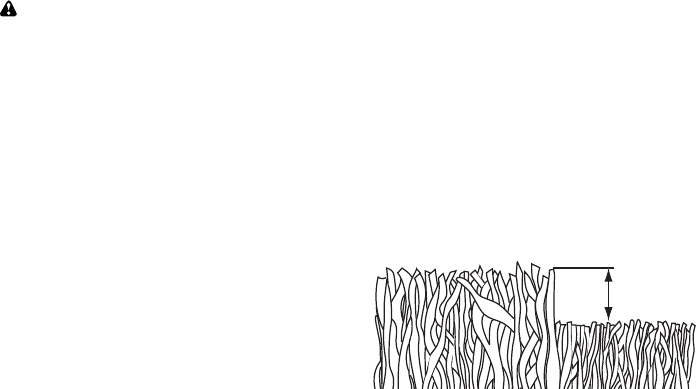

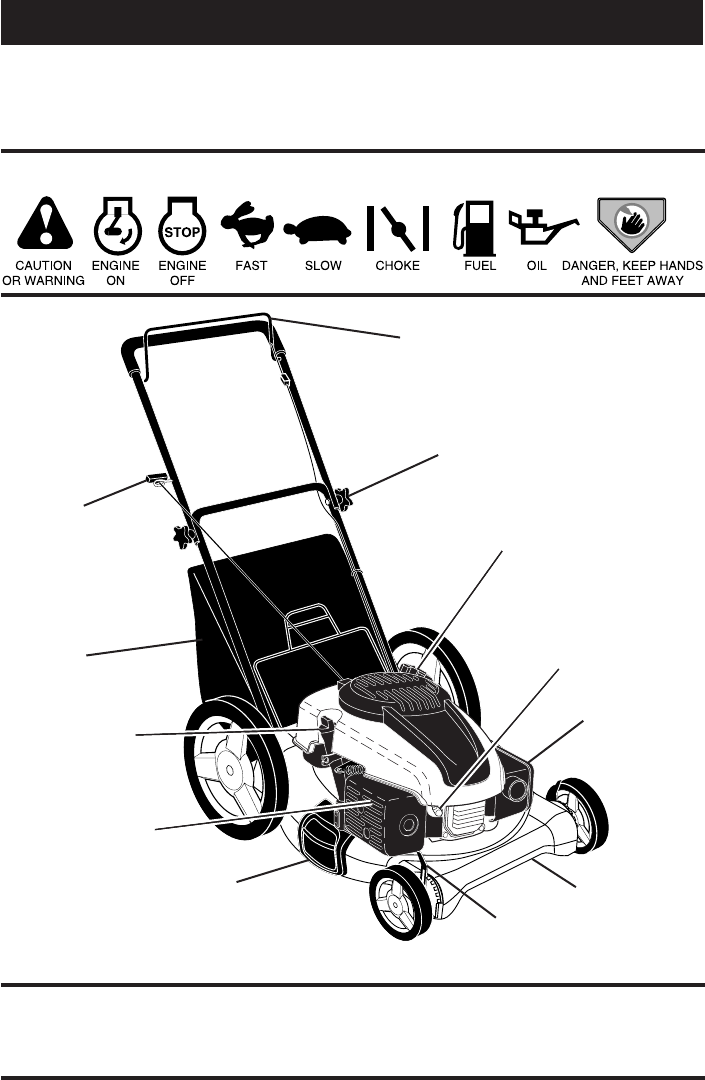

Op er a tion.............................................7-10

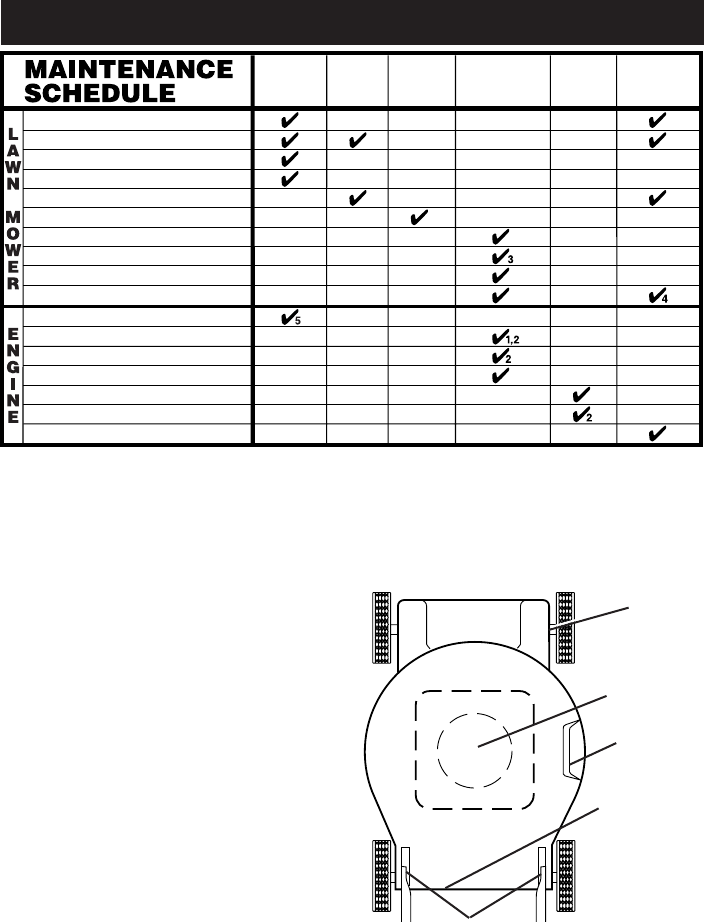

Maintenance Sched ule........................... 11

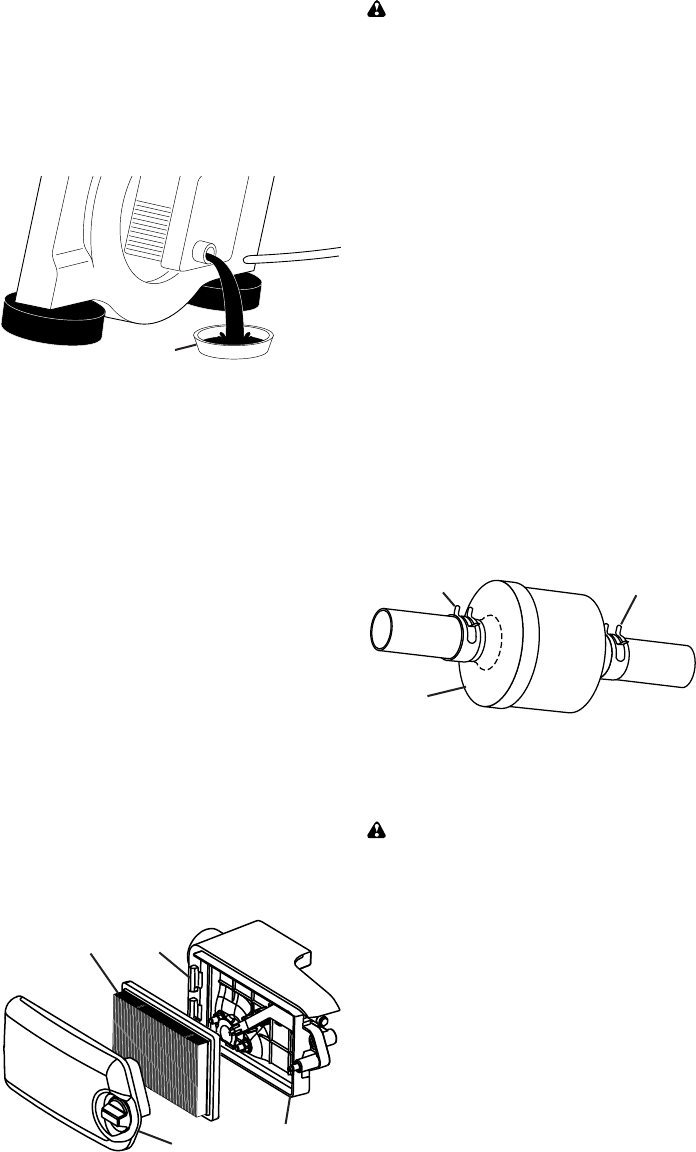

Maintenance......................................11-13

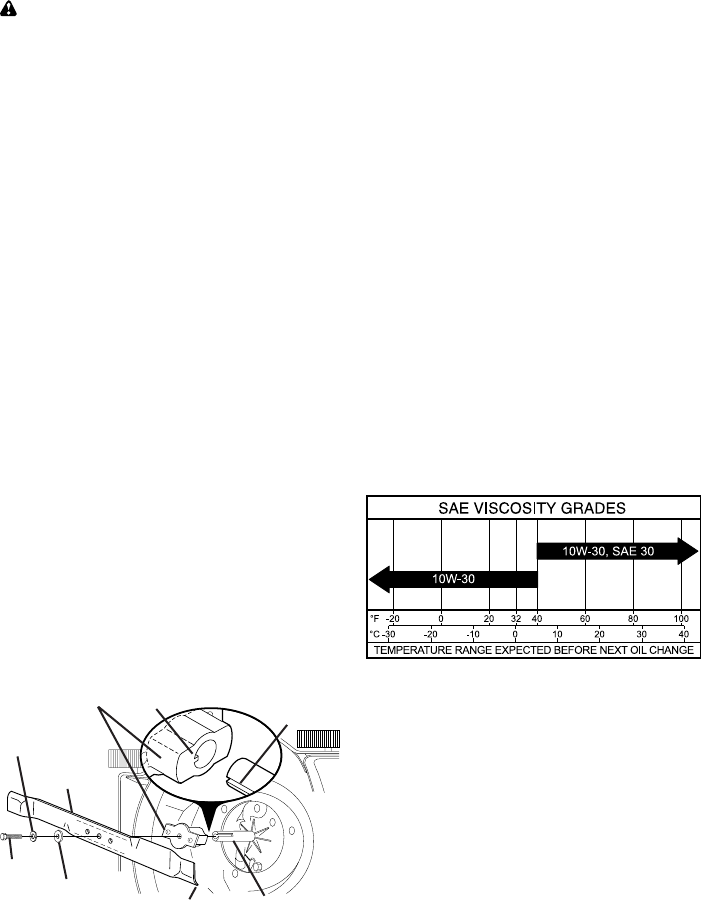

Ser vice and Ad just ments...................14-15

Stor age..............................................15-16

Trou ble shoot ing.................................16-17

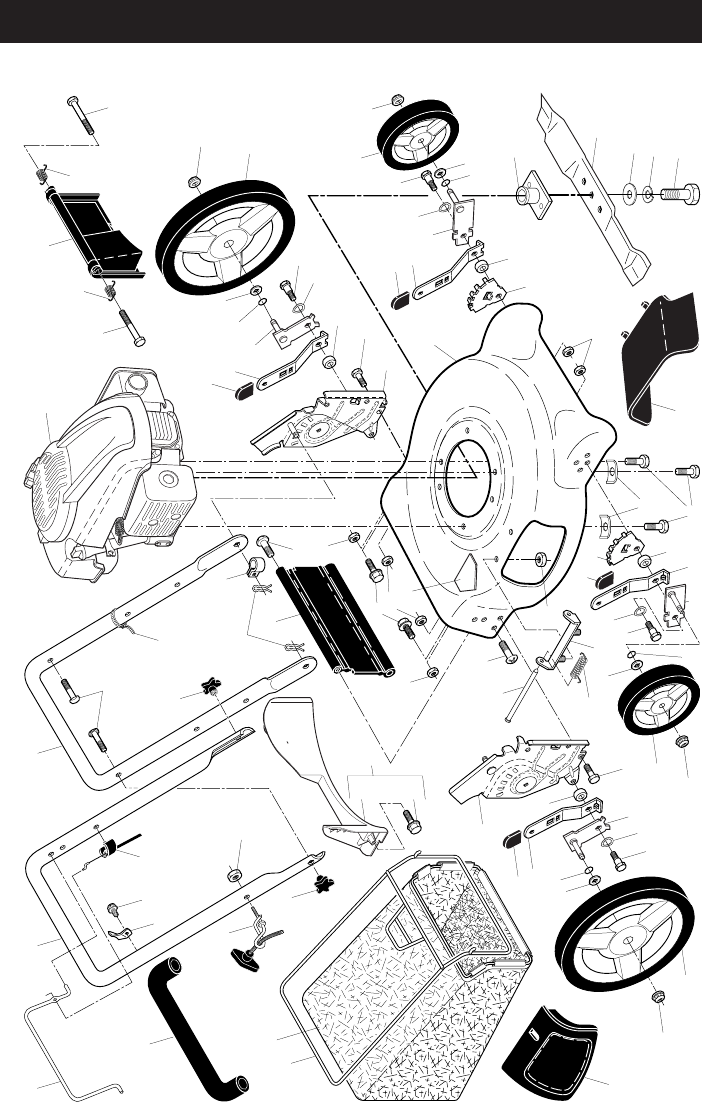

Re pair Parts.......................................34-38

TABLE OF CONTENTS

IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing ob-

jects. Failure to observe the following safety instructions could result in serious injury or death.

Look for this symbol to point out im-

por tant safety precautions. It means

CAU TION!!! BECOME ALERT!!!

YOUR SAFE TY IS INVOLVED.

WARNING: In order to prevent ac ci den tal

starting when setting up, trans port ing, ad-

just ing or making repairs, always dis con nect

spark plug wire and place wire where it can not

come in contact with plug.

WARNING: Engine exhaust, some of its

constituents, and certain vehicle com po -

nents contain or emit chem i cals known to

the State of Cal i for nia to cause can cer and

birth defects or oth er re pro duc tive harm.

WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State

of Cal i for nia to cause can cer and birth

defects or oth er re pro duc tive harm. Wash

hands after handling.

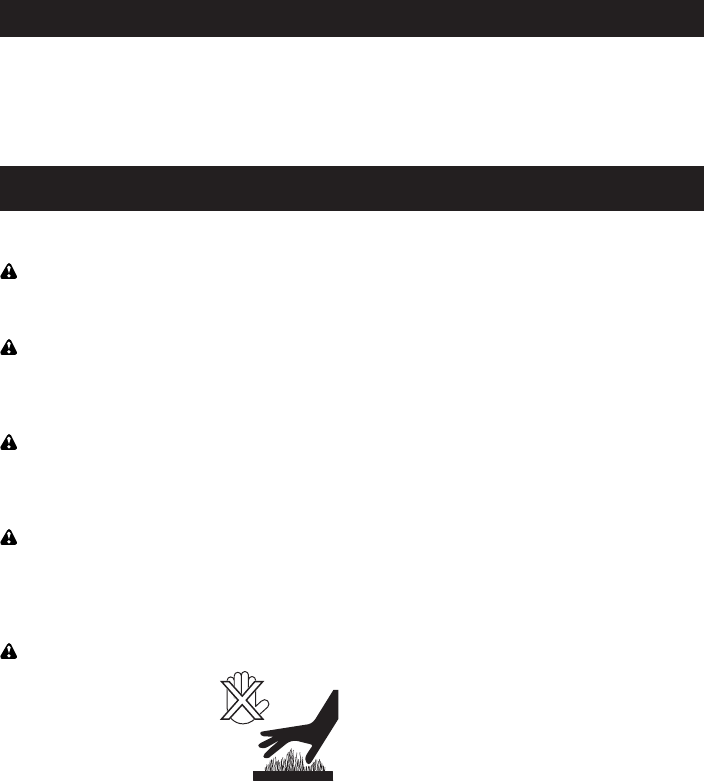

CAUTION: Muffl er and other engine

SAFETY RULES

parts become extremely

hot during operation and

remain hot after engine

has stopped. To avoid

severe burns on contact,

stay away from these areas.

I. GENERAL OPERATION

• Read, understand, and follow all

in struc tions on the machine and in the

manual(s) before starting. Be thor ough ly

familiar with the controls and the proper

use of the machine before starting.

• Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

• Only allow responsible individuals, who

are familiar with the in struc tions, to

operate the machine.

• Clear the area of objects such as rocks,

toys, wire, bones, sticks, etc., which could

be picked up and thrown by blade.

• Be sure the area is clear of other people

before mowing. Stop the ma chine if

anyone enters the area.

• Do not operate the mower when bare-

foot or wearing open sandals. Al ways

wear substantial foot wear.

• Do not pull mower backwards unless abso-

lutely nec es sary. Always look down and be-

hind before and while moving backwards.

• Never direct discharged material toward

anyone. Avoid discharging material

against a wall or obstruction. Material may

richochet back toward the operator. Stop

the blade when crossing gravel surfaces.

• Do not operate the mower without prop-

er guards, plates, grass catcher or oth er

safety protective devices in place.

• See manufacturer’s instructions for

proper operation and installation of

accessories. Only use accessories ap-

proved by the manufacturer.

• Stop the blade(s) when crossing grav el

drives, walks, or roads.

• Stop the engine (motor) whenever you

leave the equip ment, before clean ing

the mower or unclogging the chute.

• Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

• Mow only in daylight or good artifi cial light.

• Do not operate the machine while under

the infl uence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

fi rm hold on the handle; walk, never run.

• Disengage the self-propelled mech-

a nism or drive clutch on mowers so

equipped before starting the engine.

• If the equipment should start to vi brate

abnormally, stop the engine (motor) and

check immediately for the cause. Vibra-

tion is generally a warning of trouble.

• Always wear safety goggles or safe ty glass-

es with side shields when op er at ing mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip &

fall accidents which can result in severe

injury. All slopes require extra caution. If

you feel uneasy on a slope, do not mow it. 39

SERVICE NOTES

38

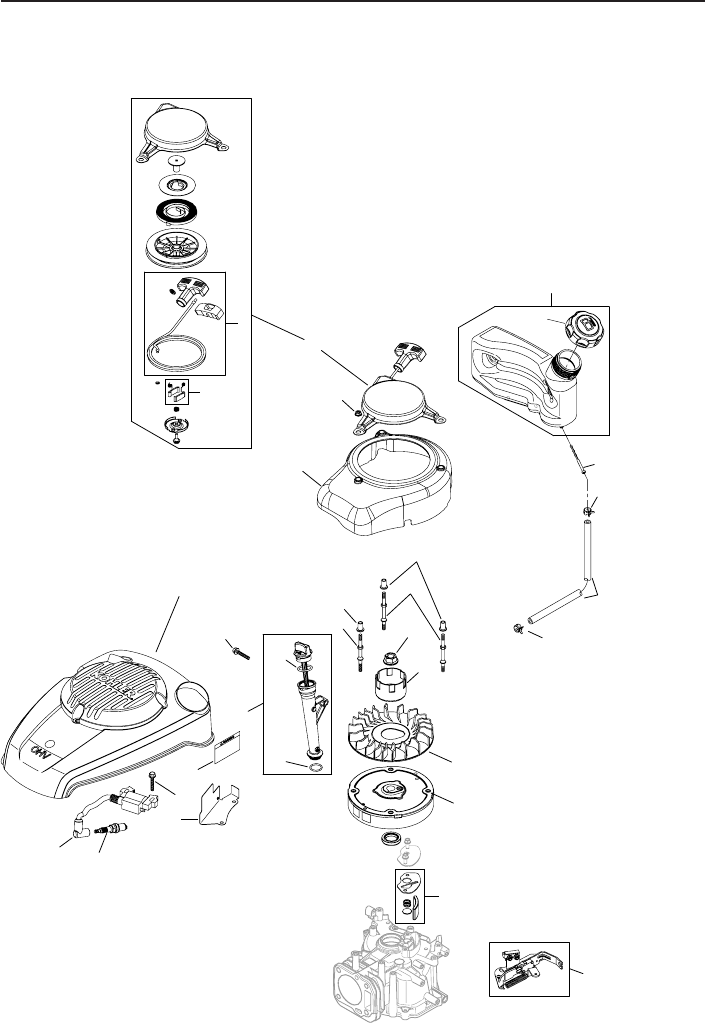

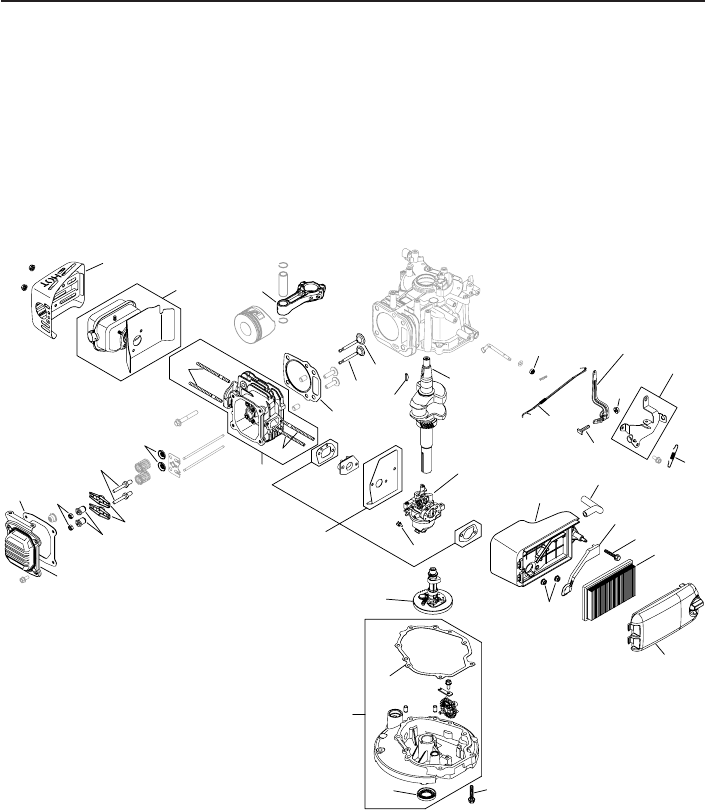

MODEL NUMBER XT149-0026-EAKOHLER 4-CYCLE ENGINE

KEY PART

NO. NO. DESCRIPTION

1 14 165 01-s Starter, Recoil (Includes

Key Numbers 2 and 3, Recoil

Housing, Recoil Bushing,

Recoil Guide Plate, Recoil

Springs, Recoil Pulley, Recoil

Retainer Plate and Recoil

Shoulder Screw)

2 14 160 01-s Kit, Starter Rope, with Handle

(Includes Coil Starter Rope,

Recoil Starter Handle, Recoil

Starter Handle Retainer and

Recoil Rope Retainer)

3 14 379 01-s Kit, Pawl Repair (Includes

Recoil Springs and Recoil

Starter Pawls)

5 14 227 04-s Cap Assembly, Fuel

8 14 100 10-s Nut, Flywheel, with Serrations

9 14 109 02-s Cup, Starter Drive

10 14 025 02-s Flywheel Assembly, Aluminum

11 14 050 01-s Kit, Breather Filter (Includes

Breather Cover Gasket,

Breather Cover Spring,

Breather Filter and Breather

Reed)

25 14 090 18-s Lever, Governor

26 14 126 22-s Control Assembly,

Fixed Speed

29 14 089 14-s Spring, Extension (Governor)

36 14 094 13-s Base, Air Cleaner

37 14 123 05-s Hose, Breather

38 14 083 01-s Element, Air Filter

40 14 096 09-s Cover, Air Cleaner

44 14 199 03-s Kit, Oil Pan (Includes

Key Numbers 45 and 46)

45 14 032 05-s Seal, Oil

46 14 041 13-s Gasket, Oil Pan

48 14 041 16-s Gasket, Carburetor

(Heat Shield)

49 14 853 21-s Carburetor, 12mm Auto

Choke without Shutoff

50 14 014 29-s Crankshaft Assembly

51 14 340 01-s Key, Woodruff

52 14 017 02-s Valve, Intake

53 14 016 02-s Valve, Exhaust

54 14 841 15-s Gasket, Head

55 14 318 02-s Kit, Cylinder Head

(Includes Key Number 93)

56 14 096 05-s Cover, Valve

57 14 041 01-s Gasket, Valve Cover

KEY PART

NO. NO. DESCRIPTION

60 14 314 04-s Guard Assembly, Muffl er

61 14 068 06-s Muffl er Assembly

62 14 067 02-s Rod Assembly, Connecting

64 14 584 05-s Module, Ignition

(Aluminum Flywheel)

66 14 132 08-s Plug, Spark (RA10HC)

70 14 123 04-s Assembly, Dipstick and Tube

(Includes Key No.s 71 and 72)

71 14 153 03-s O-Ring, Oil Fill Tube

72 14 153 01-s O-Ring, Dipstick

73 14 113 03-s Label, Warning

74 14 096 36-s Cover, Engine

78 14 027 03-s Housing, Blower

79 M-641060-s Nut, Hex Flange (M6)

80 14 112 07 Spacer, Compression Limiter

81 14 072 12-s Stud, Blower Housing

(Fuel Tank)

82 14 072 13-s Stud, Blower Housing

(Ignition)

83 14 079 20-s Linkage, Governor

(Auto Choke)

86 25 086 166-s Screw, Retangle Head, M6

89 14 096 51-s Cover, Air Cleaner Base

(Breather Gas)

90 25 086 293-s Screw, Hex Flange (M6)

93 24 072 06-s Stud, Carburetor (M6)

99 14 065 11-s Tank, Fuel (Row)

(Includes Key Number 5)

100 14 050 14-s Filter, Fuel (in-nipple)

101 14 237 04-s Clamp, Hose

123 25 111 61-s Hose, Fuel Low-permeation

125 - - - Guard, Finger

126 - - - Seal, Oil

128 - - - Retainer, Valve Spring

129 - - - Nut, Hex Jam (M6)

130 - - - Pivot, Rocker Arm

131 - - - Arm, Rocker

132 - - - Stud, Rocker Arm

133 - - - Fan, Flywheel (Plastic)

136 14 219 07-s Brake Assembly,

Carburetor Side (Includes

Brake Lever, Brake Spring,

Flange Nuts, Brake Pad,

Ground To Kill Lead, Screw,

Kill Switch, Brake Bracket,

Brake Lever Washer and

Brake Lever Rivet)

153 14 237 05-s Clamp, Hose

154 - - - Camshaft Assembly

3

DO:

• Mow across the face of slopes: nev er

up and down. Exercise extreme caution

when changing direction on slopes.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced

footing could cause slipping.

III. CHILDREN

Tragic accidents can occur if the op er a tor is

not alert to the presence of children. Children

are often attracted to the ma chine and the

mowing activity.

Never

assume that children

will remain where you last saw them.

• Keep children out of the trimming area

and under the watchful care of an oth er

re spon si ble adult.

• Be alert and turn machine off if chil dren

enter the area.

• Before and while walking back wards,

look behind and

down

for small chil dren.

• Never allow children to operate machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SAFE HANDLING OF GASOLINE

Use extreme care in handling gasoline.

Gasoline is extremely fl ammable and the

vapors are explosive.

• Extinguish all cigarettes, cigars, pipes

and other sources of ignition.

• Use only an approved container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never refuel the machine indoors.

• Never store the machine or fuel contain-

er where there is an open fl ame, spark

or pilot light such as a water heater or

on other appliances.

• Never fi ll containers inside a vehicle, on

a truck or trailer bed with a plastic liner.

Always place containers on the ground

away from your vehicle before fi lling.

• Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground. If this is not possible, then

refuel such equipment with a portable

container, rather than from a gasoline

dispenser nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do

not use a nozzle lock-open device.

• If fuel is spilled on clothing, change

clothing immediately.

• Never overfi ll fuel tank. Replace gas

cap and tighten securely.

V. GENERAL SERVICE

• Never run machine inside a closed area.

• Never make adjustments or repairs with

the engine (motor) running. Dis con nect the

spark plug wire, and keep the wire away

from the plug to prevent ac ci den tal starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation reg u lar ly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel spill-

age. Allow machine to cool before storing.

• Stop and inspect the equipment if you

strike an object. Repair, if nec es sary,

before restarting.

• Never attempt to make wheel height

adjustments while the engine is running.

• Grass catcher components are sub ject to

wear, dam age, and de te ri o ra tion, which

could expose moving parts or allow objects

to be thrown. Frequently check com po -

nents and replace with man u fac tur er’s

recommended parts, when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when ser vic ing them.

• Do not change the engine governor set-

ting or overspeed the engine.

• Maintain or replace safety and instruc-

tion labels, as necessary.

WARNING: This lawn mower is equipped with an internal com bus tion engine and

should not be used on or near any un im proved forest-covered, brush-covered or

grass-cov ered land unless the engine’s exhaust system is equipped with a spark

arrester meeting applicable local or state laws (if any). If a spark arrester is used, it

should be maintained in effective working order by the operator.

In the state of California the above is required by law (Section 4442 of the California Public

Resources Code). Other states may have similar laws. Federal laws apply on federal

lands. A spark arrester for the muffl er is available through your nearest Husqvarna or

other authorized service center (See the REPAIR PARTS section of this manual).

4

WARRANTY

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company (“Husqvarna”)

warrants Husqvarna product to the original purchaser

to be free from defects in material and workmanship

from the date of purchase for the “Warranty Period” of

the product as set forth below:

2 YEAR NON-COMMERCIAL WARRANTY: Auto-

matic Mower, Riding lawn mowers, yard and garden

tractors, walk behind mowers, tillers, chain saws,

trimmers, brushcutters, clearing saws, snow blowers,

handheld blowers, backpack blowers, hedge trimmers,

electrical products and power-assist collection systems

for non com mer cial, nonprofessional, noninstitutional or

nonincome producing use, except as herein stated.

Emission control system components necessary to

comply with CARB-TIER-II and EPA regulations.

Husqvarna Safety Apparel carries a 90-day warranty

from the date of the customer’s original purchase for

defects in material and workmanship. Normal wear,

tear or abuse is not covered under warranty. Product

must be returned to Charlotte with a warranty claim

form. All care and maintenance instructions must be

followed as stated by the manufacturer on the care

label. The fi t of the protective apparel/boot is not

covered under warranty.

SECTION 2: HUSQVARNA’S OBLIGATIONS UNDER

THE WARRANTY

Husqvarna will repair or replace defective components

without charge for parts or labor if a component fails

because of a defect in material or workmanship during

the warranty period.

SECTION 3: ITEMS NOT COVERED BY THIS WAR-

RANTY

The following items are not covered by this warranty:

(1)Normal customer maintenance items which become

worn through normal regular use, including, but

not limited to, belts, blades, blade adapters, bulbs,

fi lters, guide bars, lubricants, rewind springs, saw

chain, spark plugs, starter ropes and tines;

(2) Natural discoloration of material due to ultraviolet

light;

(3) Lawn and garden attachments are covered by a

third party which gives a warranty, all claims for

warranty should be sent to the manufacturer; and

(4)Emission Control System components necessary

to which are manufactured by third party engine

manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting

from the following:

(1) Accident, abuse, misuse, negligence and neglect,

including stale fuel, dirt, abrasives, moisture, rust,

corrosion, or any adverse reaction due to incorrect

storage or use habits;

(2) Failure to operate or maintain the unit in accor-

dance with the Owner’s/Operator’s manual or

instruction sheet furnished by Husqvarna;

(3) Alterations or modifi cations that change the

intended use of the product or affects the product’s

performance, operation, safety, or durability, or

causes the product to fail to comply with any ap-

plicable laws; or:

(4) Additional damage to parts or components due to

continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER

THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE PUR CHAS ER. HUSQVARNA SHALL NOT BE

LIABLE FOR ANY INCIDENTAL OR CONSEQUEN-

TIAL DAMAGES FOR BREACH OF ANY EXPRESS

OR IMPLIED WARRANTY ON THESE PRODUCTS

EXCEPT TO THE EXTENT PROHIBITED BY AP-

PLICABLE LAW. ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICU-

LAR PURPOSE ON THESE PRODUCTS IS LIMITED

IN DURATION TO THE WARRANTY PERIOD AS

DEFINED IN THE LIMITED WARRANTY STATE-

MENT. HUSQVARNA RE SERVES THE RIGHT TO

CHANGE OR IMPROVE THE DESIGN OF THE

PRODUCT WITHOUT NO TICE, AND DOES NOT

ASSUME OBLIGATION TO UPDATE PREVIOUSLY

MANUFACTURED PROD UCTS.

Some states do not allow the exclusion of incidental

or consequential damages, or limitations on how long

an implied warranty lasts, so the above limitations or

exclusions may not apply to you. This warranty gives

you specifi c legal rights, and you may also have other

rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, mainte-

nance, operation, storage and general upkeep as

written in the maintenance section of the Owner’s/

Operator’s manual. Should an operational problem

or failure occur, the product should not be used, but

delivered as is to an authorized Husqvarna dealer for

evaluation. Proof of purchase, as explained in section

6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY

CONSIDERATION

It is the Owner’s and Dealer’s responsibility to make

certain that the Warranty Registration Card is properly

fi lled out and mailed to Husqvarna Forest & Garden

Company. This card should be mailed within ten (10)

days from the date of purchase in order to confi rm the

warranty and to facilitate post-sale service.

Proof of purchase must be presented to the authorized

Husqvarna dealer in order to obtain warranty service.

This proof must include date purchased, model num-

ber, serial number, and complete name and address of

the selling dealer.

To obtain the benefi t of this warranty, the product

believed to be defective must be delivered to an

authorized Husqvarna dealer in a timely manner, no

later than thirty (30) days from date of the operational

problem or failure. The product must be delivered at

the owner’s expense. Pick-up and delivery charges are

not covered by this warranty. An authorized Husqvarna

dealer can be normally located through the “Yellow

Pages” of the local telephone directory or by calling

1-800-HUSKY62 for a dealer in your area.

HUSQVARNA

7349 Statesville Road

Charlotte, NC 28269

531 83 81-23 2002

37

MODEL NUMBER XT149-0026-EAKOHLER 4-CYCLE ENGINE

51

52

53

54

60

46

50

48

55

36

126

44

25

79

37

38

89

90

90

45

29

86

26

61

93

93

57

56

132

130

131

79

83

62

40

128

129

49

154

153

36

MODEL NUMBER XT149-0026-EAKOHLER 4-CYCLE ENGINE

66

71

72

79

74

1

78

8

80

80

81

10

133

82

9

90

90

2

3

70

73

64

11

5

99

100

123

101

101

125

136

5

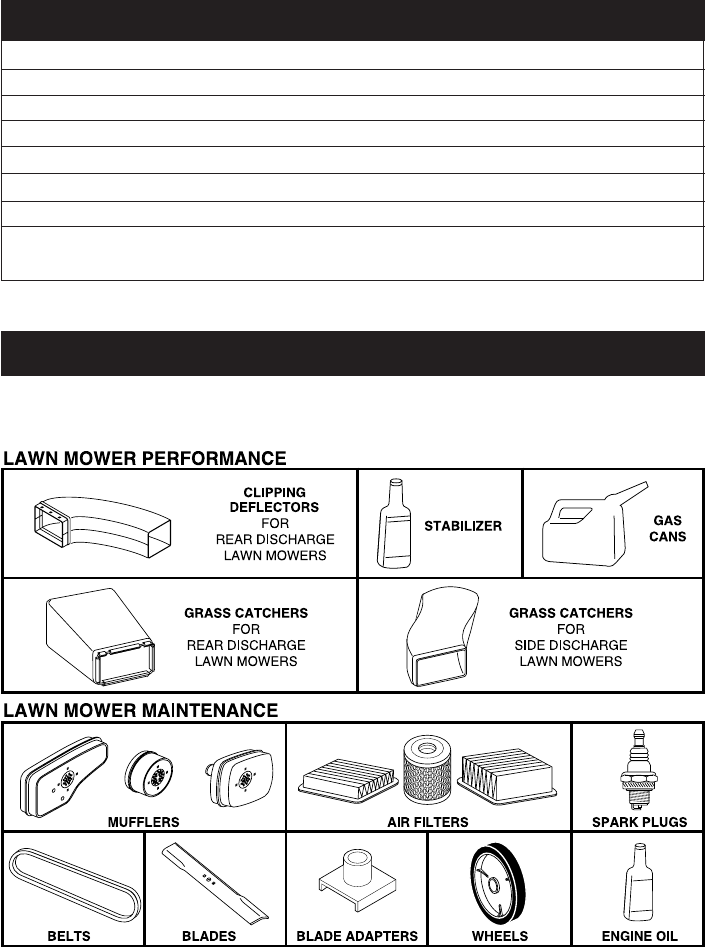

ACCESSORIES

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Husqvarna retailers and

service centers. Some of these accessories may not apply to your lawn mower.

Serial Number:

Date of Purchase:

Gasoline Capacity / Type: 1.5 Quarts (Unleaded Regular)

Oil Capacity: 20 Ounces

Oil Type (API SG–SL): SAE 30 (above 32°F); SAE 10W-30 (below 32°F)

Spark Plug: Champion RC12YC (Gap: .030")

Blade Bolt Torque: 35–40 ft. lbs.

• The model and serial numbers will be found on a decal on the rear of the lawn mower

housing. Record both serial number and date of purchase in space provided above.

PRODUCT SPECIFICATIONS

6

ASSEMBLY / PRE-OPERATION

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the engine.

Your new lawn mower has been as-

sem bled at the factory with the excep-

tion of those parts left unassembled for

shipping pur pos es. To ensure safe and

proper op er a tion of your lawn mower, all

parts and hard ware you assemble must be

tight ened securely. Use the correct tools

as nec es sary to ensure proper tightness.

All parts such as nuts, wash ers, bolts, etc.,

nec es sary to complete the as sem bly have

been placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower.

2. Cut down two end corners of carton

and lay end panel down fl at.

3. Remove all packing materials except

padding be tween upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thor ough ly for additional

loose parts.

HOW TO SET UP YOUR LAWN

MOW ER

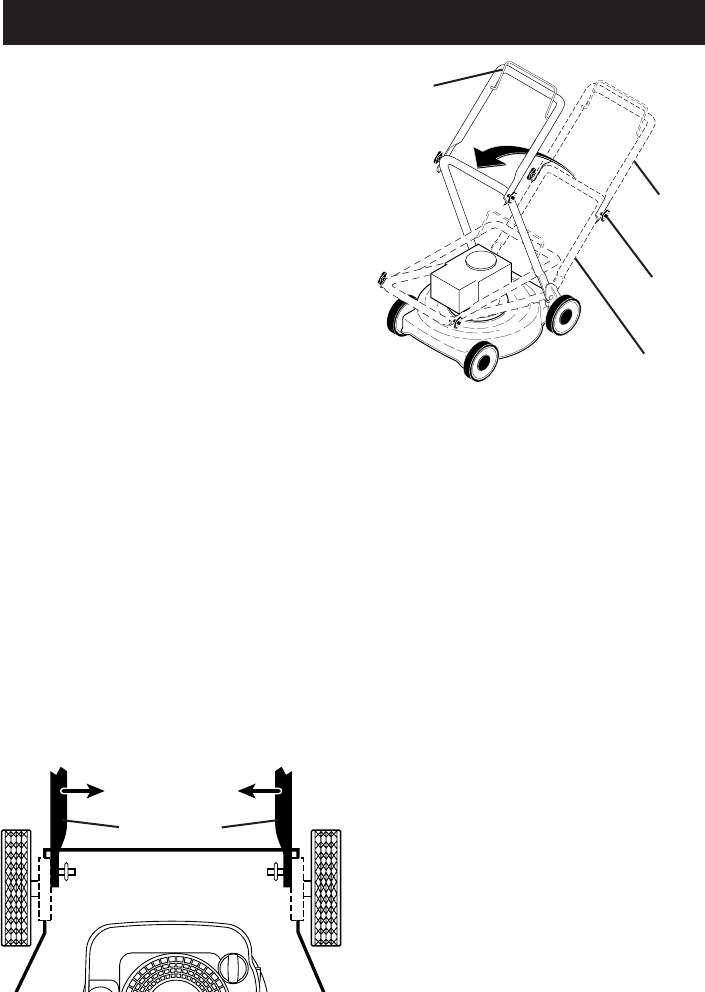

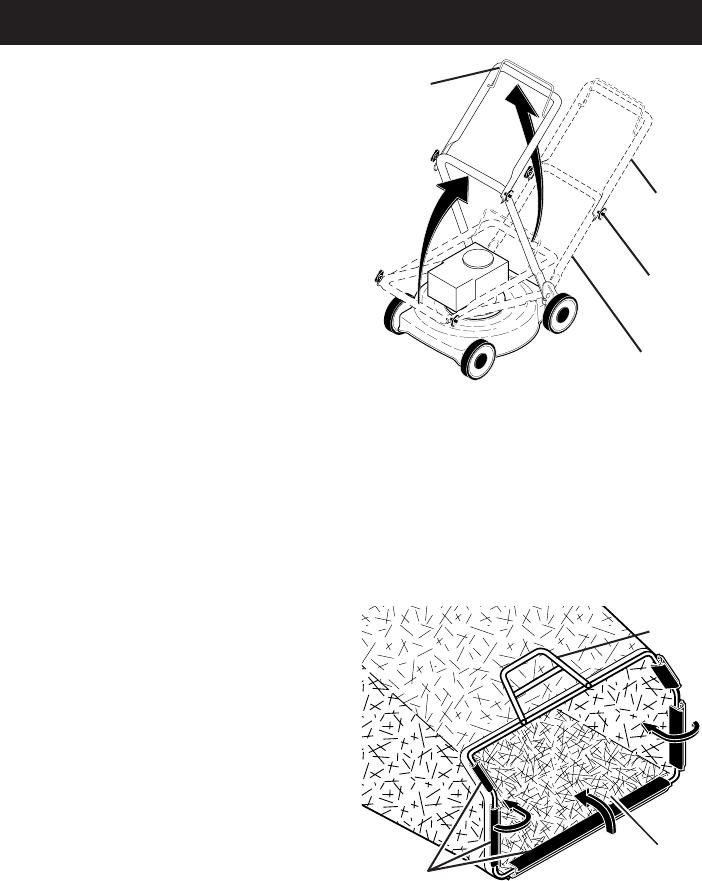

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage con trol cables.

1. Raise handles until lower handle sec-

tion locks into place in mowing position.

2. Remove protective padding, raise up-

per handle sec tion into place on lower

handle and tighten both handle knobs.

3. Remove handle padding holding

operator pres ence control bar to upper

handle.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to “AD-

JUST HANDLE” in the Service and Adjust-

ments section of this manual.

TO ASSEMBLE GRASS CATCH ER

1. Put grass catcher frame into grass bag

with rigid part of bag on the bottom.

Make sure the frame handle is outside

of the bag top.

2. Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

bag gets wet, let it dry before using.

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to bag-

ging or discharging, see “TO CON VERT

MOWER” in the Operation section of this

manual.

Frame

handle

Frame

opening

Vinyl

bindings

MOWING

POSITION

Lower handle

LIFT

UP

Operator

presence

control bar

Upper

handle

LIFT

UP

Handle

knob

35

HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.384510 (PRODUCT NUMBER 6021P)

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 194177X422 Control Bar

2 197808 Upper Handle

3 169708X498 Lower Handle

4 194788 Rope Guide

5 132004 Nut, Hex

6 191574 Handle Bolt

7 66426 Wire Tie

8 74780512 Bolt, Hex Head 5/16-18 x 3/4

9 154132 Hinge Bracket

10 185589 Mulcher Door

11 183281 Engine Zone Control Cable

12 750634 Hex Washer Head Screw

13 429930X004 Up-Stop Bracket

14 182398 Handle Knob

15 51793 Hairpin Cotter

18 17600406 Screw 1/4-20 x 3/8

19 401174X004 Axle Arm Assembly, Front, LH

20 401175X004 Axle Arm Assembly, Front, RH

21 418655 Kit, Rear Skirt

22 401621X004 Selector Spring, Front

23 401814X428 Rear Door Assembly

25 410385X422 Handle Bracket Assembly, LH

26 410386X422 Handle Bracket Assembly, RH

29 407494X005 Wheel Adjusting Bracket

30 401629 Spacer

31 185595 Discharge Defl ector

32 401624X004 Selector Spring, Rear

33 87877 Selector Knob

34 401176X004 Axle Arm Assembly, Rear, LH

35 426589 Locknut, Hex 5/16-18

36 401638 Shoulder Bolt 5/16-18

37 401273X460 Wheel & Tire Assembly, Front

39 409149 Flanged Locknut, Hex

40 411949 Frame, Grassbag

41 88652 Hinge Screw

42 405421 Spring, Rear Door, LH

43 405423 Spring, Rear Door, RH

44 184193 Bolt, Rear Door

45 150406 Screw, Hex Head, Threaded,

Rolled 3/8-16 x 1

46 404763 Danger Decal

47 751153 Nut, Hex

48 401177X004 Axle Arm Assembly, Rear, RH

49 401277X460 Wheel & Tire Assembly, Rear

50 194715 Grassbag

51 147286 Hinge Rod

52 418709 Kit, Housing

(Includes Key Number 46)

53 851084 Screw, Hex Head, Grade 8

3/8-24 x 1-3/8

54 850263 Helical Lockwasher

55 851074 Hardened Washer

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

56 406712 21" Blade

57 420097 Blade Adapter

58 152124 Hinge Spring

59 - - - Engine, Kohler, Model

Number XT149-0026-EA

(See Breakdown)

61 409148 Nut, Hex

62 73800400 Locknut, Hex 1/4-20

65 88348 Washer, Flat

66 197480 O-Ring

67 197991 Clip, Cable

68 164265 Grip, Foam

73 401630 Washer, Curved

74 851201X004 Washer, Special, Engine

75 413693 Kit, Rear Baffl e

(Includes 3 Screws)

76 410589 Baffl e, Rear

77 17411312 Screw, Rear Baffl e

- - 404764 Warning Decal (not shown)

- - 431621 Owner’s Manual

Available accessories not included with mower:

- - 71 33623 Gas Can

(2.5 Gallon Container)

- - 71 33500 Fuel Stabilizer

- - 71 33000 SAE 30W Oil

(20 Ounce Bottle)

KEY PART

NO. NO. DESCRIPTION

34

HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.384510 (PRODUCT NUMBER 6021P)

REPAIR PARTS

12 3

4

5

6

7

8

9

10

11

12

13

14

14

15

18

19

21

22

23

25

30

30

31

32

33

33

34

35

35

36

36

37

39

40

41

41

47

47

42

43

44

44

45

46

49

50

68

51

52

53

54

55

56

57

58

59

61

62

65

66

67

73

73

8

20 22

26

29

29

30

30

32

33

33

34

36

36

37

39

49 61

65 66

65

66

65

66

73

73

74

75

76

77

7

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the engine.

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OP ER AT ING

YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize

yourself with the location of various controls and adjustments. Save this manual for

future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

Operator presence control bar

Starter

handle

Handle knob

Engine oil cap

with dipstick

Air fi lter

Wheel adjuster

(on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Com-

mis sion. The blade turns when the engine is running.

Operator presence control bar – must

be held down to the handle to start the

engine. Release to stop the engine.

Mulcher door – allows con ver sion to

discharging or bagging operation.

Starter handle – used for starting engine.

Gasoline fi ller cap

Muffl er

Grass

catcher

Housing

OPERATION

Spark plug

Mulcher door

8

The operation of any lawn

mower can result in foreign

objects thrown into the

eyes, which can result in

severe eye damage. Always

wear safety glasses or eye shields while

operating your lawn mower or performing

any ad just ments or repairs. We recom-

mend a standard safety glasses or wide

vision safety mask worn over spectacles.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

Engine speed was set at the factory for

optimum performance. It is not adjustable.

ENGINE ZONE CONTROL

CAUTION: Federal regulations re quire

an engine control to be installed on this

lawn mower in order to minimize the

risk of blade contact injury. Do not un der

any circumstances attempt to de feat the

func tion of the operator con trol. The blade

turns when the engine is running.

• Your lawn mower is equipped with an

operator pres ence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower wheels

for high cut, adjust cutting height to suit

your requirements. Me di um position is

best for most lawns.

• To change cutting height, squeeze ad-

juster lever to ward wheel. Move wheel

up or down to suit your re quire ments. Be

sure all wheels are in the same setting.

NOTE: Adjuster is properly positioned when

plate tab inserts into hole in lever. Also, 9-

position adjusters (if so equipped) allow lever

to be positioned between the plate tabs.

• To convert to mulching or dis charg ing

operation, remove grass catch er and

close rear door.

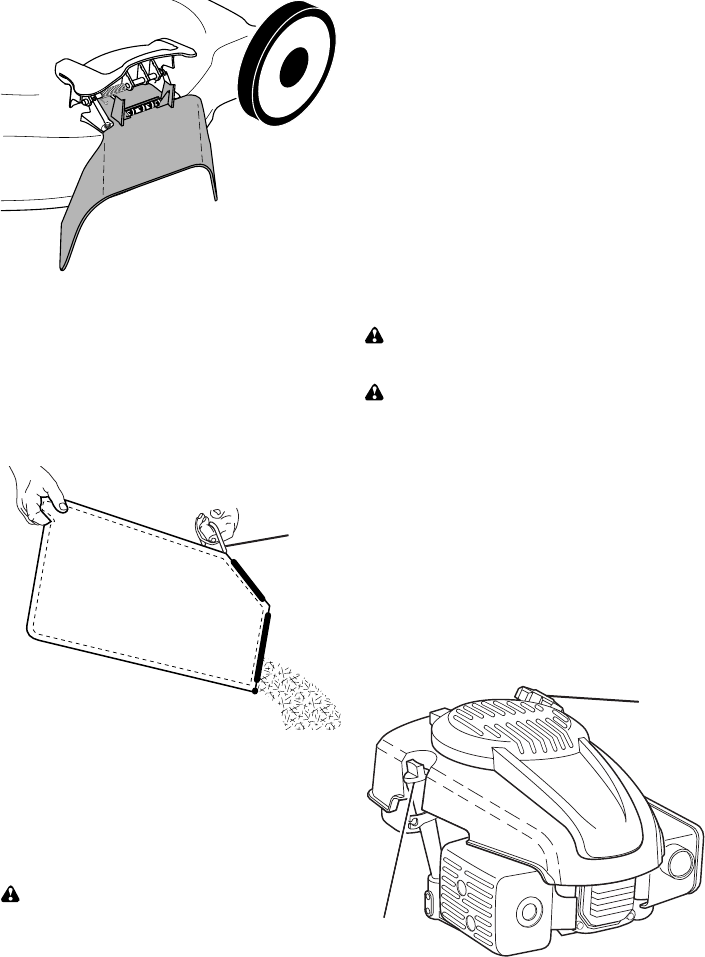

SIDE DISCHARGING

• Rear door must be closed.

• Open mulcher door and install dis-

charge defl ector under door as shown.

• Mower is now ready for discharging

operation.

• To convert to mulching or bagging opera-

tion, dis charge defl ector must be removed

and mulcher door must be closed.

SIMPLE STEPS TO REMEMBER WHEN

CONVERTING YOUR LAWN MOWER

FOR MULCHING -

1. Rear door closed.

2. Mulcher door closed.

FOR REAR BAGGING -

1. Grass catcher installed.

2. Mulcher door closed.

FOR SIDE DISCHARGING -

1. Rear door closed.

2. Discharge defl ector installed.

CAUTION: Do not run your lawn mower

with out rear door closed, clipping defl ector

or ap proved grass catcher in place. Never

at tempt to op er ate the lawn mow er with the

rear door re moved or propped open.

Pivot pins Grass

catcher

handle

Catcher frame hook

Rear

door

LEVER BACKWARD

TO LOWER MOWER

LEVER FORWARD TO RAISE MOWER

Plate tab

Lever

TO CONVERT MOWER

Your lawn mower was shipped ready to be

used as a mulcher. To convert to bagging

or discharging:

REAR BAGGING

• Lift rear door of the lawn mower and

place the grass catcher frame hooks

onto the door pivot pins.

Open mulcher door

Install

discharge

defl ector 33

Falta de 1. Cuchilla desgastada, doblada 1. Ajuste a la posición de

fuerza o suelta. “Corte más alto.”

2. Altura de las ruedas dispareja. 2. Ajuste a la posición de

“Corte más alto.”

3. Velocidad del motor lenta. 3. Limpie/cambie el fi ltro de aire.

4. Acumulación de césped, hojas o 4. Limpie la parte inferior de la

basura debajo de la segadora. caja de la segadora.

5. Demasiado aceite en motor. 5. Revise el nivel del aceite.

6. Velocidad de recorrido 6. Corte a una velocidad de

demasiado rápida. recorrido más lenta.

Mal corte- 1. Cuchilla desgastada, doblada 1. Cambie la cuchilla. Apriete el perno

disparejo o suelta. de la cuchilla.

2. Altura de las ruedas dispareja. 2. Ajuste todas las ruedas a la misma

altura.

3. Acumulación de césped, hojas o 3. Limpie la parte inferior de la

basura debajo de la segadora. caja de la segadora.

Vibración 1. Cuchilla desgastada, doblada 1. Cambie la cuchilla. Apriete el

excesiva o suelta. perno de la cuchilla.

2. Cigueñal del motor doblado. 2. Póngase en contacto con su centro

de servicio Sears o con un otro

centro de servicio cualifi cado.

Cordón 1. El freno del volante del motor 1. Presione la barra de control

arrancador está aplicado cuando se hacia el mango superior antes

difícil de tirar suelta la barra de control. de tirar el cordón arrancador.

2. Cigueñal del motor doblado. 2. Póngase en contacto con su centro

de servicio Sears o con un otro

centro de servicio cualifi cado.

3. Adaptador de la cuchilla quebrado. 3. Cambie el adaptador de la cuchilla.

4. La cuchilla se arrastra en 4. Mueva la segadora a un lugar

el césped. en donde el césped ha sido

cortado o a una superfi cie fi rme

para hacer arrancar el motor.

Recogedor de 1. Altura de corte demasiado baja. 1. Eleve la altura de corte.

césped no se 2. Levantamiento de la cuchilla 2. Cambie las cuchillas.

llena (si viene desgastado.

equipado) 3. Recogedor sin ventilación de aire. 3. Limpie el recogedor de césped.

Difícil de 1. El césped está demasiado alto o la 1. Eleve la altura de corte.

empujar altura de la rueda demasiado baja.

2. Parte trasera de la 2. Eleve la parte trasera de la caja de

caja/cuchilla de la segadora la segadora (1) un lugar más alto.

arrastrándose en el césped.

3. Recogedor de césped 3. Vacíe el recogedor de césped.

demasiado lleno.

4. Posición de la altura del mango 4. Ajuste la altura del mango de

no adecuada para usted. modo que le acomode.

PROBLEMA CAUSA CORRECCIÓN

SOLUCIÓN DE PROBLEMAS - Vea la sección apropiada en el manual amenos que

esté dirigido a un centro de servico Sears.

32

ACEITE DEL MOTOR

Drene el aceite (con el motor caliente) y cámbielo

con aceite de motor limpio. (Vea “MOTOR” en la

sección de Mantenimento de este manual.)

CILINDRO

1. Remueva la bujía.

2. Vacíe una onza (29 ml) de aceite a través

del agujero de la bujía en el cilindro.

3. Tire la manilla de arranque lentamente unas

cuantas veces para distribuir el aceite.

4. Vuelva a montar la nueva bujía.

OTROS

• No guarde la gasolina de una temporada a la

otra.

• Cambie el envase de la gasolina si se emp-

ieza a oxidar. La oxidación y/o la mugre en

su gasolina producirán problemas.

• Si es posible, guarde su unidad en un recinto

cerrado y cúbrala para protegerla contra el

polvo y la mugre.

• Cubra su unidad con un forro protector

adecuado que no retenga la humedad. No

use plástico. El plástico no puede respirar, lo

que permite la formación de condensación,

lo que producirá la oxidación de su unidad.

IMPORTANTE: Nunca cubra la segadora

mientras el motor y las areas de escape todavia

estan calientes.

PRECAUCIÓN: Nunca almacene la

segadora con gasolina en el estanque dentro

de un edifi cio en donde los gases pueden

alcanzar una llama expuesta o una chispa.

Permita que se enfríe el motor antes de

almacenarla en algún recinto cerrado.

No arranca 1. Filtro de aire sucio. 1. Limpie/cambie el fi ltro de aire.

2. Sin combustible. 2. Llene el estanque de combustible.

3. Combustible rancio. 3. Vaciar el estanque y vuelva a

llenarlo con combustible limpio

y nuevo.

4. Agua en el combustible. 4. Vaciar el estanque y vuelva a

llenarlo con combustible limpio

y nuevo.

5. Alambre de la bujía desconectado. 5. Conecte el alambre a la bujía.

6. Bujía mala. 6. Cambie la bujía.

7. Cuchilla suelta o adaptador 7. Apriete el perno de la cuchilla

de la cuchilla quebrado. cambie el adaptador de la cuchilla.

8. Barra de control en la 8. Presione la barra de control

posición suelta. hacia el mango.

9. Barra de control defectuosa. 9. Cambie la barra de control.

10. Válvula del combustible (si equ- 10. Gire a la válvula del combustible

ipada) está en la posición OFF. a la posición ON.

11. Batería débi (si equipada). 11. Cague la batería.

12. Desconecte el conector 12. Conecte la batería al motor.

de la batería (si equipada).

PROBLEMA CAUSA CORRECCIÓN

SOLUCIÓN DE PROBLEMAS - Vea la sección apropiada en el manual amenos que

esté dirigido a un centro de servico Sears.

9

IMPORTANT:

• Check oil level before each use. Add oil

if needed. Fill to full line on dipstick.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions. See “TO

CHANGE ENGINE OIL” in the Mainte-

nance section of this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank fi ller neck.

Do not overfi ll. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. Do not mix oil with gasoline.

Purchase fuel in quan ti ties that can be

used within 30 days to assure fuel fresh-

ness.

CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open fl ame.

CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or metha-

nol) can attract moisture which leads to

separation and for ma tion of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage. To

avoid engine problems, the fuel system

should be emptied before stor age of 30

days or longer. Empty the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage In struc tions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

MOWER IS NOW READY FOR

DISCHARGING OPERATION

TO EMPTY GRASS CATCHER

1. Lift up on grass catcher using the

frame han dle.

2. Remove grass catcher with clippings

from under lawn mower han dle.

3. Empty clippings from bag.

NOTE: Do not drag the bag when empty-

ing; it will cause unnecessary wear.

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. For type and grade of oil to

use, see “EN GINE” in the Maintenance

section of this manual.

CAUTION: DO NOT overfi ll engine with

oil, or it will smoke heavily from the muffl er

on startup.

1. Be sure lawnmower is level.

2. Remove oil dipstick from oil fi ll spout.

3. You receive a container of oil with the

unit. Slowly pour the entire container

down the oil fi ll spout into the engine.

NOTE: Initial oil fi ll requires only 18 oz.

due to residual oil in engine from the

manufacturers 100% quality testing. When

changing oil you may need 20 oz.

4. Insert and tighten dipstick.

Grass

catcher

frame

handle

Engine

oil cap

Gasoline

fi ller cap

10

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. See “CLEANING” in the

Maintenance section of this manual.

• The special mulching blade will recut

the grass clip pings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will bio de grade quick ly to

provide nu tri ents for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

in ter feres with the mulch ing action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, yet the newly cut area will not be

exposed to direct sunlight.

• For best results, adjust the lawn mower

cutting height so that the lawn mower

cuts off only the top one-third of the

grass blades. If the lawn is over grown it

will be nec es sary to raise the height of cut

to reduce pushing effort and to keep from

over load ing the engine and leaving clumps

of mulched grass. For ex tremely heavy

grass, reduce your width of cut by overlap-

ping previously cut path and mow slowly.

• Certain types of grass and grass

con di tions may re quire that an area be

mulched a second time to com pletely

hide the clip pings. When doing a sec-

ond cut, mow across (perpendicular) to

the fi rst cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

TO STOP ENGINE

• To stop engine, release operator pres-

ence con trol bar.

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the product

and should be considered normal.

NOTE: Your engine is equipped with an

automatic choke system. No priming or

choking is required before starting.

• To start engine, hold operator presence

control bar down to the han dle and pull

starter handle quickly. Do not allow

starter rope to snap back.

MOWING TIPS

CAUTION: Do not use de-thatcher

blade attachments on your mower. Such

attachments are hazardous, will damage

your mower and could void your warranty.

• Under certain conditions, such as very

tall grass, it may be nec es sary to raise

the height of cut to reduce pushing effort

and to keep from overloading the engine

and leaving clumps of grass clippings.

It may also be necessary to re duce

ground speed and/or run the lawn

mower over the area a sec ond time.

• For extremely heavy cutting, re duce the

width of cut by over lap ping previously

cut path and mow slowly.

• For better grass bagging and most cut-

ting conditions, the engine speed should

be set in the FAST po si tion.

• Pores in cloth grass catchers can

become fi lled with dirt and dust with use

and catchers will collect less grass. To

prevent this, reg u lar ly hose catcher off

with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air fl ow and extend

engine life.

MAX 1/3

31

ALMACENAMIENTO

Inmediatamente prepare su segadora para el

almacenamiento al fi nal de cada temporada o si

la unidad no se va a usar por 30 días o más.

SEGADORA

Cuando se va a guardar la segadora por cierto

período de tiempo, límpiela cuidadosamente,

remueva toda la mugre, la grasa, las hojas, etc.

Guárdela en un área limpia y seca.

1. Limpie toda la segadora (Vea “LIMPIEZA”

en la sección de Mantenimento de este

manual).

2. Lubríquela según se muestra en la sección

de Mantenimento de este manual.

3. Asegúrese de que todas las tuercas y

clavijas y todos los pernos y tornillos estén

apretados en foma segura. Inspeccione

las partes que se mueven para verifi car si

están dañadas, quebradas o desgastadas.

Cámbielas si es necesario.

4. Retoque todas las superfi cies que estén

oxidadas o con la pintura picada; use una

lija antes de pintar.

MANGO

Puede doblar el mango de su segadora para el

almacenamiento.

1. Apriete los extremos inferiores del mango

inferior entre sí hasta que el mango inferior

quede separado del puntal del mango,

luego muévalo hacia adelante.

2. Suelte los pernos de montaje del mango

superior lo sufi ciente como para permitir

que el mango superior se pueda doblar

hacia atrás.

IMPORTANTE: Cuando doble el mango para el

almacenamiento o el transporte, asegúrese que

lo doble según se muestra o purde dañar los

cables de control.

• Cuando prepare sus mangos a partir de

la posición de almacenamiento, el mango

inferior automáticamente se asegurará en la

posición para segar.

Mango inferior

APRIETE

PARA DOBLAR

MOTOR

SISTEMA DE COM BUS TI BLE

IMPORTANTE: Es importante evitar que

se formen depositos de coma en partes

fundamentales del sistemade combustible tales

como el carburador, el fi ltro del combustible,

la mangura del combustible o en el estanque

durante el almacenamiento. Los combustibles

mezclados con alcohol (conocido come

gasohol o que tienen etanol o metanol)

Pueden atraer humedad, lo que conduce a la

separacion y a la formación de acidos durante

el almacenamiento. La gasolina acida puede

danar el sistema de combustible de un motor

durante el perido de almacenamiento.

• Vaciar el depósito del carburante poniendo

en marcha el motor y dejándolo funcionar

hasta que el carburante termine y el

carburador esté vacío.

• Nunca use los productos para limpieza del

carburador o del motor en el estanque de

combustible pues se pueden producir daños

permanentes.

• Use combustible nuevo la próxima temporada.

AVISO: El estabilizador de combustible es una

alternativa aceptable para reducir a un mínimo

la formación de depósitos de goma en el com-

bus ti ble durante el período de almacenamiento.

Agregue estabilizador a la gasolina en el

estanque de combustible o en el envase para el

almacenamiento. Siempre siga la proporción de

mezcla que se encuentra en el envase del esta-

bilizador. Haga funcionar el motor por lo menos

10 minutos después de agregar el estabilizador,

para permitir que este llegue al carburador. No

drene la gasolina del estanque de gasolina y el

carburador si se está usando estabilizador de

combustible.

POSICIÓN

PARA

SEGAR

Barra de control

que exige la

presencia del

operador

DOBLAR

HACIA

ADELANTE

PARA

ALMACENAR

Mango

superior

Mango inferior

Manilla del

mango

30

SERVICIO Y AJUSTES

ADVERTENCIA: Para evitar lesiónes serias,

antes de dar calquier servico o de hacer

ajustes:

1. Suelte la barra de control y pare el motor.

2. Asegúrese que la cuchilla y que todas las

partes movibles se hayan detenido comple-

tamente.

3. Desconecte el alambre de la bujía y pón-

galo en donde no pueda entrar en contacto

con ésta.

SEGADORA

PARA AJUSTAR LA ALTURA DE CORTE

Vea “PARA AJUSTAR LA ALTURA DE CORTE”

en la sección de Operación de este manual.

DESVIADOR TRASERO

Se proporciona un desviador trasero, adjunto

entre las ruedas traseras de su segadora, para

reducir a un mínimo la posibilidad que objetos

sean lanzados hacia afuera de la parte trasera

de la segadora, en la posición en donde se

encuentra el operador. Si se daña el desviador

debe cambiarse.

PARA AJUSTAR EL MANGO

El mango puede ser montado a una posición

alta o baja. Los agujeros de montaje en el

mango inferior están fuera del centro para

levantar y bajar el mango.

1. Remueva el mango superior y conexióne(s)

el asegurar él (los) cable(s) al mango infe-

rior.

2. Remueva las clavijas de horquilla de la

clavija de montaje del puntal del mango.

3. Apreite el mango inferior hacia dentro para

removerlo de las clavijas de montaje.

4. Gire el mango inferior por encima para

levantar o bajar el mango.

5. Vuelva a montar las clavijas de horquilla por

encima de las clavijas de montaje.

6. Vuelva a montar el mango superior y todas

las partes removidas del mango inferior.

Mango inferior

Puntal

del mango Clavija de horquilla

APRIETE

PARA AJUSTE

Clavija de montaje

Posición

para segar Posición

para segar

POSICIÓN ALTAPOSICIÓN BAJA

Puntal

del mango

Clavija

de

horquilla

Clavija de

montaje

GIRAR

Mango

in fe ri or

MOTOR

VELOCIDAD DEL MOTOR

La velocidad del motor ha sido ajustada en

la fábrica. No trate de aumentar la velocidad

del motor pues se pueden producir lesiones

personales. Si cree que el motor está funciona-

ndo demasiado rápido o demasiado lento, lleve

su segadora a mas con su centro de servicio

cualifi cado.

CARBURADOR

Su carburador tiene un chorro principal fi jo no

ajustable para controlar la mezcla. Si su motor

no está funcionando en forma adecuada debido

a problemas que se sospecha vienen del

carburador, lleve su segadora a contacto con

su centro de servicio cualifi cado para repararla

y/o ajustarla.

IMPORTANTE: Nunca manipule el regulador

del motor, el que ha sido ajustado en la fábrica

para la velocidad del motor adecuada. Puede

ser peligroso hacer funcionar el motor a una

velocidad por sobre el ajuste de alta velocidad

de la fábrica. Si cree que la velocidad alta

regulada del motor necesita ajuste,contacto con

su centro de servicio cualifi cado, el que cuenta

con el equipo adecuado y la experiencia para

hacer los ajustes necesarios.

11

➀ Wheel

adjuster (on

each wheel)

➁ Engine oil

➀ Rear door

hinge

➀ Handle bracket mounting pins

Check for Loose Fasteners

Clean / Inspect Grass Catcher *

Check Tires

Check Drive Wheels ***

Clean Lawn Mower ****

Clean under Drive Cover ***

Check Drive Belt / Pulleys ***

Check / Sharpen / Replace Blade

Lubrication

Clean and Recharge Battery **

Check Engine Oil level

Change Engine Oil

Clean Air Filter

Inspect Muffler

Replace Spark Plug

Replace Air Filter Paper Cartridge

Empty fuel system or add Stabilizer

BEFORE

EACH

USE

AFTER

EACH

USE

EVERY

10

HOURS

EVERY

25 HOURS

OR SEASON

EVERY

100

HOURS

BEFORE

STORAGE

1- Change more often if operating under a heavy load or in high outdoor temperatures.

2- Service more often if operating in dirty or dusty conditions.

3- Replace blades more often when mowing in sandy soil.

4- Charge 48 hours at end of season.

5- And after each 5 hours of use.

(if so equipped)

Electric-Start mowers

Power-Propelled mowers

Use a scraper

to clean under deck

*

**

***

****

MAINTENANCE

GENERAL REC OM MEN DA TIONS

The warranty on this lawn mower does not

cover items that have been sub ject ed to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain unit as in struct ed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Ad just ments

section of this manual.

• At least once a year, replace the spark

plug, clean or replace air fi lter element

and check blade for wear. A new spark

plug and clean/new air fi lter element

assure proper air-fuel mix ture and help

your engine run bet ter and last longer.

• Follow the maintenance schedule in this

manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated

(See “LU BRI CA TION CHART”).

LUBRICATION CHART

➀ Spray lubricant

➁ See "ENGINE" in Maintenance section.

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lu bri cants will

attract dust and dirt that will short en the life of

the self-lu bri cat ing bearings. If you feel they

must be lu bri cated, use only a dry, pow dered

graphite type lubricant spar ingly.

➀ Mulcher

door hinge

12

LAWN MOWER

Always observe safety rules when per-

form ing any main te nance.

TIRES

• Keep tires free of gasoline, oil, or insect

control chemi cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

BLADE CARE

For best results, mower blade must be kept

sharp. Re place bent or dam aged blades.

CAUTION: Use only a replacement

blade approved by the manufacturer of

your mower. Using a blade not approved

by the manufacturer of your mower is

hazardous, could damage your mower and

void your warranty.

TO REMOVE BLADE

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with plug.

2. Turn lawn mower on its side. Make

sure air fi lter and carburetor are up.

3. Use a wood block between blade and

mower hous ing to prevent blade from

turning when re mov ing blade bolt.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

4. Remove blade bolt by turning counter-

clockwise.

5. Remove blade and attaching hard ware

(bolt, lock wash er and hardened wash er).

TO REPLACE BLADE

1. Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

2. Be sure the trailing edge of blade (oppo-

site sharp edge) is up toward the engine.

3. Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

4. Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

• The recommended tightening torque is

35-40 ft. lbs.

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approved bolt shown in the Repair Parts

section of this manual.

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

en ing the blade - but if you do, be sure

the blade is balanced. An un bal anced

blade will cause eventual damage to lawn

mower or engine.

• The blade can be sharp ened with a fi le

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, drive a nail into

a beam or wall. Leave about one inch of

the straight nail ex posed. Place center

hole of blade over the head of the nail.

If blade is balanced, it should remain in

a horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

GRASS CATCHER

• The grass catcher may be hosed with

water, but must be dry when used.

• Check your grass catcher often for dam-

age or de te ri o ra tion. Through normal

use it will wear. If catcher needs replac-

ing, replace only with ap proved replace-

ment catcher shown in the Repair Parts

section of this manual. Give the lawn

mower model number when ordering.

ENGINE

LUBRICATION

Use only high quality detergent oil rated

with API service classification SJ–SL.

Select the oil's SAE viscosity grade according

to your expected operating temperature.

Change the oil after every 25 hours of

operation or at least once a year if the

lawn mower is not used for 25 hours in

one year.

Check the crankcase oil level before

starting the engine and after each fi ve (5)

hours of continuous use. Tighten oil plug

securely each time you check the oil level.

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to

drain oil, empty fuel tank by running en-

gine until fuel tank is empty.

Blade

bolt

Crankshaft

keyway

Hardened

washer

Lockwasher

Blade adapter Key

Blade

Trailing edge Crankshaft 29

1. Desconecte el alambre de la bujía y

póngalo de modo que no pueda entrar en

contacto con ésta.

2. Remueva la tapa del depósito del aceite;

déjela a un lado en una superfi cie limpia.

3. Incline la cortadora de césped por este

costado tal como se muestra y purgue el

aceite en un recipiente idóneo. Mueva la

segadora de atrás para adelante para re-

mover todo el aceite que se haya quedado

atrapado dentro del motor.

PRECAUCIÓN: Los solventes de petróleo,

tales como el keroseno, no se deben usar para

limpiar el cartucho. Pueden producir el deteri-

oro de éste. No aceite el cartucho. No use aire

a presión para limpiarlo o secarlo.

4. Instale el cartucho, luego vuelva a poner la

cubierta.

SILENCIADOR

Inspeccione y cambie el silenciador si está corroí-

do puede producir un peligro de incendio y/o daño.

BUJÍA

Cambie el bujía al comienzo de cada tempo-

rada de siega o después de cada 100 horas de

operación, lo que suceda pri me ro. El tipo de

bujía y el ajuste de la abertura aparecen en “ES-

PE CI FI CA CIO NES DEL PRODUCTO” sección

de este manual.

FILTRO DE COMBUSTIBLE EN LINEA

El fi ltro de combustible debe cambiarse una

vez cada temporada. Si el fi ltro de combustible

se tapona, obstruyendo el fl ujo del combustible

hacia el carburador, es necesario cambiarlo.

1. Con el motor frío, remueva el fi ltro y tapone

las secciones de la línea de combustible.

2. Ponga el fi ltro de combustible nuevo en su

posición en la línea de combustible con la

fl echa señalando hacia el car bu ra dor.

3. Asegúrese de que no hayan fugas en la

línea del combustible y que las grapas

estén colocadas en forma adecuada.

4. Inmediatamente limpie toda la gasolina der-

ramada.

4. Limpie todo el aceite derramado en la sega-

dora y en el lado del motor.

5. Echar aceite despacio en el conducto del

aceite, parándose a intervalos regulares para

controlar el nivel del aceite con la varilla.

6. Parar de añadir aceite cuando se alcanza la

señal de lleno (FULL) en la varilla. Esperar un

minuto para dejar que el aceite se arregle.

7. Continúe agregando cantidades pequeas

de aceite y vuelva a inspeccionar la varilla

medidora settles del nivel de aciete en lleno

(FULL). NO sobrellene el motor con aceite,

o fumará pesa demante del silenciador

cuando lo valla a arrancar.

8. Asegúrese de apretar la varilla medidora

del aceite antes de arrancar el motor.

9. Vuelva a conectar el alambre de la bujía a ésta.

FILTRO DE AIRE

Su motor puede sufrir averías y funcionar de

manera incorrecta con un fi ltro del aire sucio.

Sustituir el papel del cartucho una vez al año o

tras 100 horas de funcionamiento, más a menu-

do si se utiliza en condiciones de suciedad y

polvo particulares. No lave el fi ltro de aire.

PARA LIMPIAR EL FILTRO DE AIRE

1. Remueva la cubierta.

2. Cuidadosamente, remueva el cartucho.

3. Límpielo golpeándolo suavemente en una

superfi cie plana. Si está muy sucio cambie

el cartucho.

Envase

Plancha trasera

RanurasCartucho

Cubierta

LIMPIEZA

IMPORTANTE: Para obtener el mejor rendimineto,

mantenga la caja de la segadora sin acumulacion

de cesped y basura. Limpie la parte de abajo de

su segadora despues de cada uso.

PRECAUCIÓN: Desconecte el alambre de

la bujía y póngalo en donde no pueda entrar en

contacto con ésta.

• Haga descansar la segadora en su lado.

Asegúrese que el fi ltro de aire y que el carbu-

rador queden mirando hacia arriba. Limpie la

parte inferior de su segadora raspándola para

remover la acumulación de césped y basura.

• Limpie el motor a menudo para evitar que

se acumule la basura. Un motor tapado fun-

ciona más caliente y se acorta su duración.

• Mantenga las superfi cies pulidas y las rue-

das sin gasolina, aceite, etc.

• No recomendamos el uso de una manguera

de jardín para limpiar la segadora a menos

que el sistema eléctrico, el silenciador, el

fi ltro de aire y el carburador estén tapados

para evitar que les entre el agua. El agua en

el motor puede acortar la duración de éste.

Filtro de

Com bus ti ble

Abrazadera Abrazadera

28

SEGADORA

Siempre observe las reglas de seguridad cu-

ando haga el mantenimiento.

LLANTAS

• Mantenga las llantas sin gasolina, aceite o

substancias químicas para control de insec-

tos que pueden dañar la goma.

• Evite los tocones, las piedras, las grietas pro-

fundas, los objetos afi lados y otros peligros

que pueden dañar a las llantas.

CUIDADO DE LA CUCHILLA

Para obtener los mejores resultados, la cuchilla

de la segadora tienen que mantenerse afi lada.

Cambie la cuchilla doblada o dañada.

PRECAUCIÓN: Usar solamente la hoja

de repuesto aprobada por el fabricante de su

cortacésped. Usar una hoja no aprobada por el

fabricante de su cortacésped es peligroso, pu-

ede dañar su cortacésped y anular su garantía.

PARA REMOVER LA CUCHILLA

1. Desconecte el alambre de la bujía y póngalo en

donde no pueda entrar en contacto con ésta.

2. Haga descansar la segadora en su lado.

Asegúrese que el fi ltro de aire y que el

carburador queden mirando hacia arriba.

3. Use un bloque de madera entre la cuchilla

y la caja de la segadora para evitar que la

cuchilla gire cuando se le quite el perno.

AVISO: Proteja sus manos con guantes y/o

envuelva la cuchilla con una tela gruesa.

4. Remueva el perno de la cuchilla girándolo

en el sentido contrario en que giran las

manillas del reloj.

5. Remueva la cuchilla y los artículos de fer-

retería adjuntadores (el perno, la arandela

de seguridad y la arandela endurecida).

PARA CAMBIAR LA CUCHILLA

1. Ponga la cuchilla en el adaptador de ésta

alineando los dos (2) agujeros en la cuchilla

con las salientes elevadas en el adaptador.

2. Asegúrese de que el borde de salida de

la cuchilla (opuesto al borde afi lado) esté

hacia arriba hacia el motor.

3. Instale el perno de la cuchilla con la aran-

dela de seguridad y la arandela endurecida

en el adaptador de la cuchilla y el cigueñal.

4. Use un bloque de madera entre la cuchilla

y la caja de la segadora y apriete el perno

de la cuchilla girándolo en el sentido en que

giran las manillas del reloj.

• La torsión para apretar recomendada es de

35 – 40 pies libras.

IMPORTANTE: El perno de la cuchilla es tratado

a calo. Si es necesario sustituir los pernos,

sustituirlos sólo con pernos aprobados mostrados

en la sección Partes de Reparación de este manual.

PARA AFILAR LA CUCHILLA

AVISO: No recomendamos el afi lar la cuchilla – pero

si lo hace, asegúrese de que quede balanceada.

Se tiene que tener cuidado de mantenerla

balanceada. Una cuchilla que no está bal-

anceada va a producir eventualmente daño en

la segadora o en el motor.

• La cuchilla puede afi larse con una lima o en

una rueda rectifi cadora. No trate de afi larla

mientras se encuentra en la segadora.

• Para revisar el balance de la cuchilla, clave un

clavo en una viga o en la pared. Deje alrededor

de una pulgada de un clavo recto expuesto.

Ponga el agujero central de la cuchilla sobre la

cabeza del clavo. Si la cuchilla está balanceada

debe permanecer en la posición horizontal. Si

cualquiera de los extremos de la cuchilla se

mueve hacia abajo, afi le el extremo pesado

hasta que ésta quede balanceada.

RECOGEDOR DE CÉSPED

• El recogedor de césped puede ser rociado

con el agua de la manguera pero tiene que

estar seco cuando se vaya a usar.

• Revise su recogedor de césped a menudo

para verifi car si está dañado o deteriorado.

Se va a desgastar con el uso normal. Si se

necesita cambiar el recogedor, cámbielo

solamente por uno que sea aprobado por el

fabricante. Dé el número del modelo de la

segadora cuando lo ordene.

MOTOR

LUBRICACIÓN

Use solamente aceite de detergente de alta

calidad clasifi cado con la clasifi cación SJ–SL

de servicio API. Seleccione la calidad de visco-

sidad SAE según su temperatura de operación

esperada.

Cambie el aceite después de 25 horas de

operación o por lo menos una vez al año si la

segadora se utiliza menos 25 horas el año.

Revise el nivel del aceite del cárter antes de

arrancar el motor y después de cada cinco (5)

horas de uso continuado. Apriete el tapón del

aceite en forma segura cada vez que revise el

nivel del aceite.

PARA CAMBIAR EL ACEITE DEL MOTOR

AVISO: Antes de inclinar la segadora para dre-

nar el aceite, drene el tanque de com bus ti ble

haciendo correr el motor hasta que el tanque

esté vacio.

Arandela de

seguridad

Borde de salida

Perno

de la

cuchilla

Ranura

Cuchilla

Chavetero del

ciguenal

Adaptador de

la cuchilla

Ciguénal

Arandela

endurecida

13

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with plug.

2. Remove engine oil cap; lay aside on a

clean surface.

3. Tip lawn mower on its side as shown

and drain oil into a suitable container.

Rock lawn mower back and forth to re-

move any oil trapped inside of engine.

CAUTION: Petroleum solvents, such

as ker o sene, are not to be used to clean

car tridge. They may cause de te ri o ra tion

of the cartridge. Do not oil car tridge. Do

not use pres sur ized air to clean or dry

car tridge.

4. Install cartridge, then replace cover.

MUFFLER

Inspect and replace corroded muffl er as it

could create a fi re hazard and/or dam age.

SPARK PLUG

Replace spark plug at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs

fi rst. Spark plug type and gap setting

are shown in the “PROD UCT SPEC I FI C-

A TIONS” section of this manual.

IN-LINE FUEL FILTER

The fuel fi lter should be replaced once

each season. If fuel fi lter becomes

clogged, ob struct ing fuel fl ow to car bu -

re tor, re place ment is re quired.

1. With engine cool, remove fi lter and

plug fuel line sec tions.

2. Place new fuel fi lter in position in fuel line

with arrow pointing towards carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled gasoline.

4. Wipe off any spilled oil from lawn

mower or side of engine.

5. Slowly pour oil down the oil fi ll spout,

stopping every few ounces to check the

oil level with the dipstick.

6. Stop adding oil when you reach the

FULL mark on the dipstick. Wait a

minute to allow oil to settle.

7. Continue adding small amounts of oil,

rechecking the dipstick until oil level

settles at FULL. DO NOT overfi ll, or

engine will smoke heavily from the muf-

fl er on startup.

8. Always be sure to retighten oil dipstick

before starting engine.

9. Re con nect spark plug wire to plug.

AIR FILTER

Your engine will not run properly and may

be damaged by using a dirty air fi lter.

Replace the air fi lter every 100 hours of

operation or every season, whichever oc-

curs fi rst. Service air cleaner more often

under dusty conditions.

TO CLEAN AIR FILTER

1. Remove cover.

2. Carefully remove cartridge.

3. Clean by gently tapping on a fl at sur-

face. If very dirty, replace cartridge.

Container

Back plate

SlotCartridge

Cover

Fuel

Filter

Clamp Clamp

CLEANING

IMPORTANT: For best performance,

keep mower housing free of built-grass

and trash. Clean the underside of your

mower after each use.

CAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with spark plug.

• Clean the underside of your lawn

mower by scraping to remove build-up

of grass and trash.

• Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

• Keep fi nished surfaces and wheels free

of all gasoline, oil, etc.

• We do not recommend using a garden

hose to clean lawn mower unless the

elec tri cal system, muffl er, air fi lter and

carburetor are covered to keep water

out. Water in engine can result in short-

ened engine life.

14

SERVICE AND ADJUSTMENTS

WARNING: To avoid serious injury,

before performing any service and

adjustments:

1. Release control bar and stop engine.

2. Make sure the blade and all moving

parts have completely stopped.

3. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See “TO ADJUST CUTTING HEIGHT” in

the Operation sec tion of this manual.

REAR DEFLECTOR

The rear defl ector, attached between the

rear wheels of your mower, is provided to

minimize the possibility that objects will

be thrown out of the rear of the mower

into the operator mowing position. If the

defl ector becomes dam aged, it should be

replaced.

TO ADJUST HANDLE

The handle can be mounted in a high or

low position. The mounting holes in the

bottom of lower handle are off center for

raising or lowering the handle.

1. Remove upper handle and all wire

tie(s) securing cable(s) to lower handle.

2. Remove hairpin cotters from lower

handle bracket mount ing pin.

3. Squeeze lower handle in to remove it

from mounting pins.

4. Turn lower handle over to raise or

lower handle.

5. Squeeze lower handle in and po si tion

holes onto mount ing pins on handle

bracket.

6. Reassemble upper handle and all

parts removed from lower handle.

Lower handle

Handle

bracket Hairpin cotter

SQUEEZE

TO ADJUST

Mounting pin

Mowing

position Mowing

position

HIGH POSITIONLOW POSITION

Handle

bracket

Hairpin

cotter

Mounting

pin

Lower

handle

ROTATE

ENGINE

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed

or it may result in personal injury. If you

believe that the engine is running too

fast or too slow, take your lawn mower to

a qualifi ed service center for repair and

ad just ment.

CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

lawn mower to a qualifi ed service center

for repair and/or ad just ment.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Over speed ing

the engine above the factory high speed

setting can be dangerous. If you think

the engine-governed high speed needs

adjusting, contact a qualifi ed service

center, which has proper equip ment and

ex pe ri ence to make any nec es sary adjust-

ments. 27

➀ Ajustador

de la rueda

➀ Clavija de montaje del puntal del mango

➀ Bisagra

de la

puerta

traser

➁ Aceite

del

motor

MANTENIMENTO

RECOMENDACIONES GENERALES

La garantía de esta segadora no cubre los

artículos que han estado sujetos al abuso o a

la negligencia del operador. Para recibir todo

el valor de la garantía, el operador tiene que

mantener la segadora según las instrucciones

descritas en este manual.

Hay algunos ajustes que se tienen que hacer

en forma periódica para poder mantener su

unidad adecuadamente.

Al menos una vez cada estación comprobar

si es necesario efectuar los ajustes descritos

en las secciones de Servicio y Ajustes de este

manual.

• Una vez al año, cambie la bujía, limpie o

cambie el elemento del fi ltro de aire y revise

si la cuchilla está desgastada. Una bujía

nueva y un elemento del fi ltro de aire limpio/

nuevo aseguran la mezcla de aire-com-

bus ti ble adecuada y ayudan a que su motor

funcione mejor y que dure más.

• Siga el programa de mantenimiento en este

manual.

ANTES DE CADA USO

• Revise el nivel del aceite del motor.

• Revise si hay sujetadores sueltos.

LUBRICACIÓN

Mantenga la unidad bien lubricada

(vea la “TABLA DE LUBRICACIÓN”).

Revisar si hay Sujetadores Sueltos

Limpiar/Inspeccionar el Recogedor de Césped *

Controlar los Neumáticos

Controlar las Ruedas Motrices ***

Limpiar la Segadora ****

Limpiar debajo la Cubierta de la Transmisión ***

Revisar las Correas y las Poleas Impulsadas ***

Revisar / Afilar / Cambiar la Cuchilla

Lubricación

Limpiar / Recargar la Batería **

Revisar el nivel del Aceite

Cambiar el Aceite del motor

Limpiar el Filtro de Aire

Inspeccionar el Silenciador

Cambiar la Bujía

Cambiar el Cartucho de Papel del Filtro de Aire

Vaciar el sistema del carburante

o añadir un estabilizador de carburante.

ANTES

DE CADA

USO

DESPUES

DE CADA

USO

CADA

10

HORAS

CADA

25 HORAS O

TEMPORADA

CADA

100

HORAS

ANTES DEL

ALMACE-

NAMIENTO

*

**

***

****

TABLA DE LUBRICACIÓN

➀ Rocie el lubricante

➁ Vea "MOTOR" en la seccion de Mantenimiento

IMPORTANTE: No aceite o engrase los roda-

mientos de la rueda de plastico. Los lubricantes

viscosos atearan polvo y mugre, lo acortara la

duracion de los rodamientos autolubricantes. Si

cree que tienen que lubricarse, use losamente

un lubricante tipo crafi to, de polvo seco, en

forma moderada.

➀ Puerta

de la

acolchadora

26

CONSEJOS PARA SEGAR Y ACOL-

CHAR

IMPORTANTE: Para obtener el mejor

rendimiento mantenga la caja de la segadora

sin acumulacion de cesped y basura. Vea

“LIMPIEZA” en la seccion de Mantenimento de

este manual.

• La cuchilla acolchadora especial va a volver

a cortar los recortes de césped muchas

veces, y los reduce en tamaño, de modo que

si se caen en el césped se van a dispesar

entre éste y no se van a notar. También, el

césped acolchado se va a deshacer rápi-

damente entregando substancias nutritivas

para el césped. Siempre acolche con la

velocidad del motor (cuchilla) más alta, pues

así se obtendrá la mejor acción de recorte de

las cuchillas.

• Evite cortar el césped cuando esté mojado.

El césped mojado tiende a formar montones

e interfi ere con la acción de acolchado.

La mejor hora para segar el césped es

temprano en la tarde. A esa hora éste se ha

secado y el área recién cortada no quedará

expuesta al sol directo.

• Para obtener los mejores resultados, ajuste

la altura del corte de la segadora de modo

que ésta corte solamente el tercio superior

de las hojas de césped. En el caso de que el

césped haya crecido demasiado, puede ser

necesario el elevar la altura del corte para

reducir el esfuerzo necesario para empujar la

segadora y para evitar sobrecargar el motor,

dejando montones de recortes de césped.

Para un césped muy pesado, reduzca el an-

cho del corte pasando por encima del lugar

anteriormente cortado y siegue lentamente.

• Ciertos tipos de césped y sus condiciones

pueden exigir que un área tenga que ser

acolchada por segunda vez para esconder

completamente los recortes. Cuando se

haga el segundo corte, siegue atravesado

(en forma perpendicular) a la pasada del

primer corte.

• Cambie su patrón de corte de semana a

semana. Siegue de norte a sur una semana

y luego cambie de este a oeste la próxima

semana. Esto evitará que el césped se

enrede y cambie de dirección.

PARA PARAR EL MOTOR

• Para parar el motor, suelte la barra de con-

troles que exigen la presencia del operador.

PARA HACER ARRANCAR EL MOTOR

AVISO: Debido a las capas protectoras del mo-

tor, una cantidad pequeña de humo puede es-

tar presente durante el uso inicial del producto

y se debe considerar normal.

AVISO: Su motor viene equipado con un

sistema de estrangulación automático. No

requiere ser cebado o obturado antes de

arrancar.

• Para hacer arrancar un motor, sujete la barra

de controles que exigen la presencia del

operador abajo en el mango y tire el mango

del arrancador rápidamente. No permita que

el cordón arrancador se devuelva abruptam-

ente.

CONSEJOS PARA SEGAR

PRECAUCIÓN: No utilizar dispositivos anti-

paja de la hoja en la segadora ya que estos

accesorios son peligrosos, pueden dañar su

segadora y anular su garantía.

• Bajo ciertas condiciones, tal como césped

muy alto, puede ser necesario el elevar

la altura del corte para reducir el esfuerzo

necesario para empujar la segadora y para

evitar sobrecargar el motor, dejando mon-

tones de recortes de césped. Puede que sea

necesario reducir la velocidad del recorrido

y/o haga funcionar la segadora sobre el área

por segunda vez.

• Para un corte muy pesado, reduzca el ancho

del corte pasando parcialmente por encima

del lugar anteriormente cortado y siegue

lentamente.

• Para un mejor ensacado del césped y para la

mayoría de las condiciones de corte, la velo-

cidad del motor debe ajustarse a la posición

de RÁPIDO.

• Los poros en los recogedores de césped de

tela pueden llenarse con mugre y polvo con

el uso y los recogedores recaudarán menos

césped. Para evitar éste, rocíe el recogedor

con la manguera de agua regularmente y

déjelo secarse antes de usarlo.

• Mantenga la parte superior del motor, alred-

edor del arrancador, despejada y sin recortes

de césped y paja. Esto ayudará el fl ujo del

aire del motor y extenderá su duración.

MAX 1/3

15

STORAGE

Immediately prepare your lawn mower for

storage at the end of the season or if the

unit will not be used for 30 days or more.

LAWN MOWER

When lawn mower is to be stored for a

period of time, clean it thor oughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire lawn mower (See

“CLEANING” in the Maintenance sec-

tion of this manual).

2. Lubricate as shown in the Main te nance

section of this manual.

3. Be sure that all nuts, bolts, screws, and

pins are securely fas tened. Inspect

moving parts for damage, breakage

and wear. Replace if necessary.

4. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

HANDLE

You can fold your lawn mower handle for

storage.

1. Squeeze the bottom ends of the lower

handle toward each other until the

lower handle clears the handle bracket,

then move handle forward.

2. Loosen upper handle mounting bolts

enough to allow upper handle to be

folded back.

IMPORTANT: When folding the handle for

storage or transportation, be sure to fold

the handle as shown or you may damage

the control cables.

• When setting up your handle from the

storage position, the lower han dle will au-

tomatically lock into the mow ing position.

Lower handle

SQUEEZE

TO FOLD

ENGINE

FUEL SYS TEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

fi lter, fuel hose, or tank during storage.

Alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and car bu re tor are empty.

• Never use engine or carburetor cleaner

prod ucts in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in min i miz ing the formation of

fuel gum deposits during stor age. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 min utes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

FOLD

FORWARD

FOR

STORAGE

MOWING

POSITION

Lower handle

Operator

presence

control bar

Upper

handle

Handle

knob

16

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See “ENGINE” in

the Maintenance section of this man ual).

CYLINDER

1. Remove spark plug.

2. Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

3. Pull starter handle slowly a few times to

dis trib ute oil.

4. Replace with new spark plug.

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your unit indoors and

cover it to protect it from dust and dirt.

• Cover your unit with a suitable pro tec -

tive cover that does not retain mois ture.

Do not use plastic. Plastic cannot

breathe, which allows condensation to

form and will cause your unit to rust.

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

CAUTION: Never store the lawn mower

with gaso line in the tank in side a build ing

where fumes may reach an open fl ame

or spark. Allow the engine to cool before

storing in any enclosure.

Does not start 1. Dirty air fi lter. 1. Clean/replace air fi lter.

2. Out of fuel. 2. Fill fuel tank.

3. Stale fuel. 3. Empty fuel tank and refi ll tank

with fresh, clean gasoline.

4. Water in fuel. 4. Empty fuel tank and refi ll tank

with fresh, clean gasoline.

5. Spark plug wire is 5. Connect wire to plug.

disconnected.

6. Bad spark plug. 6. Replace spark plug.

7. Loose blade or broken 7. Tighten blade bolt or

blade adapter. replace blade adapter.

8. Control bar in released 8. Depress control bar to

position. handle.

9. Control bar defective. 9. Replace control bar.

10.Fuel valve lever (if so 10.Turn fuel valve lever

equipped) in OFF position. to the ON position.

11. Weak battery (if equipped). 11. Charge battery.

12.Disconnected battery 12.Connect battery to engine.

connector (if equipped).

PROBLEM CAUSE CORRECTION

TROUBLESHOOTING - See appropriate section in manual unless directed

to a Sears Parts & Repair Center.

25

AVISO: El terraplén inicial del aceite requiere

solamente 18 onzas debido al aceite residual

en el motor de la prueba de calidad de 100%

del fabricante. Al cambiar el aceite puede

necesitar 20 onzas.

4. Inserte y apriete la varilla medidora de

aceite.

IMPORTANTE:

• Revise el nivel del aceite antes de cada uso.

Agregue aceite si es necesario. Llene hasta la

línea de lleno en la varilla medidora de nivel.

• Cambie el aceite después de 25 horas de

operación o una vez por temporada. Puede

necesitar cambiar el aceite más a menudo

cuando las condiciones son polvorosas o su-

cias. Vea “PARA CAMBIAR EL ACEITE DEL

MOTOR” en la seccion de Mantenimiento de

este manual.

AGREGUE GASOLINA

• Llene el estanque de combustible hasta la

parte inferior del cuello de relleno del es-

tanque de gasolina. No lo llene demasiado.

Use gasolina regular, sin plomo, nueva y lim-

pia con el mínimo de 87 octanos. No mezcle

el aceite con la gasolina. Para asegurar

que la gasolina utilizada sea fresca compre

estanques los cuales puedan ser utilizados

durante los primeros 30 días.

ADVERTENCIA: Limpie el aceite o el

combustible derramado. No al ma ce ne, derrame

o use gasolina cerca de una llama expuesta.

PRECAUCIÓN: Los com bus ti bles mezclados

con alcohol (conocidos como gasohol, o el uso

de etanol o metanol) pueden atraer la humedad,

la que conduce a la separación y formación de

ácidos durante el almacenamiento. La gasolina

acídica puede dañar el sistema del combustible

de un motor durante el almacenamiento. Para

evitar los problemas con el motor, se debe vaciar

el sistema del combustible antes de guardarlo por

un período de 30 días o más. Vacíe el estanque

del combustible, haga arrancar el motor y hágalo

funcionar hasta que las líneas del combustible y el

carburador queden vacíos. La próxima temporada

use combustible nuevo. Vea las Instrucciones

Para El Almacenamiento para más información.

Nunca use productos de limpieza para el motor o

para el carburador en el estanque del combustible

pues se pueden producir daños permanentes.

PASOS SIMPLES DE RECORDAR

CUANDO CONVIERTA SU SEGADORA

PARA ACOLCHAMIENTO -

1. La plancha acolchadora trasera instalada.

2. La protección contra la descarga cerrada.

PARA ENSACAMIENTO TRASERO -

1. La plancha acolchadora trasera removida.

2. Recogedor del césped instalado.

3. La protección contra la descarga cerrada.

PARA DESCARGA LATERAL-

1. La plancha acolchadora trasera instalada.

2. La desviador de la descarga instalada.

PRECAUCIÓN: No haga funcionar su

segadora sin la placa de la acolchadora, el

desviador de recortes o sin el recogedor

césped aprobados en su lugar. Nunca trate de

operar la segadora cuando se halla removido

la puerta trasera o cuando se ha removido a

puerta trasera o cuando está un poco abierta.

PARA VACIAR EL RECOGEDOR DE CÉSPED

1. Levante el recogedor de césped usando el

mango del bastidor.

2. Remueva el recogedor de césped, con los

recortes, de debajo del mango de la sega-

dora.

3. Vacíe los recortes de la bolsa.

AVISO: No arrastre la bolsa cuando la vacíe;

se producirá un desgaste innecesario.

ANTES DE HACER ARRANCAR EL

MOTOR

AGREGUE ACEITE

Su segadora fue enviada sin aceite en el motor.

Para el tipo y el grado del aceite a utilizar, vea

el “MOTOR” en la sección del Mantenimiento

de este manual.

PRECAUCIÓN: NO sobrellene el motor con

aceite, o fumará pesa demante del silenciador

cuando lo valla a arrancar.

1. Asegúrese que la segadora esté nivelada.

2. Remueva la varila medidora de aceite del tubo

de desarga de aceite.

3. Usted recibe un envase de aceite con la

unidad. Vierta lentamente el envase entero

de aceite en el tubo de relleno del motor.

Mango del

bastidor del

recogedor

de césped

Tapa del

rellenador de

gasolina

Tapa del

deposito

de aceite

34

HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.384510 (PRODUCT NUMBER 6021P)

REPAIR PARTS

12 3

4

5

6

7

8

9

10

11

12

13

14

14

15

18

19

21

22

23

25

30

30

31

32

33

33

34

35

35

36

36

37

39

40

41

41

47

47

42

43

44

44

45

46

49

50

68

51

52

53

54

55

56

57

58

59

61

62

65

66

67

73

73

8

20 22

26

29

29

30

30

32

33

33

34

36

36

37

39

49 61

65 66

65

66

65

66

73

73

74

75

76

77

7

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the engine.

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OP ER AT ING

YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize

yourself with the location of various controls and adjustments. Save this manual for

future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

Operator presence control bar

Starter

handle

Handle knob

Engine oil cap

with dipstick

Air fi lter

Wheel adjuster

(on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Com-

mis sion. The blade turns when the engine is running.

Operator presence control bar – must

be held down to the handle to start the

engine. Release to stop the engine.

Mulcher door – allows con ver sion to

discharging or bagging operation.

Starter handle – used for starting engine.

Gasoline fi ller cap

Muffl er

Grass

catcher

Housing

OPERATION

Spark plug

Mulcher door

6

ASSEMBLY / PRE-OPERATION

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the engine.

Your new lawn mower has been as-

sem bled at the factory with the excep-

tion of those parts left unassembled for

shipping pur pos es. To ensure safe and

proper op er a tion of your lawn mower, all

parts and hard ware you assemble must be

tight ened securely. Use the correct tools

as nec es sary to ensure proper tightness.

All parts such as nuts, wash ers, bolts, etc.,

nec es sary to complete the as sem bly have

been placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower.

2. Cut down two end corners of carton

and lay end panel down fl at.

3. Remove all packing materials except

padding be tween upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thor ough ly for additional

loose parts.

HOW TO SET UP YOUR LAWN

MOW ER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage con trol cables.

1. Raise handles until lower handle sec-

tion locks into place in mowing position.

2. Remove protective padding, raise up-

per handle sec tion into place on lower

handle and tighten both handle knobs.

3. Remove handle padding holding

operator pres ence control bar to upper

handle.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to “AD-

JUST HANDLE” in the Service and Adjust-

ments section of this manual.

TO ASSEMBLE GRASS CATCH ER

1. Put grass catcher frame into grass bag

with rigid part of bag on the bottom.

Make sure the frame handle is outside

of the bag top.

2. Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

bag gets wet, let it dry before using.

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to bag-

ging or discharging, see “TO CON VERT

MOWER” in the Operation section of this

manual.

Frame

handle

Frame

opening

Vinyl

bindings

MOWING

POSITION

Lower handle

LIFT

UP

Operator

presence

control bar

Upper

handle

LIFT

UP

Handle

knob

35

HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.384510 (PRODUCT NUMBER 6021P)

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 194177X422 Control Bar

2 197808 Upper Handle

3 169708X498 Lower Handle

4 194788 Rope Guide

5 132004 Nut, Hex

6 191574 Handle Bolt

7 66426 Wire Tie

8 74780512 Bolt, Hex Head 5/16-18 x 3/4

9 154132 Hinge Bracket

10 185589 Mulcher Door

11 183281 Engine Zone Control Cable

12 750634 Hex Washer Head Screw

13 429930X004 Up-Stop Bracket

14 182398 Handle Knob

15 51793 Hairpin Cotter

18 17600406 Screw 1/4-20 x 3/8

19 401174X004 Axle Arm Assembly, Front, LH

20 401175X004 Axle Arm Assembly, Front, RH

21 418655 Kit, Rear Skirt

22 401621X004 Selector Spring, Front

23 401814X428 Rear Door Assembly

25 410385X422 Handle Bracket Assembly, LH

26 410386X422 Handle Bracket Assembly, RH

29 407494X005 Wheel Adjusting Bracket

30 401629 Spacer

31 185595 Discharge Defl ector

32 401624X004 Selector Spring, Rear

33 87877 Selector Knob

34 401176X004 Axle Arm Assembly, Rear, LH

35 426589 Locknut, Hex 5/16-18

36 401638 Shoulder Bolt 5/16-18

37 401273X460 Wheel & Tire Assembly, Front

39 409149 Flanged Locknut, Hex

40 411949 Frame, Grassbag

41 88652 Hinge Screw

42 405421 Spring, Rear Door, LH

43 405423 Spring, Rear Door, RH

44 184193 Bolt, Rear Door

45 150406 Screw, Hex Head, Threaded,

Rolled 3/8-16 x 1

46 404763 Danger Decal

47 751153 Nut, Hex

48 401177X004 Axle Arm Assembly, Rear, RH

49 401277X460 Wheel & Tire Assembly, Rear

50 194715 Grassbag

51 147286 Hinge Rod

52 418709 Kit, Housing

(Includes Key Number 46)

53 851084 Screw, Hex Head, Grade 8

3/8-24 x 1-3/8

54 850263 Helical Lockwasher

55 851074 Hardened Washer

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

56 406712 21" Blade

57 420097 Blade Adapter

58 152124 Hinge Spring

59 - - - Engine, Kohler, Model

Number XT149-0026-EA

(See Breakdown)

61 409148 Nut, Hex

62 73800400 Locknut, Hex 1/4-20

65 88348 Washer, Flat

66 197480 O-Ring

67 197991 Clip, Cable

68 164265 Grip, Foam

73 401630 Washer, Curved

74 851201X004 Washer, Special, Engine

75 413693 Kit, Rear Baffl e

(Includes 3 Screws)

76 410589 Baffl e, Rear

77 17411312 Screw, Rear Baffl e

- - 404764 Warning Decal (not shown)

- - 431621 Owner’s Manual

Available accessories not included with mower:

- - 71 33623 Gas Can

(2.5 Gallon Container)

- - 71 33500 Fuel Stabilizer

- - 71 33000 SAE 30W Oil

(20 Ounce Bottle)

KEY PART

NO. NO. DESCRIPTION

36

MODEL NUMBER XT149-0026-EAKOHLER 4-CYCLE ENGINE

66

71

72

79

74

1

78

8

80

80

81

10

133

82

9

90

90

2

3

70

73

64

11

5

99

100

123

101

101

125

136

5

ACCESSORIES

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Husqvarna retailers and

service centers. Some of these accessories may not apply to your lawn mower.

Serial Number:

Date of Purchase:

Gasoline Capacity / Type: 1.5 Quarts (Unleaded Regular)

Oil Capacity: 20 Ounces

Oil Type (API SG–SL): SAE 30 (above 32°F); SAE 10W-30 (below 32°F)

Spark Plug: Champion RC12YC (Gap: .030")

Blade Bolt Torque: 35–40 ft. lbs.

• The model and serial numbers will be found on a decal on the rear of the lawn mower

housing. Record both serial number and date of purchase in space provided above.

PRODUCT SPECIFICATIONS

4

WARRANTY

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company (“Husqvarna”)

warrants Husqvarna product to the original purchaser

to be free from defects in material and workmanship

from the date of purchase for the “Warranty Period” of

the product as set forth below:

2 YEAR NON-COMMERCIAL WARRANTY: Auto-

matic Mower, Riding lawn mowers, yard and garden

tractors, walk behind mowers, tillers, chain saws,

trimmers, brushcutters, clearing saws, snow blowers,

handheld blowers, backpack blowers, hedge trimmers,

electrical products and power-assist collection systems

for non com mer cial, nonprofessional, noninstitutional or

nonincome producing use, except as herein stated.

Emission control system components necessary to

comply with CARB-TIER-II and EPA regulations.

Husqvarna Safety Apparel carries a 90-day warranty

from the date of the customer’s original purchase for

defects in material and workmanship. Normal wear,

tear or abuse is not covered under warranty. Product

must be returned to Charlotte with a warranty claim

form. All care and maintenance instructions must be

followed as stated by the manufacturer on the care

label. The fi t of the protective apparel/boot is not

covered under warranty.

SECTION 2: HUSQVARNA’S OBLIGATIONS UNDER

THE WARRANTY

Husqvarna will repair or replace defective components

without charge for parts or labor if a component fails

because of a defect in material or workmanship during

the warranty period.

SECTION 3: ITEMS NOT COVERED BY THIS WAR-

RANTY

The following items are not covered by this warranty:

(1)Normal customer maintenance items which become

worn through normal regular use, including, but

not limited to, belts, blades, blade adapters, bulbs,

fi lters, guide bars, lubricants, rewind springs, saw

chain, spark plugs, starter ropes and tines;

(2) Natural discoloration of material due to ultraviolet

light;

(3) Lawn and garden attachments are covered by a

third party which gives a warranty, all claims for

warranty should be sent to the manufacturer; and

(4)Emission Control System components necessary

to which are manufactured by third party engine

manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting

from the following:

(1) Accident, abuse, misuse, negligence and neglect,

including stale fuel, dirt, abrasives, moisture, rust,

corrosion, or any adverse reaction due to incorrect

storage or use habits;

(2) Failure to operate or maintain the unit in accor-

dance with the Owner’s/Operator’s manual or

instruction sheet furnished by Husqvarna;

(3) Alterations or modifi cations that change the

intended use of the product or affects the product’s

performance, operation, safety, or durability, or

causes the product to fail to comply with any ap-

plicable laws; or:

(4) Additional damage to parts or components due to

continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER

THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE PUR CHAS ER. HUSQVARNA SHALL NOT BE

LIABLE FOR ANY INCIDENTAL OR CONSEQUEN-

TIAL DAMAGES FOR BREACH OF ANY EXPRESS

OR IMPLIED WARRANTY ON THESE PRODUCTS

EXCEPT TO THE EXTENT PROHIBITED BY AP-

PLICABLE LAW. ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICU-

LAR PURPOSE ON THESE PRODUCTS IS LIMITED

IN DURATION TO THE WARRANTY PERIOD AS

DEFINED IN THE LIMITED WARRANTY STATE-

MENT. HUSQVARNA RE SERVES THE RIGHT TO

CHANGE OR IMPROVE THE DESIGN OF THE

PRODUCT WITHOUT NO TICE, AND DOES NOT

ASSUME OBLIGATION TO UPDATE PREVIOUSLY

MANUFACTURED PROD UCTS.

Some states do not allow the exclusion of incidental

or consequential damages, or limitations on how long

an implied warranty lasts, so the above limitations or

exclusions may not apply to you. This warranty gives

you specifi c legal rights, and you may also have other

rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, mainte-

nance, operation, storage and general upkeep as

written in the maintenance section of the Owner’s/

Operator’s manual. Should an operational problem

or failure occur, the product should not be used, but

delivered as is to an authorized Husqvarna dealer for

evaluation. Proof of purchase, as explained in section

6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY

CONSIDERATION

It is the Owner’s and Dealer’s responsibility to make

certain that the Warranty Registration Card is properly

fi lled out and mailed to Husqvarna Forest & Garden

Company. This card should be mailed within ten (10)

days from the date of purchase in order to confi rm the

warranty and to facilitate post-sale service.

Proof of purchase must be presented to the authorized

Husqvarna dealer in order to obtain warranty service.

This proof must include date purchased, model num-

ber, serial number, and complete name and address of

the selling dealer.

To obtain the benefi t of this warranty, the product

believed to be defective must be delivered to an

authorized Husqvarna dealer in a timely manner, no

later than thirty (30) days from date of the operational

problem or failure. The product must be delivered at

the owner’s expense. Pick-up and delivery charges are

not covered by this warranty. An authorized Husqvarna

dealer can be normally located through the “Yellow

Pages” of the local telephone directory or by calling

1-800-HUSKY62 for a dealer in your area.

HUSQVARNA

7349 Statesville Road

Charlotte, NC 28269

531 83 81-23 2002

37

MODEL NUMBER XT149-0026-EAKOHLER 4-CYCLE ENGINE

51

52

53

54

60

46

50

48

55

36

126

44

25

79

37

38

89

90

90

45

29

86

26

61

93

93

57

56

132

130

131

79

83

62

40

128

129

49

154

153

38

MODEL NUMBER XT149-0026-EAKOHLER 4-CYCLE ENGINE

KEY PART

NO. NO. DESCRIPTION

1 14 165 01-s Starter, Recoil (Includes

Key Numbers 2 and 3, Recoil

Housing, Recoil Bushing,

Recoil Guide Plate, Recoil

Springs, Recoil Pulley, Recoil

Retainer Plate and Recoil

Shoulder Screw)

2 14 160 01-s Kit, Starter Rope, with Handle

(Includes Coil Starter Rope,

Recoil Starter Handle, Recoil

Starter Handle Retainer and

Recoil Rope Retainer)

3 14 379 01-s Kit, Pawl Repair (Includes

Recoil Springs and Recoil

Starter Pawls)

5 14 227 04-s Cap Assembly, Fuel

8 14 100 10-s Nut, Flywheel, with Serrations

9 14 109 02-s Cup, Starter Drive

10 14 025 02-s Flywheel Assembly, Aluminum

11 14 050 01-s Kit, Breather Filter (Includes

Breather Cover Gasket,

Breather Cover Spring,

Breather Filter and Breather

Reed)

25 14 090 18-s Lever, Governor

26 14 126 22-s Control Assembly,

Fixed Speed

29 14 089 14-s Spring, Extension (Governor)

36 14 094 13-s Base, Air Cleaner

37 14 123 05-s Hose, Breather

38 14 083 01-s Element, Air Filter

40 14 096 09-s Cover, Air Cleaner

44 14 199 03-s Kit, Oil Pan (Includes

Key Numbers 45 and 46)

45 14 032 05-s Seal, Oil

46 14 041 13-s Gasket, Oil Pan

48 14 041 16-s Gasket, Carburetor

(Heat Shield)

49 14 853 21-s Carburetor, 12mm Auto

Choke without Shutoff

50 14 014 29-s Crankshaft Assembly

51 14 340 01-s Key, Woodruff

52 14 017 02-s Valve, Intake

53 14 016 02-s Valve, Exhaust

54 14 841 15-s Gasket, Head

55 14 318 02-s Kit, Cylinder Head

(Includes Key Number 93)

56 14 096 05-s Cover, Valve

57 14 041 01-s Gasket, Valve Cover

KEY PART

NO. NO. DESCRIPTION

60 14 314 04-s Guard Assembly, Muffl er

61 14 068 06-s Muffl er Assembly

62 14 067 02-s Rod Assembly, Connecting

64 14 584 05-s Module, Ignition

(Aluminum Flywheel)

66 14 132 08-s Plug, Spark (RA10HC)

70 14 123 04-s Assembly, Dipstick and Tube

(Includes Key No.s 71 and 72)

71 14 153 03-s O-Ring, Oil Fill Tube

72 14 153 01-s O-Ring, Dipstick

73 14 113 03-s Label, Warning

74 14 096 36-s Cover, Engine

78 14 027 03-s Housing, Blower

79 M-641060-s Nut, Hex Flange (M6)

80 14 112 07 Spacer, Compression Limiter

81 14 072 12-s Stud, Blower Housing

(Fuel Tank)

82 14 072 13-s Stud, Blower Housing

(Ignition)

83 14 079 20-s Linkage, Governor

(Auto Choke)

86 25 086 166-s Screw, Retangle Head, M6

89 14 096 51-s Cover, Air Cleaner Base

(Breather Gas)

90 25 086 293-s Screw, Hex Flange (M6)

93 24 072 06-s Stud, Carburetor (M6)

99 14 065 11-s Tank, Fuel (Row)

(Includes Key Number 5)

100 14 050 14-s Filter, Fuel (in-nipple)

101 14 237 04-s Clamp, Hose

123 25 111 61-s Hose, Fuel Low-permeation

125 - - - Guard, Finger

126 - - - Seal, Oil

128 - - - Retainer, Valve Spring

129 - - - Nut, Hex Jam (M6)

130 - - - Pivot, Rocker Arm

131 - - - Arm, Rocker

132 - - - Stud, Rocker Arm

133 - - - Fan, Flywheel (Plastic)

136 14 219 07-s Brake Assembly,

Carburetor Side (Includes

Brake Lever, Brake Spring,

Flange Nuts, Brake Pad,

Ground To Kill Lead, Screw,

Kill Switch, Brake Bracket,

Brake Lever Washer and

Brake Lever Rivet)

153 14 237 05-s Clamp, Hose

154 - - - Camshaft Assembly

3

DO:

• Mow across the face of slopes: nev er

up and down. Exercise extreme caution

when changing direction on slopes.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced

footing could cause slipping.

III. CHILDREN

Tragic accidents can occur if the op er a tor is

not alert to the presence of children. Children

are often attracted to the ma chine and the

mowing activity.

Never

assume that children

will remain where you last saw them.

• Keep children out of the trimming area

and under the watchful care of an oth er

re spon si ble adult.

• Be alert and turn machine off if chil dren

enter the area.

• Before and while walking back wards,

look behind and

down

for small chil dren.

• Never allow children to operate machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SAFE HANDLING OF GASOLINE

Use extreme care in handling gasoline.

Gasoline is extremely fl ammable and the

vapors are explosive.

• Extinguish all cigarettes, cigars, pipes

and other sources of ignition.

• Use only an approved container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never refuel the machine indoors.

• Never store the machine or fuel contain-

er where there is an open fl ame, spark

or pilot light such as a water heater or

on other appliances.

• Never fi ll containers inside a vehicle, on

a truck or trailer bed with a plastic liner.

Always place containers on the ground

away from your vehicle before fi lling.

• Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground. If this is not possible, then

refuel such equipment with a portable

container, rather than from a gasoline

dispenser nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do

not use a nozzle lock-open device.

• If fuel is spilled on clothing, change

clothing immediately.

• Never overfi ll fuel tank. Replace gas

cap and tighten securely.

V. GENERAL SERVICE

• Never run machine inside a closed area.

• Never make adjustments or repairs with

the engine (motor) running. Dis con nect the

spark plug wire, and keep the wire away

from the plug to prevent ac ci den tal starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation reg u lar ly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel spill-

age. Allow machine to cool before storing.

• Stop and inspect the equipment if you

strike an object. Repair, if nec es sary,

before restarting.

• Never attempt to make wheel height

adjustments while the engine is running.

• Grass catcher components are sub ject to

wear, dam age, and de te ri o ra tion, which

could expose moving parts or allow objects

to be thrown. Frequently check com po -

nents and replace with man u fac tur er’s

recommended parts, when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when ser vic ing them.

• Do not change the engine governor set-

ting or overspeed the engine.

• Maintain or replace safety and instruc-

tion labels, as necessary.

WARNING: This lawn mower is equipped with an internal com bus tion engine and

should not be used on or near any un im proved forest-covered, brush-covered or

grass-cov ered land unless the engine’s exhaust system is equipped with a spark

arrester meeting applicable local or state laws (if any). If a spark arrester is used, it

should be maintained in effective working order by the operator.

In the state of California the above is required by law (Section 4442 of the California Public

Resources Code). Other states may have similar laws. Federal laws apply on federal

lands. A spark arrester for the muffl er is available through your nearest Husqvarna or

other authorized service center (See the REPAIR PARTS section of this manual).

2

Warranty...................................................4

Safe ty Rules ..........................................2-3

Prod uct Spec i fi ca tions..............................5

Assembly / Pre-Operation ........................6

Op er a tion.............................................7-10

Maintenance Sched ule........................... 11

Maintenance......................................11-13

Ser vice and Ad just ments...................14-15

Stor age..............................................15-16

Trou ble shoot ing.................................16-17

Re pair Parts.......................................34-38

TABLE OF CONTENTS

IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing ob-

jects. Failure to observe the following safety instructions could result in serious injury or death.

Look for this symbol to point out im-

por tant safety precautions. It means

CAU TION!!! BECOME ALERT!!!

YOUR SAFE TY IS INVOLVED.

WARNING: In order to prevent ac ci den tal

starting when setting up, trans port ing, ad-

just ing or making repairs, always dis con nect

spark plug wire and place wire where it can not

come in contact with plug.

WARNING: Engine exhaust, some of its

constituents, and certain vehicle com po -

nents contain or emit chem i cals known to

the State of Cal i for nia to cause can cer and

birth defects or oth er re pro duc tive harm.

WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State

of Cal i for nia to cause can cer and birth

defects or oth er re pro duc tive harm. Wash

hands after handling.

CAUTION: Muffl er and other engine

SAFETY RULES

parts become extremely

hot during operation and

remain hot after engine

has stopped. To avoid

severe burns on contact,

stay away from these areas.

I. GENERAL OPERATION

• Read, understand, and follow all

in struc tions on the machine and in the

manual(s) before starting. Be thor ough ly

familiar with the controls and the proper

use of the machine before starting.

• Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

• Only allow responsible individuals, who

are familiar with the in struc tions, to

operate the machine.

• Clear the area of objects such as rocks,

toys, wire, bones, sticks, etc., which could

be picked up and thrown by blade.

• Be sure the area is clear of other people

before mowing. Stop the ma chine if

anyone enters the area.

• Do not operate the mower when bare-

foot or wearing open sandals. Al ways

wear substantial foot wear.

• Do not pull mower backwards unless abso-

lutely nec es sary. Always look down and be-

hind before and while moving backwards.

• Never direct discharged material toward

anyone. Avoid discharging material

against a wall or obstruction. Material may

richochet back toward the operator. Stop

the blade when crossing gravel surfaces.

• Do not operate the mower without prop-

er guards, plates, grass catcher or oth er

safety protective devices in place.

• See manufacturer’s instructions for

proper operation and installation of

accessories. Only use accessories ap-

proved by the manufacturer.

• Stop the blade(s) when crossing grav el

drives, walks, or roads.

• Stop the engine (motor) whenever you

leave the equip ment, before clean ing

the mower or unclogging the chute.

• Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

• Mow only in daylight or good artifi cial light.

• Do not operate the machine while under

the infl uence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

fi rm hold on the handle; walk, never run.

• Disengage the self-propelled mech-

a nism or drive clutch on mowers so

equipped before starting the engine.

• If the equipment should start to vi brate

abnormally, stop the engine (motor) and

check immediately for the cause. Vibra-

tion is generally a warning of trouble.

• Always wear safety goggles or safe ty glass-

es with side shields when op er at ing mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip &

fall accidents which can result in severe

injury. All slopes require extra caution. If

you feel uneasy on a slope, do not mow it. 39

SERVICE NOTES

431621 01.05.10 BY Printed in U.S.A.

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR

®

(1-888-784-6427)

Au Canada pour service en français:

1-800-LE-FOYER

MC

(1-800-533-6937)

www.sears.ca

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

Your Home

For repair – in your home –ofall major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME®Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Get it fixed, at your home or ours!

© Sears Brands, LLC

® Registered Trademark / TM Trademark / SM Service Mark of Sears Brands, LLC

® Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears Brands, LLC

MC Marque de commerce / MD Marque déposée de Sears Brands, LLC

Model No.

917.384510

Product No.

6021P

CAUTION:

Read and follow all

Safety Rules and In struc tions

before operating this equipment

Owner’s Manual

ROTARY LAWN MOWER

149cc Kohler Engine

21" Multi-Cut

Husqvarna, Charlotte, NC 28269 U.S.A.

Visit our website: www.husqvarna.com

• Español, p. 19
