Owner's Manual

07002

532 44 00-55

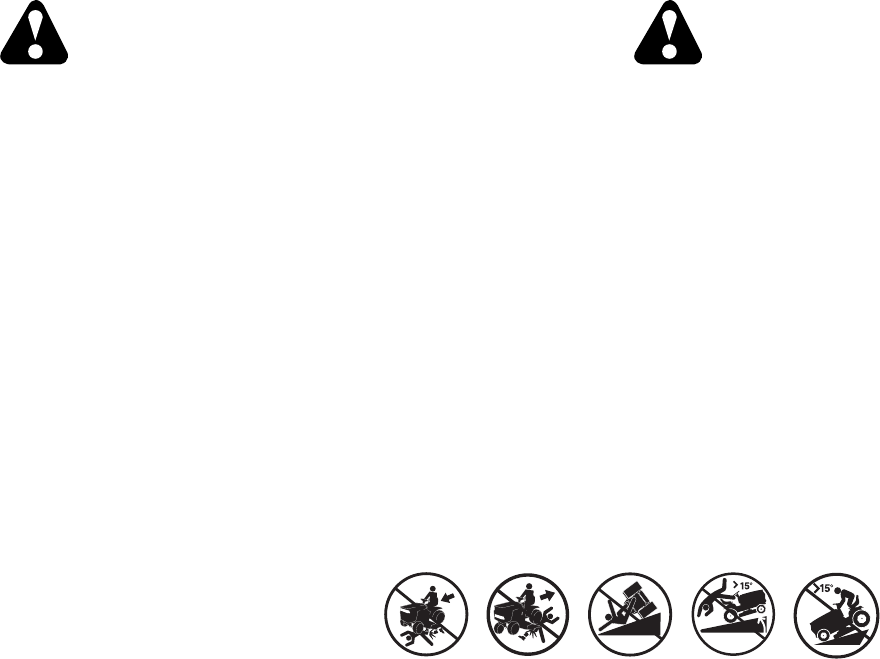

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE

TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

• Read, understand, and follow all instructions on the

machine and in the manual before starting.

• Do not put hands or feet near rotating parts or under

the machine. Keep clear of the discharge opening at

all times.

• Only allow responsible adults, who are familiar with

the in struc tions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blades.

• Be sure the area is clear of bystanders before

operating. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while back ing.

• Never direct discharged material toward anyone. Avoid

discharging material against a wall or obstruction.

Material may ricochet back toward the operator. Stop

the blades when crossing gravel surfaces.

• Do not operate machine without the entire grass catcher,

discharge chute, or other safety devices in place and

working.

• Slow down before turning.

WARNING: In order to prevent ac ci den tal

starting when setting up, trans port ing,

ad just ing or making repairs, al ways

dis con nect spark plug wire and place

wire where it can not contact spark plug.

WARNING: Do not coast down a hill in neu-

tral, you may lose control of the tractor.

WARNING: Tow only the attachments that

are rec om mend ed by and comply with

spec i fi ca tions of the man u fac tur er of your

tractor. Use common sense when towing.

Operate only at the low est possible speed

when on a slope. Too heavy of a load,

while on a slope, is dan ger ous. Tires

can lose trac tion with the ground and

cause you to lose control of your tractor.

WARNING

Engine exhaust, some of its con stit u ents, and cer tain

vehicle com po nents contain or emit chem i cals

known to the State of Cal i for nia to cause can cer

and birth de fects or oth er re pro duc tive harm.

WARNING

Battery posts, terminals and related ac ces so ries

contain lead and lead compounds, chem i cals known

to the State of Cal i for nia to cause can cer and birth

defects or oth er re pro duc tive harm. Wash hands

after handling.

• Never leave a running machine unattended. Always

turn off blades, set parking brake, stop engine, and

remove keys before dismounting.

• Disengage blades when not mowing. Shut off engine

and wait for all parts to come to a complete stop before

cleaning the machine, removing the grass catcher, or

unclogging the discharge chute.

• Operate machine only in daylight or good artificial light.

• Do not operate the machine while under the influence

of alcohol or drugs.

• Watch for traffic when operating near or crossing

road ways.

• Use extra care when loading or unloading the machine

into a trailer or truck.

• Always wear eye protection when operating machine.

• Data indicates that operators, age 60 years and above,

are involved in a large percentage of riding mower-

related injuries. These operators should evaluate their

ability to operate the riding mower safely enough to

protect them selves and others from serious injury.

• Follow the manufacturer's recommendation for wheel

weights or counterweights.

• Keep machine free of grass , leaves or other debris

build-up which can touch hot exhaust / engine parts

and burn. Do not allow the mower deck to plow leaves

or other debris which can cause build-up to occur.

Clean any oil or fuel spillage before operating or storing

the machine. Allow machine to cool before storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss of control and tip-

over accidents, which can result in severe injury or death.

Operation on all slopes requires extra caution. If you cannot

back up the slope or if you feel uneasy on it, do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or other hidden

objects. Uneven terrain could overturn the machine.

Tall grass can hide obstacles.

• Choose a low ground speed so that you will not have

to stop or shift while on the slope.

• Do not mow on wet grass. Tires may lose traction.

Always keep the machine in gear when going down

slopes. Do not shift to neutral and coast downhill.

• Avoid starting, stopping, or turning on a slope. If the

tires lose traction, disengage the blades and proceed

slowly straight down the slope.

• Keep all movement on the slopes slow and gradual.

Do not make sudden changes in speed or direction,

which could cause the machine to roll over.

• Use extra care while operating machine with grass

catchers or other at tach ments; they can affect the

stability of the machine. Do no use on steep slopes.

• Do not try to stabilize the machine by putting your foot

on the ground.

• Do not mow near drop-offs, ditches, or embankments.

The machine could suddenly roll over if a wheel is over

the edge or if the edge caves in.

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

• Be sure the area is clear of bystanders before operat-

ing. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Al ways look down and behind before and while back-

ing.

• Never carry children, even with the blades shut off. They

may fall off and be seriously injured or interfere with

safe machine operation. Children who have been given

rides in the past may suddenly appear in the mowing

area for another ride and be run over or backed over

by the machine.

• Keep children out of the mowing area and in the watch-

ful care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the area.

• Before and while backing, look behind and down for

small children.

• Mow up and down slopes (15° Max), not across.

• Choose a low ground speed so that you will not have

to stop or shift while on the slope.

• Avoid starting, stopping, or turning on a slope. If the

tires lose traction, disengage the blades and proceed

slowly straight down the slope.

• If machine stops while going uphill, disengage blades,

shift into reverse and back down slowly.

• Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, if possible.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to

the presence of children. Children are often attracted to

the ma chine and the mowing activity. Never assume that

children will remain where you last saw them.

• Keep children out of the mowing area and in the watchful

care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the area.

• Before and while backing, look behind and down for

small children.

• Never carry children, even with the blades shut off. They

may fall off and be seriously injured or interfere with

safe machine operation. Children who have been given

rides in the past may suddenly appear in the mowing

area for another ride and be run over or backed over

by the machine.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may block your view of a

child.

IV. TOWING

• Tow only with a machine that has a hitch designed for

towing. Do not attach towed equipment except at the

hitch point.

• Follow the manufacturer's recommendation for weight

limits for towed equipment and towing on slopes.

• Never allow children or others in or on towed equipment.

• On slopes, the weight of the towed equipment may

cause loss of traction and loss of control.

• Travel slowly and allow extra distance to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property damage, use extreme

care in handling gasoline. Gasoline is extremely flammable

and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes, and other

sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel container where there

is an open flame, spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle or on a truck or

trailer bed with plastic liner. Always place containers

on the ground away from your vehicle when filling.

• Remove gas-powered equipment from the truck or

trailer and refuel it on the ground. If this is not possible,

then refuel such equipment with a portable container,

rather than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim of the fuel tank or

container opening at all times until fueling is complete.

Do not use a nozzle lock-open device.

• If fuel is spilled on clothing, change clothing immediately.

• Never overfill fuel tank. Replace gas cap and tighten

securely.

GENERAL SERVICE

• Never operate machine in a closed area.

• Keep all nuts and bolts tight to be sure the equipment

is in safe working condition.

• Never tamper with safety devices. Check their proper

operation regularly.

• Keep machine free of grass, leaves, or other debris

build-up. Clean oil or fuel spillage and remove any fuel-

soaked debris. Allow machine to cool before storing.

• If you strike a foreign object, stop and inspect the

machine. Repair, if necessary, before restarting.

• Never make any adjustments or repairs with the engine

run ning.

• Check grass catcher components and the discharge

chute frequently and replace with manufacturer's rec-

ommended parts, when necessary.

• Mower blades are sharp. Wrap the blade or wear

gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service

as required.

• Maintain or replace safety and instruction labels, as

necessary.

SAFETY RULES ......................................................... 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ................................. 4

ASSEMBLY ................................................................. 5-8

OPERATION ............................................................. 9-15

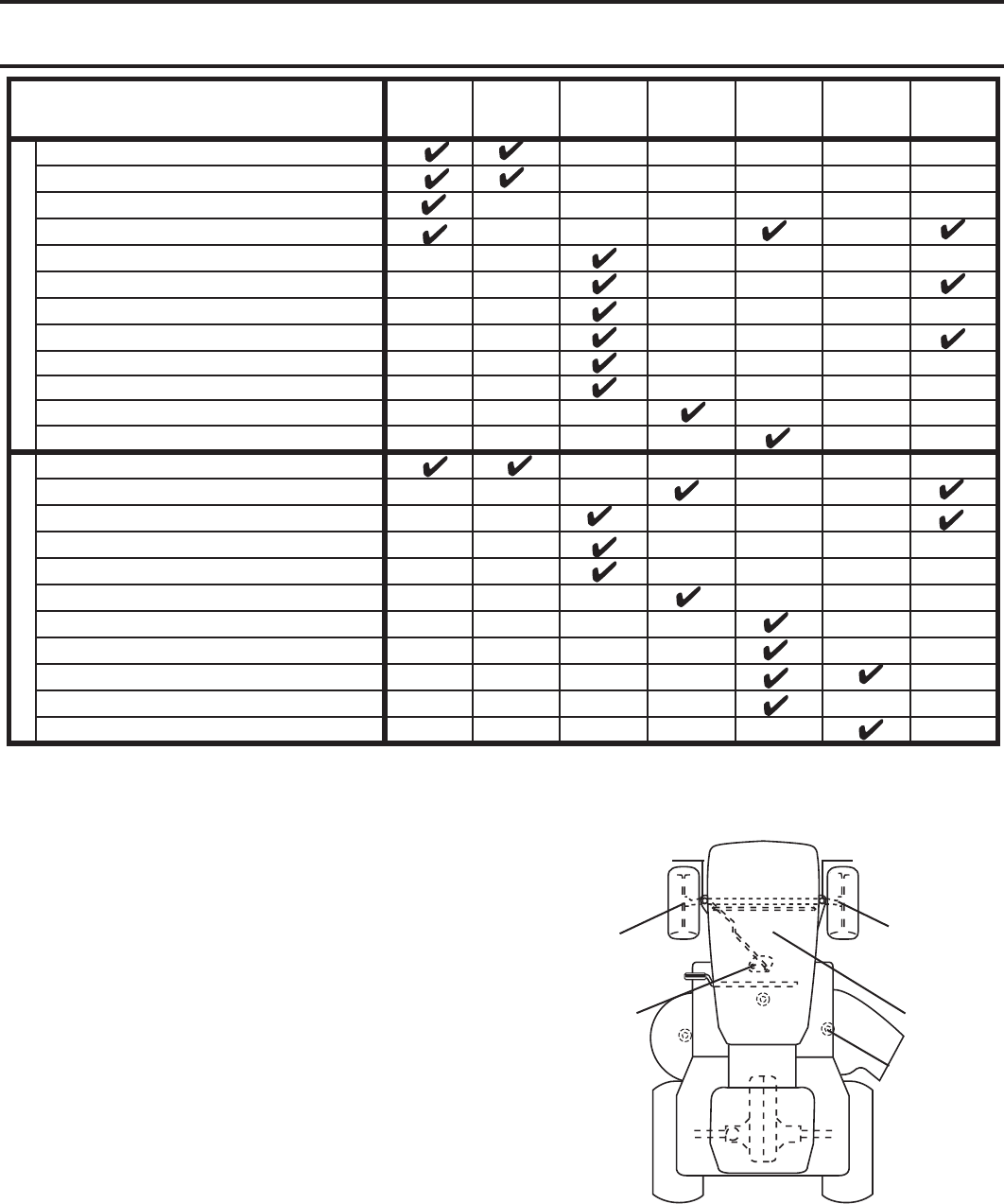

MAINTENANCE SCHEDULE ...................................... 16

MAINTENANCE ..................................................... 16-19

SERVICE AND AD JUST MENTS ............................ 20-24

STORAGE .................................................................... 25

TROU BLE SHOOT ING ............................................ 26-27

REPAIR PARTS ...................................................... 28-42

WARRANTY ............................................. BACK COVER

TABLE OF CONTENTS

PRODUCT SPECIFICATIONS

Gasoline Capacity 4 Gallons

and type: Unleaded Regular

Oil Type (API-SG-SL): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

Oil Capacity: W/ Filter: 64 oz

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed (MPH): Forward: 0 - 5.2

Reverse: 0 - 2.9

Charging System: 15 AMPS @ 3600 RPM

Battery: AMP/HR: 28

MIN. CCA: 230

Case Size: U1R

Blade Bolt Torque: 45-55 FT. LBS.

CONGRATULATIONS on your purchase of a new tractor.

It has been designed, engineered and manu fac tured to give

you the best possible dependability and performance.

Should you experience any problem you cannot easily rem-

edy, please contact your nearest authorized servicecenter/

de part ment We have competent, well-trained tech ni cians

and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor prop erly.

Always observe the “SAFETY RULES”.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for

and using your tractor.

• Follow the instructions under “Maintenance” and “Stor-

age” sec tions of this own er’s manual.

WARNING: This tractor is equipped with an internal com-

bus tion engine and should not be used on or near any un-

im proved forest-covered, brush-covered or grass-cov ered

land unless the en gine’s exhaust system is equipped with

a spark arrester meeting ap pli ca ble local or state laws (if

any). If a spark arrester is used, it should be maintained

in effective working order by the operator.

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code).

Other states may have similar laws. Federal laws apply

on federal lands.

A spark arrester for the muffler is available through your

nearest authorized service center/department (See RE PAIR

PARTS section of this manual).

5Fig. 1

LABEL

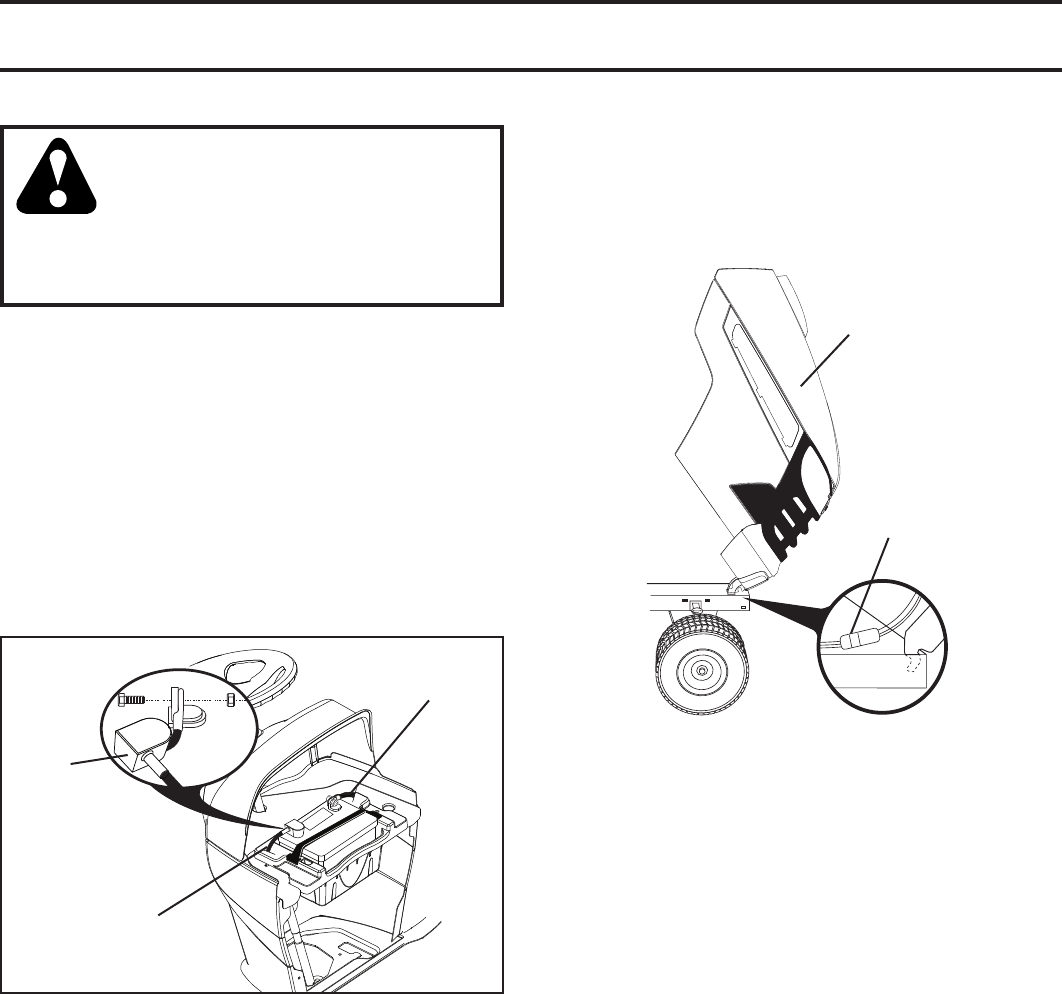

TO CHECK BATTERY (See Fig. 1)

• Lift hood to raised position.

NOTE: If this battery is put into service after month and

year indicated on label (label is located between terminals)

charge battery for minimum of one hour at 6-10 amps.

(See "BATTERY" in Maintenance section of this manual

for charging instructions).

• For battery and battery cable installation see "RE-

PLACING BATTERY" in the "Service and Adjustments"

section in this manual.

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons

from carton .

• Cut along dotted lines on all four panels of carton.

Remove end panels and lay side panels flat.

• Remove mower and packing materials.

• Check for any additional loose parts or cartons and

remove.

BEFORE REMOVING TRACTOR FROM

SKID

ASSEMBLY

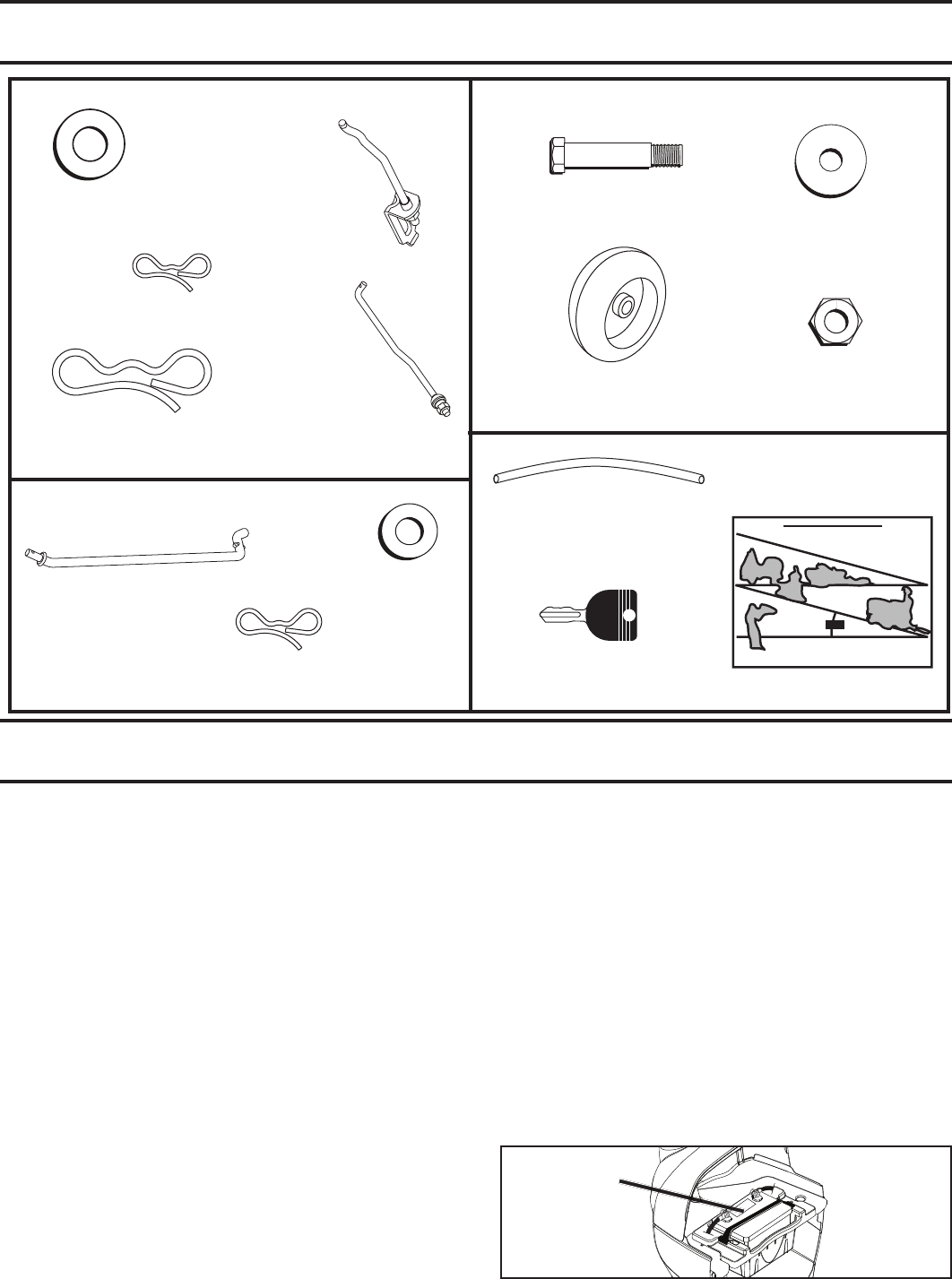

UNASSEMBLED PARTS

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to ensure proper tightness.

(5) Large

Retainer Springs

(1) Small

Retainer Springs

61/3-1 )5(

srehsaW .D.O

(2) Rear

Lift Link

Assemblies

(1) Front

Lift Link

Assembly

(1) Anti-Sway Bar (1) 3/4 O.D.

Washers

(1) Small Retainer

Springs

(1) 1-1/4 O.D.

Washer

(1) Wheel (1) 3/8-16

Locknut

(1) Shoulder Bolt

Mower

If Equipped

(2) Keys

Slope Sheet

Keys

(1) Oil Drain Tube

Mower Front Wheel

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Stan dard

wrench sizes are listed.

(2) 7/16" wrenches Utility knife

(1) 1/2" wrench Tire pressure gauge

(1) 3/4" wrench Pliers

(1) 3/4" socket w/drive ratchet

(1) 9/16" wrench Flashlight

When right or left hand is mentioned in this man ual, it means

when you are in the operating po si tion (seated be hind the

steer ing wheel).

NOTE: You may now roll your tractor off the skid. Follow the

instructions below to remove the tractor from the skid.

WARNING: Before start ing, read, un der stand and fol low

all in struc tions in the Op er a tion section of this man u al. Be

sure tractor is in a well-ventilated area. Be sure the area in

front of tractor is clear of other peo ple and objects.

TO ROLL TRACTOR OFF SKID (See Op er a tion

section for location and function of con trols)

• Raise attachment lift lever to its highest po si tion.

• Release parking brake by de press ing clutch/brake ped al.

• Place freewheel control in "trans mis sion dis en gaged"

position (See “TO TRANS PORT” in the Op er a tion

section of this manual).

• Roll tractor forward off skid.

Continue with the instructions that follow.

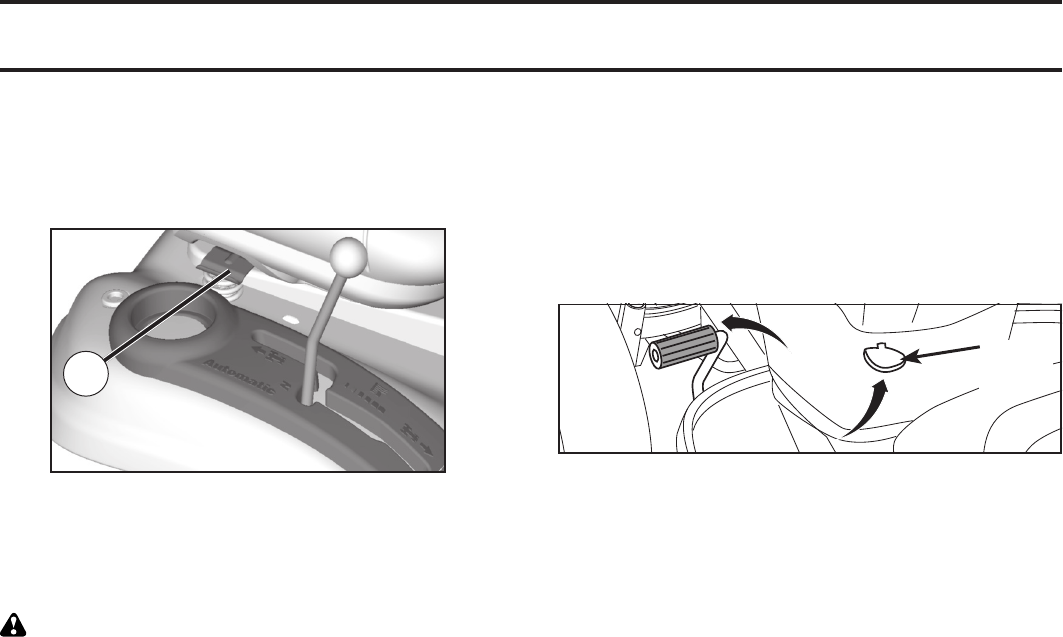

Fig. 2

ASSEMBLY

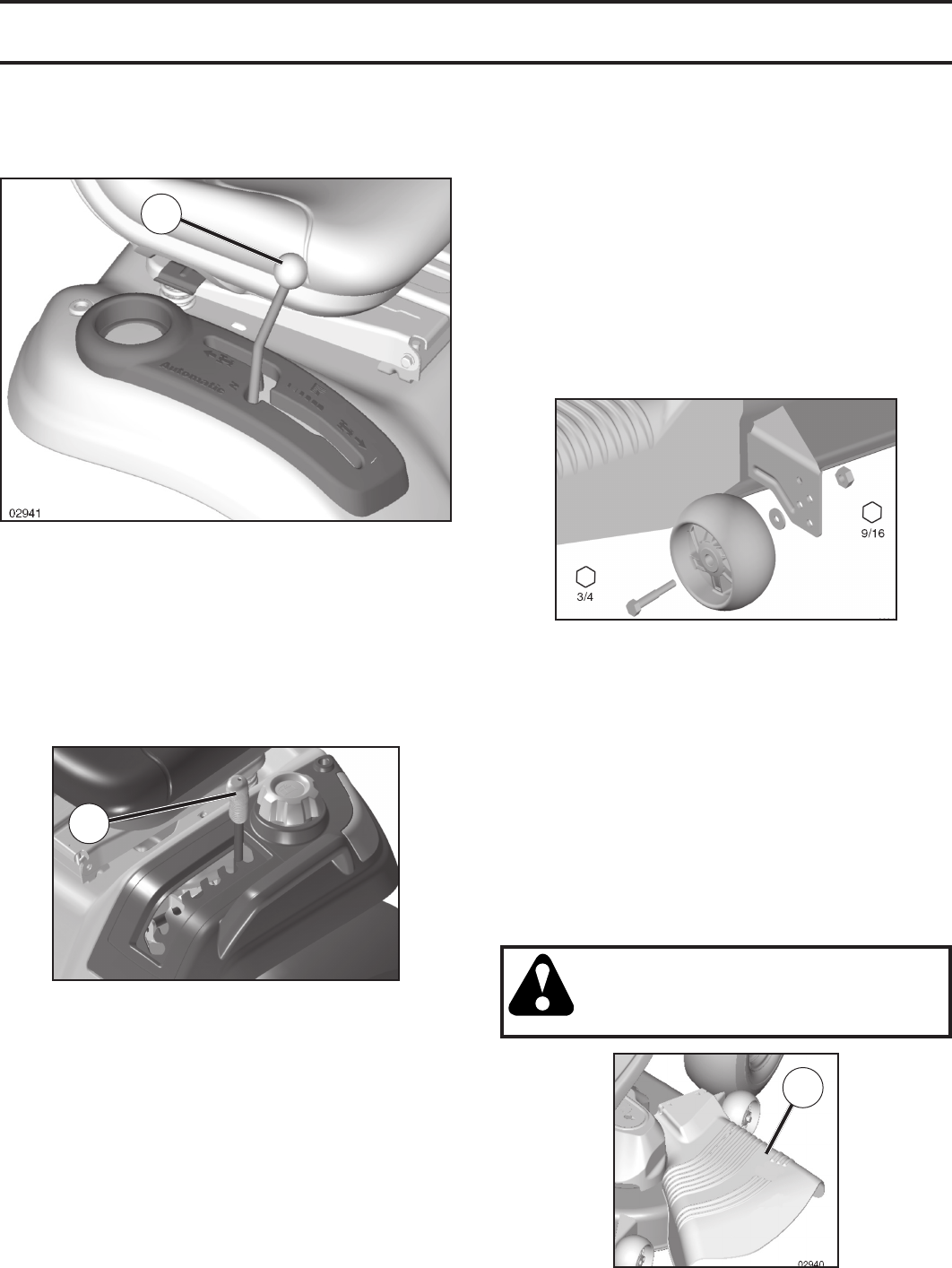

ADJUST SEAT (See Fig. 2)

• Sit in seat.

• Lift up adjustment lever (A) and slide seat until a com-

fortable position is reached which allows you to press

clutch/brake pedal all the way down.

• Release lever to lock seat in position.

TO INSTALL MOWER AND DRIVE BELT

(See Figs. 3 - 14)

1. SET PARKING BRAKE LEVER AND LOWER AT-

TACHMENT LIFT (See Fig. X1)

• Depress clutch/brake pedal all the way down and hold.

• Pull parking brake lever up and hold, re lease pres sure

from clutch/brake pedal, then release parking brake

lever. Pedal should re main in brake position. Ensure

parking brake will hold tractor secure.

PARKING

BRAKE

LEVER

Fig. 3

• The attachment lift switch is used to raise and lower

the mower deck or other attachments mounted to your

tractor. Ignition must be on to operate this switch.

• Lower attachment lift to its lowest position.

ASSEMBLY

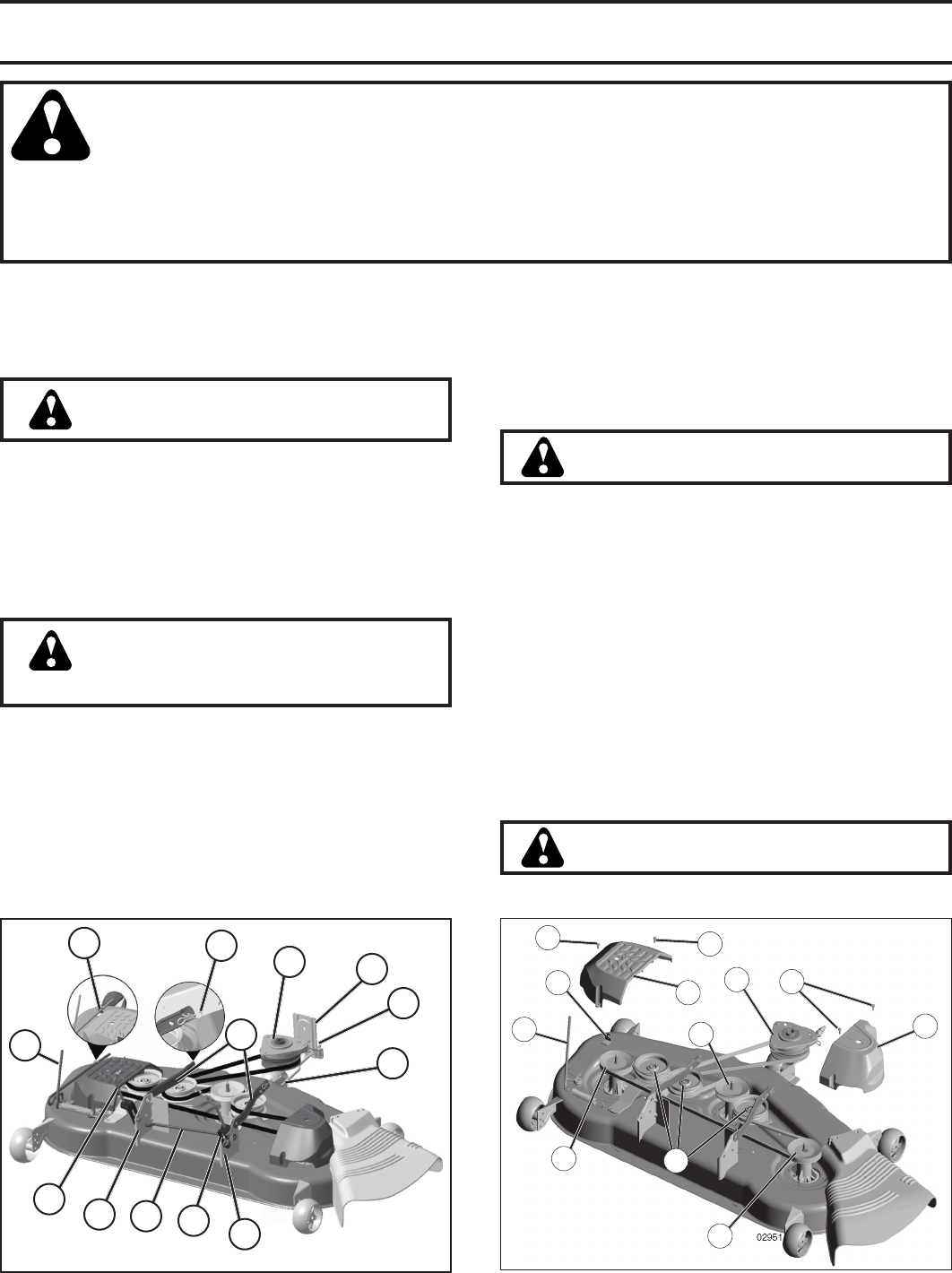

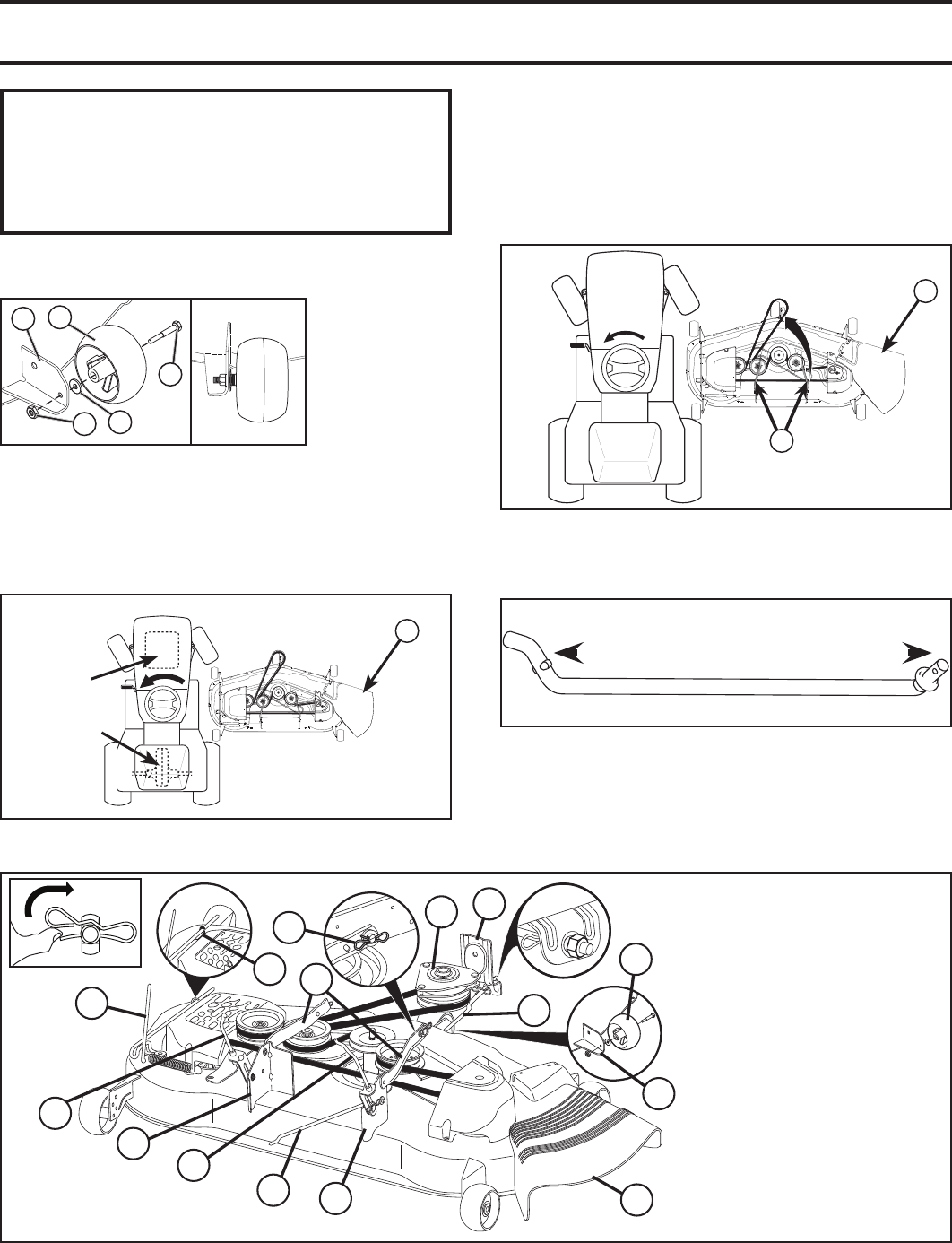

A. MOWER SIDE SUSPENSION

ARMS

B. RETAINER SPRING

C. REAR LIFT LINK(S)

D. RIGHT SIDE REAR MOWER

BRACKET

E. FRONT LIFT LINK ASSEMBLY

F. FRONT SUSPENSION BRACKET

H. FRONT MOWER BRACKET

I. LEFT SIDE REAR MOWER

BRACKET

K. BELT TENSION ROD

L. LOCKING BRACKET

M. ENGINE CLUTCH PULLEY

Q. DEFLECTOR SHIELD

S. ANTI-SWAY BAR

W. FRONT GAUGE WHEEL

TRANSAXLE

02965

FRONT

BACK

ENGINE

Q. DEFLECTOR

SHIELD

Fig. 5

90° END INTEGRATED WASHER END

ANTI-SWAY BAR (S)

TOWARDS TOWARDS

TRANSAXLE MOWER DECK

• From right side of mower, first insert 90° end of anti-sway

bar (S) into hole in transaxle bracket (T), located near

left rear tire in front of transaxle.

NOTE: Flashlight may be helpful.

5. INSTALL ANTI-SWAY BAR (S) (IF EQUIPPED)

(See Fig. 8 - 10)

Fig. 8

02965

A. MOWER SIDE

SUSPENSION

ARMS

Q. DEFLECTOR

SHIELD

Fig. 7

4. SLIDE MOWER UNDER TRACTOR (See Fig. 7)

• Bring belt forward and check belt for proper routing in

all mower pulley grooves.

NOTE: Be sure mower side suspension arms (A) are point-

ing forward before sliding mower under tractor.

• Slide mower under tractor until it is centered under

tractor.

H. FRONT MOWER

BRACKET

W. FRONT GAUGE

WHEEL

X. SHOULDER

BOLT

Y. 1-1/4 O.D.

WASHER

Z. 3/8-16 LOCKNUT

Fig. 4

Fig. 6

3. TURN STEERING WHEEL LEFT AND POSITION

MOWER (See Fig. 5)

• Turn steering wheel to the left as far as it will go and

position mower on right side of tractor with deflector

shield (Q) to the right.

2. ASSEMBLE FRONT GAUGE WHEEL (W) TO FRONT

OF MOWER (See Fig. 4)

CAUTION: Continuing to press the electric lift switch

after the mower deck has reached the minimum

or maximum position may result in damage to the

electric lift mechanism.The electric lift mechanism

is equipped with a thermal protection system. If

the system overheats or fails to operate, allow the

system to cool before attempting to operate again.

ASSEMBLY

6. ATTACH MOWER SIDE SUSPENSION ARMS (A) TO

CHASSIS (See Fig. 11)

• Position front hole in side suspension arm (A) over

pin on outside of tractor chassis and secure with large

washer and large retainer spring (B).

• Repeat on opposite side of tractor.

A. MOWER SIDE

SUSPENSION

ARMS

B. RETAINER

SPRING

D. RIGHT

SIDE REAR

MOWER

BRACKET

Fig. 11

NOTE: Depending on model, bracket (T) may be differ-

ent than shown but hole for anti-sway bar will be in same

position/location.

ANTI-SWAY BAR

(S) LOCATION TRANSAXLE

BRACKET (T)

LOCATED

BETWEEN REAR

TIRES

PLACE 90° END INTO HOLE

TS. ANTI-SWAY BAR

T. TRANSAXLE BRACKET

Fig. 9

8 ATTACH FRONT LINK (E) (See Fig. 13)

• Turn steering wheel to position wheels straight forward.

• From front of tractor, insert rod end of front link (E)

through front hole in tractor front suspension bracket (F).

• Move to left side of mower and and insert large retainer

spring (G) through hole in front link (E) behind front

suspension bracket (F).

• Insert other end of link (E) into hole in front mower

bracket (H) and secure with washer and small retainer

spring (J).

NOTE: Requires deck lifting.

Fig. 13

FRONT LINK

LOCATION

E. FRONT LIFT LINK ASSEMBLY

F. FRONT SUSPENSION BRACKET

G. LARGE RETAINER SPRING

H. FRONT MOWER BRACKET

J. SMALL RETAINER SPRING

M. ENGINE CLUTCH PULLEY

Fig. 12

7. ATTACH REAR LIFT LINKS (C) (See Fig. 12)

• Insert rod end of rear lift link (C) into hole (U) in tractor

lift shaft suspension arm and pivot link down to mower.

• Lift rear corner of mower and position slot in link as-

sembly over pin on rear mower bracket (D) and secure

with large washer and large retainer spring.

• Repeat on opposite side of tractor.

C. REAR LIFT LINK(S)

D. RIGHT SIDE REAR

MOWER BRACKET

U. HOLE

D. RIGHT SIDE

REAR MOWER

BRACKET

S. ANTI-SWAY BAR

T. TRANSAXLE

BRACKET

Fig. 10

• Pivot the integrated washer end of anti-sway bar (S)

towards mower deck bracket on right side of mower.

Insert integrated washer end of bar into hole in rear

mower bracket (D). Move mower as needed to insert

integrated washer end of bar into rear mower bracket (D).

• Secure with small washer and small retainer spring as

shown.

ASSEMBLY

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory

for shipping purposes. Correct tire pressure is important

for best cutting performance.

• Reduce tire pressure to PSI shown on tires.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be prop-

erly leveled. See “TO LEVEL MOWER HOUSING” in the

Service and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments sec-

tion of this manual. Verify that the belts are routed cor rect ly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that

the brake is operating properly. See “TO CHECK BRAKE”

in the Service and Adjustments section of this manual.

✓CHECKLIST

BEFORE YOU OPERATE YOUR NEW TRAC TOR, WE

WISH TO ASSURE THAT YOU RECEIVE THE BEST

PERFORMANCE AND SATISFACTION FROM THIS

QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

✓ All assembly instructions have been com plet ed.

✓ No remaining loose parts in carton.

✓ Battery is properly prepared and charged.

✓ Seat is adjusted comfortably and tightened securely.

✓ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

✓ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

✓ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

✓ Check wiring. See that all connections are still secure

and wires are properly clamped.

✓ Before driving tractor, be sure free wheel control is in

“transmission engaged” position (see “TO TRANS-

PORT” in the Operation section of this man u al).

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

✓ Engine oil is at proper level.

✓ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

✓ Become familiar with all controls, their location and

function. Operate them before you start the engine.

✓ Be sure brake system is in safe operating condition.

✓ Be sure Operator Presence System and Reverse Op-

eration System (ROS) are working properly (See the

Operation and Maintenance sections in this manual).

✓ It is important to purge the transmission before op-

er at ing your tractor for the first time. Follow proper

starting and transmission purging instructions (See

“TO START EN GINE” and “PURGE TRANSMISSION”

in the Op er a tion section of this manual).

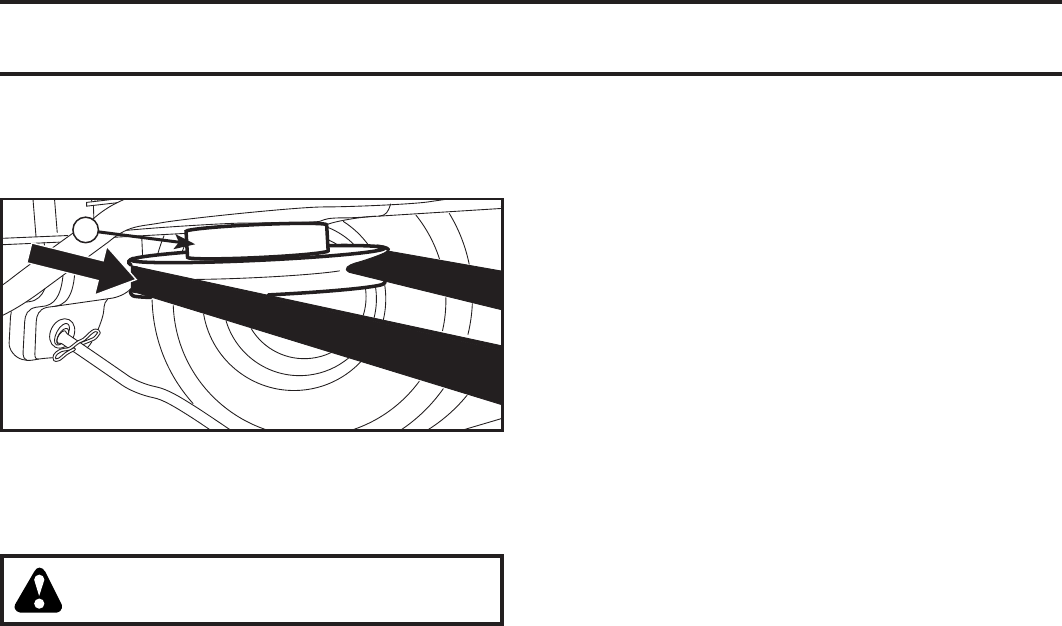

9 INSTALL BELT ON ENGINE CLUTCH PULLEY (M)

(See Fig. 6 & 14)

• Disengage belt tension rod (K) from locking bracket (L).

• Install belt onto engine clutch pulley (M).

M. ENGINE

CLUTCH PULLEY

Fig. 14

IMPORTANT: Check belt for proper routing in all mower

pulley grooves and under mandrel covers.

• Engage belt tension rod (K) on locking bracket (L).

CAUTION: Belt tension rod is spring loaded.

Have a tight grip on rod and engage slowly.

• Raise attachment lift to highest position.

• If necessary, adjust gauge wheels before op er at ing

mower as shown in the Operation section of this manual.

MOWER DRIVE BELT INSTALLATION

Follow procedure described in “TO REPLACE MOWER

BLADE DRIVE BELT ” in the "Service and Adjustments"

section of this manual.

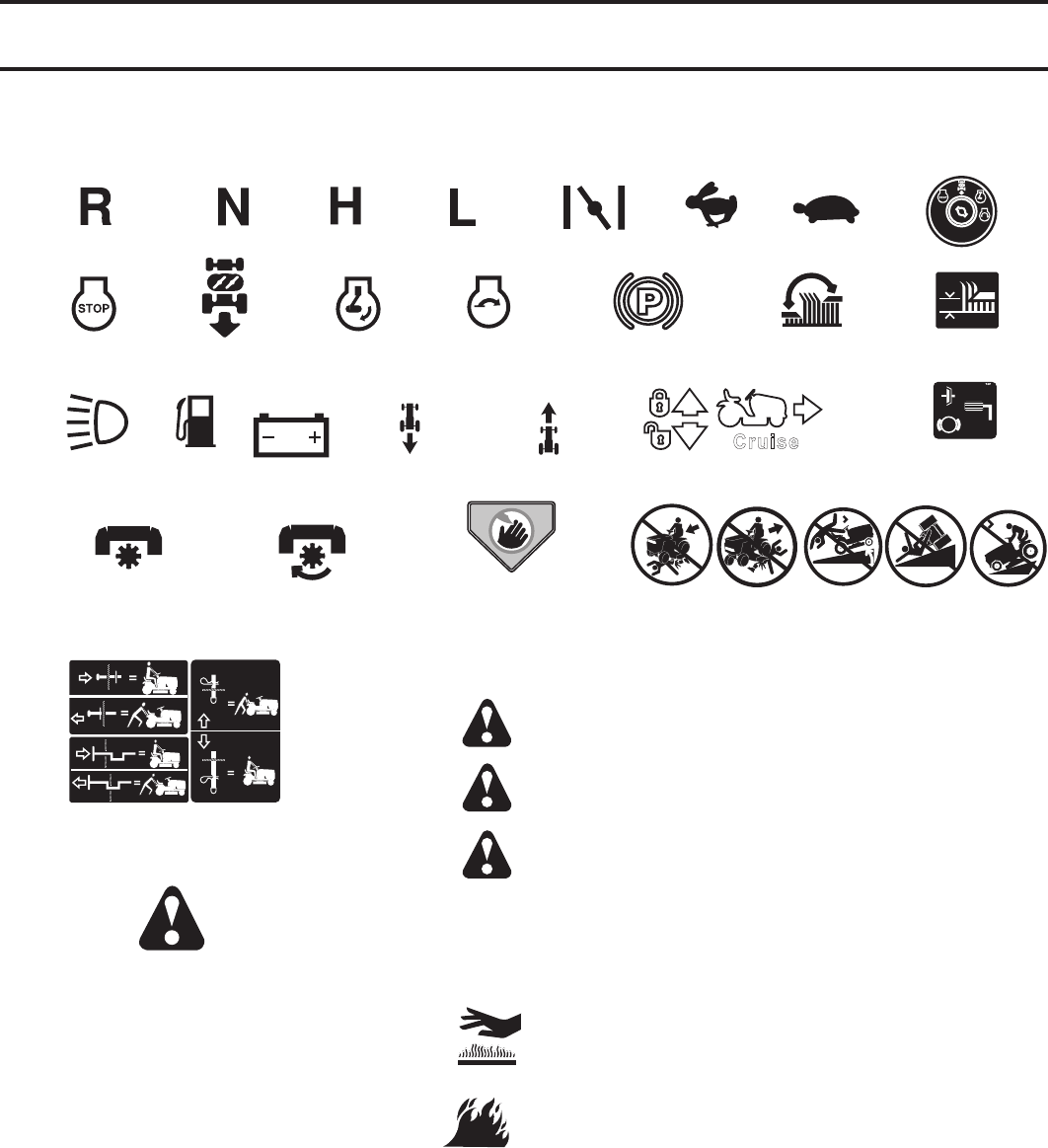

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

DANGER, KEEP HANDS

AND FEET AWAY

FREE WHEEL

(Automatic Models only)

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

BATTERY REVERSE FORWARD

FAST SLOW

ENGINE ON

ENGINE OFF

FUEL

CHOKE

MOWER HEIGHT

REVERSE NEUTRAL HIGH LOW

ATTACHMENT

CLUTCH ENGAGED

PARKING BRAKE

IGNITION SWITCH

ATTACHMENT

CLUTCH DISENGAGED

ENGINE START MOWER LIFT

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

REVERSE

OPERATION

SYSTEM (ROS)

LIGHTS ON CLUTCH/BRAKE

PEDAL

CRUISE CONTROL

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments.

Save this manual for future reference.

Our tractors conform to the applicable safety standards of the American National Standards Institute.

Fig. 15

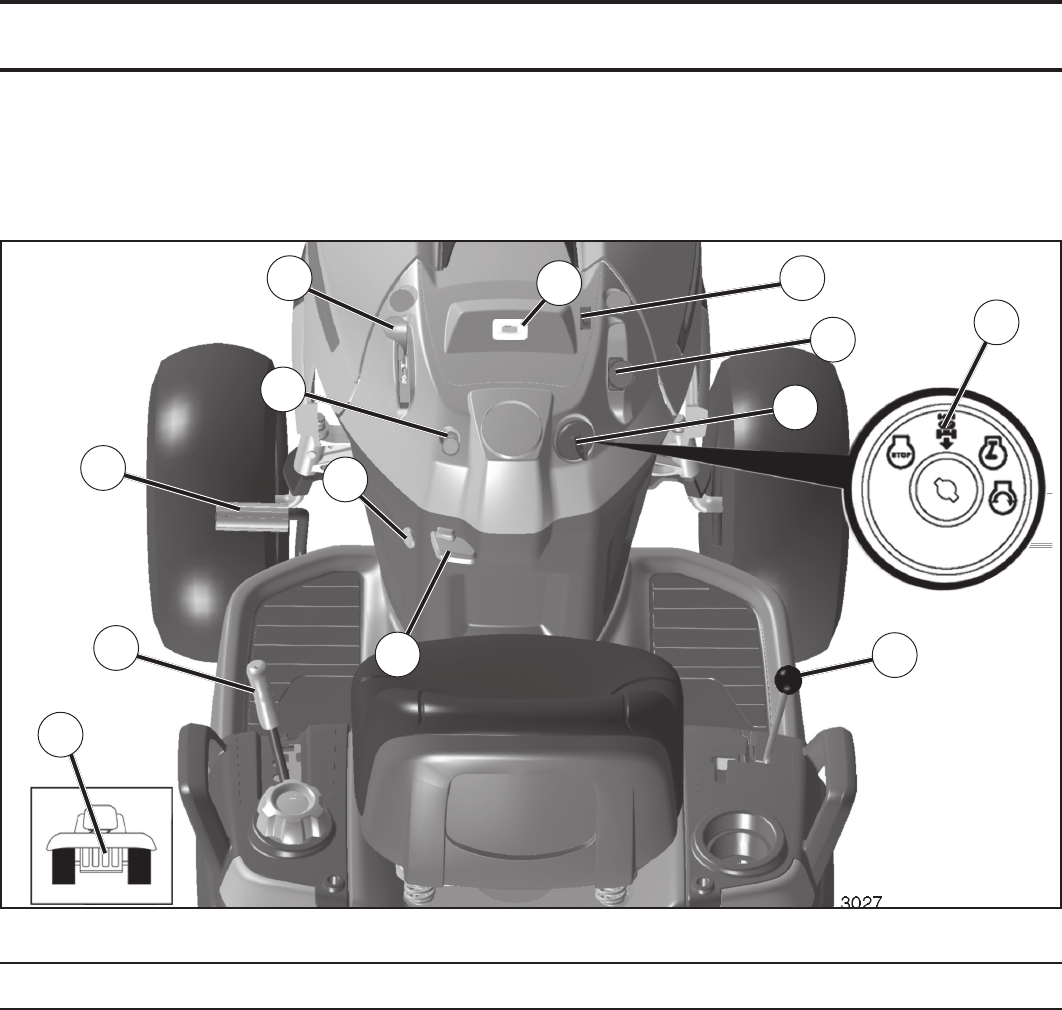

(A) ATTACHMENT LIFT LEVER - Used to raise and lower

the mower or other attachments mounted to your trac tor.

(B) BRAKE PEDAL - Used for brak ing the tractor and

start ing the engine.

brake position.

(D) THROTTLE CONTROL - Used to control engine speed.

(E) ATTACHMENT CLUTCH SWITCH - Used to engage

the mow er blades, or other at tach ments mounted to your

tractor.

(F) IGNITION SWITCH - Used for starting and stopping

the engine.

(G) REVERSE OPERATION SYSTEM (ROS) "ON"

POSITION - Allows operation of mower or other powered

attachment while in reverse.

(H) LIGHT SWITCH - Turns the headlights on and off.

(J) MOTION CONTROL LEVER - Selects the speed and

di rec tion of the tractor.

(M) FREEWHEEL CONTROL - Disengages transmission

for pushing or slowly tow ing the trac tor with the engine off.

(N) CHOKE CONTROL - Used when starting a cold engine.

(P) SERVICE REMINDER/HOUR METER - Indicates

when service is required for the engine and mower.

(Q) 12-VOLT POWER PORT - Used for 12-volt accessories.

OPERATION

Fig. 16

The operation of any tractor can result in foreign objects thrown into the eyes, which can result

in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor

or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide

vision safety mask worn over spectacles.

Fig. 18

HOW TO USE YOUR TRAC TOR

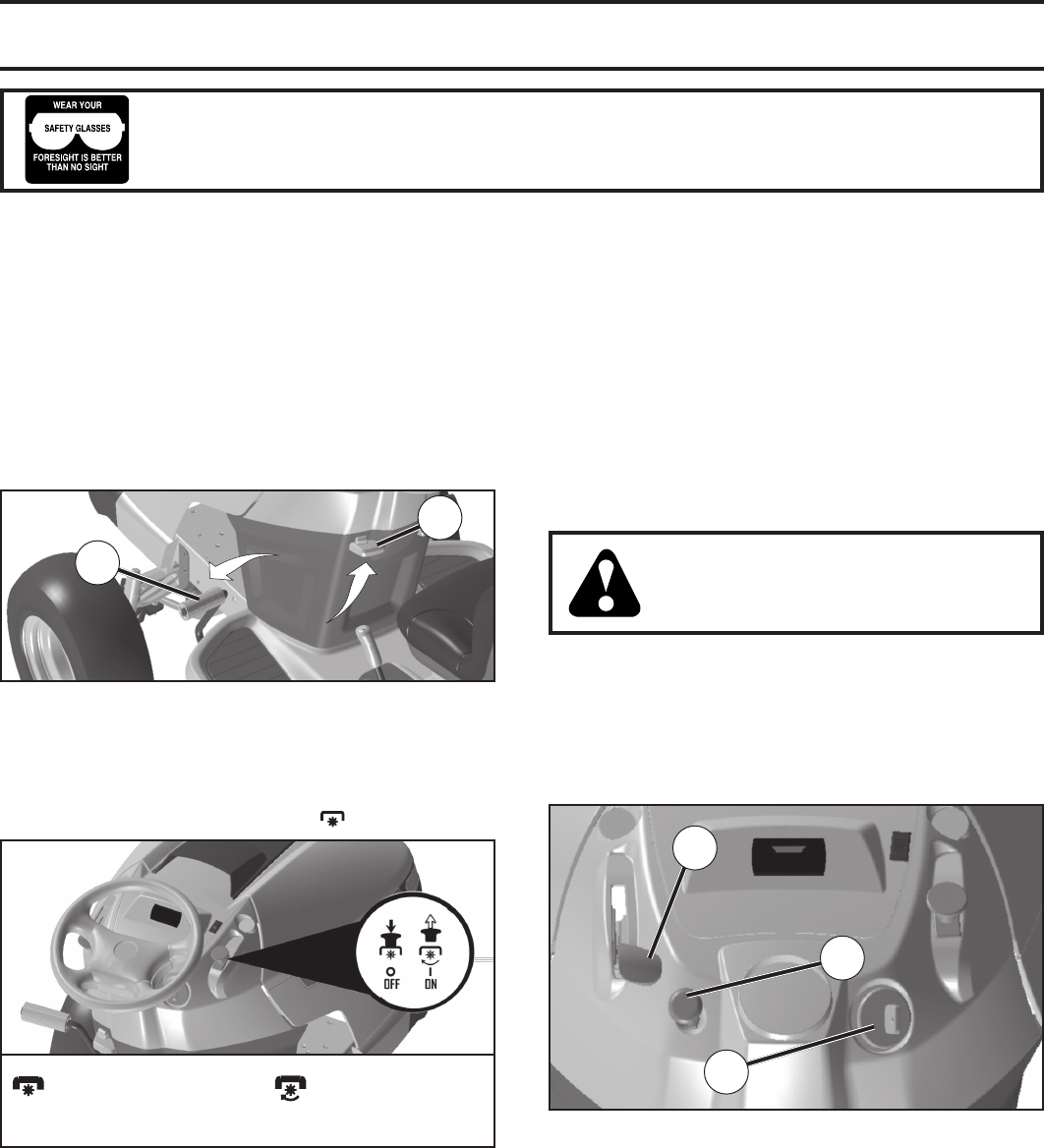

TO SET PARKING BRAKE(See Fig. 16)

Your tractor is equipped with an operator presence sens-

ing switch. When engine is running, any attempt by the

op er a tor to leave the seat without first setting the parking

brake will shut off the engine.

• Depress brake pedal (B) all the way down and hold.

• Pull parking brake lever (C) up and hold, re lease pres-

sure from brake pedal (B), then release parking brake

lever. Pedal should re main in brake position. Make

sure parking brake will hold tractor secure.

Fig. 17

( ) ATTACHMENT

CLUTCH SWITCH

“ENGAGED”

( ) ATTACHMENT

CLUTCH SWITCH

“DIS EN GAGED”

GROUND DRIVE -

• To stop ground drive, depress brake pedal all the way

down.

• Move motion control lever (J) to neutral position.

ENGINE -

• Move throttle control (D) between half and full speed

(fast) position.

STOPPING (See Fig. 17)

MOWER BLADES -

• To stop mower blades, place attachment clutch control

in the “DIS EN GAGED” position ( ).

NOTE: Failure to move throttle control between half and full

speed (fast) position, before stopping, may cause engine

to “backfire”.

• Turn ignition key (F) to “STOP” position and remove

key. Always remove key when leaving tractor to prevent

un au tho rized use.

• Never use the choke to stop the engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY

POSITION OTHER THAN "STOP" WILL CAUSE THE BATTERY

TO DISCHARGE AND GO DEAD.

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause “browning” of grass. To eliminate this possibility, al-

ways stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com-

plete ly, as described above, and set

parking brake before leav ing the op er a-

tor's position.

OPERATION

TO USE THROTTLE CONTROL (D) (See Fig. 18)

Always operate engine at full speed (fast).

• Operating engine at less than full speed (fast) reduces

the engine's operating efficiency.

• Full speed (fast) of fers the best mower per for mance.

TO USE CHOKE CONTROL (N) (See Fig. 18)

Use choke control whenever you are starting a cold engine.

Do not use to start a warm engine.

• To engage choke control (N), pull knob out. Slowly

push knob in to disengage.

TO ADJUST GAUGE WHEELS (See Fig. 21)

Gauge wheels are prop er ly ad just ed when they are slight ly

off the ground when mower is at the desired cutting height in

operating position. Gauge wheels then keep the deck in prop-

er position to help prevent scalping in most terrain conditions.

NOTE: Adjust gauge wheels with tractor on a flat level

surface.

• Adjust mower to desired cutting height (See “TO AD JUST

MOWER CUT TING HEIGHT” in this sec tion of manual).

• With mower in desired height of cut po si tion, gauge

wheels should be assembled so they are slightly off

the ground. In stall gauge wheel in ap pro pri ate hole.

Tighten se cure ly.

• Repeat for all, installing gauge wheel in same adjust-

ment hole.

Fig. 20

Fig. 19

Fig. 21

TO MOVE FORWARD AND BACKWARD

(See Fig. 19)

The direction and speed of movement is controlled by the

motion control lever. (J)

• Start tractor with motion control le ver in neutral position.

• Release parking brake.

• Slowly move motion control lever to desired position.

TO OPERATE MOWER

Your tractor is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine. You must remain fully and centrally

positioned in the seat to prevent the engine from hesitat-

ing or cutting off when operating your equipment on rough,

rolling terrain or hills.

• Select desired height of cut with attachment lift lever.

• Start mower blades by engaging at tach ment clutch

control.

Fig. 22

CAUTION: Do not operate the mower without

either the en tire grass catcher, on mowers

so equipped, or the deflector shield (S) in

place (See Fig. 22).

TO STOP MOWER BLADES

• Disengage at tach ment clutch con trol.

OPERATION

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 20)

The position of the attachment lift lever (A) determines the

cutting height.

• Put attachment lift lever in desired cutting height slot.

The cutting height range is ap prox i mate ly 1" to 4". The

heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate and

may vary depending upon soil conditions, height of grass

and types of grass being mowed.

• The average lawn should be cut to approximately

2-1/2" during the cool season and to over 3" during hot

months. For healthier and better looking lawns, mow

often and after moderate growth.

• For best cutting performance, grass over 6" in height

should be mowed twice. Make the first cut relatively

high; the second to de sired height.

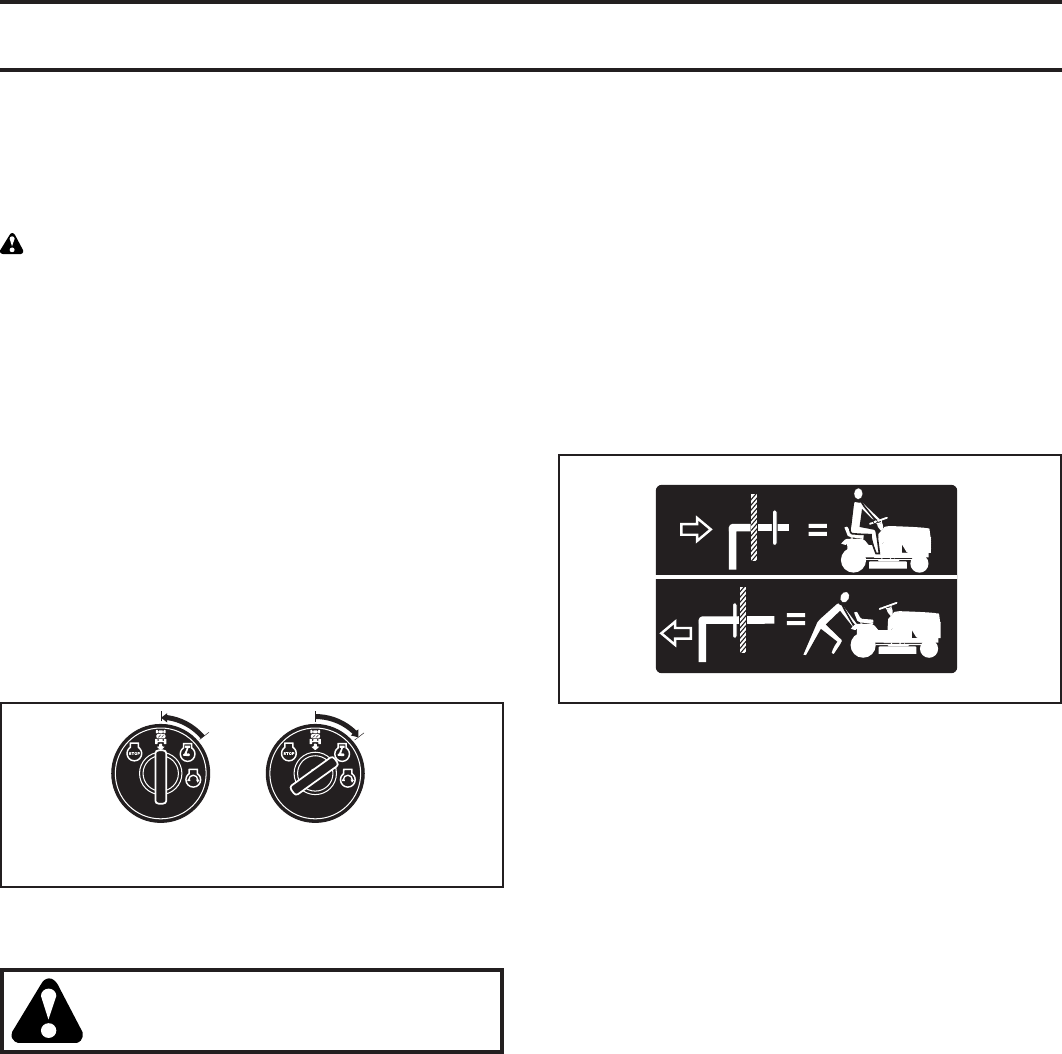

TO TRANSPORT (See Fig. 15 and 24)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in free wheel ing

po si tion. Free wheel control is located at the rear drawbar

of tractor.

• Raise attachment lift to highest position with at tach ment

lift control.

• Pull freewheel control out and down into the slot and

release so it is held in the disengaged position.

• Do not push or tow tractor at more than two (2) MPH.

• To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed

and secured to tractor. Use an appropriate means of tying

hood to tractor (rope, cord, etc.).

Fig. 24

Fig. 23

TOWING CARTS AND OTHER AT TACH MENTS

Tow only the attachments that are recommended by and

comply with specifications of the manufacturer of your trac-

tor. Use common sense when towing. Too heavy of a load,

while on a slope, is dangerous. Tires can lose traction with

the ground and cause you to lose control of your tractor.

SERVICE REMINDER/HOUR METER

Service reminder shows the total number of hours the engine

has run and flashes to indicate that the engine or mower

needs servicing. When service is required, the service

reminder will flash for two hours. To service engine and

mower, see the Maintenance section of this manual.

NOTE: Service reminder runs when the ignition key is in

any position but "STOP". For accurate reading, be sure key

remains in the "STOP" position when engine is not running.

TRANSMISSION ENGAGED

TRANSMISSION DISENGAGED

TO OPERATE ON HILLS

CAUTION: Do not drive up or down hills

with slopes greater than 15° and do not

drive across any slope.

• Choose the slowest speed before starting up or down

hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to

slower position.

• If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking brake.

• Move motion control lever to neutral position.

IMPORTANT: THE MOTION CONTROL LEVER DOES NOT

RETURN TO NEUTRAL POSITION WHEN THE BRAKE PED AL

IS DEPRESSED.

• To restart movement, slowly release parking brake and

clutch/brake pedal.

• Slowly move motion control lever to slowest setting.

• Make all turns slowly.

OPERATION

REVERSE OPERATION SYSTEM (ROS)

Your tractor is equipped with a Reverse Operation System

(ROS). Any attempt by the operator to travel in the reverse

direction with the attachment clutch engaged will shut off

the engine unless ignition key is placed in the ROS "ON"

position.

WARNING: Backing up with the attachment clutch en-

gaged while mowing is strongly discouraged. Turning the

ROS "ON", to allow reverse operation with the attachment

clutch engaged, should only be done when the operator

decides it is necessary to reposition the machine with the

attachment engaged. Do not mow in reverse unless

absolutely necessary.

USING THE REVERSE OPERATION SYSTEM (See Fig. 23)

Only use if you are certain no children or other bystanders

will enter the mowing area.

• Move motion control lever to neutral (N) position.

• With engine running, turn ignition key counterclockwise

to ROS "ON" position.

• Look down and behind before and while backing.

• Slowly move motion control lever to reverse (R) po si -

tion to start movement.

• When use of the ROS is no longer needed, turn the

ignition key clockwise to engine "ON" position.

ROS "ON"

POSITION

ENGINE "ON" POSITION

(NORMAL OPERATING)

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do not overfill.

Use fresh, clean, regular un lead ed gasoline with a

minimum of 87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits and reduce

valve life). Do not mix oil with gasoline. Purchase fuel

in quan ti ties that can be used within 30 days to assure

fuel freshness.

CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES BELOW

32°F (0°C), USE FRESH, CLEAN WINTER GRADE GAS O LINE

TO HELP ENSURE GOOD COLD WEATHER START ING.

CAUTION: Alcohol blended fuels (called gasohol

or using ethanol or methanol) can attract moisture

which leads to sep a ra tion and for ma tion of acids

during storage. Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before

stor age of 30 days or longer. Drain the gas tank,

start the engine and let it run until the fuel lines and

carburetor are empty. Use fresh fuel next season.

See Storage In struc tions for additional information.

Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

OPERATION

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the

factory, already filled with sum mer weight oil.

• Check engine oil with tractor on level ground.

• Pull up and remove oil fill cap/dipstick; wipe oil off.

Reinsert the dipstick into the tube and push down firmly

into place. Remove and read oil level. If necessary,

add oil until “FULL” mark on dipstick is reached. Do

not overfill.

• For cold weather operation you should change oil for

easier starting (See “OIL VISCOSITY CHART” in the

Maintenance sec tion of this manual).

• To change engine oil, see the Maintenance section in

this manual.

TO START ENGINE (See Fig. 16)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.

• Be sure freewheel control is in the transmission en gaged

position.

• Sit on seat in operating position, depress clutch/brake

pedal and set parking brake.

• Place motion control lever in neutral position.

• Move attachment clutch to “DISENGAGED” position.

• Move throttle control to fast position

• Pull choke control out for a cold engine start attempt.

For a warm engine start attempt the choke control may

not be needed.

NOTE: Before starting, read the warm and cold starting

procedures below.

• Insert key into ignition and turn key clockwise to

“START” position and release key as soon as engine

starts. Do not run starter continuously for more than

fifteen sec onds per minute. If the engine does not start

after several attempts, push choke control in, wait a

few minutes and try again. If engine still does not start,

pull the choke control out and retry.

WARM WEATHER STARTING (50°F (10°C and above)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. If the engine starts to

run roughly, pull the choke control out slightly for a few

seconds and then continue to push the control in slowly.

• The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow it to warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50°F (10°C and below)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. Continue to push

the choke control in small steps allowing the engine to

accept small changes in speed and load, until the choke

control is fully in. If the engine starts to run roughly, pull

the choke control out slightly for a few seconds and

then continue to push the control in slowly. This may

require an engine warm-up period from several sec onds

to several minutes, depending on the temperature.

AUTOMATIC TRANSMISSION WARM UP

• Before driving the unit in cold weather, the trans mis sion

should be warmed up as follows:

• Be sure the tractor is on level ground.

• Place the motion control lever in neu tral.

Re lease the parking brake and let the clutch/brake

slowly return to operating po si tion.

• Allow one minute for transmission to warm up. This

can be done during the engine warm up period.

• The attachments can be used during the engine warm-

up period after the transmission has been warmed up

and may require the choke con trol be pulled out slight ly.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32° F /0°C) the carburetor fuel mixture

may need to be adjusted for best engine performance. See

“TO ADJUST CARBURETOR” in the Service and Ad just -

ments section of this manual.

PURGE TRANSMISSION

CAUTION: Never engage or disengage

freewheel lever while the engine is run ning.

To ensure proper operation and performance, it is rec om-

mend ed that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air inside the transmission which may have de vel-

oped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION RE QUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT SHOULD

BE PURGED AFTER REINSTALLATION BEFORE OPERATING

THE TRACTOR.

1. Place tractor safely on a level surface - that is clear

and open - with engine off and parking brake set.

2. Disengage transmission by placing freewheel control

in freewheeling position (See “TO TRANSPORT” in

this section of manual).

3. Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to slow position. With

motion control lever in neutral po si tion, slowly disengage

clutch/brake pedal.

CAUTION: At any time, during step 4, there

may be movement of the drive wheels.

4. Move motion control lever to full forward position and

hold for five (5) seconds. Move lever to full reverse

position and hold for five (5) seconds. Repeat this

procedure three (3) times.

5. Move motion control lever to neutral position. Shut- off

engine and set parking brake.

6. Engage transmission by placing freewheel control in

engaged position (See “TO TRANSPORT” in this sec-

tion of manual).

7. Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to half (1/2) speed.

With motion control lever in neutral position, slowly

disengage clutch/brake pedal.

8. Slowly move motion control lever forward, after the

tractor moves approximately five (5) feet, slowly move

motion control lever to reverse position. After the trac-

tor moves approximately five (5) feet return the motion

control lever to the neutral position. Repeat this proce-

dure with the motion control lever three (3) times.

Your transmission is now purged and now ready for normal

op er a tion.

OPERATION

MOWING TIPS

• Tire chains cannot be used when the mower hous ing

is attached to tractor.

• Mower should be properly leveled for best mowing

performance. See “TO LEVEL MOWER HOUSING”

in the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim ming.

• Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of

the tractor. This will result in a more even dis tri bu tion

of clippings and more uniform cutting.

• When mowing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, driveways, etc. After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig. X1).

Fig. X1

• If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

• Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. Allow grass to

dry before mowing.

• Always operate engine at full throttle when mow-

ing to assure better mowing performance and proper

dis charge of material. Regulate ground speed by

se lect ing a low enough gear to give the mower cut ting

per for mance as well as the quality of cut desired.

• When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the at tach ment being used.

LUBRICATION CHART

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, operator must main tain tractor

as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

At least once a season, check to see if you should make

any of the adjustments described in the Service and

Adjustments section of this manual.

• At least once a year you should replace the spark plug,

clean or replace air filter, and check blades and belts

for wear. A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and ROS systems for proper

operation.

• Check for loose fasteners.

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS

LU BRI CANTS WILL ATTRACT DUST AND DIRT THAT WILL

SHORT EN THE LIFE OF THE SELF-LU BRI CAT ING BEARINGS.

IF YOU FEEL THEY MUST BE LU BRI CAT ED, USE ONLY A DRY,

POW DERED GRAPHITE TYPE LU BRI CANT SPARINGLY.

➀ General Purpose Grease

➁ Refer to Maintenance “ENGINE” Section

02501

➀ MANDREL

ZERKS

➁ ENGINE

➀ FRONT

WHEEL

BEARING

ZERK

➀ STEERING

SECTOR

GEAR

TEETH

➀ FRONT

WHEEL

BEARING

ZERK

➀ SPINDLE ZERK ➀ SPINDLE ZERK

MAINTENANCE

1 - Change more often when operating under a heavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - See Cleaning in Maintenance Section.

1,2

BEFORE

EACH

USE

EVERY

HOURS

EVERY

HOURS

EVERY

HOURS

EVERY

100

HOURS

EVERY

SEASON

BEFORE

STORAGE

Inspect Muffler/Spark Arrester

Clean Air Filter

Change Engine Oil (with oil filter)

Replace Air Filter Paper Cartridge

Replace Spark Plug

Check Engine Oil Level

Clean Engine Cooling Fins

Clean Air Screen

Replace Oil Filter (If equipped)

Replace Fuel Filter

Change Engine Oil (without oil filter)

Lubrication Chart

Check Brake Operation

Check Battery Level

Check Tire Pressure

Clean Battery and Terminals

MAINTENANCE

SCHEDULE

Check for Loose Fasteners

Check/Replace Mower Blades

Che

Clean Debris Off Steering Plate

ck Transaxle Cooling

Che

Check Operator Presence & ROS Systems

ck V-Belts

Check Mower Levelness

TRACTOR

Always observe safety rules when per form ing any

main te nance.

BRAKE OPERATION

If tractor requires more than five (5) feet to stop at highest

speed in high est gear on a level, dry concrete or paved

surface, then brake must be checked and ad just ed. (See

“TO CHECK BRAKE” in the Ser vice and Ad just ments

section of this manual).

TIRES

• Maintain proper air pressure in all tires (See the sides

of tires for proper PSI).

• Keep tires free of gasoline, oil, or insect control

chemi cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and pre vent flat tires due

to slow leaks, tire sealant may be purchased from your

local parts dealer. Tire sealant also pre vents tire dry rot

and corrosion.

OPERATOR PRESENCE SYS TEM AND REVERSE

OPERATION SYSTEM (ROS) (See Fig. 26)

Be sure operator presence and reverse operation sys tems

are work ing properly. If your tractor does not function as

described, repair the problem immediately.

• The engine should not start unless the brake pedal is

fully de pressed, and the attachment clutch con trol is

in the dis en gaged position.

CHECK OPERATOR PRESENCE SYSTEM

• When the engine is running, any attempt by the op er a tor

to leave the seat without first setting the parking brake

should shut off the engine.

• When the engine is running and the at tach ment clutch

is engaged, any attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never operate unless

the operator is in the seat.

CHECK REVERSE OPERATION (ROS) SYSTEM

• When the engine is running with the ignition switch in

the engine "ON" position and the at tach ment clutch

engaged, any attempt by the operator to shift into

reverse should shut off the engine.

• When the engine is running with the ignition switch

in the ROS "ON" position and the at tach ment clutch

engaged, any attempt by the operator to shift into

reverse should NOT shut off the engine.

BLADE CARE

For best results mower blades must be kept sharp. Re place

bent or damaged blades.

CAUTION: Use only a replacement blade ap-

proved by the manufacturer of your tractor.

Using a blade not approved by the manu-

facturer of your tractor is hazardous, could

damage your tractor and void your warranty.

BATTERY

Your tractor has a battery charging system which is suf fi cient

for normal use. However, periodic charging of the battery

with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is main-

tenance free. Do not attempt to open or remove caps or cov-

ers. Adding or checking level of electrolyte is not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to “leak” power.

• Raise hood.

• Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See “REPLACING BATTERY" in the

SERVICE AND ADJUSTMENTS section of this man u al).

Fig. 26

BLADE REMOVAL (See Fig. 27)

• Raise mower to highest position to allow access to

blades.

NOTE: Protect your hands with gloves and/or wrap blade

with heavy cloth.

• Remove blade bolt by turning counterclockwise.

• Install new or resharpened blade with stamped "THIS

SIDE UP" facing deck and mandrel assembly.

IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER

HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL

ASSEMBLY.

• Install and tighten blade bolt securely (45-55 Ft. Lbs.

torque).

IMPORTANT: SPECIAL BLADE BOLT HEAT TREATED.

Fig. 27

BLADE

BLADE BOLT

(SPECIAL)

CENTER HOLE

STAR

MANDREL ASSEMBLY

ROS "ON"

POSITION

ENGINE "ON" POSITION

(NORMAL OPERATING)

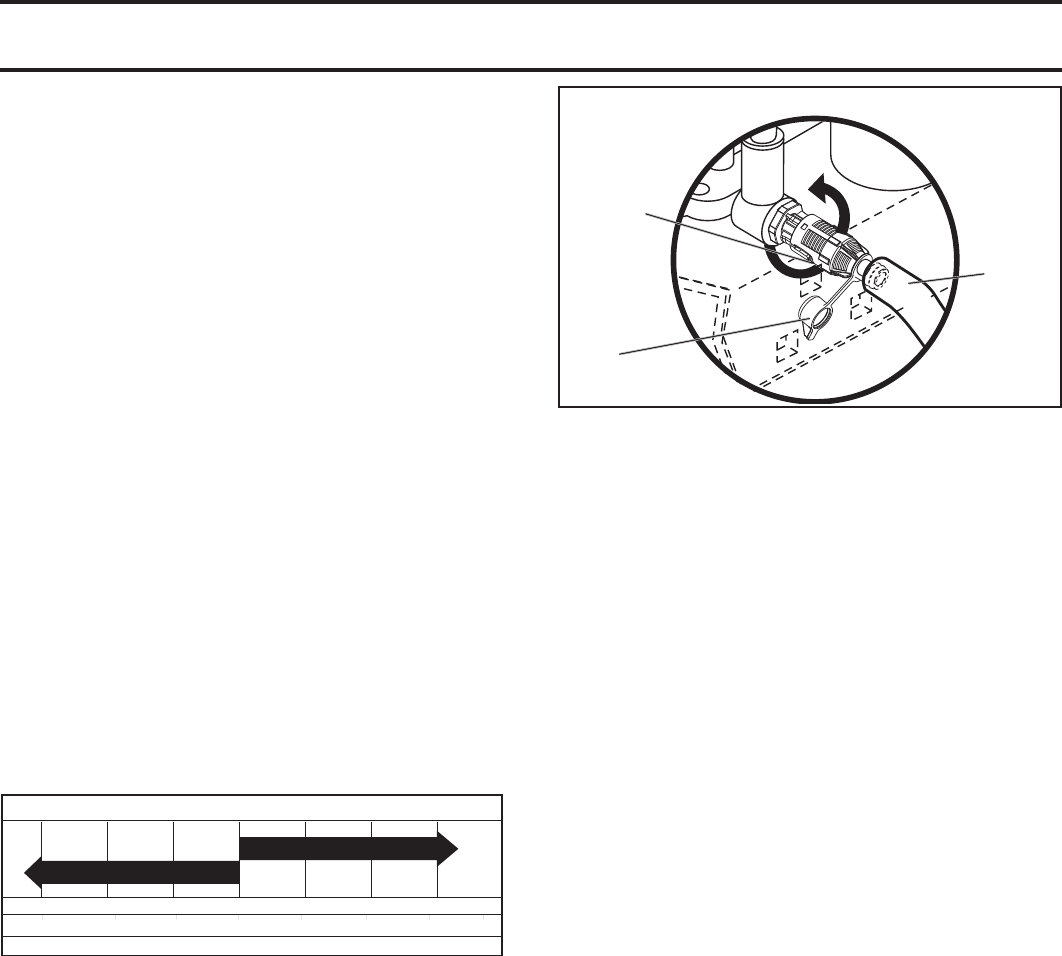

MAINTENANCE

TRANSAXLE MAINTENANCE

The transmission fan and cooling fins should be kept clean

to assure proper cooling.

Do not attempt to clean fan or transmission while engine

is running or while the transmission is hot. To prevent pos-

si ble damage to seals, do not use high pressure water or

steam to clean transmission.

• Inspect cooling fan to be sure fan blades are intact and

clean.

• Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean

cool ing fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid main te-

nance is not required for the life of the transaxle. Should

the transaxle ever leak or require servicing, contact your

near est au tho rized ser vice center/department.

V-BELTS

Check V-belts for deterioration and wear after 100 hours

of operation and replace if necessary. The belts are not

ad just able. Re place belts if they begin to slip from wear.

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

SAE VISCOSITY GRADES

-20 0 30 40 80 100

-30 -20 0 20 30 40

-10 10

5W-30

10W30

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SG-SL. Select the oil’s SAE viscosity grade

according to your expected operating temperature.

Change the oil after every 50 hours of operation or at least

once a year if the tractor is not used for 50 hours in one year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation.

ENGINE COOLING SYSTEM

To ensure proper cooling, make sure the grass screen,

cooling fins, and other external surfaces of the engine are

kept clean at all times.

Every 100 hours of operation (more often under extremely

dusty, dirty conditions), remove the blower housing and

other cooling shrouds. Clean the cooling fins and external

surfaces as necessary. Make sure the cooling shrouds

are reinstalled.

NOTE: Operating the engine with a blocked grass screen,

dirty or plugged cooling fins, and/or cooling shrouds re moved

will cause engine damage due to overheating.

TO CHANGE ENGINE OIL (See Fig. 28)

Determine temperature range expected before oil change.

All oil must meet API service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

• Remove yellow cap from end of drain valve and install

the drain tube onto the fitting.

• Unlock drain valve by pushing inward and turning

coun ter clock wise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and lock the

drain valve by pushing inward and turning clockwise

until the pin is in the locked position as shown.

• Remove the drain tube and replace the cap onto to the

bottom fitting of the drain valve.

• Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

“PRODUCT SPECIFICATIONS” section of this man u al.

• Use gauge on oil fill cap/dipstick for checking level.

Insert dipstick into the tube and rest the oil fill cap on

the tube. Do not thread the cap onto the tube when

taking reading. Keep oil at “FULL” line on dipstick.

Tighten cap onto the tube securely when finished.

Fig. 28

AIR FILTER

Your engine will not run properly using a dirty air filter.

Service air cleaner more often under dusty conditions.

See engine manual.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent

engine dam age from overheating. Clean with a wire brush or

compressed air to re move dirt and stubborn dried gum fibers.

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

“PROD UCT SPECIFICATIONS” section of this manual.

ENGINE OIL FILTER

Replace the engine oil filter every season or every other oil

change if the tractor is used more than 100 hours in one year.

MAINTENANCE

OIL DRAIN VALVE

02463

CLOSED AND

LOCKED

POSITION

YELLOW

CAP

DRAIN

TUBE

00667

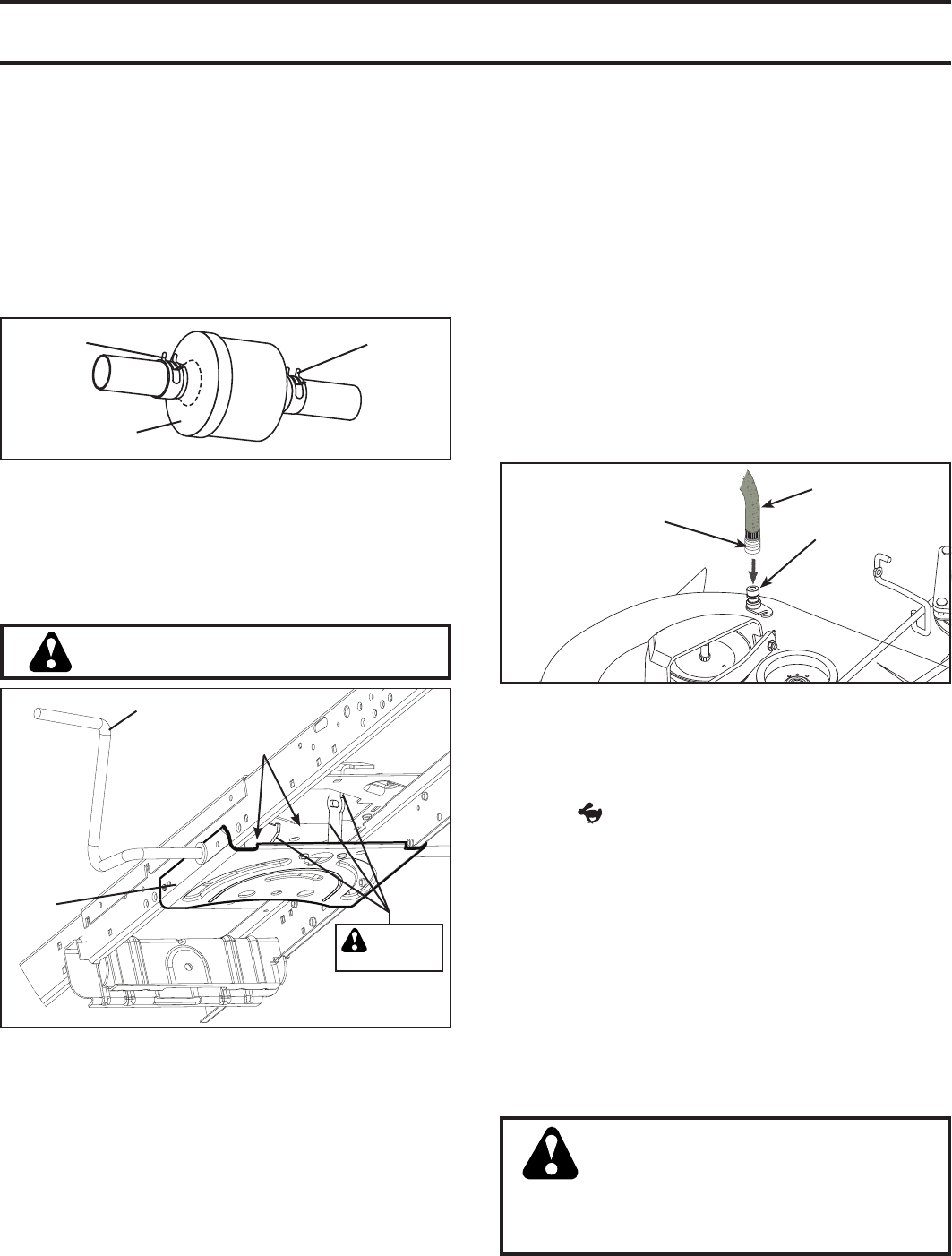

FUEL FILTER

CLAMP

IN-LINE FUEL FILTER (See Fig. 29)

The fuel filter should be replaced once each season. If fuel

filter becomes clogged, ob struct ing fuel flow to car bu re tor,

re place ment is re quired.

• With engine cool, remove filter and plug fuel line sec tions.

• Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are

properly positioned.

• Immediately wipe up any spilled gasoline.

Fig. 29

MAINTENANCE

DECK WASHOUT PORT (See Fig. 31)

Your tractor’s deck is equipped with a washout port on

its surface as part of its deck wash system. It should be

utilized after each use.

1. Drive the tractor to a level, clear spot on your lawn, near

enough to a water spigot for your garden hose to reach.

IMPORTANT: Make certain the tractor’s discharge chute is

directed AWAY from your house, garage, parked cars, etc.

Remove bagger chute or mulch cover if attached.

2. Make sure the attachment clutch control is in the

“DIS EN GAGED” position, set the parking brake, and

stop the engine.

3. Thread the nozzle adapter (packaged with your tractor’s

Operator’s Manual) onto the end of your garden hose.

4. Pull back the lock collar of the nozzle adapter and push

the adapter onto the deck washout port at the left end

of the mower deck. Release the lock collar to lock the

adapter on the nozzle.

WASHOUT

PORT

NOZZLE ADAPTER

HOSE

IMPORTANT: Tug hose ensuring connection is secure.

5. Turn the water on.

6. While sitting in the operator’s position on the tractor,

re-start the engine and place the throttle lever in the

Fast " " position.

IMPORTANT: Recheck the area making certain the area

is clear.

7. Move the tractor’s attachment clutch control to the

“ENGAGED” position. Remain in the operator’s position

with the cutting deck engaged until the deck is cleaned.

8. Move the tractor’s attachment clutch control to the “DIS-

EN GAGED” position. Turn the ignition key to the STOP

position to turn the tractor’s engine off. Turn the water off.

9. Pull back the lock collar of the nozzle adapter to dis-

connect the adapter from the nozzle washout port.

10. Move the tractor to a dry area, preferably a concrete

or paved area. Place the attachment clutch control in

the “ENGAGED” position to remove excess water and

to help dry before putting the tractor away.

WARNING: A broken or missing washout

fitting could expose you or others to

thrown objects from contact with the blade.

• Replace broken or missing washout fitting

immediately, prior to using mower again.

• Plug any holes in mower with bolts and locknuts.

Fig. 31

Fig. 30

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose or pressure

washer to clean your tractor unless the engine and trans-

mission are covered to keep water out. Water in engine or

transmission will shorten the useful life of your tractor. Use

compressed air or a leaf blower to remove grass, leaves

and trash from tractor and mower.

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign

matter.

• Clean debris from steering plate. Debris can restrict

clutch/brake pedal shaft movement, causing belt slip

and loss of drive.

CAUTION: Avoid all pinch points and

movable parts (See Fig. 30)

CLUTCH/BRAKE PEDAL

STEERING

PLATE

STEERING SYSTEM,

DASH, FENDER AND

MOWER NOT SHOWN

CLEAN TOP SIDE

CAUTION:

PINCH

POINTS

Fig. 32 Fig. 33

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 33)

MOWER DRIVE BELT REMOVAL

• Park tractor on a level surface. En gage parking brake.

• Lower attachment lift lever to its lowest position.

• Disengage belt tension rod (K) from lock bracket (L).

CAUTION: Belt tension rod is spring loaded.

Have a firm grip on rod and release slowly.

• Remove screws (P) from mandrel covers (Q) and

remove covers.

• Remove any dirt or grass clippings which may have accu-

mulated around mandrels and entire upper deck surface.

• Remove belt from electric clutch pulley (M), both man-

drel pulleys (R) and all idler pulleys (V).

MOWER DRIVE BELT INSTALLATION

• Install belt around all mandrel pulleys (R) and around

idler pulleys (V) as shown.

• Install belt onto electric clutch pulley (M).

IMPORTANT: Check belt for proper routing in all mower

pulley grooves.

• Reassemble mandrel covers (Q). Securely tighten all

screws.

• Engage belt tension rod (K) on locking bracket (L).

CAUTION: Belt tension rod is spring loaded.

Have a firm grip on rod and release slowly.

• Raise attachment lift lever to highest position.

WARNING: TO AVOID SE RI OUS IN JU RY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

• Depress brake pedal fully and set parking brake.

• Place motion control lever in neutral position.

• Place attachment clutch in “DISENGAGED” position.

• Turn ignition key to “STOP” and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

TO REMOVE MOWER (See Fig. 32)

• Place attachment clutch in “DIS EN GAGED” position.

• Lower attachment lift lever to its lowest position.

• Disengage belt tension rod (K) from lock bracket (L).

CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and

release slowly.

• Remove mower belt from electric clutch pulley (M).

• Disconnect front link (E) from mower - remove retainer

spring and washer.

• Go to either side of mower and disconnect mower suspen-

sion arm (A) from chassis and rear lift link (C) from rear

mower bracket (D) - remove retainer springs and washers.

• Go to other side of mower and disconnect the suspen-

sion arm and rear lift link.

CAUTION: After rear lift links are discon-

nected, the attachment lift lever will be

spring loaded. Have a tight grip on lift

lever when changing position of the lever.

• From right side of mower, disconnect anti-sway bar (S)

from right rear mower bracket (D) - remove retainer

spring and washer and pull mower toward you until the

bar falls from the hole in bracket.

• Turn tractor steering wheel to the left as far as it will go.

• Slide mower out from under right side of tractor.

TO IN STALL MOWER

Follow procedure described in “INSTALL MOWER AND

DRIVE BELT” in the As sem bly section of this manual.

SERVICE AND ADJUSTMENTS

FRONT-TO-BACK ADJUSTMENT (See Figs. 36 & 37)

IMPORTANT: Deck must be level side-to-side.

To obtain the best cutting re sults, the mower blades should

be adjusted so the front tip is 1/8" to 1/2" lower than the

rear tip when the mower is in its highest position.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap

blade with heavy cloth.

• Raise mower to highest position.

• Position any blade so the tip is pointing straight forward.

Measure distance (B) to the ground at front and rear tip

of the blade.

TO LEVEL MOWER

Make sure tires are properly inflated to the PSI shown on

tires. If tires are over or under inflated, it may affect the

appearance of your lawn and lead you to think the mower

is not adjusted properly.

VISUAL SIDE-TO-SIDE ADJUSTMENT (See Fig. 34)

• With all tires properly inflated and if your lawn appears

unevenly cut, determine which side of mower is cutting

lower.

NOTE: As desired, you can raise the low side of mower

or lower the high side.

• Go to side of mower you wish to adjust.

• With a 3/4" or adjustable wrench, turn lift link adjust-

ment nut (A) to the left to lower the mower, or, to the

right to raise the mower.

NOTE: Each full turn of adjustment nut will change mower

height about 3/16".

• Test your adjustment by mowing some uncut grass

and visually checking the appearance. Readjust, if

necessary, until you are satisfied with the results.

Turn nut left

to lower mower

Turn nut right

to raise mower

Fig. 34

Fig. 35

PRECISION SIDE-TO-SIDE ADJUSTMENT (See Fig. 35)

• With all tires properly inflated, park tractor on level

ground or driveway.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap

blade with heavy cloth.

• Raise mower to its highest position.

• At both sides of mower, position blade at side and

measure the distance (A) from bottom edge of blade

to the ground. The distance should be the same on

both sides.

NOTE: Each full turn of the adjustment nut will change

mower height about 1/8".

• Recheck measurements, adjust if necessary until front

tip of blade is 1/8" to 1/2" lower than the rear tip.

• Hold adjustment nut in position with wrench and tighten

jam nut securely against adjustment nut.

Fig. 36

Fig. 37

02966

A A

• If adjustment is necessary, see steps in Visual Adjust-

ment instructions above.

• Recheck measurements, adjust if necessary until both

sides are equal.

02950

TIGHTEN ADJUST

NUT B TO RAISE

MOWER

LOOSEN

ADJUST NUT

B TO LOWER

MOWER

LOOSEN JAM NUT A FIRST

• If front tip of blade is not 1/8" to 1/2" lower than the rear

tip, go to the front of tractor.

• With an 11/16" or adjustable wrench, loosen jam nut A

several turns to clear adjustment nut B.

• With a 3/4" or adjustable wrench, turn front link adjustment

nut (B) clockwise (tighten) to raise the front of mower,

or, counterclockwise (loosen) to lower the front mower.

SERVICE AND ADJUSTMENTS

Fig. 38

TO REMOVE WHEEL (See Fig. 39)

• Block up axle securely.

• Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

• Replace washers and snap retaining ring securely in

axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due to slow

leaks, tire sealant may be purchased from your local parts

dealer. Tire sealant also prevents tire dry rot and corrosion.

Fig. 39

RE TAIN ING

RING

WASH ERS

SQUARE KEY (REAR

WHEEL ONLY)

AXLE

COVER

TO CHECK BRAKE

If tractor requires more than five (5) feet to stop at highest

speed in high est gear on a level, dry concrete or paved

surface, then brake must be serviced.

You may also check brake by:

• Park tractor on a level, dry concrete or paved surface,

depress brake pedal all the way down and engage

parking brake.

• Disengage transmission by placing freewheel control

in “transmission disengaged” position. Pull freewheel

control out and into the slot and release so it is held in

the disengaged position.

The rear wheels must lock and skid when you try to manu-

ally push the tractor forward. If the rear wheels rotate,

then the brake needs to be serviced. Contact a qualified

service center.

FRONT WHEEL TOE-IN/CAMBER

Your new tractor front wheel toe-in and camber is set at the

factory and is normal. The front wheel toe-in and camber

are not adjustable. If damage has occurred to affect the

factory set front wheel toe-in or camber, contact a qualified

service center.

TO REPLACE MOTION DRIVE BELT

(See Fig. 38)

Park the tractor on level surface. En gage parking brake.

For as sis tance, there is a belt installation guide decal on

bottom side of left footrest.

BELT REMOVAL -

1. Remove mower (See “TO REMOVE MOWER” section

in this manual).

NOTE: Observe entire motion drive belt and position of all

belt guides and keepers.

2. Disconnect clutch wire harness (A).

3. Remove anti-rotation link (B) on right side of tractor.

4. Remove belt from stationary idler (C) and clutching idler (D).

5. Remove belt from centerspan idler (E).

6. Pull belt slack toward rear of trac tor. Carefully remove

belt up wards from trans mis sion input pulley and over

cooling fan blades (F).

7. Remove belt downward from engine pulley and around

electric clutch (G).

8. Slide belt toward rear of tractor, off the steering plate

(H) and remove from tractor.

BELT INSTALLATION -

1. Install new belt from tractor rear to front, over the steer-

ing plate (H) and above clutch brake pedal shaft (J).

2. Pull belt toward front of tractor and roll belt around

electric clutch and onto engine pulley (G).

3. Pull belt toward rear of tractor. Carefully work belt down

around transmission cooling fan and onto the input pul-

ley (F). Be sure belt is inside the belt keeper.

4. Install belt on centerspan idler (E).

5. Install belt through stationary idler (C) and clutch ing idler (D).

6. Reinstall anti-rotation link (B) on right side of tractor.

Tighten securely.

7. Reconnect clutch harness (A).

8. Make sure belt is in all pulley grooves and in side all belt

guides and keep ers.

9. Install mower (See “TO INSTALL MOWER” section in

this manual).

electric

02953

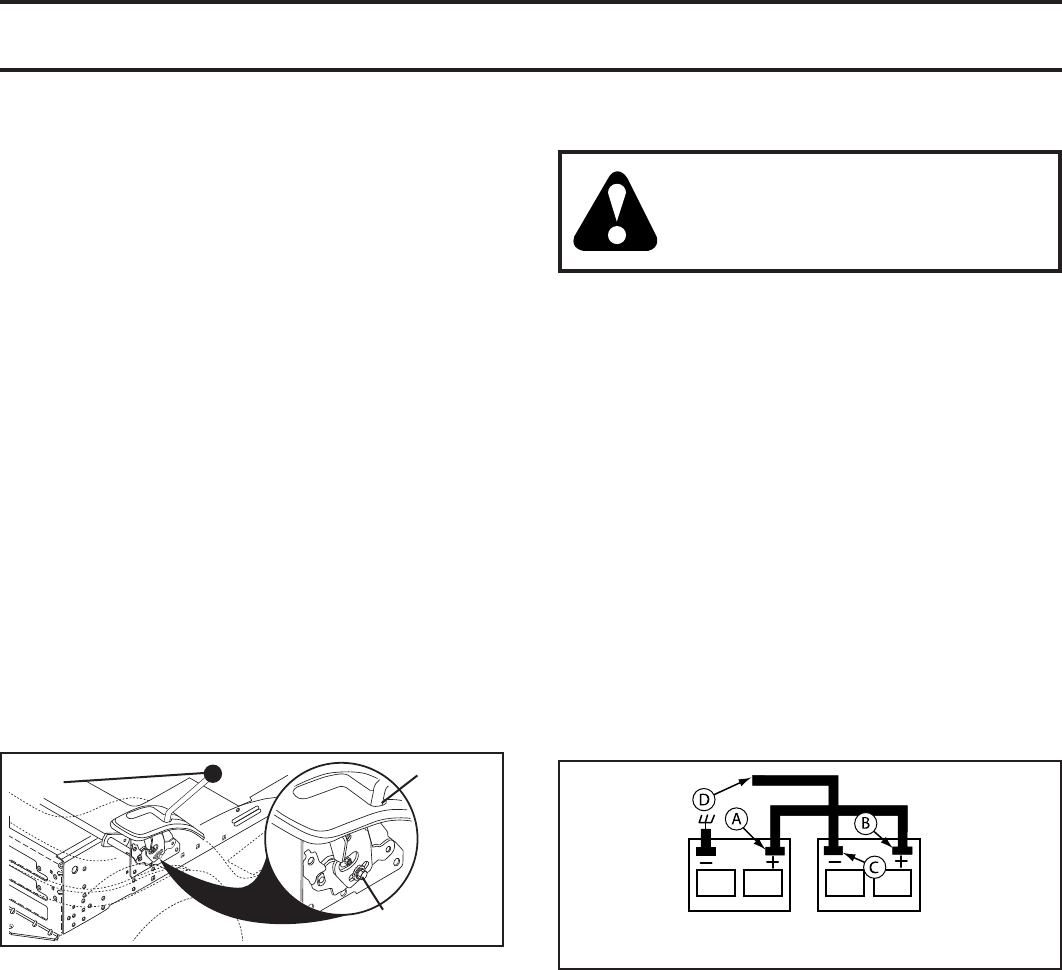

SERVICE AND ADJUSTMENTS

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 41)

WARNING: Lead-acid batteries gen-

er ate ex plo sive gases. Keep sparks,

flame and smoking ma te ri als away from

bat ter ies. Always wear eye pro tec tion

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. (See "BATTERY" in the MAINTENANCE sec-

tion of this man u al).

If “jumper ca bles” are used for emer gen cy starting, follow

this pro ce dure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12

VOLT SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO

START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect one end of the RED cable to the POSITIVE

(+) terminal of each battery(A-B), taking care not to

short against tractor chassis.

• Connect one end of the BLACK ca ble to the NEGA TIVE

(-) terminal (C) of fully charged battery.

• Connect the other end of the BLACK cable (D) to good

chassis ground, away from fuel tank and bat tery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery.

• RED cable last from both batteries.

Fig. 41

WEAK OR DEAD

BATTERY

FULLY CHARGED

BATTERY

ADJUSTMENT

BOLT

NEUTRAL

LOCK

GATE

MOTION CONTROL

LEVER

FIG. 40

TRANSAXLE MOTION CONTROL LEVER

NEUTRAL ADJUSTMENT (See Fig. 40)

The motion control lever has been pre set at the factory

and adjustment should not be necessary.

• Loosen adjustment bolt in front of the right rear wheel,

and lightly tighten.

• Start engine and move motion control lever until tractor

does not move forward or backward.

• Hold motion control lever in that position and turn engine

off.

• While holding motion control lever in place, loosen the

adjustment bolt.

• Move motion control lever to the neutral (lock gate)

position.

• Tighten adjustment bolt securely.

NOTE: If additional clearance is needed to get to ad just ment

bolt, move mower deck height to the lowest position.

After above adjustment is made, if the tractor still creeps

forward or backward while motion control lever is in neutral

position, follow these steps:

• Loosen the adjustment bolt.

• Move the motion control lever 1/4 to 1/2 inch in the

direction it is trying to creep.

• Tighten adjustment bolt securely.

• Start engine and test.

• If tractor still creeps, repeat above steps until satisfied.

SERVICE AND ADJUSTMENTS

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the

grill.

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the

Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 43)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedure.

ENGINE

TO AD JUST THROTTLE CON TROL CABLE

The throttle control has been preset at the factory and

ad just ment should not be necessary. If adjustment is nec-

es sary, see engine manual.

TO AD JUST CHOKE CON TROL

The choke control has been preset at the factory and ad just-

ment should not be necessary. If adjustment is necessary,

see engne manual.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not

operate properly due to suspected carburetor problems,

take your tractor to an authorized service center for repair

and/or adjustment.

Fig. 43

TRANSMISSION

REMOVAL/RE PLACE MENT

Should your transmission require removal for service or

re place ment, it should be purged after reinstallation and

before operating the tractor. See “PURGE TRANS MIS SION”

in the Operation section of this manual.

REPLACING BATTERY (See Fig. 42)

WARNING: Do not short battery ter mi-

nals by allowing a wrench or any other

object to contact both terminals at the

same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc. Positive terminal

must be connected first to prevent

sparking from ac ci den tal grounding.

• Lift hood to raised position.

• Remove terminal cover.

• Disconnect BLACK battery cable then RED battery

cable and carefully remove battery from tractor.

• Install new battery with terminals in same position as

old battery.

• Reinstall terminal cover.

• First connect RED battery cable to positive (+) battery

terminal with bolt and nut as shown. Tighten securely.

• Connect BLACK grounding cable to negative (-) bat tery

terminal with remaining bolt and nut. Tighten securely

• Close hood.

POSITIVE

(RED)

CABLE

TERMINAL

COVER

NEGATIVE

(BLACK)

CABLE

Fig. 42

SERVICE AND ADJUSTMENTS

HEADLIGHT

WIRE

CONNECTOR

HOOD

03076

Immediately prepare your tractor for storage at the end

of the season or if the tractor will not be used for 30 days

or more.

WARNING: Never store the trac tor with

gas o line in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any en clo sure.

TRACTOR

Remove mower from tractor for winter storage. When

mower is to be stored for a period of time, clean it thor-

oughly, remove all dirt, grease, leaves, etc. Store in a

clean, dry area.

• Clean entire tractor (See “CLEANING” in the Mainte-

nance section of this manual).

• Inspect and replace belts, if necessary (See belt re-

place ment instructions in the Service and Adjustments

section of this manual).

• Lubricate as shown in the Maintenance sec tion of this

man ual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require

re charg ing.

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be dis-

con nect ed and battery cleaned thoroughly (see “TO

CLEAN BATTERY AND TERMINALS” in the Mainte-

nance section of this manual).

• After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

• If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS

FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH

AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK

DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT

ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT MOIS TURE WHICH

LEADS TO SEPARATION AND FOR MA TION OF ACIDS DURING

STOR AGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM

OF AN ENGINE WHILE IN STORAGE.

• Empty the fuel tank by starting the engine and let it run

until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in mini-

mizing the formation of fuel gum deposits during stor age.

Add stabilizer to gasoline in fuel tank or storage container.

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to

allow the stabilizer to reach the carburetor. Do not empty

the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See “ENGINE” in the Maintenance section of this

man ual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

• Turn ignition key to “START” position for a few seconds

to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to

give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE EN GINE

AND EXHAUST AREAS ARE STILL WARM.

STORAGE

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Will not start 1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section.

3. Engine flooded. 3. Wait several minutes before attempting to start.

4. Bad spark plug. 4. Replace spark plug.

5. Dirty air filter. 5. Clean/replace air filter.

6. Dirty fuel filter. 6. Replace fuel filter.

7. Water in fuel. 7. Empty fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

8. Loose or damaged wiring. 8. Check all wiring.

9. Carburetor out of adjustment. 9. See “To Adjust Carburetor” in Service Adjustments

section.

10. Engine valves out of adjustment. 10. Contact an authorized service center/department.

Hard to start 1. Dirty air filter. 1. Clean/replace air filter.

2. Bad spark plug. 2. Replace spark plug.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Dirty fuel filter. 4. Replace fuel filter.

5. Stale or dirty fuel. 5. Empty fuel tank and refill tank with fresh, clean gas.

6. Loose or damaged wiring. 6. Check all wiring.

7. Carburetor out of adjustment. 7. See “To Adjust Carburetor” in Service Adjustments

section.

8. Engine valves out of adjustment. 8. Contact an authorized service center/department.

Engine will not

turn over

1. Brake pedal not depressed. 1. Depress brake pedal.

2. Attachment clutch is engaged. 2. Disengage attachment clutch.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Blown fuse. 4. Replace fuse.

5. Corroded battery terminals. 5. Clean battery terminals.

6. Loose or damaged wiring. 6. Check all wiring.

7. Faulty ignition switch. 7. Check/replace ignition switch.

8. Faulty solenoid or starter. 8. Check/replace solenoid or starter.

9. Faulty operator presence switch(es). 9. Contact an authorized service center/department.

Engine clicks but

will not start

1. Weak or dead battery. 1. Recharge or replace battery.

2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or starter.

Loss of power 1. Cutting too much grass/too fast. 1. Raise cutting height/reduce speed.

2. Throttle in “CHOKE” position. 2. Adjust throttle control.

3. Build-up of grass, leaves, trash under mower. 3. Clean underside of mower housing.

4. Dirty air filter. 4. Clean/replace air filter.

5. Low oil level/dirty oil. 5. Check oil level/change oil.

6. Faulty spark plug. 6. Clean and regap or change spark plug.

7. Dirty fuel filter. 7. Replace fuel filter.

8. Stale or dirty fuel. 8. Empty fuel tank and refill tank with fresh, clean gas.

9. Water in fuel. 9. Empty fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Spark plug wire loose. 10. Connect and tighten spark plug wire.

11. Dirty engine air screen/fins. 11. Clean engine air screen/fins.

12. Dirty/clogged muffler. 12. Clean/replace muffler.

13. Loose or damaged wiring. 13. Check all wiring.

14. Carburetor out of adjustment. 14. See “To Adjust Carburetor” in Service Adjustments

15. Engine valves out of adjustment. 15. Contact an authorized service center/department.

Excessive

vibration

1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Bent blade mandrel. 2. Replace blade mandrel.

3. Loose/damaged part(s). 3. Tighten loose part(s). Replace damaged parts.

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Engine continues

to run when oper-

ator leaves seat

with attachment

clutch engaged

1. Faulty operator-safety presence control

system.

1. Check wiring, switches and connections. If not

corrected, contact an authorized service center/

department.

Poor cut - uneven 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Mower deck not level. 2. Level mower deck.

3. Buildup of grass, leaves, trash under mower. 3. Clean underside of mower housing.

4. Bent blade mandrel. 4. Replace blade mandrel.

5. Clogged mower deck vent holes from

buildup of grass, leaves, and trash around

mandrels.

5. Clean around mandrels to open vent holes.

Mower blades will

not rotate

1. Obstruction in clutch mechanism. 1. Remove obstruction.

2. Worn/damaged mower drive belt. 2. Replace mower drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass

discharge

1. Engine speed too slow. 1. Place throttle control in “FAST” position.

2. Travel speed too fast. 2. Shift to slower speed.

3. Wet grass. 3. Allow grass to dry before mowing.

4. Mower deck not level. 4. Level mower deck.

5. Low/uneven tire air pressure. 5. Check tires for proper air pressure.

6. Worn, bent or loose blade. 6. Replace blade. Tighten blade bolt.

7. Buildup of grass, leaves, trash under mower. 7. Clean underside of mower housing.

8. Mower drive belt worn. 8. Replace mower drive belt.

9. Blades improperly installed. 9. Reinstall blades sharp edge down.

10. Improper blades used. 10. Replace with blades listed in parts manual.

11. Clogged mower deck vent holes from buildup

of grass, leaves, trash around mandrels.

11. Clean around mandrels to open vent holes.

Headlight(s) not

working

(if so equipped)

1. Switch is “OFF”. 1. Turn switch “ON”.

2. Bulb(s) or lamp(s) burned out. 2. Replace bulb(s) or lamp(s).

3. Faulty light switch. 3. Check/replace light switch.

4. Loose or damaged wiring. 4. Check wiring and connections.

5. Blown fuse. 5. Replace fuse.

Battery will not

charge

1. Bad battery cell(s). 1. Replace battery.

2. Poor cable connections. 2. Check/clean all connections.

3. Faulty regulator (if so equipped). 3. Replace regulator.

4. Faulty alternator. 4. Replace alternator.

Loss of drive 1. Freewheel control in “disengaged” position. 1. Place freewheel control in “engaged” position.

2. Debris on steering plate (if equipped). 2. See "CLEANING" in the maintenance section.

3. Motion drive belt worn, damaged, or broken. 3. Replace motion drive belt.

4. Air trapped in transmission during shipment

or servicing.

4. Purge transmission.

5. Axle key missing. 5. Install axle key at rear wheel. See "TO REMOVE

WHEEL" in the Service and Adjustments section.

Engine "back-

fires” when turn-

ing engine “OFF”

1. Engine throttle control not set between

half and full speed (fast) position before

stopping engine.

1. Move throttle control between half and full speed

(fast) position before stopping engine.

Engine dies when

tractor is shifted

into reverse

1. Reverse operation system (ROS) is not "ON"

while mower or other attachment is engaged.

1. Turn ignition key to ROS "ON" position. See

Operation section.

NOTES

FUSE

STARTER

SOLENOID

BATTERY

ELECTRIC CLUTCH

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

REGULATOR

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

STATOR

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF EQUIPPED)

JUNCTION

CONNECTOR

PTO SWITCH

(DISENGAGED)

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

9-16AMPDC@3600 RPM

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH12

IGNITION SWITCH

CIRCUIT

POSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1

START

M+G+A1

B+A1

RUN

“MAKE”

L+A2

POWER OUTLET

(OPTIONAL)

12V

AMMETER

(OPTIONAL)

BLACK

BLACK /WHITE

ORANGE

RED

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

RED

WHITE

GRAY

BLACK

PTO SWITCH

BLUE BLACK

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

SCHEMATIC

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

ELECTRICAL

100

227

79 21

With Service Minder Option

4646

With 12V Outlet Option

103

T07S

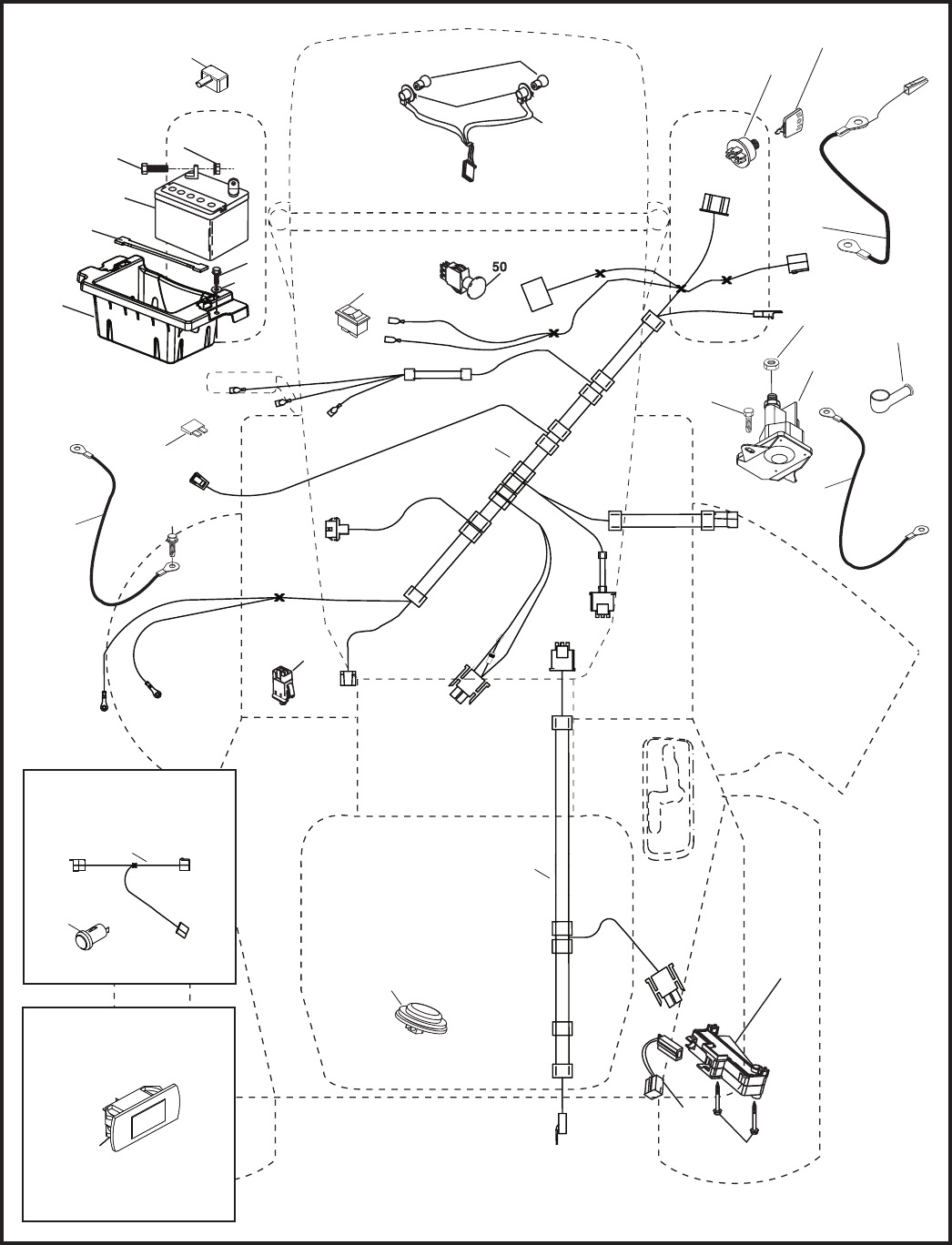

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4

8 532 18 64-91 Battery Box

16 532 17 61-38 Switch Interlock

21 532 18 37-59 Harness Socket Light

22 532 00 41-52 Bulb, Light #1156

24 532 40 02-53 Cable Battery

25 532 41 28-95 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 14 54-91 Cable Ground 21" Blk 6 Ga.

29 532 40 15-45 Switch Seat

30 532 19 33-50 Switch Ign

33 532 41 19-33 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 532 40 11-04 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover Terminal Red

43 532 19 25-07 Solenoid

46 532 40 17-63 Gauge Hourmeter

50 532 19 61-12 Switch PTO

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4

59 532 40 03-03 Outlet 12-Volt

71 532 19 42-76 Harness Ign Chassis

79 532 17 52-42 Socket Asm Bulb

90 532 43 53-95 Cover Terminal Battery

91 532 19 02-70 Strap Battery

92 532 19 66-15 Harness Pigtail Reverse Switch

93 532 19 25-40 Screw Plastite 10-14 X 2.00

94 532 19 18-34 Module Reverse ROS

99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4

100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.

103 532 40 79-62 Harness Pigtail 12 V Outlet

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

CHASSIS

182

176

175

165

228

183

194

236

150

180

213

218

130

177

189

152

217

235

195

176

233

130

202

203

208

207

176

176 205

151

206

234

137

214

204

181

199

162

196

221

210

211

209

212

161

289

194

162

189

chassis-tex_GT HUSQ_II_14

298

238

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

CHASSIS

KEY PART

NO. NO. DESCRIPTION

3 532 40 50-12 Logo

5 532 40 87-01 Dash

14 532 43 97-25 Hood Asm.

15 532 19 89-07 Lens LH

18 532 43 77-62 Grille Asm.

25 532 19 89-06 Lens RH

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 40 18-25 Fender

52 873 68 05-00 Nut Crown Lock 5/16-18

58 532 19 43-14 Bracket Fender

68 817 49 05-08 Screw 5/16-18 x 1/2

130 532 41 63-58 Screw #10 x .750 BOS Thread

137 532 40 75-90 Bumper Dash

150 532 43 97-74 Duct Heat Hood

151 532 43 66-70 Bracket Pivot Hood

152 532 19 95-35 Shield Browning/Debris

161 532 40 18-26 Console Fuel Window

162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2

165 532 19 68-26 Bracket Support Tank

175 532 19 63-04 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-27 Bushing Steering

180 532 19 54-77 Chassis

181 532 40 30-25 Bushing Mtg. Fender Crgo.

182 532 40 68-59 Dash Lower

183 874 52 05-20 Bolt 5/16-18 x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

KEY PART

NO. NO. DESCRIPTION

196 532 40 02-99 Console Asm. Deck Lift

199 532 19 82-59 Plate Deck Lift

202 532 43 97-28 Vent Side Hood RH

203 532 43 97-27 Vent Side Hood LH

204 532 41 66-13 Vent Asm Hood Top

205 532 43 97-30 Skirt Hood Side RH

206 532 43 97-29 Skirt Hood Side LH

207 532 19 71-98 Bezel RH

208 532 19 71-99 Bezel LH

209 532 19 91-30 Insert Hex Top RH

210 532 19 91-31 Insert Hex Top LH

211 532 19 91-32 Insert Hex Bottom RH

212 532 19 91-33 Insert Hex Bottom LH

213 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4

214 532 19 91-45 Clip Retainer

217 532 40 91-67 Rod Pivot

218 532 19 63-95 Hood Stop

221 532 19 89-09 Reflector LH

228 532 19 51-61 Stud Fastener

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Center Lock 5/16-18 unc

238 532 40 86-06 Trim

289 532 40 35-71 Plug Cruise/Phone

298 532 11 04-52 Nut Push

- - 532 43 18-83 Kit Bumper 2010

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

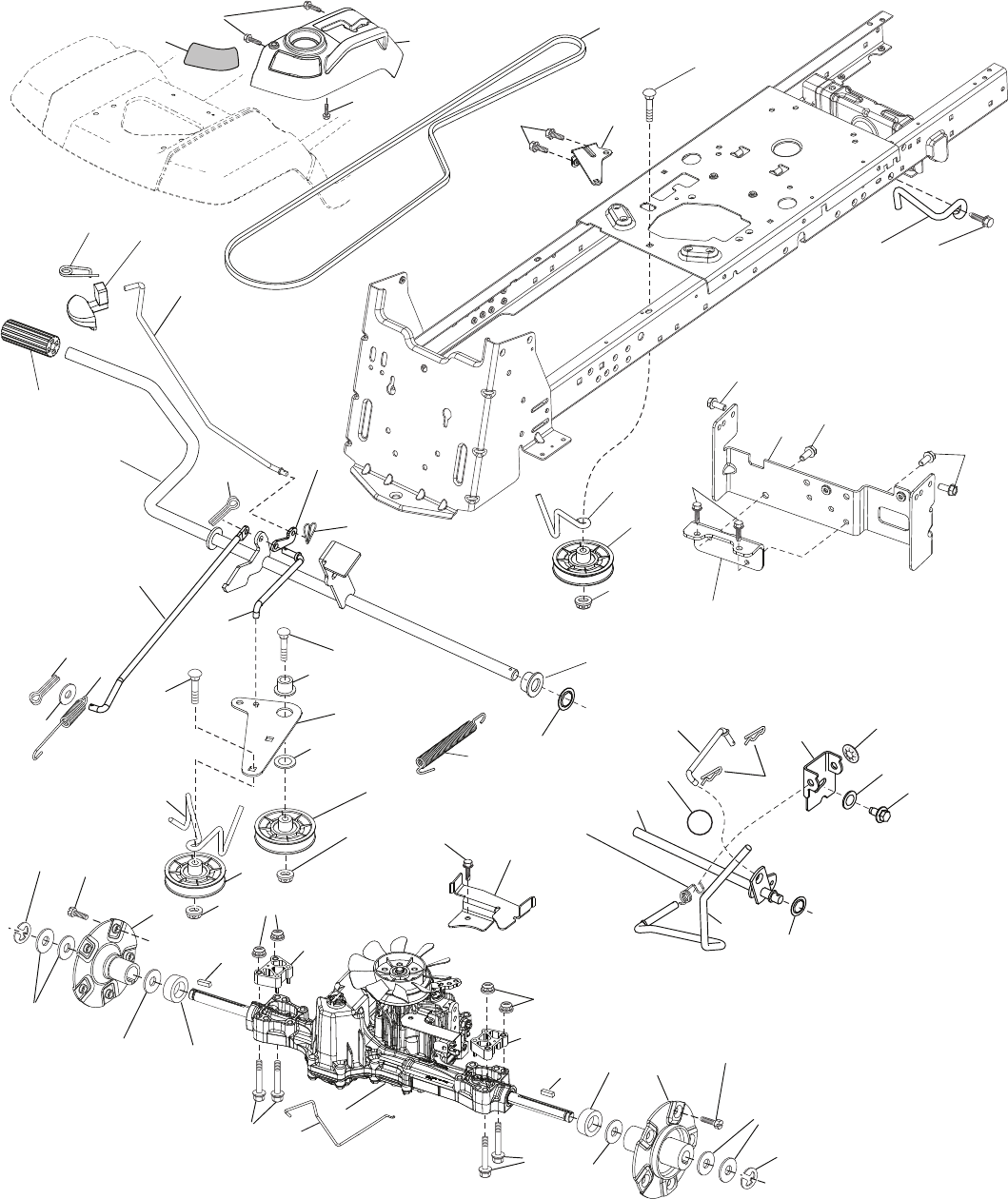

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

DRIVE

216

143

197 196

125

226

125

80 125

231

170

175

279 176

178

174

166

276

153

233

drive-tex_K46_fender_6_r2

161

184

221

225

125

211

166

159

167

160

188

186

189

187

190

185

159

220

205

116

230

230 183 183

205

116

185

162

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

DRIVE

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 - - - - - - - - - Transaxle, TUFFTORQ K46 AW

(Internal parts not available)

2 532 18 62-11 Key

7 532 19 98-44 Hub Asm. Wheel Rear 22" TX GT .06

9 532 14 00-80 Bolt Hub Wheel Rear

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring Brake

22 532 19 73-29 Rod Shift

23 532 14 08-45 Knob

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 532 43 54-86 Rod Brake Park

42 532 12 48-72 Cover Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove 910" Offset

56 532 13 09-69 V-Belt Drive

64 532 19 62-00 Shaft Asm. Pedal Brake Control

70 532 40 02-98 Console Asm.

73 874 49 05-60 Bolt Hex Flghd 5/16-18 3.75

74 532 14 24-32 Screw 1/4 x 1/2

80 532 41 00-24 Strap Torque

99 532 41 57-43 Rod Bypass

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw 5/16-18 x 1/2

153 532 12 47-88 Retainer Spring

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring Return Clutch

162 532 19 57-85 Spacer Transaxle 18 and 22

166 532 42 91-64 Nut Push

167 532 40 52-57 Latch Brake Parking

170 532 41 34-30 Keeper Belt Centerspan

174 532 19 72-89 Nut Push

175 532 40 62-08 Shaft Asm Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift

183 532 40 04-24 Spacer Split

184 532 40 31-18 Handle Parking Brake

185 872 11 06-22 Bolt Rdhd Sqnk 3/8-16 x 2-3/4 Gr. 5

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

196 817 00 06-16 Screw 3/8-16 x 1

197 532 19 97-69 Link Clutch Anti-Rotation

205 532 12 17-48 Washer

211 532 19 62-12 Bushing Brake Shaft

216 532 19 61-31 Bracket Pulley Idler

220 532 19 89-08 Reflector RH

221 532 40 31-87 Retainer Spring Clip Handle

225 532 40 33-19 Keeper Belt Trans.

226 532 40 08-31 Bracket Mount Torque

230 532 18 89-67 Washer Hardened

231 532 40 72-87 Idler V-Groove 1.688" Offset

233 532 40 52-96 Washer Serrated

276 874 78 07-16 Bolt 7/16-14 x 1 Gr. 5

279 532 40 62-07 Link Shift

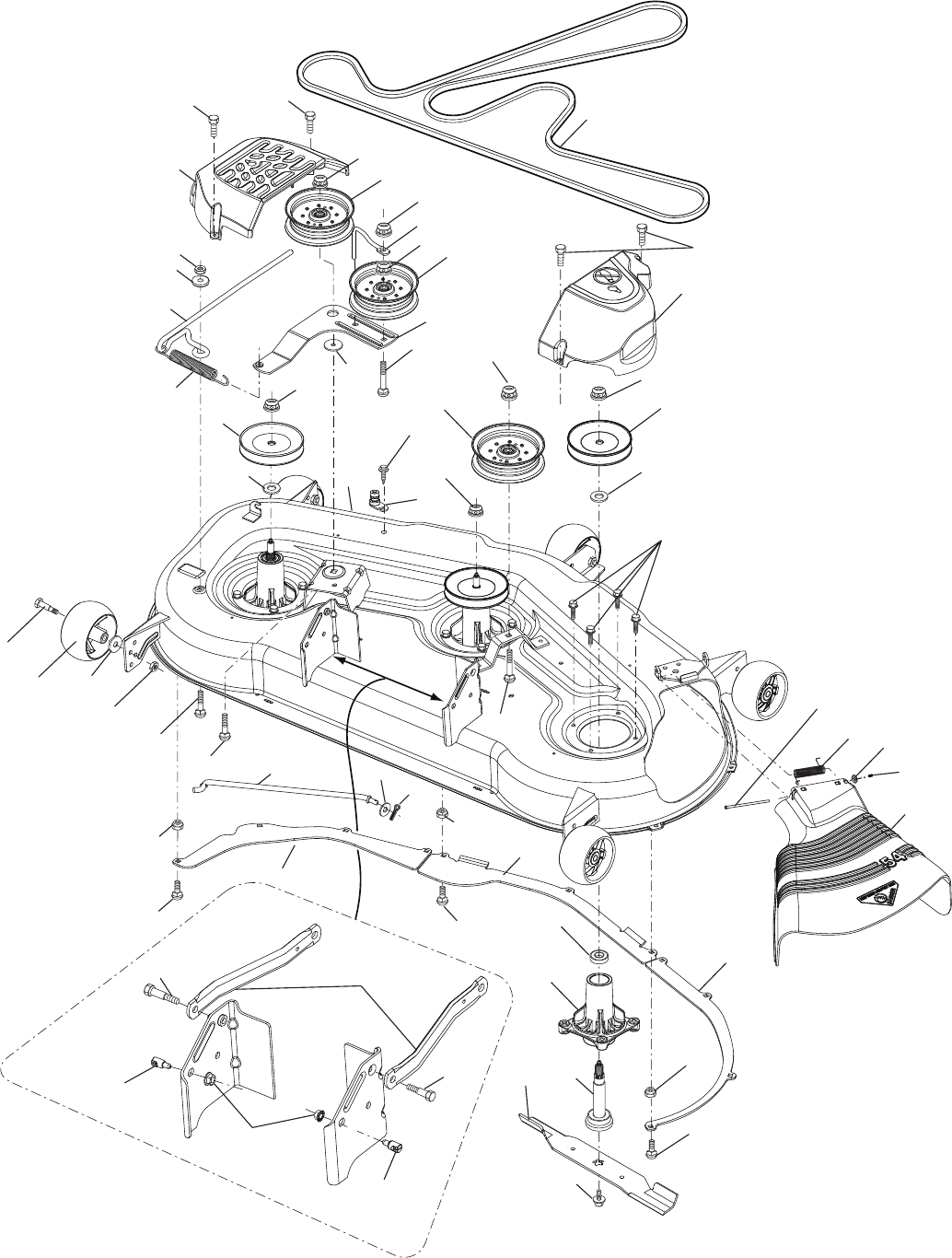

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

MOWER DECK

mower_deck 54-tex_16

133

196

192

185

122

114

25 26

194

113

187

190

188

190

187

120

117

116

189

12 16

241

242

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

MOWER DECK

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 532 19 56-32 Deck Weldment Mower

6 532 19 60-66 Cover Mandrel LH

7 532 19 71-81 Cover Mandrel RH

8 532 19 30-03 Bolt 7/16 Asm. Blade

11 532 18 72-56 Blade Bagging

- - 532 18 72-55 Blade Mulching

12 532 40 48-51 Rod Anti Sway

13 532 18 72-91 Shaft Asm. w/Lower Bearing

14 532 18 72-81 Housing, Mandrel

16 819 13 13-12 Washer 3/8

15 532 11 04-85 Bearing, Ball, Mandrel

18 872 14 05-05 Bolt Carriage 5/16-18 x 5/8

19 532 19 42-08 Pin Cotter 5/16 Bowtie

21 873 68 05-00 Nut, Crownlock 5/16-18 unc

24 532 10 53-04 Cap Sleeve

25 532 17 81-02 Spring, Torsion

26 532 11 04-52 Nut, Push

27 532 18 89-38 Deflector Shield

29 532 13 14-91 Rod, Hinge

30 532 17 39-84 Screw, Thdroll Washer Head

31 532 18 76-90 Washer, Spacer Mower Vented

32 532 15 35-35 Pulley, Mandrel

33 532 40 02-34 Nut, Flg. Top Lock

34 873 68 06-00 Nut Crownlock 3/8-16 unc

39 532 19 73-80 Pulley, Idler, Stationary LH

43 532 19 60-65 Arm, Idler

46 532 13 77-29 Screw, Thdroll. 1/4-20 x 5/8

47 532 19 61-03 Belt Deck Drive

49 873 90 06-00 Nut, Lock Flg. 3/8-16 unc

50 872 11 06-16 Bolt Rdhd Sqnk 3/8-16 unc x 2

52 532 19 73-79 Pulley Idler

58 532 18 73-42 Baffle Right

59 532 18 73-44 Baffle Left

60 532 18 76-07 Baffle Center

97 532 17 85-15 Washer Hardened

98 532 19 61-05 Spring Drive

113 872 11 05-08 Bolt Rdhd Sqnk 5/16-18 x 3/4

114 532 18 75-56 Rod Tension Relief

116 532 19 34-06 Bolt, Shoulder

117 532 17 48-73 Gauge Wheel

120 819 13 20-12 Washer 13/32 x 1-1/4 x 12 Ga.

122 532 18 75-57 Bushing Tension Relief

185 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5

187 532 19 51-61 Stud Fastener w/"D" Anti-Rotation

188 873 90 05-00 Nut Lock Hex Flange

189 532 19 51-85 Arm Susp. Mower Rear

190 532 19 65-39 Bolt Shoulder

192 532 19 84-68 Keeper Belt Idler

194 874 49 07-36 Bolt Carr Sqnk 7/16-24 x 2

196 872 14 06-20 Bolt Rdhd 3/8-16 x 2-1/2 Gr. 5

241 532 15 29-27 Screw

242 532 41 55-98 Washout Port

- - 532 41 64-05 Coupling, Quick Connect

- - 532 18 72-92 Mandrel Assembly (Includes

housing, shaft assembly, and

bearing only - pulley/nut/washer

and blade bolt/washers not in-

cluded)

- - 532 43 29-07 Replacement Mower, Complete

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 - - - - - - - - - Engine Kohl Model No. SV730-0034

2 532 14 97-23 Muffler

9 532 19 43-20 Keeper Belt Engine

11 532 17 93-35 Clutch Electric

12 532 19 43-43 Pulley Engine

15 532 19 34-99 Tank Fuel 4.0

18 532 43 02-17 Cap Fuel

20 532 18 29-37 Control Throttle

21 532 41 63-58 Screw #10 x .750 BOS Thread

22 532 19 15-96 Control Choke

28 532 40 11-35 Fuel Line

29 532 13 71-80 Spark Arrester Kit

37 532 12 34-87 Clamp Hose

41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250

42 810 04 07-00 Washer Lock 7/16

45 873 51 04-00 Nut Keps Hex 1/4-20 unc

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

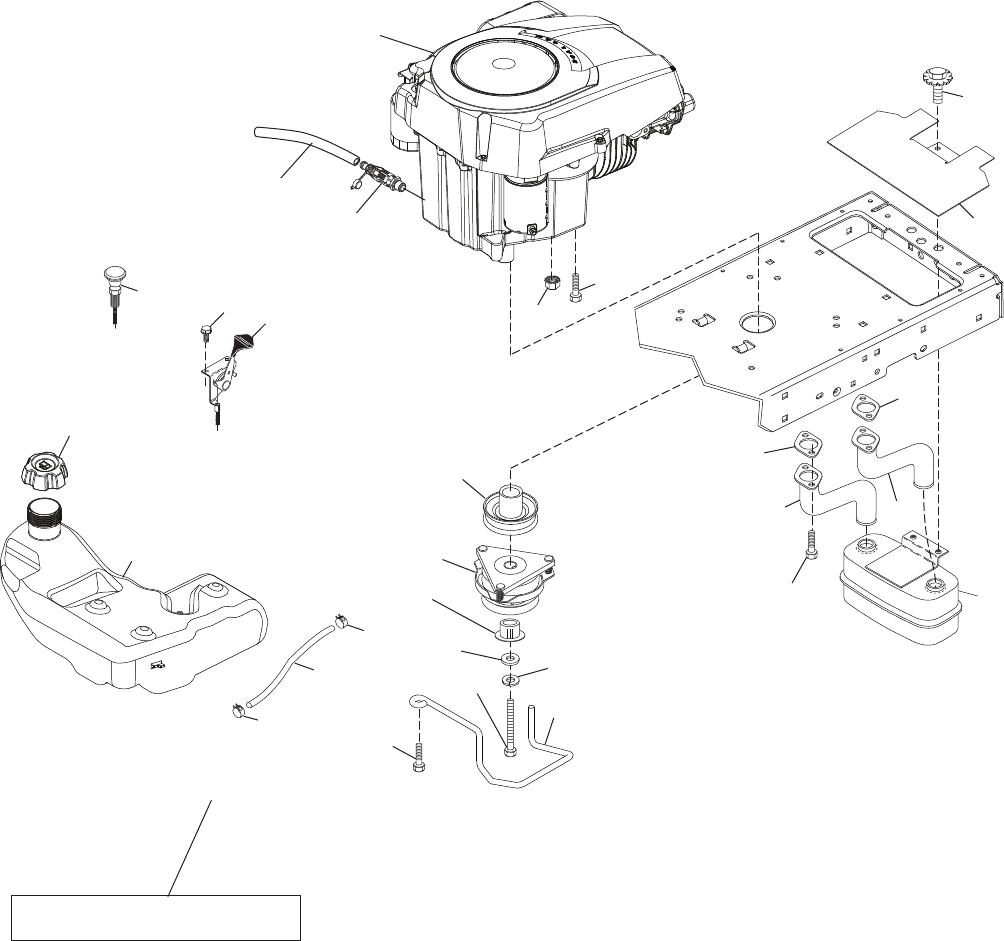

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

ENGINE

30!2+ª!22%34%2ª+)4

21 20

engine-tex_Kohl_19

41 42

62 532 43 40-17 Shield Heat Muffler

69 532 18 60-54 Gasket

70 532 14 66-99 Tube Exhaust LH

71 532 14 67-00 Tube Exhaust RH

79 532 19 23-34 Screw Socket Head 5/16-18 x .75

81 532 14 84-56 Tube Drain Oil Easy

82 532 42 82-87 Valve Drain Oil

84 817 12 06-16 Screw 3/8-16 x 1

85 532 17 99-53 Bolt Hex 7/16-20 x 3.75 Gr. 5

87 532 19 82-39 Bolt 5/16-18 unc x 1 w/Sems

90 817 00 06-16 Screw 3/8-16 x 1

91 532 18 74-95 Bushing

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

SEAT ASSEMBLY

1 532 42 40-68 Seat

2 532 18 01-66 Bracket Pivot Fender

3 532 14 06-75 Strap, Asm Fender

6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc

7 532 12 41-81 Spring, Seat Cprsn

8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems

10 532 19 69-77 Pan, Seat

21 532 17 18-52 Bolt, Shoulder 5/16-18

37 873 80 05-00 Nut, Lock 5/16-18 unc

40 532 19 76-61 Handle Slide Seat

41 532 19 82-00 Spring Latch Seat

43 874 76 06-12 Bolt 3/8-16 x 3/4

44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

seat-tex_6.5SL_3

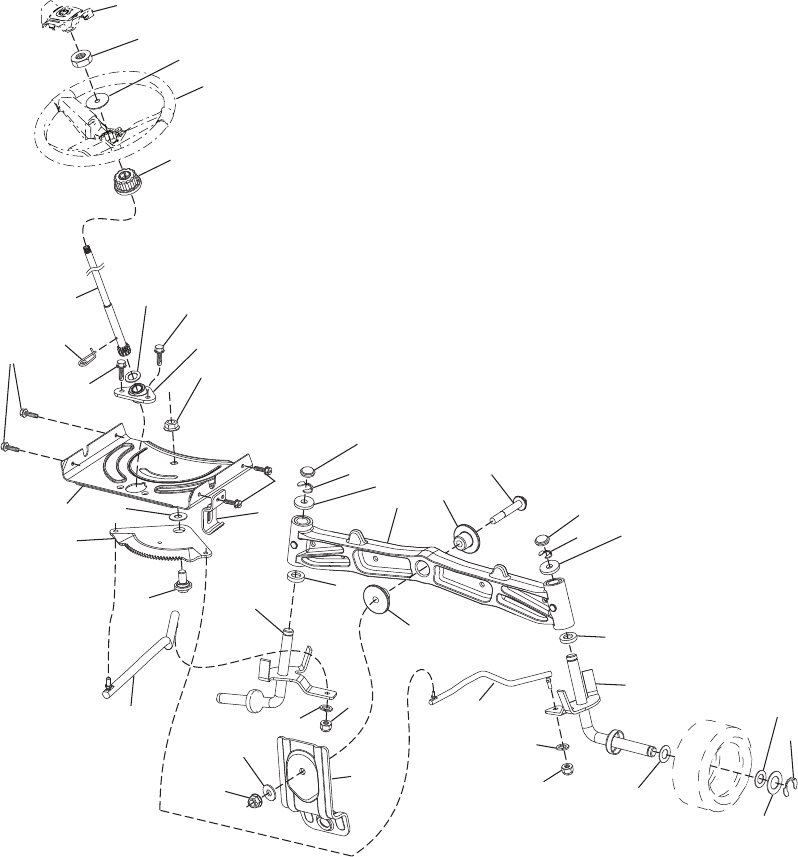

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

STEERING ASSEMBLY

steering-tex_HUSQSR_7_1

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 532 41 64-80 Wheel, Steering

2 532 19 59-68 Axle Asm., Front

4 532 40 30-89 Spindle Asm., LH

5 532 40 30-90 Spindle Asm., RH

6 532 12 49-31 Bearing, Race Thrust Harden

7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

8 812 00 00-29 Ring, Clip #T5304-75

9 532 12 12-32 Cap, Spindle

13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8

15 873 54 06-00 Nut, Crown Lock 3/8-24 unf

16 532 40 82-19 Shaft Steering

19 532 19 47-29 Plate Steering

21 532 18 67-37 Adapter, Wheel Steering

22 532 42 05-37 Supt. Lower, Strg.

26 532 41 59-87 Insert, Wheel Steering

28 817 00 06-12 Screw 3/8-16 x 3/4

35 532 19 47-32 Gear, Sector Plate

45 819 18 38-12 Washer 9/16 x 2-3/8 x 12 Ga.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf

53 532 18 89-67 Washer Hardened .793 x 1.637 x

.060

57 532 19 72-46 Bracket Upstop

58 532 19 47-47 Bolt Shoulder Sector Pivot CFM

59 532 19 47-48 Washer Thrust Sector Steering

60 873 97 10-00 Nut Flange Lock 5/8-11

61 532 19 47-40 Draglink, LH

62 532 19 47-41 Draglink, RH

63 817 00 05-12 Screw 5/16-18 x 3/4

64 532 19 98-49 Retainer Clip Spring Steering

66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr

67 532 19 47-37 Bushing PM Front Axle

68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5

69 532 19 91-62 Washer 1.5 x .505 x .118

70 532 19 61-97 Bracket Deck Susp. Front

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

MOWER LIFT

10 88

lift-tex_23

2 532 42 20-27 Shaft Asm., Lift

3 532 19 52-30 Lever Asm., Lift RH

7 532 41 15-55 Grip, Lever

10 532 19 63-14 Spring Torsion

87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock

88 532 19 53-04 Spring Lift Assist

89 819 19 19-12 Washer Clear Zinc

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock

91 532 40 34-07 Link Lift Susp Mower Rear

97 817 00 06-12 Screw 3/8-16 x 3/4

98 532 19 52-64 Link Lift Susp. Front Mower

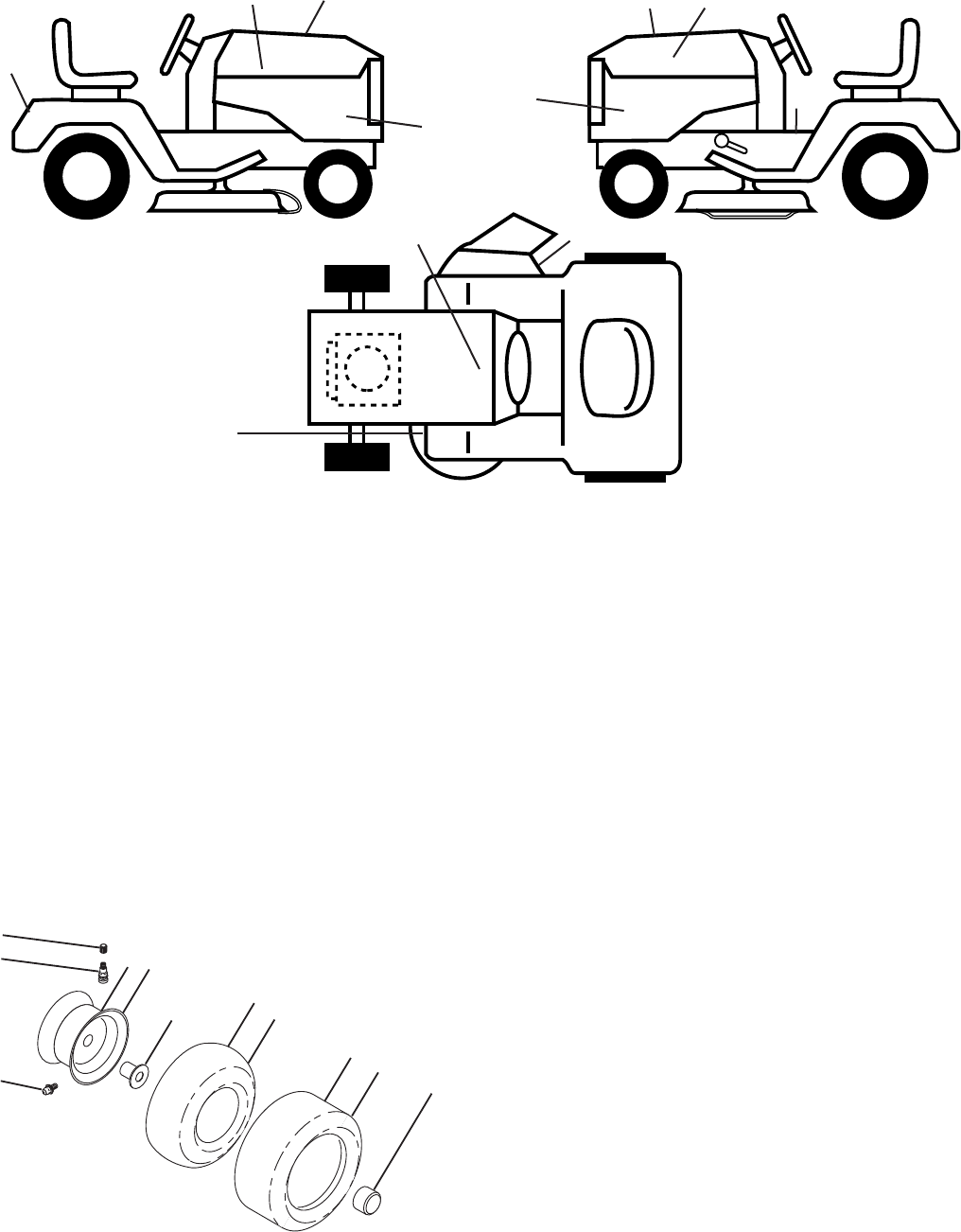

TRACTOR - MODEL NO. LGT2554 (96045002800), PRODUCT NO. 960 45 00-28

DECALS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap, Valve, Tire

2 532 06 51-39 Stem, Valve

3 532 14 45-09 Rim Assembly, Front

4 532 00 81-34 Tube, Front (Ser vice Item Only)

5 532 10 62-30 Tire, Front

6 532 12 49-57 Fitting, Grease (Front Wheel Only)

7 532 12 49-59 Bearing, Flange (Front Wheel Only)

8 532 17 50-39 Cap, Axle (Front Wheel Only)

9 532 18 47-08 Tire, Rear

10 532 00 71-54 Tube, Rear (Service Item Only)

11 532 40 17-82 Rim Assembly, Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 41 16-57 Decal, Warning

4 532 19 15-54 Decal, Fender

5 532 17 84-55 Decal, Caution

8 532 19 87-85 Decal, Mower Sch.

9 532 14 50-05 Decal, Battery Dnge/Poi

14 532 44 03-73 Decal, Panel Side

15 532 42 38-29 Decal, Warning Customer Resp.

16 532 42 91-96 Decal, Hood Logo

17 532 43 96-68 Decal, Replacement

- - 532 16 69-60 Decal, Bypass

- - 532 40 17-71 Pad, Footrest, LH

- - 532 40 17-70 Pad, Footrest, RH

- - 532 44 00-55 Manual, Owner's English

- - 532 44 00-56 Manual, Owner's Spanish

16 16

15 DEGREES MAX.

FOLD ALONG DOTTED LINE

THIS IS A 15 DEGREE SLOPE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Consumer Wheeled Products – Limited Warranty

Husqvarna warrants to the original retail purchaser that this Husqvarna® product is free from defects in material or workmanship

under normal use and maintenance from the date of retail purchase for the applicable Warranty Period shown on Exhibit A. Certain

components (e.g., engines and transmissions) are excluded from coverage, and other limitations apply, as described in this document.

Husqvarna will repair or replace at its discretion, any defective product or part covered by the Limited Warranty, free of charge at any

authorized Husqvarna Servicing Dealer/Center using original OEM Husqvarna replacement parts, subject to the limitations and

exclusions described below. Husqvarna does not offer an over-the-counter exchange program.

THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY PROVIDED BY HUSQVARNA. ANY WARRANTY

THAT MAY BE IMPLIED BY LAW (INCLUDING ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR

PURPOSE OR USE AND IMPLIED WARRANTY OF MERCHANTABILITY) IS LIMITED TO THE DURATION OF THE

APPLICABLE WARRANTY PERIOD UNDER THIS LIMITED WARRANTY. THIS LIMITED WARRANTY MAY BE

MODIFIED ONLY BY HUSQVARNA. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES

YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

THIS WARRANTY IS GIVEN ONLY BY HUSQVARNA. THE ABOVE REMEDIES ARE THE EXCLUSIVE REMEDIES FOR

ANY BREACH OF THIS LIMITED WARRANTY. HUSQVARNA AND ITS AFFILIATED COMPANIES SHALL NOT BE

LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGE, INCLUDING LOST PROFITS RESULTING

FROM ANY SUCH BREACH, AND ALL SUCH DAMAGES ARE HEREBY DISCLAIMED. SOME STATES DO NOT ALLOW

THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS

MAY NOT APPLY TO YOU.

LIMITATIONS AND EXCLUSIONS

1. Engines, Transmissions and certain other components are NOT covered. This Limited Warranty does not cover any of the

following:

(a) Engines and Attachments. Except where otherwise indicated on Exhibit A, all Engines and Attachments are not covered by

this warranty. In most cases, these items are NOT manufactured by Husqvarna in which case they may be covered separately by

their respective manufacturer’s warranties if one is provided and included with the product at the time of purchase. All such

claims must be submitted and sent to the appropriate manufacturer or as otherwise directed in those separate warranties.

Husqvarna is not authorized to handle warranty adjustments or repairs on engines manufactured by Briggs & Stratton, Honda,

Kawasaki, or Kohler (exception – models equipped with LCT engines). Husqvarna does not assume any warranty obligation of

the other manufacturer’s engines.

(b) Transmissions. Except where otherwise indicated on Exhibit A, Transmission / Transaxle (including Drive Systems) are not

covered by this warranty. In most cases, these items are NOT manufactured by Husqvarna in which case they may be covered

separately by their respective manufacturer’s warranties if one is provided and included with the product at the time of purchase.

The following transmission / transaxle manufacturers, Dana, Hydro-Gear, Tuff-Torq provide a warranty for the transmission /

transaxle to the ultimate purchaser or to Husqvarna. Husqvarna will assign the transmission / transaxle manufacturer’s warranty

or any rights thereof to the original purchaser of the unit. To obtain transmission / transaxle warranty service, first contact the

retailer who you purchased the unit from. Should you require assistance or have any questions concerning transmission / transaxle

warranty coverage, contact Husqvarna directly at our website www.husqvarna.com or call 800-487-5951 for an authorized

Husqvarna service provider. All such claims must be submitted and sent to the appropriate manufacturer or as otherwise directed

in those separate warranties. Husqvarna is not authorized to handle warranty adjustments or repairs on transmissions or transaxles.

Husqvarna does not assume any warranty obligation of the above listed manufacturers (for exceptions – see Exhibit A).

including without limitation spark plugs, bulbs, filters, lubricants, starter cords, belts, blades, and blade adapters.

(d) Emissions Control Components. This Limited Warranty does not cover Emissions control equipment and components to the

extent regulated by the U.S. Environmental Protection Agency or similar state agencies. Such equipment and components are

covered by a separate emission control warranty statement supplied with your new product. Please consult this separate warranty

statement for details.

2. Any COMMERCIAL, INSITUTIONAL, AGRICULTURAL, INDUSTRIAL, INCOME PRODUCING, or RENTAL use will result in either No

Warranty or a Shortened Warranty Period Depending on the product; there is either NO WARRANTY or a reduced warranty if the product is used for commercial,

institutional, agricultural, industrial, income producing, or rental purposes. Please refer to Exhibit A.

3. Owner’s (Your) Responsibilities. To preserve your rights under this Limited Warranty, you must demonstrate reasonable care

and use of the product, including, following the preventative maintenance, storage, fuel and oil usages as prescribed in the enclosed

operator’s manual. For example, the following items are the Owner’s responsibility and are not covered by this Limited Warranty:

a. Set-up and pre-delivery service, and engine tune-ups.

b. Adjustments after the first (30) thirty days of purchase and beyond, such as throttle cable, belt guides adjustments.

c. Preventative maintenance as outlined in the operator’s manual.

In addition, you must cease using the product immediately upon any failure or damage. The product should be taken to an authorized

Husqvarna servicing dealer prior to any further use.

4. Damages resulting from normal aging, wear and tear or neglect are NOT covered. The Limited Warranty does not cover

damage other than that resulting from defects in material or workmanship. The following are NOT considered defects in material or

workmanship, and therefore are NOT covered.

(a) Abrasion to mower decks;

(b) Tires damaged by external punctures;

(d) Damage to cutting equipment by way of contact with, rocks, or other non-approved materials and/or structures;

In addition, this Limited Warranty does not cover damages, malfunctions or failures resulting from abuse or neglect of the product

related to or including any of the following:

(e) Failure to provide or perform required maintenance services as prescribed in the operator’s manual;

(f) Abuse, misuse, neglect, modifications, alterations, normal wear, improper servicing, use of unauthorized attachments, Lack of

lubrication or engine failure, due to the use of oils that do not meet Engine manufacturer’s specifications;

(g) Use of gasohol, containing methanol (wood alcohol). Gasohol which contains a maximum 10% ethanol (grain alcohol) or

15% MTBE (methyl/tertiary/butyl/ether) is approved;

(h) Use of ether or any starting fluids;

(i) Pressure cleaning or steam cleaning the product;

(j) Use of spark plugs other than those meeting emission performance requirements listed in the operator’s manual;

(k) Tampering with engine speed governor or emission components, or running engines above specified and recommended

engine speeds as listed in your operator’s manual;

(l) Operation of the unit with improperly installed/removed or modified cutting shields, guards, or safety devices;

(m) Any removed/damaged air filter, excessive dirt, abrasives, salt water, moisture, corrosion, rust, varnish, stale fuel, or any

adverse reaction due to incorrect storage procedures;

(n) Failures due to improper set up, pre-delivery service or repair service by anyone other than an authorized Husqvarna

servicing dealer during the warranty period;

(o) Dirt contaminated grease or oil, use of incorrect type of greases or oils, failure to comply with recommended greasing

intervals, water or moisture damage, and/or improper storage;

(p) Sprayers pumping or spraying caustic or flammable materials, lack of or broken strainers; or

(q) Continued use of product, after initial operational problem or failure occurs.

HOW TO OBTAIN SERVICE

5. Authorized Husqvarna Servicing Dealer/Center. In order to obtain warranty coverage it is your responsibility (at your

expense) to deliver or ship your Husqvarna unit to an authorized Husqvarna Servicing Dealer/Center and arrange for pick-up or return

of your unit after the repairs have been made. If you do not know the location of your nearest authorized Husqvarna Servicing Dealer,

call Husqvarna, at 1-800-487-5951 during the hours of 8:00 AM to 8:00 PM Eastern Standard Time, or visit www.husqvarna.com.

Should you require assistance or have questions concerning this Limited Warranty, you may contact us at 800-487-5951 during the

hours of 8:00 AM to 8:00 PM Eastern Standard Time or contact us through the web at www.husqvarna.com.

6. Documentation Required. You must maintain and present Proof of purchase (including date, product model and, if applicable,

engine serial number) to an authorized Husqvarna Servicing Dealer for warranty service under this Limited Warranty. Proof of

purchase rests solely with the owner-customer. Husqvarna encourages you to register your product online at

www.usa.husqvarna.com to help ensure, among other things, that you can be notified of important product information. However,

registering your product is not a condition of warranty service.

Husqvarna Consumer Outdoor Products N.A., Inc.; Husqvarna Professional Products, Inc.

9335 Harris Corners Parkway Charlotte, NC 28269

575 49 43-01 R3 2010

Consumer Wheeled Warranty Chart 2010

Exhibit A

Consumer (personal,

household use only)

Commercial (any commercial,

professional, institutional,

arigculutral, or income producing

use, other than Rental Use)

Rental (any rental

usage)

Riding Lawn Tractors:

Frame, Chassis, Front Axle 5 Years NO WARRANTY NO WARRANTY

Engine* * * *

Transmission (if made by

Husqvarna/Peerless) 3 Years NO WARRANTY NO WARRANTY

Transmission (if third party)** ** ** **

Battery 1 Year Pro-rated NO WARRANTY NO WARRANTY

Other Non-Expendable Components 3 Years NO WARRANTY NO WARRANTY

Engine* * * *

Transmission ** ** NO WARRANTY NO WARRANTY

Battery 1 Year Pro-rated NO WARRANTY NO WARRANTY

Other Non-Expendable Components 3 Years NO WARRANTY NO WARRANTY

Engine* * * *

Transmission ** ** ** **

Battery 1 Year Pro-rated 1 Year Pro-rated NO WARRANTY

Other Non-Expendable Components 3 Years 1 Year NO WARRANTY

LE475 Edger

Engine* * * *

Other Non-Expendable Components 2 Years 90 days 90 days

Walk Behind Mowers

Engine* * * *

Battery 1 Year Pro-rated NO WARRANTY NO WARRANTY

Other Non-Expendable Components 2 Years NO WARRANTY NO WARRANTY

Snow Throwers

Engine* **

Residential Zero Turn Mowers ( MZ & EZ )

Product/Component

Residential Zero Turn Mowers ( RZ Only )

Engine* ***

Other Non-Expendable Components 2 Years 90 days 90 days

Tillers

Engine* * *

Battery 1 Year Pro-rated NO WARRANTY NO WARRANTY

Other Non-Expendable Components 2 Years NO WARRANTY NO WARRANTY

Tiller Tines *** NO WARRANTY NO WARRANTY

Hovering Trimmers

Engine* * * *

Other Non-Expendable Components 2 Years 1 Year 90 days

Consumer Commercial Rental

* See Separate Engine Manufacturer's or Manufacturer's warranty

LCT Engines on specific Snow Throwers & Tillers, warranty through Husqvarna.

*** "Limited Lifetime Warranty" on Tiller tines is for the life of the product or 7 (seven) years after the last date of the complete

unit's final production, whichever comes first.

** See reference 1 (b) of the warranty statement.

RZ - Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network.

EZ - One (1) Year Commercial warranty, parts & labor, with Husqvarna.

Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network.

MZ - Two (2) Year Commercial warranty, parts & labor, with Hydro-Gear Distributor network.

Consumer Wheeled Warranty Chart 2010

Exhibit A

Consumer (personal,

household use only)

Commercial (any commercial,

professional, institutional,

arigculutral, or income producing

use, other than Rental Use)

Rental (any rental

usage)

Product/Component

Front Mounted Deck Riders

Engine* * * *

Transmission 2 Years NO WARRANTY NO WARRANTY

Battery 1 Year Pro-rated NO WARRANTY NO WARRANTY

Other Non-Expendable Components 2 Years NO WARRANTY NO WARRANTY

Cultivators

Battery 1 Year Pro-rated NO WARRANTY NO WARRANTY

Other Non-Expendable Components 2 Years NO WARRANTY NO WARRANTY

Pressure Washers

Model 5525PW:

Engine* * * *

Pump 2 Years NO WARRANTY NO WARRANTY

Other Non-Expendable Components 2 Years NO WARRANTY NO WARRANTY

Engine* * * *

Pump 2 Years 2 Years NO WARRANTY

Other Non-Expendable Components 2 Years 2 Years NO WARRANTY

Generators

Engine* * * *

Other Non-Expendable Components*

*2 Years (2nd Year

Parts Only)

*2 Years-1365GN (2nd Year

Parts Only) NO WARRANTY

Spreaders

Spreader 1 Year 1 Year 1 Year

Robotic Mowers

Robotic Mower 2 Years 90 days 90 days

Battery 1 Year 1 Year 1 Year

Pt&A i (if h d)

All other Pressure Washers (6027PW, 9032PW, 1340PW)

Parts & Accessories (if purchased)

Accessories (e.g., grass catcher, bumper

guard accessories, etc. 1 Year NO WARRANTY NO WARRANTY

Parts (e.g., belts, blades, etc.) 30 days NO WARRANTY NO WARRANTY

Parts & Accessories (if replaced in Warranty Service)

Replacement parts and/or accessories

provided under this Limited Warranty are

warranted only for the BALANCE of the

warranty period applicable to the part or

accessory that was replaced. See to left See to left See to left

Consumer Commercial Rental

* See Separate Engine Manufacturer's or Manufacturer's warranty

LCT Engines on specific Snow Throwers & Tillers, warranty through Husqvarna.

*** "Limited Lifetime Warranty" on Tiller tines is for the life of the product or 7 (seven) years after the last date of the complete

unit's final production, whichever comes first.

** See reference 1 (b) of the warranty statement.

RZ - Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network.

EZ - One (1) Year Commercial warranty, parts & labor, with Husqvarna.

Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network.

MZ - Two (2) Year Commercial warranty, parts & labor, with Hydro-Gear Distributor network.

11.02.10 JA Printed in the U.S.A.

Husqvarna 96045002800 Users Manual OM, LGT2554, 2010 11, TRACTORS/RIDE MOWERS,

96045002800 HUSO2010_USen__532440055

96045002800 to the manual c420ec7c-8230-4d20-aa13-0b87278abca5

Navigation menu

Versions of this User Manual:

Views

Navigation
