LT130

Owner’s Manual

2

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

• Read, understand, and follow all instructions in the manual

and on the machine before starting.

• Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blade.

• Be sure the area is clear of other people before mowing. Stop

machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Always

look down and behind before and while backing.

• Be aware of the mower discharge direction and do not point

it at anyone. Do not operate the mower without either the

entire grass catcher or the guard in place.

• Slow down before turning.

• Never leave a running machine unattended. Always turn off

blades, set parking brake, stop engine, and remove keys

before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass catcher or unclogging

chute.

• Mow only in daylight or good artificial light.

• Do not operate the machine while under the influence of

alcohol or drugs.

• Watch for traffic when operating near or crossing roadways.

• Use extra care when loading or unloading the machine into

a trailer or truck.

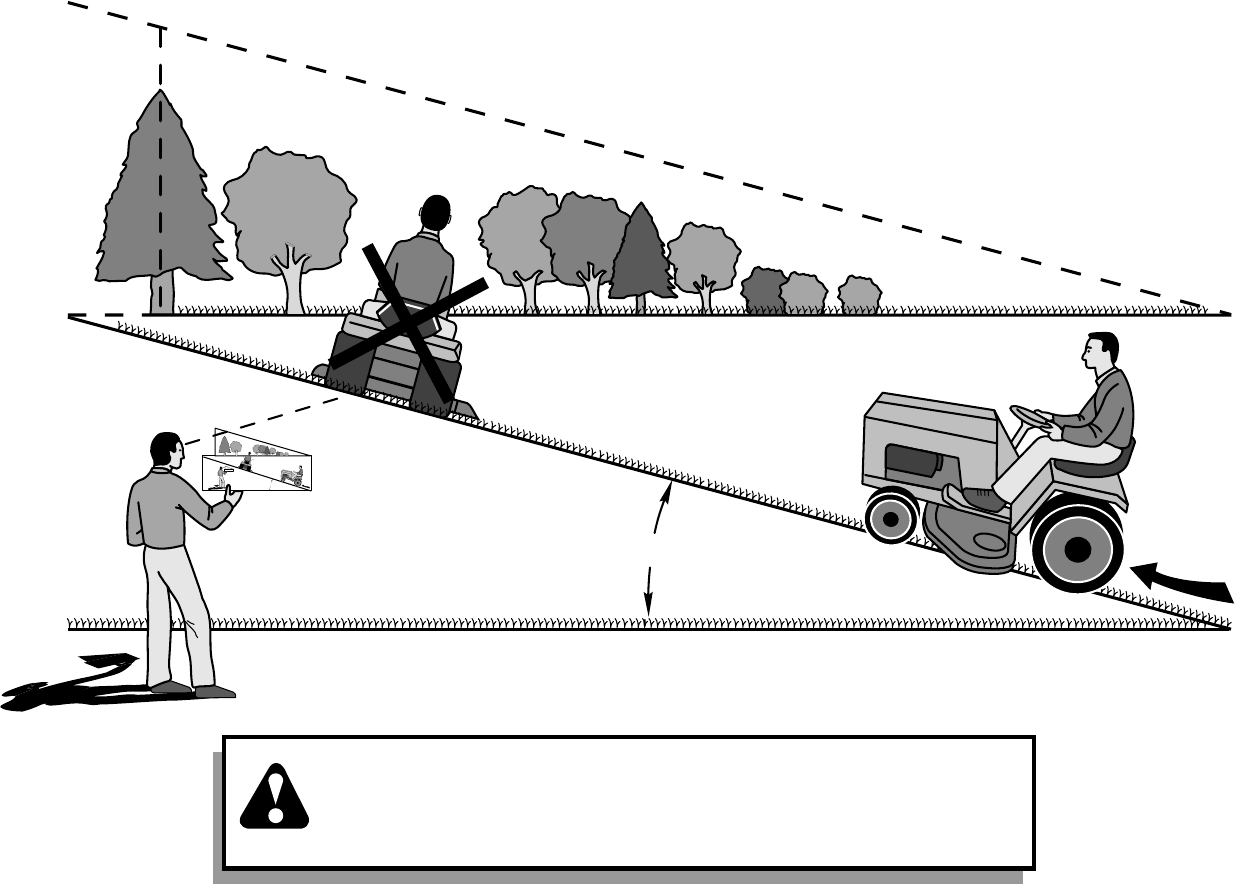

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and

tipover accidents, which can result in severe injury or death.

All slopes require extra caution. If you cannot back up the

slope or if you feel uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not have

to stop or shift while on the slope.

• Follow the manufacturer’s recommendations for wheel

weights or counterweights to improve stability.

• Use extra care with grass catchers or other attachments.

These can change the stability of the machine.

• Keep all movement on the slopes slow and gradual. Do not

make sudden changes in speed or direction.

• Avoid starting or stopping on a slope. If tires lose traction,

disengage the blades and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless necessary, and then, turn slowly

and gradually downhill, if possible.

•Do not mow near drop-offs, ditches, or embankments. The

mower could suddenly turn over if a wheel is over the edge

of a cliff or ditch, or if an edge caves in.

•Do not mow on wet grass. Reduced traction could cause

sliding.

•Do not try to stabilize the machine by putting your foot on the

ground.

•Do not use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity. Never assume that

children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful

care of another responsible adult.

• Be alert and turn machine off if children enter the area.

• Before and when backing, look behind and down for small

children.

• Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and other fuels. They are

flammable and vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do not

smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel container inside where

there is an open flame, such as a water heater.

• Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts, tight

and keep equipment in good condition.

• Never tamper with safety devices. Check their proper

operation regularly.

• Keep machine free of grass, leaves, or other debris build-up.

Clean oil or fuel spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine running.

• Grass catcher components are subject to wear, damage, and

deterioration, which could expose moving parts or allow

objects to be thrown. Frequently check components and

replace with manufacturer's recommended parts, when nec-

essary.

• Mower blades are sharp and can cut. Wrap the blade(s) or

wear gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service as

required.

Look for this symbol to point out im-

portant safety precautions. It means

CAUTION!!! BECOME ALERT!!! YOUR

SAFETY IS INVOLVED.

SAFETY RULES

WARNING

The engine exhaust from this product con-

tains chemicals known to the State of Califor-

nia to cause cancer, birth defects, or other

reproductive harm.

CAUTION: Always disconnect spark plug

wire and place wire where it cannot contact

spark plug in order to prevent accidental

starting when setting up, transporting,

adjusting or making repairs.

3

PRODUCT SPECIFICATIONS

HORSEPOWER: 13.0

GASOLINE CAPACITY 2 GALLONS

AND TYPE: UNLEADED REGULAR

OIL TYPE (API-SF/SG): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: W/O FILTER: 3 PINTS

SPARK PLUG: CHAMPION RJ19LM

(GAP: .030")

VALVE CLEARANCE: INTAKE: .005" - .007"

EXHAUST: .009" - .011"

GROUND SPEED (MPH): FORWARD:

1st 1.0

2nd 1.4

3rd 2.1

4th 3.1

5th 4.0

6th 5.1

REVERSE: 1.6

TIRE PRESSURE: FRONT: 14 PSI

REAR: 12 PSI

CHARGING SYSTEM: 3 AMPS BATTERY

5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 25

MIN. CCA: 190

CASE SIZE: U1R

BLADE BOLT TORQUE: 30-35 FT. LBS.

CONGRATULATIONS on your purchase of a new tractor.

It has been designed, engineered and manufactured to

give you the best possible dependability and performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest authorized service

center/department. We have competent, well-trained tech-

nicians and the proper tools to service or repair this unit.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your unit properly.

Always observe the “SAFETY RULES”.

MODEL

NUMBER LT130

SERIAL

NUMBER ____________________________________

DATE OF PURCHASE __________________________

THE MODEL AND SERIAL NUMBERS WILL BE FOUND

ON A PLATE UNDER THE SEAT.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and

using your unit.

• Follow the instructions under “Customer Responsibili-

ties” and “Storage” sections of this owner’s manual. WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine’s exhaust system is equipped

with a spark arrester meeting applicable local or state laws

(if any). If a spark arrester is used, it should be maintained

in effective working order by the operator.

A spark arrester for the muffler is available through your

nearest authorized service center/department (See RE-

PAIR PARTS section of this manual).

4

TABLE OF CONTENTS

A

Adjustments:

Brake ............................................ 20

Carburetor ................................... 23

Mower

Front-To-Back......................... 19

Side-To-Side........................... 19

Throttle Control Cable.................. 22

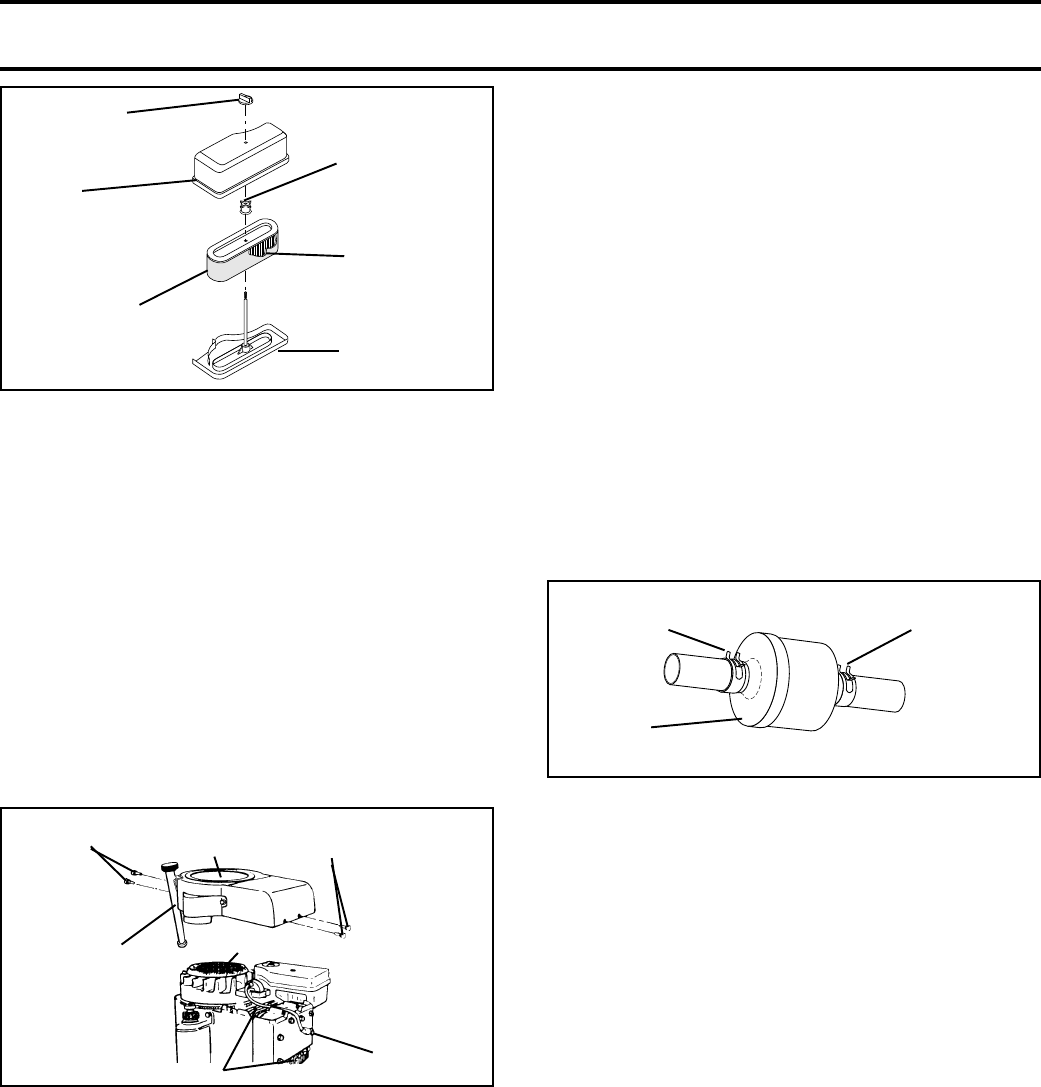

Air Filter, Engine ................................. 17

Air Screen, Engine.............................. 17

Assembly ........................................... 6-9

B

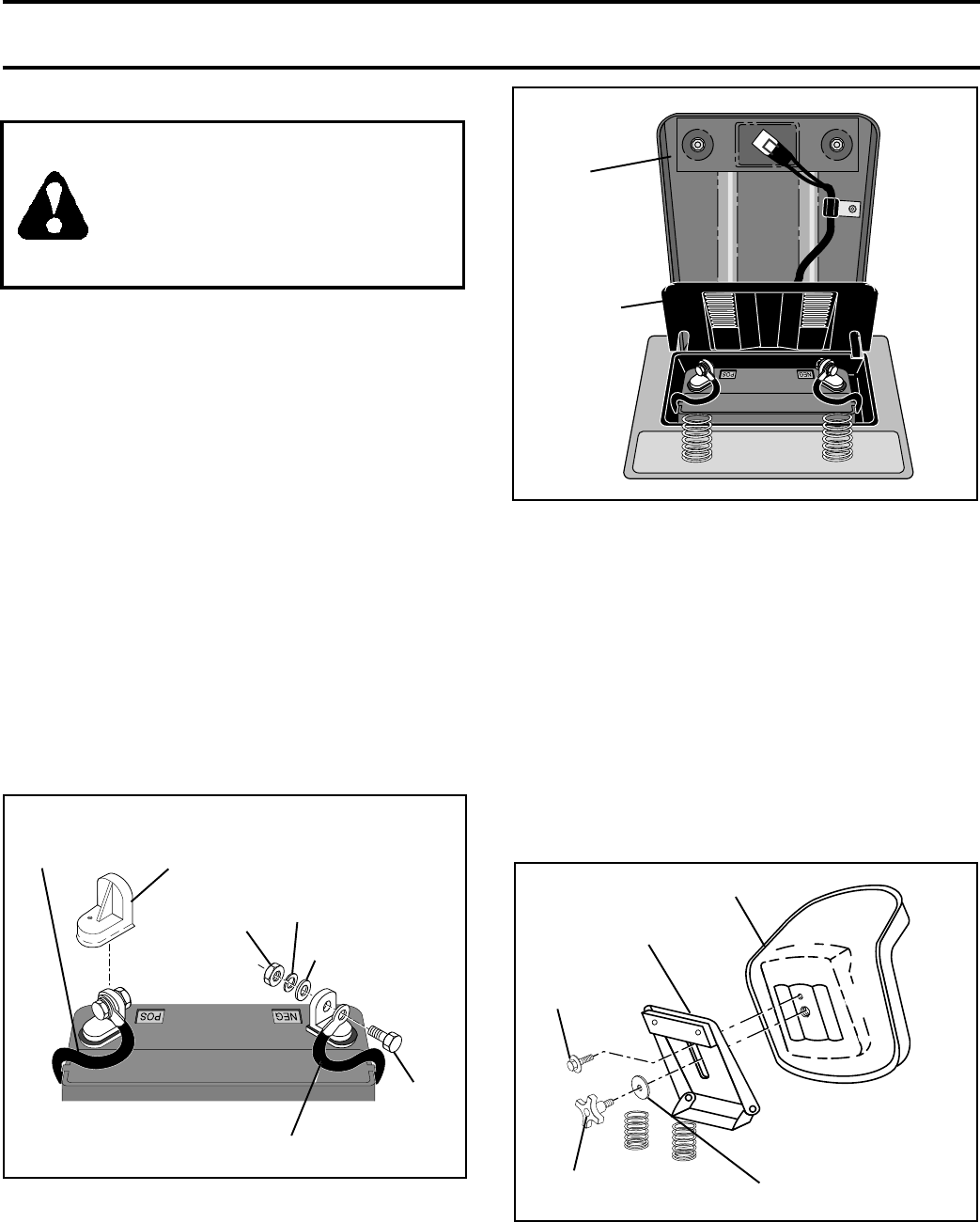

Battery:

Charging ......................................... 7

Cleaning ...................................... 16

Levels ........................................ 7,16

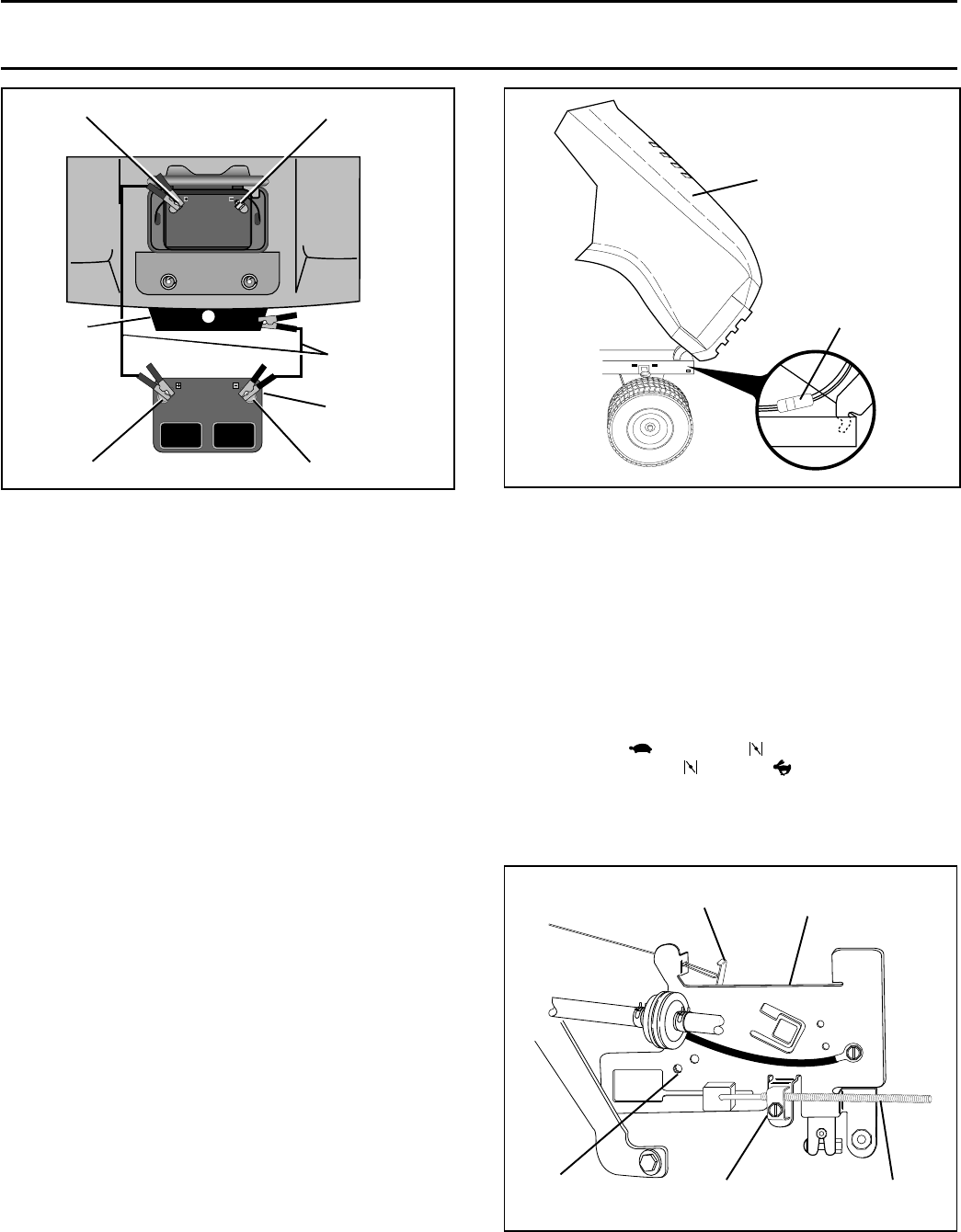

Starting with Weak Battery........... 21

Storage ......................................... 24

Terminals..................................... 16

Belt:Motion Drive

Removal/Replacement ........... 20

Mower Belt(s)

Removal/Replacement ........... 20

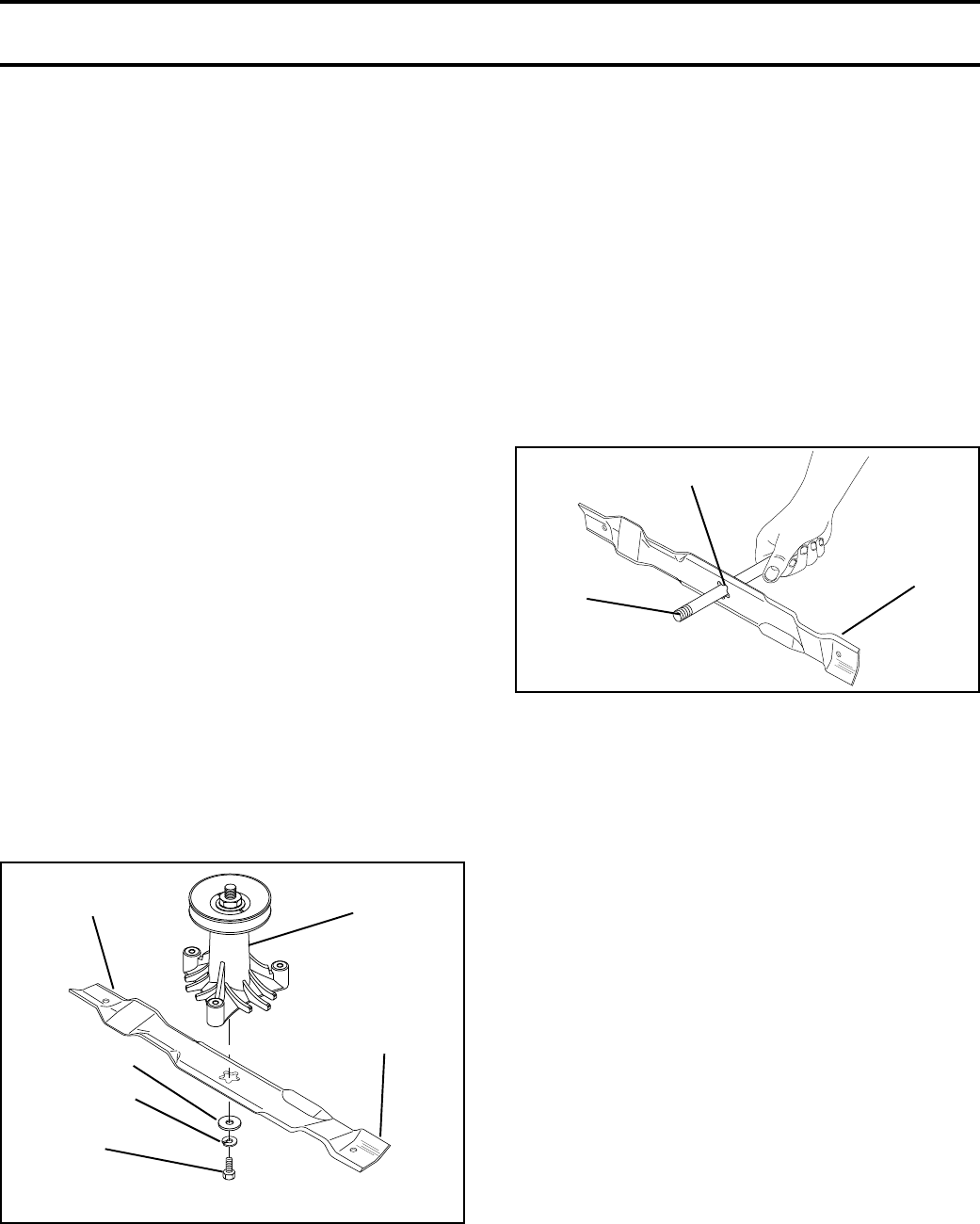

Blade:

Sharpening .................................. 15

Replacement ............................... 15

Brake Adjustment ............................... 20

C

Carburetor Adjustment........................ 23

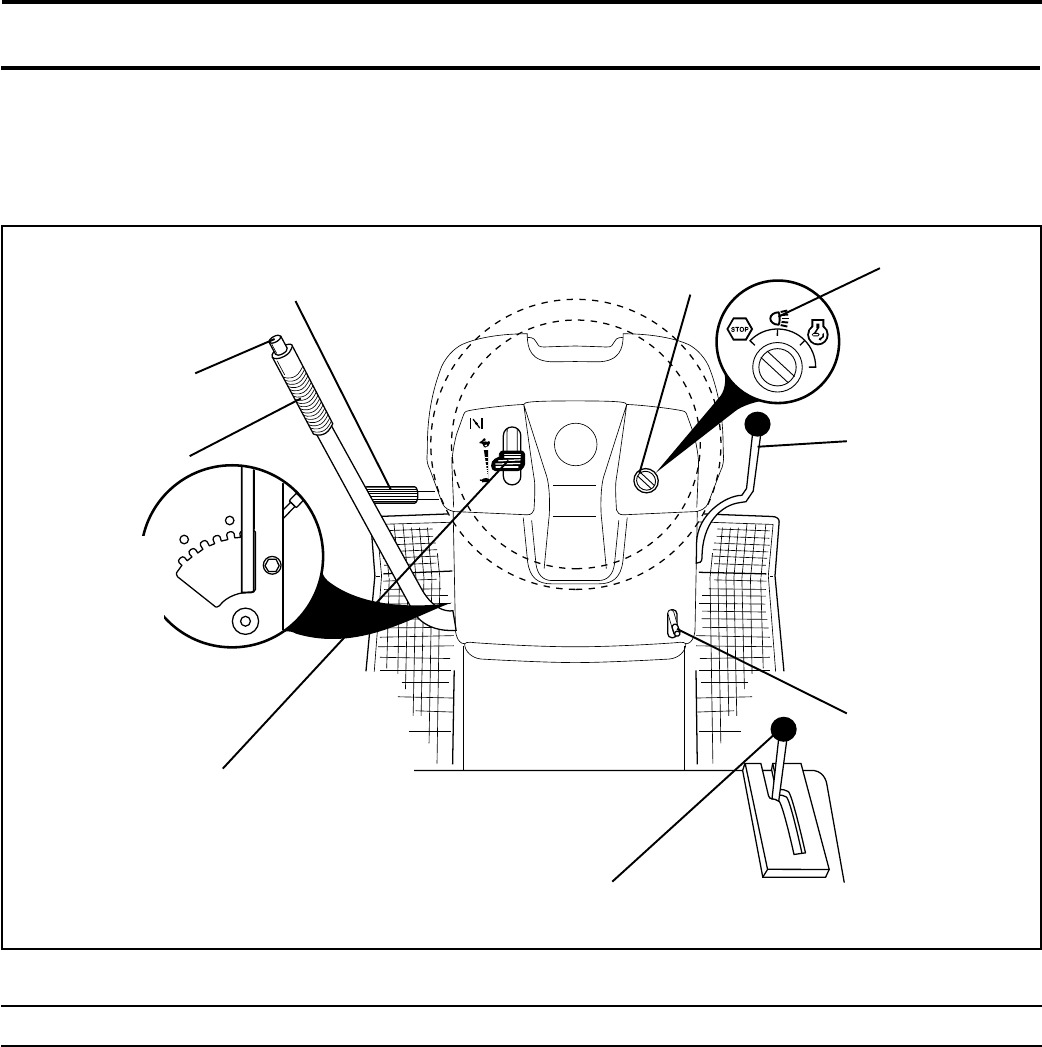

Controls, Tractor ................................. 10

Customer Responsibilities ............. 14-17

Engine:

Air Filter ................................... 16

Air Screen................................ 17

Cooling Fins............................. 17

Engine Oil ........................... 12,16

Fuel Filter ................................ 17

Spark Plug(s) ........................... 17

Tractor:

Battery ..................................... 16

Blade ....................................... 15

Lubrication Chart ..................... 14

Maintenance Schedule ............ 14

Tire Care ......................... 7,15,21

Transaxle................................. 16

Cutting Height, Mower ........................ 11

SAFETY RULES ........................................................... 2

PRODUCT SPECIFICATIONS...................................... 3

CUSTOMER RESPONSIBILITIES ..................... 3, 14-17

ASSEMBLY ............................................................... 6-9

OPERATION .......................................................... 10-13

MAINTENANCE SCHEDULE ..................................... 14

SERVICE AND ADJUSTMENTS ........................... 19-23

STORAGE.................................................................... 24

TROUBLESHOOTING ........................................... 25-26

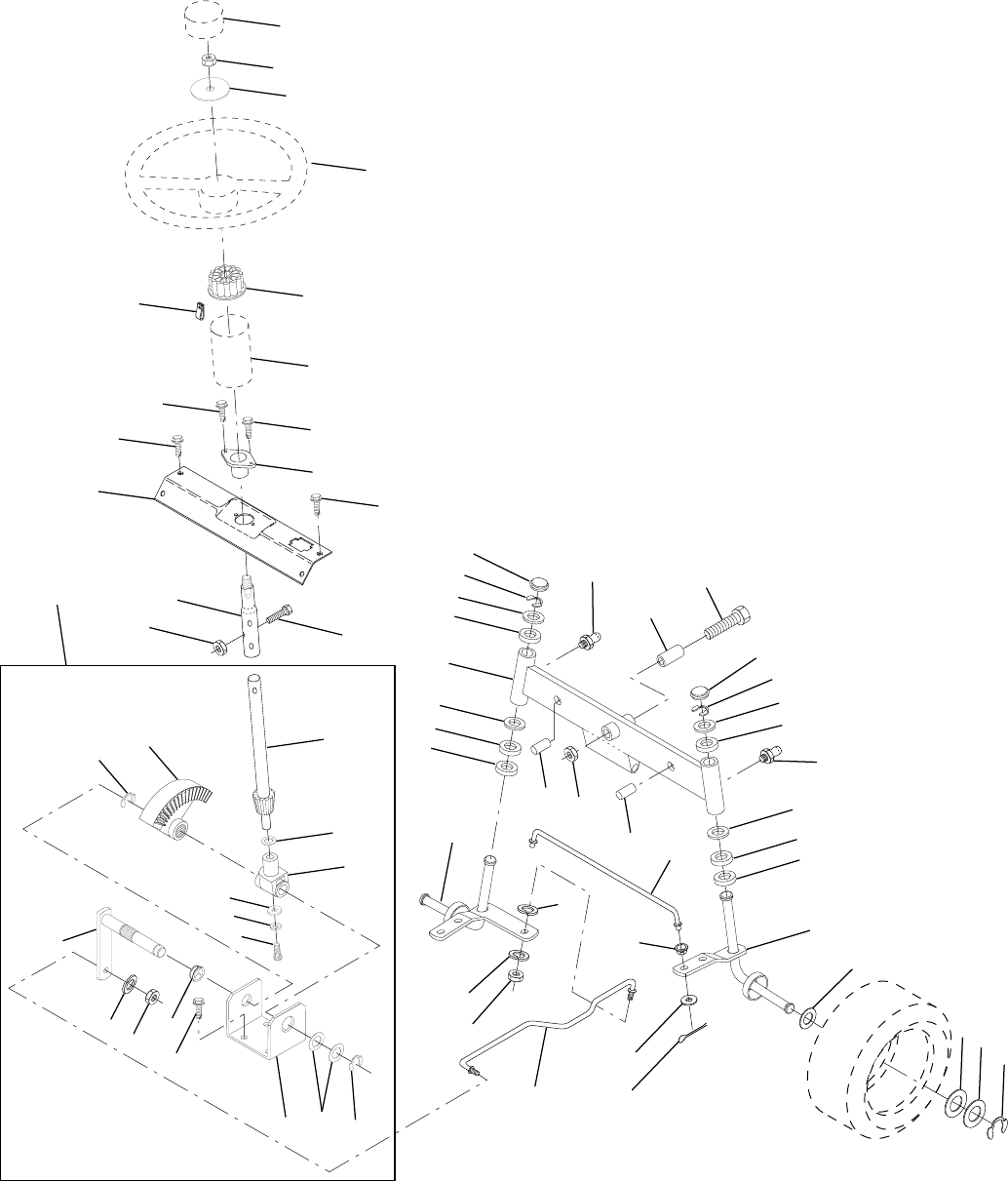

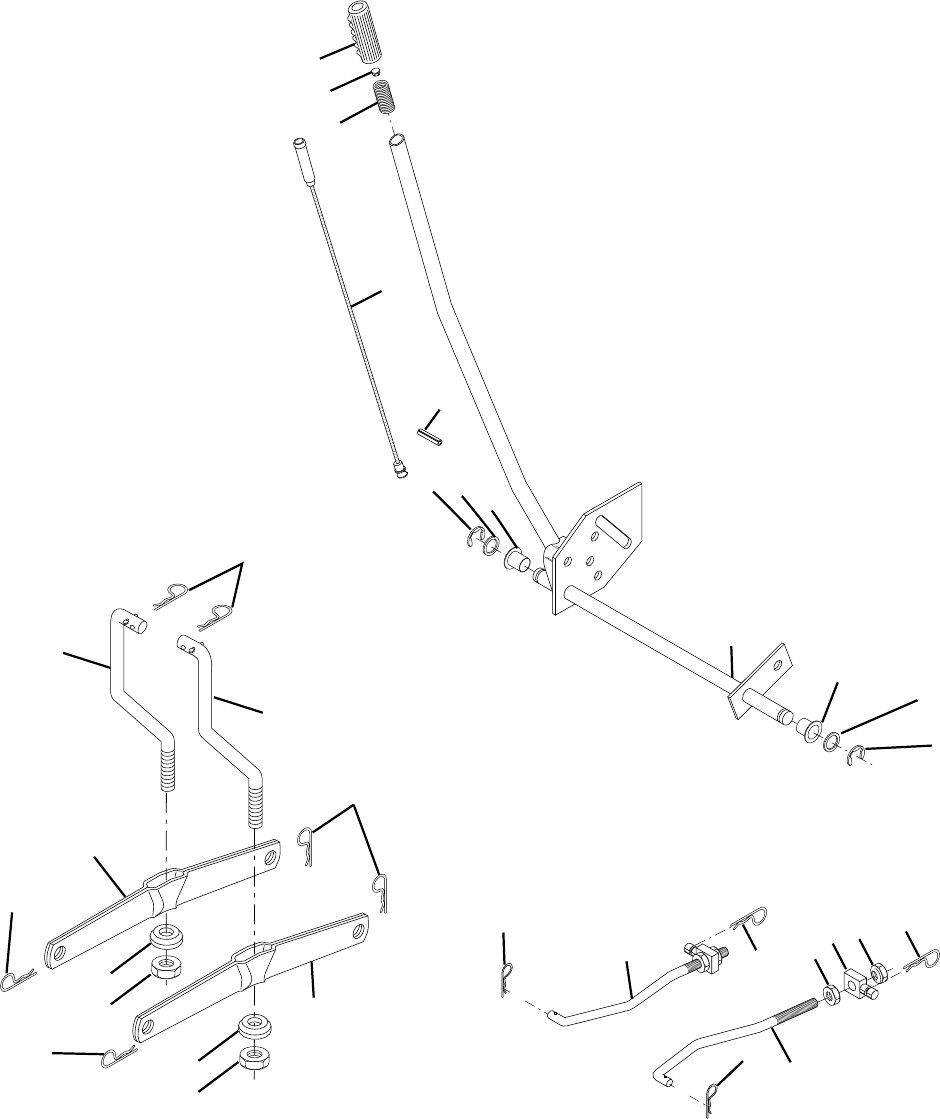

REPAIR PARTS - TRACTOR ................................ 28-45

WARRANTY ................................................................ 57

INDEX E

Electrical:

Interlocks and Relays .................. 22

Schematic.................................... 27

Wiring Diagram ............................ 28

Engine:

Air Filter ....................................... 16

Air Screen.................................... 17

Cooling Fins ................................ 17

Oil Change .................................. 16

Oil Level ...................................... 12

Oil Type ................................... 12,16

Preparation .................................. 12

Starting ......................................... 13

Storage ......................................... 24

F

Filter:

Air Filter ....................................... 16

Fuel .............................................. 17

Fuel:

Type ............................................. 12

Storage ......................................... 24

Fuse .................................................... 22

H

Hood Removal/Installation .................. 22

L

Leveling Mower Deck ......................... 19

Lubrication:

Chart ............................................ 14

Engine .......................................... 16

M

Maintenance Schedule ....................... 14

Mower:

Adjustment, Front-to-Back ........... 19

Adjustment, Side-to-Side ............. 19

Blade Replacement ..................... 15

Blade Sharpening ........................ 15

Cutting Height.............................. 11

Installation ................................... 18

Operation..................................... 12

Removal ...................................... 18

Mowing Tips ....................................... 13

Muffler ................................................. 17

Spark Arrester .......................... 3,38

O

Oil: Cold Weather Conditions ........ 12,16

Engine .......................................... 16

Storage ......................................... 24

Operation....................................... 10-13

Operating Mower ................................ 12

Options:

Spark Arrester .......................... 3,38

P

Parking Brake ................................ 10-11

Parts Bag............................................... 5

Parts, Replacement/Repair ............ 28-45

Product Specifications. ......................... 2

R

Repair Parts................................... 28-45

S

Safety Rules .......................................... 2

Seat ....................................................... 7

Service and Adjustments ............... 19-23

Carburetor .................................... 23

Fuse ............................................. 22

Hood Removal/Installation ........... 22

Motion Drive Belt

Removal/Replacement ........... 20

Mower Belt(s)

Removal/Replacement ........... 20

Mower Adjustment

Front-to-Back .......................... 21

Side-to-Side ............................ 21

Mower Removal/Installation......... 18

Tire Care .............................. 7,15,21

Slope Guide Sheet ............................. 56

Spark Plug(s) ....................................... 17

Specifications ....................................... 3

Starting the Engine ............................. 13

Steering Wheel ................................ 6,21

Stopping the Tractor ........................... 11

Storage ................................................ 24

T

Throttle Control Cable Adjustment ...... 22

Tires. ........................................... 7,15,21

Troubleshooting Chart ................... 25-26

Transaxle............................................. 16

W

Warranty .............................................. 57

Wiring Diagram .................................... 28

Wiring Schematic................................ 27

5

CONTENTS OF HARDWARE PACK

Parts packed separately in carton

Parts Bag contents shown full size

Parts bag contents not shown full size

Slope Sheet

(2) Hex Bolts

1/4-20 x 3/4

(2) Washers 9/32 x 5/8 x 16 Ga.

(2) Lock

Washers 1/4

(2) Hex Nuts

1/4-20

Seat

Manual

Steering

Wheel

Parts Bag

(2) Weld

Nuts #10

(2) Washers 

3/16 x 3/4 x 16 Gauge

(2) Screws #10 x 5/8

(2) Lock

Washers #10

Mulcher

Plate

(1) Shoulder Bolt

5/16-18

(1) Washer 17/32 x 1-3/16 x 12 Gauge

(1) Knob

(1) Locknut 

3/8-24

(1) Large

Flat Washer

(1) Locknut 5/16-18

(1) Hex Bolt 5/16-18 x 1-1/4

(3) Tinnerman 

Clips

Nose Roller

(2) Washers 17/32

x 15/16 x 12 Gauge

(2) Shoulder Bolts

(2) Gauge 

Wheels

(2) Washers 3/8

x 7/8 x 14 Gauge

(2) Center-

lock Nuts

Nose Roller

Brackets

(2) Latch Hook

Assemblys

Steering 

Wheel 

Insert

Steering

Extension

Shaft

Steering Wheel

Adapter

Steering 

sleeve

(2) Keys

(2) Hex Bolts 3/8-16 x 1

(2) Washers 

17/32 x 7/8 x 16 Ga.

(2) Nylon Locknuts

3/8-16

ASSEMBLY

6

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to insure proper tightness.

LOWER

STEERING

SHAFT

FIG. 1

STEERING

SLEEVE

5/16 LOCKNUT

3/8-24 LOCKNUT

STEERING

WHEEL HUB

STEERING

WHEEL

RETAINER CLIP

(TAB TO OUTSIDE)

ADAPTER

STEERING

SLEEVE

LARGE FLAT

WASHER

INSERT

5/16 HEX BOLT

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR

IS TO ROLL OFF SKID.

TO ROLL TRACTOR OFF SKID (See Fig. 8)

• Raise attachment lift lever to its highest position.

• Release parking brake by depressing clutch/brake

pedal.

• Place gearshift lever in neutral (N) position.

• Roll tractor backwards off skid.

• Remove banding holding discharge guard up against

tractor.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

(2) 7/16" wrenches Phillips Screwdriver

(1) 1/2" wrench Tire pressure gauge

(1) 9/16" wrench Utility knife

When right or left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel).

TO REMOVE TRACTOR FROM CAR-

TON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons

from carton (See page 5).

• Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat.

• Check for any additional loose parts or cartons and

remove.

BEFORE ROLLING TRACTOR OFF SKID

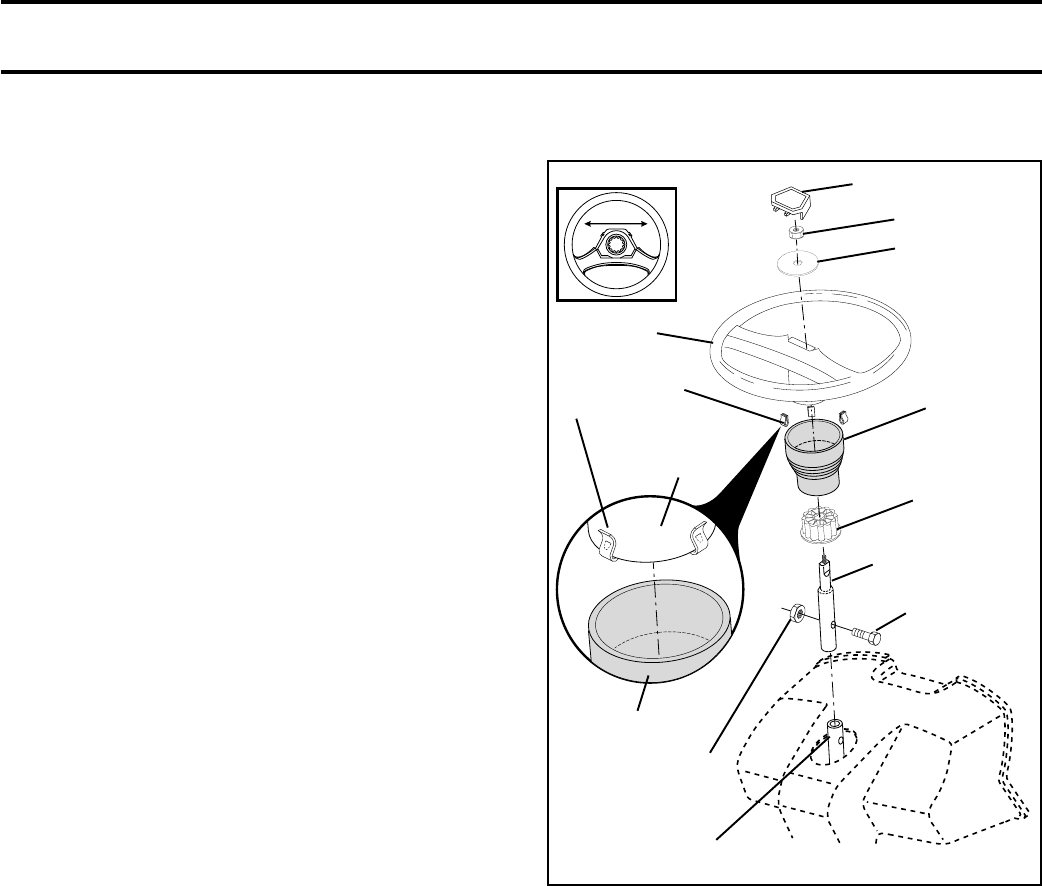

ATTACH STEERING WHEEL (See Fig. 1)

PREASSEMBLE SLEEVE TO STEERING WHEEL (See

Fig. 1 Inset)

• Install sleeve retainer clips, evenly spaced around

steering wheel hub, with formed tabs toward the out-

side of hub.

• Press or lightly tap retainer clips fully onto steering

wheel hub.

• Press steering sleeve fully onto steering wheel hub and

clips.

ASSEMBLE EXTENSION SHAFT

• Slide extension shaft onto lower steering shaft. Align

mounting holes in extention and lower shafts and install

5/16 hex bolt and locknut. Tighten securely.

IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO

18-22 FT. LBS TORQUE.

INSTALL STEERING WHEEL

• Position front wheels of the tractor so they are pointing

straight forward.

• Slide steering wheel adapter onto steering shaft exten-

sion.

• Position steering wheel and sleeve assembly so cross

bars are horizontal (left to right) and slide onto adapter.

• Assemble large flat washer and 3/8-24 locknut and

tighten securely.

• Snap steering wheel insert into center of steering

wheel.

• Remove protective plastic from tractor hood and grill.

EXTENSION SHAFT

ASSEMBLY

7

CONNECT BATTERY (See Figs. 2 and 3)

CAUTION: Do not short battery termi-

nals. Before connecting battery, re-

move metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

• Remove cardboard packing from seat pan and lift seat

pan to raised position.

• Open battery box door.

• Remove terminal protective caps and discard.

• If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amps.

• First connect RED battery cable to positive (+) terminal

with hex bolt, flat washer, lock washer and hex nut as

shown. Tighten securely.

• Connect BLACK grounding cable to negative (-) termi-

nal with remaining hex bolt, flat washer, lock washer

and hex nut. Tighten securely.

• Close battery box door.

Open battery box door for:

• Inspection for secure connections (to tighten hard-

ware).

• Inspection for corrosion.

• Testing battery.

• Jumping (if required).

• Periodic charging .

BATTERY

BOX DOOR

SEAT

PAN

FIG. 3

INSTALL SEAT (See Fig. 4)

Adjust seat before tightening adjustment knob.

• Remove cardboard packing on seat pan.

• Place seat on seat pan and assemble shoulder bolt.

• Assemble adjustment knob and flat washer loosely.

Do not tighten.

• Tighten shoulder bolt securely.

• Lower seat into operating position and sit on seat.

• Slide seat until a comfortable position is reached which

allows you to press clutch/brake pedal all the way

down.

• Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment knob securely.

FIG. 4

SEAT

SEAT PAN

SHOULDER

BOLT

ADJUSTMENT

BOLT LARGE FLAT WASHER

POSITIVE

(RED) CABLE

NEGATIVE

(BLACK) CABLE

HEX

BOLT

FLAT

WASHER

HEX

NUT

LOCK

WASHER

DISCARD

TERMINAL

PROTECTIVE

CAPS

FIG. 2

ASSEMBLY

8

FIG. 5

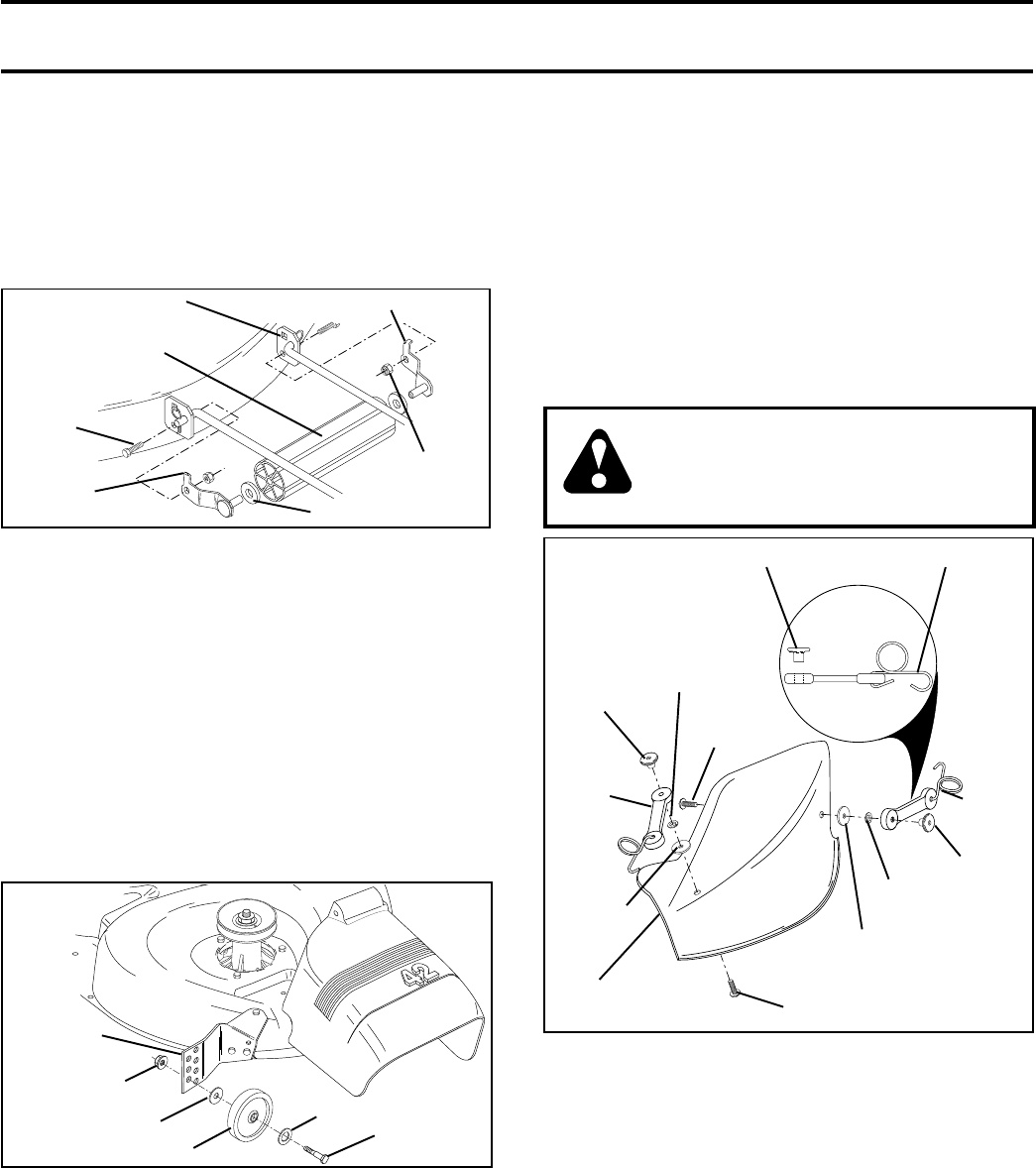

TO ATTACH NOSE ROLLER (See Fig. 4)

• Position brackets, 17/32 x 7/8 x 16 gauge washers, and

nose roller between deck mounting brackets as shown.

Be sure to position brackets on correct side, as shown.

• Install 3/8-16 x 1 hex bolts and 3/8-16 crownlock nuts

as shown. Tighten hardware securely.

NOTE: Be sure bracket tabs are positioned in tab holes in

deck brackets.

NOSE ROLLER

HEX

BOLT

“B”

BRACKET

TAB WASHER

TAB HOLE

CROWNLOCK

NUT

“A” BRACKET TAB

SHOULDER

BOLT

GAUGE WHEEL

3/8-16

LOCKNUT

GAUGE

WHEEL

MOUNTING

BRACKET

3/8 WASHER 17/32 WASHER

FIG. 6

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 6)

Assemble gauge wheels with tractor on a flat level surface.

• Adjust mower to desired cutting height (See “TO AD-

JUST MOWER CUTTING HEIGHT” in the Operation

section of this manual).

• With mower in desired height of cut position, gauge

wheels should be assembled so they are slightly off the

ground. Install gauge wheel in appropriate hole with

shoulder bolt, 17/32 washer, 3/8 washer, and 3/8-16

locknut and tighten securely.

• Repeat for opposite side installing gauge wheel in

same adjustment hole.

INSTALL MULCHER PLATE

(See Figs. 7 and 8)

• Install two latch hooks to mulcher plate using screw,

washer, lock washer, and weld nut as shown.

NOTE: Pre-assemble weld nut to latch hook by inserting

weld nut from the top with hook pointing down.

• Tighten hardware securely.

• Raise and hold deflector shield in upright position.

• Place front of mulcher plate over front of mower deck

opening and slide into place, as shown.

• Hook front latch into hole on front of mower deck.

• Hook rear latch into hole on back of mower deck.

CAUTION: Do not remove discharge

guard from mower. Raise and hold

guard when attaching mulcher plate

and allow it to rest on plate while in

operation.

LATCH

HOOK

WELD

NUT

SCREW

LOCK

WASHER

WASHER

WASHER

FIG. 7

HOOK POINTS DOWN

WELD NUT FROM THE TOP

WELD

NUT

SCREW

LOCK

WASHER

MULCHER

PLATE

LATCH

HOOK

ASSEMBLY

9

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in a safe place.

Your mower is now ready for discharging or installation of

optional grass catcher accessory.

NOTE: It is not necessary to change blades. The mulcher

blades are designed for discharging and bagging also.

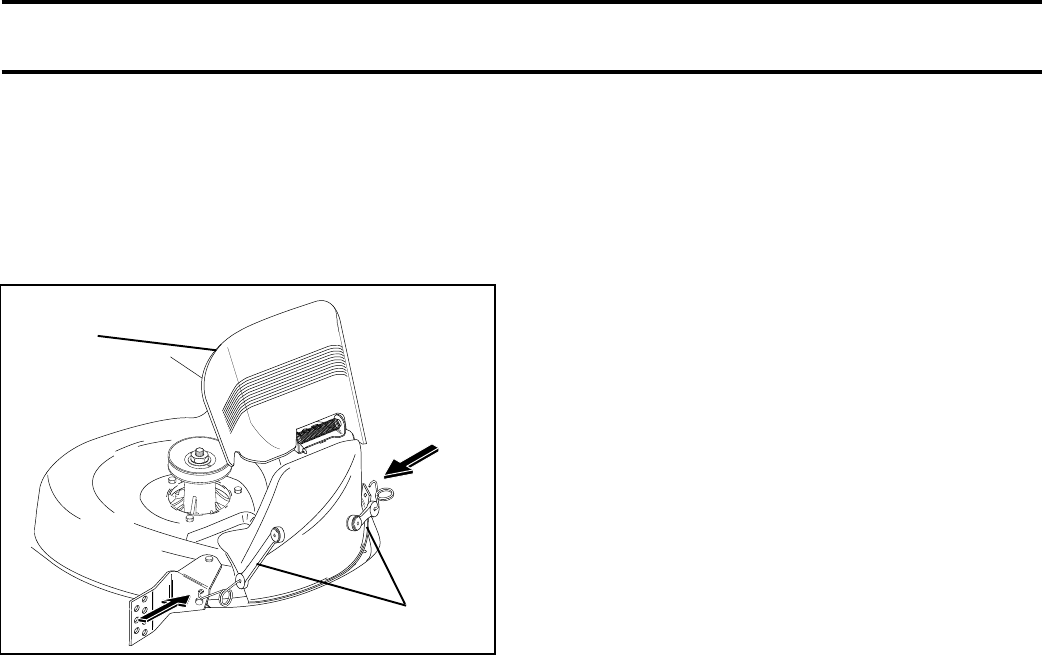

LATCH

HOOKS

DEFLECTOR

SHIELD

FIG. 8

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance.

• Reduce tire pressure to PSI shown in “PRODUCT

SPECIFICATIONS” on page 3 of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See “TO LEVEL MOWER HOUSING” in the

Service and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

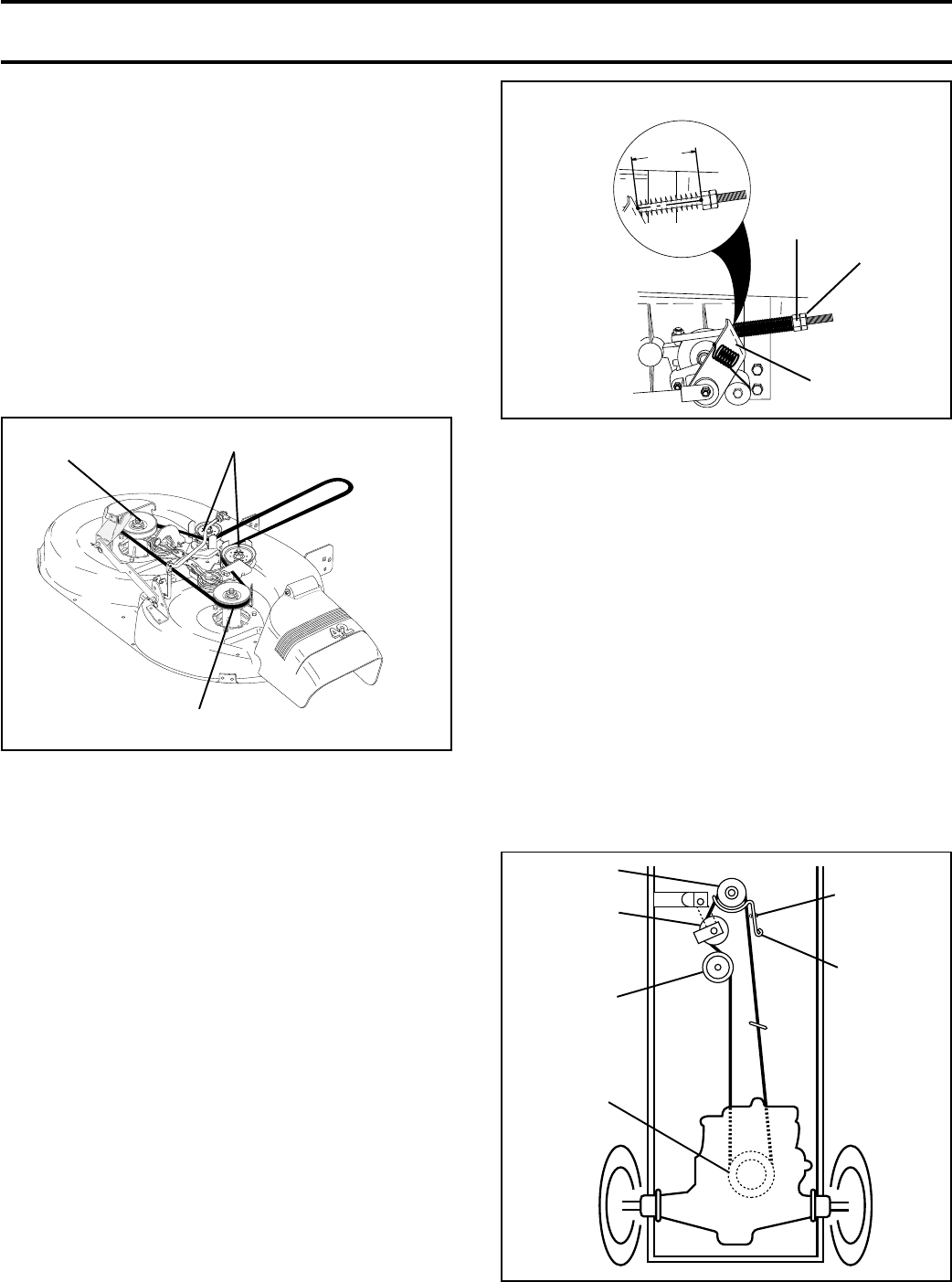

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see

that the brake is properly adjusted. See “TO ADJUST

BRAKE” in the Service and Adjustments section of this

manual.

✓

CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE

THE BEST PERFORMANCE AND SATISFACTION FROM

THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

✓All assembly instructions have been completed.

✓No remaining loose parts in carton.

✓Battery is properly prepared and charged. (Minimum

1 hour at 6 amps).

✓Seat is adjusted comfortably and tightened securely.

✓All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

✓Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

✓Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

✓Check wiring. See that all connections are still secure

and wires are properly clamped.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

✓ Engine oil is at proper level.

✓Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

✓Become familiar with all controls - their location and

function. Operate them before you start the engine.

✓Be sure brake system is in safe operating condition.

OPERATION

10

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save

this manual for future reference.

FIG. 9

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used to engage the

mower blades, or other attachments mounted to your

tractor.

LIGHT SWITCH POSITION: Turns the headlights on.

THROTTLE/CHOKE CONTROL: Used for starting and

controlling engine speed.

CLUTCH/BRAKE PEDAL: Used for declutching and brak-

ing the tractor and starting the engine.

PARKING BRAKE: Locks clutch/brake pedal into the

brake position.

GEARSHIFT LEVER: Selects the speed and direction of

tractor.

ATTACHMENT LIFT LEVER: Used to raise, lower, and

adjust the mower deck or other attachments mounted to

your tractor.

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position.

IGNITION SWITCH: Used for starting and stopping the

engine.

ATTACHMENT

CLUTCH LEVER

IGNITION

SWITCH

CLUTCH/BRAKE

PEDAL

GEARSHIFT

LEVER

PARKING BRAKE

LIGHT

SWITCH

POSITION

ATTACHMENT

LIFT LEVER

LIFT LEVER

PLUNGER

THROTTLE/CHOKE

CONTROL

HEIGHT

ADJUST

POSITIONS

OPERATION

11

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 10)

Your tractor is equipped with an operator presence sensing

switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

• Depress clutch/brake pedal into full “BRAKE” position

and hold.

• Place parking brake lever in “ENGAGED” position and

release pressure from clutch/brake pedal. Pedal should

remain in “BRAKE” position. Make sure parking brake

will hold tractor secure.

STOPPING (See Fig. 10)

MOWER BLADES -

• Move attachment clutch lever to “DISENGAGED” po-

sition.

GROUND DRIVE -

• Depress clutch/brake pedal into full “BRAKE” position.

• Move gearshift lever to neutral (N) position.

ENGINE -

• Move throttle control to slow ( ) position.

NOTE: Failure to move throttle control to slow ( )

position and allowing engine to idle before stopping may

cause engine to “backfire”.

• Turn ignition key to “OFF” position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause “browning” of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator’s position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 10)

Always operate engine at full throttle.

• Operating engine at less than full throttle reduces the

battery charging rate.

• Full throttle offers the best bagging and mower perfor-

mance.

The operation of any tractor can result in foreign objects thrown into the eyes, which

can result in severe eye damage. Always wear safety glasses or eye shields while

operating your tractor or performing any adjustments or repairs. We recommend a wide

vision safety mask for over the spectacles or standard safety glasses.

SAFETY GLASSES

WEAR YOUR

FORESIGHT IS BETTER

THAN NO SIGHT

TO MOVE FORWARD AND BACKWARD

(See Fig. 10)

The direction and speed of movement is controlled by the

gearshift lever.

• Start tractor with clutch/brake pedal depressed and

gearshift lever in neutral (N) position.

• Move gearshift lever to desired position.

• Slowly release clutch/brake pedal to start movement.

IMPORTANT: BRING TRACTOR TO A COMPLETE STOP

BEFORE SHIFTING OR CHANGING GEARS. FAILURE

TO DO SO WILL SHORTEN THE USEFUL LIFE OF YOUR

TRANSAXLE.

“DISENGAGED”

POSITION

PARKING BRAKE

“ENGAGED” POSITION

ATTACHMENT CLUTCH LEVER

“ENGAGED” POSITION

“BRAKE”

POSITION

CLUTCH/BRAKE

PEDAL “DRIVE”

POSITION

THROTTLE/CHOKE

CONTROL

FIG. 10

“DISENGAGED”

POSITION

GEARSHIFT

LEVER

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 10)

The position of the attachment lift lever determines the

cutting height.

• Grasp lift lever.

• Press plunger with thumb and move lever to desired

position.

The cutting height range is approximately 1-1/2 to 4". The

heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height.

OPERATION

12

TO OPERATE MOWER (See Fig. 11)

Your tractor is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine.

• Select desired height of cut.

• Start mower blades by engaging attachment clutch

control.

• TO STOP MOWER BLADES - disengage attachment

clutch control.

CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the dis-

charge guard in place.

• Move gearshift lever to 1st gear. Be sure you have

allowed room for tractor to roll slightly as you restart

movement.

• To restart movement, slowly release parking brake and

clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position with attach-

ment lift control.

• When pushing or towing your tractor, be sure gearshift

lever is in neutral (N) position.

• Do not push or tow tractor at more than five (5) MPH.

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed

and secured to tractor. Use an appropriate means of tying

hood to tractor (rope, cord, etc.).

BEFORE STARTING THE ENGINE

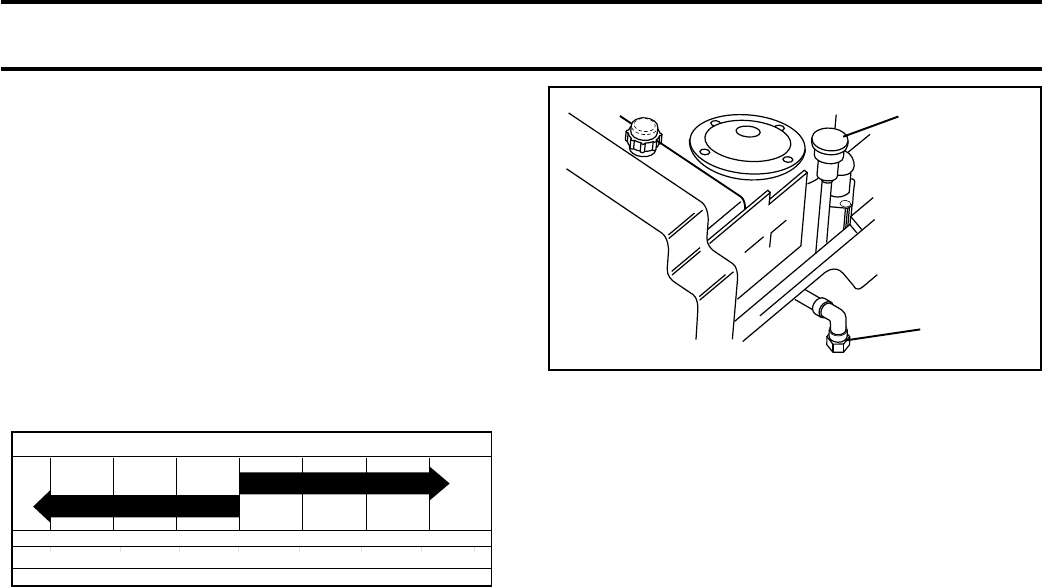

CHECK ENGINE OIL LEVEL (See Fig. 16)

• The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil.

• Check engine oil with tractor on level ground.

• Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

“FULL” mark on dipstick is reached. Do not overfill.

• For cold weather operation you should change oil for

easier starting (See “OIL VISCOSITY CHART” in the

Customer Responsibilities section of this manual).

• To change engine oil, see the Customer Responsibili-

ties section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular unleaded

gasoline. (Use of leaded gasoline will increase carbon

and lead oxide deposits and reduce valve life).

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage. Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fuel next season. See Storage Instruc-

tions for additional information. Never use engine or

carburetor cleaner products in the fuel tank or permanent

damage may occur.

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

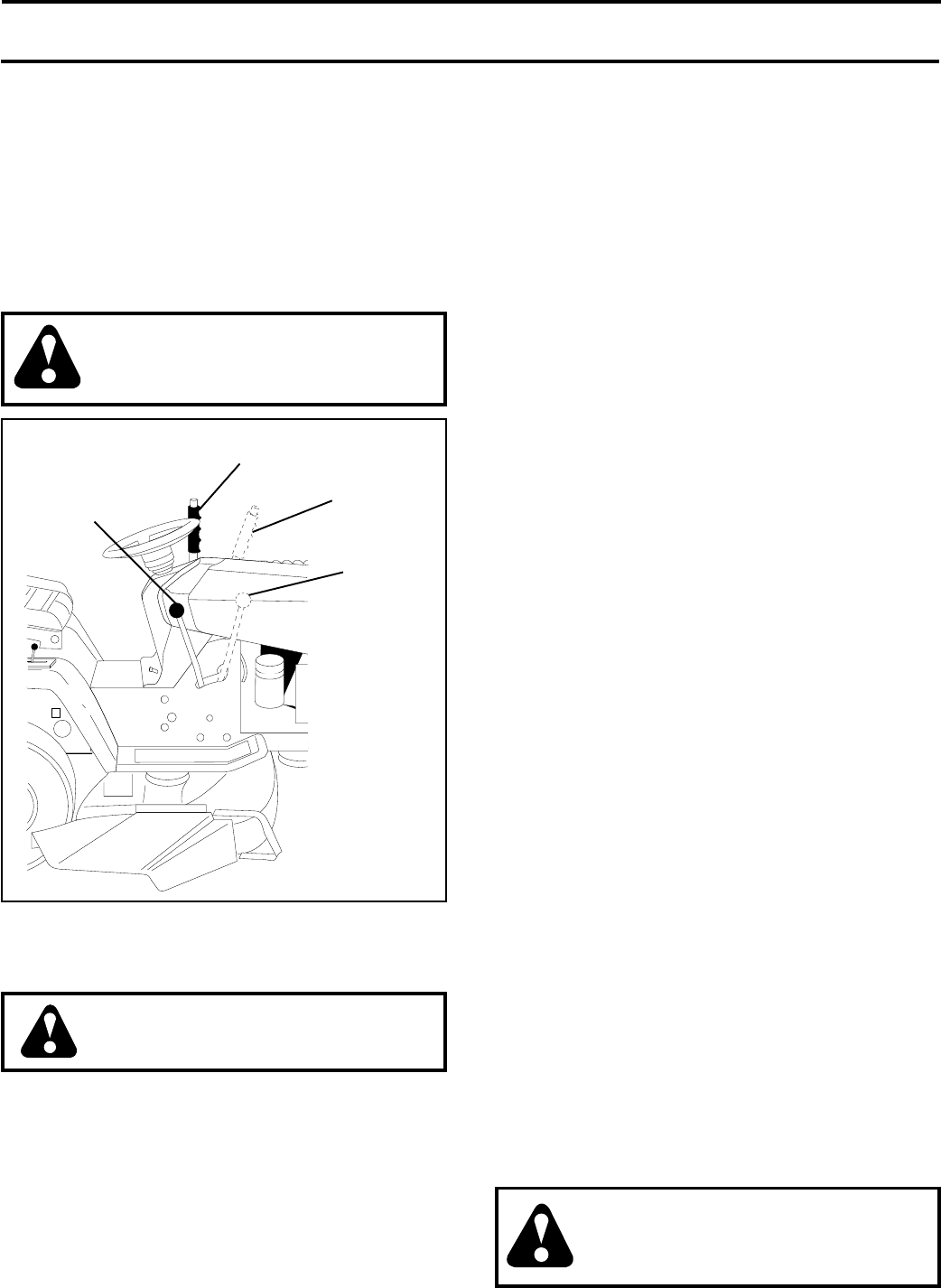

FIG. 11

ATTACHMENT LIFT

LEVER HIGH POSITION

LOW

POSITION

"ENGAGED"

POSITION

ATTACHMENT

CLUTCH LEVER

"DISENGAGED"

POSITION

TO OPERATE ON HILLS

CAUTION: Do not drive up or down

hills with slopes greater than 15° and

do not drive across any slope.

• Choose the slowest speed before starting up or down

hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to

slower position.

• If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

OPERATION

13

TO START ENGINE (See Fig. 9)

When starting engine for the first time or if engine has run

out of fuel, it will take extra cranking time to move fuel from

the tank to the engine.

• Depress clutch/brake pedal and set parking brake.

• Place gearshift lever in neutral (N) position.

• Move attachment clutch to “DISENGAGED” position.

• Move throttle control lever to choke ( ) position for

cold engine start. For warm engine start, move throttle

control to fast ( ) position.

• Insert key into ignition and turn key clockwise to “START”

position and release key as soon as engine starts. Do

not run starter continuously for more than fifteen

seconds per minute. If engine does not start after

several attempts, move throttle control to fast ( )

position, wait a few minutes and try again.

• When engine starts, move throttle control to desired

position.

• Allow engine to warm up for a few minutes before

engaging drive or attachments.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32°F), the carburetor fuel mixture

may need to be adjusted for best engine performance. See

“TO ADJUST CARBURETOR” in the Service and Adjust-

ments section of this manual.

MOWING TIPS

• Tire chains cannot be used when the mower housing

is attached to tractor.

• Mower should be properly leveled for best mowing

performance. See “TO LEVEL MOWER HOUSING” in

the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim-

ming.

• Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

machine. This will result in a more even distribution of

clippings and more uniform cutting.

• When mowing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, driveways, etc. After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig. 12 ).

• If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

• Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. Allow grass to

dry before mowing.

• Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis-

charge of material. Regulate ground speed by select-

ing a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

• When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used.

FIG. 12

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH. CLEAN AFTER EACH USE.

• The special mulching blade will recut the grass clip-

pings many times and reduce them in size so that as

they fall onto the lawn they will disperse into the grass

and not be noticed. Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn.

Always mulch with your highest engine (blade) speed

as this will provide the best recutting action of the

blades.

• Avoid cutting your lawn when it is wet. Wet grass tends

to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon.

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun.

•For best results, adjust the mower cutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. 13). For extremely heavy mulching,

reduce your width of cut and mow slowly.

• Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to

completely hide the clippings. When doing a second

cut, mow across or perpendicular to the first cut path.

• Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the lawn.

MAX 1/3

FIG. 13

14

CUSTOMER RESPONSIBILITIES

2

LUBRICATION CHART

2

SPINDLE ZERK

FRONT WHEEL

BEARING ZERK

ATTACHMENT

CLUTCH

PIVOT(S)

1

SPINDLE ZERK

FRONT WHEEL

BEARING ZERK

2

2

3

ENGINE

GEARSHIFT

PIVOTS 1

2

1

3

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To

receive full value from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

• Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear. A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check for loose fasteners.

SAE 30 OR 10W30 MOTOR OIL

GENERAL PURPOSE GREASE

REFER TO CUSTOMER RESPONSIBILITIES “ENGINE” SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

DERED GRAPHITE TYPE LUBRICANT SPARINGLY.

BEFORE EACH USE

✔

✔✔

✔

✔

T

R

A

C

T

0

R

Adjust Motion Drive Belt(s) Tension

Inspect Muffler/Spark Arrester

Lubrication Chart

Check Brake Operation

Clean Air Filter

Change Engine Oil

Replace Air Filter Paper Cartridge

Replace Spark Plug

Check Battery Level/Recharge

Check Tire Pressure

Clean Battery and Terminals

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

MAINTENANCE SCHEDULE

EVERY 8 HOURS

EVERY 25 HOURS

EVERY 50 HOURS

EVERY 100 HOURS

EVERY SEASON

SERVICE DATES

Check for Loose Fasteners

FIRST 2 HOURS

BEFORE STORAGE

Check Engine Oil Level

Clean Engine Cooling Fins

Sharpen/Replace Mower Blades

Clean Air Screen

1 - Change more often when operating under a heavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - If equipped with oil filter, change oil every 50 hours.

4 - Replace blades more often when mowing in sandy soil.

E

N

G

I

N

E

Replace Oil Filter (If equipped)

Check Transaxle Cooling

Adjust Blade Belt(s) Tension

Replace Fuel Filter

✔

✔

✔

✔

✔✔

✔

✔✔

✔✔✔

✔

✔✔✔

✔

✔

✔✔

✔

✔

✔

✔

1

4

2

2

2

2

5 - If equipped with adjustable system.

6 - Not required if equipped with maintenance-free battery.

7 - Tighten front axle pivot bolt to 35 ft.-lbs. maximum.

Do not overtighten.

1

,

12,3

,

2

5

5

6

✔

7

CUSTOMER RESPONSIBILITIES

15

TRACTOR

Always observe safety rules when performing any mainte-

nance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

(See “TO ADJUST BRAKE” in the Service and Adjust-

ments section of this manual).

TIRES

• Maintain proper air pressure in all tires (See “PROD-

UCT SPECIFICATIONS” on page 3 of this manual).

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

BLADE CARE

For best results mower blades must be kept sharp. Re-

place bent or damaged blades.

BLADE REMOVAL (See Fig. 14)

• Raise mower to highest position to allow access to

blades.

• Remove hex bolt, lock washer and flat washer securing

blade.

• Install new or resharpened blade with trailing edge up

towards deck as shown.

• Reassemble hex bolt, lock washer and flat washer in

exact order as shown.

• Tighten bolt securely (30-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED.

NOTE: We do not recommend sharpening blade - but if you

do, be sure the blade is balanced.

FLAT WASHER

LOCK WASHER

HEX BOLT

(GRADE 8)*

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT HEAD.

TRAILING EDGE

MANDREL

ASSEMBLY

BLADE

FIG. 14

TO SHARPEN BLADE (See Fig. 15)

Care should be taken to keep the blade balanced. An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine.

• The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower.

• To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a cone

balancer, follow the instructions supplied with bal-

ancer).

• Slide blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

5/8" BOLT

OR PIN

BLADE

CENTER HOLE

FIG. 15

BATTERY

Your tractor has a battery charging system which is suffi-

cient for normal use. However, periodic charging of the

battery with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to “leak” power.

• Remove terminal guard.

• Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See “CONNECT BATTERY” in the

Assembly section of this manual).

CUSTOMER RESPONSIBILITIES

16

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF or SG. Select the oil’s SAE viscosity grade

according to your expected operating temperature.

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

SAE VISCOSITY GRADES

-20° 0° 30° 40° 80° 100°

-30° -20° 0° 20° 30° 40°

°

F

°

C

32°

-10° 10°

60°

5W-30

SAE 30

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after the first two hours of operation and

every 25 hours thereafter or at least once a year if the

tractor is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

cap/dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Fig. 16)

Determine temperature range expected before oil change.

All oil must meet API service classification SF or SG.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

• Remove drain plug.

• After oil has drained completely, replace oil drain plug

and tighten securely.

• Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

“PRODUCT SPECIFICATIONS” on page 3 of this

manual.

• Use gauge on oil fill cap/dipstick for checking level. Be

sure dipstick cap is tightened securely for accurate

reading. Keep oil at “FULL” line on dipstick.

V-BELTS

Check V-belts for deterioration and wear after 100 hours of

operation and replace if necessary. The belts are not

adjustable. Replace belts if they begin to slip from wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt and chaff which

can restrict cooling.

FIG. 16

OIL FILL

CAP/DIPSTICK

OIL DRAIN

PLUG

AIR FILTER (See Fig. 17)

Your engine will not run properly using a dirty air filter.

Clean the foam pre-cleaner after every 25 hours of opera-

tion or every season. Service paper cartridge every 100

hours of operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

• Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

• Saturate it in engine oil. Wrap it in clean, absorbent

cloth and squeeze to remove excess oil.

• If very dirty or damaged, replace pre-cleaner.

• Reinstall pre-cleaner over cartridge.

• Reinstall cover and secure with knob(s).

TO SERVICE CARTRIDGE

• Remove cartridge nut.

• Carefully remove cartridge to prevent debris from en-

tering carburetor. Clean base carefully to prevent

debris from entering carburetor.

• Clean cartridge by tapping gently on flat surface. If very

dirty or damaged, replace cartridge.

• Reinstall cartridge, nut, precleaner, cover and secure

with knob(s).

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY

CARTRIDGE.

CUSTOMER RESPONSIBILITIES

17

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

“PRODUCT SPECIFICATIONS” on page 3 of this manual.

IN-LINE FUEL FILTER (See Fig. 19)

The fuel filter should be replaced once each season. If fuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

• With engine cool, remove filter and plug fuel line

sections.

• Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are

properly positioned.

• Immediately wipe up any spilled gasoline.

FIG. 19

FUEL

FILTER

CLAMP

CLAMP

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign

matter.

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out. Water in engine

can result in a shortened engine life.

COVER KNOB

COVER

FOAM

PRE-CLEANER

PAPER

CARTRIDGE

CARTRIDGE NUT

BASE

FIG. 17

CLEAN AIR SCREEN (See Fig. 18)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.

ENGINE COOLING FINS (See Fig. 18)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating.

• Remove screws from blower housing and lift housing

and dipstick tube assembly off engine.

• Cover oil fill opening to prevent entry of dirt.

• Use compressed air or stiff bristle brush to thoroughly

clean engine cooling fins.

• To reassemble, reverse above procedure.

BLOWER

HOUSING

SCREWS SCREWS

AIR SCREEN

DIPSTICK TUBE

ASSEMBLY

SPARK

PLUG

ENGINE COOLING FINS

FIG. 18

SERVICE AND ADJUSTMENTS

18

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

• Depress clutch/brake pedal fully and set parking brake.

• Place gearshift lever in neutral (N) position.

• Place attachment clutch in “DISENGAGED” position.

• Turn ignition key “OFF” and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with

plug.

TRACTOR

TO REMOVE MOWER (See Fig. 20)

Mower will be easier to remove from the right side of tractor.

• Place attachment clutch in “DISENGAGED” position.

• Move attachment lift lever forward to lower mower to its

lowest position.

• Roll belt off engine pulley.

• Disconnect clutch rod from clutch lever by removing

retainer spring.

• Disconnect anti-sway bar from chassis bracket by

removing retainer spring.

• Disconnect suspension arms from rear deck brackets

by removing retainer springs.

• Disconnect front links from deck by removing retainer

springs.

• Raise lift lever to raise suspension arms. Slide mower

out from under tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER IS TO BE MOUNTED TO THE TRACTOR, THE

R.H. AND L.H. SUSPENSION ARMS MUST BE REMOVED

FROM TRACTOR.

TO INSTALL MOWER (See Fig. 20)

• Raise attachment lift lever to its highest position.

• Slide mower under tractor with discharge guard to right

side of tractor.

• Lower lift lever to its lowest position.

• Install mower in reverse order of removal instructions.

SUSPENSION

ARMS

RETAINER

SPRINGS

(BOTH SIDES)

ENGINE

PULLEY

RETAINER

SPRING

RETAINER

SPRING

ANTI-SWAY BAR RETAINER

SPRINGS

(BOTH SIDES)

FIG. 20

CLUTCH LEVER

CLUTCH ROD

SERVICE AND ADJUSTMENTS

19

NUT "E"

TRUNNION

FRONT LINKS

NUT "F"

FIG. 24

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See

“PRODUCT SPECIFICATIONS” on page 3 of this manual).

If tires are over or underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 21 and 22)

• Raise mower to its highest position.

• At the midpoint of both sides of mower, measure height

from bottom edge of mower to ground. Distance “A” on

both sides of mower should be the same or within 1/4"

of each other.

• If adjustment is necessary, make adjustment on one

side of mower only.

• To raise one side of mower, tighten lift link adjustment

nut on that side.

• To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Three full turns of adjustment nut will change

mower height about 1/8".

• Recheck measurements after adjusting.

FRONT-TO-BACK ADJUSTMENT (See Figs. 23 and 24)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE.

To obtain the best cutting results, the mower housing

should be adjusted so that the front is approximately 1/4" to

3/4" lower than the rear when the mower is in its highest

position.

Check adjustment on right side of tractor. Measure dis-

tance “D” directly in front and behind the mandrel at bottom

edge of mower housing as shown.

• Before making any necessary adjustments, check that

both front links are equal in length. Both links should

be approximately 10-3/8".

• If links are not equal in length, adjust one link to same

length as other link.

• To lower front of mower loosen nut “E” on both front

links an equal number of turns.

• When distance “D” is 1/4" to 3/4" lower at front than

rear, tighten nuts “F” against trunnion on both front

links.

• To raise front of mower, loosen nut “F” from trunnion on

both front links. Tighten nut “E” on both front links an

equal number of turns.

• When distance “D” is 1/4" to 3/4" lower at front than

rear, tighten nut “F” against trunnion on both front links.

• Recheck side-to-side adjustment.

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

MANDREL

"D" "D"

FIG. 23

BOTTOM EDGE

OF MOWER TO

GROUND

FIG. 22

LIFT LINK

ADJUSTMENT NUT

SUSPENSION ARM

BOTTOM EDGE

OF MOWER TO

GROUND

AA

GROUND LINE

FIG. 21

SERVICE AND ADJUSTMENTS

20

1-1/2"

NUT “A”

WITH PARKING BRAKE “ENGAGED”

OPERATING ARM

JAM NUT

FIG. 26

TO REPLACE MOTION DRIVE BELT

(See Fig. 27)

Park the tractor on level surface. Engage parking brake.

For assistance, there is a belt installation guide decal on

bottom side of left footrest.

• Remove mower (See “TO REMOVE MOWER” in this

section of this manual).

• Remove upper belt keeper.

• Remove belt from stationary idler and clutching idler.

• Pull belt slack toward rear of tractor. Remove belt

upwards from transaxle pulley by deflecting belt keep-

ers.

• Pull belt toward front of tractor and remove downwards

from around engine pulley.

• Install new belt by reversing above procedure.

IMPORTANT: MAKE SURE UPPER BELT KEEPER IS

POSITIONED PROPERLY BETWEEN LOCATOR TABS.

TRANSAXLE

PULLEY

STATIONARY

IDLER

CLUTCHING

IDLER

LOCATOR

TABS

UPPER BELT

KEEPER

ENGINE

PULLEY

FIG. 27

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 25)

The mower blade drive belt may be replaced without tools.

Park the tractor on level surface. Engage parking brake.

BELT REMOVAL -

• Remove mower from tractor (See “TO REMOVE

MOWER” in this section of this manual).

• Work belt off both mandrel pulleys and idler pulleys.

• Pull belt away from mower.

BELT INSTALLATION -

• Install new belt in reverse order of removal.

• Make sure belt is in all pulley grooves and inside all belt

guides.

• Install mower in reverse order of removal instructions.

TO ADJUST BRAKE (See Fig. 26)

Your tractor is equipped with an adjustable brake system

which is mounted on the right side of the transaxle.

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

• Depress clutch/brake pedal and engage parking brake.

• Measure distance between brake operating arm and

nut “A” on brake rod.

• If distance is other than 1-1/2", loosen jam nut and turn

nut “A” until distance becomes 1-1/2". Retighten jam

nut against nut “A”.

• Road test tractor for proper stopping distance as stated

above. Readjust if necessary. If stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary. Contact your nearest au-

thorized service center/department.

MANDREL

PULLEY

IDLER

PULLEYS

MANDREL

PULLEY

FIG. 25

21

SERVICE AND ADJUSTMENTS

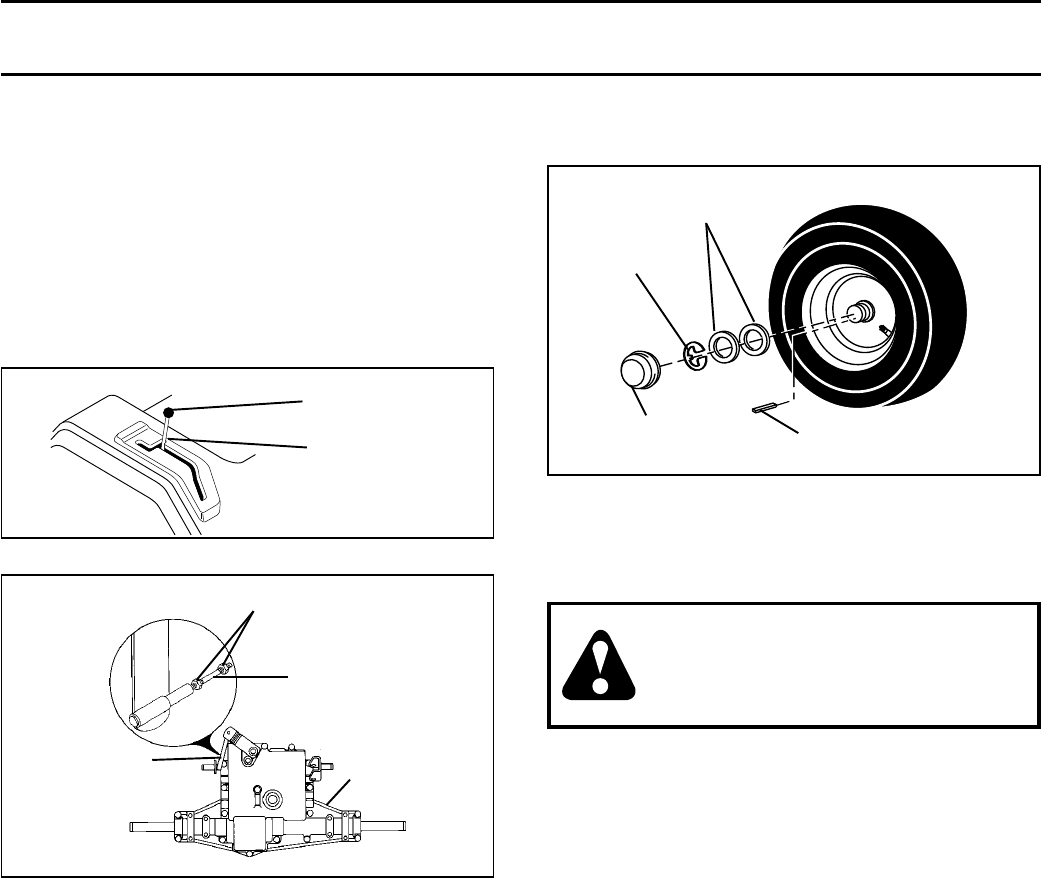

TRANSAXLE SHIFTER LINKAGE AND AD-

JUSTMENT (See Figs. 28 and 29)

The transaxle should be in neutral when the gear shift lever

is in the neutral (N) (lock gate) position. The adjustment is

preset at the factory; however, if adjustment is needed,

proceed as follows:

• Make sure transaxle is in neutral (N).

• Loosen two locknuts on tie rod.

• Turn center rod until gearshift lever falls into neutral

lock gate on fender console.

• Tighten locknuts securely.

GEARSHIFT LEVER

NEUTRAL

LOCK GATE

FIG. 28

LOCKNUT

CENTER ROD

TIRE ROD TRANSAXLE

FIG. 29

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service center/department.

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 30)

• Block up axle securely.

• Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

• Replace washers and snap retaining ring securely in

axle groove.

• Replace axle cover.

RETAINING

RING

WASHERS

AXLE COVER SQUARE KEY

(REAR WHEEL ONLY)

FIG. 30

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 31)

CAUTION: Lead-acid batteries gener-

ate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. If “jumper cables” are used for emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis.

• Connect one end of the BLACK cable to the NEGA-

TIVE (-) terminal of fully charged battery.

• Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery.

• RED cable last from both batteries.

22

SERVICE AND ADJUSTMENTS

CABLES

NEGATIVE TERMINAL

POSITIVE TERMINAL

CHASSIS

CHARGED

BATTERY

POSITIVE TERMINAL NEGATIVE TERMINAL

FIG. 31

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the

grill.

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the

Repair Parts section of this manual.

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 32)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedures.

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 33)

The throttle control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

• With engine not running, move throttle control lever

from slow ( ) to choke ( ) position. Slowly move

lever from choke ( ) to fast ( ) position.

• Check that holes “A” in governor control lever and hole

in governor plate line-up. If holes “A” are not aligned,

loosen clamp screw and move throttle cable until holes

are aligned. Tighten clamp screw securely.

GOVERNOR

CONTROL LEVER GOVERNOR

CONTROL PLATE

CLAMP

SCREW THROTTLE

CABLE

HOLES “A”

FIG. 33

FIG. 32

HOOD

HEADLIGHT

WIRE

CONNECTOR

23

SERVICE AND ADJUSTMENTS

ACCELERATION TEST -

• Move throttle control lever from slow ( ) to fast ( )

position. If engine hesitates or dies, turn idle mixture

valve out (counterclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until engine acceler-

ates smoothly.

High speed stop is factory adjusted. Do not adjust -

damage may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

TO ADJUST CARBURETOR (See Fig. 34)

The carburetor has been preset at the factory and adjust-

ment should not be necessary. However, minor adjust-

ment may be required to compensate for differences in fuel,

temperature, altitude or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning idle mixture valve in (clockwise) de-

creases the supply of fuel to the engine giving a leaner fuel/

air mixture. Turning the idle mixture valve out (counter-

clockwise) increases the supply of fuel to the engine giving

a richer fuel/air mixture.

IMPORTANT: DAMAGE TO THE NEEDLE VALVE AND

THE SEAT IN CARBURETOR MAY RESULT IF SCREW IS

TURNED IN TOO TIGHT.

PRELIMINARY SETTING -

• Air cleaner assembly must be assembled to the carbu-

retor when making carburetor adjustments.

• Be sure the throttle control cable is adjusted properly

(see above).

• With engine off turn idle mixture valve in (clockwise)

closing it finger tight and then turn out (counterclock-

wise) 1 full turn.

FINAL SETTING -

• Start engine and allow to warm for five minutes. Make

final adjustments with engine running and shift/motion

control lever in neutral (N) position.

• Move throttle control lever to slow ( ) position. With

finger, rotate and hold throttle lever against idle speed

screw. Turn idle speed screw to attain 1750 RPM.

• While still holding throttle lever against idle speed

screw, turn idle mixture valve in (clockwise) until en-

gine begins to die and then turn out (counterclockwise)

until engine runs rough. Turn valve to a point midway

between those two positions. Release throttle lever.

THROTTLE

LEVER IDLE SPEED

SCREW

IDLE MIXTURE

VALVE

FIG. 34

24

STORAGE

Immediately prepare your tractor for storage at the end of

the season or if the tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool

before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter storage. When

mower is to be stored for a period of time, clean it thor-

oughly, remove all dirt, grease, leaves, etc. Store in a

clean, dry area.

• Clean entire tractor (See “CLEANING” in the Customer

Responsibilities section of this manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

• Lubricate as shown in the Customer Responsibilities

section of this manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require

recharging.

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and battery cleaned thoroughly (see “TO

CLEAN BATTERY AND TERMINALS” in the Cus-

tomer Responsibilities section of this manual).

• After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

• Be sure battery drain tube is securely attached.

• If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

• Drain the fuel tank.

• Start the engine and let it run until the fuel lines and

carburetor are empty.

• Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See “ENGINE” in the Customer Responsibilities

section of this manual).

CYLINDERS

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

• Turn ignition key to “START” position for a few seconds

to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to

give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

25

TROUBLESHOOTING POINTS

Will not start 1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section.

3. Engine flooded. 3. Wait several minutes before attempting to start.

4. Bad spark plug. 4. Replace spark plug.

5. Dirty air filter. 5. Clean/replace air filter.

6. Dirty fuel filter. 6. Replace fuel filter.

7. Water in fuel. 7. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

8. Loose or damaged wiring. 8. Check all wiring.

9. Carburetor out of adjustment. 9. Contact an authorized service center/department.

10. Engine valves out of adjustment. 10. Contact an authorized service center/department.

Hard to start 1. Dirty air filter. 1. Clean/replace air filter.

2. Bad spark plug. 2. Replace spark plug.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Dirty fuel filter. 4. Replace fuel filter.

5. Stale or dirty fuel. 5. Drain fuel tank and refill with fresh gasoline.

6. Loose or damaged wiring. 6. Check all wiring.

7. Carburetor out of adjustment. 7. Contact an authorized service center/department.

8. Engine valves out of adjustment. 8. Contact an authorized service center/department.

Engine will not turn over 1. Clutch/brake pedal not depressed. 1. Depress clutch/brake pedal.

2. Attachment clutch is engaged. 2. Disengage attachment clutch.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Blown fuse. 4. Replace fuse.

5. Corroded battery terminals. 5. Clean battery terminals.

6. Loose or damaged wiring. 6. Check all wiring.

7. Faulty ignition switch. 7. Check/replace ignition switch.

8. Faulty solenoid or starter. 8. Check/replace solenoid or starter.

9. Faulty operator presence switch(es). 9. Contact an authorized service center/department.

Engine clicks but will not 1. Weak or dead battery. 1. Recharge or replace battery.

start 2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or starter.

Loss of power 1. Cutting too much grass/too fast. 1. Set in “Higher Cut” position/reduce speed.

2. Throttle in “CHOKE” position. 2. Adjust throttle control.

3. Build-up of grass, leaves and trash under mower. 3. Clean underside of mower housing.

4. Dirty air filter. 4. Clean/replace air filter.

5. Low oil level/dirty oil. 5. Check oil level/change oil.

6. Faulty spark plug. 6. Clean and regap or change spark plug.

7. Dirty fuel filter. 7. Replace fuel filter.

8. Stale or dirty fuel. 8. Drain fuel tank and refill with fresh gasoline.

9. Water in fuel. 9. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Spark plug wire loose. 10. Connect and tighten spark plug wire.

11. Dirty engine air screen/fins. 11. Clean engine air screen/fins.

12. Dirty/clogged muffler. 12. Clean/replace muffler.

13. Loose or damaged wiring. 13. Check all wiring.

14. Carburetor out of adjustment. 14. Contact an authorized service center/department.

15. Engine valves out of adjustment. 15. Contact an authorized service center/department.

Excessive vibration 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Bent blade mandrel. 2. Replace blade mandrel.

3. Loose/damaged part(s). 3. Tighten loose part(s). Replace damaged parts.

PROBLEM CAUSE CORRECTION

26

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Engine continues to run 1. Faulty operator-safety presence control system. 1. Check wiring, switches and connections. If not

when operator leaves seat corrected, contact an authorized service center/

with attachment clutch department.

engaged

Poor cut - uneven 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Mower deck not level. 2. Level mower deck.

3. Buildup of grass, leaves, and trash under mower. 3. Clean underside of mower housing.

4. Bent blade mandrel. 4. Replace blade mandrel.

5. Clogged mower deck vent holes from buildup of 5. Clean around mandrels to open vent holes.

grass, leaves, and trash around mandrels.

Mower blades will not 1. Obstruction in clutch mechanism. 1. Remove obstruction.

rotate 2. Worn/damaged mower drive belt. 2. Replace mower drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass discharge 1. Engine speed too slow. 1. Place throttle control in “FAST” position.

2. Travel speed too fast. 2. Shift to slower speed.

3. Wet grass. 3. Allow grass to dry before mowing.

4. Mower deck not level. 4. Level mower deck.

5. Low/uneven tire air pressure. 5. Check tires for proper air pressure.

6. Worn, bent or loose blade. 6. Replace/sharpen blade. Tighten blade bolt.

7. Buildup of grass, leaves and trash under mower. 7. Clean underside of mower housing.

8. Mower drive belt worn. 8. Replace mower drive belt.

9. Blades improperly installed. 9. Reinstall blades sharp edge down.

10. Improper blades used. 10. Replace with blades listed in this manual.

11. Clogged mower deck vent holes from buildup of 11. Clean around mandrels to open vent holes.

grass, leaves, and trash around mandrels.

Headlight(s) not working 1. Switch is “OFF”. 1. Turn switch “ON”.

(if so equipped) 2. Bulb(s) burned out. 2. Replace bulb(s).

3. Faulty light switch. 3. Check/replace light switch.

4. Loose or damaged wiring. 4. Check wiring and connections.

5. Blown fuse. 5. Replace fuse.

Battery will not charge 1. Bad battery cell(s). 1. Replace battery.

2. Poor cable connections. 2. Check/clean all connections.

3. Faulty regulator (if so equipped). 3. Replace regulator.

4. Faulty alternator. 4. Replace alternator.

Engine “backfires” 1. Engine throttle control not set at “SLOW” 1. Move throttle control to “SLOW” position and allow

when turning engine position for 30 seconds before stopping engine. to idle for 30 seconds before stopping engine.

“OFF”

27

TRACTOR - MODEL NO. LT130 (954830071A)

SCHEMATIC

BATTERY

G

BSM

L

IGNITION

SWITCH

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR 

WIRING

BLACK

RED

RED

BLACK

RED

WHITE

IGNITION

UNIT SPARK

PLUG

HEADLIGHTS

BLACK

BROWN

ORANGE

NOTE

YOUR TRACTOR IS EQUIPPED WITH 

A SPECIAL ALTERNATOR SYSTEM. 

THE LIGHTS ARE NOT CONNECTED 

TO THE BATTERY, BUT HAVE THEIR 

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE BRIGHTNESS 

OF THE LIGHTS WILL CHANGE WITH 

ENGINE SPEED. AT IDLE THE LIGHTS 

WILL DIM. AS THE ENGINE IS 

SPEEDED UP, THE LIGHTS WILL 

BECOME THEIR BRIGHTEST.

FUSE 30 AMP.

RED

BLACK BLACK

WHITE

STARTER

M

RED

SEAT SWITCH

(NOT OCCUPIED)

GROUNDING

CONNECTOR

ATTACHMENT

CLUTCH

(CLUTCH OFF)

SOLENOID

BLACK

LIGHTING SYSTEM OUTPUT

5 AMP AC @ 3600 RPM

ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM 

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

BLACK

IGNITION SWITCH

CIRCUITPOSITION

OFF

B + LRUN/LIGHT

B + L + SSTART

G + M + L

S

B

G

ML

B + LRUN

“MAKE”

A + Y

NONE

NONE

NONE

Y

A

AY

CLUTCH / BRAKE

(PEDAL UP)

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

ELECTRICAL

28

39

38

36

28

29

26

24 42

43

44 44

25

41

19

20

19

20

36

40

3332

31 30

48

15

9

7

8

6

34

2

1

22 21

70

52

36

39

35

36

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

ELECTRICAL

29

KEY PART

NO. NO. DESCRIPTION

1 532144925 Battery 12 Volt 25 AMP

2 874760412 Bolt Hex Hd 1/4-20unc X 3/4

3 819091016 Washer 9/32 X 5/8 X 16 Ga.

4 810040400 Washer Lock Hvy Helical 1/4

6 873220400 Nut Fin Hex 1/4-20 Unc

7 532109238 Tube Plastic 12"

8 532144940 Case Battery w/2 holes 2 battery

9 532109596 Clamp Hose Olive

15 532147688 Fastener Snap-In

19 810090400 Washer Lock 1/4

20 873350400 Nut Jam Hex 1/4-20 Unc

21 532147430 Harness Asm Light W/4152j

22 532004152 Bulb Light #1156

24 532124780 Cable Battery 6 Ga 11" red

25 532146147 Cable Battery 6 Ga 44" red w/16

wire

26 532108824 Fuse 30 AMP Auto Green

28 532124773 Cable Ground 6 Ga 12" black

29 532121305 Switch Plunger Nc Gray

30 532140301 Switch Ign 4 pos w/lights

31 532124211 Nut Ignition

32 532141226 Cover Sw Ignition

33 532122147 Key Ign Modleded Generic

35 532108236 Bracket Switch Clutch

36 817021008 Screw Tap Hex #10-24unc X 1/2

38 532140336 Bracket, Switch, Interlock

39 532109553 Switch Intlk Clutch Red 4 Term

40 532151212 Harness Ign. Lt P/L Mech HM 95

41 871110408 Bolt Blk Fin Hex 1/4 - 20 x 1/2

42 532131563 Cover Terminal Red

43 532145673 Solenoid

44 873640400 Nut Keps Hex 1/4-20 Unc

48 532140844 Adapter Ammeter Rectangular

52 532141940 Protection Wire Loop

70 532141163 Harness, Eng.

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

30

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

CHASSIS AND ENCLOSURES

3

2

3

38

39

35

26

35

26

33 10

34

3

1

8

68

14

14

9

48

4

11

17

29

129

134

28

14

4

14

13

49

49

57 52

51

50

58

37

20

37

23

24

26 25

26 25

3

31

24

30

3

6

51

57

53

52 53

31

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

CHASSIS AND ENCLOSURES

1 532145501 Chassis Weldment 11ga

2 532140356 Drawbar, Stretch

3 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt

4 819131216 Washer 13/32 x 3/4 x 16 Ga.

6 532145206 Saddle LT Fender Shift

8 532126471 Clip Insulator .406 Mtg Hole

9 532151011 Dash P/L M, N/AMM N/HM Grey

10 872140608 Bolt Carriage 3/8-16 x 1

11 532146965 Panel Pnt Dash Lh

13 532146959 Panel Dash Rh Weldment

14 817490608 Screw Thdrol 3/8-16x1/2 Ty-tt

17 532149775 Hood LT/PL Husqvarna

20 532145210 Plate Mtg Battery Fuel tank 95

23 532124028 Bushing

24 874780616 Bolt Fin Hex 3/8-16unc X 1 Gr. 5

25 819131312 Washer 13/32 X 13/16 X 12 Ga

26 873800600 Nut Lock Hex W/Ins 3/8-16 Unc

28 532149776 Grille LT/PL Husqvarna

29 532149777 Lens LT/PL Husqvarna

30 532143050 Fender Pnt

31 532136619 Bracket Pnt Fender

33 532147203 Footrest Pnt Lh

34 532147202 Footrest Pnt Rh

35 872110606 Bolt Rdhd Sht Sqnk 3/8-16 X3/4

37 817490508 Screw Thdrol 6/16-18 x 1/2 TYT

38 532139886 Bracket, Asm. Pivot, L.H., Mower Rear

39 532139887 Bracket, Asm. Pivot, R.H., Mower Rear

48 532138096 Rivet Push Plate D Plastick Blk

49 817490412 Screw Hexwsh. Thdrol 1/4-20 x 3/4

50 532142779 Brace

51 873800400 Nut Lock Hex W/Ins 1/4-20

52 819091416 Washer 9/32 x 7/8 x 16 Ga.

53 532150067 Bracket Pnt. Pick off LT/PL Husq.

57 874780412 Bolt Hex 1/4-20 x 3/4

58 532140806 Air Duct P/L

68 873510400 Nut Keps Hex 1/4-20

129 819091016 Washer 9/32 x 5/8 x 16 Ga.

134 532150132 Rod Support Hood LT/PL Husq.

- - 532005479 Plug Button

- - 532134014 Plug Dome Blk

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1

inch = 25.4 mm

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

DRIVE

32

29

28

12

14 41

42

40

38

42

39

89

57

90

51

42

19

74

75

7876

77

1

25

19 24

253

46

45

44

35

34 37

36 35

27

19

48

62

36

64

65

49

47

26 50

45

59

56

66

19 72

55

63

56

70

77

42

61

31

58

22 27

26

6

5

18

19 5

18

6

85

52

61

30 32

32 30

52

61

11

85

80 4

3

13

88 87 86 81

84 83

82

86

88

87

15

8

21

10

52

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

DRIVE

33

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 532142603 Transaxle 6sp Dana 4360-79

2 532146682 Spring Return Brake T/a Zinc

3 532123666 Pulley Transaxle 18"tires

4 812000028 Ring Retainer # 5100-62

5 874490544 Bolt Hex FLGHD 5/16-18 Gr.5

6 817490512 Screw Thdrol 5/16-18 X 3/4 TYT

8 532141003 Rod Shifter

10 876020416 Pin Cotter 1/8 X 1 Cad

11 532105701 Washer Plate Shf 388 Sq Hole

12 819151216 Washer 15/32 X 3/4 X 16 Ga

13 874550412 Bolt 1/4-28 Unf Gr 8 W/Patch

14 810040400 Washer Lock Hvy Helical 1/4

15 874490544 Bolt Hex 5/16-18Gr. 5

18 874780616 Bolt Fin Hex 3/8-16unc X 1 Gr. 5

19 873800600 Nut Lock 3/8-16 Unc

21 532121274 Knob Duckhead1/2-13 Plstc Thds

Blk

22 532130804 Rod Brake Blk Zinc 26 840

24 873350600 Nut Hex Jam 3/8-16 Unc

25 532106888 Spring Rod Brake 2 00 Zinc

26 819131316 Washer 13/32 X 13/16 X 16 Ga

27 876020412 Pin Cotter 1/8 X 3/4 Cad

28 532145204 Rod Brake Parking LT/YT

29 532071673 Cap Brake Parking Black

30 532130807 Bracket Mtg Transaxle

31 532127275 Keeper Belt LH LT 14 Ga

32 874760512 Bolt Hex Hd 5/16-18unc X 3/4

34 532149001 Shaft Asm Pedal Foot 1 930

35 532120183 Bearing Nylon Blk 629 Id

36 819211616 Washer 21/32 X 1 X 16 Ga

37 532124963 Pin Roll 3/16 X 1"

38 532123674 Pulley Idler Flat

39 874760644 Bolt Fin Hex 3/8-16unc X 2-3/4

40 532124965 Spacer Split 395 X 59 Bzp

41 532109070 Keeper Belt Retainer

42 819131312 Washer 13/32 X 13/16 X 12 Ga

44 532105706 Bearing Nyl 503 X 628 X 1 25

45 532110812 Washer Hardened

46 812000039 Ring Klip #t5304-50

47 532127783 Pulley Idler V Groove Plastic

48 532123789 Bellcrank Asm Clutch

49 532123205 Retainer Belt Style Spring

50 874760624 Bolt Hex Hd 3/8-16unc X 1-1/2

51 873680600 Nut Crownlock 3/8-16 Unc

52 873680500 Nut Crownlock 5/16-18 Unc

53 532105710 Link Clutch 7 66

55 532105709 Spring Return Clutch 6 75

56 874760620 Bolt Fin Hx 3/8-16 X 1/4

57 532130801 V-Belt Ground Drive 95 25 42"

58 532127274 Keeper Belt RH LT Pnt/zinc 16g

59 532140312 Keeper Belt Span Ctr

61 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt

62 532124872 Cover Pedal Blk Round

63 532140186 Engine Pulley LT/YT

64 871170764 Bolt Hex

65 810040700 Washer Lock Hvy Hlcl Spr 7/16

66 532129921 Keeper Belt Engine LH LT

70 532134683 Guide Belt Mower Drive RH

72 819132012 Washer 13/32 X 1-1/4 X 12 Ga

74 532109502 Spacer Split

75 532121749 Washer 25/32 X 1 1/4 X 16 Ga

76 812000001 E-ring #5133-75

77 532123583 Key Square 2 0 X 1845/ 1865

78 532121748 Washer 25/32 X 1-5/8 X 16 Ga

80 532131488 Arm Shift Transaxle

81 532136932 Shaft Asm Cross 20"t 42"deck

82 532123782 Spring Torsion T/a

83 819171216 Washer 17/32 X 3/4 X 16 Ga

84 532132182 Rod Shift Adj Tie

85 873530400 Nut Nylock 1/4 - 28

86 532071208 Bushing Rod Strg 629/632 Id

87 819212016 Washer 21/32 X 1-1/4 X 16 Ga

88 812000008 Ring Klip #5304-62

89 532139964 Console Shift 6sp LT

90 532124346 Nut Self-thd Wsh-hd 1/4 Zinc

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

34

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

STEERING ASSEMBLY

5

9

5

7

7

9

4

332

43

643 8

18

19

22

21

20

827

62

23

11 12 24

29

25 58

10

12

11

11

15

8

6

9

46

46

8

6

9

2

47 14

13

47

16

16

38

40

39

1

41

17

42

37

36

50

44

51 54

57

37

50

55

26

30

28

35

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

STEERING ASSEMBLY

KEY PART DESCRIPTION

NO. NO.

1 532124415 Wheel Steering Auto Grey

2 532142033 Axle Asm Fr LT W/gzks 38/42

3 532135227 Spindle Asm LH

4 532135228 Spindle Asm RH

5 532124931 Bearing Race Thrust Harden

6 532121748 Washer 25/32 X 1-5/8 X 16 Ga

7 819272016 Washer 27/32 X 1-1/4 X 16 Ga

8 812000029 Ring Klip #t5304-75

9 532124937 Bearing Col Strg Blk

10 532130468 Link Drag Sol Ball Jt 20 064

11 810040600 Washer Lock Hvy Hlcl Spr 3/8

12 873610600 Nut Fin Hex 3/8-24 Unf

13 532110438 Spacer Bearing Axle Front

14 874011056 Bolt Hex 5/8-11 Unc X 3-1/2

15 873901000 Nut Lock Flange 5/8-11 Unc

16 532132624 Pin Axle 5/8 X 1 55/1 54 Lg

17 532140176 Shaft Asm Strg Private Label

18 532057079 Washer Thrust 515x 750x 033

19 532124035 Support Shaft

20 532126684 Washer Shim 1/4 X 5/8 X 062

21 810040400 Washer Lock Hvy Helical 1/4

22 871070410 Screw Hex Socket 1/4-20 X 5/8

23 532127501 Shaft Asm Pittman

24 532109816 Nyliner Snap In

25 532124036 Bracket Steering

26 543126847 Bushing Link Drag Blk LR

27 532136874 Gear Sector

28 819131416 Washer 13/32 X 7/8 X 16 Ga

29 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt

30 876020412 Pin Cotter 1/8 X 3/4 Cad

32 532130465 Rod Tie Wire Form 19 75 Mech

36 532102803 Bushing Strg

37 817431008 Screw Slftp #10-16 X 1/2 Ty-b

38 532124416 Insert Cap Strg Wh Au

39 819133808 Washer 13/32 X 2-3/8 X 8 Ga

40 532124701 Nut Lock Center 3/8-24unf

41 532104820 Adaptor Wheel Strg 640/ 635id

42 532150390 Boot Steering Shaft

43 532121749 Washer 25/32 X 1 1/4 X 16 Ga

44 532146690 Shaft Extention Steering

46 532121232 Cap Spindle Fr Top Blk

47 532124836 Fitting Grease

50 817490412 Screw Hex Wsh Thdrol 1/4-20 x 3/4

51 873800500 Nut Lock Hex w/Ins 5/16-18

54 874780520 Bolt Fin Hex 5/16-18 Unc x 1-1/4

55 532140285 Clip Tinnerman

57 532140172 Support Shaft Steering

62 532149686 Kit, Steering Assembly

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

SEAT ASSEMBLY

36

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532140838 Seat V250

2 532140551 Bracket Pivot Seat 8 720

3 874760616 Bolt Fin Hex 3/8-16unc X 1

4 819131610 Washer 13/32 X 1 X 10 Ga

5 532145006 Clip Push-In

6 873800600 Nut Hex w/Ins. 3/8-16 Unc

7 532124181 Spring Seat Cprsn 2 250 Blk Zi

8 817490616 Screw Thdrol 3/8-16 X 1 Ty-tt

9 819131614 Washer 13/32 X 1 X 14 Ga.

10 532140552 Pan Seat

11 532120068 Knob seat 1/2-13 Unc

12 532121246 Bracket Mounting Switch

13 532121248 Bushing Snap Blk Nyl 50 Id

14 872050411 Bolt Rdhd Sht Nk 1/4-20x1-3/8

15 532134300 Spacer Split 28x 96 Yel Zinc

16 532121250 Spring Cprsn 1 27 Blk Pnt

17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc

18 532124238 Cap Spring Seat

21 532139888 Bolt Shoulder 5/16-18 Unc Blkz

22 873800500 Nut Hex Lock W/Ins 5/16-18

24 819171912 Washer 17/32 X 1-3/16 X 12 Ga.

25 532127018 Bolt Shoulder 5/16-18 X 62

1

24

16

15

12

13

17

25

4

3

8

9

7

8

9

7

18

11

2

6

22

21

5

10

5

14

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

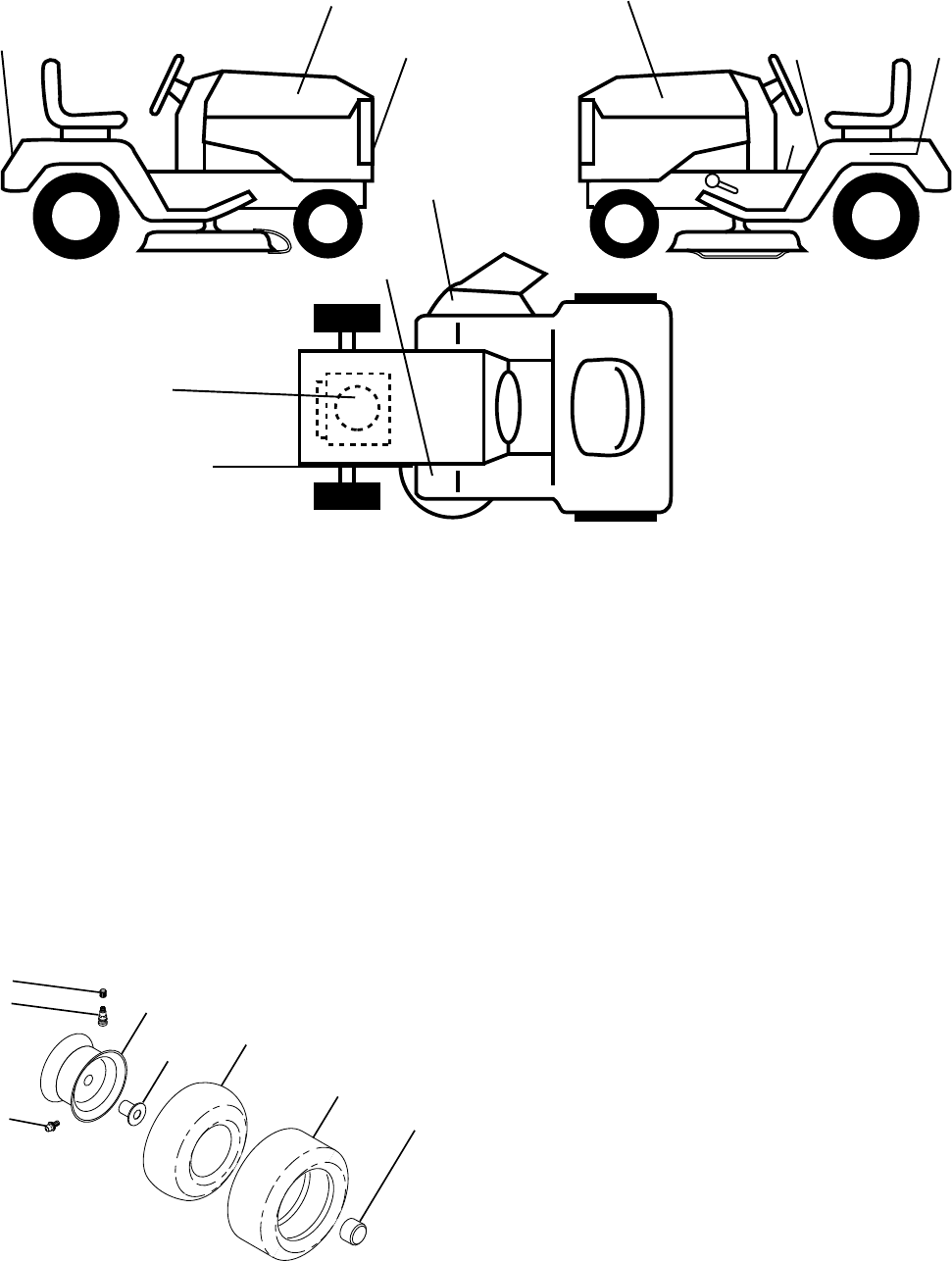

DECALS

37

9

3

4

8

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 532059192 Cap Valve Tire

2 532065139 Stem Valve

3 532106222 Tire F Ts 15 X 6 0 - 6 Service

4 532059904 Tube Front (Service Item Only)

5 532138336 Rim Asm 6"front Silver Service

6 532124957 Fitting Grease (Front Wheel Only)

7 532124959 Bearing Flange (Front Wheel Only)

8 532138337 Rim Asm 8"rear Silver Service

9 532124635 Tire R Ts 18x8 5-8 C Service

10 532124926 Tube Rear (Service Item Only)

11 532104757 Cap Axle Blk 1 50 X 1 00

- - 532144334 Sealant, Tire ( 10 oz. Tube)

10

11

2

15

17

1 532140820 Decal Instruction Dash Eng/fr

2 532145005 Decal Bat Dan/Poi P/L Sym

3 532150724 Decal Hood LH

4 532150723 Decal Hood RH

6 532150616 Decal Grille Husqvarna

8 532150617 Decal Fender Logo

9 532133795 Decal Caution Fender Eng/fr

10 532101892 Decal Clutch/brake Eng/fr

11 532137259 Decal Warning Multi-Language

15 532136832 Decal V-Belt Schematic

17 532273212 Decal HP Engine

KEY PART

NO. NO. DESCRIPTION

1

6

2

1

5,8

4,10

3,9

11

7

WHEELS & TIRES

- - 532145247 Fastener Pop In Footrest (8per)

- - 532145246 Pad FTREST RBR SQ Generic 95

- - 532138311 Decal Handle Lft Height Adjust

- - 532150710 Manual Owner's (English)

- - 532150711 Manual Owner's (French)

Available accessories not included with tractor:

- - LBD48 42" Snow Blade

- - LSB42 40" Snow Thrower

- - LC05 33lb. Wheel Wts. (Pair)

- - CH12 Tire Chains (18 x 8.5 x 8)

- - MP42 Mulcher Plate Kit 42"

- - C42 Grass Catcher

6

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

ENGINE

38

24

23

2

1

OPTIONAL EQUIPMENT



Spark Arrester

29

44

46

32

31

33

37

33

40

62

13 4

72

78

81

3

14

38

15

16

78

19

18

22

30

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

ENGINE

39

1 532140310 Control Th/ch 23 5 LH Flag

2 817720410 Screw Hex Thd Cut 1/4-20x5/8 T

3 - - - - - - - - Engine B&S 12.5 ICQ

Model No. 28M707

4 532137348 Muffler LT B&S 12/12.5/13HP

13 532272293 Gasket Eng 1 313 Id Tin Plated

14 813280324 Nipple Pipe 3/8 Npt X 3"

15 813200300 Elbow Std 90 Degree 3/8-18 Npt

16 811050600 Washer Lock Ext Tooth 3/8

18 532136718 Shield Heat Lt

19 532105839 Receptacle 1/4 turn

20 532105838 Retainer 1/4 turn

21 819091016 Washer 9/32 x 5/8 x 16 Ga.

22 532123650 Stud 1/4 turn

23 532128953 Shield Heat Browning LT/YT

24 817021008 Screw Tap Hex #10-24unc X 1/2

29 532137180 Kit Spark Arrestor (Flat Scrn)

30 532127057 Pinch Weld Hood Black

31 532140280 Tank Fuel Front 2 00

32 532140527 Cap Asm Fuel W/sym Vented

33 532123487 Clamp Hose Black

37 532137040 Line Fuel 20"

38 - - - - - - -- Plug Oil Drain (Order From Engine

Manufacturer)

40 532124028 Bushing Snap Nyl Blk Fuel Line

44 817490412 Screw Hexwsh Thdrol 1/4-20x3/4

46 819091416 Washer 9/32 X 7/8 X 16 Ga

62 810040500 Washer Lock Hvy Hlcl Spr 5/16

72 871070512 Screw Hexhd Cap 5/16-18x 3/4

78 817490620 Screw Thdrol 3/8-16x1-1/4 TYTT

81 532128861 Nut Flange 1/4-20 Starter Nut

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

MOWER DECK

40

15

14

12

13

11

10

98

16

68

36

37

30

31

32

33

35

49

50

51

54

52

53

34

55

56

40

17

1

46

44

21 22

24

25

26

27

2

28

29

23

21

21

21

18

18

20

19

4

3

5

6

2

21

58

48

59

84

83

36

37

40

85

43

72

41

74

75

76 77

79 40

80

73 78

45

71

45

81 82

67

102

104

103 105

106

103

104

105

106

101



90

90 91 92 93 94

939295

113

117

116

118

119

114

115 112

121

120

114

117 119

116

115

111

118

121

113

120

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

MOWER DECK

41

1 532144393 Deck Asm MWR 42"weldment

2 872140506 Bolt Rdhd Sqnk 5/16-18unc X3/4

3 532138017 Bracket Asm Fr Sway Bar 38/42

4 532138440 Bracket Asm Deck 42"sway Bar

5 532124670 Retainer Spring

6 532130832 Arm Suspension Rear

8 532850857 Bolt 3/8 - 24 X 1.25 Gr 8

9 810030600 Washer Lock Hvy 3/8

10 532140296 Washer Hard Blade Mower Vented

11 532134149 Blade Mower Mulching 42"

12 532129895 Bearing Ball #6024 (Mandrel)

13 532137645 Shaft Asm W/lower Bearing

14 532128774 Housing Mandrel Vented

15 532110485 Bearing Ball Mandrel

16 532140329 Stripper Mower Vented

17 872110610 Bolt Rdhd Sqnk 3/8-16 X 1-1/4

18 872140505 Bolt Rdhd Sqnk 5/16-18 X 5/8

19 532132827 Bolt Shoulder

20 532136888 Baffle Vortex 42

21 873680500 Nut Crownlock 5/16-18 UNC

22 532134753 Stiffener Bracket 42"deck

23 532131267 Bracket Deflector Mower 42"

24 532105304 Cap Sleeve 80x 112 Blk Mower

25 532123713 Spring Torsion Deflector 2 52

26 532110452 Nut Push Phos & Oil

27 532130968 Shield Deflector Mower 42" Blk

28 819111016 Washer 11/32 X 5/8 X 16 Ga

29 532131491 Rod Hinge 42"6 75 Wlg

30 532138776 Screw Thdrol Hex Head Zinc Mwr

31 532129963 Washer Spacer Mower Vented

32 532129861 Pulley Mandrel 42"

33 532137266 Nut 9/16 Toplock Flng Oil Dip

34 872110614 Bolt Rdhd 3/8-16uncx1-3/4 Gr5

35 532133835 Fastner Christmas Tree

36 532131494 Pulley Idler Flat 3 060

37 819131316 Washer 13/32 X 13/16 X 16

40 873680600 Nut Crownlock 3/8-16 UNC

41 532133551 Rod Pivot W/nibs

43 532140083 Rod Clutch Secondary W/nibs

44 532140088 Guard Mandrel LH Black

45 532124788 Spring Retainer 1" Zinc/cad

46 532137729 Screw Hex Thd Cut 1/4-20x5/8 T

48 532133944 Washer Hardened Smaller

49 532133940 Roller Asm Cam Follower 42"dec

50 532131340 Bolt Shldr 10-24 Zinc Gr 5 42"

51 532069180 Nut Lock #10-24 Unc

52 532139888 Bolt Shoulder 5/16-18 Unc Blkz

53 532131845 Arm Asm Pad Brake

54 532133943 Washer Hardened

55 532140084 Arm Idler 42"mower LT/YT

56 532122052 Spacer Retainer Pm Mower

58 532140086 Spring Torsion Brakes

59 532141043 Guard TUV Idler

67 532106933 Knob Rd 1/2-13 Plstc Thds Blk

68 532144200 V-Belt Mower 42"

71 532142427 Rod Clutch Primary 38/42

72 532131870 Spring Return

73 532127847 Arm Clutch Secondary

74 532121748 Washer 25/32 X 1-5/8 X 16 Ga

75 812000029 Ring Klip #t5304-75

76 532128903 Bolt Shoulder 3/8-16 Unc 1 44

77 532127845 Keeper Spring 4 000

78 532140179 Arm Asm Clutch Primary

79 532127498 Bushing 747 Od X 794 Lg Brass

80 532128759 Spring Clutch Mower 2 750 Zinc

81 873350600 Nut Hex Jam 3/8-16

82 532142028 Trunnion Adj 94

83 532120958 Washer Sintered

84 532144394 Keeper Belt Idler Fixed

85 872140618 Bolt Carriage 3/8-16 x 2-1/4 Gr.5

90 874760616 Bolt Fin Hex 3/8-16 UNC x 1

91 532132274 Bracket Asm Noseroller LH

92 873800600 Nut Lock Hex W/Ins 3/8-16 Unc

93 819171416 Washer 17/32 x 7/8 x 16 Ga.

94 532132264 Roller Nose 38 & 42

95 532132273 Bracket Asm Noseroller RH

101 532136420 Cover Mulching 42" Black

102 871161010 Screw

103 819061216 Washer #10

104 810071000 Washer Lock #10

105 532130758 Latch Asm Bagger

106 532125004 Nut Weld

111 532140353 Bracket Wheel Gauge LH 42" Deck

112 532132262 Bracket Gauge Wheel RH 42" Deck

113 817490512 Screw Thdrol 5/16-18 X 3/4

114 873510500 Nut Keps 5/16-18 UNC

115 872110504 Bolt Carriage 5/16-UNC x 1/2

116 532124842 Bolt Shoulder "A" 2.41 "B" 1.66

117 532105455 Wheel Guage Blk 4.93

118 873930600 Nut Centerlock 3/8-16 UNC

119 819121414 Washer 3/8 x 7/8 x 14 Ga.

120 819171512 Washer 17/32 x 15/16 x 12 Ga.

121 532143723 Bracket Extruded Guage Wheel

- - 532130794 Mandrel Asm Service (Includes Key

Nos. 8-10, 12-15, 31 and 33)

- - 532145411 Deck Serv 42"mch S Bar Mult-Lang

(Standard Deck - Order noseroller,

mulch cover and gauge wheel

components separately Key Nos.

90-95, 101-106 and 111-120)

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

42

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

MOWER LIFT

15

20

161718 20

20

15

20

456

2

3

1

65

4

7

8

10

12

11

31

32

31

32

19

19

13

13

13

13

43

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

MOWER LIFT

1 532136973 Wire Asm Inner W/plunger 17 32

2 532150588 Shaft Asm Lift

3 532138284 Pin Groove

4 812000002 E Ring #5133-62

5 819211621 Washer PLTD 21/32 X 1 X 21ga

6 532120183 Bearing Nylon Blk 629 Id

7 532109413 Grip Handle Bicycle Matte Blk

8 532124526 Button Plunger Black

10 532122512 Spring Cprsn 3 750 Oiled

11 532139865 Link Lift LH

12 532139866 Link Lift RH

13 532124670 Retainer Spring

15 532127218 Link Front

16 873350800 Nut Jam Hex 1/2-13 Unc

17 532130171 Trunnion Blk Zinc

18 873800800 Nut Lock W/wsh 1/2-13unc

19 532139868 Arm Suspension Rear

20 532124660 Spring, Retainer

31 532140302 Bearing Pvt. Lift Spherical

32 873540600 Nut Crownlock 3/8-24

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

44

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

DANA TRANSAXLE - MODEL NUMBER 4360-79

45

REPAIR PARTS

TRACTOR - MODEL NO. LT130 (954830071A)

DANA TRANSAXLE - MODEL NUMBER 4360-79

KEY PART

NO. NO. DESCRIPTION

1 532142671 Housing, Upper

2 532002274 Screw, Self-Tapping, Large

1/4-20 x .734

3 532134400 Ball, Detent

4 532105904 Spring, Detent

5 532105905 Screw, Set

6 532138235 Kit, Shifter Assembly

7 532134399 Boot, Shifter

8 532134791 Screw, Self-Tapping, with Sealer

9 532138241 Square Ring

10 532142672 Ring, Retaining

11 532134793 * Assembly, Kit, Shim .625 Shaft

12 532142673 Bearing, Flange

13 532120415 Washer, Plain .632 x 1.38 x .046

14 532142674 Key, Woodruff, #9

15 532138234 Assembly, Kit, Input Shaft

16 532110078 Pinion, Bevel, 14 Teeth

17 532105909 Ring, Retaining

18 532105910 Chain, 24 Pitches

19 532105911 Bearing, Flange

20 532142675 Gear, Spur, 14 Teeth

21 532138246 Collar, Clutch

22 532138236 Assembly, Kit, Clutch Keys

23 873810500 Locknut 5/16-24

24 532142676 Shaft, Intermediate

25 532002244 Key, Woodruff, #61

26 532105916 Ring, Retaining

27 532120470 Sprocket, 18 Teeth (Reverse)

28 532110070 Spacer

29 532142677 Gear, Spur, 37 Teeth (1st)

30 532142681 Gear, Spur, 35 Teeth (2nd)

31 532120405 Gear, Spur, 30 Teeth (3rd)

32 532108980 Gear, Spur, 25 Teeth (4th)

33 532120406 Gear, Spur, 22 Teeth (5th)

34 532134796 Gear, Spur, 19 Teeth (6th)

35 532105925 Washer, Plain .640 x 1.37 x .061

36 532002232 Washer, Plain .632 x 1.00 x .026

37 532108978 Spacer .630 x 1.00 x .169

38 532110079 Assembly, Gear, Combination of

12 Teeth and 35 Teeth

39 532124639 Shaft, Idler

40 532120472 Spacer .635 x .875 x .755

KEY PART

NO. NO. DESCRIPTION

41 532105928 Sprocket, 9 Teeth (Reverse)

42 532110084 Gear, Bevel, 42 Teeth

43 532134394 * Assembly, Kit, Shim .750 Shaft

44 532120473 Shaft, Drive

45 532142678 Gear, Spur, 12 Teeth (1st)

46 532142679 Gear, Spur, 15 Teeth (2nd)

47 532120407 Gear, Spur, 20 Teeth (3rd)

48 532106589 Gear, Spur, 25 Teeth (4th)

49 532120408 Gear, Spur, 28 Teeth (5th)

50 532105937 Gear, Spur, 31 Teeth (6th)

51 532002226 Washer, Plain .632 x 1.00 x .060

52 532134401 Washer, Neoprene

53 532002264 Washer, Plain .758 x 1.25 x .031

54 532120474 Axle, L.H.

55 532110081 Gear, Miter, 15 Teeth

56 532105941 Ring, Retaining

57 532110071 Gear, Spur, 32 Teeth

58 532120952 Shaft, Cross

59 532110082 Gear, Miter, 15 Teeth

60 532123908 Axle, R.H.

61 532142680 Housing, Lower

62 532120961 Puck, Friction

63 532007294 Disc, Brake

64 532108989 Spacer

65 532120953 Jaw, Brake

66 532120954 Pin, Dowel

67 532134799 Screw, Self-Tapping, Large

5/16-18 x 2.25

68 532138244 Lever, Actuating

69 532108996 Washer, Plain .321 x 1.00 x .055

70 532120956 Bracket, Anti-Rotation

71 532106596 Screw, Self-Tapping, Large

5/16-18 x 1.44

72 532120951 Puck, Friction

73 532120416 Grease

* Use in combinations to maintain proper clearances

** Order Key No. 15

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

46

15° MAX.

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

CUT OUT ON DOTTED LINES

THIS IS A 15° SLOPE

SIGHTING

GUIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

Operate your Tractor up and down the face of slopes (not

greater than 15°), never across the face. Make turns gradu-

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

Effective May 1, 1992

WARRANTY STATEMENT

(2) Failure to operate or maintain the unit in accordance with the Owner’s/Operator’s manual or instruction

sheet furnished by Husqvarna.

(3) Alterations or modifications that affect the unit's performance, operation, safety, durability, change its

intended use, or cause failure of compliance with current regulatory standards or applicable federal, state

or local laws.

(4) Use of parts or accessories which are not recommended by Husqvarna Forest & Garden Company.

(5) Additional damage to parts or components due to continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE CONSUMER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS EXCEPT

TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABIL-

ITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO

THE WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRANTY STATEMENT. HUSQVARNA

RESERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NOTICE,

AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PRODUCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long an

implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you

specific legal rights, and you may also have other rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The customer must exhibit reasonable care, maintenance, operation, storage and general upkeep as

written in the maintenance section of the Owner’s/Operator’s manual. Should an operational problem or

failure occur the product should not be used, but delivered as is to an authorized Husqvarna dealer for

evaluation. Proof of purchase, as explained in section 6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN

WARRANTY CONSIDERATION

It is the Owner’s and Dealer’s responsibility to make certain that the Warranty Registration Card is properly

filled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10)

days from the date of purchase in order to validate the warranty and to provide post-sale service.

Proof of purchase must be presented to the authorized Husqvarna dealer in order to obtain warranty service.

This receipt must include date purchased, model number, serial number, and complete name and address of

the selling dealer.

To obtain the benefit of this warranty, the product believed to be defective must be delivered in a timely manner,

within thirty (30) days from date of operational problem or failure, and during the warranty period, to any

authorized Husqvarna dealer. The product must be delivered to the dealer, at the owner’s expense. An

authorized Husqvarna dealer can be normally located through the “Yellow Pages” of the local telephone

directory.

HUSQVARNA FOREST & GARDEN CO.

9006-J PERIMETER WOODS DRIVE

CHARLOTTE, NORTH CAROLINA 28216

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company ("Husqvarna") warrants Husqvarna product to the original purchaser

to be free from defective material and workmanship from the date of purchase for the "Warranty Period”

here stated dependent upon the type of product use. Warranty period is as follows for products listed:

5 Year Warranty: Plastic walk behind mower decks for noncommercial, noninstitutional or nonincome

producing use.

2 Year Warranty: Riding lawn mowers, yard and garden tractors, walk behind mowers, tillers and

attachments for noncommercial, noninstitutional or nonincome producing use. Ignition coils or modules on

the chain saws, clearing saws and trimmers.

1 Year Warranty: Chain saws, clearing saws, trimmers, blowers and batteries for noncommercial,

noninstitutional or nonincome producing use.

90 Day Warranty: Any Husqvarna product used for rental, commercial, professional, or income producing

use.

30 Day Warranty: Husqvarna professional bow bars.

30 Day Replacement Part Warranty: Unless otherwise stated, replacement parts are warranted for 30

days from date of purchase.

SECTION 2: HUSQVARNA’S

OBLIGATIONS UNDER THE WARRANTY

Husqvarna will remedy defects in material and workmanship during the warranty period by repairing or

replacing, at Husqvarna’s option, the defective component without charge for parts or labor.

SECTION 3: ITEMS NOT

COVERED BY THIS WARRANTY

The following items are not covered by this warranty:

(1) Normal customer maintenance items (i.e., belts, blades, blade adapters, bulbs, filters, guide bars,

lubricants, rewind springs, saw chain, spark plugs, starter ropes and tines).

(2) Normal wear, normal adjustment, standard hardware or items worn through regular use.

(3) Natural discoloration of material due to ultraviolet light.

(4) The replacement or maintenance of worn items.

(5) Briggs & Stratton, Kawasaki and Kohler engines, including starters, generators, alternators and

accessories. These items are covered by the engine manufacturer’s warranty as stated with the

product information supplied at the time of purchase. All claims for specified engines, starters,

generators, alternators and accessories should be sent to the appropriate manufacturer.

(6) Agri-Fab, Foote, and Tecumseh-Peerless drive systems. These items are covered by the drive system

manufacturer’s warranty as stated with the product information supplied at the time of purchase. All

claims for specified drive systems should be sent to the appropriate manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting from the following:

(1) Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt abrasives, moisture, rust,

corrosion, or any adverse reaction due to incorrect storage habits. 530-0683-91-2-04/21/92

532150710 09.22.95 TR Printed in U.S.A.
