LTH125

Owner’s Manual

2

Look for this symbol to point out impor-

tant safety precautions. It means

CAUTION!!! BECOME ALERT!!! YOUR

SAFETY IS INVOLVED.

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making

repairs.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the machine

and the mowing activity. Never assume that children will remain

where you last saw them.

• Keep children out of the mowing area and under the watchful

care of another responsible adult.

• Be alert and turn machine off if children enter the area.

• Before and when backing, look behind and down for small

children.

• Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and other fuels. They are

flammable and vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do not

smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel container inside where

there is an open flame, such as a water heater.

• Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts, tight

and keep equipment in good condition.

• Never tamper with safety devices. Check their proper

operation regularly.

• Keep machine free of grass, leaves, or other debris build-up.

Clean oil or fuel spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine running.

• Grass catcher components are subject to wear, damage, and

deterioration, which could expose moving parts or allow

objects to be thrown. Frequently check components and

replace with manufacturer's recommended parts, when nec-

essary.

• Mower blades are sharp and can cut. Wrap the blade(s) or

wear gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service as

required.

I. GENERAL OPERATION

• Read, understand, and follow all instructions in the manual

and on the machine before starting.

• Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blade.

• Be sure the area is clear of other people before mowing. Stop

machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Always

look down and behind before and while backing.

• Be aware of the mower discharge direction and do not point

it at anyone. Do not operate the mower without either the

entire grass catcher or the guard in place.

• Slow down before turning.

• Never leave a running machine unattended. Always turn off

blades, set parking brake, stop engine, and remove keys

before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass catcher or unclogging

chute.

• Mow only in daylight or good artificial light.

• Do not operate the machine while under the influence of

alcohol or drugs.

• Watch for traffic when operating near or crossing roadways.

• Use extra care when loading or unloading the machine into

a trailer or truck.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and tipover

accidents, which can result in severe injury or death. All slopes

require extra caution. If you cannot back up the slope or if you feel

uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not have

to stop or shift while on the slope.

• Follow the manufacturer’s recommendations for wheel

weights or counterweights to improve stability.

• Use extra care with grass catchers or other attachments.

These can change the stability of the machine.

• Keep all movement on the slopes slow and gradual. Do not

make sudden changes in speed or direction.

• Avoid starting or stopping on a slope. If tires lose traction,

disengage the blades and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless necessary, and then, turn slowly

and gradually downhill, if possible.

•Do not mow near drop-offs, ditches, or embankments. The

mower could suddenly turn over if a wheel is over the edge

of a cliff or ditch, or if an edge caves in.

•Do not mow on wet grass. Reduced traction could cause

sliding.

•Do not try to stabilize the machine by putting your foot on the

ground.

•Do not use grass catcher on steep slopes.

3

PRODUCT SPECIFICATIONS

HORSEPOWER: 12.5

GASOLINE CAPACITY 2 GALLONS

AND TYPE: UNLEADED REGULAR

OIL TYPE (API-SF/SG): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: 3.0 PINTS

SPARK PLUG: CHAMPION RJ19LM

(GAP: .030”)

VALVE CLEARANCE: INTAKE: .005” - .007”

EXHAUST: .009” - .011”

GROUND SPEED (MPH): FORWARD: 5.0

REVERSE: 2.4

TIRE PRESSURE: FRONT: 14 PSI

REAR: 12 PSI

CHARGING SYSTEM: 3 AMPS BATTERY

5 AMPS HEADLIGHTS

BLADE BOLT TORQUE: 30-35 FT. LBS.

CONGRATULATIONS on your purchase of a new trac-

tor. It has been designed, engineered and manufactured

to give you the best possible dependability and perfor-

mance.

Should you experience any problem you cannot easily

remedy, please contact your nearest authorized service

center. We have competent, well-trained technicians and

the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor prop-

erly. Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and

using your tractor.

• Follow the instructions under "Customer Responsibili-

ties" and "Storage" sections of this manual.

MODEL

NUMBER LTH125

SERIAL

NUMBER ____________________________________

DATE OF PURCHASE __________________________

THE MODEL AND SERIAL NUMBERS WILL BE FOUND

ON A PLATE UNDER THE SEAT.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE. WARNING: This unit is equipped with an internal combus-

tion engine and should not be used on or near any unim-

proved forest-covered, brush-covered or grass-covered

land unless the engine’s exhaust system is equipped with

a spark arrester meeting applicable local or state laws (if

any). If a spark arrester is used, it should be maintained in

effective working order by the operator.

A spark arrester for the muffler is available through your

nearest authorized service center/department (See RE-

PAIR PARTS section of this manual).

4

TABLE OF CONTENTS

INDEX

SAFETY RULES............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES..................... 3, 15-19

ASSEMBLY ................................................................ 6-9

OPERATION........................................................... 10-14

MAINTENANCE SCHEDULE ..................................... 15

SERVICE AND ADJUSTMENTS ........................... 20-25

STORAGE ................................................................... 26

TROUBLESHOOTING ........................................... 27-28

REPAIR PARTS - TRACTOR ................................ 30-47

WARRANTY ................................................................ 51

A

Adjustments:

Brake........................................... 22

Carburetor ................................... 25

Mower:

Front-To-Back ........................ 21

Side-To-Side .......................... 21

Throttle Control Cable ...... ...........25

Air Filter, Engine................................. 18

Assembly........................................... 6-9

B

Battery:

Charging ....................................... 7

Cleaning ...................................... 17

Installation ..................................... 8

Levels....................................... 7,17

Preparation ................................... 7

Starting with Weak Battery.......... 24

Storage ....................................... 26

Terminals .................................... 17

Belt:Motion Drive

Removal/Replacement........... 22

Mower Blade Drive

Removal/Replacement........... 21

Blade:

Sharpening.................................. 16

Replacement ............................... 16

Brake Adjustment ............................... 22

C

Carburetor Adjustment ....................... 25

Controls, Tractor ................................ 10

Customer Responsibilities............. 15-19

Engine:

Air Filter................................... 18

Battery..................................... 17

Engine Oil ............................... 18

Fuel Filter ................................ 19

Spark Plugs............................. 19

Tractor:

Blade ....................................... 16

Lubrication Chart..................... 15

Maintenance Schedule ........... 15

Tire Care ......................... 7,16,23

Cutting Height, Mower........................ 11

E

Electrical:

Interlocks and Relays.................. 24

Schematic ................................... 29

Wiring Diagram ........................... 30

Engine:

Air Filter....................................... 18

Cooling Fins ................................ 19

Oil Change .................................. 18

Oil Level ................................. 12,18

Oil Type....................................... 18

Preparation ................................. 12

Starting........................................ 13

Storage ....................................... 26

F

Filter:

Air Filter....................................... 18

Fuel ............................................. 19

Fuel:

Type ............................................ 12

Storage ....................................... 26

Fuse ................................................... 24

H

Hood Removal/Installation ................. 24

L

Leveling Mower Deck ......................... 21

Lubrication Chart ................................ 15

M

Maintenance Schedule....................... 15

Mower:

Adjustment, Front-to-Back .......... 21

Adjustment, Side-to-Side ............ 21

Blade Sharpening ....................... 16

Blade Replacement..................... 16

Cutting Height ............................. 11

Installation ................................... 20

Operation .................................... 12

Removal ...................................... 20

Mowing Tips ....................................... 14

Muffler ................................................ 19

Mulcher Plate ....................................... 9

O

Oil: Cold Weather Conditions ....... 12,18

Engine ......................................... 18

Storage ....................................... 26

Operation ......... .............................10-14

Operating Mower ................................12

P

Parking Brake..................................... 11

Parts Bag ............................................. 5

Parts, Replacement/Repair ........... 30-47

Product Specifications...........................3

R

Repair Parts .................................. 30-47

S

Safety Rules ......................................... 2

Seat ...................................................... 7

Service and Adjustments .............. 20-25

Carburetor ................................... 25

Fuse ............................................ 24

Hood Removal/Installation .......... 24

Motion Drive Belt

Removal/Replacement........... 22

Mower Blade Drive Belt

Removal/Replacement........... 21

Mower Adjustment:

Front- to-Back ........................ 21

Side-to-Side ........................... 21

Mower Removal .......................... 20

Tire Care ............................. 7,16,23

Slope Guide Sheet ............................. 50

Spark Plugs ........................................ 19

Specifications ....................................... 3

Starting the Engine............................. 13

Steering Wheel................................ 6,23

Stopping the Tractor........................... 11

Storage.............................................. .26

T

Throttle Control Cable Adjustment ..... 25

Tires...................................................7,16,23

Transaxle ........................................... 17

Transmission:

Purge .......................................... 13

Trouble Shooting Chart ..................27-28

W

Warranty............................................. 51

Wiring Diagram .................................. 30

Wiring Schematic ............................... 29

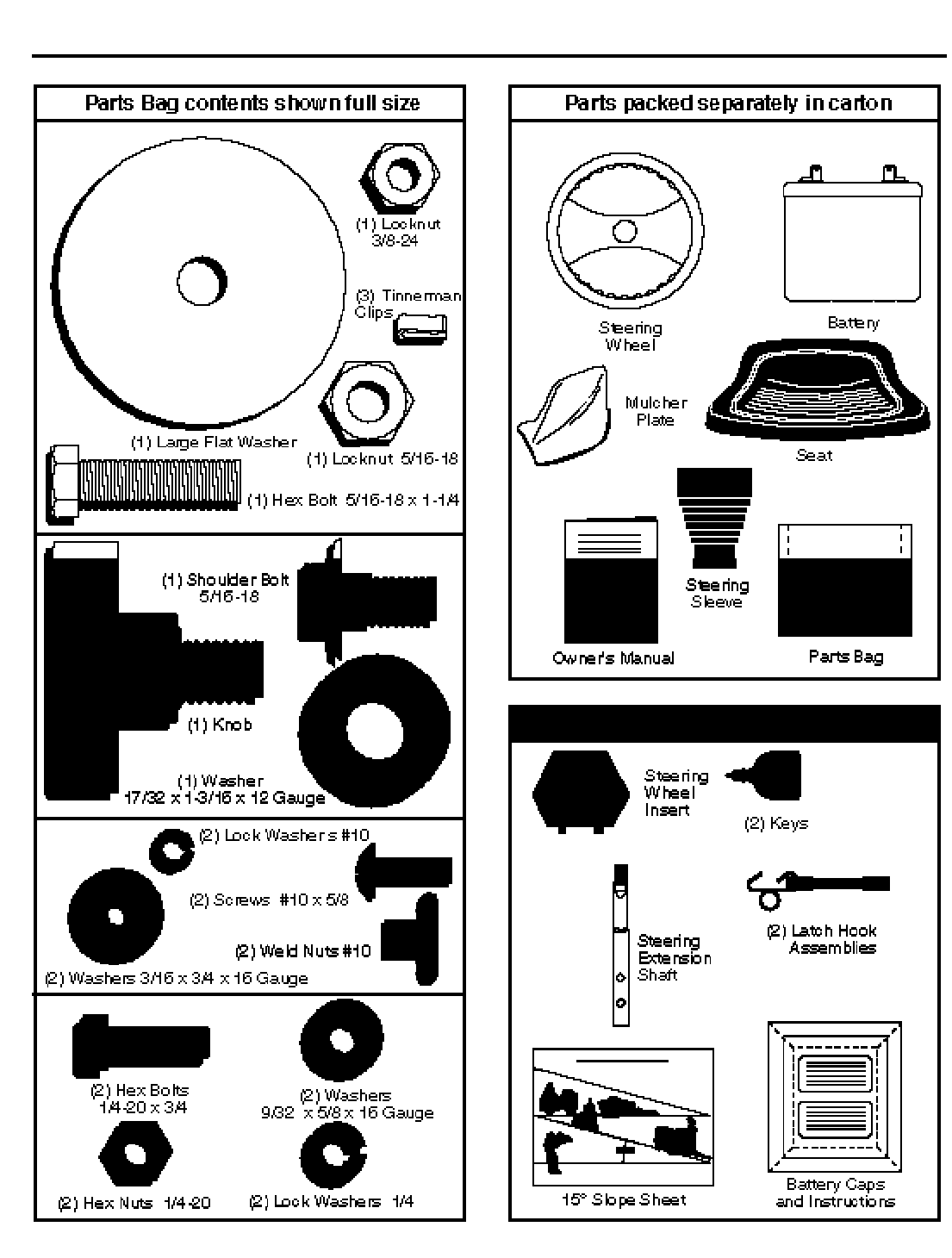

CONTENTS OF HARDWARE PACK

5

6

ASSEMBLY

STEERING

WHEEL

LOWER

STEERING

SHAFT

RETAINER CLIPS

(TAB TO OUTSIDE)

STEERING

WHEEL HUB

STEERING SLEEVE

5/16 LOCKNUT

5/16 HEX BOLT

ADAPTER

STEERING

SLEEVE

ADJUSTABLE

EXTENSION SHAFT

LARGE FLAT

WASHER

3/8-24 LOCKNUT

INSERT

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tractor, all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

(1) 3/4" socket w/drive ratchet

(2) 7/16" wrenches Phillips Screwdriver

(1) 1/2" wrench Utility knife

(1) 9/16" wrench Tire pressure gauge

When right and left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons

from carton (See page 5).

• Cut along lines on carton, from top to bottom, all four

corners of carton and lay panels flat.

• Check for any additional loose parts or cartons and

remove.

BEFORE ROLLING TRACTOR OFF SKID

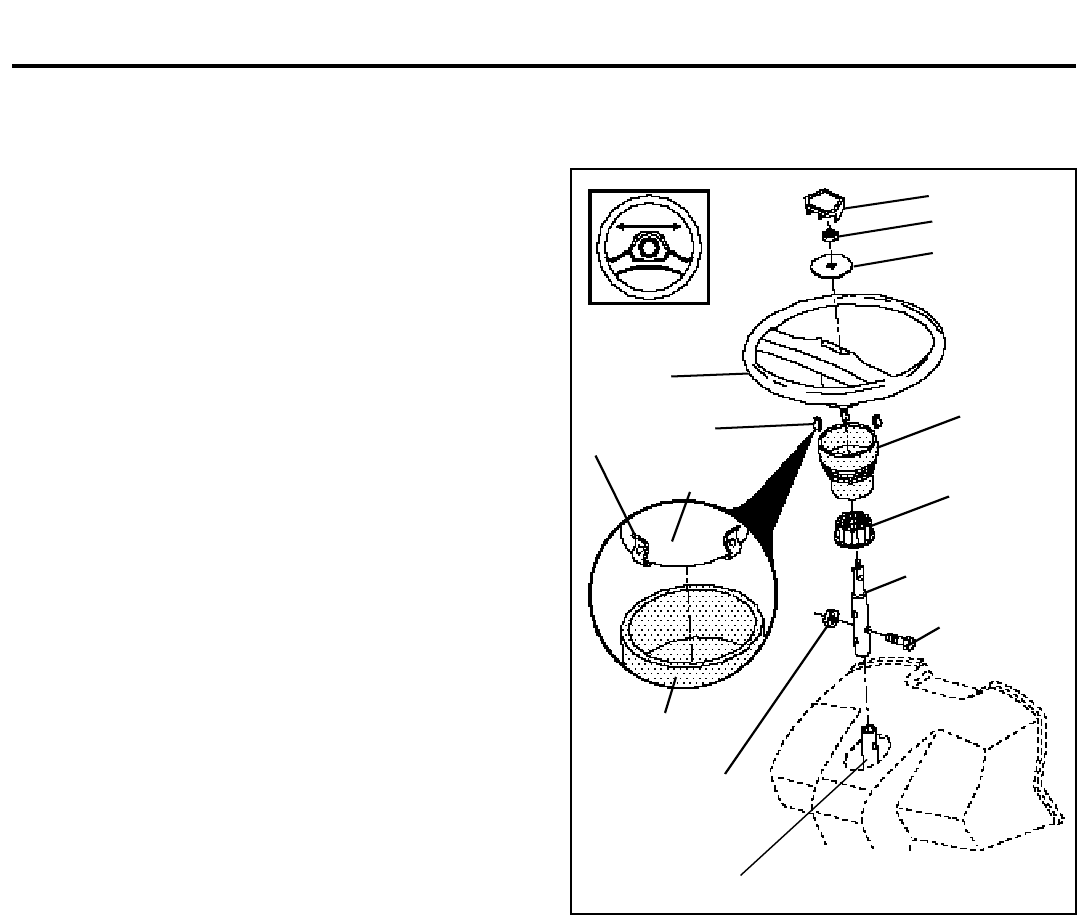

ATTACH STEERING WHEEL (See Fig. 1)

PREASSEMBLE SLEEVE TO STEERING WHEEL

(See Fig. 1 Inset)

• Install sleeve retainer clips, evenly spaced around

steering wheel hub, with formed tabs toward the out-

side of hub.

• Press or lightly tap the retainer clips fully onto the

steering wheel hub.

• Press steering sleeve fully onto steering wheel hub and

clips.

ASSEMBLE ADJUSTABLE EXTENSION SHAFT

The steering wheel may be assembled in a high, medium,

or low position. Position is determined by which of the three

mounting holes is used in the extension shaft.

• Slide extension shaft onto lower steering shaft. Align

desired mounting holes and install 5/16 hex bolt and

locknut. Tighten securely.

INSTALL STEERING WHEEL

• Position front wheels of the tractor so they are pointing

straight forward.

• Slide steering wheel adapter onto steering shaft exten-

sion.

• Position steering wheel and sleeve assembly so cross

bars are horizontal (left to right) and slide onto adapter.

• Assemble large flat washer and 3/8-24 locknut and

tighten securely.

FIG. 1

• Snap steering wheel insert into center of steering

wheel.

• Remove protective plastic from tractor hood and grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR

IS TO ROLL OFF SKID.

TO ROLL TRACTOR OFF SKID (See Fig. 8)

• Raise attachment lift lever to its highest position.

• Release parking brake by depressing clutch/brake

pedal.

• Place freewheel control in freewheel position to disen-

gage transmission. (See "TO TRANSPORT" in Opera-

tion section of this manual).

• Roll tractor backwards off skid.

• Remove banding holding discharge guard up against

tractor.

7

ASSEMBLY

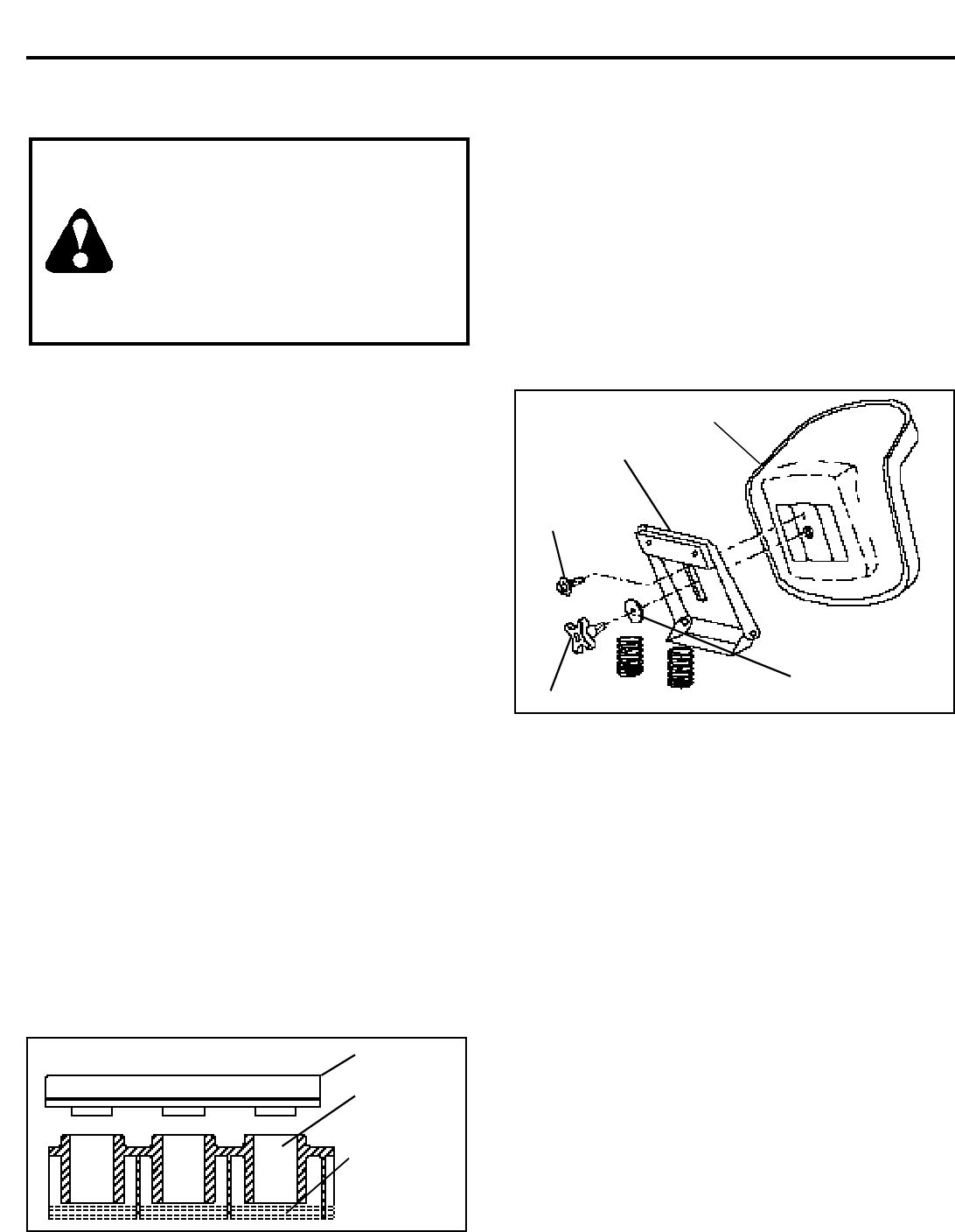

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

• Remove cardboard packing on seat pan.

• Place seat on pan and assemble shoulder bolt.

• Assemble adjustment knob and flat washer loosely.

Do not tighten.

• Tighten shoulder bolt securely.

• Lower seat into operating position and sit on seat.

• Slide seat until a comfortable position is reached which

allows you to press clutch/brake pedal all the way

down.

• Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment knob securely.

HOW TO SET UP YOUR TRACTOR

PREPARE BATTERY (See Fig. 2)

CAUTION: Wear eye and face shield.

Wash hands or clothing immediately if

accidentally in contact with battery acid.

Do not smoke. Fumes from charged

battery acid are explosive.

Read the instructions included with the

battery vent caps. Always wear gloves,

clothing and goggles to protect your

hands, skin and eyes.

Your tractor has a battery charging system which is suffi-

cient for normal use. However, periodic charging of the

battery with an automotive charger will extend its life.

• See instructions packed with vent caps in parts bag.

• Fill battery with acid. Fill each cell until it reaches the

bottom of the vent wells. Do not overfill.

• Allow battery to stand and settle for at least thirty

minutes. After standing, check the level of acid. If

below the vent wells, add more acid until the correct

level is reached.

While battery is standing (after adding acid) and later, while

battery is being charged, continue with assembly of tractor.

IMPORTANT: TO MAXIMIZE THE LIFE OF YOUR

BATTERY, IT IS NECESSARY THAT THE BATTERY BE

CHARGED BEFORE USE. FAILURE TO CHARGE

BATTERY CAN RESULT IN A SHORTENED BATTERY

LIFE.

• Charge battery at a rate of 6 amperes for 1 hour. Use

a 12 volt battery charger. Observe all safety precau-

tions required for battery charging.

• Check the acid level after the battery is charged. If the

acid has fallen below the correct level, add distilled or

iron free water.

• Install the vent caps to cover the vent wells. Wash the

top of the battery with water to remove any acid, then

wipe dry.

• Check battery case for leakage to make sure that no

damage has occurred in handling.

• Dispose of excess battery acid. Neutralize acid for

disposal by adding it to 2 gallons of water in a five gallon

plastic container. Stir with a wooden or plastic paddle

while adding baking soda until the addition of more

soda causes no more foaming.

• Follow instructions on how to install battery.

ADJUSTMENT KNOB

SHOULDER

BOLT

SEAT PAN

SEAT

FLAT WASHER

FIG. 3

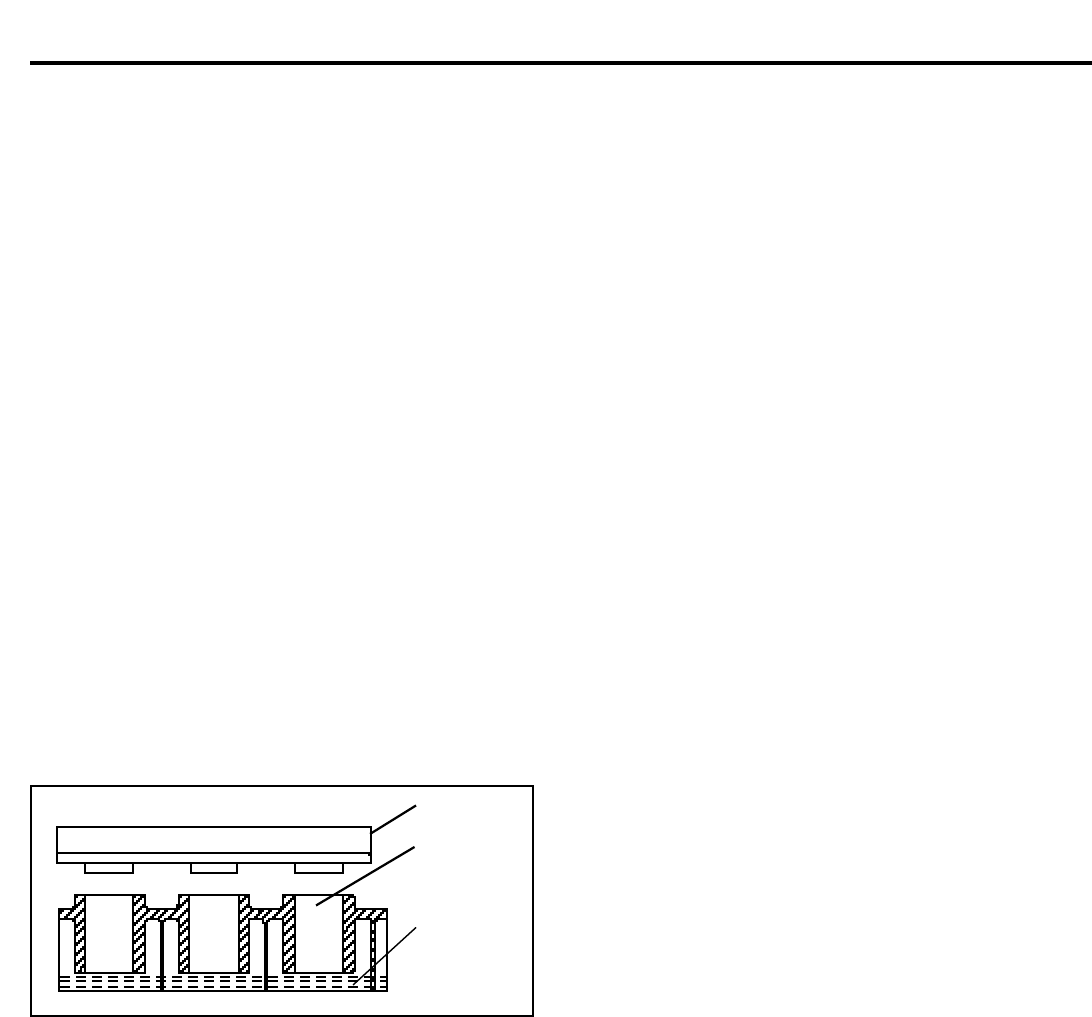

FIG. 2

CUT AWAY VIEW VENT CAP

VENT WELL

BATTERY

CELL ACID

LEVEL

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance.

• Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see

that the brake is properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments section of this

manual.

8

ASSEMBLY

NEGATIVE (-) TERMINAL

NEGATIVE

(BLACK) CABLE

POSITIVE

(RED) CABLE

HEX NUT

FLAT

WASHER

HEX

BOLT

POSITIVE (+) TERMINAL

BATTERY

BOX DOOR

LOCK

WASHER

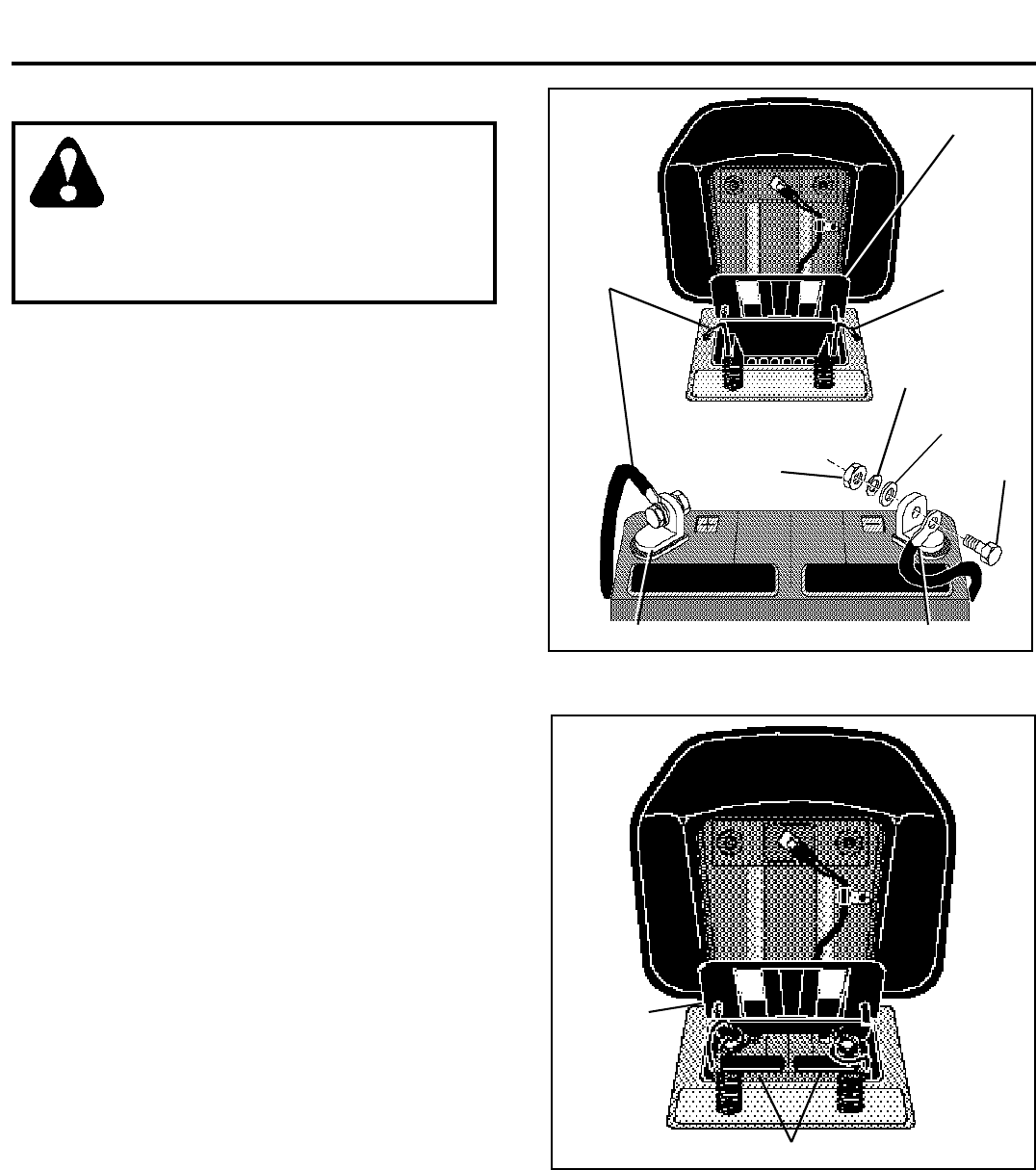

FIG. 4

INSTALL BATTERY (See Figs. 4 & 5)

CAUTION: Do not short battery termi-

nals. Before installing battery, remove

metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

• Lift seat to raised position.

• Open battery box door.

• Be sure battery drain tube is attached to battery box.

• Lower battery into battery box with battery terminals

toward front of tractor.

• First connect RED battery cable to positive (+) terminal

with hex bolt, flat washer, lock washer and hex nut as

shown. Tighten securely.

• Connect BLACK grounding cable to negative (-) termi-

nal with remaining hex bolt, flat washer, lock washer

and hex nut. Tighten securely.

• Close battery box door.

Open battery box door for:

• Inspection for secure connections (to tighten hard-

ware).

• Inspection for corrosion.

• Testing battery.

• Jumping (if required).

• Periodic charging .

VENT CAPS

BATTERY

BOX DOOR

FIG. 5

9

ASSEMBLY

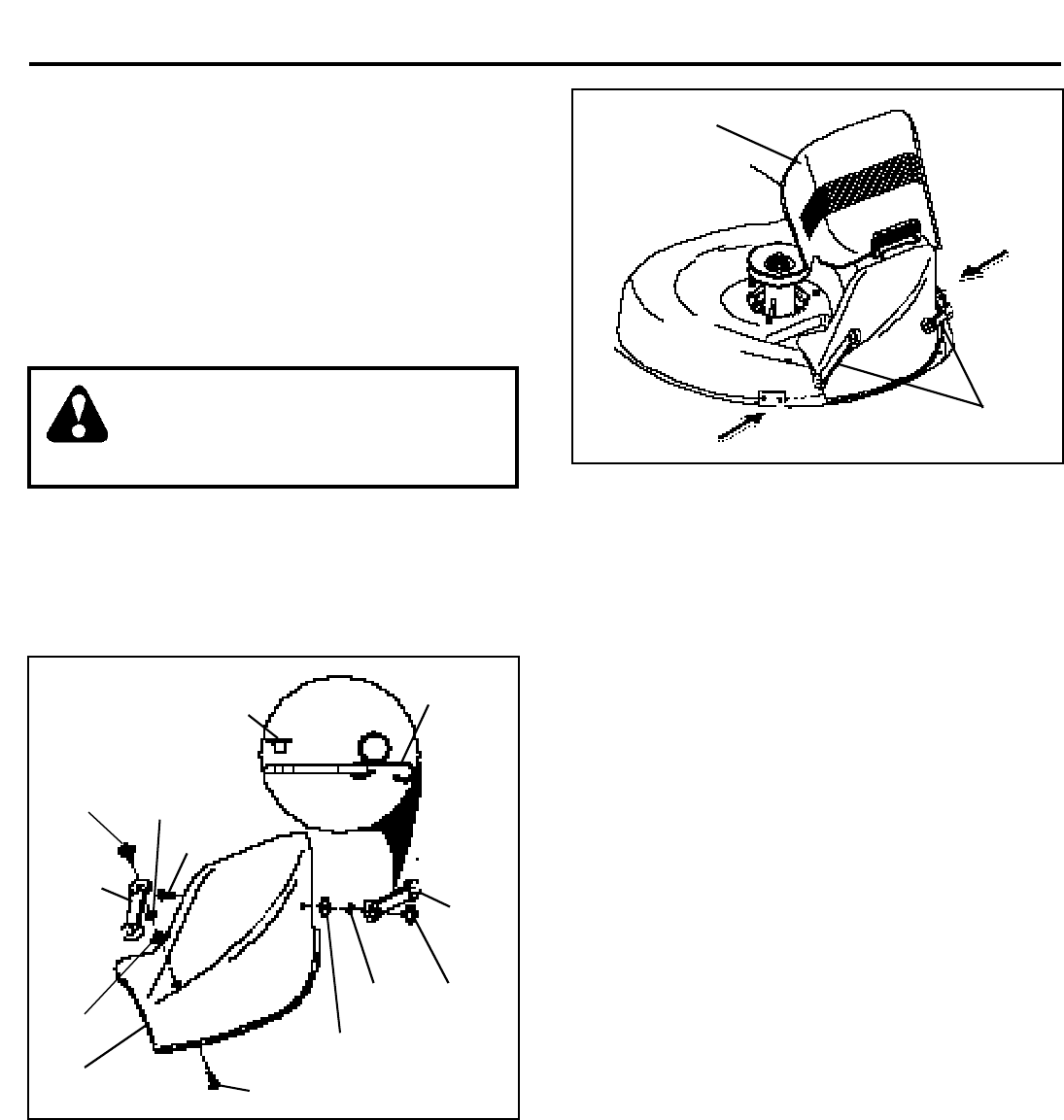

INSTALL MULCHER PLATE (See Figs.6 & 7)

• Install two latch hooks to mulcher plate using screw,

washer, lock washer, and weld nut as shown.

NOTE: Pre-assemble weld nut to latch hook by inserting

weld nut from the top with hook pointing down.

• Tighten hardware securely.

• Raise and hold deflector shield in upright position.

• Place front of mulcher plate over front of mower deck

opening and slide into place, as shown.

• Hook front latch into hole on front of mower deck.

• Hook rear latch into hole on back of mower deck.

CAUTION: Do not remove discharge

guard from mower. Raise and hold

guard when attaching mulcher plate

and allow it to rest on plate while in

operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in a safe place.

Your mower is now ready for discharging or installation of

optional grass catcher accessory.

LATCH

HOOKS

FIG. 7

✓CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE

THE BEST PERFORMANCE AND SATISFACTION FROM

THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

✓All assembly instructions have been completed.

✓No remaining loose parts in carton.

✓Battery is properly prepared and charged. (Minimum

1 hour at 6 amps).

✓Seat is adjusted comfortably and tightened securely.

✓All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

✓Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

✓Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

✓Check wiring. See that all connections are still secure

and wires are properly clamped.

✓Before driving tractor, be sure freewheel control is in

drive position.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

✓ Engine oil is at proper level.

✓Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

✓Become familiar with all controls - their location and

function. Operate them before you start the engine.

✓Be sure brake system is in safe operating condition.

✓It is important to purge the transmission before operat-

ing your tractor for the first time. Follow proper starting

and transmission purging instructions (See "TO START

ENGINE" and "PURGE TRANSMISSION" in Opera-

tion section of this manual).

WELD

NUT

LATCH

HOOK

SCREW

WASHER

LOCK

WASHER WELD

NUT

LATCH

HOOK

MULCHER

PLATE

WASHER

SCREW

LOCK

WASHER

WELD NUT

FROM THE TOP

HOOK POINTS

DOWN

FIG. 6

DEFLECTOR

SHIELD

10

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Our tractors conform to the safety standards of the American National Standards Institute.

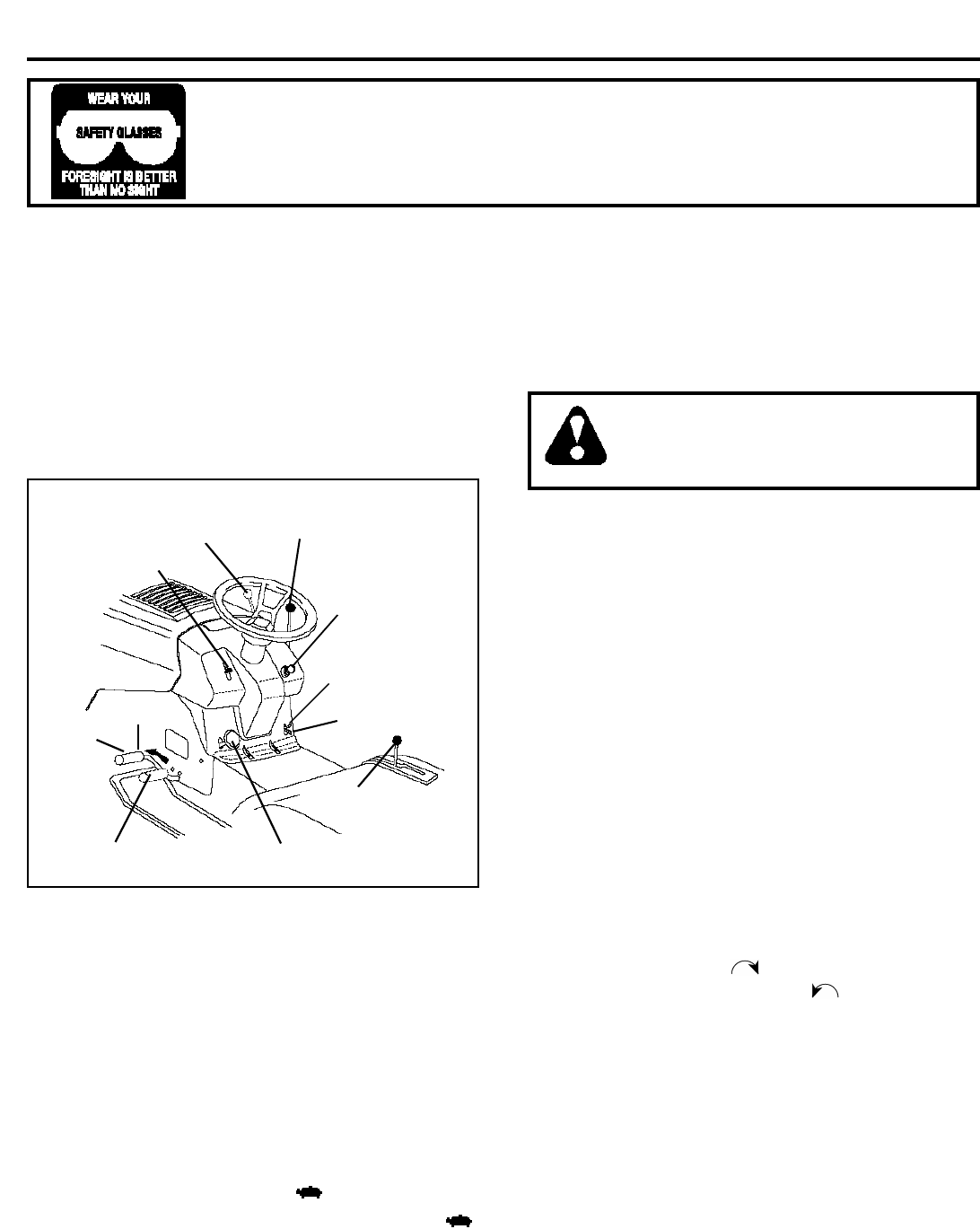

ATTACHMENT CLUTCH LEVER: Used to engage the

mower blades, or other attachments mounted to your

tractor.

THROTTLE/CHOKE CONTROL: Used for starting and

controlling engine speed.

CLUTCH/BRAKE PEDAL: Used for declutching and brak-

ing the tractor and starting the engine.

PARKING BRAKE: Locks clutch/brake pedal into the

brake position.

HEIGHT ADJUSTMENT KNOB - Used to adjust the mower

height.

MOTION CONTROL LEVER: Selects the speed and

direction of tractor.

ATTACHMENT LIFT LEVER: Used to raise and lower the

mower deck or other attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position.

IGNITION SWITCH: Used for starting and stopping the

engine.

LIGHT SWITCH: Turns the headlights on and off.

FREEWHEEL CONTROL: Disengages transmission for

pushing or slowly towing the tractor with the engine off.

PARKING BRAKE

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save

this manual for future reference.

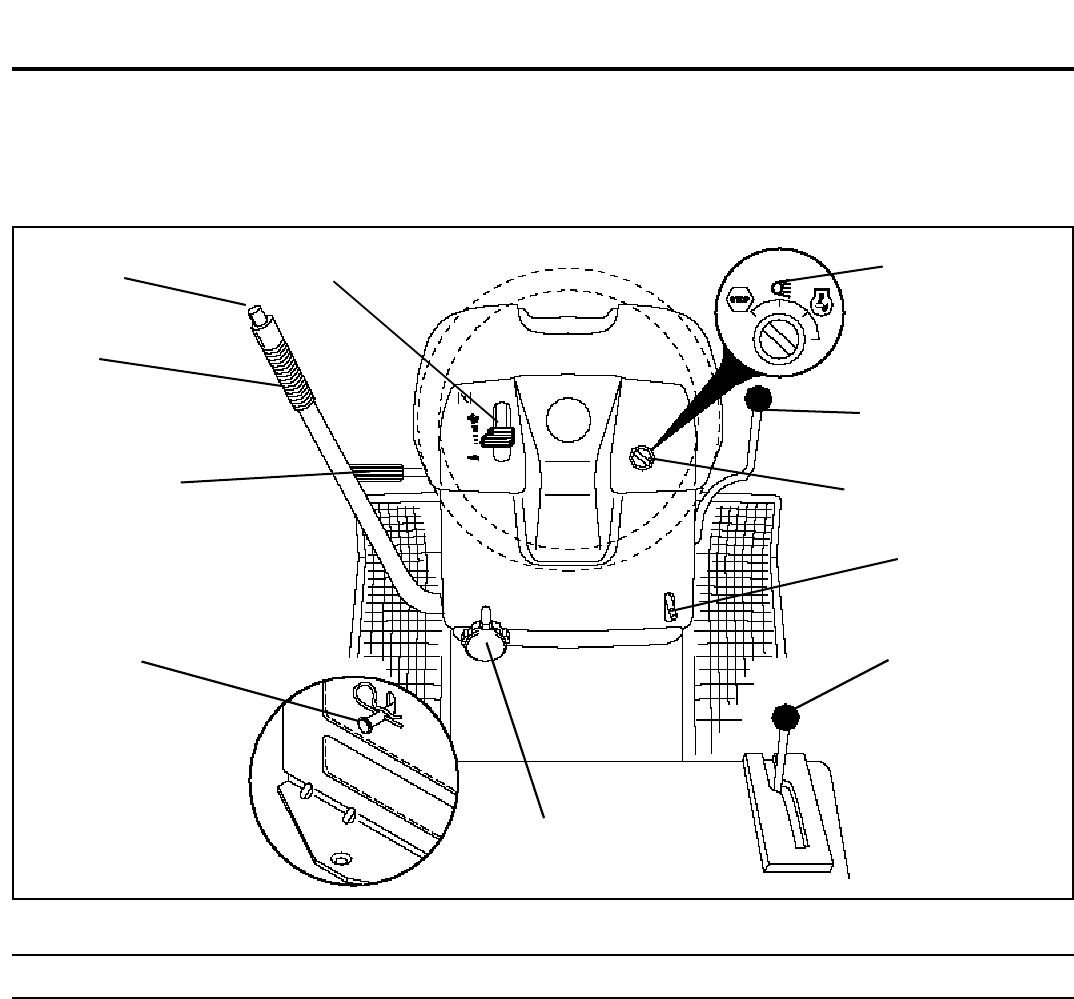

FIG. 8

FREEWHEEL

CONTROL

HEIGHT ADJUSTMENT KNOB

MOTION CONTROL LEVER

ATTACHMENT LIFT

LEVER

LIFT LEVER

PLUNGER

LIGHT SWITCH

POSITION

THROTTLE/CHOKE

CONTROL

CLUTCH/BRAKE

PEDAL

ATTACHMENT CLUTCH

LEVER

IGNITION

SWITCH

11

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes,

which can result in severe eye damage. Always wear safety glasses or eye shields

while operating your tractor or performing any adjustments or repairs. We recom-

mend a wide vision safety mask for over the spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 9)

Your tractor is equipped with an operator presence sensing

switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

• Depress clutch/brake pedal into full "BRAKE" position

and hold.

• Place parking brake lever in "ENGAGED" position and

release pressure from clutch/brake pedal. Pedal should

remain in "BRAKE" position. Make sure parking brake

will hold tractor secure.

FIG. 9

STOPPING (See Fig. 9)

MOWER BLADES -

• Move attachment clutch lever to “DISENGAGED” po-

sition.

GROUND DRIVE -

• Depress clutch/brake pedal into full “BRAKE” position.

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED.

ENGINE -

• Move throttle control to slow ( ) position.

NOTE: Failure to move throttle control to slow ( )

position and allowing engine to idle before stopping may

cause engine to “backfire”.

• Turn ignition key to “OFF” position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause “browning” of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator’s position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 9)

Always operate engine at full throttle.

• Operating engine at less than full throttle reduces the

battery charging rate.

• Full throttle offers the best bagging and mower per-

formance.

TO MOVE FORWARD AND BACKWARD

(See Fig. 9)

The direction and speed of movement is controlled by the

motion control lever.

• Start tractor with clutch/brake pedal depressed and

motion control lever in neutral (N) position.

• Release parking brake and clutch/pedal.

• Slowly move motion control lever to desired position.

CLUTCH/BRAKE

PEDAL "DRIVE" POSITION HEIGHT ADJUSTMENT

KNOB TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 9)

The cutting height is controlled by turning the height adjust-

ment knob in desired direction.

• Turn knob clockwise ( ) to raise cutting height.

• Turn knob counterclockwise ( ) to lower cutting

height.

The cutting height range is approximately 1-1/2" to 4". The

heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height.

"BRAKE"

POSITION

MOTION CONTROL

LEVER

"DISENGAGED"

POSITION

PARKING BRAKE

"ENGAGED"

POSITION

ATTACHMENT

CLUTCH LEVER

"DISENGAGED" POSITION

IGNITION KEY

THROTTLE/CHOKE

CONTROL LEVER

"ENGAGED"

POSITION

12

OPERATION

TO OPERATE ON HILLS

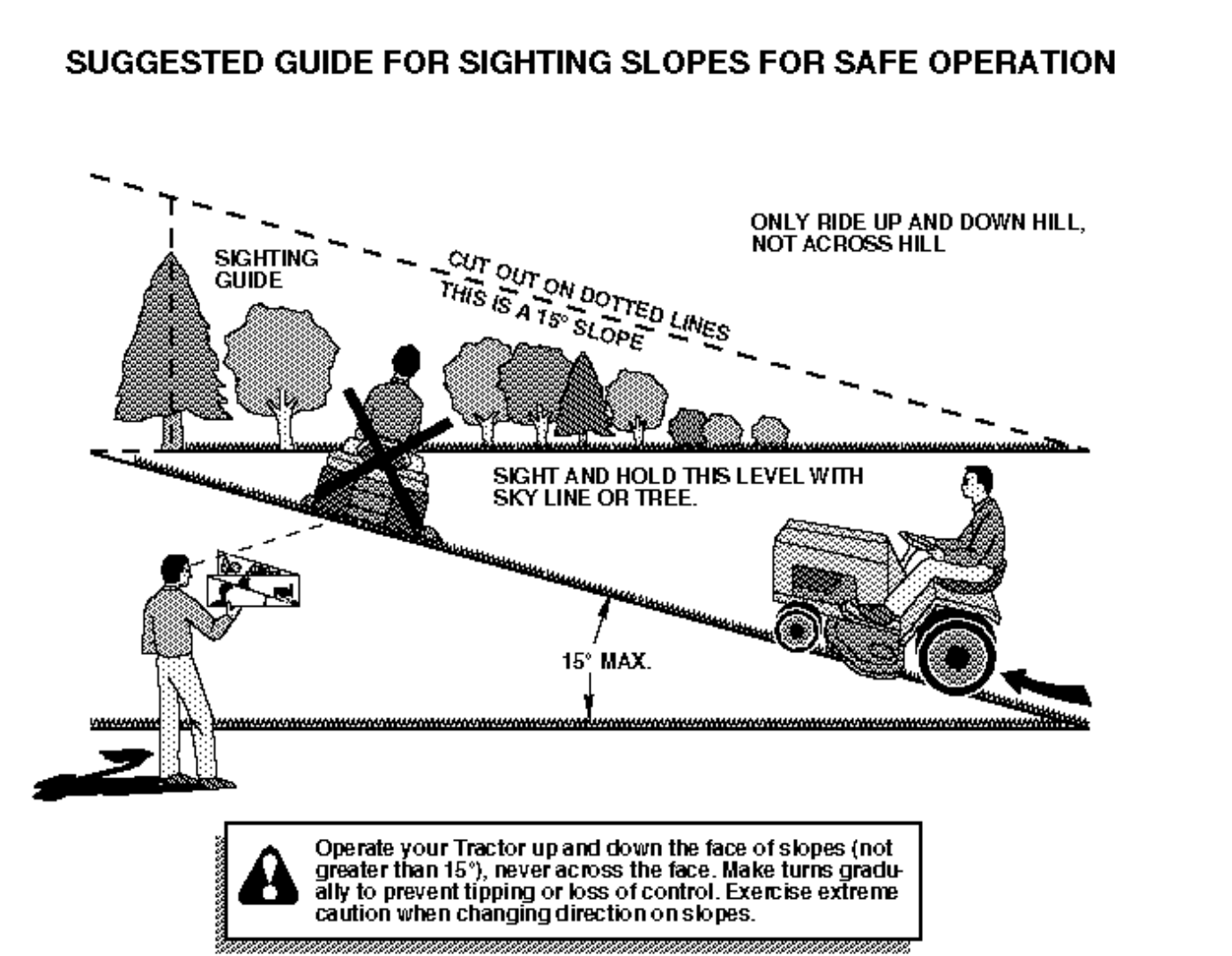

CAUTION: Do not drive up or down

hills with slopes greater than 15° and

do not drive across any slope.

• Choose the slowest speed before starting up or down

hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to

slower position.

• If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED.

• To restart movement, slowly release parking brake and

clutch/brake pedal.

TO TRANSPORT (See Fig. 11)

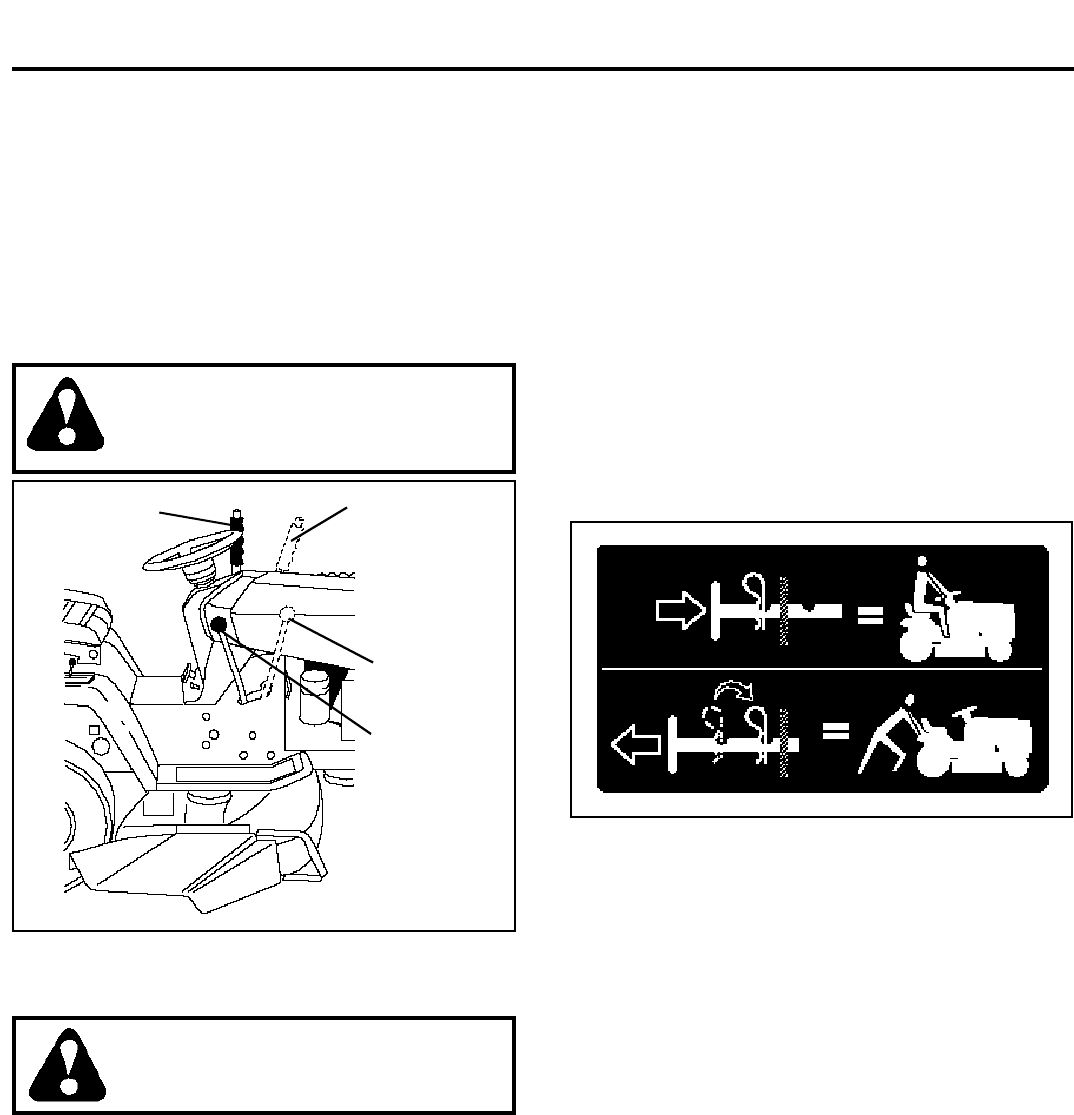

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in freewheeling

position. Free wheel control is located at the rear drawbar

of tractor.

• Raise attachment lift to highest position with attach-

ment lift control.

• Pull freewheel control knob out and hold in position by

inserting retainer spring into forward hole of control rod.

• Do not push or tow tractor at more than two (2) MPH.

• To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate means of tying hood

to tractor (rope, cord, etc.).

TO OPERATE MOWER (See Fig. 10)

Your tractor is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the mower clutch engaged will shut

off the engine.

• Select desired height of cut.

• Lower mower with attachment lift control.

• Start mower blades by engaging attachment clutch

control.

• TO STOP MOWER BLADES - disengage attachment

clutch control.

CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the dis-

charge guard in place.

FIG. 10

• Slowly move motion control lever to slowest setting.

• Make all turns slowly.

FIG. 11

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 17)

• The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil.

• Check engine oil with tractor on level ground.

• Unthread and remove oil fill cap/dipstick; wipe oil off.

Reinsert the dipstick into the tube and rest oil fill cap on

the tube. Do not thread the cap onto the tube. Remove

and read oil level. If necessary, add oil until "FULL"

mark on dipstick is reached. Do not overfill.

• For cold weather operation you should change oil for

easier starting (see "OIL VISCOSITY CHART" in the

Customer Responsibilities section of this manual).

• To change engine oil, see the Customer Responsibili-

ties section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular unleaded

gasoline. (Use of leaded gasoline will increase carbon

and lead oxide deposits and reduce valve life).

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

ATTACHMENT LIFT LEVER

HIGH POSITION

"DISENGAGED"

POSITION

LOW POSITION

ATTACHMENT

CLUTCH LEVER

"ENGAGED"

POSITION

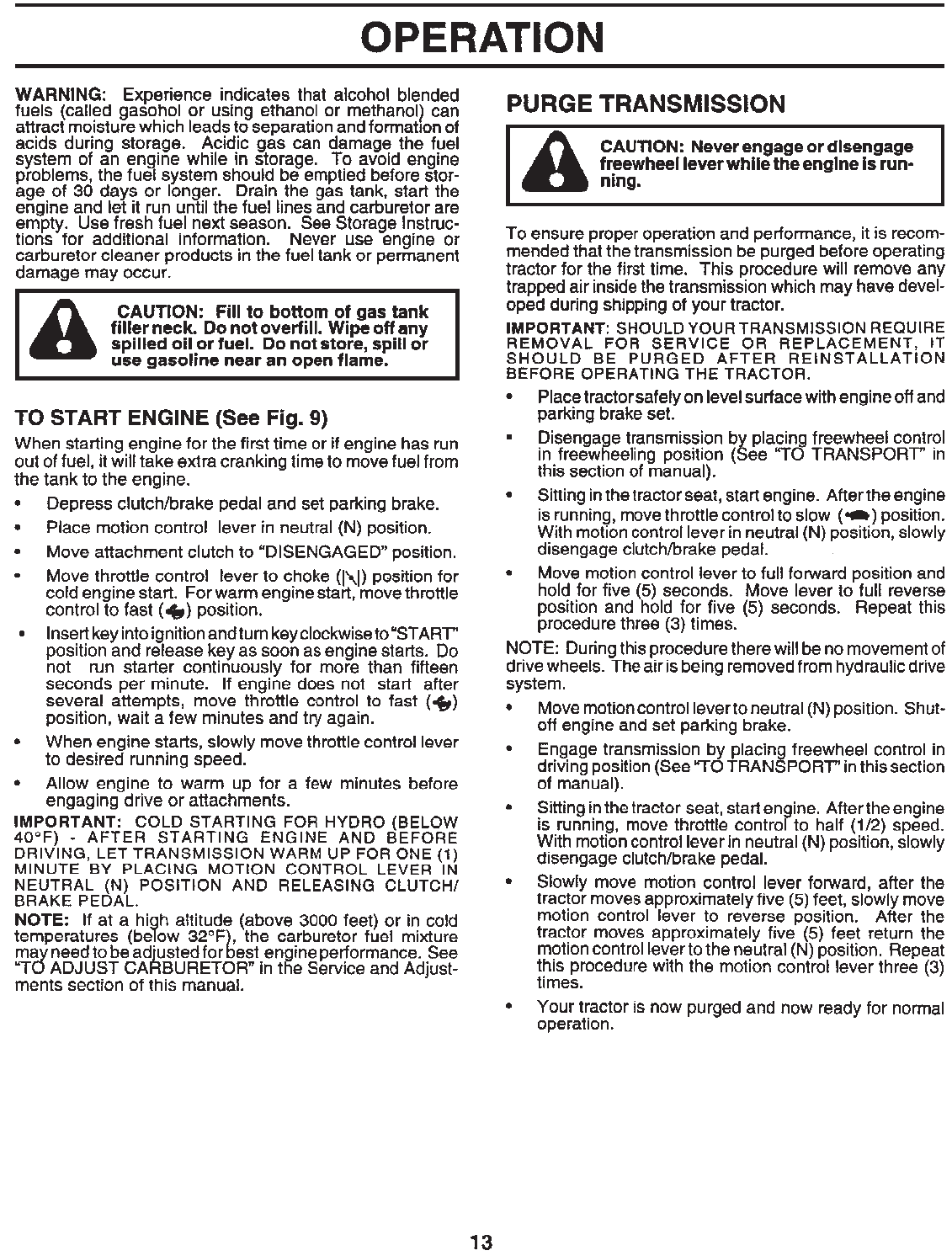

14

OPERATION

MOWING TIPS

• Tire chains cannot be used when the mower housing is

attached to tractor.

• Mower should be properly leveled for best mowing

performance. See "TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim-

ming.

• Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

machine. This will result in a more even distribution of

clippings and more uniform cutting.

• When mowing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, driveways, etc. After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig.12).

• If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

• Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. Allow grass to

dry before mowing.

• Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis-

charge of material. Regulate ground speed by select-

ing a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

• When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used.

FIG. 12

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH. CLEAN AFTER EACH USE.

• The special mulching blade will recut the grass clip-

pings many times and reduce them in size so that as

they fall onto the lawn they will disperse into the grass

and not be noticed. Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn.

Always mulch with your highest engine (blade) speed

as this will provide the best recutting action of the

blades.

• Avoid cutting your lawn when it is wet. Wet grass tends

to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon.

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun.

•For best results, adjust the mower cutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. 13). For extremely heavy mulching,

reduce your width of cut on each pass and mow slowly.

MAX 1/3

• Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to com-

pletely hide the clippings. When doing a second cut,

mow across or perpendicular to the first cut path.

• Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the lawn.

FIG. 13

15

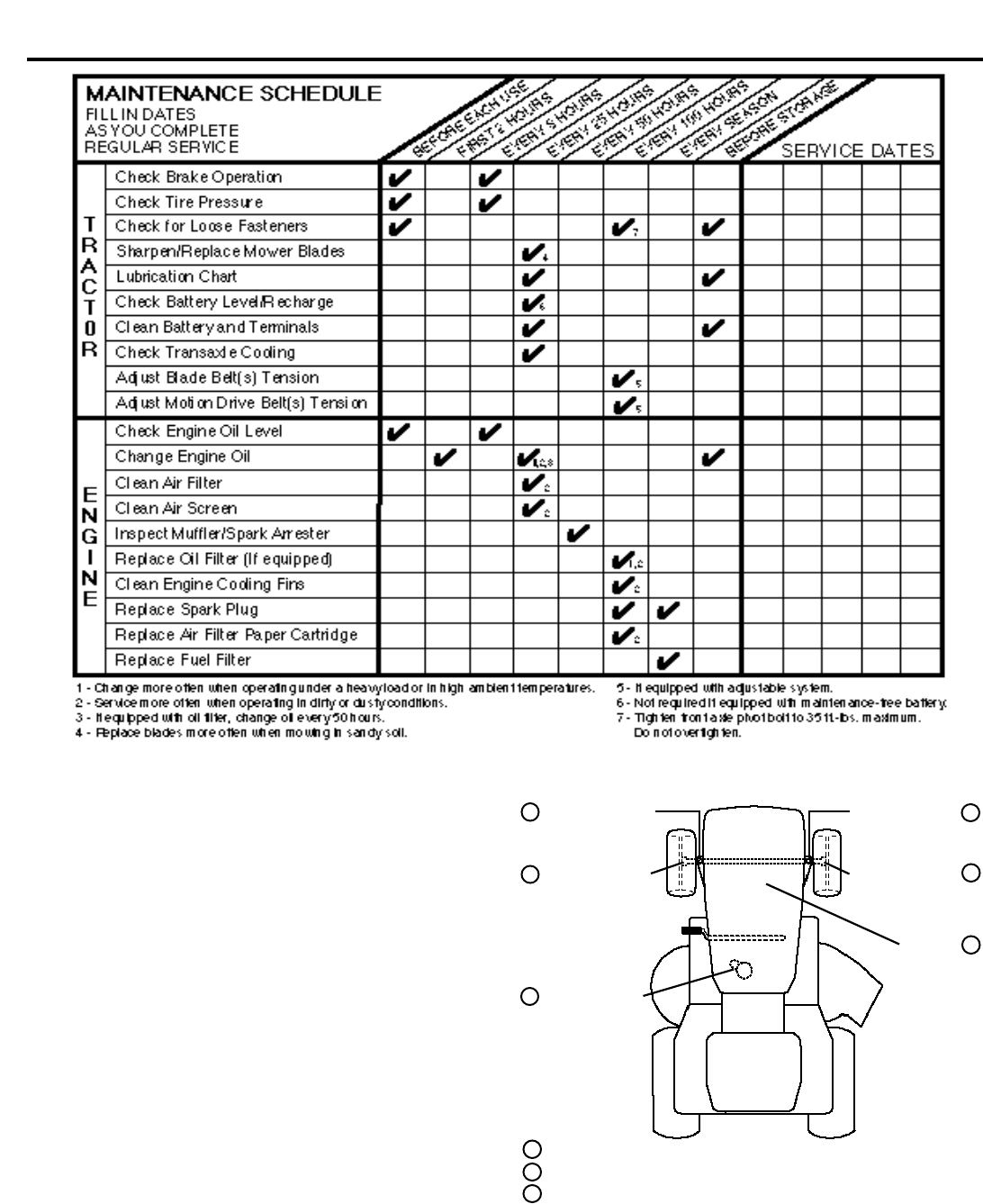

CUSTOMER RESPONSIBILITIES

LUBRICATION CHART

FRONT WHEEL

BEARING ZERK FRONT WHEEL

BEARING ZERK

ATTACHMENT

CLUTCH

PIVOT(S)

1

ENGINE 3

SPINDLE ZERK SPINDLE ZERK

2

2

2

2

SAE 30 OR 10W30 MOTOR OIL API

GENERAL PURPOSE GREASE

REFER TO CUSTOMER RESPONSIBILITIES “ENGINE” SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

DERED GRAPHITE TYPE LUBRICANT SPARINGLY.

1

2

3

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To

receive full value from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

• Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear. A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check for loose fasteners.

16

CUSTOMER RESPONSIBILITIES

TRACTOR

Always observe safety rules when performing any mainte-

nance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

(See "TO ADJUST BRAKE" in the Service and Adjust-

ments section of this manual).

TIRES

• Maintain proper air pressure in all tires (See "PROD-

UCT SPECIFICATIONS" on page 3 of this manual).

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

BLADE CARE

For best results mower blades must be kept sharp. Re-

place bent or damaged blades.

BLADE REMOVAL (See Fig. 14)

• Raise mower to highest position to allow access to

blades.

• Remove hex bolt, lock washer and flat washer securing

blade.

• Install new or resharpened blade with trailing edge up

towards deck as shown.

• Reassemble hex bolt, lock washer and flat washer in

exact order as shown.

• Tighten bolt securely (30-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED.

TO SHARPEN BLADE (See Fig. 15)

Care should be taken to keep the blade balanced. An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine.

• The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower.

• To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a cone

balancer, follow the instructions supplied with bal-

ancer).

• Slide blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

MANDREL

ASSEMBLY

BLADE

FLAT WASHER

LOCK WASHER

HEX BOLT

(GRADE 8)*

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT HEAD.

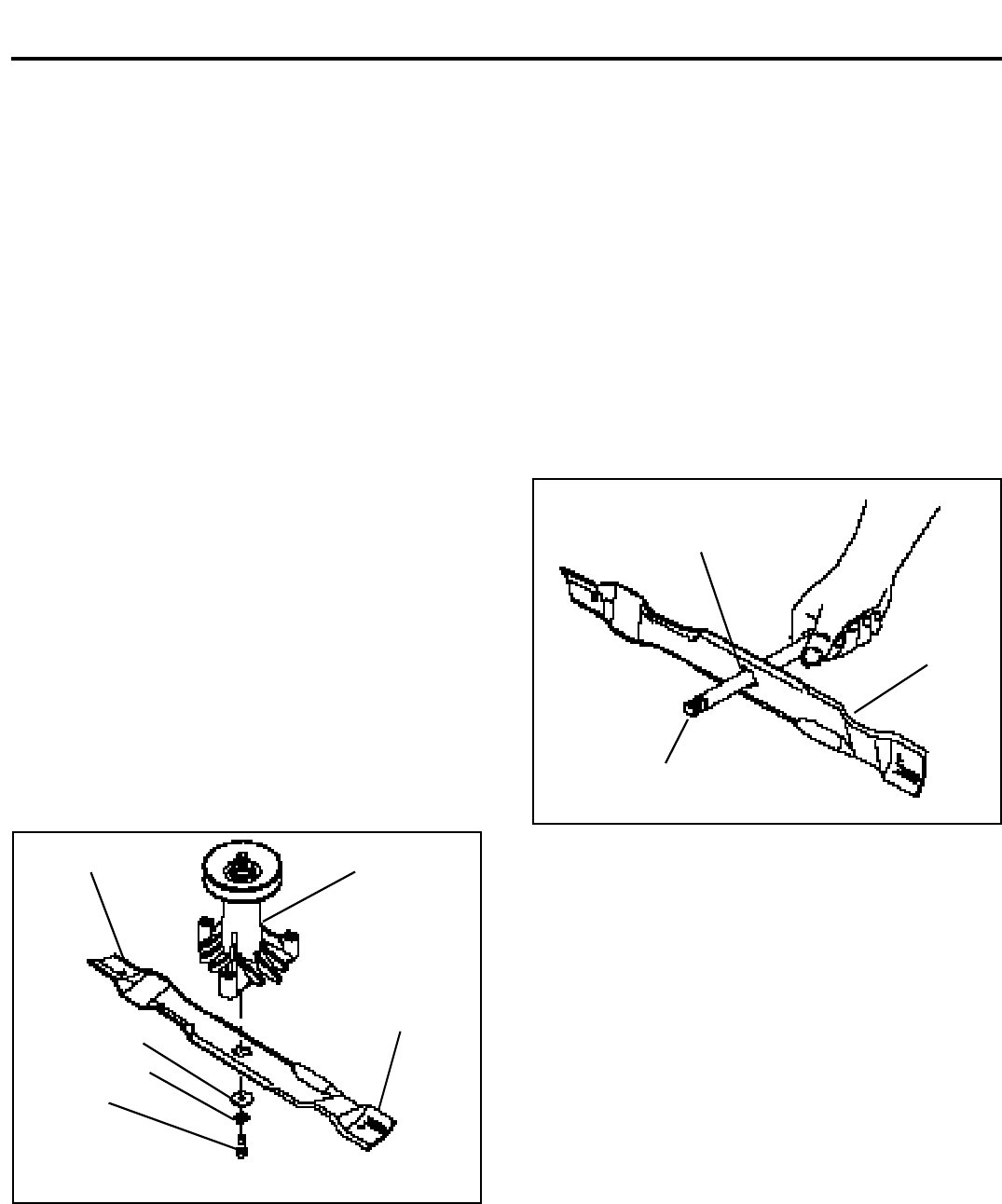

FIG. 14

TRAILING EDGE

FIG. 15

BLADE

CENTER HOLE

5/8" BOLT OR PIN

17

CUSTOMER RESPONSIBILITIES

BATTERY (See Fig. 16)

Your tractor has a battery charging system which is suffi-

cient for normal use. However, periodic charging of the

battery with an automotive charger will extend it's life.

• Acid solution level in each battery cell should be even

with bottoms of vent wells. Add only distilled or iron free

water if necessary. Do not overfill.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep vent caps tight and small vent holes in caps open.

• Recharge at 6 amperes for 1 hour.

TO CLEAN BATTERY AND TERMINALS -

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

• Open battery box door.

• Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

• Wash battery with solution of four tablespoons of

baking soda to one gallon of water. Be careful not to get

the soda solution into the cells.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See "INSTALL BATTERY" in the

Assembly section of this manual).

TRANSAXLE COOLING

The fan and cooling fins of transmission should be kept

clean to assure proper cooling.

Do not attempt to clean fan or transmission while engine is

running or while the transmission is hot.

• Inspect cooling fan to be sure fan blades are intact and

clean.

• Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean

cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nance is not required for the life of the transaxle. Should the

transaxle ever leak or require servicing, contact your near-

est authorized service center/department.

V-BELTS

Check V-belts for deterioration and wear after 100 hours

and replace if necessary. The belts are not adjustable.

Replace belts if they begin to slip from wear.

CUT AWAY VIEW

FIG. 16

VENT CAP

VENT

WELL

BATTERY

CELL ACID

LEVEL

18

CUSTOMER RESPONSIBILITIES

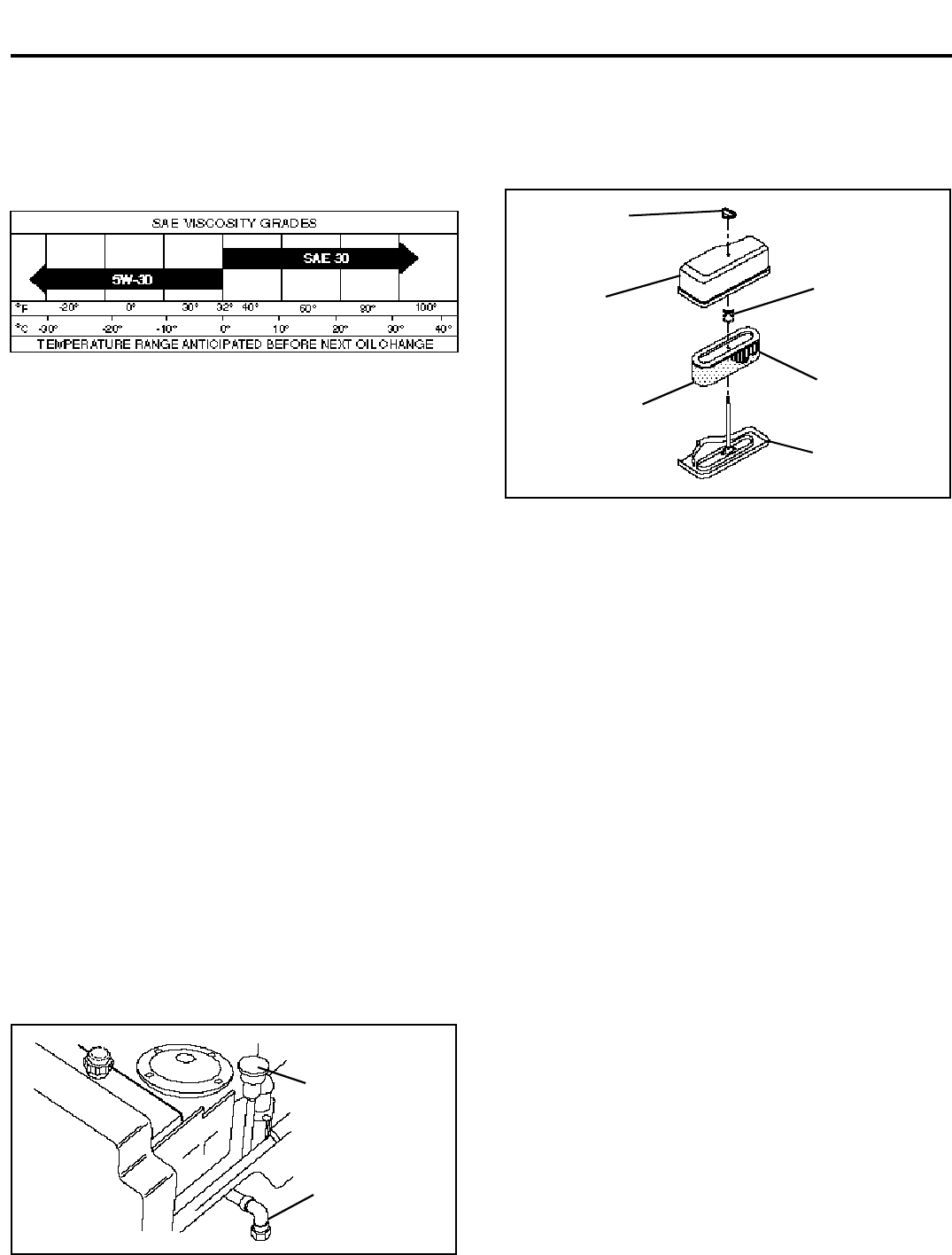

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF or SG. Select the oil's SAE viscosity grade

according to your expected operating temperature.

TO CHANGE ENGINE OIL (See Fig.17)

Determine temperature range expected before oil change.

All oil must meet API service classification SF or SG.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

• Remove drain plug.

• After oil has drained completely, replace oil drain plug

and tighten securely.

• Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

“PRODUCT SPECIFICATIONS” on page 3 of this

manual.

• Use gauge on oil fill cap/dipstick for checking level. Be

sure dipstick cap is tightened securely for accurate

reading. Keep oil at “FULL” line on dipstick.

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after the first two hours of operation and

every 25 hours thereafter or at least once a year if the

tractor is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of continuous use. Tighten

oil fill cap/dipstick securely each time you check the oil

level.

OIL DRAIN PLUG

OIL FILL

CAP/DIPSTICK

FIG. 17

CLEAN AIR SCREEN (See Fig. 19)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.

FOAM

PRE-CLEANER

COVER

KNOB

COVER CARTRIDGE

NUT

PAPER

CARTRIDGE

BASE

FIG. 18

AIR FILTER (See Fig. 18)

Your engine will not run properly using a dirty air filter.

Clean the foam pre-cleaner after every 25 hours of opera-

tion or every season. Service paper cartridge every 100

hours of operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

• Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

• Saturate it in engine oil. Wrap it in clean, absorbent

cloth and squeeze to remove excess oil.

• If very dirty or damaged, replace pre-cleaner.

• Reinstall pre-cleaner over cartridge.

• Reinstall cover and secure with knob(s).

TO SERVICE CARTRIDGE

• Remove cartridge nut.

• Carefully remove cartridge to prevent debris from en-

tering carburetor. Clean base carefully to prevent

debris from entering carburetor.

• Clean cartridge by tapping gently on flat surface. If very

dirty or damaged, replace cartridge.

• Reinstall cartridge, nut, precleaner, cover and secure

with knob(s).

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT

USE PRESSURIZED A IR TO CLEA N OR DRY

CARTRIDGE.

19

CUSTOMER RESPONSIBILITIES

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

comes first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" on page 3 of this manual.

IN-LINE FUEL FILTER (See Fig. 20)

The fuel filter should be replaced once each season. If fuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

• With engine cool, remove filter and plug fuel line

sections.

• Place new fuel filter in position in fuel line.

• Be sure there are no fuel line leaks and clamps are

properly positioned.

• Immediately wipe up any spilled gasoline.

CLEANING

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILD-UP, GRASS AND

TRASH. CLEAN UNDERSIDE OF MOWER HOUSING

AFTER EACH USE.

• Clean engine, battery, seat, finish, etc. of all foreign

matter.

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out. Water in engine

can result in a shortened engine life.

CLAMP CLAMP

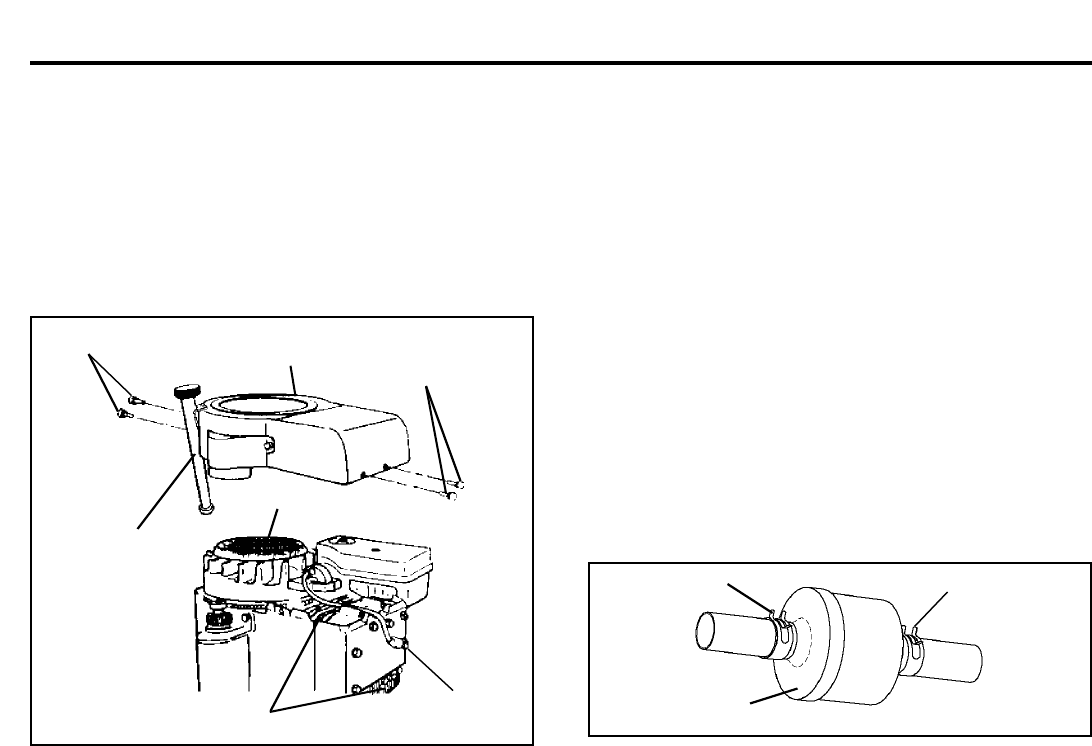

ENGINE COOLING FINS (See Fig. 19)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating.

• Remove screws from blower housing and lift housing

and dipstick tube assembly off engine.

• Cover oil fill opening to prevent entry of dirt.

• Use compressed air or stiff bristle brush to thoroughly

clean engine cooling fins.

• To reassemble, reverse above procedure.

ENGINE COOLING FINS

SPARK

PLUG

AIR SCREEN

SCREWS BLOWER HOUSING

SCREWS

DIPSTICK TUBE

ASSEMBLY

FIG. 19 FIG. 20

FUEL FILTER

20

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

• Depress clutch/brake pedal fully and set parking brake.

• Place motion control lever in neutral (N) position.

• Place attachment clutch in "DISENGAGED" position.

• Turn ignition key "OFF" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in

contact with plug.

CLUTCH LEVER

RETAINER

SPRING

ANTI-SWAY BAR RETAINER

SPRINGS

(BOTH SIDES)

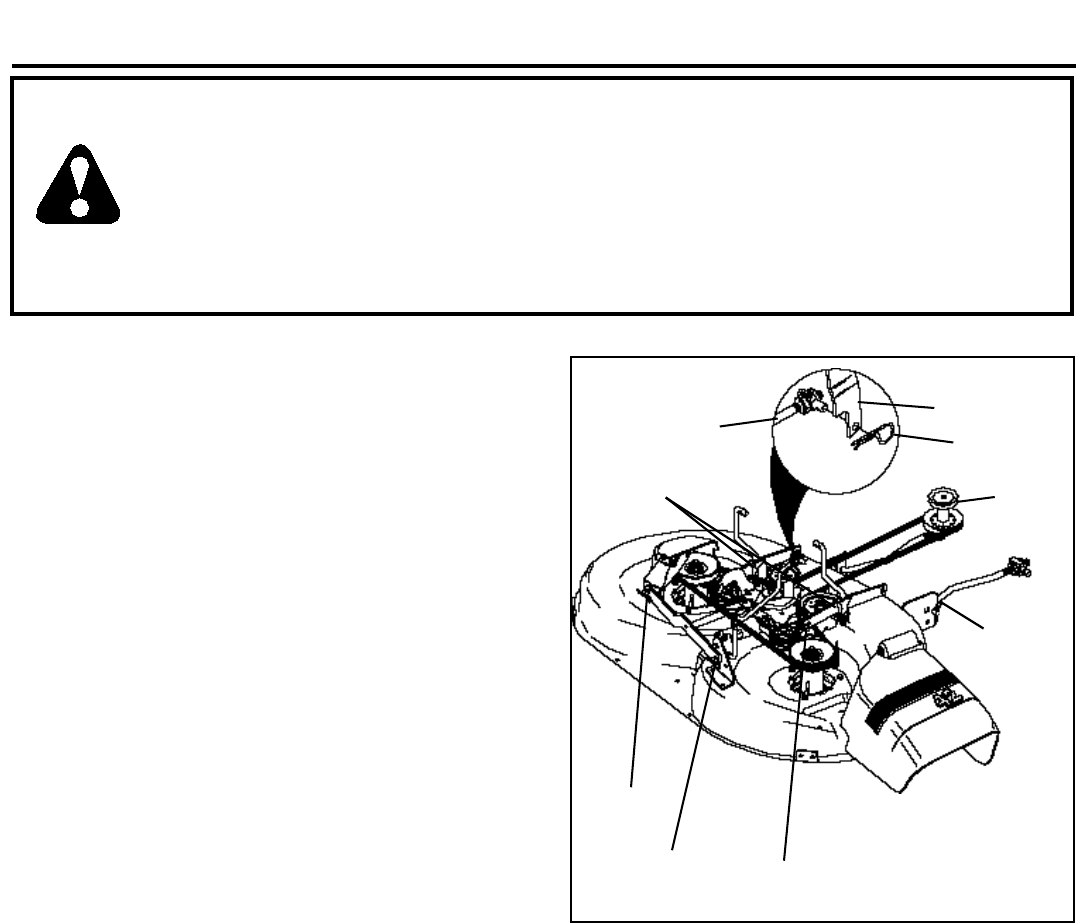

TO REMOVE MOWER (See Fig. 21)

Mower will be easier to remove from the right side of tractor.

• Place attachment clutch in “DISENGAGED” position.

• Move attachment lift lever forward to lower mower to its

lowest position.

• Roll belt off engine pulley.

• Disconnect clutch rod from clutch lever by removing

retainer spring.

• Disconnect anti-sway bar from chassis bracket by

removing retainer spring.

• Disconnect suspension arms from rear deck brackets

by removing retainer springs.

• Disconnect front links from deck by removing retainer

springs.

• Raise lift lever to raise suspension arms. Slide mower

out from under tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER IS TO BE MOUNTED TO THE TRACTOR, THE

R.H. AND L.H. SUSPENSION ARMS MUST BE REMOVED

FROM TRACTOR.

TO INSTALL MOWER (See Fig. 21)

• Raise attachment lift lever to its highest position.

• Slide mower under tractor with discharge guard to right

side of tractor.

• Lower lift lever to its lowest position.

• Install mower in reverse order of removal instructions.

RETAINER

SPRINGS

(BOTH SIDES)

RETAINER

SPRING

SUSPENSION

ARMS ENGINE

PULLEY

FIG. 21

CLUTCH ROD

21

SERVICE AND ADJUSTMENTS

FRONT-TO-BACK ADJUSTMENT (See Figs. 24 and 25)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE.

To obtain the best cutting results, the mower housing

should be adjusted so that the front is approximately 1/4" to

3/4" lower than the rear when the mower is in its highest

position.

Check adjustment on right side of tractor. Measure dis-

tance “D” directly in front and behind the mandrel at bottom

edge of mower housing as shown.

• Before making any necessary adjustments, check that

both front links are equal in length. Both links should be

approximately 10-3/8".

• If links are not equal in length, adjust one link to same

length as other link.

• To lower front of mower loosen nut “E” on both front

links an equal number of turns.

• When distance “D” is 1/4" to 3/4" lower at front than

rear, tighten nuts “F” against trunnion on both front

links.

• To raise front of mower, loosen nut “F” from trunnion on

both front links. Tighten nut “E” on both front links an

equal number of turns.

• When distance “D” is 1/4" to 3/4" lower at front than

rear, tighten nut “F” against trunnion on both front links.

• Recheck side-to-side adjustment.

NUT “E”

TRUNNION

NUT “F”

FRONT LINKS

FIG. 25

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

FIG. 24

MANDREL

“D”

“D”

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See

“PRODUCT SPECIFICATIONS” on page 3 of this manual).

If tires are over or underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 22 and 23)

• Raise mower to its highest position.

• At the midpoint of both sides of mower, measure height

from bottom edge of mower to ground. Distance “A” on

both sides of mower should be the same or within 1/4"

of each other.

• If adjustment is necessary, make adjustment on one

side of mower only.

• To raise one side of mower, tighten lift link adjustment

nut on that side.

• To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Three full turns of adjustment nut will change

mower height about 1/8".

• Recheck measurements after adjusting.

FIG. 22

A

FIG. 23

SUSPENSION ARM

LIFT LINK ADJUSTMENT NUT

BOTTOM EDGE

OF MOWER TO

GROUND

BOTTOM EDGE

OF MOWER TO

GROUND

GROUND LINE

22

SERVICE AND ADJUSTMENTS

WITH PARKING BRAKE "ENGAGED"

JAM NUT

OPERATING ARM

NUT “A”

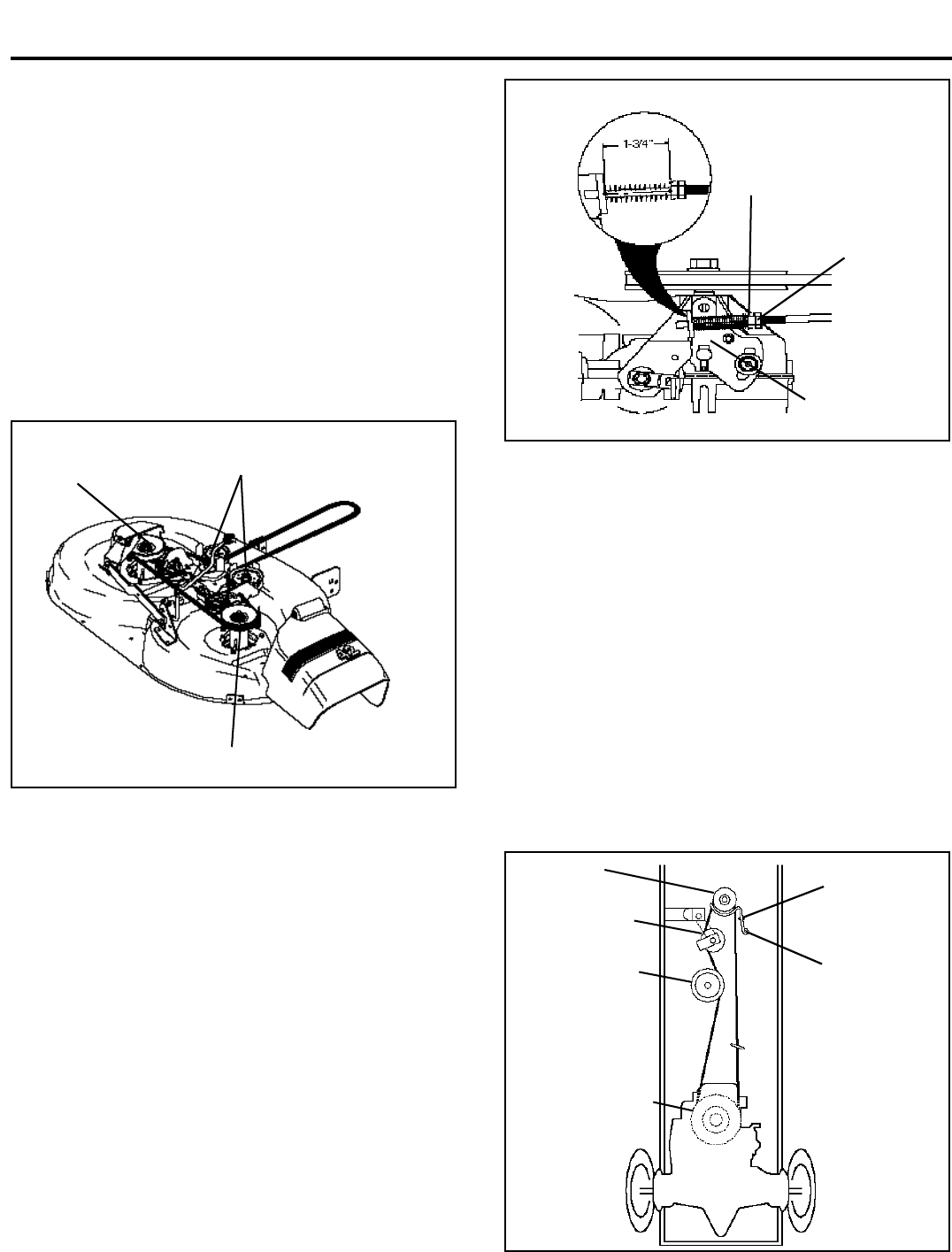

TO REPLACE MOTION DRIVE BELT

(See Fig.28)

Park the tractor on level surface. Engage parking brake.

For assistance, there is a belt installation guide decal on

bottom side of left footrest.

• Remove mower (See “TO REMOVE MOWER” in this

section of this manual.)

• Remove upper belt keeper.

• Remove belt from stationary idler and clutching idler.

• Pull belt slack toward rear of tractor. Carefully remove

belt upwards from transmission input pulley and over

cooling fan blades.

• Pull belt toward front of tractor and remove downward

from around engine pulley.

• Install new belt by reversing above procedure.

IMPORTANT: MAKE SURE UPPER BELT KEEPER IS

POSITIONED PROPERLY BETWEEN LOCATOR TABS.

FIG. 28

UPPER BELT

KEEPER

LOCATOR

TABS

ENGINE

PULLEY

CLUTCHING

IDLER

STATIONARY

IDLER

TRANSMISSION

INPUT PULLEY

FIG. 27

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 26)

The mower blade drive belt may be replaced without tools.

Park the tractor on level surface. Engage parking brake.

BELT REMOVAL -

• Remove mower from tractor (See “TO REMOVE

MOWER” in this section of this manual).

• Work belt off both mandrel pulleys and idler pulleys.

• Pull belt away from mower.

BELT INSTALLATION -

• Install new belt in reverse order of removal.

• Make sure belt is in all pulley grooves and inside all belt

guides.

• Install mower in reverse order of removal instructions.

MANDREL

PULLEY

MANDREL

PULLEY

IDLER

PULLEYS

FIG. 26

TO ADJUST BRAKE (See Fig. 27)

Your tractor is equipped with an adjustable brake system

which is mounted on the right side of the transaxle.

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

• Depress clutch/brake pedal and engage parking brake.

• Measure distance between brake operating arm and

nut "A" on brake rod.

• If distance is other than 1-3/4", loosen jam nut and turn

nut "A" until distance becomes 1-3/4". Retighten jam

nut against nut "A".

• Road test tractor for proper stopping distance as stated

above. Readjust if necessary. If stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary. Contact your nearest au-

thorized service center.

23

SERVICE AND ADJUSTMENTS

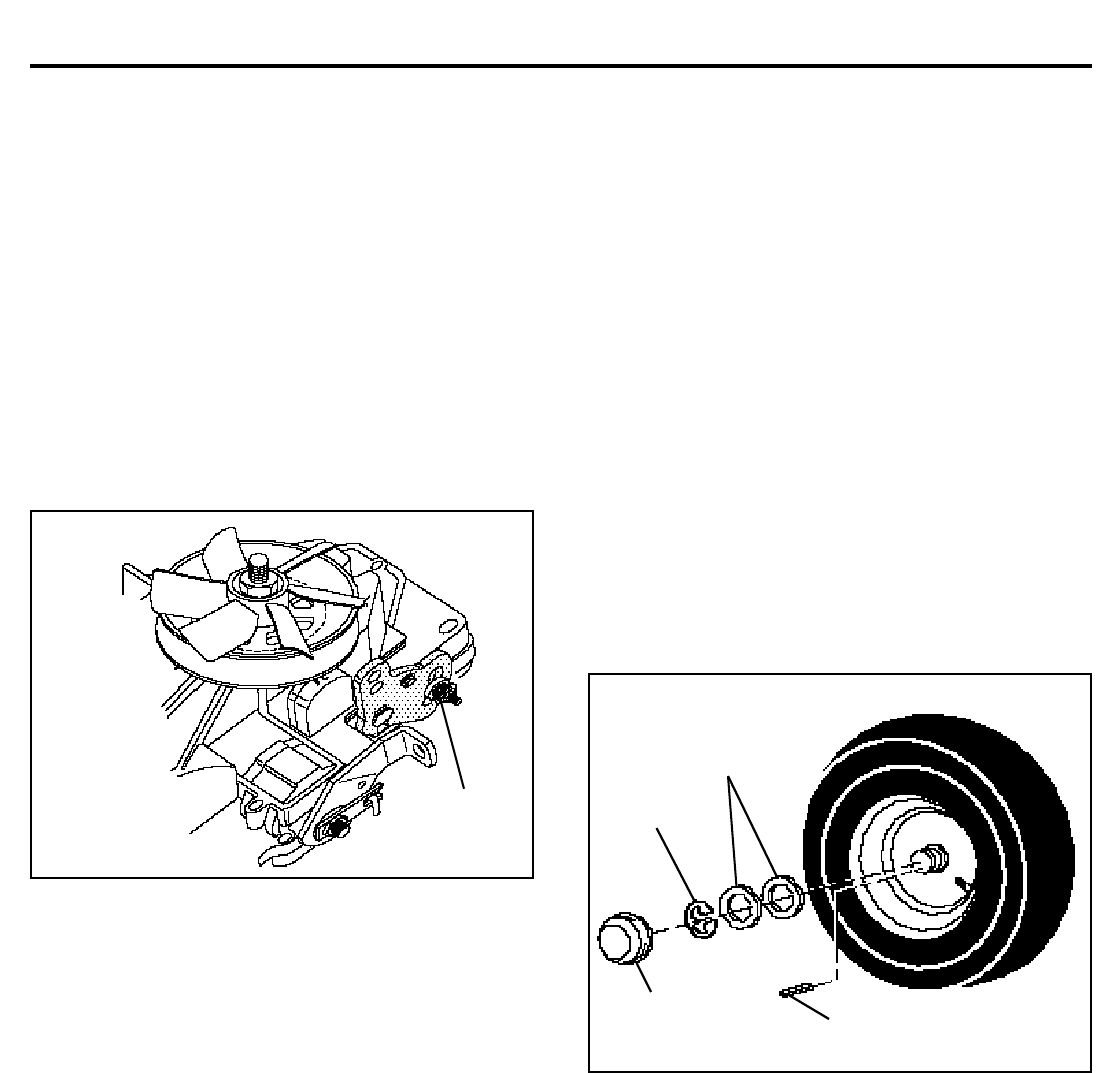

TO ADJUST MOTION CONTROL LEVER (See

Fig.29)

The motion control lever has been preset at the factory and

adjustment should not be necessary.

If for any reason the motion control lever will not hold its

position while at a selected speed, it may be adjusted at the

friction pack located on the right side of transmission.

• Park tractor on level surface. Stop tractor by turning

ignition key to “OFF” position, and engage parking

brake.

• Adjust motion control lever by tightening adjustment

locknut one half (1/2) turn.

NOTE: If for any reason the effort to move the motion

control lever becomes too excessive, reverse the above

adjustment procedure by loosening locknut 1/4 to 1/2 turn.

Road test tractor after adjustment and repeat procedure if

necessary.

FIG. 29

ADJUSTMENT

LOCKNUT

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service center.

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 30)

• Block up axle securely.

• Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

• Replace washers and snap retaining ring securely in

axle groove.

• Replace axle cover.

WASHERS

RETAINING

RING

AXLE COVER SQUARE KEY

(REAR WHEEL ONLY)

FIG. 30

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or

replacement, it should be purged after reinstallation before

operating the tractor. See “Purge transmission” in Opera-

tion section of this manual.

SERVICE AND ADJUSTMENTS

24

NEGATIVE TERMINALPOSITIVE TERMINAL

NEGATIVE TERMINALPOSITIVE TERMINAL

CHARGED

BATTERY

CABLES

CHASSIS

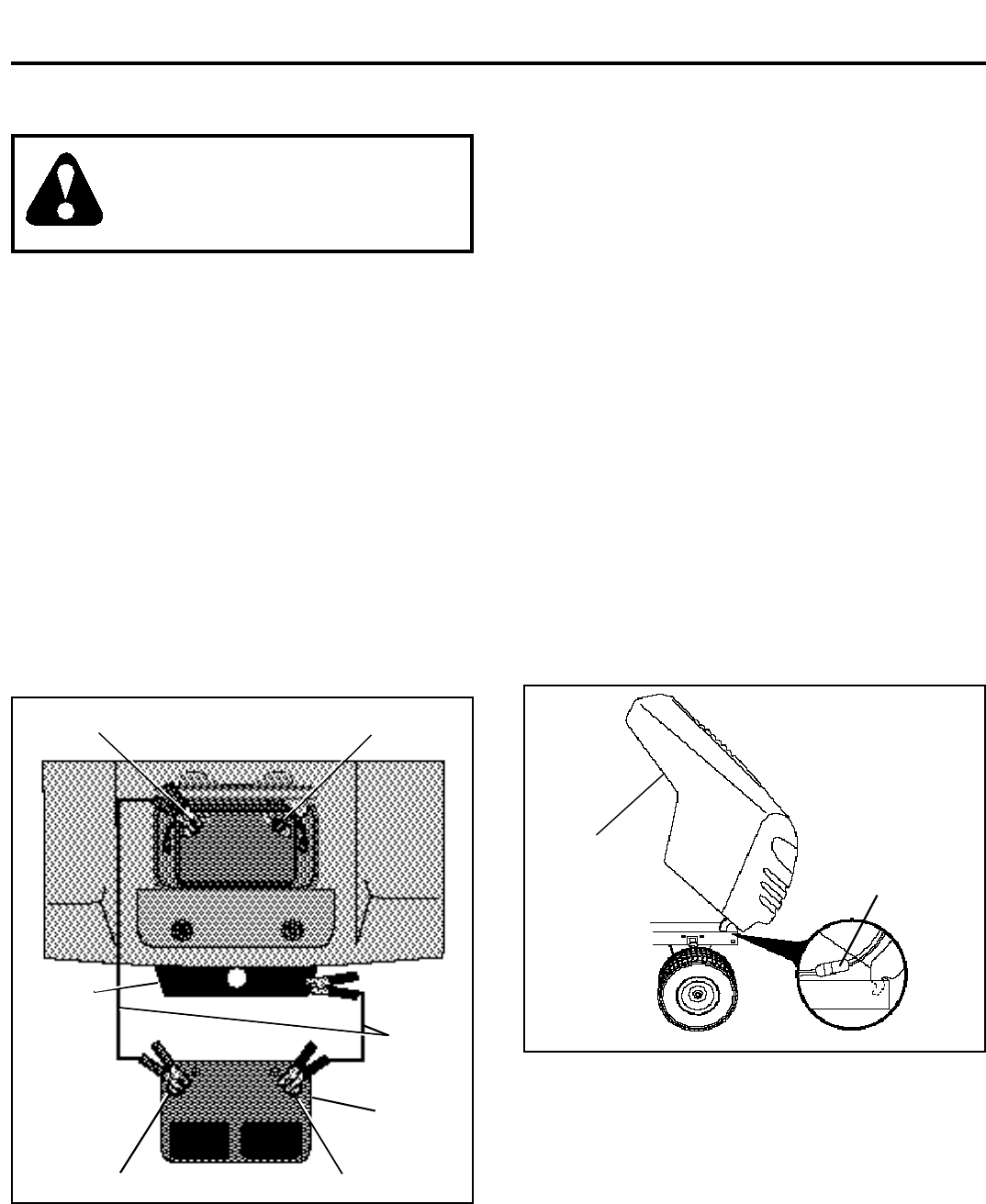

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 31)

CAUTION: Lead-acid batteries gener-

ate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A

12 VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis.

• Connect one end of the BLACK cable to the NEGA-

TIVE (-) terminal of fully charged battery.

• Connect the other end of the BLACK cable to a good

CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery.

• RED cable last from both batteries.

FIG. 31

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the

grill.

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running or prevent it from starting.

• Check wiring. See the electrical wiring diagram in the

Repair Parts section of this manual.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig.32)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedure.

HOOD HEADLIGHT

WIRE

CONNECTOR

FIG. 32

25

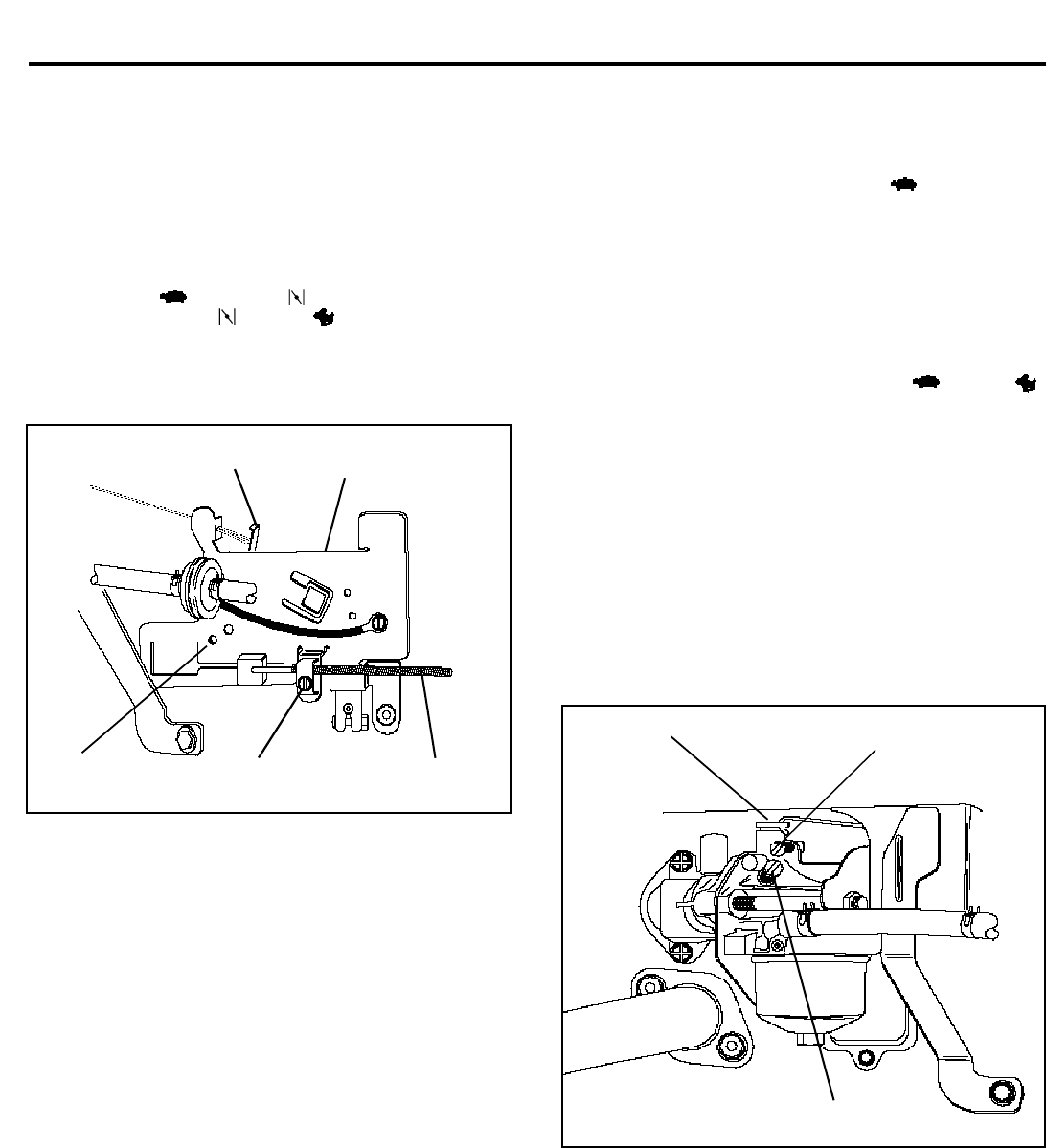

SERVICE AND ADJUSTMENTS

GOVERNOR

CONTROL LEVER GOVERNOR

CONTROL PLATE

THROTTLE

CABLE

HOLES “A”

FIG. 33

FINAL SETTING -

• Start engine and allow to warm for five minutes. Make

final adjustments with engine running and shift/motion

control lever in neutral (N) position.

• Move throttle control lever to slow ( ) position. With

finger, rotate and hold throttle lever against idle speed

screw. Turn idle speed screw to attain 1750 RPM.

• While still holding throttle lever against idle speed

screw, turn idle mixture valve in (clockwise) until en-

gine begins to die and then turn out (counterclockwise)

until engine runs rough. Turn valve to a point midway

between those two positions. Release throttle lever.

ACCELERATION TEST -

• Move throttle control lever from slow ( ) to fast ( )

position. If engine hesitates or dies, turn idle mixture

valve out (counterclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until engine acceler-

ates smoothly.

High speed stop is factory adjusted. Do not adjust -

damage may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MA KE AN Y NECE SSARY

ADJUSTMENTS.

TO ADJUST CARBURETOR (See Fig. 34)

The carburetor has been preset at the factory and adjust-

ment should not be necessary. However, minor adjust-

ment may be required to compensate for differences in fuel,

temperature, altitude or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning idle mixture valve in (clockwise) de-

creases the supply of fuel to the engine giving a leaner fuel/

air mixture. Turning the idle mixture valve out (counter-

clockwise) increases the supply of fuel to the engine giving

a richer fuel/air mixture.

IMPORTANT: DAMAGE TO THE NEEDLE VALVE AND

THE SEAT IN CARBURETOR MAY RESULT IF SCREW IS

TURNED IN TOO TIGHT.

PRELIMINARY SETTING -

• Air cleaner assembly must be assembled to the carbu-

retor when making carburetor adjustments.

• Be sure the throttle control cable is adjusted properly

(see above).

• With engine off turn idle mixture valve in (clockwise)

closing it finger tight and then turn out (counterclock-

wise) 1 full turn.

IDLE SPEED

SCREW

THROTTLE

LEVER

CLAMP

SCREW

IDLE MIXTURE

VALVE

FIG. 34

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig.33)

The throttle control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

• With engine not running, move throttle control lever

from slow ( ) to choke ( ) position. Slowly move

lever from choke ( ) to fast ( ) position.

• Check that holes “A” in governor control lever and hole

in governor plate line-up. If holes “A” are not aligned,

loosen clamp screw and move throttle cable until holes

are aligned. Tighten clamp screw securely.

26

STORAGE

Immediately prepare your tractor for storage at the end of

the season or if the tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool

before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter storage. When

mower is to be stored for a period of time, clean it thor-

oughly, remove all dirt, grease, leaves, etc. Store in a

clean, dry area.

• Clean entire tractor (See “CLEANING” in the Customer

Responsibilities section of this manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

• Lubricate as shown in the Customer Responsibilities

section of this manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require

recharging.

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and battery cleaned thoroughly (see “TO

CLEAN BATTERY AND TERMINALS” in the Cus-

tomer Responsibilities section of this manual).

• After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

• Be sure battery drain tube is securely attached.

• If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

• Drain the fuel tank.

• Start the engine and let it run until the fuel lines and

carburetor are empty.

• Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See “ENGINE” in the Customer Responsibilities

section of this manual).

CYLINDERS

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

• Turn ignition key to “START” position for a few seconds

to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to

give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

TROUBLESHOOTING POINTS

27

PROBLEM CAUSE CORRECTION

Will not start 1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section.

3. Engine flooded. 3. Wait several minutes before attempting to start.

4. Bad spark plug. 4. Replace spark plug.

5. Dirty air filter. 5. Clean/replace air filter.

6. Dirty fuel filter. 6. Replace fuel filter.

7. Water in fuel. 7. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

8. Loose or damaged wiring. 8. Check all wiring.

9. Carburetor out of adjustment. 9. Contact an authorized service center/department.

10. Engine valves out of adjustment. 10. Contact an authorized service center/department.

Hard to start 1. Dirty air filter. 1. Clean/replace air filter.

2. Bad spark plug. 2. Replace spark plug.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Dirty fuel filter. 4. Replace fuel filter.

5. Stale or dirty fuel. 5. Drain fuel tank and refill with fresh gasoline.

6. Loose or damaged wiring. 6. Check all wiring.

7. Carburetor out of adjustment. 7. Contact an authorized service center/department.

8. Engine valves out of adjustment. 8. Contact an authorized service center/department.

Engine will not turn over 1. Clutch/brake pedal not depressed. 1. Depress clutch/brake pedal.

2. Attachment clutch is engaged. 2. Disengage attachment clutch.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Blown fuse. 4. Replace fuse.

5. Corroded battery terminals. 5. Clean battery terminals.

6. Loose or damaged wiring. 6. Check all wiring.

7. Faulty ignition switch. 7. Check/replace ignition switch.

8. Faulty solenoid or starter. 8. Check/replace solenoid or starter.

9. Faulty operator presence switch(es). 9. Contact an authorized service center/department.

Engine clicks but will not 1. Weak or dead battery. 1. Recharge or replace battery.

start 2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or starter.

Loss of power 1. Cutting too much grass/too fast. 1. Set in “Higher Cut” position/reduce speed.

2. Throttle in “CHOKE” position. 2. Adjust throttle control.

3. Build-up of grass, leaves and trash under mower. 3. Clean underside of mower housing.

4. Dirty air filter. 4. Clean/replace air filter.

5. Low oil level/dirty oil. 5. Check oil level/change oil.

6. Faulty spark plug. 6. Clean and regap or change spark plug.

7. Dirty fuel filter. 7. Replace fuel filter.

8. Stale or dirty fuel. 8. Drain fuel tank and refill with fresh gasoline.

9. Water in fuel. 9. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Spark plug wire loose. 10. Connect and tighten spark plug wire.

11. Dirty engine air screen/fins. 11. Clean engine air screen/fins.

12. Dirty/clogged muffler. 12. Clean/replace muffler.

13. Loose or damaged wiring. 13. Check all wiring.

14. Carburetor out of adjustment. 14. Contact an authorized service center/department.

15. Engine valves out of adjustment. 15. Contact an authorized service center/department.

Excessive vibration 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Bent blade mandrel. 2. Replace blade mandrel.

3. Loose/damaged part(s). 3. Tighten loose part(s). Replace damaged parts.

TROUBLESHOOTING POINTS

28

PROBLEM CAUSE CORRECTION

Engine continues to run 1. Faulty operator-safety presence control system. 1. Check wiring, switches and connections. If not

when operator leaves seat corrected, contact an authorized service center/

with attachment clutch department.

engaged

Poor cut - uneven 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Mower deck not level. 2. Level mower deck.

3. Buildup of grass, leaves, and trash under mower. 3. Clean underside of mower housing.

4. Bent blade mandrel. 4. Replace blade mandrel.

5. Clogged mower deck vent holes from buildup of 5. Clean around mandrels to open vent holes.

grass, leaves, and trash around mandrels.

Mower blades will not 1. Obstruction in clutch mechanism. 1. Remove obstruction.

rotate 2. Worn/damaged mower drive belt. 2. Replace mower drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass discharge 1. Engine speed too slow. 1. Place throttle control in “FAST” position.

2. Travel speed too fast. 2. Shift to slower speed.

3. Wet grass. 3. Allow grass to dry before mowing.

4. Mower deck not level. 4. Level mower deck.

5. Low/uneven tire air pressure. 5. Check tires for proper air pressure.

6. Worn, bent or loose blade. 6. Replace/sharpen blade. Tighten blade bolt.

7. Buildup of grass, leaves and trash under mower. 7. Clean underside of mower housing.

8. Mower drive belt worn. 8. Replace mower drive belt.

9. Blades improperly installed. 9. Reinstall blades sharp edge down.

10. Improper blades used. 10. Replace with blades listed in this manual.

11. Clogged mower deck vent holes from buildup of 11. Clean around mandrels to open vent holes.

grass, leaves, and trash around mandrels.

Headlight(s) not working 1. Switch is “OFF”. 1. Turn switch “ON”.

(if so equipped) 2. Bulb(s) burned out. 2. Replace bulb(s).

3. Faulty light switch. 3. Check/replace light switch.

4. Loose or damaged wiring. 4. Check wiring and connections.

5. Blown fuse. 5. Replace fuse.

Battery will not charge 1. Bad battery cell(s). 1. Replace battery.

2. Poor cable connections. 2. Check/clean all connections.

3. Faulty regulator (if so equipped). 3. Replace regulator.

4. Faulty alternator. 4. Replace alternator.

Loss of drive 1. Freewheel control in “disengaged” position. 1. Place freewheel control in “engaged” position.

2. Motion drive belt worn, damaged, or broken. 2. Replace motion drive belt.

3. Air trapped in transmission during shipment 3. Purge transmission.

or servicing.

Engine “backfires” 1. Engine throttle control not set at “SLOW” 1. Move throttle control to “SLOW” position and allow

when turning engine position for 30 seconds before stopping engine. to idle for 30 seconds before stopping engine.

“OFF”

29

TRACTOR - MODEL NO. LTH125 (HC125H42C), PRODUCT NO. 954 00 27-21

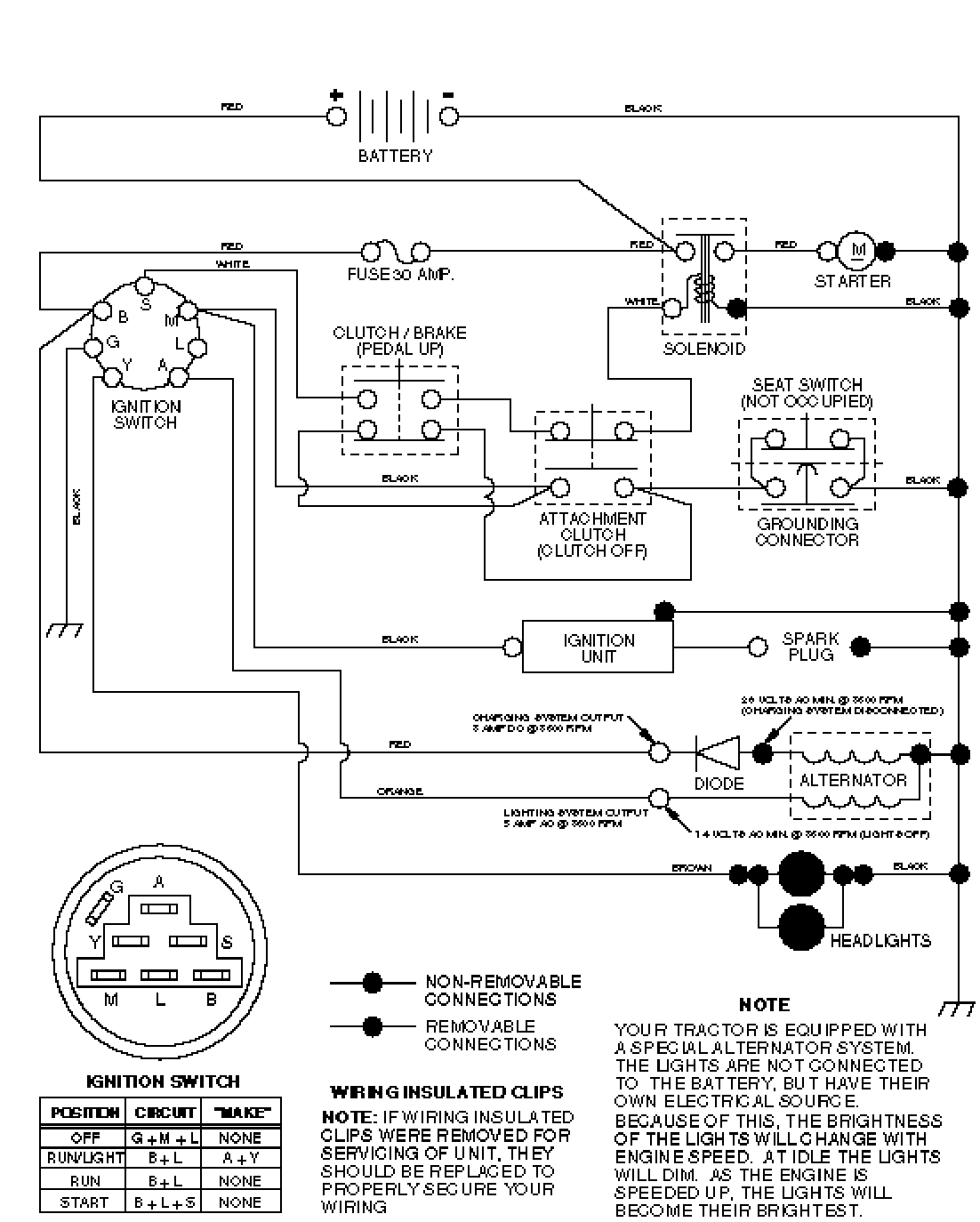

SCHEMATIC

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

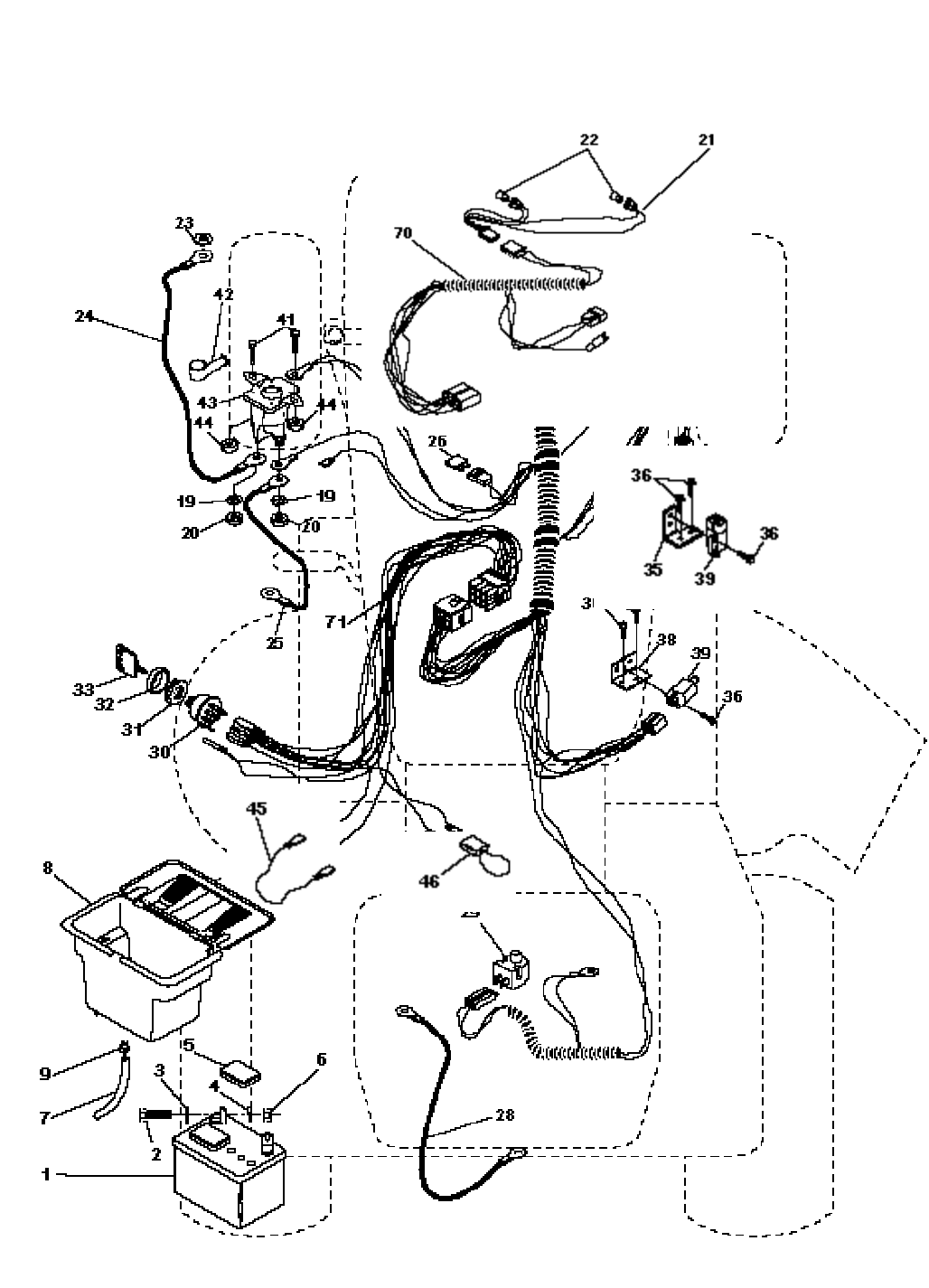

ELECTRICAL

30

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

ELECTRICAL

31

KEY PART DESCRIPTION

NO. NO.

1 532121265 Battery 12 Volt 25 Amp

2 874760412 Bolt Hex Hd 1/4-20unc X 3/4

3 819091016 Washer 9/32 X 5/8 X 16 Ga

4 810040400 Washer Lock Hvy Helical 1/4

5 532121264 Caps Battery 20/25/30 AMP

6 873220400 Nut Fin Hex 1/4-20 Unc

7 532109238 Tube Plastic 20"

8 532129965 Battery Case Hng Mech

9 532109596 Clamp Hose Olive

19 810090400 Washer Lock 1/4

20 873350400 Nut Jam Hex 1/4-20 Unc

21 532136850 Harness Asm Light W/4152j

22 532004152 Bulb Light #1156

23 811150400 Washer Lock Internal Tooth 1/4

24 532124780 Cable Battery 6 Ga 11"red

25 532132202 Cable Battery 6 Ga 43"red

26 532108824 Fuse 30 AMP Auto Green

28 532124773 Cable Ground 6 Ga 12"black

29 532121305 Switch Plunger Nc Gray

30 532140301 Switch Ign 4 Pos.

31 532124211 Nut Ignition

32 532141226 Cover Sw Key Blk 1 25 Text SLT

33 532122147 Key Ign

35 532108236 Bracket Switch Clutch

36 817021008 Screw Tap Hex #10-24unc X 1/2

38 532140336 Bracket Switch Interlock

39 532109553 Switch Intlk Clutch Gry 4 Term

40 532140707 Harness Ign Lt Mech Dash

41 871110408 Bolt Fin Hex 1/4-20 x 1/2

42 532131563 Cover Terminal Red

43 532138406 Solenoid

44 873640400 Nut Keps Hex 1/4-20 Unc

45 532140844 Adapter Ammeter rectangular

46 532141940 Protection Wire Loop (Hourmeter)

70 532141163 Harness Eng. B&S

71 532140710 Harness Dash Lt Private Label

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

32

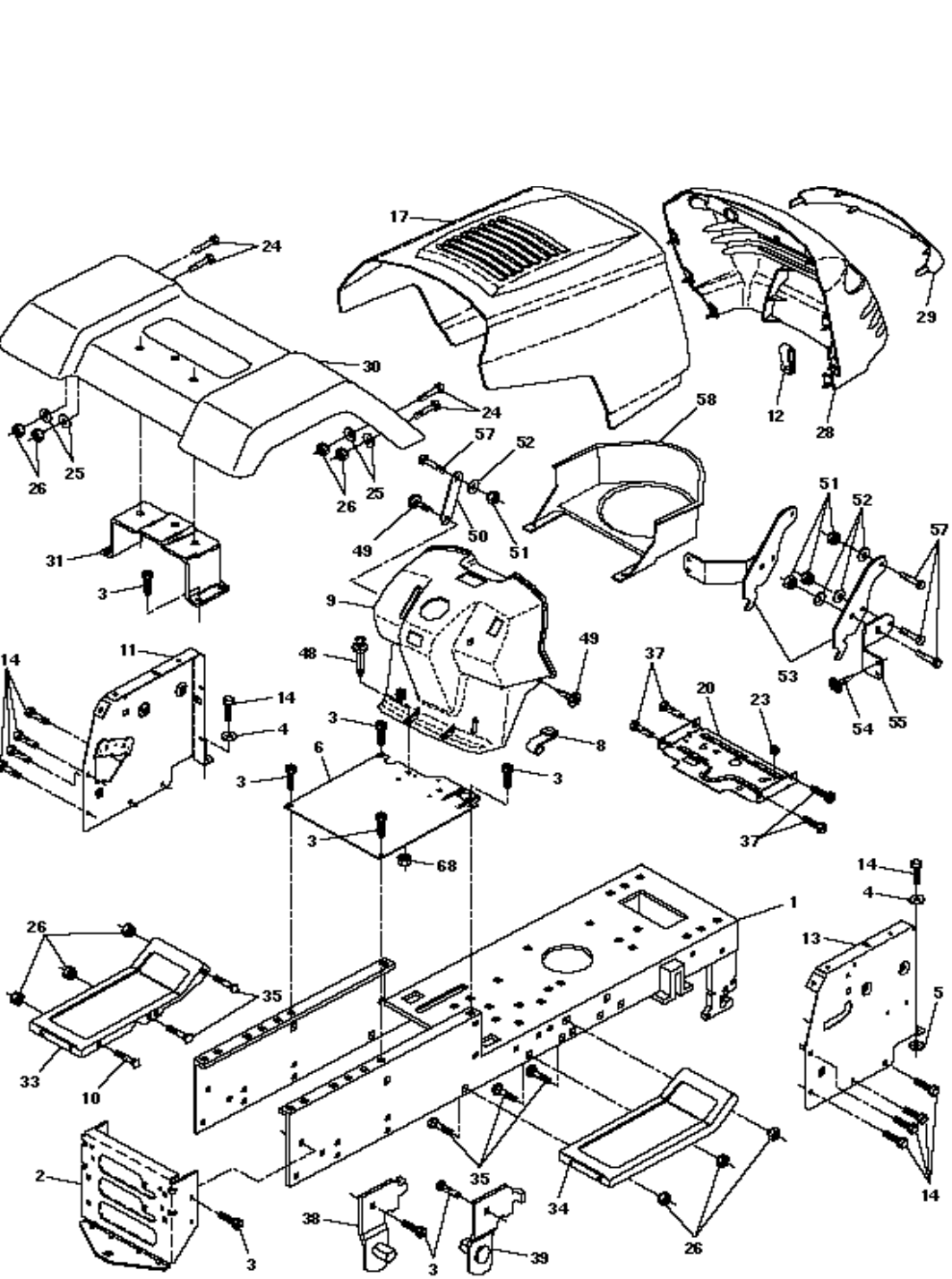

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

CHASSIS AND ENCLOSURES

33

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

CHASSIS AND ENCLOSURES

- - 532005479 Plug Button

1 532140341 Chassis Weldment 11ga

2 532140356 Drawbar, Stretch

3 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt

4 819131216 Washer 13/32 x 3/4 x 16 Ga.

5 811050600 Washer Lock Ext. Tooth 3/8

6 532145206 Saddle LT Fender Shift

8 532126471 Clip Insulator .406 Mtg Hole

9 532140072 Dash Private Label

10 872140608 Bolt Carriage 3/8-16 x 1

11 532140311 Panel Pnt Dash Lh

12 532145660 Clip Tinnerman Grille Private Label

13 532140178 Panel Dash Rh Weldment

14 817490608 Screw Thdrol 3/8-16x1/2 Ty-tt

17 532144320 Hood Paint Steel Private Label

20 532140281 Support Battery

23 532124028 Bushing

24 874780616 Bolt Fin Hex 3/8-16unc X1

25 819131312 Washer 13/32 X 13/16 X 12 Ga

26 873800600 Nut Lock 3/8-16 Unc

28 532140141 Grille Private Label

29 532140273 Lens Grille Private Label

30 532143050 Fender Pnt

31 532136619 Bracket Pnt Fender

33 532124899 Footrest Pnt Lh

34 532124914 Footrest Pnt Rh

35 872110606 Bolt Rdhd Sht Sqnk 3/8-16 X3/4

37 817490512 Screw Thdrol 5/16-18 X3/4

38 532139886 Bracket, Asm. Pivot, L.H., Mower Rear

39 532139887 Bracket, Asm. Pivot, R.H., Mower Rear

48 532138096 Rivet Push

49 817490412 Screw Hexwsh. Thdrol 1/4-20 x 3/4

50 532142779 Brace

51 873800400 Nut Lock Hex W/Ins 1/4-20

52 819091416 Washer 9/32 x 7/8 x 16 Ga.

53 532140219 Hinge Pickoff Hood

54 817030814 Screw Lock Spider #8 x 7/8

55 532143007 Bracket, Grill

57 874780412 Screw Hex 1/4-20 x 3/4

58 532140806 Air Duct P/L

68 873510400 Nut Keps Hex 1/4-20 UNC

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

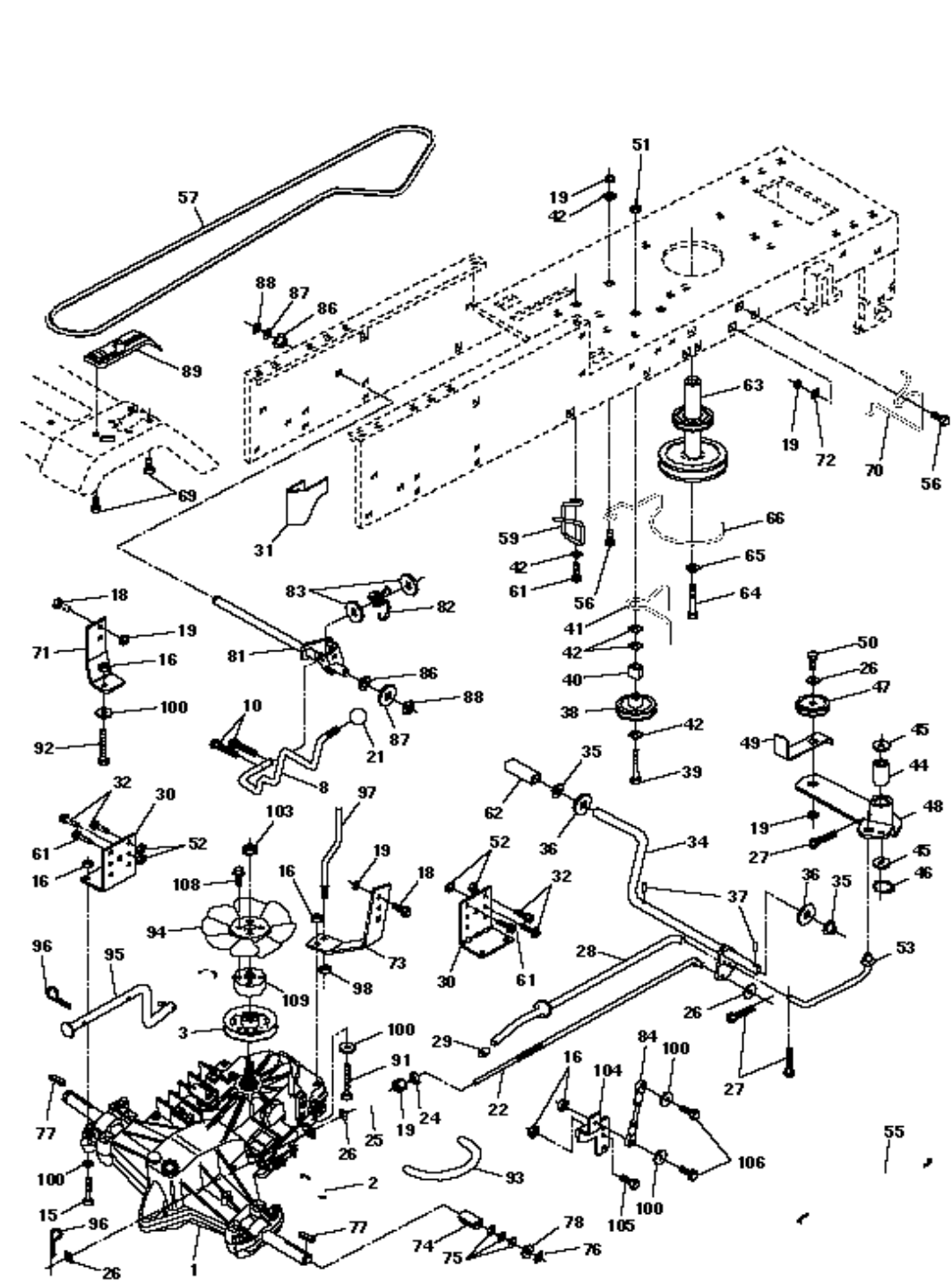

DRIVE

34

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

DRIVE

35

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 532140607 Transaxle Assembly

2 532142431 Spring, Return, Brake

3 532144698 Pulley, Transaxle

8 532141003 Rod Shift Hydro LT

10 876020416 Pin Cotter 1/8 x 1 CAD

15 874780544 Bolt Fin Hex 5/16-18 Unc

16 873800500 Nut Lock Hex W/Ins 5/16-18 Unc P

18 874780616 Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

19 873800600 Nut Lock Hex W/Wsh 3/8-16 Unc

21 532140845 Knob 1/2-13

22 532145627 Rod, Brake Hydro

24 873350600 Nut

25 532106888 Spring, Brake Rod

26 819131316 Washer

27 876020412 Pin Cotter 1/8 x 3/4 CAD.

28 532145204 Rod, Parking Brake

29 532071673 Cap, Parking Brake

30 532130807 Bracket, Transaxle

31 532127275 Keeper Belt Lh

32 874760512 Bolt Hex Hd 5/16-18 Unc x 3/4

34 532122424 Shaft, Foot Pedal

35 532120183 Bearing, Nylon

36 819211616 Washer

37 532124963 Pin, Roll

38 532123674 Pulley, Idler, Flat

39 874760644 Bolt

40 532124965 Spacer, Split

41 532109070 Keeper, Belt Retainer

42 819131312 Washer 13/32 x 13/16 x 12 Gauge

44 532105706 Bearing, Nylon

45 532110812 Washer, Hardened

46 812000039 Ring, Klip

47 532127783 Pulley, Idler, V-Groove

48 532123789 Bellcrank Assembly

49 532123205 Retainer, Belt

50 874760624 Bolt

51 873680600 Nut Crownlock 3/8-16

52 873680500 Nut Crownlock 5/16-18

53 532105710 Link, Clutch

55 532105709 Spring, Return, Clutch

56 874760620 Bolt Fin Hex 3/8-16 Unc x 1-1/4

57 532141416 V-Belt, Ground Drive

59 532140312 Keeper, Center Span

61 817490612 Screw Thdrol. 3/8-16 x 3/4 Ty. TT

62 532124872 Cover, Pedal

63 532140186 Pulley, Engine

64 871170764 Bolt, Hex

65 810040700 Washer

66 532129921 Keeper Belt Engine

69 532142432 Screw

70 532134683 Keeper Belt Engine

71 532141417 Strap Torque Lh Hydro 500 18"

72 819132012 Washer 13/32 x 1-1/4 x 12 Gauge

73 532141418 Strap Torque Rh Hydro 500 18"

74 532121199 Spacer, Split

75 532121749 Washer 25/32 x 1-1/4 x 16 Gauge

76 812000001 E-Ring

77 532123583 Key, Square

78 532121748 Washer 25/32 x 1-5/8 x 16 Gauge

81 532141420 Shaft Asm. Cross Hydro 500

82 532123782 Spring Torsion T/A

83 819171216 Washer 17/32 x 3/4 x 16 Ga.

84 532141423 Rod, Tie Hydro Sph Ball 500

86 532071208 Bushing Rod Strig. 629/632 ID

87 819212016 Washer 21/32 x 1-1/4 x 16 Ga.

88 812000008 Ring Klip #5304-62

89 532139988 Console, Shift

91 874780536 Bolt Fin Hex 5/16-18 x 2-1/4

92 874780524 Bolt Fin Hex 5/6-18 Unc x 1-1/2

93 532142564 Line Fuel Hydro 4"

94 532140462 Fan, Hydro 7"

95 532144643 Control Asm. Bypass Hydro

96 532124788 Retainer Spring 1" Zinc/Cad

97 532144201 Keeper Belt Rh Hydro 500

98 873510600 Nut Keps Hex 3/8-16 Unc

100 819111216 Washer 11/32 x 3/4 x 16 Ga.

103 532050831 Nut Nylon Insert 1/2-20 Unf.

104 532141421 Arm, Control Pump

105 871070516 Screw Cap Hex 5/16 x 18 x 1

106 874780520 Bolt Fin Hex 5/16-18 Unc x 1-1/4

108 817541026 Screw Hex Wh Hd #10-24 x 1-5/8

109 532145098 Adaptor Fan/Hydro Lt Hyd Alum

NOTE: All component dimensions give in U.S. inches.

1 inch = 25.4 mm.

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

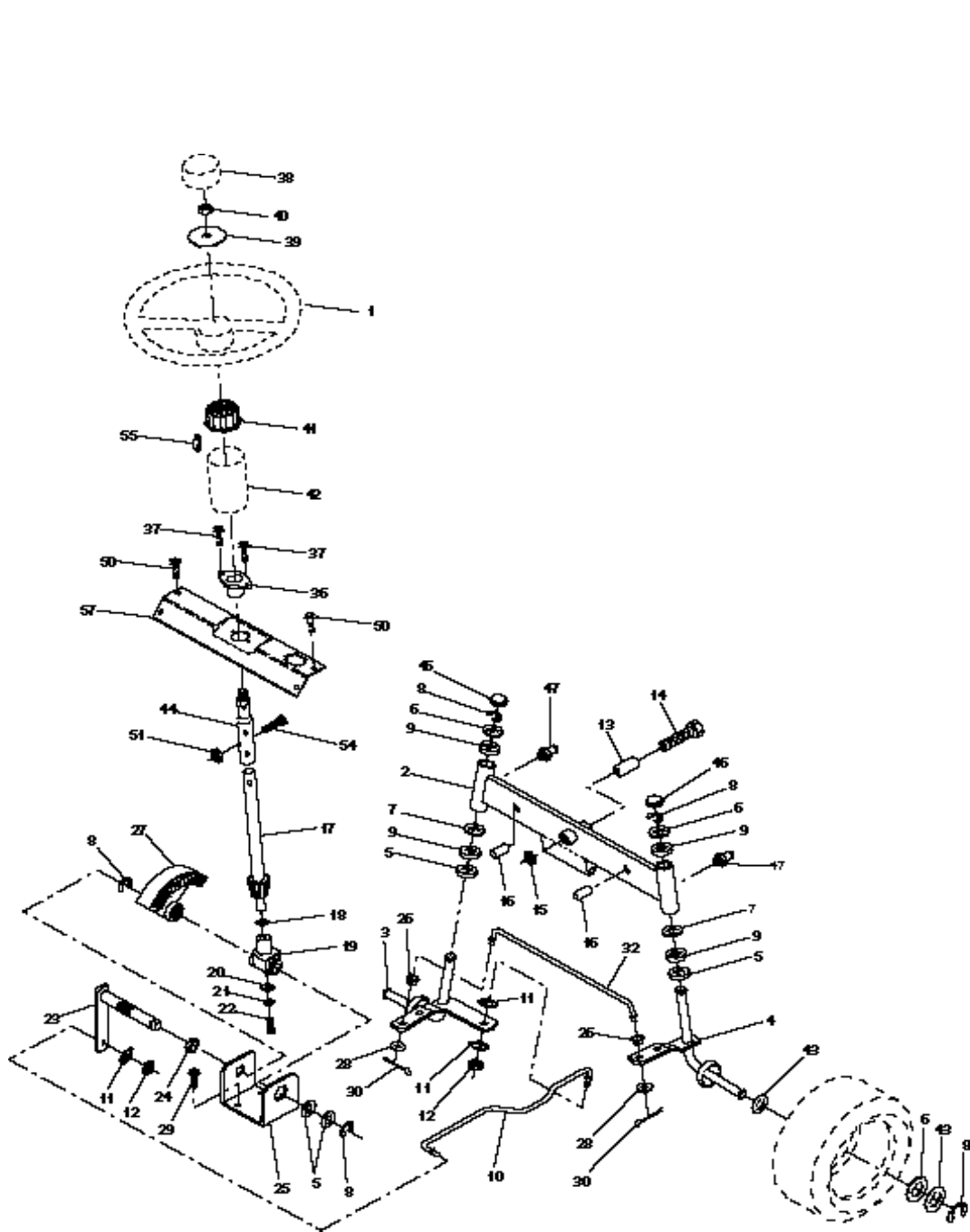

STEERING AND FRONT AXLE

36

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

STEERING AND FRONT AXLE

37

1 532121472 Wheel Steering Auto Black

2 532142033 Axle Asm Fr LT W/gzks 38/42

3 532135227 Spindle Asm LH

4 532135228 Spindle Asm RH

5 532124931 Bearing Race Thrust Harden

6 532121748 Washer 25/32 X 1-5/8 X 16ga

7 819272016 Washer 27/32 X 1-1/4 X 16 Ga

8 812000029 Ring Klip #t5304-75

9 532124937 Bearing Col Strg Blk

10 532130468 Link Drag Sol Ball Jt 20 064

11 810040600 Washer Lock Hvy Hlcl Spr 3/8

12 873610600 Nut Fin Hex 3/8-24 Unf

13 532110438 Spacer Bearing Axle Front

14 874011056 Bolt Hex 5/8-11 Unc X 3-1/2

15 873901000 Nut Lock Flange 5/8-11 Unc

16 532132624 Pin Axle 5/8 X 1 55/1 54 Lg

17 532140176 Shaft Asm Strg Private Label

18 532057079 Washer Thrust 515x 750x 033

19 532124035 Support Shaft

20 532126684 Washer Shim 1/4 X 5/8 X 062

21 810040400 Washer Lock Hvy Helical 1/4

22 871070410 Screw Hex Socket 1/4-20 X 5/8

23 532127501 Shaft Asm Pittman

24 532109816 Nyliner Snap In

25 532124036 Bracket Steering

26 532126847 Bushing Link Drag Blk LR

27 532136874 Gear Sector 22 Teeth

28 819131416 Washer 13/32 X 7/8 X 16ga

29 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt

30 876020412 Pin Cotter 1/8 X 3/4 Cad

32 532130465 Rod Tie Wire Form 19 75 Mech

36 532102803 Bushing Strg

37 817431008 Screw Slftp #10-16 X 1/2 Ty-b

38 532126805 Insert Cap Strg Wh Au Gen Blk

39 819133808 Washer 13/32 X 2-3/8 X 8 Ga

40 532124701 Nut Lock Center 3/8-24unf

41 532104820 Adaptor Wheel Strg 640/ 635id

42 532140216 Boot Shaft Steering

43 532121749 Washer 25/32 X 1 1/4 X 16 Ga

44 532140171 Shaft Extension Steering

45 812000029 Ring Klip #t5304-75

46 532121232 Cap Spindle Fr Top Blk

47 532124836 Fitting Grease

50 817490412 Screw Hex Wsh Thdrol 1/4-20 x 3/4

51 873800500 Nut Lock Hex w/Insert 5/16-18

54 874780520 Bolt Fin Hex 5/16-18 unc x 1-1/4

55 532140285 Clip Tinnerman

57 532140172 Support Shaft Steering

KEY PART DESCRIPTION

NO. NO. KEY PART DESCRIPTION

NO. NO.

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

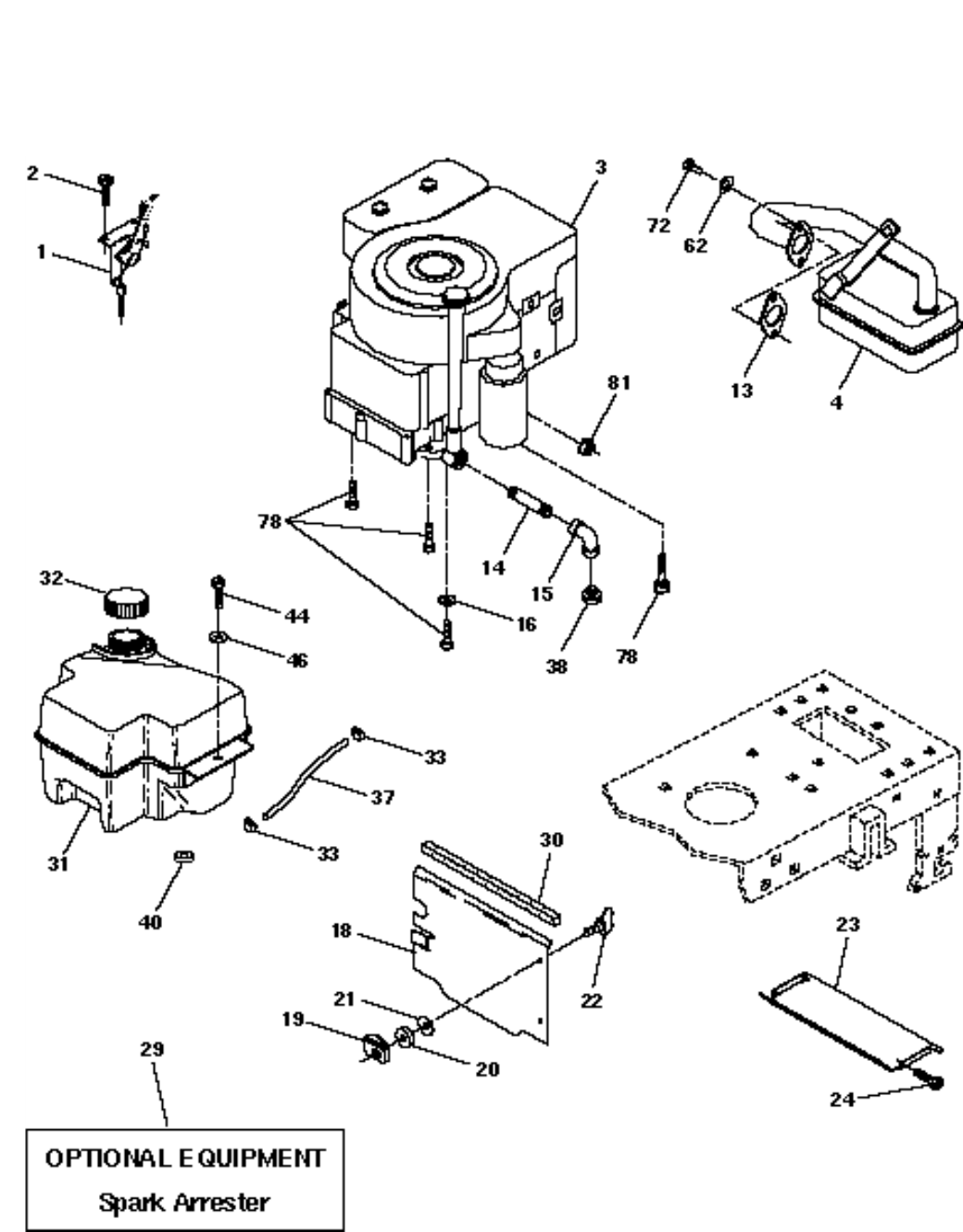

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

ENGINE

38

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

ENGINE

39

1 532140310 Control Th/ch RH Blk Tee Eec

2 817720410 Screw Hex Thd Cut 1/4-20x5/8 T

3 - - - - - - - Engine B&S 12.5HP Icq Dual 1vt

Model No 286707

4 532137348 Muffler LT B&s 12/12.5 HP

13 532125593 Gasket Eng 1 313 Id Tin Plated

14 813280324 Nipple Pipe 3/8 Npt X 3”

15 813200300 Elbow Std 90 Degree 3/8-18 Npt

16 811050600 Washer Lock Ext Tooth 3/8

18 532136718 Shield Heat LT

19 532105839 Receptacle 1/4 Turn dacrotized

20 532105838 Retainer 1/4 Turn 365 OD x .222 ID

21 819091016 Washer 9/32 x 5/8 x 16 Ga

22 532123650 Stud 1/4 Turn (replaces 105751)

23 532128953 Shield Heat Browning LT/YT

24 817021008 Screw Tap Hex #10-24unc X 1/2

29 532137180 Kit Spark Arrestor 1 25

30 532127057 Pinch Weld Hood Black 2.00

31 532140280 Tank Fuel Front 2.00

32 532140527 Cap Asm Fuel W/sym Vented

33 532123487 Clamp Hose Blk

37 532137040 Line Fuel 9 20”

38 - - - - - - - Plug Oil Drain (Order From Engine

Manufacturer)

40 532124028 Bushing Snap Nyl Blk Fuel Line

44 817490412 Screw Hexwsh Thdrol 1/4-20x3/4

46 819091416 Washer 9/32 X 7/8 X 16ga

62 810040500 Washer Lock Hvy Hlcl Spr 5/16

72 871070512 Screw Hexhd Cap 5/16-18x3/4

78 817490620 Screw Thdrol 3/8-16x1-1/4 TYTT

81 873510400 Nut Keps Hex 1/4-20 UNC

KEY PART DESCRIPTION

NO. NO. KEY PART DESCRIPTION

NO. NO.

NOTE: All component dimensions given in U.S. inches. 1

inch = 25,4 mm.

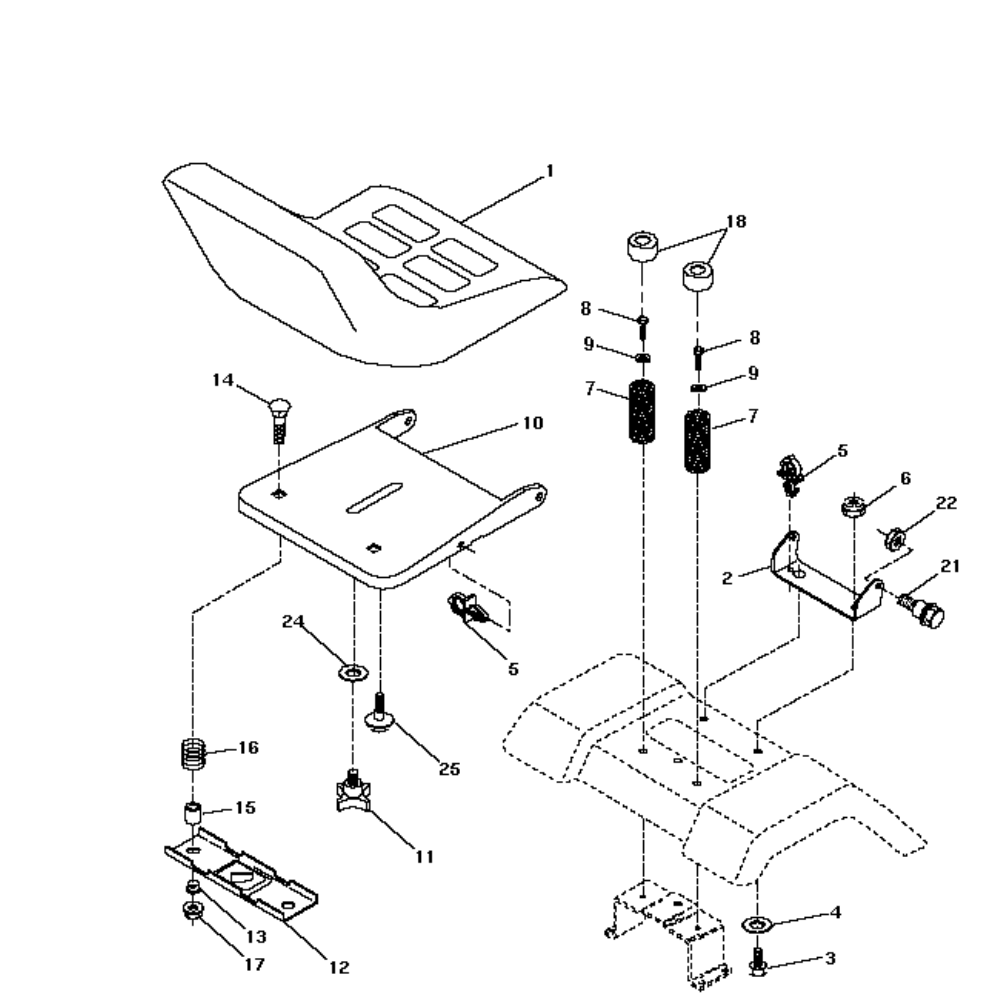

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

SEAT

40

1 532127427 Seat V350 Blk/blk Std

2 532140551 Bracket Pivot Seat 8 720

3 874760616 Bolt Fin Hex 3/8-16unc X 1

4 819131610 Washer 13/32 X 3/4 X 10 Ga

5 532145006 Clip Push-In Hinged

6 873800600 Nut Lock Hex w/Ins 3/8-16 Unc

7 532124181 Spring Seat Cprsn 2 250 Blk Zi

8 817490616 Screw Thdrol 3/8-16 X 1 Ty-tt

9 819131614 Washer 13/32 X 1 X 14 Ga

10 532140552 Pan Seat

11 532120068 Knob Seat 1/2-13unc Blk

12 532121246 Bracket Mounting Switch

13 532121248 Bushing Snap Blk Nyl 50 Id

14 872050411 Bolt Rdhd Sht Nk 1/4-20x1-3/8

15 532134300 Spacer Split 28x 96 Yel Zinc

16 532121250 Spring Cprsn 1 27 Blk Pnt

17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc

18 532124238 Cap Spring Seat Blk 1.75 x 1.0

21 532139888 Bolt Shoulder 5/16-18 Type

T.T.T.R.

22 873800500 Nut Lock 5/16-18

24 819171912 Washer 17/32 X 1-3/16 X 12 Ga

25 532127018 Bolt Shoulder 5/16-18 X 62

KEY PART DESCRIPTION

NO. NO. KEY PART DESCRIPTION

NO. NO.

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

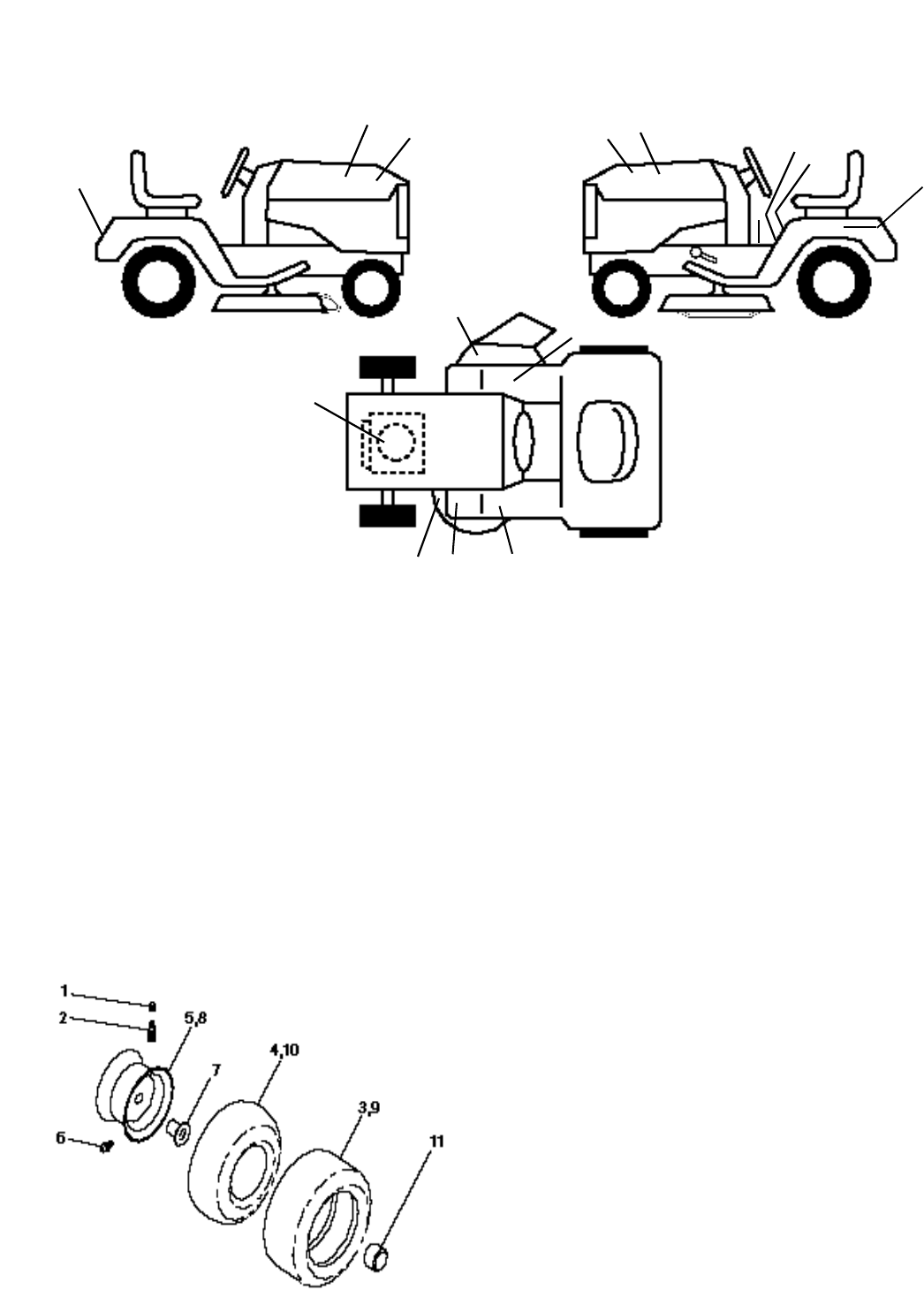

DECALS

41

WHEELS AND TIRES

1 532143609 Decal Hood Husqvarna LH

2 532143608 Decal Hood Husqvarna RH

3 532143742 Decal Panel Side LH

4 532131582 Decal Fender

5 532129057 Decal Engine 12.5 HP B&S ICQ

6 532136832 Decal, V-Belt Sch 38"/42" LT

7 532137259 Decal Warning MULT-LANGUAGE

8 532140820 Decal Dash Instructions Operating

Eng/Fr

9 532142337 Decal Sdl Cold Start Hydo Eng/Fr

10 532133671 Pad Footrest Ribbed

12 532101892 Decal Clutch/brake Eng/Fr/Ger/Du

13 532121549 Decal Caution Battery Fr/Ger

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532059192 Cap Valve Tire

2 532065139 Stem Valve

3 532106222 Tire F Ts 15 X 6 0 - 6 Service

4 532059904 Tube Front (Service Item Only)

5 532141446 Rim Asm 6” front Service

6 532124957 Fitting Grease (Front Wheel Only)

7 532124959 Bearing Flange (Service Item Only)

8 532141447 Rim Asm 8” rear Service

9 532106268 Tire R Ts 18x9 5-8 C Service

10 532124926 Tube Rear (Service Item Only)

11 532104757 Cap Axle Blk 1 50 X 1 00

KEY PART

NO. NO. DESCRIPTION

4

215 13

9

8

13

17

612

7

5

15 532143741 Decal Panel Side RH Hydr.

17 532133795 Decal Caution Fender Eng/Fr

- 532138311 Decal Handle Lift Height Adjust

- 532142341 Decal Drawbar Control

- 532145999 Manual Owner's (English)

- 532146000 Manual Owner's (French)

Available accessories (not included with tractor)

- LA018 Tire Chains (18 x 9.5 x 8)

- LSB42 42” Snow Thrower

- LBD48 48” Snow Blade

- LC05 33 lb. Wheel Wts. (pair)

- MP42 Mulching Plate for 42”

10

10

42

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

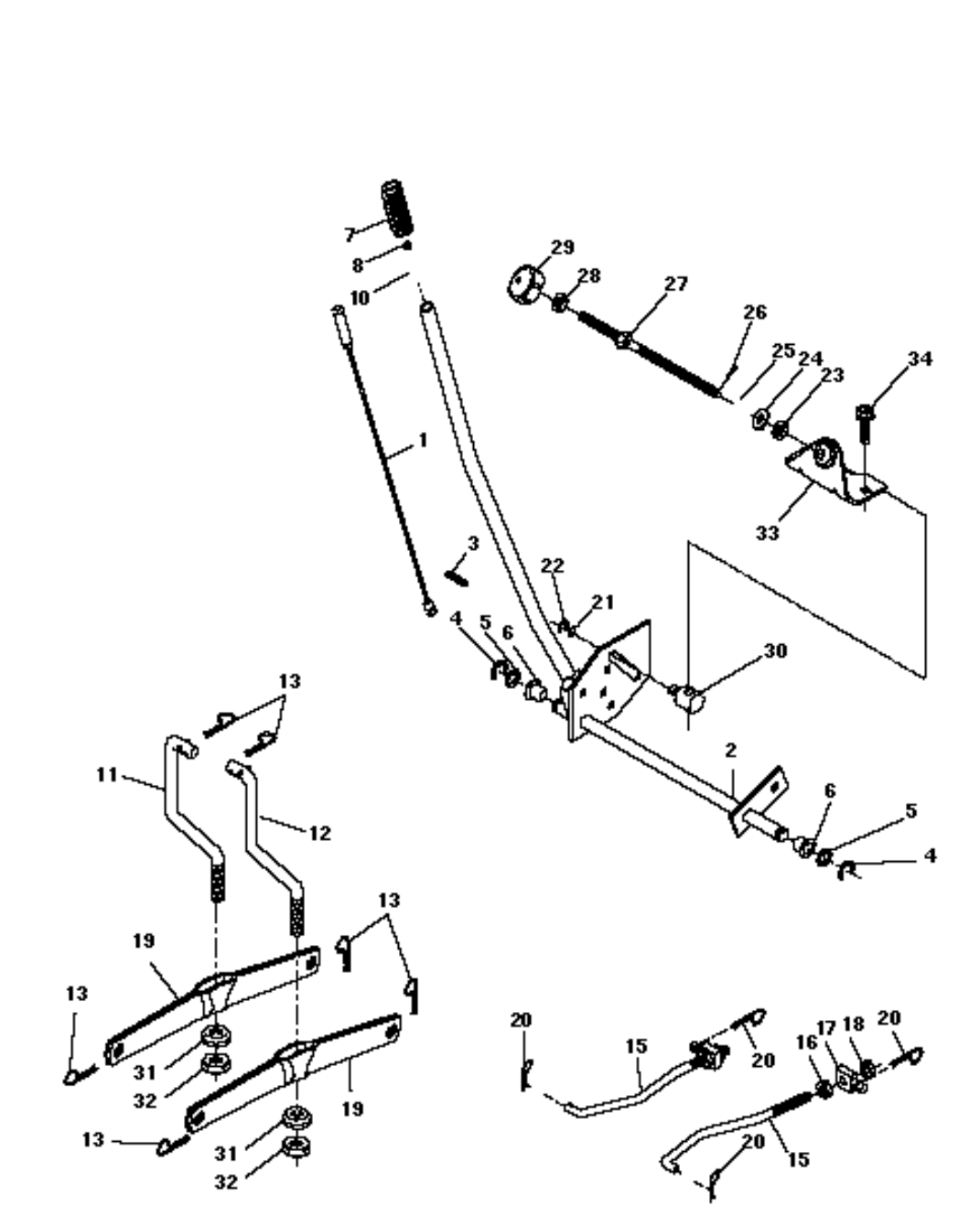

LIFT

43

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

LIFT

1 532136973 Wire Asm Inner w/plunger

2 532140278 Shaft Asm Lift LH Inf Hgt P/L

3 532138284 Pin Groove

4 812000002 E Ring #5133-62

5 819211621 Washer PLTD 21/32 X 1 X 21ga

6 532120183 Bearing Nylon Blk 629 Id

7 532109413 Grip Handle Bicycle Matte Blk

8 532124526 Button Plunger Black

10 532122512 Spring Cprsn 3 750 Oiled

11 532139865 Link Lift LH

12 532139866 Link Lift RH

13 532124670 Retainer Spring

15 532127218 Link Front

16 873350800 Nut Jam Hex 1/2-13 Unc

17 532130171 Trunnion Blk Zinc

18 873800800 Nut Lock W/wsh 1/2-13unc

19 532139868 Arm Suspension Rear

20 532124660 Retainer Spring

21 819151216 Washer 15/32 X 3/4 X 16ga

22 812000037 Ring Klip

23 532110807 Nut Special

24 819131016 Washer 13/32 x 5/8 x 16 ga

25 532124874 Spring 2-1/8

26 876020308 Pin Cotter 3/32 x 1/2

27 532126971 Rod Adj Lift

28 873350600 Nut Hex Jam 3/8-16 Unc

29 532138057 Knob Inf 3/8-16 UNC

30 532110810 Trunnion Dp Stop

31 532140302 Bearing Pivot Lift Spherical

32 873540600 Nut Crownlock 3/8-24

33 532140168 Bracket Stop Inf Hgt

34 817490608 Screw Thdrol 3/8-16 x 1/2

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

45

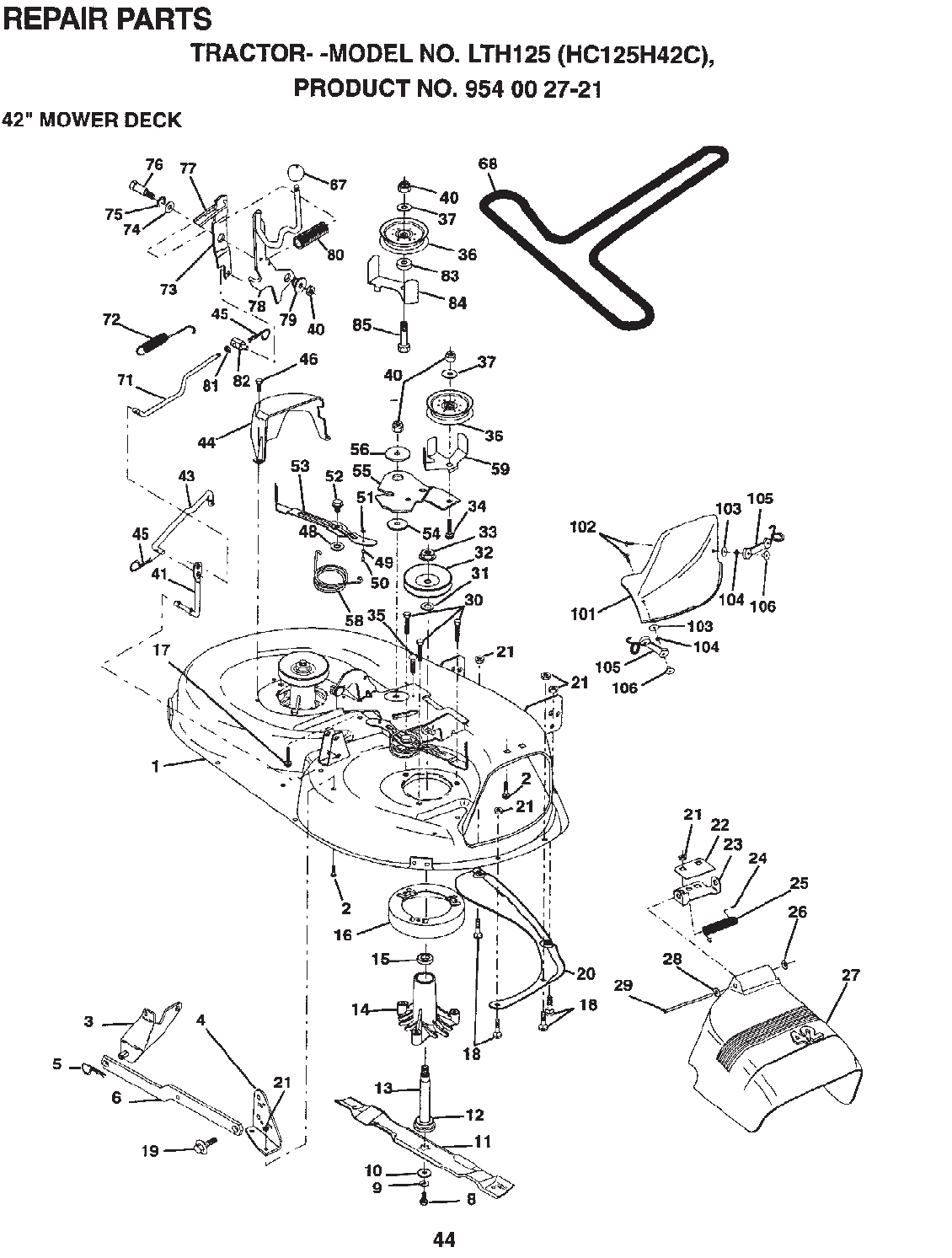

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

42" MOWER DECK

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532144393 Deck Asm Mower 42"

2 872140506 Bolt Rdhd Sqnk 5/16-18unc X3/4

3 532138017 Bracket Asm Fr Sway Bar

4 532138440 Bracket Asm Deck Sway Bar 42"

5 532124670 Retainer Spring

6 532130832 Arm Suspension Rear

8 532850857 Bolt 3/8-24x1 25 Gr8 Patched

9 810030600 Washer Lock Hvy 3/8 Unplated

10 532140296 Washer Hard Blade Mower Vented

11 532134149 Blade

12 532129895 Bearing Ball #6204 (Mandrel)

13 532137645 Shaft Asm W/lower Bearing

14 532128774 Housing Mandrel Vented(machd)

15 532110485 Bearing Ball Mandrel

16 532140329 Stripper Mower Vented

17 872110610 Bolt Rdhd Sqnk 3/8-16 X 1-1/4

18 872140505 Bolt Rdhd Sqnk 5/16-18 X 5/8

19 532132827 Bolt Shoulder 5/16 - 18

20 532136888 Baffle Vortex 42

21 873680500 Nut Crownlock 5/16-18

22 532134753 Stiffener Bracket 42" deck

23 532131267 Bracket Deflector Mower 42"

24 532105304 Cap Sleeve 80x 112 Blk Mower

25 532123713 Spring Torsion Deflector 2 52

26 532110452 Nut Push Phos & Oil

27 532130968 Shield Deflector Mower 42" Blk”

28 819111016 Washer 11/32 X 5/8 X 16 Ga

29 532131491 Rod Hinge 42" 6 75 Wlg

30 532138776 Screw Thdrol Hex Head

31 532129963 Washer Spacer Mower Vented

32 532129861 Pulley Mandrel 42"

33 532137266 Nut Flg Top Lock Cntr B 9/16

34 872110614 Bolt Rdhd 3/8-16uncx1-3/4 Gr5

35 532133835 Fastner Christmas Tree

36 532131494 Pulley Idler Flat 3 060

37 819131316 Washer 13/32 X 13/16 X 16 Ga

40 873680600 Nut Crownlock 3/8-16

41 532133551 Rod Pivot W/nibs

43 532140083 Rod Clutch Secondary W/nibs

44 532140088 Guard Mandrel LH Black

45 532124788 Spring Retainer 1" Zinc/cad

46 532137729 Screw Hex Thd Cut 1/4-20x5/8 T

48 532133944 Washer Hardened Smaller

49 532133940 Roller Asm Cam Follower 42" dec

50 532131340 Bolt Shldr 10-24 Zinc Gr 5 42"

51 532069180 Nut Lock #10-24 Unc

52 532139888 Bolt Shoulder 5/16-18

53 532131845 Arm Asm Pad Brake

54 532133943 Washer Hardened

55 532140084 Arm Idler 42" mower LT/YT

56 532122052 Spacer Retainer Pm Mower

58 532140086 Spring Torsion Brakes

59 532141043 Guard Tuv Idler

67 532106933 Knob Rd 1/2-13 Plstc Thds Blk

68 532144200 V-Belt Mower

71 532142427 Rod Clutch Primary 38/42

72 532131870 Spring Return

73 532127847 Arm Clutch Secondary

74 532121748 Washer 25/32 X 1-5/8 X 16 Ga

75 812000029 Ring Klip #t5304-75

76 532128903 Bolt Shoulder 3/8-16 Unc 1 44

77 532127845 Keeper Spring 4 000

78 532140179 Arm Asm Clutch Primary

79 532127498 Bushing 747 Od X 794 Lg Brass

80 532128759 Spring Clutch Mower 2 750 Zinc

81 873350600 Nut Hex Jam 3/8-16 unc

82 532142028 Trunnion Adj.

83 532120958 Washer Sintered

84 532144394 Keeper Belt Idler Fixed

85 872140620 Bolt Carriage 3/8-16 x 2-1/2 Gr.5

101 532136420 Cover Mulching 42" Black

102 871161010 Screw

103 810071000 Washer Lock #10

104 819061216 Washer #10

105 532130758 Latch Asm Bagger

106 532125004 Nut Weld .327/.304 #10-24

- - 532130794 Mandrel Asm Service (Includes Key

Nos. 8-10, 12-15, 31 and 33)

- - 532145411 Deck Serv 42" mech (Std. Deck -

Order Mulcher Plate Components

separately- Key Nos. 101-106)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

46

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

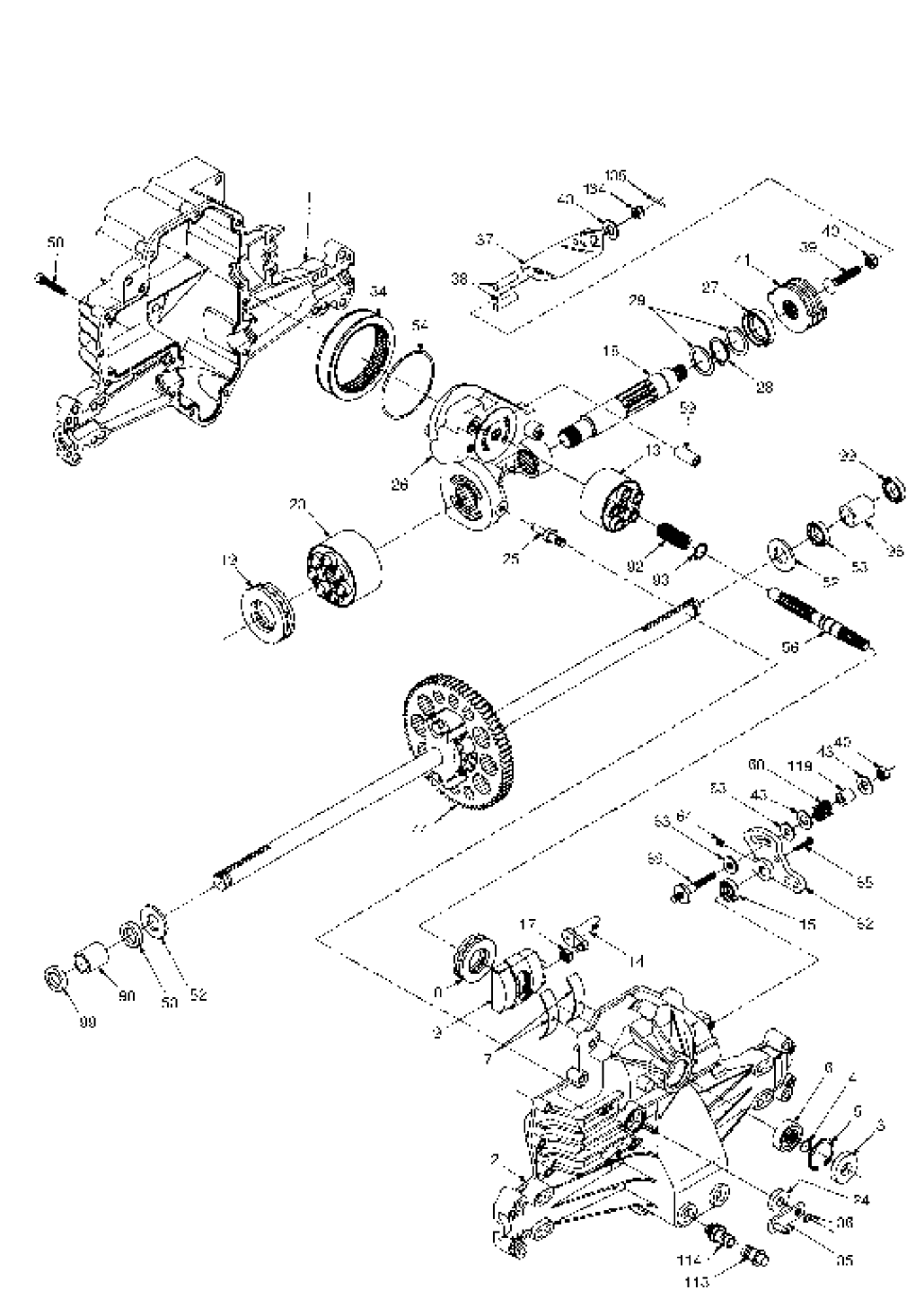

HYDRO-GEAR TRANSAXLE - MODEL NO. 310-0500

47

REPAIR PARTS

TRACTOR- -MODEL NO. LTH125 (HC125H42C),

PRODUCT NO. 954 00 27-21

HYDRO-GEAR TRANSAXLE - MODEL NO. 310-0500

KEY PART

NO. NO. DESCRIPTION

1 532142986 Housing, Lower

2 532142987 Assembly, Upper Housing

3 532142932 Seal, Lip

4 532142928 Ring, Wire Retaining

5 532142933 Ring, Retaining

6 532142934 Bearing, Shaft Ball

7 532142935 Bearing, Cradle

8 532142936 Bearing, Thrust 30 x 52 x 13

9 532142937 Swashplate, Variable

13 532142938 Block, Cylinder Assembly

14 532142939 Arm, Trunnion

15 532142940 Seal, Lip

17 532142941 Guide, Slot

18 532142988 Shaft, Motor

19 532142943 Bearing, Thrust 42 x 68 x 16

23 532142944 Block, Cylinder Assembly

24 532142945 Seal, Lip 10 x 25 x 7

25 532142946 Actuator, Bypass

26 532142947 Center Section Assembly Kit

27 532142948 Seal, Lip 26 x 42 x 8

28 532142949 Ring, Retaining

29 532142950 Washer 26 x 35 x 1

34 532142951 Oil Filter Element

35 532142952 Arm, Bypass

36 532142953 Ring, Retaining

37 532142954 Arm, Actuating

38 532142955 Pin, Actuating

39 532142956 Bolt 5/16-24 x 1-3/4

KEY PART

NO. NO. DESCRIPTION

40 532142957 Locknut, Hex 5/16-24 UNJC

41 532142958 Brake Rotor/Stator Kit

43 532142884 Washer 7/16 x 7/8 x .060

44 532142990 Differential Assembly

52 532142991 Washer 3/4 x 1.5 x .13

53 532142961 Seal .75 x 1.25 x .250

54 532142962 O-Ring .103 x 2.987 ID

56 532142963 Shaft, Input

58 532142964 Bolt 1/4-20 x 1.38

59 532142965 Pin .5 OD x .43 ID x .750

62 532142966 Arm, Control

63 532142967 Puck, Dampener

64 532142920 Set Screw

65 532142968 Bolt #8-32 x .875

68 532142969 Spring

69 532144610 Stud 5/16-24

92 532142977 Spring, Block

93 532142978 Washer, Block Thrust

98 532142993 Sleeve Bearing

99 532142976 Seal, Wiper

113 532142917 Cap, Vent Assembly

114 532142918 Fitting, O-Ring Assembly

119 532142980 Spacer

134 532144607 Nut, Castle 5/16-24

135 532144608 Pin, Cotter

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

48

SERVICE NOTES

49

SERVICE NOTES

50

Effective May 1, 1992

WARRANTY STATEMENT

(2) Failure to operate or maintain the unit in accordance with the Owner’s/Operator’s manual or instruction

sheet furnished by Husqvarna.

(3) Alterations or modifications that affect the unit's performance, operation, safety, durability, change its

intended use, or cause failure of compliance with current regulatory standards or applicable federal, state

or local laws.

(4) Use of parts or accessories which are not recommended by Husqvarna Forest & Garden Company.

(5) Additional damage to parts or components due to continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE CONSUMER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS EXCEPT

TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABIL-

ITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO

THE WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRANTY STATEMENT. HUSQVARNA

RESERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NOTICE,

AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PRODUCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long an

implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you

specific legal rights, and you may also have other rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The customer must exhibit reasonable care, maintenance, operation, storage and general upkeep as

written in the maintenance section of the Owner’s/Operator’s manual. Should an operational problem or

failure occur the product should not be used, but delivered as is to an authorized Husqvarna dealer for

evaluation. Proof of purchase, as explained in section 6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN

WARRANTY CONSIDERATION

It is the Owner’s and Dealer’s responsibility to make certain that the Warranty Registration Card is properly

filled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10)

days from the date of purchase in order to validate the warranty and to provide post-sale service.

Proof of purchase must be presented to the authorized Husqvarna dealer in order to obtain warranty service.

This receipt must include date purchased, model number, serial number, and complete name and address of

the selling dealer.

To obtain the benefit of this warranty, the product believed to be defective must be delivered in a timely manner,

within thirty (30) days from date of operational problem or failure, and during the warranty period, to any

authorized Husqvarna dealer. The product must be delivered to the dealer, at the owner’s expense. An

authorized Husqvarna dealer can be normally located through the “Yellow Pages” of the local telephone

directory.

HUSQVARNA FOREST & GARDEN CO.

9006-J PERIMETER WOODS DRIVE

CHARLOTTE, NORTH CAROLINA 28216

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company ("Husqvarna") warrants Husqvarna product to the original purchaser

to be free from defective material and workmanship from the date of purchase for the "Warranty Period”

here stated dependent upon the type of product use. Warranty period is as follows for products listed:

5 Year Warranty: Plastic walk behind mower decks for noncommercial, noninstitutional or nonincome

producing use.

2 Year Warranty: Riding lawn mowers, yard and garden tractors, walk behind mowers, tillers and

attachments for noncommercial, noninstitutional or nonincome producing use. Ignition coils or modules on

the chain saws, clearing saws and trimmers.

1 Year Warranty: Chain saws, clearing saws, trimmers, blowers and batteries for noncommercial,

noninstitutional or nonincome producing use.

90 Day Warranty: Any Husqvarna product used for rental, commercial, professional, or income producing

use.

30 Day Warranty: Husqvarna professional bow bars.

30 Day Replacement Part Warranty: Unless otherwise stated, replacement parts are warranted for 30

days from date of purchase.

SECTION 2: HUSQVARNA’S

OBLIGATIONS UNDER THE WARRANTY

Husqvarna will remedy defects in material and workmanship during the warranty period by repairing or

replacing, at Husqvarna’s option, the defective component without charge for parts or labor.

SECTION 3: ITEMS NOT

COVERED BY THIS WARRANTY

The following items are not covered by this warranty:

(1) Normal customer maintenance items (i.e., belts, blades, blade adapters, bulbs, filters, guide bars,

lubricants, rewind springs, saw chain, spark plugs, starter ropes and tines).

(2) Normal wear, normal adjustment, standard hardware or items worn through regular use.

(3) Natural discoloration of material due to ultraviolet light.

(4) The replacement or maintenance of worn items.

(5) Briggs & Stratton, Kawasaki and Kohler engines, including starters, generators, alternators and

accessories. These items are covered by the engine manufacturer’s warranty as stated with the

product information supplied at the time of purchase. All claims for specified engines, starters,

generators, alternators and accessories should be sent to the appropriate manufacturer.

(6) Agri-Fab, Foote, and Tecumseh-Peerless drive systems. These items are covered by the drive system

manufacturer’s warranty as stated with the product information supplied at the time of purchase. All

claims for specified drive systems should be sent to the appropriate manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting from the following:

(1) Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt abrasives, moisture, rust,

corrosion, or any adverse reaction due to incorrect storage habits. 530-0683-91-2-04/21/92

Printed in U.S.A.

532145999 Rev. 1 10.10.94
