Hysiry Technology ESP826612H ESP8266-12H User Manual ESP8266 12H DataSheet V1 0x
Shenzhen Hysiry Technology Co., Ltd. ESP8266-12H ESP8266 12H DataSheet V1 0x
User Manual
User manual
Model:ESP8266-12H,IESP8266-01H,ESP8266-12L
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 2 / 14
Disclaimer and Copyright Notice
Information in this document, including URL references, is subject to change without notice.
THIS DOCUMENT IS PROVIDED AS IS WITH NO WARRANTIES WHATSOEVER, INCLUDING ANYWARRANTY OF
MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR ANY PARTICULARPURPOSE, OR ANY WARRANTY
OTHERWISE ARISING OUT OF ANY PROPOSAL, SPECIFICATIONOR SAMPLE. All liability, including liability for
infringement of any proprietary rights, relating to useof information in this document is disclaimed. No licenses
express or implied, by estoppel orotherwise, to any intellectual property rights are granted herein.
The WiFi Alliance Member Logo is a trademark of the WiFi Alliance.
All trade names, trademarks and registered trademarks mentioned in this document are property oftheir
respective owners, and are here by acknowledged.
Note
As the product upgrade or other reasons, this manual may change. Shenzhen Hysiry Technology Co., Ltd has
right to modify the contents of this manual without any notice or warning. This manual is only as a guide,Hysiry
Technology Co., Ltd Spareno effort to provide accurate information in this manual, but the Hysiry can't guarantee
manual there is no problem , all statements in this manual, information and suggestions do not constitute any
guarantee of express or implication.
Amendment record
Time Version Specification
2017.09 V1.0 First release
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 3 / 14
Contents
1. Overview .......................................................................................................................................................... 4
2. Main Features .................................................................................................................................................. 4
2.1 System Diagram ......................................................................................................................................... 4
2.2 Hardware Specifications ............................................................................................................................ 5
3. Pin description ................................................................................................................................................. 6
4. Functional Description ..................................................................................................................................... 7
4.1 MCU ........................................................................................................................................................... 7
4.2 Memory ..................................................................................................................................................... 8
4.2.1 Internal SRAM and ROM ..................................................................................................................... 8
4.2.2 SPI Flash .............................................................................................................................................. 8
4.3 Interface Description ................................................................................................................................. 8
5. Electrical Characteristic ................................................................................................................................... 9
5.1 Standby Power Consumption .................................................................................................................... 9
5.2 RF Performance ....................................................................................................................................... 10
5.3 Digital Terminal Characteristics ............................................................................................................... 11
5.4 Absolute Maximum Ratings .................................................................................................................... 11
5.5 Reflow Profile .......................................................................................................................................... 12

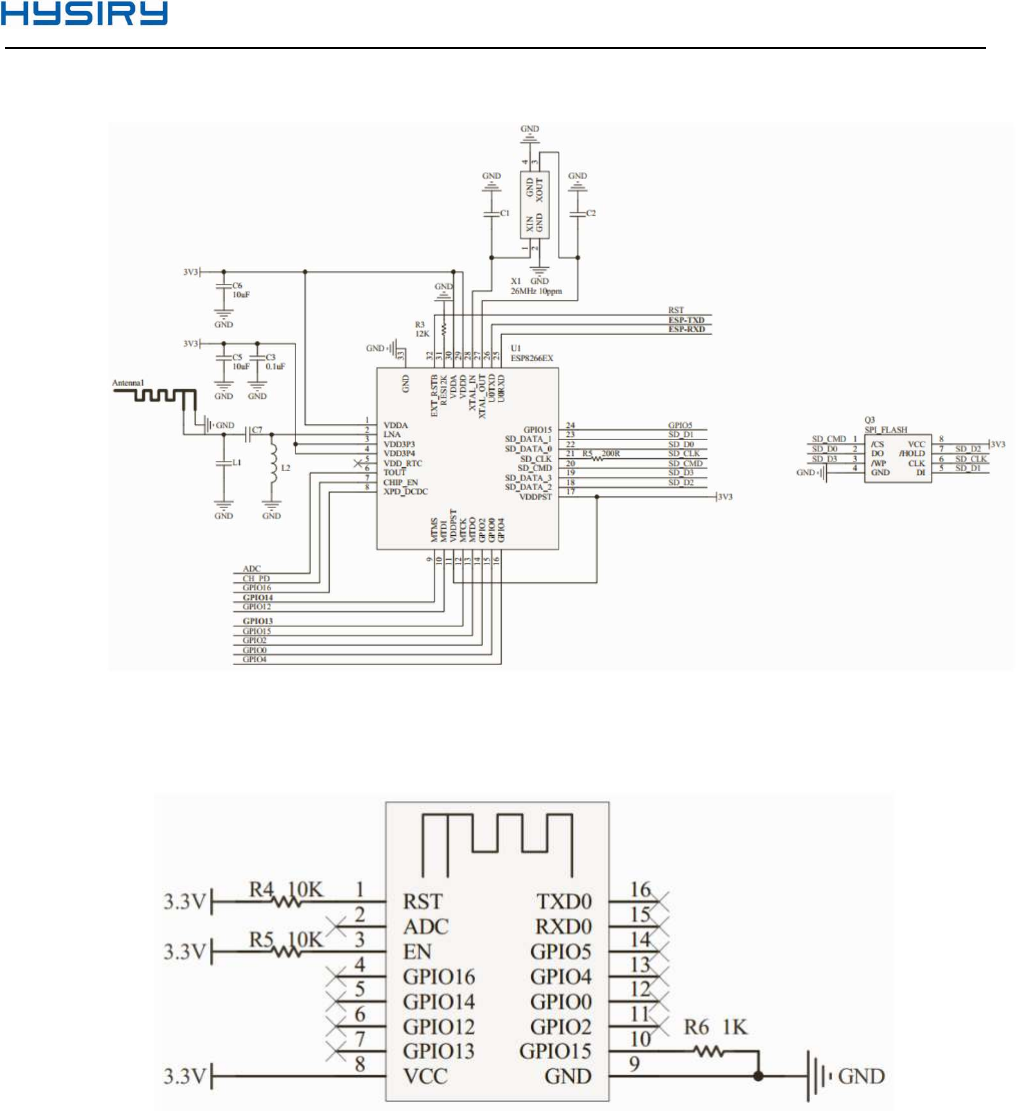

6. Schematics ..................................................................................................................................................... 13
7. Minimum System Requirements ................................................................................................................... 13
8. Switching noise control ................................................................................................................................. 13
9. Technical Support .......................................................................................................................................... 14
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 4 / 14
1. Overview
ESP8266-12H Wi-Fi module is a low consumption, high performance Wi-Fi network control module designed
by Hysiry. It can meet the IoT application requirements in smart power grids, building automation, security and
protection, smart home, remote health care etc.
The module's core processor ESP8266 integrates an enhanced version of Tensilica's L106 Diamond series 32-
bit processor with smaller package size and 16 bit compact mode, main frequency support 80 MHz and 160 MHz,
support RTOS, integrated Wi-Fi MAC / BB / RF / PA / LNA, on-board PCB antenna.
The module supports standard IEEE802.11 b / g / n protocol, a complete TCP / IP protocol stack.
Users can use the module to add networking capabilities to existing devices, but also to build an independent net
work controller.

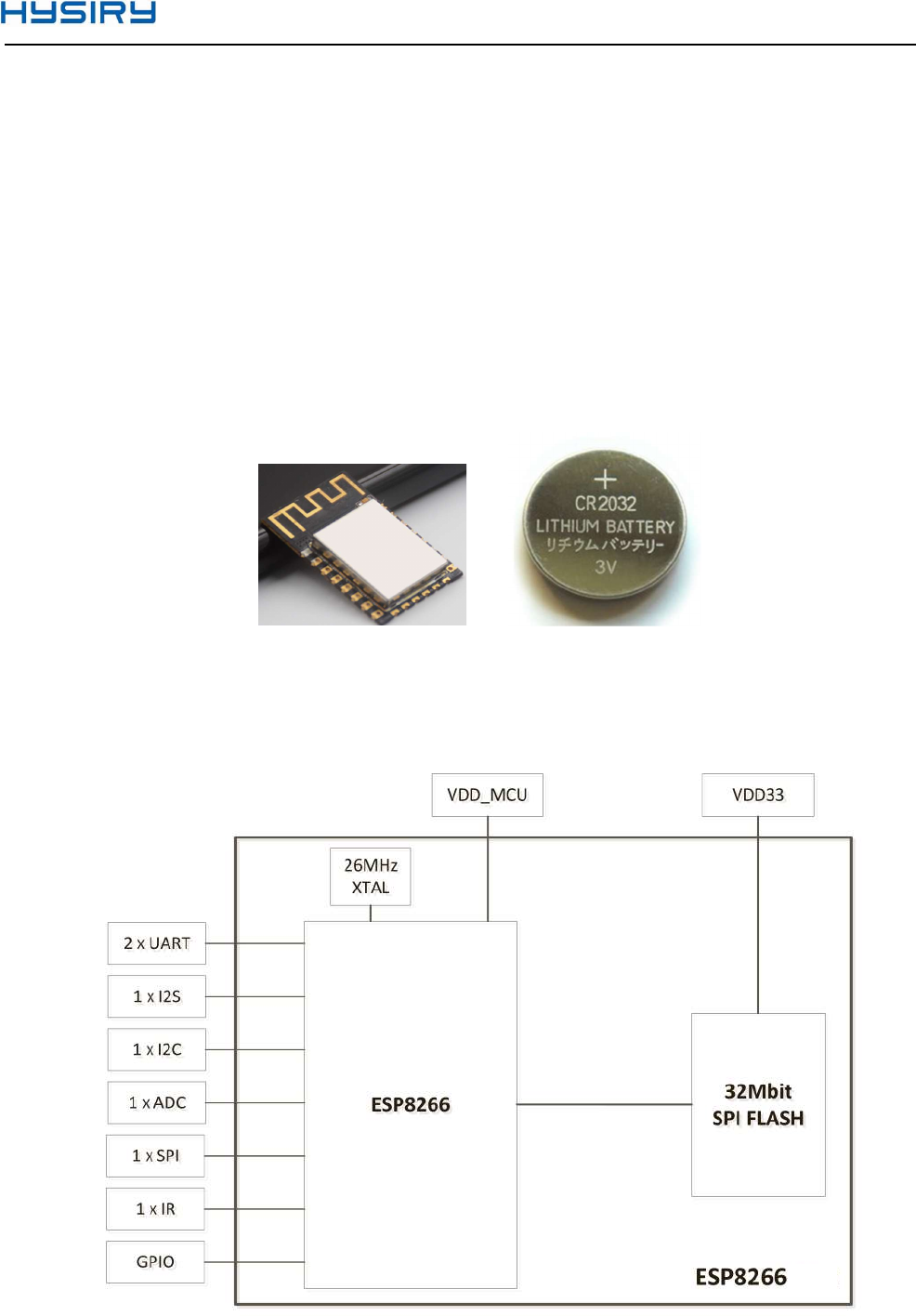

Figure -1.ESP8266-12H Module
2. Main Features
2.1 System Diagram
Figure -2. System Diagram
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 5 / 14
2.2 Hardware Specifications
Operating Voltage: 3.3V（3.0 ~ 3.6V）
Operating Temperature：-40 - 85°C
CPU Tensilica L106
o RAM 50KB（Available）
o Flash 8 Mbit
System
o 802.11 b/g/n
o Frequency range 2.4 GHz ~ 2.5 GHz（2400 M ~ 2483.5 M）
o IntegratedTensilica L106 ultra-low power 32-bitmicro MCU, with 16-bit RSIC. The CPU clock speed
is 80MHz. It can also reach a maximum value of 160MHz.
o WIFI 2.4 GHz，supportWPA/WPA2
o Supports UART、I2C、GPIO、PWM、SDIO、SPI、ADC、PWM、IR
o Integrated 10 bit high precision ADC
o Supports TCP、UDP、HTTP、FTP
o Integrated TR switch, balun,LNA, Power amplifier and matching network
o Integrated PLL, Regulator and power source management components, +20 dBm output power in
802.11b mode
o Average working current80mA, <Deep sleep current < 20uA, Power down leakage current < 5uA
o Rich interface on processor: SDIO 2.0, SPI, UARTl
o Wake up ,build the connection and transmit packets in < 2ms
o Standby power consumption < 1.0mW (DTIM3)
o Support AT remote upgrades and cloud OTA upgrade
o Support Station / SoftAP / SoftAP+Station operation modes
o Ultra-Small 20.2mm * 17.6mm * 3.05mm
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 6 / 14

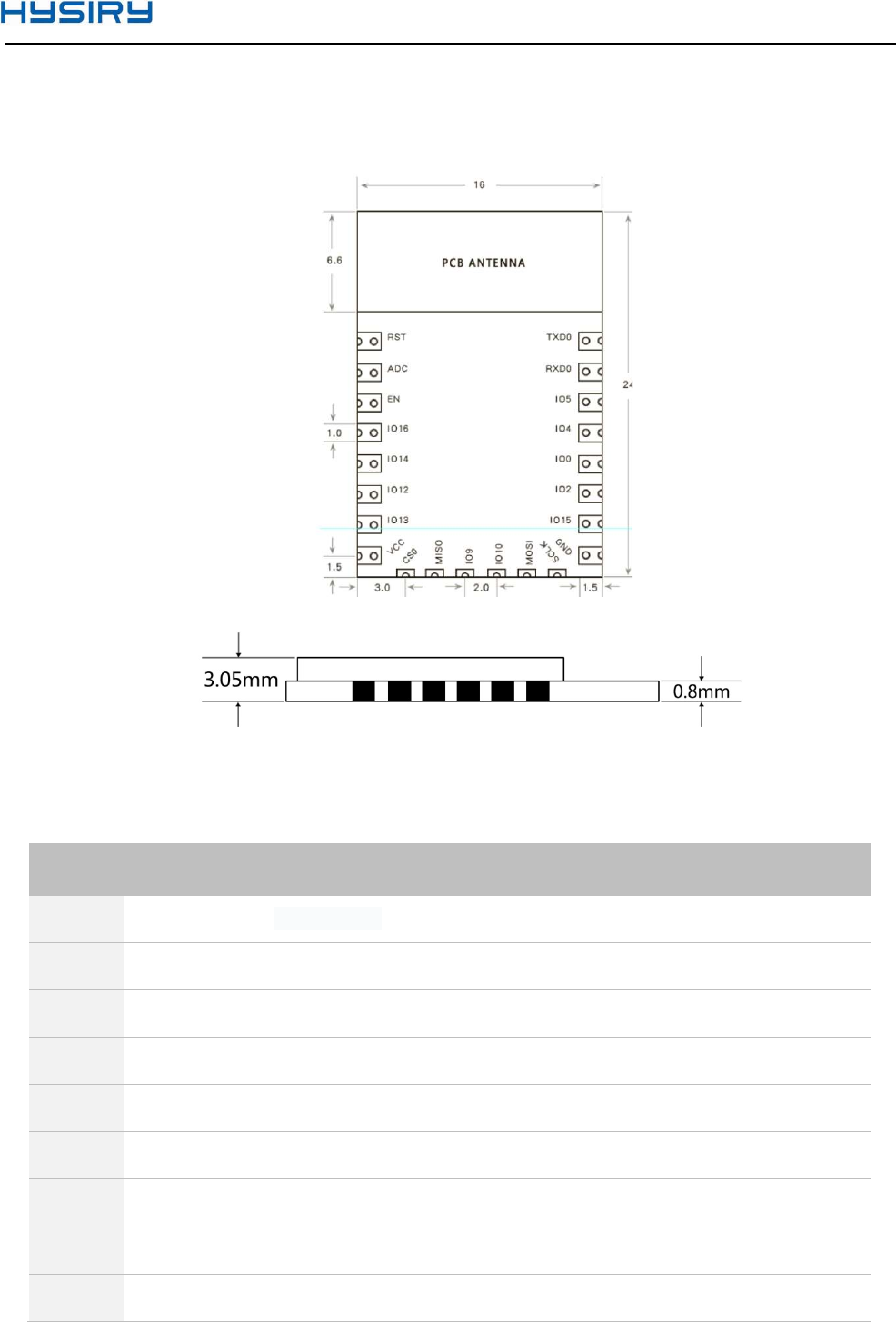

3. Pin description
Figure -3. Pin description
Figure -4.Module Size - shieldingcase (Side View)
Table -1. ESP8266-12H Pin Definitions
No. Pin Name Functional Description
1 RST Reset module
2 TOUT Tests the power-supply voltage of VDD3P3 and the input power voltage of
TOUT.These two functions cannot be used simultaneously.
3 EN Chip enable pin (cannot be floating). Active high.GPIO14；HSPI_CLK
4 IO16 GPIO16
5 IO14 GPIO14； HSPI_CLK
6 IO12 GPIO12：HSPI_MIS0 MIDO； HSPICS；UART0_RTS
7 IO13 GPIO13； HSPI_MOSI；UART0_CTS
8 VCC 3.3 V power supply (VDD)
Note:It is recommended the maximum output current a power supply
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 7 / 14
provides be of 500 mA or above. GPIO2；UART1_TXD
9 CS0 Chip Selection
10 MISO MISO
11 IO9 GPIO9
12 IO10 GPIO10
13 MOSI MOSI
14 SCLK CLK
15 GND Ground
16 IO15 GPIO15；MTDO；HSPICS；UART0_RTS
17 IO2 GPIO2；UART1_TXD
18 IO0 GPIO0
19 IO4 GPIO4
20 IO5 GPIO5
21 RXD UART0_RXD, receive end in UART download；GPIO3
22 TXD UART0_TXD, transmit end in UART download, floating (internal pull-up) or
pull up；GPIO1
4. Functional Description
4.1 MCU
ESP8266EX contained in the ESP8266-12H integrates Tensilica L106 32-bit micro controller (MCU) and a 16-
bit RSIC. The CPU clock speed is 80 MHz and can reach a maximum value of 160 MHz. The system can readily run a
Real Time Operating System (RTOS). Currently, the Wi-Fi stack only takes up 20% of CPU time. The remaining CPU
time (80% of total MIPS) can be used for user application. The MCU can work in conjunction with the other parts
of the chip through the following interfaces.
Programmable RAM/ROM interface (iBus) that connects to memory controller and can access the
external flash.
Data RAM interface (dBus) that connects to memory controller.
AHB interface that accesses the register.
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 8 / 14
4.2 Memory
4.2.1 Internal SRAM and ROM
ESP8266EX Wi-Fi SoC integrates memory controller including SRAM and ROM. MCU can access the memory
controller through iBus, dBus, and AHB interfaces. All these interfaces can access ROM or RAM units. A memory
arbiter determines the running sequence in the arrival order of requests.
According to our current version of SDK, SRAM space available to users is assigned as below.
RAM size < 50 kB, that is, when ESP8266EX is working in Station mode and connects to the router,
available space in Heap + Data sector is around 50 kB.
There is no programmable ROM in ESP8266EX, therefore, user program must be stored in the SPI flash
integrated into the ESP8266-12H.
4.2.2 SPI Flash
ESP8266EX supports SPI flash. Theoretically speaking, ESP8266EX can support up to 16 MB SPI flash.
ESP8266-12H. currently integrates 8 Mbit SPI flash memory. ESP8266-12H supports these SPI modes:
Standard SPI, DIO (Dual I/O), DOUT (Dual Output), QIO (Quad I/O) and QOUT (Quad Output).
4.3 Interface Description
Table -2. Interface Description
Interface Pin Functional Description
SPI IO12(MISO),IO13(MOSI),
IO14(CLK),IO15(CS)
S3 can control SPI Slave as a Master or communicate with
Host MCU as a Slave. In overlap mode, S3 can share the SPI
interface with Flash, shifted by different CS signals.
PWM Any available GPIO
(EXCEPT GPIO16)
Currently the demo provides 4 PWM channels (users can
extend to 6 channels). PWM interface can realize the control
of LED lights, buzzers, relays, electronic machines, etc.
IR Any available GPIO
(EXCEPT GPIO16)
The functionality of Infrared remote control interface can be
implemented via software programming. NEC coding,
modulation, and demodulation are used by this interface. The
frequency of modulated carrier signal is 38KHz.
ADC TOUT
ESP8266EX integratesa 10-bit precision SARADC.
ADC_IN interface is used to test the power supply voltage of
VDD3P3(Pin 3 and Pin 4), as well as the input voltage of TOUT
(Pin 6). It can be used in sensors application.
I2C
IO14(SCL), IO2(SDA)
Any available
GPIO(EXCEPT GPIO16)
Can connect to external sensor and display, etc.
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 9 / 14
UART
UART0:
TXD(U0TXD),RXD(U0RXD)
,IO15(RTS),IO13(CTS)
Devices with UART interfaces can be connected
Download：U0TXD+U0RXD or GPIO2+U0RXD
Communication：
(UART0):U0TXD,U0RXD,MTDO(U0RTS),MTCK(U0CTS)
Debug：UART1_TXD(GPIO2)Can be used to print debugging
information
UART1: IO2(TXD)
By default, UART0 will output some printed information when
the device is powered on and is booting up. If this issue exerts
influence on some specific applications, users can exchange
the inner pins of UART when initializing, that is to say,
exchange U0TXD, U0RXD with U0RTS, U0CTS.
I2S
I2S input：
IO12 (I2SI_DATA);
IO13 (I2SI_BCK );
IO14 (I2SI_WS);
Mainly used for audio capturing, processing and transmission
I2S output:
IO15 (I2SO_BCK );
IO3 (I2SO_DATA);
IO2 (I2SO_WS );
5. Electrical Characteristic
5.1 Standby Power Consumption
Table -3. Standby Power Consumption
Mode Status Typical Value
Standby
Modem Sleep 15mA
Light Sleep 0.9mA
Deep Sleep 20uA
Off 0.5uA
Working（Average） 80mA
Tx 801.11b，CCK 11Mbps，P OUT=+17 dBm 170mA
Tx 801.11g，OFDM 54Mbps，P OUT =+15 dBm 140mA
Tx 801.11n，MCS7，P OUT =+13 dBm 120mA
Rx 801.11b，1024 bytes packet length，-80 dBm 50mA
Rx 801.11g，1024 bytes packet length，-70 dBm 56mA
Rx 801.11n，1024 bytes packet length，-65 dBm 56mA
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 10 / 14
The following current consumption is based on 3.3V supply and 25°C ambient with internalregulators.Values
are measured at antenna port without SAW filter. All the transmissionmeasurements valuesare based on 90%
duty cycle, continuous transmission mode.
Table -4.Standby Power Consumption
Mode Status Typical Value
Standby
Modem Sleep 15mA
Light Sleep 0.9mA
Deep Sleep 20uA
Off 0.5uA
Power Save Mode
(2.4G)
(Low Power Listen
disabled) ¹
DTIM period Current Cons. (mA) T1 (ms) T2 (ms) Tbeacon (ms) T3
(ms)
DTIM 1 1.2 2.01 0.36 0.99 0.39
DTIM 3 0.9 1.99 0.32 1.06 0.41
①: Modem-Sleep requires the CPU to be working, as in PWM or I2S applications. According to802.11
standards (like U-APSD), it saves power to shut down the Wi-Fi Modem circuit whilemaintaining a Wi-Fi
connection with no data transmission. E.g. in DTIM3, to maintain a sleep 300mswake 3ms cycle to receive AP’s
Beacon packages, the current is about 15mA.
②: During Light-Sleep, the CPU may be suspended in applications like Wi-Fi switch. Without
datatransmission, the Wi-Fi Modem circuit can be turned off and CPU suspended to save poweraccording to the
802.11 standard (U-APSD). E.g. in DTIM3, to maintain a sleep 300ms-wake 3mscycle to receive AP’s Beacon
packages, the current is about 0.9mA.
③: Deep-Sleep does not require Wi-Fi connection to be maintained. For application with long timelags
between data transmission, e.g. a temperature sensor that checks the temperature every 100s,sleep 300s and
waking up to connect to the AP (taking about 0.3~1s), the overall average current isless than 1mA.
5.2 RF Performance
Table -5. RF Performance
Description Min Typ Max Unit
Input frequency 2400 / 2483.5 MHz
Input impedance / 50 / ohm
Input reflection / / -10 dB
PA output power at 72.2
Mbps 15.5 16.5 17.5 dBm
PA output power in 11b
mode 19.5 20.5 21.5 dBm
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 11 / 14
Sensitivity
CCK，1Mbps / -98 / dBm
CCK，11Mbps / -91 / dBm
6Mbps（1/2 BPSK） / -93 / dBm
54Mbps（3/4 64-QAM） / -75 / dBm
HT20，MCS7（65Mbps，
72.2Mbps） / -72 / dBm
Adjacent channel rejection
OFDM，6Mbps / 37 / dB
OFDM，54Mbps / 21 / dB
HT20，MCS0 / 37 / dB
HT20，MCS7 / 20 / dB
5.3 Digital Terminal Characteristics
Table -6. Digital Terminal Characteristics
Terminals Symbol Min Max Unit
Input logic level low VIL -0.3 0.25 VDD V
Input logic level high VIH 0.75 VDD VDD + 0.3 V
Output logic level low VOL N 0.1 VDD V
Output logic level high VOL 0.8 VDD N V
5.4 Absolute Maximum Ratings
Table -7. Absolute Maximum Ratings
Rating Condition Value Unit
Storage temperatue / -40 to 125 °C
Maximum soldering
temperature / 260 °C
Supply voltage IPC/JEDEC J-STD-020 +3.0 to +3.6 V
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 12 / 14
5.5 Reflow Profile
Table -8. Reflow Profile
Indicator Value
Ramp-up Rate (TS Max to TL) 3 °C /second max.
Prehea
Temperature Min. (TS Min.)
Temperature Typ. (TS Typ.)
Temperature Min. (TS Max.)
Time (TS)
150°C
175°C
200°C
60 ~ 180 seconds
Ramp-up Rate (TL to TP) 3°C /second max
Time maintained above: Temperature
(TL)/Time (TL) 270°C / 60 ~ 150 seconds
Peak temperature (TP) 260 °C max, for 10 seconds
Target Peak Temperature (TP Target) 260 °C + 0 / -5°C
Time within 5°C of actual Peak Temperature
(TP) 20 ~ 40 seconds
TS max to TL (Ramp-down Rate) 6°C / second max.
Time 25°C to Peak Temperature (t) 8 minutes max.
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 13 / 14
6. Schematics
Figure -5. ESP8266-12H Schematics
7. Minimum System Requirements
Figure -6. ESP8266-12H minimum system
8. Switching noise control
ESP8266-12H has high speed GPIO and peripheral interfaces which can create severe switching noise. In
applications where power consumption and EMI profile are important, it is recommended that a series resistor of
10-100 ohms be placed with digital I/O. This limits overshoot during switching and results in smoother transitions.
A series resistor may also protect from ESD to some extents.
Shenzhen Hysiry Technology Co.,Ltd T：0755-23596457 14 / 14
9. Technical Support
E-mail：technical@hysiry.com
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
The modular can be installed or integrated in mobile or fix devices only. This modular cannot be
installed in any portable device.
FCC Radiation Exposure Statement
This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This modular must be installed and operated with a minimum distance
of 20 cm between the radiator and user body.
If the FCC identification number is not visible when the module is installed inside another device,
then the outside of the device into which the module is installed must also display a label
referring to the enclosed module. This exterior label can use wording such as the following:
“Contains Transmitter Module FCC ID: 2AKBPESP826612H Or Contains FCC ID:
2AKBPESP826612H”When the module is installed inside another device, the user manual of the
host must contain below warning statements;
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The devices must be installed and used in strict accordance with the manufacturer's instructions
as described in the user documentation that comes with the product.
Any company of the host device which install this modular with Single modular approval should
perform the test of radiated emissionand spurious emission according to FCC part 15C : 15.247
and 15.209 requirement,Only if the test result comply with FCC part 15C : 15.247 and 15.209
requirement，then the host can be sold legally.
