Hysiry Technology Q6 SMART LAMP User Manual smart bulb x
Shenzhen Hysiry Technology Co., Ltd. SMART LAMP smart bulb x
User Manual
第1页共7页
Smart bulb User Manual

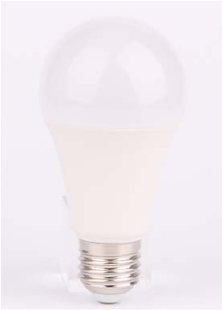

ProductSchematic
Featuresofsmartbulblight:
1. Controlled by mobile phones from anywhere at anytime
2. Free app smart life supports Android and iOS systems, simple to use
3. Timer for schedules setting
4. Energy monitoring for energy saving plan
5. Voice control: works with Amazon Alexa and Google home
6. Wide voltage suitable for AC100~250V 50Hz/60Hz
7. Connection: Wi-Fi
Specifications:
Rated power: 10W
Input voltage: AC100~250V 50Hz/60Hz
Lumen: 850lm
Light source: LED
CRI: ≥80Ra
Switch life: 15000 times
Lamp luminous efficiency: 80lm/W
Power factor: 0.6
Color temperature: 6000K~6500K + RGB
Working temperature:-20 to 40°C
Base: E14/E27/E40
Connection: Wi-Fi
第2页共7页
Easy installation - There are 3 steps to start your smart life. Scan the QR code to
download the APP, install the lamp and use the APP to control the Wi-Fi bulb.If you do not
linked, it just a normal bulb, but once you linked it to your Amazon Echo/Goole home, you
can control it with voice, Turns on and off the light, and the changing of the color which is
very interesting

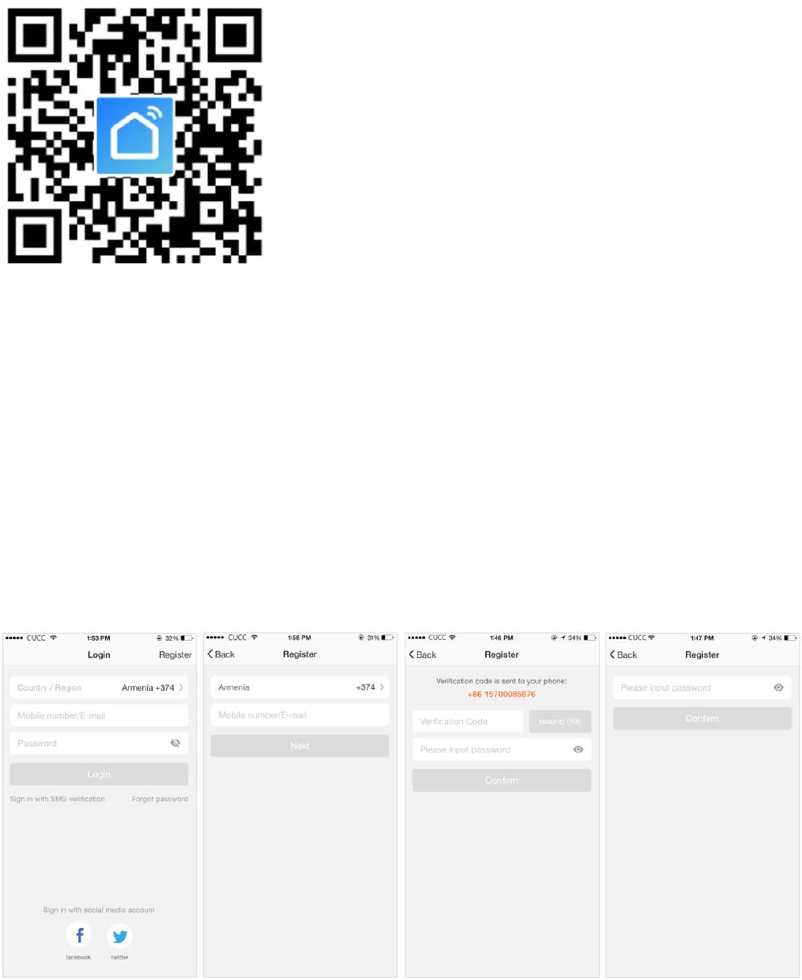

Use your phone to scan the QR code below or search “smart life” in
application market to download and install the App
Step 1: Registration and login "smart life" APP.
If you don't have the account of “Smart life” APP,register an account or sign in with
cellphone number + verification code.This page describes the Registration process.
1.Tap“Register”in the upper right（pic 1）
2.The system automatically determines your country / area.You can also select your
country code by yourself. Enter the cellphone number/E-mail and tap “Next” （pic 2）
3.If you enter the mobile cellphone number，enter the verification code in the message
（pic 3），and enter the password，tap"Confirm" to finish your registration.
4.If you enter the E-mail，enter the password （pic 4），tap” Confirm" to finish your
registration.

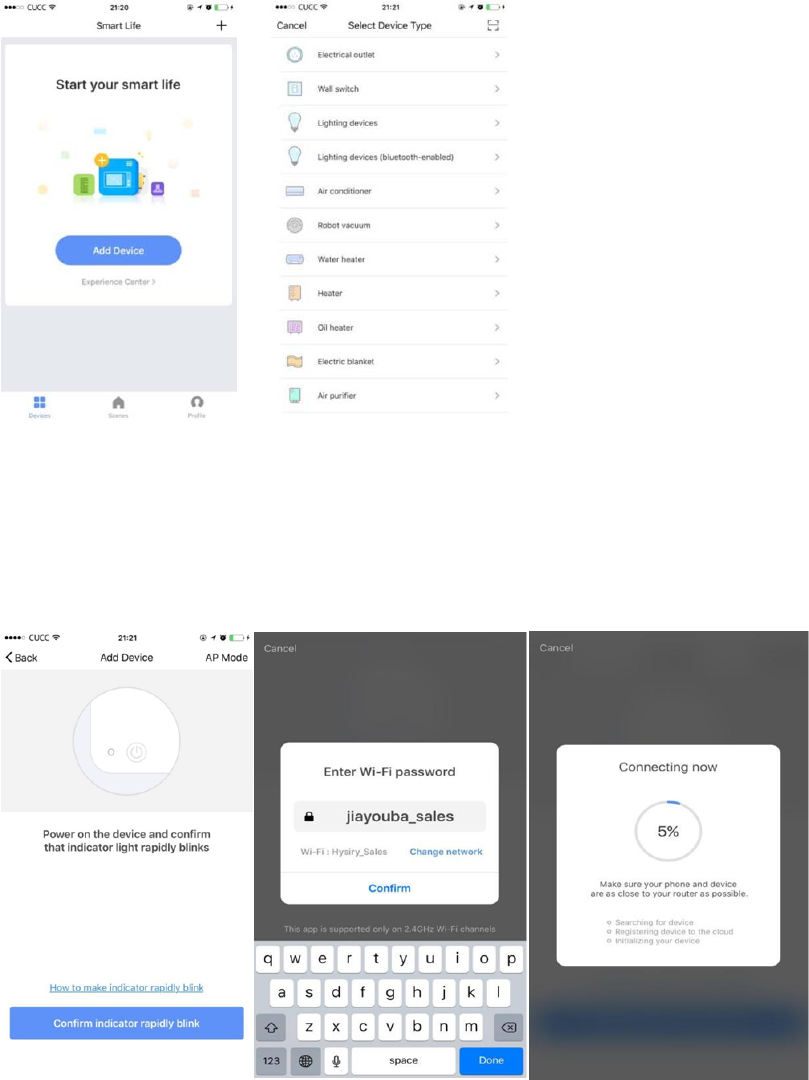

Make sure your phone is connected to WiFi in your home. Click "+" in the upper right
corner of the homepage and select "Lighting devices" from the device type.
第3页共7页
Step 2: Connect with the power supply, Make sure the WiFi smart bulb is standby(the
white light flash rapidly ) Select confirm indicator rapidly blinks.
Step 3: Enter your WiFi password for your phone and click "Confirm" to enter the
page of the search device.

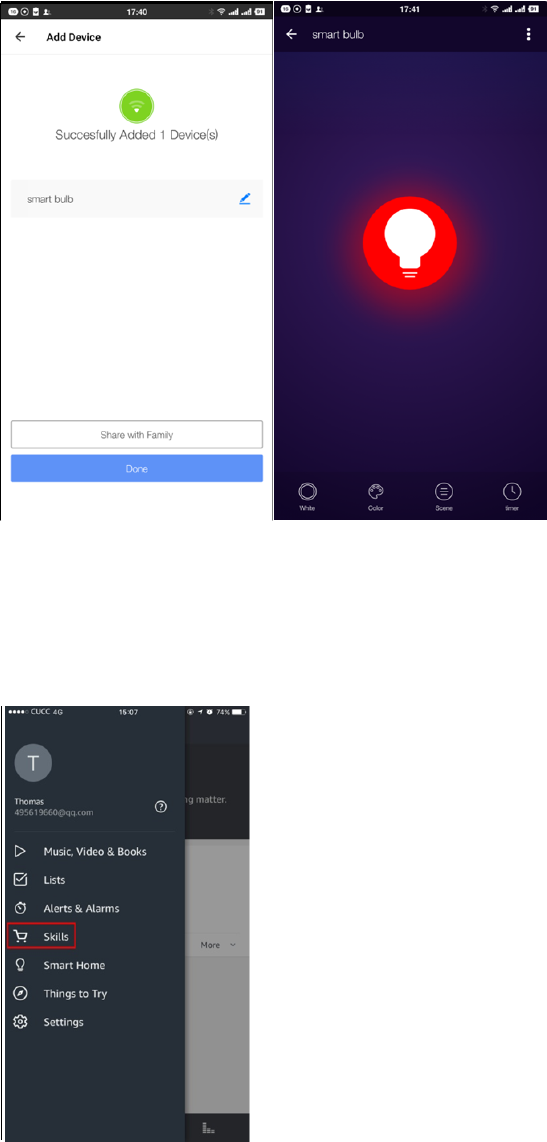

Step 4: Enter the device page, then complete the configuration
第4页共7页
How to use Amazon Echo to control your Smart devices?
Step 1: Open the” Amazon Alexa”APP,then find the “Skills “button on the menu. Press
it.
第5页共7页

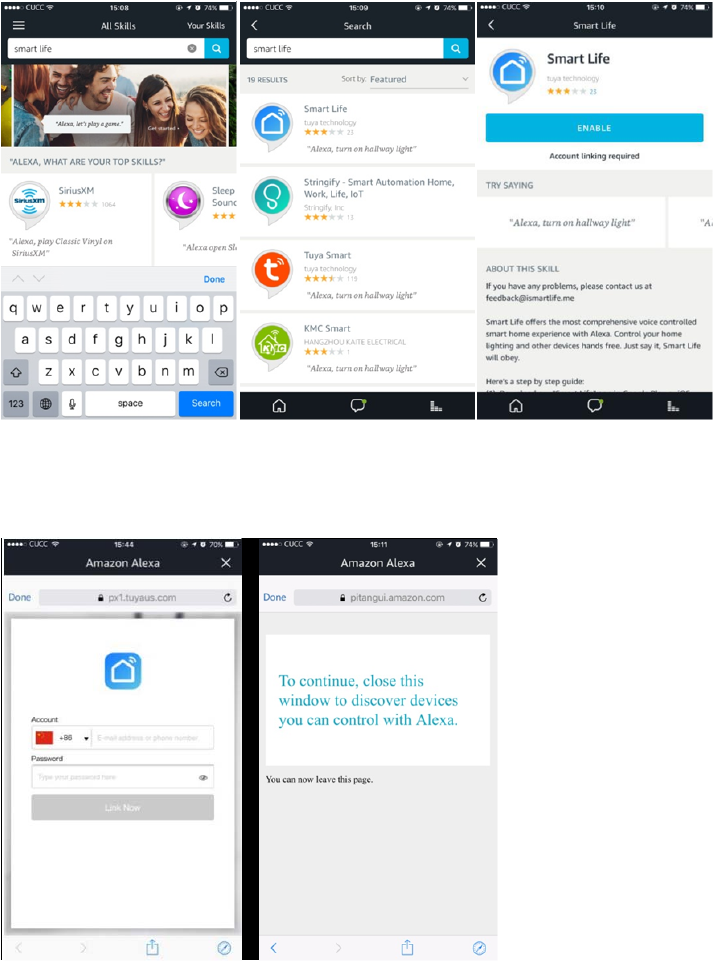

Step 2: Search the” Smart life” and choose the first one, then Enable it.
Step 3: Select your country code and Enter your “Smart life” APP Account and
Password, then press the “Link Now” button. When the Account success to login
press the “Done” button.
第6页共7页

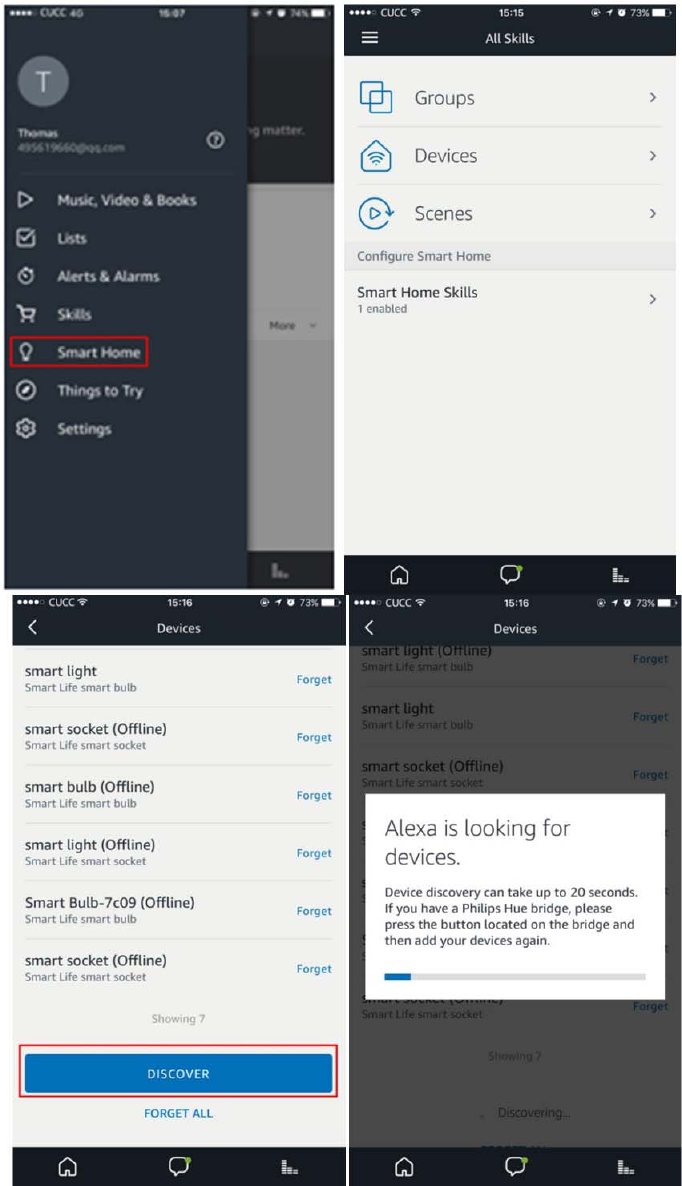

Step 4: Back to the menu, and press the “Smart home” button, then choose the
“Devices”, then press the ”Discover” button.
Step 5: Now you can use your Alexa to control your Smart devices, enjoy yourself.
第7页共7页
FCC Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party.
Responsible for compliance could void the user’s authority to operate this
equipment. (Example- use only shielded interface cables when connecting to
computer or peripheral devices).
This equipment complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
FCC Radiation Exposure Statement:
The equipment complies with FCC Radiation exposure limits set forth for
uncontrolled enviroment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.
.
