Instructions
Do not install this product near any object with strong magnetism to avoid potential damage.
Do not place the product in an environment which is too hot or too damp; otherwise, permanent
damage may occur.
Work with our dispatch workstation only.
Checking Items in the Package
Please unpack carefully and check that all items listed below are received. If any item is missing or
damaged, please contact your dealer.
No. Name Qty.
1 Gooseneck Microphone 1
2 Microphone Base 1
3 Owner’s Manual 1
4 Foam Windscreen 1
5 Disk 1
Product Controls

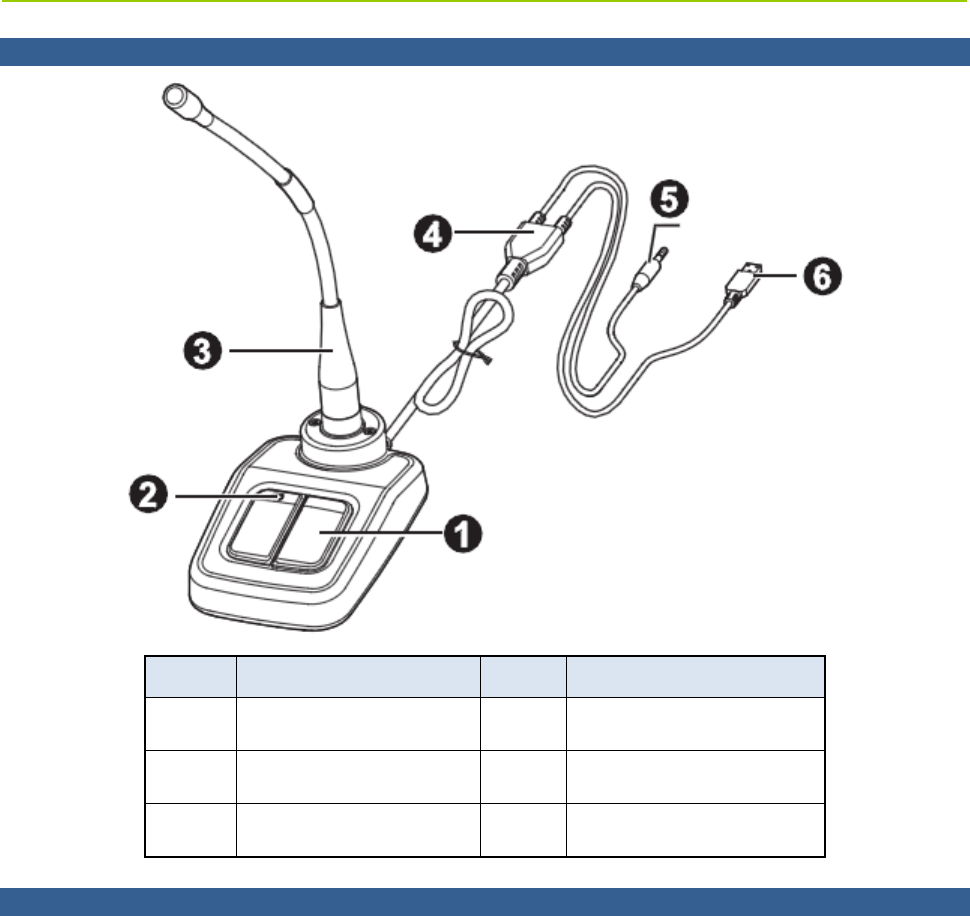

No. Part Name No. Part Name
1 PTT Key 4 Cable Distribution Head
2 Status LED 5 Audio Plug
3 Gooseneck Microphone
6 USB Connector
Product Overview
The gooseneck microphone is a unidirectional condenser microphone with the PTT key. It features wide
frequency response and dynamic range, making it suitable for dispatching application.
Features:
Quick-mount design with the Cannon connector.
Cardioid pickup pattern to capture audio from the front while eliminating unwanted background noise.
Wide dynamic range and frequency response for clean and accurate vocal reproduction.
On-base PTT design for convenient operation.
Flexible gooseneck for easy positioning and adjustment.
Installation and Operation
Installing the USB Driver
Step 1 Insert the disk into the optical drive of the computer.
Step 2 Open the “Document” folder in the “UPort 1100” directory and Install this driver according to
Section Driver Installation in the “UPort_1100_Series_Users_Manual_v5” document.
Note
The driver installation is subject to the edition and bit of the operating system. The “X64” folder in the
installation package is applied to the operating system (64-bit), while the “X86” folder in the
installation package is applied to the operating system (32-bit),

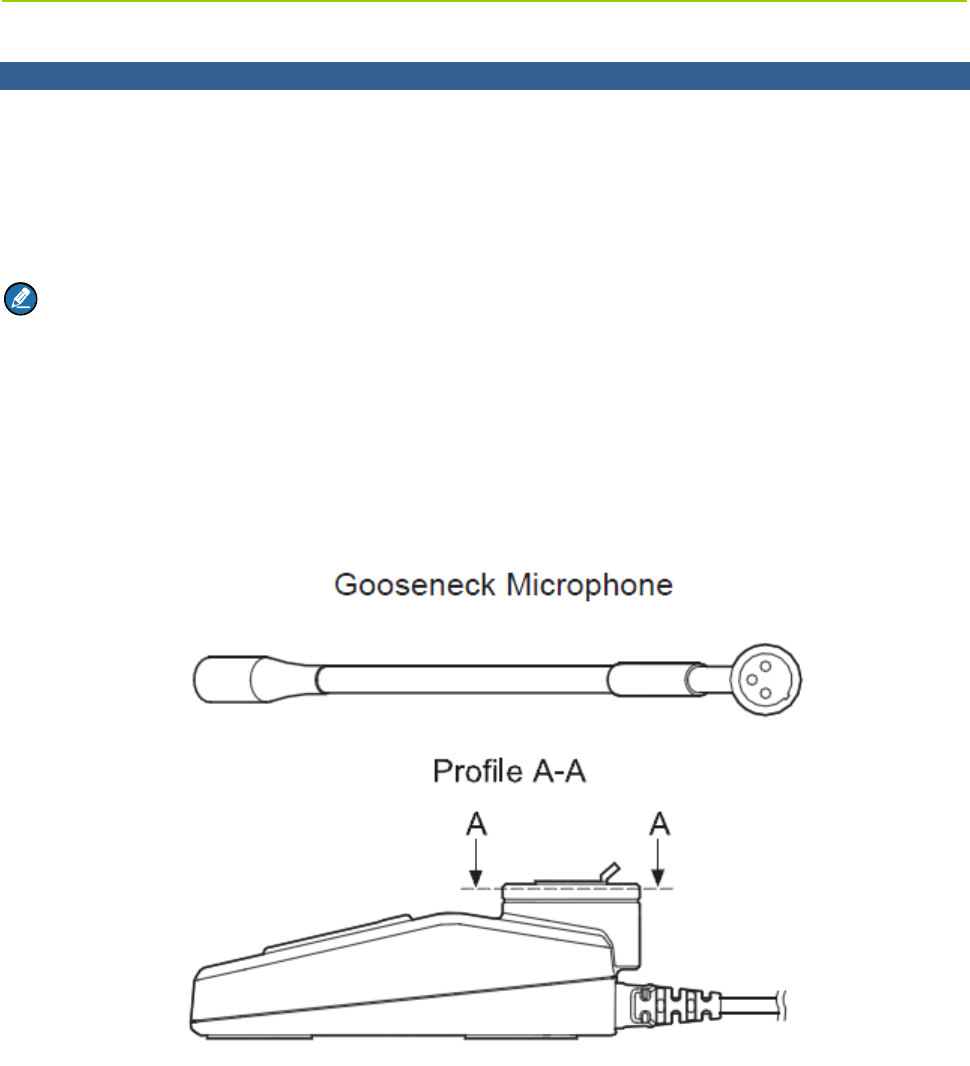

Assembling the Gooseneck Microphone

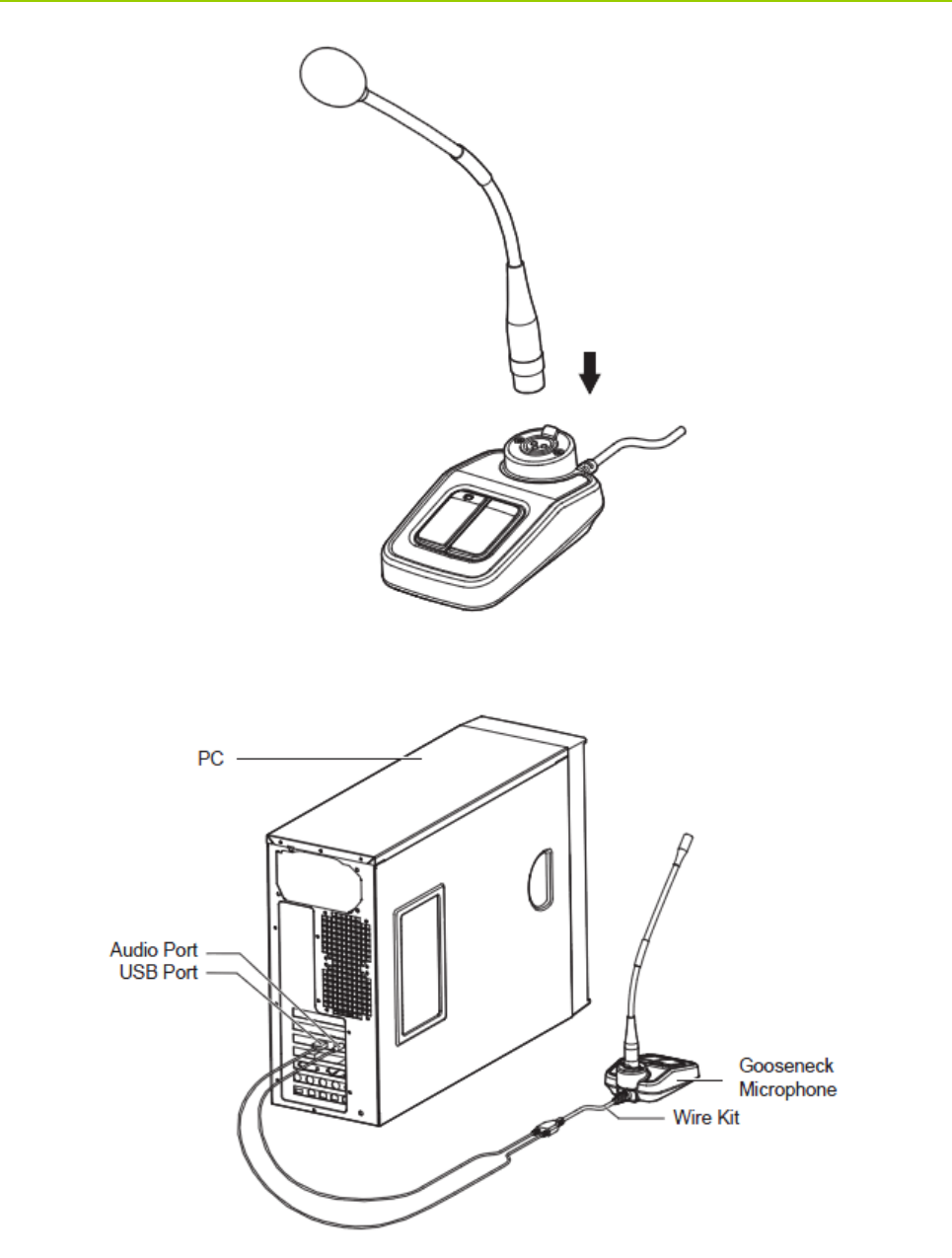

Plug the gooseneck microphone into the jack on the microphone base. See the figure below.
Connecting the Gooseneck Microphone to the PC
1. Insert the audio plug from the wire kit into the audio port on the PC.
2. Insert the USB connector from the wire kit into the USB port on the PC.
Using the Gooseneck Microphone
Hold the PTT key to speak.
To ensure optimal voice performance, hold the microphone approximately 10cm away from your mouth.
Disassembling the Gooseneck Microphone

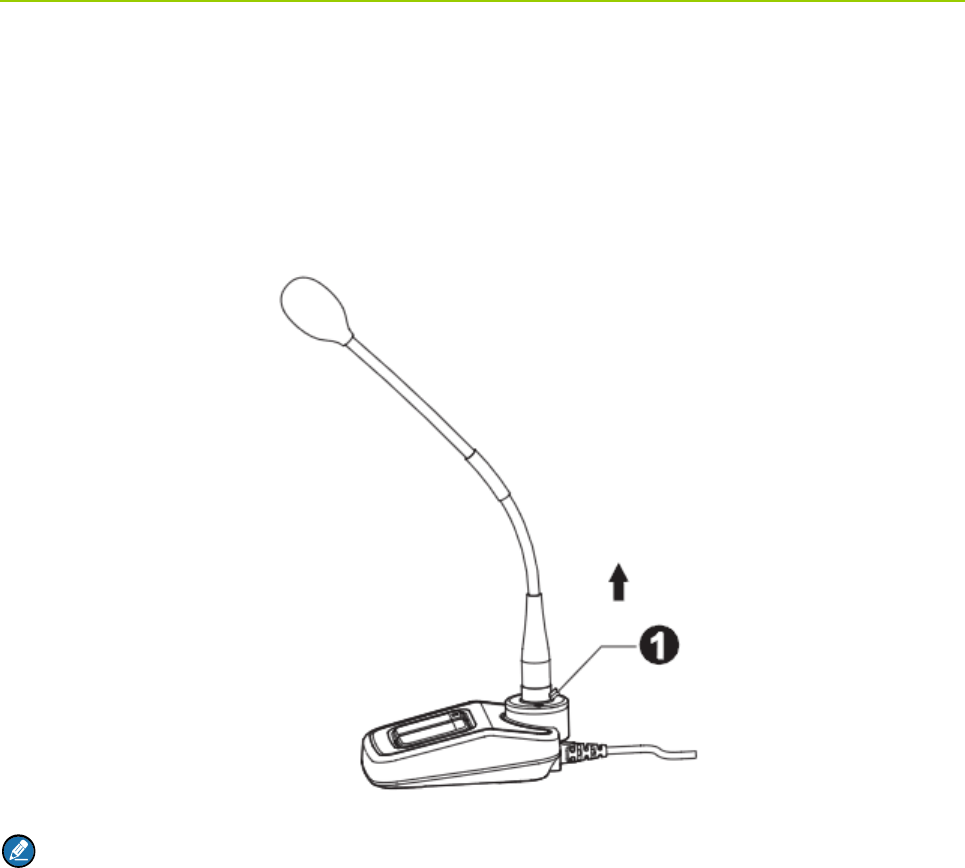

Press the buckle on the microphone base, and take the microphone out. See the figure below.
Note: “①” refers to the buckle.
Specification
Element Condenser (electrets)
Polar Pattern Cardioid
Frequency
Response
50 - 16,000Hz
Sensitivity -39dB V/Pa(11.2mV)
Impedance 200Ω
Finish Black
Microphone
Connector
XLR3M
Power Supply 5V 150mA
Audio Plug ￠3.5mm
Temperature Operating temperature range: -10℃ - +40℃
Storage temperature range: -20℃ - +60℃
Humidity 20% ~85%
Mean Time
Between Failure
25,000 hours
Net Weight 600g (21.2 oz)
