Hytera Communications MD65XU2 Digital Mobile Radio User Manual 811MD65000000 MD65X Hytera
Hytera Communications Corporation Ltd. Digital Mobile Radio 811MD65000000 MD65X Hytera
User Manual
811MD65000010
L07157 Z07639 C10524
2013 Hytera Corp., Ltd.
: !" #
$%:
&'(): - -
:..
9108
518057
400 830 7020
http //www hytera com
2014
*+,/01
OWNER'S MANUAL
DIGITAL MOBILE RADIO
23456
Hytera Communications Corporation Limited.
Hytera Communications Corporation Limited.
Preface
Thanks for your favor in our product. This manual is helpful for you to quickly know how to use the product.
Please refer to the corresponding Feature Book for detailed features and operations.
This manual is applicable to the following product:
MD65X Digital Mobile Radio
(X may represent 2, 5, 6 or 8)
Instructional Icons
: Indicates functions that are available on digital
channel only.
: Indicates functions that are available on analog
channel only.
Functions marked with neither the above icons are
available on both analog and digital channels.
Disclaimer
Hytera Communications Corporation Limited (the
Company) endeavors to achieve the accuracy and
completeness of this manual, but no warranty of
accuracy or reliability is given. All the specifications
and designs are subject to change without notice due
to continuous technology development. No part of
this manual may be copied, modified, translated, or
distributed in any manner without the express written
permission of us.
We do not guarantee, for any particular purpose,
the accuracy, validity, timeliness, legitimacy or
completeness of the Third Party products and contents
involved in this manual.
If you have any suggestions or would like to learn more
details, please visit our website at: http://www.hytera.
com.
RF Radiation Information
This product must be restricted to operations in an
occupational/controlled RF exposure environment.
Users must be fully aware of the hazards of the
exposure and able to exercise control over their RF
exposure to qualify for the higher exposure limits.
RF Radiation Profile
Radio Frequency (RF) is a frequency of
electromagnetic radiation in the range at which radio
signals are transmitted. RF technology is widely used
in communication, medicine, food processing and
other fields. It may generate radiation during use.
RF Radiation Safety
In order to ensure user health, experts from relevant
industries including science, engineering, medicine
and health work with international organizations to
develop standards for safe exposure to RF radiation.
These standards consist of:
●United States Federal Communications
Commission, Code of Federal Regulations; 47CFR
part 2 sub-part J;
●American National Standards Institute (ANSI)/
Institute of Electrical and Electronic Engineers
(IEEE) C95. 1-1992;
●Institute of Electrical and Electronic Engineers
(IEEE) C95.1-1999;
●International Commission on Non-Ionizing
Radiation Protection (ICNIRP) 1998.
FCC Regulations
Federal Communication Commission (FCC) requires
that all radio communication products should meet the
requirements set forth in the above standards before
they can be marketed in the U.S, and the manufacturer
shall post a RF label on the product to inform users
of operational instructions, so as to enhance their
occupational health against exposure to RF energy.
Operational Instructions and
Training Guidelines
To ensure optimal performance and compliance with
the occupational/controlled environment RF energy
exposure limits in the above standards and guidelines,
users should transmit not more than 50% of the time
and always adhere to the following procedures:
●Antenna gain must not exceed 5dBi.
●The antenna installation must comply with the
requirements of manufacturer or supplier, and it
must be 1.0 meter away from human body.
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in
compliance with the essential requirements and other
relevant provisions of the Directive 1999/5/EC.
Please note that the above information is applicable to
EU countries only.
1
Contents
Items in the Package -------------------------------------------------------------------2
Product Overview ----------------------------------------------------------------------- 3
Radio Unit -------------------------------------------------------------------------- 3
Remote Speaker Microphone ------------------------------------------------3
Installation--------------------------------------------------------------------------------- 3
Instructions ------------------------------------------------------------------------3
Installation Tools -----------------------------------------------------------------3
Installation Procedure ---------------------------------------------------------- 3
Status Indication ------------------------------------------------------------------------ 4
LCD Ic o n ---------------------------------------------------------------------------- 4
LED Indi c at or ---------------------------------------------------------------------- 4
Bas ic Operat ions ------------------------------------------------------------------------ 5
Powering On/Off -----------------------------------------------------------------5
Adjusting the Volume -----------------------------------------------------------5
Selecting a Zone -----------------------------------------------------------------5
Selecting a Channel -------------------------------------------------------------5
Setting TX Power Level --------------------------------------------------------5
Call Services -----------------------------------------------------------------------------5
Calls on Digital Channel -------------------------------------------------5
Calls on Analog Channel (No Signaling) ---------------------------- 5
Features -----------------------------------------------------------------------------------6
Troubleshooting ------------------------------------------------------------------------- 6
Care and Cleaning ---------------------------------------------------------------------- 7
Optional Accessories ------------------------------------------------------------------ 7
2

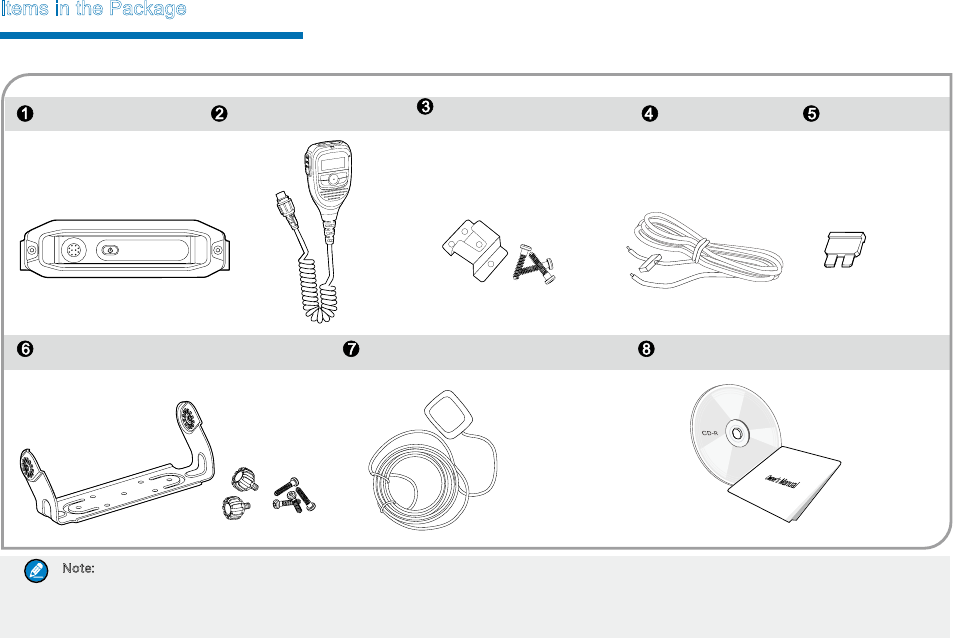

Items in the Package
Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer.
Note:•
•●The• GPS• antenna• is• the• standard• accessory• for• the• MD65X• with• GPS• feature.• The• frequency• band• is• marked• on• the• label• of• antenna;• if• not,• please•
refer• to• the• label• on• the• radio• for• frequency• band• information.•
•●Unless• otherwise• specified,• the• remote• speaker• microphone• mentioned• in• this• manual• refers• to• that• included• in• the• item• list.•
Mounting Bracket Kit GPS Antenna Documentation Kit
Radio Unit Remote Speaker Microphone Power Cord Fuse
Hanger and Screws for Remote
Speaker Microphone
3

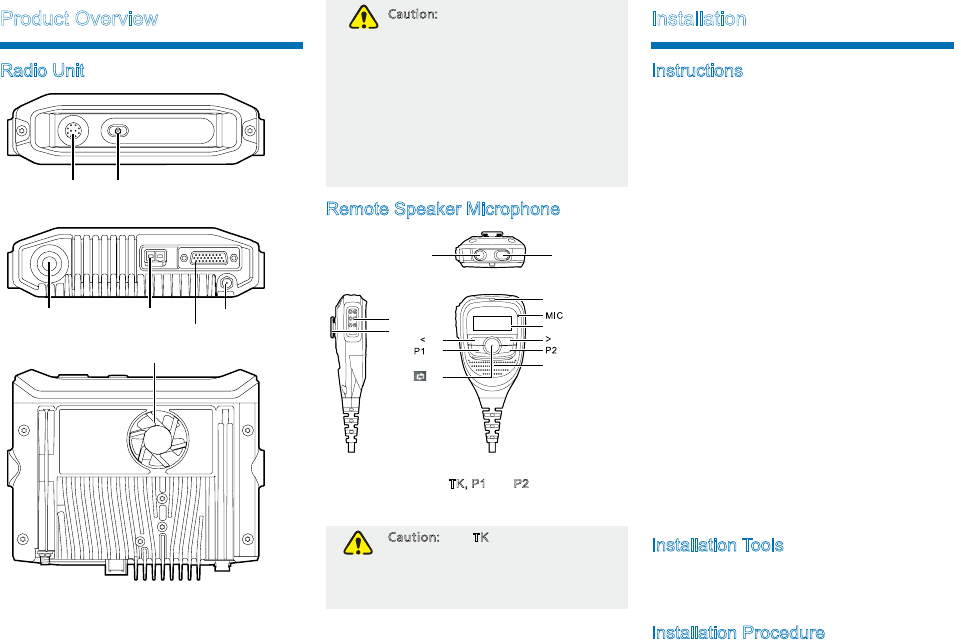

Product Overview
Radio Unit
Remote Speaker
Microphone
Connector
Power
On/Off Key
RF Antenna Connector Power Interface
Accessory Connector
GPS Antenna Connector
Fan
Caution:• •
•●GPS• antenna• connector• is• for• MD65X•
mobile• radio• with• GPS• feature• only.•
•●Do• not• block• the• ventilation• hole• of•
the• fan.•
•●Clean• the• fan• regularly.•
•●Do• not• stop• the• fan• with• hard• objects•
such• as• a• screwdriver• to• avoid• fan•
damage.•
•●Do• not• touch• the• fan• blades• when• the•
fan• operates• to• avoid• bodily• injury.•
Remote Speaker Microphone
For enhanced convenience, you may request your
dealer to program the TK, P1 and P2 keys as shortcuts
to certain functions. You may refer to the corresponding
Feature Book for more details.
Caution:• The• TK• is• programmed• with•
emergency• feature• by• default• (short•
press:• Emergency• On;• long• press:•
Emergency• Off).• It• is• programmable• by•
your• dealer.• •
Power On/Off Key
PTT Key
TK Key
LED Indicator
LCD Display
KeyKey
Key Key
Speaker
Key
Buckle
Installation
Instructions
Before you install the radio in a vehicle, be sure to read
the following instructions carefully:
●The radio must work with a 13.6V±15% negative
ground electrical system only. And ensure to check
the ground polarity and voltage of the vehicle
power supply prior to installation.
●Check how long the screws will extend from the
bottom surface of the radio before installation. Drill
the mounting hole cautiously to avoid damage to
the vehicle wiring and other parts.
●Connect the antenna and power cord to the radio,
before you install it in the bracket. And make sure
the antenna and power cord are dedicated for
digital radios of the Company.
●Install the radio with the mounting bracket supplied
by the Company, to avoid radio looseness in case
of accidents. The loose radio may cause bodily
injury.
●Install the radio in a location where it’s easy to
reach the front panel controls.
●Keep sufficient clearance at the back of the radio
for wiring.
●Be sure to use the fuse with the same specification
for DC power cord upon replacement.
●If there are any other device in the vicinity of this
radio, the distance between the antenna of this
radio and the antenna of such RF device shall be
no less than 10 meters.
Installation Tools
●Drill
●Cross head screwdriver
●Hex socket sleeve (for 4.8h20mm self-tapping
screws assembling)
Installation Procedure
To install the radio, do as follows:
4
1. Install the bracket in a location where it’s easy to
operate the radio.
2. Connect accessories such as the antenna and
power cord to the radio.
3. Slide the radio into the properly mounted bracket
and secure it using the locking knobs.
4. Install the remote speaker microphone hanger in a
location where it can be reached conveniently.
5. Plug the remote speaker microphone into the
radio, but at first align the triangle index on the
remote speaker microphone with the microphone
installation index on the microphone connector.
Place the remote speaker microphone on the
hanger when you do not use it.

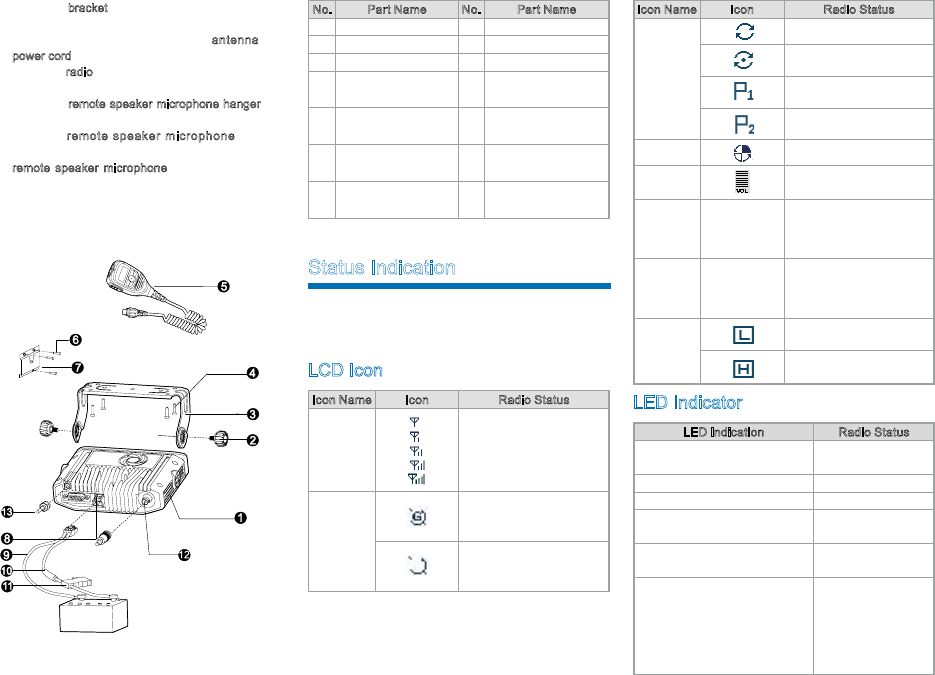

The parts of the radio are illustrated below:
No. Part Name No. Part Name
1 Radio Unit 8 Power Interface
2 Locking Knobs 9 Power Cord (black)
3 Mounting Bracket 10 Power Cord (red)
44.8×20mm Self-
tapping Screws 11 Fuse
5Remote Speaker
Microphone 12 RF Antenna
Connector
64×16mm Self-tapping
Screws 13 GPS Antenna
Connector
7Remote Speaker
Microphone Hanger //
Status Indication
The LCD display and LED indicators on the remote
speaker microphone indicate the operation status of
the radio.
LCD Icon
Icon Name Icon Radio Status
RSSI Icon More bars indicate better
signal strength.
GPS Icon
The GPS feature is
enabled, and valid GPS
data is received.
The GPS feature is
enabled, but no valid GPS
data is received.
Icon Name Icon Radio Status
Scan Icon
The radio is scanning.
The radio stays on a non-
priority channel.
The radio stays on Priority
Channel 1.
The radio stays on Priority
Channel 2.
Roam Icon The radio is roaming.
Volume
Icon
More bars indicate higher
volume.
Channel
Icon CHXX
Indicates the current
channel. “XX” denotes
the channel number, such
as “CH01”.
Zone Icon ZONEXX
Indicates the current
zone. “XX” denotes
the zone number, such as
“ZONE01”.
TX Power
Icon
Low TX power for the
current channel.
High TX power for the
current channel.
LED Indicator
LED Indication Radio Status
The LED indicator flashes
green. Powering on
The LED indicator glows red. Transmitting
The LED indicator glows green. Receiving
The LED indicator flashes
orange slowly. Scanning or roaming
The LED indicator flashes
orange rapidly. Emergency
The LED indicator glows
orange.
Call hung. During
a call, you can hold
down the PTT key
to talk to the other
party before the call
hang time expires.
5

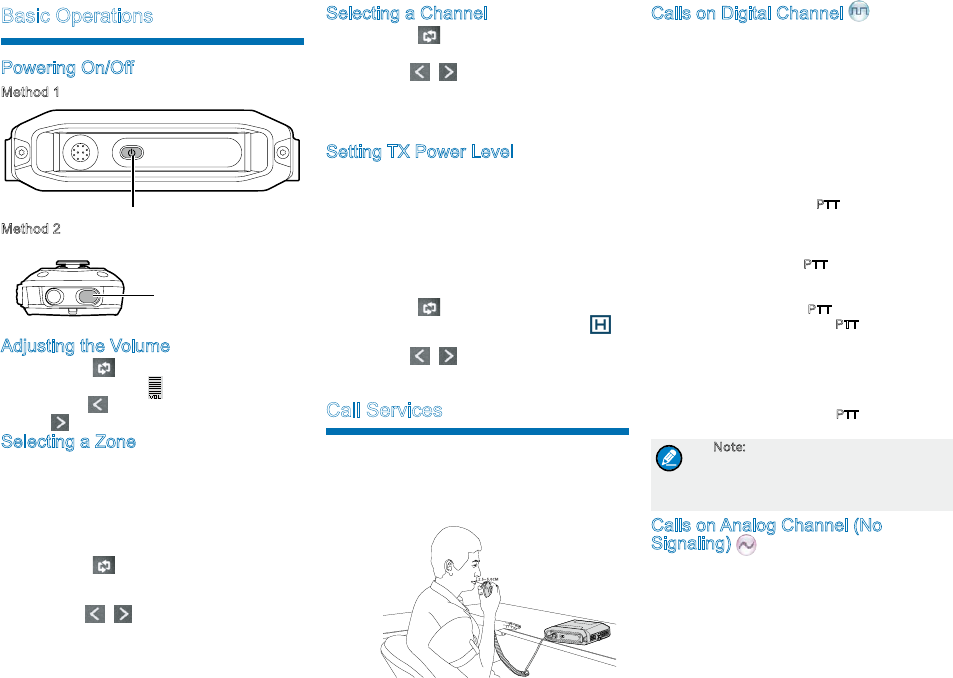

Basic Operations
Powering On/Off
Method 1
Method 2
Adjusting the Volume
1. Press the key on the remote microphone
speaker until the icon is shadowed.
2. Press the key to lower the volume and press
the key to increase it.
Selecting a Zone
A zone is a group of channels exhibiting the same
property, which is programmed by your dealer and can
facilitate convenient management over the channel.
The radio supports 64 zones, each of which consists of
up to 16 channels.
To select a zone, do as follows:
1. Press the key on the remote microphone
speaker until ZONEXX (e.g. ZONE01) is
shadowed.
2. Press the / key to select a zone.
Long press to power on/off
Long press to power on/off
Selecting a Channel
1. Press the key on the remote microphone
speaker until CHXX (e.g. CH01) is shadowed.
2. Press the / key to select a channel.
If the Channel Notify feature is enabled by your dealer,
the radio will announce the channel number upon
channel switching.
Setting TX Power Level
This feature is to set the TX power level to high or low.
High power can extend the signal coverage of the
radio, enabling you to communicate with farther radios.
Generally, we recommend you to adopt low power for
battery saving. However, if you cannot communicate
with radios located at a distant place with low power,
please select high power.
To set the TX power level, do as follows:
1. Press the key on the remote microphone
speaker until the TX power level Icon (e.g. ) is
shadowed.
2. Press the / key to switch power level.
Call Services
After the radio is powered on, you can make and
receive calls. To ensure optimal volume of the receiving
radio, keep the palm microphone about 2.5 to 5
centimeters away from your mouth when transmitting.
Calls on Digital Channel
You can initiate a private call, group call or all call (your
radio must be programmed to allow you to use the all
call service) through the same operations on digital
channel.
When calling back, the radio will make a call to the
calling party in private call and all call (your radio must
be programmed to allow you to call back in an all call);
but in group call, the radio will make a call to all parties
involved. Here takes the private call between Radio A
and Radio B as example:
1. Radio A and B select the same digital channel.
2. Radio A holds down the PTT key to initiate a call.
Radio A may preset a regular private call/group
call/all call contact for each digital channel via the
dealer.
3. By holding down the PTT key, Radio A can talk
to the microphone when the LED indicator on the
radio glows red.
4. Radio A releases the PTT key to finish talking.
Radio A can hold down the PTT key to talk when
the LED indicator on the radio is glowing orange.
When receiving, the LED indicator on the radio
glows green.
5. Radio B can receive the call without any operation.
When receiving, the LED indicator glows green.
6. Radio B can hold down the PTT key to talk when
the LED indicator on the radio is glowing orange.
Note:• The• Call• Hang• Time• (the• duration•
of• LED• indicator• glowing• orange)• is•
preset• by• your• dealer.• If• neither• party•
talk• before• this• duration• expires,• the•
call• will• end.•
Calls on Analog Channel (No
Signaling)
On the analog channel without signaling, the calling
operations are the same as that on the digital channel.
The difference is that the called parties are all the
users on the channel, rather than the preset contact for
the channel.
Please refer to the corresponding Feature Book for
operation description on how to make and receive calls
on the analog channel with signaling.
6
Features
Available features of this radio are listed below. Please
refer to the corresponding Feature Book for details.
Feature Type Detailed Feature
Radio Features
●Radio setting: Power Level,
LED Indicator and Alert Tone
●Convenient functionality:
Shortcuts, One Touch Call and
VOX
●Security: Lone Worker
●Rent
●Audio Optimization
●Positioning
Conventional
Common
Features
●Scan
●Talk Around
Digital Features
●Access management
●Basic voice services: Private
Call and Group Call (See Calls
on Digital Channel in this
manual)
●Auxiliary voice services: All Call
(See Calls on Digital Channel
in this manual) and Phone
●Security
●Supplementary services
●Patented features
●Mobility management
Analog
Features
●Access management
●Voice services (See Calls on
Analog Channel (No Signaling)
in this manual)
●Security
●Signaling
Features
Developed with
Third Party
●API
●Accessory Connector
Troubleshooting
Phenomena Analysis Solution
The radio fails to power on. The power cord may be disconnected. Properly connect the power cord.
During receiving, the voice is
weak, discontinuous or totally
inactive.
The volume level may be low. Increase the volume via the remote
speaker microphone.
The antenna may be loosened or
improperly installed. Power off the radio and reattach the
antenna.
The speaker may be blocked or damaged.
Clean the surface of the speaker. If the
problem cannot be solved, contact your
dealer or authorized service center for
inspection and repair.
You cannot communicate
with other members in analog
mode.
The frequency or signaling may not match
that of other members. Set your TX/RX frequency and signaling
to the same as that of other members.
You may be too far away from the group
members. Move towards other members.
In digital mode, there’s RX
indication on the radio, but
unable to communicate with
other members.
The digital carrier may be received but may
not be demodulated due to inconsistent ID
with that of other members. Sets the same ID of other members.
Irrelevant communication
or noise is heard on the
channel.
You may be interrupted by radios using the
same frequency. Adjust the squelch level.
The radio may be set with no signaling.
Set your radio with signaling to avoid
interference at the same frequency, and
make sure that all members share the
same signaling.
The noise is too loud.
You may be too far away from other
members. Move towards other members, and then
try again.
You may locate in an unfavorable position.
For example, your communication may be
blocked by high buildings or frustrated in
the underground areas.
Move to an open and flat area, and restart
the radio to try again.
You may suffer from external disturbance
(such as electromagnetic interference). Stay away from equipment that may cause
interference.
No indication on the LCD
of the remote speaker
microphone. The LCD may fail to function temporarily. Restart the radio or reassemble the
remote speaker microphone.
GPS positioning failure.
The GPS antenna may be connected
improperly. Properly connect the GPS antenna.
GPS signals may not be received due to
unfavorable position. Move to an open and flat area to try again.
If the above solutions cannot fix your problems, or you may have some other queries, please contact us or your
local dealer for more technical support.
7
Care and Cleaning
To guarantee optimal performance as well as a long
service life of the product, please follow the tips below.
Product Care
●Do not pierce or scrape the product.
●Keep the product far away from substances that
can corrode the circuit.
●Do not hold the product by its antenna or earpiece
cable directly.
●Attach the accessory connector cover when the
accessory is not in use.
Product Cleaning
•Caution:• Turn• off• the• product• and•
disconnect• the• power• supply• before•
cleaning.•
●Clean up the dust and fine particles on the product
surface and charging piece with a clean and dry
lint-free cloth or a brush regularly.
●Use neutral cleanser and a non-woven fabric to
clean the keys and front case after long-time use.
Do not use chemical preparations such as stain
removers, alcohol, sprays or oil preparations, so as
to avoid surface case damage.
●Make sure the product is completely dry before
use.
Optional Accessories
The following items are the main optional accessories
for the radio. For more information of other
accessories, please consult your local dealer.
Caution:• Use• the• accessories• specified•
by• the• Company• only.• If• not,• the•
Company• shall• not• be• liable• for• any•
loss• or• damage• arising• out• of• use• of•
unauthorized• accessories.•
Accessory Type Model/Name
Power Supply
PS22002 Power Supply for Mobile
Radio (220W, Backup Power Supply
applicable)
Audio SM09D1 External Speaker
Cable
PC37 DB26-connector
Programming Cable (USB port)
PC47 Programming Cable (USB
port)
PC49 Back-to-back Data Cable
(DB26 to DB26)
Others Omni-directional Antenna
