Hytera Communications POS-MARK Patrol Beacon_Ex User Manual
Hytera Communications Corporation Limited Patrol Beacon_Ex
User manual
To Costumers
Thank you very much for using Hytera patrol beacon_Ex POS_MARK! The product meets IP67 dust and
water intrusion standard. To ensure that you acquire the great benefits from our products, please read
this manual carefully especially on explosion protection.
The manual applies for the following product:
Patrol beacon_Ex POS_MARK.
Copyright Information
Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the
Company) in People's Republic of China (PRC) and/or other countries or areas. The Company retains
the ownership of its trademarks and product names. All other trademarks and/or product names that
may be used in this manual are properties of their respective owners.
The product described in this manual may include the Company's computer programs stored in memory
or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of the Company
with respect to its computer programs. The purchase of this product shall not be deemed to grant, either
directly or by implication, any rights to the purchaser regarding the Company's computer programs. The
Company's computer programs may not be copied, modified, distributed, decompiled, or
reverse-engineered in any manner without the prior written consent of the Company.
Disclaimer
The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of
accuracy or reliability is given. All the specifications and designs are subject to change without notice
due to continuous technological development. No part of this manual may be copied, modified,
translated, or distributed in any manner without the prior written consent of the Company.
We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or
completeness of the third-party products and contents involved in this manual.
If you have any suggestions or would like to receive more information, please visit our website at:
http://www.hytera.com, or call our 400-830-7020.
Content
Documentation Information .................................................................................................................... 1
1. Notification ............................................................................................................................................ 1
2. Specification ......................................................................................................................................... 2
2.1 General Specification ....................................................................................................................... 2
3. Explosion-Proof Beacon POS-MARK ................................................................................................. 3
3.1 Package List ..................................................................................................................................... 3
3.2 Product Overview ............................................................................................................................. 3
3.3 Operation Instructions ...................................................................................................................... 3
4. Maintenance and Cleaning .................................................................................................................. 5
5. Quality Assurance and Maintenance Terms ..................................................................................... 6
Documentation Information
This section describes the conventions and revision history of this document.
Documentation Conventions
Icon Conventions
Icon
Description
Tip
Indicates information that can help you make better use of your product.
Note
Indicates references that can further describe the related topics.
Caution
Indicates situations that could cause data loss or equipment damage.
Warning
Indicates situations that could cause minor personal injury.
Danger
Indicates situations that could cause major personal injury or even death.
Notation Conventions
Item
Description
“ ”
The quotation marks enclose the name of a software interface element. For example,
click “OK”.
【】
The text in boldface denotes the name of a hardware button. For example, press the
【PTT】key.
->
The symbol directs you to access a multi-level menu. For example, to select “New” from
the “File” menu, we will describe it as follows: “File -> New”.
Revision History
Version
Release Date
Description
V2.0.03
March 2017
Initial release.
1
1. Notification
Anyone using this product must comply with the standard safety regulation and read the operation
manual carefully to avoid any improper operation or damage to machine.
It is strictly forbidden to connect or disassemble the product in any dangerous places.
It is strictly forbidden to disassemble or refit the product not certified by explosion-proof inspection
institution by yourself in any means. Only the original manufacturer can refit the product within the
scope approved by the explosion-proof inspection institution. Unauthorized refit or dissemble shall
result in invalidity to explosion-proof certification.
Please use the product in the temperature range of -20℃～＋40℃ (explosive environment) and -20°
C～+50° C (non-explosive environment).
Please don’t come near to the magnetic-sensitive electronic devices the when using the product.
2
2. Specification
2.1 General Specification
General
Model
POS-MARK
Description
Patrol Beacon_Ex
RFID Frequency
2.45GHz
RFID Effective
Distance
>10 meters
Dust & Water
Intrusion
IP67
Dimension
85.5mm×85.5mm×23.5mm
Weight
Around 80g
Input Voltage Range
2.5V~3.6V
Operation
Temperature
-20℃～＋40℃
ESD
Contact discharge ±8KV, air discharge ±15KV
Explosion-Proof
Standard
Ex ib IIC T4 Gb/Ex ibD 21 T4 Db
Others
Comply with Hytera reliability test standard.
3
3. Explosion-Proof Beacon POS-MARK
3.1 Package List
POS-MARK package includes the following items. If any item is missing or damaged, please
contact your dealer.
Num.
Name
Amount
1
Patrol Beacon_Ex
1
2
Operation Manual
1
3
Fixed Mounting Screw Set
1
4
Battery
2
3.2 Product Overview
POS-MARK is a RFID tag designed for explosive environment, sending signal of the tag at regular
intervals and communicating with patrol devices.
3.3 Operation Instructions

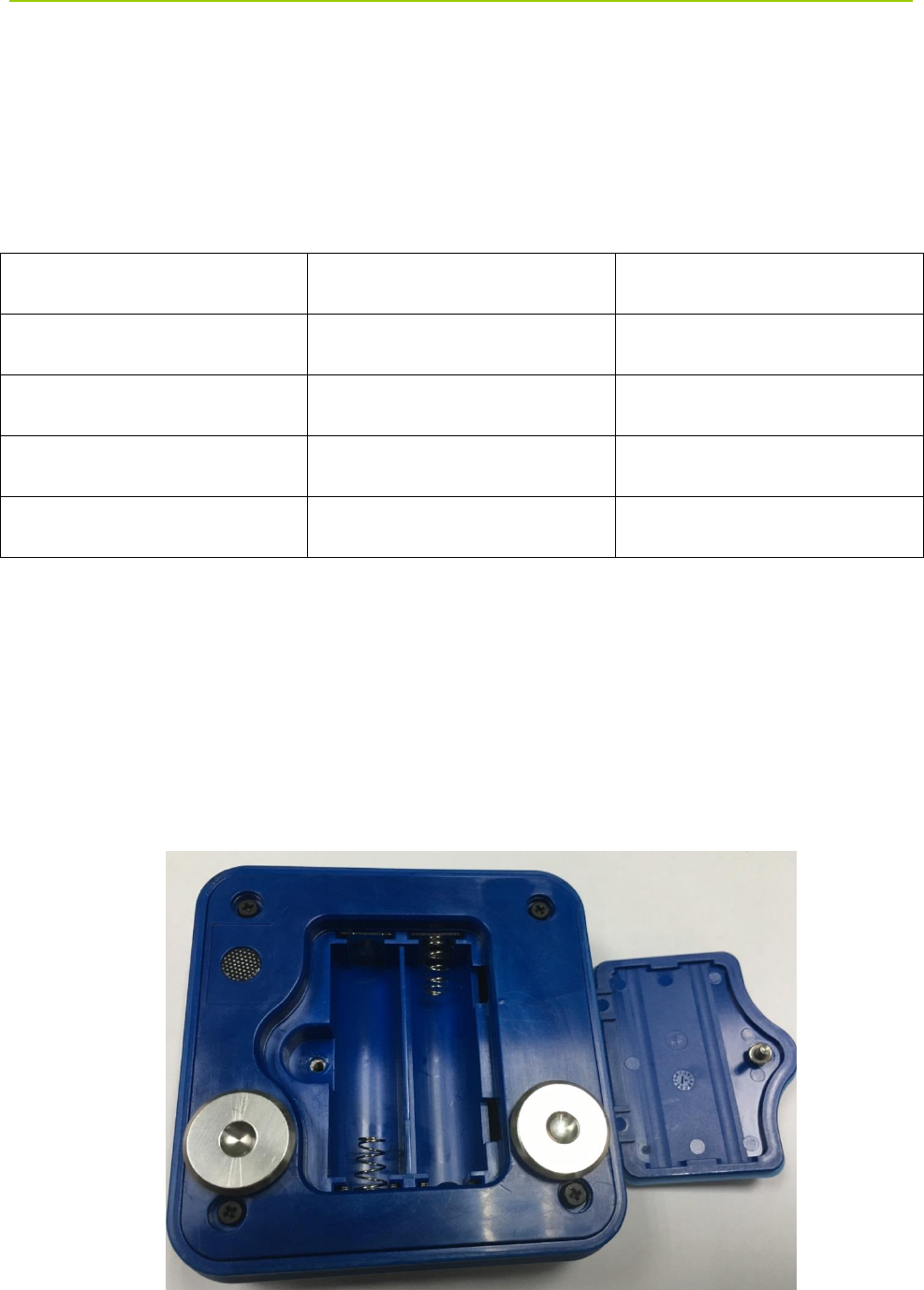

1. Open the battery cover, load the battery and then put the cover back.
Fig. 1
4

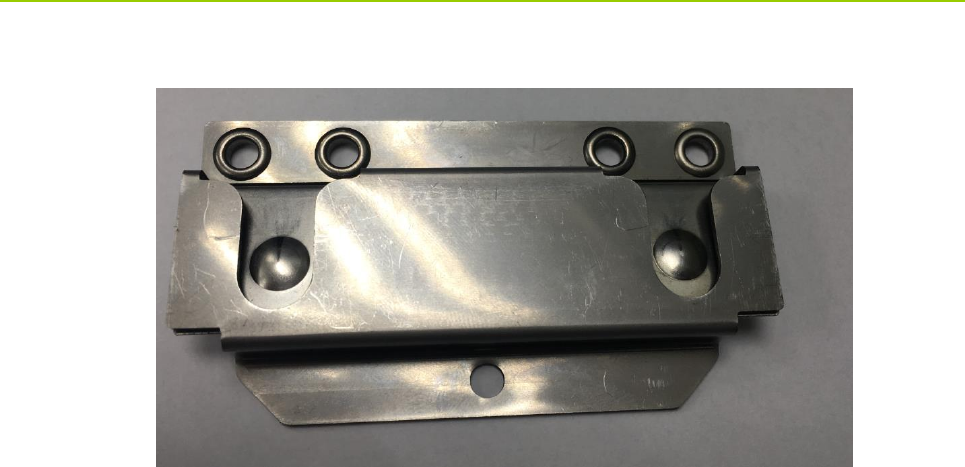

2. Fixed the rack on the wall as shown in fig.2.
Fig. 2
3. Put the buckle of the beacon aligned with the two slots, and then insert the buckle and fixed to the
slots.
4. When the radio (palm microphone) with patrol function enters into the communication range of the
patrol beacon_Ex, the patrol radio (palm microphone) will receive the ID of the beacon, sending the
patrol confirmation data to server.
5
4. Maintenance and Cleaning
In order to maintain the best performance and extend the service life, please be familiar with the
following instructions so as to assure the daily maintenance and cleaning of the product.
Maintenance
Do not puncture or scratch the product with hard object.
Do not store the product in the environment containing substance that corrodes electronic circuits.
Cleaning
Please Use clean dry lint-free cloth or brush to wipe the dust on the surface of this product and the
dust attached to the charging pole regularly.
Clean the product with neutral detergent and non-woven fabric. Please do not use detergents,
alcohol, sprays or petroleum to clean the products so as to avoid damage to the surface and the
case.
After cleaning, make sure that the product is completely dry, otherwise don't use it.
6
5. Quality Assurance and Maintenance Terms
We promise that the product produced by our company can enjoy the following warranty service under the contract from
the date of purchase if there is any occurrence of the defects in material or manufacturing process under the condition of
normal use, operation and maintenance.
Scope and Duration of Warranty
6 months
Caution
Please pack the product properly with detailed fault description, and send it back to the
place of purchase or to our designated after-sales service point. You can always seek help
by calling our service hotline 400-830-7020.
The warranty terms do not include the following scenarios:
Beyond the warranty period.
The failure or damage of the product caused by the operation not following the instructions.
The failure or damage of the product caused in abnormal or unusual application circumstances.
The failure or damage of the product caused by modification, removal, or software update, firmware
removal without authorization of our company.
Our logo or serial number label on the product is torn, erased or unable to identify.
The purchase date of the product can not be determined.
The failure or damage of the product caused by force majeure like earthquake, flood, fire, etc.
Normal wear and tear in the appearance of the product.
Special Notifications
Within the limit permitted by law, our company do not compensate the money that exceeds the price
of the product, or take responsibility of collateral damage caused by use loss, time loss, business
loss, profit or income loss, product use inability
The maintenance terms are formulated according to relevant national warranty, and the content of
the terms will be accordingly modified due to factors such as technology development and market
adjustment. Please refer to the changes in the maintenance terms issued by our customer service
center. Please refer to the relevant national regulations with uncovered matters.
7
6. FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
8
7. IC STATEMENT
This device complies with Industry Canada licence-exempt RSS standard(s): Operation is
subject to the following Two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
