Hyundai IBT ET1925L 19 Inches LCD Monitor User Manual 1
Hyundai IBT Corp. 19 Inches LCD Monitor 1
User Manual
FCC ID : PJIET1925L
REPORT NO. : HCT-F04-0304 HYUNDAI C–TECH
ATTACHMENT E .
- USER’S MANUAL -
Elo Entuitive Touchmonitor
User Guide
For 19" LCD Desktop Touchmonitors
ET1925L Series
Revision B
Elo Entuitive Touchmonitor
User Guide
19" LCD Desktop Touchmonitor
ET1925L Series
Revision B
P/N 008563
Elo TouchSystems, Inc.
1-900-ELOTOUCH
www.elotouch.com
iii
Copyright © 2002 Elo TouchSystems Inc. All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language or computer language, in any form or by any means, including, but not
limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written
permission of Elo TouchSystems.
Disclaimer
The information in this document is subject to change without notice. Elo TouchSystems makes no
representations or warranties with respect to the contents hereof, and specifically disclaims any
implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves
the right to revise this publication and to make changes from time to time in the content hereof
without obligation of Elo TouchSystems to notify any person of such revisions or changes.
Trademark Acknowledgments
IntelliTouch, iTouch, SecureTouch, AccuTouch, Entuitive, and MonitorMouse are trademarks of Elo
TouchSystems Inc.
Other product names mentioned herein may be trademarks or registered trademarks of their
respective companies. Elo TouchSystems claims no interest in trademarks other than its own.
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
Interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
Not installed and used in accordance with the instructions, may cause harmful
Interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
Installation.
If this equipment does cause harmful interference to radio or television reception,
Which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
Compliance could void the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
v
Chapter 1
Introduction 1
Precautions . . . . . . . . . . . . . . . . . . . . 1
About the Product . . . . . . . . . . . . . . . . . 1
Chapter 2
Installation and Setup 3
Unpacking Your Touchmonitor. . . . . . . . . . . 3
Product Overview . . . . . . . . . . . . . . . . . 4
Main Unit . . . . . . . . . . . . . . . . . . . . 4
Rear View . . . . . . . . . . . . . . . . . . . 4
Side View. . . . . . . . . . . . . . . . . . . . 5
Base Bottom View . . . . . . . . . . . . . . . 5
Touch Interface Connection . . . . . . . . . . . . 6
Serial or USB Connection . . . . . . . . . . . 6
STEP 1-Routing the Cables . . . . . . . . . 7
STEP 2-Connecting the Video Cable . . . . 8
STEP 3-Connecting the Serial or USB
Touchscreen Cable . . . . . . . . . . . . . 9
STEP 4-Connecting the Speaker Cable . 10
STEP 5-Connecting the Power Cable. . . 11
Chapter 3
Operation 19
About Touchmonitor Adjustments. . . . . . . . 19

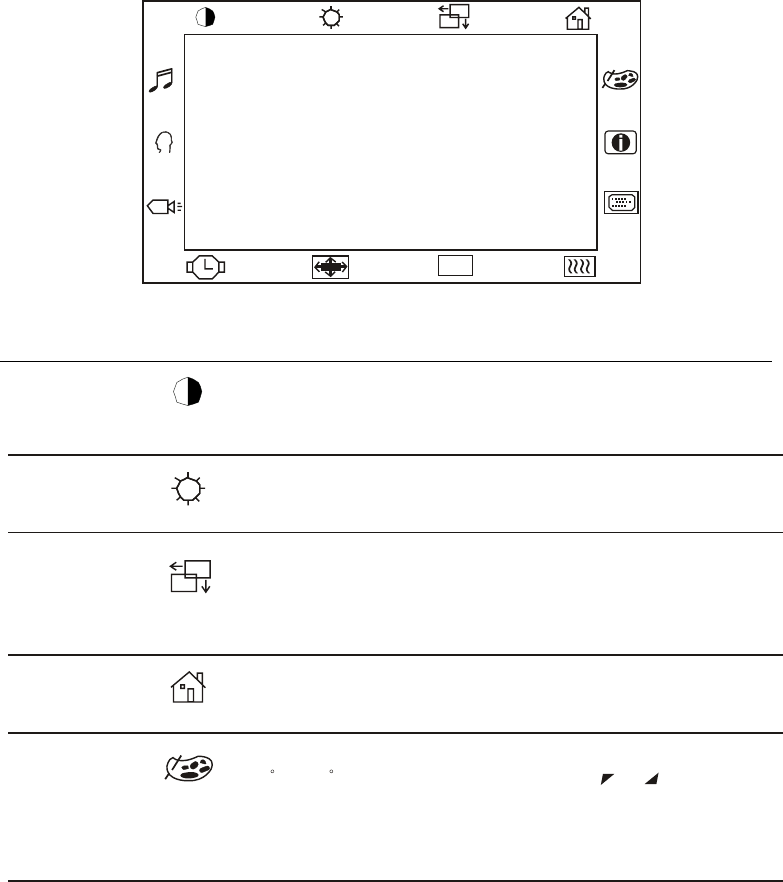

Using the On-Screen Display (OSD) Menus . . 19
Side Bezel Buttons . . . . . . . . . . . . . . . 20

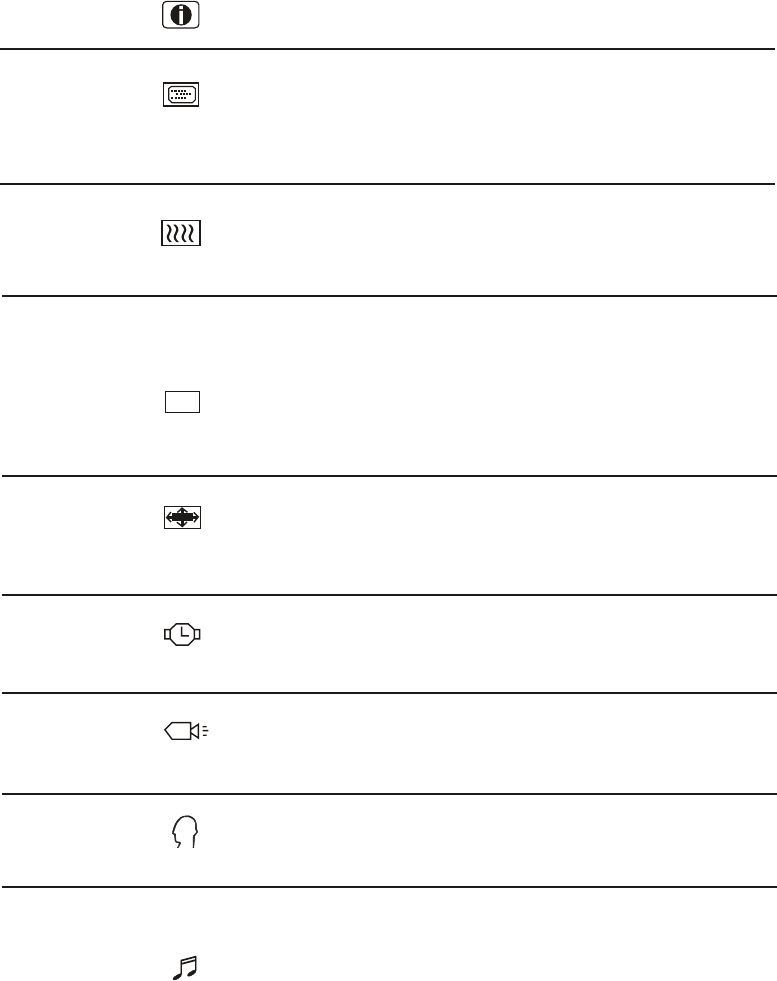

OSD Menu Function . . . . . . . . . . . . . . 21
Auto Adjustment . . . . . . . . . . . . . . . . 22
Chapter 4
Troubleshooting 23
Solutions to Common Problems . . . . . . . . 23
Appendix A
Native Resolution 25
Appendix B
Touchmonitor Safety 27
Care and Handling of Your Touchmonitor. . . . 28
Appendix C
Technical Specifications 29
Compatible Video Modes . . . . . . . . . . . . 29
Touchmonitor Specifications . . . . . . . . . . 30
18.1" LCD Touchmonitor (ET182XL-XXWB-X)

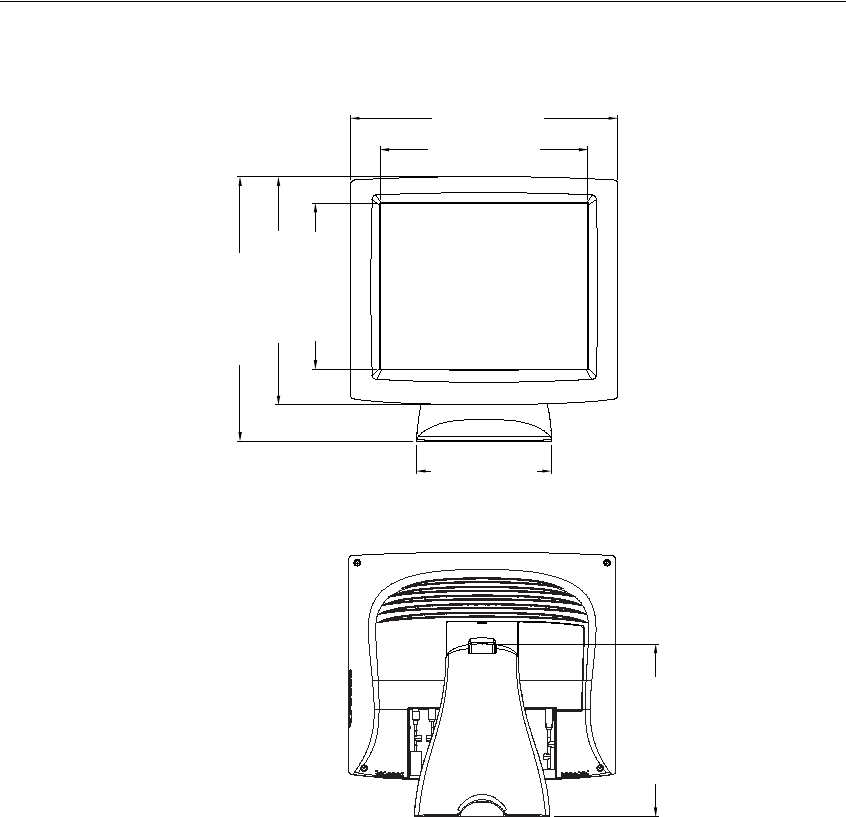

Dimensions . . . . . . . . . . . . . . . . . . 34
Regulatory Information 37
Warranty 41
Index
43
Table of Contents
Optimizing the LCD Display . . . . . . . . . . . 12
VESA Mount on Your Touchmonitor. . . . . . . 12
Accessing the VESA Mounting Interface. . . 13
Mounting the Base . . . . . . . . . . . . . . . 13
Installing the Driver Software . . . . . . . . . . 14
Installing the Serial Touch Driver. . . . . . . 15
Installing the Serial Touch Driver for Windows
XP, 2000, Me, 95/98 and NT 4.0 . . . . . 15
Installing the Serial Touch Driver for MS-DOS
and Windows 3.1 . . . . . . . . . . . . . 16
Installing the USB Touch Driver . . . . . . . 17
Installing the USB Touch Driver for Windows
XP, 2000, Me and 98 . . . . . . . . . . . 17
1-1
CHAPTER
1
C
HAPTER
1
I
NTRODUCTION
Congratulations on your purchase of an Elo TouchSystems Entuitive
touchmonitor. Your new touchmonitor combines the reliable performance of
Elo’s touch technology with the latest advances in LCD display design. This
combination of features creates a natural flow of information between a user
and your touchmonitor.

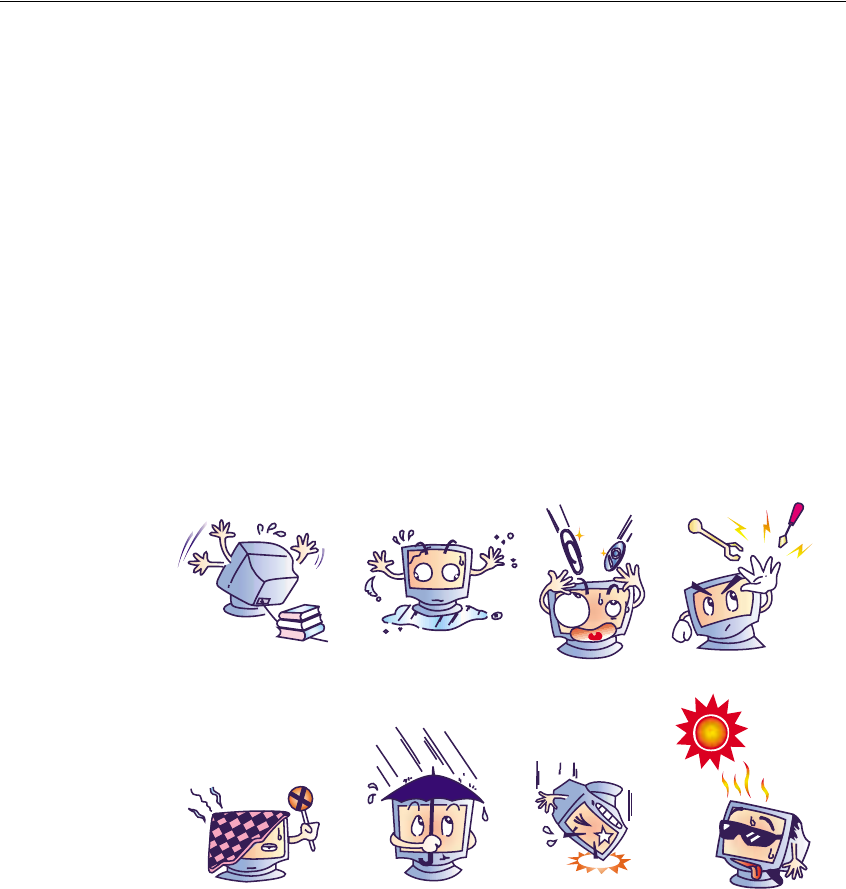

Precautions
Follow all warnings, precautions and maintenance as recommended in this
user’s manual to maximize the life of your unit. See Appendix B for more
information on touchmonitor safety.
About the Product
Your LCD Desktop Touchmonitor is a 19” SXGA TFT color display with the
following features:
• Direct analog RGB or Digital RGB input
•19” diagonal screen size
• 16.7 million displayable colors
•1280 x 1024 resolution
•SXGA/XGA/SVGA/VGA/VESA/Mac compatible
•30kHz~80kHz horizontal scan
• 56~75Hz refresh rate
1-2 Elo Entuitive Touchmonitor User Guide
• Auto adjustment capability
• High quality full screen re-scaling
• Multilingual OSD menus in six languages: English, French, German,
Spanish, Italian and Japanese
• Serial or USB touch interface (USB requires Windows 98, 2000, Me and
XP.)
•Built in speakers with volume, treble, bass and balance control through OSD
• Patented touch technology of Elo TouchSystems
•Power saving mode
•Stand with minimum 95o angle of tilt.
•Cable management device
•VESA flat panel monitor physical mounting interface (Both of 75 & 100mm)
•OSD and Power button lockouts
•Wall mountable with existing stand
•M5 threaded holes on bottom of stand for securing to desk or other surface,
i.e. table top
Cable stain reliefs for all cables
For full Product Specifications refer to Appendix C.
•
2-3
CHAPTER
2
C
HAPTER
2
I
NSTALLATION AND
S
ETUP
This chapter discusses how to install your LCD touchmonitor and how to install
Elo TouchSystems driver software.

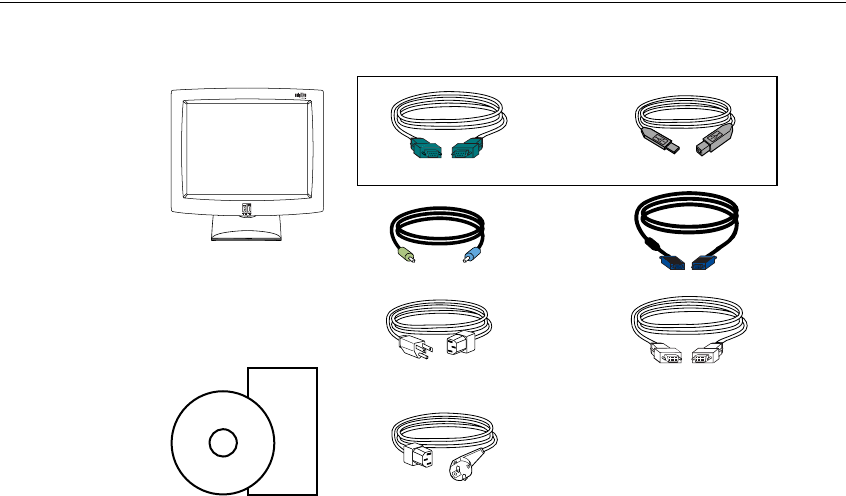

Unpacking Your Touchmonitor
Check that the following 10 items are present and in good condition:
LCD Display
European monitor
power cable
Monitor power cable
(US/Canada)
Serial touchscreen cable
Speaker cable Video cable
DVI-D video cable
USB Cable
OR
User Guide-on CD,
Quick Install Guide and software CD
CD
Software
Quick Install Guide
2-4 Elo Entuitive Touchmonitor User Guide

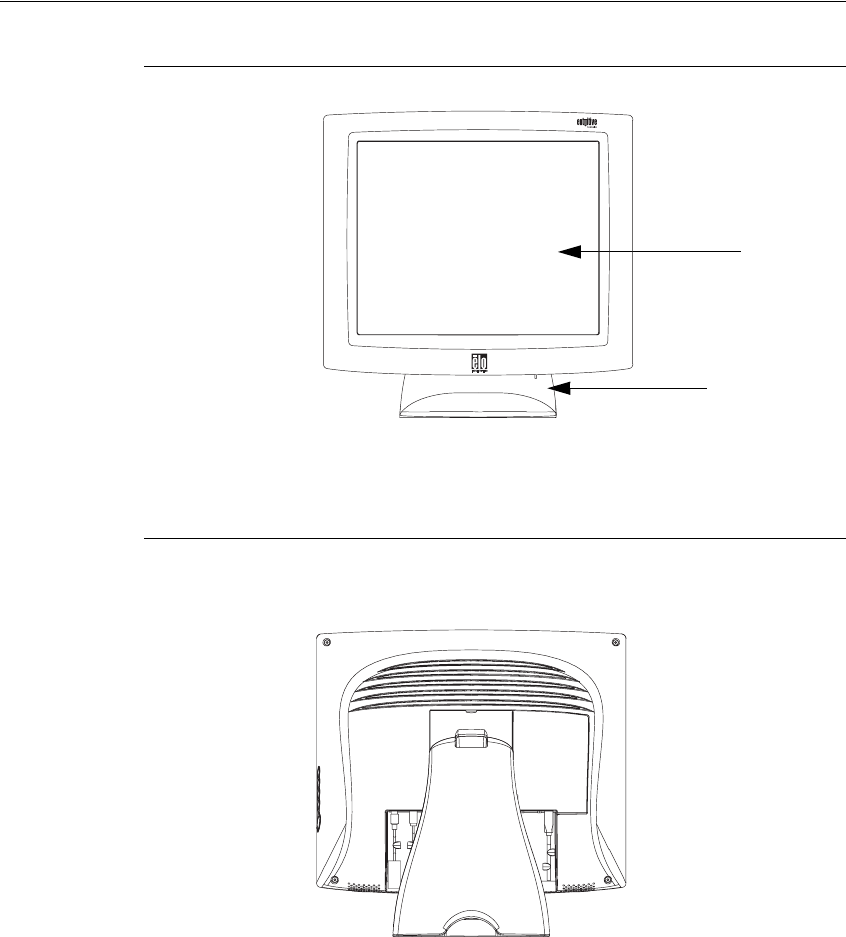

Product Overview
Main Unit
Rear View
LCD Display
Stand
2-5

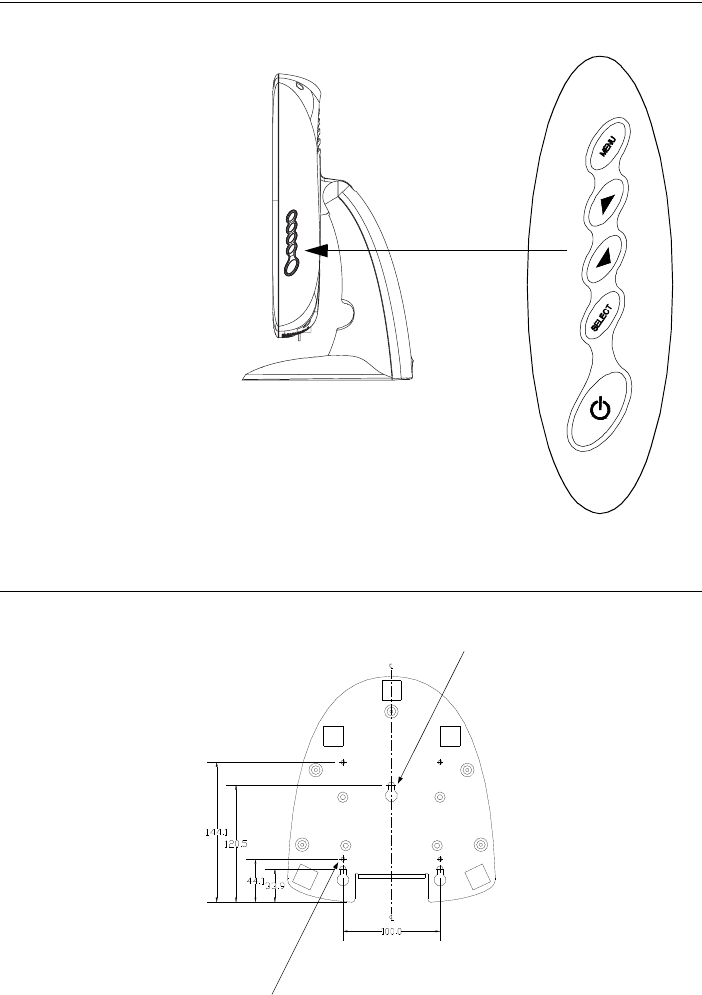

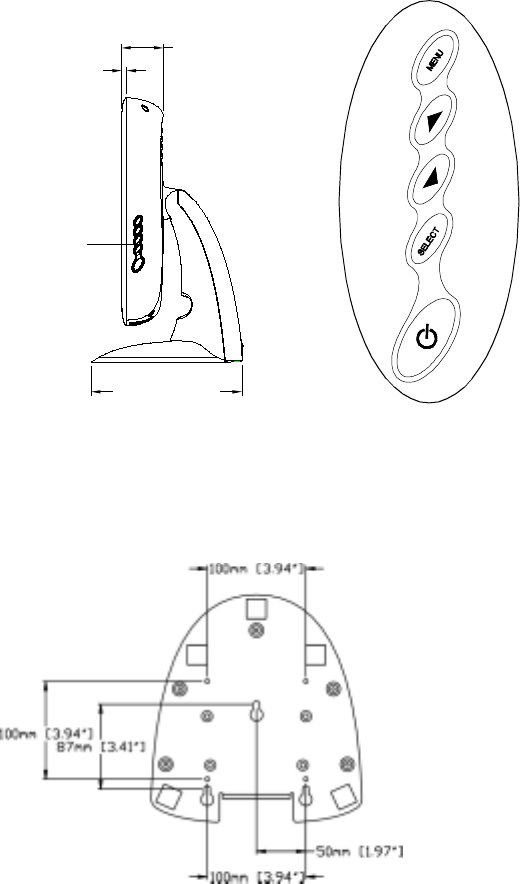

Side View
Base Bottom View

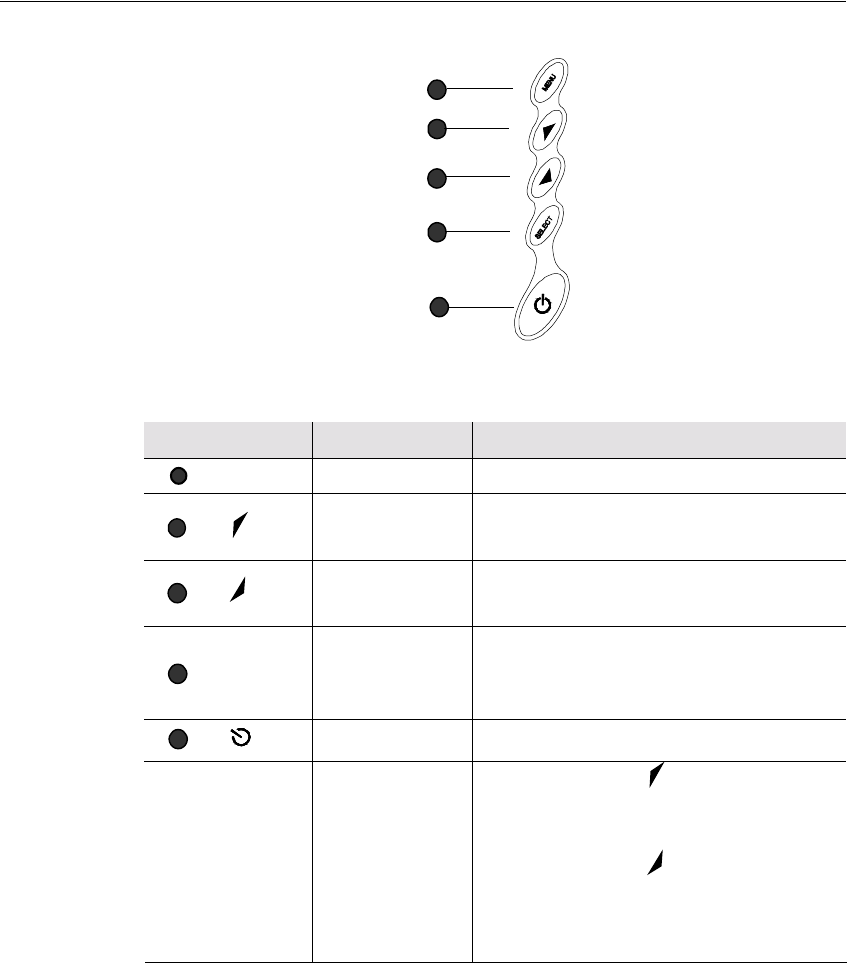

User Controls
Key hole for M5 screw
4X thread
M5x0.8
2-6 Elo Entuitive Touchmonitor User Guide
Touch Interface Connection
Your touchmonitor comes with one of the following touchscreen connector
cables: Serial (RS-232) cable or USB cable. (For Windows 98, 2000, Me and
XP systems only.)
To set up this display, please refer to the following figures and procedures:

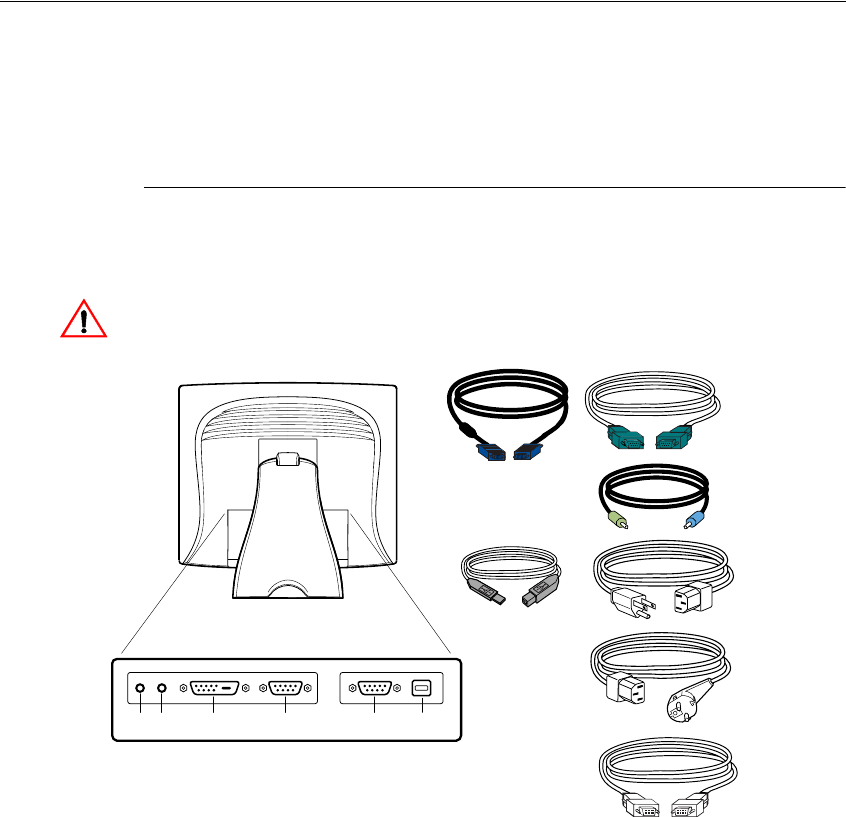

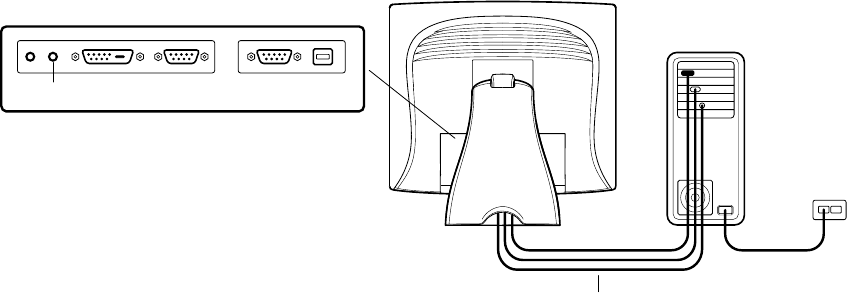

Serial or USB Connection
The following illustrations guide you step by step in connecting your
touchmonitor using a serial or USB cable connection
CAUTION
Before connecting the cables to your touchmonitor and PC, be sure that the computer
and the touchmonitor are turned off.
DVI-D video cable
POWER SPEAKER
PORT
FEMALE DVI-D
VIDEO CONNECTOR
FEMALE 15-PIN
VIDEO CONNECTOR
FEMALE 9-PIN SERIAL
TOUCHSCREEN CONNECTOR
USB CONNECTOR
CONNECTIONS ON UNDERSIDE
European monitor
(US/Canada)
Monitor
power cable
power cable
Serial touchscreen
cable
Speaker cable
Video cable
USB Cable
2-7

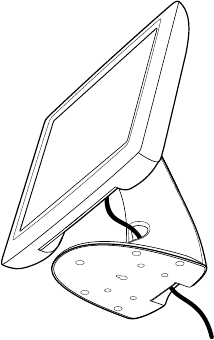

STEP 1-Routing the Cables
•Feed the cables through the cable port holes. Do not remove the rear cover.
2-8 Elo Entuitive Touchmonitor User Guide

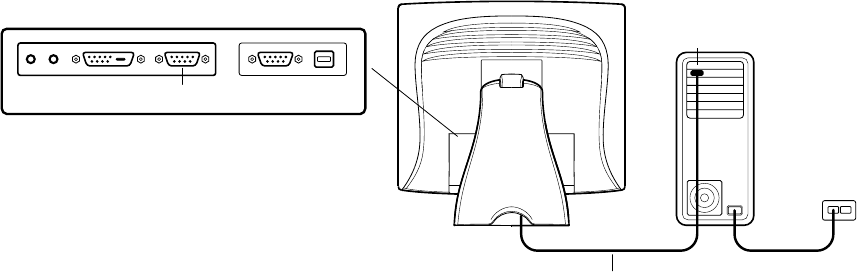

STEP 2-Connecting the Video Cable
or 24-pin DVI-D cable
• Tilt the screen up and back to access the connection ports.
• Connect the 15-pin video cable (the ferrite bead end)
to the video port on your PC.
• Connect the other end of the video cable to the video connector on your
touchmonitor by routing the cable through the hole in the stand.
• Secure the cable to your touchmonitor and PC by turning the screws on the
connector clockwise.
VIDEO CABLE
VIDEO PORT
FEMALE 15-PIN
VIDEO CONNECTOR
CONNECTIONS ON UNDERSIDE
2-9

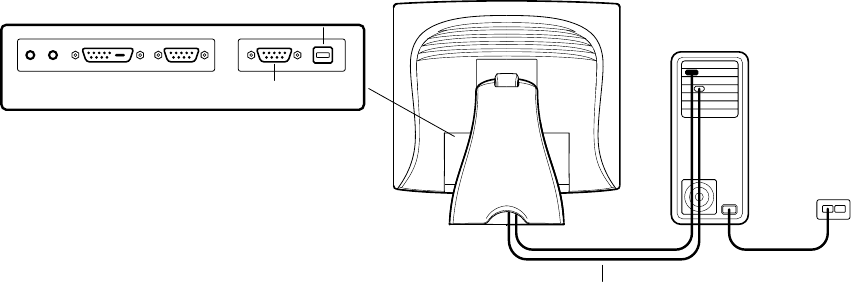

STEP 3-Connecting the Serial or USB Touchscreen Cable
• Connect the female end of the serial (RS-232) cable to the serial port on your
• Connect the male end of the cable to the serial touchscreen connector on your
• Secure the cable to your touchmonitor and PC by turning the screws on the
connector.
SERIAL TOUCHSCREEN CABLE
FEMALE 9-PIN SERIAL
TOUCHSCREEN CONNECTOR
CONNECTORS ON THE UNDERSIDE
PC, or connect the USB touchscreen cable to the USB touchscreen connector
on the back of your touchmonitor.
touchmonitor, or connect the other end of the USB touchscreen cable to your
PC.
USB TOUCHSCREEN
CONNECTOR
2-10 Elo Entuitive Touchmonitor User Guide

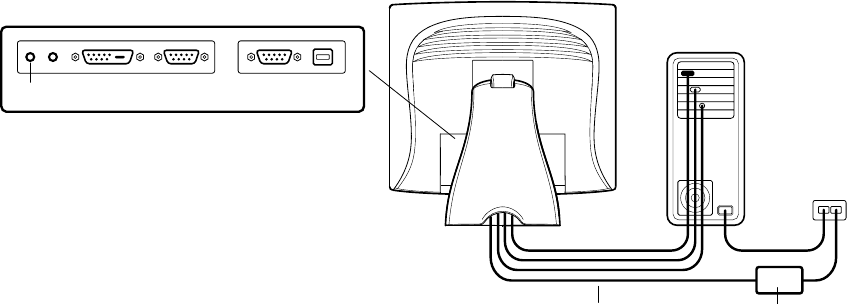

STEP 4-Connecting the Speaker Cable
N
OTE
:
If you do not wish to connect the speaker cable, go to step 5.
SPEAKER CABLE
SPEAKER
PORT
CONNECTIONS ON UNDERSIDE
Connect the light blue end of the speaker cable to the light blue speaker
•
port of the monitor (audio in).
Connect the lime (light green) end of the speaker cable to the lime speaker
•
port on the computer (audio out).
2-11
STEP 5-Connecting the Power Cable
Depending on where you live, you will use either the European or US/Canadian
power cable.
• Connect the female end of the power cable to the
•
N
OTE
:
To p rotect your equipment against risk of damage from electrical surges in the power
line, plug the touchmonitor’s power cord into a surge protector, and then connect the
surge protector to a grounded AC electrical outlet.
POWER CABLE
POWER
CONNECTIONS ON UNDERSIDE
Brick power supply.
Connect the Brick power cable into the power port on the touchmonitor.
•
BRICK POWER SUPPLY
Route the cable through the cable management channel.
2-12Elo Entuitive Touchmonitor User Guide
Optimizing the LCD Display
To ensure the LCD display works well with your computer, configure the
display mode of your graphic card to make it less than or equal to 1024 x 768
resolution, and make sure the timing of the display mode is compatible with the
LCD display. Refer to Appendix A for more information about resolution.
Compatible video modes for your touchmonitor are listed in Appendix C.

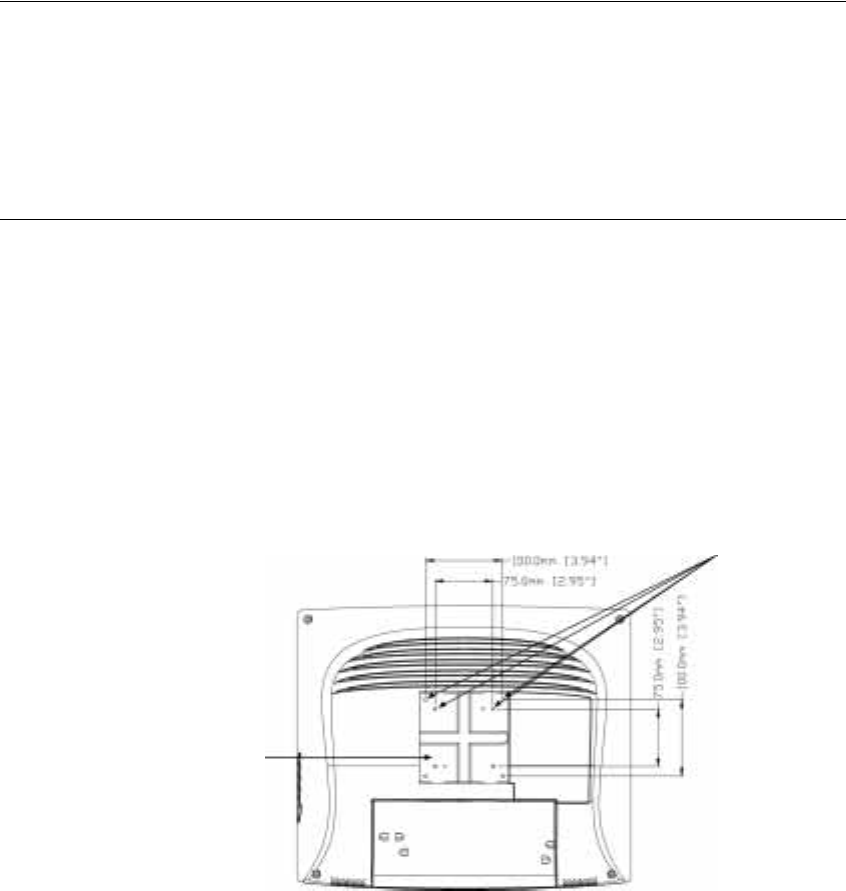

VESA Mount on Your Touchmonitor
Your touchmonitor conforms to the VESA Flat Panel Monitor Physical
Mounting Interface (FPMPMI™) Standard which defines a physical mounting
interface for flat panel monitors, and corresponding standards for flat panel
monitor mounting devices, such as wall and table arms. The VESA mounting
interface is located on the back of your touchmonitor and is shipped
pre-connected to the base.
VESA mounting
interface
8X M4x0.7
threaded holes
N
OTE
:
The above drawing displays the VESA mounting interface after the removal of the
mounting cover and base.
You can also use the existing stand for wall mounting. For mounting dimensions,
go to www.elotouch.com/products/displcds.asp and under Model, click on Elo
Entuitive 1825L/1827L. Click on drawing MS500231.
2-13
Accessing the VESA Mounting Interface
If you want to convert your desktop monitor to a wall mount or kiosk monitor,
follow the steps below to access the VESA mounting interface.
N
OTE
:
You will need a screwdriver for the following steps.
1Remove the back cover of the stand by pulling forward on the bottom
cut-out.
2Carefully lay the monitor face down. At the top of the mounting screw cover
there are two slots. With a screwdriver, pry open the mounting screw cover.
The cover fit is tight so remove it carefully.
3When you remove the mounting screw cover, you will see four screws.
Remove the screws to mount your monitor. Refer to the drawing on page 18.
The following companies provide VESA mounting devices compatible with
your touchmonitor:
Mounting the Base
You can also mount your touchmonitor by using the keyholes in the base of the
stand. These keyholes provide easy slide on mounting. You can also bolt your
touchmonitor to a tabletop or other flat surface. Please refer to Appendix C for
location and dimension of the mounting holes.
Ergotron
800-888-8458
651-681-7600
www.ergotron.com
Innovative Office Products
800-524-2744
610-253-9554
www.innov-office-prod.com
GCX
800-228-2555
707-773-1100
www.gcx.com
MRI
800-688-2414
www.mediarecovery.com
2-14 Elo Entuitive Touchmonitor User Guide
Installing the Driver Software
Elo TouchSystems provides driver software that allows your touchmonitor to
work with your computer. Drivers are located on the enclosed CD-ROM for the
following operating systems:
• Windows XP
• Windows 2000
• Windows Me
• Windows 98
• Windows 95
• Windows NT 4.0
Additional drivers and driver information for other operating systems are
available on the Elo TouchSystems web site at www.elotouch.com.
Refer to the appropriate following section for driver installation instructions.
2-15
Installing the Serial Touch Driver
Installing the Serial Touch Driver for
Windows XP,
Windows 2000, Me, 95/98 and NT 4.0
N
OTE
:
For Windows 2000 and NT 4.0 you must have administrator access rights to install the
driver.
1Insert the Elo CD-ROM in your computer’s CD-ROM drive.
2If the AutoStart feature for your CD-ROM drive is active, the system
automatically detects the CD and starts the setup program.
3Follow the directions on the screen to complete the driver setup for your
version of Windows.
4If the AutoStart feature is not active:
5Click Start > Run.
6Click the Browse button to locate the EloCd.exe program on the CD-ROM.
7Click Open, then OK to run EloCd.exe.
8Follow the directions on the screen to complete the driver setup for your
version of Windows.
To install Windows 2000 and Windows XP, you must use the "update driver" method;
you will not find a setup.exe file within the download.
2-16 Elo Entuitive Touchmonitor User Guide
Installing the Serial Touch Driver for MS-DOS and
Windows 3.1
You must have a DOS mouse driver (MOUSE.COM) installed for your mouse
if you wish to continue using your mouse along with your touchmonitor in
DOS.
To install Windows 3.x and MS-DOS from Windows 95/98, follow the
directions below:
1Insert the Elo CD-ROM in your computer’s CD-ROM drive.
2From DOS, type d:\EloDos_W31 to change to the correct directory on the
CD-ROM (your CD-ROM drive may be mapped to a different drive letter).
3Type install and press Enter to start the installation.
4Align the touchscreen.
You must have already completed Steps 1 and 2 before proceeding. Refer to
Chapter 2 of the Elo DOS and Windows Driver Guide as necessary for
additional installation information.
To run the INSTALL program:
1Type INSTALL at the DOS prompt in the directory containing the driver
install files.
2INSTALL asks you to select the software to install. Then choose
d:\EloDos_W31 from the displayed list.
3INSTALL also asks you for the paths to use during installation, or you may
use its defaults. INSTALL creates directories as necessary, and warns you if
they exist.
If you are updating your software, you may wish to specify the paths containing
the earlier versions, and overwrite the obsolete files. All executable programs
are upward compatible. For a list of differences from each previous version of
the drivers, be sure to select "Differences from Previous Versions" during the
installation process.
INSTALL updates your AUTOEXEC.BAT file with the drivers you select.
INSTALL makes a copy of your original AUTOEXEC.BAT file, called
AUTOEXEC.OLD. If you already have Elo driver commands in your
AUTOEXEC.BAT file, they will be commented out.
When INSTALL is finished, it leaves a file called GO.BAT in the subdirectory
you specified. GO loads the touchscreen driver, runs the calibration program
ELOCALIB, and gives you some final instructions.
If you are using Windows 3.1, you will also calibrate the touchscreen within
Windows 3.1 with the Touchscreen Control Panel.
2-17
Installing the USB Touch Driver
Installing the USB Touch Driver for Windows XP,
Windows 2000, Me and 98
1Insert the Elo CD-ROM in your computer’s CD-ROM drive.
If Windows 98, Windows Me or Windows 2000 starts the Add New
Hardware Wizard:
2Choose Next. Select “Search for the best driver for your device
(Recommended)” and choose Next.
3When a list of search locations is displayed, place a checkmark on “Specify a
location” and use Browse to select the \EloUSB directory on the Elo
CD-ROM.
4Choose Next. Once the Elo TouchSystems USB touchscreen driver has been
detected, choose Next again.
5You will see several files being copied. Insert your Windows 98 CD if
prompted. Choose Finish.
If Windows 98, Windows Me or Windows 2000 does not start the Add New
Hardware Wizard:
N
OTE
:
For Windows 2000 you must have administrator access rights to install the driver.
1Insert the Elo CD-ROM in your computer’s CD-ROM drive.
If the AutoStart feature for your CD-ROM drive is active, the system
automatically detects the CD and starts the setup program.
2Follow the directions on the screen to complete the driver setup for your
version of Windows.
If the AutoStart feature is not active:
1Click Start > Run.
2Click the Browse button to locate the EloCd.exe program on the CD-ROM.
3Click Open, then OK to run EloCd.exe.
4Follow the directions on the screen to complete the driver setup for your
version of Windows.
To install Windows 2000 and Windows XP, you must use the "update driver" method;
you will not find a setup.exe file within the download.
2-18 Elo Entuitive Touchmonitor User Guide
3-19
CHAPTER
3
C
HAPTER
3
O
PERATION
About Touchmonitor Adjustments
Your touchmonitor will unlikely require adjustment. Variations in video output
and application may require adjustments to your touchmonitor to optimize the
quality of the display.
For best performance, your touchmonitor should be operating in native
resolution, that is 1280 x 1024 at 80k-75 Hz. Use the Display control panel in
Windows to choose 1280 x 1024 resolution.
Operating in other resolutions will degrade video performance. For further
information, please refer to Appendix A.
All adjustments you make to the controls are automatically memorized. This
feature saves you from having to reset your choices every time you unplug or
power your touchmonitor off and on. If there is a power failure your
touchmonitor settings will not default to the factory specifications.
Using the On-Screen Display (OSD) Menus
All adjustments are made by using the on-screen display (OSD) menus. All
menu items can be selected by using the buttons on the side bezel.
N
OTE
:
OSD menu default is enabled.
3-20 Elo Entuitive Touchmonitor User Guide
Side Bezel Buttons
Control Function
MENUMenu Display/Exits the OSD menus.
Brightness/
Plus/Clockwise
1. Adjust brightness of the OSD.
2. Increase value of the adjustment item.
3. Select item clockwise.
MUTE/Minus
Counter-clockwise 2. Decrease value of the adjustment item.
3. Select item counter-clockwise.
SELECT Enter Select item
Select- To select the adjustment items from the
OSD menus.
Auto- To activate the “Auto Adjustment” function
to obtain an optimum image.
Power Switch Switches on/off the power of your touchmonitor.
Enable/Disable 1
2
. Press the Menu and buttons at the same
time and hold for two seconds to enable/disable
the OSD lock functions. OSD menu default is
enabled.
. Press the Menu and buttons at the same
time and hold for two seconds to enable/disable
the power lock function.
1
2
3
4
5
1
2
3
4
5
. Enable/Disable MUTE functions.
1
OSD Menu Function
3-21
Function Symbol Proc e ss
YUV
?
?
CONTRAST
AUTO CONTRAST
Contrast Controls the picture contrast
Auto Contrast Automatically selects an appropriate contrast setting for the picture.
500 K, 9300 K) Press the OSD button or or set color
values individually using the "USER" option. To define the color values
individually, select the "USER" option.You can switch between the setting
options for R/G/B (red, green and blue foreground) using the OSD direction
button. Select and specify the desired value by using the OSD button.
Brightness Controls the picture brightness.
Left/Right Controls the horizontal position.
Up/Down Controls the vertical position.
Recall defaults Recall factory settings of the image parameters.
Color Temperature In this menu you can select one of the default color temperatures
6
3-22 Elo Entuitive Touchmonitor User Guide
Additional Color Settings
SATURATION Adjusts color intensity.
HUE Adjusts color tint.
FLESH TONE Adjusts the color so faces appear natural.
YUV
??
Information Displays the current graphics mode.
DSUB Analog/ Select the connection for the display: DSUB Analog (15-pin connector) or
DVI Digital (24-pin connector). In this way you can connect your monitor to
2 computers (by simultaneously using both connectors) and switch between
displays.
Clock Controls the horizontal image size.
Phase Controls the vertical and horizontal fine tuning.
DVI Digital
OSD Left/Right Adjusts the horizontal position of the OSD menu.
OSD Up/Down Adjusts the vertical position of the OSD menu.
OSD Timeout Determines how long (in seconds) the OSD menu waits before closing
automatically after no action has been performed.
Auto Adjust Automatically selects the optional settings for image parameters (brightness,
contrast, image position, phase etc).
Language Selection of the OSD menu language: English, Fresh, Italian, German,
Spanish, Japanese.
Volume Adjusts the volume of the monitor speakers.
Treble Controls the treble of the monitor speakers.
Bass Controls the bass of the monitor speakers.
Balance Controls the balance between the left and right monitor speakers.
4-23
CHAPTER
4
C
HAPTER
4
T
ROUBLESHOOTING
If you are experiencing trouble with your touchmonitor, refer to the following
table. If the problem persists, please contact your local dealer or our service
center.
Solutions to Common Problems
Problem Suggestion(s)
No image appears on screen. Check that all the I/O and power connectors are properly
connected as described in Chapter 2.
Make sure the pins of the connectors are not crooked or
broken.
Test power supply by trying different cables, a different
wall outlet or plug another appliance into the outlet.
Make certain the video cable is properly connected and that
it is not damaged. Check for bent pins on the cable
connectors.
Ensure that your computer and video card are properly
configured. (Consult video card documentation.)
“Out of Range” display Check to see if the resolution of your computer is higher
than that of the LCD display.
Reconfigure the resolution of your computer to make it less
than or equal to 1280 x 1024. See Appendix A for more
information on resolution.
OSD/Power buttons don't respond See page 3-20 for OSD enable/disable.
4-24 Elo Entuitive Touchmonitor User Guide
Image has vertical flickering line bars. Use “Phase”tomakeanadjustment.
Check and reconfigure the display mode of the vertical
refresh rate of your graphic card to make it compatible with
the LCD display.
Image is unstable and flickering Use “CLOCK” to make an adjustment.
Image is scrolling Make sure the VGA signal cable (or adapter) is well
connected.
Check and reconfigure the display mode of the vertical
refresh rate of your graphic card to make it compatible with
the LCD display.
Touch doesn’t work Make sure cable is securely attached at both ends.
A-25
APPENDIX
A
C
HAPTER
4
N
ATIVE
R
ESOLUTION
The native resolution of a monitor is the resolution level at which the LCD
panel is designed to perform best. For the Elo LCD touchmonitor, the native
resolution is 1280 x 1024 for the SXGA-18.1 inch size. In almost all cases,
screen images look best when viewed at their native resolution. You can lower
the resolution setting of a monitor but not increase it.
The native resolution of an LCD is the actual number of pixels horizontally in
the LCD by the number of pixels vertically in the LCD. LCD resolution is
usually represented by the following symbols:
1024x768 (XGA)
Input Video 19" LCD
640x480 (VGA) Transforms input format to 1280x1024
800x600 (SVGA) Transforms input format to 1280x1024
1280x1024 (SXGA) Displays in Native Resolution
VGA 640x480
SVGA 800x600
XGA 1024x768
SXGA 1280x1024
UXGA 1600x1200
Transforms input format to 1280x1024
A-26 Elo Entuitive Touchmonitor User Guide
As an example, a SVGA resolution LCD panel has 800 pixels horizontally by
600 pixels vertically. Input video is also represented by the same terms. XGA
input video has a format of 1024 pixels horizontally by 768 pixels vertically.
When the input pixels contained in the video input format match the native
resolution of the panel, there is a one to one correspondence of mapping of input
video pixels to LCD pixels. As an example, the pixel in column 45 and row 26
of the input video is in column 45 and row 26 of the LCD. For the case when
the input video is at a lower resolution than the native resolution of the LCD, the
direct correspondence between the video pixels and the LCD pixels is lost. The
LCD controller can compute the correspondence between video pixels and LCD
pixels using algorithms contained on its controller. The accuracy of the
algorithms determines the fidelity of conversion of video pixels to LCD pixels.
Poor fidelity conversion can result in artifacts in the LCD displayed image such
as varying width characters.
B-27
APPENDIX
B
C
HAPTER
4
T
OUCHMONITOR
S
AFETY
This manual contains information that is important for the proper setup and
maintenance of your touchmonitor. Before setting up and powering on your new
touchmonitor, read through this manual, especially Chapter 2 (Installation), and
Chapter 3 (Operation).
1To reduce the risk of electric shock, follow all safety notices and never open
the touchmonitor case.
2Turn off the product before cleaning.
3Your new touchmonitor is equipped with a 3-wire, grounding power cord.
The power cord plug will only fit into a grounded outlet. Do not attempt to fit
the plug into an outlet that has not been configured for this purpose. Do not
use a damaged power cord. Use only the power cord that comes with your
Elo TouchSystems Touchmonitor. Use of an unauthorized power cord may
invalidate your warranty.
4The slots located on the sides and top of the touchmonitor case are for
ventilation. Do not block or insert anything inside the ventilation slots.
5It is important that your touchmonitor remains dry. Do not pour liquid into or
onto your touchmonitor. If your touchmonitor becomes wet do not attempt to
repair it yourself.
B-28 Elo Entuitive Touchmonitor User Guide
Care and Handling of Your Touchmonitor
The following tips will help keep your Elo Entuitive touchmonitor functioning
at the optimal level.
• To avoid risk of electric shock, do not disassemble the brick supply or
display unit cabinet. The unit is not user serviceable. Remember to unplug
the display unit from the power outlet before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do
not use thinner or benzene, abrasive cleaners or compressed air.
• To clean the display unit cabinet, use a cloth lightly dampened with a mild
detergent.
• Avoid getting liquids inside your touchmonitor. If liquid does get inside,
have a qualified service technician check it before you power it on again.
• Do not wipe the screen with a cloth or sponge that could scratch the surface.
• To clean the touchscreen, use window or glass cleaner. Put the cleaner on the
rag and wipe the touchscreen. Never apply the cleaner directly on the
touchscreen.
C-29
APPENDIX
C
C
HAPTER
4
T
ECHNICAL
S
PECIFICATIONS
Compatible Video Modes
You r Elo Entuitive touchmonitor is compatible with the following standard
video modes:
SUN 1024 x 768
Mode
52,450
Resolution
65
H. Frequency(kHz)
VGA
V
720 x 400
.Frequency(Hz)
31,470
VGA
70
720 x 350 31,470 70
VGA 640 x 480 31,470 60
MAC 640 x 480 35,000 75
VESA 640 x 480 37,860 72
VESA 640 x 480 37,500 75
VESA 800 x 600 35,160 56
VESA 800 x 600 37,880 60
VESA 800 x 600 46,880 75
VESA 800 x 600 48,080 72
MAC 832 x 624 49,720 75
VESA 1024 x 768 48,360 60
VESA 1024 x 768 56,480 70
VESA 1024 x 768 60,020 75
SXGA 1280 x 1024 64,000 60
SXGA 1280 x 1024 80,000 75
SXGA 1152 x 864 67,500 75
SXGA 1280 x 960 60,000 60
C-30Elo Entuitive Touchmonitor User Guide
Touchmonitor Specifications
Table C.1
19" LCD Touchmonitor (ET192XL-XXXA*) Specifications
Display Type Active matrix, thin film transistor
(TFT), liquid crystal display
Size
19.0-inchdiagonal
359.040 x 287.232 mm useful screen
area
Pixel Format 1280 x 1024
Touchscreen 0.125-inch IntelliTouch and
AccuTouch, anti-glare
IntelliTouch or AccuTouch
Colors 16 million with dithering
Display
Brightness
IntelliTouch: 210 cd/m² Max.AccuTouch: 188 cd/m² Max.
Back-light Lamp
Life
40,000 hours at 50% brightness
typical
Viewing Angle Horizontal
Vertical
-85~85 or 170 degrees total
-85~85 or 170 degrees total
Contrast Ratio 400:1 typical
Display Response
Time
16 ms (tr) /7ms (tf)
Environmental Operating Temp
Storage Temp
Humidity
10°C to 40°C
-20°C to +60°C
80% non-condensing AT
95% IT
Mechanical Weight
Size
28 lbs. maximum approx. weight
for IntelliTouch and AccuTouch
See drawings on page C-34.
Electrical Input Video
Input Power
Power Dissipation
VGA/SVGA/XGA/SXGA analog or digital video
Main Adapter:100-240VAC,50/60Hz /LCD:12VDC 4A
Universal
Speakers 8ohms,2watt per speaker
Agencies
Safety & EMC cULus, TUV-GS, TUV-AR/S, CB
FCC-B, CE, VCCI, C-Tick, VCCI
C-31
Table C.2
IntelliTouch Touchmonitor Specifications
Mechanical
Positional Accuracy Standard deviation of error is less than 0.080 in. (2.03 mm).
Equates to less than ±1%.
Touchpoint Density More than 100,000 touchpoints/in2 (15,500 touchpoints/cm2).
Touch Activation
Force Typically less than 3 ounces (85 grams).
Surface Durability Surface durability is that of glass, Mohs’ hardness rating of 7.
Expected Life
Performance No known wear-out mechanism, as there are no layers, coatings,
or moving parts. IntelliTouch technology has been operationally
tested to more than 50 million touches in one location without
failure, using a stylus similar to a finger.
Sealing Unit is sealed to protect against splashed liquids, dirt, and dust.
Optical
Light Transmission
(per ASTM D1003) 90%
Visual Resolution All measurements made using USAF 1951 Resolution Chart,
under 30X magnification, with test unit located approximately
1.5 in (38 mm) from surface of resolution chart.
Clear surface: Excellent, with no noticeable degradation.
Antiglare surface: 6:1 minimum.
Gloss (per ASTM
D2457 using a 60-
degree gloss meter)
Antiglare surface: Curved: 60 ± 20 gloss units or 75 ± 15 gloss
units.
C-32Elo Entuitive Touchmonitor User Guide
Environmental
Chemical Resistance The active area of the touchscreen is resistant to all chemicals
that do not affect glass, such as:
Acetone
Toluene
Methyl ethyl ketone
Isopropyl alcohol
Methyl alcohol
Ethyl acetate
Ammonia-based glass cleaners
Gasoline
Kerosene
Vinegar
Electrostatic
Protection (per EN 61
000-4-2, 1995)
Meets Level 4 (15 kV air/8 kV contact discharges).
C-33
Table C.3
AccuTouch Touchmonitor Specifications
Mechanical
Construction Top: Polyester with outside hard-surface coating with clear or
antiglare finish.
Inside: Transparent conductive coating.
Bottom: Glass substrate with uniform resistive coating. Top and
bottom layers separated by Elo-patented separator dots.
Positional Accuracy Standard deviation of error is less than 0.080 in. (2.03 mm). This
equates to less than ±1%.
Touchpoint Density More than 100,000 touchpoints/in² (15,500 touchpoints/cm²).
Touch Activation Force Typically less than 4 ounces (113 grams).
Surface Durability Meets Taber Abrasion Test (ASTM D1044), CS-10F wheel, 500 g.
Meets pencil hardness 3H.
Expected Life
Performance AccuTouch technology has been operationally tested to greater than
35 million touches in one location without failure, using a stylus
similar to a finger.
Optical
Light Transmission
(per ASTM D1003) Typically 75% at 550-nm wavelength (visible light spectrum).
Visual Resolution All measurements made using USAF 1951 Resolution Chart, under
30 X magnification, with test unit located approximately 1.5 in. (38
mm) from surface of resolution chart.
Antiglare surface: 6:1 minimum.
Haze (per ASTM D1003) Antiglare surface: Less than 15%.
Gloss (per ASTM D2457) Antiglare surface: 90 ± 20 gloss units tested on a hard-coated front
surface.
C-34 Elo Entuitive Touchmonitor User Guide
19
"
LCD Touchmonitor (ET192XL-XXXA*) Dimensions
444mm [17.47"]
359mm [14.14"]
437mm [17.20"]
385mm [15.17"]
287mm [11.31"]
220mm [8.65"]
280mm [11.03"]
C-35
Detail A
77mm [3.03"]
10mm [0.39"]
244mm [9.62"]
See Detail A
C-36 Elo Entuitive Touchmonitor User Guide
40Elo Entuitive Touchmonitor User Guide
41
C
HAPTER
4
W
ARRANTY
Except as otherwise stated herein or in an order acknowledgment delivered to
Buyer, Seller warrants to Buyer that the Product shall be free of defects in
materials and workmanship. The warranty for the touchmonitors and
components of the product are: 3 years monitor, 10 years IntelliTouch screen, 5
years Accu- Touch screen, 5 years Controller.
Seller makes no warranty regarding the model life of components. Seller’s
suppliers may at any time and from time to time make changes in the
components delivered as Products or components.
Buyer shall notify Seller in writing promptly (and in no case later than thirty
(30) days after discovery) of the failure of any Product to conform to the
warranty set forth above; shall describe in commercially reasonable detail in
such notice the symptoms associated with such failure; and shall provide to
Seller the opportunity to inspect such Products as installed, if possible. The
notice must be received by Seller during the Warranty Period for such product,
unless otherwise directed in writing by the Seller. Within thirty (30) days after
submitting such notice, Buyer shall package the allegedly defective Product in
its original shipping carton(s) or a functional equivalent and shall ship to Seller
at Buyer’s expense and risk.
Within a reasonable time after receipt of the allegedly defective Product and
verification by Seller that the Product fails to meet the warranty set forth above,
Seller shall correct such failure by, at Seller’s options, either (i) modifying or
repairing the Product or (ii) replacing the Product. Such modification, repair, or
replacement and the return shipment of the Product with minimum insurance to
Buyer shall be at Seller’s expense. Buyer shall bear the risk of loss or damage in
transit, and may insure the Product. Buyer shall reimburse Seller for
transportation cost incurred for Product returned but not found by Seller to be
defective. Modification or repair, of Products may, at Seller’s option, take place
either at Seller’s facilities or at Buyer’s premises. If Seller is unable to modify,
repair, or replace a Product to conform to the warranty set forth above, then
Seller shall, at Seller’s option, either refund to Buyer or credit to Buyer’s
account the purchase price of the Product less depreciation calculated on a
straight-line basis over Seller’s stated Warranty Period.
42Elo Entuitive Touchmonitor User Guide
THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES
FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS
WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER
WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE,
REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE,
THEIR QUALITY, THEIR MERCHANTABILITY, THEIR
NONINFRINGEMENT, OR OTHERWISE. NO EMPLOYEE OF SELLER
OR ANY OTHER PARTY IS AUTHORIZED TO MAKE ANY WARRANTY
FOR THE GOODS OTHER THAN THE WARRANTY SET FORTH
HEREIN. SELLER’S LIABILITY UNDER THE WARRANTY SHALL BE
LIMITED TO A REFUND OF THE PURCHASE PRICE OF THE PRODUCT.
IN NO EVENT SHALL SELLER BE LIABLE FOR THE COST OF
PROCUREMENT OR INSTALLATION OF SUBSTITUTE GOODS BY
BUYER OR FOR ANY SPECIAL, CONSEQUENTIAL, INDIRECT, OR
INCIDENTAL DAMAGES.
Buyer assumes the risk and agrees to indemnify Seller against and hold Seller
harmless from all liability relating to (i) assessing the suitability for Buyer’s
intended use of the Products and of any system design or drawing and (ii)
determining the compliance of Buyer’s use of the Products with applicable
laws, regulations, codes, and standards. Buyer retains and accepts full
responsibility for all warranty and other claims relating to or arising from
Buyer’s products, which include or incorporate Products or components
manufactured or supplied by Seller. Buyer is solely responsible for any and all
representations and warranties regarding the Products made or authorized by
Buyer. Buyer will indemnify Seller and hold Seller harmless from any liability,
claims, loss, cost, or expenses (including reasonable attorney’s fees) attributable
to Buyer’s products or representations or warranties concerning same.
Index-43
INDEX
Numerics
A
B
C
D
18.1" LCD Touchmonitor (ET182XL-XXWB-X) Dimensions, 34
18.1" LCD Touchmonitor (ET182XL-XXWB-X) Specifications, 30
About the Product, 1
About Touchmonitor Adjustments, 19
Accessing the VESA Mounting Interface, 13
AccuTouch Touchmonitor Specifications, 33
Additional Color setting, 22
Agencies, 30
Analog Contrast, 21
Auto Adjust, 22
Auto Contrast, 21
Back-light Lamp Life, 30
Base Bottom View, 5
Bass, 22
Brightness, 20,21
Care and Handling of Your Touchmonitor, 28
Chemical Resistance, IntelliTouch, 32
Cleaning Your Touchmonitor, 28
Clock, 22
Colors Temperature, 21
Compatible Video Modes, 29
Connecting the Power Cable, 11
Connecting the Serial or USB Touchscreen Cable, 9
Connecting the Speaker Cable, 10
Connecting the Video Cable, 8
Construction, AccuTouch, 33
Contrast, 21
Display Brightness, 30
Display Response Time, 30
Display Type, 30
DSUB Analog/DVI Digital, 22
Connecting the Remote OSD Cable, 10
Electrical, 30
Electrical Safety Information, 31
Electrostatic Protection, IntelliTouch, 32
Emissions and Immunity Information, 31
Enable/Disable, 20
Enter Select item, 20
Environmental, 30, 32
Expected Life Performance, AccuTouch, 33
Expected Life Performance, IntelliTouch, 31
E
F
Flesh Tone, 22
G
H
I
Gloss, AccuTouch, 33
Gloss, IntelliTouch, 31
Haze, AccuTouch, 33
Hue, 22
Image Information, 22
Image problem, 23
Image, scrolling, 24
Image, unstable, 24
Image, vertical flickering, 24
Installation and Setup, 3
Installing the Driver Software, 14
Installing the Serial Touch Driver, 15
Installing the Serial Touch Driver for MS-DOS and
Windows 3.1, 16
Installing the Serial Touch Driver for Windows XP, 2000,
Me, 95/98 and NT 4.0, 15
Installing the USB Touch Driver, 17
Installing the USB Touch Driver for Windows XP, 2000, Me
and 98, 17
IntelliTouch Touchmonitor Specifications, 31
Introduction, 1
L
M
N
Light Transmission, AccuTouch, 33
Light Transmission, IntelliTouch, 31
Main Unit, 4
Mechanical, 30
Mechanical, AccuTouch, 33
Mechanical, IntelliTouch, 31
Menu, 20
Mute/Minus Counter-clockwise, 20
Mounting the Base, 13
Native Resolution, 25
Balance,22
Contrast Ratio,30
T
U
V
W
X
Technical Specifications, 29
Touch Activation Force, AccuTouch, 33
Touch Activation Force, IntelliTouch, 31
Touch Interface Connection, 6
Touch not working, 24
Touchmonitor Safety, 27
Touchmonitor Specifications, 30
Touchpoint Density, AccuTouch, 33
Touchpoint Density, IntelliTouch, 31
Troubleshooting, 23
Unpacking Your Touchmonitor, 3
Using the On-Screen Display (OSD) Menus, 19
UXGA, 25
VESA Mount on Your Touchmonitor, 12
VGA, 25
Viewing Angle, 30
Visual Resolution, AccuTouch, 33
Visual Resolution, IntelliTouch, 31
Volume, 22
Warranty, 41
XGA, 25
Up/Down, 21
O
Operation, 19
Optical, AccuTouch, 33
Optical, IntelliTouch, 31
Optimizing the LCD Display, 12
OSD Left/Right, 22
OSD Menu Function, 21
OSD Timeout, 22
OSD Up/Down, 22
OSD Power, Respond, 23
Out of Range display, 23
Phase, 22
Pixel Format, 30
Positional Accuracy, AccuTouch, 33
Positional Accuracy, IntelliTouch, 31
Power Switch, 26
Precautions, 1
Product Overview, 4
Rear View, 4
Recall Defaults, 21
Regulatory Information, 37
Routing the cables, 7
Saturation, 22
Sealing, IntelliTouch, 31
Serial or USB Connection, 6
Side Bezel Buttons, 20
Side View, 5
Solutions to Common Problems, 23
Speakers, 30
Surface Durability, AccuTouch, 33
Surface Durability, IntelliTouch, 31
SVGA, 25
SXGA, 25
P
R
S
Index-44
Treble, 22
Check out Elo's W
eb site!
www.elotouch.com
Get the latest...
•Product information
•Specifications
•News on upcoming events
•Press
releases
•Software
drivers
Getting in T
ouch with Elo
To find out more about Elo’s extensive range of touch solutions, visit our Web site at www.elotouch.com
or simply call the office nearest you:
USA
Elo TouchSystems, Inc.
6500 Kaiser Drive
Fremont, CA 94555-3613
(800) ELO-TOUCH (800-356-8682)
Tel 510-739-5016
Fax 510-790-0627
eloinfo@elotouch.com
Germany
Elo TouchSystems GmbH & Co. KG
Haidgraben 6
D-85521 Ottobrunn
Germany
Tel +49(89)60822-0
Fax +49(89)60822-150
elosales@elotouch.com
Belgium
Elo TouchSystems
Diestsesteenweg 692
B-3010 Kessel-Lo
Belgium
Tel +32(16)35-2100
Fax +32(16)35-2101
elosales@elotouch.com
Japan
Touch Panel Systems K.K
Sun Homada Bldg. 2F
1-19-20 Shin-Yokohama,
Kanagawa 222-0033
Japan
Tel +81(45)478-2161
Fax +81(45)478-2180
www.tps.co.jp
2002 Elo TouchSystems, Inc. Pinted in USA
