Hyundai IBT L17A00001 17" LCD Monitor User Manual ATT E MANUAL
Hyundai IBT Corp. 17" LCD Monitor ATT E MANUAL
Users Manual
FCC ID : PJIL17A00001
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCT-FO5-0903 1/1
ATTACHMENT E.
- USER’S MANUAL -
NEXT
User’s Guide
Type No. L17A00000 / L19A00000
Model. L17T/L19T
TFT LCD Color Multi Function Monitor
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
WE Hyundai ImageQuest CO., LTD.
Ami-ri Bubal-Eub Ichon-Si Kyungki-Do
467-860 KOREA
declare under our sole responsibility that the product:
to which this declaration relates is in conformity with the
following standard(s) or other normative document(s)
following the provisions of the Low Voltage Directive 73/23/EEC,
93/68/EEC and the EMC Directive 89/336/EEC.
KOREA / September. 09, 2005
BYUNG SUHN, AHN
(Place and date of issue) (Name and signature of
authorized person)
DECLARATION OF CONFORMITY
Kind of equipment : LCD MONITOR
Type-Designation : L17A00000 / L19A00000
Safety : EN60950-1:2002
EMC : EN 55013:2001+A1:2003
EN 55020 :2002+A1:2003
EN 55022 :1998+A1:2000+A2:2003
EN 55024 :1998+A1:2001+A2:2003
EN 61000-3-2:2000
EN 61000-3-3:1995+A1:2001
Accredited testlaboratory:
TÜV Rheinland
Am Grauen Stein
51105 Köln
L17T/L19T
TFT LCD Color Multi Function Monitor
Contents 1. Introduction ...................................1/35
2. Safety Information ........................1/35
3. Installing the monitor ...................4/35
3-1. Packing List .........................................4/35
3-2. Selecting a suitable location ..............5/35
3-3. Connecting the monitor .....................5/35
3-4. Connecting the TV ..............................5/35
3-5. Setting the refresh rate ......................8/35
Preset Timing Table ............................9/35
3-6. User’s Environment ...........................10/35
4. Adjusting the picture(Monitor) .12/35
4-1. Using the On Screen Display ...........13/35
4-2. Direct access buttons .......................13/35
4-3. OSD Adjustments .............................14/35
5. Adjusting the picture(TV) ...........17/35
5-1. Direct access buttons .......................17/35
5-2. OSD Adjustments .............................18/35
6. TV Functions ................................21/35
7. Display power management ......29/35
Reducing power consumption ..............29/35
8. Troubleshooting ..........................31/35
9. Specifications ..............................34/35
L17T/L19T
TFT LCD Color Multi Function Monitor
1. Introduction
2. Safety Information
1/35
This manual contains instructions for installing and operating
Hyundai ImageQuest L17T/L19T.
Hyundai ImageQuest L17T/L19T is a highly ergonomic color display unit.
• 17"/19” viewable SXGA LCD
• High quality screen re-scaling capability
• 100-240V AC input voltage, DC 12V 3.5A Adapter
• VESA DPMS (Display Power Management Signaling)
• VESA DDC1/2B compatibility
• Advanced digital On-Screen-Display controls
• Fast and accurate auto adjustment
• Most advanced image scaling

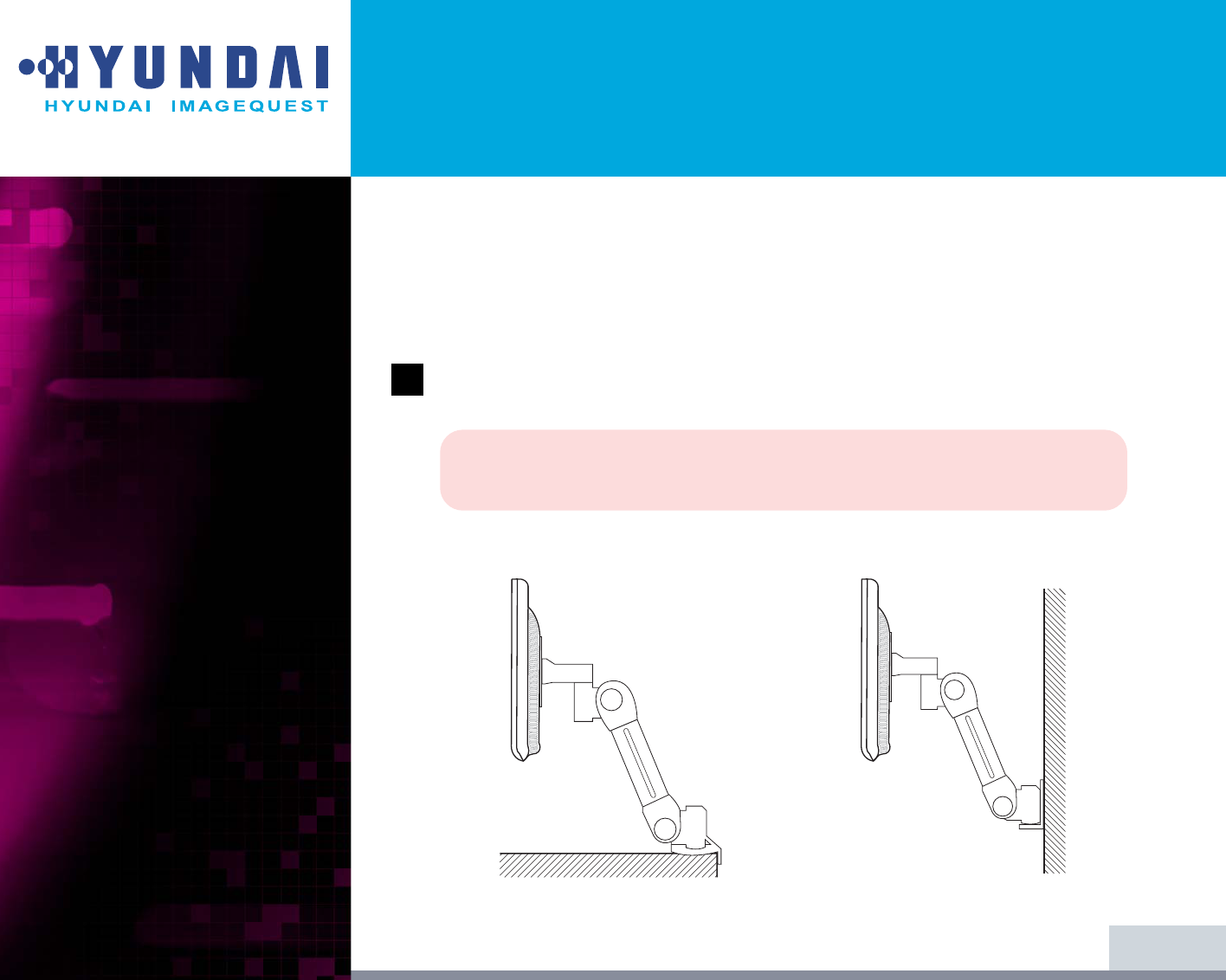

• Supporting VESA Flat Panel Monitor Physical Mounting Interface

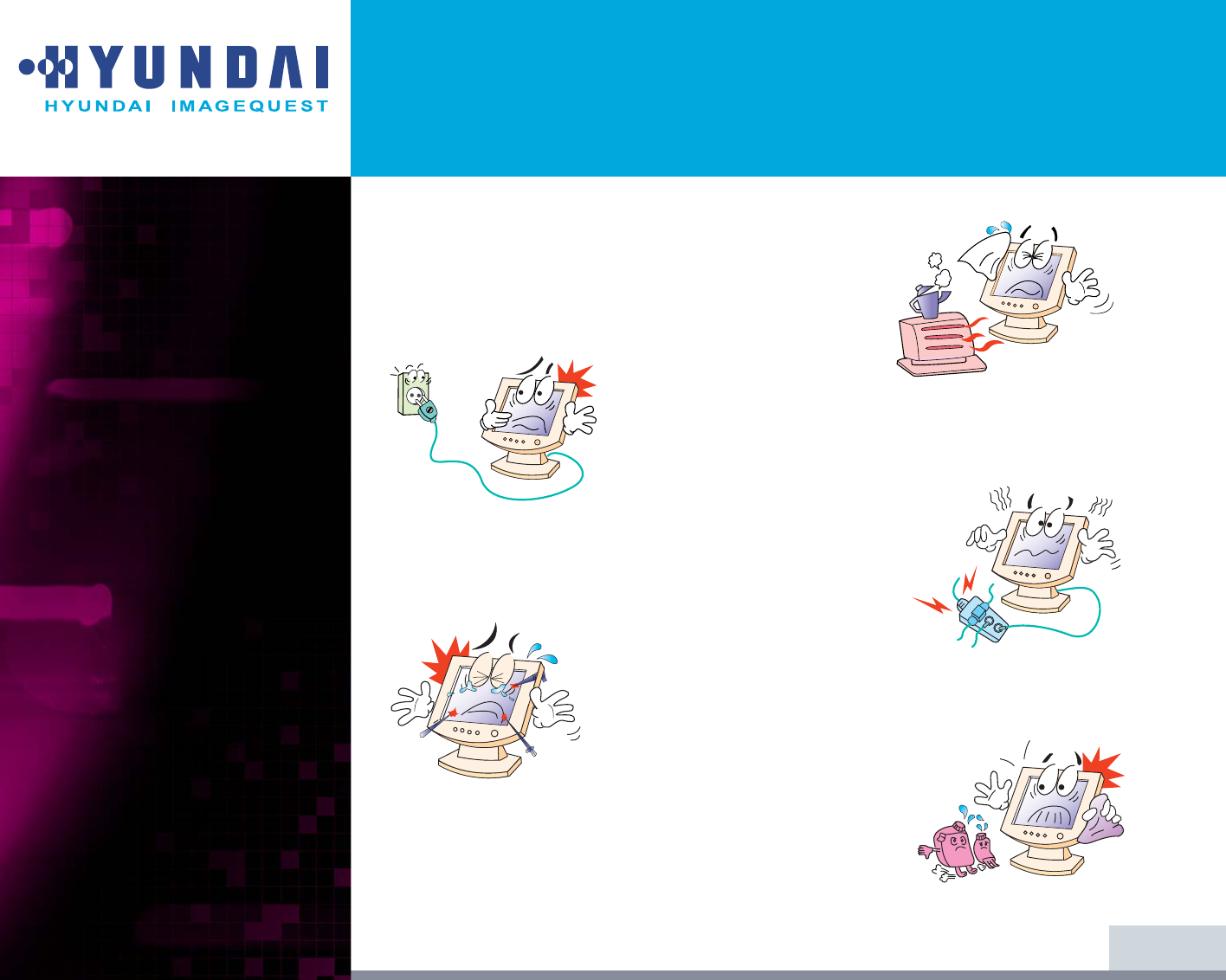

This Monitor has been engineered and manufactured to assure your safety.
You can prevent serious electrical shock and other hazards by keeping in mind
the following:
Do not place anything wet on the monitor or the power
cord. Never cover the ventilation openings with any
material or touch them with metallic or
inflammable materials.
L17T/L19T
TFT LCD Color Multi Function Monitor
2/35
Avoid operating the monitor in extreme heat,
humidity or areas affected by dust.
Temperature : 5~35°C
Humidity : 30~80RH
Be sure to turn the monitor off before plugging the
power cord into the socket. Make sure that the power
cord and the other cords are securely and rightly
connected.
Overloaded AC outlets and extension cords are
dangerous, as are frayed power cords and broken
plugs, which may cause electric shock or fire. Call
your service technician for replacement.
Do not use sharp tools such as a pin or a pencil near
the monitor, as they may scratch the LCD surface.
Do not use any solvent, such as benzene, to clean the
monitor, as it will damage the LCD surface.
L17T/L19T
TFT LCD Color Multi Function Monitor
Cleaning and Maintenance
• To avoid risk from electric shock, do not disassemble the cabinet of the unit.
The unit is not user-serviceable. Remember to unplug the unit from the power
outlet before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not
use thinner or benzene, abrasive cleaners or compressed air.
• Do not wipe the screen with sponge/cloth that could scratch the surface.
• To clean your antistatic screen, use water and special microfiber-screen-
cleaning tissue-used in optical lens cleaning, or a lightly dampened piece of
soft, clean cloth with water or mild detergent.
• If the instructions above do not help in removing stains, contact an authorized
service agent.
3/35
L17T/L19T
TFT LCD Color Multi Function Monitor
4/35

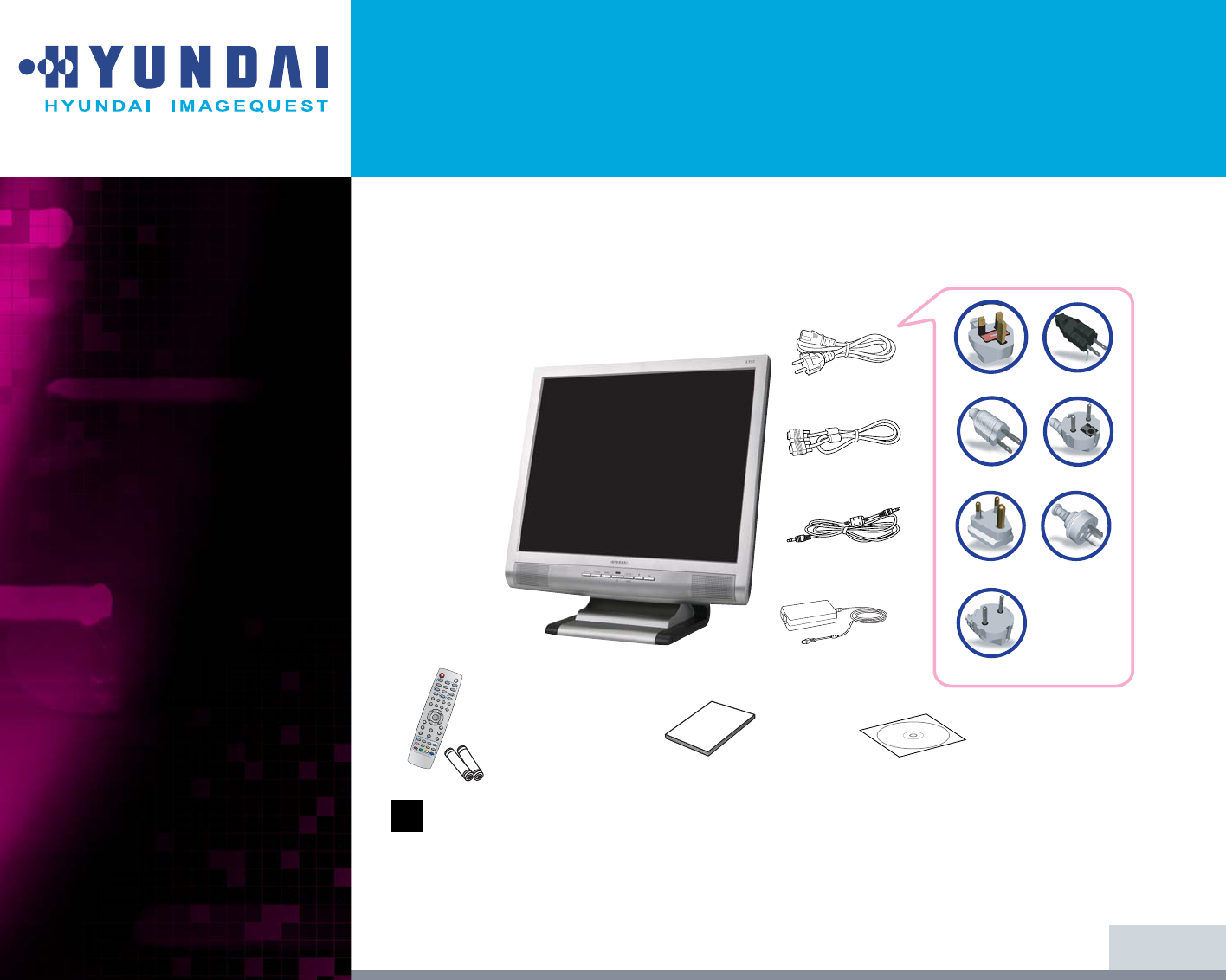

The following items should be found in the package.
The power cord above can be changed upon different voltage areas. Please
contact your dealer if anything is missing or damaged.
Other power cord’s except the original packed in the product especially cards
longer than 3m may affect EMC of the product in operating condition.
3. Installing the
monitor
3-1. Packing List
!
UK
America/Canada
Japan
Australia
Korea
Europe
South Africa
12
0
3
4
7
5
8
6
9

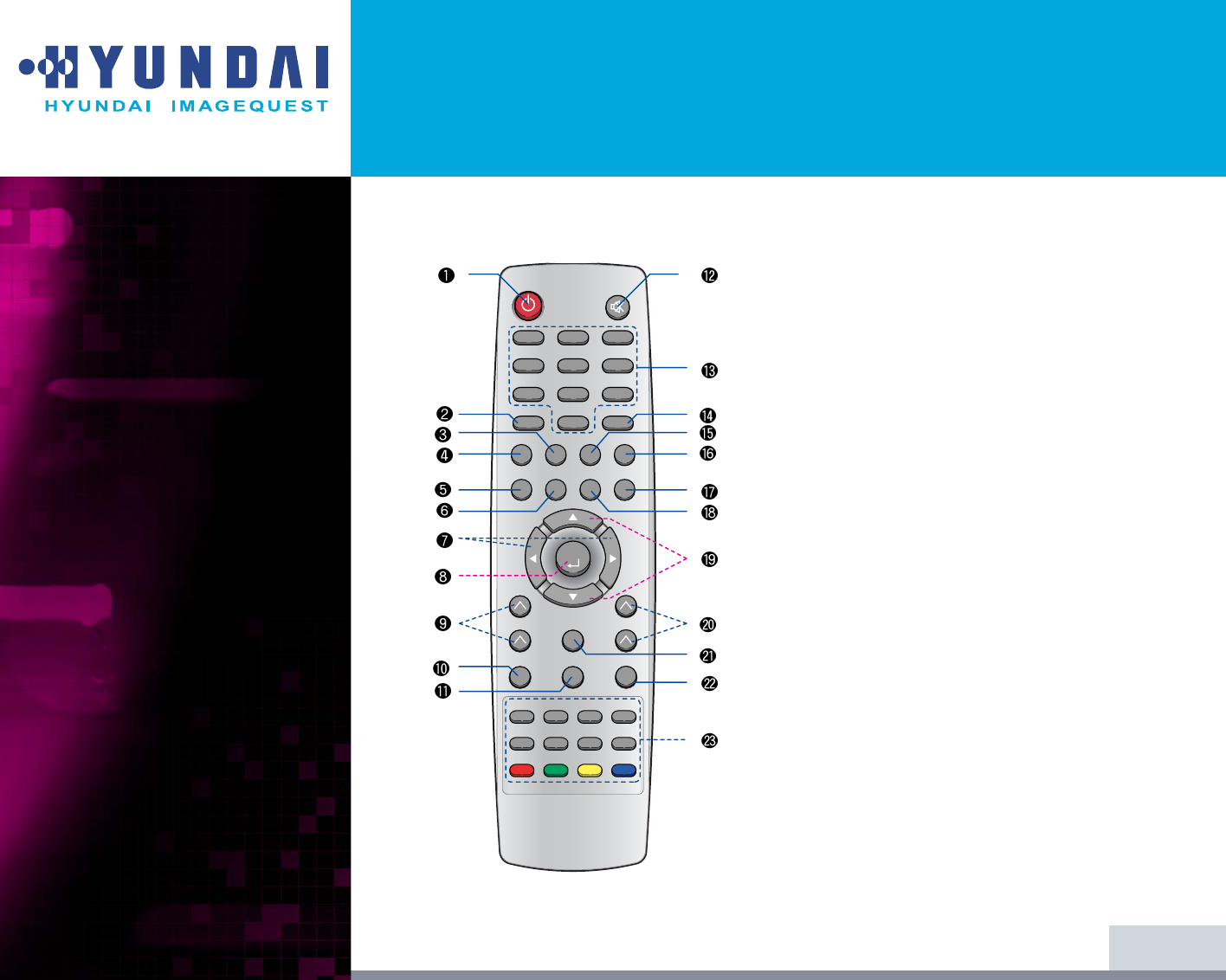

MUTE
P-CH EDIT PRE,P
–
CH
PCS-VIDEOVIDEOT
V
SOURCEINFOAIR/CABLESEARCH
VOLEXIT P-CHANNEL
AUTOBRIGHTNESSCONTRAST
POWER
TTX/MIX LIST/FLOFSTOREHOLD
SIZEREVEALSUB PAGEINDEX
MENU
Power Cord
Signal Cable
Audio Cable
Compact Disc
Remote Conrtol wuth
Batteries(AAA x 2) Installation
Guide
AC/DC Power
adapter
L17T/L19T
TFT LCD Color Multi Function Monitor
5/35
3-2. Selecting a suitable
location
3-3. Connecting the
monitor
• Place the monitor at least 30cm from other electrical or heat-emitting
equipment and allow at least 10cm on each side for ventilation.
• Place the monitor in a position where no light shines directly onto or is
reflected on the screen.
• To reduce eye strain, avoid installing the display unit against a bright
background such as a window.
•
Position the monitor so that the top of the screen is no higher than the eye level.
• Position the monitor directly in front of you at a comfortable reading distance
(around 45 to 90cm)

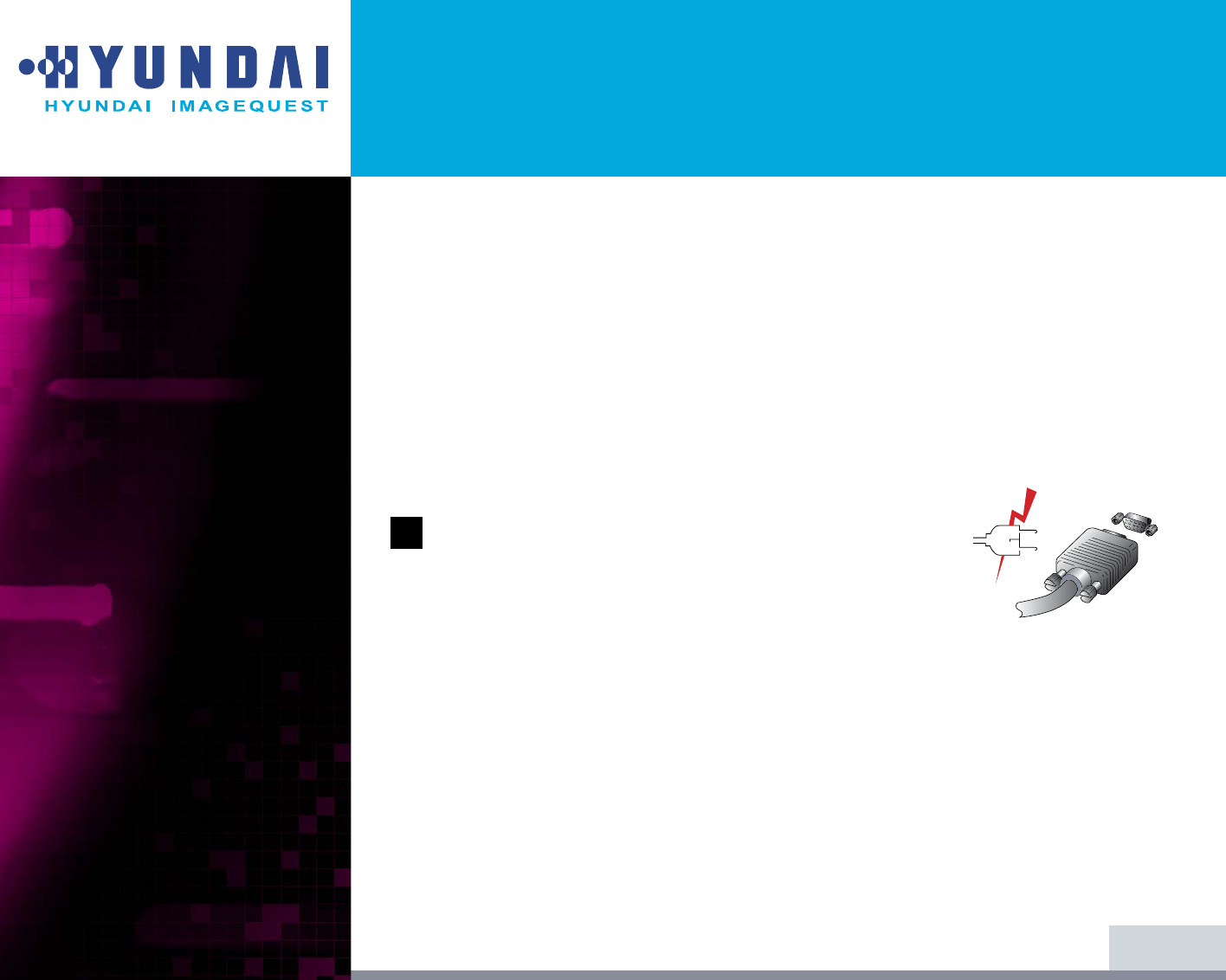

Before you start cabling your monitor, check that the
power is off on all units. To avoid any possibility of
electric shock, always connect your equipment to
properly earthed outlets.
1. Insert the other 15-pin signal cable connector into the 15-pin VGA connection
on your computer and screw it.
2. Plug the power cord connection to the connection on the monitor.
3. Plug the other end of the power cord to your computer's main supply or to a
100V-240V earthed electrical outlet.
4. Turn on the monitor using the power switch and check that the power LED is
on. If not, repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of
this guide.
5. Turn on the power of the computer. The picture will appear within about 10
seconds. Adjust the picture to obtain optimum picture quality. See section
Adjusting the picture in this guide for more information.
!!
L17T/L19T
TFT LCD Color Multi Function Monitor
6/35

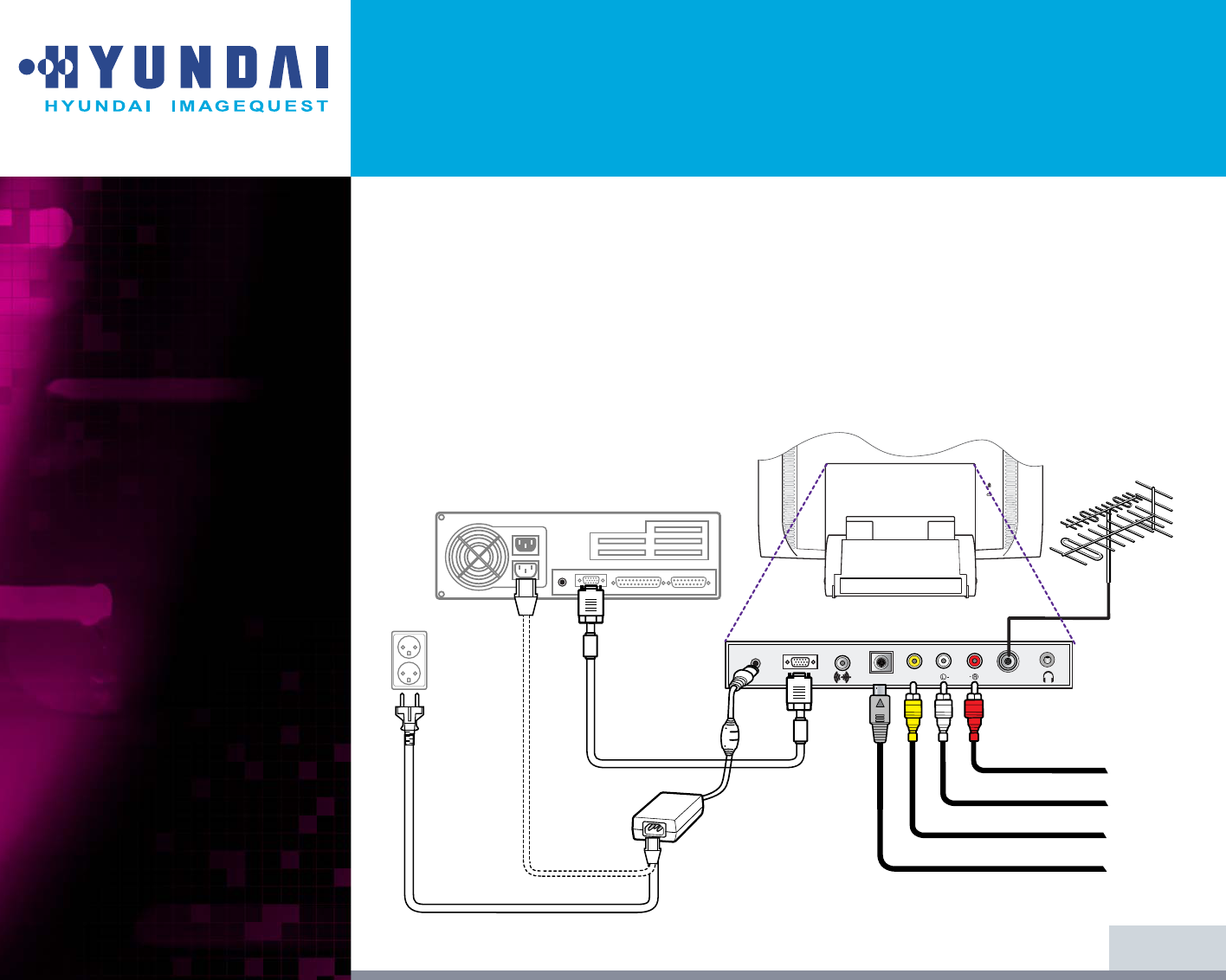

3-4. Connecting the
monitor
- Connecting External A/V Devices
• Connect RCA (Yellow) or S-Video cables to an appropriate external A/V device
such as VCR, DVD or Camcorder.
• Connect RCA audio cables to “Audio (R)” and “Audio (L)” terminals and the other
ends to corresponding audio out terminals on the A/V device.
- Connecting TV/CATV
• Connect an antenna or CATV cable to the antenna terminal on the back of the
monitor.
ANTENNA
AUDIO
VIDEOS-VIDEO
D-SUBDC 12 V
RCA VIDEO Yellow-Cable
S-VIDEO Cable (Option)
RCA(Left) AUDIO White-Cable
RCA(Right) AUDIO
Red-Cable
Speaker
L17T/L19T
TFT LCD Color Multi Function Monitor
• Audio system
7/35
!!

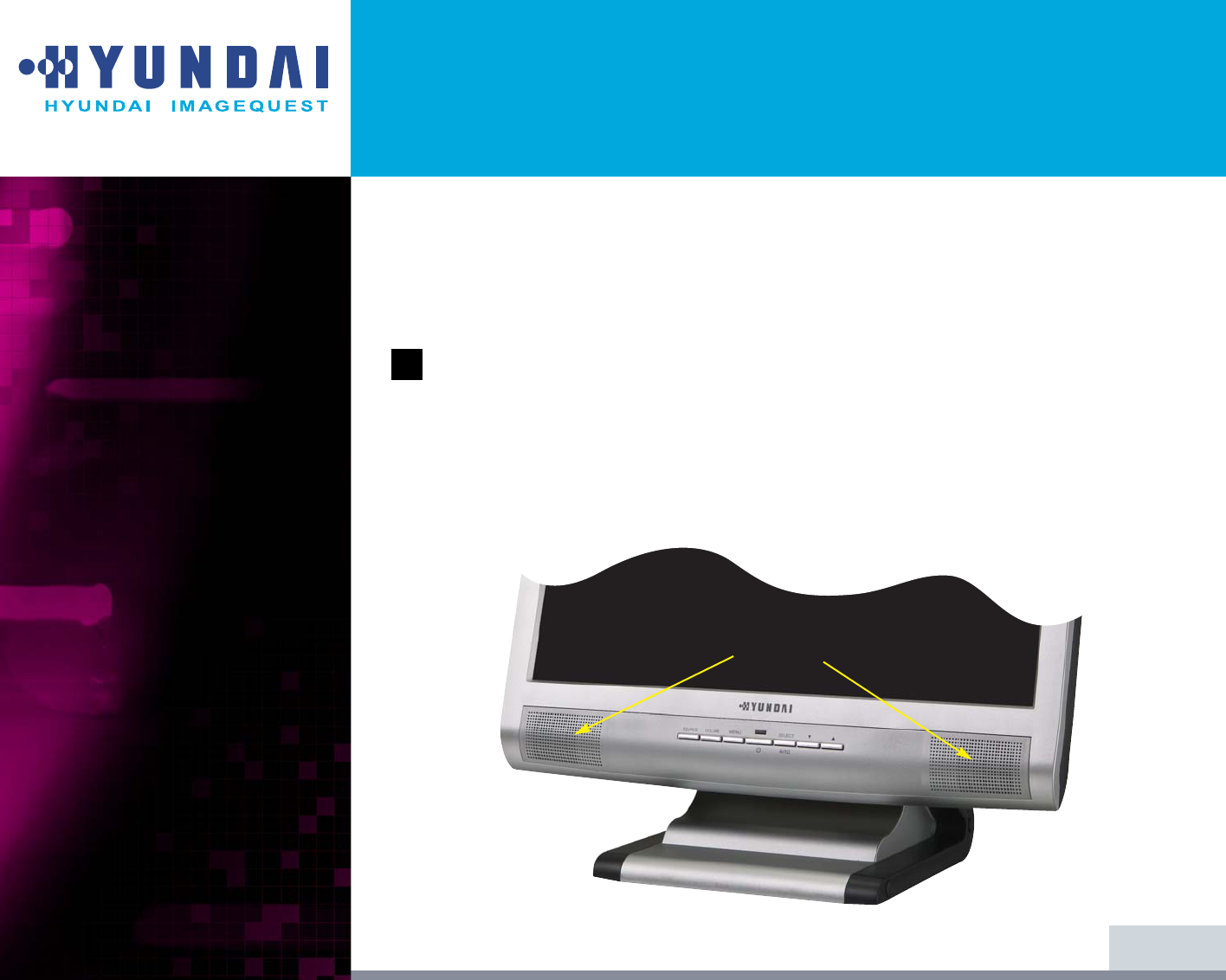

This monitor has an audio system including two micro loudspeakers. Each of two
micro loudspeakers has an 2Wrms (typ.) output power. This system also supports a
headphone output jack.
This system has been tuned to get a best tone quality which an audio input
level is under 300mVrms. if the input level is more than 600mVp-p, you must
tune down the audio input as the audio output tone may be distorted.
When the monitor is turned on, audio is always set up as off mode. Please use
AUDIO direct access button on the front cover or On Screen Display to put
audio on.
L17T/L19T
TFT LCD Color Multi Function Monitor
8/35
3-5. Setting the refresh
rate Follow the instructions below to set your refresh rate in Windows 98/ME/XP/2000.
1. Go to the configuration window(Start-Settings-Configuration window).
2. Double click on the ‘Display’ icon.
3. Click on the ‘Settings’ tab.
4. Click on the ‘Advanced’ button.
5. Click on ‘Adapter’ and select 60Hz from the list.
6. Click on ‘Apply’ to accept the selected value.
Power Switch
LED Indicator
L17T/L19T
TFT LCD Color Multi Function Monitor
Preset Timing Table
If the signal from the system doesn't equal to the preset timing mode, adjust
the mode with reference to the user guide of videocard because the screen
may not be displayed.
The recommended setting is a resolution of 1280x1024 and a refresh rate of 60Hz.
9/35
!
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Resolution
720
x
400
640
x
480
640
x
480
800
x
600
800
x
600
800
x
600
800
x
600
832
x
624
1024
x
768
1024
x
768
1024
x
768
1152
x
864
1280
x
1024
1280
x
1024
Horizontal Frequency
31.5 KHz
31.5 KHz
37.5 KHz
35.2 KHz
37.9 KHz
48.1 KHz
46.9 KHz
49.7 KHz
48.4 KHz
56.5 KHz
60.0 KHz
67.5 KHz
63.9 KHz
80.0 KHz
Refresh rate
70 Hz
60 Hz
75 Hz
56 Hz
60 Hz
72 Hz
75 Hz
75 Hz
60 Hz
70 Hz
75 Hz
75 Hz
60 Hz
75 Hz
L17T/L19T
TFT LCD Color Multi Function Monitor
3-6. User’s Environment
Kensington Security
(Locking) Slot
Recommended Ergonomic User’s Environment
• Viewing angle of the monitor should be between 0~20 degree.
• This display unit supports a Kensington-type security device to secure your
monitor. Kensington lock is not included.
• To purchase and install the Kensington locking device, please refer to the
following contact information.
* Kensington Technology Group
· Address : 2000 Alameda de las Pulgas 2F san mateo, California 94403-1289
· Tel : +1 650 572 2700 · Fax : +1 650 572 9675 · Web-site : www.kensington.com
10/35
20o
Kensington
security slot
L17T/L19T
TFT LCD Color Multi Function Monitor
VESA MOUNT’G
• This unit supports VESA FPMPMI standard for 75mmx75mm screw mounting by
giving 4 screw holes inside the base stand of the unit.
• For buying VESA Flat Panel Monitor Mounting Devices, please contact the
following .
Only M4 x10 size screw must be used for proper mounting.
(Using wrong size screw may cause damages to the device)
* Ergotron, Inc.
· Address : Ergotron Europe Kuiperbergweg 50 1101 AG Amsterdam The Netherlands
· Tel : +3 1 20 696 60 65 · Fax : +3 1 20 609 04 59 · E-mail : info.eu@ergotron.com
11/35
Desk Mount
Wall Mount
!
L17T/L19T
TFT LCD Color Multi Function Monitor

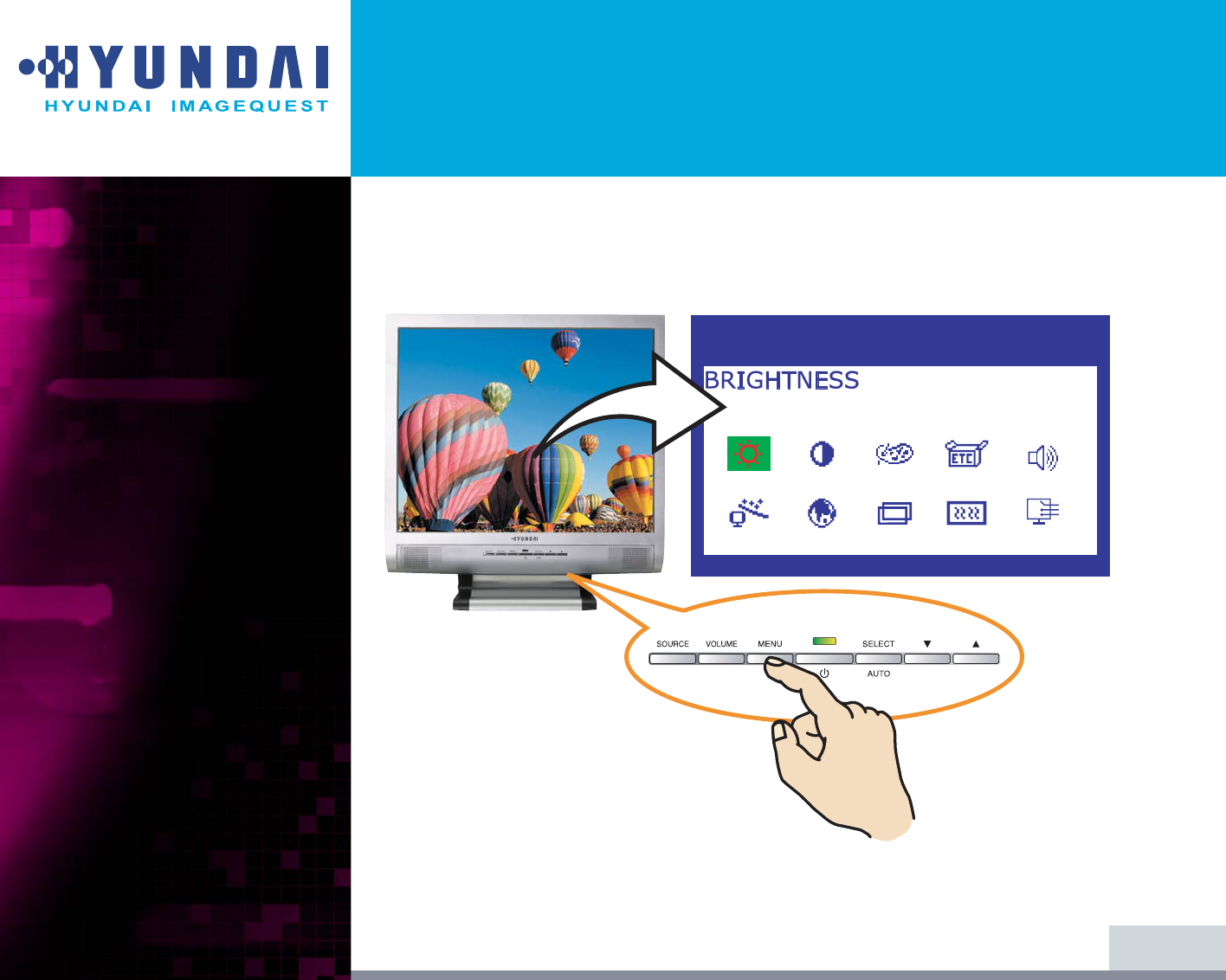

4. Adjusting the picture
12/35
You can adjust the screen display by using the buttons located below the
screen.
1280X1024
V:60.0/H:63.9
L17T/L19T
TFT LCD Color Multi Function Monitor
13/35
1. Push the MENU button to call the OSD to the screen. The resolution and
frequency are displayed at the top of the menu box for your information.
2. Push the or button to choose the item you want to adjust. The selected
item is highlighted.
3. Push the SELECT button to adjust the highlighted item.
4. Use the or button to adjust the selection.
5. Push the MENU button to return to the previous menu if you are in a submenu.
6. The display unit automatically saves the new settings in 1 second after your
last adjustments and the menu disappears. You can also push the MENU button
to make the menu disappear.
AUTO ADJUST
At first, a full screen such as Window's back ground will be displayed.
Push the SELECT(AUTO) button to adjust the shape of the screen
automatically.
VOLUME
Use the VOLUME button to select the volume adjustment.
Adjust with or button.
4-1. Using the On Screen
Display
4-2. Direct access buttons
L17T/L19T
TFT LCD Color Multi Function Monitor
14/35
4-3. OSD Adjustments
The OSD adjustments available to you are listed below.
BRIGHTNESS
Adjusts the brightness of the screen.
CONTRAST
Adjusts the contrast of the screen.
COLOR CONTROL
Color temperature affects the tint of the image. With lower color
temperatures the image turns reddish and with higher temperatures
bluish.
There are three color settings available: BLUISH, REDDISH or USER.
With the USER setting you can set individual values for red, green
and blue.
MISCELLANEOUS
RECALL
Recall the saved color data.
OSD TIMER
You can set the displayed time of OSD Menu window on the screen by
using this adjustment.
L17T/L19T
TFT LCD Color Multi Function Monitor
15/35
OSD POSITION
Adjust the OSD menu's horizontal or vertical position on the screen.
AUTO COLOR
Optimum color setting is auto programmed for user’s convenience.
AUDIO
VOLUME
Adjust the audio volume level.
SOUND OFF
This menu is used to choose audio on / off.
TREBLE
Emphasize high frequency audio.
BASE
Emphasize low frequency audio.
AUTO ADJUST
You can adjust the shape of the screen automatically at the full screen
pattern.
LANGUAGE
You can select the language in which adjustment menus are displayed.
The following languages are available : English, French, German, Italian,
Spanish, Swedish, Finnish, Danish, Portuguese, Dutch (Option Russia,
Korean, Japanese, chinese)
L17T/L19T
TFT LCD Color Multi Function Monitor
H/V. POSITION
H POSITION
Adjust the horizontal position of the entire screen image.
V POSITION
Adjust the vertical position of the entire screen image.
CLOCK PHASE
PHASE
Adjust the noise of the screen image.
CLOCK
Adjust the horizontal size of the entire screen image.
SOURCE
No function. (Only supportable by the optional appliance.)
16/35
L17T/L19T
TFT LCD Color Multi Function Monitor
5. Adjusting the picture
(TV)
5-1. Direct access buttons
Use this button to change the video source
Video sources are changed in the following order :
PC → S-VIDEO → VIDEO → TV
Use this button to select the volume adjustment.
Then, adjust with the Up or Down button.
Open the On-Screen-Display and select the highlighted function.
17/35
POWER SWITCHLED INDICATOR
/Receive window for
Remote controller
L17T/L19T
TFT LCD Color Multi Function Monitor
5-2. OSD Adjustments
Select a function on the OSD.
Moves the selector right or left on the OSD.
Increases or decreases the values of the selected function.
Increases or decreases the channel number.
The OSD adjustments are listed below.
BRIGHTNESS
Adjust the brightness of the screen.
CONTRAST
Adjust the contrast of the screen.
IMAGE ADJUST
SATURATION
Adjust the color saturation of the video image.
TINT
Adjust the color Tint of the video image.
SHARPNESS
Adjust the sharpness and softness of the video image.
18/35
L17T/L19T
TFT LCD Color Multi Function Monitor
MISCELLANEOUS
RECALL
Recall the saved color data.
OSD TIMER
You can set the time. The OSD Menu window will be displayed on the
screen by using this adjustment.
OSD POSITION
Adjusts the OSD menu's horizontal or vertical position on the screen.
L19T TTX LANGUAGE(OPTION)
AUDIO
VOLUME
Adjusts the audio volume level.
SOUND OFF
This menu is used to turn the choose audio on /off.
TREBLE
Emphasizes high frequency audio.
BASE
Emphasizes low frequency audio.
LANGUAGE
You can select the language in which adjustment menus are displayed.
The following languages are available : English, French, German, Italian,
Spanish, Swedish, Finnish, Danish, Portuguese and Dutch.
19/35
L17T/L19T
TFT LCD Color Multi Function Monitor
SOURCE
This menu is used to choose the desired input signal source.
There are four signal sources available :
- Analog RGB : 15 pin D-sub, Analog signal
- S-video : MINI DIN, Separate video signal
- Composite Video : RCA Jack, Composite video signal
- TV : Antenna or CATV signal

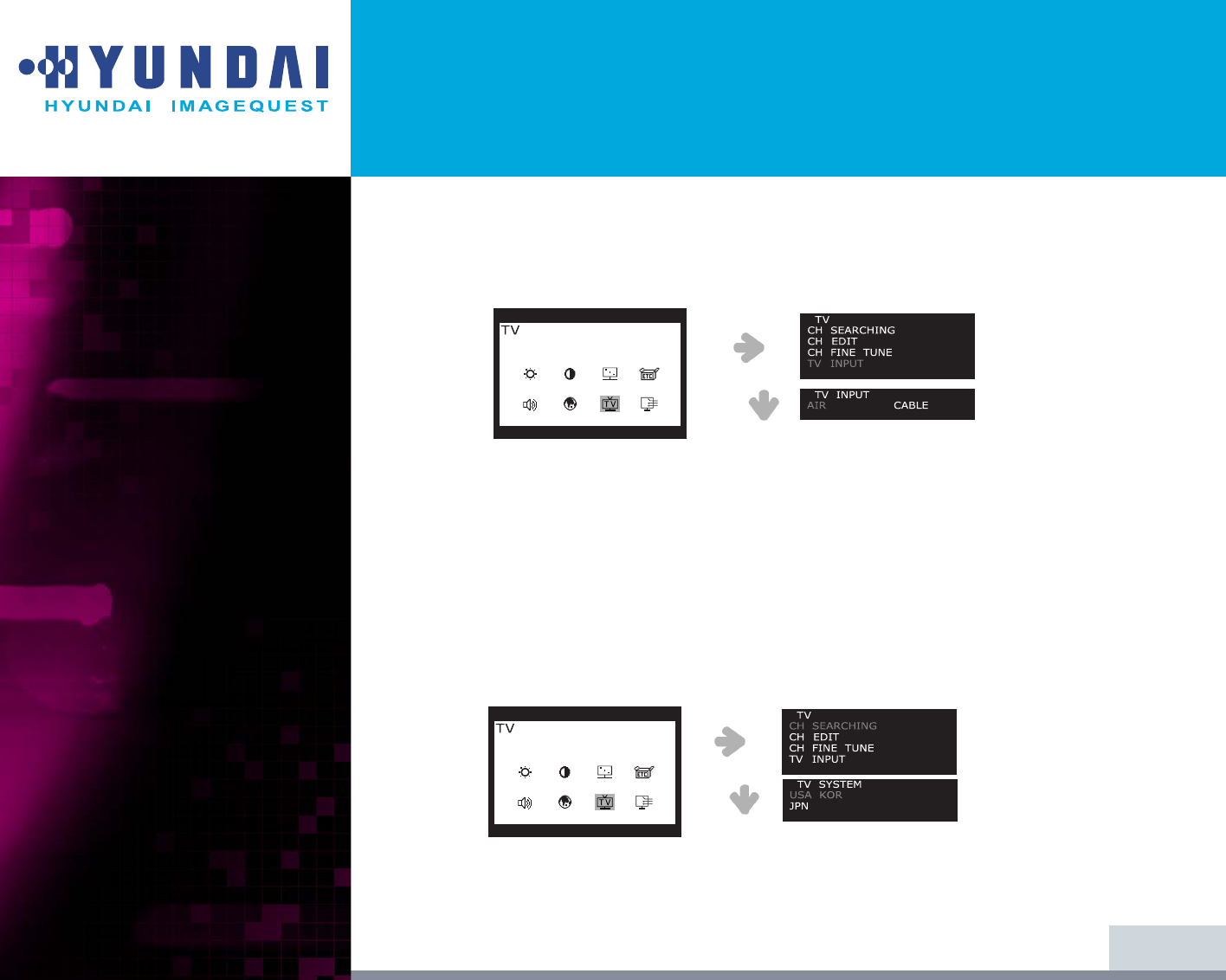

TV
CH SEARCHING
This Function is to scan the broadcasting channels in your location.

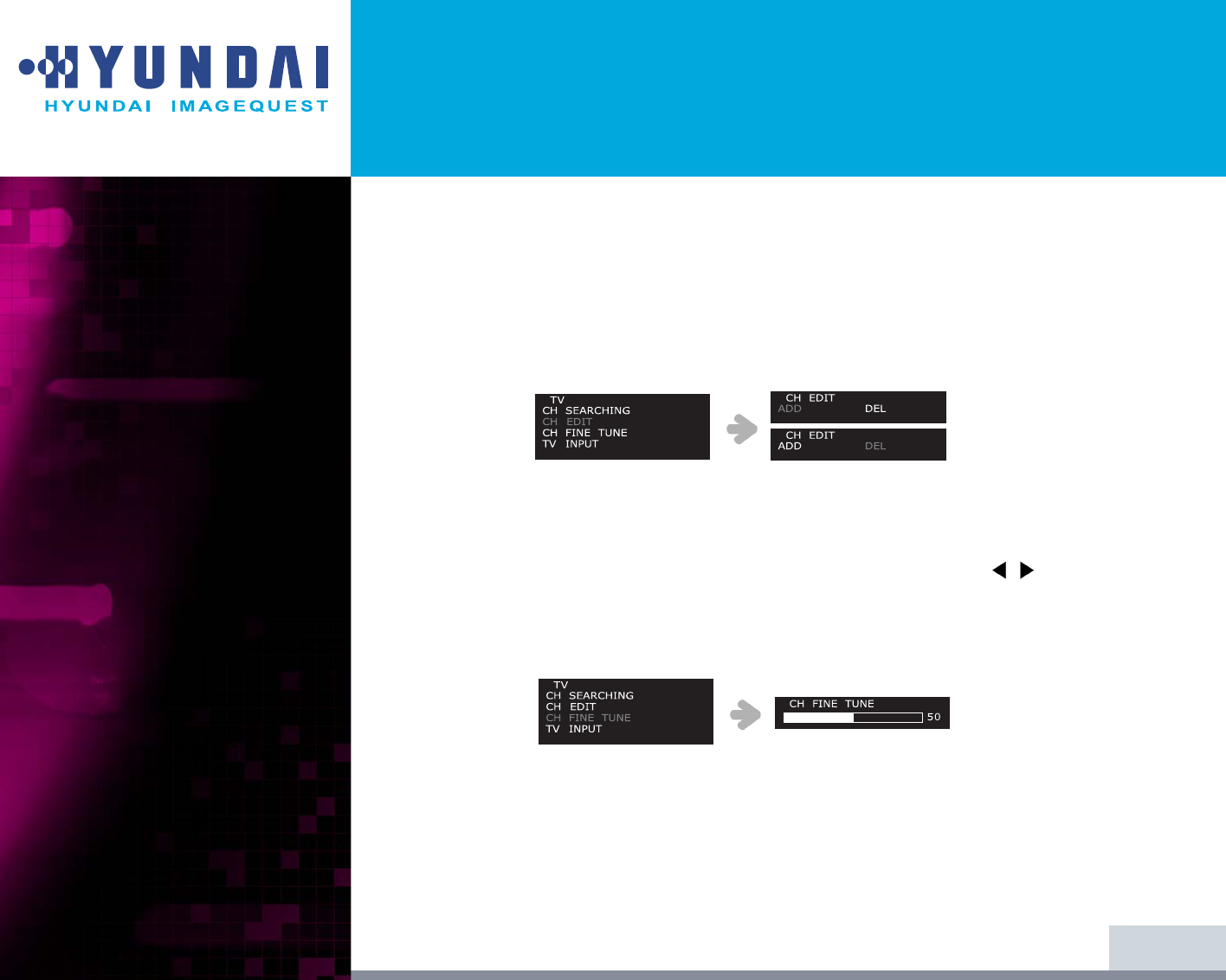

PR(CH) EDIT
You can change the channel or PR No with this function.
CH FINE TUNE
To make the video image as clear as possible.
TV INPUT
Select a channel system : Air or Cable.
20/35
L17T/L19T
TFT LCD Color Multi Function Monitor
6. TV Functions
21/35
1 2
0
3
4
7
5
8
6
9
MUTE
P-CH EDIT PRE,P
–
CH
PC S-VIDEO VIDEO TV
SOURCE INFO AIR/CABLE SEARCH
VOL EXIT P-CHANNEL
AUTO BRIGHTNESS CONTRAST
POWER
TTX/MIX LIST/FLOF STORE HOLD
SIZE REVEAL SUB PAGE INDEX
MENU
1. POWER ON/OFF
2. PROGRAM EDIT
3. S-VIDEO MODE
4. PC MODE
5. SELECT INPUT SIGNALS; PC,
S-VIDEO, VIDEO, TV
6. DISPLAY CURRENT STATUS
7. MOVE LEFT/RIGHT
VOLUME UP/DOWN
8. DISPLAY OSD MENU ON SCREEN
9. VOLUME UP/DOWN
10. AUTO ADJUSTMENT (IN PC MODE)
11. ADJUST THE BRIGHTNESS
12. SOUND ON/OFF
13. NUMERIC KEYPADS (CHANNEL ACCESS
IN TV MODE)
14. PREVIOUS PROGRAM
15. VIDEO MODE
16. TV MODE
17. CHANNEL SEARCH
18. TV INPUT SELECT
19. MOVE UP/DOWN
PROGRAM UP/DOWN
TELETEXT PAGE UP/DOWN
20. PROGRAM UP/DOWN
21. TURN OFF THE OSD
22. ADJUST THE CONTRAST
23. BUTTON FOR TELETEXT(OPTION)
L17T/L19T
TFT LCD Color Multi Function Monitor
• Channel Search - PAL
• Auto Pr
In order to watch TV, Multimedia Kit shall be installed to your monitor.
Following instructions are based on using remote controller, and MENU(↵) button
in remote controller is compatible with SELECT button of the monitor.
You can scan for the frequency ranges available in your country.
1. Press the MENU(↵) button and select TV icon.
2. Select CH SEARCHING and you can see country list.
3. Choose your country by +/- key, then press MENU(↵) button to go to PR
SEARCHING. If your country is not listed, contact the distributors or service
representatives.
This function is to search the channels automatically.
Select AUTO PR and press MENU(↵) button for automatic
channel search.
Scanned channels are automatically allocated to each PR No.
22/33
BACK
NEXT
GER EST DEN SWE FIN
ESP+FRA
FRA
ITA
GBR
AUS
NZL
RUS
IRL
CHN
USA KOR
JPN
L17T/L19T
TFT LCD Color Multi Function Monitor

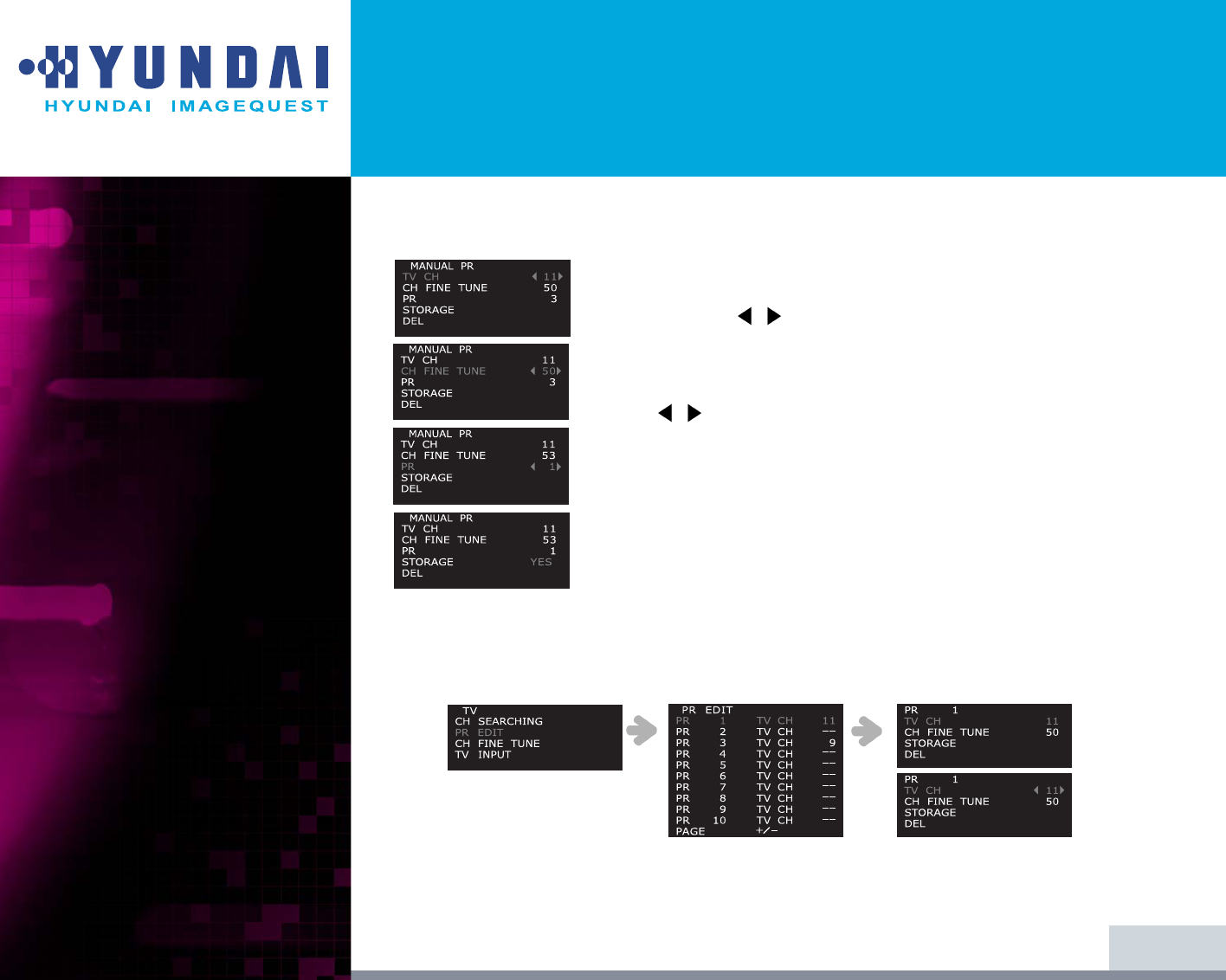

• MANUAL PR
•PR EDIT(PROGRAMME EDIT)
This function is to store the channels manually.
a. Select MANUAL PR.
b. Select TV CH by +/- buttons, then press MENU(↵) button.
You can see at channel number.
c. Change the channel by +/- buttons or numeric buttons, and
press EXIT.
d. If you choose CH FINE TUNE and press MENU(↵), you can
see at the number.
e. You can tune the TV screen by +/- buttons, then press EXIT.
f. If you select PR and press MENU(↵), you can change the PR
number by +/- buttons. Then press EXIT.
g. You can save or delete above changes by selecting
STORAGE or DEL button by pressing MENU(↵) button.
When storage or delete is finished, you can see YES in the
menu, then press EXIT.
The PR EDIT allows you to change the program numbers of stored channels.
23/35
L17T/L19T
TFT LCD Color Multi Function Monitor
1. Press the
MENU(↵)
button and select TV icon.
2. Select PR EDIT and press
MENU(↵)
button, then you can see the current PR list.
*If you want to move to other pages, move the cursor PAGE +/- and press
MENU(↵)
button. Then you can move to the other page by pressing +/-
button
3. Move the cursor to the PR number you want to change, then press
MENU(↵)
to go to the sub menu.
4. Select TV CH, then press
MENU(↵)
button. You can see at the channel
numbers.
5. Change the channel by +/- buttons or numeric buttons, and press EXIT.
6. If you choose CH FINE TUNE and press
MENU(↵)
, you can see at the
number.
7. You can tune the TV screen by +/- buttons, then press EXIT.
8. You can save or delete these changes by selecting STORAGE or DEL button by
pressing MENU
(↵)
button.
When storage or delete is finished, you can see YES in the menu, press EXIT
to go back to the previous menu.
24/35
L17T/L19T
TFT LCD Color Multi Function Monitor
• L19T Only TELETEXT
(Optional)
• Other Functions
You can display teletext information from TV channels.
– Displaying teletext information
1. Press TTX/MIX button to display teletext mode.
2. To see the actual broadcast simultaneously with the teletext page, press TTX/MIX
button again.
3. Press TTX/MIX button again to exit from the teletext mode.
*If you press MENU(↵) when you watch teletext information, you can go back to
the top page.
1. HOLD :
If the selected page is linked with several secondary pages, the secondary pages
are displayed in sequence.
To freeze the display on a given page, press HOLD button.
When this button is pressed, the stop symbol is displayed at the top left corner of
the screen and the automatic page change will be inhibited.
If you press HOLD button again, the automatic change resumes.
2. REVEAL :
To see the hidden text (answers like quiz games), press REVEAL button.
3. LIST/FLOF :
To select between LIST mode and FLOF mode.
25/35
L17T/L19T
TFT LCD Color Multi Function Monitor
4. FLOF mode :
In FLOF mode, press the colored button corresponding to the topic that you wish to
select. (The available topics are listed on the status information line) the page
displayed with additional color-coded information that can be selected in the same
way.
a) RED button : If you want to go to the previous page, press RED button.
b) Green button : If you wan to go to the next page, press GREEN button.
5. STORE :
In LIST mode, you can store teletext pages with following step.
a. Select LIST mode, and you can see four 3-digit numbers are displayed in different
colors at the bottom of the screen.
b. Press the colored button corresponding to the page that should be replaced.
c. Enter the new page number using numeric buttons.
d. Repeat steps b. c. for each page to be stored, using a different colored button
each time.
e. Press STORE button until the corresponding blocks blink.
6. SIZE :
Press SIZE button once, the letter size of upper half of the screen will be doubled.
Press SIZE button twice, the letter size of lower half of the screen will be doubled.
Press SIZE button three times, the letter size gets normal.
7. SUB PAGE :
If there are secondary pages in current teletext information, you can go to
secondary pages by pressing SUB PAGE and enter its 4-digit number.
26/35
L17T/L19T
TFT LCD Color Multi Function Monitor
• Channel Search - NTSC TV INPUT
First of all, you can select the Air or Cable before setup the
Channel Searching.
1. Press the MENU(↵) button and select TV icon.
2. Move cursor to TV INPUT using the +/- buttons.
3. Press the MENU(↵) to Select TV INPUT, then select AIR or CABLE by using the +/-
buttons.
4. Press the EXIT button to go back to the previous menu.
You can scan for the frequency ranges available in your country.
27/35
L17T/L19T
TFT LCD Color Multi Function Monitor
• Channel Edit
• Channel Fine Tune
1. Press the MENU(↵) button and select TV icon.
2. Select CH SEARCHING and you can see country list.
3. Choose your country by +/- key, then press MENU(↵) button to go to CH
SEARCHING. If your country is not listed, contact the distributors or service
representatives.
. Select CH EDIT by +/- buttons, then press MENU(↵) button. You can save or delete
above changes by selecting DEL or ADD button by pressing MENU(↵) button.
2. If you choose CH FINE TUNE and press MENU(↵), you can see at the
number.
3. You can tune the TV screen by +/- buttons, then press EXIT.
1. Select CH FINE TUNE by +/- buttons, then press MENU(↵) button. You can adjust
CH FINE TUNE value by +/- buttons.
2. Press the EXIT button to go back to the previous menu.
28/35
L17T/L19T
TFT LCD Color Multi Function Monitor
If the power management function of your computer is enabled, your monitor
turns on/off automatically. You can control power management features from your
computer.
Your computer may have power management features which enable the computer
or monitor to enter a power saving mode when the system is idle. You can
reactivate the system by pressing any key or moving the mouse.
The power button does not disconnect the monitor from the mains. The only
way to isolate the monitor completely from the mains supply is to unplug the
mains cable.
29/35
7. Display power
management
Reducing power
consumption
Power consumption
40 W
L17T : 3.5 W
L19T : 5 W
0 W
Mode
Normal
off
Unplugged
LED
Green
Orange
Not illuminated
!
L17T/L19T
TFT LCD Color Multi Function Monitor
8. Troubleshooting
(TV)
If this product is not functioning properly, you may be able to solve the problem by
by the following below ;
30/35
Problem
Color defects
No channel
searching
Blue screen
/No signal
The remote control
does not work.
Possible solution
If the screen color is not suitable for viewing.
You can select “Recall” button in the OSD menu.
This function returns to the initial factor setting values. (Page 4)
If it could not find channels please check it again according to the
following steps.
• The cable connection must be secure.
• TV input (Air/CATV)
• Country selection must be correct.
You should select the appropriate country to your location.
(PAL : Page 22, NTSC : Page 27)
If the screen shows only blue color or No signal message, Please
check whether you have selected the right signal source.
-Analog RGB, S-video, Composite-video, TV (page 6)
If the remote control does not operate well.
Please check the batteries.
• Batteries are correctly inserted according to and marking.
• Batteries must be replaced if dead.
L17T/L19T
TFT LCD Color Multi Function Monitor
6. Troubleshooting
(Monitor)
31/35
Problem
Blank screen
Error message:
Video mode not
supported
The display does
not enter power
management
mode
Possible solution
If the power LED is not lit, push the Soft power switch or check the
AC cord to turn the monitor on. If the unit is powered through the
computer, check that the computer is switched on.
The unit might be in standby mode. Push one of the keyboard keys.
Check that the keyboard is properly connected to the computer.
Check that the signal cable connector is properly connected and that
the connection pins are not bent or damaged. If the connector is
loose, tighten the connector's screws.
Check that the power cable is correctly connected to the unit and to
the power outlet.
Check the resolution and the frequency on the video port of your
computer.
Compare these values with the data in the Preset Timing Table.
The video signal from the computer does not comply with VESA
DPMS standard. Either the computer or the graphics adapter is not
using the VESA DPMS power management function.
If this product is not functioning properly, you may be able to solve the problem by
by the following below ;
L17T/L19T
TFT LCD Color Multi Function Monitor
32/35
Possible solution
Check that the signal cable connector is properly connected and that
the connection pins are not bent or damaged. Try another color
temperature.
Adjust the picture characteristics as described in the section OSD
Adjustment(4-3).
A problem with your graphics adapter or display unit. Contact your
service representative.
Check that the resolution and frequency from your PC or graphic
adapter is an available mode for your monitor.
In your PC, you can check through Control panel, Display, Settings.
If the setting is not correct, use your computer utility program to
change the display settings.
Check that the signal cabel connector is properly connected and that
the connection pins are not bent or damaged.
If the connector is loose, tighten the connector’s screws.
Check that the computer is switched on.
To enter a power saving mode. You can reactivate the system by
pressing any key or moving the mouse.
Problem
Color defects
Size, position,
shape or quality
unsatisfactory
Duplicated
images
Image is not
stable
Message :
No signal
The power LED is
a orange color
Possible solution
LED Indicator can be orange color on changing of video mode or
Input Signal.
Check the resolution and the frequency on the video part of your
computer. Compare these values with the data in the Preset Timing
Table.
Problem
The power LED is
a orange color
L17T/L19T
TFT LCD Color Multi Function Monitor
33/35
Contacting service
If the above troubleshooting hints do not help you find a solution to the problem,
contact an authorized service agent. If the monitor is sent for service, use the
original package if possible.
Unplug the unit from the power outlet and contact a service agent when:
• The monitor does not operate normally according to the operating instructions.
• The monitor exhibits a distinct change in performance.
• The monitor has been dropped or the cabinet has been damaged.
• The monitor has been exposed to rain, or water or liquid has been spilled onto
the monitor.
L17T/L19T
TFT LCD Color Multi Function Monitor
34/35
17"viewable, Diagonal, A-Si TFT
0.264 x 0.264mm
337.920 x 270.336 mm
16.2Mil
Horizontal : 31.0 to 80.0KHz, Vertical : 56 to 75Hz
135 MHz
1280 x 1024@75Hz
1280 x 1024@60Hz
DC 12V 3.5A
40W
VESA DPMS
VESA DDC 1/2B
MONITOR : BRIGHTNESS, CONTRAST, COLOR CONTROL,
MISCELLANEOUS, AUDIO, AUTO ADJUST, LANGUAGE,
H/V. POSITION, CLOCK-PHASE, SOURCE
TV : BRIGHTNESS, CONTRAST, IMAGE ADJUST,
MISCELLANEOUS, AUDIO, LANGUAGE, SOURCE, TV
2ch x 2watts
75 x 75 mm screw mounting
TCO
FCC Class B, CE, cTÜVus, TÜV-GS
5 ~ 35O C
4.5Kg unpacked, 6.0Kg packed
372 X 395 X 185 mm
LCD
Pixel pitch
Display area
Number of color
Frequency rate
Maximum bandwidth
Maximum resolution
Recommanded resolution
Input voltage
Power consumption
Power management
Plug & Play
OSD menu
Built in Speaker
VESA FPMPMI
Ergonomics,
Safety and EMC
Operating Temperature
Weight
Dimensions (W X H X D mm)
• Specification is subject to change without notice for performance improvement.
9. Specifications
• L17T
L17T/L19T
TFT LCD Color Multi Function Monitor
• L19T
35/35
19"viewable, Diagonal, A-Si TFT
0.294 x 0.294mm
376.32 x 301.056 mm
16.7Mil
Horizontal : 31.0 to 80.0KHz, Vertical : 56 to 75Hz
135 MHz
1280 x 1024@75Hz
1280 x 1024@60Hz
DC 12V 3.5A
40W
VESA DPMS
VESA DDC 1/2B
MONITOR : BRIGHTNESS, CONTRAST, COLOR CONTROL,
MISCELLANEOUS, AUDIO, AUTO ADJUST, LANGUAGE,
H/V. POSITION, CLOCK-PHASE, SOURCE
TV : BRIGHTNESS, CONTRAST, IMAGE ADJUST,
MISCELLANEOUS, AUDIO, LANGUAGE, SOURCE, TV
2ch x 2watts
75 x 75 mm screw mounting
TCO
FCC Class B, CE, cTÜVus, TÜV-GS
5 ~ 35O C
4.9Kg unpacked, 6.8Kg packed
420 X 441 X 185 mm
LCD
Pixel pitch
Display area
Number of color
Frequency rate
Maximum bandwidth
Maximum resolution
Recommanded resolution
Input voltage
Power consumption
Power management
Plug & Play
OSD menu
Built in Speaker
VESA FPMPMI
Ergonomics,
Safety and EMC
Operating Temperature
Weight
Dimensions (W X H X D mm)
• Specification is subject to change without notice for performance improvement.
