Hyundai IBT L27DPJLP0 LED MONITOR User Manual 002
Hyundai IBT Corp. LED MONITOR 002
User Manual
27” QHD Wide LED Monitor
User Manual
L27DPJLP0

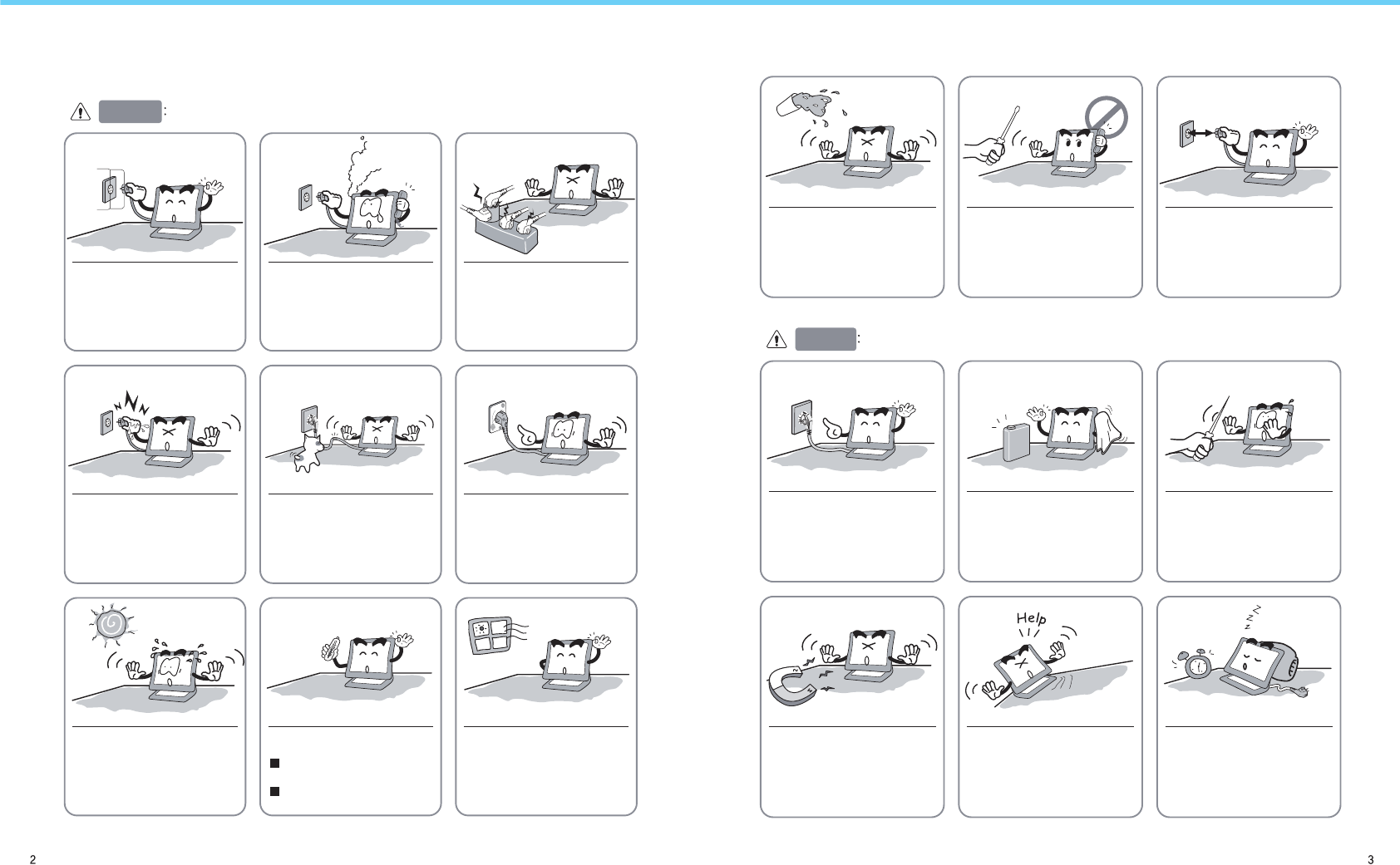

Precautions
AC outlet
Power cord
Warning
The following information will help you avoid the risk of electric shock, serious injury or death.
Plug the power cord into a
properly grounded outlet.
There is the risk of electric
shock.
Do not unplug from the outlet
by pulling the power cord or
when your hands are wet.
There is the risk of electric
shock or fire.
Do not allow any object or liq-
uid to enter inside the monitor.
There is the risk of electric
shock, fire or damage to the
monitor.
Do not bend the power cord
excessively nor place heavy objects
on it. Keep children and pets away
from the power cord as they may
damage the power cord. There is
the risk of electric shock or fire.
Do not use a damaged power
cord or plug. Make sure the
plug fits snugly into the outlet.
There is the risk of electric
shock or fire.
Do not expose the monitor to
the direct sun light.
Keep the monitor away from high
temperature, humidity, and dust.
Operating environment
=10~40degrees Celsius
Operating environment
=20~80relative humidity.
Do not block the fan louvers.
There is the risk of fire or dam-
age to the monitor.
Use a proper voltage/current
level indicated
Do not clean the LCD with
abrasive chemicals.
There is the risk of damage to
the LCD.
Do not scratch and damage
the LCD with sharp objects.
Keep the monitor away from
objects and electrical appli-
ances that may generate elec-
tromagnetic fields.
Place the monitor on a flat, sta-
ble surface. The monitor may
fall and there is the risk of
damage or injury.
Unplug the power cord when
the monitor is not in use for a
long period of time.
If you hear a noise or smell
smoke from the computer or
adaptor, unplug the power cord
immediately, and call the service
center. There is the risk of elec-
tric shock or fire.
Do not overload an electrical
outlet with too many devices.
There is the risk of fire.
Do not attempt to disassemble, The socket-outlet shall be
installed near the equipment
and shall be easily accessible.
fix or modify the monitor.
There is the risk of electric
shock or fire.
Caution
The following information will help you avoid the risk of minor or moderate injury or damage to the monitor.
Precautions
The socket - outlet shall be installed near the equipment and shall be easily accessible.

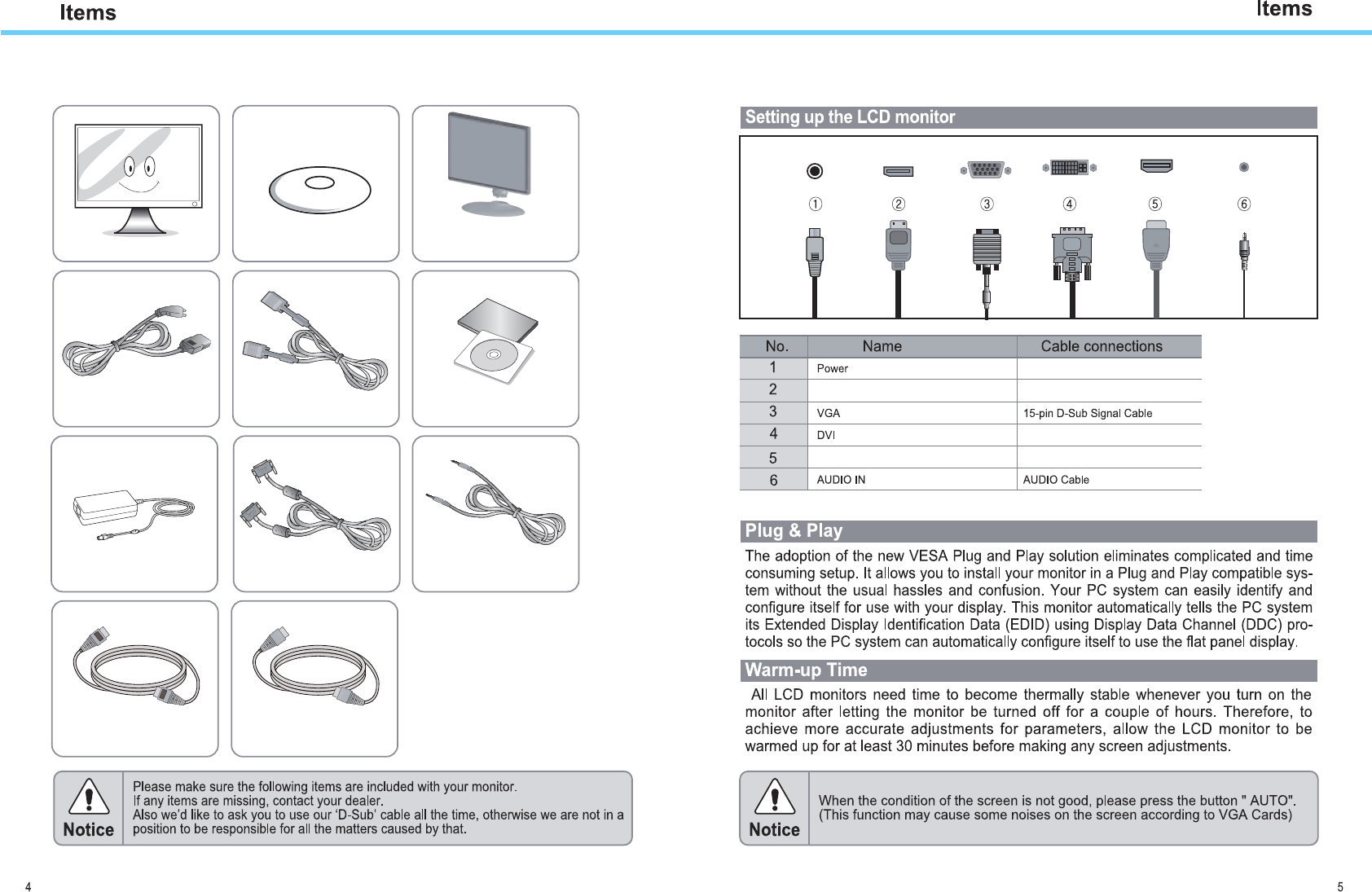

Display port Cable
HIMDH
elbaCPDtroPyalpsiD
Adapter Jack
Dual link DVI Cable
DMI Cable
HDMI Cable(More than 1.3)
Stand
After assemble pedestal
at stand body, assemble
screw to driver.
LCD Monitor
Power Cord 15-pin D-Sub Cable Install CD / Quick Guide
Adapter Audio Cable
24-pin Dual Link DVI Cable24-pin Dual Link DVI Cable

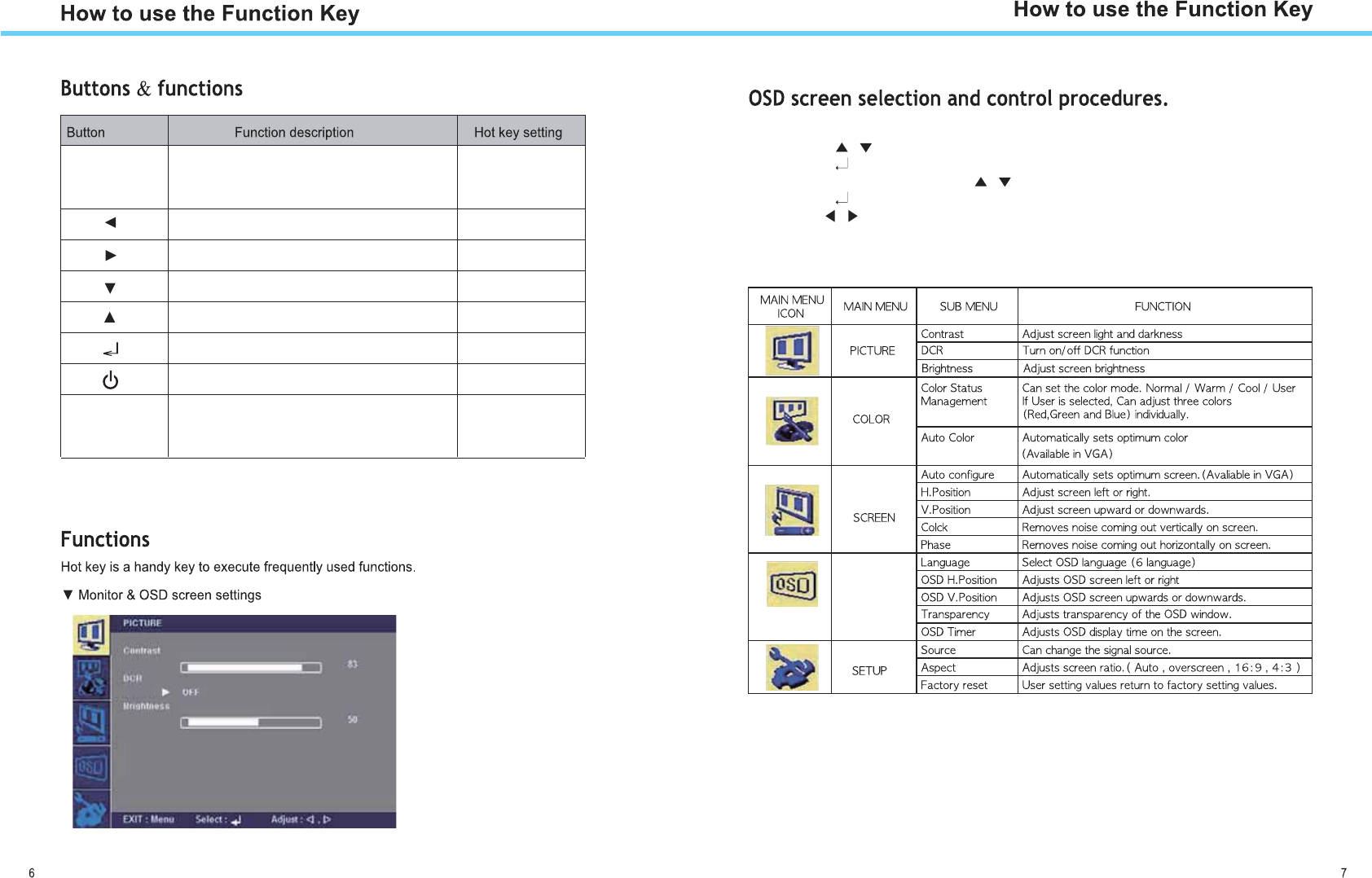

1. Press the “MENU” button to bring up the screen.
2. Press the " , " buttons to select the main option.
3. Press the " " button after selecting the main option.
4. Bring up the sub-menu. Use the " , " buttons to select the desired option.
5. Press the " " button after selecting the desired sub-menu option.
6. Use the " , " buttons to adjust the set value.
7. Pressing the " MENU " button Two times saves and exits the setting mode.
* Pressing the " MENU " button moves back to the previous menu.
MENU
State lamp
Opens OSD Menu window.
Cansels chosen OSD Menu setp by step,
Closes OSD Menu.
Decreases value of chosen icon.
Increases value of chosen icon.
Indicates monitor's state.
LCD on(Blue) in normal state
LCD flicker(RED and off) in standby mode
Volume
Mute
Moves down icon choice bar. Automatic setting
Moves up icon choice bar. Scale
Chooses icons.
Turn On/off Monitor.
OSD
Source
8 9

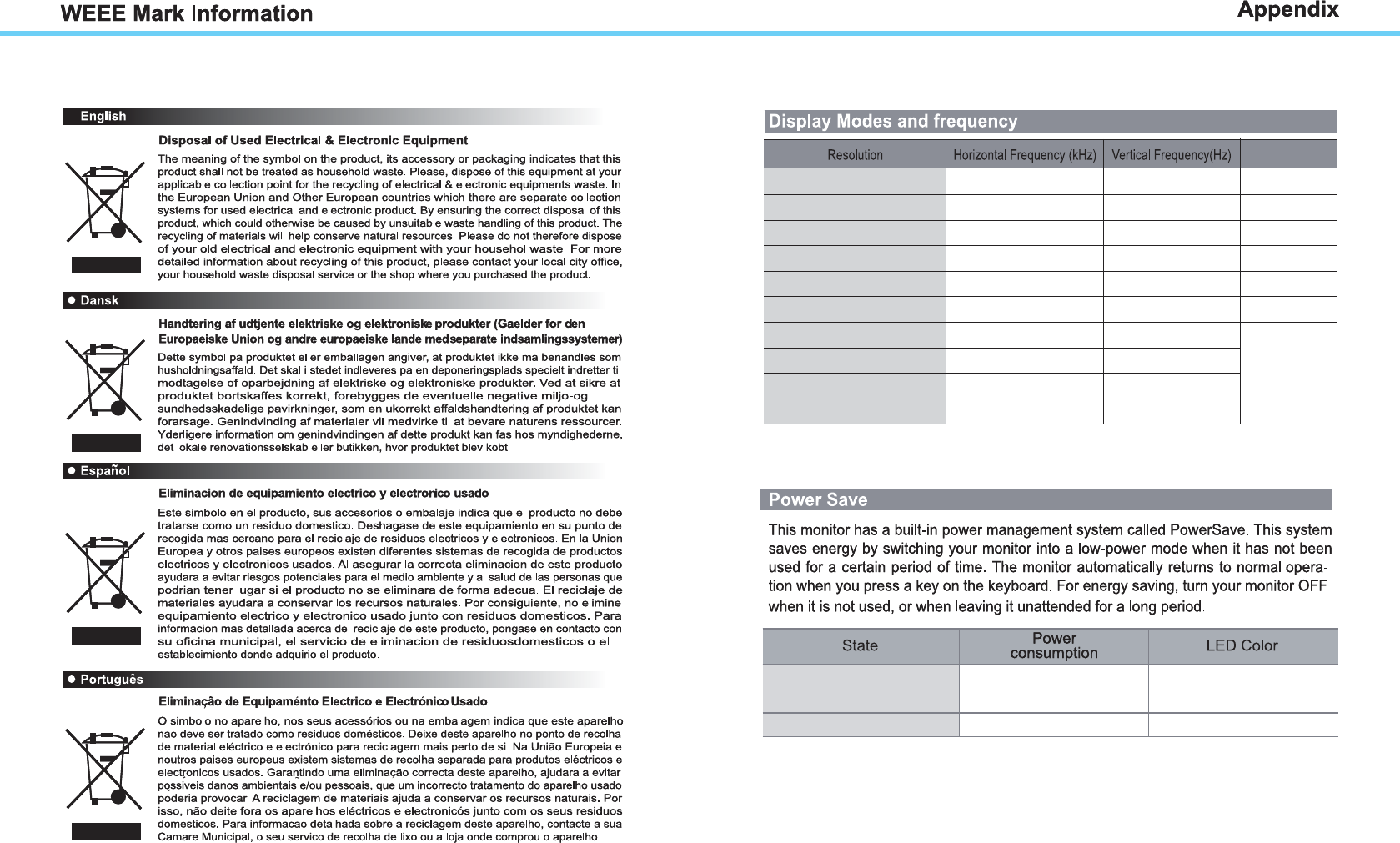

800 x 600
1024 x 768
1280 x 1024
1920 x 1080
1920 x 1200
2560 x 1440
480p
576p
720p
1080p
37.8 kHz
48.3 kHz
63.9 kHz
66.6 kHz
74.0 kHz
88.8 kHz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
50/60
50/60
50/60
50/60
DVI(HDCP)

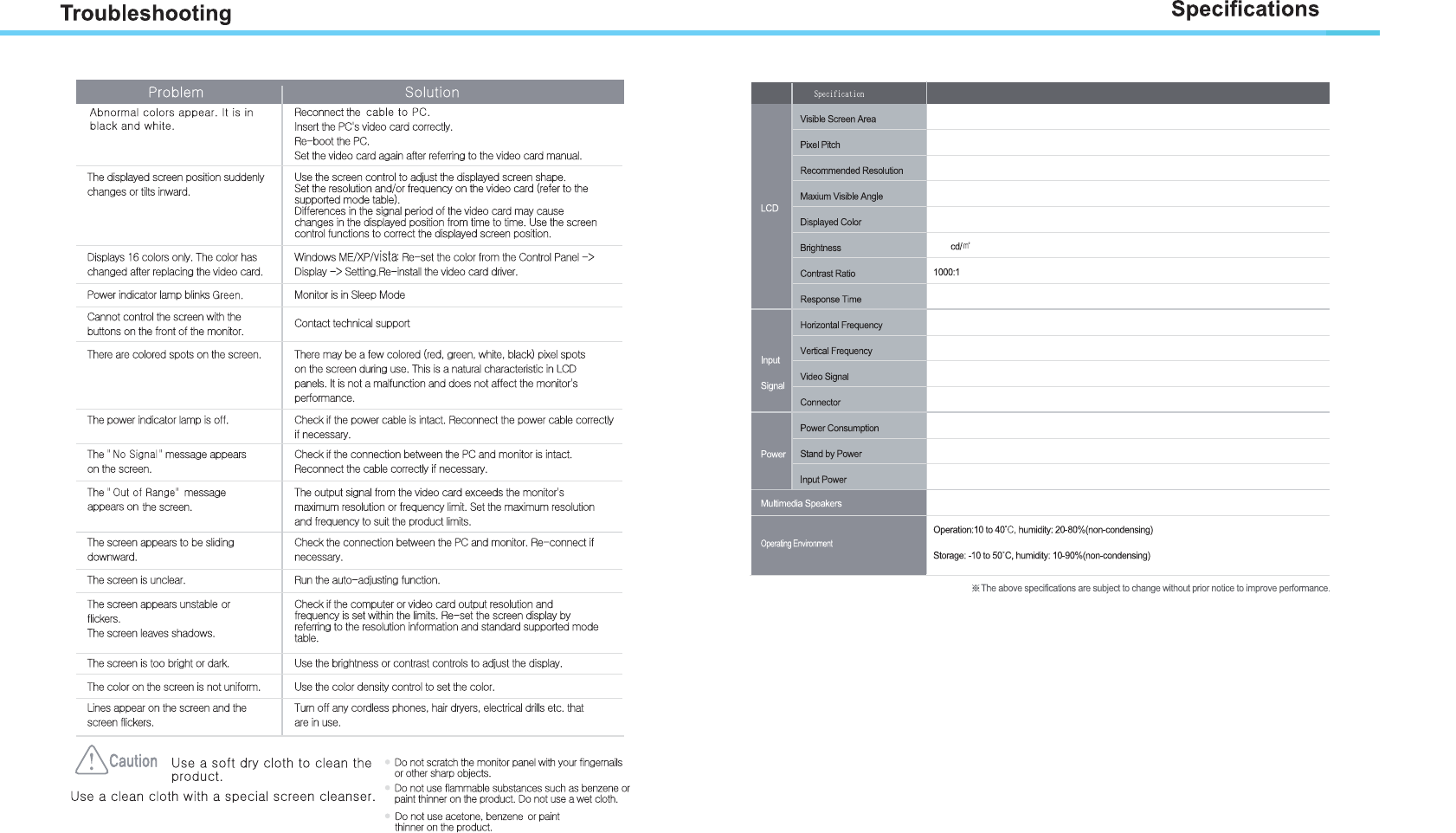

Under 70 W (Max.) BlueON / Under 58 W (Typ.)
deRgnirekcilFW5.0nahtsseLOFF
350
6 ms
31 ~ 90KHz
56 ~ 75Hz
Analong RGB, DVI , HDMI , Disply port
15Pin D-Sub, 29pin DVI, 19Pin HDMI, 20Pin Display port, Audio In
70W (Max), 58W (Typ)
0.5W
596.74mm(H) x 335.66mm(V)
0.2331mm(H) x 0.2331mm(V)
2560 x 1440@60Hz
178º / 178º (H/V)
1.07 Billion
AC : 110V~240V 50/60Hz 1.5A , DC : 24Vdc, 5A
2W x 2
27 QHD Wide
10 11
12
FCC compliance
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Change or modifications not expressly approved by the
party responsible for compliance could void the user’s authority
to operate the equipment under FCC rules.
