2005

A010A03A-AAT

WARRANTIES FOR YOUR HYUNDAI VEHICLE

o New Vehicle 60 Months/60,000 Miles Limited Warranty

o New Vehicle 120 Months/100,000 Miles Limited Powertrain Warranty (original owner only)

o Anti-Perforation Limited Warranty

o Emission Defect Warranty - Federal Vehicle

o California Emission Control System Warranty (if applicable)

o Emission Performance Warranty - Federal Vehicle

o Replacement Parts and Accessories Limited Warranty

NOTE:

Detailed warranty information is provided in your Hyundai Owner's Handbook.

A020A01A-AAT

RESPONSIBILITY FOR MAINTENANCE

The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility

to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals.

When the vehicle is used in severe driving conditions, more frequent maintenance is required for some operations.

Maintenance requirements for severe operating conditions are also included in Section 5.

OWNER'S MANUAL

A030A03A-AAT

Operation

Maintenance

Specifications

All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any

time so that our policy of continual product improvement may be carried out.

This manual applies to all Hyundai models and includes descriptions and explanations of optional as well as standard equipment.

As a result, you may find material in this manual that does not apply to your specific vehicle.

A030A01A

A070A01A-AAT

CAUTION: MODIFICATIONS TO YOUR HYUNDAI

Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safety

or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle.

Certain modifications may also be in violation of regulations established by the U.S. Department of Transportation

and other federal or state agencies.

A080A01S-AAT

TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION

Your vehicle is equipped with electronic fuel injection and other electronic components. It is possible for an

improperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic systems. For this

reason, we recommend that you carefully follow the radio manufacturer's instructions or consult your Hyundai

dealer for precautionary measures or special instructions if you choose to install one of these devices.

A090A01A-AAT

SAFETY AND VEHICLE DAMAGE WARNING

This manual includes information titled as WARNING, CAUTION and NOTE.

These titles indicate the following:

WARNING:

This indicates that a condition may result in harm, serious injury or death to you or other persons if

the warning is not heeded. Follow the advice provided with the warning.

CAUTION:

This indicates that a condition may result in damage to your vehicle or its equipment if the caution is

not heeded. Follow the advice provided with the caution.

NOTE:

This indicates that interesting or helpful information is being provided.

A110A01A-AAT

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS

Your Hyundai vehicle is equipped with many high technology, electronically controlled systems that help to ensure

your vehicle operates properly and provides the performance that you expect. These systems utilize computers

to monitor the operation of various systems and components and help to control their operation. These

computerized system operations are wide-ranging and involve components to reduce emissions, to continuously

evaluate the readiness of the airbag and seat belt pretensioner systems, to determine when the airbag and seat

belt pre-tensioner systems should be deployed and then to activate the deployment, and if equipped, to operate

anti-lock braking, traction control and electrical stability control to assist the driver to control the vehicle in difficult

driving situations. These systems electronically store information that is useful to service technicians when they

need to diagnose and repair these systems. Additional information is stored only when a crash occurs that results

in the deployment of the airbags or seat belt pre-tensioners. This type of data storage is done by devices called

event data recorders(EDR).

After a crash event, the airbag and seat belt pre-tensioner computer system, known as the Supplemental

Restraint System Control Module (SRSCM) or Airbag Control Unit (ACU), may record some information about

the condition of the vehicle and how it was being operated. This information consists of data related to seat belt

usage and if there was diagnostic information in the airbag or seat belt systems at the time that a crash occurred,

and if the ACU sensed that a crash of sufficient severity occurred to require seat belt pre-tensioner or airbag

deployment.

To retrieve this information, special equipment is needed and access to the vehicle or the device that stores the

data is required. Hyundai will not access information about a crash event or share it with others except:

o in response to an official request of police or similar government office, or

o with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee, or

o as part of Hyundai’s defense of litigation through the discovery process, or

o as required by law.

A040A01A-AAT

FOREWORD

Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discriminating people who

drive Hyundai. The advanced engineering and high-quality construction of each Hyundai we build is something of which

we're very proud.

Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read

it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.

The manufacturer also recommends that all service and maintenance on your car be performed by an authorized Hyundai

dealer. Hyundai dealers are prepared to provide high-quality service, maintenance and any other assistance that may

be required.

A050A04A-AAT

HYUNDAI MOTOR COMPANY

Note:Because future owners will also need the information included in this manual, if you sell this Hyundai, please leave

the manual in the vehicle for their use. Thank you.

CAUTION:

Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do not

meet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifica-

tions listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual and which also appear

in the Service Station Information on the back cover of the Owner's Manual.

any retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai Motor

Company.

A100A03A-AAT

Guide to Hyundai Genuine Parts

1. What are Hyundai Genuine Parts?

Hyundai Genuine Parts are the same parts

used by Hyundai Motor Company to manu-

facture vehicles. They are designed and

tested for the optimum safety, performance,

and reliability to our customers.

2. Why should you use genuine parts?

Hyundai Genuine Parts are engineered and

built to meet rigid manufacturing require-

ments. Using imitation, counterfeit or used

salvage parts is not covered under the

Hyundai New Vehicle Limited Warranty or

any other Hyundai warranty. In addition, any

damage to or failure of Genuine Hyundai

Parts caused by the installation or failure of

an imitation, counterfeit or used salvage part

is not covered by any Hyundai Warranty.

3. How can you tell if you are purchasing

Hyundai Genuine Parts?

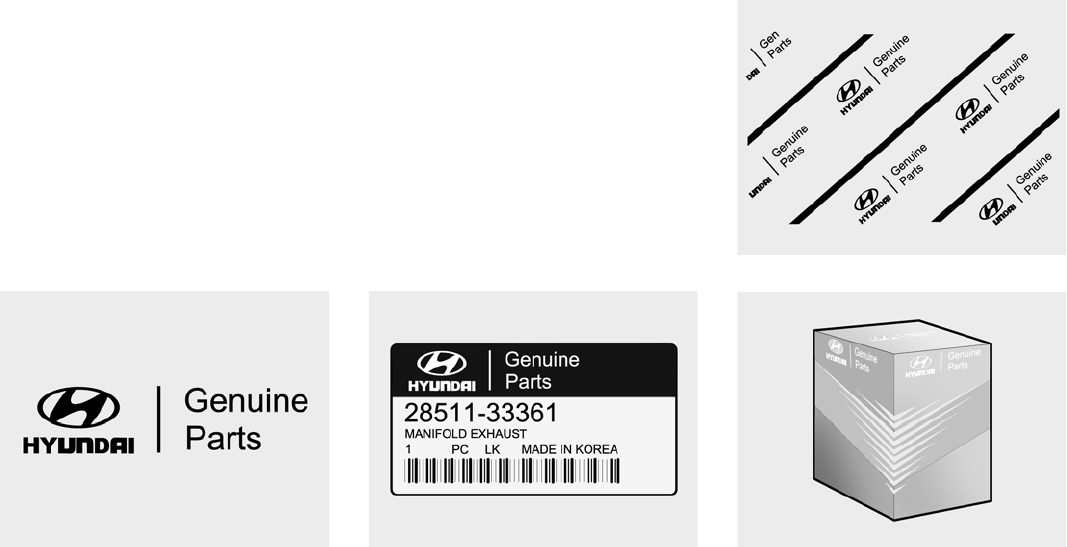

Look for the Hyundai Genuine Parts Logo on

the package (see below).

Hyundai Genuine Parts exported to the United

States are packaged with labels written only

in English.

Hyundai Genuine Parts are only sold through

authorized Hyundai Dealerships.

" To find the closest authorized dealer

call 1-800-826-CARS "

A100A01L A100A02L A100A04L

A100A03L

TABLE OF CONTENTS

SECTION

FEATURES OF YOUR HYUNDAI

DRIVING YOUR HYUNDAI

WHAT TO DO IN AN EMERGENCY

CORROSION PREVENTION & APPEARANCE CARE

VEHICLE MAINTENANCE REQUIREMENTS

DO-IT-YOURSELF MAINTENANCE

EMISSION CONTROL SYSTEMS

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS &

BINDING ARBITRATION OF WARRANTY CLAIMS

VEHICLE SPECIFICATIONS

INDEX

B250A01A-AAT

B250A01A-1

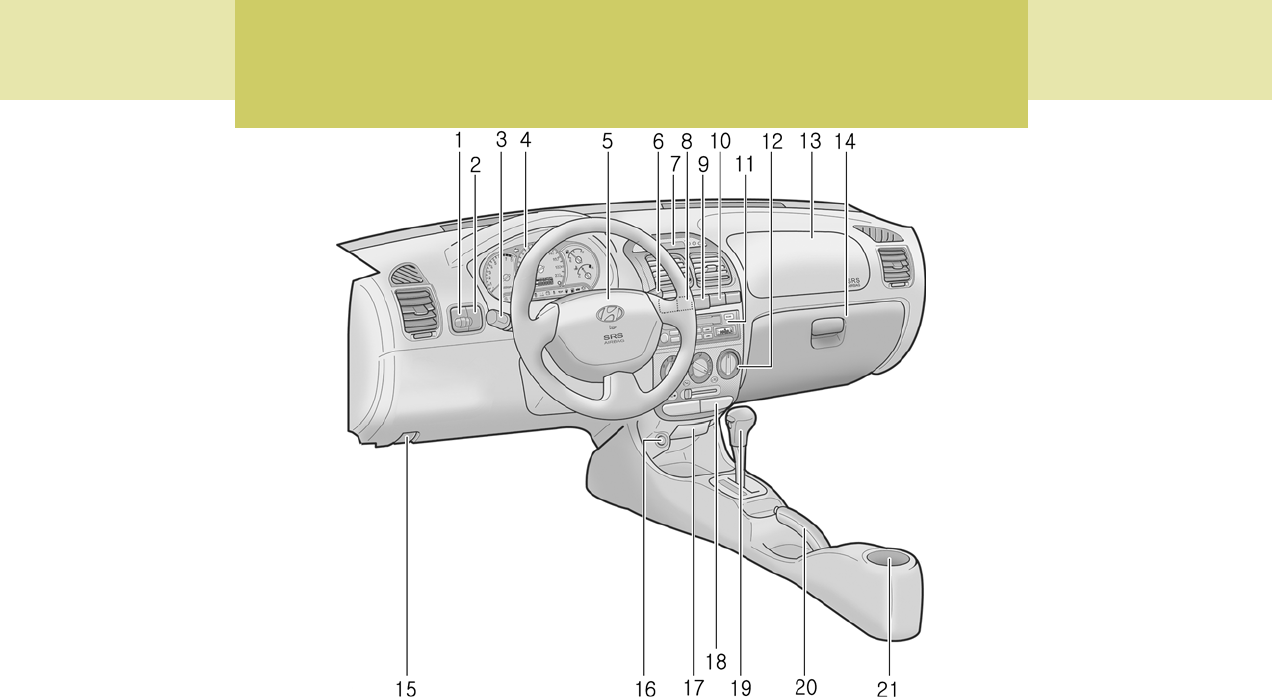

INSTRUMENTS AND CONTROLS

1. Panel Brightness Control Knob (Rheostat Switch)

2. Rear Wiper/Washer Switch (If Installed)

3. Multi-Function Light Switch

4. Instrument Cluster

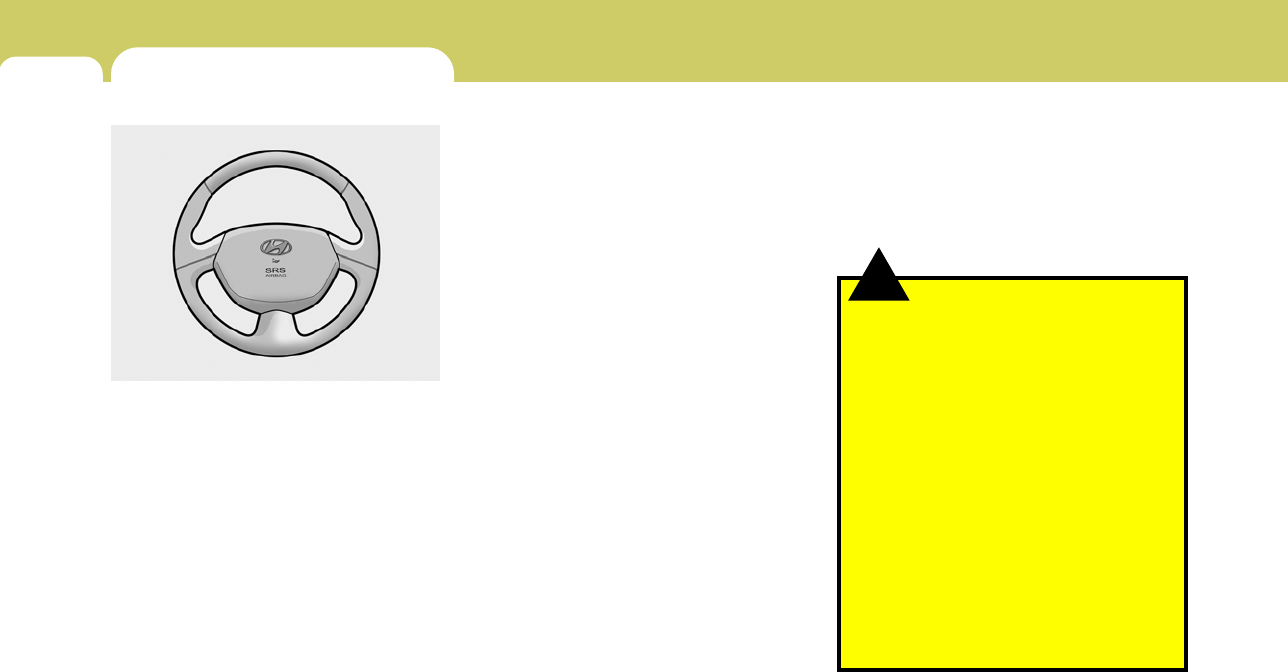

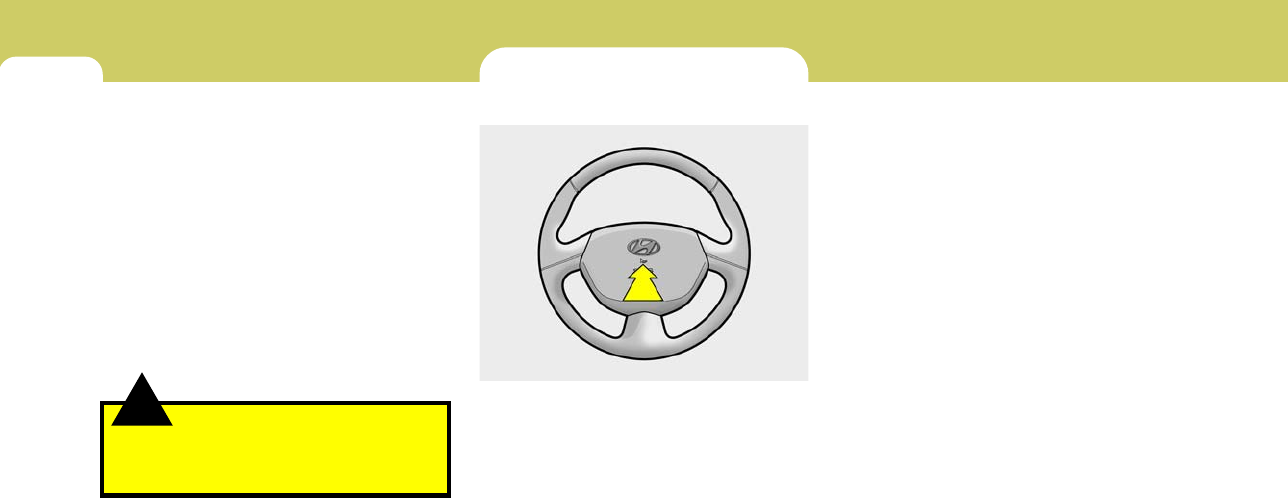

5. Horn and Driver's Airbag

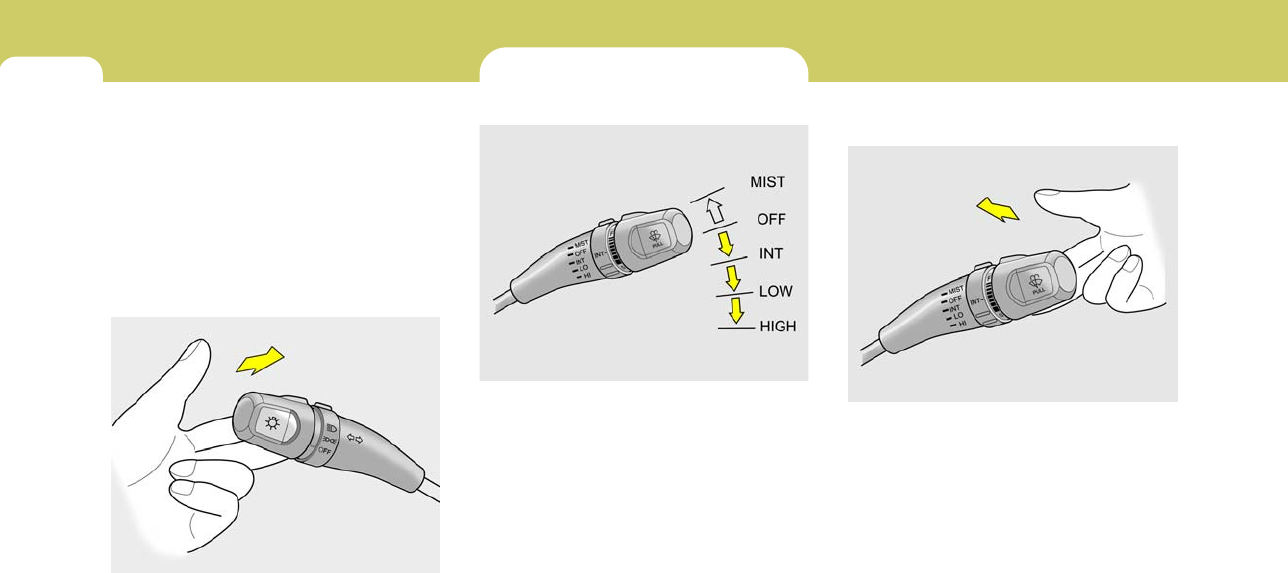

6. Windshield Wiper/Washer Switch

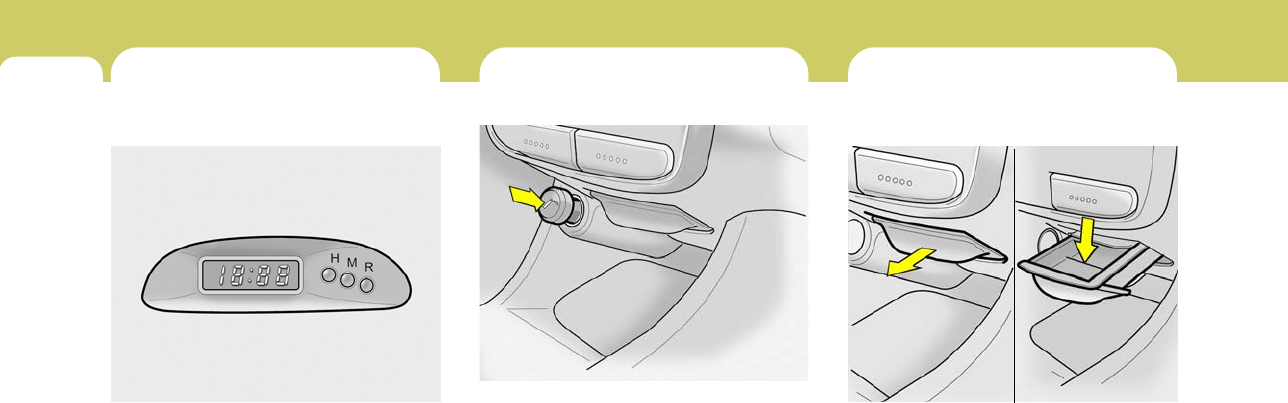

7. Digital Clock (If Installed)

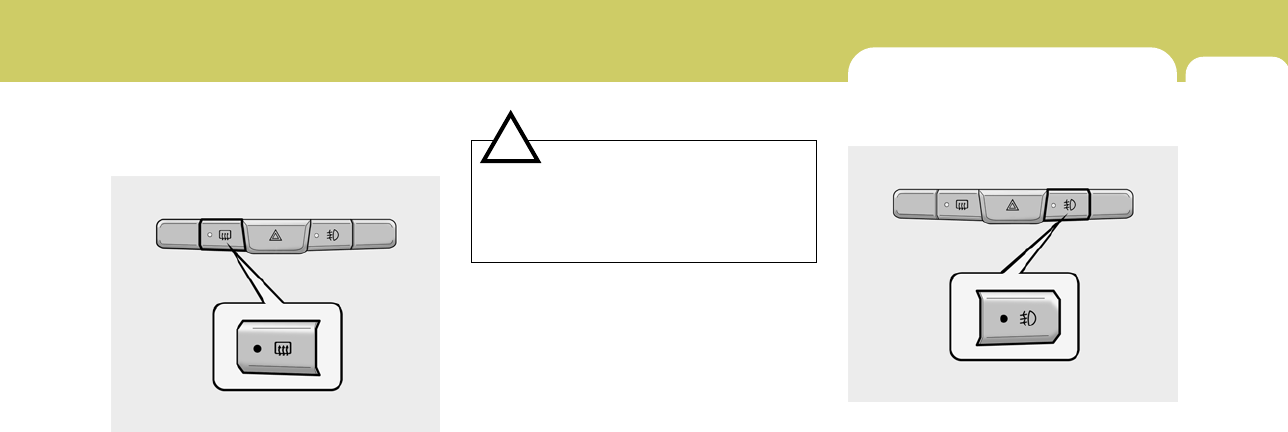

8. Rear Window Defroster Switch (If Installed)

9. Hazard Warning Light Switch

10.Front Fog Light Switch (If Installed)

11.Audio System (If Installed)

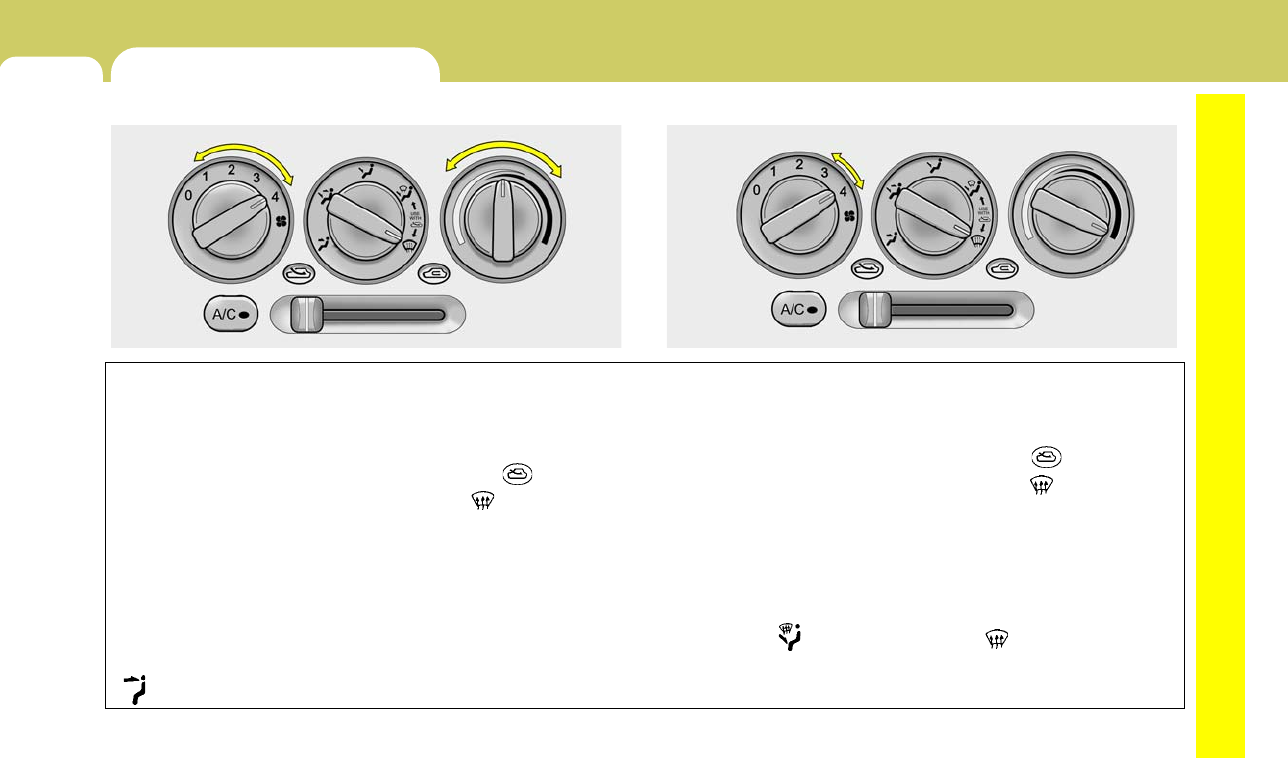

12.Heating/Air Conditioning Control Panel

13.Passenger's Airbag

14.Glove Box

15.Hood Release Lever

16.Cigarette Lighter

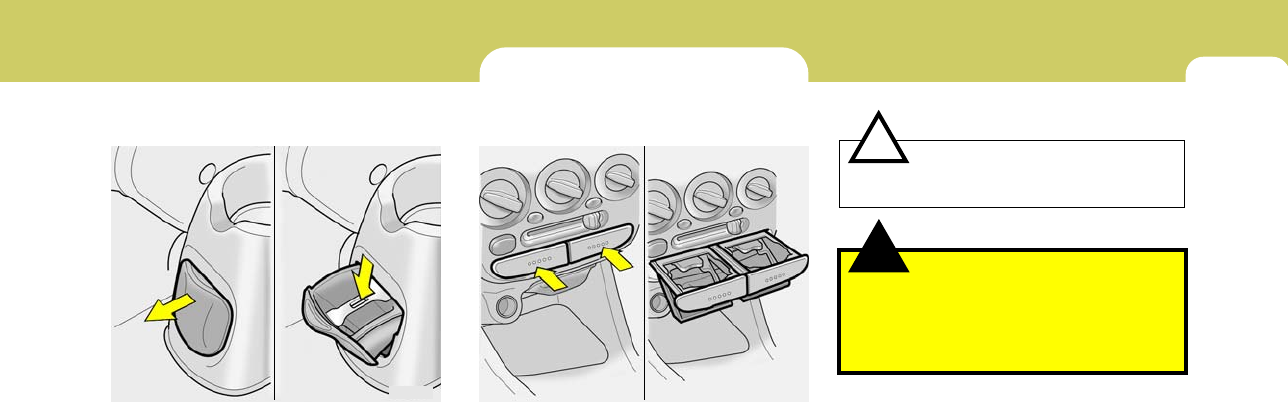

17.Ashtray

18.Front Drink Holder

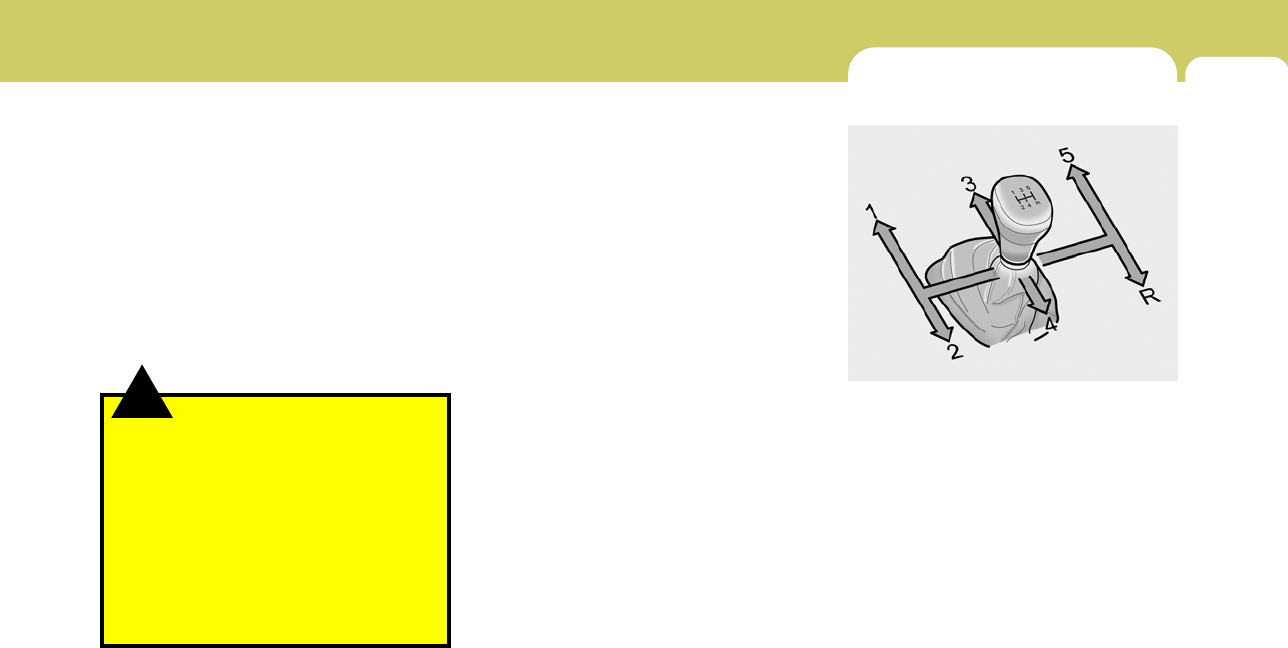

19.Shift Lever

20.Parking Brake Lever

21.Rear Drink Holder

CAUTION:

When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor

on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster,

instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these

areas, wash them with water immediately.

YOUR VEHICLE AT A GLANCE

High Beam Indicator Light

Parking Brake/Low Brake Fluid Level

Warning Light

Door Ajar Warning Light

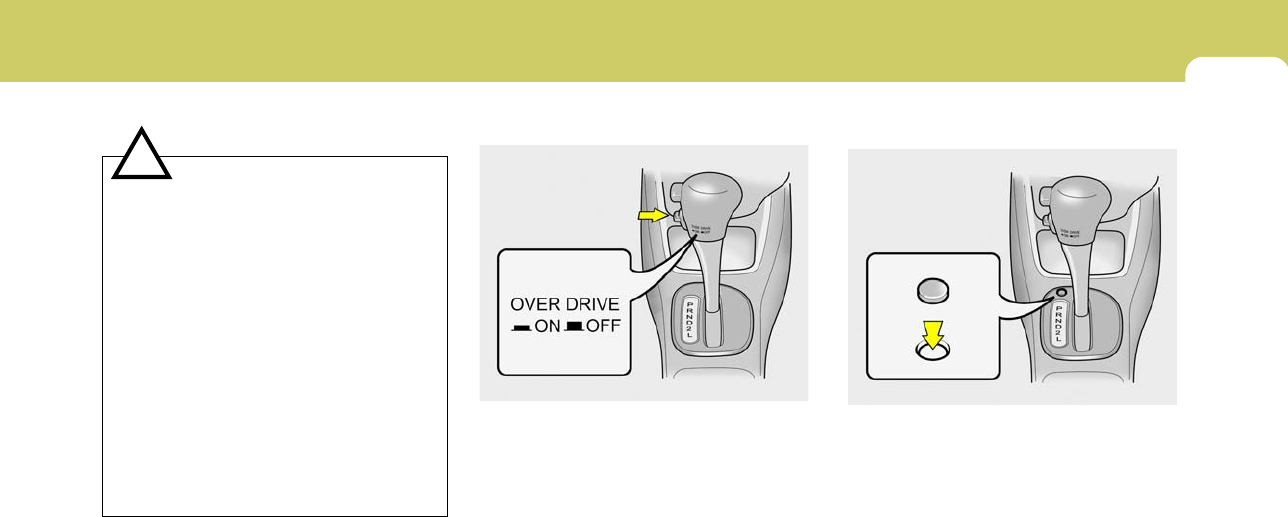

O/D OFF Indicator

(Automatic transaxle only)

B255A01A-AAT

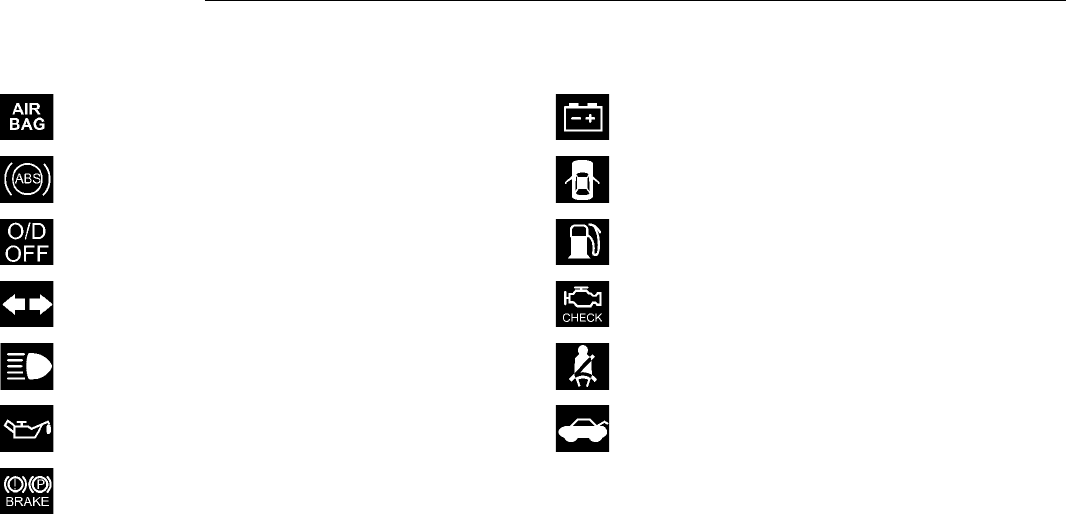

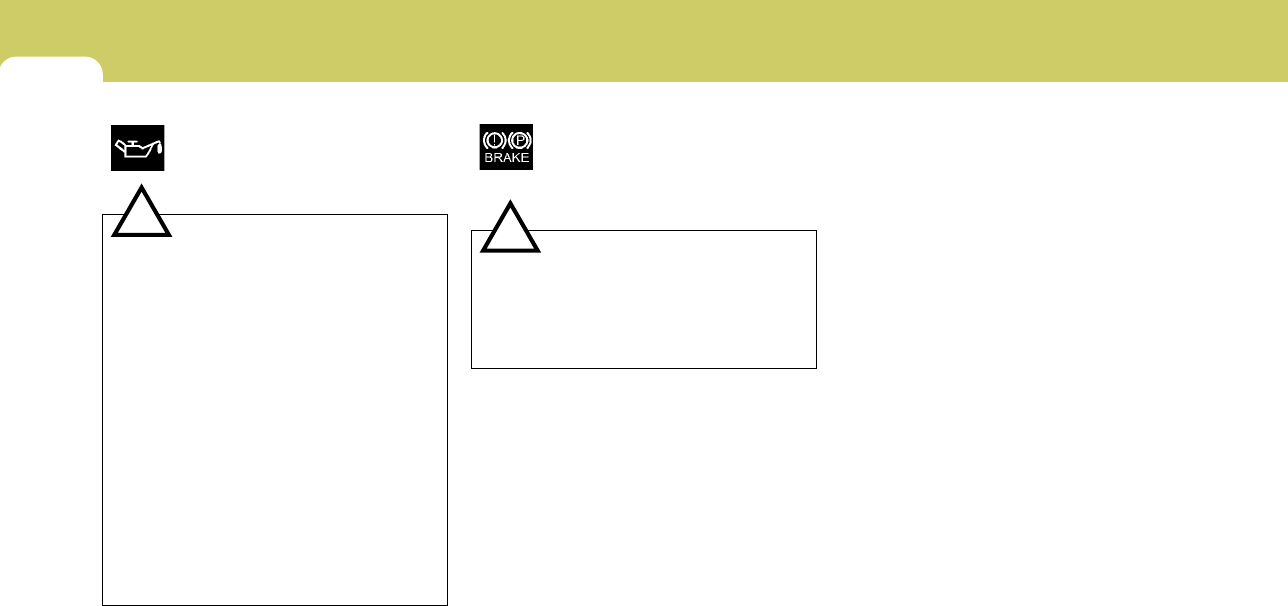

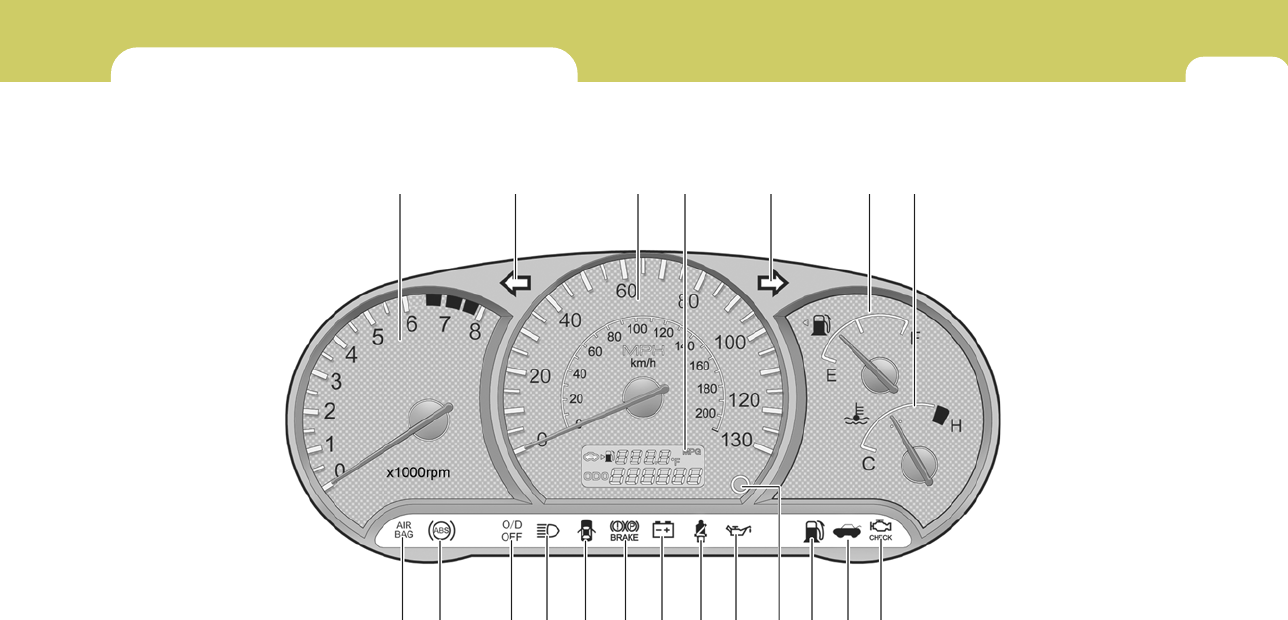

INDICATOR SYMBOLS ON THE INSTRUMENT PANEL

* More detailed explanations of these items will be found begining on page 1-38.

SRS (Airbag) Service Reminder

Indicator

ABS Service Reminder Indicator (If Installed)

Turn Signal Indicator Lights

Low Oil Pressure Warning Light

Charging System Warning Light

Low Fuel Level Warning Light

Malfunction Indicator Light

Seat Belt Reminder Light

Trunk Lid / Tail Gate Open Warning Light

FEATURES OF YOUR HYUNDAI

Fuel Recommendations ................................................ 1-2

Breaking in Your New Hyundai .................................... 1-3

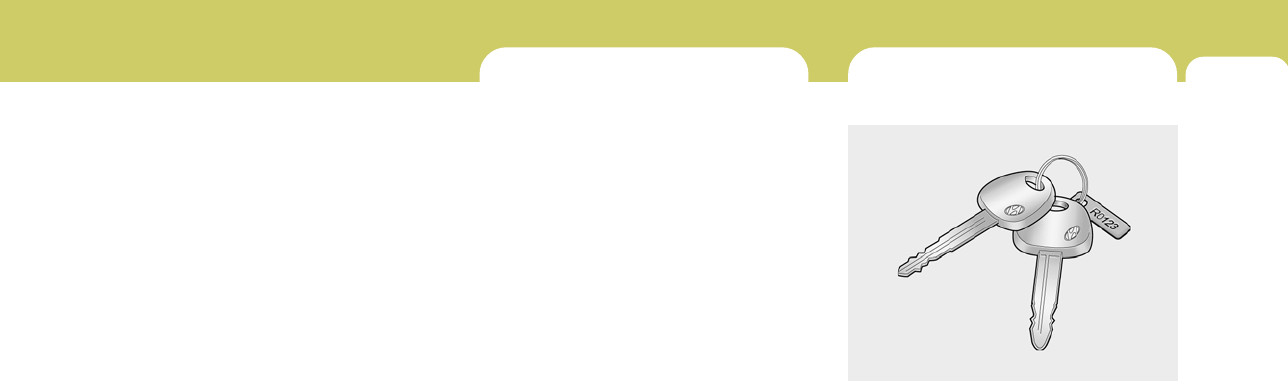

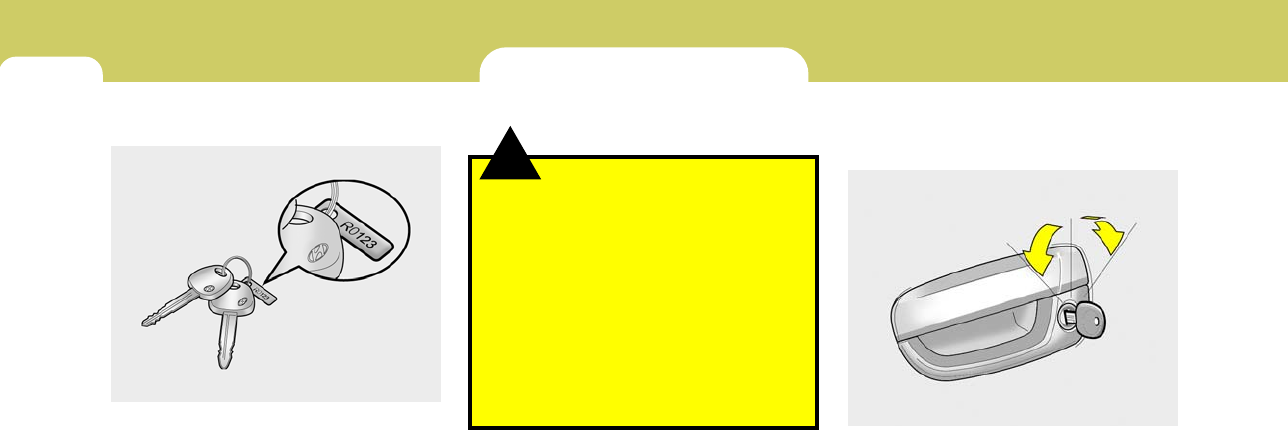

Key................................................................................ 1-3

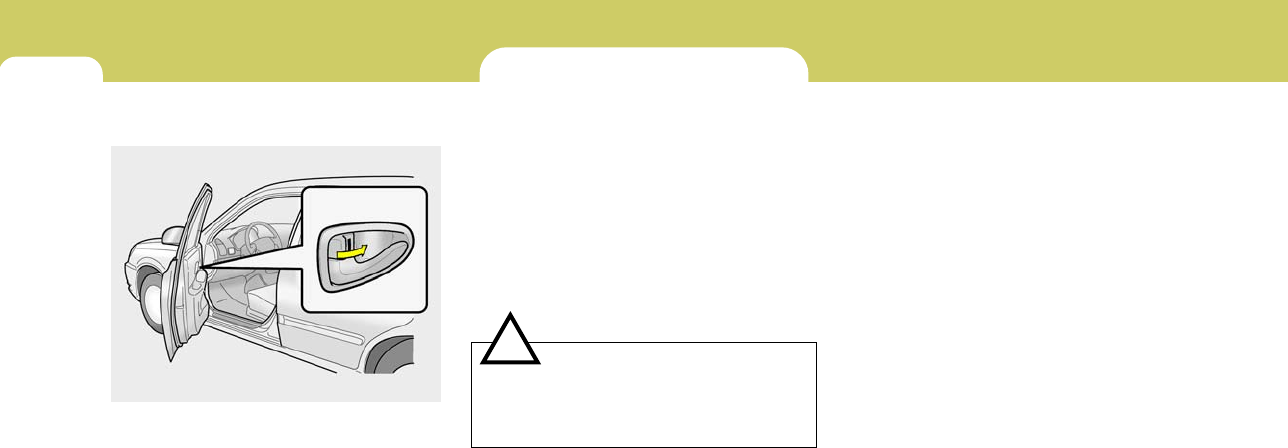

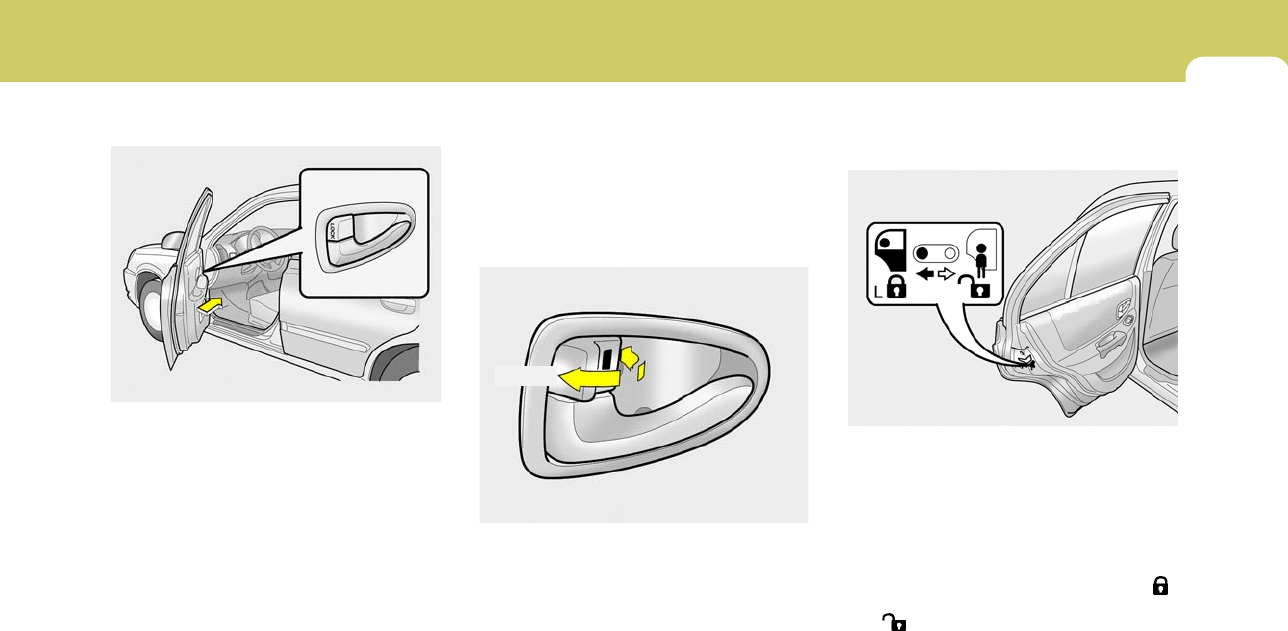

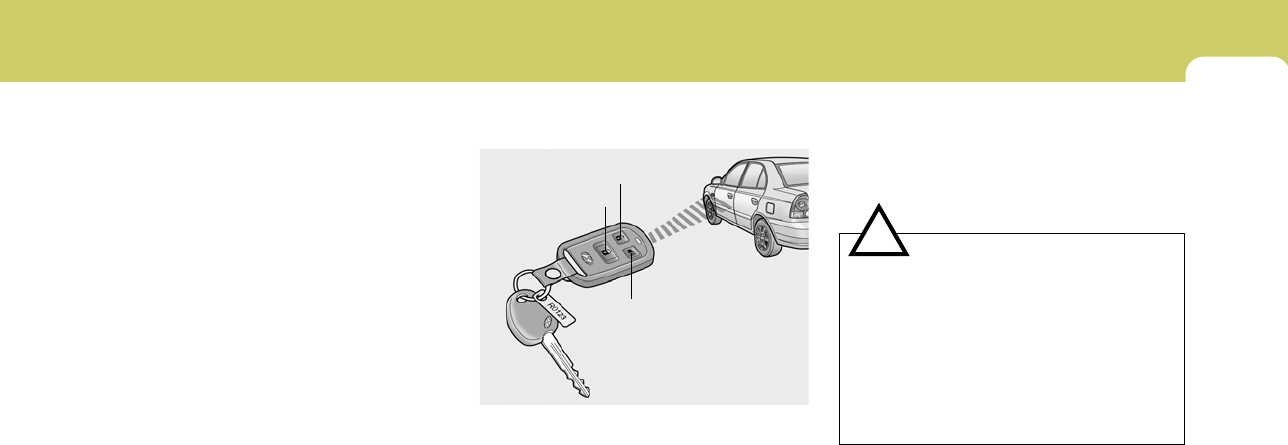

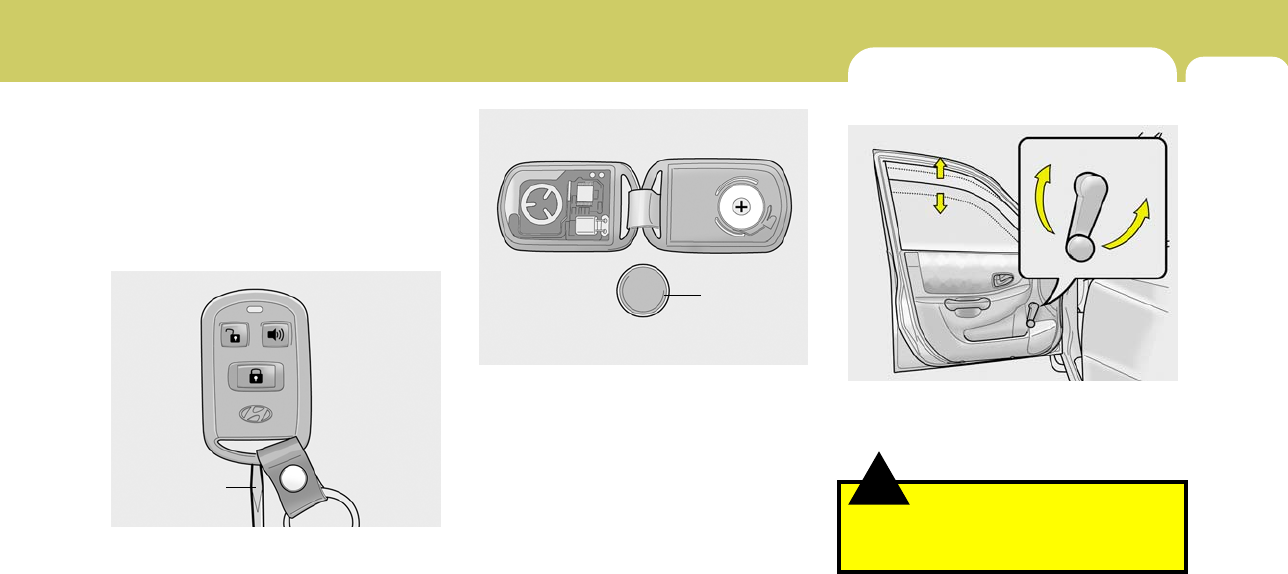

Door Locks (Keyless Entry System) .................... 1-4, 1-6

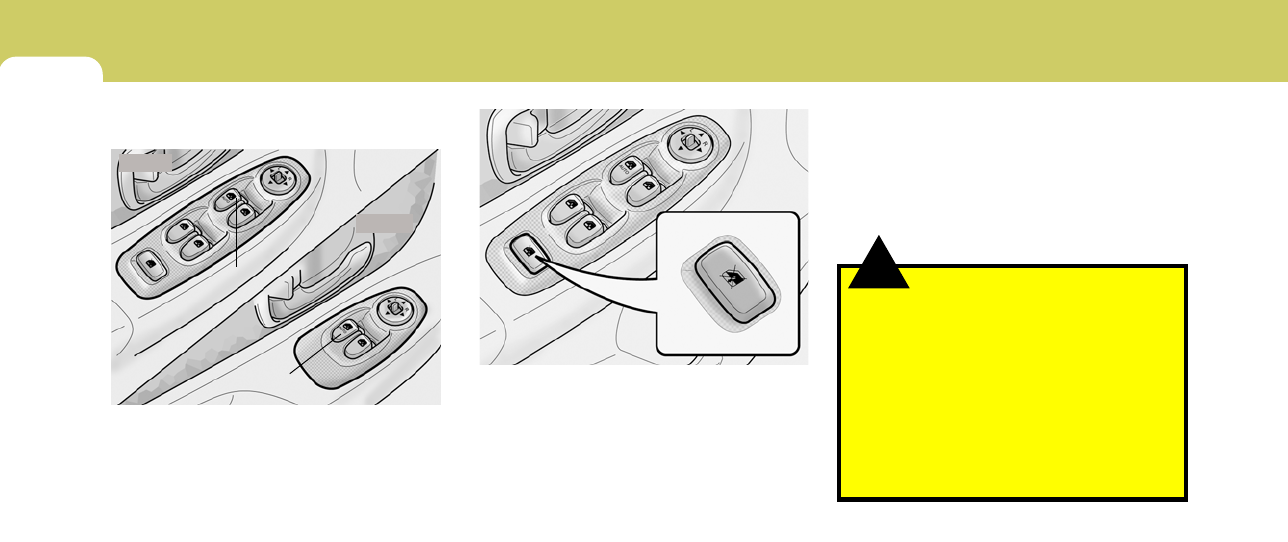

Window Glass (Power Windows) ....................... 1-9, 1-10

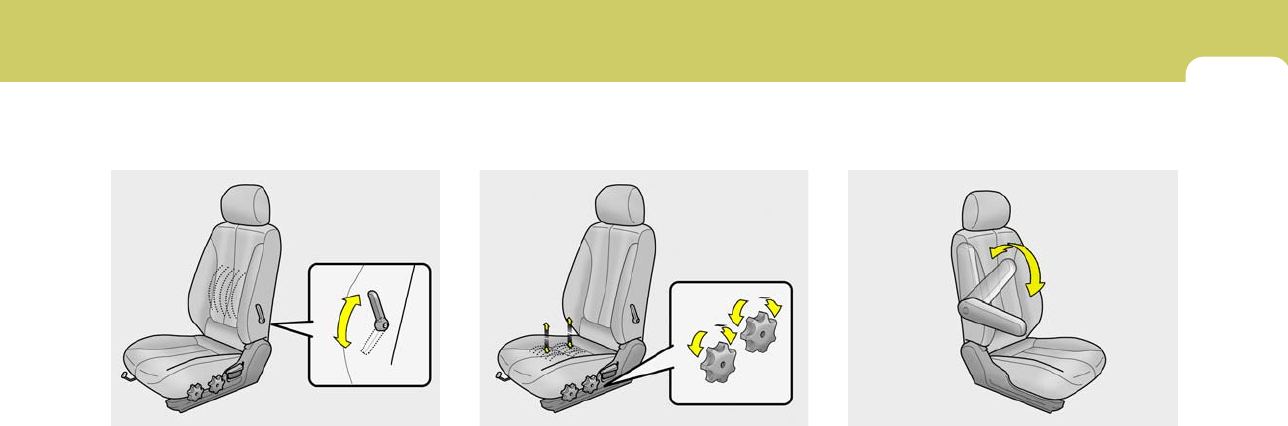

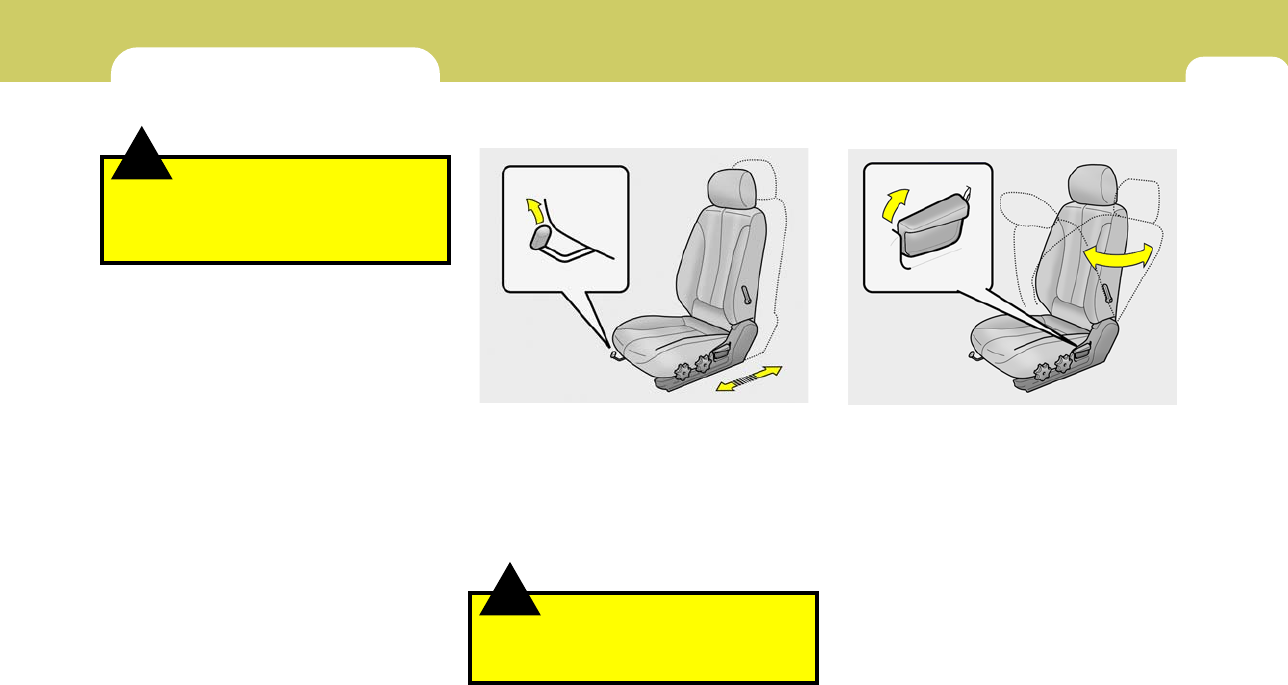

Seat............................................................................. 1-11

Seat Belt ..................................................................... 1-16

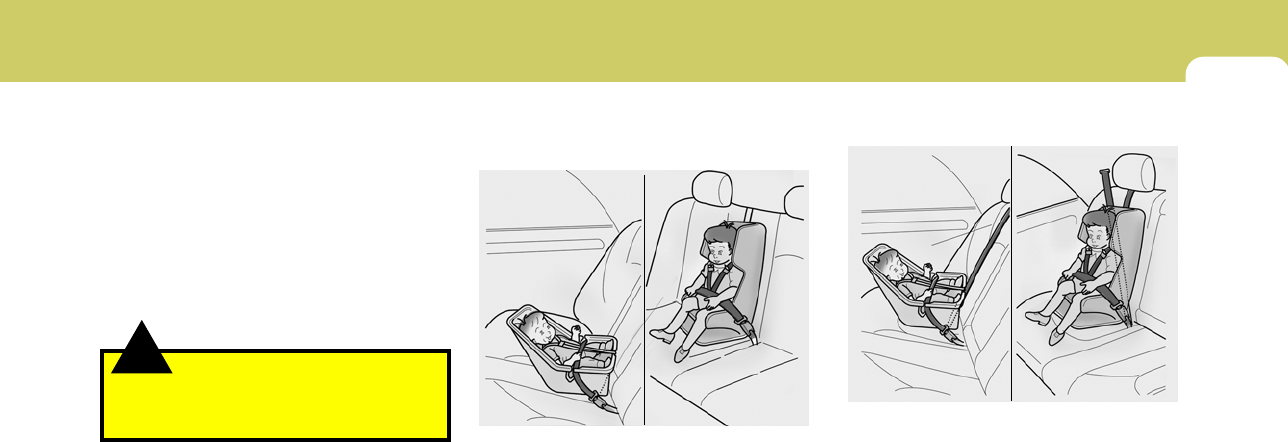

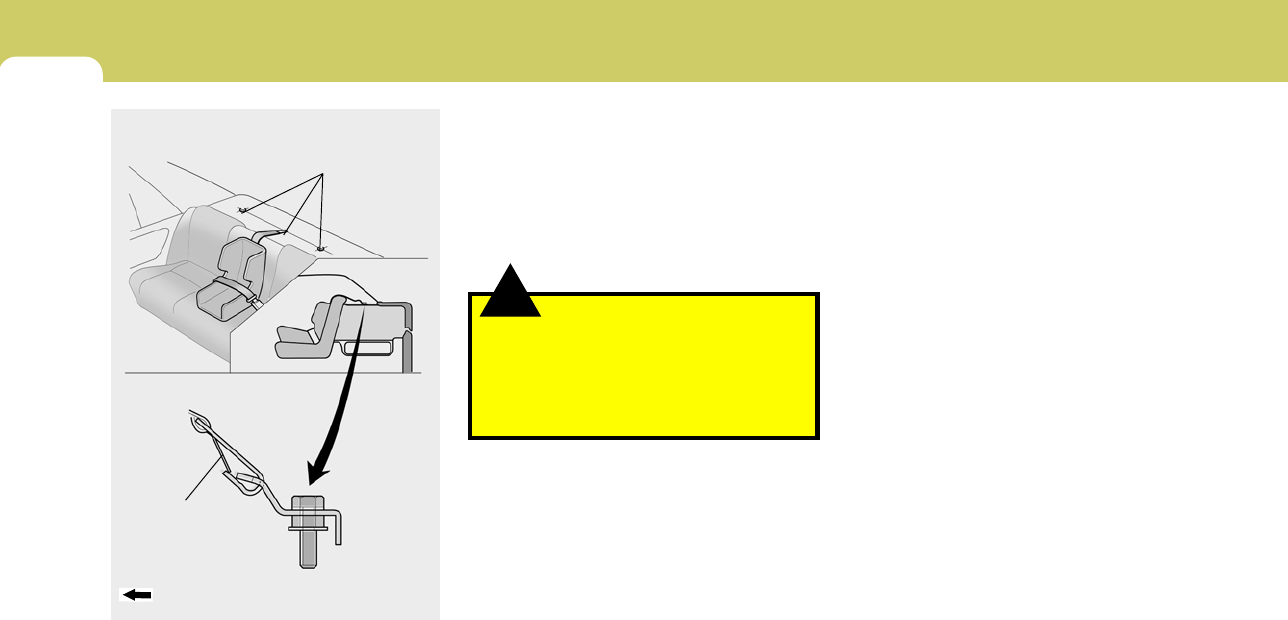

Child Restraint System............................................... 1-22

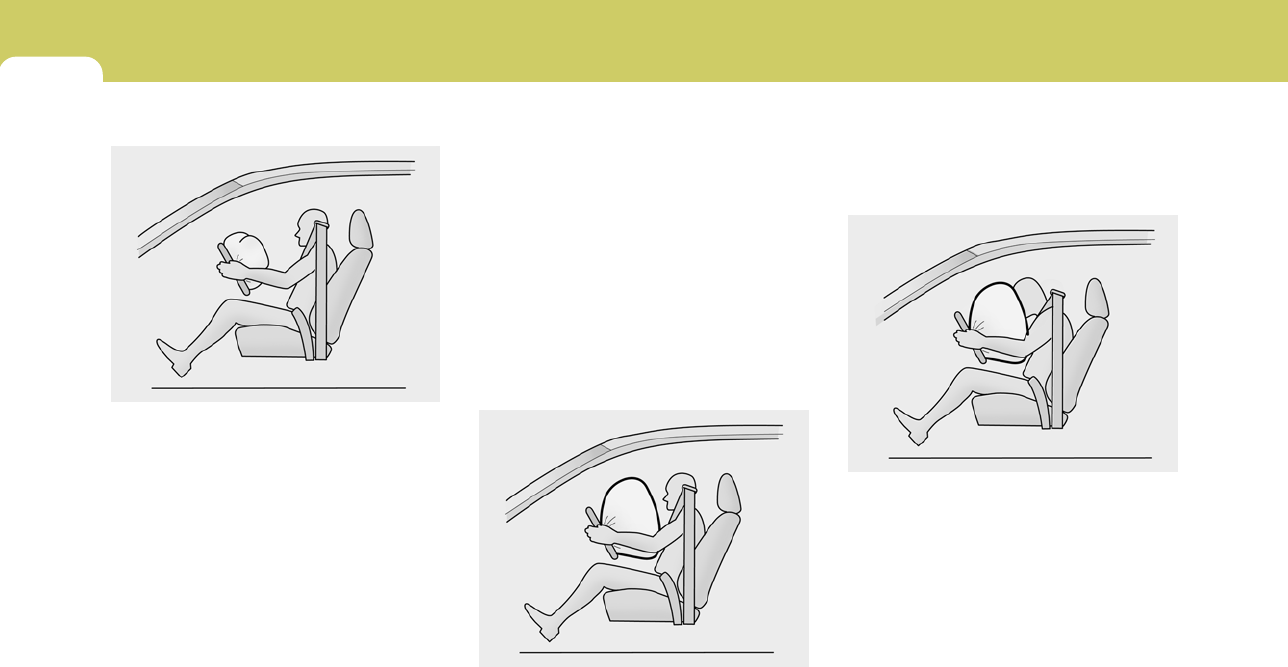

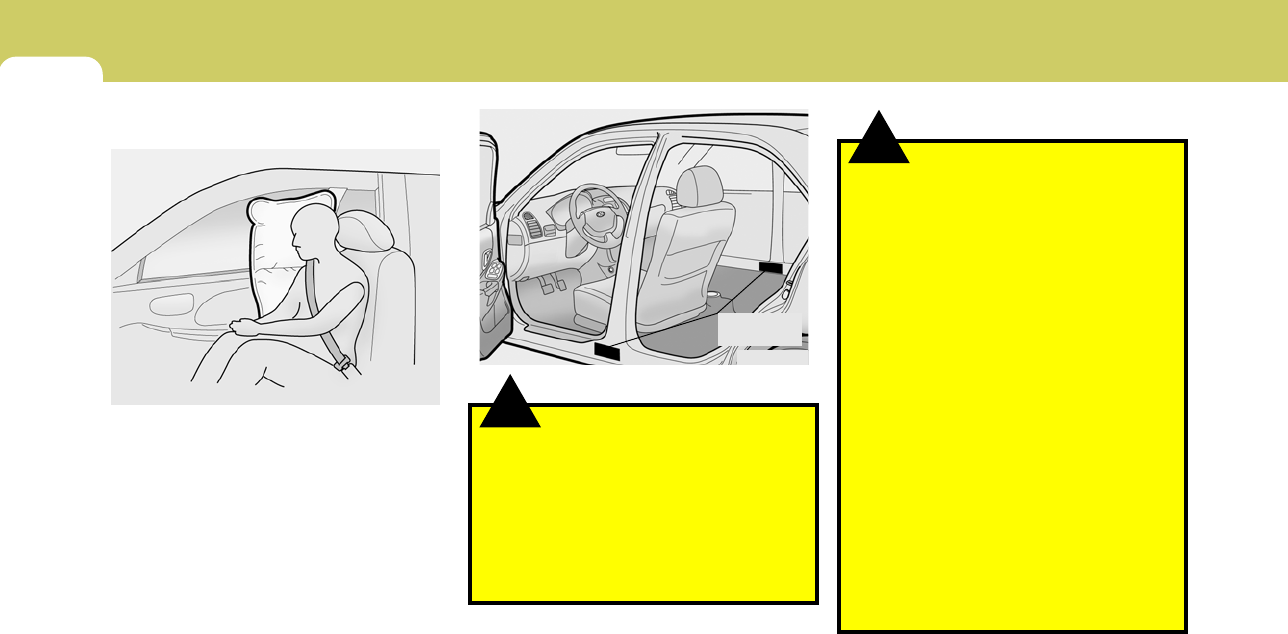

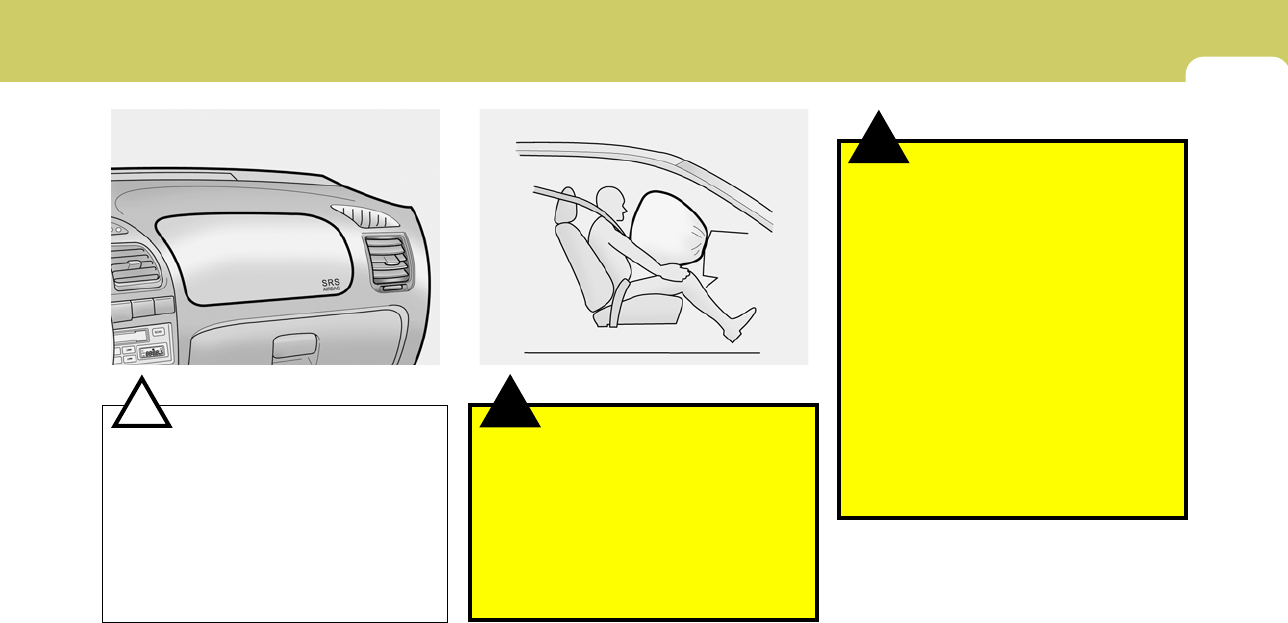

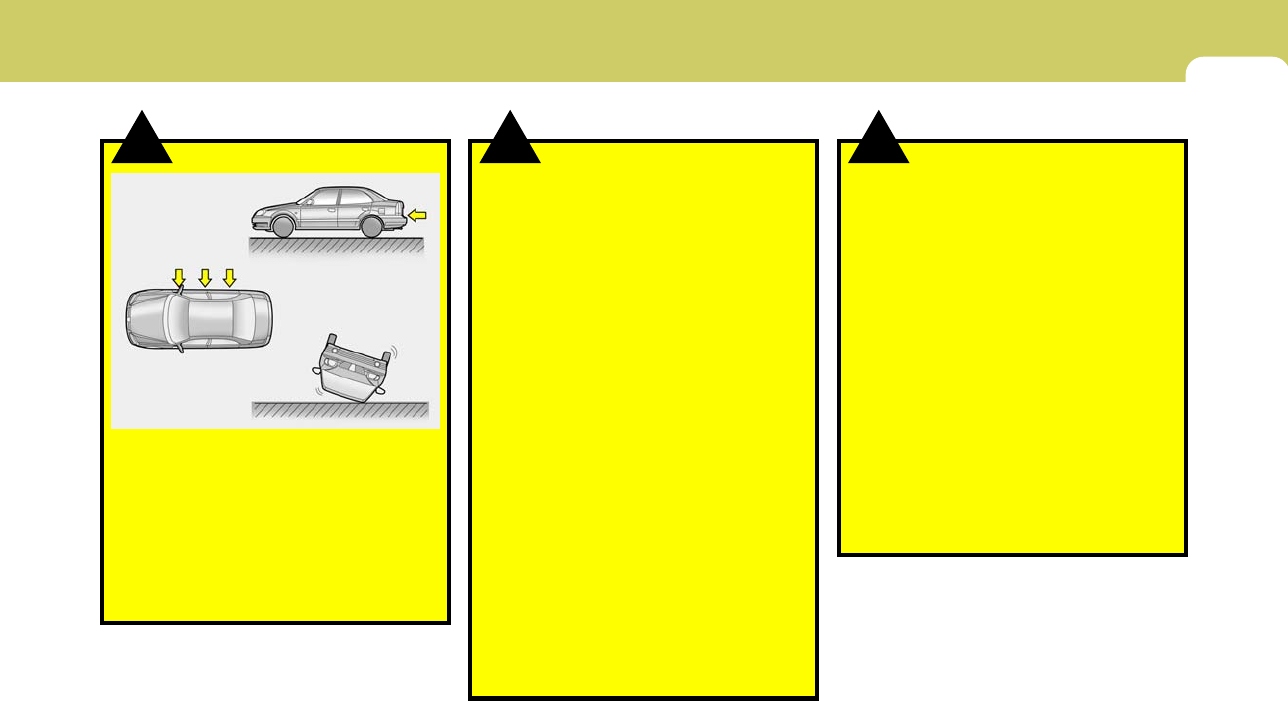

Dual-Stage Supplemental Restraint (AIRBAG)

System ...................................................................... 1-30

Instrument Cluster and Indicator Lights ..................... 1-37

Warning and Indicator Lights ...................................... 1-39

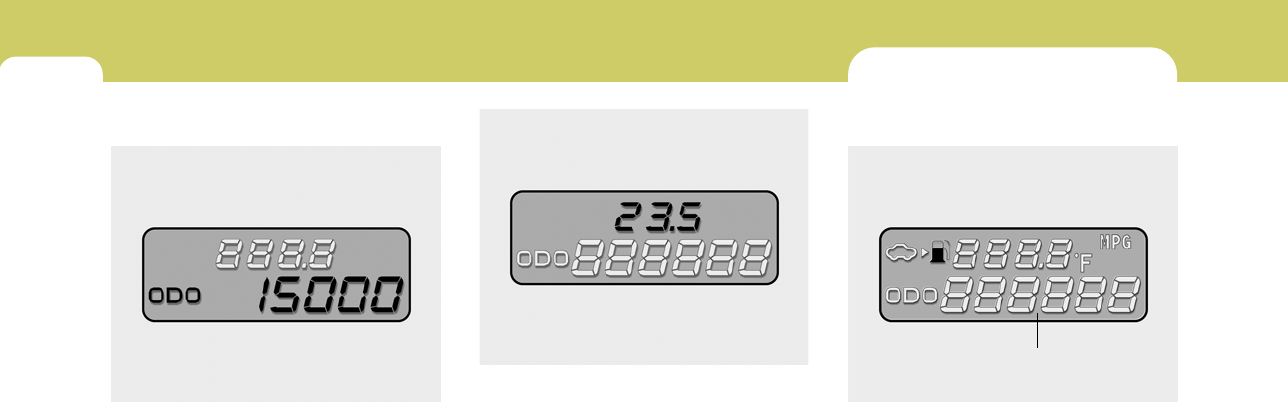

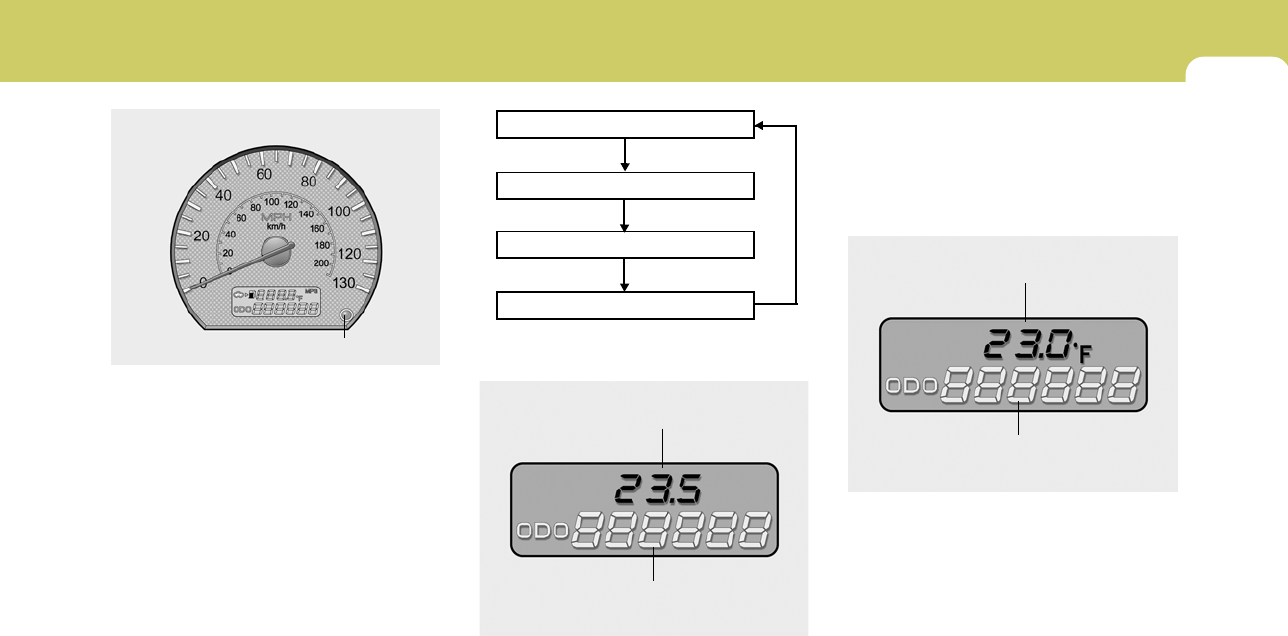

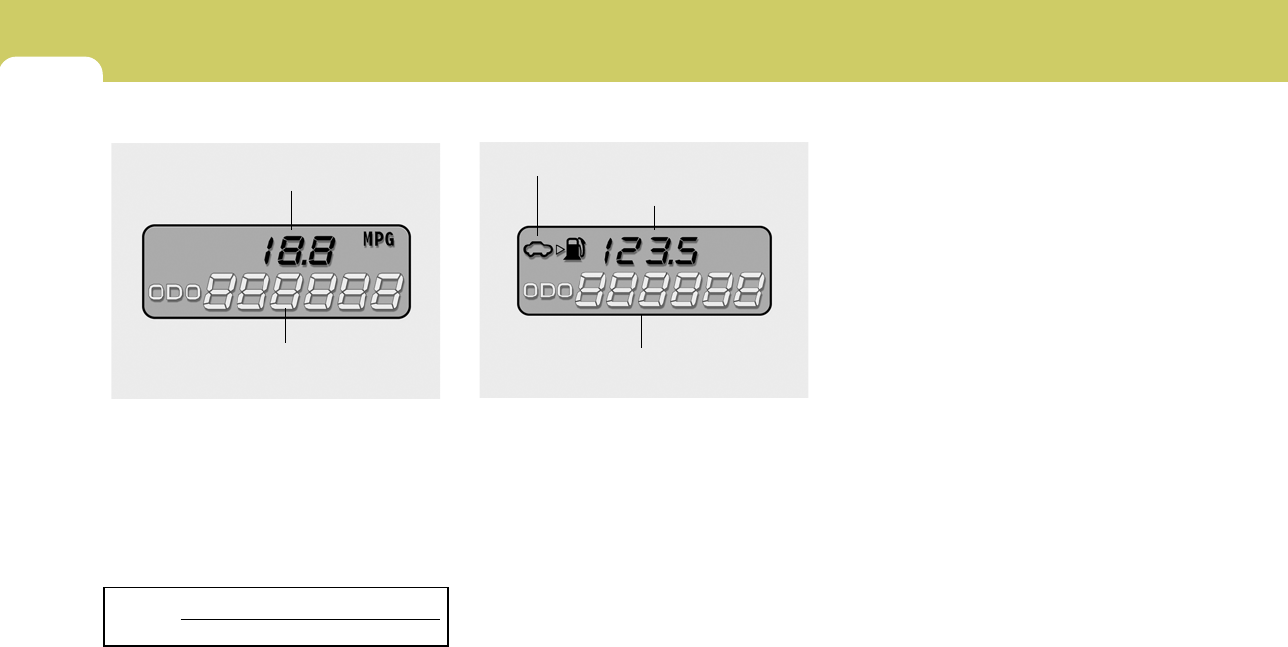

Trip Computer ............................................................. 1-44

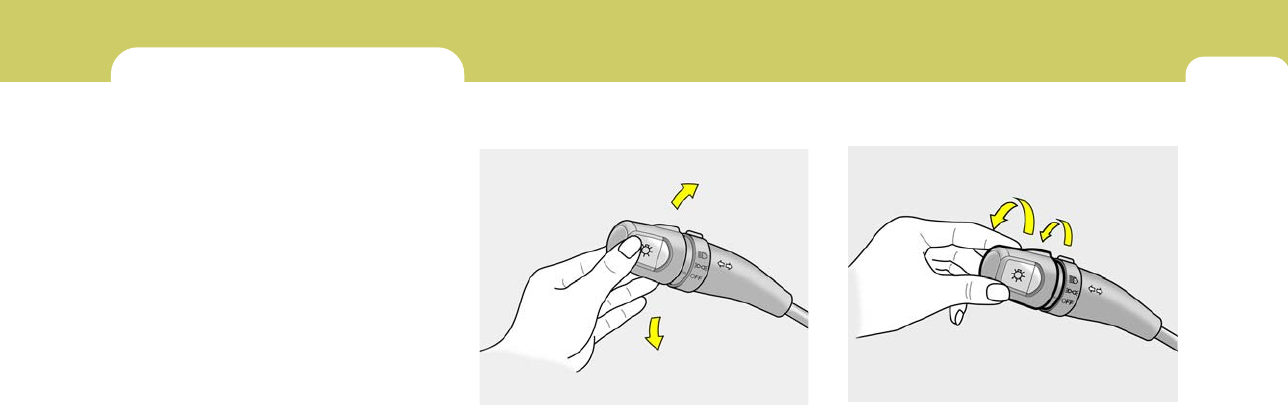

Multi-Function Light Switch ......................................... 1-47

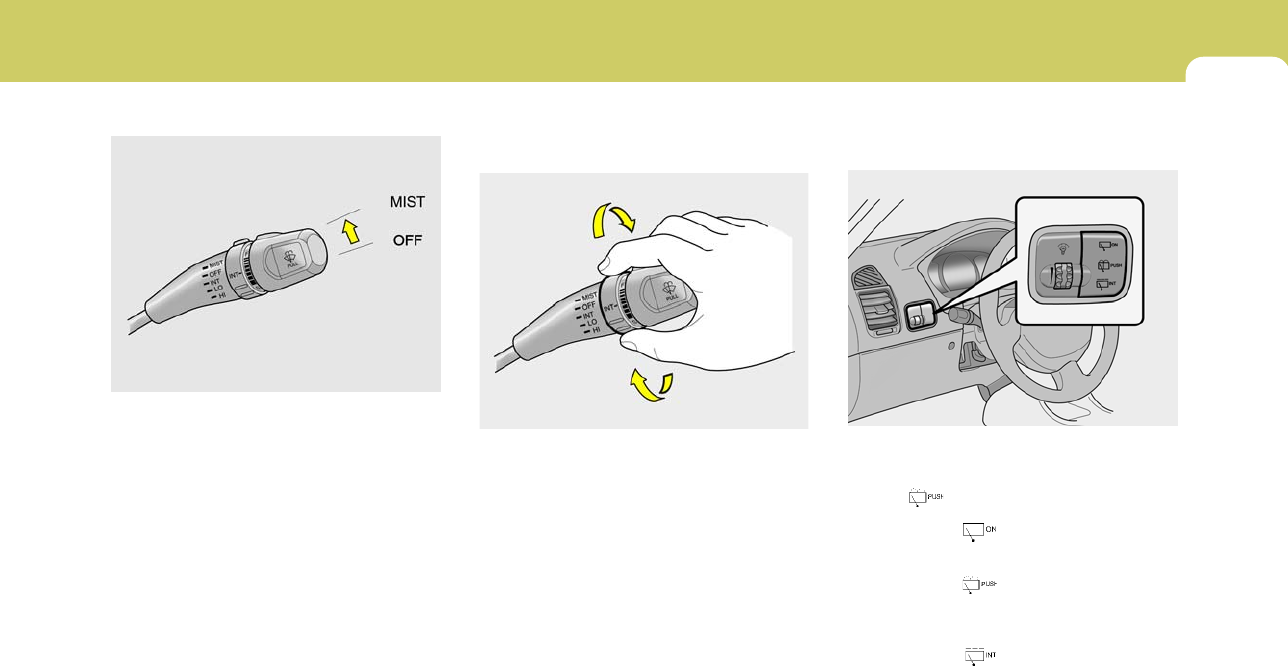

Windshield Wiper and Washer Switch ....................... 1-48

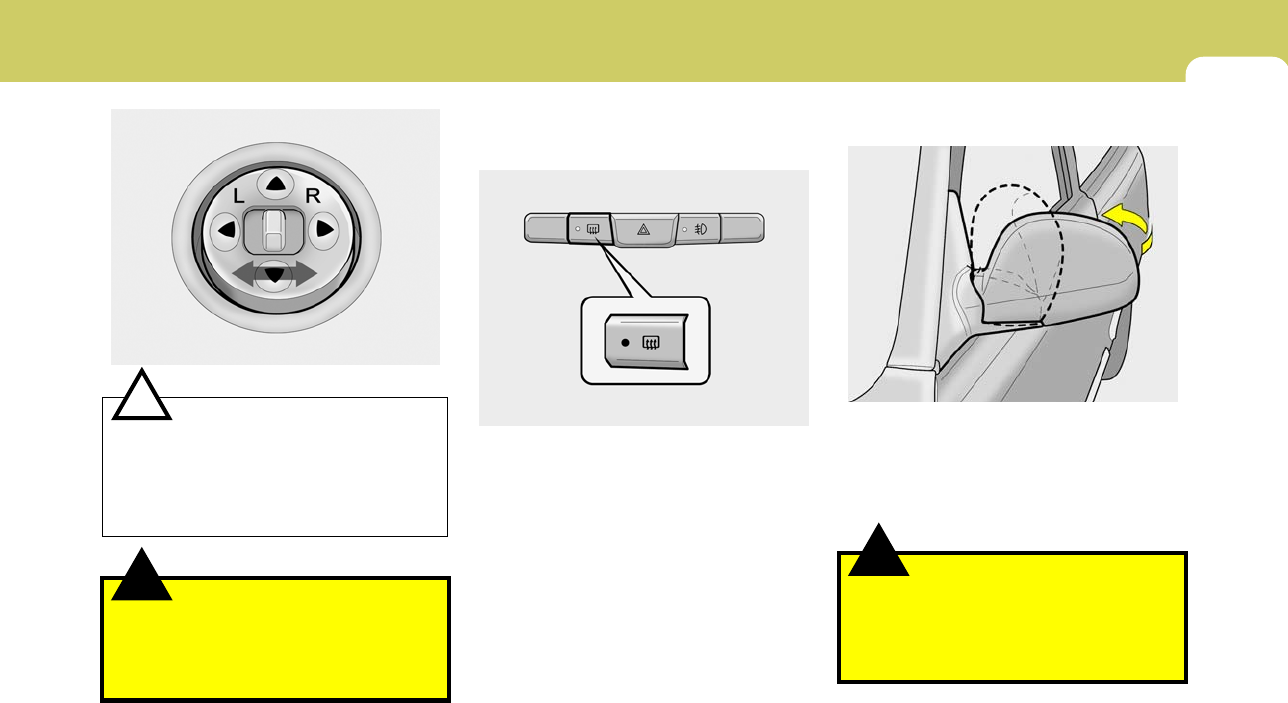

Mirror ........................................................................... 1-56

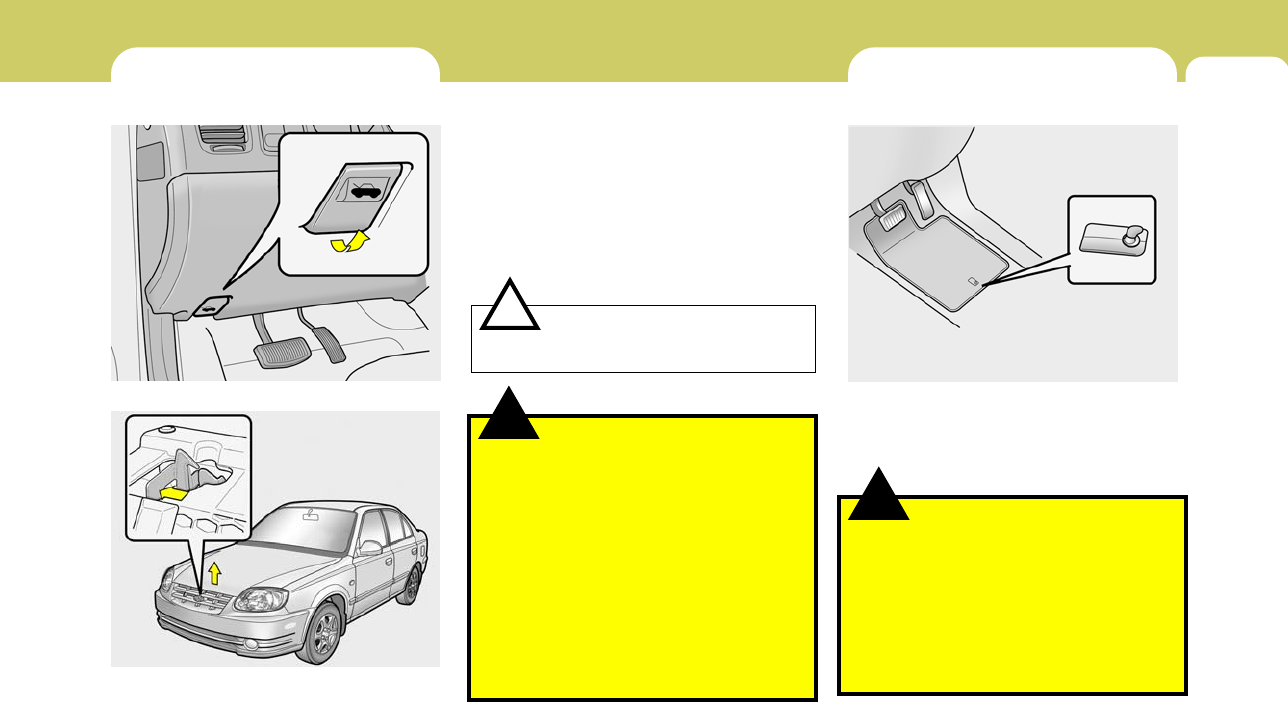

Hood Release ............................................................. 1-59

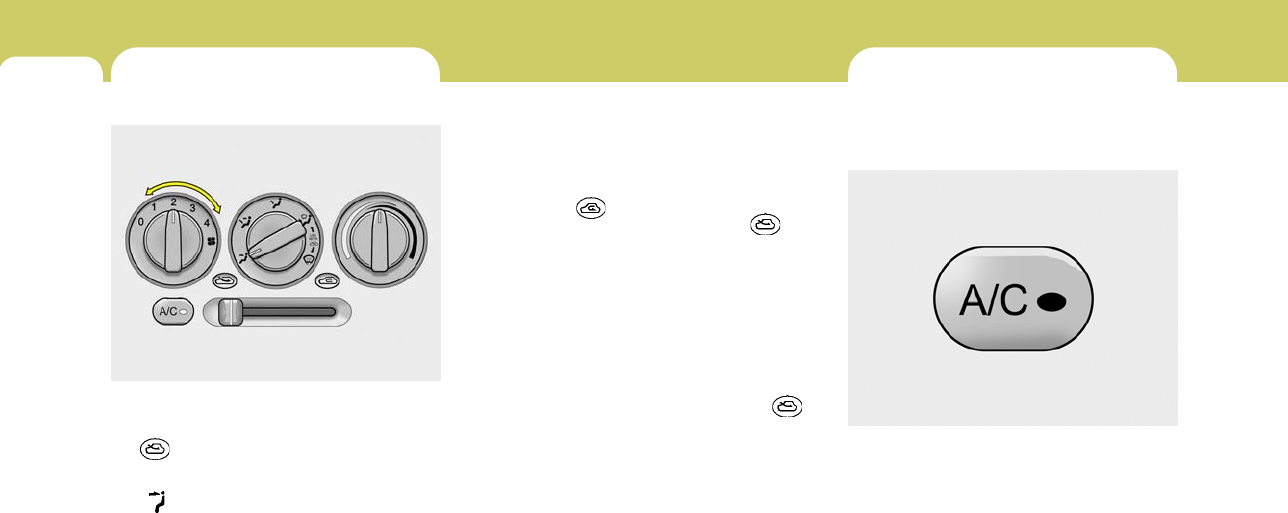

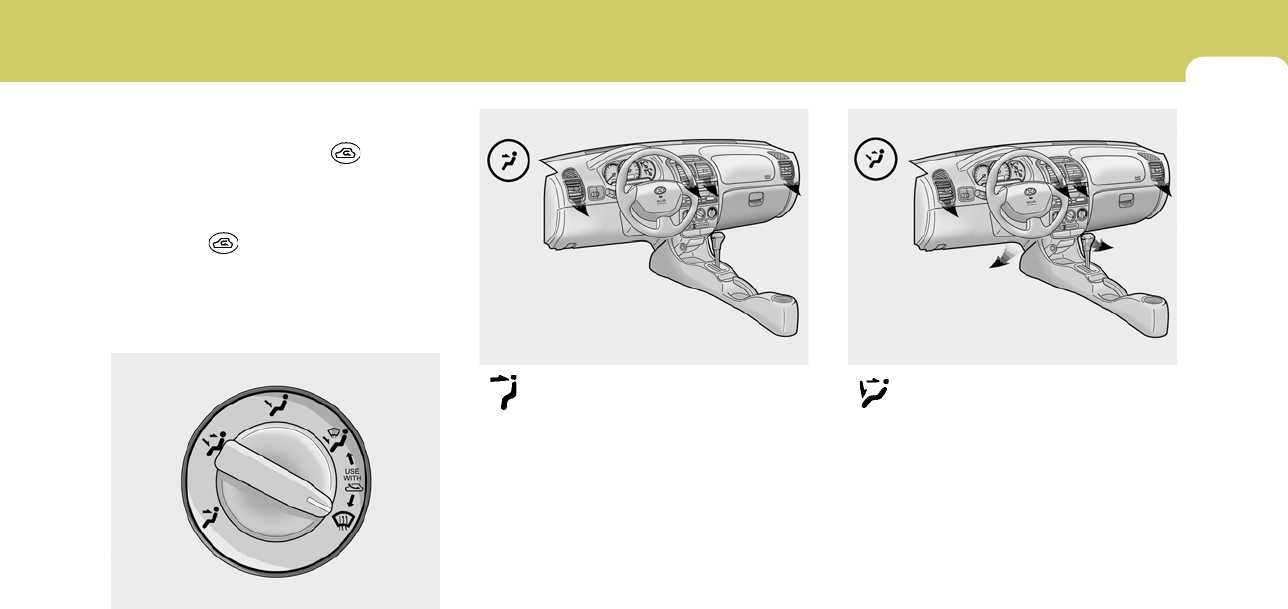

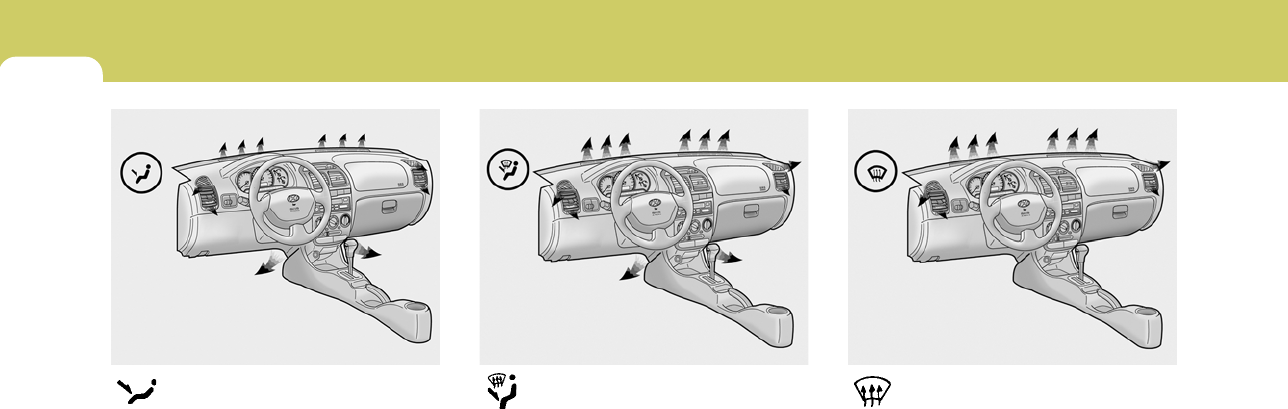

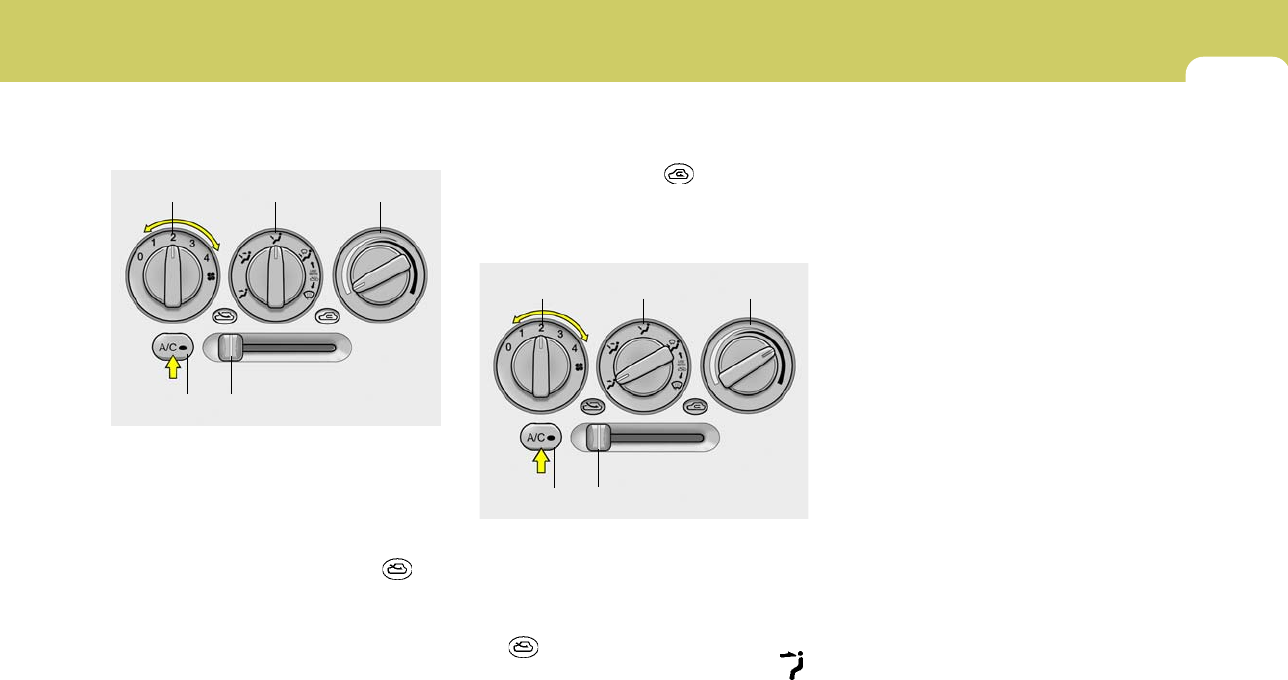

Heating and Cooling Control ...................................... 1-65

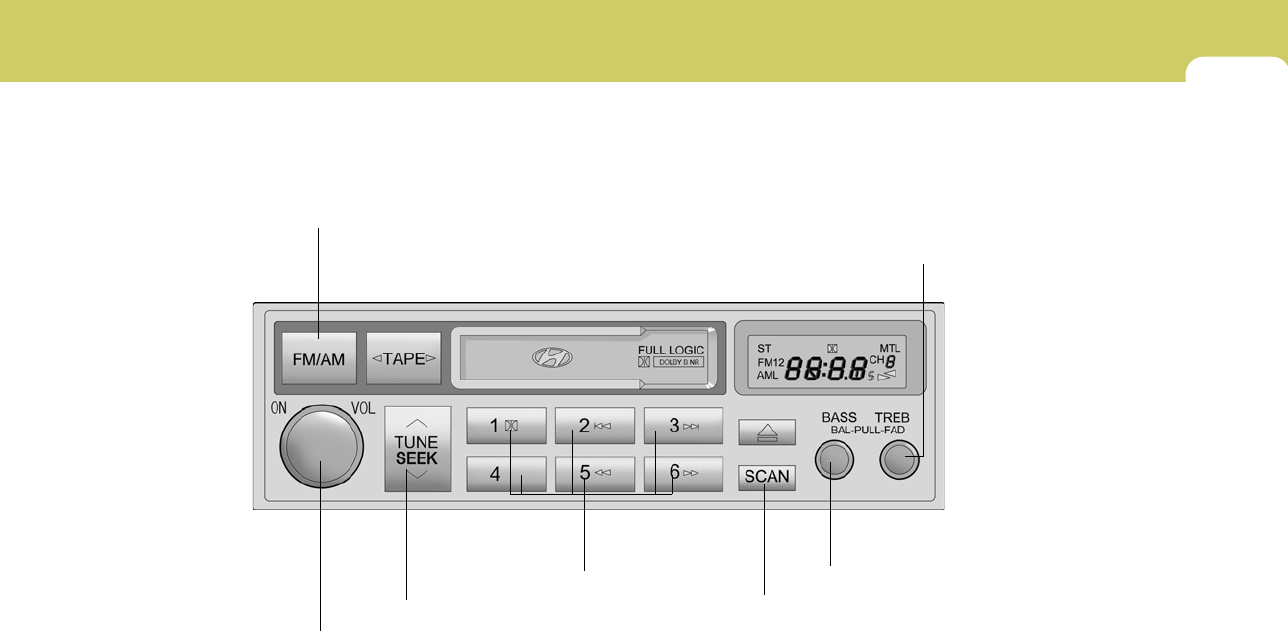

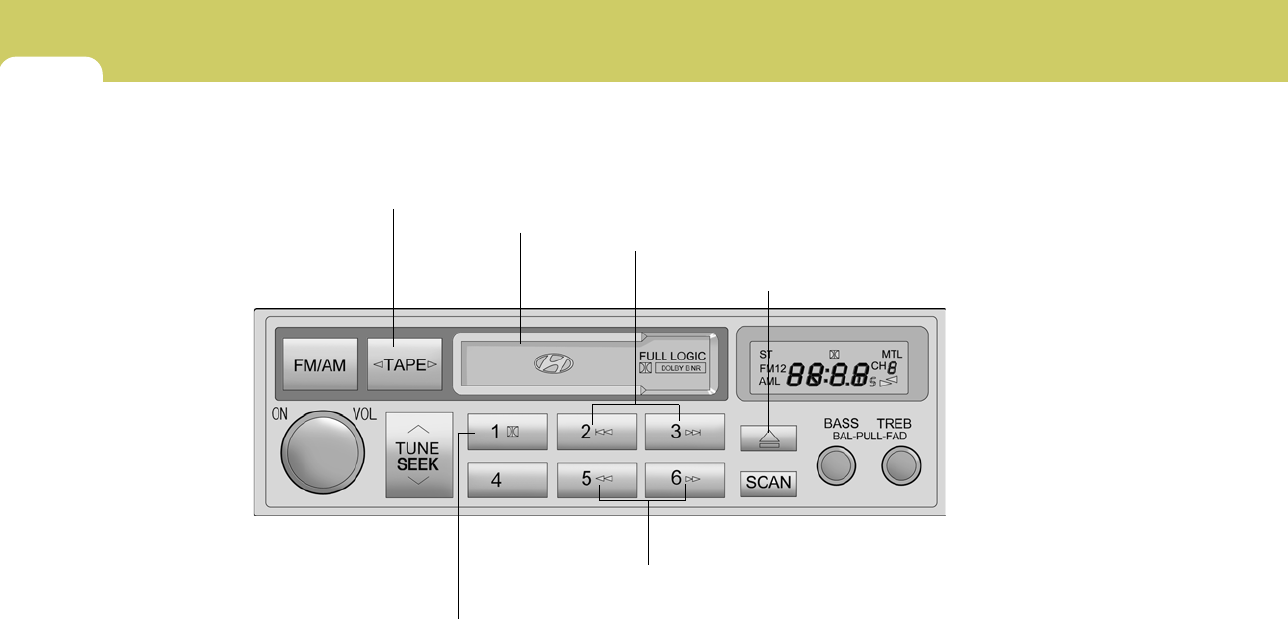

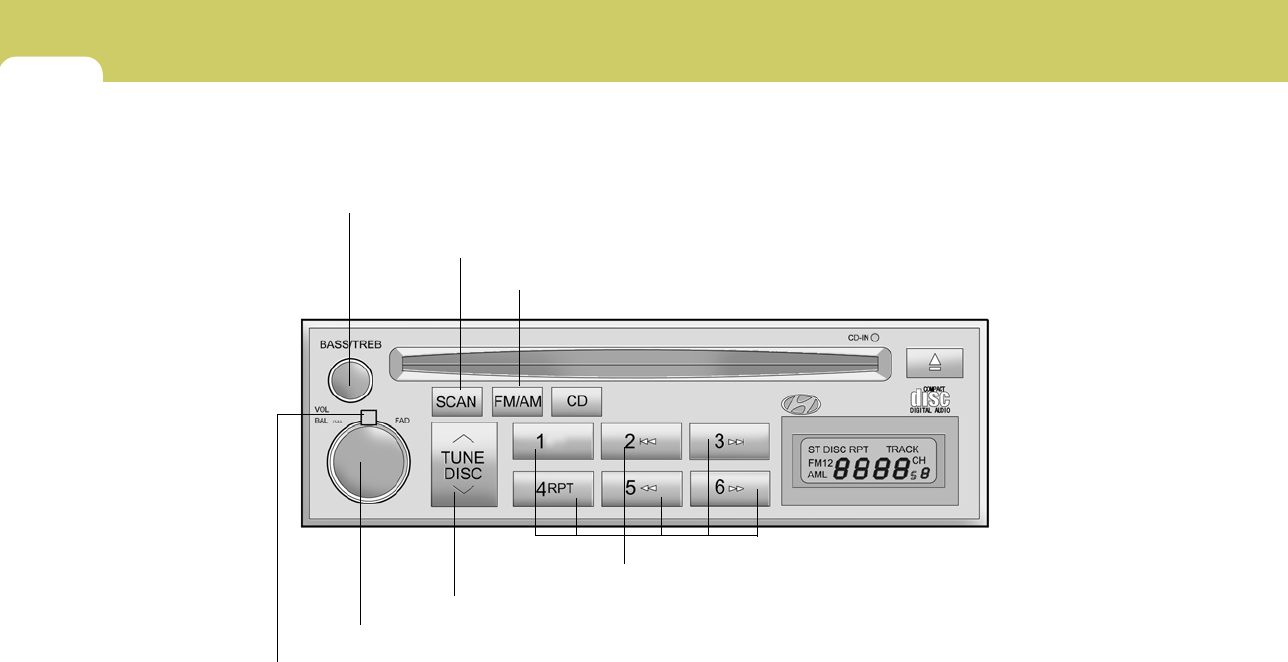

Stereo Sound System ................................................ 1-74

Audio System ............................................................. 1-76

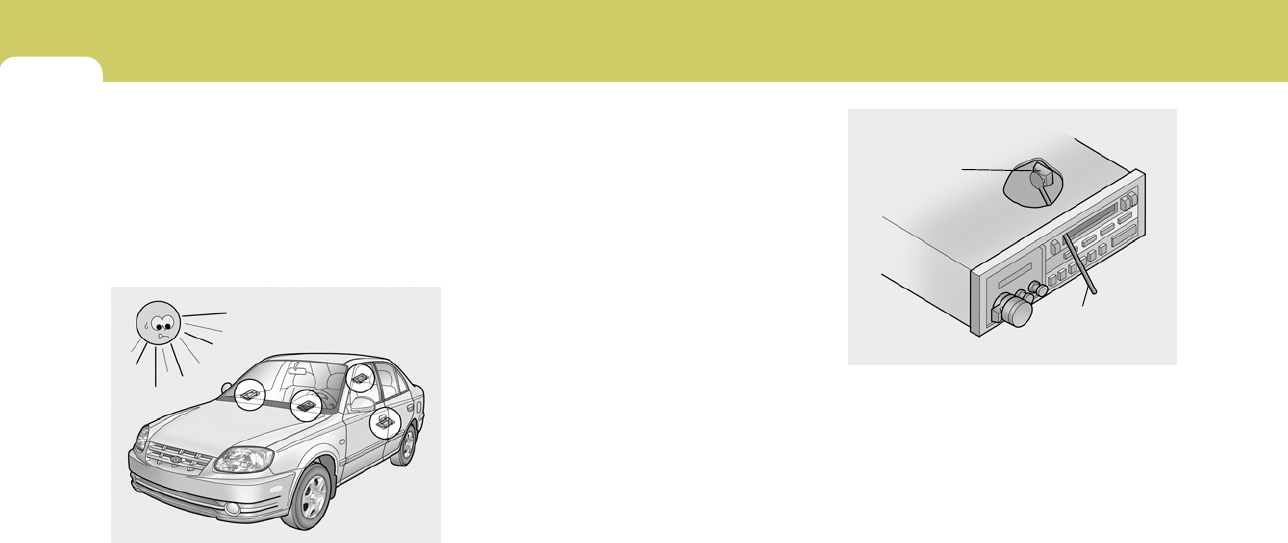

Antenna ....................................................................... 1-93

1FEATURES OF YOUR HYUNDAI

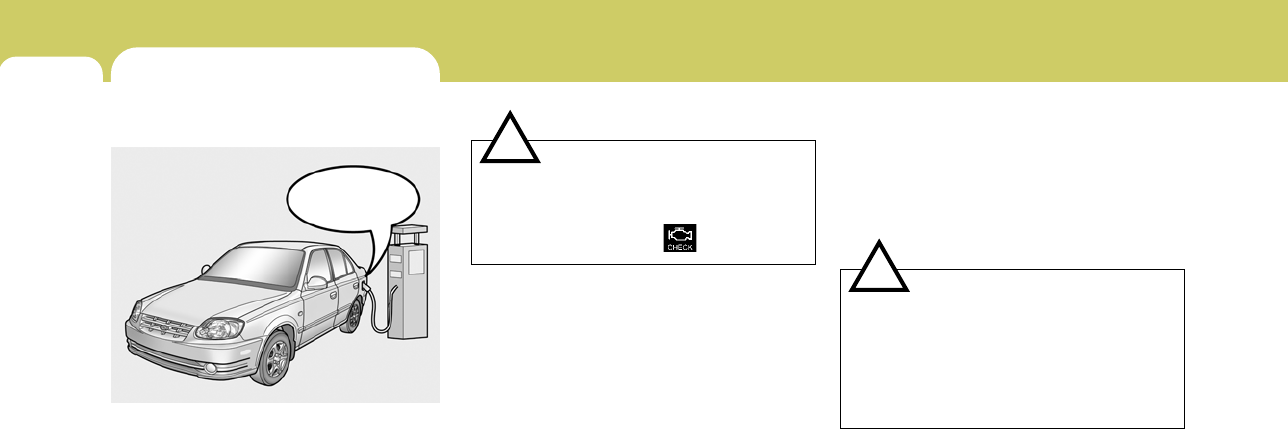

2FUEL RECOMMENDATIONS

UNLEADED

FUEL ONLY

B010A04A

B010A02A-AAT

Use Unleaded Gasoline

Unleaded gasoline with a Pump Octane

Rating of 87 (Research Octane Number 91)

or higher must be used in your Hyundai.

If leaded gasoline is used, it will cause the

catalytic converter to become ineffective and

the emission control system to malfunction. This

can also result in increased maintenance ex-

pense.

To avoid accidental use of leaded fuel, the larger

nozzle used with leaded gasoline at service

stations cannot be inserted into the fuel tank

opening of your Hyundai.

B010B01A-AAT

What About Gasohol?

Gasohol (a mixture of 90% unleaded gasoline

and 10% ethanol or grain alcohol) may be used

in your Hyundai. However, if your engine devel-

ops driveability problems, the use of 100% un-

leaded gasoline is recommended. Fuels with

unspecified quantities of alcohol, or alcohols

other than ethanol, should not be used.

B010C01A-AAT

Use of MTBE

Hyundai recommends that fuels containing

MTBE (Methyl Tertiary Butyl Ether) over 15.0%

vol. (Oxygen Content 2.7% weight) should not

be used in your Hyundai.

Fuel containing MTBE over 15.0% vol. (Oxygen

Content 2.7% weight) may reduce vehicle per-

formance and produce vapor lock or hard start-

ing.

B010D01A-AAT

Do Not Use Methanol

Fuels containing methanol (wood alcohol) should

not be used in your Hyundai. This type of fuel

can reduce vehicle performance and damage

components of the fuel system.

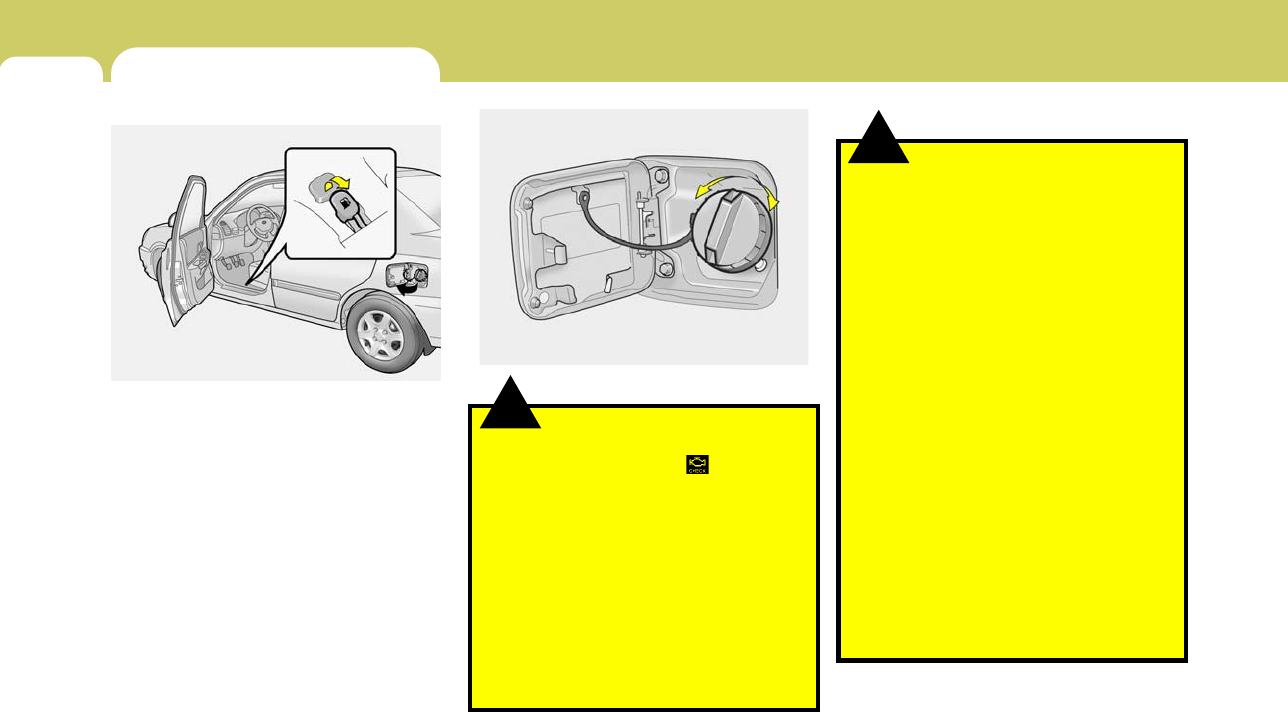

CAUTION:

o Do not "TOP-OFF" after the first nozzle

shut off when refueling.

o The fuel cap must be tightened at least

3 clicks, otherwise " " light may ill-

uminate.

CAUTION:

Your Hyundai's New Vehicle Limited Warran-

ty may not cover damage to the fuel system

and any performance problems that are caused

by the use of fuels containing methanol or

fuels containing MTBE (Methyl Tertiary Butyl

Ether) over 15.0% vol. (Oxygen Content 2.7%

weight.)

FEATURES OF YOUR HYUNDAI

KEYSBREAKING IN YOUR NEW HYUNDAI

B010F01A-AAT

Operation in Foreign Countries

If you are going to drive your Hyundai in another

country, be sure to:

o Observe all regulations regarding registra-

tion and insurance.

o Determine that acceptable fuel is available.

B010E01A-AAT

Gasolines for Cleaner Air

To help contribute to cleaner air, Hyundai rec-

ommends that you use gasolines treated with

detergent additives, which help prevent deposit

formation in the engine. These gasolines will

help the engine run cleaner and enhance

performance of the Emission Control System.

B020A01S-AAT

During the First 1200 Miles (2000 Km)

No formal "break-in" procedure is required with

your new Hyundai. However, you can contribute

to the economical operation and durability of

your Hyundai by observing the following recom-

mendations during the first 1200 miles (2000

km).

o Don't drive faster than 55 MPH (88 km/h).

o While driving, keep your engine speed (rpm,

or revolutions per minute) between 2,000

rpm and 4,000 rpm.

o Use moderate acceleration. Don't start quickly

or depress the accelerator pedal fully.

o For the first 200 miles (300 km), try to avoid

hard stops.

o Don't lug the engine (in other words, don't

drive so slowly in too high a gear that the

engine "bucks"-shift to a lower gear).

o Whether going fast or slow, vary your speed

from time to time.

o Don't let the engine idle longer than 3 min-

utes at one time.

o Don't tow a trailer during the first 1,200 miles

(2,000 km) of operation.

B030A01A-AAT

For greater convenience, the same key oper-

ates all the locks in your Hyundai. However,

because the doors can be locked without a

key, carrying a spare key is recommended in

case you accidentally lock one key inside the

car.

B030A01E

1FEATURES OF YOUR HYUNDAI

4DOOR LOCKS

B030B01A-AAT

Record Your Key Number

A code number is stamped on the number plate

that came with the keys to your Hyundai. This

key number plate should not be left with the

keys but kept in a safe place, not in the vehicle.

The key number should also be recorded in a

place where it can be found in an emergency.

If you need additional keys, or if you should lose

your keys, your authorized Hyundai dealer can

make new keys if you can supply the key

number.

B030B01E

B040A01A-AAT B040B02A-AAT

Locking and Unlocking Front Doors with

a Key

o The door can be locked or unlocked with a

key.

o Lock the door by turning the key toward the

front of the vehicle and unlock it by turning

the key toward the rear.

NOTE:

The driver's door can be unlocked by turning

the key once toward the rear. If you wish to

unlock all doors, turn the key again toward

the rear within 4 seconds. (With central

door locking system)

WARNING:

o Unlocked doors can be dangerous. Be-

fore you drive away (especially if there

are children in the car), be sure that all the

doors are securely closed and locked so

that the doors cannot be opened from the

inside. This helps ensure that the doors

will not be opened accidentally. Also,

when combined with the proper use of

seat belts, locking the doors helps keep

occupants from being ejected from the

car in case of an accident.

o Before opening the door, always look

for and avoid oncoming traffic.

UNLOCK

HLC2003

LOCK

FEATURES OF YOUR HYUNDAI

B040D01FC-GAT

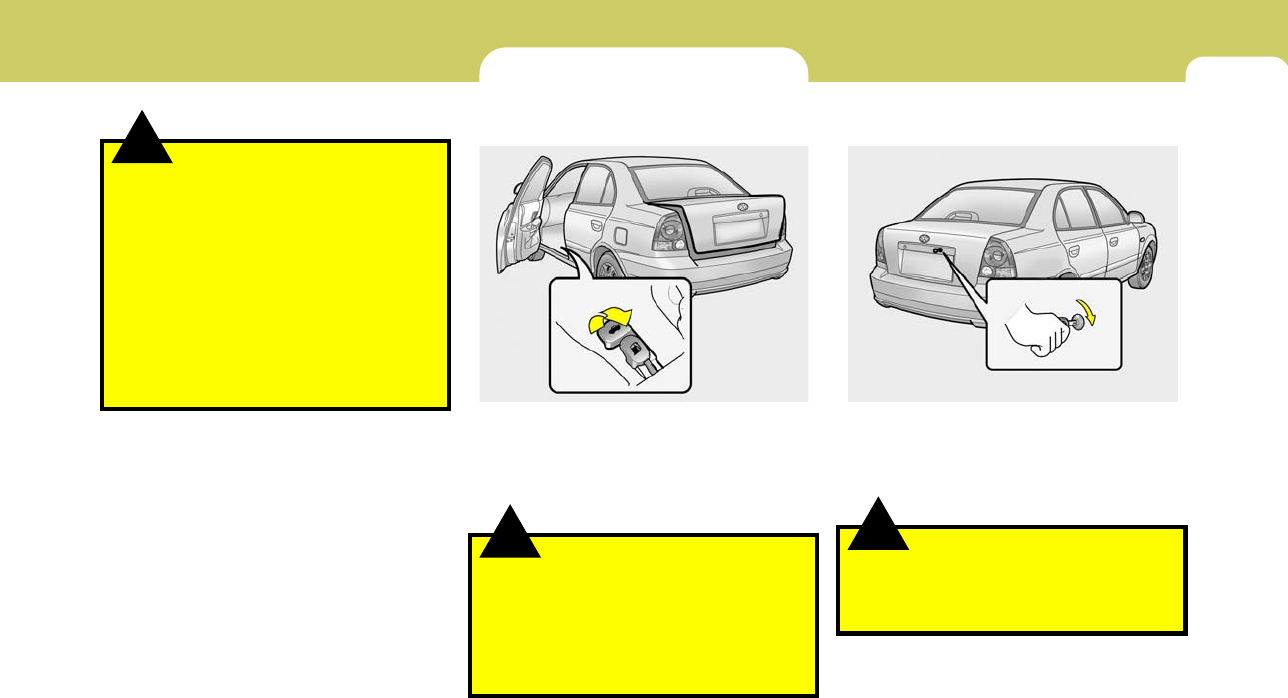

Locking from the Inside

To lock the doors from the inside, simply close

the door and push the lock switch to the "LOCK"

position. When this is done, neither the outside

nor the inside door handle can be used.

NOTE:

When the door is locked, the red mark on the

switch is not visible and the character "LOCK"

on the switch is visible.

B040E03A-AAT

CHILD-PROTECTOR REAR DOOR

LOCK (If Installed)

Your Hyundai is equipped with a "child-protec-

tor" rear door lock assembly. When the lock

mechanism is engaged, the rear door cannot be

opened from the inside. Its use is recom-

mended whenever there are small children in

the rear seat.

To engage the child-protector feature so that

the door cannot be opened from the inside,

move the child-protector lever to the " "

position and close the door. Move the lever to

the " " position when normal door operation

is desired.

If you wish to be able to open the door from the

outside, the outside door handle will function

normally.

The doors can be locked without a key.

To lock the doors, first push the inside lock

switch to the "LOCK" position so that the red

mark on the switch is not visible, then close the

door.

NOTE:

o If your vehicle is equipped with central

door locking system, the door will not

lock if the key is left in the ignition

switch when the front doors are closed.

o When locking the door this way, be

careful not to lock the door with the

ignition key left in the vehicle.

B040C04A-AAT

Locking from Outside

B040C01A-1

HLC2004

LOCK

UNLOCK

HLC2005

o To protect against theft, always remove

the ignition key, close all windows, and

lock all doors and the trunk lid(4 Door)

/ tail gate(3 Door) when leaving your

vehicle unattended.

1FEATURES OF YOUR HYUNDAI

KEYLESS ENTRY SYSTEM

B040G02A-GAT

Central Door Lock (If Installed)

B040G01A-1

The central door locking is operated by pushing

the driver's door lock switch toward the front or

rear of the vehicle. If the passenger and rear

doors are open when the switch is pushed, the

door will remain locked when closed.

NOTE:

o When pushing the switch toward the rear,

all doors will unlock.

When pushing the switch toward the front,

all doors will lock.

o When the door is unlocked, the red mark

on the switch is visible and the character

"LOCK" on the switch is not visible.

o The central door locking is operated by

turning the key toward the front or rear of

the vehicle.

B070F02O-AAT

(If Installed)

This device complies with Part 15 of the FCC

rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful inter-

ference. and (2) this device must accept any

interference received.

Including interference that may cause undes-

ired operation.

CAUTION:

Changes or modifications not expressly

approved by the party responsible for com-

pliance could void the user's authority to

operate the equipement

Locking doors

1. Close all doors.

2. Push the "LOCK" button on the transmitter.

3. At the same time all doors lock, the turn

signal light will blink once to indicate that the

system is armed.

Unlocking doors

1. Push the "UNLOCK" button on the trans-

mitter.

2. At the same time the driver's door unlocks,

the turn signal light will blink twice to indicate

that the system is disarmed.

NOTE:

If you wish to unlock all the doors, press the

"UNLOCK" button on the transmitter again

within 4 seconds.

FEATURES OF YOUR HYUNDAI

B070A01A-AAT

THEFT-ALARM SYSTEM

(If Installed)

This system is designed to provide protection

from unauthorized entry into the car. This sys-

tem is operated in three stages: the first is the

"Armed" stage, the second is the "Alarm" stage,

and the third is the "Disarmed" stage. If trig-

gered, the system provides an audible alarm

with blinking of the turn signal lights.

B070D02A

B070B02A-AAT

Armed Stage

Park the car and stop the engine. Arm the

system as described in the following paragraph.

1) Remove the ignition key from the ignition

switch.

2) Make sure that the engine hood and trunk lid

(4 Door)/tail gate (3 Door) are closed and

latched.

3) Lock the doors using the transmitter of the

keyless entry system.

After completion of the steps above, the turn

signal lights will blink once to indicate that the

system is armed.

LOCK

UNLOCK

PANIC

!CAUTION:

o Do not arm the system until all passen-

gers have left the car. If the system is

armed while a passenger(s) remains in

the car, the alarm may be activated when

the remaining passenger(s) leaves the car.

o If the "LOCK" button is pressed once

more within 4 seconds after pushing the

"LOCK" button on the transmitter, the

alarming horn will sound once to indicate

that the system is armed.

NOTE:

If any door, trunk lid (4 Door)/tail gate (3 Door)

or engine hood remains open, the system will

not be armed. If this happens, rearm the

system as described above.

1FEATURES OF YOUR HYUNDAI

B070E02A-AAT

Panic Warning

1. Push the "PANIC" button on the transmitter.

2. At the same time, the alarming horn will

sound and the turn signal lights will blink

continuously for 30 seconds.

3. To turn off the system, push the "PANIC"

button again on the transmitter.

B070D02A-AAT

Disarmed Stage

The system will be disarmed when the following

step is taken:

The driver's or passenger's door is unlocked by

depressing the "UNLOCK" button on the trans-

mitter or the ignition key.

After completion of the steps above, the turn

signal lights will blink twice to indicate that the

system is disarmed.

If any door, trunk lid(4 Door)/tail gate(3 Door) or

engine hood is not opened within 30 seconds,

the system will be rearmed.

NOTE:

When the system is disarmed with the inte-

rior light switched to "DR" or " ", the interior

light will illuminate for 30 seconds.

B070C03A-AAT

Alarm Stage

The alarm will be activated if any of the follow-

ing occurs while the car is parked and the

system is armed.

1) A door or tail gate(3 Door) is opened without

using the transmitter or the ignition key.

2) The trunk lid(4 Door) is opened without using

the ignition key.

3) The engine hood is opened.

The alarming horn will sound and the turn

signal lights will blink continuously for 27 sec-

onds (This happens 3 times). To turn off the

system, unlock the door with the transmitter or

the ignition key.

CAUTION:

Avoid trying to start the engine while the

system is armed.

FEATURES OF YOUR HYUNDAI

WINDOW GLASS

B070E02HP-AAT

Replacing the battery

When the transmitter's battery begins to get

weak, it may take several pushes on the button

to lock or unlock the doors, and the LED will not

light. Replace the battery as soon as possible.

Battery type : CR2032

Replacement instructions:

1. Carefully separate the case with a blade

screwdriver as shown in the illustration.

2. Remove the old battery from the case and

note the polarity. Make sure the polarity of

the new battery is the same(+side facing

down), then insert it in the transmitter.

B070E03A-1

Screwdriver

Battery

B070E02A-1

B050A01A

B050A01A-AAT

To raise or lower the window, turn the window

regulator handle clockwise or counterclock-

wise.

WARNING:

When opening or closing the windows, make

sure your passenger's arms, hands and body

are safely out of the way.

1FEATURES OF YOUR HYUNDAI

HLC2009

(1)

HLC2014

In order to prevent operation of the passenger

front and rear windows, a window lock switch is

provided on the armrest of the driver's door. To

disable the power windows, press the window

lock switch.

To return to normal operation, press the win-

dow lock switch a second time.

B060A01E-AAT

POWER WINDOWS (If Installed)

The power windows operate when the ignition

key is in the "ON" position. The main switches

are located on the driver's armrest and control

the front and rear windows on both sides of the

vehicle. The windows may be opened by de-

pressing the appropriate window switch and

closed by pulling up the switch. To open the

window on the driver's side, press the switch(1)

down. The window moves as long as the switch

is operated.

Auto-Down Window

(Driver's Side) (If Installed)

The Auto-Down window is moved to its fully

open position by pushing the switch. To stop at

the desired position push the switch again.

(1)

4 Door

3 Door

WARNING:

1) Be careful that someone's head, hands

and body are not trapped by a closing

window.

2) Never try to operate the main switch on

the driver's door and the individual door

window switch in opposing directions at

the same time. If this is done, the window

will stop and cannot be opened or closed.

3) Do not leave children alone in the car.

Always remove the ignition key for their

safety.

FEATURES OF YOUR HYUNDAI

ADJUSTABLE FRONT SEATS

B080C01A-AAT

Adjusting Seatback Angle

To recline the seatback, lean forward to take

your weight off it, then pull up on the recliner

control lever at the outside edge of the seat.

Now lean back until the desired seatback angle

is achieved. To lock the seatback into position,

release the recliner control lever.

B080A01A-AAT

To move the seat toward the front or rear, pull

the lock release lever upward. This will release

the seat on its track so you can move it forward

or rearward to the desired position.

When you find the position you want, release

the lever and slide the seat forward or rear-

ward on its track until it locks into the desired

position and cannot be moved further.

B080B02A-AAT

Adjusting Seat Forward and Rearward

WARNING:

Never attempt to adjust the seat while the

vehicle is moving. This could result in loss

of control, or an accident which may cause

death, serious injury, or property damage.

HLC2026 HLC2027

!WARNING:

To ensure the seat is locked securely, at-

tempt to move the seat forward or rearward

without using the lock release lever.

1FEATURES OF YOUR HYUNDAI

B080D03A-AAT

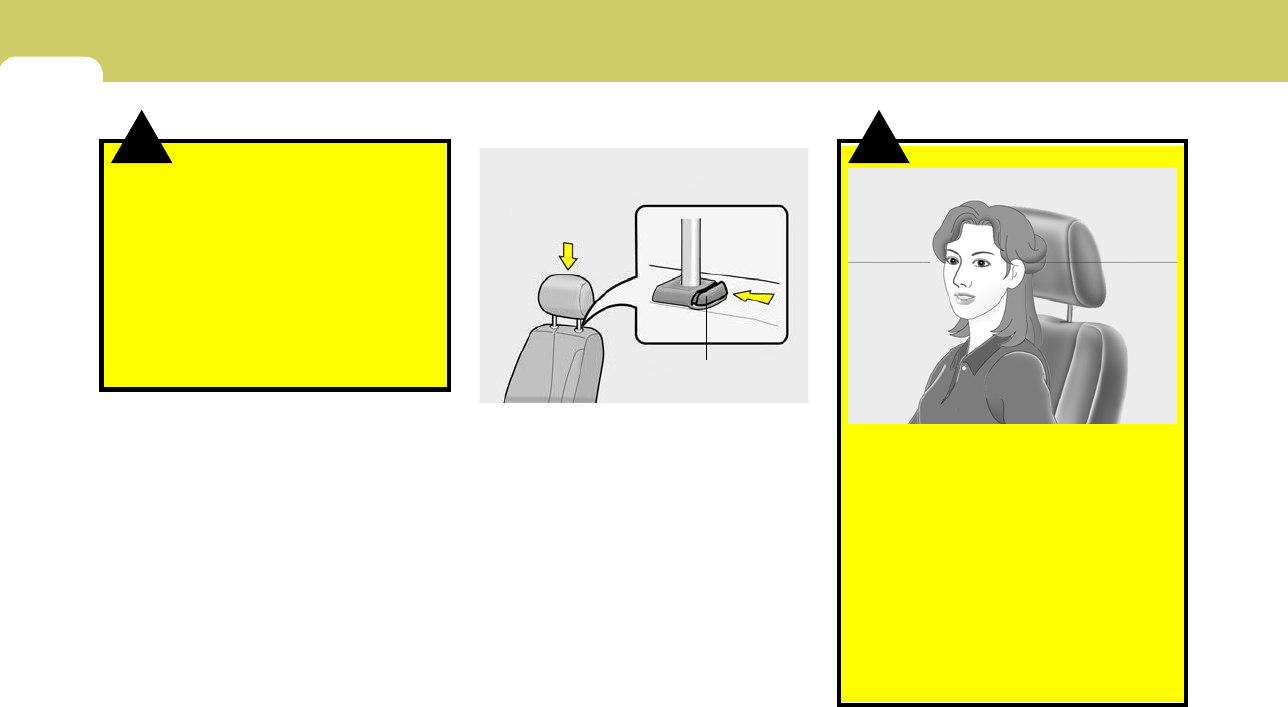

Adjustable Headrests

Headrests are designed to help reduce the

risk of neck injuries.

To raise the headrest, pull it up. To lower it,

push it down while pressing the lock knob.

WARNING:

To minimize risk of severe injury in the event

of a collision or sudden stop, both the driver

and passenger seatbacks should always be in

a nearly upright position while the vehicle is

in motion. The protection provided by the

seat belts and airbags in a frontal collision

may be reduced significantly when the

seatback is reclined. There is greater risk

that the driver and passenger will slide

under the seat belt which may result in

serious injury if a crash occurs when the

seatback is reclined.

B080D01A

Lock knob

WARNING:

o For maximum effectiveness in case of

an accident, the headrest should be

adjusted so the middle of the headrest

is at the same height as the top of the

occupant's eyes. The use of a cushion

that holds the body away from the

seatback is not recommended.

o Do not operate the vehicle with the

headrests removed as severe injury to

an occupant may occur in the event of

an accident. Headrests may provide

protection against severe neck injuries

when properly adjusted.

o Do not adjust the headrest height while

the vehicle is in motion.

B080D01JM

FEATURES OF YOUR HYUNDAI

B080E01O-AAT

Lumbar Support Control

(Driver's Seat only) (If Installed)

To adjust the lumbar support, turn the handle

on the outboard or left side of the seat. To

increase the amount of lumbar support, pull

the lever forward. To decrease it, push the

lever toward the rear.

1. Minimum support

2. Maximum supprot

HLC2029

B080F01S-AAT

Seat Cushion Height Adjustment

(Driver's Seat only) (If Installed)

To raise or lower the front part of the seat

cushion, turn the front knob forward or rearward.

To raise or lower the rear part of the seat

cushion, turn the rear knob forward or rear-

ward.

Clockwise raises the seat, counterclockwise

lowers the seat.

HLC2028

B080G01A-GAT

Adjusting Armrest Angle

(Driver's side only)

The armrest will be raised or lowered manu-

ally.

To raise the armrest, pull it up.

To lower it, press the armrest down.

B080G02A-1

(1)

(2)

1FEATURES OF YOUR HYUNDAI

14 REAR SEAT

B130A01A-AAT

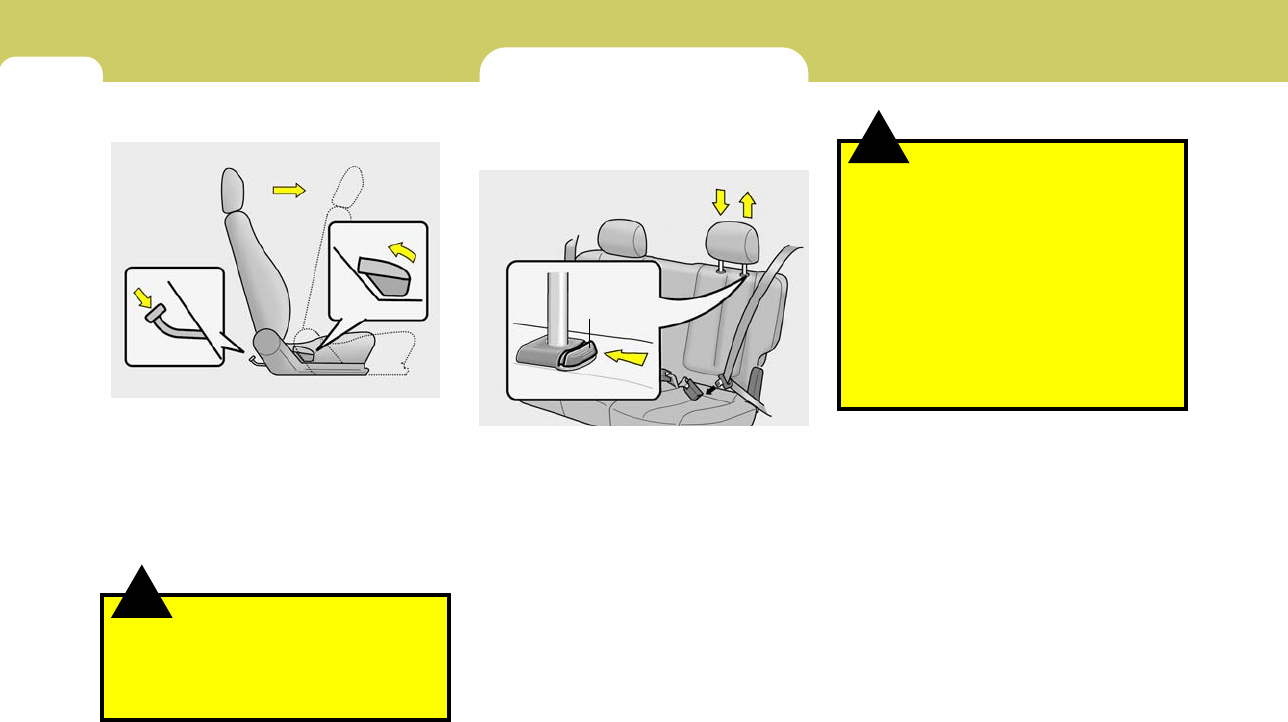

REAR SEAT ENTRY (For 3-door model)

The front passenger's seatback should be

tilted to enter the rear seat.

By pulling up on the recliner control lever (1)

at the outside of the front passenger's seat,

the seatback will tilt forward and the seat will

automatically slide forward.

Rear seat occupants can tilt the front

passenger's seatback by depressing the foot

lever (2) as shown in the illustration.

HTB258

(1)

(2)

WARNING:

Passengers sitting in the rear seat should be

careful not to accidentally press the foot lever

(2) while the vehicle is moving, as this may

cause the seatback to move forward and in-

jure a front seat occupant.

Lock Knob

B090A01A-GAT

Adjustable Headrests

(If Installed)

Headrests are designed to help reduce the

risk of neck injuries.

To raise the headrest, pull it up. To lower it,

push it down while pressing the lock knob.

B090A01A-1

WARNING:

o For maximum effectiveness in case of

an accident, the headrest should be

adjusted so the top of the headrest is

at the same height as the top of the

occupant's ears. The use of a cushion

that holds the body away from the

seatback is not recommended.

o Do not operate vehicle with the head-

rests removed as severe injury to an

occupant may occur in the event of an

accident. Headrests may provide pro-

tection against severe neck injuries

when properly adjusted.

FEATURES OF YOUR HYUNDAI

!! WARNING:

The purpose of the fold-down rear seatbacks

is to allow you to carry longer objects than

could otherwise be accommodated. Never

allow passengers to sit on top of the folded-

down seatback while the car is moving as this

is not a proper seating position and no seat

belts are available for use when the seatbacks

are folded down. This could result in serious

injury or death in case of an accident or a

sudden stop. Objects carried on the folded-

down seatback should not extend higher than

the top of the front seats. This could allow

cargo to slide forward and cause injury or

damage during sudden stops.

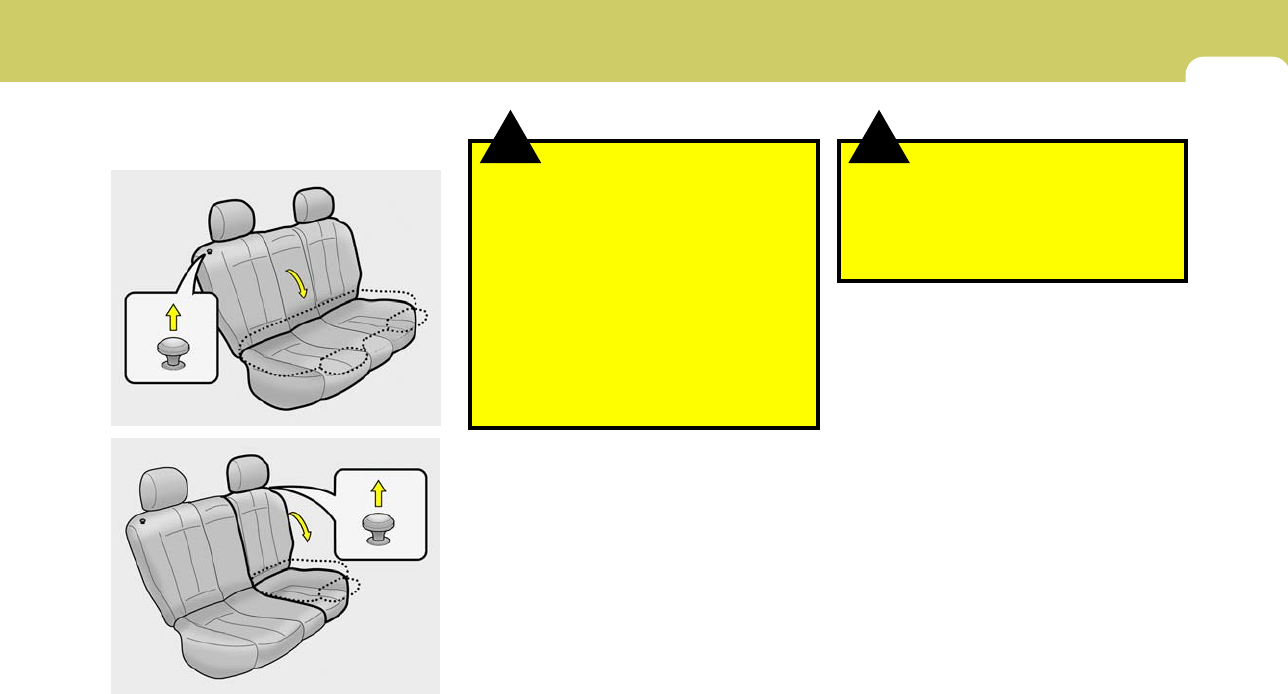

For greater convenience, the entire seatback

may be folded down or the seatbacks may be

folded down individually.

o To unlock the seatback, pull up the seatback

locking knob, then push forward on the

seatback panel.

o When you return the seatback to its upright

position, always be sure it has locked into

position by pulling and pushing on the top of

the seatback.

B110A02A-1

WARNING:

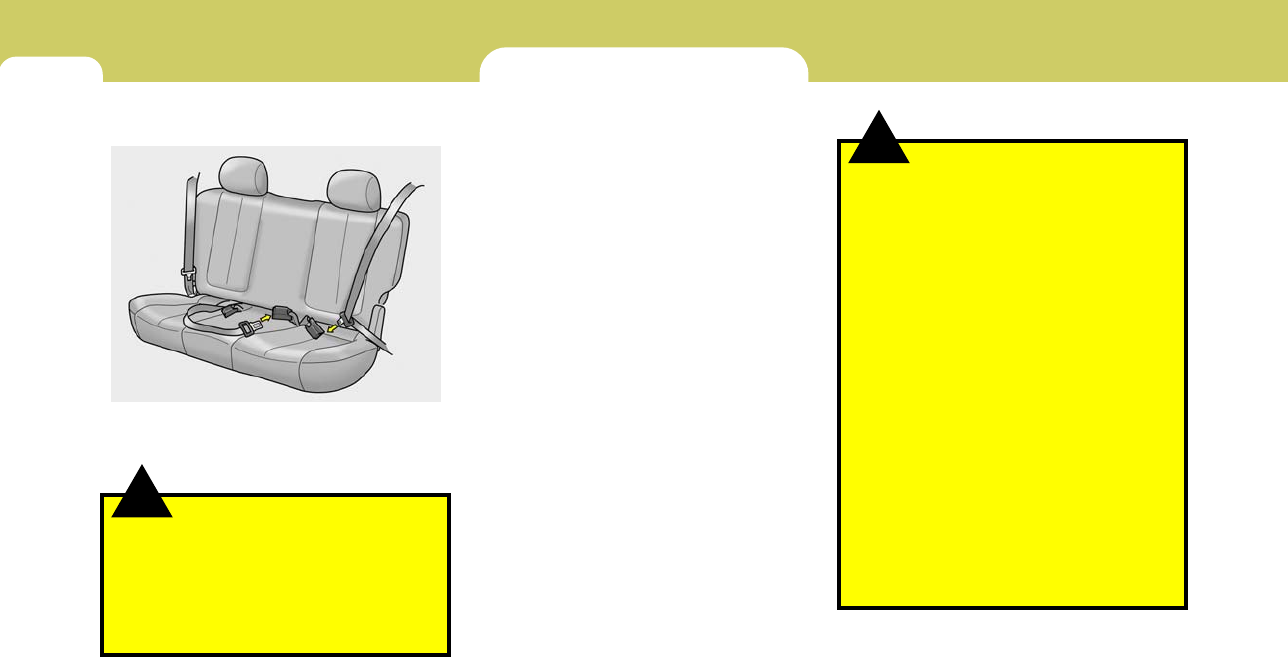

When you return the rear seatback to its

upright position after being folded down,

be careful not to damage the seat belt

webbing or buckle. In addition, do not allow

the seat belt webbing or buckle to get

caught or pinched in the rear seat.

B110A03A-AAT

Folding Rear Seatbacks

(If Installed)

B110A01A-1

1FEATURES OF YOUR HYUNDAI

16 SEAT BELTS

B140A01S-AAT

REAR SEAT WARNING

For the safety of all passengers, luggage or

other cargo should not be piled higher than the

top of the seatback. In addition, do not place

objects on the rear shelf as they may move

forward during braking or in an accident and

strike vehicle passengers.

B140A01A

B150B02A-AAT

Infant or Small Child

All 50 states have child restraint laws. You

should be aware of the specific requirements in

your state. Child and/or infant safety seats must

be properly placed and installed in the rear seat.

Information about the use of these restraints

begins on page 1-22.

B150A01S-AAT

SEAT BELT PRECAUTIONS

WARNING:

All occupants of the vehicle must wear their

seat belts at all times. Note that this vehicle is

equipped with a Supplemental Restraint

(Airbag) System as discussed beginning on

page 1-30. The seat belts must be used in

conjunction with the supplemental airbag sys-

tem. State laws require that some or all occu-

pants of the vehicle use seat belts. The possi-

bility of increased injury or severity of injury

in an accident will be increased if this elemen-

tary safety precaution is not observed.

In addition, follow the other instructions

provided in this section.

WARNING:

Every person in your vehicle needs to be

buckled up at all times, including infants and

children. In a collision, an unrestrained child

can become a "missile" inside the car. The

force required to hold a child on your lap

could be so great that you could not hold the

child. Any child riding in the vehicle should

always be in a proper restraint.

NOTE:

Small children are best protected from injury

in an accident when properly restrained in the

rear seat by a child restraint system that

meets the requirements of the Federal Motor

Vehicle Safety Standards. Before buying any

child restraint system, make sure that it has a

label certifying that it meets Motor Vehicle

Safety Standard 213. The restraint must be

appropriate for your child's height and weight.

Check the label on the child restraint for this

information. See page 1-22.

FEATURES OF YOUR HYUNDAI

B150E01A-AAT

Injured Person

A seat belt should be used when an injured

person is being transported. When this is nec-

essary, you should consult a physician for rec-

ommendations.

B150F01A-AAT

One Person Per Belt

Two people (including children) should never

attempt to use a single seat belt. This could

increase the severity of injuries in case of an

accident.

B150G01A-AAT

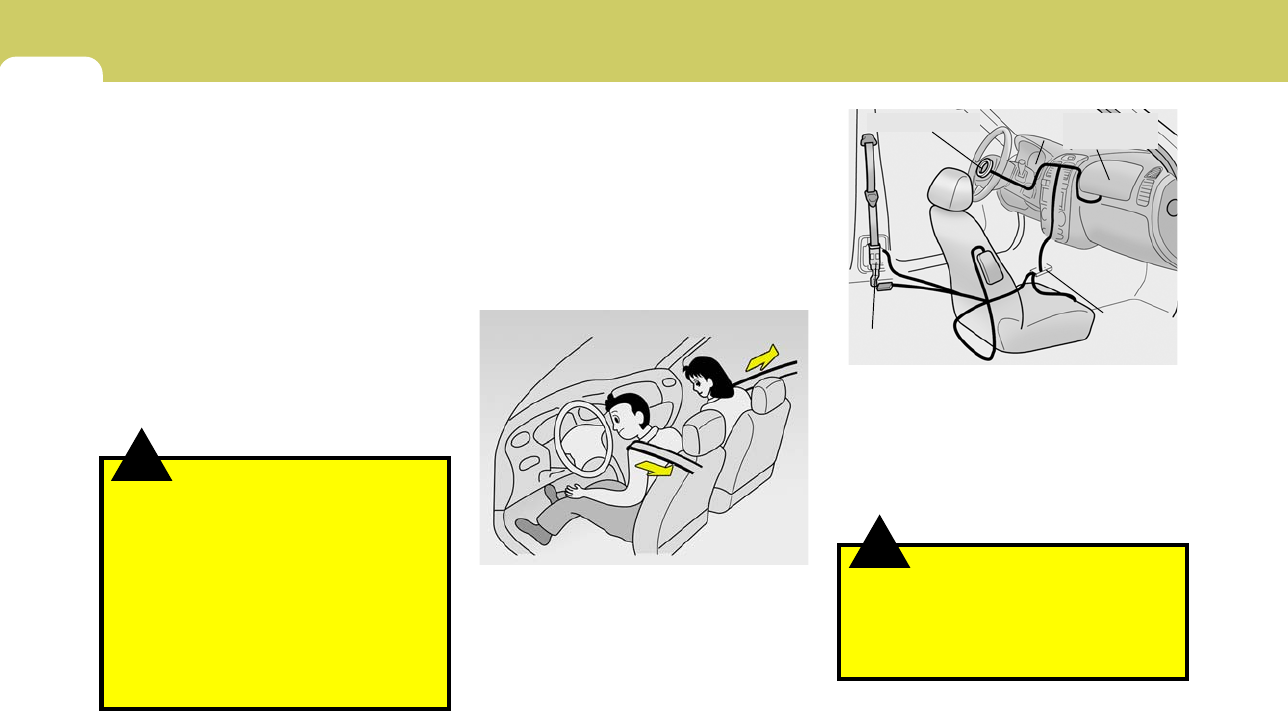

Do Not Lie Down

To reduce the chance of injuries in the event

of an accident and to achieve maximum effec-

tiveness of the restraint system, all passen-

gers should be sitting up and the front seats

should be in an upright position when the car

is moving. A seat belt cannot provide proper

protection if the person is lying down in the rear

seat or if the front seat is in a reclined position.

WARNING:

Sitting in a reclined position or lying down

when your vehicle is in motion can be danger-

ous. Even if you buckle up, your seat belts

can't do their job when you're reclined. The

shoulder belt can't do its job because it won't

be against your body. Instead, it will be in

front of you. In a crash you could go into it

with great force, receiving serious neck or

other injuries. The lap belt can't do its job

either. In a crash the belt could go up over

your abdomen. The belt forces would be there,

not at your strong pelvic bones. This could

cause serious internal injuries.

For proper protection when the vehicle is in

motion, have the seatback upright. Then sit

back in the seat and wear your seat belt

properly. See Page 1-19.

B150D01A-AAT

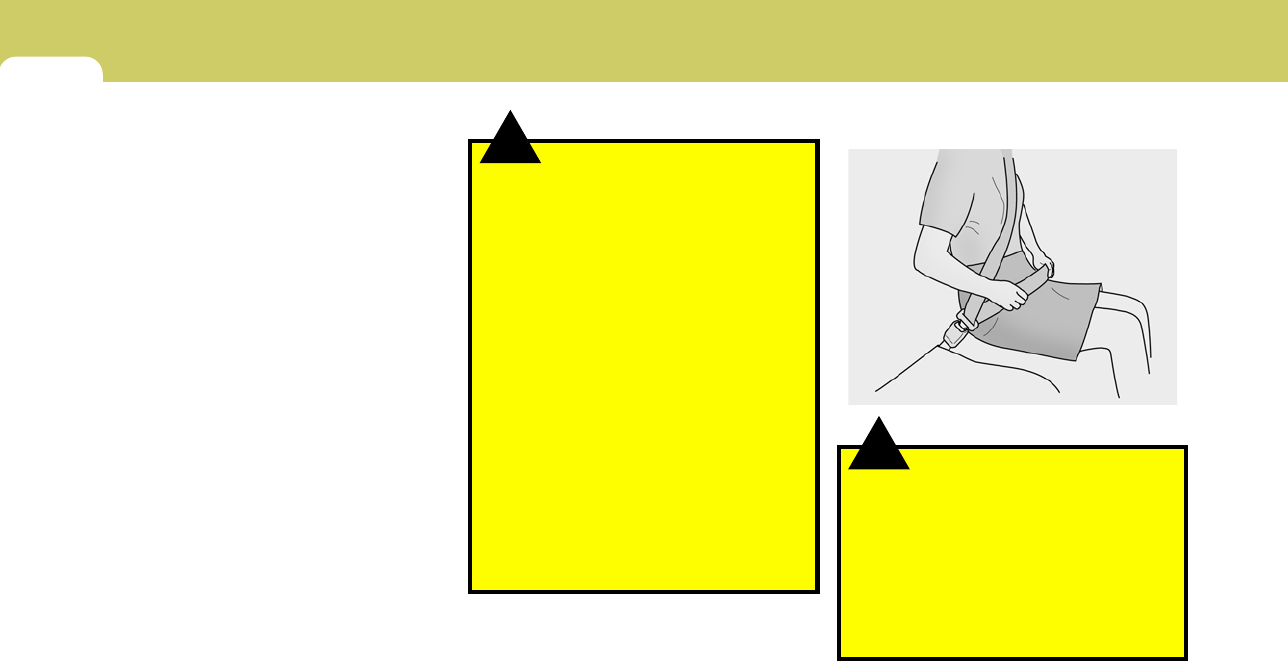

Pregnant Women

The use of a seat belt is recommended for

pregnant women to lessen the chance of injury

in an accident. When a seat belt is used, the lap

belt portion should be placed as low and snugly

as possible on the hips, not across the abdo-

men. For specific recommendations, consult a

physician.

B150C02A-AAT

Larger Children

Children who are too large for child restraint

systems should always occupy the rear seat

and use the available lap/shoulder belts. The

lap portion should be fastened snug on the

hips and as low as possible. Check belt fit

periodically. A child's squirming could put the

belt out of position. Children are afforded the

most safety in the event of an accident when

they are restrained by a proper restraint sys-

tem in the rear seat. If a larger child (over age

13) must be seated in the front seat, the child

should be securely restrained by the available

lap/shoulder belt and the seat should be placed

in the rearmost position. Children under the

age of 13 should be restrained securely in the

rear seat. NEVER place a child under the age

of 13 in the front seat. NEVER place a rear

facing child seat in the front seat of a vehicle.

1FEATURES OF YOUR HYUNDAI

B160A01A-AAT

CARE OF SEAT BELTS

Seat belt systems should never be disassem-

bled or modified. In addition, care should be

taken to assure that seat belts and belt hard-

ware are not damaged by seat hinges, doors or

other abuse.

B160B01A-AAT

Periodic Inspection

It is recommended that all seat belts be in-

spected periodically for wear or damage of any

kind. Parts of the system that are damaged

should be replaced as soon as possible.

WARNING:

When you return the rear seatback to its

upright position after the rear seatback was

folded down, be careful not to damage the

seat belt webbing or buckle. Be sure that the

webbing or buckle does not get caught or

pinched in the rear seat.

B160D01A-AAT

When to Replace Seat Belts

Entire in-use seat belt assembly or assemblies

should be replaced if the vehicle has been

involved in an accident. This should be done

even if no damage is visible. Additional ques-

tions concerning seat belt operation should be

directed to your Hyundai Dealer.

B160C01A-AAT

Keep Belts Clean and Dry

Seat belts should be kept clean and dry. If belts

become dirty, they can be cleaned by using a

mild soap solution and warm water. Bleach,

dye, strong detergents or abrasives should not

be used because they may damage and weaken

the fabric.

B170A04A-AAT

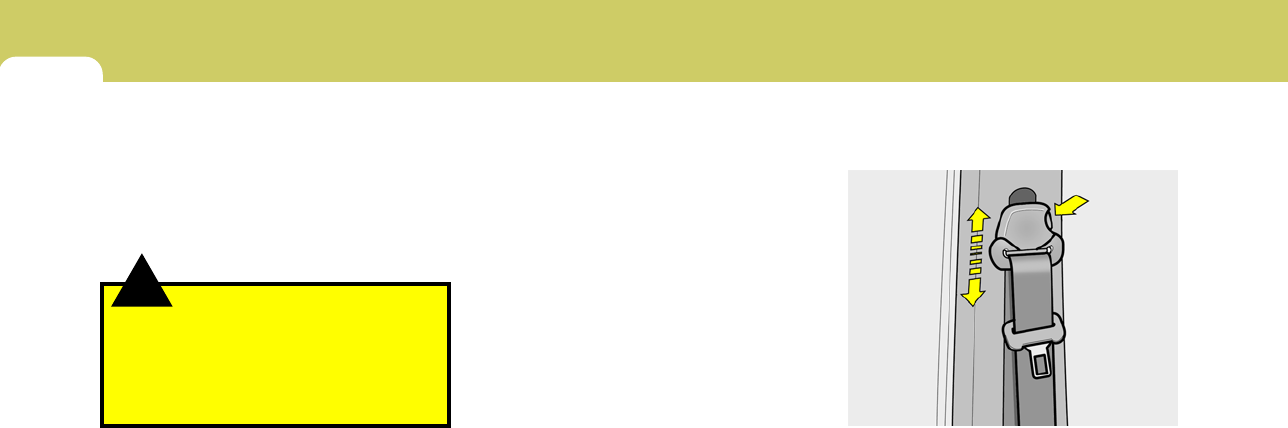

HEIGHT ADJUSTABLE FRONT SEAT

SHOULDER BELT (If Installed)

B170A01A

You can adjust the height of the shoulder belt

anchor to one of the 4 positions for maximum

comfort and safety.

If the height of the adjusting seat belt is too near

your neck, you will not be getting the most

effective protection. The shoulder portion should

be adjusted so that it lies across your chest and

midway over your shoulder nearest the door

and not your neck.

To adjust the height of the seat belt anchor,

lower or raise the height adjuster into an appro-

priate position. To raise the height adjuster, the

height adjuster button needs to be pressed to

move it up or down, pull it up. To lower it, push

FEATURES OF YOUR HYUNDAI

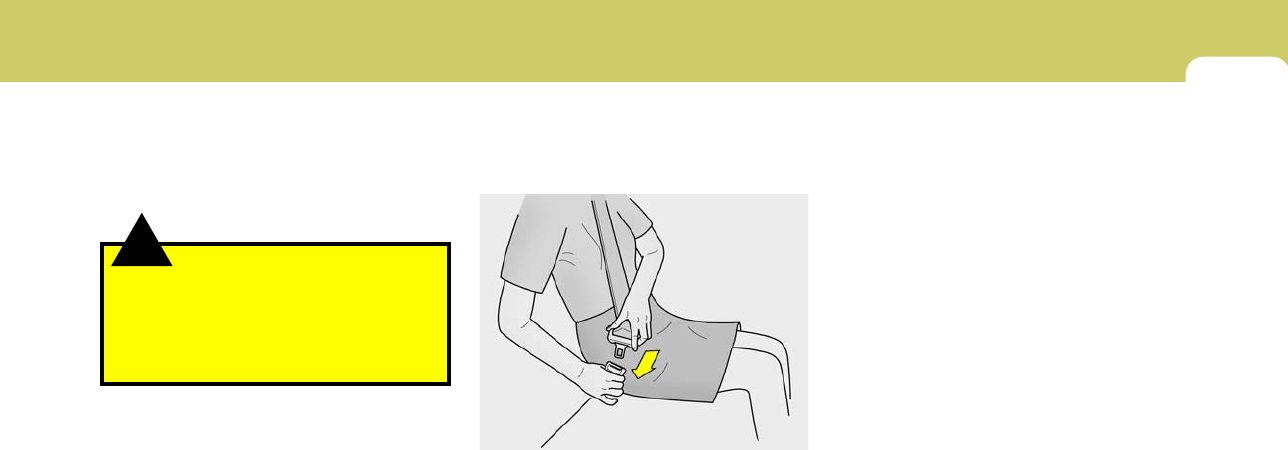

To fasten your seat belt, pull it out of the

retractor and insert the metal tab into the

buckle. There will be an audible "click" when

the tab locks into the buckle.

The seat belt automatically adjusts to the

proper length only after the lap belt is adjusted

manually so that it fits snugly around your hips.

If you lean forward in a slow, easy motion, the

belt will extend and let you move around. If

there is a sudden stop or impact, however, the

belt will lock into position. It will also lock if you

try to lean forward too quickly.

B190A01A-AAT

SEAT BELTS-Front Passenger and

Outboard Rear Seat 3-Point System

with Combination Locking Retractor :

To Fasten Your Belt

Combination retractor type seat belts are in-

stalled in the rear seat outboard positions to

help accommodate the installation of child re-

straint systems. Hyundai strongly recommends

that children always be seated in the rear seat.

NEVER place any infant restraint system in

the front seat of the vehicle.

This type of seat belt combines the features

of both an emergency locking retractor seat

belt and an automatic locking retractor seat

belt. To fasten your seat belt, pull it out of the

retractor and insert the metal tab into the

buckle. There will be an audible "click" when

the tab locks into the buckle. When not secur-

ing a child restraint, the seat belt operates in

the same way as the driver's seat belt (Emer-

gency Locking Retractor Type). It automati-

B180A01A-AAT

SEAT BELT-Driver's 3-Point System

with Emergency Locking Retractor

To Fasten Your Belt

WARNING:

o The height adjuster must be in the

locked position when the vehicle is

moving.

o The misadjustment of height of the shoul-

der belt could reduce the effectiveness of

the seat belt in a crash.

B180A01L

it down while pressing the height adjuster

button.

Release the button to lock the anchor into

position. Try sliding the height adjuster to

make sure that it has locked into the position.

NOTE:

If the driver's seat belt is not fastened when

the ignition key is in the "ON" position, the

seat belt warning light will flash and the warn-

ing chime will sound for approximately six

seconds.

1FEATURES OF YOUR HYUNDAI

cally adjusts to the proper length only after the

lap belt portion of the seat belt is adjusted

manually so that it fits snugly around your hips.

When the seat belt is fully extended from the

retractor to allow the installation of a child

restraint system, the seat belt operation

changes to allow the belt to retract, but not to

extend (Automatic Locking Retractor Type).

See page 1-27.

NOTE:

Although the combination retractor provides

the same level of protection for seated pas-

sengers in either emergency or automatic

locking modes, it is recommended that seated

passengers use the emergency locking fea-

ture for improved convenience. The auto-

matic locking function is intended to facilitate

child restraint installation. To convert from

the automatic locking feature to the emer-

gency locking operation mode, allow the un-

buckled seat belt to fully retract.

WARNING:

o For maximum restraint system protec-

tion, seat belts must always be used

whenever the car is moving.

o Seat belts are most effective when

seatbacks are in the upright position.

o Children must always be seatbelted in

the rear seats. Never allow children to

ride in the front passenger seat.

o The shoulder belt should be positioned

midway over the shoulder nearest the

door for the most effective protection.

Never wear the seat belt under the arm

nearest the door. Wearing the belt under

the arm nearest the door could cause

serious or fatal injuries in an accident.

o Avoid wearing twisted seat belts. A twist-

ed belt can't do its job as well. In a colli-

sion, it could even cut into you. Be sure

the belt webbing is straight and not

twisted.

o Be careful not to damage the belt web-

bing or hardware. If the belt webbing or

hardware is damaged, replace it.

B200A01A-AAT

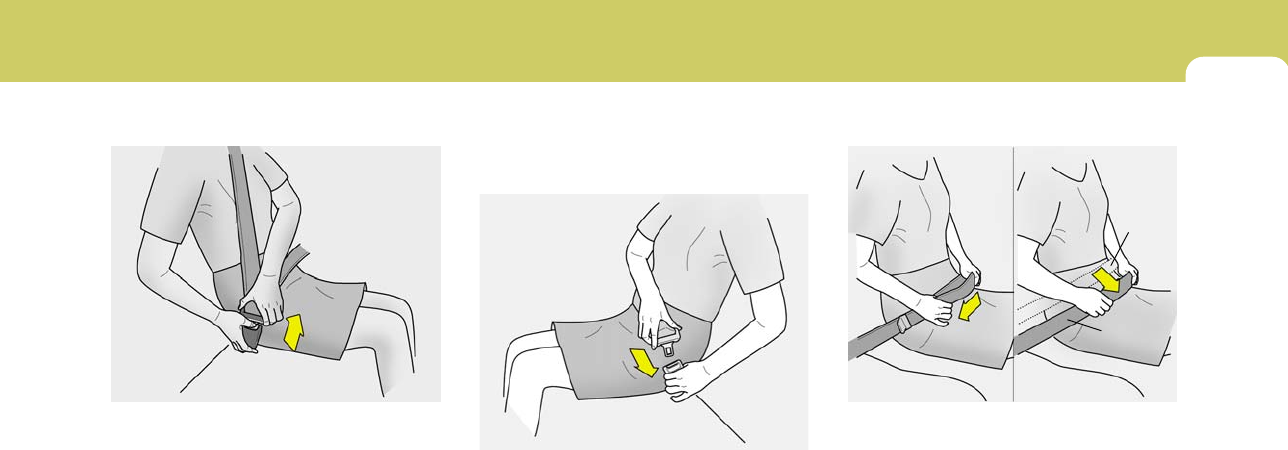

Adjusting Your Seat Belt

WARNING:

You should place the lap belt portion as low as

possible and snugly across your hips, not on

your waist. If the lap belt is located too high on

your waist, it may increase the chance of

injury in the event of a collision. Both arms

should not be under or over the belt. Rather,

one should be over and the other under, as

shown in the illustration.

Never wear the seat belt under the arm near-

est the door.

B200A01L

FEATURES OF YOUR HYUNDAI

B220B01A-AAT

Adjusting Your Seat Belt

With a 2-point static type seat belt, the length

must be adjusted manually so it fits snugly

around your body. Fasten the belt and pull on

the loose end to tighten. The belt should be

placed as low as possible on your hips, not on

your waist. If the belt is too high, it could in-

crease the possibility of your being injured in an

accident.

HTB226

Correct

Shorten

Too

high

B220A01A-AAT

SEAT BELTS (2-Point Static Type)

(Rear Seat Center)

To Fasten Your Seat Belt

To fasten a 2-point static type belt, insert the

metal tab into the locking buckle. There will be

an audible "click" when the tab locks into the

buckle. Check to make sure the belt is properly

locked and that the belt is not twisted.

B210A01A-AAT

To Release the Seat Belt

The seat belt is released by pressing the re-

lease button in the locking buckle. When it is

released, the belt should automatically draw

back into the retractor.

If this does not happen, check the belt to be sure

it is not twisted, then try again.

HTB225

B210A01L

1FEATURES OF YOUR HYUNDAI

22 CHILD RESTRAINT SYSTEM

B220C01A-AAT

To Release the Seat Belt

When you want to release the seat belt, press

the button in the locking buckle.

B220C01A-1

WARNING:

The center lap belt latching mechanism is

different from those for the rear seat shoulder

belts. When fastening the rear seat shoulder

belts or the center lap belt, make sure they are

inserted into the correct buckle to obtain

maximum protection from the seat belt sys-

tem and assure proper operation.

B230A02A-AAT

Children riding in the car should sit in the rear

seat and must always be properly restrained to

minimize the risk of injury in an accident, sud-

den stop or sudden maneuver. According to

accident statistics provided by the National High-

way Traffic Safety Administration (NHTSA),

children are safer when properly restrained in

the rear seats than in the front seat. Larger

children not in a child restraint should use one

of the seat belts provided.

All 50 states have child restraint laws. You

should be aware of the specific requirements in

your state. Child and/or infant safety seats must

be properly placed and installed in the rear seat.

You must use a commercially available child

restraint system that meets the requirements of

the Federal Motor Vehicle Safety Standards

(FMVSS).

Children could be injured or killed in a crash if

their restraints are not properly secured. For

small children and babies, a child seat or infant

seat must be used. Before buying a particular

child restraint system, make sure it fits your car

seat and seat belts, and fits your child. Follow all

the instructions provided by the manufacturer

when installing the child restraint system.

WARNING:

o A child restraint system must be placed

in the rear seat. Never install a child or

infant seat on the front passenger's seat.

Should an accident occur and cause the

passenger side airbag to deploy, it could

severely injure or kill an infant or child

seated in an infant or child seat. Thus,

only use a child restraint in the rear seat

of your vehicle.

o Since a safety belt or child restraint sys-

tem can become very hot if it is left in a

closed vehicle, be sure to check the seat

cover and buckles before placing a child

there.

o When the child restraint system is not in

use, store it in the trunk or fasten it with

a safety belt so that it will not be thrown

forward in the case of a sudden stop or

an accident.

o Children who are too large to be in a child

restraint should still sit in the rear seat

and be restrained with the available lap/

shoulder belts. Never allow children to

ride in the front passenger seat.

FEATURES OF YOUR HYUNDAI

B230B01E-AAT

Using a Child Restraint System with

the "Tether Anchorage" System

For small children and babies, the use of a

child seat or infant seat is required. This child

seat or infant seat should be of appropriate

size for the child and should be installed in

accordance with the manufacturer's instruc-

tions. It is further required that the seat be

placed in the vehicle's rear seat since this can

make an important contribution to safety. Your

vehicle is provided with three child restraint

hook holders for installing the child seat or

infant seat.

WARNING:

o Always make sure that the shoulder

belt portion of the outboard lap/shoul-

der belt is positioned midway over the

shoulder, never across the neck or be-

hind the back. Moving the child closer

to the center of the vehicle may help

provide a good shoulder belt fit. The

lap belt portion of the lap/shoulder belt

or the center seat lap belt must always

be positioned as low as possible on the

child's hips and as snug as possible.

o If the seat belt will not properly fit the

child, Hyundai recommends the use of

an approved booster seat in the rear

seat in order to raise the child's seating

height so that the seat belt will properly

fit the child. Before purchasing a

booster seat, make sure that it meets

applicable Federal Motor Vehicle Safety

Standards (FMVSS) and that it is satis-

factory for use with this vehicle.

o Never allow a child to stand up or kneel

on the seat.

o Never use an infant carrier or child safety

seat that "hooks" over a seatback; it may

not provide adequate security in an acci-

dent.

WARNING:

o Never allow a child to be held in a

person's arms while they are in a mov-

ing vehicle, as this could result in seri-

ous injury to the child in the event of an

accident or a sudden stop. Holding a

child in a moving vehicle does not pro-

vide the child with any means of protec-

tion during an accident, even if the per-

son holding the child is wearing a seat

belt.

B230C04A-AAT

Installing a Child Restraint Seat with

the "Tether Anchorage" System

(4 Door)

Three child restraint hook holders are located

on the rear seat package tray.

To install the child restraint seat

B230C01A

1. Open the tether anchor cover on the rear

seat package tray.

Tether Anchor

Cover

Child Restraint

Hook Holder

1FEATURES OF YOUR HYUNDAI

B230E04A-AAT

Installing a Child Restraint Seat with the

"Tether Anchorage" System (3 Door)

Three child restraint hook holders are located

on the vertical back panel. (behind rear bumper

bar)

To install the child restraint seat

1. Route the child restraint seat strap over the

seatback.

For vehicles with adjustable headrests,

route the tether strap under the headrest

and between the headrest posts, otherwise

route the tether strap over the top of the

seatback.

2. Route the child restraint seat strap over the

seatback.

B230C02A-1

Front of Vehicle

Tether Strap

Hook

Child Restraint

Hook Holders

Rear seat package tray

For vehicles with adjustable headrests,

route the tether strap under the headrest

and between the headrest posts, otherwise

route the tether strap over the top of the

seatback.

3. Connect the tether strap hook to the child

restraint hook holder and tighten to secure

the seat.

WARNING:

Do not mount more than one child restraint

to a single tether or to a child restraint lower

anchorage point. The improper increased

load may cause the anchorage points or

tether anchor to break, causing serious

injury or death.

FEATURES OF YOUR HYUNDAI

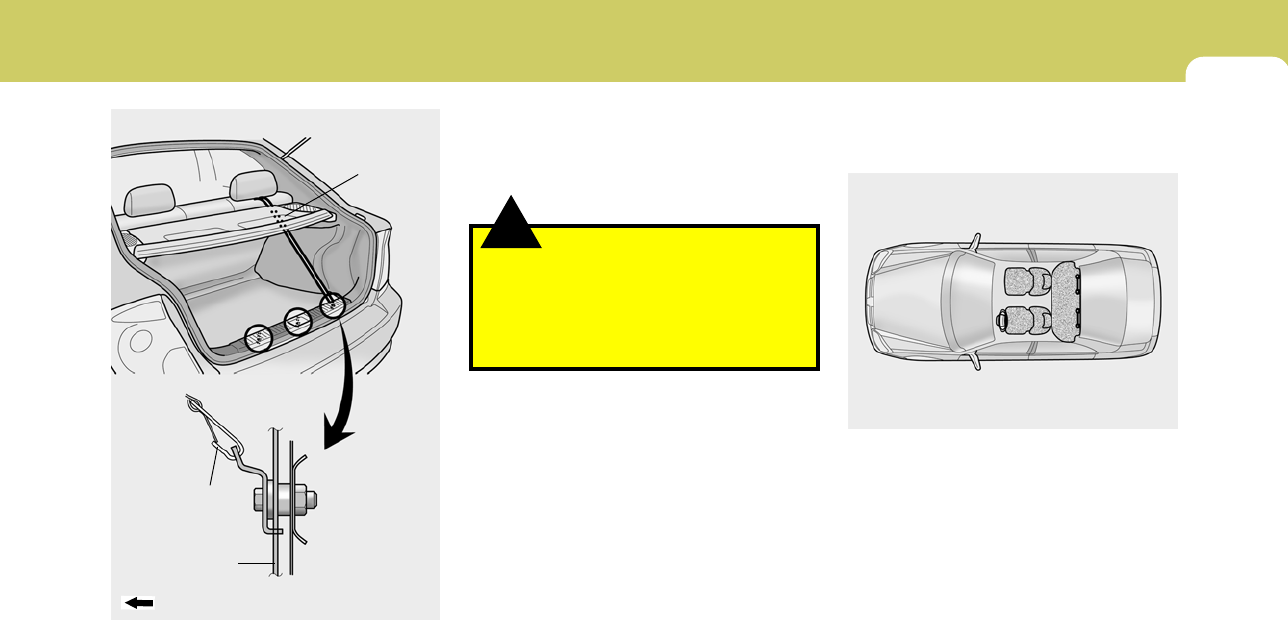

Tether Strap Hook

B230E03A-1

Front of Vehicle

Back Panel

Covering Shelf

3. Connect the tether strap hook to the child

restraint hook holder through the hole on

the covering shelf and tighten to secure the

seat.

WARNING:

Do not mount more than one child restraint

to a single tether or to a child restraint lower

anchorage point. The improper increased

load may cause the anchorage points or

tether anchor to break, causing serious

injury or death.

2. Remove the blanking covers on the cover-

ing shelf.

B230D04E-AAT

Securing the Child Restraint Seat with

the "ISOFIX" System

Some child seat manufacturers make safety

seats that are labeled as ISOFIX or ISOFIX-

compatible child seats. These seats include two

rigid or webbing mounted attachments that con-

nect to two ISOFIX anchors at specific seating

positions in your vehicle. This type of child seat

eliminates the need to use seat belts to attach

the child seat for forward-facing child seats.

ISOFIX anchors have been provided in your

vehicle. The ISOFIX anchors are located in the

left and right outboard rear seating positions.

Their locations are shown in the illustration.

There is no ISOFIX anchor provided for the

center rear seating position.

B230D01A

1FEATURES OF YOUR HYUNDAI

WARNING:

o Do not install a child restraint seat at

the center of the rear seat using the

vehicle's ISOFIX anchors. The ISOFIX

anchors are only provided for the left

and right outboard rear seating posi-

tions. Do not misuse the ISOFIX an-

chors by attempting to attach a child

restraint seat improperly in the middle

of the reat seat position to the ISOFIX

anchors. In a crash, the child seat ISOFIX

attachments may not be strong enough

to secure the child restraint seat prop-

erly in the center of the rear seat and

may break, causing serious injury or

death.

o When using the vehicle’s “ISOFIX” sys-

tem to install a child restraint system in

the rear seat, all unused vehicle rear

seat belt metal latch plates or tabs must

be latched securely in their seat belt

buckles and the seat belt webbing must

be retracted behind the child restraint

to prevent the child from reaching and

taking hold of unretracted seat belts.

Unlatched metal latch plates or tabs

may allow the child to reach the

unretracted seat belts which may result

in strangulation and a serious injury or

death to the child in the child restraint.

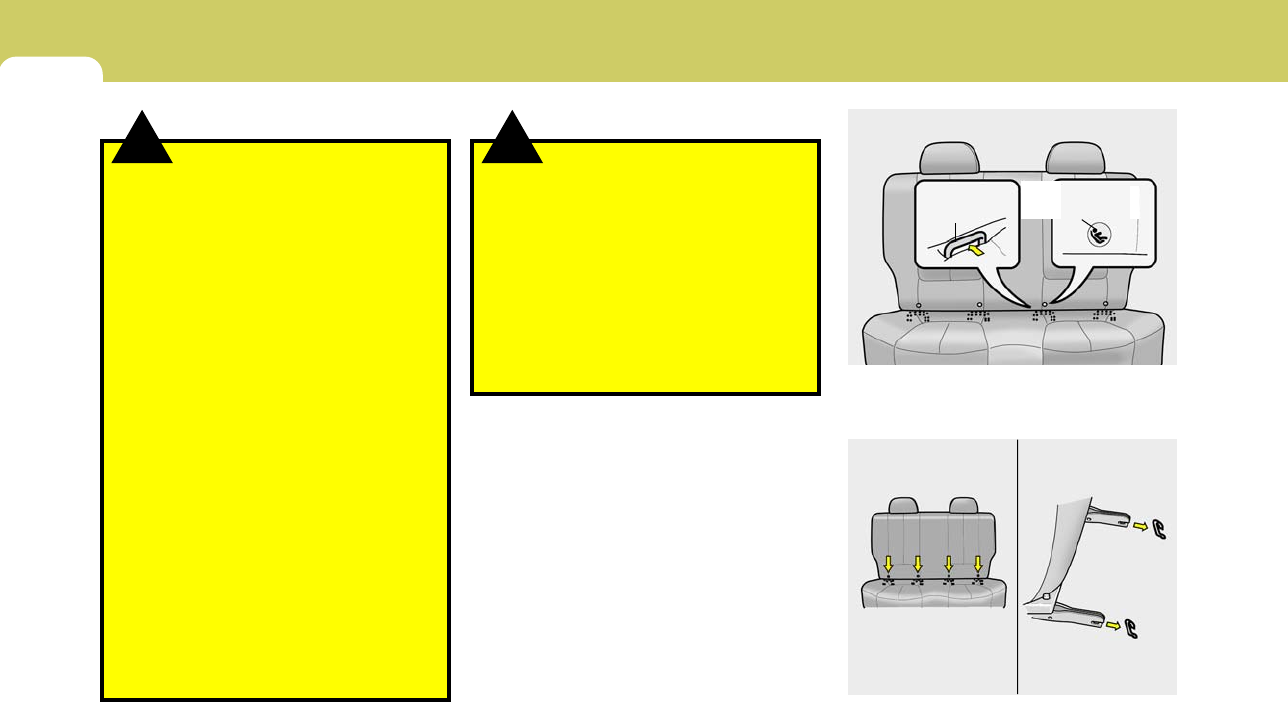

The ISOFIX anchors are located between the

seatback and the seat cushion of the rear seat

B230D02A-1

ISOFIX

Anchor

ISOFIX Anchor

Position Indicator

B230D03A-1

WARNING:

o Do not mount more than one child

restraint to a single tether or to a child

restraint lower anchorage point. The

improper increased load may cause the

anchorage points or tether anchor to

break, causing serious injury or death.

o Attach the ISOFIX or ISOFIX-compat-

ible child seat only to the appropriate

locations shown.

o Always follow the installation and use

instructions provided by the manufac-

turer of the child restraint.

FEATURES OF YOUR HYUNDAI

To install a child restraint system in the out-

board rear seats, extend the shoulder/lap belt

entirely from its retractor until a "click" is felt.

This will engage the seat belt retractor auto-

matic locking feature, which allows the seat

belt to retract but not extend. Install the child

restraint system, buckle the seat belt and

allow the seat belt to take up any slack. Make

sure that the lap portion of the belt is tight

around the child restraint system and the

shoulder portion of the belt is positioned so that

it cannot interfere with the child's head or neck.

Also, double check to be sure that the retrac-

tor has engaged the automatic locking feature

by trying to extend webbing out of the retrac-

tor. If the retractor is in the automatic locking

B230G01A-AAT

Installation on Outboard Rear Seats

On outboard rear seats

B230G01A

B230F01A-AAT

Installation on Rear Seat Center

Position

Use the center seat belt for the rear seat to

secure the child restraint system as illustrated.

After installation of the child restraint system,

rock the child seat back and forth, and side to

side to ensure that it is properly secured by the

seat belt.

If the child seat moves, readjust the length of the

seat belt. Then, if equipped, insert the child

restraint tether strap hook into the child restraint

hook holder and tighten to secure the seat.

Always refer to the child restraint system

manufacturer's recommendation before install-

ing the child restraint system in your vehicle.

B230F01A

On center rear seat

left and right outboard seating positions.

Follow the child seat manufacturer's instruc-

tions to properly install safety seats with ISOFIX

or ISOFIX-compatible attachments.

Once you have installed the ISOFIX child re-

straint seat, assure that the seat is properly

attached to the ISOFIX and tether anchors.

Also, test the safety seat before you place the

child in it. Tilt the seat from side to side. Also

try to tug the seat forward. Check to see if the

anchors hold the seat in place.

WARNING:

If the child restraint seat is not anchored

properly, the risk of a child being seriously

injured or killed in a collision greatly increases.

1FEATURES OF YOUR HYUNDAI

The seat belt pre-tensioner system consists

mainly of the following components. Their lo-

cations are shown in the illustration.

1. SRS airbag warning light

2. Seat belt pre-tensioner assembly

3. SRS control module

B180C02A-AAT

Pre-Tensioner Seat Belt

Your Hyundai vehicle is equipped with driver's

and front passenger's pre-tensioner seat belts.

The purpose of the pre-tensioner is to make

sure that the seat belts fit tightly against the

occupant's body in certain frontal collisions. The

pre-tensioner seat belts can be activated alone

or, where the frontal collision is severe enough,

together with the airbags.

When the vehicle stops suddenly, or if the

occupant tries to lean forward too quickly, the

seat belt retractor will lock into position. In

certain frontal collisions, the pre-tensioner will

activate and pull the seat belt into tighter

contact against the occupant's body.

Passenger's

airbag

HXG229

B180D01A

Driver's airbag 1

WARNING:

To obtain maximum benefit from a pre-

tensioner seat belt:

1. The seat belt must be worn correctly.

2. The seat belt must be adjusted to the

correct position.

mode, the belt will be locked. After installation

of the child restraint system, try to move it in

all directions to be sure the child restraint

system is securely installed. If you need to

tighten the belt, pull more webbing toward the

retractor. When you unbuckle the seat belt

and allow it to retract, the retractor will auto-

matically revert back to its normal seated

passenger emergency locking usage condition.

NOTE:

o Before installing the child restraint sys-

tem, read the instructions supplied by the

child restraint system manufacturer.

o If the seat belt does not operate as de-

scribed, have the system checked imme-

diately by your authorized Hyundai dealer.

WARNING:

o If the retractor is not in the Automatic

Locking mode, the child restraint system

can move when your vehicle turns or

stops abruptly.

o Do not install any child restraint system

in the front passenger seat. Should an

accident occur and cause the passenger

side airbag to deploy, it could severely

injure or kill an infant or child seated in an

infant or child seat. Therefore, only use a

child restraint system in the rear seat of

your vehicle.

FEATURES OF YOUR HYUNDAI

!WARNING:

o Pre-tensioners are designed to operate

only one time. After activation, pre-

tensioner seat belts must be replaced. All

seat belts, of any type, should always be

replaced after they have been worn dur-

ing a collision.

o The pre-tensioner seat belt assembly

mechanisms become hot during activa-

tion. Do not touch the pre-tensioner seat

belt assemblies for several minutes after

they have been activated.

o Do not attempt to inspect or replace the

pre-tensioner seat belts yourself. This

must be done by an authorized Hyundai

dealer.

o Do not strike the pre-tensioner seat belt

assemblies.

o Do not attempt to service or repair the

pre-tensioner seat belt system in any

manner.

o Improper handling of the pre-tensioner

seat belt assemblies, and failure to heed

the warnings to not strike, modify, in-

spect, replace, service or repair the pre-

tensioner seat belt assemblies may lead

to improper operation or inadvertent acti-

vation and serious injury.

o Always wear the seat belts when driving

or riding in a motor vehicle.

CAUTION:

o Because the sensor that activates the

SRS airbag is connected with the pre-

tensioner seat belt, the SRS airbag warn-

ing light on the instrument panel will

blink for approximately 6 seconds after

the ignition key has been turned to the

"ON" position, and then it should turn

off.

o If the pre-tensioner seat belt is not

working properly, this warning light

will illuminate even if there is no mal-

function of the SRS airbag system.

If the SRS airbag warning light does not

illuminate when the ignition key is turned

to "ON", or if it remains illuminated after

blinking for approximately 6 seconds, or

if it illuminates while the vehicle is being

driven, please have an authorized Hyundai

dealer inspect the pre-tensioner seat

belts and SRS airbag system as soon as

possible.

NOTE:

o Both the driver's and front passenger's

pre-tensioner seat belts will be activated

in certain frontal collisions. The pre-

tensioner seat belts can be activated

alone or, where the frontal collision is

severe enough, together with the

airbags.

The pre-tensioners will not be acti-

vated if the seat belts are not being

worn at the time of the collision.

o When the pre-tensioner seat belts are

activated, a loud noise may be heard and

fine dust, which may appear to be smoke,

may be visible in the passenger compart-

ment. These are normal operating condi-

tions and are not hazardous.

o Although it is harmless, the fine dust may

cause skin irritation and should not be

breathed for prolonged periods. Wash

your hands and face thoroughly after an

accident in which the pre-tensioner seat

belts were activated.

1FEATURES OF YOUR HYUNDAI

30 DUAL-STAGE SUPPLEMENTAL

RESTRAINT (AIRBAG) SYSTEM (SRS)

B240A01A-AAT

Your Hyundai is equipped with a Dual-stage

Supplemental Restraint (Airbag) System. The

indications of the system's presence are the

letters "SRS AIRBAG" embossed on the airbag

pad cover in the steering wheel and the

passenger's side front panel pad above the

glove box.

The Hyundai SRS consists of airbags installed

under the pad covers in the center of the steer-

ing wheel and the passenger's side front panel

above the glove box. The purpose of the SRS is

to provide the vehicle's driver and/or the front

passenger with additional protection than that

offered by the seat-belt system alone, in case of

a frontal impact of sufficient severity.

B240A03A

Driver's Airbag

The dual-stage SRS uses a collection of sen-

sors to gather information about the driver's

and front passenger's seat position, the

driver's and front passenger's seat belt usage

and impact severity.

The driver's and front passenger's seat posi-

tion sensors determine if the seats are fore or

aft of a reference position. Similarly, the seat

belt usage sensors determine if the driver and

front passenger's seat belts are fastened.

These sensors provide the ability to control

the SRS deployment's pressure based on how

close the driver's seat is to the steering wheel,

how close the passenger's seat is to the

instrument panel and whether or not the seat

belts are fastened.

The dual-stage airbags offer the ability to control

the airbag inflation with two pressure levels. A

lower pressure level is provided for moderate-

severity impacts. A higher-pressure level is pro-

vided for more severe impacts.

NOTE:

o Be sure to read information about the

SRS on the labels provided on the back-

side of the sun visor and in the glove box.

o Dual-stage inflating airbags are com-

bined with pre-tensioner seat belts to

help provided enhanced occupant pro-

tection in frontal crashes. Front airbags

WARNING:

o As its name implies, the SRS is de-

signed to work with, and be supple-

mental to, the driver's and the

passenger's three point seat belt sys-

tems and is not a substitute for them.

Therefore, your seat belts must be worn

at all times while the vehicle is in mo-

tion. The airbags deploy only in certain

frontal impact conditions severe

enough to cause significant injury to

the vehicle occupants.

o The SRS is designed to deploy the

airbags only when an impact is suffi-

ciently severe and when the impact

angle is less than 30° from the forward

longitudinal axis of the vehicle and will

not deploy in side, rear or rollover im-

pacts. Additionally, the airbags will only

deploy once. Thus, seat belts must be

worn at all times.

are not intended to deploy in light

collisions in which protection can be

provided by the pre-tensioner seat belt.

o If you are considering modification of

your vehicle due to a disability, please

contact the Hyundai Customer Assis-

tance Center at 1-800-633-5151.

FEATURES OF YOUR HYUNDAI

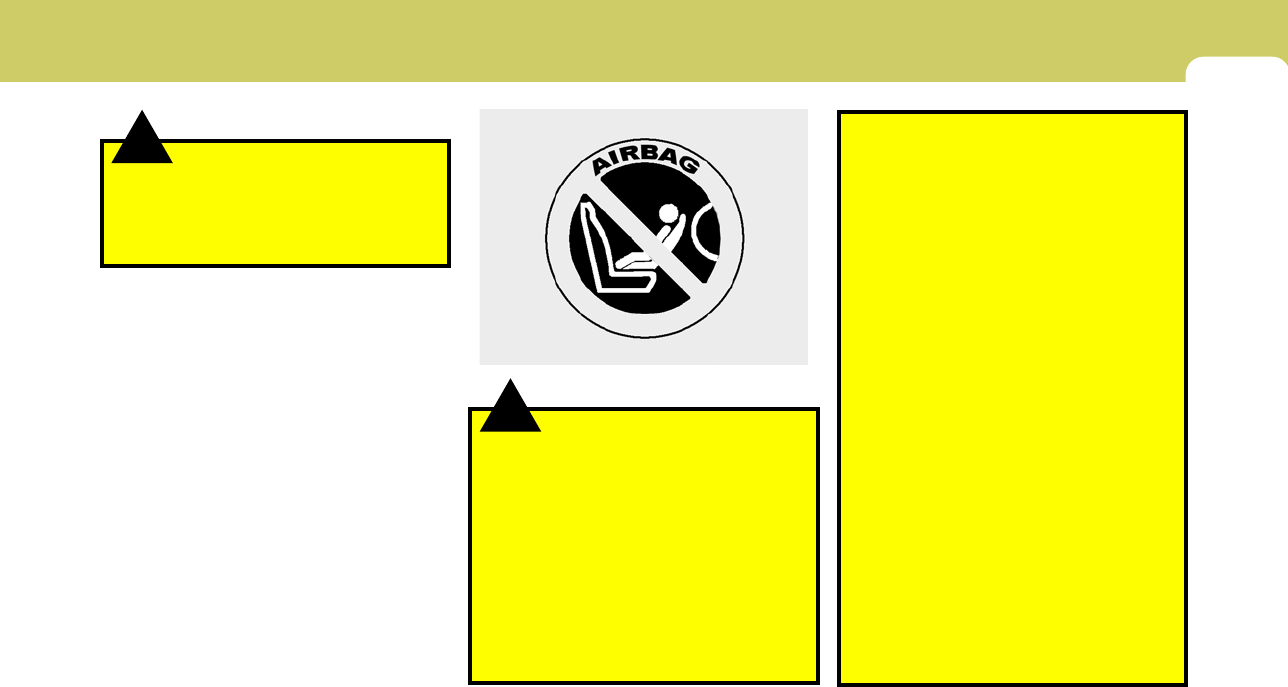

WARNING:

o No objects should be placed over or

near the airbag modules on the steer-

ing wheel, instrument panel, and the

front passenger's panel above the glove

box, because any such object could

cause harm if the vehicle is in a crash

severe enough to cause the airbags to

deploy.

o If the airbags deploy, they must be

replaced by an authorized Hyundai

dealer.

o Do not tamper with or disconnect SRS

wiring, or other components of the SRS

system. Doing so could result in injury,

due to accidental firing of the airbags

or by rendering the SRS inoperative.

o Do not install a child restraint system in

the front passenger seat position. A

child restraint system must never be

placed in the front seat. The infant or

child could be severely injured or killed

by an airbag deployment in case of an

accident.

o Do not allow children to ride in the front

passenger seat. If older children (teen-

agers and older) must ride in the front

seat, make sure they are always prop-

erly belted and that the seat is moved

back as far as possible.

WARNING:

o For maximum safety protection in all

types of crashes, all occupants includ-

ing the driver should always wear their

seat belts whether or not an airbag is

also provided at their seating position

to minimize the risk of severe injury or

death in the event of a crash. Do not sit

or lean unnecessarily close to the airbag

while the vehicle is in motion.

o Sitting improperly or out of position

can result in serious or fatal injury in a

crash. All occupants should sit upright

in their seats with their feet on the floor

until the vehicle is parked and the igni-

tion key is removed.

o The SRS airbag system must deploy

very rapidly to provide protection in a

crash. If an occupant is out of position

because of not wearing a seat belt, the

airbag may forcefully contact the occu-

pant causing serious or fatal injuries.

! !

o Front airbags are not intended to de-

ploy in side-impact, rear-impact or

rollover crashes. In addition, airbags

will not deploy in frontal crashes below

the deployment threshold speed.

o The driver should sit back as far as

possible while still maintaining control

of the vehicle. If you are sitting too

close to the airbag, it can cause death

or serious injury when it inflates.

B240A04A

Rear impact

Side Impact

Rollover

WARNING:

1FEATURES OF YOUR HYUNDAI

The SRSCM continually monitors all elements

while the ignition is "ON" to determine if a frontal

or near-frontal impact is severe enough to re-

quire airbag deployment.

The SRS service reminder indicator (SRI) on

the instrument panel will blink for about 6

seconds after the ignition key is turned to the

"ON" position or after the engine is started,

after which the SRI should go out.

The airbag modules are located both in the

center of the steering wheel and in the front

passenger's panel above the glove box. When

the SRSCM detects a considerable impact to

the front of the vehicle, it will automatically

deploy the airbags.

A fully inflated airbag in combination with a

properly worn seat belt slows the driver's or

the passenger's forward motion, thus reduc-

ing the risk of head and chest injury.

After complete inflation, the airbag immediately

starts deflating, enabling the driver to maintain

forward visibility.

B240B02L

B240B03A-AAT

SRS Components and Functions

The SRS consists of the following compo-

nents:

- Driver's Airbag Module

- Passenger's Airbag Module

- Knee Bolster

- Pre-tensioner seat belt

- Front impact sensors

- Driver's and front passenger's seat belt usage

sensors

- Driver's and front passenger's seat position

sensors

- SRS Service Reminder Indicator (SRI)

- SRS Control Module (SRSCM)

B240B01L

Upon deployment, tear seams molded directly

into the pad covers will separate under pres-

sure from the expansion of the airbags. Fur-

ther opening of the covers then allows full

inflation of the airbags.

B240B03L

FEATURES OF YOUR HYUNDAI

!WARNING:

o When the SRS is activated, there may

be a loud noise and fine dust will be

released throughout the vehicle. These

conditions are normal and are not haz-

ardous. However, the fine dust gener-

ated during airbag deployment may

cause skin irritation. Wash your hands

and face thoroughly with lukewarm wa-

ter and a mild soap after an accident in

which the airbags were deployed.

Passenger's Airbag

B240B05L

WARNING:

o The SRS can function only when the

ignition key is in the "ON" position. If

the SRS SRI does not illuminate, or

continuously remains on, after flashing

for about 6 seconds when the ignition

key is turned to the "ON" position, or

after the engine is started, comes on

while driving, the SRS is not working

properly. If this occurs, have your vehi-

cle immediately inspected by your

Hyundai dealer.

o Before you replace a fuse or disconnect

a battery terminal, turn the ignition key

to the "LOCK" position or remove the

ignition key. Never remove or replace

the air bag related fuse(s) when the

ignition key is in the "ON" position.

Failure to heed this warning will cause

the SRS SRI to illuminate.

CAUTION:

When installing a container of liquid air

freshener inside the vehicle, do not place it

near the instrument cluster nor on the in-

strument panel surface. If there is any leak-

age from the air freshener onto these areas

(instrument cluster, instrument panel or air

ventilator), it may damage these parts. If the

liquid from the air freshener does leak onto

these areas, wash them with water immedi-

ately.

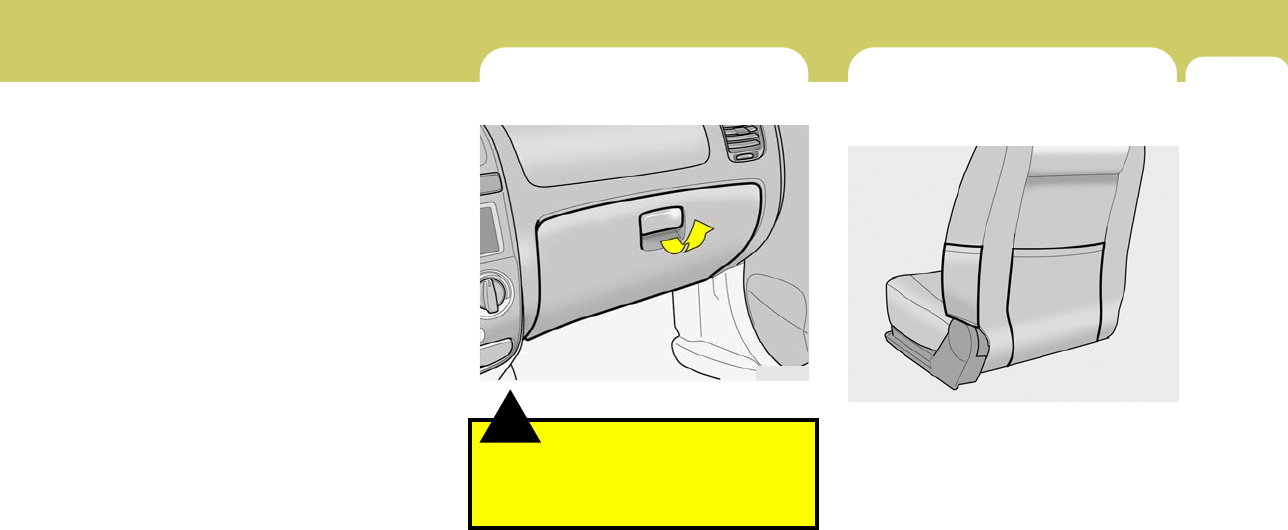

B240B01A

Passenger's Airbag

1FEATURES OF YOUR HYUNDAI

WARNING:

o For best protection from the side im-

pact airbag system and to avoid being

injured by the deploying side impact

airbag, both front seat occupants

should sit in an upright position with

the seat belt properly fastened. The

driver's hands should be placed on the

steering wheel at the 9:00 and 3:00

o'clock positions.

The passenger's arms and hands should

be placed on their laps.

o Do not use any accessory seat covers.

o Use of seat covers could reduce or pre-

vent the effectiveness of the system.

o Do not install any accessories on the side

or near the side impact airbag.

o Do not use excessive force on the side of

the seat.

o Do not place any objects over the airbag

or between the airbag and yourself.

o Do not place any objects (an umbrella,

bag, etc.) between the front door and the

front seat. Such objects may become dan-

gerous projectiles and cause injury if the

supplemental side impact airbag inflates.

B990B01A-1

Side airbag

sensor

WARNING:

o The side impact airbag is supplemental to

the driver's and the passenger's three

point seat belt systems and is not a sub-

stitute for them. Therefore your seat belts

must be worn at all times while the ve-

hicle is in motion. The airbags deploy

only in certain side impact conditions

severe enough to cause significant injury

to the vehicle occupants.

B990B04Y-GAT

Side Impact Airbag (If Installed)

Your Hyundai is equipped with a side impact

airbag in each front seat. The purpose of the

airbag is to provide the vehicle's driver and/or

the front passenger with additional protection

than that offered by the seat belt alone. The side

impact airbags are designed to deploy only

during certain side impact collisions, depending

on the crash severity, angle, speed and point of

impact. The side impact airbags are not de-

signed to deploy in all side impact situations.

B990B02Y

FEATURES OF YOUR HYUNDAI

!WARNING:

o Do not install a child restraint system in

the front passenger seat position.

A child restraint system must never be

placed in the front seat. The infant or

baby could be severely injured by an

airbag deployment in case of an acci-

dent.

o Modification to SRS components or

wir-ing, including the addition of any

kind of badges to the pad covers or

modifications to the body structure,

can adversely affect SRS performance

and lead to possible injury.

B240C03A-AAT

SRS Care

o The SRS is virtually maintenance free and there

are no parts you can safely service by yourself.

The entire SRS system must be inspected by

an authorized Hyundai dealer in 10 years after

the date that the vehicle was manufactured.

o Any work on the SRS system, such as remov-

ing, installing, repairing, or any work on the

steering wheel must be performed by a qualified

Hyundai technician. Improper handling of the

airbag system may result in serious personal

injury.

B240C01HP

o To prevent unexpected deployment of

the side impact air bag that may result

in personal injury, avoid impact to the

side impact airbag sensor when the

ignition key is on.

WARNING:

o For cleaning the airbag pad covers, use

only a soft, dry cloth or one which has

been moistened with plain water. Sol-

vents or cleaners could adversely affect

the airbag covers and proper deployment

of the system.

o No objects should be placed over or

near the airbag modules on the steer-

ing wheel, instrument panel, and the

front passenger's panel above the glove

box, because any such object could

cause harm if the vehicle is in a crash

severe enough to cause the airbags to

inflate.

o If the airbags inflate, they must be

replaced by an authorized Hyundai

dealer.

o Do not tamper with or disconnect SRS

wiring, or other components of the SRS

system. Doing so could result in injury,

due to accidental inflation of the airbags

or by rendering the SRS inoperative.

o If components of the airbag system

must be discarded, or if the vehicle

must be scrapped, certain safety pre-

cautions must be observed. Your

Hyundai dealer knows these precau-

tions and can give you the necessary

information. Failure to follow these

precautions and procedures could in-

crease the risk of personal injury.

1FEATURES OF YOUR HYUNDAI

oEach seat belt is designed to restrain

one occupant. If more than one person

uses the same seat belt, they could be

seriously injured or killed in a collision.

oDo not use any accessories on seat

belts. Devices claiming to improve occu-

pant comfort or reposition the seat belt can

reduce the protection provided by the seat

belt and increase the chance of serious

injury in a crash.

oPassengers should not place hard or

sharp objects between themselves and

the airbags. Carrying hard or sharp ob-

jects on your lap or in your mouth can result

in injuries if an airbag inflates.

oKeep occupants away from the airbag

covers. All occupants should sit upright,

fully back in their seats with their seat belts

on and their feet on the floor. If occupants

are too close to the airbag covers, they

could be injured if the airbags inflate.

oDo not attach or place objects on or

near the airbag covers. Any object at-

tached to or placed on the front or side

impact airbag covers could interfere with

the proper operation of the airbags.

oDo not modify the front seats. Modifica-

tion of the front seats could interfere with

the operation of the supplemental restraint

system sensing components or side im-

pact airbags.

B240D01JM-AAT

Additional Safety Precautions

oNever let passengers ride in the cargo

area (trunk) or on top of a folded-down

back seat. All occupants should sit upright,

fully back in their seats with their seat belts

on and their feet on the floor.

oPassengers should not move out of or

change seats while the vehicle is mov-

ing. A passenger who is not wearing a seat

belt during a crash or emergency stop can

be thrown against the inside of the vehicle,

against other occupants, or out of the

vehicle.

o If you sell your vehicle, be sure to

inform the new owner of these impor-

tant points and make certain that this

manual is transferred to the new owner.

o If your car was flooded and has soaked

carpeting or water on the floor, you

shouldn't try to start the engine; have

the car towed to an authorized Hyundai

dealer.

oDo not place items under the front

seats. Placing items under the front seats

could interfere with the operation of the

supplemental restraint system sensing

components and wiring harnesses.

oNever hold an infant or child on your

lap. The infant or child could be seriously

injured or killed in the event of a crash. All

infants and children should be properly

restrained in appropriate child safety seats

or seat belts in the rear seat.

WARNING:

o Sitting improperly or out of position

can result in serious injury or death in

a crash.

o Always sit upright, fully back in the

seat, with your seat belt on, and your

feet on the floor.

Adding Equipment to or Modifying Your

Airbag-Equipped Vehicle.

If you modify your vehicle by changing your

vehicle's frame, bumper system, front end or

side sheet metal or ride height, this may affect

the operation of your vehicle's airbag system.

WARNING:

FEATURES OF YOUR HYUNDAI

INSTRUMENT CLUSTER AND INDICATOR LIGHTS

B260A02A-A

B260A03A-AAT

12 34 56

78 9101112131415161718

1FEATURES OF YOUR HYUNDAI

11. Door Ajar Warning Light

12. Parking Brake/Low Brake fluid Level Warning Light

13. Charging System Warning Light

14. Seat Belt Warning Light

15. Low Oil Pressure Warning Light

16. Trip Odometer Reset Switch /

Trip Computer Reset Switch (If Installed)

17. Low Fuel Warning Light

18. Trunk Lid/Tail Gate Open Warning Light

19. Malfunction Indicator Light (MIL)

1. Tachometer (If Installed)

2. Turn Signal Indicator Light

3. Speedometer

4. Odometer / Trip Odometer / Trip Computer (If Installed)

5. Fuel Gauge

6. Temperature Gauge

7. SRS Service Reminder Indicator

8. ABS Service Reminder Indicator (If Installed)

9. Overdrive Off Indicator Light (If Installed)

10. High Beam Indicator Light

FEATURES OF YOUR HYUNDAI

WARNING AND INDICATOR LIGHTS

B260B01A-AAT

SRS (AIRBAG) SERVICE RE-

MINDER INDICATOR (SRI)

The SRS service reminder indicator (SRI) comes

on and flashes for about 6 seconds after the

ignition key is turned to the "ON" position or

after the engine is started, after which it will go

out.

This light also comes on when the SRS is not

working properly. If the SRI does not come on,

or continuously remains on after flashing for

about 6 seconds when you turned the ignition

key to the "ON" position or started the engine,

or if it comes on while driving, have the SRS

inspected by an authorized Hyundai Dealer.

B260P02Y-GAT

ABS SERVICE REMINDER IN-

DICATOR (SRI) (If Installed)

When the key is turned to the "ON" position, the

Anti-Lock Brake System SRI will come on and

then go off in a few seconds. If the ABS SRI

remains on, comes on while driving, or does not

come on when the key is turned to the "ON"

position, this indicates that there may be a

problem with the ABS.

If this occurs, have your vehicle checked by

your Hyundai dealer as soon as possible. The

normal braking system will still be operational,

but without the assistance of the anti-lock brake

system.

WARNING:

If both ABS SRI and Parking Brake/Brake fluid

level warning lights remain "ON" or come on

while driving, there may be a problem with

E.B.D. (Electronic Brake Force Distribution).

If this occurs, avoid sudden stops and have

your vehicle checked by your Hyundai dealer

as soon as possible.

B260F01A-AAT

HIGH BEAM INDICATOR LIGHT

The high beam indicator light comes on when-

ever the headlights are switched to the high

beam or flash position.

B260C01A-AAT

O/D OFF INDICATOR

(Automatic Transaxle only)

When the overdrive switch is turned on, the

overdrive off indicator will go out. This amber

indicator will be illuminated when the overdrive

switch is turned off (Auto T/A only).

B260D01A-AAT

TURN SIGNAL INDICATOR

LIGHTS

The blinking green arrow on the instrument

panel shows the direction indicated by the turn

signals. If the arrow comes on but does not

blink, blinks more rapidly than normal, or does

not blink at all, a malfunction in the turn signal

system is indicated. Your dealer should be con-

sulted for repairs.

1FEATURES OF YOUR HYUNDAI

B260G01A-AAT

LOW OIL PRESSURE WARNING

LIGHT

CAUTION:

If the oil pressure warning light stays on while

the engine is running, serious engine damage

may result. The oil pressure warning light

comes on whenever there is insufficient oil

pressure. In normal operation, it should come

on when the ignition switch is turned on, then

go out when the engine is started. If the oil

pressure warning light stays on while the

engine is running, there is a serious malfunc-

tion.

If this happens, stop the car as soon as it is

safe to do so, turn off the engine and check the

oil level. If the oil level is low, fill the engine oil

to the proper level and start the engine again.

If the light stays on with the engine running,

turn the engine off immediately. In any in-

stance where the oil light stays on when the

engine is running, the engine should be

checked by a Hyundai dealer before the car is

driven again.

B260H03A-AAT

PARKING BRAKE/

LOW BRAKE FLUID LEVEL

WARNING LIGHT

CAUTION:

If you suspect brake trouble, have your brakes

checked by a Hyundai dealer as soon as pos-

sible. Driving your car with a problem in either

the brake electrical system or brake hydraulic

system is dangerous, and could result in se-

rious injury or death.

Warning Light Operation

The parking brake/brake fluid level warning light

should come on when the parking brake is

applied and the ignition switch is turned to "ON"

or "START". After the engine is started, the light

should go out when the parking brake is re-

leased.

If the parking brake is not applied, the warning

light should come on when the ignition switch is

turned to "ON" or "START", then go out when

the engine starts. If the light comes on at any

other time, you should slow the vehicle and

bring it to a complete stop in a safe location off

the roadway.

The brake fluid level warning light indicates

that the brake fluid level in the brake master

cylinder is low and brake fluid conforming to

DOT 3 or DOT 4 specifications should be

added. After adding fluid, if no other trouble is

found, the car should be immediately and

carefully driven to a Hyundai dealer for

inspection. If further trouble is experienced,

the vehicle should not be driven at all but taken

to a dealer by a professional towing service.

Your Hyundai is equipped with dual-diagonal

braking systems. This means you still have

braking on two wheels even if one of the dual

systems should fail. With only one of the dual

systems working, more than normal pedal travel

and greater pedal pressure are required to stop

the car. Also, the car will not stop in as short a

distance with only a portion of the brake system

working. If the brakes fail while you are driving,

shift to a lower gear for additional engine braking

and stop the car as soon as it is safe to do so.

FEATURES OF YOUR HYUNDAI

B260E02O-AAT

SEAT BELT REMINDER LIGHT

AND CHIME

The seat belt reminder light blinks until your seat

belt is fastened when the ignition key is turned

from the "OFF" position to "ON" or "START",

and the warning chime will sound for 6 sec-

onds.

B260N01A-AAT

MALFUNCTION INDICATOR

LIGHT

This light illuminates when there is a malfunction

of an exhaust gas related component, and the

system is not functioning properly so that the

exhaust gas regulation values are not satisfied.

This light will also illuminate when the ignition

key is turned to the "ON" position, and will go

out in a few seconds. If it illuminates while

driving, or does not illuminate when the ignition

key is turned to the "ON" position, take your car

to your nearest authorized Hyundai dealer and

have the system checked.

B260K02A-AAT

TRUNK LID(4 DOOR)/

TAIL GATE(3 DOOR) OPEN

WARNING LIGHT

This light remains on unless the trunk lid/tail

gate is completely closed and latched.

B260J01A-AAT

CHARGING SYSTEM WARNING

LIGHT

The charging system warning light should come

on when the ignition is turned on, then go out

when the engine is running. If the light stays on

while the engine is running, there is a malfunc-

tion in the electrical charging system. If the light

comes on while you are driving, stop, turn off the

engine and check under the hood. First, make

certain the generator drive belt is in place. If it is,

check the tension of the belt. Do this as shown

on page 6-19 by pushing down on the center

of the belt. And then have the system checked

by your Hyundai dealer.

B260M01A-AAT

LOW FUEL LEVEL WARNING

LIGHT

The low fuel level warning light comes on when

the fuel tank is approaching empty. When it

comes on, you should add fuel as soon as

possible. Driving with the fuel level warning light

on or with the fuel level below "E" can cause the

engine to misfire and damage the catalytic con-

verter.

B260L02HP-GAT

DOOR AJAR WARNING LIGHT

AND CHIME (If Installed)

The door ajar warning light warns you that a

door is not completely closed and the chime

warns you that the key is in the ignition switch.

NOTE :

The warning chime only sounds whenever

the key is in the ignition switch and the driver's

side front door is open simultaneously. The

chime sounds until the key is removed from

the ignition switch or the driver's side front

door is closed.

1FEATURES OF YOUR HYUNDAI

42 INSTRUMENT CLUSTER

B270A01A-AAT

BRAKE PAD WEAR WARNING

SOUND

The front disc brake pads have wear indicators

that should make a high-pitched squealing or

scraping noise when new pads are needed. The

sound may come and go or be heard all the time

when the vehicle is moving. It may also be

heard when the brake pedal is pushed down

firmly. Expensive rotor damage will result if the

worn pads are not replaced. See your Hyundai

dealer immediately.

B900A01A-AAT

LIGHTS ON WARNING SOUND

The warning chime sounds when the tail lights

are on and the driver side door is open. This

prevents the battery from discharging by

warning you when the car is left with the tail

lights on. The chime sounds until the tail lights

are turned off.

B280A01A-AAT

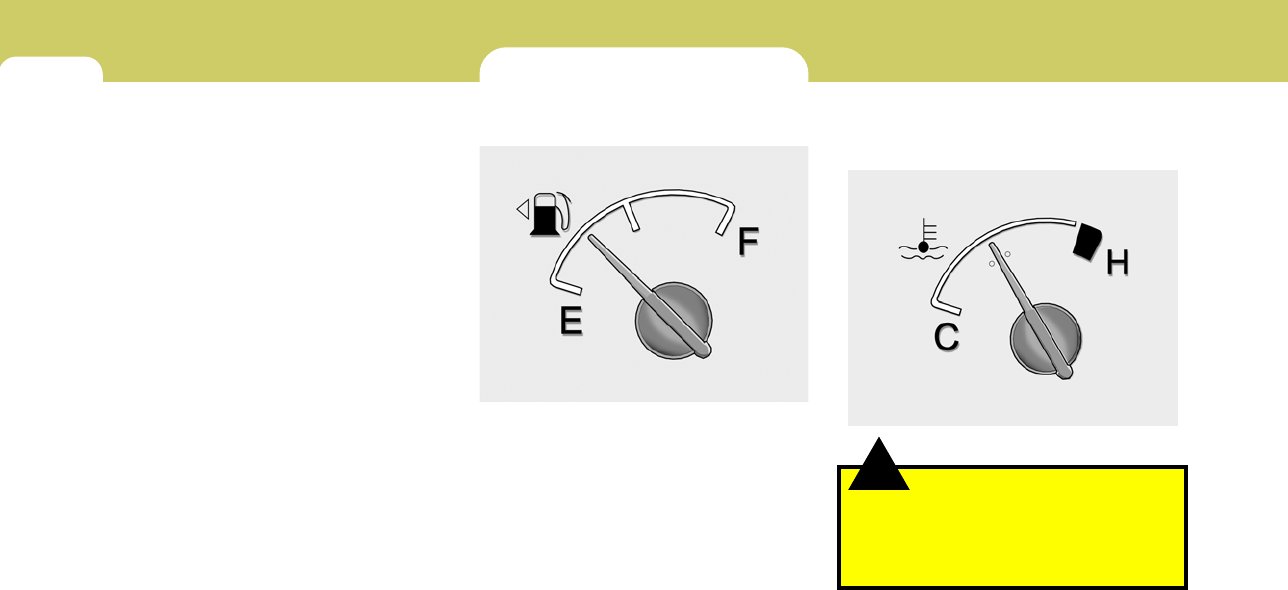

FUEL GAUGE

The needle on the gauge indicates the ap-

proximate fuel level in the fuel tank. The fuel

capacity is given in Section 9.

HLC2052

B290A02A-AAT

ENGINE COOLANT TEMPERATURE

GAUGE

WARNING:

Never remove the radiator cap when the en-

gine is hot. The engine coolant is under pres-

sure and could erupt and cause severe burns.

Wait until the engine is cool before removing

the radiator cap.

HLC2053

FEATURES OF YOUR HYUNDAI

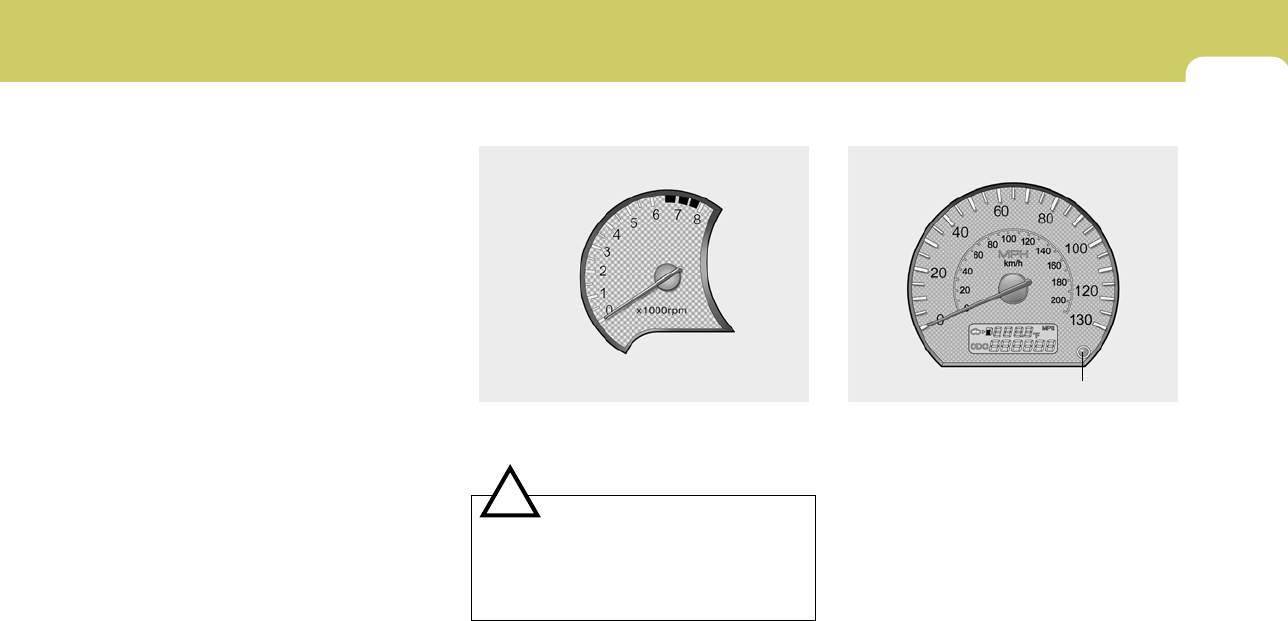

B330A03A-AAT

TACHOMETER (If Installed)

The tachometer registers the speed of your

engine in revolutions per minute (rpm).

B300A01A-AAT

SPEEDOMETER

Your Hyundai's speedometer is calibrated in

miles per hour (on the outer scale) and kilome-

ters per hour (on the inner scale).

B300A01A-E

HLC2050-D Reset Switch

CAUTION:

The engine should not be raced to such a

speed that the needle enters the red zone on

the tachometer face. This can cause severe

engine damage and may void your war-

ranty.

The needle on the engine coolant temperature

gauge should stay in the normal range. The

normal range is approximately in the middle

between "H" and "C". If it moves across the

dial to "H" (Hot), pull over and stop as soon as

possible and turn off the engine. Then open the

hood and, after the engine has cooled, check

the coolant level and the water pump drive belt.

If you suspect cooling system trouble, have

your cooling system checked by a Hyundai

dealer as soon as possible.

1FEATURES OF YOUR HYUNDAI

44 TRIP COMPUTER

B400B01A-E

The trip computer is a microcomputer-con-

trolled driver information gauge that displays

information related to driving, such as a

tripmeter, outside temperature, average fuel

consumption and distance to empty on the

LCD.

B400B01A-AAT

(If Installed)

B310B01A-AAT

ODOMETER/TRIP ODOMETER

1. Odometer

The odometer records the total distance trav-

eled in miles. You will also find the odometer

useful to determine when periodic maintenance

should be performed.

NOTE:

Federal law forbids alteration of the odometer

of any vehicle with the intent to change the

number of the odometer. The alteration may

void your warranty coverage.

B310A01A 2. Trip Odometer

o The trip odometer records the total distance

traveled since the last trip odometer reset.

o To reset the trip odometer to zero, press

and hold the reset switch to the right of the

speedometer for more than 1 second while

the trip odometer is being displayed.

o If your vehicle is equipped with a trip com-

puter, refer to the explanation of the trip

computer (See page 1-45, tripmeter)

B320A01A Odometer

FEATURES OF YOUR HYUNDAI

1. Tripmeter (miles)

TRIPMETER

OUTSIDE TEMPERATURE

AVERAGE FUEL CONSUMPTION

DISTANCE TO EMPTY

o This mode indicates the total distance trav-

eled since the last tripmeter reset.

B320A01A

B400B02A-E

o To reset the tripmeter to zero, press and

hold the reset switch to the right of the

speedometer for more than 1 second while

the tripmeter is being displayed.

2. Outside Temperature (°F)

This mode indicates the outside tempera-

ture between -40°F and 176°F.

Odometer

Tripmeter

Odometer

Outside Temperature

B300A01A-E

Reset Switch

o The reset switch is used to zero the multi-

functional display mode.

o Pushing in the reset switch built in right side

of speedometer changes the display as fol-

lows;

Reset Switch

1FEATURES OF YOUR HYUNDAI

3. Average Fuel Consumption (MPG)

B400B03A-E

MPG = Total Cruise Distance(Miles)

Total Fuel Consumption (G)

o This mode calculates the average fuel

consumption from the total fuel used and

the distance since the last average con-

sumption reset.

o The total fuel used is calculated from the

fuel consumption input.

o The meter's working range is from 0.0 to

99.9 miles/gallon(MPG).

o Calculation Method

Odometer

Average Fuel Consumption

HLC2057

Distance to empty symbol

Distance to empty

4. Distance to Empty (miles)

o This mode provides the estimated distance

to empty from the current fuel level in the

fuel tank.

o The trip computer may not register addi-

tional fuel if less than 1.59 gallons of fuel are

added to the vehicle.

o When the battery has been reinstalled after

being discharged or disconnected, drive more

than 20 miles for an accurate distance to

empty.

Odometer

NOTE:

o If the distance to empty is less than 30

miles, a blinking "----" symbol will be

displayed.

o The distance to empty can differ from the

actual tripmeter according to driving con-

ditions.

o The distance to empty can vary accord-

ing to the driving conditions, driving

pattern or vehicle speed.

FEATURES OF YOUR HYUNDAI

COMBINATION TURN SIGNAL,

HEADLIGHT AND LOW-BEAM SWITCH

To operate the headlights, turn the barrel on

the end of the multi-function switch. The first

position turns on the parking lights, sidelights,

tail lights and instrument panel lights. The

second position turns on the headlights.

NOTE:

The ignition must be in the "ON" position

to turn on the headlights.

Parking Light Auto Off

If you do not turn the parking lights "OFF" after

driving, the parking lights will automatically

shut "OFF" when the driver's door is opened.

To turn them "ON" again you must simply turn

the ignition key to the "ON" position.

B340C03A-AAT

Headlight Switch

HLC2069

B340B01A-AAT

Lane Change Signal

To indicate a lane change, move the lever up or

down to a point where it begins flashing.

The lever will automatically return to the center

position when released.

HLC2072

B340A01A-AAT

Turn Signal Operation

Pulling down on the lever causes the turn sig-

nals on the left side of the car to blink. Pushing

upward on the lever causes the turn signals on

the right side of the car to blink. As the turn is

completed, the lever will automatically return to

the center position and turn off the turn signals

at the same time. If either turn signal indicator

light blinks more rapidly than usual, goes on but

does not blink, or does not go on at all, there is

a malfunction in the system. Check for a burned-

out fuse or bulb or see your Hyundai dealer.

1FEATURES OF YOUR HYUNDAI

48 WINDSHIELD WIPER AND WASHER

SWITCH

B340E01A-AAT

Headlight Flasher

To flash the headlights, pull the switch lever

toward you, then release it. The headlights can

be flashed even though the headlight switch is

in the "OFF" position.

B350A01A-AAT

The windshield wiper switch has three posi-

tions:

1. Intermittent wiper operation

2. Low-speed operation

3. High-speed operation

NOTE:

To prevent damage to the wiper system, do

not attempt to wipe away heavy accumula-

tions of snow or ice. Accumulated snow and

ice should be removed manually. If there is

only a light layer of snow or ice, operate the

heater in the defrost mode to melt the snow or

ice before using the wiper.

B340D01A-AAT

High-Beam Switch

To turn on the headlight high beams, push the

lever forward (away from you). The High Beam

Indicator Light will come on at the same time.

For low beams, pull the lever back toward you.

HLC2071

B350A01A-1

B350B01A-AAT

WINDSHIELD WASHER OPERATION

To use the windshield washer, pull the wiper/

washer lever toward the steering wheel. When

the washer lever is operated, the wipers auto-

matically make three passes across the wind-

shield. The washer continues to operate until

the lever is released.

NOTE:

o Do not operate the washer more than 15

seconds at a time or when the fluid reser-

voir is empty.

o In icy or freezing weather, be sure the

wiper blades are not frozen to the glass

prior to operating the wipers.

o In areas where water freezes in winter,

use windshield washer antifreeze.

B350B01A-1

FEATURES OF YOUR HYUNDAI

B390A02A-AAT

REAR WINDOW WIPER AND WASHER

(If Installed)

B390A01A-1

The rear window wiper and washer are turned

on by depressing the button.

Washer fluid is sprayed onto the glass as long

as the " " is depressed.

1. When the " " position is depressed,

the rear window wiper starts to operate con-

tinuously.

2. When the " " position is depressed,

the rear window wiper starts to operate three

times after the washer fluid sprays onto the

rear window.

3. When the " " position is depressed,

the interval between wipes operates every

five seconds intermittently.

B350B02A-1

Mist Wiper Operation B350C01O-GAT

Adjustable Intermittent Wiper Opera-

tion

To use the intermittent wiper feature, place the

wiper switch in the "INT" position. With the

switch in this position, the interval between

wipes can be varied from approximately 1 to 18

seconds by turning the interval adjuster barrel.

This is also varied automatically depending on

your road speed.

B350C01A-1

If a single wipe is desired in mist, move the

windshield wiper and washer control lever up.

1FEATURES OF YOUR HYUNDAI

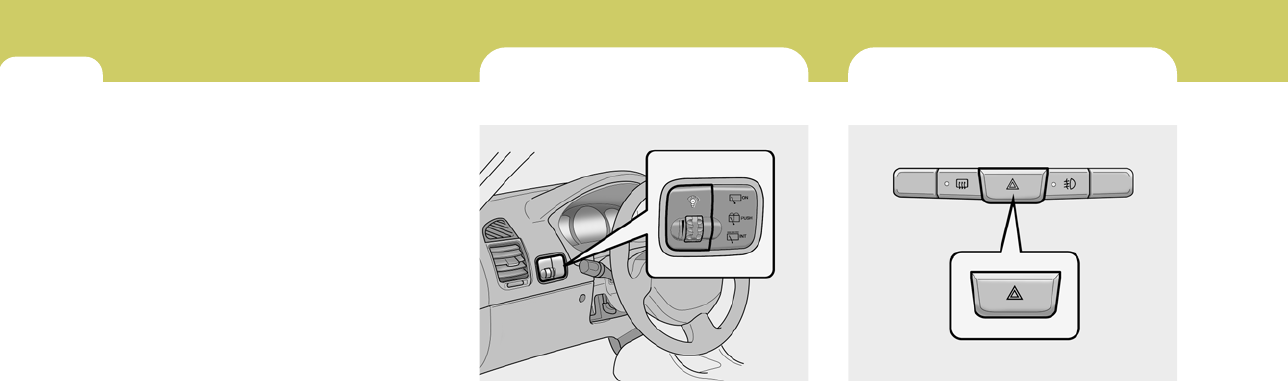

50 HAZARD WARNING SYSTEMINSTRUMENT PANEL LIGHT CON-

TROL (RHEOSTAT)

B370A01A-AAT

The hazard warning system should be used

whenever you find it necessary to stop the car

in a hazardous location. When you must make

such an emergency stop, always pull off the

road as far as possible.

The hazard warning lights are turned on by

pushing in the hazard switch. This causes all

turn signal lights to blink. The hazard warning

lights will operate even though the key is not in

the ignition.

To turn the hazard warning lights off, push the

switch a second time.

Do not operate the washer continuously for

more than 15 seconds or when the fluid reser-

voir is empty; this could damage the system.

Do not operate the wiper when the window is

dry; this can result in scratching as well as

premature wiper blade wear.

For the reason stated above,do not operate the

washer when the washer fluid reservoir is empty.

B370B01A

B410A01A-AAT

The instrument panel lights can be made

brighter or dimmer by turning the instrument

panel light control knob.

B410A01A-1

FEATURES OF YOUR HYUNDAI

FRONT FOG LIGHT SWITCH

B360A04A-AAT

(If Installed)

To turn on the front fog lights, push the switch.

They will light when the headlight switch is in

the second position and the key is in the "ON"

position.

NOTE:

If you turn on the headlight high beams, the

front fog lights will be turned off.

CAUTION:

Do not clean the inner side of the rear window

glass with an abrasive type of glass cleaner or

use a scraper to remove foreign deposits from

the inner surface of the glass as this may

cause damage to the defroster elements.

NOTE:

The ignition must be in the "ON" position

for the rear window defroster to operate.

B360B01A

B380A01HP-AAT

REAR WINDOW DEFROSTER

SWITCH (If Installed)

The rear window defroster and heated outside

rearview mirrors are turned on by pushing in

the switch. To turn the defroster off, push the

switch a second time. The rear window

defroster automatically turns itself off after

about 20 minutes. To restart the defroster

cycle, push in the switch again after it has

turned itself off.

B370A01A

1FEATURES OF YOUR HYUNDAI

52 ASHTRAYCIGARETTE LIGHTERDIGITAL CLOCK

B420A01A-AAT

For the cigarette lighter to work, the key must

be in the "ACC" position or the "ON" position.

To use the cigarette lighter, push it all the way

into its socket. When the element has heated,

the lighter will pop out to the "ready" position.

Do not hold the cigarette lighter pressed in. This

can damage the heating element and create a

fire hazard.

If it is necessary to replace the cigarette lighter,

use only a genuine Hyundai replacement or its

approved equivalent.

B430A01S-AAT

Front Ashtray

The front ashtray may be opened by pulling it

out by its grip. To remove the ashtray to empty

or clean it, press down on the spring-loaded tab

inside the ashtray. The ashtray light will only

illuminate when the external lights are on.

HLC2104

HLC2107

B400A01A-AAT

(If Installed)

There are three control buttons for the digital

clock. Their functions are:

HOUR - Push "H" to advance the hour indicat-

ed.

MIN - Push "M" to advance the minute indicat-

ed.

RESET - Push "R" to reset minutes to ":00" to

facilitate resetting the clock to the correct time.

When this is done:

Pressing "R" between 10 : 30 and 11 : 29

changes the readout to 11 : 00. Pressing "R"

between 11 : 30 and 12 : 29 changes the

readout to 12 : 00.

HLC2100

FEATURES OF YOUR HYUNDAI

DRINK HOLDER

The front drink holder is located on the center

facia panel for holding cups or cans in its holes.

The drink holder can be used by pushing it.

B450A04A-AAT

Front Drink Holder

HLC2116

CAUTION:

Place the drink holder in its closed position

when not in use.

WARNING:

Do not place anything except drinks in the

drink holder. Such objects can be thrown

out, possibly injuring persons in the ve-

hicle during sudden braking or in the event

of an accident.

B440A01E-AAT

Rear Ashtray (If Installed)

The rear ashtray may be opened by pulling it

out by its top edge. To remove the ashtray to

empty or clean it, press down on the spring-

loaded tab inside the ashtray and lift the ash-

tray upward and pull it all the way out.

HLC2108

1FEATURES OF YOUR HYUNDAI

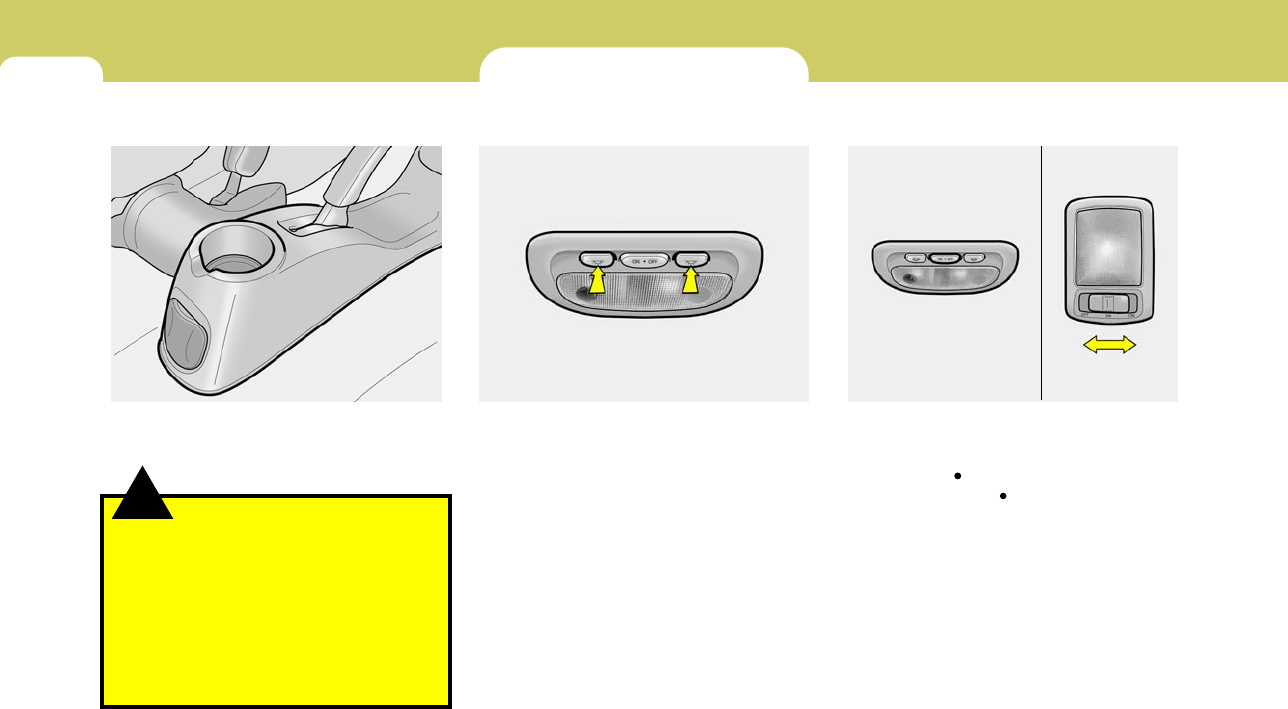

54 INTERIOR LIGHT

The interior courtesy light switch has three

positions. The three positions are:

o "DR" or " "

In the "DR" or " " position, the interior

courtesy light comes on when any door is

opened regardless of the ignition key posi-

tion. The light goes out when the door is

closed.

NOTE:

If your vehicle is equipped with the delay-out

interior light, the light goes out gradually

within 6 seconds after the door is closed.

B490A03A-AAT

Interior light

HLC2080

Type A (If Installed) Type B

B480A01E-AAT

Map Light (If Installed)

The two map light switches are located on

both sides of the front overhead console.

Push in the map light switch to turn the light on

or off. This light produces a spot beam for

convenient use as a map light at night or as

a personal light for the driver and the passen-

ger.

HLC2081

B450B02A-AAT

Rear Drink Holder

The rear drink holder is located on the rear

main console and may be used for holding

cups or cans.

HLC2117

WARNING:

o Use caution when using the drink hold-

ers. A spilled beverage that is very hot

can injure you or your passengers.

Spilled liquids can damage interior trim

and electrical components.

o Do not place anything except drinks in

the drink holder. Such objects can be

thrown out, possibly injuring persons

in the vehicle during sudden braking or

in the event of an accident.

FEATURES OF YOUR HYUNDAI

SEAT POCKETGLOVE BOX

o To open the glove box, pull on the glove box

release lever.

o To close glove box, push up on glove box.

B540B01TB-AAT

(If Installed)

A seat side pocket is located on the front

passenger seat to hold papers.

There are seatback pockets on the backside

of the front seats.

HLC2119

oON

In the "ON" position, the light stays on at all

times. Do not leave the switch in this position

for an extended period of time when the ve-

hicle is not running.

oOFF

In the "OFF" position, the light stays off at all

times even though a door is open.

HLC2110

B500A01A-AAT

WARNING:

To avoid the possibility of injury in case of

an accident or a sudden stop, the glove box

door should be kept closed when the car is

in motion.

1FEATURES OF YOUR HYUNDAI

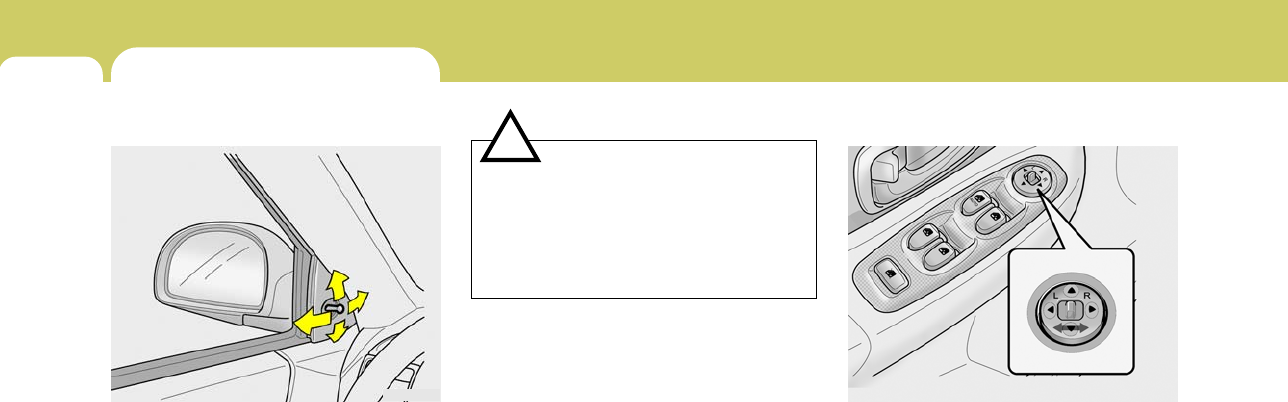

56 OUTSIDE REARVIEW MIRROR

B510A01A-AAT

Manual Type (If Installed)

The outside rearview mirrors are equipped

with a remote control for your convenience. It

is operated by the control lever in the bottom

front corner of the window.

Before driving away, always check that your

mirrors are positioned so you can see behind

you, both to the left and right sides, as well as

directly behind your vehicle. When using the

mirror, always exercise caution when attempt-

ing to judge the distance of vehicles behind or

along side of you.

HLC2113

CAUTION:

If the mirror control is jammed with ice, do not

attempt to break it free using the control

handle or by manipulating the face of the

mirror. Use an approved spray de-icer (not

radiator antifreeze) to release the frozen

mechanism or move the vehicle to a warm

place and allow the ice to melt.

B510B01Y-AAT

Electric Type (If Installed)

HLC2114

The outside rearview mirrors can be adjusted

to your preferred rear vision, both directly

behind the vehicle, and to the rear of the left

and right sides.

The remote control outside rearview mirror

switch controls the adjustments for both right

and left outside mirrors.

To adjust the position of either mirror:

1. Move the selecting switch to the right or left

to activate the adjustable mechanism for the

corresponding door mirror.

2. Adjust mirror angle by depressing the ap-

propriate directional switch as illustrated.

FEATURES OF YOUR HYUNDAI

B510D01HP-GAT

Outside Rearview Mirror Heater

(If Installed)

The outside rearview mirror heater is actuated

in connection with the rear window defroster.

To heat the outside rearview mirror glass,

push in the switch for the rear window de-

froster. The rearview mirror glass will be

heated for defrosting or defogging and will give

you improved rear vision in inclement weather

conditions. Push the switch again to turn the

heater off. The outside rearview mirror heater

automatically turns itself off after 20 minutes.

B370A01A

B510C01A-AAT

Folding the Outside Rearview Mirrors

To fold the outside rearview mirrors, push

them towards the rear. To unfold the outside

rear view mirrors, push them toward the front.

The outside rearview mirrors can be folded

rearward for parking in restricted areas.

HLC2115

WARNING:

Do not adjust or fold the outside rearview

mirrors while the vehicle is moving. This

could result in loss of control, and an acci-

dent causing death, serious injury or prop-

erty damage.

B510B01A

CAUTION:

o Do not operate the switch continuously

for an unnecessary length of time.

o Scraping ice from the mirror face could

cause permanent damage. To remove any

ice, use a sponge, soft cloth or ap-

proved de-icer.

WARNING:

Be careful when judging the size or distance

of any object seen in the passenger side

rearview mirror. It is a convex mirror with a

curved surface. Any objects seen in this

mirror are closer than they appear.

1FEATURES OF YOUR HYUNDAI

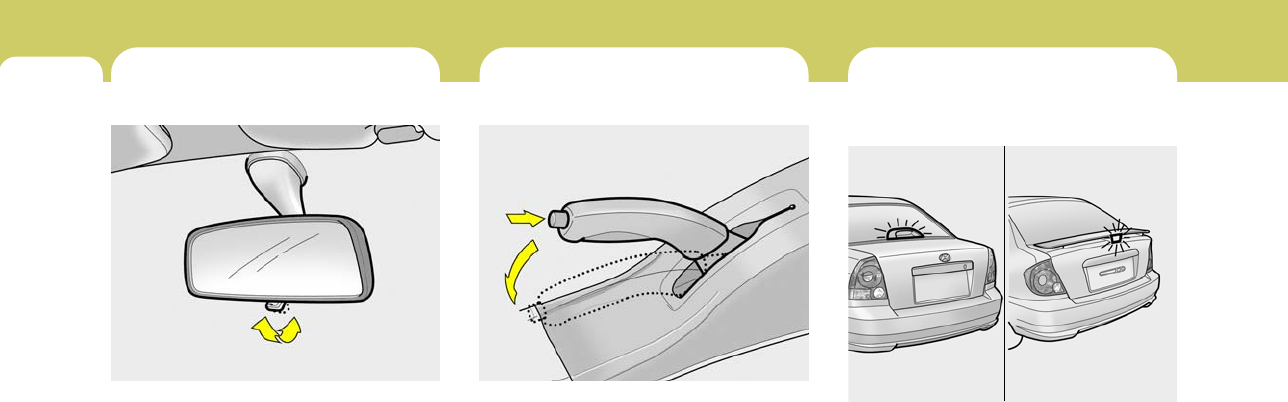

58 PARKING BRAKEDAY/NIGHT INSIDE REARVIEW

MIRROR

B520A01A-AAT

Your Hyundai is equipped with a day/night

inside rearview mirror. The "night" position is

selected by flipping the tab at the bottom of the

mirror toward you. In the "night" position, the

glare of headlights of cars behind you is re-

duced.

HLC2112

B530A01A-AAT

Always engage the parking brake before leav-

ing the car. This also turns on the parking

brake indicator light when the key is in the

"ON" or "START" position. Before driving away,

be sure that the parking brake is fully released

and the indicator light is off.

o To engage the parking brake, pull the lever

up as far as possible.

o To release the parking brake, pull up the

lever and press the thumb button. Then,

while holding the button in, lower the brake

lever.

HLC3024

HIGH-MOUNTED REAR STOP LIGHT

B550A01S-GAT

(If Installed)

In addition to the lower-mounted rear stop

lights on either side of the car, the high mounted

rear stop light in the center of the rear window

or inserted in the rear spoiler also lights when

the brakes are applied.

HLC2124

FEATURES OF YOUR HYUNDAI

FLOOR MAT ANCHORHOOD RELEASE

CAUTION:

Make sure that the support rod has been

released prior to closing the hood.

WARNING:

o Always double check to be sure that the

hood is firmly latched before driving

away. If it is not latched, the hood could

open while the vehicle is being driven,

causing a total loss of visibility, which

might result in an accident.

o The support rod must be inserted com-

pletely into the hole provided in the hood

whenever you inspect the engine com-

partment. This will prevent the hood

from falling and possibly injuring you.

o Do not move the vehicle with the hood in

the raised position, as vision is obstructed

and the hood could fall or be damaged.

B571A03Y-AAT

When using a floor mat on the front floor

carpet, make sure it attaches to the floor mat

anchor in your vehicle. This keeps the floor

mat from sliding forward.

HXGS263

WARNING:

o Make sure the floor mat is properly

placed on the floor carpet. If the floor

mat slips and interferes with the move-

ment of the pedals during driving, it

may cause an accident.

o Don't put a additional floor mat on the

top of the fixed mat, otherwise the ad-

ditional mat may slide forward and inter-

fere with the movement of the pedals.

2. Push the safety catch lever to the left and

lift the hood.

3. Hold the hood open with the support rod.

Before closing the hood, return the support rod

to its clip to prevent it from rattling. Lower the

hood until it is about 1 ft. (30 cm) above the

closed position and let it drop. Make sure that

it locks into place.

B570A01A-1

B570A03A-GAT

1. Pull the release knob to unlatch the hood.

B570A01A

1FEATURES OF YOUR HYUNDAI

B560A02S-AAT

B560A01A-1

The fuel-filler lid may be opened from inside the

vehicle by pulling up on the fuel-filler lid opener

located on the front floor area on the left side

of the car.

NOTE:

If the fuel-filler lid will not open because ice

has formed around it, tap lightly or push on

the lid to break the ice and release the lid. Do

not pry on the lid. If necessary, spray around

the lid with an approved de-icer fluid (do not

use radiator anti-freeze) or move the vehicle

to a warm place and allow the ice to melt.

REMOTE FUEL-FILLER LID RELEASE

!WARNING:

o The fuel cap must be tightened at least

3 clicks, otherwise " " light will

illuminate.

o Gasoline vapors are dangerous. Before

refueling, always stop the engine and

never allow sparks or open flames near

the filler area. If you need to replace the

filler cap, use a genuine Hyundai re-

placement part.

o If you open the fuel filler cap during

high ambient temperatures, a slight

"pressure sound" may be heard. This is

normal and not a cause for concern.

Whenever you open the fuel filler cap,

turn it slowly.

HLC2016-2

o Make sure the fuel filler cap is replaced

and securely seated after fueling. Fail-

ure to replace or fully seat the fuel filler

cap will result in fuel vapors escaping

into the atmosphere and the check

engine "MIL" indicator illuminating.

o Do not "TOP-OFF" after the first nozzle

shut off when refueling.

o Automotive fuels are flammable/explo-

sive materials. When refueling, please

note the following guidelines carefully.

o Before touching the fuel nozzle or fuel

filler cap, have one's hands in contact

with metal parts away from the filler

neck to discharge static electricity.

o Do not get back in the vehicle while

refueling. Do not operate anything that

can produce static electricity. Static

electricity discharge can ignite fuel va-

pors resulting in explosion.

o When using a portable fuel container

be sure to place the container on the

ground while refueling. Static electric-

ity discharge from the container can

ignite fuel vapors causing a fire. While

starting refueling contact should be

maintained until the filling is complete.

WARNING:

FEATURES OF YOUR HYUNDAI

TRUNK LID (4 DOOR)

B540C02A-AAT

To Unlock Using the Key.

To open the trunk lid, insert the key and turn

it clockwise to unlock. The luggage compart-

ment light illuminates when the trunk lid is

opened.

B450E01A

B540A01E-AAT

Remote Trunk Lid Release

B540D01A

To open the trunk lid without using the key, pull

up the lid release lever.

To close, lower the trunk lid, then press down

on it until it locks. To be sure the trunk lid is

securely fastened, try to pull it up again.

WARNING:

The trunk lid should always be kept com-

pletely closed while the vehicle is in motion.

If it is left open or ajar, poisonous exhaust

gases may enter the car resulting in serious

illness or death to the occupants. See addi-

tional warnings concerning exhaust gases on

page 2-2.

!WARNING:

Parents should teach children about the

emergency trunk release lever in their ve-

hicle and how to open the trunk lid if they

are accidentally locked in the trunk.

o Do not use cellular phones around a

gas station. The electric current or elec-

tronic interference from cellular phones

can ignite fuel vapors causing a fire.

o When refueling always shut the engine

off. Sparks by electrical equipment of

the engine can ignite fuel vapors caus-

ing a fire. After refueling, check to make

sure the fuel filler cap is securely closed,

and then start the engine.

o Do not smoke or try to light cigarettes

around a gas station. Automotive fuels

are flammable.

WARNING:

1FEATURES OF YOUR HYUNDAI

B540F01A-AAT

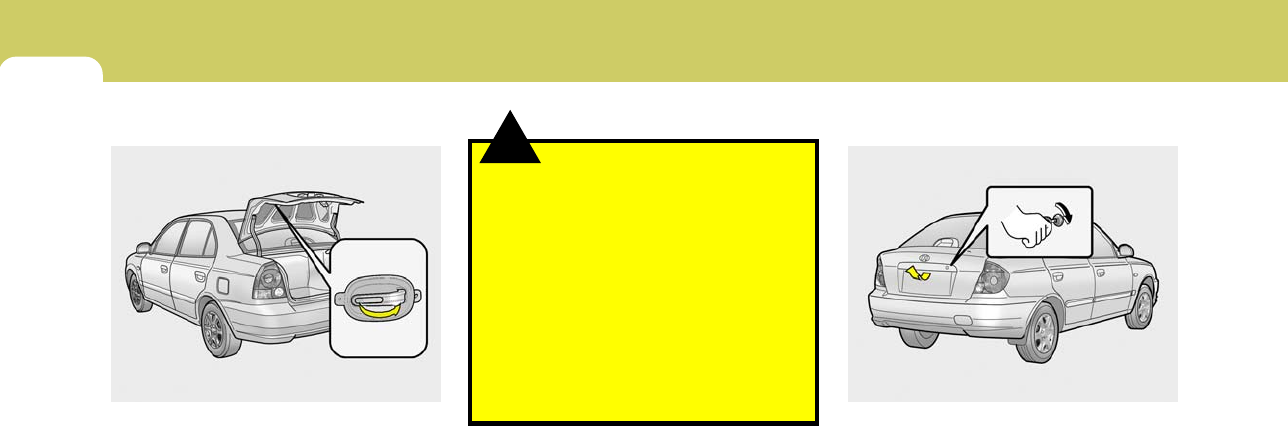

Tailgate (3 DOOR)

To open the tailgate, unlock it by turning the

key clockwise, then pull the outside handle

toward you.

To close, lower the tailgate and shut firmly to

engage the latch. Lock the tailgate by turning the

key counterclockwise.

If the vehicle is equipped with central door

locking, the tailgate can be locked without a

key. Push the central door lock switch toward

the front of the vehicle after closing the tailgate.

If the tailgate is open when the switch is

pushed, the tailgate will be locked when it is

fully closed.

B540B02E-AAT

Trunk Lid Emergency Latch Release

Your vehicle is equipped with a glow-in-the

dark emergency trunk release lever located

inside the trunk. It will glow after the trunk is

closed. When pulled, this lever will release the

trunk latch mechanism and open the trunk.

B540B02A B540F01A

WARNING:

o If a person is locked in the trunk, pull

the emergency trunk release lever on

the driver's side of the inside panel of

the trunk to open the trunk lid.

o HYUNDAI recommends that cars be kept

locked and keys be kept out of the

reach of children, and that parents teach

their children about the dangers of

playing in trunks.

o Parents should teach children about

the emergency trunk release lever in

their vehicle and how to open the trunk

lid if they are accidentally locked in the

trunk.

FEATURES OF YOUR HYUNDAI

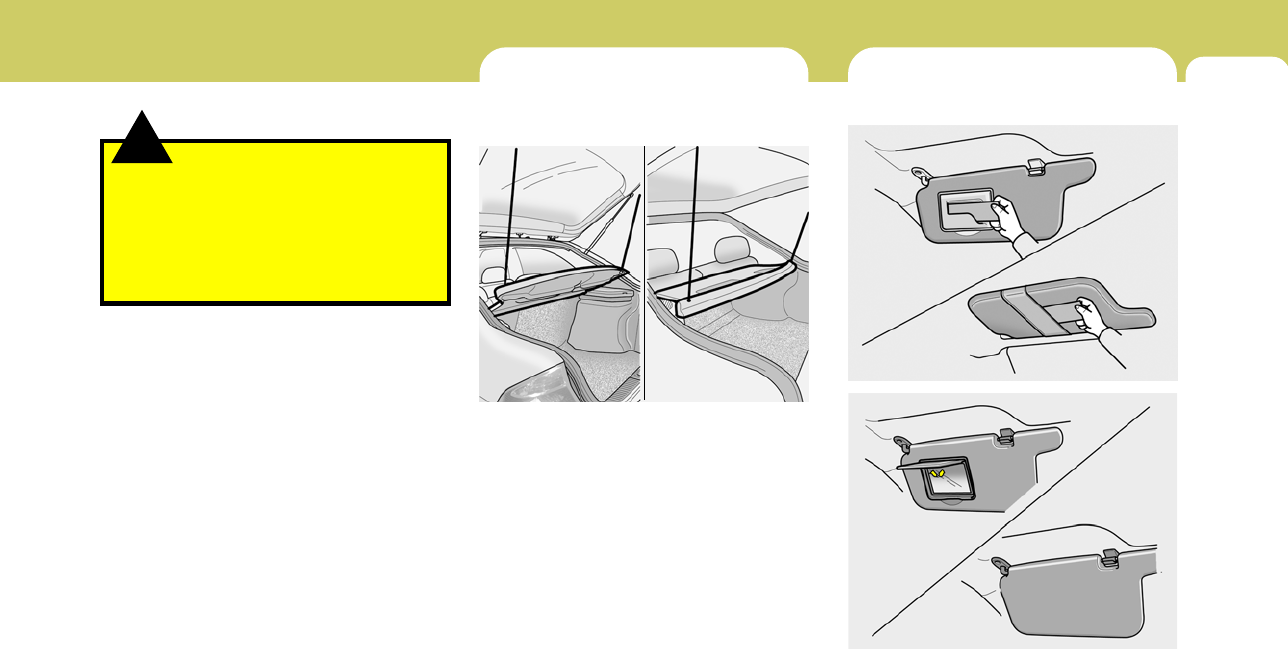

SUN VISORCARGO AREA COVER

HLC2105

B580A01TB-AAT

B580A01A-2

Type A

Type B

B650A01A-GAT

(3 Door Model)

Nothing should be carried on top of the lug-

gage cover. Loose materials could result in

injury to vehicle occupants during sudden

braking.

B650A01A-1 Type A

Type B

!WARNING:

The tailgate should always be kept completely

closed while the vehicle is in motion. If it is left

open or ajar, poisonous exhaust gases may

enter the car which could result in serious

injury or death to the occupants. See addi-

tional warnings concerning exhaust gases on

page 2-2.

1FEATURES OF YOUR HYUNDAI

64 HORN

Your Hyundai is equipped with sun visors to

give the driver and front passenger either frontal

or sideward shade. To reduce glare or to shut

out direct rays of the sun, turn the sun visor

down. A ticket holder is provided on the back

of the sun visor for the driver. Vanity mirrors

are provided on the back of the sunvisor for

the driver and the front passenger (If In-

stalled).

NOTE:

The Supplemental Restraint System (SRS)

label containing useful information can be

found on the front of each sun visor.

WARNING:

Do not place the sun visor in such a manner

that it obscures visibility of the roadway,

traffic or other objects.

B610A01A-AAT

Press the pad on the steering wheel to sound

the horn.

B610B02A

FEATURES OF YOUR HYUNDAI

HEATING AND COOLING CONTROL

B710A01TB-GAT

(If Installed)

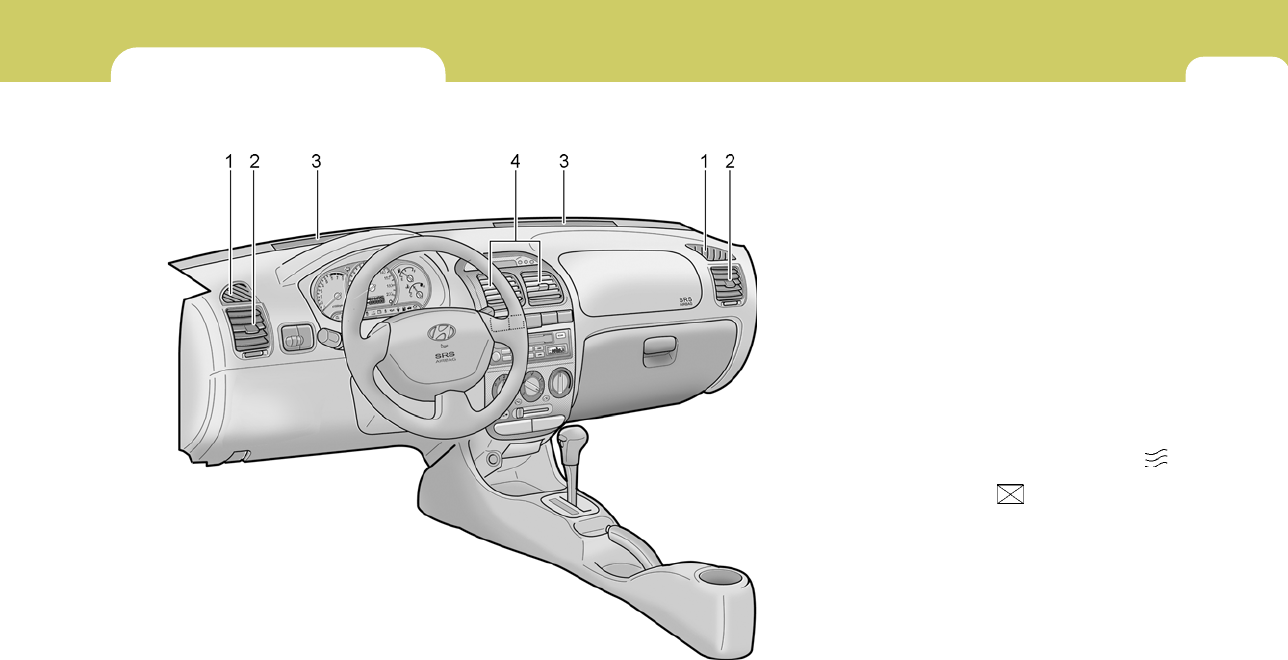

B710A01A-1

1. Side Defrost Nozzle

2. Side Ventilator

3. Windshield Defrost Nozzle

4. Center Ventilator

B710B01S-AAT

CENTER VENTILATOR

The center ventilators are located in the middle

of the dashboard. The direction of air flow from

the vents in the center of the dashboard is

adjustable.

To control the direction of the air flow, move the

knob in the center of the vent up-and-down and

side-to-side.

B710C02HP-AAT

SIDE VENTILATOR

The side ventilators are located on each side of

dashboard. To change the direction of the air

flow, move the knob in the center of the vent up-

and-down and side-to-side. The vents are

opened when the vent knob is moved to " "

position. The vents are closed when the vent

knob is moved to " ". Keep these vents

clear of any obstructions.

1FEATURES OF YOUR HYUNDAI

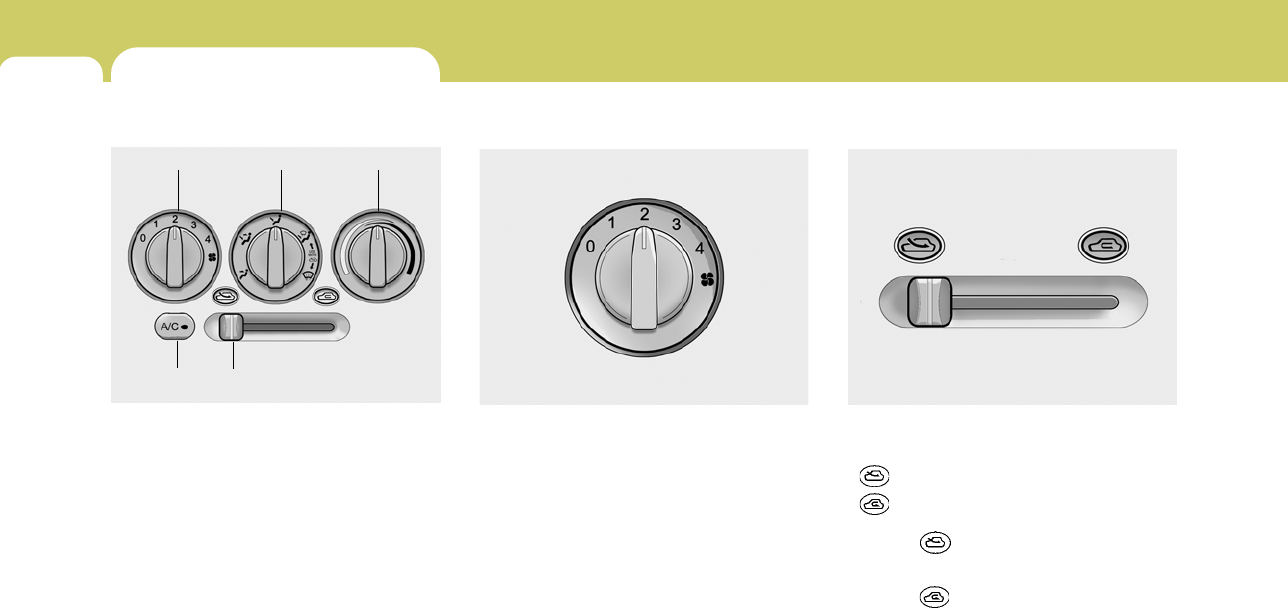

66 HEATING AND VENTILATION

This is used to select fresh outside air or

recirculating inside air.

Fresh

Recirculation

With the mode selected, air enters the

vehicle from outside and is heated or cooled

according to the other functions selected.

With the mode selected, air from within

the passenger compartment is drawn through

the heating system and heated or cooled ac-

cording to the other functions selected.

B670C01A-AAT

AIR INTAKE CONTROL

This model has four controls and one switch

for the heating and cooling system. They are:

1. Fan speed control

2. Air flow control

3. Temperature control

4. Air conditioning switch

5. Air intake control

B670B01A-AAT

Fan Speed Control (Blower Control)

This is used to turn the blower fan on and off and

to select the fan speed.

The blower fan speed, and therefore the volume

of air delivered from the system, may be con-

trolled manually by setting the blower control

between the "1" and "4" position.

B670A02A-AAT

(If Installed)

B670A01A

123

4HLC2085 HLC2087

FEATURES OF YOUR HYUNDAI

NOTE:

It should be noted that prolonged opera-

tion of the heating system in mode will

give rise to misting of the windshield and

side windows and the air within the passen-

ger compartment will become stale. In ad-

dition prolonged use of the air condition-

ing with the mode selected may result

in the air within the passenger compart-

ment becoming excessively dry.

Bi-Level

Air is discharged through the face vents and

the floor vents. This makes it possible to have

cooler air from the dashboard vents and warmer

air from the floor outlets at the same time.

B670D02A-1

B670D01A-1

Face-Level

Selecting the "Face" mode will cause air to be

discharged through the face level vents.

B670D03A-AAT

Air Flow Control

This is used to direct the flow of air. Air can be

directed to the floor, dashboard outlets, or wind-

shield. Five symbols are used to represent Face,

Bi-Level, Floor, Floor-Defrost and Defrost air

position.

HLC2082

1FEATURES OF YOUR HYUNDAI

Defrost-Level

Air is discharged through the windshield de-

froster nozzle, side defroster nozzle, side

ventilator.

If the "Defrost" mode is selected, the air condi-

tioning will be turned on automatically to im-

prove windshield defrosting. And if you want to

turn off the air conditioning, push the A/C

button.

B670D05A-1

Floor-Level

Air is discharged through the floor vents,

windshield defroster nozzle, side defroster

nozzle, side ventilator.

B670D03A-1

Floor-Defrost Level

Air is discharged through the windshield de-

froster nozzle, the floor vents, side defroster

nozzle, side ventilator.

If the "Floor-Defrost" mode is selected, the air

conditioning will be turned on automatically. And

if you want to turn off the air conditioning, push

the A/C button.

BB670D04A-1

FEATURES OF YOUR HYUNDAI

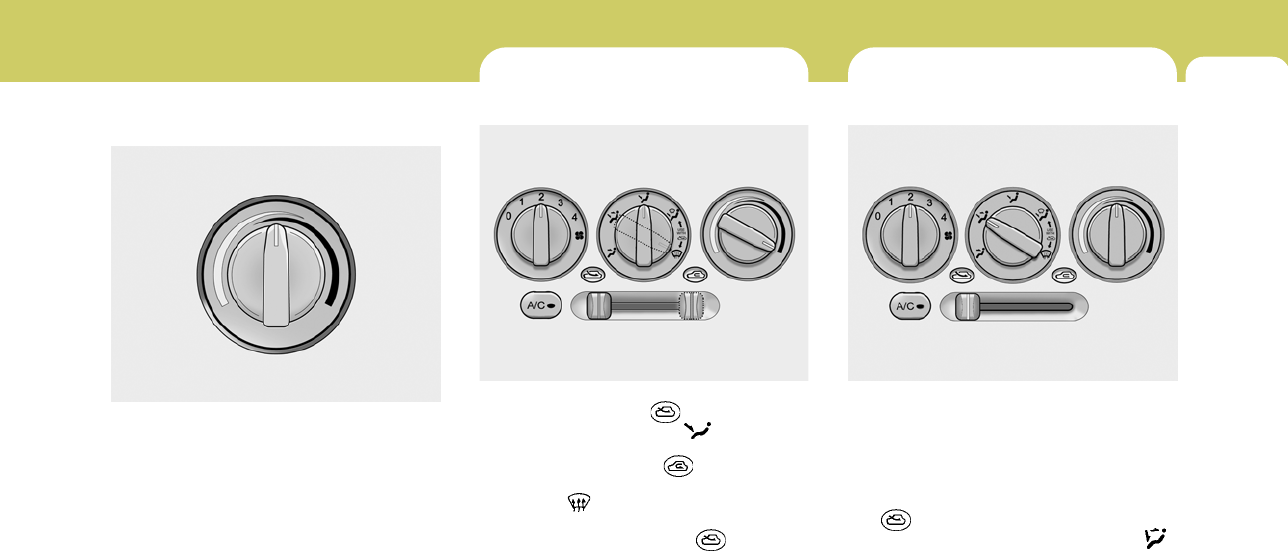

BI-LEVEL HEATINGHEATING CONTROLS

B690A02A-AATB670E02A-AAT

TEMPERATURE CONTROL

Cool Warm

This control is used to adjust the degree of

heating or cooling desired.

HLC2086 For normal heating operation, set the air intake

control to the fresh air ( ) position and the

air flow control to the floor ( ) position.

For faster heating, the air intake control should

be set in the recirculate ( ) position.

If the windows fog up, set the air flow control to

the defrost ( ) position (The air conditioning

will be turned on automatically.) and the air

intake control to the fresh air ( ) position.

For maximum heat, move the temperature con-

trol to "Warm".

B700A01A-AAT

Your Hyundai is equipped with bi-level heating

controls. This makes it possible to have cooler

air from the dashboard vents and warmer air

from the floor outlets at the same time. To use

this feature:

o Set the air intake control to the fresh air

( ) position.

o Set the air flow control at the bi-level ( )

position.

o Set the temperature control between "Cool"

and "Warm".

B690A01A B670B01A

1FEATURES OF YOUR HYUNDAI

70 VENTILATION

B730A01L-AAT

Operation Tips

o To keep dust or unpleasant fumes from

entering the car through the ventilation

system, temporarily set the air intake con-

trol to the position.

Be sure to return the control to the po-

sition when the irritation has passed to keep

fresh air in the vehicle. This will help keep the

driver alert and comfortable.

o Air for the heating/cooling system is drawn in

through the grilles just ahead of the wind-

shield. Care should be taken that these are

not blocked by leaves, snow, ice or other

obstructions.

o To prevent interior fog on the windshield, set

the air intake control to the fresh air ( )

position, fan speed to the desired position,

turn on the air conditioning system, and

adjust temperature control to desired tem-

perature.

B740A01A-AAT

Air Conditioning Switch

(If Installed)

The air conditioning is turned on by pushing

the A/C button on the heating/air conditioning

control panel.

B710A01A-AAT

To operate the ventilation system:

o Set the air intake control at the fresh air

( ) position.

o To direct all intake air to the dashboard

vents, set the airflow control to the face

( ) position.

o Adjust the fan speed control to the desired

speed.

o Set the temperature control between "Cool"

and "Warm".

B710A01A

HLC2090

AIR CONDITIONING SYSTEM

FEATURES OF YOUR HYUNDAI

B740B02A-AAT

AIR CONDITIONING OPERATION

Cooling

To use the air conditioning to cool the interior:

o Turn on the fan control switch (1).

o Turn on the air conditioning switch (4) by

pushing in on the switch.

The air conditioning indicator light should

come on at the same time.

o Set the air intake control (5) to the po-

sition.

o Set the temperature control (3) to "Cool".

("Cool" provides maximum cooling. The tem-

perature may be moderated by moving the

control toward "Warm".)

(1) (2) (3)

(4) (5)

B740D01A-AAT

Operation Tips

o If the interior of the car is hot when you first

get in, open the windows for a few minutes to

expel the hot air.

o When you are using the air conditioning

system, keep all windows closed to keep hot

air out.

o When moving slowly, as in heavy traffic, shift

to a lower gear. This increases engine speed,

which in turn increases the speed of the air

conditioning compressor.

o On steep grades, turn the air conditioner off

to avoid the possibility of the engine over-

heating.

o During winter months or in periods when the

air conditioner is not used regularly, run the

air conditioner once every month for a few

minutes. This will help circulate the lubri-

cants and keep your system in peak operat-

ing condition.

B740C01A-AAT

De-Humidified Heating

For dehumidified heating:

o Turn on the fan control switch (1).

o Turn on the air conditioning switch (4). The

air conditioning indicator light should come

on at the same time.

o Set the air intake control (5) to the fresh air

( ) position.

o Set the air flow control (2) to the face ( )

position.

B740C01A

(1) (2) (3)

(4) (5)

o Adjust the fan control (1) to the desired

speed. For greater cooling, turn the fan

control (1) to one of the higher speeds or

temporarily select the position on the

air intake control (5).

o Adjust the fan control (1) to the desired

speed.

o For more rapid action, set the fan at one of

the higher speeds.

o Adjust the temperature control (3) to provide

the desired amount of warmth.

B740B01A

1FEATURES OF YOUR HYUNDAI

72 DEFROSTING/DEFOGGING

NOTE:

When the A/C is operated continuously on the floor-defrost level ( ) or defrost level ( ), it may cause

fog to form on the exterior windshield. If this occurs, set the air flow control to the face level position

( ) and fan speed control to the low position.

Use the heating/ventilation system to defrost or defog the

windshield:

To remove interior fog on the windshield:

o Set the air intake control to the fresh air ( ) position.

o Set the air flow control to the defrost ( ) position.

(The air conditioning will be turned on automatically.)

o Set the temperature control to the desired position.

o Set the fan speed control between "1" and "4" position.

To remove frost or exterior fog on the windshield:

o Activate the windshield wipers and washer to remove

light frost and moisture.

o Set the air intake control to the fresh ( ) position.

o Set the air flow control to the defrost ( ) position.

(The air conditioning will be turned on automatically.)

o Set the temperature control to warm.

o Set the fan speed control to position "3" or "4".

B720A05A-AAT

B720B01A-1 B720B02A-1

FEATURES OF YOUR HYUNDAI

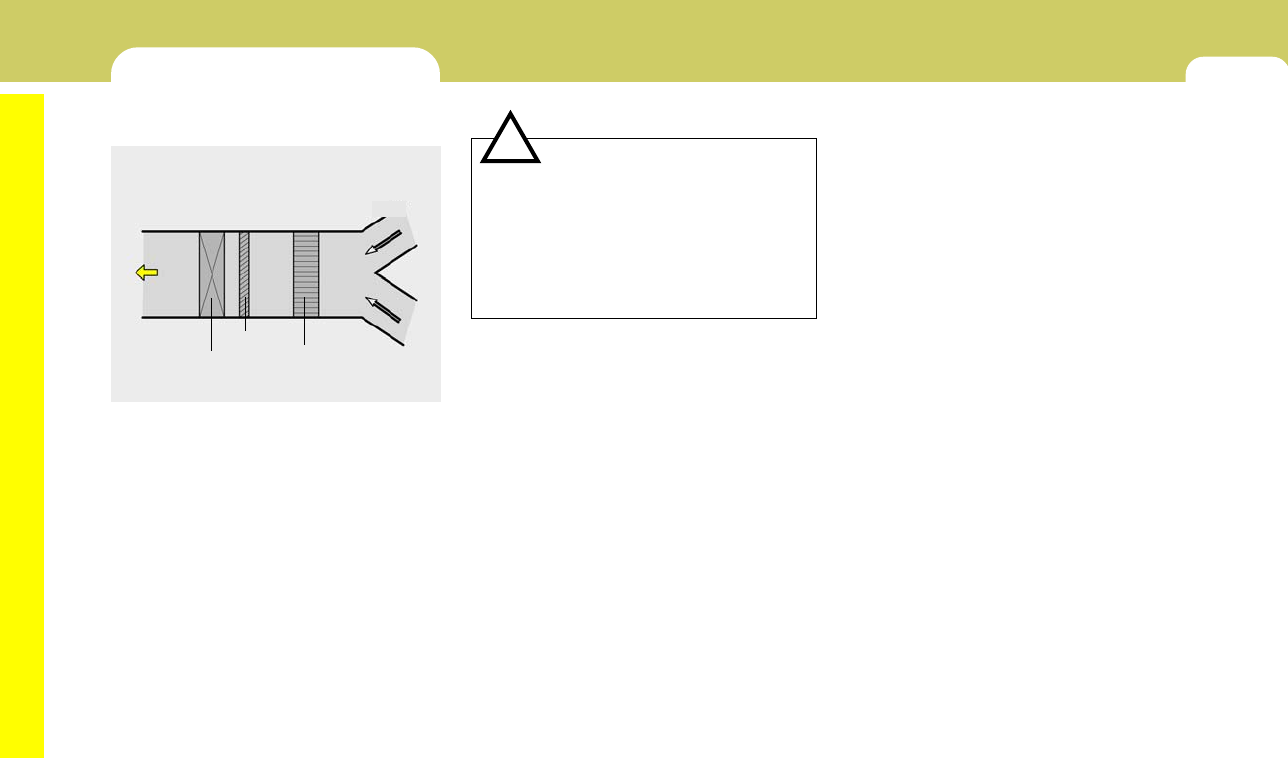

AIR CONDITIONER FILTER

(For Evaporator and Blower unit)

B760A01Y

The air conditioner filter is located in front of the

evaporator unit behind the glove box.

It operates to decrease the amount of pollut-

ants entering the car.

To replace the air conditioner filter, refer to the

page 6-16.

B760A05A-GAT

(If Installed)

Inside of

a vehicle

Evaporator core

Filter Blower

Outside air

CAUTION:

o Replace the filter every 12,000 miles

(20,000 km) or once a year. If the car is

being driven in severe conditions such

as dusty, rough roads, more frequent

air conditioner filter inspections and

changes are required.

o When the air flow rate is decreased, it

must be checked at an authorized dealer.

Inside air

1FEATURES OF YOUR HYUNDAI

74 STEREO SOUND SYSTEM

FM broadcasts are transmitted at high fre-

quencies and do not bend to follow the earth's

surface. Because of this, FM broadcasts gen-

erally begin to fade at short distances from the

station. Also, FM signals are easily affected by

buildings, mountains, or other obstructions.

These can result in certain listening conditions

which might lead you to believe a problem

exists with your radio. The following conditions

are normal and do not indicate radio trouble:

AM broadcasts can be received at greater dis-

tances than FM broadcasts. This is because

AM radio waves are transmitted at low fre-

quencies. These long, low frequency radio

waves can follow the curvature of the earth

rather than travelling straight out into the atmo-

sphere. In addition, they curve around ob-

structions so that they can provide better

signal coverage.

B750A02A-AAT

How Car Audio Works

AM and FM radio signals are broadcast from

transmitter towers located around your city.

They are intercepted by the radio antenna on

your car. This signal is then received by the

radio and sent to your car speakers.

When a strong radio signal has reached your

vehicle, the precise engineering of your audio

system ensures the best possible quality re-

production. However, in some cases the sig-

nal coming to your vehicle may not be strong

and clear. This can be due to factors such as

the distance from the radio station, closeness

of other strong radio stations or the presence

of buildings, bridges or other large obstruc-

tions in the area.

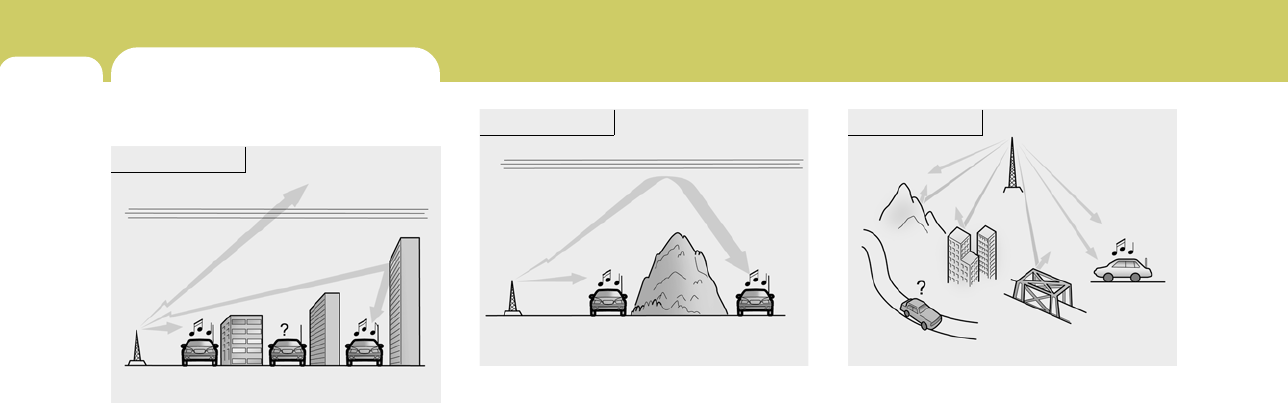

Ionosphere

B750A02L

Mountains

Buildings

Obstructed area

Unobstructed

area

FM radio station

B750A03L

Ionosphere

FM reception

B750A01L

Iron bridges

AM reception

FEATURES OF YOUR HYUNDAI

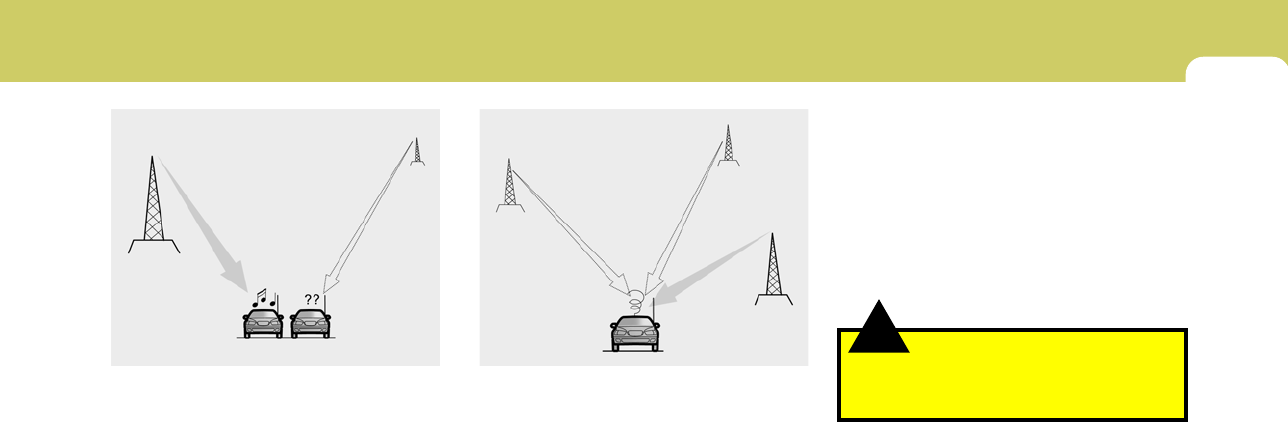

o Station Swapping - As an FM signal weak-

ens, another more powerful signal near the

same frequency may begin to play. This is

because your radio is designed to lock onto

the clearest signal. If this occurs, select

another station with a stronger signal.

o Multi-Path Cancellation - Radio signals be-

ing received from several directions can

cause distortion or fluttering. This can be

caused by a direct and reflected signal

from the same station, or by signals from

two stations with close frequencies. If this

occurs, select another station until the con-

dition has passed.

B750B03Y-AAT

Using a cellular phone or a two-way

radio

When a cellular phone is used inside the vehi-

cle, noise may be produced from the audio

equipment. This does not mean that something

is wrong with the audio equipment. In such a

case, use the cellular phone at a place as far as

possible from the audio equipment.

o Fading - As your car moves away from the

radio station, the signal will weaken and

sound will begin to fade. When this occurs,

we suggest that you select another stronger

station.

o Flutter/Static - Weak FM signals or large

obstructions between the transmitter and your

radio can disturb the signal causing static or

fluttering noises to occur. Reducing the tre-

ble level may lessen this effect until the

disturbance clears.

B750A04L B750A05L WARNING:

Don't use a cellular phone when you are

driving. Stop at a safe place to use a cellular

phone.

1FEATURES OF YOUR HYUNDAI

76 AUDIO SYSTEM

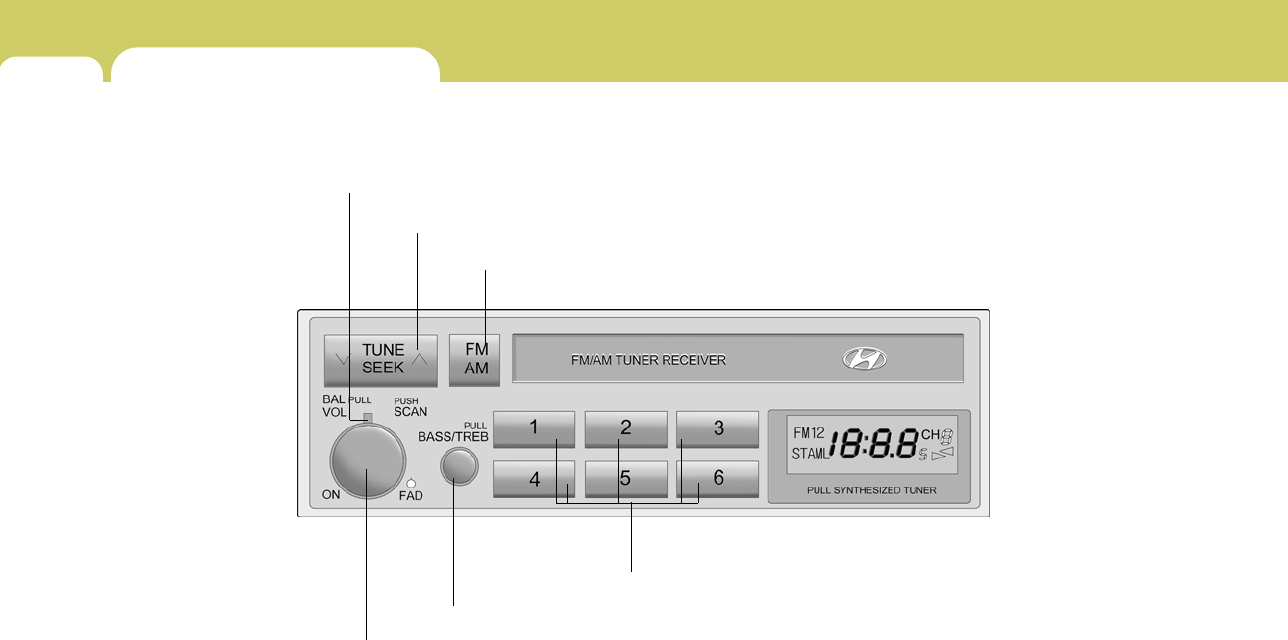

1. POWER ON-OFF, BALANCE, VOLUME, SCAN Control Knob

H210A01O-AAT

STEREO RADIO OPERATION (H215) (If Installed)

H210A01O

2. FADER Control Knob

3. BASS/TREBLE Control Knob

4. BAND Selector

5. TUNE/SEEK Select Button

6. PRESET Station Select Button

FEATURES OF YOUR HYUNDAI

2. FAD (Fader Control) Knob

Turn the control knob counterclockwise to em-

phasize front speaker sound (rear speaker

sound will be attenuated). When the control

knob is turned clockwise, rear speaker sound

will be emphasized (front speaker sound will

be attenuated).

3. BASS Control Knob

Press to pop the knob out and turn to the left or

right for the desired bass tone.

TREBLE Control Knob.

Pull the bass control knob further out. Turn to

the left or right for the desired treble tone.

4. BAND Selector

Pressing the button changes the AM, FM1

and FM2 bands. The mode selected is dis-

played on LCD.

5. TUNE (Manual) Select Button

Press the ( ) side or ( ) side to increase or to

decrease the frequency. With the button held

down for 1 sec. or more, the stop signal (broad-

casting radio wave) is ignored and channel

selection continues.

SEEK Operation

(Automatic Channel Selection)

Press the TUNE select button for 1 sec. or

more. When the ( ) side is pressed, the unit will

automatically tune to the next higher frequency

and when the ( ) side is pressed, it will automa-

tically tune to the next lower frequency.

6. PRESET STATION SELECT Button

Six (6) stations for AM, FM1 and FM2 respec-

tively can be preset in the electronic memory

circuit on this unit.

HOW TO PRESET STATIONS

Six AM and twelve FM stations may be pro-

grammed into the memory of the radio. Then, by

simply pressing the band select button and/or

one of the six station select buttons, you may

recall any of these stations instantly. To pro-

gram the stations, follow these steps:

o Press band selector to set the band for AM,

FM1, and FM2.

o Select the desired station to be stored by

seek, scan or manual tuning.

o Determine the preset station select button

you wish to use to access that station.

H210B04O-AAT

1. POWER ON-OFF/VOLUME Control

Knob

The radio unit may be operated when the igni-

tion key is in the "ACC" or "ON" position. Rotate

the knob clockwise to switch the radio unit on

and to increase the volume.

The LCD shows the radio frequency in the radio

mode. Turn the knob counterclockwise to re-

duce the volume and to switch the radio unit off.

BAL (Balance Control) Knob

Pull and turn the control knob clockwise to

emphasize right speaker sound (left speaker

sound will be attenuated). When the control

knob is turned counterclockwise, left speaker

sound will be emphasized (right speaker sound

will be attenuated).

After adjusting the balance, push the knob

again to use the other function.

SCAN Knob

When the scan knob is pressed, the frequency

will increase and the receivable stations will be

tuned in one after another, receiving each sta-

tion for 5 seconds. To stop scanning, press the

scan knob again.

1FEATURES OF YOUR HYUNDAI

o Press the station select button for more

than two seconds. A select button indicator

will show in the display indicating which

select button you have depressed. You

should then release the button, and pro-

ceed to program the next desired station.

A total of 18 stations can be programmed

by selecting one AM and two FM stations

per button.

o When completed, any preset station may

be recalled by selecting AM, FM1 or FM2

band and the appropriate station button.

!CAUTION:

o Do not place beverages close to the

audio system. The audio system mecha-

nism may be damaged if you spill them.

o Do not impact on the audio system, or

the audio system mechanism could be

damaged.

FEATURES OF YOUR HYUNDAI

H240A01O-GAT

STEREO RADIO OPERATION (H245) (If Installed)

H240A01O

1. POWER ON/OFF, VOLUME Control Knob

5. BAND Selector

4. TUNE/SEEK Select Button 7. SCAN Button

6. PRESET Buttons 2. BASS/BALANCE Control Knob (BASS/BAL)

3. TREBLE/FADER Control Knob (TREB/FAD)

1FEATURES OF YOUR HYUNDAI

3. TREB (Treble Control) Knob

Press to pop the knob out and turn to the left or

right for the desired treble tone.

FAD (Fader Control) Knob

Pull the treble control knob further out.

Turn the control knob counterclockwise to em-

phasize front speaker sound (rear speaker

sound will be attenuated).

When the control knob is turned clockwise,

rear speaker sound will be emphasized (front

speaker sound will be attenuated).

4. TUNE (Manual) Select Button

Press the ( ) side or ( ) side to increase or to

decrease the frequency. Press either button and

hold down to continuously scroll. Release but-

ton once the desired station is reached.

SEEK Operation

(Automatic Channel Selection)

Press the TUNE select button 0.5 sec or more.

Releasing it will automatically tune to the next

available station with a beep sound.

When the ( ) side is pressed longer than 0.5

second, releasing will automatically tune to the

next higher frequency and when the ( ) side

is pressed longer than 0.5 second, releasing

will automatically tune to the next lower fre-

quency.

5. BAND Selector

Pressing the button changes the AM, FM1

and FM2 bands. The mode selected is dis-

played on LCD.

6. PRESET STATION SELECT Button

Six (6) stations for AM, FM1 and FM2 respec-

tively can be preset in the electronic memory

circuit on this unit.

HOW TO PRESET STATIONS

Six AM and twelve FM stations may be pro-

grammed into the memory of the radio. Then, by

simply pressing the band select button and/or

one of the six station select buttons, you may

recall any of these stations instantly. To pro-

gram the stations, follow these steps:

H240B04O-AAT

1. POWER ON-OFF Control Knob

The radio unit may be operated when the igni-

tion key is in the "ACC" or "ON" position. Press

the knob to switch the power on. The LCD

shows the radio frequency in the radio mode or

the tape direction indicator in the tape mode. To

switch the power off, press the knob again.

VOLUME Control

Rotate the knob clockwise to increase the vol-

ume and turn the knob counterclockwise to

reduce the volume.

2. BASS Control Knob

Press the control knob to pop knob out and

turn to the left or right for the desired bass

tone.

BAL (Balance Control) Knob

Pull the bass control knob further out.Turn the

control knob clockwise to emphasize right

speaker sound (left speaker sound will be

attenuated).

When the control knob is turned counterclock-

wise, left speaker sound will be emphasized

(right speaker sound will be attenuated).

FM/AM

FEATURES OF YOUR HYUNDAI

o Press band selector to set the band for AM,

FM1, and FM2.

o Select the desired station to be stored by

seek or manual tuning.

o Determine the preset station select button

you wish to use to access that station.

o Press the station select button for more

than two seconds. A select button indicator

will show in the display indicating which

select button you have depressed. The

frequency display will flash after it has been

stored into the memory with a beep sound.

You should then release the button, and

proceed to program the next desired sta-

tion. A total of 18 stations can be pro-

grammed by selecting one AM and two FM

stations per button.

o When completed, any preset station may

be recalled by selecting AM, FM1 or FM2

band and the appropriate station button.

7. SCAN Button

When the scan button is pressed, the frequency

will increase and the receivable stations will be

tuned in one after another, receiving each sta-

tion for 5 seconds. To stop scanning, press the

scan button again.

!CAUTION:

o Do not place beverages close to the

audio system. The audio system mecha-

nism may be damaged if you spill them.

o Do not impact on the audio system, or

the audio system mechanism could be

damaged.

1FEATURES OF YOUR HYUNDAI

H240C01O-GAT

CASSETTE TAPE PLAYER OPERATION (H245) (If Installed)

H240A01O

3. TAPE PROGRAM Button

2. AUTO MUSIC SELECT Button

4. EJECT Button

1. FF/REW Button

6. TAPE SLOT

5. DOLBY SELECT Button

FEATURES OF YOUR HYUNDAI

H240A03O-AAT

1. FF/REW Button

o The FF (fast forward tape winding) starts

when the button is pressed during PLAY

or REW.

o PLAY starts when the button is press-

ed again during FF.

o REW (rewinding) starts when the button

is pressed during PLAY or FF.

o PLAY starts when the button is press-

ed again during the REW.

2. AUTO MUSIC SELECT Button

Press the button to find the starting point of each

song in a prerecorded music tape.

The quiet space between songs (must have at

least a 4 sec. gap) can be identified by the

AUTO MUSIC SELECT button.

o Pressing the button will play the beginn-

ing of the next music segment.

o Pressing the button will start replay at

the beginning of the music just listened to.

3. TAPE PROGRAM Button

This allows you to play the reverse side of the

tape by merely pressing the program button.

An arrow will appear in the display to show

tape direction.

NOTE:

When tape operation is abnormal or ER8 fault

code is displayed, press the eject button more

than 5 seconds to reset the deck function.

4. EJECT Button

o When the EJECT button is pressed with a

cassette loaded, the cassette will eject.

o When the EJECT button is pressed during

FF/REW, the cassette will eject.

5. DOLBY SELECT Button

If you get background noise during PLAY, you

can reduce this considerably by merely press-

ing DOLBY SELECT button.

If you want to release, press the button again.

!CAUTION:

o Do not insert anything like coins into

the player slot as damage to the unit

may occur.

o Do not place beverages close to the

audio system. The playback mecha-

nism may be damaged if you spill them.

o Do not impact on the audio system, or

the playback mechanism could be dam-

aged.

1FEATURES OF YOUR HYUNDAI

H260A01O-AAT

STEREO RADIO OPERATION (H265) (If Installed)

1. POWER ON-OFF/VOLUME/BALANCE Control Knob

H260A01A

2. FADER Control Knob

3. BASS/TREBLE Control Knob

4. SCAN Button

5. TUNE/SEEK Select Button

6. BAND Selector

7. PRESET Button

FEATURES OF YOUR HYUNDAI

3. BASS Control Knob

Press to pop the knob out and turn to the left or

right for the desired bass tone.

TREB (Treble Control) Knob

Pull the bass control knob further out. Turn to

the left or right for the desired treble tone.

4. SCAN Button

When the scan button is pressed, the frequency

will increase and the receivable stations will be

tuned in one after another, receiving each sta-

tion for 5 seconds. To stop scanning, press the

scan button again.

5. TUNE (Manual) Select Button

Press the ( ) side or ( ) side to increase or to

decrease the frequency. Press either button and

hold down to continuously scroll. Release but-

ton once the desired station is reached.

SEEK Operation

(Automatic Channel Selection)

Press the TUNE select button for 0.5 sec or

more. Releasing it will automatically tune to the

next available station with a beep sound.

When the ( ) side is pressed longer than 0.5

second, releasing will automatically tune to the

next higher frequency and when the ( ) side is

pressed longer than 0.5 second, releasing will

automatically tune to the next lower frequency.

6. BAND Selector

Pressing the button changes the AM, FM1

and FM2 bands. The mode selected is dis-

played on LCD.

7. PRESET STATION SELECT Button

Six (6) stations for AM, FM1 and FM2 respec-

tively can be preset in the electronic memory

circuit on this unit.

H260B05O-AAT

1. POWER ON-OFF Control Knob

The radio unit may be operated when the igni-

tion key is in the "ACC" or "ON" position. Press

the knob to switch the power on. The LCD

shows the radio frequency in the radio mode or

the CD track indicator in the CD mode. To

switch the power off, press the knob again.

VOLUME Control

Rotate the knob clockwise to increase the vol-

ume and turn the knob counterclockwise to

reduce the volume.

BALANCE Control

Pull and turn the control knob clockwise to

emphasize right speaker sound (left speaker

sound will be attenuated). When the control

knob is turned counterclockwise, left speaker

sound will be emphasized (right speaker sound

will be attenuated).

2. FAD (Fader Control) Knob

Turn the control knob counterclockwise to em-

phasize front speaker sound (rear speaker

sound will be attenuated). When the control

knob is turned clockwise, rear speaker sound

will be emphasized (front speaker sound will

be attenuated).

FM/AM

1FEATURES OF YOUR HYUNDAI

HOW TO PRESET STATIONS

Six AM and twelve FM stations may be pro-

grammed into the memory of the radio. Then, by

simply pressing the band select button and/or

one of the six station select buttons, you may

recall any of these stations instantly. To pro-

gram the stations, follow these steps:

o Press band selector to set the band for AM,

FM1, or FM2.

o Select the desired station to be stored by

seek, scan or manual tuning.

o Determine the preset station select button

you wish to use to access that station.

o Press the station select button for more than

two seconds. A select button indicator will

show in the display indicating which select

button you have depressed. The frequency

display will flash after it has been stored into

the memory.

You should then release the button, and

proceed to program the next desired station.

A total of 18 stations can be programmed by

selecting one AM and two FM stations per

button.

o When completed, any preset station may be

recalled by selecting AM, FM1 or FM2

band and the appropriate station button.

!CAUTION:

o Do not place beverages close to the

audio system. The audio system mecha-

nism may be damaged if you spill them.

o Do not impact on the audio system, or

the audio system mechanism could be

damaged.

FEATURES OF YOUR HYUNDAI

H260B01O-AAT

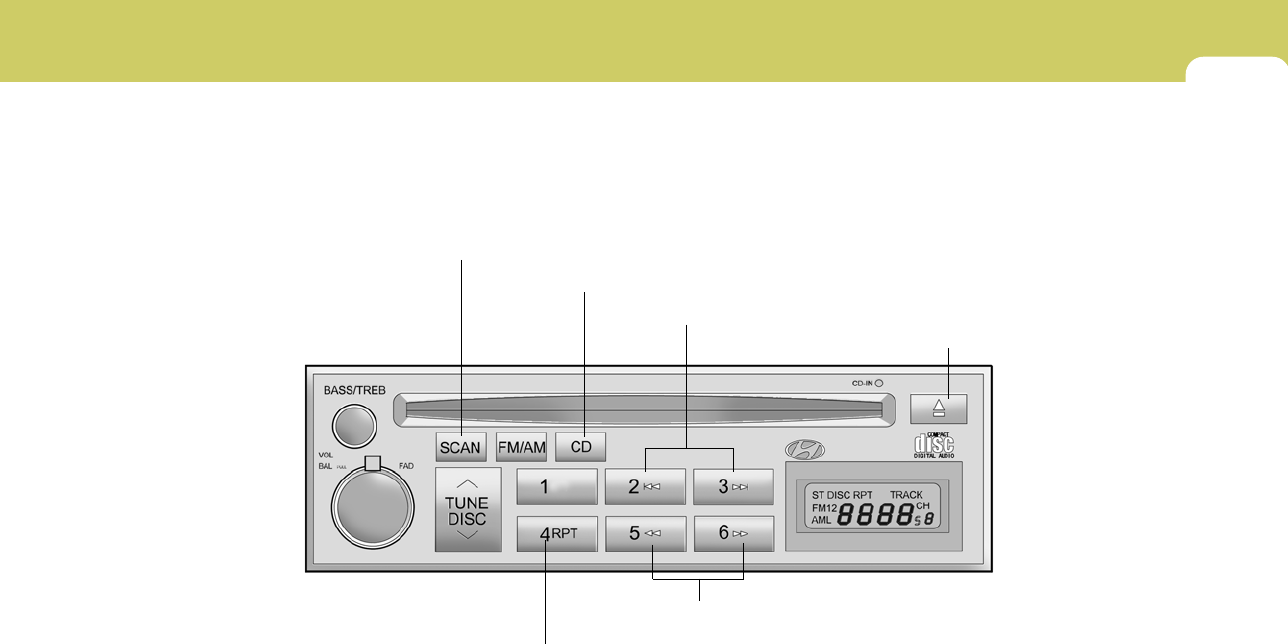

COMPACT DISC PLAYER OPERATION (H265) (If Installed)

1. Playing CD

H260A01A

2. FF/REW Button

3. TRACK UP/DOWN

4. SCAN Button

5. REPEAT Button

6. EJECT Button

1FEATURES OF YOUR HYUNDAI

B260D04O-AAT

1. Playing CD

o Insert the CD with the label facing upward.

o Insert the CD to start CD playback, during

radio operation.

o When a disc is in the CD deck, if you press

the CD button, the CD player will begin

playing even if the radio is being used.

o The CD player can be used when the ignition

switch is in either the "ON" or "ACC" posi-

tion.

2. FF/REW ( / )

If you want to fast forward or reverse through

the compact disc track, push and hold the FF

( ) or REW ( ) button.

When you release the button, the compact disc

player will resume playing.

3. TRACK UP/DOWN

o The desired track on the disc currently being

played can be selected using the track num-

ber.

o Press once to skip forward to the beginn-

ing of the next track. Press once to skip

back to the beginning of the track.

4. SCAN Button

o Press the SCAN button to playback the first

10 seconds of each track.

o Press the SCAN button again within 10 sec.

when you have reached the desired track.

5. REPEAT Button

o To repeat the track you are currently listen-

ing to, press the RPT button. To cancel,

press again.

o If you do not release RPT operation when

the track ends, it will automatically be re-

played.

This process will be continued until you push

the button again.

6. EJECT Button

When the EJECT button is pressed with a

CD loaded, the CD will eject.

NOTE:

o If the CD does not operate properly or

if the ER2 fault code is displayed, use

one of two methods to reset the CD

deck function.

- Remove the audio fuse for 5 minutes.

Then, reinstall the audio fuse.

- Diconnect the negative terminal of

the battery and wait 5 minutes. Then,

reconnect the negative battery termi-

nal.

o To assure proper operation of the unit,

keep the vehicle interior temperature

within a normal range by using the

vehicle's air conditioning or heating sys-

tem.

o When replacing the fuse, replace it with

a fuse having the correct capacity.

o The preset station frequencies are all

erased when the car battery is discon-

nected. Therefore, all data will have to be

set again if this should occur.

o Do not add any oil to the rotating parts.

Keep magnets, screwdrivers and other

metallic objects away from the tape

mechanism and head.

o This equipment is designed to be used

only in a 12 volt DC battery system with

negative ground.

FEATURES OF YOUR HYUNDAI

o This unit is made of precision parts. Do

not attempt to disassemble or adjust any

parts.

o When driving your vehicle, be sure to

keep the volume of the unit set low enough

to allow you to hear sounds coming

from the outside.

o Do not expose this equipment (includ-

ing the speakers) to water or excessive

moisture.

CAUTION:

o Do not insert warped or poor quality

discs into the CD player as damage to

the unit may occur.

o Do not insert anything like coins into

the player slot as damage to the unit

may occur.

o Do not place beverages close to the

audio system. The playback mecha-

nism may be damaged if you spill them.

o Do not impact on the audio system, or

the playback mechanism could be dam-

aged.

o Driving on the off-roads or other vibra-

tions may skip your compact disc.

Do not use the audio system on off-

roads as the discs could be scratched

and damaged.

o Do not grip or pull out the disc with

your hand while the disc is being pulled

into the unit by the self loading mecha-

nism. These can cause poor disc

scratching to occur or trouble in the

compact disc player.

o Avoid using CD-Recordable or CD-

Rewritable as the player could not be

operated in recording way of the CD

maker. When using the compact disc

player, genuine CDs are recommended.

CAUTION:

1FEATURES OF YOUR HYUNDAI

B890A01A-AAT

AUDIO FAULT CODE

If you see any error indication in the display while using the system in CD or Tape mode, find the cause in the chart below. If you cannot clear the

error indication, take the car to your Hyundai dealer.

INDICATION CAUSE SOLUTION

Er2

Er3

Er6

Er8

CD DECK MECHANICAL ERROR

(EJECT ERROR, LOADING ERROR)

FOCUS ERROR

DATA READ ERROR

DISC ERROR

TAPE DECK ERROR

TAPE EJECT ERROR

After resetting the audio system, push the eject button.

If disc is not ejected, consult your Hyundai dealer.

Make sure the disc is not scratched or damaged.

Press the eject button and pull out the disc. Then insert a normal CD disc.

Check if the disc is inserted correctly in the CD player. Make sure the disc

is not scratched or damaged.

After resetting the audio system, push the eject button.

If tape does not eject, consult your Hyundai dealer.

FEATURES OF YOUR HYUNDAI

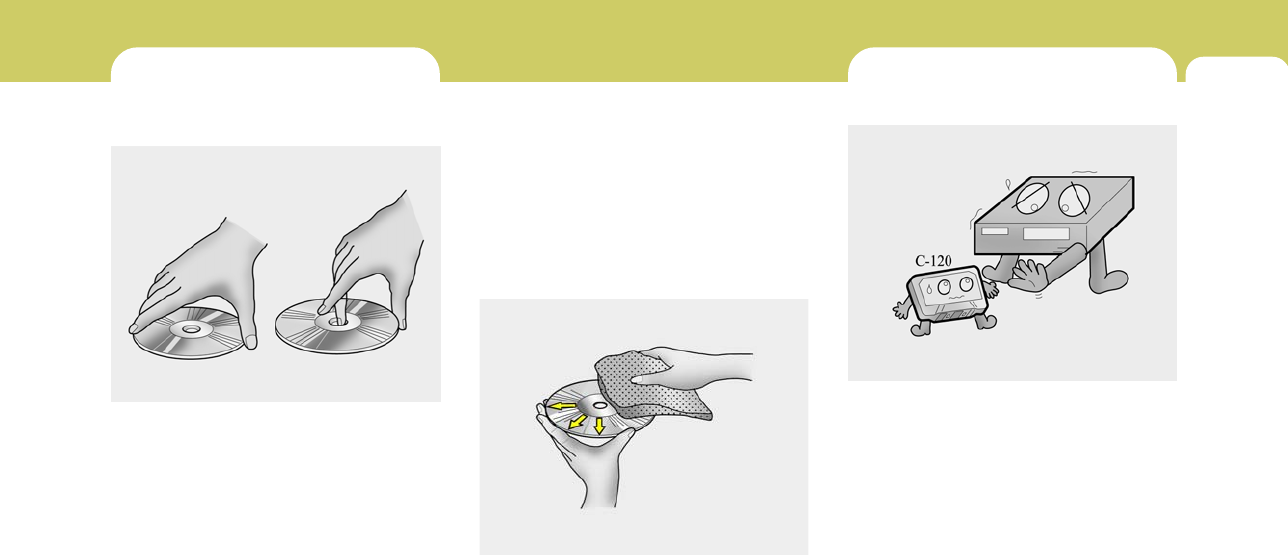

CARE OF CASSETTE TAPESCARE OF DISC

B850A02F-AAT

Proper Handling

Handle your disc as shown. Do not drop the

disc. Hold the disc so you will not leave

fingerprints on the surface. If the surface is

scratched, it may cause the pickup to skip

signal tracks. Do not affix tape, paper, or

gummed labels on the disc. Do not write on the

disc.

Damaged Disc

Do not attempt to play damaged, warped or

cracked discs. It could severely damage the

playback mechanism.

Storage

When not in use, place your discs in their

individual case and store them in a cool place

away from the sun, heat, and dust.

Do not grip or pull out the disc with your hand

while the disc is being pulled into the unit by the

Self Loading mechanism.

Keep Your Discs Clean

Fingerprints, dust, or soil on the surface could

cause the pickup to skip signal tracks. Wipe

the surface clean with a clean soft cloth. If the

surface is heavily soiled, dampen a clean soft

cloth in a solution of mild neutral detergent to

wipe it clean. See drawing.

B850A01L

B850A02L

B860A01A-AAT

B860A01L

Proper care of your cassette tapes will extend

the tape life and increase your listening enjoy-

ment. Always protect your tapes and cassette

cases from direct sunlight, severely cold and

dusty conditions. When not in use, cassettes

should always be stored in the protective cas-

sette case in which they were originally sup-

plied. When the vehicle is very hot or cold, allow

the interior temperature to become more com-

fortable before listening to your cassettes.

1FEATURES OF YOUR HYUNDAI

o Keep all magnetized objects, such as elec-

tric motors, speakers or transformers away

from your cassette tapes and tape player

unit.

o Store cassettes in a cool, dry place with the

open side facing down to prevent dust from

settling in the cassette body.

o Avoid repeated fast reverse usage to re-

play one given tune or tape section. This

can cause poor tape winding to occur, and

eventually cause excessive internal drag

and poor audio quality in the cassette. If

this occurs, it can sometimes be corrected

by fast winding the tape from end to end

several times. If this does not correct the

problem, do not continue to use the tape in

your vehicle.

Head

Cotton

applicator

HLC216

B860A02L

o Never leave a cassette inserted in the

player when not being played. This could

damage the tape player unit and the cas-

sette tape.

o We strongly recommend against the use of

tapes longer than C-60 (60 minutes total).

Tapes such as C-120 or C-180 are very thin

and do not perform as well in the automotive

environment.

o Be sure that the cassette label is not loose

or peeling off or tape ejection may be

difficult.

o Never touch or soil the actual audio tape

surfaces.

o The playback head, capstan and pinch

rollers will develop a coating of tape residue

that can result in deterioration of sound

quality, such as a wavering sound. They

should be cleaned monthly using a com-

mercially available head cleaning tape or

special solution available from audio spe-

cialty shops. Follow the supplier's direc-

tions carefully and never oil any part of the

tape player unit.

o Always be sure that the tape is tightly

wound on its reel before inserting in the

player. Rotate a pencil in the drive sprock-

ets to wind up any slack.

FEATURES OF YOUR HYUNDAI

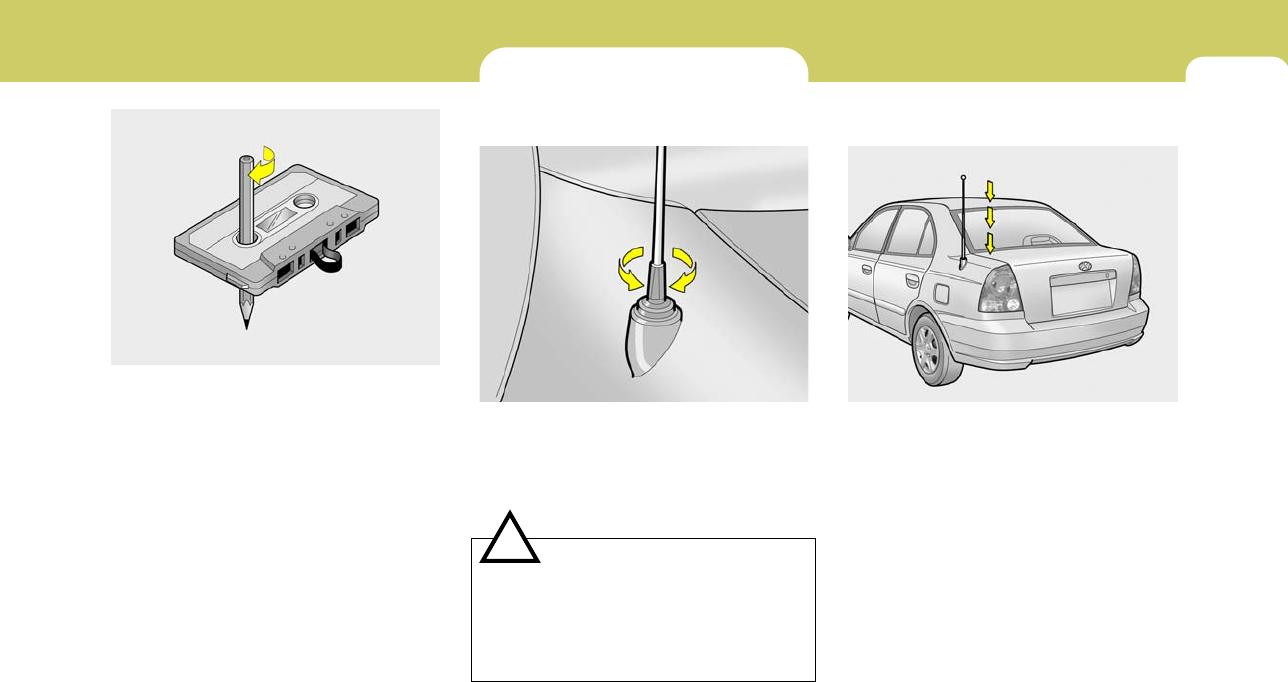

ANTENNA

B870A01A-AAT

Fixed Rod Antenna

Your car uses a fixed rod antenna to receive

both AM and FM broadcast signals.

This antenna is a removable type. To remove

the antenna, turn it counterclockwise. To install

the antenna, turn it clockwise.

B870B01Y-AAT

Power Antenna (If Installed)

The antenna will automatically be extended

when the radio power switch is turned on while

the ignition key is in either the "ON" or "ACC"

position. The antenna will automatically be re-

tracted and stored when either the radio power

switch is turned off or the ignition key is set to

the "LOCK" position.

HLC2123

B870A01A

NOTE:

Look at a tape before you insert it. If the tape

is loose, tighten it by turning one of the

hubs with a pencil or your finger. If the label

is peeling off, do not put it in the player. It

may cause the tape to jam in the drive

mechanism when you try to eject it.

Do not leave tape sitting where they are

exposed to high temperatures or, high hu-

midity, such as on top of the dashboard or

in the player. If a tape is excessively hot or

cold, let it reach a moderate temperature

before putting it in the player.

B860A03L

CAUTION:

o Be sure to remove the antenna before

washing the car in an automatic car wash

or it may be damaged.

o When reinstalling your antenna, it is im-

portant that it is fully tightened to ensure

proper reception.

1FEATURES OF YOUR HYUNDAI

NOTE:

o Before turning on the radio, make sure

that no one is near the antenna.

o Before entering an automatic car wash or

a place with a low height clearance, be

sure that the antenna is retracted and

stored.

o If the antenna is dirty, be sure to clean it

in order to avoid an operation malfunc-

tion.

Before Starting the Engine ............................................ 2-3

Key Positions ................................................................ 2-3

Starting .......................................................................... 2-4

Operating the Manual Transaxle ................................... 2-5

Automatic Transaxle ..................................................... 2-7

Good Braking Practices .............................................. 2-10

Anti-Lock Brake System ............................................. 2-11

Driving for Economy ................................................... 2-12

Winter Driving ............................................................. 2-13

Trailer Towing ............................................................. 2-16

Vehicle Load Limit ....................................................... 2-16

DRIVING YOUR HYUNDAI

2DRIVING YOUR HYUNDAI

!WARNING: ENGINE EXHAUST CAN BE DANGEROUS!

C010A03A-AAT

Engine exhaust fumes can be extremely dangerous. If, at any time, you smell exhaust fumes inside the vehicle, open the windows immediately.

o Do not inhale exhaust fumes.

Exhaust fumes contain carbon monoxide, a colorless, odorless gas that can cause unconsciousness and death by asphyxiation.

o Be sure the exhaust system does not leak.

The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If you hear a change

in the sound of the exhaust or if you drive over something that strikes the underneath side of the car, have the exhaust system checked

as soon as possible by your Hyundai dealer.

o Do not run the engine in an enclosed area.

Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Never run the engine in your garage any

longer than it takes to start the engine and back the car out.

o Avoid idling the engine for prolonged periods with people inside the car.

If it is necessary to idle the engine for a prolonged period with people inside the car, be sure to do so only in an open area with the air intake

set at "Fresh" and fan operating at one of the higher speeds so fresh air is drawn into the interior.

If you must drive with the trunk lid/ tail gate open because you are carrying objects that make this necessary:

1. Close all windows.

2. Open side vents.

3. Set the air intake control at "Fresh", the air flow control at "Floor" or "Face" and the fan at one of the higher speeds.

To assure proper operation of the ventilation system, be sure the ventilation air intakes located just in front of the windshield are kept clear

of snow, ice, leaves or other obstructions.

!PROPOSITION 65 WARNING:

Engine exhaust and a wide variety of automobile components and parts, including components found in the interior furnishings

in a vehicle, contain or emit chemicals known to the State of California to cause cancer and birth defects and reproductive harm.

In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm.

DRIVING YOUR HYUNDAI

TO START THE ENGINEBEFORE STARTING THE ENGINE

C020A01A-AAT

Before you start the engine, you should al-

ways:

1. Look around the vehicle to be sure there

are no flat tires, puddles of oil or water or

other indications of possible trouble.

2. After entering the car, check to be sure the

parking brake is engaged.

3. Check that all windows, and lights are clean.

4. Check that the interior and exterior mirrors

are clean and in position.

5. Check your seat, seatback and headrest to

be sure they are in their proper positions.

6. Lock all the doors.

7. Fasten your seat belt and be sure that all

other occupants have fastened theirs.

8. Turn off all lights and accessories that are

not needed.

9. When you turn the ignition switch to "ON",

check that all appropriate warning lights are

operating and that you have sufficient fuel.

10.Check the operation of warning lights and all

bulbs when key is in the "ON" position.

C030A01A-AAT

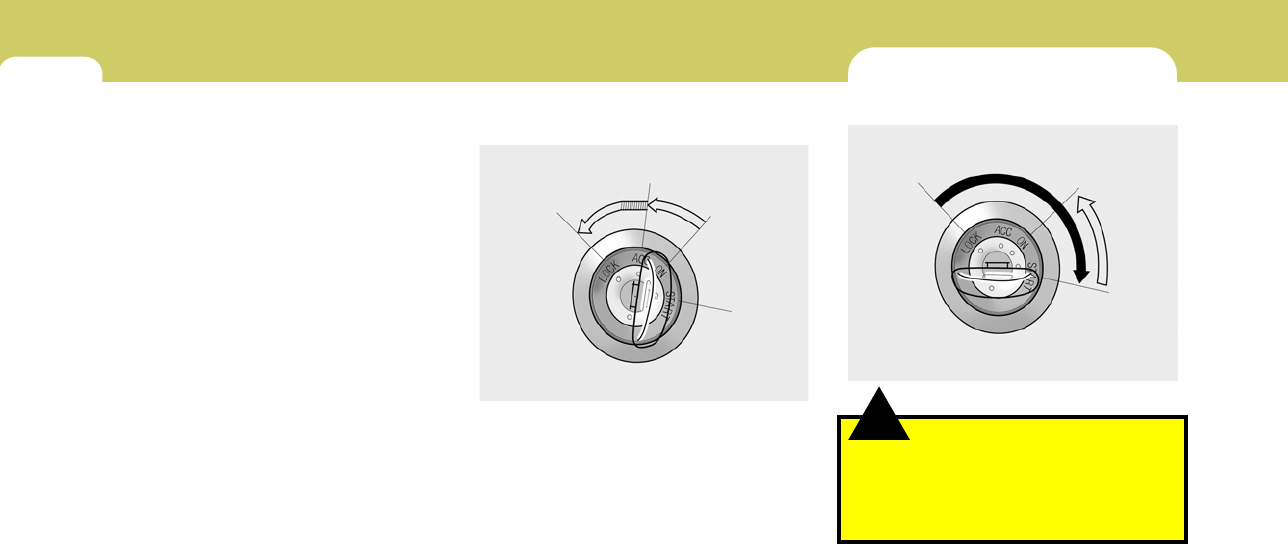

COMBINATION IGNITION SWITCH

o If your Hyundai is equipped with a manual

transaxle, place the shift lever in neutral and

depress the clutch pedal fully.

o If your Hyundai has an automatic transaxle,

place the shift lever in "P" (park).

o To start the engine, insert the ignition key

and turn it to the "START" position. Release

it as soon as the engine starts. Do not hold

the key in the "START" position for more

than 15 seconds.

NOTE:

o For safety, the engine will not start if the

clutch pedal is not depressed fully (Manual

Transaxle) or the shift lever is not in "P"

or "N" Position (Automatic Transaxle).

o The ignition key cannot be turned from

"ACC" position to "LOCK" position un-

less the shift lever is in the "P" (Park)

position or the negative battery terminal

is disconnected from the battery. (For

Automatic Transaxle)

C040A01A-AAT

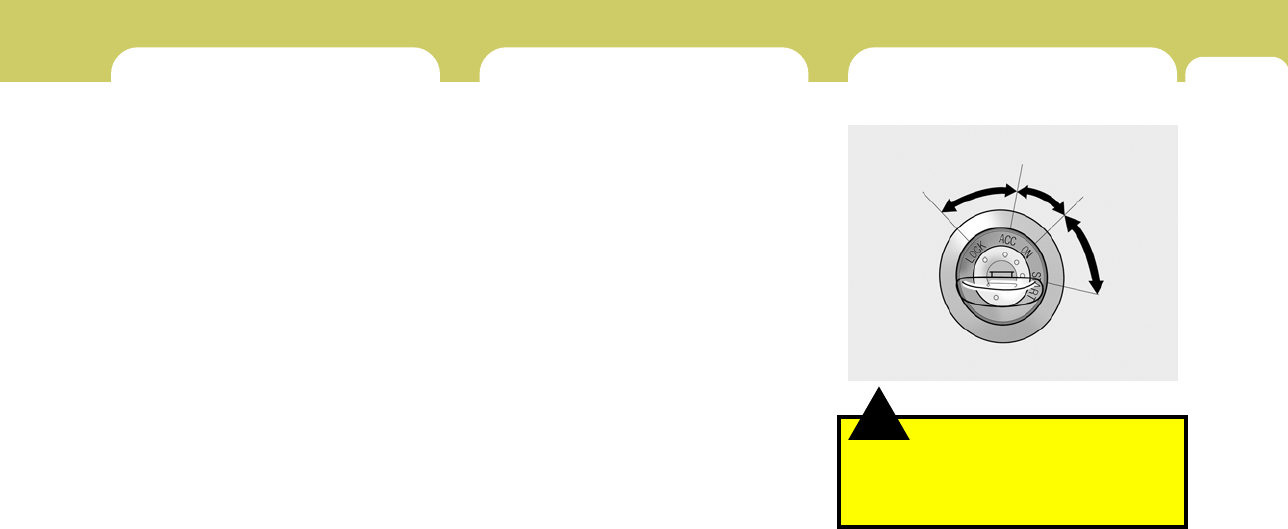

C040A01A-1

LOCK

ACC

START

WARNING:

The engine should not be turned off or the

key removed from the ignition key cylinder

while the vehicle is in motion. The steering

wheel is locked by removing the key.

o "START"

The engine is started in this position. It will

crank until you release the key.

NOTE:

Do not hold the key in the "START" posi-

tion for more than 15 seconds.

KEY POSITIONS

2DRIVING YOUR HYUNDAI

4STARTING

C070C01A-AAT

To Remove the Ignition Key

1. Turn the ignition key to the "ACC" position.

2. Simultaneously push and turn the ignition

key counterclockwise from the "ACC" posi-

tion to the "LOCK" position.

3. The key can be removed in the "LOCK"

position.

C050A01A-AAT

WARNING:

Never run the engine in a closed or poorly

ventilated area any longer than is needed

to move your car in or out of the area. The

carbon monoxide gas emitted is odorless

and can cause serious injury or death.

o "ON"

When the key is in the "ON" position, the

ignition is on and all accessories may be

turned on. If the engine is not running, the key

should not be left in the "ON" position. This will

discharge the battery and may also damage

the ignition system.

o "ACC"

With the key in the "ACC" position, some elec-

trical accessories (radio, etc.) may be operat-

ed.

o "LOCK"

The key can be removed or inserted in this

position. To protect against theft, the steering

wheel locks by removing the key.

NOTE:

To unlock the steering wheel, insert the key,

and then turn the steering wheel and key

simultaneously.

C070C01A-1

LOCK

ACC

START

C050A01A-1

LOCK ON

START

DRIVING YOUR HYUNDAI

OPERATING THE MANUAL

TRANSAXLE

4. Turn the ignition key to the "Start" position

and release it when the engine starts.

After the engine has started, allow the engine

to run for 10 to 20 seconds prior to placing

the vehicle in gear.

The starter should not be operated for more

than 15 seconds at a time. Wait 15-30 sec-

onds between starting attempts to protect

the starter from overheating.

C050B01A-AAT

Normal Conditions:

The Starting Procedure:

1. Insert key, and fasten the seat belt.

2. Depress the clutch pedal fully and place the

gearshift lever (manual transaxle) in neutral

or the selector lever (automatic transaxle) in

"P" (park) position.

3. After turning the ignition key to the "ON"

position, make certain all warning lights and

gauges are functioning properly before start-

ing the engine.

WARNING:

Be sure that the clutch is fully depressed

when starting a manual transaxle vehicle.

Your manual transaxle equipped vehicle will

not start unless the clutch pedal is fully

depressed. On a manual transaxle equipped

vehicle that can be started without depress-

ing the clutch, there is the potential to cause

damage to the vehicle or injury to someone

inside or outside the vehicle as a result of

the forward or backward movement of the

vehicle that will occur if the clutch is not

depressed when the vehicle is started.

C070A02A-AAT

Your Hyundai's manual transaxle has a con-

ventional shift pattern. This shift pattern is also

imprinted on the shift knob. The transaxle is

fully synchronized in all forward gears so

shifting to either a higher or a lower gear is

easily accomplished.

NOTE:

o To shift into reverse, rest the lever in

neutral for at least 3 seconds after your

car is completely stopped. Then move

the lever into the reverse position.

o During cold weather, shifting may be

difficult until the transaxle lubricant

has warmed up. This is normal and not

harmful to the transaxle.

C070A01A

2DRIVING YOUR HYUNDAI

The shift points as shown above are recom-

mended for optimum fuel economy and perform-

ance.

C070E03A-AAT

RECOMMENDED SHIFT POINTS

C070D02O-AAT

Good Driving Practices

o Never take the car out of gear and coast

down a hill. This is extremely hazardous.

Always leave the car in gear.

o Don't "ride" the brakes. This can cause them

to overheat and malfunction. Instead, when

you are driving down a long hill, slow down

and shift to a lower gear. When you do this,

engine braking will help slow the car.

o Slow down before shifting to a lower gear.

This will help avoid over-revving the engine,

which can cause damage.

o Slow down when you encounter cross winds.

This gives you much better control of your

car.

o Be sure the car is completely stopped before

you attempt to shift into reverse. The transaxle

can be damaged if you do not. To shift into

reverse, depress the clutch, move the shift

lever to neutral, wait three seconds, then

shift to the reverse position.

o Exercise extreme caution when driving on a

slippery surface. Be especially careful when

braking, accelerating or shifting gears. On a

slippery surface, an abrupt change in vehicle

speed can cause the drive wheels to lose

traction and the vehicle to go out of control.

C070B01A-AAT

Using the Clutch

The clutch should be pressed all the way to the

floor before shifting, then released slowly. Do

not rest your foot on the clutch pedal while

driving. This can cause unnecessary wear.

Do not partially engage the clutch to hold the car

on an incline. This causes unnecessary wear.

Use the parking brake to hold the car on an

incline. Do not operate the clutch pedal rapidly

and repeatedly.

Shift

from-to

Recommended

mph(km/h)

15 (20)

25 (40)

35 (55)

45 (75)

1-2

2-3

3-4

4-5

o If you've come to a complete stop and

it's hard to shift into 1st or R(Reverse),

put the shift lever in N(Neutral) position

and release the clutch. Press the clutch

pedal back down, and then shift into 1st

or R(Reverse) gear position.

o Do not use the shift lever as a handrest

during driving, as this can result in pre-

mature wear of the transaxle shift forks.

CAUTION:

When downshifting from fifth gear to

fourth gear, caution should be taken not

to inadvertently press the gear shift lever

sideways in such a manner that second

gear is engaged. Such a drastic downshift

may cause the engine speed to increase to

the point that the tachometer will enter the

red zone. Such over revving of the engine

may possibly cause engine damage.

DRIVING YOUR HYUNDAI

AUTOMATIC TRANSAXLE

!WARNING:

o Avoid high cornering speeds.

o Do not make quick steering wheel move-

ments, such as sharp lane changes or

fast, sharp turns.

o Always wear your seat belts.

In a collision crash, un unbelted person

is significantly more likely to die than a

person wearing a seatbelt.

o The risk of rollover is greatly increased

if you lose control of your vehicle at

highway speeds.

o Loss of control often occurs if two or

more wheels drop off the roadway and

the driver oversteers to reenter the road-

way.

o In the event your vehicle leaves the

roadway, do not steer sharply. Instead,

slow down before pulling back into the

travel lanes.

o Never exceed posted speed limits.

C090A01A-AAT

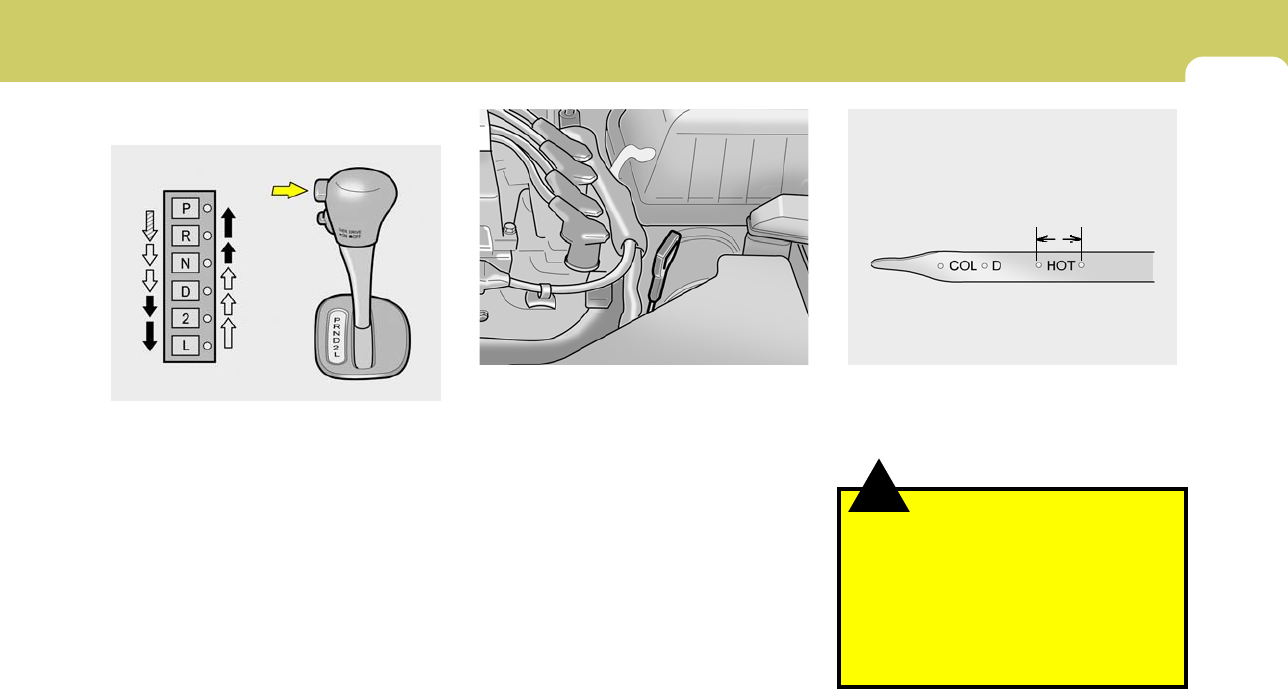

The highly efficient Hyundai automatic

transaxle has four forward speeds and one

reverse speed. It has a conventional shift

pattern as shown in the illustration. At night,

with the multi-function switch turned on to the

parking light or head light position the appro-

priate symbol on the shift pattern indicator will

be illuminated according to the range selected.

CAUTION:

Never shift into "R" or "P" position while

the car is moving.

C090A01A

C090B02A-AAT

The function of each position is as fol-

lows:

o P (Park):

Use to hold the vehicle in place when parking or

while starting the engine. Whenever parking

the car, apply the parking brake and shift the

selector lever to the "P" (Park) position.

NOTE:

Depress the brake pedal and push

the button when shifting

Push the button when shifting

The selector lever can be shifted freely.

For optimum fuel economy, accelerate gradu-

ally. The transaxle will automatically shift to the

second, third and overdrive gears.

CAUTION:

Never place the selector lever in the "P"

(Park) position unless the vehicle is fully

stopped. Failure to observe this caution will

cause severe damage to the transaxle.

2DRIVING YOUR HYUNDAI

C090G01A-AAT

o L (Low gear):

Use for driving up a very steep grade or for

engine braking when descending steep hills.

When downshifting to "L", the transaxle will

temporarily remain in second gear until the ve-

hicle has slowed enough for low gear to engage.

Do not exceed 31 mph (50 km/h) in low gear.

C090F01A-AAT

o 2 (Second gear):

Use for driving on a slippery road, hill climbing

or engine braking downhill. "2" automatically

shifts between first and second gears.

This means that no shift-up to 3rd gear is per-

formed. However, the shift-up to third gear is

done when the car speed exceeds a certain

value to prevent the engine from over-revving.

Manually move the selector to "D" returning to

normal driving condition.

C090H01A-AAT

NOTE:

o For smooth and safe operation, de-

press the brake pedal when shifting

from "Neutral" position or "Park" posi-

tion to a forward or reverse gear.

o The ignition key must be in the "ON"

position and the brake pedal fully de-

pressed in order to move the shift lever

from the "P" (Park) position to any of the

other positions.

o It is always possible to shift from "R",

"N", "D", "2", "L" position to "P" posi-

tion.

C090C01A-AAT

o R(Reverse):

Use for backing up the vehicle. Bring the car to

a complete stop before shifting the selector

lever to "R" position.

C090D02A-AAT

o N (Neutral):

In the "N" position, the transaxle is in neutral

position, which means that no gears are en-

gaged. The engine can be started with the shift

lever in "N" position, although this is not recom-

mended except if the engine stalls while the car

is moving.

C090E01A-AAT

o D (Drive):

Use for normal driving. The transaxle will auto-

matically shift through a four-gear sequence.

Never downshift manually to "2" position or "L"

position when vehicle speed is more than 60

mph (96 km/h).

DRIVING YOUR HYUNDAI

C090I01A-AAT

CAUTION:

o Shift into "R" and "P" position only

when the vehicle has completely

stopped.

o Do not accelerate the engine in reverse

or any of the forward positions with the

brakes applied.

o Always apply the footbrake when shifting

from "P" or "N", to "R", "D", "2" or "L"

position.

o Do not use the "P" (Park) position in

place of the parking brake. Always set

the parking brake, shift the transaxle into

"P" (Park) position and turn off the igni-

tion when you leave the vehicle, even

momentarily. Never leave the vehicle un-

attended while the engine is running.

o Check the automatic transaxle fluid level

regularly, and add fluid as necessary.

If you cannot move the shift lever from the "P"

(Park) position to any other position with the

brake pedal fully depressed and the ignition key

in the "ON" position, remove the cap on the

console with a thin object such as a pencil, push

the shift lock release button down. Then, with

the brake pedal depressed, move the shift lever

to the desired position, then the shift lock re-

lease button will automatically return to its origi-

nal position after shifting from the "P" (Park)

position. Then, reinstall the cap.

Have the system checked by your Hyundai

dealer.

JC110J4-A

SHIFT LOCK RELEASE (If Installed)

C090J01A

C090P01A-AAT

Overdrive Switch

When the overdrive switch is turned on, the

transaxle will automatically upshift to the sec-

ond, third and overdrive gears. When the over-

drive switch is turned off, the transaxle will not

upshift to the overdrive gear. For normal driving,

the selector lever should be left in the "D"

position and the overdrive switch turned on.

If you need to accelerate rapidly, press the

accelerator pedal all the way to the floor. The

transaxle will automatically shift to a lower gear,

depending on the vehicle speed and load.

C090P01A

2DRIVING YOUR HYUNDAI

10 GOOD BRAKING PRACTICES

o Turn the overdrive switch on for good fuel

economy and smooth driving. If engine brak-

ing is needed in the "D" range or if repeated

upshifting and downshifting between the 3rd

and 4th gear is needed when climbing a

gentle slope, it is recommended that the

overdrive switch be turned off. Turn the over-

drive switch back on immediately afterward.

C090N03A-AAT

Good Driving Practices

o Never move the gear selector lever from "P"

or "N" to any other position with the acceler-

ator pedal depressed.

o Never move the gear selector lever into "P"

when the vehicle is in motion.

o Be sure the car is completely stopped before

you attempt to shift into "R".

o Never take the car out of gear and coast

down a hill. This may be extremely hazard-

ous. Always leave the car in gear when

moving.

o Do not "ride" the brakes. This can cause

them to overheat and malfunction. Instead,

when you are driving down a long hill, slow

down and shift to a lower gear. When you do

this, engine braking will help slow the car.

o Slow down before shifting to a lower gear.

Otherwise, the lower gear may not be en-

gaged.

o Always use the parking brake. Do not de-

pend on placing the transaxle in "P" to keep

the car from moving.

o Exercise extreme caution when driving on a

slippery surface. Be especially careful when

braking, accelerating or shifting gears. On a

slippery surface, an abrupt change in vehicle

speed can cause the drive wheels to lose

traction and the vehicle to go out of control.

WARNING:

o Avoid high cornering speeds.

o Do not make quick steering wheel move-

ments, such as sharp lane changes or

fast, sharp turns.

o Always wear your seat belts.

In a collision crash, un unbelted person

is significantly more likely to die than a

person wearing a seatbelt.

o The risk of rollover is greatly increased

if you lose control of your vehicle at

highway speeds.

o Loss of control often occurs if two or

more wheels drop off the roadway and

the driver oversteers to reenter the road-

way.

o In the event your vehicle leaves the

roadway, do not steer sharply. Instead,

slow down before pulling back into the

travel lanes.

o Never exceed posted speed limits.

C130A01A-AAT

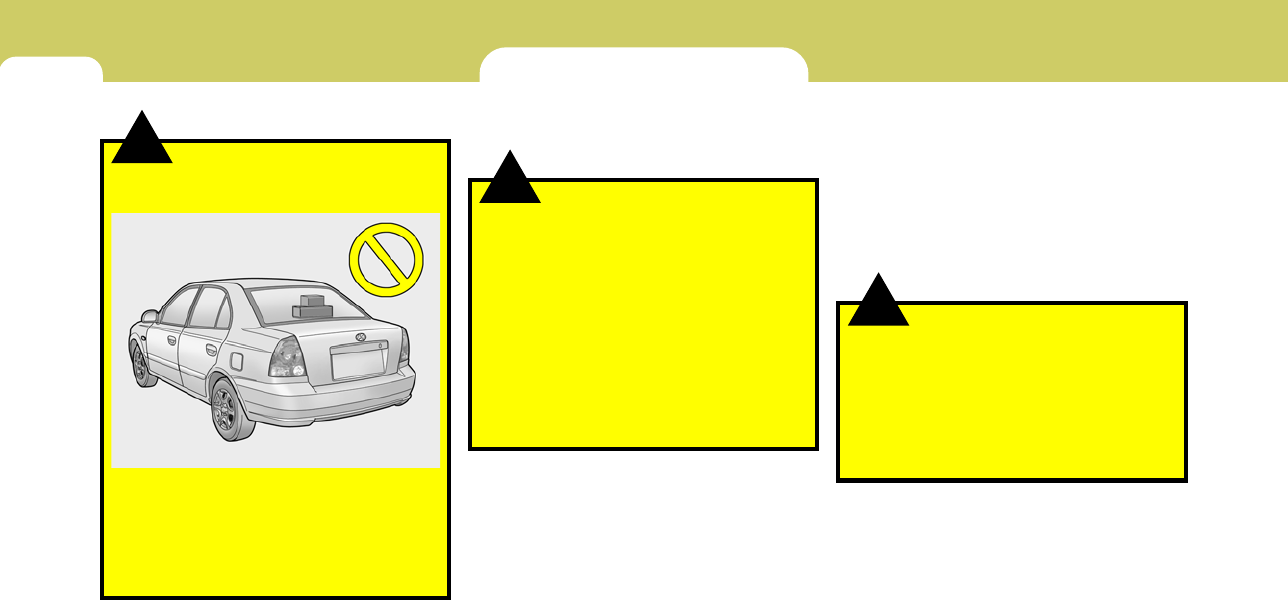

WARNING:

Nothing should be carried on top of the

shelf panel behind the rear seat. If there

were an accident or a sudden stop, such

objects could move forward and cause

damage to the vehicle or injure the occu-

pants.

o After being parked, check to be sure the

parking brake is not engaged and that the

parking brake indicator light is out before

driving away.

o Driving through water may get the brakes

wet. They can also get wet when the car is

washed. Wet brakes can be dangerous! Your

car will not stop as quickly if the brakes are

wet. Wet brakes may cause the car to pull to

one side. To dry the brakes, apply the brakes

lightly until the braking action returns to nor-

mal, taking care to keep the car under con-

trol at all times. If the braking action does not

return to normal, stop as soon as it is safe to

do so and call your Hyundai dealer for assis-

tance.

o Don't coast down hills with the car out of

gear. This is extremely hazardous. Keep

the car in gear at all times, use the brakes

to slow down, then shift to a lower gear so

DRIVING YOUR HYUNDAI

ANTI-LOCK BRAKE SYSTEM

that engine braking will help you maintain a

safe speed.

o Don't "ride" the brake pedal. Resting your

foot on the brake pedal while driving can be

dangerous because it can result in the brakes

overheating and losing their effectiveness. It

also increases the wear of the brake compo-

nents.

o If a tire goes flat while you are driving, apply

the brakes gently and keep the car pointed

straight ahead while you slow down. When

you are moving slowly enough for it to be

safe to do so, pull off the road and stop in a

safe place.

o If your car is equipped with an automatic

transaxle, don't let your car creep forward.

To avoid creeping forward, keep your foot

firmly on the brake pedal when the car is

stopped.

o Use caution when parking on a hill. Engage

the parking brake and place the gear selec-

tor lever in "P" (automatic transaxle) or in

first or reverse gear (manual transaxle). If

your car is facing downhill, turn the front

wheels into the curb to help keep the car

from rolling. If your car is facing uphill, turn

the front wheels away from the curb to help

keep the car from rolling. If there is no curb

or if it is required by other conditions to keep

the car from rolling, block the wheels.

o Under some conditions your parking brake

can freeze in the engaged position. This is

most likely to happen when there is an

accumulation of snow or ice around or near

the rear brakes or if the brakes are wet. If

there is a risk that the parking brake may

freeze, apply it only temporarily while you

put the gear selector lever in "P" (automat-

ic) or in first or reverse gear (manual

transaxle) and block the rear wheels so the

car cannot roll. Then release the parking

brake.

o Do not hold the vehicle on the upgrade with

the accelerator pedal. This can cause the

transaxle to overheat. Always use the brake

pedal or parking brake.

C120A03A-AAT

(If Installed)

The Anti-Lock Brake System (ABS) is de-

signed to prevent wheel lock-up during sud-

den braking or on hazardous road surfaces.

The ABS control module monitors the wheel

speed and controls the pressure applied to

each brake. Thus, in emergency situations or

on slick roads, ABS will increase vehicle con-

trol during braking.

NOTE:

A click sound may be heard in the engine

compartment when the vehicle begins to

move after the engine is started. These

conditions are normal and indicate that

the anti-lock brake system (Electronic Sta-

bility Control) is functioning properly.

During ABS operation, a slight pulsation

may be felt in the brake pedal when the

brakes are applied. Also, a noise may be

heard in the engine compartment while

braking. These conditions are normal and

indicate that the anti-lock brake system is

functioning properly.

2DRIVING YOUR HYUNDAI

12 DRIVING FOR ECONOMY

!WARNING:

ABS will not prevent accidents due to

improper or dangerous driving maneu-

vers. Even though vehicle control is im-

proved during emergency braking, always

maintain a safe distance between you and

objects ahead. Vehicle speeds should al-

ways be reduced during extreme road

conditions.

The braking distance for cars equipped

with an anti-lock braking system may be

longer than for those without it in the

following road conditions.

During these conditions the veicle should

be driven at reduced speeds.

o Rough, gravel or snow-covered roads.

o With tire chains installed.

o On roads where the road surface is

pitted or has different surface height.

These roads should be driven at reduced

speeds. The safety features of an ABS

equipped vehicle should not be tested by

high speed driving or cornering. This could

endanger the safety of yourself or others.

C140A01A-AAT

You can save fuel and get more miles from

your car if you follow these suggestions:

o Drive smoothly. Accelerate at a moderate

rate. Don't make "jack-rabbit" starts or full-

throttle shifts and maintain a steady cruising

speed. Don't race between stoplights. Try to

adjust your speed to that of the other traffic

so you don't have to change speeds unnec-

essarily. Avoid heavy traffic whenever possi-

ble. Always maintain a safe distance from

other vehicles so you can avoid unneces-

sary braking. This also reduces brake wear.

o Drive at a moderate speed. The faster you

drive, the more fuel your car uses. Driving at

a moderate speed, especially on the high-

way, is one of the most effective ways to

reduce fuel consumption.

o Don't "ride" the brake or clutch pedal. This

can increase fuel consumption and also in-

crease wear on these components. In addi-

tion, driving with your foot resting on the

brake pedal may cause the brakes to over-

heat, which reduces their effectiveness and

may lead to more serious consequences.

o Take care of your tires. Keep them inflated to

the recommended pressure. Incorrect infla-

tion, either too much or too little, results in

unnecessary tire wear. Check the tire pres-

sures at least once a month.

o Be sure that the wheels are aligned cor-

rectly. Improper alignment can result from

hitting curbs or driving too fast over irreg-

ular surfaces. Poor alignment causes faster

tire wear and may also result in other

problems as well as greater fuel consump-

tion.

o Keep your car in good condition. For better

fuel economy and reduced maintenance

costs, maintain your car in accordance with

the maintenance schedule in Section 5. If

you drive your car in severe conditions, more

frequent maintenance is required (see Sec-

tion 5 for details).

o Keep your car clean. For maximum service,

your Hyundai should be kept clean and free

of corrosive materials. It is especially impor-

tant that mud, dirt, ice, etc. not be allowed to

accumulate on the underside of the car. This

extra weight can result in increased fuel

consumption and also contribute to corro-

sion.

o Travel lightly. Don't carry unnecessary weight

in your car. Weight reduces fuel economy.

o Don't let the engine idle longer than neces-

sary. If you are waiting (and not in traffic),

turn off your engine and restart only when

you're ready to go.

DRIVING YOUR HYUNDAI

o Remember, your Hyundai does not require

extended warm-up. As soon as the engine

is running smoothly, you can drive away. In

very cold weather, however, give your en-

gine a slightly longer warm-up period.

o Don't "lug" or "over-rev" the engine. Lug-

ging is driving too slowly in too high a gear

resulting in the engine bucking. If this hap-

pens, shift to a lower gear. Over-revving is

racing the engine beyond its safe limit. This

can be avoided by shifting at the recom-

mended speeds.

o Use your air conditioning sparingly. The air

conditioning system is operated by engine

power so your fuel economy is reduced

when you use it.

WINTER DRIVINGSMOOTH CORNERING

C160A01A-AAT

The more severe weather conditions of winter

result in greater wear and other problems. To

minimize the problems of winter driving, you

should follow these suggestions:

C160B01A-AAT

Snowy or Icy Conditions

To drive your vehicle in deep snow, it may be

necessary to use snow tires or to install tire

chains on your tires. If snow tires are needed, it

is necessary to select tires equivalent in size

and type to the original equipment tires. Failure

to do so may adversely affect the safety and

handling of your car. Furthermore, speeding,

rapid acceleration, sudden brake applications,

and sharp turns are potentially very hazardous

practices.

During deceleration, use engine braking to the

fullest extent. Sudden brake applications on

snowy or icy roads may cause skids to occur.

You need to keep sufficient distance between

the vehicle in operation in front and your vehicle.

Also, apply the brake gently. It should be noted

that installing tire chains on the tire will provide

a greater driving force, but will not prevent side

skids.

NOTE:

Tire chains are not legal in all states. Check

state laws before fitting tire chains.

C150A01A-AAT

Avoid braking or gear changing in corners,

especially when roads are wet. Ideally, cor-

ners should always be taken under gentle

acceleration. If you follow these suggestions,

tire wear will be held to a minimum.

2DRIVING YOUR HYUNDAI

C160D01A-AAT

Check Battery and Cables

Winter puts additional burdens on the battery

system. Visually inspect the battery and cables

as described in Section 6. The level of charge in

your battery can be checked by your Hyundai

dealer or a service station.

C160E01A-AAT

Change to "Winter Weight" Oil if

Necessary

In some climates it is recommended that a lower

viscosity "winter weight" oil be used during cold

weather. See Section 9 for recommendations. If

you aren't sure what weight oil you should use,

consult your Hyundai dealer.

C160C01A-AAT

Use High Quality Ethylene Glycol

Coolant

Your Hyundai is delivered with high quality eth-

ylene glycol coolant in the cooling system. It is

the only type of coolant that should be used

because it helps prevent corrosion in the cooling

system, lubricates the water pump and prevents

freezing. Be sure to replace or replenish your

coolant in accordance with the maintenance

schedule in Section 5. Before winter, have your

coolant tested to assure that its freezing point is

sufficient for the temperatures anticipated dur-

ing the winter.

C160H01A-AAT

Use Approved Anti-Freeze in Window

Washer System

To keep the water in the window washer system

from freezing, add an approved anti-freeze so-

lution in accordance with instructions on the

container. Window washer anti-freeze is avail-

able from Hyundai dealers and most auto parts

outlets. Do not use engine coolant or other types

of anti-freeze as these may damage the finish.

C160F01A-AAT

Check Spark Plugs and Ignition

System

Inspect your spark plugs as described in Sec-

tion 6 and replace them if necessary. Also

check all ignition wiring and components to be

sure they are not cracked, worn or damaged in

any way.

C160G01A-AAT

To Keep Locks from Freezing

To keep the locks from freezing, squirt an ap-

proved de-icer fluid or glycerine into the key

opening. If a lock is covered with ice, squirt it

with an approved de-icing fluid to remove the

ice. If the lock is frozen internally, you may be

able to thaw it out by using a heated key. Handle

the heated key with care to avoid injury.

DRIVING YOUR HYUNDAI

HIGHER SPEED MOTORING

C160I01A-AAT

Don't Let Your Parking Brake Freeze

Under some conditions your parking brake can

freeze in the engaged position. This is most

likely to happen when there is an accumulation

of snow or ice around or near the rear brakes or

if the brakes are wet. If you think the parking

brake may freeze, apply it only temporarily while

you put the gear selector lever in "P" (automatic)

or in first or reverse gear (manual transaxle) and

block the rear wheels so the car cannot roll.

Then release the parking brake.

C160K01A-AAT

Carry Emergency Equipment

Depending on the severity of the weather where

you drive your car, you should carry appropriate

emergency equipment. Some of the items you

may want to carry include tire chains, tow straps

or chains, flashlight, emergency flares, sand, a

shovel, jumper cables, a window scraper, gloves,

ground cloth, coveralls, a blanket, etc.

C160J01A-AAT

Don't Let Ice and Snow Accumulate

Underneath

Under some conditions, snow and ice can build

up under the fenders and interfere with the

steering. When driving in severe winter condi-

tions where this may happen, you should peri-

odically check underneath the car to be sure the

movement of the front wheels and the steering

components is not obstructed.

C170A01A-AAT

Pre-Trip Inspections

1. Tires:

Adjust the tire inflation pressures for highway

driving. Low tire inflation pressures will result in

overheating and possible failure of the tires.

Avoid using worn or damaged tires which may

result in reduced traction or tire failure.

NOTE:

Never exceed the maximum tire inflation pres-

sure shown on the tires.

2. Fuel, engine coolant and engine oil:

High speed travel consumes more fuel than

urban motoring. Do not forget to check both

engine coolant and engine oil.

3. Drive belt:

A loose or damaged drive belt may result in

overheating of the engine.

2DRIVING YOUR HYUNDAI

16 TRAILER TOWINGUSE OF LIGHTS

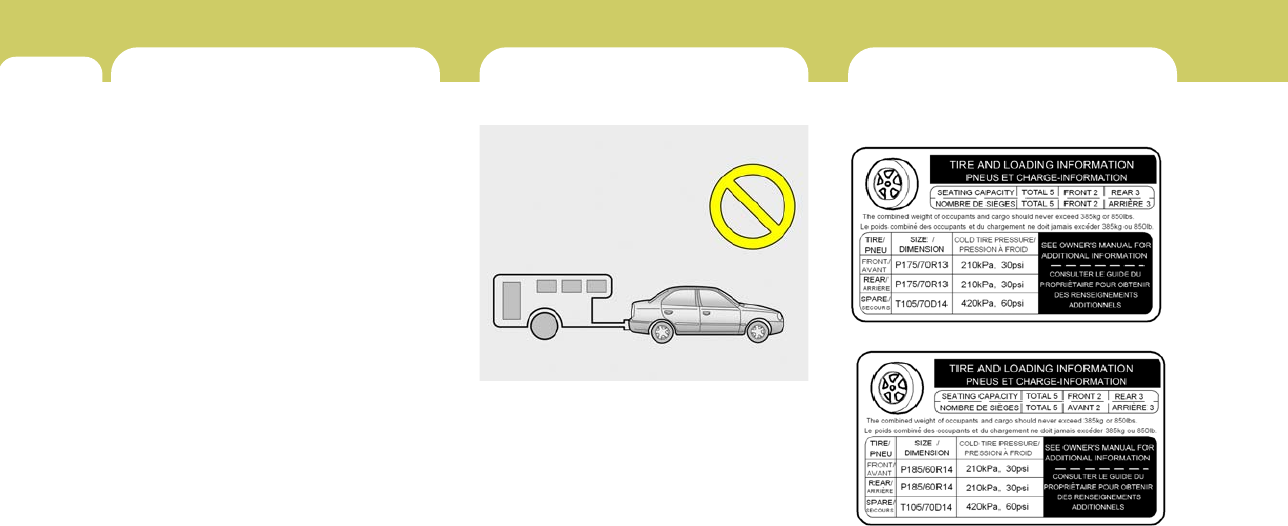

C190A01A-AAT

Your Hyundai should not be used to tow a

trailer. It is designed to be compact and light

for good fuel economy, and is not designed as

a trailer-towing vehicle. Damages or malfunc-

tions caused by towing may not be covered by

the limited warranties applying to your Hyundai.

Damages or malfunctions that result from tow-

ing a trailer for commercial purposes are specifi-

cally not covered by Hyundai limited warranties.

C180A01A-AAT

Check your lights regularly for correct opera-

tion and always keep them clean. When driv-

ing during the day in conditions of poor visibil-

ity, it is helpful to drive with headlights on low

beam. This enables you to be seen as well as

to see.

C190A02A

VEHICLE LOAD LIMIT

C190F02JM-AAT

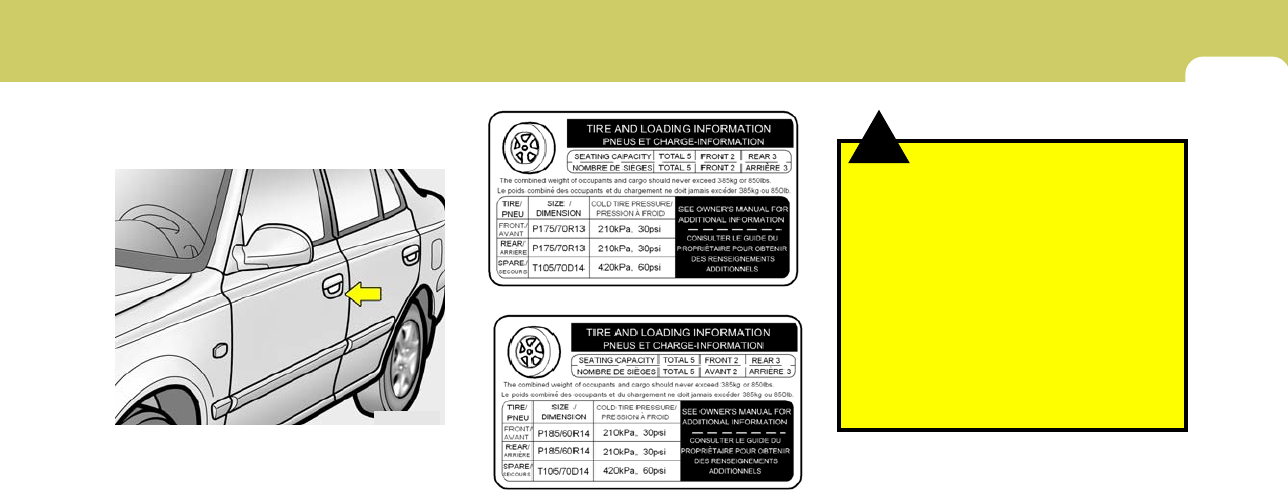

Tire and Loading Information Label

The tire label located on the driver's

side of the center pillar outer panel

gives the original tire size, cold tire

pressures recommended for your ve-

hicle, the number of people that can be

in your vehicle and vehicle capacity

weight.

I030A01LC-1

I030A01LC-2

DRIVING YOUR HYUNDAI

Vehicle capacity weight:

880 lbs (400 kg)

Vehicle capacity weight is the maxi-

mum combined weight of occupants

and cargo. If your vehicle is equipped

with a trailer, the combined weight

includes the tongue load.

Seating capacity:

Total: 5 persons

(Front seat: 2 persons,

Rear seat: 3 persons)

Seating capacity is the maximum num-

ber of occupants including a driver,

your vehicle may carry.

However the seating capacity may be

reduced based upon the weight of all

of the occupants, and the weight of the

cargo being carried or towed. Do not

overload the vehicle as there is a limit

to the total weight, or load limit includ-

ing occupants and cargo, the vehicle

can carry.

Towing capacity:

Towing capacity is the maximum trailer

weight including its cargo weight, your

vehicle can tow. See the section

"Trailer or Vehicle Towing" for specifi-

cations about the trailer weight.

Cargo capacity:

The cargo capacity of your vehicle will

increase or decrease depending on the

weight and the number of occupants

and the tongue load, if your vehicle is

equipped with a trailer.

Steps for Determining Correct Load

Limit

(1)Locate the statement "The com-

bined weight of occupants and cargo

should never exceed XXX pounds''

on your vehicle's placard.

(2)Determine the combined weight of

the driver and passengers that will

be riding in your vehicle.

(3)Subtract the combined weight of the

driver and passengers from XXX

kilograms or XXX pounds.

(4)The resulting figure equals the avail-

able amount of cargo and luggage

load capacity. For example, if the

"XXX" amount equals 1400 lbs, and

there will be five 150 lb. passengers

in your vehicle, the amount of avail-

able cargo and luggage load capac-

ity is 650 lbs. (1400-750 (5 x 150) =

650 lbs.)

(5)Determine the combined weight of

luggage and cargo being loaded on

the vehicle. That weight may not

safely exceed the available cargo

and luggage load capacity calcu-

lated in Step 4.

(6)If your vehicle will be towing a trailer,

load from your trailer will be trans-

ferred to your vehicle. Consult this

manual to determine how this re-

duces the available cargo and lug-

gage load capacity of your vehicle.

2DRIVING YOUR HYUNDAI

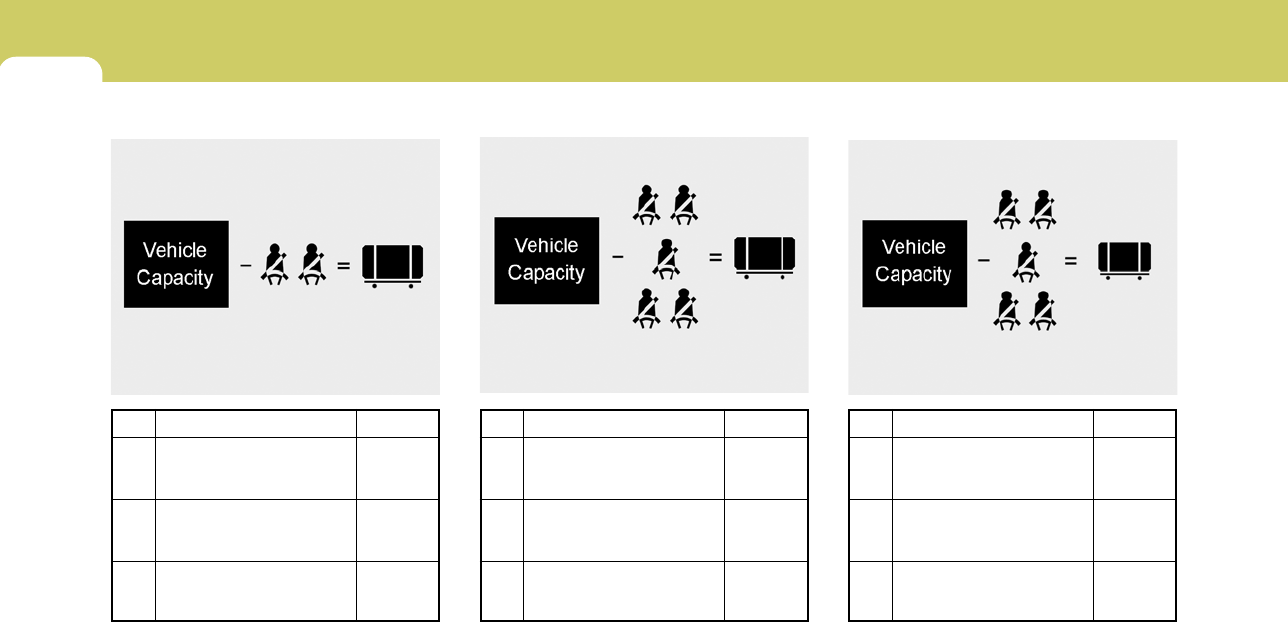

C190F02JM C190F03JM

Total

1400 lbs

(640 kg)

860 lbs

(390 kg)

540 lbs

(250 kg)

Example 2

Item

Description

Vehicle Capacity Weight

Subtract Occupant Weight

172 lbs (78 kg) x 5

Available Cargo Weight

Total

1400 lbs

(640 kg)

750 lbs

(350 kg)

650 lbs

(290 kg)

Item

Description

Vehicle Capacity Weight

Subtract Occupant Weight

150 lbs (70 kg) x 5

Available Cargo and

Luggage Weight

Example 3

ABCABC

C190F01JM

Total

1400 lbs

(640 kg)

300 lbs

(140 kg)

1100 lbs

(500 kg)

Example 1

Item

Description

Vehicle Capacity Weight

Subtract Occupant Weight

150 lbs (70 kg) × 2

Available Cargo and

Luggage weight

ABC

DRIVING YOUR HYUNDAI

Refer to your vehicle’s tire and loading

information label for specific informa-

tion about your vehicle’s capacity

weight and seating positions. The com-

bined weight of the driver, passengers

and cargo should never exceed your

vehicle’s capacity weight.

The label shows the maximum allow-

able weight of the fully loaded vehicle.

This is called the GVWR (Gross Ve-

hicle Weight Rating). The GVWR in-

cludes the weight of the vehicle, all

occupants, fuel and cargo.

This label also tells you the maximum

weights that can be supported by the

front and rear axles, called Gross Axle

Weight Rating (GAWR). To find out the

actual loads on your front and rear

axles, you need to go to a weigh

station and weigh your vehicle. Your

dealer can help you with this. Be sure

to spread out your load equally on both

sides of the centerline.

WARNING:

o Never exceed the GVWR for your

vehicle, the GAWR for either the

front or rear axle and vehicle ca-

pacity weight. Exceeding these

ratings can cause an accident or

vehicle damage. You can calcu-

late the weight of your load by

weighing the items (or people)

before putting them in the ve-

hicle. Be careful not to overload

your vehicle.

o Do not load your vehicle any

heavier than the GVWR, either the

maximum front or rear GAWR and

vehicle capacity weight. If you

do, parts, including tires on your

vehicle can break, and it can

change the way your vehicle

handles and braking ability. This

could cause you to lose control

and crash. Also, overloading can

shorten the life of your vehicle.

C190G03JM-AAT

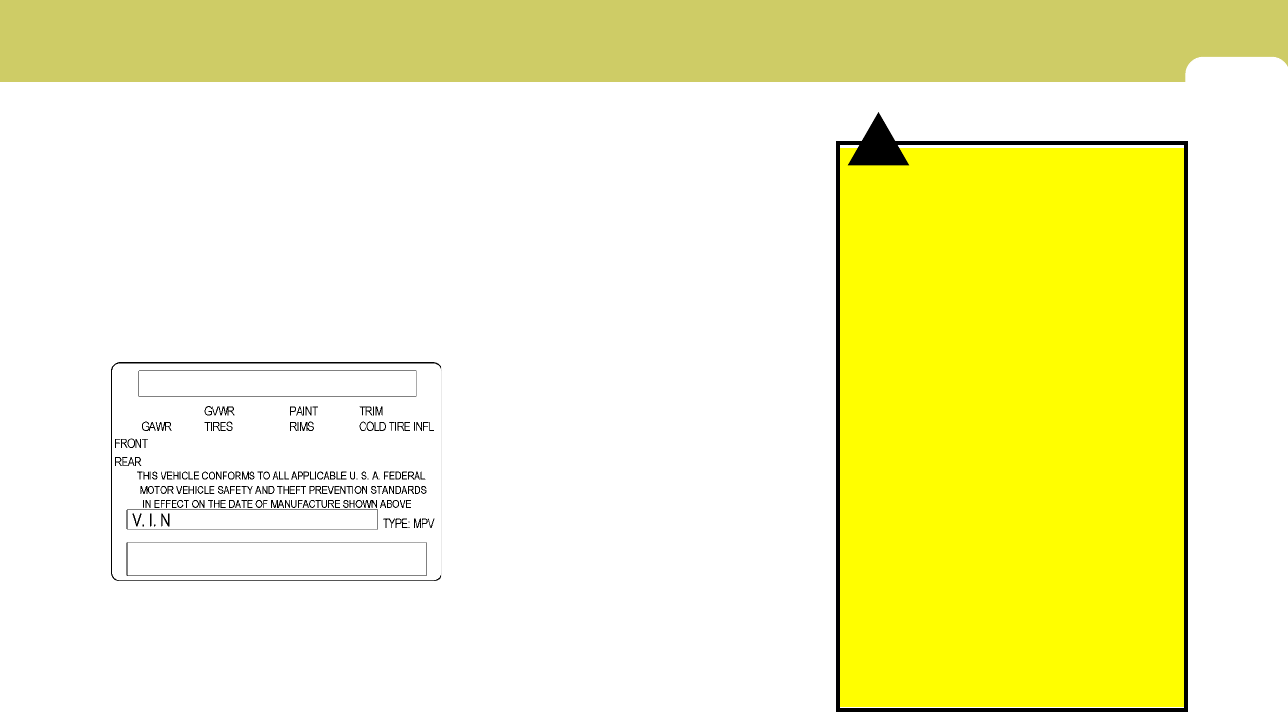

Compliance Label

The compliance label is located on the

driver's side of the center piller outer

panel.

C190G01JM

2DRIVING YOUR HYUNDAI

! ! WARNING:

Items you carry inside your vehicle

can strike and injure people in a

sudden stop or turn, or in a crash.

o Put things in the cargo area of

your vehicle. Try to spread the

weight evenly.

o Never stack items, like suitcases,

inside the vehicle above the tops

of the seats.

o Do not leave an unsecured child

restraint in your vehicle.

o When you carry something in-

side the vehicle, secure it.

o Do not drive with a seat folded

down unless necessary.

WARNING:

o Overloading your vehicle can

cause heat buildup in your

vehicle's tires and possible tire

failure that could lead to a crash.

o Overloading your vehicle can

cause increased stopping dis-

tances that could lead to a crash.

o A crash resulting from poor han-

dling vehicle damage, tire failure,

or increased stopping dis-

tances could result in serious

injury or death.

The label will help you decide how

much cargo and installed equipment

your vehicle can carry.

If you carry items inside your vehicle

– like suitcases, tools, packages, or

anything else – they more as fast as

the vehicle goes. If you have to stop or

turn quickly, or if there is a crash, the

items will keep going and can cause

an injury if they strikes the driver or a

passenger.

If the Engine Will Not Start .......................................... 3-2

Jump Starting ............................................................... 3-3

If the Engine Overheats............................................... 3-4

Spare Tire ..................................................................... 3-5

If You Have a Flat Tire ................................................ 3-6

Changing a Flat Tire .................................................... 3-7

If Your Car Must Be Towed ...................................... 3-12

Emergency Towing..................................................... 3-14

If You Lose Your Keys .............................................. 3-14

WHAT TO DO IN AN EMERGENCY

IF THE ENGINE WILL NOT START

D010B02A-AAT

If Engine Doesn't Turn Over or Turns

Over Slowly

D010A01A-AAT D010C01A-AAT

If Engine Turns Over Normally but Does

Not Start

1. Check fuel level.

2. With the key in the "OFF" position, check all

connectors at ignition coil and spark plugs.

Reconnect any that may be disconnected or

loose.

3. Check the fuel line in the engine room.

4. If the engine still refuses to start, call a

Hyundai dealer or seek other qualified assis-

tance.

WARNING:

If the engine will not start, do not push or

pull the car to start it. This could result in a

collision or cause other damage. In addition,

push or pull starting may cause the catalytic

converter to be overloaded and create a fire

hazard.

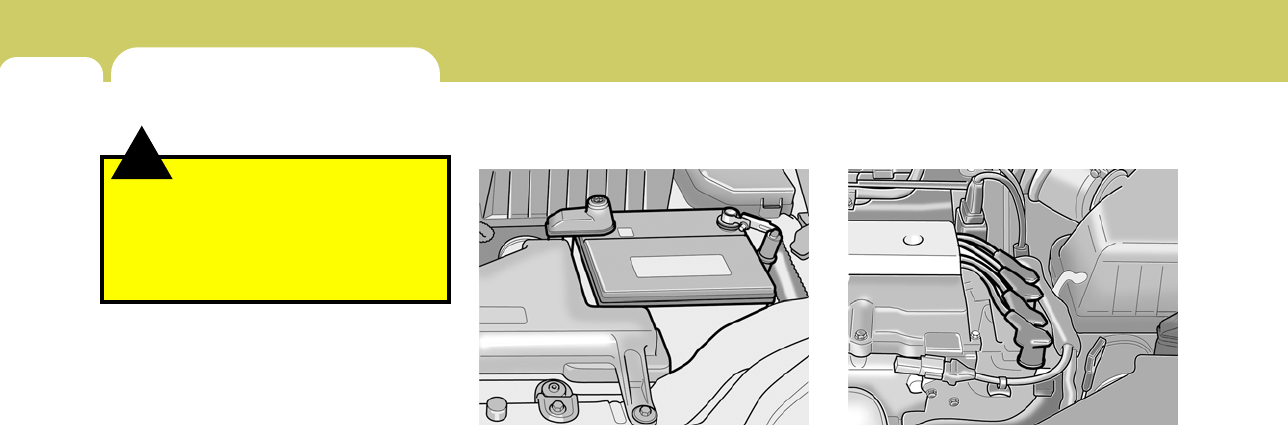

D010B01A D010C01A-D

1. If your car has an automatic transaxle, be

sure the gear selector lever is in "N" or "P"

and the emergency brake is set.

2. Check the battery connections to be sure

they are clean and tight.

3. Turn on the interior light. If the light dims or

goes out when you operate the starter, the

battery is discharged.

4. Check the starter connections to be sure

they are securely tightened.

5. Do not push or pull the vehicle to start it. See

instructions for "Jump Starting".

WHAT TO DO IN AN EMERGENCY

JUMP STARTING

D010D01A-AAT

If the Engine Stalls While Driving

1. Reduce your speed gradually, keeping a

straight line. Move cautiously off the road to

a safe place.

2. Turn on your emergency flashers.

3. Try to start the engine again. If your vehicle

will not start, contact a Hyundai dealer or

seek other qualified assistance.

D020A02A-AAT

WARNING:

The gas produced by the battery during the

jump-start operation is highly explosive. If

these instructions are not followed exactly,

serious personal injury and damage to the

vehicle may occur! If you are not sure how to

follow this procedure, seek qualified assis-

tance. Automobile batteries contain sulfuric

acid. This is poisonous and highly corrosive.

When jump starting, wear protective glasses

and be careful not to get acid on yourself,

your clothing or on the car.

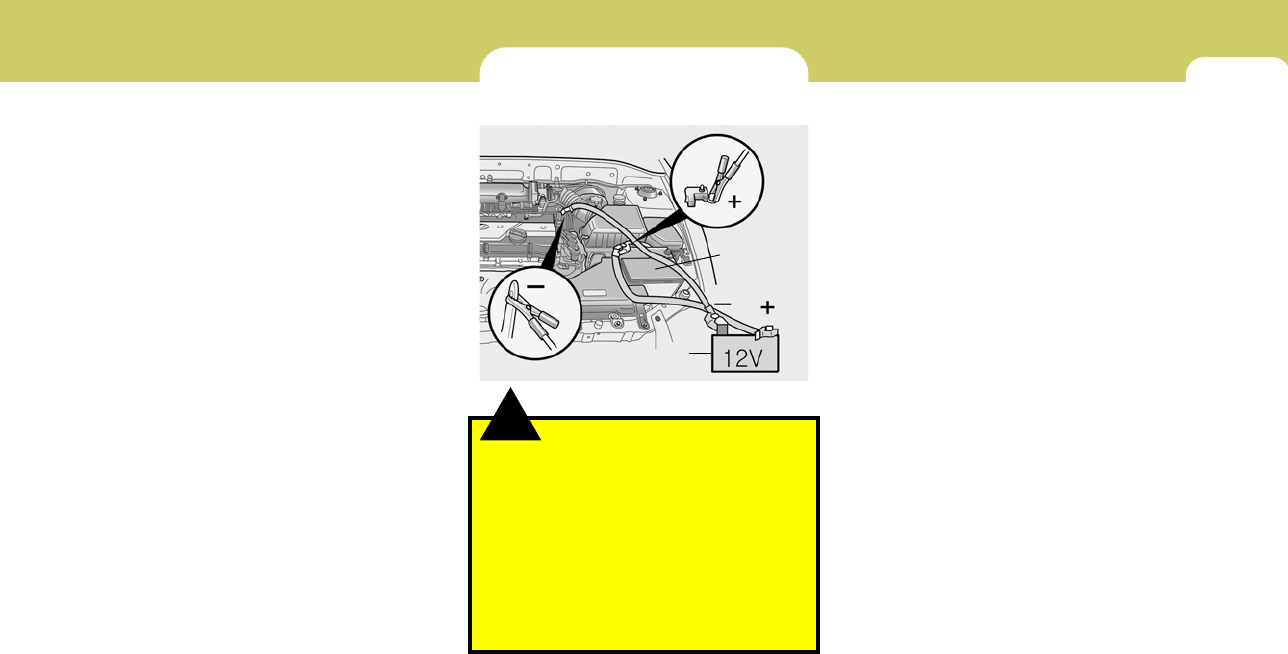

Discharged

battery

Booster

battery HLC4001

o If you should accidentally get acid on your

skin or in your eyes, immediately remove

any contaminated clothing and flush the area

with clear water for at least 15 minutes. Then

promptly obtain medical attention. If you must

be transported to an emergency facility, con-

tinue to apply water to the affected area with

a sponge or cloth.

o The gas produced by the battery during the

jump-start operation is highly explosive. Do

not smoke or allow a spark or open flame in

the vicinity.

o The battery being used to provide the jump

start must be 12-volt. If you cannot deter-

mine that it is a 12-volt battery, do not at-

tempt to use it for the jump start.

o To jump start a car with a discharged battery,

follow this procedure exactly:

1. If the booster battery is installed in another

vehicle, be sure the two vehicles are not

touching.

2. Turn off all unnecessary lights and acces-

sories in both vehicles.

3. Attach the clamps of the jumper cable in the

exact location shown on the previous page.

First, attach one clamp of the jumper cable to

the positive (+) post or cable of the dis-

charged battery. Then attach the other end

of the same cable to the positive (+) post or

cable of the booster battery. Next, using the

other cable, attach one clamp to the nega-

tive (-) post or cable of the booster battery.

WHAT TO DO IN AN EMERGENCY

IF THE ENGINE OVERHEATS

!WARNING:

While the engine is running, keep hands,

long hair and clothing away from moving

parts such as the fan and drive belts to

prevent injury.

D030A02A-AAT

If your temperature gauge indicates overheat-

ing, you experience a loss of power, or hear loud

pinging or knocking, the engine is probably too

hot. If this happens, you should:

1. Pull off the road and stop as soon as it is safe

to do so.

2. Place the gear selector lever in "P" (auto-

matic), or neutral (manual transaxle) and set

the parking brake. If the air conditioner is on,

turn it off.

3. If coolant is running out under the car or

steam is coming out from the hood, stop the

engine. Do not open the hood until the cool-

ant has stopped running or the steaming has

stopped. If there is no visible loss of coolant

and no steam, leave the engine running and

check to be sure the engine cooling fan is

operating. If the fan is not running, turn the

engine off.

4. Check to see if the water pump drive belt is

missing. If it is not missing, check to see that

it is tight. If the drive belt seems to be

satisfactory, check for coolant leaking from

the radiator, hoses or under the car. (If the air

conditioner had been in use, it is normal for

cold water to be draining from it when you

stop).

5. If the water pump drive belt is broken or

coolant is leaking out, stop the engine im-

mediately and call the nearest Hyundai deal-

er for assistance.

WARNING:

Do not remove the radiator cap when the

engine is hot. This may allow coolant to be

blown out of the opening and cause serious

burns.

6. If you cannot find the cause of the overheat-

ing, wait until the engine temperature has

returned to normal. Then, if coolant has been

lost, carefully add water to the reservoir

(Page 6-7) to bring the fluid level in the

reservoir up to the halfway mark.

7. Proceed with caution, keeping alert for fur-

ther signs of overheating. If overheating hap-

pens again, call a Hyundai dealer for assis-

tance.

Then attach the other end of that cable to a

solid metal part of the engine away from the

battery. Do not connect the cable to any

moving part.

4. Start the engine in the car with the booster

battery and let it run for a few minutes. This

will help to assure that the booster battery is

fully charged. During the jumping operation,

run the engine in this vehicle at about 2000

rpm.

5. Start the engine in the car with the dis-

charged battery using the normal starting

procedure. After the engine starts, leave the

jumper cables connected and let the engine

run at fast idle or about 2000 rpm for several

minutes.

6. Carefully remove the jumper cables in the

reverse order of attachment.

If you do not know why your battery became

discharged (because the lights were left on,

etc.), have the charging system checked by

your Hyundai dealer.

WHAT TO DO IN AN EMERGENCY

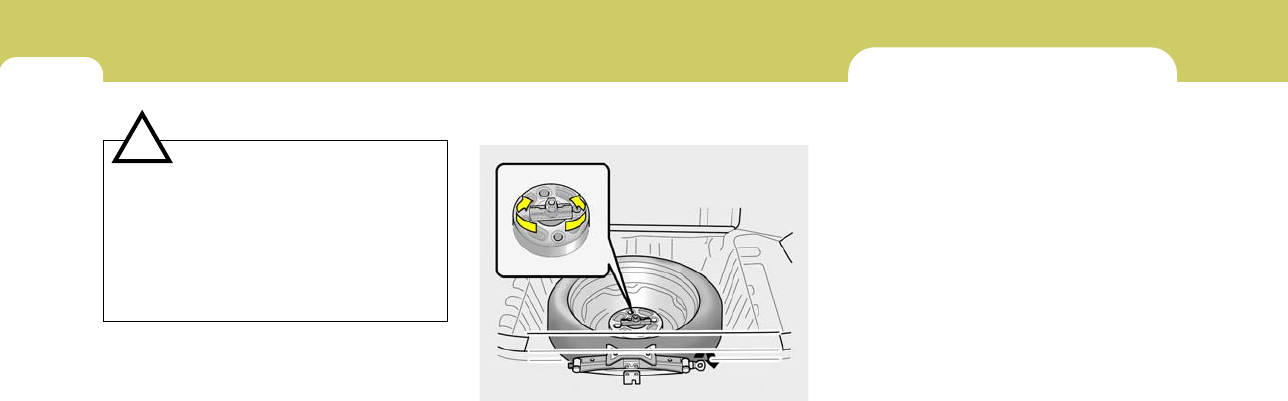

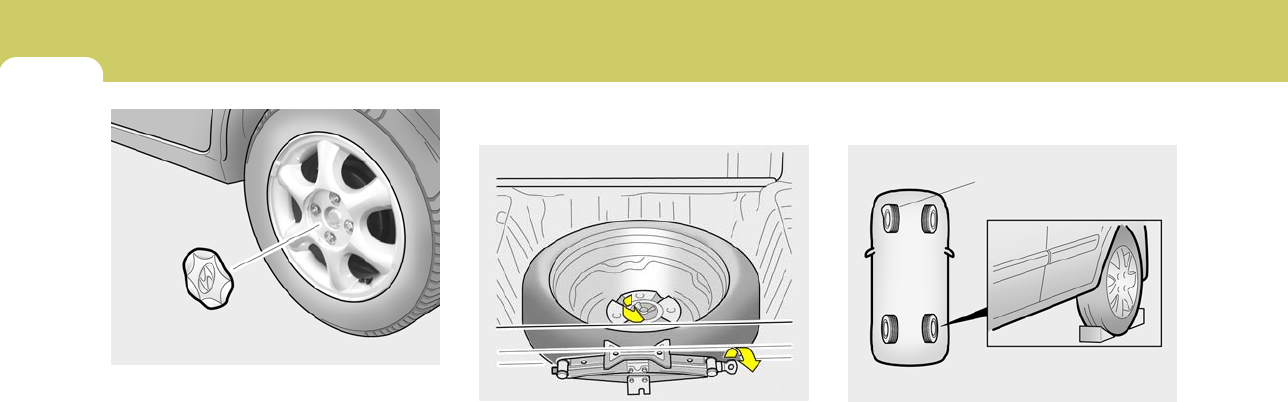

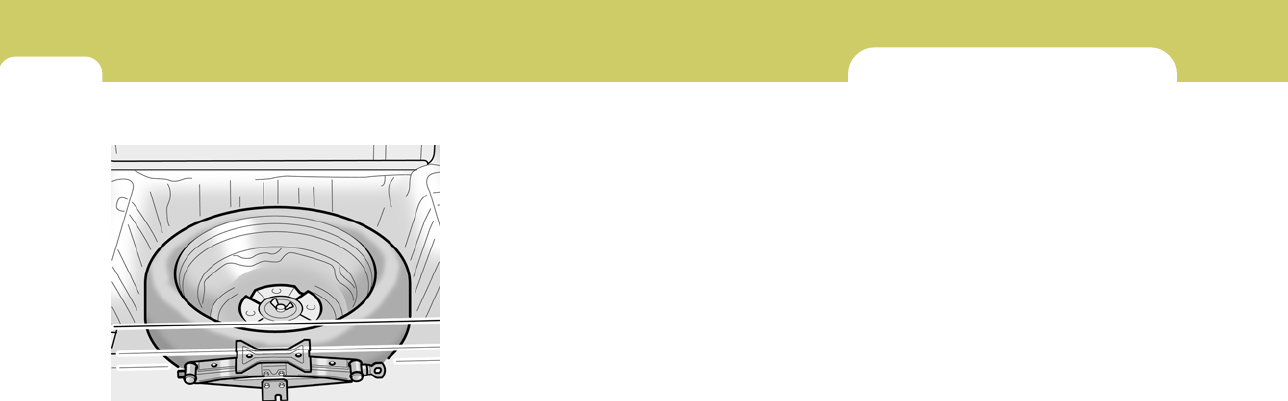

SPARE TIRE

Spare Tire Pressure

D040A01A-AAT

The following instructions for the tem-

porary spare tire should be observed:

1. Check inflation pressure as soon

as is practical after installing the

spare tire, and adjust to the speci-

fied pressure. The tire pressure

should be periodically checked and

maintained at the specified pres-

sure while the tire is stored.

Tire Size

Inflation Pressure

T105/70D(R)14

60 psi (420 kPa)

CAUTION:

Serious loss of coolant indicates there is a

leak in the cooling system and this should

be checked as soon as possible by a Hyundai

dealer.

3. Continuous use at speeds of over

50 mph (80 km/h) is not recom-

mended.

4. As the temporary spare tire is spe-

cifically designed for your car, it

should not be used on any other

vehicle.

5. The temporary spare tire should

not be used on any other wheels,

nor should standard tires, snow

tires, wheel covers or trim rings be

used with the temporary spare

wheel. If such use is attempted,

damage to these items or other car

components may occur.

6. The temporary spare tire pressure

should be checked once a month

while the tire is stored.

2. The spare tire should only be used

temporarily and should be returned

to the luggage compartment as

soon as the original tire can be

repaired or replaced.

WHAT TO DO IN AN EMERGENCY

IF YOU HAVE A FLAT TIRE

D040B01A-AAT

Handling the Spare Tire

Remove the installation bolt to re-

move the spare tire. To replace the

spare tire in its storage compartment,

tighten the bolt firmly with your fin-

gers until there is no more play in the

spare tire.

HLC4011

D050A01A-AAT

If a tire goes flat while you are driving:

1. Take your foot off the accelerator

pedal and let the car slow down

while driving straight ahead. Do not

apply the brakes immediately or

attempt to pull off the road as this

may cause a loss of control. When

the car has slowed to such a speed

that it is safe to do so, brake care-

fully and pull off the road. Drive off

the road as far as possible and

park on firm, level ground. If you

are on a divided highway, do not

park in the median area between

the two traffic lanes.

2. When the car is stopped, turn on

your emergency hazard flashers,

set the parking brake and put the

transaxle in "P" (automatic) or re-

verse (manual transaxle).

CAUTION:

o Do not use snow chains with

your temporary spare tire.

o Do not use more than one tem-

porary spare tire at a time.

o Do not tow a trailer while the

temporary spare tire is installed.

WHAT TO DO IN AN EMERGENCY

CHANGING A FLAT TIRE

D060A01A-AAT

The procedure described on the fol-

lowing pages can be used to rotate

tires as well as to change a flat tire.

When preparing to change a flat tire,

check to be sure the gear selector

lever is in "P" (automatic) or reverse

gear (manual transaxle) and that the

parking brake is set, then:

D060A01A

3. Have all passengers get out of the

car. Be sure they all get out on the

side of the car that is away from

traffic.

4. Change the tire following the in-

structions provided on the follow-

ing pages.

D060K01A-AAT

Wheel Cap (If Installed)

1. Wrap a piece of cloth around the

tip of the wrench bar to avoid

scratching.

2. Insert the wrench bar into the notch

of the wheel cap and pry gently to

remove the wheel cap.

3. Change the flat tire.

HLC4009-1

Notch

WHAT TO DO IN AN EMERGENCY

HTB156

Flat tire

Block the wheel that is diagonally

opposite from the flat to keep the

vehicle from rolling when the car is

raised on the jack.

D060C01A-AAT

2. Block the Wheel

4. Reinstall the wheel cap by fitting

the boss of the wheel cap in the

notch of the wheel, hitting the cen-

ter of the wheel cap with your

hand.

HLC4010

Remove the spare tire and remove

the jack and tool bag from the trunk.

NOTE:

The jack is located beneath the

luggage mat in the vehicle trunk.

D060B01E-AAT

1. Obtain Spare Tire and Tool

D060B01A

WHAT TO DO IN AN EMERGENCY

D060E01A-AAT

4. Put the Jack in Place

The base of the jack should be placed

on firm, level ground. The jack should

be positioned as shown in the draw-

ing.

D060E03A

D060D01A-AAT

3. Loosen Wheel Nuts

The wheel nuts should be loosened

slightly before raising the car. To

loosen the nuts, turn the wrench

handle counterclockwise. When do-

ing this, be sure that the socket is

seated completely over the nut so it

cannot slip off. For maximum lever-

age, position the wrench so the handle

is to the right as shown in the draw-

ing. Then, while holding the wrench

near the end of the handle, pull up on

it with steady pressure. Do not re-

HLC4007

move the nuts at this time. Just loosen

them about one-half turn.

D060F02E-AAT

5. Raising the Car

After inserting a wrench bar into the

wheel nut wrench, install the wrench

bar into the jack as shown in the

drawing. To raise the vehicle, turn the

wheel nut wrench clockwise. As the

jack begins to raise the vehicle, double

check that it is properly positioned

and will not slip. If the jack is on soft

ground or sand, place a board, brick,

flat stone or other object under the

base of the jack to keep it from sink-

ing.

Wrench bar

Wheel nut wrench

HFC4022

WHAT TO DO IN AN EMERGENCY

Raise the car high enough so that the

fully inflated spare tire can be in-

stalled. To do this, you will need more

ground clearance than is required to

remove the flat tire.

D060G02Y-AAT

6. Changing Wheels

Loosen the wheel nuts and remove

them with your fingers. Slide the wheel

off the studs and lay it flat so it cannot

roll away. To put the wheel on the

hub, pick up the spare tire, line up the

holes with the studs and slide the

wheel onto them. If this is difficult, tip

the wheel slightly and get the top hole

in the wheel lined up with the top

stud. Then jiggle the wheel back and

forth until the wheel can be slid over

the other studs.

D060G01A

WARNING:

Do not get under the car when it is

supported by the jack! This is very

dangerous as the vehicle could

fall and cause serious injury or

death. No one should stay in the

car while the jack is being used. !WARNING:

Wheels and wheel covers may have

sharp edges. Handle them care-

fully to avoid possible severe in-

jury.

Before putting the wheel into place,

be sure that there is nothing on

the hub or wheel (such as mud,

tar, gravel, etc.) that interferes with

the wheel fitting solidly against

the hub. If there is, remove it.

D060G02A

WHAT TO DO IN AN EMERGENCY

D060H02A-AAT

7. Re-install Wheel Nuts

To reinstall the wheel cover, hold it on

the studs, put the wheel nuts on the

studs and tighten them finger tight.

The nuts should be installed with their

small diameter ends directed inward.

Jiggle the tire to be sure it is com-

pletely seated, then tighten the nuts

as much as possible with your fingers

again.

D060H01A

If there is not good contact on the

mounting surface between the

wheel and hub, the wheel nuts

could loosen and cause the loss

of a wheel. Loss of a wheel may

result in loss of control of the

vehicle. This may cause serious

injury or death.

D060I01E-GAT

8. Lower Vehicle and Tighten Nuts

Lower the car to the ground by turn-

ing the wheel nut wrench counter-

clockwise. Then position the wrench

as shown in the drawing and tighten

the wheel nuts. Be sure the socket is

seated completely over the nut. Do

not stand on the wrench or use an

extension pipe over the wrench

handle.

Go around the wheel tightening every

other nut until they are all tight. Then

double-check each nut for tightness.

HLC4008

WHAT TO DO IN AN EMERGENCY

IF YOUR CAR MUST BE TOWED

D060J01E-AAT

After Changing Wheels

If you have a tire gauge, remove the

valve cap and check the air pressure.

D080A01A-AAT

CAUTION:

Your car can be damaged if towed incor-

rectly!

HLC4012

If your car has to be towed, it should be done by

your Hyundai dealer or a commercial tow truck

service. This will help assure that your car is not

damaged in towing. Also, professionals are gen-

erally aware of state and local laws governing

towing. In any case, rather than risk damage to

your car, it is suggested that you show this

information to the tow truck operator. Be sure

that a safety chain system is used and that all

state and local laws are observed.

D080A01A

o OK FOR AUTOMATIC OR MANUAL

TRANSAXLE EQUIPPED VEHICLE

After changing wheels, have a techni-

cian tighten the wheel nuts to their

proper torque as soon as possible.

Wheel nut tightening torque:

Steel wheel & aluminium alloy wheel:

65-80 lb.ft (900-1,100 kg.cm)

If the pressure is lower than recom-

mended, drive slowly to the nearest

service station and inflate to the cor-

rect pressure. If it is too high, adjust

it until it is correct. Always reinstall

the valve cap after checking or ad-

justing tire pressure. If the cap is not

replaced, air may leak from the tire. If

you lose a valve cap, buy another

and install it as soon as possible.

After you have changed wheels, al-

ways secure the flat tire in its place in

the trunk and return the jack and tools

to their proper storage locations.

WHAT TO DO IN AN EMERGENCY

D080B01A-AAT

TOWING A CAR WITH MANUAL

TRANSAXLE

o If the car is being towed with the rear wheels

on the ground, be sure the parking brake is

released.

o If the car is being towed with the front wheels

on the ground, be sure that the transaxle is

in neutral. Also, be sure that the ignition key

is in the "ACC" position. This is necessary to

prevent damage to the steering lock mecha-

nism, which is not designed to hold the front

wheels straight while the car is being towed.

o If any of the loaded wheels or suspension

components are damaged, a towing dolly

must be used.

D080B01A

o OK FOR AUTOMATIC OR MANUAL

TRANSAXLE EQUIPPED VEHICLE

WITH NO DAMAGE

D080C02A-AAT

TOWING A CAR WITH AUTOMATIC

TRANSAXLE

CAUTION:

A car with an automatic transaxle should

never be towed from the rear with the front

wheels on the ground. This can cause seri-

ous damage to the transaxle. If the car must

be towed from the rear, a towing dolly must

be used under the front wheels.

o NOT OK FOR AUTOMATIC

TRANSAXLE EQUIPPED VEHICLE

o OK FOR MANUAL TRANSAXLE

D080C01A

o If the car is being towed with the rear wheels

on the ground, be sure the parking brake is

released.

NOTE:

Before towing, check the level of the tran-

saxle fluid. If it is below the "HOT" range on

the dipstick, add fluid. If you cannot add

fluid, a towing dolly must be used as de-

scribed above.

D080C02A

o OK FOR AUTOMATIC OR MANUAL

TRANSAXLE EQUIPPED VEHICLE

WHAT TO DO IN AN EMERGENCY

IF YOU LOSE YOUR KEYS

D120A01A-AAT

If you lose your keys, many Hyundai dealers

can make you a new key if you have your key

number.

If you lock the keys inside your car and you

cannot obtain a new key, many Hyundai dealers

can use special tools to open the door for you.

CAUTION:

If the car is being towed with all four wheels

on the ground, it can be towed only from the

front. Be sure that the transaxle is in neutral.

Do not tow at speeds greater than 30 mph

(50 km/h) and for more than 15 miles (25 km).

Be sure the steering is unlocked by placing

the key in the "ACC" position. A driver must

be in the towed vehicle to operate the steer-

ing and brakes.

D080D03A-AAT

EMERGENCY TOWING

For emergency towing when no commercial tow

vehicle is available, attach a tow cable, chain or

strap to one of the towing hooks under the front/

rear of your car. Do not attempt to tow your

vehicle in this manner on any unpaved surface.

This may result in serious damage to your car.

Nor should it be attempted if the wheels, drive

train, axles, steering or brakes are damaged.

Before towing, be sure the transaxle is in neutral

and the key in "ACC" (with the engine off) or in

the "ON" position (with the engine running). A

driver must be in the towed car to steer it and

operate the brakes.

HLC4014

Front

Rear

CORROSION PREVENTION &

APPEARANCE CARE

Corrosion Protection .................................................... 4-2

To Help Prevent Corrosion .......................................... 4-2

Washing and Waxing ................................................... 4-3

Cleaning the Interior .................................................... 4-5

4CORROSION PREVENTION AND APPEARANCE CARE

2TO HELP PREVENT CORROSIONCORROSION PROTECTION

E010B01A-AAT

Common Causes of Corrosion

The most common causes of corrosion on your

car are:

o Road salt, dirt and moisture that is allowed to

accumulate underneath the car.

o Removal of paint or protective coatings by

stones, gravel, abrasion or minor scrapes

and dents which leave unprotected metal

exposed to corrosion.

E010A01A-AAT

Protecting Your Hyundai from Corro-

sion

By using the most advanced design and con-

struction practices to combat corrosion, Hyundai

produces cars of the highest quality. However,

this is only part of the job. To achieve the long

term corrosion resistance your Hyundai can

deliver, the owner's cooperation and assistance

is also required.

E010C01A-AAT

High-Corrosion Areas

If you live in an area where your car is regularly

exposed to corrosive materials, corrosion pro-

tection is particularly important. Some of the

common causes of accelerated corrosion are

road salts, dust control chemicals, ocean air

and industrial pollution.

E010D01A-AAT

Moisture Breeds Corrosion

Moisture creates the conditions in which corro-

sion is most likely to occur. For example, corro-

sion is accelerated by high humidity, particularly

when temperatures are just above freezing. In

such conditions, the corrosive material is kept in

contact with the car surfaces by moisture that is

slow to evaporate.

Mud is a particular enemy of corrosion protec-

tion because it is slow to dry and holds moisture

in contact with the vehicle. Even though the mud

appears to be dry, it can still retain moisture and

promote corrosion.

High temperatures can also accelerate corro-

sion of parts that are not properly ventilated so

the moisture can be dispersed. For all these

reasons, it is particularly important to keep your

car clean and free of mud or accumulations of

other materials. This applies not only on the

visible surfaces but particularly to the underside

of the car.

E020A01A-AAT

You can help prevent corrosion from getting

started by observing the following:

E020B01A-AAT

Keep Your Car Clean

The best way to prevent corrosion is to keep

your car clean and free of corrosive materials.

Attention to the underside of the car is particu-

larly important.

o If you live in a high-corrosion area — where

road salts are used, near the ocean, areas

with industrial pollution, acid rain, etc.— you

should take extra care to prevent corrosion.

In winter, hose off the underside of your car

at least once a month and be sure to clean

the underside thoroughly when winter is over.

o When cleaning underneath the car, give par-

ticular attention to the components under the

fenders and other areas that are hidden from

view. Do a thorough job; just dampening the

accumulated mud rather than washing it away

will accelerate corrosion rather than prevent

it. Water under high pressure and steam are

particularly effective in removing accumulat-

ed mud and corrosive materials.

CORROSION PREVENTION AND APPEARANCE CARE 4

CORROSION PREVENTION AND APPEARANCE CARE

E020C01A-AAT

Keep Your Garage Dry

Don't park your car in a damp, poorly ventilated

garage. This creates a favorable environment

for corrosion. This is particularly true if you wash

your car in the garage or drive it into the garage

when it is still wet or covered with snow, ice or

mud. Even a heated garage can contribute to

corrosion unless it is well ventilated so moisture

is dispersed.

E020D01A-AAT

Keep Paint and Trim in Good Condition

Scratches or chips in the finish should be cov-

ered with "touch-up" paint as soon as possible

to reduce the possibility of corrosion. If bare

metal is showing through, the attention of a

qualified body and paint shop is recommended.

o When cleaning lower door panels, rocker

panels and frame members, be sure that

drain holes are kept open so that moisture

can escape and not be trapped inside to ac-

celerate corrosion.

WASHING AND WAXING

E030A01A-AAT

Washing Your Hyundai

Never wash your car when the surface is hot

from being in the sun. Always wash your car in

the shade.

Wash your car frequently. Dirt is abrasive and

can scratch the paint if it is not removed. Air

pollution or acid rain may damage the paint and

trim through chemical action if pollutants are

allowed to remain in contact with the surface. If

you live near the ocean or in an area where road

salts or dust control chemicals are used, you

should pay particular attention to the underside

of the car. Start by rinsing the car to remove

dust and loose dirt. In winter, or if you have

driven through mud or muddy water, be sure to

thoroughly clean the underside as well. Use a

hard direct stream of water to remove accumu-

lations of mud or corrosive materials. Use a

good quality car-washing solution and follow the

manufacturer's directions on the package. These

are available at your Hyundai dealer or auto

parts outlet. Don't use strong household deter-

gents, gasoline, strong solvents or abrasive

cleaning powders as these may damage the

finish.

E020E01A-AAT

Don't Neglect the Interior

Moisture can collect under the floor mats and

carpeting to cause corrosion. Check under the

mats periodically to be sure the carpeting is dry.

Use particular care if you carry fertilizers, clean-

ing materials or chemicals in the car.

These should be carried only in proper contain-

ers and any spills or leaks should be cleaned

up, flushed with clear water and thoroughly

dried.

4CORROSION PREVENTION AND APPEARANCE CARE

Use a clean sponge or cloth, rinse it frequently

and don't damage the finish by rubbing too hard.

For stubborn spots, dampen them frequently

and remove them a little at a time.

To clean whitewall tires, use a stiff brush or

soap-impregnated steel-wool scouring pad.

To clean plastic wheel covers, use a clean

sponge or soft cloth and water.

To clean cast aluminum alloy wheels, use a mild

soap or neutral detergent. Do not use abrasive

cleaners. Protect the bare-metal surfaces by

cleaning, polishing and waxing. Because alumi-

num is subject to corrosion, be sure to give

aluminum alloy wheels special attention in win-

ter. If you drive on salted roads, clean the

wheels thoroughly afterwards.

After washing, be sure to rinse thoroughly. If

soapy water dries on the finish, streaking will

result.

When the weather is warm and the humidity low,

you may find it necessary to rinse each section

immediately after washing to avoid streaking.

After rinsing, dry the car using a damp chamois

or soft, absorbent cloth. The reason for drying

the car is to remove water from the car so it will

dry without water spots. Don't rub, this can

damage the finish.

If you find any nicks or scratches in the paint,

use touch-up paint to cover them to prevent

corrosion. To protect the paintwork of the car

against corrosion, you must clean your Hyundai

(at least once a month). Give special attention

to the removal of salt, mud and other substanc-

es on the underside of the splashboards of the

car. Make sure that the outlets and the under-

side of the doors are open. Paint damage can be

caused by small accumulation of tar, industrial

precipitation, tree resin, insects and bird drop-

pings, when not removed immediately.

If water alone is not strong enough to remove

the accumulated dirt, use a mild car washing

solution. Be sure to rinse the surface after

washing to remove the solution. Never allow the

solution to dry on the painted surfaces.

E030B01A-AAT

Spot Cleaning

Don't use gasoline, strong solvents or corrosive

cleaning agents. These can damage the finish

of the car. To remove road tar, use turpentine on

a clean, soft cloth. Be gentle.

To remove dead insects or tree sap, use warm

water and mild soap or car-washing solution.

Soak the spot and rub gently. If the paint has

lost its luster, use a commercial car-cleaning

polish.

E030C01A-AAT

Polishing and Waxing

Always wash and dry the car before polishing or

waxing or using a combination cleaner and wax.

Use a good quality commercial product and

follow the manufacturer's directions on the con-

tainer. Polish and wax the bright trim pieces as

well as the paint.

CORROSION PREVENTION AND APPEARANCE CARE 4

CORROSION PREVENTION AND APPEARANCE CARE

E030D01A-AAT

When to Wax Again

You should polish and wax the car again when

water no longer beads on a clean surface but

spreads out over a larger area.

E030E01A-AAT

Maintaining Bumpers

Special precautions must be observed to pre-

serve the appearance of the bumpers on your

Hyundai. They are:

o Be careful not to spill battery electrolyte or

hydraulic brake fluid on the bumpers. If you

do, wash it off immediately with clean water.

o Be gentle when cleaning the bumper sur-

faces. They are made of soft plastic and the

surface can be damaged if mistreated. Do

not use abrasive cleaners. Use warm water

and mild soap or car-washing solution.

o Do not expose the bumpers to high tem-

peratures. For example, if you have your

car repainted, do not leave the bumpers on

the car if the car is going to be placed in a

high-temperature paint booth.

E040D01A-AAT

Cleaning the Seat Belts

To clean the seat belts, use a cloth or sponge

with mild soap or detergent and warm water. Do

not use strong detergents, dye, bleach or abra-

sive materials on the seat belts as this may

weaken the fabric.

While cleaning the belts, inspect them for ex-

cessive wear, cuts, fraying or other signs of

damage and replace them if necessary.

E040E01A-AAT

Cleaning the Windows

You may use any household window cleaner on

the windows. However, when cleaning the in-

side of the rear window be careful not to damage

the rear window defroster wiring.

E040A01A-AAT

To Clean the Vinyl Upholstery

To clean the vinyl upholstery, first remove loose

dirt and dust with a vacuum cleaner. Then apply

a solution of mild soap or detergent and water

using a clean sponge or soft cloth. Allow this to

stay on the surface to loosen the dirt, then wipe

with a clean damp sponge or cloth. If all the dirt

stains are not removed, repeat this procedure

until the upholstery is clean. Do not use gaso-

line, solvent, paint thinner or other strong clean-

ers.

E040C01A-AAT

Cleaning the Carpets

Use a foam-type carpet cleaner. Cleaners of

this type are available in aerosol cans in liquid

form or powder. Read the instructions and follow

them exactly. Using a vacuum cleaner with the

appropriate attachment, remove as much dirt

from the carpets as possible. Apply the foam

following the manufacturer's directions, then

rub in overlapping circles. Do not add water.

These cleaners work best when the carpet is

kept as dry as possible.

CLEANING THE INTERIOR

4CORROSION PREVENTION AND APPEARANCE CARE

6ANY QUESTIONS?

E050A01A-AAT

If you have any questions about the care of your

car, consult your Hyundai dealer.

Maintenance Intervals .................................................. 5-2

Scheduled Maintenance .............................................. 5-4

Maintenance Under Severe Usage Conditions .......... 5-6

Explanation of Scheduled Maintenance Items ........... 5-7

VEHICLE MAINTENANCE REQUIREMENTS

5VEHICLE MAINTENANCE REQUIREMENTS

2MAINTENANCE INTERVALS

F010B01A-AAT

Maintenance Requirements

The maintenance required for your Hyundai can

be divided into three main areas:

o Specified scheduled procedures

o General checks

o Do-it-yourself maintenance

F010A01A-AAT

Service Requirements

To ensure that you receive the greatest number

of miles of satisfying operation from your

Hyundai, certain maintenance procedures must

be performed. Although careful design and engi-

neering have reduced these to a minimum,

those that are required are of the utmost impor-

tance.

It is your responsibility to have these mainte-

nance procedures performed to comply with the

terms of the warranties covering your new

Hyundai. The Owner's Handbook supplied with

your new vehicle provides further information

about these warranties.

F010D01A-AAT

General Checks

These are the regular checks you should per-

form when you drive your Hyundai or you fill the

fuel tank. A list of these items will be found on

page 6-3.

F010C01A-AAT

Specified Scheduled Procedures

These are the procedures such as inspections,

adjustments and replacements that are listed in

the maintenance charts starting on page 5-4.

These procedures must be performed at the

intervals shown in the maintenance schedule to

assure that your warranty remains in effect.

Although it is strongly recommended that they

be performed by the factory-trained or distribu-

tor-trained technicians at your Hyundai dealer,

these procedures may be performed at any

qualified service facility.

It is suggested that genuine Hyundai service

parts be used for any required repairs or re-

placements. Other parts of equivalent quality

such as engine oil, engine coolant, manual or

auto transaxle oil, brake fluid and so on which

are not supplied by Hyundai Motor Company or

its distributor may be used without affecting your

warranty coverage but you should always be

sure these are equivalent to the quality of the

original Hyundai parts. Your Owner's Handbook

provides further information about your warranty

coverage.

F010E01A-AAT

Do-It-Yourself Maintenance

If you are mechanically inclined, own a few tools

that are required and want to take the time to do

so, you can inspect and service a number of

items. For more information about doing it your-

self, see Section 6.

VEHICLE MAINTENANCE REQUIREMENTS

SCHEDULED MAINTENANCE

REQUIREMENTS

F020A02A-AAT

o Inspection should be performed any time a

malfunction is experienced or suspected.

o Receipts for all emission control system ser-

vices should be retained to demonstrate com-

pliance with conditions of the emissions sys-

tem warranty.

o After 120 months or 150,000 miles (240,000

km), continue to follow the prescribed main-

tenance intervals.

o For severe usage maintenance requirements,

see page 5-6 of this section.

F010F01A-AAT

A Few Tips

o Whenever you have your Hyundai serviced,

keep copies of the service records in your

glove box. This will help ensure that you can

document that the required procedures have

been performed to keep your warranties in

effect. This is especially important when ser-

vice is not performed by an authorized

Hyundai dealer.

o If you choose to do your own maintenance

and repairs, you may find it helpful to have

an official Hyundai Shop Manual. A copy of

this publication may be purchased at your

Hyundai dealer's parts department.

5VEHICLE MAINTENANCE REQUIREMENTS

4SCHEDULED MAINTENANCE

150

240

120

MILES X 1000

KILOMETERS X 1000

MONTHS

EMISSION CONTROL ITEMS

ENGINE OIL AND FILTER

FUEL FILTER

FUEL LINES, FUEL HOSES AND CONNECTIONS

VACUUM AND CRANKCASE VENTILATION HOSES

VAPOR HOSE AND FUEL FILLER CAP

AIR CLEANER FILTER

FUEL TANK AIR FILTER

SPARK PLUGS

No. DESCRIPTION

7.5

22.5

37.5

52.5

67.5

108

120

82.5

132

144

97.5

156

105

168

112.5

180

120

192

127.5

204

102

135

216

108

142.5

228

114

F030B03A-AAT

R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary

F030A01A-AAT

The following maintenance services must be performed to assure good vehicle control and performance. Keep receipts for all vehicle services to protect

your warranty. Where both mileage and time are shown, the frequency of service is determined by whichever occurs first.

VEHICLE MAINTENANCE REQUIREMENTS

GENERAL ITEMS

DRIVE BELT (WATER PUMP, ALTERNATOR AND A/CON)

COOLANT

TIMING BELT

MANUAL TRANSAXLE OIL

AUTOMATIC TRANSAXLE FLUID

BRAKE FLUID

BRAKE HOSES AND LINES

REAR BRAKE DRUMS/LININGS, PARKING BRAKE

BRAKE PADS, CALIPERS AND ROTORS

EXHAUST PIPE AND MUFFLER

SUSPENSION MOUNTING BOLTS

STEERING GEAR BOX, LINKAGE & BOOTS/LOWER ARM

BALL JOINT

POWER STEERING PUMP, BELT AND HOSES

DRIVESHAFTS AND BOOTS

AIR CONDITIONING REFRIGERANT

AIR CONDITIONER FILTER (For Evaporator and Blower unit)

No. DESCRIPTION

MILES X 1000

KILOMETERS X 1000

MONTHS

7.5

22.5

37.5

52.5

67.5

108

120

82.5

132

144

97.5

156

105

168

112.5

180

120

192

127.5

204

102

135

216

108

142.5

228

114

150

240

120

See Note *2

Note :

*1. FOR THE FIRST TIME, REPLACE THE COOLANT AT 60,000 MILES (100,000 KM) OR 60 MONTHS.

AFTER THAT, REPLACE IT EVERY 30,000 MILES (45,000 KM) OR 24 MONTHS.

*2. FOR EVERY 12 MONTHS OR 12,000 MILES (20,000 KM), WHICHEVER OCCURS FIRST : "R"

F030C2A-AAT

R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary

See Note *1

5VEHICLE MAINTENANCE REQUIREMENTS

DRIVING

CONDITION

MAINTENANCE

INTERVALS

ENGINE OIL AND FILTER

AIR CLEANER FILTER

SPARK PLUGS

BRAKE PADS, CALIPERS AND ROTORS

REAR BRAKE DRUMS/LININGS,

PARKING BRAKE

STEERING GEAR BOX, LINKAGE

& BOOTS/LOWER ARM BALL JOINT

DRIVESHAFTS AND BOOTS

MANUAL TRANSAXLE OIL

AUTOMATIC TRANSAXLE FLUID

AIR CONDITIONER FILTER

(For Evaporator and Blower unit)

MAINTENANCE

OPERATION

MAINTENANCE ITEM

EVERY 3,000 MILES (4,800 KM) OR 3 MONTHS

MORE FREQUENTLY

EVERY 7,500 MILES (12,000 KM) OR 6 MONTHS

EVERY 60,000 MILES (96,000 KM)

EVERY 30,000 MILES (48,000 KM)

MORE FREQUENTLY

SEVERE DRIVING CONDITIONS

A - Repeatly driving short distance of less than 5miles(8km) in normal tempera

ture or less than 10miles(16km) in freezing temperature

B - Extensive engine idling or low speed driving for long distances

C - Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads

D - Driving in areas using salt or other corrosive materials or in very cold

weather

E - Driving in sandy areas

F - Driving in heavy traffic area over 90°F(32°C)

G - Driving on uphill, downhill, or mountain road

H - Towing a Trailer, or using a camper, or roof rack

I - Driving as a patrol car, taxi, other commercial use or vehicle towing

J - Driving over 100 MPH(170 Km/h)

K - Frequently driving in stop-and-go conditions

F040A08A-AAT

MAINTENANCE UNDER SEVERE USAGE CONDITIONS

The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate

maintenance intervals.

R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary

A, B, C, F, G, H, I, K

C, E

B, H

C, D, G, H

C, D, E, F, G

C, E, F

A, C, D, E, F, G, H, I

A, C, E, F, G, H, I

C, E

VEHICLE MAINTENANCE REQUIREMENTS

EXPLANATION OF SCHEDULED

MAINTENANCE ITEMS

F060D01A-AAT

o Fuel Lines, Fuel Hoses and

Connections

Check the fuel lines, fuel hoses and connec-

tions for leakage and damage. Have a trained

techincian, replace any damaged or leaking

parts immediately.

F060C01A-AAT

o Fuel Filter

A clogged filter can limit the speed at which the

vehicle may be driven, damage the emission

system and cause hard starting. If an excessive

amount of foreign matter accumulates in the fuel

tank, the filter may require replacement more

frequently.

After installing a new filter, run the engine for

several minutes, and check for leaks at the

connections.

Fuel filters should be installed by trained techni-

cians.

F060M01A-AAT

o Engine Oil and Filter

The engine oil and filter should be changed at

the intervals specified in the maintenance sched-

ule. If the car is being driven in severe condi-

tions, more frequent oil and filter changes are

required.

F060H01A-AAT

o Air Cleaner Filter

A Genuine Hyundai air cleaner filter is recom-

mended when the filter is replaced.

F060G01A-AAT

o Vapor Hose and Fuel Filler Cap

The vapor hose and fuel filler cap should be

inspected at those intervals specified in the

maintenance schedule. Make sure that a new

vapor hose or fuel filler cap is correctly re-

placed.

F060F01A-AAT

o Vacuum, Crankcase Ventilation

Hoses

Inspect the surface of hoses for evidence of

heat and/or mechanical damage. Hard and brittle

rubber, cracking, tears, cuts, abrasions, and

excessive swelling indicate deterioration. Par-

ticular attention should be paid to examine those

hose surfaces nearest to high heat sources,

such as the exhaust manifold.

Inspect the hose routing to assure that the

hoses do not come in contact with any heat

source, sharp edges or moving component which

might cause heat damage or mechanical wear.

Inspect all hose connections, such as clamps

and couplings, to make sure they are secure,

and that no leaks are present. Hoses should be

replaced immediately if there is any evidence of

deterioration or damage.

F060B01A-AAT

o Drive Belts

Inspect all drive belts for evidence of cuts,

cracks, excessive wear or oil saturation and

replace if necessary. Drive belts should be

checked periodically for proper tension and ad-

justed as necessary.

F060J01A-AAT

o Spark Plugs

Make sure to install new spark plugs of the

correct heat range.

5VEHICLE MAINTENANCE REQUIREMENTS

F070H01A-AAT

o Rear Brake Drums/Linings,

Parking Brake

Check the rear brake drums and linings for

scoring, burning, leaking fluid, broken parts, and

excessive wear. Inspect the parking brake sys-

tem including the parking brake lever and cables.

For detailed service procedures, refer to the

Shop Manual.

F070F01A-AAT

o Brake Hoses and Lines

Visually check for proper installation, chafing,

cracks, deterioration and any leakage. Replace

any deteriorated or damaged parts immediately.

F070G02A-AAT

o Brake Fluid

Check brake fluid level in the brake fluid reser-

voir. The level should be between "MIN" and

"MAX" marks on the side of the reservoir. Use

only hydraulic brake fluid conforming to DOT 3

or DOT 4.

F070E06A-AAT

o Automatic Transaxle Fluid

The fluid level should be in the “HOT” range of

the dipstick, after the engine and transaxle are

at normal operating temperature. Check the

automatic transaxle fluid level with the engine

running and the transaxle in neutral, with the

parking brake properly applied. Use HYUNDAI

GENUINE ATF SP III, DIAMOND ATF SP III,

ATF SP III or other brands meeting the SP III

specification approved by Hyundai Motor Co.

when adding or changing fluid. Using the wrong

ATF may result in damage to the ATM.

F070K01A-AAT

o Exhaust Pipe and Muffler

Visually inspect the exhaust pipes, muffler and

hangers for cracks, deterioration, or damage.

Start the engine and listen carefully for any

exhaust gas leakage. Tighten connections or

replace parts as necessary.

F070J01A-AAT

o Brake Pads, Calipers and Rotors

Check the pads for excessive wear, discs for

run out and wear, and calipers for fluid leakage.

F070D01A-AAT

o Manual Transaxle Oil

Inspect the manual transaxle oil according to

the maintenance schedule.

NOTE:

If the oil level is low, check for possible leaks

before adding oil. Do not overfill.

F060E01A-AAT

o Timing Belt

Inspect all parts related to the timing belt for

damage and deformation. Replace any dam-

aged parts immediately.

F070C01A-AAT

o Coolant

The coolant should be changed at the

intervals specified in the maintenance schedule.

VEHICLE MAINTENANCE REQUIREMENTS

F070M01A-AAT

o Steering Gear Box, Linkage &

Boots/Lower Arm Ball Joint

With the vehicle stopped and engine off, check

for excessive free-play in the steering wheel.

Check the linkage for bends or damage. Check

the dust boots and ball joints for deterioration,

cracks, or damage. Replace any damaged parts.

F070L01A-AAT

o Suspension Mounting Bolts

Check the suspension connections for loose-

ness or damage. Retighten to the specified

torque.

F070Q01A-AAT

o Air Conditioning Refrigerant

Check the air conditioning lines and connec-

tions for leakage and damage. Check air condi-

tioning performance according to the relevant

shop manual if necessary.

F070P01A-AAT

o Driveshafts and Boots

Check the drive shafts, boots and clamps for

cracks, deterioration, or damage. Replace any

damaged parts and, if necessary, repack the

grease.

F070N01A-AAT

o Power Steering Pump, Belt and

Hoses

Check the power steering pump and hoses for

leakage and damage. Replace any damaged or

leaking parts immediately. Inspect the power

steering belt for evidence of cuts, cracks, ex-

cessive wear, oiliness and proper tension. Re-

place or adjust it if necessary.

Engine Compartment.................................................... 6-2

General Checks ............................................................ 6-3

Checking the Engine Oil ............................................... 6-4

Changing the Oil and Filter........................................... 6-5

Checking and Changing the Engine Coolant ............... 6-6

Spark Plugs .................................................................. 6-8

Changing the Air Cleaner Filter .................................. 6-10

Checking the Transaxle Oil (manual) ......................... 6-11

Checking the Transaxle Fluid (Automatic) ................. 6-12

Checking the Brakes .................................................. 6-14

Checking the Clutch Fluid .......................................... 6-15

Air Conditioning Care ................................................. 6-15

Changing the Air Conditioner Filter

(For Evaporator and Blower Unit).............................. 6-16

Checking Drive Belts .................................................. 6-19

Checking and Replacing Fuses ................................. 6-19

Power Steering Fluid Level ........................................ 6-22

Replacement of Bulbs ................................................ 6-25

Bulb Wattages ............................................................ 6-31

Fuse Panel Description .............................................. 6-32

Do-It-Yourself Maintenance

6DO-IT-YOURSELF MAINTENANCE

6. Brake fluid reservoir

7. Clutch fluid reservoir

8. Air filter element

9. Relay box

10. Windshield washer fluid reservoir cap

ENGINE COMPARTMENT

G010C01A-GAT

(1.6 DOHC)

G010D01A-1

1. Engine coolant reservoir

2. Power steering fluid reservoir (If Installed)

3. Rocker cover

4. Engine oil filler cap

5. Brake booster

11. Engine oil level dipstick

12. Radiator cap

13. Automatic transaxle fluid level dipstick

(If Installed)

14. Battery

CAUTION:

When inspecting or ser-

vicing the engine, you

should handle tools and

other heavy objects care-

fully so that the plastic

rocker cover of the engine

is not damaged.

23456789

10 11 12 13 14

DO-IT-YOURSELF MAINTENANCE

GENERAL CHECKS

G020C01A-AAT

Vehicle Interior

The following should be checked each time

when the vehicle is driven:

o Light operation

o Windshield wiper operation

o Horn operation

o Defroster, heater system operation (and air

conditioning, if installed)

o Steering operation and condition

o Mirror condition and operation

o Turn signal operation

o Accelerator pedal operation

o Brake operation, including parking brake

o Manual transaxle operation, including clutch

operation

o Automatic transaxle operation, including

"Park" mechanism operation

o Seat control condition and operation

o Seat belt condition and operation

o Sun visor operation

If you notice anything that does not operate

correctly or appear to be functioning correctly,

inspect it carefully and seek assistance from

your Hyundai dealer if service is needed.

G020A01A-AAT

Engine Compartment

The following should be checked regularly:

o Engine oil level and condition

o Transaxle fluid level and condition

o Brake fluid level

o Clutch fluid level

o Engine coolant level

o Windshield washer fluid level

o Accessory drive belt condition

o Engine coolant hose condition

o Fluid leaks (on or below components)

o Power steering fluid level and condition

o Battery Condition

o Air filter condition

G020B01A-AAT

Vehicle Exterior

The following should be checked monthly:

o Overall appearance and condition

o Wheel condition and wheel nut tightness

o Exhaust system condition

o Light condition and operation

o Windshield glass condition

o Wiper blade condition

o Paint condition and body corrosion

o Fluid leaks

o Door and hood lock condition

o Tire pressure and condition

(including spare tire)

6DO-IT-YOURSELF MAINTENANCE

4CHECKING THE ENGINE OIL

G030A01A-AAT

Engine oil is essential to the performance and

service of the engine. It is suggested that you

check the oil level at least once a week in

normal use and more often if you are on a trip or

driving in severe conditions. G030C02A-AAT

To Check the Oil Level

Before checking the oil, warm up the engine to

the normal operating temperature and be sure it

is parked on level ground. Turn the engine off.

Wait five minutes, then remove the dipstick,

wipe it off, fully reinsert the dipstick and with-

draw it again. Then note the highest level the oil

has reached on the dipstick. It should be be-

tween the upper ("F") and lower ("L") range.

G030D01A-AAT

Adding Oil

If the oil level is close to or below the "L" mark,

add oil until it reaches the "F" mark. To add oil:

1. Remove the oil filler cap by turning it counter-

clockwise.

2. Add oil, then check the level again. Do not

overfill.

3. Replace the cap by turning it clockwise.

The distance between the "F" and "L" marks is

equal to about 1 quart of oil.

G030C03A

G030D03A

G030B01O-AAT

Recommended Oil

The engine oil quality should meet the following

classification.

API SJ, SL or ABOVE,

ILSAC GF-3 or ABOVE

NOTE:

o For good fuel economy, SAE 5W-20 (5W-

30), ILSAC GF-3 engine oil is preferred

regardless of regional option and engine

variation.

G030B01JM-U

o If SAE 5W-20, ILSAC GF-3 engine oil is

not available, secondary recommended

engine oil for corresponding temperature

range can be used.

DO-IT-YOURSELF MAINTENANCE

CHANGING THE OIL AND FILTER

G040A03A-AAT 3. Slide underneath the car and loosen the

drain plug by turning it counterclockwise with

a wrench of the proper size. Be sure that a

drain pan is in position to catch the oil as it

drains out, then remove the drain plug.

F040A02TB

Oil filler cap

Drain plug

Oil filter

.........

WARNING:

Be very careful when draining the engine oil

as it may be hot enough to burn you!

4. When the oil has stopped draining, replace

the drain plug using a new gasket and re-

tighten by turning it clockwise.

Oil pan drain plug tightening torque:

3.5 ~ 4.5 kgf.m

5. Remove the oil filter by turning it counter-

clockwise with a oil filter wrench of the proper

size. A certain amount of oil will come out

when you remove the filter. So be sure to

have your drain pan in place underneath it.

6. Install a new oil filter in accordance with the

instructions on the carton or on the filter

itself. Do not over-tighten (Tightening torque

: 1.2 ~ 1.6 kgf.m).

Be sure that the mounting surface on the

engine is clean and that the old gasket is

removed completely. Lubricate the new gas-

ket on the filter before installation with clean

engine oil.

7. Refill the crankcase with the recommended

engine oil. Refer to the specification in chap-

ter 9 for engine oil capacity.

8. Start the engine and check to be sure no oil

is leaking from the drain plug or oil filter.

9. Shut off the engine and recheck the oil

level.

NOTE:

Always dispose of used engine oil in an

environmentally acceptable manner. It is sug-

gested that it be placed in a sealed container

and taken to a service station for reclama-

tion. Do not pour the oil on the ground or put

it in with the household trash.

The engine oil and filter should be changed at

those intervals specified in the maintenance

schedule in Section 5. If the car is being driven

in severe conditions, more frequent oil and filter

changes are required.

The procedure for changing the oil and filter is

as follows:

1. Park the car on level ground and set the

parking brake. Start the engine and let it

warm up until the needle on the temperature

gauge moves above the lowest mark. Turn

the engine off and place the gear selector

lever in "P" (automatic) or reverse gear

(manual transaxle).

2. Open the hood and remove the engine oil

filler cap.

!PROPOSITION 65 WARNING:

Used engine oil may cause irritation or can-

cer of the skin if left in contact with the skin

for prolonged periods of time. Used engine

oil contains chemicals that have caused can-

cer in laboratory animals. Always protect

your skin by washing your hands thoroughly

with soap and warm water as soon as pos-

sible after handling used oil.

6DO-IT-YOURSELF MAINTENANCE

6CHECKING AND CHANGING

THE ENGINE COOLANT

G050A01A-AAT G050B01A-AAT

Recommended Engine Coolant

Use a high quality ethylene-glycol coolant in a

50/50 mix with water. The engine coolant should

be compatible with aluminum engine parts. Ad-

ditional corrosion inhibitors or additives should

not be used. The cooling system must be main-

tained with the correct concentration and type of

engine coolant to prevent freezing and corro-

sion.

Never allow the concentration of antifreeze to

exceed the 60% level or go below the 35% level

or damage to the coolant system may result. For

proper concentration when adding or replacing

the coolant, refer to the following table.

WARNING:

Do not remove the radiator cap when the

engine is hot. When the engine is hot, the

engine coolant is under pressure and may

erupt through the opening if the cap is re-

moved. You could be seriously burned if you

do not observe this precaution. Do not re-

move the radiator cap until the radiator is

cool to the touch.

Water

65%

60%

50%

40%

Antifreeze

solution

35%

40%

50%

60%

Ambient

temperature

°F (°C)

5 (-15)

-13 (-25)

-31 (-35)

-49 (-45)

Engine coolant

concentration

G050C01A-AAT

To Check the Coolant Level

The coolant level can be seen on the side of the

plastic coolant reservoir. The level of the coolant

should be between the "L" and "F" lines on the

reservoir when the engine is cool. If the level is

below the "L" mark, add engine coolant to bring

it up between "L" and "F". If the level is low,

inspect for coolant leaks and recheck the fluid

level frequently. If the level drops again, visit

your Hyundai dealer for an inspection and diag-

nosis of the reason.

HLC5005

DO-IT-YOURSELF MAINTENANCE

G050D02A-AAT

To Change the Coolant

The coolant should be changed at those inter-

vals specified in the vehicle maintenance sched-

ule in Section 5.

CAUTION:

Engine coolant can damage the finish of

your car. If you spill engine coolant on the

car, wash it off thoroughly with clean water.

1. Park the car on level ground, set the parking

brake and remove the radiator cap when

cool.

2. Be sure your drain receptacle is in place.

Open the drain cock on the radiator. Allow all

the engine coolant to drain from the cooling

system, then securely close the drain cock.

3. Check Section 9 for the capacity of the

cooling system in your car. Then, following

the manufacturer's directions on the engine

coolant container, add the appropriate quan-

tity of coolant to the radiator.

4. Turn the radiator cap counterclockwise with-

out pressing down on it, until it stops. This

relieves any pressure remaining in the cool-

ing system. And remove the radiator cap by

pushing down and turning counterclockwise.

Now fill the radiator with clean demineralized

or distilled water. Continue to add clean

demineralized or distilled water in small quan-

tities until the fluid level stays up in the

radiator neck.

G050D01A G050D02A

5. Start the engine, top off the radiator with

water and then add engine coolant to the

reservoir until the level is between "L" and

"F".

6. Replace the radiator and reservoir caps and

check to be sure the drain cocks are fully

closed and not leaking.

6DO-IT-YOURSELF MAINTENANCE

8REPLACING THE SPARK PLUGS

G060B01A-AAT

G060A01L

0.039 ~ 0.043 in.

(1.0 ~ 1.1 mm )

The spark plugs should be changed at the

intervals specified in the vehicle maintenance

schedule in section 5, or whenever engine per-

formance indicates they should be changed.

Symptoms that suggest poor spark plug perfor-

mance include engine misfiring under load, loss

of fuel economy, poor acceleration, etc. When

spark plugs are replaced, always use spark

plugs recommended by Hyundai. The use of

other spark plugs can result in loss of perfor-

mance, radio interference or engine damage.

NOTE:

When replacing the spark plugs, genuine

Hyundai replacement parts are recom-

mended.

G060C01S-GAT

Changing the Spark Plugs

You will find it easier to change spark plugs if the

engine is cold. Always change one spark plug at

a time. This helps avoid getting the wires mixed

up.

G060C01A-D

1. Remove the center cover on the engine

rocker cover.

2. Using a clean cloth, remove any dirt that has

accumulated around the base of the spark

plug so it cannot fall into the cylinder when

the spark plug is removed.

Recommended Spark Plugs:

CHAMPION : RC10YC4

NGK : BKR5ES-11

!WARNING:

The cooling fan is controlled by engine cool-

ant temperature and may sometimes operate

even when the engine is not running. Use

extreme caution when working near the

blades of the cooling fan so that you are not

injured by a rotating fan blade. As the engine

coolant temperature decreases, the fan will

automatically shut off. This is a normal con-

dition.

DO-IT-YOURSELF MAINTENANCE

!WARNING:

It is recommended that the engine be cool or

cold when changing the spark plugs. If the

engine is hot, you could burn yourself on the

insulated connector, the spark plug or the

engine itself.

G060C02A-D

4. When preparing to remove the old spark

plug, guide the socket down over the spark

plug, being careful not to damage the ce-

ramic insulator.

6. To install the new spark plug, guide the

socket down over the spark plug, being care-

ful not to damage the ceramic insulator.

5. To remove the old spark plug, turn the wrench

handle in a counterclockwise direction.

G060C03A-D

3. To remove the spark plug cable, pull straight

up on the insulated connector, not the cable.

Pulling on the cable may damage the carbon

core conductor.

NOTE:

Spark plugs should be tightened firmly. Over-

tightening can damage the threads in the

aluminum cylinder head. Also, leaving them

too loose can cause the spark plugs to get

very hot and possibly result in damage to the

engine.

7. Replace the cable by pushing the insulated

connector directly down onto the electrode.

Check to be sure it has snapped into place

and can't fall off.

G060C04A-D

6DO-IT-YOURSELF MAINTENANCE

10 WINDSHIELD WIPER BLADESCHANGING THE AIR CLEANER

FILTER

G080A02A-AAT

The wiper blades should be carefully inspected

from time to time and cleaned to remove accu-

mulations of road film or other debris. To clean

the wiper blades and arms, use a clean sponge

or cloth with a mild soap or detergent and water.

If the wipers continue to streak or smear the

glass, replace them with genuine Hyundai re-

placement parts or their equivalent.

HEF119

CAUTION:

o Do not operate the wipers on dry glass.

This can result in more rapid wear of the

wiper blades and may scratch the glass.

o Keep the blade rubber out of contact with

petroleum products such as engine oil,

gasoline, etc.

G070A03Y-AAT

The replacement of air cleaner filter is per-

formed in the following manner.

1. Unsnap the clips around the cover.

2. When this is done, the cover can be lifted off,

the old filter removed and the new filter put in

its place.

Genuine Hyundai replacement parts are recom-

mended.

G070A01A

CAUTION:

o Operating your vehicle without a proper

air filter in place can result in excessive

engine wear.

o When removing the air cleaner filter, be

careful that dust or dirt does not enter the

air intake. These may result in damage to

the air cleaner filter.

DO-IT-YOURSELF MAINTENANCE

CHECKING THE TRANSAXLE OIL

(MANUAL)

FILLING THE WASHER RESERVOIR

G090A01A-AAT

A good quality washer fluid should be used to fill

the washer reservoir. The fluid level should be

checked more frequently during inclement weath-

er or whenever the washer system is in more

frequent use.

The capacity of the washer reservoir is 3.2 U.S.

quarts (3.0 Liters).

CAUTION:

o Radiator anti-freeze (engine coolant)

should not be used in the washer system

because it will damage the car's finish.

o The washer should not be operated if the

washer reservoir is empty. This can dam-

age the washer fluid pump.

G100A03A-AAT

Transaxle lubricant in the manual transaxle

should be checked at those intervals specified

in the vehicle maintenance schedule in Section

Recommended Oil

Use only HYUNDAI GENUINE PARTS MTF

75W/85 (API GL-4) or equivalent in the manual

transaxle.

Manual Transaxle Oil Capacity

The oil capacity of the manual transaxle is 2.27

U.S. quarts (2.15 liters).

HLC5007 HXGS506

Drain plug

Filler plug

!WARNING:

It is always better to check the transaxle oil

level when the engine is cool or cold. If the

engine is hot, you should exercise great

caution to avoid burning yourself on hot

engine or exhaust parts.

G100B02A-AAT

To check the Manual Transaxle Fluid

Level

Park the car on level ground with the engine off.

G100B01L

6DO-IT-YOURSELF MAINTENANCE

12 CHECKING THE TRANSAXLE

FLUID (AUTOMATIC)

G110A01E-AAT

Transaxle fluid in the automatic transaxle should

be checked at those intervals specified in the

vehicle maintenance schedule in Section 5.

NOTE:

Automatic transaxle fluid is basically a red

color. As driving distance increases, the fluid

color turns darkish red gradually. It is a

normal condition and you should not judge

the need to replace based upon the chang-

ing color.

You must replace the automatic transaxle

fluid in accordance with intervals specified

in the vehicle maintenance schedule in sec-

tion 5.

G110C02A-AAT

Transaxle Fluid Capacity

The fluid capacity of the automatic transaxle is

6.45 U.S. quarts (6.1 liters).

WARNING:

The transaxle fluid level should be checked

when the engine is at normal operating tem-

perature. This means that the engine, radia-

tor, exhaust system etc., are very hot. Exer-

cise great care not to burn yourself during

this procedure.

1. Using a wrench of the correct size, loosen

the oil filler plug by turning it counterclock-

wise and remove it with your fingers.

2. Use your finger or suitable tool to feel inside

the hole. The oil level should be at its bottom

edge. If it is not, check for leaks before

adding oil. To refill the transaxle or bring the

oil level up, add oil slowly until it reaches the

proper level. Do not overfill.

3. Replace the plug and washer, screw it in with

your fingers and then tighten securely with

the wrench.

G110B05A-AAT

Recommended Fluid

Your Hyundai automatic transaxle is specially

designed to operate with HYUNDAI GENUINE

ATF SP III, DIAMOND ATF SP III, SK ATF SP

III or other brands meeting the SP III specifi-

cation approved by Hyundai Motor Co..

Damage caused by a nonspecified fluid is not

covered by your new vehicle limited warranty.

CAUTION:

Use of aftermarket ATF additives may

cause damage to the automatic transaxle.

Only use HYUNDAI GENUINE ATF SP III,

DIAMOND ATF SP III, SK ATF SP III or other

brands meeting the SP III specification

approved by Hyundai Motor Co.. If you are

having your vehicle serviced at a facility

other than a Hyundai dealer, verify that the

correct ATF is used for your vehicle.

DO-IT-YOURSELF MAINTENANCE

While the engine is idling, apply the brakes and

move the gear selector lever from "P" to each of

its other positions -- "R", "N", "D", "2", "L" -- and

then return to "N" or "P". With the engine still

idling:

1. Open the hood, being careful to keep hands,

hair and clothing clear of any moving parts.

2. Remove the transaxle dipstick, wipe it clean,

reinsert the dipstick as far as it will go, then

remove it again. Now check the fluid level on

the dipstick. It should be in the "HOT" range

on the dipstick.

G110D03A

G110D02A-AAT

To Check the Transaxle Fluid Level

Park the car on level ground with the parking

brake engaged. When the transaxle fluid level is

checked, the transaxle fluid should be at normal

operating temperature and the engine idling.

C090A01A

3. If the transaxle fluid level is low, use a funnel

to add transaxle fluid through the dipstick

tube until the level reaches the "HOT" range.

Do not overfill.

G110D04A

Fluid level should be within

"HOT" range

WARNING:

The cooling fan is controlled by the engine

coolant temperature and may sometimes op-

erate even when the engine is not running.

Use extreme caution when working near the

blades of the cooling fan, so that you are not

injured by a rotating fan blade. As the engine

coolant temperature decreases, the fan will

automatically shut off. This is a normal con-

dition.

6DO-IT-YOURSELF MAINTENANCE

14 CHECKING THE BRAKES

G120A01A-AAT

G120B01A-AAT

Checking the Brake Fluid Level

CAUTION:

Because brakes are essential to the safe

operation of the car, it is suggested that they

be checked and inspected by your Hyundai

dealer. The brakes should be checked and

inspected for wear at those intervals speci-

fied in the vehicle maintenance schedule in

Section 5.

WARNING:

Use caution when handling brake fluid. It

can damage your vision if it gets into your

eyes. It will also damage your vehicle's paint

if spilled on it and not removed immediately.

G120D01A-AAT

To Check the Fluid Level

G120E02A-AAT

Adding Brake Fluid

G120C02A-AAT

Recommended Brake Fluid

Use only hydraulic brake fluid conforming to

DOT 3 or DOT 4 specifications in your braking

system. Follow the instructions printed on the

container.

The fluid level in the brake fluid reservoir should

be checked periodically. The level should be

between the "MIN" and "MAX" marks on the

side of the reservoir. If the level is at or below

the "MIN" mark, carefully add fluid to bring it up

to "MAX". Do not overfill.

HLC5035

WARNING:

Handle brake fluid carefully. It can damage

your vision if it gets into your eyes. Use only

DOT 3 or DOT 4 specification fluid from a

sealed container. Do not allow the fluid can

or reservoir to remain open any longer than

required. This will avoid entry of dirt and

moisture which can damage the brake sys-

tem and cause improper operation.

To add brake fluid, first wipe away any dirt then

unscrew the fluid reservoir cap. Slowly pour the

recommended fluid into the reservoir. Do not

overfill. Carefully replace the cap on the reser-

voir and tighten.

DO-IT-YOURSELF MAINTENANCE

CHECKING THE CLUTCH FLUID

G130B02A-AAT

To Replace the Fluid

Recommended brake fluid conforming to DOT 3

or DOT 4 specification should be used. The

reservoir cap must be fully tightened to avoid

contamination from foreign matter or moisture.

NOTE:

Do not allow any other liquids to contami-

nate the brake fluid. Seal damage will result.

WARNING:

Use caution when handling brake fluid. It

can damage your vision if you get it in your

eyes. It will also damage your vehicles paint

if spilled on it and not removed immediately.

G130A01A-AAT

To Check the Clutch Fluid

The clutch fluid level in the master cylinder

should be checked when performing other un-

der hood services. The system should be

checked for leakage at the same time.

Check to make certain that the clutch fluid level

is between the "MAX" and "MIN" level markings

on the fluid reservoir. Fill as required. Fluid loss

indicates a leak in the clutch system which

should be inspected and repaired immediately.

Consult your Hyundai dealer.

HLC5036

AIR CONDITIONER CARE

G140A01A-AAT

Keeping the Condenser Clean

The air conditioner condenser (and engine ra-

diator) should be checked periodically for accu-

mulation of dirt, dead insects, leaves, etc. These

can interfere with maximum cooling efficiency.

When removing such accumulations, brush or

hose them away carefully to avoid bending the

cooling fans.

6DO-IT-YOURSELF MAINTENANCE

16 CHANGING THE AIR CONDITIONER

FILTER

G140D02A-AAT

Checking the Compressor Drive Belt

When the air conditioning is being used regular-

ly, the compressor drive belt tension should be

checked at least once a month with the engine

turned off.

To check the drive belt tension, press down on

the belt halfway between the engine crankshaft

and compressor pulleys. Pressing with your

finger, you should not be able to deflect this belt

anymore than 1/3 of an inch. If the belt is too

loose, have it adjusted by your Hyundai dealer.

CRANK PULLEY G140D01A

A/C

TENSION PULLEY

0.315 in.

(8mm)

HLC2096

B145A02A-GAT

(For Evaporator and Blower Unit)

(If Installed)

The air conditioner filter is located in front of the

evaporator unit behind the glove box.

It helps to decrease the amount of pollutants

entering the car.

1. Open the glove box and by pushing at the

outside of adjusting pin (1) first and then

sliding the adjusting pin (2) in makes it easier

to remove adjusting pin.

G140C01A-AAT

Lubrication

To lubricate the compressor and the seals in the

system, the air conditioner should be run for at

least 10 minutes each week. This is particularly

important during cool weather when the air con-

ditioning system is not otherwise in use.

G140B01A-AAT

Checking the Air Conditioner Opera-

tion

1. Start the engine and let it run at fast idle for

several minutes with the air conditioner set

at the maximum cold setting.

2. If the air coming out of the in-dash vents is

not cold, have the air conditioning system

inspected by your Hyundai dealer.

CAUTION:

Running the air conditioning system for ex-

tended periods of time with a low refrigerant

level may damage the compressor.

(1)

(2)

DO-IT-YOURSELF MAINTENANCE

HLC2097

2. Remove the cable and the wiring from the

filter cover.

HLC2098

3. Remove the filter cover by pushing the upper

end of the filter cover.

HLC2099

4. Replace the two filters.

5. Installation is the reverse order of disassem-

bly.

CAUTION:

Be sure to install the air conditioner filter in

the direction of the arrow sign. Otherwise, it

may cause noise or deterioration.

CHECKING THE FREE-PLAY

G150A01A-AAT

Steering Wheel

To check the steering wheel free-play, stop the

car with the wheels pointed straight ahead and

gently move the steering wheel back and forth.

Use very light finger pressure and be sensitive

to changes in resistance that mark the limits of

the free-play. If the free-play is greater than

specified, have it inspected by your Hyundai

dealer and adjusted or repaired if necessary.

HLC5008

1.18 in.

(30 mm)

6DO-IT-YOURSELF MAINTENANCE

18 CHECKING BRAKE PEDAL

CLEARANCE

G170A01A-AAT

Brake Pedal

With the engine off, press down on the brake

pedal several times to reduce the vacuum in the

brake booster.

Then, using your hand, press down slowly on

the brake pedal until you feel a change in resis-

tance. This is the brake pedal free-play.

The free-play should be within the limits speci-

fied in the illustration above. If it is not, have it

inspected by your Hyundai dealer and adjusted

or repaired if necessary.

HXGS508

0.12 ~ 0.31 in.

(3 ~ 8 mm)

G180A01A-AAT

You need a helper to check the brake pedal

clearance. With the engine running, have your

helper press down on the brake pedal several

times and then hold it down with a force of about

110 lbs (50 kg, 490 N). The brake pedal clear-

ance is the distance from the top surface of the

brake pedal to the asphalt sheeting under the

floor mat.

If the brake pedal clearance is not within the

limits specified in the illustration, have it in-

spected by your Hyundai dealer and adjusted or

repaired if necessary.

G180A01L

1.78 in. (45.1 mm)

G160A01A-AAT

Clutch Pedal

With the engine off, press lightly on the clutch

pedal until you feel a change in resistance. This

is the clutch pedal free-play. The free-play should

be within the limits specified in the illustration

below. If it is not, have it inspected by your

Hyundai dealer and adjusted or repaired if nec-

essary.

G160A01E

0.24 ~ 0.51 in.

(6 ~ 13 mm)

DO-IT-YOURSELF MAINTENANCE

CHECKING AND REPLACING

FUSES

CHECKING DRIVE BELTS

G190A01A-AAT

Drive belts should be checked periodically for

proper tension and adjusted if necessary. At the

same time, belts should be examined for cracks,

wear, fraying or other evidence of deterioration

and replaced if necessary.

Belt routing should also be checked to be sure

there is no interference between the belts and

other parts of the engine. After a belt is replaced,

the new belt should be adjusted again after two

or three weeks to eliminate slack resulting from

initial stretching after use.

Water Pump Pulley

Alternator

Pulley

Crankshaft Pulley

0.2~0.24 in.

(5.1~6 mm)

HTB186

G200A01A-AAT

Replacing a Fusible Link

A fusible link will melt if the electrical circuits

from the battery are ever overloaded, thus pre-

venting damage to the entire wiring harness.

(This could be caused by a short in the system

drawing too much current.) If this ever happens,

have a Hyundai dealer determine the cause,

repair the system and replace the fusible link.

The fusible links are located in a relay box for

easy inspection.

G200A01A

Open-

Replace Good

CAUTION:

When replacing a fusible link, never use

anything but a new fusible link with the same

or lower amperage rating. Never use a piece

of wire or a higher-rated fusible link. This

could result in serious damage and create a

fire hazard.

6DO-IT-YOURSELF MAINTENANCE

CAUTION:

An open fuse indicates that there is a prob-

lem in the electrical circuit. If you replace a

fuse and it blows as soon as the accessory

is turned on, the problem is serious and

should be referred to a Hyundai dealer for

diagnosis and repair. Never replace a fuse

with anything except a fuse with the same or

a lower amperage rating. A higher capacity

fuse could cause damage and create a fire

hazard.

G200B02L

Good Open - Replace

G200B01A-AAT

Replacing Accessory Fuses

The fuse box for the lights and other electrical

accessories will be found low on the dashboard

on the driver's side. Inside the box you will find

a list showing the circuits protected by each

fuse.

If any of your car's lights or other electrical

accessories stop working, a blown (open) fuse

could be the reason. If the fuse has opened, you

will see that the metal strip inside the fuse has

melted through. If you suspect a blown fuse,

follow this procedure:

HLC4002

1. Turn off the ignition and all other switches.

2. Open the fuse box and examine each fuse.

Remove each fuse by pulling it toward you (a

small "fuse puller" tool is contained in the

fuse box to simplify this operation).

3. Be sure to check all other fuses even if you

find one that appears to have opened.

HLC4003

4. Replace the blown fuse by pressing a new

fuse of the same rating into place. The fuse

should be a snug fit. If it is not, have the fuse

clip repaired or replaced by a Hyundai deal-

er. If you do not have a spare fuse, you may

be able to borrow a fuse of the same or lower

rating from an accessory you can tempo-

rarily get along without (the radio or cigarette

lighter, for example). Always remember to

replace the borrowed fuse.

NOTE:

See page 6-32 for the fuse panel descrip-

tions.

DO-IT-YOURSELF MAINTENANCE

CHECKING THE BATTERY

G210A01A-AAT

WARNING:

When working with batteries, carefully ob-

serve the following precautions to avoid se-

rious injuries.

o If battery fluid is on your skin, flush the

affected areas with water for at least 15

minutes and then seek medical assistance.

o If battery fluid is in your eyes, rinse out your

eyes with water and get medical assistance

as soon as possible. While you are being

driven to get medical assistance, continue to

rinse your eyes by using a sponge or soft

cloth saturated with water.

o If you swallow battery fluid, drink a large

quantity of water or milk followed by milk of

magnesia, eat a raw egg or drink vegetable

oil. Get medical assistance as soon as pos-

sible.

While batteries are being charged (either by a

battery charger or by the vehicle's alternator),

they produce explosive gases. Always observe

these warnings to prevent injuries from occur-

ring:

o Charge batteries only in a well ventilated

area.

o Do not permit flames, sparks or smoking in

the area.

o Keep children away from the area.

D010B01A

The fluid in the battery contains a strong solution

of sulfuric acid, which is poisonous and highly

corrosive. Be careful not to spill it on yourself or

the car. If you do spill battery fluid on yourself,

immediately do the following:

G210B02A-AAT

Checking the Battery

Keep the battery clean. Any evidence of corro-

sion around the battery posts or terminals should

be removed using a solution of household bak-

ing soda and warm water. After the battery

terminals are dry, cover them with a light coating

of grease.

WARNING:

Always read the following instruc-

tions carefully when handling a

battery.

Keep lighted cigarettes and all

other flames or sparks away from

the battery.

Hydrogen, which is a highly com-

bustible gas, is always present in

battery cells and may explode if

ignited.

Keep batteries out of the reach of

children because batteries con-

tain highly corrosive SULFURIC

ACID. Do not allow battery acid to

contact your skin, eyes, clothing

or paint finish.

6DO-IT-YOURSELF MAINTENANCE

22 POWER STEERING FLUID LEVELCHECKING ELECTRIC COOLING

FANS

G220A01A-AAT G230A03A-AAT

G220B01A-AAT

Checking Engine Cooling Fan

The engine cooling fan should come on auto-

matically if the engine coolant temperature is

high.

WARNING:

The radiator fan is controlled by engine cool-

ant temperature and may sometimes operate

even when the engine is not running. Use

extreme caution when working near the

blades of the cooling fan, so that you are not

injured by a rotating fan blade. As the cool-

ant temperature decreases the fan will auto-

matically shut off. This is a normal condition.

G220C01A-AAT

Checking Condenser Cooling Fan

The condenser cooling fan should come on

automatically whenever the air conditioner is in

operation.

HLC5006

The power steering fluid level should be checked

regularly. To check the power steering fluid

level, be sure the engine is "OFF", then check to

make certain that the power steering fluid level

is between the "MAX" and "MIN" level markings

on the fluid reservoir.

NOTE:

Grinding noise from the power steering pump

may be heard immediately after the engine is

started in extremely cold conditions (below

-4°F). If the noise stops during warm up,

there is no abnormal function in the system.

It is due to a power steering fluid character-

istic in extremely cold conditions.

If any electrolyte gets into your

eyes, flush your eyes with clean

water for at least 15 minutes and

get immediate medical attention.

If possible, continue to apply wa-

ter with a sponge or cloth until

medical attention is received.

If electrolyte gets on your skin,

thoroughly wash the contacted

area.

If you feel a pain or a burning

sensation, get medical attention

immediately.

Wear eye protection when charg-

ing or working near a battery.

Always provide ventilation when

working in an enclosed space.

o When lifting a plastic-cased battery, ex-

cessive pressure on the case may cause

battery acid to leak, resulting in personal

injury. Lift with a battery carrier or with

your hands on opposite corners.

o Never attempt to charge the battery when

the battery cables are connected.

o The electrical ignition system works with

high voltage.

Never touch these components with the

engine running or the ignition switched

on.

DO-IT-YOURSELF MAINTENANCE

G240A01A-AAT

POWER STEERING HOSES

It is suggested that you check the power steer-

ing hose connections for fluid leakage at those

intervals specified in the vehicle maintenance

schedule in Section 5.

The power steering hoses should be replaced if

there is severe surface cracking, pulling, scuff-

ing or worn spots. Deterioration of the hose

could cause premature failure.

Recommended Fluid

Use PSF-3 type fluid

NOTE:

Do not start the engine when the power

steering oil reservoir is empty.

HEADLIGHT AIMING ADJUSTMENT

G250A01A-AAT

FOR MORE INFORMATION ABOUT

YOUR HYUNDAI

If you desire additional information about main-

taining and servicing your Hyundai, you may

purchase a factory Shop Manual at your Hyundai

dealer's parts department. This is the same

manual used by dealership technicians and while

it is highly technical it can be useful in obtaining

a better understanding of your car and how it

works.

G290A04A-AAT

Before performing aiming adjustment, make sure

of the following.

1. Keep all tires inflated to the correct pressure.

2. Place the vehicle on level ground and press

the front bumper & rear bumper down sever-

al times. Place vehicle at a distance of 118

in. (3m) from the test wall.

3. See that the vehicle is unloaded (except for

full levels of coolant, engine oil and fuel, and

spare tire, jack, and tools). Have the driver or

equivalent weight placed in driver's seat.

4. Clean the headlight lenses and turn on the

headlights (Low beam).

5. Open the hood.

G290A01A-1

Vertical

Aiming

6DO-IT-YOURSELF MAINTENANCE

SPECIFICATIONS:

"H";

Horizontal center line of headlights from

ground : 25.8 in. (656 mm)

"W";

Distance between each headlight center :

42.4 in. (1,078 mm)

"L";

Distance between the headlights and the

wall that the lights are tested against:

118 in. (3,000 mm).

G290B02A-AAT

Adjustment After Headlight Assembly

Replacement

If the vehicle has had front body repair and the

headlight assembly has been replaced, the head-

light aiming should be checked using an aiming

screen as shown in the illustration. Turn on the

headlight switch. (Low Beam Position)

1. Adjust headlights so that main axis of light is

parallel to center line of the body and is

aligned with point "P" shown in the illustra-

tion.

2. Dotted lines in the illustration show the cen-

ter of headlights.

G290B01A-2

Ground

line

Horizontal line

0.8 in. (21mm) Vertical line

Cut-off line

"P"

6. Draw the vertical line (through the center of

each headlight) and the horizontal line

(through the center of each headlight) on the

aiming screen.

And then, draw a parallel line at 0.8 in.(21

mm) under the horizontal line.

7. Adjust each cut-off line of the low beam to

the parallel line with a phillips screwdriver

- VERTICAL AIMING

WARNING:

Horizontal aiming should be adjusted by an

authorized Hyundai dealer.

DO-IT-YOURSELF MAINTENANCE

REPLACEMENT OF LIGHT BULBS

G260A02A-AAT

Before attempting to replace a light bulb, be sure

the switch is turned to the "OFF" position.

The next paragraph shows how to reach the

light bulbs so they may be changed. Be sure to

replace the burned-out bulb with one of the

same number and wattage rating.

See page 6-31 for the wattage descriptions

CAUTION:

Keep the lamps out of contact with petro-

leum products, such as oil, gasoline, etc.

HLC5033

G270A03A-AAT

Headlight Bulb

1. Allow the bulb to cool. Wear eye protection.

2. Open the engine hood.

3. Always grasp the bulb by its plastic base,

avoid touching the glass.

4. Using a socket wrench of the correct size,

remove the headlight assembly mounting

bolts.

6. Remove the dust cover.

HLC5009

5. Disconnect the power cord from the bulb

base in the back of the headlight.

HLC5034-1

6DO-IT-YOURSELF MAINTENANCE

!WARNING:

The halogen bulb contains gas under pres-

sure and if impacted could shatter, resulting

in flying fragments. Always wear eye protec-

tion when servicing the bulb. Protect the

bulb against abrasions or scratches and

against liquids when lighted. Turn the bulb

on only when installed in a headlight. Re-

place the headlight if damaged or cracked.

Keep the bulb out of the reach of children

and dispose of the used bulb with care.

8. Remove the protective cap from the replace-

ment bulb and install the new bulb by match-

ing the plastic base with the headlight hole.

Re-attach the bulb spring and install the dust

cover. Reconnect the power cord.

9. Use the protective cap and carton to dispose

of the old bulb.

10.Check for proper headlight aim.

G270A03O

HLC5011

7. Push the bulb spring to remove the headlight

bulb.

HLC5010

DO-IT-YOURSELF MAINTENANCE

G270B01A-GAT

Front Turn Signal light / Position Light

1. Disconnect the power cord from the bulb.

HLC5034

HLC5012

(1)

(2)

2. To replace the front turn signal light (1) or

position light (2), take it out from the bulb

holder by turning it counterclockwise.

3. Install the new bulb.

G270D01TB-AAT

Rear Combination Light

HLC5015

3 Door

G270D01A

4 Door

1. Open the trunk lid/tail gate.

6DO-IT-YOURSELF MAINTENANCE

3. To replace the rear combination light (stop/

tail light, turn signal light or back-up light),

take it out from the bulb holder by turning it

counterclockwise.

(1) Stop/Tail Light

(2) Turn Signal Light

(3) Back-up Light

4. Install the new bulb.

G270C01TB-AAT

Luggage Compartment Light

(If Installed)

HLC5014

1. Remove the cover with a flat-head screw-

driver.

3 Door 4 Door

(2)

(1)

(3)

HLC5016

3 Door

G270D02A

4 Door

(1)

(2)

(3)

2. Remove the mounting screws as shown with

a phillips screwdriver.

DO-IT-YOURSELF MAINTENANCE

3. Replace with a new bulb.

HTB283

2. Disconnect the power cord.

HTB284

G270G01A-AAT

Interior Light (Map Light) (If Installed)

1. Remove the cover with a flat-head screw-

driver.

HLC5017

HLC5018

2. Replace with a new bulb.

6DO-IT-YOURSELF MAINTENANCE

2. Replace with a new bulb.

HLC5020

G270H01A-AAT

Interior Light

1. Remove the cover with a flat-head screw-

driver.

HLC5019

DO-IT-YOURSELF MAINTENANCE

BULB WATTAGES

Part Name

Front Position Light

Headlight (High/Low)

Front Turn Signal Light

Interior Light (Map Light) (If Installed)

Interior Light

Front Fog Light (If Installed)

Front Side Marker Light

No.

G280A03A-AAT

G280A02A

Wattage

60/55

No.

Wattage

27/8(4 Door), 28/8(3 Door)

Part Name

Rear Combination Turn Signal Light

Light Stop/Tail Light

Back-up Light

High Mounted Rear Stop Light (If Installed)

Rear Side Marker Light

Luggage Compartment Light (If Installed)

License Plate Light

612

1 3 4 98 98

10 11

4 DOOR 3 DOOR

6DO-IT-YOURSELF MAINTENANCE

32 FUSE PANEL DESCRIPTION

G200C02A-GAT

Engine Compartment

HLC5027

NOTE:

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse

box on your vehicle, refer to the fuse box label.

FUSE RATING

120A

50A

20A

30A

20A

30A

20A

PROTECTED COMPONENTS

Charging (Generator)

Fuse 6, 7, 8, 9, Horn fuse, Room lamp fuse

Head lamp fuse, Front fog lamp fuse, Tail lamp relay, H/LP washer fuse

Engine control relay, Generator, Fuel pump relay, ECU #3 fuse

Ignition power source, Start relay

Radiator fan control

Blower control

ABS control, ABS bleeding connector

Power window

Condenser fan control

ALT

BATTERY

LAMP

ECU

IGN

RAD FAN

BLOWER

ABS

P/WDW

COND FAN

FUSIBLE

LINK

DESCRIPTION

DO-IT-YOURSELF MAINTENANCE

FUSE RATING

10A

15A

10A

15A

10A

25A

PROTECTED COMPONENTS

Radiator fan, Condenser fan, ECM, Oxygen sensor, Purge control valve,

SMATRA, Glow plug relay, Heater relay, Stop lamp switch

A/C relay

Horn relay

Illumination lamps, Left rear combination lamp, License lamp, DRL control,

Position lamp, H/LP washer relay

Right rear combination lamp, License lamp, Position lamp

Left head lamp, DRL control, Instrument cluster

Right head lamp

Front fog lamp relay

Instrument cluster, Courtesy lamp, Trunk room lamp, ETACM, DLC,

Door warning, Multipurpose check connector

Audio, Digital clock, Power antenna, A/C switch, Rear fog lamp switch

Idle speed actuator, ECM, Camshaft position sensor, EGR actuator,

Throttle plate actuator

ECM

Head lamp washer motor

Fuel pump relay, Fuel pump motor

ECU #1

A/CON COMP

HORN

TAIL LH

TAIL RH

H/LP LH

H/LP RH

FRONT FOG

ROOM LP

AUDIO

ECU #2

ECU#3

H/L WASHER

FUSE

DESCRIPTION

F/PUMP CHK (E50)

6DO-IT-YOURSELF MAINTENANCE

G200E01A-GAT

Inner Panel

HLC5031

PROTECTED COMPONENTS

Hazard warning, Back-up lamp switch, Transaxle range switch,

A/T shift & key lock control module

ETACM, Pre-Excitation resistor, Instrument cluster, Seat belt timer

Instrument cluster

Air bag

ECM, A/T shift lever, Transaxle range switch, Mass air flow sensor, Vehicle

speed sensor, Water sensor

Power door lock

Hazard warning, ETACM

Stop lamp, A/T shift lever, A/T key interlock solenoid

Rear window defogger

Head lamp, Power window, Head lamp leveling, Head lamp washer,

ETACM, Front fog lamp, Blower control, Rear intermittent washer, Fuel

filter relay

Front wiper & washer

Seat warmer

ABS control, ABS bleeding

Digital clock, Audio, A/T shift & key lock control module

Cigarette lighter

Power outside mirror

Rear window & outside mirror defogger

Rear wiper

FUSE RATING

10A

15A

10A

20A

10A

20A

10A

15A

10A

20A

FUSE

EMISSION CONTROL SYSTEMS

Emission Control System ............................................. 7-2

Catalytic Converter ....................................................... 7-3

7EMISSION CONTROL SYSTEMS

2EMISSION CONTROL SYSTEM

Canister

Fuel vapors generated inside the fuel tank are

absorbed and stored in the onboard canister.

When the engine is running, the fuel vapors

absorbed in the canister are drawn into the

induction system through the purge control

solenoid valve.

Purge Control Solenoid Valve (PCSV)

The purge control solenoid valve is controlled

by the Engine Control Module (ECM); when

the engine coolant temperature is low during

idling, the PCSV closes so that evaporated fuel

is not taken into the engine. After the engine

warms-up during ordinary driving, the PCSV

opens to introduce evaporated fuel to the

engine.

H010B01A-AAT

1. CRANKCASE EMISSION CONTROL

SYSTEM

The positive crankcase ventilation system is

employed to prevent air pollution caused by

blow-by gases being emitted from the crank-

case. This system supplies filtered fresh air to

the crankcase through the air intake hose.

Inside the crankcase, the fresh air mixes with

blow-by gases, then passes through the PCV

valve into the induction system.

H010A01A-AAT

Your Hyundai is equipped with an emission

control system to meet all requirements of the

U.S. Environmental Protection Agency or Cali-

fornia Air Resources Board.

There are three emission control systems

which are as follows.

1) Crankcase Emission Control System

2) Evaporative Emission Control System

3) Exhaust Emission Control System

In order to ensure the proper function of the

emission control systems, it is recommended

that you have your car inspected and main-

tained by an authorized Hyundai dealer in

accordance with the maintenance schedule in

this manual.

H010D01A-AAT

3. EXHAUST EMISSION

CONTROL SYSTEM

The Exhaust Emission Control System is a

highly effective system which controls ex-

haust emissions while maintaining good ve-

hicle performace.

H010C01S-AAT

2. Evaporative Emission Control (Includ-

ing ORVR: Onboard Refueling Vapor

Recovery) System

The Evaporative Emission Control System is

designed to prevent fuel vapors from escaping

into the atmosphere.

(The ORVR system is designed to allow the

vapors from the fuel tank to be loaded into a

canister while refueling at the gas station,

preventing the escape of fuel vapors into the

atmosphere.)

EMISSION CONTROL SYSTEMS

CATALYTIC CONVERTER

H020A01A-AAT

All Hyundai vehicles are equipped with a mono-

lith type three-way catalytic converter to

reduce the carbon monoxide, hydrocarbons

and nitrogen oxides contained in the exhaust

gas. Exhaust gases passing through the cata-

lytic converter cause it to operate at a very

high temperature. The introduction of large

amounts of unburned gasoline into the ex-

haust may cause the catalytic converter to

overheat and create a fire hazard. This risk

may be reduced by observing the following:

system.

WARNING:

o Remember that your Hyundai dealer is

your best source of assistance.

o Do not stop your Hyundai over any

combustible material such as grass,

paper, leaves or rags. These materials

might contact the hot catalytic con-

verter and a fire might result.

HLC5022

Catalytic Converter

WARNING:

o Use unleaded fuel only.

o Maintain the engine in good operating

condition. Extremely high catalytic con-

verter temperatures can result from im-

proper operation of the electrical, igni-

tion or multiport electronic fuel injec-

tion.

o If your engine stalls, pings, knocks, or

is hard to start, have your Hyundai

dealer inspect and repair the problem

as soon as possible.

o Avoid driving with a very low fuel level.

Running out of gasoline may cause the

engine to misfire and result in damage

to the catalytic converter.

o Avoid idling the engine for periods

longer than 10 minutes.

o The vehicle should not be pushed or

pulled to get started. This may cause

the catalytic converter to overheat and

create a fire hazard.

o Do not touch the catalytic converter or

any other part of the exhaust system

while the catalytic converter is hot.

Shut off the engine, wait for at least one

hour before touching the catalytic con-

verter or any other part of the exhaust

CONSUMER INFORMATION, REPORTING

SAFETY DEFECTS & BINDING

ARBITRATION OF WARRANTY CLAIMS

Vehicle Identification Number (VIN) ............................. 8-2

Engine Number ............................................................. 8-2

Recommended Cold Tire Inflation Pressures .............. 8-3

Snow Tires.................................................................... 8-9

Tire Chains ................................................................. 8-10

Tire Rotation ............................................................... 8-10

Tire Balancing ............................................................. 8-11

Tire Traction................................................................ 8-11

When to Replace Tires............................................... 8-11

Spare Tire and Tools .................................................. 8-12

Warranties for Your Hyundai Vehicle ......................... 8-12

Consumer Information ................................................ 8-13

Reporting Safety Defects ........................................... 8-15

Binding Arbitration of Warranty Claims ...................... 8-16

8CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

2ENGINE NUMBERVEHICLE IDENTIFICATION

NUMBER (VIN)

I010A02A-AAT

The vehicle identification number (VIN) is the

number used in registering your car and in all

legal matters pertaining to its ownership, etc.

It can be found in four different places on your

car:

1. On the bulkhead between the engine and

passenger compartments.

2. On the left top side of the instrument panel

where it can be seen by looking down through

the windshield.

3. Door edge post

4. On the lower side of the center pillar outer

panel.

I010B01A-AAT

The engine number is stamped on the engine

block as shown in the drawing.

I010A01A-1

F040A02TB-1

TIRES

I020A02A-AAT

TIRE INFORMATION

The tires supplied on your new Hyndai

are chosen to provide the best perfor-

mance for normal driving.

If you ever have questions about your

tire warranty and where to obtain ser-

vice, see the tire manufacture's book-

let included with your vehicle's Owner's

Manual Literature Kit.

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

I030A02JM-AAT

RECOMMENDED COLD TIRE INFLA-

TION PRESSURES

Tire label located on the driver's side

of the center pillar outer panel gives

the cold tire pressures recommended

for your vehicle with the original tire

size, the number of people that can be

in your vehicle and vehicle capacity

weight.

I030A01A-2

These pressures were chosen to pro-

vide the most satisfactory combina-

tion of ride comfort, tire wear and

stability under normal conditions. Tire

pressures should be checked at least

monthly. Proper tire inflation pressures

should be maintained for these rea-

sons:

I030A01LC-1

WARNING:

Severe underinflation (10 psi (70

kPa) or more) can lead to severe

heat buildup, causing blowouts,

tread separation and other tire fail-

ures that can result in the loss of

vehicle control leading to severe

injury or death. This risk is much

higher on hot days and when driv-

ing for protracted periods at high

speeds.

I030A01LC-2

8CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

NOTE:

o Underinflation also results in ex-

cessive wear, poor handling and

reduced fuel economy. Wheel de-

formation also is possible. Keep

your tire pressures at the proper

levels. If a tire frequently needs

refilling, have it checked by your

Hyundai Dealer.

o Overinflation produces a harsh

ride, excessive wear at the center

of the tire tread, and a greater

possibility of damage from road

hazards.

WARNING:

Overinflation or underinflation can

reduce the tire life, adversely affect

vehicle handling, and lead to sud-

den tire failure. This could rusult in

loss of vehicle control and potential

injury.

CAUTION:

Always observe the following:

o Check pressures when the tires

are cold. (After the vehicle has

been parked for at least three

hours or hasn't been driven more

than one mile (1.6 km) since start-

ing up.)

o Check the pressure of your spare

tire each time you check the pres-

sure of other tires.

o Never overload your vehicle. Be

especially careful about overload-

ing if you equip your vehicle with

a luggage rack.

o Worn, old tires can cause acci-

dents. If your tread is badly worn,

or if your tires have been dam-

aged, replace them.

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

Remove the valve cap from the tire

valve stem. Press the tire gage firmly

onto the valve to get a pressure mea-

surement. If the cold tire inflation pres-

sure matches the recommended pres-

sure on the tire and loading information

label, no further adjustment is neces-

sary. If the pressure is low, add air

until you reach the recommended

amount.

If you overfill the tire, release air by

pushing on the metal stem in the

center of the tire valve. Recheck the

tire pressure with the tire gage. Be

sure to put the valve caps back on the

valve stems. They help prevent leaks

by keeping out dirt and moisture.

I035A01JM-AAT

CHECKING TIRE INFLATION PRES-

SURE

Check your tires once a month or

more.

Also, check the tire pressure of the

spare tire.

How to Check

Use a good quality gage to check tire

pressure. You can not tell if your tires

are properly inflated simply by looking

at them. Radial tires may look properly

inflated even when they're underinflated.

Check the tire's inflation pressure when

the tires are cold. - "Cold" means your

vehicle has been sitting for at least

three hours or driven no more than 1

mile (1.6 km).

Federal law requires tire manufactur-

ers to place standardized information

on the sidewall of all tires. This infor-

mation identifies and describes the

fundamental characteristics of the tire

and also provides the tire identification

number (TIN) for safety standard cer-

tification. The TIN can be used to

identify the tire in case of a recall.

I030B01JM-AAT

TIRE SIDEWALL LABELING

I030B04JM

5, 6

8CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

1. Manufacturer or Brand name

o Manufacturer or Brand name is

shown.

2. Tire size (example: P175/70R13)

o The "P" indicates the tire is de-

signed for passenger vehicles. A

"T" is the designation for a tempo-

rary spare tire.

o Three-digit number (175): This

number gives the width in millime-

ters of the tire from sidewall edge

to sidewall edge.

o Two-digit number (70): This num-

ber, known as the aspect ratio,

gives the tire's ratio of height to

width.

o R: The "R" stands for radial.

o Two-digit number (13): This num-

ber is the wheel or rim diameter in

inches.

o Two (or three) digit number (82):

This number is the tire's load in-

dex. It is a measurement of how

much weight each tire can sup-

port.

o T: Speed Rating. The speed rat-

ing denotes the speed at which a

tire is designed to be driven for

extended periods of time. The

ratings range from "A" to "Z" (98

to 186 MPH).

3. TIN (Tire Identification Number) for

new tire (example: DOT XX XX

XXX XXXX)

o DOT: Abbreviation for the "De-

partment of Transportation". The

symbol can be placed above, be-

low or to the left or right of the Tire

Iden tification Number. In-

dicates tire is in compliance with

the U.S. Department of

Transportation Motor Vehicle

Safety Standards.

o 1st two-digit code: Manufacturer's

identification mark

o 2nd two-digit code: Tire size

o 3rd three-digit code: Tire type code

(Optional)

o 4th four-digit code: Date of Manu-

facture

o Four numbers represent the week

and year the tire was built. For

example, the numbers 3104

means the 31st week of 2004.

4. Tire ply composition and mate-

rial

The number of layers or plies of

rubbercoated fabric in the tire. Tire

manufacturers also must indicate

the materials in the tire, which in-

clude steel, nylon, polyester, and

others. The letter "R" means radial

ply construction; the letter "D" means

diagonal or bias ply construction;

and the letter "B" means belted-bias

ply construction.

5. Maximum permissible inflation

pressure

This number is the greatest amount

of air pressure that should be put in

the tire. Do not exceed the maxi-

mum permissible inflation pressure.

Refer to the Tire and Loading Infor-

mation label for recommended infla-

tion pressure.

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

6. Maximum load rating

This number indicates the maxi-

mum load in kilograms and pounds

that can be carried by the tire. When

replacing the tires on the vehicle,

always use a tire that has the same

load rating as the factory installed

tire.

7. Uniform Tire Quality Grading

(UTQG):

Tire manufacturers are required to

grade tires based on three perfor-

mance factors: treadwear, traction

and temperature resistance. For

more information, see Uniform Tire

Quality Grading on page 8-13.

I030D01JM-AAT

TIRE TERMINOLOGY AND DEFINI-

TIONS

Air Pressure: The amount of air inside

the tire pressing outward on the tire.

Air pressure is expressed in pounds

per square inch (psi) or kilopascal

(kPa).

Accessory Weight: This means the

combined weight of optional accesso-

ries. Some examples of optional ac-

cessories are, automatic transmission,

power seats, and air conditioning.

Aspect Ratio: The relationship of a

tire's height to its width.

Belt: A rubber coated layer of cords

that is located between the plies and

the tread. Cords may be made from

steel or other reinforcing materials.

Bead: The tire bead contains steel

wires wrapped by steel cords that hold

the tire onto the rim.

Bias Ply Tire: A pneumatic tire in

which the plies are laid at alternate

angles less than 90 degrees to the

centerline of the tread.

Cold Tire Pressure: The amount of

air pressure in a tire, measured in

pounds per square inch (psi) or

kilopascals (kPa) before a tire has

built up heat from driving.

Curb Weight: This means the weight

of a motor vehicle with standard and

optional equipment including the maxi-

mum capacity of fuel, oil and coolant,

but without passengers and cargo.

DOT Markings: A code molded into

the sidewall of a tire signifying that the

tire is in compliance with the U.S.

Department of Transportation motor

vehicle safety standards. The DOT

code includes the Tire Identification

Number (TIN), an alphanumeric desig-

nator which can also identify the tire

manufacturer, production plant, brand

and date of production.

GVWR: Gross Vehicle Weight Rating

GAWR FRT: Gross Axle Weight Rat-

ing for the front Axle.

GAWR RR: Gross Axle Weight Rating

for the rear axle.

8CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

Intended Outboard Sidewall: The

side of an asymmetrical tire, that must

always face outward when mounted on

a vehicle.

Kilopascal (kPa): The metric unit for

air pressure.

Load Index: An assigned number rang-

ing from 1 to 279 that corresponds to

the load carrying capacity of a tire.

Maximum Inflation Pressure: The

maximum air pressure to which a cold

tire may be inflated. The maximum air

pressure is molded onto the sidewall.

Maximum Load Rating: The load rat-

ing for a tire at the maximum permis-

sible inflation pressure for that tire.

Maximum Loaded Vehicle Weight:

The sum of curb weight; accessory

weight; vehicle capacity weight; and

production options weight.

Normal Occupant Weight: The num-

ber of occupants a vehicle is designed

to seat multiplied by 150 pounds (68

kg).

Occupant Distribution: Designated

seating positions.

Outward Facing Sidewall: The side

of a asymmetrical tire that has a par-

ticular side that faces outward when

mounted on a vehicle. The side of the

tire that contains a whitewall, bears

white lettering or bears manufacturer,

brand and or model name molding that

is higher or deeper than the same

moldings on the other sidewall of the

tire.

Passenger (P-Metric) Tire: A tire used

on passenger cars and some light duty

trucks and multipurpose vehicles.

Recommended Inflation Pressure:

Vehicle manufacturer's recommended

tire inflation pressure and shown on

the tire placard.

Radial Ply tire: A pneumatic tire in

which the ply cords that extend to the

beads are laid at 90 degrees to the

centerline of the tread.

Rim: A metal support for a tire and

upon which the tire beads are seated.

Sidewall: The portion of a tire be-

tween the tread and the bead.

Speed Rating: An alphanumeric code

assigned to a tire indicating the maxi-

mum speed at which a tire can oper-

ate.

Traction: The friction between the tire

and the road surface. The amount of

grip provided.

Tread: The portion of a tire that comes

into contact with the road.

Treadwear Indicators: Narrow bands,

sometimes called "wear bars," that

show across the tread of a tire when

only 2/32 inch of tread remains.

UTQGS: Uniform Tire Quality Grading

Standards, a tire information system

that provides consumers with ratings

for a tire's traction, temperature and

treadwear. Ratings are determined by

tire manufacturers using government

testing procedures. The ratings are

molded into the sidewall of the tire.

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

Vehicle Capacity Weight: The num-

ber of designated seating positions

multiplied by 150 lbs. (68 kg) plus the

rated cargo and luggage load

Vehicle Maximum Load on the Tire:

Load on an individual tire due to curb

and accessory weight plus maximum

occupant and cargo weight.

Vehicle Normal Load on the Tire:

That load on an individual tire that is

determined by distributing to each axle

its share of the curb weight, accessory

weight, and normal occupant weight

and driving by 2.

Vehicle Placard: A label permanently

attached to a vehicle showing the origi-

nal equipment tire size and recom-

mended inflation pressure

I040A01O-AAT

SNOW TIRES

If you equip your car with snow tires,

they should be the same size and

have the same load capacity as the

original tires. Snow tires should be

installed on all four wheels; otherwise,

poor handling may result.

Snow tires should carry 4 psi (28 kPa)

more air pressure than the pressure

recommended for the standard tires on

the tire label on the driver's side of the

center pillar , or up to the maximum

pressure shown on the tire sidewall

whichever is less.

Do not drive faster than 75 mph (120

km/h) when your car is equipped with

snow tires.

I040B01JM-AAT

ALL SEASON TIRES

Hyundai specifies all season tires on

some models to provide good perfor-

mance for use all year round, including

snowy and icy road conditions. All sea-

son tires are identified by ALL SEA-

SON and/or M+S (Mud and Snow) on

the tire sidewall. Snow tires have better

snow traction than all season tires an

may be more appropriate in some ar-

eas.

I040C01JM-AAT

SUMMER TIRES

Hyundai specifies summer tires on

some models to provide superior per-

formance on dry roads. Summer tire

performance is substantrally reduced in

snow and ice. Summer tires do not

have the tire traction rating M+S (Mud

and Snow) on the tire side wall. if you

plan to operate your vehicle in snowy or

icy conditions. Hyundai recommends

the use of snow tires or all season tires

on all four wheels.

8CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

I060A02A-AAT

TIRE ROTATION

Tires should be rotated every 7,500

miles (12,000 km). If you notice that

tires are wearing unevenly between

rotations, have the car checked by a

Hyundai dealer so the cause may be

corrected.

After rotating, adjust the tire pressures

and be sure to check the wheel nut

torque.

HEF-241

I050A03A-AAT

TIRE CHAINS

Tire chains, if necessary, should be installed on

the front wheels. Be sure that the chains are

installed in accordance with the manufacturer's

instructions.

To minimize tire and chain wear, do not con-

tinue to use tire chains when they are no

longer needed.

WARNING:

o When driving on roads covered with snow

or ice, drive at less than 20 mph (30 km/h).

o Use the SAE "S" class or wire & plastic

chains.

o If you have noise caused by chains

contacting the body, retighten the chain

to avoid contact with the vehicle body.

o To prevent body damage, retighten the

chains after driving 0.3~0.6 miles.

!WARNING:

o Do not use the temporary spare

tire for tire rotation.

o Do not mix bias ply and radial ply

tires under any circumstances.

This may cause unusual handling

characteristics that could result

in death, serious injury, or prop-

erty damage.

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

I070A01A-AAT

TIRE BALANCING

A tire that is out of balance may affect

handling and tire wear. The tires on

your Hyundai were balanced before

the car was delivered but may need

balancing again during the years you

own the car.

Whenever a tire is dismounted for

repair, it should be rebalanced before

being reinstalled

on the car.

I080A01A-AAT

TIRE TRACTION

Tire traction can be reduced if you

drive on worn tires, tires that are im-

properly inflated or on slippery road

surfaces. Tires should be replaced

when tread wear indicators appear. To

reduce the possibility of losing control,

slow down whenever there is rain,

snow or ice on the road.

I090A01A-AAT

WHEN TO REPLACE TIRES

Tread wear in-

dicator

0.06 in. (1.6 mm)

HGK248

The original tires on your car have

tread wear indicators. The location of

tread wear indicators is shown by the

"TWI" or " " marks, etc., The tread

wear indicators appear when the tread

depth is 0.06 in. (1.6 mm). The tire

should be replaced when these appear

as a solid bar across two or more

grooves of the tread. Always replace

your tires with those of the recom-

mended size. If you change wheels,

the new wheel's rim width and offset

must meet Hyundai specification.

!WARNING:

o Driving on worn-out tires is dan-

gerous! Worn-out tires can cause

loss of braking effectiveness,

steering control and traction.

When replacing tires, never mix

radial and bias ply tires on the

same car. If you replace radial

tires with bias-ply tires, they must

be installed in sets of four.

o Using tires and wheels of other

than the recommended sizes

could cause unusual handling

characteristics that could cause

death, serious injury, or property

damage.

o Wheels that do not meet Hyundai's

dimensional specifications may

fit poorly and result in damage to

the vehicle, including broken

wheel studs.

8CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

12 WARRANTIES FOR YOUR HYUNDAI

VEHICLE

I100A02E-AAT

SPARE TIRE AND TOOLS

Your Hyundai is delivered with the

following:

Spare tire and wheel

Wheel nut wrench, Wrench bar

Jack

I100A01A

I110A01A-AAT

SHOP MANUAL

A Hyundai Shop Manual is available from your

authorized Hyundai dealer. It's written for pro-

fessional technicians, but is simple enough for

most mechanically-inclined owners to under-

stand.

I120A03A-AAT

o New vehicle 60 Months/60,000 Miles Limited

Warranty.

o New vehicle 120 Months/100,000 Miles Lim-

ited Powertrain Warranty (original owner

only).

o Anti-Perforation Limited Warranty

o Emission Defect Warranty - Federal Ve-

hicle

o California Emission Control System War-

ranty (if applicable)

o Emission Performance Warranty Federal

vehicle

o Replacement Parts and Accessories Limited

Warranty

NOTE:

Detailed warranty information is provided in

your Hyundai Owner's Handbook.

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

CONSUMER INFORMATION

I130A01A-AAT

This consumer information has been prepared

in accordance with regulations issued by the

National Highway Traffic Safety Administration

of the U.S. Department of Transportation. It

provides the purchasers and/or prospective

purchasers of Hyundai automobiles with infor-

mation on uniform tire quality grading. Your

Hyundai dealer will help answer any questions

you may have as you read this information.

I130B03A-AAT

Tire Quality Grading

Department of Transportation quality

grades - All passenger vehicle tires

must conform to Federal Safety Stan-

dards in addition to these grades. These

quality grades are molded on the

sidewall.

Treadwear - The treadwear grade is a

comparative rating based on the wear

rate of the tire when tested under

controlled conditions on a specified

government test course. For example,

a tire graded 150 would wear one and

a half (1 - 1/2) times as well on the

government course as a tire graded

100. The relative performance of tires

depends upon the actual conditions of

their use, however, and may depart

significantly from the norm due to

variations in driving habits, service

practices and differences in road char-

acteristics and climate.

Traction AA, A, B, C - The traction

grades, from highest to lowest, are

AA, A, B, and C. Those grades repre-

sent the tire's ability to stop on wet

pavement as measured under con-

trolled conditions on specified govern-

ment test surfaces of asphalt and

concrete. A tire marked C may have

poor traction performance.

WARNING:

The traction grade assigned to this

tire is based on straight-ahead brak-

ing traction tests, and does not in-

clude acceleration, cornering, hy-

droplaning, or peak traction charac-

teristics.

8CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

Temperature A, B, C - The tempera-

ture grades are A (the highest), B, and

C, representing the tire's resistance to

the generation of heat and its ability to

dissipate heat when tested under con-

trolled conditions on a specified indoor

laboratory test wheel. Sustained high

temperature can cause the material of

the tire to degenerate and reduce tire

life, and excessive temperature can

lead to sudden tire failure. The grade C

corresponds to a level of performance

which all passenger car tires must

meet under the Federal Motor Vehicle

Safety Standard No. 109. Grades B

and A represent higher levels of perfor-

mance on the laboratory test wheel

than the minimum required by law.

!WARNING:

The temperature grade for this tire

is established for a tire that is prop-

erly inflated and not overloaded.

Excessive speed, underinflation, or

excessive loading, either separately

or in combination, can cause heat

buildup and possible tire failure.

Uniform Tire Quality Grading - Qual-

ity grades can be found on the tire

sidewall between the tread shoulder

and the maximum section width.

For example:

Treadwear 200 Traction AA

Temperature A

I130D03A-AAT

Hyundai motor vehicles are designed and

manufactured to meet or exceed all applicable

safety standards.

For your safety, however, we strongly urge

you to read and follow all directions in this

Owner's Manual, particularly the information

under the headings "NOTE", "CAUTION"

and "WARNING".

If, after reading this manual, you have any

questions regarding the operation of your vehi-

cle, please contact your nearest Hyundai Motor

America Regional Office as listed below:

Eastern Region : Connecticut, Delaware, Maine,

Maryland, Massachusetts, New Hampshire, New

Jersey, New York, Pennsylvanina, Rhode Is-

land, Vermont, Virginia, West Virginia.

Eastern Region

1100 Cranbury South River Road

Jamesburg, NJ 08831

(800) 633-5151

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

I130C02A-AAT

If you believe that your vehicle has a

defect which could cause a crash or

could cause injury or death, you should

immediately inform the National High-

way Traffic Safety Administration

(NHTSA) in addition to notifying

HYUNDAI MOTOR AMERICA. If

NHTSA receives similar complaints,

it may open an investigation, and if it

finds that a safety defect exists in a

group of vehicles, it may order a

recall and remedy campaign. How-

ever, NHTSA cannot become involved

in individual problems between you,

your dealer, or HYUNDAI MOTOR

AMERICA.

To contact NHTSA, you may either

call the Auto Safety Hotline toll-free at

1-888-327-4236 or write to: NHTSA,

U.S. Department of Transportation,

Washington. D.C. 20590. You can

also obtain other information about

motor vehicle safety from the Hotline.

REPORTING SAFETY DEFECTS

Southern Region: Alabama, Arkansas, Flor-

ida, Georgia, Louisiana, Mississippi, North Caro-

lina, South Carolina, Oklahoma, Tennessee,

Texas.

Southern Region

270 Riverside Parkway, Suite A

Austell, GA 30168

(800) 633-5151

Central Region: Illinois, Indiana, Missouri,

lowa, Kansas, Kentucky, Michigan, Minne-

sota, Nebraska, North Dakota, South Dakota,

Ohio, Wisconsin.

Central Region

1705 Sequoia Drive

Aurora, Illinois 60506

(800) 633-5151

Western Region: Alaska, Hawaii, Arizona,

California, Colorado, ldaho, Montana, Nevada,

New Mexico, Oregon, Texas, Utah, Washing-

ton, Wyoming.

Western Region

10550 Talbert Avenue

P.O.Box 20850

Fountain Valley, California 92728-0850

(800) 633-5151

8CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

I140A01A-AAT

BINDING ARBITRATION

Any claim or dispute you may have

related to your vehicle's warranty or

the duties contemplated under the war-

ranty, including claims related to the

refund or partial refund of your vehicle's

purchase price (excluding personal in-

jury or product liability claims), shall

be resolved by binding arbitration. Bind-

ing arbitration shall be administered by

and through the National Arbitration

Forum (NAF) or the American Arbitra-

tion Association (AAA), under the Code

of Procedure of the entity you select.

You will not be responsible for paying

filing and hearing fees above $275.00.

All other arbitration costs shall be borne

by Hyundai Motor America. You are

not responsible to pay any of the costs

Hyundai incurs.

This Binding Arbitration Agreement

shall not deprive you of any remedies

available to you under applicable law.

The parties are waiving their right to

seek remedies in court, including the

right to a jury trial.

This Binding Arbitration Agreement

shall be governed by and interpreted

under the Federal Arbitration Act, 9

U.S.C. sections 1-16. Judgment upon

any award may be entered in any court

having jurisdiction.

You may revoke this Arbitration Agree-

ment by (1) written notice or (2) elec-

tronic notice. Written notice must be

delivered (via certified mail) to Hyundai

Motor America, Attn: Consumer Af-

fairs, 10550 Talbert Avenue, P.O. Box

20849, Fountain Valley, CA 92728-

0849.

Electronic notice must be submitted at

the following website address : http://

warranty-arbitration.hyundaiUSA.com.

Notice must be received within 90

days after you purchase your vehicle.

BINDING ARBITRATION

Measurement ................................................................ 9-2

Engine ........................................................................... 9-3

Lubrication Chart ........................................................... 9-4

VEHICLE SPECIFICATIONS

9VEHICLE SPECIFICATIONS

Tire Size

P175/70 R13

P185/60 R14

T105/70 D(R)14

in. (mm)

Liter

Automatic Transaxle

Manual Transaxle

MF12V, 55AH

13.5V 90A

Dual hydraulic with brake booster

Ventilated disc

Drum

Cable operated on rear wheel

Standard

Option

Spare

US. gal

11.9

Fuel tank

capacity

Imp.gal

9.9

Battery

Alternator

Starter 0.9 KW

0.7 KW

Type

Front brake type

Rear brake type

Parking brake

Inflation Pressure

30PSI (207 kPa)

60PSI (414 kPa)

J010A01A-AAT

MEASUREMENT

J020A01A-AAT

POWER STEERING

J060A01A-AAT

FUEL SYSTEM

J040A01A-AAT

ELECTRICAL

J050A01A-AAT

BRAKE

J030A03A-AAT

TIRE

4 DOOR

167.7 (4260)

66.1 (1680)

54.9 (1395)

96.1 (2440)

56.5 (1435)

56.1 (1425)

Item

Overall length

Overall width

Overall height (unladen)

Wheel base

Wheel tread Front

Rear

3 DOOR

165.9 (4215)

Type

Wheel free play

Rack stroke

Oil pump type

Rack and pinion

0 ~ 1.18 in (0 ~ 30 mm)

5.3 in. (134 mm)

Vane type

VEHICLE SPECIFICATIONS

ENGINE

SPECIFICATIONS

1.6 MPI

4-Cylinder in-line DOHC

76.5 x 87

1,599

800 ± 100

BKR5ES-11

RC10YC4

0.039 to 0.043 in. (1.0 to 1.1 mm)

Auto lash

BTDC 10° ± 5°

1 - 3 - 4 - 2

SH, SG or SG/CD and ABOVE multigrade and fuel-efficient oil

J070A04A-AAT

ITEMS

Engine Type

Bore x Stroke

Displacement (cc)

Idle Speed (RPM)

Spark plug

Spark plug gap

Valve Clearance

(warm engine)

Ignition timing (Base)

Firing order

Oil grade (API)

NGK

CHAMPION

Intake valve

Exhaust valve

9VEHICLE SPECIFICATIONS

Oil & Grease Standard

API SJ, SL or ABOVE,

ILSAC GF-3 or ABOVE

HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4)

HYUNDAI GENUINE ATF SP III, DIAMOND ATF SP III, SK ATF SP III or other brands

meeting the SP III specification approved by Hyundai Motor Co..

PSF-3

DOT 3, DOT 4 or Equivalent

Ethylene glycol base for aluminum radiator

SAE 5W-20, 20W-30

SAE 10W-30 (ABOVE 0°F (-18°C))

LUBRICATION CHART

Item

Engine oil

Transaxle Manual

Auto

Power steering

Brake fluid

Coolant Manual

Transaxle

Automatic

Transaxle

J080A11A-AAT

Q'ty (US.QTS)(Imp.qts, liter)

Drain and refill

Without oil filter : 3.16 (2.3, 3.0)

With oil filter : 3.49 (2.9, 3.3)

2.27 (1.9, 2.15)

6.45 (5.4, 6.1)

0.95 (0.79, 0.9)

As required

6.2 (5.2, 5.88)

5.8 (4.8, 5.48)

INDEX

10 INDEX

Care of Cassette tapes .................................................................. 1-91

Care of Disc ..................................................................................... 1-91

Cargo Area Cover ........................................................................... 1-63

Catalytic Converter ............................................................................ 7-3

Changing a flat tire ............................................................................ 3-7

Child-Protector Rear Door Look ....................................................... 1-5

Child Restraint System .................................................................... 1-22

Installing a child restraint seat with the

"Tether Anchorage" system .................................................... 1-24

Securing the child restraint seat with the "ISOFIX" system ... 1-25

Cigarette Lighter .............................................................................. 1-52

Clock ................................................................................................ 1-52

Clutch

Checking fluid ............................................................................. 6-15

Pedal free-play ............................................................................ 6-18

Combination Light

Headlight flasher ......................................................................... 1-48

Headlight switch .......................................................................... 1-47

High-beam switch ....................................................................... 1-48

Lane change signal .................................................................... 1-47

Turn signal operation ................................................................. 1-47

Cooling Fans .................................................................................... 6-22

Corrosion Protection

Cleaning the interior ..................................................................... 4-5

Protecting your Hyundai from corrosion .................................... 4-2

Washing and waxing .................................................................... 4-3

Airbag ......................................................................................................

1-30

Air Cleaner Filter .............................................................................. 6-10

Air Conditioner

Care ............................................................................................. 6-15

Filter ............................................................................................. 1-73

Operation..................................................................................... 1-71

Antenna ............................................................................................ 1-93

Ashtray ............................................................................................. 1-52

Audio Fault Code ............................................................................. 1-90

Audio System

Cassette tape player operation (H245) .................................... 1-82

Compact disc player operation (H265) .................................... 1-87

Stereo radio operation (H215, H245, H265) ........ 1-76, 1-79, 1-84

Automatic Transaxle .......................................................................... 2-7

Overdrive switch .......................................................................... 2-9

Shift lock release .......................................................................... 2-9

Battery .............................................................................................. 6-21

Bi-Level Heating ............................................................................... 1-69

Binding Arbitration ............................................................................ 8-16

Brake

Anti-lock system ......................................................................... 2-11

Checking the brakes .................................................................. 6-14

Fluid ............................................................................................. 6-14

Pedal clearance .......................................................................... 6-18

Pedal free-play ............................................................................ 6-18

Practices ..................................................................................... 2-10

Breaking-In your new Hyundai ......................................................... 1-3

INDEX

Defrosting/Defogging ....................................................................... 1-72

Door

Central door lock .......................................................................... 1-6

Door locks .................................................................................... 1-4

Locking, unlocking front door with a key ................................... 1-4

Drink Holder ..................................................................................... 1-53

Drive Belts ........................................................................................ 6-19

Driving

Economical driving ...................................................................... 2-12

Smooth cornering ....................................................................... 2-13

Winter driving .............................................................................. 2-13

Dual-Stage Supplemental Restraint (AIRBAG) System ................ 1-30

Emission Control Systems ................................................................ 7-1

Engine

Before starting the engine ............................................................ 2-3

Compartment (For 1.6 DOHC) ................................................... 6-2

Coolant .......................................................................................... 6-6

Coolant temperature gauge ....................................................... 1-42

If the engine overheats ................................................................ 3-4

Number .......................................................................................... 8-2

Oil .................................................................................................. 6-4

Starting .......................................................................................... 2-4

Engine Exhaust Can Be Dangerous ................................................ 2-2

Fan Speed Control (Blower Control) .............................................. 1-66

Fog Light

Front ............................................................................................ 1-51

Front Seats

Adjustable front seats ................................................................ 1-11

Adjustable headrests .................................................................. 1-12

Adjusting seatback angle ........................................................... 1-11

Adjusting seatback forward and rearward ............................... 1-11

Lumbar support control .............................................................. 1-13

Seat cushion height adjustment ................................................ 1-13

Seat pocket ................................................................................. 1-55

Fuel

Capacity ........................................................................................ 9-2

Gauge .......................................................................................... 1-42

Recommendations ........................................................................ 1-2

Fuel Filler Lid

Remote release .......................................................................... 1-60

Fuses ......................................................................................................

6-19

General Checks ................................................................................ 6-3

Glove box ......................................................................................... 1-55

Hazard Warning System ................................................................. 1-50

10 INDEX

Maintenance under severe usage conditions ................................ 5-6

Scheduled maintenance ................................................................. 5-4

Service requirements ..................................................................... 5-2

Mirrors

Day/night inside rearview ............................................................. 1-58

Outside rear view ........................................................................ 1-56

Odometer/Trip Odometer .................................................................. 1-44

Parking Brake ................................................................................... 1-58

Power Steering Fluid Level ............................................................... 6-22

Pretensioner Seat Belt ...................................................................... 1-28

Rear Seats

Folding seatbacks ........................................................................ 1-15

Rear seat entry ............................................................................ 1-13

Rear Window Defroster Switch ......................................................... 1-51

Rear Window Wiper and Washer ..................................................... 1-49

Replacement of Bulbs ....................................................................... 6-24

Seat Belts

2-Point static type ........................................................................ 1-21

3-Point type .................................................................................. 1-19

Adjusting your seat belt ............................................................... 1-20

Adjutable height ........................................................................... 1-18

Care of seat belts ........................................................................ 1-18

Headlight Bulb .................................................................................. 6-25

Heating and Ventilation

Air flow control ............................................................................ 1-67

Air intake control ......................................................................... 1-66

Bi-level heating ............................................................................ 1-69

Defrosting/Defogging .................................................................. 1-72

Fan seed control (Blower control) ............................................ 1-66

Temperature control ................................................................... 1-69

High-Mounted Rear Stop Light ....................................................... 1-58

Hood Release .................................................................................. 1-59

Horn ................................................................................................ 1-64

Ignition Switch ..................................................................................... 2-3

Instrument Cluster and Indicator Lights ............................................ 1-39

Instrument Panel Light Control (Rheostat) ....................................... 1-50

Interior Light ...................................................................................... 1-54

Jump Starting ...................................................................................... 3-3

Keys .................................................................................................. 1-3

If you lose your keys ................................................................... 3-14

Positions ........................................................................................ 2-3

Maintenance Intervals

Explanation of scheduled maintenance items .............................. 5-7

INDEX

Precautions .................................................................................. 1-16

Spark Plugs ........................................................................................ 6-8

Speedometer .................................................................................... 1-43

Starting Procedures ........................................................................... 2-5

Steering Wheel

Free-play ..................................................................................... 6-17

Stereo Sound System ..................................................................... 1-74

Sun Visor .......................................................................................... 1-63

Tachometer ...................................................................................... 1-43

Tailgate ............................................................................................. 1-62

Theft-Alarm System ........................................................................... 1-7

Tires

Balancing ..................................................................................... 8-11

Chains ......................................................................................... 8-10

Changing a flat tire ....................................................................... 3-7

If you have a flat tire .................................................................... 3-6

Information .................................................................................... 8-2

Pressure (see glove box) ............................................................ 8-3

Replacement ............................................................................... 8-11

Rotation ....................................................................................... 8-10

Snow tires ..................................................................................... 8-9

Spare tire ....................................................................................... 3-5

Traction ....................................................................................... 8-11

Towing

Emergency .................................................................................. 3-14

If your car must be towed ......................................................... 3-12

Trailer towing .............................................................................. 2-16

Transaxle

Automatic ....................................................................................... 2-7

Automatic transaxle fluid checking ............................................ 6-12

Manual ........................................................................................... 2-5

Manual transaxle oil checking ................................................... 6-11

Trip Computer .................................................................................. 1-44

Trunk

Emergency latch release ........................................................... 1-62

Remote release .......................................................................... 1-61

Vehicle Identification Number (VIN) ................................................. 8-2

Vehicle Load Limt ............................................................................ 2-16

Vehicle Specifications

Engine ............................................................................................ 9-3

Lubrication Chart .......................................................................... 9-4

Measurement ................................................................................ 9-2

Warning and Indicatior Lights ......................................................... 1-39

Windows

Manual ........................................................................................... 1-9

Power .......................................................................................... 1-10

Windshield Wiper and Washer ........................................................ 1-48

Adjustable intermittent wiper operation ..................................... 1-49

Windshield Wiper Blades ............................................................ 6-10

A000A01A-AAT

This Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner.

OWNER'S I.D.

ORIGINAL OWNER

ADDRESS

CITY STATE ZIP CODE

DELIVERY DATE

(Date Sold to Original Retail purchaser)

DEALER NAME DEALER NO.

ADDRESS

CITY STATE ZIP CODE

Seoul Korea

Printing: JUN. 23, 2005

Publication No.: A25O-EU56N

Printed in Korea

SERVICE STATION INFORMATION

FUEL:

UNLEADED gasoline only

Pump Octane Rating of 87 (Research Octane Number 91) or higher.

FUEL TANK CAPACITY

Original, US.gal (Imp.gal., liter) 11.9 (9.9, 45)

TIRE PRESSURE:

See the label in the glove box.

OTHER TIRE INFORMATION:

See pages 8-1 through 8-12

HOOD RELEASE:

Pull handle under left side of dash.

ENGINE OIL:

API grade SJ, SL or ABOVE / ILSAC grade GF-3 or ABOVE and fuel

efficient oil. Use SAE 5W-20, 5W-30 or 10W-30 if normal tempera-

tures are above 0°F (-18°C). For other viscosity recommendations,

see page 6-4 or 9-4.

MANUAL TRANSAXLE:

HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4) Oil level

should be up to filler-bolt hole in housing beside differential.

AUTOMATIC TRANSAXLE:

Apply the parking brake, with the engine running, shift the selector lever

through all ranges and return to “N” (Neutral) position. Then check the

level of fluid on the dipstick. Use only HYUNDAI GENUINE ATF

SP III, DIAMOND ATF SP III, SK ATF SP III or other brands meeting

the SP III specification approved by Hyundai Motor Co..

QUICK INDEX

o Car will not start .................................................................... 3-2

o Flat tire ................................................................................. 3-6

o Warning light/chime comes on .................................... 1-39 ~ 1-42

o Engine overheats ................................................................... 3-4

o Towing of your vehicle ......................................................... 3-11

o Starting the engine ................................................................. 2-4

o Driving tips for first 1,200 miles (2,000 km) .......................... 1-3

o Scheduled maintenance ......................................................... 5-4

o Reporting safety defects ...................................................... 8-14

Hyundai 2005 Accent Owners Manual Lcflhma 0.p65

Navigation menu

Versions of this User Manual:

Views

Navigation
