I Link Technology I-LINK BLUETOOTH MUSIC RECEIVER User Manual Manual
Shenzhen I-Link Technology Co., Ltd. BLUETOOTH MUSIC RECEIVER Manual
User Manual
I-LINK
Operation Manual
Bluetooth Music Receiver
Preface
Thank you for the purchase of our products! Please read this manual carefully to get
the details how to operate the device correctly. Finally, save it properly for future use!
Notes
1. Keep it far away from high temperature and damp environment; place it in
ventilated and dry environment. Exposure to rain and severe shock is forbidden!
2. Do not open the cover at will in case of electrical shock or any other accidents.
For repairs, ask help from maintenance stations of our company or professional
personnels.
3. If any metal part or liquor drops into it, switch off the power at once. It can be
used only after examination by professional personnels.
4. Pull it out when you do not use it.
Operation Steps
z Logo：I-LINK

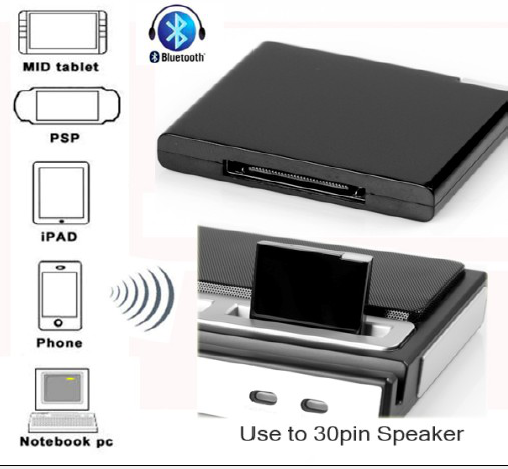

1. Bluetooth music receiver connects directly to iPod speaker 30-pin dock, and
then the red LED lamp and the blue LED lamp will flicker alternately until they
enter paring mode, which means the device starts to work normally. Perform
bluetooth paring operations after it is on for 30 seconds.
2. After it enters paring mode, enable the bluetooth function for the devices
such as iPad, iPhone, bluetooth PC, cell phone and any other digital products
with bluetooth function. Search bluetooth devices or new devices to find
I-LINK and connect it. Password input for paring is needed, and the default
password is: 0000.
3. After successful paring, the red LED lamp will turn off and the blue LED lamp
will flicker slowly, which means it has been connected already. Then we can
play music by player.
4. To change the play device during normal operation, disconnect the connected
bluetooth PC and cell phone, and then perform paring connection for other
bluetooth devices.
Accessories
1. Bluetooth Music Receiver 1
Technical Specification
| Complies with Bluetooth 2.0+EDR
| Support A2DP V1.2
| Powered from 30-pin dock
| Transmission distance: not less than 10 meters
| Dimension：43.5 * 35.5 * 7 mm
| 2 indicators flicker alternately when there is no connection. Blue light flicker slowly
after successful connection
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
