I Link Technology VBR002B Bluetooth music receiver User Manual
Shenzhen I-Link Technology Co., Ltd. Bluetooth music receiver Users Manual
Users Manual
VTIN
Wireless Music Receiver
User Manual
What is Included
1 X Receiver
1 X 3.5mm audio cable (m/m)
1 X 3.5mm audio jack (m/m)
1 X USB cable
1 X User manual

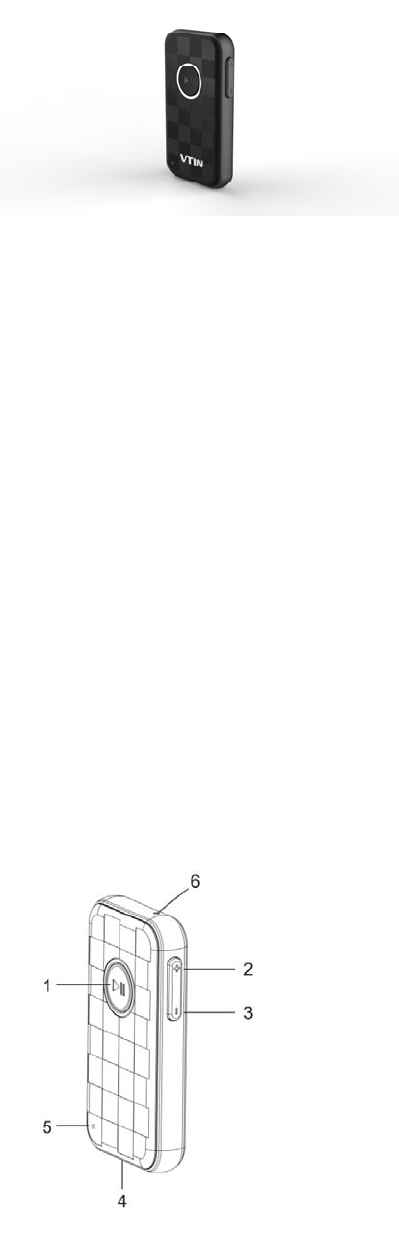

Product Diagram
1. Multifunction Button (MFB)
2. Next Song/Volume UP
3. Previous Song/Volume Down
4. Charge Port
5. Indicator
6. Microphone
Specification
Bluetooth Version: V4.1
Frequency Range: 2.4GHz
Operation: Class2
Bluetooth Mode: HFP/ A2DP/AVRCP
Bluetooth Range: up to 30 feets
Charge time: 1.5 hours
Playing time: Up to 8 hours
Charging the Receiver
You must charge the receiver fully before using the receiver for the first
time.
1. Connect the receiver to the power source with USB charging cable.
2. The indicator light will turn into red when charging.
3. The full charge takes about 1.5 hours.
4. The red indicator light goes out when charging completed.
Low-Voltage Alert:
When battery low, there will be an alert sound, and red light will flash.
Please charge it as soon as possible.
Power on/off the Receiver
Power on: Long press the MFB about 3 seconds until the blue and red
indicator lights start flashing alternately.
Power off: Long press the MFB about 3 seconds until the blue indicator
light goes off.
Pair to Your Phone
1. Connect the receiver to your home stereo system or car stereo system
via the 3.5mm audio cable/adapter.
2. Pair the receiver with your device for the first time, the distance
between the receiver and your phone would be better within 1 meter.
3. With the receiver power off, long press power on button until the red
and blue lights start flashing alternately.
4. Turn on the Bluetooth function on your phone.
5. Search for the Bluetooth devices and select "Grid"
6. Enter the code "0000" if needed.
7. If pairing is successful, the blue indicator light flashes slowly.
8. Now you can enjoy your music through the home stereo system or car
stereo system.
Note:
1. It will connect to the last paired phone automatically when it turns on.
(Please make sure the Bluetooth function on your phone is on before turn
on the receiver.)
2. If you want to use it in the car stereo system, you need to adjust the car
radio to AUX in.
Pair with Two Bluetooth Devices at the Same Time
1. Pair the Bluetooth receiver with the first phone.
2. After pair successfully, turn off the Bluetooth function on the first
phone.
3. It will enter pairing mode again.
4. Pair the Bluetooth receiver to the second phone.
5. After pair successfully, turn off the Bluetooth function on the second
phone.
6. Turn on the Bluetooth function on the first phone. Choose "Grid" to
connect it.
7. Turn on the Bluetooth function on the second phone. Choose "Grid" to
connect it.
8. Two phones will both connect the Bluetooth receiver at the same time.
Answering/Ending/Rejecting a Call
Answering a call: Press the “Answer” button on your phone or short press
the MFB on your receiver.
Ending a call: Press the “End” button on your phone or short press the
MFB on your receiver.
Rejecting a call: Press the “End” button on your phone or long press
MFB on your receiver.
Redialing the Last Dialed Number
Redialing the last dialed number: If your phone supports this function,
double press MFB at stand-by mode.
Playing Music
1. Play/Pause: Short press the multifunction button.
2. Next Song: Short press the button “ + ”.
3. Previous Song: Short press the button “ - ”.
4. Volume Up: Long press the button “ + ”.
5. Volume Down: Long press the button “ - ”.
Note:
If you want to switch different phone to listen music, please pause the
music of the first phone, and then play the music on the second phone, it
will switch to the music of the second phone after a few seconds.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it
should not be disposed with other household wastes at the end of its
working life.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household user should contact either the retailer where they purchased
this product, or their local government office, for details of where and
how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed
with other commercial wastes for disposal.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Contact Us:
Website: www.ivtin.com
Email: support@ivtin.com
