Foldable Bluetooth Keyboard User’s Guide
Model No: IRK06B
Thanks for purchasing this Slim Bluetooth Keyboard,
This creative and easy-to-use Bluetooth Keyboard will bring you a whole new wireless life
experience.

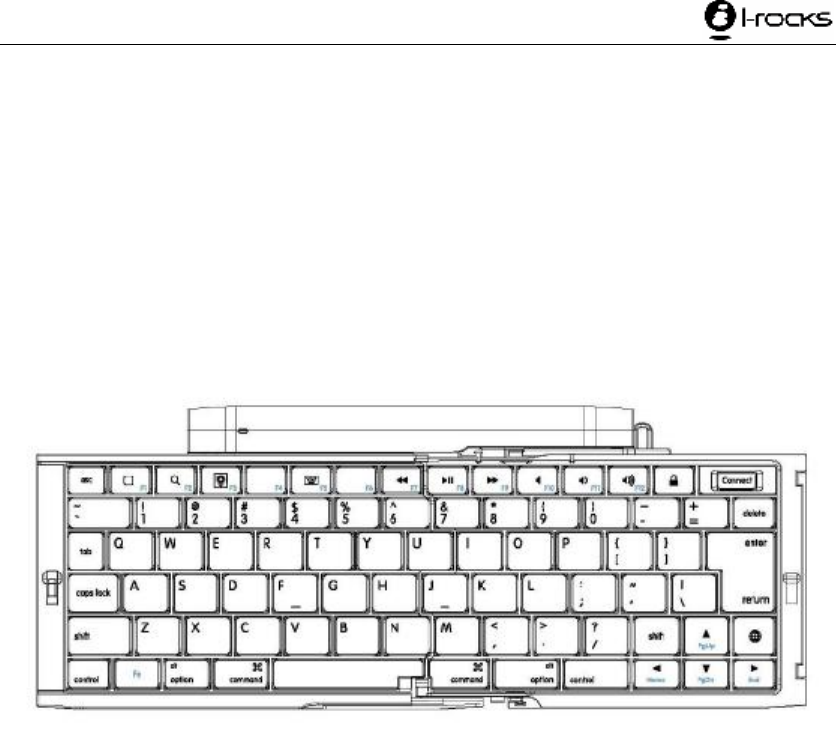

Appearance Drawing
Main Features
l Use Broadcom BCM20730 Chipset with wireless Bluetooth 3.0 interface
l Features comfortable, ergonomic design with 14 function keys
l Come with particular power managing software, indicates the power capacity in Microsoft
Windows System automatically
l Use the Bluetooth industry leading software solutions, WIDCOMM BTW (Microsoft
officially designated software) Bluetooth software
l Built-in software solutions with Bluetooth human interface device and comply with the
standard version of the Bluetooth SIG Bluetooth 3.0
l Work with Windows 98, ME, 2000, Server 2003, XP and Vista
l Support SONY PS3
l Frequency band: 2.402 - 2.483GHz unlicensed ISM band
l Receiving sensitivity: -75bm (standard)
l RF output power: up to 4bm as maximum, good for your health with lowest radiates
l 310 mAh Li-Polymer Battery
l Operation distance: 10m
l Operation Temperature: 0-55°C
l Operation Humidity: 10%-85% RH at 25°C
l Storage Temperature: -20~+60°C
l Storage Humidity: 5%-95% RH at 25°C
l Dimension: 148×100×22 mm
2
Installation Guide
Before you install the Bluetooth Keyboard, please make sure that the Bluetooth Dongle has been
installed. Software available like Widcomm(Recommended), IVT or the Microsoft built-in
software(can not connect to the headset).

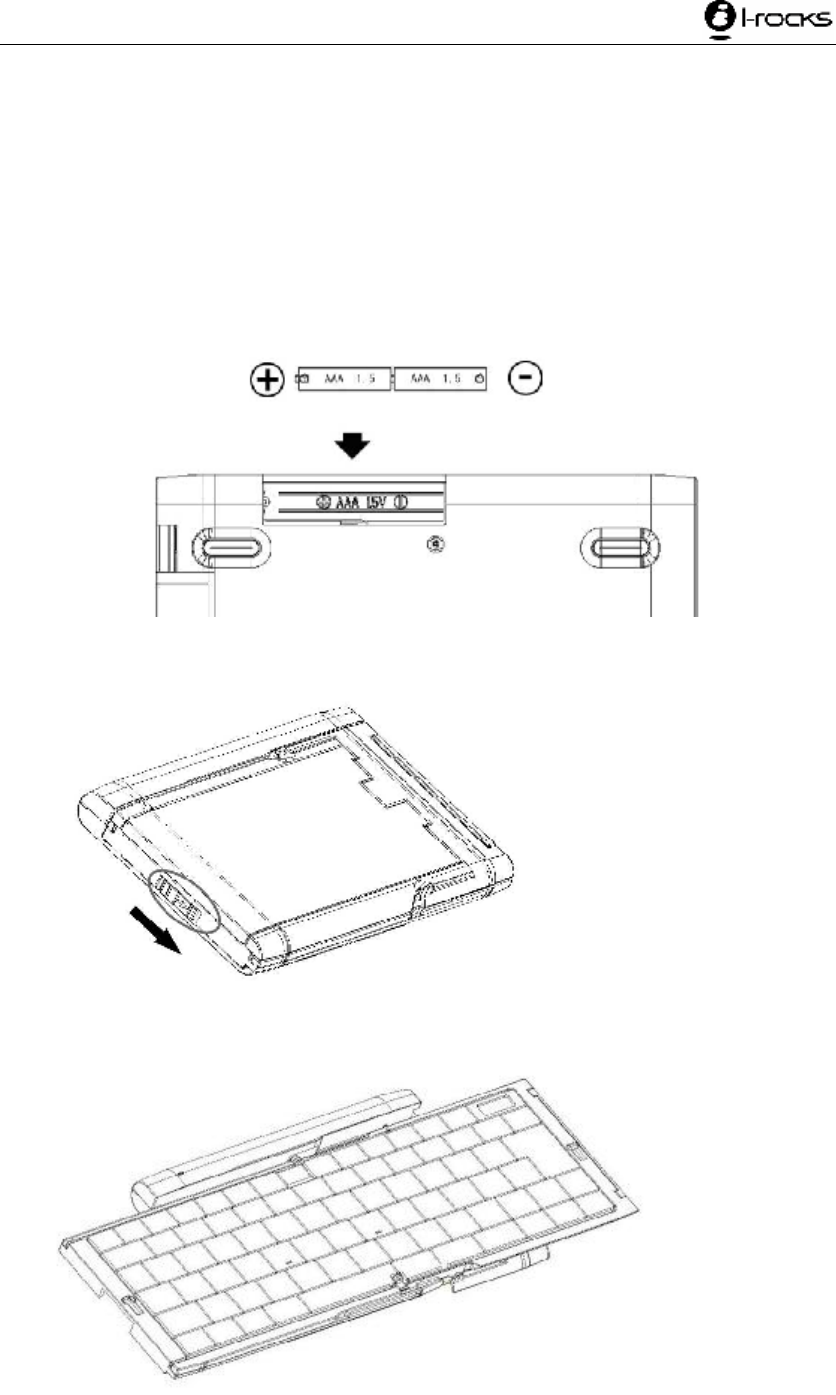

1. Using thumb to open the battery compartment of the keyboard and remove it by pulling back
2. Insert two 1.5V, AAA batteries into the compartment. Make sure to comply with the polarity
markings.
3. Replace the batteries compartment.
4. Slide the switch down on side of keyboard to unlock the keyboard
5. Unfold the keyboard.
6. Press and release the “connect” on right top corner of the keyboard , when the “power” LED
3
start to flash white, the keyboard enters pairing mode.
Pair Procedure

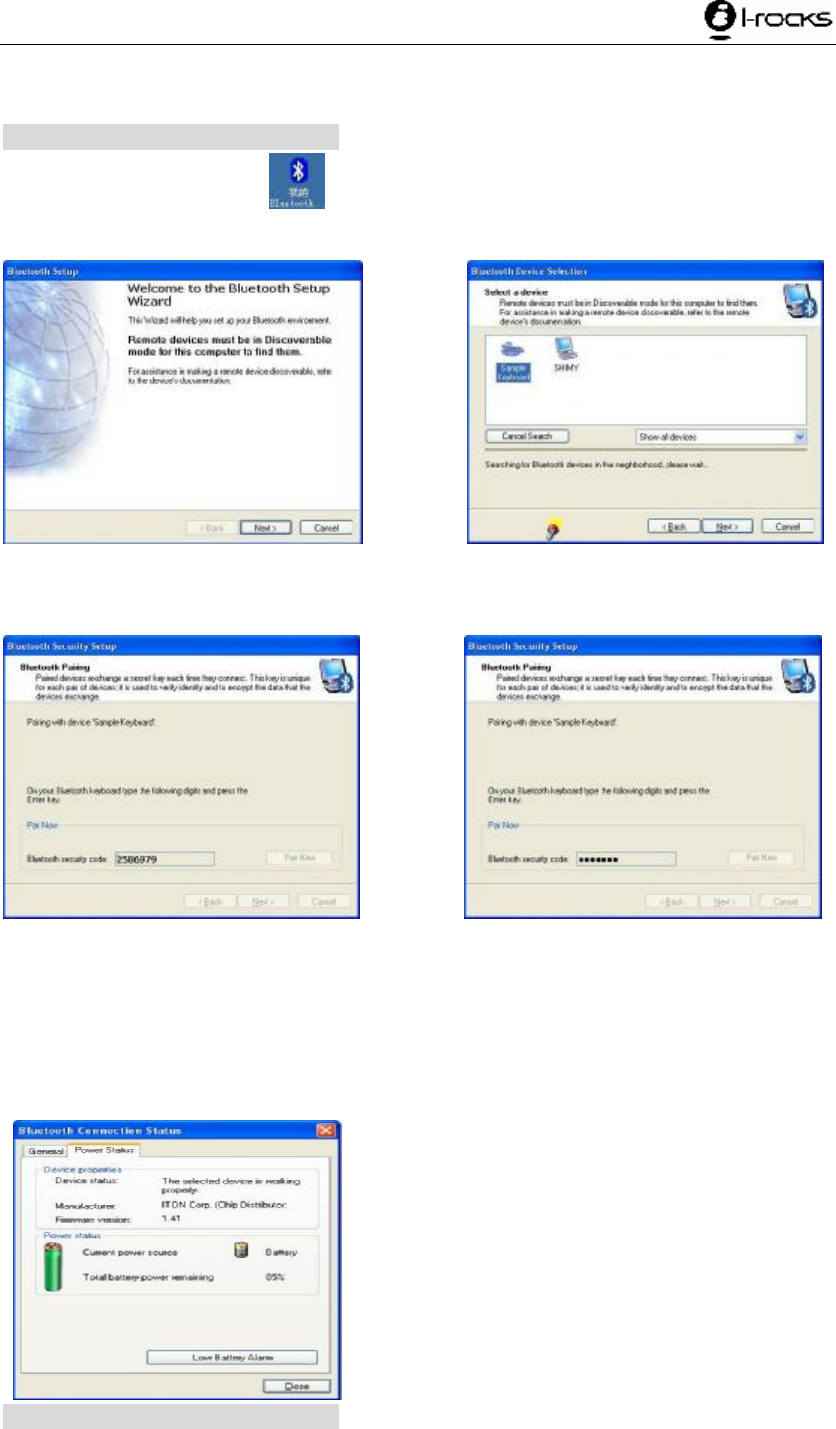

A: Pair on Widcomm (recommended)
1. Double click the Icon again , “My Bluetooth Place” pops up; select “Bluetooth ---Add
Bluetooth facility”. Click “Next” button In the Setup Guild window.
2. When the system finds the Keyboard, select it and click “Next”.
3. Input the stochastic Pairing Code, and confirm.
1. Now you can use your keyboard at ease.
Tips:
If you are using the Widcomm Bluetooth Software, select the keyboard icon and click the right
button of the keyboard and select “Status”, then you can check the power status of the batteries
and setup alarm for shortage of battery.

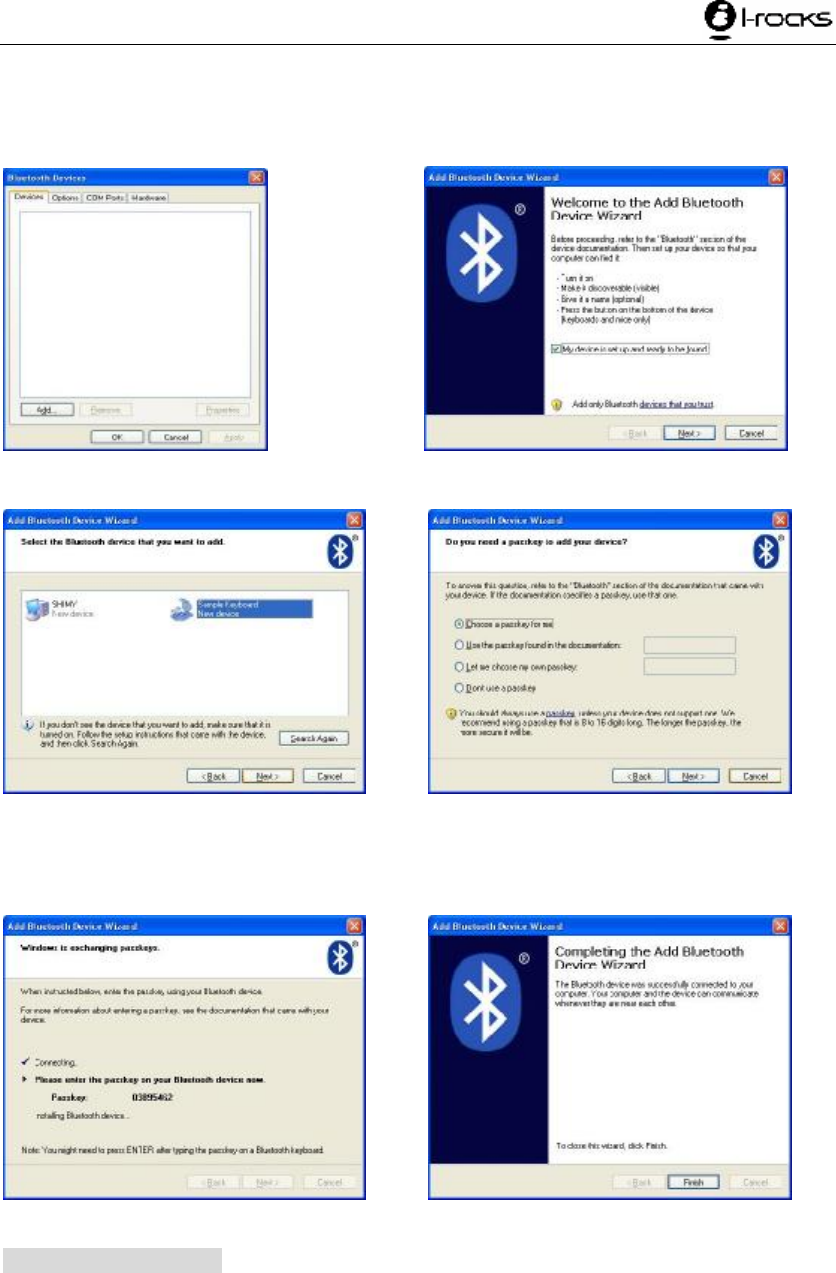

B. Pair on Microsoft built-in software
4
1. Make sure that the Bluetooth Function has been activated. Double click the Bluetooth Icon on
the Task Bar or in the Control Panel, open the “Bluetooth Management” window, click “Add”,
tick off “facility is ready for searching”, click “Next”.
2. Wait till the keyboard is found, select keyboard and click “Next”.
3. Select” Choose a pass key for me”, click “Next”.
4. Input the pass key and press “Enter”, click “Next”, the system will finish the installation of the
new facility automatically.

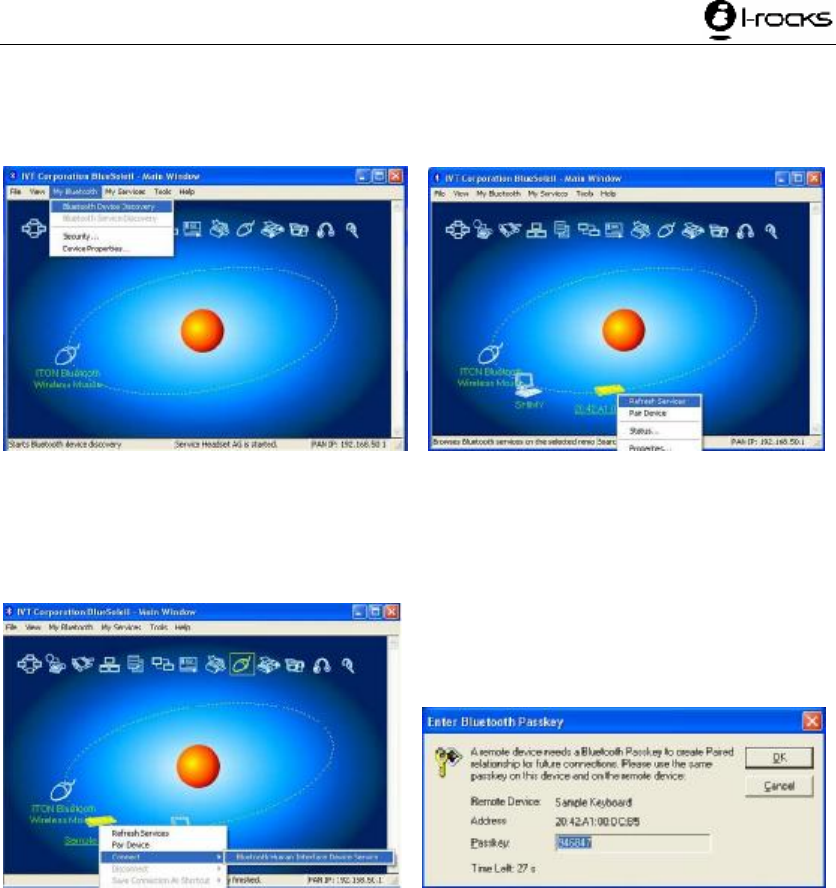

C. Pair on IVT Software
1. Make sure that the Bluetooth function is active. Double click the Bluetooth Icon, open the
Management window, select “Search for Bluetooth facilities” or click the Round Ball in the
middle of the window.
5
2. Click the Bluetooth Keyboard founded, click the right button for “Refresh Service”.
3. Select the Bluetooth Keyboard again, click the right button for “Connect-Bluetooth Input
Service”, input the stochastic pass key, the system will auto install the HID facility. After that you
can use your Bluetooth Keyboard at ease.
FAQ:
If unable to connect the Bluetooth Keyboard to the computer, or the Keyboard work
unconventionally, please try the steps below:
1. Before you install your Bluetooth Keyboard, please make sure you have done the Bluetooth
Dongle installation procedure, and the Bluetooth facility is turned on.
2. Press and release the connect button on the bottom of Bluetooth Keyboard. The blue led light
will change into a flashing mode.
3. Make sure that the Computer is connected to the Bluetooth Keyboard. If they are paired to
6
each other before, then under the Standby State, just double click the left button of the
keyboard.
4. Make sure that the keyboard is within the effective range---10M.
5. Make sure that there’s no change of the Bluetooth facility. If anything changed, please kindly
pair again.
6. If your Bluetooth facility is connected to other Bluetooth products, please kindly confirm that
the speed of the Bluetooth facility is enough.
7. Please kindly check the batteries. If they are short of power, replace them for new ones.
7
R & TTE Compliance Statement
This equipment complies with all the requirements of the DIRECTIVE 1999/5/EC OF THE
EUROPEAN
PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and
telecommunication terminal equipment and the mutual recognition of their conformity (R &
TTE).
Correct Disposal of this product. This marking indicates
that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please
use the return and collection systems or contact the retailer
where the product was purchased. They can take this product
for environmental safe recycling.
Federal Communication Commission Interference Statement
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
8
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with FCC RF radiation exposure limits set forth for general
population (uncontrolled exposure). This device must not be collocated or
operating in conjunction with any other antenna or transmitter.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
