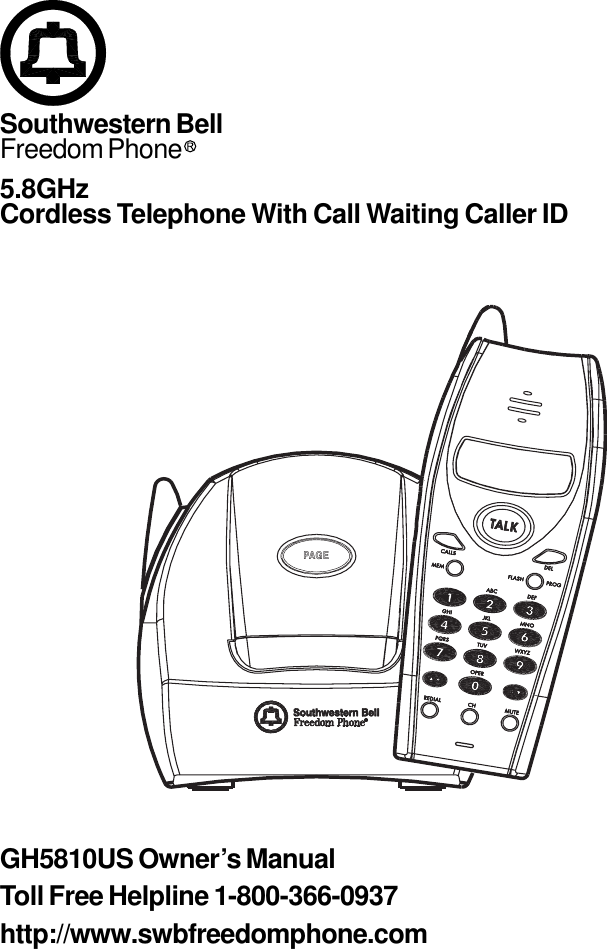

Southwestern BellFreedom Phone5.8GHzCordless Telephone With Call Waiting Caller IDGH5810US Owner’s ManualToll Free Helpline 1-800-366-0937http://www.swbfreedomphone.comPAGE

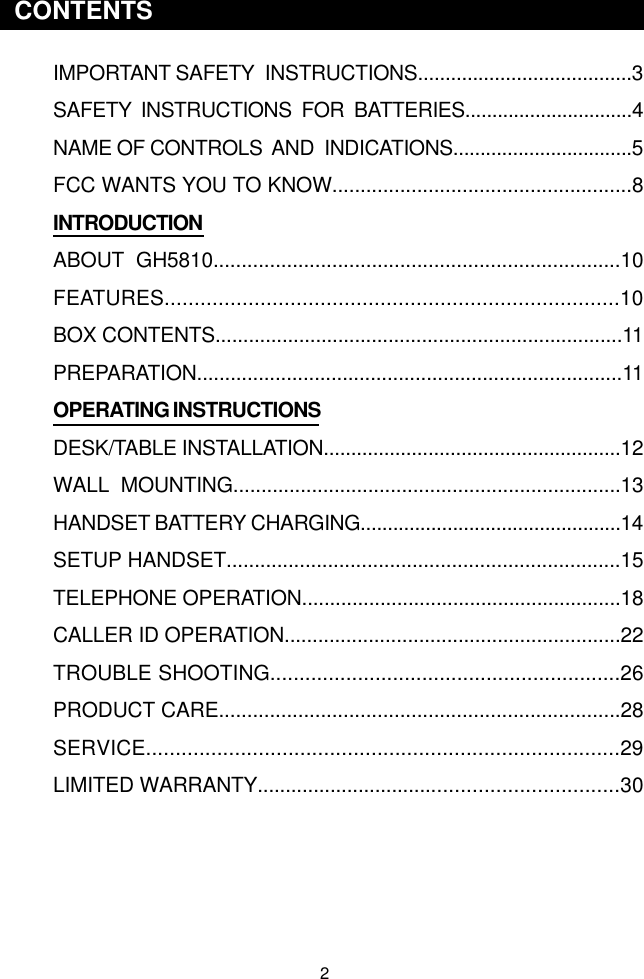

2IMPORTANT SAFETY INSTRUCTIONS.......................................3SAFETY INSTRUCTIONS FOR BATTERIES...............................4NAME OF CONTROLS AND INDICATIONS.................................5FCC WANTS YOU TO KNOW.....................................................8INTRODUCTIONABOUT GH5810........................................................................10FEATURES............................................................................10BOX CONTENTS.........................................................................11PREPARATION............................................................................11OPERATING INSTRUCTIONSDESK/TABLE INSTALLATION......................................................12WALL MOUNTING.....................................................................13HANDSET BATTERY CHARGING................................................14SETUP HANDSET......................................................................15TELEPHONE OPERATION.........................................................18CALLER ID OPERATION............................................................22TROUBLE SHOOTING............................................................26PRODUCT CARE.......................................................................28SERVICE................................................................................29LIMITED WARRANTY...............................................................302 CONTENTS
BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONSSHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRICSHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING:1. Read and understand all instructions.2. Follow all warnings and instructions marked on the product.3. Unplug this product from the wall telephone jack and power outlet before cleaning.Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.4. Do not use this product near water, for example, near a bath tub, wash bowl, kit-chen sink, laundry tub, swimming pool, or in a wet basement.5. Do not place this product on an unstable cart, stand or table. The product may fall,causing serious damage.6. Slots or openings in the cabinet and the back and bottom are provided for ventilation,to protect it from overheating. These openings must not be blocked or covered. Theopenings should never be blocked by placing the product on a bed, or other similarsurface. This product should never be placed near or over a radiator or heat regi-ster.7. This product should be operated only from the type of power source indicated onthe marking label. If you are not sure of the type of power supply to your home,con-sult your dealer or local power company.8. Do not allow anything to rest on the power cord. Do not place this product wherethe cord will be damaged by persons stepping on it.9. Do not overload wall outlets and extension cords, as this can result in fire or elec-tric shock.10. Never push objects of any kind into this product through cabinet slots, as they maytouch dangerous voltage points or short out parts. This could result in fire or elec-tric shock. Never spill liquid of any kind on the product.11. To reduce the risk of electric shock, do not disassemble this product. Instead,whenservice or repair work is required, take it to a qualified service technician.Open-ing or removing covers may expose you to dangerous voltages or other risks.Incorrect reassembly can cause electric shock when the appliance is subse-quently used.12. Unplug this product from the wall outlet and refer servicing to qualified servicepersonnel under the following conditions:a. When the power supply cord or plug is damaged or frayed.b. If liquid has been spilled into the product.c. If the product has been exposed to rain or water.d. If the product does not operate normally, and proper operating instructions havebeen followed, adjust only those controls that are covered by the operatinginstructions. Improper adjustment of other controls may result in damage and willoften require extensive work by a qualified technician to restore the product to nor-mal operation.e. If the product has been dropped or the cabinet has been damaged.f. If the product exhibits a distinct change in performance.13. Avoid using a telephone (other than a cordless type) during an electrical storm.There may be a remote risk of electric shock from lightning.14. Do not use the telephone to report a gas leak in the vicinity of the leak.15. Use only the power cord and batteries indicated in this manual. Do not dispose ofbatteries in a fire. They may explode. Check with local codes for possible specialdisposal instructions.CAUTIONDanger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type recommended by the manufacturer.Dispose of used batteries according to the manufacturer’s instructions.3322233 333 IMPORTANT SAFETY INSTRUCTIONS

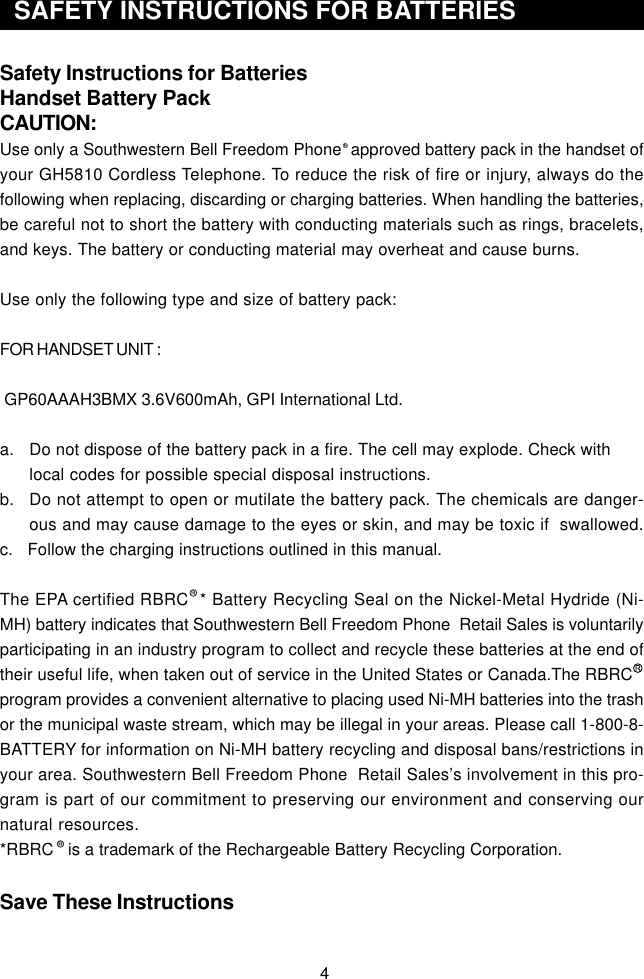

4Safety Instructions for BatteriesHandset Battery PackCAUTION:Use only a Southwestern Bell Freedom Phone approved battery pack in the handset ofyour GH5810 Cordless Telephone. To reduce the risk of fire or injury, always do thefollowing when replacing, discarding or charging batteries. When handling the batteries,be careful not to short the battery with conducting materials such as rings, bracelets,and keys. The battery or conducting material may overheat and cause burns.Use only the following type and size of battery pack:FOR HANDSET UNIT : GP60AAAH3BMX 3.6V600mAh, GPI International Ltd.a. Do not dispose of the battery pack in a fire. The cell may explode. Check withlocal codes for possible special disposal instructions.b. Do not attempt to open or mutilate the battery pack. The chemicals are danger-ous and may cause damage to the eyes or skin, and may be toxic if swallowed.c. Follow the charging instructions outlined in this manual.The EPA certified RBRC * Battery Recycling Seal on the Nickel-Metal Hydride (Ni-MH) battery indicates that Southwestern Bell Freedom Phone Retail Sales is voluntarilyparticipating in an industry program to collect and recycle these batteries at the end oftheir useful life, when taken out of service in the United States or Canada.The RBRCprogram provides a convenient alternative to placing used Ni-MH batteries into the trashor the municipal waste stream, which may be illegal in your areas. Please call 1-800-8-BATTERY for information on Ni-MH battery recycling and disposal bans/restrictions inyour area. Southwestern Bell Freedom Phone Retail Sales’s involvement in this pro-gram is part of our commitment to preserving our environment and conserving ournatural resources.*RBRC is a trademark of the Rechargeable Battery Recycling Corporation.Save These Instructions44 SAFETY INSTRUCTIONS FOR BATTERIES
EarpieceLCD DisplayHeadset JackTalk buttonUsed to make or toterminate callsFlash ButtonUsed to access callwaiting(if available)Program ButtonProgarm button to setMicrophoneRedial/Pause buttonRedials the last number oradds a pauseChannel ButtonUsed to select anotherchannel for clearerreceptionKeypadNumber buttonsCaller ID CallsButtonUser to dial the displayednumberReceiver VolumeSwitch-To adjust the receiver5 NAME OF CONTROLS AND INDICATIONSHandset Controls, IndicatorsNew Call IndicatorFlashes to indicate thereare calls that have not beenreviewedMemory ButtonUser to store or recallnumbers in memoryCaller ID ReviewbuttonsMemory scroll buttonsTone select buttonDelete ButtonUsed for deleting callerID entriesMute ButtonMute button to set function

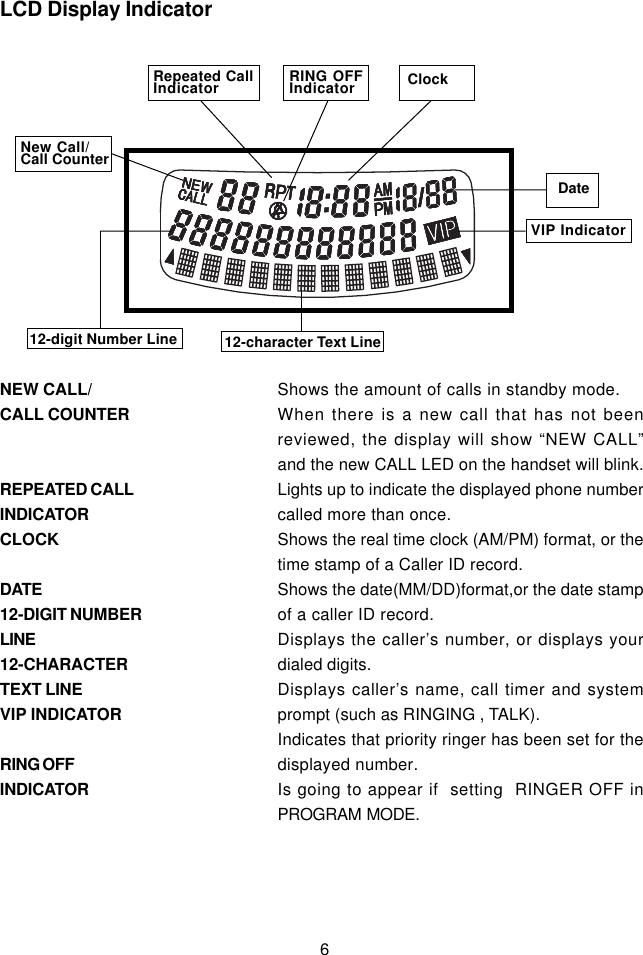

6LCD Display IndicatorNAME OF CONTROLS AND INDICATIONSNew Call/Call Counter12-digit Number Line 12-character Text Line VIP IndicatorRING OFFIndicator ClockDateRepeated CallIndicatorNEW CALL/CALL COUNTERREPEATED CALLINDICATORCLOCKDATE12-DIGIT NUMBERLINE12-CHARACTERTEXT LINEVIP INDICATORRING OFFINDICATORShows the amount of calls in standby mode.When there is a new call that has not beenreviewed, the display will show “NEW CALL”and the new CALL LED on the handset will blink.Lights up to indicate the displayed phone numbercalled more than once.Shows the real time clock (AM/PM) format, or thetime stamp of a Caller ID record.Shows the date(MM/DD)format,or the date stampof a caller ID record.Displays the caller’s number, or displays yourdialed digits.Displays caller’s name, call timer and systemprompt (such as RINGING , TALK).Indicates that priority ringer has been set for thedisplayed number.Is going to appear if setting RINGER OFF inPROGRAM MODE.

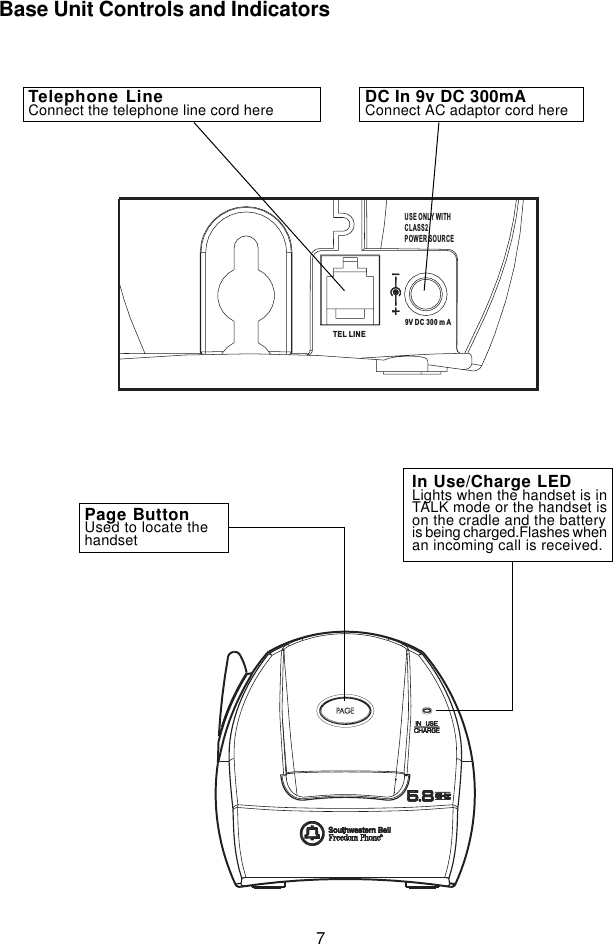

USE ONLY WITHCLASS2POWER SOURCETEL LINE9V DC 300 m APage ButtonUsed to locate thehandsetIn Use/Charge LEDLights when the handset is inTALK mode or the handset ison the cradle and the batteryis being charged.Flashes whenan incoming call is received.7Base Unit Controls and IndicatorsTelephone LineConnect the telephone line cord here DC In 9v DC 300mAConnect AC adaptor cord here

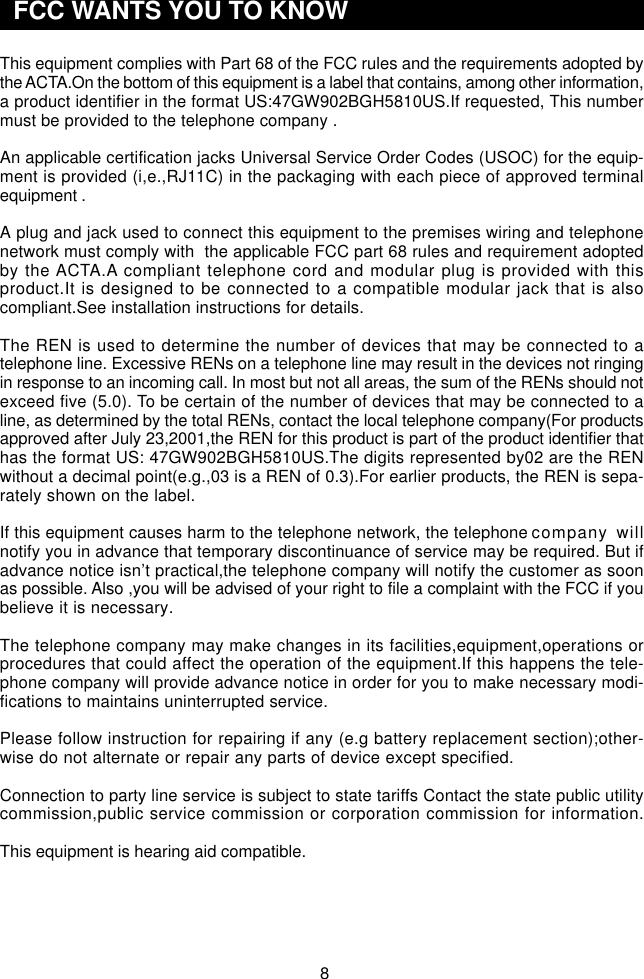

8This equipment complies with Part 68 of the FCC rules and the requirements adopted bythe ACTA.On the bottom of this equipment is a label that contains, among other information,a product identifier in the format US:47GW902BGH5810US.If requested, This numbermust be provided to the telephone company .An applicable certification jacks Universal Service Order Codes (USOC) for the equip-ment is provided (i,e.,RJ11C) in the packaging with each piece of approved terminalequipment .A plug and jack used to connect this equipment to the premises wiring and telephonenetwork must comply with the applicable FCC part 68 rules and requirement adoptedby the ACTA.A compliant telephone cord and modular plug is provided with thisproduct.It is designed to be connected to a compatible modular jack that is alsocompliant.See installation instructions for details.The REN is used to determine the number of devices that may be connected to atelephone line. Excessive RENs on a telephone line may result in the devices not ringingin response to an incoming call. In most but not all areas, the sum of the RENs should notexceed five (5.0). To be certain of the number of devices that may be connected to aline, as determined by the total RENs, contact the local telephone company(For productsapproved after July 23,2001,the REN for this product is part of the product identifier thathas the format US: 47GW902BGH5810US.The digits represented by02 are the RENwithout a decimal point(e.g.,03 is a REN of 0.3).For earlier products, the REN is sepa-rately shown on the label.If this equipment causes harm to the telephone network, the telephone company willnotify you in advance that temporary discontinuance of service may be required. But ifadvance notice isn’t practical,the telephone company will notify the customer as soonas possible. Also ,you will be advised of your right to file a complaint with the FCC if youbelieve it is necessary.The telephone company may make changes in its facilities,equipment,operations orprocedures that could affect the operation of the equipment.If this happens the tele-phone company will provide advance notice in order for you to make necessary modi-fications to maintains uninterrupted service.Please follow instruction for repairing if any (e.g battery replacement section);other-wise do not alternate or repair any parts of device except specified.Connection to party line service is subject to state tariffs Contact the state public utilitycommission,public service commission or corporation commission for information.This equipment is hearing aid compatible. FCC WANTS YOU TO KNOW
Warning: Changes or modifications to this unit not expressly approved by the partyresponsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a ClassB digital device,pursuant to Part 15 of the FCC Rules.These limits are designed toprovide reasonable protection against harmful interference in a residential installationThis equipment generates,uses and can radiate radio frequency energy and,if notinstalled and uesed in accordance with the instruction, may cause harmful interferenceto radio communications.However ,there is no guarantee that interference will not occur in a particular installation.If this equipmentdoes cause harmful interference to radio or television reception,whichcan be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which thereceiver is needed.Consult the dealer or an experienced radio/TV technician for help.NOTICE:If your home has specially wired alarm equipment connected to the telephoneline,ensure the installation of this (equipment ID) does not disable your alarm equipmentIf you have questions about what will disable alarm equipment,consult your telephonecompany or a qualified installer.Should you experience trouble with this equipment, place contact(company namerepair centre address and phone number)for repair or warranty information. If theequipment is causing harm to the telephone network, the telephone company mayrequest that you disconnect the equipment until the problem is resolved.NOTICE: According to telephone company reports, AC electrical surges, typically re-sulting from lightning strikes, are very destructive to telephone equipment connected toAC power sources .To minimize damage from these types of surges, a surge arrestoris recommended.9

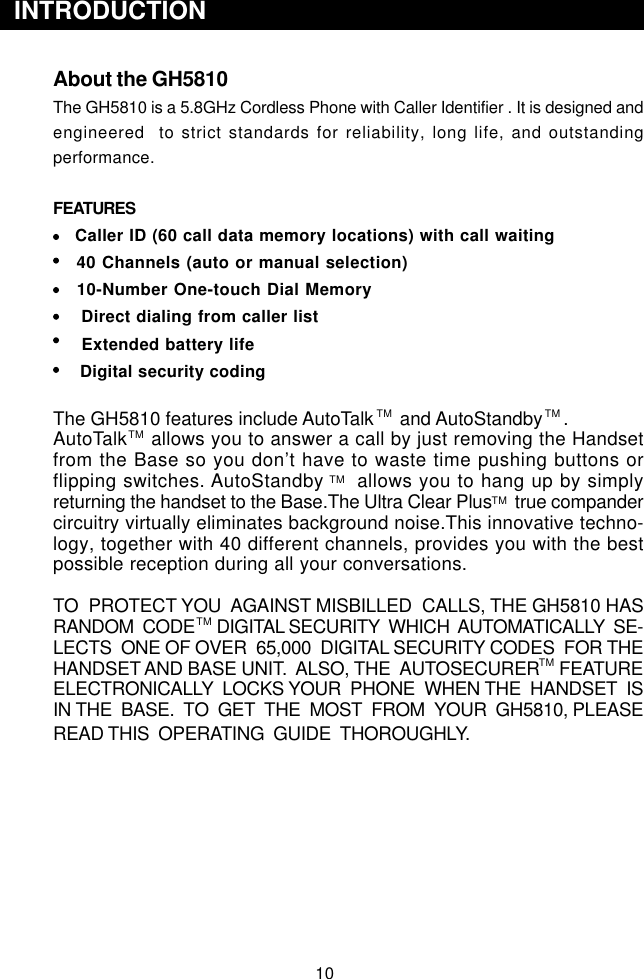

10 INTRODUCTIONAbout the GH5810The GH5810 is a 5.8GHz Cordless Phone with Caller Identifier . It is designed andengineered to strict standards for reliability, long life, and outstandingperformance.FEATURES Caller ID (60 call data memory locations) with call waiting 40 Channels (auto or manual selection) 10-Number One-touch Dial Memory Direct dialing from caller list Extended battery life Digital security codingThe GH5810 features include AutoTalk and AutoStandby .AutoTalk allows you to answer a call by just removing the Handsetfrom the Base so you don’t have to waste time pushing buttons orflipping switches. AutoStandby allows you to hang up by simplyreturning the handset to the Base.The Ultra Clear Plus true compandercircuitry virtually eliminates background noise.This innovative techno-logy, together with 40 different channels, provides you with the bestpossible reception during all your conversations.TO PROTECT YOU AGAINST MISBILLED CALLS, THE GH5810 HASRANDOM CODE DIGITAL SECURITY WHICH AUTOMATICALLY SE-LECTS ONE OF OVER 65,000 DIGITAL SECURITY CODES FOR THEHANDSET AND BASE UNIT. ALSO, THE AUTOSECURER FEATUREELECTRONICALLY LOCKS YOUR PHONE WHEN THE HANDSET ISIN THE BASE. TO GET THE MOST FROM YOUR GH5810, PLEASEREAD THIS OPERATING GUIDE THOROUGHLY.TMTMTMTMTMTMTM

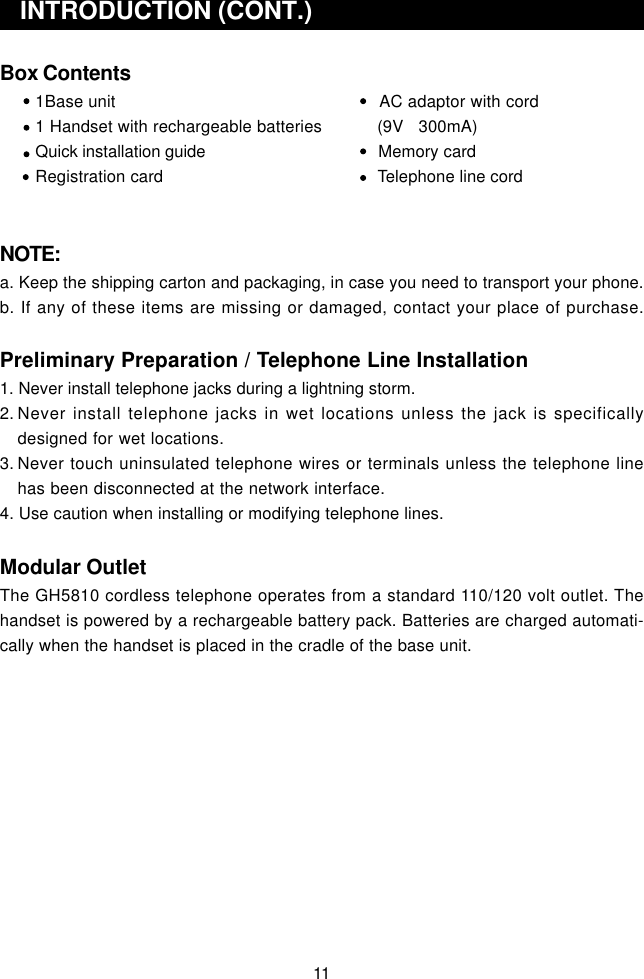

Box Contents1Base unit AC adaptor with cord1 Handset with rechargeable batteries (9V 300mA)Quick installation guide Memory cardRegistration card Telephone line cordNOTE:a. Keep the shipping carton and packaging, in case you need to transport your phone.b. If any of these items are missing or damaged, contact your place of purchase.Preliminary Preparation / Telephone Line Installation1. Never install telephone jacks during a lightning storm.2. Never install telephone jacks in wet locations unless the jack is specificallydesigned for wet locations.3. Never touch uninsulated telephone wires or terminals unless the telephone linehas been disconnected at the network interface.4. Use caution when installing or modifying telephone lines.Modular OutletThe GH5810 cordless telephone operates from a standard 110/120 volt outlet. Thehandset is powered by a rechargeable battery pack. Batteries are charged automati-cally when the handset is placed in the cradle of the base unit. INTRODUCTION (CONT.)11

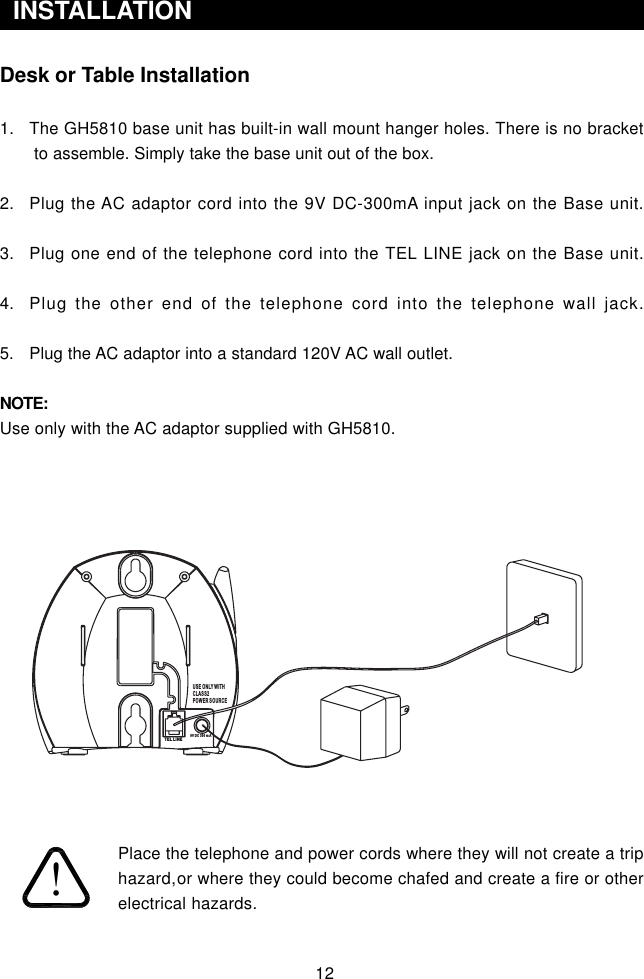

12Desk or Table Installation1. The GH5810 base unit has built-in wall mount hanger holes. There is no bracket to assemble. Simply take the base unit out of the box.2. Plug the AC adaptor cord into the 9V DC-300mA input jack on the Base unit.3. Plug one end of the telephone cord into the TEL LINE jack on the Base unit.4. Plug the other end of the telephone cord into the telephone wall jack.5. Plug the AC adaptor into a standard 120V AC wall outlet.NOTE:Use only with the AC adaptor supplied with GH5810.Place the telephone and power cords where they will not create a triphazard,or where they could become chafed and create a fire or otherelectrical hazards. INSTALLATIONUSE ONLY WITHCLASS2POWER SOURCETEL LINE9V DC 300 m A!

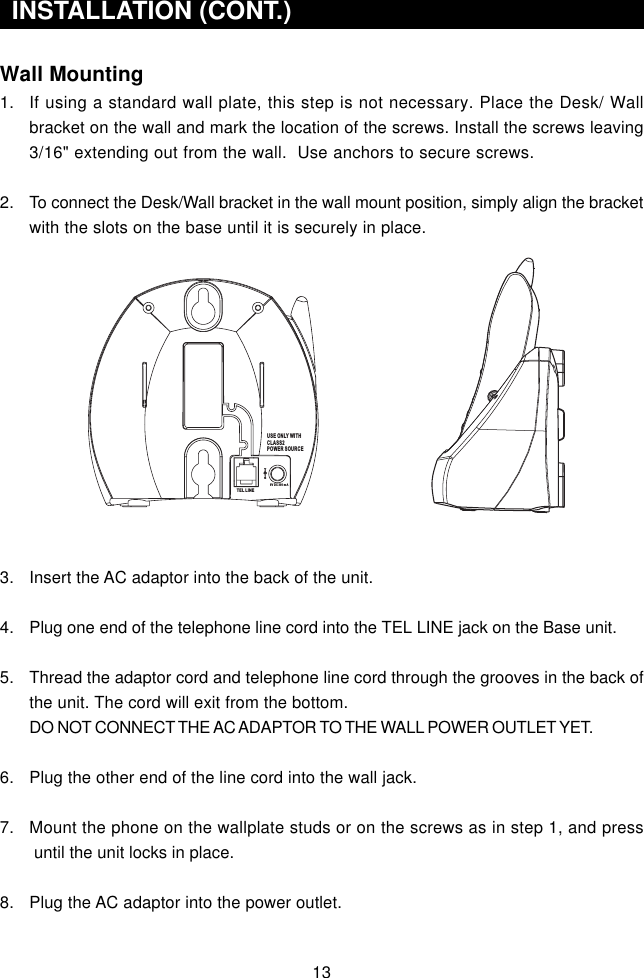

Wall Mounting1. If using a standard wall plate, this step is not necessary. Place the Desk/ Wallbracket on the wall and mark the location of the screws. Install the screws leaving3/16" extending out from the wall. Use anchors to secure screws.2. To connect the Desk/Wall bracket in the wall mount position, simply align the bracketwith the slots on the base until it is securely in place.3. Insert the AC adaptor into the back of the unit.4. Plug one end of the telephone line cord into the TEL LINE jack on the Base unit.5. Thread the adaptor cord and telephone line cord through the grooves in the back ofthe unit. The cord will exit from the bottom.DO NOT CONNECT THE AC ADAPTOR TO THE WALL POWER OUTLET YET.6. Plug the other end of the line cord into the wall jack.7. Mount the phone on the wallplate studs or on the screws as in step 1, and press until the unit locks in place.8. Plug the AC adaptor into the power outlet.INSTALLATION (CONT.)USE ONLY WITHCLASS2POWER SOURCETEL LINE9V DC 300 m A13

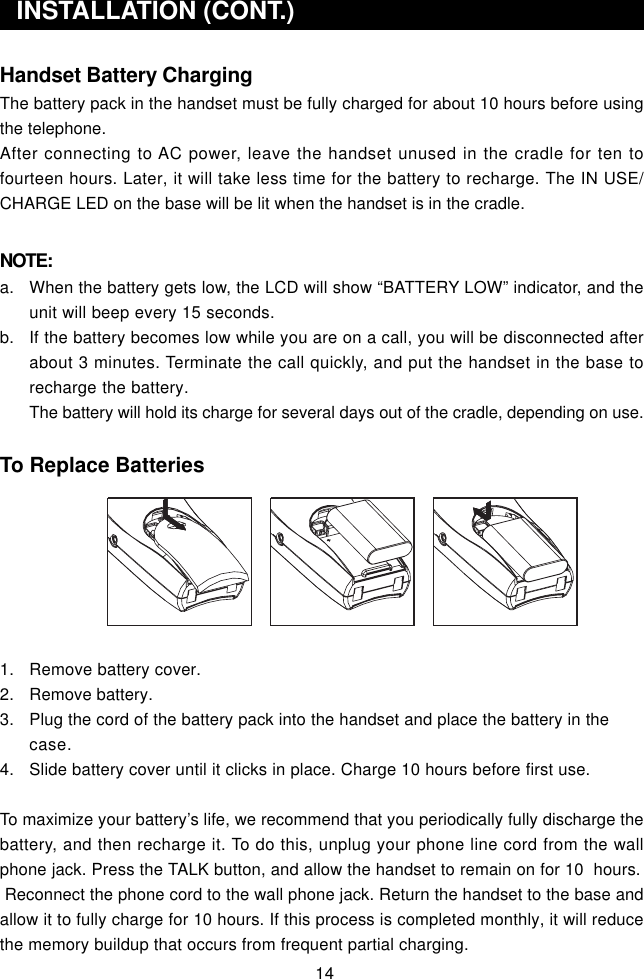

14Handset Battery ChargingThe battery pack in the handset must be fully charged for about 10 hours before usingthe telephone.After connecting to AC power, leave the handset unused in the cradle for ten tofourteen hours. Later, it will take less time for the battery to recharge. The IN USE/CHARGE LED on the base will be lit when the handset is in the cradle.NOTE:a. When the battery gets low, the LCD will show “BATTERY LOW” indicator, and theunit will beep every 15 seconds.b. If the battery becomes low while you are on a call, you will be disconnected afterabout 3 minutes. Terminate the call quickly, and put the handset in the base torecharge the battery.The battery will hold its charge for several days out of the cradle, depending on use.To Replace Batteries1. Remove battery cover.2. Remove battery.3. Plug the cord of the battery pack into the handset and place the battery in thecase.4. Slide battery cover until it clicks in place. Charge 10 hours before first use.To maximize your battery’s life, we recommend that you periodically fully discharge thebattery, and then recharge it. To do this, unplug your phone line cord from the wallphone jack. Press the TALK button, and allow the handset to remain on for 10 hours. Reconnect the phone cord to the wall phone jack. Return the handset to the base andallow it to fully charge for 10 hours. If this process is completed monthly, it will reducethe memory buildup that occurs from frequent partial charging. INSTALLATION (CONT.)

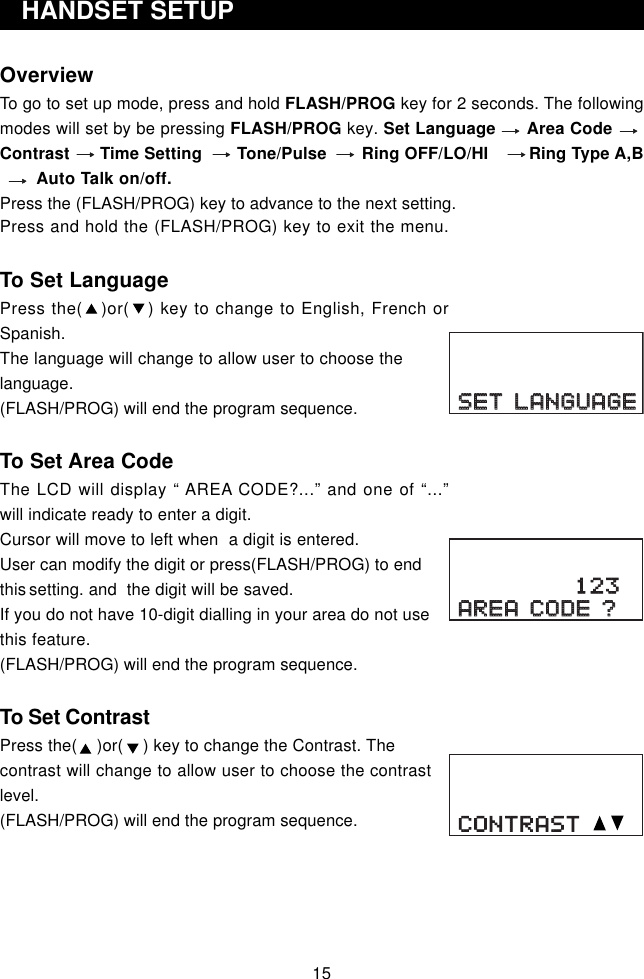

Press and hold the (FLASH/PROG) key to exit the menu.To Set LanguagePress the( )or( ) key to change to English, French orSpanish.The language will change to allow user to choose thelanguage.(FLASH/PROG) will end the program sequence.To Set Area CodeThe LCD will display “ AREA CODE?...” and one of “...”will indicate ready to enter a digit.Cursor will move to left when a digit is entered.User can modify the digit or press(FLASH/PROG) to endthis setting. and the digit will be saved.If you do not have 10-digit dialling in your area do not usethis feature.(FLASH/PROG) will end the program sequence.To Set ContrastPress the( )or( ) key to change the Contrast. Thecontrast will change to allow user to choose the contrastlevel.(FLASH/PROG) will end the program sequence.OverviewTo go to set up mode, press and hold FLASH/PROG key for 2 seconds. The followingmodes will set by be pressing FLASH/PROG key. Set Language Area CodeContrast Time Setting Tone/Pulse Ring OFF/LO/HI Ring Type A,B Auto Talk on/off.Press the (FLASH/PROG) key to advance to the next setting. HANDSET SETUP15SET LANGUAGESET LANGUAGEAREA CODE ?AREA CODE ?123CONTRAST

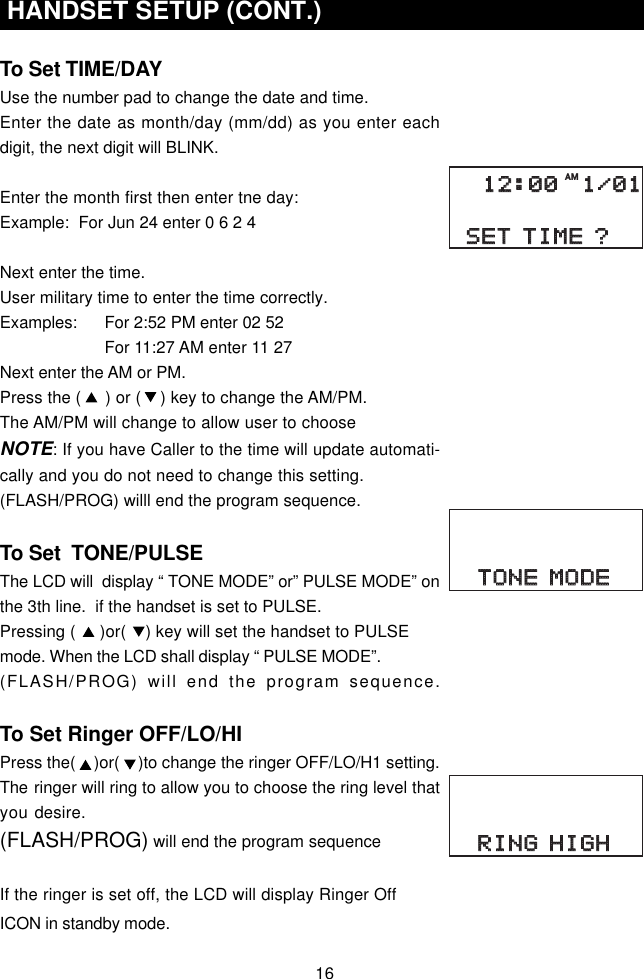

16 HANDSET SETUP (CONT.)To Set TIME/DAYUse the number pad to change the date and time.Enter the date as month/day (mm/dd) as you enter eachdigit, the next digit will BLINK.Enter the month first then enter tne day:Example: For Jun 24 enter 0 6 2 4Next enter the time.User military time to enter the time correctly.Examples: For 2:52 PM enter 02 52 For 11:27 AM enter 11 27Next enter the AM or PM.Press the ( ) or ( ) key to change the AM/PM.The AM/PM will change to allow user to chooseNOTE: If you have Caller to the time will update automati-cally and you do not need to change this setting.(FLASH/PROG) willl end the program sequence.To Set TONE/PULSEThe LCD will display “ TONE MODE” or” PULSE MODE” onthe 3th line. if the handset is set to PULSE.Pressing ( )or( ) key will set the handset to PULSEmode. When the LCD shall display “ PULSE MODE”.(FLASH/PROG) will end the program sequence.To Set Ringer OFF/LO/HIPress the( )or( )to change the ringer OFF/LO/H1 setting.The ringer will ring to allow you to choose the ring level thatyou desire.(FLASH/PROG) will end the program sequenceIf the ringer is set off, the LCD will display Ringer OffICON in standby mode.SET TIME ?SET TIME ?12:00 1/0112:00 1/01AMTONE MODETONE MODERING HIGHRING HIGH

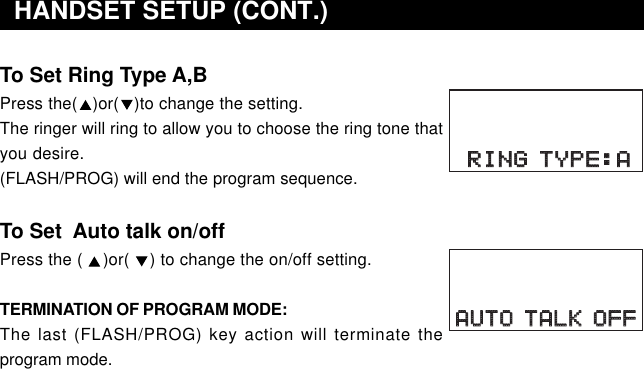

To Set Ring Type A,BPress the( )or( )to change the setting.The ringer will ring to allow you to choose the ring tone thatyou desire.(FLASH/PROG) will end the program sequence.To Set Auto talk on/offPress the ( )or( ) to change the on/off setting.TERMINATION OF PROGRAM MODE:The last (FLASH/PROG) key action will terminate theprogram mode. HANDSET SETUP (CONT.)AUTO TALK OFFAUTO TALK OFFRING TYPE:ARING TYPE:A

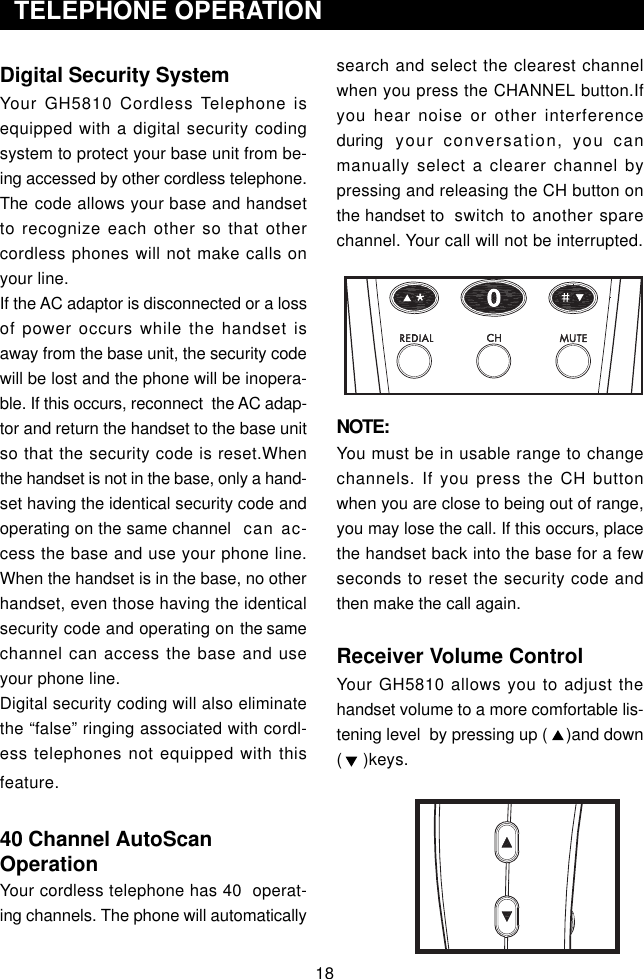

18Digital Security SystemYour GH5810 Cordless Telephone isequipped with a digital security codingsystem to protect your base unit from be-ing accessed by other cordless telephone.The code allows your base and handsetto recognize each other so that othercordless phones will not make calls onyour line.If the AC adaptor is disconnected or a lossof power occurs while the handset isaway from the base unit, the security codewill be lost and the phone will be inopera-ble. If this occurs, reconnect the AC adap-tor and return the handset to the base unitso that the security code is reset.Whenthe handset is not in the base, only a hand-set having the identical security code andoperating on the same channel can ac-cess the base and use your phone line.When the handset is in the base, no otherhandset, even those having the identicalsecurity code and operating on the samechannel can access the base and useyour phone line.Digital security coding will also eliminatethe “false” ringing associated with cordl-ess telephones not equipped with thisfeature.40 Channel AutoScanOperationYour cordless telephone has 40 operat-ing channels. The phone will automatically TELEPHONE OPERATIONsearch and select the clearest channelwhen you press the CHANNEL button.Ifyou hear noise or other interferenceduring your conversation, you canmanually select a clearer channel bypressing and releasing the CH button onthe handset to switch to another sparechannel. Your call will not be interrupted.NOTE:You must be in usable range to changechannels. If you press the CH buttonwhen you are close to being out of range,you may lose the call. If this occurs, placethe handset back into the base for a fewseconds to reset the security code andthen make the call again.Receiver Volume ControlYour GH5810 allows you to adjust thehandset volume to a more comfortable lis-tening level by pressing up ( )and down( )keys.

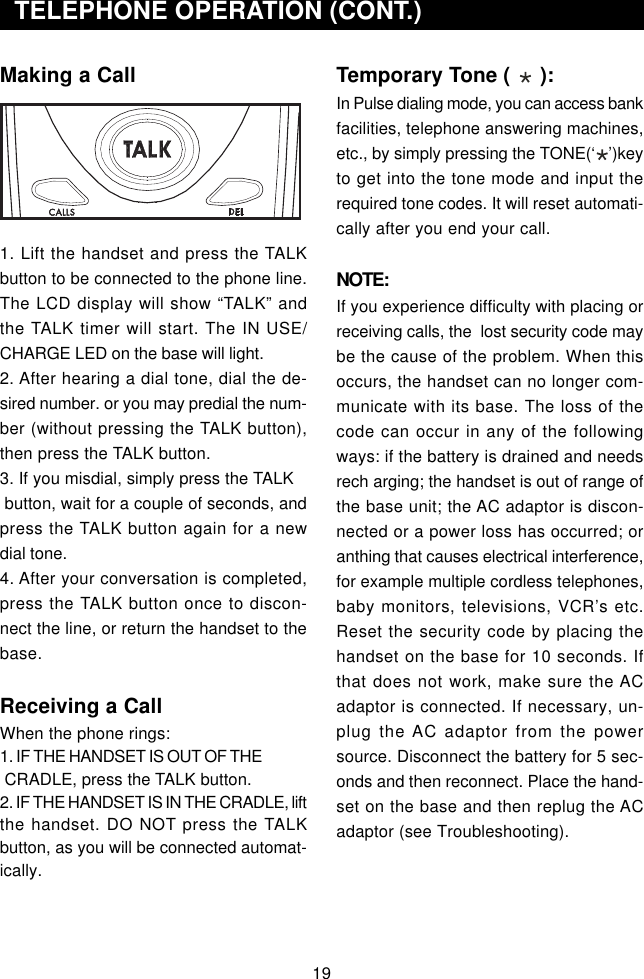

Making a Call1. Lift the handset and press the TALKbutton to be connected to the phone line.The LCD display will show “TALK” andthe TALK timer will start. The IN USE/CHARGE LED on the base will light.2. After hearing a dial tone, dial the de-sired number. or you may predial the num-ber (without pressing the TALK button),then press the TALK button.3. If you misdial, simply press the TALK button, wait for a couple of seconds, andpress the TALK button again for a newdial tone.4. After your conversation is completed,press the TALK button once to discon-nect the line, or return the handset to thebase.Receiving a CallWhen the phone rings:1. IF THE HANDSET IS OUT OF THE CRADLE, press the TALK button.2. IF THE HANDSET IS IN THE CRADLE, liftthe handset. DO NOT press the TALKbutton, as you will be connected automat-ically. TELEPHONE OPERATION (CONT.)Temporary Tone ( ):In Pulse dialing mode, you can access bankfacilities, telephone answering machines,etc., by simply pressing the TONE(‘ ’)keyto get into the tone mode and input therequired tone codes. It will reset automati-cally after you end your call.NOTE:If you experience difficulty with placing orreceiving calls, the lost security code maybe the cause of the problem. When thisoccurs, the handset can no longer com-municate with its base. The loss of thecode can occur in any of the followingways: if the battery is drained and needsrech arging; the handset is out of range ofthe base unit; the AC adaptor is discon-nected or a power loss has occurred; oranthing that causes electrical interference,for example multiple cordless telephones,baby monitors, televisions, VCR’s etc.Reset the security code by placing thehandset on the base for 10 seconds. Ifthat does not work, make sure the ACadaptor is connected. If necessary, un-plug the AC adaptor from the powersource. Disconnect the battery for 5 sec-onds and then reconnect. Place the hand-set on the base and then replug the ACadaptor (see Troubleshooting).19

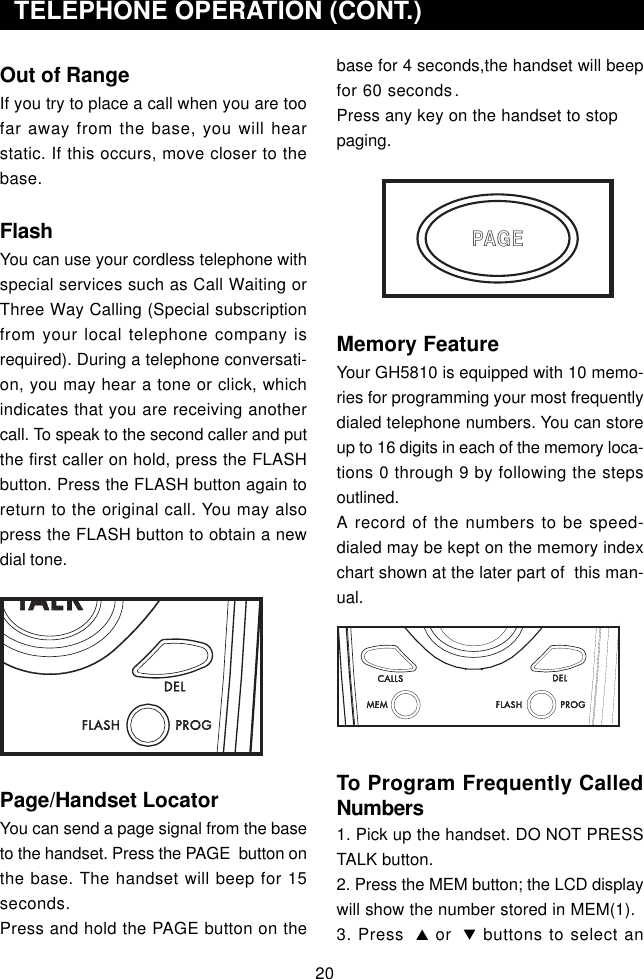

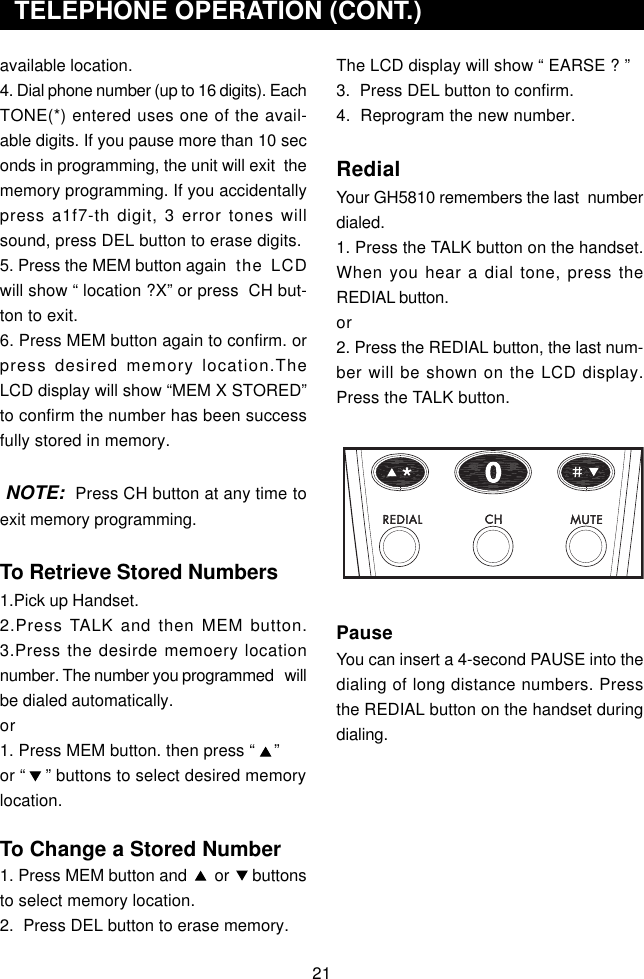

20base for 4 seconds,the handset will beepfor 60 seconds.Press any key on the handset to stoppaging.Memory FeatureYour GH5810 is equipped with 10 memo-ries for programming your most frequentlydialed telephone numbers. You can storeup to 16 digits in each of the memory loca-tions 0 through 9 by following the stepsoutlined.A record of the numbers to be speed-dialed may be kept on the memory indexchart shown at the later part of this man-ual.To Program Frequently CalledNumbers1. Pick up the handset. DO NOT PRESSTALK button.2. Press the MEM button; the LCD displaywill show the number stored in MEM(1).3. Press or buttons to select anOut of RangeIf you try to place a call when you are toofar away from the base, you will hearstatic. If this occurs, move closer to thebase.FlashYou can use your cordless telephone withspecial services such as Call Waiting orThree Way Calling (Special subscriptionfrom your local telephone company isrequired). During a telephone conversati-on, you may hear a tone or click, whichindicates that you are receiving anothercall. To speak to the second caller and putthe first caller on hold, press the FLASHbutton. Press the FLASH button again toreturn to the original call. You may alsopress the FLASH button to obtain a newdial tone.Page/Handset LocatorYou can send a page signal from the baseto the handset. Press the PAGE button onthe base. The handset will beep for 15seconds.Press and hold the PAGE button on the TELEPHONE OPERATION (CONT.)PAGE
The LCD display will show “ EARSE ? ”3. Press DEL button to confirm.4. Reprogram the new number.RedialYour GH5810 remembers the last numberdialed.1. Press the TALK button on the handset.When you hear a dial tone, press theREDIAL button.or2. Press the REDIAL button, the last num-ber will be shown on the LCD display.Press the TALK button.PauseYou can insert a 4-second PAUSE into thedialing of long distance numbers. Pressthe REDIAL button on the handset duringdialing.available location.4. Dial phone number (up to 16 digits). EachTONE(*) entered uses one of the avail-able digits. If you pause more than 10 seconds in programming, the unit will exit thememory programming. If you accidentallypress a1f7-th digit, 3 error tones willsound, press DEL button to erase digits.5. Press the MEM button again the LCDwill show “ location ?X” or press CH but-ton to exit.6. Press MEM button again to confirm. orpress desired memory location.TheLCD display will show “MEM X STORED”to confirm the number has been successfully stored in memory. NOTE: Press CH button at any time toexit memory programming.To Retrieve Stored Numbers1.Pick up Handset.2.Press TALK and then MEM button.3.Press the desirde memoery locationnumber. The number you programmed willbe dialed automatically.or1. Press MEM button. then press “ ”or “ ” buttons to select desired memorylocation.To Change a Stored Number1. Press MEM button and or buttonsto select memory location.2. Press DEL button to erase memory. TELEPHONE OPERATION (CONT.)21

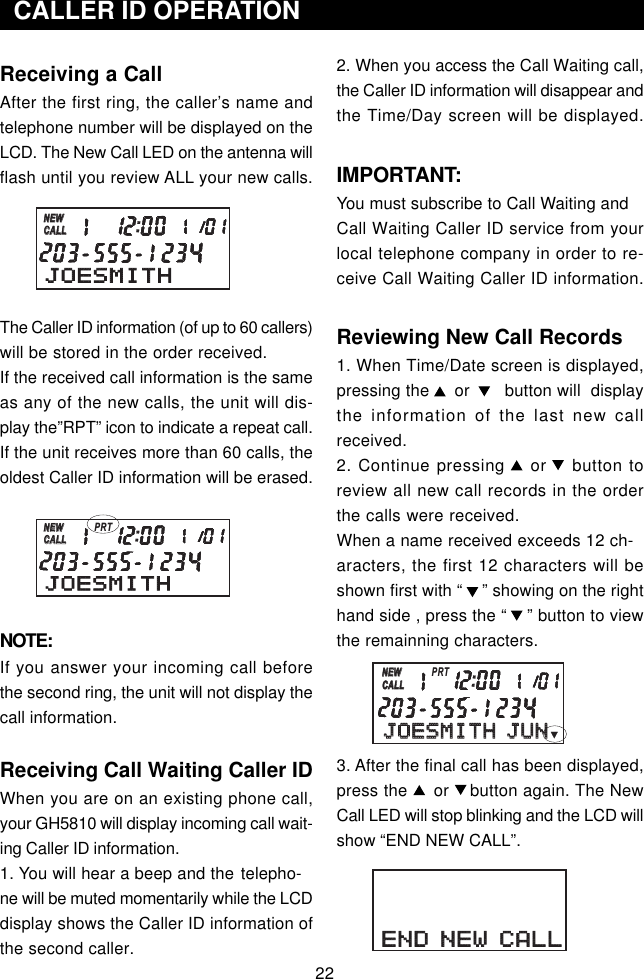

22Receiving a CallAfter the first ring, the caller’s name andtelephone number will be displayed on theLCD. The New Call LED on the antenna willflash until you review ALL your new calls.The Caller ID information (of up to 60 callers)will be stored in the order received.If the received call information is the sameas any of the new calls, the unit will dis-play the”RPT” icon to indicate a repeat call.If the unit receives more than 60 calls, theoldest Caller ID information will be erased.NOTE:If you answer your incoming call beforethe second ring, the unit will not display thecall information.Receiving Call Waiting Caller IDWhen you are on an existing phone call,your GH5810 will display incoming call wait-ing Caller ID information.1. You will hear a beep and the telepho-ne will be muted momentarily while the LCDdisplay shows the Caller ID information ofthe second caller.2. When you access the Call Waiting call,the Caller ID information will disappear andthe Time/Day screen will be displayed.IMPORTANT:You must subscribe to Call Waiting andCall Waiting Caller ID service from yourlocal telephone company in order to re-ceive Call Waiting Caller ID information.Reviewing New Call Records1. When Time/Date screen is displayed,pressing the or button will displaythe information of the last new callreceived.2. Continue pressing or button toreview all new call records in the orderthe calls were received.When a name received exceeds 12 ch-aracters, the first 12 characters will beshown first with “ ” showing on the righthand side , press the “ ” button to viewthe remainning characters.3. After the final call has been displayed,press the or button again. The NewCall LED will stop blinking and the LCD willshow “END NEW CALL”. CALLER ID OPERATIONJOESMITHNEWCALLNEWCALLJOESMITHNEWCALLNEWCALLPRTJOESMITH JUNJOESMITH JUNNEWCALLNEWCALLPRTEND NEW CALLEND NEW CALL

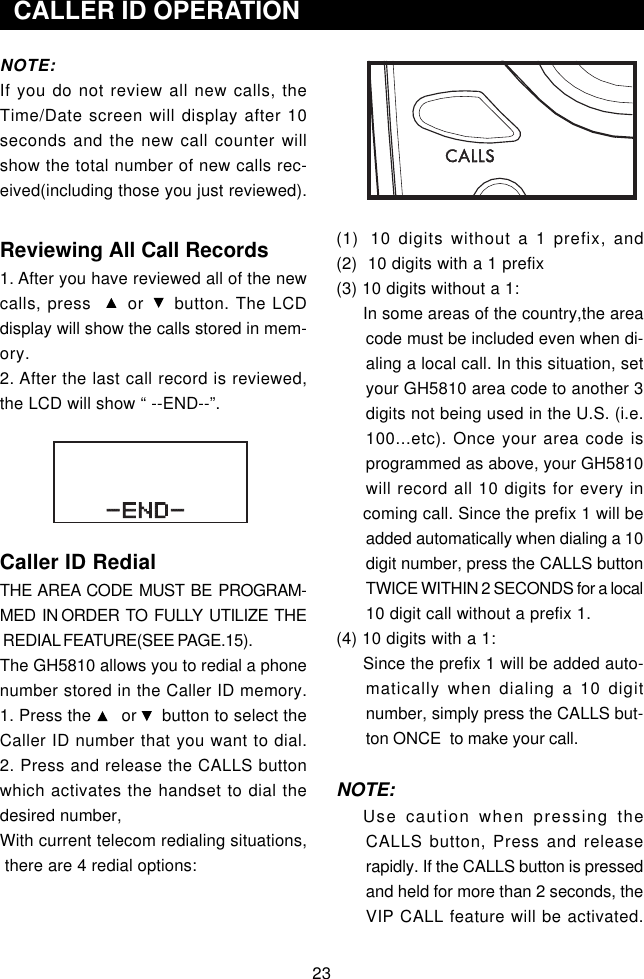

(1) 10 digits without a 1 prefix, and(2) 10 digits with a 1 prefix(3) 10 digits without a 1:In some areas of the country,the areacode must be included even when di-aling a local call. In this situation, setyour GH5810 area code to another 3digits not being used in the U.S. (i.e.100...etc). Once your area code isprogrammed as above, your GH5810will record all 10 digits for every incoming call. Since the prefix 1 will beadded automatically when dialing a 10digit number, press the CALLS buttonTWICE WITHIN 2 SECONDS for a local10 digit call without a prefix 1.(4) 10 digits with a 1:Since the prefix 1 will be added auto-matically when dialing a 10 digitnumber, simply press the CALLS but-ton ONCE to make your call.NOTE:Use caution when pressing theCALLS button, Press and releaserapidly. If the CALLS button is pressedand held for more than 2 seconds, theVIP CALL feature will be activated.NOTE:If you do not review all new calls, theTime/Date screen will display after 10seconds and the new call counter willshow the total number of new calls rec-eived(including those you just reviewed).Reviewing All Call Records1. After you have reviewed all of the newcalls, press or button. The LCDdisplay will show the calls stored in mem-ory.2. After the last call record is reviewed,the LCD will show “ --END--”.Caller ID RedialTHE AREA CODE MUST BE PROGRAM-MED IN ORDER TO FULLY UTILIZE THE REDIAL FEATURE(SEE PAGE.15).The GH5810 allows you to redial a phonenumber stored in the Caller ID memory.1. Press the or button to select theCaller ID number that you want to dial.2. Press and release the CALLS buttonwhich activates the handset to dial thedesired number,With current telecom redialing situations, there are 4 redial options: CALLER ID OPERATION23-END-

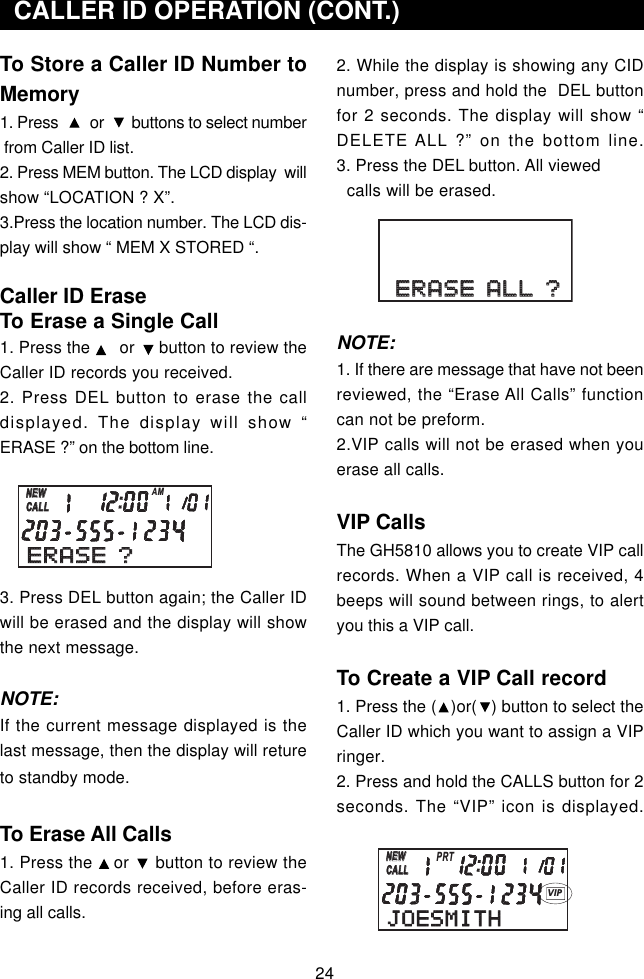

24To Store a Caller ID Number toMemory1. Press or buttons to select number from Caller ID list.2. Press MEM button. The LCD display willshow “LOCATION ? X”.3.Press the location number. The LCD dis-play will show “ MEM X STORED “.Caller ID EraseTo Erase a Single Call1. Press the or button to review theCaller ID records you received.2. Press DEL button to erase the calldisplayed. The display will show “ERASE ?” on the bottom line.3. Press DEL button again; the Caller IDwill be erased and the display will showthe next message.NOTE:If the current message displayed is thelast message, then the display will retureto standby mode.To Erase All Calls1. Press the or button to review theCaller ID records received, before eras-ing all calls. CALLER ID OPERATION (CONT.)2. While the display is showing any CIDnumber, press and hold the DEL buttonfor 2 seconds. The display will show “DELETE ALL ?” on the bottom line.3. Press the DEL button. All viewed calls will be erased.NOTE:1. If there are message that have not beenreviewed, the “Erase All Calls” functioncan not be preform.2.VIP calls will not be erased when youerase all calls.VIP CallsThe GH5810 allows you to create VIP callrecords. When a VIP call is received, 4beeps will sound between rings, to alertyou this a VIP call.To Create a VIP Call record1. Press the ( )or( ) button to select theCaller ID which you want to assign a VIPringer.2. Press and hold the CALLS button for 2seconds. The “VIP” icon is displayed.ERASE ?ERASE ?NEWCALLNEWCALLAMJOESMITHNEWCALLNEWCALLPRTVIPERASE ALL ?ERASE ALL ?

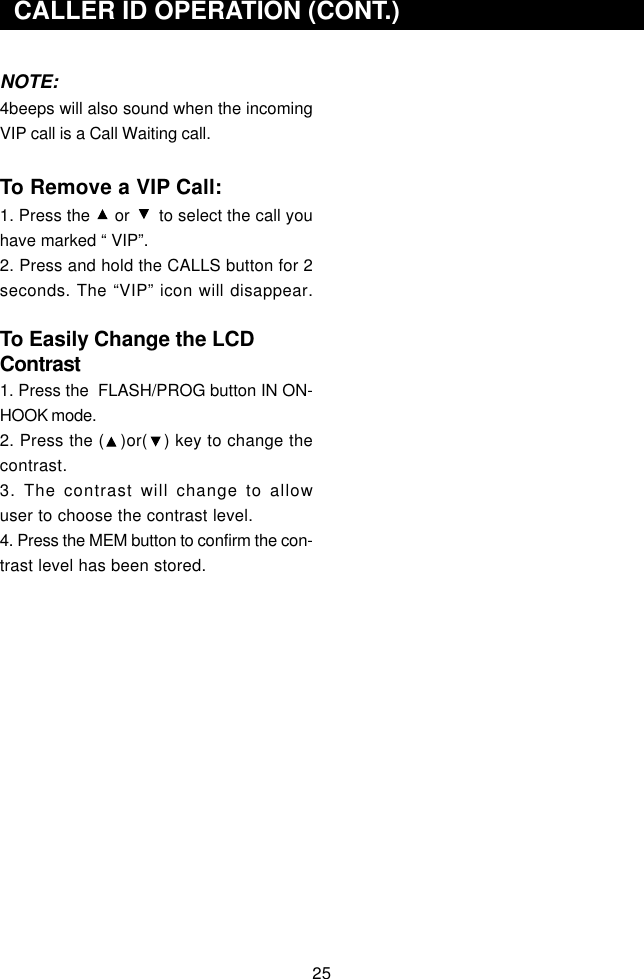

25 CALLER ID OPERATION (CONT.)NOTE:4beeps will also sound when the incomingVIP call is a Call Waiting call.To Remove a VIP Call:1. Press the or to select the call youhave marked “ VIP”.2. Press and hold the CALLS button for 2seconds. The “VIP” icon will disappear.To Easily Change the LCDContrast1. Press the FLASH/PROG button IN ON-HOOK mode.2. Press the ( )or( ) key to change thecontrast.3. The contrast will change to allowuser to choose the contrast level.4. Press the MEM button to confirm the con-trast level has been stored.

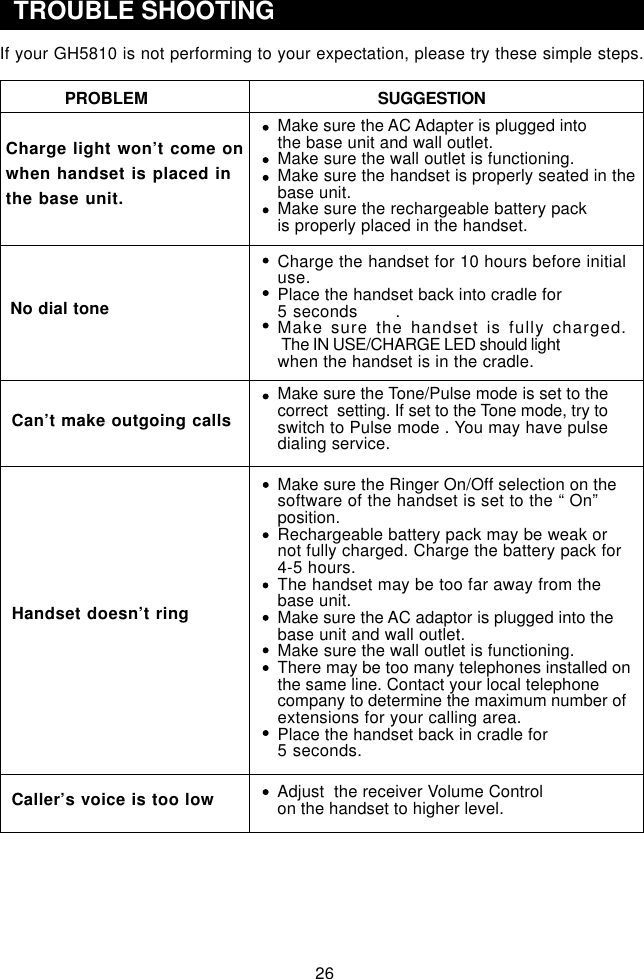

26If your GH5810 is not performing to your expectation, please try these simple steps. TROUBLE SHOOTINGPROBLEM SUGGESTION Caller’s voice is too low Handset doesn’t ring Can’t make outgoing calls No dial toneCharge the handset for 10 hours before initialuse.Place the handset back into cradle for5 seconds .Make sure the handset is fully charged. The IN USE/CHARGE LED should lightwhen the handset is in the cradle.Make sure the Tone/Pulse mode is set to thecorrect setting. If set to the Tone mode, try toswitch to Pulse mode . You may have pulsedialing service.Make sure the Ringer On/Off selection on thesoftware of the handset is set to the “ On”position.Rechargeable battery pack may be weak ornot fully charged. Charge the battery pack for4-5 hours.The handset may be too far away from thebase unit.Make sure the AC adaptor is plugged into thebase unit and wall outlet.Make sure the wall outlet is functioning.There may be too many telephones installed onthe same line. Contact your local telephonecompany to determine the maximum number ofextensions for your calling area.Place the handset back in cradle for5 seconds.Adjust the receiver Volume Controlon the handset to higher level.Charge light won’t come onwhen handset is placed inthe base unit.Make sure the AC Adapter is plugged intothe base unit and wall outlet.Make sure the wall outlet is functioning.Make sure the handset is properly seated in thebase unit.Make sure the rechargeable battery packis properly placed in the handset.

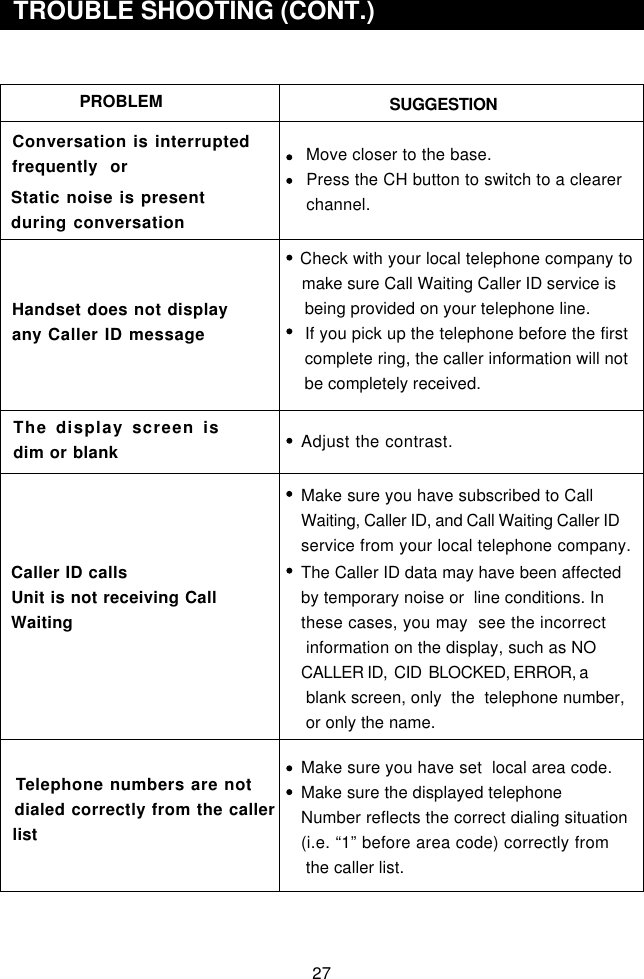

Check with your local telephone company to make sure Call Waiting Caller ID service is being provided on your telephone line. If you pick up the telephone before the first complete ring, the caller information will not be completely received. Telephone numbers are not dialed correctly from the caller list TROUBLE SHOOTING (CONT.)PROBLEM SUGGESTION Conversation is interrupted frequently or Handset does not display any Caller ID message The display screen is dim or blank Caller ID calls Unit is not receiving Call WaitingStatic noise is presentduring conversation Move closer to the base.Press the CH button to switch to a clearerchannel.Adjust the contrast.Make sure you have set local area code.Make sure the displayed telephoneNumber reflects the correct dialing situation(i.e. “1” before area code) correctly from the caller list.Make sure you have subscribed to CallWaiting, Caller ID, and Call Waiting Caller IDservice from your local telephone company.The Caller ID data may have been affectedby temporary noise or line conditions. Inthese cases, you may see the incorrect information on the display, such as NOCALLER ID, CID BLOCKED, ERROR, a blank screen, only the telephone number, or only the name.27

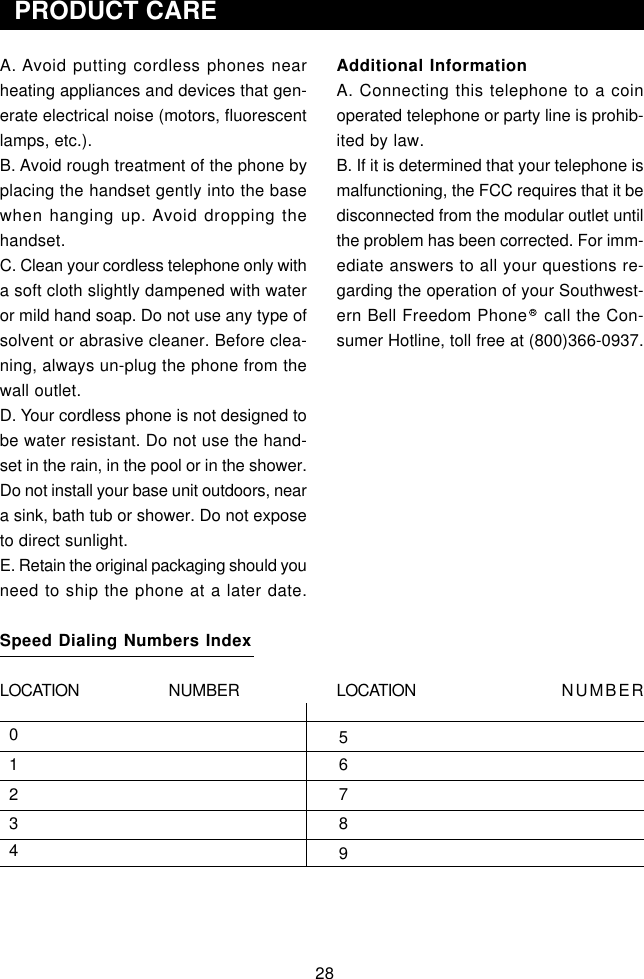

28 PRODUCT CAREAdditional InformationA. Connecting this telephone to a coinoperated telephone or party line is prohib-ited by law.B. If it is determined that your telephone ismalfunctioning, the FCC requires that it bedisconnected from the modular outlet untilthe problem has been corrected. For imm-ediate answers to all your questions re-garding the operation of your Southwest-ern Bell Freedom Phone call the Con-sumer Hotline, toll free at (800)366-0937.LOCATION NUMBER 0 1 2 3 4 5 6 7 8 9A. Avoid putting cordless phones nearheating appliances and devices that gen-erate electrical noise (motors, fluorescentlamps, etc.).B. Avoid rough treatment of the phone byplacing the handset gently into the basewhen hanging up. Avoid dropping thehandset.C. Clean your cordless telephone only witha soft cloth slightly dampened with wateror mild hand soap. Do not use any type ofsolvent or abrasive cleaner. Before clea-ning, always un-plug the phone from thewall outlet.D. Your cordless phone is not designed tobe water resistant. Do not use the hand-set in the rain, in the pool or in the shower.Do not install your base unit outdoors, neara sink, bath tub or shower. Do not exposeto direct sunlight.E. Retain the original packaging should youneed to ship the phone at a later date.Speed Dialing Numbers IndexLOCATION NUMBER

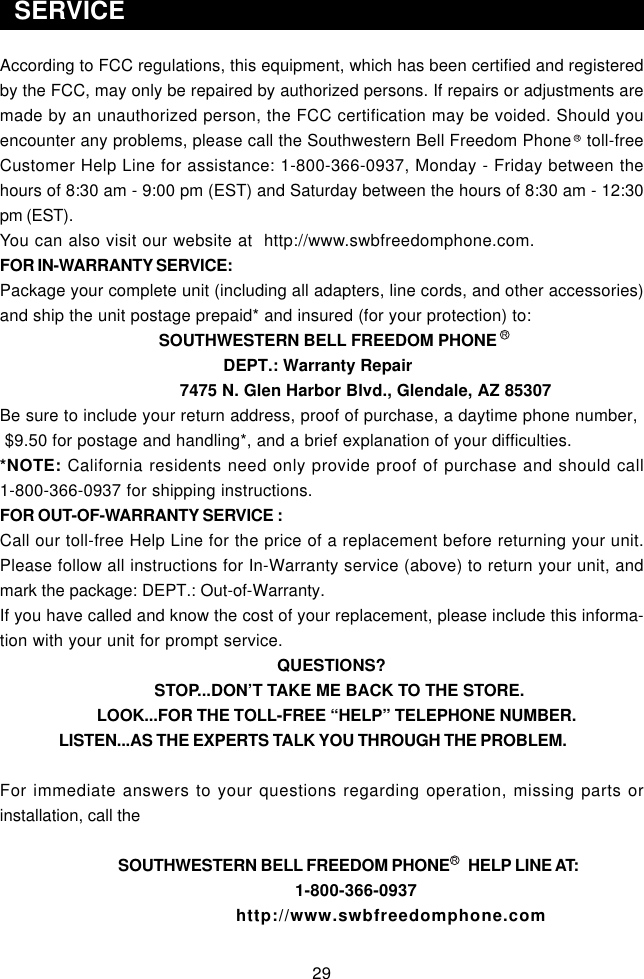

According to FCC regulations, this equipment, which has been certified and registeredby the FCC, may only be repaired by authorized persons. If repairs or adjustments aremade by an unauthorized person, the FCC certification may be voided. Should youencounter any problems, please call the Southwestern Bell Freedom Phone toll-freeCustomer Help Line for assistance: 1-800-366-0937, Monday - Friday between thehours of 8:30 am - 9:00 pm (EST) and Saturday between the hours of 8:30 am - 12:30pm (EST).You can also visit our website at http://www.swbfreedomphone.com.FOR IN-WARRANTY SERVICE:Package your complete unit (including all adapters, line cords, and other accessories)and ship the unit postage prepaid* and insured (for your protection) to: SOUTHWESTERN BELL FREEDOM PHONE DEPT.: Warranty Repair 7475 N. Glen Harbor Blvd., Glendale, AZ 85307Be sure to include your return address, proof of purchase, a daytime phone number, $9.50 for postage and handling*, and a brief explanation of your difficulties.*NOTE: California residents need only provide proof of purchase and should call1-800-366-0937 for shipping instructions.FOR OUT-OF-WARRANTY SERVICE :Call our toll-free Help Line for the price of a replacement before returning your unit.Please follow all instructions for In-Warranty service (above) to return your unit, andmark the package: DEPT.: Out-of-Warranty.If you have called and know the cost of your replacement, please include this informa-tion with your unit for prompt service. QUESTIONS? STOP...DON’T TAKE ME BACK TO THE STORE. LOOK...FOR THE TOLL-FREE “HELP” TELEPHONE NUMBER.LISTEN...AS THE EXPERTS TALK YOU THROUGH THE PROBLEM.For immediate answers to your questions regarding operation, missing parts orinstallation, call theSOUTHWESTERN BELL FREEDOM PHONE HELP LINE AT:1-800-366-0937http://www.swbfreedomphone.com SERVICE29

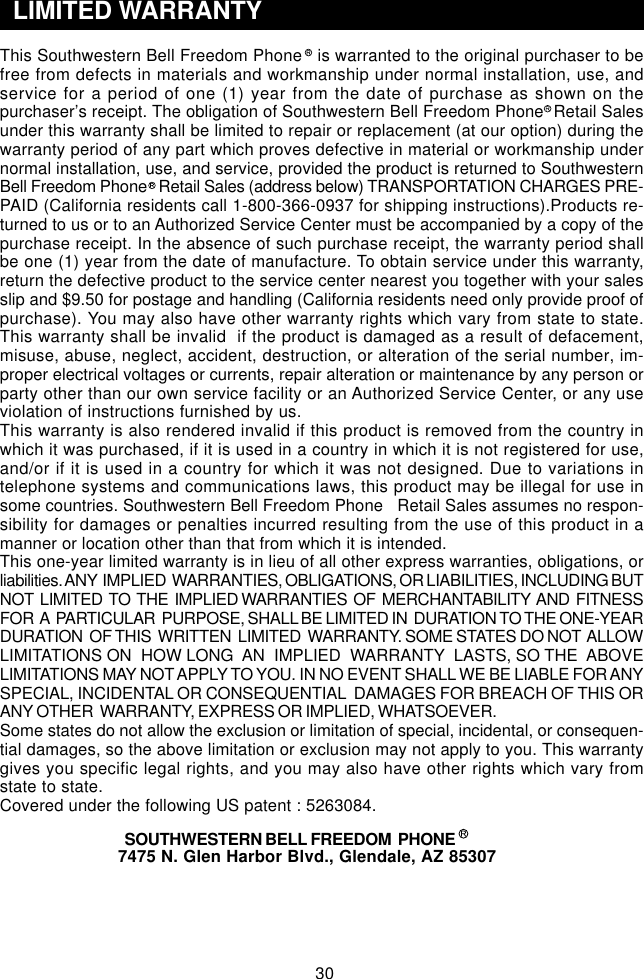

30This Southwestern Bell Freedom Phone is warranted to the original purchaser to befree from defects in materials and workmanship under normal installation, use, andservice for a period of one (1) year from the date of purchase as shown on thepurchaser’s receipt. The obligation of Southwestern Bell Freedom Phone Retail Salesunder this warranty shall be limited to repair or replacement (at our option) during thewarranty period of any part which proves defective in material or workmanship undernormal installation, use, and service, provided the product is returned to SouthwesternBell Freedom Phone Retail Sales (address below) TRANSPORTATION CHARGES PRE-PAID (California residents call 1-800-366-0937 for shipping instructions).Products re-turned to us or to an Authorized Service Center must be accompanied by a copy of thepurchase receipt. In the absence of such purchase receipt, the warranty period shallbe one (1) year from the date of manufacture. To obtain service under this warranty,return the defective product to the service center nearest you together with your salesslip and $9.50 for postage and handling (California residents need only provide proof ofpurchase). You may also have other warranty rights which vary from state to state.This warranty shall be invalid if the product is damaged as a result of defacement,misuse, abuse, neglect, accident, destruction, or alteration of the serial number, im-proper electrical voltages or currents, repair alteration or maintenance by any person orparty other than our own service facility or an Authorized Service Center, or any useviolation of instructions furnished by us.This warranty is also rendered invalid if this product is removed from the country inwhich it was purchased, if it is used in a country in which it is not registered for use,and/or if it is used in a country for which it was not designed. Due to variations intelephone systems and communications laws, this product may be illegal for use insome countries. Southwestern Bell Freedom Phone Retail Sales assumes no respon-sibility for damages or penalties incurred resulting from the use of this product in amanner or location other than that from which it is intended.This one-year limited warranty is in lieu of all other express warranties, obligations, orliabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES, INCLUDING BUTNOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESSFOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE ONE-YEARDURATION OF THIS WRITTEN LIMITED WARRANTY. SOME STATES DO NOT ALLOWLIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVELIMITATIONS MAY NOT APPLY TO YOU. IN NO EVENT SHALL WE BE LIABLE FOR ANYSPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS ORANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER.Some states do not allow the exclusion or limitation of special, incidental, or consequen-tial damages, so the above limitation or exclusion may not apply to you. This warrantygives you specific legal rights, and you may also have other rights which vary fromstate to state.Covered under the following US patent : 5263084. SOUTHWESTERN BELL FREEDOM PHONE7475 N. Glen Harbor Blvd., Glendale, AZ 85307 LIMITED WARRANTY
IB-4846STOP...DON’T TAKE ME BACK TO THE STORE. LOOK...FOR THE TOLL-FREE “HELP” TELEPHONE NUMBER. LISTEN...AS THE EXPERTS TALK YOU THROUGH THE PROBLEM. For immediate answers to your questions regarding operation, missing parts or installation, call theSOUTHWESTERN BELL FREEDOM PHONE RETAIL SALES HELP LINE AT: 1-800-366-0937 Monday - Friday 8:30a.m. - 9:00p.m. EST Saturday 8:30a.m. - 12:30p.m. EST http://www.swbfreedomphone.com SOUTHWESTERN BELL FREEDOM PHONE 7475 N. Glen Harbor Blvd., Glendale, AZ 85307GH5810 Printed in China
