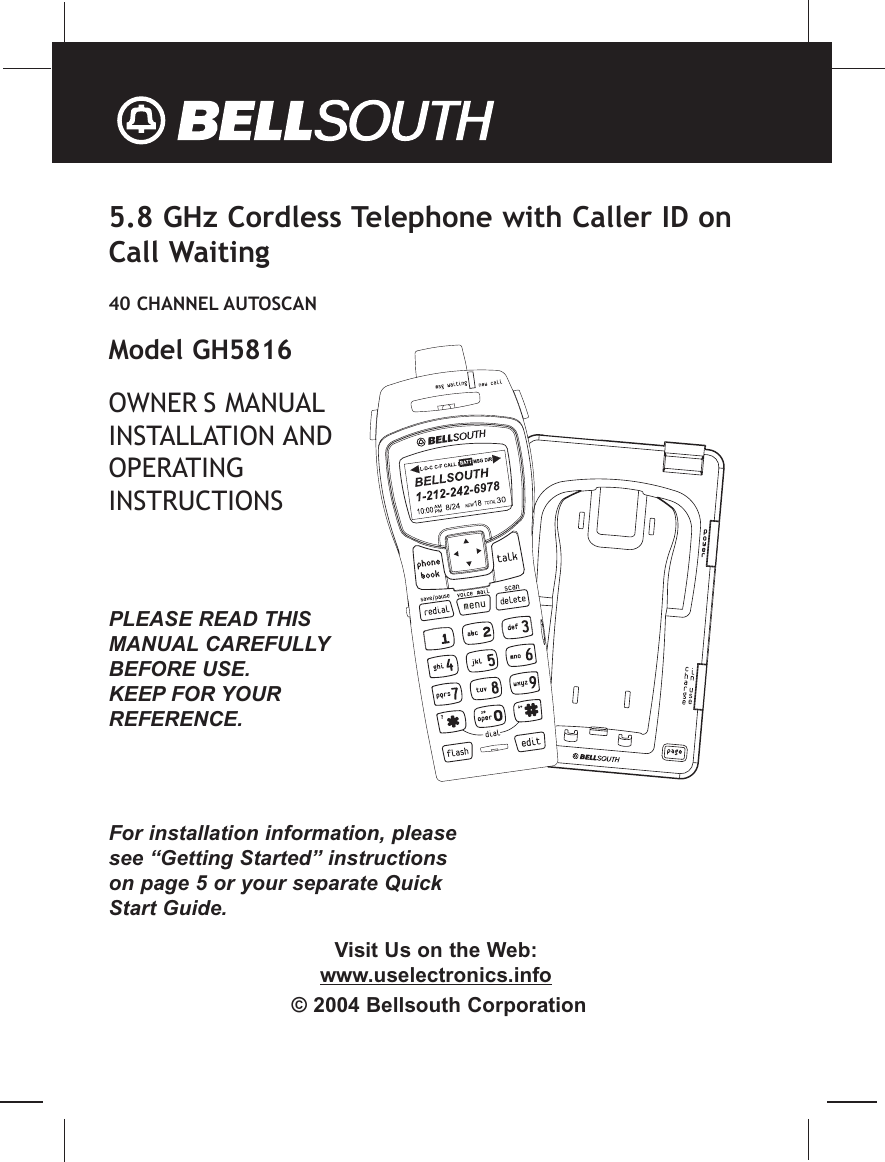

5.8 GHz Cordless Telephone with Caller ID onCall Waiting40 CHANNEL AUTOSCANModel GH5816OWNER S MANUALINSTALLATION ANDOPERATINGINSTRUCTIONSPLEASE READ THISMANUAL CAREFULLYBEFORE USE.KEEP FOR YOURREFERENCE.For installation information, pleasesee “Getting Started” instructionson page 5 or your separate QuickStart Guide.Visit Us on the Web:www.uselectronics.info© 2004 Bellsouth Corporation

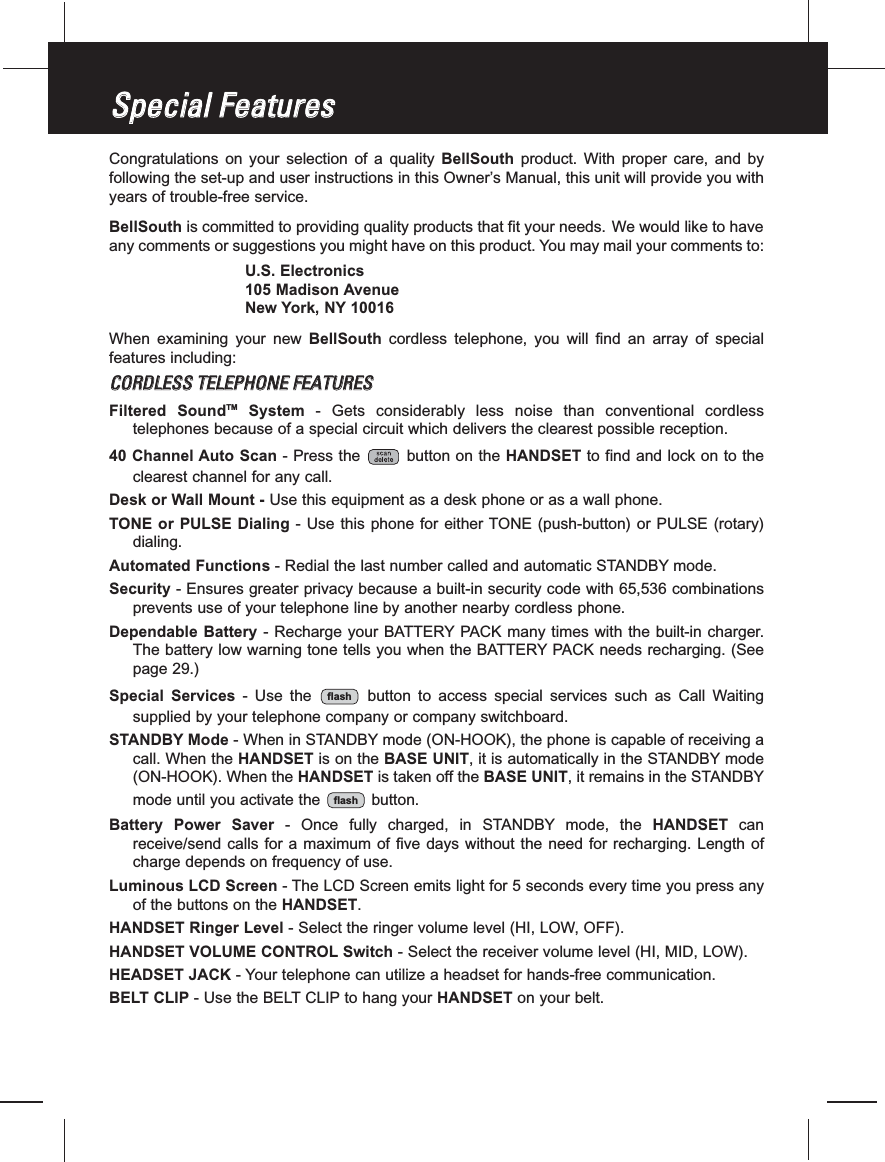

Congratulations on your selection of a quality BellSouth product. With proper care, and byfollowing the set-up and user instructions in this Owner’s Manual, this unit will provide you withyears of trouble-free service.BellSouth is committed to providing quality products that fit your needs. We would like to haveany comments or suggestions you might have on this product. You may mail your comments to:U.S. Electronics105 Madison AvenueNew York, NY 10016When examining your new BellSouth cordless telephone, you will find an array of specialfeatures including:CCOORRDDLLEESSSSTTEELLEEPPHHOONNEEFFEEAATTUURREESSFiltered SoundTM System - Gets considerably less noise than conventional cordlesstelephones because of a special circuit which delivers the clearest possible reception.40 Channel Auto Scan - Press the button on the HANDSET to find and lock on to theclearest channel for any call.Desk or Wall Mount - Use this equipment as a desk phone or as a wall phone.TONE or PULSE Dialing - Use this phone for either TONE (push-button) or PULSE (rotary)dialing.Automated Functions - Redial the last number called and automatic STANDBY mode.Security - Ensures greater privacy because a built-in security code with 65,536 combinationsprevents use of your telephone line by another nearby cordless phone.Dependable Battery - Recharge your BATTERY PACK many times with the built-in charger.The battery low warning tone tells you when the BATTERY PACK needs recharging. (Seepage 29.)Special Services - Use the button to access special services such as Call Waitingsupplied by your telephone company or company switchboard.STANDBY Mode - When in STANDBY mode (ON-HOOK), the phone is capable of receiving acall. When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode(ON-HOOK). When the HANDSET is taken off the BASE UNIT, it remains in the STANDBYmode until you activate the button.Battery Power Saver - Once fully charged, in STANDBY mode, the HANDSET canreceive/send calls for a maximum of five days without the need for recharging. Length ofcharge depends on frequency of use.Luminous LCD Screen - The LCD Screen emits light for 5 seconds every time you press anyof the buttons on the HANDSET.HANDSET Ringer Level - Select the ringer volume level (HI, LOW, OFF).HANDSET VOLUME CONTROL Switch - Select the receiver volume level (HI, MID, LOW).HEADSET JACK - Your telephone can utilize a headset for hands-free communication.BELT CLIP - Use the BELT CLIP to hang your HANDSET on your belt.flashflashSSppeecciiaallFFeeaattuurreess

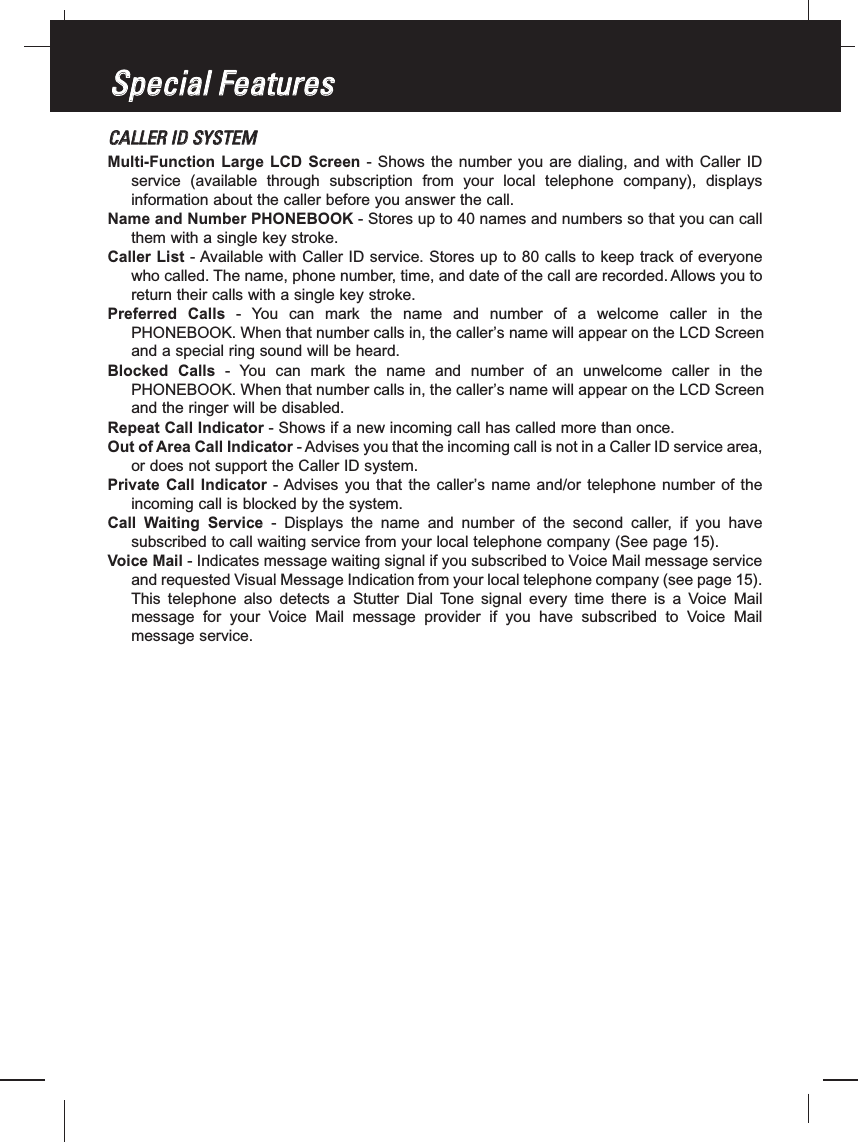

CCAALLLLEERRIIDDSSYYSSTTEEMMMulti-Function Large LCD Screen - Shows the number you are dialing, and with Caller IDservice (available through subscription from your local telephone company), displaysinformation about the caller before you answer the call.Name and Number PHONEBOOK - Stores up to 40 names and numbers so that you can callthem with a single key stroke.Caller List - Available with Caller ID service. Stores up to 80 calls to keep track of everyonewho called. The name, phone number, time, and date of the call are recorded. Allows you toreturn their calls with a single key stroke.Preferred Calls - You can mark the name and number of a welcome caller in thePHONEBOOK. When that number calls in, the caller’s name will appear on the LCD Screenand a special ring sound will be heard.Blocked Calls - You can mark the name and number of an unwelcome caller in thePHONEBOOK. When that number calls in, the caller’s name will appear on the LCD Screenand the ringer will be disabled.Repeat Call Indicator - Shows if a new incoming call has called more than once.Out of Area Call Indicator - Advises you that the incoming call is not in a Caller ID service area,or does not support the Caller ID system.Private Call Indicator - Advises you that the caller’s name and/or telephone number of theincoming call is blocked by the system.Call Waiting Service - Displays the name and number of the second caller, if you havesubscribed to call waiting service from your local telephone company (See page 15).Voice Mail - Indicates message waiting signal if you subscribed to Voice Mail message serviceand requested Visual Message Indication from your local telephone company (see page 15).This telephone also detects a Stutter Dial Tone signal every time there is a Voice Mailmessage for your Voice Mail message provider if you have subscribed to Voice Mailmessage service.SSppeecciiaallFFeeaattuurreess

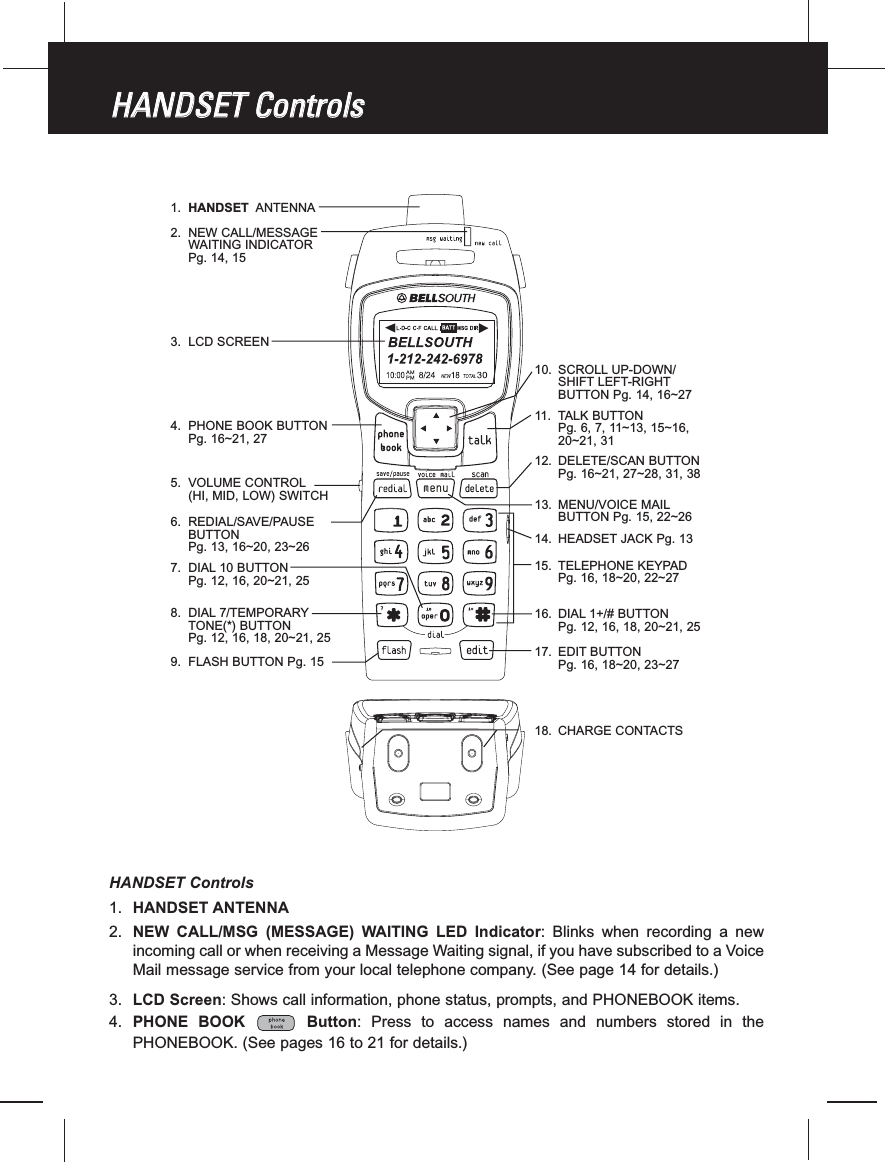

HANDSET Controls1. HANDSET ANTENNA2. NEW CALL/MSG (MESSAGE) WAITING LED Indicator: Blinks when recording a newincoming call or when receiving a Message Waiting signal, if you have subscribed to a VoiceMail message service from your local telephone company. (See page 14 for details.)3. LCD Screen: Shows call information, phone status, prompts, and PHONEBOOK items.4. PHONE BOOK Button: Press to access names and numbers stored in thePHONEBOOK. (See pages 16 to 21 for details.)HHAANNDDSSEETTCCoonnttrroollss2. NEW CALL/MESSAGEWAITING INDICATORPg. 14, 153. LCD SCREEN1. HANDSET ANTENNA11. TALK BUTTONPg. 6, 7, 11~13, 15~16,20~21, 3110. SCROLL UP-DOWN/SHIFT LEFT-RIGHTBUTTON Pg. 14, 16~275. VOLUME CONTROL(HI, MID, LOW) SWITCH7. DIAL 10 BUTTONPg. 12, 16, 20~21, 258. DIAL 7/TEMPORARYTONE(*) BUTTONPg. 12, 16, 18, 20~21, 256. REDIAL/SAVE/PAUSEBUTTONPg. 13, 16~20, 23~2617. EDIT BUTTONPg. 16, 18~20, 23~274. PHONE BOOK BUTTONPg. 16~21, 2713. MENU/VOICE MAILBUTTON Pg. 15, 22~2614. HEADSET JACK Pg. 139. FLASH BUTTON Pg. 1518. CHARGE CONTACTS15. TELEPHONE KEYPADPg. 16, 18~20, 22~2716. DIAL 1+/# BUTTONPg. 12, 16, 18, 20~21, 2512. DELETE/SCAN BUTTONPg. 16~21, 27~28, 31, 38

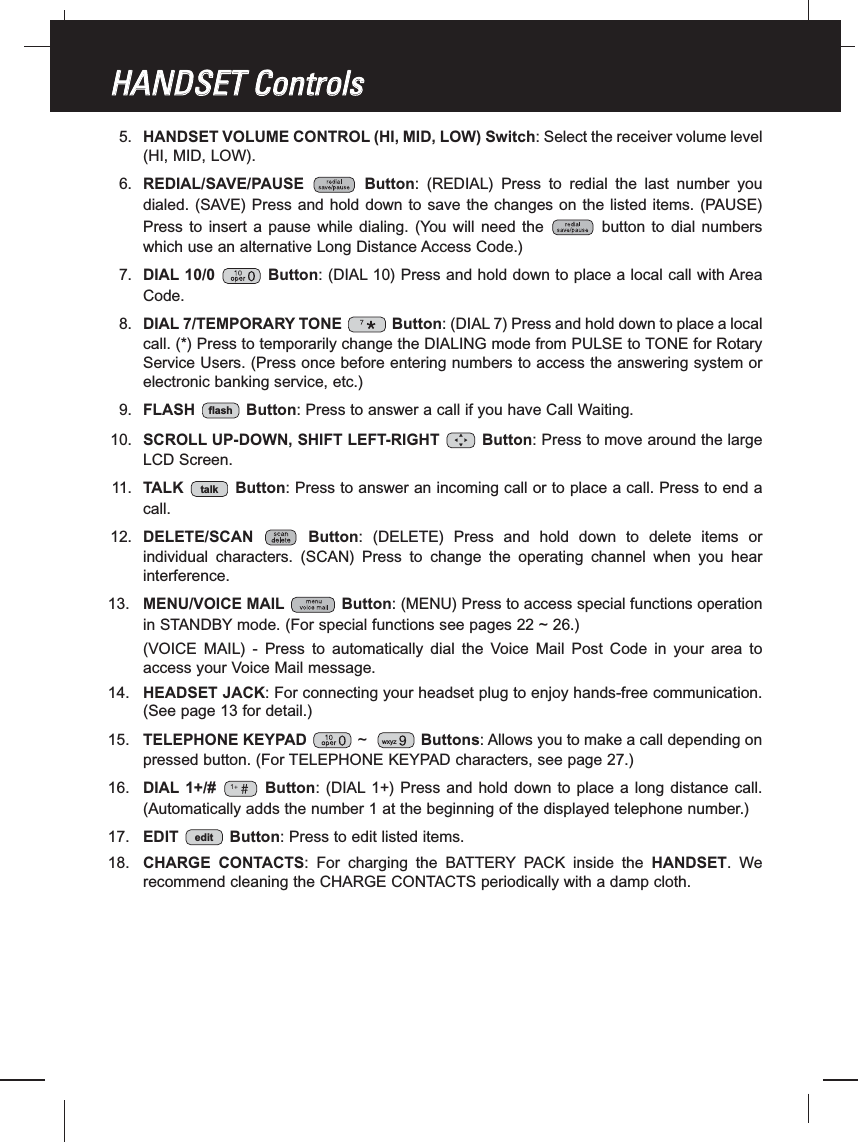

5. HANDSET VOLUME CONTROL (HI, MID, LOW) Switch: Select the receiver volume level(HI, MID, LOW).6. REDIAL/SAVE/PAUSE Button: (REDIAL) Press to redial the last number youdialed. (SAVE) Press and hold down to save the changes on the listed items. (PAUSE)Press to insert a pause while dialing. (You will need the button to dial numberswhich use an alternative Long Distance Access Code.)7. DIAL 10/0 Button: (DIAL 10) Press and hold down to place a local call with AreaCode.8. DIAL 7/TEMPORARY TONE Button: (DIAL 7) Press and hold down to place a localcall. (*) Press to temporarily change the DIALING mode from PULSE to TONE for RotaryService Users. (Press once before entering numbers to access the answering system orelectronic banking service, etc.)9. FLASH Button: Press to answer a call if you have Call Waiting.10. SCROLL UP-DOWN, SHIFT LEFT-RIGHT Button: Press to move around the largeLCD Screen.11. TALK Button: Press to answer an incoming call or to place a call. Press to end acall.12. DELETE/SCAN Button: (DELETE) Press and hold down to delete items orindividual characters. (SCAN) Press to change the operating channel when you hearinterference.13. MENU/VOICE MAIL Button: (MENU) Press to access special functions operationin STANDBY mode. (For special functions see pages 22 ~ 26.)(VOICE MAIL) - Press to automatically dial the Voice Mail Post Code in your area toaccess your Voice Mail message.14. HEADSET JACK: For connecting your headset plug to enjoy hands-free communication.(See page 13 for detail.)15. TELEPHONE KEYPAD ~Buttons: Allows you to make a call depending onpressed button. (For TELEPHONE KEYPAD characters, see page 27.)16. DIAL 1+/# Button: (DIAL 1+) Press and hold down to place a long distance call.(Automatically adds the number 1 at the beginning of the displayed telephone number.)17. EDIT Button: Press to edit listed items.18. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET.Werecommend cleaning the CHARGE CONTACTS periodically with a damp cloth.editwxyztalkflashHHAANNDDSSEETTCCoonnttrroollss

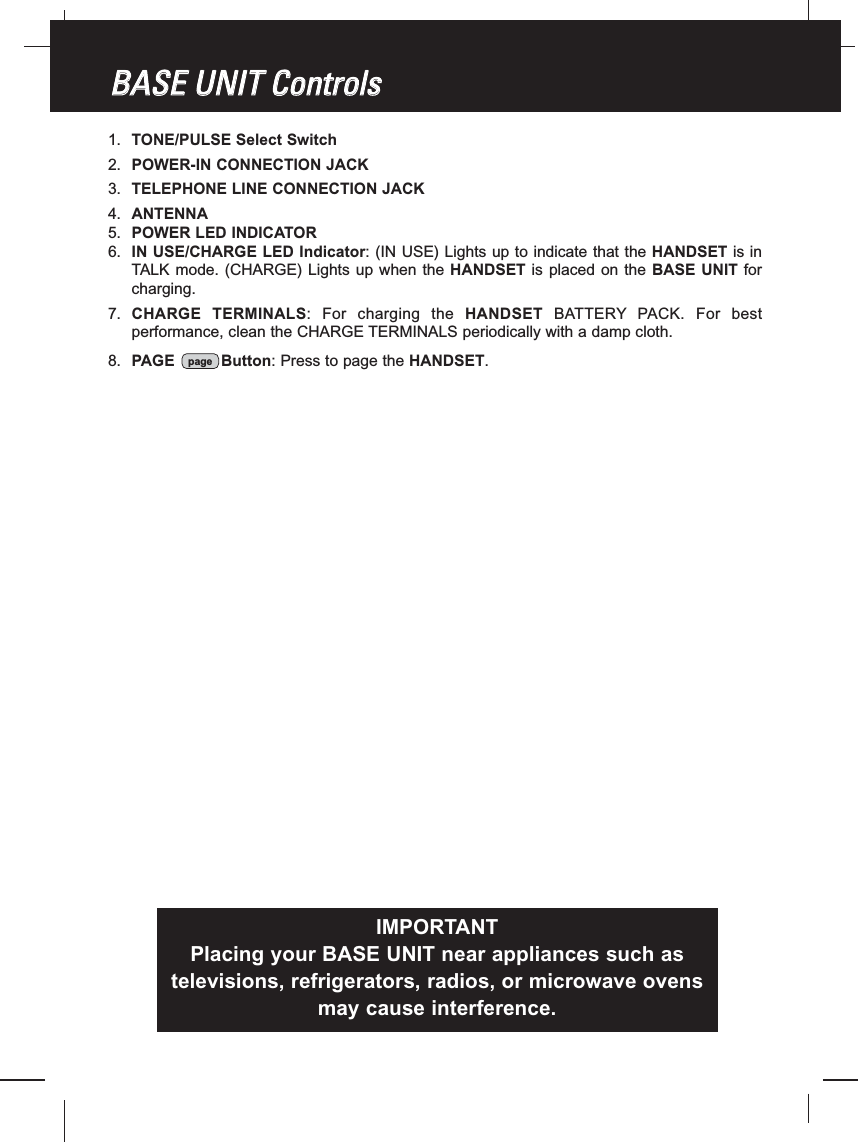

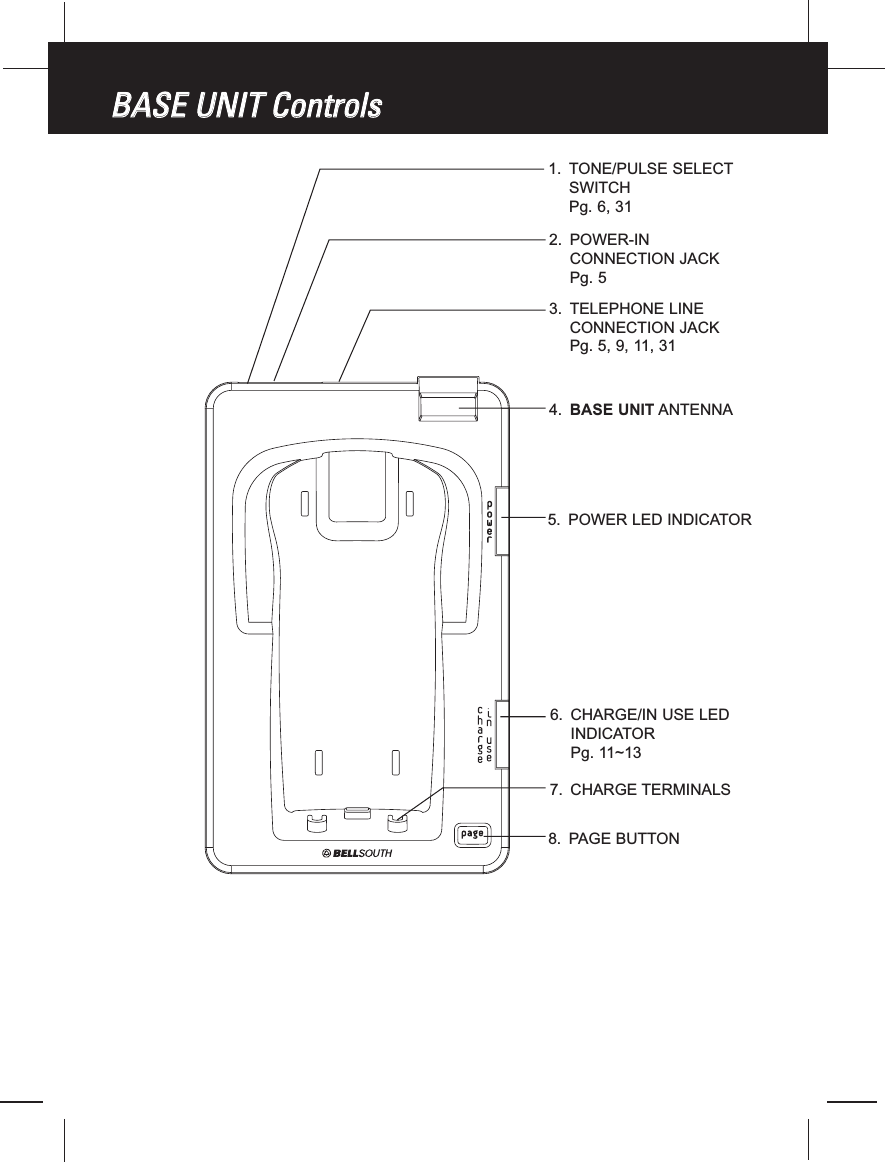

BBAASSEEUUNNIITTCCoonnttrroollss1. TONE/PULSE SELECTSWITCHPg. 6, 312. POWER-INCONNECTION JACKPg. 53. TELEPHONE LINECONNECTION JACKPg. 5, 9, 11, 314. BASE UNIT ANTENNA5. POWER LED INDICATOR6. CHARGE/IN USE LEDINDICATORPg. 11~137. CHARGE TERMINALS8. PAGE BUTTON
1. TONE/PULSE Select Switch2. POWER-IN CONNECTION JACK3. TELEPHONE LINE CONNECTION JACK4. ANTENNA5. POWER LED INDICATOR6. IN USE/CHARGE LED Indicator: (IN USE) Lights up to indicate that the HANDSET is inTALK mode. (CHARGE) Lights up when the HANDSET is placed on the BASE UNIT forcharging.7. CHARGE TERMINALS: For charging the HANDSET BATTERY PACK. For bestperformance, clean the CHARGE TERMINALS periodically with a damp cloth.8. PAGE Button: Press to page the HANDSET.pageBBAASSEEUUNNIITTCCoonnttrroollssIMPORTANTPlacing your BASE UNIT near appliances such astelevisions, refrigerators, radios, or microwave ovensmay cause interference.

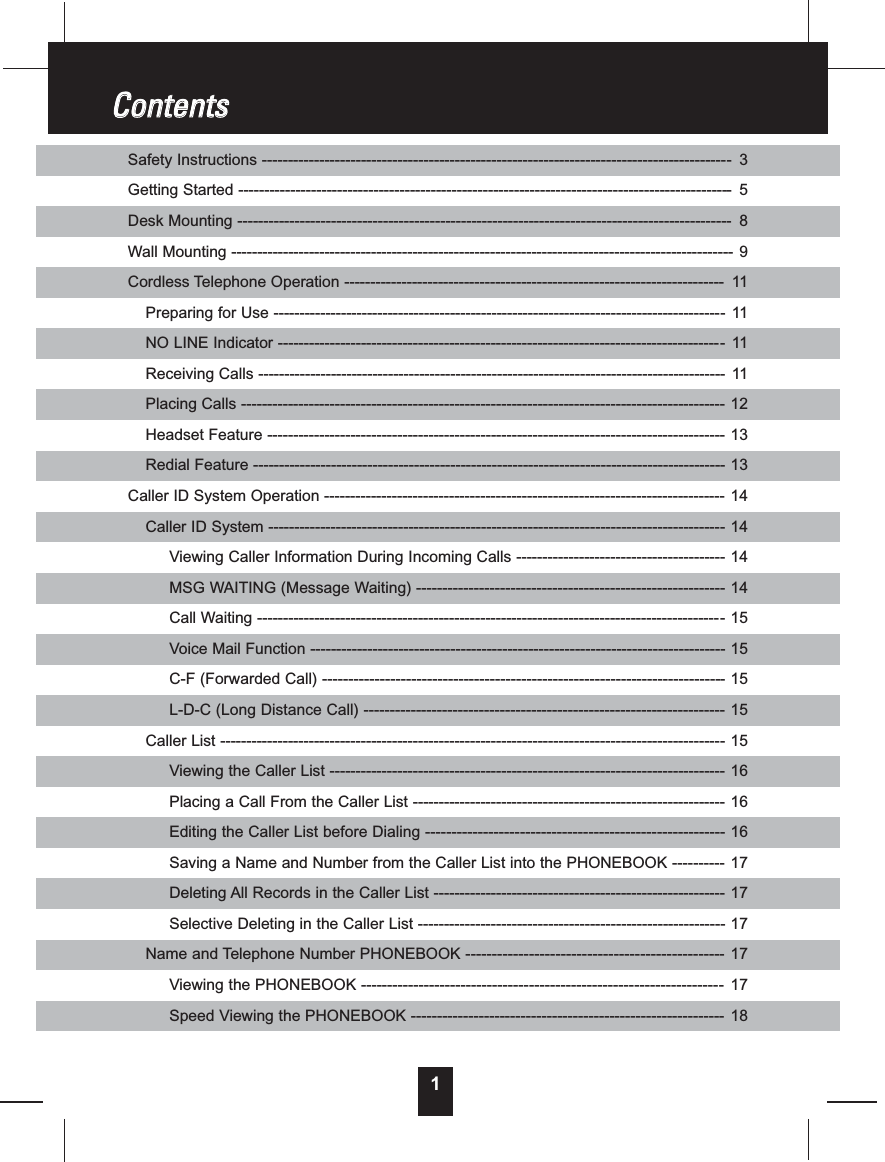

1Safety Instructions ------------------------------------------------------------------------------------------3Getting Started ----------------------------------------------------------------------------------------------- 5Desk Mounting ----------------------------------------------------------------------------------------------- 8Wall Mounting ------------------------------------------------------------------------------------------------- 9Cordless Telephone Operation ------------------------------------------------------------------------- 11Preparing for Use --------------------------------------------------------------------------------------- 11NO LINE Indicator -------------------------------------------------------------------------------------- 11Receiving Calls ------------------------------------------------------------------------------------------ 11Placing Calls --------------------------------------------------------------------------------------------- 12Headset Feature ---------------------------------------------------------------------------------------- 13Redial Feature ------------------------------------------------------------------------------------------- 13Caller ID System Operation ----------------------------------------------------------------------------- 14Caller ID System ---------------------------------------------------------------------------------------- 14Viewing Caller Information During Incoming Calls ---------------------------------------- 14MSG WAITING (Message Waiting) ----------------------------------------------------------- 14Call Waiting ------------------------------------------------------------------------------------------ 15Voice Mail Function -------------------------------------------------------------------------------- 15C-F (Forwarded Call) ----------------------------------------------------------------------------- 15L-D-C (Long Distance Call) --------------------------------------------------------------------- 15Caller List ------------------------------------------------------------------------------------------------- 15Viewing the Caller List ---------------------------------------------------------------------------- 16Placing a Call From the Caller List ------------------------------------------------------------ 16Editing the Caller List before Dialing --------------------------------------------------------- 16Saving a Name and Number from the Caller List into the PHONEBOOK ---------- 17Deleting All Records in the Caller List -------------------------------------------------------- 17Selective Deleting in the Caller List ----------------------------------------------------------- 17Name and Telephone Number PHONEBOOK ------------------------------------------------- 17Viewing the PHONEBOOK --------------------------------------------------------------------- 17Speed Viewing the PHONEBOOK ------------------------------------------------------------ 18CCoonntteennttss

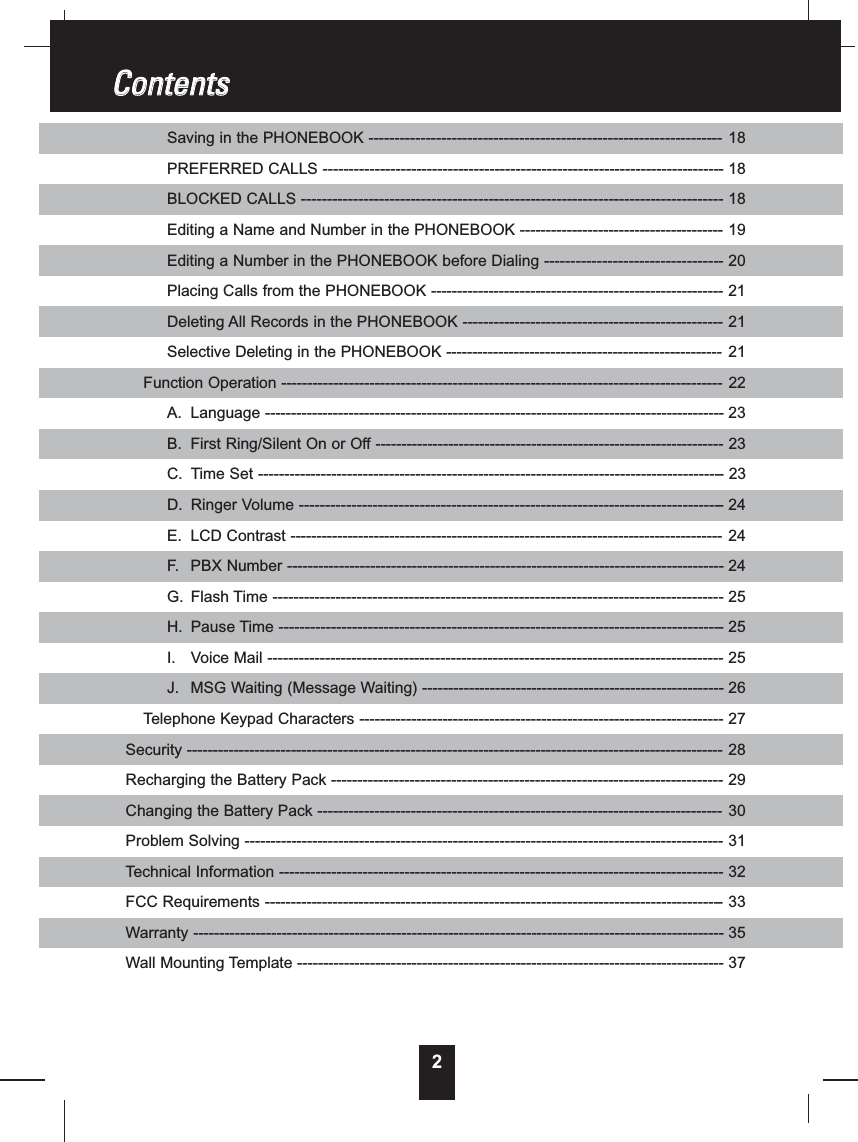

2Saving in the PHONEBOOK -------------------------------------------------------------------- 18PREFERRED CALLS ----------------------------------------------------------------------------- 18BLOCKED CALLS --------------------------------------------------------------------------------- 18Editing a Name and Number in the PHONEBOOK --------------------------------------- 19Editing a Number in the PHONEBOOK before Dialing ---------------------------------- 20Placing Calls from the PHONEBOOK -------------------------------------------------------- 21Deleting All Records in the PHONEBOOK -------------------------------------------------- 21Selective Deleting in the PHONEBOOK ----------------------------------------------------- 21Function Operation ------------------------------------------------------------------------------------- 22A. Language ---------------------------------------------------------------------------------------- 23B. First Ring/Silent On or Off ------------------------------------------------------------------- 23C. Time Set ----------------------------------------------------------------------------------------- 23D. Ringer Volume --------------------------------------------------------------------------------- 24E. LCD Contrast ----------------------------------------------------------------------------------- 24F. PBX Number ------------------------------------------------------------------------------------ 24G. Flash Time -------------------------------------------------------------------------------------- 25H. Pause Time ------------------------------------------------------------------------------------- 25I. Voice Mail --------------------------------------------------------------------------------------- 25J. MSG Waiting (Message Waiting) ---------------------------------------------------------- 26Telephone Keypad Characters ---------------------------------------------------------------------- 27Security ------------------------------------------------------------------------------------------------------- 28Recharging the Battery Pack --------------------------------------------------------------------------- 29Changing the Battery Pack ------------------------------------------------------------------------------ 30Problem Solving -------------------------------------------------------------------------------------------- 31Technical Information ------------------------------------------------------------------------------------- 32FCC Requirements ---------------------------------------------------------------------------------------- 33Warranty ------------------------------------------------------------------------------------------------------ 35Wall Mounting Template ---------------------------------------------------------------------------------- 37CCoonntteennttss

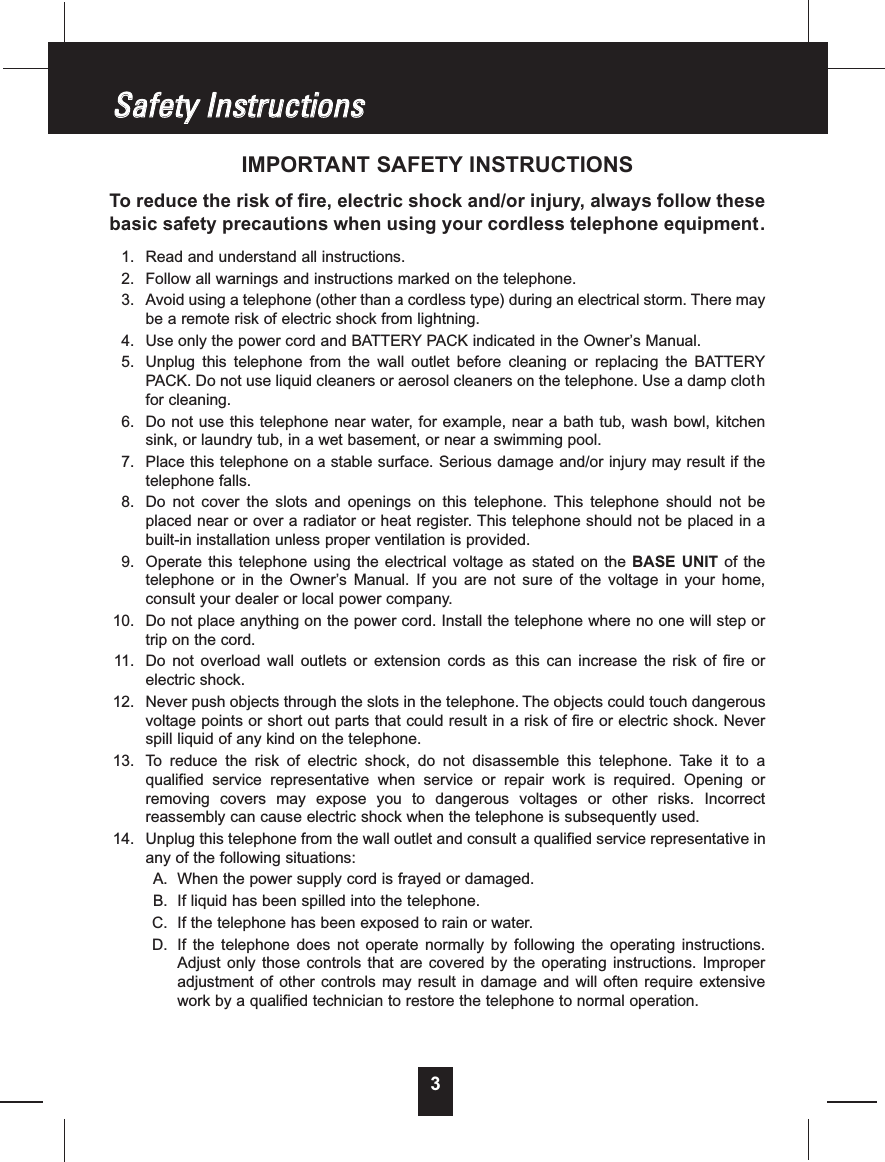

3IMPORTANT SAFETY INSTRUCTIONSTo reduce the risk of fire, electric shock and/or injury, always follow thesebasic safety precautions when using your cordless telephone equipment.1. Read and understand all instructions.2. Follow all warnings and instructions marked on the telephone.3. Avoid using a telephone (other than a cordless type) during an electrical storm. There maybe a remote risk of electric shock from lightning.4. Use only the power cord and BATTERY PACK indicated in the Owner’s Manual.5. Unplug this telephone from the wall outlet before cleaning or replacing the BATTERYPACK. Do not use liquid cleaners or aerosol cleaners on the telephone. Use a damp clothfor cleaning.6. Do not use this telephone near water, for example, near a bath tub, wash bowl, kitchensink, or laundry tub, in a wet basement, or near a swimming pool.7. Place this telephone on a stable surface. Serious damage and/or injury may result if thetelephone falls.8. Do not cover the slots and openings on this telephone. This telephone should not beplaced near or over a radiator or heat register. This telephone should not be placed in abuilt-in installation unless proper ventilation is provided.9. Operate this telephone using the electrical voltage as stated on the BASE UNIT of thetelephone or in the Owner’s Manual. If you are not sure of the voltage in your home,consult your dealer or local power company.10. Do not place anything on the power cord. Install the telephone where no one will step ortrip on the cord.11. Do not overload wall outlets or extension cords as this can increase the risk of fire orelectric shock.12. Never push objects through the slots in the telephone. The objects could touch dangerousvoltage points or short out parts that could result in a risk of fire or electric shock. Neverspill liquid of any kind on the telephone.13. To reduce the risk of electric shock, do not disassemble this telephone. Take it to aqualified service representative when service or repair work is required. Opening orremoving covers may expose you to dangerous voltages or other risks. Incorrectreassembly can cause electric shock when the telephone is subsequently used.14. Unplug this telephone from the wall outlet and consult a qualified service representative inany of the following situations:A. When the power supply cord is frayed or damaged.B. If liquid has been spilled into the telephone.C. If the telephone has been exposed to rain or water.D. If the telephone does not operate normally by following the operating instructions.Adjust only those controls that are covered by the operating instructions. Improperadjustment of other controls may result in damage and will often require extensivework by a qualified technician to restore the telephone to normal operation.SSaaffeettyyIInnssttrruuccttiioonnss

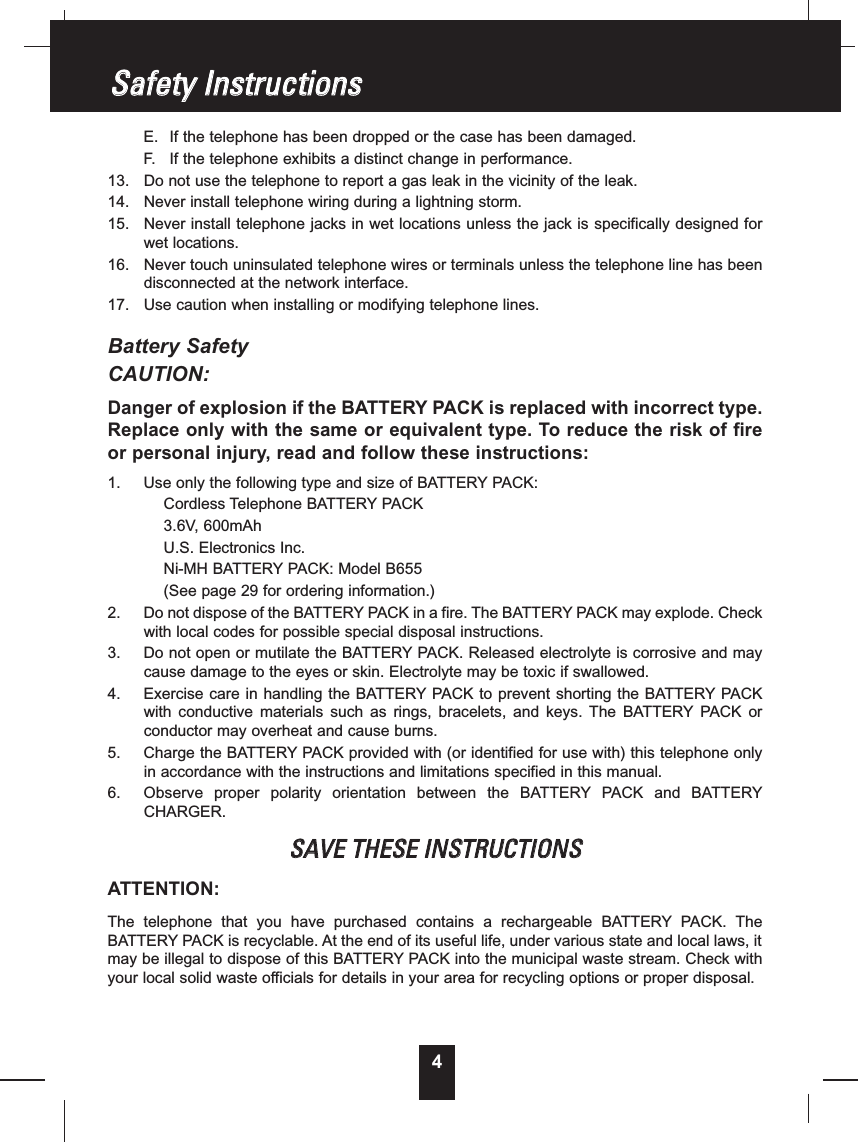

E. If the telephone has been dropped or the case has been damaged.F. If the telephone exhibits a distinct change in performance.13. Do not use the telephone to report a gas leak in the vicinity of the leak.14. Never install telephone wiring during a lightning storm.15. Never install telephone jacks in wet locations unless the jack is specifically designed forwet locations.16. Never touch uninsulated telephone wires or terminals unless the telephone line has beendisconnected at the network interface.17. Use caution when installing or modifying telephone lines.Battery SafetyCAUTION:Danger of explosion if the BATTERY PACK is replaced with incorrect type.Replace only with the same or equivalent type. To reduce the risk of fireor personal injury, read and follow these instructions:1. Use only the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6V, 600mAhU.S. Electronics Inc.Ni-MH BATTERY PACK: Model B655(See page 29 for ordering information.)2. Do not dispose of the BATTERY PACK in a fire. The BATTERY PACK may explode. Checkwith local codes for possible special disposal instructions.3. Do not open or mutilate the BATTERY PACK. Released electrolyte is corrosive and maycause damage to the eyes or skin. Electrolyte may be toxic if swallowed.4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERY PACKwith conductive materials such as rings, bracelets, and keys. The BATTERY PACK orconductor may overheat and cause burns.5. Charge the BATTERY PACK provided with (or identified for use with) this telephone onlyin accordance with the instructions and limitations specified in this manual.6. Observe proper polarity orientation between the BATTERY PACK and BATTERYCHARGER.SSAAVVEETTHHEESSEEIINNSSTTRRUUCCTTIIOONNSSATTENTION:The telephone that you have purchased contains a rechargeable BATTERY PACK. TheBATTERY PACK is recyclable. At the end of its useful life, under various state and local laws, itmay be illegal to dispose of this BATTERY PACK into the municipal waste stream. Check withyour local solid waste officials for details in your area for recycling options or proper disposal.SSaaffeettyyIInnssttrruuccttiioonnss4
5CCoonnnneeccttiinnggYYoouurrPPhhoonneeThis section is a reference guide to the basic functions and operations of your cordlesstelephone. For more detailed descriptions of the operations and features of this telephone, referto the Contents on page 1.1. Carefully remove your cordless telephone from its shipping carton. If there is any visibledamage, do not attempt to operate this equipment. Return it to the place of purchase.2. Check to be sure you have all items that come with this cordless telephone system. Youshould have a HANDSET,BASE UNIT, AC ADAPTER, TELEPHONE LINE CORD, SHORTTELEPHONE LINE CORD, BELT CLIP, and an Owner’s Manual.3. Insert the small plug on the end of the AC ADAPTER into the POWER-IN CONNECTIONJACK at the back of the BASE UNIT.4. Plug the AC ADAPTER into a 120V AC wall outlet.USE ONLY WITH CLASS 2 POWER SOURCE 9V DC, 300 mA.5. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACK andthe other end into the TELEPHONE LINE CONNECTION JACK at the back of the BASEUNIT. (If you have an older 4-prong TELEPHONE JACK, you will need an RJ-11CTELEPHONE JACK ADAPTER. This adapter is available at the same place you purchasedyour telephone.)6. We recommend not placing this unit next to appliances. Doing so may cause interference.GGeettttiinnggSSttaarrtteeddTELEPHONELINE CORDSHORT TELEPHONELINE CORDBELT CLIPAC ADAPTERBATTERYPAC KHANDSET BASE UNIT!MOUNTINGBRACKET

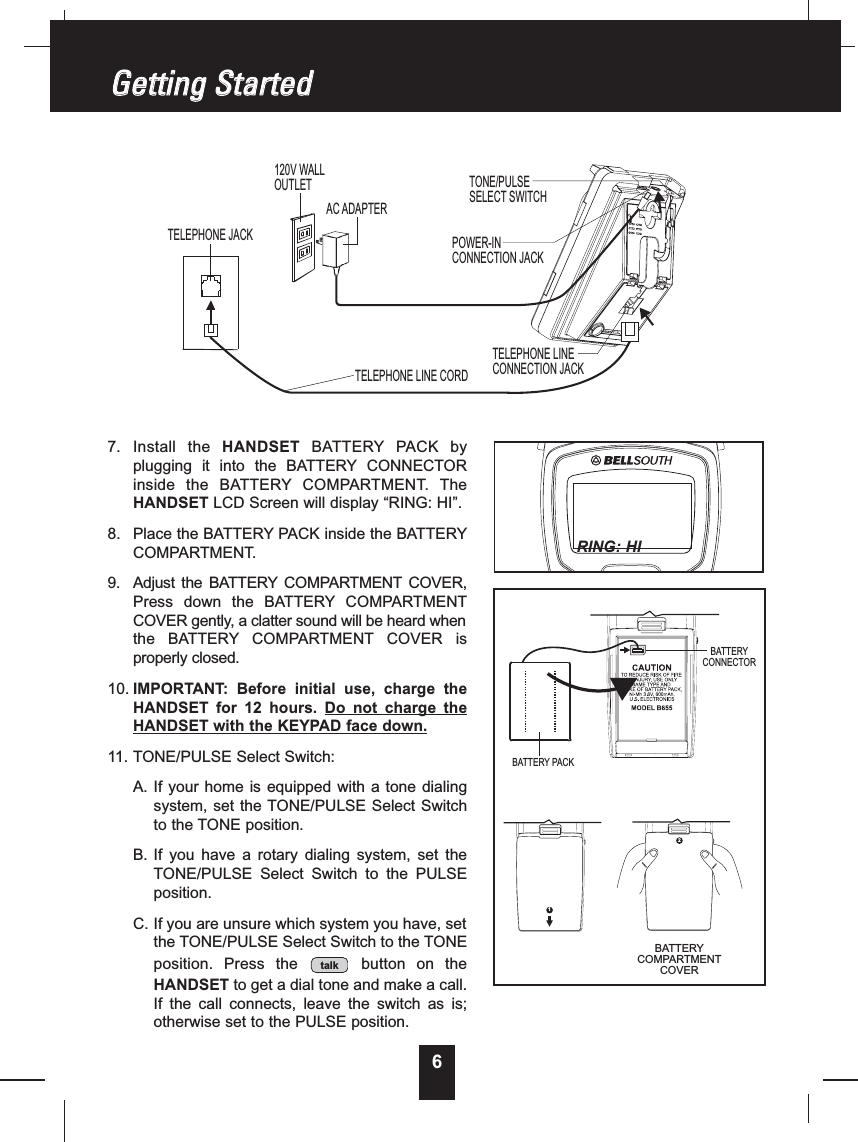

67. Install the HANDSET BATTERY PACK byplugging it into the BATTERY CONNECTORinside the BATTERY COMPARTMENT. TheHANDSET LCD Screen will display “RING: HI”.8. Place the BATTERY PACK inside the BATTERYCOMPARTMENT.9. Adjust the BATTERY COMPARTMENT COVER,Press down the BATTERY COMPARTMENTCOVER gently, a clatter sound will be heard whenthe BATTERY COMPARTMENT COVER isproperly closed.10. IMPORTANT: Before initial use, charge theHANDSET for 12 hours. Do not charge theHANDSET with the KEYPAD face down.11. TONE/PULSE Select Switch:A. If your home is equipped with a tone dialingsystem, set the TONE/PULSE Select Switchto the TONE position.B. If you have a rotary dialing system, set theTONE/PULSE Select Switch to the PULSEposition.C. If you are unsure which system you have, setthe TONE/PULSE Select Switch to the TONEposition. Press the button on theHANDSET to get a dial tone and make a call.If the call connects, leave the switch as is;otherwise set to the PULSE position.talkTELEPHONE JACKAC ADAPTER120V WALLOUTLETTELEPHONE LINE CORDTELEPHONE LINECONNECTION JACKPOWER-INCONNECTION JACKTONE/PULSESELECT SWITCHGGeettttiinnggSSttaarrtteeddBATTERYCONNECTORBATTERYCOMPARTMENTCOVER12BATTERY PACKRING: HI

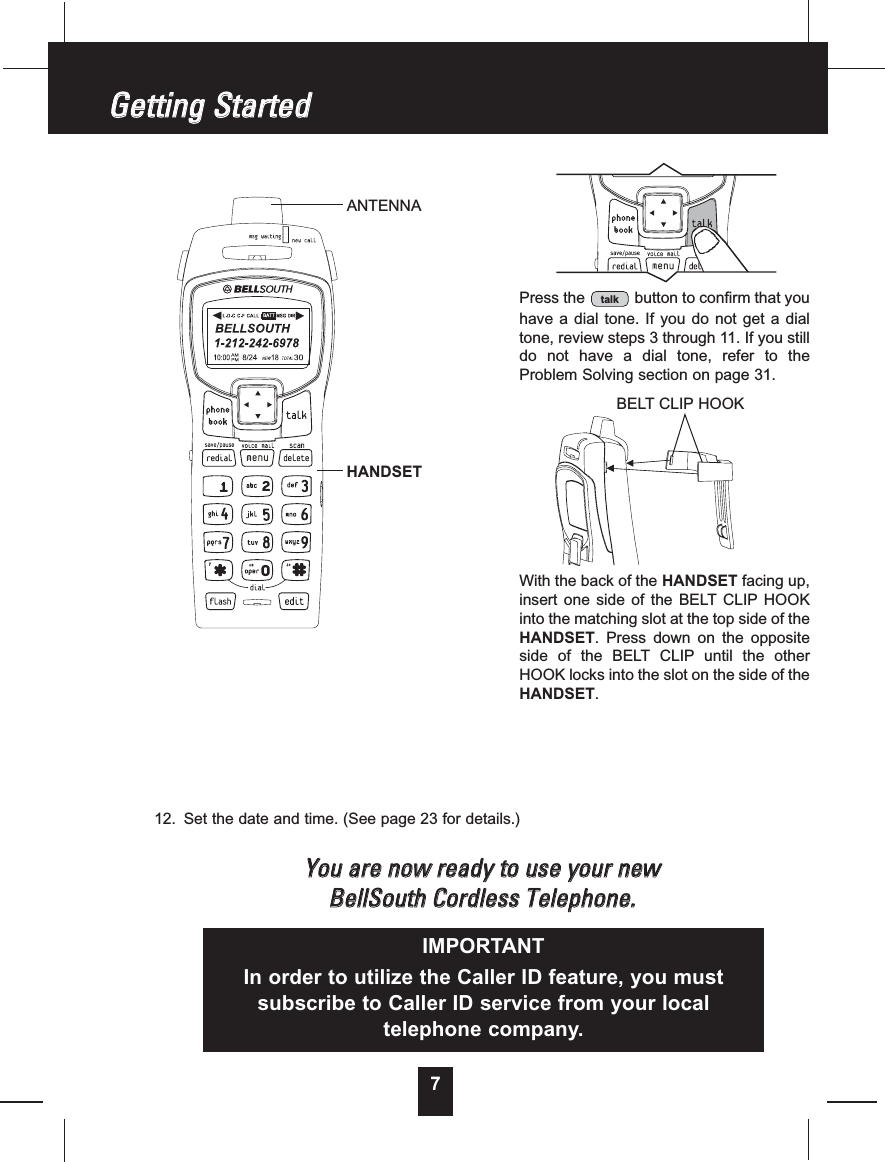

712. Set the date and time. (See page 23 for details.)YYoouuaarreennoowwrreeaaddyyttoouusseeyyoouurrnneewwBBeellllSSoouutthhCCoorrddlleessssTTeelleepphhoonnee..GGeettttiinnggSSttaarrtteeddPress the button to confirm that youhave a dial tone. If you do not get a dialtone, review steps 3 through 11. If you stilldo not have a dial tone, refer to theProblem Solving section on page 31.With the back of the HANDSET facing up,insert one side of the BELT CLIP HOOKinto the matching slot at the top side of theHANDSET. Press down on the oppositeside of the BELT CLIP until the otherHOOK locks into the slot on the side of theHANDSET.talkIMPORTANTIn order to utilize the Caller ID feature, you mustsubscribe to Caller ID service from your localtelephone company.ANTENNAHANDSETBELT CLIP HOOK

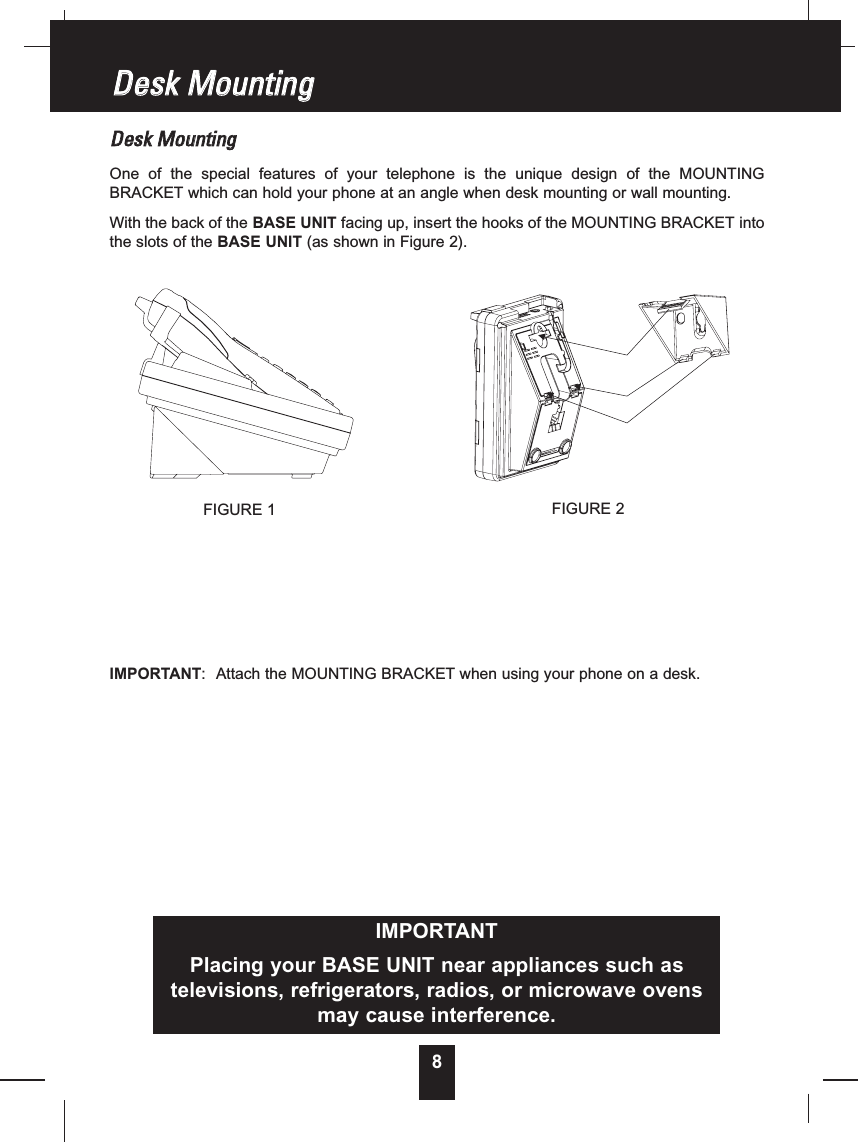

8DDeesskkMMoouunnttiinnggOne of the special features of your telephone is the unique design of the MOUNTINGBRACKET which can hold your phone at an angle when desk mounting or wall mounting.With the back of the BASE UNIT facing up, insert the hooks of the MOUNTING BRACKET intothe slots of the BASE UNIT (as shown in Figure 2).IMPORTANT: Attach the MOUNTING BRACKET when using your phone on a desk.DDeesskkMMoouunnttiinnggIMPORTANTPlacing your BASE UNIT near appliances such astelevisions, refrigerators, radios, or microwave ovensmay cause interference.FIGURE 1 FIGURE 2

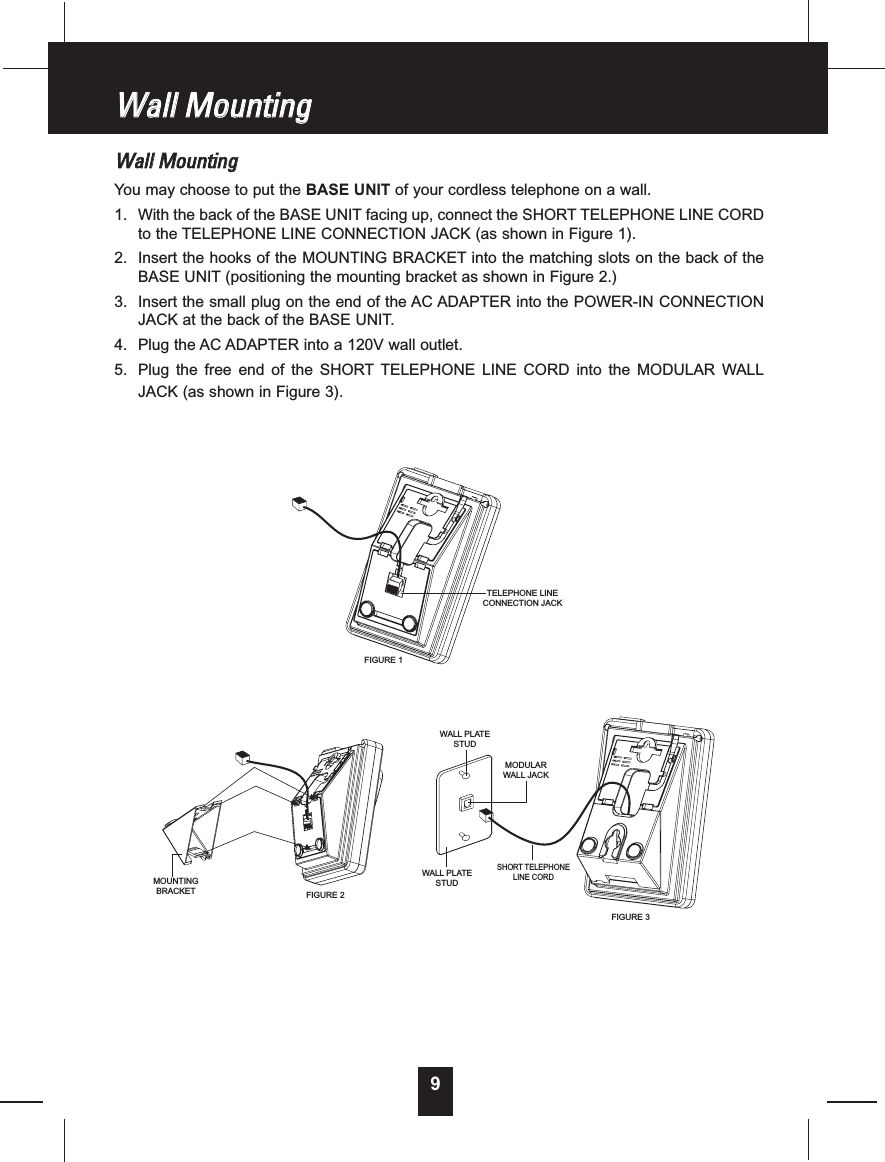

9WWaallllMMoouunnttiinnggWWaallllMMoouunnttiinnggYou may choose to put the BASE UNIT of your cordless telephone on a wall.1. With the back of the BASE UNIT facing up, connect the SHORT TELEPHONE LINE CORDto the TELEPHONE LINE CONNECTION JACK (as shown in Figure 1).2. Insert the hooks of the MOUNTING BRACKET into the matching slots on the back of theBASE UNIT (positioning the mounting bracket as shown in Figure 2.)3. Insert the small plug on the end of the AC ADAPTER into the POWER-IN CONNECTIONJACK at the back of the BASE UNIT.4. Plug the AC ADAPTER into a 120V wall outlet.5. Plug the free end of the SHORT TELEPHONE LINE CORD into the MODULAR WALLJACK (as shown in Figure 3).SHORT TELEPHONELINE CORDMOUNTINGBRACKETTELEPHONE LINECONNECTION JACKWALL PLATESTUDWALL PLATESTUDMODULARWALL JACKFIGURE 1FIGURE 2FIGURE 3

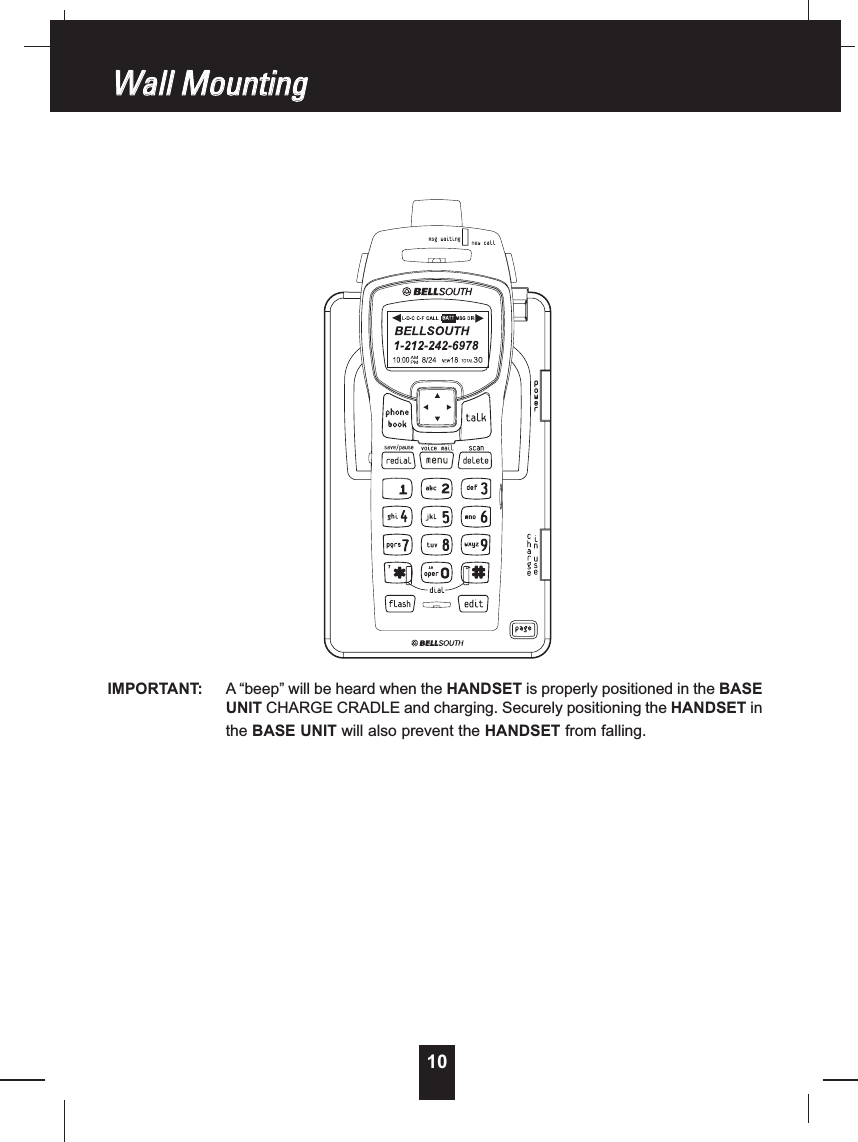

10WWaallllMMoouunnttiinnggIMPORTANT: A “beep” will be heard when the HANDSET is properly positioned in the BASEUNIT CHARGE CRADLE and charging. Securely positioning the HANDSET inthe BASE UNIT will also prevent the HANDSET from falling.

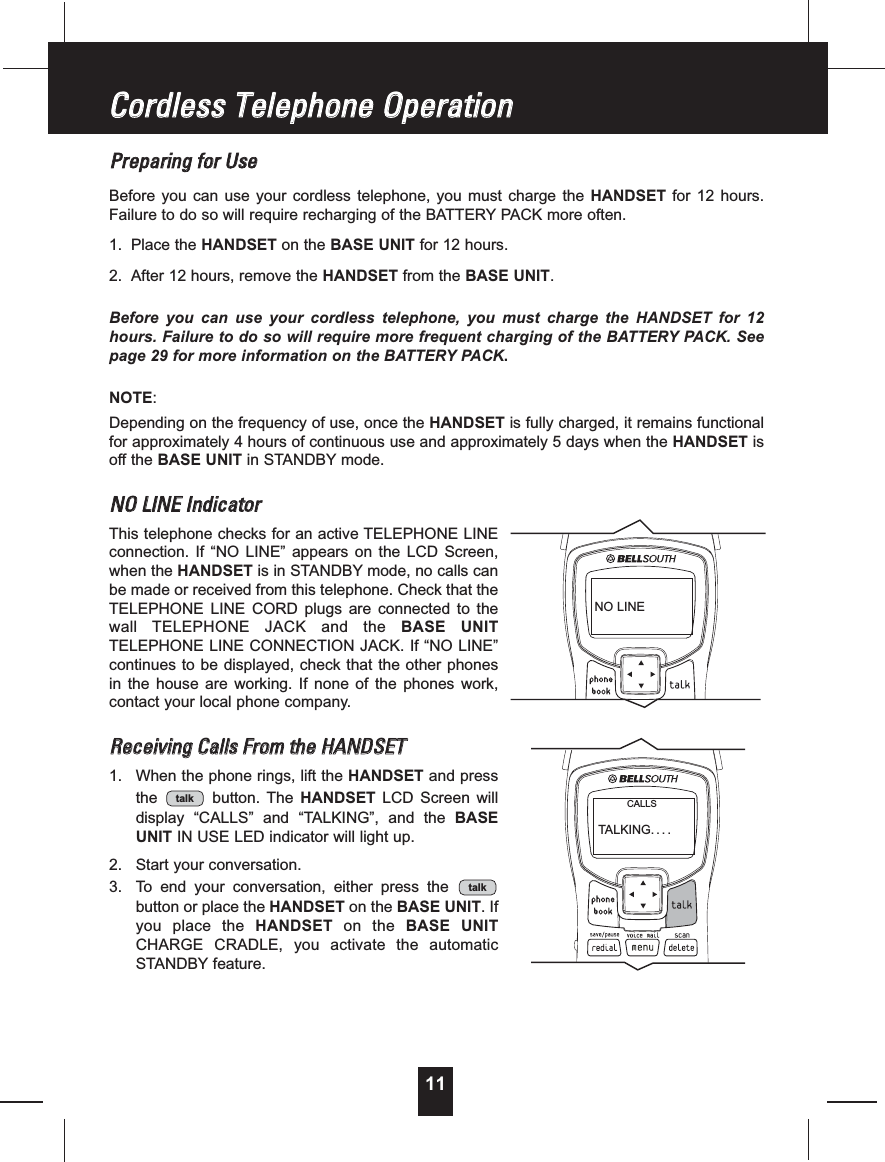

11PPrreeppaarriinnggffoorrUUsseeBefore you can use your cordless telephone, you must charge the HANDSET for 12 hours.Failure to do so will require recharging of the BATTERY PACK more often.1. Place the HANDSET on the BASE UNIT for 12 hours.2. After 12 hours, remove the HANDSET from the BASE UNIT.Before you can use your cordless telephone, you must charge the HANDSET for 12hours. Failure to do so will require more frequent charging of the BATTERY PACK. Seepage 29 for more information on the BATTERY PACK.NOTE:Depending on the frequency of use, once the HANDSET is fully charged, it remains functionalfor approximately 4 hours of continuous use and approximately 5 days when the HANDSET isoff the BASE UNIT in STANDBY mode.NNOOLLIINNEEIInnddiiccaattoorrThis telephone checks for an active TELEPHONE LINEconnection. If “NO LINE” appears on the LCD Screen,when the HANDSET is in STANDBY mode, no calls canbe made or received from this telephone. Check that theTELEPHONE LINE CORD plugs are connected to thewall TELEPHONE JACK and the BASE UNITTELEPHONE LINE CONNECTION JACK. If “NO LINE”continues to be displayed, check that the other phonesin the house are working. If none of the phones work,contact your local phone company.RReecceeiivviinnggCCaallllssFFrroommtthheeHHAANNDDSSEETT1. When the phone rings, lift the HANDSET and pressthe button. The HANDSET LCD Screen willdisplay “CALLS” and “TALKING”, and the BASEUNIT IN USE LED indicator will light up.2. Start your conversation.3. To end your conversation, either press thebutton or place the HANDSET on the BASE UNIT.Ifyou place the HANDSET on the BASE UNITCHARGE CRADLE, you activate the automaticSTANDBY feature.talktalkCCoorrddlleessssTTeelleepphhoonneeOOppeerraattiioonnNO LINETALKING....CALLS

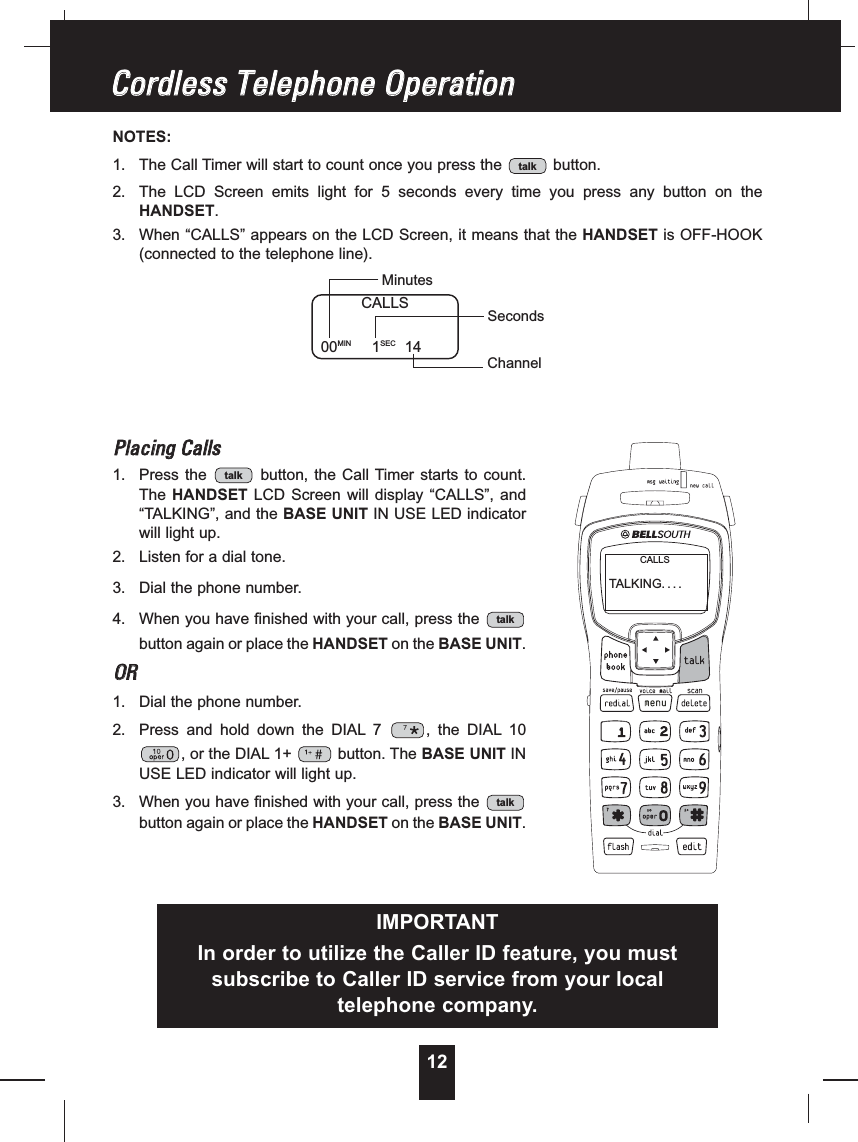

12NOTES:1. The Call Timer will start to count once you press the button.2. The LCD Screen emits light for 5 seconds every time you press any button on theHANDSET.3. When “CALLS” appears on the LCD Screen, it means that the HANDSET is OFF-HOOK(connected to the telephone line).PPllaacciinnggCCaallllss1. Press the button, the Call Timer starts to count.The HANDSET LCD Screen will display “CALLS”, and“TALKING”, and the BASE UNIT IN USE LED indicatorwill light up.2. Listen for a dial tone.3. Dial the phone number.4. When you have finished with your call, press thebutton again or place the HANDSET on the BASE UNIT.OORR1. Dial the phone number.2. Press and hold down the DIAL 7 , the DIAL 10, or the DIAL 1+ button. The BASE UNIT INUSE LED indicator will light up.3. When you have finished with your call, press thebutton again or place the HANDSET on the BASE UNIT.talktalktalktalkCCoorrddlleessssTTeelleepphhoonneeOOppeerraattiioonnCALLS00MIN 1SEC 14MinutesSecondsChannelIMPORTANTIn order to utilize the Caller ID feature, you mustsubscribe to Caller ID service from your localtelephone company.TALKING. . . .CALLS

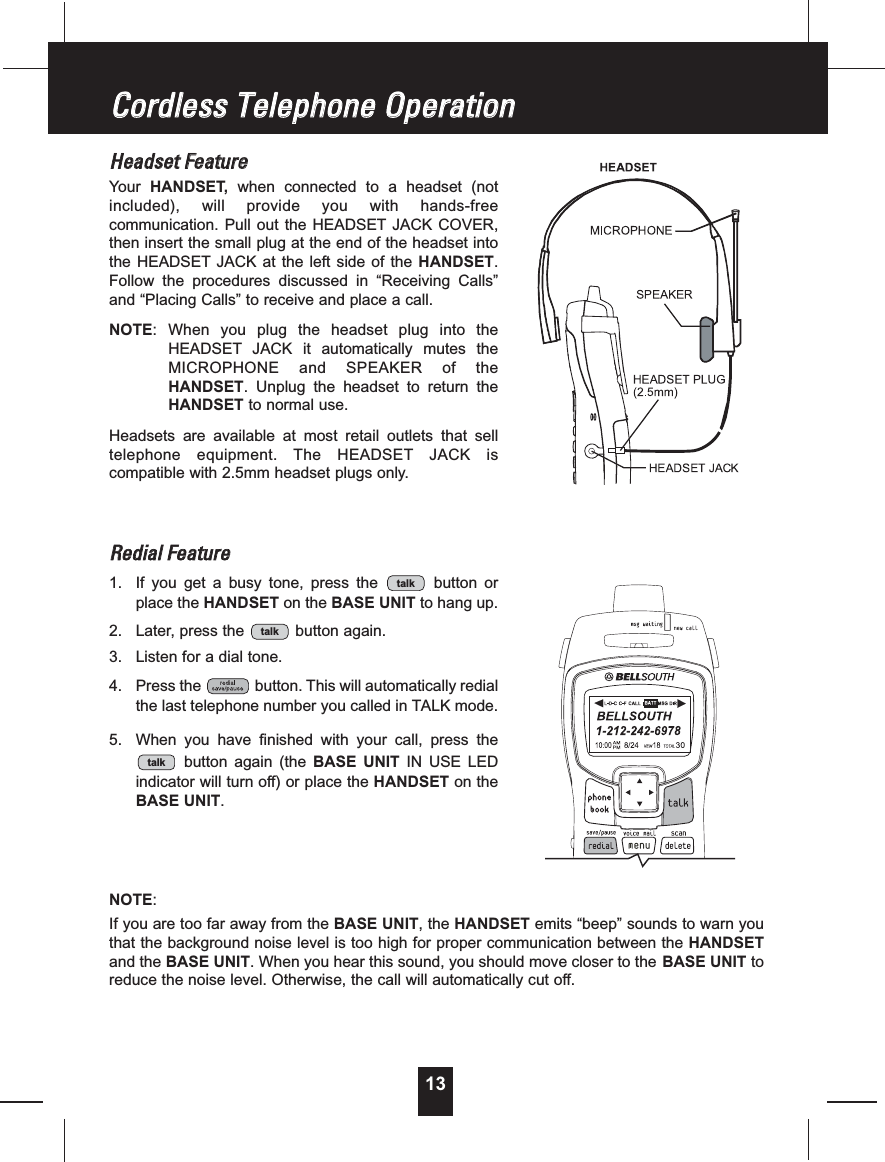

13HHeeaaddsseettFFeeaattuurreeYour HANDSET,when connected to a headset (notincluded), will provide you with hands-freecommunication. Pull out the HEADSET JACK COVER,then insert the small plug at the end of the headset intothe HEADSET JACK at the left side of the HANDSET.Follow the procedures discussed in “Receiving Calls”and “Placing Calls” to receive and place a call.NOTE: When you plug the headset plug into theHEADSET JACK it automatically mutes theMICROPHONE and SPEAKER of theHANDSET. Unplug the headset to return theHANDSET to normal use.Headsets are available at most retail outlets that selltelephone equipment. The HEADSET JACK iscompatible with 2.5mm headset plugs only.RReeddiiaallFFeeaattuurree1. If you get a busy tone, press the button orplace the HANDSET on the BASE UNIT to hang up.2. Later, press the button again.3. Listen for a dial tone.4. Press the button. This will automatically redialthe last telephone number you called in TALK mode.5. When you have finished with your call, press thebutton again (the BASE UNIT IN USE LEDindicator will turn off) or place the HANDSET on theBASE UNIT.NOTE:If you are too far away from the BASE UNIT,theHANDSET emits “beep” sounds to warn youthat the background noise level is too high for proper communication between the HANDSETand the BASE UNIT. When you hear this sound, you should move closer to the BASE UNIT toreduce the noise level. Otherwise, the call will automatically cut off.talktalktalkCCoorrddlleessssTTeelleepphhoonneeOOppeerraattiioonn

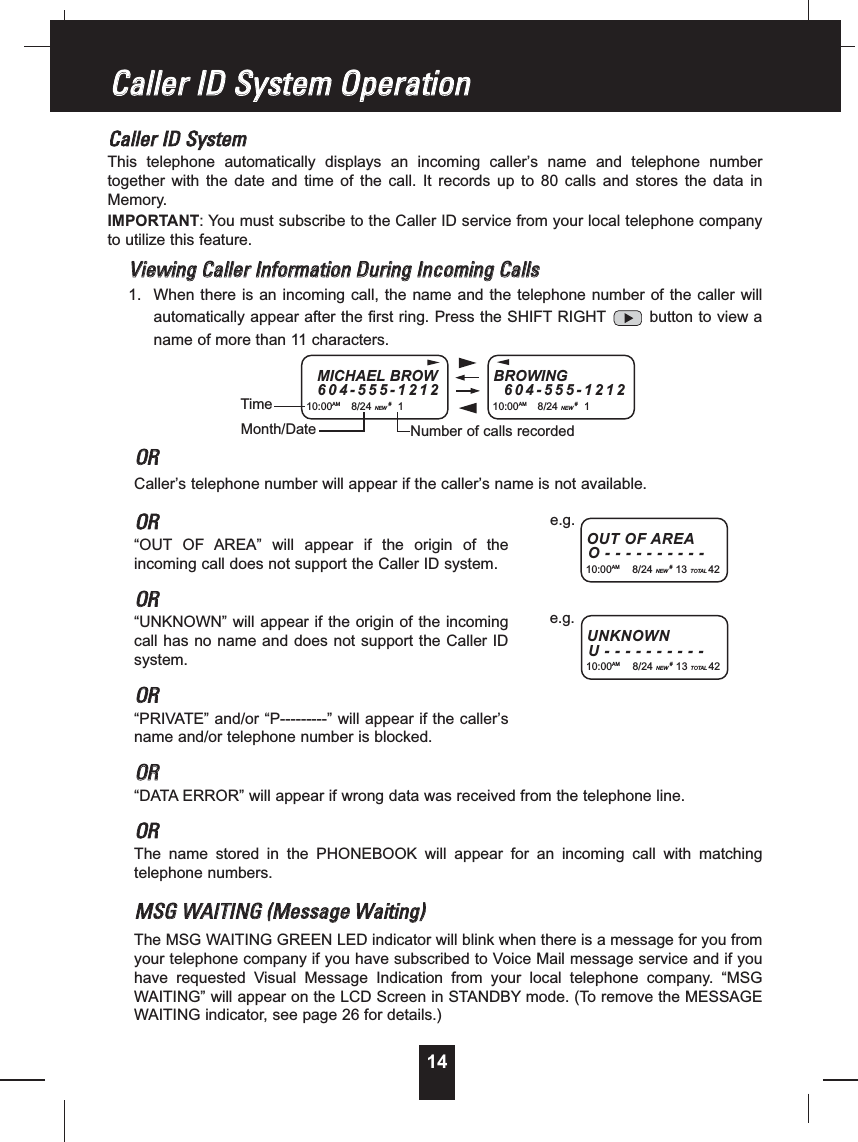

14CCaalllleerrIIDDSSyysstteemmThis telephone automatically displays an incoming caller’s name and telephone numbertogether with the date and time of the call. It records up to 80 calls and stores the data inMemory.IMPORTANT: You must subscribe to the Caller ID service from your local telephone companyto utilize this feature.VViieewwiinnggCCaalllleerrIInnffoorrmmaattiioonnDDuurriinnggIInnccoommiinnggCCaallllss1. When there is an incoming call, the name and the telephone number of the caller willautomatically appear after the first ring. Press the SHIFT RIGHT button to view aname of more than 11 characters.OORRCaller’s telephone number will appear if the caller’s name is not available.OORR“OUT OF AREA” will appear if the origin of theincoming call does not support the Caller ID system.OORR“UNKNOWN” will appear if the origin of the incomingcall has no name and does not support the Caller IDsystem.OORR“PRIVATE” and/or “P---------” will appear if the caller’sname and/or telephone number is blocked.OORR“DATA ERROR” will appear if wrong data was received from the telephone line.OORRThe name stored in the PHONEBOOK will appear for an incoming call with matchingtelephone numbers.MMSSGGWWAAIITTIINNGG((MMeessssaaggeeWWaaiittiinngg))The MSG WAITING GREEN LED indicator will blink when there is a message for you fromyour telephone company if you have subscribed to Voice Mail message service and if youhave requested Visual Message Indication from your local telephone company. “MSGWAITING” will appear on the LCD Screen in STANDBY mode. (To remove the MESSAGEWAITING indicator, see page 26 for details.)CCaalllleerrIIDDSSyysstteemmOOppeerraattiioonnMICHAEL BROW604-555-121210:00AM 8/24 NEW #1TimeBROWING604-555-121210:00AM 8/24 NEW #1Month/Date Number of calls recordedOUT OF AREAO----------10:00AM 8/24 NEW #13 TOTAL 42e.g.UNKNOWNU----------10:00AM 8/24 NEW #13 TOTAL 42e.g.

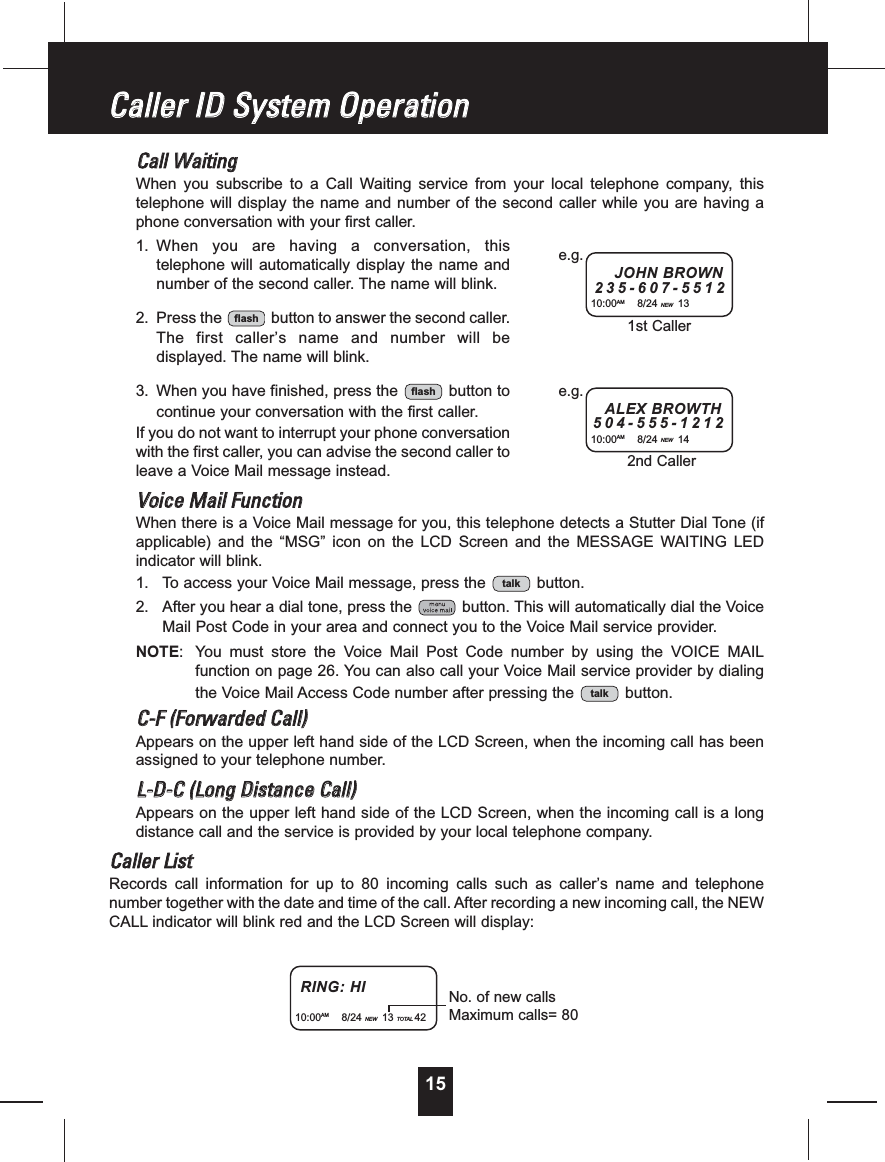

15CCaallllWWaaiittiinnggWhen you subscribe to a Call Waiting service from your local telephone company, thistelephone will display the name and number of the second caller while you are having aphone conversation with your first caller.1. When you are having a conversation, thistelephone will automatically display the name andnumber of the second caller. The name will blink.2. Press the button to answer the second caller.The first caller’s name and number will bedisplayed. The name will blink.3. When you have finished, press the button tocontinue your conversation with the first caller.If you do not want to interrupt your phone conversationwith the first caller, you can advise the second caller toleave a Voice Mail message instead.VVooiicceeMMaaiillFFuunnccttiioonnWhen there is a Voice Mail message for you, this telephone detects a Stutter Dial Tone (ifapplicable) and the “MSG” icon on the LCD Screen and the MESSAGE WAITING LEDindicator will blink.1. To access your Voice Mail message, press the button.2. After you hear a dial tone, press the button. This will automatically dial the VoiceMail Post Code in your area and connect you to the Voice Mail service provider.NOTE: You must store the Voice Mail Post Code number by using the VOICE MAILfunction on page 26. You can also call your Voice Mail service provider by dialingthe Voice Mail Access Code number after pressing the button.CC--FF((FFoorrwwaarrddeeddCCaallll))Appears on the upper left hand side of the LCD Screen, when the incoming call has beenassigned to your telephone number.LL--DD--CC((LLoonnggDDiissttaanncceeCCaallll))Appears on the upper left hand side of the LCD Screen, when the incoming call is a longdistance call and the service is provided by your local telephone company.CCaalllleerrLLiissttRecords call information for up to 80 incoming calls such as caller’s name and telephonenumber together with the date and time of the call. After recording a new incoming call, the NEWCALL indicator will blink red and the LCD Screen will display:talktalkflashflashCCaalllleerrIIDDSSyysstteemmOOppeerraattiioonnJOHN BROWN235-607-551210:00AM 8/24 NEW 13e.g.ALEX BROWTH504-555-121210:00AM 8/24 NEW 14e.g.1st Caller2nd CallerRING: HI10:00AM 8/24 NEW 13 TOTAL 42No. of new callsMaximum calls= 80

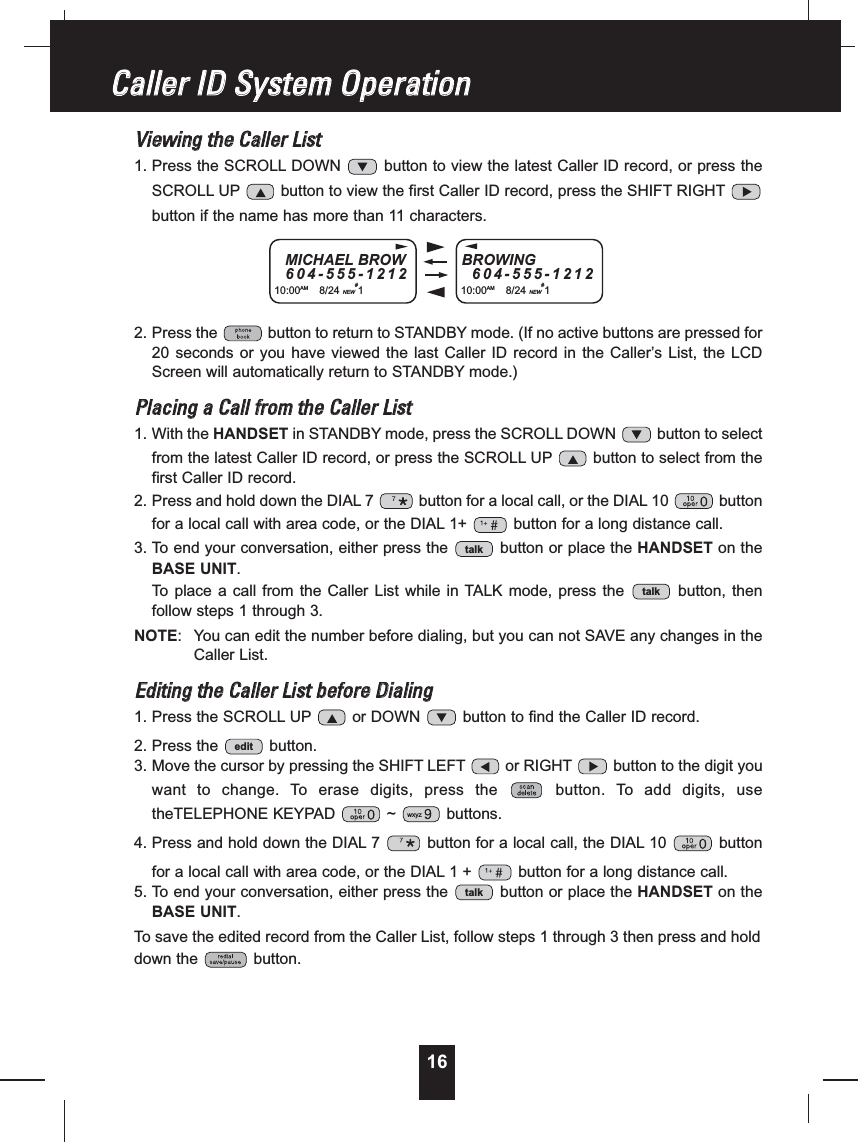

16VViieewwiinnggtthheeCCaalllleerrLLiisstt1. Press the SCROLL DOWN button to view the latest Caller ID record, or press theSCROLL UP button to view the first Caller ID record, press the SHIFT RIGHTbutton if the name has more than 11 characters.2. Press the button to return to STANDBY mode. (If no active buttons are pressed for20 seconds or you have viewed the last Caller ID record in the Caller’s List, the LCDScreen will automatically return to STANDBY mode.)PPllaacciinnggaaCCaallllffrroommtthheeCCaalllleerrLLiisstt1. With the HANDSET in STANDBY mode, press the SCROLL DOWN button to selectfrom the latest Caller ID record, or press the SCROLL UP button to select from thefirst Caller ID record.2. Press and hold down the DIAL 7 button for a local call, or the DIAL 10 buttonfor a local call with area code, or the DIAL 1+ button for a long distance call.3. To end your conversation, either press the button or place the HANDSET on theBASE UNIT.To place a call from the Caller List while in TALK mode, press the button, thenfollow steps 1 through 3.NOTE: You can edit the number before dialing, but you can not SAVE any changes in theCaller List.EEddiittiinnggtthheeCCaalllleerrLLiissttbbeeffoorreeDDiiaalliinngg1. Press the SCROLL UP or DOWN button to find the Caller ID record.2. Press the button.3. Move the cursor by pressing the SHIFT LEFT or RIGHT button to the digit youwant to change. To erase digits, press the button. To add digits, usetheTELEPHONE KEYPAD ~ buttons.4. Press and hold down the DIAL 7 button for a local call, the DIAL 10 buttonfor a local call with area code, or the DIAL 1 + button for a long distance call.5. To end your conversation, either press the button or place the HANDSET on theBASE UNIT.To save the edited record from the Caller List, follow steps 1 through 3 then press and holddown the button.talkwxyzedittalktalkCCaalllleerrIIDDSSyysstteemmOOppeerraattiioonnMICHAEL BROW604-555-121210:00AM 8/24 NEW#1BROWING604-555-121210:00AM 8/24 NEW#1

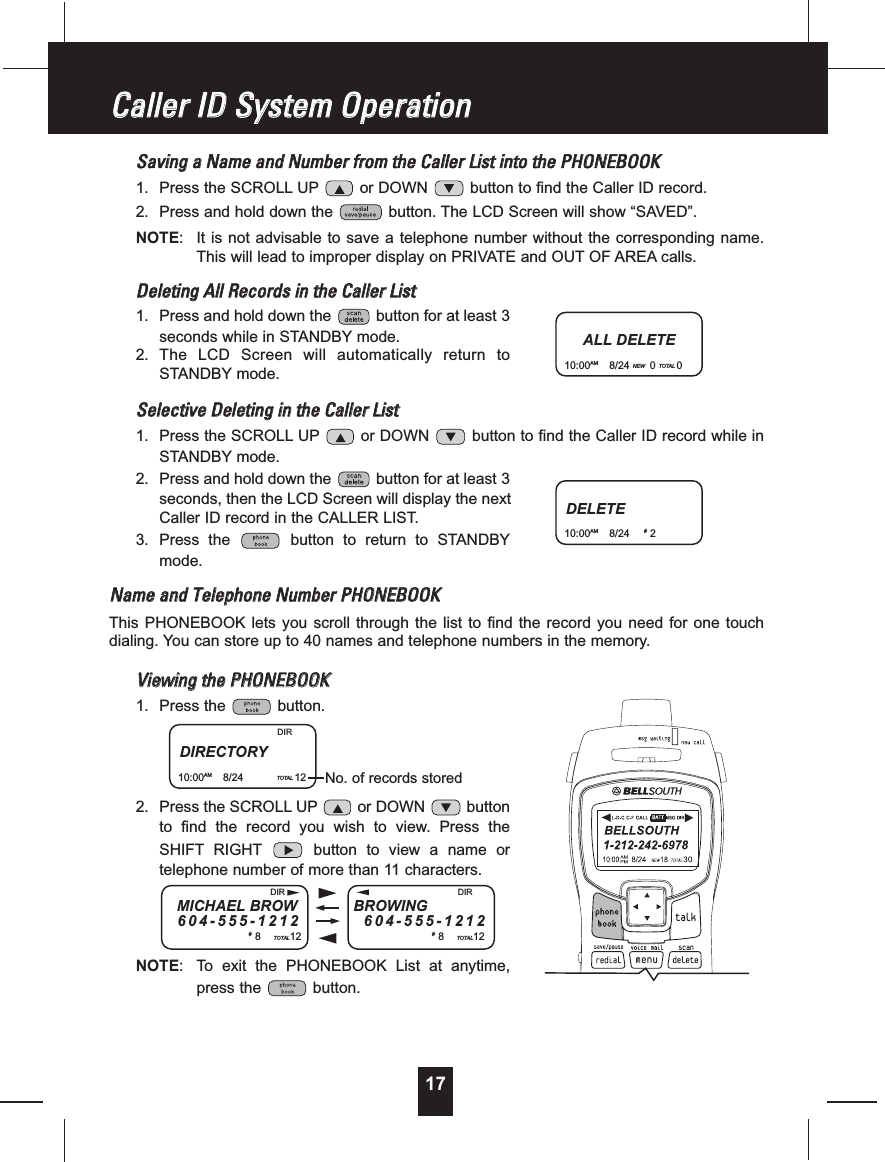

17SSaavviinnggaaNNaammeeaannddNNuummbbeerrffrroommtthheeCCaalllleerrLLiissttiinnttootthheePPHHOONNEEBBOOOOKK1. Press the SCROLL UP or DOWN button to find the Caller ID record.2. Press and hold down the button. The LCD Screen will show “SAVED”.NOTE: It is not advisable to save a telephone number without the corresponding name.This will lead to improper display on PRIVATE and OUT OF AREA calls.DDeelleettiinnggAAllllRReeccoorrddssiinntthheeCCaalllleerrLLiisstt1. Press and hold down the button for at least 3seconds while in STANDBY mode.2. The LCD Screen will automatically return toSTANDBY mode.SSeelleeccttiivveeDDeelleettiinnggiinntthheeCCaalllleerrLLiisstt1. Press the SCROLL UP or DOWN button to find the Caller ID record while inSTANDBY mode.2. Press and hold down the button for at least 3seconds, then the LCD Screen will display the nextCaller ID record in the CALLER LIST.3. Press the button to return to STANDBYmode.NNaammeeaannddTTeelleepphhoonneeNNuummbbeerrPPHHOONNEEBBOOOOKKThis PHONEBOOK lets you scroll through the list to find the record you need for one touchdialing. You can store up to 40 names and telephone numbers in the memory.VViieewwiinnggtthheePPHHOONNEEBBOOOOKK1. Press the button.2. Press the SCROLL UP or DOWN buttonto find the record you wish to view. Press theSHIFT RIGHT button to view a name ortelephone number of more than 11 characters.NOTE: To exit the PHONEBOOK List at anytime,press the button.CCaalllleerrIIDDSSyysstteemmOOppeerraattiioonnALL DELETE10:00AM 8/24 NEW 0TOTAL 0DELETE10:00AM 8/24 #2DIRECTORY10:00AM 8/24 TOTAL 12DIRNo. of records storedMICHAEL BROW604-555-1212#8TOTAL12BROWING604-555-1212#8TOTAL12DIR DIR

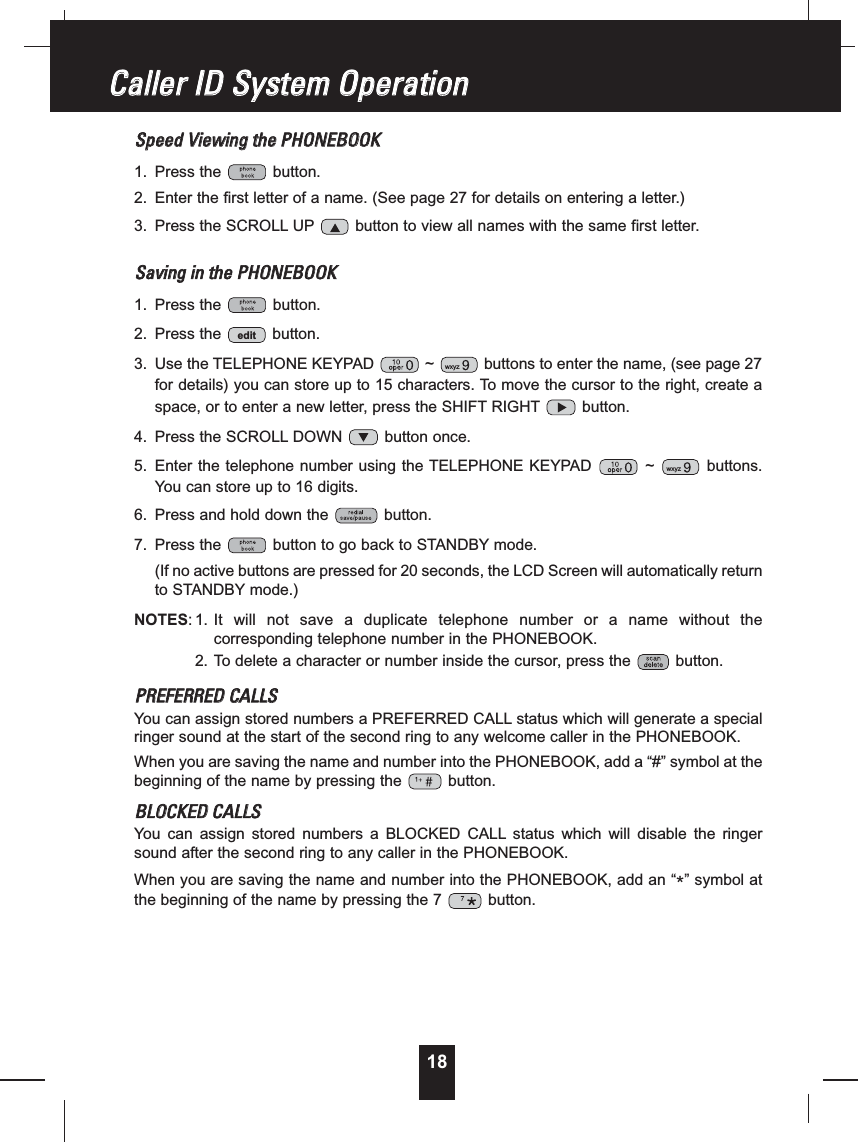

18SSppeeeeddVViieewwiinnggtthheePPHHOONNEEBBOOOOKK1. Press the button.2. Enter the first letter of a name. (See page 27 for details on entering a letter.)3. Press the SCROLL UP button to view all names with the same first letter.SSaavviinnggiinntthheePPHHOONNEEBBOOOOKK1. Press the button.2. Press the button.3. Use the TELEPHONE KEYPAD ~ buttons to enter the name, (see page 27for details) you can store up to 15 characters. To move the cursor to the right, create aspace, or to enter a new letter, press the SHIFT RIGHT button.4. Press the SCROLL DOWN button once.5. Enter the telephone number using the TELEPHONE KEYPAD ~ buttons.You can store up to 16 digits.6. Press and hold down the button.7. Press the button to go back to STANDBY mode.(If no active buttons are pressed for 20 seconds, the LCD Screen will automatically returnto STANDBY mode.)NOTES: 1. It will not save a duplicate telephone number or a name without thecorresponding telephone number in the PHONEBOOK.2. To delete a character or number inside the cursor, press the button.PPRREEFFEERRRREEDDCCAALLLLSSYou can assign stored numbers a PREFERRED CALL status which will generate a specialringer sound at the start of the second ring to any welcome caller in the PHONEBOOK.When you are saving the name and number into the PHONEBOOK, add a “#” symbol at thebeginning of the name by pressing the button.BBLLOOCCKKEEDDCCAALLLLSSYou can assign stored numbers a BLOCKED CALL status which will disable the ringersound after the second ring to any caller in the PHONEBOOK.When you are saving the name and number into the PHONEBOOK, add an “*” symbol atthe beginning of the name by pressing the 7 button.wxyzwxyzeditCCaalllleerrIIDDSSyysstteemmOOppeerraattiioonn
