I Tel 0402 900MHz / 5.8GHz CORDLESS PHONE HANDSET User Manual GH5816 UserMan

I-Tel Corporation 900MHz / 5.8GHz CORDLESS PHONE HANDSET GH5816 UserMan

Contents

users manual 2

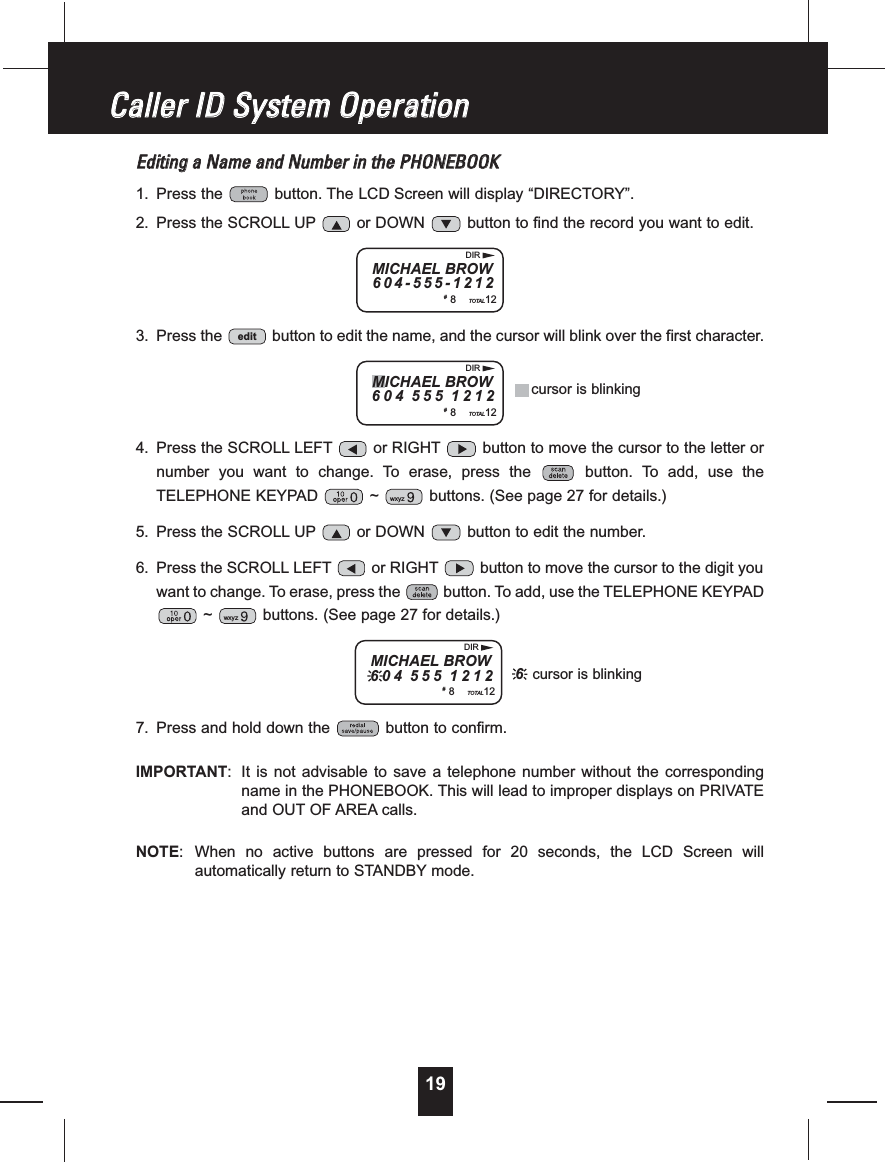

19EEddiittiinnggaaNNaammeeaannddNNuummbbeerriinntthheePPHHOONNEEBBOOOOKK1. Press the button. The LCD Screen will display “DIRECTORY”.2. Press the SCROLL UP or DOWN button to find the record you want to edit.3. Press the button to edit the name, and the cursor will blink over the first character.4. Press the SCROLL LEFT or RIGHT button to move the cursor to the letter ornumber you want to change. To erase, press the button. To add, use theTELEPHONE KEYPAD ~ buttons. (See page 27 for details.)5. Press the SCROLL UP or DOWN button to edit the number.6. Press the SCROLL LEFT or RIGHT button to move the cursor to the digit youwant to change. To erase, press the button. To add, use the TELEPHONE KEYPAD~ buttons. (See page 27 for details.)7. Press and hold down the button to confirm.IMPORTANT: It is not advisable to save a telephone number without the correspondingname in the PHONEBOOK. This will lead to improper displays on PRIVATEand OUT OF AREA calls.NOTE: When no active buttons are pressed for 20 seconds, the LCD Screen willautomatically return to STANDBY mode.wxyzwxyzeditCCaalllleerrIIDDSSyysstteemmOOppeerraattiioonnMICHAEL BROW604-555-1212#8TOTAL12DIRMICHAEL BROW604 555 1212#8TOTAL12DIR6cursor is blinkingMICHAEL BROW604 555 1212#8TOTAL12DIRcursor is blinking

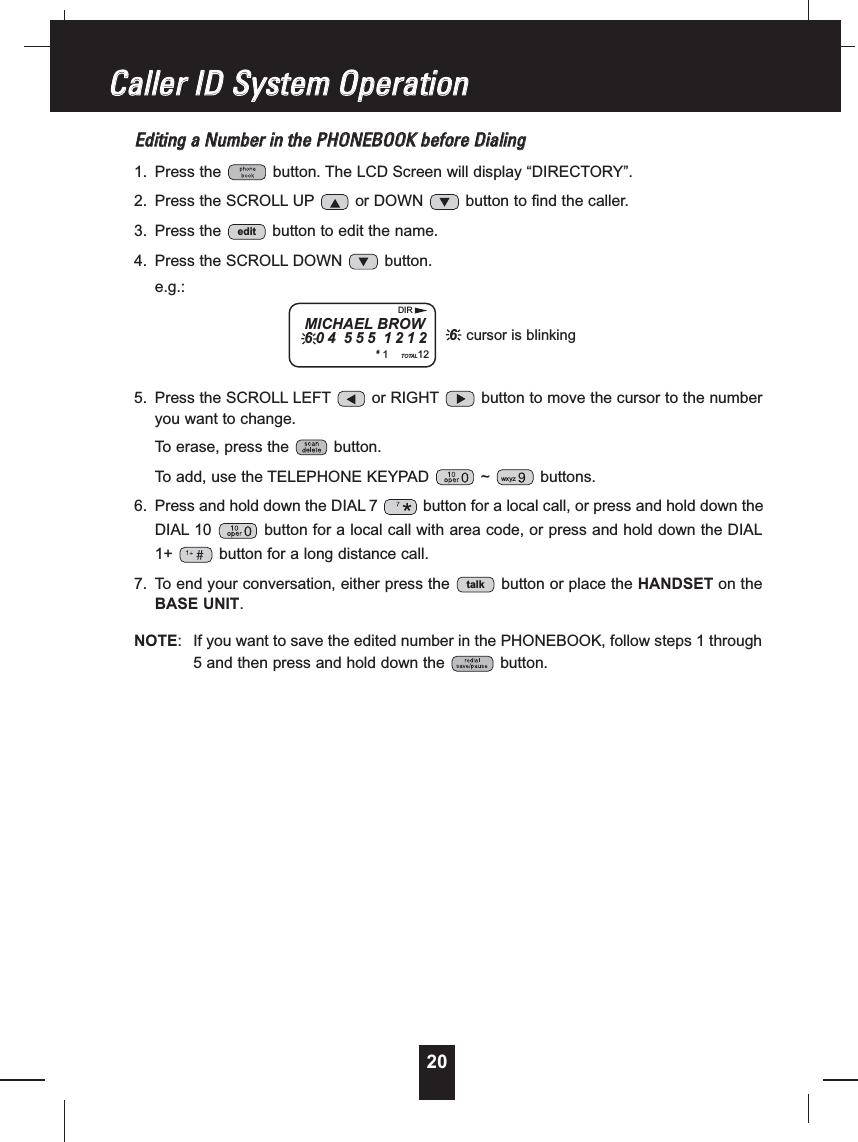

EEddiittiinnggaaNNuummbbeerriinntthheePPHHOONNEEBBOOOOKKbbeeffoorreeDDiiaalliinngg1. Press the button. The LCD Screen will display “DIRECTORY”.2. Press the SCROLL UP or DOWN button to find the caller.3. Press the button to edit the name.4. Press the SCROLL DOWN button.e.g.:5. Press the SCROLL LEFT or RIGHT button to move the cursor to the numberyou want to change.To erase, press the button.To add, use the TELEPHONE KEYPAD ~ buttons.6. Press and hold down the DIAL 7 button for a local call, or press and hold down theDIAL 10 button for a local call with area code, or press and hold down the DIAL1+ button for a long distance call.7. To end your conversation, either press the button or place the HANDSET on theBASE UNIT.NOTE: If you want to save the edited number in the PHONEBOOK, follow steps 1 through5 and then press and hold down the button.talkwxyzedit20MICHAEL BROW604 555 1212#1TOTAL12DIR6cursor is blinkingCCaalllleerrIIDDSSyysstteemmOOppeerraattiioonn

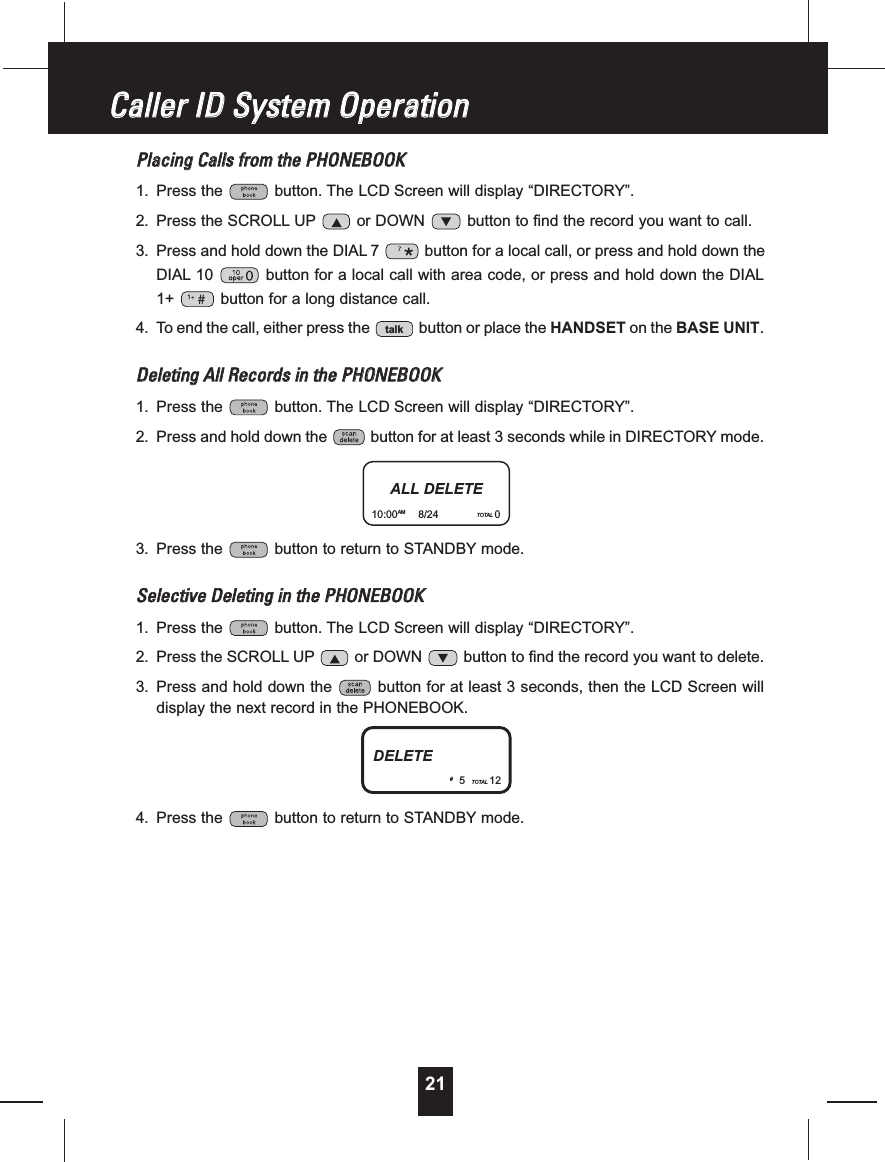

21PPllaacciinnggCCaallllssffrroommtthheePPHHOONNEEBBOOOOKK1. Press the button. The LCD Screen will display “DIRECTORY”.2. Press the SCROLL UP or DOWN button to find the record you want to call.3. Press and hold down the DIAL 7 button for a local call, or press and hold down theDIAL 10 button for a local call with area code, or press and hold down the DIAL1+ button for a long distance call.4. To end the call, either press the button or place the HANDSET on the BASE UNIT.DDeelleettiinnggAAllllRReeccoorrddssiinntthheePPHHOONNEEBBOOOOKK1. Press the button. The LCD Screen will display “DIRECTORY”.2. Press and hold down the button for at least 3 seconds while in DIRECTORY mode.3. Press the button to return to STANDBY mode.SSeelleeccttiivveeDDeelleettiinnggiinntthheePPHHOONNEEBBOOOOKK1. Press the button. The LCD Screen will display “DIRECTORY”.2. Press the SCROLL UP or DOWN button to find the record you want to delete.3. Press and hold down the button for at least 3 seconds, then the LCD Screen willdisplay the next record in the PHONEBOOK.4. Press the button to return to STANDBY mode.talkCCaalllleerrIIDDSSyysstteemmOOppeerraattiioonnALL DELETE10:00AM 8/24 TOTAL 0DELETE#5TOTAL 12

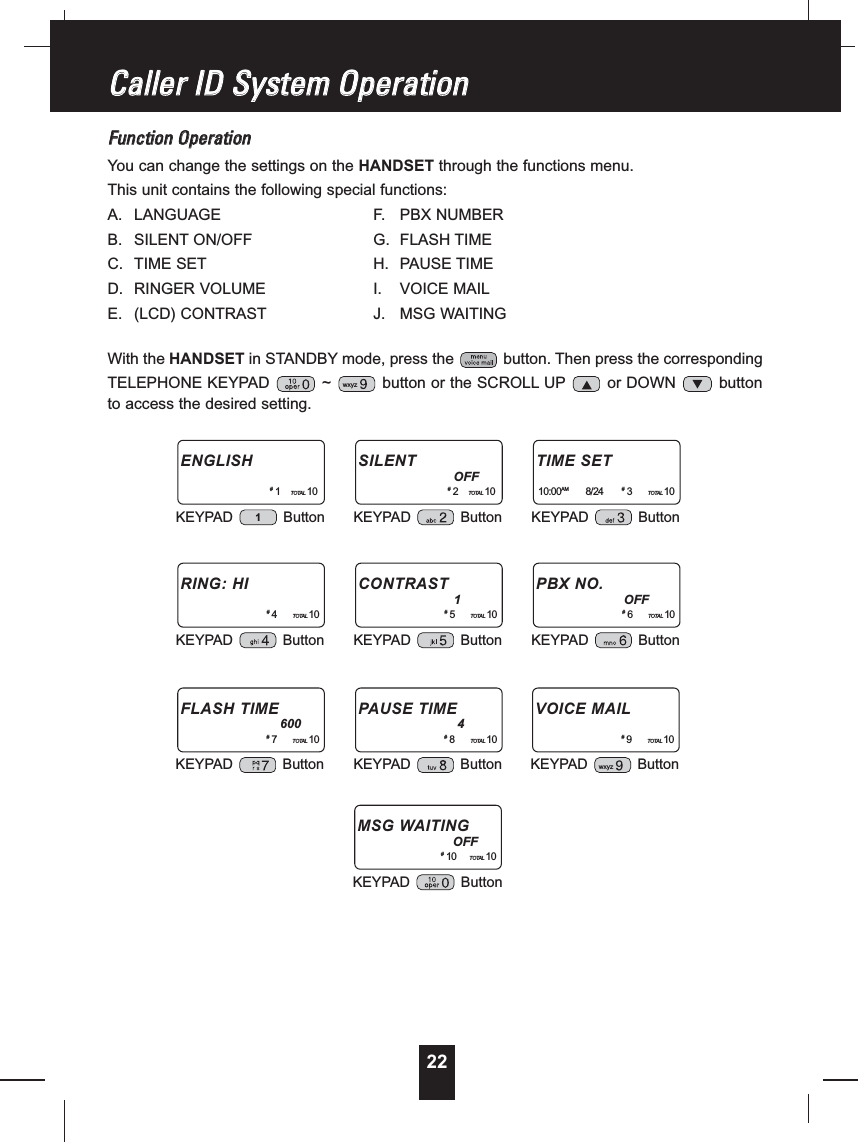

22FFuunnccttiioonnOOppeerraattiioonnYou can change the settings on the HANDSET through the functions menu.This unit contains the following special functions:A. LANGUAGE F. PBX NUMBERB. SILENT ON/OFF G. FLASH TIMEC. TIME SET H. PAUSE TIMED. RINGER VOLUME I. VOICE MAILE. (LCD) CONTRAST J. MSG WAITINGWith the HANDSET in STANDBY mode, press the button. Then press the correspondingTELEPHONE KEYPAD ~ button or the SCROLL UP or DOWN buttonto access the desired setting.wxyzCCaalllleerrIIDDSSyysstteemmOOppeerraattiioonnENGLISH#1TOTAL 10KEYPAD Button1SILENTOFF#2TOTAL 10KEYPAD ButtonTIME SET10:00AM 8/24 #3TOTAL 10KEYPAD ButtonRING: HI#4TOTAL 10KEYPAD ButtonCONTRAST1#5TOTAL 10KEYPAD ButtonPBX NO.OFF#6TOTAL 10KEYPAD ButtonFLASH TIME600#7TOTAL 10KEYPAD ButtonPAUSE TIME4#8TOTAL 10KEYPAD ButtonVOICE MAIL#9TOTAL 10KEYPAD ButtonwxyzMSG WAITINGOFF#10 TOTAL 10KEYPAD Button

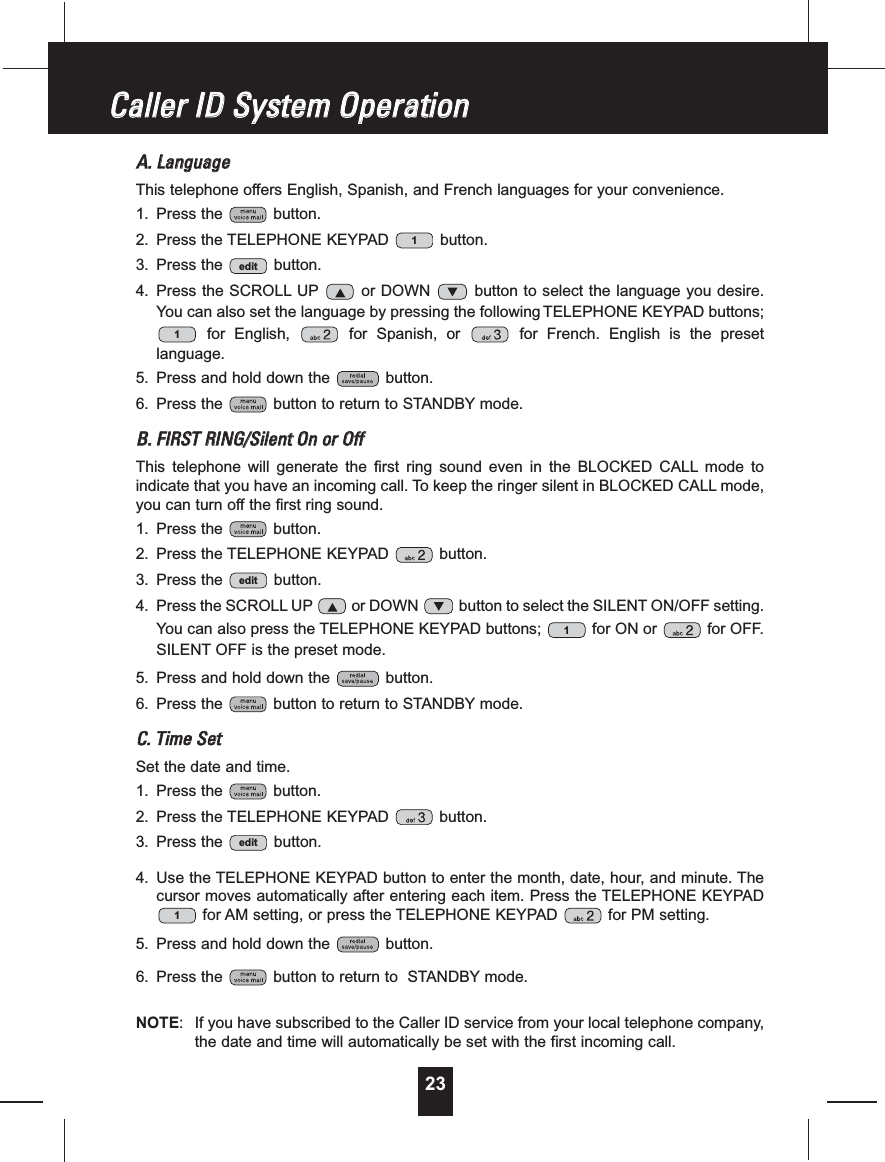

AA..LLaanngguuaaggeeThis telephone offers English, Spanish, and French languages for your convenience.1. Press the button.2. Press the TELEPHONE KEYPAD button.3. Press the button.4. Press the SCROLL UP or DOWN button to select the language you desire.You can also set the language by pressing the following TELEPHONE KEYPAD buttons;for English, for Spanish, or for French. English is the presetlanguage.5. Press and hold down the button.6. Press the button to return to STANDBY mode.BB..FFIIRRSSTTRRIINNGG//SSiilleennttOOnnoorrOOffffThis telephone will generate the first ring sound even in the BLOCKED CALL mode toindicate that you have an incoming call. To keep the ringer silent in BLOCKED CALL mode,you can turn off the first ring sound.1. Press the button.2. Press the TELEPHONE KEYPAD button.3. Press the button.4. Press the SCROLL UP or DOWN button to select the SILENT ON/OFF setting.You can also press the TELEPHONE KEYPAD buttons; for ON or for OFF.SILENT OFF is the preset mode.5. Press and hold down the button.6. Press the button to return to STANDBY mode.CC..TTiimmeeSSeettSet the date and time.1. Press the button.2. Press the TELEPHONE KEYPAD button.3. Press the button.4. Use the TELEPHONE KEYPAD button to enter the month, date, hour, and minute. Thecursor moves automatically after entering each item. Press the TELEPHONE KEYPADfor AM setting, or press the TELEPHONE KEYPAD for PM setting.5. Press and hold down the button.6. Press the button to return to STANDBY mode.NOTE: If you have subscribed to the Caller ID service from your local telephone company,the date and time will automatically be set with the first incoming call.1edit1edit1edit1CCaalllleerrIIDDSSyysstteemmOOppeerraattiioonn23
DD..RRiinnggeerrVVoolluummeeThis function enables you to adjust the ringer volume to HI, LOW, or OFF as desired.1. Press the button.2. Press the TELEPHONE KEYPAD button.3. Press the button.4. Press the SCROLL UP or DOWN button to adjust the ringer volume asneeded. You can also adjust the ringer volume by pressing the following TELEPHONEKEYPAD buttons; for HI, for LOW, or for OFF. HI is the preset ringervolume.5. Press and hold down the button.6. Press the button to go back to STANDBY mode.EE..LLCCDDCCoonnttrraassttThis unit enables you to select 8 brightness levels for the Large LCD Screen.1. Press the button.2. Press the TELEPHONE KEYPAD button.3. Press the button.4. Press the SCROLL UP or DOWN button to adjust the brightness of the LCDScreen. Level 1 is the preset brightness.5. Press and hold down the button.6. Press the button to go back to STANDBY mode.FF..PPBBXXNNuummbbeerrThis unit enables you to preset the PBX number (such as an 8 or 9) while you are using aswitchboard system.1. Press the button.2. Press the TELEPHONE KEYPAD button.3. Press the button.4. Press the SCROLL UP or DOWN button. (OFF is the preset PBX number.)PBX MODE OFF - set for direct line access.5. Press and hold down the button.6. Press the button to go back to STANDBY mode.NOTE: When placing a call by using the DIAL 7 , or the DIAL 10 , or the DIAL1+ button, this telephone will automatically add the PBX number and a pausetime before the dialed telephone numbers.editedit1editCCaalllleerrIIDDSSyysstteemmOOppeerraattiioonn24

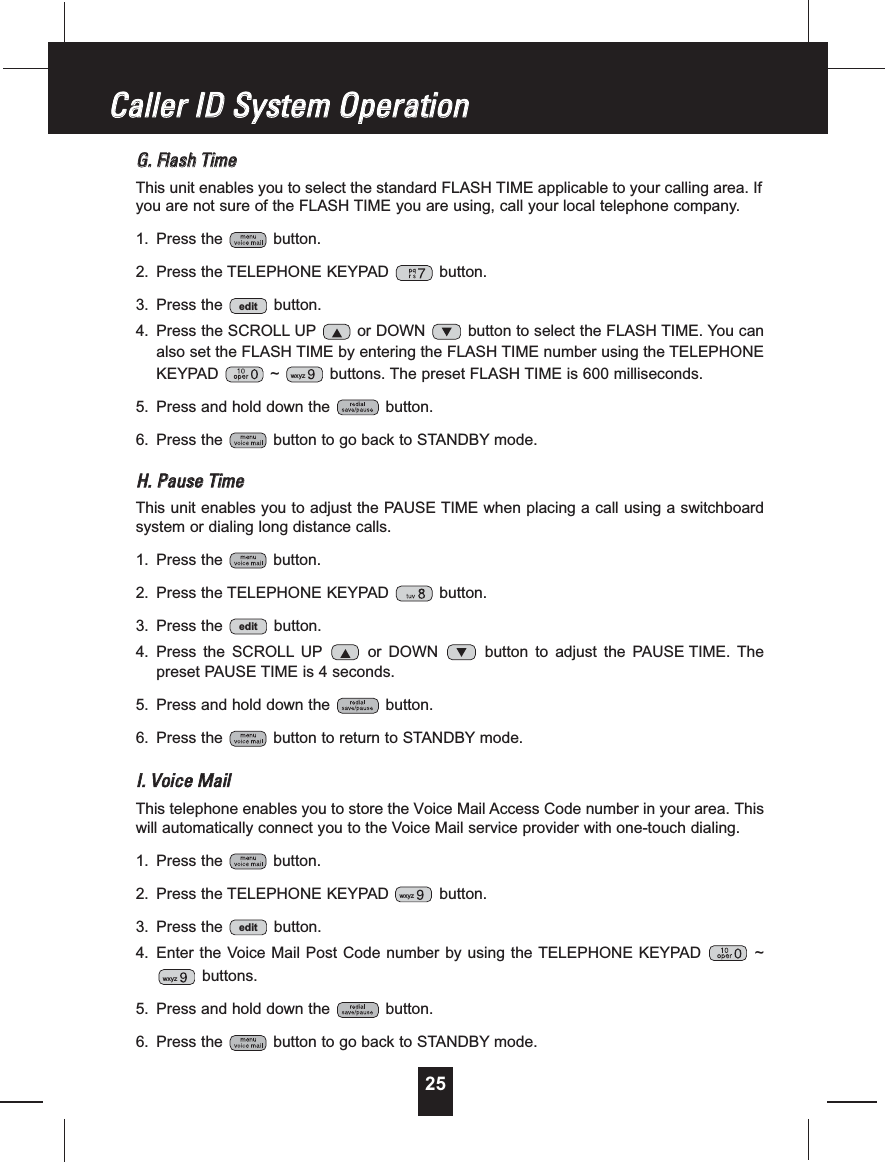

GG..FFllaasshhTTiimmeeThis unit enables you to select the standard FLASH TIME applicable to your calling area. Ifyou are not sure of the FLASH TIME you are using, call your local telephone company.1. Press the button.2. Press the TELEPHONE KEYPAD button.3. Press the button.4. Press the SCROLL UP or DOWN button to select the FLASH TIME. You canalso set the FLASH TIME by entering the FLASH TIME number using the TELEPHONEKEYPAD ~ buttons. The preset FLASH TIME is 600 milliseconds.5. Press and hold down the button.6. Press the button to go back to STANDBY mode.HH..PPaauusseeTTiimmeeThis unit enables you to adjust the PAUSE TIME when placing a call using a switchboardsystem or dialing long distance calls.1. Press the button.2. Press the TELEPHONE KEYPAD button.3. Press the button.4. Press the SCROLL UP or DOWN button to adjust the PAUSE TIME. Thepreset PAUSE TIME is 4 seconds.5. Press and hold down the button.6. Press the button to return to STANDBY mode.II..VVooiicceeMMaaiillThis telephone enables you to store the Voice Mail Access Code number in your area. Thiswill automatically connect you to the Voice Mail service provider with one-touch dialing.1. Press the button.2. Press the TELEPHONE KEYPAD button.3. Press the button.4. Enter the Voice Mail Post Code number by using the TELEPHONE KEYPAD ~buttons.5. Press and hold down the button.6. Press the button to go back to STANDBY mode.wxyzeditwxyzeditwxyzeditCCaalllleerrIIDDSSyysstteemmOOppeerraattiioonn25

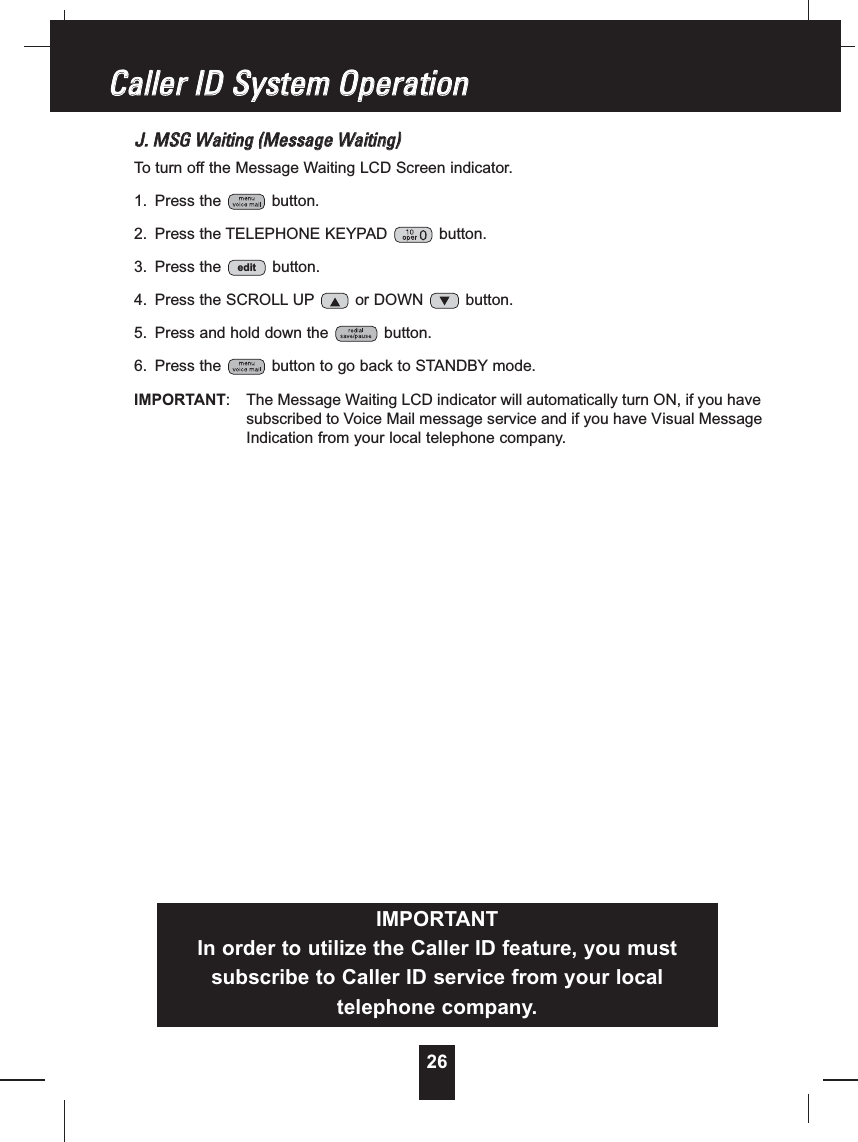

26IMPORTANTIn order to utilize the Caller ID feature, you mustsubscribe to Caller ID service from your localtelephone company.JJ..MMSSGGWWaaiittiinngg((MMeessssaaggeeWWaaiittiinngg))To turn off the Message Waiting LCD Screen indicator.1. Press the button.2. Press the TELEPHONE KEYPAD button.3. Press the button.4. Press the SCROLL UP or DOWN button.5. Press and hold down the button.6. Press the button to go back to STANDBY mode.IMPORTANT: The Message Waiting LCD indicator will automatically turn ON, if you havesubscribed to Voice Mail message service and if you have Visual MessageIndication from your local telephone company.editCCaalllleerrIIDDSSyysstteemmOOppeerraattiioonn
27TTeelleepphhoonneeKKeeyyppaaddCChhaarraacctteerrssThe TELEPHONE KEYPAD ~ buttons are used to enter characters when enteringnames. Press the appropriate TELEPHONE KEYPAD button to get the following characters.EXAMPLE:If you want to enter the characters “ACE” on the HANDSET LCD Screen.1. Press the button. The LCD Screen will display “DIRECTORY”.2. Press the button.3. Press the TELEPHONE KEYPAD button, “A” will be displayed. Press the SHIFTRIGHT button to move the cursor to the right to enter the next character (See NOTESbelow.).4. Press the TELEPHONE KEYPAD button three times to display “C”.5. Press the TELEPHONE KEYPAD button two times to display “E”.NOTES:1. To enter the next character, press the appropriate button. If, however, the next character ison the same button as the previous character, you will first need to press the SHIFT RIGHTbutton. Pressing the SHIFT RIGHT button a second time will produce a space.2. If you want to change any character, you can go back to the incorrect character by pressingthe SHIFT LEFT button. To delete the character inside the cursor “ ”, press thebutton.3. You can store a maximum of 15 characters on the letter icon.4. You can store a maximum of 16 digits on the number icon.editwxyzCCaalllleerrIIDDSSyysstteemmOOppeerraattiioonnKEYPADBUTTONS123456789*0#CHARACTERSSPACE&’()*.1ABC2DEF3GHI4JKL5MNO6PQRS7TUV8WXYZ9*0#

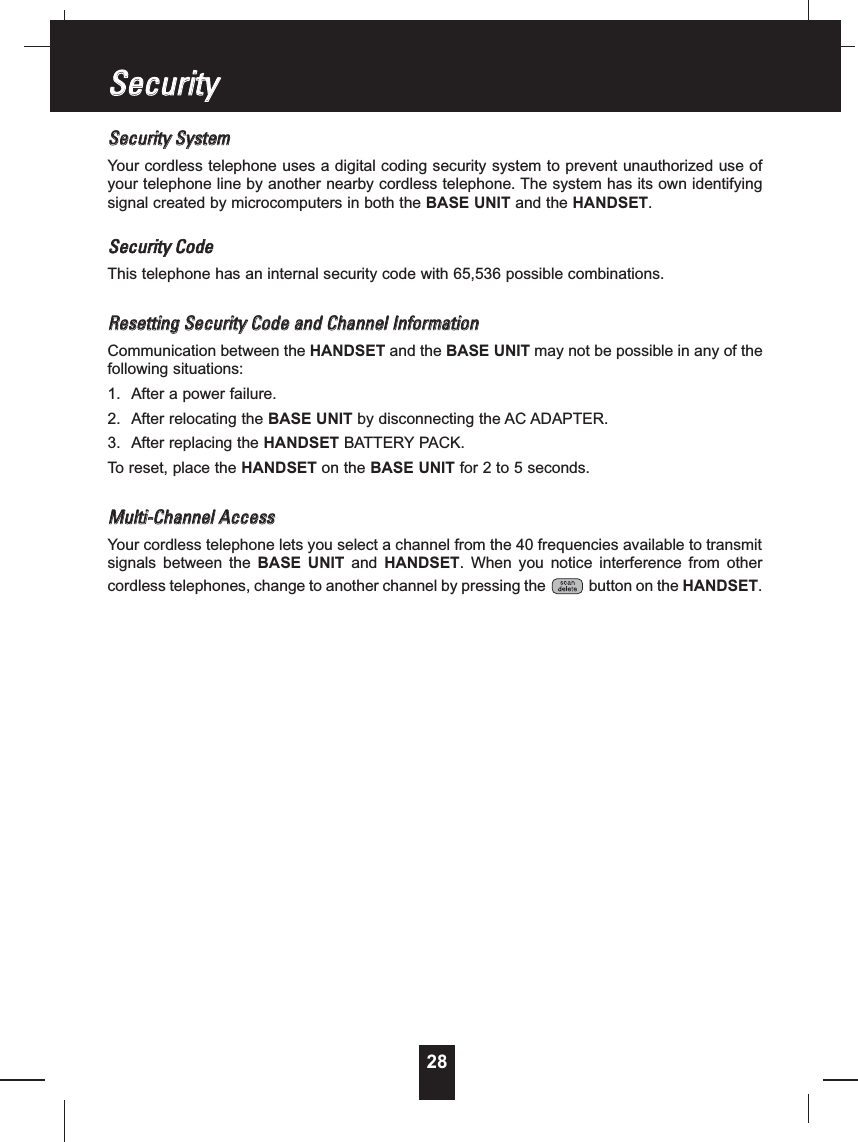

28SSeeccuurriittyySSyysstteemmYour cordless telephone uses a digital coding security system to prevent unauthorized use ofyour telephone line by another nearby cordless telephone. The system has its own identifyingsignal created by microcomputers in both the BASE UNIT and the HANDSET.SSeeccuurriittyyCCooddeeThis telephone has an internal security code with 65,536 possible combinations.RReesseettttiinnggSSeeccuurriittyyCCooddeeaannddCChhaannnneellIInnffoorrmmaattiioonnCommunication between the HANDSET and the BASE UNIT may not be possible in any of thefollowing situations:1. After a power failure.2. After relocating the BASE UNIT by disconnecting the AC ADAPTER.3. After replacing the HANDSET BATTERY PACK.To reset, place the HANDSET on the BASE UNIT for 2 to 5 seconds.MMuullttii--CChhaannnneellAAcccceessssYour cordless telephone lets you select a channel from the 40 frequencies available to transmitsignals between the BASE UNIT and HANDSET. When you notice interference from othercordless telephones, change to another channel by pressing the button on the HANDSET.SSeeccuurriittyy

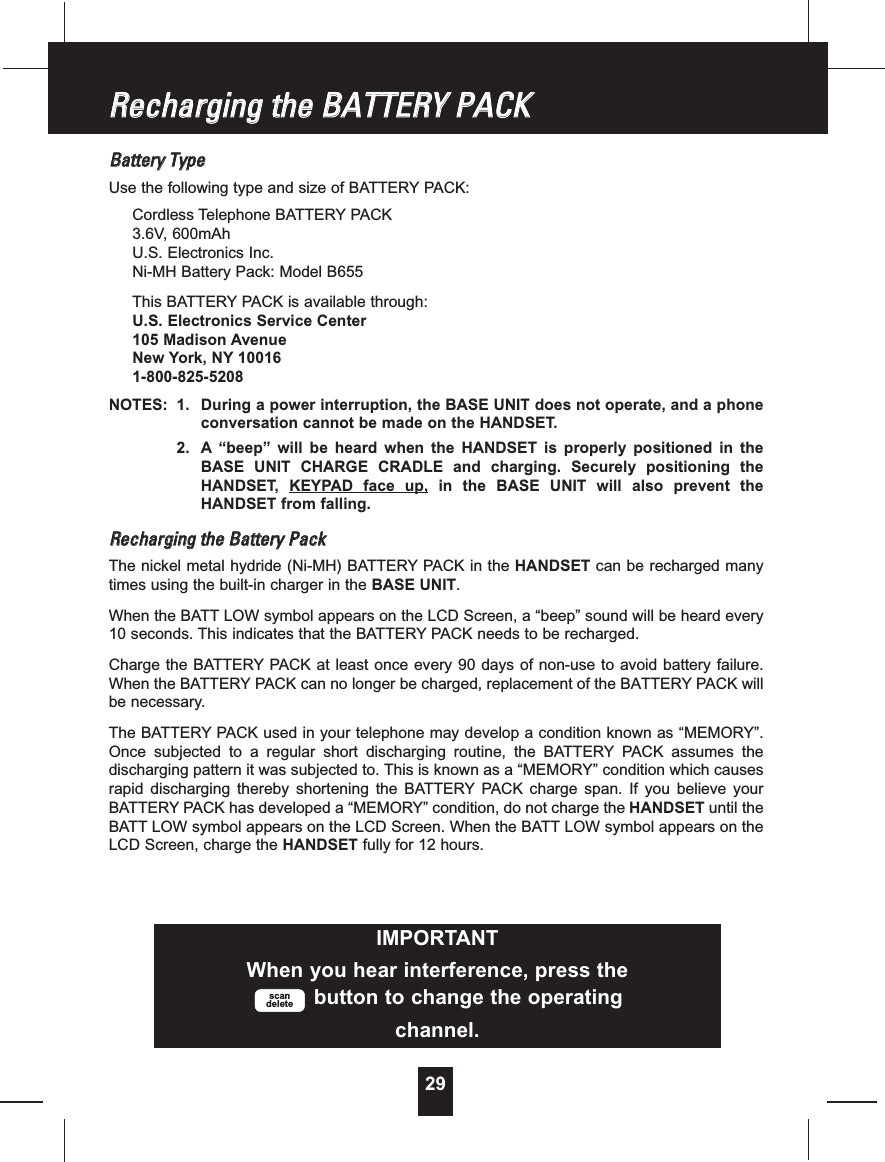

29BBaatttteerryyTTyyppeeUse the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6V, 600mAhU.S. Electronics Inc.Ni-MH Battery Pack: Model B655This BATTERY PACK is available through:U.S. Electronics Service Center105 Madison AvenueNew York, NY 100161-800-825-5208NOTES: 1. During a power interruption, the BASE UNIT does not operate, and a phoneconversation cannot be made on the HANDSET.2. A “beep” will be heard when the HANDSET is properly positioned in theBASE UNIT CHARGE CRADLE and charging. Securely positioning theHANDSET, KEYPAD face up, in the BASE UNIT will also prevent theHANDSET from falling.RReecchhaarrggiinnggtthheeBBaatttteerryyPPaacckkThe nickel metal hydride (Ni-MH) BATTERY PACK in the HANDSET can be recharged manytimes using the built-in charger in the BASE UNIT.When the BATT LOW symbol appears on the LCD Screen, a “beep” sound will be heard every10 seconds. This indicates that the BATTERY PACK needs to be recharged.Charge the BATTERY PACK at least once every 90 days of non-use to avoid battery failure.When the BATTERY PACK can no longer be charged, replacement of the BATTERY PACK willbe necessary.The BATTERY PACK used in your telephone may develop a condition known as “MEMORY”.Once subjected to a regular short discharging routine, the BATTERY PACK assumes thedischarging pattern it was subjected to. This is known as a “MEMORY” condition which causesrapid discharging thereby shortening the BATTERY PACK charge span. If you believe yourBATTERY PACK has developed a “MEMORY” condition, do not charge the HANDSET until theBATT LOW symbol appears on the LCD Screen. When the BATT LOW symbol appears on theLCD Screen, charge the HANDSET fully for 12 hours.RReecchhaarrggiinnggtthheeBBAATTTTEERRYYPPAACCKKIMPORTANTWhen you hear interference, press thebutton to change the operatingchannel.scandelete

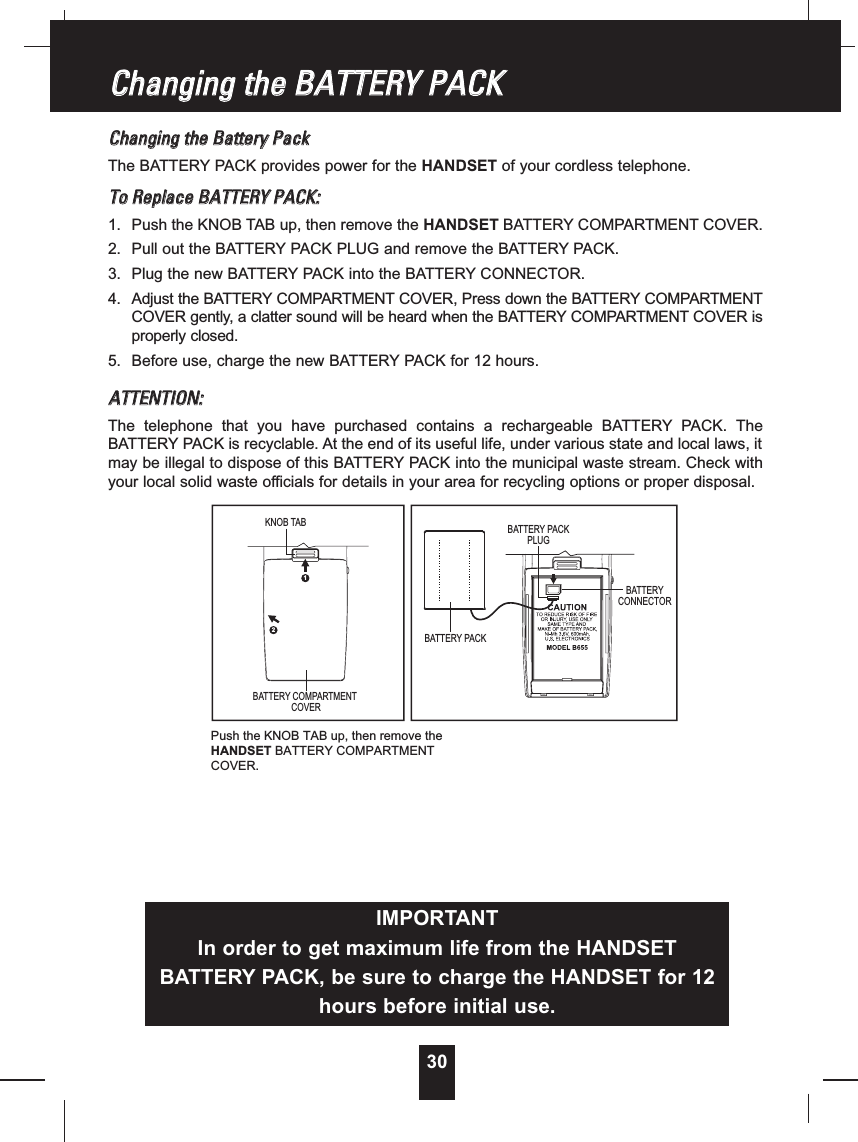

30BATTERYCONNECTORBATTERY PACKBATTERY PACKPLUG12Push the KNOB TAB up, then remove theHANDSET BATTERY COMPARTMENTCOVER.BATTERY COMPARTMENTCOVERKNOB TABCChhaannggiinnggtthheeBBaatttteerryyPPaacckkThe BATTERY PACK provides power for the HANDSET of your cordless telephone.TTooRReeppllaacceeBBAATTTTEERRYYPPAACCKK::1. Push the KNOB TAB up, then remove the HANDSET BATTERY COMPARTMENT COVER.2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK.3. Plug the new BATTERY PACK into the BATTERY CONNECTOR.4. Adjust the BATTERY COMPARTMENT COVER, Press down the BATTERY COMPARTMENTCOVER gently, a clatter sound will be heard when the BATTERY COMPARTMENT COVER isproperly closed.5. Before use, charge the new BATTERY PACK for 12 hours.AATTTTEENNTTIIOONN::The telephone that you have purchased contains a rechargeable BATTERY PACK. TheBATTERY PACK is recyclable. At the end of its useful life, under various state and local laws, itmay be illegal to dispose of this BATTERY PACK into the municipal waste stream. Check withyour local solid waste officials for details in your area for recycling options or proper disposal.CChhaannggiinnggtthheeBBAATTTTEERRYYPPAACCKKIMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSET for 12hours before initial use.

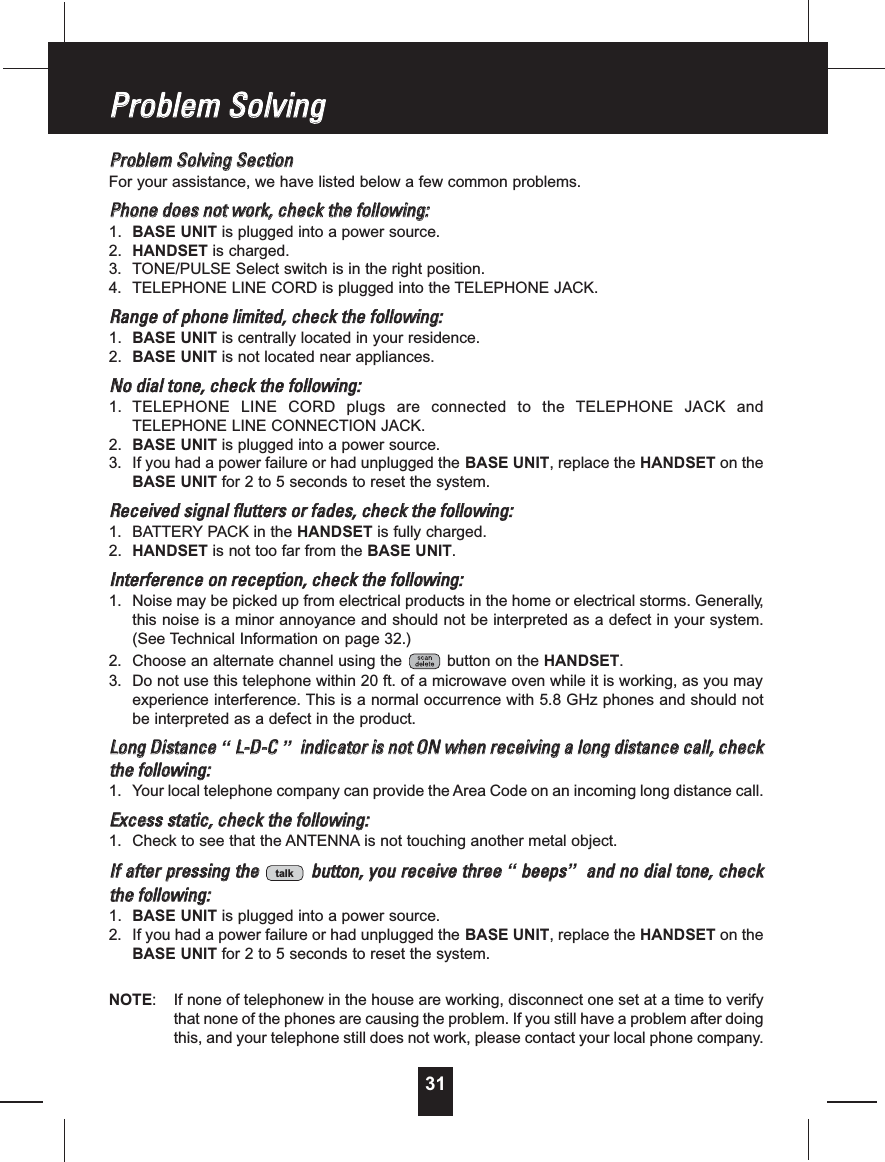

31PPrroobblleemmSSoollvviinnggSSeeccttiioonnFor your assistance, we have listed below a few common problems.PPhhoonneeddooeessnnoottwwoorrkk,,cchheecckktthheeffoolllloowwiinngg::1. BASE UNIT is plugged into a power source.2. HANDSET is charged.3. TONE/PULSE Select switch is in the right position.4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.RRaannggeeooffpphhoonneelliimmiitteedd,,cchheecckktthheeffoolllloowwiinngg::1. BASE UNIT is centrally located in your residence.2. BASE UNIT is not located near appliances.NNooddiiaallttoonnee,,cchheecckktthheeffoolllloowwiinngg::1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK andTELEPHONE LINE CONNECTION JACK.2. BASE UNIT is plugged into a power source.3. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET on theBASE UNIT for 2 to 5 seconds to reset the system.RReecceeiivveeddssiiggnnaallfflluutttteerrssoorrffaaddeess,,cchheecckktthheeffoolllloowwiinngg::1. BATTERY PACK in the HANDSET is fully charged.2. HANDSET is not too far from the BASE UNIT.IInntteerrffeerreenncceeoonnrreecceeppttiioonn,,cchheecckktthheeffoolllloowwiinngg::1. Noise may be picked up from electrical products in the home or electrical storms. Generally,this noise is a minor annoyance and should not be interpreted as a defect in your system.(See Technical Information on page 32.)2. Choose an alternate channel using the button on the HANDSET.3. Do not use this telephone within 20 ft. of a microwave oven while it is working, as you mayexperience interference. This is a normal occurrence with 5.8 GHz phones and should notbe interpreted as a defect in the product.LLoonnggDDiissttaannccee“LL--DD--CC”iinnddiiccaattoorriissnnoottOONNwwhheennrreecceeiivviinnggaalloonnggddiissttaanncceeccaallll,,cchheecckktthheeffoolllloowwiinngg::1. Your local telephone company can provide the Area Code on an incoming long distance call.EExxcceessssssttaattiicc,,cchheecckktthheeffoolllloowwiinngg::1. Check to see that the ANTENNA is not touching another metal object.IIffaafftteerrpprreessssiinnggtthheebbuuttttoonn,,yyoouurreecceeiivveetthhrreeee“bbeeeeppss”aannddnnooddiiaallttoonnee,,cchheecckktthheeffoolllloowwiinngg::1. BASE UNIT is plugged into a power source.2. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET on theBASE UNIT for 2 to 5 seconds to reset the system.NOTE: If none of telephonew in the house are working, disconnect one set at a time to verifythat none of the phones are causing the problem. If you still have a problem after doingthis, and your telephone still does not work, please contact your local phone company.talkPPrroobblleemmSSoollvviinngg
32IMPORTANTWhen you hear interference, press thebutton to change the operatingchannel.TTeecchhnniiccaallIInnffoorrmmaattiioonnThis cordless telephone uses radio frequencies to allow mobility. There are certain difficulties inusing radio frequencies with a cordless telephone. While these are normal, the following couldaffect the operation of your system.NNooiisseeElectrical pulse noise is present in most homes at one time or another. This noise is mostintense during electrical storms. Certain kinds of electrical equipment such as light dimmers,fluorescent bulbs, motors, and fans also generate noise pulses. Because radio frequencies aresusceptible to these noise pulses, you may occasionally hear them in your HANDSET.Generally they are a minor annoyance and should not be interpreted as a defect in your system.RRaannggeeBecause radio frequency is used, the location of the BASE UNIT can affect the operating range.Try several locations in your home or office and pick the one that gives you the clearest signalto the HANDSET.IInntteerrffeerreenncceeElectronic circuits activate a relay to connect the cordless telephone to your telephone line.These electronic circuits operate in the radio frequency spectrum. While several protectioncircuits are used to prevent unwanted signals, there may be periods when these unwantedsignals enter the BASE UNIT. You may hear clicks or hear the relay activate while you are notusing the HANDSET. If the interference occurs frequently, it can be minimized or eliminated byrelocating the BASE UNIT. You can check for interference before selecting the final BASE UNITlocation by plugging in the telephone.NNOOTTIICCEE::This cordless telephone uses radio communication between the HANDSET and the BASEUNIT and may not ensure privacy of communication. Other devices, including another cordlesstelephone, may interfere with the operation of this cordless telephone or cause noise duringoperation. Units not containing coded access may be accessed by other radio communicationsystems. Cordless telephones must not cause interference to any licensed radio service.TTeecchhmmiiccaallIInnffoorrmmaattiioonn
33FFeeddeerraallCCoommmmuunniiccaattiioonnssCCoommmmiissssiioonnRReeqquuiirreemmeennttssThis equipment complies with Part 68 of the FCC rules. A label on the BASE UNIT of theequipment contains, among other information, the ACTA Product Number and the RingerEquivalence Number (REN) for this equipment. You must, upon request, provide thisinformation to your telephone company.The REN is also useful in determining the number of devices that you may connect to yourtelephone line and still allow all of these devices to ring when your telephone number is called.In most, but not all areas, the sum of the RENs of all devices connected to one line should notexceed five (5.0). To be certain of the number of devices that you may connect to your line,contact your local telephone company.If your equipment should cause harm to the telephone network, the telephone company maytemporarily disconnect your service. If possible, they will notify you in advance that temporarydiscontinuance of service may be required.However, when advance written notice is not possible, the telephone company may temporarilydiscontinue service without notice if such action is necessary under the circumstances. Thetelephone company may make changes in its communication facilities, equipment, operations,or procedures where such action is reasonably required in the operation of its business and isnot inconsistent with the rules and regulations of the Federal Communications Commission.Do not attempt to repair or modify this equipment.Warning: Changes or modifications not expressly approved by the party responsible for itscompliance could void the user’s authority to operate the equipment.Some cordless telephones operate at frequencies that may cause interference to nearby TV’sand VCR’s. To minimize or prevent such interference, the BASE UNIT of the cordless telephoneshould not be placed on or near a TV or VCR. If interference is experienced, moving thecordless telephone farther away from the TV or VCR will often reduce or eliminate theinterference.This equipment should not be used on coin telephone lines. Connection to party line service issubject to state tariffs. If trouble is experienced, disconnect this equipment from the telephoneline to determine if it is causing the malfunction. If the equipment is determined to bemalfunctioning, its use should be discontinued until the problem has been corrected.FFCCCCRReeqquuiirreemmeennttssIMPORTANTPlacing your BASE UNIT near appliances such astelevisions, refrigerators, radios, or microwave ovensmay cause interference.

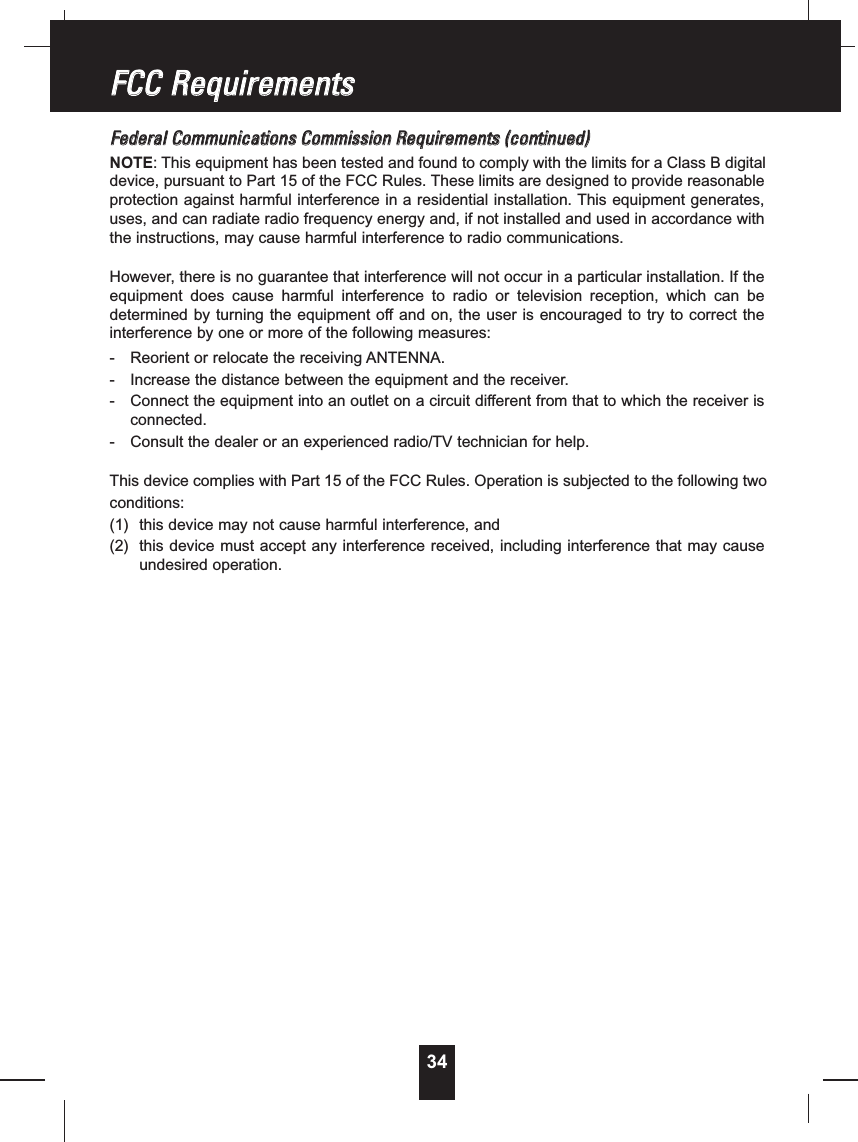

34FFeeddeerraallCCoommmmuunniiccaattiioonnssCCoommmmiissssiioonnRReeqquuiirreemmeennttss((ccoonnttiinnuueedd))NOTE: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates,uses, and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If theequipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:- Reorient or relocate the receiving ANTENNA.- Increase the distance between the equipment and the receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.- Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subjected to the following twoconditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation.FFCCCCRReeqquuiirreemmeennttss

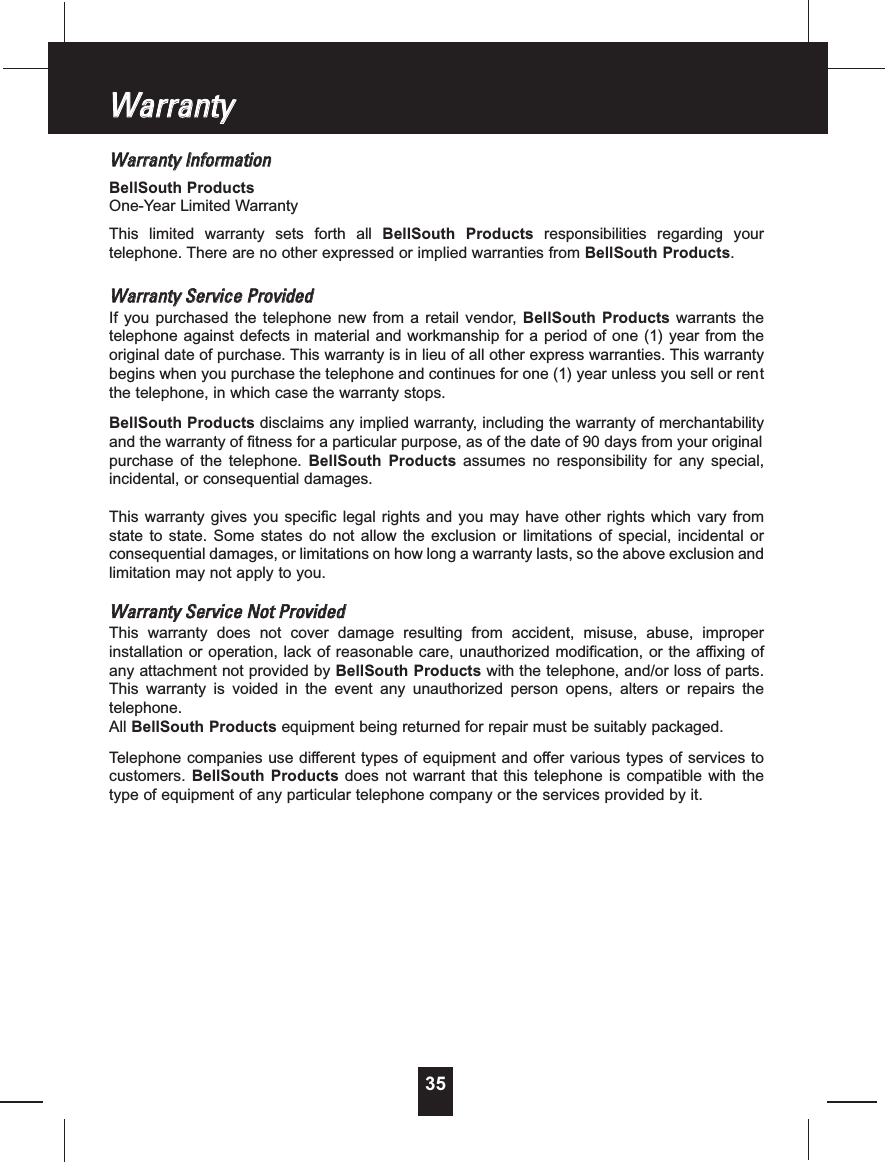

35WWaarrrraannttyyIInnffoorrmmaattiioonnBellSouth ProductsOne-Year Limited WarrantyThis limited warranty sets forth all BellSouth Products responsibilities regarding yourtelephone. There are no other expressed or implied warranties from BellSouth Products.WWaarrrraannttyySSeerrvviicceePPrroovviiddeeddIf you purchased the telephone new from a retail vendor, BellSouth Products warrants thetelephone against defects in material and workmanship for a period of one (1) year from theoriginal date of purchase. This warranty is in lieu of all other express warranties. This warrantybegins when you purchase the telephone and continues for one (1) year unless you sell or rentthe telephone, in which case the warranty stops.BellSouth Products disclaims any implied warranty, including the warranty of merchantabilityand the warranty of fitness for a particular purpose, as of the date of 90 days from your originalpurchase of the telephone. BellSouth Products assumes no responsibility for any special,incidental, or consequential damages.This warranty gives you specific legal rights and you may have other rights which vary fromstate to state. Some states do not allow the exclusion or limitations of special, incidental orconsequential damages, or limitations on how long a warranty lasts, so the above exclusion andlimitation may not apply to you.WWaarrrraannttyySSeerrvviicceeNNoottPPrroovviiddeeddThis warranty does not cover damage resulting from accident, misuse, abuse, improperinstallation or operation, lack of reasonable care, unauthorized modification, or the affixing ofany attachment not provided by BellSouth Products with the telephone, and/or loss of parts.This warranty is voided in the event any unauthorized person opens, alters or repairs thetelephone.All BellSouth Products equipment being returned for repair must be suitably packaged.Telephone companies use different types of equipment and offer various types of services tocustomers. BellSouth Products does not warrant that this telephone is compatible with thetype of equipment of any particular telephone company or the services provided by it.WWaarrrraannttyy

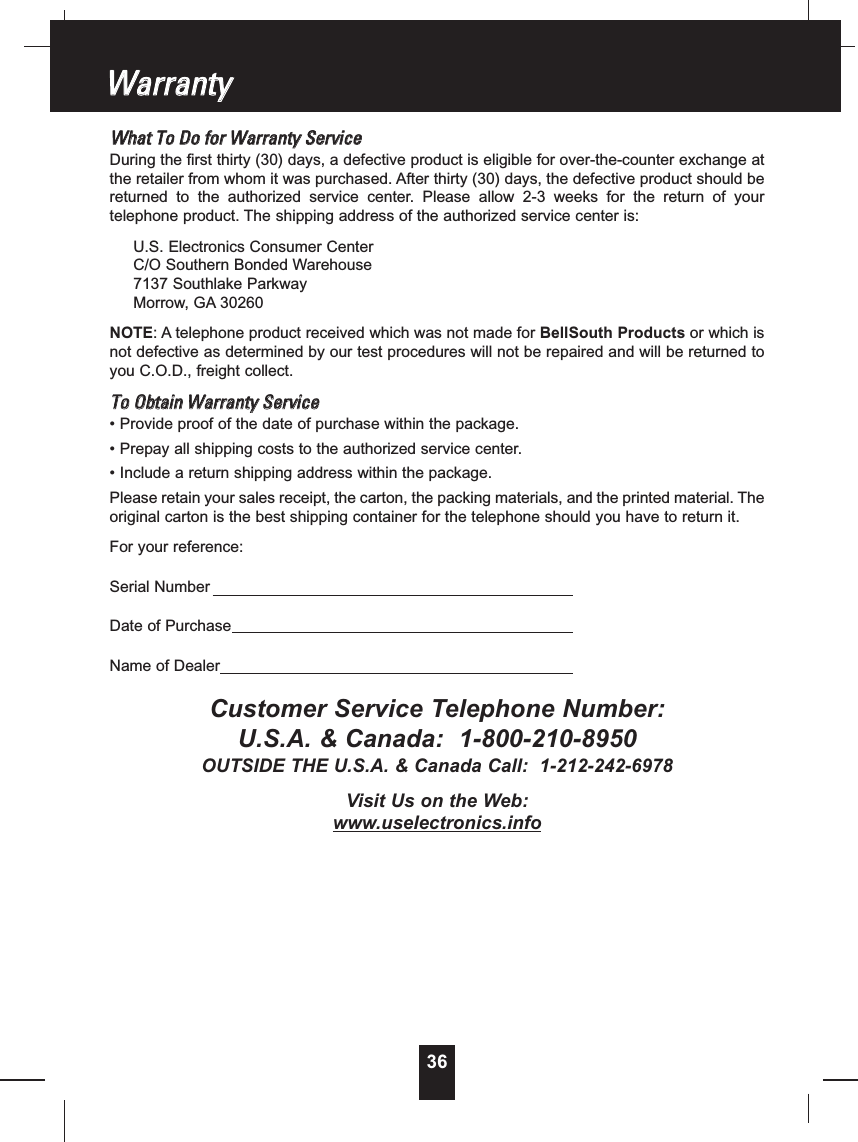

36WWhhaattTTooDDooffoorrWWaarrrraannttyySSeerrvviicceeDuring the first thirty (30) days, a defective product is eligible for over-the-counter exchange atthe retailer from whom it was purchased. After thirty (30) days, the defective product should bereturned to the authorized service center. Please allow 2-3 weeks for the return of yourtelephone product. The shipping address of the authorized service center is:U.S. Electronics Consumer CenterC/O Southern Bonded Warehouse7137 Southlake ParkwayMorrow, GA 30260NOTE: A telephone product received which was not made for BellSouth Products or which isnot defective as determined by our test procedures will not be repaired and will be returned toyou C.O.D., freight collect.TTooOObbttaaiinnWWaarrrraannttyySSeerrvviiccee• Provide proof of the date of purchase within the package.• Prepay all shipping costs to the authorized service center.• Include a return shipping address within the package.Please retain your sales receipt, the carton, the packing materials, and the printed material. Theoriginal carton is the best shipping container for the telephone should you have to return it.For your reference:Serial NumberDate of PurchaseName of DealerCustomer Service Telephone Number:U.S.A. & Canada: 1-800-210-8950OUTSIDE THE U.S.A. & Canada Call: 1-212-242-6978Visit Us on the Web:www.uselectronics.infoWWaarrrraannttyy

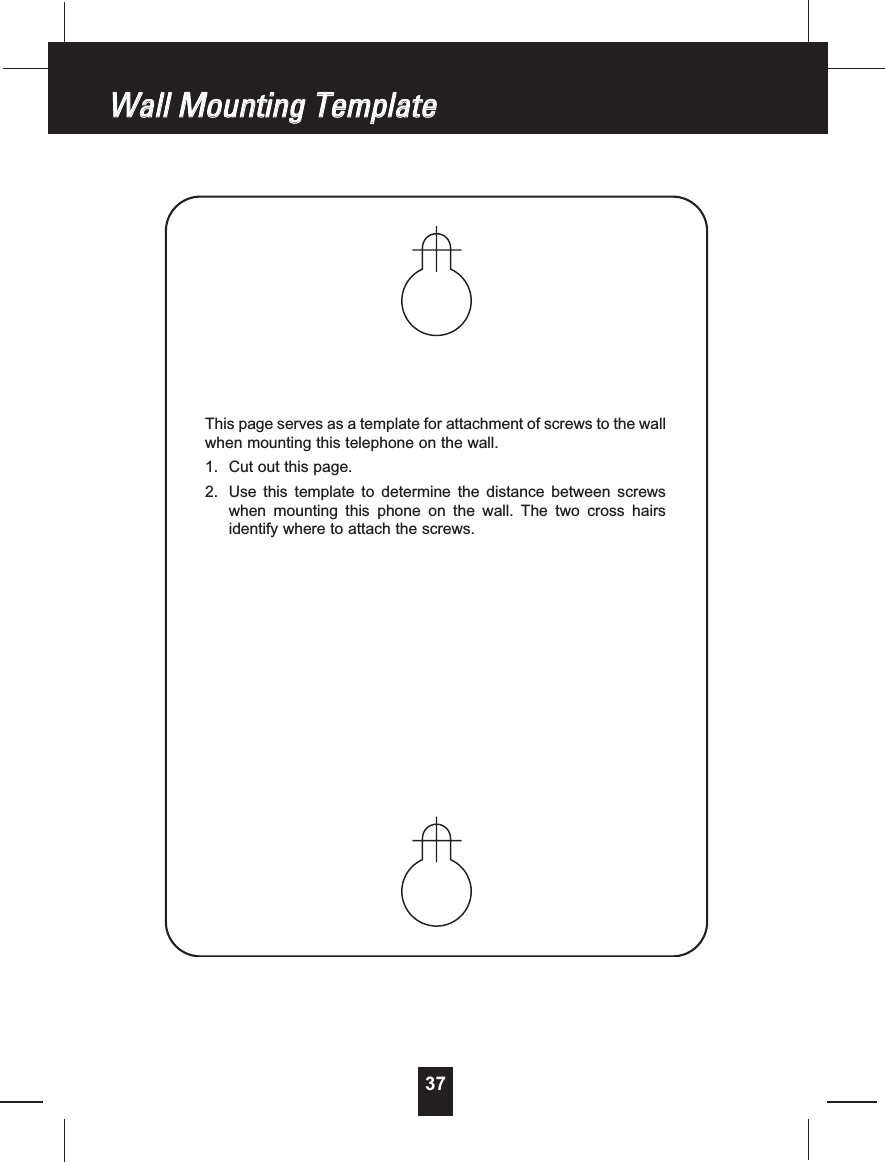

37This page serves as a template for attachment of screws to the wallwhen mounting this telephone on the wall.1. Cut out this page.2. Use this template to determine the distance between screwswhen mounting this phone on the wall. The two cross hairsidentify where to attach the screws.WWaallllMMoouunnttiinnggTTeemmppllaattee
38IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSET for 12hours before initial use.IMPORTANTPlacing your BASE UNIT near appliances such astelevisions, refrigerators, radios, or microwave ovensmay cause interference.IMPORTANTWhen you hear interference, press thebutton to change the operatingchannel.IMPORTANTThe AC ADAPTER must always be plugged into anelectrical outlet.IMPORTANTIf you live in an area which gets frequentthunderstorms, we strongly recommend plugging yourAC ADAPTER into a surge protector.IMPORTANTIn order to utilize the Caller ID feature, you mustsubscribe to Caller ID service from your localtelephone company.
Make certain you receive the bestperformance from your telephone.Read this manual first.Visit Us on the Web:www.uselectronics.infoMade in ChinaSTOP
