Users Manual Part II

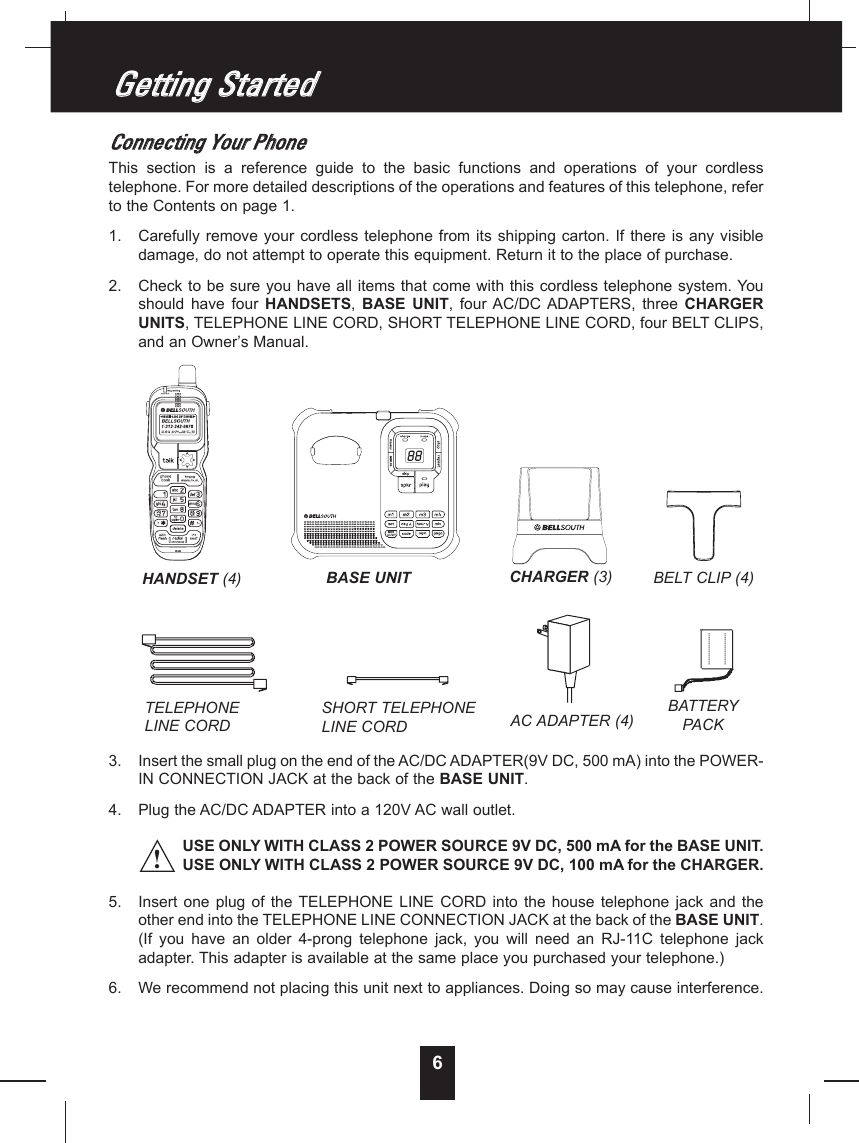

6CCoonnnneeccttiinngg YYoouurr PPhhoonneeThis section is a reference guide to the basic functions and operations of your cordlesstelephone. For more detailed descriptions of the operations and features of this telephone, referto the Contents on page 1.1. Carefully remove your cordless telephone from its shipping carton. If there is any visibledamage, do not attempt to operate this equipment. Return it to the place of purchase.2. Check to be sure you have all items that come with this cordless telephone system. Youshould have four HANDSETS, BASE UNIT, four AC/DC ADAPTERS, three CHARGERUNITS, TELEPHONE LINE CORD, SHORT TELEPHONE LINE CORD, four BELT CLIPS,and an Owner’s Manual.3. Insert the small plug on the end of the AC/DC ADAPTER(9V DC, 500 mA) into the POWER-IN CONNECTION JACK at the back of the BASE UNIT.4. Plug the AC/DC ADAPTER into a 120V AC wall outlet.USE ONLY WITH CLASS 2 POWER SOURCE 9V DC, 500 mA for the BASE UNIT.USE ONLY WITH CLASS 2 POWER SOURCE 9V DC, 100 mA for the CHARGER.5. Insert one plug of the TELEPHONE LINE CORD into the house telephone jack and theother end into the TELEPHONE LINE CONNECTION JACK at the back of the BASE UNIT.(If you have an older 4-prong telephone jack, you will need an RJ-11C telephone jackadapter. This adapter is available at the same place you purchased your telephone.)6. We recommend not placing this unit next to appliances. Doing so may cause interference.GGeettttiinngg SSttaarrtteedd!TELEPHONE LINE CORDSHORT TELEPHONE LINE CORDBELT CLIP (4)AC ADAPTER (4)BATTERYPACKHANDSET (4) BASE UNIT CHARGER (3)

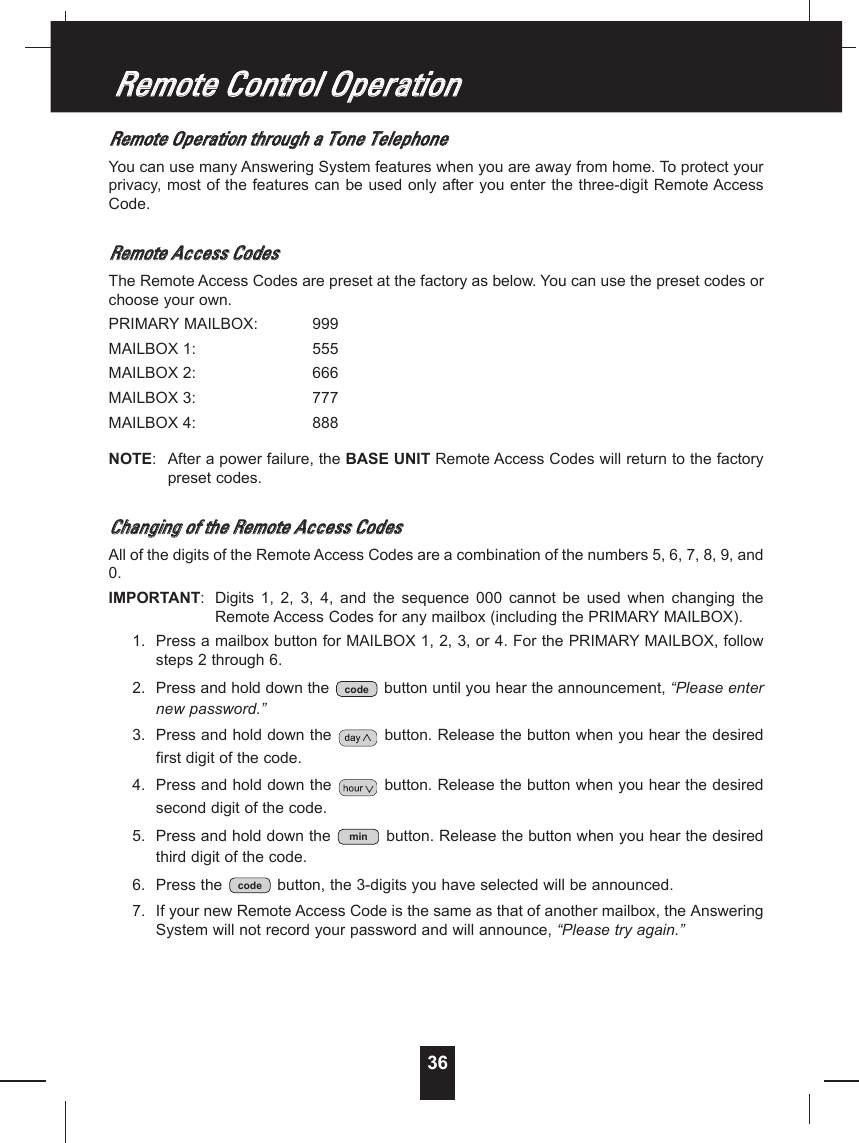

RReemmoottee OOppeerraattiioonn tthhrroouugghh aa TToonnee TTeelleepphhoonneeYou can use many Answering System features when you are away from home. To protect yourprivacy, most of the features can be used only after you enter the three-digit Remote AccessCode.RReemmoottee AAcccceessss CCooddeessThe Remote Access Codes are preset at the factory as below. You can use the preset codes orchoose your own.PRIMARY MAILBOX: 999MAILBOX 1: 555MAILBOX 2: 666MAILBOX 3: 777MAILBOX 4: 888NOTE: After a power failure, the BASE UNIT Remote Access Codes will return to the factorypreset codes.CChhaannggiinngg ooff tthhee RReemmoottee AAcccceessss CCooddeessAll of the digits of the Remote Access Codes are a combination of the numbers 5, 6, 7, 8, 9, and0.IMPORTANT: Digits 1, 2, 3, 4, and the sequence 000 cannot be used when changing theRemote Access Codes for any mailbox (including the PRIMARY MAILBOX).1. Press a mailbox button for MAILBOX 1, 2, 3, or 4. For the PRIMARY MAILBOX, followsteps 2 through 6.2. Press and hold down the button until you hear the announcement, “Please enternew password.”3. Press and hold down the button. Release the button when you hear the desiredfirst digit of the code.4. Press and hold down the button. Release the button when you hear the desiredsecond digit of the code.5. Press and hold down the button. Release the button when you hear the desiredthird digit of the code.6. Press the button, the 3-digits you have selected will be announced.7. If your new Remote Access Code is the same as that of another mailbox, the AnsweringSystem will not record your password and will announce, “Please try again.”codemincode36RReemmoottee CCoonnttrrooll OOppeerraattiioonn

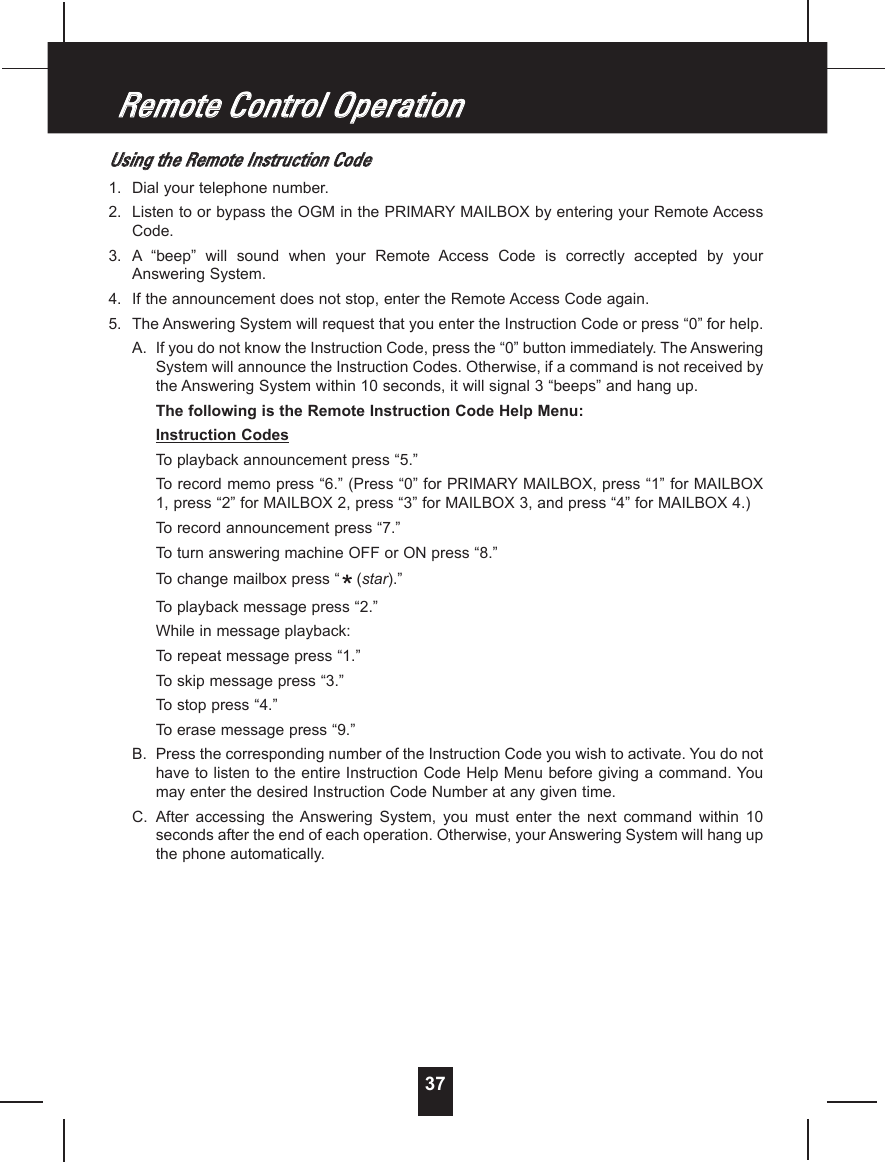

UUssiinngg tthhee RReemmoottee IInnssttrruuccttiioonn CCooddee1. Dial your telephone number.2. Listen to or bypass the OGM in the PRIMARY MAILBOX by entering your Remote AccessCode.3. A“beep” will sound when your Remote Access Code is correctly accepted by yourAnswering System.4. If the announcement does not stop, enter the Remote Access Code again.5. The Answering System will request that you enter the Instruction Code or press “0” for help.A. If you do not know the Instruction Code, press the “0” button immediately. The AnsweringSystem will announce the Instruction Codes. Otherwise, if a command is not received bythe Answering System within 10 seconds, it will signal 3 “beeps” and hang up.The following is the Remote Instruction Code Help Menu:Instruction CodesTo playback announcement press “5.”To record memo press “6.” (Press “0” for PRIMARY MAILBOX, press “1” for MAILBOX1, press “2” for MAILBOX 2, press “3” for MAILBOX 3, and press “4” for MAILBOX 4.)To record announcement press “7.”To turn answering machine OFF or ON press “8.”To change mailbox press “(star).”To playback message press “2.”While in message playback:To repeat message press “1.”To skip message press “3.”To stop press “4.”To erase message press “9.”B. Press the corresponding number of the Instruction Code you wish to activate. You do nothave to listen to the entire Instruction Code Help Menu before giving a command. Youmay enter the desired Instruction Code Number at any given time.C. After accessing the Answering System, you must enter the next command within 10seconds after the end of each operation. Otherwise, your Answering System will hang upthe phone automatically.37RReemmoottee CCoonnttrrooll OOppeerraattiioonn

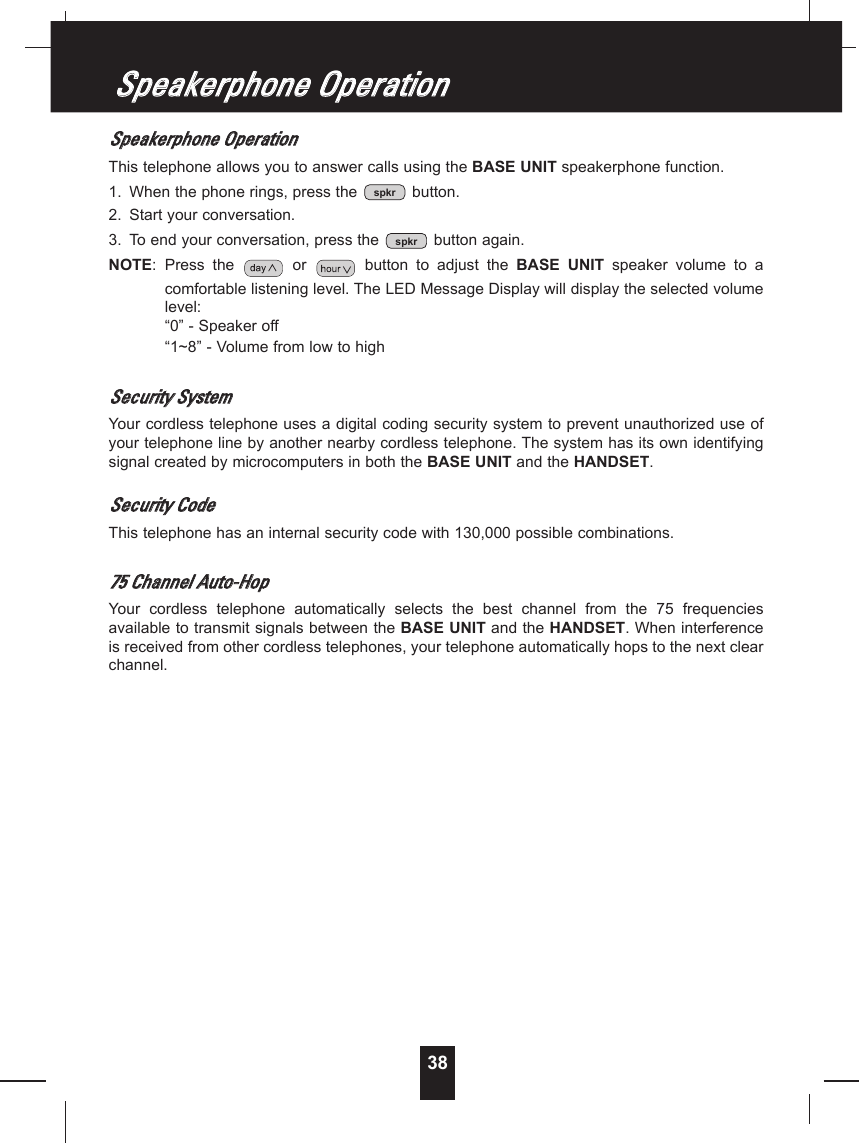

SSppeeaakkeerrpphhoonnee OOppeerraattiioonnThis telephone allows you to answer calls using the BASE UNIT speakerphone function.1. When the phone rings, press the button.2. Start your conversation.3. To end your conversation, press the button again.NOTE:Press the or button to adjust the BASE UNIT speaker volume to acomfortable listening level. The LED Message Display will display the selected volumelevel:“0”- Speaker off “1~8”- Volume from low to highSSeeccuurriittyy SSyysstteemmYour cordless telephone uses a digital coding security system to prevent unauthorized use ofyour telephone line by another nearby cordless telephone. The system has its own identifyingsignal created by microcomputers in both the BASE UNIT and the HANDSET.SSeeccuurriittyy CCooddeeThis telephone has an internal security code with 130,000 possible combinations. 7755 CChhaannnneell AAuuttoo--HHooppYour cordless telephone automatically selects the best channel from the 75 frequenciesavailable to transmit signals between the BASE UNIT and the HANDSET. When interferenceis received from other cordless telephones, your telephone automatically hops to the next clearchannel.spkrspkr38SSppeeaakkeerrpphhoonnee OOppeerraattiioonn

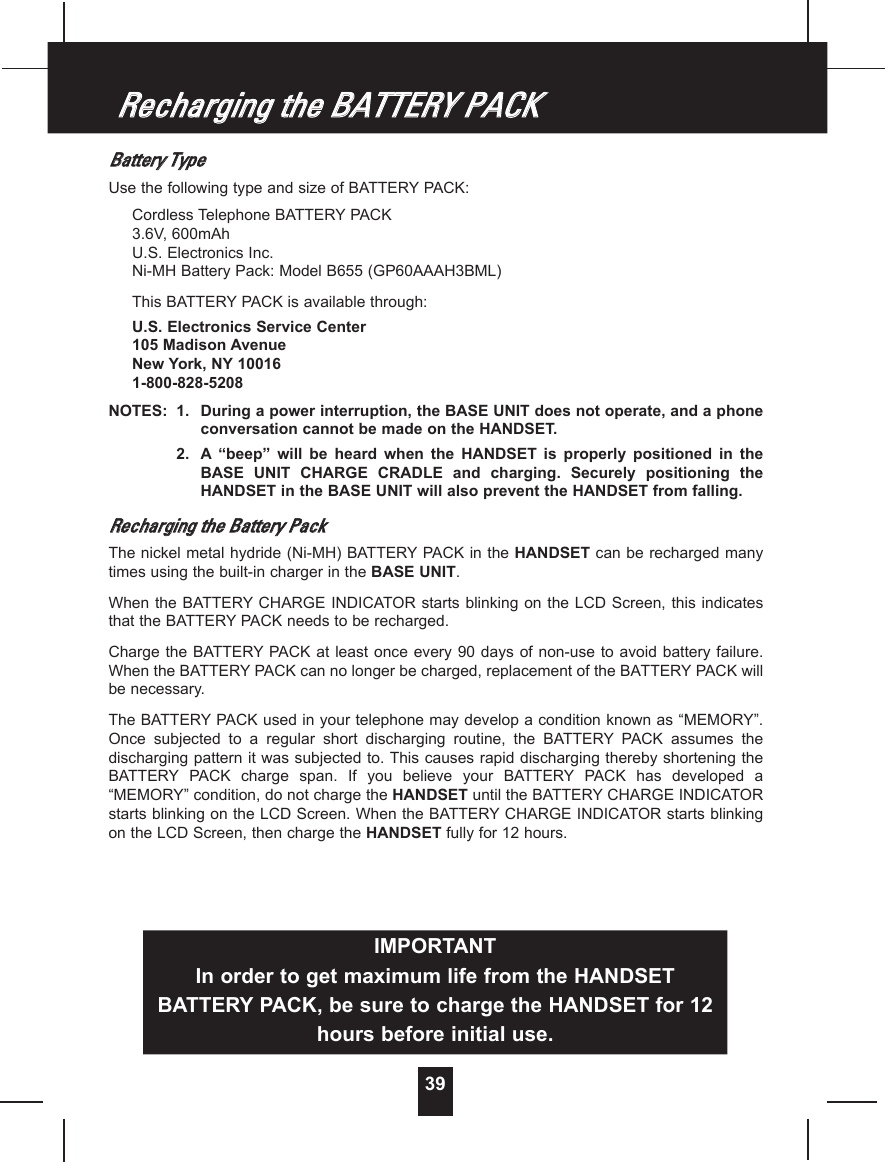

BBaatttteerryy TTyyppeeUse the following type and size of BATTERYPACK:Cordless Telephone BATTERYPACK3.6V, 600mAhU.S. Electronics Inc.Ni-MH Battery Pack: Model B655 (GP60AAAH3BML)This BATTERYPACK is available through:U.S. Electronics Service Center105 Madison AvenueNew York, NY 100161-800-828-5208NOTES: 1. During a power interruption, the BASE UNIT does not operate, and a phoneconversation cannot be made on the HANDSET.2. A “beep” will be heard when the HANDSET is properly positioned in theBASE UNIT CHARGE CRADLE and charging. Securely positioning theHANDSET in the BASE UNIT will also prevent the HANDSET from falling.RReecchhaarrggiinngg tthhee BBaatttteerryy PPaacckkThe nickel metal hydride (Ni-MH) BATTERYPACK in the HANDSET can be recharged manytimes using the built-in charger in the BASE UNIT.When the BATTERY CHARGE INDICATOR starts blinking on the LCD Screen, this indicatesthat the BATTERYPACK needs to be recharged.Charge the BATTERYPACK at least once every 90 days of non-use to avoid battery failure.When the BATTERYPACK can no longer be charged, replacement of the BATTERYPACK willbe necessary.The BATTERYPACK used in your telephone may develop a condition known as “MEMORY”.Once subjected to a regular short discharging routine, the BATTERYPACK assumes thedischarging pattern it was subjected to. This causes rapid discharging thereby shortening theBATTERYPACK charge span. If you believe your BATTERYPACK has developed a“MEMORY” condition, do not charge the HANDSET until the BATTERY CHARGE INDICATORstarts blinking on the LCD Screen. When the BATTERY CHARGE INDICATOR starts blinkingon the LCD Screen, then charge the HANDSET fully for 12 hours.39RReecchhaarrggiinngg tthhee BBAATTTTEERRYY PPAACCKKIMPORTANTIn order to get maximum life from the HANDSETBATTERYPACK, be sure to charge the HANDSET for 12hours before initial use.

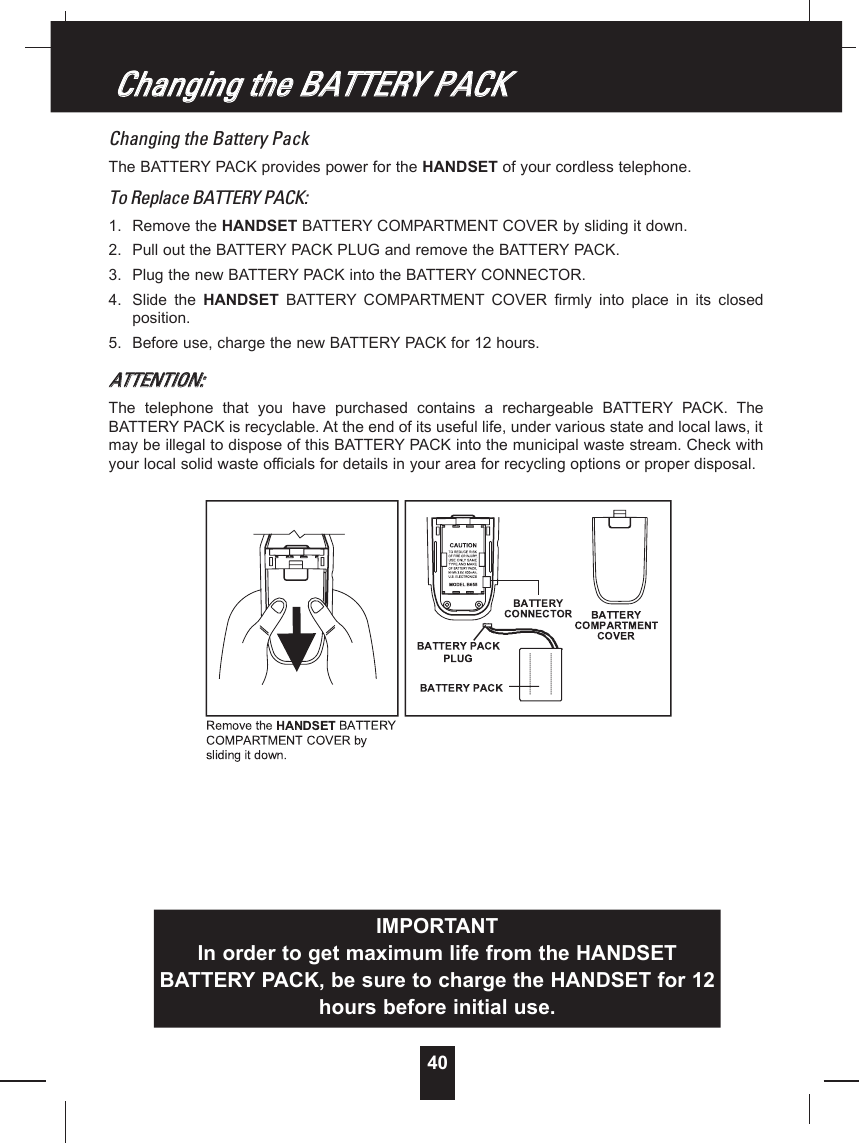

Changing the Battery PackThe BATTERYPACK provides power for the HANDSET of your cordless telephone.To Replace BATTERY PACK: 1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.2. Pull out the BATTERYPACK PLUG and remove the BATTERYPACK.3. Plug the new BATTERYPACK into the BATTERY CONNECTOR.4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closedposition.5. Before use, charge the new BATTERYPACK for 12 hours.AATTTTEENNTTIIOONN::The telephone that you have purchased contains a rechargeable BATTERYPACK. TheBATTERYPACK is recyclable. At the end of its useful life, under various state and local laws, itmay be illegal to dispose of this BATTERYPACK into the municipal waste stream. Check withyour local solid waste officials for details in your area for recycling options or proper disposal.40CChhaannggiinngg tthhee BBAATTTTEERRYY PPAACCKKIMPORTANTIn order to get maximum life from the HANDSETBATTERYPACK, be sure to charge the HANDSET for 12hours before initial use.

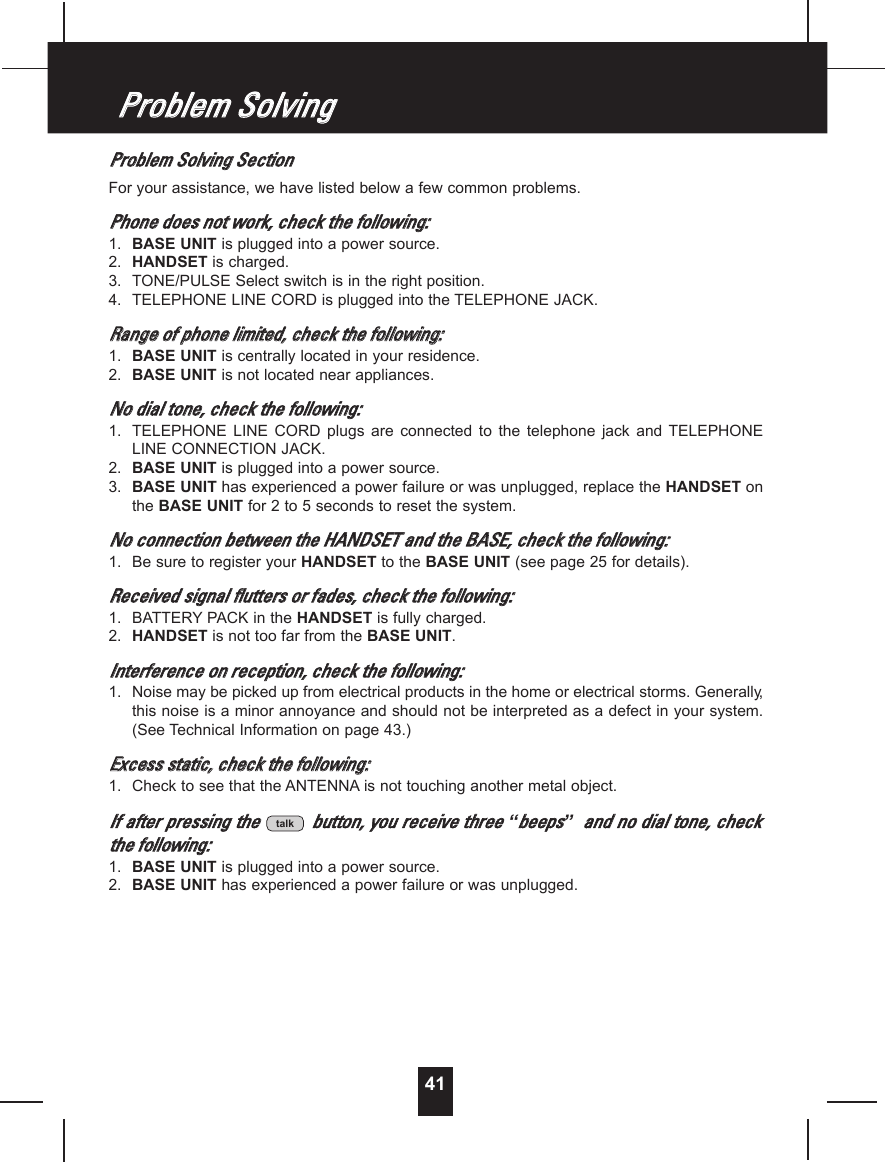

PPrroobblleemm SSoollvviinngg SSeeccttiioonnFor your assistance, we have listed below a few common problems.PPhhoonnee ddooeess nnoott wwoorrkk,, cchheecckk tthhee ffoolllloowwiinngg::1. BASE UNIT is plugged into a power source.2. HANDSET is charged.3. TONE/PULSE Select switch is in the right position.4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.RRaannggee ooff pphhoonnee lliimmiitteedd,, cchheecckk tthhee ffoolllloowwiinngg::1. BASE UNIT is centrally located in your residence.2. BASE UNIT is not located near appliances.NNoo ddiiaall ttoonnee,, cchheecckk tthhee ffoolllloowwiinngg::1. TELEPHONE LINE CORD plugs are connected to the telephone jack and TELEPHONELINE CONNECTION JACK.2. BASE UNIT is plugged into a power source.3. BASE UNIT has experienced a power failure or was unplugged, replace the HANDSET onthe BASE UNIT for 2 to 5 seconds to reset the system.NNoo ccoonnnneeccttiioonn bbeettwweeeenn tthhee HHAANNDDSSEETT aanndd tthhee BBAASSEE,, cchheecckk tthhee ffoolllloowwiinngg::1. Be sure to register your HANDSET to the BASE UNIT (see page 25 for details).RReecceeiivveedd ssiiggnnaall fflluutttteerrss oorr ffaaddeess,, cchheecckk tthhee ffoolllloowwiinngg::1. BATTERY PACK in the HANDSET is fully charged.2. HANDSET is not too far from the BASE UNIT.IInntteerrffeerreennccee oonn rreecceeppttiioonn,, cchheecckk tthhee ffoolllloowwiinngg::1. Noise may be picked up from electrical products in the home or electrical storms. Generally,this noise is a minor annoyance and should not be interpreted as a defect in your system.(See Technical Information on page 43.)EExxcceessss ssttaattiicc,, cchheecckk tthhee ffoolllloowwiinngg::1. Check to see that the ANTENNA is not touching another metal object.IIff aafftteerr pprreessssiinngg tthhee bbuuttttoonn,, yyoouu rreecceeiivvee tthhrreeee “bbeeeeppss”aanndd nnoo ddiiaall ttoonnee,, cchheecckktthhee ffoolllloowwiinngg::1. BASE UNIT is plugged into a power source.2. BASE UNIT has experienced a power failure or was unplugged.talk41PPrroobblleemm SSoollvviinngg
AAnnsswweerriinngg SSyysstteemm ddooeess nnoott wwoorrkk,, cchheecckk tthhee ffoolllloowwiinngg::1. BASE UNIT is plugged into a power source.AAnnsswweerriinngg SSyysstteemm ddooeess nnoott aannsswweerr ccaallllss,, cchheecckk tthhee ffoolllloowwiinngg::1. ANSWER ON/OFF LED indicator is lit.AAnnsswweerrss ccaallllss oonnllyy aafftteerr 1100 rriinnggss,, cchheecckk tthhee ffoolllloowwiinngg::1. ANSWER ON/OFF LED indicator is lit.2. Message Memory is not full.DDooeess nnoott rreessppoonndd ttoo rreemmoottee ccoommmmaannddss,, eennssuurree tthhee ffoolllloowwiinngg::1. Correct Remote Access Code is entered.2. ATONE telephone is being used.MMeessssaaggee iiss iinnccoommpplleettee,, eennssuurree tthhee ffoolllloowwiinngg::1. Message Memory is not full.2. Caller may be hesitating and pausing for more than 7 seconds.AAnnsswweerr ccaallllss bbuutt ddooeess nnoott rreeccoorrdd mmeessssaaggeess,, cchheecckk tthhee ffoolllloowwiinngg::1. ANNC/ICM switch is set to ICM.2. Memory is not full.3. Extension telephone was not picked up.NNoo SSoouunnddss oonn tthhee BBAASSEE UUNNIITT::1. Adjust the volume by using and button and make sure the volume level is not“0”.RReesseett yyoouurr ccoorrddlleessss tteelleepphhoonnee::1. You can reset your unit if the unit is not working properly. Unplug and then plug the ACADAPTER into its power source, then press and hold down the button for at least 3seconds, then release the button and the unit will “beep”. (See detail operations in page 29.)NOTE: If none of the telephones in the house are working, disconnect one set at a time toverify that none of the phones are causing the problem. If you still have a problem afterdoing this, and your telephone still does not work, please contact your local telephoneservice provider.stop42PPrroobblleemm SSoollvviinngg

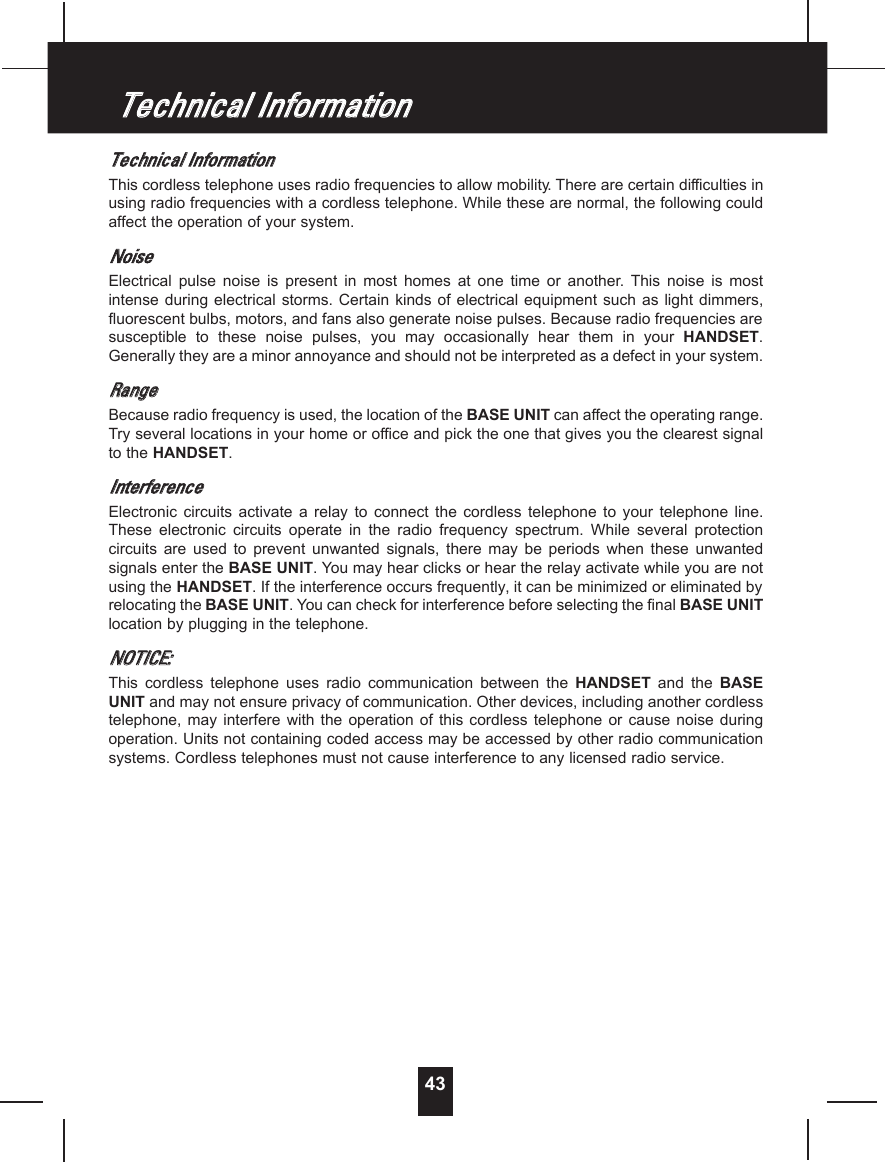

TTeecchhnniiccaall IInnffoorrmmaattiioonnThis cordless telephone uses radio frequencies to allow mobility. There are certain difficulties inusing radio frequencies with a cordless telephone. While these are normal, the following couldaffect the operation of your system.NNooiisseeElectrical pulse noise is present in most homes at one time or another. This noise is mostintense during electrical storms. Certain kinds of electrical equipment such as light dimmers,fluorescent bulbs, motors, and fans also generate noise pulses. Because radio frequencies aresusceptible to these noise pulses, you may occasionally hear them in your HANDSET.Generally they are a minor annoyance and should not be interpreted as a defect in your system.RRaannggeeBecause radio frequency is used, the location of the BASE UNIT can affect the operating range.Try several locations in your home or office and pick the one that gives you the clearest signalto the HANDSET.IInntteerrffeerreenncceeElectronic circuits activate a relay to connect the cordless telephone to your telephone line.These electronic circuits operate in the radio frequency spectrum. While several protectioncircuits are used to prevent unwanted signals, there may be periods when these unwantedsignals enter the BASE UNIT. You may hear clicks or hear the relay activate while you are notusing the HANDSET. If the interference occurs frequently, it can be minimized or eliminated byrelocating the BASE UNIT. You can check for interference before selecting the final BASE UNITlocation by plugging in the telephone.NNOOTTIICCEE::This cordless telephone uses radio communication between the HANDSET and the BASEUNIT and may not ensure privacy of communication. Other devices, including another cordlesstelephone, may interfere with the operation of this cordless telephone or cause noise duringoperation. Units not containing coded access may be accessed by other radio communicationsystems. Cordless telephones must not cause interference to any licensed radio service.43TTeecchhnniiccaall IInnffoorrmmaattiioonn

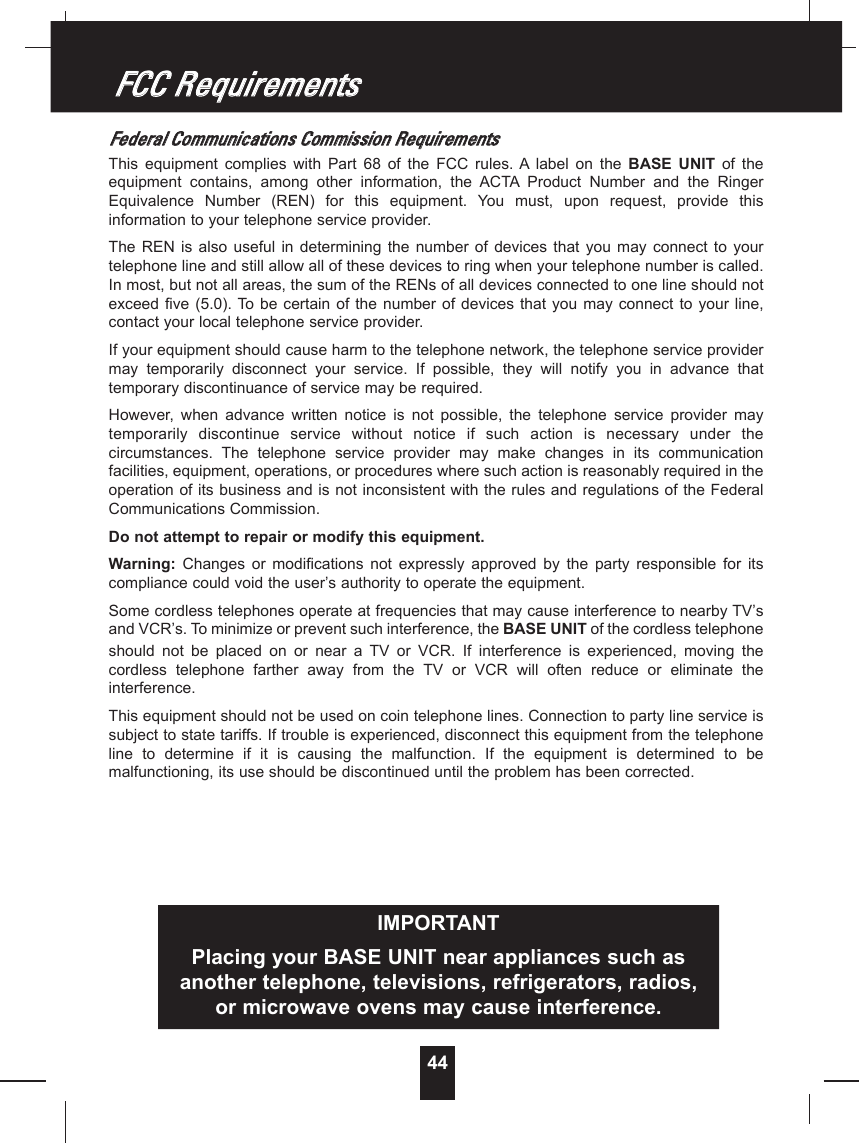

FFeeddeerraall CCoommmmuunniiccaattiioonnss CCoommmmiissssiioonn RReeqquuiirreemmeennttssThis equipment complies with Part 68 of the FCC rules. A label on the BASE UNIT of theequipment contains, among other information, the ACTA Product Number and the RingerEquivalence Number (REN) for this equipment. You must, upon request, provide thisinformation to your telephone service provider.The REN is also useful in determining the number of devices that you may connect to yourtelephone line and still allow all of these devices to ring when your telephone number is called.In most, but not all areas, the sum of the RENs of all devices connected to one line should notexceed five (5.0). To be certain of the number of devices that you may connect to your line,contact your local telephone service provider.If your equipment should cause harm to the telephone network, the telephone service providermay temporarily disconnect your service. If possible, they will notify you in advance thattemporary discontinuance of service may be required.However, when advance written notice is not possible, the telephone service provider maytemporarily discontinue service without notice if such action is necessary under thecircumstances. The telephone service provider may make changes in its communicationfacilities, equipment, operations, or procedures where such action is reasonably required in theoperation of its business and is not inconsistent with the rules and regulations of the FederalCommunications Commission.Do not attempt to repair or modify this equipment.Warning: Changes or modifications not expressly approved by the party responsible for itscompliance could void the user’s authority to operate the equipment.Some cordless telephones operate at frequencies that may cause interference to nearby TV’sand VCR’s. To minimize or prevent such interference, the BASE UNIT of the cordless telephoneshould not be placed on or near a TV or VCR. If interference is experienced, moving thecordless telephone farther away from the TV or VCR will often reduce or eliminate theinterference.This equipment should not be used on coin telephone lines. Connection to party line service issubject to state tariffs. If trouble is experienced, disconnect this equipment from the telephoneline to determine if it is causing the malfunction. If the equipment is determined to bemalfunctioning, its use should be discontinued until the problem has been corrected.44FFCCCC RReeqquuiirreemmeennttssIMPORTANTPlacing your BASE UNIT near appliances such asanother telephone, televisions, refrigerators, radios, or microwave ovens may cause interference.
FFeeddeerraall CCoommmmuunniiccaattiioonnss CCoommmmiissssiioonn RReeqquuiirreemmeennttss ((ccoonnttiinnuueedd))CAUTION: Any changes or modifications in construction of this device which are not expresslyapproved by the party responsible for compliance could void the user’s authority to operateequipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates,uses, and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If theequipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:• Reorient or relocate the receiving ANTENNA.• Increase the distance between the equipment and the receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.• Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subjected to the following twoconditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation.The Relevant Guidelines and Standards are:• FCC Report and Order FCC 96-326 (August, 1996)• American National Standards Institute (C95-1-1992)• National Council Radiation Protection and Measurements (NCRP-1986)• International Commission on Non-Ionizing Radiation Protection (ICNIRP-1998)45FFCCCC RReeqquuiirreemmeennttss

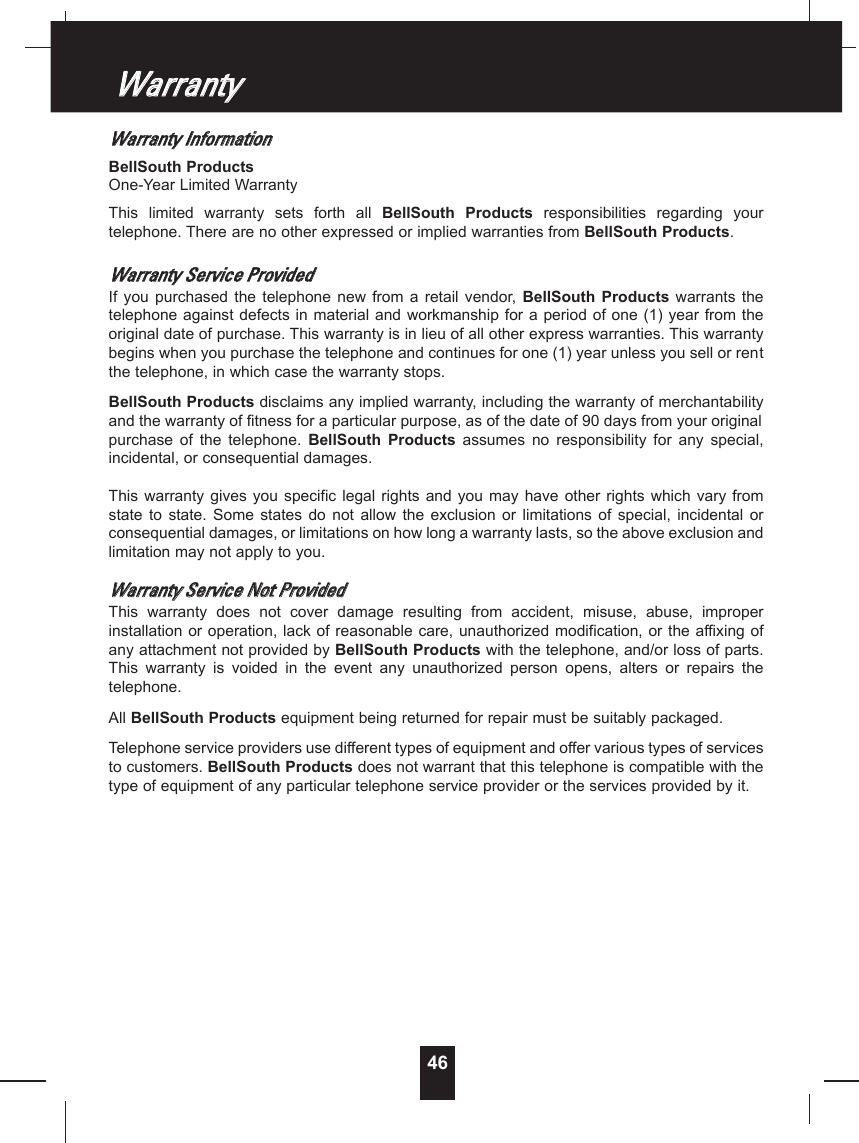

WWaarrrraannttyy IInnffoorrmmaattiioonnBellSouth ProductsOne-Year Limited WarrantyThis limited warranty sets forth all BellSouth Products responsibilities regarding yourtelephone. There are no other expressed or implied warranties from BellSouth Products.WWaarrrraannttyy SSeerrvviiccee PPrroovviiddeeddIf you purchased the telephone new from a retail vendor, BellSouth Products warrants thetelephone against defects in material and workmanship for a period of one (1) year from theoriginal date of purchase. This warranty is in lieu of all other express warranties. This warrantybegins when you purchase the telephone and continues for one (1) year unless you sell or rentthe telephone, in which case the warranty stops.BellSouth Products disclaims any implied warranty, including the warranty of merchantabilityand the warranty of fitness for a particular purpose, as of the date of 90 days from your originalpurchase of the telephone. BellSouth Products assumes no responsibility for any special,incidental, or consequential damages. This warranty gives you specific legal rights and you may have other rights which vary fromstate to state. Some states do not allow the exclusion or limitations of special, incidental orconsequential damages, or limitations on how long a warranty lasts, so the above exclusion andlimitation may not apply to you.WWaarrrraannttyy SSeerrvviiccee NNoott PPrroovviiddeeddThis warranty does not cover damage resulting from accident, misuse, abuse, improperinstallation or operation, lack of reasonable care, unauthorized modification, or the affixing ofany attachment not provided by BellSouth Products with the telephone, and/or loss of parts.This warranty is voided in the event any unauthorized person opens, alters or repairs thetelephone.All BellSouth Products equipment being returned for repair must be suitably packaged.Telephone service providers use different types of equipment and offer various types of servicesto customers. BellSouth Products does not warrant that this telephone is compatible with thetype of equipment of any particular telephone service provider or the services provided by it.46WWaarrrraannttyy

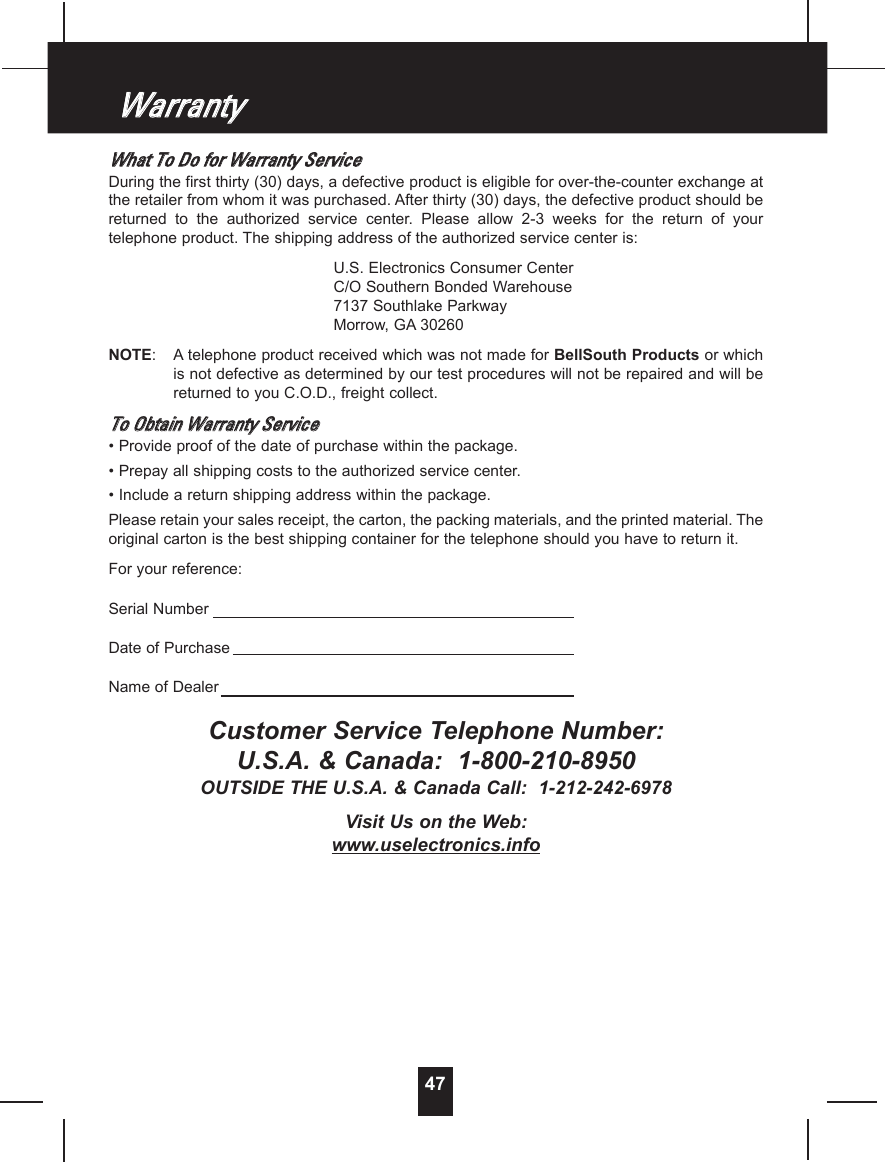

WWhhaatt TToo DDoo ffoorr WWaarrrraannttyy SSeerrvviicceeDuring the first thirty (30) days, a defective product is eligible for over-the-counter exchange atthe retailer from whom it was purchased. After thirty (30) days, the defective product should bereturned to the authorized service center. Please allow 2-3 weeks for the return of yourtelephone product. The shipping address of the authorized service center is:U.S. Electronics Consumer CenterC/O Southern Bonded Warehouse7137 Southlake ParkwayMorrow, GA 30260NOTE:Atelephone product received which was not made for BellSouth Products or whichis not defective as determined by our test procedures will not be repaired and will bereturned to you C.O.D., freight collect.TToo OObbttaaiinn WWaarrrraannttyy SSeerrvviiccee• Provide proof of the date of purchase within the package.• Prepay all shipping costs to the authorized service center.• Include a return shipping address within the package.Please retain your sales receipt, the carton, the packing materials, and the printed material. Theoriginal carton is the best shipping container for the telephone should you have to return it.For your reference:Serial NumberDate of PurchaseName of DealerCustomer Service Telephone Number:U.S.A. & Canada: 1-800-210-8950OUTSIDE THE U.S.A. & Canada Call: 1-212-242-6978Visit Us on the Web:www.uselectronics.info47WWaarrrraannttyy

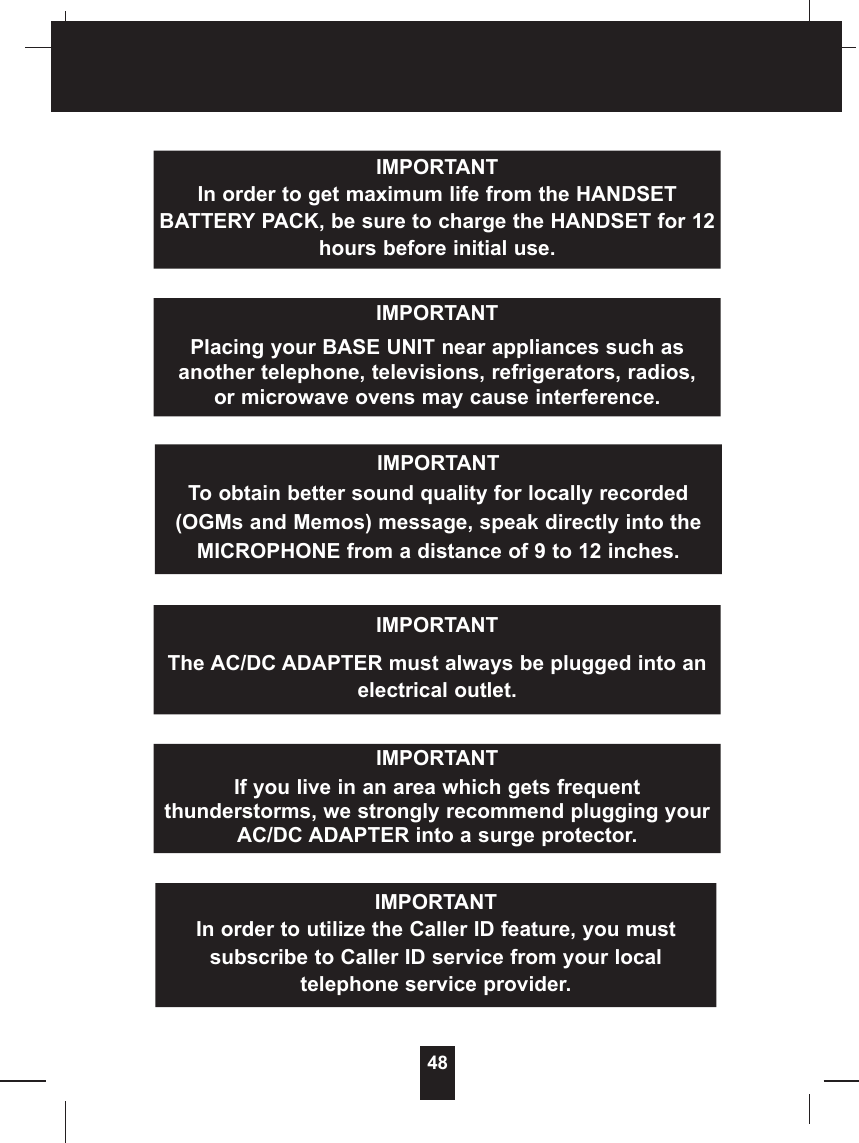

48IMPORTANTIn order to get maximum life from the HANDSETBATTERYPACK, be sure to charge the HANDSET for 12hours before initial use.IMPORTANTPlacing your BASE UNIT near appliances such asanother telephone, televisions, refrigerators, radios, or microwave ovens may cause interference.IMPORTANTThe AC/DC ADAPTER must always be plugged into an electrical outlet.IMPORTANTIf you live in an area which gets frequentthunderstorms, we strongly recommend plugging yourAC/DC ADAPTER into a surge protector.IMPORTANTIn order to utilize the Caller ID feature, you mustsubscribe to Caller ID service from your localtelephone service provider.IMPORTANTTo obtain better sound quality for locally recorded(OGMs and Memos) message, speak directly into theMICROPHONE from a distance of 9 to 12 inches.

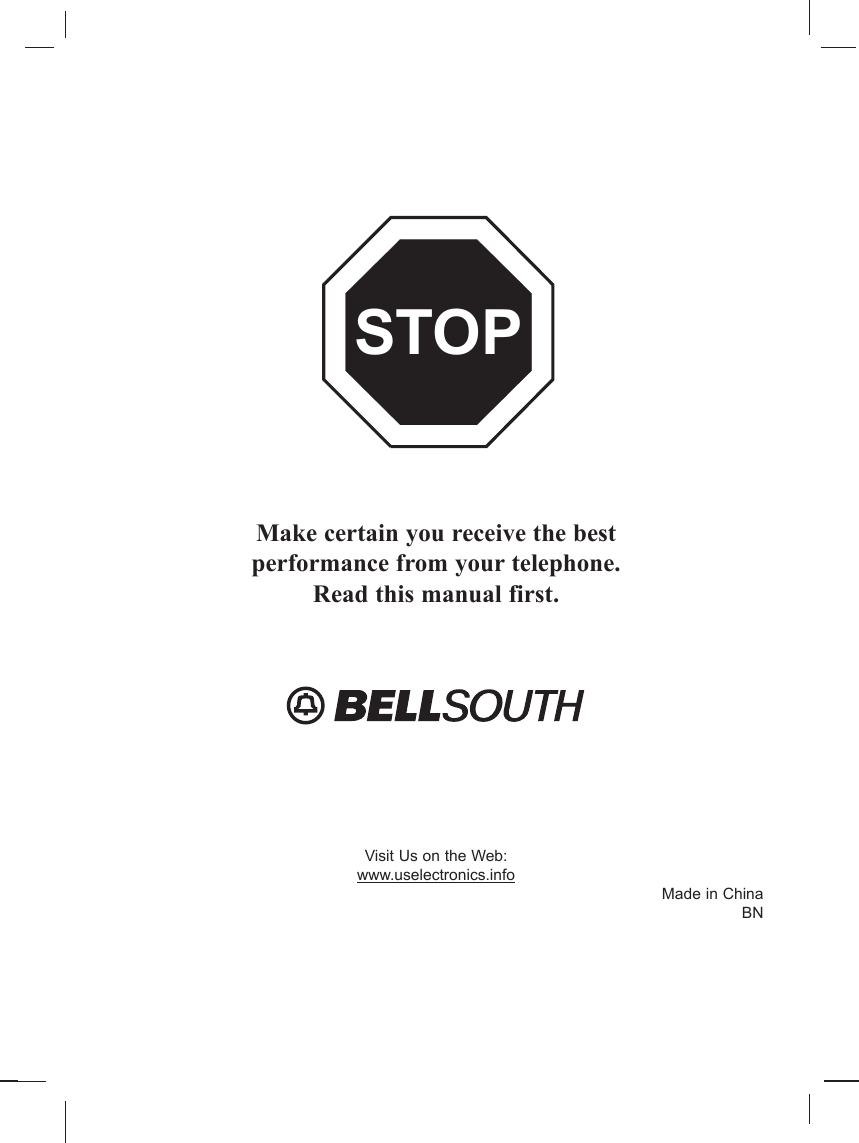

Make certain you receive the bestperformance from your telephone.Read this manual first.Visit Us on the Web:www.uselectronics.infoMade in ChinaBNSTOP
