I Tel 0701H 5.8GHz/2.4GHz Analog Cordless Phone w/CID-Handset User Manual PRODUCT DESCRIPTION

I-Tel Corporation 5.8GHz/2.4GHz Analog Cordless Phone w/CID-Handset PRODUCT DESCRIPTION

User Manual

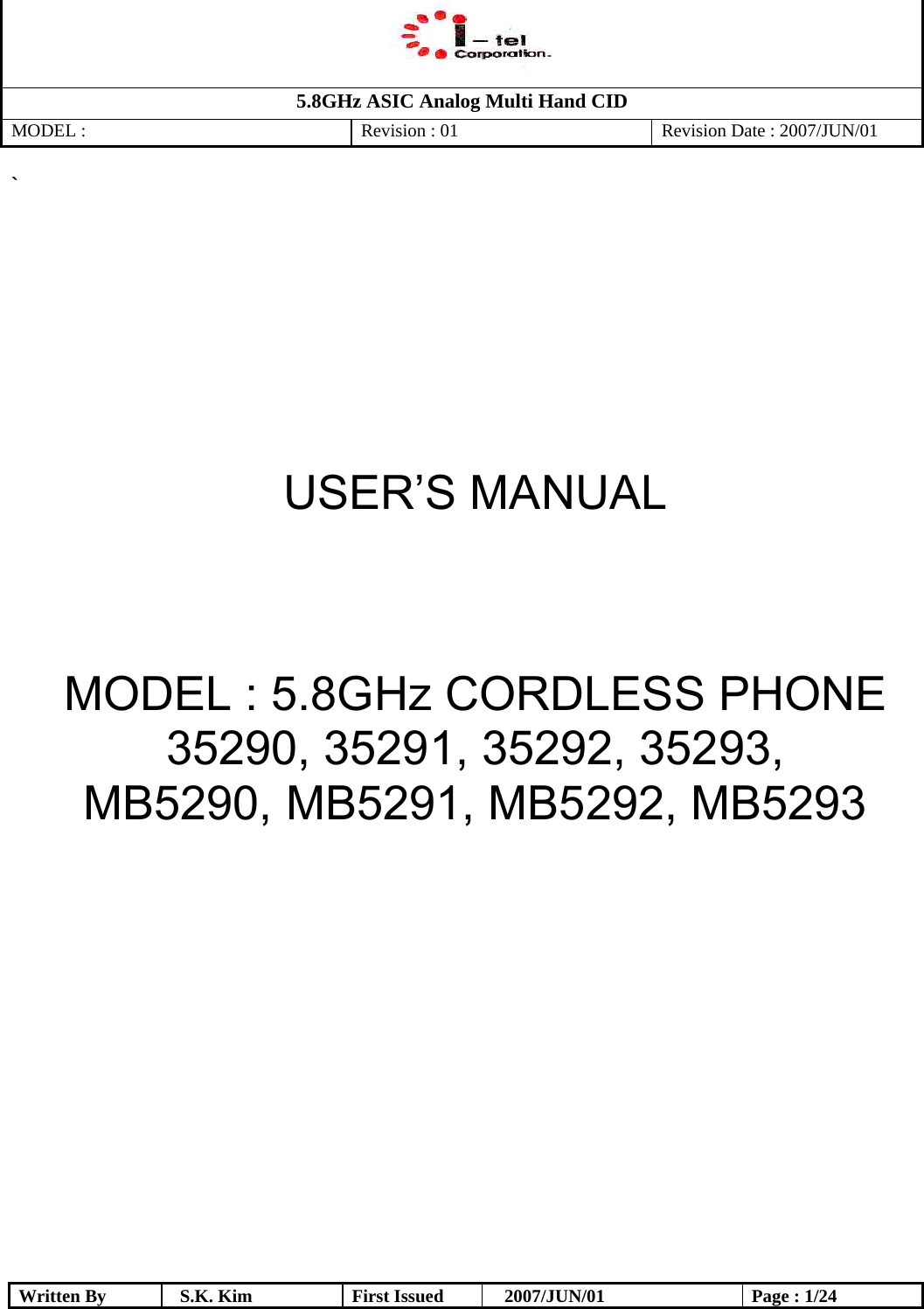

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 1/24 ` USER’S MANUAL MODEL : 5.8GHz CORDLESS PHONE 35290, 35291, 35292, 35293, MB5290, MB5291, MB5292, MB5293

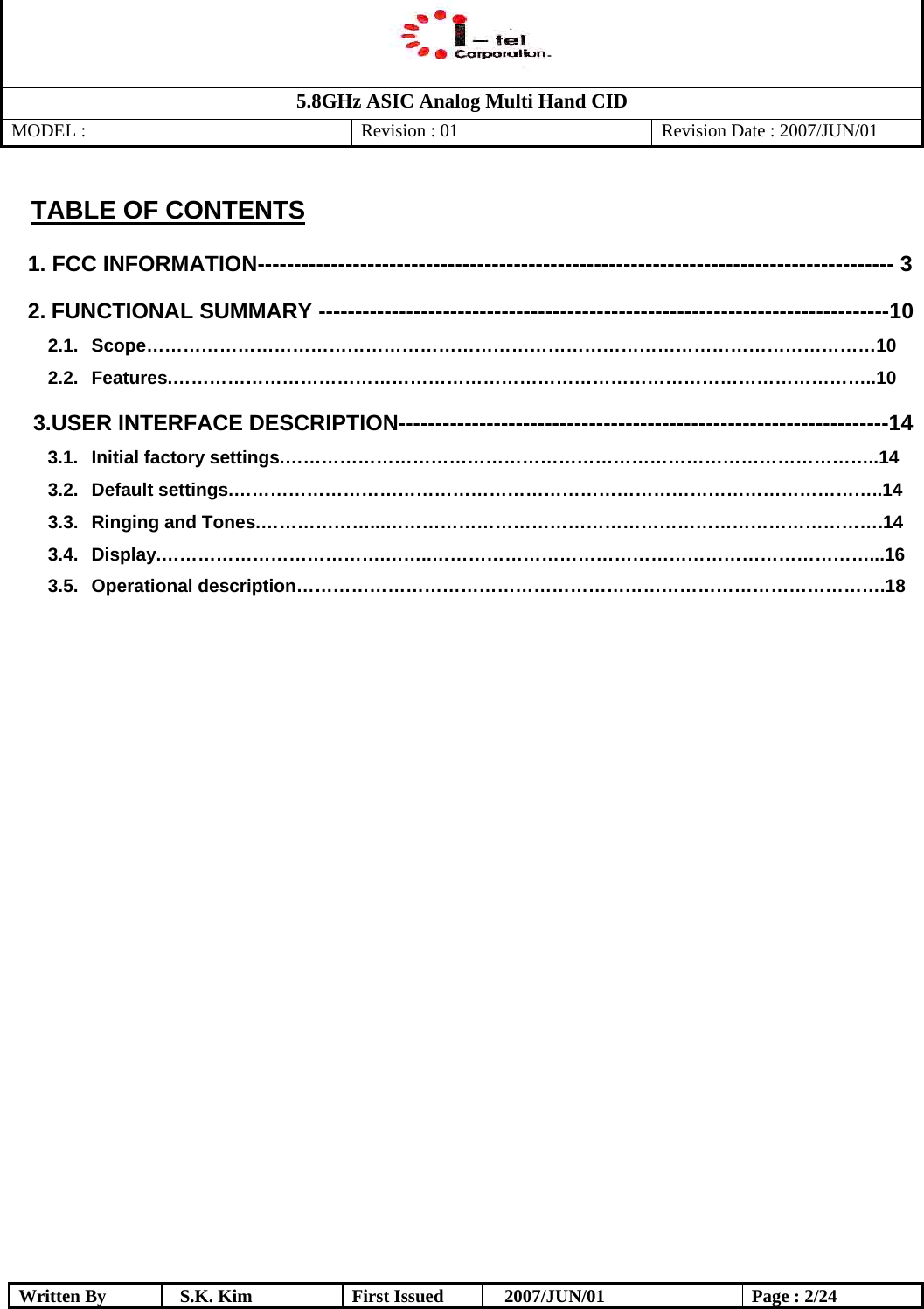

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 2/24 TABLE OF CONTENTS 1. FCC INFORMATION--------------------------------------------------------------------------------------- 3 2. FUNCTIONAL SUMMARY ------------------------------------------------------------------------------10 2.1. Scope…………………………………………………………………………………………………………10 2.2. Features.……………………………………………………………………………………………………..10 3.USER INTERFACE DESCRIPTION-------------------------------------------------------------------14 3.1. Initial factory settings.……………………………………………………………………………………..14 3.2. Default settings.……………………………………………………………………………………………..14 3.3. Ringing and Tones.………………...……………………………………………………………………….14 3.4. Display.……………………………….……..………………………………………………………………...16 3.5. Operational description…………………………………………………………………………………….18

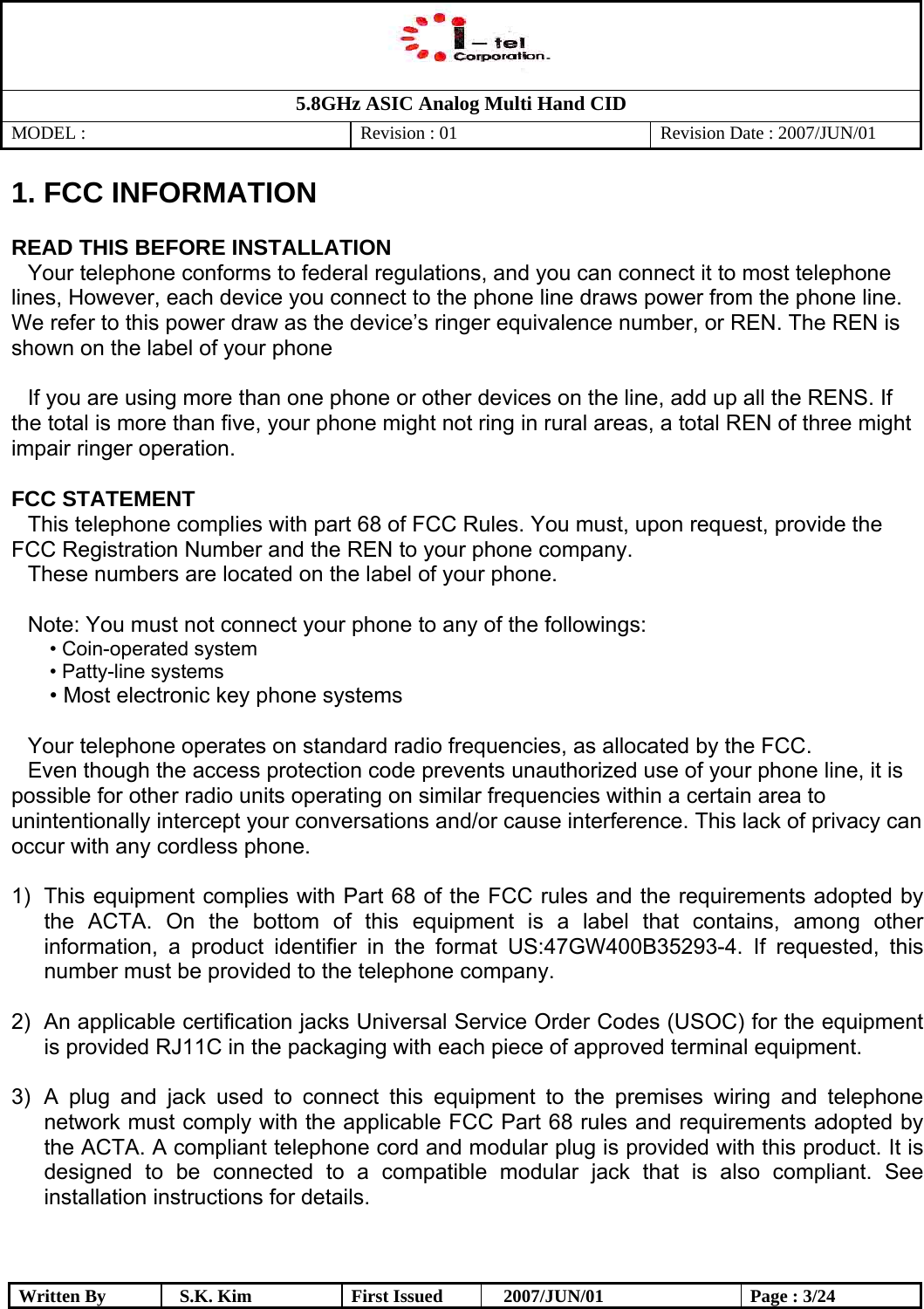

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 3/24 1. FCC INFORMATION READ THIS BEFORE INSTALLATION Your telephone conforms to federal regulations, and you can connect it to most telephone lines, However, each device you connect to the phone line draws power from the phone line. We refer to this power draw as the device’s ringer equivalence number, or REN. The REN is shown on the label of your phone If you are using more than one phone or other devices on the line, add up all the RENS. If the total is more than five, your phone might not ring in rural areas, a total REN of three might impair ringer operation. FCC STATEMENT This telephone complies with part 68 of FCC Rules. You must, upon request, provide the FCC Registration Number and the REN to your phone company. These numbers are located on the label of your phone. Note: You must not connect your phone to any of the followings: • Coin-operated system • Patty-line systems • Most electronic key phone systems Your telephone operates on standard radio frequencies, as allocated by the FCC. Even though the access protection code prevents unauthorized use of your phone line, it is possible for other radio units operating on similar frequencies within a certain area to unintentionally intercept your conversations and/or cause interference. This lack of privacy can occur with any cordless phone. 1) This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:47GW400B35293-4. If requested, this number must be provided to the telephone company. 2) An applicable certification jacks Universal Service Order Codes (USOC) for the equipment is provided RJ11C in the packaging with each piece of approved terminal equipment. 3) A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.

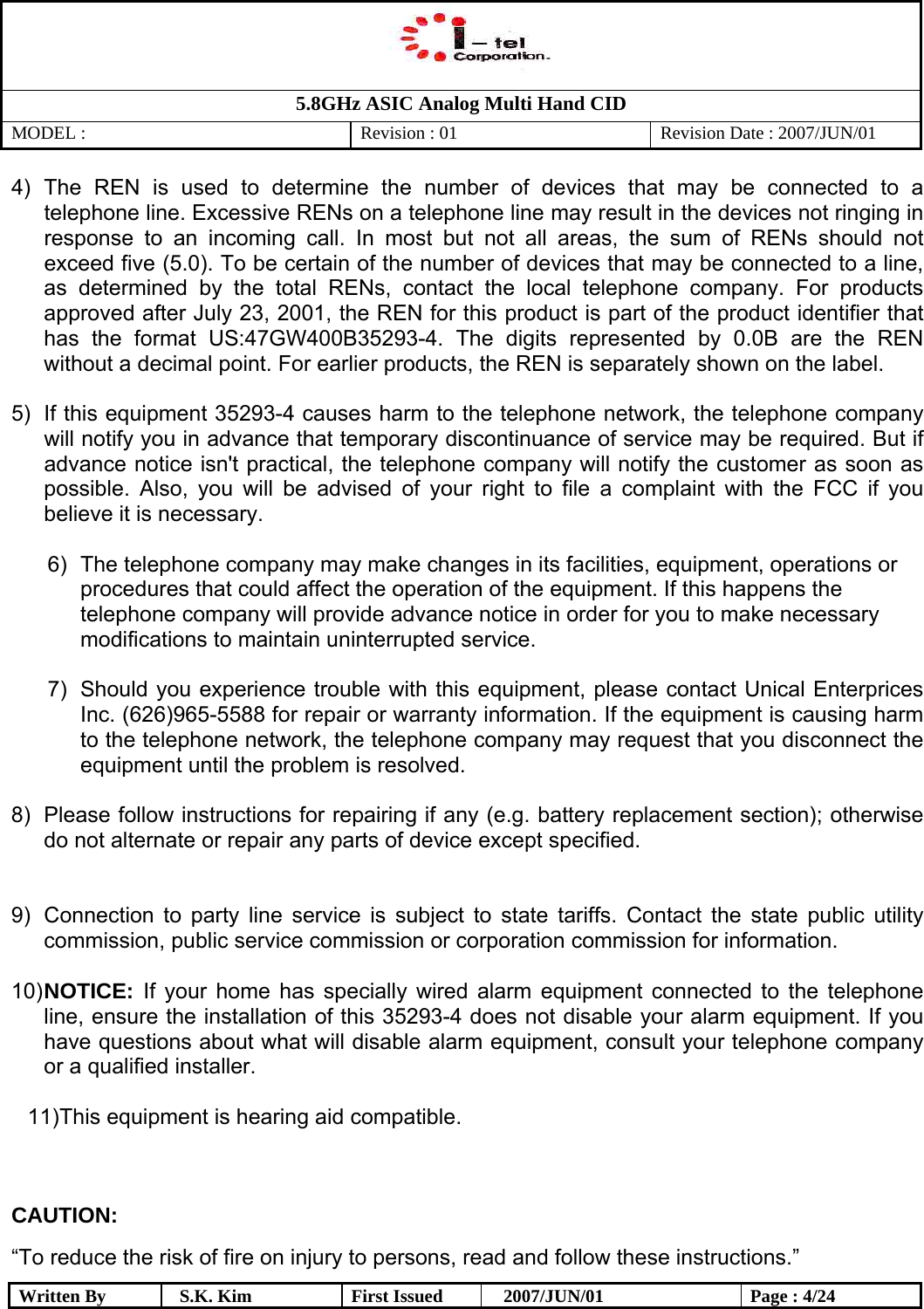

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 4/24 4) The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:47GW400B35293-4. The digits represented by 0.0B are the REN without a decimal point. For earlier products, the REN is separately shown on the label. 5) If this equipment 35293-4 causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. 6) The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. 7) Should you experience trouble with this equipment, please contact Unical Enterprices Inc. (626)965-5588 for repair or warranty information. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. 8) Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do not alternate or repair any parts of device except specified. 9) Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. 10) NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this 35293-4 does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. 11) This equipment is hearing aid compatible. CAUTION: “To reduce the risk of fire on injury to persons, read and follow these instructions.”

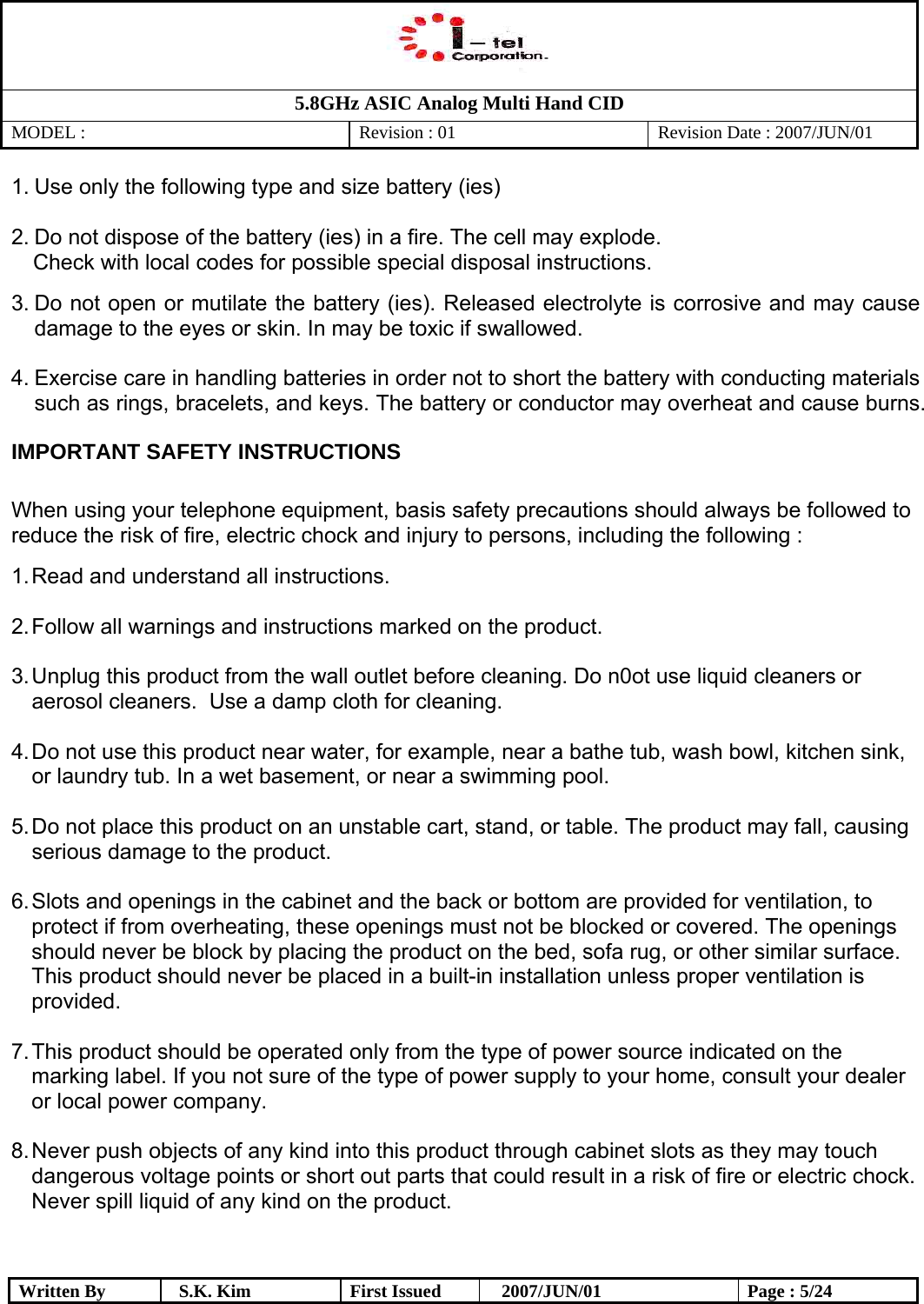

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 5/24 1. Use only the following type and size battery (ies) 2. Do not dispose of the battery (ies) in a fire. The cell may explode. Check with local codes for possible special disposal instructions. 3. Do not open or mutilate the battery (ies). Released electrolyte is corrosive and may cause damage to the eyes or skin. In may be toxic if swallowed. 4. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns. IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basis safety precautions should always be followed to reduce the risk of fire, electric chock and injury to persons, including the following : 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall outlet before cleaning. Do n0ot use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bathe tub, wash bowl, kitchen sink, or laundry tub. In a wet basement, or near a swimming pool. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect if from overheating, these openings must not be blocked or covered. The openings should never be block by placing the product on the bed, sofa rug, or other similar surface. This product should never be placed in a built-in installation unless proper ventilation is provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you not sure of the type of power supply to your home, consult your dealer or local power company. 8. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric chock. Never spill liquid of any kind on the product.

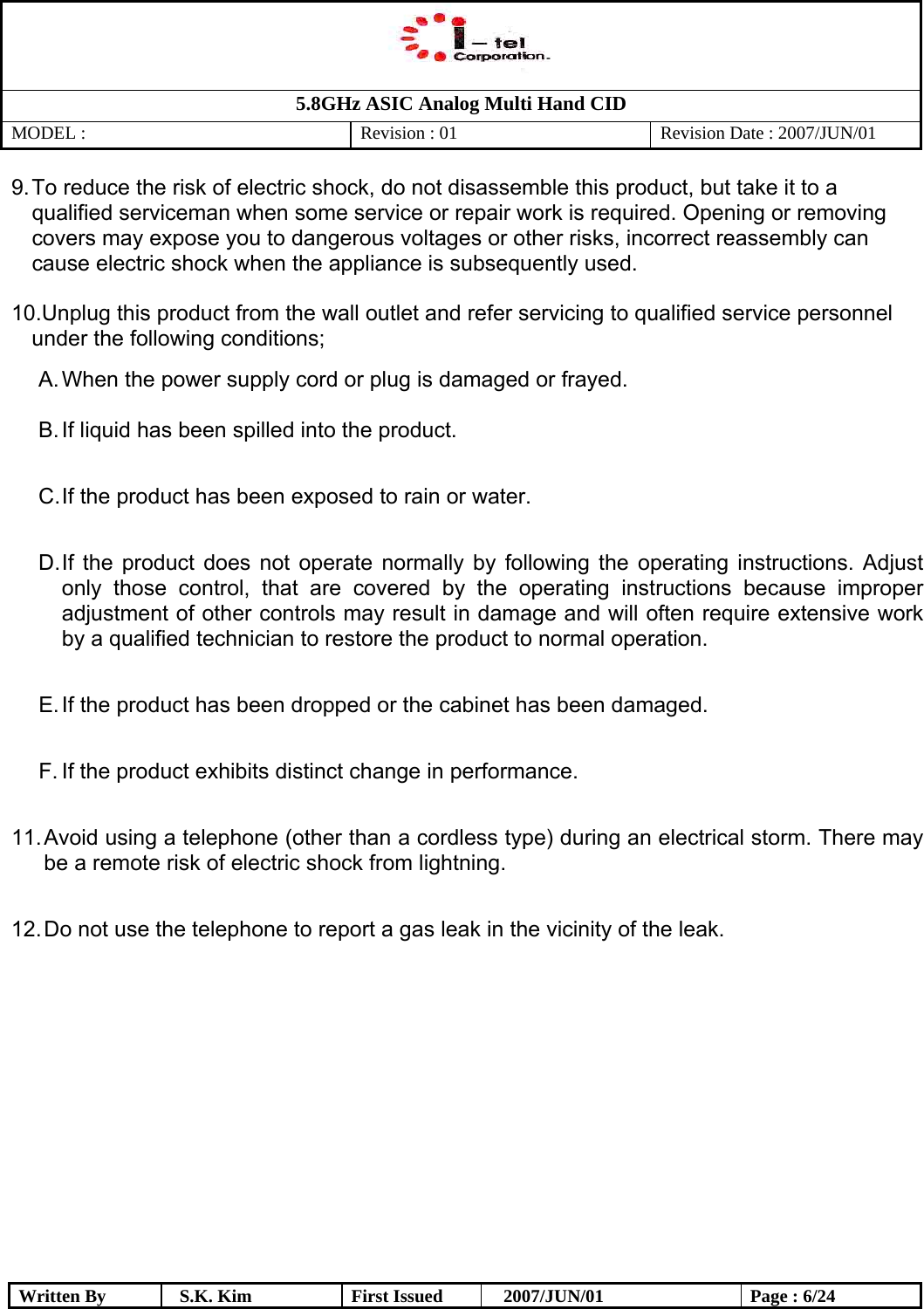

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 6/24 9. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified serviceman when some service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks, incorrect reassembly can cause electric shock when the appliance is subsequently used. 10. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions; A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those control, that are covered by the operating instructions because improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits distinct change in performance. 11. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 12. Do not use the telephone to report a gas leak in the vicinity of the leak.

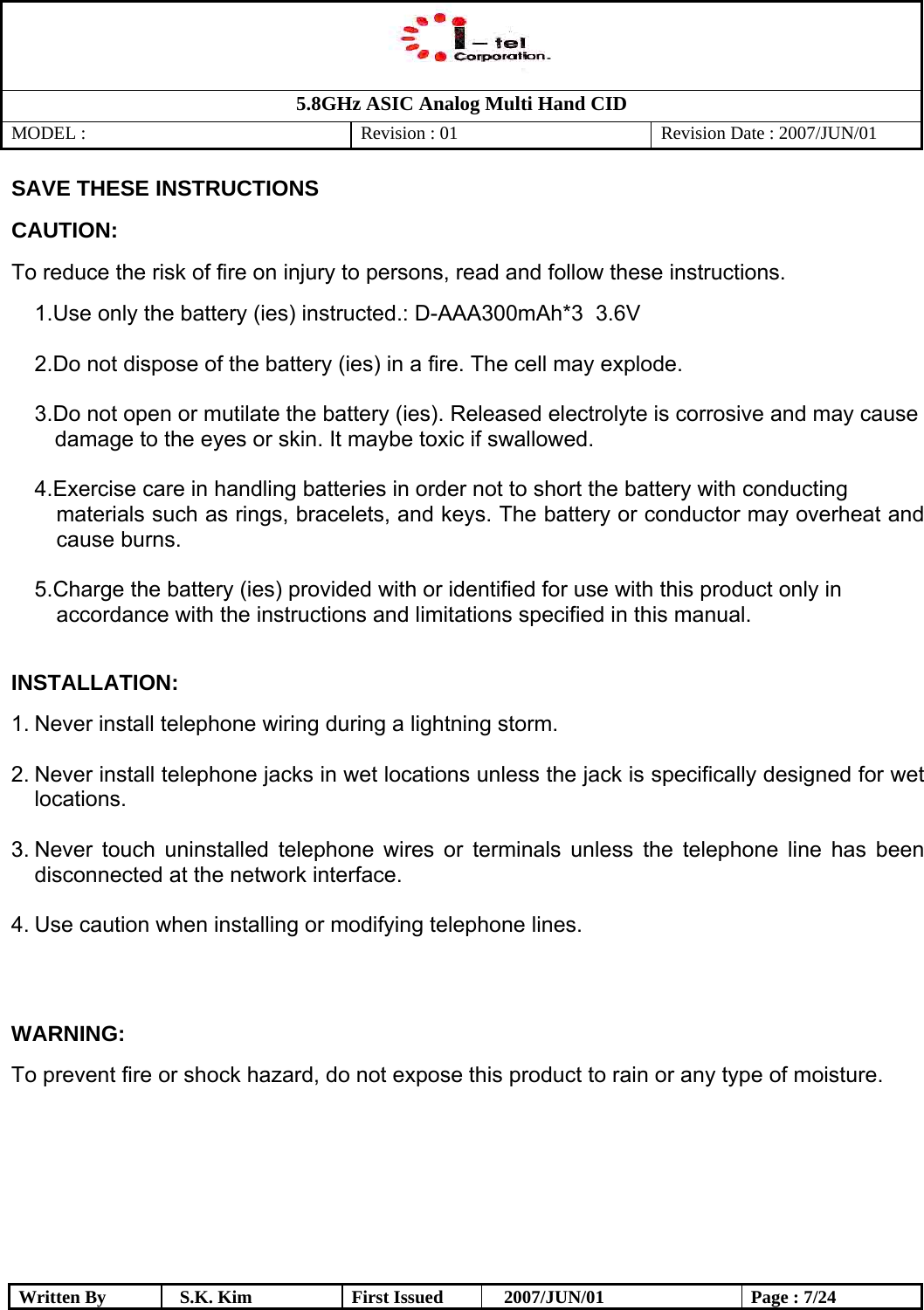

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 7/24 SAVE THESE INSTRUCTIONS CAUTION: To reduce the risk of fire on injury to persons, read and follow these instructions. 1. Use only the battery (ies) instructed.: D-AAA300mAh*3 3.6V 2. Do not dispose of the battery (ies) in a fire. The cell may explode. 3. Do not open or mutilate the battery (ies). Released electrolyte is corrosive and may cause damage to the eyes or skin. It maybe toxic if swallowed. 4. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns. 5. Charge the battery (ies) provided with or identified for use with this product only in accordance with the instructions and limitations specified in this manual. INSTALLATION: 1. Never install telephone wiring during a lightning storm. 2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. 3. Never touch uninstalled telephone wires or terminals unless the telephone line has been disconnected at the network interface. 4. Use caution when installing or modifying telephone lines. WARNING: To prevent fire or shock hazard, do not expose this product to rain or any type of moisture.

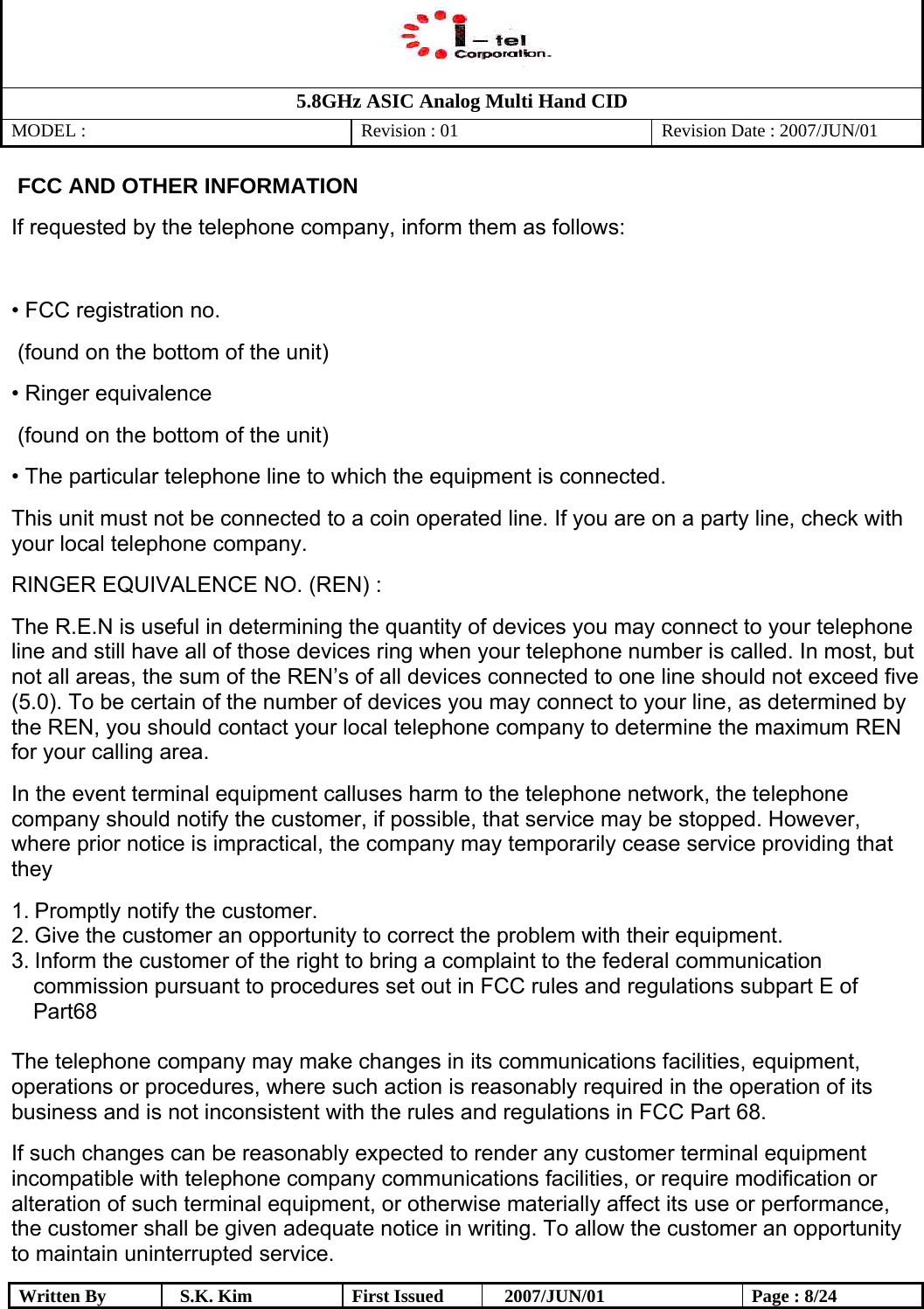

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 8/24 FCC AND OTHER INFORMATION If requested by the telephone company, inform them as follows: • FCC registration no. (found on the bottom of the unit) • Ringer equivalence (found on the bottom of the unit) • The particular telephone line to which the equipment is connected. This unit must not be connected to a coin operated line. If you are on a party line, check with your local telephone company. RINGER EQUIVALENCE NO. (REN) : The R.E.N is useful in determining the quantity of devices you may connect to your telephone line and still have all of those devices ring when your telephone number is called. In most, but not all areas, the sum of the REN’s of all devices connected to one line should not exceed five (5.0). To be certain of the number of devices you may connect to your line, as determined by the REN, you should contact your local telephone company to determine the maximum REN for your calling area. In the event terminal equipment calluses harm to the telephone network, the telephone company should notify the customer, if possible, that service may be stopped. However, where prior notice is impractical, the company may temporarily cease service providing that they 1. Promptly notify the customer. 2. Give the customer an opportunity to correct the problem with their equipment. 3. Inform the customer of the right to bring a complaint to the federal communication commission pursuant to procedures set out in FCC rules and regulations subpart E of Part68 The telephone company may make changes in its communications facilities, equipment, operations or procedures, where such action is reasonably required in the operation of its business and is not inconsistent with the rules and regulations in FCC Part 68. If such changes can be reasonably expected to render any customer terminal equipment incompatible with telephone company communications facilities, or require modification or alteration of such terminal equipment, or otherwise materially affect its use or performance, the customer shall be given adequate notice in writing. To allow the customer an opportunity to maintain uninterrupted service.

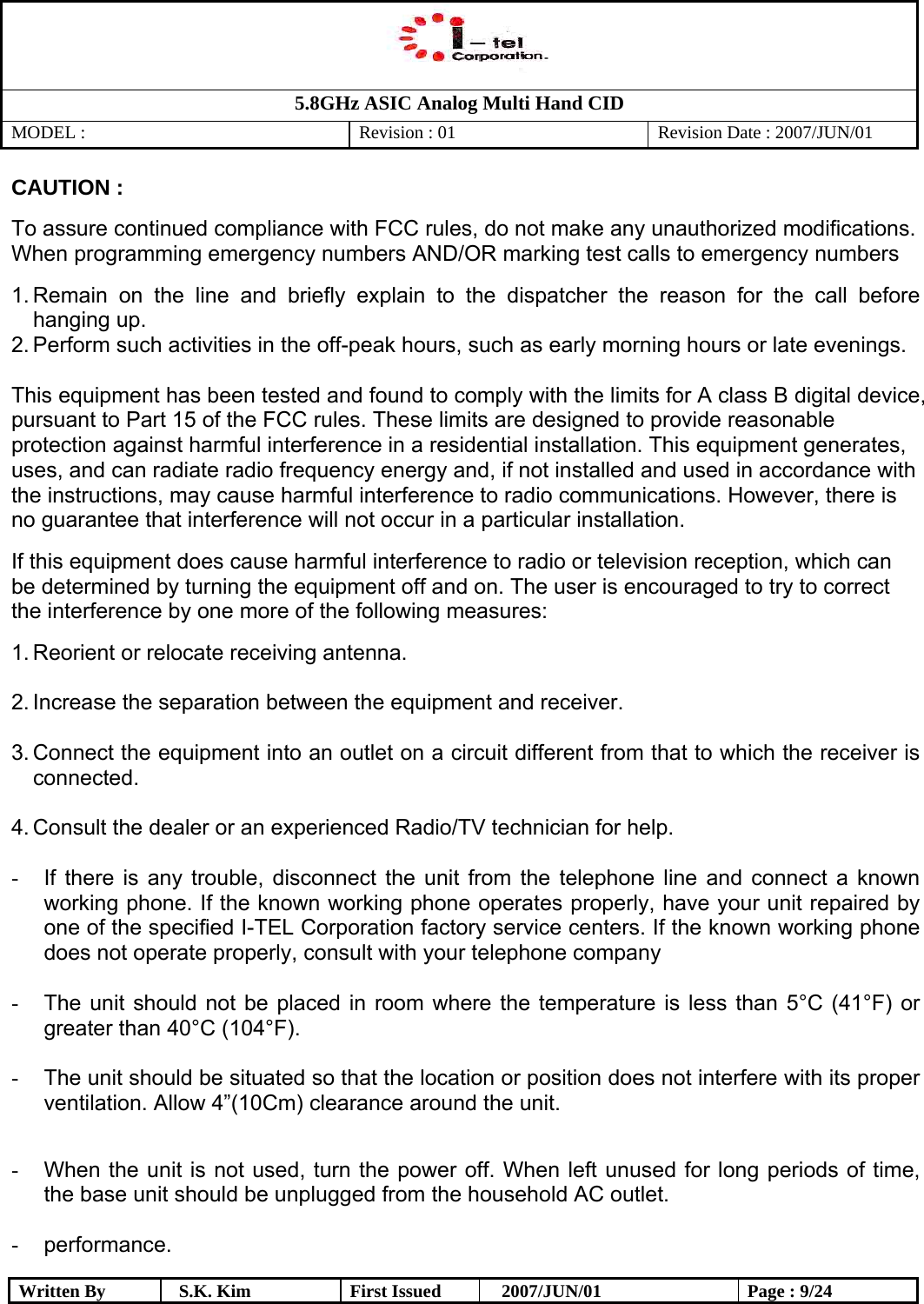

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 9/24 CAUTION : To assure continued compliance with FCC rules, do not make any unauthorized modifications. When programming emergency numbers AND/OR marking test calls to emergency numbers 1. Remain on the line and briefly explain to the dispatcher the reason for the call before hanging up. 2. Perform such activities in the off-peak hours, such as early morning hours or late evenings. This equipment has been tested and found to comply with the limits for A class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one more of the following measures: 1. Reorient or relocate receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced Radio/TV technician for help. - If there is any trouble, disconnect the unit from the telephone line and connect a known working phone. If the known working phone operates properly, have your unit repaired by one of the specified I-TEL Corporation factory service centers. If the known working phone does not operate properly, consult with your telephone company - The unit should not be placed in room where the temperature is less than 5°C (41°F) or greater than 40°C (104°F). - The unit should be situated so that the location or position does not interfere with its proper ventilation. Allow 4”(10Cm) clearance around the unit. - When the unit is not used, turn the power off. When left unused for long periods of time, the base unit should be unplugged from the household AC outlet. - performance.

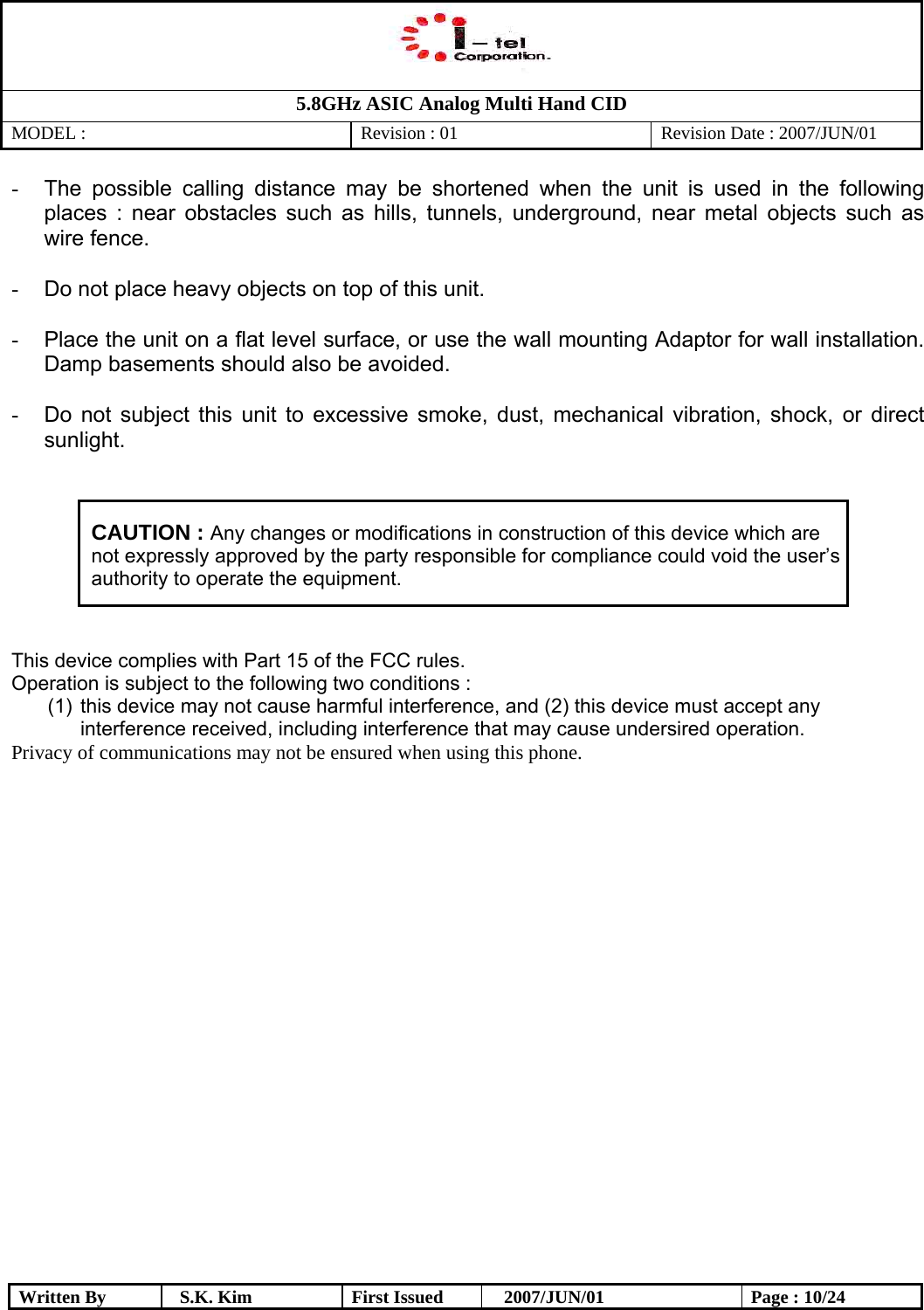

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 10/24 - The possible calling distance may be shortened when the unit is used in the following places : near obstacles such as hills, tunnels, underground, near metal objects such as wire fence. - Do not place heavy objects on top of this unit. - Place the unit on a flat level surface, or use the wall mounting Adaptor for wall installation. Damp basements should also be avoided. - Do not subject this unit to excessive smoke, dust, mechanical vibration, shock, or direct sunlight. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. Privacy of communications may not be ensured when using this phone.

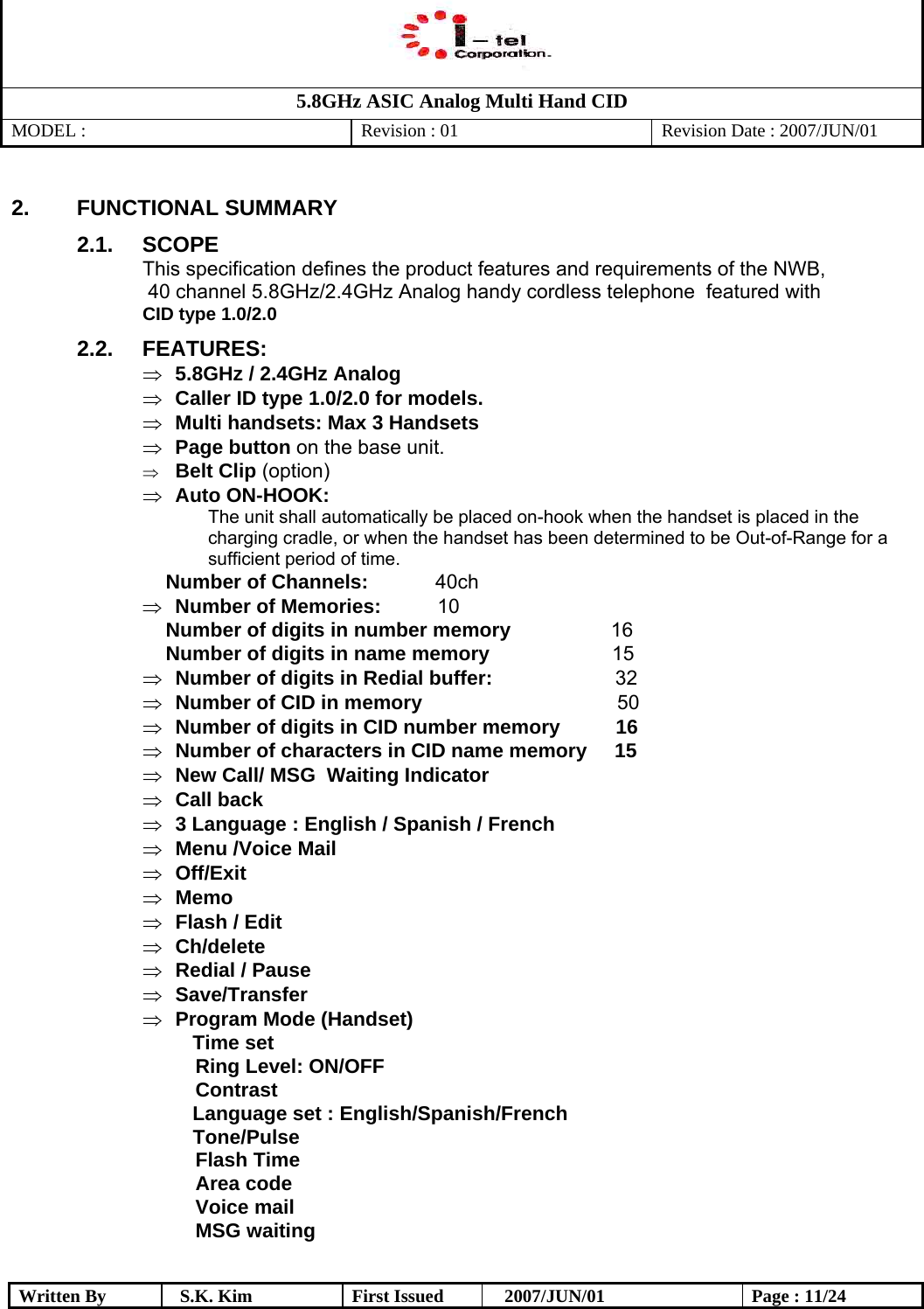

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 11/24 2. FUNCTIONAL SUMMARY 2.1. SCOPE This specification defines the product features and requirements of the NWB, 40 channel 5.8GHz/2.4GHz Analog handy cordless telephone featured with CID type 1.0/2.0 2.2. FEATURES: ⇒ 5.8GHz / 2.4GHz Analog ⇒ Caller ID type 1.0/2.0 for models. ⇒ Multi handsets: Max 3 Handsets ⇒ Page button on the base unit. ⇒ Belt Clip (option) ⇒ Auto ON-HOOK: The unit shall automatically be placed on-hook when the handset is placed in the charging cradle, or when the handset has been determined to be Out-of-Range for a sufficient period of time.  Number of Channels: 40ch ⇒ Number of Memories: 10  Number of digits in number memory 16  Number of digits in name memory 15 ⇒ Number of digits in Redial buffer: 32 ⇒ Number of CID in memory 50 ⇒ Number of digits in CID number memory 16 ⇒ Number of characters in CID name memory 15 ⇒ New Call/ MSG Waiting Indicator ⇒ Call back ⇒ 3 Language : English / Spanish / French ⇒ Menu /Voice Mail ⇒ Off/Exit ⇒ Memo ⇒ Flash / Edit ⇒ Ch/delete ⇒ Redial / Pause ⇒ Save/Transfer ⇒ Program Mode (Handset) Time set Ring Level: ON/OFF Contrast Language set : English/Spanish/French Tone/Pulse Flash Time Area code Voice mail MSG waiting

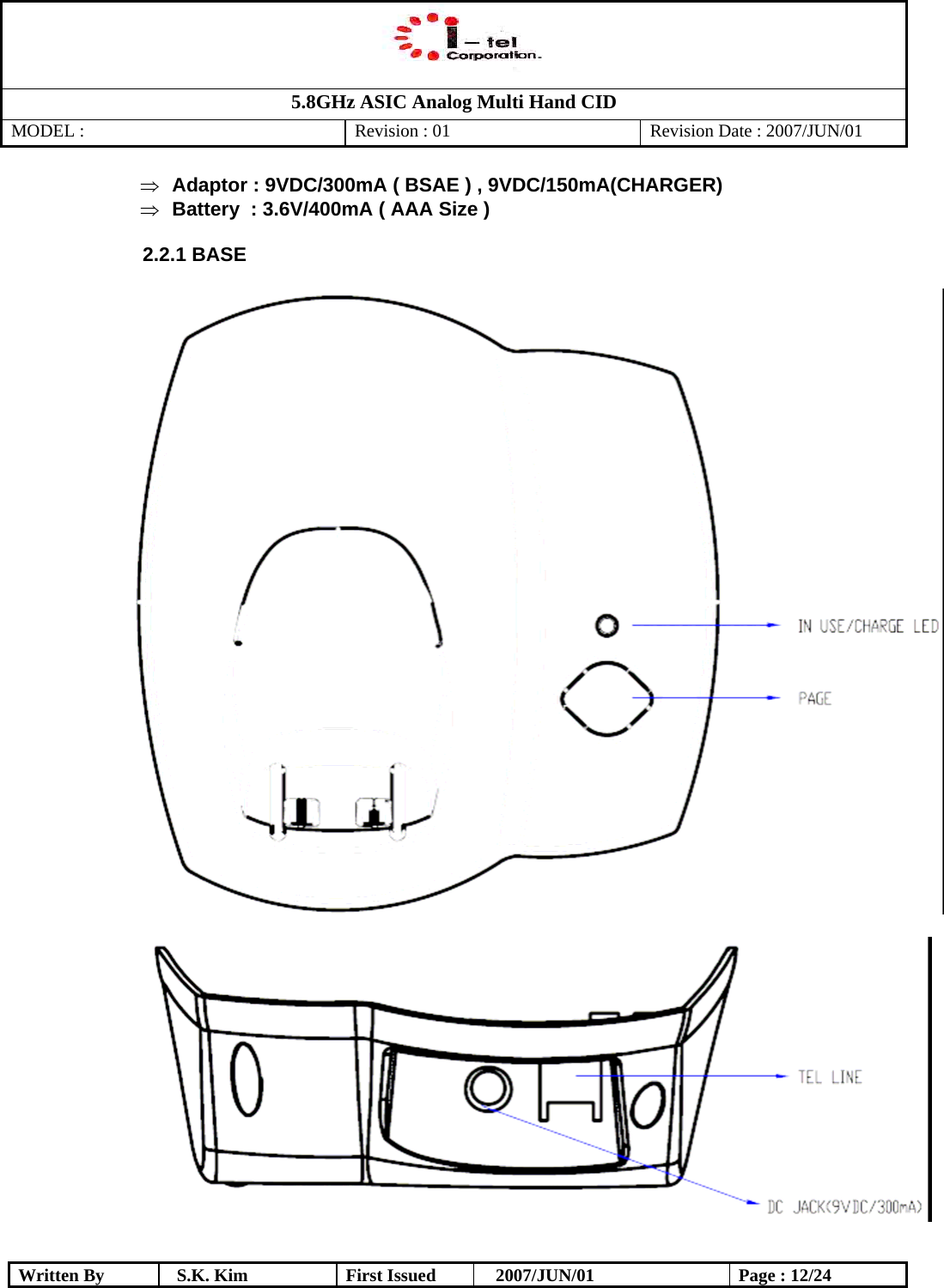

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 12/24 ⇒ Adaptor : 9VDC/300mA ( BSAE ) , 9VDC/150mA(CHARGER) ⇒ Battery : 3.6V/400mA ( AAA Size ) 2.2.1 BASE

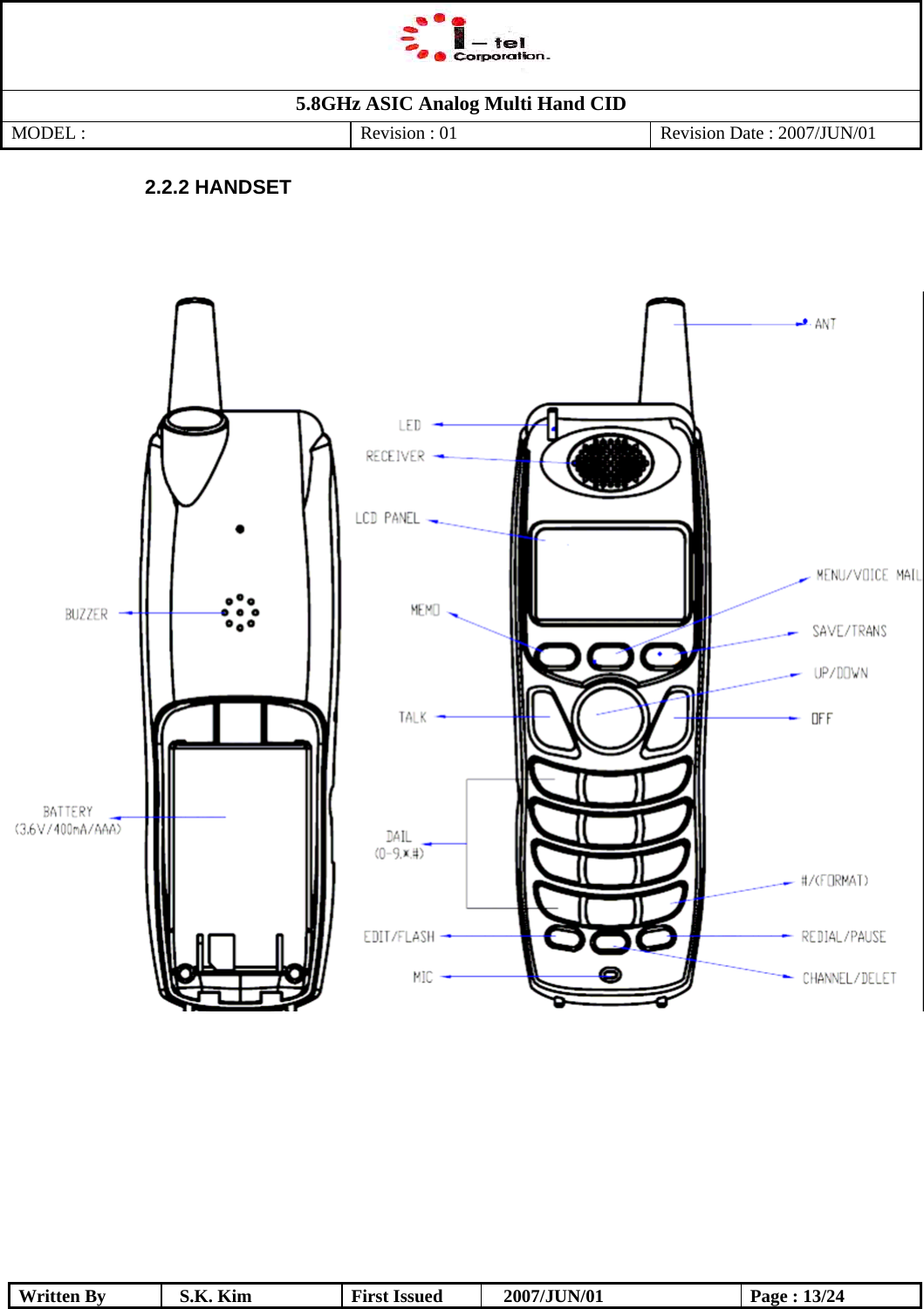

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 13/24 2.2.2 HANDSET
5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 14/24 2.2.3 CHARGER

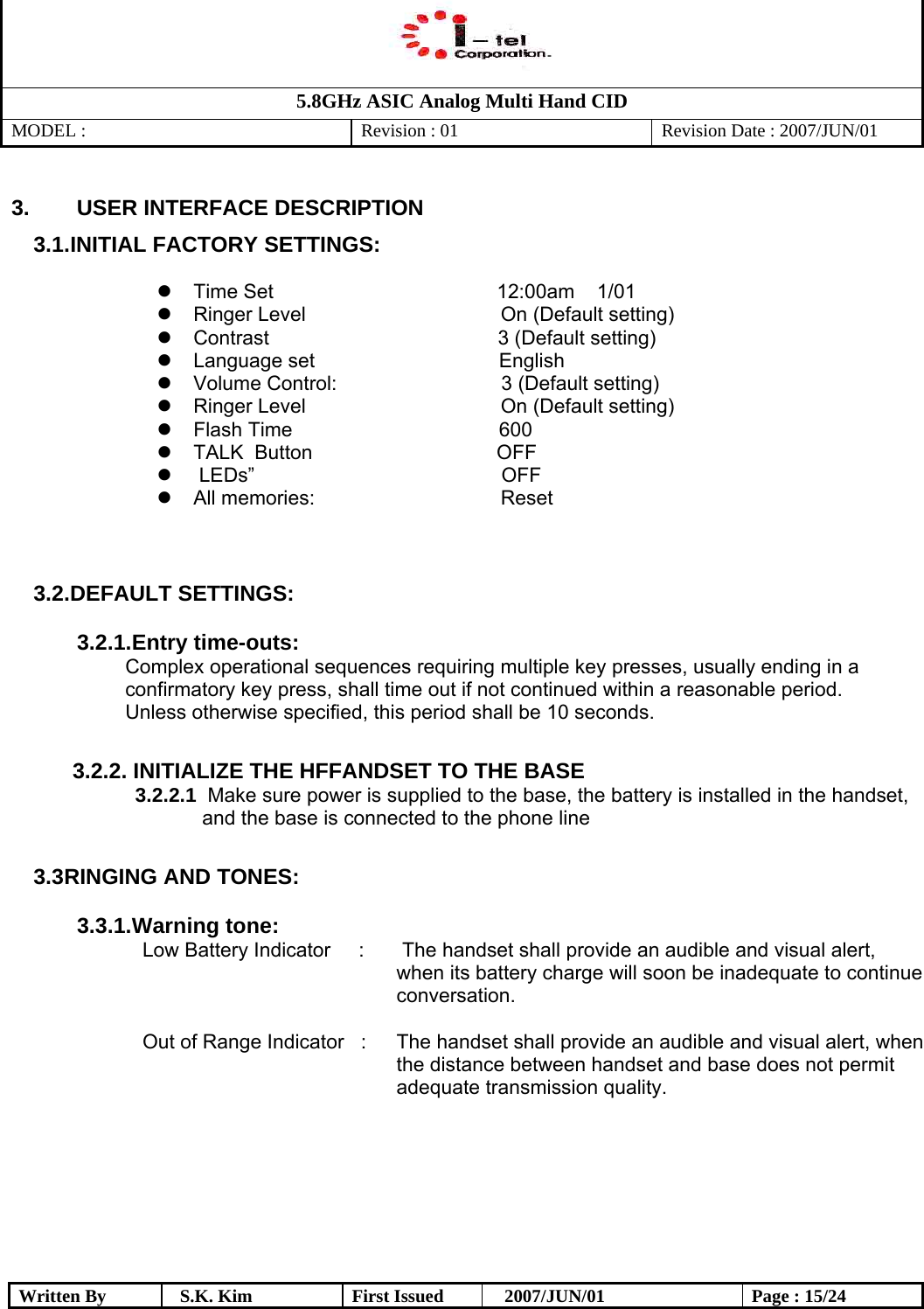

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 15/24 3. USER INTERFACE DESCRIPTION 3.1. INITIAL FACTORY SETTINGS:  Time Set 12:00am 1/01  Ringer Level On (Default setting)  Contrast 3 (Default setting)  Language set English  Volume Control: 3 (Default setting)  Ringer Level On (Default setting)  Flash Time 600  TALK Button OFF  LEDs” OFF  All memories: Reset 3.2. DEFAULT SETTINGS: 3.2.1. Entry time-outs: Complex operational sequences requiring multiple key presses, usually ending in a confirmatory key press, shall time out if not continued within a reasonable period. Unless otherwise specified, this period shall be 10 seconds. 3.2.2. INITIALIZE THE HFFANDSET TO THE BASE 3.2.2.1 Make sure power is supplied to the base, the battery is installed in the handset, and the base is connected to the phone line 3.3 RINGING AND TONES: 3.3.1. Warning tone: Low Battery Indicator : The handset shall provide an audible and visual alert, when its battery charge will soon be inadequate to continue conversation. Out of Range Indicator : The handset shall provide an audible and visual alert, when the distance between handset and base does not permit adequate transmission quality.

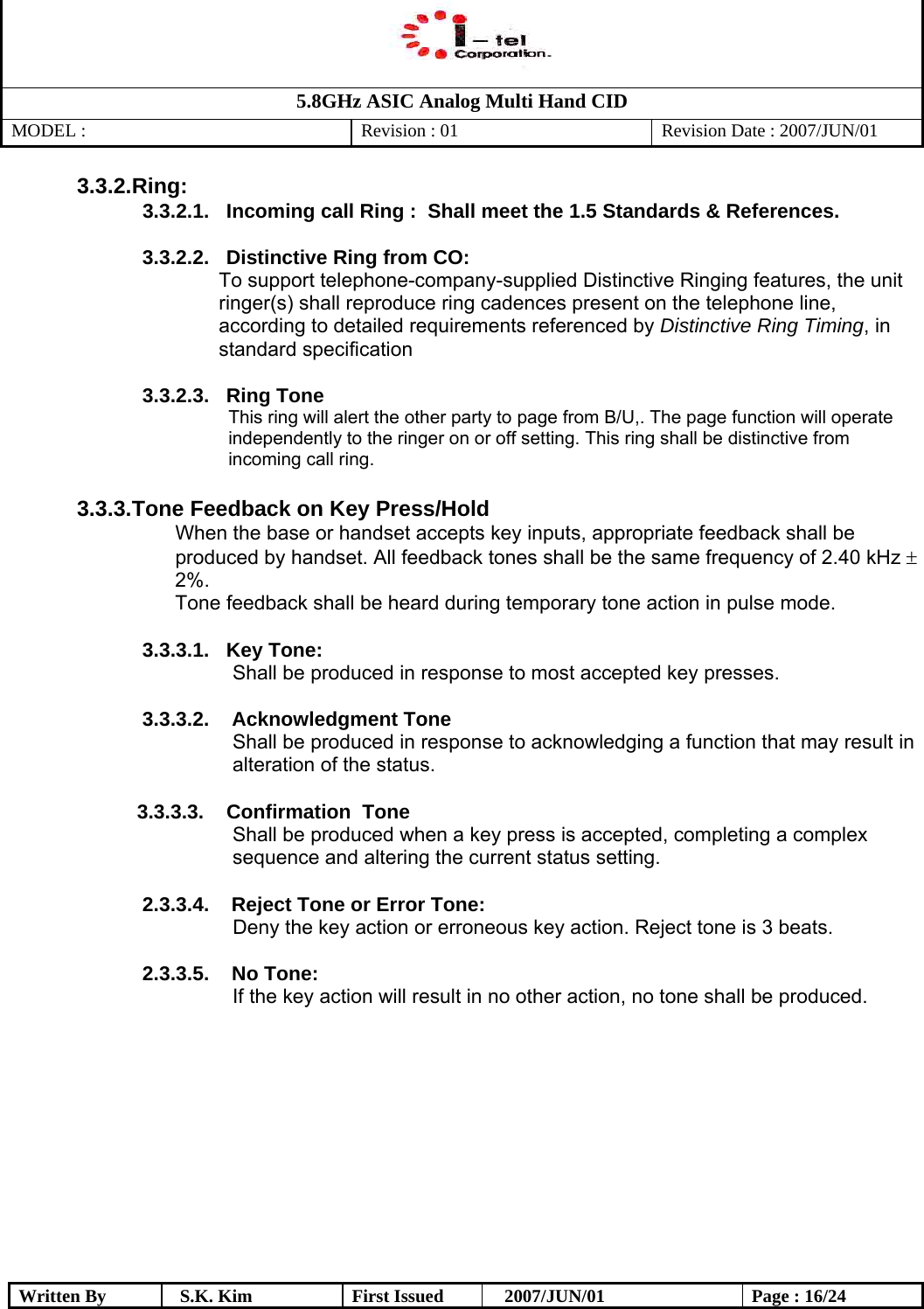

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 16/24 3.3.2. Ring: 3.3.2.1. Incoming call Ring : Shall meet the 1.5 Standards & References. 3.3.2.2. Distinctive Ring from CO: To support telephone-company-supplied Distinctive Ringing features, the unit ringer(s) shall reproduce ring cadences present on the telephone line, according to detailed requirements referenced by Distinctive Ring Timing, in standard specification 3.3.2.3. Ring Tone This ring will alert the other party to page from B/U,. The page function will operate independently to the ringer on or off setting. This ring shall be distinctive from incoming call ring. 3.3.3. Tone Feedback on Key Press/Hold When the base or handset accepts key inputs, appropriate feedback shall be produced by handset. All feedback tones shall be the same frequency of 2.40 kHz ± 2%. Tone feedback shall be heard during temporary tone action in pulse mode. 3.3.3.1. Key Tone: Shall be produced in response to most accepted key presses. 3.3.3.2. Acknowledgment Tone Shall be produced in response to acknowledging a function that may result in alteration of the status. 3.3.3.3. Confirmation Tone Shall be produced when a key press is accepted, completing a complex sequence and altering the current status setting. 2.3.3.4. Reject Tone or Error Tone: Deny the key action or erroneous key action. Reject tone is 3 beats. 2.3.3.5. No Tone: If the key action will result in no other action, no tone shall be produced.

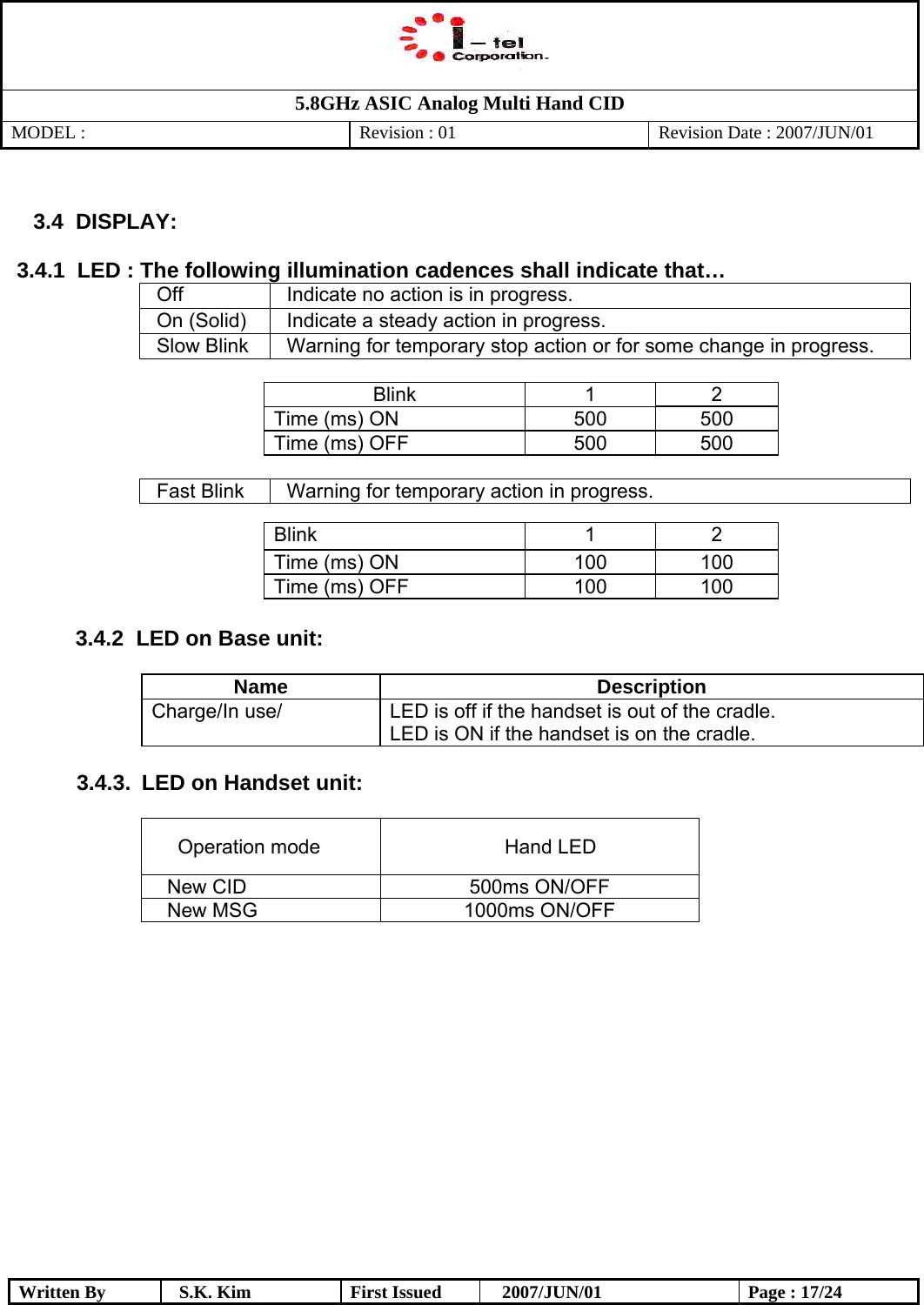

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 17/24 3.4 DISPLAY: 3.4.1 LED : The following illumination cadences shall indicate that… Off Indicate no action is in progress. On (Solid) Indicate a steady action in progress. Slow Blink Warning for temporary stop action or for some change in progress. Blink 1 2 Time (ms) ON 500 500 Time (ms) OFF 500 500 Fast Blink Warning for temporary action in progress. Blink 1 2 Time (ms) ON 100 100 Time (ms) OFF 100 100 3.4.2 LED on Base unit: Name Description Charge/In use/ LED is off if the handset is out of the cradle. LED is ON if the handset is on the cradle. 3.4.3. LED on Handset unit: Operation mode Hand LED New CID 500ms ON/OFF New MSG 1000ms ON/OFF

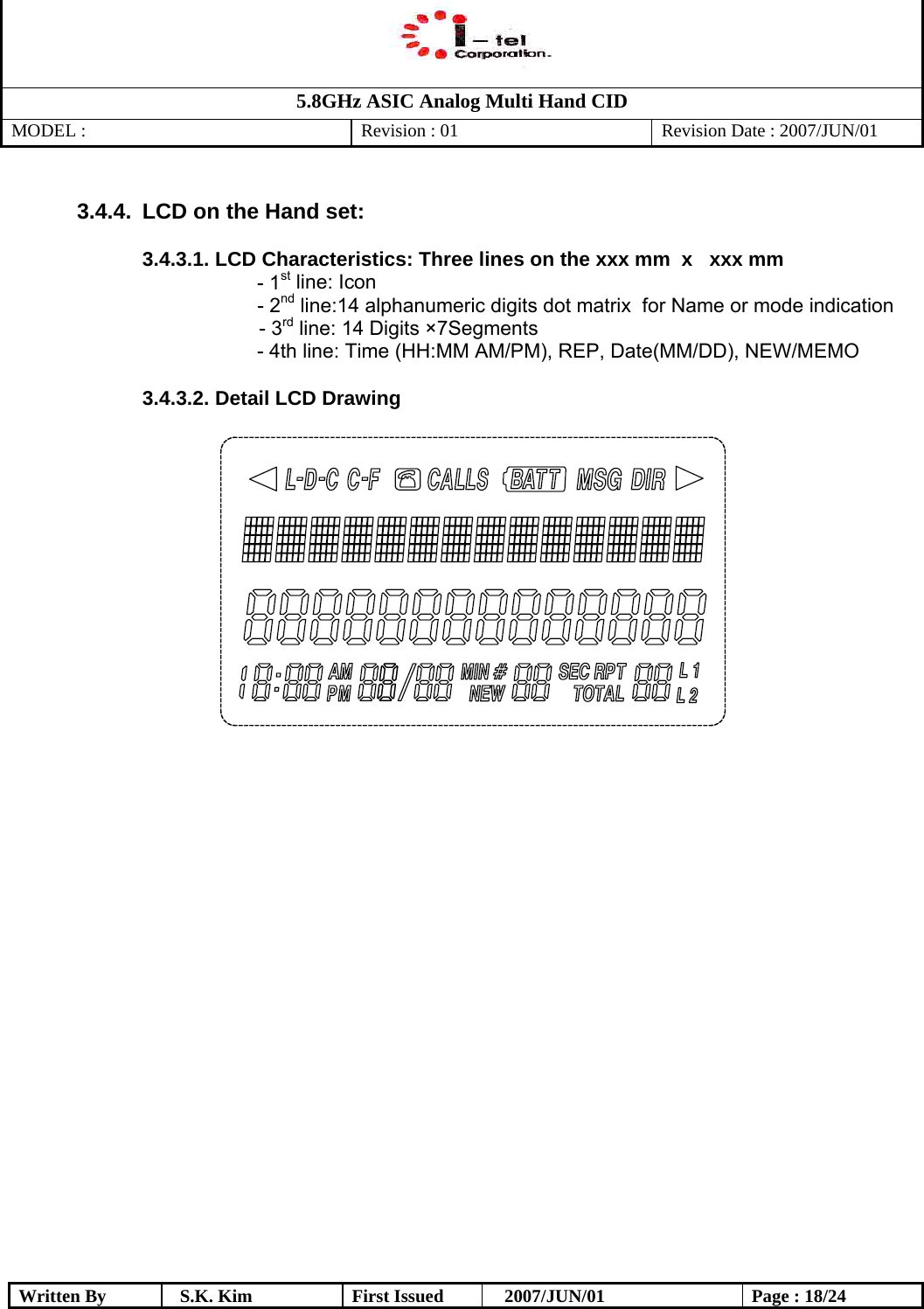

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 18/24 3.4.4. LCD on the Hand set: 3.4.3.1. LCD Characteristics: Three lines on the xxx mm x xxx mm - 1st line: Icon - 2nd line:14 alphanumeric digits dot matrix for Name or mode indication - 3rd line: 14 Digits ×7Segments - 4th line: Time (HH:MM AM/PM), REP, Date(MM/DD), NEW/MEMO 3.4.3.2. Detail LCD Drawing

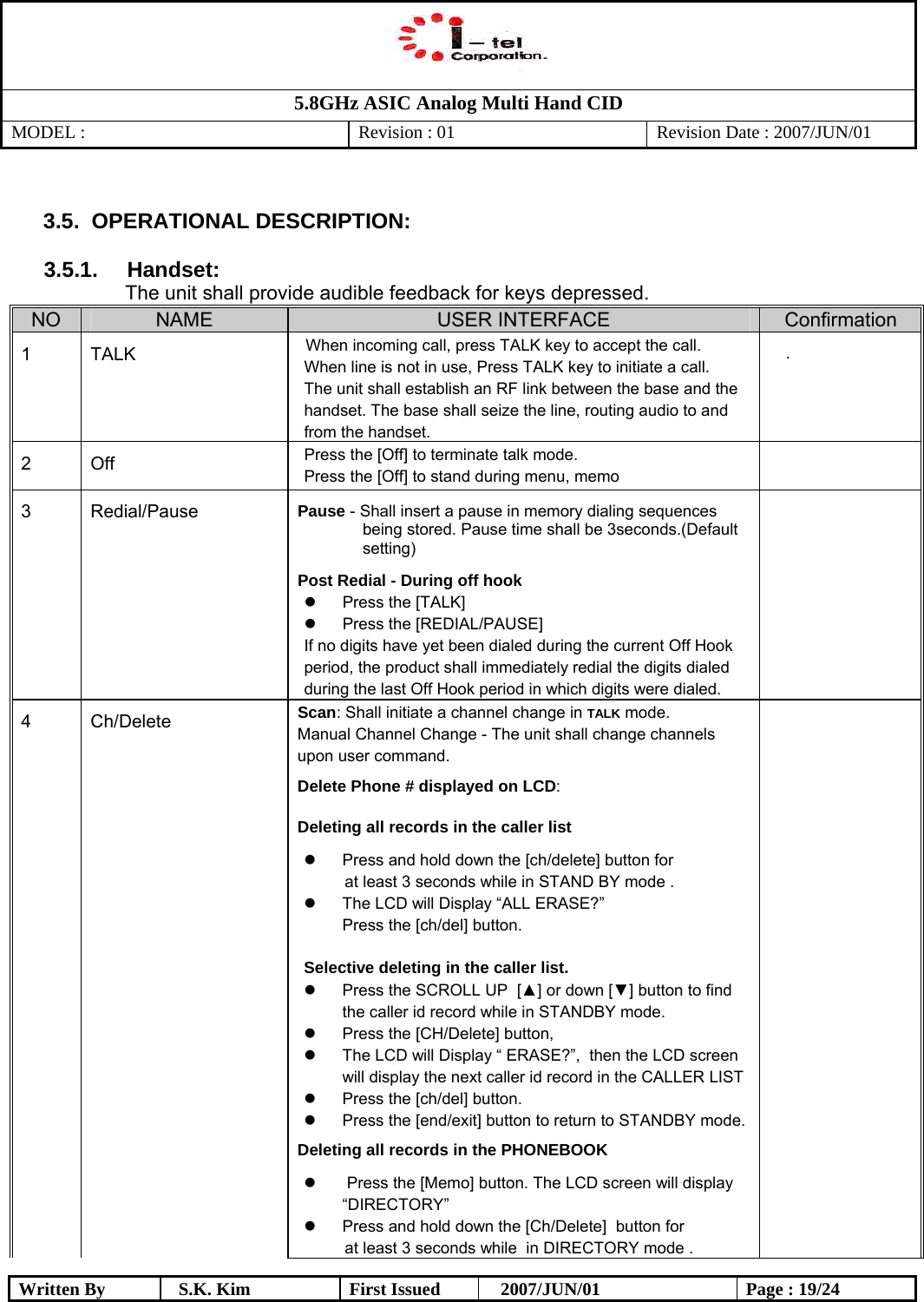

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 19/24 3.5 . OPERATIONAL DESCRIPTION: 3.5.1. Handset: The unit shall provide audible feedback for keys depressed. NO NAME USER INTERFACE Confirmation 1 TALK When incoming call, press TALK key to accept the call. When line is not in use, Press TALK key to initiate a call. The unit shall establish an RF link between the base and the handset. The base shall seize the line, routing audio to and from the handset. . 2 Off Press the [Off] to terminate talk mode. Press the [Off] to stand during menu, memo 3 Redial/Pause Pause - Shall insert a pause in memory dialing sequences being stored. Pause time shall be 3seconds.(Default setting) Post Redial - During off hook  Press the [TALK]  Press the [REDIAL/PAUSE] If no digits have yet been dialed during the current Off Hook period, the product shall immediately redial the digits dialed during the last Off Hook period in which digits were dialed. 4 Ch/Delete Scan: Shall initiate a channel change in TALK mode. Manual Channel Change - The unit shall change channels upon user command. Delete Phone # displayed on LCD: Deleting all records in the caller list  Press and hold down the [ch/delete] button for at least 3 seconds while in STAND BY mode .  The LCD will Display “ALL ERASE?” Press the [ch/del] button. Selective deleting in the caller list.  Press the SCROLL UP [▲] or down [▼] button to find the caller id record while in STANDBY mode.  Press the [CH/Delete] button,  The LCD will Display “ ERASE?”, then the LCD screen will display the next caller id record in the CALLER LIST  Press the [ch/del] button.  Press the [end/exit] button to return to STANDBY mode. Deleting all records in the PHONEBOOK  Press the [Memo] button. The LCD screen will display “DIRECTORY”  Press and hold down the [Ch/Delete] button for at least 3 seconds while in DIRECTORY mode .

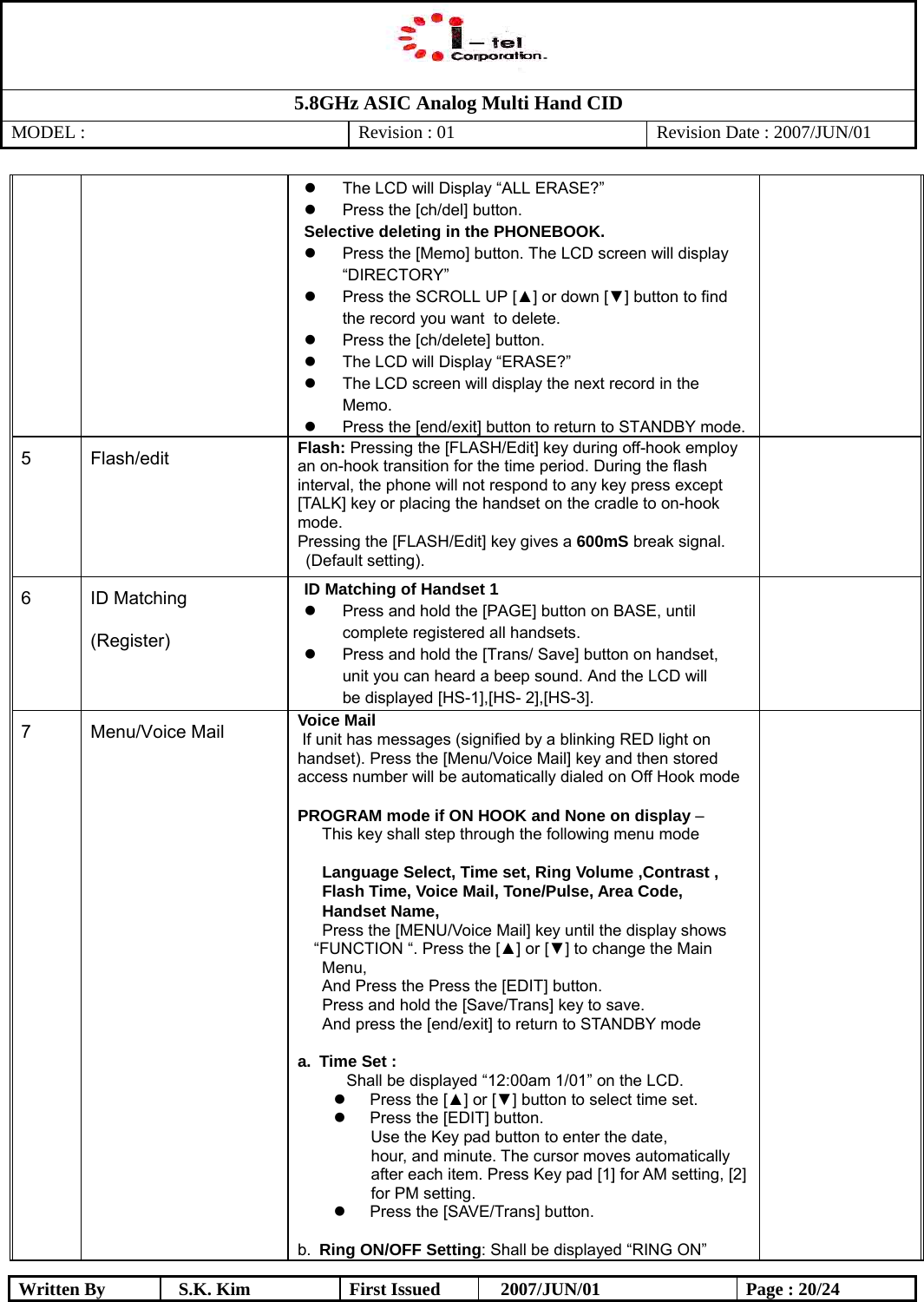

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 20/24  The LCD will Display “ALL ERASE?”  Press the [ch/del] button. Selective deleting in the PHONEBOOK.  Press the [Memo] button. The LCD screen will display “DIRECTORY”  Press the SCROLL UP [▲] or down [▼] button to find the record you want to delete.  Press the [ch/delete] button.  The LCD will Display “ERASE?”  The LCD screen will display the next record in the Memo.  Press the [end/exit] button to return to STANDBY mode. 5 Flash/edit Flash: Pressing the [FLASH/Edit] key during off-hook employ an on-hook transition for the time period. During the flash interval, the phone will not respond to any key press except [TALK] key or placing the handset on the cradle to on-hook mode. Pressing the [FLASH/Edit] key gives a 600mS break signal. (Default setting). 6 ID Matching (Register) ID Matching of Handset 1  Press and hold the [PAGE] button on BASE, until complete registered all handsets.  Press and hold the [Trans/ Save] button on handset, unit you can heard a beep sound. And the LCD will be displayed [HS-1],[HS- 2],[HS-3]. 7 Menu/Voice Mail Voice Mail If unit has messages (signified by a blinking RED light on handset). Press the [Menu/Voice Mail] key and then stored access number will be automatically dialed on Off Hook mode PROGRAM mode if ON HOOK and None on display – This key shall step through the following menu mode Language Select, Time set, Ring Volume ,Contrast , Flash Time, Voice Mail, Tone/Pulse, Area Code, Handset Name, Press the [MENU/Voice Mail] key until the display shows “FUNCTION “. Press the [▲] or [▼] to change the Main Menu, And Press the Press the [EDIT] button. Press and hold the [Save/Trans] key to save. And press the [end/exit] to return to STANDBY mode a. Time Set : Shall be displayed “12:00am 1/01” on the LCD.  Press the [▲] or [▼] button to select time set.  Press the [EDIT] button. Use the Key pad button to enter the date, hour, and minute. The cursor moves automatically after each item. Press Key pad [1] for AM setting, [2] for PM setting.  Press the [SAVE/Trans] button. b. Ring ON/OFF Setting: Shall be displayed “RING ON”

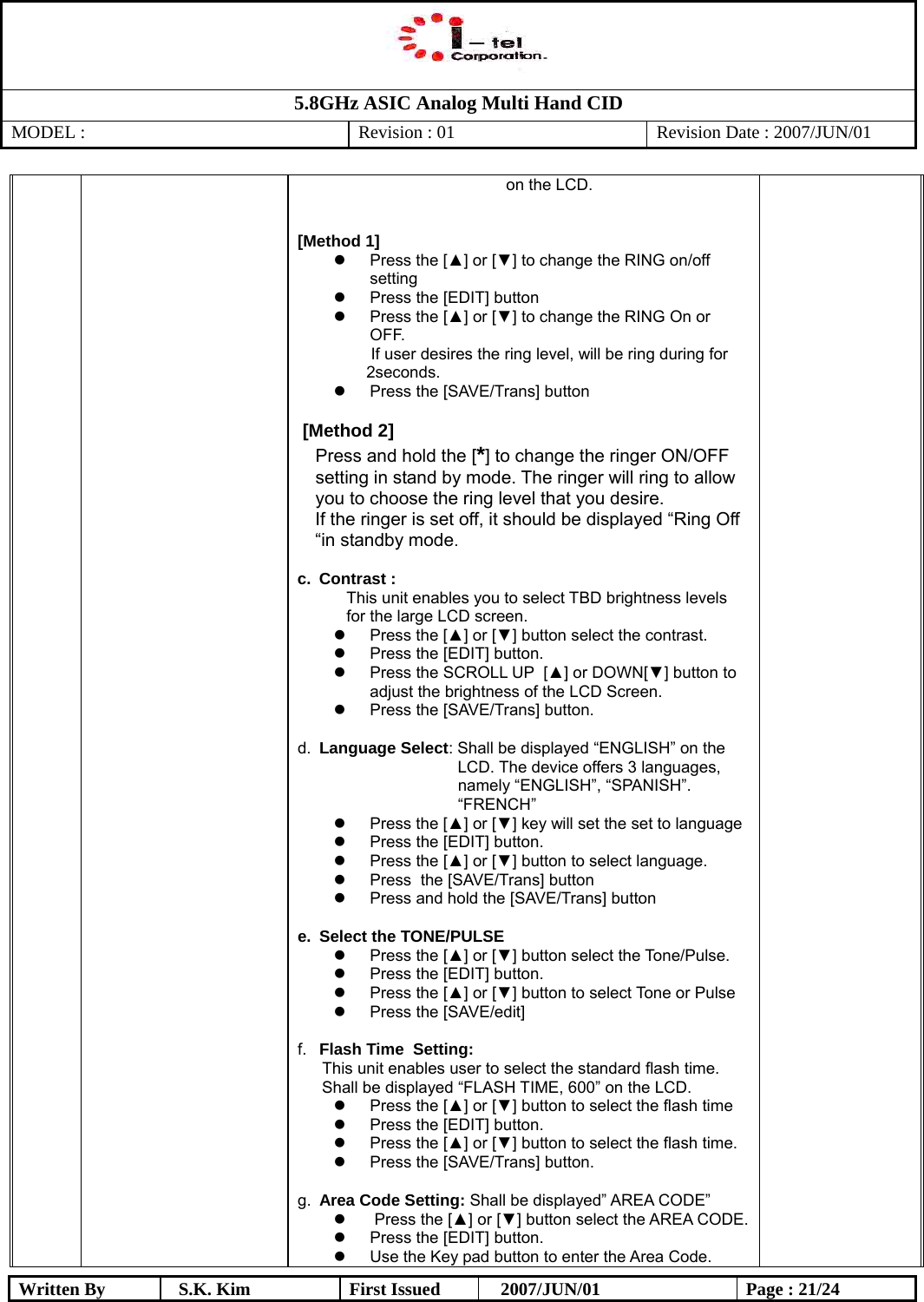

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 21/24 on the LCD. [Method 1]  Press the [▲] or [▼] to change the RING on/off setting  Press the [EDIT] button  Press the [▲] or [▼] to change the RING On or OFF. If user desires the ring level, will be ring during for 2seconds.  Press the [SAVE/Trans] button [Method 2] Press and hold the [*] to change the ringer ON/OFF setting in stand by mode. The ringer will ring to allow you to choose the ring level that you desire. If the ringer is set off, it should be displayed “Ring Off “in standby mode. c. Contrast : This unit enables you to select TBD brightness levels for the large LCD screen.  Press the [▲] or [▼] button select the contrast.  Press the [EDIT] button.  Press the SCROLL UP [▲] or DOWN[▼] button to adjust the brightness of the LCD Screen.  Press the [SAVE/Trans] button. d. Language Select: Shall be displayed “ENGLISH” on the LCD. The device offers 3 languages, namely “ENGLISH”, “SPANISH”. “FRENCH”  Press the [▲] or [▼] key will set the set to language  Press the [EDIT] button.  Press the [▲] or [▼] button to select language.  Press the [SAVE/Trans] button  Press and hold the [SAVE/Trans] button e. Select the TONE/PULSE  Press the [▲] or [▼] button select the Tone/Pulse.  Press the [EDIT] button.  Press the [▲] or [▼] button to select Tone or Pulse  Press the [SAVE/edit] f. Flash Time Setting: This unit enables user to select the standard flash time. Shall be displayed “FLASH TIME, 600” on the LCD.  Press the [▲] or [▼] button to select the flash time  Press the [EDIT] button.  Press the [▲] or [▼] button to select the flash time.  Press the [SAVE/Trans] button. g. Area Code Setting: Shall be displayed” AREA CODE”  Press the [▲] or [▼] button select the AREA CODE.  Press the [EDIT] button.  Use the Key pad button to enter the Area Code.

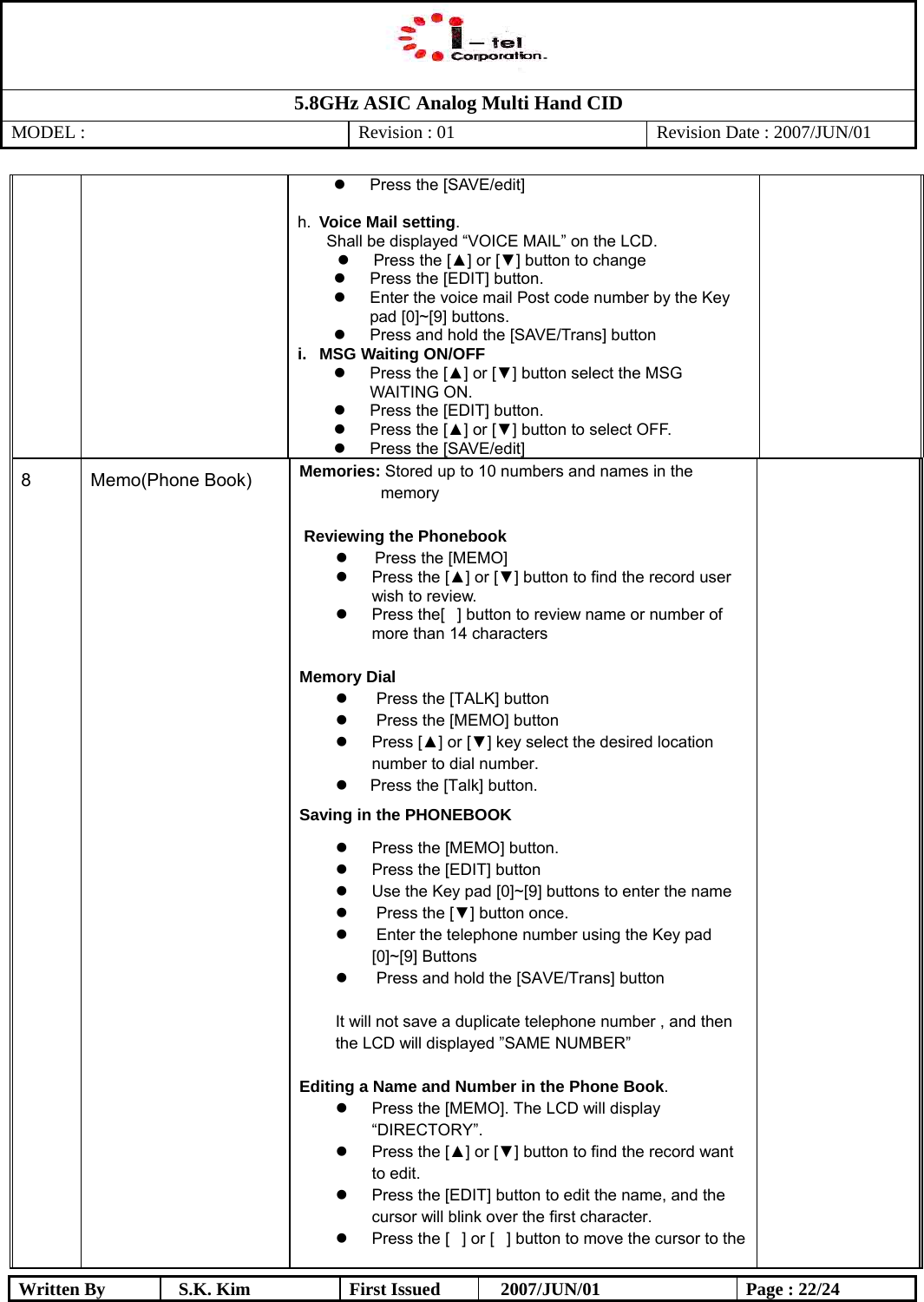

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 22/24  Press the [SAVE/edit] h. Voice Mail setting. Shall be displayed “VOICE MAIL” on the LCD.  Press the [▲] or [▼] button to change  Press the [EDIT] button.  Enter the voice mail Post code number by the Key pad [0]~[9] buttons.  Press and hold the [SAVE/Trans] button i. MSG Waiting ON/OFF  Press the [▲] or [▼] button select the MSG WAITING ON.  Press the [EDIT] button.  Press the [▲] or [▼] button to select OFF.  Press the [SAVE/edit] 8 Memo(Phone Book) Memories: Stored up to 10 numbers and names in the memory Reviewing the Phonebook  Press the [MEMO]  Press the [▲] or [▼] button to find the record user wish to review.  Press the[] button to review name or number of more than 14 characters Memory Dial  Press the [TALK] button  Press the [MEMO] button  Press [▲] or [▼] key select the desired location number to dial number.  Press the [Talk] button. Saving in the PHONEBOOK  Press the [MEMO] button.  Press the [EDIT] button  Use the Key pad [0]~[9] buttons to enter the name  Press the [▼] button once.  Enter the telephone number using the Key pad [0]~[9] Buttons  Press and hold the [SAVE/Trans] button It will not save a duplicate telephone number , and then the LCD will displayed ”SAME NUMBER” Editing a Name and Number in the Phone Book.  Press the [MEMO]. The LCD will display “DIRECTORY”.  Press the [▲] or [▼] button to find the record want to edit.  Press the [EDIT] button to edit the name, and the cursor will blink over the first character.  Press the [] or [] button to move the cursor to the
5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 23/24 10 Call Transfer letter or number want to change. To erase, press the [ch/DELETE] . To add, use the Key pad [0]~[9] buttons.  Press [▲] or [▼] button to edit the number.  Press the [] or [] button to move the cursor to the digit want to change. To erase, press the [SCAN/DELETE] . To add, use the Key pad [0]~[9] buttons  Press and hold the [SAVE/Trans] button. Placing Calls from the Memo.  Press the [Memo]. The LCD will display “DIRECTORY”.  Press [▲] or [▼] button to find the record want to call.  Press the [Talk] button for a local call, C-F (Forwarded Call) The “C-F” icon pops-up on the LCD, when the incoming call has been assigned to users telephone number. L-D-C (Long Distance Call). The “L-D-C” icon pops-up on the LCD, when the incoming call is a long distance call and the service is provided by your local telephone company. During Post-Intercom Mode (Off-hook mode) During telephone conversation, a call transfer to other extension in the same multi handset is possible.  Press the [Trans/save] button.  To select the handset #, use the Key pad [0]~[3] buttons Receiving handset is answered by pressing [TALK] Receiving handset goes to OFF-HOOK mode, and another handset goes to ON-HOOK mode. If no answer is received in 30 seconds, the page will stop and return to ring back to calling party for 30 seconds. If no answer is received at that point, the call will be terminated 11 0 to 9 digit keys Shall dial a digit the digit in TALK mode, store MEMEORY programming or select entry of one of two digits for MEMORY dial. Each key action will be followed by tone feedback 12 TONE, * Shall dial or store the digit ‘*’, in TALK mode or MEM programming, respectively; shall initiate temporary tone dialing The procedure to activate tone dialing temporarily, for the purpose of activating touch-tone services offered by banks, credit card companies, etc.) When pulse dialing is selected Each key action will be followed by tone feedback

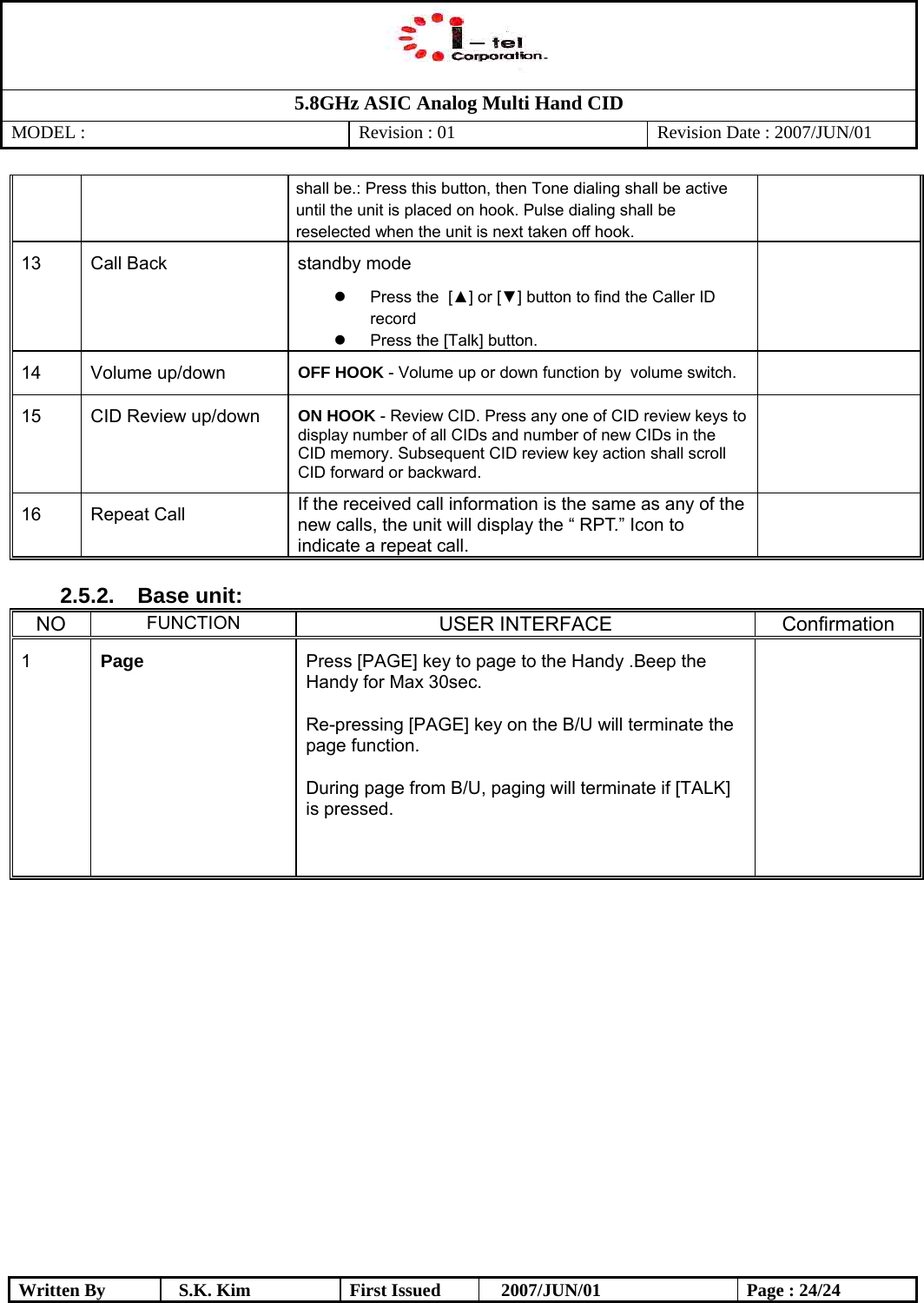

5.8GHz ASIC Analog Multi Hand CID MODEL : Revision : 01 Revision Date : 2007/JUN/01 Written By S.K. Kim First Issued 2007/JUN/01 Page : 24/24 shall be.: Press this button, then Tone dialing shall be active until the unit is placed on hook. Pulse dialing shall be reselected when the unit is next taken off hook. 13 Call Back standby mode  Press the [▲] or [▼] button to find the Caller ID record  Press the [Talk] button. 14 Volume up/down OFF HOOK - Volume up or down function by volume switch. 15 CID Review up/down ON HOOK - Review CID. Press any one of CID review keys to display number of all CIDs and number of new CIDs in the CID memory. Subsequent CID review key action shall scroll CID forward or backward. 16 Repeat Call If the received call information is the same as any of the new calls, the unit will display the “ RPT.” Icon to indicate a repeat call. 2.5.2. Base unit: NO FUNCTION USER INTERFACE Confirmation 1 Page Press [PAGE] key to page to the Handy .Beep the Handy for Max 30sec. Re-pressing [PAGE] key on the B/U will terminate the page function. During page from B/U, paging will terminate if [TALK] is pressed.
