INSTRUCTION MANUAL
IBRit - rf1 - opto
Miniature radio module for
wireless data transfer
2
Introduction
The miniature radio module IBRit- rf1 - opto allows the
transmission of measured values from gauges with Opto-RS232
( Duplex ) to a PC. The transmission of measured values is
triggered by pressing the data key on the gauge and is optically
and acoustically confirmed by the IBRit- rf1 - opto radio module.
The miniature radio modules are individually and wirelessly
programmable by a PC programme and store these settings.
By programmable module addresses up to 120 radio modules can
work parallel with a PC work station.
For optimal usage of the radio module we advice to read the
manual intently.
Contents
1. Safety Instructions / 2. Delivered Items .................. 3
3. Cleaning und Maintenance / 4. Storage .................... 3
5. Technical data / 6. Dimensions ............................... 4
7. Plugging a miniature radio module IBRit - rf1 - opto
into a gauge ............................................................... 5
8. Changing an antenna on the IBRit - rf1 - opto ............. 5
9. Mode selection on hand gauges and
measurement data transfer ........................................ 6
10. Battery exchange on the IBRit - rf1 - opto ................... 7
11. Meaning of the different flash - codes ........................ 8
12. Battery - Dischargement by light emission ................. 8
13. Programming of IBRit - rf1- opto radio modules .......... 10
Page
3
1. Safety Instructions
Batteries
Are not rechargeable Do not throw them into fire
Correct disposing of them
2. Delivered Items
Miniature radio module IBRit - rf1 - opto
2 Antennas ( short and long version )
2 Batteries ( in the radio module )
Light protection cover
Instruction manual
3. Cleaning and Maintenance
♦ Please clean the case and the circuit board with a
soft duster and neutral cleaner.
Do not use any chemical products ( like i.e. dilute,
petrol, acetone, … ).
♦ Except of exchanging the batteries only the
manufacturer is allowed to demount the instrument.
On not observing the guarantee is lost.
4. Storage
On storing the miniature radio module outside the gauge
the circuit board side must be put into the black light
protection cover. Otherwise light emission discharges the
batteries in the module.
Please store the miniature radio module only on dry and
clean places.
4
5. Technical Data
Mechanical characteristics
Case Plastic
Dimension W x H x D / Weight 25,1 x 41,69 x 12,15 mm / ca. 8 g
Electrical characteristics
Battery lifetime About 100.000 data transfers
Battery type SR 920 W, SR 69, 371 LD
Frequency 433,926 MHz
Frequency shifting ± 15 KHz
Modulation type FSK
Output @ 400Ω+ 10 dBm
Sensitivity @ 400Ω- 105 dBm
Transmission speed 9600 Baud
Environmental conditions
Working temperature range 0 ... 45°C
Storage temperature range -30 ... +60°C
Specific standards
CE conformity Harmonised standards EN 300 220
FCC FCC ID : T6T-604005

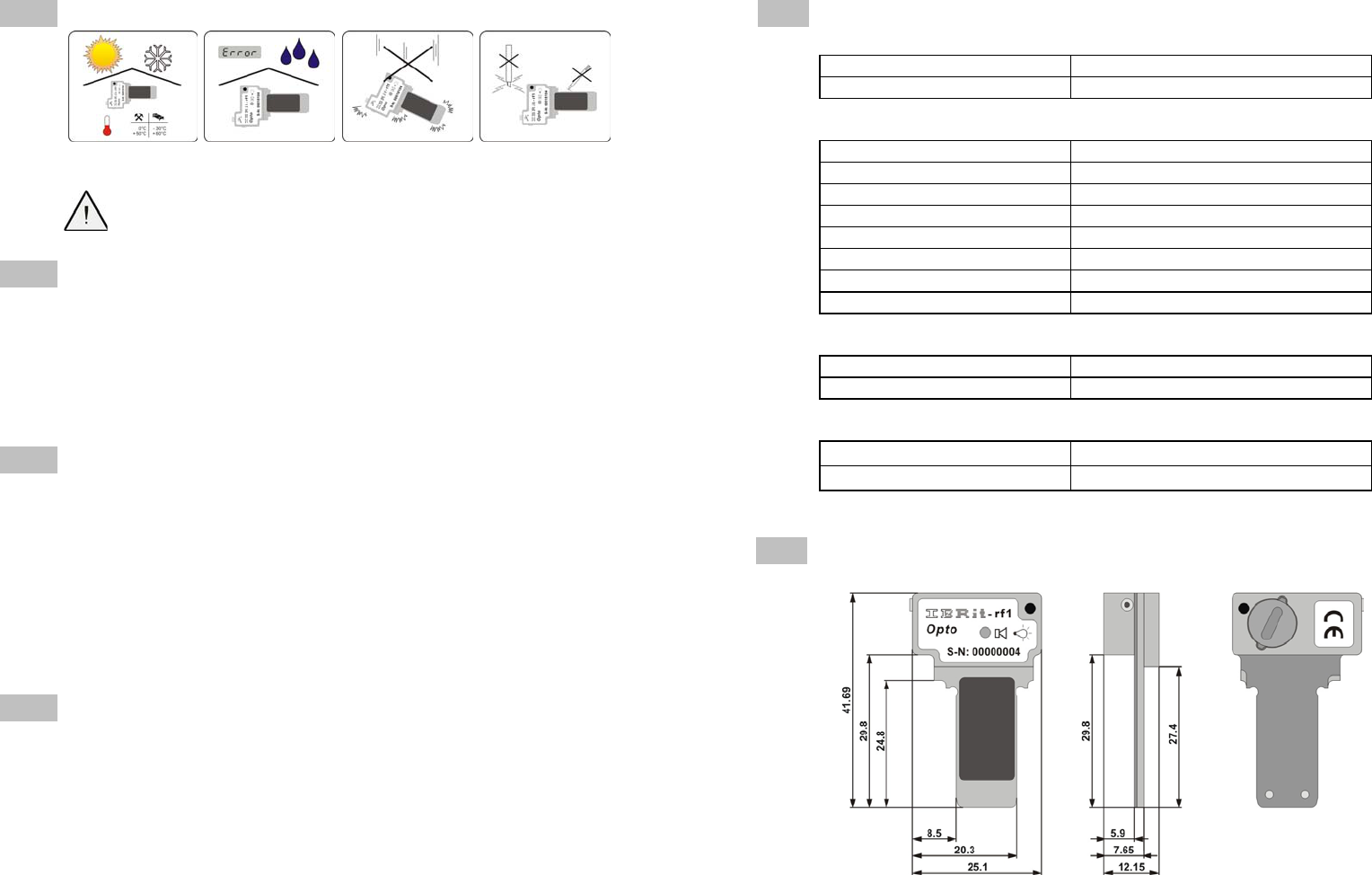

6. Dimensions
5

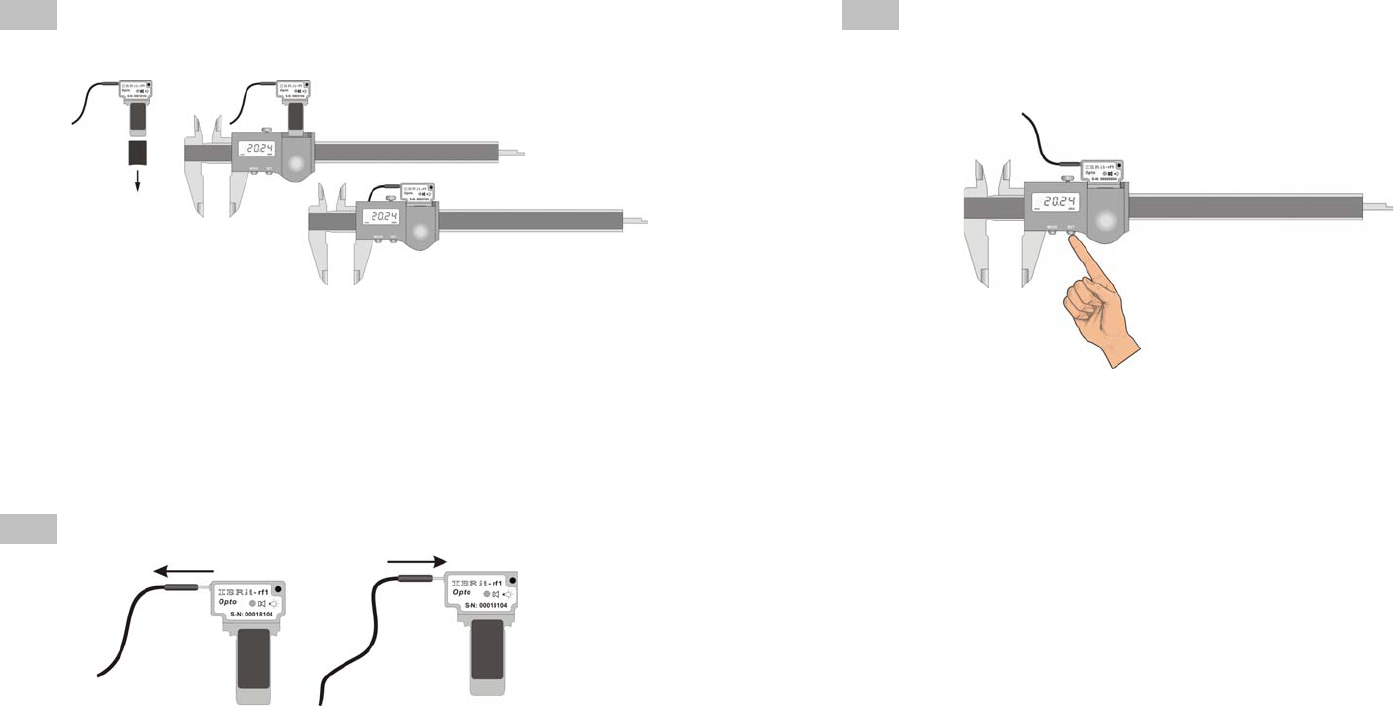

7. Plugging a miniature radio module IBRit - rf1 - opto
into a gauge
♦ Please remove the black light protection cover before
plugging the radio module into the gauge.
♦ Please mind the distort protection !
The IBRit - rf1 - opto must be rested completed !
♦ The miniature radio module works only with gauges with a
Duplex Opto RS232 - interface
8. Changing an antenna on the IBRit - rf1 - opto
Note :
Part of the delivered items of the IBRit - rf1 - opto are a
short and a long antenna.
The short antenna is suitable for most applications.
To reconcile bigger distances or on disturbance fields
the long antenna is required.
Only the long antenna provides the full transmitting and
receiving power.
6
9. Mode selection on hand gauges and
measurement data transfer
♦ On Sylvac gauges for the data transmission the
measuring mode ABS or REF must be selected.
For mode selection please see the gauge manual
or gauge backside.
♦ The data transmission occurs by pressing the Data or
Set - key on the gauge.
Note :
A green flashing light or a short beep tone confirms a
successful data transmission. When the PC radio station is
not connected or when the Software is not started, the radio
module returns the error message with a red flashing light
and two long beep-tones.
More information about error messages you find in the
table on page 8.
7

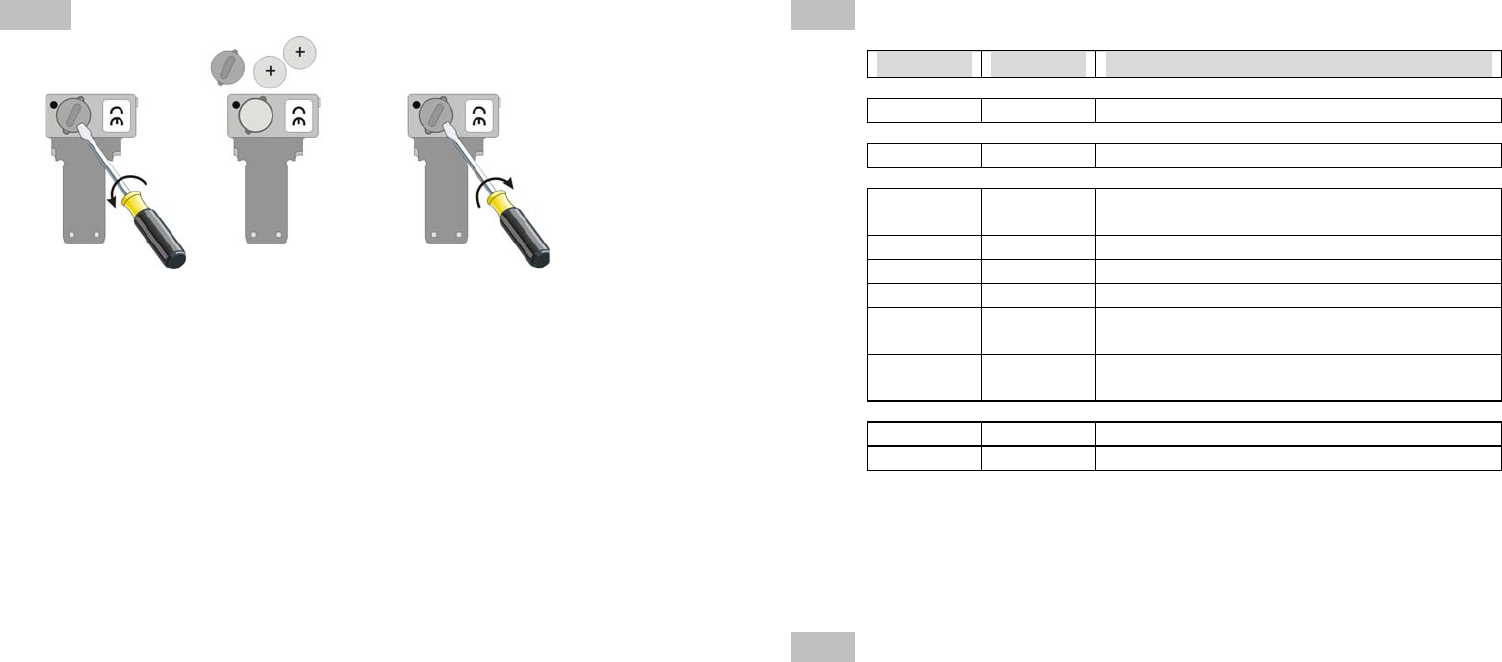

10. Battery exchange on the IBRit - rf1 - opto
Open Close
Battery type : SR 920 W, SR 69, 371 LD
Released manufacturers : Maxwell, Duracell, Energizer,
Renata
Note :
a) Please remove according to the picture the both
batteries and dispose the empty batteries according
to the regulations.
b) Before inserting the new batteries the capacitors in
the miniature radio modules must be completely
discharged. For discharging the capacitors please
lay the miniature radio module at minimum 5
minutes under a light lamp. The open battery
compartment must show in direction of the lamp.
c) Please insert the new batteries. Mind that both
batteries show with the plus pole to the opening and
that the battery contact is not bended.
d) After the 2nd Battery is inserted the miniature radio
module announces itself with a short tone series.
If not please remove the batteries a second time and
discharge the radio module long enough before you
insert the batteries again.
8
11. Meaning of the different flash - codes
LED Buzzer Meaning
1 x green 1 x short Data transfer successful
1 x red 2 x long Error on the radio transfer
2 x red 2 x long Timeout error by reading the measurement
value from the gauge
3 x red 2 x long Spike on the data wire of the Opto RS232
4 x red 2 x long No Stop bit from the Opto RS232 interface
5 x red 2 x long Parity – error on the Opto RS232 interface
6 x red 2 x long Overflow of the input buffer on the
Opto RS232 interface
7 x red 2 x long Undefined data format from the Opto
RS232 interface
8 x red 2 x long Writing error on EEPROM access
9 x red 2 x long Reading error on EEPROM access
Note :
A measurement value cannot be transmitted until the
error message has ended ( about 2 sec. ) !!!
12. Battery - Dischargement by light emission
If the miniature radio module is not plugged into the gauge
then the receiver diode of the Opto RS232 – interface can
discharge the battery.
!!! A short beep tone in 1 sec interval informs the user
about this situation. Please protect the radio module
by the black light protection cover.
9

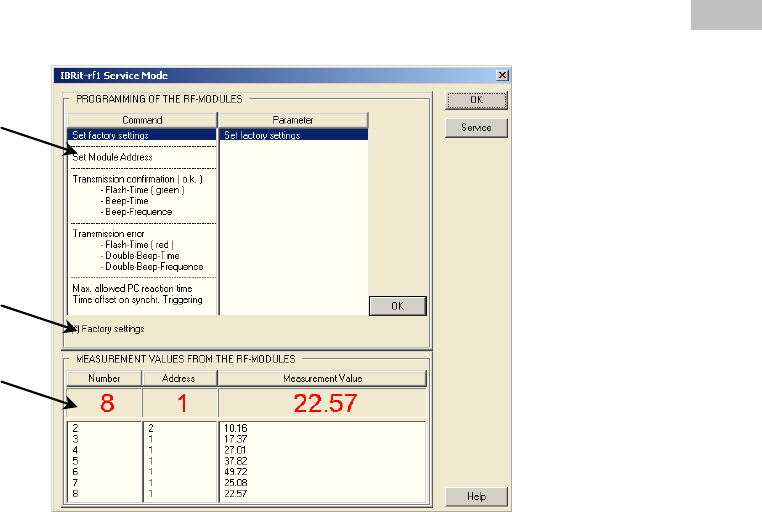

Programming window of IBR_SimKey
Example :
Programming of a new radio module address ( sender )
1. Click on Command : Set module address
2. Parameter : Select an address between 1 and 120
3. Set command into waiting queue : Click onto OK - Button
4. Press the Data - Key on that gauge or gauge module
which should be programmed
5. Two short beep tones confirm the successful
programming
Command list
Info line
Receiving-
display
10
13. Programming of the IBRit - rf1 - opto
radio modules
The programming of the miniature radio modules occurs
with the programme IBR_SimKey. The Software is included
in the delivery of the PC radio station IBRit - rf1 - usb.
All settings are stored in the miniature radio modules and
are also stored on changing the batteries. For programming
the miniature radio modules please go in the programme
IBR_SimKey into the programming window.
Please select after that the command and the parameter.
By clicking onto the OK - Button the command is set into a
waiting queue. Please press now the data key of that radio
module or gauge, which should be programmed for trans-
mitting a measuring value. On the end of the measuring
value transmission the PC radio station sends the command
out of the waiting queue to the module. Two short beep
tones confirm the correct programming.
Command overview for programming the miniature
radio modules
- Set module address ( 1...120 )
- Transmission confirmation ( o.k. )
- Flash time ( green )
- Beep time
- Beep frequency
- Transmission error
- Flash time ( red )
- Double Beep time
- Double Beep frequency
11
Declaration of conformity
Thank you very much for your confidence in purchasing this product.
We certify herewith that the product was manufactured and inspected
in our works. We declare under our sole responsibility that this product
is conform with technical data specified in this instruction manual.
On addition, we certify that the measuring equipment used to check
this product is calibrated by authorized companies in regular intervals.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions. This device may not cause harmful
interference, and this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful inter-
ference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures :
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
12
Important Notice :
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions :
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Warning : Changes or modifications made to this equipment not
expressly approved by IBR may void the FCC
authorization to operate this equipment.
13
Guarantee
The quality of this instrument is guaranteed for a period of 12 month from
the date of the delivery. This guarantee covers all materials
and manufacturing defects. Our liability is confined to repair,
or should we deem it is necessary,
replacing or crediting the goods.
The batteries and following points are not covered by the guarantee :
♦ Disregard of operating instructions,
♦ Damages due to incorrect handling,
♦ Tampering by unauthorised staff,
♦ Attempts by any unauthorised person to repair the instruments.
In no case any consequential damage is covered by the guarantee
which is connected either directly or indirectly to the
instrument or its usage.
Notice : On returning the instrument under guarantee the original
packaging must be use.
Should you detect an irregularity of any kind, please contact one of our
authorised distributors or our service department.
IBR Messtechnik GmbH & Co. KG
We must reserve us the right to make changes on our products,
especially because of technical improvements and further devel-
opments. So all Figures, Numbers, … in the manual are without
guarantee.
Messtechnik GmbH & Co. KG
Kirchstrasse 20 D-36166 Haunetal
Tel. : 06673-919180 Fax : 06673-919185
Email : Info@IBRit.com Web : www.IBRit.com
Printed in Germany
