ICI Technology ASD-156E Android Signage Display User Manual ASD 156 V140 no wifix

ICI Technology Shenzhen Co.,Ltd. Android Signage Display ASD 156 V140 no wifix

Users Manual

(√) Preliminary Specification ( ) Final Specification For APPROVAL PCB No.: M6P V11 Customer’s Approval Customer’s Name: Date: By: Manufacturer Approve Prepare Date: Date: By: By: ProductSpecificationAndroidSignageDisplayAndroidCommercialTabletModel:ASD‐156E  ASD‐156C  ASD‐156CE  ASD‐156R NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

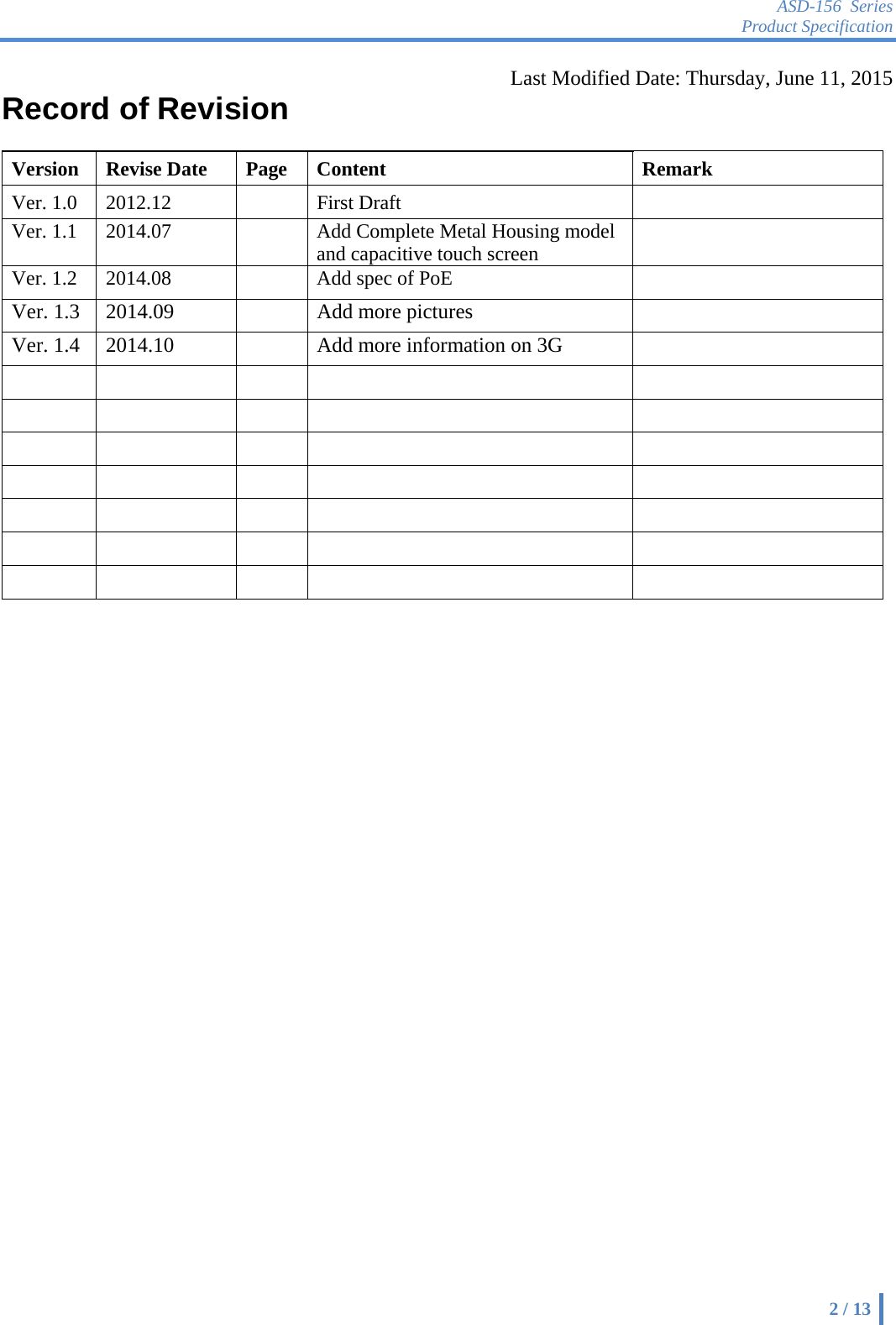

ASD-156 Series Product Specification 2 / 13 Last Modified Date: Thursday, June 11, 2015 Record of Revision Version Revise Date Page Content Remark Ver. 1.0 2012.12 First Draft Ver. 1.1 2014.07 Add Complete Metal Housing model and capacitive touch screen Ver. 1.2 2014.08 Add spec of PoE Ver. 1.3 2014.09 Add more pictures Ver. 1.4 2014.10 Add more information on 3G
ASD-156 Series Product Specification 3 / 13 ur Android-based Signage Display (Commercial Tablet) is designed to enhance the customer experience and provide the most cost effective solutions for retail POS/POP, commercial, industrial, and hospitality markets.  Perfect for end-cap displays, kiosks, or as a customer-facing display in retail POS/POP environments  Utilizes the security of wired OR the convenience of 3G/4G/LET connections  Designed for fixed applications where a rugged mountable Android tablet is desired and where battery power is not required. Battery is optional and part of a separate base.  Build-in proprietary app automatically starts with the device boot completed.  No back/home/menu system button for the security, to prevent users from accessing Settings or install other apps or install other apps or install other apps 1. Main Features  Support Web browsing via native browser or dedicated Apps  Dynamic touch screen for complex multi-layer interactive solutions  Updates contents & scheduling over network without disturbing foreground display  Support Power-On Auto Play Function  Full HD(1080P) H.264(AVC), MPEG1/2/4, VC1, 720P RealVideo decoding up to 70Mbps bitrates  Play High Definition Content on SD Card  Digital 15.6” TFT panel with 1366X768 or 1920X1080 resolution  Support automatically update content of SD Card from USB thumb drive  Multi-language OSD: English/German/French/Spanish/Italian/Russian/Chinese/other  Built-in stereo amplifier  Industrial grade plastic housing  Two mounting options: key-hole slots and VESA 100 (4” x 4”) Uses 4 M4 screws for mounting  Optional Capacitive Multiple Touch Screen  Optional motion sensor (Photo or IR)  Optional Barcode Scanner  Optional Thermal Printer  Optional RFID Reader  Optional 3G/4G built-in Module, support WCDMA, HSPA: UL 5.76 (Mbps)/ DL (14.4 Mbps)  Optional Wired Ethernet and PoE (Power Over Ethernet, IEEE 802.3AT) O
ASD-156 Series Product Specification 4 / 13 Product specification Product Name: Android Signage Display Model No.: ASD-156R Standard Plastic Open Frame and Resistive Touch Screen ASD-156E Plastic open frame housing, no Touch Screen, built-in Ethernet and PoE Module ASD-156C Complete Housing, plastic middle frame, metal back and Capacitive Touch Screen ASD-156CE Complete Housing, plastic middle frame, metal back and Capacitive Touch Screen, built-in Ethernet and PoE Module CPU: Amlogic 8726-MXS (ARM Cortex-A9 Dual Core) up to 1.5GHz GPU: ARM Mali-400 Dual Core up to 400MHz (DVFS) Memory: 1GB DDR3 @ 516MHz Storage: 4GB (4-16GB optional) Operating system: Rooted Google Android 4.2.2(Jelly Bean) 2. Input 2.1 Storage Media / Device SD/SDHC Card USB Thumb Drive, USB HDD 2.2 Supported Codecs and Formats Video Codec H.264 HP@L5.1 up to 1080P@60fps H.264 MVC up to 1080P@60fps MPEG‐4 Part 2 ASP@L5 up to 1080P@60fps (ISO 14496) WMV/VC-1 SP/MP/AP up to 1080P@60fps AVS JiZhun Profile up to 1080P@60fps MPEG-2 MP/HL ISO 13818 (1080p) MPEG-1 MP/HL ISO 11172 (1080p) RealVideo 8/9/10 up to 1080P@60fps WebM up to VGA Multiple languages and multiple formats sub-title video support Motion-JPEG (VGA) H.263 (VGA) Supports *.mov, *.mpg, *.avi, *.mp4, *.rm, *.mkv, *.ts, *.m2ts, *.iso, *.asf container formats Photo Decoding Streaming hardware JPEG decoder supporting ISO 10918 Unlimited pixel resolution (100M‐pixel tested)

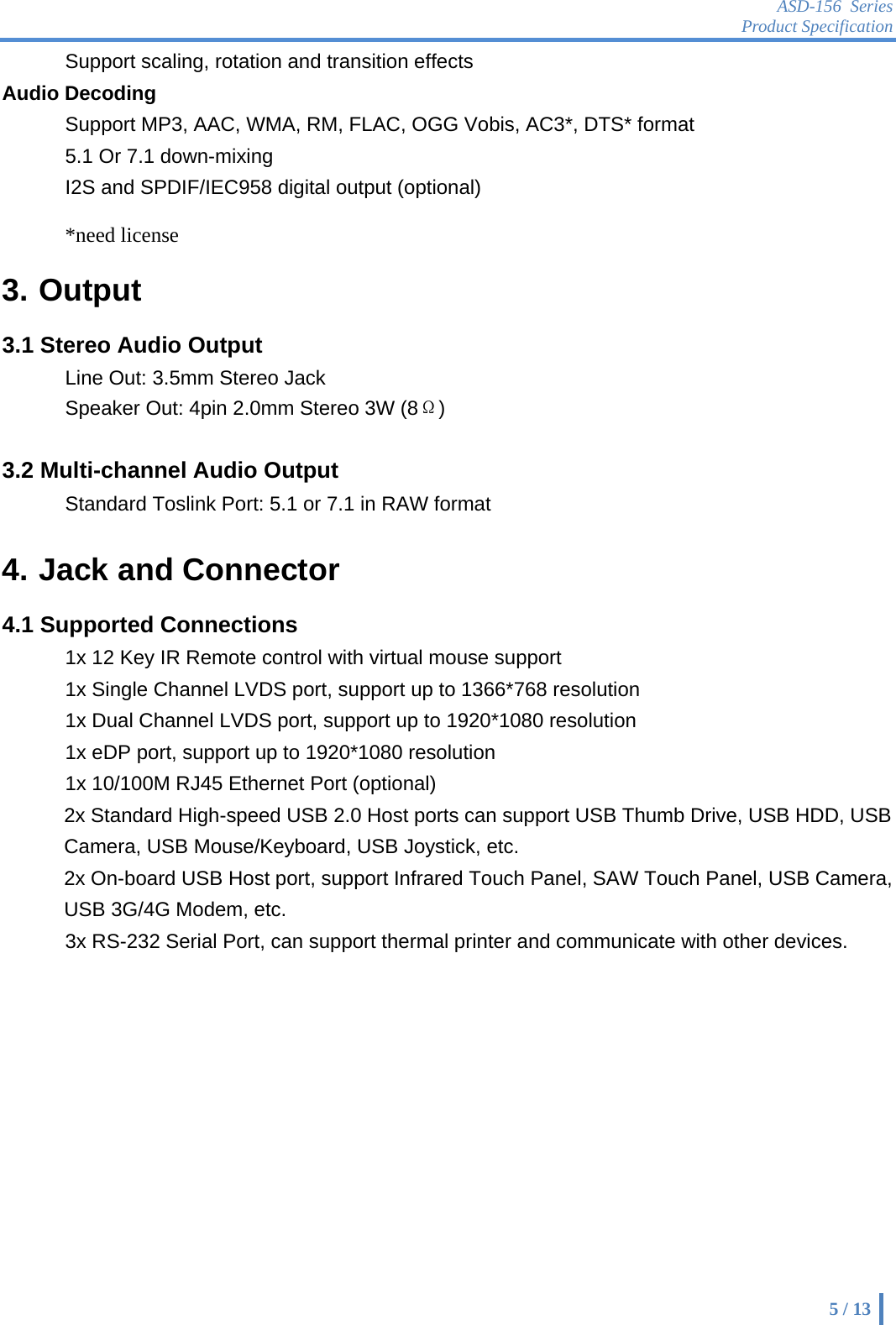

ASD-156 Series Product Specification 5 / 13 Support scaling, rotation and transition effects Audio Decoding Support MP3, AAC, WMA, RM, FLAC, OGG Vobis, AC3*, DTS* format 5.1 Or 7.1 down-mixing I2S and SPDIF/IEC958 digital output (optional) *need license 3. Output 3.1 Stereo Audio Output Line Out: 3.5mm Stereo Jack Speaker Out: 4pin 2.0mm Stereo 3W (8Ω) 3.2 Multi-channel Audio Output Standard Toslink Port: 5.1 or 7.1 in RAW format 4. Jack and Connector 4.1 Supported Connections 1x 12 Key IR Remote control with virtual mouse support 1x Single Channel LVDS port, support up to 1366*768 resolution 1x Dual Channel LVDS port, support up to 1920*1080 resolution 1x eDP port, support up to 1920*1080 resolution 1x 10/100M RJ45 Ethernet Port (optional) 2x Standard High-speed USB 2.0 Host ports can support USB Thumb Drive, USB HDD, USB Camera, USB Mouse/Keyboard, USB Joystick, etc. 2x On-board USB Host port, support Infrared Touch Panel, SAW Touch Panel, USB Camera, USB 3G/4G Modem, etc. 3x RS-232 Serial Port, can support thermal printer and communicate with other devices.

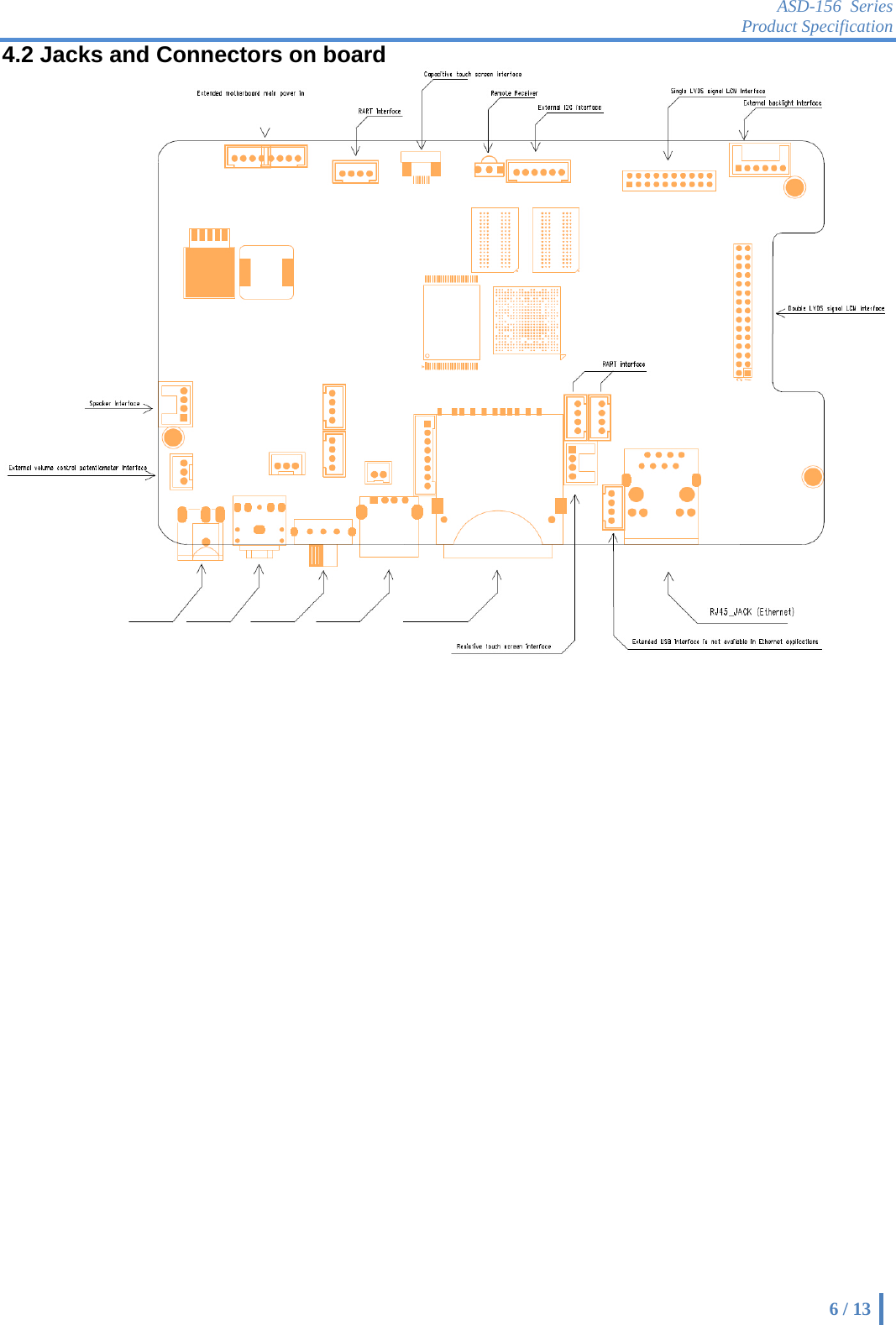

ASD-156 Series Product Specification 6 / 13 4.2 Jacks and Connectors on board

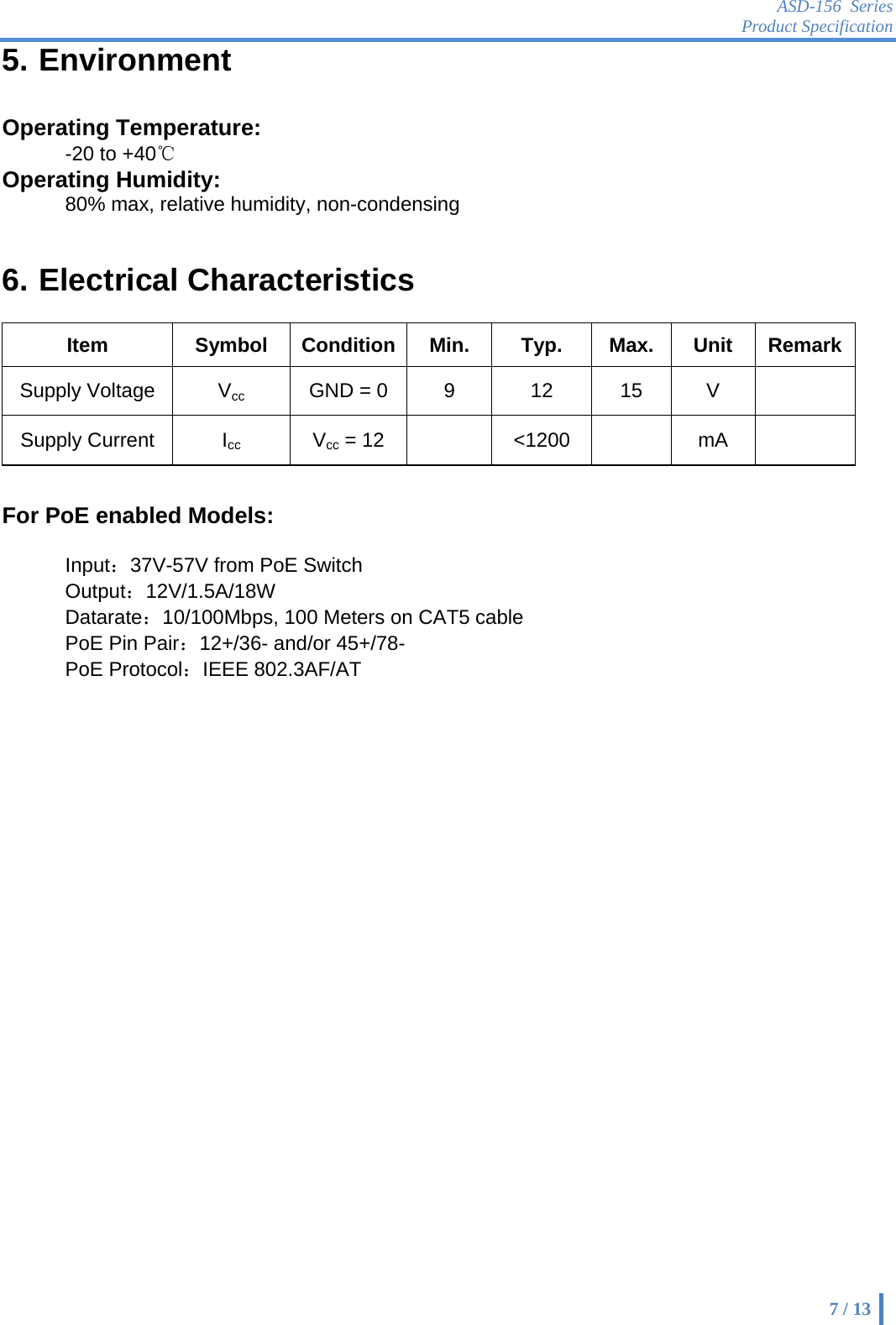

ASD-156 Series Product Specification 7 / 13 5. Environment Operating Temperature: -20 to +40℃ Operating Humidity: 80% max, relative humidity, non-condensing 6. Electrical Characteristics Item Symbol Condition Min. Typ. Max. Unit RemarkSupply Voltage Vcc GND = 0 9 12 15 V Supply Current Icc Vcc = 12 <1200 mA For PoE enabled Models: Input：37V-57V from PoE Switch Output：12V/1.5A/18W Datarate：10/100Mbps, 100 Meters on CAT5 cable PoE Pin Pair：12+/36- and/or 45+/78- PoE Protocol：IEEE 802.3AF/AT

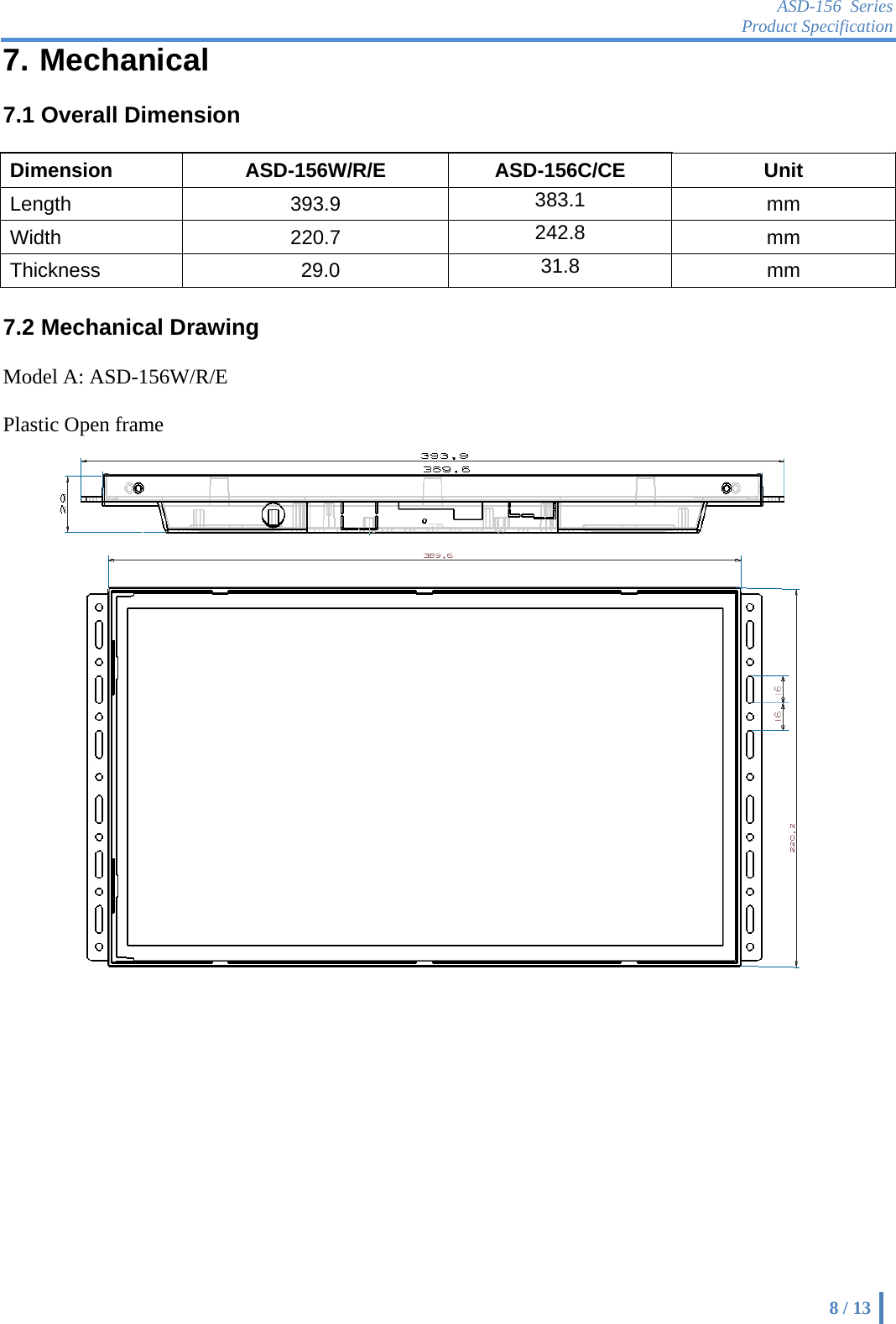

ASD-156 Series Product Specification 8 / 13 7. Mechanical 7.1 Overall Dimension Dimension ASD-156W/R/E ASD-156C/CE Unit Length 393.9 383.1 mm Width 220.7 242.8 mm Thickness 29.0 31.8 mm 7.2 Mechanical Drawing Model A: ASD-156W/R/E Plastic Open frame

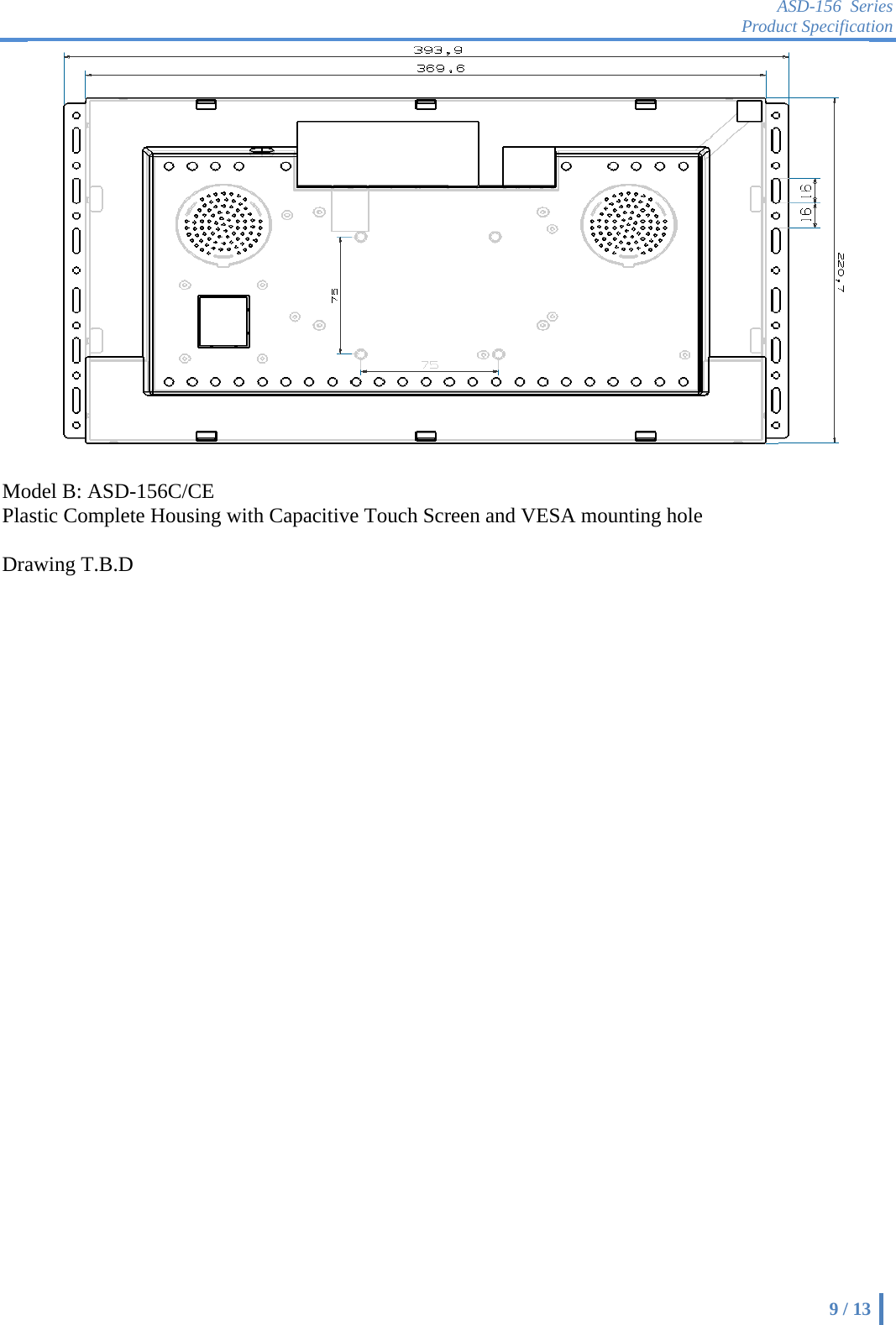

ASD-156 Series Product Specification 9 / 13 Model B: ASD-156C/CE Plastic Complete Housing with Capacitive Touch Screen and VESA mounting hole Drawing T.B.D
ASD-156 Series Product Specification 10 / 13 8. LCD Panel The following items are characteristics summary on the table at 25℃ conditions: Model A: ASD-156W/R Item Specification Unit Module Size 359.5 (H) × 223.8(V) ×3.8(D) mm Active Area 344.2 (H) × 193.5(V) (15.6” diagonal) mm Bezel Opening Area 349.58(H) x198.29 (V) mm Pixel Number 1366 x R.G.B. x 768 pixel Pixel Pitch 0.252 (H) x 0.252 (V) mm Display Colors 262,144 color Brightness 200 cd/m2 Contrast Ratio 500:1 Typ. - Response Time 16 Ms View Angle Up 15 Deg. Down 35 Deg. Left 45 Deg. Right 45 Deg. Power Consumption 3.7 Watt Weight 440 g LED Life time 12,000 Hours

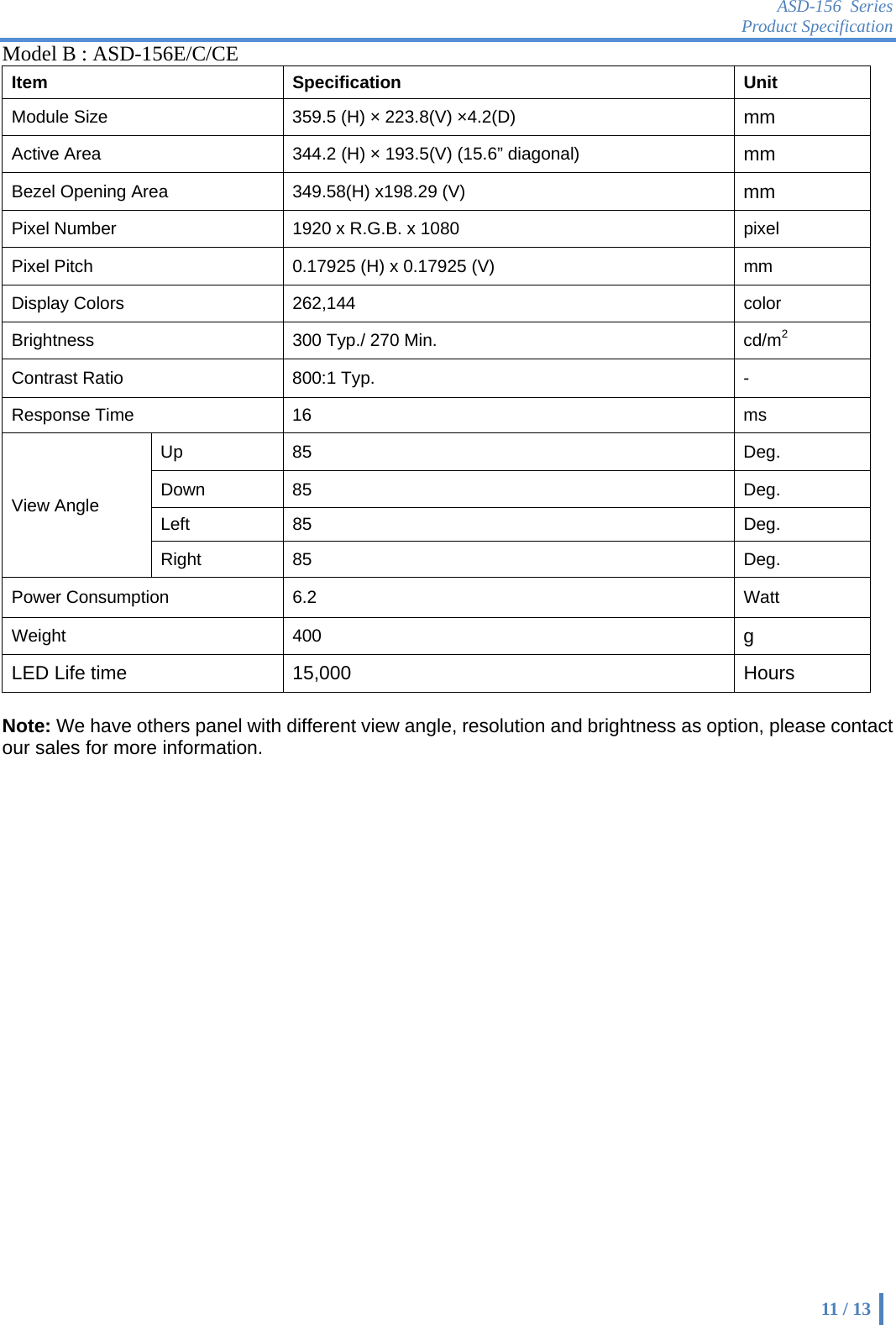

ASD-156 Series Product Specification 11 / 13 Model B : ASD-156E/C/CE Item Specification Unit Module Size 359.5 (H) × 223.8(V) ×4.2(D) mm Active Area 344.2 (H) × 193.5(V) (15.6” diagonal) mm Bezel Opening Area 349.58(H) x198.29 (V) mm Pixel Number 1920 x R.G.B. x 1080 pixel Pixel Pitch 0.17925 (H) x 0.17925 (V) mm Display Colors 262,144 color Brightness 300 Typ./ 270 Min. cd/m2 Contrast Ratio 800:1 Typ. - Response Time 16 ms View Angle Up 85 Deg. Down 85 Deg. Left 85 Deg. Right 85 Deg. Power Consumption 6.2 Watt Weight 400 g LED Life time 15,000 Hours Note: We have others panel with different view angle, resolution and brightness as option, please contact our sales for more information.

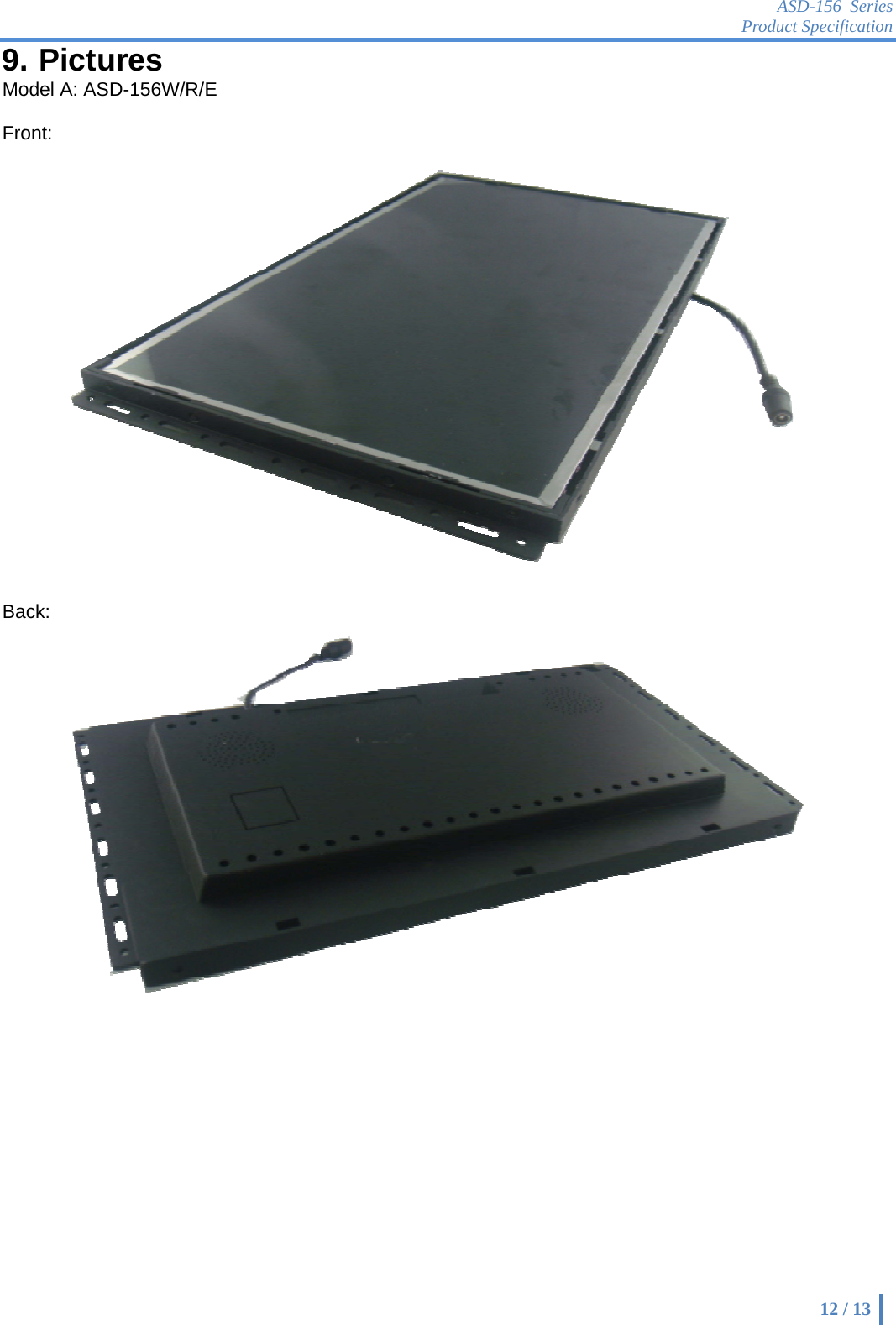

9.Mo Fro Ba . Picturodel A: ASDont: ack: res D-156W/R/EE AProduASD-156 Seruct Specificat 12 / 13 ries tion

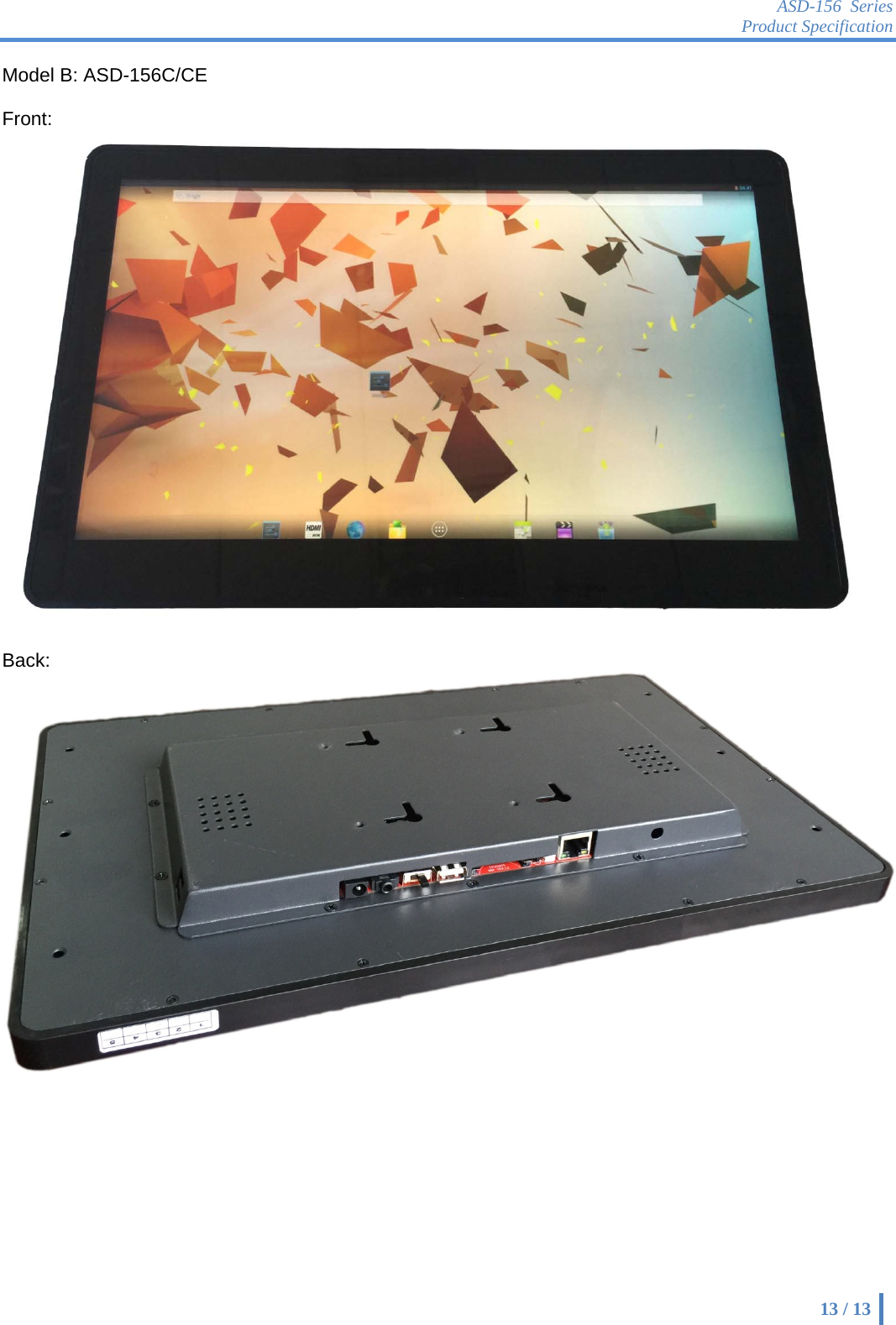

ASD-156 Series Product Specification 13 / 13 Model B: ASD-156C/CE Front: Back:
