User manual

The Outlaw - Programmable
Electronic Game Call
Operating Instructions
Thank you for purchasing The Outlaw
Programmable Electronic Game Call.
This manual will walk you through step by step setup and
operation of the unit and the remote. Should you have any
questions regarding set up, please contact us at
service@icotec.com or call 419-450-3566 for additional help.
Setting Up The Outlaw:
You will need: 18 - 1.5V AA batteries for caller and remote control
1. Place batteries in the remote: Remove
the screw on the battery compartment.
Place 4 - 1.5Volt AA batteries in the battery
compartment as indicated by the schematic
and replace the door then secure the screw.
2. Place batteries in the caller: Remove the thumb
screw from the battery compartment door. Place
10-1.5Volt AA batteries in the battery compartment
as indicated in the schematic inside the battery
compartment, replace the door and secure the
screw. We suggest that you do not use rechargeable
batteries. Use high quality alkaline or for extreme
cold conditions you can use lithium for better
3. Power on unit: Slide the power switch to the
on position, the red LED light will appear if the
batteries are in correctly.
4. Power on remote: Press the switch located on
the side of the remote to the on position.

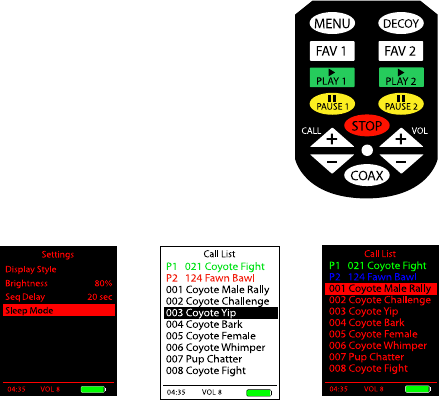

Remote Control Screen Settings:
Day Night
To choose a screen setting:
1. Press MENU to go to settings.
2. Press (Call- or +) to select the
desired setting to change.
3. Press(Vol- or +) to change the
selected setting.
4. Press MENU to exit Settings.
1 min
4. Creating favorites list is done by scrolling through your call list until you nd
the call you want to add to your FAVORITES list, up to 6 dierent calls can be
saved to your favorites list, you must select and set them one at a time. Once
you have the call highlighted, hold down on the FAV button, once you see the
word FAVORITES display at the top of the screen, you have added that call to
your favorites. To return to your list simply select the FAV button and you are
now back to your call list. To delete a call from the FAVORITES simply select FAV
and highlight a call and hold the FAV button until the call is deleted.
Programming New Sound Files:
1. On your computer, locate all of the les you plan to load onto the OUTLAW
and place them in a new folder and name it OUTLAW New Sounds”. This is for
organizational purposes, you can name it whatever you wish.
2. You will need to rename your les in the order you want them to display.
Begin with 001 then add a space and then the call name. You have up to
21 characters total which includes the three digit number. Once you have
renamed all of the les you are ready to copy them over to the OUTLAW.
3. Use the provided USB cable to connect the OUTLAW to your computer. You
will see an external drive appear on your computer screen. It will appear under
the Computer Drives on a PC. DO NOT USE A MAC COMPUTER.
4. Open the drive and you will see the call les that were provided with your
OUTLAW. These les are encrypted and cannot be shared or played on any
other device. We recommend copying all of the provided calls to a “OUTLAW
Sounds Backup” folder on your computer so you will not lose them if you
happen to delete them from your unit.
5. Now that your new call les are named and numbered, you will need to copy
them to your OUTLAW.
6. If you are satised with the numbering order then it is time to copy all of
the les onto the OUTLAW. You will need to copy the les with the USB cable
plugged into drive one and then once it is nished you will need to eject the
drive from the computer so you can plug the USB cable into Drive 2 and copy
the exact same les to that drive so you can plat 2 sounds at the same time.
7. When the les are nished copying you can eject the drive from your
computer and unplug the unit from the USB cable. You are now ready to update
your remote control. Turn the OUTLAW unit on, plug in the synch cable to the
SYN port and turn the remote control on and then plug the other end into the
side of the remote control. The process will begin automatically and when it is
nished it will display the new call list.
Synchronizing Your Remote:
1. Turn on the unit and the remote, plug one end of the synch cable into the
synch port on the back of the GC500 base unit rst, then plug in the other end
into the port on the left side of the remote control. The synchronization will
begin automatically, you will see each le name as it is placed into memory.
Once the process is complete the screen will read OK”. Once the call list appears
on the screen, you are nished and may unplug the unit and remote and store
away your cable. Now you are ready to go calling with new sounds.
2. Scroll down through your new call list to review all of the “Channels. You are
ready to play your new calls. Make sure that you set the volume control prior to
pressing the Play button. Thank you again for purchasing a product from us at
ICOtec. We wish you a safe and successful hunt.
We recommend only removing or installing an SD Card with unit power o.
Be sure you have a wide open area for the
shot. Make the coyote expose themselves
while attempting to get the wind.

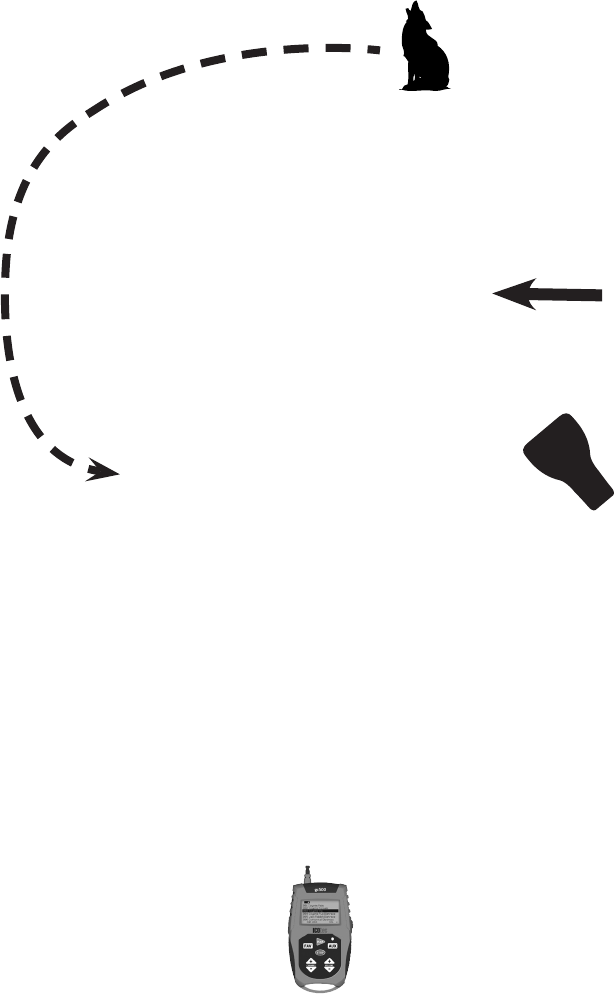

Basic Coyote Call Set Strategy
60 - 75 yards
from call
The OUTLAW Electronic Call/Decoy Combo was designed for simplicity of
operation, loud volume for windy and long distance calling, the ability to play
two sounds at the same time for more realistic sequnces, integrated decoy for
great visual interest. The world has never seen a product like this from ICOtec
before. We are developing new products to a high standard of quality and
versatility for a wider array of predator and big game hunters from around the
Some hunters prefer audio calls they have previously purchased or downloaded
for free and some hunters prefer to record themselves utilizing mouth calls
and want to have the benet of a remote location for the sound to originate
from. The OUTLAW is the ideal solution for hunters want something completely
customizeable. This new call/decoy combo comes standard with the entire ICOtec
sound library along with 24 great calls from Wildlife Technologies and 12 bonus
calls from the Professor Tony Tebbe of the infamous Predator University school of
predator hunting.
Whatever your reason for wanting a programmable audio calling device, we
have developed a very easy-to-use and extremely powerful unit that will get
tremendous results in the eld and will save you hundreds of dollars.
The OUTLAW is compact, powerful, intuitive, loud and oers a great deal of
control over your calling sequence selection without being cumbersome or
confusing. Concentrate on your hunt and the OUTLAW becomes your go-to
partner for increased results and a more exciting experience.
The Innovative New ICOtec OUTLAW
Programmable Electronic Caller/Decoy
Combo is Powerful, Versatile and LOUD!
BONUS calls from legendary coyote caller Tony Tebbe.
Name: ___________________________________
Street Address: ___________________________________
City: ___________________________________
State: ____________ Zip: ________________
Phone Number: ___________________________________
Email Address: ___________________________________
Date of Purchase: ___________________________________
Place Purchased: ___________________________________
Serial Number: ___________________________________
Thank you for the purchase!
Please ll out your product registration information and mail it back to us within 15
days of your purchase date. Or, you may go to our web site to register your product.
Please retain your original receipt in the event that you would need to return the unit
for a warranty repair.
Failure to mail in your product registration card, or registering your product on our web site
within the 15 day period of the purchase will result in the voiding of the warranty.
1 YEAR LIMITED WARRANTY (Register within 15 days of purchase)
Your ICOtec product is warranted to be free of material defects and
workmanship for 1 year after the date of purchase. In the event of a defect
under this warranty, we will, at our option, repair or replace the product,
provided you return the product postage prepaid. This warranty does
not cover damages caused by misuse, improper handling, installation,
or maintenance provided by someone other than an authorized service
contractor. Any return made under this warranty must follow the items
listed below:
1) Contact Customer Service for trouble shooting or instructions on
returning a product for repair or replacement. Call 419-450-3566 or
email: service@icotec.com
2) A check/money order in the amount of $16.00 to cover the cost
of postage and handling. All of the following information must
accompany any product shipped to ICOtec:
3) Name and address
4) An explanation of the defect
5) Proof of purchase with date of purchase
6) Product should be well packed in a sturdy shipping carton with
return postage prepaid to the address listed below:
Attn.: Repairs
6415 Angola Road
Holland, OH 43528
©2017 ICOtec. All rights reserved.
This warranty gives you specic legal rights.
Specications and product designs are
subject to change without prior notice or
Serial # on label in battery compartment.
Mail to:
ATTN: Warranty Department
6415 Angola Road
Holland, OH 43528
Register online at:
The Outlaw Game Call/Decoy
Warranty Registration Card
Game Calls & Decoys
Warning: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2)
This device must accept any interference received, including interference that may cause undesired operation.
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
