INSTRUCTION MANUAL
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
this device does not cause harmful interference.
iF3033S
iF3031S
VHF TRANSCEIVERS
iF3036S
iF4033S
iF4031S
UHF TRANSCEIVERS
iF4036S
The photo shows the
VHF transceiver
i
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL — This
instruction manual contains important oper ating instructions
for the IC-F3031S, IC-F3033S, IC-F3036S VHF TRANS-
CEIVERS and the IC-F4031S, IC-F4033S, IC-F4036S UHF
TRANSCEIVERS.
This instruction manual includes some functions which are
usable only when they are pre-programmed by your dealer.
Ask your dealer for details.
For Canada:
This device complies with RSS-310 of Industry Canada. Op-
eration is subject to the condition that this device does not
cause harmful interference.
Cet appareil est conforme au CNR-310 d’Industrie Canada.
Son exploitation est autorisée sous réserve que l’appareil ne
cause pas de brouillage préjudiciable.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-
porated (Japan) in Japan, the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
EXPLICIT DEFINITIONS
WORD DEFINITION
RDANGER! Personal death, serious injury or an ex-
plosion may occur.
RWARNING! Personal injury, fire hazard or electric
shock may occur.
CAUTION Equipment damage may occur.
NOTE If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
IMPORTANT
ii
CAUTION: MAKE SURE the flexible antenna, bat-
tery pack and jack cover are securely attached to the trans-
ceiver, and that the antenna and battery pack are dry before
attachment. Exposing the inside of the transceiver to dust or
water will result in serious damage to the transceiver.
DO NOT operate the transceiver near unshielded electri-
cal blast ing caps or in an explosive atmosphere.
DO NOT
push [PTT] when not actually intending to transmit.
DO NOT use or place the transceiver in direct sunlight or
in areas with temperatures below –30°C (–22°F) or above
+60°C (+140°F).
The basic operations, transmission and reception of the
transceiver are guaranteed within the specified operating
temperature range. However, the LCD display may not be
operate correctly, or show an indication in the case of long
hours of operation, or after being placed in extremely cold
areas.
DO NOT modify the transceiver. The transceiver warranty does
not cover any problems caused by unauthorized modification.
DO NOT use harsh solvents such as benzine or alcohol
when cleaning, as they will damage the transceiver surfaces.
BE CAREFUL! The transceiver will become hot when
operating it continuously for long periods of time.
PRECAUTIONS
R DANGER! NEVER short the terminals of the battery
pack.
R DANGER! Use and charge only specified Icom bat-
tery packs with Icom radios or Icom chargers. Only Icom bat-
tery packs are tested and approved for use with Icom radios
or charged with Icom chargers. Using third-party or coun-
terfeit battery packs or chargers may cause smoke, fire, or
cause the battery to burst.
R WARNING! NEVER hold the transceiver so that
the antenna is very close to, or touching exposed parts of
the body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10 cm
(2 to 4 inches) away from the lips and the transceiver is verti-
cal.
R WARNING! NEVER operate the transceiver with
a headset or other audio accessories at high volume levels.
Hearing experts advise against continuous high volume op-
eration. If you experience a ringing in your ears, reduce the
volume level or discontinue use.
R WARNING! NEVER operate the transceiver while
driving a vehicle. Safe driving requires your full attention—
anything less may result in an accident.
iii
FCC INFORMATION
• FOR CLASS A UNINTENTIONAL RADIATORS:
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communi-
cations. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
BE CAREFUL! The IC-F3031S, IC-F3033S, IC-F3036S,
IC-F4031S, IC-F4033S and IC-F4036S meet IP67* require-
ments for dust-tight and waterproof protection. However,
once the transceiver has been dropped, dust-tight and water-
proof protection cannot be guaranteed because of possible
damage to the transceiver’s case or the waterproof seal.
* Only when the jack cover or the optional HM-168LWP is
attached.
Even when the transceiver power is OFF, a slight current still
flows in the circuits. Remove the battery pack or batteries
from the trans ceiver when not using it for a long time. Other-
wise, the installed battery pack or batteries will become ex-
hausted, and will need to be recharged or replaced.
MAKE SURE to turn the transceiver power OFF before
connect ing the supplied/optional equipment.
For U.S.A. only:
CAUTION: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your authority to
operate this transceiver under FCC regulations.
PRECAUTIONS (Continued)
iv
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
TABLE OF CONTENTS
IMPORTANT ..........................................................................i
EXPLICIT DEFINITIONS .......................................................i
PRECAUTIONS .................................................................... ii
FCC INFORMATION ........................................................... iii
TABLE OF CONTENTS ....................................................... iv
1 ACCESSORIES ...........................................................1–2
Supplied accessories ■ ...................................................1
Accessory attachments ■ ................................................1
2 PANEL DESCRIPTION ................................................3–7
Front panel ■ ...................................................................3
Function display ■ ...........................................................4
Programmable function keys ■ ........................................5
3 BASIC OPERATION ..................................................8–14
Turning power ON ■ ........................................................8
Channel selection ■ ........................................................9

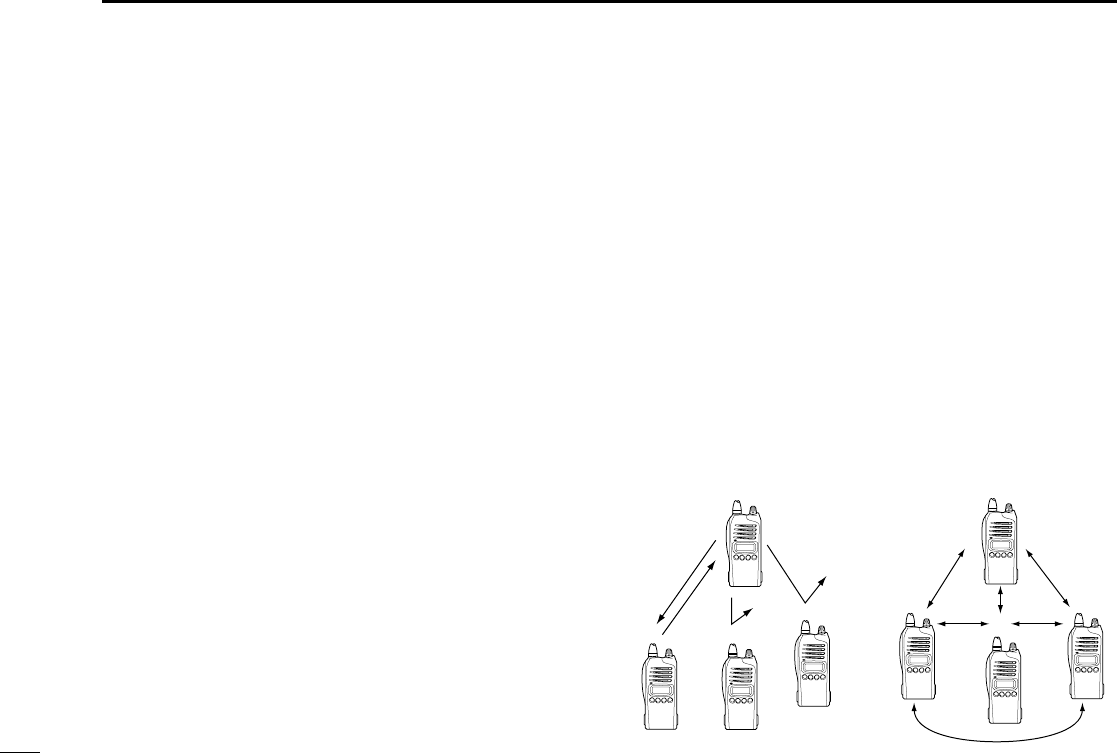

Call procedure ■ ..............................................................9
Receiving and transmitting ■ .........................................10
User set mode ■ ............................................................12

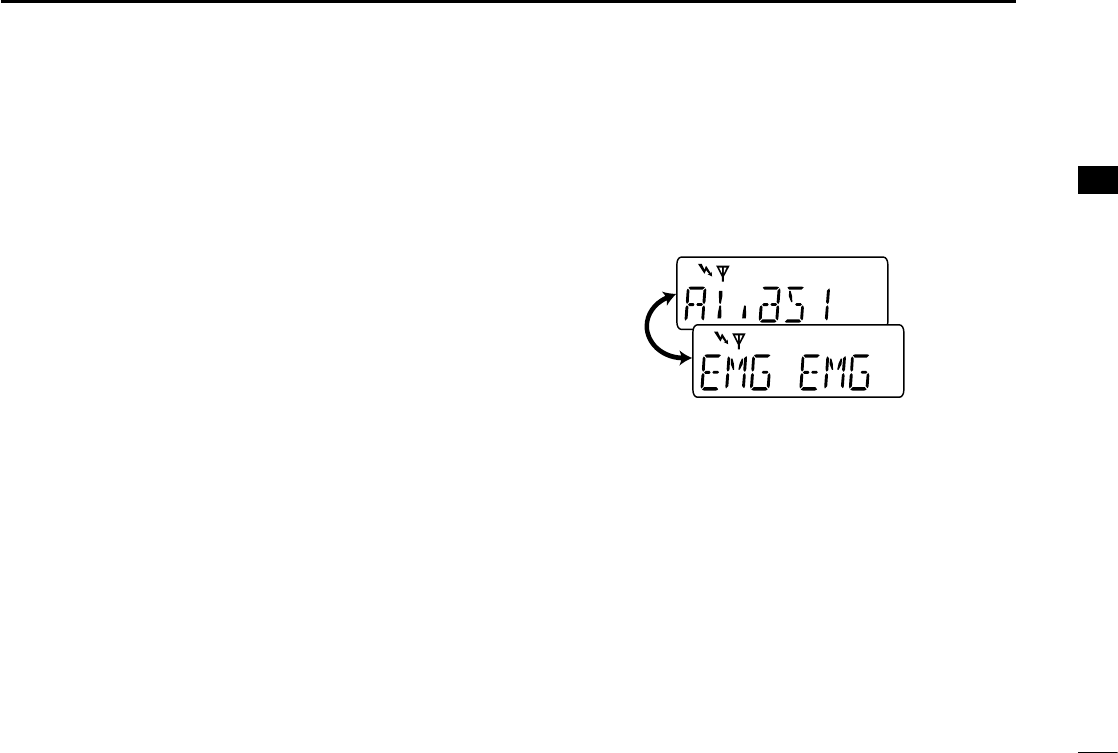

Emergency Call ■ ..........................................................12
Priority A channel selection ■ ........................................13
Man Down Emergency Call ■........................................13
Stun function ■ ..............................................................13
Scrambler function ■ .....................................................13
MDC 1200 system operation ■ .....................................14
4 BATTERY CHARGING ............................................15–19
Caution ■ .......................................................................15

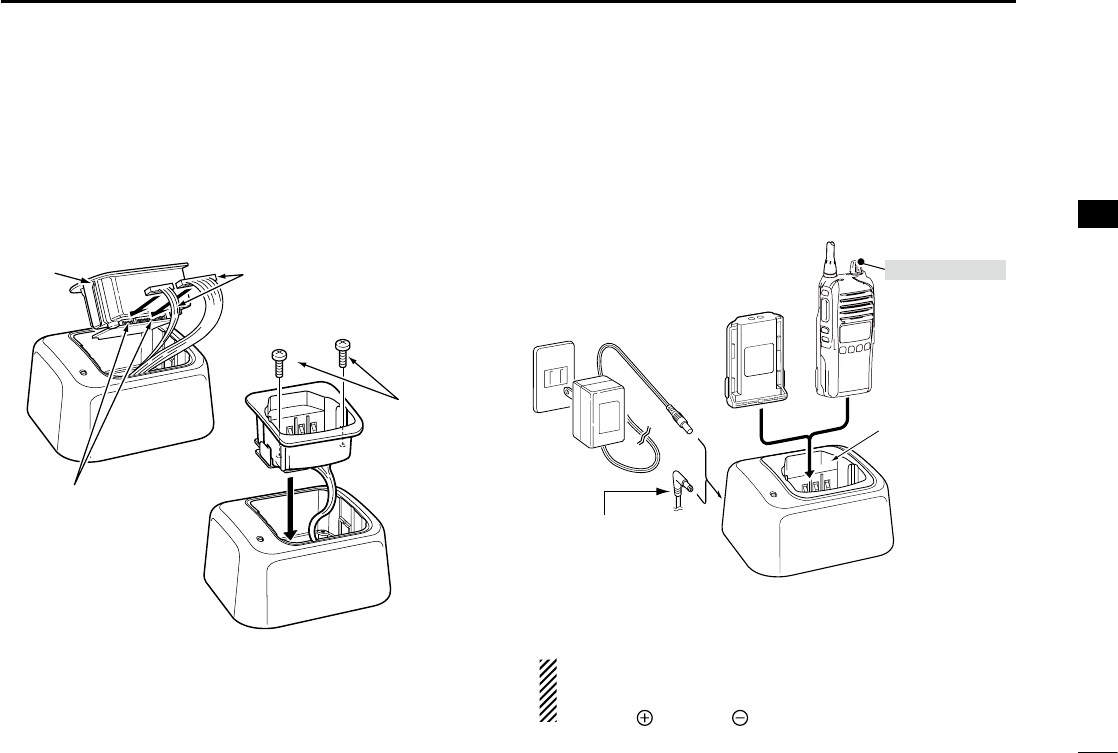

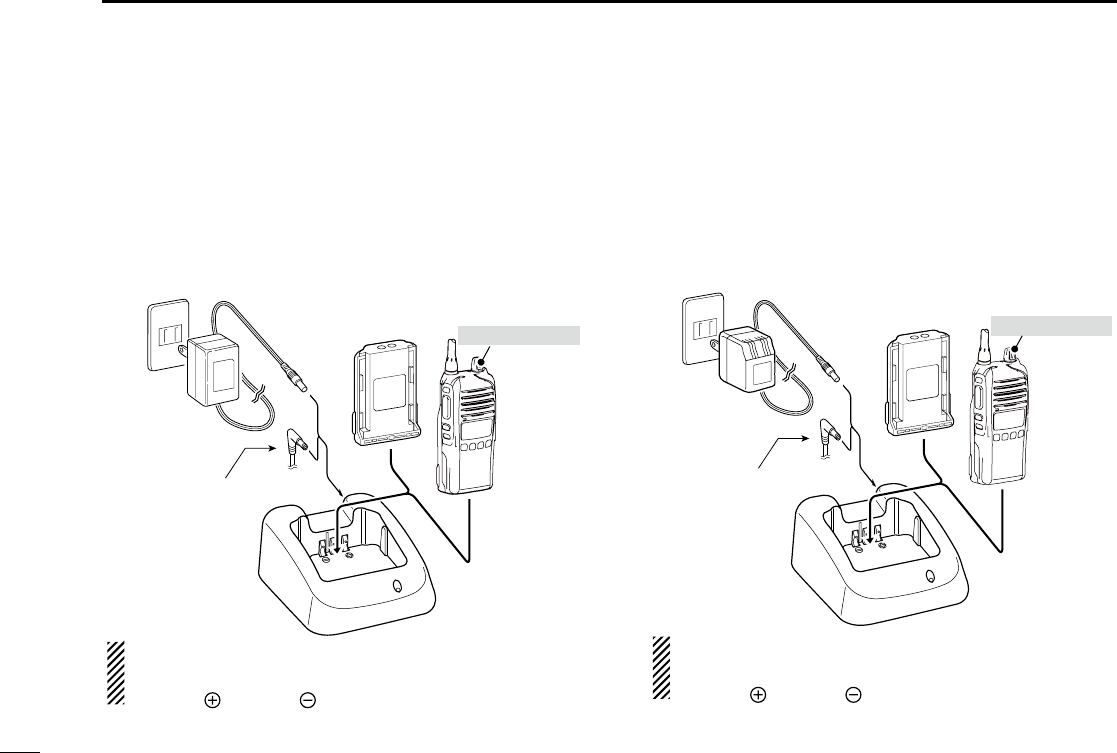

Optional battery chargers ■ ...........................................17
5 OPTIONAL SWIVEL BELT CLIP ............................20–21
MB-93 contents ■ ..........................................................20
Attaching ■ ....................................................................20
Detaching ■ ...................................................................21

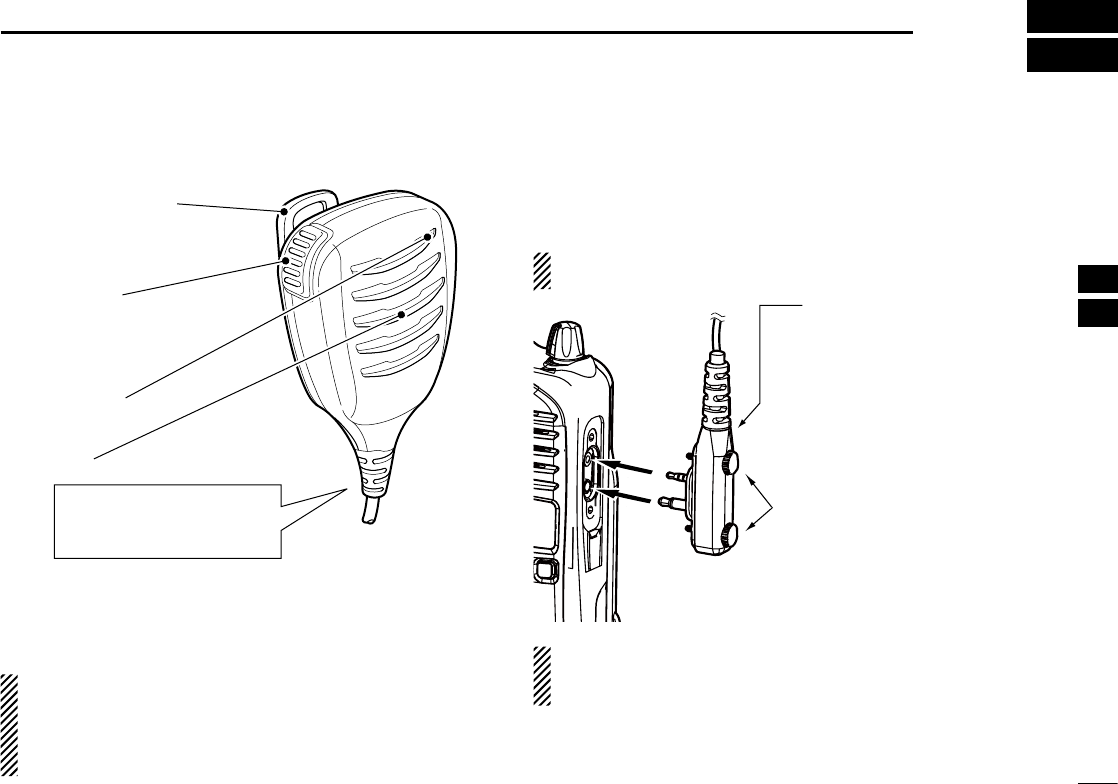

6 SPEAKER MICROPHONE ............................................22
Optional HM-168LWP description ■ ..............................22
Attachment ■ .................................................................22
7 OPTIONS .................................................................23–24
8 SAFETY TRAINING INFORMATION .......................25–26
1
1ACCESSORIES

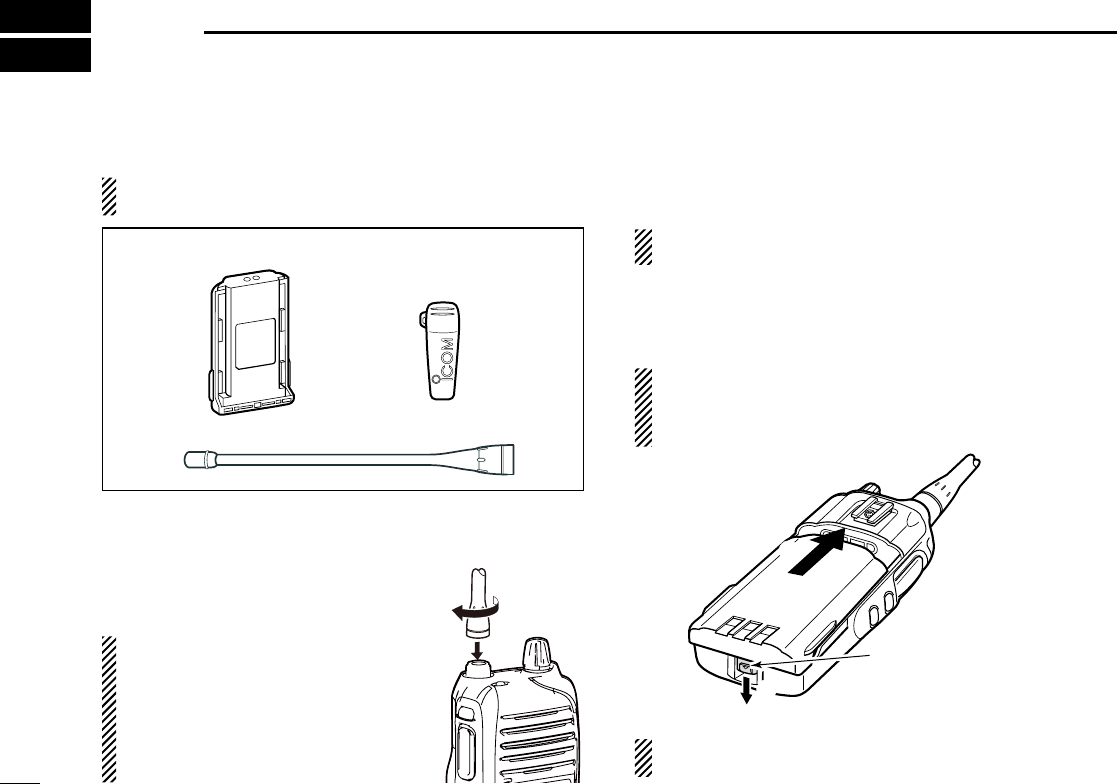

Supplied accessories ■
NOTE: Some accessories are not supplied with depending
on versions.
Flexible antenna
Battery pack
Belt clip
Accessory attachments ■
Flexible antenna D
Connect the supplied flexible antenna to
the antenna connector.
CAUTION:
• NEVER carry the transceiver by
holding the antenna.
• DO NOT connect the antenna other
than listed on page 24.
• Transmitting without an antenna
may damage the transceiver.
Battery pack D
To attach the battery pack:
Slide the battery pack in the direction of the arrow (q) until
the battery release button makes a ‘click’ sound.
NOTE: Push on the bottom of the pack to make sure the
release button is firmly locked.
To release the battery pack:
Slide the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then released.
NEVER release or attach the battery pack when the trans-
ceiver is wet or soiled. This may result water or dust get-
ting into the transceiver/battery pack and may result in the
transceiver being damaged.
q
w
Battery release button
NOTE: Keep the battery terminals clean. It's a good idea
to regularly clean them.
2
1
ACCESSORIES
1

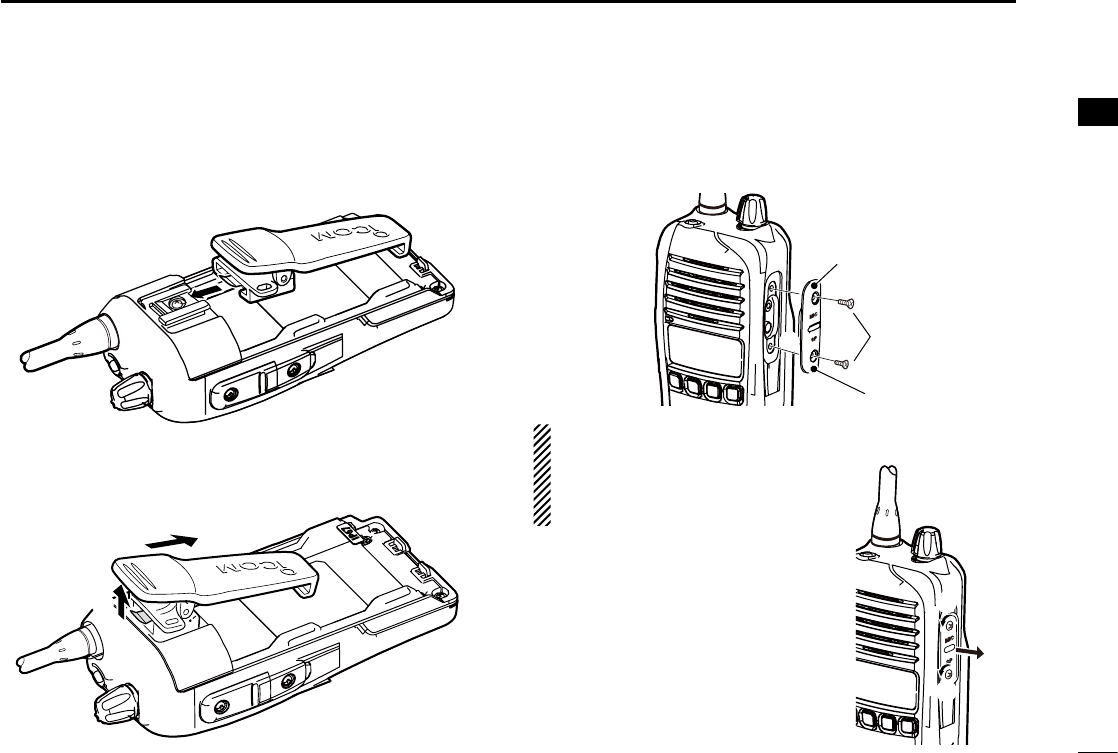

Belt clip D
To attach the belt clip:
Release the battery pack if it is attached. q
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a ‘click’ sound.
To detach the belt clip:
Release the battery pack if it is attached. q
Pinch the clip ( wq), and slide the belt clip in the direction of
the arrow (w).
q
w
Jack cover D
To attach the jack cover:
q Attach the jack cover to the [MIC/SP] jack.
w Tighten the screws.
w
[MIC/SP] jack
Jack cover
q
q
q
w
CAUTION:
• Attach the jack cover when the op-
tional speaker-microphone is not
used.
• Use the supplied screws only.
To detach the jack cover:
q Unscrew the screws using a phillips
screwdriver.
w Detach the jack cover for the speak-
er-microphone connection.
3
2PANEL DESCRIPTION

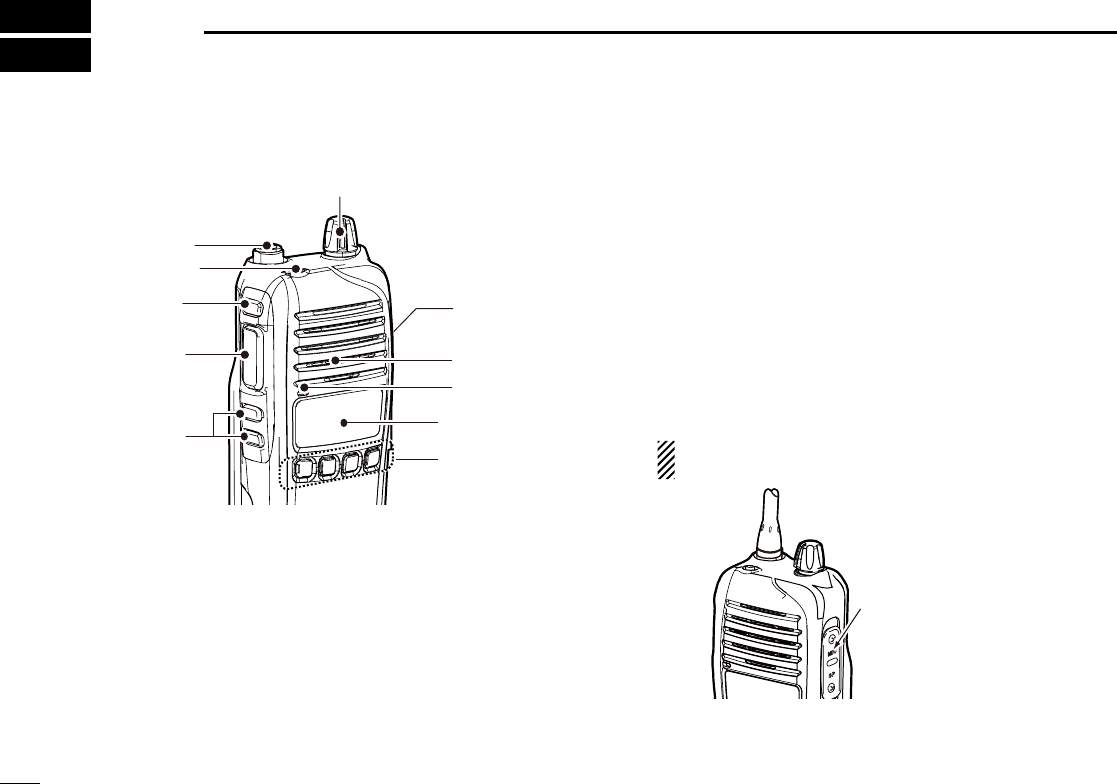

Front panel ■
q
w
r
e
o
u
y
Microphone
Speaker
t
i
q ANTENNA CONNECTOR
Connects the supplied antenna.
w DEALER-PROGRAMMABLE KEY [Emer]
Desired function can be programmed by your dealer. (p. 7)
e DEALER-PROGRAMMABLE KEY [Side1]
 Desired function can be programmed by your dealer.
(p. 5)
r PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
t DEALER-PROGRAMMABLE KEYS [Side2]/[Side3]
 Desired functions can be programmed independently by
your dealer. (p. 5)
y DEALER-PROGRAMMABLE KEYS [P0] to [P3]
 Desired functions can be programmed independently by
your dealer. (p. 5)

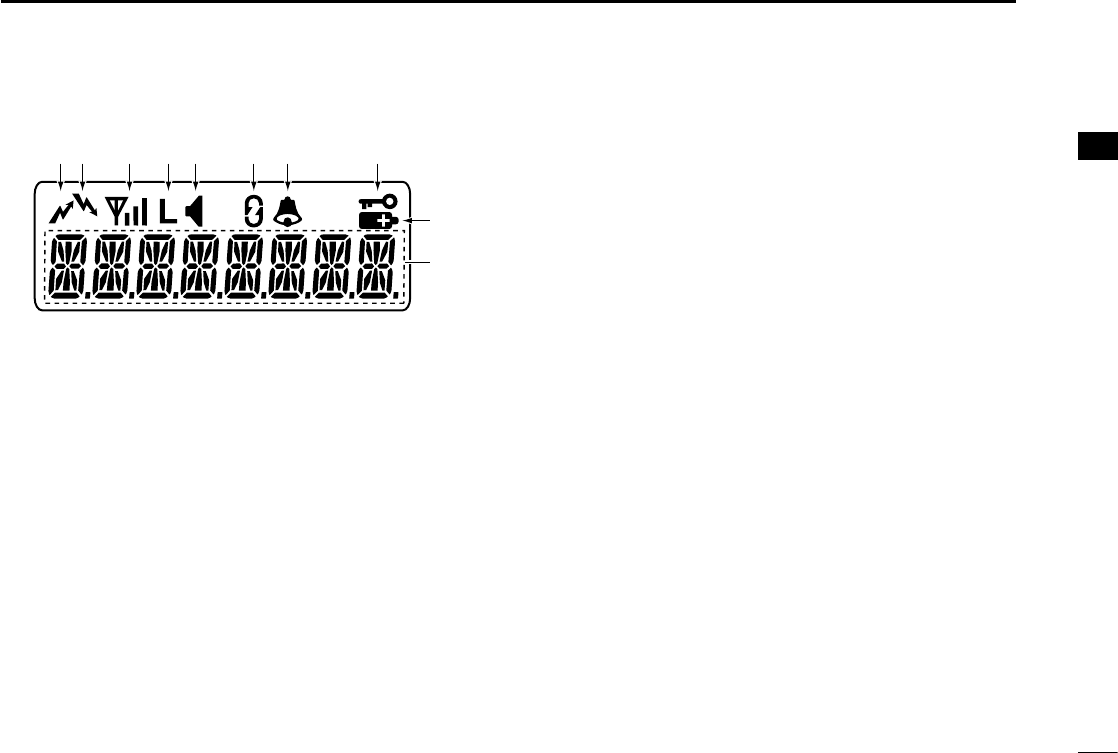

u FUNCTION DISPLAY (p. 4)
Displays a variety of information such as an operating
channel number/name, 2-tone code, DTMF numbers, se-
lected function and so on.
i EXTERNAL MICROPHONE/SPEAKER JACK
 Connect an optional speaker-microphone.
NOTE: Connect or disconnect the optional equipment
after the transceiver is turned OFF.
Jack cover
NOTE: Attach the jack
cover when the optional
equipment is not used.
See (p. 2) for details.
o VOLUME CONTROL [VOL]
 Rotate to turn the power ON/OFF and adjusts the audio
level.
4
2
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Function display ■
yq iutrew
o
!0
q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
r LOW POWER INDICATOR
Appears when low output power is selected.
• When the battery power decreases to a specied level, low
power is selected automatically.
t AUDIBLE INDICATOR
➥ Appears when the channel is in the ‘audible’ (unmute)
condition.
Appears when the specified 2-tone code is received. ➥
y SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
u BELL INDICATOR
 Appears or blinks when the specific 2-tone code is re-
ceived, according to the pre-programming.
i KEY LOCK INDICATOR
 Appears during the key lock function is ON.
o BATTERY INDICATOR
 Appears or blinks when the battery power decreases to a
specified level.
!0 ALPHANUMERIC DISPLAY
 Displays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
5
2PANEL DESCRIPTION
Programmable function keys ■
The following functions can be assigned to [Emer], [Side1],
[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable
function keys.
Consult your Icom dealer or system operator for details con-
cerning your transceivers programming.
If the programmable function names are bracketed in the fol-
lowing explanations, the specific key is used to activate the
function depends on the programming.
CH UP AND DOWN KEYS
➥ Push to select an operating channel.
➥ Push to select a transmit code channel after pushing [TX
Code CH Select].
➥ Push to select a DTMF channel after pushing [DTMF Au-
todial].
➥ Push to select a scan group after pushing and holding
[Scan A Start/Stop]/[Scan B Start/Stop] for 1 second.
SIREN KEY
Push to emit a siren.
ZONE KEY
Push this key, then push [CH Up] or [CH Down] to select the
desired zone.
What is “zone”?— The desired channels are assigned
into a zone according to the intended use for grouping.
For example, ‘Staff A’ and ‘Staff B’ are assigned into a
“Business” zone, and ‘John’ and ‘Cindy’ are assigned into
a “Private” zone.
SCAN A KEY
➥ This key’s operation depends on the Power ON Scan set-
ting.
When the power ON scan function is turned OFF;
Push to start and cancel scanning operation. In case of
transmission during scan, scanning will be cancelled.
When the power ON scan function is turned ON;
Push to pause scanning, then resumes scanning after
passing a specified time period. In case of transmission
during scan, scanning will be cancelled.
➥ Push and hold this key for 1 second to indicate the scan
group, then push [CH Up] or [CH Down] to select the de-
sired group.
SCAN B KEY
➥ Push to start and cancel scanning operation. In case of
transmission during scan, scanning will be paused. Then
resumes scanning after passing a specified time period.
➥ Push and hold this key for 1 second to indicate the scan
group, then push [CH Up] or [CH Down] to select the de-
sired group.
PRIO A/B KEYS
➥ Push to select Priority A or Priority B channel.
➥ Push and hold [Prio A (Rewrite)] or [Prio B (Rewrite)] for 1
second to reassign the operating channel to Priority A or
Priority B channel.
6
2
PANEL DESCRIPTION
2
SCAN ADD/DEL (TAG) KEY
➥ Push to add a channel to, or delete it from the current scan
list.
• When a channel is added to the current scan list, the display
shows “SCAN ON.” When a channel is deleted from the current
scan list, the display shows “SCAN OFF.” After showing “SCAN
ON” or “SCAN OFF,” the display shows the current scan list text.
➥ You can add a channel to, or delete it from the scan list
after selecting the list.
1. Hold down for 1 second to display the current scan list,
and then push [CH Up] or [CH Down] to select a desired
list.
2. Push this key to add a channel to, or delete it from the
selected list.
3. Hold down this key for 1 second to exit the scan list
selection mode.
➥ Push this key while a scan is paused on a channel, except
for primary or secondary channel, and then the channel is
deleted from the scan list.
• Depending on the setting, the deleted channel is added to the
scan list again after the scan is cancelled. (Nuisance Delete
function)
C.TONE CH ENT KEY
Push to select the continuous tone channel using [CH Up]/
[CH Down] to change the tone frequency/code setting. The
selected channel remains set as the continuous tone channel
until another channel is designated as such.
MR-CH 1/2/3/4 KEYS
Push to select memory channels 1 to 4 in the operating zone
directly.
MONI KEY
Mute and release the CTCSS (DTCS) or 2-tone squelch
mute. Open any squelch/deactivate any mute while pushing
and holding this key.
LOCK KEY
➥ Push and hold for 1 second to electronically lock all pro-
grammable keys except the following:
[Call] (incl. Call A and Call B), [Moni], [Emergency], [Sur-
veillance], [Siren], [Lone Worker] and [OPT 1/2/3].
➥
Push and hold for 1 second again to turn the lock function
OFF.
HIGH/LOW KEY
Push to select the transmit output power temporarily or per-
manently, depending on the presetting.
• Ask your dealer for the output power level for each selection.
OPT MOMENTARY KEYS
Controls the output signal level of the optional ports in the
optional unit connector while pushing and holding this key.
OPT OUT KEYS
Push to control the output signal level of the optional ports in
the optional unit connector.
SCRAMBLER FUNCTION
Push to toggle the voice scrambler function ON and OFF.
7
2PANEL DESCRIPTION
TALK AROUND KEY
Push to turn the talk around function ON and OFF.
• The talk around function equalizes the transmit frequency to the
receive frequency for transceiver-to-transceiver communication.
WIDE/NARROW KEY
Push to toggle the IF bandwidth between wide and narrow.
DTMF AUTODIAL KEY
➥ Push to enter the DTMF channel selection mode. Then se-
lect the desired DTMF channel using [CH Up]/[CH Down].
➥ After selecting the desired DTMF channel, push this key to
transmit the DTMF code.
RE-DIAL KEY
Push to transmit the last-transmitted DTMF code.
CALL KEYS
Push to transmit a 2-tone.
• Call transmission is necessary before you call another station de-
pending on your signaling system.
• [Call A] and/or [Call B] may be available when your system em-
ploys selective ‘Individual/Group’ calls. Ask your dealer which call
is assigned to each key.
LONE WORKER KEY
Push to turn the Lone Worker function ON or OFF.
• If the Lone Worker function is activated, the Emergency function
is automatically turned ON after the specified time period has
passed with no operation is performed.
TX CODE CHANNEL UP/DOWN KEYS
Push to select a TX code channel directly.
EMERGENCY KEY
Push and hold to transmit the emergency call.
• The transceiver can transmit the emergency call silently or audibly
depending on the presetting. Ask your dealer for details.
• When the emergency call transmits with beeps, the emergency
text is displayed on the LCD if programmed.
• If you want to cancel the emergency call, push and hold the key
again before transmitting the call.
• The emergency call is transmitted one time only or repeatedly until
receiving a control code, depending on the presetting.
SURVEILLANCE KEY
Push to turn the surveillance function ON or OFF.
When this function is turned ON, the beep is not emitted and
the LCD backlight does not light when a signal is received or
a key is pushed, etc.
TX CODE CHANNEL SELECT KEY
Push to enter the ID code channel selection mode directly.
Then set the desired channel using [CH Up]/[CH Down].
(p. 11)
USER SET MODE KEY
➥ Push and hold for 1 second to enter user set mode.
• During in the user set mode, push this key to select an item that
is enabled by your dealer, and change the value or condition by
pushing [CH Up] or [CH Down].
➥ Push and hold this key for 1 second again to exit user set
mode.
User set mode is also available via the ‘Power ON function.’
Refer to page 8 also.
8
3
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

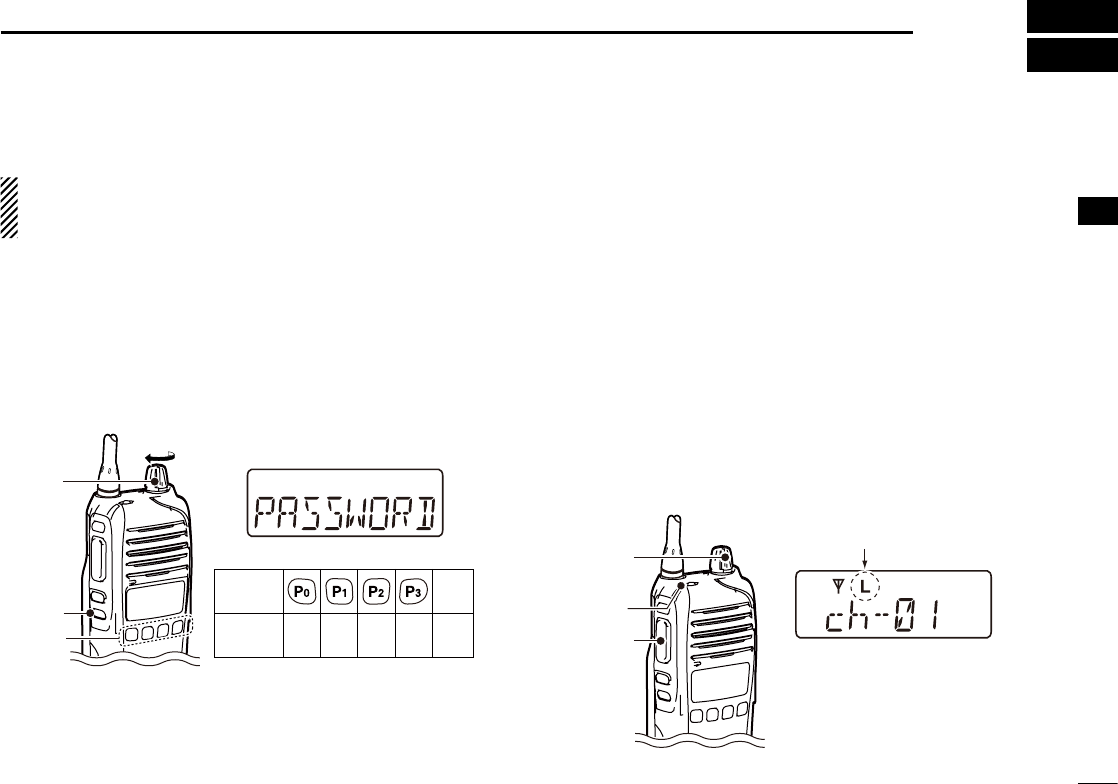

Turning power ON ■
Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
(p. 17)
Rotate [VOL] to turn the power ON. q
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
• 10-keypad can be used for password input depending on ver-
sion:
• The keys in the table below can be used for password input:
• The transceiver detects numbers in the same block as identi-
cal. Therefore “01234” and “56789” are the same.
KEY
NUMBER 0
5
4
9
3
8
2
7
1
6
[Side3]
[P0]/[P1]/
[P2]/[P3]
Side3
[VOL]
e When the “PASSWORD” indication does not clear after
inputting 4 digits, the input code number may be incorrect.
Turn the power off and start over in this case.
Battery type selection D
The battery type must be selected according to the attaching
battery type when turning the transceiver ON.
Ask your dealer for details.
Turn the power OFF. q
While pushing and holding [Emer] and [PTT], turn the w
power ON with rotating [VOL] to toggle the attaching bat-
tery type.
• After the display appears, release [Emer] and [PTT].
• “DRY BATT” is displayed for about 3 seconds then “L” appears
when the battery case operation is selected. In this case, the
transmit output power is low.
• “LI-ION” is displayed for about 3 seconds when the Lithium-ion
battery operation is selected.
[VOL]
[PTT]
[Emer]
Dry battery mode
Appears
9
3BASIC OPERATION
Channel selection ■
Several types of channel selections are available. Methods
may differ according to your system set up.
NON-ZONE TYPE:
Push [CH Up] or [CH Down] to select the desired operating
channel, in sequence; or, push one of [MR-CH 1] to [MR-CH 4]
keys to select a channel directly.
ZONE TYPE:
Push [Zone], then push [CH Up] or [CH Down] to select the
desired zone.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turn-
ing power ON, the transceiver automatically starts scanning.
Scanning stops when receiving a call.
Call procedure ■
When your system employs tone signaling (excluding CTCSS
and DTCS), the call procedure may be necessary prior to voice
transmission. The tone signaling employed may be a selective
calling system which allows you to call specific station(s) only
and prevent unwanted stations from contacting you.
q Select the desired TX code channel or 2-tone code ac-
cording to your System Operator’s instructions.
• This may not be necessary depending on programming.
• Refer to page 13 for selection.
w Push the call key (assigned to one of the dealer program-
mable keys: [Emer], [Side1], [Side2], [Side3], [P0], [P1],
[P2] and [P3]) or [PTT].
After transmitting a 2-tone code, the remainder of your e
communication can be carried out in the normal fashion.
Selective calling Non-selective calling
10
3
BASIC OPERATION
3
Receiving and transmitting ■
CAUTION: Transmitting without an antenna may damage
the transceiver. See page 1 for accessory attachments.
Receiving:
Rotate [VOL] to turn the power ON. q
Push [CH Up] or [CH Down] to select the conventional sys- w
tem channel, in sequence.
e When receiving a call, adjust the audio output level to a
comfortable listening level.
NOTE: When a matched RX code signal is received, audio
from the microphone is automatically transmitted for a
specified time period.*
*
Depending on the presetting. Ask your dealer for details.
Transmitting:
Wait for the channel to become clear to avoid interference.
Push [Call] when initiating a call from your side. q
•
Coded audio may be heard from the transceiver, then “ ” ap-
pears.
• This operation may not be necessary depending on your sig-
naling system. Ask your dealer for details.
While pushing and holding [PTT], speak into the micro- w
phone at a normal voice level.
Release [PTT] to return to receive. e
IMPORTANT: To maximize the readability of your signal;
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from your
mouth, then speak into the microphone at a normal voice
level.
Transmitting notes D
• Transmit inhibit function
The transceiver has several inhibit functions which restrict
transmission under the following conditions:
- The channel is in mute condition (‘Inaudible’ condition;
“” does not appear.)
- The channel is busy.
- Un-matched (or matched) CTCSS is received.
(Depending on the presetting.)
- The selected channel is a ‘receive only’ channel.
• Time-out timer
After continuous transmission for the pre-programmed time
period, the time-out timer is activated, causing the transceiv-
er to stop transmitting.
• Penalty timer
Once the time-out timer is activated, transmission is further
inhibited for a period determined by the penalty timer.
• PTTID call
The transceiver sends the ID code (DTMF or digital ANI) au-
tomatically when [PTT] is pushed (beginning of transmission)
and released (end of transmission) depends on the setting.
11
3BASIC OPERATION
TX code channel selection D
If the transceiver has [TX Code CH Select] assigned to it,
the indication can be toggled between the operating channel
number (or name) and TX code channel number (or name).
When the TX code channel number (or name) is displayed,
[CH Up] or [CH Down] selects the TX code channel.
USING [TX CODE CH SELECT] KEY:
Push [TX Code CH Select]— a TX code channel number q
(or name) appears.
w Push [CH Up] or [CH Down] to select the desired TX code
channel.
• Push [TX Code CH Select] again to return to the operating
channel number indication.
Push [Call] to transmit the selected TX code. e
USING [TX CODE CH UP]/[TX CODE CH DOWN] KEY:
If the transceiver has [TX Code CH Up] or [TX Code CH
Down] assignment, the programmed TX code channel can
be selected directly when pushed.
DTMF transmission D
If the transceiver has [DTMF Autodial] assigned to it, the
automatic DTMF transmission function is available. Up to 8
DTMF channels are available.
TO SELECT A TX CODE:
Push [DTMF Autodial]— a DTMF channel appears. q
w Push [CH Up] or [CH Down] to select the desired DTMF
channel.
Push [DTMF Autodial] to transmit the DTMF code in the e
selected DTMF channel.
12
3
BASIC OPERATION
3
User set mode ■
User set mode is accessed at power ON and allows you to
set seldom-changed settings. In this case you can “custom-
ize” the transceiver operation to suit your preferences and
operating style.
Entering the user set mode:
q While pushing and holding [Side2] and [Side3], rotate
[VOL] to turn the power ON. Then, push and hold [P0] for
1 second to enter user set mode.
w Push [P0] several times to select the appropriate item.
Then push [CH Up] or [CH Down] to set the desired level/
condition.
•
Available set mode functions are Backlight, Beep, Beep
Level, SQL Level, Mic Gain, Battery Voltage, Signal
Moni and Lone Worker.
Rotate [VOL] to turn the power OFF to exit user set e
mode.
NOTE: User set mode is also available via a programma-
ble function key. Refer to “USER SET MODE KEY.” (p. 7)
Emergency Call ■
When [Emergency] is pushed for the specified time period*, the
emergency signal is transmitted once, or repeatedly, on the specified
emergency channel.
A repeat emergency signal is automatically transmitted until the
transceiver receives an acknowledgement signal, or you turn the
transceiver power OFF.
When no emergency channel is specified, the signal is transmitted
on the previously selected channel.
If you want to cancel the emergency call, hold down [Emergency]
again before transmitting the call.
If your transceiver is programmed for Silent operation, you can trans-
mit an Emergency call without the beep sounding and the LED indi-
cator lighting.
IMPORTANT: It is recommended to set an emergency
channel individually to provide the certain emergency call
operation.
* Depending on the presetting. Ask your dealer for details.
D NOTES
Depending on the presetting, the following functions are au-
tomatically activated. Ask your dealer for details.
• Auto TX function
After the emergency call transmission, audio from the micro-
phone is automatically transmitted for a specified time period.*
• Auto RX function
After the emergency call transmission, the transceiver stands
by in the audible mode for the specified time period.*
13
3BASIC OPERATION
Priority A channel selection ■
Depending on the presetting, the Priority A channel is se-
lected each time the transceiver power is turned ON.
Man Down Emergency Call ■
This function requires the optional UT-124R man down unit.
When the transceiver has been left in a horizontal position for
the specified time period*, the transceiver enters the emer-
gency mode, and then the countdown starts.
After the specified time period* has passed, an emergency
call is automatically transmitted once, or repeatedly.
If the transceiver is placed in a vertical position before the first
transmission, the transceiver exits the emergency mode and
the emergency call is cancelled.
IMPORTANT: It is recommended to set an emergency
channel individually to provide the certain emergency call
operation.
* Depending on the presetting. Ask your dealer for details.
Stun function ■
When the specified ID, set as a stun ID or kill ID, is received,
the stun function is activated.
When the stun ID is received, the transceiver becomes unus-
able. Entering of the password (p. 8) or receiving a specified
ID, set as a revive ID, is necessary to operate the transceiver
again in this case.
When the kill ID is received, the transceiver switches to the
cloning required condition. Cloning the transceiver is neces-
sary to operate the transceiver again in this case.
Stun function is also available with the MDC 1200 signaling
system. (p. 14)
Scrambler function ■
The voice scrambler function provides private communica-
tion between stations. The optional Rolling or Non-rolling
type can be available.
Push [Scrambler] to turn the scrambler function ON. q
• “ ” appears.
w Push [Scrambler] again to turn the scrambler function
OFF.
• “ ” disappears.
14
3
BASIC OPERATION
3
MDC 1200 system operation ■
The MDC 1200 signaling system enhances your transceiv-
er’s capabilities. It allows PTT ID*, Emergency signaling, and
receiving Radio Check. Also, the dispatcher can stun and re-
vive transceivers on the system.
* When [PTT] is pushed and/or released, the transceiver transmits
your station ID.
Transmitting an Emergency Call D
The MDC 1200 system’s Emergency feature can be ac-
cessed using the [Emergency] key (p. 7). The transceiver will
send an Emergency MDC 1200 system command once, or
repeatedly for a programmed number of times until it receives
the acknowledgement signal.
The emergency call can be transmitted without a beep sound
depending on how the emergency function is programmed.
Ask your dealer for details.
Receiving an Emergency Call D
When an emergency call is received; q
• Beeps sound.
• The calling station alias and “EMG EMG” are displayed alter-
nately.
w Turn power OFF, change the channel, push [PTT] for reply-
ing the call, etc. to stop the beep and display indication.
Receiving a Stun and Revive D
The dispatcher can send MDC 1200 system signals that will
stun or revive your transceiver. If a Stun command is re-
ceived that matches your station ID, the transceiver will dis-
play “SORRY” (default) and you can not receive or transmit.
When a Revive command is received that matches your sta-
tion ID, normal operation is restored.
15
4BATTERY CHARGING
Caution ■
Misuse of Lithium-ion batteries may result in the following
hazards: smoke, fire, or the battery may rupture. Misuse
can also cause damage to the battery or degradation of
battery performance.
R DANGER! Use and charge only specified Icom battery
packs with Icom radios or Icom charger. Only Icom battery
packs are tested and approved for use and charge with Icom
radios or Icom charger. Using third-party or counterfeit bat-
tery packs or charger may cause smoke, fire, or cause the
battery to burst.
Battery caution
R DANGER! DO NOT hammer or otherwise impact the bat-
tery. Do not use the battery if it has been severely impacted
or dropped, or if the battery has been subjected to heavy
pressure. Battery damage may not be visible on the outside
of the case. Even if the surface of the battery does not show
cracks or any other damage, the cells inside the battery may
rupture or catch fire.
R DANGER! NEVER use or leave battery packs in areas
with temperatures above +60˚C (+140˚F). High temperature
buildup in the battery, such as could occur near fires or stoves,
inside a sun heated car, or in direct sunlight may cause the
battery to rupture or catch fire. Excessive temperatures may
also degrade battery performance or shorten battery life.
R DANGER! DO NOT expose the battery to rain, snow, sea-
water, or any other liquids. Never charge or use a wet battery.
If the battery gets wet, be sure to wipe it dry before using.
R DANGER! NEVER incinerate used battery packs since in-
ternal battery gas may cause them to rupture, or may cause
an explosion.
R DANGER! NEVER solder the battery terminals or NEVER
modify the battery pack. This may cause heat generation,
and the battery may rupture, emit smoke or catch fire.
R DANGER! Use the battery only with the transceiver for
which it is specified. Never use a battery with any other
equipment, or for any purpose that is not specified in this in-
struction manual.
R DANGER! If fluid from inside the battery gets in your eyes,
blindness can result. Rinse your eyes with clean water, with-
out rubbing them, and see a doctor immediately.
16
4
BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
R WARNING! Immediately stop using the battery if it emits
an abnormal odor, heats up, or is discolored or deformed. If
any of these conditions occur, contact your Icom dealer or
distributor.
R WARNING! Immediately wash, using clean water, any
part of the body that comes into contact with fluid from inside
the battery.
R WARNING! NEVER put the battery in a microwave oven,
high-pressure container, or in an induction heating cooker.
This could cause a fire, overheating, or cause the battery to
rupture.
CAUTION: Always use the battery within the specified tem-
perature range, –20˚C to +60˚C (–4˚F to +140˚F). Using the
battery out of its specified temperature range will reduce the
battery’s performance and battery life.
CAUTION: Shorter battery life could occur if the battery is left
fully charged, completely discharged, or in an excessive tem-
perature environment (above +50˚C; +122˚F) for an extended
period of time. If the battery must be left unused for a long
time, it must be detached from the radio after discharging.
You may use the battery until the remaining capacity is about
half, then keep it safely in a cool dry place with the tempera-
ture range as below:
–20˚C to +50˚C (–4˚F to +122˚F) (within a month)
–20˚C to +35˚C (–4˚F to +95˚F) (within three months)
Charging caution D
R DANGER! NEVER charge the battery pack in areas with
extremely high temperatures, such as near fires or stoves,
inside a sun heated car, or in direct sunlight. In such environ-
ments, the safety/protection circuit in the battery will activate,
causing the battery to stop charging.
R WARNING! NEVER charge or leave the battery in the bat-
tery charger beyond the specified time for charging. If the
battery is not completely charged by the specified time, stop
charging and remove the battery from the battery charger.
Continuing to charge the battery beyond the specified time
limit may cause a fire, overheating, or the battery may rup-
ture.
R WARNING! NEVER insert the transceiver (battery at-
tached to the transceiver) into the charger if it is wet or soiled.
This could corrode the battery charger terminals or damage
the charger. The charger is not waterproof.
CAUTION: NEVER charge the battery outside of the speci-
fied temperature range: BC-160 and BC-171 (0˚C to +45˚C;
+32˚F to +113˚F). BC-119N and BC121N (+10˚C to +40˚C;
+50˚F to +104˚F). Icom recommends charging the battery at
+20˚C (+68˚F). The battery may heat up or rupture if charged
out of the specified temperature range. Additionally, battery
performance or battery life may be reduced.
17
4BATTERY CHARGING
Optional battery chargers ■
Rapid charging with the BC-160 D
The optional BC-160 provides rapid charging of the Li-ion
battery pack.
• An AC adapter (may be supplied with BC-160 depending on ver-
sion) or the DC power cable (OPC-515L/CP-23L) is additionally
required.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
*
TransceiverBattery
pack Turn power OFF
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line :
*
Regular charging with the BC-171 D
The optional BC-171 provides regular charging of the Li-ion
battery pack.
• An AC adapter (may be supplied with BC-171 depending on ver-
sion) or the DC power cable (OPC-515L/CP-23L) is additionally
required.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
*
TransceiverBattery
pack Turn power OFF
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line :
*
18
4
BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
AD-106 installation D
The AD-106 charger adapter must be installed into the BC-
119N or BC-121N before battery charging.
➥ Connect the AD-106 charger adapter and the BC-119N/
BC-121N as below, then install the AD-106 into the hold-
er space of the BC-119N or BC-121N with the supplied
screws.
Screws supplied
with the charger
adapter
AD-106 Connectors
Plugs
* This illustration is described with the BC-119N.
Rapid charging with the BC-119N+AD-106 D
The optional BC-119N provides rapid charging of the Li-ion
battery pack. The following items are additionally required.
• AD-106 charger adapter
• An AC adapter (may be supplied with BC-119N depending on ver-
sion) or the DC power cable (OPC-515L/CP-23L).
AD-106 charger
adapter is installed
in BC-119N.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
Transceiver
Battery
pack
Turn power OFF
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line :
*
*
19
4BATTERY CHARGING
Rapid charging with the BC-121N+AD-106 D
The optional BC-121N allows up to 6 Li-ion battery packs to
be charged simultaneously. The following items are addition-
ally required.
• Six AD-106 charger adapters
•
An optional AC adapter or the DC power cable (OPC-656)
Battery
pack
AD-106 charger
adapters are installed
in each slot.
AC adapter
(Purchased
separately)
Transceiver
DC power cable (OPC-656)
(Connect with the DC power supply; 13.8 V/at least 7 A)
*Abou the OPC-656
Red line : Black line :
Turn power OFF
IMPORTANT: Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described with the BC-160.)
Guide rail
Tabs
20
5
OPTIONAL SWIVEL BELT CLIP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
MB-93 contents ■
Qty.
q Belt clip ...........................................................................1
w Base clip .........................................................................1
q w
Attaching ■
Release the battery pack if it is attached. (p. 2) q
w Slide the base clip in the direction of the arrow until the
base clip is locked and makes a ‘click’ sound.
Attach the battery pack. (p. 2) e
r Clip the belt clip to a part of your belt. And insert the trans-
ceiver into the belt clip until the base clip inserted fully into
the groove.
t Once the transceiver is locked in place, it swivels as illus-
trated below.
Once the transceiver is locked in place,
it will swivel 360 degrees.
21
5OPTIONAL SWIVEL BELT CLIP
Detaching ■
q Turn the transceiver upside down in the direction of the
arrow and pull out from the belt clip. Release the battery pack if it is attached. (p. 2) w
e Pinch the clip (q), and slide the base clip in the direction
of the arrow (w).
q
w
CAUTION:
HOLD THE TRANSCEIVER TIGHTLY, WHEN HANGING
OR DETACHING THE TRANSCEIVER FROM THE BELT
CLIP.
Otherwise the transceiver may not be attached to the
holder or swivel properly if the transceiver is accidentally
dropped and the base clip is scratched or damaged.
22
6
SPEAKER MICROPHONE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Optional HM-168LWP description ■
Alligator type clip
To attach the speaker-mic.
to your shirt or collar, etc.
PTT switch
Transmits while pushed
Receives while released
Microphone
Speaker
Turn the transceiver power
OFF when connecting the
HM-168LWP.
NEVER immerse the connector in water. If the connector
becomes wet, be sure to dry it BEFORE attaching it to the
transceiver.
NOTE: The microphone is located as shown in the dia-
gram above. To maximize the readability of your transmit-
ted signal (voice), hold the microphone approximately 5
to 10 cm (2 to 4 inches) from your mouth, and speak in a
normal voice level.
Attachment ■
Attach the connector of the speaker-microphone into the [SP
MIC] jack on the transceiver and tighten the screws with fin-
gers.
NOTE: Use only your fingers instead of tools to tighten
the screws.
IMPORTANT: Keep the [SP MIC] jack cover attached to
the transceiver when the speaker-microphone is not in
use.
Hand tighten
CAUTION: Attach the con-
nector snugly.
A loose connection will al-
low water intrusion into the
connector.
23
7OPTIONS
BATTERY PACK D
Battery pack Voltage Capacity Battery life*1
BP-232WP 7.4 V 2250 mAh (min.)
2300 mAh (typ.) 17.5 hrs.
*1
When the power save function is turned ON, and the operating
periods are calculated under the following conditions;
TX : RX : standby = 5 : 5 : 90
*2 Operating period depends on the alkaline cells used.
CHARGERS D
• BC-119N desktop charger + AD-106 charger adapter
+ BC-145S ac adapter
For rapid charging of battery packs. An AC adapter is sup-
plied with the charger depending on versions.
Charging time: approximately 3 hours when BP-232WP is at-
tached.
• BC-121N multi-charger + AD-106 charger adapter (6 pcs.)
+ BC-157S ac adapter
For rapid charging of up to 6 battery packs (six AD-106’s
are required) simultaneously. An AC adapter should be pur-
chased separately.
Charging time: approximately 3 hours when BP-232WP is at-
tached.
• BC-160 desktop charger + BC-145S ac adapter
For rapid charging of battery packs. An AC adapter is sup-
plied with the charger depending on versions.
Charging time: approximately 3 hours when BP-232WP is at-
tached.
• BC-171 desktop charger + BC-147S ac adapter
An AC adapter is supplied with the charger depending on
versions.
Charging time: approximately 10 hours when BC-232WP is at-
tached.
DC CABLES D
• CP-23L cigarette lighter cable
Allows charging of the battery pack through a 12 V cigarette
lighter socket. (For BC-160/BC-171/BC-119N)
• OPC-515L/OPC-656 dc power cables
Allows charging of the battery pack using a 13.8 V power
source instead of the AC adapter.
OPC-515L: For BC-160/BC-171/BC-119N
OPC-656 : For BC-121N
BELT CLIPS D
• MB-93 swivel belt clip
• MB-94 belt clip
Exclusive alligator-type belt clip. The same as supplied with
the transceiver.
• MB-96N/96F leather belt hanger
24
7
OPTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
OPTIONAL UNITS D
• UT-96R 5 tone unit
• UT-108R dtmf decoder unit
Provides pager and code squelch capabilities.
• UT-109R /UT-110R* voice scrambler units
Non-rolling type (UT-109R)/Rolling type (UT-110R)* voice
scrambler unit provides higher communication security.
*You can use the UT-110R as Non-rolling type.
• UT-124R
man down unit
Provides measure of safety when working in a hazardous
environment, etc.
OTHER OPTIONS D
•
HM-168LWP speaker-microphone
Combination speaker-microphone that provides convenient
operation while hanging the transceiver from your belt.
• FA-SC25V/FA-SC55V/
FA-SC25U/FA-SC57U/FA-SC72U/
FA-SC62V/FA-SC63V antennas
FA-SC25V: 136–150 MHz FA-SC55V: 150–174 MHz
FA-SC25U: 400–430 MHz FA-SC57U: 430–470 MHz
FA-SC72U: 470–520 MHz FA-SC62V: 150–160 MHz
FA-SC63V: 155–165 MHz
• FA-SC56VS/FA-SC57VS/FA-SC73US stubby antennas
FA-SC56VS: 150–162 MHz FA-SC57VS: 160–174 MHz
FA-SC73US: 450–490 MHz
• FA-SC61VC/FA-SC61UC cut antennas
FA-SC61VC: 136–174 MHz FA-SC61UC: 380–520 MHz
Some options may not be available in some countries. Ask
your dealer for details.
Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an
Icom transceiver in the event the Icom transceiver is used with
equipment that is not manufactured or approved by Icom.
25
8SAFETY TRAINING INFORMATION
Y
our Icom radio generates RF electromagnetic en-
ergy during transmit mode. This radio is designed for
and classified as “Occupational Use Only”, meaning
it must be used only during the course of employment
by individuals aware of the hazards, and the ways to
minimize such hazards. This radio is NOT intended
for use by the “General Population” in an uncontrolled environment.
This radio has been tested and complies with the FCC RF exposure
limits for “Occupational Use Only”. In addition, your Icom radio com-
plies with the following Standards and Guidelines with regard to RF
energy and electromagnetic energy levels and evaluation of such
levels for exposure to humans:
• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Ra-
dio Frequency Electromagnetic Fields.
• American National Standards Institute (C95.1-1992), IEEE
Standard for Safety Levels with Respect to Human Exposure to
Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3-1992), IEEE
Recommended Practice for the Measurement of Potentially
Hazardous Electromagnetic Fields– RF and Microwave.
• The following accessories are authorized for use with this prod-
uct. Use of accessories other than those specified may result in
RF exposure levels exceeding the FCC requirements for wire-
less RF exposure.; Belt Clip (MB-93, MB-94 and MB-96N/F),
Rechargeable Li-ion Battery Pack (BP-232WP) and Speaker-
microphone (HM-168LWP).
To ensure that your expose to RF electromagnetic
energy is within the FCC allowable limits for occu-
pational use, always adhere to the following guide-
lines:
• DO NOT operate the radio without a proper antenna attached,
as this may damaged the radio and may also cause you to ex-
ceed FCC RF exposure limits. A proper antenna is the antenna
supplied with this radio by the manufacturer or antenna specifi-
cally authorized by the manufacturer for use with this radio.
•
DO NOT transmit for more than 50% of total radio use time (“50%
duty cycle”). Transmitting more than 50% of the time can cause
FCC RF exposure compliance requirements to be exceeded.
The radio is transmitting when the TX indicator lights red. You
can cause the radio to transmit by pressing the “PTT” switch.
• ALWAYS keep the antenna at least 2.5 cm (1 inch) away from
the body when transmitting and only use the Icom belt-clips
listed on page 23 when attaching the radio to your belt, etc.,
to ensure FCC RF exposure compliance requirements are not
exceeded. To provide the recipients of your transmission the
best sound quality, hold the antenna at least 5 cm (2 inches)
from your mouth, and slightly off to one side.
The information listed above provides the user with the information
needed to make him or her aware of RF exposure, and what to do
to assure that this radio operates with the FCC RF exposure limits
of this radio.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that can
possibly cause interference with other devices or systems. To avoid
such interference, turn off the radio in areas where signs are posted
to do so. DO NOT operate the transmitter in areas that are sensitive to
electromagnetic radiation such as hospitals, aircraft, and blasting sites.
Occupational/Controlled Use
The radio transmitter is used in situations in which persons are ex-
posed as consequence of their employment provided those per-
sons are fully aware of the potential for exposure and can exercise
control over their exposure.
WARNING
CAUTION
26
8
SAFETY TRAINING INFORMATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
AVERTISSEMENT
Votre radio Icom produit une énergie électromagnétique
de radiofréquences (RF), en mode de transmission.
Cette radio est conçue pour un «usage professionnel
seulement» et classée comme tel, ce qui signifie qu’elle
doit être utilisée uniquement dans le cadre d'un travail
par des personnes conscientes des dangers et des mesures visant à mi-
nimiser ces dangers. Elle N’EST PAS conçue pour une «utilisation grand
public», dans un environnement non contrôlé.
Cet appareil a été évalué et jugé conforme, aux limites d
’
exposition aux
RF de la FCC, pour une «utilisation grand public». En outre, votre radio
Icom satisfait les normes et directives qui suivent en matière de niveaux
d'énergie et d
’
énergie électromagnétique de RF et d
’
évaluation de tels
niveaux en ce qui concerne l
’
exposition humaine:
• Supplément C, édition 97-01, du Bulletin OET n° 65 de la FCC,
«Evaluating Compliance with FCC Guidelines for Human Exposure
to Radio Frequency Electromagnetic Fields».
• Norme de l’American National Standards Institute (ANSI): IEEE
C95.1-1992 sur les niveaux de sécurité compatibles avec l
’
exposition
humaine aux champs électromagnétiques de radiofréquences (3 kHz
à 300 GHz).
• Norme de l’ANSI: IEEE C95.3-1992 sur la méthode d’évaluation re-
commandée du champ magnétique potentiellement dangereux des
radiofréquences et des micro-ondes.
•
Les accessoires illustrés à la p. 23-24 sont approuvés pour une utili-
sation avec ce produit. L’utilisation d’accessoires autres que ceux pré-
cisés peut entraîner des niveaux d’exposition aux RF supérieures aux
limites établies par la FCC en matière d’exposition aux RF sans fil.
MISE EN GARDE
Afin de vous assurer que votre exposition à
une énergie électromagnétique de RF se situe
dans les limites permises par la FCC pour une
utilisation grand public, veuillez en tout temps
respecter les directives suivantes:
•
NE PAS faire fonctionner la radio sans qu
’
une antenne appropriée y soit
fixée, car ceci risque d
’
endommager la radio et causer une exposition
supérieure aux limites établies par la FCC. L
’
antenne appropriée est celle
qui est fournie avec cette radio par le fabricant ou une antenne spéciale-
ment autorisée par le fabricant pour être utilisée avec cette radio.
• NE PAS émettre pendant plus de 50 % du temps total d’utilisation de
l’appareil («50 % du facteur d'utilisation»). La notion «50% du facteur
d’utilisation» s’applique également au mode VOX/PTT. Émettre pen-
dant plus de 50 % du temps total d’utilisation peut causer une expo-
sition aux RF supérieure aux limites établies par la FCC. Lorsque le
voyant DEL rouge s’allume, cette radio est en train d’émettre. La radio
émettra si vous appuyez sur le bouton du microphone.
• TOUJOURS tenir l
’
antenne éloignée d
’
au moins 2,5 cm de votre corps
au moment d
’
émettre et utiliser uniquement l
’
attache pour ceinture Icom
illustrée à la p. 23, lorsque vous attachez la radio à votre ceinture, ou
à autre chose, de façon à vous assurer de ne pas provoquer une ex-
position aux RF supérieure aux limites fixées par la FCC. Pour offrir à
vos interlocuteurs la meilleure qualité de transmission possible, tenez
l
’
antenne à au moins 5 cm de votre bouche et légèrement de côté.
Les renseignements ci-dessus fournissent à l’utilisateur toute l’information
nécessaire sur l’exposition aux RF et sur ce qu’il faut faire pour assurer que
cette radio fonctionne en respectant les limites d’exposition aux RF établies
par la FCC.
Interférence électromagnétique et compatibilité
En mode de transmission, votre radio Icom produit de l’énergie de RF qui
peut provoquer des interférences avec d’autres appareils ou systèmes. Pour
éviter de telles interférences, mettez la radio hors tension dans les secteurs
où une signalisation l’exige. NE PAS faire fonctionner l’émetteur dans des
secteurs sensibles au rayonnement électromagnétique tels que les hôpi-
taux, les aéronefs et les sites de dynamitage.
Usage professionnel/contrôlé
Ce radio émetteur est utilisé dans des cas où des personnes sont exposées
en raison de leur travail, pourvu qu’elles soient conscientes du risque d’ex-
position et qu’elles puissent exercer un contrôle sur cette exposition.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
A-6995D-1EX
Printed in Japan
© 2012 Icom Inc.
Printed on recycled paper with soy ink.

Navigation menu
