ICOM orporated 362102 UHF Transceiver User Manual 2

ICOM Incorporated UHF Transceiver 2

User Manual 2

WORD DEFINITION
RDANGER! Personal death, serious injury or an explosion may occur.
RWARNING! Personal injury, fire hazard or electric shock may occur.
CAUTION Equipment damage may occur.
NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock.
Thank you for choosing the IC-F1000 series v h f
t r a n s c e i v e r s or IC-F2000 series u h f t r a n s c e i v -
e r s .
READ ALL PRECAUTIONS carefully and complete-
ly before using the transceiver.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan A-7122H-1EX-q Printed in Japan
© 2014 Icom Inc.
EXPLICIT DEFINITIONS
PRECAUTIONS
VHF TRANSCEIVERS
Iç-F2000 series
UHF TRANSCEIVERS
Iç-F1000 series
Battery caution•
R DANGER! NEVER short terminals (or charging termi-
nals) of the battery pack. Also, current may flow into nearby
metal objects such as a necklace, so be careful when plac-
ing battery packs (or the radio) in handbags, etc.
Simply carrying with or placing near metal objects such as
a necklace, etc. may cause shorting. This may damage not
only the battery pack, but also the radio.
R DANGER! DO NOT hammer or otherwise impact the bat-
tery. Do not use the battery if it has been severely impact-
ed or dropped, or if the battery has been subjected to heavy
pressure. Battery damage may not be visible on the outside
of the case. Even if the surface of the battery does not show
cracks or any other damage, the cells inside the battery may
rupture or catch fire.
R DANGER! NEVER use or leave battery pack in areas
with temperatures above +60°C (+140°F). High tempera-
ture buildup in the battery, such as could occur near fires
or stoves, inside a sun heated car, or in direct sunlight may
cause the battery to rupture or catch fire. Excessive tem-
peratures may also degrade battery performance or short-
en battery life.
R DANGER! DO NOT expose the battery to rain, snow,
seawater, or any other liquids. Do not charge or use a wet
battery. If the battery gets wet, be sure to wipe it dry before
using.
R DANGER! KEEP battery packs away from fire. Fire or
heat may cause them to rupture or explode. Dispose of used
battery packs in accordance with local regulations.
R DANGER! NEVER solder the battery terminals, or NEV-
ER modify the battery pack. This may cause heat genera-
tion, and the battery may burst, emit smoke or catch fire.
R DANGER! Use the battery only with the radio for which it
is specified. Never use a battery with any other equipment,
or for any purpose that is not specified in this instruction
manual.
R DANGER! If fluid from inside the battery gets in your
eyes, blindness can result. Rinse your eyes with clean wa-
ter, without rubbing them, and see a doctor immediately.
R WARNING! Immediately stop using the battery if it emits
an abnormal odor, heats up, or is discolored or deformed. If
any of these conditions occur, contact your Icom dealer or
distributor.
R WARNING! Immediately wash, using clean water, any
part of the body that comes into contact with fluid from in-
side the battery.
R WARNING! NEVER put the battery in a microwave oven,
high-pressure container, or in an induction heating cooker.
This could cause a fire, overheating, or cause the battery to
rupture.
CAUTION: Always use the battery within the specified
temperature range, for the radio
–25°C to +55°C (–13°F to
+131°
F
): ETS version, –30°C to +60°C (–22°F to +140°F):
TIA version, and the battery itself
–20°C to +60°C (–4°F to
+140°F). Using the battery out of its specified temperature
range will reduce the battery’s performance and battery life.
Please note that the specified temperature range of the bat-
tery may exceed that of the radio. In such cases, the radio
may not work properly because it is out of its operating tem-
perature range.
CAUTION: Shorter battery life could occur if the battery is
left fully charged, completely discharged, or in an excessive
temperature environment (above +50°C; +122°F) for an ex-
tended period of time. If the battery must be left unused for a
long time, it must be detached from the radio after discharg-
ing. You may use the battery until the remaining capacity is
about half, then keep it safely in a cool dry place at the fol-
lowing temperature range:
–20°C (–4°F) to +50°C (+122°F) (within a month)
–20°C (–4°F) to +40°C (+104°F) (within three months)
–20°C (–4°F) to +20°C (+68°F) (within a year)
BE SURE to replace the battery with a new one after five
years, even if still holds a charge. The inside battery material
will deteriorate after a period of time, even with little use.
Charging caution•
R DANGER! NEVER charge the battery pack in areas with
extremely high temperatures, such as near fires or stoves,
inside a sun-heated vehicle, or in direct sunlight. In such en-
vironments, the safety/protection circuit in the battery will
activate, causing the battery to stop charging.
R WARNING! NEVER charge or leave the battery in the
battery charger beyond the specified time for charging. If
the battery is not completely charged by the specified time,
stop charging and remove the battery from the battery char-
ger. Continuing to charge the battery beyond the specified
time limit may cause a fire, overheating, or the battery may
rupture.
R WARNING! NEVER insert the radio (battery attached to
the radio) into the charger if it is wet or soiled. This could cor-
rode the battery charger terminals or damage the charger.
The charger is not waterproof.
NOTE: Charge the battery within the specified temperature
range of +10°C to +40°C (+50°F to +104°F). Otherwise, the
charging time will be longer, but the battery will not reach a
full charge. While charging, at a point after the temperature
goes out of the specified range, the charging will automati-
cally stop.
PRECAUTIONS (Continued)
Misuse of Li-ion batteries may result in the following haz-
ards: smoke, fire, or the battery may rupture. Misuse can
also cause damage to the battery or degradation of bat-
tery performance.
PRECAUTIONS
R
DANGER! NEVER short the terminals of the battery pack.
R DANGER! Use and charge only specified Icom battery
packs with Icom radios or Icom chargers. Only Icom battery
packs are tested and approved for use with Icom radios or
charged with Icom chargers. Using third-party or counterfeit
battery packs or chargers may cause smoke, fire, or cause
the battery to burst.
R WARNING! NEVER hold the radio that the antenna is
very close to, or touching exposed parts of the body, es-
pecially the face or eyes, while transmitting. The radio will
perform best if the microphone is 5 to 10 cm (2 to 4 inches)
away from the lips and the radio is vertical.
R WARNING! NEVER operate the radio with a headset or
other audio accessories at high volume levels. Hearing ex-
perts advise against continuous high volume operation. If
you experience a ringing in your ears, reduce the volume
level or discontinue use.
R WARNING! NEVER operate the radio while driving a ve-
hicle. Safe driving requires your full attention—anything less
may result in an accident.
CAUTION: MAKE SURE the flexible antenna, battery pack
and jack cover are securely attached to the radio, and that
the antenna and battery pack are dry before attachment. Ex-
posing the inside of the radio to dust or water will result in se-
rious damage to the radio.
DO NOT
operate the radio near unshielded electrical blasting
caps or in an explosive atmosphere.
DO NOT push [PTT] when you do not actually intend to
transmit.
DO NOT
use or place the radio in direct sunlight or in ar-
eas with temperatures below –25°C (–13°F) or above +55°C
(+131°F): ETS version, below –30°C (–22°F) or above +60°C
(+140°F): TIA version. The basic operations, transmission
and reception of the radio are guaranteed within the specified
operating temperature range. However, the LCD display may
not be operate correctly, or show an indication in the case
of long hours of operation, or after being placed in extreme-
ly cold areas.
DO NOT modify the radio. The specifications may change
and then not comply with the requirements of a correspond-
ed regulation. The radio warranty does not cover any prob-
lems caused by unauthorized modification.
DO NOT
use harsh solvents such as benzine or alcohol
when cleaning, as they will damage the radio surfaces.
BE CAREFUL! The radio will become hot when operating it
continuously for long periods of time.
BE CAREFUL!

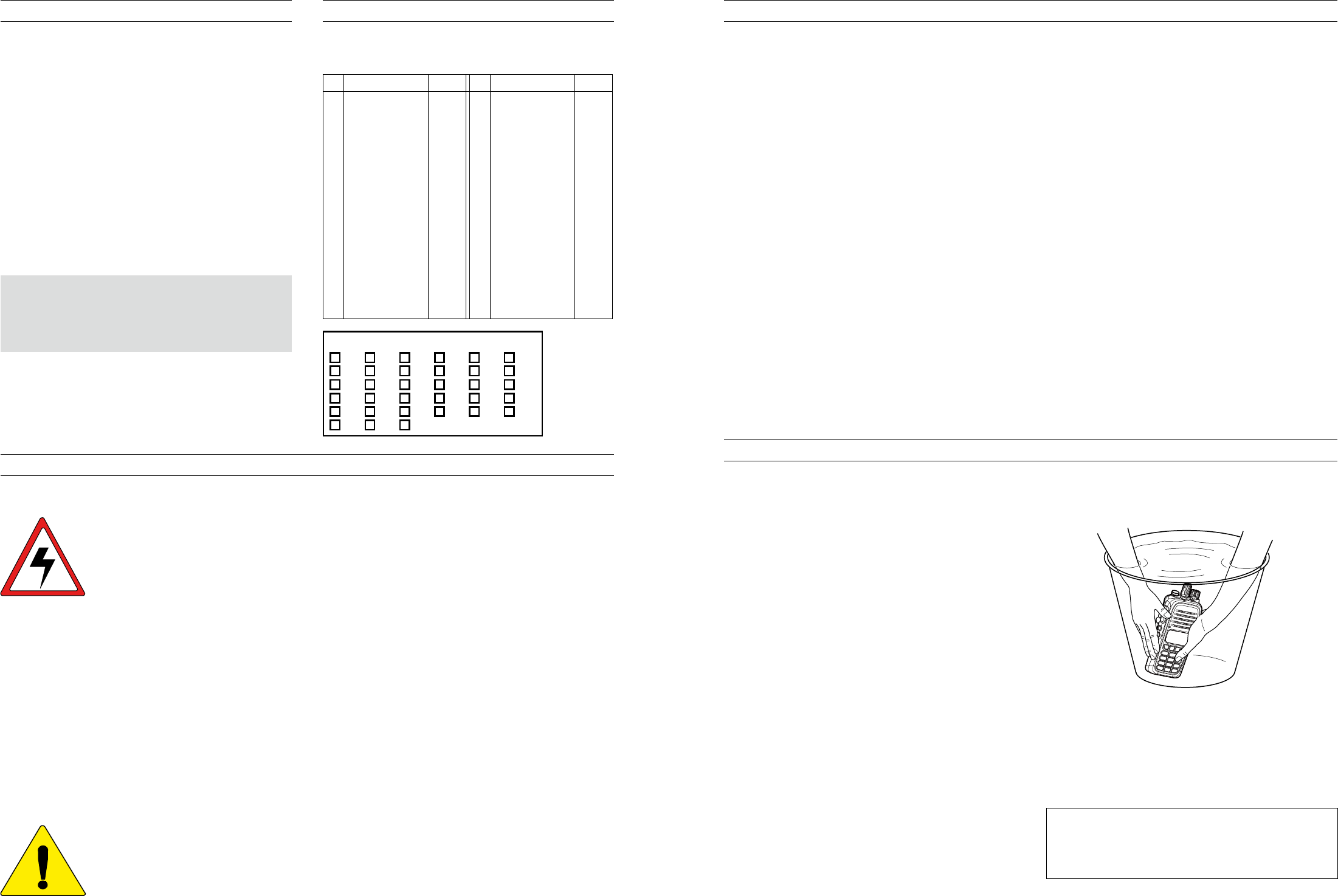

The radio meets IP67* requirements for dust-
tight and waterproof protection. However, once the radio has
been dropped, dust-tight and waterproof protection cannot be
guaranteed because of possible damage to the radio’s case
or the waterproof seal.
* Only when the jack cover
or the optional HM-168LWP is at-
tached.
Even when the radio power is OFF, a slight current still flows
in the circuits. Remove the battery pack from the radio when
not using it for a long time. Otherwise, the installed battery
pack will become exhausted, and will need to be recharged
or replaced.
MAKE SURE to turn the radio power OFF before connecting
the supplied or optional equipment.
SAFETY TRAINING INFORMATION
FCC INFORMATION
•FORCLASSAUNINTENTIONALRADIATORS:
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer-
ence when the equipment is operated in a commercial
environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual,
may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area
is likely to cause harmful interference in which case
the user will be required to correct the interference at
his own expense.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the condition that this device
does not cause harmful interference.
CAUTION:
Changes or modifications to this transceiver, not ex-
pressly approved by Icom Inc., could void your au-
thority to operate this transceiver under FCC regu-
lations.
ISO 3166-1
Country Codes Country Codes
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Austria
Belgium
Bulgaria
Croatia
Czech Republic
Cyprus
Denmark
Estonia
Finland
France
Germany
Greece
Hungary
Iceland
Ireland
Italy
Latvia
AT
BE
BG
HR
CZ
CY
DK
EE
FI
FR
DE
GR
HU
IS
IE
IT
LV
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Poland
Portugal
Romania
Slovakia
Slovenia
Spain
Sweden
Switzerland
Turkey
United Kingdom
LI
LT
LU
MT
NL
NO
PL
PT
RO
SK
SI
ES
SE
CH
TR
GB
COUNTRY CODE LIST
< Intended Country of Use >
AT
FI
IT
PL
GB
RO
BE
FR
LV
PT
IS
TR
CY
DE
LT
SK
LI
HR
CZ
GR
LU
SI
NO
DK
HU
MT
ES
CH
EE
IE
NL
SE
BG
WARNING
Your Icom radio generates RF electromagnetic energy during transmit mode. This radio is de-
signed for and classified as “Occupational Use Only”, meaning it must be used only during the
course of employment by individuals aware of the hazards, and the ways to minimize such haz-
ards. This radio is NOT intended for use by the “General Population” in an uncontrolled environ-
ment. This radio has been tested and complies with the FCC and IC RF exposure limits for “Oc-
cupational Use Only”. In addition, your Icom radio complies with the following Standards and
Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such
levels for exposure to humans:
FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Ex-•
posure to Radio Frequency Electromagnetic Fields.
American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human •
Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Po-•
tentially Hazardous Electromagnetic Fields– RF and Microwave.
The antennas, batteries, belt clips, speaker-microphone, and other accessories that are listed in “OPTIONS” of •
the INSTRUCTIONS sheet, are authorized for use with this product. Use of accessories other than those spec-
ified may result in RF exposure levels exceeding the FCC and IC requirements for wireless RF exposure.
CAUTION
To ensure that your expose to RF electromagnetic energy is within the FCC and IC al-
lowable limits for occupational use, always adhere to the following guidelines:
DO NOT • operate the radio without a proper antenna attached, as this may damaged the radio and may also
cause you to exceed FCC and IC RF exposure limits. A proper antenna is the antenna supplied with this radio
by the manufacturer or antenna specifically authorized by the manufacturer for use with this radio.
DO NOT• transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of
the time can cause FCC and IC RF exposure compliance requirements to be exceeded. The radio is transmit-
ting when the LED indicator lights red. You can cause the radio to transmit by pressing the “PTT” switch.
•ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the
Icom belt-clips listed in “OPTIONS” of the INSTRUCTIONS sheet when attaching the radio to your belt, etc., to
ensure FCC and IC RF exposure compliance requirements are not exceeded. To provide the recipients of your
transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from your mouth, and slightly off
to one side.
The information listed above provides the user with the information needed to make him or her aware of RF expo-
sure, and what to do to assure that this radio operates with the FCC and IC RF exposure limits of this radio.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that can possibly cause interference with other devic-
es or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT op-
erate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blast-
ing sites.
Occupational/Controlled Use
The radio transmitter is used in situations in which persons are exposed as consequence of their employment pro-
vided those persons are fully aware of the potential for exposure and can exercise control over their exposure.
SAFETY TRAINING INFORMATION (Continued)
Icom, Icom Inc. and the Icom logo are registered trade-
marks of Icom Incorporated (Japan) in Japan, the Unit-
ed States, the United Kingdom, Germany, France, Spain,
Russia and/or other countries.
All other products or brands are registered trademarks or
trademarks of their respective holders.
CLEAN THE TRANSCEIVER THOROUGHLY WITH
FRESH WATER after exposure to saltwater, and dry
it before operating. Otherwise, the transceiver's keys,
switches and controllers may become unusable due to
salt crystallization.
NOTE: DO NOT submerge the transceiver in water if
there is any reason (one of the following) to suspect
the waterproof protection may not be effective.
When the transceiver has been dropped•
•
When t
he transceiver’s case or the waterproof seal
is
cracked or damaged
•
When the jack cover or the optional HM-168LWP is
detached from the transceiver
RECOMMENDATION
MULTI-CHARGER
MULTI-CHARGER
Make sure the rubber seal is properly seated in the
groove and there is dust or other material is on it.
Supplied accessories
Supplied battery charger
Flexible antenna
AD-123 to BC-121N
Batt. indicator scroll
Belt clip
Handstrap Battery pack
AD-123 Install
Cover remove
Pack remove
Push to lock
Basic operation
Front, top, side and rear panels
Volume adjustment mode
Normal operating mode
Squelch adjustment mode
PUSH
PUSH
PUSH
Indication
Full Middle Charging
required Exhausted
Battery status
Optional battery charger BC-119N
OPT charger BC-121N Charging with CP-24
blinks when the battery is over charged.
Clean with water
* Different type is supplied depending on the version.
AD-123
AD-123
xx
AD-123 charger
adapters are installed
in each slot.
AC adapter
(Purchased
separately)
DC power cable (OPC-656)
(Connect to a DC
power supply;
13.8 V/at least 7 A)
xx
Fuse (2 A /250 V)
Battery packHandstrap
Belt clip
Flexible antenna
Charger
To attach the belt clip To detach the belt clip
Be careful!
Don’t break your
fingernail.
Function
display
(pp. 6, 7)
Speaker
y
t
r
e
u
w
q
!1
o
i
!0
Microphone
q To remove the
[DC]
jack cap, rotate it
counter clockwise.
w Pull the cap up to detach it.
!4
!3
i
u
o
!2
!1
!0
!7
!5
qerytw
!6
Charger
[DC] jack
Power OFF
AD-123 charger adapter is
installed in the BC-119N.
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
See the instruction manual for details of
the charger, LED indication,
operation, etc.
See the instruction manual
for details of the charger,
LED indication,
operation, etc.
IMPORTANT!:
Ensure the battery pack
snaps flat in the AD-123.
q
Belt clip
w
BP-266
BC-119N
BP-266
BP-266
Microphone
t Set output
power.
q Power ON.
y Push to
transmit.
u Release to
receive.
rSet channel.
Enter the volume
and squelch ad-
justment mode.
w
w Adjust the
volume and
squelch
level.
BP-266
BP-266
AD-123
IMPORTANT!:
Ensure the battery pack
snaps flat in the AD-123.
AC adapter
Push the cover until
the latch comes back
to the locked position.
Latch
Battery cover
Battery pack
Battery cover
“Click”
Lift the tab up (q), and slide
the belt clip in the direction
of the arrow (w).
Plugs
Sockets
Plugs
Sockets
Screws supplied with
the charger adapter
Carefully fold the
cables, as you set
the adaptor in place
Carefully fold the cables, as
you set the adaptor in place
This illustration is for the BC-119N.
This illustration is for the BC-119N.
Screws supplied with the charger adapter
Rubber seal
Groove
Battery coverBattery cover
Correct position Incorrect position
(Different types are supplied, depending on the version)
AD-123
BP-266
BP-266
BC-121N
White: +
Black: _
[DC] jack
Power OFF
To a cigarette lighter
socket (12/24 V DC)
CP-24

Navigation menu
