User Manual 2
WORD DEFINITION
RDANGER! Personal death, serious injury or an explosion may occur.
RWARNING! Personal injury, fire hazard or electric shock may occur.
CAUTION Equipment damage may occur.
NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock.
Thank you for choosing the IC-F3360DT/IC-F3360DS
VHF
DIGITAL
TRANSCEIVERS
or IC-F4360DT/IC-F4360DS
UHF
DIGITAL
TRANSCEIVERS
.
READ ALL PRECAUTIONS carefully and complete-
ly before using your transceiver.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan A-7144H-1EX Printed in Japan
© 2014 Icom Inc.
PRECAUTIONS
VHF DIGITAL TRANSCEIVERS
Iç-F4360D series
UHF DIGITAL TRANSCEIVERS
Iç-F3360D series
Misuse of Li-ion batteries may result in the following haz-
ards: smoke, fire, or the battery may rupture. Misuse can
also cause damage to the battery or degradation of battery
performance.
R DANGER! NEVER short terminals (or charging ter-
minals) of the battery pack. Also, current may flow into nearby
metal objects such as a necklace, so be careful when placing
the battery packs (or the radio) in handbags, etc.
Simply carrying with or placing near metal objects such as
a necklace, etc. may cause shorting. This may damage not
only the battery pack, but also the radio.
R DANGER! DO NOT hammer or otherwise impact the
battery pack. Do not use the battery pack if it has been se-
verely impacted or dropped, or if it has been subjected to
heavy pressure. The damage may not be visible on the out-
side of the case. Even if the surface of the battery pack does
not show cracks or any other damage, the cells inside may
rupture or catch fire.
R DANGER! NEVER use or leave the battery pack
in areas with temperatures above +60°C (+140°F). High
temperature buildup in the battery pack, such as could oc-
cur near fires or stoves, inside a sun heated car, or in direct
sunlight may cause the battery pack to rupture or catch fire.
Excessive temperatures may also degrade performance or
shorten life.
R DANGER! DO NOT expose the battery pack to rain,
snow, seawater, or any other liquids. Do not charge or use a
wet battery pack. If the battery pack gets wet, be sure to wipe
it dry before using.
R DANGER! KEEP the battery pack away from fire. Fire
or heat may cause them to rupture or explode. Dispose of a
used battery pack in accordance with local regulations.
R DANGER! NEVER solder the battery pack terminals,
or NEVER modify the battery pack. This may cause heat gen-
eration, and the battery pack may burst, emit smoke or catch
fire.
R DANGER! Use the battery pack only with the radio for
which it is specified. Never use a battery pack with any other
equipment, or for any purpose that is not specified in this
instruction manual.
R DANGER! If fluid from inside the battery pack gets in
your eyes, blindness can result. Rinse your eyes with clean
water, without rubbing them, and see a doctor immediately.
R WARNING! Immediately stop using the battery pack
if it emits an abnormal odor, heats up, or is discolored or
deformed. If any of these conditions occur, contact your Icom
dealer or distributor.
R WARNING! Immediately wash, using clean water, any
part of the body that comes into contact with fluid from inside
the battery pack.
R WARNING! NEVER put the battery pack in a micro-
wave oven, high-pressure container, or in an induction heat-
ing cooker. This could cause a fire, overheating, or cause the
battery pack to rupture.
CAUTION: Always use the battery pack within the speci-
fied temperature range, for the radio (–30°C to +60°C: –22°F
to +140°F) and the battery pack itself (–20°C to +60°C: –4°F
to +140°F). Using the battery pack out of its specified temper-
ature range will reduce the performance and the life. Please
note that the specified temperature range of the battery pack
may exceed that of the radio. In such cases, the radio may
not work properly because it is out of its operating tempera-
ture range.
CAUTION: Shorter battery life could occur if the battery
pack is left fully charged, completely discharged, or in an ex-
cessive temperature environment (above +50°C: +122°F) for
an extended period of time. If the battery pack must be left
unused for a long time, it must be detached from the radio
after discharging. You may use the battery pack until the re-
maining capacity is about half, then keep it safely in a cool
and dry place at the following temperature range:
–20˚C to +50˚C (–4˚F to +122˚F) (within a month)
–20˚C to +35˚C (–4˚F to +95˚F) (within three months)
to replace the battery pack with a new one af-
ter five years, even if still holds a charge. The inside battery
material will deteriorate after a period of time, even with little
use.
R DANGER! NEVER charge the battery pack in ar-
eas with extremely high temperatures, such as near fires or
stoves, inside a sun-heated vehicle, or in direct sunlight. In
such environments, the safety/protection circuit in the battery
pack will activate, causing the battery to stop charging.
R WARNING! NEVER charge or leave the battery pack
in the battery charger beyond the specified time for charging.
If the battery pack is not completely charged by the speci-
fied time, stop charging and remove the battery pack from
the battery charger. Continuing to charge the battery pack
beyond the specified time limit may cause a fire, overheating,
or the battery pack may rupture.
R WARNING! NEVER insert the radio (the battery pack
attached to the radio) into the charger if it is wet or soiled.
This could corrode the battery charger terminals or damage
the charger. The charger is not waterproof.
NOTE: Charge the battery pack within the specified tem-
perature range: BC-160 and BC-171 (0˚C to +45˚C; +32˚F to
+113˚F), BC-119N and BC-121N (+10˚C to +40˚C; +50˚F to
+104˚F). Otherwise, the charging time will be longer, but the
battery pack will not reach a full charge. While charging, at a
point after the temperature goes out of the specified range,
the charging will automatically stop.
R DANGER! NEVER short the terminals of the battery
pack.
R DANGER! Use and charge only specified Icom battery
packs with Icom radios or Icom chargers. Only Icom battery
packs are tested and approved for use with Icom radios or to
be charged by Icom chargers. Using third-party or counterfeit
battery packs or chargers may cause smoke, fire, or cause
the battery packs to burst.
R WARNING! NEVER hold the radio that the antenna
is very close to, or touching exposed parts of the body, es-
pecially the face or eyes, while transmitting. The radio will
perform best if the microphone is 5 to 10 cm (2 to 4 inches)
away from the lips and the radio is vertical.
R WARNING! NEVER operate the radio with a headset
or other audio accessories at high volume levels. Hearing ex-
perts advise against continuous high volume operation. If you
experience a ringing in your ears, reduce the volume level or
discontinue use.
R WARNING! NEVER operate the radio while driving
a vehicle. Safe driving requires your full attention—anything
less may result in an accident.
CAUTION: MAKE SURE the flexible antenna, battery
pack and jack cover are securely attached to the radio, and
that the antenna and battery pack are dry before attachment.
Exposing the inside of the radio to dust or water will result in
serious damage to the radio.
DO NOT operate the radio near unshielded electrical blast-
ing caps or in an explosive atmosphere.
DO NOT push [PTT] when you do not actually intend to
transmit.
DO NOT use or place the radio in direct sunlight or in plac-
es with temperatures below –30°C (–22°F) or above +60°C
(+140°F). The basic operations of the radio are guaranteed
within the specified operating temperature range. However,
the Liquid Crystal Display may not operate correctly, or show
an indication in the case of long hours of operation, or after
being placed in extremely cold areas.
DO NOT modify the radio. The specifications may change
and then not comply with the requirements of a corresponded
regulation. The radio warranty does not cover any problems
caused by unauthorized modification.
DO NOT use harsh solvents such as benzine or alcohol
when cleaning, as they will damage the radio surfaces.
The radio will become hot when operating
it continuously for long periods of time.
The radio meets IP67 requirements for
dust-tight and waterproof protection. However, once the radio
has been dropped, dust-tight and waterproof protection can-
not be guaranteed because of possible damage to the radio’s
case or the waterproof seal.
Even when the radio power is OFF, a slight current still flows
in the circuits. Remove the battery pack from the radio when
not using it for a long time. Otherwise, the installed battery
pack will become exhausted, and will need to be recharged
or replaced.
MAKE SURE to turn the radio power OFF before connect-
ing the supplied or optional equipment.
EXPLICIT DEFINITIONS
PRECAUTIONS
PRECAUTIONS (Continued)
The GPS receiver may not work if the radio transmits near
the 510 MHz. This is made in the internal circuit and does
not indicate a radio malfunction.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-
porated (Japan) in Japan, the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
AMBE+2 is a trademark and property of Digital Voice Systems Inc.
All other products or brands are registered trademarks or trademarks of their
respective holders.
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
This device complies with Part 15 of the FCC Rules. Opera-
tion is subject to the condition that this device does not cause
harmful interference.
CAUTION:
Changes or modifications to this transceiver, not expressly
approved by Icom Inc., could void your authority to operate
this transceiver under FCC regulations.
ISO 3166-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Austria
Belgium
Bulgaria
Croatia
Czech Republic
Cyprus
Denmark
Estonia
Finland
France
Germany
Greece
Hungary
Iceland
Ireland
Italy
Latvia
AT
BE
BG
HR
CZ
CY
DK
EE
FI
FR
DE
GR
HU
IS
IE
IT
LV
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Poland
Portugal
Romania
Slovakia
Slovenia
Spain
Sweden
Switzerland
Turkey
United Kingdom
LI
LT
LU
MT
NL
NO
PL
PT
RO
SK
SI
ES
SE
CH
TR
GB
>
AT
FI
IT
PL
GB
RO
BE
FR
LV
PT
IS
TR
CY
DE
LT
SK
LI
HR
CZ
GR
LU
SI
NO
DK
HU
MT
ES
CH
EE
IE
NL
SE
BG

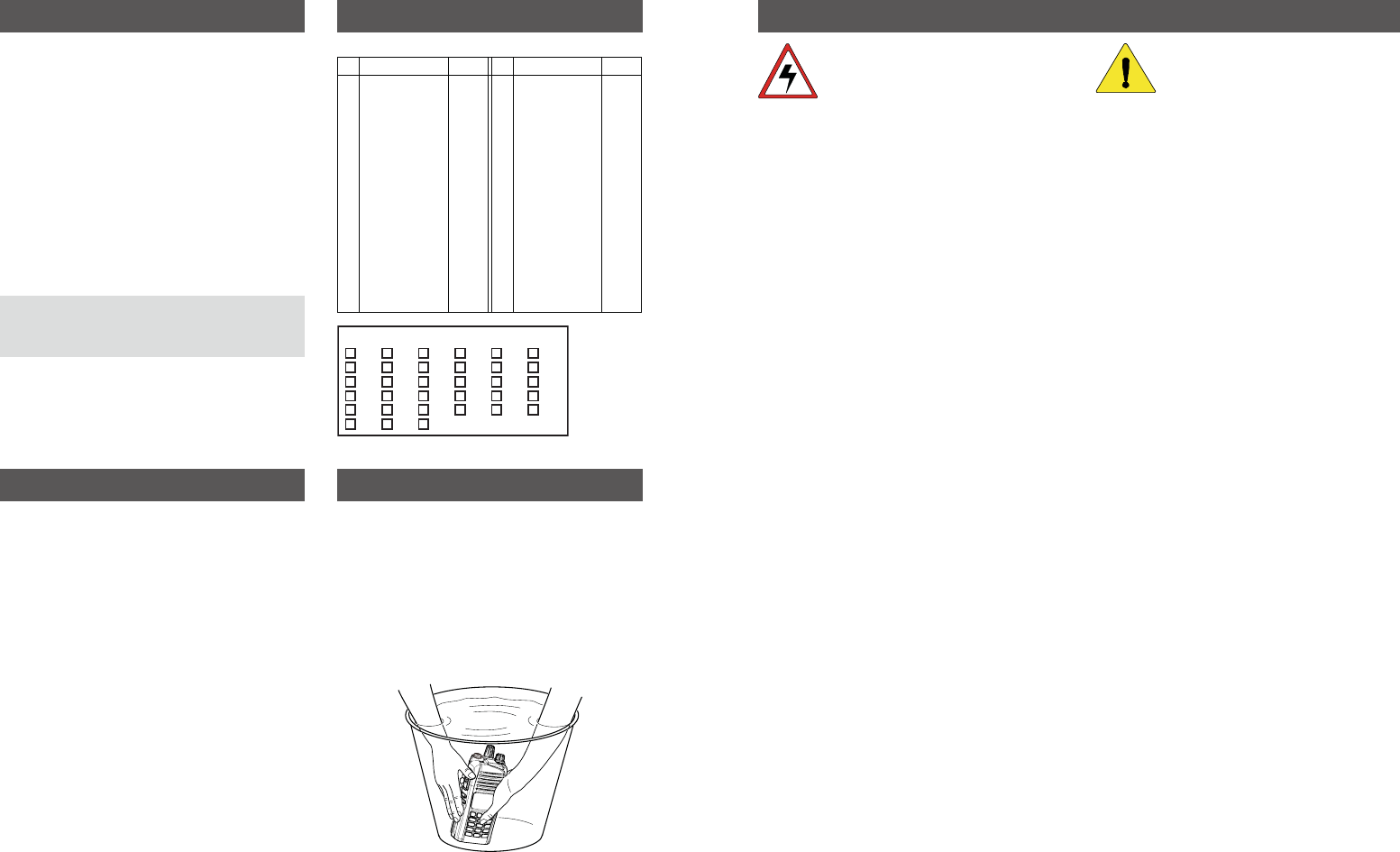

CLEAN THE TRANSCEIVER THOROUGHLY WITH FRESH
WATER after exposure to saltwater, and dry it before operat-
ing. Otherwise, the transceiver’s keys, switches and control-
lers may become unusable due to salt crystallization.
NOTE: DO NOT submerge the transceiver in water if you
suspect the waterproof protection may not be effective, es-
pecially after one of the following:
damaged
The AMBE+2™ voice coding Technology embodied in this
product is protected by intellectual property rights including
patent rights, copyrights and trade secrets of Digital Voice
Systems, Inc. This voice coding Technology is licensed solely
for use within this Communications Equipment. The user of
this Technology is explicitly prohibited from attempting to ex-
tract, remove, decompile, reverse engineer, or disassemble
the Object Code, or in any other way convert the Object Code
into a human-readable form. U.S. Patent Nos.
#5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365,
#5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772,
#5,247,579, #5,226,084 and #5,195,166.
Your Icom radio generates RF electromagnetic
energy during transmit mode. This radio is de-
signed for and classified as “Occupational Use
Only”, meaning it must be used only during the
course of employment by individuals aware of
the hazards, and the ways to minimize such
hazards. This radio is NOT intended for use by the “General
Population” in an uncontrolled environment. This radio has
been tested and complies with the FCC and IC RF expo-
sure limits for “Occupational Use Only”. In addition, your Icom
radio complies with the following Standards and Guidelines
with regard to RF energy and electromagnetic energy levels
and evaluation of such levels for exposure to humans:
-
ing Compliance with FCC Guidelines for Human Exposure
to Radio Frequency Electromagnetic Fields.
Standard for Safety Levels with Respect to Human Expo-
sure to Radio Frequency Electromagnetic Fields, 3 kHz to
300 GHz.
Recommended Practice for the Measurement of Potentially
Hazardous Electromagnetic Fields– RF and Microwave.
and other accessories that are listed in “OPTIONS” of the
INSTRUCTIONS sheet, are authorized for use with this
product. Use of accessories other than those specified may
result in RF exposure levels exceeding the FCC and IC re-
quirements for wireless RF exposure.
-
-
DO NOT operate the radio without a proper antenna at-
tached, as this may damaged the radio and may also cause
you to exceed FCC and IC RF exposure limits. A proper
antenna is the antenna supplied with this radio by the man-
ufacturer or antenna specifically authorized by the manu-
facturer for use with this radio.
DO NOT transmit for more than 50% of total radio use time
(“50% duty cycle”). Transmitting more than 50% of the time
can cause FCC and IC RF exposure compliance require-
ments to be exceeded. The radio is transmitting when the
LED indicator lights red. You can cause the radio to transmit
by pressing the “PTT” switch.
the antenna at least 2.5 cm (1 inch) away
from the body when transmitting and only use the Icom
belt-clips listed in “OPTIONS” of the INSTRUCTIONS sheet
when attaching the radio to your belt, etc., to ensure FCC
and IC RF exposure compliance requirements are not ex-
ceeded. To provide the recipients of your transmission the
best sound quality, hold the antenna at least 5 cm (2 inches)
from your mouth, and slightly off to one side.
The information listed above provides the user with the in-
formation needed to make him or her aware of RF exposure,
and what to do to assure that this radio operates with the
FCC and IC RF exposure limits of this radio.
During transmissions, your Icom radio generates RF energy
that can possibly cause interference with other devices or
systems. To avoid such interference, turn off the radio in ar-
eas where signs are posted to do so. DO NOT operate the
transmitter in areas that are sensitive to electromagnetic ra-
diation such as hospitals, aircraft, and blasting sites.
The radio transmitter is used in situations in which persons
are exposed as consequence of their employment provided
those persons are fully aware of the potential for exposure
and can exercise control over their exposure.
WARNING
CAUTION
FCC INFORMATION COUNTRY CODE LIST
VOICE CODING TECHNOLOGY
RECOMMENDATION
SAFETY TRAINING INFORMATION
