VHF MARINE TRANSCEIVERS
INSTRUCTION MANUAL
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
this device does not cause harmful interference.
iM85E
iM85
IMPORTANT
READ ALL INSTRUCTIONS carefully and completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL — This instruction
manual contains important operating instructions for the
IC-M85 and IC-M85E.
i
Thank you for choosing this Icom product.
This product is designed and built with Icom’s state of
the art technology and craftsmanship. With proper care,
this product should provide you with years of trouble-free
operation.
EXPLICIT DEFINITIONS
WORD DEFINITION
RDANGER! Personal death, serious injury or an explo-
sion may occur.
RWARNING! Personal injury, re hazard or electric
shock may occur.
CAUTION Equipment damage may occur.
NOTE
If disregarded, inconvenience only. No risk
of personal injury, re or electric shock.
IN CASE OF EMERGENCY
If your vessel requires assistance, contact other vessels and
the Coast Guard by sending a Distress call on Channel 16.
USING CHANNEL 16
DISTRESS CALL PROCEDURE
1. “MAYDAY MAYDAY MAYDAY.”
2. “THIS IS ...............” (name of vessel).
3. Say your call sign or other description of the vessel
(AND 9 digit DSC ID if you have one).
4. “LOCATED AT ...............” (your position).
5. State the nature of the distress and assistance required.
6. Give any other information which might facilitate the
rescue.
CAUTION: DO NOT expose the transceiver to heavy rain, and
never immerse it in water. The transceiver meets IP67 requirements
for dust-protection and splash resistance. However, once the
transceiver has been dropped, dust protection and splash
resistance cannot be guaranteed due to the fact that the transceiver
may be cracked, or the waterproof seal damaged, and so on.
DO NOT place or leave the transceiver in direct sunlight or in areas
with temperatures below –30°C (–22˚F) or above +60°C (+140˚F).
Keep the transceiver in a secure place to prevent use by
unauthorized persons.
ii
R DANGER! NEVER short the terminals of the battery pack.
Shorting may occur if the terminals touch metal objects such
as a key, so be careful when placing the battery packs (or the
transceiver) in bags, and so on. Carry them so that shorting cannot
occur with metal objects. Shorting may damage not only the battery
pack, but also the transceiver.
R DANGER! NEVER use or charge Icom battery packs with non-
Icom transceivers or non-Icom chargers. Only Icom battery packs
are tested and approved for use with Icom transceivers or charged
with Icom chargers. Using third-party or counterfeit battery packs or
chargers may cause smoke, re, or cause the battery to burst.
R DANGER! NEVER operate the transceiver near unshielded
electrical blasting caps or in an explosive atmosphere.
R WARNING! NEVER hold the transceiver so that the antenna is
very close to, or touching exposed parts of the body, especially the
face or eyes, while transmitting. The transceiver will perform best if
the microphone is 5 to 10 cm (2 to 4 inches) away from the lips and
the transceiver is vertical.
R WARNING! NEVER operate the transceiver with a headset
or other audio accessories at high volume levels. The continuous
high volume operation may cause a ringing in your ears. If you
experience the ringing, reduce the volume level or discontinue use.
CAUTION: DO NOT use harsh solvents such as Benzine or alcohol
when cleaning. This could damage the equipment surfaces. If the
surface becomes dusty or dirty, wipe it clean with a soft, dry cloth.
CAUTION: DO NOT place or leave the transceiver in excessively
dusty environments. This could damage the transceiver.
FCC caution: Changes or modications to this transceiver, not
expressly approved by Icom Inc., could void your authority to
operate this transceiver under FCC regulations. (USA only)
PRECAUTIONS
Icom, Icom Inc. and Icom logo are registered trademarks of Icom Incorporated
(Japan) in Japan, the United States, the United Kingdom, Germany, France,
Spain, Russia, Australia, New Zealand, and/or other countries.
All other products or brands are registered trademarks or trademarks of their
respective holders.
Icom is not responsible for the destruction, damage to, or
performance of any Icom or non-Icom equipment, if the
malfunction is because of:
• Force majeure, including, but not limited to, res, earthquakes,
storms, oods, lightning, other natural disasters, disturbances,
riots, war, or radioactive contamination.
• The use of Icom transceivers with any equipment that is not
manufactured or approved by Icom.
iii
NE PAS utiliser de dissolvants agressifs tels que du Benzène ou
de l'alcool lors du nettoyage, car ils endommageraient les surfaces
de l'émetteur-récepteur. Si l'émetteur-récepteur est poussiéreux ou
sale, nettoyez-le avec un tissu doux et sec.
NE PAS placer l'émetteur-récepteur dans des environnements
excessivement poussiéreux. Cela pourrait endommager l'émetteur-
récepteur.
CONSERVEZ l'émetteur-récepteur à l'abri des fortes pluies et
ne le plongez jamais dans l'eau. Cet émetteur-récepteur répond
aux exigences de la norme IP57 en matière de protection contre
la poussière et de résistance aux éclaboussures. Cependant,
en cas de chute de l'émetteur-récepteur, la protection contre la
poussière et la résistance aux éclaboussures ne peuvent plus être
garanties, car le boitier risque d'être ssuré ou le joint d'étanchéité
endommagé, etc.
NE PAS placer ou laisser l’émetteur-récepteur en plein soleil ou
dans un environnement soumis à des températures inférieures à
–10 °C ou supérieures à +60 °C.
Placez l’émetteur-récepteur dans un lien sûr pour éviter toute
utilisation par des personnes non autorisées.
PRÉCAUTIONS
R AVERTISSEMENT! NE JAMAIS court-circuiter les bornes
du bloc-batterie. Un court-circuit peut se produire si les bornes
touchent des objets métalliques, tels que des clés, faites donc
attention lorsque vous rangez des blocs-batteries (ou l’émetteur-
récepteur) dans des sacs, etc. Transportez-les de telle sorte
que des courts-circuits ne peuvent se produire avec des objets
métalliques.Car cela peut endommager le bloc-batterie ainsi que
l'émetteur-récepteur.
Utilisez et chargez uniquement les packs batterie Icom spéciés
avec les terminaux Icom ou les chargeurs Icom. Seuls les packs
batterie Icom sont testés et homologués pour une utilisation
avec les terminaux Icom ou être chargés avec les chargeurs
Icom. L'utilisation de packs batterie ou de chargeurs tiers ou de
contrefaçon peut être à l'origine de fumées, d'incendie ou faire
éclater la batterie.
R AVERTISSEMENT! NE JAMAIS tenir le terminal de
communication avec l'antenne placée à proximité immédiate ou en
contact avec des parties du corps exposées, en particulier le visage
ou les yeux, lors des transmissions.Les performances de la radio
sont optimales quand le microphone est tenu entre 5 et 10 cm de la
bouche de l’utilisateur et quand l’appareil est vertical.
R AVERTISSEMENT! NE JAMAIS utiliser l'émetteur-récepteur
avec un casque ou tout autre accessoire audio à un niveau
sonore élevé. L’utilisation continue à un niveau sonore élevé peut
provoquer un bourdonnement dans vos oreilles.
NE PAS utiliser l'émetteur-récepteur à proximité de détonateurs
électriques non blindés ou dans une atmosphère explosive.
vi
RECOMMENDATION
TABLE OF CONTENTS
CLEAN THE TRANSCEIVER THOROUGHLY IN A BOWL
OF FRESH WATER after exposure to saltwater, and dry
it before operating. Otherwise, the transceiver’s keys,
switches, and controllers may become unusable, due to salt
crystallization, and/or the charging terminals of the battery
pack may corrode.
NOTE: If the transceiver’s waterproof protection appears
defective, carefully clean it with a soft, damp (fresh water)
cloth, then dry it before operating. The transceiver may
lose its waterproof protection if the case, jack cap, or
connector cover is cracked or broken, or the transceiver
has been dropped. Contact your Icom distributor or your
dealer for advice.
New2001
1
New2001
OPERATING RULES
1
DPriorities
• Read all rules and regulations pertaining to call priorities,
and keep an up-to-date copy handy. Safety and distress
calls take priority over all others.
• You must monitor Channel 16 when you are not operating
on another channel.
• False or fraudulent distress calls are prohibited under law.
DPrivacy
• Information overheard, but not intended for you, cannot
lawfully be used in any way.
• Indecent or profane language is prohibited.
DRadio licenses
(1) SHIP STATION LICENSE
You may require a current radio station license before using
the transceiver. It is unlawful to operate a ship station which
is not licensed, but required to be.
If required, contact your dealer or the appropriate
government agency for a Ship-Radiotelephone license
application. This government-issued license states the call
sign which is your craft’s identication for radio purposes.
(2) OPERATOR’S LICENSE
A Restricted Radiotelephone Operator Permit is the license
most often held by small vessel radio operators when a
radio is not required for safety purposes.
If required, the Restricted Radiotelephone Operator Permit
must be posted or kept with the operator. If required, only a
licensed radio operator may operate a transceiver.
However, non-licensed individuals may talk over a
transceiver if a licensed operator starts, supervises, ends
the call and makes the necessary log entries.
A current copy of the applicable government rules and
regulations is only required to be on hand for vessels in
which a radio telephone is compulsory. However, even
if you are not required to have these on hand it is your
responsibility to be thoroughly acquainted with all pertinent
rules and regulations.
NOTE: Even though the transceiver is capable of operation
on VHF marine channels 3, 21, 23, 61, 64, 81, 82 and
83, according to FCC regulations these simplex channels
cannot be lawfully used by the general population in USA
waters.
2
2
ACCESSORIES
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
NOTE:
• Some accessories are not supplied, or the shape is different,
depending on the transceiver version.
• Conrm both battery sliding locks are locked in place, when
attaching the battery pack or the battery case to the transceiver.
Both sliding locks make a ‘click’ sound when locked.
• Before using the transceiver for the rst time, the battery pack
must be fully charged for optimum life and operation. See
Section 4 for battery charging.

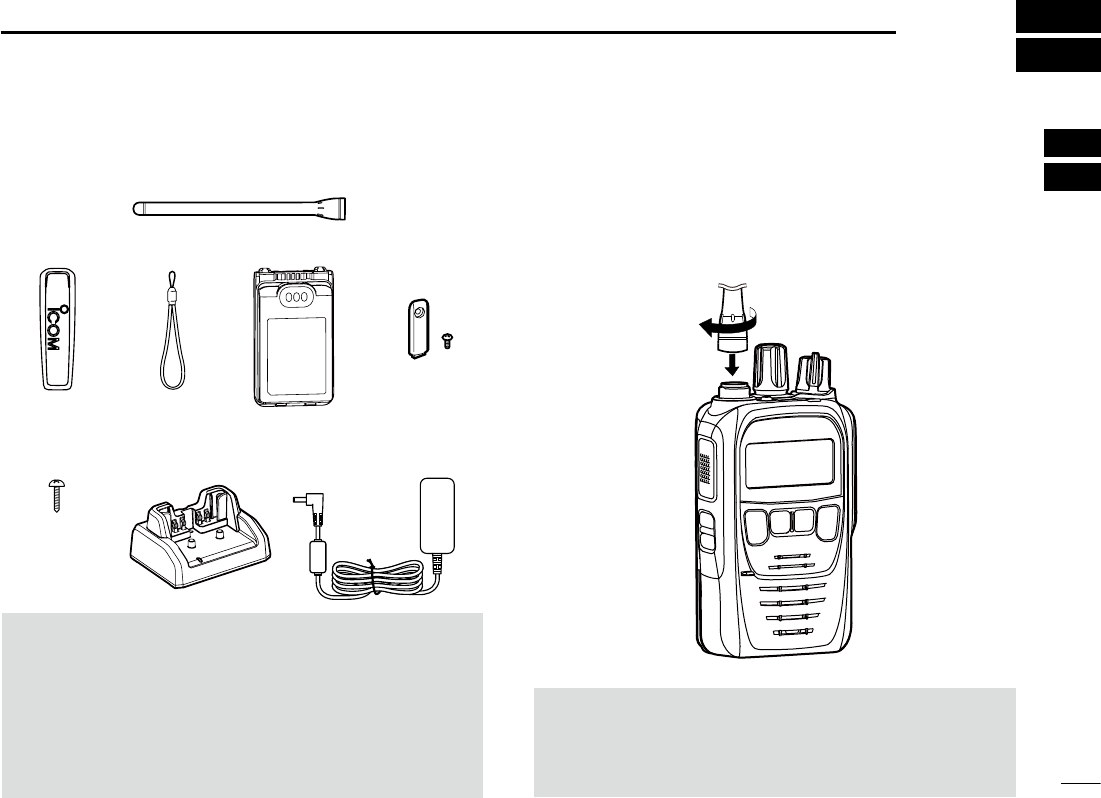

■Supplied accessories
Antenna
Belt clip Connector cover
(With a screw)
Power adapter
(For Battery charger)
Handstrap
Battery charger
Battery pack
■Attaching accessories
DFlexible antenna
Connect the supplied exible antenna to the antenna
connector.
CAUTION:
• DO NOT carry the transceiver by holding only the antenna.
• DO NOT connect an antenna other than those listed in the
INSTRUCTIONS.
• Transmitting without an antenna may damage the transceiver.
3
2ACCESSORIES
New2001

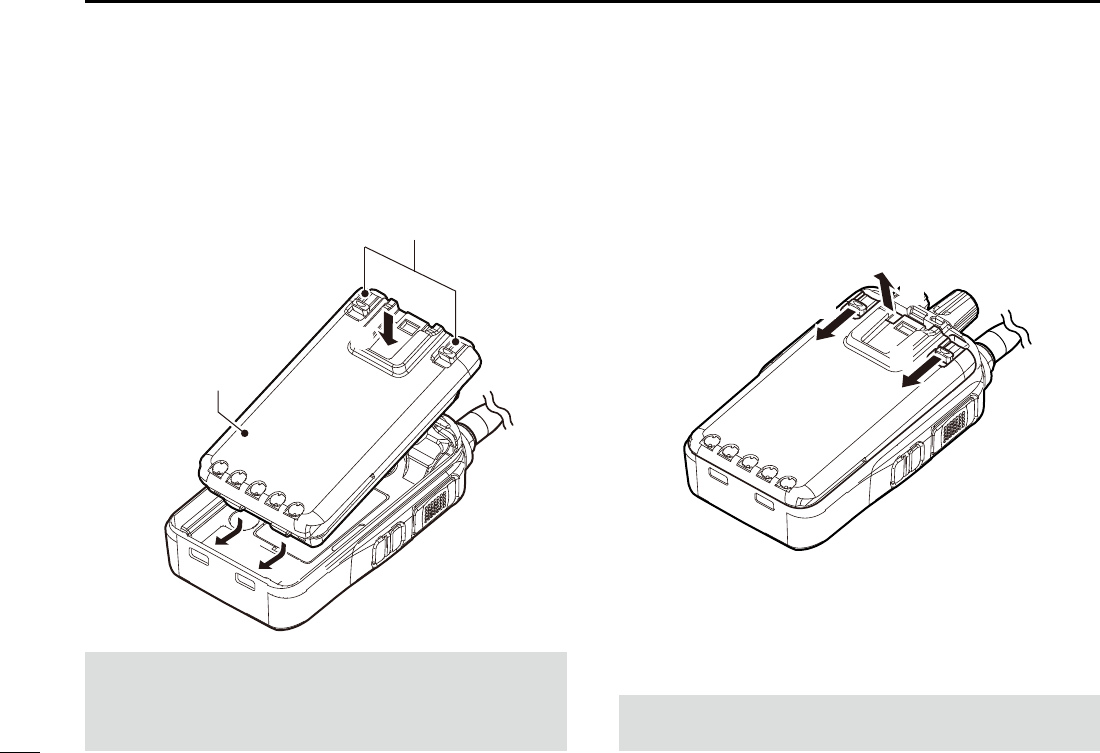

DBattery pack
To attach:
1. Slide the battery pack in the direction of the arrow. (q)
2. Push the battery pack until the battery sliding locks
make a ‘click’ sound. (w)
To detach:
1. Push both battery sliding locks in the direction of the
arrow. (z)
2. Push the battery pack until the battery sliding locks
make a ‘click’ sound. (x)
Battery sliding locks
Battery pack
CAUTION: DO NOT attach or detach the battery pack
when the transceiver is wet or soiled. This may result in
water or dust getting into the transceiver/ battery pack and
may damage the transceiver.
NOTE: Keep the battery pack terminals clean. It’s a good
idea to occasionally clean them.
x
q
q
w
z
z
4
2
ACCESSORIES
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

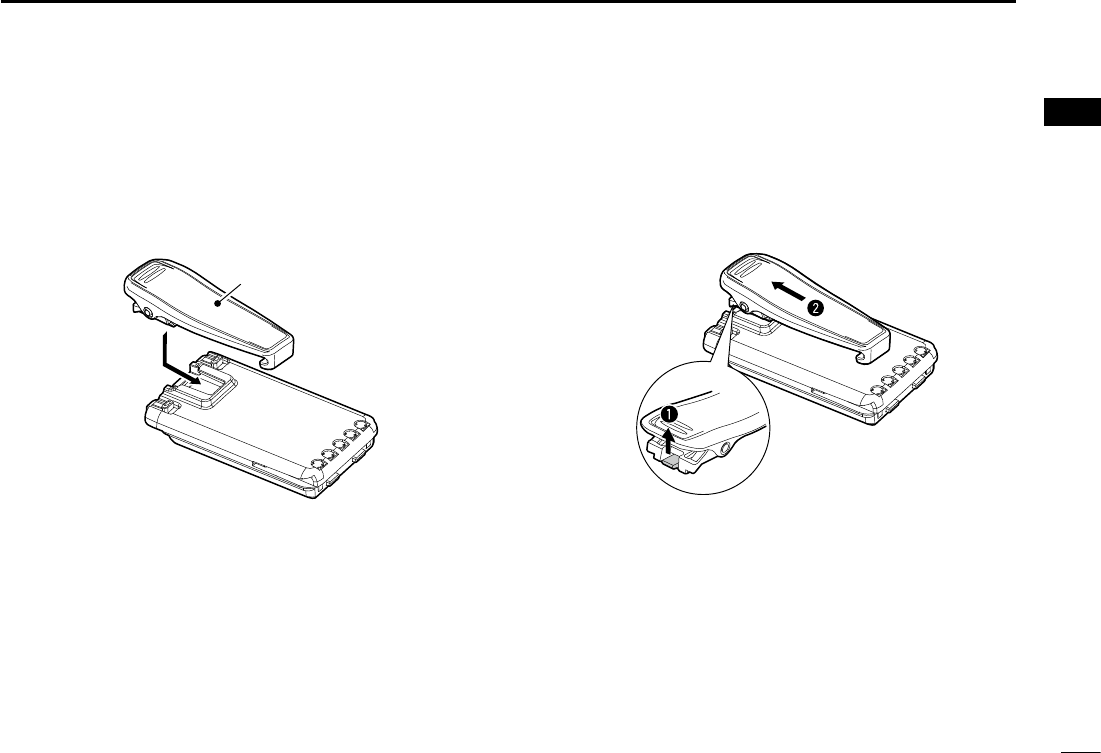

Belt clip
DBelt clip
To attach:
1. Remove the battery pack from the transceiver, if it is
attached.
2. Slide the belt clip in the direction of the arrow until the
belt clip is locked and makes a ‘click’ sound.
To detach:
Lift the tab up (q), and slide the belt clip in the
direction of the arrow (w).
5
New2001New2001
PANEL DESCRIPTION
3

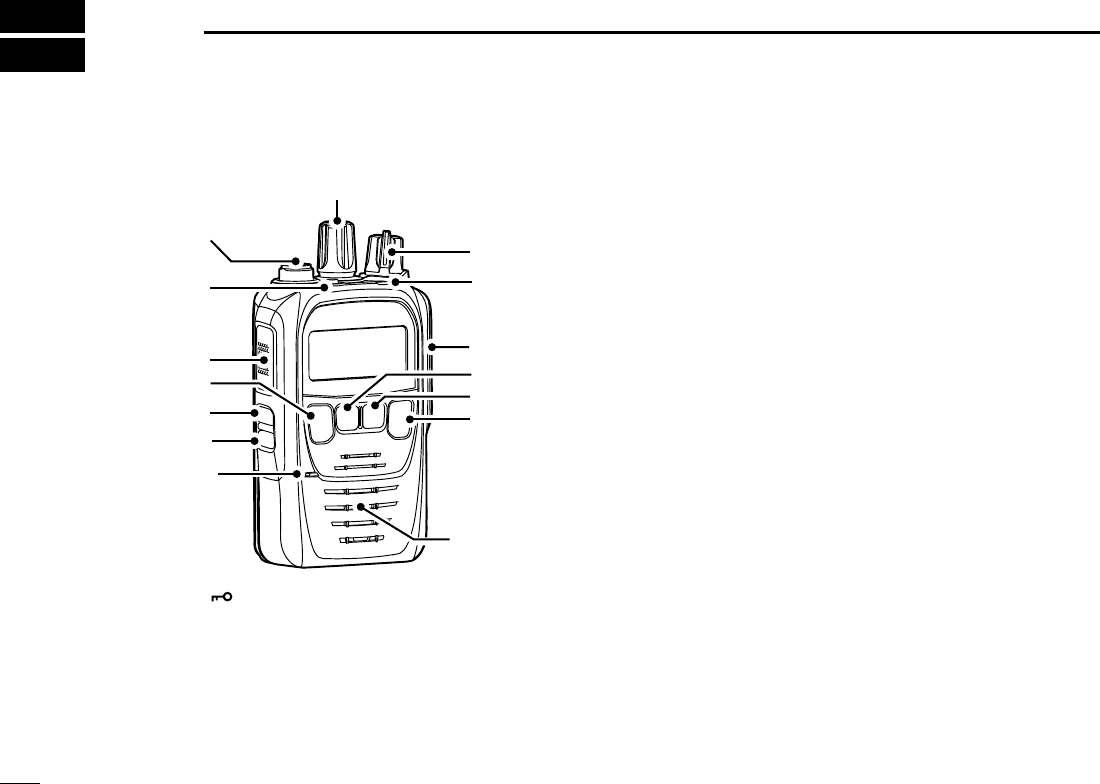

■Front, top and side panels
q LOCK KEY [ ]
Hold down for 1 second to lock or unlock the keypad.
w PTT SWITCH [PTT]
Hold down to transmit, release to receive.

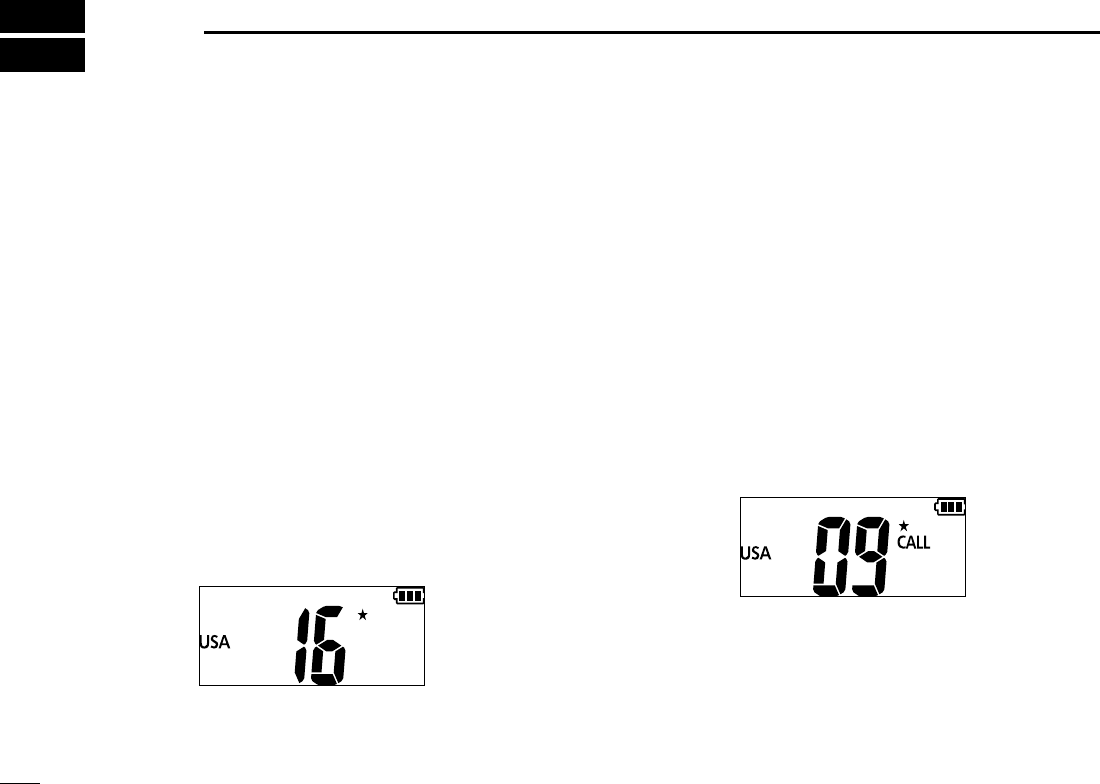

e CHANNEL 16/CALL CHANNEL KEY [16/C]
zPush to select Channel 16.
zHold down for 1 second to select the Call channel.
r SQUELCH ADJUSTMENT KEY [SQL]
Push to enter the Squelch adjustment mode.
t TRANSMIT POWER KEY [H/L]
Push to enter the Squelch adjustment mode.
zPush to set the power level to high, middle, or low.
LSome channels are set to only low power.
y FAVORITE CHANNEL KEY [FAV]
zPush to select a Favorite channel.
z Hold down for 1 second to set or clear the selected
channel as a Favorite channel.
u SCAN/DUALWATCH KEY [SCAN]/[DUAL]
z Push to start or stop a scan.
z Hold down for 1 second to start or stop the Dualwatch*.
L The key assignment may differs, depending on the presetting.
*Tri-watch starts, depending on the Set mode settings.
i WEATHER CHANNEL/ CHANNEL GROUP KEY
[CH/WX]/[U/I/C/L]
z Push to enter or exit the Weather Channel Selection
mode.
z Hold down for 1 second to change the channel group.
o MULTI-CONNECTOR
Connects to an optional speaker microphone or headset.
!0 STATUS INDICATOR
zLights red while transmitting.
z Lights green while receiving a signal, or when the
squelch is open.
!1 VOLUME/POWER SWITCH [VOL]
zRotate to turn the transceiver ON or OFF.
z Rotate to adjust the audio output level.
!2 TUNING DIAL [DIAL]
zRotate to select a channel.
!2
Antenna
Connector
q
w
y
e
r
t
Speaker
i
u
!1
!0
Microphone
o
6
3
PANEL DESCRIPTION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
New2001

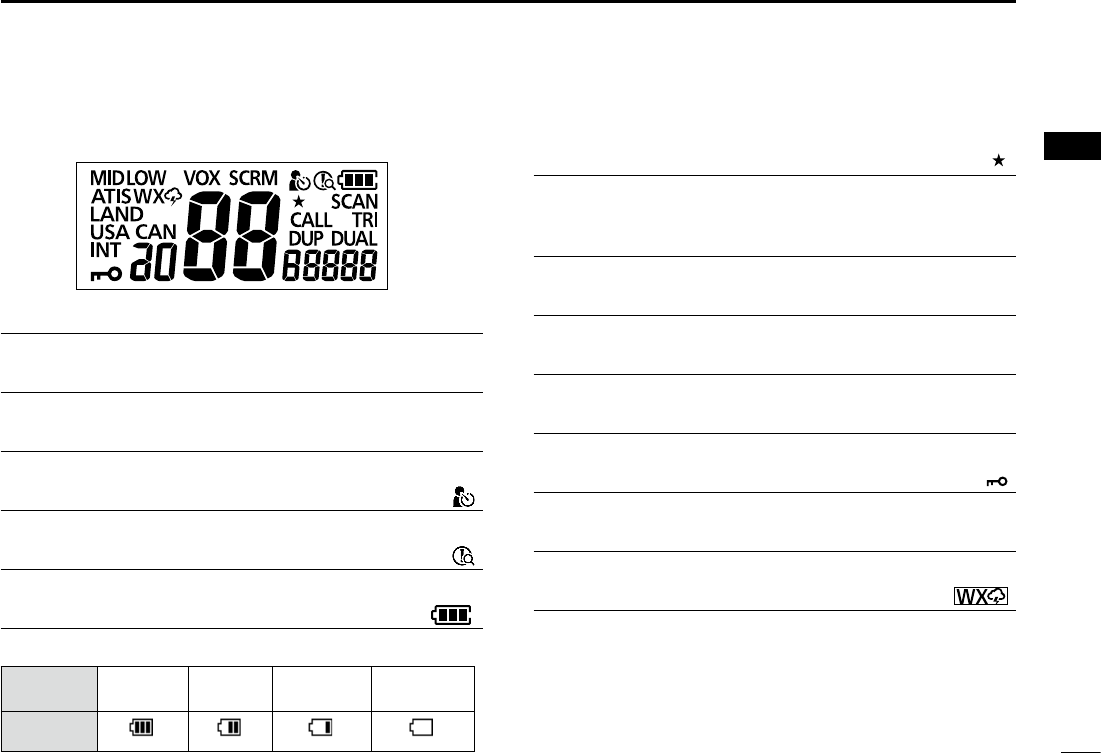

■Function display
TRANSMIT POWER INDICATOR “MID”/“LOW”
Displayed when low power or middle power is selected.
VOX INDICATOR “VOX”
Displayed when the VOX function is ON.
VOICE SCRAMBLER INDICATOR “SCRM”
Displayed when the Voice scrambler is ON.
MAN DOWN ICON “ ”
Displayed when the Man Down function is ON.
LONE WORKER ICON “ ”
Displayed when the Lone Worker function is ON.
BATTERY INDICATOR “ ”
Displays the battery status.
Battery
status Full Mid Charging
required
Battery
exhausted
Indication
NARROW ICON “ ”
Displayed when the narrow channel spacing is selected in
the land channel group.
SCAN INDICATOR “SCAN”
Blinks while scanning.
CALL CHANNEL INDICATOR “CALL”
Displayed when the call channel is selected.
DUALWATCH/TRI-WATCH INDICATOR “DUAL”/“TRI”
Displayed during Dualwatch or Tri-watch.
DUPLEX INDICATOR “DUP”
Displayed when a Duplex channel is selected.
LOCK ICON “ ”
Displayed when the Lock function is ON.
CHANNEL GROUP INDICATOR “INT”/“USA”/“CAN”/“LAND”/“ATIS”
Displays the selected channel group.

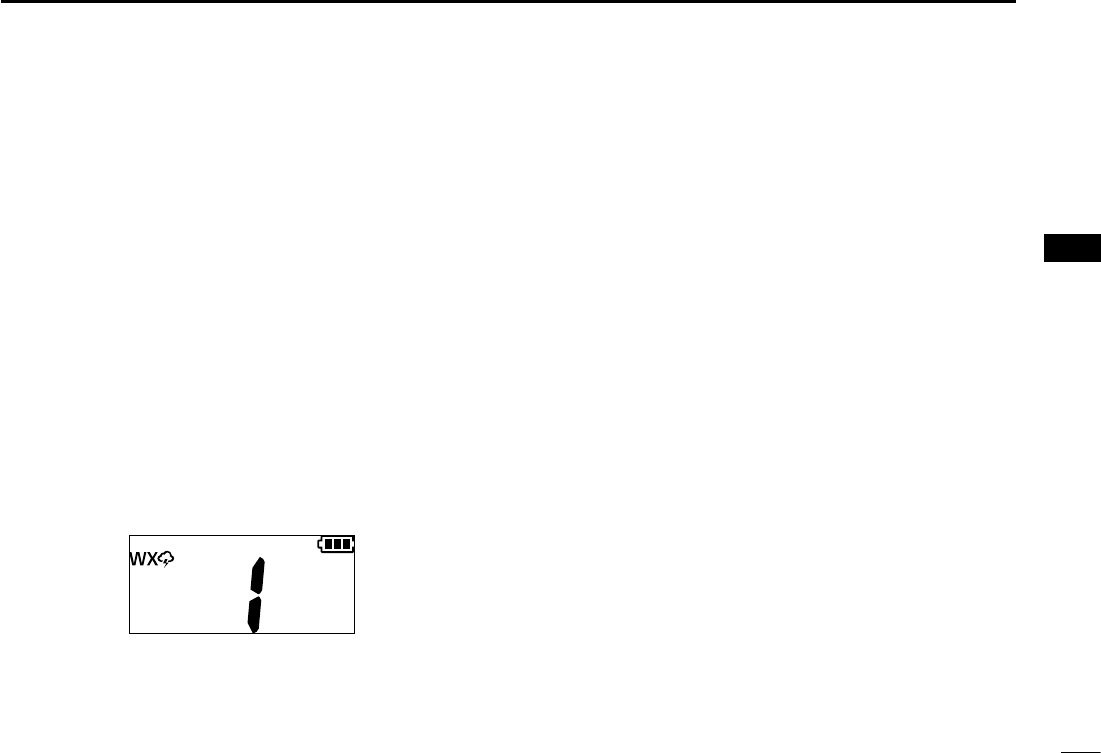

WX ICON (For only the USA version) “ ”
Displayed when the Weather channel is selected.
New2001
7
New2001New2001
BATTERY CHARGING
4
■Battery caution
R DANGER! NEVER solder the battery terminals, or NEVER
modify the battery pack. This may cause heat generation, and
the battery may burst, emit smoke or catch re.
R DANGER! NEVER place or leave battery packs in areas
with temperatures above +60°C (+140°F). High temperature
buildup in the battery cells, such as could occur near res or
stoves, inside a sun-heated vehicle, or in direct sunlight for
long periods of time may cause the battery cells to rupture
or catch re. Excessive temperatures may also degrade the
battery pack’s performance or shorten the battery cell’s life.
R DANGER! NEVER strike or otherwise impact the battery
pack. Do not use the battery pack if it has been severely
impacted or dropped, or if the pack has been subjected to
heavy pressure. Battery pack damage may not be visible
on the outside of the case. Even if the surface of the battery
does not show cracks or any other damage, the cells inside
the battery may rupture or catch re.
R DANGER! NEVER expose the battery pack to rain, snow,
seawater, or any other liquids. Do not charge or use a wet
pack. If the pack gets wet, be sure to wipe it dry before using.
R DANGER! NEVER place or leave battery packs near re.
Fire or heat may cause them to rupture or explode. Dispose
of used battery packs in accordance with local regulations.
R DANGER! NEVER let uid from inside the battery get in
your eyes. This can cause blindness. Rinse your eyes with
clean water, without rubbing them, and immediately go to a
doctor.
R WARNING! NEVER put the battery pack in a microwave
oven, high-pressure container, or in an induction heating
cooker. This could cause a re, overheating, or cause the
battery cells to rupture.
R WARNING! NEVER use the battery pack if it emits an
abnormal odor, heats up, or is discolored or deformed. If
any of these conditions occur, contact your Icom dealer or
distributor.
R WARNING! NEVER Iet uid from inside the battery cells
come in contact with your body. If it does, immediately wash
with clean water.
CAUTION: DO NOT use the battery pack out of the
specified temperature range for the transceiver (–30°C
~ +60°C (–22°F ~ +140°F)) and the battery itself (–20°C
~ +60°C (–4°F ~ +140°F)). Using the battery out of its
specied temperature range will reduce its performance and
battery cell’s life. Please note that the specied temperature
range of the battery may exceed that of the transceiver. In
such cases, the transceiver may not work properly because
it is out of its operating temperature range.
Misuse of Li-ion batteries may result in the following
hazards: smoke, re, or the battery may rupture. Misuse
can also cause damage to the battery or degradation of
battery performance.
New2001
8
4
BATTERY CHARGING
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
New2001
CAUTION: Shorter battery life could occur if the battery is
left fully charged, completely discharged, or in an excessive
temperature environment (above +50°C (+122°F)) for
an extended period of time. If the battery pack must be
left unused for a long time, it must be detached from the
transceiver after discharging. You may use the battery pack
until the remaining capacity is about half, then keep it safely
in a cool and dry place at the following temperature range:
–20°C ~ +50°C (–4°F ~ +122°F) (within a month)
–20°C ~ +40°C (–4°F ~ +104°F) (within three months)
–20°C ~ +20°C (–4°F ~ +68°F) (within a year)
BE SURE to replace the battery pack with a new one
approximately ve years after manufacturing, even if it still
holds a charge. The inside battery material will become
weak after a period of time, even with little use. The
estimated number of times you can charge the battery is
between 300 and 500. Even when the battery appears to
be fully charged, the operating time of the transceiver may
become short when:
• Approximately 5 years have passed since the battery was
manufactured.
• The battery has been repeatedly charged.
■Charging caution
R DANGER! NEVER charge the battery pack in areas with
extremely high temperatures, such as near res or stoves,
inside a sun-heated vehicle, or in direct sunlight. In such
environments, the safety/protection circuit in the battery will
activate, causing the battery to stop charging.
R WARNING! NEVER charge the transceiver during a
lightning storm. It may result in an electric shock, cause a
re or damage the transceiver. Always disconnect the power
adapter before a storm.
R WARNING! NEVER charge or leave the battery in the
battery charger beyond the specied time for charging. If the
battery is not completely charged by the specied time, stop
charging and remove the battery from the battery charger.
Continuing to charge the battery beyond the specied time
limit may cause a re, overheating, or the battery may
rupture.
R WARNING! NEVER insert the transceiver (battery
attached to the transceiver) into the charger if it is wet or
soiled. This could corrode the battery charger terminals or
damage the charger. The charger is not waterproof.
CAUTION: NEVER charge the battery outside of the
specied temperature range: BC-214 (16˚C ~ 40˚C
(60.8˚F ~ 104˚F)). Otherwise, the charging time will be
longer, but the battery will not reach a full charge. While
charging, at a point after the temperature goes out of the
specied range, the charging will automatically stop.
■Battery caution (continued)
9
4BATTERY CHARGING
New2001
■Battery charger
DSupplied battery charger
Charging time: approximately 3 hours
DOptional BC-226 desktop charger
Charging time: approximately 3 hours
Battery pack
Power adapter*
* May not be supplied, or the shape may be different, depending on
the version.
Battery
charger*
Status indicator
Turn OFF
L To connect the power adapter to the charger,
remove the charger’s left cover.
Turn OFF
BC-226
Power
adapter*
Battery pack
Status
indicator
10
4
BATTERY CHARGING
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

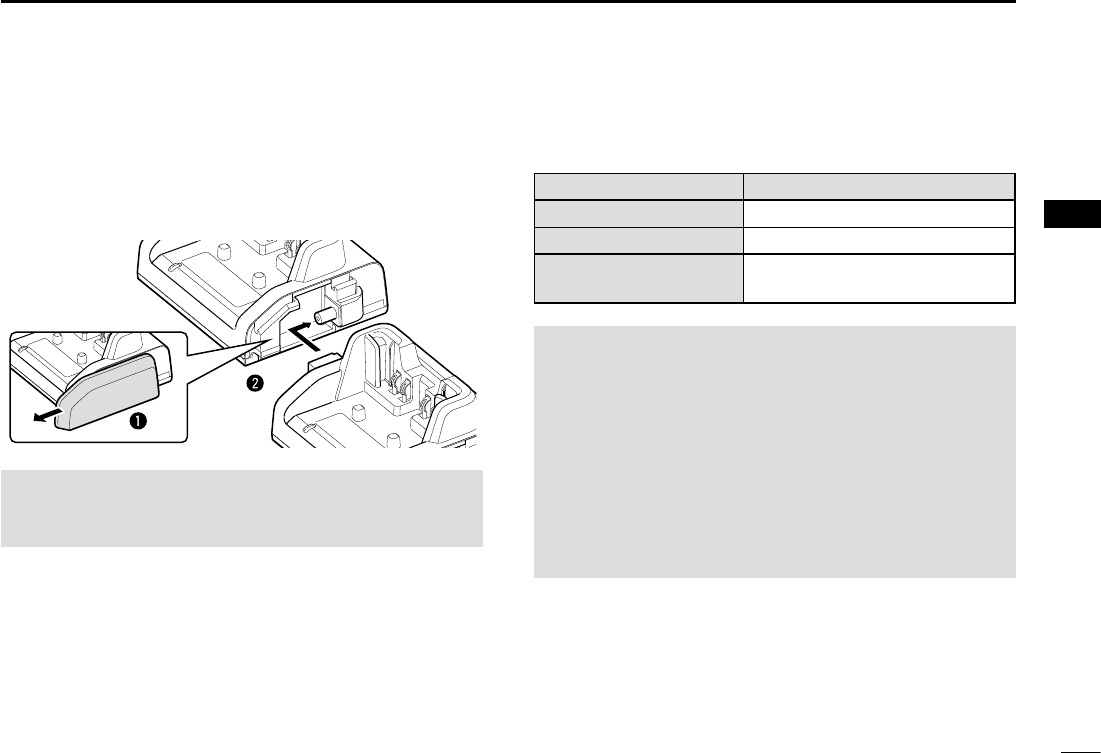

Connecting BC-226 together
You can connect up to 6 BC-226 together.
1. Remove the charger’s right cover. (q)
2. Snap the DC power plug to the another charger’s DC
power jack. (w)
WARNING: DO NOT connect more than 7 chargers
together. It may result in an electric shock, cause a re,
overheating, or damage chargers.
DInformation
Status indicator information
Light color Status
Orange Charging
Green Charging is completed.
Blinks orange and green Charging failed. It may have
some problems.
NOTE:
• The transceiver MUST be turned OFF while charging.
Otherwise:
- The battery will not be charged correctly.
- The battery life may be shortened.
• Do not transmit while charging. When you need to
transmit, remove the transceiver from the charger, and
then turn ON the power.
• If the battery pack does not properly charge when it is
attached to the transceiver, remove it from the transceiver
and insert only the battery pack into the charger.
11
New2001New2001
BASIC OPERATION
5
■Selecting a channel
D Channel 16
Channel 16 (Distress channel) is used for establishing
initial contact with another station and for emergency
communications.
Channel 16 is automatically monitored during both
dualwatch and tri-watch. While standing by, you must
monitor Channel 16.
zPush [16/C] to select Channel 16.
z Push [DIAL] to return to the condition before selecting
Channel 16, or rotate {DIAL] to select the operating
channel
DCall channel
Each regular channel group has a separate call channel.
In addition, each call channel is monitored during tri-watch.
The call channels can be reprogrammed and are used to
store your most often used channels in each channel group
for quick recall.
z Push [16/C] for 2 sec. to select the call channel in the
selected channel group.
12
5
BASIC OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
New2001
DSelecting channel group
Choose the appropriate channel group for your operating
area, and then select a desired channel.
z Hold down [CH/WX•U/I/C/L] for 2 seconds to select the
channel group.
DWeather channels
For the USA version, the transceiver has 10 preset
Weather channels. You can use these channels to
monitor broadcasts from the National Oceanographic
and Atmospheric Administration (NOAA). The transceiver
automatically detects a Weather alert tone on the selected
weather channel, or while scanning.
1. Hold down [CH/WX•U/I/C/L] for 2 seconds to select the
channel group.
2. Rotate [DIAL] to select a Weather channel.
13
5BASIC OPERATION
New2001
■Receiving and transmitting
1. Rotate [VOL] clockwise to turn ON the power.
2. Adjust the squelch to mute any audio noise if
necessary.
3. Rotate [VOL] to set the volume level.
4. Rotate [DIAL] to select a channel.
• While receiving a signal, the status indicator lights green, and
audio is heard from the speaker.
L Further adjustment of [VOL] may be necessary at this point.
LPush [H/L] to select the output power if necessary.
“LOW” is displayed when low power is selected, “MID” is
displayed when middle power is selected, no indication is
displayed when high power is selected.
Choose Low power to conserve the battery power, choose
High power for long range communications.
LSome channels are restricted to Low power only.
5. Hold down [PTT] to transmit, then speak into the
microphone.
• The status indicator lights red while transmitting.
IMPORTANT: To maximize the readability of your
transmitted signal at a receiver station, pause a second
after pushing [PTT], and then hold the microphone 5 to 10
cm from your mouth and speak at your normal voice level.
CAUTION: Transmitting without an antenna will damage
the transceiver.
NOTE: The transceiver has a Power Save function to
conserve the battery power and it cannot be turned OFF.
The Power Save function automatically activates when no
signal is received for 5 seconds.
For USA version: To prevent accidental prolonged
transmission, the transceiver has a time-out timer function.
This timer cuts the transmission OFF after 5 minutes of
continuous transmission.
14
5
BASIC OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■Adjusting the squelch level
The transceiver has a squelch circuitry. In order to receive
the signals properly, as well as for the efcient scan, the
squelch must be adjusted to the proper level.
1. Push [SQL].
2. Rotate [DIAL] to adjust the squelch level.
L When no key is pushed for 5 seconds, the transceiver
returns to the normal condition.
3. Push [SQL] again to return to the normal condition.
■Automatic backlight
This function is convenient for nighttime operation. The
automatic backlight can be activated in the Set mode.
zPush any key except [PTT] to turn ON the backlight.
L The backlight is automatically turned OFF after 5 seconds of
inactivity.
■Setting the Call channel
The Call channel key is used to select Channel 9 by default,
however, you can set your most often-used channels in
each channel group for quick recall.
1. Hold down [CH/WX•U/I/C/L] for 1 second several times
to select the desired channel group (USA, INT, CAN) to
be used.
2. Hold down [16/C] for 1 second to select the Call
channel.
• “CALL” and Call channel number appear.
3. Hold down [16/C] again for 3 seconds (until a long
beep changes to 2 short beeps) to enter Call channel
programming condition.
• Call channel number to be programmed ashes.
4. Rotate [DIAL] to select the desired channel.
5. Push [16/C] to program the displayed channel as the
Call channel.
• The Call channel number stops blinking.
15
New2001New2001
6 SET MODE
■Using the Set mode
You can set seldom changed settings in the Set mode.
You can customize the transceiver settings to suit your
preference and operating style.
1. Turn OFF the power.
2. While holding down [SQL], turn ON the power to enter
the Set mode.
• the “beep” item is displayed.
3. Push [SQL] to select the item.
4. Rotate [DIAL] to select the option.
5. Push [16/C] to exit the Set mode.
■Set mode items
Beep [bEEP] CH Display [CH_I]
WX Alert [ALrt] CH Display [CH_U]
Scan Type [Prio] CH Display [CH_C]
Scan Timer [S_ti] CH Display [CH_L]
Auto Scan [Auto] SCRM Code [codE]
Dual/Tri-watch [ dt ] VOX Gain [gAIn]
SQL Key Action
[SqLS]
VOX Delay [dELA]
Backlight [A_bL] AquaQuake Action
[Aq_A]
Contrast [Lcdc] Man Down Alarm
[do_A]
Power Save [P_SA]
16
LAND CHANNEL 7
New2001
1
2
3
4
5
6
9
10
11
12
13
14
15
16
■LAND (PMR) Channel Group
A max. of 22 free LAND mobile channels (allocated 146.000
to 174.000 MHz) can be programmed into the LAND
channel group for simple communication with PMR
transceivers in the VHF band.
Moreover, any of the marine channels in the INT and USA
channel groups can be programmed.
The default setting of the LAND channel group is the same
as that of the INT channel group. Ask your local Icom dealer
for the LAND channel group setting and PMR frequency
programming details.
z Hold down [CH/WX•U/I/C/L] for 2 seconds to select the
channel group.
• “ LAND” appears when LAND (PMR) channel group is
selected.
zRotate [DIAL] to select a channel.
• “DUP” appears for duplex channels.
17
INFORMATION 8
1
2
3
4
5
6
7
8
9
14
15
16

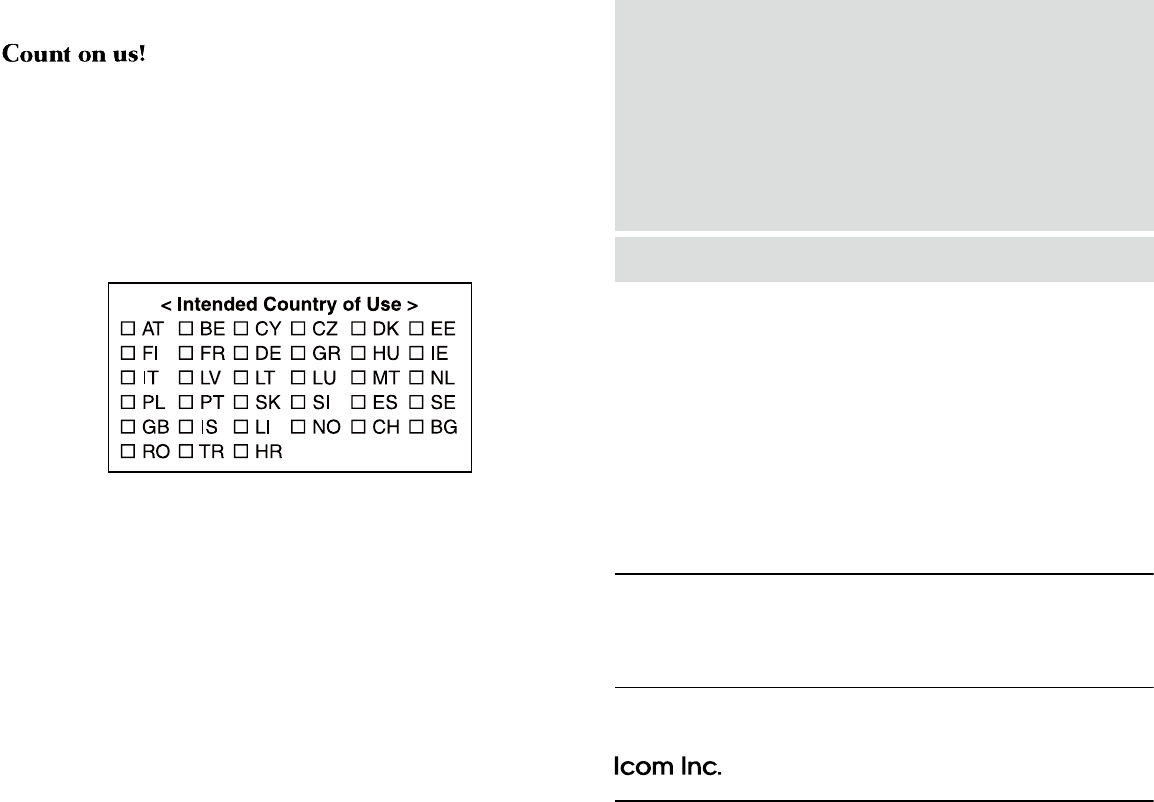

■Country code list
• ISO 3166-1
Country Codes Country Codes
1 Austria AT 18 Liechtenstein LI
2 Belgium BE 19 Lithuania LT
3 Bulgaria BG 20 Luxembourg LU
4 Croatia HR 21 Malta MT
5 Czech Republic CZ 22 Netherlands NL
6 Cyprus CY 23 Norway NO
7 Denmark DK 24 Poland PL
8 Estonia EE 25 Portugal PT
9 Finland FI 26 Romania RO
10 France FR 27 Slovakia SK
11 Germany DE 28 Slovenia SI
12 Greece GR 29 Spain ES
13 Hungary HU 30 Sweden SE
14 Iceland IS 31 Switzerland CH
15 Ireland IE 32 Turkey TR
16 Italy IT 33 United Kingdom GB
17 Latvia LV
■About CE and DOC
Versions of the IC-M85E which have the
“CE” symbol on the product, comply with
the essential requirements of the Radio
Equipment Directive, 2014/53/EU, and the
restriction of the use of certain hazardous
substances in electrical and electronic equipment Directive,
2011/65/EU.
■Disposal
The crossed-out wheeled-bin symbol on your
product, literature, or packaging reminds you
that in the European Union, all electrical and
electronic products, batteries, and accumulators
(rechargeable batteries) must be taken to
designated collection locations at the end of their working
life. Do not dispose of these products as unsorted municipal
waste. Dispose of them according to the laws in your area.
18
8 INFORMATION
■FCC information
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
■Information FCC
Cet équipement a été testé et reconnu conforme aux
limites xées pour un appareil numérique de classe A,
conformément au point 15 de la réglementation FCC.
Ces limites sont dénies de façon à fournir une protection
raisonnable contre le brouillage préjudiciable lorsque cet
appareil est utilisé dans un environnement commercial. Cet
équipement génère, utilise et peut émettre un rayonnement
de fréquence radio. S'il n'a pas été installé conformément
aux instructions, il peut par ailleurs créer des interférences
perturbant les communications radio. L'utilisation de cet
appareil dans une zone résidentielle peut provoquer un
brouillage préjudiciable, auquel cas l'utilisateur sera tenu de
corriger la situation à ses frais.
19
INFORMATION 8
10
11
12
■Safety training information
Your Icom radio generates RF electromagnetic energy while
transmitting. This radio is designed for and classied as for
“Occupational Use Only.” This means it must be used only
during the course of employment by individuals aware of
the hazards, and the ways to minimize such hazards. This
radio is NOT intended for use by the “General Population”
in an uncontrolled environment. This radio has been tested
and complies with the FCC and IC RF exposure limits for “Occupational Use
Only”. In addition, your Icom radio complies with the following Standards and
Guidelines with regard to RF energy and electromagnetic energy levels and
evaluation of such levels for exposure to humans:
• FCC KDB Publication 447498 D03, Evaluating Compliance with FCC
Guidelines for Human Exposure to Radio Frequency Electromagnetic
Fields.
• American National Standards Institute (C95.1-1992), IEEE Standard
for Safety Levels with Respect to Human Exposure to Radio Frequency
Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3-1992), IEEE Recommended
Practice for the Measurement of Potentially Hazardous Electromagnetic
Fields– RF and Microwave.
• The accessories listed on page i are authorized for use with this product.
Use of accessories other than those specied may result in RF exposure
levels exceeding the FCC requirements for wireless RF exposure.
• Health Canada Safety Code 6 - Limits of Human Exposure to
Electromagnetic Energy in the Frequency Range from 3 kHz to 300 GHz.
To ensure that your expose to RF electromagnetic energy is
within the FCC allowable limits for occupational use, always
adhere to the following guidelines:
• DO NOT operate the radio without a proper antenna attached, as this may
damage the radio and may also cause you to exceed FCC RF exposure
limits. A proper antenna is the antenna supplied with this radio by the
manufacturer or an antenna specically authorized by the manufacturer for
use with this radio.
• DO NOT transmit for more than 50% of the total radio use time (“50%
duty cycle”). Transmitting more than 50% of the time can cause FCC
RF exposure compliance requirements to be exceeded. The radio is
transmitting when “TX” is displayed on the function display. You can cause
the radio to transmit by pushing the [PTT] switch.
• ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body
when transmitting and only use the Icom belt-clips which are listed on page
12 when attaching the radio to your belt, or other place, to ensure FCC and
IC RF exposure compliance requirements are not exceeded.
The information listed above provides the user with the information needed
to make him or her aware of RF exposure, and what to do to assure that this
radio operates within the FCC RF exposure limits of this radio.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that can possibly
cause interference with other devices or systems. To avoid such interference,
turn off the radio in areas where signs are posted to do so. DO NOT operate
the transmitter in areas that are sensitive to electromagnetic radiation such as
hospitals and blasting sites.
Occupational/Controlled Use
The radio transmitter is used in situations in which persons are exposed as
consequence of their employment provided those persons are fully aware of
the potential for exposure and can exercise control over their exposure.
WARNING
CAUTION
20
8 INFORMATION
Votre radio Icom produit une énergie électromagnétique de
radiofréquences (RF), en mode de transmission. Cette radio
est conçue pour un «usage professionnel seulement» et
classée comme tel, ce qui signie qu’elle doit être utilisée
uniquement dans le cadre d’un travail par des personnes
conscientes des dangers et des mesures visant à minimiser ces dangers.
Elle N’EST PAS conçue pour une «utilisation grand public », dans un
environnement non contrôlé. Cet appareil a été évalué et jugé conforme, aux
limites d’exposition aux RF de la FCC et d’IC, pour une «utilisation grand
public». En outre, votre radio Icom satisfait les normes et directives qui
suivent en matière de niveaux d’énergie et d’énergie électromagnétique de
RF et d’évaluation de tels niveaux en ce qui concerne l’exposition humaine:
• Publication 447498 D03 de la FCC KDB, «Evaluating Compliance with
FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic
Fields».
• Norme de l’American National Standards Institute (ANSI): IEEE C95.1-1992
sur les niveaux de sécurité compatibles avec l’exposition humaine aux
champs électromagnétiques de radiofréquences (3 kHz à 300 GHz).
• Norme de l’ANSI: IEEE C95.3-1992 sur la méthode d’évaluation
recommandée du champ magnétique potentiellement dangereux des
radiofréquences et des micro-ondes.
• Les accessoires illustrés dans “Options” de la feuille d'instructions sont
approuvés pour une utilisation avec ce produit. L’utilisation d’accessoires
autres que ceux précisés peut entraîner des niveaux d’exposition aux RF
supérieures aux limites établies par la FCC et d’IC en matière d’exposition
aux RF sans l.
• Le Code de sécurité 6 de Santé Canada - Les limites d’exposition humaine à
l’énergie électromagnétique dans la gamme de fréquences de 3 kHz à 300 GHz.
An de vous assurer que votre exposition à une énergie
électromagnétique de RF se situe dans les limites permises par
la FCC pour une utilisation grand public, veuillez en tout temps
respecter les directives suivantes :
• NE PAS faire fonctionner la radio sans qu'une antenne appropriée y soit
xée, car ceci risque d'endommager la radio et causer une exposition
supérieure aux limites établies par la FCC. L'antenne appropriée est
celle qui est fournie avec cette radio par le fabricant ou une antenne
spécialement autorisée par le fabricant pour être utilisée avec cette radio.
• NE PAS émettre pendant plus de 50% du temps total d'utilisation de
l'appareil («50% du facteur d'utilisation»). Émettre pendant plus de 50% du
temps total d'utilisation peut causer une exposition aux RF supérieure aux
limites établies par la FCC. La radio est en train d’émettre lorsque le témoin
du “TX” s’afche sur l’écran ACL. La radio émettra si vous appuyez sur le
bouton du microphone.
• TOUJOURS tenir l'antenne éloignée d'au moins 2,5 cm de votre corps
au moment d'émettre et utiliser uniquement l'attache pour ceinture Icom
illustrée à la p. 12, lorsque vous attachez la radio à votre ceinture, ou à
autre chose, de façon à vous assurer de ne pas provoquer une exposition
aux RF supérieure aux limites xées par la FCC. Pour offrir à vos
interlocuteurs la meilleure qualité de transmission possible, tenez l'antenne
à au moins 5 cm de votre bouche et légèrement de côté.
Les renseignements ci-dessus fournissent à l'utilisateur toute l'information
nécessaire sur l'exposition aux RF et sur ce qu'il faut faire pour assurer que cette
radio fonctionne en respectant les limites d'exposition aux RF établies par la FCC.
Interférence électromagnétique et compatibilité
En mode de transmission, votre radio Icom produit de l'énergie de RF qui
peut provoquer des interférences avec d'autres appareils ou systèmes. Pour
éviter de telles interférences, mettez la radio hors tension dans les secteurs
où une signalisation l’exige. NE PAS faire fonctionner l'émetteur dans des
secteurs sensibles au rayonnement électromagnétique tels que les hôpitaux,
les aéronefs et les sites de dynamitage.
Usage professionnel/contrôlé
Ce radio émetteur est utilisé dans des cas où des personnes sont exposées
en raison de leur travail, pourvu qu'elles soient conscientes du risque
d'expositionet qu'elles puissent exercer un contrôle sur cette exposition.
A
VERTISSEMENT
MISE EN GARDE
■Infomation en matiére de sécurité
A7424?-1EX
Printed in Japan
© 2017 Icom Inc. 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
