DSST-24M
Wireless Modem Module
Introduction
DSST-24M is a spread spectrum radio modem
with TTL. It is designed for data acquisition and
control application between host and remote
sensors. It is also useful for those applications, the
cable wire is inconvenient to be installed. The
DSST-24M can be used in not only peer to peer
mode but also multi-point structure.
Based on direct sequence spread spectrum and
RF technology operating In ISM bands. The
Frequency Range is
2410.496MHz~2471.936MHz. The Channel
Spacing is 4.096MHz.
Specification
Frequency Range: 2.4GHz (2410.496MHz ~
2471.936MHz)
Channel Spacing: 4.096MHz
Radio technique: Direct sequence spread
spectrum
Number of channel: 16
Number of PN code: 16
Communication distance: Depend on external
antenna, default is 300M
Setting Method: Software setting
Antenna: Can bend
Antenna Connector : Reverse-Polarity SMA-Jack
Data bit error rateè Antenna: < 1/1000@
-102dBm
Input voltage: 5Vdc
Operating temperature: -10oC~50oC
Operating humility: 0~90%

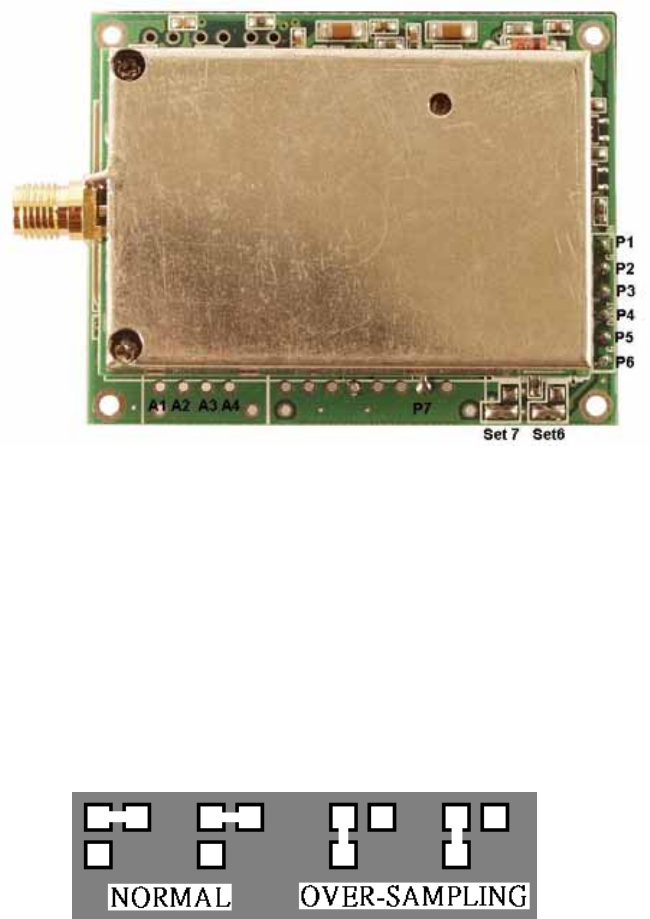

DSST-24M SETTING：
PIN A1,A2,A3,A4=FREQUENCY SETTING,(PIN A1 IS LSB,PIN A4 IS MSB)
SHORT=0 OPEN=1 STEP=2.048MHz
CH1 =2410.496 MHz CH6=2420.736 MHz CH10=2428.928 MHz
PIN P7：SHORT=PASSIVE OPEN=ACTIVE
SET6,SET7：OPERATING MODE SETTING
CONNECT PIN FUNCTION:
P1=+5Vin, P2=GND, P3=DATA IN, P4=DATA OUT, P5=DSR, P6=GND
