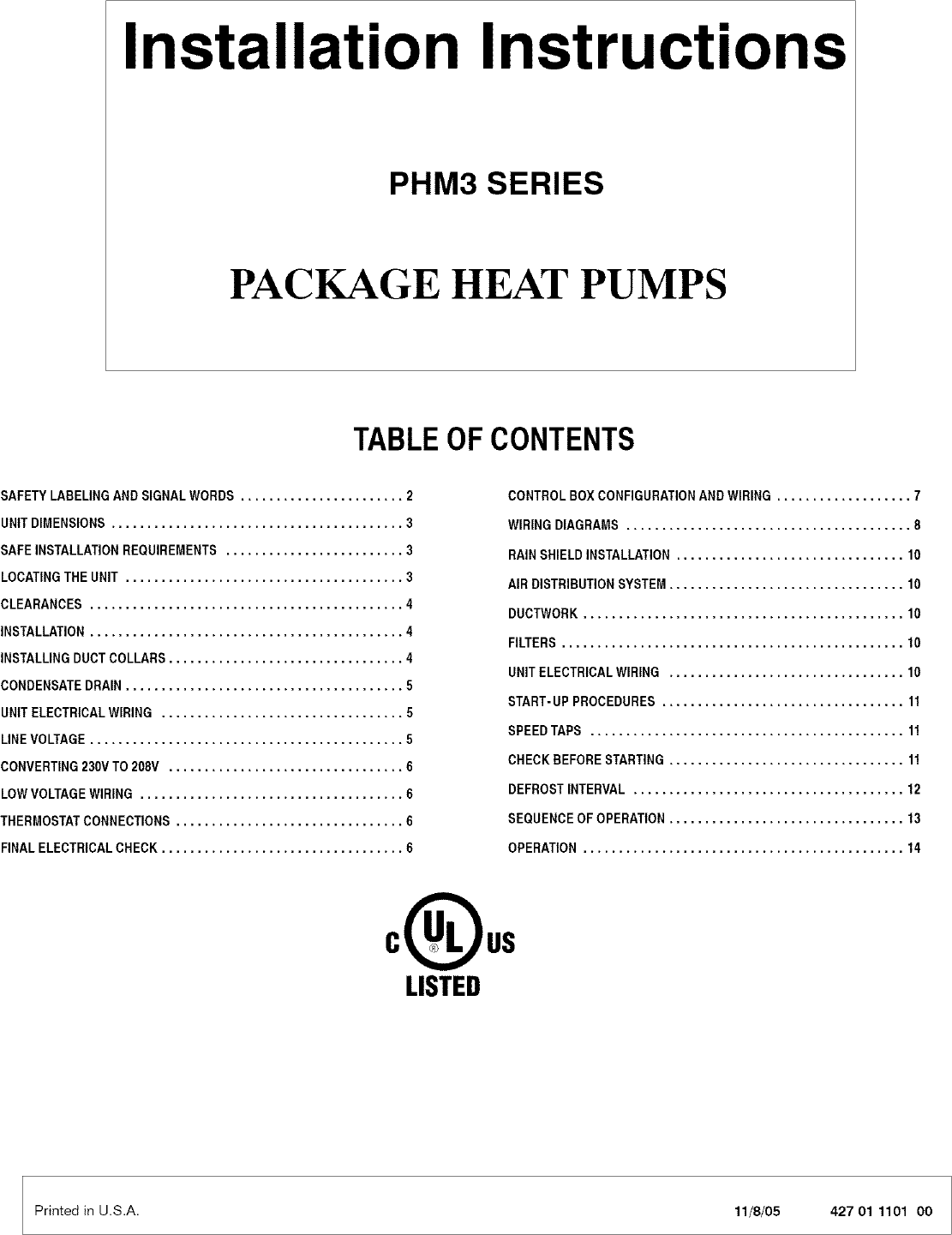

Installation InstructionsPHM3 SERIESPACKAGE HEAT PUMPSTABLEOF CONTENTSSAFETYLABELINGANDSIGNALWORDS ....................... 2UNITDIMENSIONS ......................................... 3SAFEINSTALLATIONREQUIREMENTS ......................... 3LOCATINGTHE UNIT ....................................... 3CLEARANCES ............................................ 4INSTALLATION............................................ 4INSTALLINGDUCTCOLLARS................................. 4CONDENSATEDRAIN....................................... 5UNITELECTRICALWIRING .................................. 5LINEVOLTAGE............................................ 5CONVERTING230VTO208V ................................. 6LOWVOLTAGEWIRING ..................................... 6THERMOSTATCONNECTIONS ................................ 6FINALELECTRICALCHECK.................................. 6CONTROLBOXCONFIGURATIONANDWIRING ................... 7WIRINGDIAGRAMS ........................................ 8RAINSHIELDINSTALLATION................................ 10AIR DISTRIBUTIONSYSTEM................................. 10DUCTWORK............................................. 10FILTERS................................................ 10UNITELECTRICALWIRING ................................. 10START-UP PROCEDURES.................................. 1!SPEEDTAPS ............................................ 1!CHECKBEFORESTARTING................................. 1!DEFROSTINTERVAL ...................................... 12SEQUENCEOF OPERATION................................. 13OPERATION ............................................. 14LISTEDPrinted in U.S.A. 11/8/05 427 O1 1101 OO

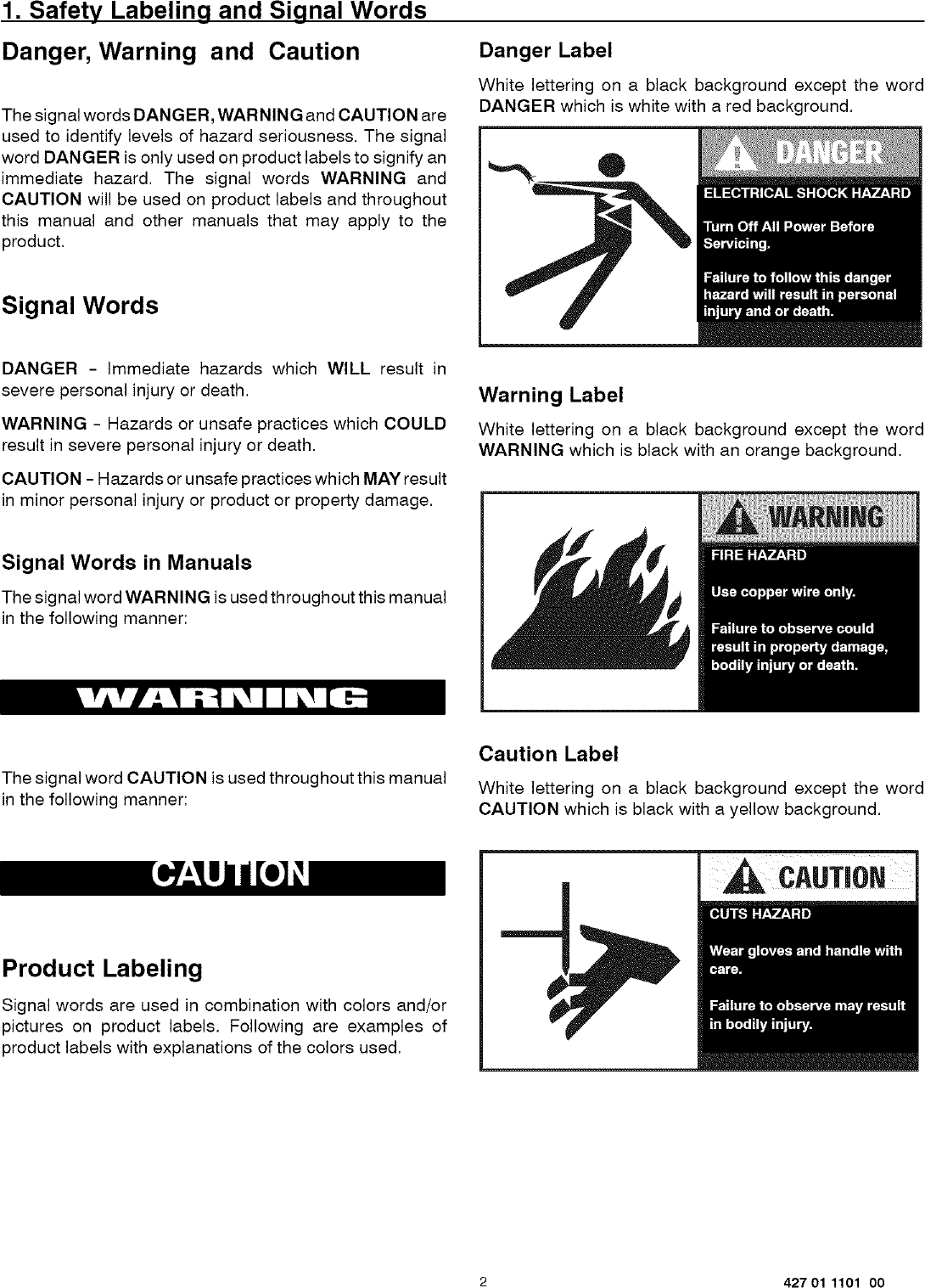

1. Safety Labelinq and Siqnal WordsDanger, Warning and CautionThe signal words DANGER, WARNING and CAUTION areused to identify levels of hazard seriousness. The signalword DANGER is only used on product labels to signify animmediate hazard. The signal words WARNING andCAUTION will be used on product labels and throughoutthis manual and other manuals that may apply to theproduct.Danger LabelWhite lettering on a black background except the wordDANGER which is white with a red background.Signal WordsDANGER - Immediate hazards which WILL result insevere personal injury or death.WARNING - Hazards or unsafe practices which COULDresult in severe personal injury or death.CAUTION - Hazards or unsafe practices which MAY resultin minor personal injury or product or property damage,Warning LabelWhite lettering on a black background except the wordWARNING which is black with an orange background,Signal Words in ManualsThe signal word WARNING is used throughout this manualin the following manner:The signal word CAUTION is used throughout this manualin the following manner:Product LabelingSignal words are used in combination with colors and/orpictures on product labels. Following are examples ofproduct labels with explanations of the colors used,Caution LabelWhite lettering on a black background except the wordCAUTION which is black with a yellow background,2 427 01 1101 00
