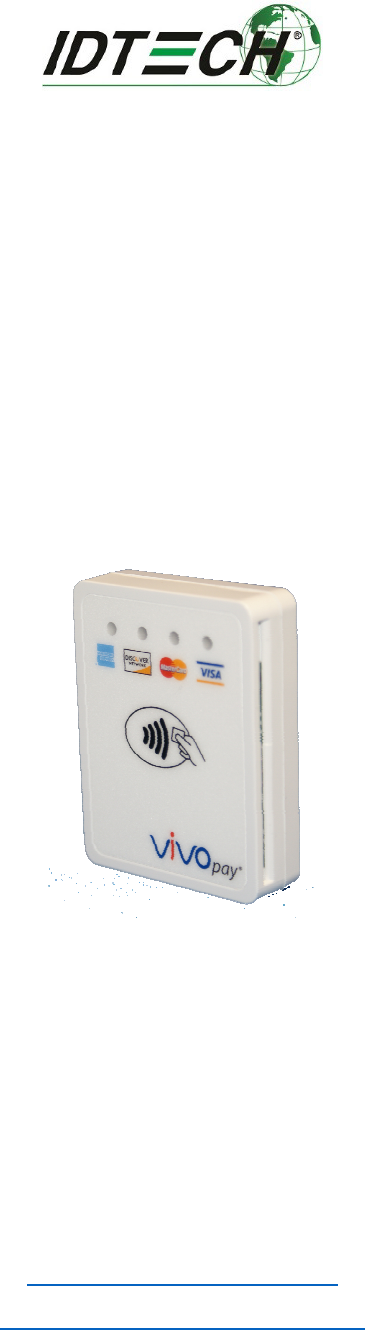

Users Manual
VP4880, VP4880C,
VP4880E
User Manual
80149509-001-A
ID TECH
10721 Walker Street
Cypress, CA 90630
(714) 761-6368
www.idtechproducts.com
support@idtechproducts.com
2
Copyright © 2016, ID TECH. All rights reserved.
This document, as well as the software and hardware described in it, is
furnished under license and may be used or copied online in accordance with
the terms of such license. The content of this document is furnished for
information use only, is subject to change without notice, and should not be
construed as a commitment by ID TECH. While every effort has been made to
ensure the accuracy of the information provided, ID TECH assumes no
responsibility or liability for any unintentional errors or inaccuracies that may
appear in this document. Except as permitted by such license, no part of this
publication may be reproduced or transmitted by electronic, mechanical,
recording, or otherwise, or translated into any language form without the
express written consent of ID TECH.
ID TECH and ViVOpay are trademarks or registered trademarks of ID TECH.
Warranty Disclaimer
The services and hardware are provided "as is" and "as-available" and the use
of the services and hardware are at its own risk. ID TECH does not make, and
hereby disclaims, any and all other express or implied warranties, including,
but not limited to, warranties of merchantability, fitness for a particular purpose,
title, and any warranties arising from a course of dealing, usage, or trade
practice. ID TECH does not warrant that the services or hardware will be
uninterrupted, error-free, or completely secure.
This device complies with Part 15 of the FCC Rules:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation of the device.
Cautions and Warnings
Warning: Avoid close proximity to radio
transmitters, which may reduce the
capabilities of the reader.
3
Introduction
IntroductionIntroduction
Introduction
VP4880 is ID TECH's family of ultra-compact, EMV L1/L2-certified
contactless card readers, designed for low cost, high reliability, and maximum
compatibility with existing contactless payment technologies (including Apple
Pay, Android Pay, and Samsung Pay).
The VP4880 family includes models with and without contact-EMV capability,
as well as with and without magnetic swipe reader (MSR) functionality. (See
the chart shown further below.) The economical VP4880C, which offers
contactless-transaction capability without contact-EMV or MSR, provides an
extremely cost-effective way for merchants to add tap-and-go capability to
existing payment options, without the need to replace other hardware. Likewise,
for merchants who already have MSR capability but need to add contact-EMV
and NFC, the VP4880E offers an economical way to do so.
The VP4880 series incorporates the proven EMV L2 kernel of ID TECH's
popular UniPay III card reader. Developers can integrate VP4880-series
products into EMV-ready terminal systems with minimal effort using ID
TECH's Universal SDK, available for Windows, Android, or iOS.
Major Features of
Major Features ofMajor Features of
Major Features of
VP4880 Family
VP4880 FamilyVP4880 Family
VP4880 Family
• Micro-USB port for communications and power.
• Magnetic stripe support (VP4880 only): ISO 7810/ISO 7811, Hi-Co+Lo-Co
Magnetic, JIS1/JIS2.
• MSR (VP4880 only) is bidirectional, reading up to 3 tracks of data at once.
• ICC support (VP4880 and VP4880E): EMV Level 1 and EMV L2
approvals. All L1 & L2 on the device.
• Contactless transaction support via Near Field Communication (NFC): all
models.
• LED status indicator.
• Audio feedback.
• Field upgradable firmware.
• Standby mode for low power consumption.
• Compact and ergonomic design to integrate with a variety of devices.
• Available with a sturdy stand, for tabletop use.
• TDES and AES 128 encryption support.
• DUKPT key management.
• Software Development Kits for Windows, Android, iOS.
• One-year manufacturer's warranty.
4
Feature
VP4880
VP4880C
VP4880E
Contactless reader (NFC capability)
ICC reader wi
th landing contacts and
EMV L1 and L2 certification
3
-
track MSR (magstripe reading)
EMVCo Contactless L1 and major
card brand contactless certifications
(L2’s)
Compact Size
4 green LEDs for the contactless
indication
Audio feedback to s
ignal good/bad
card reads, etc.
TDES and AES encryption algorithms
Supports ID TECH standard TR31
(and optional TR34) Remote Key
Injection
Supports multiple key slots
RoHS and REACH compliant
1 year manufacturer warranty
Magne
MagneMagne
Magnetic Stripe Features
tic Stripe Featurestic Stripe Features
tic Stripe Features
(VP4880 only)
(VP4880 only)(VP4880 only)
(VP4880 only)
• ISO 7810 / ISO 7811
• AAMVA format
• JIS I / II
• Single / Dual / Triple Track Support
• Bi-directional reading
• Samsung Pay MST
ICC Contact Card Features
ICC Contact Card FeaturesICC Contact Card Features
ICC Contact Card Features
(VP4880, VP4880E)
(VP4880, VP4880E)(VP4880, VP4880E)
(VP4880, VP4880E)
•
EMVCo Contact Level 1 & 2 compliant.
5
Contactless
Contactless Contactless
Contactless (
((
(NFC
NFCNFC
NFC)
))
)
F
FF
Features
eatureseatures
eatures:
::
:
• ISO 14443 Type A&B
• ISO 18092 (P2P)
• MasterCard® MCL (Formerly PayPass)
• Visa payWave/VCPS
• Visa IRWIN
• Discover® DPAS
• American Express® ExpressPay
• MIFARE
• Apple Pay
• Samsung Pay NFC
• Android Pay
• Google Wallet / Softcard SmartTap
Before You Start Using
Before You Start Using Before You Start Using
Before You Start Using VP4880
VP4880VP4880
VP4880
Devices in the VP4880 family are compact micro-USB devices for handling
contactless transactions. (See chart above for differences between models.)
Your VP4880-series device is designed to operate in conjunction with certified
third party payment software and compatible hosts, such as USB-equipped
tablets, PCs, and smartphones. Before you connect VP4880 to the host, install
and activate the software application service according to the instructions
provided by your payment application service or software provider, then
connect the VP4880 to the host through a micro-USB cable (not included).
LED
LED LED
LED S
SS
Status
tatus tatus
tatus D
DD
During
uring uring
uring T
TT
Transactions
ransactionsransactions
ransactions
and Operation
and Operationand Operation
and Operation
ICC processing: Top LED flashes amber during transaction, do not remove
card.
ICC process successful: Top LED displays solid green (2 seconds), please
remove card.
Magnetic stripe read successful: Top LED displays solid green (2 seconds.
Magnetic stripe read failed: Top LED displays solid red (2 seconds).
Contactless read successful: All 4 LEDs on the unit's face (contactless
antenna side) flash green simultaneously
6
Physical Specifications
Physical SpecificationsPhysical Specifications
Physical Specifications
(VP4880, VP4880C, VP4880E)
(VP4880, VP4880C, VP4880E)(VP4880, VP4880C, VP4880E)
(VP4880, VP4880C, VP4880E)
Operation and Storage
Operation and Storage Operation and Storage
Operation and Storage Environment
EnvironmentEnvironment
Environment
FCC Regulatory Complianc
FCC Regulatory CompliancFCC Regulatory Complianc
FCC Regulatory Compliance:
e: e:
e:
Notices: Class B Equipment
Notices: Class B EquipmentNotices: Class B Equipment
Notices: Class B Equipment
This equipment has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. This device complies with part 15 of the FCC rules. Operation is
subject to two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
No
.
Item
Specification
1
Physical
Dimensions
64mm x 49mm x 1
4.5
mm(LxWxH)
2
Structure Material
P
lastic
,
PC UL 94V
-
0
3
Housing Color
Black
/White
4
Texture
MT110
10
5
Weight
50g
Item
Specification
Note
Operating
Temperature
0
°C to
55
°C
1.
Non
-
condensing
.
Storage Temperature
-
20
°C to
60
°C
1.
Non
-
condensing
.
Operating Humidity
5
% to 9
5
%
Non
-
condensing
Storage Humidity
5
% to 9
5
%
Non
-
c
ondensing
7
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Changes or modifications to the VP4880, VP4880C, or VP4880E not
expressly approved by ID TECH could void the user's authority to
operate the device.
Other Agency Approvals and
Other Agency Approvals and Other Agency Approvals and
Other Agency Approvals and Compliances
CompliancesCompliances
Compliances
• CE (EN55022/EN55024, Class- B)
• FCC (Part 15, Class-B)
•
RoHS (DIRECTIVE 2011/65/EU)
• UL
• REACH
• EMV Contact L1&L2
• EMV Contactless L1
• TQM
For Software Developers:
For Software Developers: For Software Developers:
For Software Developers: Software
SoftwareSoftware
Software
Development
DevelopmentDevelopment
Development
Support
SupportSupport
Support
VP4880 devices are designed to be compatible with a wide range of third party
payment applications. ID TECH offers a Universal SDK (available for iOS,
Android, or Windows) to enable rapid application development with any model
of VP4880 as the target device. The languages supported include Objective C
(on iOS), Java (on Android), and C# (on Windows). The Universal SDK
includes rich, powerful libraries that make communication with VP4880
comparatively easy while greatly facilitating debugging.
Normally, development of applications that take advantage of VP4880
capabilities can be done in a high-level language like Java or C# (using
convenience objects and data structures), obviating the need to send hex-code
commands directly via USB-HID. Nevertheless, if you need to communicate
with the device via audio jack or via USB-HID, it is possible to do so. For a
command reference for VP4880-series products, consult the NEO Interface
Developers Guide (IDG), P/N 80139403-001.

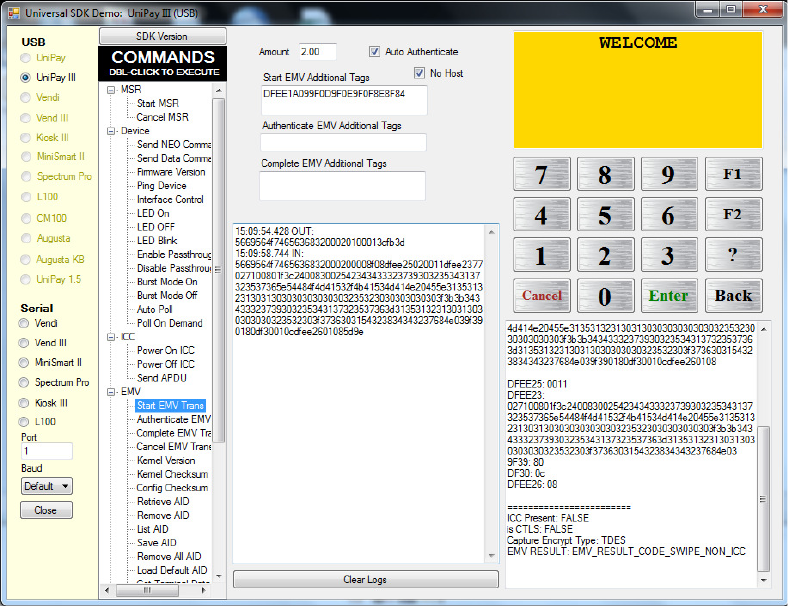

Demo App
Demo AppDemo App
Demo App
The Universal SDK comes with a rich, fully featured demo app. Complete
source code for the demo app is included with the SDK.
To use the demo app: On Windows, plug your VP4880-series device into the
host using a USB-to-micro-USB cable (not included), then double-click the
UniversalSDKDemo.exe file and allow a few seconds for the main window to
appear (see illustration below).
8
The Demo App displays available commands in a command tree, as shown
above. Single-click on a command to populate the center panel of the window
with optional settings relevant to the command (e.g., "Amount" and "Start
EMV Additional Tags" above). In some cases, text fields will appear, allowing
you to enter custom values. When you are ready to execute the command in
question, double-click it in the command tree. The command executes in real
time and a data trace appears automatically in the center and/or right-hand
panels. (Use the Clear Logs button to clear both panels.)
9
Revision History
Revision
Date
Description of Changes
By
A
9/15
/201
6
Initial release
KT
