IDEA ELECTRONICS 18IDF10-01 Digital Photo Frame User Manual iDeaPlay Digital Photo Frame 20180329
IDEA ELECTRONICS INC Digital Photo Frame iDeaPlay Digital Photo Frame 20180329
User Manual
Digital Photo Frame
DF1002
User Manual
Table of Contents
1 Introduction ............................................................................................................................. 2
1.1 Features ...................................................................................................................................... 2
1.2 What's in the Box ...................................................................................................................... 2
1.3 Product Overview ..................................................................................................................... 2
2 Getting Started ...................................................................................................................... 3
2.1 Connecting to Power ................................................................................................................ 3
2.2 Setup your DPF .......................................................................................................................... 3
3 Using the iDea Photo App ............................................................................................ 3
3.1 Download the App ................................................................................................................... 3
3.2 Register an Account ................................................................................................................. 3
3.3 Connect a Device...................................................................................................................... 3
3.4 Sending Photos ........................................................................................................................ 4
3.5 Sending Photos to Multiple Frames ..................................................................................... 4
3.6 Camera Mode ........................................................................................................................... 4
3.7 Edit a Photo ............................................................................................................................... 5
4 Using your Digital Photo Frame (DPF) ............................................................... 5
4.1 Power ......................................................................................................................................... 5
4.2 Home Screen .......................................................................................................................... 5
4.3 Photo Drop ................................................................................................................................ 5
4.4 Photos ........................................................................................................................................ 5
4.5 View a Photo/Slideshow ......................................................................................................... 5
4.6 Desk Calendar .......................................................................................................................... 6
4.7 Music .......................................................................................................................................... 6
4.8 Calendar .................................................................................................................................... 6
4.9 Clock / Alarm ............................................................................................................................. 6
5 Adjusting the Settings ..................................................................................................... 7
5.1 Connect Device ........................................................................................................................ 7
5.2 Wireless Settings ...................................................................................................................... 7
5.3 Frame Settings .......................................................................................................................... 7
5.4 Date & Time .............................................................................................................................. 8
5.5 Storage ....................................................................................................................................... 8
5.6 System ........................................................................................................................................ 8
5.7 About .......................................................................................................................................... 8
6 Settings Overview ............................................................................................................... 9
7 FAQs .............................................................................................................................................. 11
8 Customer Support ............................................................................................................ 11
9 Important Safety Precautions ................................................................................. 12

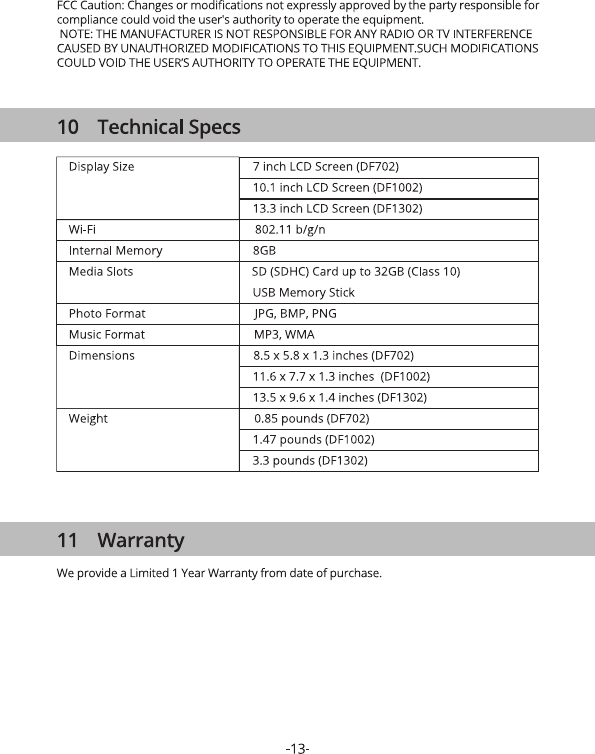

10 Technical Specs ................................................................................................................ 13
11 Warranty ............................................................................................................................... 13
-1-
1 Introduction
Welcome to the iDeaPlay Digital Photo Frame (DPF). Send images from your smart devices
effortlessly via WiFi.
1.1 Features
• Instantly share photos wirelessly from your smart devices via the free iDea Photo App.
• Stunning HD display with easy touchscreen navigation.
• Connects to your home WiFi network for receiving photos wirelessly anytime.
• 8GB internal memory with expandable storage: includes slots for SD/SDHC Card and USB
Memory Stick.
• Create your own family Album and display them in automated slideshows.
• Connect several Photo Frame's to your device and send photos to one or all of them
effortlessly.
• Available in multiple colors with a slim design perfect for any modern home or office.
• Convenient features for daily life include an alarm clock, network-provided date & time,
desk calendar mode, night mode and a music player.
1.2 What's in the Box
• Digital Photo Frame (DPF)
• AC Power Adapter
• User Manual
• Quick Start Guide
• Stand
1.3 Product Overview
-2-
1 2 54 63
Home Key (short press)
Stand Port
SD/SDHC Memory Card Slot
1
2
3
USB Port
DC Port
Micro USB (Factory test only,
not for customer use）
4
5
6
2 Getting Started
2.1 Connecting to Power
Plug the AC Power Adapter into the photo frames DC power jack and an electrical wall
outlet. The DPF will automatically power up.
2.2 Setup your DPF
After powering on the DPF for the first time, please follow the Startup Wizard:
1. Select your language and local time zone.
2. Select your local WiFi and enter the password to connect to it.
3. If you are a new user you will need to download the App on your device by either
searching for 'iDea Photo' in your devices App store, or by scanning the QR code for a
direct download link.
4. Open the iDea Photo App on your device and register a new account, or login to an
existing account.
5. Connect your smart device to the DPF via the iDea Photo App. On the home screen
of your iDea Photo App tap ' ' (top left) and follow the on-screen instructions to enter
the unique Frame ID number or scan the unique QR code on the DPF display to connect.
3 Using the iDea Photo App
3.1 Download the App
Download the 'iDea Photo' App on your device by searching for it on your App Store or by
scanning the QR code for a direct download link, available in Settings>Connect Device on
your DPF.
3.2 Register an Account
Open the iDea Photo App on your device and on the login screen, tap 'Register' to create a
new account. Enter a username, password, and nickname to register. Once registered you
can log into your account from the welcome page of the app.
3.3 Connect a Device
Please ensure your DPF is on, the iDea Photo App is open on your device, and both are
connected to WiFi:
1. On your device, login to the iDea Photo App and on the home screen tap ' ' (top left).
2. On the home screen of your DPF tap Settings>Connect Device.
3. On the Connect Device screen find the unique Frame ID number and QR code, located
next to the Step 2 instructions.
4.1 Add via Frame ID No: On the App select 'Add via Frame ID No' and enter the unique
10-digit number. You can connect any device remotely using this method as long as it
is connected to the internet, and the DPF is connected to Wi-Fi.
-3-
4.2 Add via QR Code: Alternatively, select 'Add via QR code' on the App and scan the Frame
ID QR code displayed.
5. After a successful connection you will be prompted to name your DPF on the iDea Photo
App, for simple identification should you purchase and connect to several frames
(e.g. Kitchen).
INFO: One device can connect to multiple frames via the iDea Photo App. Each device
can open several accounts, however, photos can only be transferred from one account at a
time. Each DPF can support up to 20 connected accounts.
3.4 Sending Photos
1. On the iDea Photo App home screen tap on 'Album' to view photos stored on your
local device.
2. Select up to six photos to be sent to 'Photo Drop' on your DPF and tap 'Send' (bottom
right).
3. All photos sent wirelessly by the iDea Photo App are sent to 'Photo Drop' on your
DPF, assigned to a folder matching the sender's account.
INFO: Please wait a few minutes to allow photos to show inside 'Photo Drop'. This process
can take longer with larger file sizes and/or a slow network. Please ensure your DPF is on,
and both your frame and device is connected to WiFi.
3.5 Sending Photos to Multiple Frames
You can send photos to an unlimited number of DPFs via the iDea Photo App:
1. Add each new frame to your device via the iDea Photo App following the instructions
listed in step 3.3.
2. As before, on the iDea Photo App home screen tap on 'Album' to view photos stored on
your local device. Select up to six photos to be sent to 'Photo Drop' on your DPF and tap
'Send' (bottom right).
3. With more than one available DPF connected to your device, you will now be prompted
to select which DPF(s) from the list you'd like the photos to be sent to.
4. All photos sent wirelessly via the iDea Photo App are stored to 'Photo Drop' on your DPF,
assigned to a folder matching the sender's account.
3.6 Camera Mode
Tap 'Camera' on the iDea Photo App home screen to capture an image using your smart
device. Photos taken will be saved to the 'Album' on your App, where they can be selected
and sent to your DPF.
-4-
3.7 Edit a Photo
Select one photo inside 'Album' and tap 'Edit' (bottom left). This feature enables you to crop,
rotate and change the aspect ratio of the selected image. Once any changes are confirmed,
a copy is saved to your 'Album' ready for sending to your DPF.
4 Using your Digital Photo Frame (DPF)
4.1 Power
Switch on the power at the wall with the AC Power Adapter connected, to automatically
turn on the DPF. Switch off the power at the wall to turn off the DPF.
4.2 Home Screen
The main DPF features including 'Photo Drop' and 'Settings' are accessed from the Home
Screen. The DPF will automatically boot to the Home Screen. Navigate by tapping the LCD
touch screen with your finger.
4.3 Photo Drop
When photos are sent wirelessly from your device via the iDea Photo App, they are sent to
'Photo Drop' on your DPF. Photos are received and saved in 'Photo Drop,' assigned to a
folder matching the sender's account.
IMPORTANT: If your DPF is connected to WiFi, photos are automatically pushed to it and
will appear within a few minutes. If, however, your DPF is not connected to WiFi or you
have enabled 'New Device Lock' (see 5.1) photos will automatically be deleted after 2 days.
4.4 Photos
Tap the 'Photos' icon to search photos saved to the DPF's Internal Storage, and any other
inserted external storage devices such as an SD (SDHC) Memory Card (up to 32GB) or USB
Memory Stick.
Favorited photos (see 4.5 for more details) are saved to the 'Favorites' folder located in
Internal Storage.
4.5 View a Photo/Slideshow
View an individual photo inside 'Photo Drop' or 'Photos' full-screen by tapping on it.
To begin a slideshow of all the photos within the same folder, tap again anywhere on the
full-screen photo to reveal the options panel (appears bottom). Then tap the 'Play' icon to
start the slideshow.
Whilst viewing an individual photo or slideshow, tap the screen at any time to reveal the
options panel again.
-5-
Key options include:
• Favorite: add the current photo to your Favorites folder (Photos>Internal Storage>
Favorites) or assign as a personalized background image to your home screen.
• Rotate: change the orientation of the current image by 90-degrees (each tap).
• Play: start or continue a slideshow.
• Delete: completely remove the current image from the DPF.
• Settings: change how each photo transitions in and out, the timings between each photo
displayed, and turn on or off the background music.
4.6 Desk Calendar
Your DPF can be used as a personalized desk calendar. Tap on any full-screen photo to
reveal the options panel. Now tap on Settings>Calendar. By tapping on Calendar it will turn
this feature on/off.
With Calendar turned On, now tap 'Play' from the options panel to start/continue a
slideshow. A real-time clock and calendar will overlay the bottom of each photo.
4.7 Music
Play music saved to an SD card, USB memory stick or on the Local Storage of your DPF.
Tap the 'Music' icon on the home screen to open the music player. Saved music files will
appear on the left-hand side alongside Local Storage.
Use the on-screen controls to Play/Pause, go to Previous and Next tracks. Adjust volume
by using the on-screen controls.
IMPORTANT: Please ensure you save music files in the compatible MP3 or WMA format for
playing on your DPF.
4.8 Calendar
Tap the 'Calendar' icon on the Home Screen to see a full-screen month-by-month calendar
and clock display. Tap the left and right arrows at the top of the screen to scroll between
months.
Tap 'Today' (top right) at any time to automatically reset the calendar back to today's date.
4.9 Clock / Alarm
The clock widget appears on the DPF home screen (top right box) showing date and time
information.
INFO: To adjust date and time information, please go to Settings>Date & Time (see 5.4 for
more details).
Alarm
• To set an alarm, tap on the home screen clock widget. On the clock screen tap '+ Alarm'
(top right) to open the 'Alarm Editor.' Set the time, repetition and ringtone of the alarm,
and once ready tap 'Confirm' to save and exit.
-6-
• The date and time of the next alarm to sound is shown on the clock display below the
clock (left). An active alarm is shown on the home screen clock widget via an alarm icon.
• Enable/disable a saved alarm by tapping on its toggle button.
• Delete or make changes to a saved alarm by tapping on it to open the 'Alarm Editor' and
using the on-screen controls.
5 Adjusting the Settings
5.1 Connect Device
When connecting a new device to your DPF you will need to open this screen.
Download the App: QR Code
• To download the iDea Photo App to your device, follow the on-screen instructions or scan
the QR code.
Connect to your Photo Frame: Frame ID Code & No.
• To connect your device to a DPF via the iDea Photo App, follow the on-screen instructions
to either enter the unique 10-digit reference number or scan the QR code (see 3.3 for
more details).
My Device(s)
• After successfully connecting your device, the registered account nickname will be added
here.
• Tap an account to see a list of options. Here you can delete the account and its pictures
from the DPF.
New Device Lock
• When enabled, this feature prevents new devices/accounts from being able to connect to
the DPF.
INFO: This security feature does not affect existing connected accounts from transferring
photos to the DPF, nor does it prevent access to inserted external storage devices.
5.2 Wireless Settings
• Enable/disable WiFi to your DPF by tapping on the toggle button.
• When enabled a list of available WiFi connections are listed. Select your local WiFi from
the list and enter the password when prompted.
5.3 Frame Settings
Language
• Select the operating system language.
-7-
Sound
• Enable/disable 'Touch Sound' using the toggle, and use the on-screen controls to adjust
system and alert sounds volume.
Display
• Display Settings : Enable adjust display brightness.
Screensaver
• Enable/disable 'Screensaver' by tapping the toggle.
• Adjust the type of screensaver displayed, and time after which it automatically appears.
• Enable/disable 'Night Mode' for the DPF to automatically switch to clock screensaver
between 12 am - 7 am. This time period can be customized.
5.4 Date & Time
• Enable/disable 'Automatic Date & Time' for your DPF to use the network-provided time
when connected to WiFi.
• Alternatively, with Automatic Date & Time disabled, manually adjust Date and Time
settings using the on-screen controls.
5.5 Storage
• View your DPF's total available internal storage.
IMPORTANT: This DPF comes with 10GB / 5 years wireless data - this is NOT to be
considered permanent storage. Upon exceeding either (a) 10GB of data sent wirelessly to a
DPF, or (b) 5 years, you may be prompted to 'Top-up' your account and pay a fee in order
to continue using the 'Photo Drop' feature.
5.6 System
• Tap 'Firmware Update' to search for latest software versions (requires a network
connection).
• Tap 'Restore Factory Settings' to erase all internal storage, saved accounts, and settings
on your DPF and reset it to its original factory settings.
5.7 About
• Overview of your DPF.
-8-
6 Settings Overview
-9-
Parent Item / Menu Sub-Menu Description
Photo Drop
View photos that are sent from your
device via the 'iDea Photo' App.
Photos are saved to a folder matching
the sender's account name.
Photos
View all files saved to Internal Storage,
photos saved to Favorites and files on
any inserted external storage devices.
Music Play music files stored to any inserted
external storage devices.
Calendar Open full-screen Calendar feature.
Connect
Device
Includes instructions and QR codes for
connecting new devices / accounts to
the DPF via the 'iDea Photo' App,
as well as a list of currently connected
devices and 'New Device Lock' feature.
Wireless
Settings
Enable/disable Wi-Fi and connect to a
network.
Frame
Settings
Select software language.
Settings
Information
Clock / Alarm
Language
Control screensaver and night mode
settings.
Screensaver
Manually set display brightness.
Display
Set volume levels as well as enable/
disable touch sounds.
Sound
Navigate to Settings menus.
See product information.
Clock
Widget
Displays current date & time information.
Set new alarm and edit saved alarms.
Home
Screen
Settings
Date & Time Manually set date & time information
or enable network-provided time.
Storage View total and available Internal
Storage.
System
Check for the latest firmware updates.
Reset DPF to factory default settings.Factory Default
Settings
Firmware Update
About DPF version details.
-10-
Parent Item / Menu Sub-Menu Description
Rotate Rotate an image by 90-degrees each
time.
Play Play a Slideshow.
Delete Delete selected image.
Zoom Zoom image up to 4x.
Info See photo details.
Scale
Scale image by keeping your finger
and thumb on the screen and moving
them away or close to each other.
Settings Select Slideshow transition effect.
Favorite Add to Favorites
Transition Effect
Turn on/off background music.Background Music
Select timings between photos during
a Slideshow.
Slideshow Interval
Turn on/off desktop calendar overlay
during Slideshow.
Calendar
Favorited photos are stored to the
'Favorites' folder in 'Photos'
Slideshow
(Options
Panel)
-11-
7 FAQs
When I try to send photos to my photo frame via the App, they are not appearing?
• Please wait a few minutes to allow photos to be wirelessly pushed to the photo frame - if
your device is using mobile internet or you have a slow internet connection this process
may take longer.
• Check your photo frame and device are both connected to Wi-Fi.
• Check which account you were logged into when sending the photos, and check the
corresponding folder inside the 'Photo Drop.'
• If photos were sent over 48 hours ago and have still not appeared, it is likely there was a
connection issue and they have been deleted. Please try sending from your device again.
• Still not working? Please contact us using the details below.
How do I stop somebody from sending photos to my DPF?
• Enable 'New Device Lock' to prevent new devices from connecting to your DPF (refer to
5.1 for more details).
• Go to Settings>Connect Device and under 'My Device(s)' tap and hold the account you
wish to stop. From the list of account options that appear, select 'Delete Account'
(& Photos if necessary).
I have reached maximum storage, what can I do?
• Consider deleting some of your photos saved to the Internal Storage.
• Remove any duplicates.
• Transfer smaller file sizes.
• Consider saving photos to an SD Memory Card or USB Memory Stick and inserting this
into the DPF in order to extend your storage.
8 Customer Support
For any support or comments concerning our products, please send an
email to: service@ideausa.com
Toll-Free NO: 1-886-886-6878
-12-
9 Important Safety Precautions
Always follow these basic safety precautions when using our Digital Photo Frame (DPF). This
will reduce the risk of fire, electric shock, and injury.
WARNING: To reduce the risk of fire or shock hazard, do not expose this product to rain or
moisture. Do not remove the cover. There are no user-serviceable parts inside. Refer all
servicing to qualified personnel.
• The DPF is for indoor use only.
• Unplug the DPF before performing care and maintenance.
• Do not block the ventilation holes on the back of the DPF at any time.
• Keep your DPF out of direct sunlight and heat sources.
• Route the power cable so that it is not likely to be walked on or pinched by items placed
on or against it. Pay particular attention to the point where the cable attaches to the DPF.
• Only use the AC adapter included with the DPF. Using any other power adapter will void
warranty.
• Unplug the power cord from the power outlet when the unit is not in use.
Cleaning the DPF
Treat the screen gently.
To clean fingerprints or dust from the LCD screen we recommend using a soft, non-abrasive
cloth such as a camera lens cloth.
If you use a commercial LCD cleaning kit, do not apply the cleaning fluid directly to the LCD
screen. Clean the LCD screen with the cleaning solution applied to the cleaning cloth.
Clean the outer surface of the DPF with a soft cloth dampened with water.
FCC Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter. To comply with FCC RF exposure compliance
requirements, this grant is applicable to only Mobile Configurations. The antennas used for
this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.
