IDEMIA Identity and Security France MPHAC001B Control Access Terminal User Manual MA Lite Installation Guide V3
SAFRAN MORPHO Control Access Terminal MA Lite Installation Guide V3
User Manual - MA-Lite - Installation Guide V3.pdf
MorphoAccess® SIGMA Lite Series – Installation Guide
Warning
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
2
June 2015
Warning
COPYRIGHT© 2015 Morpho. All rights reserved.
Information in this document is subject to change without notice and do not
represent a commitment on the part of Morpho.
This document contains information of a proprietary nature to Morpho and is
submitted in confidence for a specific purpose. The recipient assumes custody and
control and agrees that this document will not be copied or reproduced in whole or in
part, nor its contents revealed in any manner or to any person except to meet the
purpose for which it was delivered.
This caveat is applicable to all the pages of this document.
This manual makes reference to names and products that are trademarks of their
respective owners.
MorphoAccess® SIGMA Lite Series – Installation Guide
Revision History
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
3
June 2015
Revision History
The table below contains the history of changes made to the present document.
Version
Date
Reference
Description
01
June 2015
2015_0000007248-V1 - Draft
Document creation
MorphoAccess® SIGMA Lite Series – Installation Guide
Table of Content
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
4
June 2015
Table of Content
Warning ........................................................................................................................................ 2
Revision History ............................................................................................................................ 3
Section 1 : Introduction ................................................................................................................ 8
MorphoAccess® SIGMA Lite Series terminals ............................................................................ 9
Scope of the document ............................................................................................................ 10
Safety Instructions ................................................................................................................... 11
Wiring Recommendations ................................................................................................... 11
Europe information ............................................................................................................. 12
USA information .................................................................................................................. 12
Canada information............................................................................................................. 13
Eco-design ...................................................................................... Erreur ! Signet non défini.
Recommendations for terminal implementation .................................................................... 14
Section 2 : General Description .................................................................................................. 17
Box opening ............................................................................................................................. 18
Components of the initial package ......................................................................................... 19
Terminal's front view description ............................................................................................ 20
Terminal's rear view description ............................................................................................. 21
MorphoAccess® SIGMA Lite Series Technical Characteristics ................................................. 22
Section 3 : Installation Procedure ............................................................................................... 24
Before proceeding to the installation ..................................................................................... 25
Installation .............................................................................................................................. 26
Required tools (not supplied)............................................................................................... 26
Equipment from the initial package to use ......................................................................... 26
Step by step procedure ........................................................................................................ 27
Section 4 : Electrical Interface .................................................................................................... 29
Wiring overview ...................................................................................................................... 30
Power Supply ........................................................................................................................... 31
External Power supply ......................................................................................................... 31
POE (Power Over Ethernet) ................................................................................................. 31
Output Relay ........................................................................................................................... 32
Nominal characteristics of relay .......................................................................................... 32
Example of connection for electrical door locks .................................................................. 33
Tamper Switch ......................................................................................................................... 34
Operating principle for the switch ....................................................................................... 34
MorphoAccess® SIGMA Lite Series – Installation Guide
Table of Content
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
5
June 2015
Nominal characteristics of switch block .............................................................................. 34
Wiegand port wiring ............................................................................................................... 35
Wiegand input wiring .......................................................................................................... 35
Wiegand output wiring ....................................................................................................... 36
The controller supports neither LED1 nor LED2 signals ....................................................... 37
The controller supports only LED1 signal ............................................................................ 37
The controller supports LED1 and LED2 signals .................................................................. 37
Data Clock Input .................................................................................................................. 38
Data Clock Output ............................................................................................................... 39
RS-485 port wiring ................................................................................................................... 40
GPIO wiring ............................................................................................................................. 41
Single Door Access Control (SDAC) implementation ............................................................... 42
Ethernet connection ................................................................................................................ 43
Default Ethernet configuration ........................................................................................... 43
Recommendations for RJ45 wiring ...................................................................................... 43
External USB connection ......................................................................................................... 44
Wi-Fi™ dongle installation ...................................................................................................... 45
Section 5 : User Interface ........................................................................................................... 46
Modes for controlling access rights ........................................................................................ 47
Introduction ......................................................................................................................... 47
Identification mode ............................................................................................................. 47
Authentication (verification) mode ..................................................................................... 47
Multi-factor mode ............................................................................................................... 48
Proxy mode .......................................................................................................................... 48
External database mode (also called polling mode) ........................................................... 48
Configuring the terminal ......................................................................................................... 50
MorphoAccess® 500 or J Series legacy mode ...................................................................... 50
Bioscrypt 4G Series legacy mode ......................................................................................... 50
MorphoAccess® SIGMA Lite Series native mode ................................................................. 51
Anti-tamper / anti-pulling switches ........................................................................................ 52
Section 6 : Accessories, Software Licenses and PC Applications ................................................ 53
Compatible Accessories, Licenses and Software ..................................................................... 54
Compatible PC applications .................................................................................................... 55
Section 7 : Recommendations .................................................................................................... 56
Notice................................................................................................................................... 57
General precautions ............................................................................................................ 57
MorphoAccess® SIGMA Lite Series – Installation Guide
Table of Content
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
6
June 2015
Areas containing combustibles ............................................................................................ 57
Specific precautions for terminals equipped with a contactless smartcard reader ............ 57
Ethernet connection ............................................................................................................ 57
Date / Time synchronization ............................................................................................... 57
Cleaning precautions ........................................................................................................... 58
Legacy mode ........................................................................................................................ 58
Main principles ........................................................................................................................ 62
Most useful areas for biometric data...................................................................................... 63
Position of finger ..................................................................................................................... 64
Finger height ........................................................................................................................ 64
Finger angle ......................................................................................................................... 64
Finger inclination ................................................................................................................. 65
Finger rotation ..................................................................................................................... 65
Troubleshooting ...................................................................................................................... 66
How to get the latest versions of documents ......................................................................... 68
Documents concerning the MorphoAccess® terminal ............................................................ 69
Documents about installing the terminal ............................................................................ 69
Documents about administrating / using the terminal ....................................................... 69
Documents for the developer .............................................................................................. 69
Release note ........................................................................................................................ 70
Troubleshooting ...................................................................................................................... 72
The terminal IP address is unknown or it is not possible to connect to the terminal.......... 72
The sensor is switched off .................................................................................................... 72
The terminal returns erratic responses to Ping commands ................................................ 72
Technical Support and Hotline ................................................................................................ 73
North America ..................................................................................................................... 73
South America ..................................................................................................................... 73
South Africa ......................................................................................................................... 73
India: .................................................................................................................................... 73
Europe and rest of the world: .............................................................................................. 73
Web site ............................................................................................................................... 73
Annex 1 : Finger Placement Recommendations ...................................................................... 61
Annex 2 : Bibliography ............................................................................................................. 67
Annex 3 : Support .................................................................................................................... 71
MorphoAccess® SIGMA Lite Series – Installation Guide
Table of Figures
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
7
June 2015
Table of Figures
Figure 1: Implementation Recommendations ............................................................................. 15

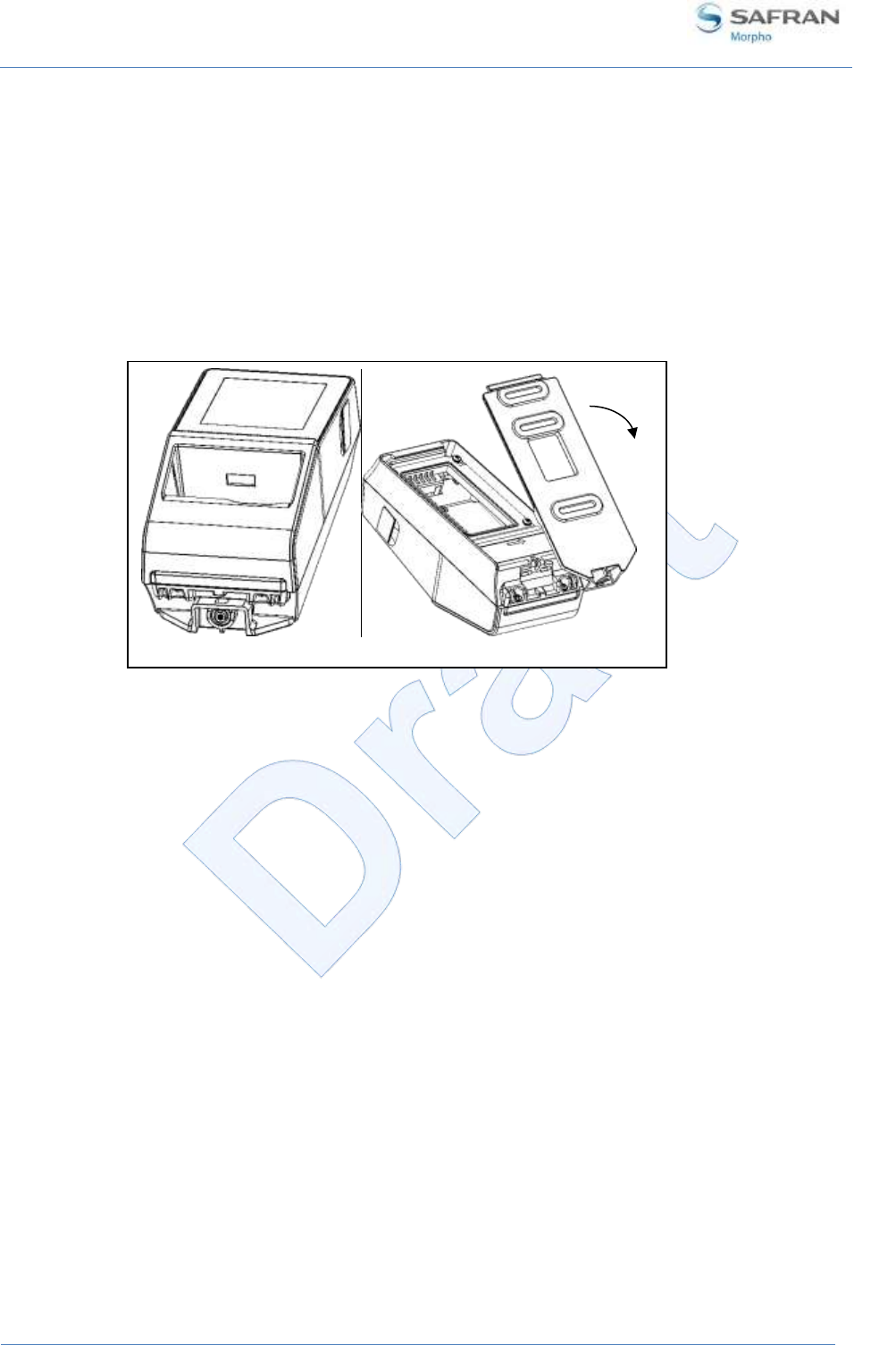

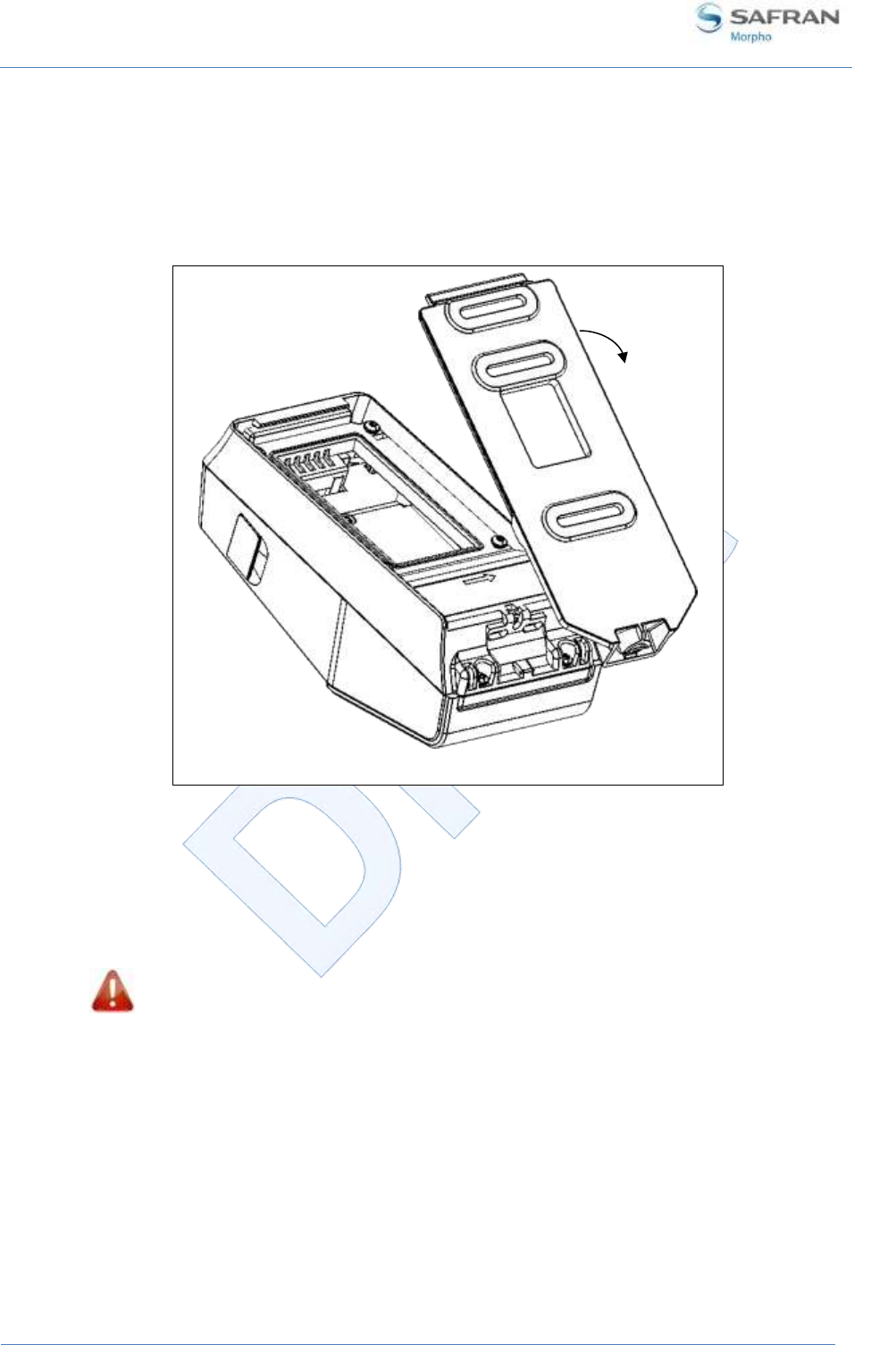

Figure 2: Box Opening .................................................................................................................. 18

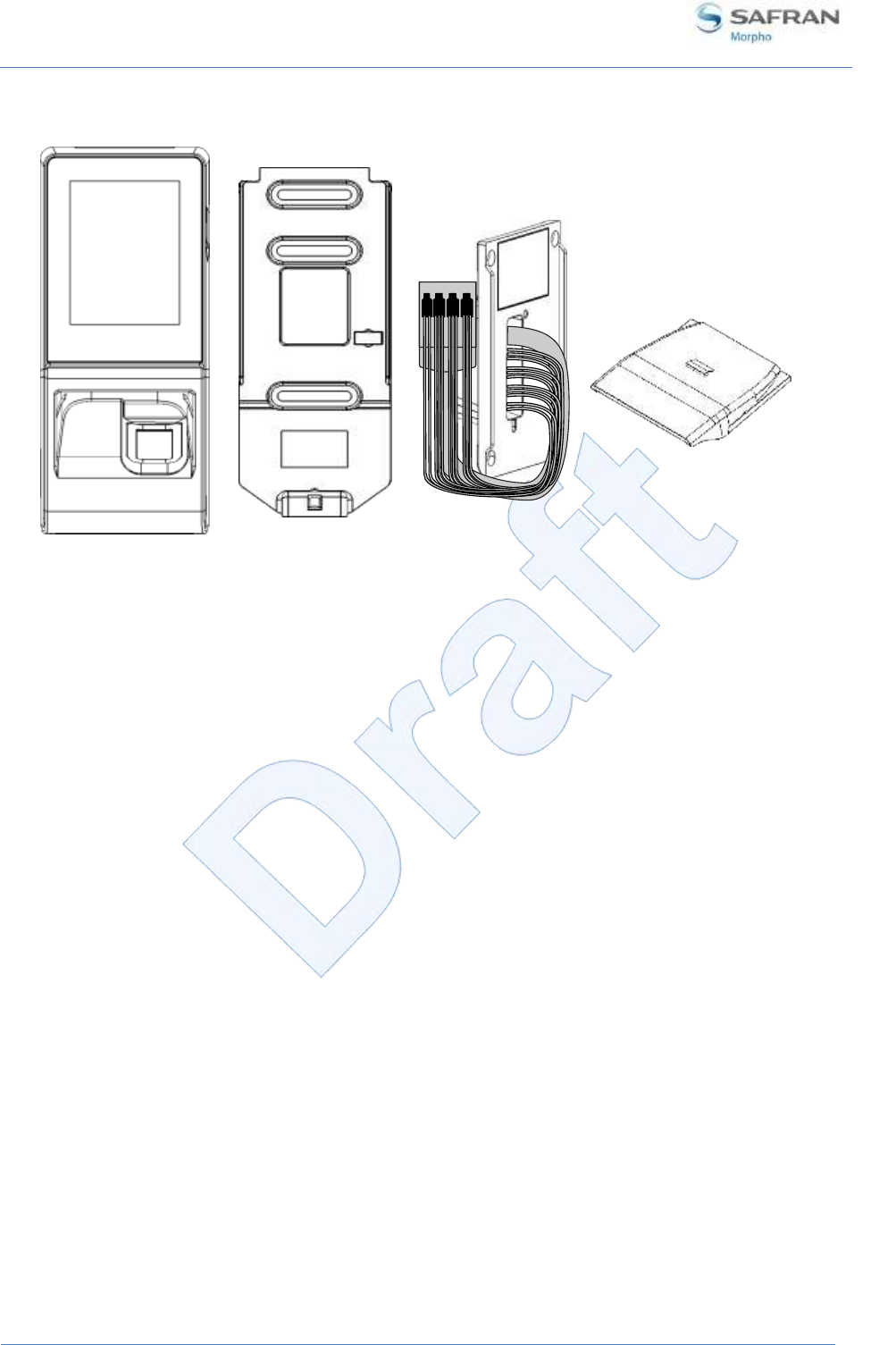

Figure 3: Box Content .................................................................................................................. 19

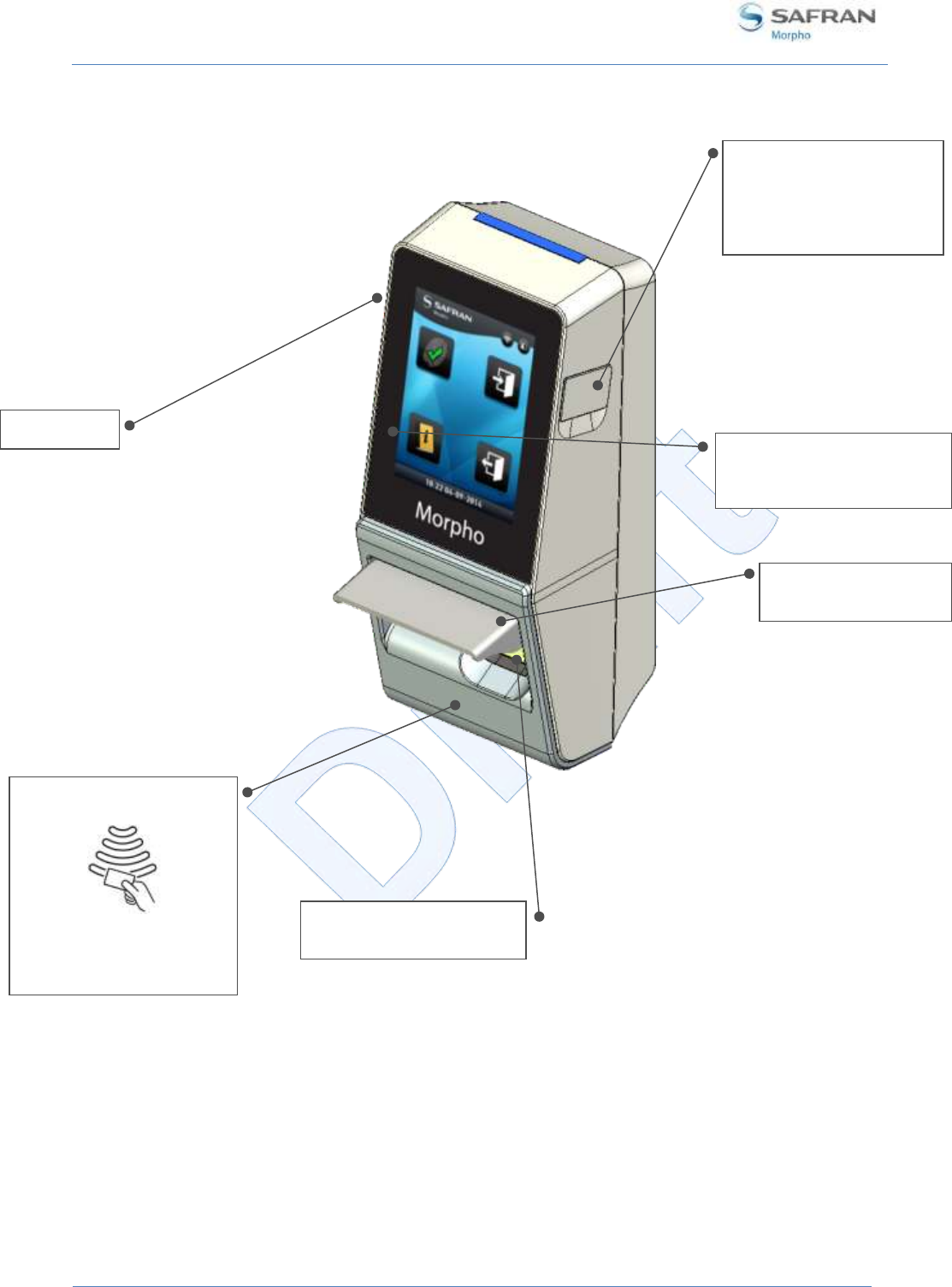

Figure 4: MorphoAccess® SIGMA Lite Series terminal front view ............................................... 20
Figure 5: MorphoAccess® SIGMA Lite Series terminal rear view ................................................ 21
Figure 6: Removing wall frame .................................................................................................... 25
Figure 7: Drilling template ........................................................................................................... 27

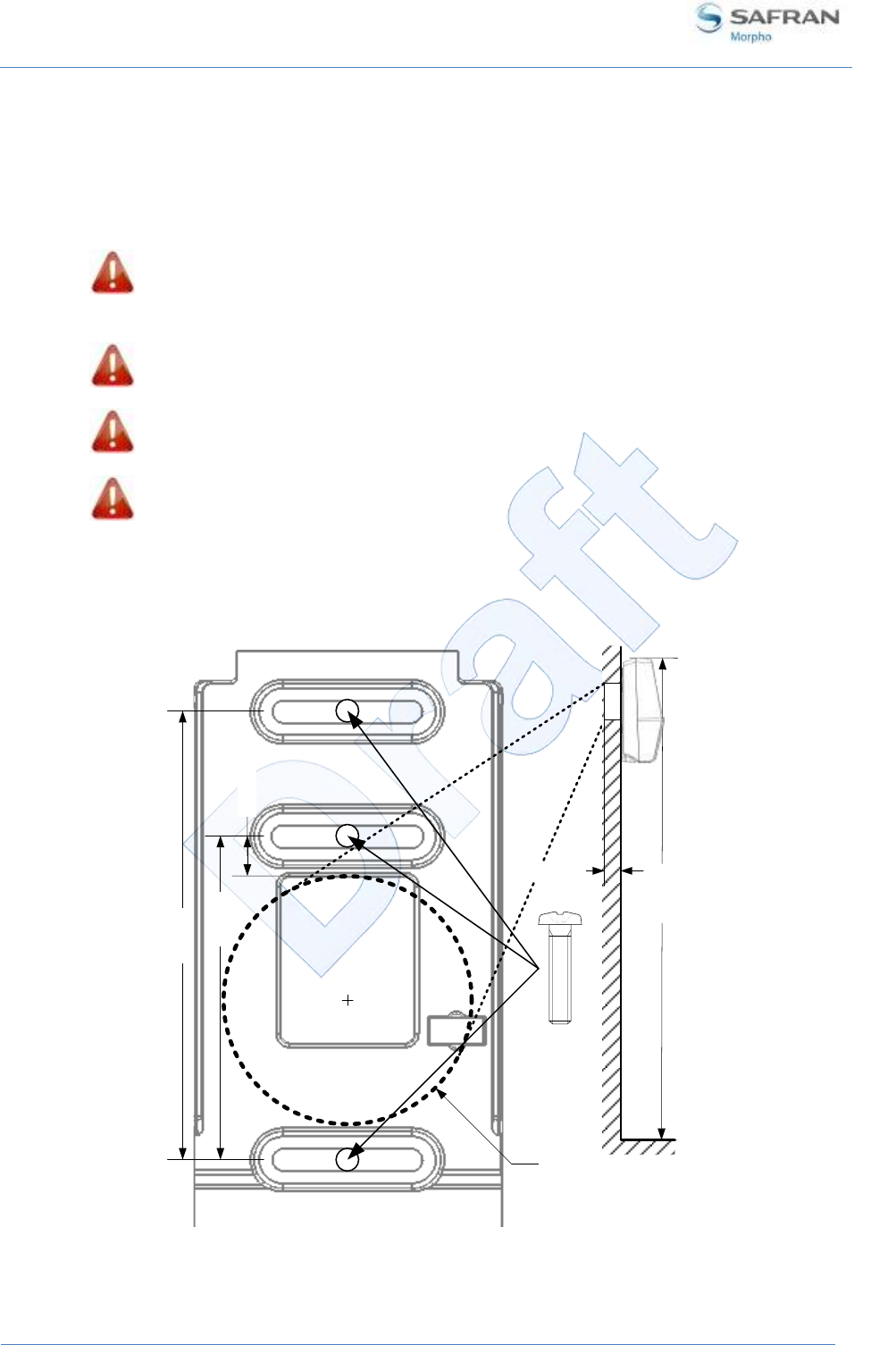

Figure 8: Wall plate fixing ............................................................................................................ 28
Figure 9: Cabling layout ............................................................................................................... 30
Figure 10: Power supply wiring ................................................................................................... 31
Figure 11: Output relay wiring ..................................................................................................... 32
Figure 12: Example of electric latch connection ......................................................................... 33

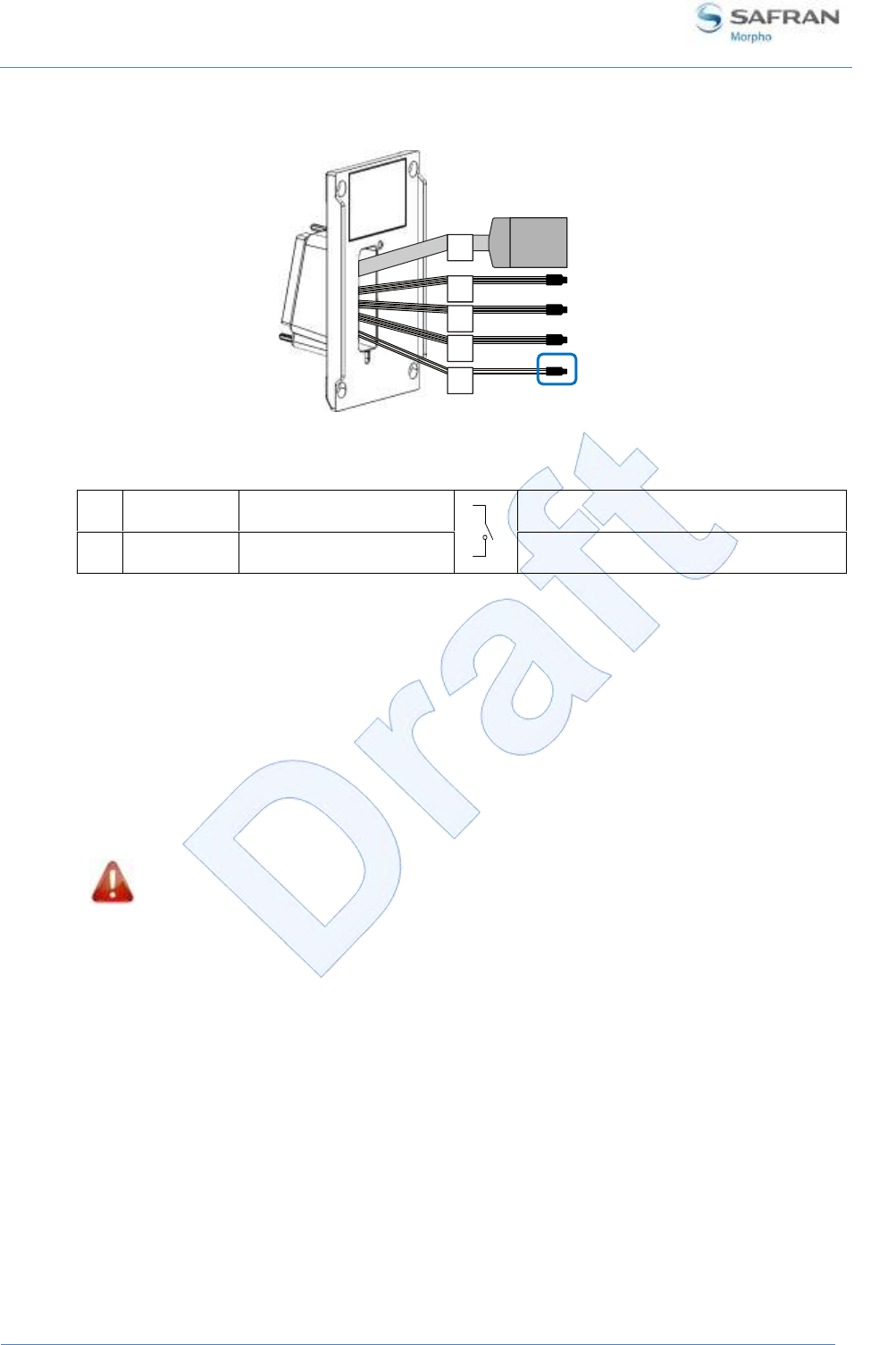

Figure 13: Tamper switch wiring ................................................................................................. 34
Figure 14: Wiegand input wiring ................................................................................................. 35
Figure 15: Wiegand output wiring ............................................................................................... 36
Figure 16: Wiegand port wiring – DataClock ............................................................................... 38
Figure 17: Wiegand port wiring – Data Clock .............................................................................. 39
Figure 18: RS-485 port wiring – RS485 ........................................................................................ 40
Figure 19: GPIO wiring ................................................................................................................. 41
Figure 20: SDAC wiring................................................................................................................. 42
Figure 21: RJ45 wiring .................................................................................................................. 43
Figure 22: External USB connection ............................................................................................ 44
Figure 23: Wi-Fi™ dongle installation .......................................................................................... 45
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 1 : Introduction
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
8
June 2015
Section 1 : Introduction
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 1 : Introduction
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
9
June 2015
MorphoAccess® SIGMA Lite Series terminals
Congratulations for choosing a MorphoAccess® SIGMA Lite Series Automatic
Fingerprint Recognition Terminal.
MorphoAccess® SIGMA Lite Series provides an innovative and effective solution for
access control applications using Fingerprint Verification or/and Identification.
Among a range of alternative biometric technologies, the use of finger imaging has
significant advantages: each finger constitutes an unalterable physical signature,
developed before birth and preserved until death. Unlike DNA, a finger image is
unique to each individual - even identical twins.
MorphoAccess® SIGMA Lite Series integrates Morpho image processing and feature
matching algorithms. This technology is based on lessons learned during 25 years of
experience in the field of biometric identification and the creation of literally millions
of individual fingerprint identification records.
We believe you will find the MorphoAccess® SIGMA Lite Series fast, accurate, easy to
use and suitable for physical access control.
The MorphoAccess® SIGMA Lite Series offers the following advantages:
high quality optical sensor (IQS quality sensor),
supports multiple input/output interfaces used in the physical access control
industry,
Local Area Network interface for easy interaction with other host systems ; LAN
and WLAN possibilities (Wi-Fi™ as an option),
compact size for easy installation and integration into your available office space,
intuitive man machine interface with touch panel and display, that is easy to use in
both setup and operational modes,
To ensure the most effective use of your MorphoAccess® SIGMA Lite Series terminal,
we recommend that you read this Installation Guide completely.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 1 : Introduction
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
10
June 2015
Scope of the document
This guide deals with the installation of MorphoAccess® SIGMA Lite Series, which is
made up of following list of products:
MA SIGMA Lite
Series
Marketing Name
Biometrics
Contactless smartcard
reader
Touch
screen
Water
Resistant
Regulatory
Model
Number (*)
iCLASS®
MIFARE®
DESFire®
NFC
Prox®
MA SIGMA Lite
MPH-AC001A
MA SIGMA Lite iClass
MPH-AC001B
MA SIGMA Lite Multi
MPH-AC001B
MA SIGMA Lite Prox
MPH-AC001A
MA SIGMA Lite+
MPH-AC001A
MA SIGMA Lite+ iClass
MPH-AC001B
MA SIGMA Lite+ Multi
MPH-AC001B
MA SIGMA Lite+ Prox
MPH-AC001A
(*) The Regulatory Model Number is the main product identifier in the regulatory
documentation and test reports associated to the product
NOTA : MA stands for MorphoAccess®
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 1 : Introduction
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
11
June 2015

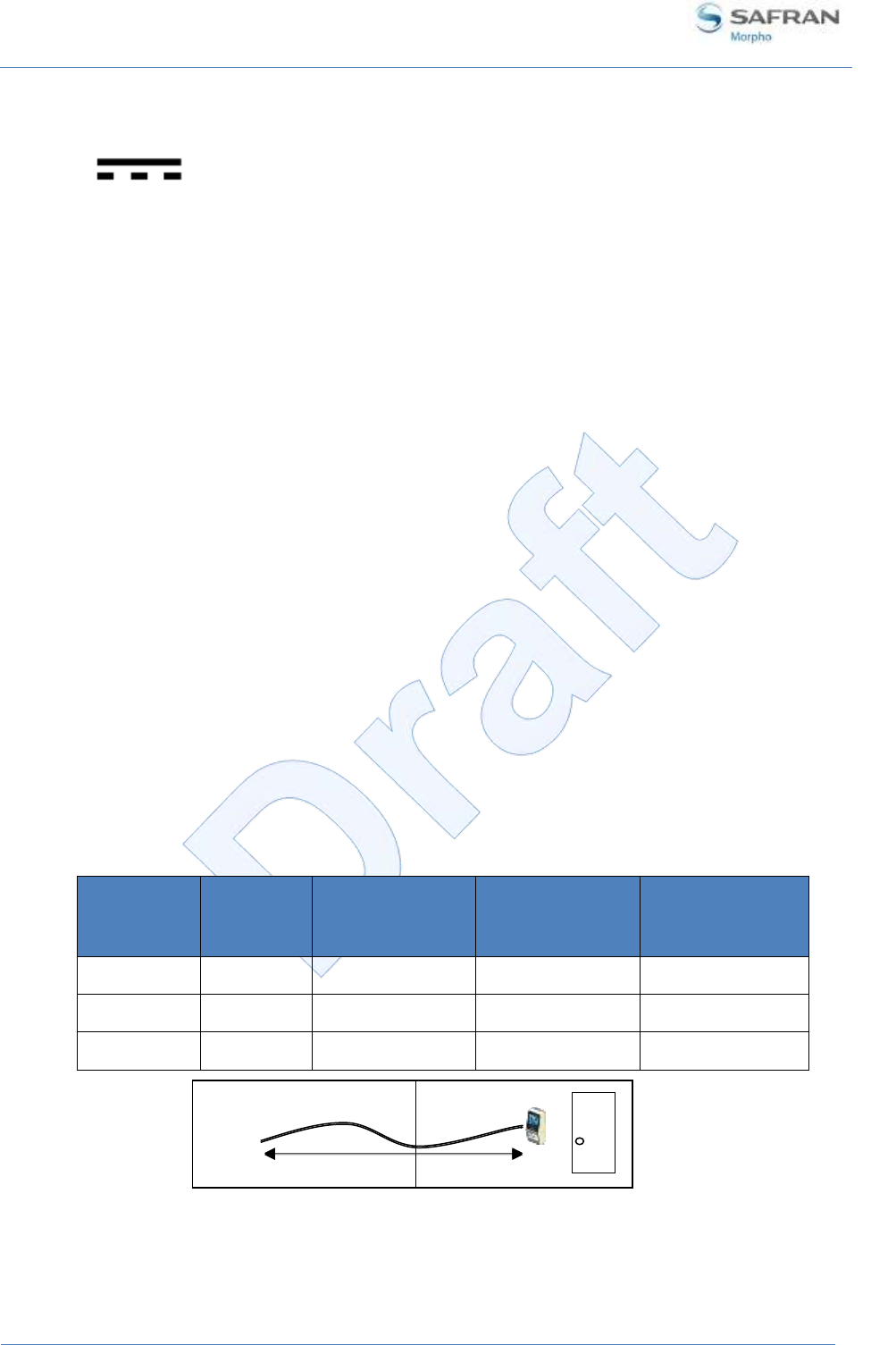

Safety Instructions
means Direct Current (DC)
The installation of this product should be made by a qualified service Person and
should comply with all local regulations.
It is strongly recommended to use a class II power supply at 12VDC-24VDC and 1A
minimum (at 12VDC) in conformity with Safety Electrical Low Voltage (SELV). The
power supply cable length should not exceed 10 meters.
This product is intended to be installed with a power supply complying with
IEC60950-1, in accordance with the NEC Class 2 requirements; or supplied by a listed
IEC60950-1 external Power Unit marked Class 2, Limited Power source, or LPS and
rated 12VDC, 1A minimum or 24VDC, 0,5A minimum.
In case of building-to-building connection (power source in a building, and terminal in
another building), it is recommended to connect the 0V of the power supply to the
earthing system of the building. And the terminal block Power Ground must be
connected with the earthing system of the other building.
Note that all connections of the MorphoAccess® SIGMA Lite Series terminal described
hereafter are of SELV (Safety Electrical Low Voltage) type.
Wiring Recommendations
Morpho recommends using a gauge AWG20 for 12VDC power supply (when the
terminal is not powered using POE feature).
The voltage must be measured on the product block connector and must be equal to
12VDC-24VDC (-15% / +10%)
For information, this table shows the maximum drop voltage observed on the
terminal MorphoAccess® SIGMA Lite Series, depending on the length of the cable:
Gauge AWG
Diameter
(mm)
Maximum drop
voltage @ 1m
(V)
Maximum drop
voltage @ 5m (V)
Maximum drop
voltage
@ 10m (V)
20
0.81
0.03
0.17
0.33
22
0.64
0.05
0.26
0.53
24
0.51
0.08
0.42
0.84
Drop voltage = loss of power due to wire resistance and its length:
V2 = V1 – Drop voltage
V1
V2
L
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 1 : Introduction
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
12
June 2015
Regulations
Europe information
MorphoAccess® SIGMA Lite Series are intended to be used for professional
application only (buildings, airport...).
Residential usage isn’t on application domain of these products.
Morpho hereby declares that the MorphoAccess® SIGMA Lite Series terminal has
been tested and it complies with following listed standards:
EMC Directive 2004/108/CE – Class A
R&TTE Directive (1999/5/CE).
ROHS Directive 2011/65.
Note: European Directive ErP isn’t applicable
USA information
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Responsible Party:
Morpho
11, boulevard Gallieni
92130 Issy-les-Moulineaux – France
NOTA : This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 1 : Introduction
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
13
June 2015
Consult the dealer or an experienced radio/TV technician for help.
Shielded cables must be used with this unit to ensure compliance with category B FCC
restrictions.
Canada information
WARNING TO USERS IN THE CANADA / ATTENTION POUR LES UTILISATEURS AU
CANADA
This device complies with Industry Canada license-exempt RSS standard(s), and with
ICES 003 standard for version(s) without RFID reader. Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada.
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communication.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 1 : Introduction
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
14
June 2015
Recommendations for terminal implementation
Every installation is unique. Sometimes the issues are well defined and can be
handled in a standard fashion; sometimes the issues are very specific and may not be
immediately recognizable.
Morpho recommends following these steps for a successful installation:
Plan the installation - Choose the type of hardware required, decide if a network
is required, and decide on the location and number of required terminals.
Unpack all items - Unpack all items and check against the packing list.
Install network hardware components - Install the cabling and components
needed to run the system.
Install software - Install the software needed to set up the terminals.
Pre-configure device - Connect the terminals to the Ethernet, supply power to the
terminals, and pre-configure the terminals.
Mount devices - Mount the terminals in their final locations
Power distribution and device hook up - Connect the terminals wiring via the
back panel.
Power-up procedure - Check the power connections, and then start the system
safely.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 1 : Introduction
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
15
June 2015
To secure properly an access, Morpho recommends installing the MorphoAccess®
SIGMA Lite Series terminal as a part of the typical Access Control environment, as the
one described in the figure below.
Figure 1: Implementation Recommendations
This environment comprises:
The MorphoAccess® SIGMA Lite Series terminal itself
Its role is to perform one-to-many biometric identification or one-to-one biometric
verification, i.e. to identify the individual who is presenting his finger on the terminal
sensor by comparing his biometric data with the references previously stored in the
terminal database (in the form of biometric templates) or to verify his identity using
the reference stored in a contactless card presented to the terminal.
An Access Controller (3rd party product)
The Controller is the element which controls the access rights of the individuals to the
secured area. For that reason, it must be located in the secured area.
ACCESS CONTROL
SYSTEM
(*) OR EQUIVALENT
NON SECURED
AREA
ACCESS
CONTROLLER
TCP/IP, Wiegand, Dataclock or RS485
ELECTRIC
LATCH (*)
SECURED
AREA
Dry Contact
MorphoAccess®
SIGMA Lite
Terminal
Dry Contact
ALARM
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 1 : Introduction
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
16
June 2015
The individuals who are authorized to access the secured area have their User ID
listed in a so-called "White List" (in contrast with a black list).
The MorphoAccess® SIGMA Lite Series terminal and the Controller are
communicating using one of the available protocol (TCP/IP, Wiegand or Dataclock, or
RS485). The typical process is described below:
After access request, and local checks, the MorphoAccess® SIGMA Lite Series
terminal sends the User ID, and the result of local checks, to the Controller
The Controller performs additional checks, and sends its decision to the
MorphoAccess® SIGMA Lite Series terminal (which displays access granted or
access denied depending on the answer), and to the electric latch of the door
(though a door controller) if access is granted to the user
The MorphoAccess® SIGMA Lite Series terminal sends an alarm signal to the
Controller as soon as a malicious operation is detected (terminal pulled out from
the wall or opened); please refer to the paragraph dealing with anti-pulling and
anti-tamper switches for more explanations.
The Controller is part of the global Access Control System of the secured area, which
can provide useful features such as manage:
white lists (i.e. for VIP),
black lists (i.e. for lost user cards),
an access request log (who and when, access granted or denied,..),
an event log (i.e. tamper detection, access control for evacuation of the
building,...).
The MorphoAccess® terminal is able to work alone, without Controller, but the
protection level of the secured area is lower.
An Alarm (3rd party product)
This element is connected to the MorphoAccess® SIGMA Lite Series terminal through
a dry contact.
The MorphoAccess® SIGMA Lite Series terminal sends the command to activate the
Alarm as soon as a malicious operation (terminal pulled out from the wall or having
its bottom cover opened out of maintenance operations) is detected; please refer to
the paragraph dealing with anti-pulling and anti-tamper switches for more
explanations.
A Door Electric Latch or equivalent (3rd party product)
The activation of this element, open the door or the gate, to provide the physical
access to the protected area. The Controller is the one which sends the command to
activate the latch if access is granted (i.e. if the individual's User ID is listed in the
Controller White List). Connection between these two elements is done through a dry
contact.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 2 : General Description
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
17
June 2015
Section 2 : General
Description
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 2 : General Description
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
18
June 2015
Box opening
At the box opening, components shall be extracted from the protection casing as
depicted in the pictures below.
Extract the wall plate (which is not screwed to the terminal) and keep it separate until
the installation of the terminal is completed. The screwing of the product to the wall
plate is the last stage of the installation.
The protection accessory provided is optional: it is recommended in case of outdoor
installation (to protect biometric module against dust, rain and direct sun rays).
Figure 2: Box Opening
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 2 : General Description
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
19
June 2015
Components of the initial package
Figure 3: Box Content
1. One (1) Terminal’s body
2. One (1) Wall frame
3. One (1) Pre-wired back door
4. One (1) Protection accessory (optional) to insert over the biometric sensor
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 2 : General Description
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
20
June 2015
Terminal's front view description
Figure 4: MorphoAccess® SIGMA Lite Series terminal front view
Contactless card area
Logo on cover when
available
Buzzer
Optical biometrical
sensor
USB port (for
configuration and
settings with a USB
mass storage)
Sensor protection
cap (optional)
2.8" WVGA touch-
screen (Lite+ model)
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 2 : General Description
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
21
June 2015
Terminal's rear view description
Figure 5: MorphoAccess® SIGMA Lite Series terminal rear view
Terminal
blocks
USB port (for installation of an
optional Wi-Fi™ USB dongle)
Anti-tamper / Anti-
pulling switches
RJ-45 female
connector
Internal Relay
Wiegand or
Data & Clock
RS485
& GPIO
Power supply
& Tamper Switch
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 2 : General Description
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
22
June 2015
MorphoAccess® SIGMA Lite Series Technical
Characteristics
Item
Description
Access control modes
Identification (search for fingerprint in a local database)
Authentication with contactless smartcard, with or
without fingerprint check (only if terminal is equipped
with a contactless smartcard reader)
Multi-factor: identification or authentication (only if
terminal is equipped with a contactless smartcard reader)
Proxy: the access control check is fully driven by a remote
system
Man Machine Interface
2,8” WVGA color touchscreen LCD (Lite+ model only)
Buzzer
Biometrics
Morpho Compact Biometric Module inside:
500dpi, 256 gray levels optical sensor.
FBI PIV IQS quality sensor.
False Acceptance Rate (FAR) adjustable from 1% down to
10-7%
Database capacity: 3,000 users (standard) and up to 10
000 users (with specific license).
Log capacity
100 000 records (standard) and up to 1 000 000 (with
specific license)
LAN/WLAN connection
For terminal configuration and data transfer:
Ethernet 10/100 Base T (MDI, MDI-X)
Or Wi-Fi™ Wireless LAN (option), WEP, WPA (PSK) and
WPA2 (PSK) encryption available
Either TCP, TLS or SSL protocol
RFID cards (depending
on product version)
MIFARE® 1k, 4k
MIFARE® PLUS S (SL1, SL3) 2k, 4k
DESFire® 2k, 4k, 8k
HID iCLASS® 16kb, 32kb
HID Prox
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 2 : General Description
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
23
June 2015
Serial port
The serial port supports WIEGAND, DATACLOCK (ISO2) and
RS485 protocols
Output relay switches
Access granted: 1 switch two outputs (normally “open”
and normally “closed”) (30V – 2A max)
USB host port
External port for terminal configuration through a USB
mass storage key
Internal port to connect an external Wi-Fi™ USB dongle
using an adapter cable.
Input signals
LED1/LED2 to activate the access granted relay
Power supply
12 to 24 V DC power supply (1A min @12V)
Or by Power Over Ethernet through RJ-45 connector
Power consumption
TBD
Security of the terminal
Anti-tamper-pulling switches.
Tamper-pulling detection: one relay switch.
Size and weight
W x H x D: 68mm x 156mm x 62mm
(2.68” x 6,14” x 2,44”)
Weight : 280g
Environmental
conditions
Operating temperature -10 °C to + 55 °C (14°F to 131°F)
Operating humidity 10 % < RH < 80 % (non condensing)
Storage temperature -25 °C to + 70 °C (-13°F to 158°F)
Storage humidity 5% < RH < 95 %
IP65 (once back door attached with the 4 screws)
The terminal should be installed in controlled lighting
conditions.
Avoid direct exposure to sunlight or to UV lights.
Certifications
CE, IEC6095-1, FCC Part 15, RSS210, Issue8 : 2010, RoHS,
REACh, WEEE
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 3 : Installation Procedure
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
24
June 2015
Section 3 : Installation
Procedure
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 3 : Installation Procedure
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
25
June 2015
Before proceeding to the installation
Make sure that you have all the components described in “Components of the
initial package” section at your disposal.
Remove the wall plate. Keep this element at hand.
Figure 6: Removing wall frame
It is then possible to fix wall plate on the wall.
The recommended height for fixing of the terminal is 1.40m (top of the product).
For an optimal use the terminal must be installed in an area where the
lighting conditions are controlled. Avoid direct exposure of the sensor to
the sun light.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 3 : Installation Procedure
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
26
June 2015
Installation
Required tools (not supplied)
Two (2) raw plugs + Two (2) ø 4mm max and length 30mm screws.
One (1) screwdriver adapted to screws above.
One (1) Drill (with a drill bit diameter adapted to raw plugs above).
One (1) hole saw (depending on installation case).
A (1) Torx T10 screwdriver
Deadbolt/door strike

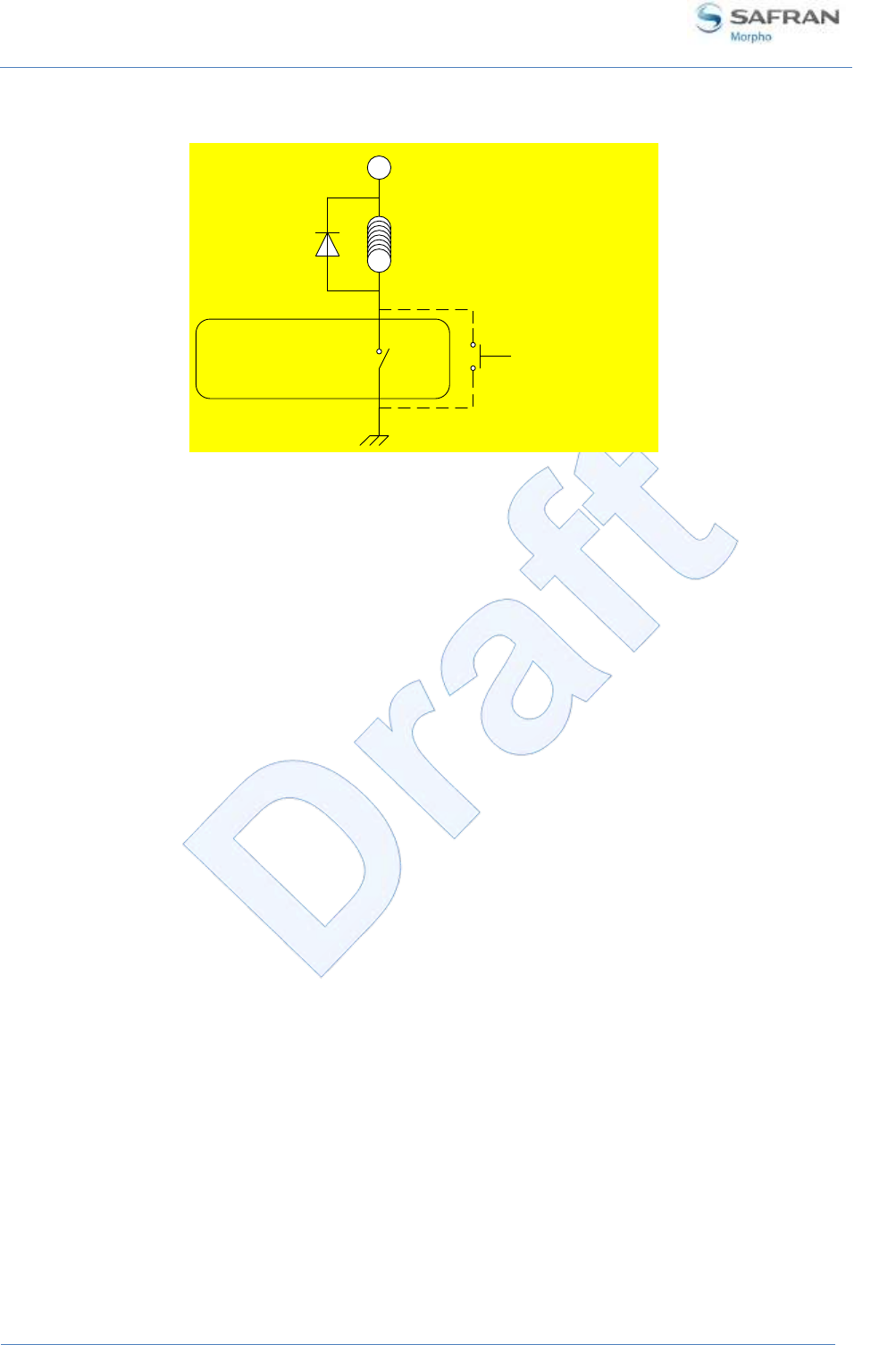

Snubber diode required to protect regulated DC power supply from inductive
kickback (1N4007 diode or equivalent recommended)
Separate power supply for the deadbolt/door strike based on supplier's
recommendations.
External relay (if required)
Networking cable
For UL-294 compliance, an earthed screen in the wire or around all wires to/from
product is only required when the wires share space/compartment/tube with high
voltage cables.
Equipment from the initial package to use
One (1) Terminal’s body,
One (1) pre-wired back door,
One (1) wall plate,
One (1) Protection accessory (optional) to insert over the biometric sensor
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 3 : Installation Procedure
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
27
June 2015
Step by step procedure
The recommended height for fixing of the terminal is 1.40m (top of the product).
For an optimal use the terminal must be installed in an area where the
lighting conditions are controlled. Avoid direct exposure of the sensor to
the sun light.
Power supply from electrical source shall be switched off before starting
the installation.
The strength of the attachment depends on the solidity of the wall on
which the terminal is mounted.
To ensure water tightness, the pre-wired back door has to be attached to
the product with the 4 screws (refer to corresponding picture for process).
Drilling the mounting holes
Figure 7: Drilling template
60,1mm
Scale 1.0
Φ = 4mm
83,3mm
7,45mm
1400mm
40mm min
Ø46mm max
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 3 : Installation Procedure
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
28
June 2015
If not present, drill in the wall a hole with a diameter adapted to the width of the
terminal and the cable to be hosted in (see Figure 7: Drilling template. This template
at scale 1:1 can be found in the Quick Installation Guide).
Confirm the presence inside the hole of all the cables needed for the electrical
installation (see Electrical Interface)
Drill in the wall 2 holes with a diameter adapted to screws and fit them with the raw
plugs (see Figure 7: Drilling template).
Fixing
Be sure that a sufficient space is reserved in the wall for the passage of
cables, in particular for Ethernet cable and plug, and also for the Wi-Fi
dongle (if applicable).
Figure 8: Wall plate fixing
Place the wall plate against the wall, opposite the four holes pierced in the wall (see
Figure 8: Wall plate fixing).
Cabling
Cable for wiring shall be AWG 20 to 24, length shall be adapted to the size of the hole
in the wall, to terminal connections, and to the distant between the electric source
and the terminal itself.

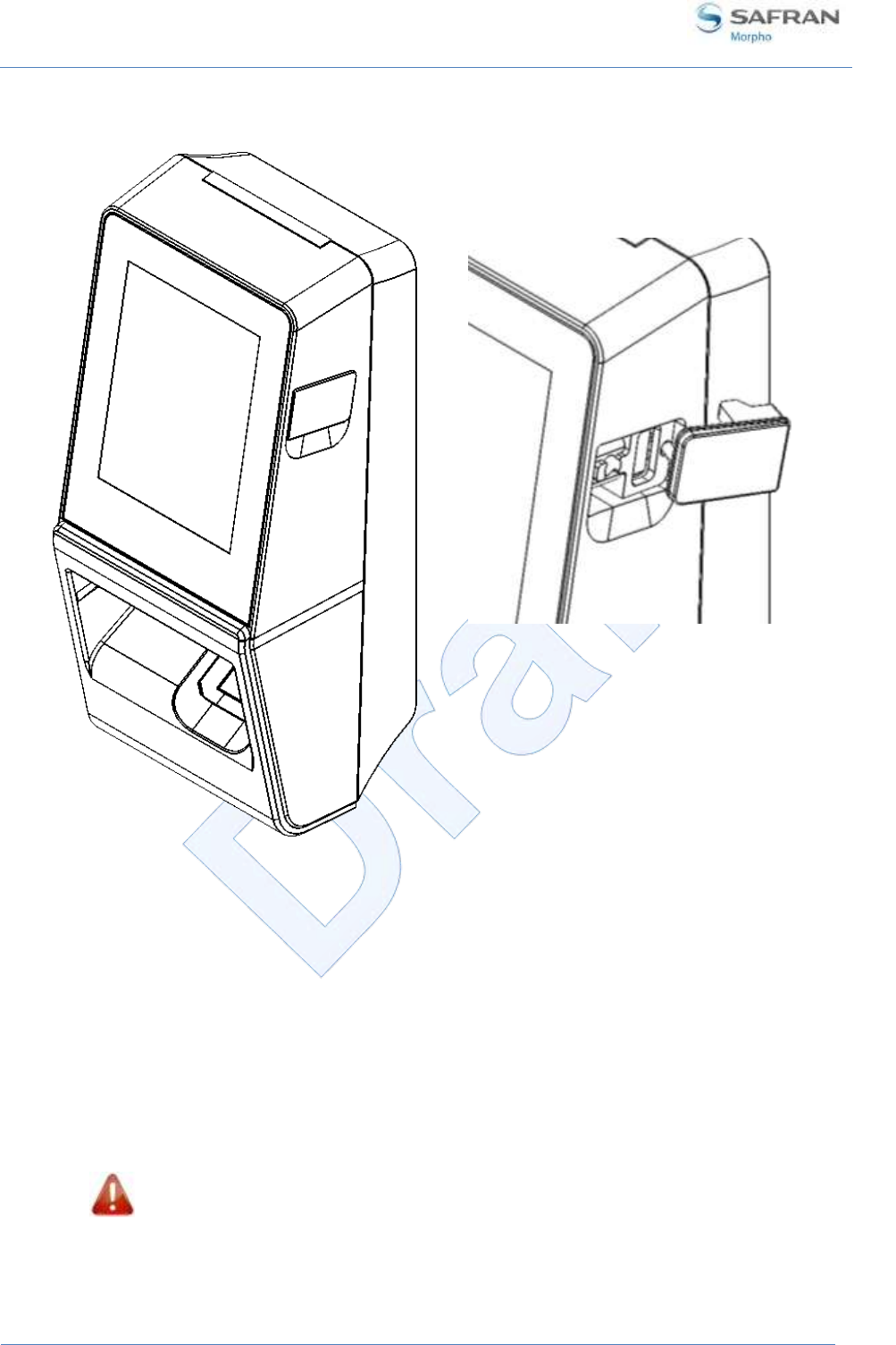

Closing
Power has to be set up just after closing it. If product has to be stored for a long time
(more than 48 hours), don’t forget to restore its configuration before use.
Finally, lock the product with the screw at the bottom of the terminal.
!
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
29
June 2015
Section 4 : Electrical
Interface
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
30
June 2015
Wiring overview
Before proceeding, make sure that the person in charge of installation and
connections is properly connected to earth, in order to prevent
Electrostatic Discharges (ESD).
Power supply ground shall not be used for peripheral ground. All other
grounds can be used indifferently.
Note that all connections of the MorphoAccess® SIGMA Lite Series terminal described
hereafter are of SELV (Safety Electrical Low Voltage) type.

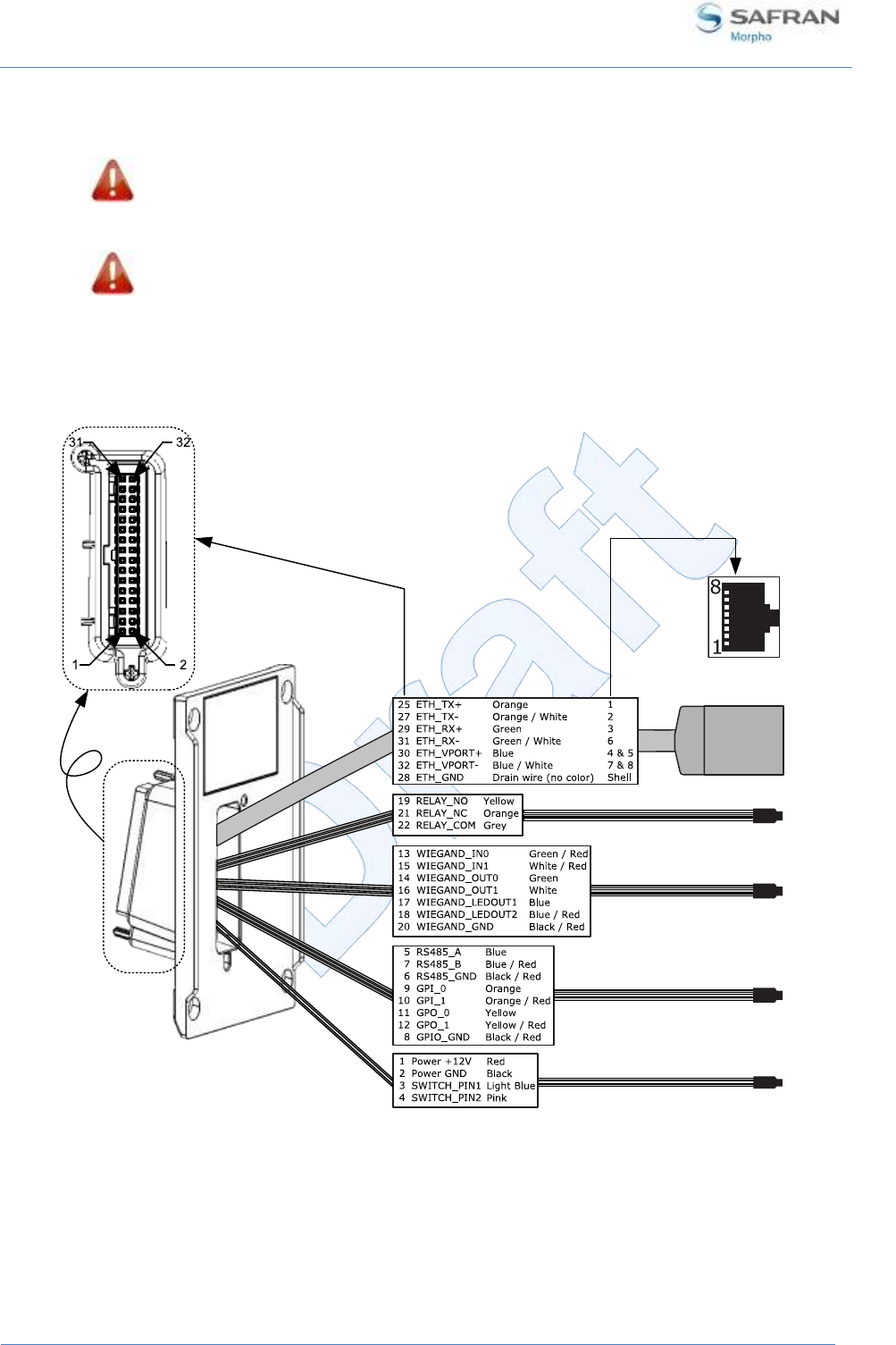

Figure 9: Cabling layout
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
31
June 2015
Power Supply
POE and external power supply can be used simultaneously, but when both power
supplies are available, priority is given to external power supply. If the external power
supply fails or is shut down, the terminal will go off and then restart using POE.
External Power supply

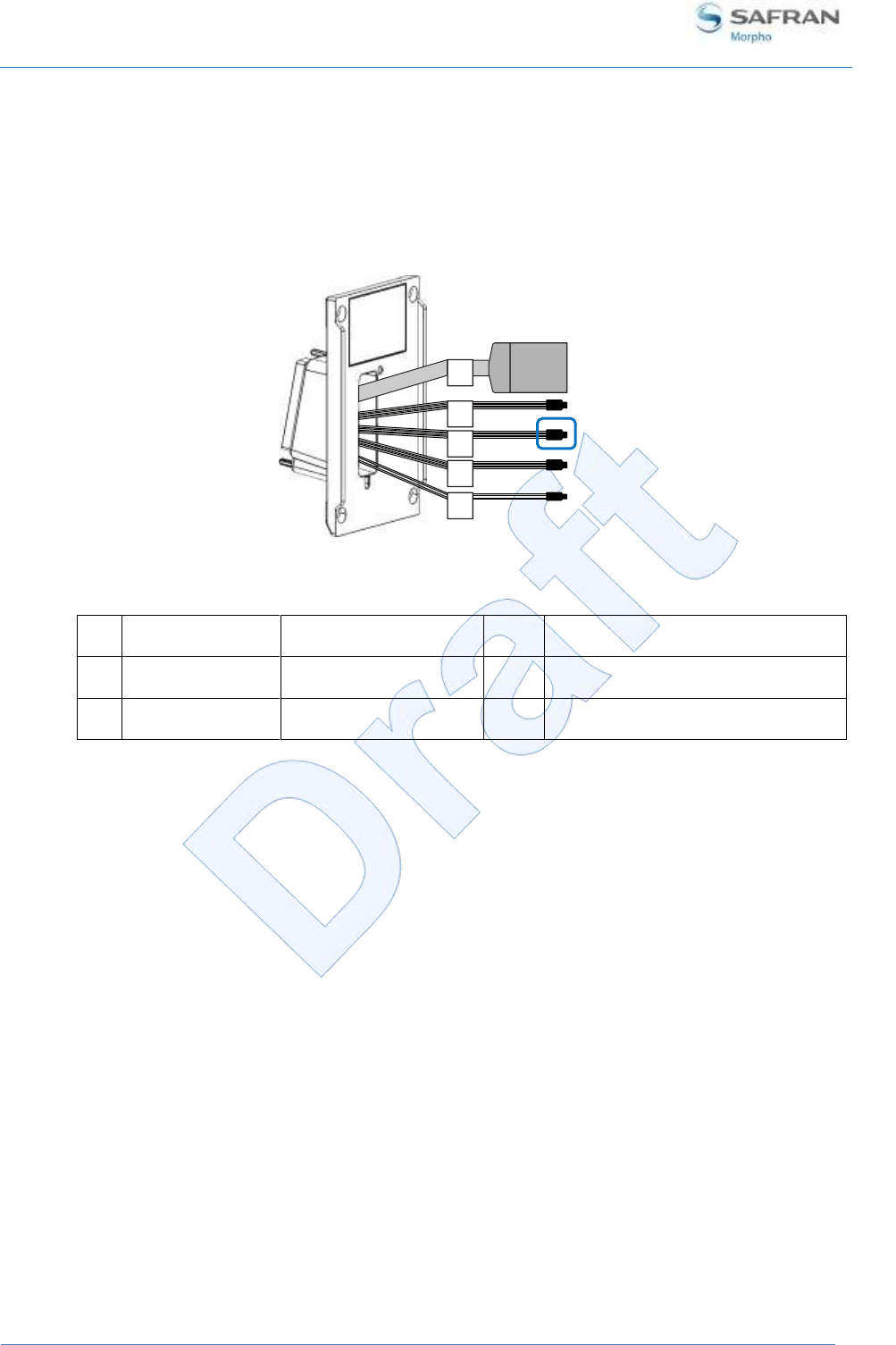

Figure 10: Power supply wiring
1
Red
Power Supply 12-24V DC
In
Positive 12-24 Volts, power supply
2
Black
Power ground
In
Ground power supply
External power supply
Must comply with IEC 60950-1 standard.
12V to 24V Dc (regulated and filtered) 1 Amp min at 12V.
Could be provided by a 12 Volts Wiegand power supply, which complies with the
Security Industry Association's Wiegand standard March 1995.
If sharing power between devices, each unit must receive 1A (e.g. two units would
require a 12vDC, 2A supply)
POE (Power Over Ethernet)
MorphoAccess® SIGMA Lite Series terminal's power supply can also be provided by
the Ethernet using RJ45 connection (Power Over Ethernet mode - IEEE802.3af or
IEEE802.3at type 1 compliant).
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
32
June 2015

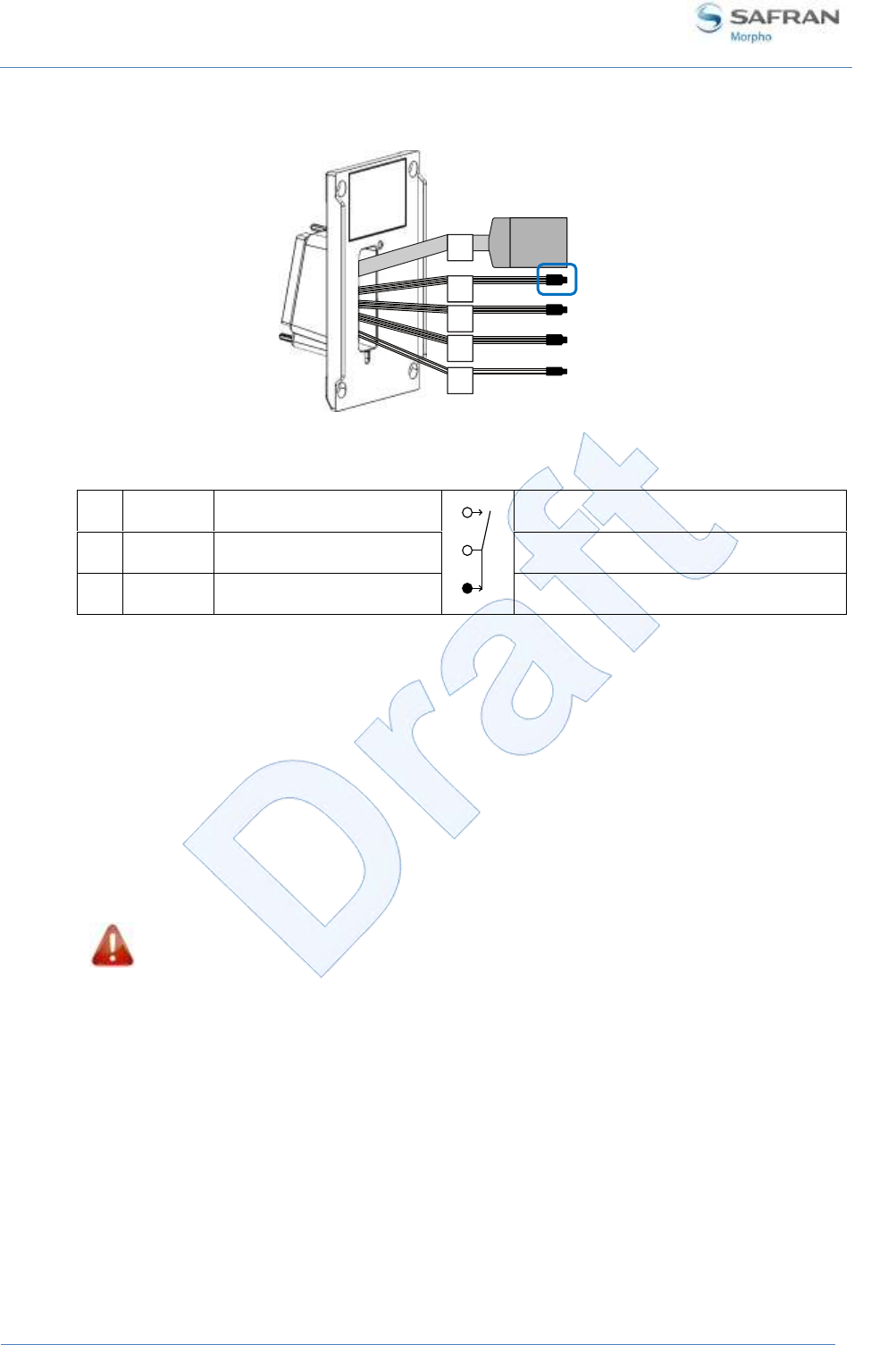

Output Relay
Figure 11: Output relay wiring
19
Yellow
Relay NO
Contact relay (normally open)
22
Grey
Relay COM
Contact relay common
21
Orange
Relay NC
Contact relay (normally closed)
Nominal characteristics of relay
Load characteristics:
1 A max @ 30 VDC (according to the safety extra low voltage requirements
independently of the power supply),
Resistive load or inductive load; see warning information hereafter for inductive
load.
The internal relay is designed for at least 100 000 cycles.
Inductive load management requires a parallel diode for a better contact
lifetime.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
33
June 2015

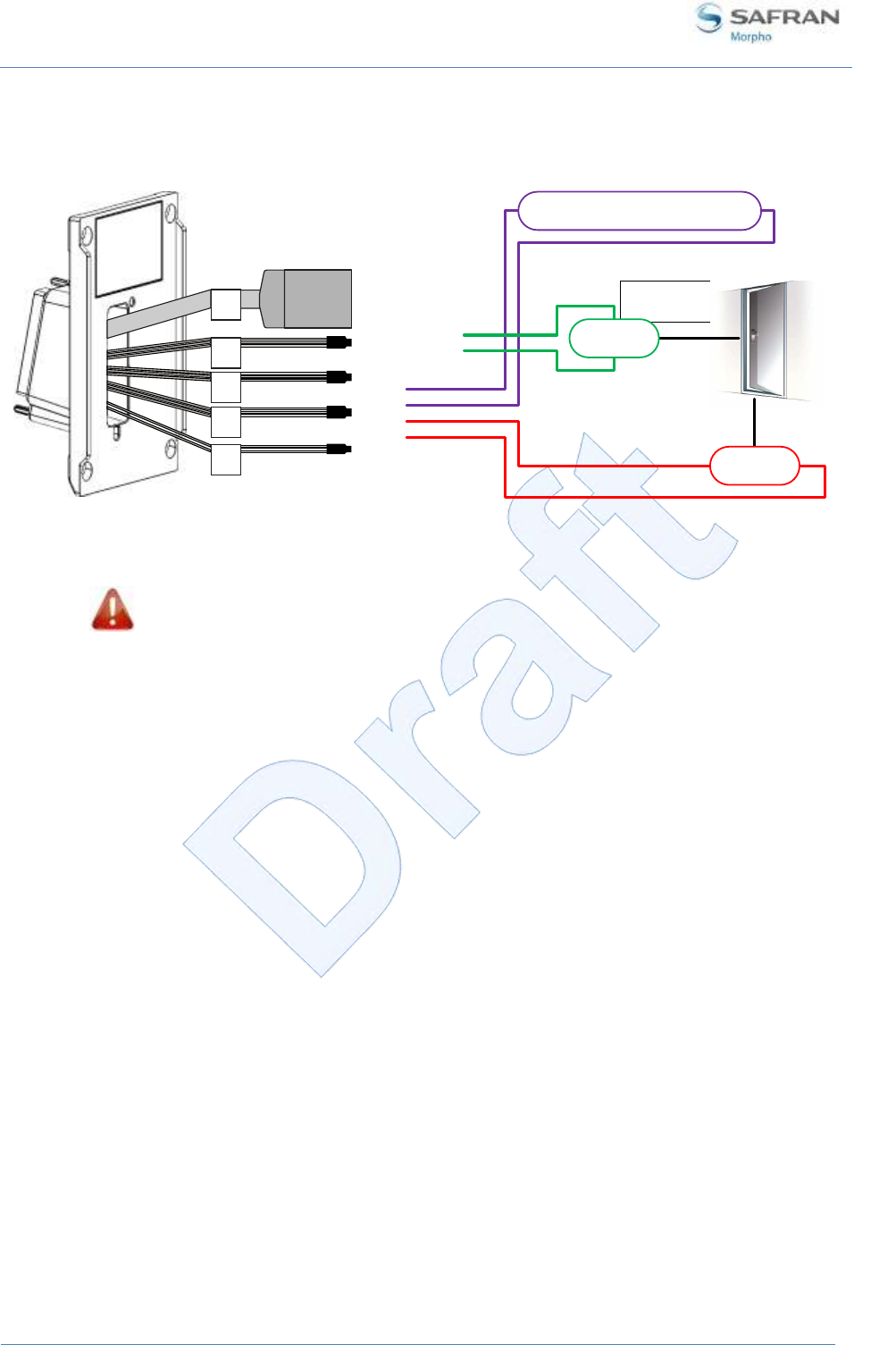

Example of connection for electrical door locks
Figure 12: Example of electric latch connection
+VCC <30V
Imax < 2A
Electric
door lock
Overswing
diode
MorphoAccess®
SIGMA Terminal
Button on other
side of the door
Relay
Pin 1
Relay
Pin 2
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
34
June 2015

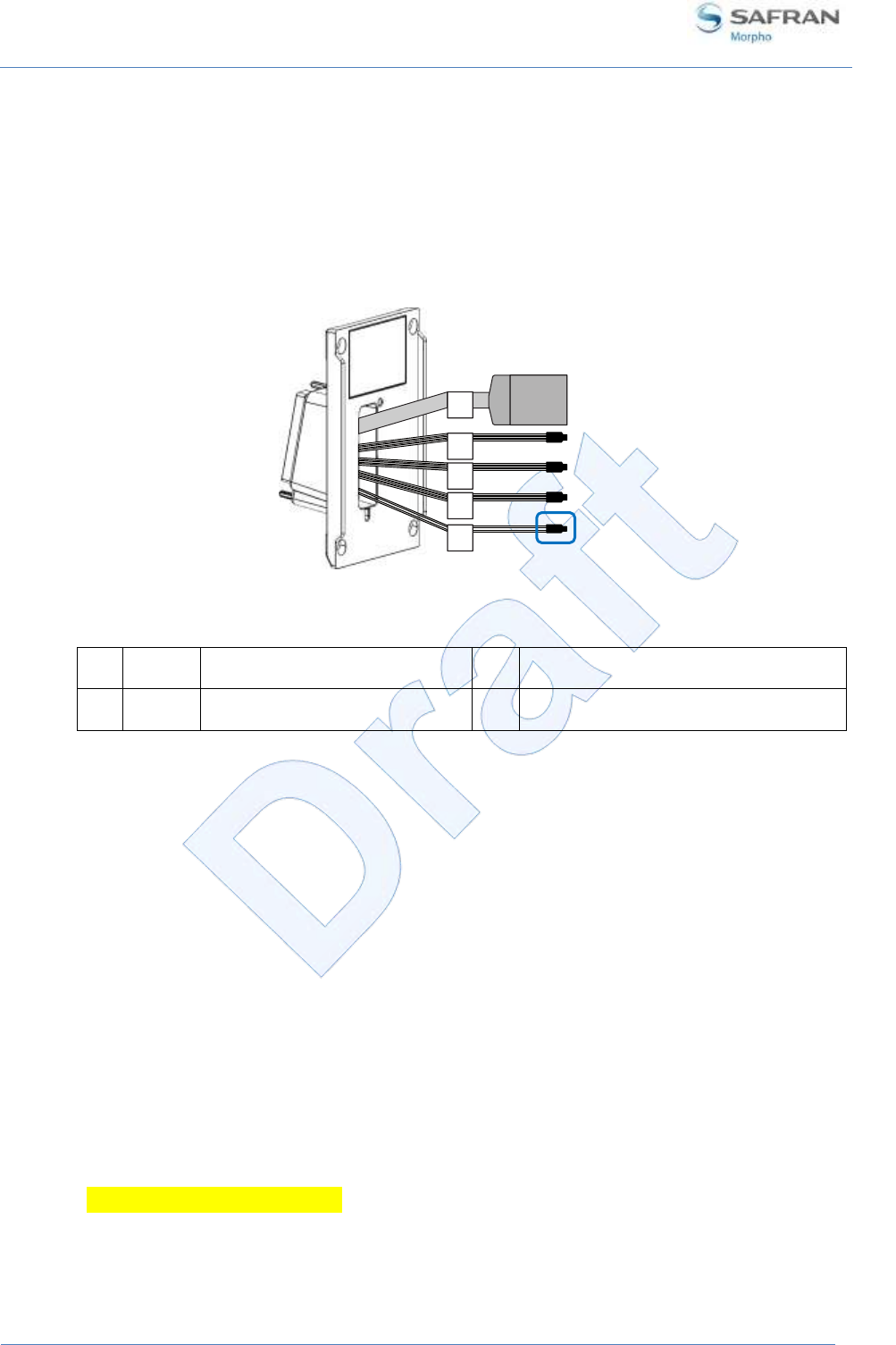

Tamper Switch

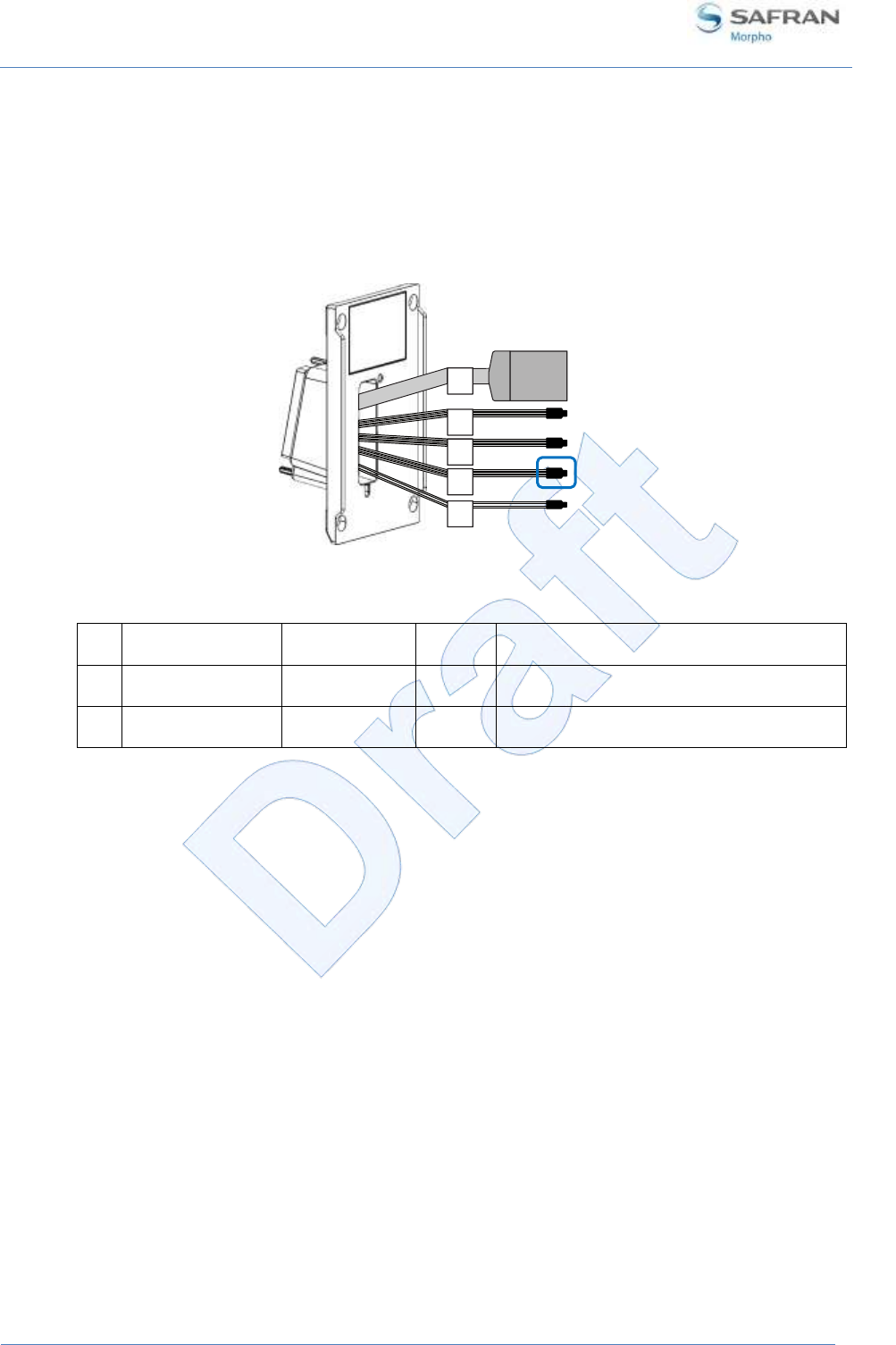

Figure 13: Tamper switch wiring
3
Light Blue
Switch 1
Tamper switch contact
4
Pink
Switch 2
Strip on tamper switch
Operating principle for the switch
Product installed on the wall plate: switch enabled (contact closed).
Product opened (rear connectors accessible): switch disabled (contact open).
Nominal characteristics of switch block
Electrical characteristics: 100 mA at 30 VDC max (Resistive load) according to the
safety extra low voltage standard.
This MorphoAccess® SIGMA Lite Series terminal is part of security system;
it is customer’s responsibility to connect the tamper switch (contact) to
physical access controller, in order to detect unauthorized access to the
connector blocks.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
35
June 2015

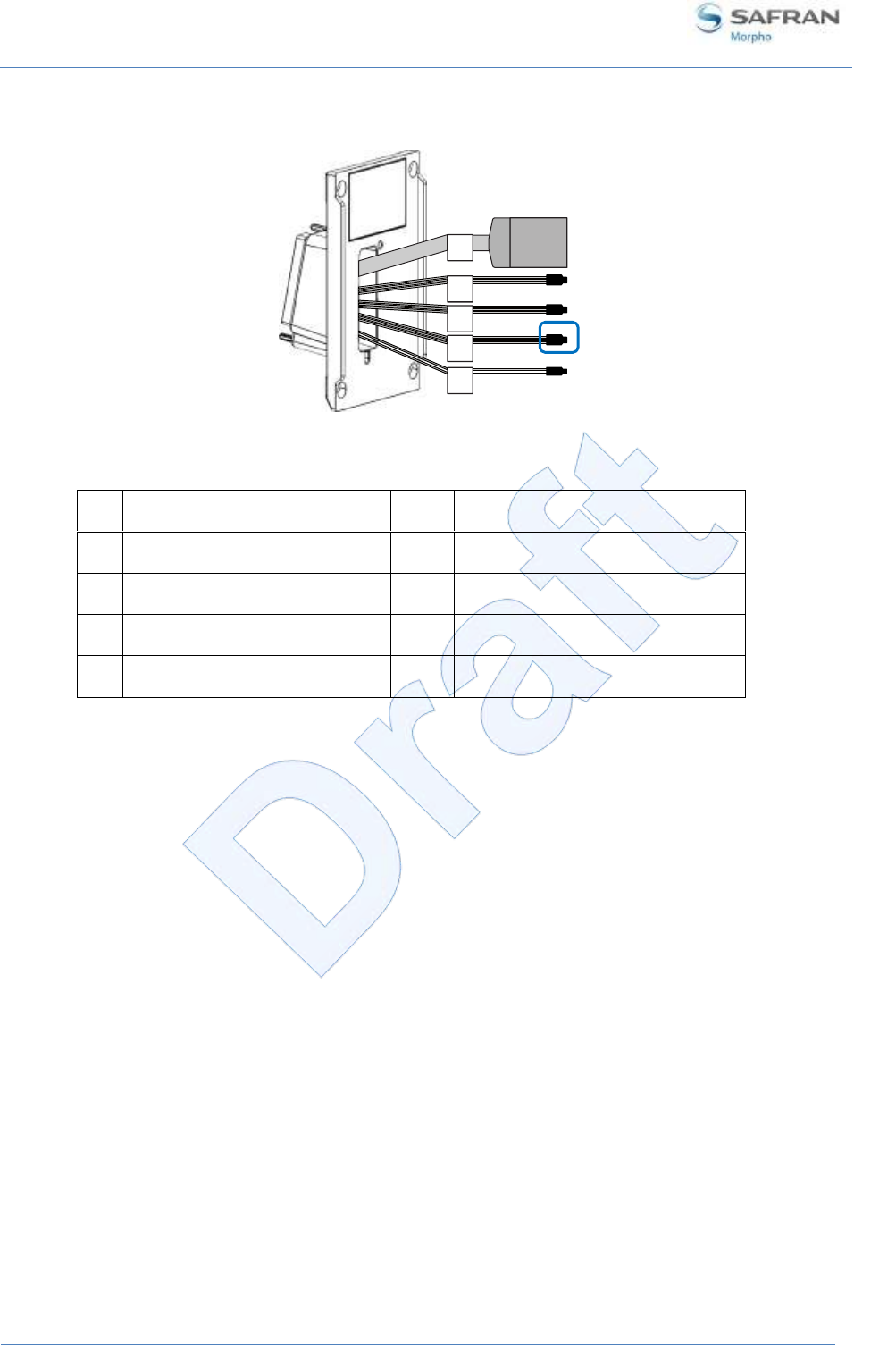

Wiegand port wiring
Wiegand input wiring
The following figure shows how to cable the wires of the “Wiegand In” port of the
terminal for Wiegand protocol. This is used, for instance, to connect an external card
stripe reader to the MorphoAccess® SIGMA Lite terminal.

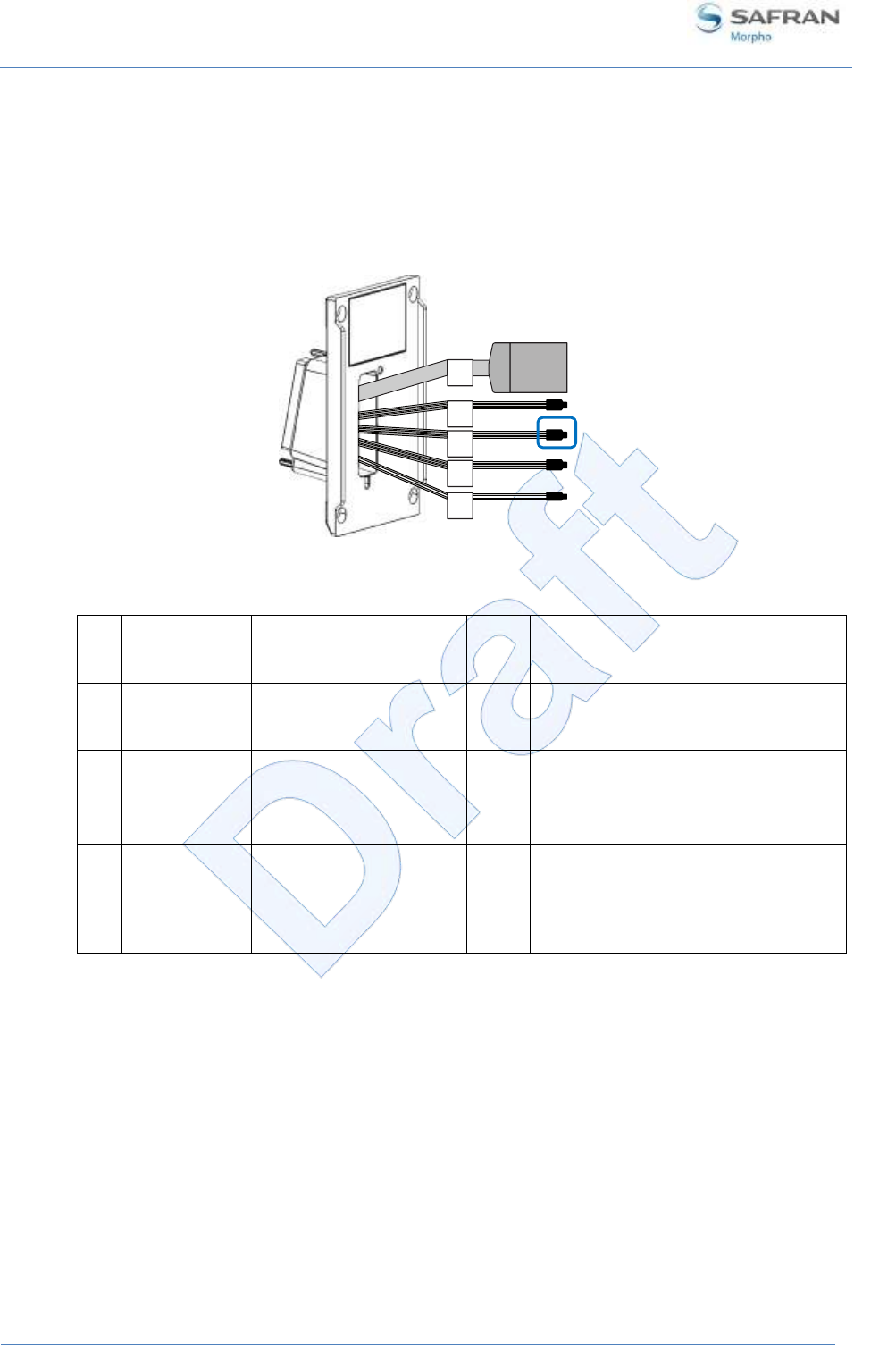

Figure 14: Wiegand input wiring
13
Green / Red
WIEGAND_IN0
In
Wiegand IN D0
(Output type required: Open drain
or 5V+/-5%)
15
White / Red
WIEGAND_IN1
In
Wiegand IN D1
(Output type required: Open drain
or 5V+/-5%)
11
Yellow
GPO0
(WIEGAND_LEDIN)
Out
Wiegand LEDIN (typical = 5VDC)
(option)
20
Black / Red
WIEGAND_GND
Ground for Wiegand
If pull-up’s to 12V have been added on D0_IN and D1_IN inputs on a
previous installation with a MorphoAccess® 500 Series terminal, these
resistors must be removed to avoid any damage to the MorphoAccess®
SIGMA Lite Series terminal.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
36
June 2015

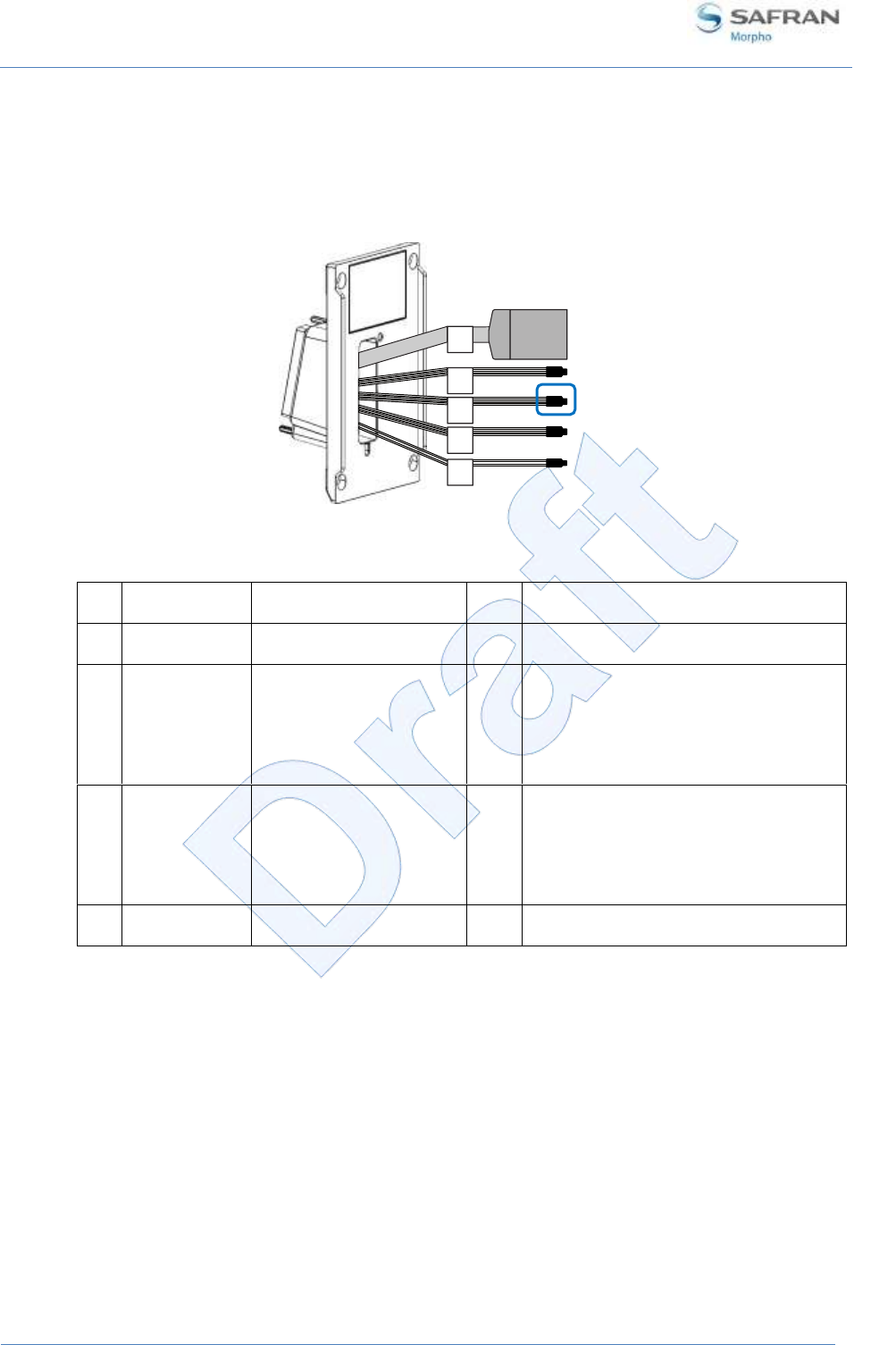

Wiegand output wiring
The following figure shows how to cable the wires of the Wiegand OUT port of the
terminal for Wiegand protocol. This is used, for instance, to connect the
MorphoAccess® SIGMA Lite terminal to an Access Control Panel (ACP).
Figure 15: Wiegand output wiring
14
Green
WIEGAND _OUT0
Out
Wiegand OUT D0 (5V TTL)
16
White
WIEGAND _OUT1
Out
Wiegand OUT D1 (5V TTL)
17
Blue
WIEGAND_LEDOUT1
In
Wiegand LED IN 1 (option): panel
feedback
(Output type required: Open drain
or 5V+/-5%)
18
Blue / Red
WIEGAND_LEDOUT2
In
Wiegand LED IN 2 (option): panel
feedback
(Output type required: Open drain
or 5V+/-5%)
20
Black / Red
WIEGAND_GND
Ground for Wiegand
The use of LED IN 1 and LED IN 2 wires is described in the paragraphs below.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
37
June 2015
The controller supports neither LED1 nor LED2 signals
When the access controller has no relay contact to provide an answer to the
MorphoAccess® terminal, then the decision to emit either the “access granted” signal
or the “access denied” signal is taken by another way. It is either the MorphoAccess®
terminal itself that decide, or it waits for the access controller answer through the
local area network (TCP), or on the RS-485 serial port.
It is strongly recommended to disable the LED IN feature, to avoid any interference
on MorphoAccess terminal behavior.
The controller supports only LED1 signal
When the access controller has only one relay contact which is dedicated to the
“access granted” answer, this one must be connected between the LED1 and GND
wires. The LED1 wire is set to the low level by closing the contact between the LED1
and the GND wires, and it means “access granted”.
The MorphoAccess® terminal uses the timeout of the wait for a low level on the on
LED1 wire or LED2 wire as “access denied” answer.
To minimize at most the waiting time of the user, the MorphoAccess® SIGMA Lite
Series terminal timeout value, must be adjusted to a value a little bit higher than the
maximal value of the controller response time.
Warning: if the LED2 wire is connected, it must be constantly maintained in the high
state.
The controller supports LED1 and LED2 signals
When the controller supports one relay contact for each of the possible answers
then:
The « access granted » contact must be connected between the LED1 and the GND
wires of the terminal
The « access denied » contact must be connected between the LED2 and the GND
wires of the terminal.
The MorphoAccess® terminal considers that:
The answer of the controller is "access granted", when the controller puts the
LED1 wire to the low state (by closing a contact between the LED1 and the GND
wires), and leaves the LED2 wire to the high state.
The answer of the controller is "access denied", when the controller puts the LED2
wire to the low state (by closing a contact between the LED2 and the GND wires),
whatever is the state of the LED1 wire.
The MorphoAccess® terminal also considers that the answer of the controller is
"access denied" in case of time-out while expecting for a closure between LED1 and
GND wires, or between LED2 and GND wires.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
38
June 2015
Data Clock Input
The following figure shows how to cable the wires of the “Wiegand In” port of the
terminal for Data Clock protocol. This is used, for instance, to connect an external
card stripe reader to the MorphoAccess® SIGMA Lite terminal.
Figure 16: Wiegand port wiring – DataClock
13
Green / Red
WIEGAND_IN0
In
Data (Output type required:
Open drain only)
15
White / Red
WIEGAND_IN1
In
Clock (Output type required:
Open drain only)
17
Blue
WIEGAND_LEDOUT1
Out
Card present signal (if configured,
only one selectable for Morpho
Legacy)
18
Blue / Red
WIEGAND_LEDOUT2
Out
Card present signal (if
configured)
20
Black / Red
WIEGAND_GND
Ground for Wiegand
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
39
June 2015
Data Clock Output
The following figure shows how to cable the wires of the Wiegand OUT port of the
terminal for Data Clock protocol. This is used, for instance, to connect the
MorphoAccess® SIGMA Lite terminal to an Access Control Panel (ACP).
Figure 17: Wiegand port wiring – Data Clock
17
Blue
WIEGAND_LEDOUT1
Out
Data ( 5V TTL )
18
Blue / Red
WIEGAND_LEDOUT2
Out
Clock ( 5V TTL )
20
Black / Red
WIEGAND_GND
Ground for Wiegand
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
40
June 2015
RS-485 port wiring
The following figure shows how to cable the wires of the RS-485 OUT port of the
terminal (RS-485 protocol). This is used, for instance, to connect the MorphoAccess®
SIGMA Lite terminal to an Access Control Panel (ACP).
Figure 18: RS-485 port wiring – RS485
5
Blue
RS485_A
In/Out
RS485 Rx/Tx non inverting signal
7
Blue / Red
RS485_B
In/Out
RS485 Rx/Tx inverting signal
6
Black / Red
RS485_GND
Ground
RS485 implementation is limited to half-duplex communication. So only Tx+, Tx- and
ground reference signals are necessary.
Depending on the RS485 network, an impedance adaptation may be required.
For farthest terminal, a 120-Ohms resistor termination may be added outside the
terminal between Tx+ and Tx-.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
41
June 2015
GPIO wiring
Figure 19: GPIO wiring
9
Orange
GPI_0
In
Digital Input (1,8V to 5V)
10
Orange / Red
GPI_1
In
Digital Input (1,8V to 5 V)
11
Yellow
GPO_0
Out
Digital Output (5V – 5mA max)
12
Yellow / Red
GPO_1
Out
Digital Output (5V – 5mA max)
8
Black / Red
GPIO_GND
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
42
June 2015
Single Door Access Control (SDAC) implementation
Figure 20: SDAC wiring
If door contact is not used, GPI1 and GPO1 shall be connected together
External Power
supply
GPI_1
GPO_0
Push button /
Motion sensor
GPI_0
GPO_1
RELAY_COM
RELAY_NO/NC
Door
contact
Door
strike
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
43
June 2015
Ethernet connection
Ethernet interface can be used to power the MorphoAccess® SIGMA Lite Series
terminal through POE (Power Over Ethernet - IEEE802.3af or IEEE802.3at type 1
mode). According to the POE standard two modes are available: power on data pins
and power on dedicated pins.
Use either one of these modes depending on POE implementation on your local
Ethernet network.
Wi-Fi™ dongle must not be used with POE power supply. The POE doesn’t
provide enough power for both the terminal and the Wi-Fi USB dongle.
Ethernet cable shall be shielded
Default Ethernet configuration
By default, MorphoAccess® SIGMA Lite Series terminal is configured in DHCP mode
Recommendations for RJ45 wiring
Pin
1
2
3
4
5
6
7
8
Signals
Data pair
1
Data pair
1
Data pair
2
NC/POE pin
dedicated (+)
NC/POE pin
dedicated (+)
Data
pair 2
Ground/ pin
dedicated (-)
NC/POE pin
dedicated (-)
EIA / TIA
T568B Colors
White
orange
Orange
White
green
Blue
White blue
Green
White brown
Brown
EIA / TIA
T568A Colors
White
green
White
green
White
green
White green
White green
White
green
White green
White green
Corel L120
Colors
Grey
White
Pink
Orange
Yellow
Blue
Purple
Brown
Figure 21: RJ45 wiring
RJ45 plug pinout is compliant with 10/100 base T, IEEE802.3 Specification. Product is
compliant also with MDI or MDI-X.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
44
June 2015
External USB connection
Figure 22: External USB connection
The external Micro USB port can be used to connect a mass storage USB key for
administration only. This requires a standard Micro USB-type A / USB-type A female
adapter or cable (which can be found in Morpho catalogue with ref 293658551).
Please report to MorphoAccess® SIGMA Lite Series Administration Guide for more
information.
USB connection is limited to USB mass storage key connection (power
consumption shall not exceed 200mA)
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 4 : Electrical Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
45
June 2015

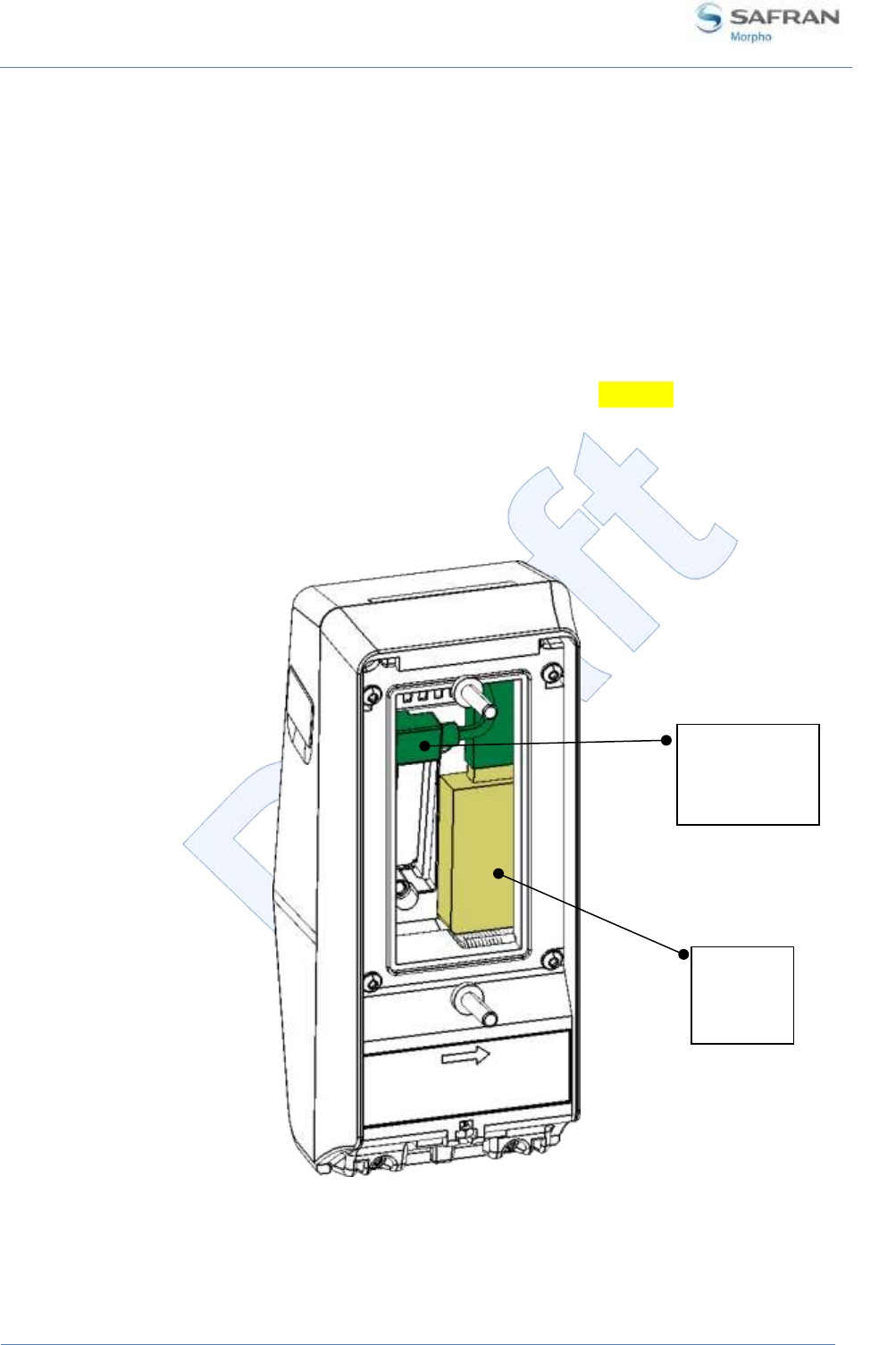

Wi-Fi™ dongle installation
Wi-Fi™ dongle shall be preferably installed outside the product (separate area shall
be reserved in the wall) and connected to the internal USB Mini B (at the rear of the
terminal) using Morpho cable provided in the kit.
Wi-Fi™ dongle shall not be exposed to temperature exceeding 50°C (don’t forget to
count the thermal dissipation of the product and of the Wi-Fi™ dongle).
Wi-Fi™ feature requires the product to be powered from an external DC 12V to 24V
power supply (the POE doesn’t provides enough power for both the terminal and the
Wi-Fi™ dongle)
Only Wi-Fi™ dongle delivered by Morpho (kit reference XXX-TBD) may be installed
with the terminal for WLAN (Wireless Local Area Network) operation.
Cable has to be plugged on the upward USB connector of the rear panel, as on the
following image:
Figure 23: Wi-Fi™ dongle installation
Wi-Fi™
USB
dongle
USB
extension
cord
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 5 : User Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
46
June 2015
Section 5 : User Interface
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 5 : User Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
47
June 2015
Modes for controlling access rights
Introduction
The MorphoAccess® SIGMA Lite Series terminal offers several methods for controlling
access rights: it needs to be configured in one of the following four modes:
Identification mode,
Authentication mode (requires a contactless smartcard reader in the terminal),
Multi-factor mode (requires a contactless smartcard reader in the terminal),
Proxy mode
Refer to MorphoAccess® SIGMA Lite Series Administration Guide for more
information on Access Control.
Identification mode
The Identification process of the MorphoAccess® SIGMA Lite Series terminal proceeds
by comparison of the biometric data of the finger placed on the biometric sensor,
with all the biometric data stored in the database.
It means that the biometric data of the allowed users must be stored in the internal
database before they can request the access on the terminal. This biometric data is
acquired either directly on the terminal (using the embedded webserver application
and the biometric sensor of the terminal), or on an enrolment system using a
biometric sensor compatible with the terminal (such as MorphoSmart™ sensors).
The access control by identification process is started when a finger is detected on
the biometric sensor
When the user requests the access, his identity is unknown, and it is the terminal that
searches for his identity. The terminal grants the access if a match is found (the user
is identified); otherwise the access is denied (the user remains unknown).
For further information, please see the "Identification mode" section in the
MorphoAccess® SIGMA Lite Series Administration Guide.
Authentication (verification) mode
Unlike the "identification" mode, the user identity must be known in order to execute
the authentication process.
Indeed, authentication is an identity verification process: the user provides his
identity and the terminal checks it with the relevant process.
This mode doesn’t compare the user’s data to the data of several users: it compares
the data provided by the user with the reference data provided by the same user
during enrollment phase. The data can be on a card presented to the terminal or in a
database and ID is provided by the user.
Access is authorized if the terminal finds a correspondence.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 5 : User Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
48
June 2015
For further information, please see the "Authentication mode" section in the
MorphoAccess® SIGMA Lite Series Administration Guide.
Multi-factor mode
In this mode, the "identification" and "authentication" modes are available
simultaneously; the user decides which control method will be used:
by placing his finger on the sensor, thereby triggering the identification process,
by placing his contactless card on the reader, thereby triggering the authentication
process,
This is the default mode for terminals fitted with a contactless smartcard reader.
For further information, please see the "Multi-factors method" section in the
MorphoAccess® SIGMA Lite Series Administration Guide.
Proxy mode
The Proxy mode is an operating mode where the access control main application is
located in a distant system. This is not a standalone mode like Identification and
Authentication modes.
It means that the terminal becomes a slave of the host system application. The access
control application is running on the host system and uses MorphoAccess® SIGMA
Lite Series terminal high level functions:
• Identification function
• Authentication function
• Read data on a contactless card
• Access control result signal command
The MorphoAccess® SIGMA Lite Series terminal is driven through an Ethernet (or Wi-
Fi™) link using TCP, SSL or TLS protocol.
The MorphoAccess® SIGMA Lite Series terminal acts as a server: it is either waiting for
a command or executing a command.
The commands allowed by the MorphoAccess® SIGMA Lite Series terminal are
described in the MorphoAccess® SIGMA Lite Series Host System Interface
Specification document.
For further details about SSL or TLS on the MorphoAccess® SIGMA Lite Series
terminal, please refer to the MorphoAccess® SIGMA Lite Series Administration Guide.
External database mode (also called polling mode)
The reference biometric templates of the users are stored in external database,
instead of terminal local database or user’s RF card.
When authentication is initiated on the terminal, the terminal will poll the user ID to
external controller. On polling out the ID, the corresponding template (if exists) is
fetched from the external database and is authenticated against user’s biometric on
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 5 : User Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
49
June 2015
the terminal. Once the template request is posted to the external database, the
terminal shall wait for the finger template from the external database to start
authentication. Further process shall be same as authentication.
Polling Process using buffer:
The user’s input ID will be queued in the terminal’s queue, which is polled by
external application.
External application waits for the User ID by polling the buffer. After getting an
user ID, it will search the template in database and send template to terminal for
further authentication.
The user is authenticated by the external device and granted access accordingly.
MorphoAccess® SIGMA Lite Series terminal also has distant commands to retrieve
polling buffer status and polling buffer data. Refer to the MorphoAccess® SIGMA Lite
Series Host System Interface Specification document.
How to Activate?
External database mode can be activated through Webserver > Complete
Configuration, by setting “ucc.enable_external_database” parameter to 1. Only an
admin user can activate polling mode. You can refer to the MorphoAccess® SIGMA
Lite Series Host System Interface Specification document to know how to set this
parameter.
NOTA : When terminal is in L1 legacy mode, then polling mode can be configured using
SecureAdmin application.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 5 : User Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
50
June 2015
Configuring the terminal
MorphoAccess® SIGMA Lite Series terminals are standalone biometric systems which
offers advance features for access control. MorphoAccess® SIGMA Lite Series
terminals are equipped with a facility to support the MorphoAccess® and Bioscrypt
legacy systems.
When MorphoAccess® SIGMA Lite Series terminal is set in any of the legacy modes, it
supports the database structures and configurations of the selected legacy system.
When the terminal is booted for the first time, user can select any of the following
modes:
MorphoAccess® 500 or J Series legacy mode
MorphoAccess® SIGMA Lite Series terminal can be operated in MorphoAccess® 500
or J series mode (also referred as Legacy Morpho). In this mode, the terminal will
support configurations and operations of MorphoAccess® 500 series terminals.
Terminal can authenticate users enrolled in the MorphoAccess® 500 series terminal,
using biometric check as well as contactless card. New users can also be enrolled in
MorphoAccess® 500 series mode.
Once the product is configured in Legacy Morpho mode, the following methods can
be used to configure the terminal:
through the Ethernet interface (remote management)
through a Wi-Fi™ connection (license and dongle required)
Configuration procedures are described inside the MorphoAccess® SIGMA Lite Series
Administration Guide as follows:
Section 4: Terminal Configuration And Administration
Bioscrypt 4G Series legacy mode
MorphoAccess® SIGMA Lite Series can be operated in Bioscrypt 4G mode (also
referred as Legacy L1). In this mode, the terminal will support limited operations and
configurations that are done using Secure Admin application. The terminal in L1 mode
is able to authenticate the users enrolled on 4G terminals and contactless cards.
However it is not possible to enrol users in legacy L1 mode on MorphoAccess® SIGMA
Lite Series terminal.
In case, users are enrolled in MA5G mode, the user data cannot be exported when
terminal is in L1 mode.
Once the product is configured in Legacy L1 mode, the following methods can be
used to configure the terminal:
through the Ethernet interface (remote management)
through a Wi-Fi™ connection (license and dongle required)
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 5 : User Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
51
June 2015
Configuration procedures are described inside the MorphoAccess® SIGMA Lite Series
Administration Guide as follows:
Section 4: Terminal Configuration And Administration
MorphoAccess® SIGMA Lite Series native mode
MorphoAccess® SIGMA Lite Series terminal is by default configured in native mode,
also named MA5G. It will support the new features and configurations only in the
native mode. The terminal can be configured using an internet browser connected to
the embedded Webserver application.
NOTA : When terminal mode is switched from MA5G to any of the legacy modes, the entire
configuration (excepted communication links) and all databases are erased
NOTA : The terminal is rebooted on mode change and factory settings are applicable.
Once the product is configured in native mode, the following methods can be used to
configure the terminal:
through the Ethernet interface (remote management)
through a Wi-Fi™ connection (license and dongle required)
Configuration procedures are described inside the MorphoAccess® SIGMA Lite Series
Administration Guide as follows:
Section 4: Terminal Configuration And Administration
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 5 : User Interface
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
52
June 2015
Anti-tamper / anti-pulling switches
Please refer also to “Tamper Switch” section.
These switches are activated as soon as there is enough pressure applied on the
terminal against the wall. They are deactivated as soon as this pressure is not big
enough, e.g. when the terminal is pulled out of the wall.
When the switches are deactivated, the MorphoAccess® SIGMA Lite Series terminal
acts as required by the related configuration key (see MorphoAccess® SIGMA Lite
Series Administrator / User Guide for key configuration description):
Ignore the event (default): useful during normal maintenance operations.
Send an alarm message to the Central Access Controller, through the usual channel
of the access control result messages (Wiegand, DataClock, RS485, Ethernet or
Wi-Fi™). An alarm switch (relay contact) is directly available on block terminal
«tamper switch pins». Please refer to “Wiring overview” and to “Tamper Switch”
sections.
Generate an audible alarm signal with the speaker and an alert message on the
screen.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 6 : Accessories, Software Licenses and PC Applications
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
53
June 2015
Section 6 : Accessories,
Software Licenses and PC
Applications
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 6 : Accessories, Software Licenses and PC Applications
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
54
June 2015
Compatible Accessories, Licenses and Software
The following items can be ordered directly to Morpho or to an official distributor, so
as to enjoy all the features of your MorphoAccess® SIGMA Lite Series terminal:
Power supply units,
Contactless smartcards: MIFARE® 1k, 4k; DESFire® 2k, 4k, 8k,
MA WI-FI PACK: containing a Wi-Fi™ USB dongle and a Wi-Fi™ license to activate
Wi-Fi™ capability on your terminal,
User database size license (MA_10K_USERS): enabling database size upgrade from
3,000 to 10,000 users capacity (max 3 fingers per record) at creation of the
database.
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 6 : Accessories, Software Licenses and PC Applications
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
55
June 2015
Compatible PC applications
MorphoAccess® SIGMA Lite Series terminals are fully compatible with:
Morpho Integrator’s Kit (MIK) software development kit (version 6 or later).
MorphoBioToolBox (version 2 or later)
Using Legacy Morpho mode, MorphoAccess® SIGMA Lite Series is also compatible
with:
MEMS (version 7.3.1 or later),
MIK (version 5.4 or later),
The limitations in Morpho Legacy mode are described in the following document:
MorphoAccess® SIGMA Lite Series Release Note - Legacy Morpho limitations
Using Legacy L1 mode, MorphoAccess® SIGMA Lite Series is also compatible with:
SecureAdmin (version v4.1.20.0.0.0.0 or later),
The limitations in L1 Legacy mode are described in the following document:
MorphoAccess® SIGMA Lite Series Release Note - Legacy L1 limitations
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 7 : Recommendations
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
56
June 2015
Section 7 :
Recommendations
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 7 : Recommendations
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
57
June 2015
Notice
The manufacturer cannot be held responsible in case of non-compliance with the
following recommendations or incorrect use of the terminal.
General precautions
Do not attempt to repair your terminal yourself. The manufacturer cannot be held
responsible for any damage/accident that may result from attempts to repair
components. Any work carried out by non-authorized personnel will invalidate
your warranty.
Do not expose your terminal to extreme temperatures.
Use your terminal with original accessories. Attempts to integrate unapproved
accessories to the terminal will void your warranty.
Due to electrostatic discharge, and depending on the environment, synthetic
carpet should be avoided in areas where the terminal has been installed.
Areas containing combustibles
It is strongly recommended that you do not install your terminal in the vicinity of gas
stations, petroleum processing facilities or any other facility containing flammable or
combustible gasses or materials.
Specific precautions for terminals equipped with a contactless
smartcard reader
It is recommended to install terminals equipped with a contactless smartcard reader
at a certain distance (> 30cm) from metallic elements such as iron fixations or lift
gates or radio product (such as contactless smartcard reader). Performances in terms
of contactless badge reading distance will decrease when metallic elements are
closer.
Ethernet connection
It is recommended to use a category 5 shielding cable (120 Ohms). It is also strongly
recommended to insert a repeater unit every 90m.
Extreme care must be taken while connecting Ethernet wire to the terminal block
board since low quality connection may strongly impact Ethernet signal sensibility.
It is recommended to connect Rx+ and Rx- with the same twisted-pair wire (and to do
the same with Tx+/Tx- and the other twisted-pair wire).
Date / Time synchronization
The terminal clock has a +/-10 ppm typical time deviation at +25°C (roughly around
+/- 6 sec per 48 hours). At lower and higher temperature (but within normal
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 7 : Recommendations
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
58
June 2015
operating temperatures), deviation may be more important (worst case: - 14 seconds
per 48 hours).
If the terminal is used in an application requiring high time precision, we recommend
synchronizing regularly your terminal time with an external clock (using NTP). Every
24 hours is usually enough for most applications.
Please note that the date/time of the terminal is protected from power failure during
at least 24 hours. If the duration of the power failure or power down is longer, the
date/time of the terminal will be lost.
Cleaning precautions
The use of a dry cloth is recommended to clean the terminal, especially the biometric
sensor. Acid liquids, alcohol or abrasive materials are prohibited.
Legacy mode
When terminal mode is switched from MA5G mode to any of the legacy modes, the
entire configuration (except communication links) and all databases are erased.
The terminal is rebooted on mode change and factory settings are applicable.
Firmware legacy limitations are described in the MorphoAccess® SIGMA Lite Series
Release Note.
Hardware legacy differences are described below:
Power supply
4G Lite Series
MA-J Series
MA SIGMA Lite Series
DC power
supply
12V – 24V
(-15% / +10%)
12V
(-15% / +30%)
12V – 24V
(-15% / +10%)
DC power
supply
connection
Wires
Terminal block
Wires
Power
supply by
POE
Only for CR Pass
(IEEE802.3af
compliant)
IEEE802.3af
compliant
IEEE802.3at type 1
compliant
POE power
supply
connection
RJ45 connector or
wires
Block connector and
RJ45 connector
RJ45 connector or
wires
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 7 : Recommendations
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
59
June 2015
Ethernet communication
4G Lite Series
MA-J Series
MA SIGMA Lite Series
RJ45 connector or wires
Block connector
RJ45 connector
RJ45 connector or wires
Serial communications
4G Lite Series
MA-J Series
MA SIGMA Lite Series
Wiegand
Yes
Output ports
Input ports
No LED IN/OUT port
Interfaces
multiplexed on the
same lines.
Wiegand, Dataclock
and RS-485 (Half
duplex) protocols
shall only be
enabled at one time,
else priority is given
to Wiegand, then
Dataclock, then
RS485.
Wiegand :
Output port
only + LED
IN inputs
Dataclock:
Output port
Yes
Output port
Input ports
LED OUT port
LED IN by GPO
Dataclock
No
Yes
RS-485
Half duplex
(Slave only)
Half duplex
(Slave only)
GPI/GPO
4G Lite Series
MA-J Series
MA SIGMA Lite
Series
GPI
2 GPI
No
2 GPI
GPO
1 GPO
(1 TTLOUT_H and 1
TTLOUT_L)
No
2GPO
(≈ 2 TTLOUT_H only)
GPO current
limitation
5mA@5V for 4G
-
5mA@5V
MorphoAccess® SIGMA Lite Series – Installation Guide
Section 7 : Recommendations
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
60
June 2015
RELAY
4G Lite Series
MA-J Series
MA SIGMA Lite
Series
Relay pins
available
NO / NC / COM*
NO / COM
NO / NC / COM
Driver
capability
1 A @30V DC
(Resistive load)
1 A @30V DC
(Resistive load)
1 A @30V DC
(Resistive load)
*: NO: Normally open
NC: Normally closed
COM: Common
RS232 communication
4G Lite Series
MA-J Series
MA SIGMA Lite Series
Not available
Not available
Not available
Anti theft/ Tamper switches
4G Lite Series
MA-J Series
MA SIGMA Lite
Series
Anti theft
switch
No
Yes
Yes
Tamper
switch
Yes
Yes
Yes
Warning to
a host if the
product
isn’t
supplied
No
Yes
Yes
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 1 : Finger Placement Recommendations
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
61
June 2015
Annex 1 : Finger
Placement
Recommendations
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 1 : Finger Placement Recommendations
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
62
June 2015
Main principles
Acquisition needs to be done with extreme care, in order to:
get the best image quality
increase recognition performance
reduce recognition time
Then, it is highly recommended to:
Maximize the contact between the fingerprint and the sensor
Exert firm, but not excessive, finger pressure on the surface of the sensor
Do not press too hard
Do not slide nor roll the finger across the sensor
Do not move the finger during acquisition
Wait for the extinction of sensor backlight before removing the finger
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 1 : Finger Placement Recommendations
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
63
June 2015

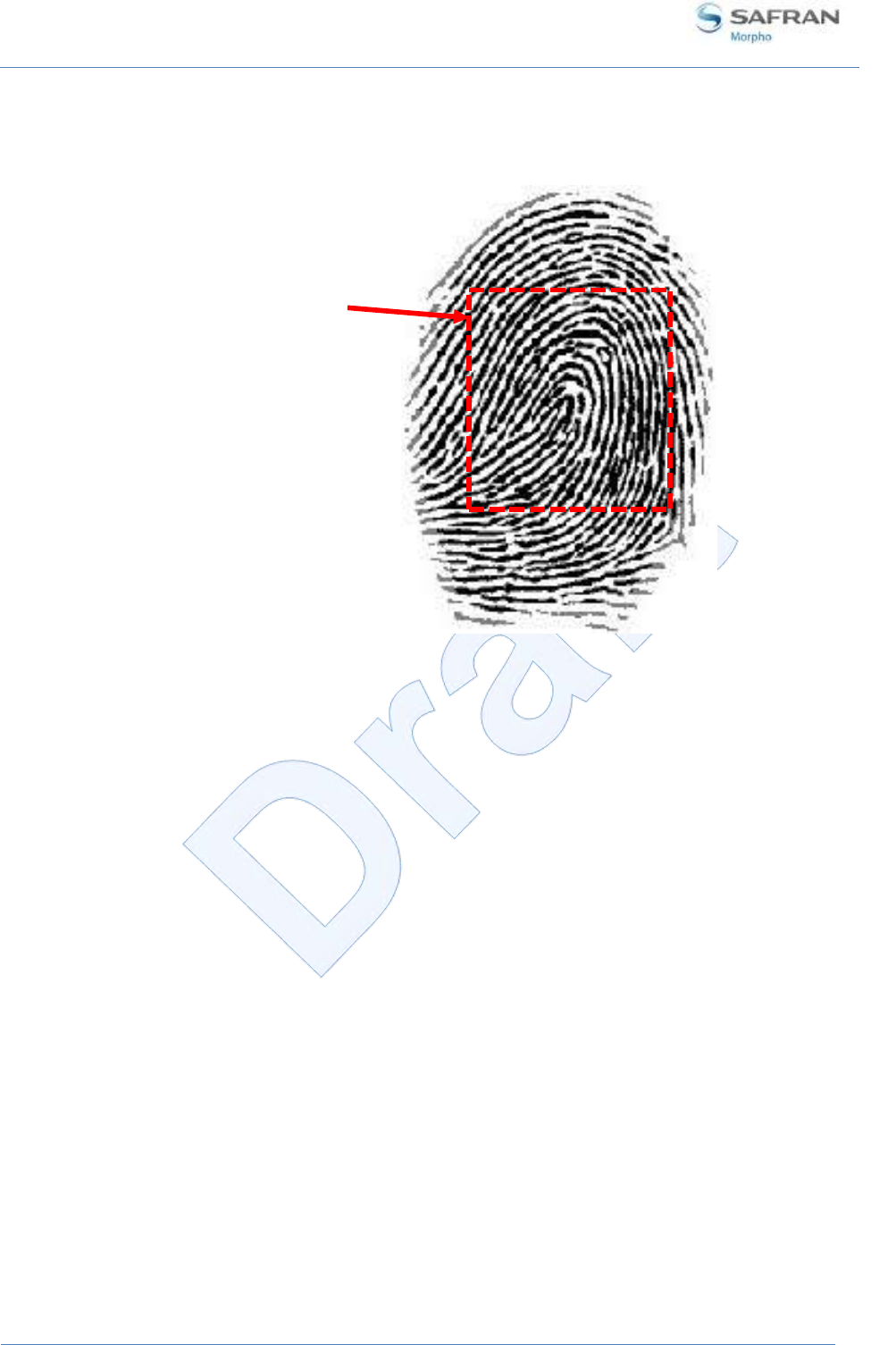

Most useful areas for biometric data
Fingerprint central area must be aligned with sensor center.
Area containing
the maximum
information
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 1 : Finger Placement Recommendations
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
64
June 2015

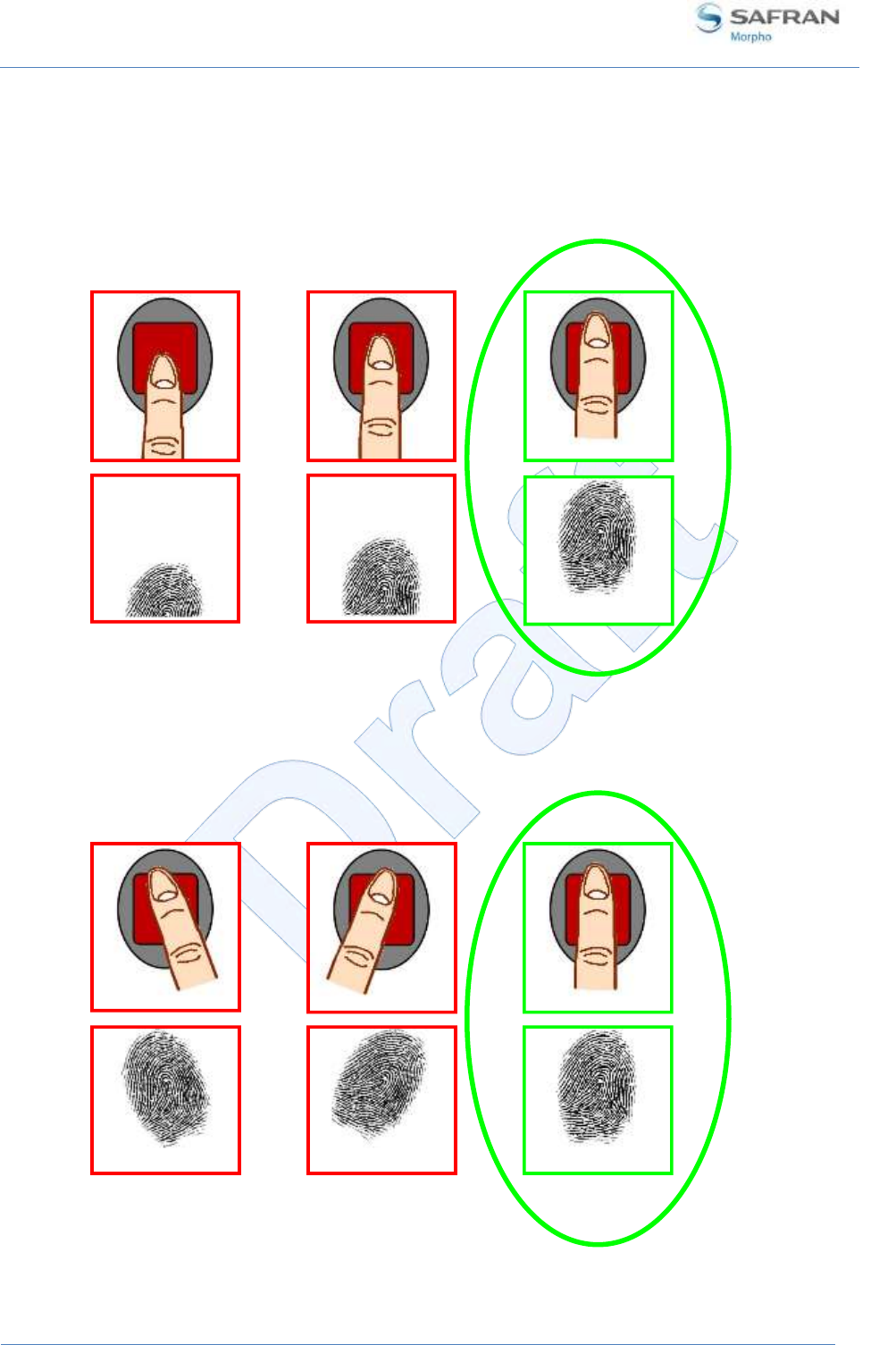

Position of finger
Finger height
Align center of 1st phalanx with sensor center
Finger angle
The finger must be parallel to sensor sides
IDEAL
POSITION
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 1 : Finger Placement Recommendations
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
65
June 2015

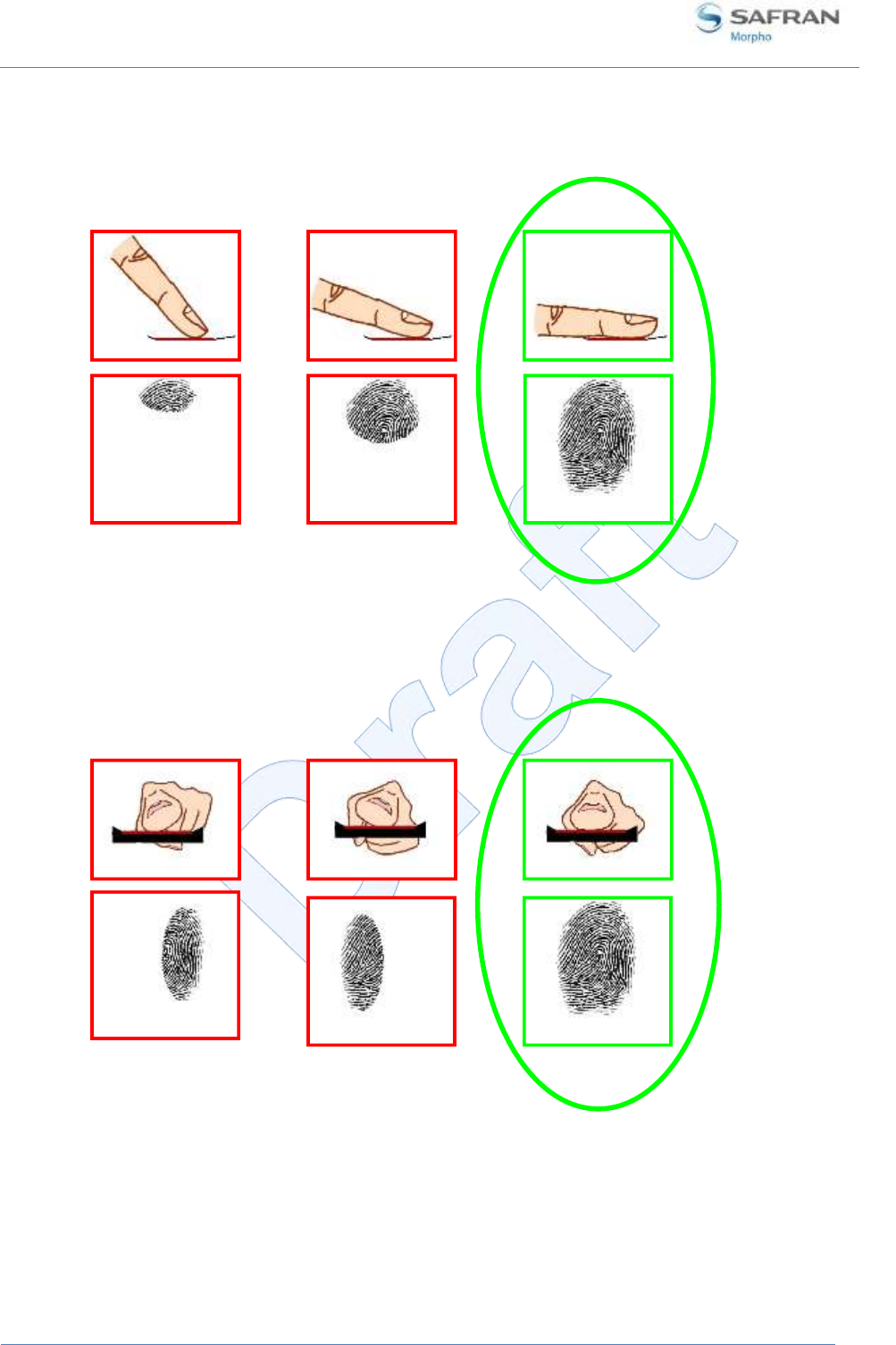

Finger inclination
Finger must be parallel to the sensor surface
Finger rotation
Finger must be parallel to the sensor surface
IDEAL
POSITION
IDEAL
POSITION
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 1 : Finger Placement Recommendations
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
66
June 2015
Troubleshooting
When finger biometric data acquisition is difficult, please follow the
recommendations listed below:
The finger is cold
o Solution : warm up the finger
The finger is wet
o Solution : wipe the finger
The finger is dry
o Solution : warm up the finger and/or add a little bit of humidity
The finger is dirty
o Solution: wash hands
Remove bandages or adhesive tapes from the fingerprint area,
Do not press or tense finger to avoid blood vessels constriction
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 2 : Bibliography
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
67
June 2015
Annex 2 : Bibliography
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 2 : Bibliography
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
68
June 2015
How to get the latest versions of documents
The last version of the documents can be downloaded from our web site at the
address below:
www.biometric-terminals.com
(Login and password required to allow access to the private part).
To request a login, please contact your sales representative.
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 2 : Bibliography
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
69
June 2015
Documents concerning the MorphoAccess® terminal
Documents about installing the terminal
MorphoAccess® SIGMA Lite Series Installation Guide,
Ref. 2015_0000007248
This document describes terminal physical mounting procedure, electrical interfaces
and connection procedures. This document is in English.
Documents about administrating / using the terminal
MorphoAccess® SIGMA Lite Series Quick User Guide,
Ref. 2015_0000005700
This document gives a quick overview of the product and the basics of configuration
and use. This document is in English.
MorphoAccess® SIGMA Lite Series Administrator Guide,
Ref. 2015_000000XXXX
This document describes the different functions available on the terminal and
procedures for configuring the terminal. It also contains the full description of all the
configuration parameters for the terminal. This document is in English.
MorphoAccess® SIGMA Lite Series Parameters Guide,
Ref. 2015_000000XXXX
This document contains the full description of all the terminal configuration
parameters. This document is in English.
Documents for the developer
MorphoAccess® SIGMA Lite Series Host System Interface Specification,
Ref. 2015_000000XXXX
This document describes the commands supported by the MorphoAccess® terminal.
This document is in English.
MorphoAccess® SIGMA Lite Series Remote Message Specification,
Ref. 2015_000000XXXX
This document describes the format of messages sent by the terminal to a distant
system. This document is in English.
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 2 : Bibliography
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
70
June 2015
Release note
For each firmware version, a release note is published describing the new features,
the supported products, the potential known issues, the upgrade / downgrade
limitations, the recommendations, the potential restrictions…
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 3 : Support
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
71
June 2015
Annex 3 : Support
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 3 : Support
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
72
June 2015
Troubleshooting
The terminal IP address is unknown or it is not possible to connect
to the terminal
Load a valid set of network parameters in your terminal.
The sensor is switched off
Check that the database contains at least one record.
Check that the identification mode is enabled.
The terminal returns erratic responses to Ping commands
Check the subnet mask.
Ask the network administrator for the correct value.
Check that each device connected to the network has a different IP address.
MorphoAccess® SIGMA Lite Series – Installation Guide
Annex 3 : Support
2015_2000007248-V1 - Draft
This document and the information therein are the property of Morpho. They must not be
copied or communicated to a third party without the prior written authorization of Morpho
73
June 2015
Technical Support and Hotline
North America
Mail: cscenter@morpho.com
Tel: +1 888 940 7477
South America
Mail: cscenter@morpho.com
Tel: +1 714 575 2973
South Africa
Mail: sec.san.bio.support@morpho.com
Tel: + 27 11 286 5855
India:
Mail: support.morphoindia@morpho.com
Tel: 0120-4699900
Europe and rest of the world:
Mail: hotline-biometrics@morpho.com
Tel: +33 1 58 11 39 19
(9H00am to 5H30pm French Time, Monday to Friday)
Web site
For the latest firmware, software, document releases, and news, please check our
website: www.biometric-terminals.com
To get your log in and password please contact your sales representative.
