IDTECK GE314 Fingerprint Access Controller User Manual 7

ID-Teck Co Ltd Fingerprint Access Controller 7

Users Manual

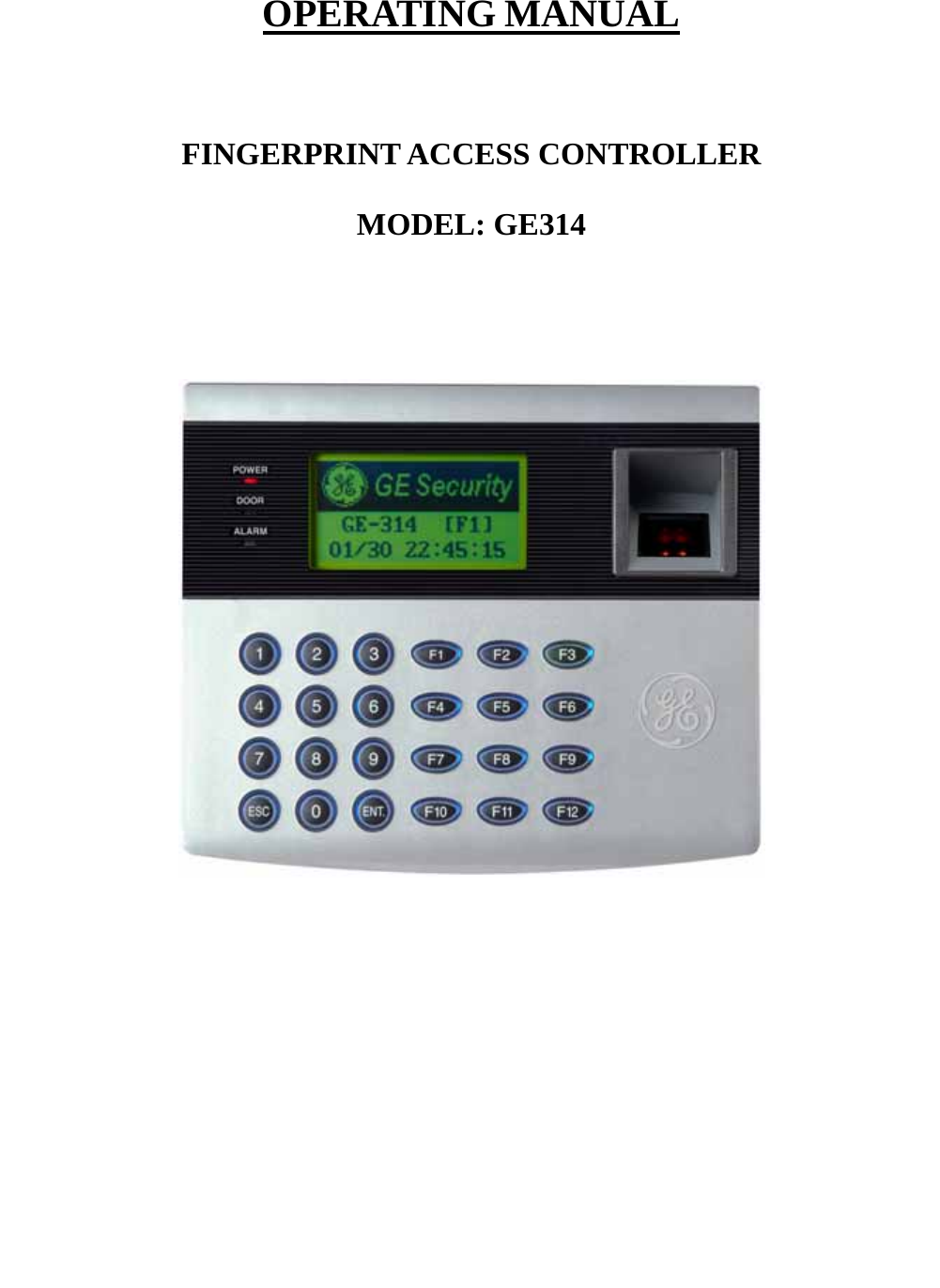

OPERATING MANUAL FINGERPRINT ACCESS CONTROLLER MODEL: GE314

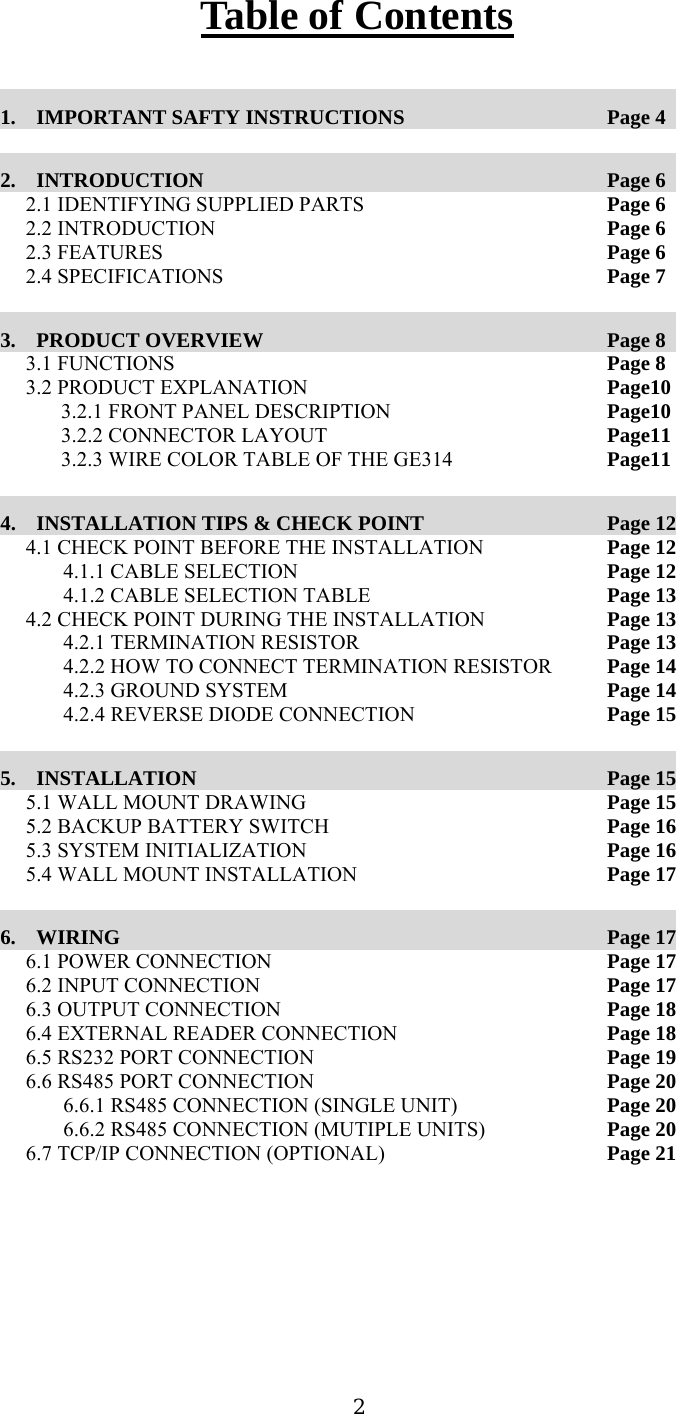

Table of Contents 1. IMPORTANT SAFTY INSTRUCTIONS Page 4 2. INTRODUCTION Page 6 2.1 IDENTIFYING SUPPLIED PARTS Page 6 2.2 INTRODUCTION Page 6 2.3 FEATURES Page 6 2.4 SPECIFICATIONS Page 7 3. PRODUCT OVERVIEW Page 8 3.1 FUNCTIONS Page 8 3.2 PRODUCT EXPLANATION Page10 3.2.1 FRONT PANEL DESCRIPTION Page10 3.2.2 CONNECTOR LAYOUT Page11 3.2.3 WIRE COLOR TABLE OF THE GE314 Page11 4. INSTALLATION TIPS & CHECK POINT Page 12 4.1 CHECK POINT BEFORE THE INSTALLATION Page 12 4.1.1 CABLE SELECTION Page 12 4.1.2 CABLE SELECTION TABLE Page 13 4.2 CHECK POINT DURING THE INSTALLATION Page 13 4.2.1 TERMINATION RESISTOR Page 13 4.2.2 HOW TO CONNECT TERMINATION RESISTOR Page 14 4.2.3 GROUND SYSTEM Page 14 4.2.4 REVERSE DIODE CONNECTION Page 15 5. INSTALLATION Page 15 5.1 WALL MOUNT DRAWING Page 15 5.2 BACKUP BATTERY SWITCH Page 16 5.3 SYSTEM INITIALIZATION Page 16 5.4 WALL MOUNT INSTALLATION Page 17 6. WIRING Page 17 6.1 POWER CONNECTION Page 17 6.2 INPUT CONNECTION Page 17 6.3 OUTPUT CONNECTION Page 18 6.4 EXTERNAL READER CONNECTION Page 18 6.5 RS232 PORT CONNECTION Page 19 6.6 RS485 PORT CONNECTION Page 20 6.6.1 RS485 CONNECTION (SINGLE UNIT) Page 20 6.6.2 RS485 CONNECTION (MUTIPLE UNITS) Page 20 6.7 TCP/IP CONNECTION (OPTIONAL) Page 21 2
7. BASIC SETTINGS Page 22 7.1 INITIALIZATION OF GE314 Page 22 7.2 HOW TO ENTER THE SETUP MENU Page 22 7.3 LANGUAGE SETTING Page 23 7.4 DATE/TIME SETTING Page 23 7.5 ID REGISTRATION Page 24 8. OPERATION Page 27 8.1 NORMAL OPERATION Page 27 8.2 DEFAULT SETTING Page 27 9. SETTING CHANGES Page 28 9.1 F1 SETUP MENU Page 29 9.2 F2 SETUP MENU Page 33 9.3 F3 SETUP MENU Page 37 9.4 F4 SETUP MENU Page 42 9.5 F5 SETUP MENU Page 47 9.6 F6 SETUP MENU Page 50 9.7 F7 SETUP MENU Page 53 9.8 F8 SETUP MENU Page 56 9.9 F9 SETUP MENU Page 59 APPENDIX Page 61 A. THE RELATION BETWEEN INPUT AND OUTPUT (DEFAULT) Page 61 B. TROUBLE SHOOTING Page 63 FCC REGISTRATION INFORMATION Page 67 WARRANTY AND SERVICE Page 68 RMA REQUEST FORM & A/S REQUEST FORM Page 69 3

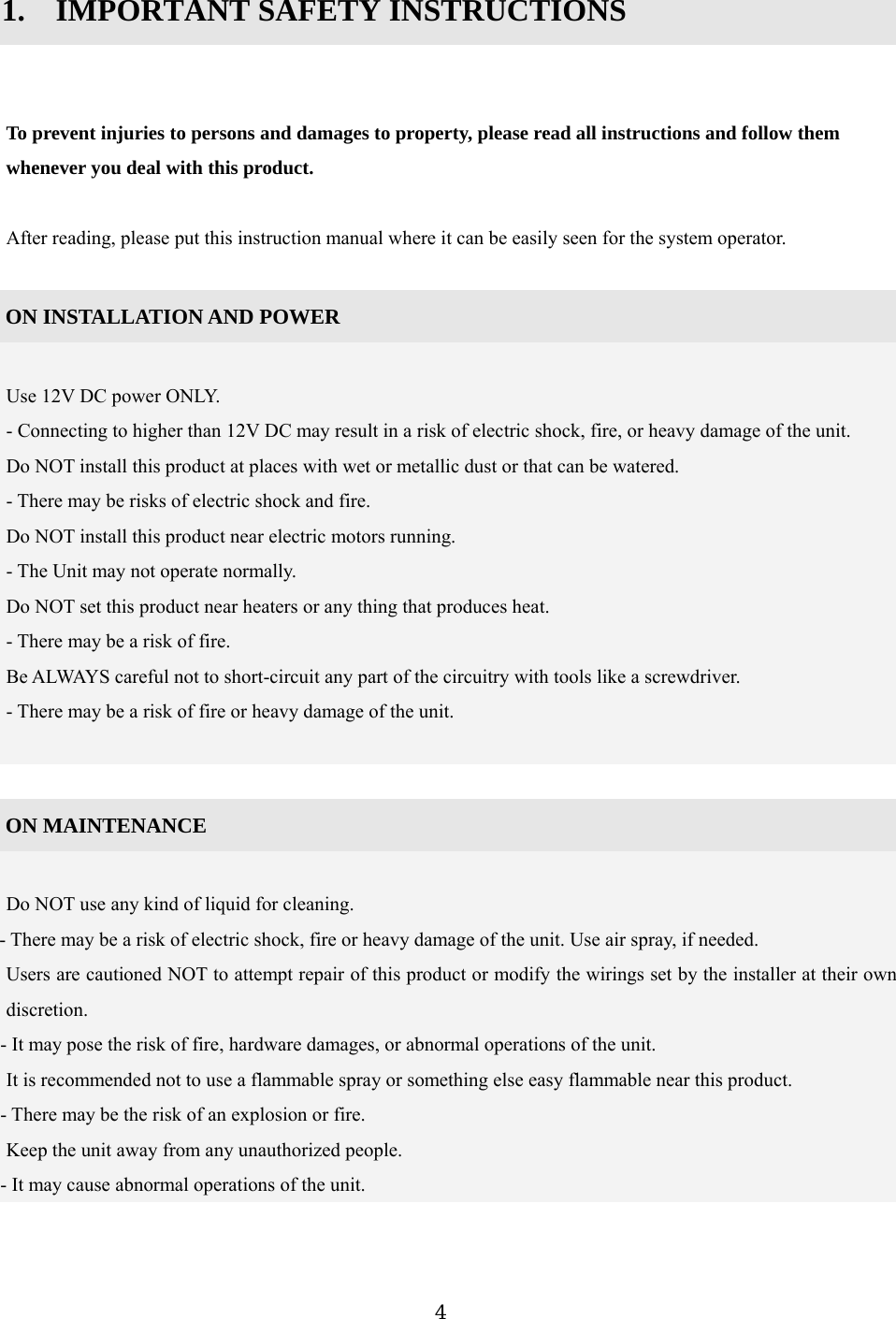

1. IMPORTANT SAFETY INSTRUCTIONS To prevent injuries to persons and damages to property, please read all instructions and follow them whenever you deal with this product. After reading, please put this instruction manual where it can be easily seen for the system operator. ON INSTALLATION AND POWER Use 12V DC power ONLY. - Connecting to higher than 12V DC may result in a risk of electric shock, fire, or heavy damage of the unit. Do NOT install this product at places with wet or metallic dust or that can be watered. - There may be risks of electric shock and fire. Do NOT install this product near electric motors running. - The Unit may not operate normally. Do NOT set this product near heaters or any thing that produces heat. - There may be a risk of fire. Be ALWAYS careful not to short-circuit any part of the circuitry with tools like a screwdriver. - There may be a risk of fire or heavy damage of the unit. ON MAINTENANCE Do NOT use any kind of liquid for cleaning. - There may be a risk of electric shock, fire or heavy damage of the unit. Use air spray, if needed. Users are cautioned NOT to attempt repair of this product or modify the wirings set by the installer at their own discretion. - It may pose the risk of fire, hardware damages, or abnormal operations of the unit. It is recommended not to use a flammable spray or something else easy flammable near this product. - There may be the risk of an explosion or fire. Keep the unit away from any unauthorized people. - It may cause abnormal operations of the unit. 4

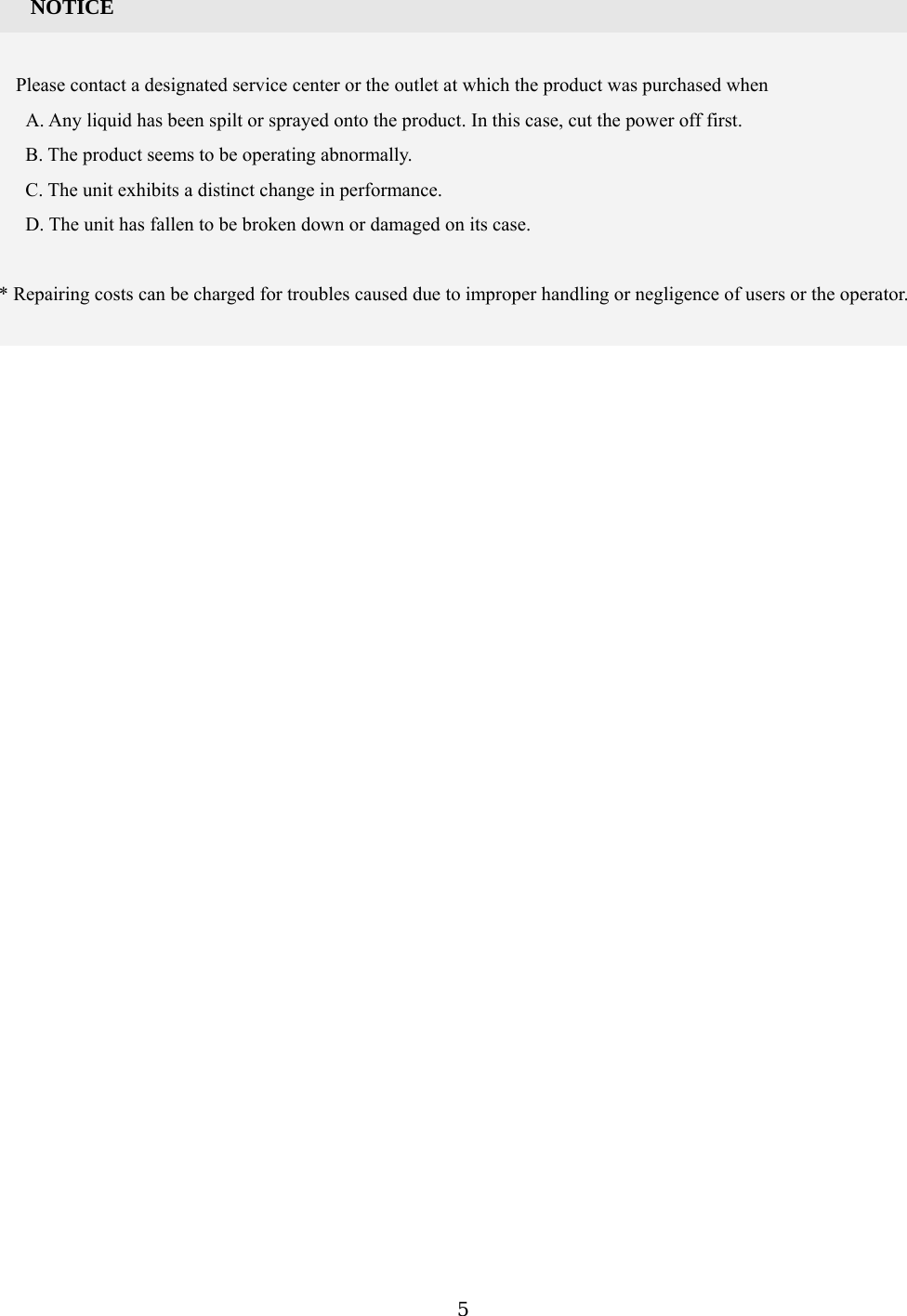

NOTICE Please contact a designated service center or the outlet at which the product was purchased when A. Any liquid has been spilt or sprayed onto the product. In this case, cut the power off first. B. The product seems to be operating abnormally. C. The unit exhibits a distinct change in performance. D. The unit has fallen to be broken down or damaged on its case. * Repairing costs can be charged for troubles caused due to improper handling or negligence of users or the operator. 5

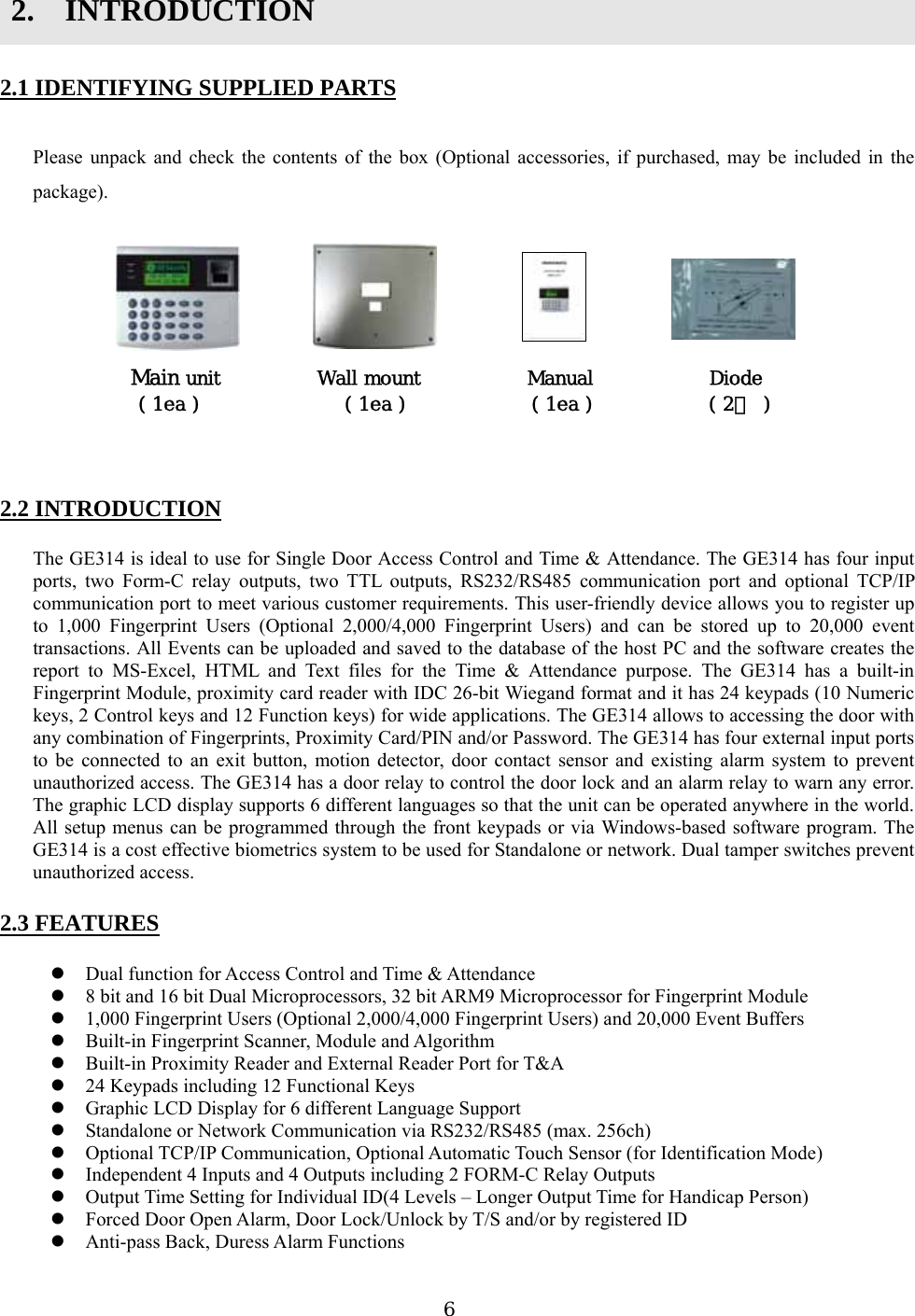

2. INTRODUCTION 2.1 IDENTIFYING SUPPLIED PARTS Please unpack and check the contents of the box (Optional accessories, if purchased, may be included in the package). Main unit Wall mount Manual Diode ( 1ea ) ( 1ea ) ( 1ea ) ( 2개 ) 2.2 INTRODUCTION The GE314 is ideal to use for Single Door Access Control and Time & Attendance. The GE314 has four input ports, two Form-C relay outputs, two TTL outputs, RS232/RS485 communication port and optional TCP/IP communication port to meet various customer requirements. This user-friendly device allows you to register up to 1,000 Fingerprint Users (Optional 2,000/4,000 Fingerprint Users) and can be stored up to 20,000 event transactions. All Events can be uploaded and saved to the database of the host PC and the software creates the report to MS-Excel, HTML and Text files for the Time & Attendance purpose. The GE314 has a built-in Fingerprint Module, proximity card reader with IDC 26-bit Wiegand format and it has 24 keypads (10 Numeric keys, 2 Control keys and 12 Function keys) for wide applications. The GE314 allows to accessing the door with any combination of Fingerprints, Proximity Card/PIN and/or Password. The GE314 has four external input ports to be connected to an exit button, motion detector, door contact sensor and existing alarm system to prevent unauthorized access. The GE314 has a door relay to control the door lock and an alarm relay to warn any error. The graphic LCD display supports 6 different languages so that the unit can be operated anywhere in the world. All setup menus can be programmed through the front keypads or via Windows-based software program. The GE314 is a cost effective biometrics system to be used for Standalone or network. Dual tamper switches prevent unauthorized access. 2.3 FEATURES  Dual function for Access Control and Time & Attendance  8 bit and 16 bit Dual Microprocessors, 32 bit ARM9 Microprocessor for Fingerprint Module  1,000 Fingerprint Users (Optional 2,000/4,000 Fingerprint Users) and 20,000 Event Buffers  Built-in Fingerprint Scanner, Module and Algorithm  Built-in Proximity Reader and External Reader Port for T&A  24 Keypads including 12 Functional Keys  Graphic LCD Display for 6 different Language Support  Standalone or Network Communication via RS232/RS485 (max. 256ch)  Optional TCP/IP Communication, Optional Automatic Touch Sensor (for Identification Mode)  Independent 4 Inputs and 4 Outputs including 2 FORM-C Relay Outputs  Output Time Setting for Individual ID(4 Levels – Longer Output Time for Handicap Person)  Forced Door Open Alarm, Door Lock/Unlock by T/S and/or by registered ID  Anti-pass Back, Duress Alarm Functions 6

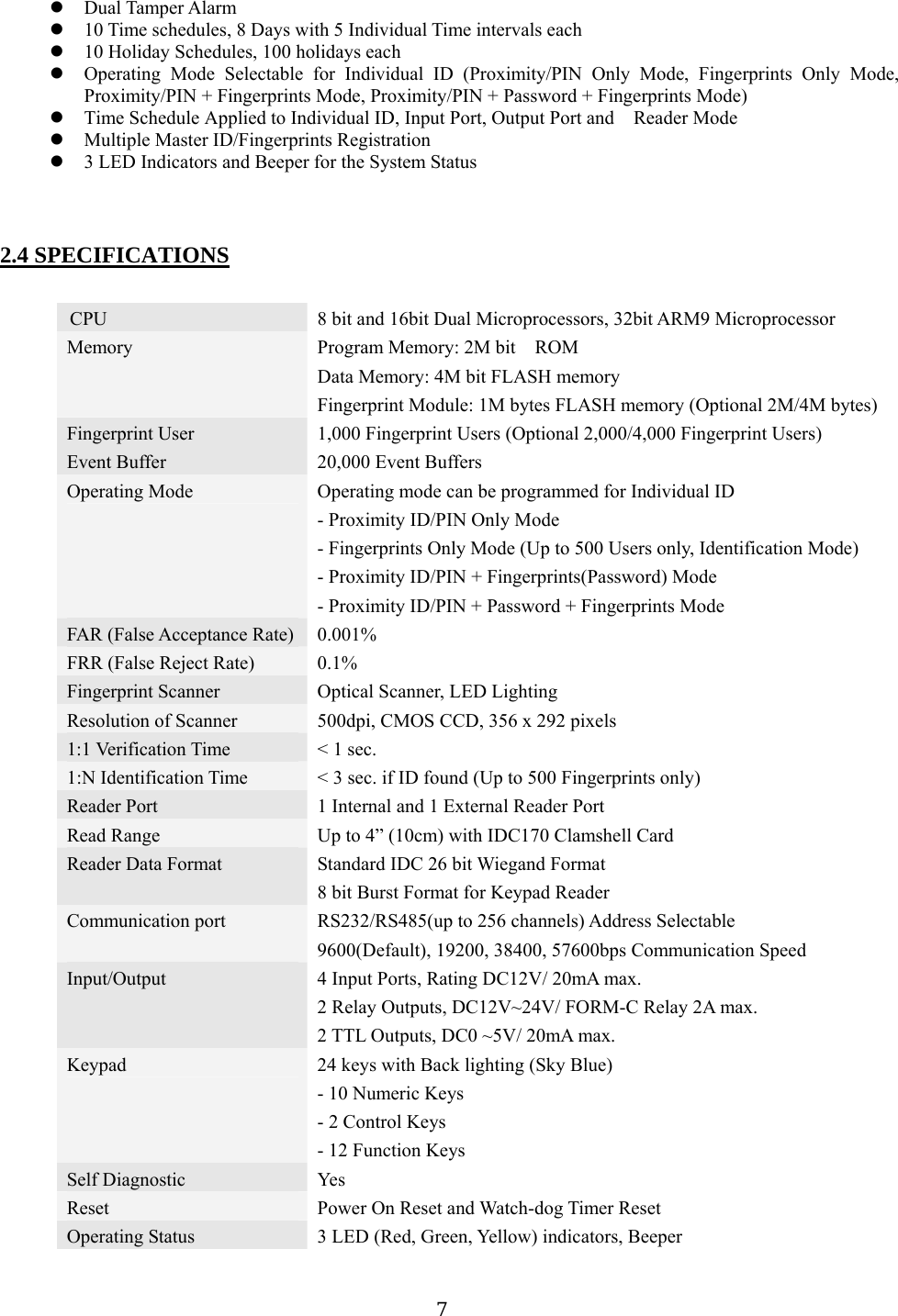

 Dual Tamper Alarm  10 Time schedules, 8 Days with 5 Individual Time intervals each  10 Holiday Schedules, 100 holidays each  Operating Mode Selectable for Individual ID (Proximity/PIN Only Mode, Fingerprints Only Mode, Proximity/PIN + Fingerprints Mode, Proximity/PIN + Password + Fingerprints Mode)  Time Schedule Applied to Individual ID, Input Port, Output Port and Reader Mode  Multiple Master ID/Fingerprints Registration  3 LED Indicators and Beeper for the System Status 2.4 SPECIFICATIONS CPU 8 bit and 16bit Dual Microprocessors, 32bit ARM9 Microprocessor Memory Program Memory: 2M bit ROM Data Memory: 4M bit FLASH memory Fingerprint Module: 1M bytes FLASH memory (Optional 2M/4M bytes)Fingerprint User Event Buffer 1,000 Fingerprint Users (Optional 2,000/4,000 Fingerprint Users) 20,000 Event Buffers Operating Mode Operating mode can be programmed for Individual ID - Proximity ID/PIN Only Mode - Fingerprints Only Mode (Up to 500 Users only, Identification Mode) - Proximity ID/PIN + Fingerprints(Password) Mode - Proximity ID/PIN + Password + Fingerprints Mode FAR (False Acceptance Rate) 0.001% FRR (False Reject Rate) 0.1% Fingerprint Scanner Optical Scanner, LED Lighting Resolution of Scanner 500dpi, CMOS CCD, 356 x 292 pixels 1:1 Verification Time < 1 sec. 1:N Identification Time < 3 sec. if ID found (Up to 500 Fingerprints only) Reader Port 1 Internal and 1 External Reader Port Read Range Up to 4” (10cm) with IDC170 Clamshell Card Reader Data Format Standard IDC 26 bit Wiegand Format 8 bit Burst Format for Keypad Reader Communication port RS232/RS485(up to 256 channels) Address Selectable 9600(Default), 19200, 38400, 57600bps Communication Speed Input/Output 4 Input Ports, Rating DC12V/ 20mA max. 2 Relay Outputs, DC12V~24V/ FORM-C Relay 2A max. 2 TTL Outputs, DC0 ~5V/ 20mA max. Keypad 24 keys with Back lighting (Sky Blue) - 10 Numeric Keys - 2 Control Keys - 12 Function Keys Self Diagnostic Yes Reset Power On Reset and Watch-dog Timer Reset Operating Status 3 LED (Red, Green, Yellow) indicators, Beeper 7

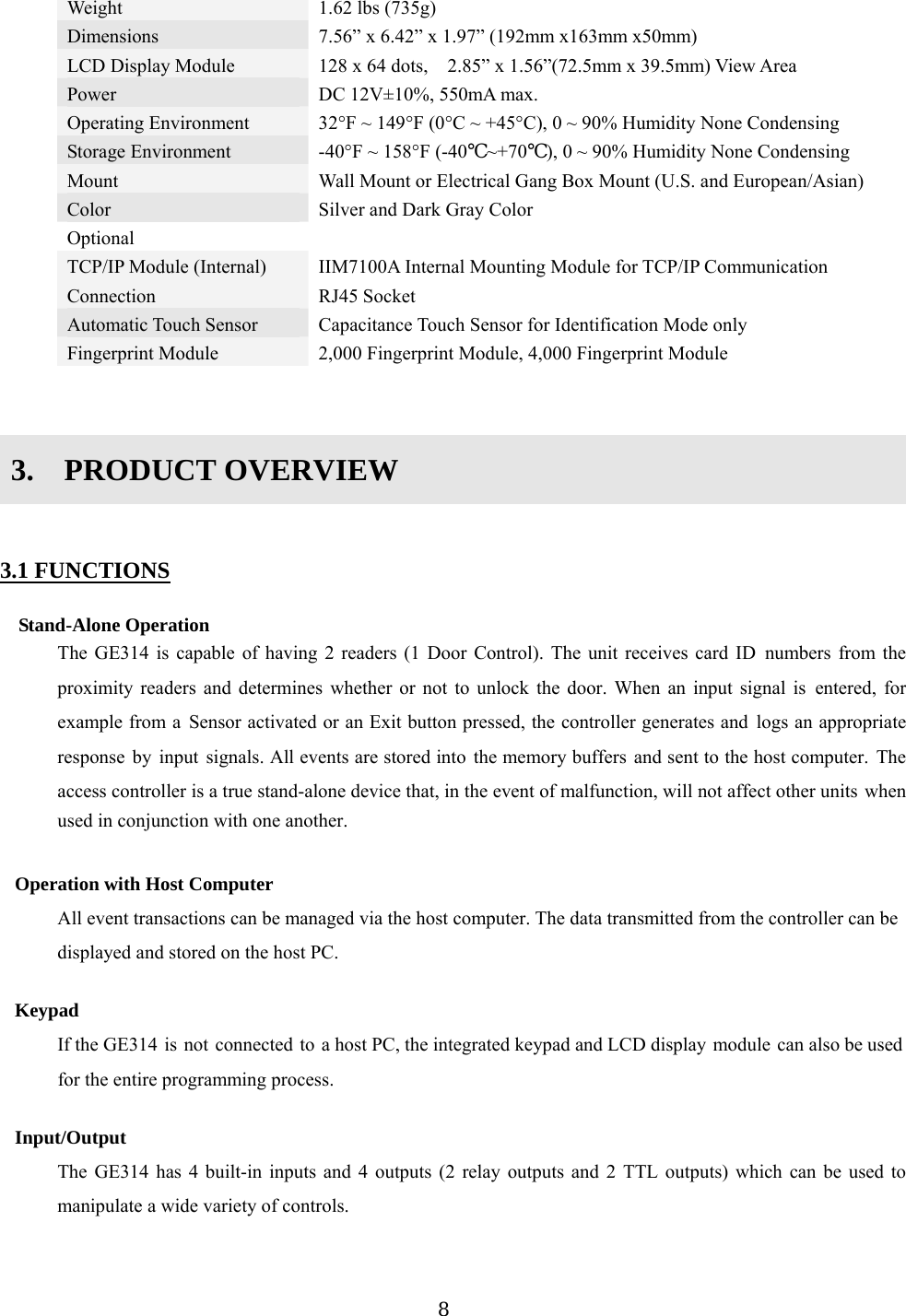

Weight 1.62 lbs (735g) Dimensions 7.56” x 6.42” x 1.97” (192mm x163mm x50mm) LCD Display Module 128 x 64 dots, 2.85” x 1.56”(72.5mm x 39.5mm) View Area Power DC 12V±10%, 550mA max. Operating Environment 32°F ~ 149°F (0°C ~ +45°C), 0 ~ 90% Humidity None Condensing Storage Environment -40°F ~ 158°F (-40 ~+70℃℃), 0 ~ 90% Humidity None Condensing Mount Wall Mount or Electrical Gang Box Mount (U.S. and European/Asian) Color Silver and Dark Gray Color Optional TCP/IP Module (Internal) Connection IIM7100A Internal Mounting Module for TCP/IP Communication RJ45 Socket Automatic Touch Sensor Capacitance Touch Sensor for Identification Mode only Fingerprint Module 2,000 Fingerprint Module, 4,000 Fingerprint Module 3. PRODUCT OVERVIEW 3.1 FUNCTIONS Stand-Alone Operation The GE314 is capable of having 2 readers (1 Door Control). The unit receives card ID numbers from the proximity readers and determines whether or not to unlock the door. When an input signal is entered, for example from a Sensor activated or an Exit button pressed, the controller generates and logs an appropriate response by input signals. All events are stored into the memory buffers and sent to the host computer. The access controller is a true stand-alone device that, in the event of malfunction, will not affect other units when used in conjunction with one another. Operation with Host Computer All event transactions can be managed via the host computer. The data transmitted from the controller can be displayed and stored on the host PC. Keypad If the GE314 is not connected to a host PC, the integrated keypad and LCD display module can also be used for the entire programming process. Input/Output The GE314 has 4 built-in inputs and 4 outputs (2 relay outputs and 2 TTL outputs) which can be used to manipulate a wide variety of controls. 8

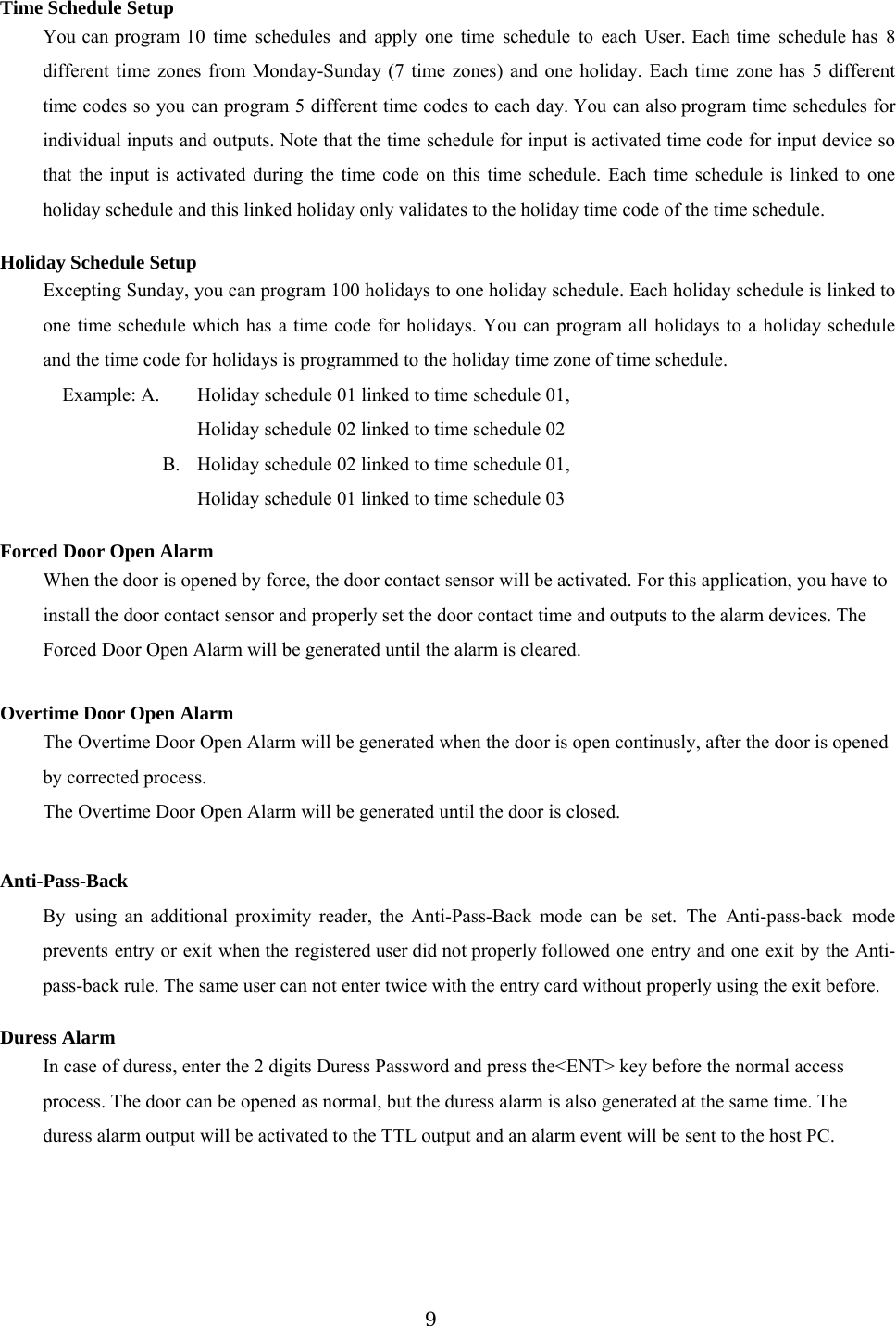

Time Schedule Setup You can program 10 time schedules and apply one time schedule to each User. Each time schedule has 8 different time zones from Monday-Sunday (7 time zones) and one holiday. Each time zone has 5 different time codes so you can program 5 different time codes to each day. You can also program time schedules for individual inputs and outputs. Note that the time schedule for input is activated time code for input device so that the input is activated during the time code on this time schedule. Each time schedule is linked to one holiday schedule and this linked holiday only validates to the holiday time code of the time schedule. Holiday Schedule Setup Excepting Sunday, you can program 100 holidays to one holiday schedule. Each holiday schedule is linked to one time schedule which has a time code for holidays. You can program all holidays to a holiday schedule and the time code for holidays is programmed to the holiday time zone of time schedule. Example: A. Holiday schedule 01 linked to time schedule 01, Holiday schedule 02 linked to time schedule 02 B. Holiday schedule 02 linked to time schedule 01, Holiday schedule 01 linked to time schedule 03 Forced Door Open Alarm When the door is opened by force, the door contact sensor will be activated. For this application, you have to install the door contact sensor and properly set the door contact time and outputs to the alarm devices. The Forced Door Open Alarm will be generated until the alarm is cleared. Overtime Door Open Alarm The Overtime Door Open Alarm will be generated when the door is open continusly, after the door is opened by corrected process. The Overtime Door Open Alarm will be generated until the door is closed. Anti-Pass-Back By using an additional proximity reader, the Anti-Pass-Back mode can be set. The Anti-pass-back mode prevents entry or exit when the registered user did not properly followed one entry and one exit by the Anti-pass-back rule. The same user can not enter twice with the entry card without properly using the exit before. Duress Alarm In case of duress, enter the 2 digits Duress Password and press the<ENT> key before the normal access process. The door can be opened as normal, but the duress alarm is also generated at the same time. The duress alarm output will be activated to the TTL output and an alarm event will be sent to the host PC. 9

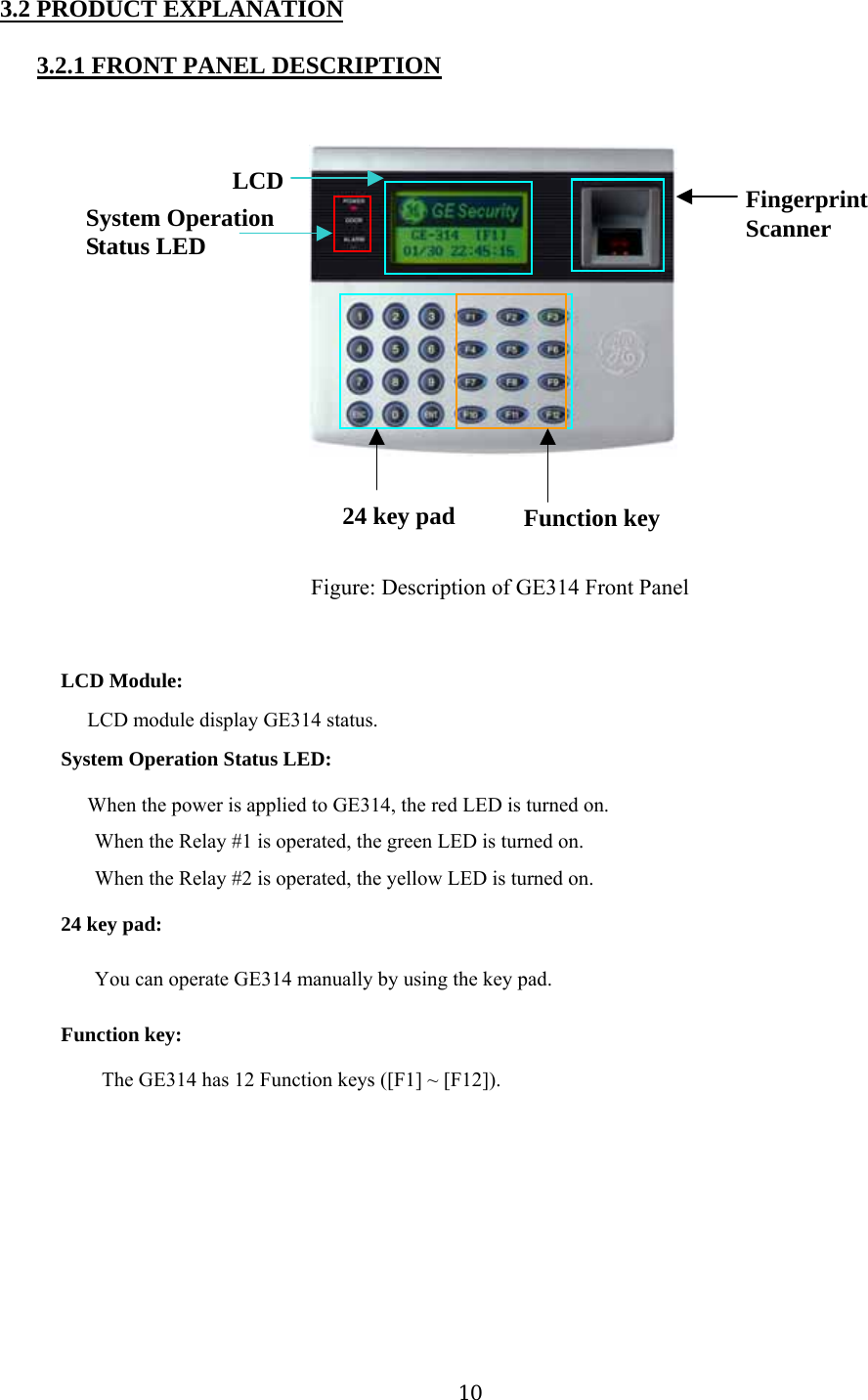

3.2 PRODUCT EXPLANATION 3.2.1 FRONT PANEL DESCRIPTION LCD System Operation Status LED Fingerprint Scanner 24 key pad Function key Figure: Description of GE314 Front Panel LCD Module: LCD module display GE314 status. System Operation Status LED: When the power is applied to GE314, the red LED is turned on. When the Relay #1 is operated, the green LED is turned on. When the Relay #2 is operated, the yellow LED is turned on. 24 key pad: You can operate GE314 manually by using the key pad. Function key: The GE314 has 12 Function keys ([F1] ~ [F12]). 10

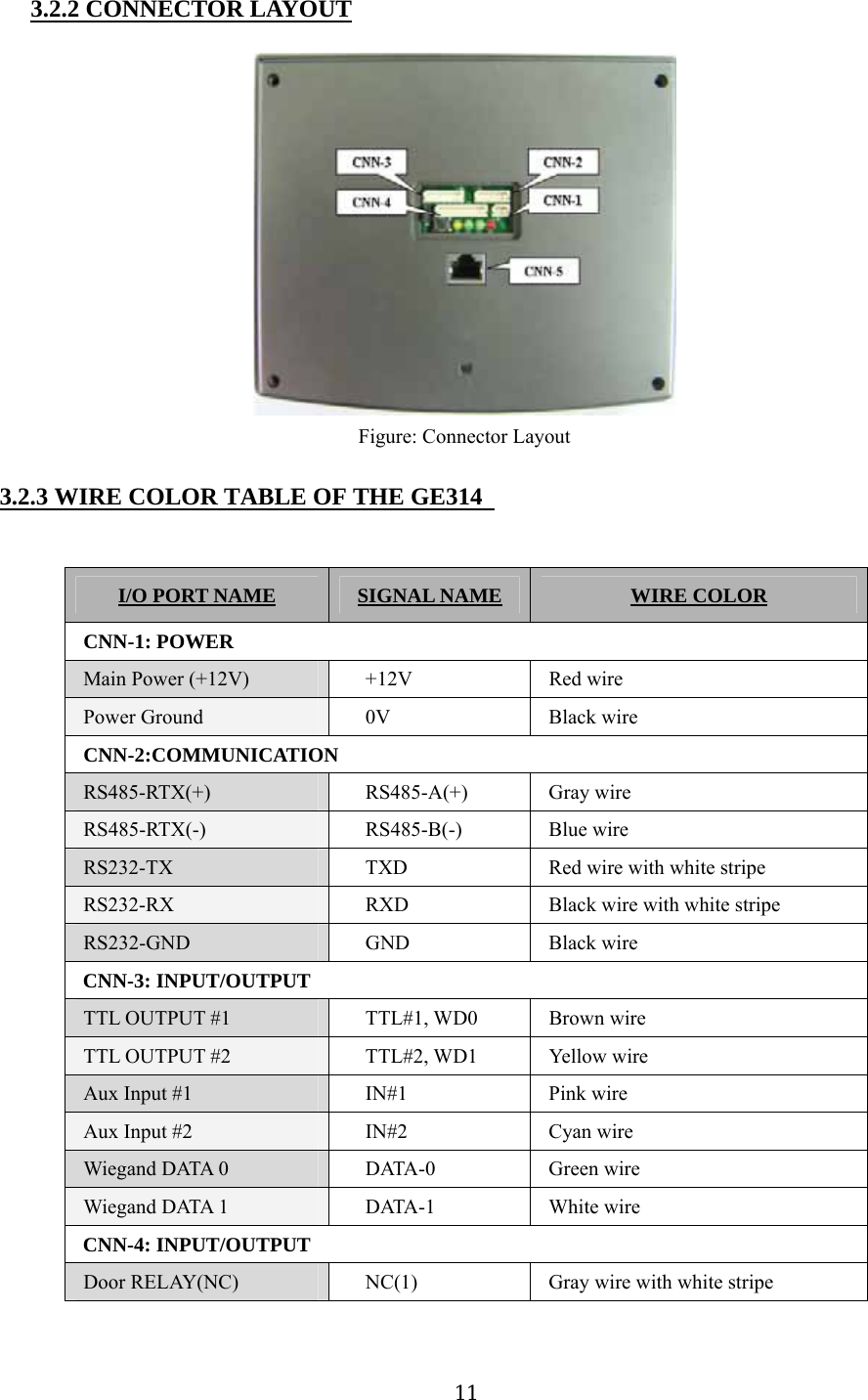

3.2.2 CONNECTOR LAYOUT Figure: Connector Layout 3.2.3 WIRE COLOR TABLE OF THE GE314 I/O PORT NAME SIGNAL NAME WIRE COLORCNN-1: POWER Main Power (+12V) +12V Red wire Power Ground 0V Black wire CNN-2:COMMUNICATION RS485-RTX(+) RS485-A(+) Gray wire RS485-RTX(-) RS485-B(-) Blue wire RS232-TX TXD Red wire with white stripe RS232-RX RXD Black wire with white stripe RS232-GND GND Black wire CNN-3: INPUT/OUTPUT TTL OUTPUT #1 TTL#1, WD0 Brown wire TTL OUTPUT #2 TTL#2, WD1 Yellow wire Aux Input #1 IN#1 Pink wire Aux Input #2 IN#2 Cyan wire Wiegand DATA 0 DATA-0 Green wire Wiegand DATA 1 DATA-1 White wire CNN-4: INPUT/OUTPUT Door RELAY(NC) NC(1) Gray wire with white stripe 11

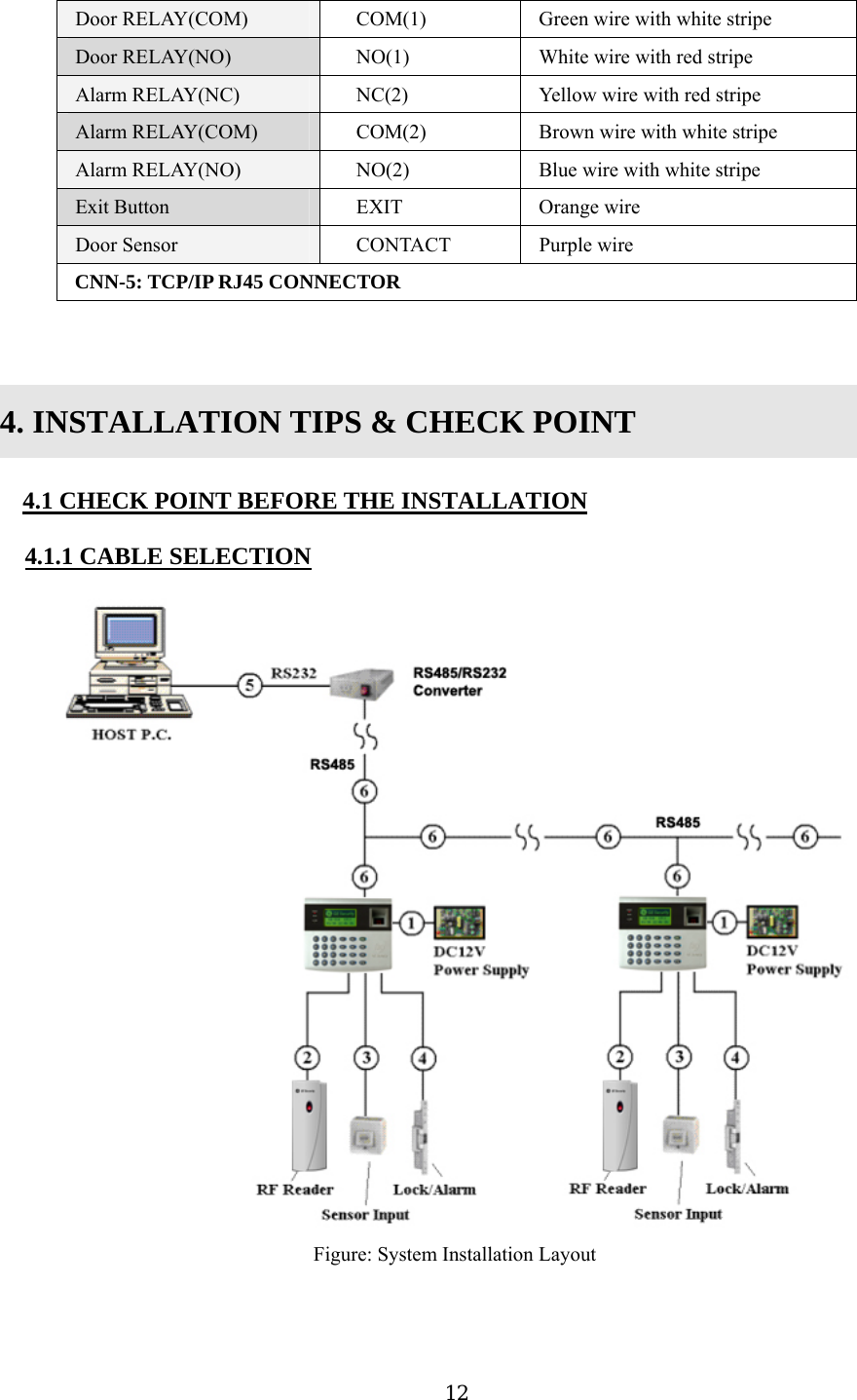

Door RELAY(COM) COM(1) Green wire with white stripe Door RELAY(NO) NO(1) White wire with red stripe Alarm RELAY(NC) NC(2) Yellow wire with red stripe Alarm RELAY(COM) COM(2) Brown wire with white stripe Alarm RELAY(NO) NO(2) Blue wire with white stripe Exit Button EXIT Orange wire Door Sensor CONTACT Purple wire CNN-5: TCP/IP RJ45 CONNECTOR 4. INSTALLATION TIPS & CHECK POINT 4.1 CHECK POINT BEFORE THE INSTALLATION 4.1.1 CABLE SELECTION Figure: System Installation Layout 12

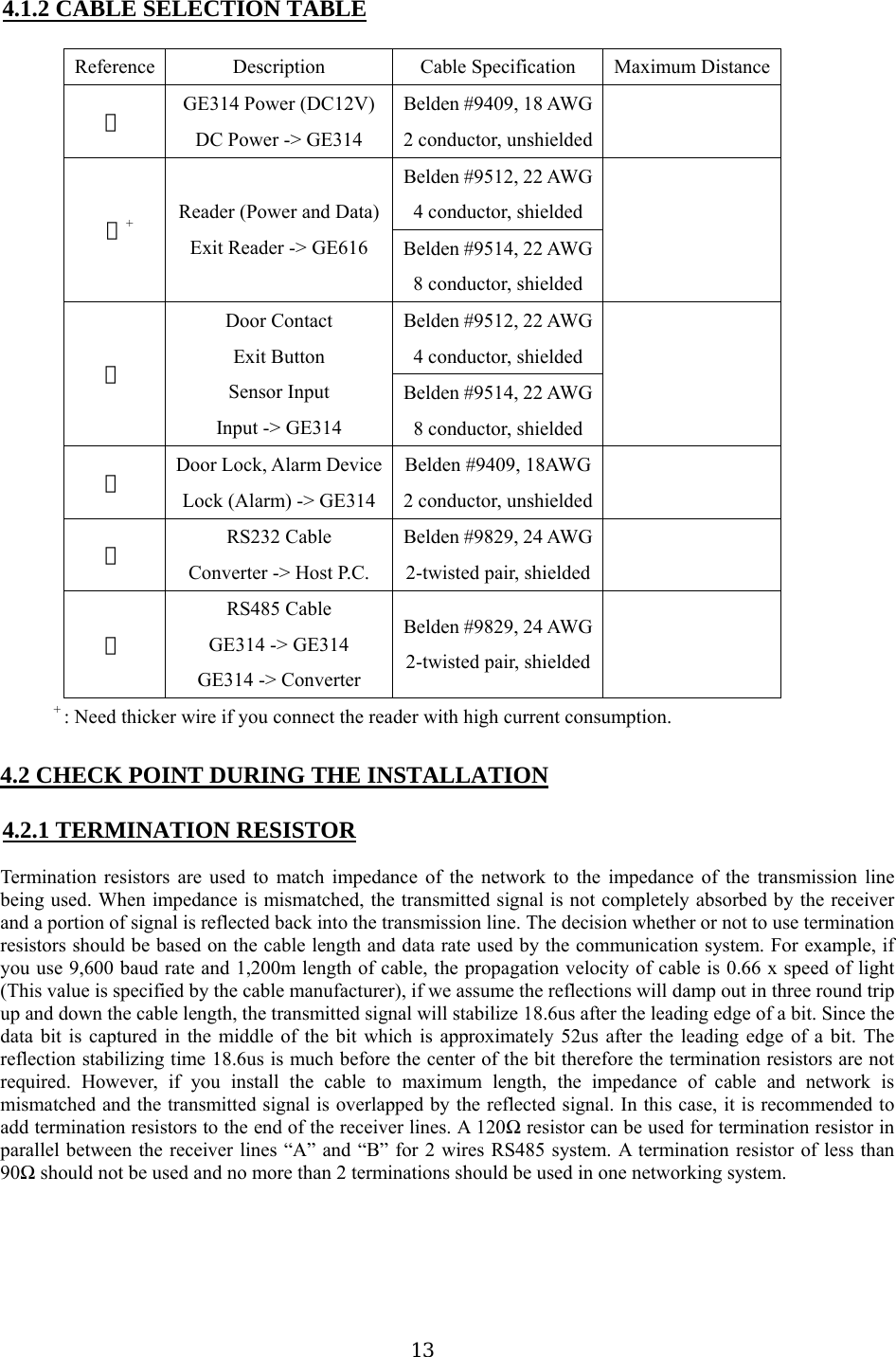

4.1.2 CABLE SELECTION TABLE Reference Description Cable Specification Maximum Distance ① GE314 Power (DC12V)DC Power -> GE314 Belden #9409, 18 AWG2 conductor, unshielded Belden #9512, 22 AWG4 conductor, shielded ②+Reader (Power and Data)Exit Reader -> GE616 Belden #9514, 22 AWG8 conductor, shielded Belden #9512, 22 AWG4 conductor, shielded ③ Door Contact Exit Button Sensor Input Input -> GE314 Belden #9514, 22 AWG8 conductor, shielded ④ Door Lock, Alarm DeviceLock (Alarm) -> GE314Belden #9409, 18AWG2 conductor, unshielded ⑤ RS232 Cable Converter -> Host P.C. Belden #9829, 24 AWG2-twisted pair, shielded ⑥ RS485 Cable GE314 -> GE314 GE314 -> Converter Belden #9829, 24 AWG2-twisted pair, shielded + : Need thicker wire if you connect the reader with high current consumption. 4.2 CHECK POINT DURING THE INSTALLATION 4.2.1 TERMINATION RESISTOR Termination resistors are used to match impedance of the network to the impedance of the transmission line being used. When impedance is mismatched, the transmitted signal is not completely absorbed by the receiver and a portion of signal is reflected back into the transmission line. The decision whether or not to use termination resistors should be based on the cable length and data rate used by the communication system. For example, if you use 9,600 baud rate and 1,200m length of cable, the propagation velocity of cable is 0.66 x speed of light (This value is specified by the cable manufacturer), if we assume the reflections will damp out in three round trip up and down the cable length, the transmitted signal will stabilize 18.6us after the leading edge of a bit. Since the data bit is captured in the middle of the bit which is approximately 52us after the leading edge of a bit. The reflection stabilizing time 18.6us is much before the center of the bit therefore the termination resistors are not required. However, if you install the cable to maximum length, the impedance of cable and network is mismatched and the transmitted signal is overlapped by the reflected signal. In this case, it is recommended to add termination resistors to the end of the receiver lines. A 120Ω resistor can be used for termination resistor in parallel between the receiver lines “A” and “B” for 2 wires RS485 system. A termination resistor of less than 90Ω should not be used and no more than 2 terminations should be used in one networking system. 13

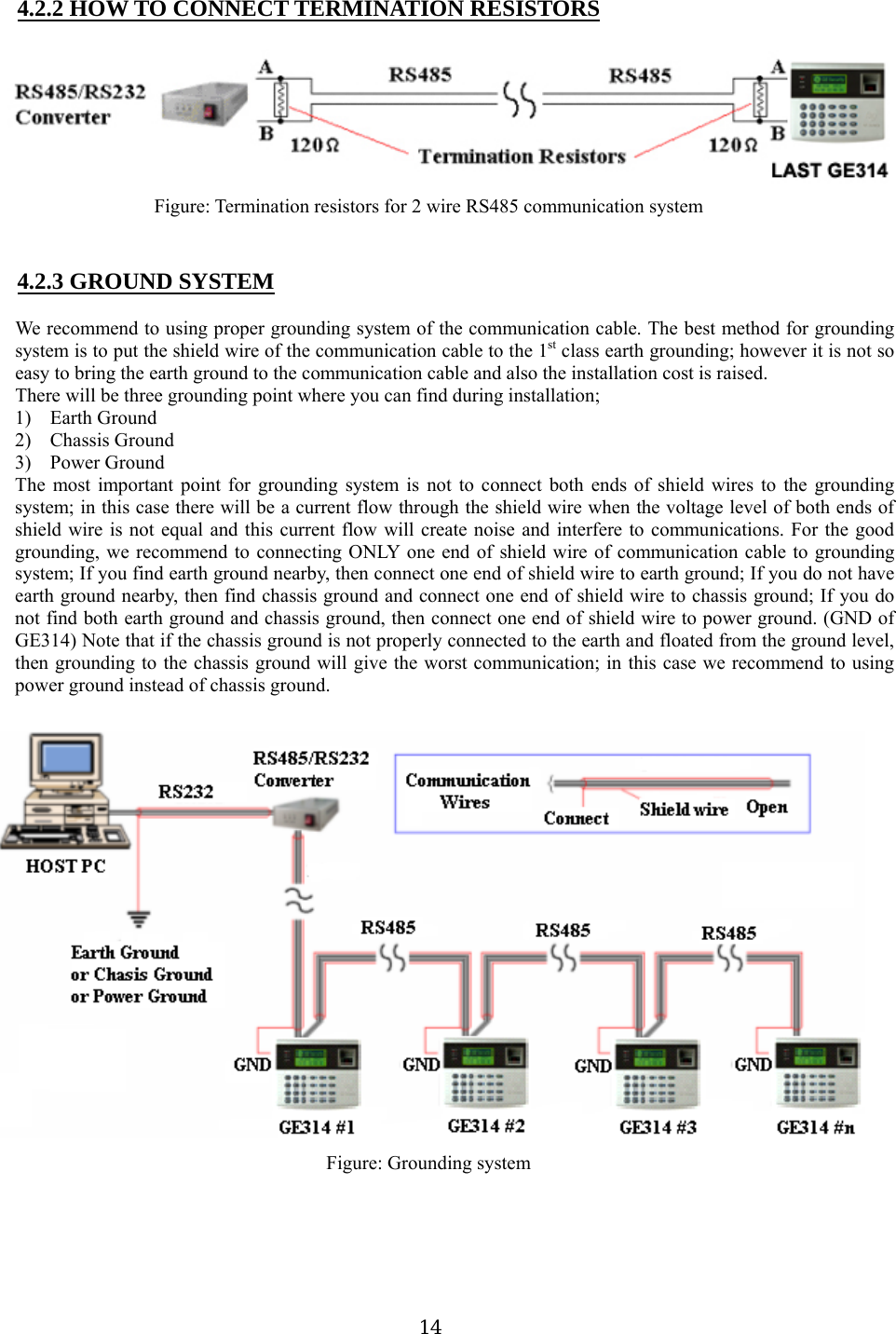

4.2.2 HOW TO CONNECT TERMINATION RESISTORS Figure: Termination resistors for 2 wire RS485 communication system 4.2.3 GROUND SYSTEM We recommend to using proper grounding system of the communication cable. The best method for grounding system is to put the shield wire of the communication cable to the 1st class earth grounding; however it is not so easy to bring the earth ground to the communication cable and also the installation cost is raised. There will be three grounding point where you can find during installation; 1) Earth Ground 2) Chassis Ground 3) Power Ground The most important point for grounding system is not to connect both ends of shield wires to the grounding system; in this case there will be a current flow through the shield wire when the voltage level of both ends of shield wire is not equal and this current flow will create noise and interfere to communications. For the good grounding, we recommend to connecting ONLY one end of shield wire of communication cable to grounding system; If you find earth ground nearby, then connect one end of shield wire to earth ground; If you do not have earth ground nearby, then find chassis ground and connect one end of shield wire to chassis ground; If you do not find both earth ground and chassis ground, then connect one end of shield wire to power ground. (GND of GE314) Note that if the chassis ground is not properly connected to the earth and floated from the ground level, then grounding to the chassis ground will give the worst communication; in this case we recommend to using power ground instead of chassis ground. Figure: Grounding system 14

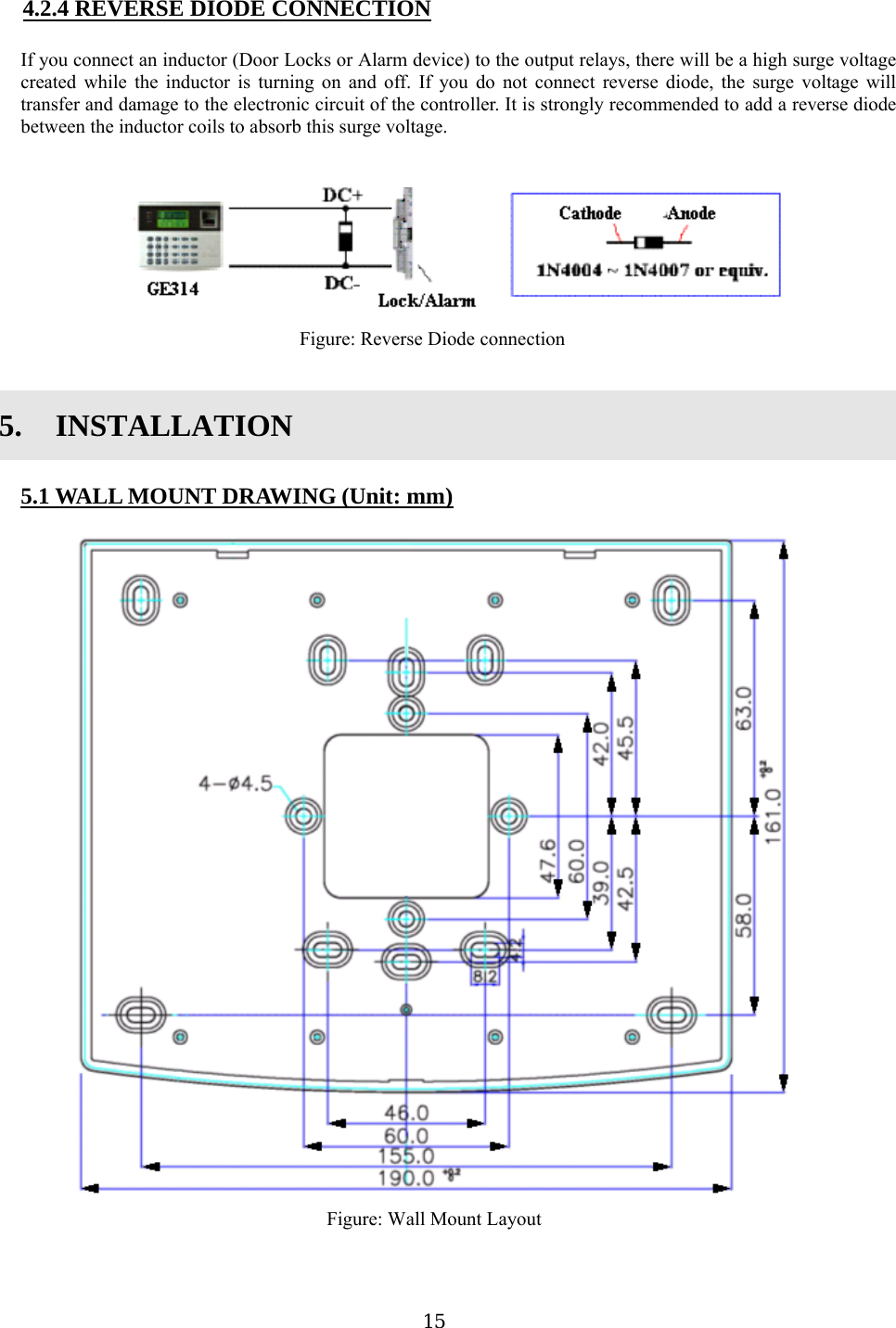

4.2.4 REVERSE DIODE CONNECTION If you connect an inductor (Door Locks or Alarm device) to the output relays, there will be a high surge voltage created while the inductor is turning on and off. If you do not connect reverse diode, the surge voltage will transfer and damage to the electronic circuit of the controller. It is strongly recommended to add a reverse diode between the inductor coils to absorb this surge voltage. Figure: Reverse Diode connection 5. INSTALLATION 5.1 WALL MOUNT DRAWING (Unit: mm) Figure: Wall Mount Layout 15

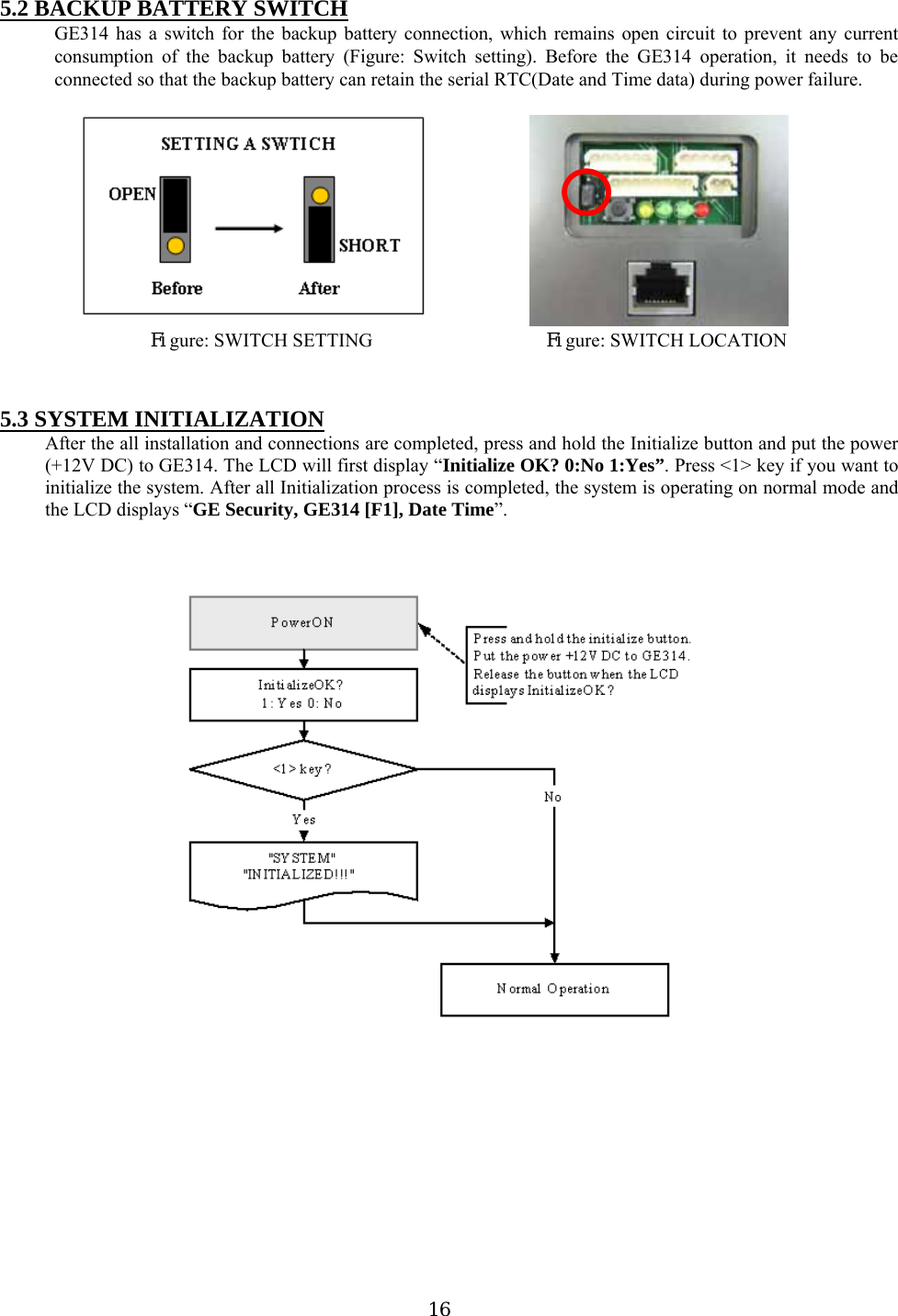

5.2 BACKUP BATTERY SWITCH GE314 has a switch for the backup battery connection, which remains open circuit to prevent any current consumption of the backup battery (Figure: Switch setting). Before the GE314 operation, it needs to be connected so that the backup battery can retain the serial RTC(Date and Time data) during power failure. Figure: SWITCH SETTING Figure: SWITCH LOCATION 5.3 SYSTEM INITIALIZATION After the all installation and connections are completed, press and hold the Initialize button and put the power (+12V DC) to GE314. The LCD will first display “Initialize OK? 0:No 1:Yes”. Press <1> key if you want to initialize the system. After all Initialization process is completed, the system is operating on normal mode and the LCD displays “GE Security, GE314 [F1], Date Time”. 16

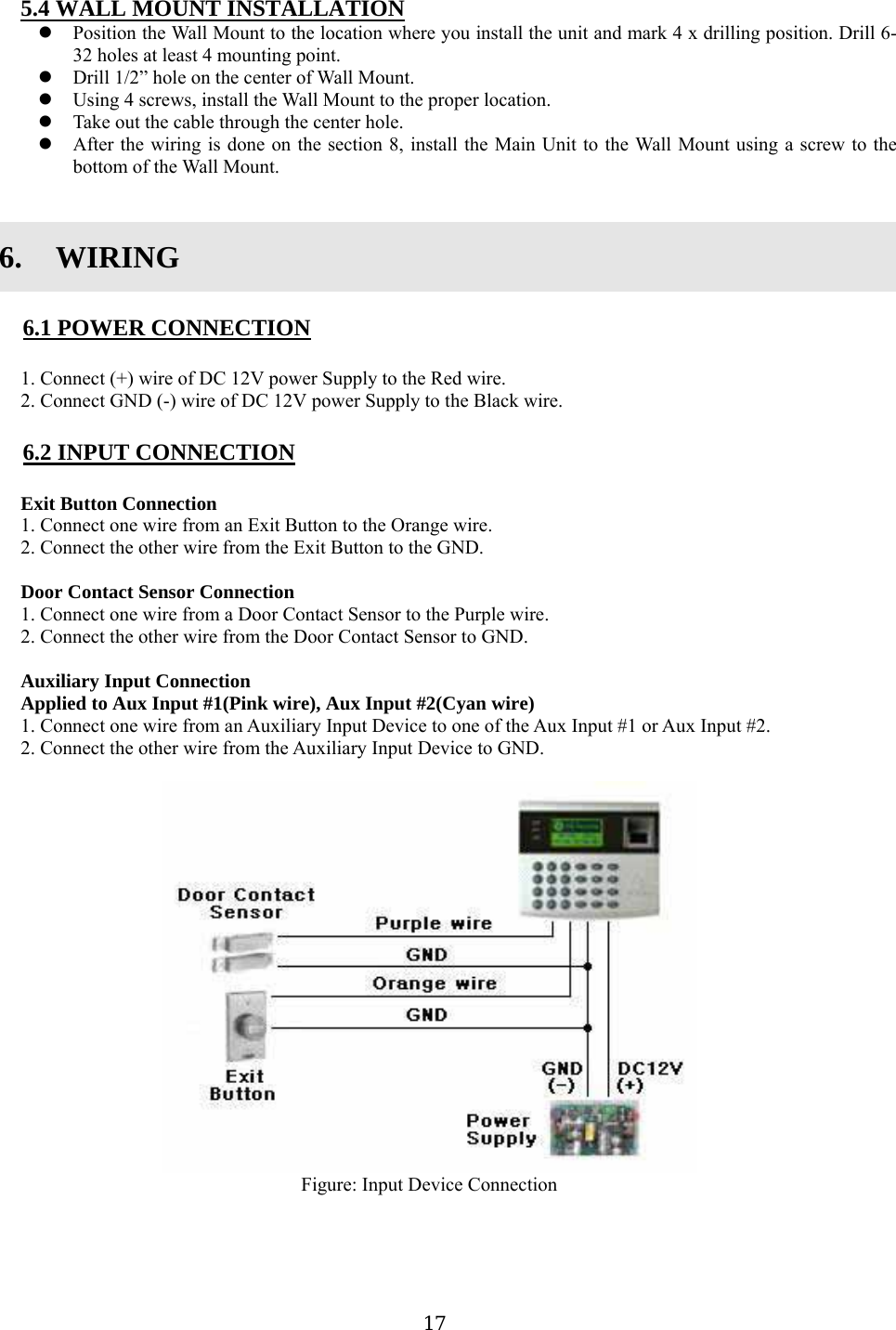

5.4 WALL MOUNT INSTALLATION  Position the Wall Mount to the location where you install the unit and mark 4 x drilling position. Drill 6-32 holes at least 4 mounting point.  Drill 1/2” hole on the center of Wall Mount.  Using 4 screws, install the Wall Mount to the proper location.  Take out the cable through the center hole.  After the wiring is done on the section 8, install the Main Unit to the Wall Mount using a screw to the bottom of the Wall Mount. 6. WIRING 6.1 POWER CONNECTION 1. Connect (+) wire of DC 12V power Supply to the Red wire. 2. Connect GND (-) wire of DC 12V power Supply to the Black wire. 6.2 INPUT CONNECTION Exit Button Connection 1. Connect one wire from an Exit Button to the Orange wire. 2. Connect the other wire from the Exit Button to the GND. Door Contact Sensor Connection 1. Connect one wire from a Door Contact Sensor to the Purple wire. 2. Connect the other wire from the Door Contact Sensor to GND. Auxiliary Input Connection Applied to Aux Input #1(Pink wire), Aux Input #2(Cyan wire) 1. Connect one wire from an Auxiliary Input Device to one of the Aux Input #1 or Aux Input #2. 2. Connect the other wire from the Auxiliary Input Device to GND. Figure: Input Device Connection 17

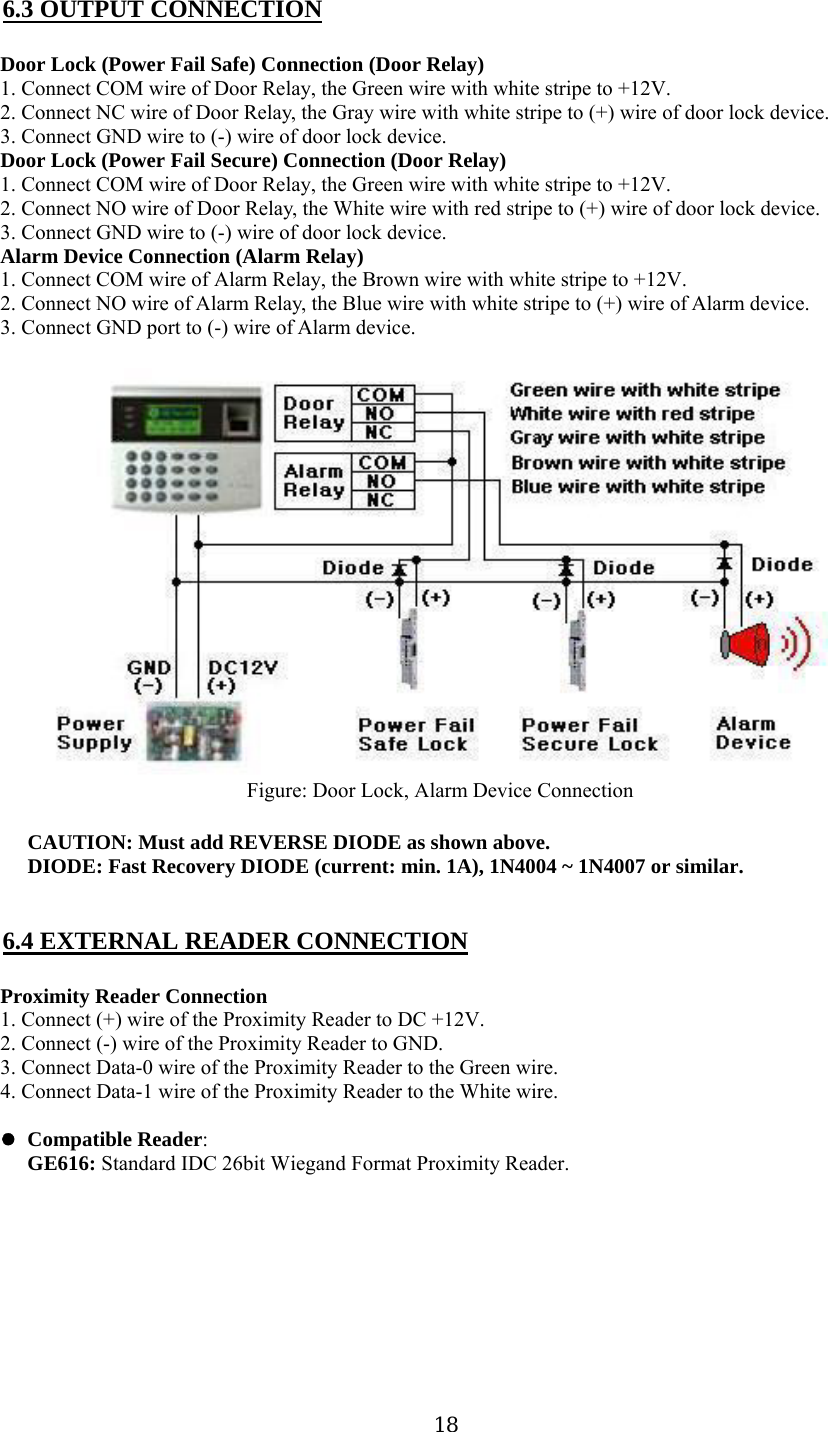

6.3 OUTPUT CONNECTION Door Lock (Power Fail Safe) Connection (Door Relay) 1. Connect COM wire of Door Relay, the Green wire with white stripe to +12V. 2. Connect NC wire of Door Relay, the Gray wire with white stripe to (+) wire of door lock device. 3. Connect GND wire to (-) wire of door lock device. Door Lock (Power Fail Secure) Connection (Door Relay) 1. Connect COM wire of Door Relay, the Green wire with white stripe to +12V. 2. Connect NO wire of Door Relay, the White wire with red stripe to (+) wire of door lock device. 3. Connect GND wire to (-) wire of door lock device. Alarm Device Connection (Alarm Relay) 1. Connect COM wire of Alarm Relay, the Brown wire with white stripe to +12V. 2. Connect NO wire of Alarm Relay, the Blue wire with white stripe to (+) wire of Alarm device. 3. Connect GND port to (-) wire of Alarm device. Figure: Door Lock, Alarm Device Connection CAUTION: Must add REVERSE DIODE as shown above. DIODE: Fast Recovery DIODE (current: min. 1A), 1N4004 ~ 1N4007 or similar. 6.4 EXTERNAL READER CONNECTION Proximity Reader Connection 1. Connect (+) wire of the Proximity Reader to DC +12V. 2. Connect (-) wire of the Proximity Reader to GND. 3. Connect Data-0 wire of the Proximity Reader to the Green wire. 4. Connect Data-1 wire of the Proximity Reader to the White wire.  Compatible Reader: GE616: Standard IDC 26bit Wiegand Format Proximity Reader. 18

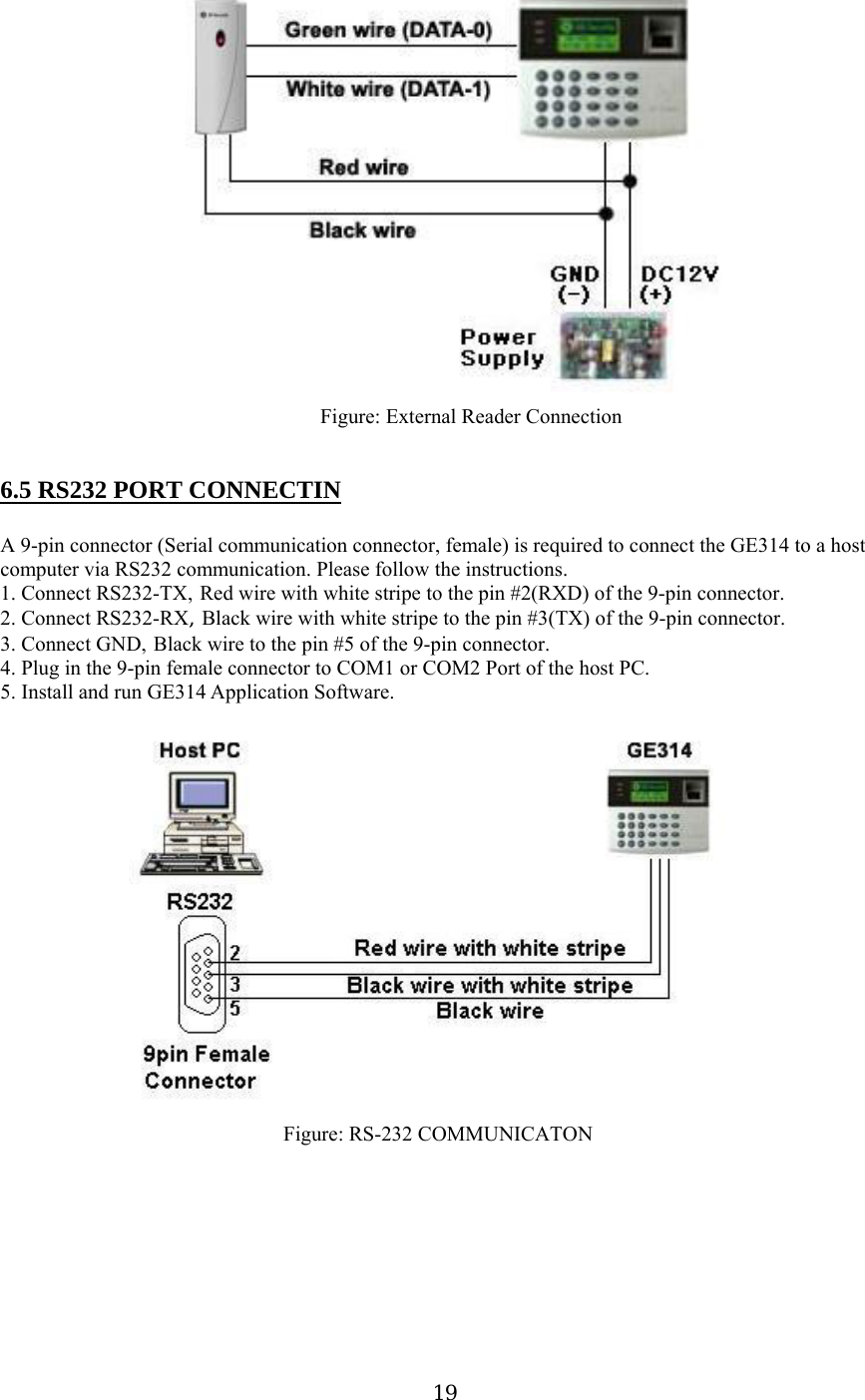

Figure: External Reader Connection 6.5 RS232 PORT CONNECTIN A 9-pin connector (Serial communication connector, female) is required to connect the GE314 to a host computer via RS232 communication. Please follow the instructions. 1. Connect RS232-TX, Red wire with white stripe to the pin #2(RXD) of the 9-pin connector. 2. Connect RS232-RX, Black wire with white stripe to the pin #3(TX) of the 9-pin connector. 3. Connect GND, Black wire to the pin #5 of the 9-pin connector. 4. Plug in the 9-pin female connector to COM1 or COM2 Port of the host PC. 5. Install and run GE314 Application Software. Figure: RS-232 COMMUNICATON 19

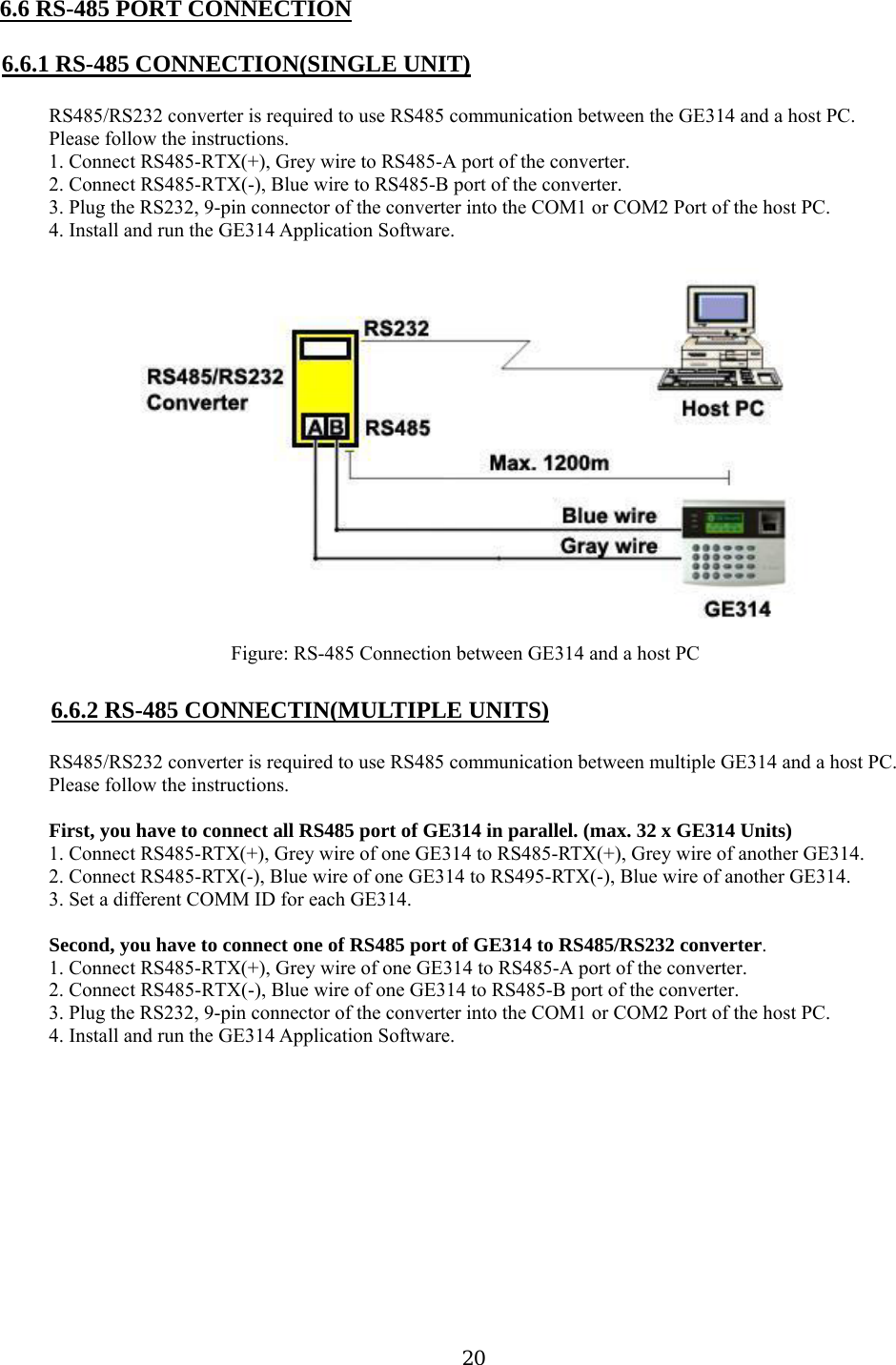

6.6 RS-485 PORT CONNECTION 6.6.1 RS-485 CONNECTION(SINGLE UNIT) RS485/RS232 converter is required to use RS485 communication between the GE314 and a host PC. Please follow the instructions. 1. Connect RS485-RTX(+), Grey wire to RS485-A port of the converter. 2. Connect RS485-RTX(-), Blue wire to RS485-B port of the converter. 3. Plug the RS232, 9-pin connector of the converter into the COM1 or COM2 Port of the host PC. 4. Install and run the GE314 Application Software. Figure: RS-485 Connection between GE314 and a host PC 6.6.2 RS-485 CONNECTIN(MULTIPLE UNITS) RS485/RS232 converter is required to use RS485 communication between multiple GE314 and a host PC. Please follow the instructions. First, you have to connect all RS485 port of GE314 in parallel. (max. 32 x GE314 Units) 1. Connect RS485-RTX(+), Grey wire of one GE314 to RS485-RTX(+), Grey wire of another GE314. 2. Connect RS485-RTX(-), Blue wire of one GE314 to RS495-RTX(-), Blue wire of another GE314. 3. Set a different COMM ID for each GE314. Second, you have to connect one of RS485 port of GE314 to RS485/RS232 converter. 1. Connect RS485-RTX(+), Grey wire of one GE314 to RS485-A port of the converter. 2. Connect RS485-RTX(-), Blue wire of one GE314 to RS485-B port of the converter. 3. Plug the RS232, 9-pin connector of the converter into the COM1 or COM2 Port of the host PC. 4. Install and run the GE314 Application Software. 20

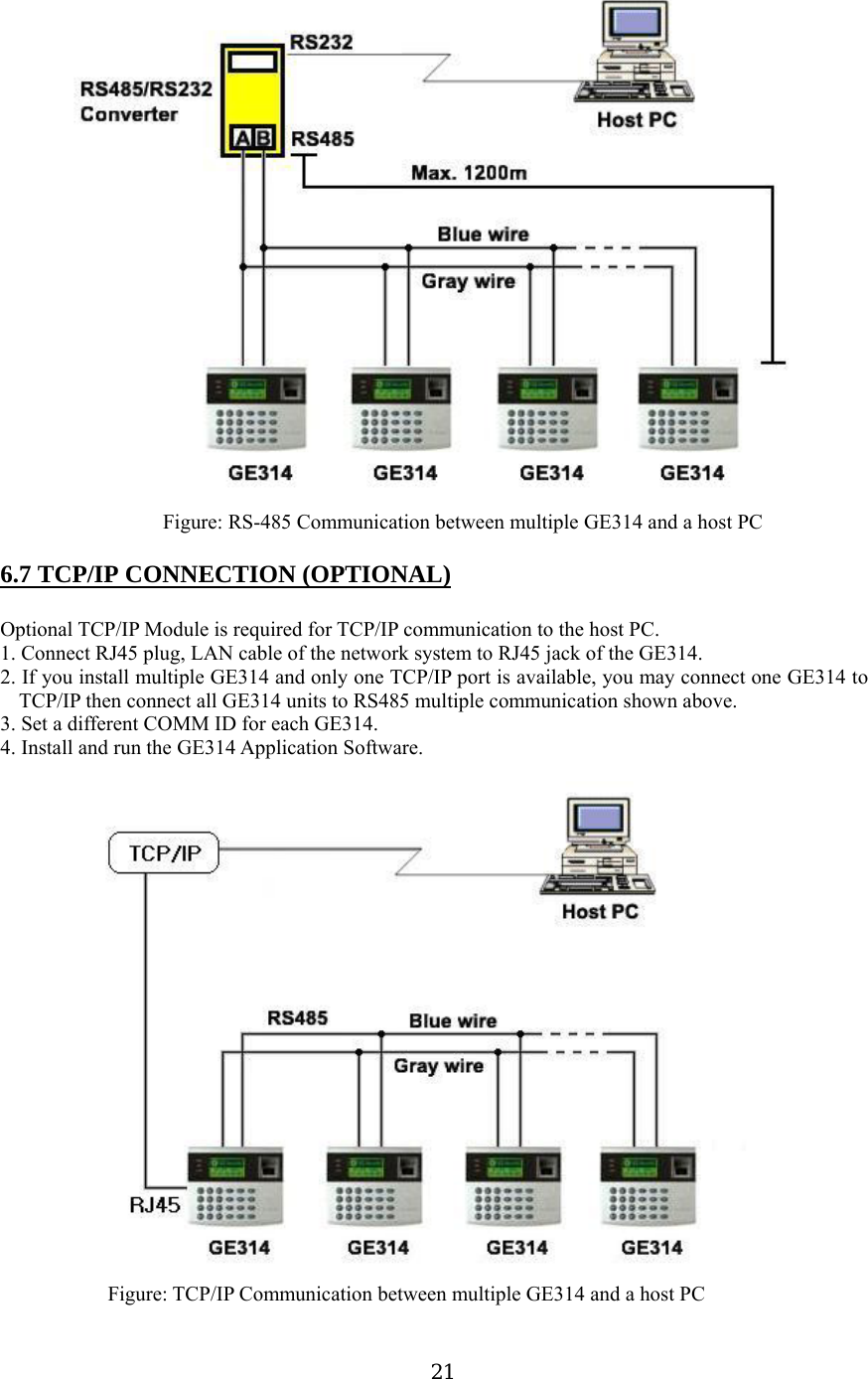

Figure: RS-485 Communication between multiple GE314 and a host PC 6.7 TCP/IP CONNECTION (OPTIONAL) Optional TCP/IP Module is required for TCP/IP communication to the host PC. 1. Connect RJ45 plug, LAN cable of the network system to RJ45 jack of the GE314. 2. If you install multiple GE314 and only one TCP/IP port is available, you may connect one GE314 to TCP/IP then connect all GE314 units to RS485 multiple communication shown above. 3. Set a different COMM ID for each GE314. 4. Install and run the GE314 Application Software. Figure: TCP/IP Communication between multiple GE314 and a host PC 21

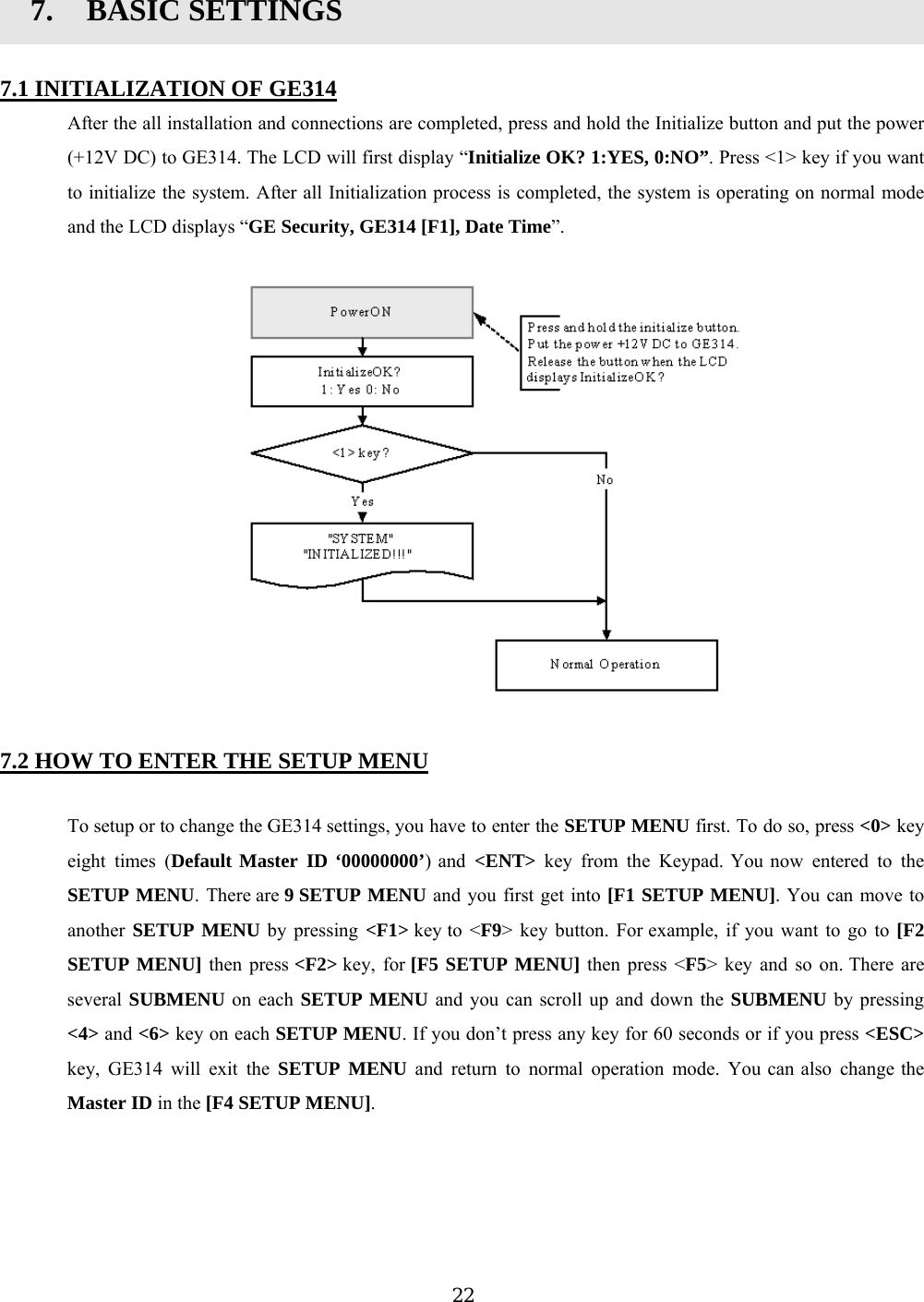

7. BASIC SETTINGS 7.1 INITIALIZATION OF GE314 After the all installation and connections are completed, press and hold the Initialize button and put the power (+12V DC) to GE314. The LCD will first display “Initialize OK? 1:YES, 0:NO”. Press <1> key if you want to initialize the system. After all Initialization process is completed, the system is operating on normal mode and the LCD displays “GE Security, GE314 [F1], Date Time”. 7.2 HOW TO ENTER THE SETUP MENU To setup or to change the GE314 settings, you have to enter the SETUP MENU first. To do so, press <0> key eight times (Default Master ID ‘00000000’) and <ENT> key from the Keypad. You now entered to the SETUP MENU. There are 9 SETUP MENU and you first get into [F1 SETUP MENU]. You can move to another SETUP MENU by pressing <F1> key to <F9> key button. For example, if you want to go to [F2 SETUP MENU] then press <F2> key, for [F5 SETUP MENU] then press <F5> key and so on. There are several SUBMENU on each SETUP MENU and you can scroll up and down the SUBMENU by pressing <4> and <6> key on each SETUP MENU. If you don’t press any key for 60 seconds or if you press <ESC> key, GE314 will exit the SETUP MENU and return to normal operation mode. You can also change the Master ID in the [F4 SETUP MENU]. 22

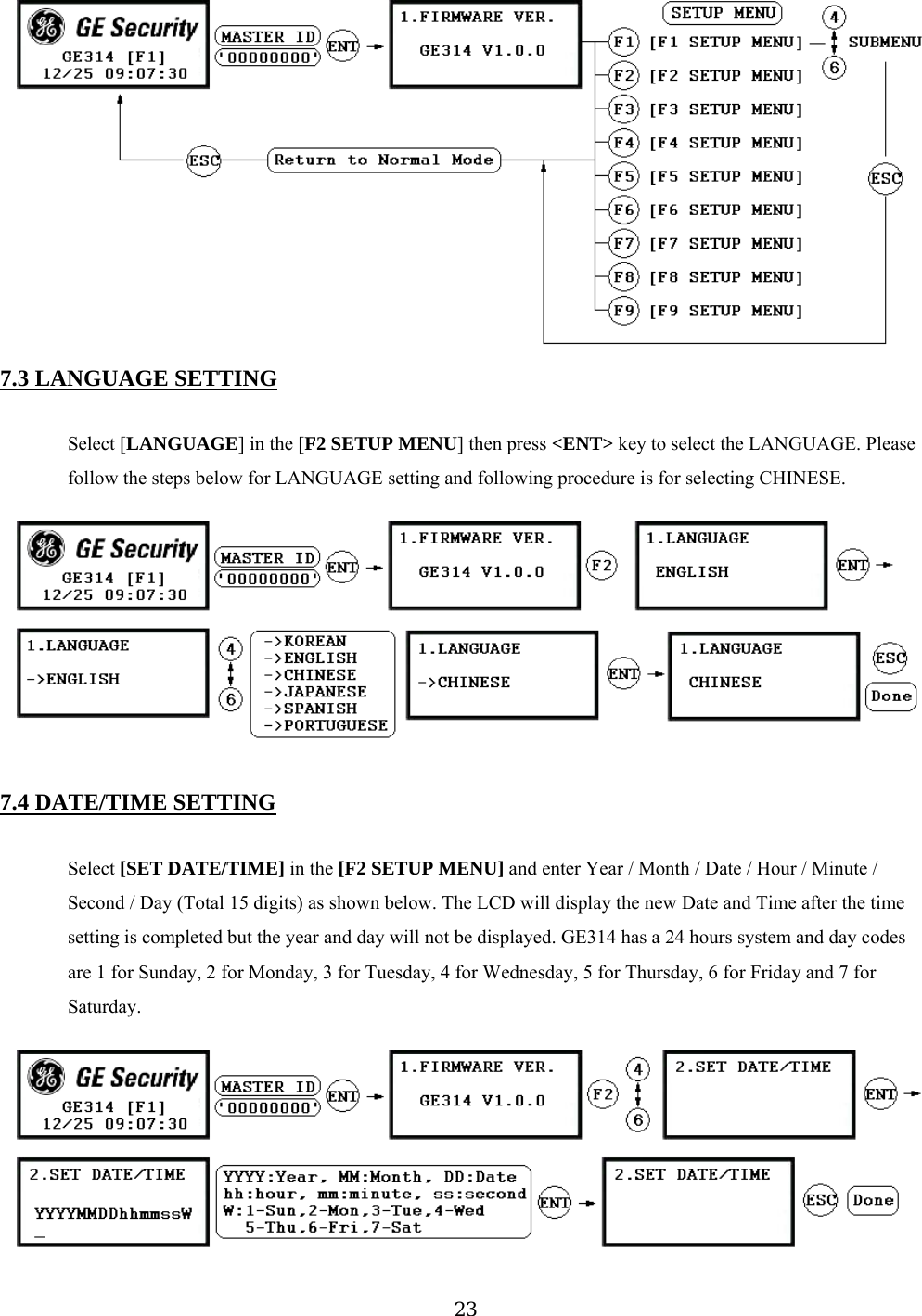

7.3 LANGUAGE SETTING Select [LANGUAGE] in the [F2 SETUP MENU] then press <ENT> key to select the LANGUAGE. Please follow the steps below for LANGUAGE setting and following procedure is for selecting CHINESE. 7.4 DATE/TIME SETTING Select [SET DATE/TIME] in the [F2 SETUP MENU] and enter Year / Month / Date / Hour / Minute / Second / Day (Total 15 digits) as shown below. The LCD will display the new Date and Time after the time setting is completed but the year and day will not be displayed. GE314 has a 24 hours system and day codes are 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday and 7 for Saturday. 23

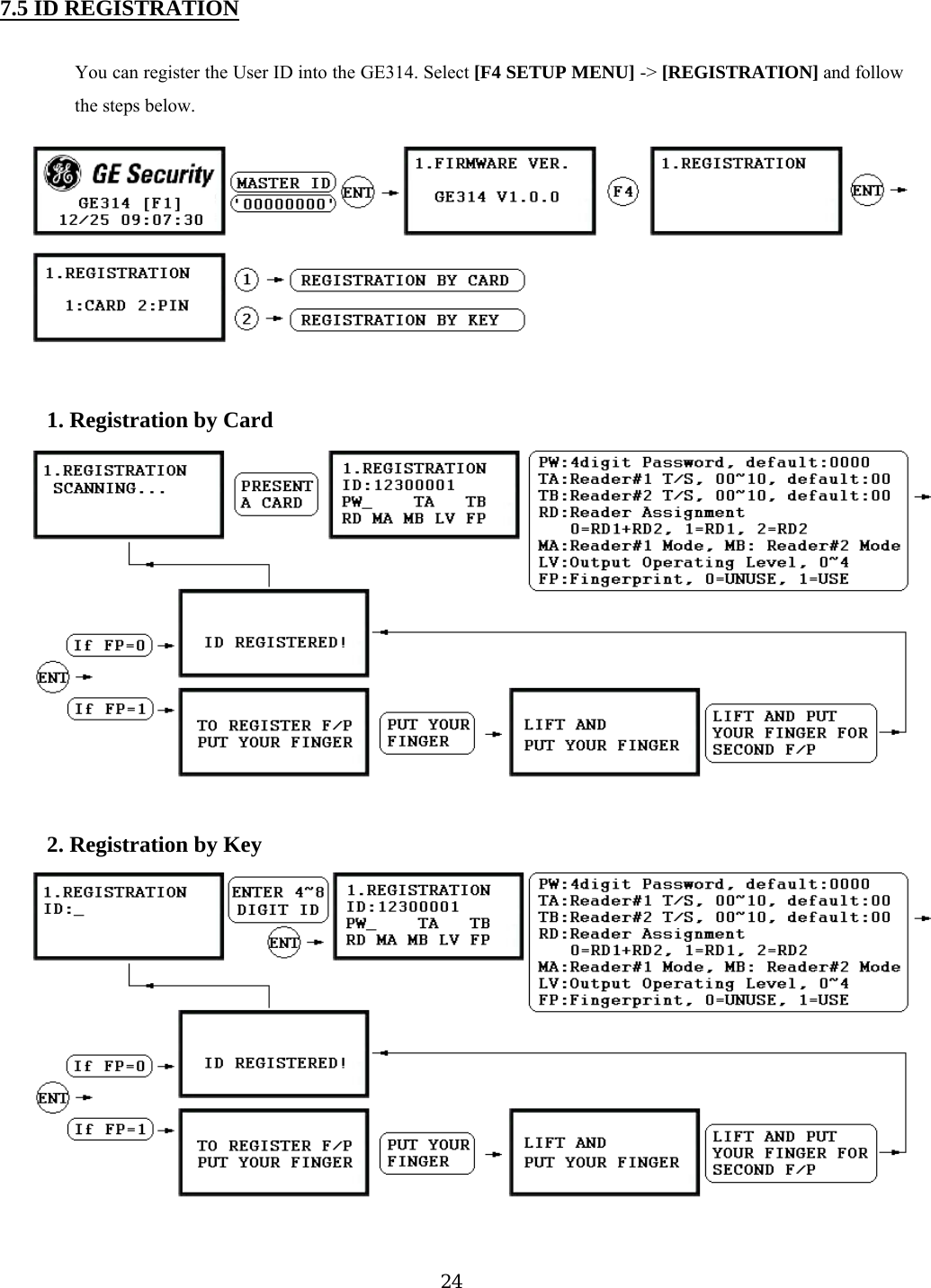

7.5 ID REGISTRATION You can register the User ID into the GE314. Select [F4 SETUP MENU] -> [REGISTRATION] and follow the steps below. 1. Registration by Card 2. Registration by Key 24
1. Scanning… The reader is waiting for the ID number to be registered. The card number will appear with a beep sound when you present the card. ID number is 8digit number. 2. ID: ID number consists of 4~8 digit. Enter 4~8digit ID number (PIN) and press <ENT> key on the field. 3. PW: PW is the password which can be used to access the doors with RF + Password operating mode. It is necessary to enter a default password (‘0000’) when you register an ID. 4. TA: TA is the Time Schedule code (‘00’ ~ ‘10’) for the Reader#1 (Built-in Reader). When you present the card to the Reader#1, the cardholder is only allowed the access of the door during the Time intervals of the Time Schedule code entered to TA. To setup the Time intervals for each Time Schedule code, refer to the ard to the Reader#2, the cardholder is only allowed the access of the door during the Time intervals of the the door anytime for the cardholder en enter the default Time Schedule code '00' for the value. n ns ss Door Error”) on the LCD display. A, ‘3’ – ID + Password + Finger Mode ‘1’ – ID Only Mode Time Schedule Setup on the [F5 SETUP MENU]. If you want to access the door anytime for the cardholder then enter the default Time Schedule code '00' for the value. 5. TB: TB is the Time Schedule code (‘00’ ~ ‘10’) for the Reader#2 (Exit Reader). When you present the cTime Schedule code entered to TB. To setup the Time intervals for each Time Schedule code, refer to the Time Schedule Setup on the [F5 SETUP MENU]. If you want to access th 6. RD: RD is the Reader Assignment code for the cardholder. Code ‘0’ assigns for both readers (Built-iReader and Exit Reader), code ‘1’ only assigns Reader#1 (Built-in Reader) and code ‘2’ only assigReader#2 (Exit Reader). If you put ‘1’ for RD (Only Reader#1 assigned) and try to exit through Reader#2(Exit Reader) then GE314 generates an error message (“Acce 7. MA: MA is the Reader#1 (Built-in Reader) Operating Mode for the cardholder. If you put ‘1’ for MReader#1 is always operating on RF Only Mode. ‘0’ – System Operating Mode [F2 SETUP MENU] [READER#1 MODE] ‘1’ – ID Only Mode ‘2’ – ID + Finger(Password) Mode 8. MB: MB is the Reader#2 (Exit Reader) Operating Mode for the cardholder. If you put ‘1’ for MB, Reader#2 is always operating on RF Only Mode. ‘0’ – System Operating Mode [F2 SETUP MENU] [READER#2 MODE] ‘2’ – ID + Password Mode 25

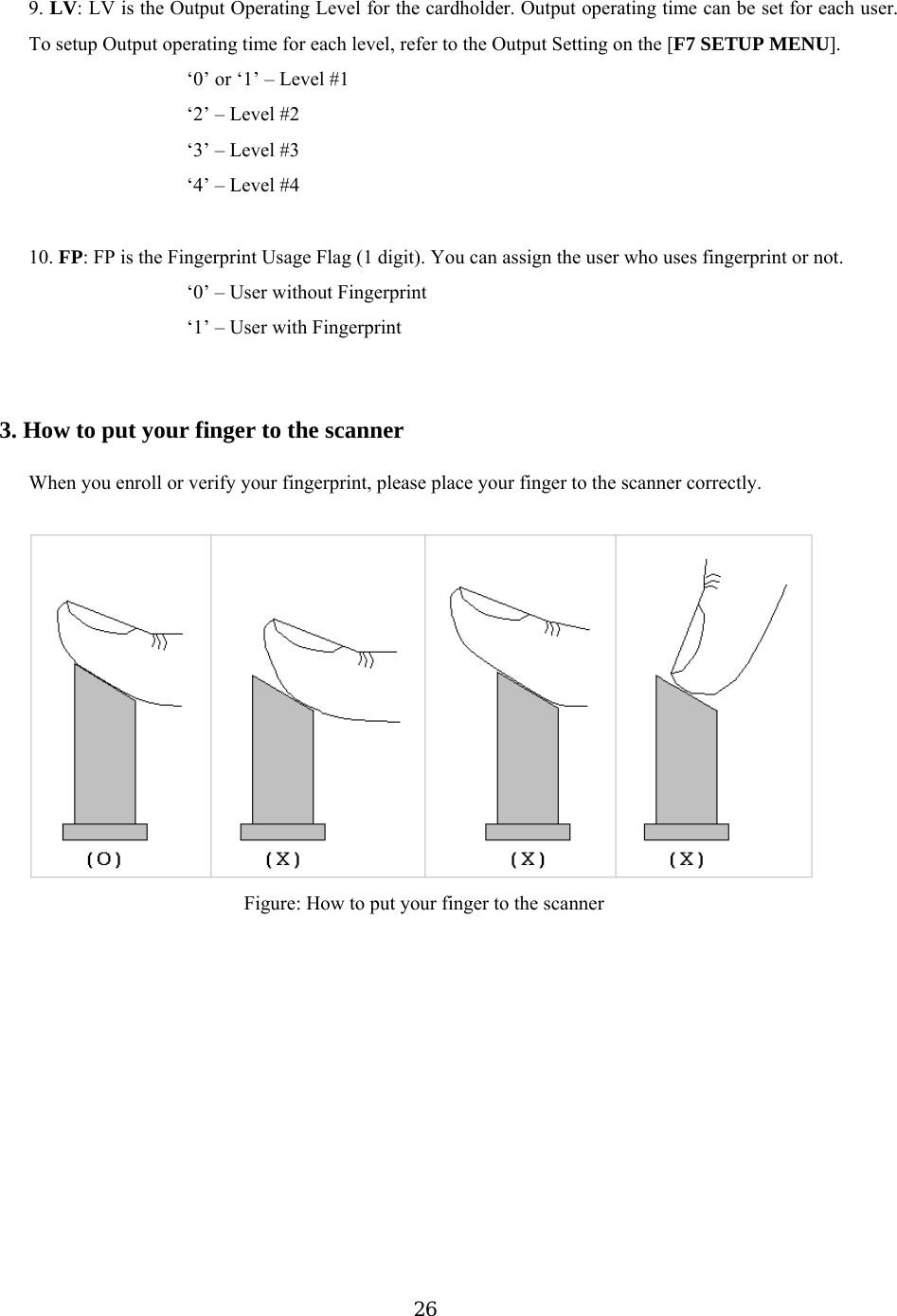

9utput Operating Level for the cardholder. Output operating time can be set for . LV: LV is the O each user. evel, refer to the Output Setting on the [F7 SETUP MENU]. ‘3’ – Level #3 0. FP: FP is the Fi not. nt 3. hen you enroll or verify y place your finger to the scanner correctly. To setup Output operating time for each l ‘0’ or ‘1’ – Level #1 ‘2’ – Level #2 ‘4’ – Level #4 1ngerprint Usage Flag (1 digit). You can assign the user who uses fingerprint or ‘0’ – User without Fingerpri ‘1’ – User with Fingerprint How to put your finger to the scanner Wour fingerprint, please Figure: How to put your finger to the scanner 26

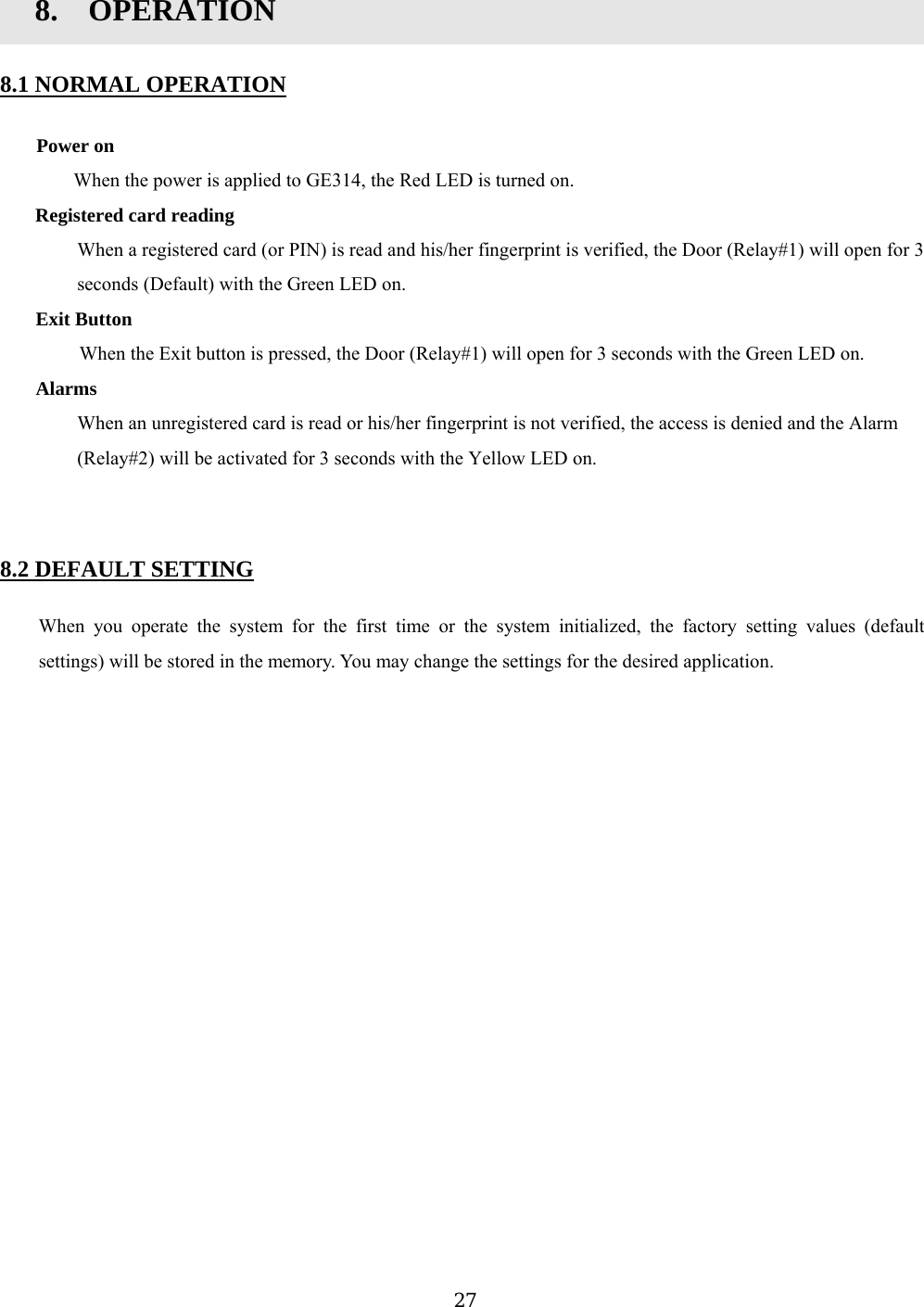

8. OPERATION 8.1 NORMAL OPERATION Power on When the power is applied to GE314, the Red LED is turned on. Registered card reading When a registered card (or PIN) is read and his/her fingerprint is verified, the Door (Relay#1) will open for 3 seconds (Default) with the Green LED on. Exit Button When the Exit button is pressed, the Door (Relay#1) Alarms When an unregistered card is read or his/her fingerprint is not verified, the access is denied and the Alarm (Relay#2) will be activated for 3 seconds with the Yellow LED on. 8.2 DEFAULT SETTINGwill open for 3 seconds with the Green LED on. When you operate the system for the first time or the system initialized, the factory setting values (default ory. You may change the settings for the desired application. settings) will be stored in the mem 27

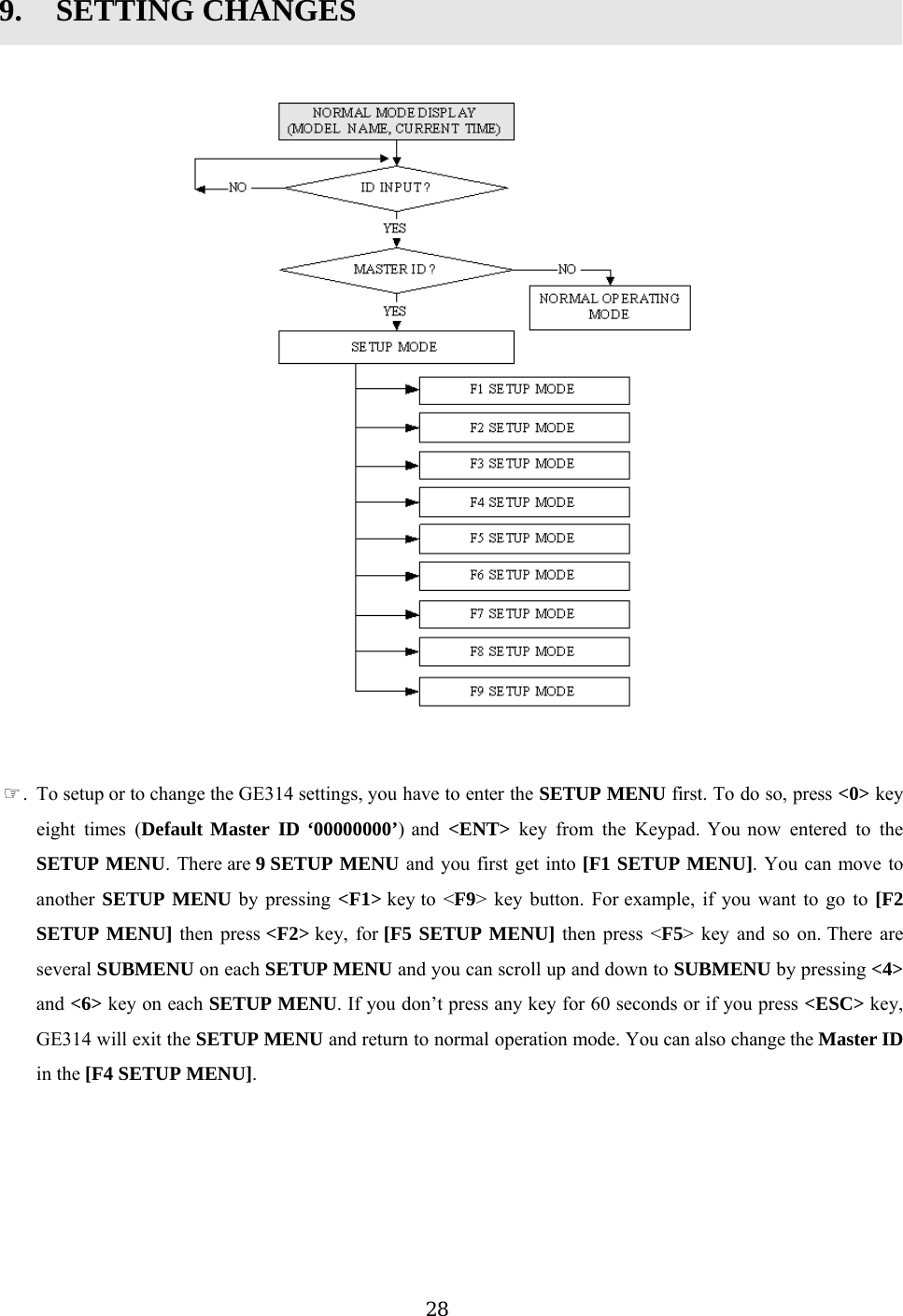

9 . SETTING CHANGES ☞. To setup or to change the GE314 settings, you have to enter the SETUP MENU first. To do so, press <0> key eight times (Default Master ID ‘00000000’) and <ENT> key from the Keypad. You now entered to the SETUP MENU. There are 9 SETUP MENU and you first get into [F1 SETUP MENU]. You can move to another SETUP MENU by pressing <F1> key to <F9> key button. For example, if you want to go to [F2 SETUP MENU] then press <F2> key, for [F5 SETUP MENU] then press <F5> key and so on. There are several SUBMENU on each SETUP MENU and you can scroll up and down to SUBMENU by pressing <4> and <6> key on each SETUP MENU. If you don’t press any key for 60 seconds or if you press <ESC> key, GE314 will exit the SETUP MENU and return to normal operation mode. You can also change the Master ID in the [F4 SETUP MENU]. 28

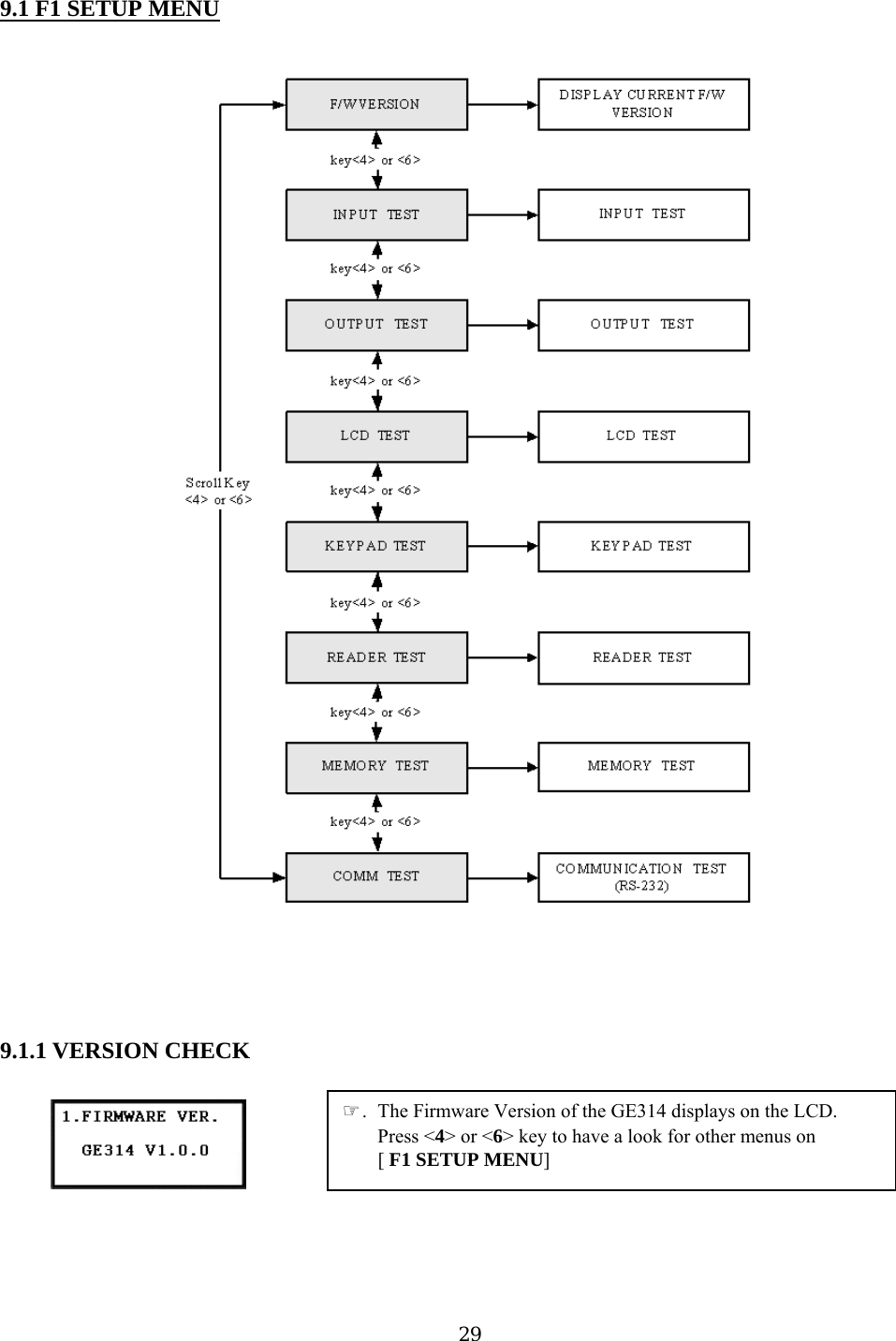

299.1 F1 SETUP MENU 9.1.1 VERSION CHECK ☞. The Firmware Version of the GE314 displays on the LCD. Press <4> or <6> key to have a look for other menus on [ F1 SETUP MENU]

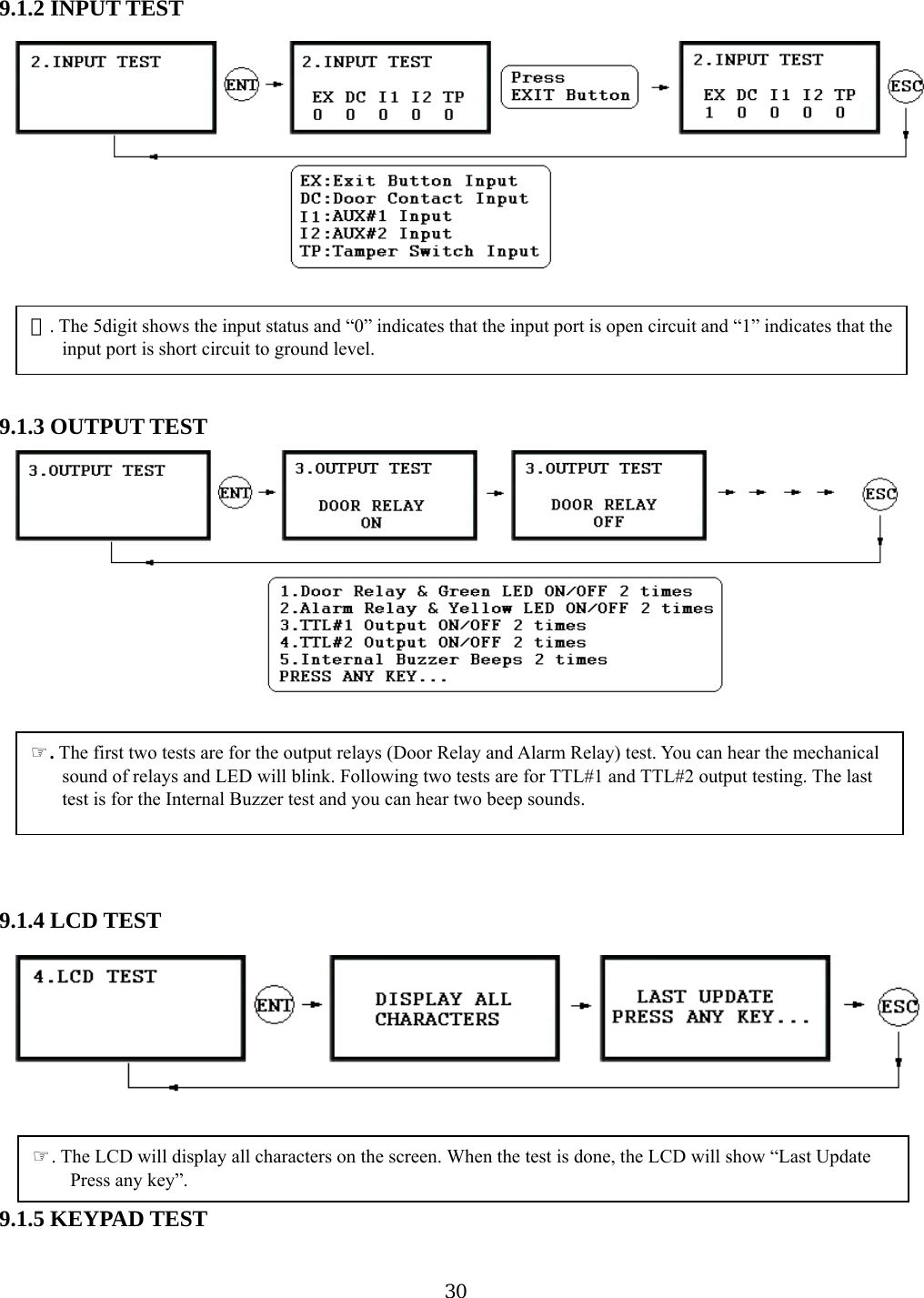

9.1.2 INPUT TEST 9.1.4 LCD TEST 9.1.5 KEYPAD TEST 9.1.3 OUTPUT TEST . The ☞5digit shows the input status and “0” indicates that the input port is open circuit and “1” indicates that theinput port is short circuit to ground level. ☞. The first two tests are for the output relays (Door Relay and Alarm Relay) test. You can hear the mechanical sound of relays and LED will blink. Following two tests are for TTL#1 and TTL#2 output testing. The last test is for the Internal Buzzer test and you can hear two beep sounds. ☞. The LCD will display all characters on the screen. When the test is done, the LCD will show “Last Update Press any key”. 30

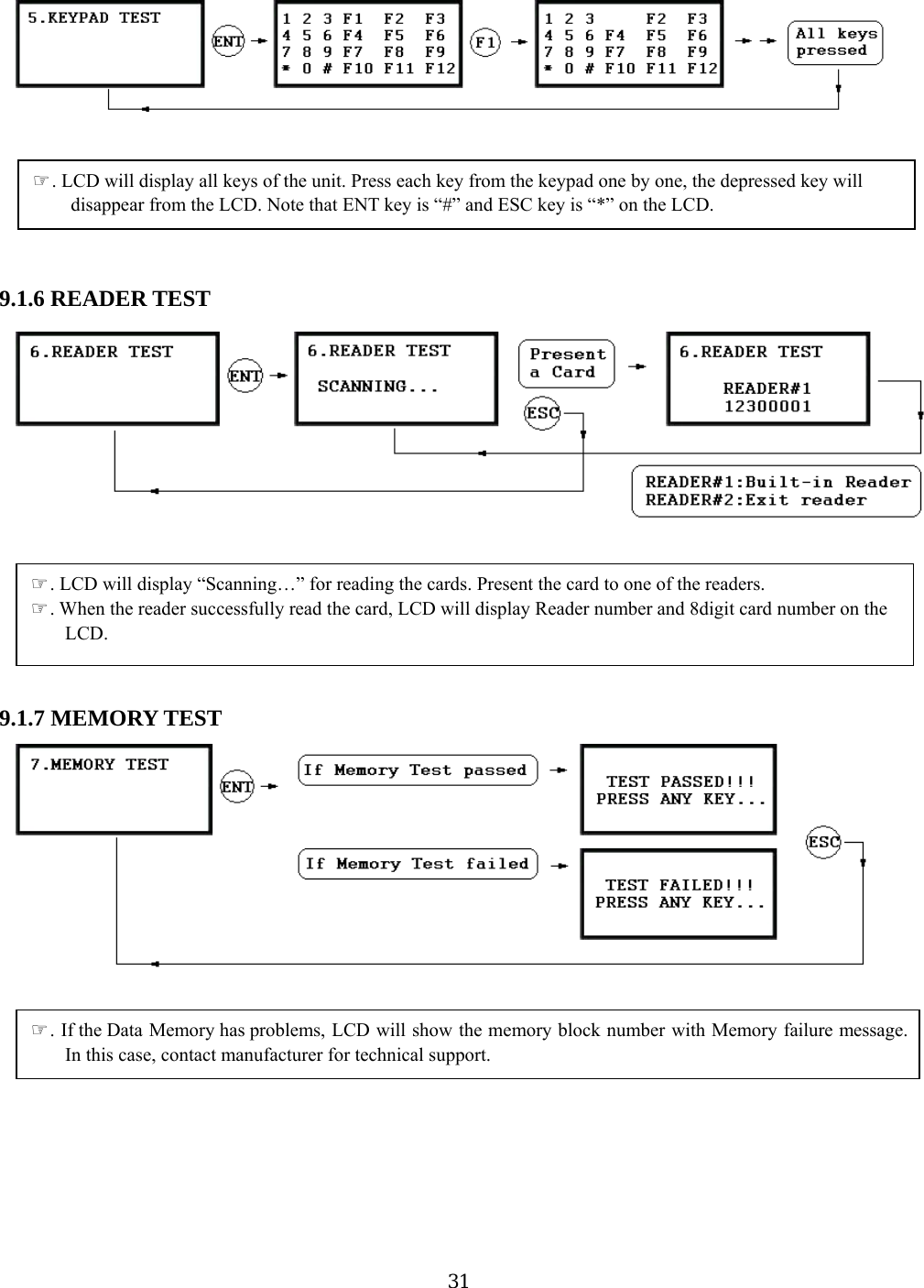

.1. 9 6 READER TEST 9.1.7 MEMORY TEST ☞. LCD will display all keys of the unit. Press each key from the keypad one by one, the depressed key will disappear from the LCD. Note that ENT key is “#” and ESC key is “*” on the LCD. ☞. LCD will display “Scanning…” for reading the cards. Present the card to one of the readers. ☞. When the reader successfully read the card, LCD will display Reader number and 8digit card number on the LCD. ☞. If the Data Memory has problems, LCD will show the memory block number with Memory failure message.In this case, contact manufacturer for technical support. 31

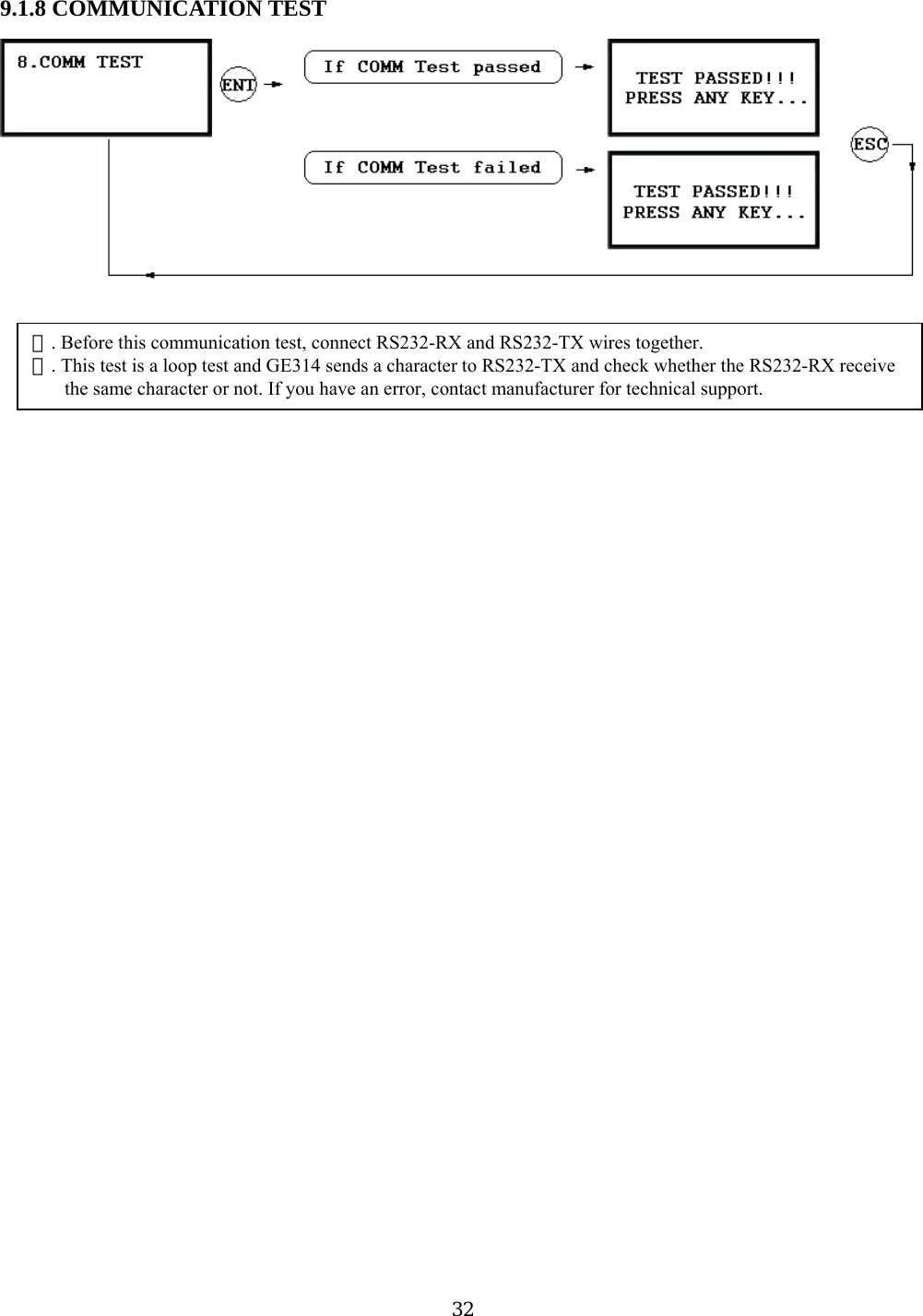

9.1.8 COMMUNICATION TEST . ☞Before this communication test, connect RS232-RX and RS232-TX wires together. . ☞This test is a loop test and GE314 sends a character to RS232-TX and check whether the RS232-RX receive the same character or not. If you have an error, contact manufacturer for technical support. 32

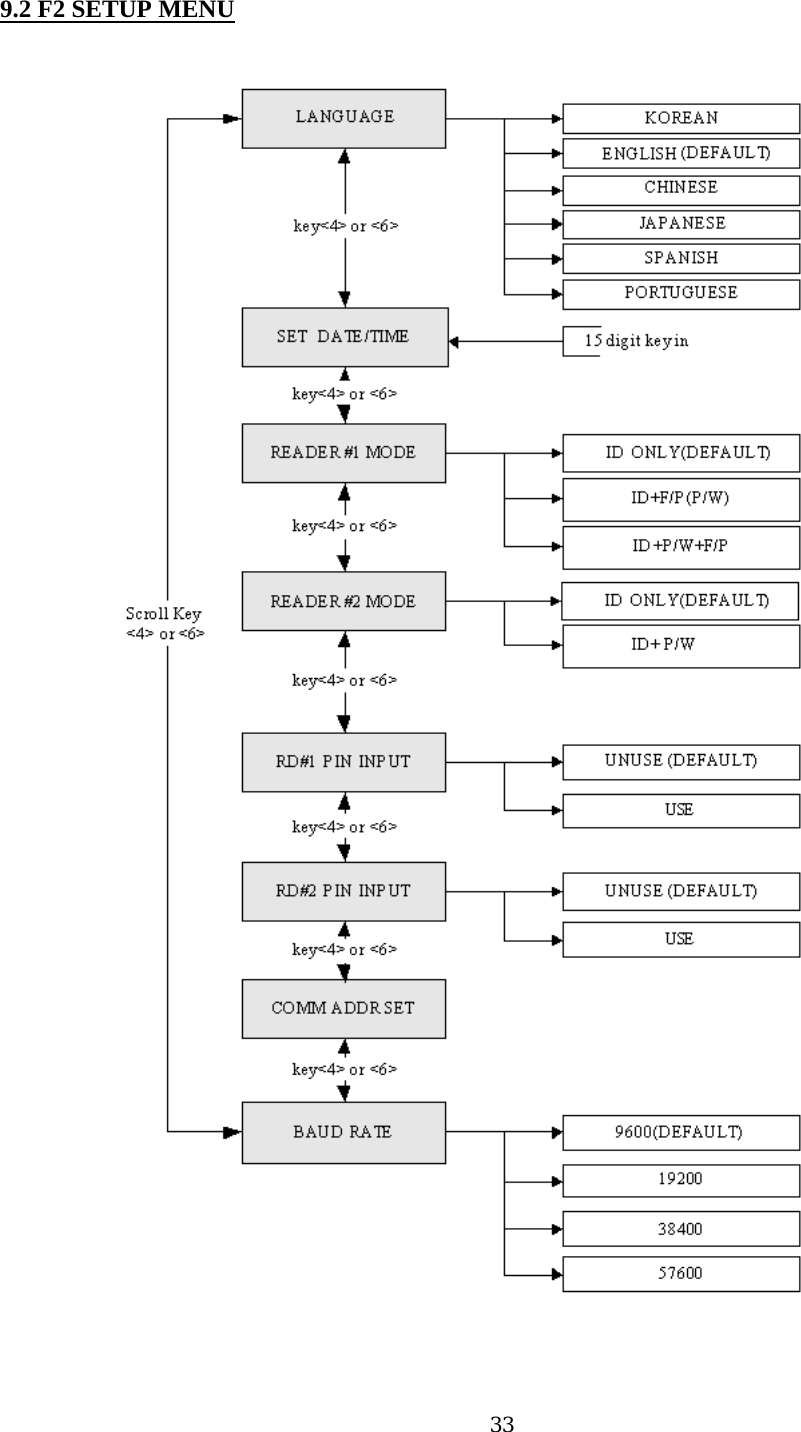

9.2 F2 SETUP MENU 33

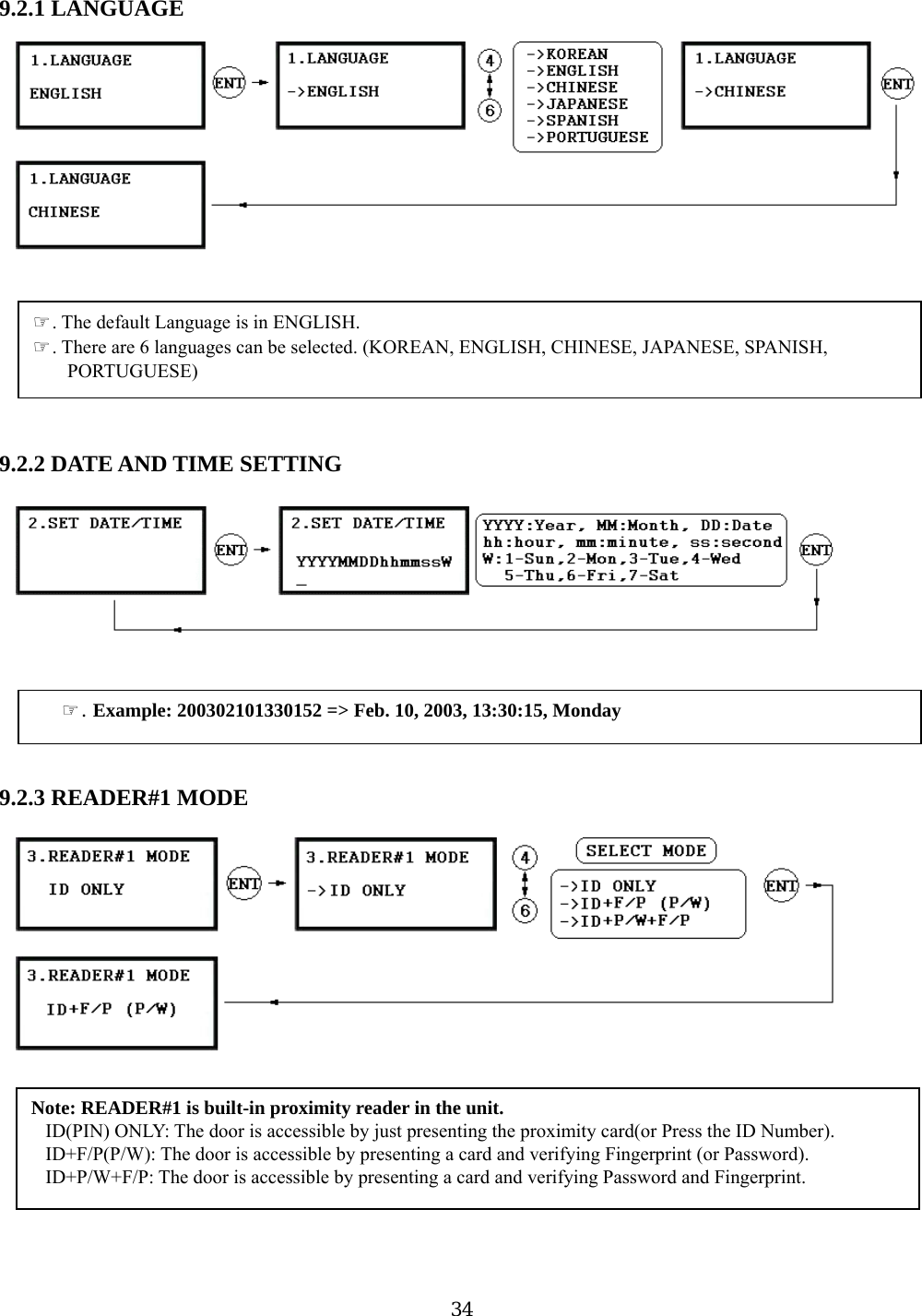

9.2.1 LANGUAGE 9.2.2 DATE AND TIME SETTING 9.2.3 READER#1 MODE ☞. The default Language is in ENGLISH. ☞. There are 6 languages can be selected. (KOREAN, ENGLISH, CHINESE, JAPANESE, SPANISH, PORTUGUESE) ☞. Example: 200302101330152 => Feb. 10, 2003, 13:30:15, Monday Note: READER#1 is built-in proximity reader in the unit. ID(PIN) ONLY: The door is accessible by just presenting the proximity card(or Press the ID Number). ID+F/P(P/W): The door is accessible by presenting a card and verifying Fingerprint (or Password). ID+P/W+F/P: The door is accessible by presenting a card and verifying Password and Fingerprint. 34

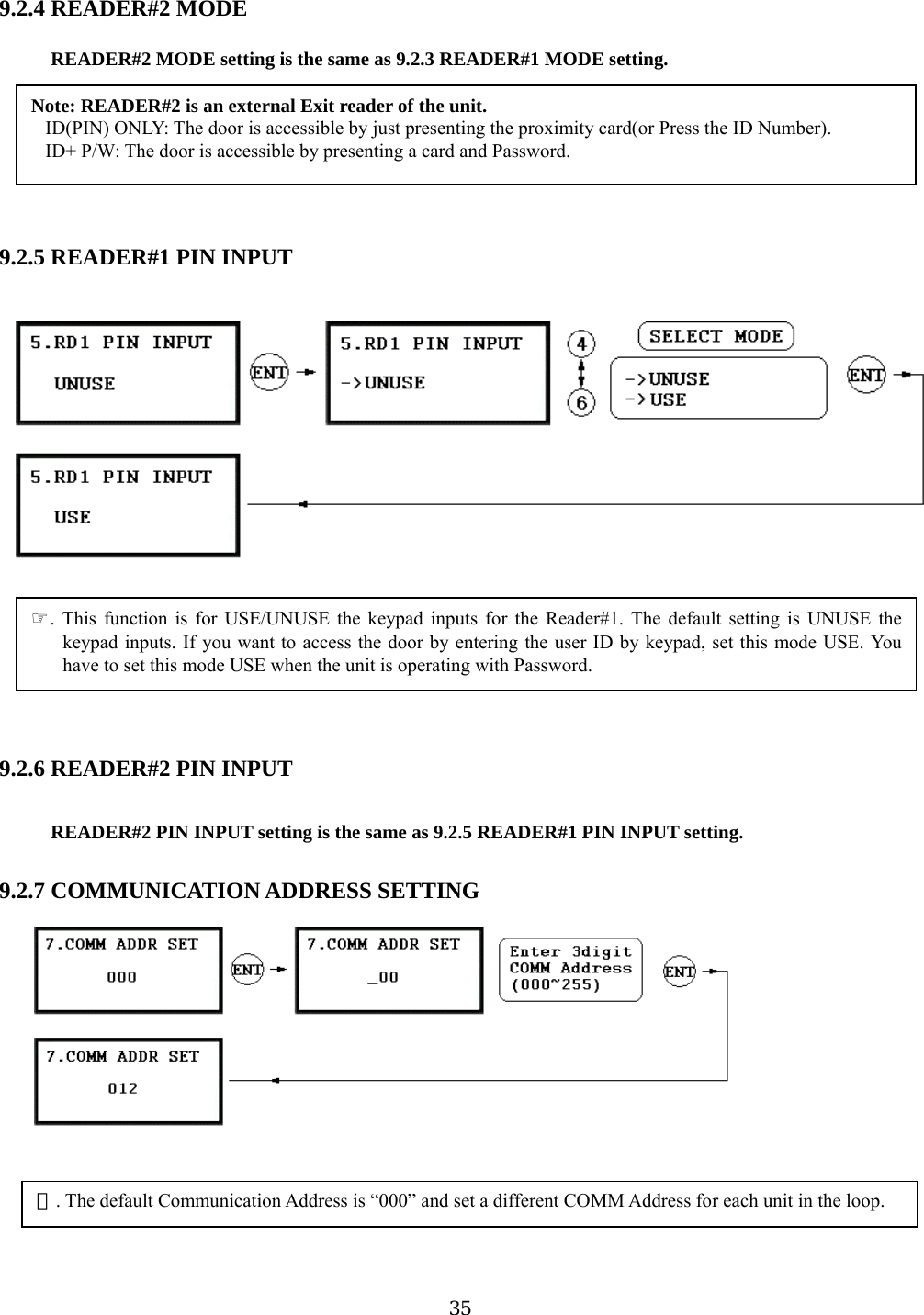

9.2.4 READER#2 MODE READER#2 MODE setting is the same as 9.2.3 READER#1 MODE setting. .2.5 READER#1 PIN INPUT 9.2.6 READER#2 PIN INPUT READER#2 PIN INPUT setting is the same as 9.2.5 READER#1 PIN INPUT setting. 9.2.7 COMMUNICATION ADDRESS SETTING 9 . ☞The default Communication Address is “000” and set a different COMM Address for each unit in the loop. ☞. This function is for USE/UNUSE the keypad inputs for the Reader#1. The default setting is UNUSE thekeypad inputs. If you want to access the door by entering the user ID by keypad, set this mode USE. Youhave to set this mode USE when the unit is operating with Password. Note: READER#2 is an external Exit reader of the unit. ID(PIN) ONLY: The door is accessible by just presenting the proximity card(or Press the ID Number). ID+ P/W: The door is accessible by presenting a card and Password. 35

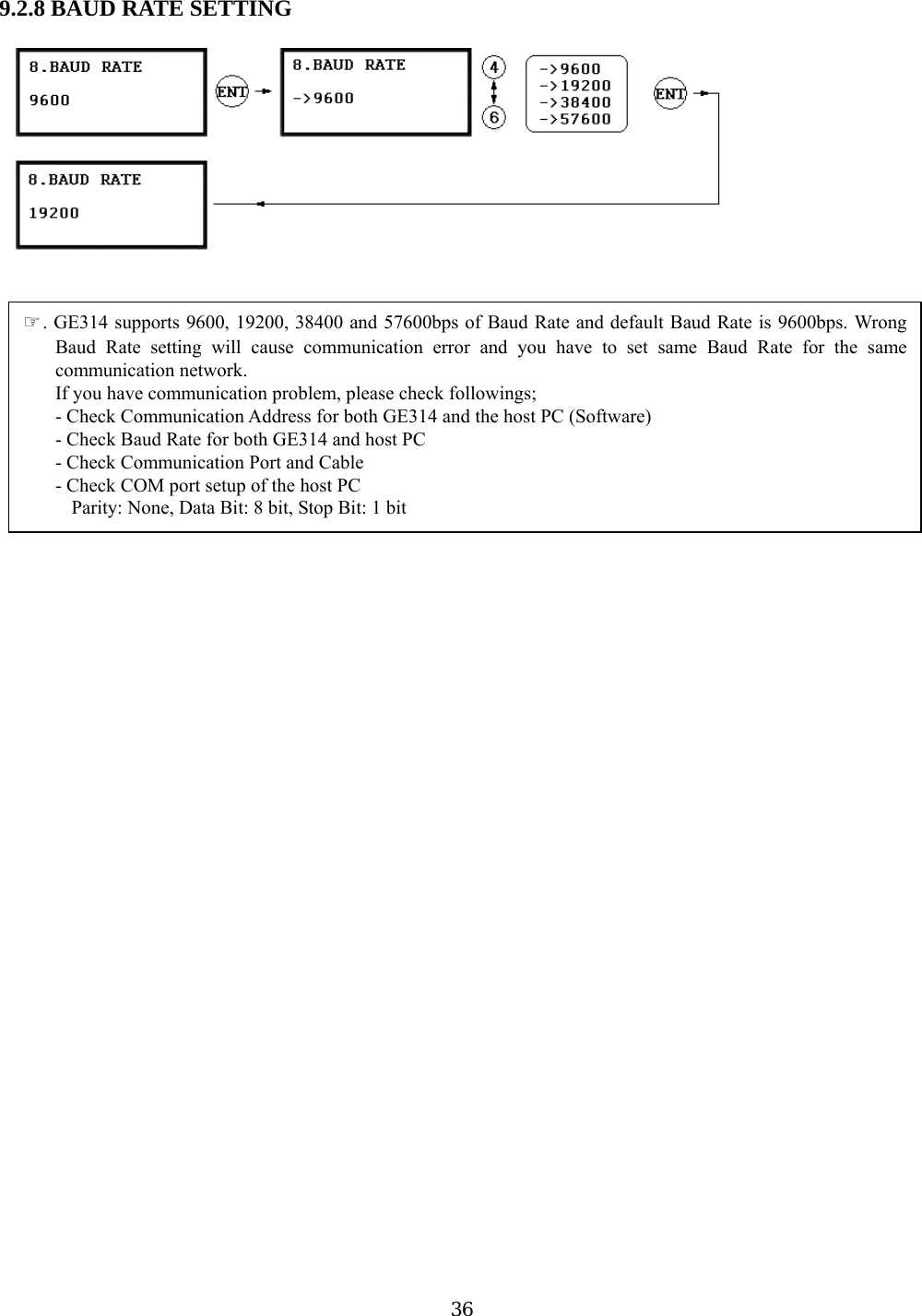

9.2.8 BAUD RATE SETTING ☞. GE314 supports 9600, 19200, 38400 and 57600bps of Baud Rate and default Baud Rate is 9600bps. WrongBaud Rate setting will cause communication error and you have to set same Baud Rate for the samecommunication network. If you have communication problem, please check followings; - Check Communication Address for both GE314 and the host PC (Software) - Check Baud Rate for both GE314 and host PC - Check Communication Port and Cable - Check COM port setup of the host PC Parity: None, Data Bit: 8 bit, Stop Bit: 1 bit 36

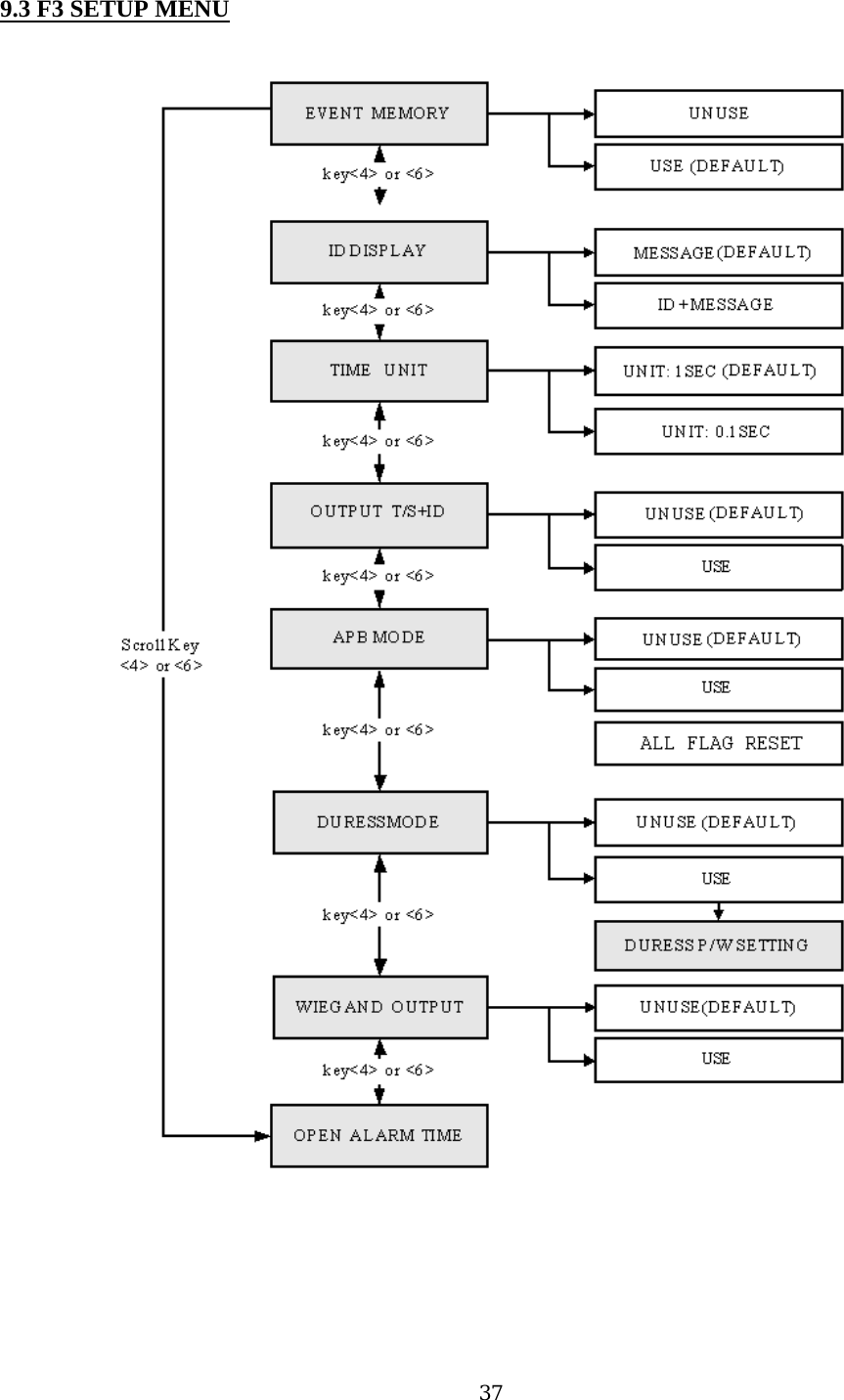

9.3 F3 SETUP MENU 37

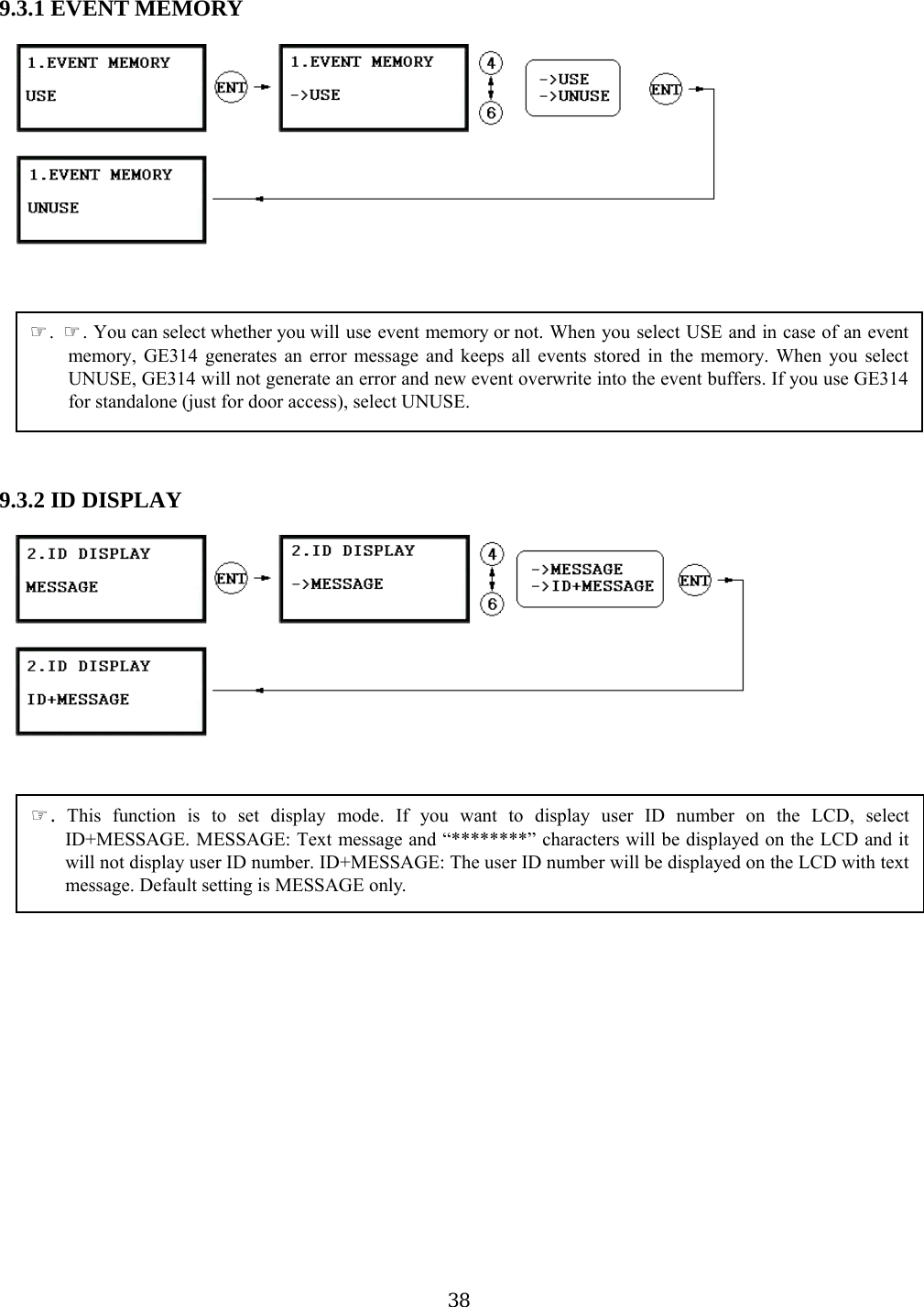

9.3.1 EVENT MEMORY 9.3.2 ID DISPLAY ☞. This function is to set display mode. If you want to display user ID number on the LCD, selectID+MESSAGE. MESSAGE: Text message and “********” characters will be displayed on the LCD and itwill not display user ID number. ID+MESSAGE: The user ID number will be displayed on the LCD with textmessage. Default setting is MESSAGE only. ☞. ☞. You can select whether you will use event memory or not. When you select USE and in case of an eventmemory, GE314 generates an error message and keeps all events stored in the memory. When you selectUNUSE, GE314 will not generate an error and new event overwrite into the event buffers. If you use GE314for standalone (just for door access), select UNUSE. 38

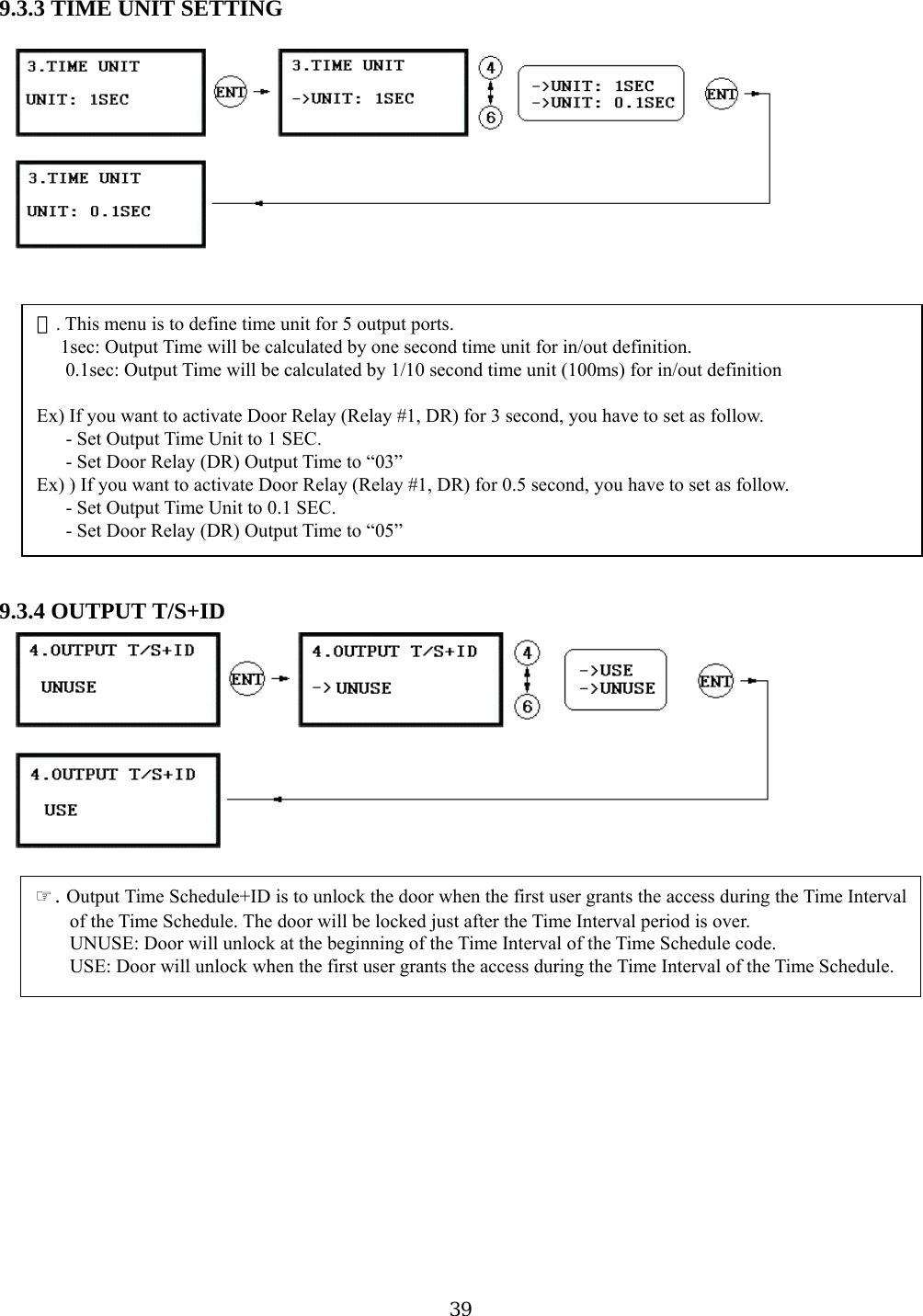

9.3.3 TIME UNIT SETTING .3.4 OUTPUT T/S+ID - Set Output Tim. s menu is to define time unit for 5 output ports. 1sec: Output Time will be calculated by one second time unit for in/out definition. 0.1sec: Output Time will be calculated by 1/10 second time unit (100ms) for in/out definition If you want to activate Door Relay (Relay #1, DR) for☞Thi Ex) 3 second, you have to set as follow. - Set Output Time Unit to 1 SEC. - Set Door Relay (DR) Output Time to “03” x) ) If you want to activate Door Relay (Relay #1, DR) for 0.5 second, you have to set as follow. e Unit to 0.1 SEC. - Set Door Relay (DR) Output Time to “05” E 9 Output Time Schedule+ID is to unlock the do ☞. or when the first user grants the access during the Time Intervalof the Time Schedule. The door will be locked just after the Time Interval period is over. UNUSE: Door will unlock at the beginning of the Time Interval of the Time Schedule code. USE: Door will unlock when the first user grants the access during the Time Interval of the Time Schedule. 39

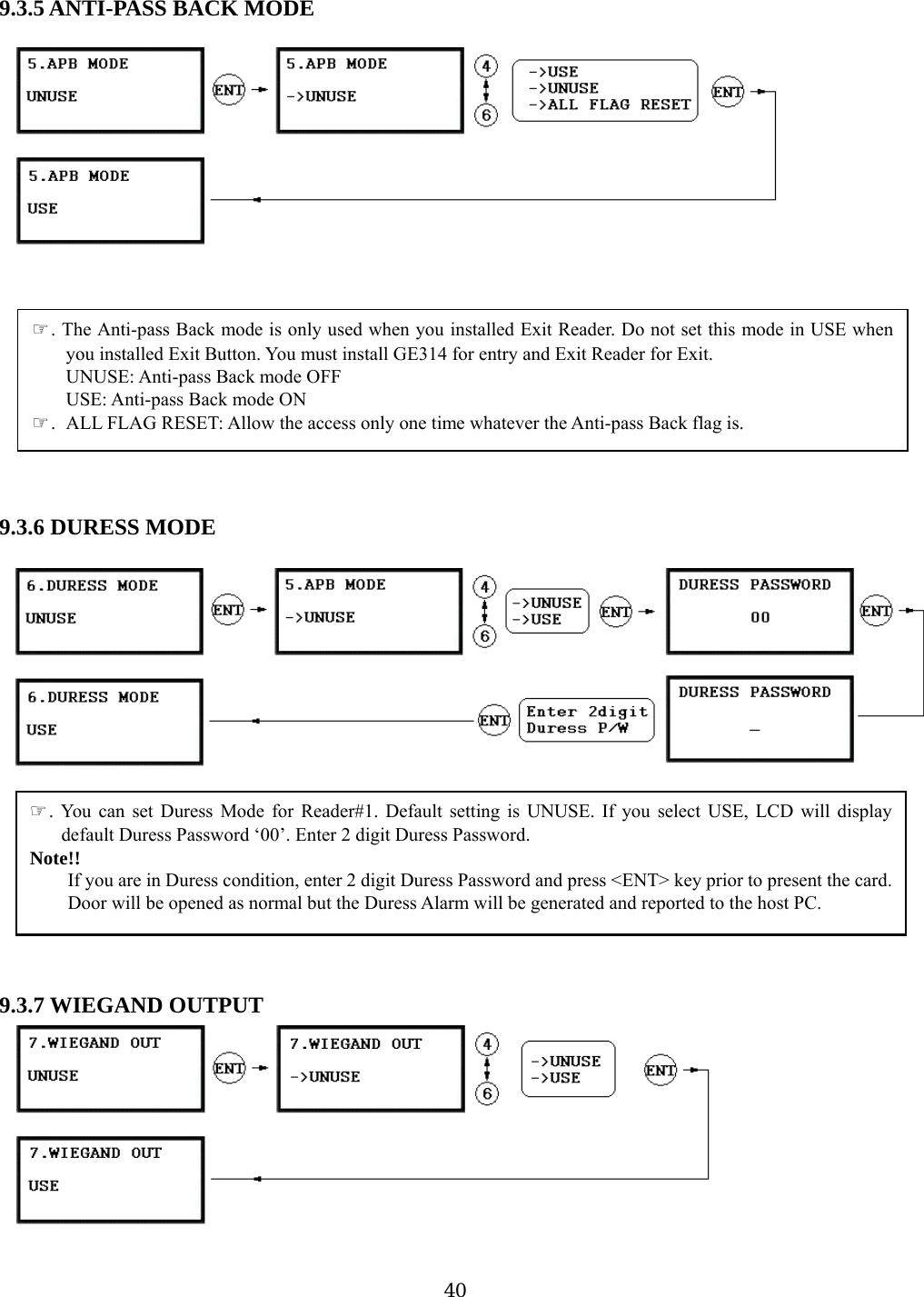

9.3.5 ANTI-PASS BACK MODE 9.3. 9.3.7 WIEGAND OUTPUT ☞. You can set Duress Mode for Reader#1. Default setting is UNUSE. If you select USE, LCD will display default Duress Password ‘00’. Enter 2 digit Duress Password. Note!! ost PC. 6 DURESS MODE . The Anti-pass Back mode is only used when you installed Exit Reader. Do not seyou installed Exit Button. You must install GE314 for entry and Exit Reader for Exit. UNUSE: Anti-pass Back mode OFF USE: Anti-pass Back mode ON ess only one time whatever the Anti-pass Back flag is. ☞. ALL FLAG RESET: Allow the acc If you are in Duress condition, enter 2 digit Duress Password and press <ENT> key prior to present the card. Door will be opened as normal but the Duress Alarm will be generated and reported to the h☞t this mode in USE when 40

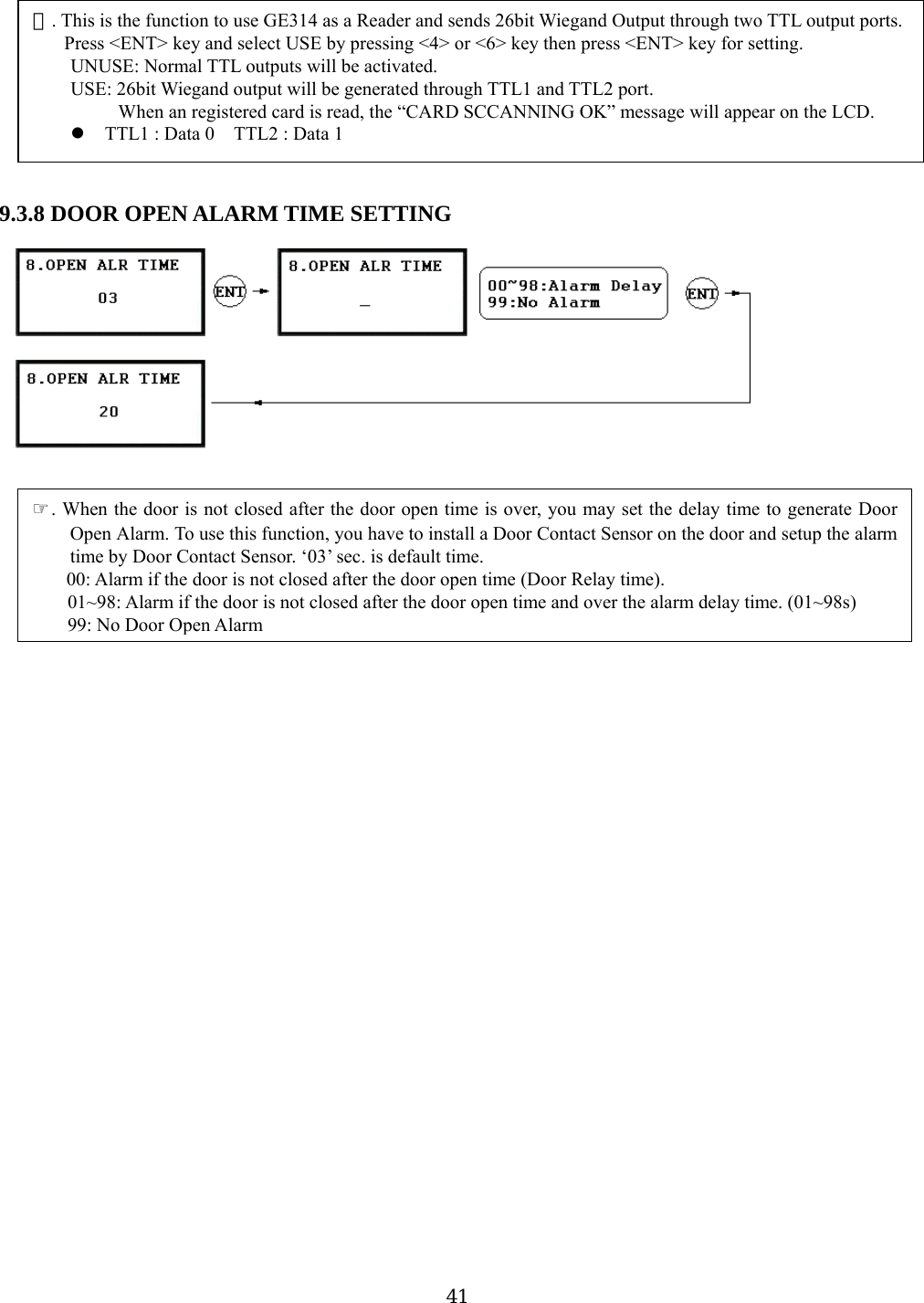

☞. This is the function to use GE314 a 9.3.8 DOOR OPEN ALARM TIME SETTING Open Alarm. To use t☞. When the door is not closed after the door open time is over, you may set the delay time to generate Doorhis function, you have to install a Door Contact Sensor on the door and setup the alarmtime by Door Contact Sensor. ‘03’ sec. is default time. 00: Alarm if the door is not closed after the door open time (Door Relay time). 01~98: Alarm if the door is not closed after the door open time and over the alarm delay time. (01~98s) 99: No Door Open Alarm s a Reader and sends 26bit Wiegand Output through two TTL output ports. Press <ENT> key and select USE by pressing <4> or <6> key then press <ENT> key for setting. UNUSE: Normal TTL outputs will be activated. USE: 26bit Wiegand output will be generated through TTL1 and TTL2 port. When an registered card is read, the “CARD SCCANNING OK” message will appear on the LCD.  TTL1 : Data 0 TTL2 : Data 1 41

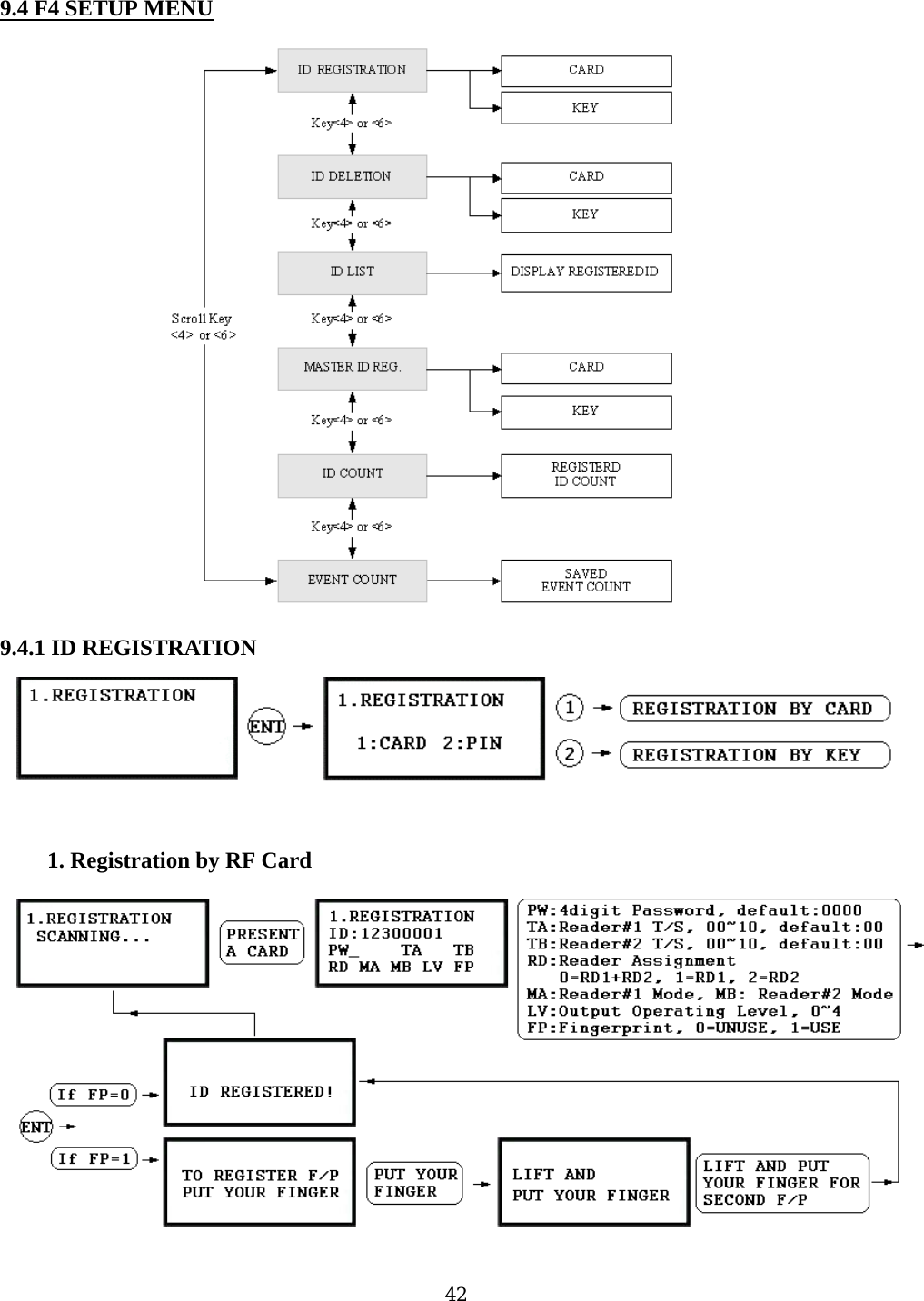

9.4 F4 SETUP MENU 9.4.1 ID REGISTRATION 1. Registration by RF Card 42

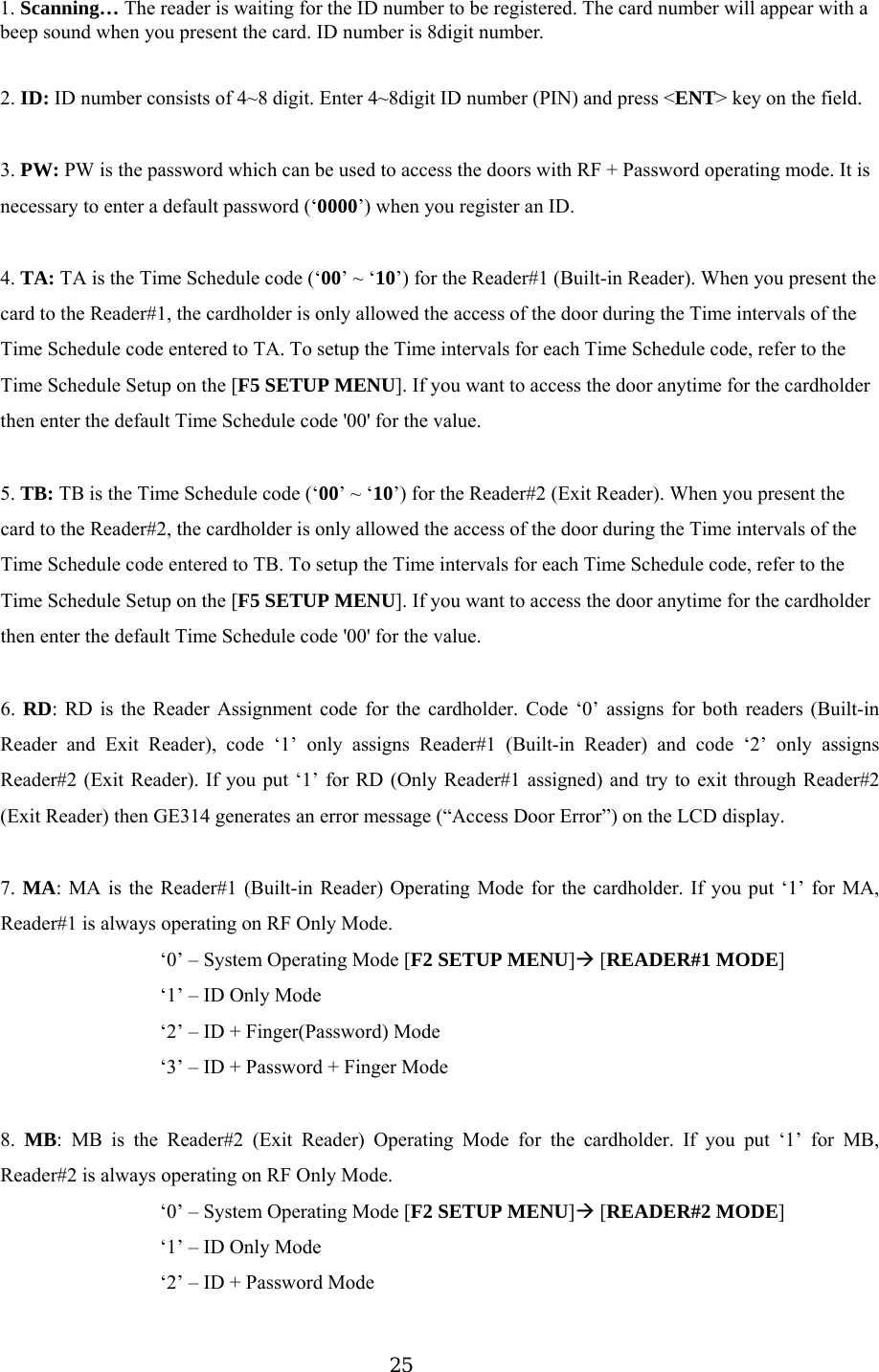

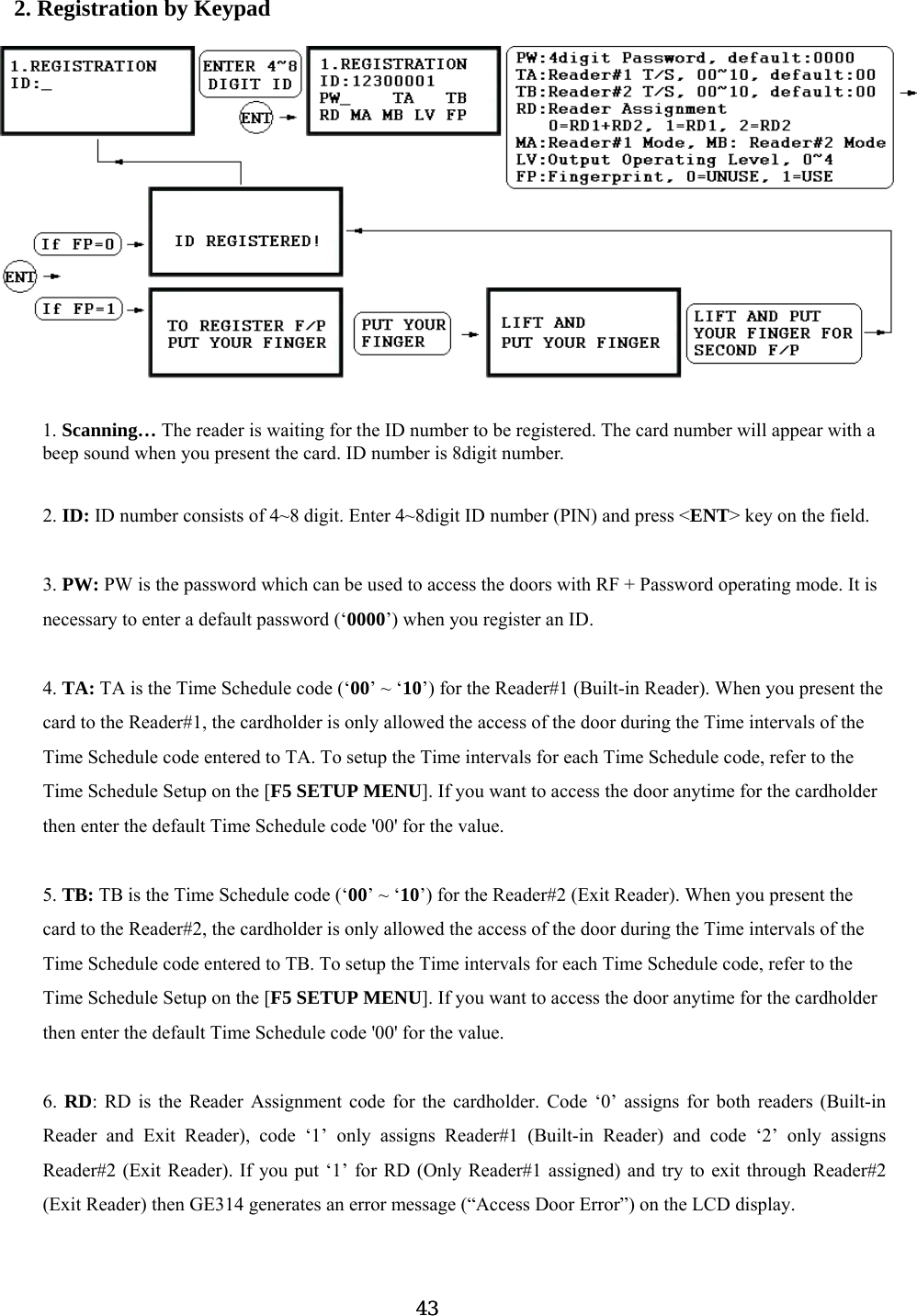

43 Keypad 1. Scanning… The reader is waiting for the ID number to be registered. The card number will appear with a beep sound when you present the card. ID number is 8digit number. 2. ID: ID number consists of 4~8 digit. Enter 4~8digit ID number (PIN) and press <ENT> key on the field. 3. PW: PW is the password which can be used to access the doors with RF + Password operating mode. It is necessary to enter a default password (‘0000’) when you register an ID. 4. TA: TA is the Time Schedule code (‘00’ ~ ‘10’) for the Reader#1 (Built-in Reader). When you present the card to the Reader#1, the cardholder is only allowed the access of the door during the Time intervals of the Time Schedule code entered to TA. To setup the Time intervals for each Time Schedule code, refer to the Time Schedule Setup on the [F5 SETUP MENU]. If you want to access the door anytime for the cardholder then enter the default Time Schedule code '00' for the value. 5. TB: TB is the Time Schedule code (‘00’ ~ ‘10’) for the Reader#2 (Exit Reader). When you present the 2. Registration by card to the Reader#2, the cardholder is only allowed the access of the door during the Time intervals of the Time Schedule code entered to TB. To setup the Time intervals for each Time Schedule code, refer to the Time Schedule Setup on the [F5 SETUP MENU]. If you want to access the door anytime for the cardholder then enter the default Time Schedule code '00' for the value. 6. RD: RD is the Reader Assignment code for the cardholder. Code ‘0’ assigns for both readers (Built-in Reader and Exit Reader), code ‘1’ only assigns Reader#1 (Built-in Reader) and code ‘2’ only assigns Reader#2 (Exit Reader). If you put ‘1’ for RD (Only Reader#1 assigned) and try to exit through Reader#2 (Exit Reader) then GE314 generates an error message (“Access Door Error”) on the LCD display. 43

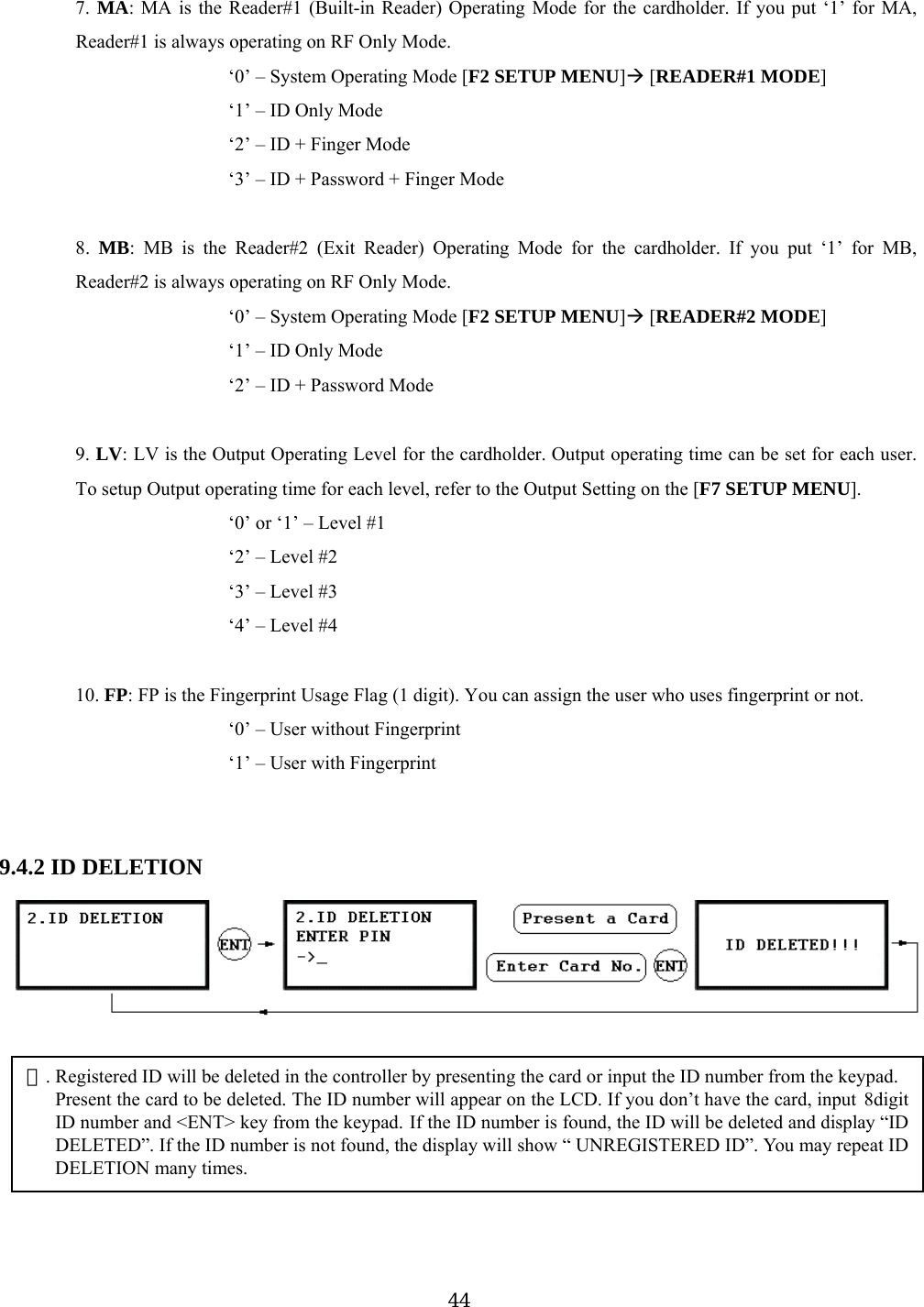

7. MA: MA is the Reader#1 (Built-in Reader) Operating Mode for the cardholder. If you put ‘1’ for MA, Reader#1 is always operating on RF Only Mode. ‘0’ – System Operating Mode [F2 SETUP MENU] [READER#1 MODE] ‘1’ – ID Only Mode ‘2’ – ID + Finger Mode ‘3’ – ID + Password + Finger Mode 8. MB: MB is the Reader#2 (Exit Reader) Operating Mode for the cardholder. If you put ‘1’ for MB, Reader#2 is always operating on RF Only Mode. ‘0’ – System Operating Mode [F2 SETUP MENU] [READER#2 MODE] ‘1’ – ID Only Mode ‘2’ – ID + Password Mode operating time can be set for each user. o setup Output operating time for each level, refer to the Output Setting on the [F7 SETUP MENU]. ‘2’ – Level #2 9.4.2 ID DELETION 9. LV: LV is the Output Operating Level for the cardholder. OutputT ‘0’ or ‘1’ – Level #1 ‘3’ – Level #3 ‘4’ – Level #4 10. FP: FP is the Fingerprint Usage Flag (1 digit). You can assign the user who uses fingerprint or not. ‘0’ – User without Fingerprint ‘1’ – User with Fingerprint . ☞Registered ID will be deleted in the controller by presenting the card or input the ID number from the keypad.Present the card to be deleted. The ID number will appear on the LCD. If you don’t have the card, input 8digitIDDELETED”D number and <ENT> key from the keypad. If the ID number is found, the ID will be deleted and display “ID. If the ID number is not found, the display will show “ UNREGISTERED ID”. You may repeat IDELETION many times. 44

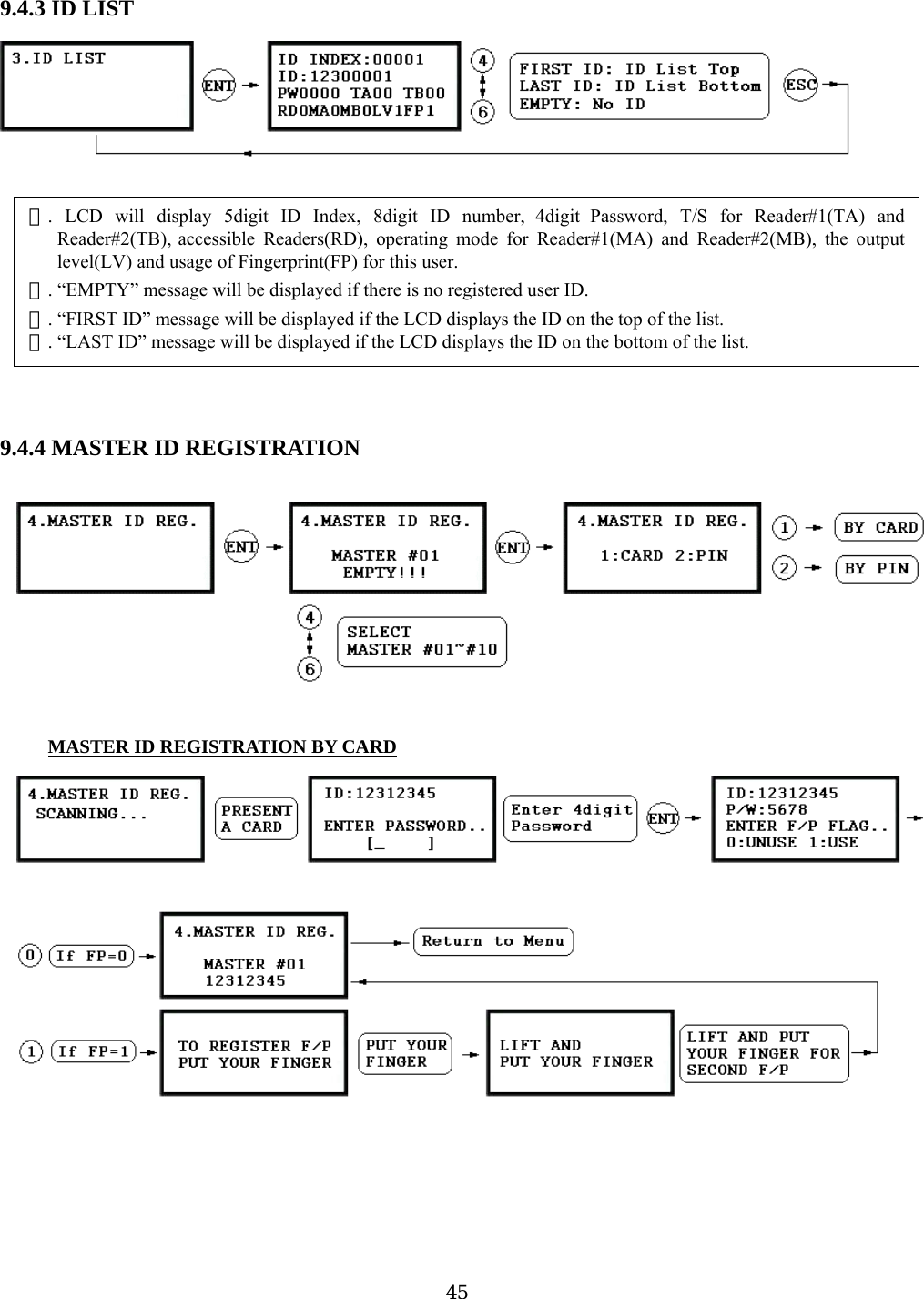

9.4.3 ID 9.4.4 M TER ID REGIST LIST . LCD will display 5digit ID Index, 8digit I☞D number, 4digit Password, T/S for Reader#1(TA) andReader#2(TB), accessible Readers(RD), operating mode for Reader#1(MA) and Reader#2(MB), the outputlevel(. ☞“E gistered user ID. . ☞“FIRST ID” message . ☞“LAST ID” message w isplays the ID on the bottom of the list. LV) and usage of Fingerprint(FP) for this user. MPTY” message will be displayed if there is no rewill be displayed if the LCD displays the ID on the top of the list. ill be displayed if the LCD dASTER ID REGISTRATION MAS RATION BY CARD 45

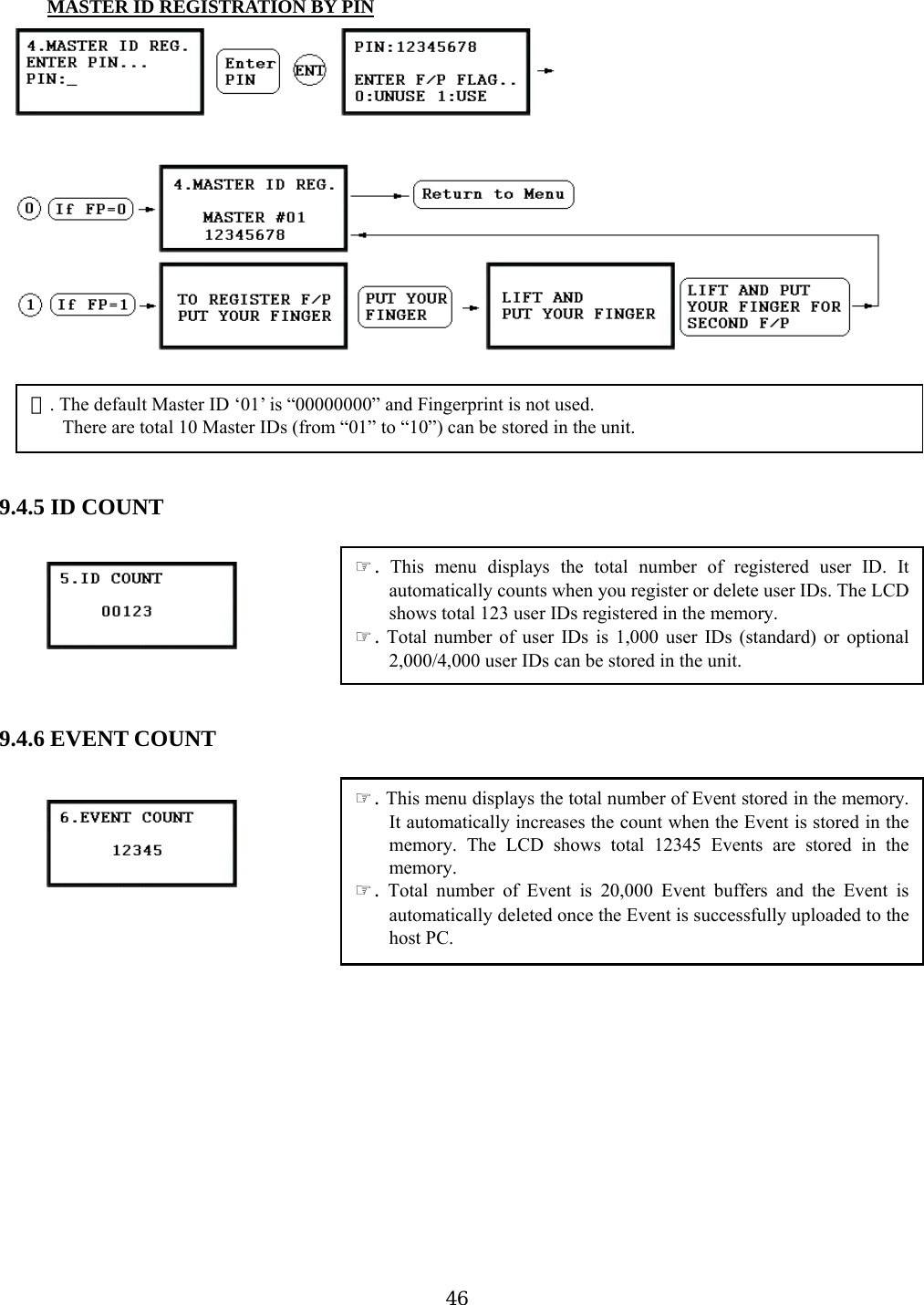

MASTER ID REGISTRATION BY PIN ☞. This menu displays the total number of registered user ID. I 9.4.5 ID COUNT tautomatically counts when you register or delete user IDs. The LCDshows total 123 user IDs registered in the memory. ☞. Total number of user IDs is 1,000 user IDs (standard) or optional2,000/4,000 user IDs can be stored in the unit. . ☞The default Master ID ‘01’ is “00000000” and Fingerprint is not used. There are total 10 Master IDs (from “01” to “10”) can be stored in the unit. 9.4.6 EVENT COUNT ☞. This menu displays the total number of Event stored in the memory.It automatically increases the count when the Event is stored in thememory. The LCD shows total 12345 Events are stored in thememory. ☞. Total number of Event is 20,000 Event buffers and the Event isautomatically deleted once the Event is successfully uploaded to thehost PC. 46

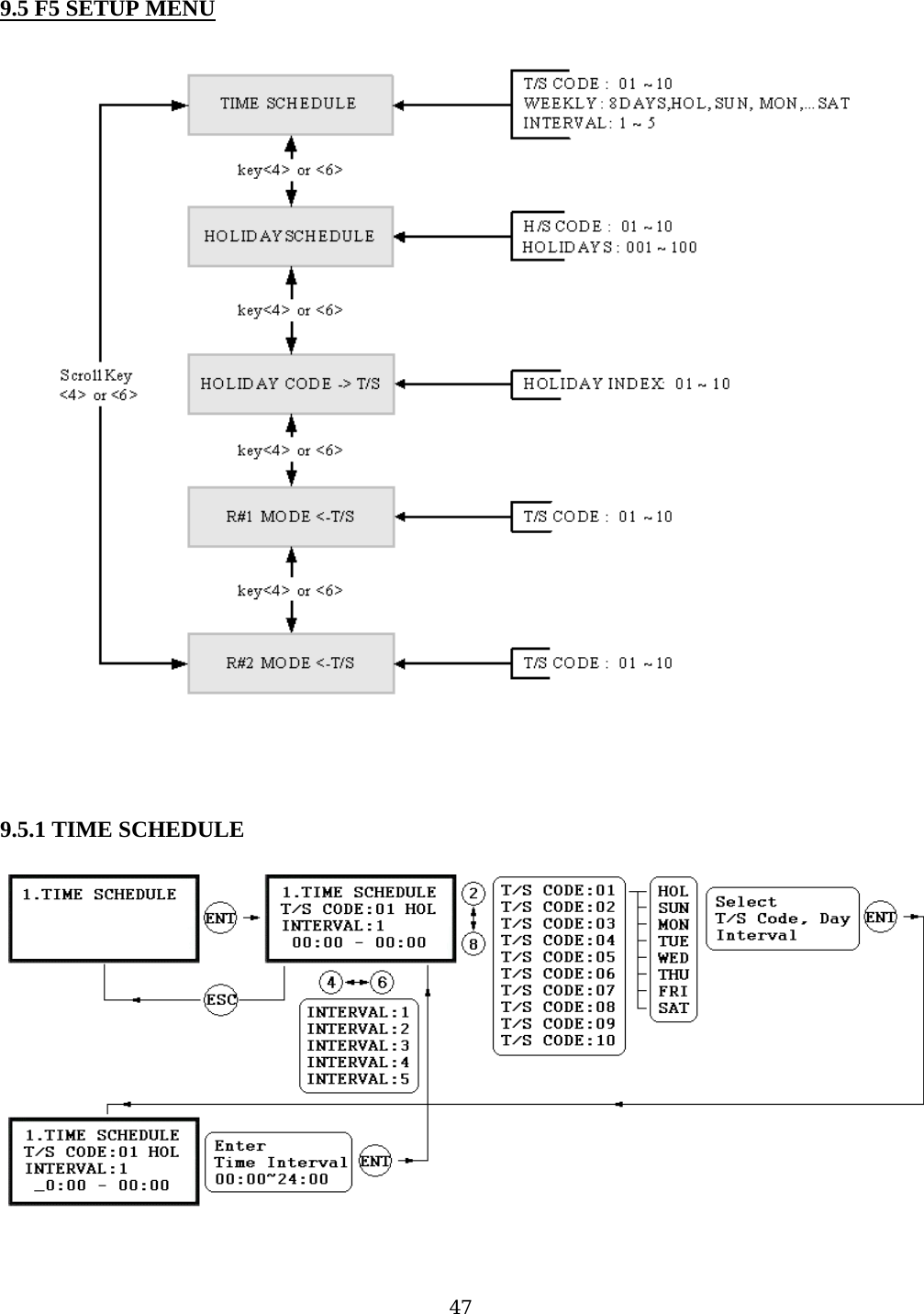

9.5 F5 SETUP MENU 9.5.1 TIME SCHEDULE 47

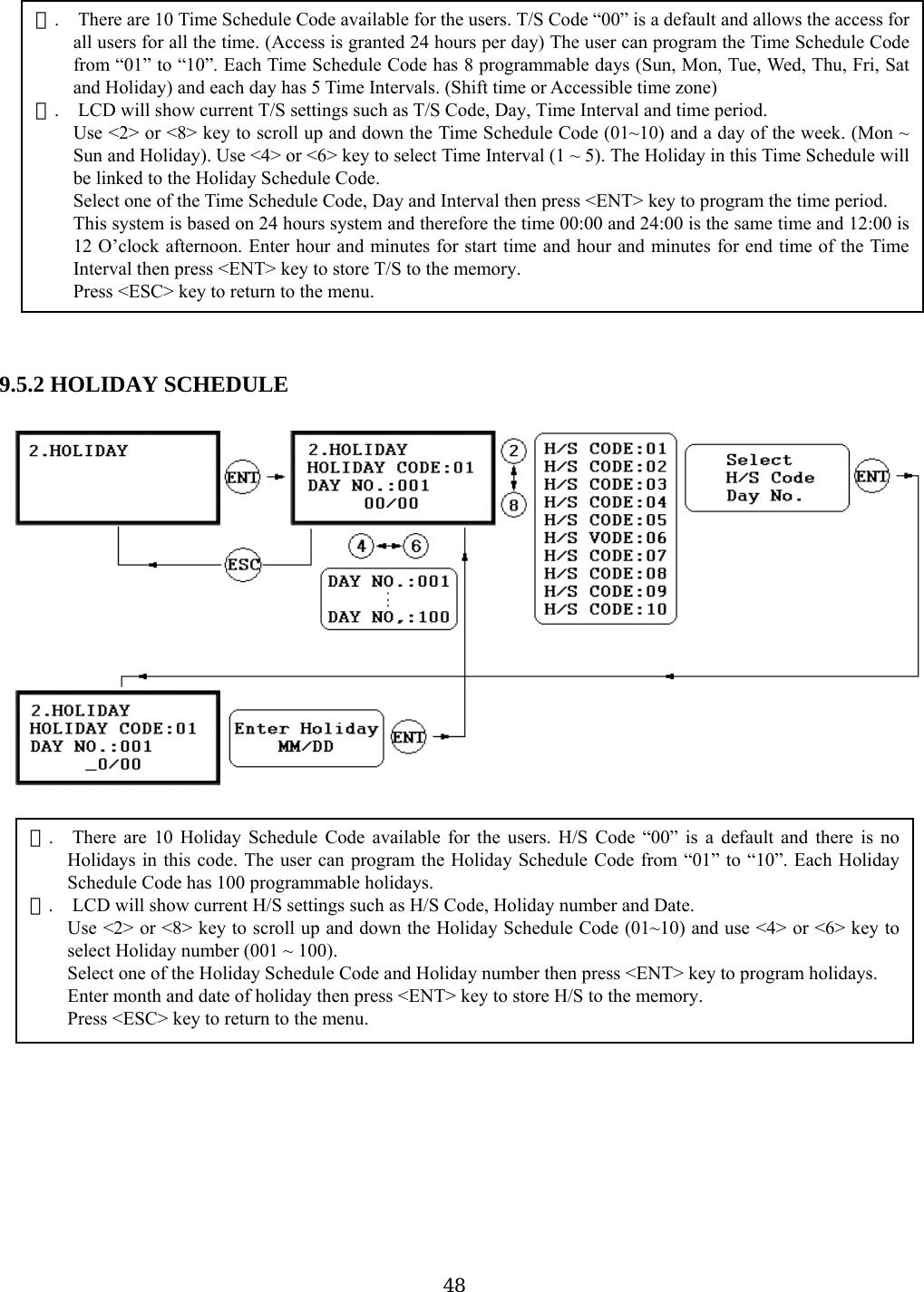

48 9.5.2 HOLIDAY SCHEDULE ☞. There are 10 Time Schedule Code available for the users. T/S Code “00” is a default and allows the access forall users for all the time. (Access is granted 24 hours per day) The user can program the Time Schedule Codefrom “01” to “10”. Each Time Schedule Code has 8 programmable days (Sun, Mon, Tue, Wed, Thu, Fr Sai,tand Holiday) and each day has 5 Time Intervals. (Shift time or Accessible time zone) ☞. LCD will show current T/S settings such as T/S Code, Day, Time Interval and time period. Use <2> or <8> key to scroll up and down the Time Schedule Code (01~10) and a day of the week. (M no~Sun and Holiday). Use <4> or <6> key to select Time Interval (1 ~ 5). The Holiday in this Time Schedube linked to the Holiday Schedule Code. Select one of the Time Schedule Code, Day and Interval then press <ENT> key to program the time period. This system is based on 24 hours system and therefore the time 00:00 and 24:00 is the same time and 12 0 is12 O’clock afternoon. Enter hour and minutes for start time and hour and minutes for end time of the TimeInterval then press <ENT> key to store T/S to the memory. Press <ESC> key to return to the menu. le will:0☞. There are 10 Holiday Schedule Code available r the users. H/S Code “00” is a default and there is noHolidays in this code. The user can program the Holiday Schedule Code from “01” to “10”. Each HolidaySchedule Code has 100 programmable holidays. ☞. LCD will show current H/S settings such as H/S Code, Holiday number and Date. Use <2> or <8> key to scroll up and down the H iday Schedule Code (01~10) and use <4> or <6> key toselect Holiday number (001 ~ 100). Select one of the Holiday Schedule Code and Holi number then press <ENT> key to program holidays. Enter month and date of holiday then press <ENT> key to store H/S to the memory. Press <ESC> key to return to the menu. fo olday

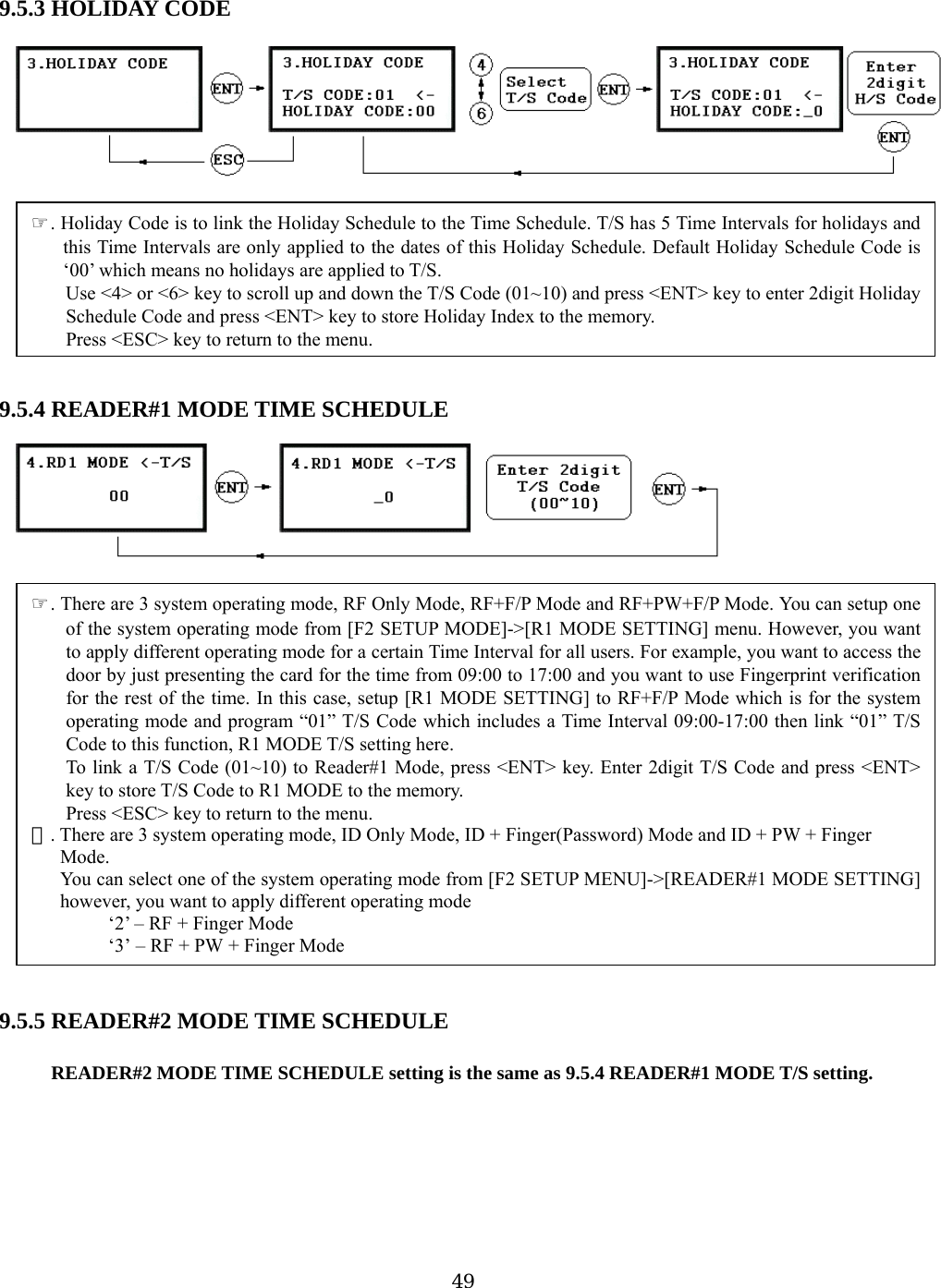

9. .5.5 R ULE READER#2 MODE TIME SCHEDULE setting is the same as 9.5.4 READER#1 MODE T/S setting. 5.3 HOLIDAY CODE oliday Code is to link the Holiday Schedule to the Time Schedule. T/S has 5 Time Intervals for holidays andth ay Schedule. Default Holiday Schedule Code is‘ o T/S. Use <4> or <6> key to scroll up and down the T/S Code (01~10) and press <ENT> key to enter 2digit Holidais Time Intervals are only applied to the dates of this Holid00’ which means no holidays are applied t 9.5.4 READER#1 MODE TIME SCHEDULE EADER#2 MODE TIME SCHEDPress <ESC> key to return to the menu. . There are 3 system operating mode, ☞ID Only Mode, ID + Finger(Password) Mode and ID + PW + Finger ode. ou can select one of the system operating mode frhowever, you want to apply different operating mode ‘2’ – RF + Finger Mode ‘3’ – RF + PW + Finger Mode ☞. HySchedule Code and press <ENT> key to store Holiday Index to the memory. Press <ESC> key to return to the menu.☞. There are 3 system operating mode, RF Only Mode, RF+F/P Mode and RF+PW+F/P Mode. You can setup oneof the system operating mode from [F2 SETUP MODE]->[R1 MODE SETTING] menu. However, you wantto apply different operating mode for a certain Time Interval for all users. For example, you want to access thedoor by just presenting the card for the time from 09:00 to 17:00 and you want to use Fingerprint verificationfor the rest of the time. In this case, setup [R1 MODE SETTING] to RF+F/P Mode which is for the systemoperating mode and program “01” T/S Code which includes a Time Interval 09:00-17:00 then link “01” T/SCode to this function, R1 MODE T/S setting here. To link a T/S Code (01~10) to Reader#1 Mode, press <ENT> key. Enter 2digit T/S Code and press <ENT>key to store T/S Code to R1 MODE to the memory. M Y om [F2 SETUP MENU]->[READER#1 MODE SETTING] 9 49

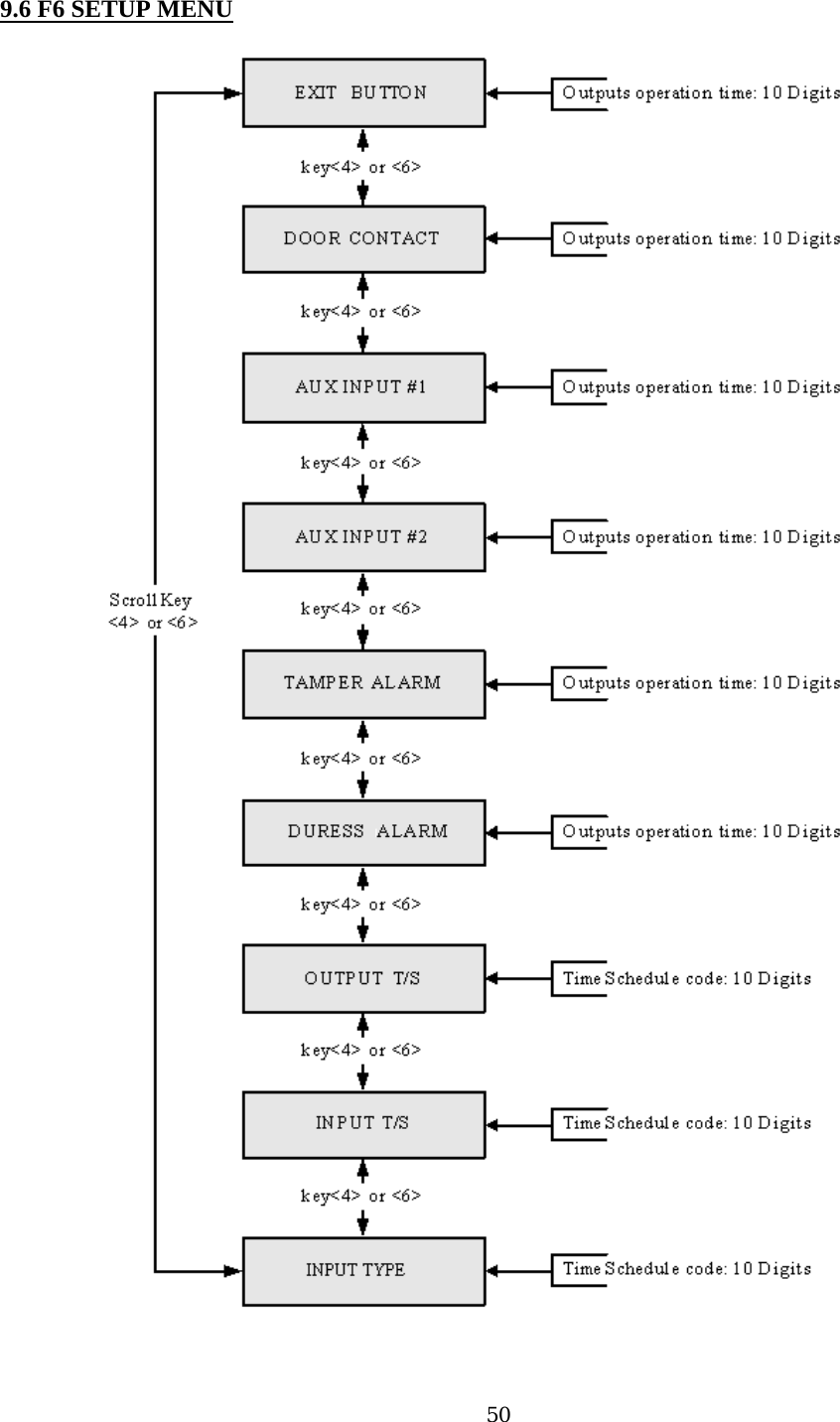

9.6 F6 SETUP MENU 50

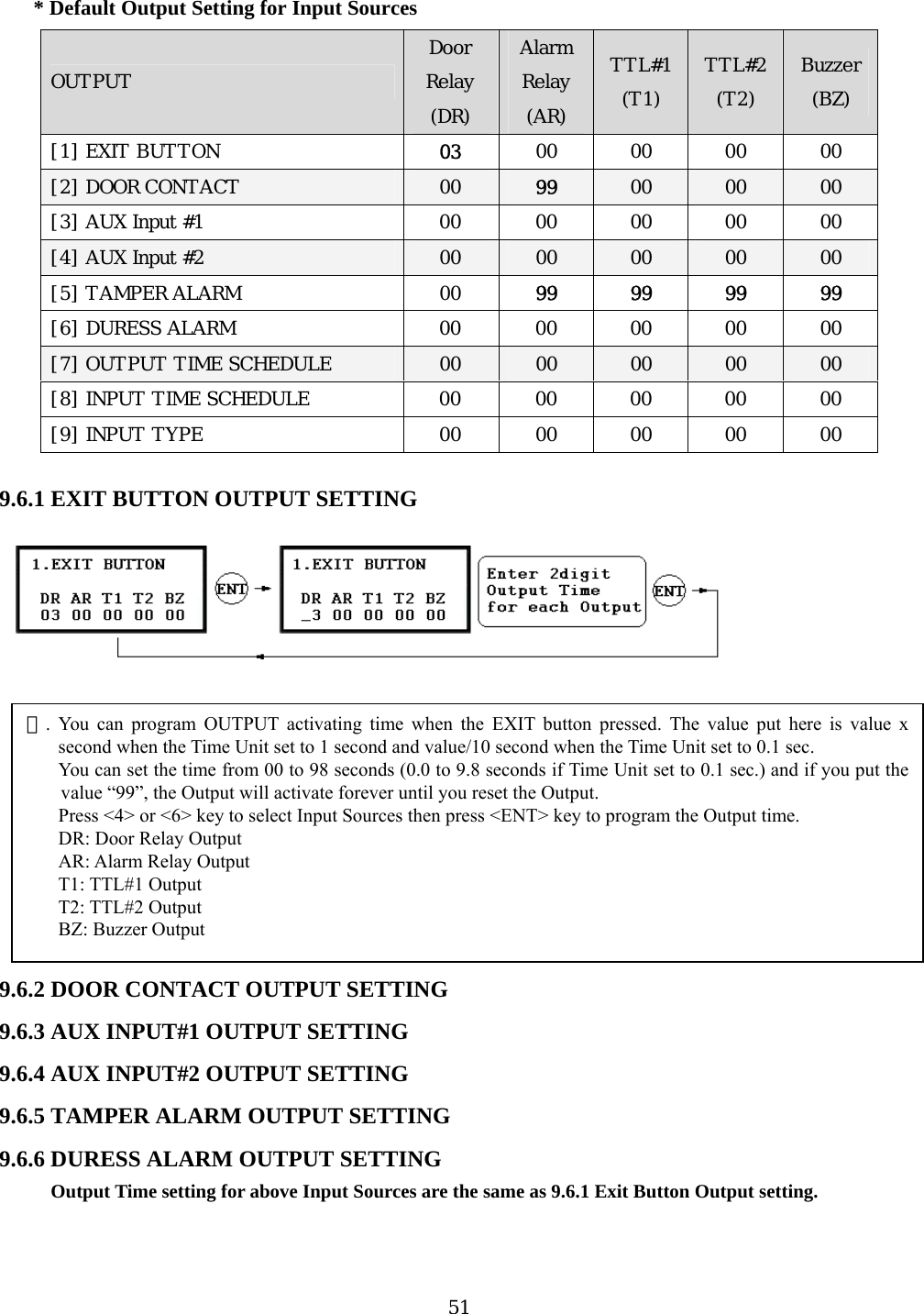

* Default Output Setting for Input Sources 9.6.1 EXIT BUTTON OUTPUT SETTING 9.6.2 DOOR CONTACT OUTPUT SETTING 9.6.3 AUX INPUT#1 OUTPUT SETTING 9.6.4 AUX INPUT#2 OUTPUT SETTING 9.6.5 TAMPER ALARM OUTPUT SETTING 9.6.6 DURESS ALARM OUTPUT SETTING Output Time setting for above Input Sources are the same as 9.6.1 Exit Button Output setting. OUTPUT Door Relay (DR) Alarm Relay (AR) TTL#1(T1) TTL#2 (T2) Buzzer(BZ) [1] EXIT BUTTON 03 00 00 00 00 [2] DOOR CONTACT 00 99 00 00 00 [3] AUX Input #1 00 00 00 00 00 [4] AUX Input #2 00 00 00 00 00 [5] TAMPER ALARM 00 99 99 99 99 [6] DURESS ALARM 00 00 00 00 00 [7] OUTPUT TIME SCHEDULE 00 00 00 00 00 [8] INPUT TIME SCHEDULE 00 00 00 00 00 [9] INPUT TYPE 00 00 00 00 00 . You can program ☞OUTPUT activating time when the EXIT button pressed. The value put here is value xsecond when the Time Unit set to 1 second and value/10 second when the Time Unit set to 0.1 sec. You can set the time from 00 to 98 seconds (0.0 to 9.8 seconds if Time Unit set to 0.1 sec.) and if you put thevalue “99”, the Output will activate forever until you reset the Output. Press <4> or <6> key to select Input Sources then press <ENT> key to program the Output time. DR: Door Relay Output AR: Alarm Relay Output T1: TTL#1 Output T2: TTL#2 Output BZ: Buzzer Output 51

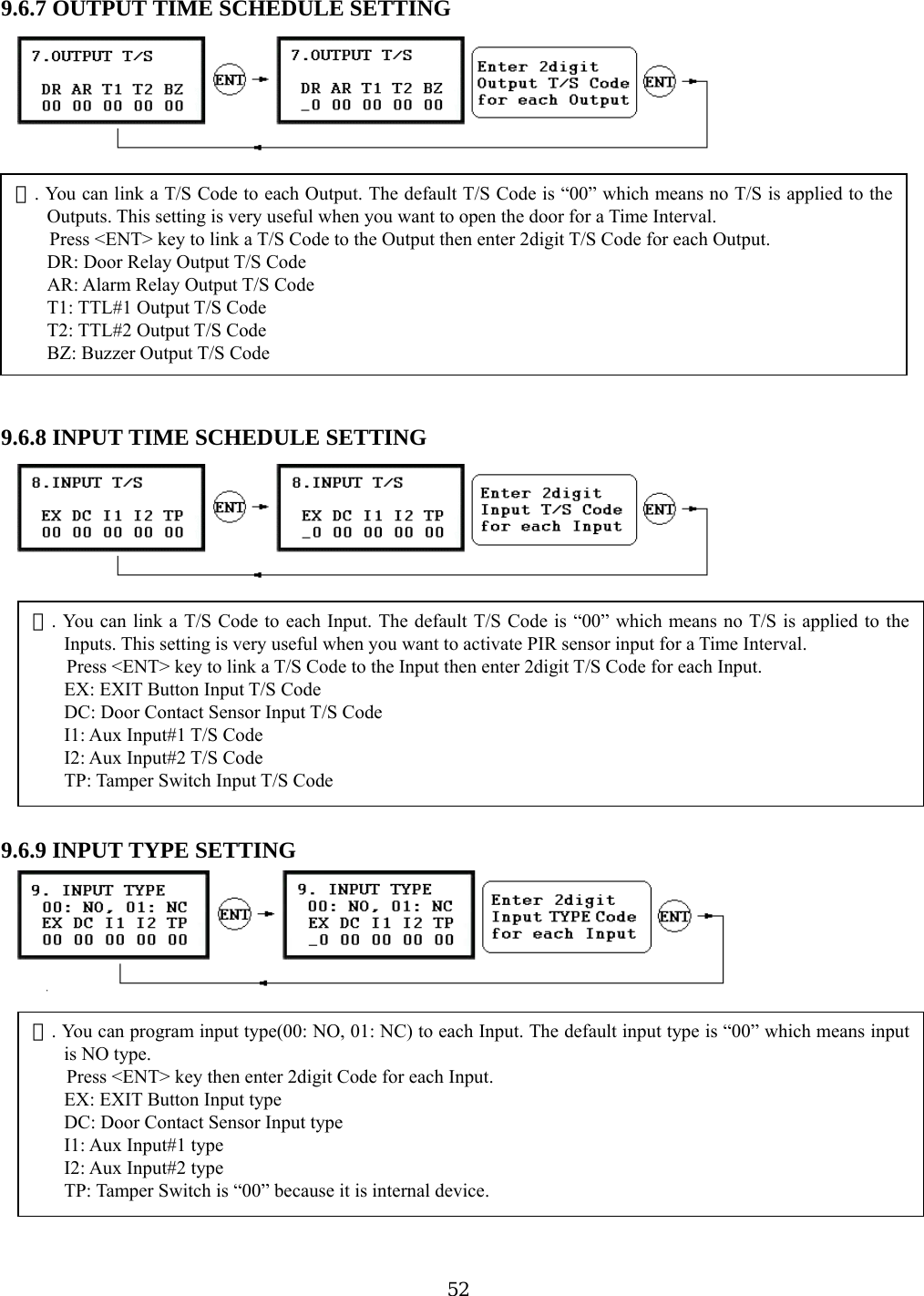

9.6.7 OUTPUT TIME SCHEDULE SETTING 9.6.8 INPUT TIME SCHEDULE SETTING .6.9 I NG Outputs. This setting i to o me IPress <ENT> key to lAR: Alarm Relay Output TT1: TTL#1 Output T/S Cod TTL#2 Output T/S Code BZ: Buzzer Output T/S Code . You can ☞link a T/S Code to each Output. The default T/S Code is “00” which means no T/S is applied to thes very useful when you want pen the door for a Ti nterval. ink a T/S Code to the Output then enter 2digit T/S Code for each Output. DR: Door Relay Output T/S Code /S Code e T2: NPUT TYPE SETTIDC: Door Contact Sensor Input T/S Code I1: Aux Input#1 T/S Code I2: Aux Input#2 T/S Code TP: Tamper Switch Input T/S Code . You can ☞link a T/S Code to each Input. The default T/S Code is “00” which means no T/S is applied to theInputs. This setting is very useful when you want to activate PIR sensor input for a Time Interval. Press <ENT> key to link a T/S Code to the Input then enter 2digit T/S Code for each Input. EX: EXIT Button Input T/S Code 9 EX: EXIT Button Input type DC: Door Contact Sensor Input type I1: Aux Input#1 type . You can ☞program input type(00: NO, 01: NC) to each Input. The default input type is “00” which means inputis NO type. Press <ENT> key then enter 2digit Code for each Input. I2: Aux Input#2 type TP: Tamper Switch is “00” because it is internal device. 52

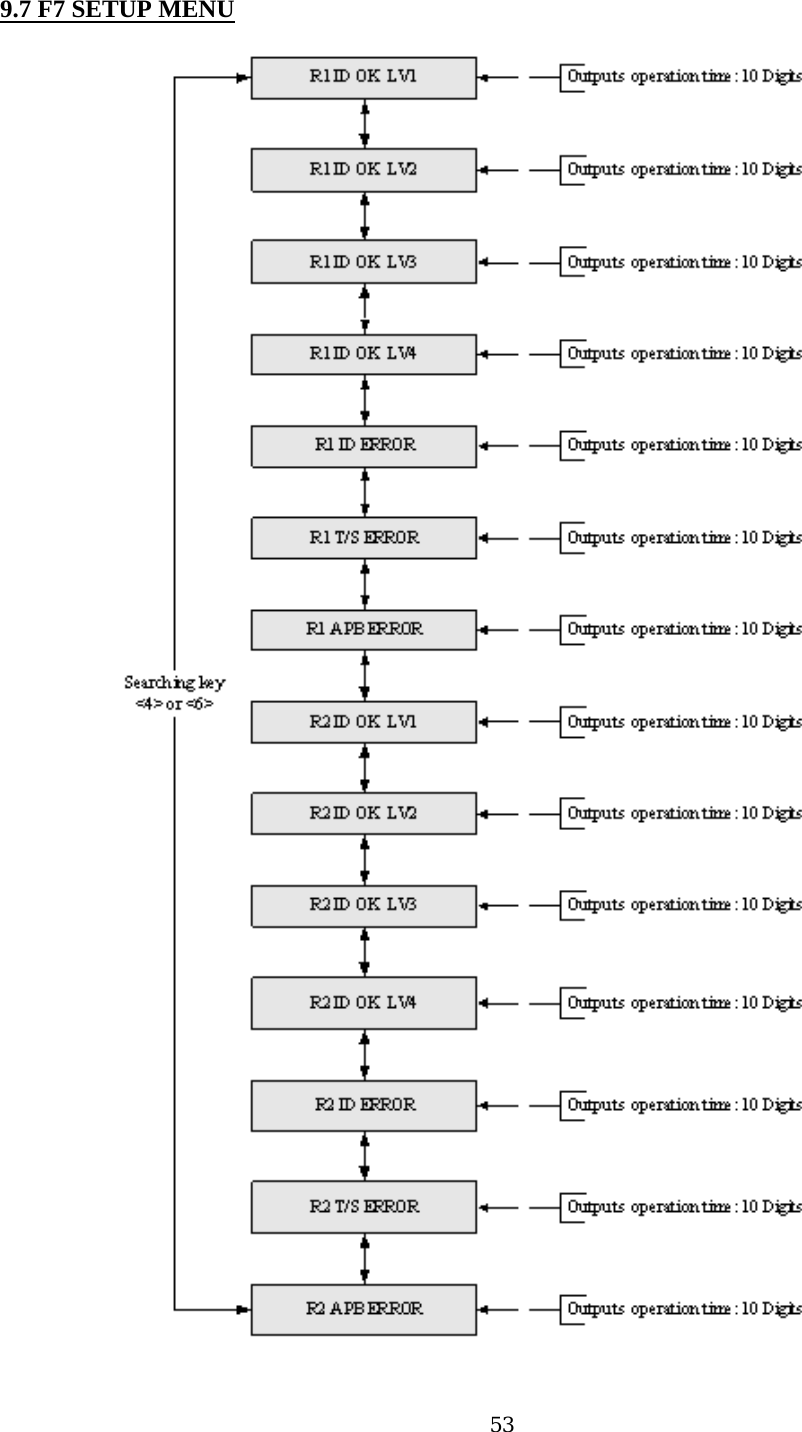

9.7 F7 SETUP MENU 53

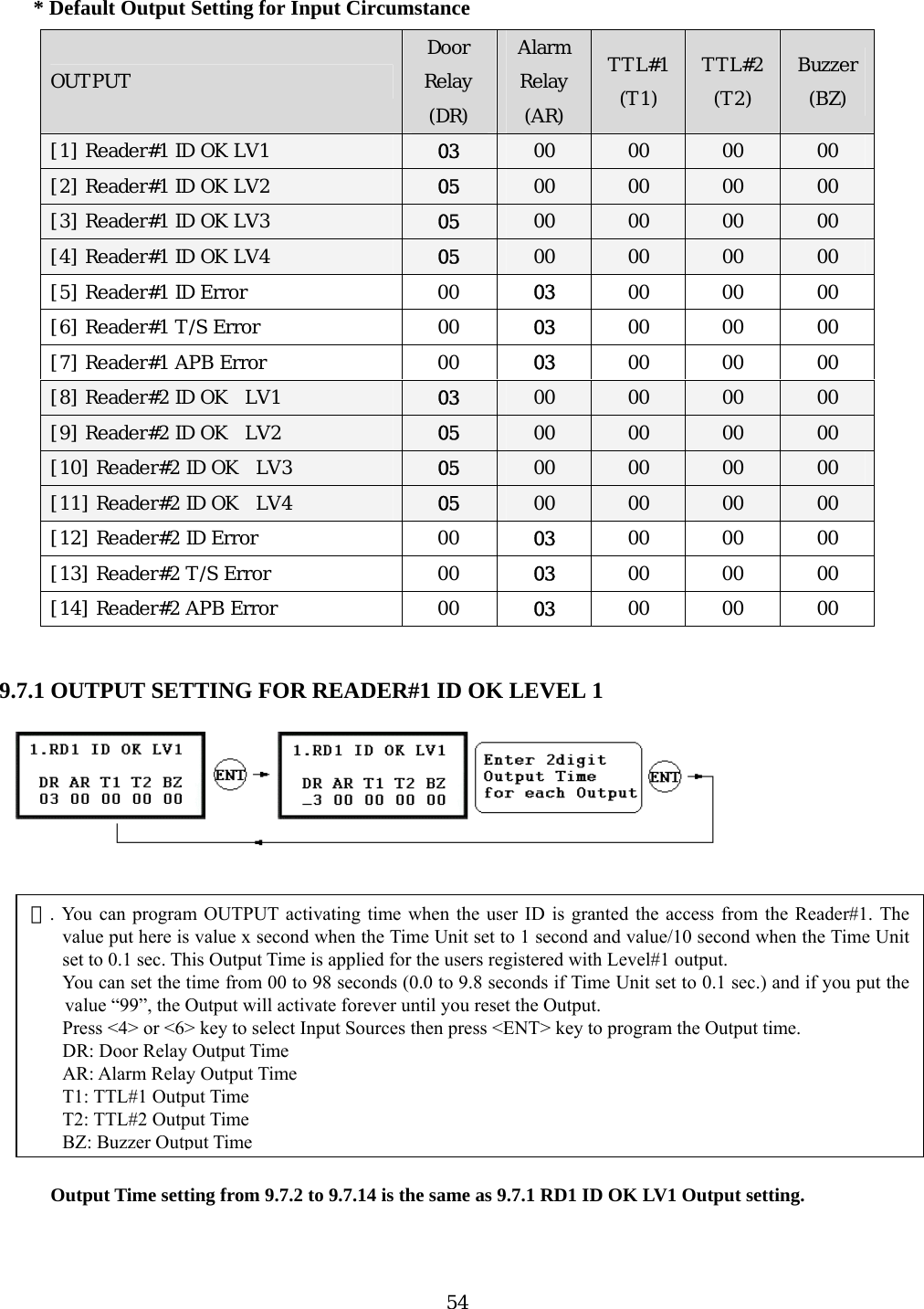

* Default Output Setting for Input Circumstance 9.7.1 OUTPUT SETTING FOR READER#1 ID OK LEVEL 1 Output Time setting from 9.7.2 to 9.7.14 is the same as 9.7.1 RD1 ID OK LV1 Output setting. OUTPUT Door Relay (DR) Alarm Relay (AR) TTL#1(T1) TTL#2 (T2) Buzzer(BZ) [1] Reader#1 ID OK LV1 03 00 00 00 00 [2] Reader#1 ID OK LV2 05 00 00 00 00 [3] Reader#1 ID OK LV3 05 00 00 00 00 [4] Reader#1 ID OK LV4 05 00 00 00 00 [5] Reader#1 ID Error 00 03 00 00 00 [6] Reader#1 T/S Error 00 03 00 00 00 [7] Reader#1 APB Error 00 03 00 00 00 [8] Reader#2 ID OK LV1 03 00 00 00 00 [9] Reader#2 ID OK LV2 05 00 00 00 00 [10] Reader#2 ID OK LV3 05 00 00 00 00 [11] Reader#2 ID OK LV4 05 00 00 00 00 [12] Reader#2 ID Error 00 03 00 00 00 [13] Reader#2 T/S Error 00 03 00 00 00 [14] Reader#2 APB Error 00 03 00 00 00 . You can program ☞OUTPUT activating time when the user ID is granted the access from the Reader#1. Thevalue put here is value x second when the Time Unit set to 1 second and value/10 second when the Time Unitset to 0.1 sec. This Output Time is applied for the users registered with Level#1 output. You can set the time from 00 to 98 seconds (0.0 to 9.8 seconds if Time Unit set to 0.1 sec.) and if you put thevalue “99”, the Output will activate forever until you reset the Output. Press <4> or <6> key to select Input Sources then press <ENT> key to program the Output time. DR: Door Relay Output Time AR: Alarm Relay Output Time T1: TTL#1 Output Time T2: TTL#2 Output Time BZ: Buzzer Output Time 54

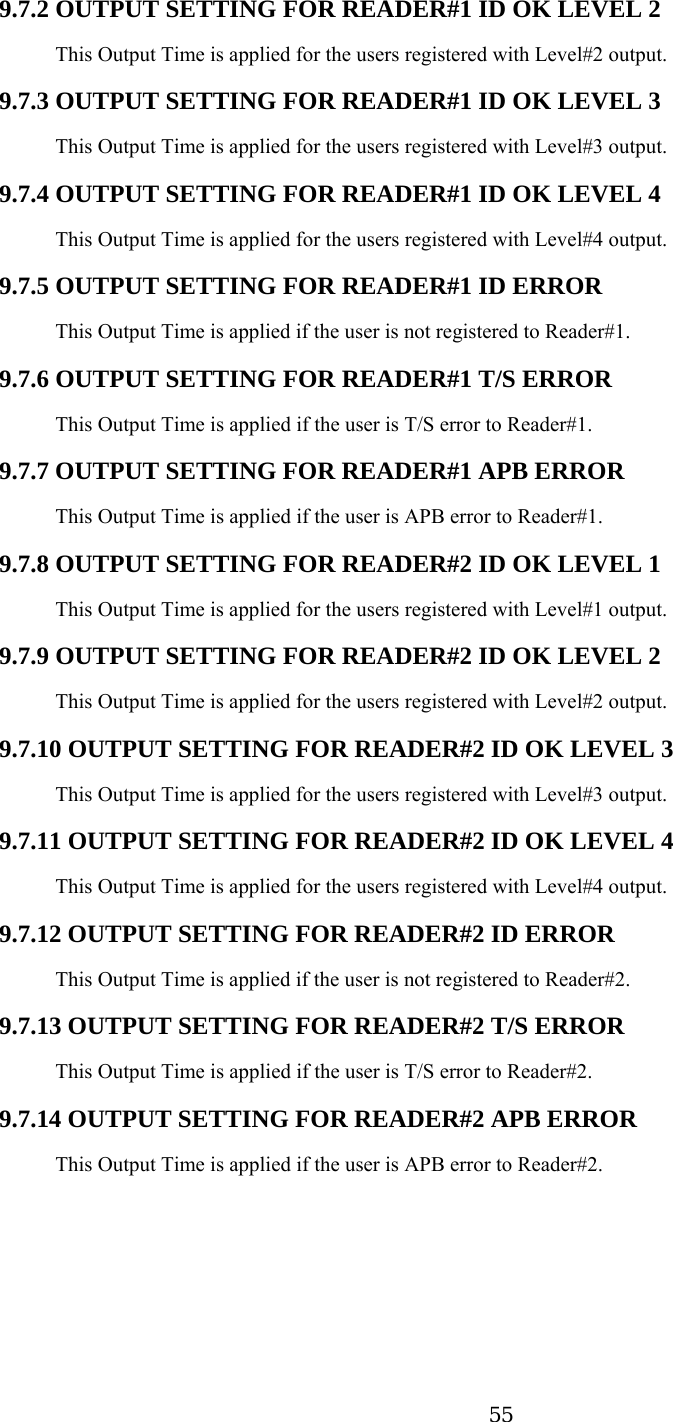

9.7.2 OUTPUT SETTING FOR READER#1 ID OK LEVEL 2 This Output Time is applied for the users registered wi Level put9.7.3 OUTPUT SETTING FOR READER#1 ID OK LEVEL 3 r the users registere th Level utput. 9.7.4 OUTPUT SETTING FOR READER#1 ID OK LEVEL 4 r the users registere th Level utput. 9.7.5 OUTPUT SETTING FOR READER#1 ID ERROR This Output Time is applied if the user is not registered to Reader#1. 9.7.6 R READER#1 ERROhe user is T/S erro eader#9.7.7 OUTPUT SETTING FOR READER#1 APB ERROR e user is APB erro Reader#9.7.8 OUTPUT SETTING FOR READER#2 ID OK LEVEL 1 r the users registere th Level utput. 9.7.9 OUTPUT SETTING FOR READER#2 ID OK LEVEL 2 This Output Time is applied for the users registered with Level#2 output. This Output Time is applied for the users registered with Level#3 output. 9.7.11 OUTPUT SETTING FOR READER#2 ID OK LEVEL 4 This Output Time is applied for the users registered with Level#4 output. 9.7.12 OUTPUT SETTING FOR READER#2 ID ERROR .7.13T.7.14T ser is APB error to Reader#2. th #2 out . This Output Time is applied fo d wi #3 oThis Output Time is applied fo d wi #4 o OUTPUT SETTING FO T/S R This Output Time is applied if t r to R 1. This Output Time is applied if th r to 1. This Output Time is applied fo d wi #1 o9.7.10 OUTPUT SETTING FOR READER#2 ID OK LEVEL 3This Output Time is applied if the user is not registered to Reader#2. OUTPUT SETTING FOR READER#2 T/S ERROR his Output Time is applied if the user is T/S error to Reader#2. OUTPUT SETTING FOR READER#2 APB ERROR his Output Time is applied if the u99 55

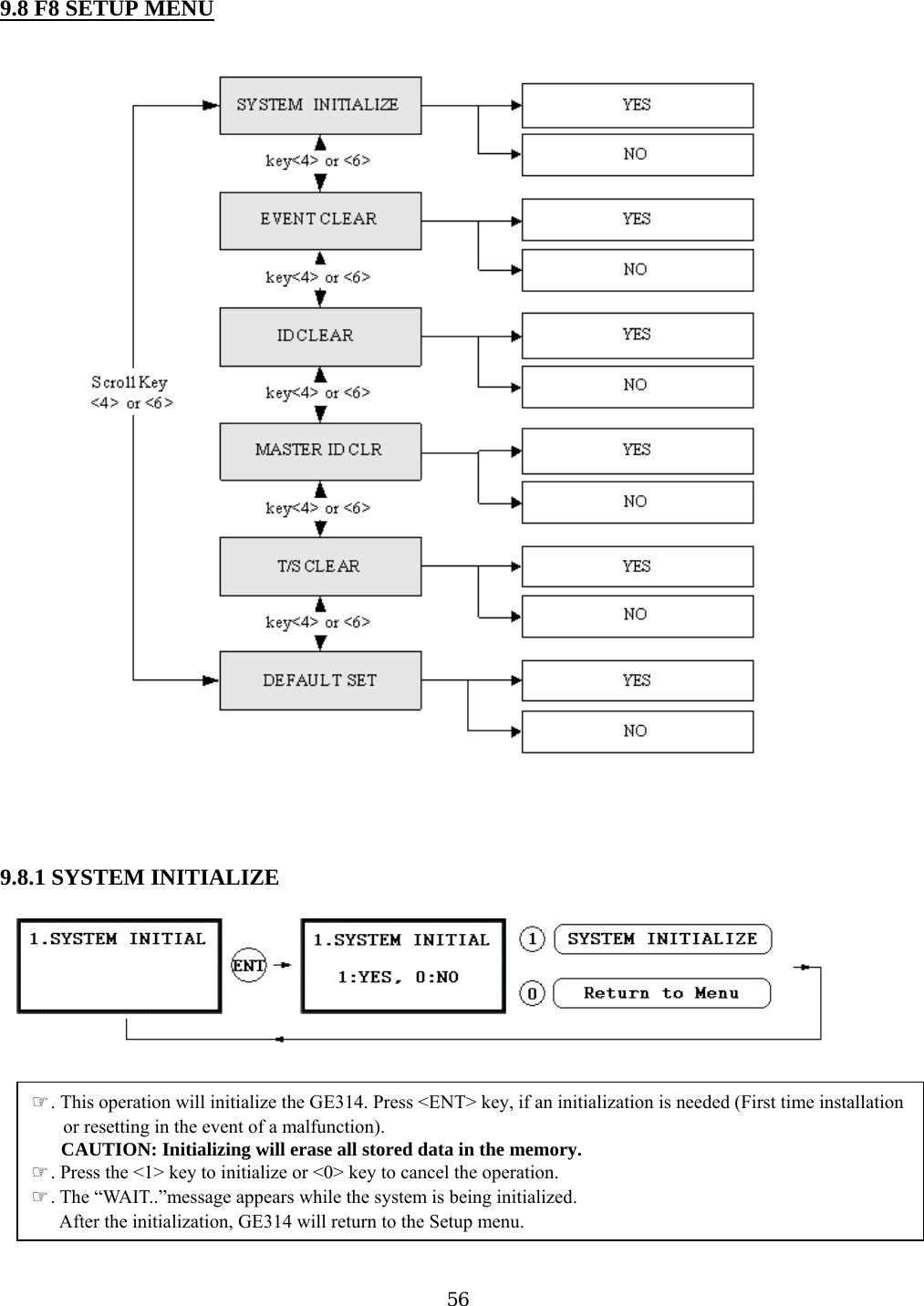

9.8 F8 SETUP MENU 9.8.1 SYSTEM INITIALIZE ☞. This operation will initialize the GE314. Press <ENT> key, if an initialization is needed (First time installation or resetting in the event of a malfunction). CAUTION: Initializing will erase all stored data in the memory. ☞. Press the <1> key to initialize or <0> key to cancel the operation. ☞. The “WAIT..”message appears while the system is being initialized. After the initialization, GE314 will return to the Setup menu. 56

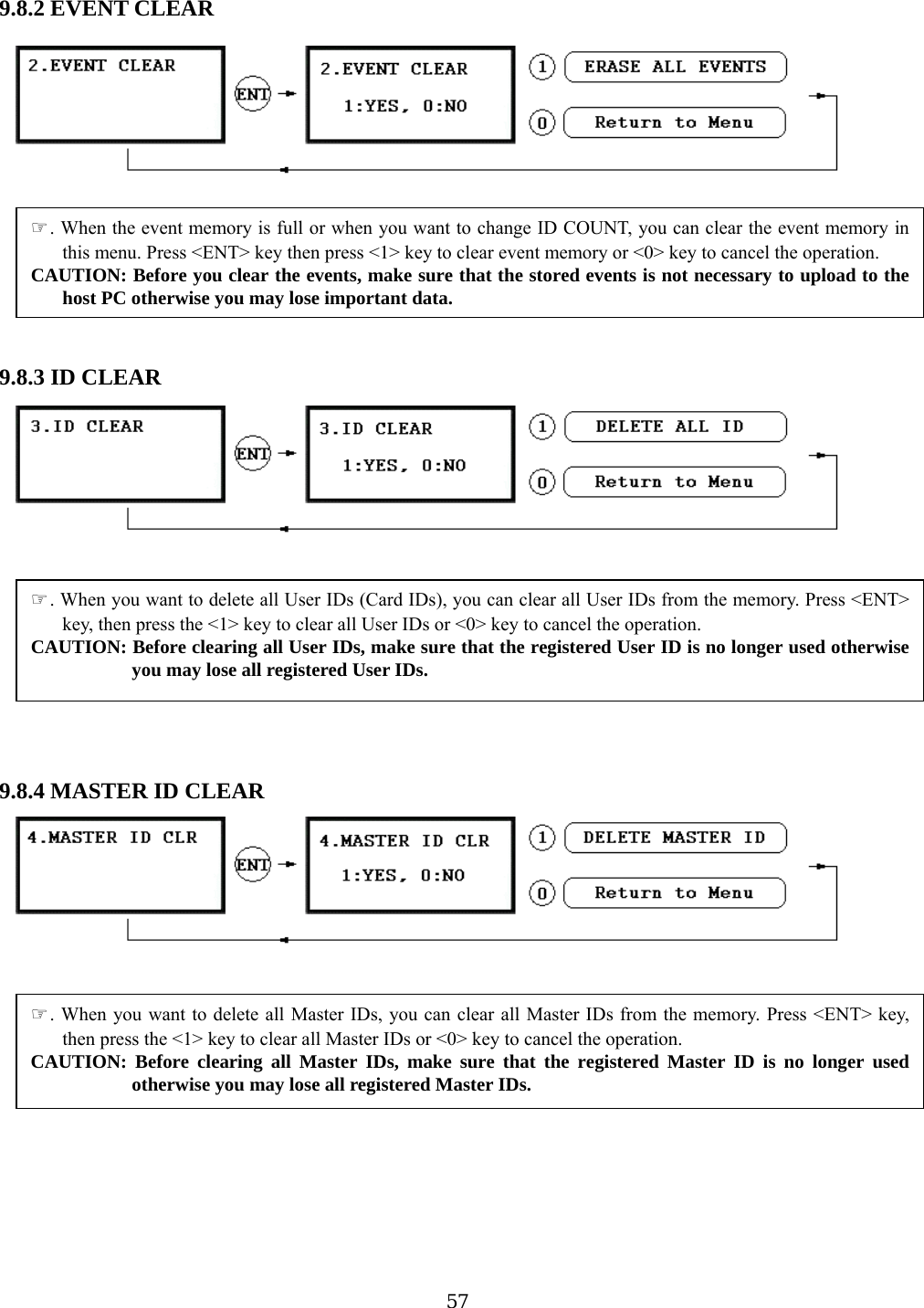

9.8.2 EVENT CLEAR 9.8.3 ID CLEAR 9.8.4 MASTER ID CLEAR ☞. When you want to delete all User IDs (Card IDs), you can clear all User IDs from the memory. Press <ENT>key, then press the <1> key to clear all User IDs or <0> key to cancel the operation. CAUTION: Before clearing all User IDs, make sure that the registered User ID is no longer used otherwiseyou may lose all registered User IDs. ☞. When the event memory is full or when you want to change ID COUNT, you can clear the event memory inthis menu. Press <ENT> key then press <1> key to clear event memory or <0> key to cancel the operation. CAUTION: Before you clear the events, make sure that the stored events is not necessary to upload to thehost PC otherwise you may lose important data. ☞. When you want to delete all Master IDs, you can clear all Master IDs from the memory. Press <ENT> key,then press the <1> key to clear all Master IDs or <0> key to cancel the operation. CAUTION: Before clearing all Master IDs, make sure that the registered Master ID is no longer usedotherwise you may lose all registered Master IDs. 57

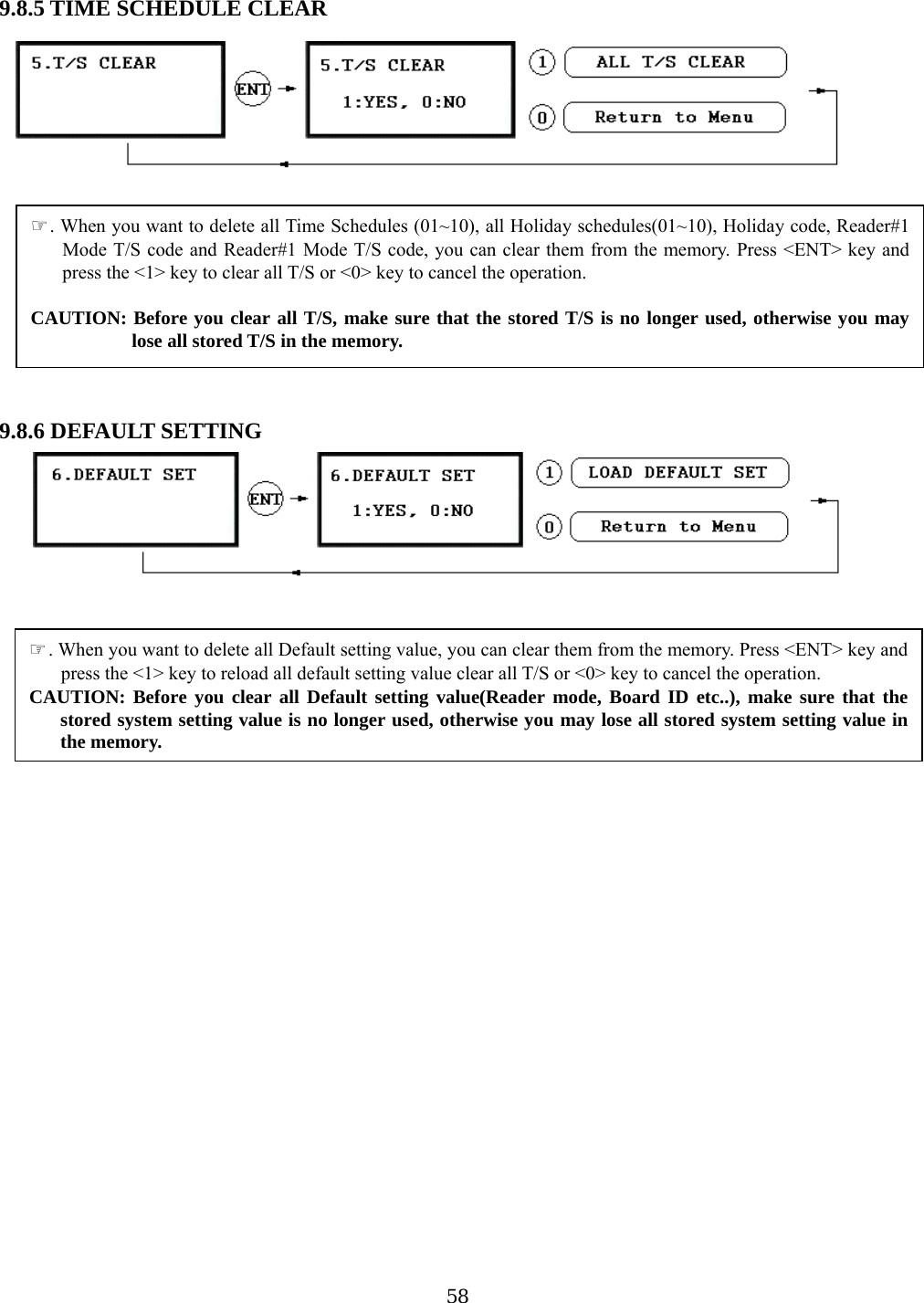

9.8.5 TIME SCHEDULE CLEAR 9.8.6 DEFAULT SETTING ☞. When you want to delete all Time Schedules (01~10), all Holiday schedules(01~10), Holiday code, Reader#1Mode T/S code and Reader#1 Mode T/S code, you can clear them from the memory. Press <ENT> key apress the <1> key to clear all T/S or <0> key to cancel the operation. CAUTION: Before you clear all T/S, make sure that the stored T/S is no longer used, otherwise you maylose all stored T/S in the memory. ☞. When you want to delete all Default setting value, you can clear them from the memory. Press <ENT> key andpress the T/S or <0> key to cancel the operation. CAUTION: Before <1> key to reload all default setting value clear all you clear all Default setting value(Reader mode, Board ID etc..), make sure that thestored system setting value is no longer used, otherwise you may lose all stored system setting value inthe memory. nd 58

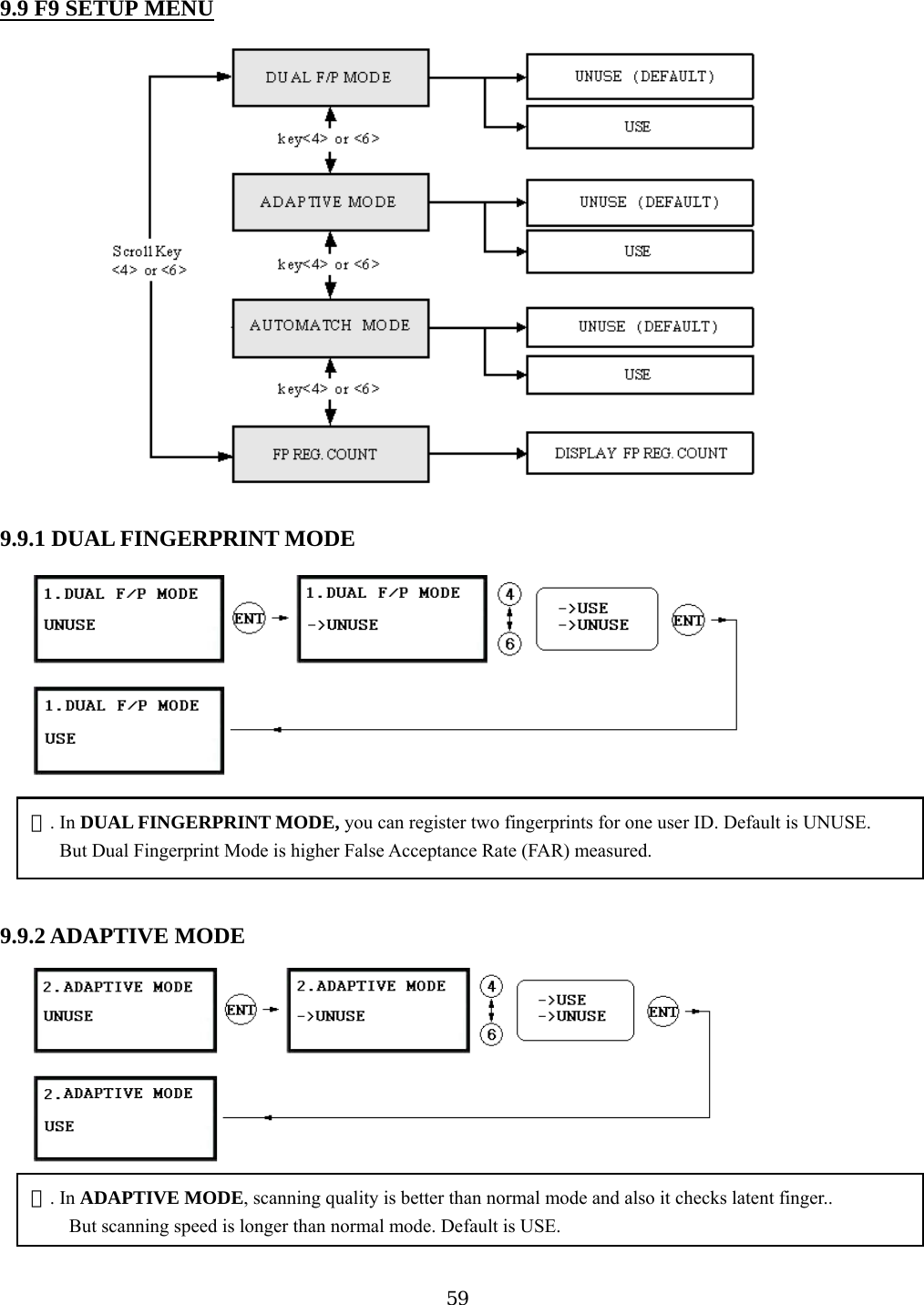

9.9 F9 SETUP MENU 9.9.1 DUAL FINGERPRINT MODE .9.2 ADAPTIVE MODE FINGERPRINT MODE, you can register two fingerprints for one user ID. Default is UNUSE. Fingerprint Mode is higher False Acceptance Rate (FAR) measured. . ☞In DUAL But Dual 9.☞ In ADAPTIVE MODE, scanning quality is better than normal mode and also it checks latent finger.. But scanning speed is longer than normal mode. Default is USE. 59

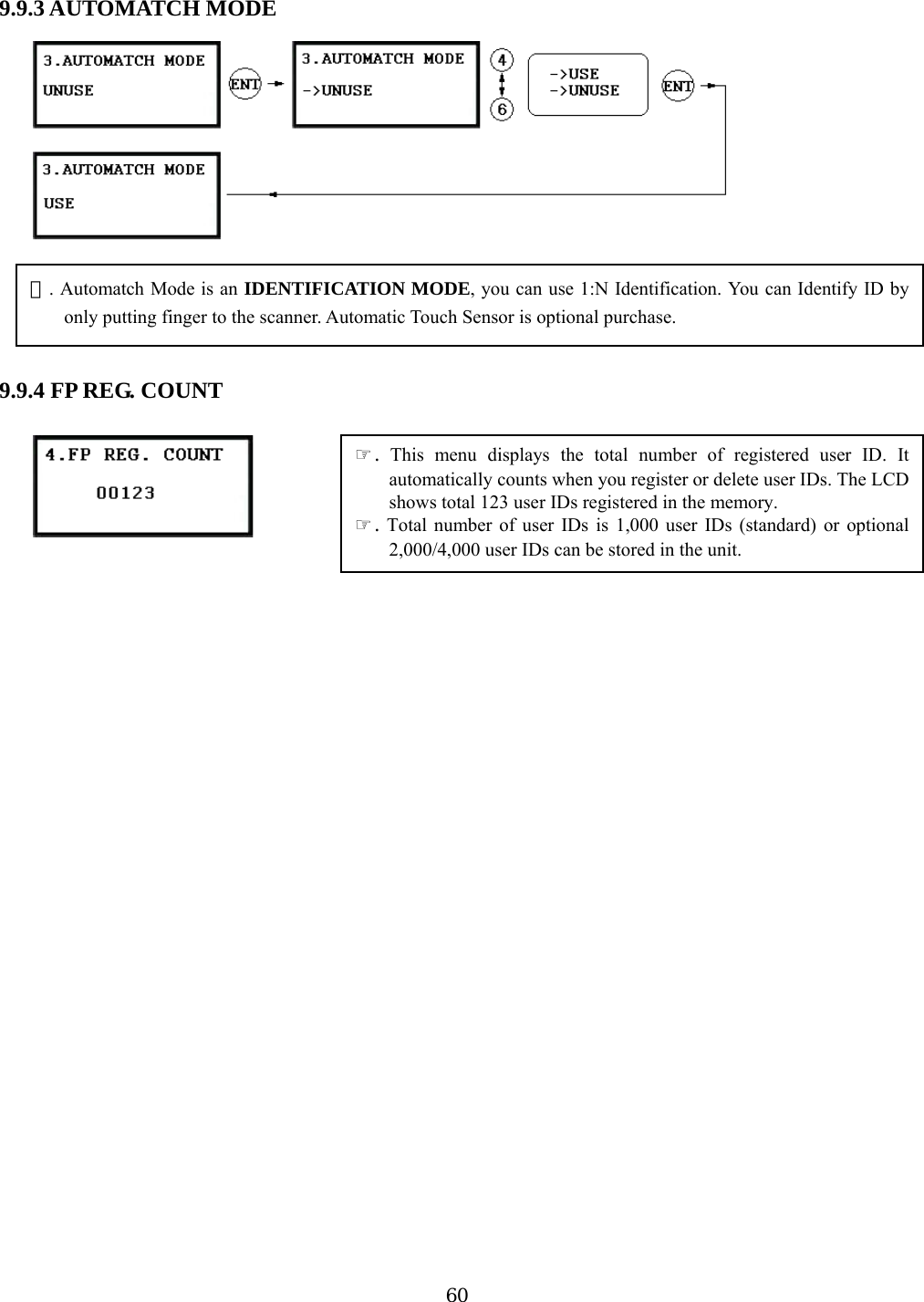

9.9.3 AUTOMATCH MODE 9.9.4 FP REG. COUNT . ☞Automatch Mode is an IDENTIFICATION MODE, you can use 1:N Identification. You can Identify ID b yonly putting finger to the scanner. Automatic Touch Sensor is optional purchase. ☞. This menu displays the total number of registered user ID. Itautomatically counts when you register or delete er IDs. The LCDshows total 123 user IDs registered in the memory. . Total number of user IDs is 1,000 user IDs (standard) or optional2,000/4,000 user IDs can be stored in the unit. us☞ 60

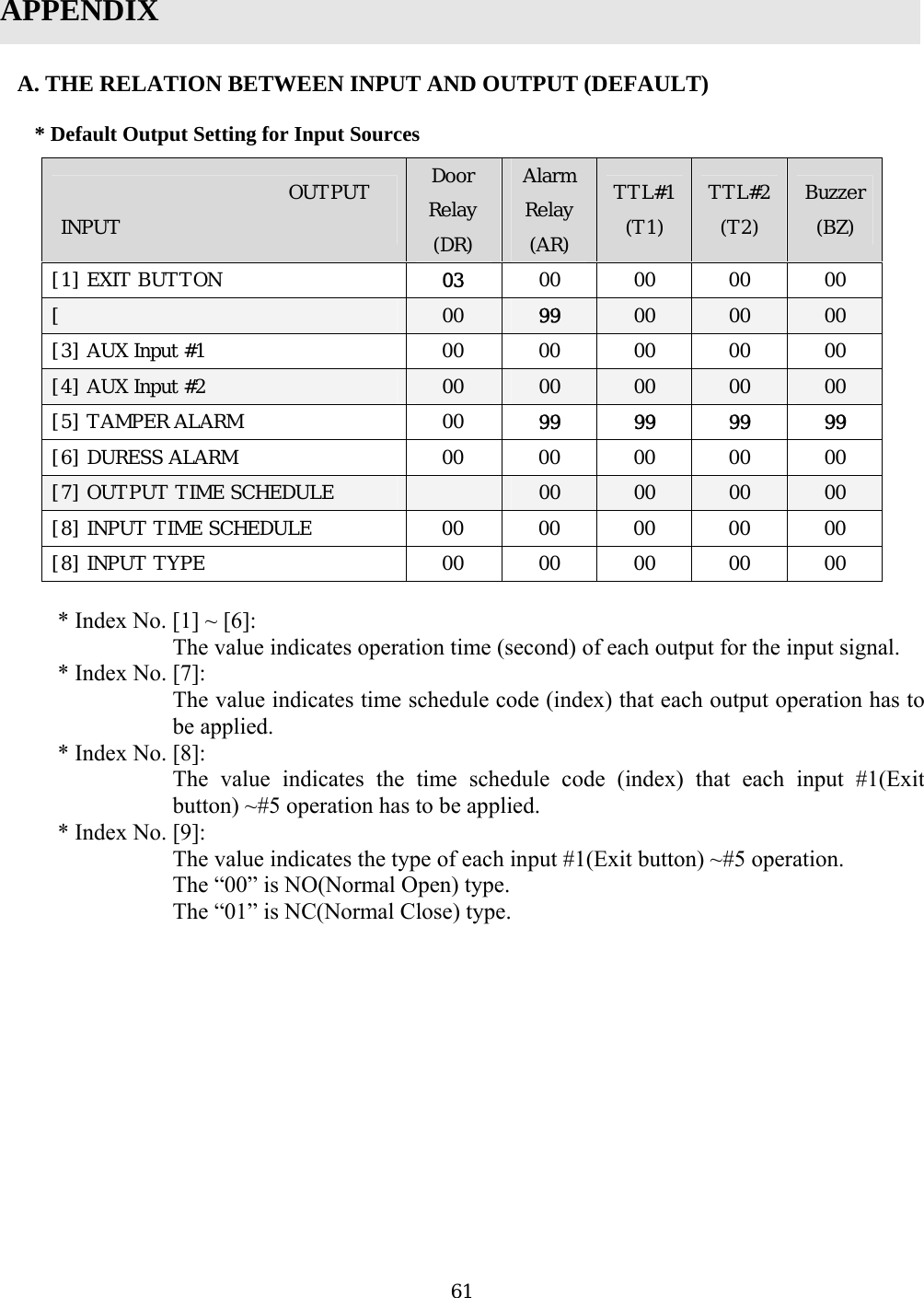

APPENDIX A. THE RELATION BETWEEN INPUT AND OUTPUT (DEFAULT) * Default Output Setting for Input Sources * Index No. [1] ~ [6]: The value indicates operation time (second) of each output for the input signal. * Index No. [7]: The value indicates time schedule code (index) that each output operation has to be applied. * Index No. [8]: The value indicates the time schedule code (index) that each input #1(Exit button) ~#5 operation has to be applied. * Index No. [9]: The value indicates the type of each input #1(Exit button) ~#5 operation. The “00” is NO(Normal Open) type. The “01” is NC(Normal Close) type. OUTPUT INPUT Door Relay (DR) Alarm Relay (AR) TTL#1(T1) TTL#2 (T2) Buzzer(BZ) [1] EXIT BUTTON 03 00 00 00 00 2] DOOR CONTACT 00 99 00 [00 00 [3] AUX Input #1 00 00 00 00 00 [4] AUX Input #2 00 00 00 00 00 [5] TAMPER ALARM 00 99 99 99 99 [6] DURESS ALARM 00 00 00 00 00 00 00 00 00 0000 00 00 00 00 [7] OUTPUT TIME SCHEDULE [8] INPUT TIME SCHEDULE [8] INPUT TYPE 0 00 00 00 00 0 61

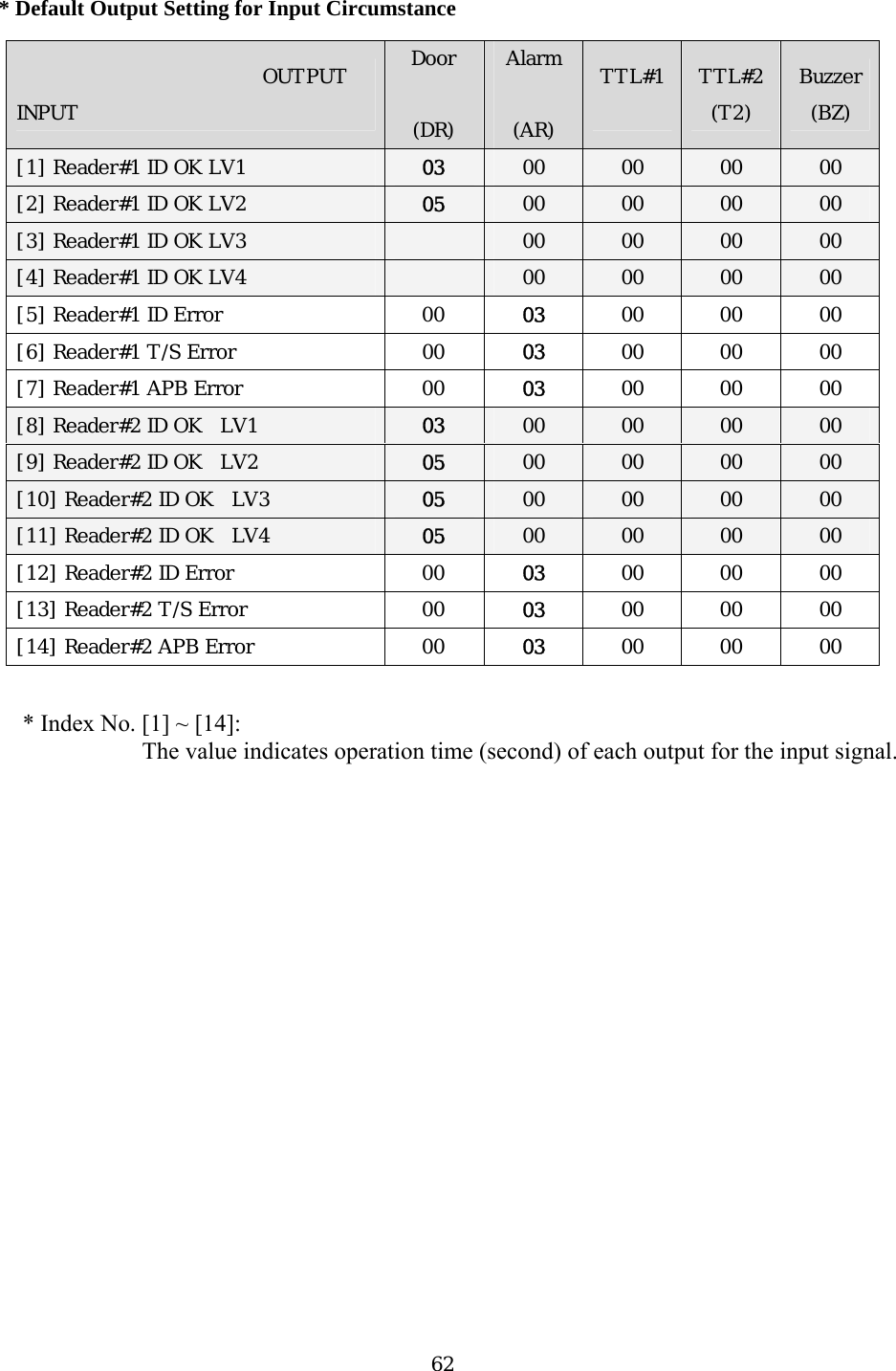

* Default Output Setting for Input Circumstance 14]: * Index No. [1] ~ [The value indicates operation time (second) of each output for the input signal. OUTPUT INPUT Relay Relay (T1) Door (DR) Alarm (AR) TTL#1 TTL#2 (T2) Buzzer(BZ) [1] Reader#1 ID OK LV1 03 00 00 00 00 [2] Reader#1 ID OK LV2 05 00 05 00 05 00 [5] Reader#1 ID Error 00 03 00 00 00 [6] Reader#1 T/S Error 00 03 00 00 00 [7] Reader#1 APB Error 00 03 00 00 00 [8] Reader#2 ID OK LV1 03 00 00 00 00 [9] Reader#2 ID OK LV2 05 00 00 00 00 [10] Reader#2 ID OK LV3 05 00 00 00 00 [11] Reader#2 ID OK LV4 05 00 00 00 00 [12] Reader#2 ID Error 00 03 00 00 00 [13] Reader#2 T/S Error 00 03 00 00 00 00 00 00 [3] Reader#1 ID OK LV3 00 00 00 [4] Reader#1 ID OK LV4 00 00 00 [1 00 03 00 00 00 4] Reader#2 APB Error 62

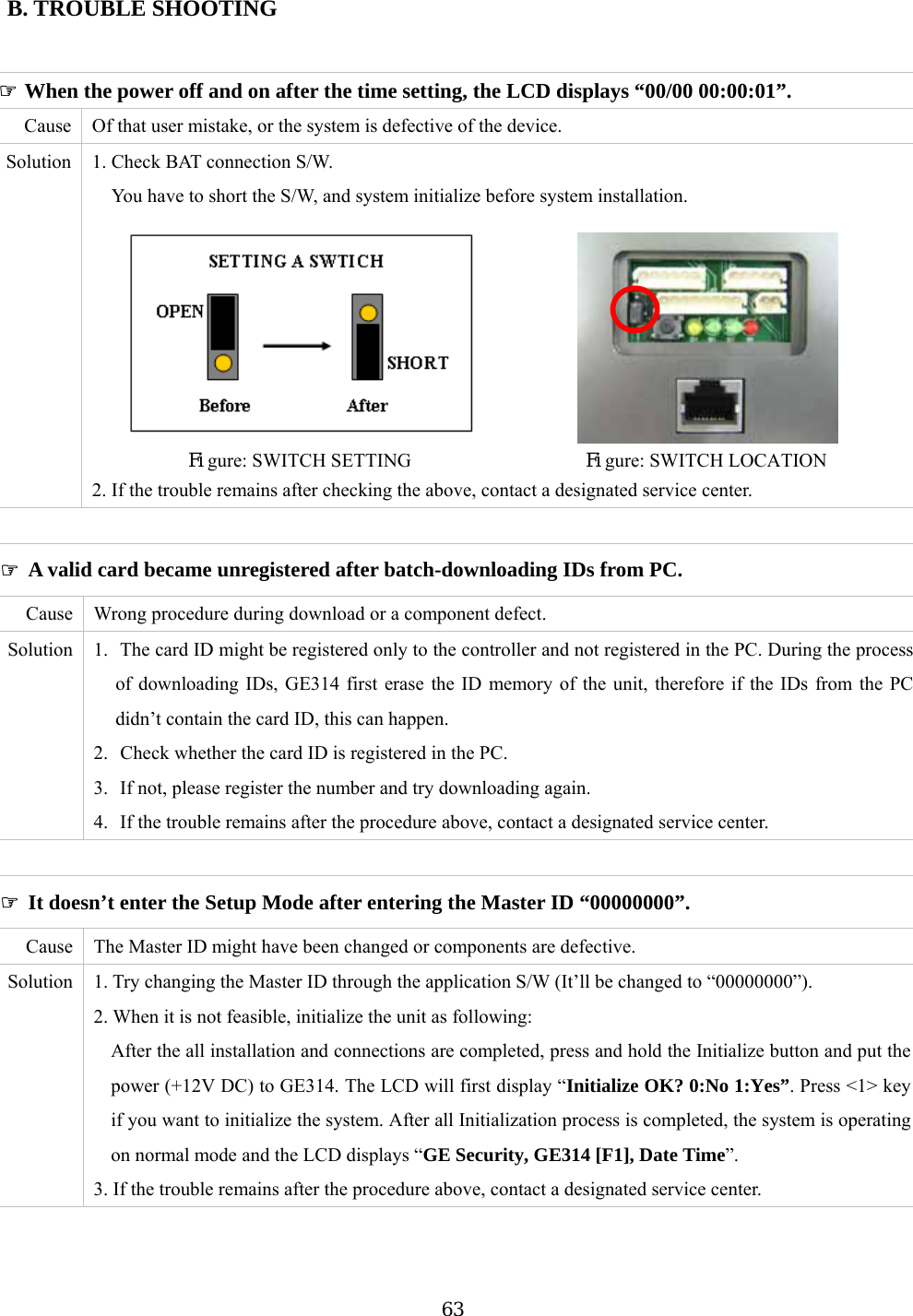

B ☞ A ed after batch-downloading IDs from PC. . TROUBLE SHOOTING valid card became unregisterause Wrong procedure during pon ct. tive of evice. tion 1. Check BAT connection S/You have to short the itialize b C download or a com ent defeSolution 1. The card ID might be registered only to the controller and not registered in the PC. During the process 314 first erase the ID memory of the unit, therefore if the IDs from the PC didn’2. Check whether the card ID is registered in the PC. 3. If not, please register the number and try downloading again. 4. If the trouble remains after the procedure above, contact a designated service center. of downloading IDs, GEt contain the card ID, this can happen. ☞ It doesn’t enter the Setup Mode after entering the Master ID “00000000”. Cause The Master ID might have been changed or components are defective. Solution 1. Try changing the Master ID through the application S/W (It’ll be changed to “00000000”). 2. When it is not feasible, initialize the unit as following: After the all installation and connections are completed, press and hold the Initialize button and put the power (+12V DC) to GE314. The LCD will first display “Initialize OK? 0:No 1:Yes”. Press <1> key if you want to initialize the system. After all Initialization process is completed, the system is operating on normal mode and the LCD displays “GE Security, GE314 [F1], Date Time”. 3. If the trouble remains after the procedure above, contact a designated service center. ☞ When the power off and on after the time setting, the LCD displays “00/00 00:00:01”. Cause Of that user mistake, or the system is defec the dSolu W. S/W, and system in efore system installation. Figure: SWITCH SETTING Figure: SWITCH LOCATION 2. If the trouble remains after checking the above, contact a designated service center. 63

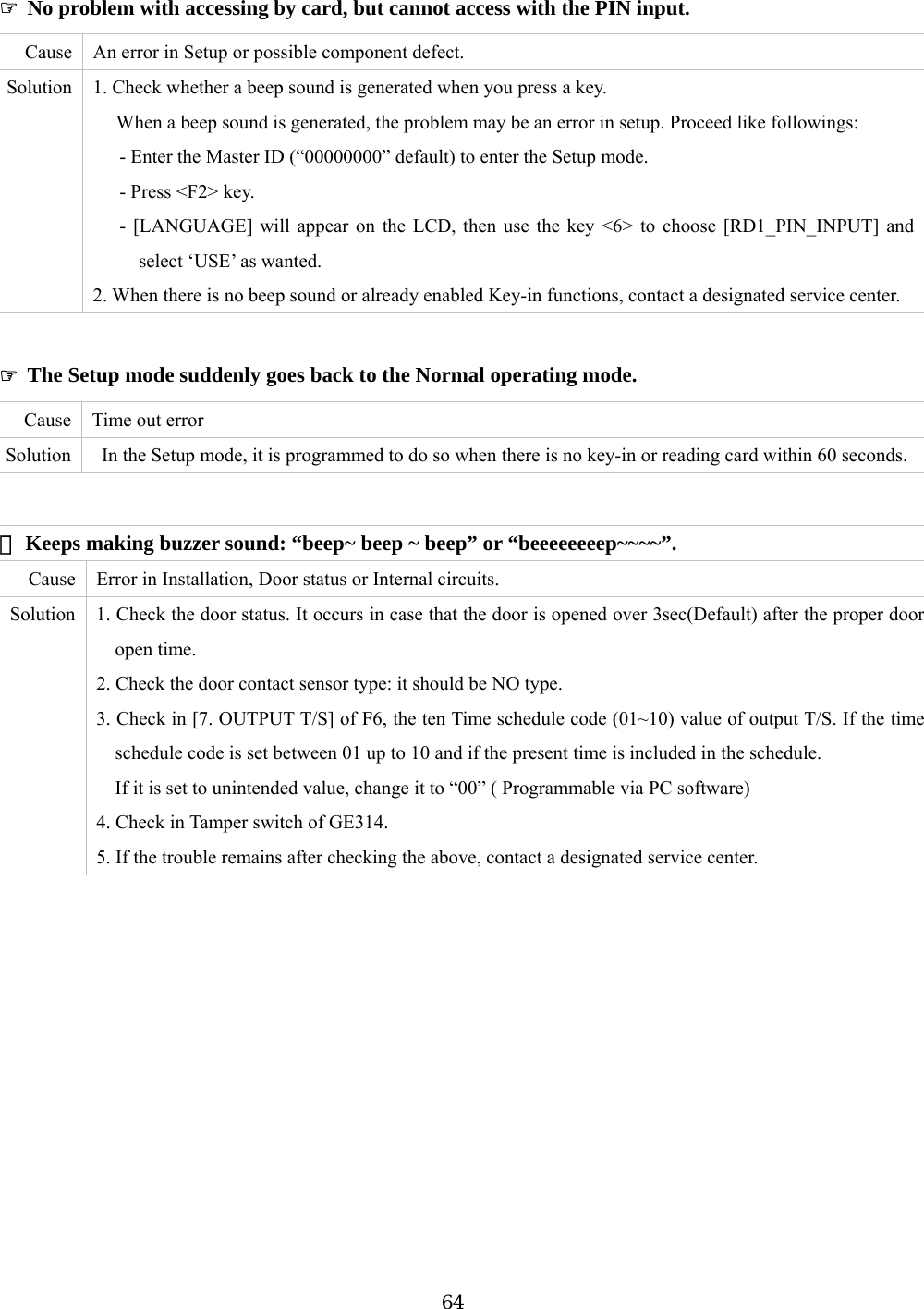

☞ No problem with accessing by card, but cannot access with the PIN input. Cause An error in Setup or possible component defect. Solution 1. Check whether a beep sound is generated when you press a key. When a beep sound is generated, the problem may be an error in setup. Proceed like followings: 000” default) to enter the Setup mode. - [LANGUAGE] will appear on the LCD, then use the key <6> to choose [RD1_PIN_INPUT] and SE’ as wanted. 2. When th sound or already enabled Key-in functions, contact a designated service center. - Enter the Master ID (“00000- Press <F2> key. select ‘Uere is no beepime out erroup mode, it is programmed to do so when there is no key-in or reading card within 60 ☞ The Setup mode suddenly goes back to the Normal operating mode. Cause T r Solution In the Set seconds. ☞ Keeps making buzzer sound: “beep~ beep ~ beep” or “beeeeeeeep~~~~”. olution 1. Check the door status. It occurs in case that the door is oopen time. Check the door contact sensor type: it should be NO type. Check in [7. OUTPUT T/S] of F6, the ten Tischedule code is set between 01 up to 10 and if the pIf it is set to unintended value, change it to “00” ( Programmab4. Check in Tamper switch of GE314. Cause Error in Installation, Door status or Internal circuits. Spened over 3sec(Default) after the proper door 2.3. me schedule code (01~10) value of output T/S. If the time resent time is included in the schedule. le via PC software) 5. If the trouble remains after checking the above, contact a designated service center. 64

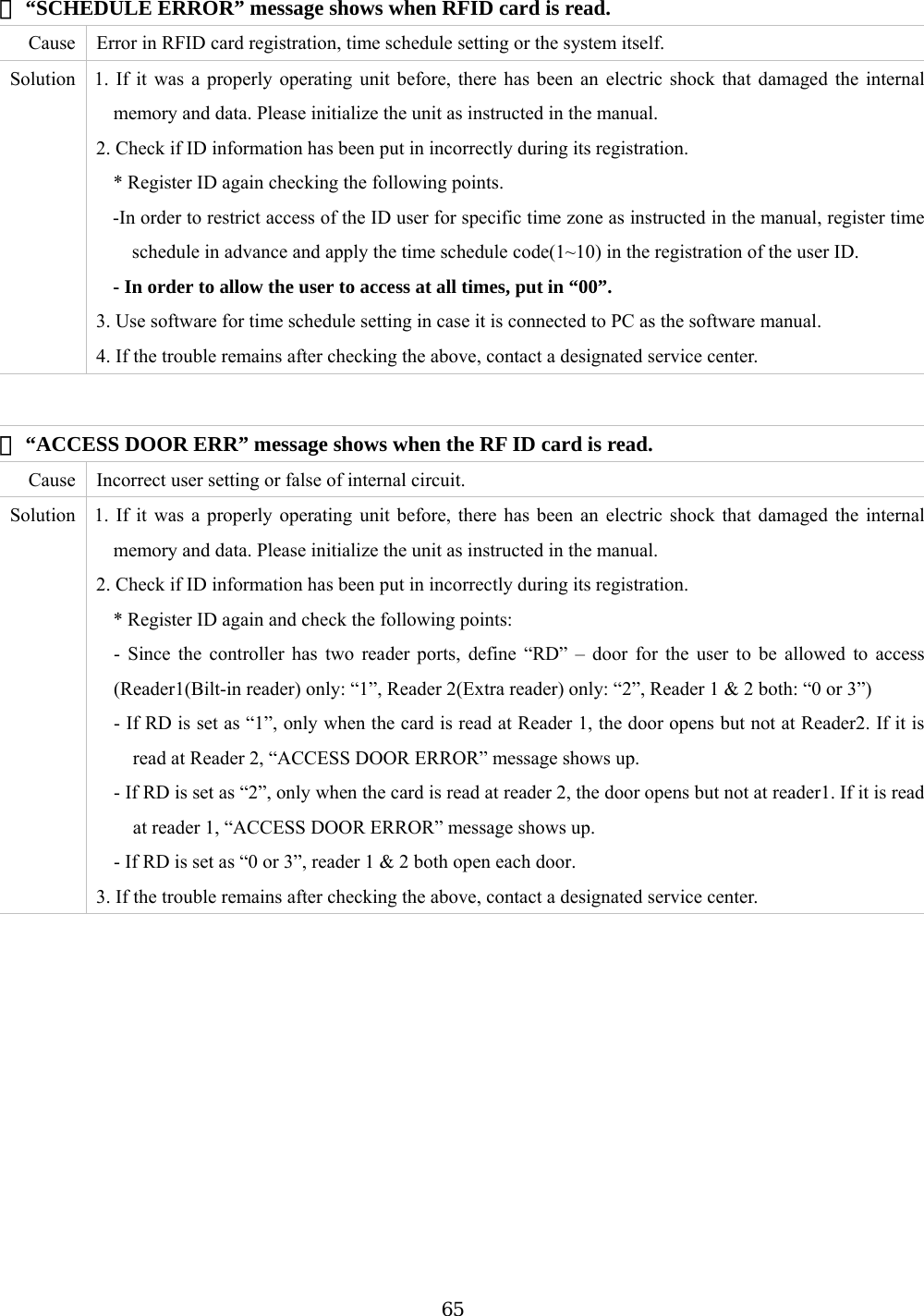

☞ “SCHEDULE ERROR” message shows when RFID card is read. Cause Error in RFID card registration, time schedule setting or the system itself. Solution 1. If it was a properly operating unit before, there has been an electric shock that damaged the internal 2. C ion. * R ng the following points. -In schedul y the time schedule code(1~10) in the registration of the user ID. 3. Use software for time schedule setting in case it is connected to PC as the software manual. 4. If the trouble remains after checking the above, contact a designated service center. memory and data. Please initialize the unit as instructed in the manual. heck if ID information has been put in incorrectly during its registrategister ID again checkiorder to restrict access of the ID user for specific time zone as instructed in the manual, register timee in advance and appl- In order to allow the user to access at all times, put in “00”. ☞ “ACCESS DOOR ERR” message shows when the RF ID card is read. Cause Incorrect user setting or false of internal circuit. Solution 1. If it was a properly operating unit before, there has been an electric shock that damaged the internal during its registration. ontroller has two reader ports, define “RD” – door for the user to be allowed to access nly: “2”, Reader 1 & 2 both: “0 or 3”) t reader1. If it is read R” message shows up. 3. If the trouble remains after checking the above, contact a designated service center. memory and data. Please initialize the unit as instructed in the manual. 2. Check if ID information has been put in incorrectly* Register ID again and check the following points: - Since the c(Reader1(Bilt-in reader) only: “1”, Reader 2(Extra reader) o- If RD is set as “1”, only when the card is read at Reader 1, the door opens but not at Reader2. If it is read at Reader 2, “ACCESS DOOR ERROR” message shows up. - If RD is set as “2”, only when the card is read at reader 2, the door opens but not aat reader 1, “ACCESS DOOR ERRO- If RD is set as “0 or 3”, reader 1 & 2 both open each door. 65

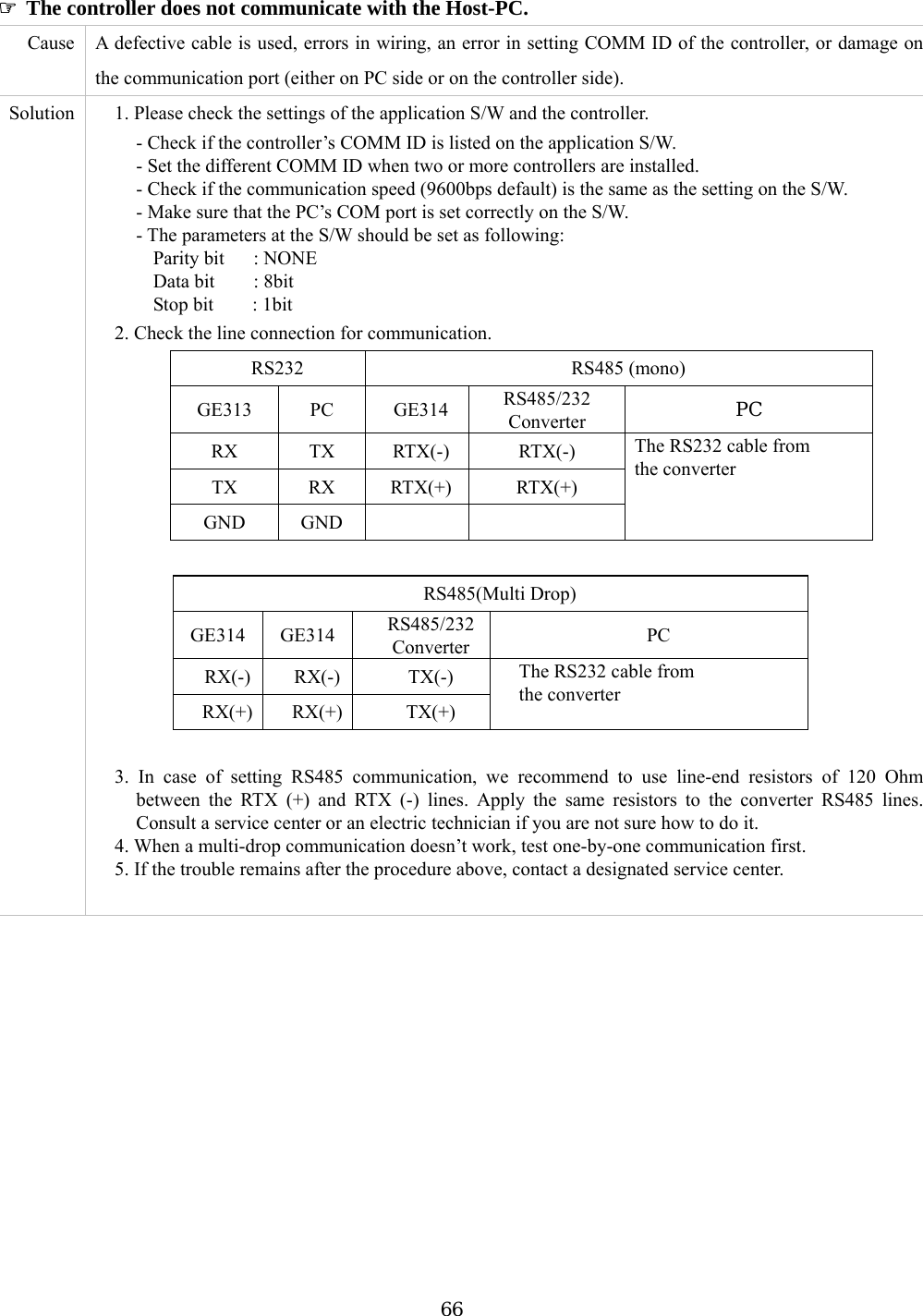

☞ The controller does not communicate with the Host-PC. Cause A defective cable is used, errors in wiring, an error in setting COMM ID of the controller, or damage on the communication port (either on PC side or on the controller side). 1. Please check the settings of the application S/W and the controller. - Check if the controller’s COMM ID is listed on the application S/W. ntrollers are installed - Set the different COMM ID when two or more co- Check if the communication speed (9600bps def- Make sure that the PC’s COM port is set correctly on the S/W. - The parameters at the S/W should be set as following: Parity bit : NONE Data bit : 8bit Stop bit : 1bit 2. Check the line connection for communication. RS232 RS485 (mono) Solution . ault) is the same as the setting on the S/W. GE313 PC GE314 RS485/232 Converter PC RX TX RTX(-) RTX(-) TX RX RTX(+) RTX(+) GND GND The RS232 cable from the converter RS485(Multi Drop) GE314 GE314 RS485/232Converter PC RX(-) RX(-) TX(-) RX(+) RX(+) TX(+) The RS232 cable from the converter 3. In case of setting RS485 communication, we recommend to use line-end resistors of 120 Ohm between the RTX (+) and RTX (-) lines. Apply the same resistors to the converter RS485 lines. Consult a service center or an electric technician if you are no4. When a multi-drop communication doesn’t work, test one5. If the trouble remains after the procedure above, contact a t sure how to do it. -by-one communication first. designated service center. 66
FCC REQUIREMENTS PART 15 Caution: Any ch y the manufacturer fo ent. NOTE: This device c f the FCC Rules. Operation is subjec1. This device m2. This device m erference that may cause undesired operation. This equipment has been test foun comply with e lim s A Digital Device, pursuant to Part 15 of the FCC Rules. These l desi to this ent ge , and can radiate frequency energy and, if not installed and n acc nce w instru y ca ce to radio communications. However, there is no guaran at interference wi cur in a r installatio uipment does cause harmful interference to radi levision ion, which can be determined by turning the radio or television off and on, the user is encouraged t corre one or more of the following measures. 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and re3. Connect the equipment ut ther 4. Consult the dealer or an technician for help. FCC REGISTRATION INFORMATION anges or modifications in construction of this device which are not expressly approved br compliance could void the user's authority to operate the equipmomplies with Part 15 ot to the following two conditions; ay not cause harmful interference, and ust accept any interference received, including inted andimits ared togned th equipmits for a Classnerates, usec a radioused i orda ith the tions, m use harmful interferentee th ll not oc particula n. If this eqo or teo try toreceptct interference byceiver. into an o experienced radio/TVlet on ano circuit. 67

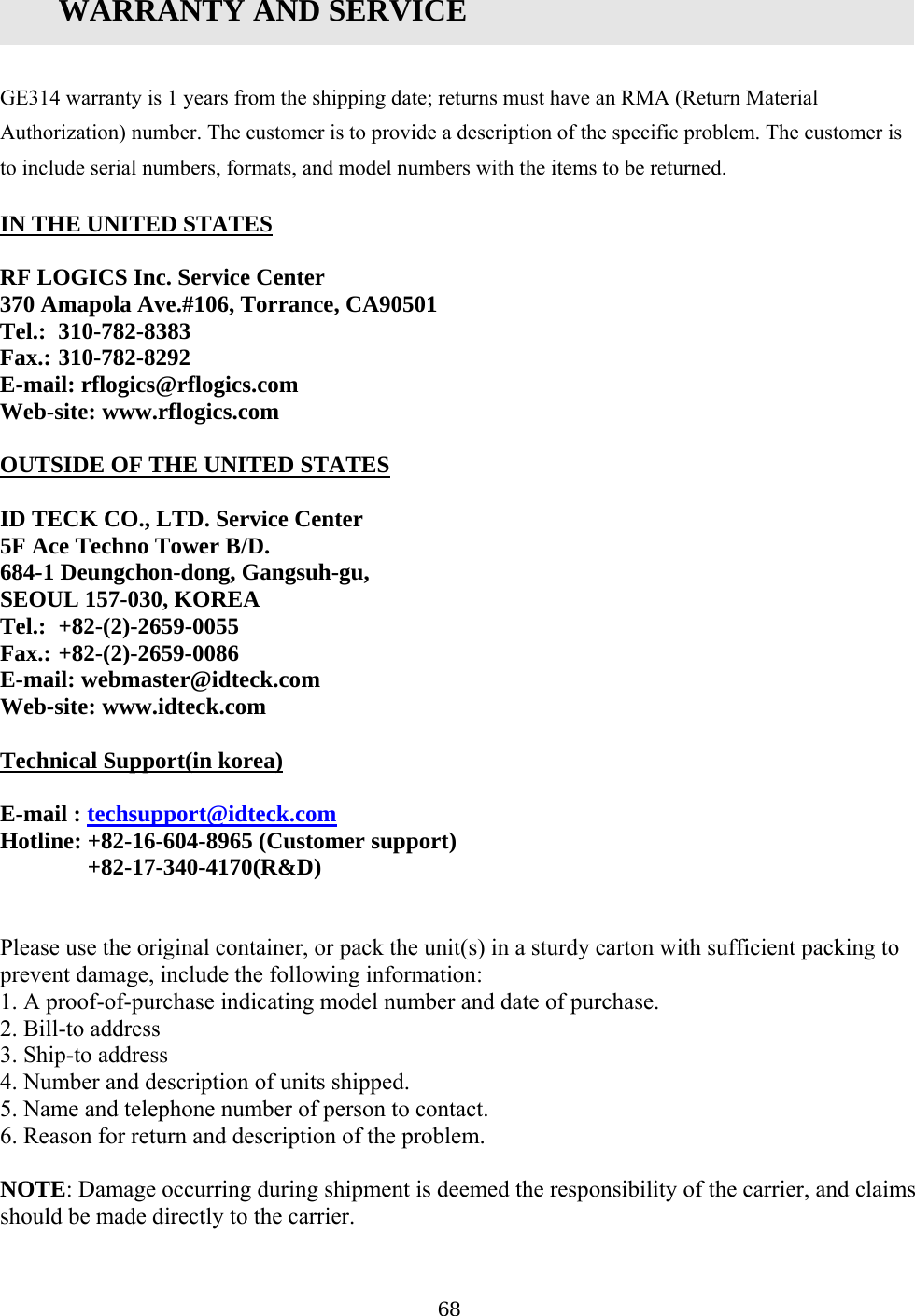

WARRANTY AND SERVICE GE314 warranty is 1 years from the shipping date; Authorization) number. The customer is toreturns must have an RMA (Return Material provide a description of the specific problem. The customer is IN THE UNITED STATESto include serial numbers, formats, and model numbers with the items to be returned. 1 Fax.: 310-782-8292 RF LOGICS Inc. Service Center 370 Amapola Ave.#106, Torrance, CA9050Tel.: 310-782-8383 E-mail: rflogics@rflogics.com Web-site: www.rflogics.com OUTSIDE OF THE UNITED STATES ID TECK CO., LTD. Service Center 5F Ace Techno Tower B/D. gu, E-mail: webmaster@idteck.com Web-site: www.idteck.com Technical Support(in korea)684-1 Deungchon-dong, Gangsuh-SEOUL 157-030, KOREA Tel.: +82-(2)-2659-0055 Fax.: +82-(2)-2659-0086 E-mail : techsupport@idteck.comHotline: +82-16-604-8965 (Customer support) +82-17-340-4170(R&D) Please use the original container, or pack the unit(s) in a sturdy carton with sufficient packing to prevent damage, include the following information: 1. A proof-of-purchase indicating model number and date of purchase. 2. Bill-to address 3. Ship-to address 4. Number and description of units shipped. 5. Name and telephone number of person to contact. 6. Reason for return and description of the problem. NOTE: Damage occurring during shipment is deemed the responsibility of the carrier, and claims should be made directly to the carrier. 68

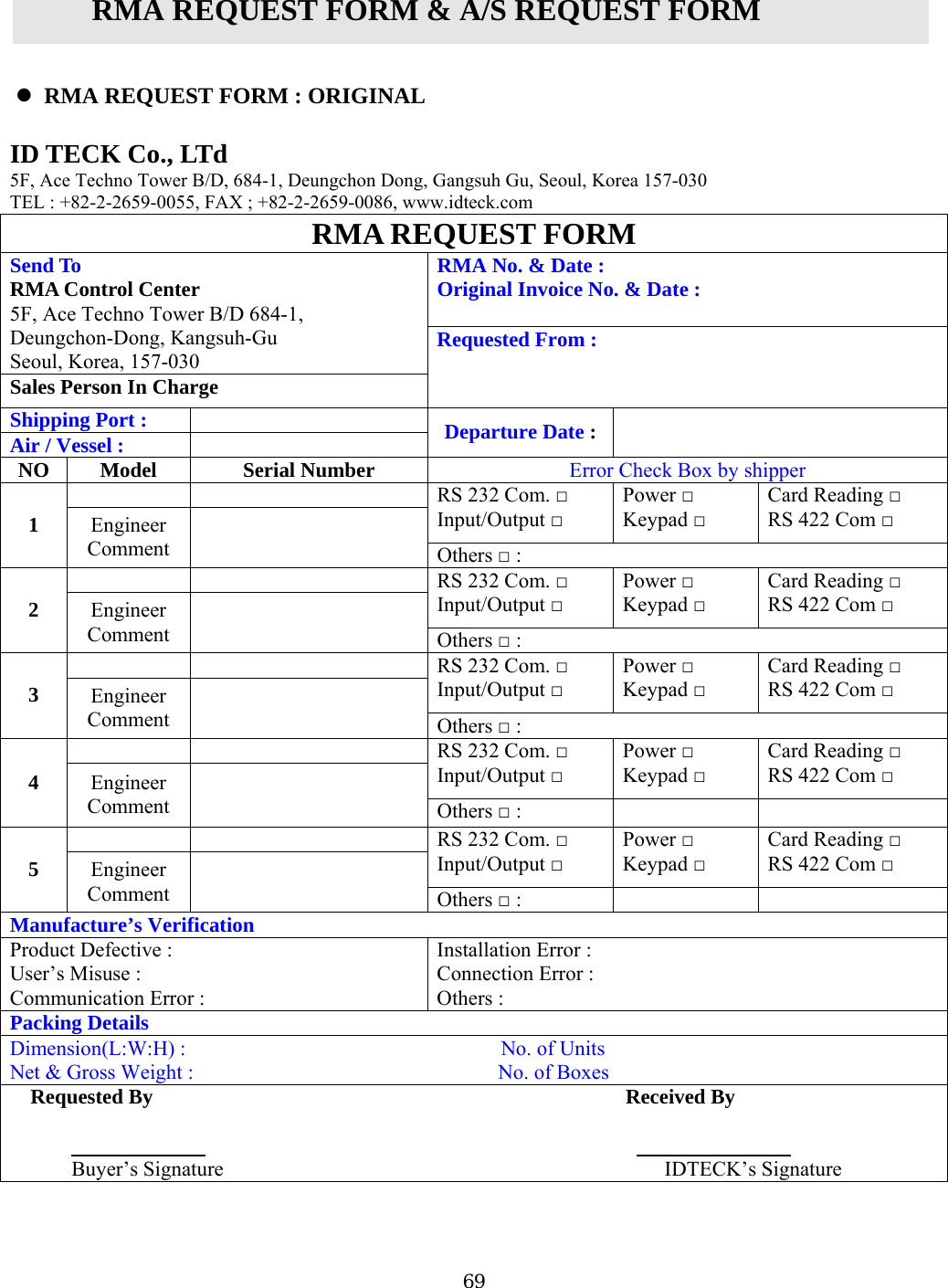

RMA REQUEST FORM & A/S REQUEST FORM ID5F, Ace Techno Tower BTEL : +82-2-2659-0055, FAX ; +82-2-2659-0086, www.idteck.com RMA REQUEST FORM RMA REQUEST FORM : ORIGINAL TECK Co., LTd /D, 684-1, Deungchon Dong, Gangsuh Gu, Seoul, Korea 157-030 RMA No. & Date : inal Invoice No. & Date : OrigA Control Center SeRM5F, Ace Techno Tower B/D 684-1, Deungchon-Dong, Kangsuh-Gu Send To oul, Korea, 157-030 SaRequested From : les Person In Charge Shipping Port : Ai Departure Date : r / Vessel : Model Serial Number N Error Check Box by shipper O RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 1 Engineer Comment Others □ : RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 2 Engineer Comment Others □ : RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 3 Engineer Comment Others □ : RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 4 Engineer Comment OthersRS 232 Com □ : . □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 5 Engineer Comment Others □ : Manufacture’s Verification oduct Defective : InstallatioPrUsCon Error : er’s Misuse : Connection Error : Others : mmunication Error :Packing Details Di No. of Units Ne . of Boxes mension(L:W:H) : t & Gross Weight : NoRequested By Received By Buyer’s Signature IDTECK’s Signature 69
 RMAID TECK Co., LTd ong, Gangsuh Gu, Seoul, Korea 157-030 , www.idteck.com RMA REQUEST FORM REQUEST FORM : SAMPLE 5F, Ace Techno Tower B/D, 684-1, Deungchon DTEL : +82-2-2659-00 5, FAX ; +82-2-2659-00865RMA No. & Date : We send this No. , when you want. Date : 00-00-0-000 / 1990.01.01Original Invoice No. &Send To RMA Control Center 5F, Ace Techno Tower B/D 684-1on-Dong, Kangsuh-Gu , DeungchSeoul, Korea, 157-030Sales Person In Charge Karina Kwak ABC Company,… address…. Requested From : Mr. Luis Castro Tokyo, Japan Shipping Port : Narita Air / Vessel : Air Departure Date : 2003, 11. 25 NO Model Serial Number r C eck Box by shipper Erro h505R XXXXXXXXX Keypad ▣ RS 421 Engineer CWrite problem to be detailed. omment Others □ : others RS 232 Com. □ Power □ KeCard Reading □ Input/Output □ ypad □ RS 422 Com □ omment Others □ : RS 232 Com. □ Input/Output □ PoKewer □ ypad □ Card Reading □ RS 422 Com □ 3 EC ngineer omment Others □ : RS 232 Com. □ Input/Output □ PoKewer □ ypad □ Card Reading □ RS 422 Com □ 4 EC ngineer omment Others □ : RS 232 Com. □ □ Input/Output PoKey RS 422 Comwer □ pad □ Card Reading □ □ ngineer Comment Others □ : Manufacture’s Verification Product Defective : User’s Misuse : Communication Error : Others : InstallatiConnection Error : on Error : Packing Details Dimension(L:W:H) : 30 * 25 * 80 No. of Units 20 et & Gross Weight : 10Kg No. of Boxes 2 NRequested By Received By XXXXXXXX XXX X RS 232 Com. □ Input/Output □Power ▣ Card Reading ▣ 2 Com □ 2 Engineer C 5 E Buyer’s Signature IDTECK’s Signature 70

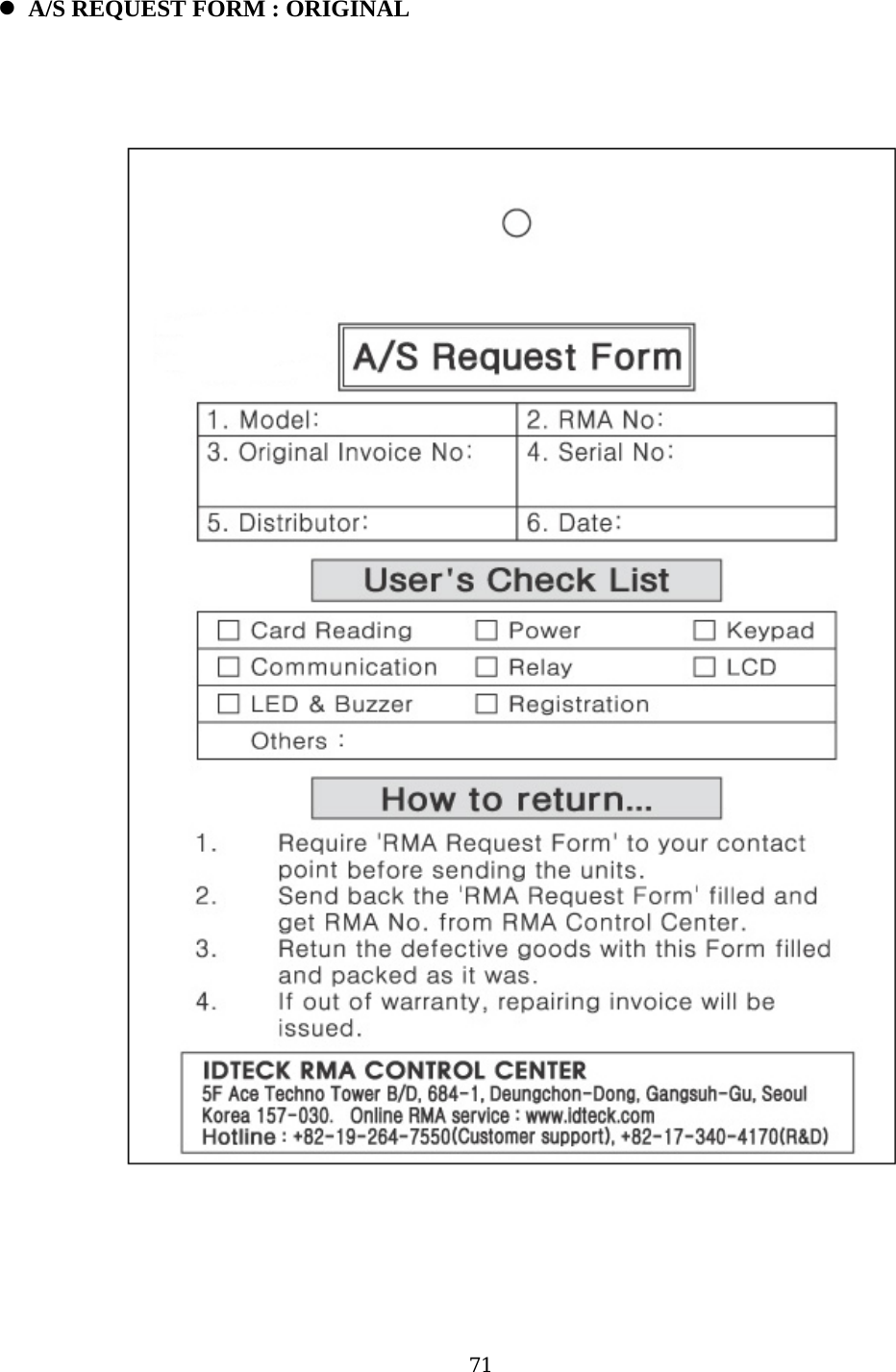

 A/S REQUEST FORM : ORIGINAL 71

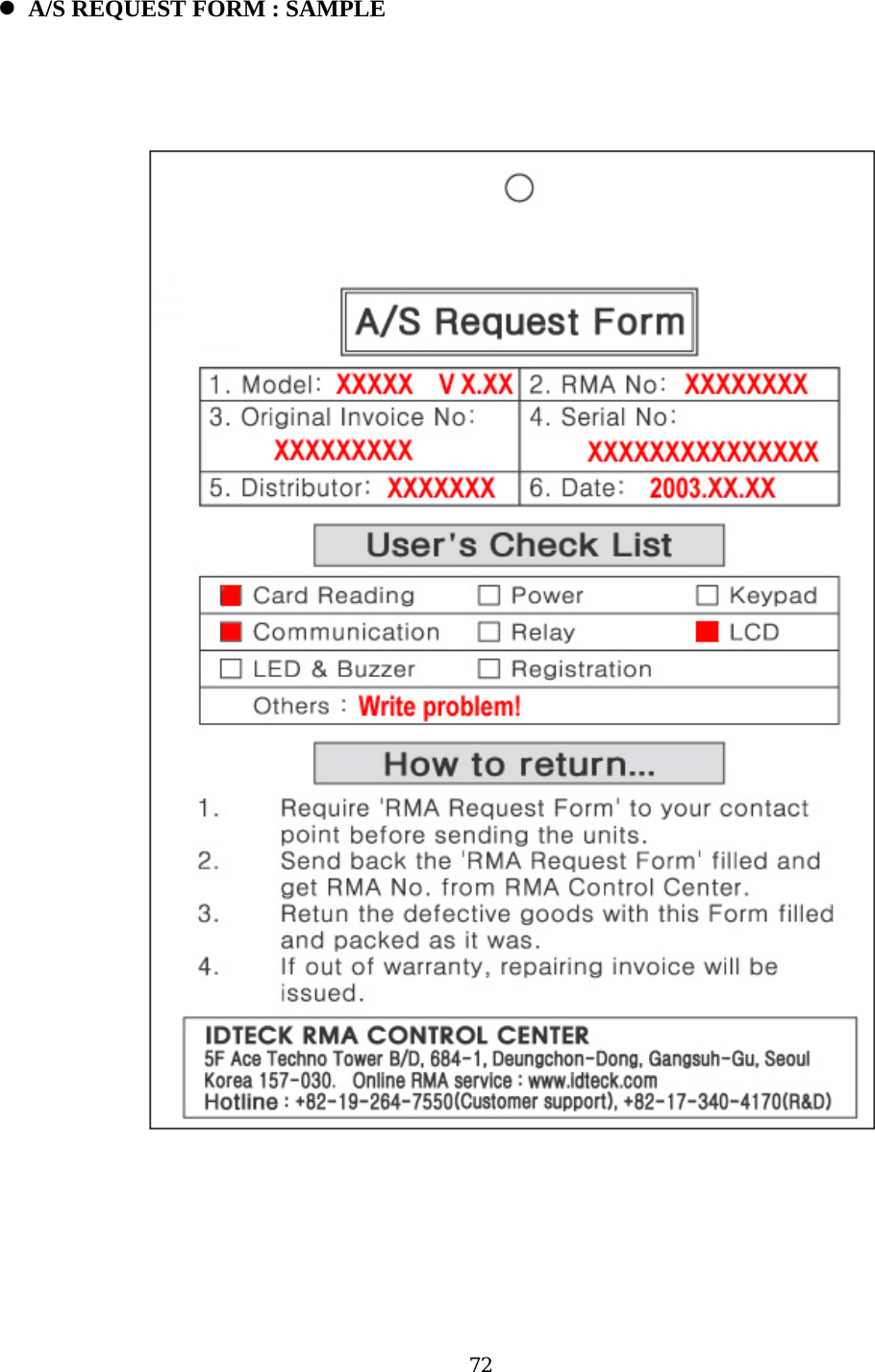

 A/S REQUEST FORM : SAMPLE 72

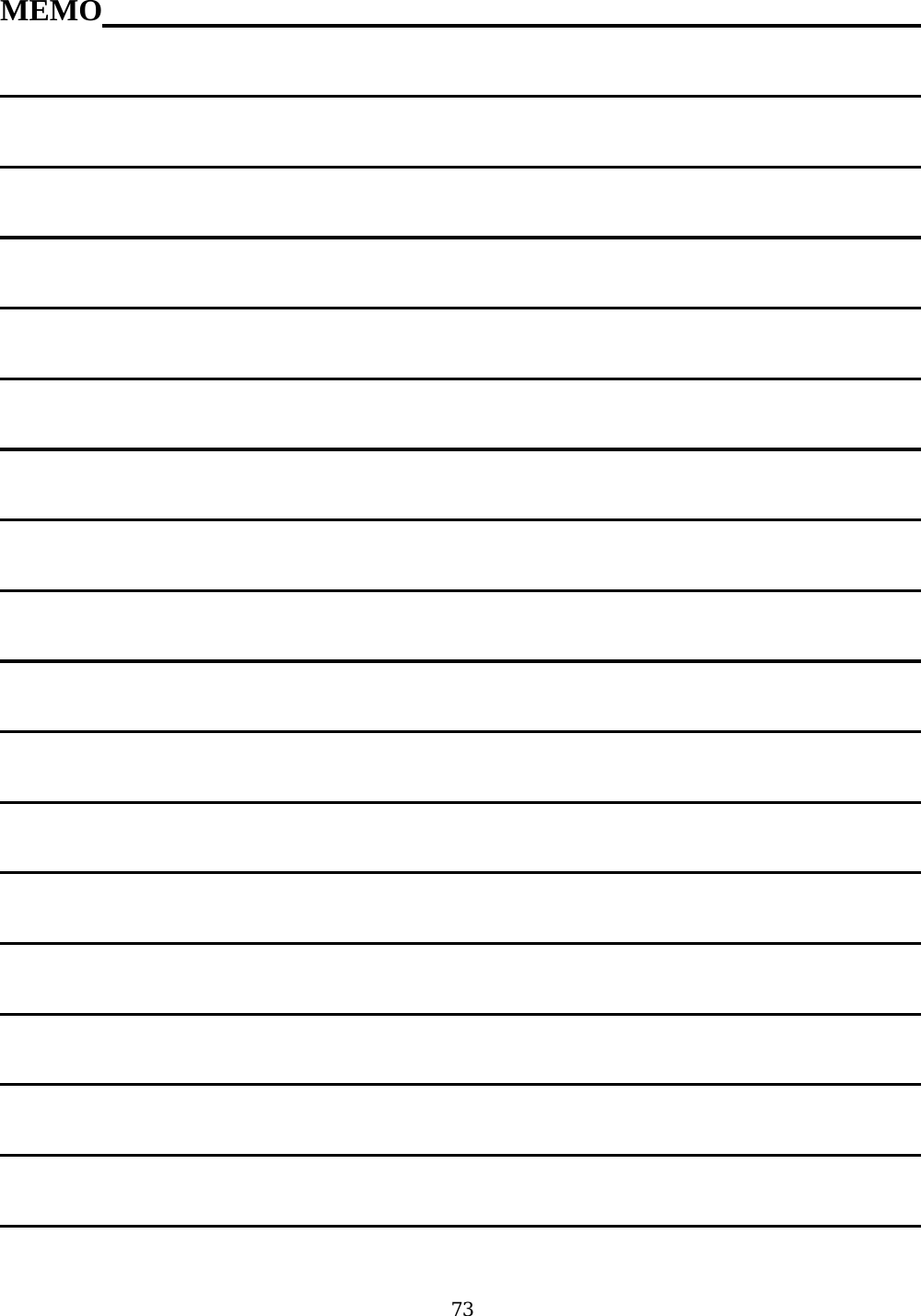

MEMO 73

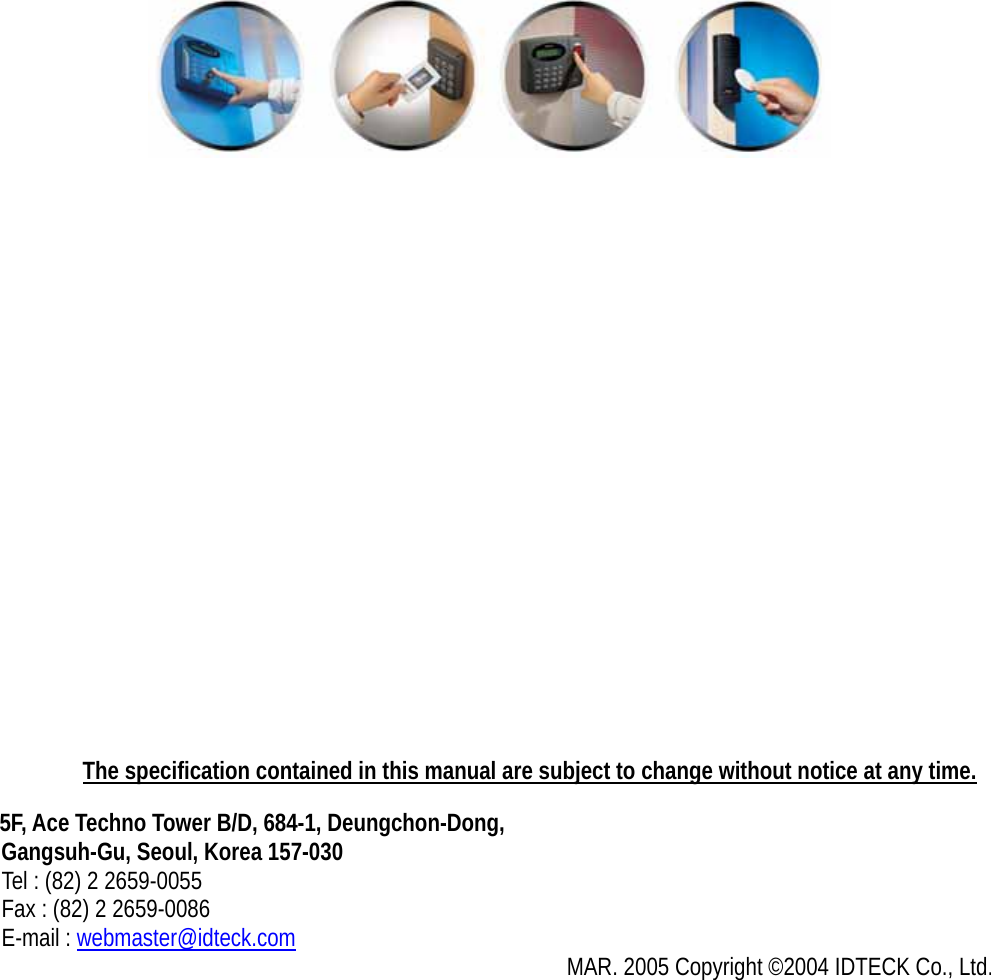

The specification contained in this manual are subject to change without notice at any time. 5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong, Fax : (82) 2 2659-0086 E-mail : webmaster@idteck.comGangsuh-Gu, Seoul, Korea 157-030 Tel : (82) 2 2659-0055 MAR. 2005 Copyright ©2004 IDTECK Co., Ltd.
