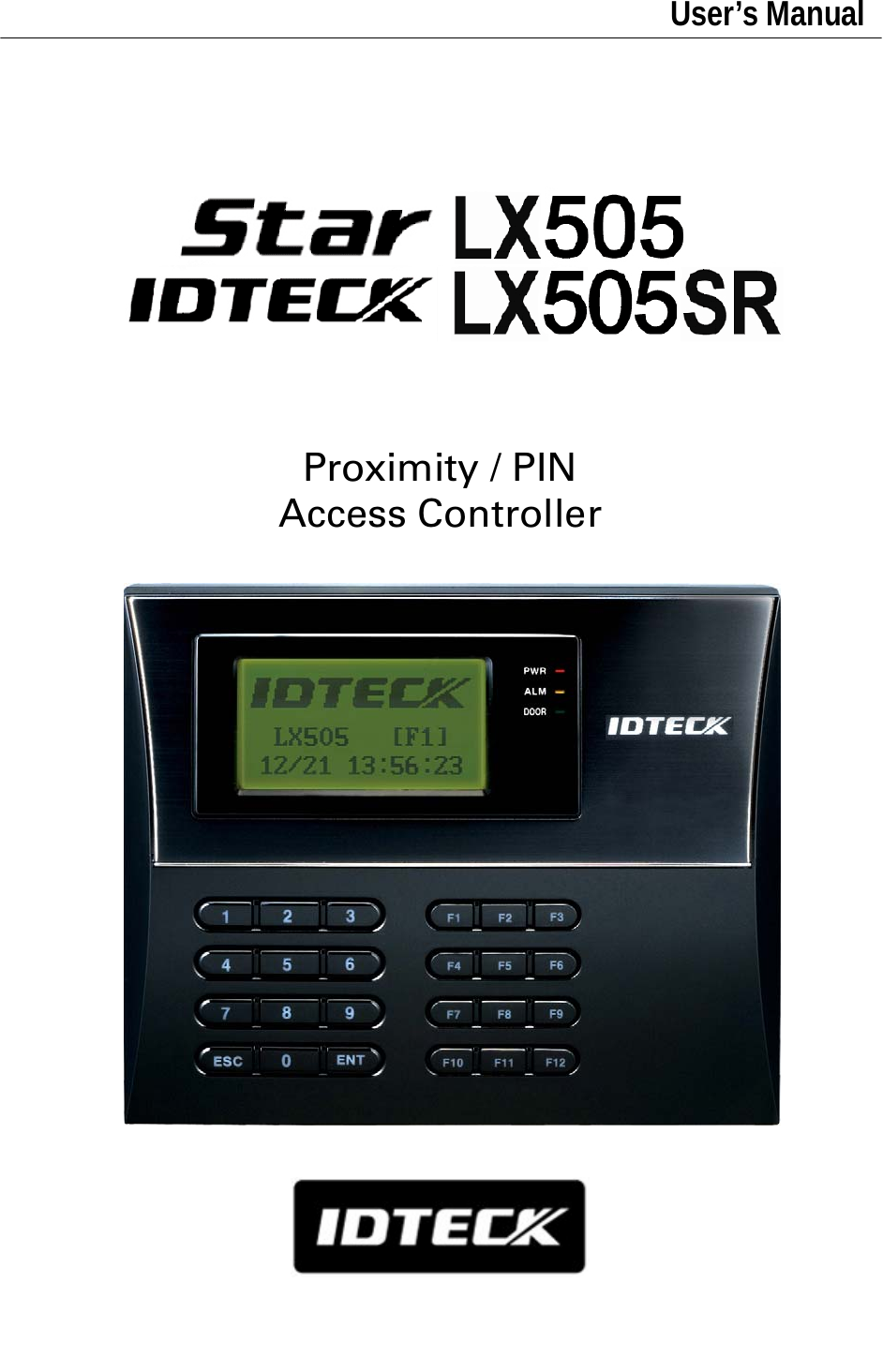

User’s Manual Proximity / PIN Access Controller

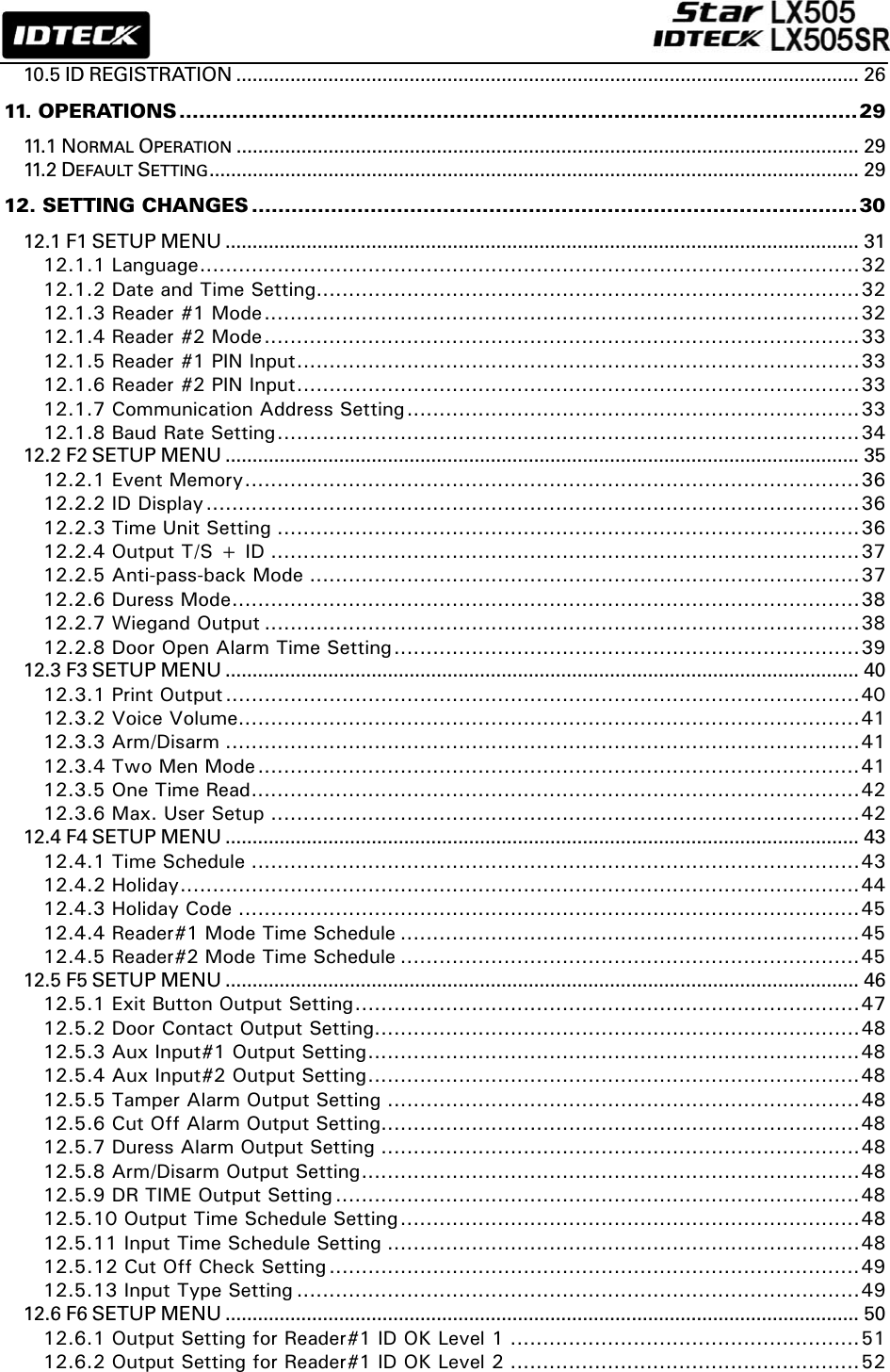

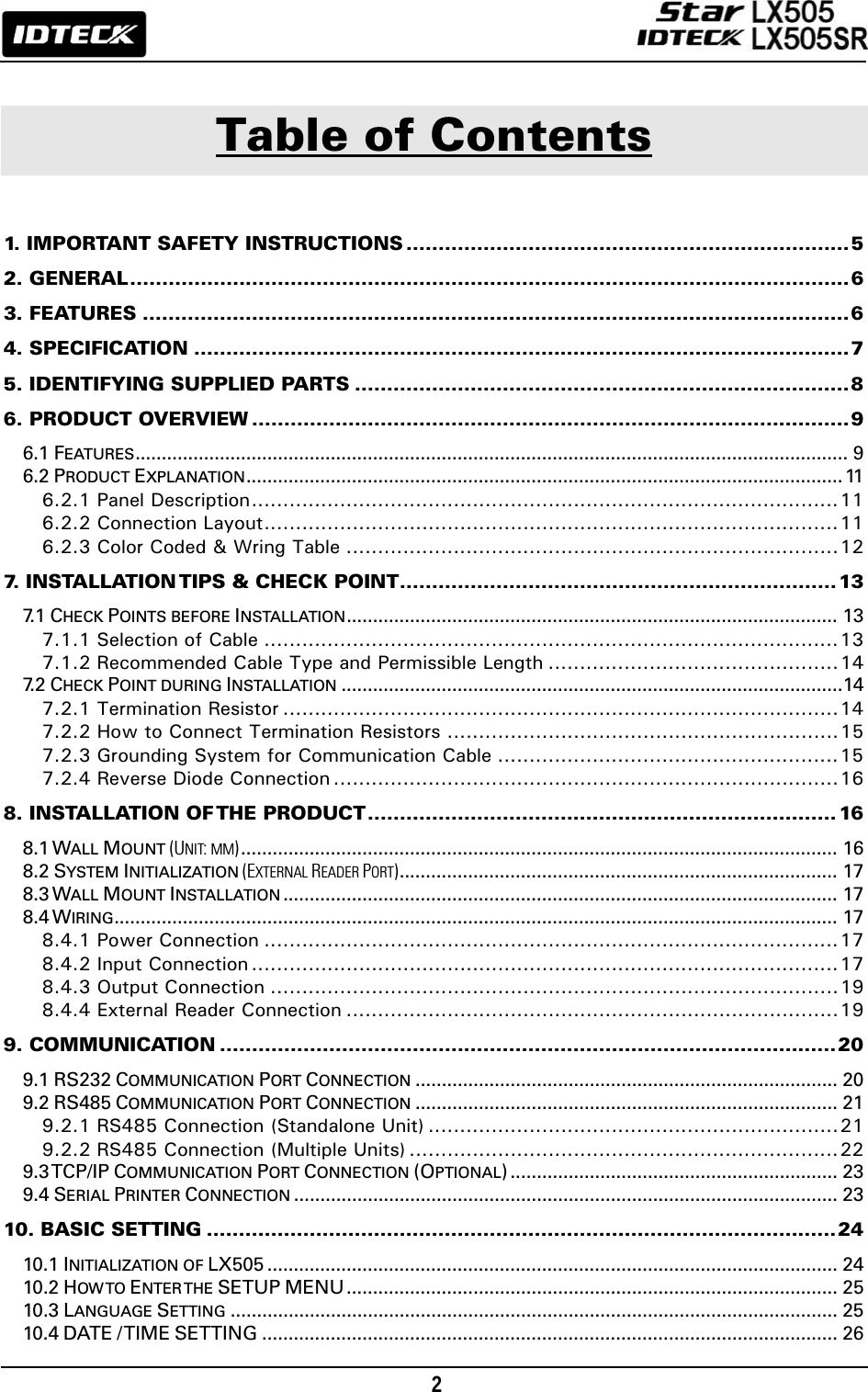

2 Table of Contents 1. IMPORTANT SAFETY INSTRUCTIONS .....................................................................5 2. GENERAL................................................................................................................6 3. FEATURES ..............................................................................................................6 4. SPECIFICATION ......................................................................................................7 5. IDENTIFYING SUPPLIED PARTS .............................................................................8 6. PRODUCT OVERVIEW .............................................................................................9 6.1 FEATURES....................................................................................................................................... 9 6.2 PRODUCT EXPLANATION................................................................................................................. 11 6.2.1 Panel Description.............................................................................................11 6.2.2 Connection Layout...........................................................................................11 6.2.3 Color Coded & Wring Table ..............................................................................12 7. INSTALLATION TIPS & CHECK POINT....................................................................13 7. 1 CHECK POINTS BEFORE INSTALLATION............................................................................................. 13 7.1.1 Selection of Cable ...........................................................................................13 7.1.2 Recommended Cable Type and Permissible Length ..............................................14 7. 2 CHECK POINT DURING INSTALLATION ...............................................................................................14 7.2.1 Termination Resistor ........................................................................................14 7.2.2 How to Connect Termination Resistors ..............................................................15 7.2.3 Grounding System for Communication Cable ......................................................15 7.2.4 Reverse Diode Connection ................................................................................16 8. INSTALLATION OF THE PRODUCT......................................................................... 16 8.1 WALL MOUNT (UNIT: MM)................................................................................................................. 16 8.2 SYSTEM INITIALIZATION (EXTERNAL READER PORT)................................................................................... 17 8.3 WALL MOUNT INSTALLATION ......................................................................................................... 17 8.4 WIRING......................................................................................................................................... 17 8.4.1 Power Connection ...........................................................................................17 8.4.2 Input Connection .............................................................................................17 8.4.3 Output Connection ..........................................................................................19 8.4.4 External Reader Connection ..............................................................................19 9. COMMUNICATION ................................................................................................20 9.1 RS232 COMMUNICATION PORT CONNECTION ................................................................................ 20 9.2 RS485 COMMUNICATION PORT CONNECTION ................................................................................ 21 9.2.1 RS485 Connection (Standalone Unit) .................................................................21 9.2.2 RS485 Connection (Multiple Units) ....................................................................22 9.3 TCP/IP COMMUNICATION PORT CONNECTION (OPTIONAL) .............................................................. 23 9.4 SERIAL PRINTER CONNECTION ....................................................................................................... 23 10. BASIC SETTING ..................................................................................................24 10.1 INITIALIZATION OF LX505 ............................................................................................................ 24 10.2 HOW TO ENTER THE SETUP MENU ............................................................................................. 25 10.3 LANGUAGE SETTING ................................................................................................................... 25 10.4 DATE / TIME SETTING ............................................................................................................. 26
10.5 ID REGISTRATION ................................................................................................................... 26 11. OPERATIONS.......................................................................................................29 11. 1 NORMAL OPERATION ................................................................................................................... 29 11. 2 DEFAULT SETTING........................................................................................................................ 29 12. SETTING CHANGES ............................................................................................30 12.1 F1 SETUP MENU ..................................................................................................................... 31 12.1.1 Language......................................................................................................32 12.1.2 Date and Time Setting....................................................................................32 12.1.3 Reader #1 Mode............................................................................................32 12.1.4 Reader #2 Mode............................................................................................33 12.1.5 Reader #1 PIN Input.......................................................................................33 12.1.6 Reader #2 PIN Input.......................................................................................33 12.1.7 Communication Address Setting......................................................................33 12.1.8 Baud Rate Setting..........................................................................................34 12.2 F2 SETUP MENU ..................................................................................................................... 35 12.2.1 Event Memory...............................................................................................36 12.2.2 ID Display.....................................................................................................36 12.2.3 Time Unit Setting ..........................................................................................36 12.2.4 Output T/S + ID ...........................................................................................37 12.2.5 Anti-pass-back Mode .....................................................................................37 12.2.6 Duress Mode.................................................................................................38 12.2.7 Wiegand Output ............................................................................................38 12.2.8 Door Open Alarm Time Setting........................................................................39 12.3 F3 SETUP MENU ..................................................................................................................... 40 12.3.1 Print Output ..................................................................................................40 12.3.2 Voice Volume................................................................................................41 12.3.3 Arm/Disarm ..................................................................................................41 12.3.4 Two Men Mode .............................................................................................41 12.3.5 One Time Read..............................................................................................42 12.3.6 Max. User Setup ...........................................................................................42 12.4 F4 SETUP MENU ..................................................................................................................... 43 12.4.1 Time Schedule ..............................................................................................43 12.4.2 Holiday.........................................................................................................44 12.4.3 Holiday Code ................................................................................................45 12.4.4 Reader#1 Mode Time Schedule .......................................................................45 12.4.5 Reader#2 Mode Time Schedule .......................................................................45 12.5 F5 SETUP MENU ..................................................................................................................... 46 12.5.1 Exit Button Output Setting..............................................................................47 12.5.2 Door Contact Output Setting...........................................................................48 12.5.3 Aux Input#1 Output Setting............................................................................48 12.5.4 Aux Input#2 Output Setting............................................................................48 12.5.5 Tamper Alarm Output Setting .........................................................................48 12.5.6 Cut Off Alarm Output Setting..........................................................................48 12.5.7 Duress Alarm Output Setting ..........................................................................48 12.5.8 Arm/Disarm Output Setting.............................................................................48 12.5.9 DR TIME Output Setting .................................................................................48 12.5.10 Output Time Schedule Setting.......................................................................48 12.5.11 Input Time Schedule Setting .........................................................................48 12.5.12 Cut Off Check Setting ..................................................................................49 12.5.13 Input Type Setting .......................................................................................49 12.6 F6 SETUP MENU ..................................................................................................................... 50 12.6.1 Output Setting for Reader#1 ID OK Level 1 ......................................................51 12.6.2 Output Setting for Reader#1 ID OK Level 2 ......................................................52
12.6.3 Output Setting for Reader#1 ID OK Level 3 ......................................................52 12.6.4 Output Setting for Reader#1 ID OK Level 4 ......................................................52 12.6.5 Output Setting for Reader#1 ID Error ...............................................................52 12.6.6 Output Setting for Reader#1 T/S Error .............................................................52 12.6.7 Output Setting for Reader#1 APB Error ............................................................52 12.6.8 Output Setting for Reader#2 ID OK Level 1 ......................................................52 12.6.9 Output Setting for Reader#2 ID OK Level 2 ......................................................52 12.6.10 Output Setting for Reader#2 ID OK Level 3.....................................................52 12.6.11 Output Setting for Reader#2 ID OK Level 4.....................................................53 12.6.12 Output Setting for Reader#2 ID Error .............................................................53 12.6.13 Output Setting for Reader#2 T/S Error............................................................53 12.6.14 Output Setting for Reader#2 APB Error ..........................................................53 12.7 F7 SETUP MENU ..................................................................................................................... 54 12.7.1 ID Registration ..............................................................................................54 12.7.2 ID Deletion....................................................................................................56 12.7.3 ID List ..........................................................................................................57 12.7.4 Master ID Registration....................................................................................57 12.7.5 ID Count.......................................................................................................58 12.7.6 Event Count..................................................................................................58 12.8 F8 SETUP MENU ..................................................................................................................... 59 12.8.1 System Initialize ............................................................................................59 12.8.2 Event Clear ...................................................................................................60 12.8.3 ID Clear ........................................................................................................60 12.8.4 MASTER ID CLEAR........................................................................................60 9.8.5 TIME SCHEDULE CLEAR ..................................................................................61 9.8.6 DEFAULT SETTING..........................................................................................61 12.9 F9 SETUP MENU ..................................................................................................................... 62 12.9.1 Version Check...............................................................................................62 12.9.2 Input Test.....................................................................................................63 12.9.3 Output Test ..................................................................................................63 12.9.4 LCD Test ......................................................................................................63 12.9.5 Keypad Test .................................................................................................64 12.9.6 Reader Test ..................................................................................................64 12.9.7 Memory Test ................................................................................................64
5 1. Important Safety Instructions When using Proximity / PIN Access Controller, you are recommended to follow the basic safety precautions below to reduce the risk of fire, electrical shock, and injury to persons. 1. Fully read and understand all instructions and follow them completely. 2. Follow all warnings and instructions marked on the product. 3. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. If necessary, use mild soap. 4. Do not use this product near water. 5. Only operate this product using the type of power source indicated. If you are not sure of the type of power supplied to your installation site, consult the personnel of local power company. 6. Never insert objects of any kind into the product or through the cabinet slots as they may touch voltage points and/or short circuit parts possibly resulting in fire or electric shock. 7. Never spill liquid of any kind on the product. 8. Never disassemble this product by yourself; take the unit to a qualified service center whenever service or repair is required. Opening or removing the covers may expose you to dangerous voltages or other risks. Also, incorrect reassembly can cause electric shock when the unit is subsequently used. 9. Unplug this product from the Direct Current (DC) power source and refer to qualified service personnel under these conditions: a. When the power supply cord or plug is damaged or frayed. b. If liquid has been spilled on the product. c. If the product does not operate normally after following the operating instructions in this manual, adjust only those controls that are covered by the operating instructions in this manual. Improper adjustment of other controls that are not covered by this manual may damage the unit and will often require extensive work by a qualified technician to restore normal operation. d. If the product exhibits a distinct change in performance.

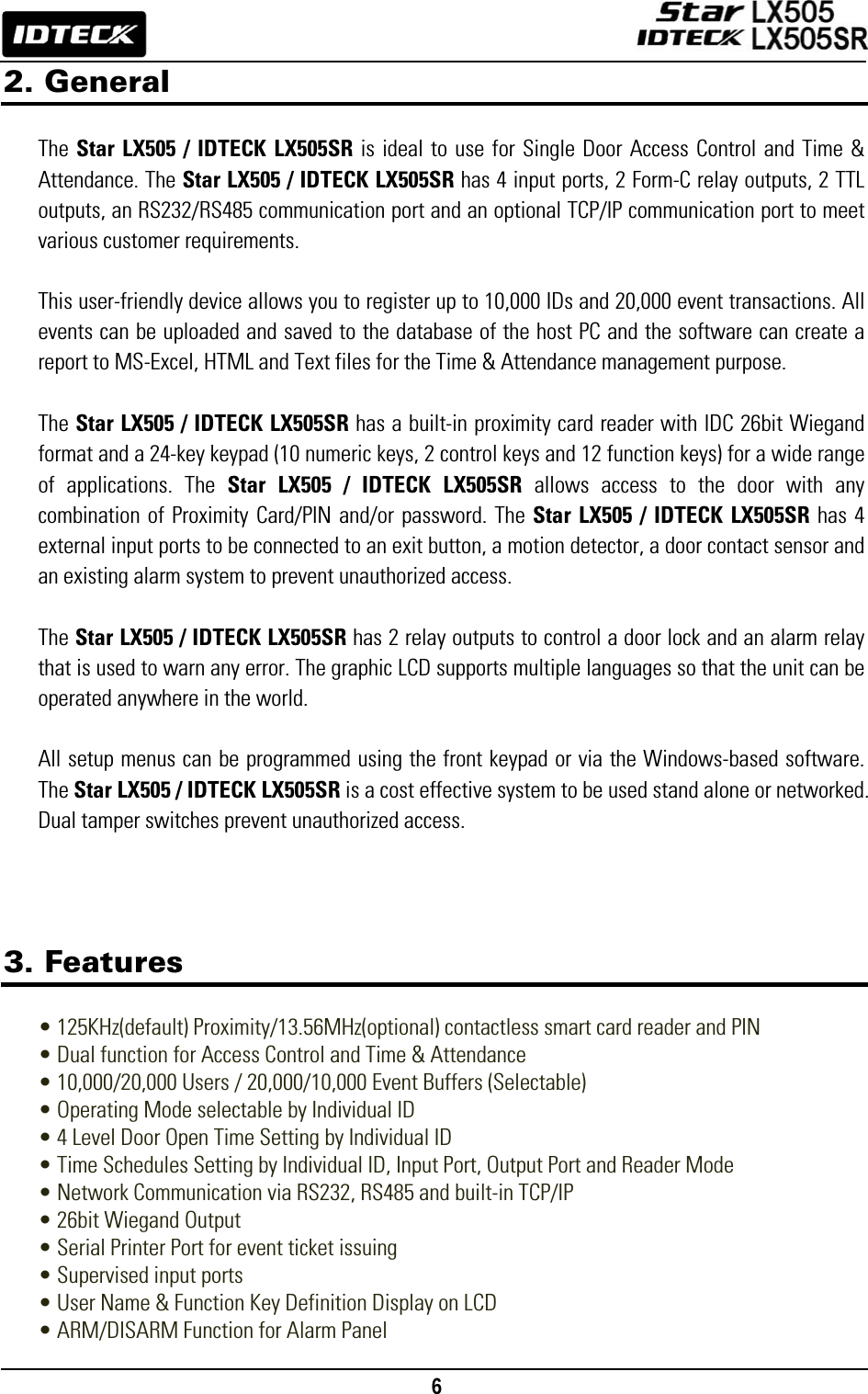

6 2. General The Star LX505 / IDTECK LX505SR is ideal to use for Single Door Access Control and Time & Attendance. The Star LX505 / IDTECK LX505SR has 4 input ports, 2 Form-C relay outputs, 2 TTL outputs, an RS232/RS485 communication port and an optional TCP/IP communication port to meet various customer requirements. This user-friendly device allows you to register up to 10,000 IDs and 20,000 event transactions. All events can be uploaded and saved to the database of the host PC and the software can create a report to MS-Excel, HTML and Text files for the Time & Attendance management purpose. The Star LX505 / IDTECK LX505SR has a built-in proximity card reader with IDC 26bit Wiegand format and a 24-key keypad (10 numeric keys, 2 control keys and 12 function keys) for a wide range of applications. The Star LX505 / IDTECK LX505SR allows access to the door with any combination of Proximity Card/PIN and/or password. The Star LX505 / IDTECK LX505SR has 4 external input ports to be connected to an exit button, a motion detector, a door contact sensor and an existing alarm system to prevent unauthorized access. The Star LX505 / IDTECK LX505SR has 2 relay outputs to control a door lock and an alarm relay that is used to warn any error. The graphic LCD supports multiple languages so that the unit can be operated anywhere in the world. All setup menus can be programmed using the front keypad or via the Windows-based software. The Star LX505 / IDTECK LX505SR is a cost effective system to be used stand alone or networked. Dual tamper switches prevent unauthorized access. 3. Features • 125KHz(default) Proximity/13.56MHz(optional) contactless smart card reader and PIN • Dual function for Access Control and Time & Attendance • 10,000/20,000 Users / 20,000/10,000 Event Buffers (Selectable) • Operating Mode selectable by Individual ID • 4 Level Door Open Time Setting by Individual ID • Time Schedules Setting by Individual ID, Input Port, Output Port and Reader Mode • Network Communication via RS232, RS485 and built-in TCP/IP • 26bit Wiegand Output • Serial Printer Port for event ticket issuing • Supervised input ports • User Name & Function Key Definition Display on LCD • ARM/DISARM Function for Alarm Panel

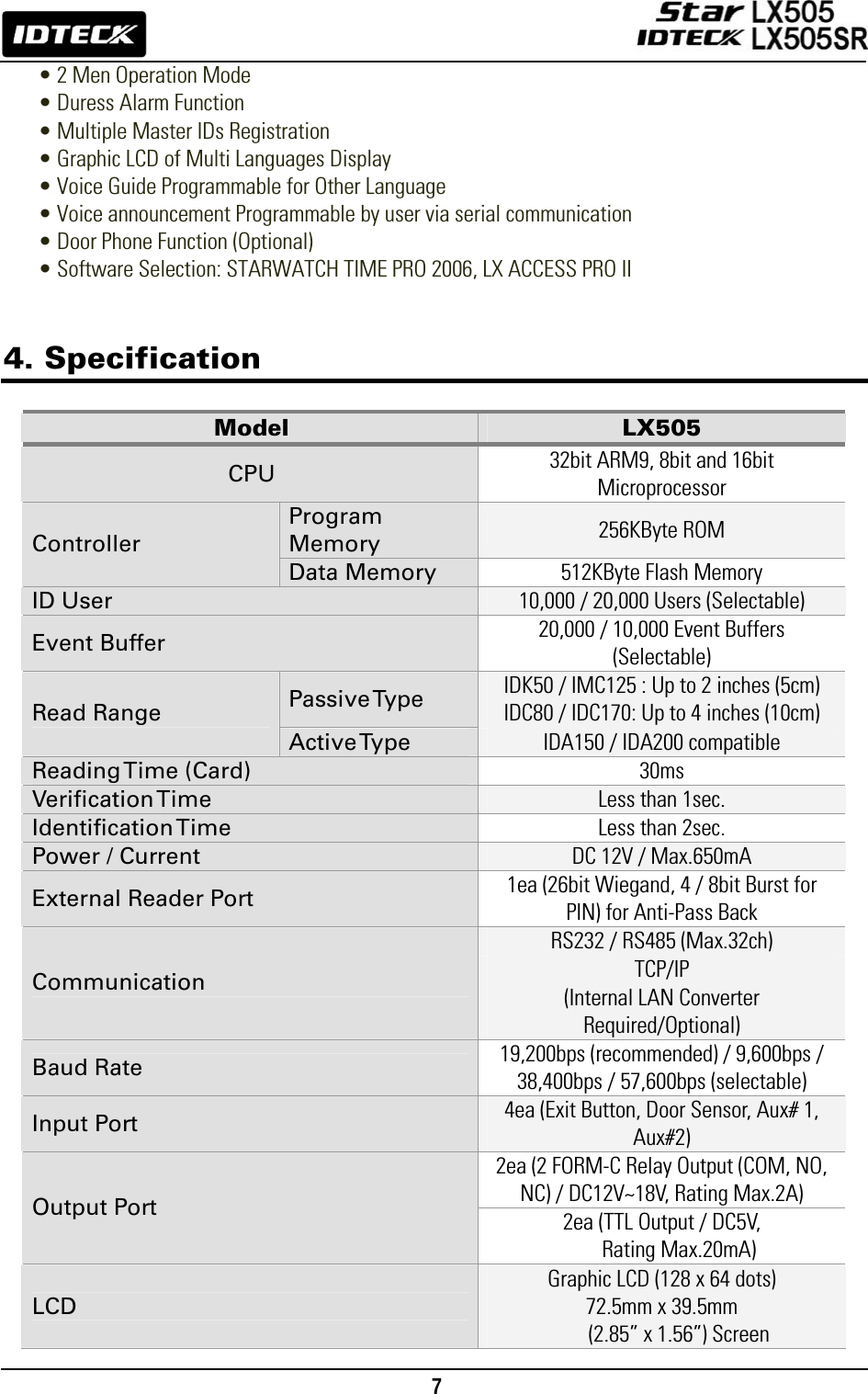

7 • 2 Men Operation Mode • Duress Alarm Function • Multiple Master IDs Registration • Graphic LCD of Multi Languages Display • Voice Guide Programmable for Other Language • Voice announcement Programmable by user via serial communication • Door Phone Function (Optional) • Software Selection: STARWATCH TIME PRO 2006, LX ACCESS PRO II 4. Specification Model LX505 CPU 32bit ARM9, 8bit and 16bit Microprocessor Program Memory 256KByte ROM Controller Data Memory 512KByte Flash Memory ID User 10,000 / 20,000 Users (Selectable) Event Buffer 20,000 / 10,000 Event Buffers (Selectable) Passive Type IDK50 / IMC125 : Up to 2 inches (5cm) IDC80 / IDC170: Up to 4 inches (10cm) Read Range Active Type IDA150 / IDA200 compatible Reading Time (Card) 30ms Verification Time Less than 1sec. Identification Time Less than 2sec. Power / Current DC 12V / Max.650mA External Reader Port 1ea (26bit Wiegand, 4 / 8bit Burst for PIN) for Anti-Pass Back RS232 / RS485 (Max.32ch) Communication TCP/IP (Internal LAN Converter Required/Optional) Baud Rate 19,200bps (recommended) / 9,600bps / 38,400bps / 57,600bps (selectable) Input Port 4ea (Exit Button, Door Sensor, Aux# 1, Aux#2) 2ea (2 FORM-C Relay Output (COM, NO, NC) / DC12V~18V, Rating Max.2A) Output Port 2ea (TTL Output / DC5V, Rating Max.20mA) LCD Graphic LCD (128 x 64 dots) 72.5mm x 39.5mm (2.85” x 1.56”) Screen

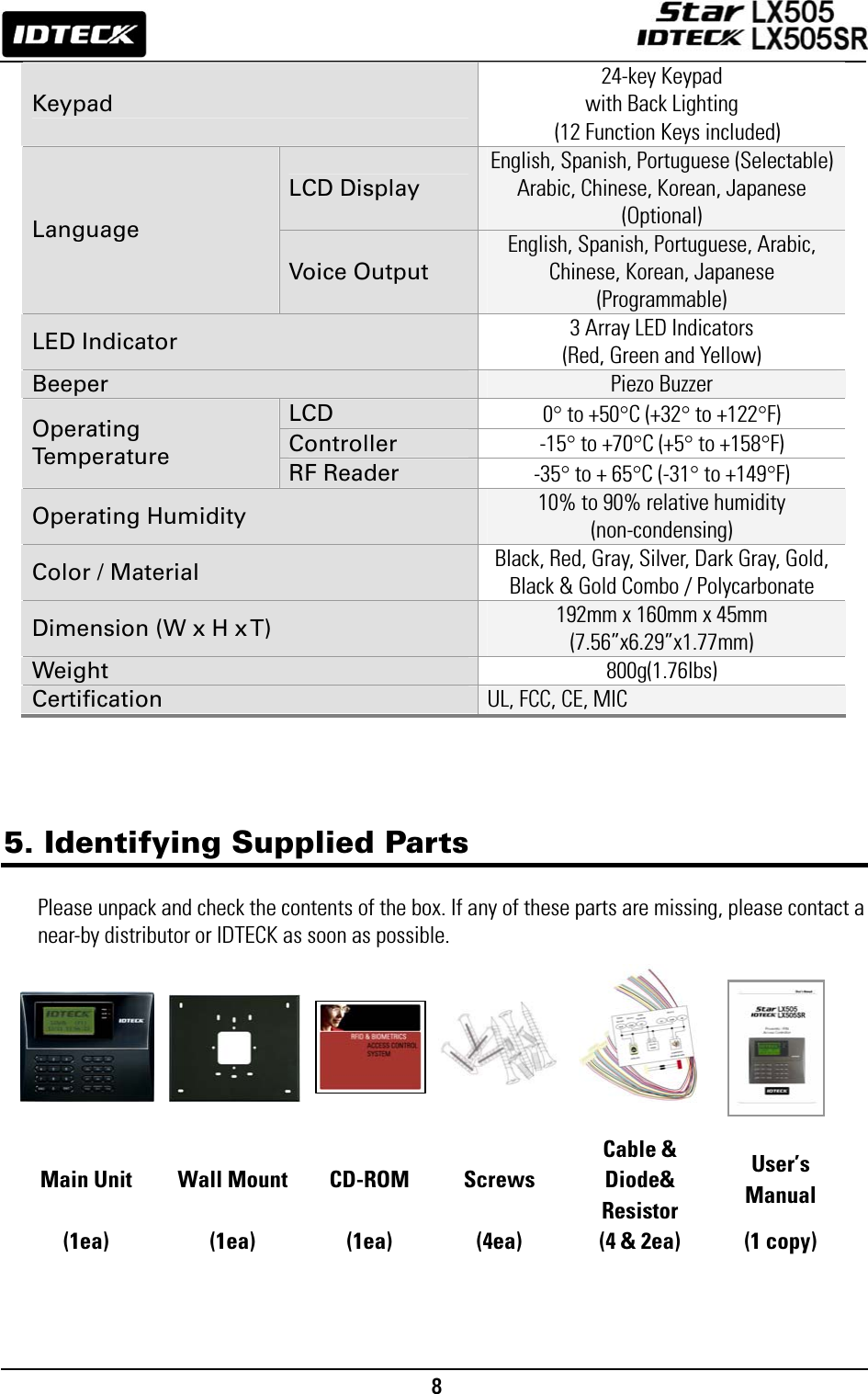

8 Keypad 24-key Keypad with Back Lighting (12 Function Keys included) LCD Display English, Spanish, Portuguese (Selectable)Arabic, Chinese, Korean, Japanese (Optional) Language Voice Output English, Spanish, Portuguese, Arabic, Chinese, Korean, Japanese (Programmable) LED Indicator 3 Array LED Indicators (Red, Green and Yellow) Beeper Piezo Buzzer LCD 0° to +50°C (+32° to +122°F) Controller -15° to +70°C (+5° to +158°F) Operating Temperature RF Reader -35° to + 65°C (-31° to +149°F) Operating Humidity 10% to 90% relative humidity (non-condensing) Color / Material Black, Red, Gray, Silver, Dark Gray, Gold, Black & Gold Combo / Polycarbonate Dimension (W x H x T) 192mm x 160mm x 45mm (7.56”x6.29”x1.77mm) Weight 800g(1.76lbs) Certification UL, FCC, CE, MIC 5. Identifying Supplied Parts Please unpack and check the contents of the box. If any of these parts are missing, please contact a near-by distributor or IDTECK as soon as possible. Main Unit Wall Mount CD-ROM Screws Cable & Diode& Resistor User’s Manual (1ea) (1ea) (1ea) (4ea) (4 & 2ea) (1 copy)

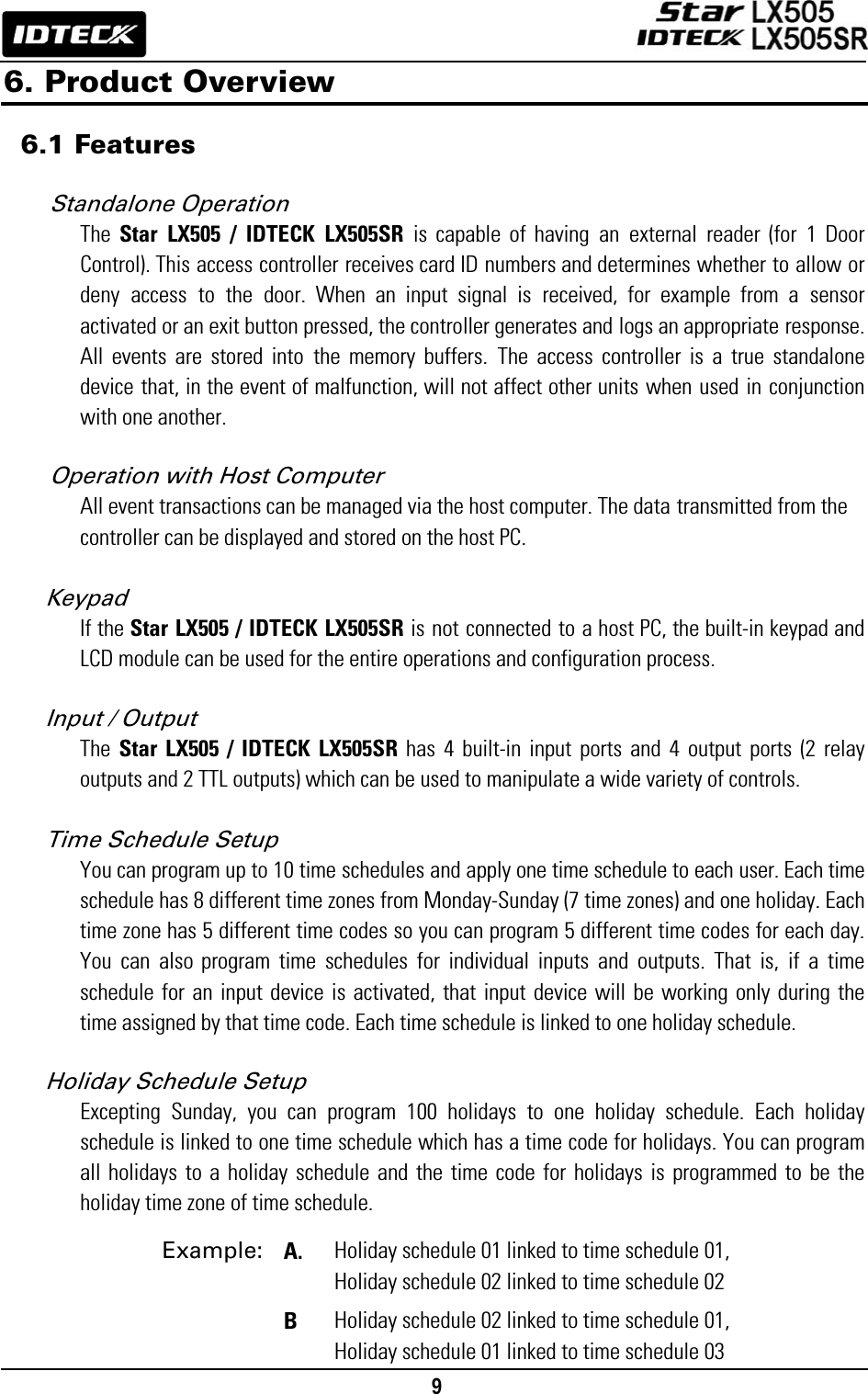

9 6. Product Overview 6.1 Features Standalone Operation The Star LX505 / IDTECK LX505SR is capable of having an external reader (for 1 Door Control). This access controller receives card ID numbers and determines whether to allow or deny access to the door. When an input signal is received, for example from a sensor activated or an exit button pressed, the controller generates and logs an appropriate response. All events are stored into the memory buffers. The access controller is a true standalone device that, in the event of malfunction, will not affect other units when used in conjunction with one another. Operation with Host Computer All event transactions can be managed via the host computer. The data transmitted from the controller can be displayed and stored on the host PC. Keypad If the Star LX505 / IDTECK LX505SR is not connected to a host PC, the built-in keypad and LCD module can be used for the entire operations and configuration process. Input / Output The Star LX505 / IDTECK LX505SR has 4 built-in input ports and 4 output ports (2 relay outputs and 2 TTL outputs) which can be used to manipulate a wide variety of controls. Time Schedule Setup You can program up to 10 time schedules and apply one time schedule to each user. Each time schedule has 8 different time zones from Monday-Sunday (7 time zones) and one holiday. Each time zone has 5 different time codes so you can program 5 different time codes for each day. You can also program time schedules for individual inputs and outputs. That is, if a time schedule for an input device is activated, that input device will be working only during the time assigned by that time code. Each time schedule is linked to one holiday schedule. Holiday Schedule Setup Excepting Sunday, you can program 100 holidays to one holiday schedule. Each holiday schedule is linked to one time schedule which has a time code for holidays. You can program all holidays to a holiday schedule and the time code for holidays is programmed to be the holiday time zone of time schedule. Example: A. Holiday schedule 01 linked to time schedule 01, Holiday schedule 02 linked to time schedule 02 B Holiday schedule 02 linked to time schedule 01, Holiday schedule 01 linked to time schedule 03

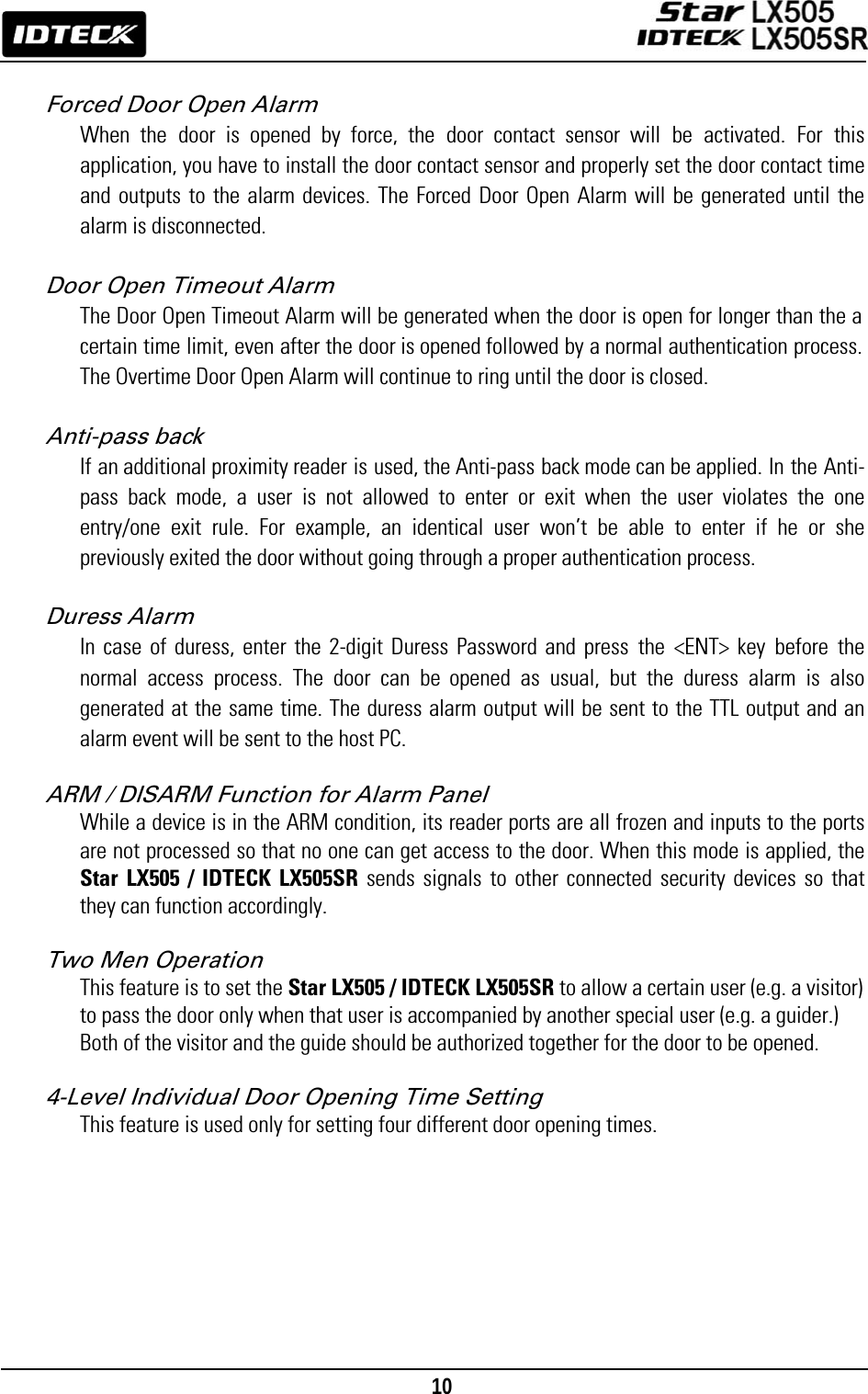

10 Forced Door Open Alarm When the door is opened by force, the door contact sensor will be activated. For this application, you have to install the door contact sensor and properly set the door contact time and outputs to the alarm devices. The Forced Door Open Alarm will be generated until the alarm is disconnected. Door Open Timeout Alarm The Door Open Timeout Alarm will be generated when the door is open for longer than the a certain time limit, even after the door is opened followed by a normal authentication process. The Overtime Door Open Alarm will continue to ring until the door is closed. Anti-pass back If an additional proximity reader is used, the Anti-pass back mode can be applied. In the Anti-pass back mode, a user is not allowed to enter or exit when the user violates the one entry/one exit rule. For example, an identical user won’t be able to enter if he or she previously exited the door without going through a proper authentication process. Duress Alarm In case of duress, enter the 2-digit Duress Password and press the <ENT> key before the normal access process. The door can be opened as usual, but the duress alarm is also generated at the same time. The duress alarm output will be sent to the TTL output and an alarm event will be sent to the host PC. ARM / DISARM Function for Alarm Panel While a device is in the ARM condition, its reader ports are all frozen and inputs to the ports are not processed so that no one can get access to the door. When this mode is applied, the Star LX505 / IDTECK LX505SR sends signals to other connected security devices so that they can function accordingly. Two Men Operation This feature is to set the Star LX505 / IDTECK LX505SR to allow a certain user (e.g. a visitor) to pass the door only when that user is accompanied by another special user (e.g. a guider.) Both of the visitor and the guide should be authorized together for the door to be opened. 4-Level Individual Door Opening Time Setting This feature is used only for setting four different door opening times.

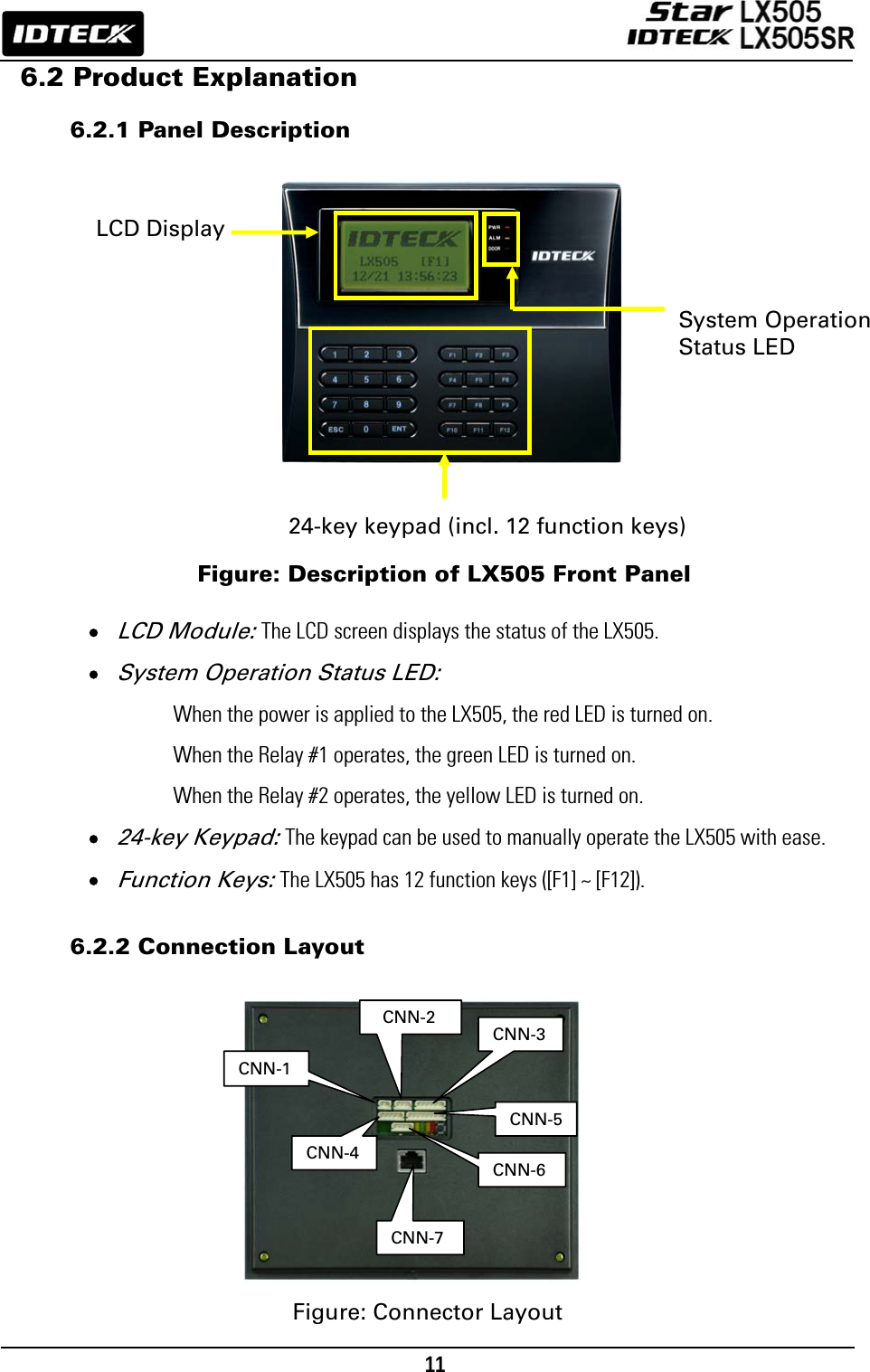

11 6.2 Product Explanation 6.2.1 Panel Description Figure: Description of LX505 Front Panel • LCD Module: The LCD screen displays the status of the LX505. • System Operation Status LED: When the power is applied to the LX505, the red LED is turned on. When the Relay #1 operates, the green LED is turned on. When the Relay #2 operates, the yellow LED is turned on. • 24-key Keypad: The keypad can be used to manually operate the LX505 with ease. • Function Keys: The LX505 has 12 function keys ([F1] ~ [F12]). 6.2.2 Connection Layout Figure: Connector Layout 24-key keypad (incl. 12 function keys) LCD Display System Operation Status LED CNN-2CNN-1 CNN-6CNN-3CNN-4CNN-5CNN-7

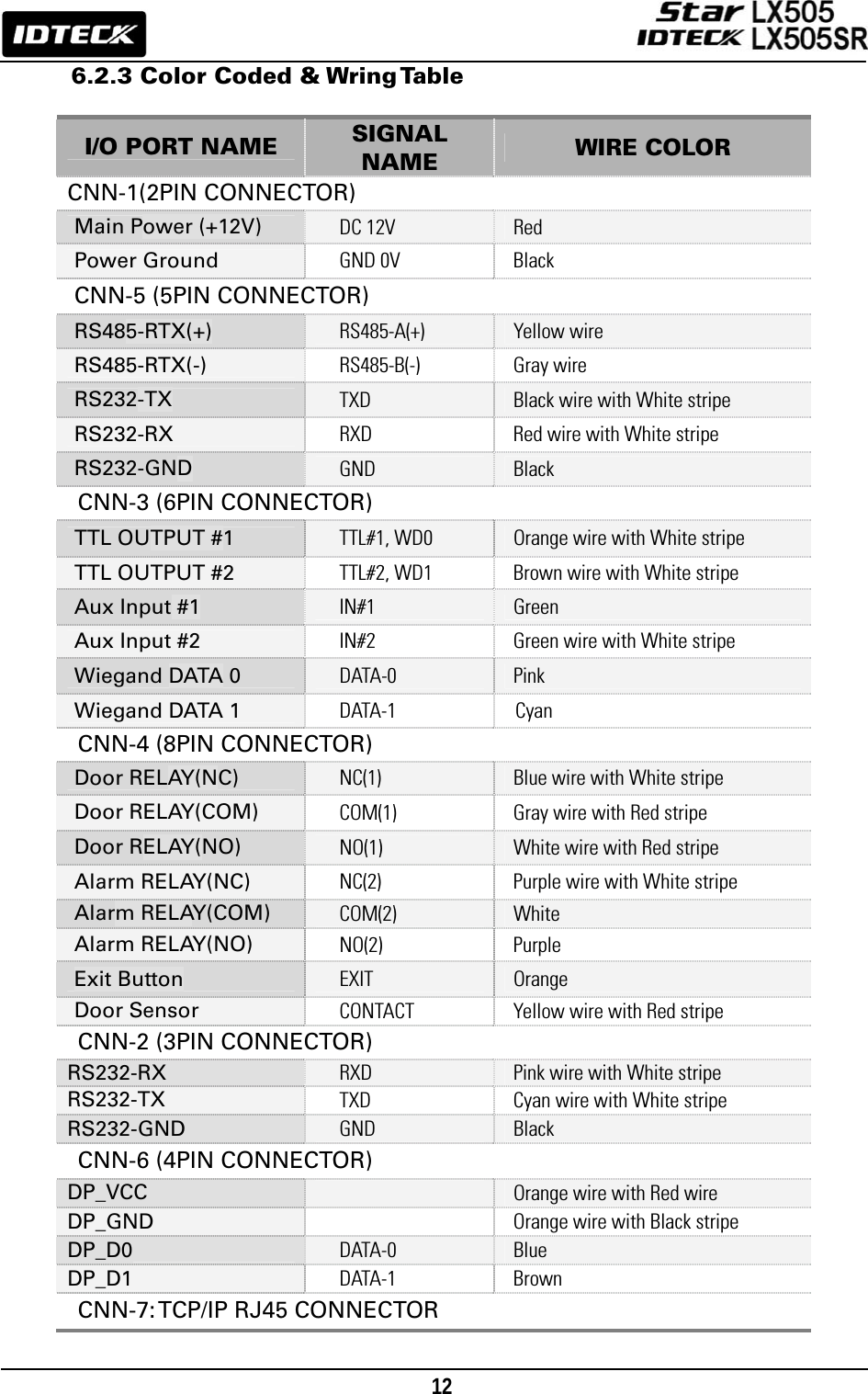

12 6.2.3 Color Coded & Wring Table I/O PORT NAME SIGNAL NAME WIRE COLOR CNN-1(2PIN CONNECTOR) Main Power (+12V) DC 12V Red Power Ground GND 0V Black CNN-5 (5PIN CONNECTOR) RS485-RTX(+) RS485-A(+) Yellow wire RS485-RTX(-) RS485-B(-) Gray wire RS232-TX TXD Black wire with White stripe RS232-RX RXD Red wire with White stripe RS232-GND GND Black CNN-3 (6PIN CONNECTOR) TTL OUTPUT #1 TTL#1, WD0 Orange wire with White stripe TTL OUTPUT #2 TTL#2, WD1 Brown wire with White stripe Aux Input #1 IN#1 Green Aux Input #2 IN#2 Green wire with White stripe Wiegand DATA 0 DATA-0 Pink Wiegand DATA 1 DATA-1 Cyan CNN-4 (8PIN CONNECTOR) Door RELAY(NC) NC(1) Blue wire with White stripe Door RELAY(COM) COM(1) Gray wire with Red stripe Door RELAY(NO) NO(1) White wire with Red stripe Alarm RELAY(NC) NC(2) Purple wire with White stripe Alarm RELAY(COM) COM(2) White Alarm RELAY(NO) NO(2) Purple Exit Button EXIT Orange Door Sensor CONTACT Yellow wire with Red stripe CNN-2 (3PIN CONNECTOR) RS232-RX RXD Pink wire with White stripe RS232-TX TXD Cyan wire with White stripe RS232-GND GND Black CNN-6 (4PIN CONNECTOR) DP_VCC Orange wire with Red wire DP_GND Orange wire with Black stripe DP_D0 DATA-0 Blue DP_D1 DATA-1 Brown CNN-7: TCP/IP RJ45 CONNECTOR

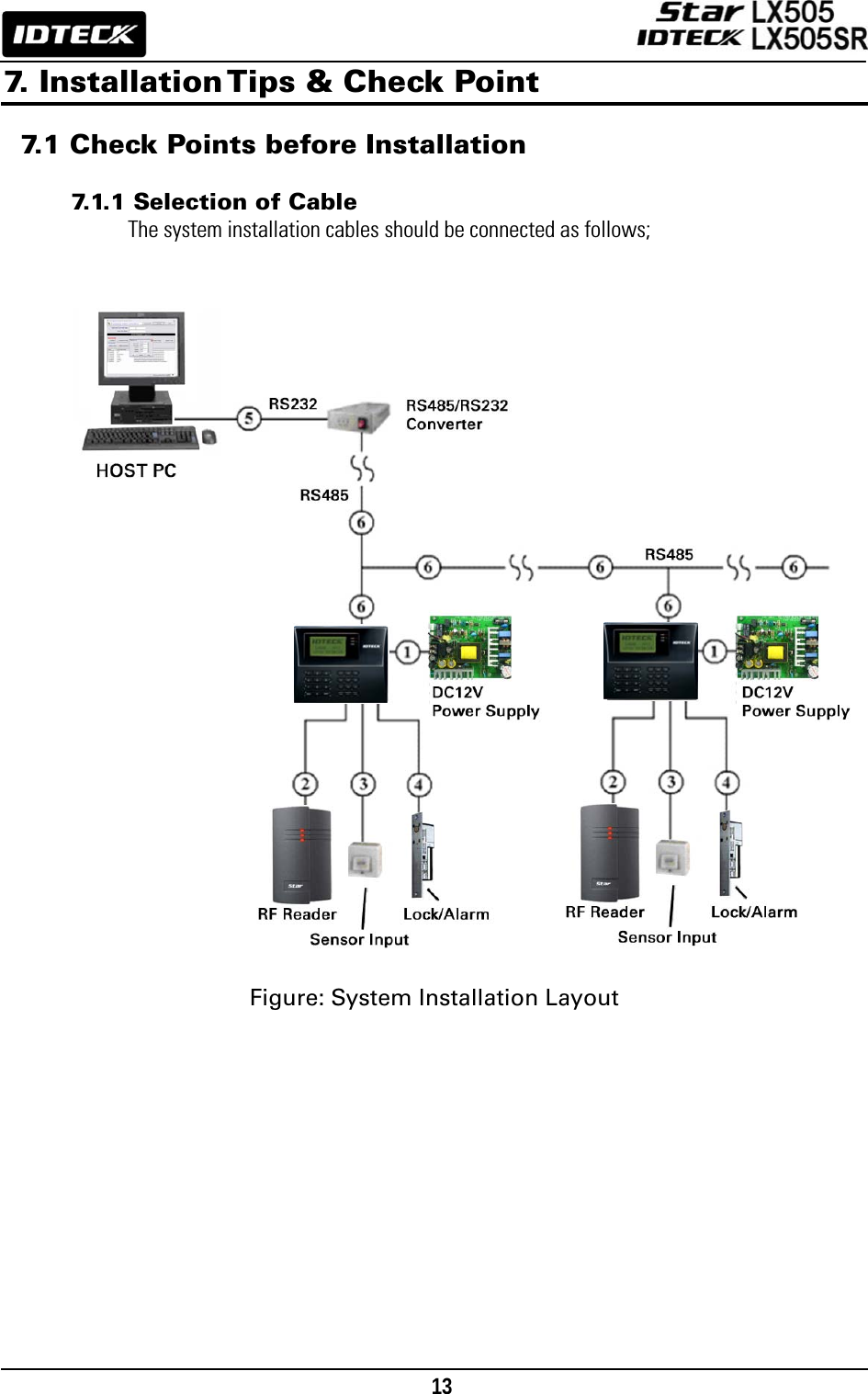

13 7. Installation Tips & Check Point 7.1 Check Points before Installation 7.1.1 Selection of Cable The system installation cables should be connected as follows; Figure: System Installation Layout

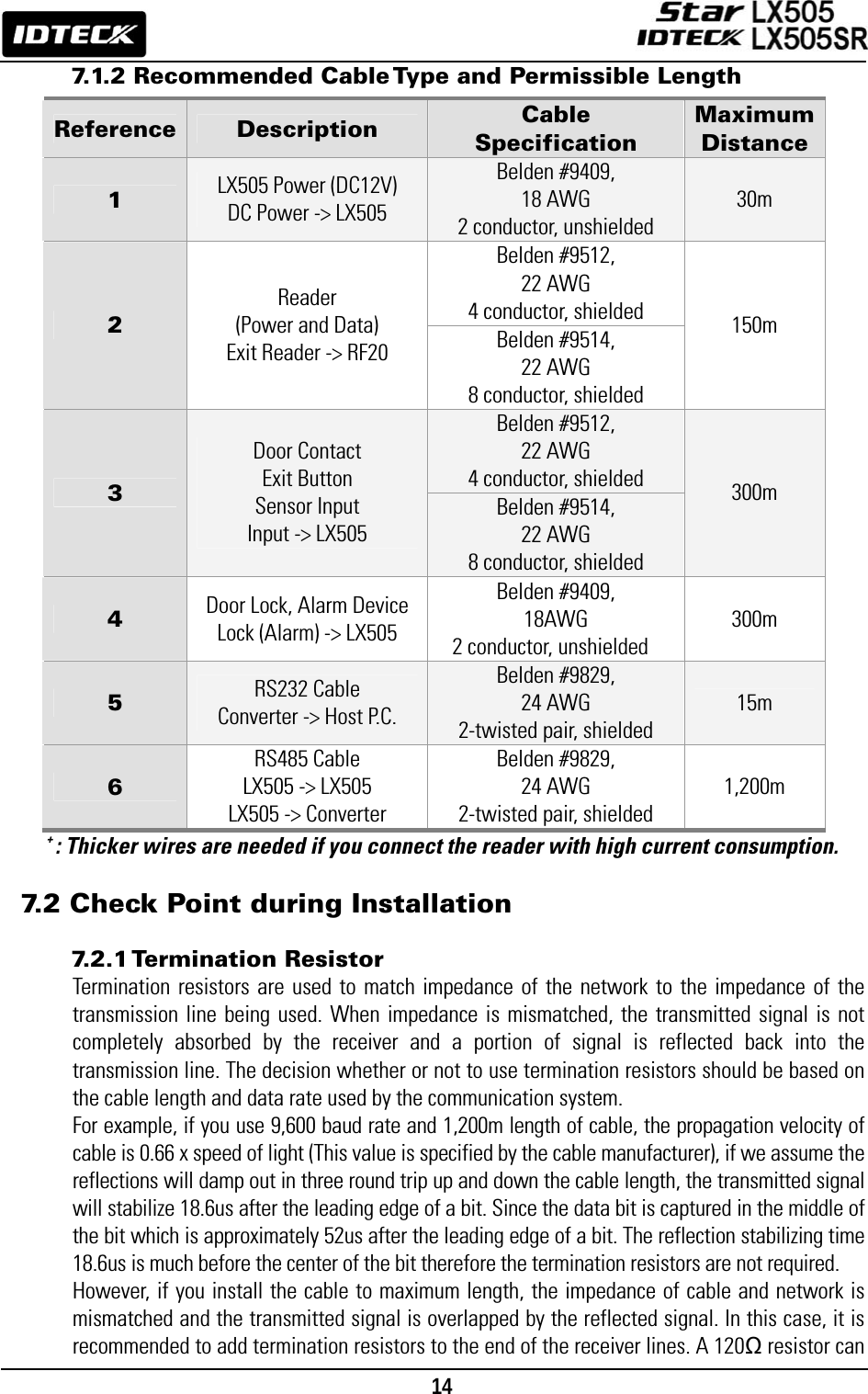

14 7.1.2 Recommended Cable Type and Permissible Length + : Thicker wires are needed if you connect the reader with high current consumption. 7.2 Check Point during Installation 7.2.1 Termination Resistor Termination resistors are used to match impedance of the network to the impedance of the transmission line being used. When impedance is mismatched, the transmitted signal is not completely absorbed by the receiver and a portion of signal is reflected back into the transmission line. The decision whether or not to use termination resistors should be based on the cable length and data rate used by the communication system. For example, if you use 9,600 baud rate and 1,200m length of cable, the propagation velocity of cable is 0.66 x speed of light (This value is specified by the cable manufacturer), if we assume the reflections will damp out in three round trip up and down the cable length, the transmitted signal will stabilize 18.6us after the leading edge of a bit. Since the data bit is captured in the middle of the bit which is approximately 52us after the leading edge of a bit. The reflection stabilizing time 18.6us is much before the center of the bit therefore the termination resistors are not required. However, if you install the cable to maximum length, the impedance of cable and network is mismatched and the transmitted signal is overlapped by the reflected signal. In this case, it is recommended to add termination resistors to the end of the receiver lines. A 120Ω resistor can Reference Description Cable Specification Maximum Distance1 LX505 Power (DC12V) DC Power -> LX505 Belden #9409, 18 AWG 2 conductor, unshielded 30m Belden #9512, 22 AWG 4 conductor, shielded 2 Reader (Power and Data) Exit Reader -> RF20 Belden #9514, 22 AWG 8 conductor, shielded 150m Belden #9512, 22 AWG 4 conductor, shielded 3 Door Contact Exit Button Sensor Input Input -> LX505 Belden #9514, 22 AWG 8 conductor, shielded 300m 4 Door Lock, Alarm Device Lock (Alarm) -> LX505 Belden #9409, 18AWG 2 conductor, unshielded 300m 5 RS232 Cable Converter -> Host P.C. Belden #9829, 24 AWG 2-twisted pair, shielded 15m 6 RS485 Cable LX505 -> LX505 LX505 -> Converter Belden #9829, 24 AWG 2-twisted pair, shielded 1,200m

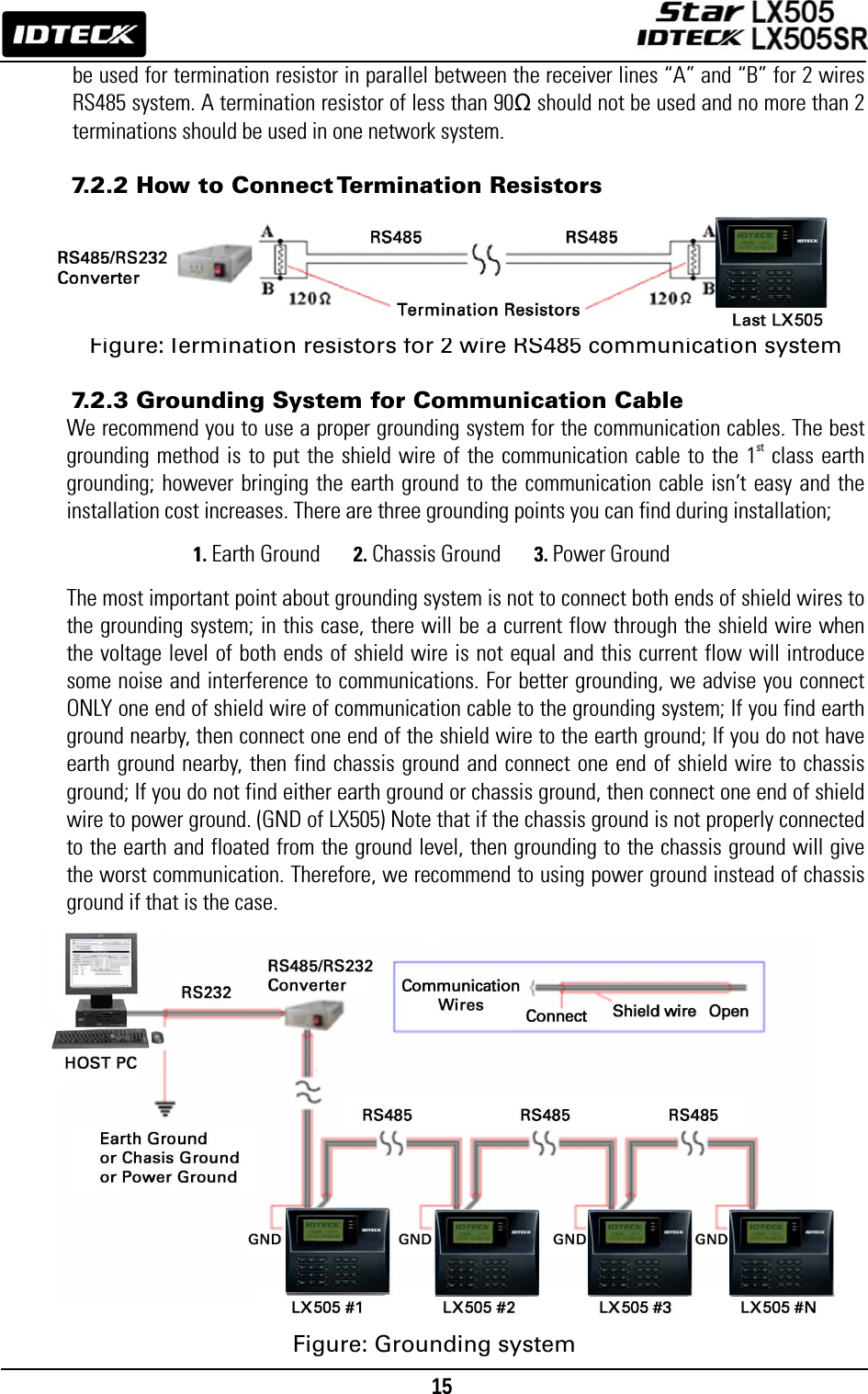

15 be used for termination resistor in parallel between the receiver lines “A” and “B” for 2 wires RS485 system. A termination resistor of less than 90Ω should not be used and no more than 2 terminations should be used in one network system. 7.2.2 How to Connect Termination Resistors Figure: Termination resistors for 2 wire RS485 communication system 7.2.3 Grounding System for Communication Cable We recommend you to use a proper grounding system for the communication cables. The best grounding method is to put the shield wire of the communication cable to the 1st class earth grounding; however bringing the earth ground to the communication cable isn’t easy and the installation cost increases. There are three grounding points you can find during installation; 1. Earth Ground 2. Chassis Ground 3. Power Ground The most important point about grounding system is not to connect both ends of shield wires to the grounding system; in this case, there will be a current flow through the shield wire when the voltage level of both ends of shield wire is not equal and this current flow will introduce some noise and interference to communications. For better grounding, we advise you connect ONLY one end of shield wire of communication cable to the grounding system; If you find earth ground nearby, then connect one end of the shield wire to the earth ground; If you do not have earth ground nearby, then find chassis ground and connect one end of shield wire to chassis ground; If you do not find either earth ground or chassis ground, then connect one end of shield wire to power ground. (GND of LX505) Note that if the chassis ground is not properly connected to the earth and floated from the ground level, then grounding to the chassis ground will give the worst communication. Therefore, we recommend to using power ground instead of chassis ground if that is the case. Figure: Grounding system

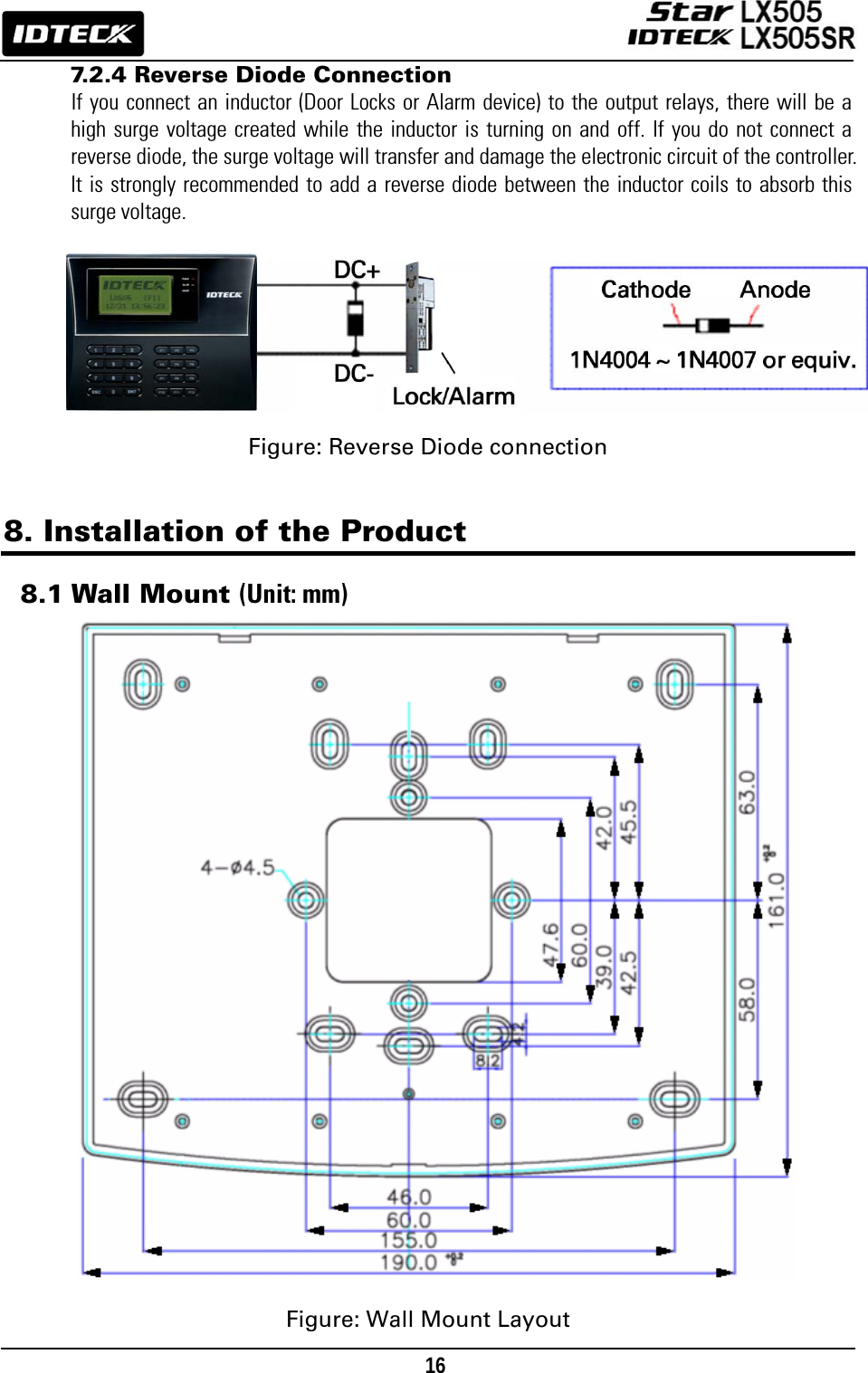

16 7.2.4 Reverse Diode Connection If you connect an inductor (Door Locks or Alarm device) to the output relays, there will be a high surge voltage created while the inductor is turning on and off. If you do not connect a reverse diode, the surge voltage will transfer and damage the electronic circuit of the controller. It is strongly recommended to add a reverse diode between the inductor coils to absorb this surge voltage. Figure: Reverse Diode connection 8. Installation of the Product 8.1 Wall Mount (Unit: mm) Figure: Wall Mount Layout

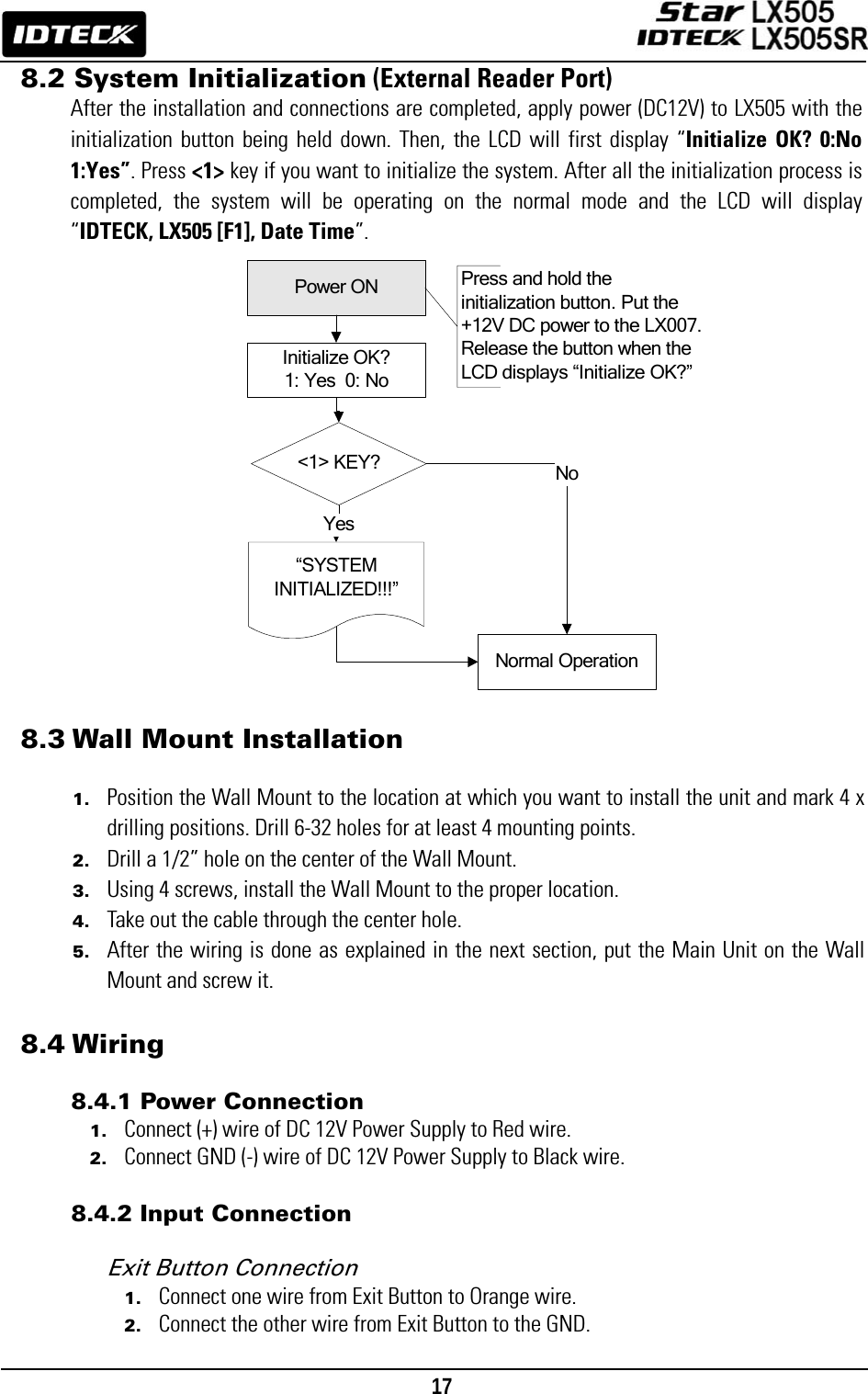

17 <1> KEY?“SYSTEM INITIALIZED!!!”Power ONInitialize OK?1: Yes 0: NoNormal OperationYesNoPress and hold the initialization button. Put the +12V DC power to the LX007. Release the button when the LCD displays “Initialize OK?”8.2 System Initialization (External Reader Port) After the installation and connections are completed, apply power (DC12V) to LX505 with the initialization button being held down. Then, the LCD will first display “Initialize OK? 0:No 1:Yes”. Press <1> key if you want to initialize the system. After all the initialization process is completed, the system will be operating on the normal mode and the LCD will display “IDTECK, LX505 [F1], Date Time”. 8.3 Wall Mount Installation 1. Position the Wall Mount to the location at which you want to install the unit and mark 4 x drilling positions. Drill 6-32 holes for at least 4 mounting points. 2. Drill a 1/2” hole on the center of the Wall Mount. 3. Using 4 screws, install the Wall Mount to the proper location. 4. Take out the cable through the center hole. 5. After the wiring is done as explained in the next section, put the Main Unit on the Wall Mount and screw it. 8.4 Wiring 8.4.1 Power Connection 1. Connect (+) wire of DC 12V Power Supply to Red wire. 2. Connect GND (-) wire of DC 12V Power Supply to Black wire. 8.4.2 Input Connection Exit Button Connection 1. Connect one wire from Exit Button to Orange wire. 2. Connect the other wire from Exit Button to the GND.

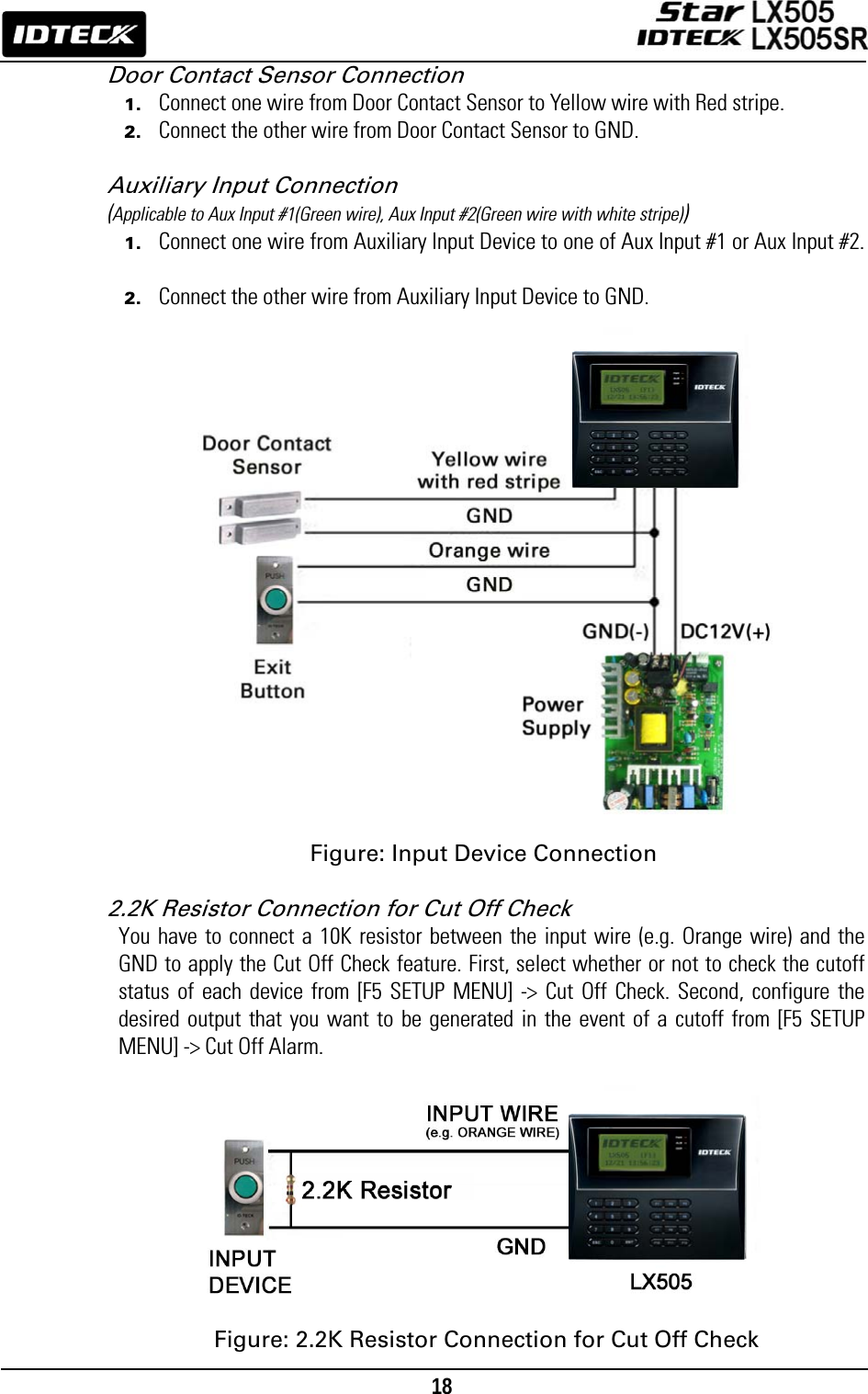

18 Door Contact Sensor Connection 1. Connect one wire from Door Contact Sensor to Yellow wire with Red stripe. 2. Connect the other wire from Door Contact Sensor to GND. Auxiliary Input Connection (Applicable to Aux Input #1(Green wire), Aux Input #2(Green wire with white stripe)) 1. Connect one wire from Auxiliary Input Device to one of Aux Input #1 or Aux Input #2. 2. Connect the other wire from Auxiliary Input Device to GND. Figure: Input Device Connection 2.2K Resistor Connection for Cut Off Check You have to connect a 10K resistor between the input wire (e.g. Orange wire) and the GND to apply the Cut Off Check feature. First, select whether or not to check the cutoff status of each device from [F5 SETUP MENU] -> Cut Off Check. Second, configure the desired output that you want to be generated in the event of a cutoff from [F5 SETUP MENU] -> Cut Off Alarm. Figure: 2.2K Resistor Connection for Cut Off Check

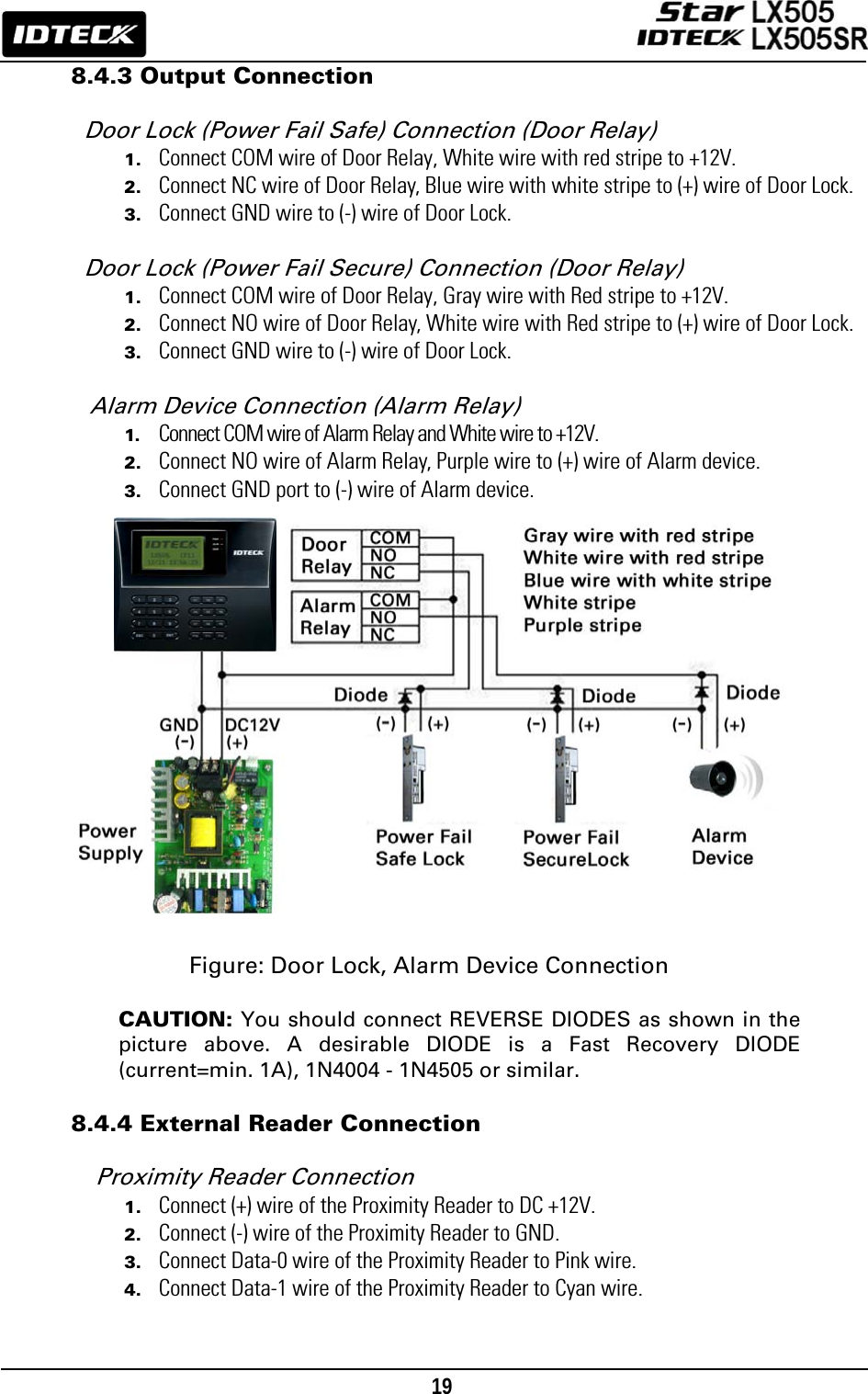

19 8.4.3 Output Connection Door Lock (Power Fail Safe) Connection (Door Relay) 1. Connect COM wire of Door Relay, White wire with red stripe to +12V. 2. Connect NC wire of Door Relay, Blue wire with white stripe to (+) wire of Door Lock. 3. Connect GND wire to (-) wire of Door Lock. Door Lock (Power Fail Secure) Connection (Door Relay) 1. Connect COM wire of Door Relay, Gray wire with Red stripe to +12V. 2. Connect NO wire of Door Relay, White wire with Red stripe to (+) wire of Door Lock. 3. Connect GND wire to (-) wire of Door Lock. Alarm Device Connection (Alarm Relay) 1. Connect COM wire of Alarm Relay and White wire to +12V. 2. Connect NO wire of Alarm Relay, Purple wire to (+) wire of Alarm device. 3. Connect GND port to (-) wire of Alarm device. Figure: Door Lock, Alarm Device Connection CAUTION: You should connect REVERSE DIODES as shown in the picture above. A desirable DIODE is a Fast Recovery DIODE (current=min. 1A), 1N4004 - 1N4505 or similar. 8.4.4 External Reader Connection Proximity Reader Connection 1. Connect (+) wire of the Proximity Reader to DC +12V. 2. Connect (-) wire of the Proximity Reader to GND. 3. Connect Data-0 wire of the Proximity Reader to Pink wire. 4. Connect Data-1 wire of the Proximity Reader to Cyan wire.

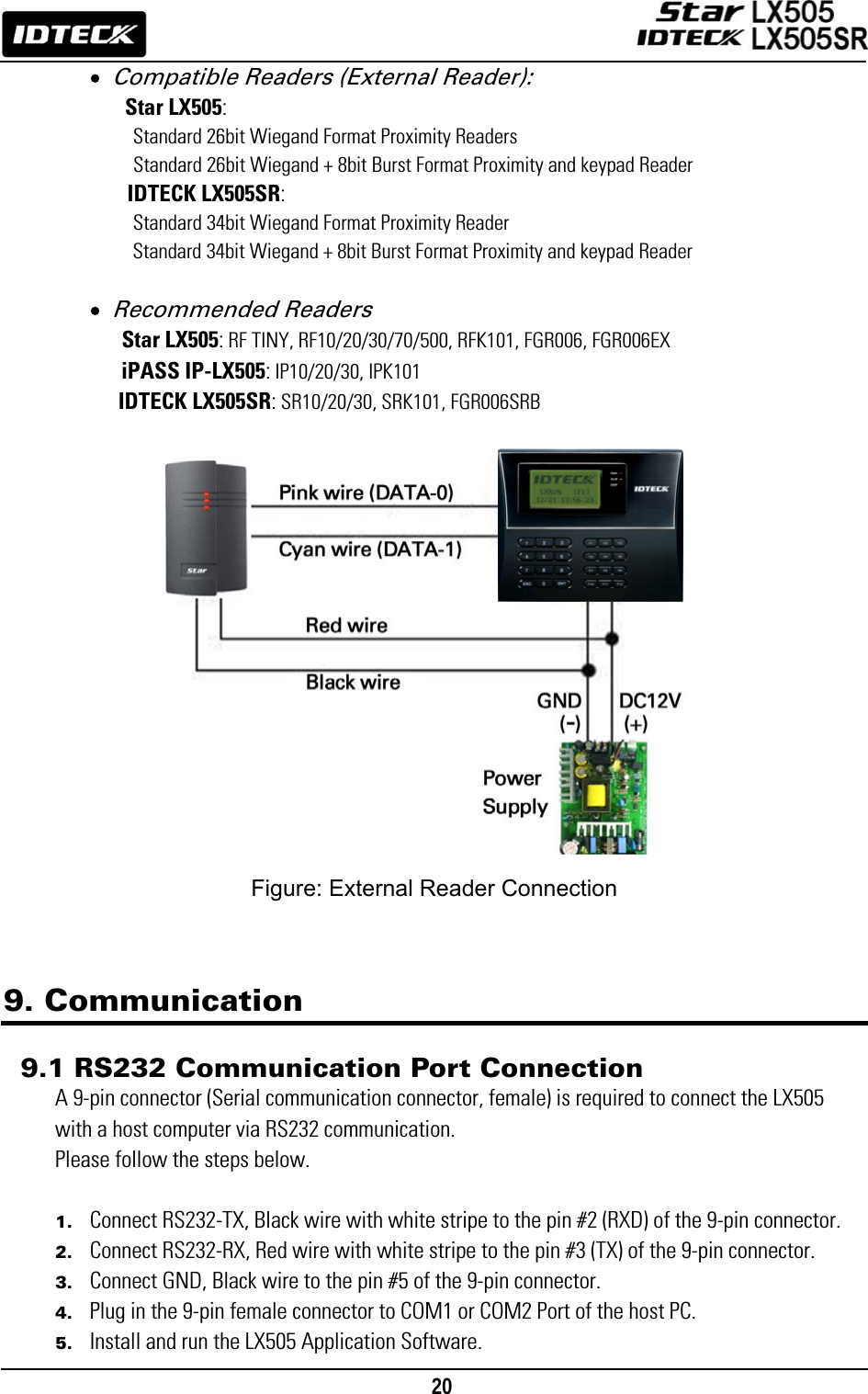

20 • Compatible Readers (External Reader): Star LX505: Standard 26bit Wiegand Format Proximity Readers Standard 26bit Wiegand + 8bit Burst Format Proximity and keypad Reader IDTECK LX505SR: Standard 34bit Wiegand Format Proximity Reader Standard 34bit Wiegand + 8bit Burst Format Proximity and keypad Reader • Recommended Readers Star LX505: RF TINY, RF10/20/30/70/500, RFK101, FGR006, FGR006EX iPASS IP-LX505: IP10/20/30, IPK101 IDTECK LX505SR: SR10/20/30, SRK101, FGR006SRB Figure: External Reader Connection 9. Communication 9.1 RS232 Communication Port Connection A 9-pin connector (Serial communication connector, female) is required to connect the LX505 with a host computer via RS232 communication. Please follow the steps below. 1. Connect RS232-TX, Black wire with white stripe to the pin #2 (RXD) of the 9-pin connector. 2. Connect RS232-RX, Red wire with white stripe to the pin #3 (TX) of the 9-pin connector. 3. Connect GND, Black wire to the pin #5 of the 9-pin connector. 4. Plug in the 9-pin female connector to COM1 or COM2 Port of the host PC. 5. Install and run the LX505 Application Software.

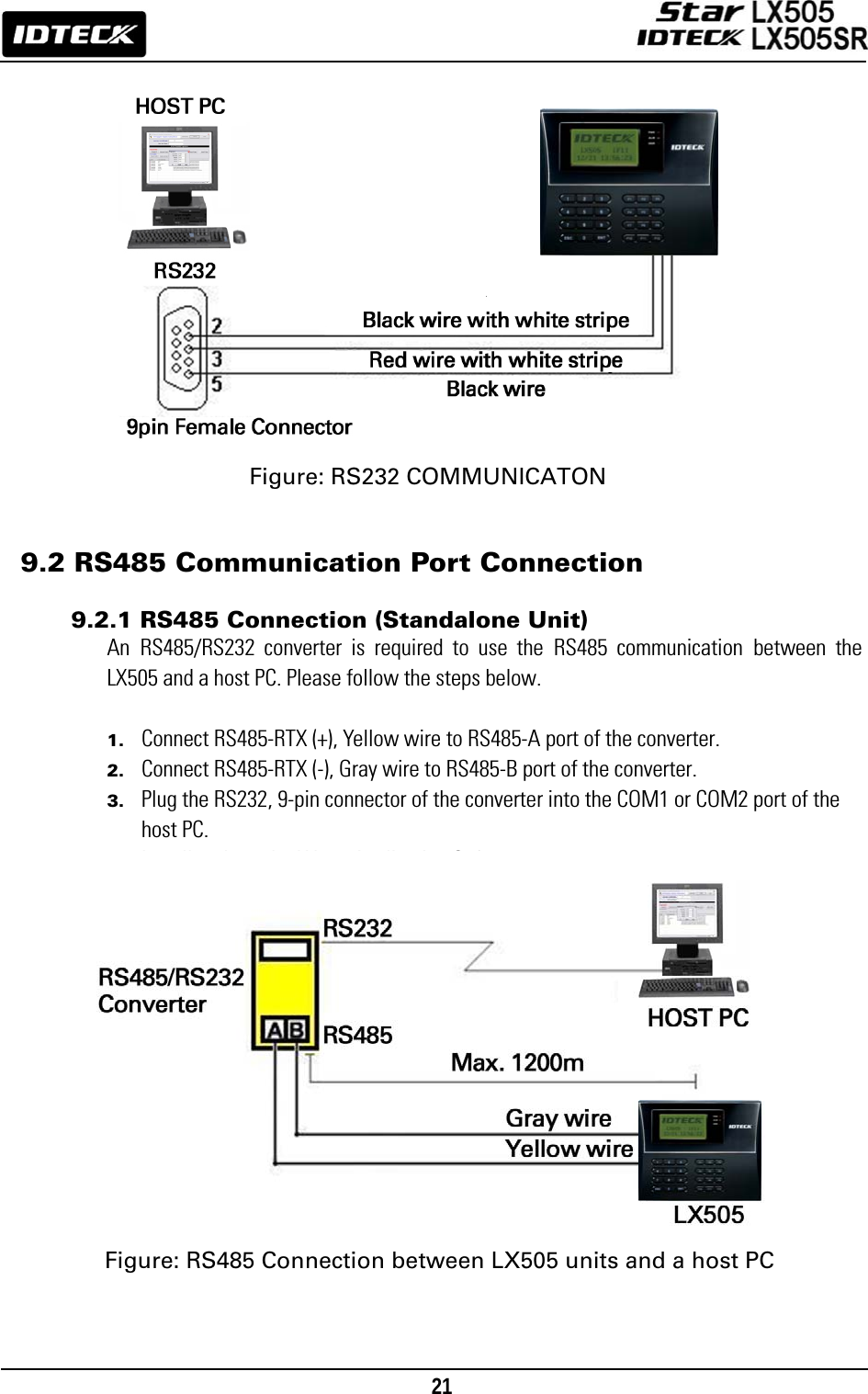

21 Figure: RS232 COMMUNICATON 9.2 RS485 Communication Port Connection 9.2.1 RS485 Connection (Standalone Unit) An RS485/RS232 converter is required to use the RS485 communication between the LX505 and a host PC. Please follow the steps below. 1. Connect RS485-RTX (+), Yellow wire to RS485-A port of the converter. 2. Connect RS485-RTX (-), Gray wire to RS485-B port of the converter. 3. Plug the RS232, 9-pin connector of the converter into the COM1 or COM2 port of the host PC. 4. Install and run the LX505 Application Software. Figure: RS485 Connection between LX505 units and a host PC

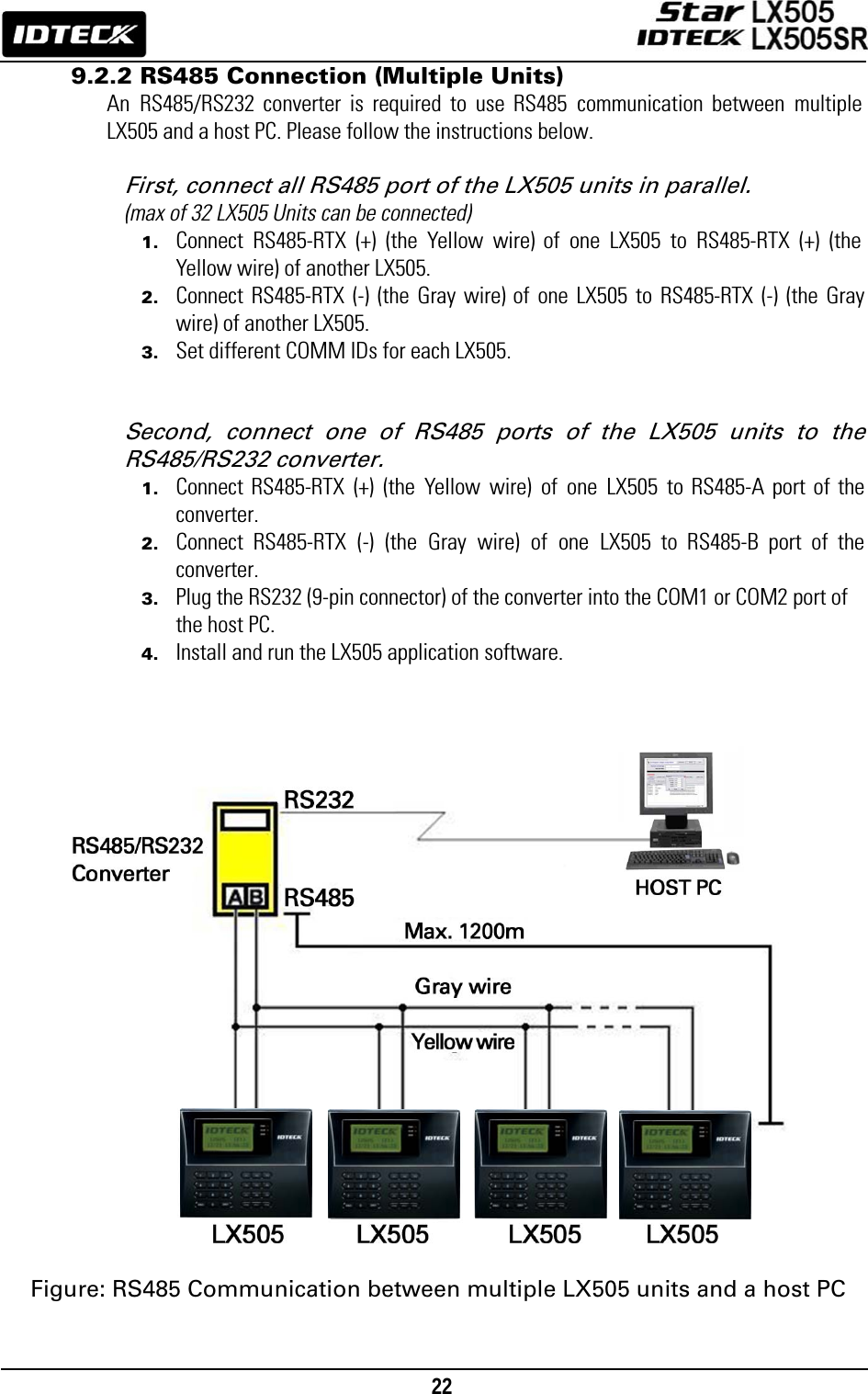

22 9.2.2 RS485 Connection (Multiple Units) An RS485/RS232 converter is required to use RS485 communication between multiple LX505 and a host PC. Please follow the instructions below. First, connect all RS485 port of the LX505 units in parallel. (max of 32 LX505 Units can be connected) 1. Connect RS485-RTX (+) (the Yellow wire) of one LX505 to RS485-RTX (+) (the Yellow wire) of another LX505. 2. Connect RS485-RTX (-) (the Gray wire) of one LX505 to RS485-RTX (-) (the Gray wire) of another LX505. 3. Set different COMM IDs for each LX505. Second, connect one of RS485 ports of the LX505 units to the RS485/RS232 converter. 1. Connect RS485-RTX (+) (the Yellow wire) of one LX505 to RS485-A port of the converter. 2. Connect RS485-RTX (-) (the Gray wire) of one LX505 to RS485-B port of the converter. 3. Plug the RS232 (9-pin connector) of the converter into the COM1 or COM2 port of the host PC. 4. Install and run the LX505 application software. Figure: RS485 Communication between multiple LX505 units and a host PC

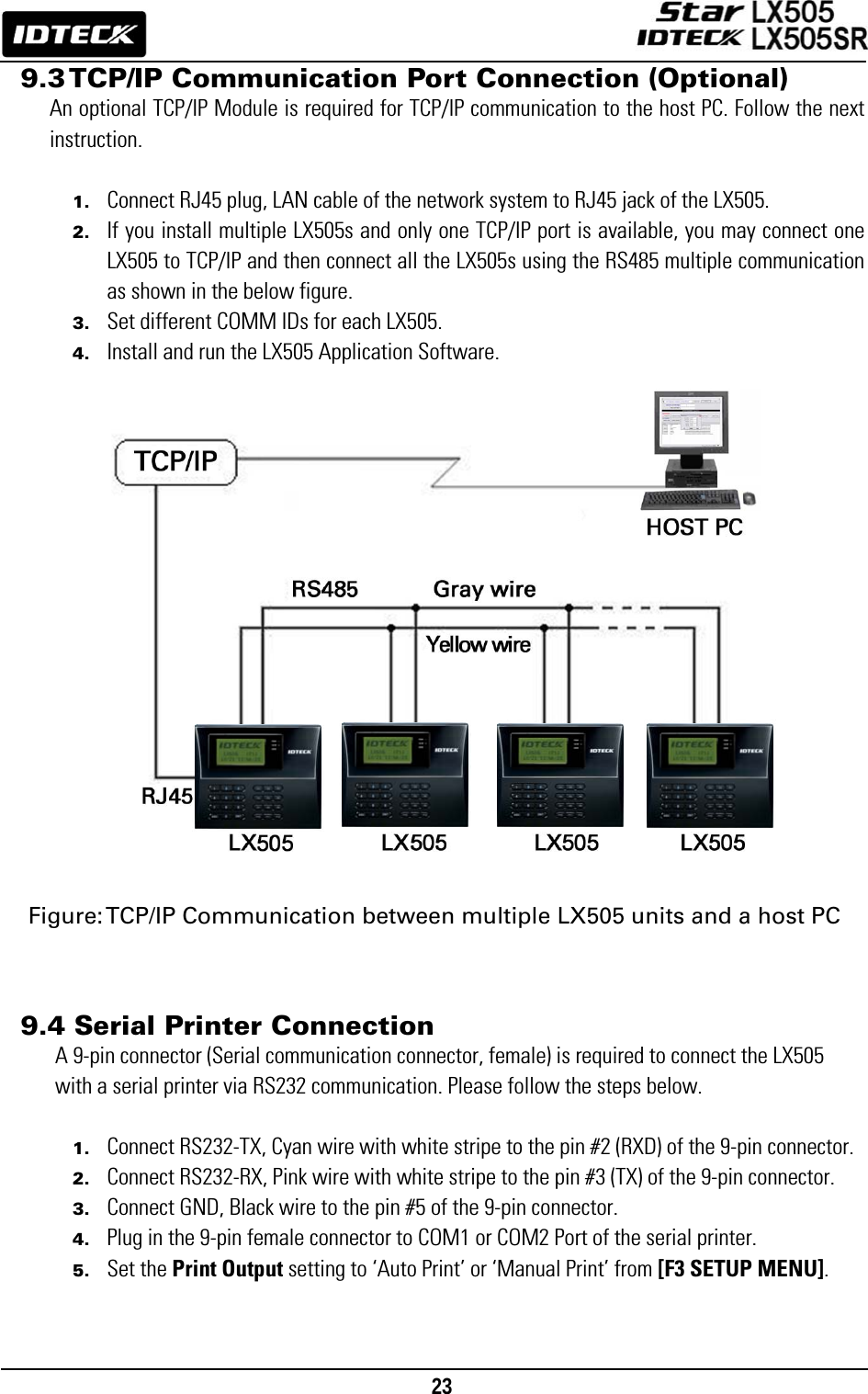

23 9.3 TCP/IP Communication Port Connection (Optional) An optional TCP/IP Module is required for TCP/IP communication to the host PC. Follow the next instruction. 1. Connect RJ45 plug, LAN cable of the network system to RJ45 jack of the LX505. 2. If you install multiple LX505s and only one TCP/IP port is available, you may connect one LX505 to TCP/IP and then connect all the LX505s using the RS485 multiple communication as shown in the below figure. 3. Set different COMM IDs for each LX505. 4. Install and run the LX505 Application Software. Figure: TCP/IP Communication between multiple LX505 units and a host PC 9.4 Serial Printer Connection A 9-pin connector (Serial communication connector, female) is required to connect the LX505 with a serial printer via RS232 communication. Please follow the steps below. 1. Connect RS232-TX, Cyan wire with white stripe to the pin #2 (RXD) of the 9-pin connector. 2. Connect RS232-RX, Pink wire with white stripe to the pin #3 (TX) of the 9-pin connector. 3. Connect GND, Black wire to the pin #5 of the 9-pin connector. 4. Plug in the 9-pin female connector to COM1 or COM2 Port of the serial printer. 5. Set the Print Output setting to ‘Auto Print’ or ‘Manual Print’ from [F3 SETUP MENU].

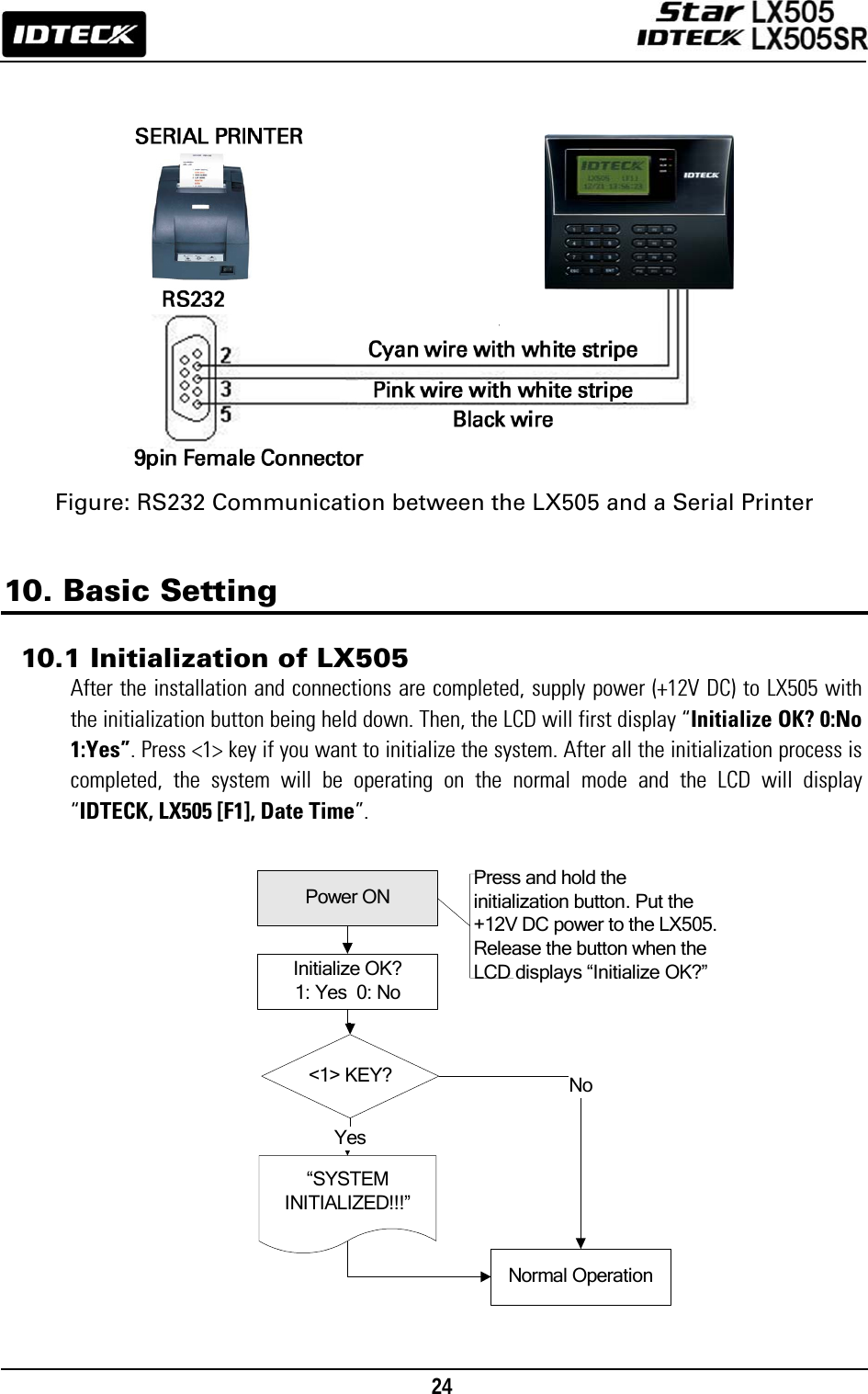

24 <1> KEY?“SYSTEM INITIALIZED!!!”Power ONInitialize OK?1: Yes 0: NoNormal OperationYesNoPress and hold the initialization button. Put the +12V DC power to the LX505. Release the button when the LCD displays “Initialize OK?” Figure: RS232 Communication between the LX505 and a Serial Printer 10. Basic Setting 10.1 Initialization of LX505 After the installation and connections are completed, supply power (+12V DC) to LX505 with the initialization button being held down. Then, the LCD will first display “Initialize OK? 0:No 1:Yes”. Press <1> key if you want to initialize the system. After all the initialization process is completed, the system will be operating on the normal mode and the LCD will display “IDTECK, LX505 [F1], Date Time”.

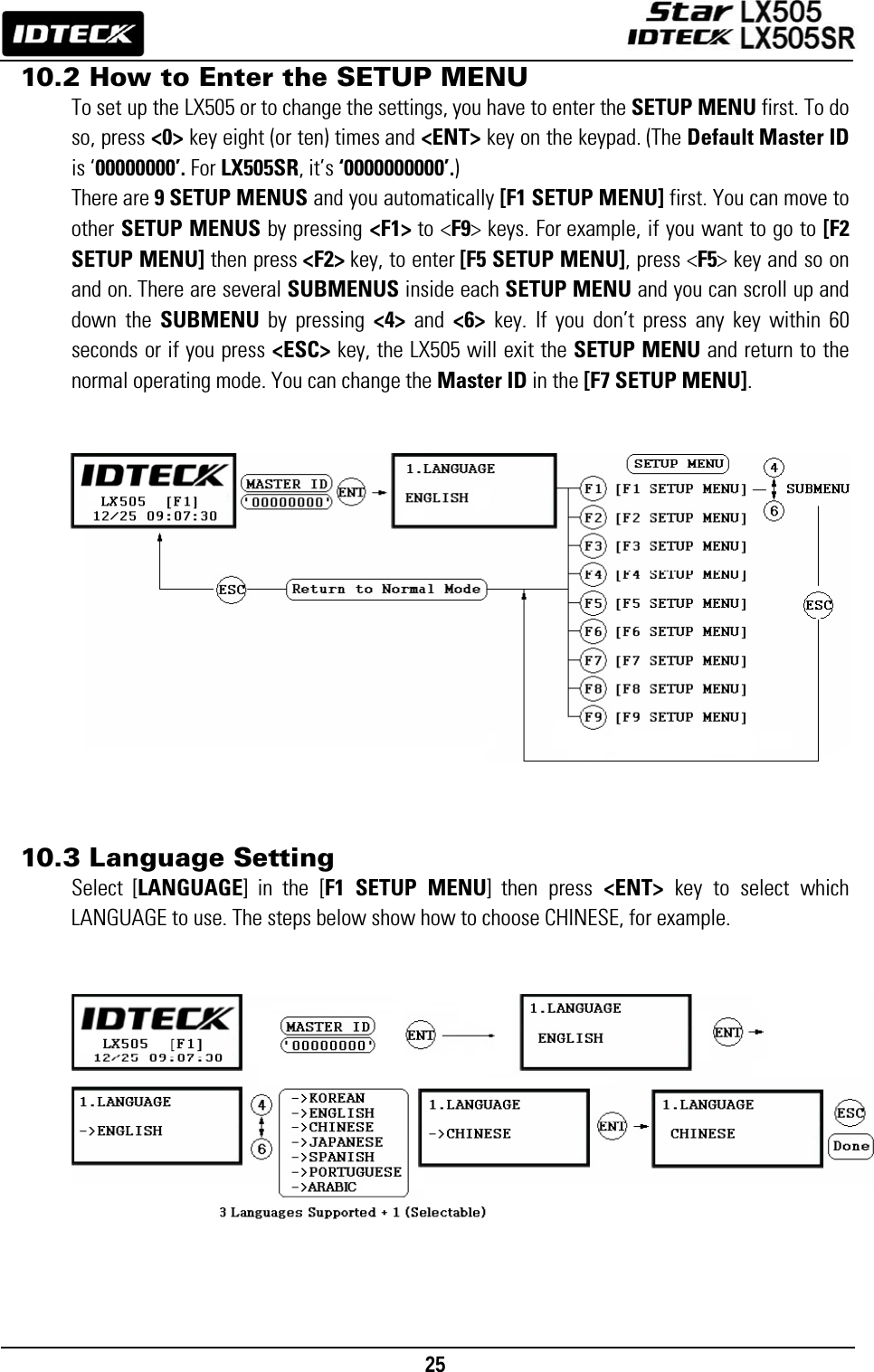

25 10.2 How to Enter the SETUP MENU To set up the LX505 or to change the settings, you have to enter the SETUP MENU first. To do so, press <0> key eight (or ten) times and <ENT> key on the keypad. (The Default Master ID is ‘00000000’. For LX505SR, it’s ‘0000000000’.) There are 9 SETUP MENUS and you automatically [F1 SETUP MENU] first. You can move to other SETUP MENUS by pressing <F1> to <F9> keys. For example, if you want to go to [F2 SETUP MENU] then press <F2> key, to enter [F5 SETUP MENU], press <F5> key and so on and on. There are several SUBMENUS inside each SETUP MENU and you can scroll up and down the SUBMENU by pressing <4> and <6> key. If you don’t press any key within 60 seconds or if you press <ESC> key, the LX505 will exit the SETUP MENU and return to the normal operating mode. You can change the Master ID in the [F7 SETUP MENU]. 10.3 Language Setting Select [LANGUAGE] in the [F1 SETUP MENU] then press <ENT> key to select which LANGUAGE to use. The steps below show how to choose CHINESE, for example.

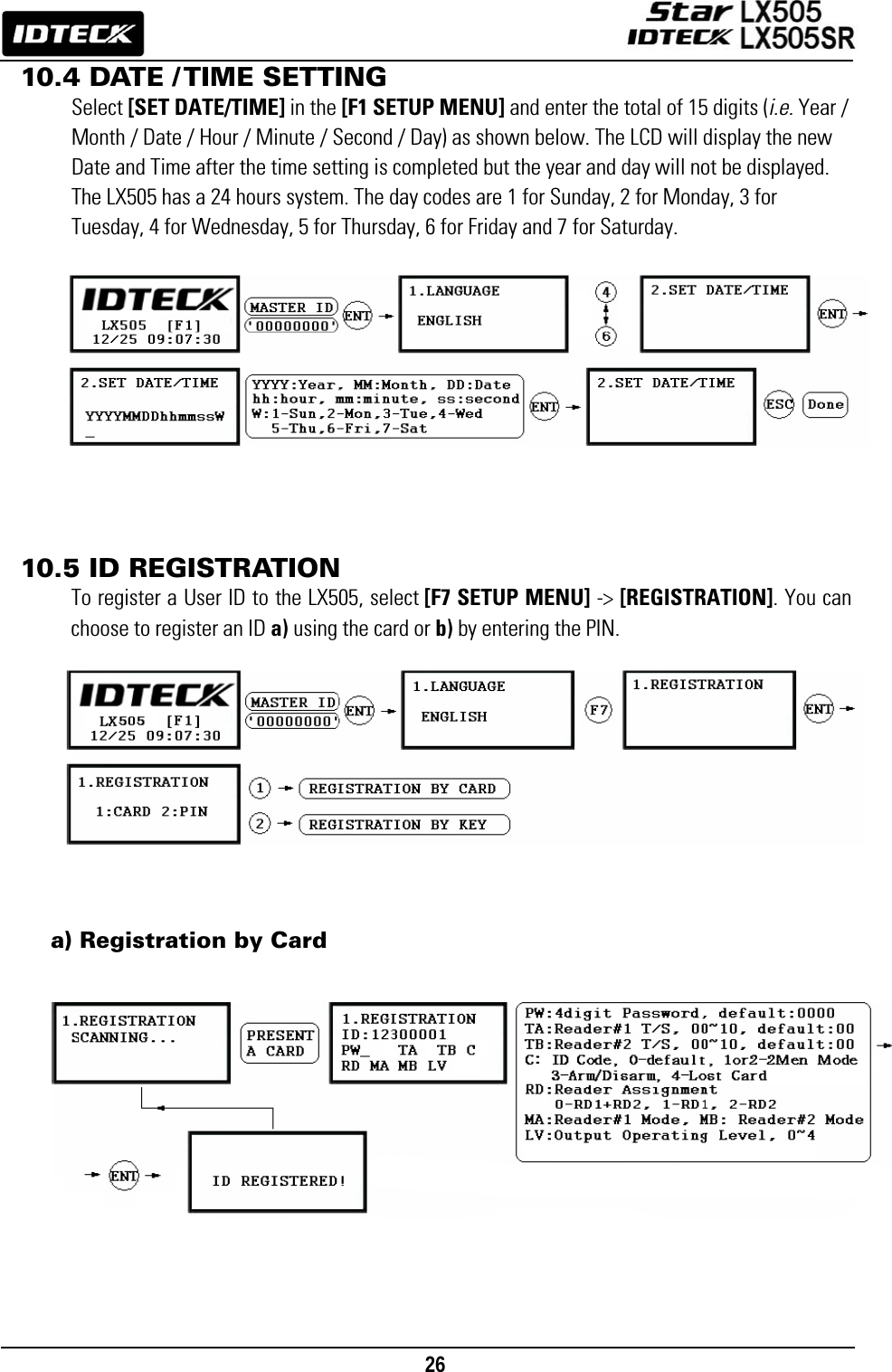

26 10.4 DATE / TIME SETTING Select [SET DATE/TIME] in the [F1 SETUP MENU] and enter the total of 15 digits (i.e. Year / Month / Date / Hour / Minute / Second / Day) as shown below. The LCD will display the new Date and Time after the time setting is completed but the year and day will not be displayed. The LX505 has a 24 hours system. The day codes are 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday and 7 for Saturday. 10.5 ID REGISTRATION To register a User ID to the LX505, select [F7 SETUP MENU] -> [REGISTRATION]. You can choose to register an ID a) using the card or b) by entering the PIN. a) Registration by Card
27 b) Registration Using Keypad NOTE| In case you make a typing mistake during the registration process, you can press F1 button to erase your errors. 1. Scanning – means the reader is waiting for an ID number to be entered. The card number for the card will appear with a beep sound when you present the card. 2. ID – is a Personal Identification Number (PIN) that consists of 4-8 digits. Enter a 4-8digit ID number (PIN) and press <ENT> key. (For LX505SR, the ID number consists of 4-10 digits. 3. PW – stands for a password that is required for verification in the RF + Password operating mode. 4. TA – refers to the Time Schedule code (‘00’ ~ ‘10’) for the Reader#1 (i.e. the built-in reader). Cardholders are granted access only during the Time Intervals of the Time Schedule code entered to this TA field. To set the Time Intervals for each Time Schedule code, refer to the instructions on the Time Schedule Setup in the [F4 SETUP MENU]. If you want allow the cardholder access to the door anytime, then enter the default Time Schedule code '00' for the value. 5. TB – refers to the Time Schedule code (‘00’ ~ ‘10’) for the Reader#2 (i.e. Exit Reader). Cardholders are granted access only during the Time Intervals of the Time Schedule code entered to this TB field. To set the Time Intervals for each Time Schedule code, refer to the instructions on the Time Schedule Setup in the [F4 SETUP MENU]. If you want allow the cardholder access to the door anytime, then enter the default Time Schedule code '00' for the value. 6. RD – refers to the Reader Assignment code for the cardholder. Entering the code ‘0’ assigns both readers (Built-in Reader and Exit Reader) to grant access to the user that is being registered, code ‘1’ only assigns Reader#1 (Built-in Reader) and code ‘2’ assigns Reader#2 (Exit Reader). If you enter ‘1’ in the RD field(Only Reader#1 assigned) and try to exit through Reader#2 (Exit Reader) then LX505 generates an error message (“Access Door Error”) on the LCD display.

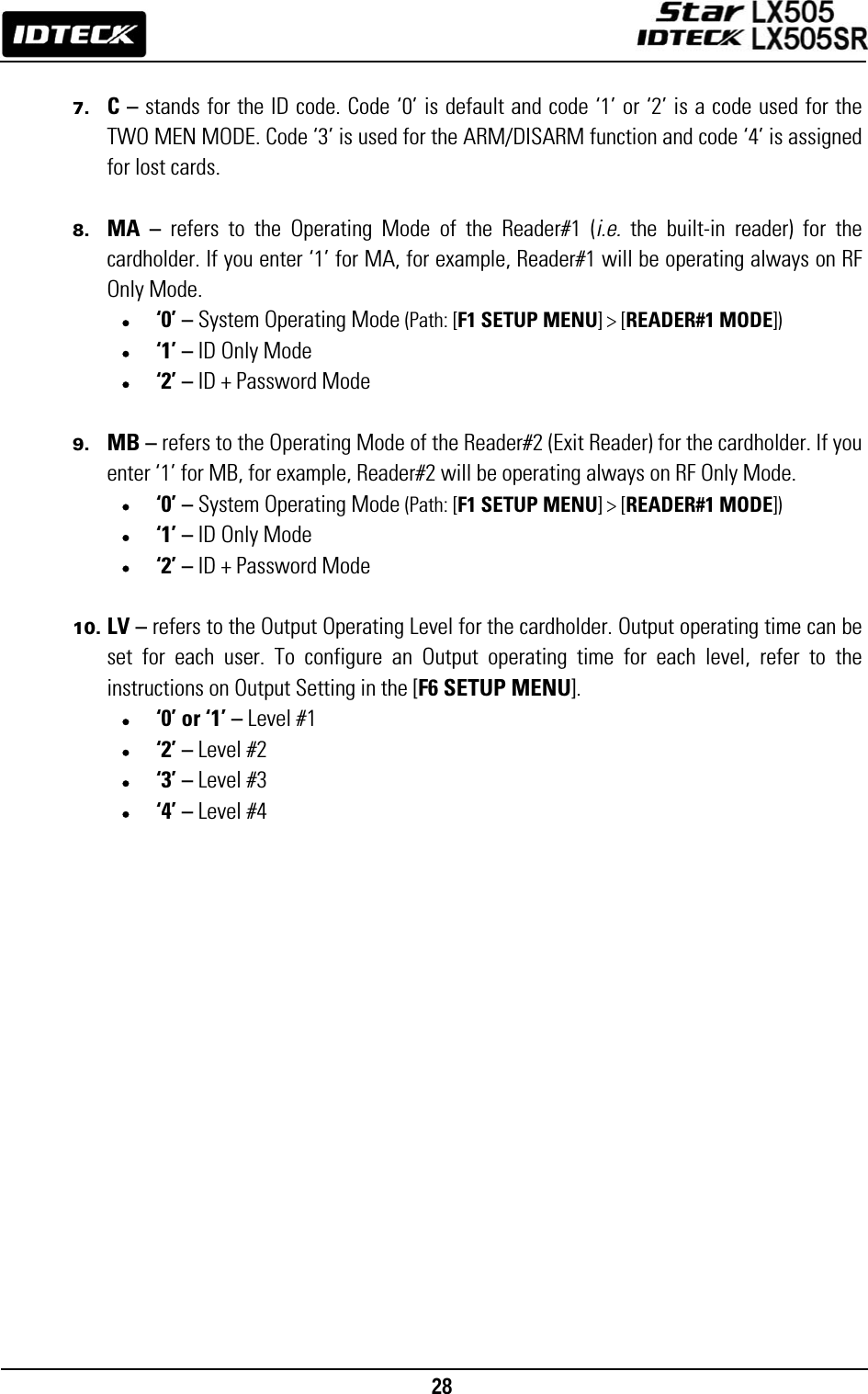

28 7. C – stands for the ID code. Code ‘0’ is default and code ‘1’ or ‘2’ is a code used for the TWO MEN MODE. Code ‘3’ is used for the ARM/DISARM function and code ‘4’ is assigned for lost cards. 8. MA – refers to the Operating Mode of the Reader#1 (i.e. the built-in reader) for the cardholder. If you enter ‘1’ for MA, for example, Reader#1 will be operating always on RF Only Mode. • ‘0’ – System Operating Mode (Path: [F1 SETUP MENU] > [READER#1 MODE]) • ‘1’ – ID Only Mode • ‘2’ – ID + Password Mode 9. MB – refers to the Operating Mode of the Reader#2 (Exit Reader) for the cardholder. If you enter ‘1’ for MB, for example, Reader#2 will be operating always on RF Only Mode. • ‘0’ – System Operating Mode (Path: [F1 SETUP MENU] > [READER#1 MODE]) • ‘1’ – ID Only Mode • ‘2’ – ID + Password Mode 10. LV – refers to the Output Operating Level for the cardholder. Output operating time can be set for each user. To configure an Output operating time for each level, refer to the instructions on Output Setting in the [F6 SETUP MENU]. • ‘0’ or ‘1’ – Level #1 • ‘2’ – Level #2 • ‘3’ – Level #3 • ‘4’ – Level #4

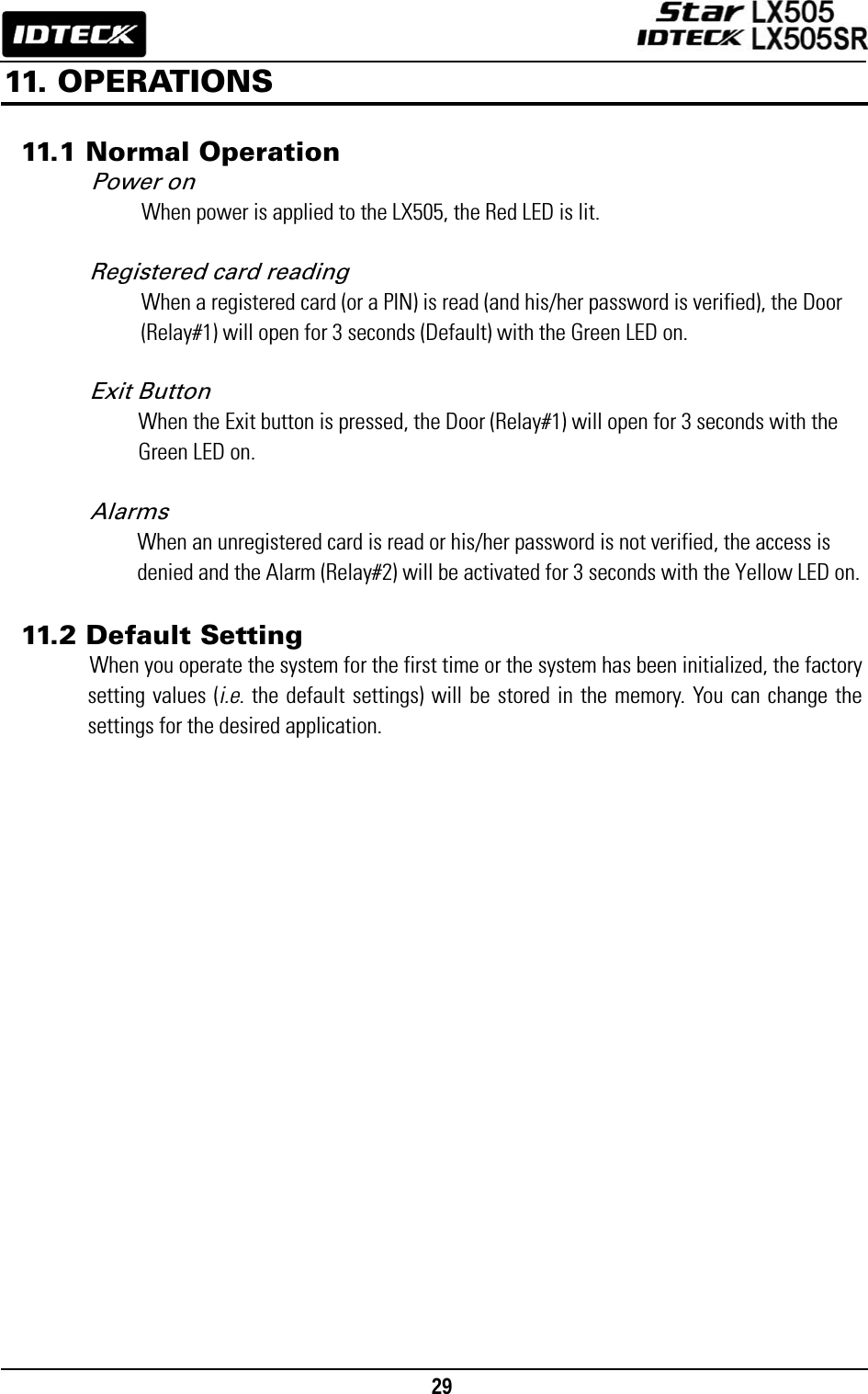

29 11. OPERATIONS 11.1 Normal Operation Power on When power is applied to the LX505, the Red LED is lit. Registered card reading When a registered card (or a PIN) is read (and his/her password is verified), the Door (Relay#1) will open for 3 seconds (Default) with the Green LED on. Exit Button When the Exit button is pressed, the Door (Relay#1) will open for 3 seconds with the Green LED on. Alarms When an unregistered card is read or his/her password is not verified, the access is denied and the Alarm (Relay#2) will be activated for 3 seconds with the Yellow LED on. 11.2 Default Setting When you operate the system for the first time or the system has been initialized, the factory setting values (i.e. the default settings) will be stored in the memory. You can change the settings for the desired application.

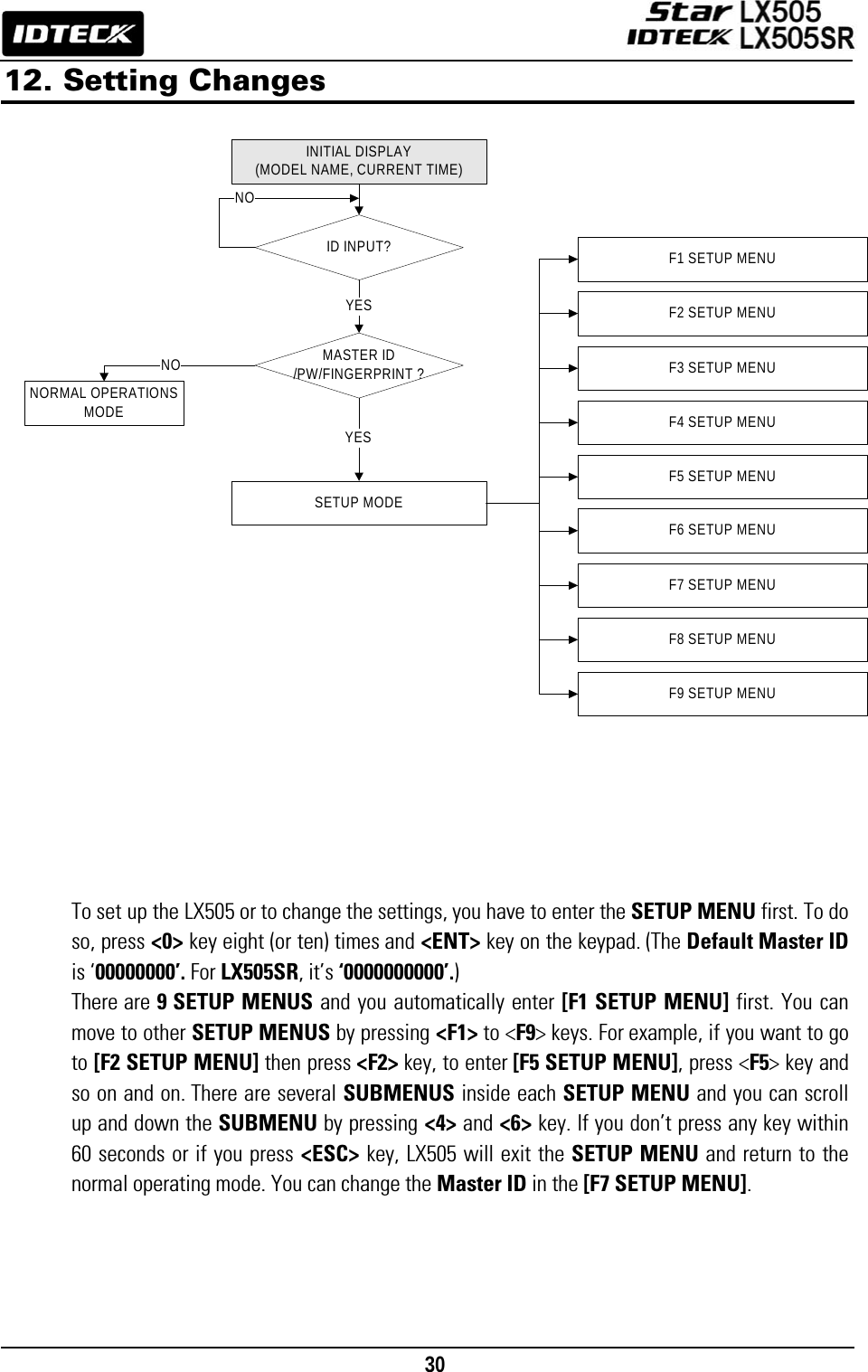

30 12. Setting Changes To set up the LX505 or to change the settings, you have to enter the SETUP MENU first. To do so, press <0> key eight (or ten) times and <ENT> key on the keypad. (The Default Master ID is ‘00000000’. For LX505SR, it’s ‘0000000000’.) There are 9 SETUP MENUS and you automatically enter [F1 SETUP MENU] first. You can move to other SETUP MENUS by pressing <F1> to <F9> keys. For example, if you want to go to [F2 SETUP MENU] then press <F2> key, to enter [F5 SETUP MENU], press <F5> key and so on and on. There are several SUBMENUS inside each SETUP MENU and you can scroll up and down the SUBMENU by pressing <4> and <6> key. If you don’t press any key within 60 seconds or if you press <ESC> key, LX505 will exit the SETUP MENU and return to the normal operating mode. You can change the Master ID in the [F7 SETUP MENU]. INITIAL DISPLAY(MODEL NAME, CURRENT TIME)ID INPUT?MASTER ID /PW/FINGERPRINT ?YESYESNONORMAL OPERATIONS MODESETUP MODENOF1 SETUP MENUF2 SETUP MENUF3 SETUP MENUF4 SETUP MENUF5 SETUP MENUF6 SETUP MENUF7 SETUP MENUF8 SETUP MENUF9 SETUP MENU

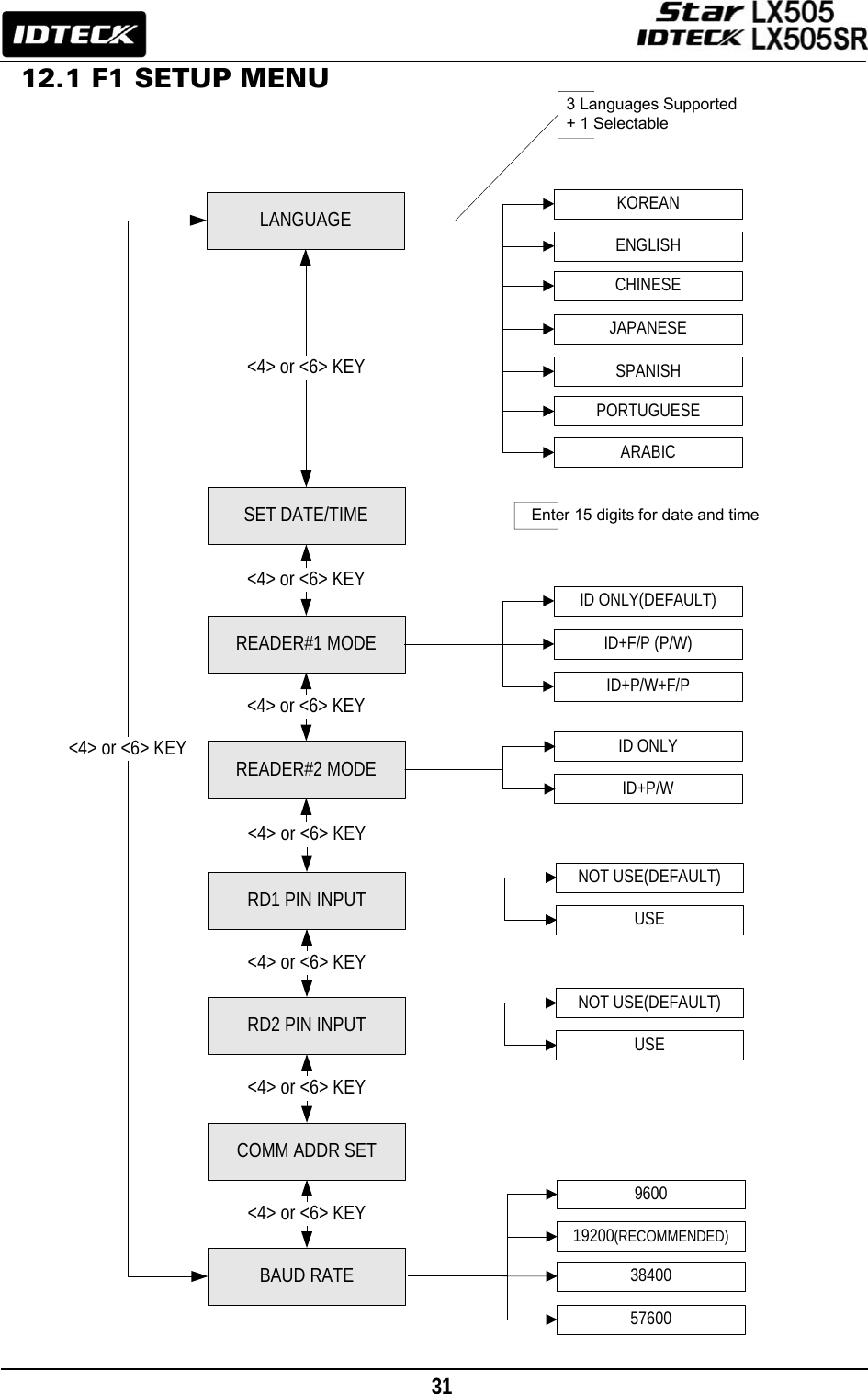

31 12.1 F1 SETUP MENU LANGUAGESET DATE/TIMEREADER#1 MODEKOREAN<4> or <6> KEY<4> or <6> KEY<4> or <6> KEY<4> or <6> KEYREADER#2 MODERD1 PIN INPUTRD2 PIN INPUT<4> or <6> KEY<4> or <6> KEY<4> or <6> KEYCOMM ADDR SET<4> or <6> KEYBAUD RATEENGLISHCHINESEJAPANESESPANISHPORTUGUESEEnter 15 digits for date and timeID ONLY(DEFAULT)ID+F/P (P/W)ID+P/W+F/PID ONLYID+P/WNOT USE(DEFAULT)USENOT USE(DEFAULT)USE960019200(RECOMMENDED)3840057600ARABIC 3 Languages Supported + 1 Selectable

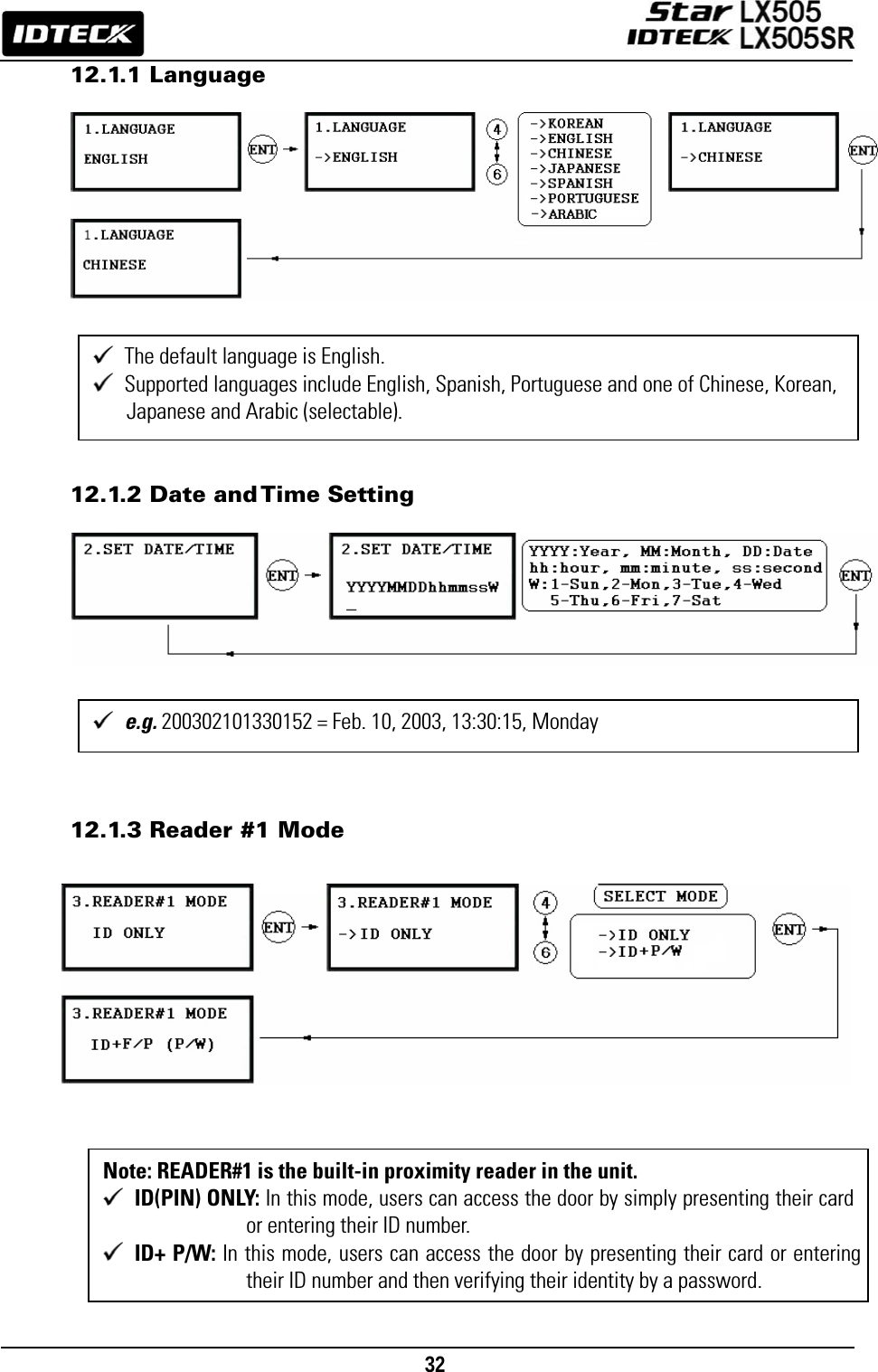

32 12.1.1 Language 12.1.2 Date and Time Setting 12.1.3 Reader #1 Mode The default language is English. Supported languages include English, Spanish, Portuguese and one of Chinese, Korean, Japanese and Arabic (selectable). e.g. 200302101330152 = Feb. 10, 2003, 13:30:15, MondayNote: READER#1 is the built-in proximity reader in the unit. ID(PIN) ONLY: In this mode, users can access the door by simply presenting their card or entering their ID number. ID+ P/W: In this mode, users can access the door by presenting their card or entering their ID number and then verifying their identity by a password.

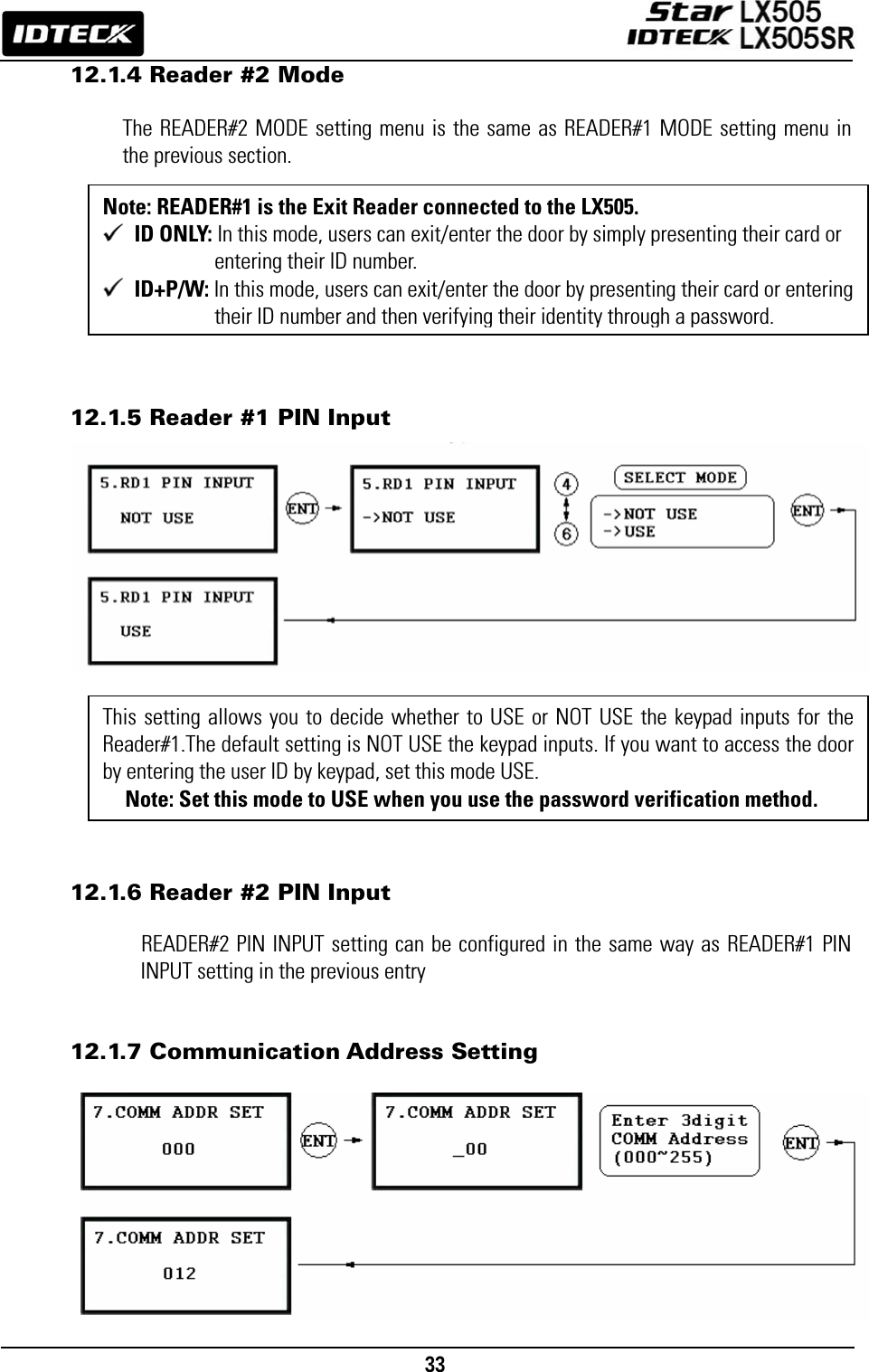

33 12.1.4 Reader #2 Mode The READER#2 MODE setting menu is the same as READER#1 MODE setting menu in the previous section. 12.1.5 Reader #1 PIN Input 12.1.6 Reader #2 PIN Input READER#2 PIN INPUT setting can be configured in the same way as READER#1 PIN INPUT setting in the previous entry 12.1.7 Communication Address Setting This setting allows you to decide whether to USE or NOT USE the keypad inputs for the Reader#1.The default setting is NOT USE the keypad inputs. If you want to access the door by entering the user ID by keypad, set this mode USE. Note: Set this mode to USE when you use the password verification method. Note: READER#1 is the Exit Reader connected to the LX505. ID ONLY: In this mode, users can exit/enter the door by simply presenting their card or entering their ID number. ID+P/W: In this mode, users can exit/enter the door by presenting their card or entering their ID number and then verifying their identity through a password.

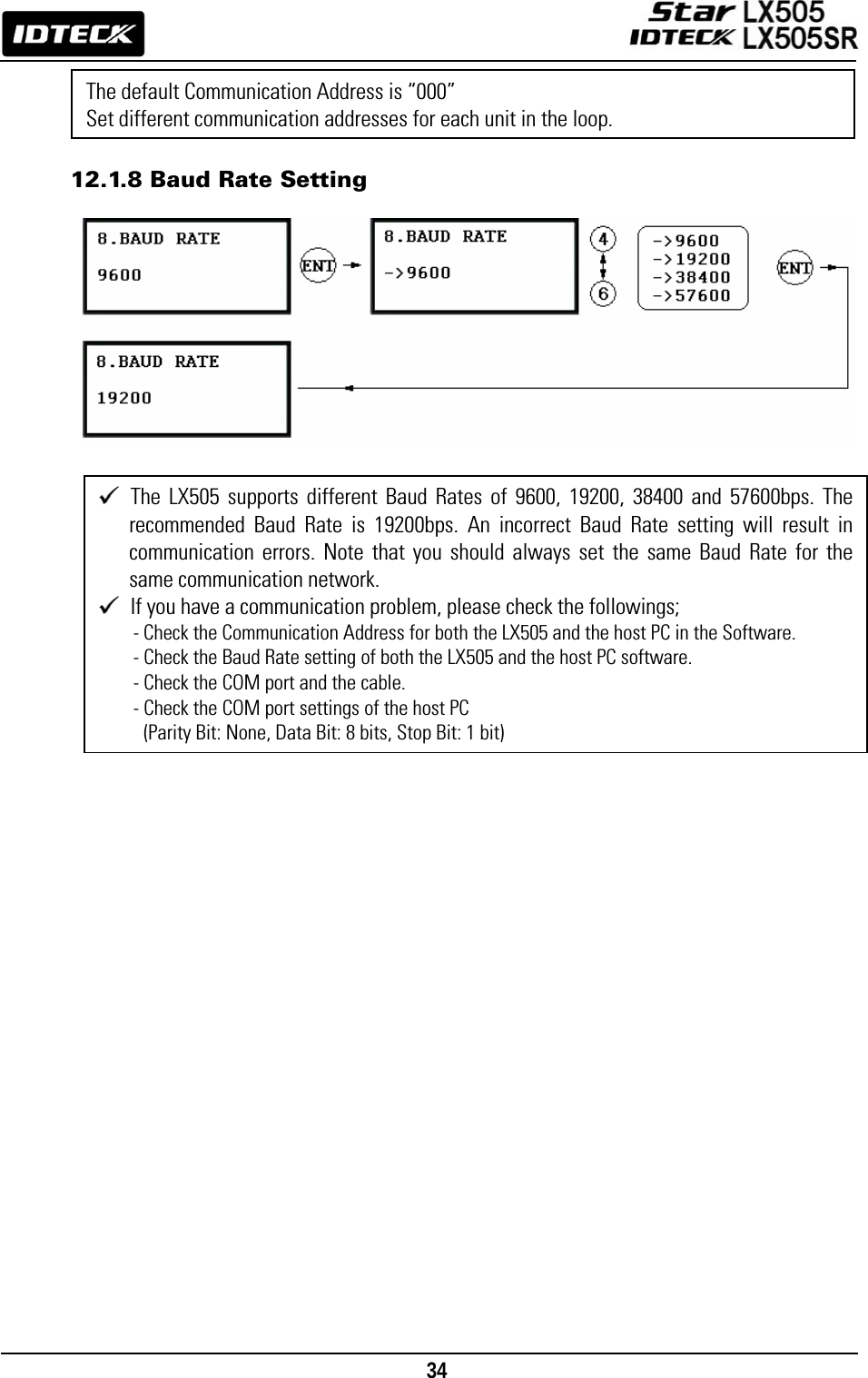

34 12.1.8 Baud Rate Setting The LX505 supports different Baud Rates of 9600, 19200, 38400 and 57600bps. The recommended Baud Rate is 19200bps. An incorrect Baud Rate setting will result in communication errors. Note that you should always set the same Baud Rate for the same communication network. If you have a communication problem, please check the followings; - Check the Communication Address for both the LX505 and the host PC in the Software. - Check the Baud Rate setting of both the LX505 and the host PC software. - Check the COM port and the cable. - Check the COM port settings of the host PC (Parity Bit: None, Data Bit: 8 bits, Stop Bit: 1 bit)The default Communication Address is “000”Set different communication addresses for each unit in the loop.

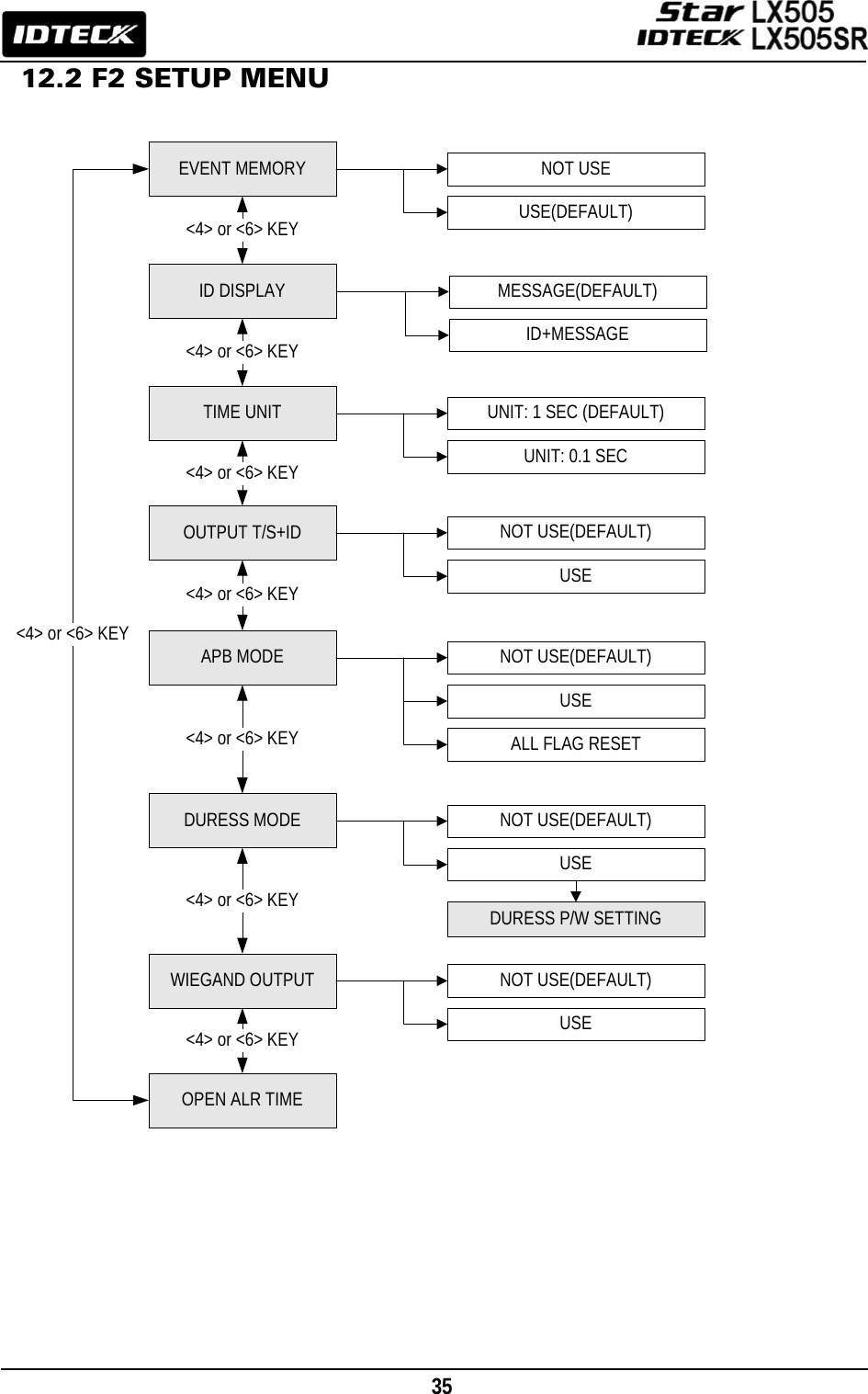

35 12.2 F2 SETUP MENU APB MODEDURESS MODEWIEGAND OUTPUT<4> or <6> KEY<4> or <6> KEY<4> or <6> KEY<4> or <6> KEYOPEN ALR TIMEEVENT MEMORYID DISPLAYTIME UNIT<4> or <6> KEY<4> or <6> KEY<4> or <6> KEYOUTPUT T/S+ID<4> or <6> KEYNOT USEUSE(DEFAULT)MESSAGE(DEFAULT)ID+MESSAGEUNIT: 1 SEC (DEFAULT)UNIT: 0.1 SECNOT USE(DEFAULT)USENOT USE(DEFAULT)USENOT USE(DEFAULT)USENOT USE(DEFAULT)USEALL FLAG RESETDURESS P/W SETTING

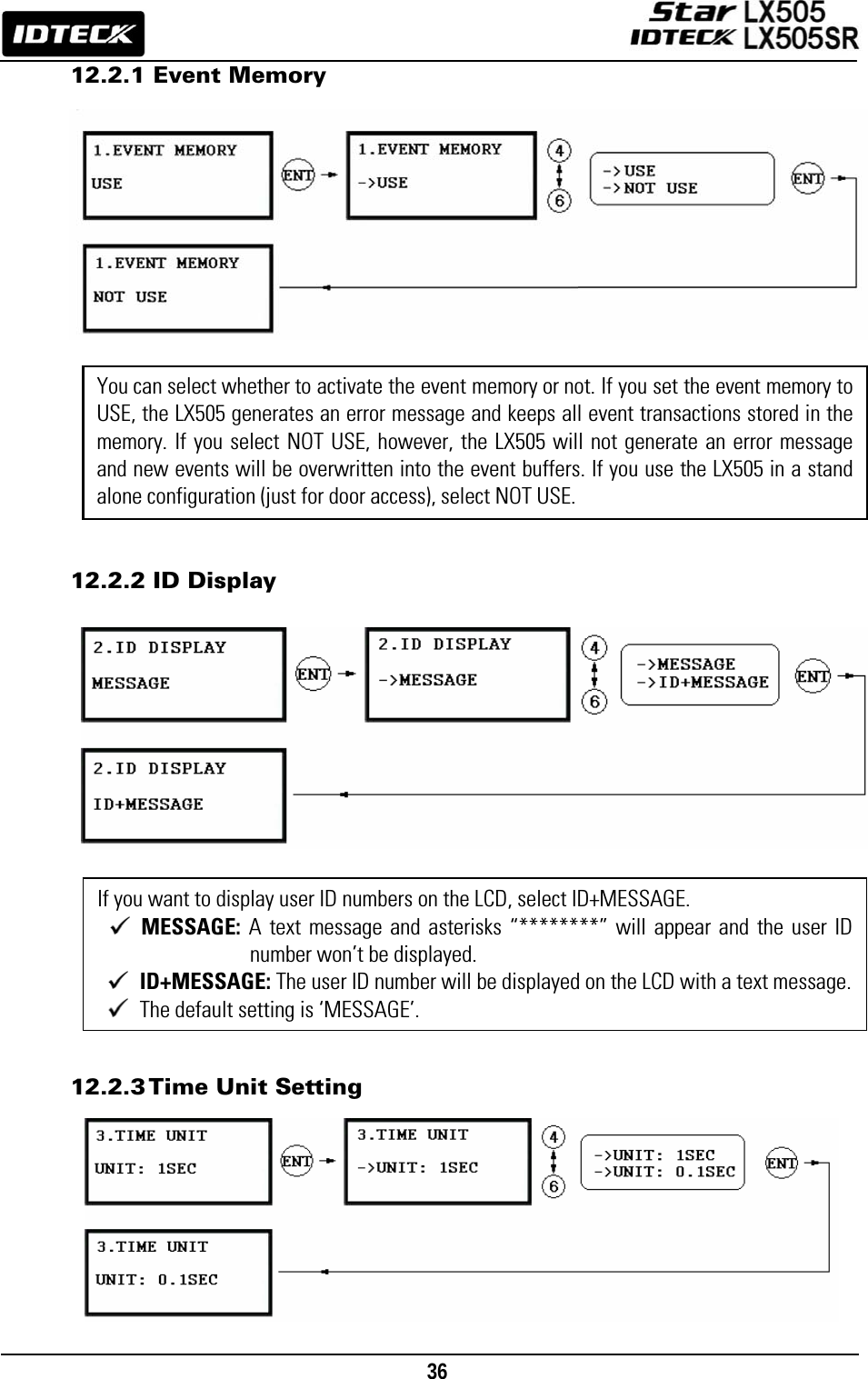

36 12.2.1 Event Memory 12.2.2 ID Display 12.2.3 Time Unit Setting You can select whether to activate the event memory or not. If you set the event memory to USE, the LX505 generates an error message and keeps all event transactions stored in the memory. If you select NOT USE, however, the LX505 will not generate an error message and new events will be overwritten into the event buffers. If you use the LX505 in a stand alone configuration (just for door access), select NOT USE. If you want to display user ID numbers on the LCD, select ID+MESSAGE. MESSAGE: A text message and asterisks “********” will appear and the user ID number won’t be displayed. ID+MESSAGE: The user ID number will be displayed on the LCD with a text message. The default setting is ‘MESSAGE’.

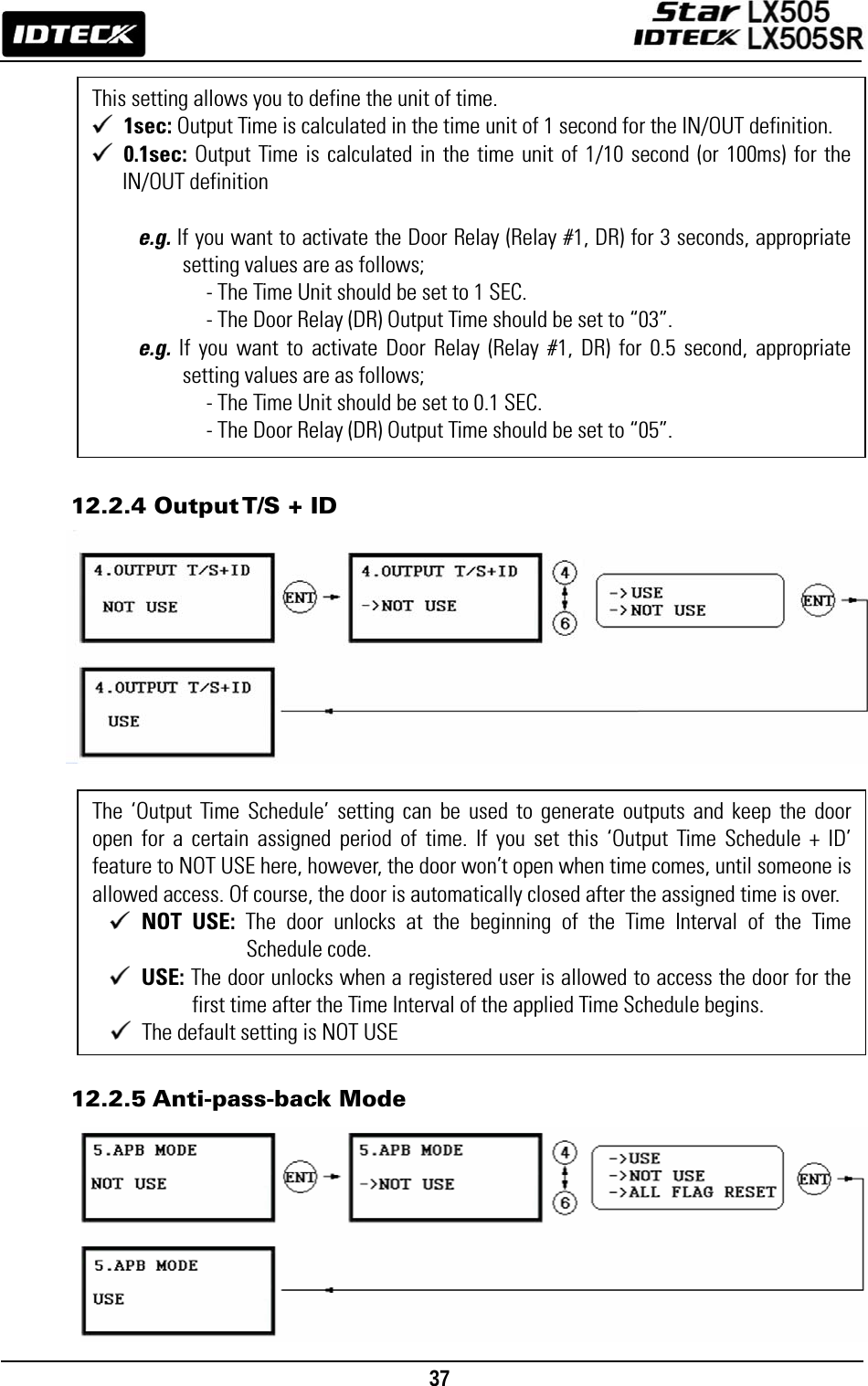

37 12.2.4 Output T/S + ID 12.2.5 Anti-pass-back Mode This setting allows you to define the unit of time. 1sec: Output Time is calculated in the time unit of 1 second for the IN/OUT definition. 0.1sec: Output Time is calculated in the time unit of 1/10 second (or 100ms) for the IN/OUT definition e.g. If you want to activate the Door Relay (Relay #1, DR) for 3 seconds, appropriate setting values are as follows; - The Time Unit should be set to 1 SEC. - The Door Relay (DR) Output Time should be set to “03”. e.g. If you want to activate Door Relay (Relay #1, DR) for 0.5 second, appropriate setting values are as follows; - The Time Unit should be set to 0.1 SEC. - The Door Relay (DR) Output Time should be set to “05”. The ‘Output Time Schedule’ setting can be used to generate outputs and keep the door open for a certain assigned period of time. If you set this ‘Output Time Schedule + ID’ feature to NOT USE here, however, the door won’t open when time comes, until someone is allowed access. Of course, the door is automatically closed after the assigned time is over. NOT USE: The door unlocks at the beginning of the Time Interval of the Time Schedule code. USE: The door unlocks when a registered user is allowed to access the door for the first time after the Time Interval of the applied Time Schedule begins. The default setting is NOT USE

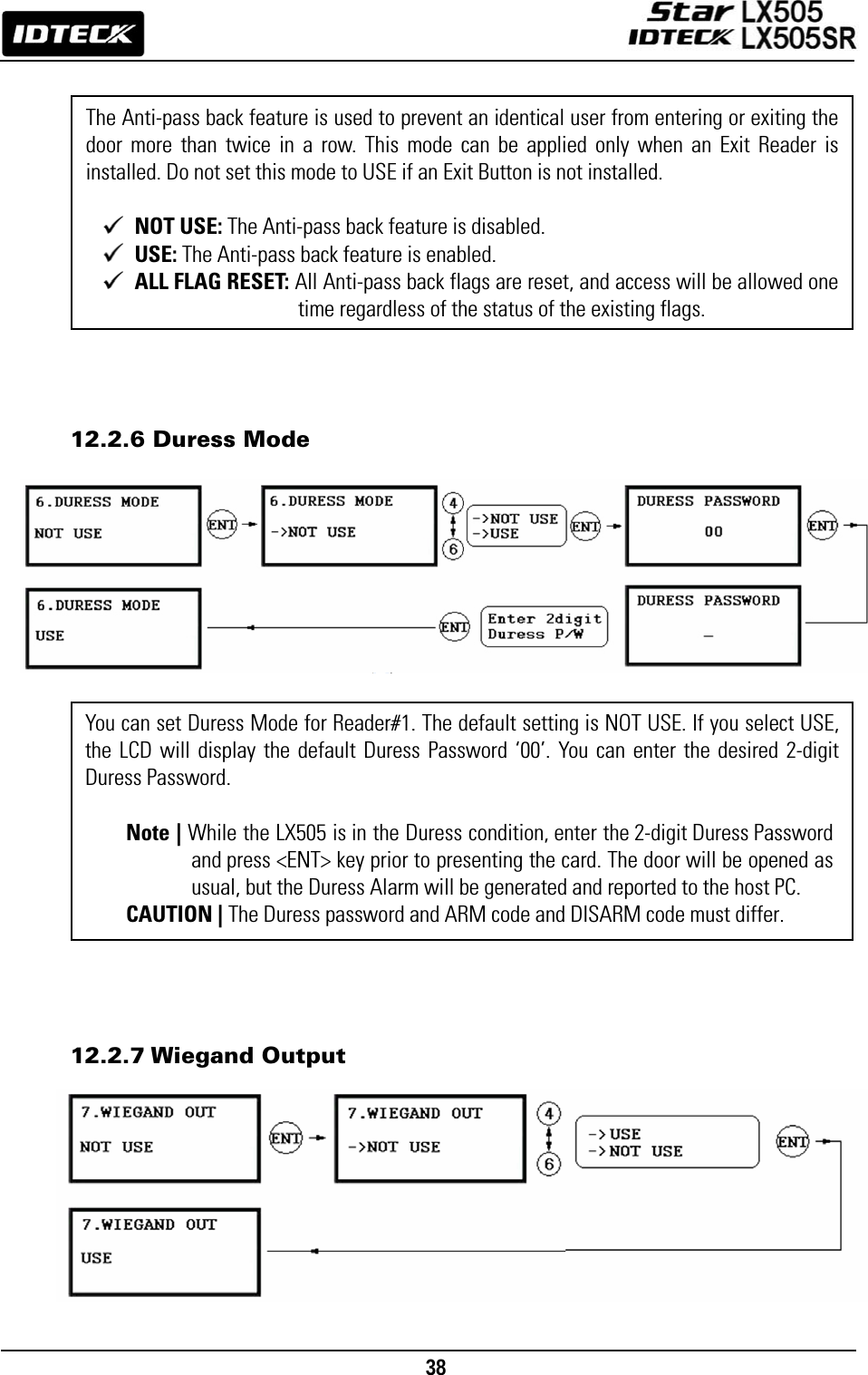

38 12.2.6 Duress Mode 12.2.7 Wiegand Output You can set Duress Mode for Reader#1. The default setting is NOT USE. If you select USE, the LCD will display the default Duress Password ‘00’. You can enter the desired 2-digit Duress Password. Note | While the LX505 is in the Duress condition, enter the 2-digit Duress Password and press <ENT> key prior to presenting the card. The door will be opened as usual, but the Duress Alarm will be generated and reported to the host PC. CAUTION | The Duress password and ARM code and DISARM code must differ. The Anti-pass back feature is used to prevent an identical user from entering or exiting the door more than twice in a row. This mode can be applied only when an Exit Reader is installed. Do not set this mode to USE if an Exit Button is not installed. NOT USE: The Anti-pass back feature is disabled. USE: The Anti-pass back feature is enabled. ALL FLAG RESET: All Anti-pass back flags are reset, and access will be allowed one time regardless of the status of the existing flags.

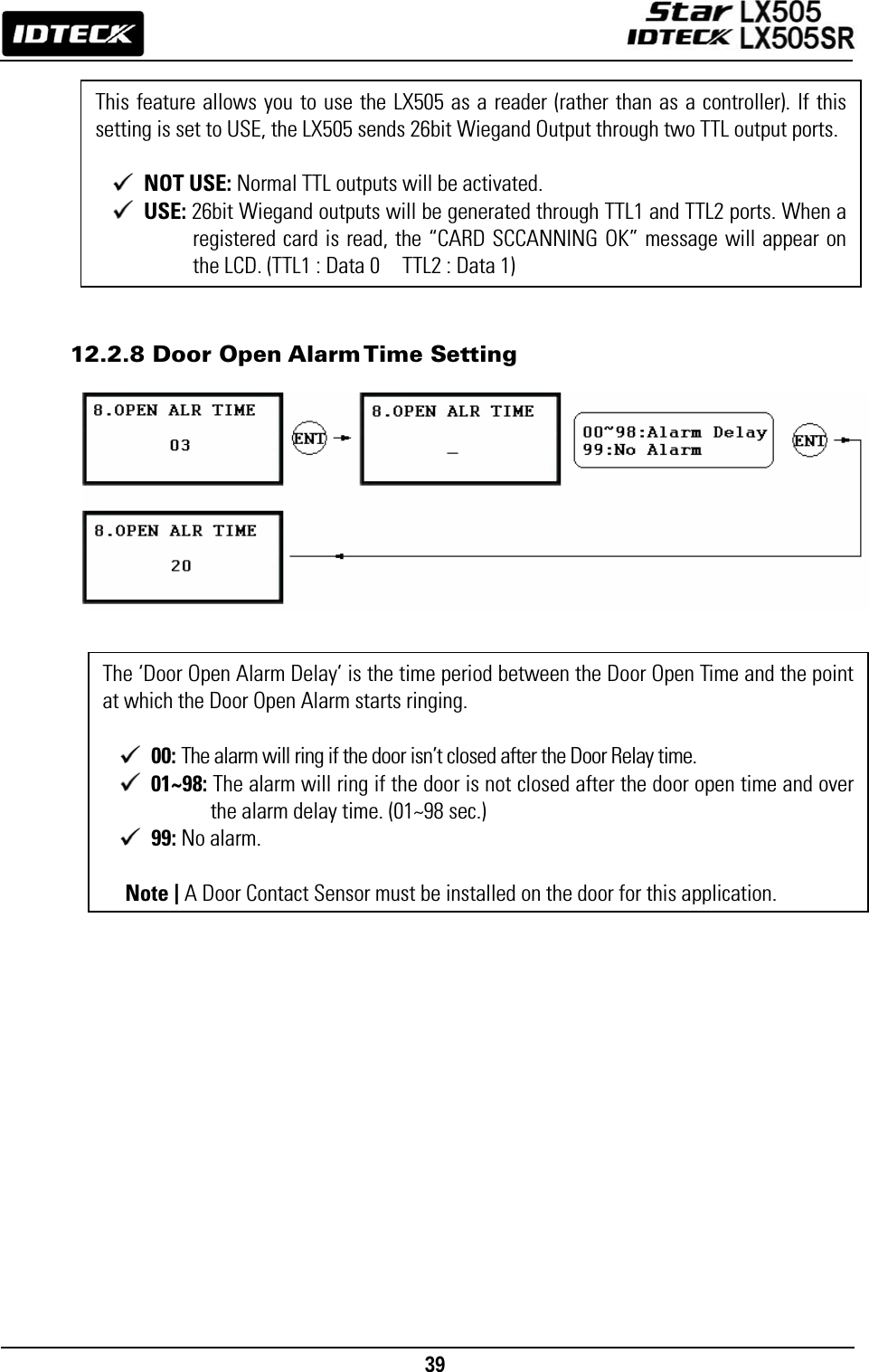

39 12.2.8 Door Open Alarm Time Setting The ‘Door Open Alarm Delay’ is the time period between the Door Open Time and the point at which the Door Open Alarm starts ringing. 00: The alarm will ring if the door isn’t closed after the Door Relay time. 01~98: The alarm will ring if the door is not closed after the door open time and over the alarm delay time. (01~98 sec.) 99: No alarm. Note | A Door Contact Sensor must be installed on the door for this application. This feature allows you to use the LX505 as a reader (rather than as a controller). If this setting is set to USE, the LX505 sends 26bit Wiegand Output through two TTL output ports. NOT USE: Normal TTL outputs will be activated. USE: 26bit Wiegand outputs will be generated through TTL1 and TTL2 ports. When a registered card is read, the “CARD SCCANNING OK” message will appear on the LCD. (TTL1 : Data 0 TTL2 : Data 1)

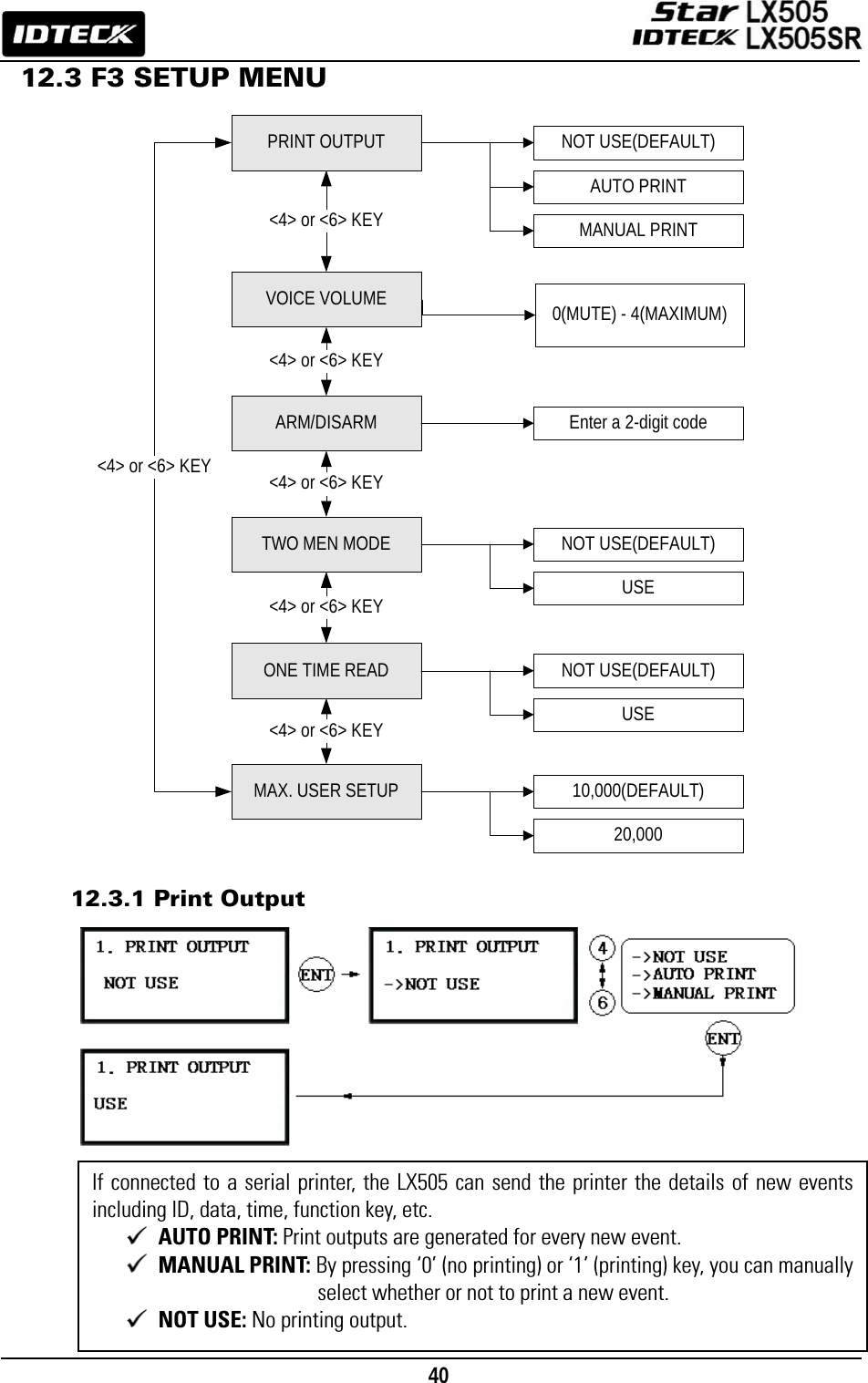

40 12.3 F3 SETUP MENU 12.3.1 Print Output If connected to a serial printer, the LX505 can send the printer the details of new events including ID, data, time, function key, etc. AUTO PRINT: Print outputs are generated for every new event. MANUAL PRINT: By pressing ‘0’ (no printing) or ‘1’ (printing) key, you can manually select whether or not to print a new event. NOT USE: No printing output. ONE TIME READ<4> or <6> KEYPRINT OUTPUTVOICE VOLUMEARM/DISARM<4> or <6> KEY<4> or <6> KEY<4> or <6> KEYTWO MEN MODE<4> or <6> KEYNOT USE(DEFAULT)AUTO PRINT0(MUTE) - 4(MAXIMUM)Enter a 2-digit codeNOT USE(DEFAULT)USEMAX. USER SETUP<4> or <6> KEY10,000(DEFAULT)20,000MANUAL PRINTNOT USE(DEFAULT)USE

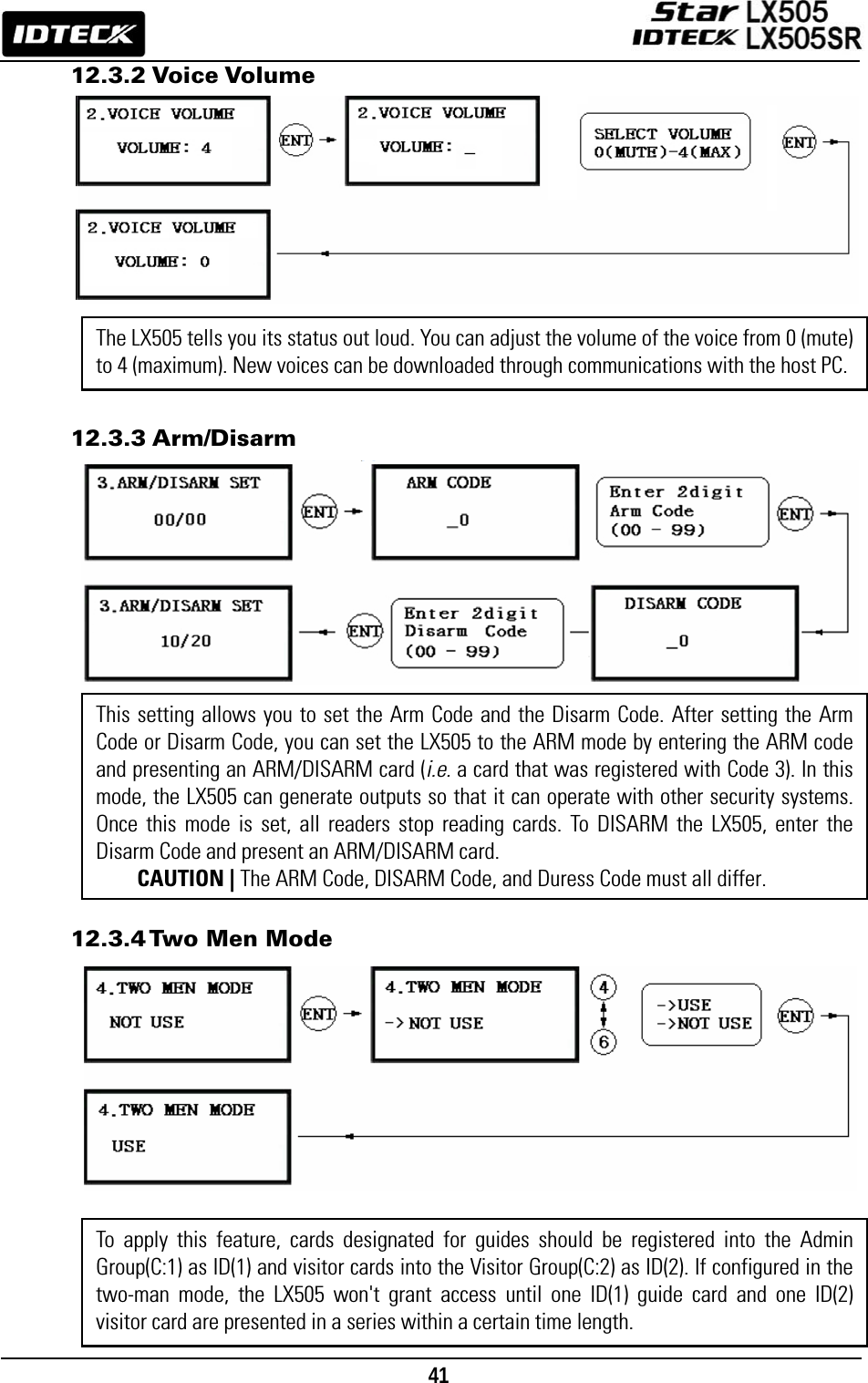

41 12.3.2 Voice Volume 12.3.3 Arm/Disarm 12.3.4 Two Men Mode The LX505 tells you its status out loud. You can adjust the volume of the voice from 0 (mute) to 4 (maximum). New voices can be downloaded through communications with the host PC. This setting allows you to set the Arm Code and the Disarm Code. After setting the Arm Code or Disarm Code, you can set the LX505 to the ARM mode by entering the ARM code and presenting an ARM/DISARM card (i.e. a card that was registered with Code 3). In this mode, the LX505 can generate outputs so that it can operate with other security systems. Once this mode is set, all readers stop reading cards. To DISARM the LX505, enter the Disarm Code and present an ARM/DISARM card. CAUTION | The ARM Code, DISARM Code, and Duress Code must all differ. To apply this feature, cards designated for guides should be registered into the Admin Group(C:1) as ID(1) and visitor cards into the Visitor Group(C:2) as ID(2). If configured in the two-man mode, the LX505 won't grant access until one ID(1) guide card and one ID(2) visitor card are presented in a series within a certain time length.

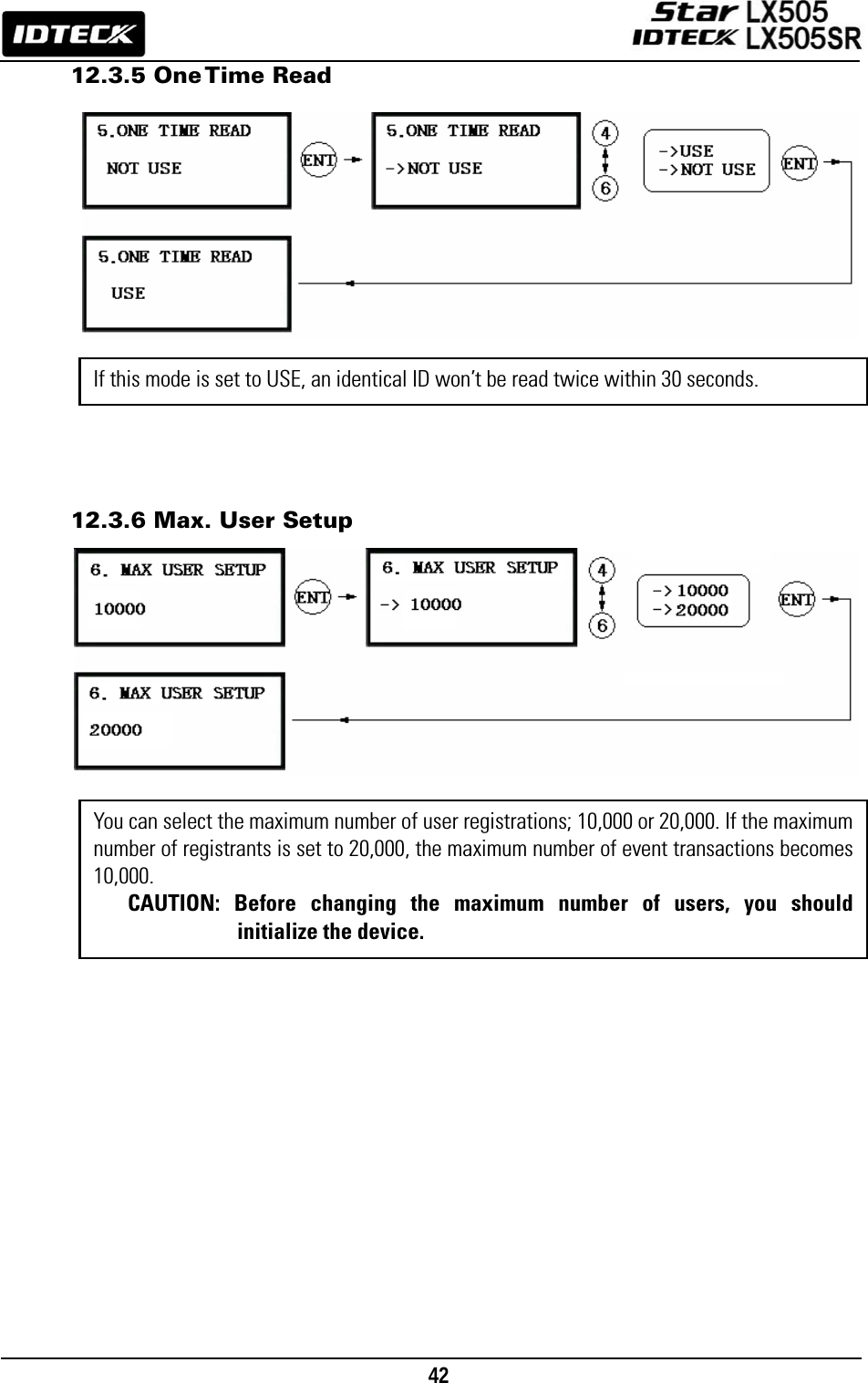

42 12.3.5 One Time Read 12.3.6 Max. User Setup If this mode is set to USE, an identical ID won’t be read twice within 30 seconds. You can select the maximum number of user registrations; 10,000 or 20,000. If the maximum number of registrants is set to 20,000, the maximum number of event transactions becomes 10,000. CAUTION: Before changing the maximum number of users, you should initialize the device.

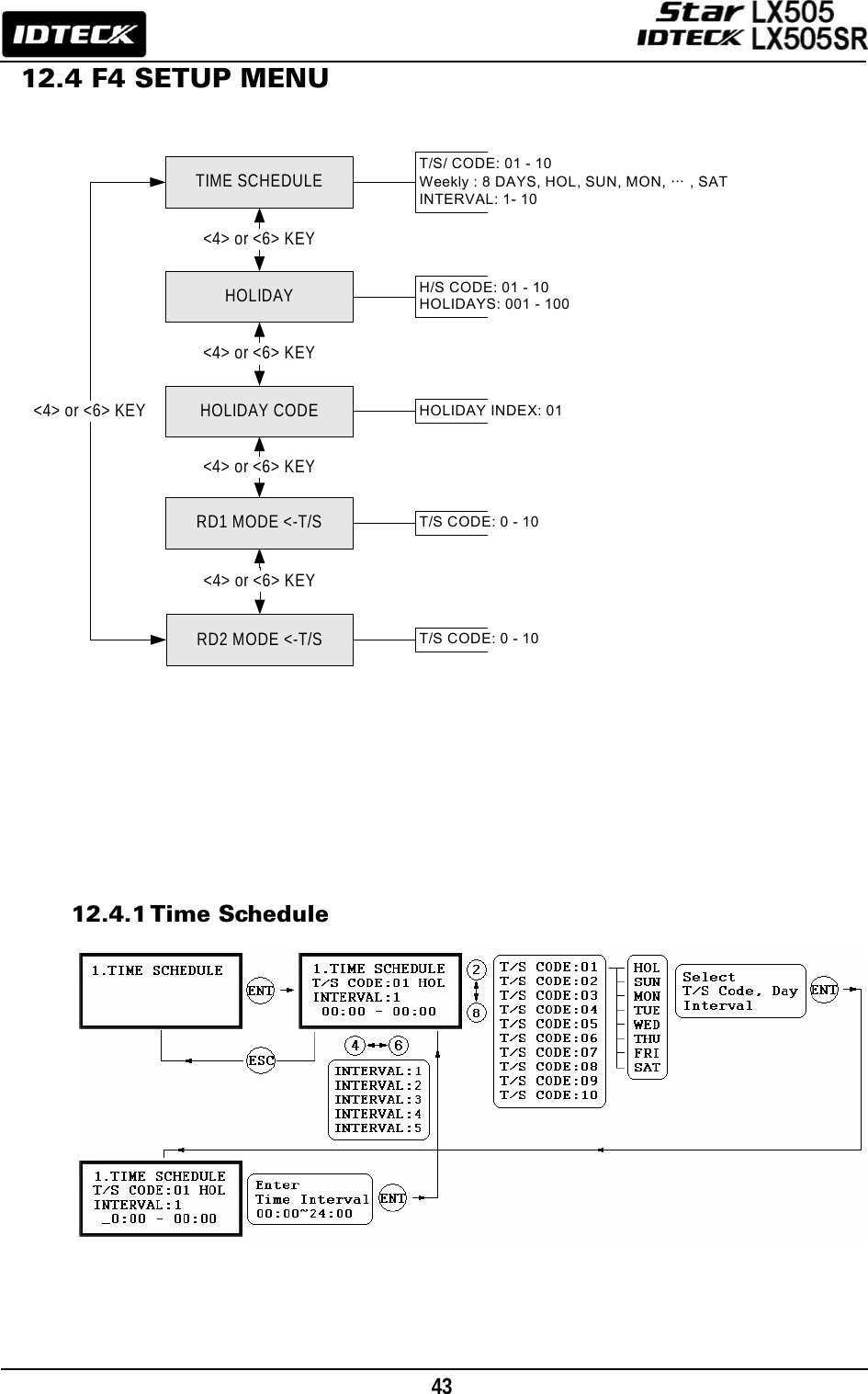

43 12.4 F4 SETUP MENU 12.4.1 Time Schedule TIME SCHEDULEHOLIDAYHOLIDAY CODE<4> or <6> KEY<4> or <6> KEY<4> or <6> KEY<4> or <6> KEYRD1 MODE <-T/SRD2 MODE <-T/S<4> or <6> KEYT/S/ CODE: 01 - 10Weekly : 8 DAYS, HOL, SUN, MON, … , SATINTERVAL: 1- 10H/S CODE: 01 - 10HOLIDAYS: 001 - 100HOLIDAY INDEX: 01T/S CODE: 0 - 10T/S CODE: 0 - 10

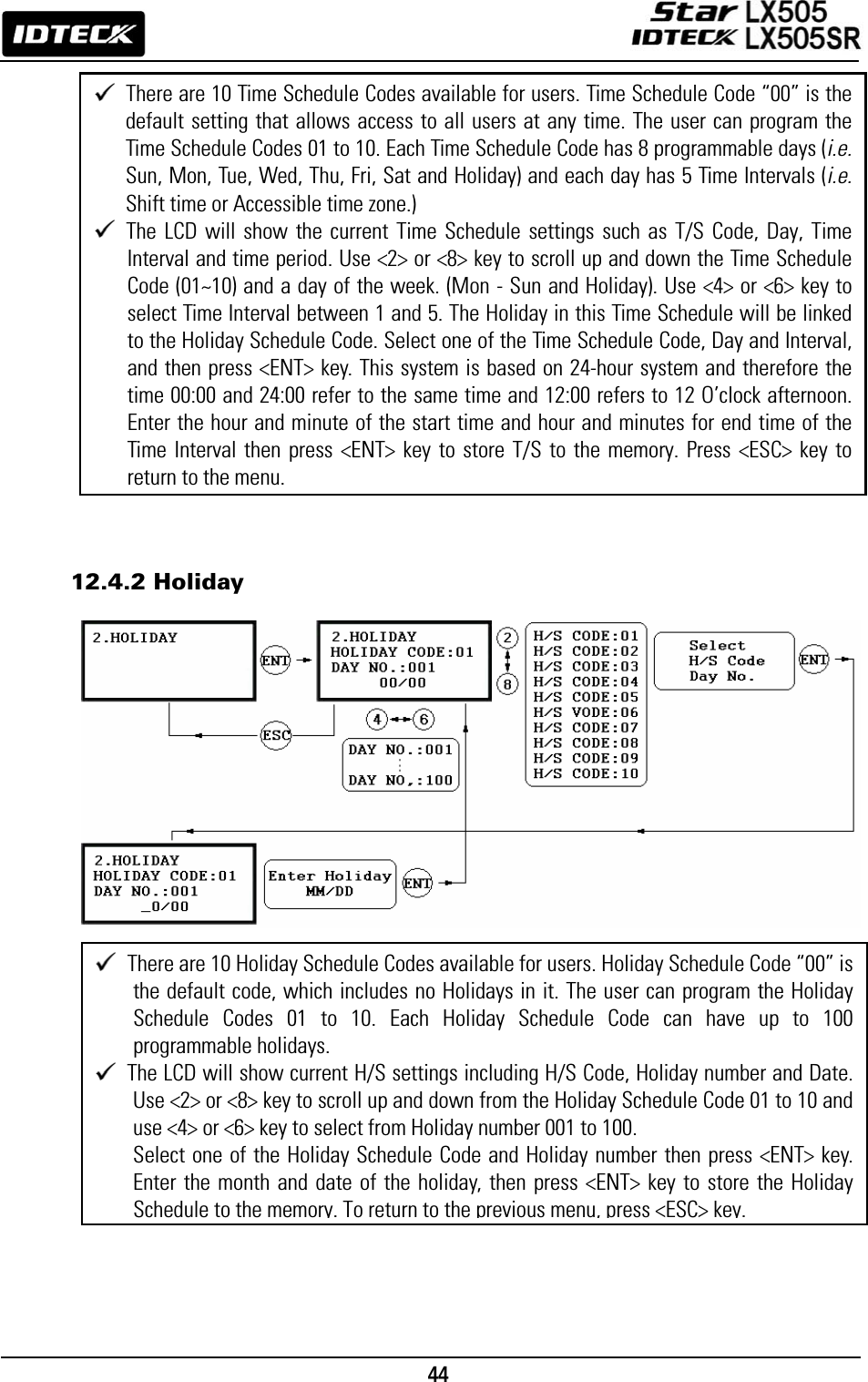

44 12.4.2 Holiday There are 10 Time Schedule Codes available for users. Time Schedule Code “00” is the default setting that allows access to all users at any time. The user can program the Time Schedule Codes 01 to 10. Each Time Schedule Code has 8 programmable days (i.e. Sun, Mon, Tue, Wed, Thu, Fri, Sat and Holiday) and each day has 5 Time Intervals (i.e. Shift time or Accessible time zone.) The LCD will show the current Time Schedule settings such as T/S Code, Day, Time Interval and time period. Use <2> or <8> key to scroll up and down the Time Schedule Code (01~10) and a day of the week. (Mon - Sun and Holiday). Use <4> or <6> key to select Time Interval between 1 and 5. The Holiday in this Time Schedule will be linked to the Holiday Schedule Code. Select one of the Time Schedule Code, Day and Interval, and then press <ENT> key. This system is based on 24-hour system and therefore the time 00:00 and 24:00 refer to the same time and 12:00 refers to 12 O’clock afternoon. Enter the hour and minute of the start time and hour and minutes for end time of the Time Interval then press <ENT> key to store T/S to the memory. Press <ESC> key to return to the menu. There are 10 Holiday Schedule Codes available for users. Holiday Schedule Code “00” is the default code, which includes no Holidays in it. The user can program the Holiday Schedule Codes 01 to 10. Each Holiday Schedule Code can have up to 100 programmable holidays. The LCD will show current H/S settings including H/S Code, Holiday number and Date. Use <2> or <8> key to scroll up and down from the Holiday Schedule Code 01 to 10 and use <4> or <6> key to select from Holiday number 001 to 100. Select one of the Holiday Schedule Code and Holiday number then press <ENT> key. Enter the month and date of the holiday, then press <ENT> key to store the Holiday Schedule to the memory. To return to the previous menu, press <ESC> key.

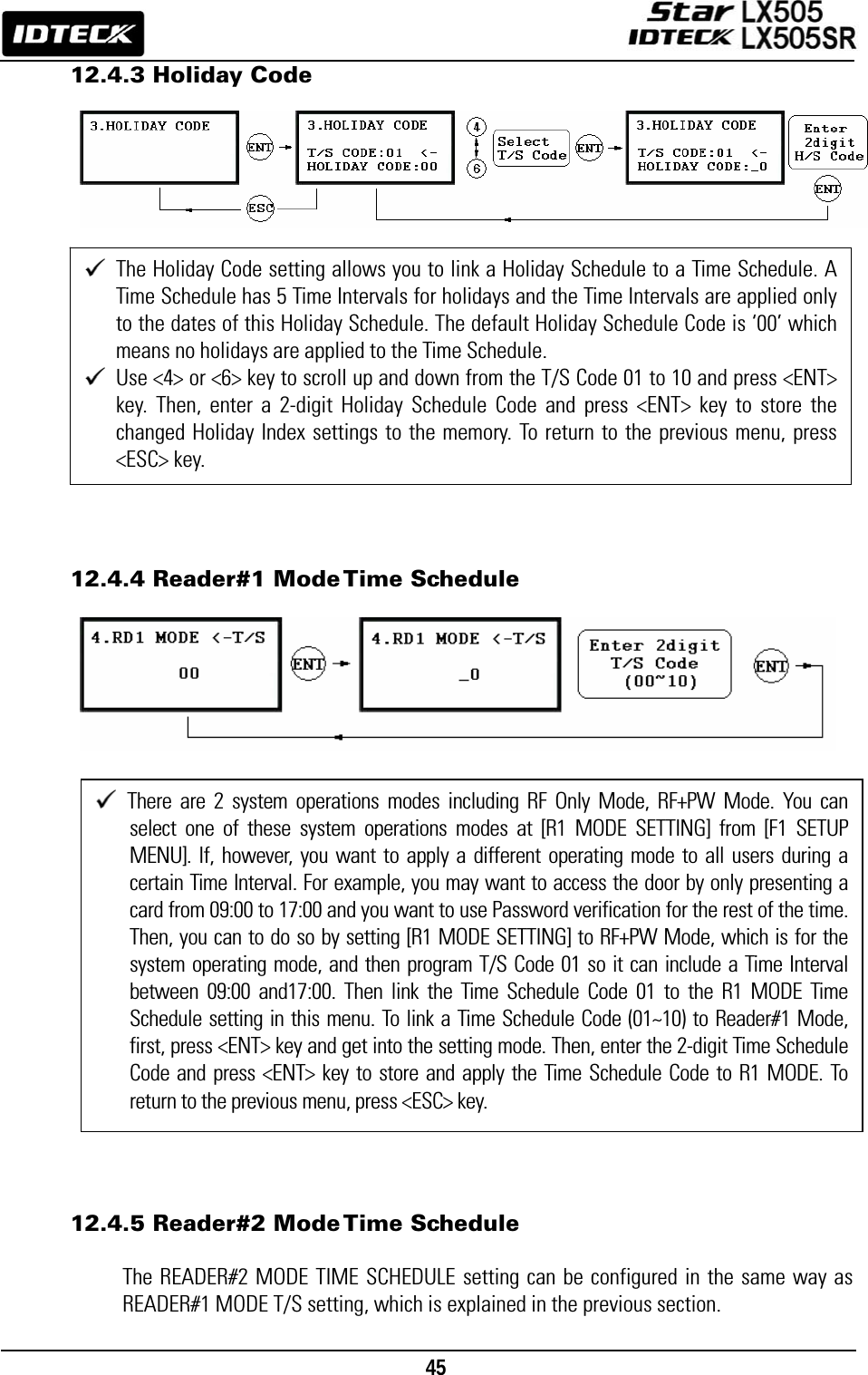

45 12.4.3 Holiday Code 12.4.4 Reader#1 Mode Time Schedule 12.4.5 Reader#2 Mode Time Schedule The READER#2 MODE TIME SCHEDULE setting can be configured in the same way as READER#1 MODE T/S setting, which is explained in the previous section. The Holiday Code setting allows you to link a Holiday Schedule to a Time Schedule. A Time Schedule has 5 Time Intervals for holidays and the Time Intervals are applied only to the dates of this Holiday Schedule. The default Holiday Schedule Code is ‘00’ which means no holidays are applied to the Time Schedule. Use <4> or <6> key to scroll up and down from the T/S Code 01 to 10 and press <ENT> key. Then, enter a 2-digit Holiday Schedule Code and press <ENT> key to store the changed Holiday Index settings to the memory. To return to the previous menu, press <ESC> key. There are 2 system operations modes including RF Only Mode, RF+PW Mode. You can select one of these system operations modes at [R1 MODE SETTING] from [F1 SETUP MENU]. If, however, you want to apply a different operating mode to all users during a certain Time Interval. For example, you may want to access the door by only presenting a card from 09:00 to 17:00 and you want to use Password verification for the rest of the time. Then, you can to do so by setting [R1 MODE SETTING] to RF+PW Mode, which is for the system operating mode, and then program T/S Code 01 so it can include a Time Interval between 09:00 and17:00. Then link the Time Schedule Code 01 to the R1 MODE Time Schedule setting in this menu. To link a Time Schedule Code (01~10) to Reader#1 Mode, first, press <ENT> key and get into the setting mode. Then, enter the 2-digit Time Schedule Code and press <ENT> key to store and apply the Time Schedule Code to R1 MODE. To return to the previous menu, press <ESC> key.

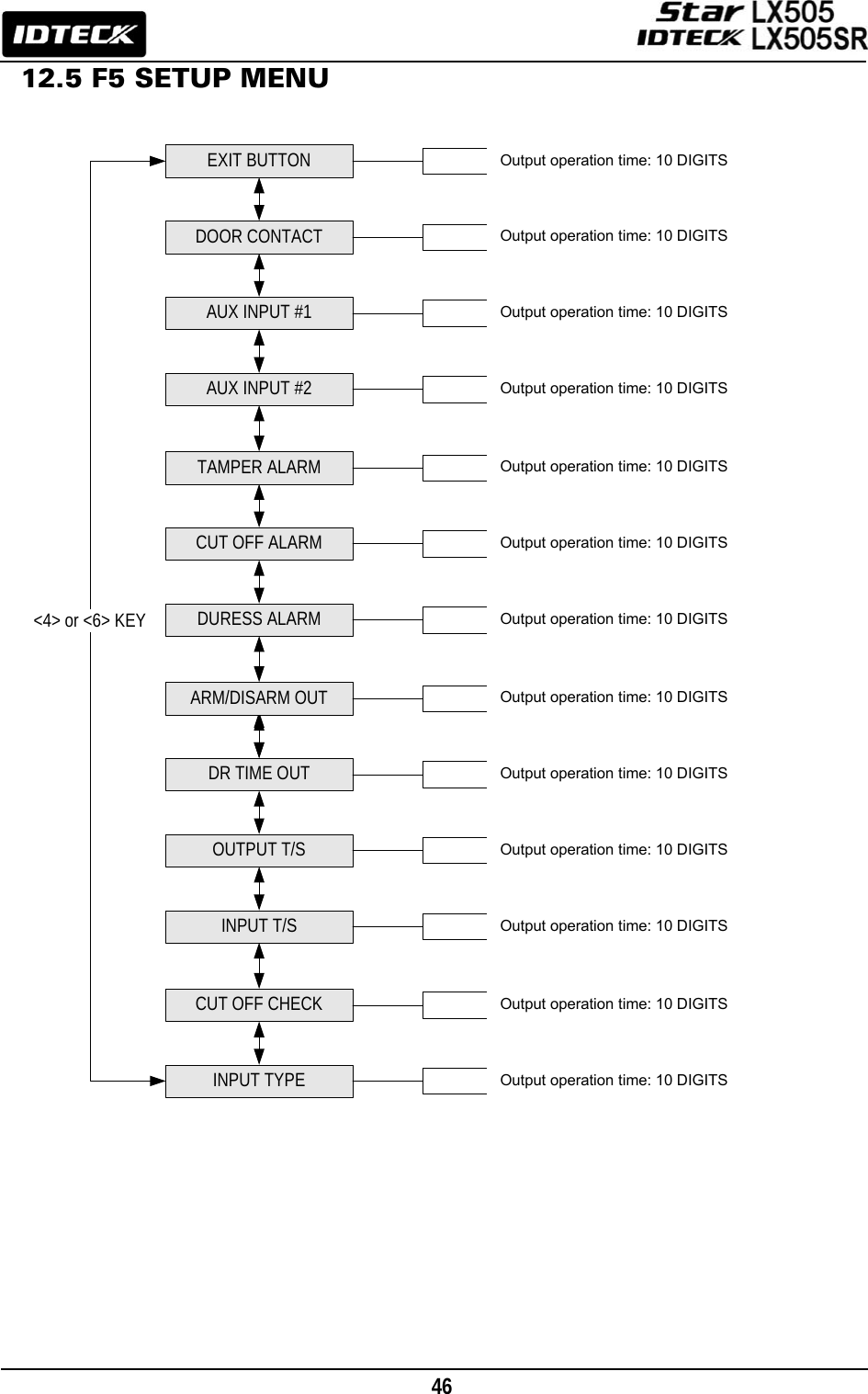

46 12.5 F5 SETUP MENU TAMPER ALARM<4> or <6> KEYEXIT BUTTONDOOR CONTACTAUX INPUT #1AUX INPUT #2DR TIME OUTCUT OFF ALARMDURESS ALARMCUT OFF CHECKARM/DISARM OUTOUTPUT T/SINPUT T/SINPUT TYPEOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITS

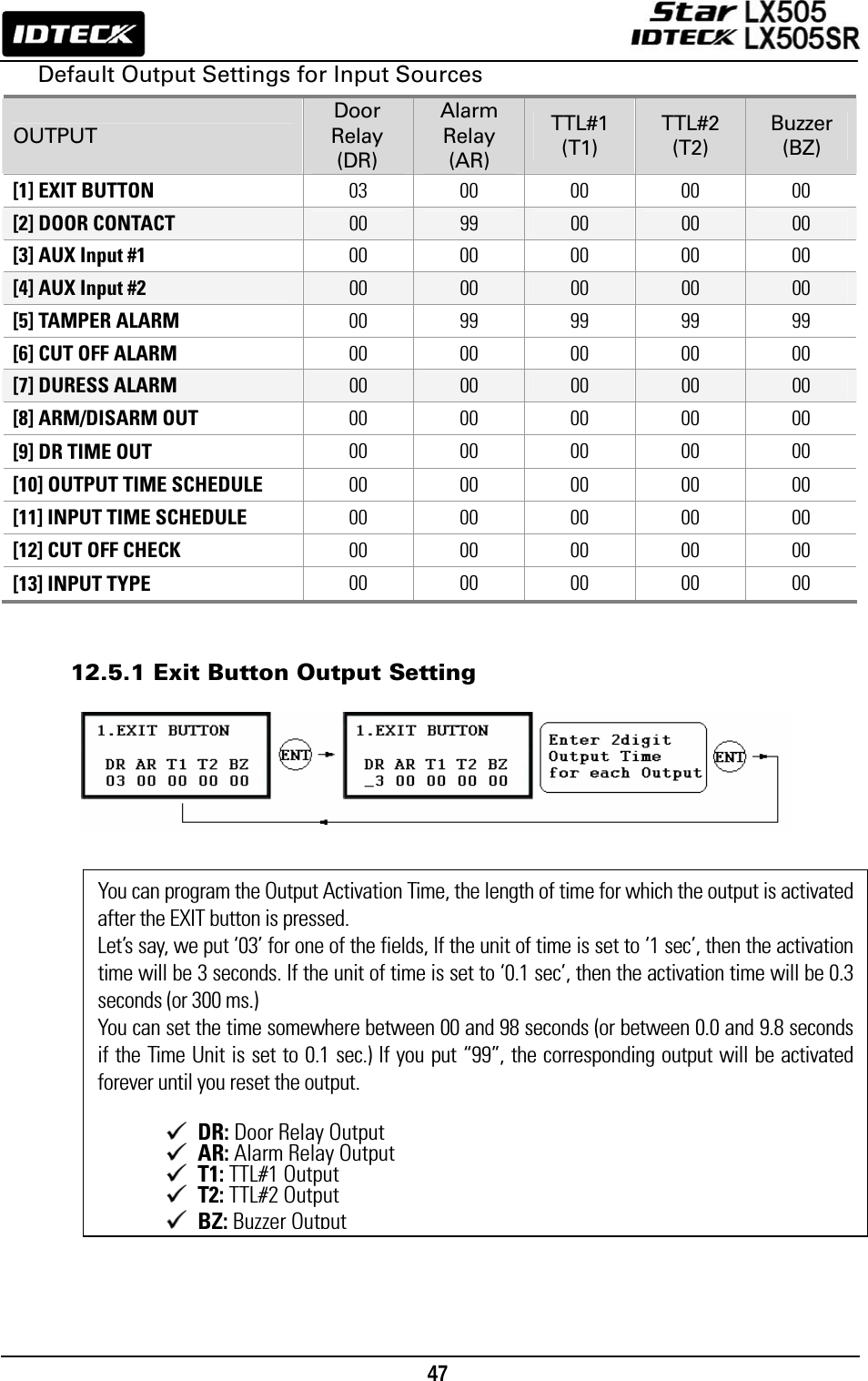

47 Default Output Settings for Input Sources 12.5.1 Exit Button Output Setting OUTPUT Door Relay (DR) Alarm Relay (AR) TTL#1 (T1) TTL#2 (T2) Buzzer (BZ) [1] EXIT BUTTON 03 00 00 00 00 [2] DOOR CONTACT 00 99 00 00 00 [3] AUX Input #1 00 00 00 00 00 [4] AUX Input #2 00 00 00 00 00 [5] TAMPER ALARM 00 99 99 99 99 [6] CUT OFF ALARM 00 00 00 00 00 [7] DURESS ALARM 00 00 00 00 00 [8] ARM/DISARM OUT 00 00 00 00 00 [9] DR TIME OUT 00 00 00 00 00 [10] OUTPUT TIME SCHEDULE 00 00 00 00 00 [11] INPUT TIME SCHEDULE 00 00 00 00 00 [12] CUT OFF CHECK 00 00 00 00 00 [13] INPUT TYPE 00 00 00 00 00 You can program the Output Activation Time, the length of time forwhich the output is activated after the EXIT button is pressed. Let’s say, we put ‘03’ for one of the fields, If the unit of time is set to ‘1 sec’, then the activation time will be 3 seconds. If the unit of time is set to ‘0.1 sec’, then the activation time will be 0.3 seconds (or 300 ms.) You can set the time somewhere between 00 and 98 seconds (or between 0.0 and 9.8 seconds if the Time Unit is set to 0.1 sec.) If you put “99”, the corresponding output will be activated forever until you reset the output. DR: Door Relay Output AR: Alarm Relay Output T1: TTL#1 Output T2: TTL#2 Output BZ:Buzzer Output

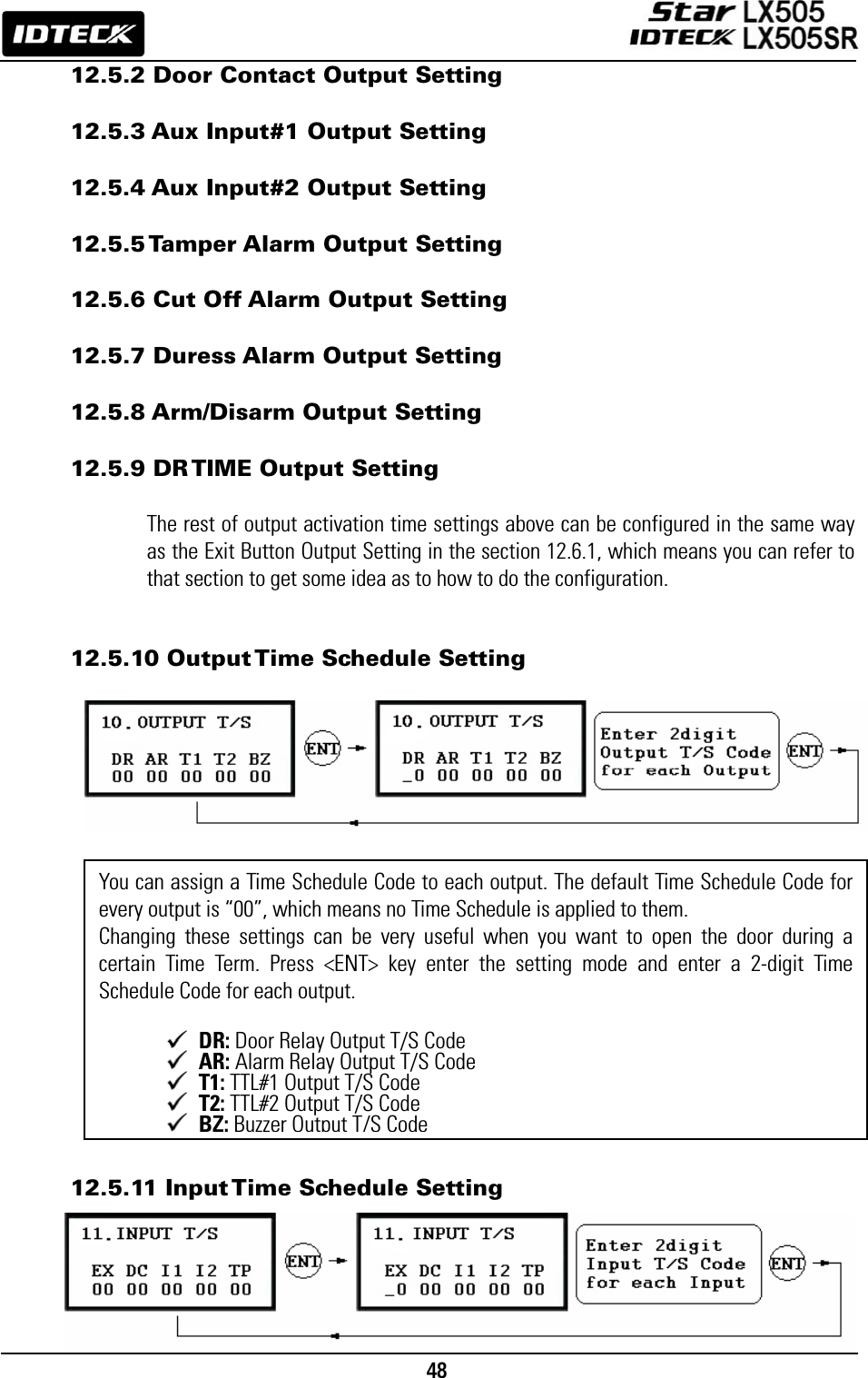

48 12.5.2 Door Contact Output Setting 12.5.3 Aux Input#1 Output Setting 12.5.4 Aux Input#2 Output Setting 12.5.5 Tamper Alarm Output Setting 12.5.6 Cut Off Alarm Output Setting 12.5.7 Duress Alarm Output Setting 12.5.8 Arm/Disarm Output Setting 12.5.9 DR TIME Output Setting The rest of output activation time settings above can be configured in the same way as the Exit Button Output Setting in the section 12.6.1, which means you can refer to that section to get some idea as to how to do the configuration. 12.5.10 Output Time Schedule Setting 12.5.11 Input Time Schedule Setting You can assign a Time Schedule Code to each output. The default Time Schedule Code for every output is “00”, which means no Time Schedule is applied to them. Changing these settings can be very useful when you want to open the door during a certain Time Term. Press <ENT> key enter the setting mode and enter a 2-digit Time Schedule Code for each output. DR: Door Relay Output T/S Code AR: Alarm Relay Output T/S Code T1: TTL#1 Output T/S Code T2: TTL#2 Output T/S Code BZ:Buzzer Output T/S Code

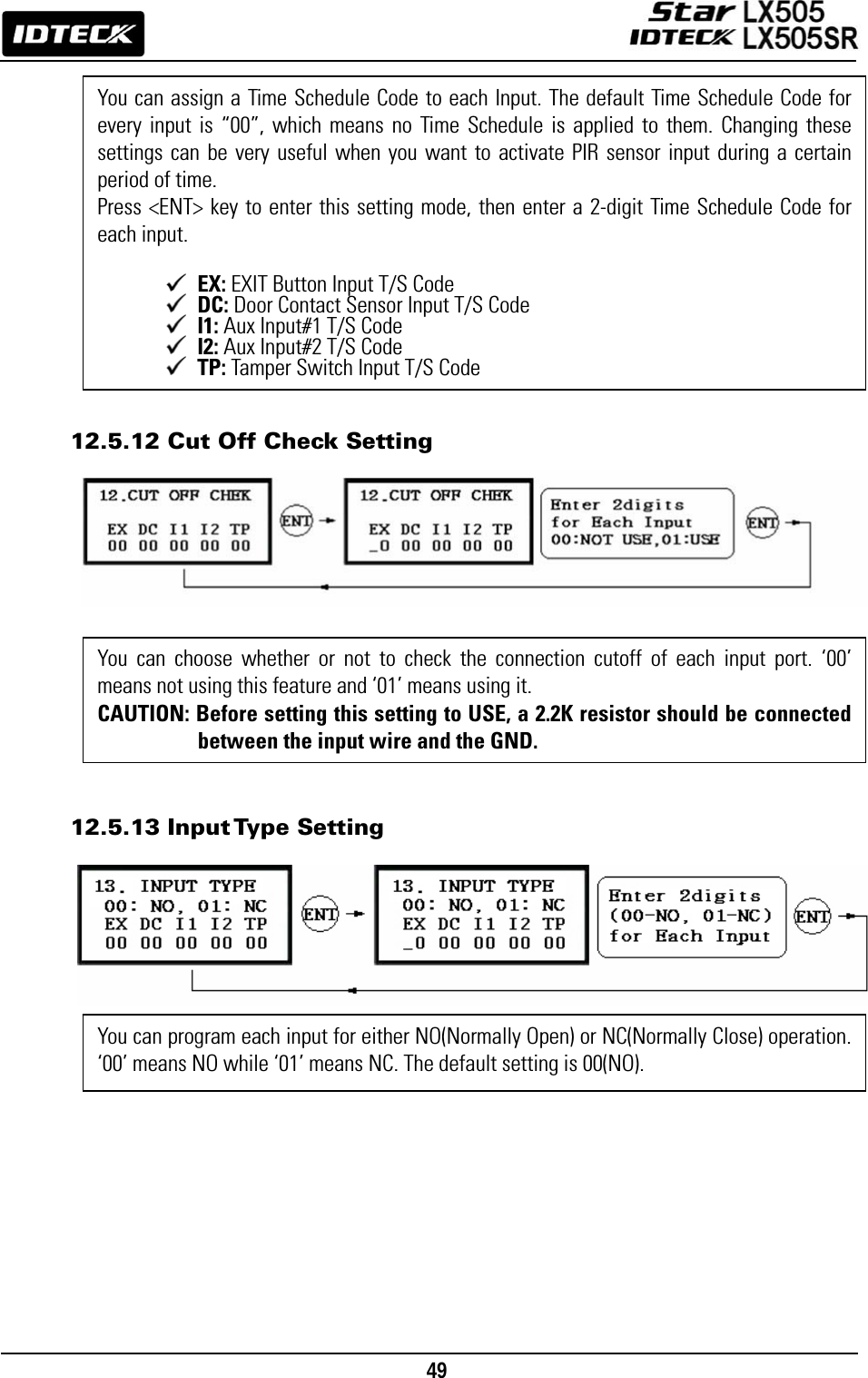

49 12.5.12 Cut Off Check Setting 12.5.13 Input Type Setting You can assign a Time Schedule Code to each Input. The default Time Schedule Code for every input is “00”, which means no Time Schedule is applied to them. Changing these settings can be very useful when you want to activate PIR sensor input during a certain period of time. Press <ENT> key to enter this setting mode, then enter a 2-digit Time Schedule Code for each input. EX: EXIT Button Input T/S Code DC: Door Contact Sensor Input T/S Code I1: Aux Input#1 T/S Code I2: Aux Input#2 T/S Code TP: Tamper Switch Input T/S Code You can choose whether or not to check the connection cutoff of each input port. ‘00’ means not using this feature and ‘01’ means using it. CAUTION: Before setting this setting to USE, a 2.2K resistor should be connected between the input wire and the GND. You can program each input for either NO(Normally Open) or NC(Normally Close) operation. ‘00’ means NO while ‘01’ means NC. The default setting is 00(NO).

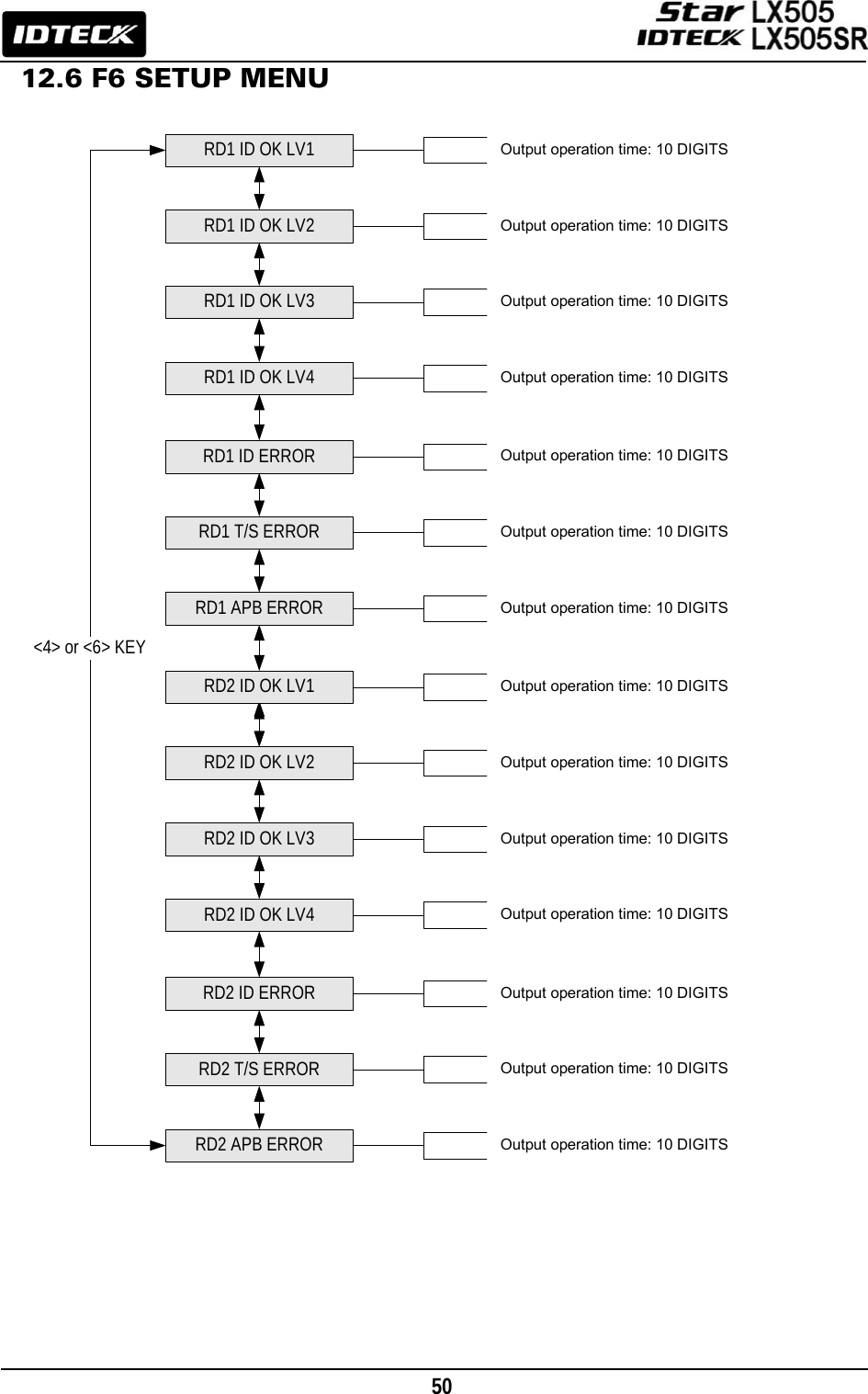

50 12.6 F6 SETUP MENU RD1 ID ERROR<4> or <6> KEYRD1 ID OK LV1RD1 ID OK LV2RD1 ID OK LV3RD1 ID OK LV4RD2 ID OK LV2RD1 T/S ERRORRD1 APB ERRORRD2 ID ERRORRD2 ID OK LV1RD2 ID OK LV3RD2 ID OK LV4RD2 T/S ERRORRD2 APB ERROROutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITSOutput operation time: 10 DIGITS

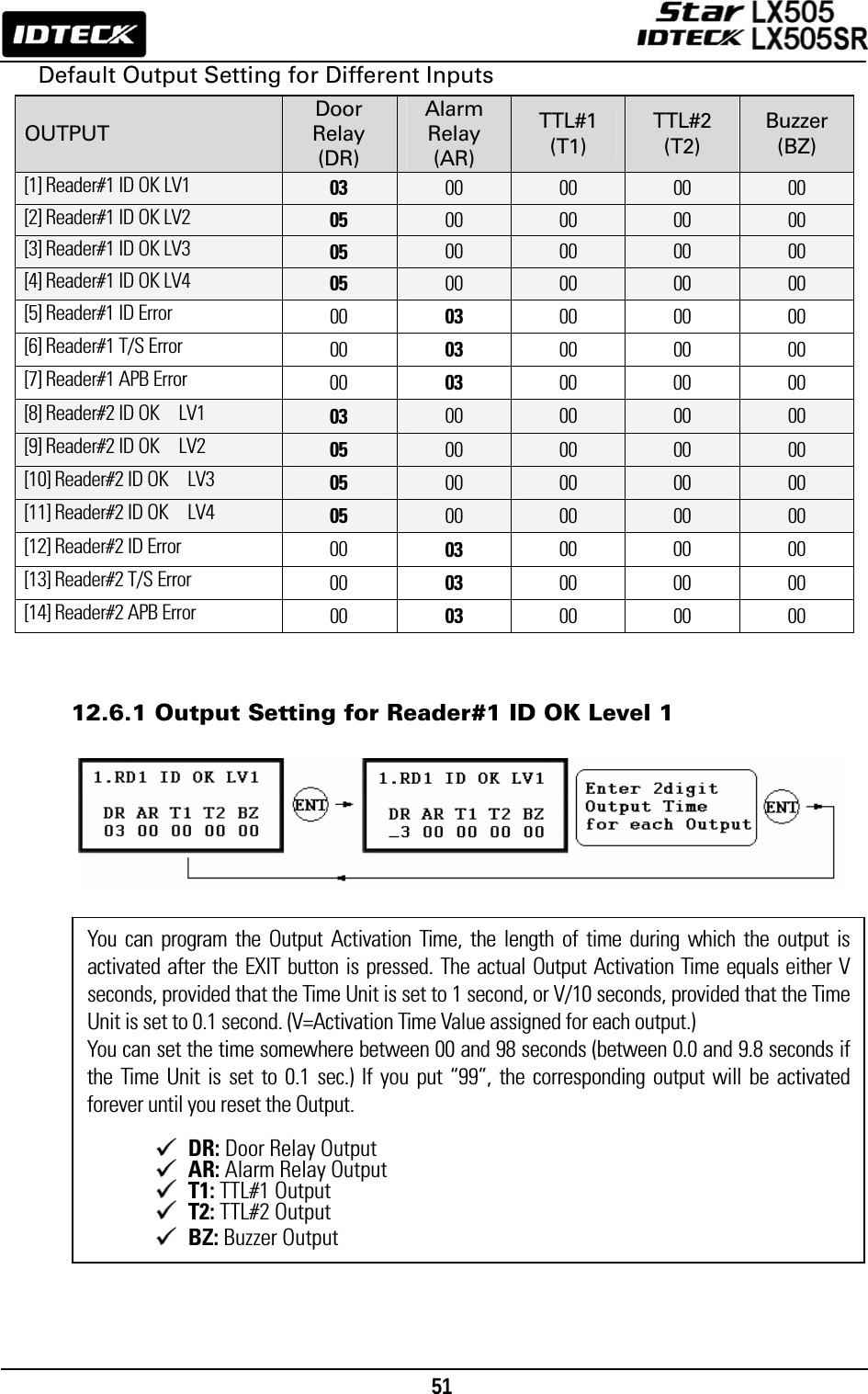

51 Default Output Setting for Different Inputs 12.6.1 Output Setting for Reader#1 ID OK Level 1 OUTPUT Door Relay (DR) Alarm Relay (AR) TTL#1 (T1) TTL#2 (T2) Buzzer (BZ) [1] Reader#1 ID OK LV1 03 00 00 00 00 [2] Reader#1 ID OK LV2 05 00 00 00 00 [3] Reader#1 ID OK LV3 05 00 00 00 00 [4] Reader#1 ID OK LV4 05 00 00 00 00 [5] Reader#1 ID Error 00 03 00 00 00 [6] Reader#1 T/S Error 00 03 00 00 00 [7] Reader#1 APB Error 00 03 00 00 00 [8] Reader#2 ID OK LV1 03 00 00 00 00 [9] Reader#2 ID OK LV2 05 00 00 00 00 [10] Reader#2 ID OK LV3 05 00 00 00 00 [11] Reader#2 ID OK LV4 05 00 00 00 00 [12] Reader#2 ID Error 00 03 00 00 00 [13] Reader#2 T/S Error 00 03 00 00 00 [14] Reader#2 APB Error 00 03 00 00 00 You can program the Output Activation Time, the length of time during which the output is activated after the EXIT button is pressed. The actual Output Activation Time equals either V seconds, provided that the Time Unit is set to 1 second, or V/10 seconds, provided that the Time Unit is set to 0.1 second. (V=Activation Time Value assigned for each output.) You can set the time somewhere between 00 and 98 seconds (between 0.0 and 9.8 seconds if the Time Unit is set to 0.1 sec.) If you put “99”, the corresponding output will be activated forever until you reset the Output. DR: Door Relay Output AR: Alarm Relay Output T1: TTL#1 Output T2: TTL#2 Output BZ: Buzzer Output

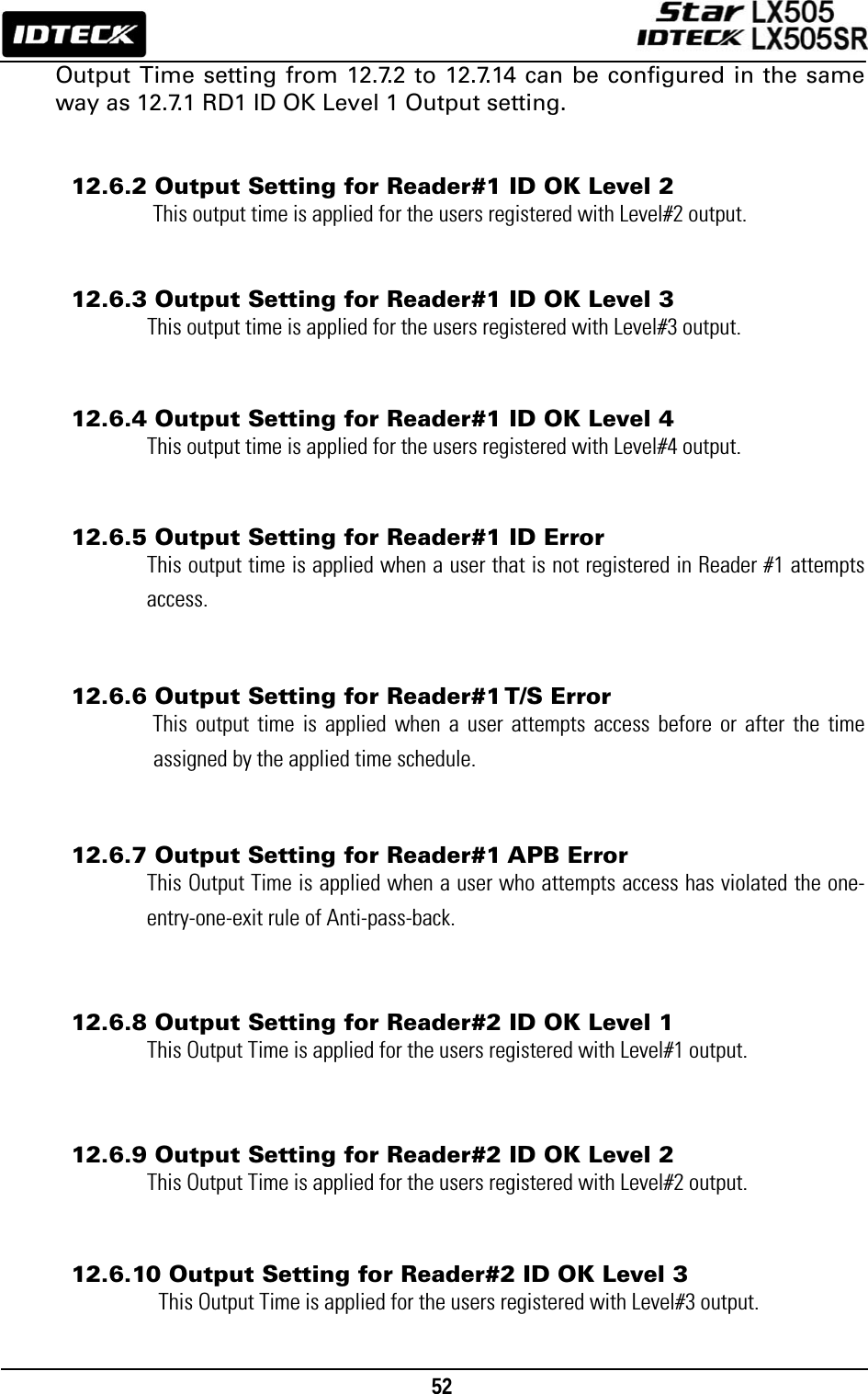

52 Output Time setting from 12.7.2 to 12.7.14 can be configured in the same way as 12.7.1 RD1 ID OK Level 1 Output setting. 12.6.2 Output Setting for Reader#1 ID OK Level 2 This output time is applied for the users registered with Level#2 output. 12.6.3 Output Setting for Reader#1 ID OK Level 3 This output time is applied for the users registered with Level#3 output. 12.6.4 Output Setting for Reader#1 ID OK Level 4 This output time is applied for the users registered with Level#4 output. 12.6.5 Output Setting for Reader#1 ID Error This output time is applied when a user that is not registered in Reader #1 attempts access. 12.6.6 Output Setting for Reader#1 T/S Error This output time is applied when a user attempts access before or after the time assigned by the applied time schedule. 12.6.7 Output Setting for Reader#1 APB Error This Output Time is applied when a user who attempts access has violated the one-entry-one-exit rule of Anti-pass-back. 12.6.8 Output Setting for Reader#2 ID OK Level 1 This Output Time is applied for the users registered with Level#1 output. 12.6.9 Output Setting for Reader#2 ID OK Level 2 This Output Time is applied for the users registered with Level#2 output. 12.6.10 Output Setting for Reader#2 ID OK Level 3 This Output Time is applied for the users registered with Level#3 output.

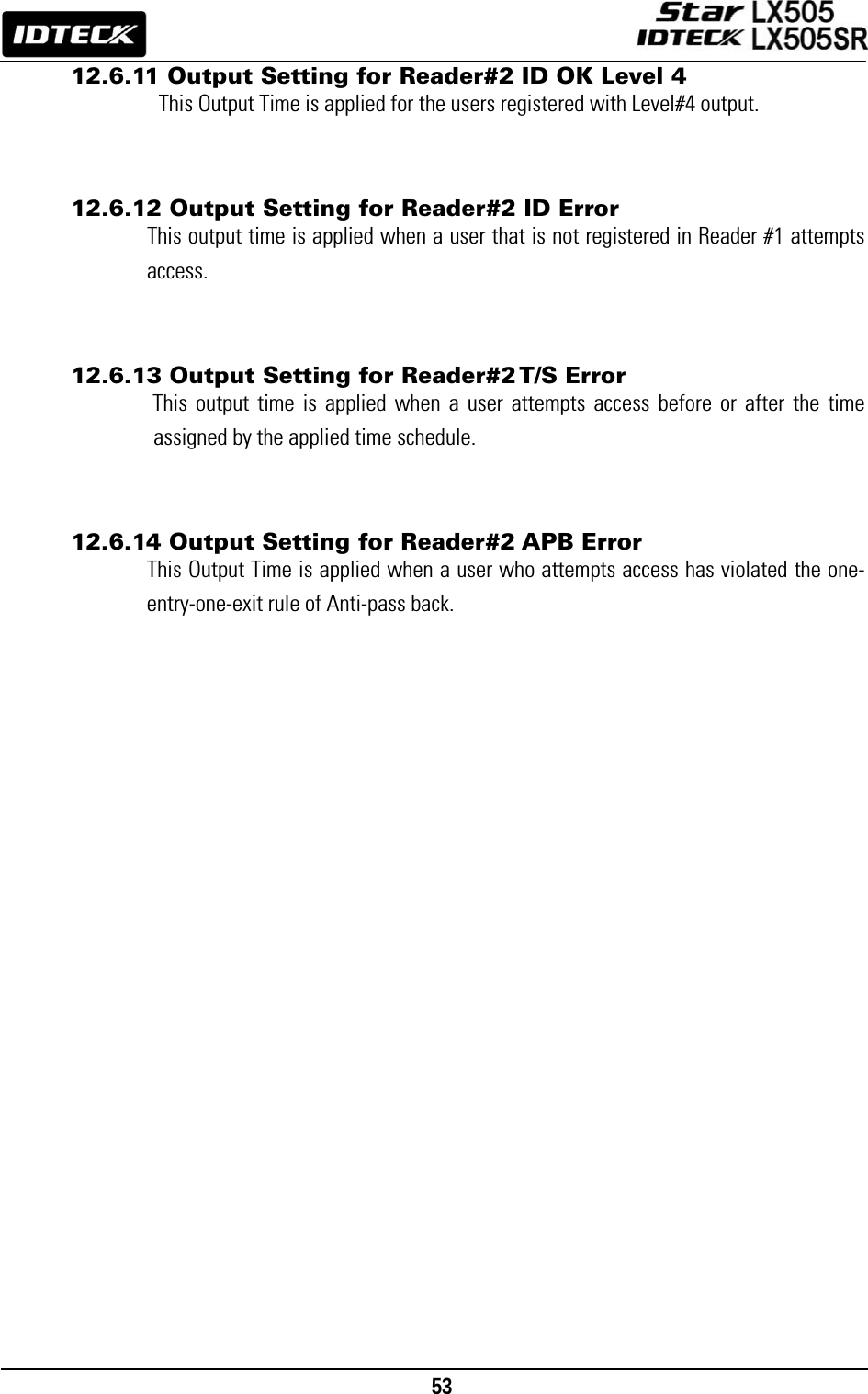

53 12.6.11 Output Setting for Reader#2 ID OK Level 4 This Output Time is applied for the users registered with Level#4 output. 12.6.12 Output Setting for Reader#2 ID Error This output time is applied when a user that is not registered in Reader #1 attempts access. 12.6.13 Output Setting for Reader#2 T/S Error This output time is applied when a user attempts access before or after the time assigned by the applied time schedule. 12.6.14 Output Setting for Reader#2 APB Error This Output Time is applied when a user who attempts access has violated the one-entry-one-exit rule of Anti-pass back.

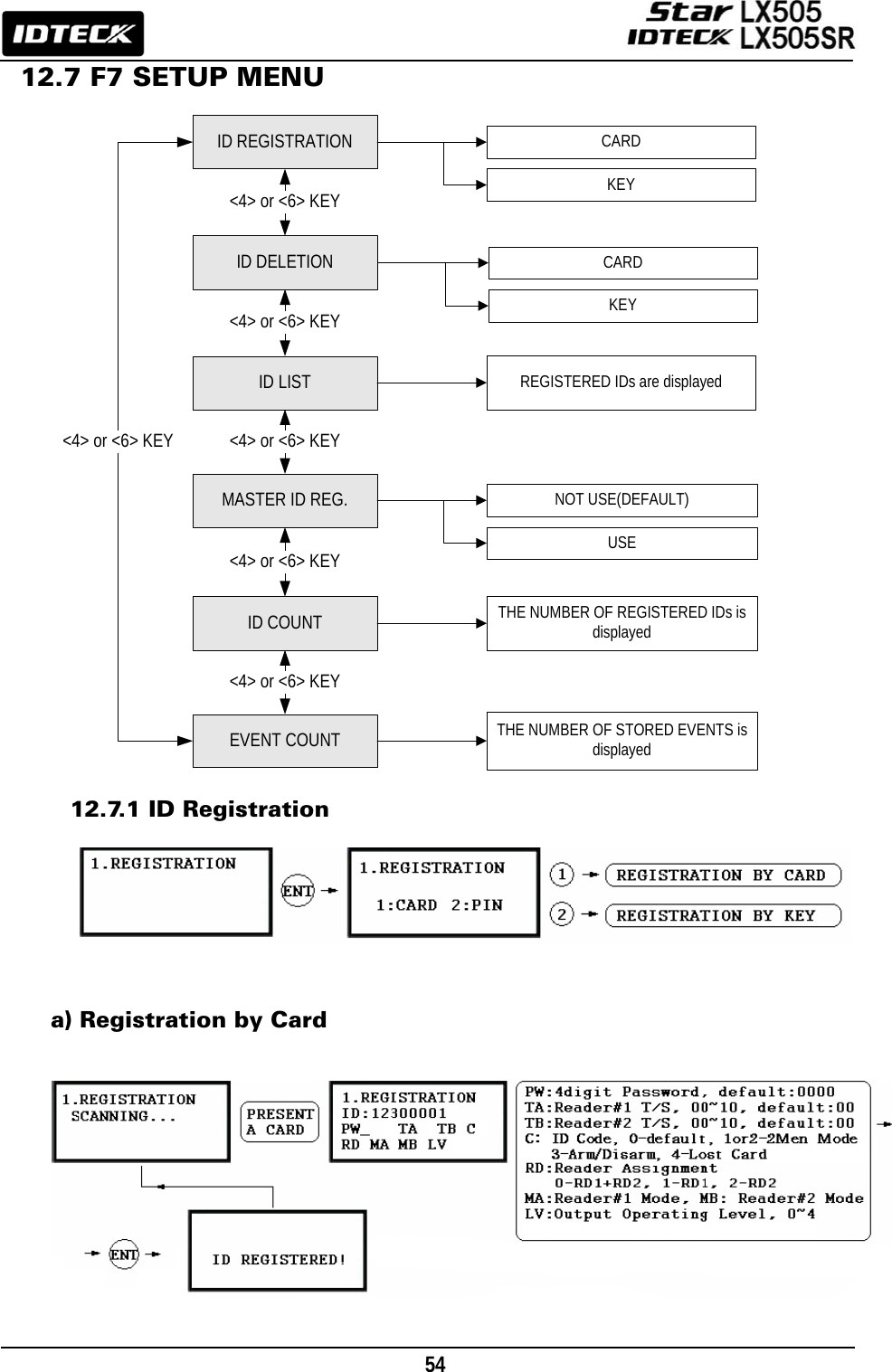

54 12.7 F7 SETUP MENU 12.7.1 ID Registration a) Registration by Card ID COUNTEVENT COUNT<4> or <6> KEY<4> or <6> KEYID REGISTRATIONID DELETIONID LIST<4> or <6> KEY<4> or <6> KEY<4> or <6> KEYMASTER ID REG.<4> or <6> KEYCARDKEYCARDKEYREGISTERED IDs are displayedNOT USE(DEFAULT)USETHE NUMBER OF REGISTERED IDs is displayedTHE NUMBER OF STORED EVENTS is displayed

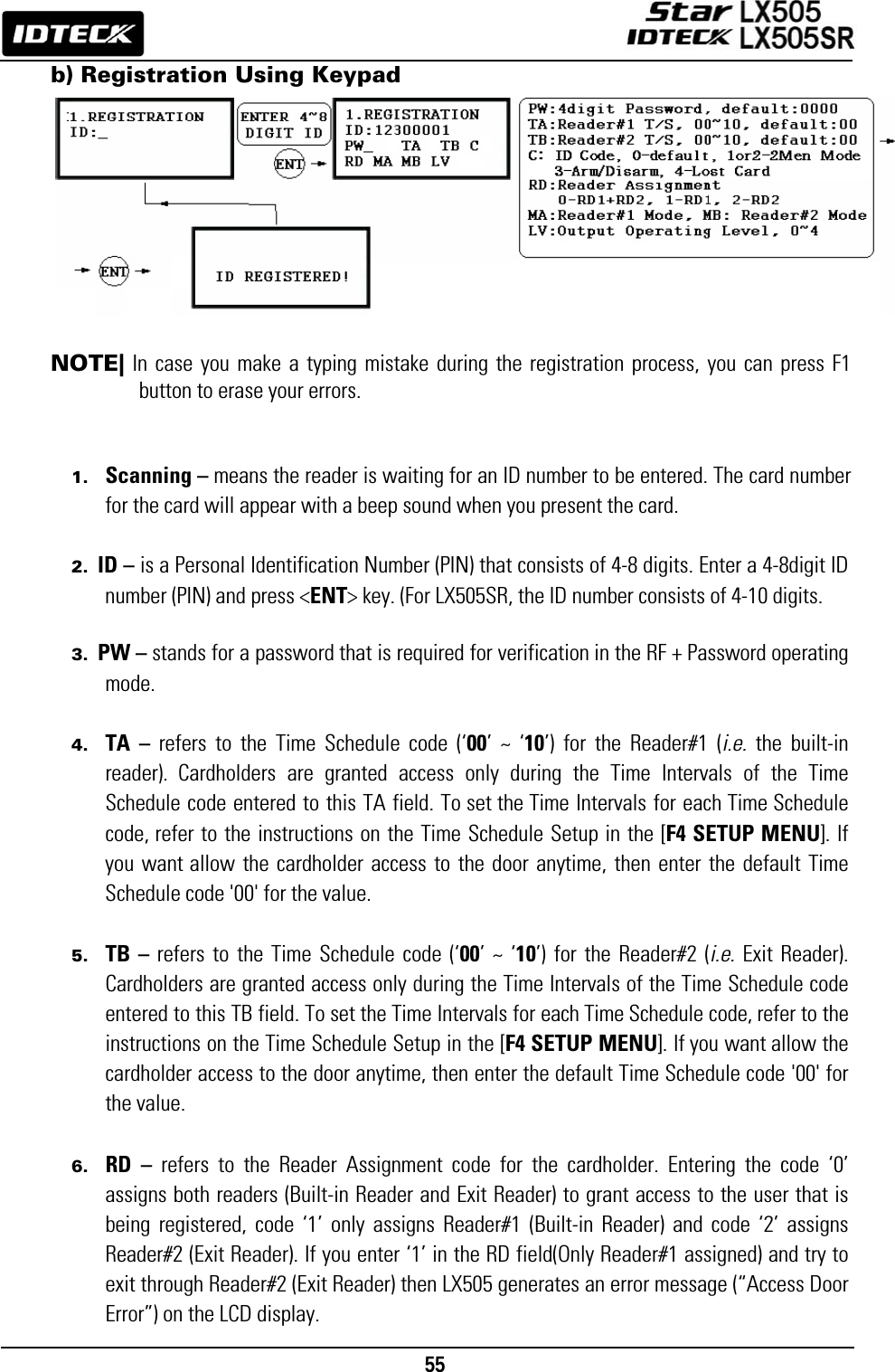

55 b) Registration Using Keypad NOTE| In case you make a typing mistake during the registration process, you can press F1 button to erase your errors. 1. Scanning – means the reader is waiting for an ID number to be entered. The card number for the card will appear with a beep sound when you present the card. 2. ID – is a Personal Identification Number (PIN) that consists of 4-8 digits. Enter a 4-8digit ID number (PIN) and press <ENT> key. (For LX505SR, the ID number consists of 4-10 digits. 3. PW – stands for a password that is required for verification in the RF + Password operating mode. 4. TA – refers to the Time Schedule code (‘00’ ~ ‘10’) for the Reader#1 (i.e. the built-in reader). Cardholders are granted access only during the Time Intervals of the Time Schedule code entered to this TA field. To set the Time Intervals for each Time Schedule code, refer to the instructions on the Time Schedule Setup in the [F4 SETUP MENU]. If you want allow the cardholder access to the door anytime, then enter the default Time Schedule code '00' for the value. 5. TB – refers to the Time Schedule code (‘00’ ~ ‘10’) for the Reader#2 (i.e. Exit Reader). Cardholders are granted access only during the Time Intervals of the Time Schedule code entered to this TB field. To set the Time Intervals for each Time Schedule code, refer to the instructions on the Time Schedule Setup in the [F4 SETUP MENU]. If you want allow the cardholder access to the door anytime, then enter the default Time Schedule code '00' for the value. 6. RD – refers to the Reader Assignment code for the cardholder. Entering the code ‘0’ assigns both readers (Built-in Reader and Exit Reader) to grant access to the user that is being registered, code ‘1’ only assigns Reader#1 (Built-in Reader) and code ‘2’ assigns Reader#2 (Exit Reader). If you enter ‘1’ in the RD field(Only Reader#1 assigned) and try to exit through Reader#2 (Exit Reader) then LX505 generates an error message (“Access Door Error”) on the LCD display.

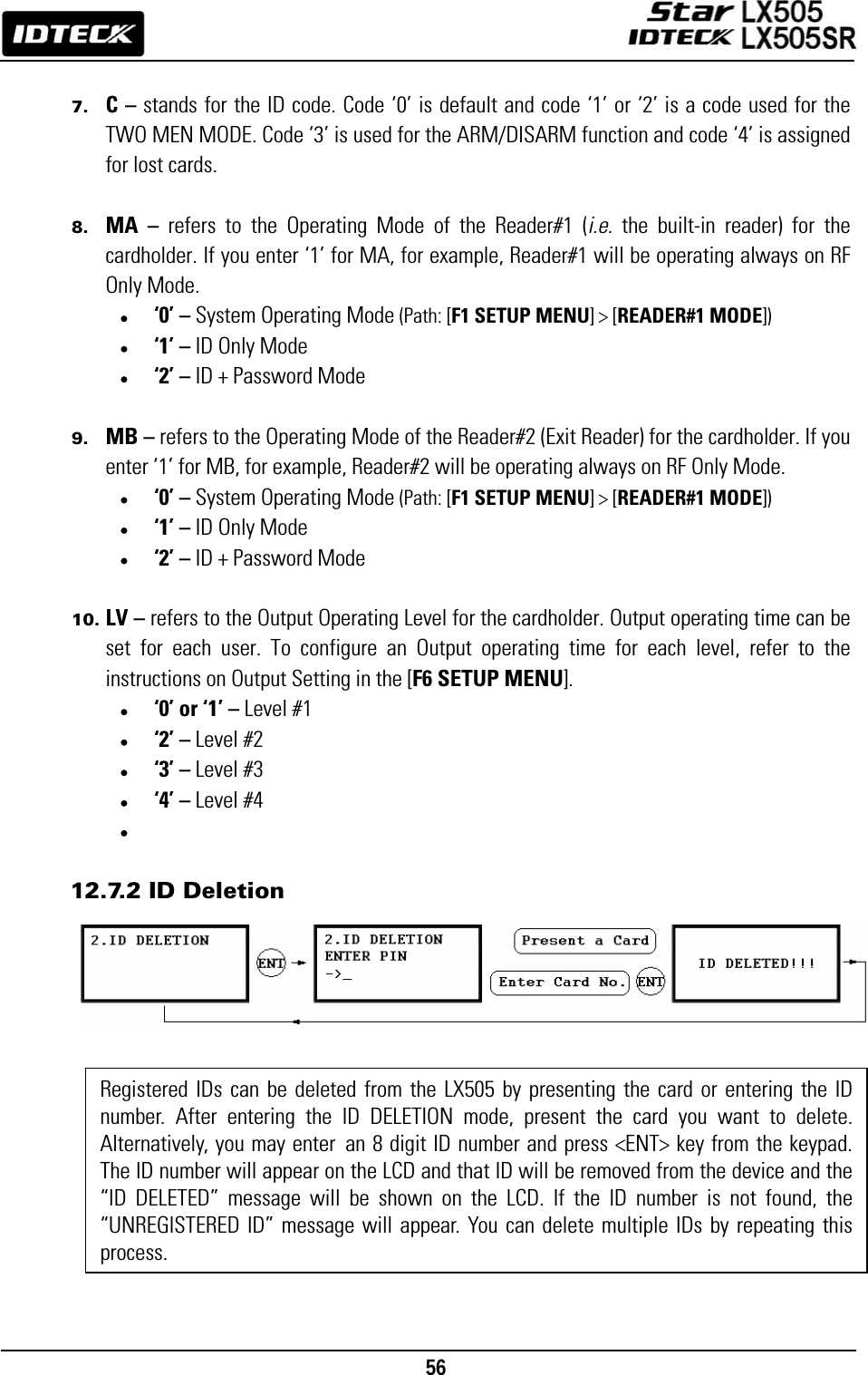

56 7. C – stands for the ID code. Code ‘0’ is default and code ‘1’ or ‘2’ is a code used for the TWO MEN MODE. Code ‘3’ is used for the ARM/DISARM function and code ‘4’ is assigned for lost cards. 8. MA – refers to the Operating Mode of the Reader#1 (i.e. the built-in reader) for the cardholder. If you enter ‘1’ for MA, for example, Reader#1 will be operating always on RF Only Mode. • ‘0’ – System Operating Mode (Path: [F1 SETUP MENU] > [READER#1 MODE]) • ‘1’ – ID Only Mode • ‘2’ – ID + Password Mode 9. MB – refers to the Operating Mode of the Reader#2 (Exit Reader) for the cardholder. If you enter ‘1’ for MB, for example, Reader#2 will be operating always on RF Only Mode. • ‘0’ – System Operating Mode (Path: [F1 SETUP MENU] > [READER#1 MODE]) • ‘1’ – ID Only Mode • ‘2’ – ID + Password Mode 10. LV – refers to the Output Operating Level for the cardholder. Output operating time can be set for each user. To configure an Output operating time for each level, refer to the instructions on Output Setting in the [F6 SETUP MENU]. • ‘0’ or ‘1’ – Level #1 • ‘2’ – Level #2 • ‘3’ – Level #3 • ‘4’ – Level #4 • 12.7.2 ID Deletion Registered IDs can be deleted from the LX505 by presenting the card or entering the ID number. After entering the ID DELETION mode, present the card you want to delete. Alternatively, you may enter an 8 digit ID number and press <ENT> key from the keypad. The ID number will appear on the LCD and that ID will be removed from the device and the “ID DELETED” message will be shown on the LCD. If the ID number is not found, the “UNREGISTERED ID” message will appear. You can delete multiple IDs by repeating this process.

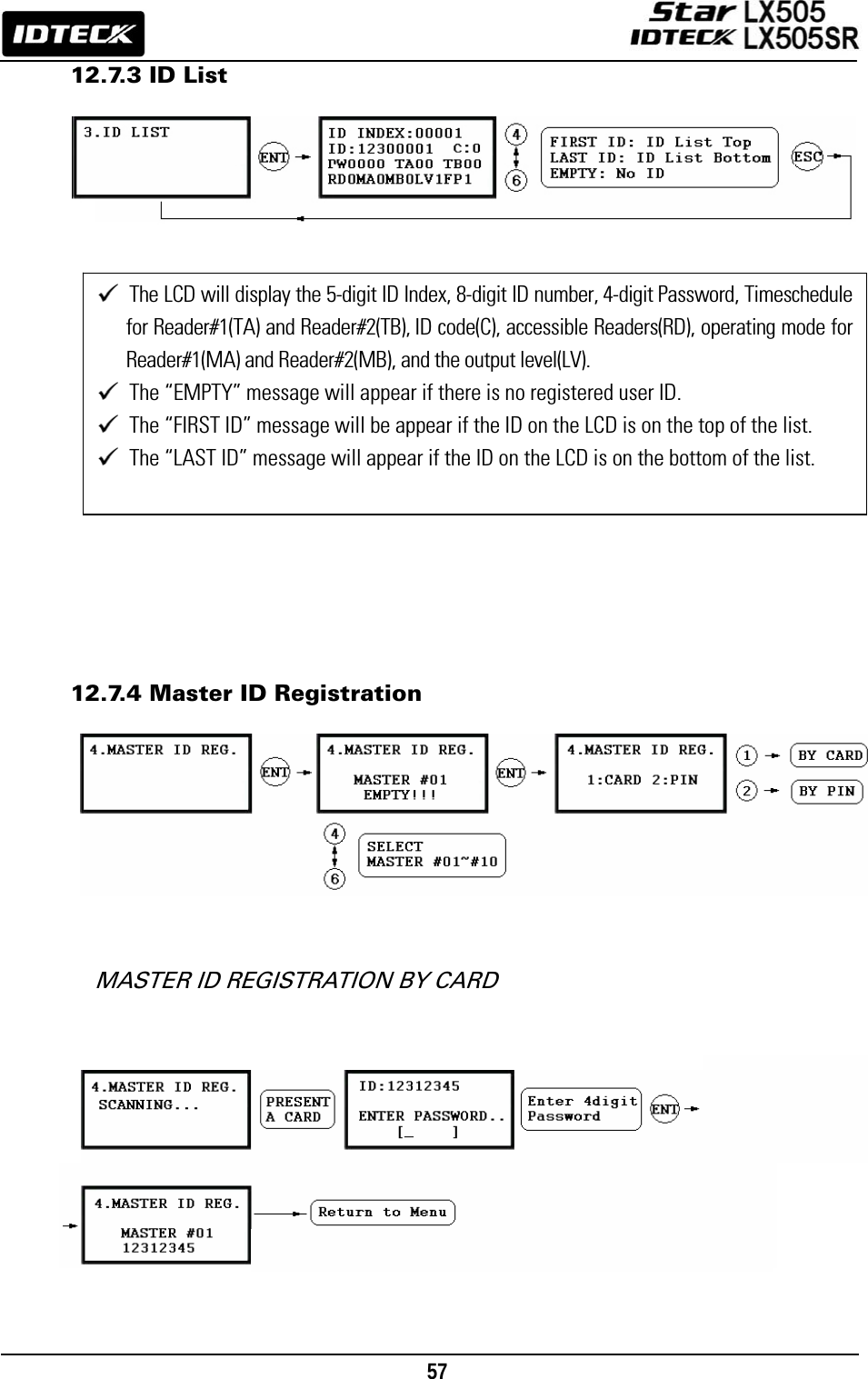

57 12.7.3 ID List 12.7.4 Master ID Registration MASTER ID REGISTRATION BY CARD The LCD will display the 5-digit ID Index, 8-digit ID number, 4-digit Password, Timeschedule for Reader#1(TA) and Reader#2(TB), ID code(C), accessible Readers(RD), operating mode for Reader#1(MA) and Reader#2(MB), and the output level(LV). The “EMPTY” message will appear if there is no registered user ID. The “FIRST ID” message will be appear if the ID on the LCD is on the top of the list. The “LAST ID” message will appear if the ID on the LCD is on the bottom of the list.

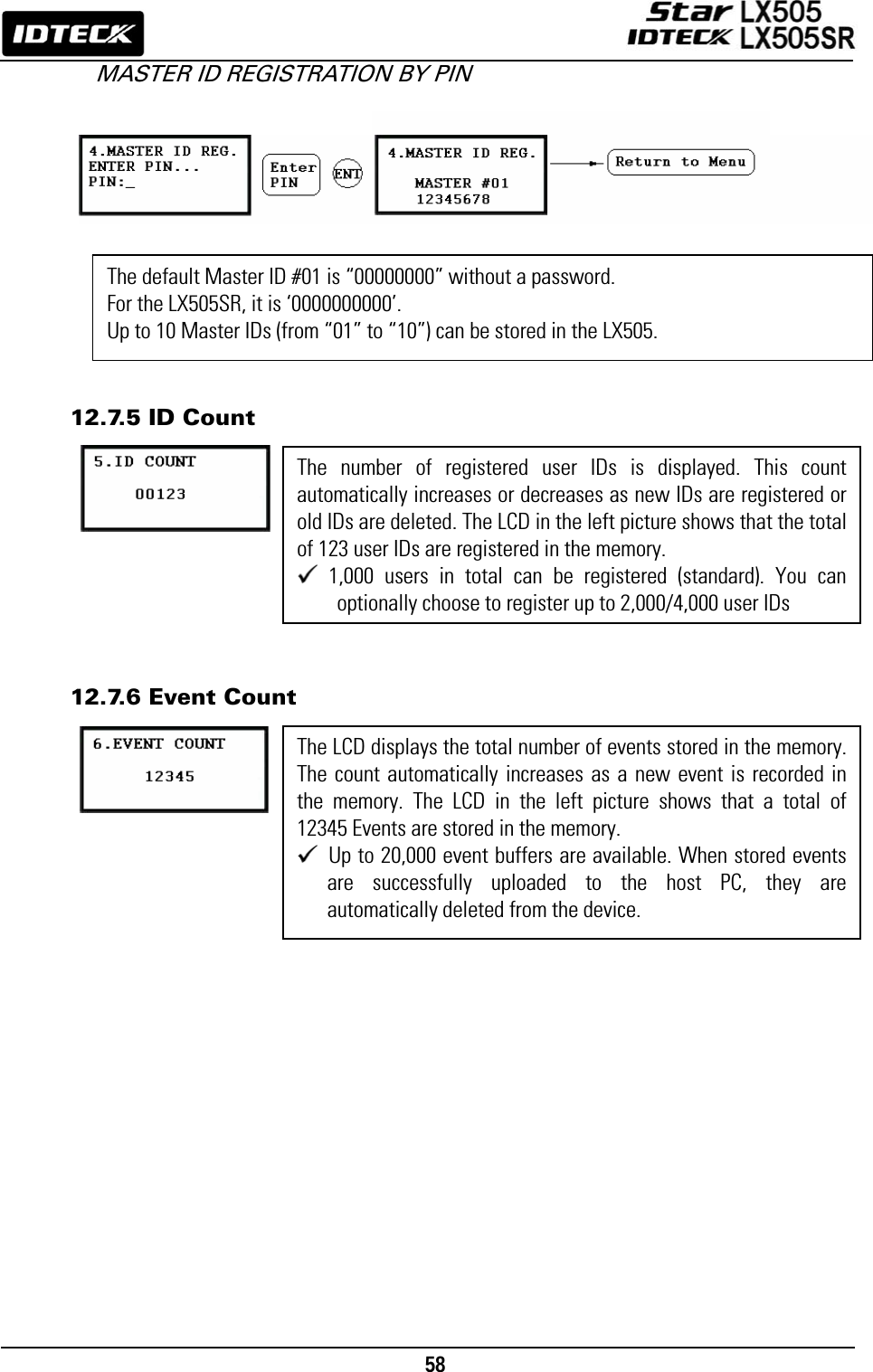

58 MASTER ID REGISTRATION BY PIN 12.7.5 ID Count 12.7.6 Event Count The number of registered user IDs is displayed. This count automatically increases or decreases as new IDs are registered or old IDs are deleted. The LCD in the left picture shows that the total of 123 user IDs are registered in the memory. 1,000 users in total can be registered (standard). You can optionally choose to register up to 2,000/4,000 user IDs The default Master ID #01 is “00000000” without a password. For the LX505SR, it is ‘0000000000’. Up to 10 Master IDs (from “01” to “10”) can be stored in the LX505. The LCD displays the total number of events stored in the memory.The count automatically increases as a new event is recorded in the memory. The LCD in the left picture shows that a total of 12345 Events are stored in the memory. Up to 20,000 event buffers are available. When stored events are successfully uploaded to the host PC, they are automatically deleted from the device.

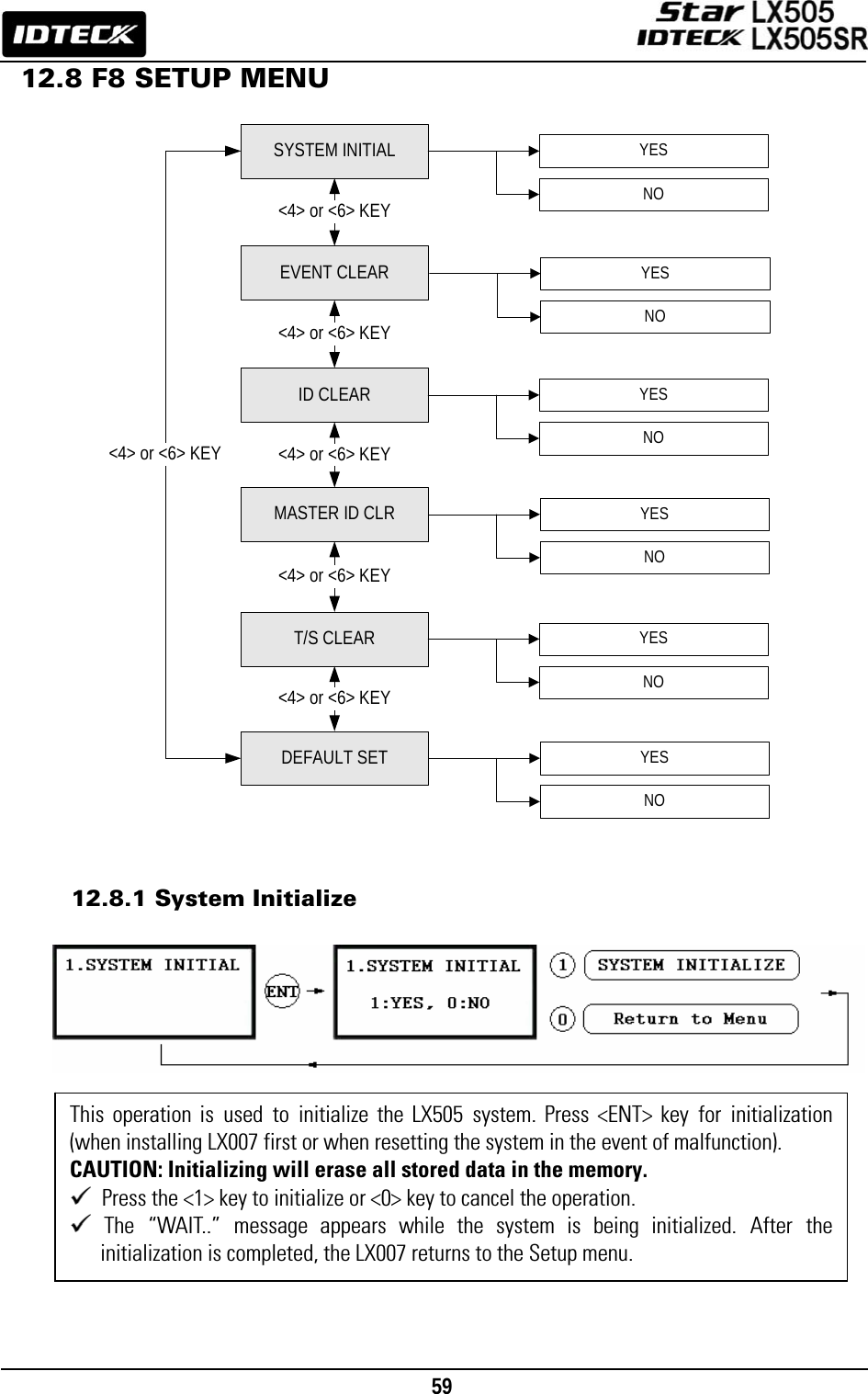

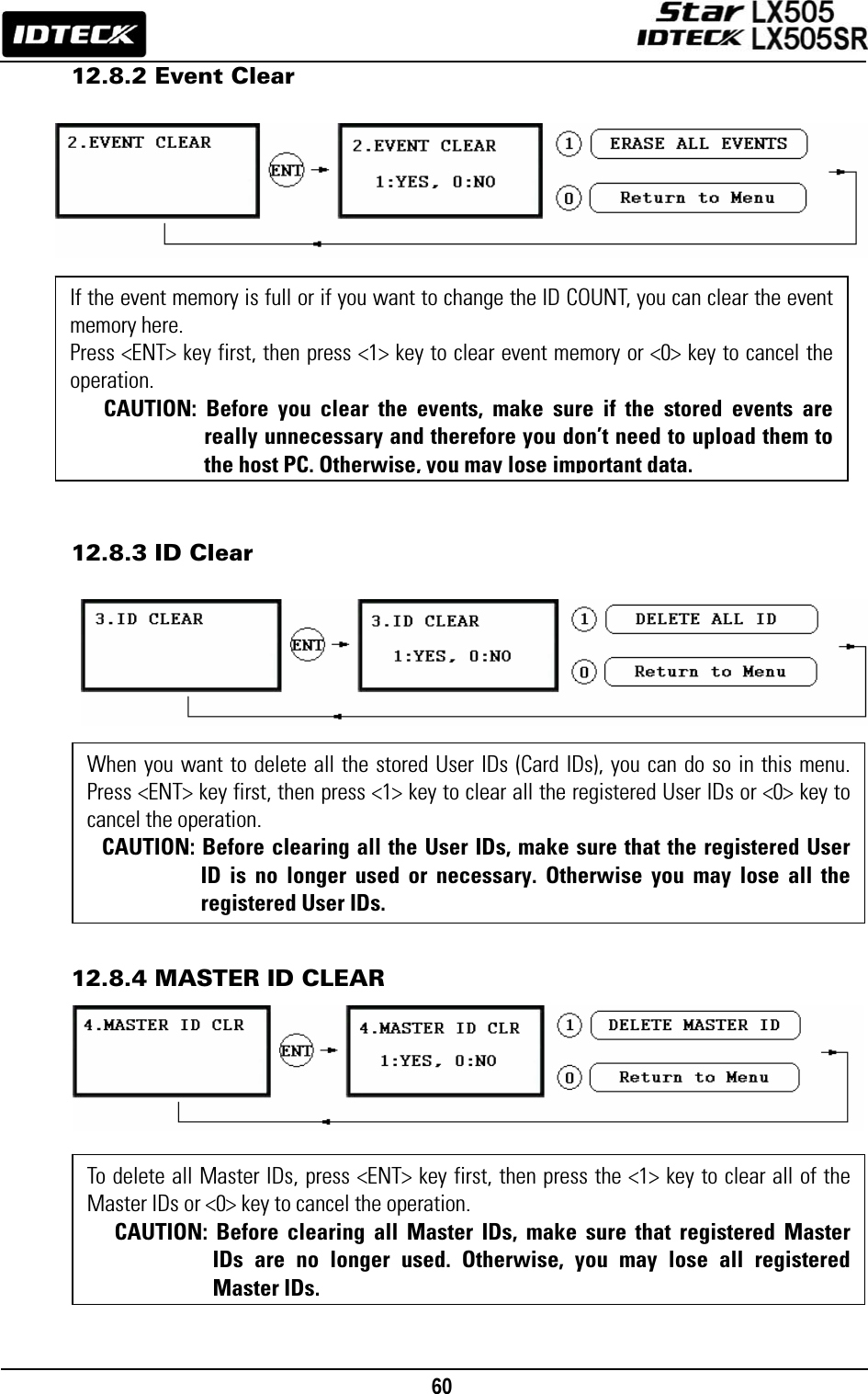

59 12.8 F8 SETUP MENU 12.8.1 System Initialize This operation is used to initialize the LX505 system. Press <ENT> key for initialization(when installing LX007 first or when resetting the system in the event of malfunction). CAUTION: Initializing will erase all stored data in the memory. Press the <1> key to initialize or <0> key to cancel the operation. The “WAIT..” message appears while the system is being initialized. After the initialization is completed, the LX007 returns to the Setup menu. T/S CLEARDEFAULT SET<4> or <6> KEY<4> or <6> KEYSYSTEM INITIALEVENT CLEARID CLEAR<4> or <6> KEY<4> or <6> KEY<4> or <6> KEYMASTER ID CLR<4> or <6> KEYYESNOYESNOYESNOYESNOYESNOYESNO
60 If the event memory is full or if you want to change the ID COUNT, you can clear the event memory here. Press <ENT> key first, then press <1> key to clear event memory or <0> key to cancel the operation. CAUTION: Before you clear the events, make sure if the stored events are really unnecessary and therefore you don’t need to upload them to the host PC. Otherwise, you may lose important data. 12.8.2 Event Clear 12.8.3 ID Clear 12.8.4 MASTER ID CLEAR When you want to delete all the stored User IDs (Card IDs), you can do so in this menu. Press <ENT> key first, then press <1> key to clear all the registered User IDs or <0> key to cancel the operation. CAUTION: Before clearing all the User IDs, make sure that the registered User ID is no longer used or necessary. Otherwise you may lose all the registered User IDs. To delete all Master IDs, press <ENT> key first, then press the <1> key to clear all of the Master IDs or <0> key to cancel the operation. CAUTION: Before clearing all Master IDs, make sure that registered Master IDs are no longer used. Otherwise, you may lose all registered Master IDs.

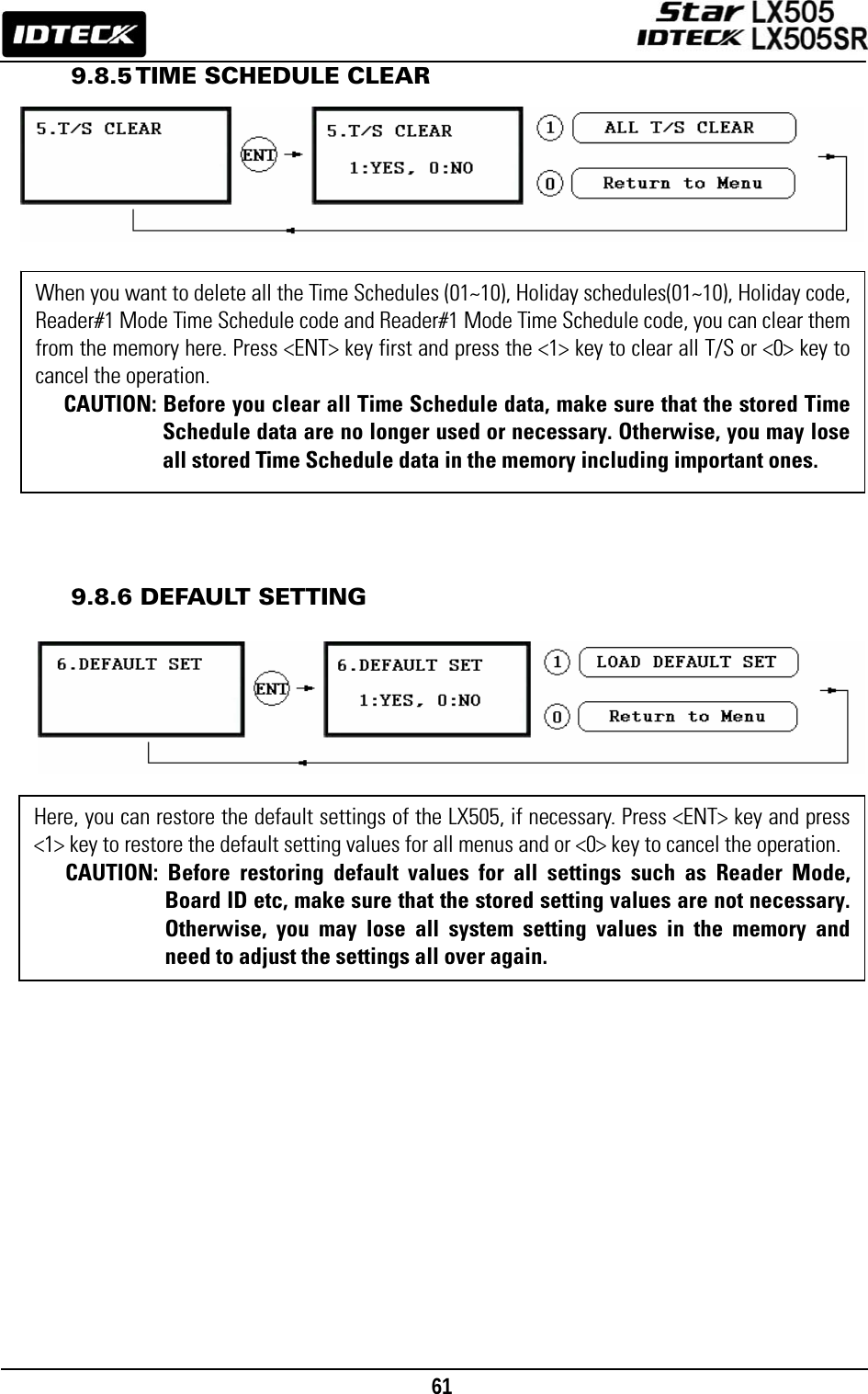

61 9.8.5 TIME SCHEDULE CLEAR 9.8.6 DEFAULT SETTING When you want to delete all the Time Schedules (01~10), Holiday schedules(01~10), Holiday code, Reader#1 Mode Time Schedule code and Reader#1 Mode Time Schedule code, you can clear them from the memory here. Press <ENT> key first and press the <1> key to clear all T/S or <0> key to cancel the operation. CAUTION: Before you clear all Time Schedule data, make sure that the stored Time Schedule data are no longer used or necessary. Otherwise, you may lose all stored Time Schedule data in the memory including important ones. Here, you can restore the default settings of the LX505, if necessary. Press <ENT> key and press <1> key to restore the default setting values for all menus and or <0> key to cancel the operation. CAUTION: Before restoring default values for all settings such as Reader Mode, Board ID etc, make sure that the stored setting values are not necessary. Otherwise, you may lose all system setting values in the memory and need to adjust the settings all over again.

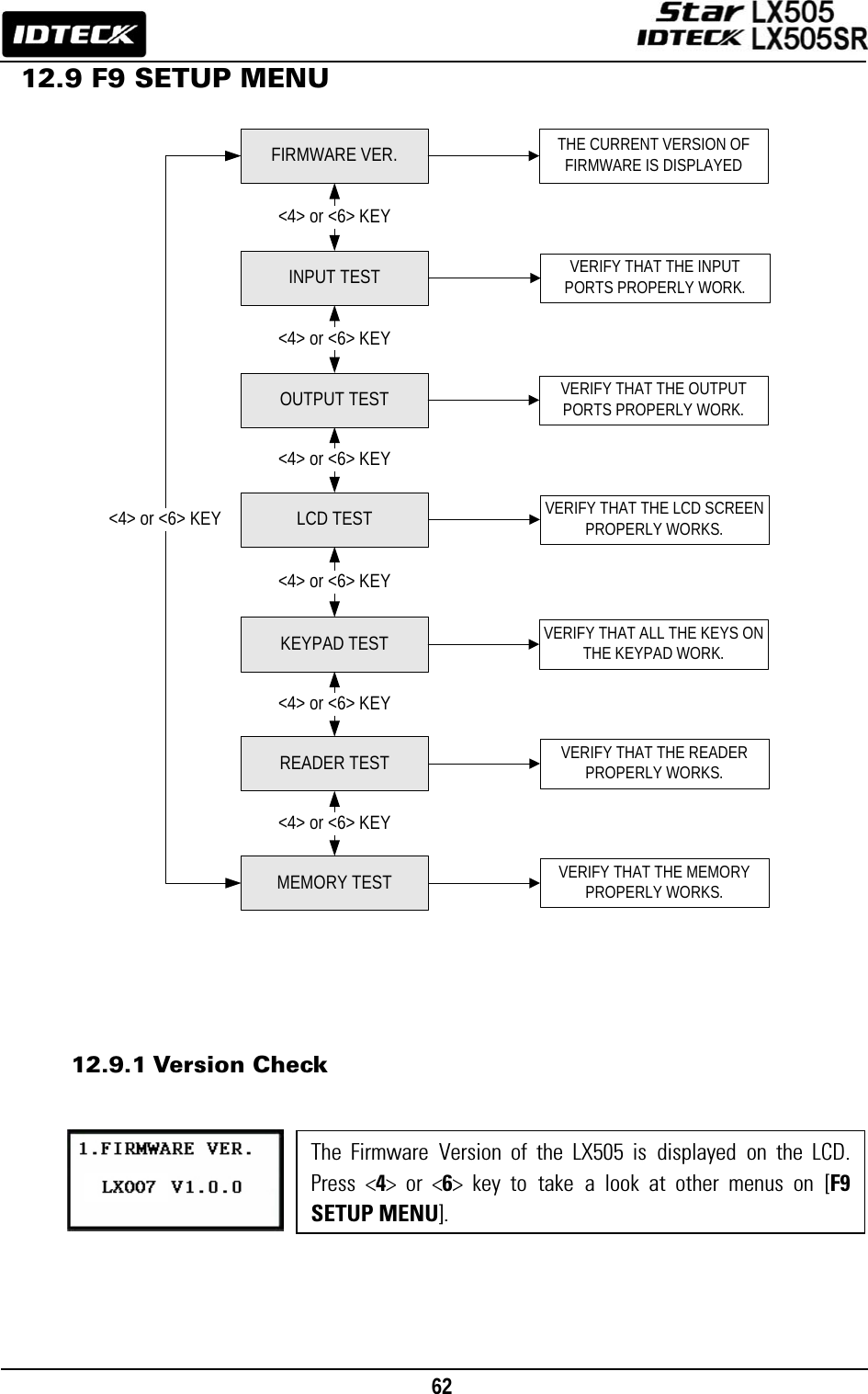

62 The Firmware Version of the LX505 is displayed on the LCD.Press <4> or <6> key to take a look at other menus on [F9 SETUP MENU].12.9 F9 SETUP MENU 12.9.1 Version Check KEYPAD TESTREADER TEST<4> or <6> KEY<4> or <6> KEYFIRMWARE VER.INPUT TESTOUTPUT TEST<4> or <6> KEY<4> or <6> KEY<4> or <6> KEYLCD TEST<4> or <6> KEYTHE CURRENT VERSION OF FIRMWARE IS DISPLAYEDVERIFY THAT THE INPUT PORTS PROPERLY WORK.MEMORY TEST<4> or <6> KEYVERIFY THAT THE OUTPUT PORTS PROPERLY WORK.VERIFY THAT THE LCD SCREEN PROPERLY WORKS.VERIFY THAT ALL THE KEYS ON THE KEYPAD WORK.VERIFY THAT THE READER PROPERLY WORKS.VERIFY THAT THE MEMORY PROPERLY WORKS.

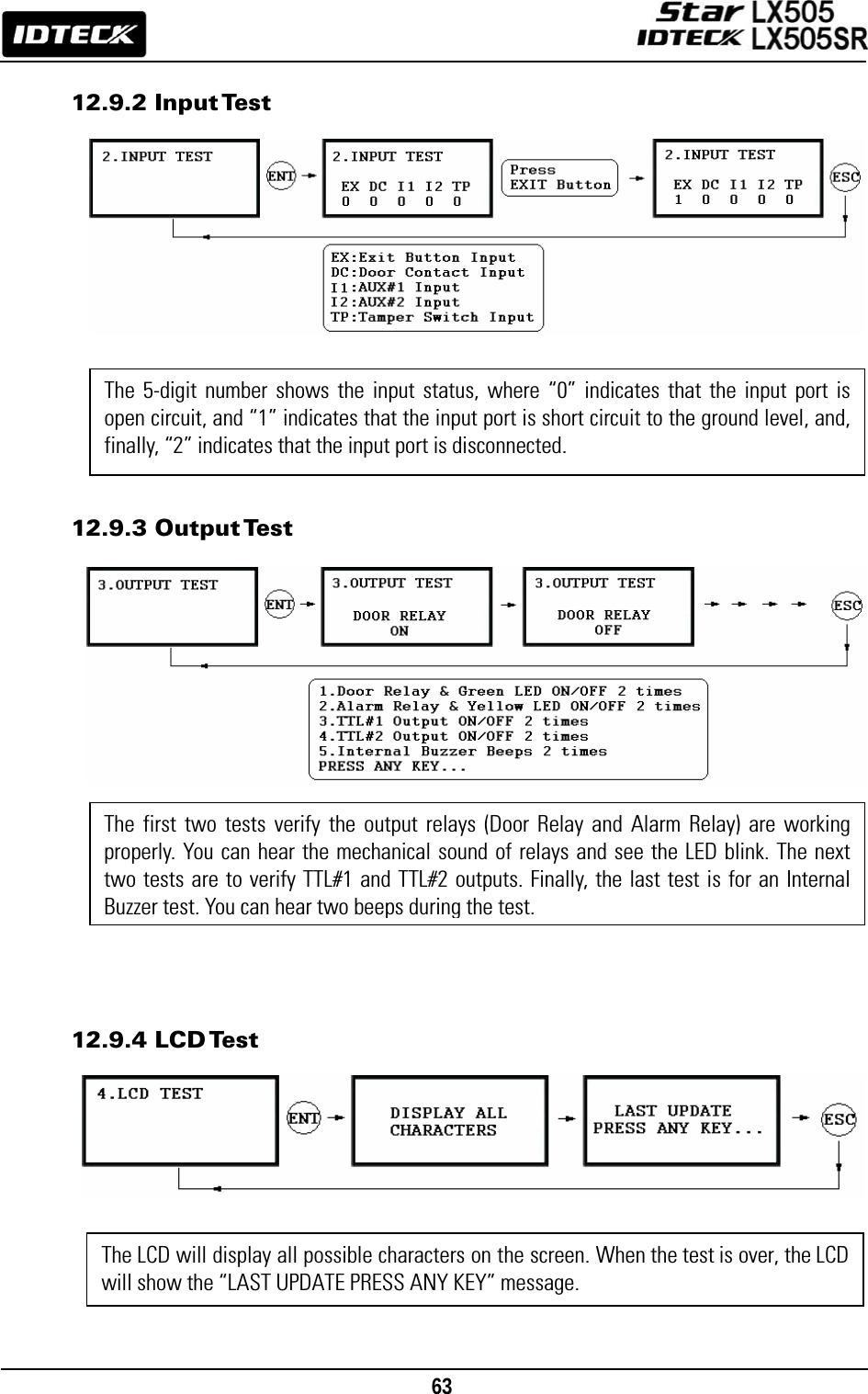

63 12.9.2 Input Test 12.9.3 Output Test 12.9.4 LCD Test The 5-digit number shows the input status, where “0” indicates that the input port is open circuit, and “1” indicates that the input port is short circuit to the ground level, and, finally, “2” indicates that the input port is disconnected. The first two tests verify the output relays (Door Relay and Alarm Relay) are working properly. You can hear the mechanical sound of relays and see the LED blink. The next two tests are to verify TTL#1 and TTL#2 outputs. Finally, the last test is for an Internal Buzzer test. You can hear two beeps during the test.The LCD will display all possible characters on the screen. When the test is over, the LCD will show the “LAST UPDATE PRESS ANY KEY” message.

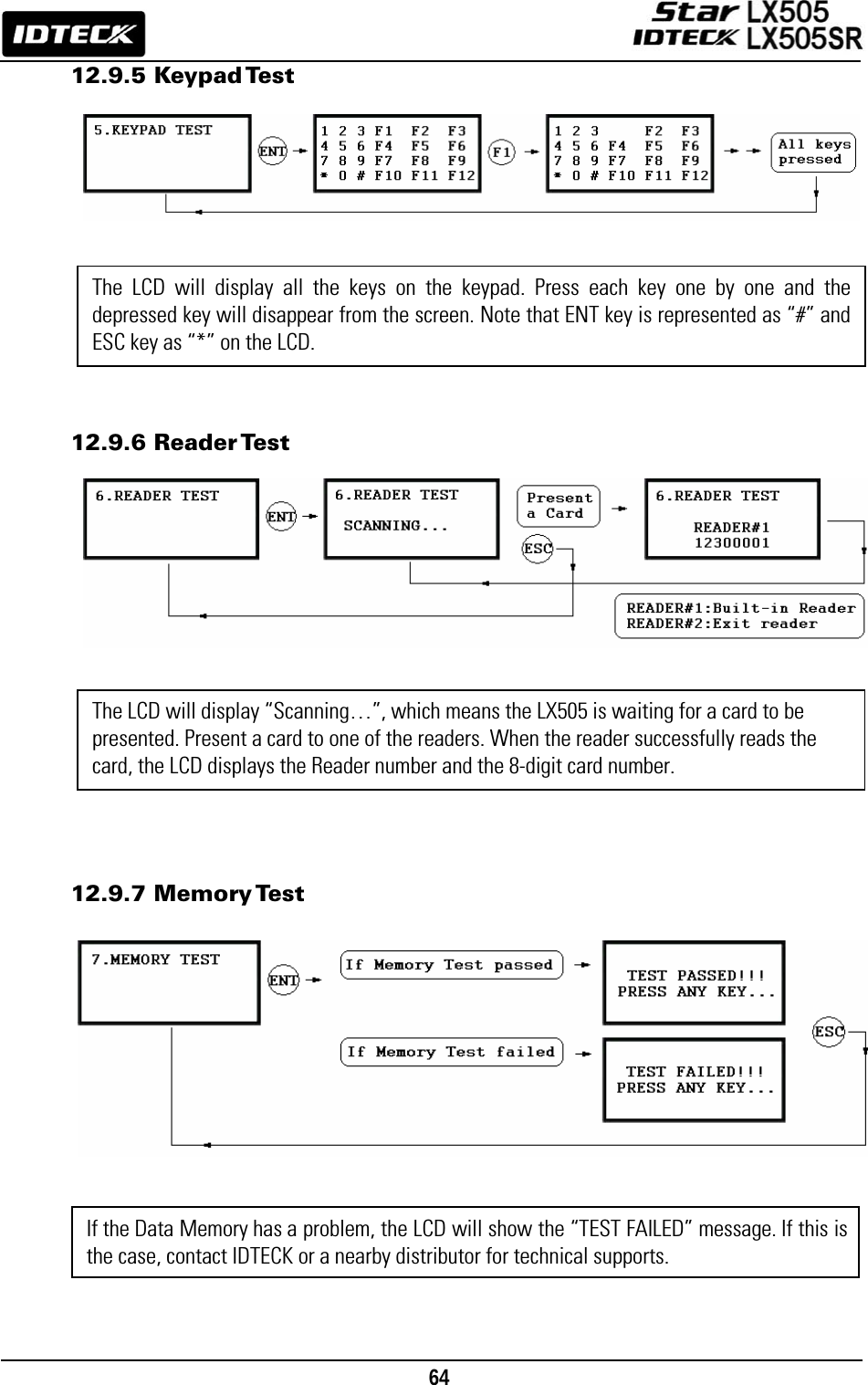

64 12.9.5 Keypad Test 12.9.6 Reader Test 12.9.7 Memory Test The LCD will display all the keys on the keypad. Press each key one by one and the depressed key will disappear from the screen. Note that ENT key is represented as “#” and ESC key as “*” on the LCD. The LCD will display “Scanning…”, which means the LX505 is waiting for a card to be presented. Present a card to one of the readers. When the reader successfully reads the card, the LCD displays the Reader number and the 8-digit card number. If the Data Memory has a problem, the LCD will show the “TEST FAILED” message. If this is the case, contact IDTECK or a nearby distributor for technical supports.

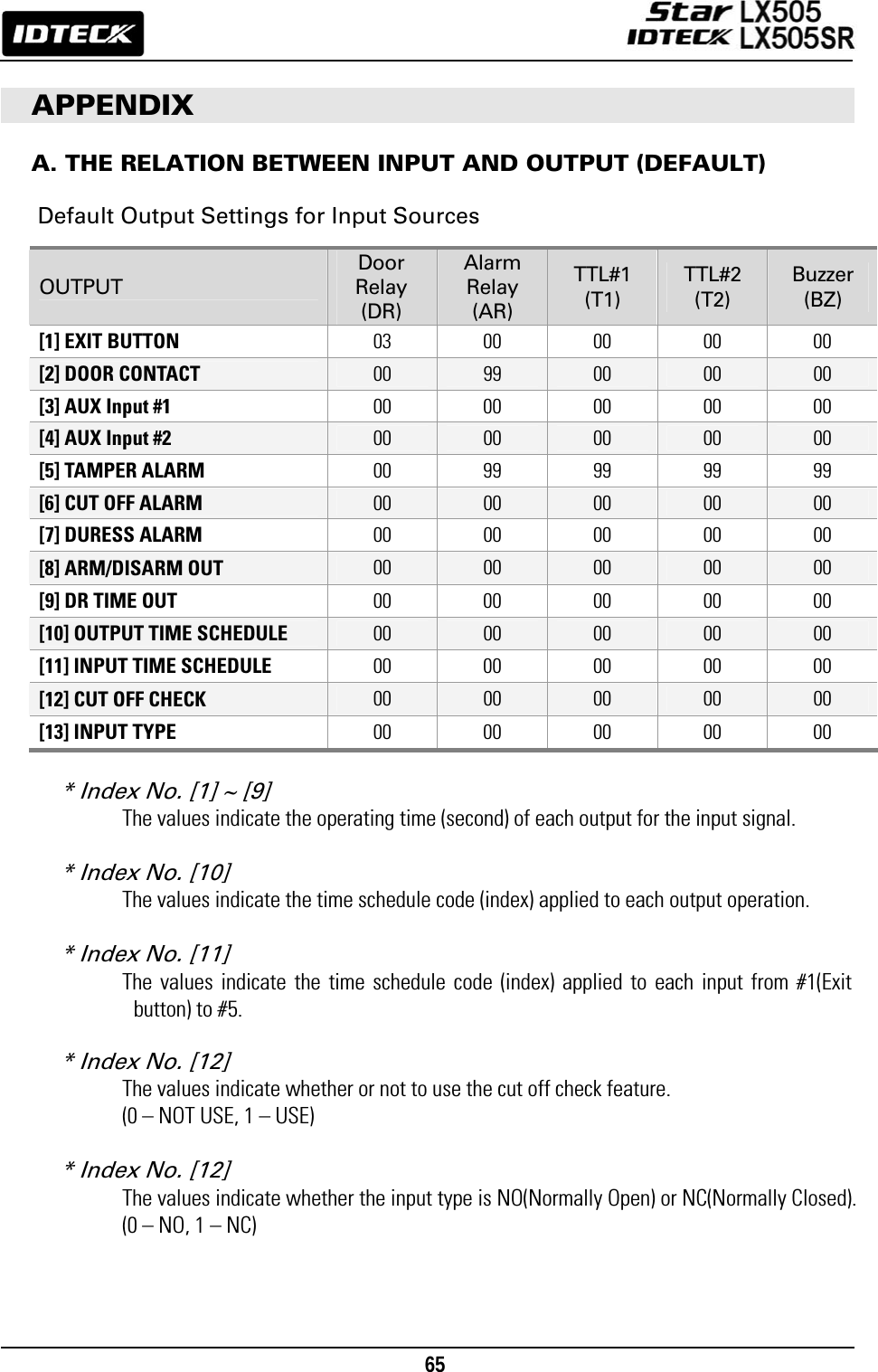

65 APPENDIX A. THE RELATION BETWEEN INPUT AND OUTPUT (DEFAULT) Default Output Settings for Input Sources * Index No. [1] ~ [9] The values indicate the operating time (second) of each output for the input signal. * Index No. [10] The values indicate the time schedule code (index) applied to each output operation. * Index No. [11] The values indicate the time schedule code (index) applied to each input from #1(Exit button) to #5. * Index No. [12] The values indicate whether or not to use the cut off check feature. (0 – NOT USE, 1 – USE) * Index No. [12] The values indicate whether the input type is NO(Normally Open) or NC(Normally Closed). (0 – NO, 1 – NC) OUTPUT Door Relay (DR) Alarm Relay (AR) TTL#1 (T1) TTL#2 (T2) Buzzer (BZ) [1] EXIT BUTTON 03 00 00 00 00 [2] DOOR CONTACT 00 99 00 00 00 [3] AUX Input #1 00 00 00 00 00 [4] AUX Input #2 00 00 00 00 00 [5] TAMPER ALARM 00 99 99 99 99 [6] CUT OFF ALARM 00 00 00 00 00 [7] DURESS ALARM 00 00 00 00 00 [8] ARM/DISARM OUT 00 00 00 00 00 [9] DR TIME OUT 00 00 00 00 00 [10] OUTPUT TIME SCHEDULE 00 00 00 00 00 [11] INPUT TIME SCHEDULE 00 00 00 00 00 [12] CUT OFF CHECK 00 00 00 00 00 [13] INPUT TYPE 00 00 00 00 00

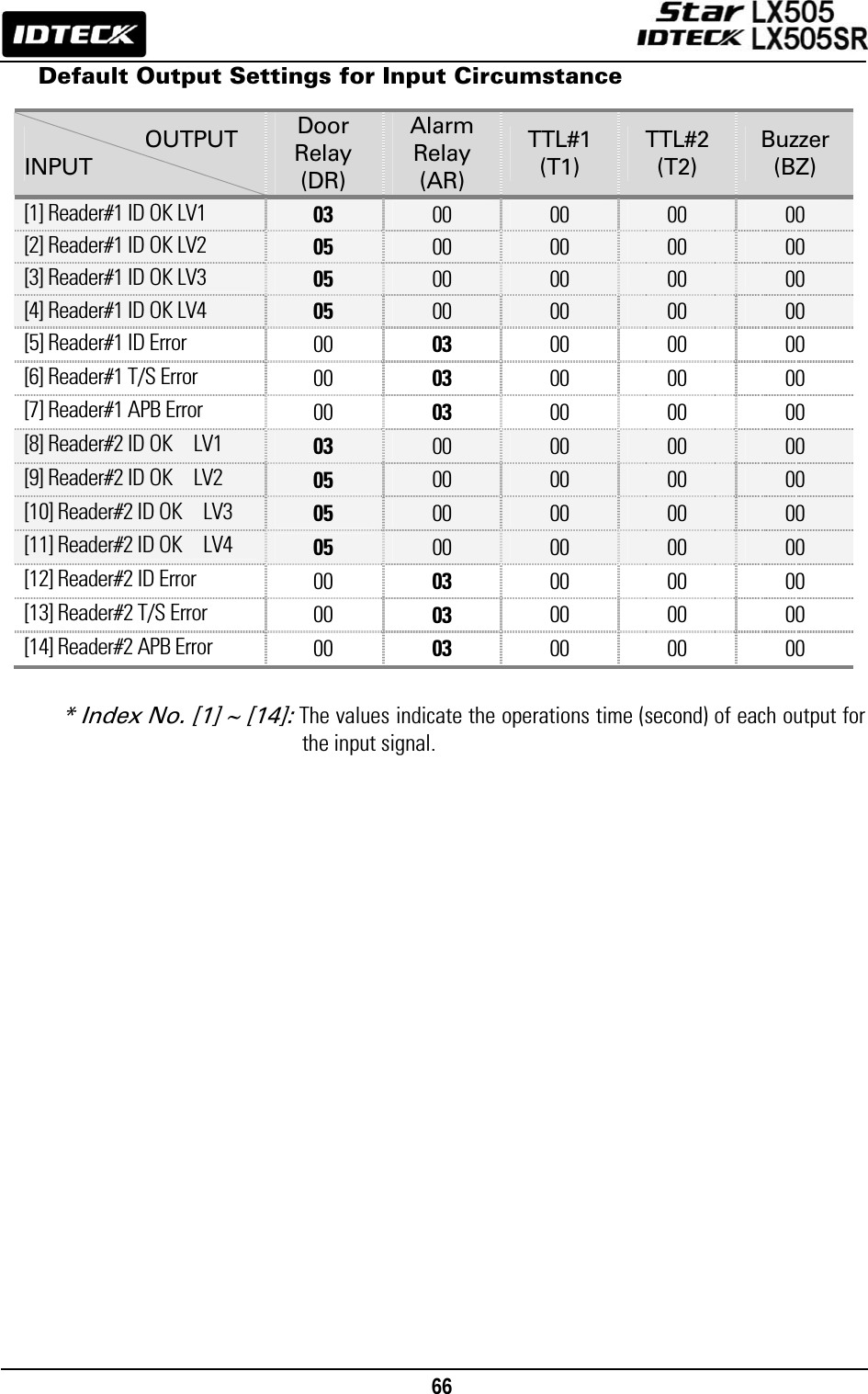

66 Default Output Settings for Input Circumstance * Index No. [1] ~ [14]: The values indicate the operations time (second) of each output for the input signal. OUTPUT INPUT Door Relay (DR) Alarm Relay (AR) TTL#1 (T1) TTL#2 (T2) Buzzer (BZ) [1] Reader#1 ID OK LV1 03 00 00 00 00 [2] Reader#1 ID OK LV2 05 00 00 00 00 [3] Reader#1 ID OK LV3 05 00 00 00 00 [4] Reader#1 ID OK LV4 05 00 00 00 00 [5] Reader#1 ID Error 00 03 00 00 00 [6] Reader#1 T/S Error 00 03 00 00 00 [7] Reader#1 APB Error 00 03 00 00 00 [8] Reader#2 ID OK LV1 03 00 00 00 00 [9] Reader#2 ID OK LV2 05 00 00 00 00 [10] Reader#2 ID OK LV3 05 00 00 00 00 [11] Reader#2 ID OK LV4 05 00 00 00 00 [12] Reader#2 ID Error 00 03 00 00 00 [13] Reader#2 T/S Error 00 03 00 00 00 [14] Reader#2 APB Error 00 03 00 00 00

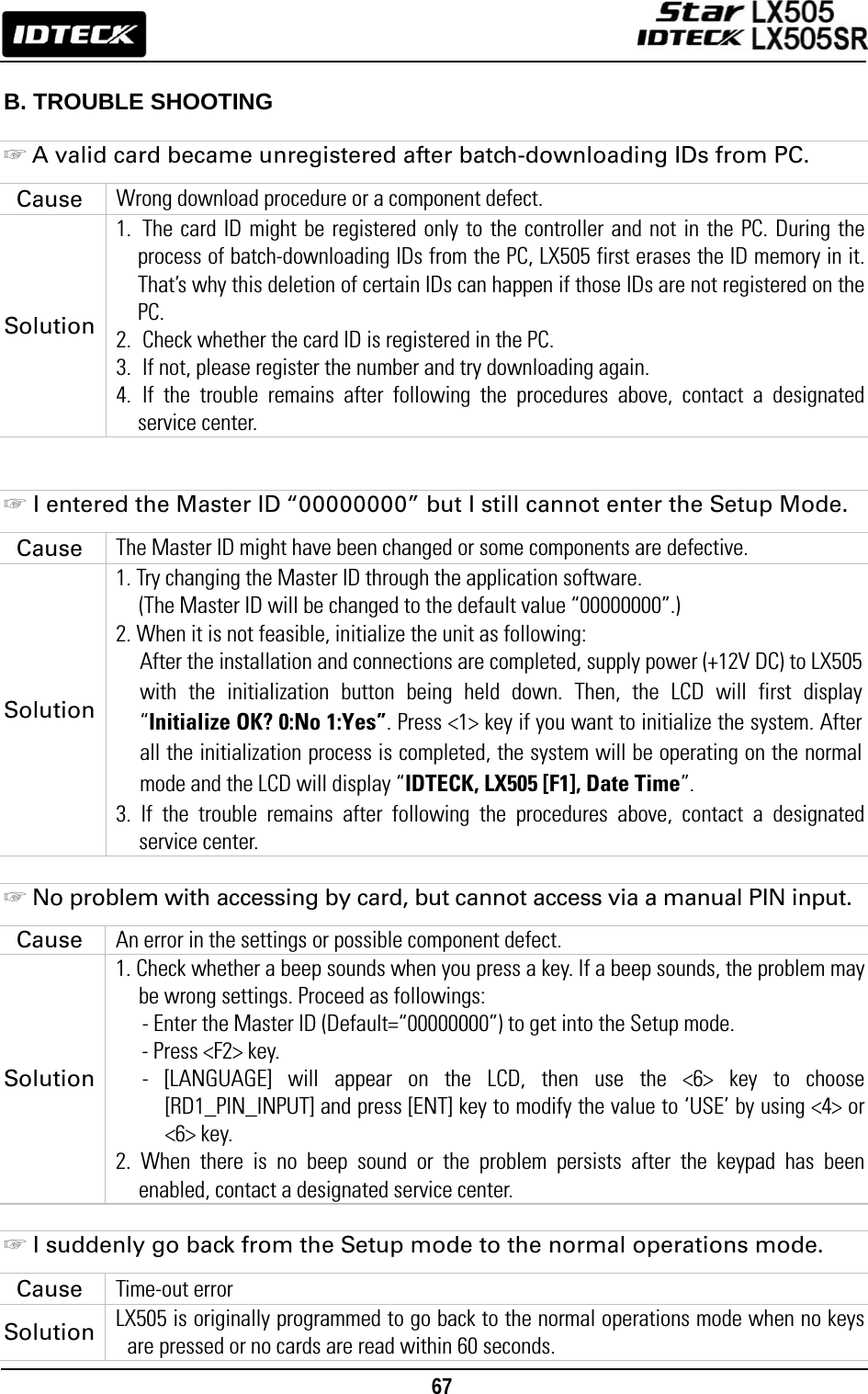

67 B. TROUBLE SHOOTING ☞ A valid card became unregistered after batch-downloading IDs from PC. Cause Wrong download procedure or a component defect. Solution 1. The card ID might be registered only to the controller and not in the PC. During the process of batch-downloading IDs from the PC, LX505 first erases the ID memory in it. That’s why this deletion of certain IDs can happen if those IDs are not registered on the PC. 2. Check whether the card ID is registered in the PC. 3. If not, please register the number and try downloading again. 4. If the trouble remains after following the procedures above, contact a designated service center. ☞ I entered the Master ID “00000000” but I still cannot enter the Setup Mode. Cause The Master ID might have been changed or some components are defective. Solution 1. Try changing the Master ID through the application software. (The Master ID will be changed to the default value “00000000”.) 2. When it is not feasible, initialize the unit as following: After the installation and connections are completed, supply power (+12V DC) to LX505 with the initialization button being held down. Then, the LCD will first display “Initialize OK? 0:No 1:Yes”. Press <1> key if you want to initialize the system. After all the initialization process is completed, the system will be operating on the normal mode and the LCD will display “IDTECK, LX505 [F1], Date Time”. 3. If the trouble remains after following the procedures above, contact a designated service center. ☞ No problem with accessing by card, but cannot access via a manual PIN input. Cause An error in the settings or possible component defect. Solution 1. Check whether a beep sounds when you press a key. If a beep sounds, the problem may be wrong settings. Proceed as followings: - Enter the Master ID (Default=“00000000”) to get into the Setup mode. - Press <F2> key. - [LANGUAGE] will appear on the LCD, then use the <6> key to choose [RD1_PIN_INPUT] and press [ENT] key to modify the value to ‘USE’ by using <4> or <6> key. 2. When there is no beep sound or the problem persists after the keypad has been enabled, contact a designated service center. ☞ I suddenly go back from the Setup mode to the normal operations mode. Cause Time-out error Solution LX505 is originally programmed to go back to the normal operations mode when no keys are pressed or no cards are read within 60 seconds.

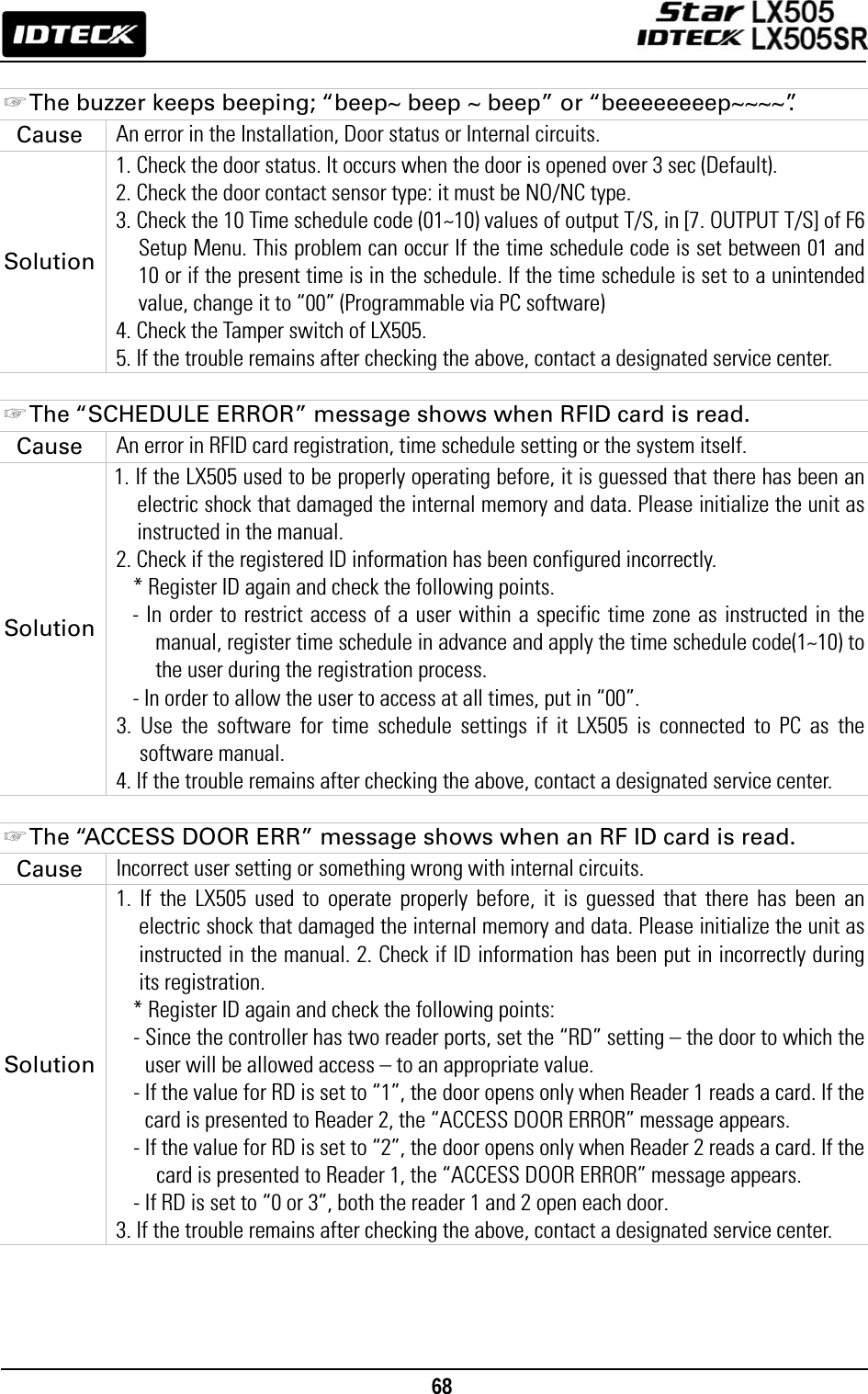

68 ☞ The buzzer keeps beeping; “beep~ beep ~ beep” or “beeeeeeeep~~~~”. Cause An error in the Installation, Door status or Internal circuits. Solution 1. Check the door status. It occurs when the door is opened over 3 sec (Default). 2. Check the door contact sensor type: it must be NO/NC type. 3. Check the 10 Time schedule code (01~10) values of output T/S, in [7. OUTPUT T/S] of F6 Setup Menu. This problem can occur If the time schedule code is set between 01 and 10 or if the present time is in the schedule. If the time schedule is set to a unintended value, change it to “00” (Programmable via PC software) 4. Check the Tamper switch of LX505. 5. If the trouble remains after checking the above, contact a designated service center. ☞ The “SCHEDULE ERROR” message shows when RFID card is read. Cause An error in RFID card registration, time schedule setting or the system itself. Solution 1. If the LX505 used to be properly operating before, it is guessed that there has been an electric shock that damaged the internal memory and data. Please initialize the unit as instructed in the manual. 2. Check if the registered ID information has been configured incorrectly. * Register ID again and check the following points. - In order to restrict access of a user within a specific time zone as instructed in the manual, register time schedule in advance and apply the time schedule code(1~10) to the user during the registration process. - In order to allow the user to access at all times, put in “00”. 3. Use the software for time schedule settings if it LX505 is connected to PC as the software manual. 4. If the trouble remains after checking the above, contact a designated service center. ☞ The “ACCESS DOOR ERR” message shows when an RF ID card is read. Cause Incorrect user setting or something wrong with internal circuits. Solution 1. If the LX505 used to operate properly before, it is guessed that there has been an electric shock that damaged the internal memory and data. Please initialize the unit as instructed in the manual. 2. Check if ID information has been put in incorrectly during its registration. * Register ID again and check the following points: - Since the controller has two reader ports, set the “RD” setting – the door to which the user will be allowed access – to an appropriate value. - If the value for RD is set to “1”, the door opens only when Reader 1 reads a card. If the card is presented to Reader 2, the “ACCESS DOOR ERROR” message appears. - If the value for RD is set to “2”, the door opens only when Reader 2 reads a card. If the card is presented to Reader 1, the “ACCESS DOOR ERROR” message appears. - If RD is set to “0 or 3”, both the reader 1 and 2 open each door. 3. If the trouble remains after checking the above, contact a designated service center.

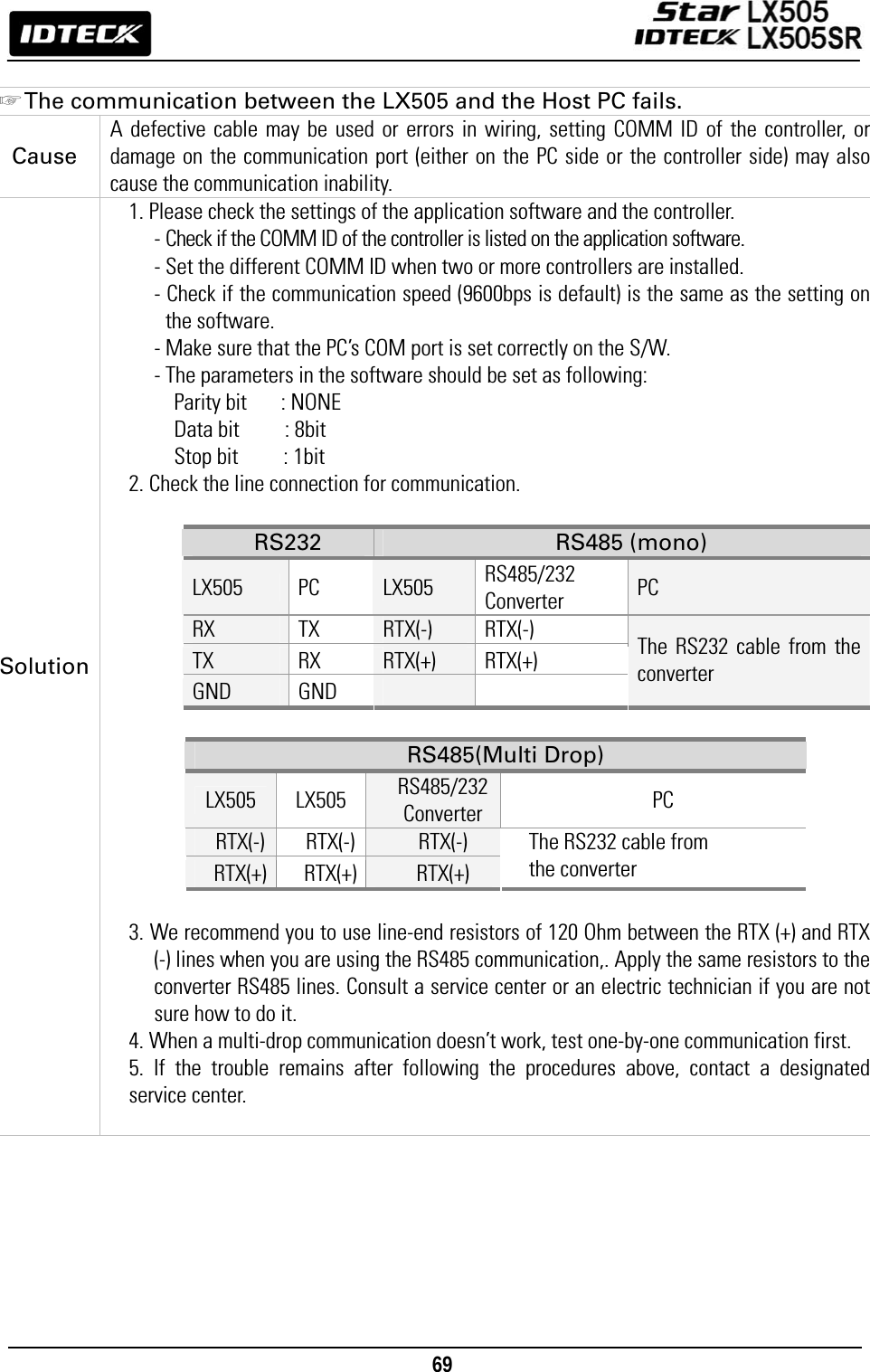

69 ☞ The communication between the LX505 and the Host PC fails. Cause A defective cable may be used or errors in wiring, setting COMM ID of the controller, or damage on the communication port (either on the PC side or the controller side) may also cause the communication inability. Solution 1. Please check the settings of the application software and the controller. - Check if the COMM ID of the controller is listed on the application software. - Set the different COMM ID when two or more controllers are installed. - Check if the communication speed (9600bps is default) is the same as the setting on the software. - Make sure that the PC’s COM port is set correctly on the S/W. - The parameters in the software should be set as following: Parity bit : NONE Data bit : 8bit Stop bit : 1bit 2. Check the line connection for communication. RS232 RS485 (mono) LX505 PC LX505 RS485/232 Converter PC RX TX RTX(-) RTX(-) TX RX RTX(+) RTX(+) GND GND The RS232 cable from the converter RS485(Multi Drop) LX505 LX505 RS485/232Converter PC RTX(-) RTX(-) RTX(-) RTX(+) RTX(+) RTX(+) The RS232 cable from the converter 3. We recommend you to use line-end resistors of 120 Ohm between the RTX (+) and RTX (-) lines when you are using the RS485 communication,. Apply the same resistors to the converter RS485 lines. Consult a service center or an electric technician if you are not sure how to do it. 4. When a multi-drop communication doesn’t work, test one-by-one communication first. 5. If the trouble remains after following the procedures above, contact a designated service center.

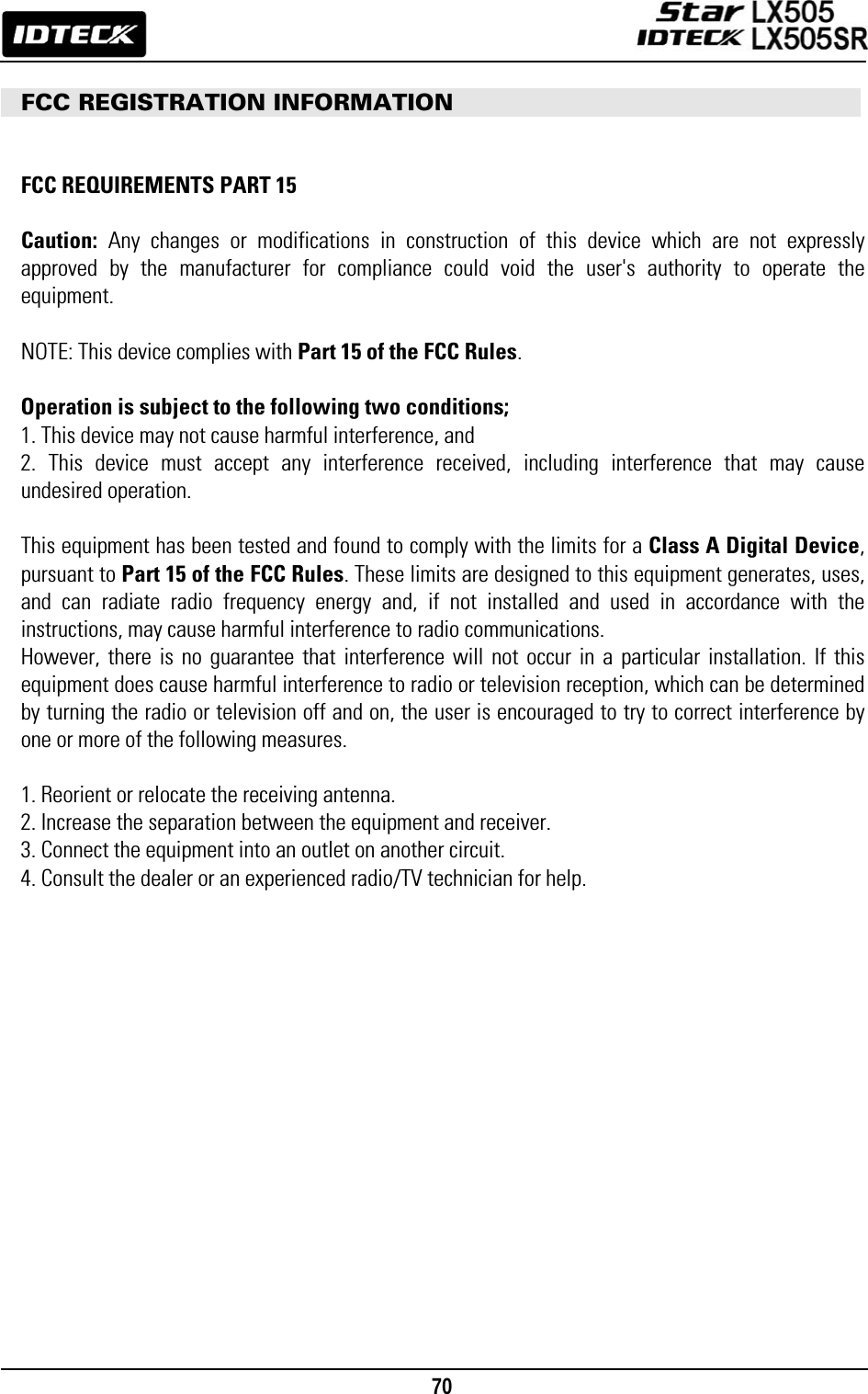

70 FCC REGISTRATION INFORMATION FCC REQUIREMENTS PART 15 Caution: Any changes or modifications in construction of this device which are not expressly approved by the manufacturer for compliance could void the user's authority to operate the equipment. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the radio or television off and on, the user is encouraged to try to correct interference by one or more of the following measures. 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on another circuit. 4. Consult the dealer or an experienced radio/TV technician for help.

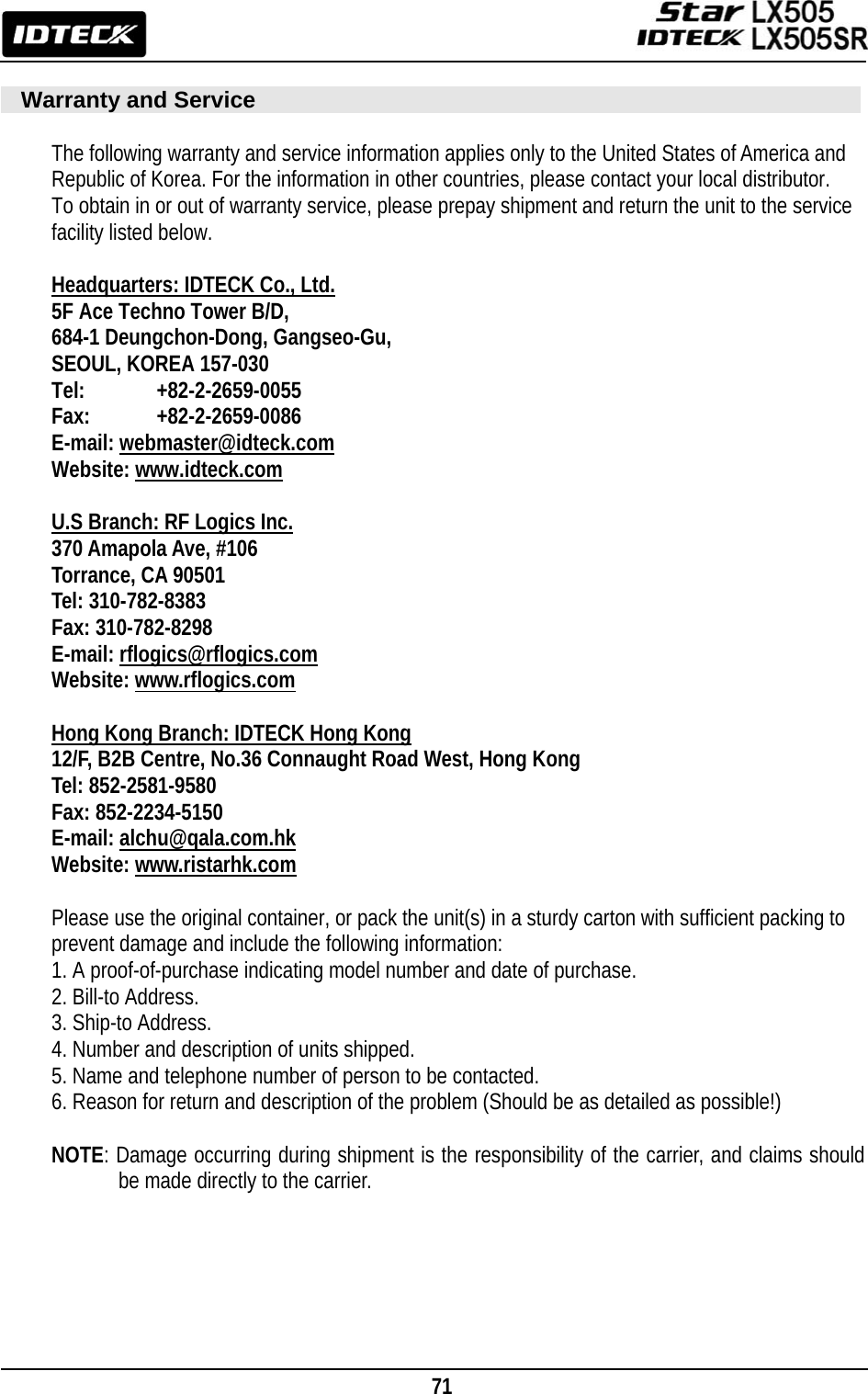

71 Warranty and Service The following warranty and service information applies only to the United States of America and Republic of Korea. For the information in other countries, please contact your local distributor. To obtain in or out of warranty service, please prepay shipment and return the unit to the service facility listed below. Headquarters: IDTECK Co., Ltd. 5F Ace Techno Tower B/D, 684-1 Deungchon-Dong, Gangseo-Gu, SEOUL, KOREA 157-030 Tel: +82-2-2659-0055 Fax: +82-2-2659-0086 E-mail: webmaster@idteck.com Website: www.idteck.com U.S Branch: RF Logics Inc. 370 Amapola Ave, #106 Torrance, CA 90501 Tel: 310-782-8383 Fax: 310-782-8298 E-mail: rflogics@rflogics.com Website: www.rflogics.com Hong Kong Branch: IDTECK Hong Kong 12/F, B2B Centre, No.36 Connaught Road West, Hong Kong Tel: 852-2581-9580 Fax: 852-2234-5150 E-mail: alchu@qala.com.hk Website: www.ristarhk.com Please use the original container, or pack the unit(s) in a sturdy carton with sufficient packing to prevent damage and include the following information: 1. A proof-of-purchase indicating model number and date of purchase. 2. Bill-to Address. 3. Ship-to Address. 4. Number and description of units shipped. 5. Name and telephone number of person to be contacted. 6. Reason for return and description of the problem (Should be as detailed as possible!) NOTE: Damage occurring during shipment is the responsibility of the carrier, and claims should be made directly to the carrier.
72 The specifications contained in this manual are subject to change without notice at any time. 5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong, Gangseo-Gu, Seoul, 157-030, Korea Tel : +82-2-2659-0055 Fax : +82-2-2659-0086 E-mail : webmaster@idteck.com Nov. 2006 Copyright ©2006 IDTECK Co., Ltd. MAML007HE1X
