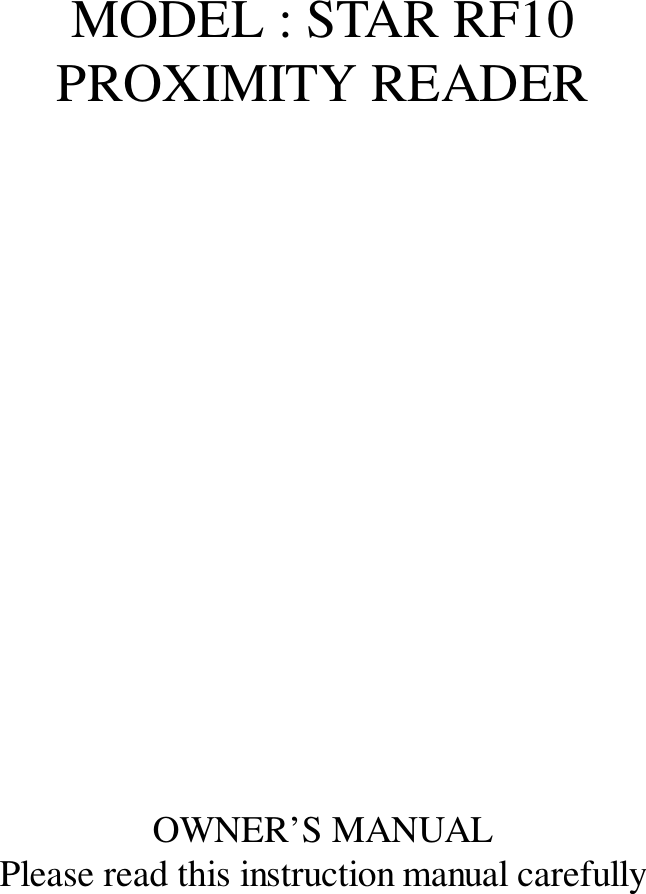

MODEL : STAR RF10PROXIMITY READEROWNER’S MANUALPlease read this instruction manual carefully

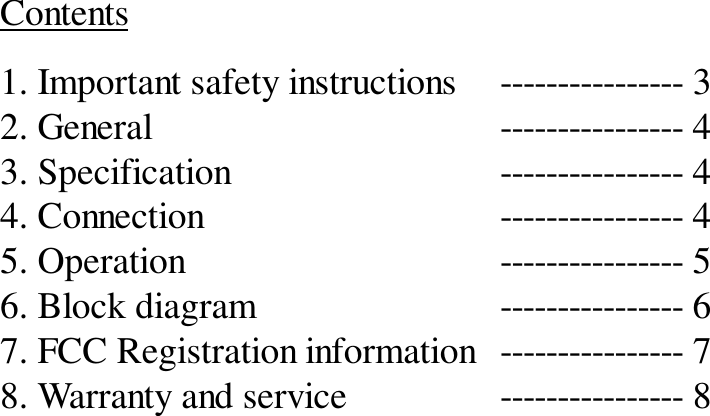

Contents1. Important safety instructions ---------------- 32. General ---------------- 43. Specification ---------------- 44. Connection ---------------- 45. Operation ---------------- 56. Block diagram ---------------- 67. FCC Registration information ---------------- 78. Warranty and service ---------------- 8

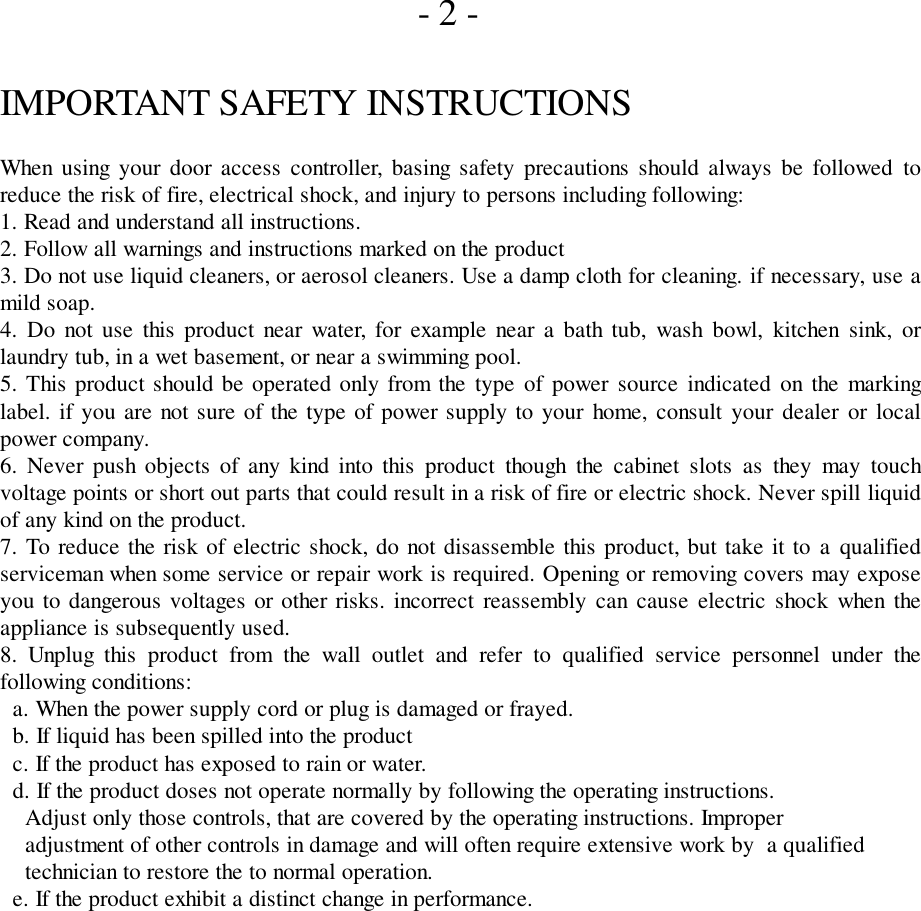

- 2 -IMPORTANT SAFETY INSTRUCTIONSWhen using your door access controller, basing safety precautions should always be followed toreduce the risk of fire, electrical shock, and injury to persons including following:1. Read and understand all instructions.2. Follow all warnings and instructions marked on the product3. Do not use liquid cleaners, or aerosol cleaners. Use a damp cloth for cleaning. if necessary, use amild soap.4. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink, orlaundry tub, in a wet basement, or near a swimming pool.5. This product should be operated only from the type of power source indicated on the markinglabel. if you are not sure of the type of power supply to your home, consult your dealer or localpower company.6. Never push objects of any kind into this product though the cabinet slots as they may touchvoltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquidof any kind on the product.7. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualifiedserviceman when some service or repair work is required. Opening or removing covers may exposeyou to dangerous voltages or other risks. incorrect reassembly can cause electric shock when theappliance is subsequently used.8. Unplug this product from the wall outlet and refer to qualified service personnel under thefollowing conditions: a. When the power supply cord or plug is damaged or frayed. b. If liquid has been spilled into the product c. If the product has exposed to rain or water. d. If the product doses not operate normally by following the operating instructions. Adjust only those controls, that are covered by the operating instructions. Improper adjustment of other controls in damage and will often require extensive work by a qualified technician to restore the to normal operation. e. If the product exhibit a distinct change in performance.

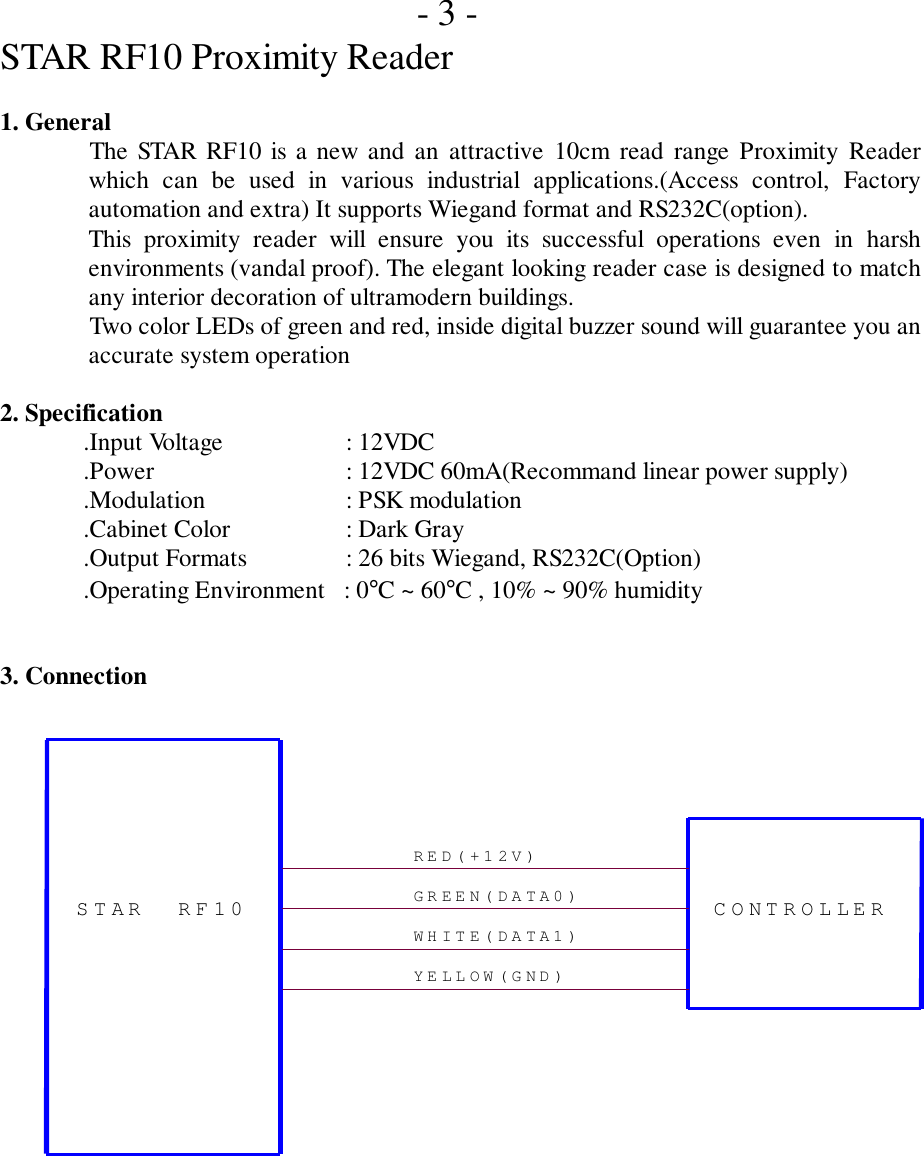

- 3 -STAR RF10 Proximity Reader1. GeneralThe STAR RF10 is a new and an attractive 10cm read range Proximity Readerwhich can be used in various industrial applications.(Access control, Factoryautomation and extra) It supports Wiegand format and RS232C(option).This proximity reader will ensure you its successful operations even in harshenvironments (vandal proof). The elegant looking reader case is designed to matchany interior decoration of ultramodern buildings.Two color LEDs of green and red, inside digital buzzer sound will guarantee you anaccurate system operation2. Specification.Input Voltage : 12VDC.Power : 12VDC 60mA(Recommand linear power supply).Modulation : PSK modulation.Cabinet Color : Dark Gray.Output Formats : 26 bits Wiegand, RS232C(Option).Operating Environment : 0°C ~ 60°C , 10% ~ 90% humidity3. Connection RED(+12V) YELLOW(GND) GREEN(DATA0) WHITE(DATA1) STAR RF10 CONTROLLER

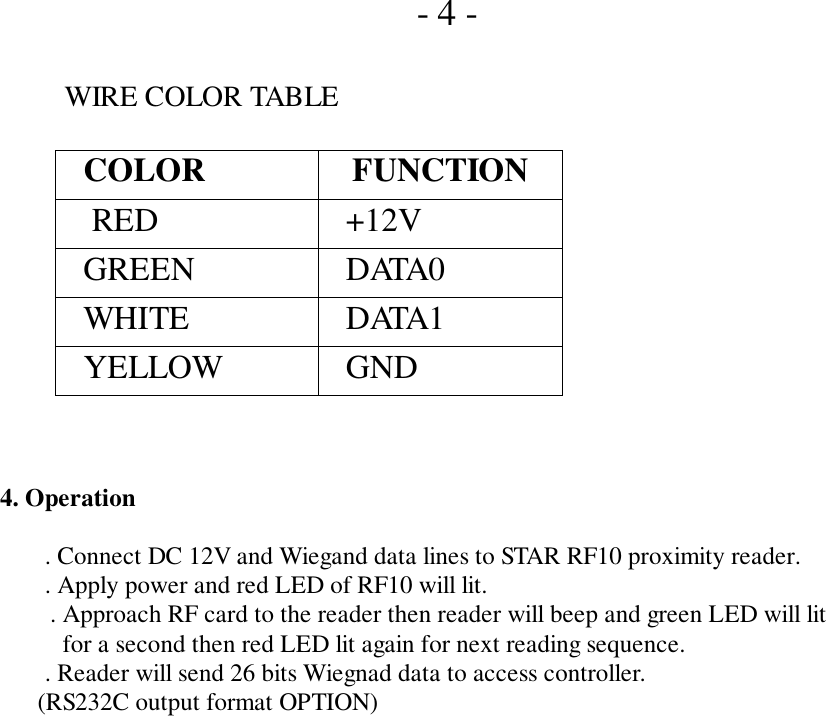

- 4 - WIRE COLOR TABLE COLOR FUNCTION RED +12V GREEN DATA0 WHITE DATA1 YELLOW GND4. Operation . Connect DC 12V and Wiegand data lines to STAR RF10 proximity reader. . Apply power and red LED of RF10 will lit.. Approach RF card to the reader then reader will beep and green LED will lit for a second then red LED lit again for next reading sequence. . Reader will send 26 bits Wiegnad data to access controller. (RS232C output format OPTION)

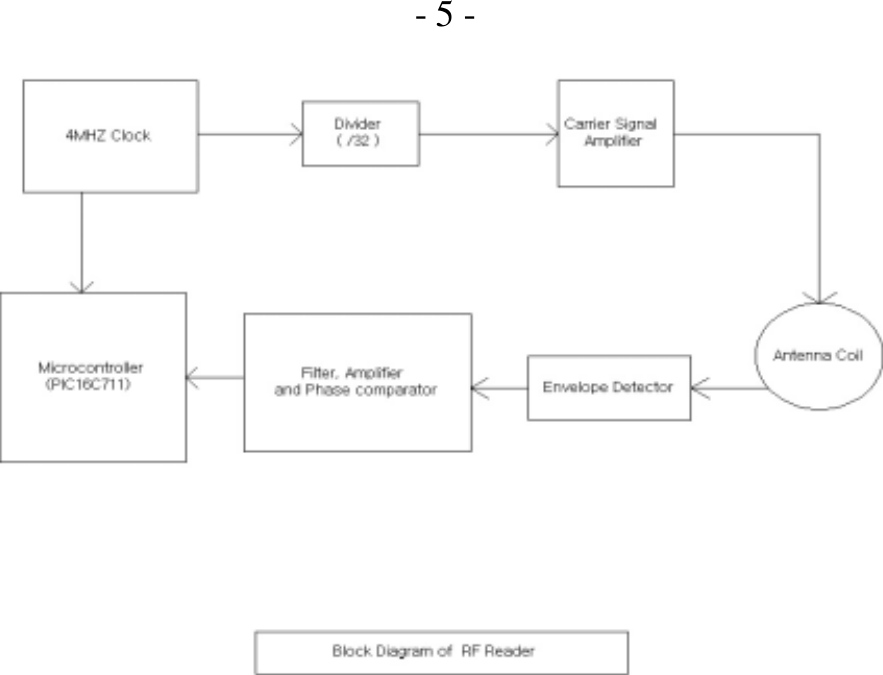

- 5 -

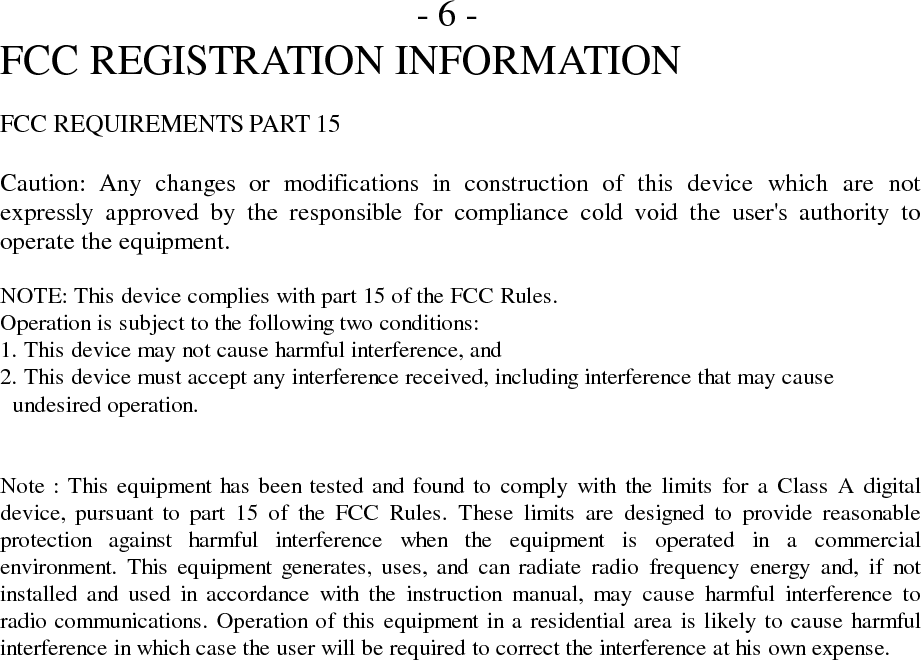

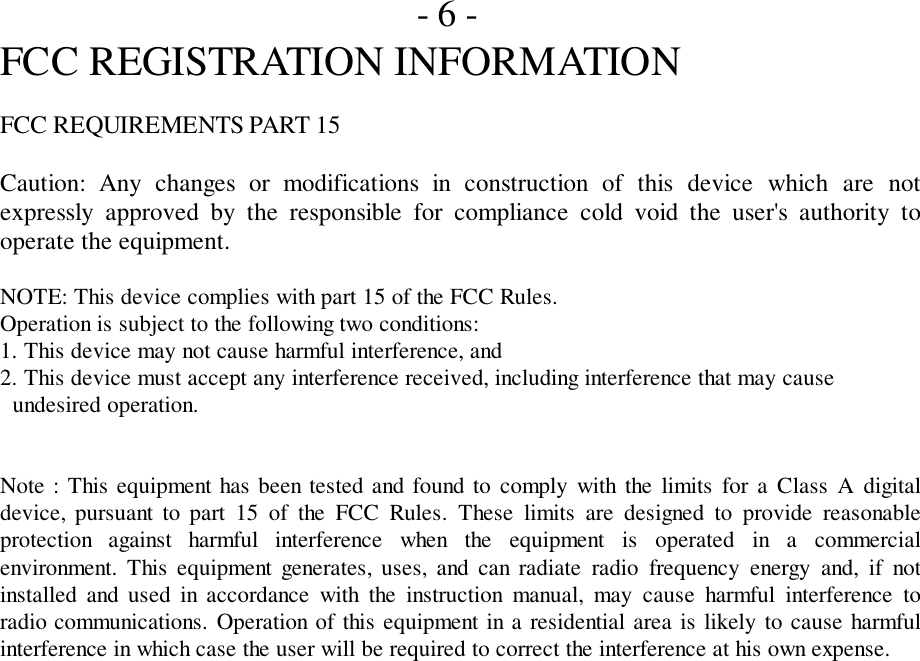

- 6 -FCC REGISTRATION INFORMATIONFCC REQUIREMENTS PART 15Caution: Any changes or modifications in construction of this device which are notexpressly approved by the responsible for compliance cold void the user's authority tooperate the equipment.NOTE: This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired operation.Note : This equipment has been tested and found to comply with the limits for a Class A digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference when the equipment is operated in a commercialenvironment. This equipment generates, uses, and can radiate radio frequency energy and, if notinstalled and used in accordance with the instruction manual, may cause harmful interference toradio communications. Operation of this equipment in a residential area is likely to cause harmfulinterference in which case the user will be required to correct the interference at his own expense.
- 7 -

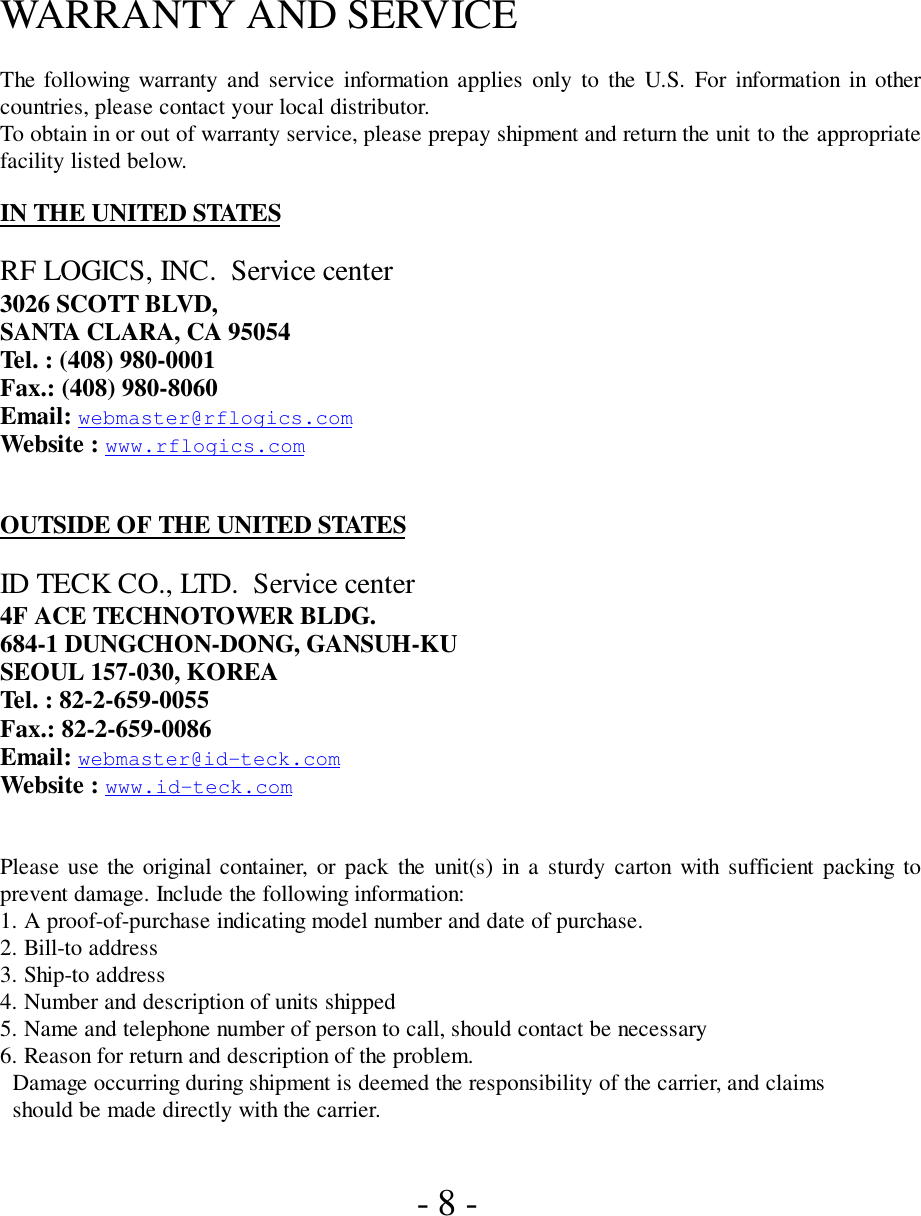

WARRANTY AND SERVICEThe following warranty and service information applies only to the U.S. For information in othercountries, please contact your local distributor.To obtain in or out of warranty service, please prepay shipment and return the unit to the appropriatefacility listed below.IN THE UNITED STATESRF LOGICS, INC. Service center3026 SCOTT BLVD,SANTA CLARA, CA 95054Tel. : (408) 980-0001Fax.: (408) 980-8060Email: webmaster@rflogics.comWebsite : www.rflogics.comOUTSIDE OF THE UNITED STATESID TECK CO., LTD. Service center4F ACE TECHNOTOWER BLDG.684-1 DUNGCHON-DONG, GANSUH-KUSEOUL 157-030, KOREATel. : 82-2-659-0055Fax.: 82-2-659-0086Email: webmaster@id-teck.comWebsite : www.id-teck.comPlease use the original container, or pack the unit(s) in a sturdy carton with sufficient packing toprevent damage. Include the following information:1. A proof-of-purchase indicating model number and date of purchase.2. Bill-to address3. Ship-to address4. Number and description of units shipped5. Name and telephone number of person to call, should contact be necessary6. Reason for return and description of the problem. Damage occurring during shipment is deemed the responsibility of the carrier, and claims should be made directly with the carrier. - 8 -
