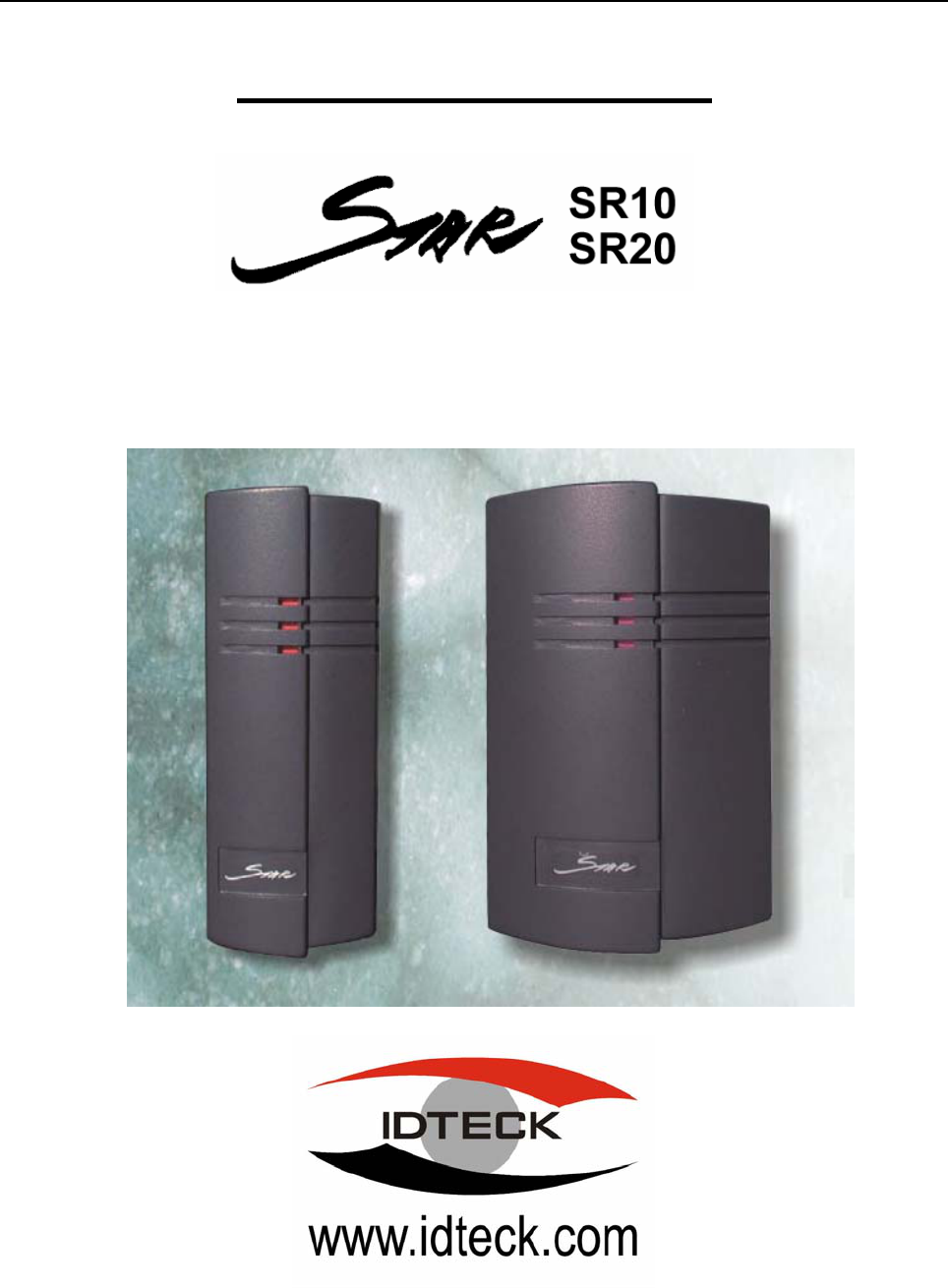

Users Manual
PROXIMITY READER
USER’s MANUAL
Philips Mifare™ Compatible Proximity Reader
PROXIMITY READER
IDTECK -2- 20031125
CONTENTS
1. Important Safety Instructions page 3
2. Product Introduction page 3
3. Features page 4
4. Identifying supplied parts page 4
5. Specification page 4
6. Installation page 5
7. Wire Color Table of the Reader page 5
8. Output Format page 6
9. Wire Connection to Controller page 7
10. Operation page 7
11. FCC Registration Information page 8
12. Warranty and Service page 9
13. RMA Request Form & A/S Request Form page 10
PROXIMITY READER
IDTECK -3- 20031125
1. Important Safety Instructions
When using STAR SR10/SR20 Philips Mifare™ Compatible Proximity Reader, basic safety precautions
should always be followed to reduce the risk of fire, electrical shock, and injury to persons. In addition, the
following should also be followed:
1. Read and understand all instructions of the User’s Manual.
2. Follow all warnings and instructions marked on the product.
3. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
If necessary, use mild soap.
4. Do not use this product near water, such as bath-tub, wash bowl,
kitchen sink, laundry tub, in a wet basement, or swimming pool.
5. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supplied to your installation site, consult your dealer or local power
company.
6. Never push objects of any kind into this product or through the cabinet
slots as they may touch voltage points or short out parts that could
result in fire or electric shock. Never spill liquid of any kind on the
product.
7. To reduce the risk of electric shock, do not disassemble this product by
yourself, but take it to qualified service whenever service or repair is
required.
8. Unplug this product from the Direct Current (DC) power source and
refer to qualified service personnel under these conditions:
z When the power supply cord or plug is damaged or frayed.
z If liquid has been spilled on the product.
z If the product does not operate normally after following the operating instructions in this manual.
z If the product exhibits a distinct change in performance.
9. Do not use this product under dusty or vibration circumstance.
2. Product Introduction
The STAR SR10/ SR20 Philips Mifare™ Compatible Proximity Reader is an elegant looking 4" (10cm) read
range proximity reader which can be mounted to any flat wall surface. The SR10/SR20 Philips Mifare™
Compatible Reader reads serial numbers from Philips Mifare™ Compatible cards and transmits the data to
control panel in various output formats. The SR10/ SR20 uses the same epoxy-potted electronics module that
ensures you successful operation even in harsh environments. The two-color LED of green and red and the
piezo buzzer inside the reader will guarantee you accurate and reliable system operations.
PROXIMITY READER
IDTECK -4- 20031125
3. Features
- Philips Mifare™ Compatible Proximity Reader
- Maximum 4" (10cm) reading range
- External LED and Buzzer control inputs
- 2-Color LED(Red and Green) Indicator and Buzzer sound
- Output format selectable between 34-bit/26-bit Wiegand
- Optional RS232 communication port
- Operating voltage from 7V to 17VDC

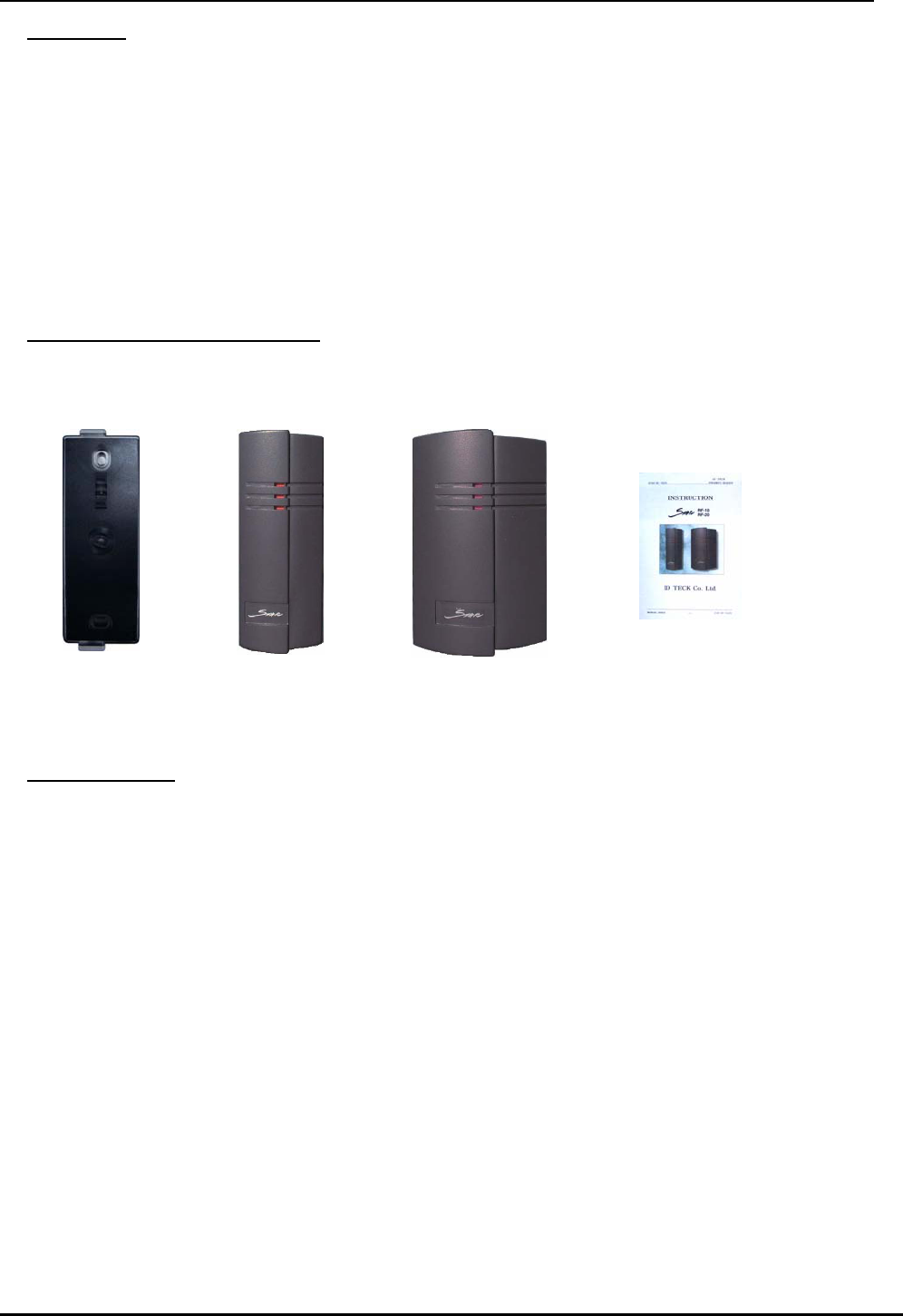

4. Identifying Supplied Parts
Please unpack and check the contents of the box.
Reader Module SR10 Bezel or SR20 Bezel Instruction (1
ea) (1 ea) (1 ea) (1 ea)
5. Specification
Read Range : Up to 4" (10cm)
Read Format : Philips Mifare™ Compatible Proximity Card Format
Operating Frequency : 13.56MHz
Compatibility : ISO14443 type A
Power : DC 7V ~ 17V, Max. 150mA
Output Format : 34-bit or 26-bit Wiegand, Optional RS232 communication port
External LED/ Buzzer control Input : Low Active, DC 0 ~ 5V, Max. 50 mA
LED/ Buzzer : Two-color LED(red and green)/ Piezo Buzzer
Color : Dark Pearl Gray
Operating Environment : 5 ~℉ 149 ℉(-15℃ ~ +65℃), 10~90% RH
Overall Size (WxHxD) : SR10 1.82"x4.81"x0.87"(46x122x23mm)
SR20 3.00"x4.89"x0.87"(76x124x23.5mm)
Weight (SR10 / SR20) : 0.33lb(150g) / 0.35(160g)
PROXIMITY READER
IDTECK -5- 20031125

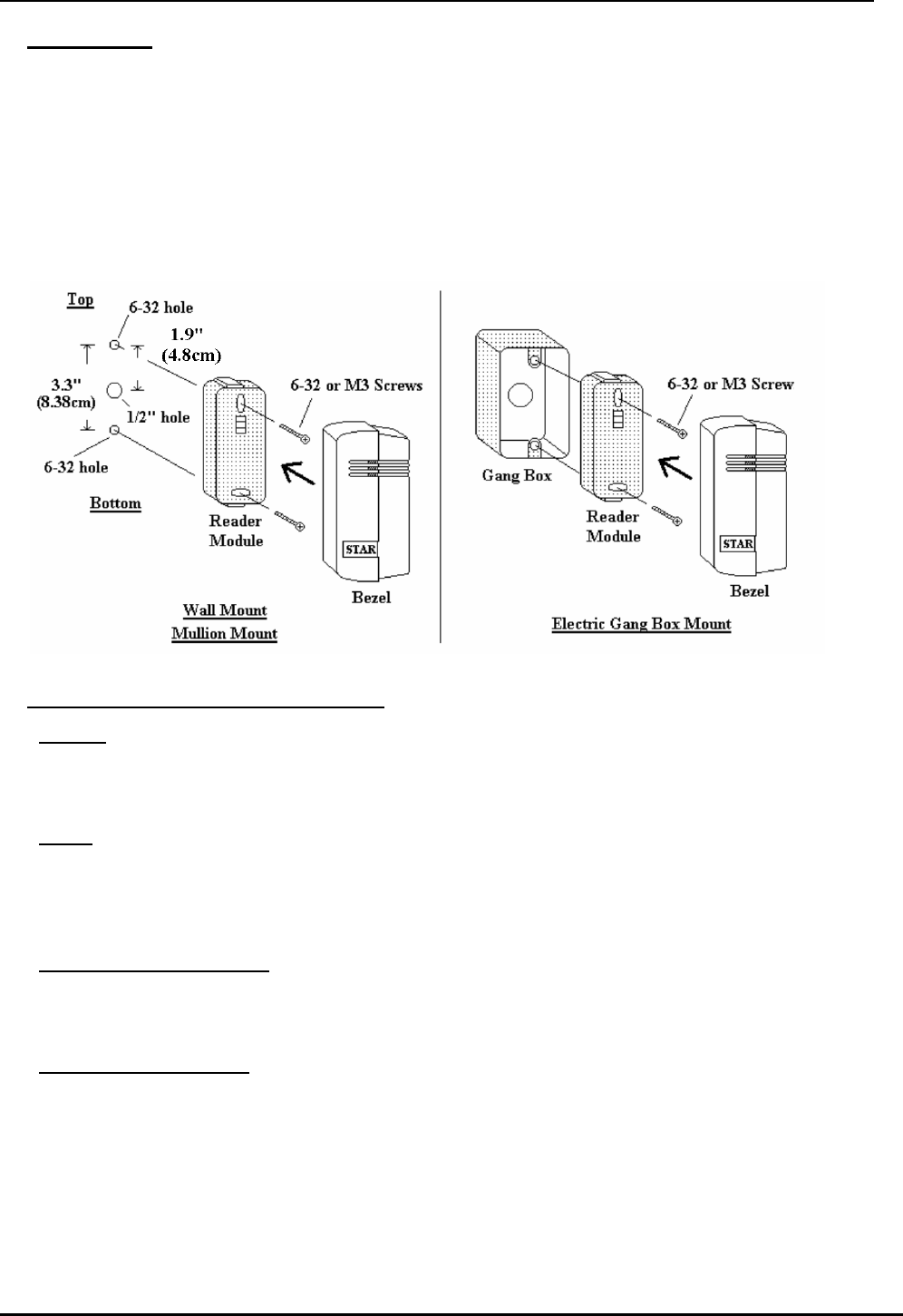

6. Installation
6-1. Mullion/Wall Mount
Drill two 6-32 or M3 holes 3.3"(8.38cm) apart in vertical and drill one 1/2" hole for
the reader cable 1.7"(4.31cm) apart from the top hole.
(If you have installed electric gang box then skip this step.)
6-2. Put reader cable into the center hole and install the reader module by using two
6-32 or M3 screws.
6-3. Put bezel into the reader module then push bezel until you hear the locking sound.
7. Wire Color Table of the SR10/20
POWER
Power (DC +7V ~ +17V) DC(+) Red wire
Power (Ground) GND Black wire
INPUT
LED Control LED_CON Yellow wire
Buzzer Control Buzzer_CON Blue wire
Output Format Selection 34 bit / 26 bit select 34/26_SLCT Gray wire
OUTPUT (Wiegand Format)
Wiegand Data-0 Data-0 Green wire
Wiegand Data-1 Data-1 White wire
OUTPUT (RS232 Format)
RS232C TX Violet wire
PROXIMITY READER
IDTECK -6- 20031125
8. Output Format
8-1. Wiegand Output Format
Data format (34-bit /26-bit)
Bit 1 / Bit 1 : Even parity from Bit 2 to Bit 17/ Bit 2 to Bit 13
Bit 2 to Bit33 / Bit 2 to Bit25 : 4-byte ID number / 3-byte ID number
Bit 34 / Bit 26 : Odd parity from Bit 18 to Bit 33/ Bit 14 to Bit 25

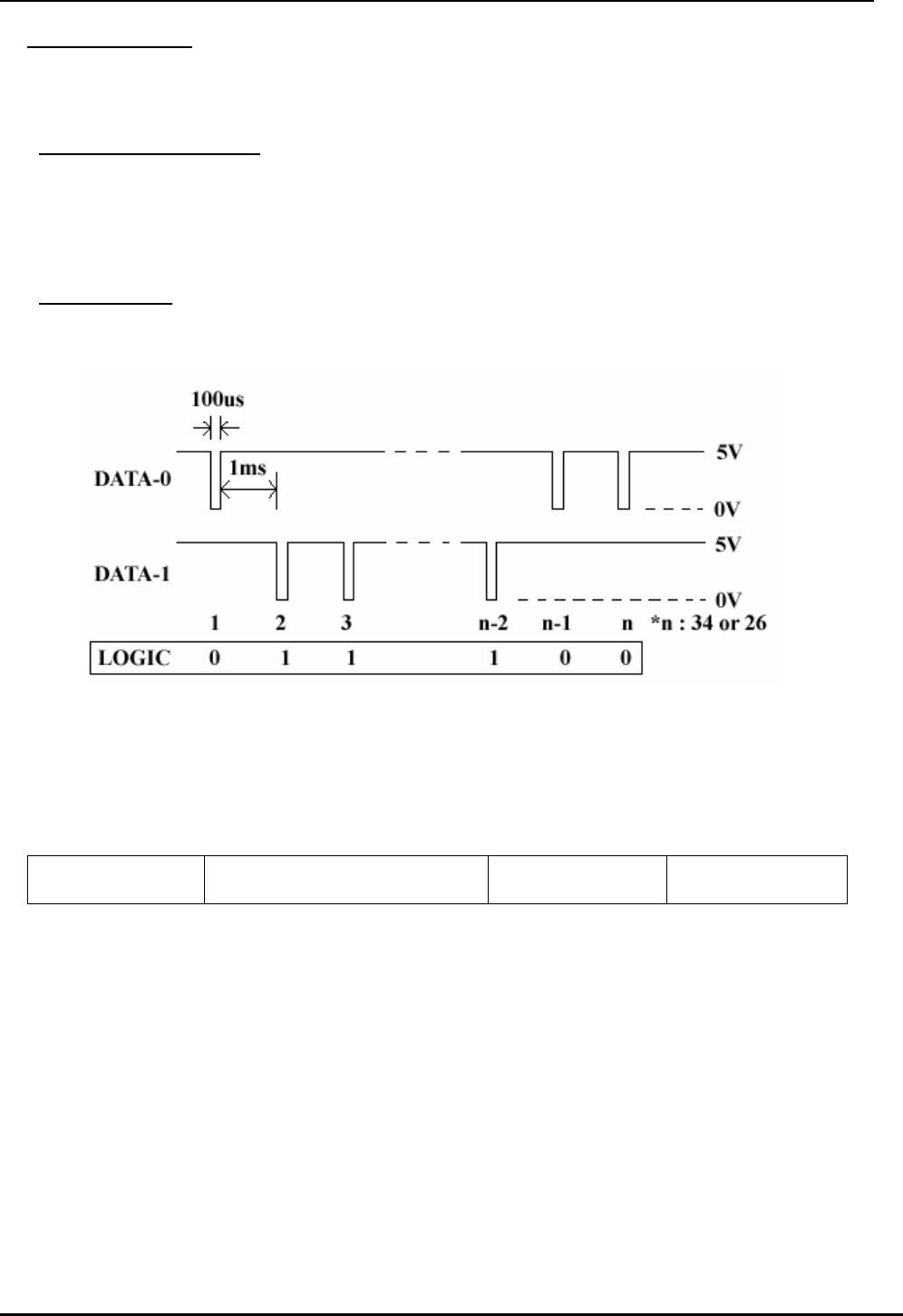

Timing diagram
8.2 RS-232C(Optional) Data format
START(0x02H) DATA(10 or 8 char’s) END(0x03H) LRC
Baud rate : 9600
DATA : 10 characters for 4-byte output, 8 characters for 3-byte.
LRC : The value made from XORing every byte from ‘START’ through ‘END’
PROXIMITY READER
IDTECK -7- 20031125

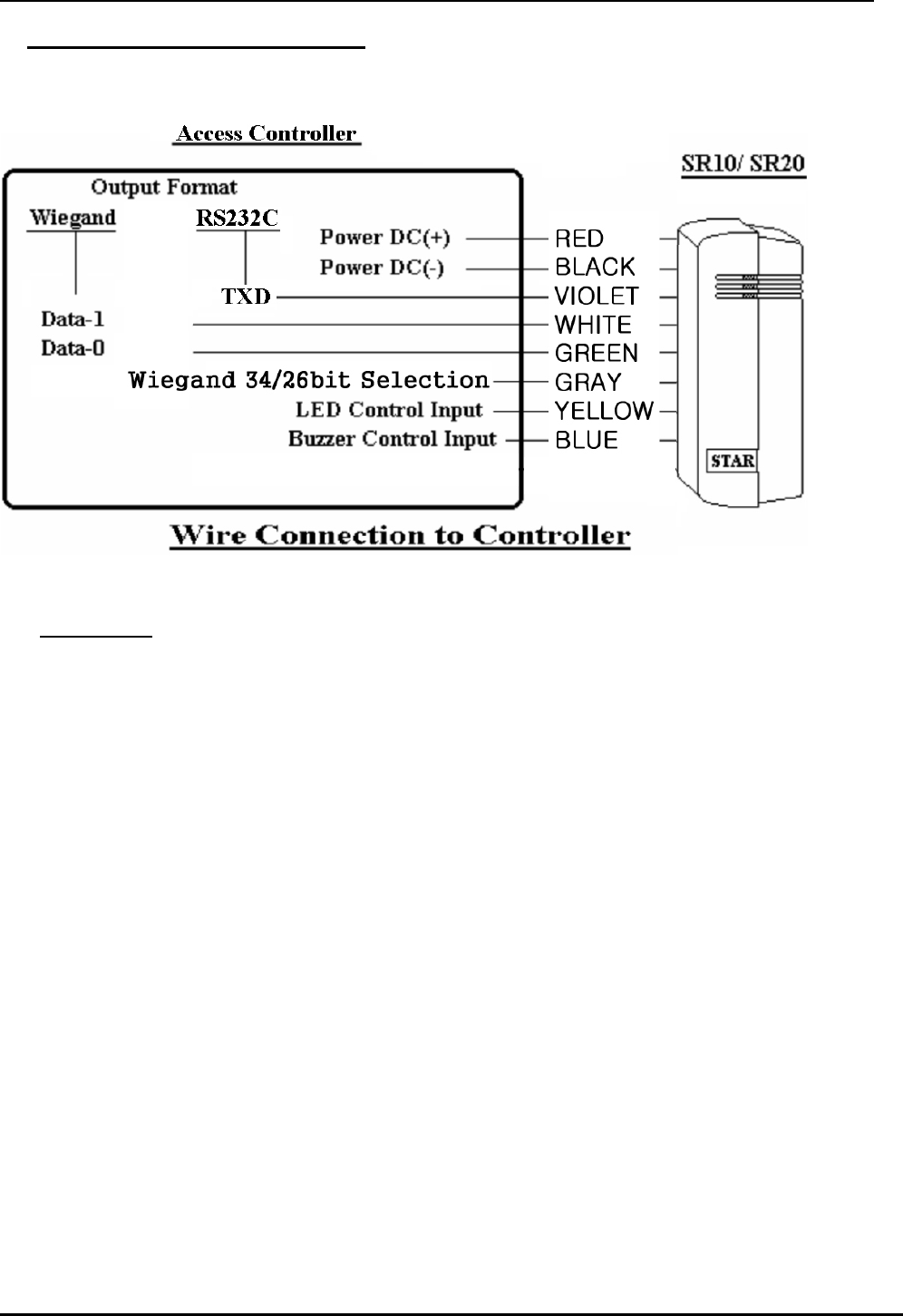

9. Wire Connection to Controller
The brown and the orange wire MUST be left unconnected. The violet wire is reserved for RS-232C output.
Please be careful connecting the wires not to make a misconnection.
10. Operation
10-1. Apply power and you can see the red LED is on indicating the reader is on standby.
10-2. Present a proximity card to the reader until you hear a beep sound and the LED changes the color to
Green simultaneously and the reader sends the RF card data to the controller then the LED changes
the color to Red again for next reading.
10-3. LED Control;
To change the LED colors, you may connect the LED Control Input(Yellow wire) to the power ground
then the Green LED is on.
Present a proximity card then the LED changes the color to Red simultaneously then Green again for
next reading.
10-4. Buzzer Control;
When the reader reads proximity card, only one beep sound generates in normal operating mode but
you can generate more beep sounds to distinguish whether the access is granted or denied.
To generate more beeps, you may control the Buzzer Control Input(Blue wire) to the power ground then
you can turn the beeper on while you hold Buzzer Control Input to the power ground.
10-5. 4-byte(34bit) / 3-byte(26bit) selection:
The reader outputs the serial number of a card which is a 4-byte number. It is, however, possible to make
the reader send only 3 bytes of it with the most significant byte trimmed off. It is useful when there are
controllers which deal with 3-byte data only as most of existing controllers are.
For 3-byte outputs, connect the 34-bit / 26-bit selection input(Gray wire) to Ground.
Caution : It is unavoidable that some card numbers are duplicated in 3-byte output.
PROXIMITY READER
IDTECK -8- 20031125
11. FCC REGISTRATION INFORMATION
FCC REQUIREMENTS PART 15
Caution: Any changes or modifications in construction of this device which are not expressly approved by the
manufacturer for compliance could void the user's authority to operate the equipment.
NOTE: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interface, and
2. This device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to
Part 15 of the FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the radio
or television off and on, the user is encouraged to try to correct interference by one or more of the following
measures.
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on another circuit.
4. Consult the dealer or an experienced radio/TV technician for help.
PROXIMITY READER
IDTECK -9- 20031125
12. Warranty and Service
STAR SR10/SR20 Philips Mifare™ Compatible Proximity Reader warranty is valid for 2 years from the
shipping date. The following warranty and service information applies only to the United States of America
and Republic of Korea. For the information in other countries, please contact your local distributor or
suppliers. To obtain in or out of warranty service, please prepay shipment and return the unit to the facility
listed below.
IN THE UNITED STATES
RF LOGICS Inc. Service Center
3026 Scott Blvd.,
SANTA CLARA, CA95054
Tel. : (408) 980-0001
Fax. : (408) 980-8060
E-mail: rflogics@rflogics.com
Web-site: www.rflogics.com
OUTSIDE OF THE UNITED STATES
ID TECK CO., LTD. Service Center
5F Ace Techno Tower Bldg.,
684-1 Deungchon-dong, Gangseo-gu,
SEOUL 157-030, KOREA
Tel. : +82 2 2659-0055
Fax. : +82 2 2659-0086
E-mail: webmaster@idteck.com
Web-site: www.idteck.com
Please use the original container, or pack the unit(s) in a sturdy carton with sufficient packing to prevent
damage, include the following information:
1. A proof-of-purchase indicating model number and date of purchase.
2. Bill-to address
3. Ship-to address
4. Number and description of units shipped.
5. Name and telephone number of person to contact.
6. Reason for return and description of the problem.
NOTE: Damage occurring during shipment is deemed the responsibility of the carrier, and claims should
be made directly to the carrier.
PROXIMITY READER
IDTECK -10- 20031125

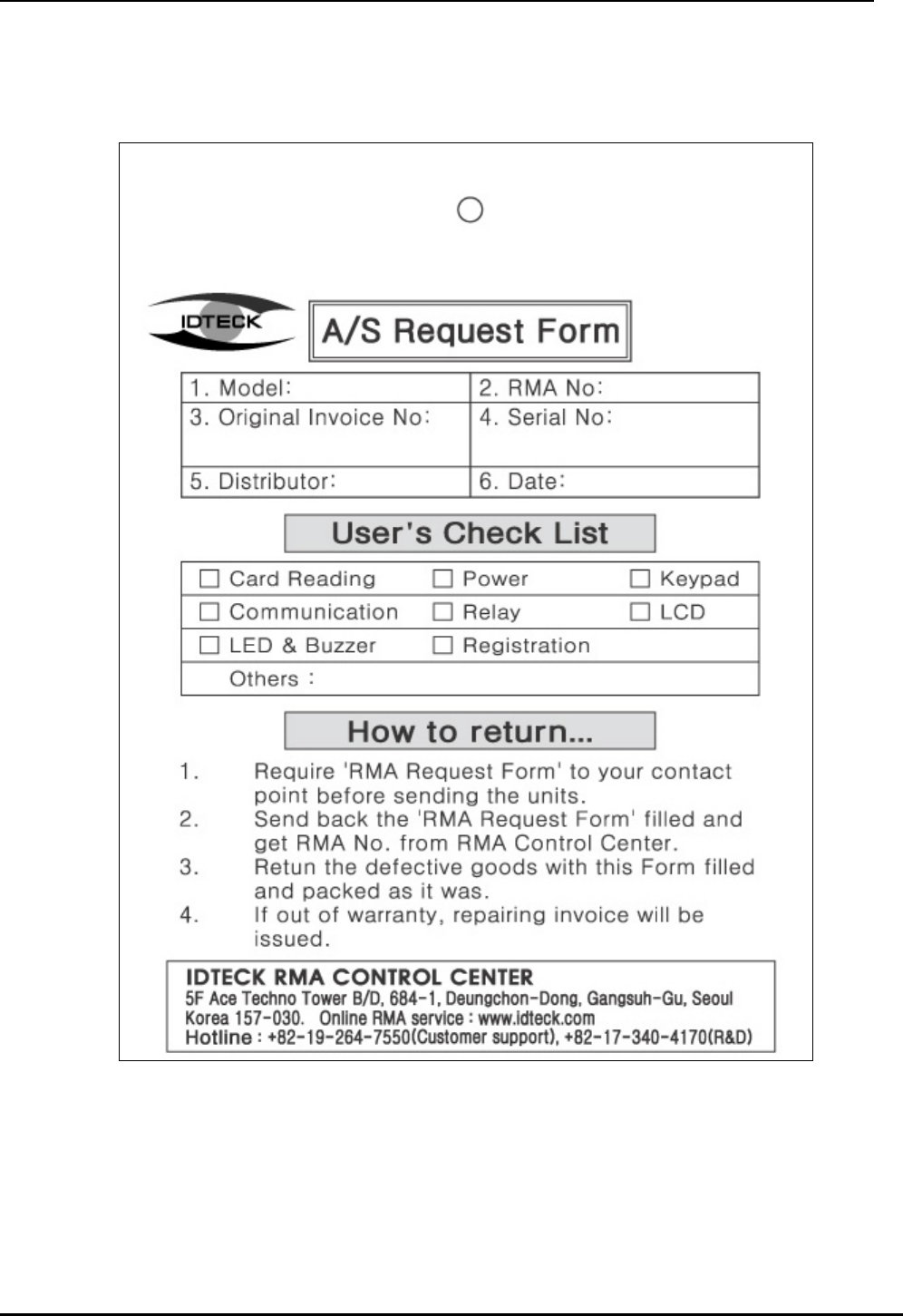

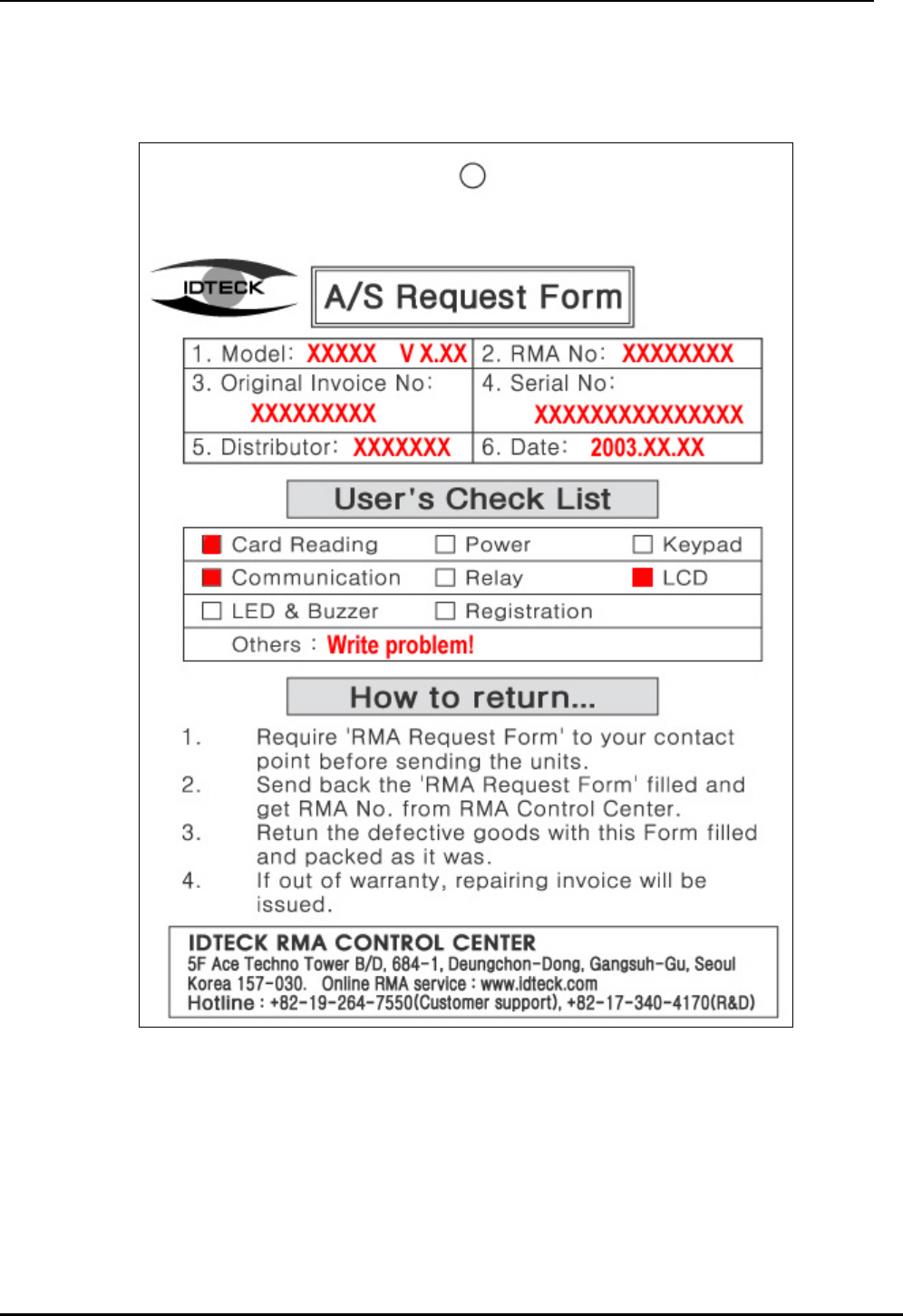

13. RMA Request Form & A/S Request Form
• RMA REQUEST FORM : ORIGINAL
5F, Ace Techno Tower B/D, 684-1, Deungchon Dong, Gangsuh Gu, Seoul, 157-030, Korea
TEL : +82-2-2659-0055, FAX ; +82-2-2659-0086, www.idteck.com
RMA REQUEST FORM
RMA No. & Date :
Original Invoice No. & Date :
Send To RMA Control Center
5F, Ace Techno Tower B/D 684-1,
Deungchon-Dong, Gangsuh-Gu
Seoul, 157-030, Korea
Sales Person In Charge
Requested From :
Shipping Port :
Air / Vessel : Departure Date :
NO Model Serial Number Error Check Box by shipper
RS 232 Com. □
Input/Output □
Power □
Keypad □
Card Reading □
RS 422 Com □
1 Engineer
Comment
Others □ :
RS 232 Com. □
Input/Output □
Power □
Keypad □
Card Reading □
RS 422 Com □
2 Engineer
Comment
Others □ :
RS 232 Com. □
Input/Output □
Power □
Keypad □
Card Reading □
RS 422 Com □
3 Engineer
Comment
Others □ :
RS 232 Com. □
Input/Output □
Power □
Keypad □
Card Reading □
RS 422 Com □
4 Engineer
Comment
Others □ :
RS 232 Com. □
Input/Output □
Power □
Keypad □
Card Reading □
RS 422 Com □
5 Engineer
Comment
Others □ :
Manufacture’s Verification
Product Defective :
User’s Misuse :
Communication Error :
Installation Error :
Connection Error :
Others :
Packing Details
Dimension(L:W:H) : No. of Units
Net & Gross Weight : No. of Boxes
Requested By Received By
Buyer’s Signature IDTECK’s Signature
PROXIMITY READER
IDTECK -11- 20031125
• RMA REQUEST FORM : SAMPLE
5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong, Gangsuh-Gu, Seoul, 157-030, Korea
TEL : +82-2-2659-0055, FAX ; +82-2-2659-0086, www.idteck.com
RMA REQUEST FORM
RMA No. & Date : We send this No. , when you want.
Original Invoice No. & Date : 00-00-0-000 / 1990.01.01
Send To RMA Control Center
5F, Ace Techno Tower B/D 684-1,
Deungchon-Dong, Gangsuh-Gu
Seoul, 157-030, Korea
Sales Person In Charge
Karina Kwak
Requested From :
Mr. Luis Castro
ABC Company,… address….
Tokyo, Japan
Shipping Port : Narita
Air / Vessel : Air Departure Date : 2003, 11. 25
NO Model Serial Number Error Check Box by shipper
SR 10 XXXXXXXXXXXXX RS 232 Com. □
Input/Output □
Power ▣
Keypad □
Card Reading ▣
RS 422 Com □
1 Engineer
Comment Write problem to be detailed. Others □ :
others RS 232 Com. □
Input/Output □
Power □
Keypad □
Card Reading □
RS 422 Com □
2 Engineer
Comment
Others □ :
RS 232 Com. □
Input/Output □
Power □
Keypad □
Card Reading □
RS 422 Com □
3 Engineer
Comment
Others □ :
RS 232 Com. □
Input/Output □
Power □
Keypad □
Card Reading □
RS 422 Com □
4 Engineer
Comment
Others □ :
RS 232 Com. □
Input/Output □
Power □
Keypad □
Card Reading □
RS 422 Com □
5 Engineer
Comment
Others □ :
Manufacture’s Verification
Product Defective :
User’s Misuse :
Communication Error :
Installation Error :
Connection Error :
Others :
Packing Details
Dimension(L:W:H) : 30 * 25 * 80 No. of Units 20
Net & Gross Weight : 150g No. of Boxes 2
Requested By Received By
Luis Castro
Buyer’s Signature IDTECK’s Signature
PROXIMITY READER
IDTECK -12- 20031125
• A/S REQUEST FORM : ORIGINAL
PROXIMITY READER
IDTECK -13- 20031125
• A/S REQUEST FORM : SAMPLE
PROXIMITY READER
IDTECK -14- 20031125

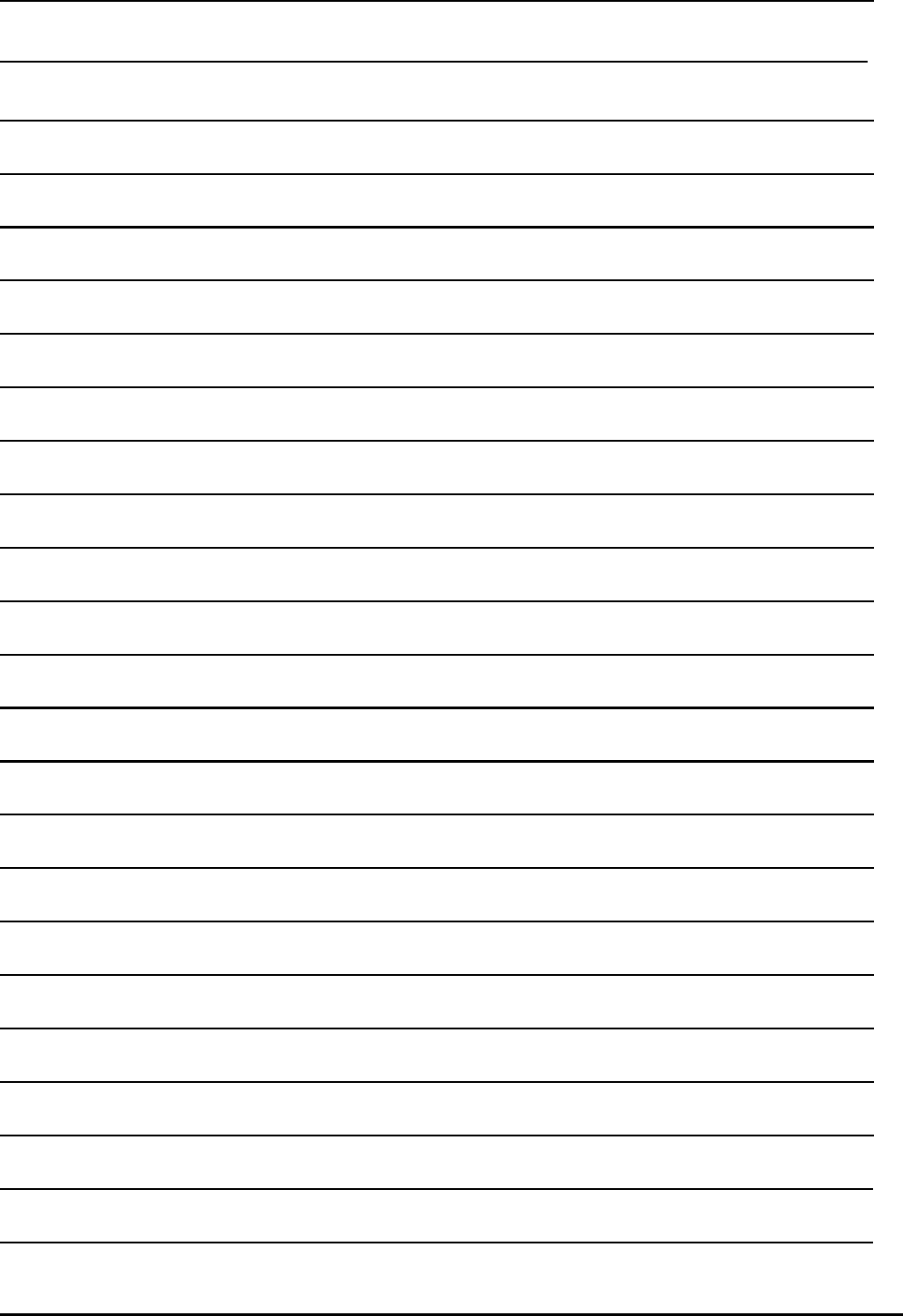

MEMO
PROXIMITY READER
IDTECK -15- 20031125

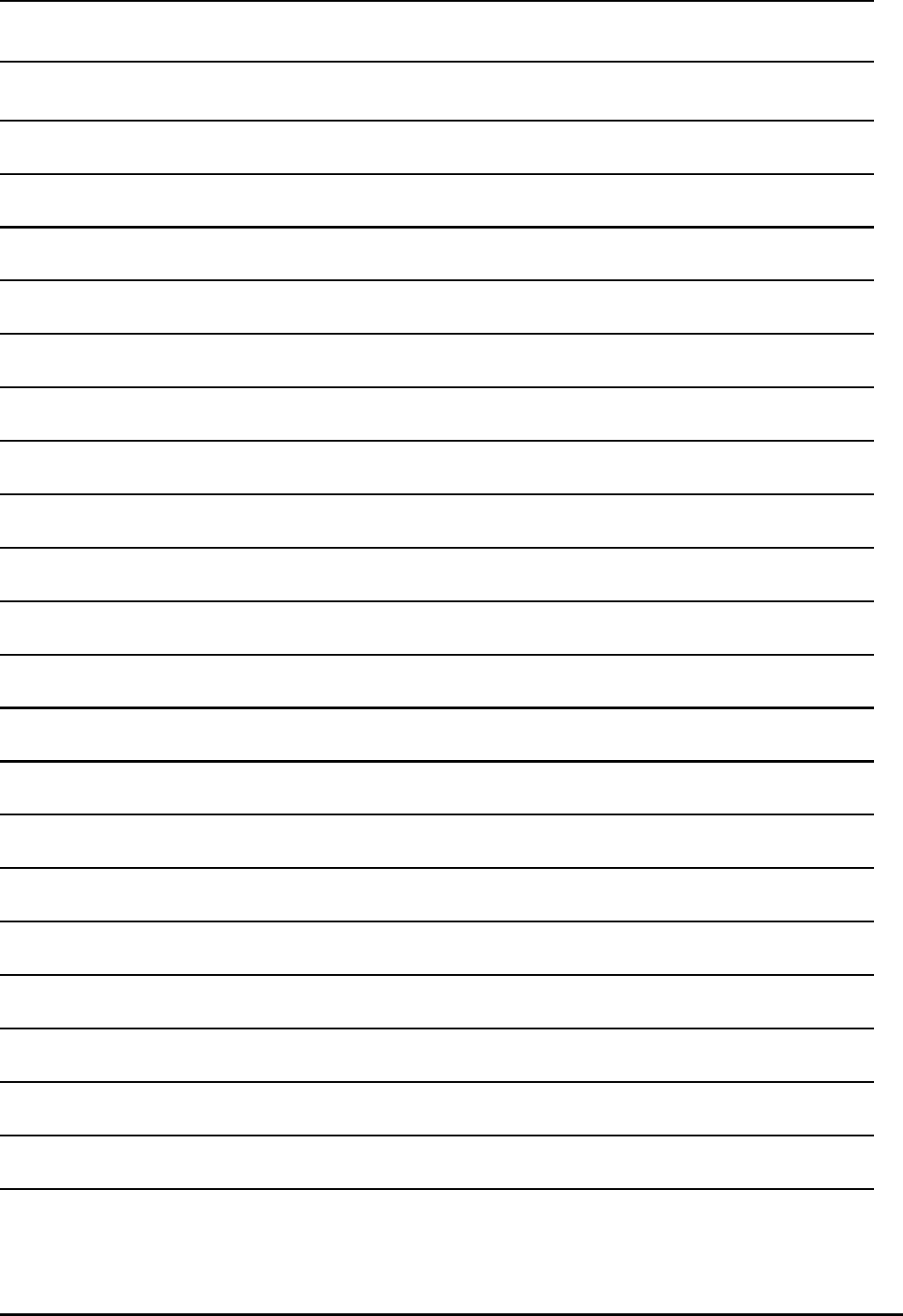

MEMO
PROXIMITY READER
The specification contained in this manual are subject to change without notice at any time.
5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong,
Gangsuh-Gu, Seoul, 157-030, Korea
Tel : (82) 2 2659-0055
Fax : (82) 2 2659-0086
E-mail : webmaster@idteck.com
NOV. 2003 Copyright ©2003 IDTECK Co., Ltd.
