PROXIMITY READER USER’s MANUAL Philips Mifare™ Compatible Proximity Reader

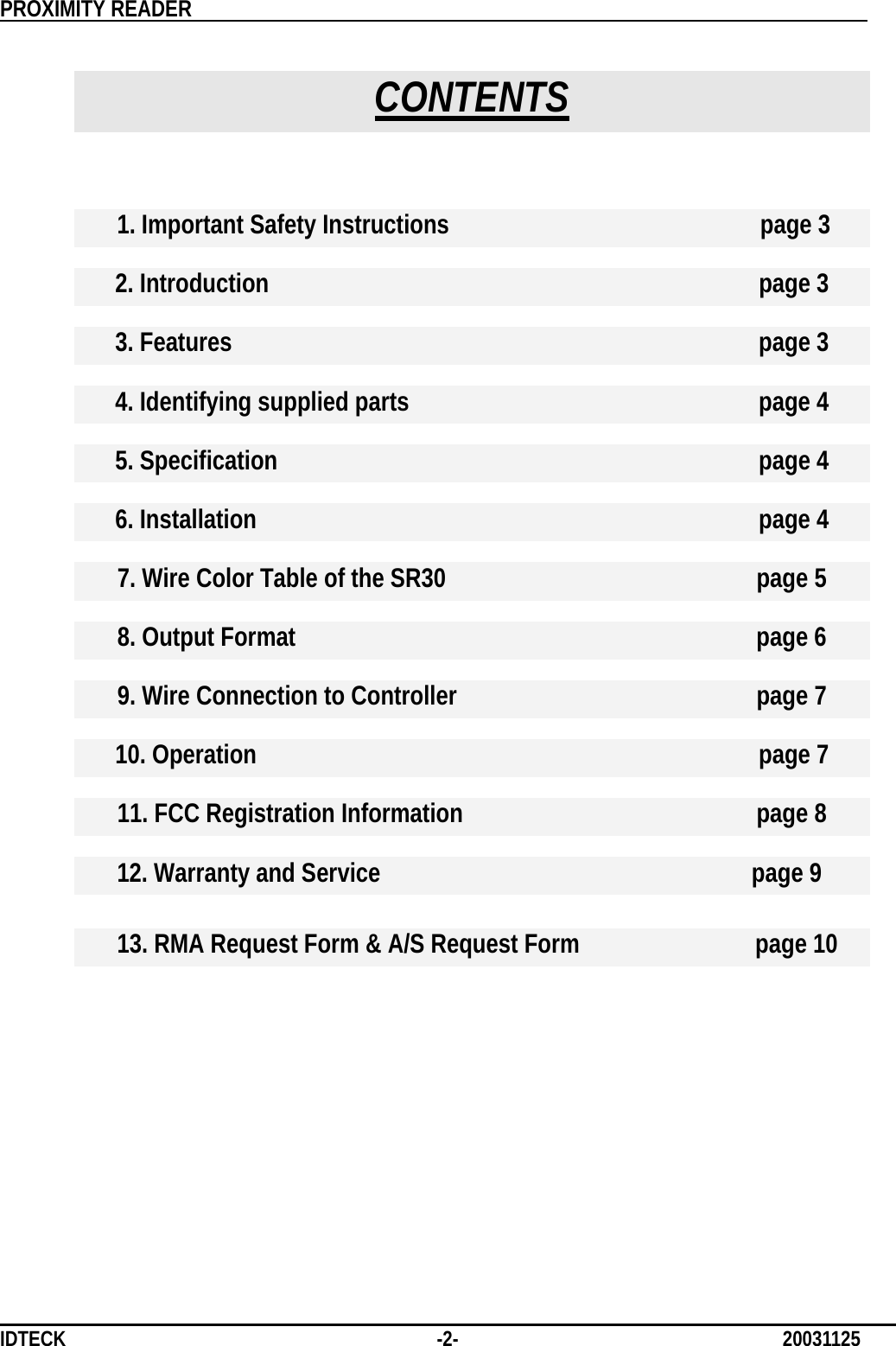

PROXIMITY READER IDTECK -2- 20031125 CONTENTS 1. Important Safety Instructions page 3 2. Introduction page 3 3. Features page 3 4. Identifying supplied parts page 4 5. Specification page 4 6. Installation page 4 7. Wire Color Table of the SR30 page 5 8. Output Format page 6 9. Wire Connection to Controller page 7 10. Operation page 7 11. FCC Registration Information page 8 12. Warranty and Service page 9 13. RMA Request Form & A/S Request Form page 10

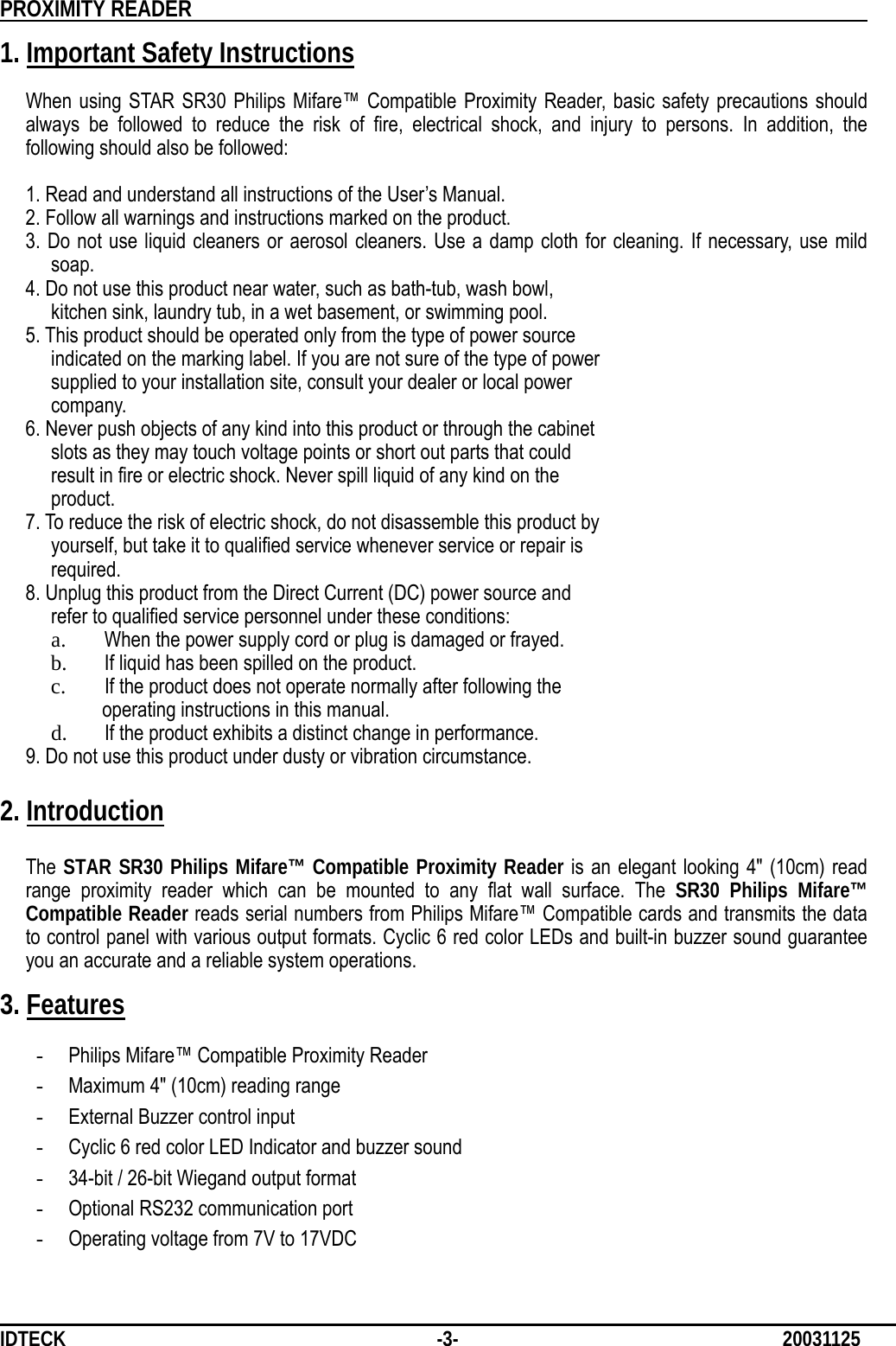

PROXIMITY READER IDTECK -3- 20031125 1. Important Safety Instructions When using STAR SR30 Philips Mifare™ Compatible Proximity Reader, basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons. In addition, the following should also be followed: 1. Read and understand all instructions of the User’s Manual. 2. Follow all warnings and instructions marked on the product. 3. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. If necessary, use mild soap. 4. Do not use this product near water, such as bath-tub, wash bowl, kitchen sink, laundry tub, in a wet basement, or swimming pool. 5. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your installation site, consult your dealer or local power company. 6. Never push objects of any kind into this product or through the cabinet slots as they may touch voltage points or short out parts that could result in fire or electric shock. Never spill liquid of any kind on the product. 7. To reduce the risk of electric shock, do not disassemble this product by yourself, but take it to qualified service whenever service or repair is required. 8. Unplug this product from the Direct Current (DC) power source and refer to qualified service personnel under these conditions: a. When the power supply cord or plug is damaged or frayed. b. If liquid has been spilled on the product. c. If the product does not operate normally after following the operating instructions in this manual. d. If the product exhibits a distinct change in performance. 9. Do not use this product under dusty or vibration circumstance. 2. Introduction The STAR SR30 Philips Mifare™ Compatible Proximity Reader is an elegant looking 4" (10cm) read range proximity reader which can be mounted to any flat wall surface. The SR30 Philips Mifare™ Compatible Reader reads serial numbers from Philips Mifare™ Compatible cards and transmits the data to control panel with various output formats. Cyclic 6 red color LEDs and built-in buzzer sound guarantee you an accurate and a reliable system operations. 3. Features - Philips Mifare™ Compatible Proximity Reader - Maximum 4" (10cm) reading range - External Buzzer control input - Cyclic 6 red color LED Indicator and buzzer sound - 34-bit / 26-bit Wiegand output format - Optional RS232 communication port - Operating voltage from 7V to 17VDC

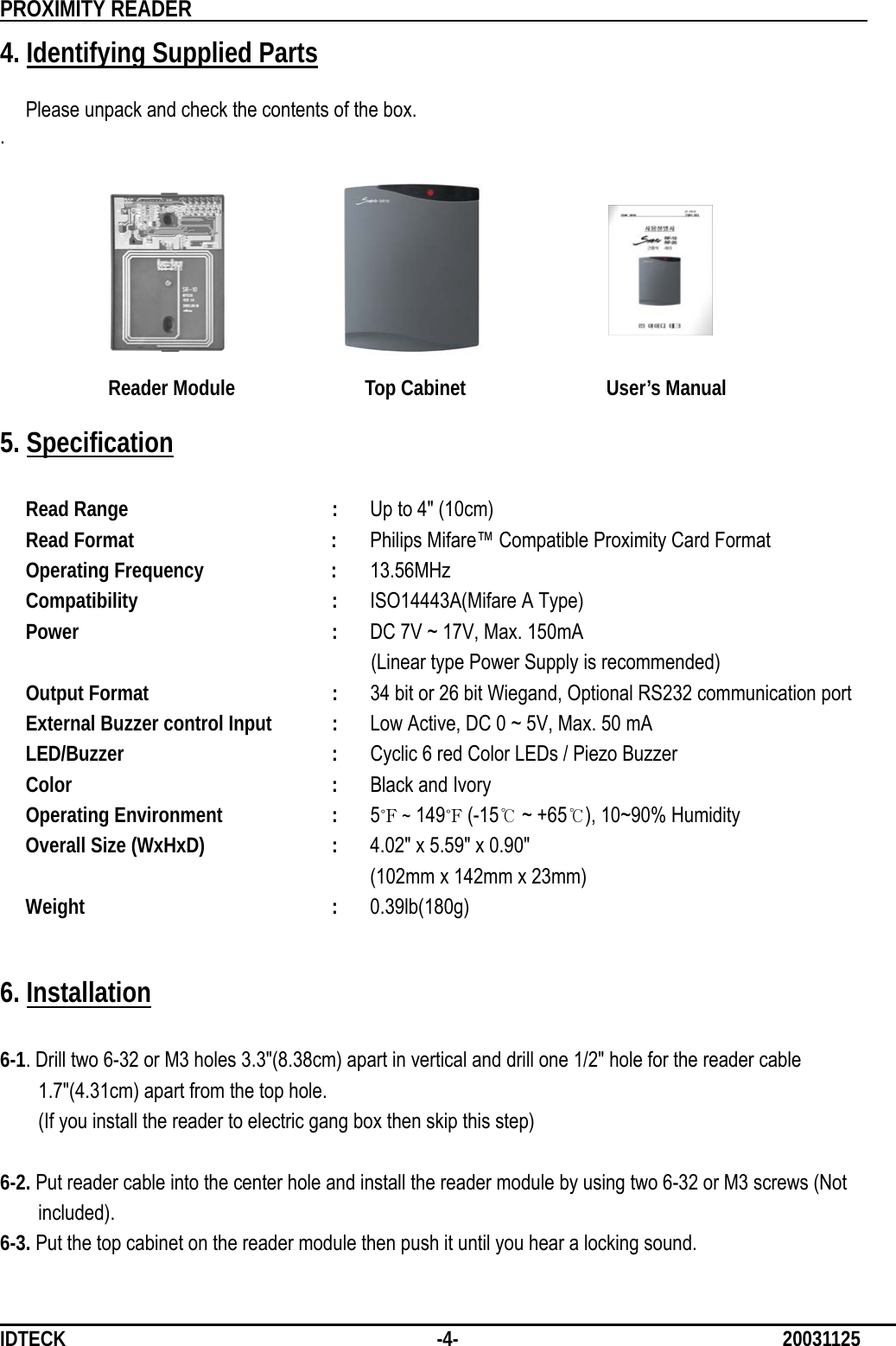

PROXIMITY READER IDTECK -4- 20031125 4. Identifying Supplied Parts Please unpack and check the contents of the box. . Reader Module Top Cabinet User’s Manual 5. Specification Read Range : Up to 4" (10cm) Read Format : Philips Mifare™ Compatible Proximity Card Format Operating Frequency : 13.56MHz Compatibility : ISO14443A(Mifare A Type) Power : DC 7V ~ 17V, Max. 150mA (Linear type Power Supply is recommended) Output Format : 34 bit or 26 bit Wiegand, Optional RS232 communication port External Buzzer control Input : Low Active, DC 0 ~ 5V, Max. 50 mA LED/Buzzer : Cyclic 6 red Color LEDs / Piezo Buzzer Color : Black and Ivory Operating Environment : 5℉ ~ 149℉ (-15℃ ~ +65℃), 10~90% Humidity Overall Size (WxHxD) : 4.02" x 5.59" x 0.90" (102mm x 142mm x 23mm) Weight : 0.39lb(180g) 6. Installation 6-1. Drill two 6-32 or M3 holes 3.3"(8.38cm) apart in vertical and drill one 1/2" hole for the reader cable 1.7"(4.31cm) apart from the top hole. (If you install the reader to electric gang box then skip this step) 6-2. Put reader cable into the center hole and install the reader module by using two 6-32 or M3 screws (Not included). 6-3. Put the top cabinet on the reader module then push it until you hear a locking sound.

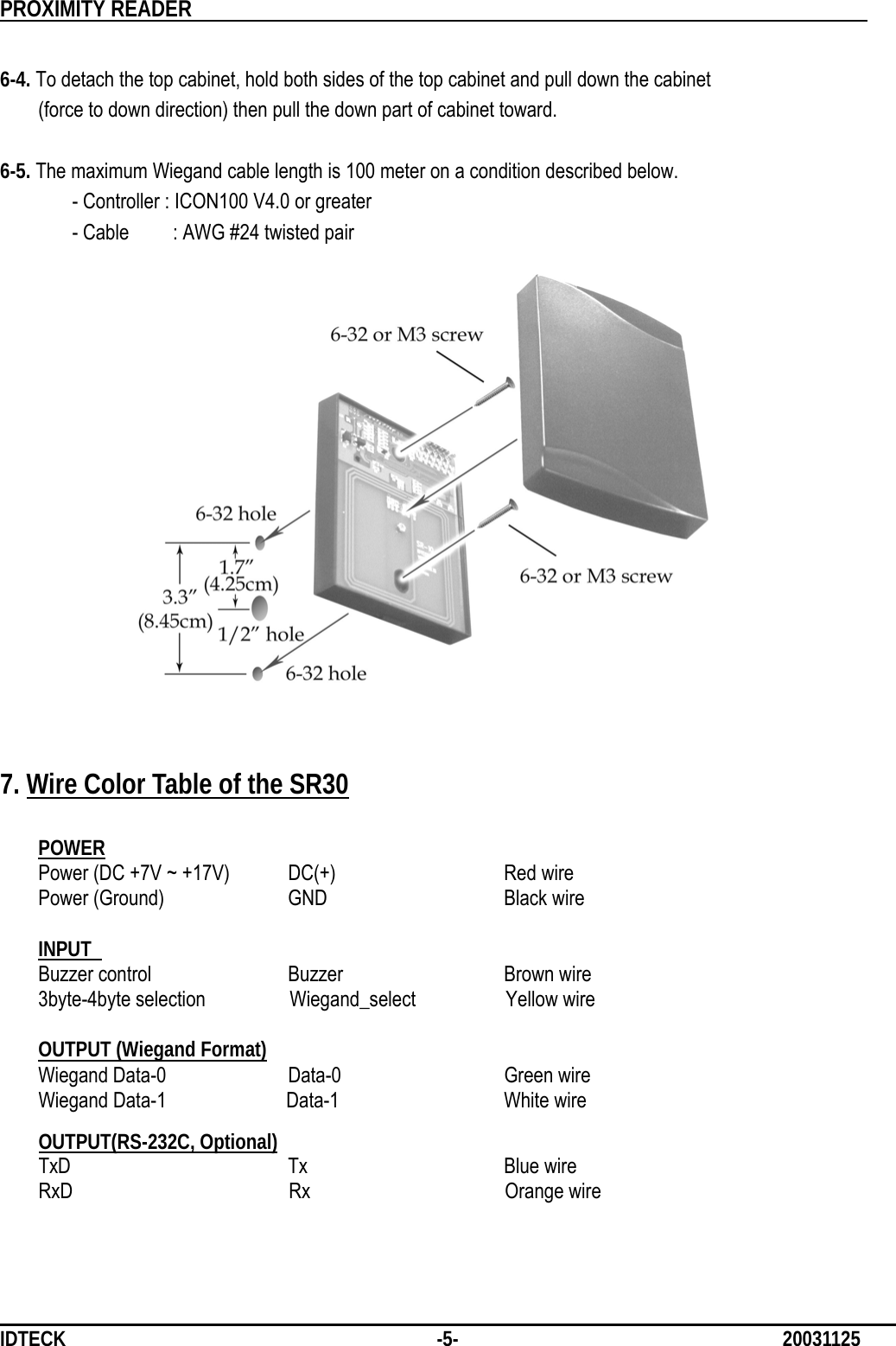

PROXIMITY READER IDTECK -5- 20031125 6-4. To detach the top cabinet, hold both sides of the top cabinet and pull down the cabinet (force to down direction) then pull the down part of cabinet toward. 6-5. The maximum Wiegand cable length is 100 meter on a condition described below. - Controller : ICON100 V4.0 or greater - Cable : AWG #24 twisted pair 7. Wire Color Table of the SR30 POWER Power (DC +7V ~ +17V) DC(+) Red wire Power (Ground) GND Black wire INPUT Buzzer control Buzzer Brown wire 3byte-4byte selection Wiegand_select Yellow wire OUTPUT (Wiegand Format) Wiegand Data-0 Data-0 Green wire Wiegand Data-1 Data-1 White wire OUTPUT(RS-232C, Optional) TxD Tx Blue wire RxD Rx Orange wire

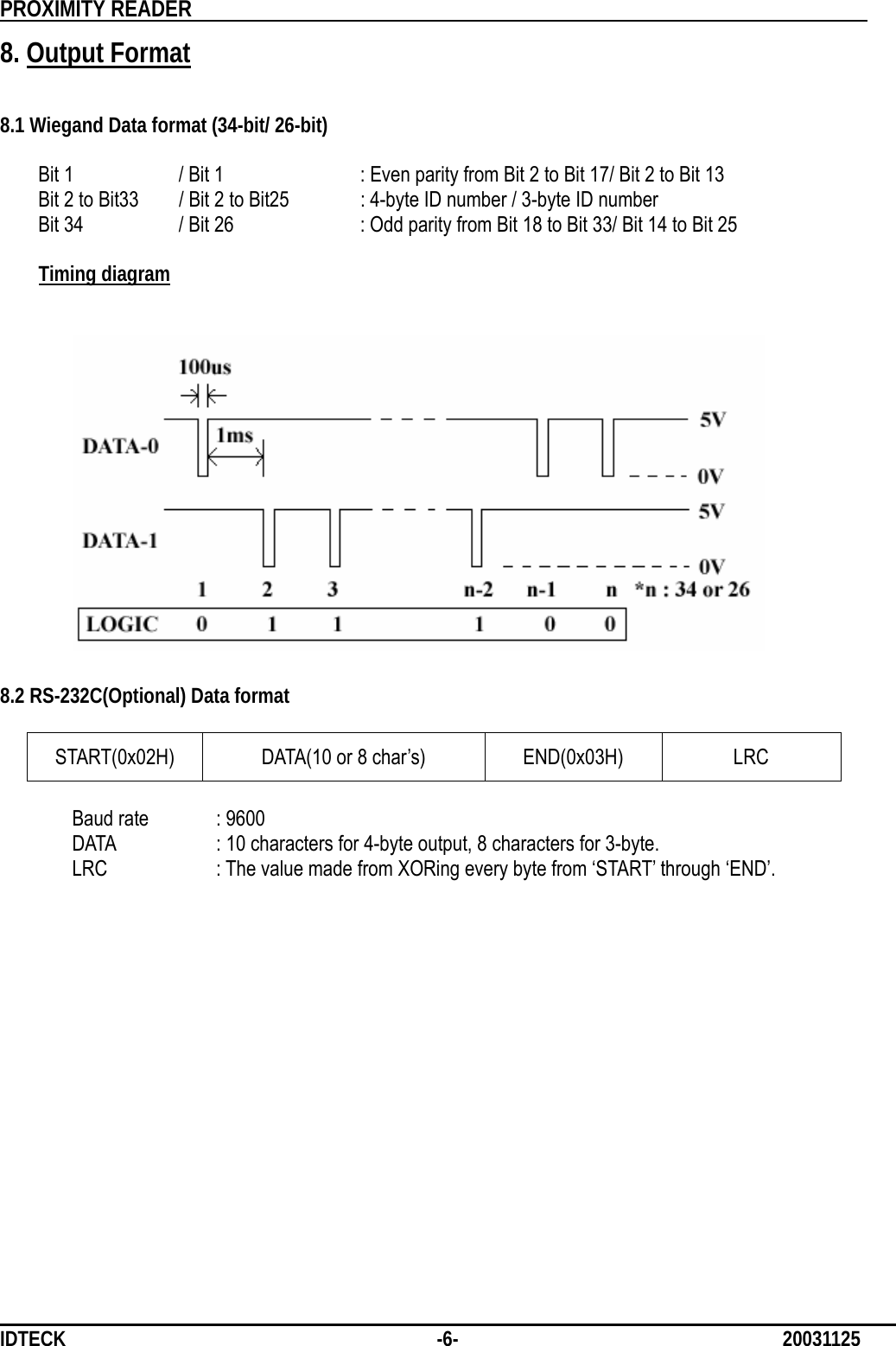

PROXIMITY READER IDTECK -6- 20031125 8. Output Format 8.1 Wiegand Data format (34-bit/ 26-bit) Bit 1 / Bit 1 : Even parity from Bit 2 to Bit 17/ Bit 2 to Bit 13 Bit 2 to Bit33 / Bit 2 to Bit25 : 4-byte ID number / 3-byte ID number Bit 34 / Bit 26 : Odd parity from Bit 18 to Bit 33/ Bit 14 to Bit 25 Timing diagram 8.2 RS-232C(Optional) Data format START(0x02H) DATA(10 or 8 char’s) END(0x03H) LRC Baud rate : 9600 DATA : 10 characters for 4-byte output, 8 characters for 3-byte. LRC : The value made from XORing every byte from ‘START’ through ‘END’.

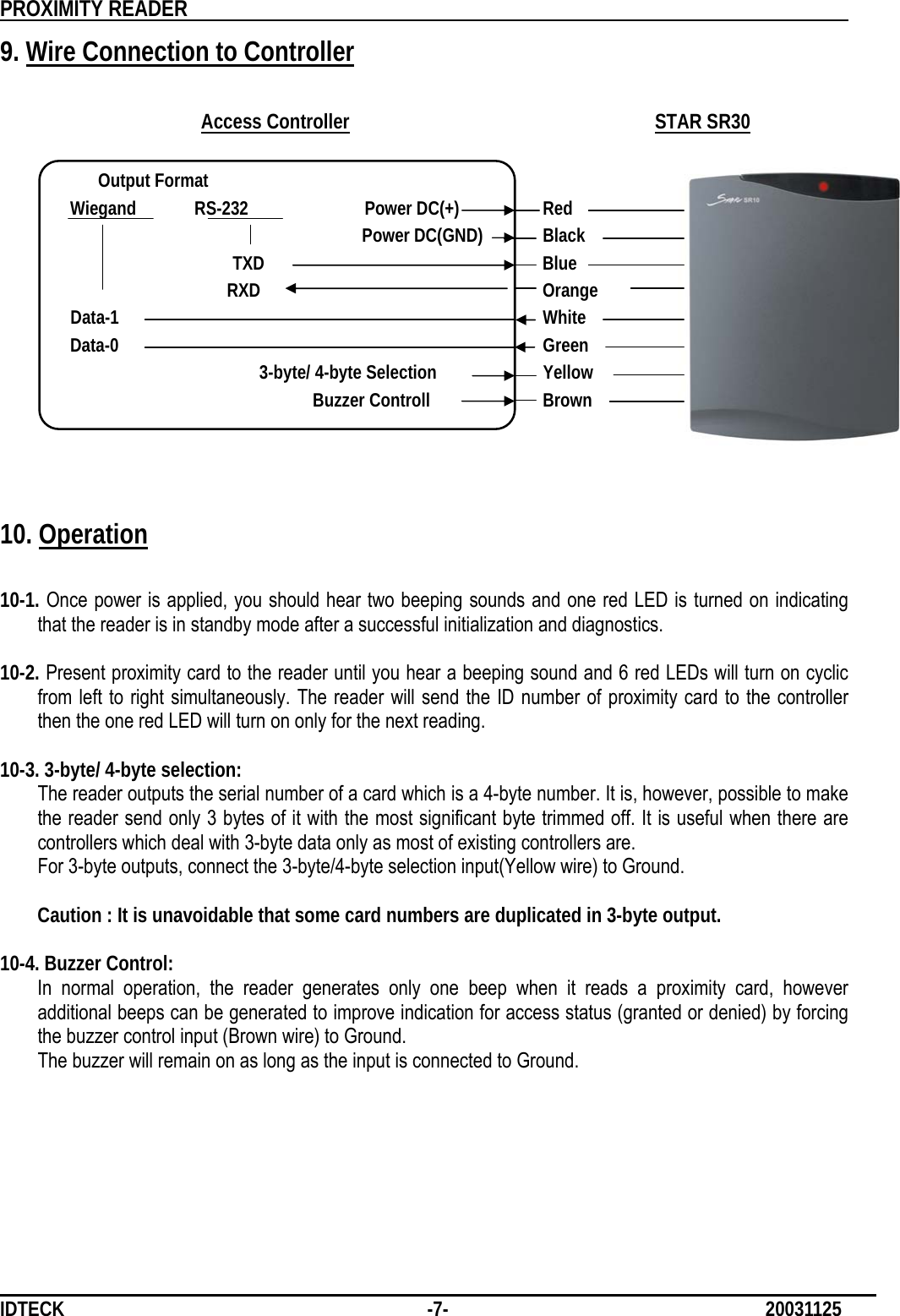

PROXIMITY READER IDTECK -7- 20031125 9. Wire Connection to Controller Access Controller STAR SR30 Output Format Wiegand RS-232 Power DC(+) Red Power DC(GND) Black TXD Blue RXD Orange Data-1 White Data-0 Green 3-byte/ 4-byte Selection Yellow Buzzer Controll Brown 10. Operation 10-1. Once power is applied, you should hear two beeping sounds and one red LED is turned on indicating that the reader is in standby mode after a successful initialization and diagnostics. 10-2. Present proximity card to the reader until you hear a beeping sound and 6 red LEDs will turn on cyclic from left to right simultaneously. The reader will send the ID number of proximity card to the controller then the one red LED will turn on only for the next reading. 10-3. 3-byte/ 4-byte selection: The reader outputs the serial number of a card which is a 4-byte number. It is, however, possible to make the reader send only 3 bytes of it with the most significant byte trimmed off. It is useful when there are controllers which deal with 3-byte data only as most of existing controllers are. For 3-byte outputs, connect the 3-byte/4-byte selection input(Yellow wire) to Ground. Caution : It is unavoidable that some card numbers are duplicated in 3-byte output. 10-4. Buzzer Control: In normal operation, the reader generates only one beep when it reads a proximity card, however additional beeps can be generated to improve indication for access status (granted or denied) by forcing the buzzer control input (Brown wire) to Ground. The buzzer will remain on as long as the input is connected to Ground.

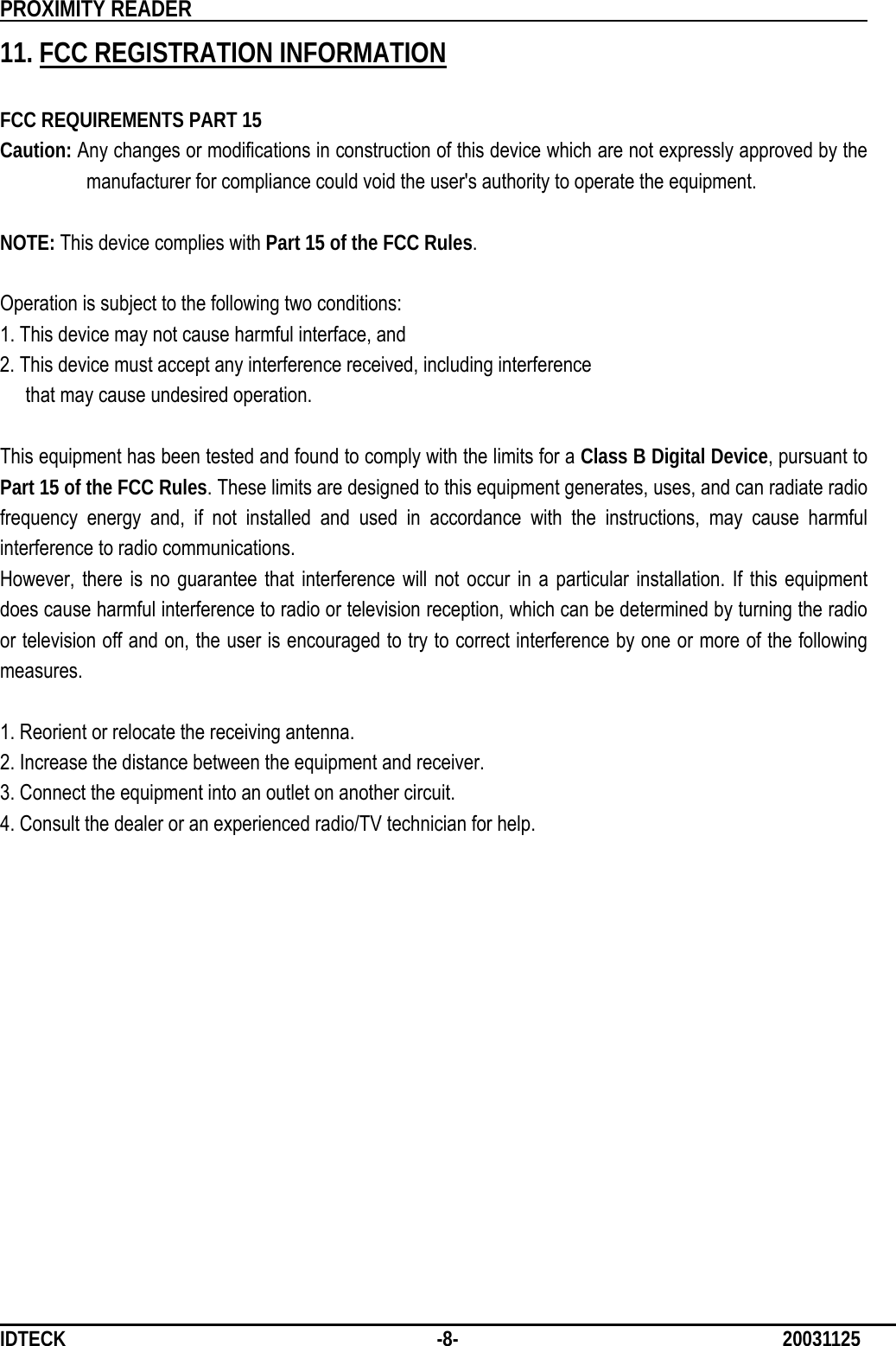

PROXIMITY READER IDTECK -8- 20031125 11. FCC REGISTRATION INFORMATION FCC REQUIREMENTS PART 15 Caution: Any changes or modifications in construction of this device which are not expressly approved by the manufacturer for compliance could void the user's authority to operate the equipment. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interface, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the radio or television off and on, the user is encouraged to try to correct interference by one or more of the following measures. 1. Reorient or relocate the receiving antenna. 2. Increase the distance between the equipment and receiver. 3. Connect the equipment into an outlet on another circuit. 4. Consult the dealer or an experienced radio/TV technician for help.

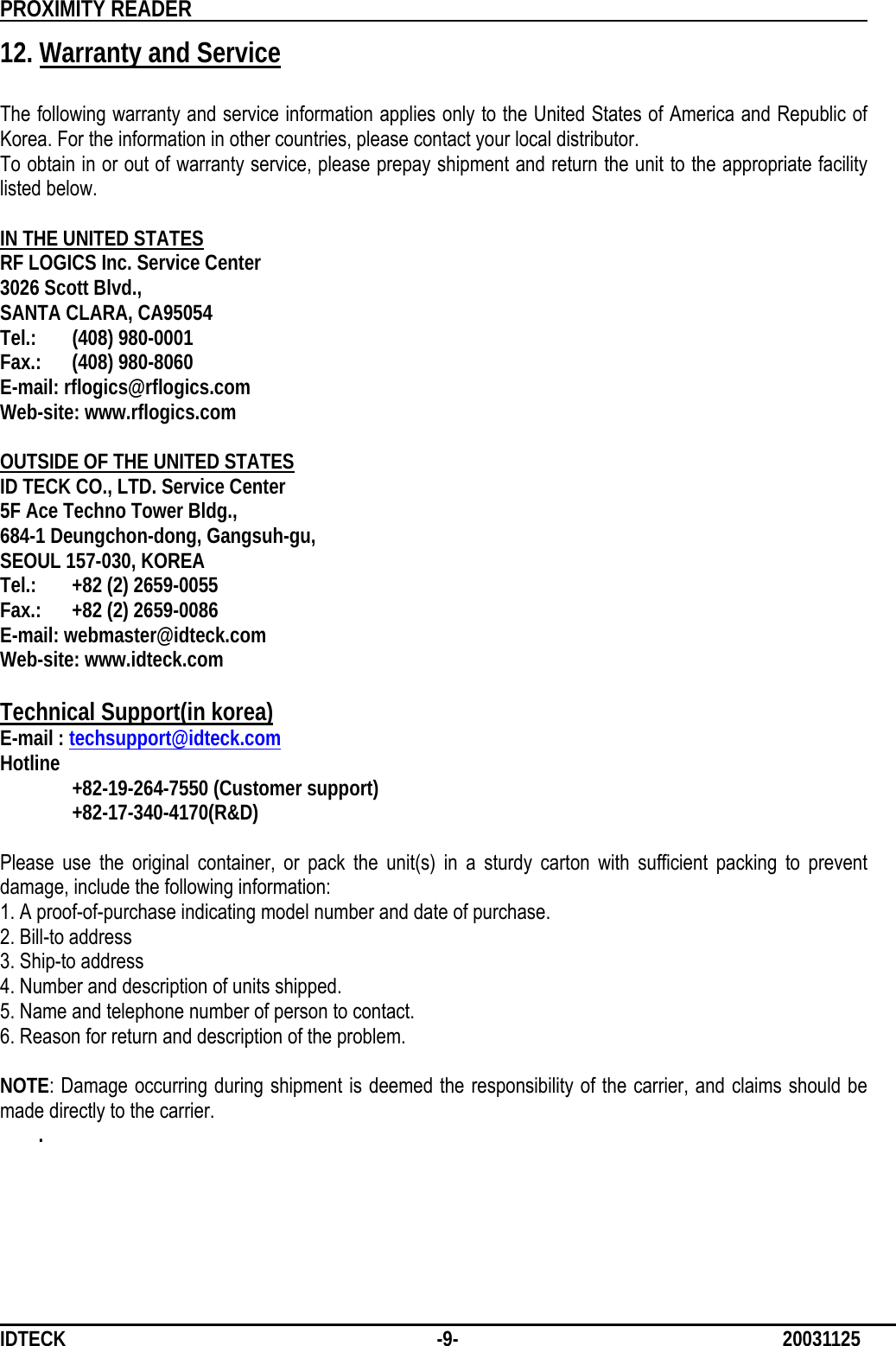

PROXIMITY READER IDTECK -9- 20031125 12. Warranty and Service The following warranty and service information applies only to the United States of America and Republic of Korea. For the information in other countries, please contact your local distributor. To obtain in or out of warranty service, please prepay shipment and return the unit to the appropriate facility listed below. IN THE UNITED STATES RF LOGICS Inc. Service Center 3026 Scott Blvd., SANTA CLARA, CA95054 Tel.: (408) 980-0001 Fax.: (408) 980-8060 E-mail: rflogics@rflogics.com Web-site: www.rflogics.com OUTSIDE OF THE UNITED STATES ID TECK CO., LTD. Service Center 5F Ace Techno Tower Bldg., 684-1 Deungchon-dong, Gangsuh-gu, SEOUL 157-030, KOREA Tel.: +82 (2) 2659-0055 Fax.: +82 (2) 2659-0086 E-mail: webmaster@idteck.com Web-site: www.idteck.com Technical Support(in korea) E-mail : techsupport@idteck.com Hotline +82-19-264-7550 (Customer support) +82-17-340-4170(R&D) Please use the original container, or pack the unit(s) in a sturdy carton with sufficient packing to prevent damage, include the following information: 1. A proof-of-purchase indicating model number and date of purchase. 2. Bill-to address 3. Ship-to address 4. Number and description of units shipped. 5. Name and telephone number of person to contact. 6. Reason for return and description of the problem. NOTE: Damage occurring during shipment is deemed the responsibility of the carrier, and claims should be made directly to the carrier. .

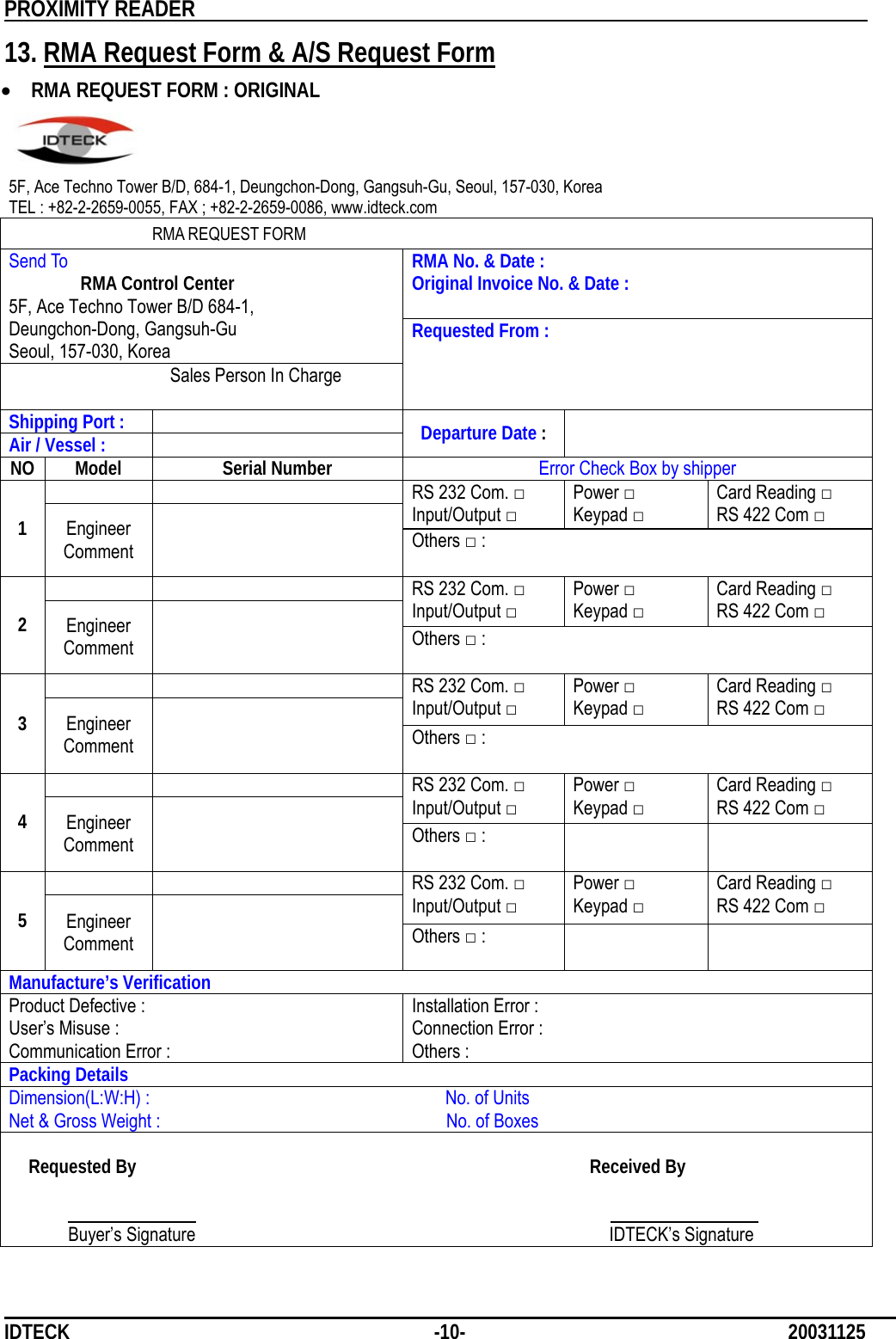

PROXIMITY READER IDTECK -10- 20031125 13. RMA Request Form & A/S Request Form • RMA REQUEST FORM : ORIGINAL 5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong, Gangsuh-Gu, Seoul, 157-030, Korea TEL : +82-2-2659-0055, FAX ; +82-2-2659-0086, www.idteck.com RMA REQUEST FORM RMA No. & Date : Original Invoice No. & Date : Send To RMA Control Center 5F, Ace Techno Tower B/D 684-1, Deungchon-Dong, Gangsuh-Gu Seoul, 157-030, Korea Sales Person In Charge Requested From : Shipping Port : Air / Vessel : Departure Date : NO Model Serial Number Error Check Box by shipper RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 1 Engineer Comment Others □ : RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 2 Engineer Comment Others □ : RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 3 Engineer Comment Others □ : RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 4 Engineer Comment Others □ : RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 5 Engineer Comment Others □ : Manufacture’s Verification Product Defective : User’s Misuse : Communication Error : Installation Error : Connection Error : Others : Packing Details Dimension(L:W:H) : No. of Units Net & Gross Weight : No. of Boxes Requested By Received By Buyer’s Signature IDTECK’s Signature

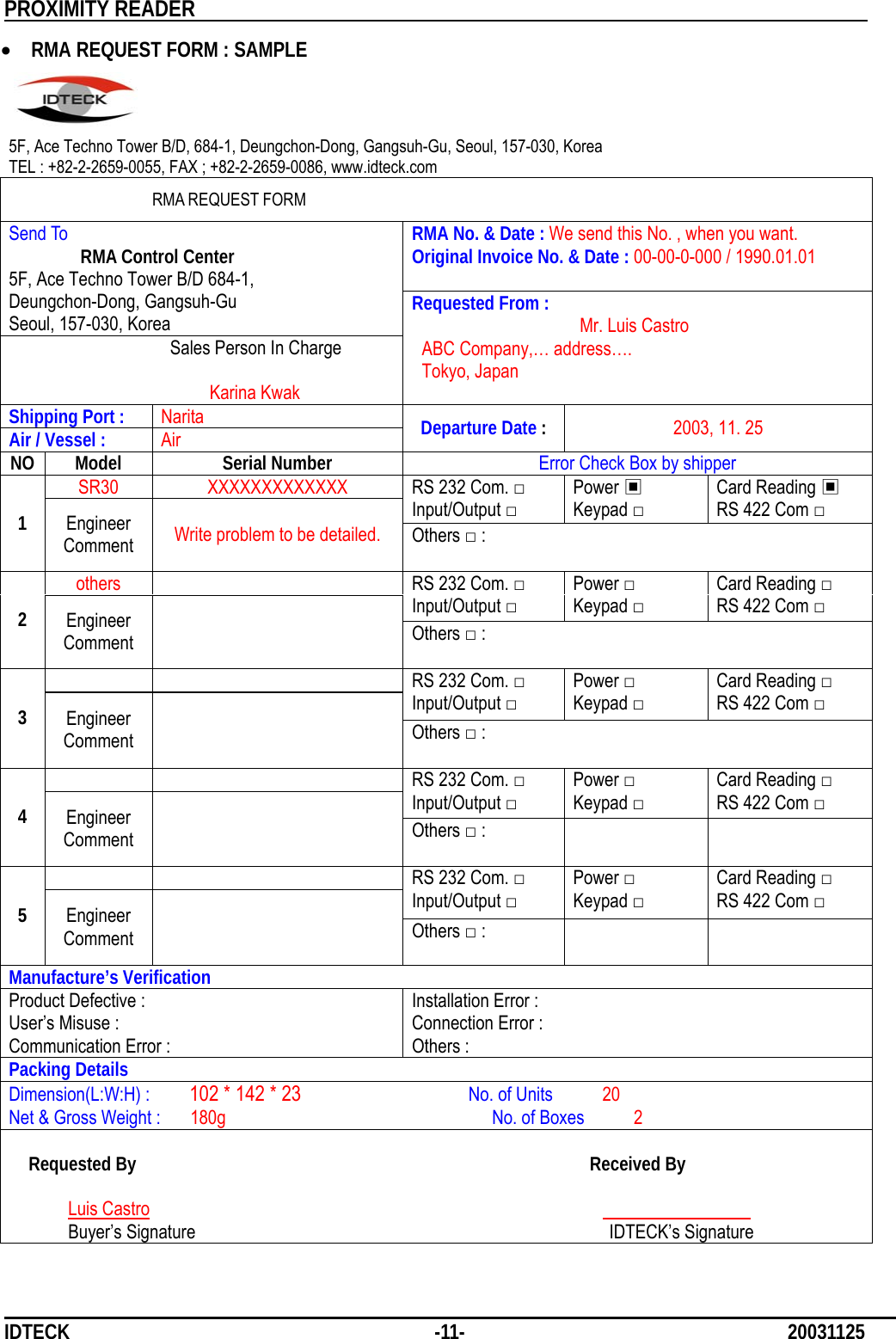

PROXIMITY READER IDTECK -11- 20031125 • RMA REQUEST FORM : SAMPLE 5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong, Gangsuh-Gu, Seoul, 157-030, Korea TEL : +82-2-2659-0055, FAX ; +82-2-2659-0086, www.idteck.com RMA REQUEST FORM RMA No. & Date : We send this No. , when you want. Original Invoice No. & Date : 00-00-0-000 / 1990.01.01 Send To RMA Control Center 5F, Ace Techno Tower B/D 684-1, Deungchon-Dong, Gangsuh-Gu Seoul, 157-030, Korea Sales Person In Charge Karina Kwak Requested From : Mr. Luis Castro ABC Company,… address…. Tokyo, Japan Shipping Port : Narita Air / Vessel : Air Departure Date : 2003, 11. 25 NO Model Serial Number Error Check Box by shipper SR30 XXXXXXXXXXXXX RS 232 Com. □ Input/Output □ Power ▣ Keypad □ Card Reading ▣ RS 422 Com □ 1 Engineer Comment Write problem to be detailed. Others □ : others RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 2 Engineer Comment Others □ : RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 3 Engineer Comment Others □ : RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 4 Engineer Comment Others □ : RS 232 Com. □ Input/Output □ Power □ Keypad □ Card Reading □ RS 422 Com □ 5 Engineer Comment Others □ : Manufacture’s Verification Product Defective : User’s Misuse : Communication Error : Installation Error : Connection Error : Others : Packing Details Dimension(L:W:H) : 102 * 142 * 23 No. of Units 20 Net & Gross Weight : 180g No. of Boxes 2 Requested By Received By Luis Castro Buyer’s Signature IDTECK’s Signature

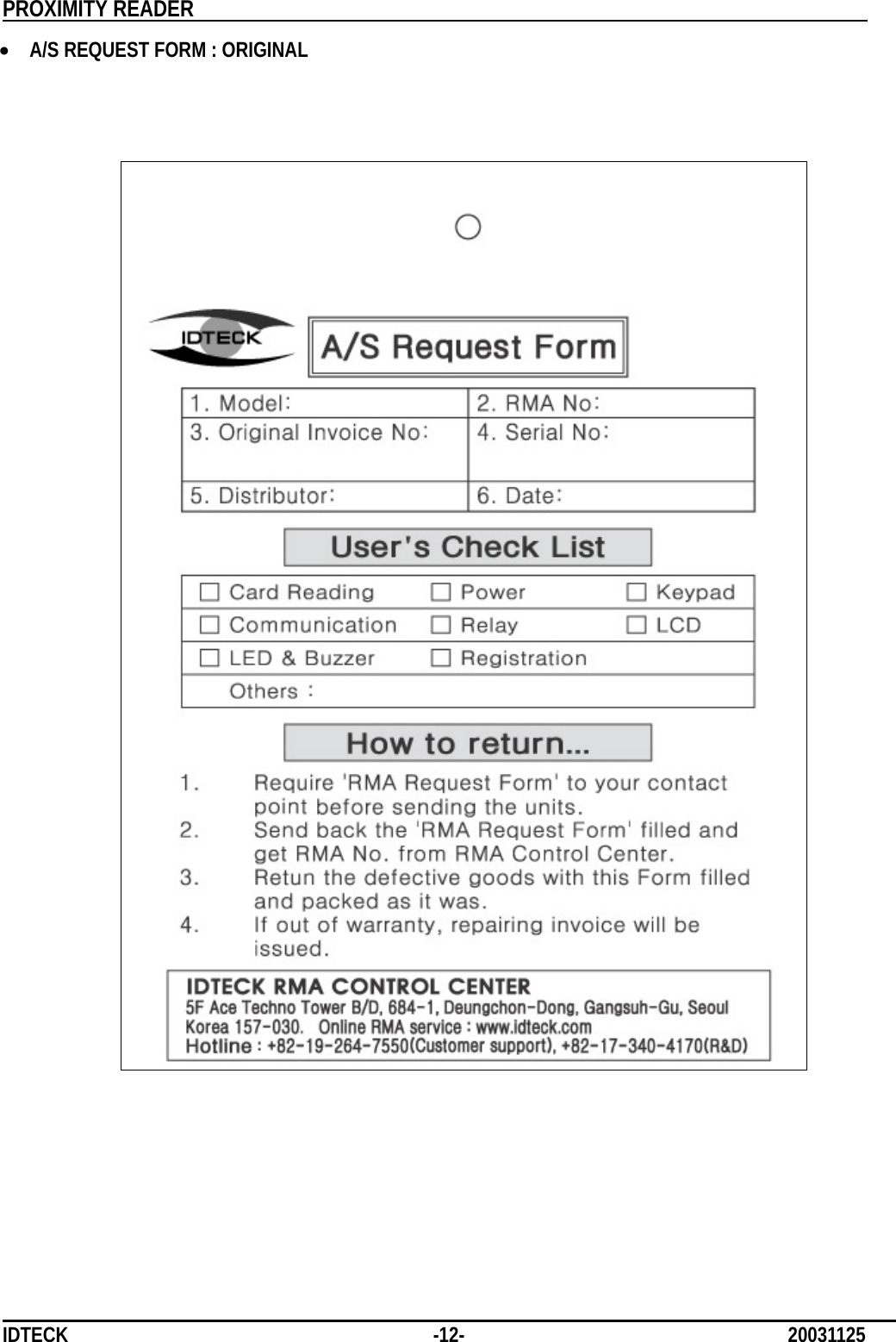

PROXIMITY READER IDTECK -12- 20031125 • A/S REQUEST FORM : ORIGINAL

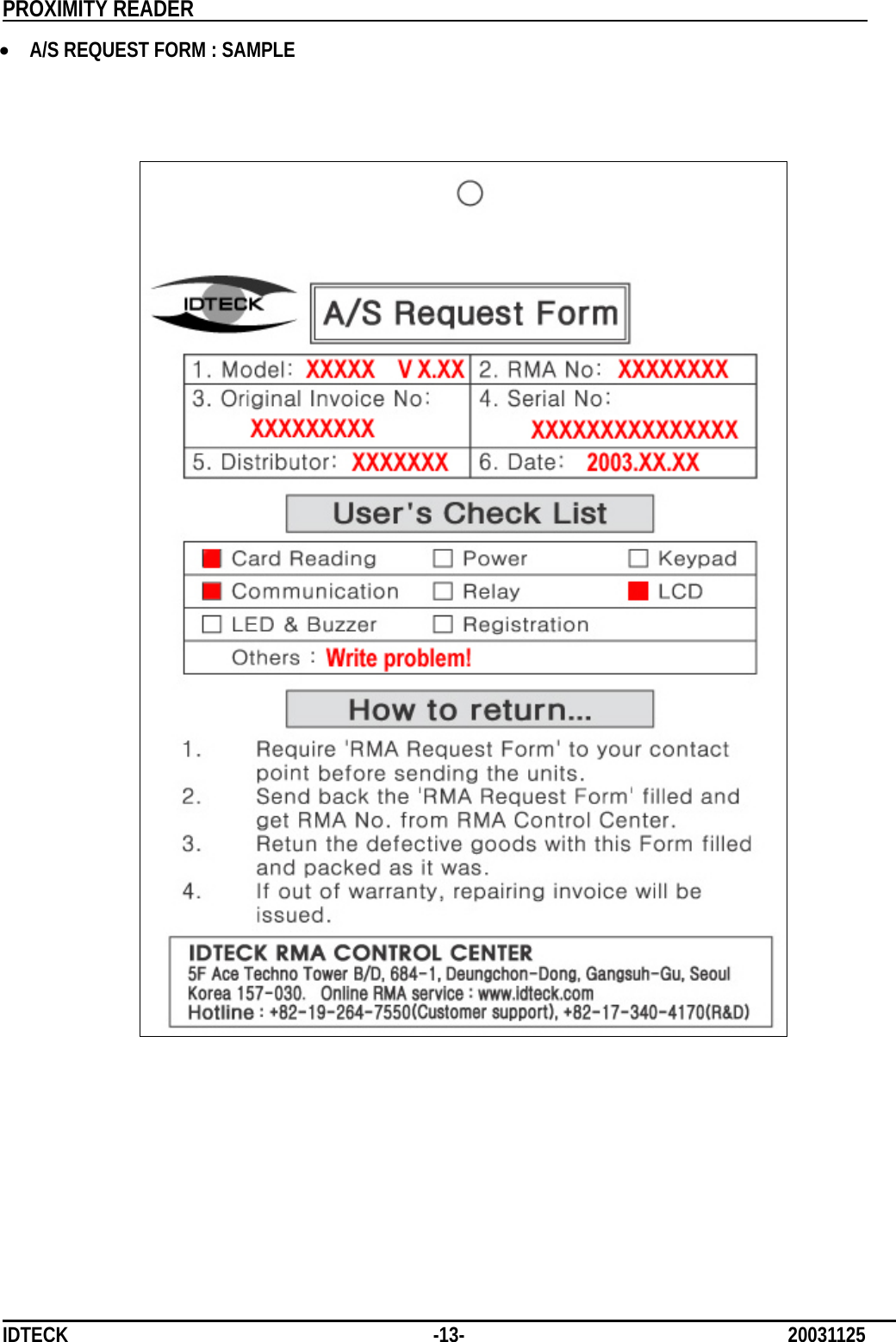

PROXIMITY READER IDTECK -13- 20031125 • A/S REQUEST FORM : SAMPLE

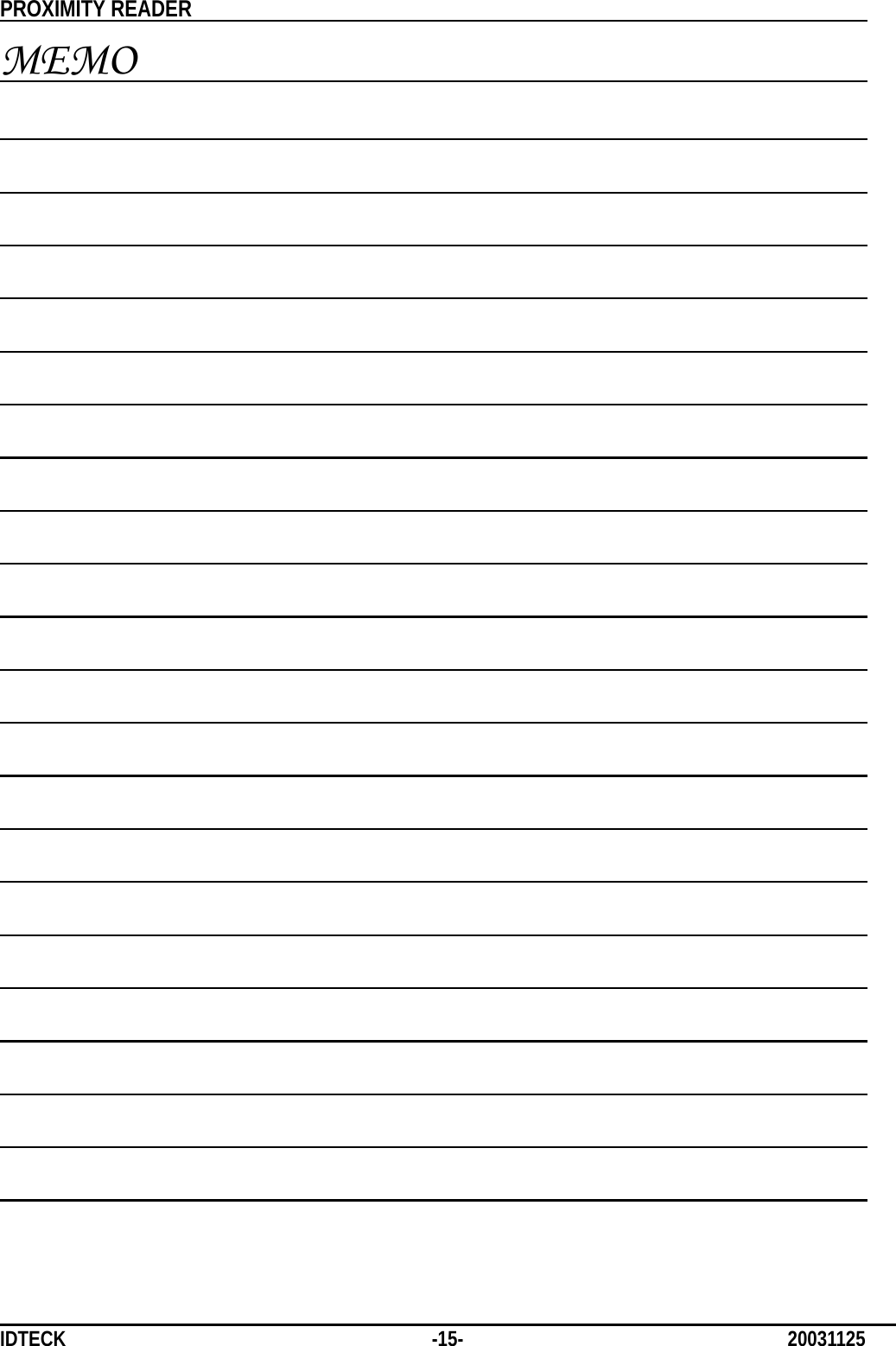

PROXIMITY READER IDTECK -14- 20031125 MEMO

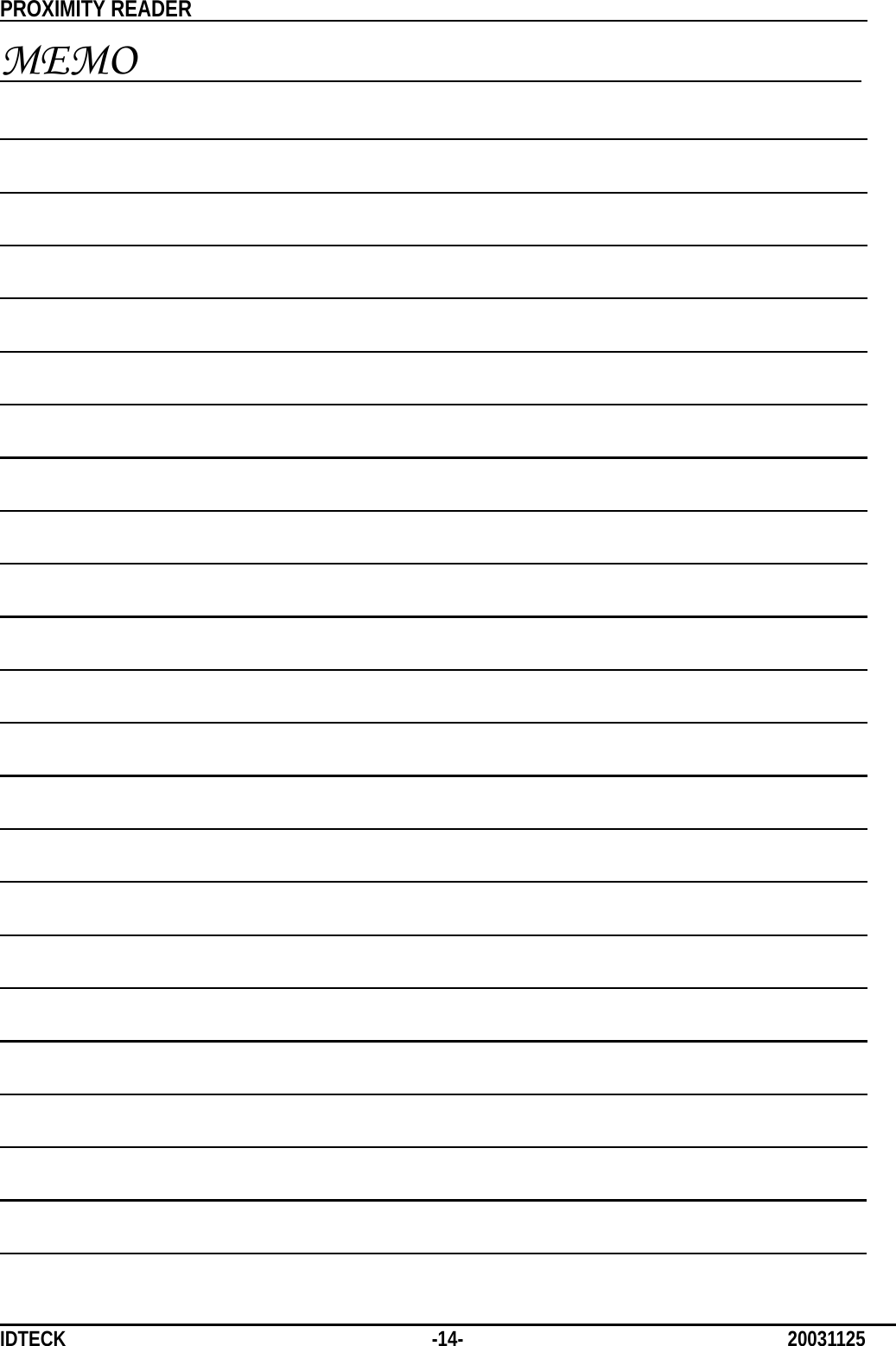

PROXIMITY READER IDTECK -15- 20031125 MEMO
PROXIMITY READER The specification contained in this manual are subject to change without notice at any time. 5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong, Gangsuh-Gu, Seoul, 157-030, Korea Tel : (82) 2 2659-0055 Fax : (82) 2 2659-0086 E-mail : webmaster@idteck.com NOV. 2003 Copyright ©2003 IDTECK Co., Ltd.
