Introduction
IDrive.One-XTB device is a portable wireless storage device with a built-in 2.5” SATA hard disk
drive with up to 3TB capacity. Jupiter supports USB3.0 for faster transfer speed with your PC
or Mac®computer. You can then stream music, photos, movies and documents from iDrive
WiFi to your iPad®, iPhone®, Android tablet or smartphone via its WiFi connection. You can
also share versatile data on the Jupiter with your family and friends, with up to five concurrent
connections from mobile devices such as iPad®, iPhone®, Android tablet or smartphone.
Without the wired limitation, you can enjoy listening to music while travelling with iDrive WiFi
in your backpack, share photo with your family by placing it at any house corner or lay back
watching movies in the beach – with a range of up to 150ft you’ll never feel tethered to your
IDrive.One-XTB. Best of all, the iDrive WiFi can bridge the Internet connection to your existing
wireless or wired router, so you may access the data in the storage while surfing the Internet
simultaneously.
IDrive.One-XTB
TargetUsers/Markets
Mobile Device User
iPhone®, iPad®, smartphone, tablet or notebook user may unleash from very limited storage
capacity by throwing large files such as movies, music or powerpoint files to Jupiter.
Frequent Business Traveler
Businessman may show customer the product datasheet, contract or quotation in Jupiter
anytime in the coffee shop, meeting room or hotel.
Movies & Music Download Mania
Have already downloaded hundreds or thousands of movies, music by BitTorrent at home but
you can not enjoy watching or listening to them while you are outside? Jupiter is the solution
for you.
Salesman
Jupiter may save mobile sales person like insurance broker, realty broker from carrying bulky
brochure or flyers.
Legacy USB External HDD Device Hater
Just can not stand anymore to be tethered by USB cable whenever you need to transfer files
3
between your notebook and external HDD? Jupiter is the answer for you!
Small Enterprise Mobile NAS
The critical and confidential business data should not be bound to the file server or NAS in
your company. Jupiter allows you to have a backup of your important data which is portable
with you.
Home Mobile NAS
With Jupiter at home, you do not need to always turn on your notebook in order to share data
with your family. Moreover, Jupiter can be your portable entertainment centre while your family
go out for vacation.
Features
File and System Manager App
Two way file transferring between Jupiter and your iPhone®, iPad®, smartphone, tablet or
computer with Wi-Fi connectivity (802.11 b/g/n). Available iOS and Android mobile app with
search utility function to find and locate specific data file.
Bridge to Internet Access
Bypass your Internet access to your existing WiFi router, so you may access any data in the
HDD while surfing the Internet simultaneously.
Share with Friends & Family
Allow 5 maximum concurrent connections for sharing videos, audios, photos and data.
USB 3.0 Host for Data Sync Build-in 2.5” internal hard disk drive and USB 3.0 port for
faster transfer speed.
Easy to Configure and Operate
Friendly user interface design with wizard guide to assure even the novice can get Jupiter start
to operate in minutes.
Applications
Bridge to Internet Access

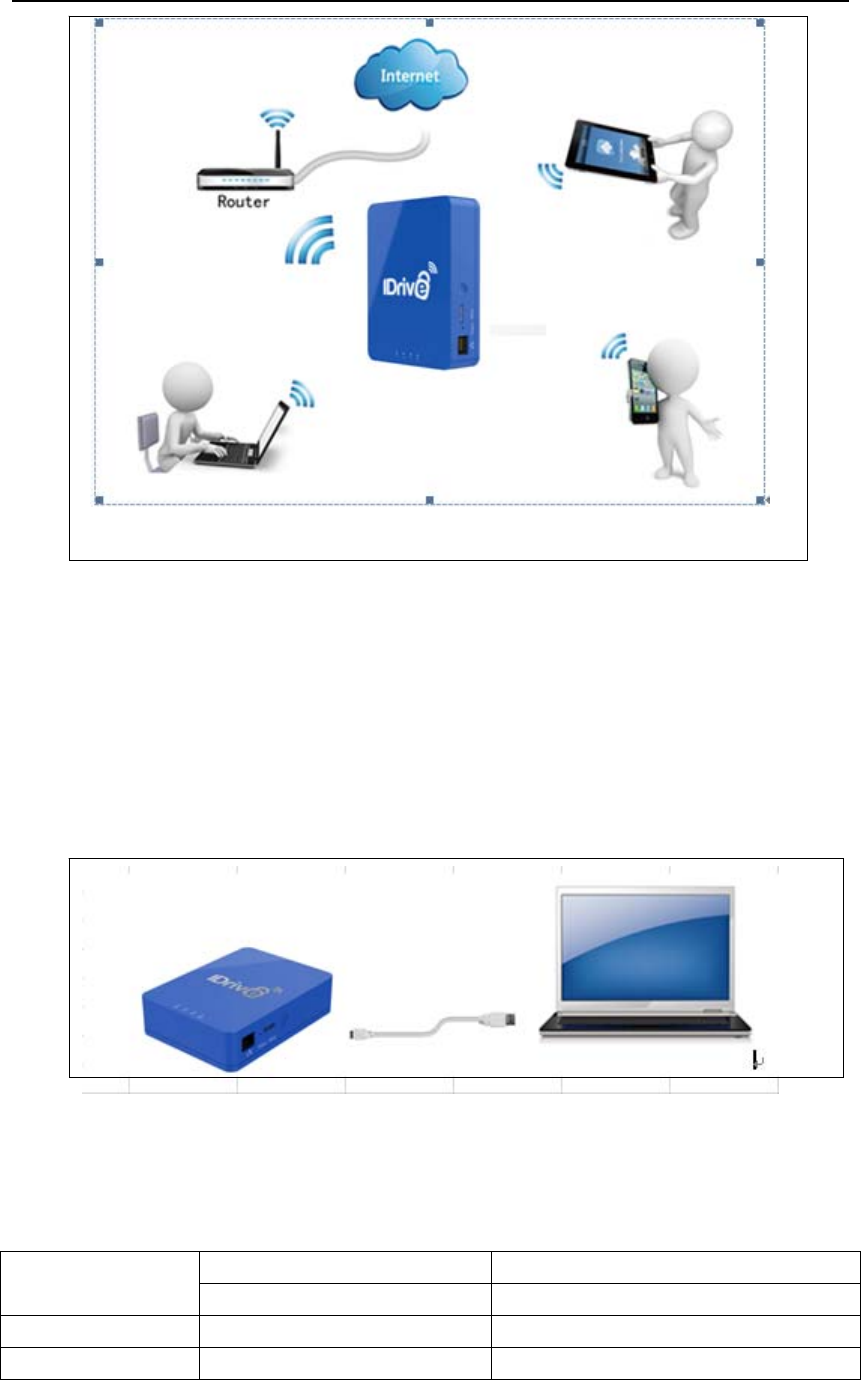

Scenario 1 - If you got an existing WiFi router for Internet access
4
Wirelessly Bridge to Internet Access
Wired Bridge to Internet Access (via RJ45 Ethernet Port)
Connect to the USB Port
Scenario 1 - Press power button on and then connect to USB port of notebook, Jupiter
works solely as a WiFi HDD with power charge to extend usage time
Works as an ordinary HDD only without stand
HardwareSpecifications
CPU Model MTK MT7620A+MT7610E
Frequency MIPS24KEc 600MHZ
Flash Capacity SPI Flash16MB (128Mbit)
Memory Capacity DDRII 128MB (1Gbit)
5
WiFi
Standard 802.11 a/b/g/n/ac
Frequency 2.4GHz / 5GHz
Speed 733Mbps (300Mbps@2.4GHZ
+433Mbps@5GHz)
QR Code QR Code Tag, support the scan QR code and connect WiFi automatically
LED
WiFi /interent LED (White)
USB3.0/2.0 (White)
When the WiFi signal is turned on, the
LED will be White. When interent is
work, the LED will be White.
Reset button Reset to Factory Default Setting
USB JACK Micro USB 3.0 Jack When connecting to the dock, USB 3.0
jack is used for providing power to
system. When connecting to the PC
through cable, it will work as an
external storage.
Hard disk drive
Supports SATA 2.5” HDD, 9.5mm, 12mm up to 15mm, up to 3TB in
capacity
Support SATA 2.5'' SSD.the same dimension as 2.5'' HDD.
Power adapter Input: 100-240V AC,50-60Hz/Max 0.35A,Output:DC 5V/2A
RJ45 1x WAN(100Mbps)
Switch Short press
Environmental
requirements
Operating Temperature: 0°C to 40°C
Non-Operating Temperature: 0°C to 60°C
Operating Humidity: 5% to 90% (Non-condensing)
Non-operating Humidity: 5% ~ 90 % (Non-condensing)
Product dimension
Emission (EMI),
Safety & Other
Certifications
FCC Class B
6
InterfaceIllustration

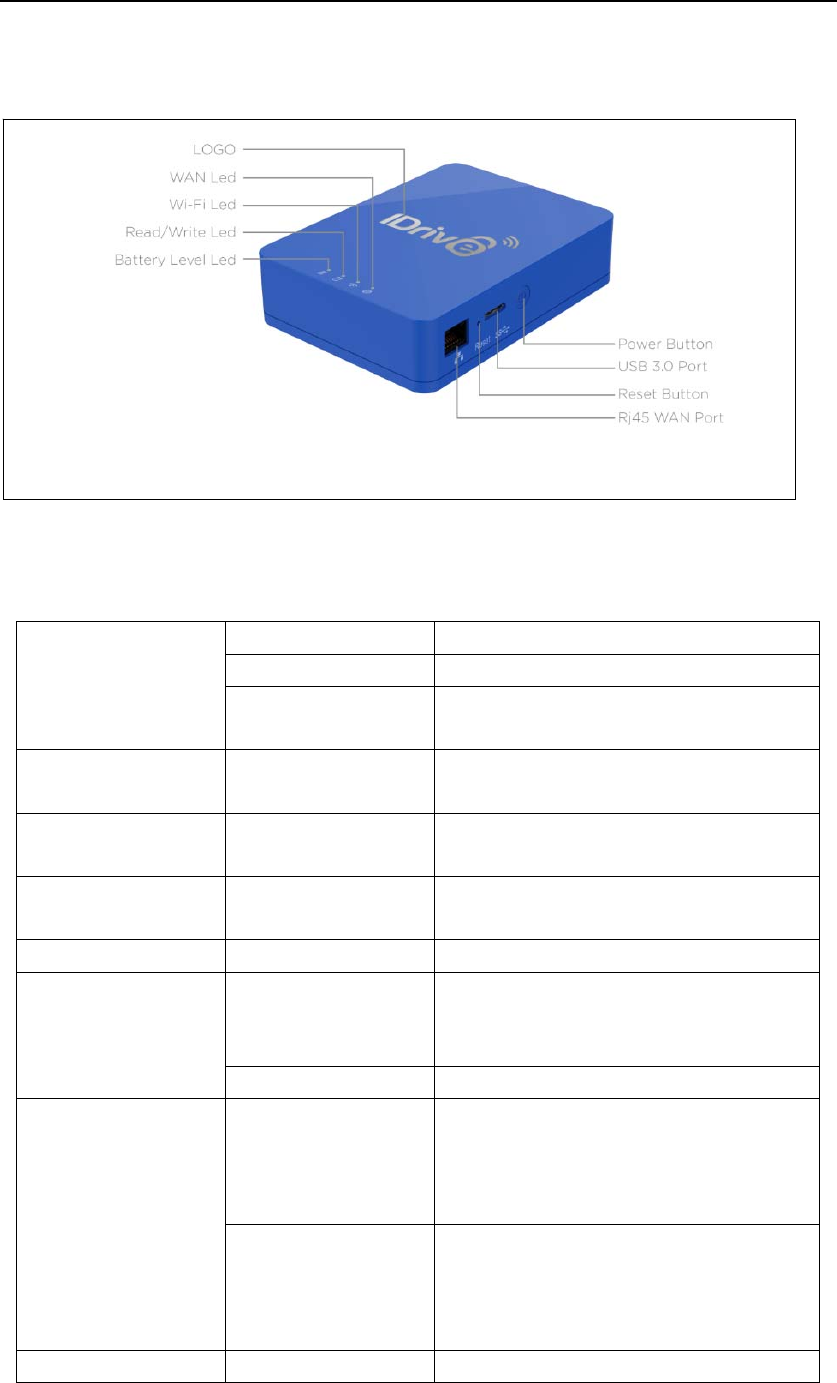

Jupiter Interface Illustration
SoftwareSpecifications
System setting Language selection To select your native languages
Firmware upgrade Automatically upgrade firmware
Factory default
setting restore
To restore default system setting
originated in factory production
File system NTFS Support Microsoft Windows NTFS file
system
FAT16/FAT32(USB)
Support Microsoft Windows FAT16/FAT32
file system
exFAT(Optional) Both support Microsoft and Mac® OS file
system
HFS+(Optional) Support Mac® OS HFS+ file system
File Service Samba service
(CIFS protocol)
Provide shared services to files and
printers for clients on Microsoft Windows
Network /Unix-Like Network
DLNA Provide DLNA server(DMS)
HTTP Service OS A build-in browser which support
common operation system such as
Windows, Linux, Mac® OS and smart
terminal for easy management
WebDAV protocol Makes the Web a readable and writable
medium which allow users to edit and
manage documents and files stored on
World Wide Web servers
Remote P2P tunnel Support Apps to control Wi-Fi storage
7
Access(Optional) connecting device, manage files, download/upload
file
Cloud Disk(Optional) Dropbox Support sync data between dropbox and
Wi-Fi storage device
Apps(Optional) Downloader Support BT/Magnet/eMule/HTTP/xunlei
download and remote control
Access Control Password protection A) Wi-Fi access control:
None
WPA-PSK Personal
WPA2-PSK Personal
WPA&WPA2-PSK Personal
B) WEB access control
A) Password login
C) Samba access control
B) Password login
Default security:
Authentication needed with
password 11111111
No authentication
Connecting Ways(Optional):
QR Code authentication
HDD management HDD display
HDD partition size and remaining space display
Network
Management
WAN side setting Static IP
Dynamic IP
LAN side setting Local IP setting
Subnet mask setting
DHCP server setting
Default gateway setting
Default DNS setting
2.4G Wi-Fi Setting Wi-Fi mode setting
Wi-Fi basic setting
Wi-Fi security setting
5G Wi-Fi Setting
A) Wi-Fi mode setting
B) Wi-Fi basic setting
C) Wi-Fi security setting
Application software Client A) Windows XP/2003/Vista/7, Linux,
Unix, Mac®
B) Android: tablet, smartphone
C) iOS: iPad®, iPhone®
D) WP: Window Phone
8
File Formats
iOS Client A) Audio: Support formats of
MP3,AAC,m4a,wav,aiff
Video: Support formats of
AVI ,M4V,MKV,MP4,MPG,RMVB,RM,
WMV,3GP,MOV,TS
B) Photo: Support formats of
jpg,tiff,bmp,png, gif(image)
C) Document: Support formats of
keynote,word,excel,ppt,pdf,txt
Android Client A) Audio: Support formats of MP3 only
at present
B) Video:
AVI ,M4V,MKV,MP4,MPG,RMVB,RM,
WMV,3GP,MOV,TS
C) Photo: Support formats of jpg,png
D) Document: Support formats of
txt,word,excel,ppt, pdf
File&SystemManagerApp
Support remote access for controlling and documents accessing.
The main interface have Media sort by video,photo,music and documents
Support search function based on media type
File management interface supports list / thumbnail view , support pictures and
documents sharing
Support copy/delete/create function and support local/Wi-Fi Storage data transmission in
/between
Playing music/video/photos by iPhone®, iPad® and tablet and smartphone (JPG, mp3,
mp4, decoding ability more dependent on the system, file format depend on the player
software installed on you device, Power7 suggest to use RockPlayer/Mobo Player on the
Android and Oplayer/GoodPlayer on iOS).
Support the operation of long-pressing the file to invoke the third-party player
Support to play the photos by filmstrip mode and support background music playing
Support video drag and play
Support music artwork shows, circulation play set, drag operation
Support email to send out pictures/documents
Support network and device’s parameters setting
Transfer videos and photos from and to the iPhone®, iPad® to Jupiter
Support DLNA/ Chromecast and Airsplay(iOS only) for pushing screen to TV.
Support QR code scanning to connect wifi (Android only)
Support feature of dropbox
9
SystemRequirements
iPhone®, iPad®, smartphone, tablet or computer with Wi-Fi connectivity (802.11
b/g/n/ac)
Mac® or PC computer running Windows8/ 7, Windows Vista, Windows XP or Mac OS®
X 10.6.0 or later operating system for loading media on to Jupiter via USB
ClientTools
Computer Client Tool
Auto search and access the Jupiter on WLAN
Supports Windows XP/2003Vista/7/8 and Mac® iOS operation system
Mobile Application Tool
A) Supports iOS (iPhone® and iPad®) and Android (smartphone and tablet)
B) Stream audios and videos and view photos from the Jupiter
