IEI Integration MODAT-100 HANDHELD COMPUTER User Manual MODAT 100 UMN v1 04 statement del FCC DoC
IEI Integration Corp. HANDHELD COMPUTER MODAT 100 UMN v1 04 statement del FCC DoC
User Manual
MODAT-100
Page 1
IEI Technology Corp.
User Manual
MODEL:
MODAT-100
Industrial
PDA
with Barcode Scanner
for
Ticketing,
Membership Verification, Real-time Transactions
Rev. 1.04 – 12 March, 2012
MODAT-100
Page 2
Revision
Date Version
Changes
12 March, 2012 1.04 Added note to Section 2.3 Charging the System and
Section 2.5 Power-On/Off Procedure
9 September, 2011 1.03 Updated Section 1.5 Specifications
8 August, 2011 1.02 Added printing notice to Pg. 4
Update to Section 2.3: Charging the System
Added Section 2.6: Synchronized with Windows 7
System
Added text size adjustment information
1 April, 2011 1.01 Minor update to Section 1.4.1. Front Panel
17 March, 2011 1.00 Initial release
MODAT-100
Page 3
Copyright
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
MODAT-100
Page 4
WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
—When printing for more than thirty seconds, let the system rest for a moment before
printing again.
You are cautioned that any change or modifications to the equipment not expressly
approve by the party responsible for compliance could void your authority to operate
such equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body
.
MODAT-100
Page 5
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1
O
VERVIEW
.................................................................................................................. 2
1.2
F
EATURE
.................................................................................................................... 2
1.3
A
PPLICATIONS
............................................................................................................ 3
1.4
E
XTERNAL
O
VERVIEW
................................................................................................ 3
1.4.1 Front Panel ........................................................................................................ 4
1.4.1.1 Keypad........................................................................................................ 6
1.4.2 Left Panel........................................................................................................... 7
1.4.3 Right Panel......................................................................................................... 8
1.4.4 Bottom Panel...................................................................................................... 8
1.4.5 Back Panel ......................................................................................................... 9
1.5
S
PECIFICATIONS
......................................................................................................... 9
1.6
D
IMENSIONS
............................................................................................................. 12
2 INSTALLATION ......................................................................................................... 13
2.1
U
NPACKING THE
D
EVICE
.......................................................................................... 14
2.2
P
ACKING
L
IST
........................................................................................................... 15
2.2.1 Optional Items.................................................................................................. 15
2.3
C
HARGING THE
S
YSTEM
........................................................................................... 16
2.3.1 Using the Optional Cradle............................................................................... 17
2.4
I
NSTALLING A
SIM/SAM
C
ARD
............................................................................... 18
2.5
P
OWER
-O
N
/O
FF
P
ROCEDURE
................................................................................... 20
2.6
S
YNCHRONIZED WITH
W
INDOWS
7
S
YSTEM
............................................................. 20
A SAFETY PRECAUTIONS......................................................................................... 22
A.1
S
AFETY
P
RECAUTIONS
............................................................................................ 23
A.1.1 General Safety Precautions............................................................................. 23
A.1.2 Anti-static Precautions .................................................................................... 24
A.1.3 Product Disposal ............................................................................................. 25
A.2
M
AINTENANCE AND
C
LEANING
P
RECAUTIONS
........................................................ 25
MODAT-100
Page 6
A.2.1 Maintenance and Cleaning.............................................................................. 25
A.2.2 Cleaning Tools................................................................................................. 26
B INTERNATIONAL STANDARDS COMPLIANCE ............................................... 27
B.1
EN
60601-1,
EN
60601-2 ....................................................................................... 28
B.2
FCC......................................................................................................................... 28
C HAZARDOUS MATERIALS DISCLOSURE ......................................................... 29
C.1
H
AZARDOUS
M
ATERIALS
D
ISCLOSURE
T
ABLE FOR
IPB
P
RODUCTS
C
ERTIFIED AS
R
O
HS
C
OMPLIANT
U
NDER
2002/95/EC
W
ITHOUT
M
ERCURY
....................................... 30
MODAT-100
Page 7
List of Figures
Figure 1-1: MODAT-100.............................................................................................................2
Figure 1-2: MODAT-100 Front Panel.........................................................................................4
Figure 1-3: MODAT-100 Keypad ...............................................................................................6
Figure 1-4: MODAT-100 Left Panel ...........................................................................................7
Figure 1-5: MODAT-100 Right Panel.........................................................................................8
Figure 1-6: MODAT-100 Bottom Panel......................................................................................8
Figure 1-7: MODAT-100 Rear Panel..........................................................................................9

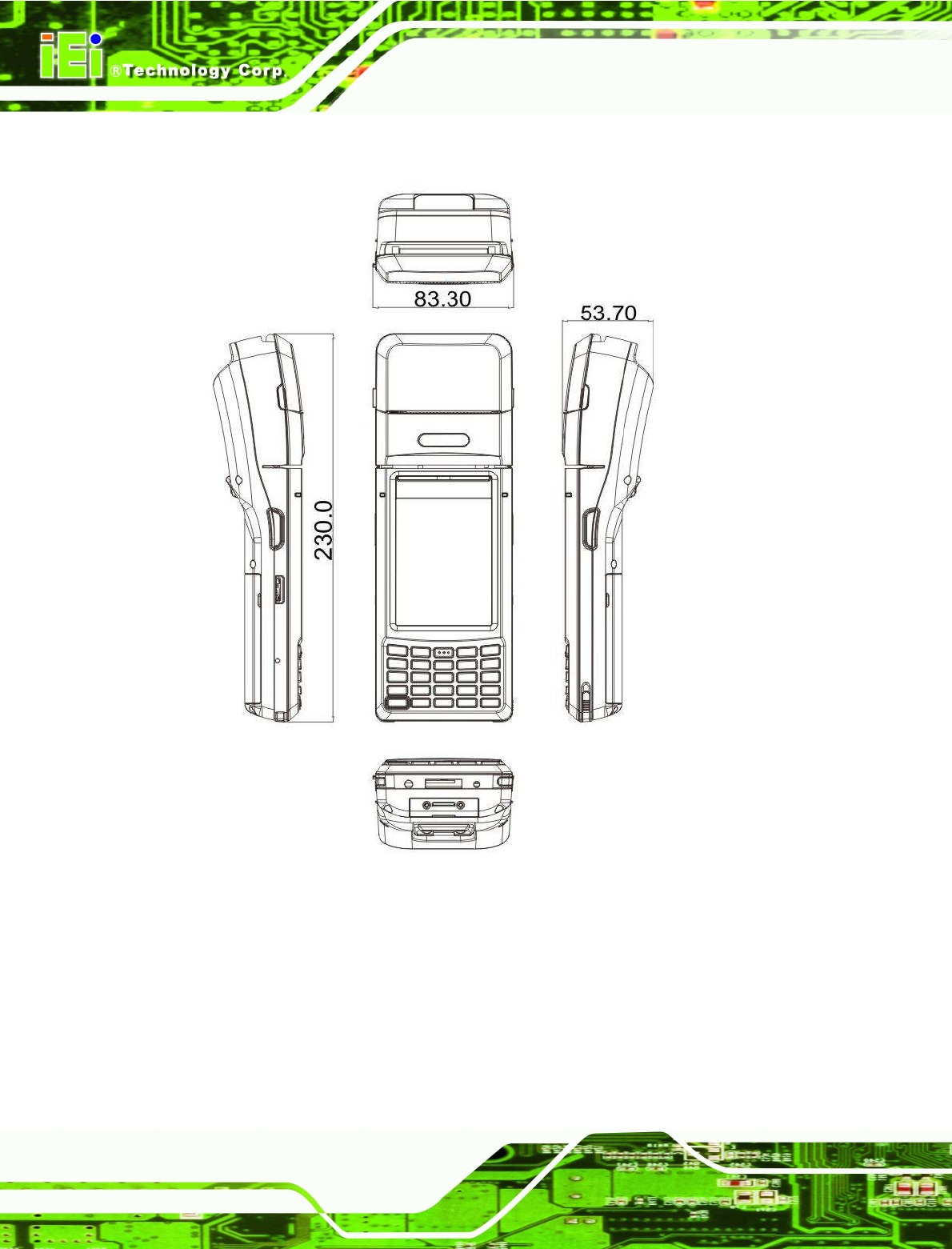

Figure 1-8: MODAT-100 Dimensions (units in mm)................................................................12
Figure 2-1: MODAT-100 DC-IN Adapter Port ..........................................................................16

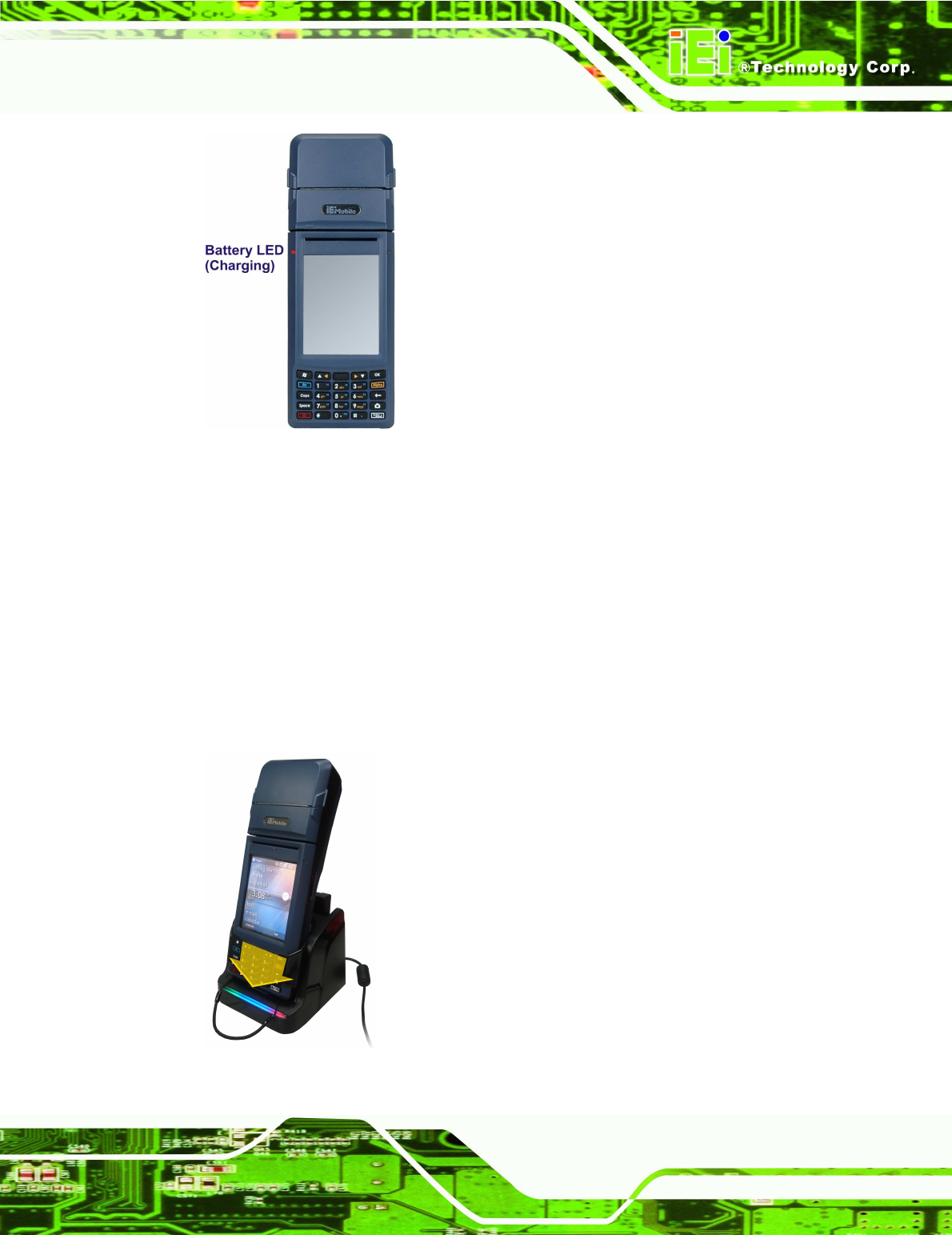

Figure 2-2: Battery LED...........................................................................................................17
Figure 2-3: Connect the MODAT-100 to the Charging Cradle................................................17

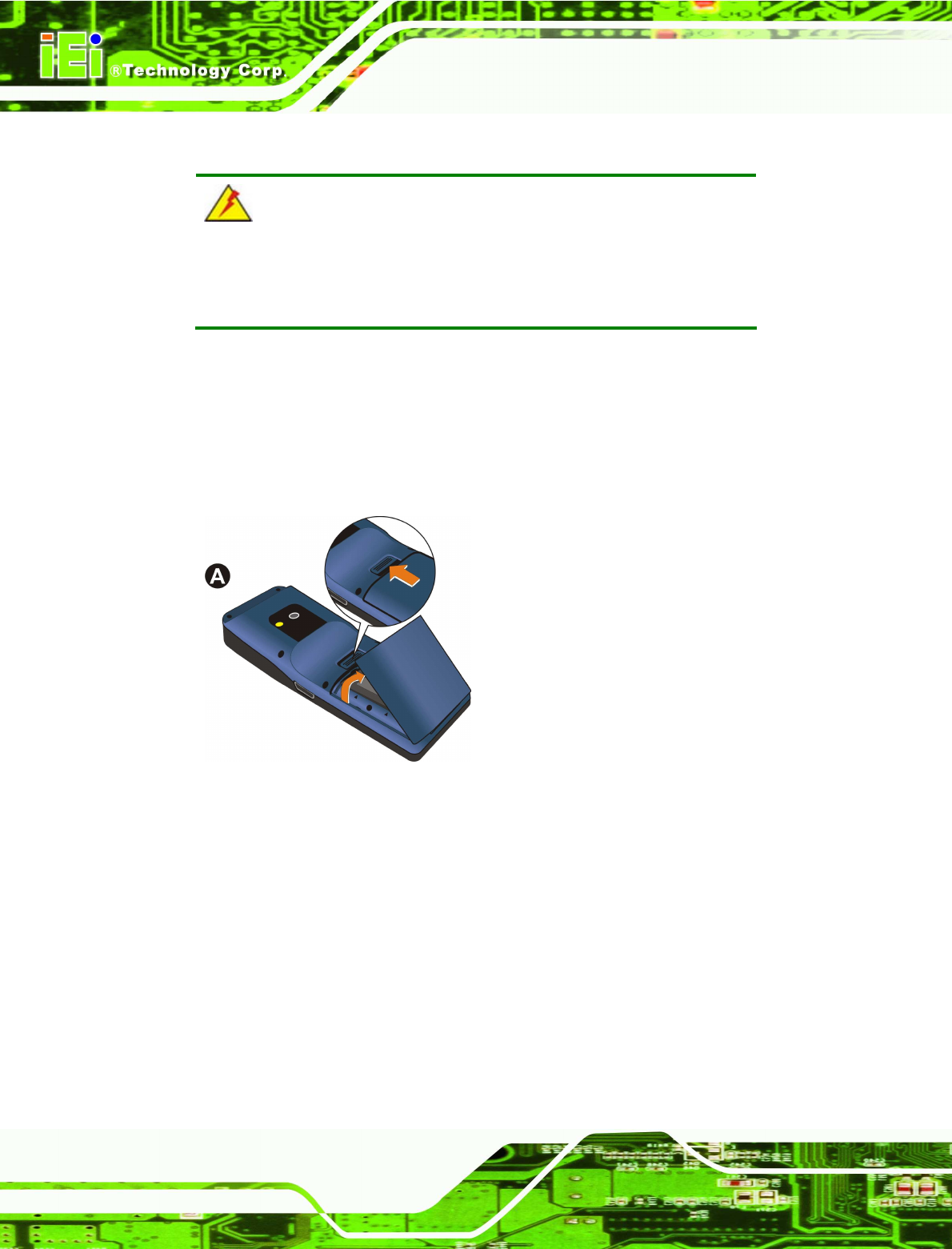

Figure2-4: Removing the Battery Cover.................................................................................18
Figure2-5: Removing the Battery............................................................................................19
Figure2-6: Inserting the SIM/SAM Card..................................................................................19
Figure 2-7: Power Button ........................................................................................................20

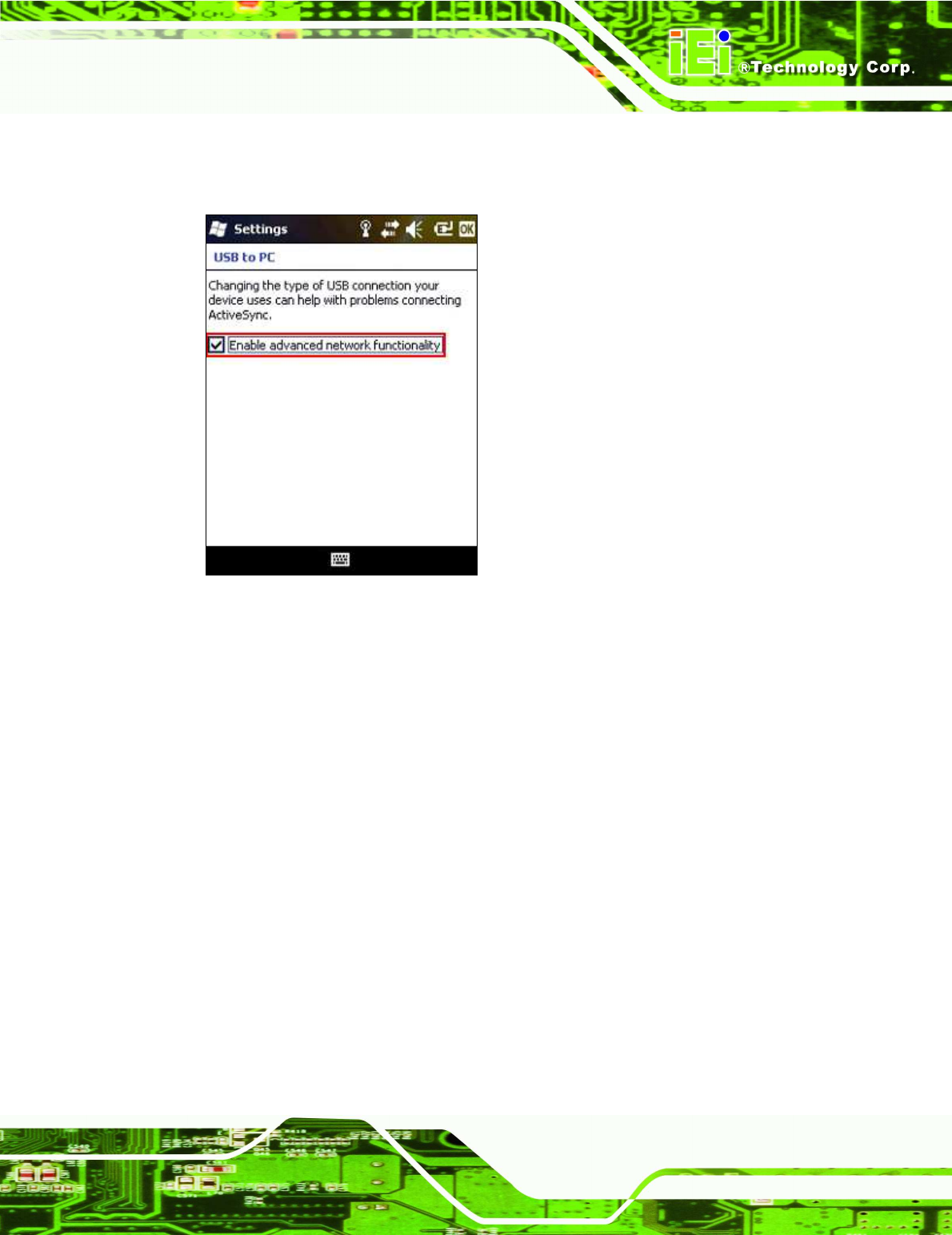

Figure 2-8: USB to PC Window...............................................................................................21
MODAT-100
Page 8
List of Tables
Table 1-1: MODAT-100 System Specifications.......................................................................11
Table 2-1: Packing List............................................................................................................15
Table 2-2: Optional Items List.................................................................................................16
MODAT-100
Page 1
Chapter
1
1 Introduction
MODAT-100
Page 2
1.1 Overview

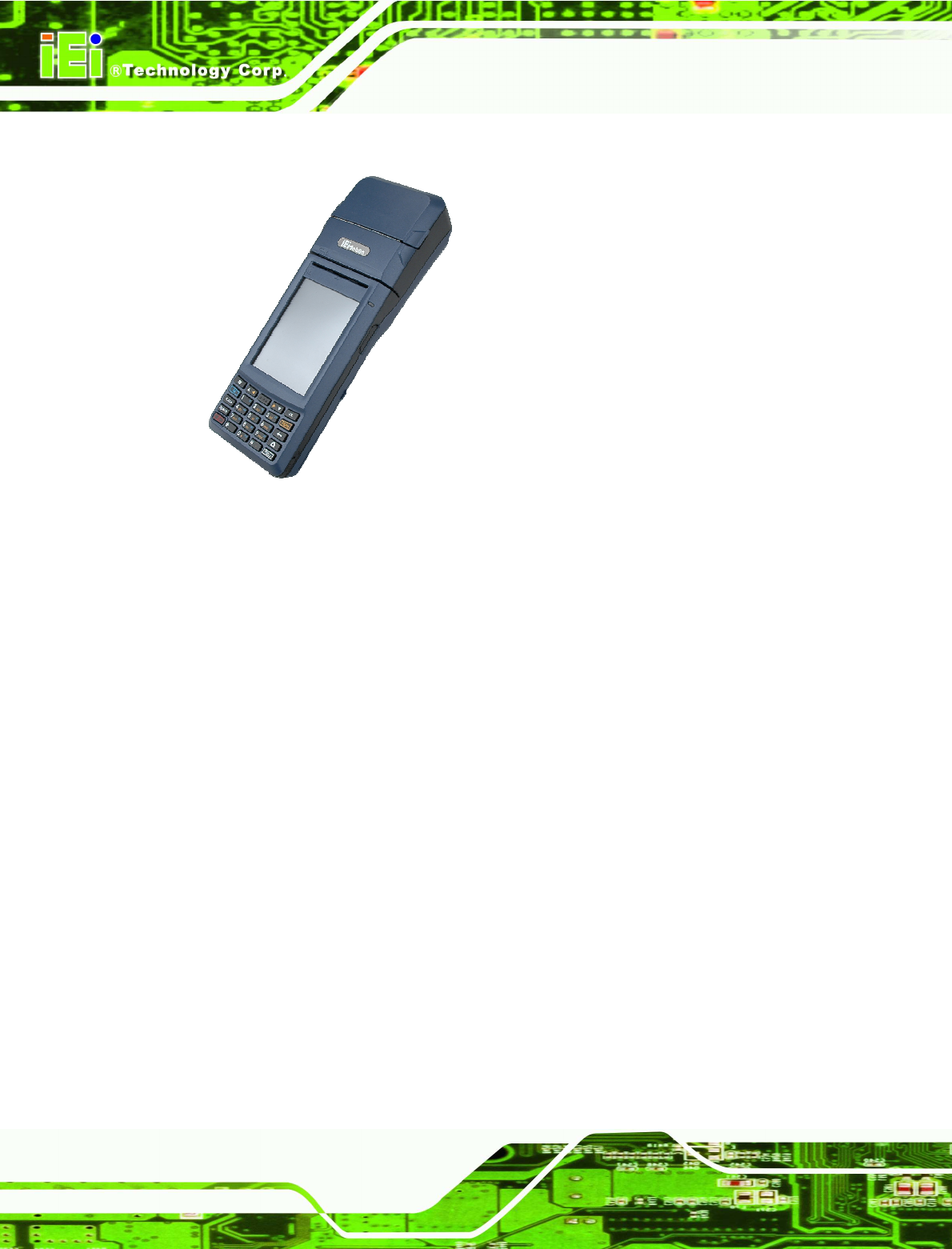

Figure 1-1: MODAT-100
The MODAT-100, built-in Windows Mobile 6.5, offers real-time information for staff to
provide their guests with better, faster service and more information.
The MODAT-100 links staff to real-time, online data through Wi-Fi connectivity. The
Bluetooth function allows devices such as headsets and thermal printers to be paired with
the MODAT-100, increasing the productivity of your staff while on the go. A built-in vibrator
alerts staff immediately allowing them to provide prompt service to customers.
1.2 Feature
The MODAT-100 features the following:
624 MHz Marvell® PXA 310 CPU
3.5” sunlight readable high brightness transflective TFT touchscreen with
stylus input
MicroSD Slot (Supports Micro SDHC up to 8 GB)
USB client (for ActiveSync and battery charging)
Wi-Fi 802.11b/g
Bluetooth 2.0 + EDR
IP 54 compliant
Windows Mobile 6.5 preinstalled
MODAT-100
Page 3
Supports Visual Studio .NET and .NET Compact Framework development
tools
Mobile application downloads: Windows Marketplace for Mobile
(http://www.windowsmarketplace.com)
1.3 Applications
The MODAT-100 can be applied in the following places:
Retail
Sales Automation
Field Services
Hospitality
1.4 External Overview
The MODAT-100 combines its features in a stylish enclosure. The MODAT-100 consists
of a screen, rear panel, top panel, bottom panel and two side panels (left and right). The
panels are described in detail in the following sections.
MODAT-100
Page 4
1.4.1 Front Panel
The front panel of the MODAT-100 is shown below.

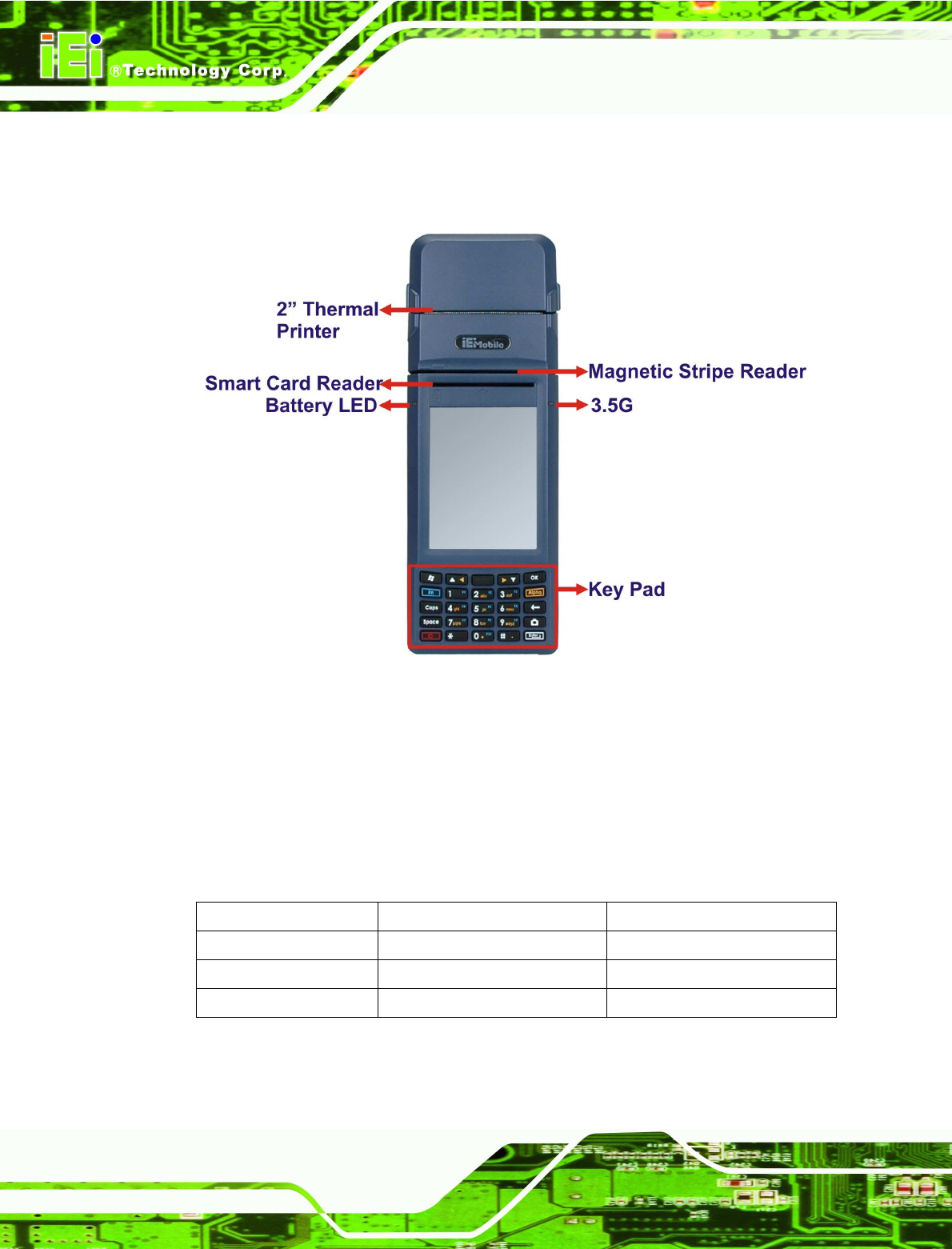

Figure 1-2: MODAT-100 Front Panel
1 x 2” Thermal Printer 1 x Magnetic Stripe Reader
1 x Smart Card Reader 1 x 3.5G WiFi
1 x Battery LED 1 x Keypad
The two LEDs on the front panel indicate battery, 3.5G and barcode status as described
below.
Battery LED (Left) 3.5G/Barcode LED (Right)
Charging Red --
Fully Charged Green --
3.5G Connection -- Green
MODAT-100
Page 5

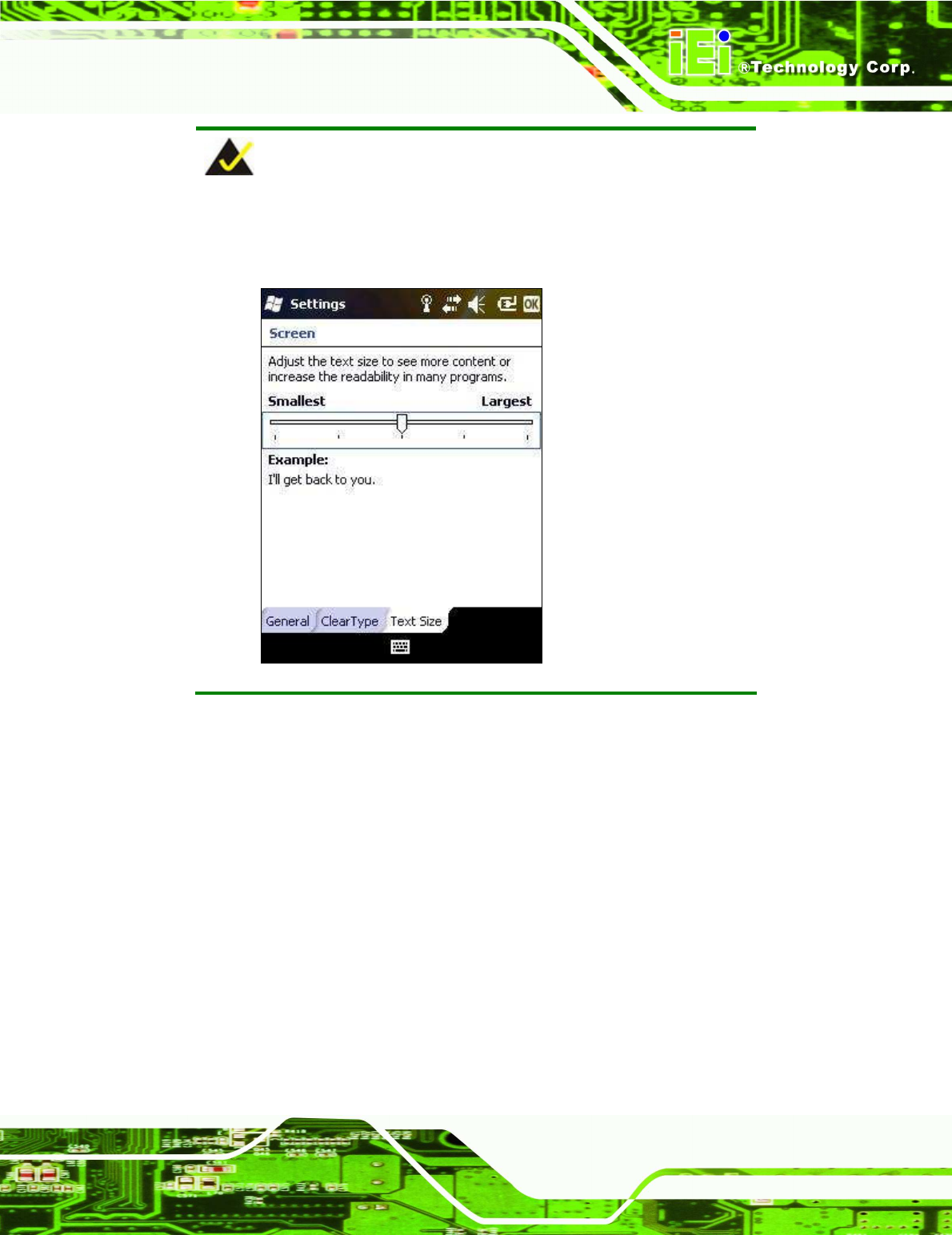

NOTE:
The user can adjust the text size showed on the screen by going to
“Start” “Settings” “System” “Screen”.
MODAT-100
Page 6
1.4.1.1 Keypad
The keypad and its functions are shown below.

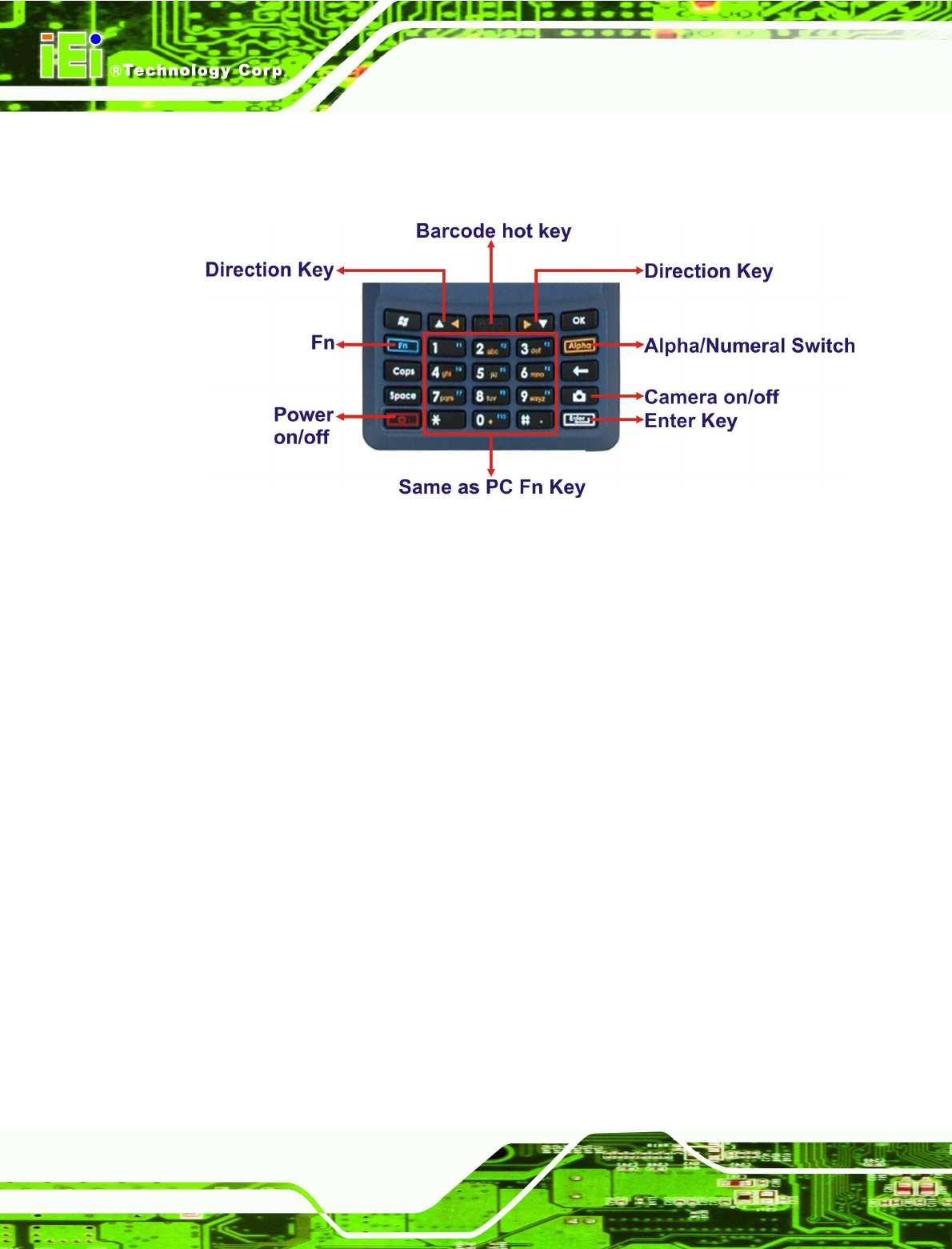

Figure 1-3: MODAT-100 Keypad
Press the “Alpha” key to use the orange characters.
Press the “Fn” key to use the blue characters.
MODAT-100
Page 7
1.4.2 Left Panel

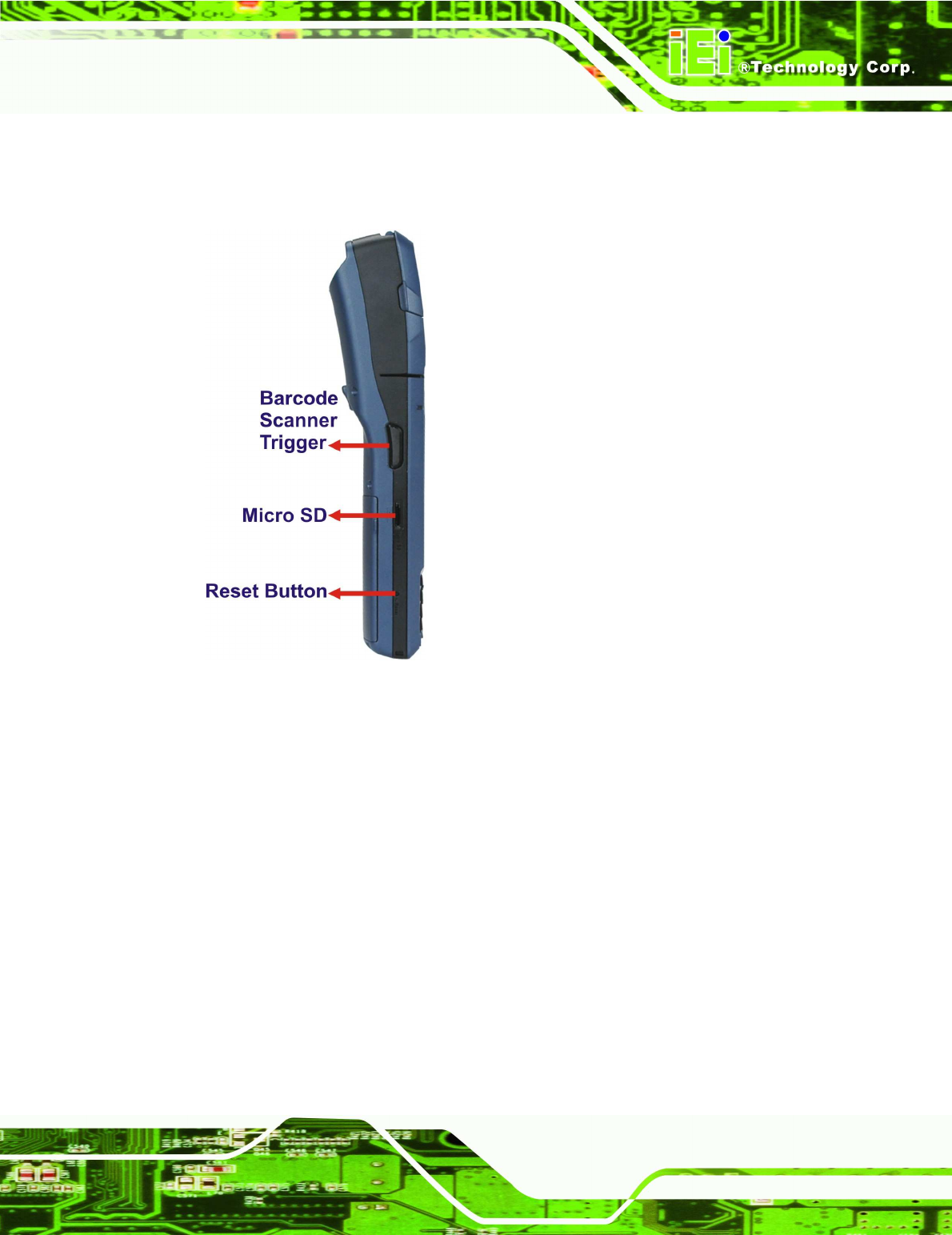

The left panel of the MODAT-100 is shown below.
Figure 1-4: MODAT-100 Left Panel
1 x Barcode Scanner Trigger
1 x MicroSD card slot
1 x Reset button
MODAT-100
Page 8
1.4.3 Right Panel

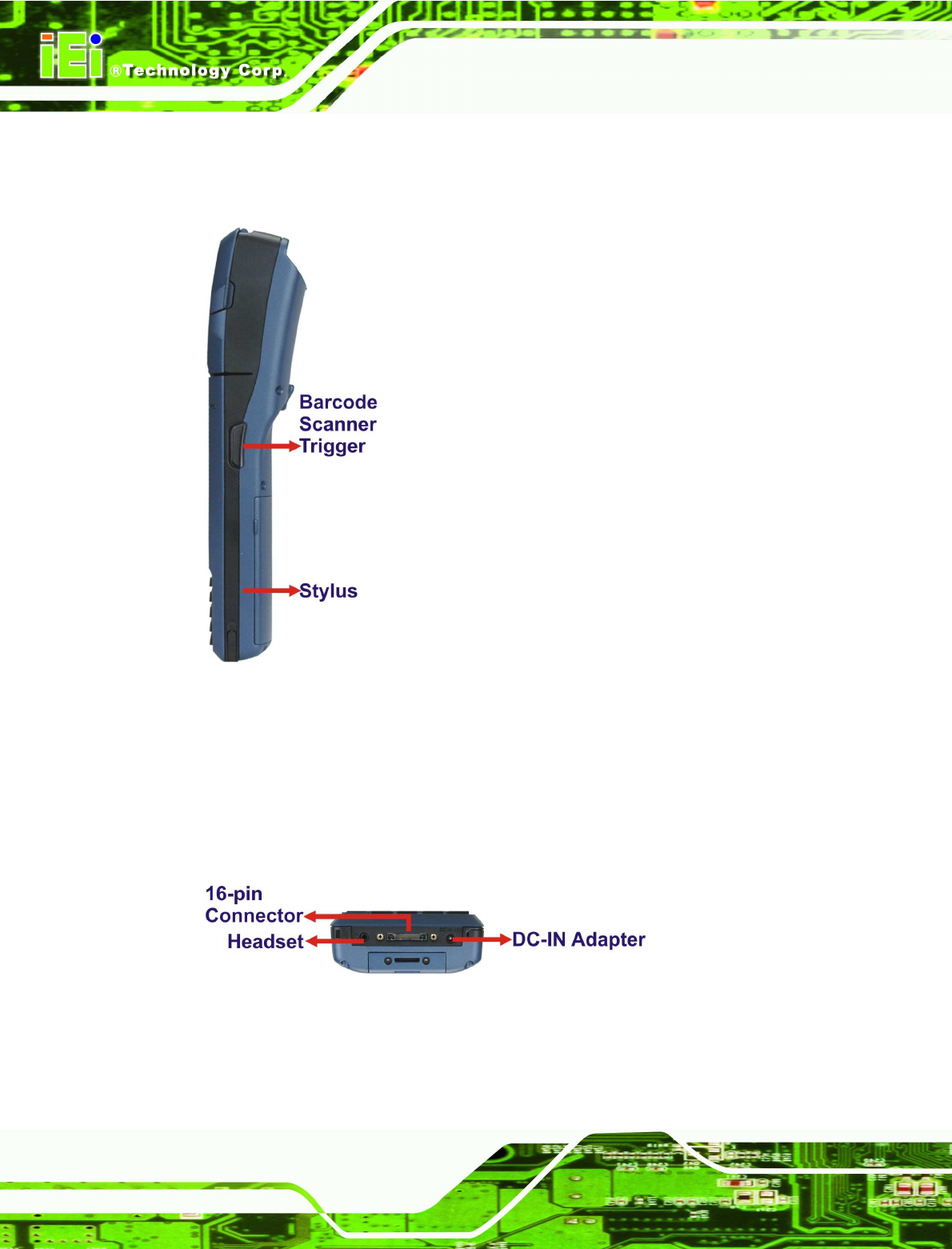

The right panel of the MODAT-100 is shown in Figure 1-5.
Figure 1-5: MODAT-100 Right Panel
1 x Barcode Scanner Trigger
1 x Stylus
1.4.4 Bottom Panel
The bottom panel of the MODAT-100 is shown below.
Figure 1-6: MODAT-100 Bottom Panel
1 x 16-pin cradle charging connector
1 x Headset port
1 x DC-IN Adapter port
MODAT-100
Page 9

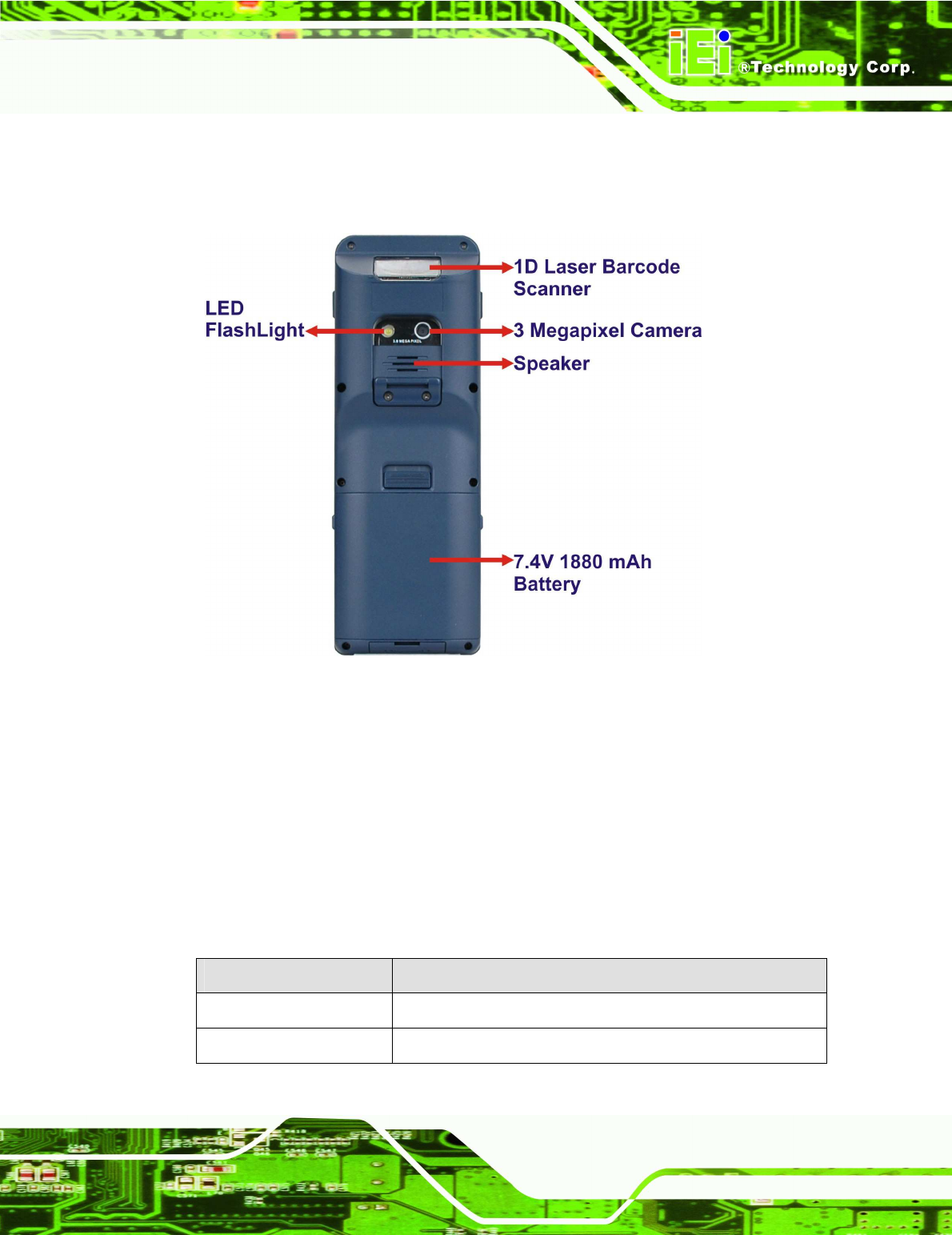

1.4.5 Back Panel
The rear panel of the MODAT-100 is shown below.
Figure 1-7: MODAT-100 Rear Panel
1 x LED FlashLight
1 x 1D Laser Barcode Scanner
1 x 3 Megapixel Camera
1 x Speaker
1 x 7.4V 1880mAh Battery
1.5 Specifications
The technical specifications for the MODAT-100 systems are listed in Table 1-1.
Specification MODAT-100
Microprocessor Marvell® PXA 310 624MHz
OS Windows Mobile 6.5
MODAT-100
Page 10
Specification MODAT-100
Memory 256 MB DDR SDRAM
128 MB NAND Flash
Display 3.5” (89mm) TFT LCD
QVGA (240 x 320)
64 K color
LED backlight (sunlight readable)
Resistive touchscreen
Camera 3 Megapixel CMOS camera with LED Flash Light
Communication Wi-Fi 802.11 b/g
Bluetooth 2.0 EDR
3.5G supports 850/900/1800/1900 MHz GSM/GPRS;
850/1900/2100MHz HSDPA
GPS with internal antenna
Storage One MicroSD slot (supports Micro SDHC up to 8GB)
Audio 1 x Speaker
1 x Microphone
1 x Audio jack for headset
Input Methods Touch panel (by stylus)
25-Key keypad (Start, Calendar, OK, Message, Numeric,
Alpha, Power, F1, F2)
Buttons/Keys 2 x Barcode hotkeys (Default: BarcodeL, BarcodeR.
Optional: Quick Print, Quick Shot)
Indicators 1 x Battery charging status LED
1 x HSDPA/Barcode status LED
I/O 16-pin connector (RS-232, battery charging, OTG-Host,
OTG-Client)
2” Thermal Printer
Smart Card Reader
Magnetic Stripe Reader
MODAT-100
Page 11
Specification MODAT-100
Vibrator Yes
Power 7.4 V 1880 mAh battery (with GasGauge)
Power Adapter Input: 100 V AC to 240 V AC ~ 50-60 Hz 1.5 A
Output: 12 V/3 A
Wattage: 36 W
Temperature Operating: 0°C ~ +50°C
Storage: -20°C ~ +70°C
Humidity 5%~95%, non-condensing
Electrostatic Discharge +/- 8k Vdc air discharge
+/- 6k Vdc contact discharge
Impact Resistance 1.2 m drop survival (excluding SCR/MSR/Printer)
Dimensions (LxWxD) 230 mm x 84 mm x 54 mm
Net Weight 546 g
Barcode Scanner 1D Laser Scan Engine
Certifications CE, FCC
Table 1-1: MODAT-100 System Specifications
MODAT-100
Page 12
1.6 Dimensions
Figure 1-8: MODAT-100 Dimensions (units in mm)
MODAT-100
Page 13
Chapter
2
2 Installation
MODAT-100
Page 14
The installation steps below should be followed in order.
Step 1: Unpack the device.
Step 2: Check that all parts are included.
Step 3: Charge the MODAT-100.
Step 4: Power up the system. Step 0:
2.1 Unpacking the Device
WARNING!
Only remove the protective plastic cover stuck to the front screen after
installation. The plastic layer protects the screen surface during the
installation process.
To unpack the MODAT-100, follow these steps:
Step 1: Cut the sealing tape. Only cut deep enough to cut the tape.
Step 2: Open the box.
Step 3: Lift out the device.
Step 4: Remove all the peripheral parts from the box. Step 0:
MODAT-100
Page 15

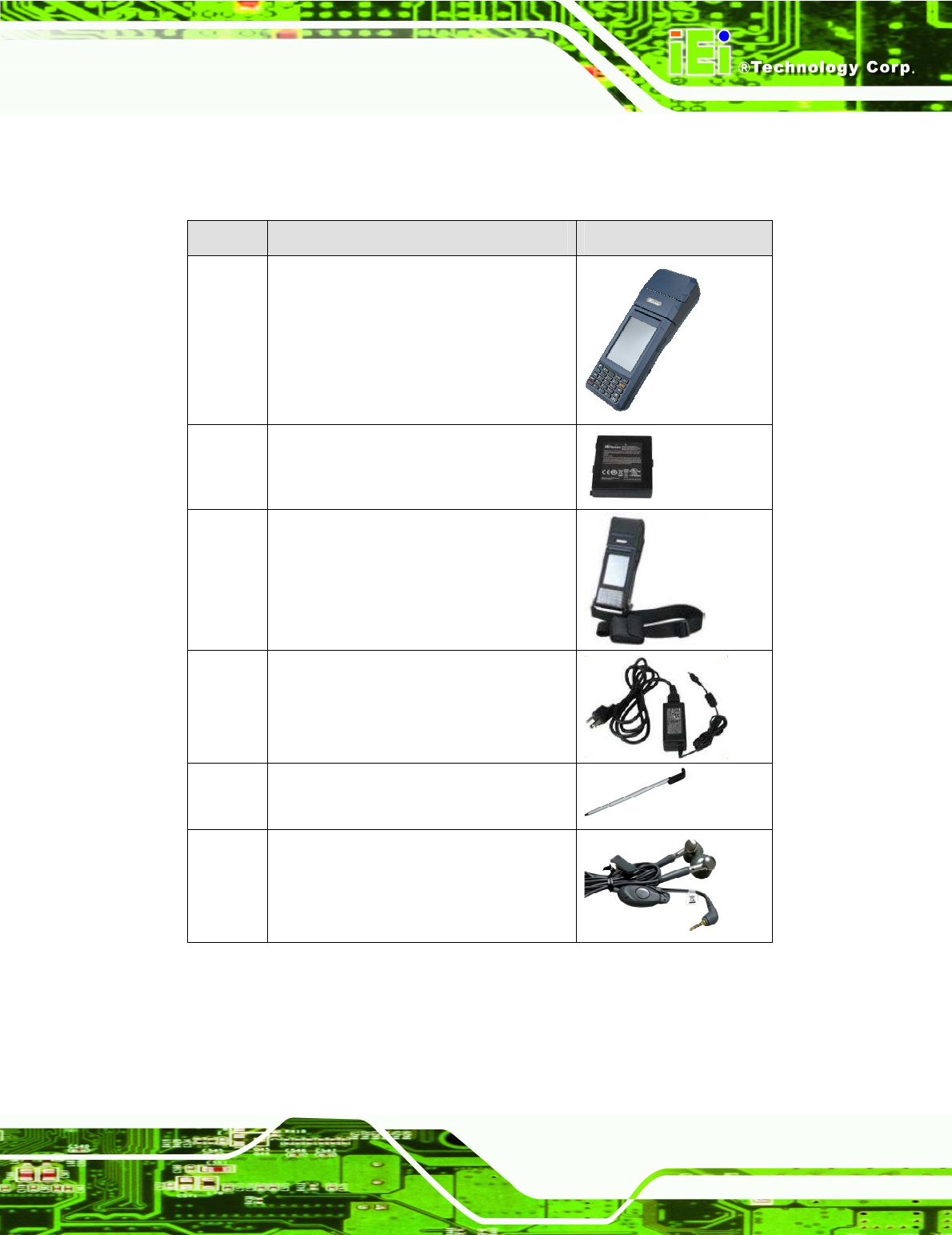

2.2 Packing List
The MODAT-100 is shipped with the following components:

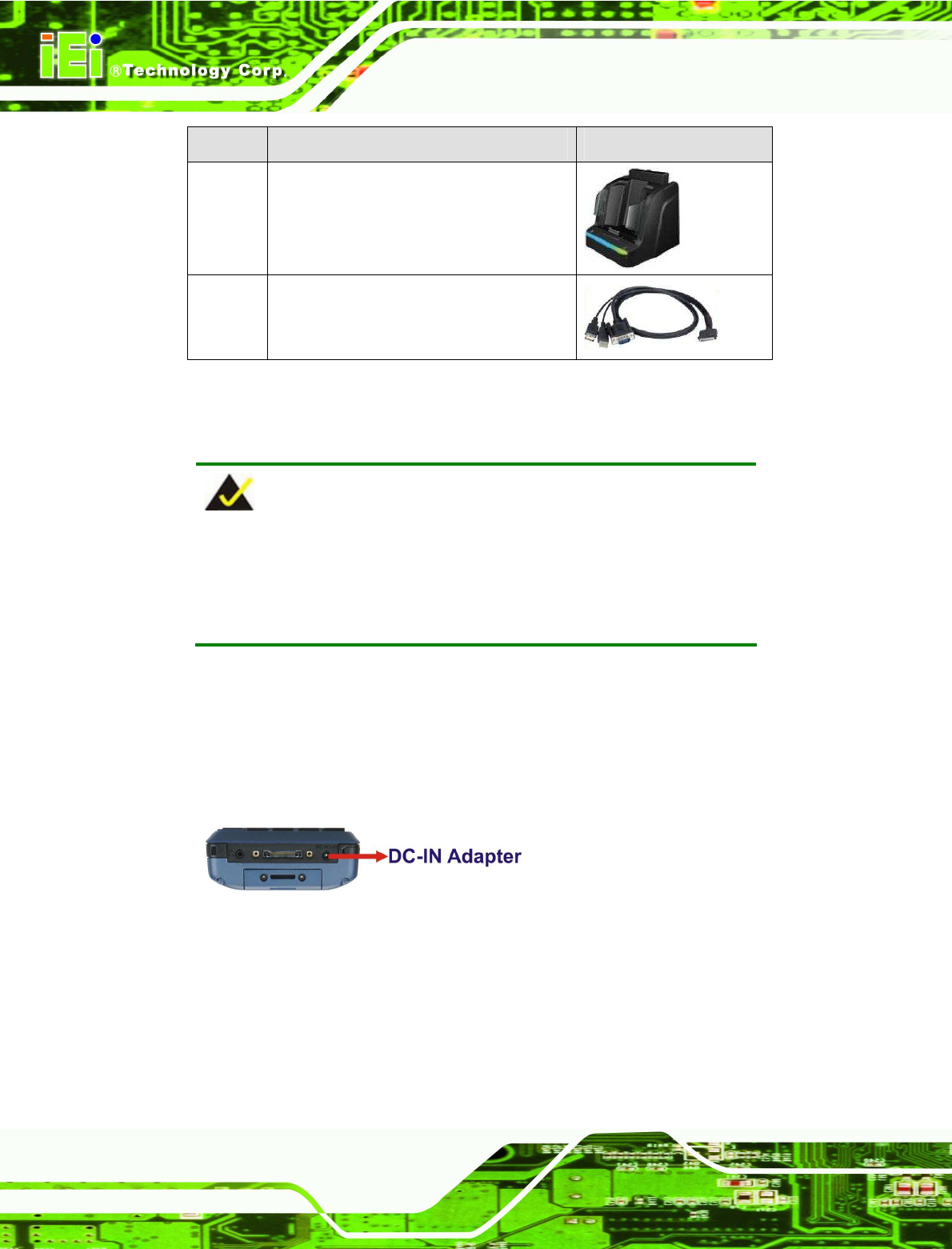

Quantity
Item Image
1 MODAT-100
1 Battery Pack
P/N: 31603-000014-RS
1 Carrying Case
P/N: 7Z000-MODAT100POUCH-RS
1 Power Adapter
P/N: 63000-FSP036RAB613-RS
1 Stylus
P/N: 7Z000-MODAT100STYLUS-RS
1 Headset
P/N: Z000-EMI164001S-RS
Table 2-1: Packing List
2.2.1 Optional Items
The following items are optional accessories for the MODAT-100:
MODAT-100
Page 16
Quantity
Item Image
1 MODAT-100 charging cradle
P/N: MODAT-100-CR01-R10
1 16-pin cable
P/N: 32024-001500-100-RS
Table 2-2: Optional Items List
2.3 Charging the System
NOTE:
Before using the MODAT-100 for the first time, the battery must be
charged for at least 4 hours. After that, the battery may be charged as
needed.
To start using the MODAT-100, the user must charge the MODAT-100 by the power
adapter. To charge the MODAT-100, please follow the steps below.
Step 1: Connect the adapter plug of the power cable to the DC-IN port on the bottom
panel of the MODAT-100.
Figure 2-1: MODAT-100 DC-IN Adapter Port
Step 2: Plug the power adapter into a power source.
Step 3: The battery LED lights up red to indicate that the battery is charging. When the
battery is fully charged, the battery LED turns green. Step 0:
MODAT-100
Page 17
Figure 2-2: Battery LED
2.3.1 Using the Optional Cradle
To charge the MODAT-100 using the optional charging cradle, follow the steps below.
Step 1: Connect the cable to the rear side of the charging cradle (the MODAT-100 is
only supported by the USB driver from the Windows XP system).
Step 2: Plug the power adapter to a power source.
Step 3: Insert the MODAT-100 into the cradle to start charging the battery. Step 0:
Figure 2-3: Connect the MODAT-100 to the Charging Cradle
MODAT-100
Page 18
2.4 Installing a SIM/SAM Card
WARNING:
When inserting the SIM or SAM card, make sure the notch on the card
is in the correct orientation to avoid damage to the card slot.
The MODAT-100 supports a Subscriber Identity Module (SIM) and a Security
Identification Module (SAM) card slot.
To install a SIM or SAM card please follow the steps below:
Step 1: Push the battery latch out while lifting the cover away (A).
Figure
2-4: Removing the Battery Cover
Step 2: Lift the battery out of the battery bay (B).
MODAT-100
Page 19
Figure
2-5: Removing the Battery
Step 3: Align the card notch with the upper left hand corner of the MODAT-100.
Step 4: Insert the SIM card into the left hand slot until the card clicks into place (C).
Step 5: Insert the SAM card into the right hand slot until the card clicks into place (C).
NOTE:
When inserted properly, the card should sit flush with the inside of the
MODAT-100.
Figure
2-6: Inserting the SIM/SAM Card
Step 6: Replace the battery.
Step 7: Replace the battery cover. Step 0:
MODAT-100
Page 20

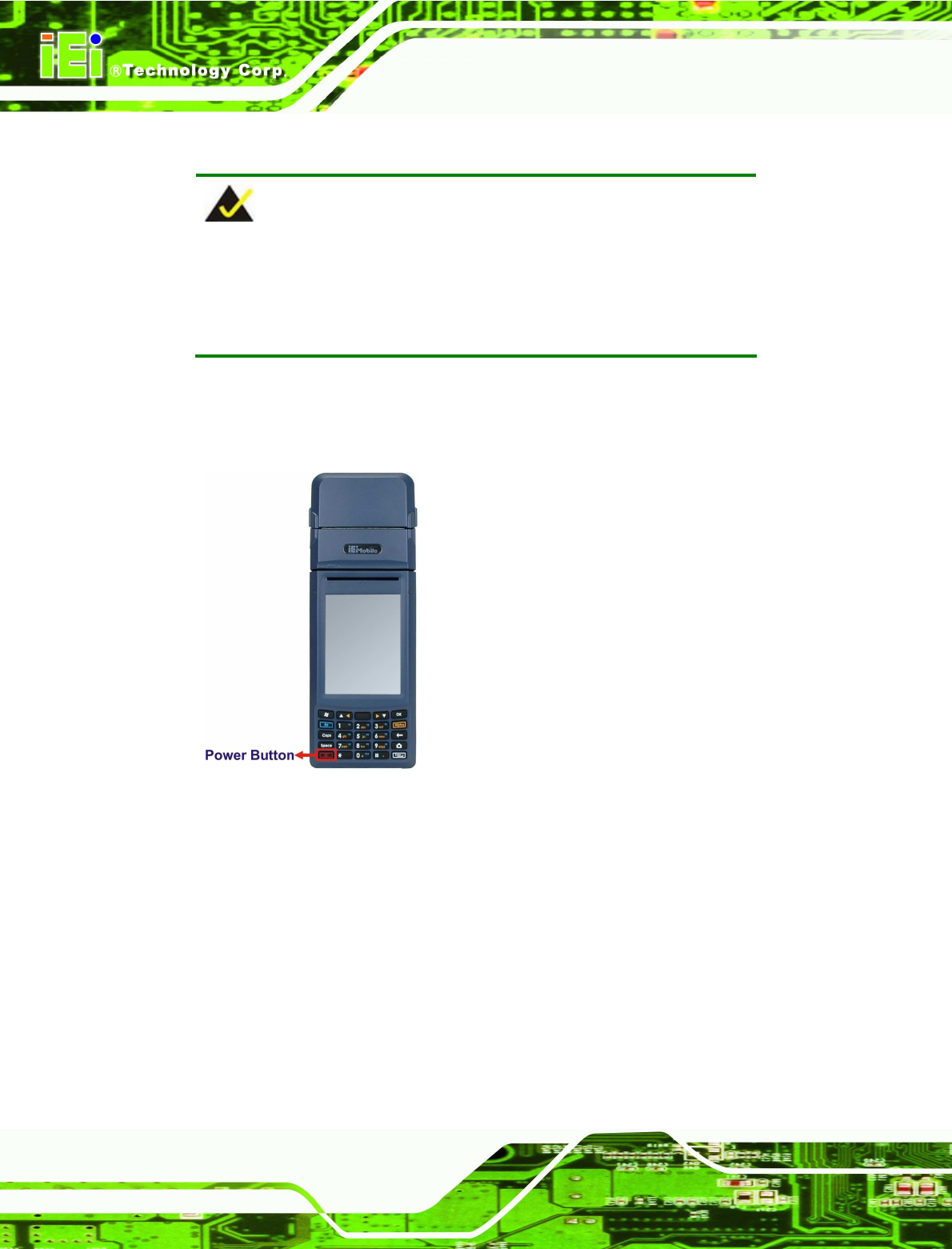

2.5 Power-On/Off Procedure
NOTE:
Before using the MODAT-100 for the first time, the battery must be
charged for at least 4 hours. After that, the battery may be charged as
needed.
To power-on/off the MODAT-100 please follow the steps below:
Power-On: Push the power button once. The start up screen should display.
Figure 2-7: Power Button
Power-Off: Hold the power button down for a few seconds until the screen shuts off.
2.6 Synchronized with Windows 7 System
The MODAT-100 can be synchronized with a PC through USB connection. To
synchronize with the Windows 7 system, please make sure to switch the USB mode to
RNDIS mode (USB to PC) in the MODAT-100. To switch the USB mode, follow the steps
below:
Step 1: Power on the MODAT-100.
MODAT-100
Page 21
Step 2: Go to “Start” “Settings” “Connections” “USB to PC”.
Step 3: Check the “Enable advanced network functionality” option.
Figure 2-8: USB to PC Window
MODAT-100
Page 22
Appendix
A
A Safety Precautions
MODAT-100
Page 23
WARNING:
The built-in 1880mAh Li-ion battery of the MODAT-100 is a
non-swappable battery. The user can not open the back cover and
remove the battery.
WARNING:
The precautions outlined in this chapter should be strictly followed.
Failure to follow these precautions may result in permanent damage to
the MODAT-100.
A.1 Safety Precautions
Please follow the safety precautions outlined in the sections that follow:
A.1.1 General Safety Precautions
Please ensure the following safety precautions are adhered to at all times.
Follow the electrostatic precautions outlined below whenever the
MODAT-100 is opened.
Make sure the power is turned off and the power cord is disconnected
whenever the MODAT-100 is being installed, moved or modified.
Do not apply voltage levels that exceed the specified voltage range.
Doing so may cause fire and/or an electrical shock.
Electric shocks can occur if the MODAT-100 chassis is opened when the
MODAT-100 is running.
Do not drop or insert any objects into the ventilation openings of the
MODAT-100.
If considerable amounts of dust, water, or fluids enter the MODAT-100,
turn off the power supply immediately, unplug the power cord, and contact the
MODAT-100 vendor.
MODAT-100
Page 24
DO NOT:
o Drop the MODAT-100 against a hard surface.
o Strike or exert excessive force onto the LCD panel.
o Touch the LCD panel with a sharp object
o Use in a site where the ambient temperature exceeds the rated
temperature
A.1.2 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
MODAT-100 may result in permanent damage to the MODAT-100 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the MODAT-100. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the MODAT-100 is opened and any of the electrical components are
handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: Wearing a simple anti-static wristband can
help to prevent ESD from damaging any electrical component.
Self-grounding: Before handling any electrical component, touch any
grounded conducting material. During the time the electrical component is
handled, frequently touch any conducting materials that are connected to the
ground.
Use an anti-static pad: When configuring or working with an electrical
component, place it on an antic-static pad. This reduces the possibility of ESD
damage.
Only handle the edges of the electrical component: When handling the
electrical component, hold the electrical component by its edges.
MODAT-100
Page 25
A.1.3 Product Disposal
CAUTION:
Risk of explosion if battery is replaced by and incorrect type.
Dispose of used batteries according to instructions and local
regulations.
Outside the European Union - If you wish to dispose of used electrical and
electronic products outside the European Union, please contact your local
authority so as to comply with the correct disposal method.

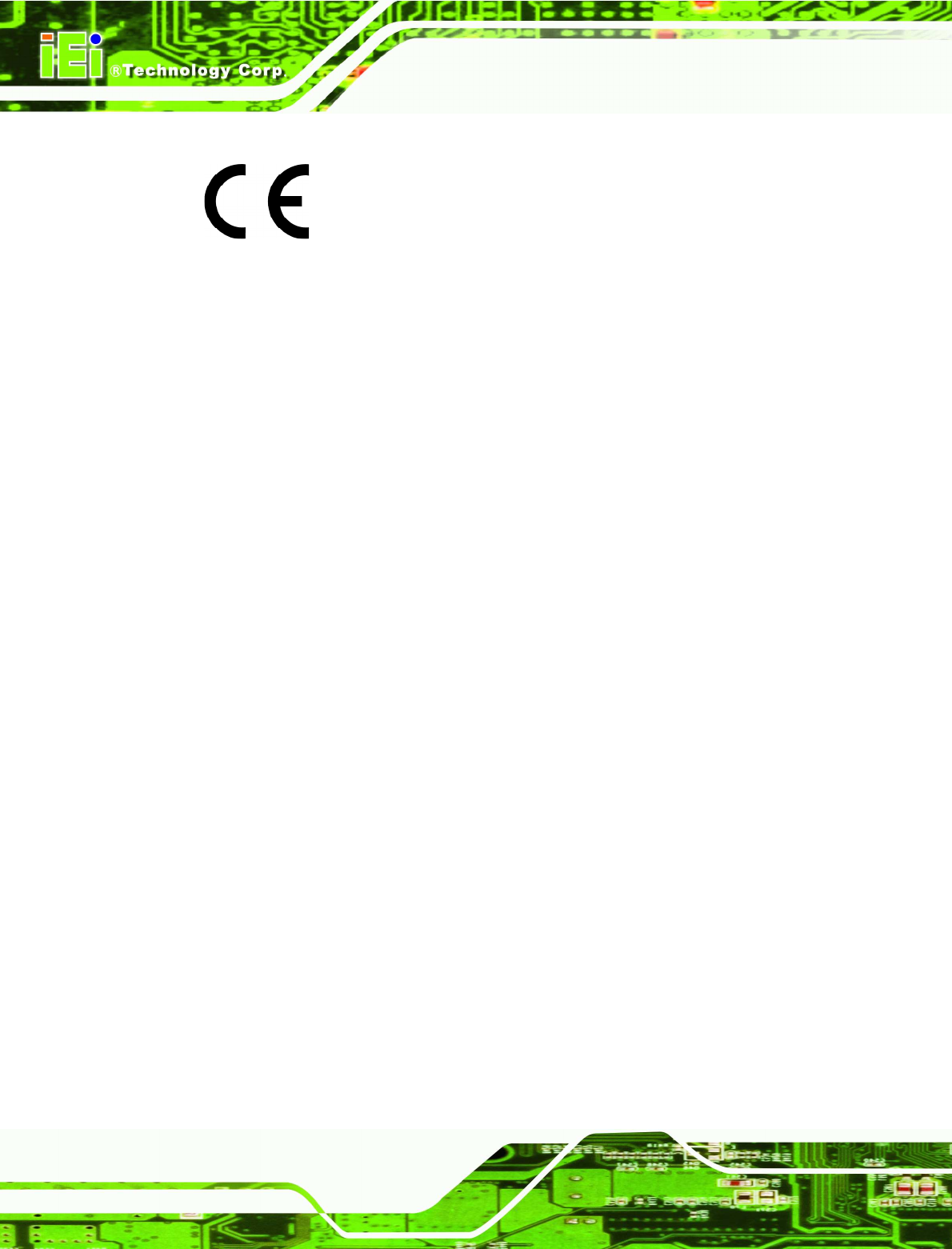

Within the European Union:
EU-wide legislation, as implemented in each Member State, requires that
waste electrical and electronic products carrying the mark (left) must be
disposed of separately from normal household waste. This includes
monitors and electrical accessories, such as signal cables or power cords.
When you need to dispose of your display products, please follow the
guidance of your local authority, or ask the shop where you purchased the product. The
mark on electrical and electronic products only applies to the current European Union
Member States.
Please follow the national guidelines for electrical and electronic product disposal.
A.2 Maintenance and Cleaning Precautions
When maintaining or cleaning the MODAT-100, please follow the guidelines below.
A.2.1 Maintenance and Cleaning
Prior to cleaning any part or component of the MODAT-100, please read the details below.
Except for the LCD panel, never spray or squirt liquids directly onto any other
components. To clean the LCD panel, gently wipe it with a piece of soft dry
cloth or a slightly moistened cloth.
MODAT-100
Page 26
The interior of the MODAT-100 does not require cleaning. Keep fluids away
from the MODAT-100 interior.
Be cautious of all small removable components when vacuuming the
MODAT-100.
Turn the MODAT-100 off before cleaning.
Never drop any objects or liquids through the openings of the MODAT-100.
Be cautious of any possible allergic reactions to solvents or chemicals used
when cleaning the MODAT-100.
Avoid eating, drinking and smoking within vicinity of the MODAT-100.
A.2.2 Cleaning Tools
Some components in the MODAT-100 may only be cleaned using a product specifically
designed for the purpose. In such case, the product will be explicitly mentioned in the
cleaning tips. Below is a list of items to use when cleaning the MODAT-100.
Cloth – Although paper towels or tissues can be used, a soft, clean piece of
cloth is recommended when cleaning the MODAT-100.
Water or rubbing alcohol – A cloth moistened with water or rubbing alcohol
can be used to clean the MODAT-100.
Using solvents – The use of solvents is not recommended when cleaning the
MODAT-100 as they may damage the plastic parts.
Vacuum cleaner – Using a vacuum specifically designed for computers is
one of the best methods of cleaning the MODAT-100. Dust and dirt can
restrict the airflow in the MODAT-100 and cause its circuitry to corrode.
Cotton swabs - Cotton swaps moistened with rubbing alcohol or water are
excellent tools for wiping hard to reach areas.
Foam swabs - Whenever possible, it is best to use lint free swabs such as
foam swabs for cleaning.
MODAT-100
Page 27
Appendix
B
B International
Standards Compliance
MODAT-100
Page 28
B.1 EN 60601-1, EN 60601-2
The LCD monitor complies with the EN 60601-1 and EN 60601-2 of related European
standards.
B.2 FCC
We hereby declare that the equipment specified above conforms to the technical
standards as specified in the FCC Rules.
MODAT-100
Page 29
Appendix
C
C Hazardous Materials
Disclosure
MODAT-100
Page 30
C.1 Hazardous Materials Disclosure Table for IPB Products
Certified as RoHS Compliant Under 2002/95/EC Without
Mercury
The details provided in this appendix are to ensure that the product is compliant with the
Peoples Republic of China (China) RoHS standards. The table below acknowledges the
presences of small quantities of certain materials in the product, and is applicable to China
RoHS only.
A label will be placed on each product to indicate the estimated “Environmentally Friendly
Use Period” (EFUP). This is an estimate of the number of years that these substances
would “not leak out or undergo abrupt change.” This product may contain replaceable
sub-assemblies/components which have a shorter EFUP such as batteries and lamps.
These components will be separately marked.
Please refer to the table on the next page.
MODAT-100
Page 31
Toxic or Hazardous Substances and Elements Part Name
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(CR(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl
Ethers
(PBDE)
Housing X O O O O X
Display X O O O O X
Printed Circuit
Board
X O O O O X
Metal
Fasteners
X O O O O O
Cable
Assembly
X O O O O X
Fan Assembly
X O O O O X
Power Supply
Assemblies
X O O O O X
Battery O O O O O O
O: This toxic or hazardous substance is contained in all of the homogeneous materials for the part is
below the limit requirement in SJ/T11363-2006
X: This toxic or hazardous substance is contained in at least one of the homogeneous materials for
this part is above the limit requirement in SJ/T11363-2006
MODAT-100
Page 32
此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符
合中国 RoHS 标准规定的限量要求。
本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的
年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元
件将会单独标示出来。
有毒有害物质或元素
有毒有害物质或元素有毒有害物质或元素
有毒有害物质或元素 部件名称
部件名称部件名称
部件名称
铅
铅铅
铅
(Pb)
汞
汞汞
汞
(Hg)
镉
镉镉
镉
(Cd)
六价铬
六价铬六价铬
六价铬
(CR(VI))
多溴联苯
多溴联苯多溴联苯
多溴联苯
(PBB)
多溴二苯
多溴二苯多溴二苯
多溴二苯
醚
醚醚
醚
(PBDE)
壳体
壳体壳体
壳体 X O O O O X
显示
显示显示
显示 X O O O O X
印刷电路板
印刷电路板印刷电路板
印刷电路板 X O O O O X
金属螺帽
金属螺帽金属螺帽
金属螺帽 X O O O O O
电缆组装
电缆组装电缆组装
电缆组装 X O O O O X
风扇组装
风扇组装风扇组装
风扇组装 X O O O O X
电力供应组装
电力供应组装电力供应组装
电力供应组装 X O O O O X
电池
电池电池
电池 O O O O O O
O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。
X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A
gital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
MODAT-100
Page 33
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an
uncontrolled environment and are safe for intended operation as described in this
manual. The further RF exposure reduction can be achieved if the product can be
kept as far as possible from the user body or set the device to lower output power
if such function is available.
